Eastman Kodak 3952C DIGITAL PICTURE FRAME User Manual urg 00721
Eastman Kodak Company DIGITAL PICTURE FRAME urg 00721
Users Manual
www.kodak.com/go/digitalframesupport 1
ENGLISH
Installing EasyShare software
Connecting the power cable
For package contents, see your product package.
To purchase accessories, visit www.kodak.com/go/digitalframes.
Install the software.
After installing the software, return to this Getting
Started Guide.
CD packaged with
your frame.
Your power cable (included with the frame) may be
different from the one pictured. Use the plug that
accommodates your type of power outlet.
2www.kodak.com/go/easysharecenter
ENGLISH
Inserting memory card/USB device
Memory card
(sold separately)
CompactFlash/
MicroDrive
Secure Digital/
Memory Stick/
xD/
MultiMediaCard
a) a)
b)
SV models EX models
USB device
(digital camera, flash drive, card reader, etc.—sold separately)
a) USB cable included with your USB device.
b) USB adapter cable included with your EX model picture frame.
www.kodak.com/go/digitalframesupport 3
ENGLISH

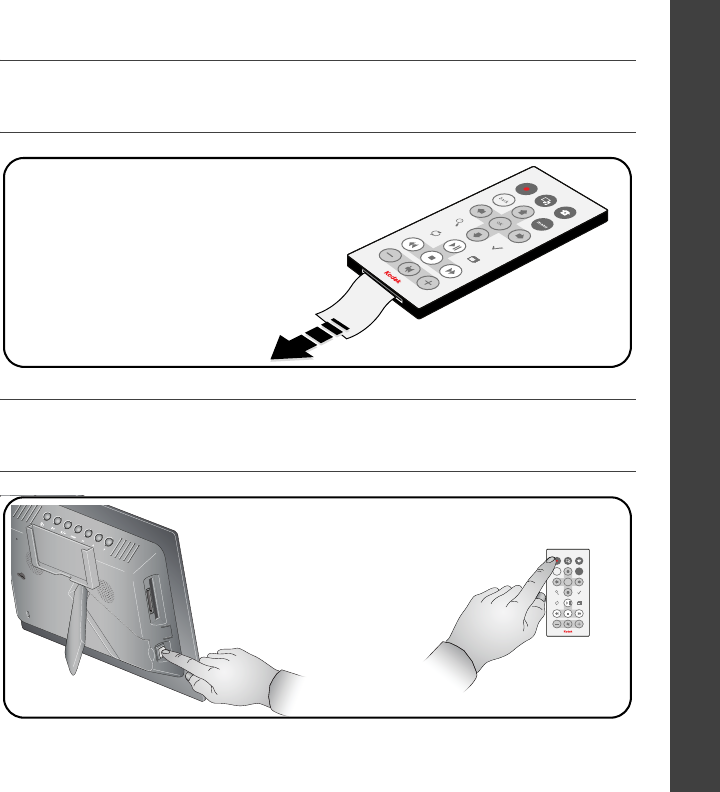

Activating the remote control
Turning on the frame
Pull out the tab to activate the battery.
back
OK
menu
Press the switch
to On.
Then use the remote control
to turn the power off and
on.
1. 2.
4www.kodak.com/go/easysharecenter
ENGLISH
Setting the language
Viewing your slide show
2.
1.
OK to accept.
to change.
The language
setup screen
appears the first
time you turn on
the frame.
back
OK
menu
A slide show starts automatically when you
turn on the frame.*
The pictures and videos - on the card or
device you inserted - are displayed in the
order they’re stored on the card or device.
EX models: with NO card inserted, the network connection screen appears
and helps you connect to your wireless network. See Chapter 3.
*
www.kodak.com/go/digitalframesupport 5
ENGLISH

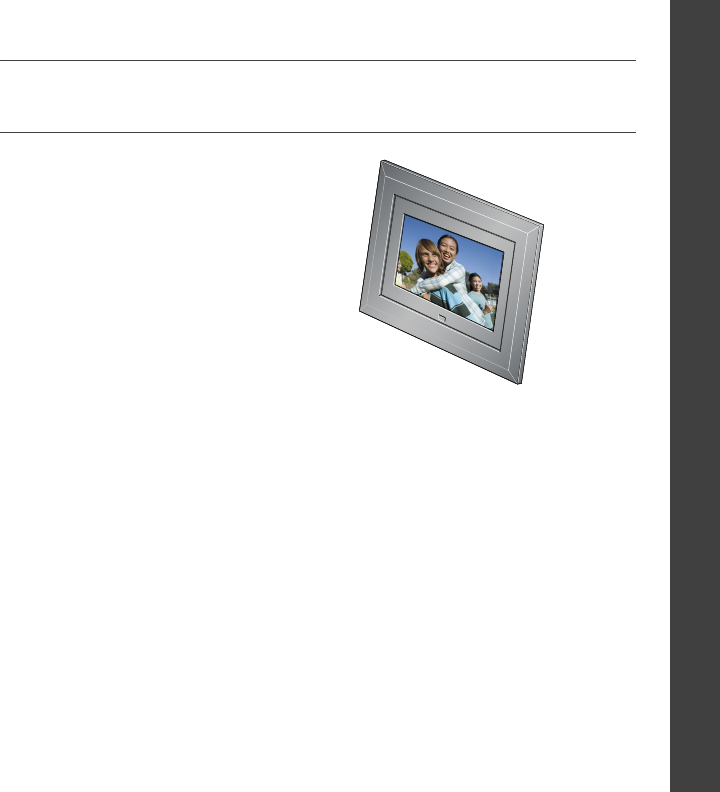

Keep learning about your frame!
Congratulations!
You have:
• set up your picture frame.
• inserted your card or other USB device.
• enjoyed your first slide show.
Visit www.kodak.com/digitalframesupport for:
• the extended user’s guide
• interactive troubleshooting and repairs
• interactive tutorials
• FAQs
• downloads
• product registration
Even more fun!
Turn the page to learn about more great features of your frame, including
personalizing your picture viewing. You can also customize your frame to
match your style or decor! For all great frame accessories, visit
www.kodak.com/go/digitalframes.
6www.kodak.com/go/easysharecenter
ENGLISH
Front View
Back/Left Side View
1Speakers 5Memory card slot - SD, MS, xD, MMC
2Wall mount hangers 6On/Off switch
3Frame stand 7Remote control holder (removable)
4Memory card slot - CF, MD
1 LCD screen
2 Faceplate
3 Remote control sensor
3
2
1
6
4
7
2
5
1
1
2
3
Slide the holder
into slots.
www.kodak.com/go/digitalframesupport 7
ENGLISH
Top/Right Side View
1Picture/music toggle 8USB connector (All models, use to connect to computer;
EX models, also use to connect to camera/USB device -
with adapter cable.)
2Play/Pause
3Stop/Back 9USB connector (SV models only, use to connect to
camera/USB device. Not available on EX models.)
4Menu
5OK 10 Volume control
6 Down 11 Headphone jack
7Up 12 DC-In (12 V)
13 Reset button
8
9
6432
12
5
11
71
10
13
8www.kodak.com/go/easysharecenter
ENGLISH
Remote Control
Button Press to
power* turn on/off the picture frame.
home return to the home screen.
pics/music toggle between viewing pictures and selecting music.
menu display menu choices.
back return to the previous screen.
stop a slide show, display thumbnails.
OK accept the current selection.
4-way navigate through pictures or menus.
zoom magnify the picture.
rotate rotate the picture, 90° clockwise each press.
select mark pictures for an operation.
slide show play a slide show.
play/pause play/pause a video or slide show.
rewind rewind a video.
fast forward fast forward a video.
stop stop a video, display the first frame.
stop a slide show, display thumbnails.
volume decrease (-) or increase (+) the volume.
mute mute audio.
back
OK
menu
First, turn on the
power switch on the
frame.
*
www.kodak.com/go/digitalframesupport 9
1Doing more
All buttons and controls described are on the remote control unless otherwise specified.
Viewing pictures and videos
Thumbnails view
■To view your pictures as multi-up thumbnails,
press when a slide show is playing.
■To navigate through the thumbnails, press .
■To play a video ( ), highlight it and press OK.
Single view
■To view a single, full-screen picture, highlight it in thumbnails view and press OK.
■To magnify a picture up to 8X, press . To view other parts of the picture, press
. Press OK to return.
■To rotate a picture, press .
Slide show
■To start a slide show from any selected picture (thumbnail or single view), press .
Doing more
10 www.kodak.com/go/easysharecenter
Deleting pictures
1Display a picture in single view, then press .
2Press to highlight Delete, then press OK.
3Highlight Delete and press OK again to confirm.
To cancel the deletion, highlight Exit, then press OK.
The picture/video is deleted.
To delete multiple pictures/videos, see page 11.
NOTE: You can delete pictures/videos from a card, internal memory, or some connected USB devices.
EX models—you cannot delete from remote locations over the wireless network.
Copying pictures
Copy pictures/videos from your current viewing location to internal memory (not
available on SV710), or other connected devices.
1Display a picture in single view, then press .
2Press to highlight Copy, then press OK.
3Press to highlight the location you want to copy
to, then press OK.
To copy multiple pictures/videos, see page 11.
To copy pictures/videos to your computer in connected or wireless (EX models) mode,
see your extended user’s guide at www.kodak.com/go/digitalframesupport.
Doing more
www.kodak.com/go/digitalframesupport 11
Selecting multiple pictures
Use the multi-select feature to copy or delete two or more pictures/videos; or to play a
slide show of selected pictures/videos.
Selecting one at a time
1In thumbnails view, press to find a picture/ video.
2Press to select a picture/video. Repeat to select additional pictures/videos.
A check mark appears on the picture. Press again to remove a check mark. You can
now copy, delete, or view a slide show of all selected pictures.
Selecting all at once
1Press whenever pictures/videos are displayed
(slide show, video, single picture).
2Press to highlight Select All, then press OK.
A check mark appears on all pictures/videos in your
current location.
3To remove the check marks, press , then Unselect
All.
Doing more
12 www.kodak.com/go/easysharecenter
Viewing pictures from a new location
1Press .
All connected devices are listed.
2Press to highlight the device you want, then
press OK.
Playing music
1Press to interrupt your picture or slide show and display the Audio screen.
2Press to locate your music files. Then press OK.
3Press to go to the next or previous song. Then
press OK.
Your music starts playing.
4Press to return to your picture or slide show.
Your selected music continues to play as the slide show
resumes. Videos play without their related audio.
5To turn off music, press , then .
6Press again to return to your pictures.
www.kodak.com/go/digitalframesupport 13
2Using WiFi® (EX models only)
For more information on using the wireless features of your frame, see your user’s guide
at www.kodak.com/go/digitalframesupport or visit www.kodak.com/go/wifisupport.
Before you start
On your computer, make sure you:
■Install the software that is packaged with your frame (page 1).
■Enable media sharing in Windows Media Player 11 (select Library → Media
Sharing, then follow the screen directions).
Setting up your wireless network
Perform this one-time setup to connect your picture frame to your wireless network.
1Make sure your computer is turned on.
2Remove all memory cards or other USB devices from your frame and turn it on.
The first time you turn on your frame (after you select your language), the Network
Connection screen appears.
3Follow the directions on the Network screens to connect to your wireless home
network.
NOTE: If you have network security turned on, you are prompted to enter your security information.
To set up your network at a later time, press , highlight Settings , and press OK.
Using WiFi® (EX models only)
14 www.kodak.com/go/easysharecenter
Viewing pictures over your wireless network
When you view pictures on your frame over your wireless network, they are accessed
from your computer via Windows Media Player 11, or over the Internet from Kodak
EasyShare gallery.
1Turn on your computer and your picture frame. Then press .
2Press to highlight your computer name, then press OK. If you have multiple
computers on your network, first select Network Computer .
3Follow the prompts to choose the pictures, then press OK.
Pictures are displayed as thumbnails. Press to play a slide show.
If your computer name is not listed on the Home screen, or for more information,
see user’s guide at www.kodak.com/go/digitalframesupport.
Setting up your Kodak gallery account
You can display pictures directly from the Kodak gallery via the Internet. Perform this
one-time setup to connect your frame to your existing Kodak gallery account.
1Press , then highlight Settings and press OK.
2Select Kodak EasyShare gallery and press OK.
3Use the to enter your existing gallery username (usually your email address)
and password. Highlight Done, then press OK.
4Press . Kodak Gallery appears as a choice on the Home screen.
www.kodak.com/go/digitalframesupport 15
3Appendix

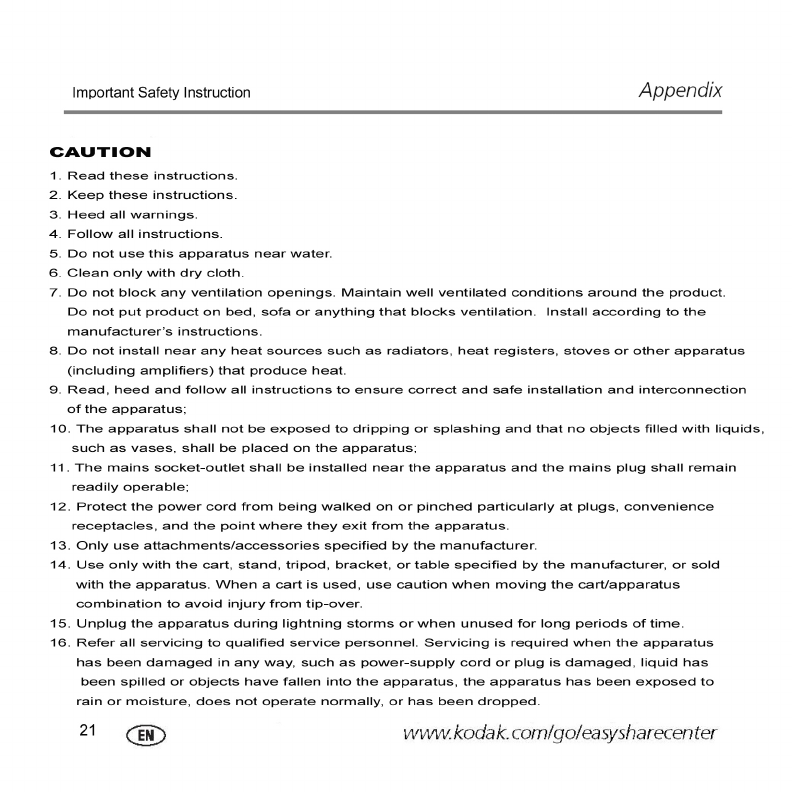

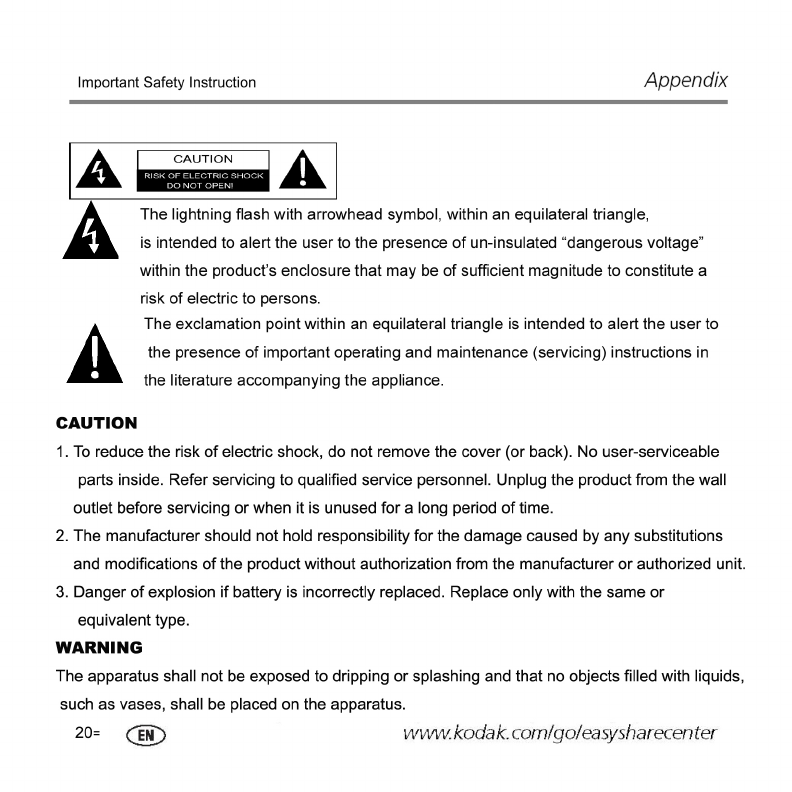

Important safety instructions
CAUTION:
Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to qualified
service personnel. Do not expose this product to liquid, moisture, or extreme temperatures. The use of
controls, adjustments, or procedures other than those specified herein may result in exposure to shock and/or
electrical or mechanical hazards. If the LCD breaks, do not touch the glass or liquid. Contact Kodak customer
support.
■The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For
approved accessories, visit www.kodak/go/accessories.
■Use only a USB-certified computer equipped with a current-limiting motherboard. Contact your computer
manufacturer if you have questions.
■When removing the battery from the remote, allow it to cool; it may be hot.
■Follow all warnings and instructions supplied by the battery manufacturer.
■Use only batteries approved for this product to avoid risk of explosion.
■Keep batteries out of the reach of children.
■Do not allow batteries to touch metal objects, including coins. Otherwise, a battery may short circuit,
discharge energy, become hot, or leak.
■Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.
■Remove the battery when the product is stored for an extended period of time. In the unlikely event that
battery fluid leaks inside the product, contact Kodak customer support.
■In the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your
local health provider. For additional health-related information, contact your local Kodak customer support.
■Dispose of batteries according to local and national regulations. Visit www.kodak.com/go/kes.
■Do not charge non-rechargeable batteries.
Appendix
16 www.kodak.com/go/easysharecenter
For more information on batteries, visit www.kodak.com/go/batterytypes.
■Digital picture frame and remote control battery may include perchlorate material. Special handling may
apply in California.
■Read and follow all warnings and instructions supplied by the battery manufacturer.
CAUTION:
EX models only: When using this product, it should be installed and operated with a minimum distance of 7.9
in. (20cm) for 2.4 GHz operations between the radiator and your body. This transmitter must not be collocated
or operated in conjunction with any other antenna or transmitter.
Upgrading your software and firmware
Download the latest versions of the software included on the Kodak EasyShare software CD and the frame
firmware (the software that runs on the frame). See www.kodak.com/go/digitalframedownloads.
Additional care and maintenance
■Wipe the LCD gently with a soft, lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning
solutions unless designed specifically for LCD screens. Do not allow chemicals, such as suntan lotion, to
contact painted surfaces.
■Service agreements are available in some countries. Contact a dealer of Kodak products for more
information.
■For digital frame disposal or recycling information, contact your local authorities. In the US, visit the
Electronics Industry Alliance Web site at www.eiae.org or visit www.kodak.com/go/digitalframesupport.
Limited warranty
Kodak warrants Kodak consumer electronic products and accessories (“Products”), excluding batteries, to be
free from malfunctions and defects in both materials and workmanship for one year from the date of purchase.
Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for
warranty repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were originally purchased. You
may be required to ship Products, at your expense, to the authorized service facility for the country where the
Appendix
www.kodak.com/go/digitalframesupport 17
Products were purchased. Kodak will repair or replace Products if they fail to function properly during the
warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all
labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a
Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been
returned to Kodak along with proof of the purchase price paid. Repair, replacement, or refund of the purchase
price are the sole remedies under the warranty. If replacement parts are used in making repairs, those parts may
be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire Product, it
may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted
for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement,
whichever is longer.
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty does not apply when failure
is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with
incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak 's
operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and
cables), or claims made after the duration of this warranty. Kodak makes no other express or implied warranty
for this product, and disclaims the implied warranties of merchantability and fitness for a particular purpose. In
the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied
warranty will be one year from the purchase date or such longer period as required by law. The option of repair,
replacement, or refund is Kodak's only obligation. Kodak will not be responsible for any special, consequential
or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability
for any special, consequential or incidental damages (including but not limited to loss of revenue or profit,
downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims
of your customers for such damages resulting from the purchase use or failure of the Product), regardless of
cause or for breach of any written or implied warranty is expressly disclaimed.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of this warranty may be
Appendix
18 www.kodak.com/go/easysharecenter
different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company,
no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage,
or loss may be by negligence or other act.
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the
equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the
receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be used with the installation of
the product, they must be used in order to ensure compliance with FCC regulation.
FCC and Industry Canada
This device complies with Industry Canada RSS-210 and FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CE
Hereby, Eastman Kodak Company declares that this Kodak product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
This digital picture frame EX811 and EX1011 transmits in 10dBm. In France, the power level is limited to
Kodak EasyShare digital picture frame
Appendix
www.kodak.com/go/digitalframesupport 19
10dBm in outdoor environments, per regulations. When in France, use the wireless functions of this device
indoors only.
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Waste Electrical and Electronic Equipment labeling
Australian C-Tick
MPEG-4
Use of this product in any manner that complies with the MPEG-4 visual standard is prohibited, except for use
by a consumer engaging in personal and non-commercial activities.
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2007
Kodak and EasyShare are trademarks of Eastman Kodak Company.
4J6095_en
In the European Union, do not discard this product as unsorted municipal waste. Contact
your local authorities or go to www.kodak.com/go/recycle for recycling program information.
N137
