What’s in the box:
C10 Camera
AC adapter with 11.8 ft (3.6 m) cord
Wall mounting accessories
Antenna
IR LEDs
Lens
Microphone
On/Off
Also included:
ENGLISH
ii www.kodak.com/go/support
Product warning
CAUTION:
Strangulation Hazard–do not place the camera
in the crib or within 3 ft (1 m) of the baby.
■You must regularly monitor your baby’s activity. This
product cannot replace responsible adult
supervision. This product will not alert parents to a
baby’s silent activities.
■Never use extension cords with AC adapters. Use
the AC adapters provided.
■When an AC adapter is plugged into an electrical
outlet, do not touch the exposed end.
■Test the monitor before first use, periodically, and
when changing the location of the camera.
■Small parts can be a choking hazard. Do not allow
children to play with the camera.
■Install batteries correctly.
■Remove alkaline batteries from the camera if the
camera is stored for long periods of time or when
batteries are exhausted; do not mix old and new
batteries; do not mix alkaline, standard, or
rechargeable batteries.
■Keep all batteries away from children. Dispose of
exhausted batteries properly.
■Do not attempt to recharge non-rechargeable
camera batteries.
Quick Start Up
1
Quick Start Up
Camera
Operate the camera with the AC adapter or with
4 AA-size alkaline batteries (not provided).
1If you choose to use AA-size alkaline batteries:
aRemove the screw on the back of the camera
with a straight-blade screwdriver, then remove
the battery door.
bInsert 4 batteries.
cPlace the battery door back on the camera,
then secure with the screw.
2Select a location for the camera with the best view
of the baby.
CAUTION:
Strangulation Hazard–do not place the
camera in the crib or within 3 ft (1 m) of
the baby.
3Place the camera on a flat surface, such as a dresser
or shelf. To mount the camera on a wall, see
page 2.
4Connect the AC adapter with the cord to the back
of the camera.
5Plug the AC adapter into a standard electrical
outlet, then secure the cord to the wall using the
mounting clips, if necessary.
6Press the On/Off button for at least 2 seconds. The
button glows when the camera is turned on.
Quick Start Up
2www.kodak.com/go/support
Mount the Camera on a Wall
NOTE: Test monitor reception before mounting the camera on a
wall. View the image on the monitor while someone else
adjusts the camera position. Optimal camera-to-subject
distance for night viewing is 3 – 6 ft (0.9 – 1.8 m).
CAUTION:
Strangulation Hazard–do not place the camera
in the crib or within 3 ft (1 m) of the baby.

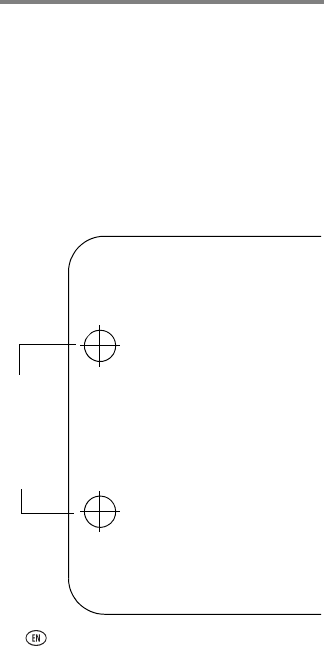

1Select a wall location for the camera, then drill
2 holes in that location using a 13/64 in. (5.2 mm)
drill bit. Use the template provided (see page 10).
2Insert a wall anchor into each hole, then gently tap
the anchors with a hammer until they are seated
(flush-mounted) in the wall.
3Insert the screws into the anchors, then tighten the
screws until approximately 7/32 in. (5.6 mm) of
each screw is exposed.
4Slide the base of the camera over the screws until
the camera locks into place.
5Connect the AC adapter to the camera (or insert
4 AA-size alkaline batteries).
6Secure the AC adapter cord to the wall with the
mounting clips.
Quick Start Up
3
Using the Camera
On / Off Button—Press for more than 2 seconds to
turn camera On/Off.
Linking the camera to your monitor
To purchase additional cameras and approved
accessories, go to the KODAK Store
(www.kodak.com/go/accessories).
Linking button
To link your camera:
Use a paper clip to press and
hold the linking button on the
back of the camera for more
than 2 seconds (a white LED
on the camera blinks twice
per second for 10 seconds).
Press and hold the OK button
on the monitor for more than
3 seconds (a linking icon
appears on the LCD). After the
camera is successfully linked,
the display will show the
image from the camera.
If you have more than one
camera linked, the image on
the monitor switches from
camera No. 2 to camera No. 1
after 10 seconds.
NOTE: Repeat the procedure to link up to 4 cameras.
1
2
Quick Start Up
4www.kodak.com/go/support
Camera Select
You can view video from the selected camera or from
all cameras in sequence. The default monitor setting
displays video from each linked camera for up to
10 seconds in sequence. To change to a different
camera manually, press to select a camera,
then press OK.
Tips and Troubleshooting
Picture not clear–
■For Night Vision, position the camera within 6 ft
(1.8 m) of the baby.
■Test the reception by moving the monitor and/or
camera to a different location.
■Position the monitor closer to the camera, if
necessary.
Squealing sound–Move the camera and the monitor
farther away from each other.
Appendix
5
Appendix
KODAK Baby Video Accessory
Camera / C10
Limited warranty
Kodak warrants KODAK Consumer Electronic Products
and Accessories (“Products”), to be free from
malfunctions and defects in both materials and
workmanship for one year from the date of purchase.
Retain the original dated sales receipt. Proof of the date
of purchase will be required with any request for
warranty repair.
Specifications
Power supply
C10 Camera AC Adapter Model No.
EFS0050059055OUL, Manufacturer:
Eastern Frontier. EIAJ Class 2 DC plug.
Input: 100-240V AC 50/60 Hz. 0.2
Amp Output: 5.9 V DC, 0.55 Amp,
3.6m cable
Size
2.8 x 3.2 x 6.0 in. (7.1 x 8.1 x 15.2 cm)
Weight 0.46 lb (210 g)
Wireless network compatibility
2.4 GHz RF
Other features
Temperature Operating: 32 to 104°F (0 to 40°C)
Storage: -25 to 160°F (-32 to 71°C)
Appendix
6www.kodak.com/go/support
Limited warranty coverage
Warranty service is only available from within the
country where the Products were originally purchased.
You may be required to ship Products, at your expense,
to the authorized service facility for the country where
the Products were purchased. Kodak will repair or
replace Products if they fail to function properly during
the warranty period, subject to any conditions and/or
limitations stated herein. Warranty service will include
all labor as well as any necessary adjustments and/or
replacement parts. If Kodak is unable to repair or
replace a Product, Kodak will, at its option, refund the
purchase price paid for the Product provided the
Product has been returned to Kodak along with proof of
the purchase price paid. Repair, replacement, or refund
of the purchase price are the sole remedies under the
warranty. If replacement parts are used in making
repairs, those parts may be remanufactured, or may
contain remanufactured materials. If it is necessary to
replace the entire Product, it may be replaced with a
remanufactured Product. Remanufactured Products,
parts and materials are warranted for the remaining
warranty term of the original Product, or 90 days after
the date of repair or replacement, whichever is longer.
Limitations
This warranty does not cover circumstances beyond
Kodak's control. This warranty does not apply when
failure is due to shipping damage, accident, alteration,
modification, unauthorized service, misuse, abuse, use
with incompatible accessories or attachments, failure to
follow Kodak's operation, maintenance or repacking
instructions, failure to use items supplied by Kodak
Appendix
7
(such as adapters and cables), or claims made after the
duration of this warranty. Kodak makes no other express
or implied warranty for this product, and disclaims the
implied warranties of merchantability and fitness for a
particular purpose. In the event that the exclusion of
any implied warranty is ineffective under the law, the
duration of the implied warranty will be one year from
the purchase date or such longer period as required by
law. The option of repair, replacement, or refund is
Kodak's only obligation. Kodak will not be responsible
for any special, consequential or incidental damages
resulting from the sale, purchase, or use of this product
regardless of the cause. Liability for any special,
consequential or incidental damages (including but not
limited to loss of revenue or profit, downtime costs, loss
of the use of the equipment, cost of substitute
equipment, facilities or services, or claims of your
customers for such damages resulting from the
purchase use or failure of the Product), regardless of
cause or for breach of any written or implied warranty is
expressly disclaimed.
Your rights
Some states or jurisdictions do not allow exclusion or
limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you.
Some states or jurisdictions do not allow limitations on
how long an implied warranty lasts, so the above
limitation may not apply to you. This warranty gives you
specific rights, and you may have other rights which
vary from state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada,
Appendix
8www.kodak.com/go/support
the terms and conditions of this warranty may be differ-
ent. Unless a specific Kodak warranty is communicated
to the purchaser in writing by a Kodak company, no
warranty or liability exists beyond any minimum require-
ments imposed by law, even though defect, damage, or
loss may be by negligence or other act.
Regulatory compliance and advisory
FCC compliance and advisory
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed or used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures: 1) reorient or relocate
the receiving antenna; 2) increase the separation
between the equipment and the receiver; 3) connect the
equipment to an outlet on a circuit different from that
to which the receiver is connected; 4) consult the dealer
or an experienced radio/TV technician for additional
suggestions.
Appendix
9
Any changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment. Where
shielded interface cables have been provided with the
product or specified additional components or
accessories elsewhere defined to be used with the
installation of the product, they must be used in order
to ensure compliance with FCC regulation.
FCC and Industry Canada
This device complies with Industry Canada RSS-210 and
FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Canadian DOC statement
DOC Class B Compliance—This Class B digital
apparatus complies with Canadian ICES-003.
Observation des normes-Classe B—Cet appareil
numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Notice
When the monitor is operating, it is possible to view
images and other content directly from other sources.
Eastman Kodak Company, its subsidiaries and affiliates
do not control and are not responsible for any content
displayed or viewed.
Appendix
10 www.kodak.com/go/support
Wall mounting Template
1.2 in. (30 mm)
Top
Select a wall location for the camera, then drill 2 holes
in that location using a 13/64 in. (5.2 mm) drill bit. Use
this template to determine hole placement.
Align the top of your camera with the top of the
drawing below.
