Eastman Kodak DPFW820 Wireless Digital Picture Frame User Manual urg 00890
Eastman Kodak Company Wireless Digital Picture Frame urg 00890
user manual
www.kodak.com/go/digitalframesupport 1
ENGLISH
See the extended user guide – for more information about using your frame, visit
www.kodak.com/go/digitalframesupport. See the frame package for package contents.
Front View
Back/Right View
1 LCD screen
2 Quick Touch border (Tap/Slide)
3 Quick Touch border (Tap only)
3
1 2
To use the touch border,
see page 4.
1 Audio In
2 Audio Out
3 DC-In (12V)
4 Speakers
1
2
3
4
2www.kodak.com/go/easysharecenter
Back/Side View
1 Power button 5 Volume button
2 Wall mounting holes 6 Memory card slot - CF, MD
3 Rotating/extending stand 7 USB connector (to camera/USB device)
4 Memory card slot - SD, MMC, MS, xD 8 USB connector (to computer)
9
5
6
7
8
4
1
2
3
www.kodak.com/go/digitalframesupport 3
1Getting started
Setting up the stand; attaching the power cable
Your frame is set up to display pictures in landscape orientation. You can turn the
stand to change it to portrait but you must also change the setting (see the
extended user guide).
Turning on your frame
Your power cable may look
different from the one
pictured. Use the plug that
accommodates your type of
power outlet.
Stand (pull out to adjust the frame angle)
Power button- press and hold for 2 seconds, then release.
Getting started
4www.kodak.com/go/easysharecenter
Using your frame’s Quick Touch Borders
Done
Close
Important:
Tap the light
closest to a button
to select it.
Touch tips
Home
Play slide show
*Quick Touch
Tap and slide on the Quick
Touch Borders* only.
Tap lights
below buttons
Slide on
bottom border
only
Slide to highlight
menus, pictures,
videos, options.**
Tap OK to select
them.
Slide to scroll:
Scroll through images—Like turning the pages of a book, slide left ← to go forward, slide right → to go back. For
faster scrolling through larger numbers of pictures, touch and hold (3 seconds), then slide to the end of the border.
Scroll through menus—Slide right → to scroll down, slide left ← to scroll up.
Borders
** Tap below small arrows at the ends of the scroll bar to move the highlight one picture, menu, or item at a time.
Tap lights next to
buttons
The screen is not touch-sensitive. Do not touch it.
Only use your finger to touch the borders. Sharp or metal objects may damage the border or screen
Don’t hover,
borders can be
sensitive.
(No sliding here)
Tap a border to
display the icons.
Tap (Close) to
dismiss them.
OK
Getting started
www.kodak.com/go/digitalframesupport 5
Setting your language
The language screen appears the first time you turn on your frame.
■1) Slide or tap below arrows to find your language.
2) Then tap OK.
To change the language at a later time:
■Tap (Home) → (Settings) → Language.
■1) Slide or tap below arrows to find your language.
2) Then tap OK.
Connecting to your wireless network
After you set your language, your frame scans for available wireless networks. See
Connecting to your wireless network, page 7.
Enjoying your pictures immediately!
■To view your pictures or play a slide show,
insert a memory card, or connect a camera or other
USB device (see page 6). Your pictures play
automatically.
If your frame has preloaded sample pictures, they
start playing automatically.
1
2
Getting started
6www.kodak.com/go/easysharecenter
Inserting a memory card
Connecting a digital camera or other USB device
Secure Digital
MultiMedia Card
Memory Stick
xD
■To insert a card, push the card firmly
into the slot until it stops.
■To remove a card from:
- top card slot, push in the card to release it.
- side card slot, pull out the card
CompactFlash
MicroDrive
Do not insert a micro or mini memory
card without an adapter.
IMPORTANT:
USB cable included
with your USB device
USB devices: camera, flash drive, card
reader, etc. (sold separately)
www.kodak.com/go/digitalframesupport 7
2Setting up for wireless
operation
If you have problems with your wireless setup or connection, see
Troubleshooting starting on page 22. Or open EasyShare digital display software on
your computer and click Tools → Wireless Troubleshooter. Follow the automated
troubleshooting wizard.
Connecting to your wireless network
To allow your frame to access the contents of your computer wirelessly, connect your
frame to your wireless home network.
NOTE: If you are not sure you have a wireless network, ask the person who set up your computer.
1First time—If this is the first time you turned on your frame, tap OK after you set
your language (page 5).
The Scanning for available wireless networks... screen appears.
Setting up for wireless operation
8www.kodak.com/go/easysharecenter

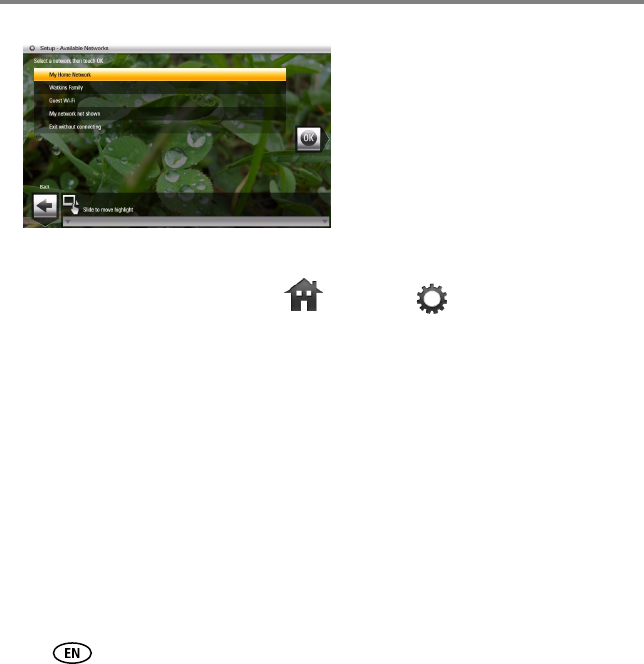

Available wireless networks are listed.
Tap Back to dismiss the screen and connect later.
Later—To connect later, tap Home → Settings → Network → Scan for
wireless networks. Then follow the screen prompts and continue with step 2 below.
If your wireless network is not found, select Scan again. You may need to enter the
network SSID (sometimes called the network name) manually. The person who set
up your network can help you with this information. Or, tap Help me connect for
more information.
2With your home network highlighted, tap OK to connect to your home network.
The Connecting... screen appears.
Or, select Exit without connecting and go to the Home screen (page 14).

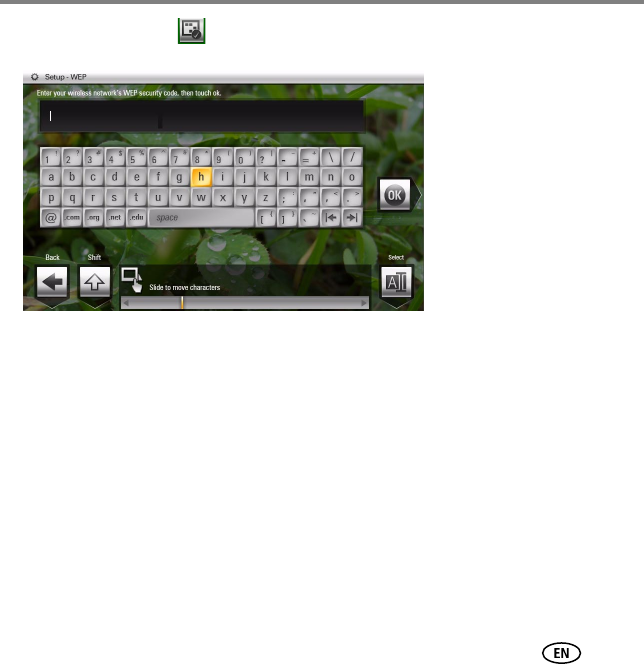

Enter security key (if you have security enabled)
If you have wireless network security enabled, enter your security key (WEP or WPA)
on the on-screen keyboard. Slide along the bottom of the touch border to highlight
NOTE:
If the scan finds multiple networks,
your home network (with the highest
% signal strength) is usually listed
first and highlighted.
Or, to select another network, slide or
tap below the arrows to highlight a
network, then tap OK.
Setting up for wireless operation
www.kodak.com/go/digitalframesupport 9
a character then tap (Select). The character appears in the text box. Tap Done
when finished.
If you do not have security enabled, go to step 1.
NOTE: The screen identifies your security as either
WEP
or
WPA
.
A
WEP
security key can be either:
5 or 13 characters (0-9, A-Z, some special characters, case sensitive),
10 or 26 characters (0-9, A-F, not case-sensitive).
A
WPA
key is 8-63 characters, case sensitive.
The person who set up your network can provide you with this information.
Congratulations! You have successfully connected to your network. Return to this
screen later to make sure the wireless network and software are working properly.
3If you haven’t done so already, install the Kodak EasyShare digital display software
(see page 10) so your frame can display wireless content properly.
Setting up for wireless operation
10 www.kodak.com/go/easysharecenter
Installing the software
The CD that was packaged with your frame contains two applications that work well
independently, but also work together for the best experience with your frame:
■Kodak EasyShare digital display software —manage your frame, copy between
your frame and computer, and set up your frame for access to
Kodak
Gallery and
Web content (page 11).
■Kodak EasyShare software —organize, edit, and share your pictures.
IMPORTANT:
We recommend that you install both. If you already have EasyShare software
on your computer, upgrade to this special version for additional features.
1Insert the CD into your computer.
2Follow the on-screen instructions to install the
software.
■Click Typical to install EasyShare digital display
software and to update a previous version of
EasyShare software.
■If you do not have a previous version of
EasyShare software on your computer, you can
click Custom and choose both applications for a
new installation.
The software icons appear on your desktop when the
installation is complete.
CD packaged with
your frame.
Setting up for wireless operation
www.kodak.com/go/digitalframesupport 11
3Double-click to open EasyShare digital display
software if it doesn’t open automatically.
When prompted, take a few minutes to electronically register your frame and software
for exclusive tips and offers. To register later, visit www.kodak.com/go/register.
Using Kodak EasyShare digital display software
Install the digital display software that was packaged with your frame (page 10) on any
computer that you want your frame to connect to wirelessly. Then double-click the icon
on your computer’s desktop to open the software.
Click Help in the menu bar for more information on using digital display software.
Picture sources on
your computer
Your wireless frame
and connected USB
devices
View and select
pictures here
Drag here to copy
to your frame
Click Help for
more info
Click here to create
a slide show
Click Tools to
configure Internet
options
Setting up for wireless operation
12 www.kodak.com/go/easysharecenter
Setting up access to Gallery and Web content
On your computer, use Kodak EasyShare digital display software (page 11) to set up
access to Web content such as your
Kodak
Gallery account, RSS (Really Simple
Syndication) photo feeds, music, or videos.
1Make sure your computer is connected to the
Internet.
2Click on your desktop to open EasyShare digital
display software.
3In the Menu bar, select Tools → Device Settings.
4From the pull-down menu, select your frame.
Your frame’s Configuration Web page opens in your
browser.
5Click the following for on-screen setup instructions:
■Web Media - RSS feeds, the Gallery, Flickr, and
news, weather, and sports from FrameChannel
■
Kodak
Gallery - your Gallery account
■Settings - customizing your frame right from your
computer
To view Web content on your frame, see page 19.
Setting up for wireless operation
www.kodak.com/go/digitalframesupport 13
Connecting to available computers and devices
After installing the software (page 10) and setting up access to Web content (page 12),
return to the Network Connection screen on your frame (see page 8).
1Tap Scan now.

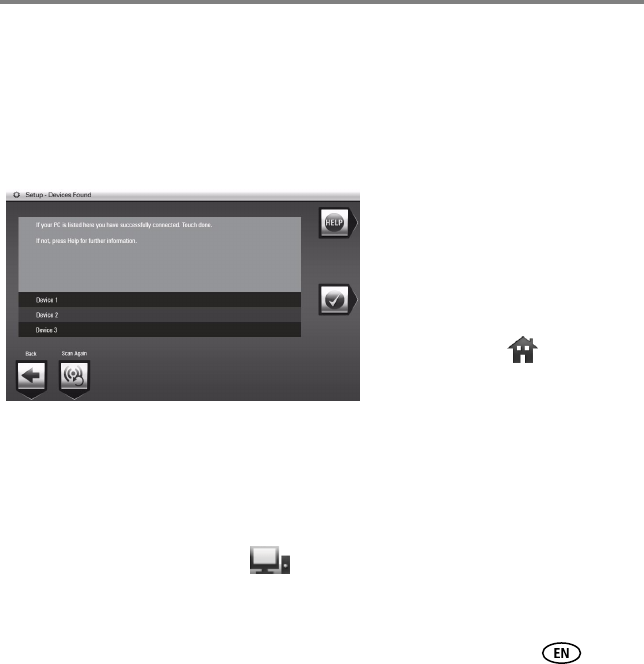

The Scanning screen appears as the frame scans your network and then lists available
computers and other picture sources that your frame can access wirelessly.
If your computer is listed, your wireless setup is successful. Tap Done.
If your computer is not listed, tap Scan again or tap Help for options.
2Tap Done to close the window and return to the Home screen.
Your frame can now access the content on your host computer, wirelessly. Your computer
appears as a picture source icon on your frame (see page 15).
NOTE:
Select Scan later to connect and
use your frame later to view
content on your computer,
wirelessly.
To verify later, tap
→ Settings → Network → Verify
computer connection
(Home)
14 www.kodak.com/go/easysharecenter
3Doing more with your frame
Viewing the Home screen
Start at the Home screen to:
■access your pictures, videos, and music
■set up and view Web content
■customize your viewing through the Settings screens
1Tap (Home). If the icons are not visible, tap the
Quick Touch Border.
2Tap the light below one of the icons along the
bottom of the screen.
3Tap Close to dismiss the icons.
Home screen icons:
Pictures and videos (see Accessing your pictures and videos, page 15)
Music;
Kodak
Gallery; Web media (see Viewing Web content, page 19)
Settings—customize frame settings such as slide show durations and transitions,
viewing options, screen brightness, clock, and timer. For details, see the extended user
guide at www.kodak.com/go/digitalframesupport.
Doing more with your frame
www.kodak.com/go/digitalframesupport 15
Accessing your pictures and videos
1Tap (Home), then (Pictures and Videos).
All connected sources are displayed.
2Slide or tap below the arrows to highlight a picture
source, then:
■Tap (Play slide show) to start a slide show of
the pictures in the highlighted source.
■Or, tap OK to view thumbnails, folders, etc.
Picture sources:
My Frame—the frame’s 512 MB internal memory. Copy your pictures into My Frame
from a memory card or other device.
Memory card—appears when you insert a card (page 6). The label and icon indicate
the type of card.
Camera—appears when you connect a digital camera via USB cable (page 6).
USB drive—appears when you insert a USB flash drive (page 6).
Network computer—appears if you are connected to a wireless network computer
(see page 7). Display pictures that are stored on the computer.
Play slide show—appears when you save a favorite slide show for quick access
anytime (see page 17).
Doing more with your frame
16 www.kodak.com/go/easysharecenter
Viewing pictures and videos
View pictures and videos from any picture source (see page 15).
IMPORTANT:
For wireless access, make sure you set up your frame to work with your
wireless home network
(see
page 7
).
View a single picture and thumbnails
To view a single, full-screen picture, highlight it in thumbnails view, then tap OK.
To view your pictures as thumbnails:
■Tap (Home) → (Pictures and Videos). Slide to highlight a picture source,
then tap OK.
■Or, from a slide show or single view, tap (Thumbnails).
Tips when viewing the thumbnail screen:
– To navigate through the thumbnails, slide your finger left/right along the slider at
the bottom, or tap below the slider arrows to move one picture at a time. To move
even faster through the thumbnails, touch and hold until the screen changes (about
3 seconds).
– To play a whole folder of images, highlight the folder then tap (Play slide
show).
– To play a video from thumbnails view, highlight a video thumbnail ( ). Tap OK.
Doing more with your frame
www.kodak.com/go/digitalframesupport 17
Play a slide show
There are two ways to start a slide show on your frame:
■Turn on the frame, then insert a card or connect a USB device—a new slide show
starts automatically, replacing a currently running slide show or single view picture.
■Highlight a picture (in thumbnail or single view), or highlight a picture source on the
Pictures and Videos screen, then tap (Play slide show).
NOTE: A slide show plays continuously until you stop it or turn off the frame.
Music and videos in the same picture source play automatically during a slide show.
To prevent music from playing automatically, tap Settings > Viewing options > Music auto-play > Off.
Save your favorite slide show for easy access
Save the location of your favorite pictures as a slide show for easy access. While
viewing a slide show:
■Tap (Viewing Options) → Save as My Slide show → OK. Tap Yes to confirm.
NOTE: My Slide show plays automatically when you turn on your frame. The My Slide show icon ( )
appears on the Pictures and Videos screen as a picture source (see page 15).
Selecting multiple pictures
Use the multi-select feature to copy or delete two or more pictures or to play a slide
show of highlighted pictures.
Doing more with your frame
18 www.kodak.com/go/easysharecenter
Select one at a time
1In thumbnails view, slide along the bottom touch border to find a picture, then tap
(Select).
A check mark appears on the selected picture.
2Continue selecting pictures.
To remove a check mark, tap (Unselect) while the picture is highlighted.
Select/Unselect all
■In thumbnails view (page 16), tap Select All.
■To remove all check marks, tap Unselect All.
Playing music
Play music without pictures
1Tap (Home), then (Music).
2Slide right/left to move up or down the music source list, then tap OK.
3Slide right/left to go to the previous or next song, or select All, then tap Play.
Your music starts playing.
NOTE: Music plays automatically when a memory card or USB device with music on it is connected.
4Adjust the volume with the Volume button on top of the frame.
Doing more with your frame
www.kodak.com/go/digitalframesupport 19
Play background music
Accompany a slide show with your favorite music.
1With a slide show playing, tap (Viewing Options), then tap Background Music.
2Use the slider to navigate to the music or song you want to play, then tap Play.
3Tap (Play slide show) to resume the slide show.
Viewing Web content
■Play slide shows of Web content (
Kodak
Gallery albums, RSS feeds). See page 12.
■Receive pictures from your friends and family at the Gallery (see page 20).
1See page 12 to set up your frame for Web access.
2Tap (Home).
3Tap one of these Web sources:
For details, see the extended user guide at www.kodak.com/go/digitalframesupport.
Kodak
Gallery—appears if you have a Gallery account. Display your Gallery albums and
My Friends’ Albums. This icon ( ) indicates someone has shared pictures with you
at the Gallery! See page 20.
Web media—RSS feeds you set up. See page 12.
Doing more with your frame
20 www.kodak.com/go/easysharecenter
Automatically receiving My Friends’ Albums
Your wireless frame uses
Kodak’s
Picture Mail feature to automatically notify you ( )
when a friend shares pictures with you at the
Kodak
Gallery. Play a slide show of the
new pictures, right on your frame, even before you see the email on your computer!
To see the shared pictures right away:
■When the notice appears on the frame screen,
tap below View now.
A slide show of the new pictures plays on your frame.
If there are multiple albums you haven’t viewed yet,
select a marked album from the Gallery list and tap
OK.
To see the shared pictures later:
1When the notice appears on the frame screen,
slide to choose Dismiss.
2To see the new pictures, tap (Home), highlight
(
Kodak
Gallery), then tap OK.
3With My Friends’ Albums highlighted, tap OK.
4Highlight a marked album , then tap OK.
You can customize how and if you receive the notifications. See the extended user
guide at www.kodak.com/go/digitalframesupport.
Doing more with your frame
www.kodak.com/go/digitalframesupport 21
Adding a matte and faceplate
Customize your frame with a decorative matte and/or faceplate (packaged with some
frames). Additional mattes and faceplates are available for purchase.
Learning more about your frame
www.kodak.com/go/digitalframes Purchase frame accessories, including decorative
faceplates and custom mattes
www.kodak.com/go/digitalframesupport Extended user guide
Interactive troubleshooting and repairs
Interactive tutorials
Frequently asked questions
Downloads
Product registration
Matte
Faceplate
Frame
When you are not using the
matte, reapply it to the liner
and store in a plastic bag to
keep the adhesive backing
clean.
See page 25 to maintain
your frame and faceplate.
22 www.kodak.com/go/easysharecenter
4Solving frame problems
For step-by-step product support, visit www.kodak.com/go/digitalframesupport and
select Interactive Troubleshooting & Repairs. Or open EasyShare digital display software
on your computer and click Tools → Wireless Troubleshooter.
Troubleshooting wireless network connection
Problem Possible causes and/or solutions
Frame cannot connect to
the wireless network —
“Wireless network not
found” appears.
■Make sure you have a wireless router and that it is
broadcasting the SSID, or enter the SSID manually.
■Make sure you are within the operating range of the network.
Move the frame into the same room with the router.
■Make sure your frame is using the latest firmware. Check
www.kodak.com/go/digitalframesupport for updates.
■If your network security is enabled, see page 8 to enter your
security key (WEP or WPA). The person who set up your
network can help you with this information.
See
Frame cannot connect to the wireless network
, above, for other
possible causes and/or solutions.
Solving frame problems
www.kodak.com/go/digitalframesupport 23
Troubleshooting frame problems
If... Try one or more of the following
Frame does not
turn on.
■Make sure the power cable that was included with your frame is
connected securely (see page 3).
■Press and hold the power button for 2 seconds, then release (see
page 3).
■Unplug the power cable, wait 5 seconds, reconnect the cable.
Press the power button for 2 seconds, then release.
Nothing happens when
a memory card, camera,
computer, or USB
device is connected.
■Make sure the USB cable that was included with your camera or
USB device is connected securely (see page 6).
■Insert a certified CF/SD/MMC/MS/xD card with images into the
designated card slot, then push to seat it (see page 6). Make sure
the card (in the top slot) is flush with the frame surface.
NOTE:
Do not insert a SANDISK Memory Stick PRO DUO card or other
micro or mini memory card without an adapter.
A large picture/video file may take time to appear.
Touch border doesn’t
work.
■Disconnect the power cable for 5 seconds then reconnect. Press
and hold power button for 2 seconds, then release (see page 3).
■Use your finger to touch along the raised guide at the bottom and
right border (see page 4). LED lights indicate touch points.
24 www.kodak.com/go/easysharecenter
5Appendix
Important safety instructions
CAUTION:
Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to
qualified service personnel. Do not expose this product to liquid, moisture, or extreme
temperatures. The use of controls, adjustments, or procedures other than those specified herein
may result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do
not touch the glass or liquid. Contact Kodak customer support.
CAUTION:
When using this product, it should be installed and operated with a minimum distance of 7.9 in.
(20 cm) for 2.4 GHz operations between the radiator and your body. This transmitter must not
be collocated or operate in conjunction with any other antenna or transmitter.
■The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For
approved accessories, visit www.kodak/go/accessories.
■Digital frame battery (internal and non-removable) may include perchlorate material. Special handling may
apply in California.
■Use only a Leader Electronics Inc. AC adapter, model MU18-2120150-A1, 12-volt, 1.5 amp. In Europe, use
only a Phihong AC adapter, model PSA 18R-120P. Use of other AC adapters may damage the frame and
void your warranties.
■When displayed with the stand extended, the frame rests at a 68 - 90 degree angle.
■Do not place frame near naked flame sources such as lighted candles or heaters.
■Excessive sound pressure from earphones and headphones may cause hearing loss.
Upgrading your software and firmware
Download the latest versions of the software and the frame firmware (the software that runs on the frame). See
www.kodak.com/go/digitalframedownloads.
Appendix
www.kodak.com/go/digitalframesupport 25
Care and maintenance
Important:
Always disconnect the power before cleaning. Do not use water, cleaning solutions, or other adhesives
on the frame or any of its parts.
■Gently wipe the frame, LCD, matte, or faceplate with a clean, dry, lint-free cloth (included). For fingerprints
on the frame, apply light pressure.
■Do not use cleaning solutions unless designed specifically for LCD screens. Do not allow chemicals, such as
suntan lotion, to contact painted surfaces.
■Service agreements are available in some countries. Contact a dealer of Kodak products for details.
■For digital frame disposal or recycling information, contact your local authorities. In the US, visit the
Electronics Industry Alliance Web site at www.eiae.org or visit www.kodak.com/go/digitalframesupport.
Limited warranty
Kodak warrants Kodak consumer electronic products and accessories (“Products”), excluding batteries, to be
free from malfunctions and defects in both materials and workmanship for one year from the date of purchase.
Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for
warranty repair.
Limited warranty coverage
Warranty service is only available from within the country where the Products were originally purchased. You
may be required to ship Products, at your expense, to the authorized service facility for the country where the
Products were purchased. Kodak will repair or replace Products if they fail to function properly during the
warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all
labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a
Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been
returned to Kodak along with proof of the purchase price paid. Repair, replacement, or refund of the purchase
price are the sole remedies under the warranty. If replacement parts are used in making repairs, those parts may
be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire Product, it
may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted
for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement,
whichever is longer.
Appendix
26 www.kodak.com/go/easysharecenter
Limitations
This warranty does not cover circumstances beyond Kodak's control. This warranty does not apply when failure
is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with
incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak's
operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and
cables), or claims made after the duration of this warranty. Kodak makes no other express or implied warranty
for this product, and disclaims the implied warranties of merchantability and fitness for a particular purpose. In
the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied
warranty will be one year from the purchase date or such longer period as required by law. The option of repair,
replacement, or refund is Kodak's only obligation. Kodak will not be responsible for any special, consequential
or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability
for any special, consequential or incidental damages (including but not limited to loss of revenue or profit,
downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims
of your customers for such damages resulting from the purchase use or failure of the Product), regardless of
cause or for breach of any written or implied warranty is expressly disclaimed.
Your rights
Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific
rights, and you may have other rights which vary from state to state or by jurisdiction.
Outside the United States and Canada
In countries other than the United States and Canada, the terms and conditions of this warranty may be
different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company,
no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage,
or loss may be by negligence or other act.
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
Kodak EasyShare W820/W1020 wireless digital frames
Appendix
www.kodak.com/go/digitalframesupport 27
This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the
equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the
receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment. Where shielded interface cables have been provided with the
product or specified additional components or accessories elsewhere defined to be used with the installation of
the product, they must be used in order to ensure compliance with FCC regulation.

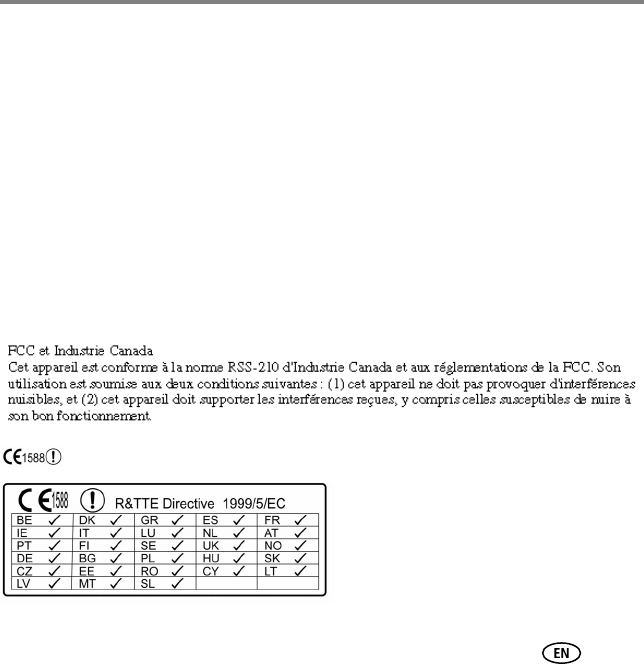

FCC and Industry Canada
This device complies with Industry Canada RSS-210 and FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Appendix
28 www.kodak.com/go/easysharecenter
Hereby, Eastman Kodak Company declares that this Kodak product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
This digital picture frame (W820 or W1020) transmits in 10 dBm. In France, the power level is limited to 10dBm
in outdoor environments, per regulations. When in France, use the wireless functions of this device indoors only.
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003.
Observation des normes-Classe B—Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Waste Electrical and Electronic Equipment labeling
Australian C-Tick
MPEG-4
Use of this product in any manner that complies with the MPEG-4 visual standard is prohibited, except for use
by a consumer engaging in personal and non-commercial activities.
EU: It is the final user’s responsibility to discard this equipment into an approved, segregated
collection scheme to enable its suitable treatment/disposal and to improve human/environmental
protection. For more information, see your retailer, local authority, or www.kodak.com/go/recycle.
N137
Appendix
www.kodak.com/go/digitalframesupport 29

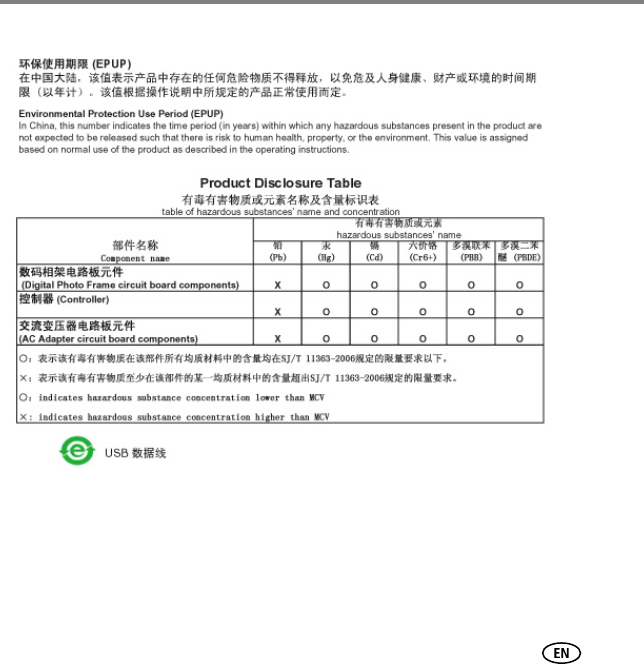

China RoHS
Appendix
30 www.kodak.com/go/easysharecenter
Licensing
Supply of this product does not convey a license nor imply any right to distribute content created with this
product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels),
streaming applications (via Internet, intranets and/or other networks), other content distribution systems
(pay-audio or audio-on-demand applications and the like) or on physical media (compact discs, digital versatile
discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is
required. For details, please visit http://mp3licensing.com.
Eastman Kodak Company
Rochester, New York 14650
© Eastman Kodak Company, 2008
Kodak and EasyShare are trademarks of Eastman Kodak Company.
Eastman Kodak Company is an authorized licensee of the CompactFlash trademark.
4F8182_en
