Prerequisites
1. HTML5 supported Web browser.
2. Latest CPT Tool 29th Dec 2018 or later.
3. The EasyIO FT Series Sedona Controller running latest firmware.
Contact EasyIO support at support@easyio.com if you need assistance.
Introduction
EasyIO FT Series is the most smallest wireless Sedona controller in the market. It is equipped with a all in
one microprocessor with built in Wi-Fi, the first in the Automation industry, with a 240MHz processor and
also with a lightweight freeRTOS V8.2.0 OS for premium performance. Supports BACnet IP server over Wi-
Fi and TCom or premium performance with Niagara AX and N4.
The Build in boot loader can be carried out remotely. No more manual service button
needed is used.
Firmware upgrading can be done remotely and without any assistant.
Firmware upgrading is via web browser. No extra program or software required.
This document describe about basic connection and technical specifications.
FT Series range of products comes in few options.
Options are referring to IO (Input/Output) configurations.
FW
Model
UI
AO
DO
Protocol Supported
FT-04B
2
1
(Voltage only)
1
Sedona
BACnet IP server
Table shown above show the IO configuration
EasyIO FT Series – User Reference v1.0
7
Hardware Configurations
Power supply Connection
Both AC and DC can be used for EasyIO FT Series controller. Refer to electrical specification for the
working range. In order to avoid damage on the controller input/output devices and RS485 connection,
use individual power supply for each controller. If a single power supply is used to power up multiple
EasyIO FW series, make sure controller power supplies are connected with the same polarity.
Electrical
Power Supply
24V AC +/- 5% or 24V DC +/- 15%
Consumption
100 mA
Operating Temperature
32 to 150 Deg-F (0 to 65 Deg-C)
Storage Temperature
-4 to 150 Deg-F (-20 to 65 Deg-C)
Operating Humidity
10% to 70% relative humidity non-condensing

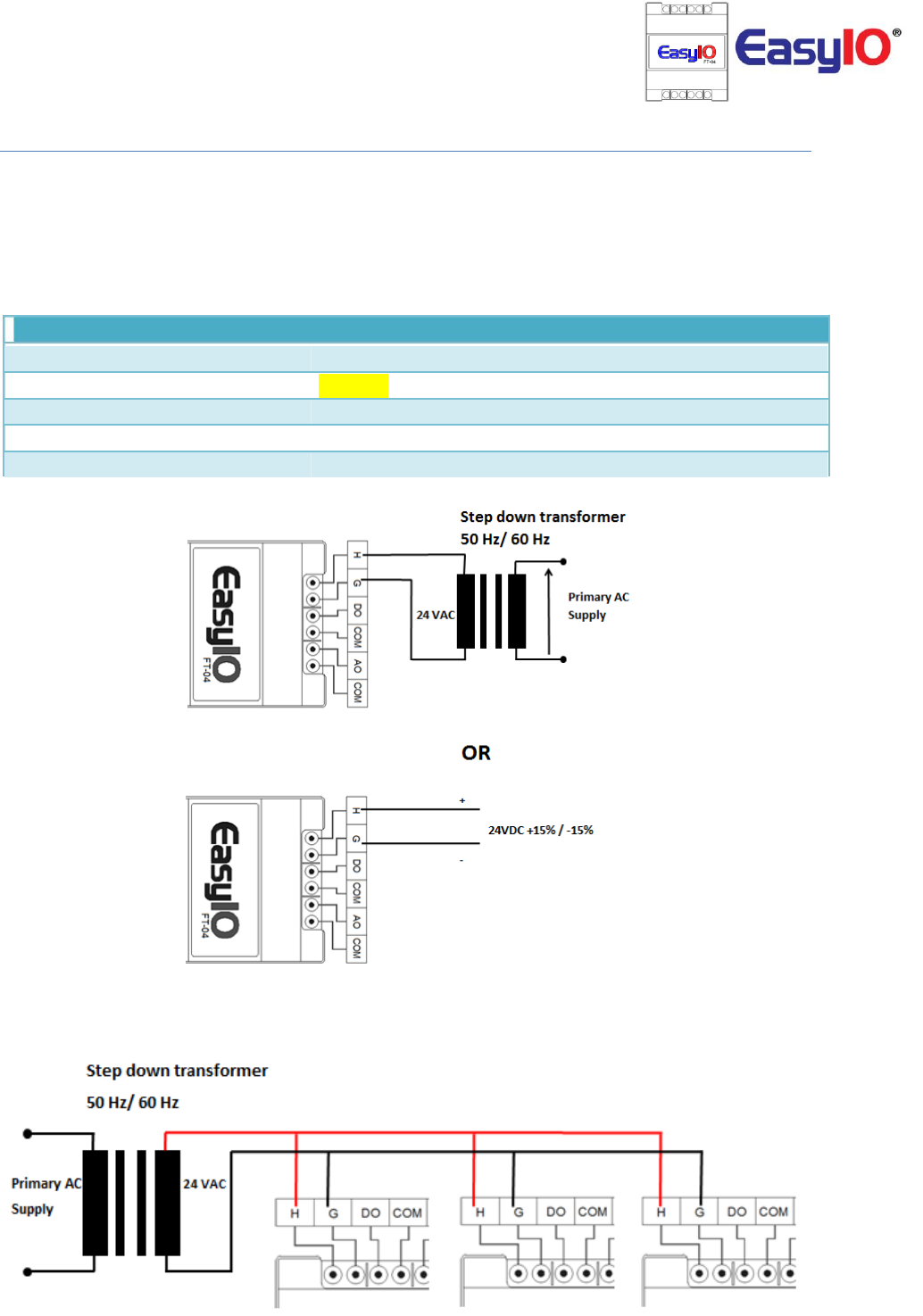

Power Supply Connection
Multiple controllers share single transformer connection
EasyIO FT Series – User Reference v1.0
8
Input Output configuration
FT Series range of products comes in few options.
Options are referring to IO (Input/Output) configurations.
FW
Model
UI
AO
DO
EIA-485
Protocol Supported
FT-04B
2
1
(Voltage Only)
1
1
Sedona
BACnet IP server
Jumpers Configurations

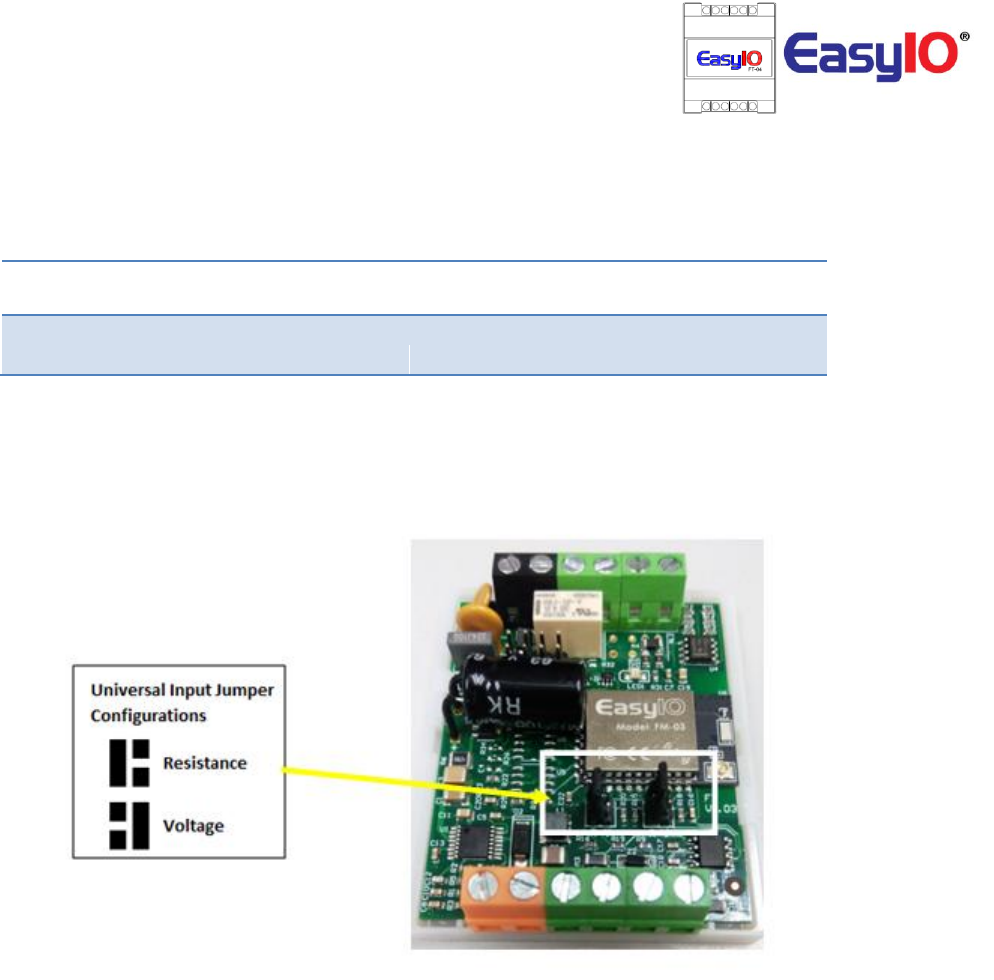

Below image shows the jumper setting for Universal Input and Watchdog Jumper
Jumper not shown below are for internal use ONLY.
EasyIO FT Series – User Reference v1.0
9
Wiring diagram
Below diagram shows the general wiring diagram for FT series according to its model.
EasyIO FT Series – User Reference v1.0
10
Digital Output Wiring Connection
EasyIO FT Series digital output is for general purpose isolated digital output connections (relay output).
Pilot Duty rating is as below (Pilot Duty);
24 VAC , 2.0A
24 VDC , 2.0A
Digital Output
1 ~ 2 Channels
Type
Relay Contacts, SPST NO, 48VA at 24VAC,
It does not output voltage or current. It is a dry relay contact.
No triac output.
Digital Output Connection
EasyIO FT Series – User Reference v1.0
11

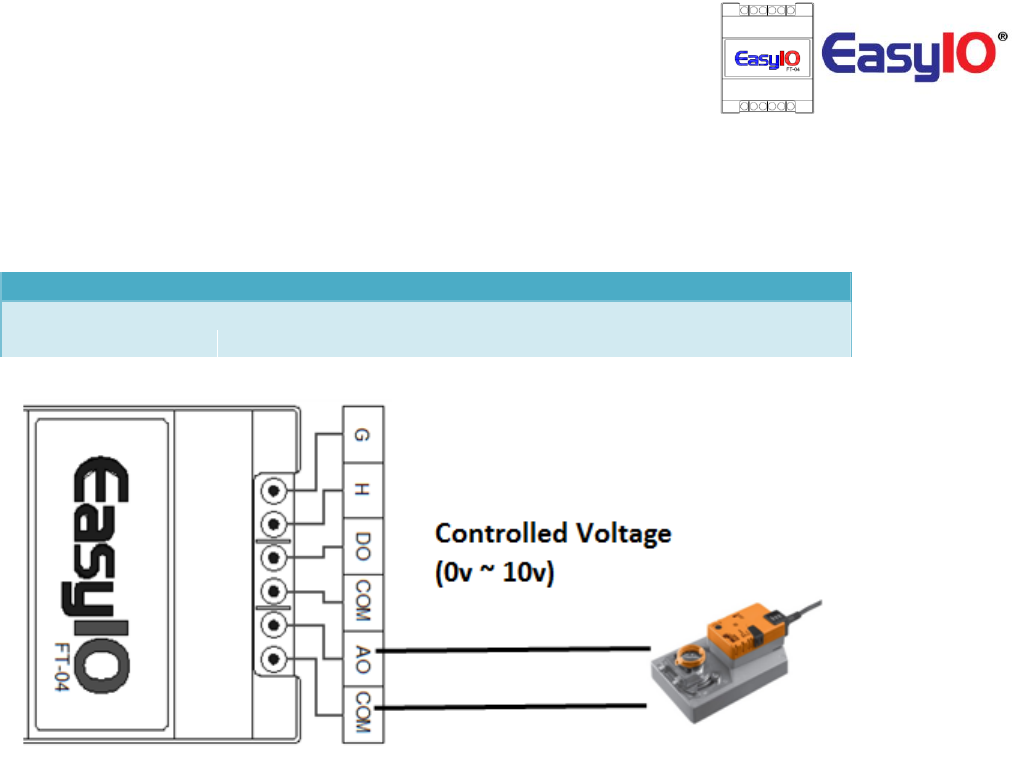

Analog Output Connection
EasyIO FT series has Analog Output connections. Each Analog Output can only drive voltage.
The working range for voltage is 0 – 10V.
Universal Output
1 ~ 2 Channels
Type
Voltage: 0 – 10VDC , Min Impedance 10K Ohm.
Analog Output Connection
EasyIO FT Series – User Reference v1.0
12

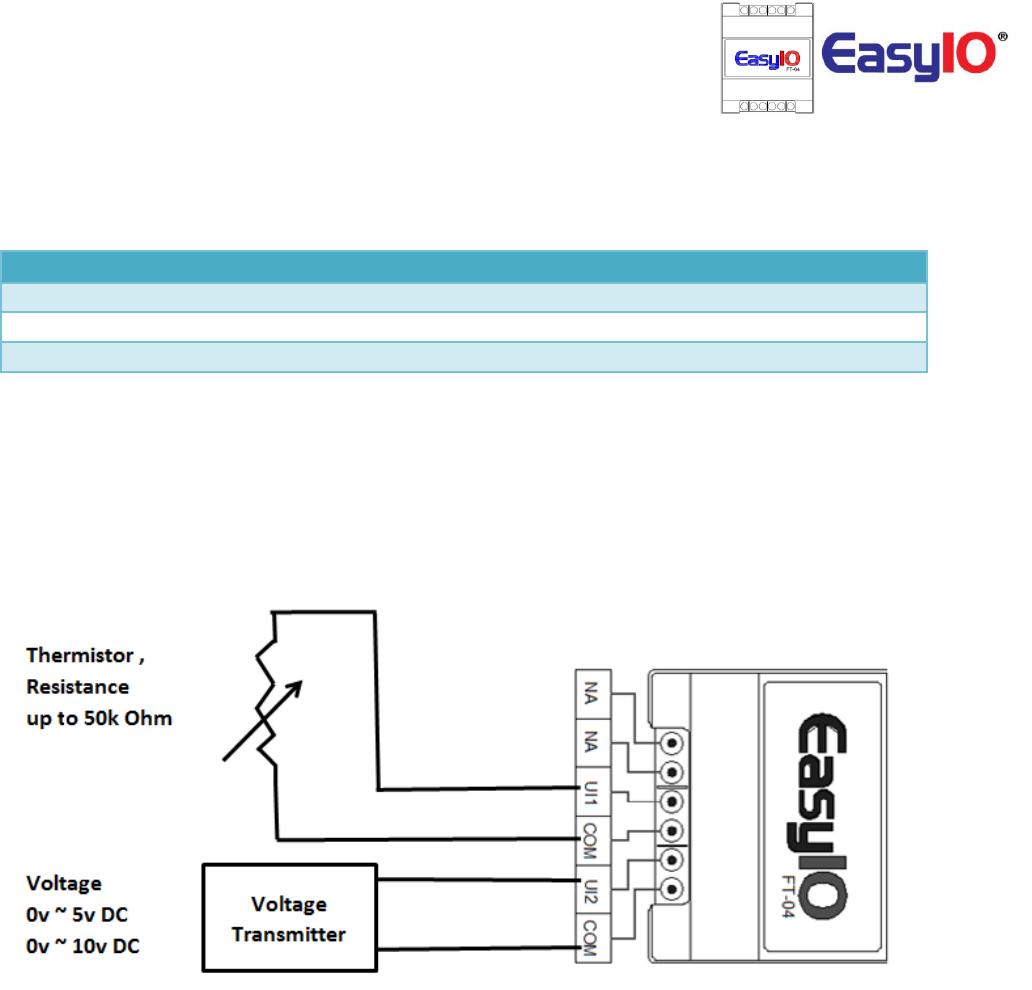

Universal Input Connection
EasyIO FT series has non-isolated universal inputs. The universal input supports two type of analog signal
i.e. resistance and voltage via hardware jumper and internal register settings:
Universal Input
2 Channel
Resistance
3K - 50K (+/-10 Ohm)
Thermistor
10K Type 3, 10K Type 2, 20K,: All (+/-0.1 Deg-C)
UI as Digital Input
Voltage Free Contact
a) Resistance – The working range of resistance is 3000 Ohm – 50k Ohm.
The commonly used Thermistor such as 10K Type 2, 10K Type 3 and 20K Thermistor.
b) Voltage – Supports 0 – 10V and 0 – 5V (scaling required).
The minimum input impedance of voltage mode input is 1 Mega Ohm.
EasyIO FT Series – User Reference v1.0
13
Network and Wireless
EasyIO FT series comes with on board wireless connection.
The wireless network comply to IEEE 802.11 standards.
It supports IEEE 802.11 b/g/n standard.
Each unit is supplied on board internal antenna.
FT Series is Wi-Fi Access Point (AP).
The AP connection is used to configure the FT controller.

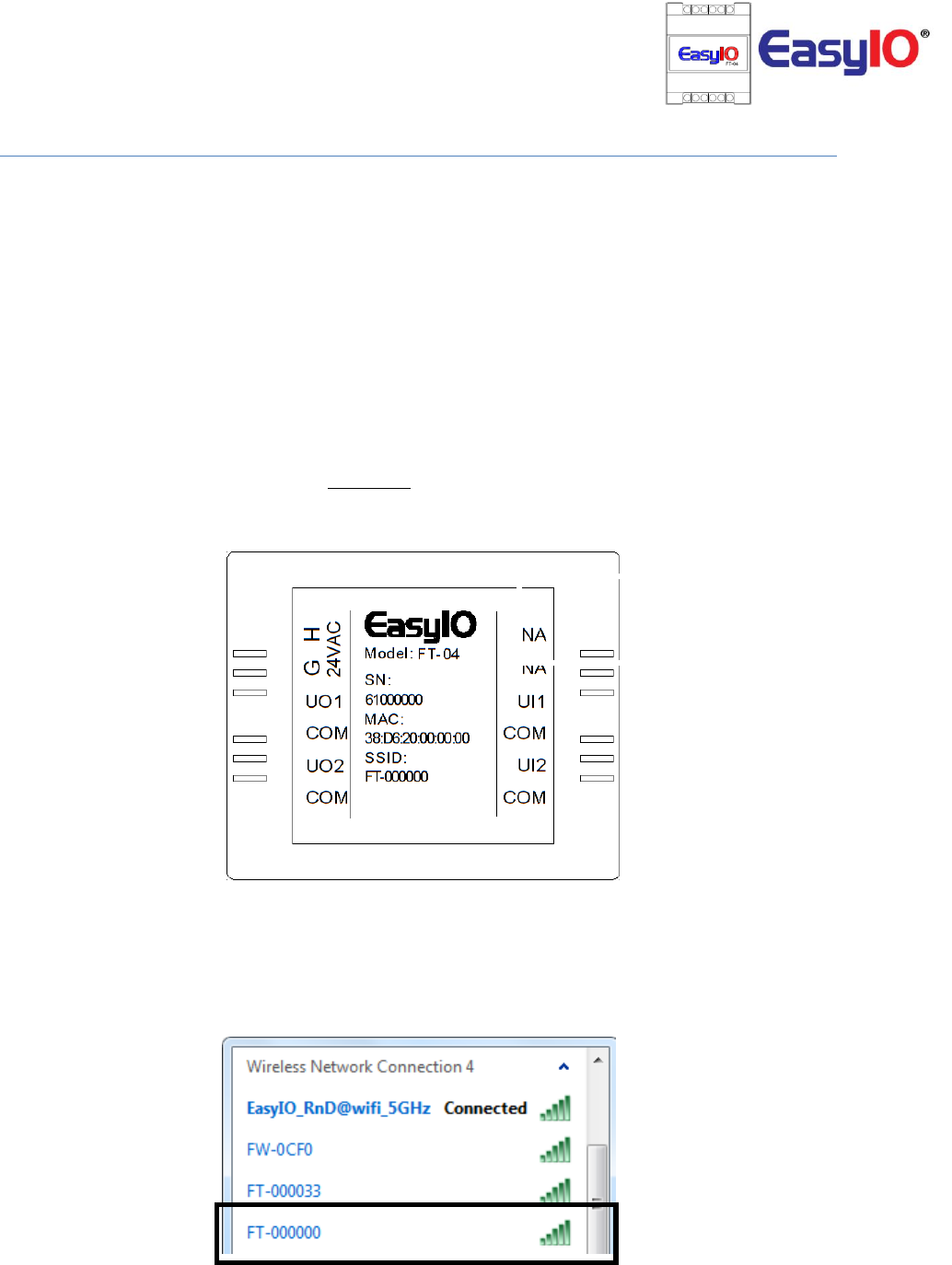

Access Point SSID : FT-xxxxxx , where xxxxxx is the last 6 digit of the MAC address.
Mac Address label located at the bottom casing of each FT series controller.
The MAC address label is available below circuit board as well
Password for FT-xxxxxx SSID by default is 12345678.
** Please change the password to secure the connection**
In the example above, the MAC address is 38:D6:20:00:00:00, you should able to scan the SSID as
FT-000000 from any Wi-Fi Scanner.
Image below shows a Wi-Fi scanner from a Windows Operating system.
EasyIO FT Series – User Reference v1.0
14
Login Details
EasyIO FW Series default IP address and login details are as below.
FT AP SSID (FT-xxxxxx)
Default IP address : 192.168.4.1
Default Subnet : 255.255.255.0
Sedona Login via CPT
Username : admin
Password : <no password>
Web Browser login
No login require at the moment.

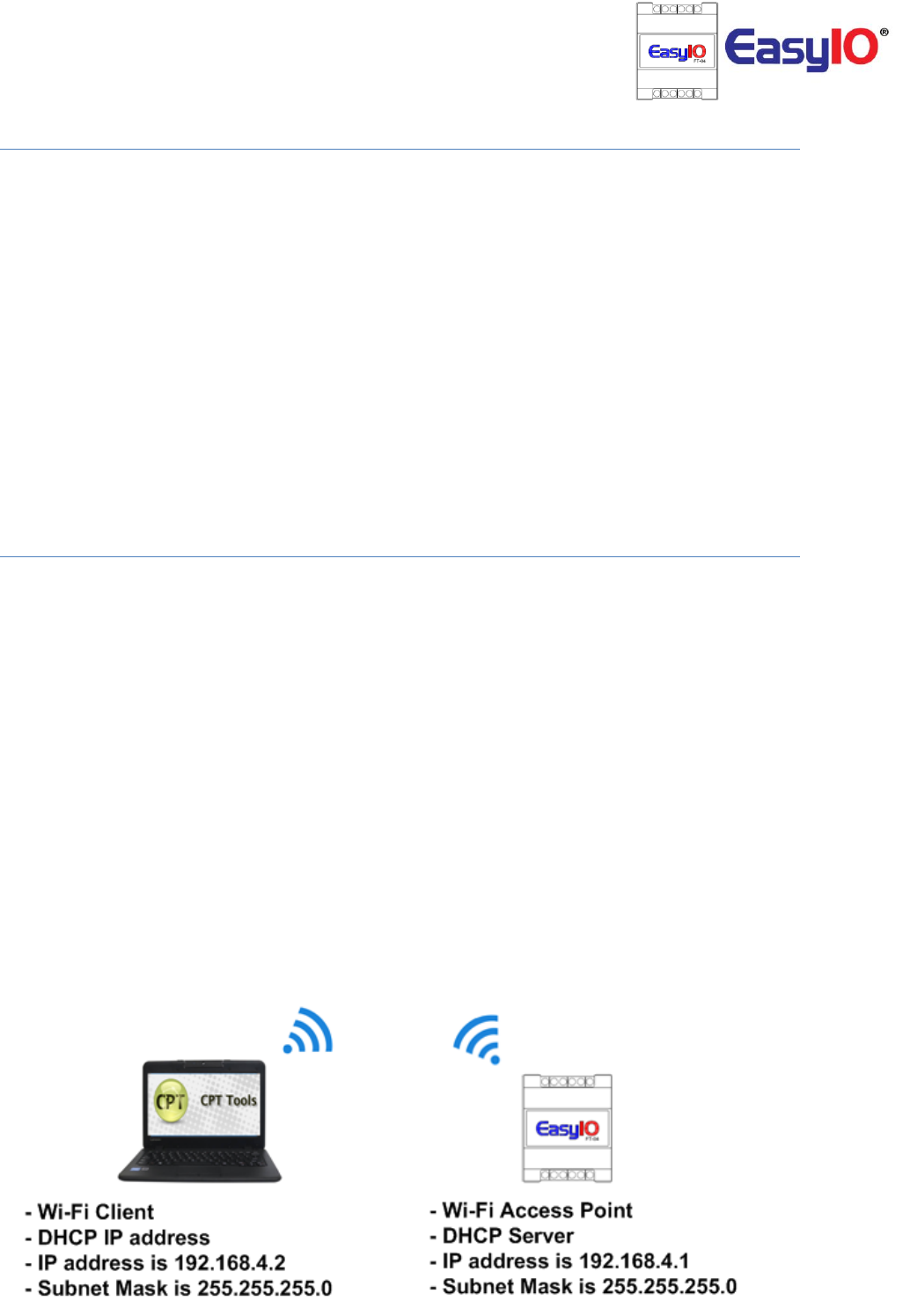

Establish a connection for the first time
In this chapter we will guide you to connect the FT Series controller for the first time.
A brand new FT controller Wi-Fi Access Point is always enable.
It has DHCP server enable.
The best approach to connect to a brand new FT series controller is by utilizing its DHCP server and run
automatic IP address in your device.
This reduces the hassle of manually configuring your computer IP address and other network settings as
well as reducing error.
Step 1
From your computer wireless network shortcut locate the controller SSID (default main SSID is FT-xxxxxx)
and connect.
Enter password as 12345678 when prompt.
Step 2
Once your computer is connected it will be most likely IP address 192.168.4.2 assign automatically by
the FT controller.
You should be able to ping the controller via command line.
FT default IP address is 192.168.4.1 in AP mode.
EasyIO FT Series – User Reference v1.0
15
Step 3

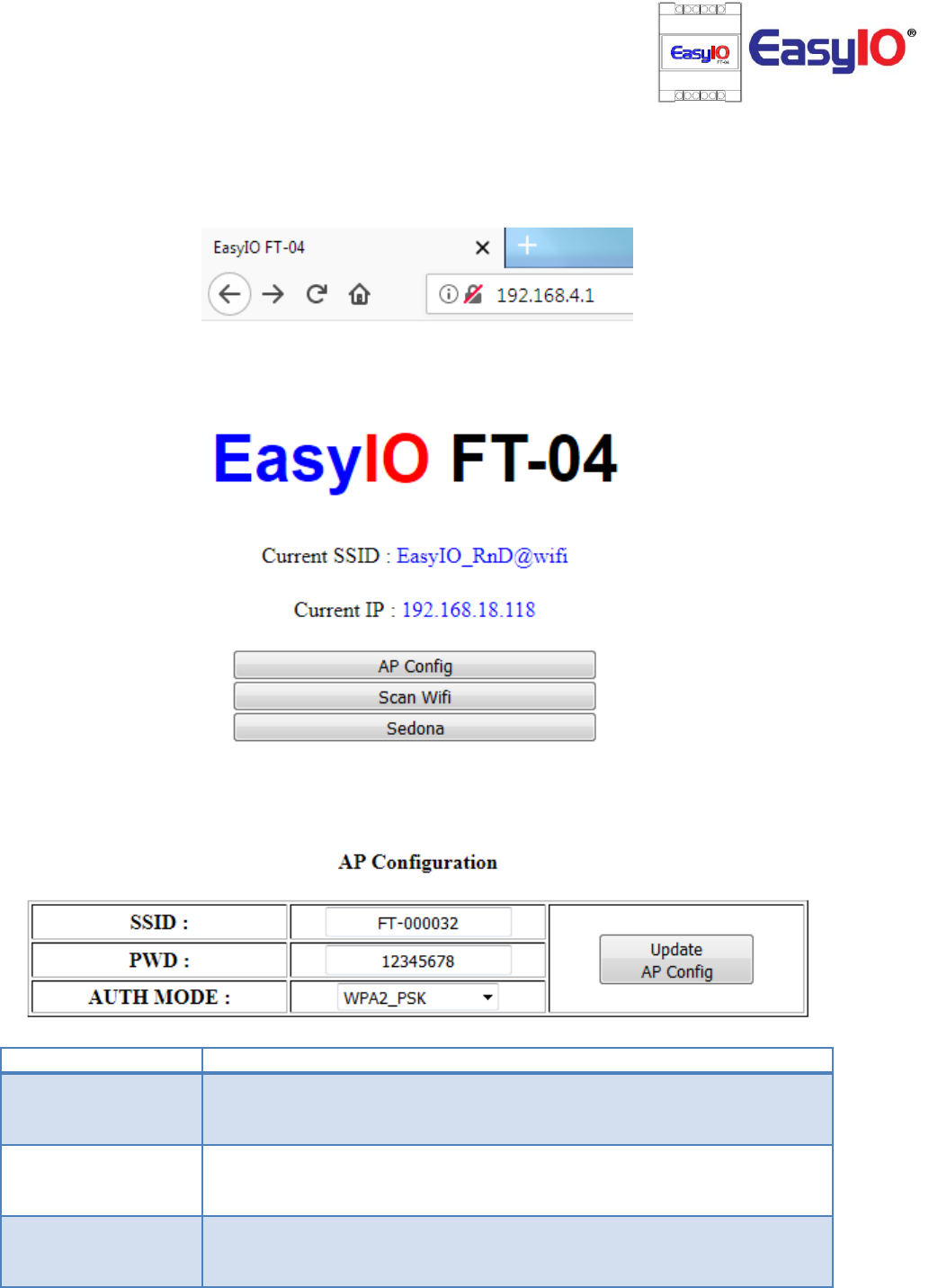

Use any HTML5 compatible web browser and connect to the FT controller with the IP address
192.168.4.1.
Step 4
Once connected you should be able to see 3 options.
AP Config
Menu
Description
SSID
Access Point SSID name.
By default each SSID is named according to its MAX address.
You can change the SSID name to your preference.
PWD
Access Point SSID password.
By default it is 12345678.
You can change the password to strengthen the security to your preference.
AUTH MODE
Access Point SSID authentication mode.
Several options of authentication mode is supported.
At the moment, WPA2 Enterprise is not supported.
EasyIO FT Series – User Reference v1.0
16
Establish connection of FT to a Wi-Fi network
Before proceeding to this chapter, please make sure you manage to connect to the FT controller using
the above chapter, Establish connection for the first time
In this chapter we will guide you to connect the FT Series controller to a Wi-Fi network.
Once this chapter is completed your FT series controller is a Wi-Fi client to a Wi-Fi network.

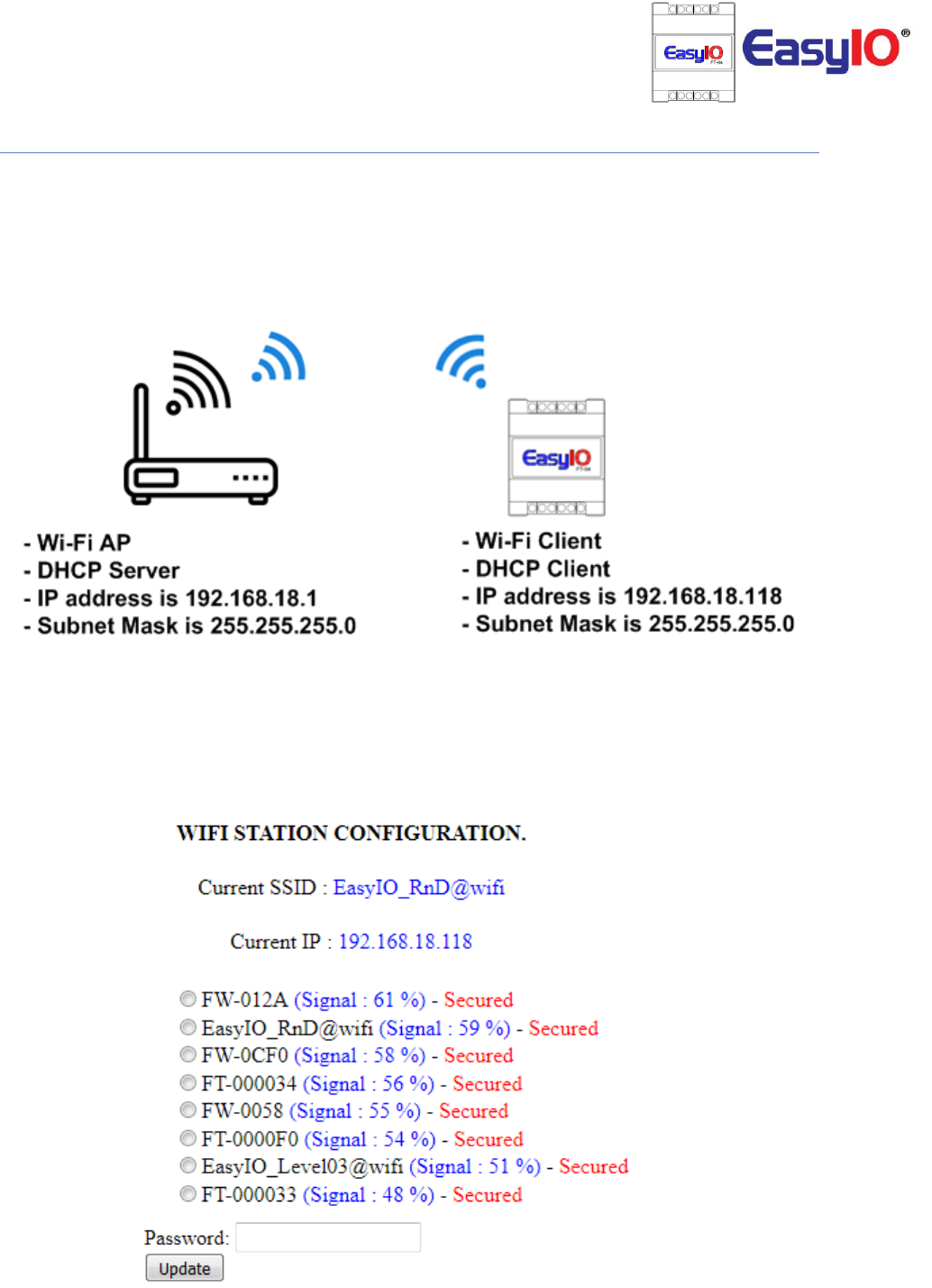

Below image is an example of FT controller is part of a Wi-Fi network.
Once connected navigate to Scan Wi-Fi menu.
Scan Wi-Fi
EasyIO FT Series – User Reference v1.0
17
Select the radio button of the preferred SSID then enter the password for the particular SSID.
Finally click Update to complete the task.
Once the Wi-Fi connection as a Wi-Fi client is successful , the current SSID and current IP will show.
In the example above the FT series controller is connected to a SSID named “EasyIO_RnD@wifi” and it
gets an IP address from the SSID DHCP server, “192.168.18.118”.
Now the FT series controller is part of EasyIO_RnD@wifi network.
Connecting to FT Series (CPT Tool)
Before proceeding to this chapter, please make sure you manage to connect to the FT controller using
the above chapter, Establish connection for the first time
In this chapter we will guide you to connect to a EasyIO FT Series controller with CPT tools for
programming.
Make sure you have all the prerequisite before we start.
Step 1
Connecting to the FW Series Sedona environment using the CPT Tools.
The default IP address for the FW Series controller is 192.168.4.1
**Depending to which connection you made to the FT, if you are connecting to the FT which is connected
to another Wi-Fi SSID , please refer to Establish a connection of FT to a Wi-Fi network chapter for current
IP address.

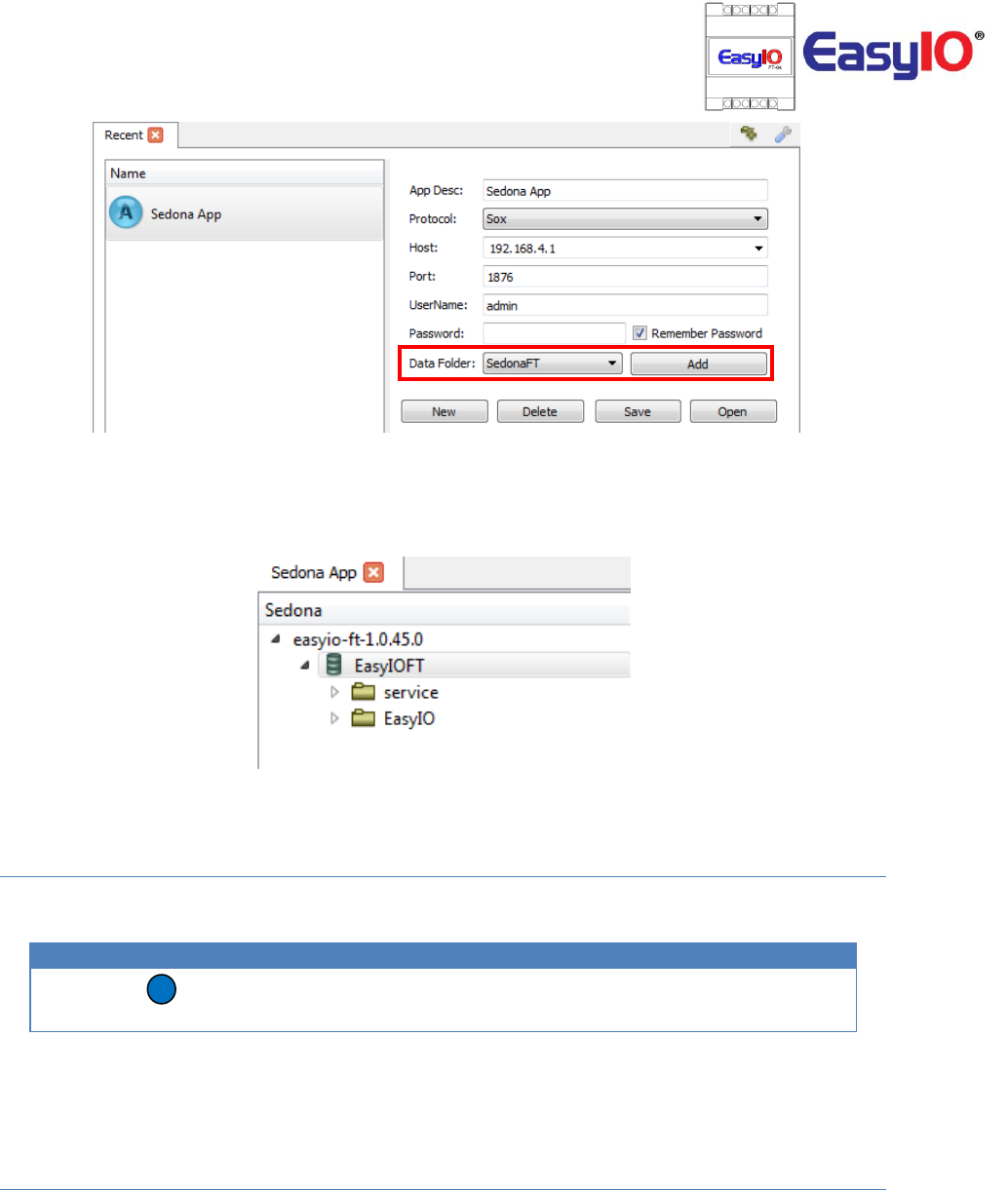

At the CPT Tool open device pane, put in the FT controller IP address.
Make sure the “DataFolder” is reference to SedonaFT.
EasyIO FT Series – User Reference v1.0
18
Step 2.
A successful connection will open the FW Series Sedona programming environment.
Proceed to create your Sedona program, installing additional kits and etc.
LED Indicator
Colour
Behaviour
Description
1
Constantly Blinking at 1 Hz
Device Running Normally
Technical Support
For technical issue, please contact
Email :support@easyio.com

Navigation menu
