Introduction
EasyIOFWSeriesisthemostpowerfulwirelessSedonacontrollerinthemarket.Itisequippedwithtwo
32bitProcessors,thefirstintheAutomationindustry,witha580MHzMTKprocessorandanARMM0
CortexfortheI/OmanagementandADprocessing,andalsowithaLinux3.18OSforpremium
performance.SupportsBACnetasserverandTComorpremiumperformancewithNiagaraAXandN4.
TheBuildinbootloadercanbecarriedoutremotely.Nomoremanualservicebutton
neededisused.
Firmwareupgradingcanbedoneremotelyandwithoutanyassistant.
Firmwareupgradingisviaftpclient.
Thisdocumentdescribeaboutbasicconnectionandtechnicalspecifications.
ItappliesforEasyIOFW08V.
Item FW08V
AnalogueOutput 4Channels
AnalogueInput 4Channels
TableshownaboveshowtheIOconfiguration
EasyIOFW08VUserReference
7
HardwareConfigurations
PowersupplyConnection
BothACandDCcanbeusedforEasyIOFW08VSeriescontroller.Refertoelectricalspecificationforthe
workingrange.Inordertoavoiddamageonthecontrollerinput/outputdevicesandRS485connection,
useindividualpowersupplyforeachcontroller.Ifasinglepowersupplyisusedtopowerupmultiple
EasyIOFW08V,makesurecontrollerpowersuppliesareconnectedwiththesamepolarity.
Electrical
Power Supply 24V AC +/- 5% or 24V DC +20%/-15%
Consumption 500 mA
Operating Temperature 32 to 150 Deg-F (0 to 65 Deg-C)
Storage Temperature -4 to 150 Deg-F (-20 to 65 Deg-C)
Operating Humidity 10% to 70% relative humidity non-condensing
PowerSupplyConnection
Multiplecontrollerssharesingletransformerconnection
EasyIOFW08VUserReference
8
RS485Connection
RS485connectionmustbeterminatedatbothendswithterminationresistor,typically120Ohms.Itis
recommendedtouseshieldedtwistedpairwire(STP)forthewiring.
Lightningprotectioncircuitishighlyrecommendedtobeinstalledatoneendofthewiring.Thecontroller
shouldbewiredindaisychainnetworktopologyasshownasimagebelow.Ifwirebranchcanbeavoided,
keepitasshortaspossible,andneverconnectmorethanonedevicetothewirebranch(itisnot
recommended).
BecarefulifsinglepowersupplyisusedforallconnectedRS485device,makesurealldevicesare
havingthesamegroundconnection.Makesureyouareconnectingthesamewireforthesame
terminalposition,all“H”terminalsconnectedtothesamewire.
Physical Interface Remark
EIA-485
BUS A,B
Two Wire, Half Duplex
Speed:(9.6K, 19.2k, 38.4K),
Data Bit:(8 bits),
Parity:(None)
Ethernet 10/100 Mbps IP, TCP, UDP, ICMP, HTTP,FTP
Application Support Sedona, BACnet MSTP Server and Tcom
DaisyChainNetworkTopology
RS485ConnectionDiagram
EasyIOFW08VUserReference
9
JumpersConfigurations

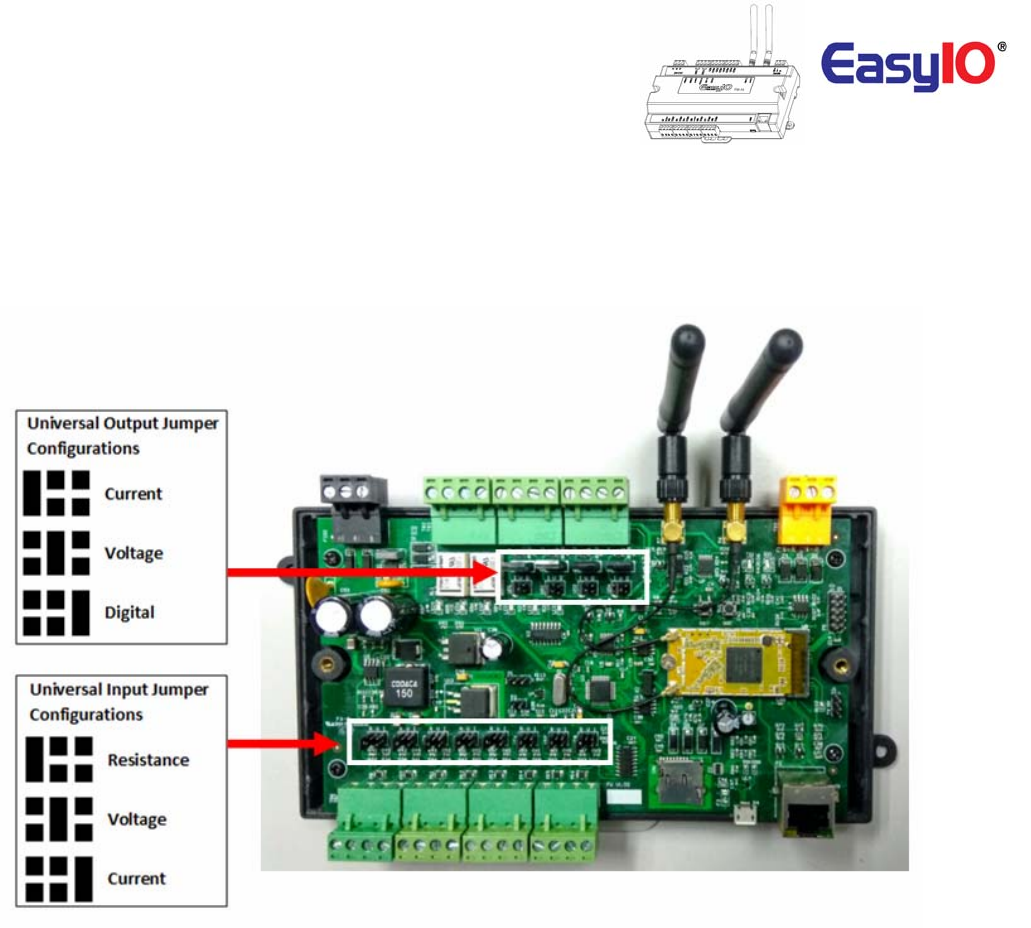

BelowimageshowsthejumpersettingforUniversalInput,UniversalOutput,WatchdogandalsoEIA485
120Ohmterminations.

EasyIOFW08VUserReference
10

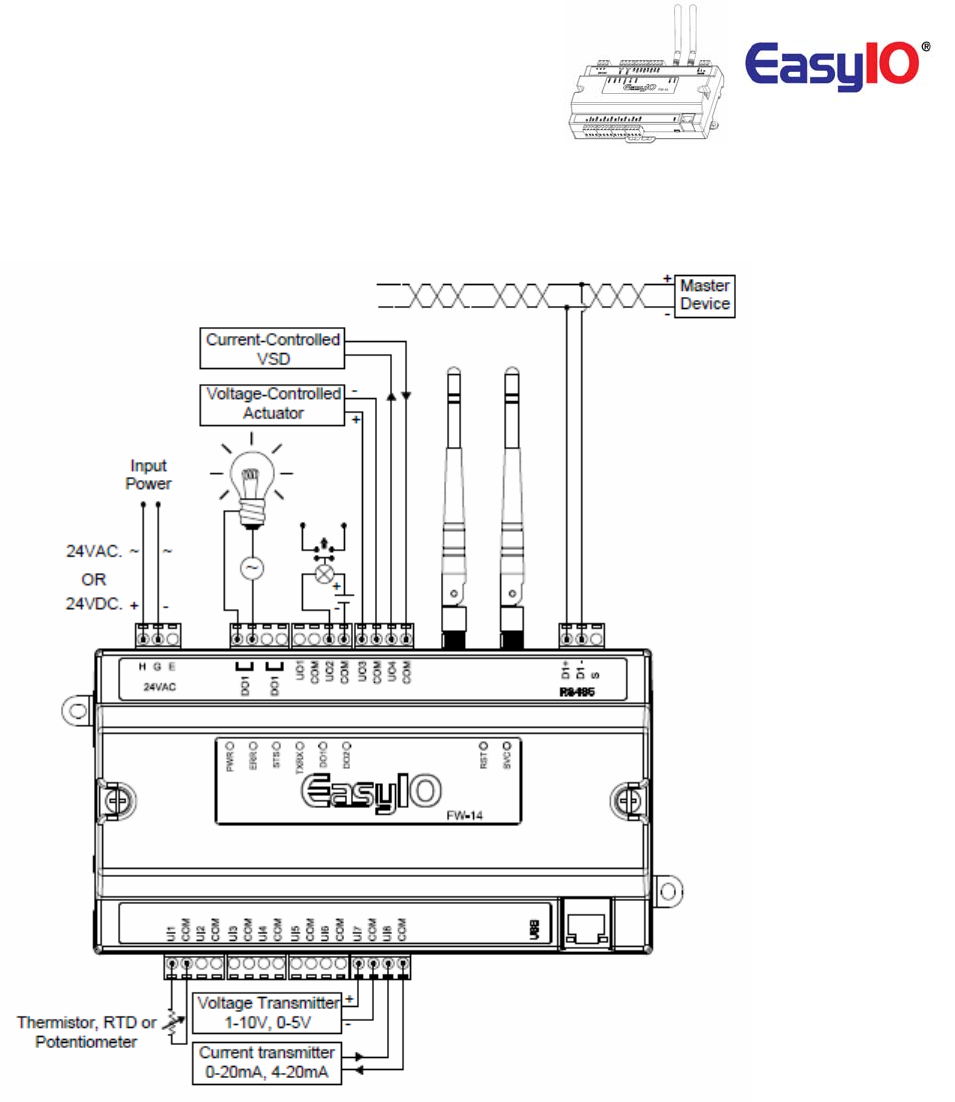

Wiringdiagram
EasyIOFW08VUserReference
11
AnalogueInputConnection
EasyIOFW08Vserieshasnonisolateduniversalinputs.Theuniversalinputsupportsthreetypeofanalog
signali.e.resistance,voltageandcurrenttransmitterviahardwarejumperandinternalregistersettings:
Universal Input 8 Channels
Voltage 0 - 10V DC (+/-0.005V)
Resistance 500 - 500K (+/-10 Ohm)
Thermistor 10K, 10K Shunt, 1K Balco, 1K Platinum : All (+/-0.01 Deg-C)
UI as Digital Input Voltage Free Contact
a) ResistanceTheworkingrangeofresistanceis500Ohm500KOhms.Iftheinputis
configuredasThermistortype.ThecommonlyusedThermistorlike10K,10KwithShunt,1K
Balcoand1KPlatinumareallsupported
b) VoltageSupports010Vand05V(scalingrequired).
Theminimuminputimpedanceofvoltagemodeinputis1MegaOhm.
c) PulseInputAllUniversalInputsarecapableofreceivinghighspeedpulse.Minimumontime
pulseis20msandminimumofftimeis20ms.
Approximately25Hz.Refertoimagebelow.
EasyIOFW08VUserReference
12
UniversalInputasPulseInputspecifications,Max25Hz
MinimumOn
period20ms
MinimumOff
period20ms
EasyIOFW08VUserReference
13
AnalogueOutputConnection
EasyIOFW08VserieshasUniversalOutputconnections.EachUniversalOutputcanbeconfiguredto
drivevoltageorcurrentoutputordigitaloutputviahardwarejumperandinternalregistersettings.
Theworkingrangeforvoltageis010V.
Universal Output
4 Channels
Type
Voltage: 0 – 10VDC , Min Impedance 1000 Ohm.
UniversalOutputConnectionforVoltageandCurrent
EasyIOFW08VUserReference
14
WirelessNetwork
EasyIOFW08Vcomeswithonboardwirelessconnection.
ItcomplytoIEEE802.11standards.
ItsupportsB/G/Nband.
Eachunitissuppliedwithtwo(2)2dBifemaleSMAjackantenna.
ButtonsandIndications
ThecontrollerwilldoahardwareresetwhentheResetButtonispressedwhenevermanualrestartis
required.
TheServicebuttonisusedtoactivatethebuiltinbootloaderprogramforsoftwareupgrade.
EachdigitaloutputhasacorrespondenceLEDtoindicateitscurrentstate.

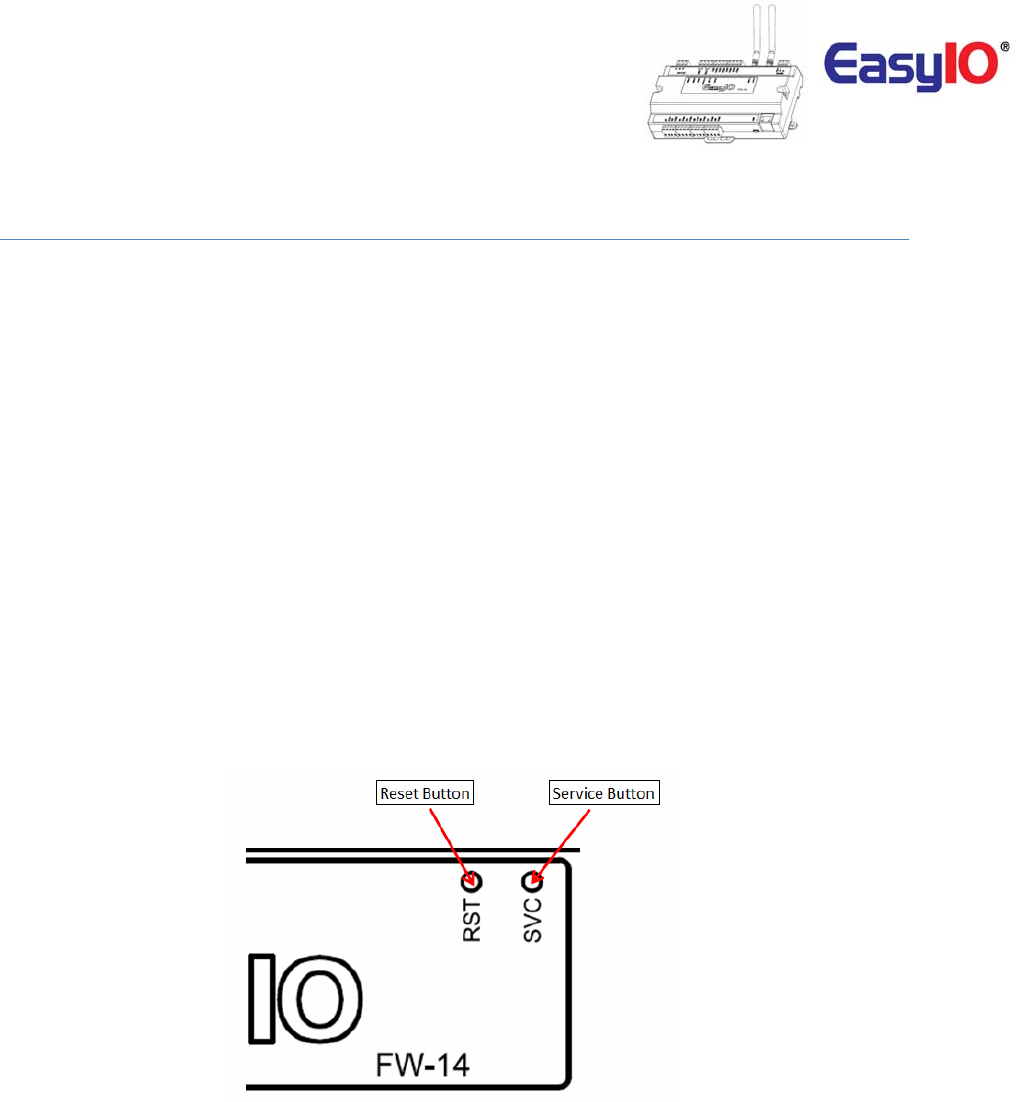

ImageshowstheResetbutton,ServicebuttonandalsoTXRXindicators.
ImageshownisanEasyIOFW14unit.
EasyIOFW08VUserReference
15

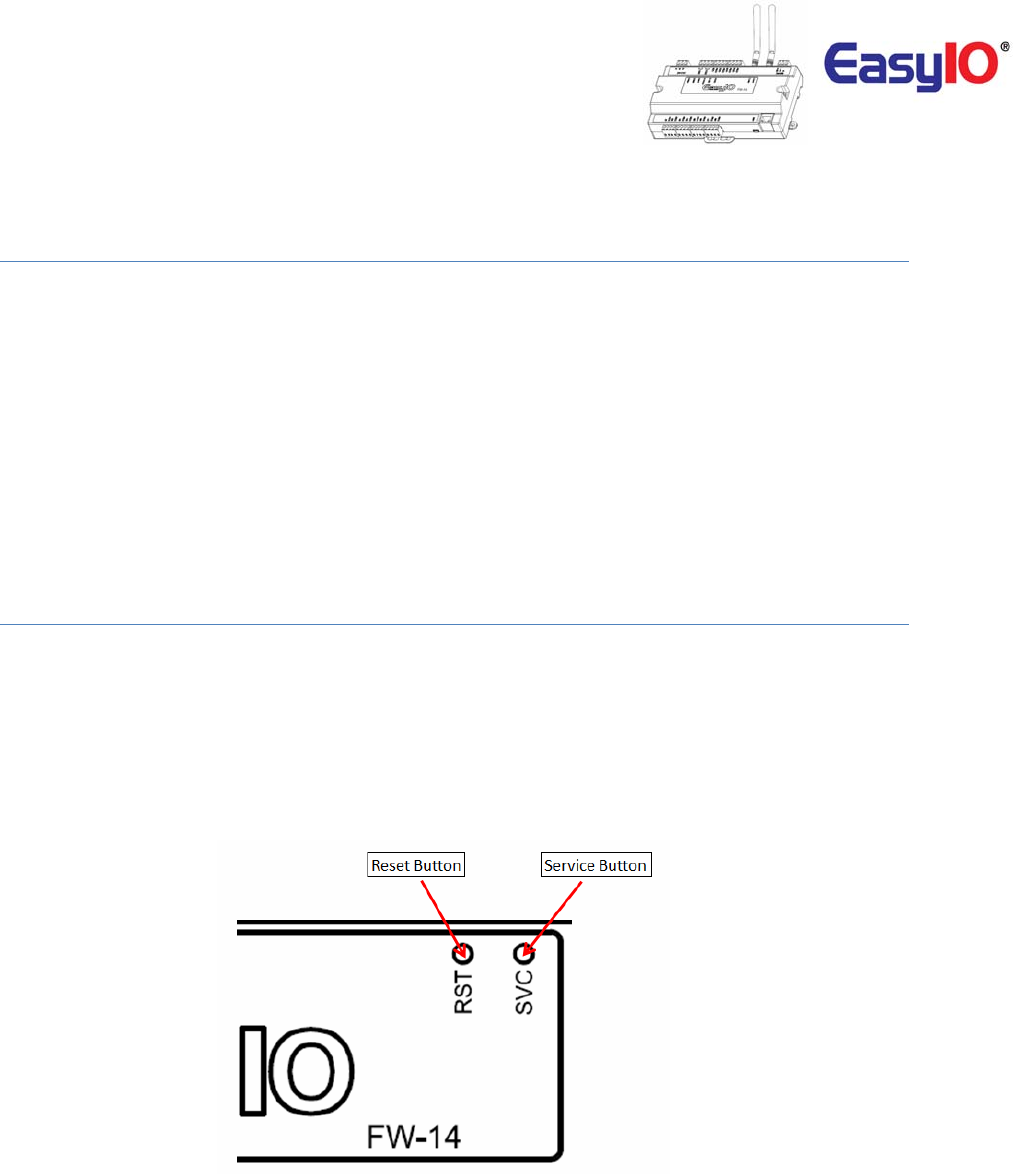

ImageshowstheStatusindicator,ErrorindicatorandindividualDigitalOutputindicator
ButtonandLEDindications.ImageshownisanEasyIOFW14.
LED
Conditions Description
Pattern: continuously blinking.
ERR is to indicate whenever there is
1
ERR
Communication errors.
Pattern: constantly light up.
The controller is undergoing firmware
upgrading. This is normal during firmware
upgrade process.
STS is used to indicate the heartbeat of the
Microcontroller. The STS LED will blink at
2
STS
1-second interval in normal operation
Condition.
TXRX is used to indicate when there are
Communication activities in Port 1.
3
TX/RX
(Transmitting or Receiving) on the
Communication port.
EasyIOFW08VUserReference
16
LoginDetails
EasyIOFW08VSeriesdetailsareasbelow.
DefaultIPaddress
:192.168.10.14
DefaultSubnet
:255.255.255.0
DefaultGateway :192.168.10.1
Note:
Inordertologin,thehostPC(laptop)hastobeinthesamesubnet.Example:
IPaddress:192.168.10.123
Subnet :255.255.255.0
SedonaLoginviaCPT
Username :admin
Password :<nopassword>
EasyIOFW08VUserReference
17
ChangingIPaddress
BydefaulttheEasyIOFW08VseriescontrollerIPaddressis192.168.10.8.
ChangingtheIPaddresscanonlybedoneviaCPTTool.
Step1

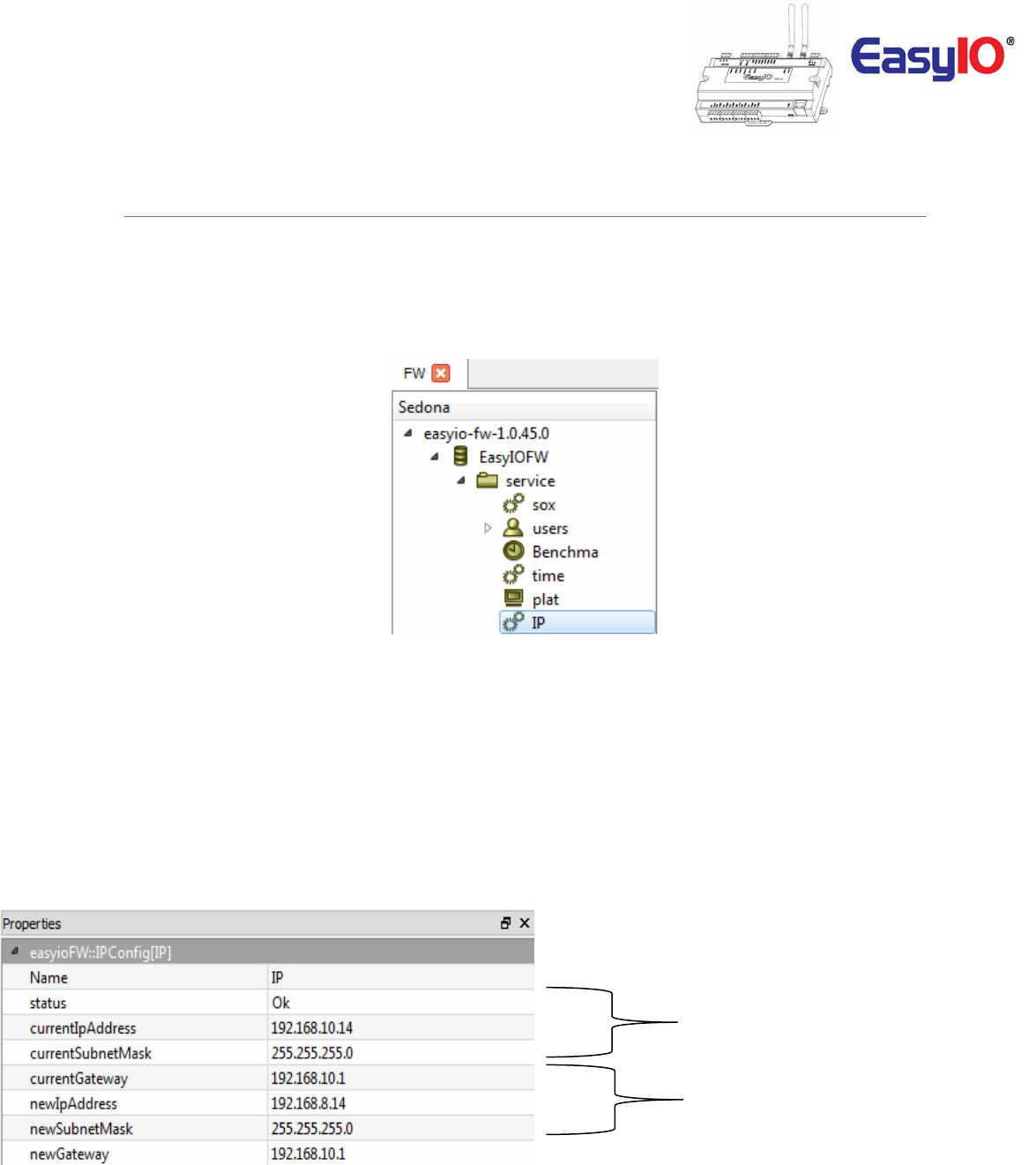

LogintotheFW08VviaSedonaworkbench.Locatetheobject“IP”undertheSedonaservicefolder.
Step2
Gointothepropertysheetofthe“IP”object.
CurrentIPaddressthatis
assigntothecontroller
NewIPaddressfield.Keyin
therequiredIPaddressin
thesefields.MakesuretheIP
addressandsubnetiscorrect
beforesaving
EasyIOFW08VUserReference
18
Step3

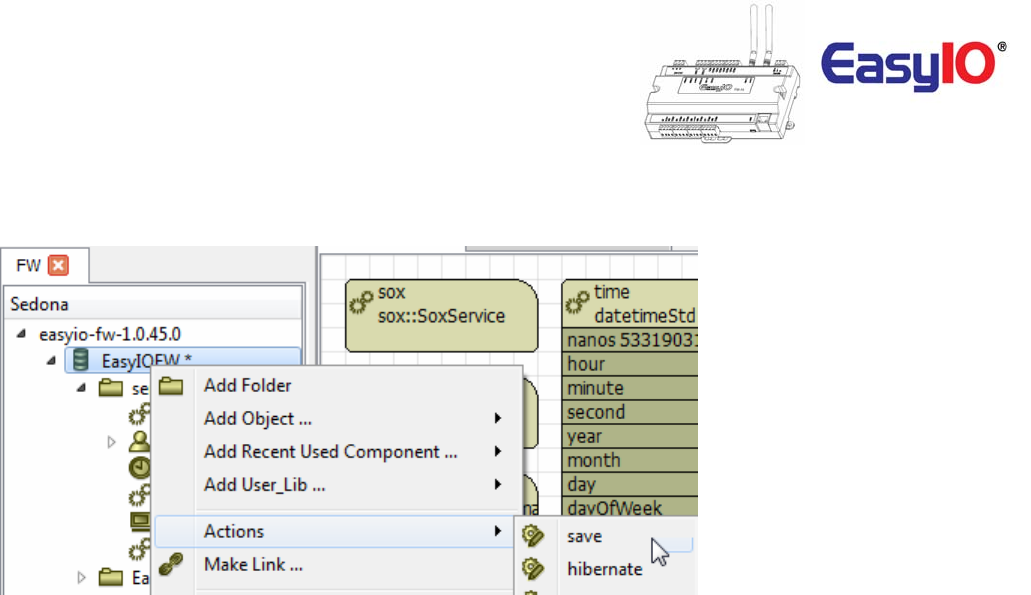

SavetheSedonaappsandcyclepower.
Step4
ReconnecttothecontrollerviaSedonaworkbenchusingthenewconfiguredIPaddress.
EasyIOFW08VUserReference
19
Restorefactorysettings
Thisfunctionisdonewithjustthebypressingthe“Service”buttonwhilethecontrollerisbootingup.
Arestoretofactorysettingswilldothefollowing;
1. RestoretheIPaddresstothedefaultwhichis192.168.10.8
2. CleartheSedonaapplicationintheSedonaVMbacktodefault(defaultappisanemptyapp)
3. AdefaultSedonaappsdefaultloginisadmin,<nopassword>.
Followthestepsbelowtorestoretofactorysettings.
Step1
MakesureyoubackuptheSedonaappsifyouhaveconnectiontotheEasyIOFW08V.
Step2
Cyclepowerandwithin5secondspressandHOLDdowntheservicebuttonuntiltheErrorLEDstartsto
flash.
Thisprocesswilltakeapproximately10secondsbeforetheerrorLedstarttoblink.
Step3
OncetheRedLEDflashes,amomentarypressoftheservicebuttonwillrestorebacktheFW08V
controllerbacktofactorydefaultstate.
EasyIOFW08VUserReference
20
TechnicalSupport
Fortechnicalissue,pleasecontact
Email:support@easyio.com
