MVH3E-E-2.0.1.7

- 2 -

1Central Management

1.1 Installation

Requirement

Hardware condition:

1、Pentium IV series，CPU frequency above 2.0G

2、memory above 2G

3、hard disk >= 120G

4、monitor 1024×768 or above

Software condition:

Windows2000/WindowsXP/Windows2003/Windows Vista/Windows

7，recommendation Windows XP

1.2 Installation steps

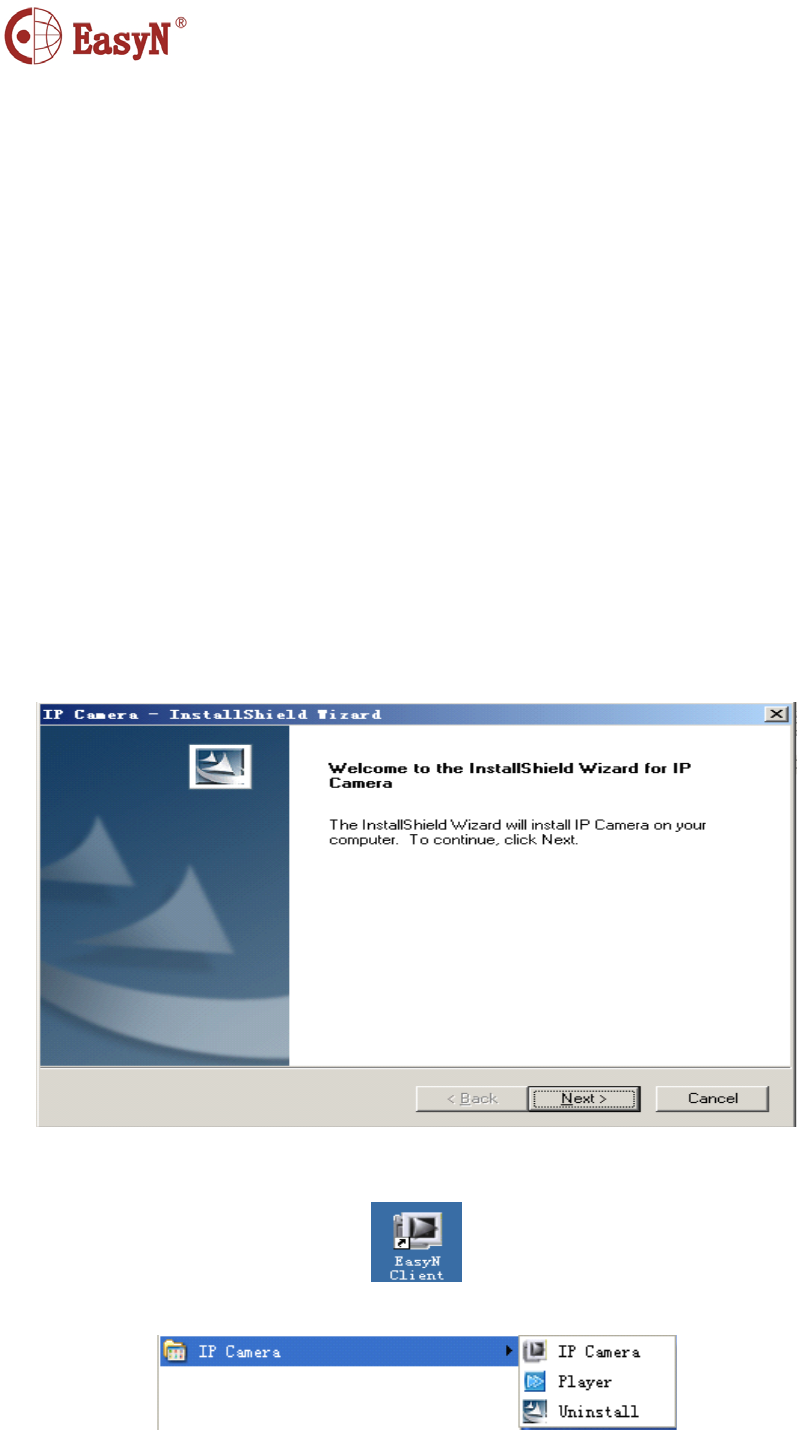

Double click installation package，it pops up as below:

Select path then click “next”.

After installation, it creates an icon on desktop as below:

At program list as below:

MVH3E-E-2.0.1.7

- 3 -

2 Detailed instructions

2.1 Login and Logout

【Login】the default user is admin and no password，click “ok”to access software main interface.

【Logout】only admin authority can logout，user and guest authority can not

It needs to input administrator user and password when logout.

2.2 Software interface

Software interface includes six blocks:

1 system button list 2 label list 3 devices list

4 real-time preview 5 PTZ control 6 alarm info list

◆ system button list:

help button, click to open client use manual

hidden button, click to hide software to system hidden list

exit button, click to pop up logout dialog

◆label list:

LOGO information

MVH3E-E-2.0.1.7

- 4 -

Click to change to preview interface

Click to change to playback interface

Click to change to map operating interface

Click to change to configuration interface

Click to change to log operating interface

Logout or change user

Click to logout

◆Devices list:

【List mode 】 display area, settings and channel from user set

【Group mode 】 display group and channel from user set

【Current screen】 display devices current screen connected, only available on

List mode

◆Real-time preview:

electronic enlarging button，circle an area after click to enable

audio talk button, select the right window then click button to enable,

only support unique device to talk at one time

Listen button, click to enable/disable listen, support multi-listen

Record button, select the right window, click to enable/disable recording

Snapshot button, select the right widow, click button to snapshoot, support to

snapshoot twice in one second

SD card button, select window, click button to open SD card page to see

inside information

Multi-picture button, click to enable multi-picture view

Full screen button, click to full-screen view of real-time-area view

Front group button, click to show the front group view on circleview mode

Next group button, click to show the next group view on circle view mode

Circle view button, single click to enable/disable

MVH3E-E-2.0.1.7

- 5 -

Devices list fold/unfold button, click to fold/unfold

Alarm information list fold/unfold button, click to fold/unfold

2.3 DEVICE MANAGEMENT

2.3.1 Add device

Firstly click “Config” button on label list to access device management page.

2.3 Device management

2.3.1 Add device

Firstly click “Config” button on label list to access device management page.

【Add list】

◆ At first time run, the default list is null, click “Add Area” button, pop

up “Add Area” dialog, and input a name on name blank to add an area

into device list. That is the first area, so there is no belonging area of it,

it means the belonging area is null.

Notice: it can support 128 areas presently

Add area into device list

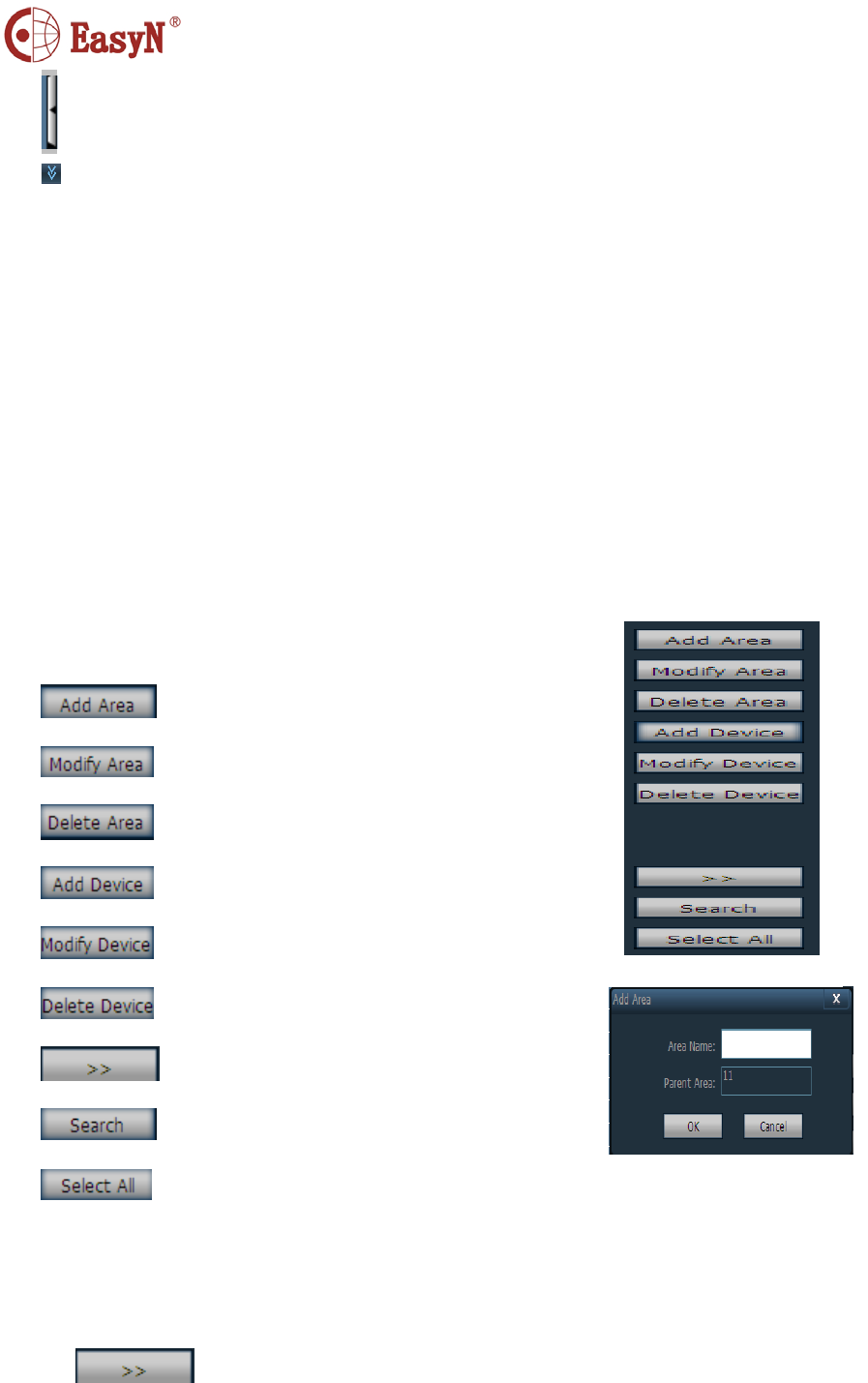

Modify name of selected area

Delete selected area

Add device manually

Click to pop up configuration dialog

Delete selected device

Add searched device into selected area

Click to search devices in LAN

Select all devices in list

【Add device】

◆ Search and add device in LAN:

Click search button, then select device in search list to add, click

button to add device to area.

◆ Add device manually:

MVH3E-E-2.0.1.7

- 6 -

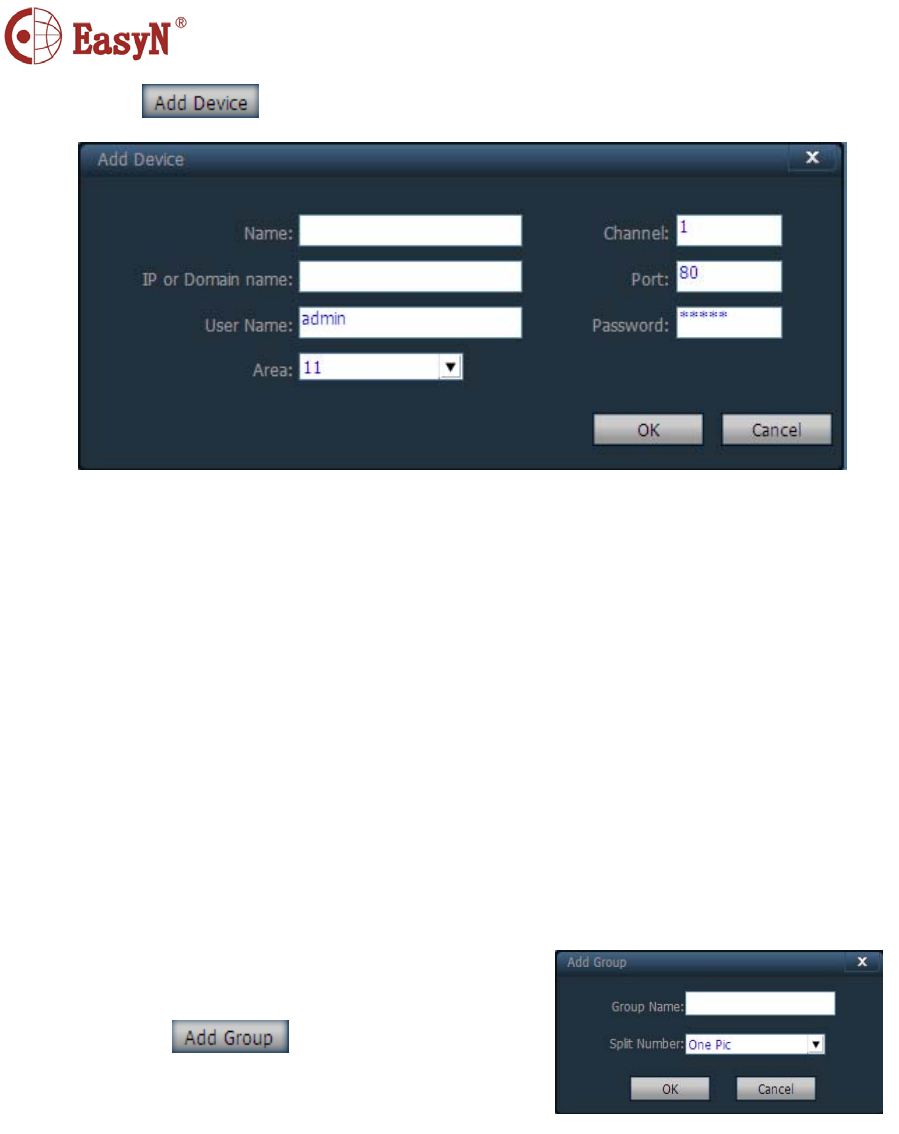

Click button then pop up add device dialog, as below:

【Name】Device name, support custom, length less than 30 byte.

Only display name instead of IP after input name.

【Channel】Support different channel on case that one device has many

channels, presently device only supports one channel.

【IP or Domain name】Device IP or domain name

【Port】Device http port, default is 80

【User name】Device login name, default is admin

【Password】Device login password, default is admin

【Area】Device displaying area

After input all needed information, click OK button to finish ADD

2.3.2 Group management

◆ Add group:

Click button, input group

name into pop-up dialog then click OK

Notice: support 20 groups

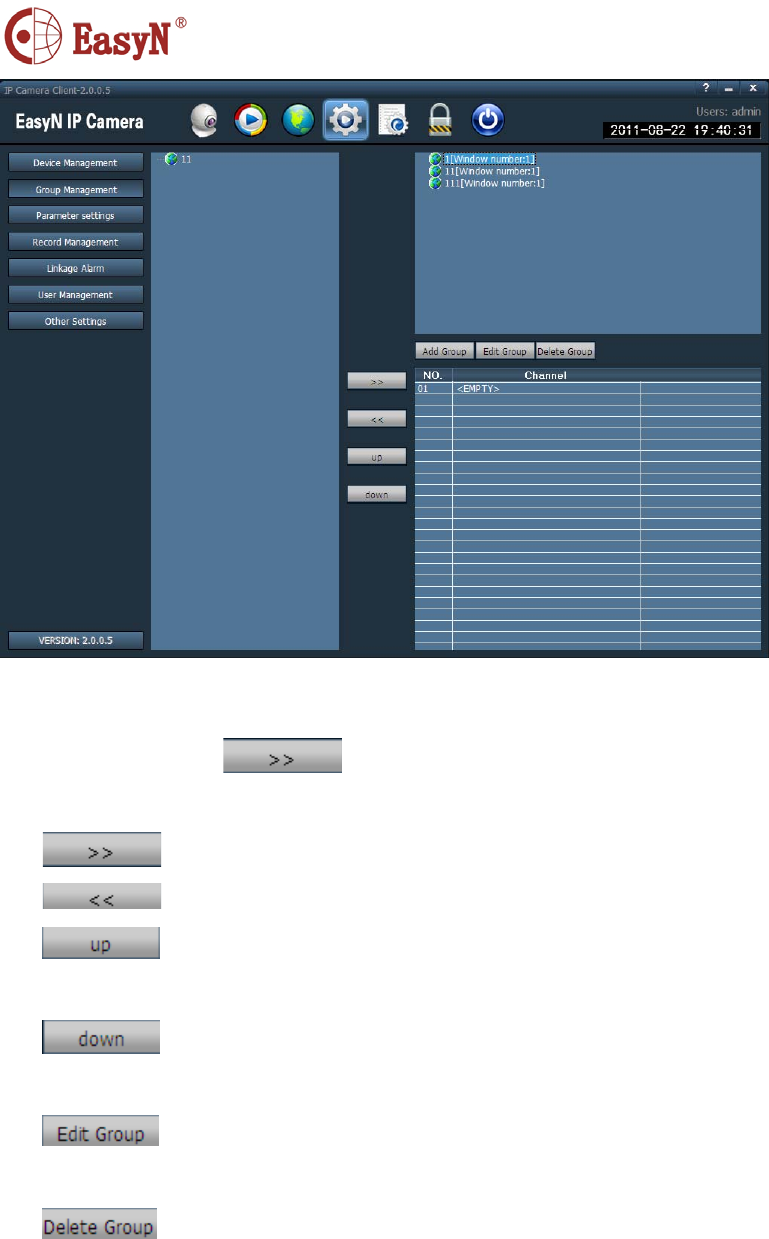

◆ Configure group

MVH3E-E-2.0.1.7

- 7 -

After add groups, configure groups

Configuration: select group, click “+” in front of device IP or name, then select

Channel 01, click button to add device channel to group.

Notice: single group can support 16-picture view

Add device channel to the group

Remove the device channel from the group

Adjust the order to display devices in the group, selected device

exchanges position with the front device

Adjust the order to display devices in the group, selected device

exchanges position with the next device

Modify the group name and numbers of multipicture, clear group

after modifying, need to create new group

Delete group and devices in the group

2.4 Image preview

After device configuration, click “Preview” button to access main interface,

devices list displays as list tree, click “group” or “list” to exchange

information of group or list. Default viewing screen is 4-picutre, max support

16-picutre view.

MVH3E-E-2.0.1.7

- 8 -

2.4.1Non-cycle preview

Click “+” in front of device’s name or IP, then double click Channel 01 or drag

Channel 01 to the window to view video. It displays a blue triangle after

device connected Channel 01, if the display as , it means device does not connect.

And if the display as , it means there is alarming.

Right click on one area, it pops up dialog as:

MVH3E-E-2.0.1.7

- 9 -

：

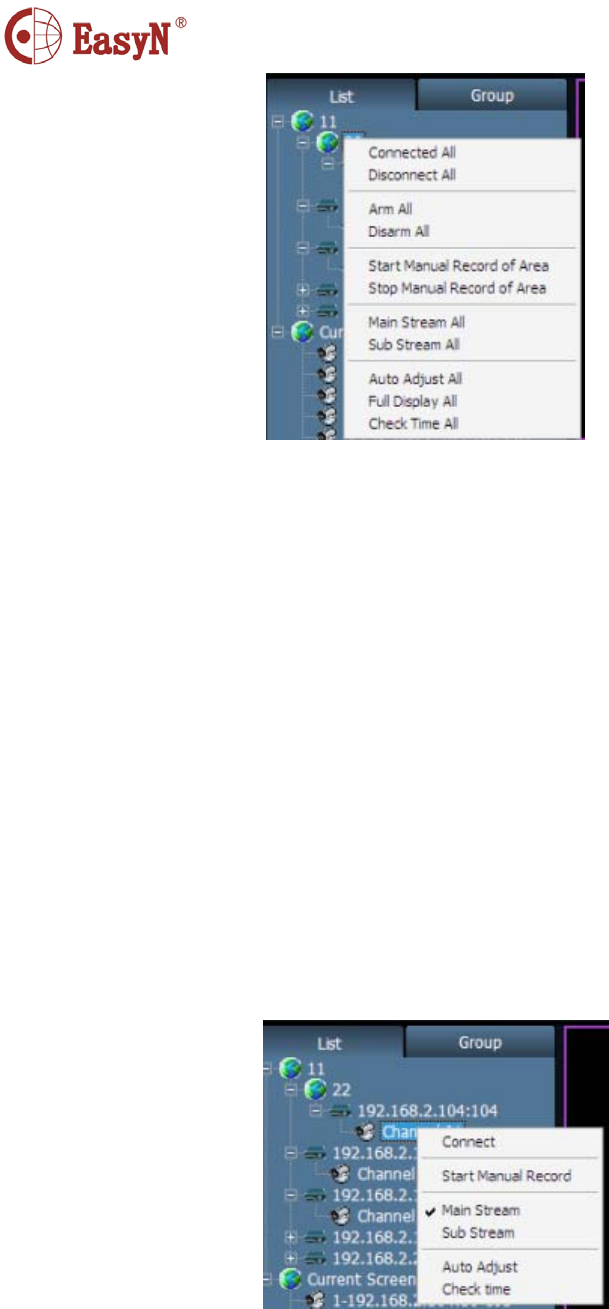

【Connected All】connect device in selected area

【Disconnected All】disconnect device in selected area

【Arm All】devices in selected area arm

【Disarm All】devices in selected area disarm

【Start Manual Record of Area】enable manual record in selected area

【Stop Manual Record of Area】disable manual record in selected area

【Main Stream All】connect device with main stream in selected area

【Sub Stream All】connect device with sub stream in selected areaIf device is in

connection, it should be disconnected then reconnect, then the stream changes to

sub stream, otherwise, it is still in main stream.

【Auto Adjust All】device in selected area auto adjusts view proportion

【Full Display All】device in selected area adjusts image proportion according to

the size of window of multi-picture view.

【Check Time All】device in selected area synchronize time with PC.

Notice: Please double click Channel 01 below device or drag Channel 01 to

window to view video.

Select one device; right click on Channel, pop-up dialog as:

【Connect】connect one channel of selected device, only support Channel 01

presently.

【Start Manual Record】enable manual record for selected channel, label auto

changes into label of disable-manual-record label.

【Main Stream】connect device with main stream, on tick means current selection

is main stream.

MVH3E-E-2.0.1.7

- 10 -

【Sub Stream】connect device with sub stream, on tick means current selection is

sub stream.

【Auto Adjust】selected channel auto adjusts view proportion

【Check Time】selected channel synchronizes time with PC.

Right click on preview window, pop-up dialog as:

【Full Screen】select full screen for software full screen view, double click to

view full screen for single window.

【Auto Adjust】on tick to display according to image proportion, off tick to

display according to window’s size of multi-picture view.

【Photo】snapshoot selected window then save to hard disk, default format is JPG.

【Record】enable manual record for selected window, auto on tick Record

【Stop Display】stop display for selected window

Notice: after stop display, device is still in connection, if device is on recording, it

keep recording after stop display.

2.4.2 Cycle preview

Only support cycle mode to view video on group list mode, it needs to set groups

before enabling cycle mode, details refer to instruction of “Group Management”.

Click enable cycle mode, click again to disable cycle mode.

For cycle mode view, to set cycle time, click “Config” then “Record

Management” to configure cycle time, default value is 5 seconds.

2.5 PTZ control

2.5.1. PTZ control

We can move PTZ to 8 directions through controlling direction buttons, and drag

the slider to change PTZ moving speed, “-” is for slowing, “+” is for accelerating.

MVH3E-E-2.0.1.7

- 11 -

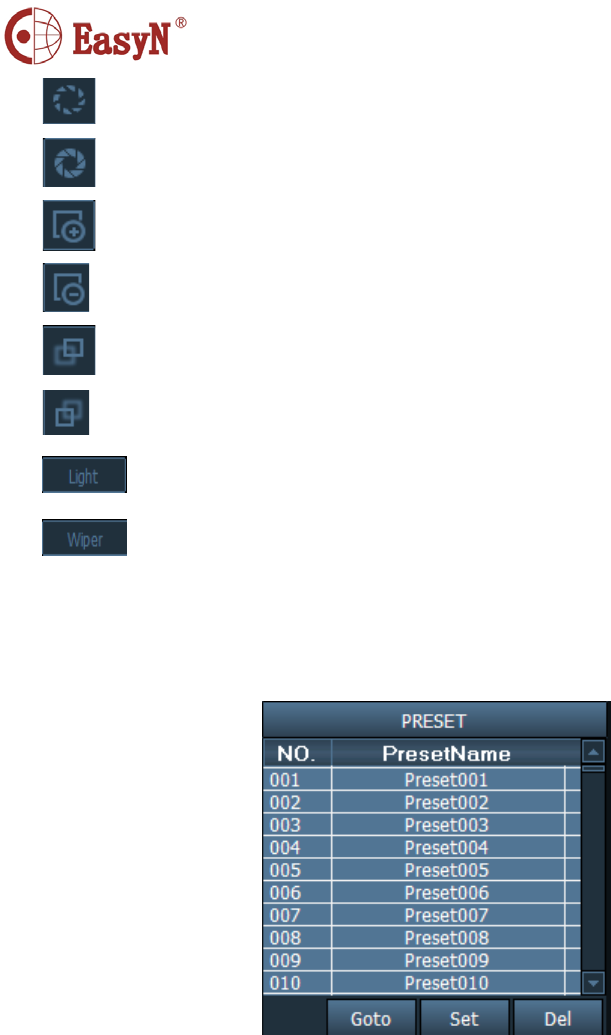

Enlarge aperture, need device hardware support

Narrow aperture, need device hardware support

Enlarge focus, need device hardware support

Narrow focus, need device hardware support

Focus forward adjustment, need device hardware support

Focus back adjustment, need device hardware support

Light button, click to light on/off, need device support

Wiper button, click to wiper on/off, need device support

2.5.2 Preset position configuration

Client software supports 256 preset positions, for actual amount of preset

positions, it depends on camera supported.

【Set preset position】Select window to set preset position, then select preset

position number, click “Set” button.

【Goto preset position】Select window to call preset position, then select preset

position number, click “Goto” button.

【Del preset position】Select window to delete preset position, then select preset

position number, click “Del” button.

2.5.3. Image color configuration

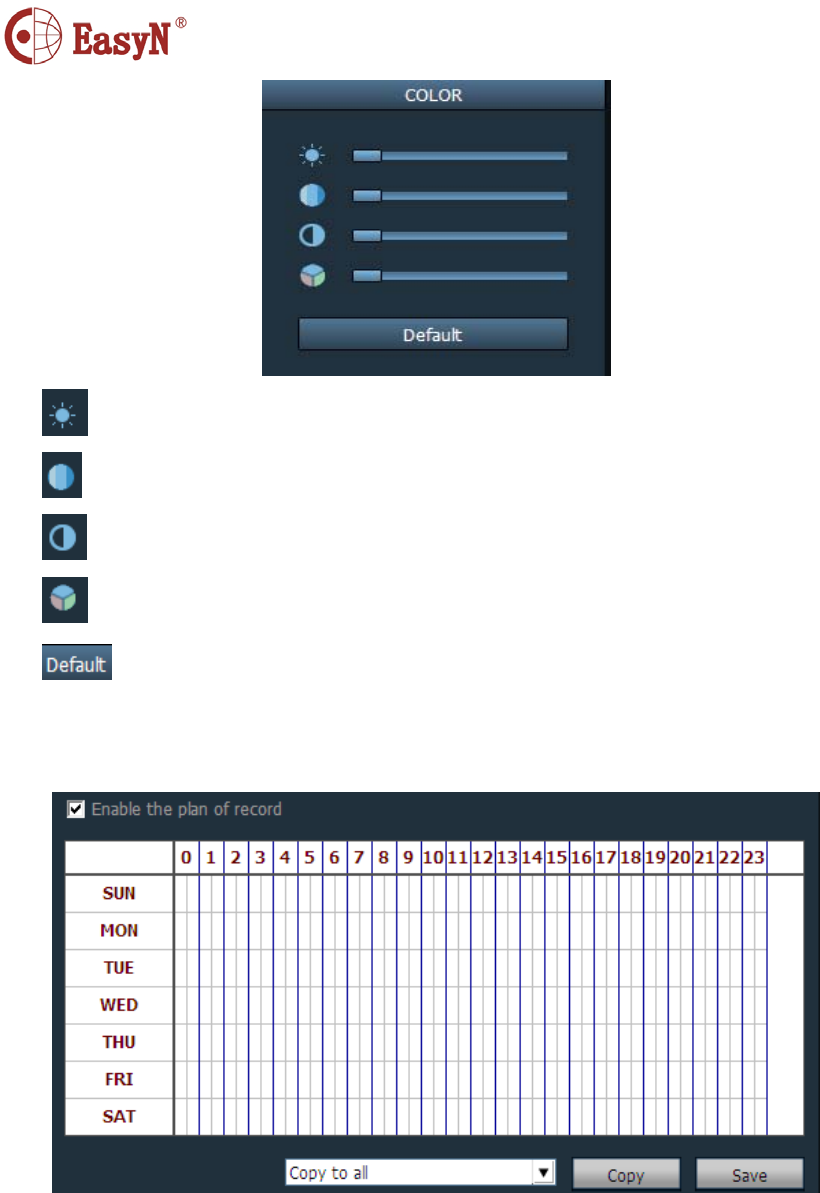

Click “Color” button to access image color adjustment dialog.

MVH3E-E-2.0.1.7

- 12 -

Adjust image brightness

Adjust image white balance

Adjust image contract

Adjust image color

Recover to factory set color

2.6 Video management

2.6.1. Plan of record

Click “Config”, then “Record Management”, then tick “Enable the plan of

record”, picture as above:

【enable plan record】Select channel to record, then left click to drag out a green

box(the box range is the time to record). Click “Save” to finish.

【disable plan record】Untick “Enable the plan of record”, then click “Save”. Or

cancel the green box then click “Save”. Left click on green box then

drag mouse to cancel.

Notice: if to set same plan to all devices, click “Copy” then “Save” after set up

one device, then all devices enabling plan.

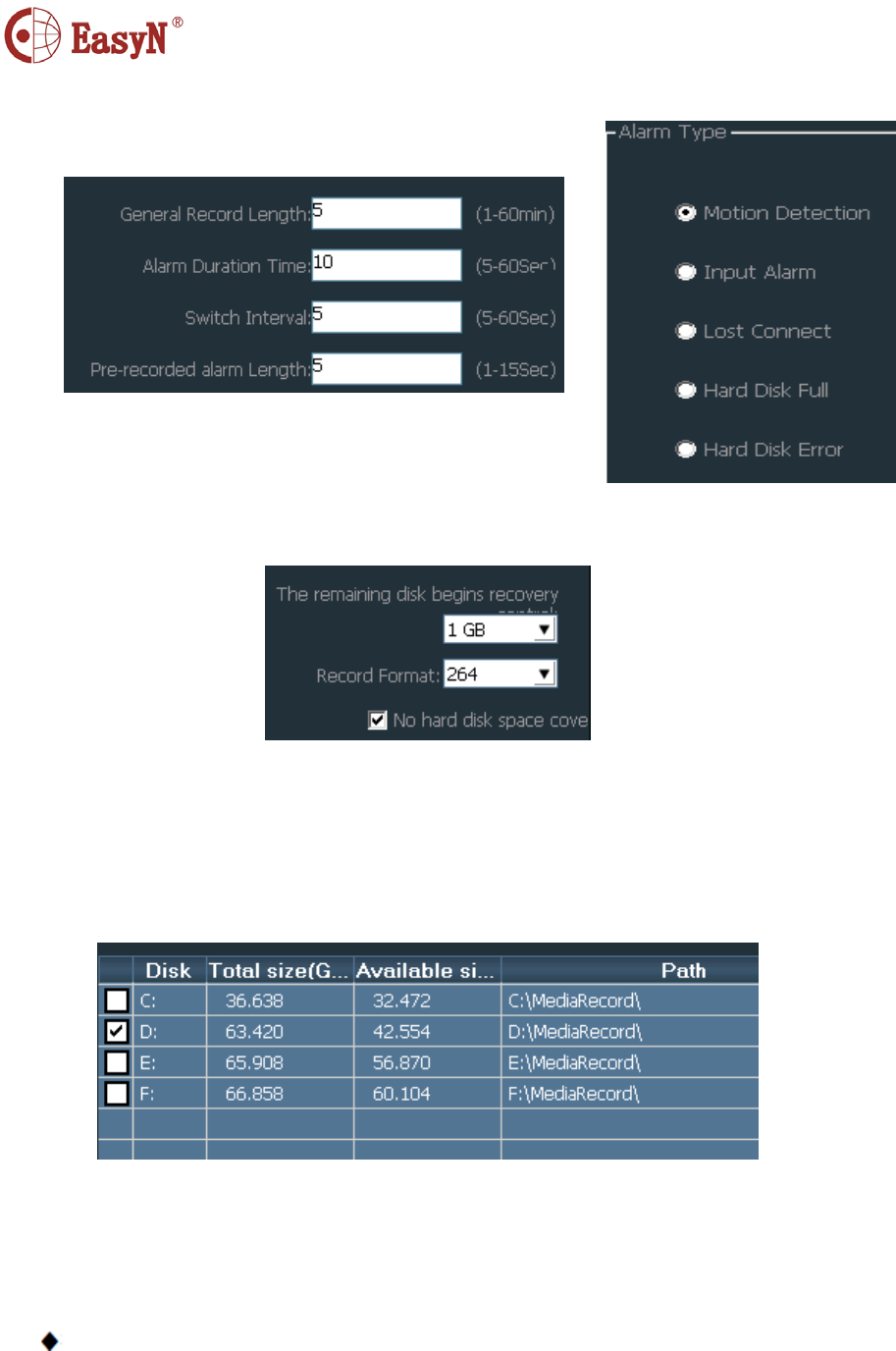

【General Record Length】Single record file’s size, the factory set is 5-min size,

MVH3E-E-2.0.1.7

- 13 -

single record file’s size can be 1-60 minutes. To modify size in

General Record Length blank then click

Save.

【Recovery of remaining disk】The selecting range is

1-10G, when space is less than selected

range, it should save record to another disk or cover the former

records.

【Record format】It can support 264 and AVI formats, and for 264 format, only

can play with factory player.

【Cover disk after fulfill】Tick to enable deleting the most former record when all

disks space are less than selected recovery space. If no tick,

recording stops when all spaces are less then selected recovery

space.

【Record Save Path】Software auto detects and lists on tablet after set-up. The

default path is D:\.

Note: Software can support 20 pieces of disk partitions.

2.6.2. Alarm Record

Alarm Type:

【Motion Detection】Alarm on motion detection

【Input Alarm】Alarm on external input signal

【Lost Connect】Alarm on lost connection

【Hard Disk Full】Alarm on hard disk is full

MVH3E-E-2.0.1.7

- 14 -

【Hard Disk Error】Alarm on hard disk error

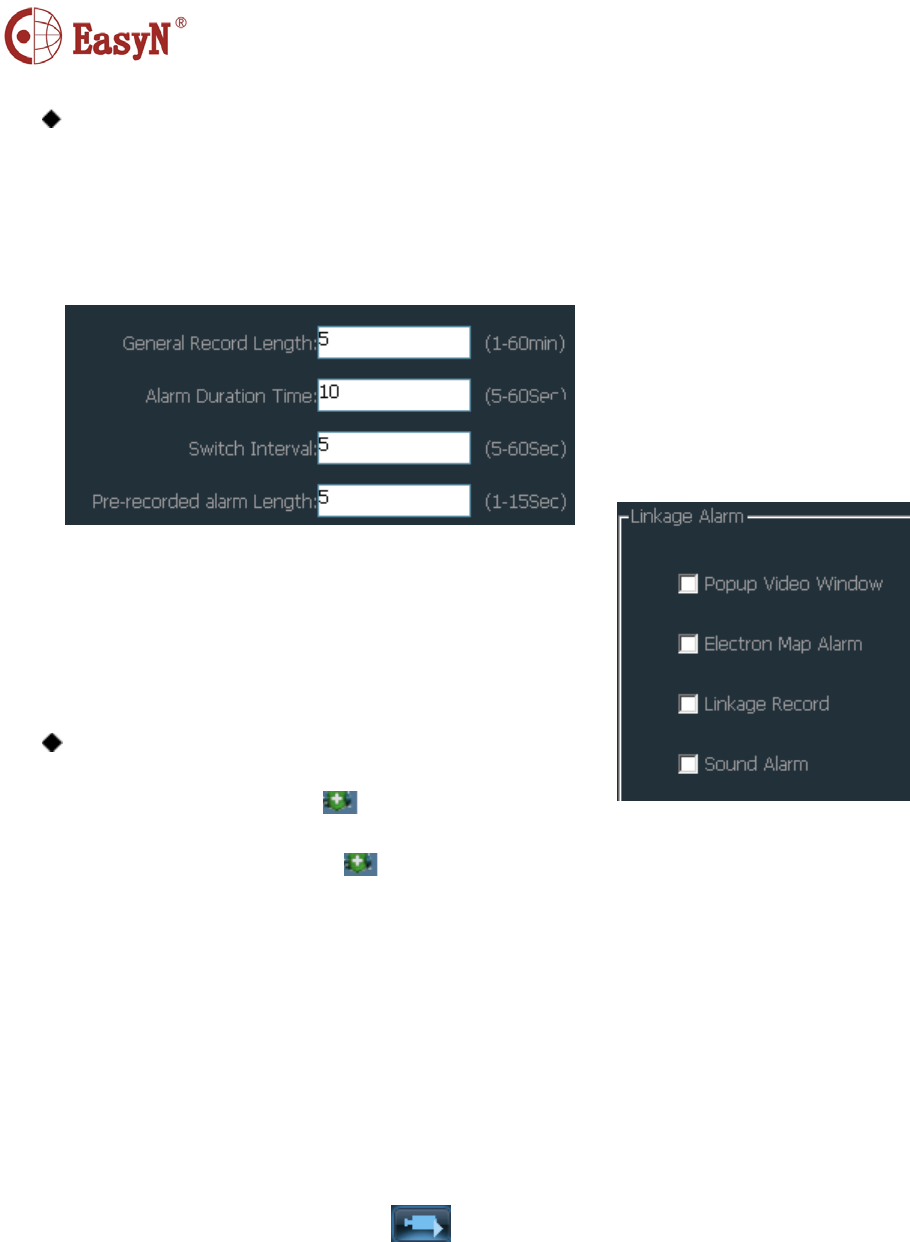

Linkage Alarm:

【Popup Video Window】Tick for popping up windows on alarm

【Electron Map Alarm】Tick for flashing on electron map on alarm

【Linkage Record】Tick for recording to local disk on alarm

【Sound Alarm】Tick for displaying sound on alarm

【Alarm Duration Time】Alarm duration time, default is

10 seconds, selecting range is 5-60

seconds.

【Pre-recorded alarm Length】Pre-recording’s length on

alarm, default is 5 seconds, selecting range

is 1-15 seconds.

Arm and Disarm

【Arm】Press “Preview”, select area or device for arming,

after arming it will display logo in front of device

IP or name.

【Disarm】After disarm, logo disappears.

Note: 1. Linkage alarm only is available on arm condition, if device disarms,

linkage alarm is not available.

2. If new alarm happens on alarm, the alarming time should extend.

3. Motion detection and input alarm can linkage popup video window;

electron map alarm, linkage record and sound alarm, others only support

sound alarm.

2.6.3. Manually Record

Select monitoring windows, click button or right click on windows to

select to record, for recording time and path, referring to schedule record.

Record priority:

1. If enable schedule record and alarm record at the same time, it triggers alarm

in schedule alarm, system should stop schedule alarm and runs alarm linkage

record.

2. If enable schedule record and alarm record at the same time, then enable

manually recording when alarm linkage record happens, system should stop

schedule record and alarm record, and run manually recording.

MVH3E-E-2.0.1.7

- 15 -

2.7 Playback.

2.7.1. Playback by searching time

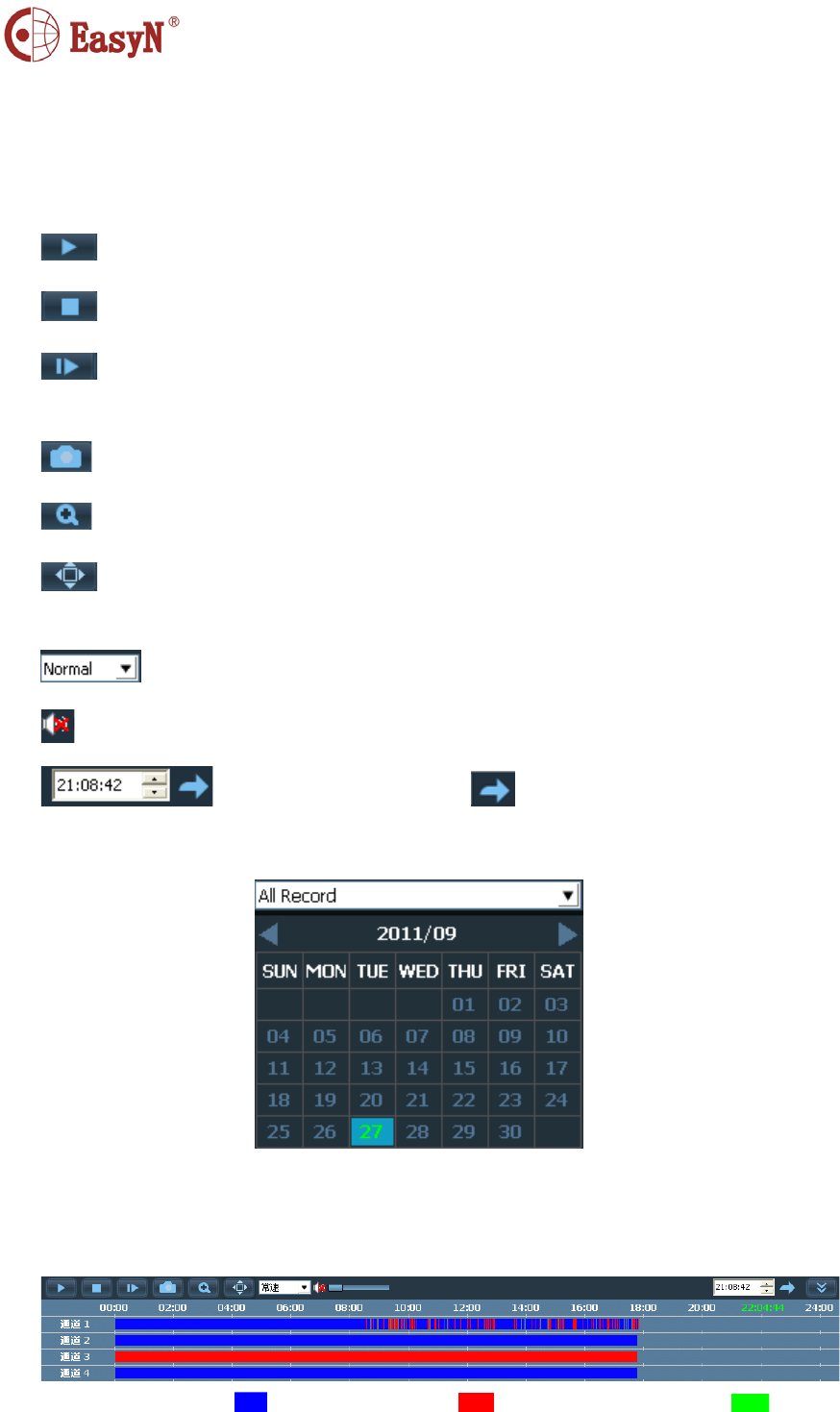

Play button; press this button for playing record

Pause button; press this button for pause

Single frame play; press this button for single frame play, one click one

frame picture

Snapshot button; select windows then press this button for snapshot

Enlarge button; press this button then select area for enlarging on windows

Full screen button; press this button for full screen show, double click on

single windows for one windows full screen

Drop down options for selecting playing speed, default is normal

Sound button; click to sound on/off, default is closed

Input time point then click to go to selected time to start

playing

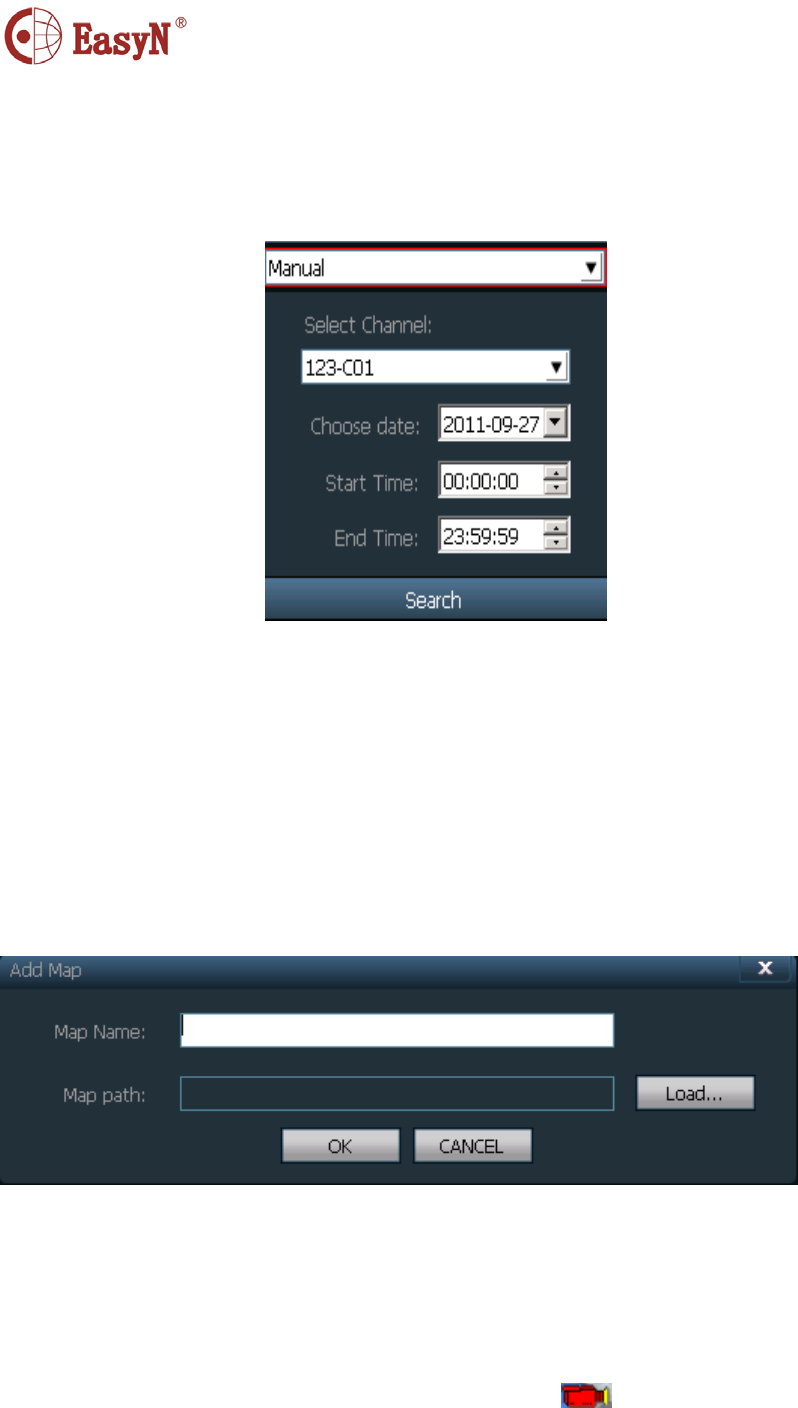

【Record search】

Step 1: define file type and searching time

Step 2: select windows to playback, then select device channel on list tree

Step 3: if there is record file matching to searching condition, the file should

display on timeline forum, then double click on channel to playback

Schedule record: alarm record: manually record:

Note: move the mouse on timeline, it will display time point of current position,

MVH3E-E-2.0.1.7

- 16 -

click to view the video; right click on timeline, the display length should

turn into 2-hour from 24-hour, it means the time point extending

2.7.2Searching-file Playback

Step 1: select file type and device channel

Step 2: select searching time then click “Search”, the eligible files should list on

device tree

Step 3: select playback windows then double click record file to view video, it

can support one video displaying on four windows at the same time

2.8 Electron map

2.8.1 add map

Step 1: click “Add Map” or right click to select “Add a new map”

Step 2: input map name in dialog “Map Name”, then load map

Step 3: click “OK” to add map to software

2.8.2 Edit Map

After added map, then go to edit map

Step 1: click “Edit Map” on map, or right click to select edit map

Step 2: drag device channel to map, then it displays , double click on it to

view image

Step 3: after edit, click “Stop Editing”

It needs to enable “Electron alarm map” of alarm linkage for logo flashing

MVH3E-E-2.0.1.7

- 17 -

2.8.3 Delete Map

Select map name then click “Delete Map” to cancel map

2.9 Parameters configuration

To connect device for configuration on parameters configuration page (double

click device channel, the image should display on right side image frame).

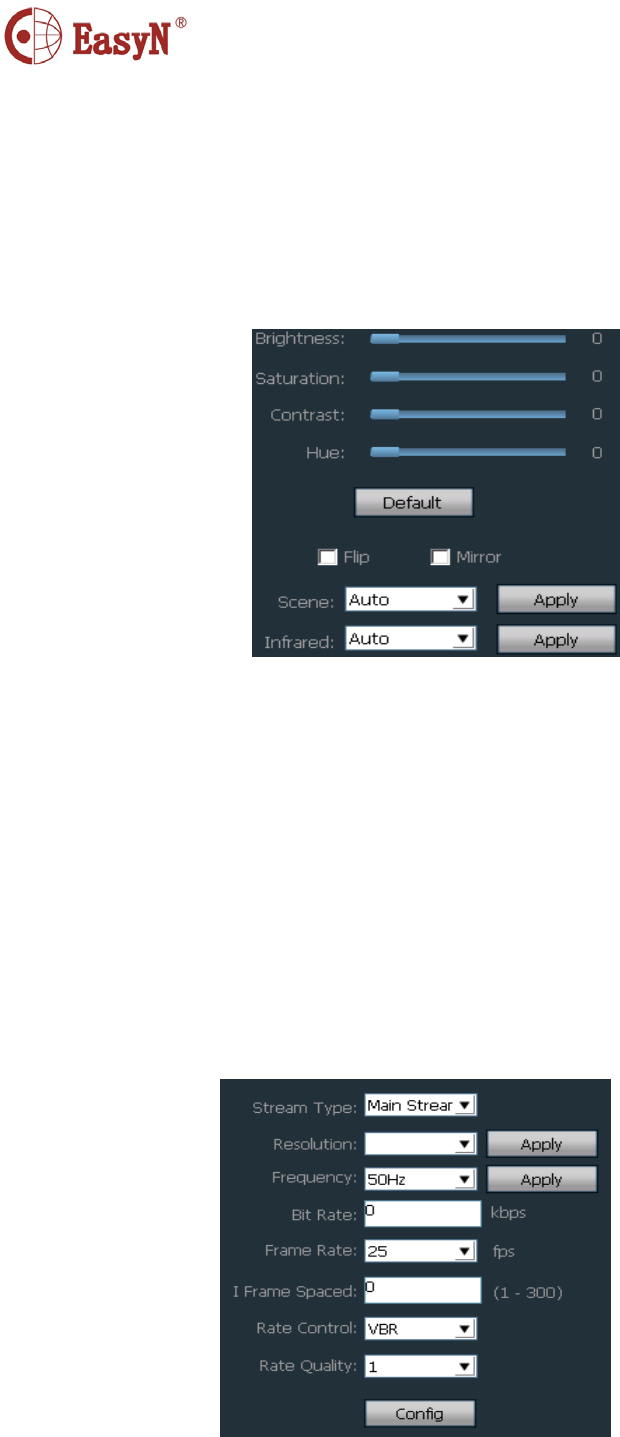

2.9.1Color

【Brightness】drag slider to select best brightness

【Saturation】drag slider to select best saturation

【Contrast】drag slider to select best contrast

【Hue】drag slider to select best color

【Default】click to load default value

【Flip】tick for image turnover(need device support)

【Mirror】tick for mirror image(need device support)

【Scene】white balance: support auto, indoor, outdoor. Default is auto(need

device support)

【Infrared】night vision: support auto switch, manually switch. Default is auto

(need device support)

Note: it can not configure if device does not support that function.

2.9.2Video

【Stream Type】support main stream and second stream

【Resolution】different resolution for different model

MVH3E-E-2.0.1.7

- 18 -

【Frequency】support 50Hz and 60Hz, default is 50Hz

【Bit Rate】different bit rate for different model

【Frame Spaced】N standard or 60Hz device has range 1-30fps, P standard or

50Hz device has range 1-25fps

【I Frame Spaced】the interval of two I frame of image

【Rate Control】support VBR and CBR

【Rate Quality】support 6 levels, lower level with better quality

2.9.3Audio

【Stream Type】support main stream and second stream

【Audio Capture】ON or OFF

【Audio Type】G727, G711 and AMR

【Input Mode】MIC or Line In

2.9.4OSD

【Camera Name】tick to enable adding name on image

【Time OSD】tick to enable adding time on image

【OSD Name】input OSD name then click Apply button, it can support 18 bit

2.9.5Network

To configure network parameters on current condition, the software only displays

network parameters of current device, despite it is manually configured or DHCP.

MVH3E-E-2.0.1.7

- 19 -

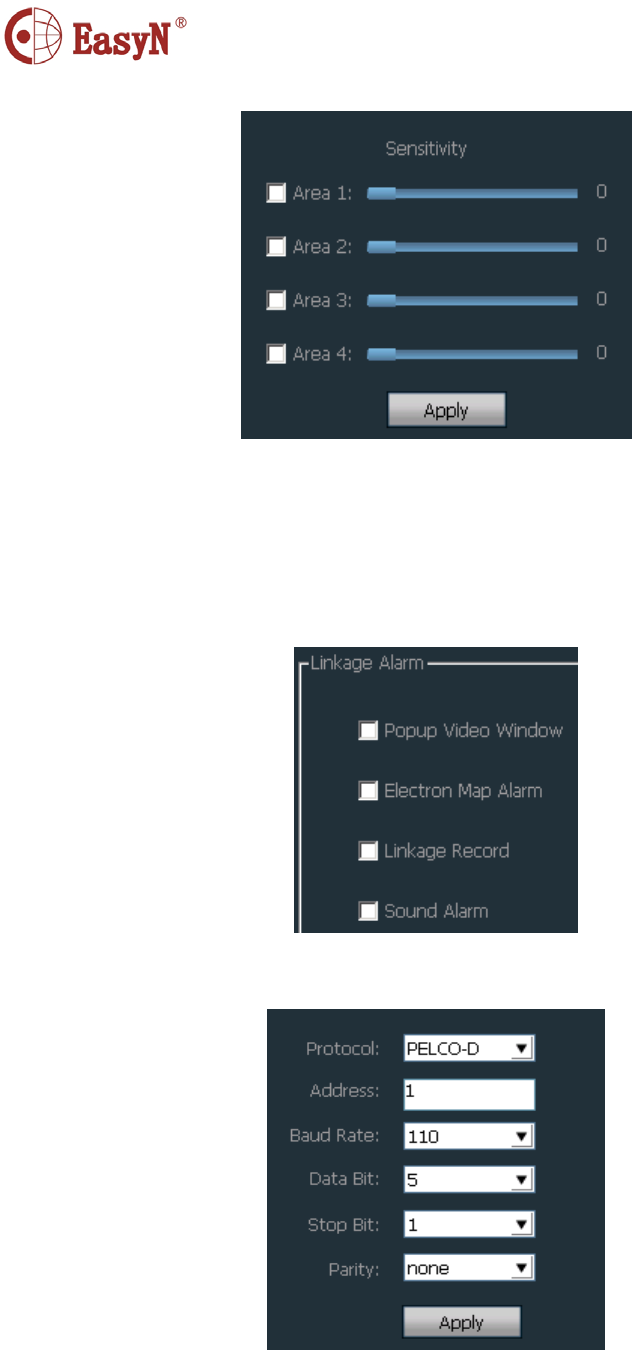

2.9.6Motion Detection

Configure motion detection:

Step 1: tick area, then it display a green dialog on left image

Step 2: drag the green dialog to position wanted, and configure its size

Step 3: configure sensitivity of alarm area detection. Sensitivity range: 0-75,

default is 35, the greater the value, the more sensitive, and vice versa.

Step 4: click “Linkage Alarm” to select alarm type

Step 5: enable arm function for device, otherwise it can not support alarm linkage

2.9.7PTZ

For ptz control, it should be fulfill with right parameters, different ptz has

different protocol, protocol code and baud rate.

2.9.8System

MVH3E-E-2.0.1.7

- 20 -

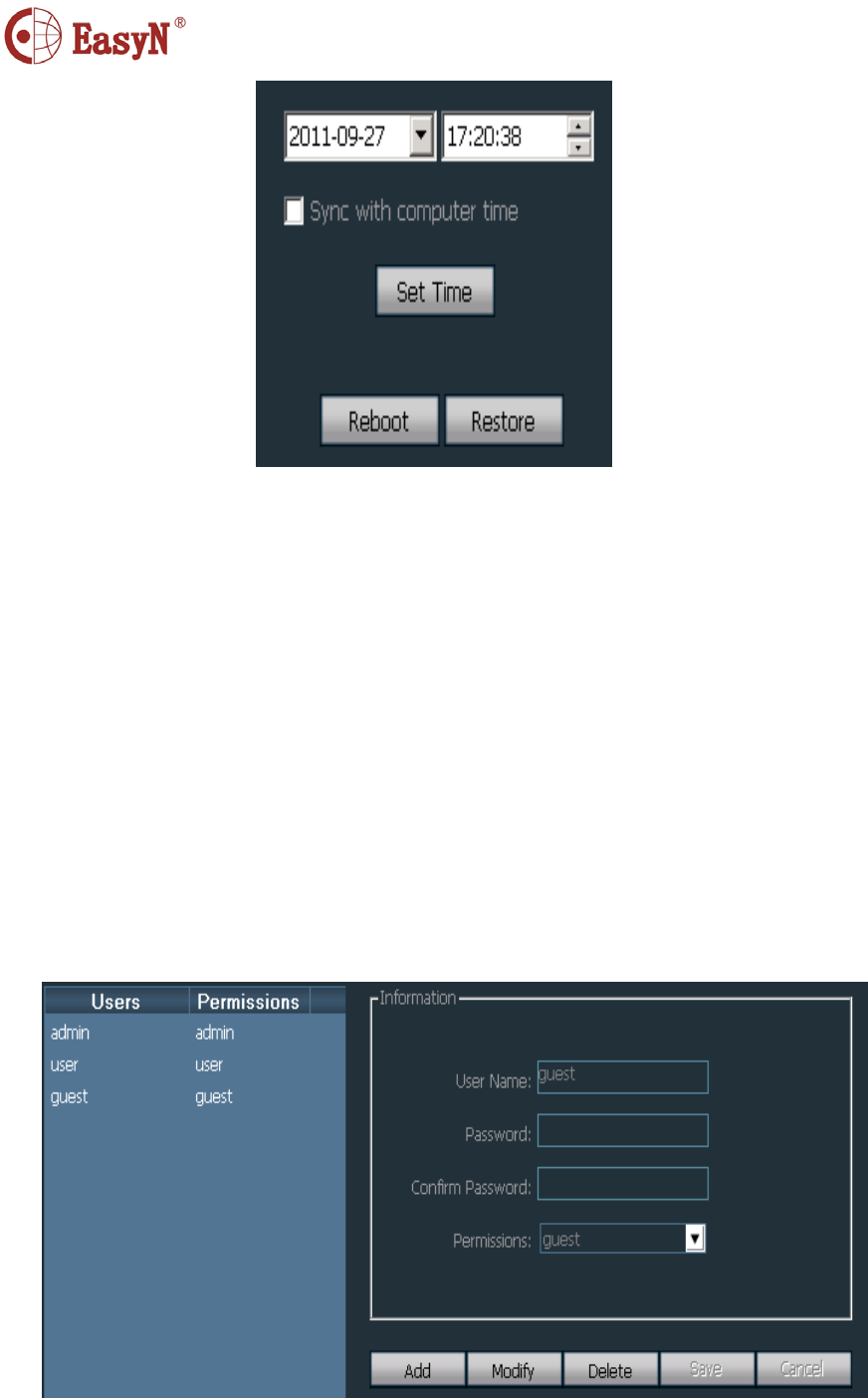

After select time, click “Set Time” to modify time of device

【Sync with computer time】tick then click “Set Time” to enable

【Reboot】click to reboot

【Restore】click to restore factory settings, after restore, need to reboot to

reconfigure network parameters of device for reconnection

2.10 User management

Factory set administrator name is admin, no password. Login with administrator

then add, delete and configure user authority. User authority includes three levels:

admin, user and guest.

“admin” authority: administrator, enable to manage device, manage user, view

video, playback video, configure map, inquire log, and exchange user and exit

software

“user” authority: enable to view video, playback video, configure map, inquire

log, exchange user and modify password

“guest” authority: enable to view video, exchange user and modify password

2.10.1 Add User

Step 1: login with admin then click “Config” then “User Management”

MVH3E-E-2.0.1.7

- 21 -

Step 2: click “Add” button, input name and password then select permission

Step 3: click “Save” button to finish

2.10.2 Delete User

Step 1: login with admin then click “Config” then “User Management”

Step 2: select user then click “Delete” button

2.10.3 Modify User Authority

Step 1: login with admin then click “Config” then “User Management”

Step 2: select user then click “Modify”

Step 3: select permission then click “Save”

2.10.4 Modify User Password

Step 1: click “Config” then “User Management”

Step 2: select user then click “Modify”

Step 3: input new password then click “Save

2.11 Log

Log Type:

【All logs】record all information of system

【System log】record information of user login, logout and user configuration,

etc.

【Operation log】record user operations

【Alarm log】record device alarm information

2.11.1 Log Retention Time

Step 1: click “Config” then “Other Settings”

Step 2: select retention time for log, it supports 1, 2, 3 or 6 months, then click

“Save” button

2.11.2 Inquire Log

Step 1: select log type and sub-log type

Step 2: select device for inquire log, default is “All Devices”

Step 3: select start time and end time then click “Search”

2.11.3 Log Backup

Step 1: select log type and sub-log type

MVH3E-E-2.0.1.7

- 22 -

Step 2: select device to inquire, default is “All Devices”

Step 3: select start time and end time then click “Search”

Step 4: click “Export” then select backup path

Note: 1. It should search log before backup

2. Exported log is with Excel format

3. Each Excel table only saves 5000 pieces of logs, extras will be saved as

another Excel table, and so on

2.12 Other settings

【Multi-screen】one computer host can support three monitors at the same time

【Time verify】tick and configure time, software verify time to all devices at

appointed time to match time on PC

【Snapshot format】format of snapshot, support JPG and BMP

【Snapshot save path】the save path of snapshot

【Save】click “Save” button to enable configuration

【Exchange User】click “Logout”, after that, click on other page to re-login

FCC Warning Statement

Changesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovide

reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This

equipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalled

andusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurina

particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor

MVH3E-E-2.0.1.7

- 23 -

televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,the

userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowing

measures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe

receiverisconnected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCCRadiationExposureStatement

Theantennasusedforthistransmittermustbeinstalledtoprovideaseparation

distanceofatleast20cmfromallpersonsandmustbeco‐locatedforoperatingin

conjunctionwithanyotherantennaortransmitter.

EasyN Technology PSD137 IP Camera User Manual MVH3E E 2 0 1 7

Shenzhen EasyN Technology Co.,Ltd IP Camera MVH3E E 2 0 1 7

User manual

Navigation menu

Namespaces

Views

Navigation
