March 2008

CA04801001E For more information visit:

www.eaton.com

Contents

Operator Interface Products 1

Operator Interface

Products

Description Page

ELC Graphics Panels

Graphics Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operator Interface

Operator Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Software and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PanelMate

Operator Interface

Product Family Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ePro PS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stand-Alone Touchscreen Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Pro LT 1100, 1700, 3000 and 5000 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PC Pro Runtime Hardware Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Connectivity: Utilities, Interfaces & Cables . . . . . . . . . . . . . . . . . . . . . . . . . .

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Legacy Products Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Note:

Supplement to Publication No. CA8102001E — Tab 48.

PanelMate and HMi Operator Interface

March 2008

For more information visit:

www.eaton.com

CA04801001E

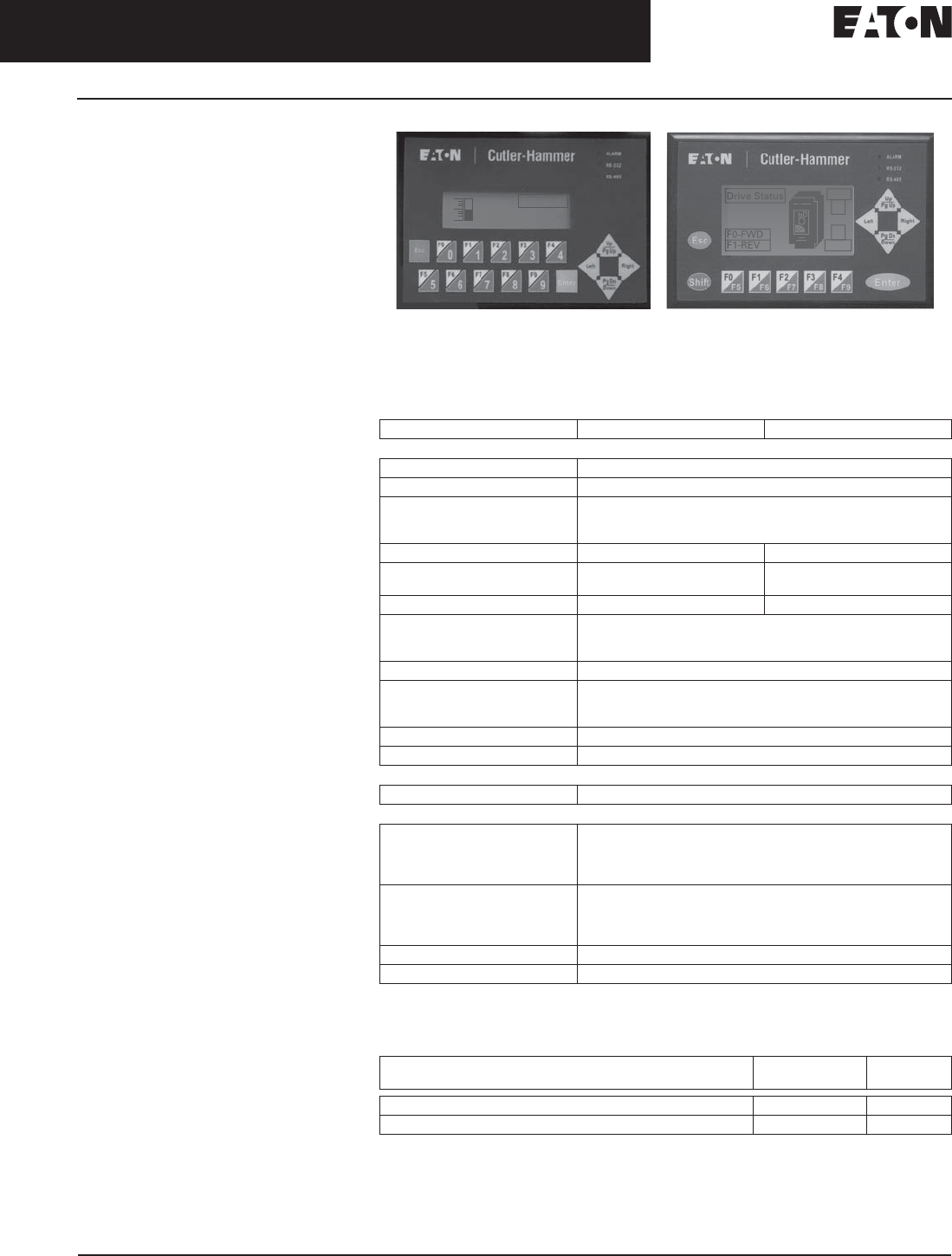

Operator Interface Products

ELC Graphics Panels

Graphics Panels

ELC Graphics Panels

Product Description

ELC Graphics Panels are simple to

program and easily connect to ELC

products. ELC graphics panels make

modifying an application quick and easy

and also connect to Cutler-Hammer

MVX drives, IQ MODBUS meters and

many other devices. With over 30

objects that can be placed anywhere

on the display, these tough panels

also communicate to other major

controllers. These graphics panels

have two serial ports which can be

used simultaneously to communicate.

Transfer applications to or from these

graphics panels using the handy

transfer module. Ten programmable

functions keys provide easy to change

pages, input numeric values, enter

alpha-numeric passwords, set, reset

and more. Create alarms, password

protect, import bitmaps, and use many

different fonts.

Protocols Supported

■

Eaton D50/D32LT, D320

■

Eaton ELC

■

Eaton MVX ASCII

■

Eaton MVX RTU

■

MODBUS ASCII

■

MODBUS RTU

■

AB DF1

■

Mitsubishi FX Series

■

Mitsubishi FX2N Series

■

Koyo K-Sequence

■

LG 200S

■

OMRON C-Series

■

Siemens 57-200 Series

■

ASCII Slave Mode

■

And more...

Features

Table 1. ELC Graphics Panel Features

Product Selection

Table 2. Graphics Panels

Item ELC-GP02 ELC-GP04

Display Screen

Screen STN-LCD

Color Monochromatic

Back-light The back-light automatic turn off time is 1 – 99 minutes

(0 = do not to turn off)

(back-light life is 50 thousand hours at 25°C)

Resolution 160X32 pixels 128X64 pixels

Display Range 72 mm (W) X 22 mm (H) 67mm (W) X 32mm (H);

3.00" (diagonal preferred)

Contrast Adjustment 15-step contrast adjustment 10-step contrast adjustment

Language Font ASCII: characters (including European Fonts)

Taiwan: (BIG 5 code) traditional Chinese character font

China: (GB2324-80 code) simpliﬁed Chinese character font

Font Size (ASCII) 5 X 8, 8 X 8, 8 X 12, 8 X 16

ALARM Indication LED 1. Power on indication (Flash three times)

2. Flash for communication error or other alarm

3. Special Indication by user programming

RS-232 LED (Yellow) Flashes when communicating

RS-485 LED (Green) Flashes when communicating

Program Memory

Program Memory 256KB ﬂash memory

External Interface

Serial Communication Port

RS-232 (COM1)

9 PIN D-SUB male

Data length: 7 or 8 bits

Stop bits: 1 or 2 bits

Parity: None/Odd/Even

Baud Rate: 4800 bps – 115200 bps

Extension Communication port

RS-485 (COM2)

5-Pin Removal Terminal

(RS-485 or RS-422)

Data length: 7 or 8 bits

Stop bits: 1 or 2 bits

Parity: None/Odd/Even

Baud Rate: 4800 bps – 115200 bps

Extension Slot The slot for program copy card

Power 24V DC input

Description Catalog

Number

Price

U.S. $

160 x 32 pixels, 10 Function Keys, Monochrome

ELC-GP02

220.

128 x 64 pixels, 10 Function Keys, Monochrome

ELC-GP04

330.

RUN

STOP

ELC-GP04

No Alarms

Tank Fill Level

100

ELC-GP02

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . .

2CD-5

CA04801001E For more information visit:

www.eaton.com

Operator Interface Products

March 2008

ELC Graphics Panels

Graphics Panels

Standards and Certiﬁcations

Table 3. Approvals/Certiﬁcations

Technical Data and Speciﬁcations

Table 4. Environmental Ratings/Speciﬁcations

Description Speciﬁcations

Electrical/EMC

Electrostatic Discharge Immunity EN61000-4-2/1995

Radiated Immunity EN61000-4-3/1995

Electrical Fast Transient EN61000-4-4/1995

Radiated Emission CISPR22, Class A

Other Approvals

Waterproof Class of Front Panel UL Type 4X Outdoor Rated

Agency Certiﬁcations UL 508, cUL (CSA C22.2 No. 14); CE (Low Voltage Directive);

Class 1 Div 2 Groups A, B, C, D

Description Speciﬁcation

Transportation & Storage

Temperature -4° – 140°F (-20° – 60°C)

Operating

Temperature 32° – 122°F (0° – 50°C)

Humidity 20 – 90% RH (non-condensing)

Communication Interface COM1: RS-232; COM2: RS-485/RS-422

Vibration 0.5 mm displacement, 10 – 55 Hz, X, Y, Z three directions and

two hours for each direction

Impact 10G, 11 mS, from X, Y, Z three directions and three times for

each direction

Weight 0.53 Lbs. (0.24 kg)

Cooling Method Natural Air Cooling

March 2008

For more information visit:

www.eaton.com

CA04801001E

Operator Interface Products

ELC Graphics Panels

Software and Accessories

ELCSoftGP Programming

Software

ELCSoftGP Programming Software

conﬁgures all ELC graphic panels. With

ELCSoftGP, applications can be created,

edited, downloaded, uploaded, etc.

Move programs from one controller to

a different one with ease.

Requirements:

■

Operating Systems

– Windows 98,

Windows ME, Windows 2000,

Windows XP

■

Hard Drive

– At least 100M bytes

■

RAM

– At least 256M bytes

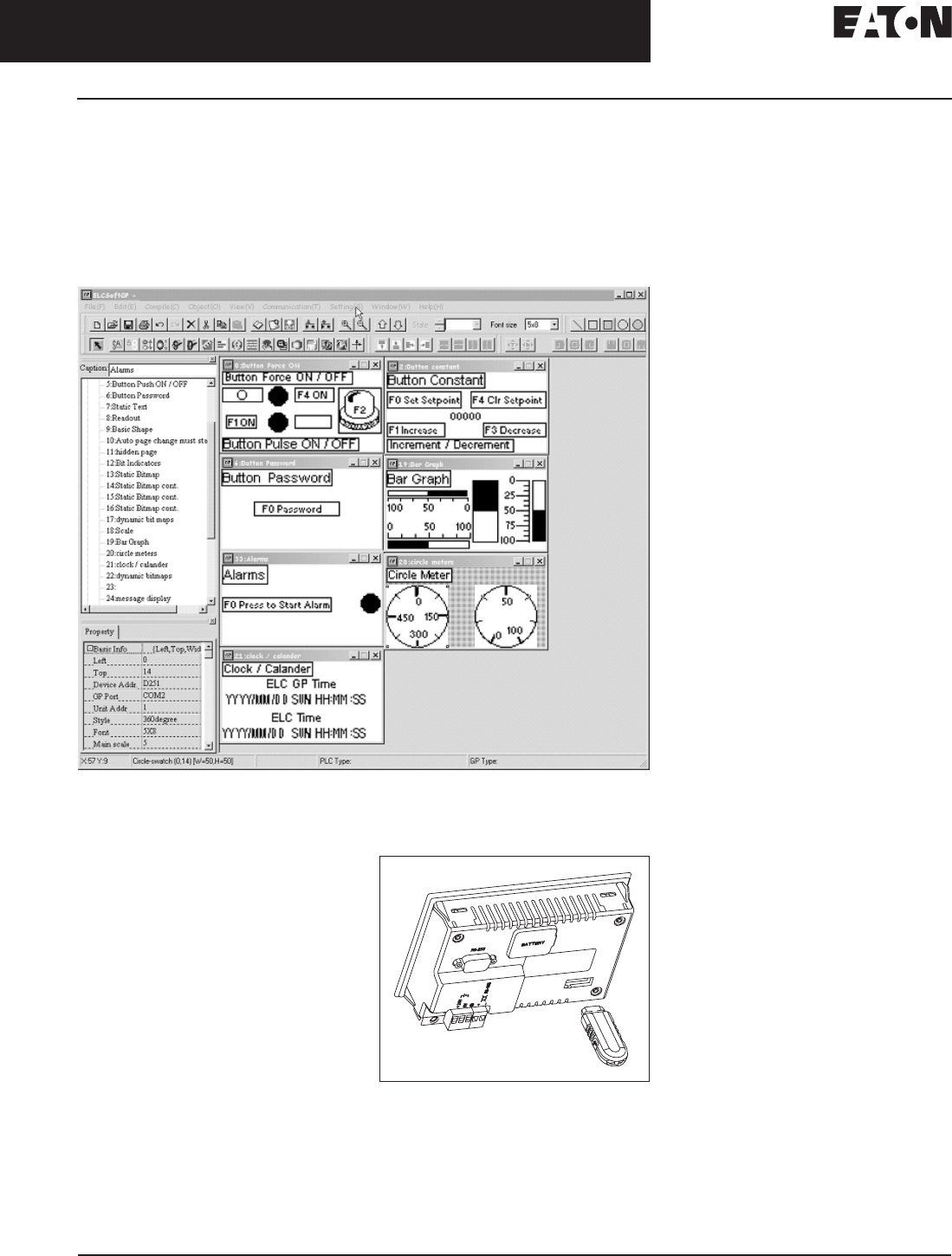

ELCSoftGP Editing Environment

Accessories

ELC-GPXFERMOD Program

Transfer Module

The ELC-GPXFERMOD is a multifunc-

tion device that provides the ability to

back up an application already loaded

onto one of the ELC-GPxx units. It will

store all system settings like baud, ID,

etc., as well as passwords and the

application itself. Once stored in the

module, the application and settings

can be transferred to another ELC-

GPxx unit of the same model number.

Figure 1. ELC-GPXFERMOD

CA04801001E For more information visit:

www.eaton.com

Operator Interface Products

March 2008

ELC Graphics Panels

Software and Accessories

ELC-CBPCGP3 Cable

Use this cable to download or upload

applications between a PC and the

ELC-GPxx graphics panels. This cable

can also be used to transfer a program

from an ELC-GPxx to another ELC-

GPxx. This cable is 3 meters long.

■

The Pin deﬁnition of 9 PIN D-SUB

RS-232:

Figure 2. PC to ELC-GPxx Cable

ELC Power Supplies

All ELC modules operate from 24V DC.

These power supplies provide a conve-

nient way to provide robust DC voltage.

Figure 3. ELC Power Supplies

Table 5. ELC Power Supply Speciﬁcations

Product Selection

Table 6. Software and Accessories

ELC-GP04 COM Port

RS-232 9 PIN D-SUB Male

GND

9 PIN D-SUB

ON PC (RS-232)

9 PIN D-SUB

ON ELC-GP02/04

PC COM Port

9 PIN D-SUB Female

GP02/04 COM Port

9 PIN D-SUB Female

Rx 2 3Tx

Tx 3 2Rx

GND 5 5GND

24V

POWER

ELC-PS01

24V

POWER

ELC-PS02

Item ELC-PS01 ELC-PS02

Dimensions WxHxD

in Inches (mm)

1.44 x 3.54 x 2.36

(36.5 x 90 x 60)

2.17 x 3.54 x 2.36

(55 x 90 x 60)

Input Power 100 – 240V AC 50/60 Hz

Output Volts 24V DC

Output Current (A) 1A 2A

Watts 24 48

Description Catalog

Number

Price

U.S. $

Programming Software for GP Units

ELCSOFTGP

226.00

Program Transfer Module

ELC-GPXFERMOD

75.50

Cable, PC to ELC-GPxx, 9.8 ft. (3 m)

ELC-CBPCGP3

36.00

Power Supply, 24 Watt, 1 Amp

ELC-PS01

52.00

Power Supply, 48 Watt, 2 Amp

ELC-PS02

75.50

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . .

2CD-5

March 2008

For more information visit:

www.eaton.com

CA04801001E

Operator Interface Products

ELC Graphics Panels

Dimensions

Figure 4. ECL-GP04 — Approximate Dimensions in Inches (mm)

3.82

(97.0)

3.35

(85.0)

1.20

(30.5) .14

(3.5) 1.40

(35.5)

3.35

(85.0)

5.79

(147.0)

ALARM

RS-232

RS-485

Pg Up

Pg Dn

Down

Left

Esc

Enter

Shift

Right

5.31

(135.0)

5.31 ~ 5.37

(135 ~ 136.5)

Cut-Out Dimensions

March 2008

CA04801001E For more information visit:

www.eaton.com

Operator Interface Products

ELC Graphics Panels

Dimensions

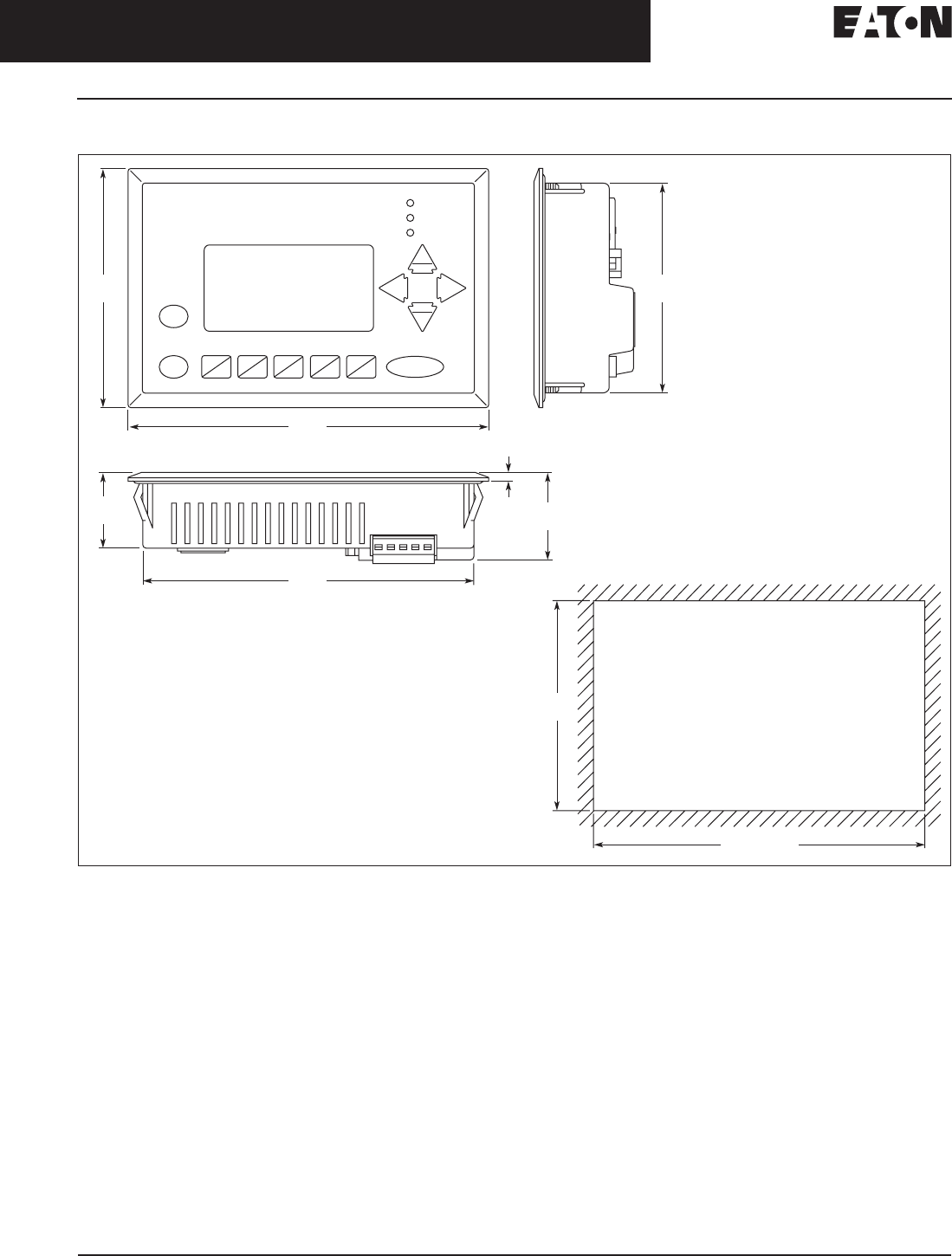

Figure 5. ECL-GP02 — Approximate Dimensions in Inches (mm)

3.82

(97.0)

3.35

(85.0)

1.20

(30.5) .14

(3.5) 1.40

(35.5)

3.35

(85.0)

5.79

(147.0)

ALARM

RS-232

RS-485

Pg Up

Pg Dn

Down

Left

Esc F0

Right

5.31

(135.0)

5.31 ~ 5.37

(135 ~ 136.5)

Cut-Out Dimensions

Enter

March 2008

For more information visit:

www.eaton.com

CA04801001E

Operator Interface Products

Operator Interface

Product Description

Positioned between the ELC graphics

panels and the ePro series of operator

interfaces,

is the work horse of the

industry. All units feature a touch-

screen and function keys to suit all

environments and applications. They

range in screen size and color to ﬁt

available space and application needs.

All units offer RS-232, RS-485 and

RS-422 communications. The 6", 8"

and 10" units also offer Ethernet

communication with an accessory card.

Features

■

True analog touchscreen

■

Retentive internal data storage

■

Real time trending

■

Trend stored data

■

Alarming and alarm storage

■

Alarm frequency

■

Event storage (History)

■

USB programming

■

USB memory storage

■

USB printer

■

Add I/O

■

Macro programming

■

Multi-language

■

Recipe storage

■

Auto-scale application from 10 – 4"

■

On-line simulation

■

Off-line simulation

■

8-level password protection

Protocols Supported

Table 7. Protocols Supported by HM

Product Selection

Table 8. HM

i Product Selection

Manufacturer Protocol

Allen Bradley Micro Logix

SLC 5

Danfoss VLT 2800 (FC Protocol)

Eaton ELC Series

Facon FB Series

Festo Festo PLC

GE Fanuc 90 Series SNP

Hust Hust CNC Controller

Hust CNC Controller v2

Jetter Nano Series

Keyence KV/KZ Series

Koyo DL/SU Series

K-Sequence

Lenze LECOM-A/B protocol

LG Master-K 120S/200S

Glofa GM6 CNET

Master-K CNET

Li Yan LYPLC EX

M2i M2i Master

M2i Slave

Matsushita FP Series

Mirle FAMA SC

Mitsubishi FX Series

FX2N

A Series/J71UC24

A2A/A2AS/A2USH

A1SH/A3N/A2ASH CPU Port

Q Series CPU Port

Manufacturer Protocol

MKS CT150

Modbus ASCII (Master)

984 RTU (Master)

RTU 2W (Master)

ASCII Hex Address (Master)

RTU Hex Address (Master)

ASCII nW (Master)

RTU nW (Master)

ASCII (Slave)

RTU (Slave)

Modicon TSX Micro (Uni-Telway)

NEZA (Uni-Telway)

TWINDO

NIKKI DENSO NCS-FI/FS Series

Omron C Series

CJ1 Series

TPM1A

SIEMENS S7 200

S7 300 (with PC Adapter)

S7 300 (without PC Adapter)

Taian TP02

Ti Ti435

Vigor M Series

VIPA S7 300 (with PC Adapter)

YOKOGAWA ACE

Description Catalog

Number

Price

U.S. $

4" Blue Mode Touchscreen HMI04BU 336.

6" Blue Mode with Expansion Slot HMI06BE 473.

6" Gray Scale Mode with Expansion Slot HMI06GE 499.

6" Color Mode with Expansion Slot HMI06CE 730.

8" Color Mode with Expansion Slot HMI08CE 1,313.

10" Color Mode with Expansion Slot HMI10CE 1,885.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

HMi Operator Interface

Operator Interface

Technical Data and Speciﬁcations

Table 9. Speciﬁcations

Please use isolated power supply (Not applicable for HMI08CE and HMI10CE).

Recipe memory uses program memory.

Model HMI04BU HMI06BE HMI06GE HMI06CE HMI08CE HMI10CE

Display Type STN STN FSTN STN TFT-LCD

Display Color 8 Blues 8 Blues 16 Grays 256 Colors 65536 Colors

Screen Pixels 320 x240 pixels 320 x 240 pixels 640 x 480 pixels

Back-light Life About 20,000 hours

at 25°C

About 50,000 hours at 25°C About 30,000 hours at 25°C

Display Size 3.8" 5.7" (118.2 x 89.4 mm) 8.0"

(162.2 x 121.77 mm)

10.4"

(215.2 x 162.4 mm)

Operation System Real Time OS

MCU 32-bit RISC Micro-controller / 206.4 MHz

Memory

Program

History

Recipe

Alarm

Data Registers

Volatile

Non-volatile

120K

64K 

64K

360K

128K

16K

64K

360K

128K

16K

64K

360K

128K

16K

64K

360K

128K

16K

64K

360K

128K

16K

64K

Backup Memory (Bytes) 128K 512K 512K 512K

Ext. Memory SM Card ✔✔✔✔ ✔

USB Disk ✔✔✔

Extension Interface ✔✔✔✔ ✔

USB for Download (USB Client) 1 Client Ver. 1.1

USB for Data Storage / Printer

(USB Host)

✔✔✔

LCD Module LED Back Light CCFL Back Light CCFL Back Light CCFL Back Light CCFL Back Light 2CCFL Back Light

Function Key 4 4446 7

Perpetual Calendar (RTC) Built-In

Cooling Method Natural Air Circulation

Standards and Certiﬁcations IP65 / UL Type 4X (Indoor Only) / CE / UL / cUL / C-Tick

Operating Temp. 32° – 122°F (0° – 50°C)

Storage Temp. -4° – 140°F (-20° – 60°C)

Ambient Humidity 10% – 90% RH (0 – 40°C), 10% – 55% RH (41 – 50°C)

Shock 30G @ 11 mS

Vibration Resistance IEC61131-2 compliant

When vibration is NOT continuous: 5 Hz – 9 Hz 3.5 mm, 9 Hz – 150 Hz 1G

X, Y, Z directions for 10 times

Dimensions

(W) x (H) x (D) in Inches (mm)

5.54 x 4.13 x 1.76

(140.8 x 104.8 x 44.8)

7.25 x 5.67 x 1.85

(184.1 x 144.1 x 47)

9.57 x 7.01 x 2.06

(243.1 x 178.1 x 52.4)

11.70 x 8.74 x 2.01

(297.1 x 222.1 x 51.1)

Weight in Lbs. (kg) .69 (.315) 1.69 (.768) 2.52 (1.147) 3.79 (1.721)

Backup Battery 3V Lithium Battery CR2032 x 1 / Battery Life: 5 Years

Buzzer 85dB

Operation Voltage DC +24V (10% – 20%) (Please use isolated power supply) 

Wattage 2.64 7.2 7.2 7.2 14 15

NIT Rating 100 cd/m2130 cd/m2100 cd/m2400 cd/m2330 cd/m2

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

HMi Operator Interface

Software and Accessories

HMisoft Programming

Software

For use with the HMi series of touch-

screens, this software supports all

of the features of HMi (listed on

Page 8). This easy to use Windows-

based software can run on Windows

2000 and XP with a minimum CPU of

Pentium III 500 Mhz, 256 MB RAM,

100 MB free hard disk space and

mouse.

HMi Editor

■Simulate an application on or off

line

■Built in picture library

■Create your own picture library

■Screen manager

■70 on-screen object

■Easy object setup

■Monitor all states of objects

■Macro editing

■Scale application from 10" – 4"

■Upload/download applications over

USB

■Upload/download register data over

USB

■

Logic conﬁguration for I/O expansion

modules

■Ethernet communications

HMi Screen Management

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

HMi Operator Interface

Software and Accessories

Accessories

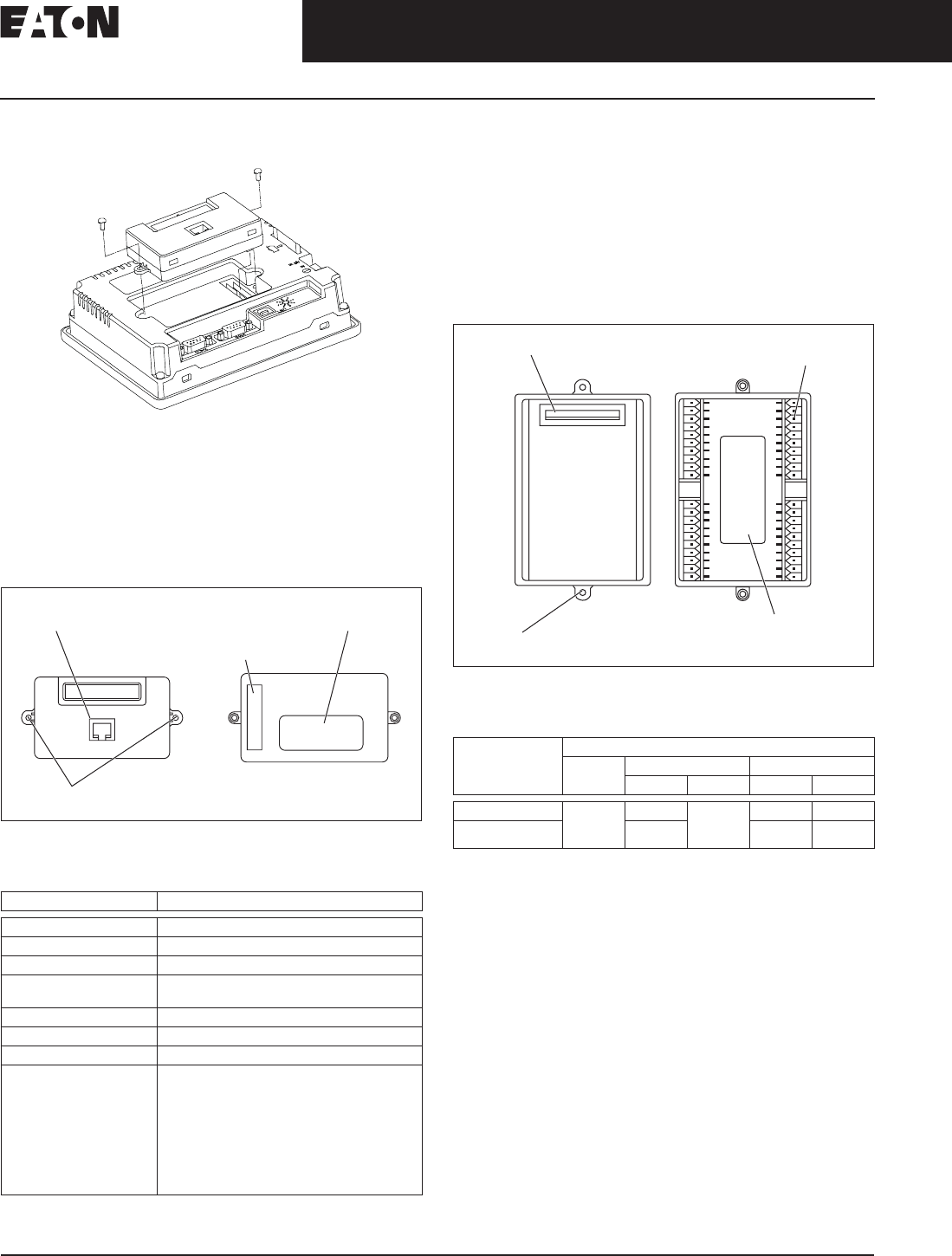

Ethernet Expansion Module

The HMIECENT expansion module adds 10/100 MB Modbus

TCP ability when plugged into the expansion slot of a 6", 8"

or 10" HMi unit. Up load and download programs and com-

municate to other Modbus TCP devices. No need for patch

or crossover cables as this module auto-detects and adjusts

for proper operation.

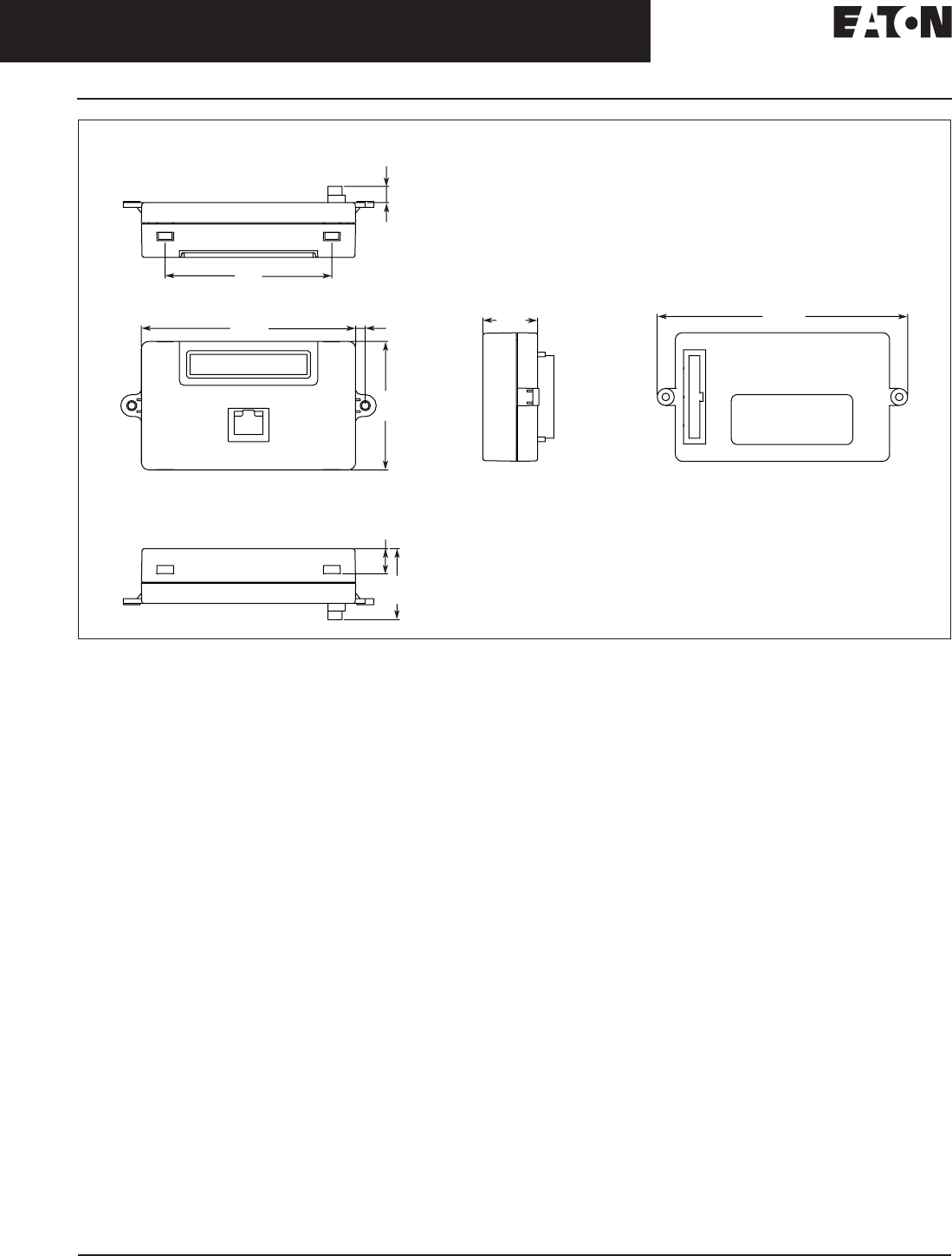

Figure 6. Ethernet Expansion Module — Product Outline

Table 10. HMICENT Function Speciﬁcations

I/O Expansion Modules

The HMIEC0806 and HMIEC1612 are 14 and 28 discrete I/0

expansion modules providing 8 DC inputs and 6 relay out-

puts or 16 DC inputs and 12 relay outputs. Plug this module

into the available expansion slot on the back of the HMi unit

(not available on the 4" model) and it’s ready to use. No need

for a separate PLC controller as it is built into the unit. Com-

bine operator interface and logic into a single platform —

use HMISOFT to build both the ladder logic and OI program.

Figure 7. I/O Expansion Modules — Product Outline

Table 11. I/O Expansion Modules

Item Speciﬁcations

Power Supply Voltage DC 5V ±10%, 1A (provided by HMi)

Interfaced Supported RJ-45 with Auto MDI/MDIX

Number of Ports 1 Port

Transmission Method

(Standard Conformance)

IEEE 802.3, IEEE 802.3u

Transmission Cable Category 5e (TIA/EIA-568-A, TIA/EIA-568-B)

Transmission Speed 10/100 Mbps Auto Detection

Ethernet Protocol ICMP, IP, TCP, UDP, DHCP, Modbus TCP

Noise Immunity ESD (IEC 61131-2,

IEC 61000-4-2): 8 kV Air Discharge

EFT (IEC 61131-2, IEC 61000-4-4):

Power Line: 2 kV,

Communication I/O: 1 kV

Damped-Oscillatory Wave:

Power Line: 1 kV, Digital I/O: 1 kV

RS (IEC 61131-2,

IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

HMIECENT Ethernet Expansion Module

Nameplate

Connection Port for

Extension Module

Connection Port for

Ethernet

Direct Mounting Hole

Catalog

Number

Input/Output

Power Input Unit Output Unit

Point Type Point Type

HMIEC0806 5V DC

supplied

by HMi

8 DC Type

Sink or

Source

6 Relay

HMIEC1612 16 12 Relay

Nameplate

Connection Port

Direct Mounting Hole

Input/Output Terminals

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

HMi Operator Interface

Software and Accessories

Table 12. HMIEC0806/HMIEC1612 Function Speciﬁcations

M1000, M1001, M1002, M1003, M1020, M1021, M1022, M1067, M10068, and M1161 are the

special auxiliary relays (special M).

Item Speciﬁcations Remark

Control Method Stored program, cyclic

scan system

—

I/O Processing Method Batch I/O (refresh) Immediate refresh command available only

with I/O of the MPU

Execution Speed Basic command (30 us) Application command (30 ~ hundreds us)

Program Language Commands + Ladder

Diagram + SFC

Step commands included

Program Capacity 999 Steps Built-in EEPROM

Commands Basic commands: 32

(including the STL

commands)

Application commands: 59

Step Relay

(Latched)

General Step

Point

128 Points S0 ~ S127

Auxiliary

Relay

General 1024 Points M0 ~ M511, M768 ~ M999, 744 points;

M1000 ~ M1279, 280 points 

Latched 256 Points M512 ~ M767

Timer Digital 64 Points T0 ~ T63 (100 ms time base)

63 Points T64 ~ T126 (10 ms time base)

1 Points T127 (1 ms time base)

Counter General 112 Points C0 ~ C111

Latched 16 Points C112 ~ C127

32 bit 13 Points C235,C236,C237,C238,C241,C242,

C244,C246,C247,C249,C251,C252, C254

(all of them are latched type)

Data

General 408 Points D0 ~ D407

Latched 192 Points D408 ~ D599

Pointer P 64 Points P0 ~ P63

Index

E / F 2 E, F

Constant Decimal K 16 bit: -32768 ~ +32767 32 bit: -2147483648 ~ +2147483647

Hexadecimal H 16 bit: 0000 ~ FFFF 32 bit: 00000000 ~ FFFFFFFF

Self Diagnosis / Protection I/O check, system execution timeout check, invalid command check,

program check and password settings

Monitor / Debug Program execution time display, bit / word, device settings

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

March 2008

HMi Operator Interface

Software and Accessories

Table 13. HMIEC0806/HMIEC1612 Electrical Speciﬁcations

Product Selection

Table 14. Product Selection — Software and Accessories

Item / Model Name HMIEC0806 HMIEC1612

Power Supply Voltage 5V DC, 1A (supplied by HMi)

Power Consumption 0.25W 0.5W

Noise Immunity

ESD

EFT

Surge

Frequency: 80MHz ~ 1GHz, 1.4GHz ~ 2.0GHz, Test level 10V/m

Frequency: 0.15MHz ~ 80MHz, Test level 10V

(HMi power port & I/O line)

Air discharge ±8 kV

±1.5 kV (HMI power port), ± 1 kV (I/O line)

±2 kV (HMI power port)

Ambient

Temperature/Humidity

Operation: 0°C ~ 50°C (Temperature), 10 ~ 90% (Humidity),

Storage: -40°C ~ 85°C (Temperature), 10 ~ 90% (Humidity)

Vibration / Shock IEC 61131-2 Compliant

5 Hz ≤ f < 9 Hz = Continuous: 1.75mm / Occasional: 3.5mm

9 Hz ≤ f ≤ 150 Hz = Continuous: 0.5g / Occasional: 1.0g

X, Y, Z directions for 10 times

Weight Approx. 95.5g Approx. 116g

Input Point Electric Speciﬁcations

Input Type DC (SINK or SOURCE)

Input Voltage 24V DC (5mA)

Active Level Off ➝ On, above 16V DC

On ➝ Off, below 14.4V DC

Response Time Approx. 10 mS

Output Point Electric Speciﬁcations

Output Type Relay-R

Current Speciﬁcations 1.5A / 1 Point (5A/COM)

Voltage Speciﬁcations 250V AC, below 30V DC

Maximum Loading 75 VA (Inductive), 90W (Resistive)

Response Time Approx. 10 mS

Mechanical Life 2 – 107 times (without load)

Electrical Life 100,000 times (3A 250V AC/30V DC)

6,000 times (5A 250V AC/30V DC)

Description Catalog

Number

Price

U.S. $

Programming Software HMISOFT 205.

Ethernet Modbus TCP Expansion Module HMIECENT 350.

I/O Expansion Module, 8 In/6 Out HMIEC0806 145.

I/O Expansion Module, 16 In/12 Out HMIEC1216 205.

6" Adapter Plate for PM1000 APPM1HMI6 202.00

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

HMi Operator Interface

Dimensions

Figure 8. HMI04__ — Approximate Dimensions in Inches (mm)

Figure 9. HMI06__ — Approximate Dimensions in Inches (mm)

Figure 10. HMI08CE — Approximate Dimensions in Inches (mm)

5.54

(140.8)

1.44

(36.7)

.06~.12

(1.6~3.0)

4.13

(104.8)

.12 (3.0) R

Typ.

3.61

(91.8)

4.64

(117.8)

POWER

Cut-Out Dimensions

SYS

7.25

(184.1)

1.54

(39.0)

.06~.12

(1.6~3.0)

5.67

(144.1)

6.1

(.24) .12 (3.0) R

Typ.

5.21

(132.4)

6.79

(172.4)

SYS

POWER

Cut-Out Dimensions

9.57

(243.1)

1.75

(44.4)

.06~.12

(1.6~3.0)

7.01

(178.1)

6.1

(.24)

.12 (3.0) R

Typ.

6.55

(166.4)

9.11

(231.4)

Cut-Out Dimensions

SYS

POWER

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

HMi Operator Interface

Dimensions

Figure 11. HMI10CE — Approximate Dimensions in Inches (mm)

Figure 12. HMIEC0806 and HMIEC1612 Expansion Modules — Approximate Dimensions in Inches (mm)

11.70

(297.1)

1.70

(43.1)

.06~.12

(1.6~3.0)

8.74

(222.1)

6.1

(.24)

.12 (3.0) R

Typ.

8.27

(210.2)

11.22

(285.2)

Cut-Out Dimensions

SYS

POWER

.46

(11.8)

2.50

(63.6)

4.22

(107.3)

3.56

(90.4)

.46

(11.8)

2.50

(63.6)

4.22

(107.3)

3.56

(90.4)

.20

(5.0)

.33

(8.3)

6.0

(15.2)

2.36

(60.0)

.27

(6.9)

.14

(3.5)

.26

(6.5)

2.50

(63.6)

3.86

(98.1)

.15

(3.9)

.46

(11.8) .33

(8.3)

.74

(18.9)

1.25

(31.8)

.20

(5.0)

1.57

(40.0)

2.13

(54.2) HMIEC1612

HMIEC0806

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

HMi Operator Interface

Dimensions

Figure 13. HMICENT Ethernet Expansion Module — Approximate Dimensions in Inches (mm)

.27

(6.9)

2.76

(70)

3.54

(90)

.16

(4)

2.13

(54)

.42

(10.6)

1.18

(29.9)

.91

(23)

4.15

(105.3)

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

March 2008

PanelMate Operator Interface

Product Family Overview

Machine builders and manufacturing

system designers increasingly recog-

nize the beneﬁts of using electronic

operator interface devices to replace

pushbuttons, lights, gauges and other

traditional hardwired devices.

Most choose dedicated operator inter-

face systems because they are easy to

use, fully integrated and cost-effective.

PanelMate: The Industry Standard

PanelMate units are ﬂexible, expand-

able, cost-effective alternatives to

traditional operator control panels.

A single PanelMate unit easily replaces

panels that once contained numerous

pushbuttons, indicator lights, thumb-

wheels, message displays and alarm

annunciators.

PanelMate Technology

Beneﬁts

■Replaces conventional control

panels at less than half the cost.

■Gives operators more information

for better control decisions.

■Standardizes operator stations and

minimizes operator training.

■Saves processor memory by utiliz-

ing Boolean logic and math functions.

■Reduces hardwiring costs and

minimizes installation time.

■Adds advanced capabilities such as

machine diagnostics, troubleshooting,

trending and alarms at no additional

cost.

■Automates documentation.

■

Meets tight panel space requirements.

How to Select

PanelMate System Components

Each PanelMate system requires

component selection from three major

categories:

■Operator Interface — the online unit

or operator station.

■Configuration Software — PC-based

software, used to configure and

transfer applications to and from

the Operator Interface.

■Connectivity — includes optional

cables, hardware interfaces and

software utilities.

Selection Criteria

■First, select the most appropriate

Operator Interface, Display Type and

Size, and Operator Input options for

the customer’s application.

❑The selection of the Operator

Interface model line is driven by

such considerations as the size

and complexity of the operator

interface application, perfor-

mance requirements, as well as

the economic factors of the over-

all control system.

❑The Display Type is chosen based

on the operator’s needs — text

only, text and graphics, color or

grayscale. Display Size is selected

based on application complexity

and the operator’s proximity to

the Operator Interface.

Table 15. PanelMate Operator Interface Model Selection Guide

TS and KP options are mutually exclusive.

Split architecture.

Classic model required.

Family Series Display TS



SST OD Classic EE Ethernet Power

Pro

Canvas

ePro PS 7685T-8 8.4" Color TFT ✓✓✓✓✓✓

✓

ePro PS 7685T-10 10.4" Color TFT ✓✓ ✓✓✓ ✓

✓

ePro PS 7685T-12

7685T-15

12.1" Color TFT

15.0" Color TFT

✓✓✓✓✓✓ ✓

✓

ePro PS 7600 Display with TS or

other input device

purchased separately.

✓✓✓ ✓

✓

PP 1155

1175

7.4" Grayscale LCD

7.7" Color DSTN

✓✓ ✓

PP 1755

1775

1785

7.4" Grayscale LCD

7.7" Color DSTN

8.4" Color TFT

✓✓ ✓

PP 3985 10.4" Color TFT ✓✓ ✓ ✓

PP 5485 10.4" Color TFT ✓ ✓✓

PP 5785 10.4" Color TFT ✓✓ ✓ ✓

❑Operator Input options include

either touchpanel (keypad) or

touchscreen Operator Interface

models. Criteria for selection of

the best input method include

environmental factors (airborne

particles, grease, etc.), and appli-

cation design (numeric input,

one-touch control, etc.).

■Second, select the appropriate

conﬁguration editing software for

the chosen Operator Interface.

Note: If the customer already has config-

uration software, they may only need a

software upgrade.

■Finally, select required connectivity

features, such as interface cables,

optional high-speed interface cards,

and, for some Allen-Bradley drivers,

licensing enabler utilities.

Eaton’s Cutler-Hammer interface

cables are ideal for system and

application testing. For actual plant

floor applications, custom cables

are generally required to meet the

customer’s requirements for length,

environment, termination, etc.

Note: In order to specify the proper

cabling and other connectivity options,

you must know the target PLC or control-

ler to be used with the Operator Inter-

face. Required information may include

the PLC brand, Model Number, software/

firmware revision level, and hardware/

software interface type.

Glossary

Classic — Support PanelMate Power

Pro and Canvas applications

EE — Enterprise Edition (extended

capabilities)

ePro — PanelMate ePro Series

ePro PS — PanelMate ePro PS

(Performance Series)

KP — Keypad (Touchpanel)

OD — Outdoor Series

PP — PanelMate Power Pro Series

SST — Stainless Steel Front Panel

Option

TS — Touchscreen

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

ePro PS

PanelMate ePro PS

Product Description

The PanelMate ePro PS family is made

up of high performance yet cost-

effective operator interface products.

The ePro PS family carries on the

PanelMate tradition of performance in

balance with ease of use. The ePro PS

family sets the standard for hybrid OI

systems by combining the ﬂexibility of

Microsoft’s Windows XP Embedded

operating with the stability and reli-

ability achieved through the solid-state

hardware design and exclusive Protect

Mode™ that provides protection for

the operating system and software.

The ePro PS family provides the per-

formance and ﬂexibility of PC based

operator interfaces without the associ-

ated complexity of a PC on the plant

ﬂoor. With integrated high-speed

Ethernet, serial ports, USB ports,

removable CompactFlash and

PCMCIA, the ePro PS models can be

adapted for a wide variety of user

requirements.

The ePro PS family of products are

conﬁgured with the Canvas editing

software. The Canvas editor supports

a modern suite of graphical templates,

called controls, for replacing hard-

wired panel devices such as pushbut-

tons, indicator lights, bars, readouts,

message displays, etc.

The PanelMate ePro PS family of prod-

ucts includes:

■PanelMate ePro PS

■PanelMate ePro PS OD (Outdoor

Series)

■PanelMate ePro PS EE (Enterprise

Edition)

■PanelMate ePro PS Classic

PanelMate ePro PS OD

The PanelMate ePro PS OD (Outdoor

Series) operator interface is designed

for use in outdoor applications. The

OD models offer increased visibility in

high ambient light, broad temperature

speciﬁcations and UV resistance.

PanelMate ePro PS EE

The PanelMate ePro PS EE (Enterprise

Edition) operator interface is designed

for end-users that need more system

memory, more data storage or

additional Windows XP Embedded

components and services to support

large Canvas applications or third-

party software.

PanelMate ePro PS Classic

The PanelMate ePro PS Classic opera-

tor interface is designed for use by

end-users that are currently using the

PanelMate Power Pro software and are

ready for the new PanelMate ePro PS

hardware but are not quite ready to

convert their PanelMate Power Pro

conﬁgurations to Canvas applications.

Since the PanelMate ePro PS Classic

OI supports Power Pro and Canvas

Runtime software, the user can utilize

the Canvas Runtime software if and

when they are ready.

The ePro PS Classic OI is based on the

PanelMate ePro PS hardware models

with the addition of software and

licenses that allow users to run the

PanelMate Power Pro Runtime soft-

ware. One difference is in the area of

drivers: the ePro PS Classic OI running

PanelMate Power Pro conﬁgurations

does not support native (non-OPC)

communication drivers, but does

support up to three OPC drivers

simultaneously.

Application Description

Whether replacing hard-wired pilot

devices and pushbuttons or providing

machine control and even SCADA

functions, the ePro PS family of prod-

ucts will ﬁt from both a form and func-

tional standpoint. In monitoring and

diagnostic applications, as well as

operator controls for critical start/stop,

ramp/jog and set point adjustment, the

PanelMate ePro PS products offer a

reliable and safe interface for a wide

range of industrial applications such as:

■Discrete manufacturing machine

diagnostics and controls

■Oil platform monitoring and control

in the petroleum industry

■Central and remote water and

wastewater control panels

■Monitoring and control panels for

local facilities/air handling

equipment

■Tire manufacturing mixing and

building processes

■Industrial and commercial power

house controls; building HVAC

controls

■Material handling and palletizing

monitoring and control

■Automotive press and machine

parts controls

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

March 2008

PanelMate Operator Interface

ePro PS

Features

Table 16. PanelMate ePro PS Features

Feature Description

8" Display Models ■8.40" (213.4 mm), color TFT display, 16 million colors

■SVGA (800 x 600) resolution

■400 nits (400 cd/m2), OD Models 425 nits (425 cd/m2) brightness

■50,000 hours typical life for backlight; ﬁeld replaceable

■Auto dimming

10" Display Models ■10.40" (260 mm), color TFT display, 16 million colors

■SVGA (800 x 600) resolution

■420 nits (420 cd/m2) brightness

■50,000 hours typical life for backlight; ﬁeld replaceable

■Auto dimming

12" Display Models ■12.10" (307.3 mm), color TFT display, 16 million colors

■SVGA (800 x 600) resolution

■450 nits (450 cd/m2), OD Models 505 nits (505 cd/m2) brightness

■50,000 hours typical life for backlight, ﬁeld replaceable

■Auto dimming

15" Display Models ■15.00" (381.0 mm), color TFT display, 16 million colors

■XGA (1024 x 768) resolution

■250 nits (250 cd/m2), OD Models 600 nits (600 cd/m2) brightness

■50,000 hours typical life for backlight, ﬁeld replaceable

■Auto dimming

Blind Node

(No Display) Models

■VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), SXGA (1280 x 1024),

UXGA (1600 x 1200) resolution

■16 million colors (SXGA and UXGA — 65K colors)

Operator Entry ■Touchscreen interface with resistive

technology for gloved-hand operation

■Pop-up, on-screen alphanumeric keypad support

Hardware/Mounting ■Single-piece lightweight design for easy panel mounting

(except blind node models)

Powerful OI

Capabilities

■Supports Canvas controls

■Built-in two-touch control

■Full math and logic expressions

Communications

and I/O Capabilities

■One integrated Ethernet port: 10/100Base-T

■Two serial ports: RS-232 and RS-232/422/485 (optically isolated)

■Four USB ports: V2.0

■One CompactFlash memory card slot

■Two PCMCIA Type II slots (or one Type III)

■Built-in OPC Client/Server with support for over 100 OPC drivers for both

Ethernet and serial connectivity

■One video output port

Protect Mode ■Safeguards the integrity of operating system ﬁles and data ﬁles by

preventing unauthorized alterations and corruption caused by viruses or

unexpected power disruptions

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

ePro PS

Technical Data

Table 17. PanelMate ePro PS Technical Data

Description Speciﬁcation

Memory PS, OD and Classic Models:

512 MB DDR2 RAM, 1 GB Internal CompactFlash (C and D drive)

EE Models:

512 MB DDR2 RAM, 4 GB Internal CompactFlash (C drive), 512 MB external

CompactFlash (D drive)

All Models:

External CompactFlash card slot, USB and PCMCIA ports available for

additional memory

Voltage 24V DC Nominal (16 – 30V DC)

Power

Consumption/

Heat Output

8" Display Models: 31 watts (105 BTU/hour)

10" Display Models: 33 watts (113 BTU/hour)

12" Display Models: 35 watts (120 BTU/hour)

15" Display Models: 54 watts (184 BTU/hour), OD 52 watts (178 BTU/hour)

Blind Node (No Display) Models: 24 watts (82 BTU/hour)

Current 8" Display Models: 1.3 amperes

10" Display Models: 1.4 amperes

12" Display Models: 1.5 amperes

15" Display Models: 2.25 amperes

Blind Node (No Display) Models: 1.0 amperes

Peak Inrush

Current

8" Display Models: 7.0 amperes

10" Display Models: 7.0 amperes

12" Display Models: 7.0 amperes

15" Display Models: 8.0 amperes

Blind Node (No Display) Models: 7.0 amperes

Installation

Rating

All ePro PS display models are approved for use in Type 4, 4X, 12 and IP65

installations when properly mounted in a correspondingly rated enclosure.

System Ambient

Temperature

All Models —

■

Operating: 0 – 60°C [32 – 140°F]

■Non-operating: -25 to 70°C [-13 to 158°F]

System Vibration Operating and Non-operating: 1G from 5 – 500 Hz

System Shock Operating and Non-operating: 100G

Relative

Humidity

Operating: 20 – 95% non-condensing

Non-operating: 20 – 95% non-condensing

Altitude Operating: 10,000 ft. (3,048m) above sea level

Non-operating: 40,000 ft. (12,192m) above sea level

Emissions CISPR 11 Class A, Radiated and Conducted

Noise Immunity IEC 61000-4-2, 3, 4, 5, 6, 8, 11

Agency

Certiﬁcations

RoHS, CE mark

UL/cUL and CSA Class I, Div 2, Groups A, B, C, D

Overall

Dimensions

(H x W x D)

8" Display Models: 7.63 x 10.51 x 3.90 in. (193.8 x 267.0 x 99.1 mm)

10" Display Models: 12.00 x 12.30 x 3.90 in. (304.8 x 312.4 x 99.1 mm)

12" Display Models: 11.60 x 15.90 x 3.90 in. (294.6 x 403.9 x 99.1 mm)

15" Display Models: 13.50 x 18.60 x 4.00 in. (342.9 x 472.4 x 101.6 mm)

Blind Node (No Display) Models: 9.30 x 12.00 x 3.60 in. (236.2 x 304.8 x 91.4 mm)

Cutout

Dimensions

(H x W)

8" Display Models: 6.50 x 9.38 in. (165.1 x 238.3 mm)

10" Display Models: 11.02 x 11.40 in. (279.9 x 289.6 mm)

12" Display Models: 10.12 x 14.34 in. (257.0 x 364.2 mm)

15" Display Models: 12.05 x 17.01 in. (306.1 x 432.1 mm)

Blind Node (No Display) Models: Designed for mounting in a cabinet

Weight 8" Display Models: 6.0 lbs. (2.73 kg)

10" Display Models: 10.5 lbs. (4.77 kg)

12" Display Models: 13.0 lbs. (5.91 kg)

15" Display Models: 17.0 lbs. (7.73 kg)

Blind Node (No Display) Models: 4.5 lbs. (2.05 kg)

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

ePro PS

Product Selection

Table 18. PanelMate ePro PS Operator Interface (76xx Series)

Note: Customs available upon request.

Description Catalog

Number

Price

U.S. $

PanelMate ePro PS

8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM

10.4" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

10.4" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-8

7685T-10

7685ST-10

3,451.

3,875.

4,955.

12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-12

7685ST-12

4,110.

5,190.

15.0" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

15.0" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

Blind Node (No Display, see Table 22 for display options), OPC, DC, User Manual on CD-ROM

7685T-15

7685ST-15

7600

4,867.

5,947.

2,426.

PanelMate ePro PS EE (Enterprise Edition)

8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM

10.4" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

10.4" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-8E

7685T-10E

7685ST-10E

3,976.

4,400.

5,480.

12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-12E

7685ST-12E

4,635.

5,715.

15.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

15.0" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

Blind Node (No Display, see Table 22 for display options), OPC, DC, User Manual on CD-ROM

7685T-15E

7685ST-15E

7600E

5,392.

6,472.

2,951.

PanelMate ePro PS OD (Outdoor)

8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM

12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-8OD

7685T-12OD

7685ST-12OD

4,551.

5,210.

6,290.

15.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

15.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-15OD

7685ST-15OD

5,967.

7,047.

PanelMate ePro PS Classic

8.4" Color TFT Display, Touchscreen (Acrylic), OPC, DC, User Manual on CD-ROM

10.4" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

10.4" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-8C

7685T-10C

7685ST-10C

4,201.

5,705.

4,625.

12.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

12.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

7685T-12C

7685ST-12C

4,860.

5,940.

15.1" Color TFT Display, Touchscreen (Glass), OPC, Painted Steel, DC, User Manual on CD-ROM

15.1" Color TFT Display, Touchscreen (Glass), OPC, Stainless Steel, DC, User Manual on CD-ROM

Blind Node (No Display, Table 22 for display options), OPC, DC, User Manual on CD-ROM

7685T-15C

7685ST-15C

7600C

5,617.

6,697.

3,176.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

ePro PS

Table 19. PanelMate ePro PS Spare Parts for all New RoHS Compliant Models 

RoHS compliant units have a silver-colored galvanized steel back cover. Non-RoHS compliant units have a gold-colored plated steel back cover.

Standard

Enterprise

Editor

Classic

Outdoor

Description

Catalog

Number

Price

U.S. $

8.4" Models

✓

Color TFT Display Assembly

Acrylic Touchscreen (gaskets 32-01682 and 32-02208 required)

35-4756-3

47-50888

47-50888-1

2,514.00

593.00

✓

Front Panel Assembly

Gasket for Front Panel

Gasket for Touchscreen

91-01494

32-01682

32-02208

127.00

33.50

27.25

✓

Backlight Kit

Ship Kit

Outdoor Color TFT Display Assembly

Outdoor Acrylic Touchscreen (gaskets 32-1682 and 32-02208 required)

99-5704

86-00088

34-4290

47-50888-2

232.00

47.25

2756.00

1,283.00

10.4" Models

✓

Color TFT Display Assembly

Glass Touchscreen

35-4756-2

63-00585

2066.00

494.00

✓

Front Panel (CRS) Assembly (gaskets 32-02545 and 32-02546 required)

Front Panel (SST) Assembly (gaskets 32-02545 and 32-02546 required)

32-02544

32-02619

32-02550

513.00

1,247.00

✓

Gasket for Front Panel

Gasket for Touchscreen

Backlight Kit

Ship Kit

32-02545

32-02546

99-5704-2

86-00090

38.50

19.20

294.00

47.25

12.1" Models

✓

Color TFT Display Assembly

Glass Touchscreen

35-4756

63-00808

2,987.00

639.00

✓

✓✓

Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)

Front Panel (SST) Assembly (gaskets 32-02491 and 32-02492 required)

32-02489

32-02534

32-02514

608.00

1,530.00

✓

Gasket for Front Panel

Gasket for Touchscreen

Backlight Kit

Ship Kit

32-02491

32-02492

99-5704-3

86-00089

33.50

27.25

375.00

47.25

✓

Outdoor Color TFT Display Assembly

Outdoor Glass Touchscreen

Outdoor Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)

34-4289

63-00841

32-02533

3,034.00

1,262.00

572.00

15.0" Models

✓

Color TFT Display Assembly

Glass Touchscreen

63-00814

63-00809

3,281.00

696.00

✓

✓✓

Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)

Front Panel (SST) Assembly (gaskets 32-02497 and 32-02498 required)

32-02490

32-02535

32-02515

655.00

1,571.00

✓

Gasket for Front Panel

Gasket for Touchscreen

Backlight Kit

Ship Kit

32-02497

32-02498

87-02457

86-00089

33.50

27.25

375.00

47.25

✓

Outdoor Color TFT Display Assembly

Outdoor Glass Touchscreen

Outdoor Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)

Outdoor Backlight Kit

63-00853

63-00850

32-02540

99-5704-4

3,034.00

1,813.00

356.00

610.00

Blind Node

✓✓✓ Ship Kit 86-00087 47.25

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

ePro PS

Table 20. PanelMate ePro PS Spare Parts for all Legacy Non-RoHS Compliant Models 

RoHS compliant units have a silver-colored galvanized steel back cover. Non-RoHS compliant units have a gold-colored plated steel back cover.

Standard

Enterprise

Editor

Classic

Outdoor

Description

Catalog

Number

Price

U.S. $

8.4" Models

✓

✓✓

Color TFT Display Assembly

Acrylic Touchscreen (gaskets 32-01682 and 32-02208 required)

Front Panel Assembly

63-00544

63-00833

91-01494

2,514.00

593.00

127.00

✓

Gasket for Front Panel

Gasket for Touchscreen

Backlight Kit

32-01682

32-02208

87-02455

33.50

27.25

232.00

✓✓✓✓

✓

Ship Kit

Outdoor Color TFT Display Assembly

Outdoor Acrylic Touchscreen (gaskets 32-1682 and 32-02208 required)

86-00088

63-00854

63-00848

47.25

2,756.00

1,283.00

10.4" Models

✓

Color TFT Display Assembly

Glass Touchscreen

Front Panel (CRS) Assembly (gaskets 32-02545 and 32-02546 required)

Front Panel (SST) Assembly (gaskets 32-02545 and 32-02546 required)

63-00852

63-00585

32-02544

32-02550

2,066.00

494.00

513.00

1247.00

✓

Gasket for Front Panel

Gasket for Touchscreen

Backlight Kit

Ship Kit

32-02545

32-02546

87-02514

86-00090

38.50

19.20

294.00

47.25

12.1" Models

✓

Color TFT Display Assembly

Glass Touchscreen

63-00815

63-00808

2,987.00

639.00

✓

✓✓

Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)

Front Panel (SST) Assembly (gaskets 32-02491 and 32-02492 required)

32-02489

32-02534

32-02514

608.00

1530.00

✓

Gasket for Front Panel

Gasket for Touchscreen

Backlight Kit

Ship Kit

32-02491

32-02492

87-02456

86-00089

33.50

27.25

375.00

47.25

✓

Outdoor Color TFT Display Assembly

Outdoor Glass Touchscreen

Outdoor Front Panel (CRS) Assembly (gaskets 32-02491 and 32-02492 required)

63-00842

63-00841

32-02533

3,034.00

1,262.00

572.00

15.0" Models

✓

Color TFT Display Assembly

Glass Touchscreen

63-00814

63-00809

3,281.00

696.00

✓

✓✓

Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)

Front Panel (SST) Assembly (gaskets 32-02497 and 32-02498 required)

32-02490

32-02535

32-02515

655.00

1,571.00

✓

Gasket for Front Panel

Gasket for Touchscreen

Backlight Kit

Ship Kit

32-02497

32-02498

87-02457

86-00089

33.50

27.25

375.00

47.25

✓

Outdoor Color TFT Display Assembly

Outdoor Glass Touchscreen

Outdoor Front Panel (CRS) Assembly (gaskets 32-02497 and 32-02498 required)

Outdoor Backlight Kit

63-00853

63-00850

32-02540

87-02515

3,034.00

1,813.00

356.00

610.00

Blind Node

✓✓✓ Ship Kit 86-00087 47.25

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

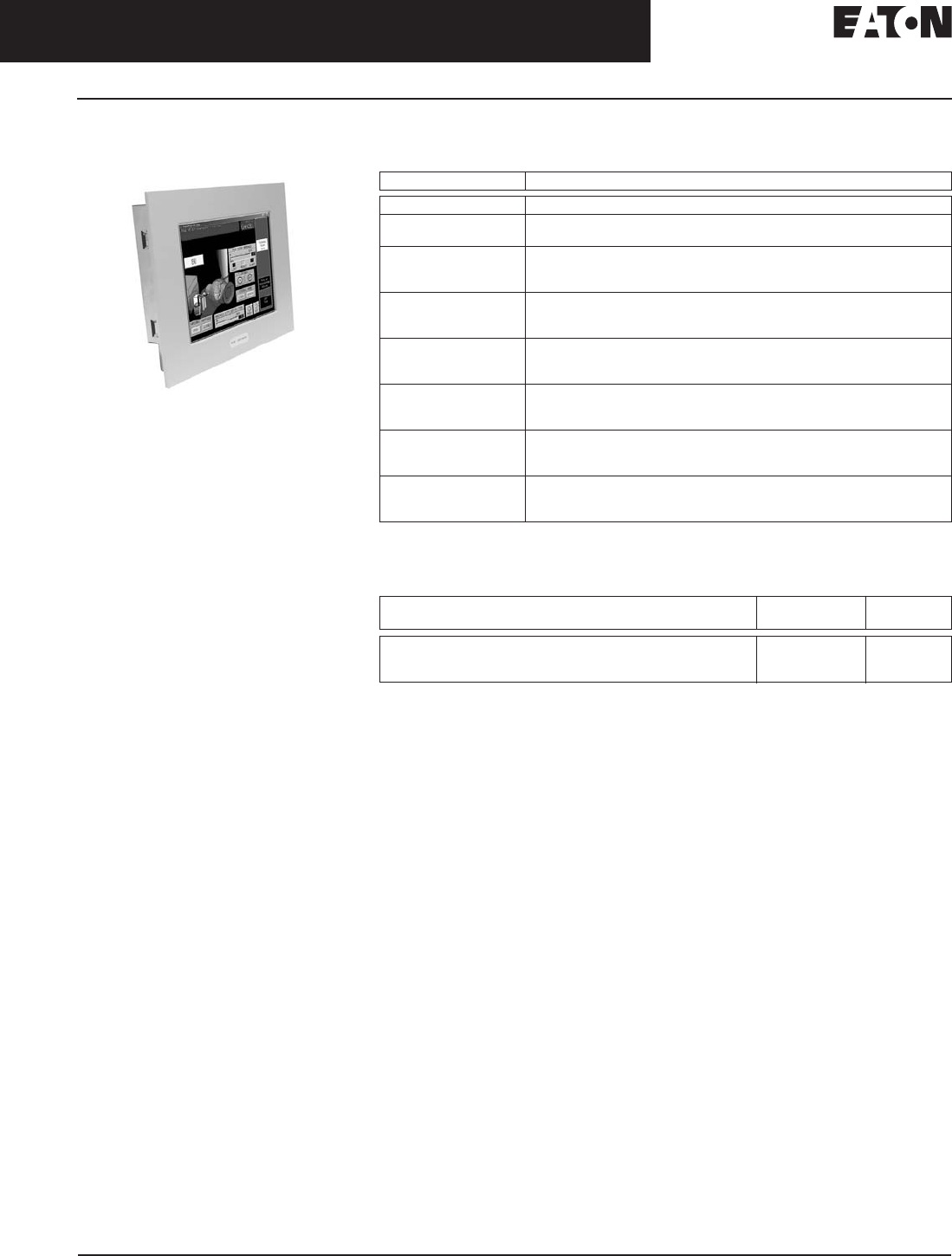

Stand-Alone Touchscreen Displays

PanelMate Stand-Alone

Touchscreen Displays

TFT Stand-Alone Touchscreen Display

Product Description

Three sizes of color TFT ﬂat panel

displays with touchscreens are

available for use with the PanelMate

ePro Blind Nodes. Models are available

in 12.1, 15.0 and 17.0-inch sizes. These

displays are constructed to handle

rugged environments and can be easily

mounted in a cabinet or a kiosk.

Features

■12.1-inch SVGA, 15.0-inch XGA

and 17.0-inch SXGA Color TFT LCD

displays.

■5-wire analog resistive ELO

touchscreen.

■Stainless steel open-frame

architecture.

■Aluminum front bezel.

■Strengthened glass protects the

front panel from shock damage.

■Approved for use in Type 4, 12 and

IP65 installations when properly

mounted in a correspondingly rated

enclosure.

Standards and Certiﬁcations

■CE

■FCC Class A

■UL

Technical Data

Table 21. PanelMate Stand-Alone Touchscreen Displays Technical Data

Product Selection

Table 22. Stand-Alone Touchscreen Displays

Description Speciﬁcation

Voltage 100 – 240V AC

System Ambient

Operating Temperature

Operating: 32 – 122°F (0 – 50°C)

System Vibration 12.1" Models: 10 – 200 Hz, 0.15 mm, 10 cycle, 1G

15.0" Models: 10 Hz, 0.15 mm, 10 cycle, 1G

17.0" Models: 10 – 500 Hz

System Shock 12.1" Models: 15G peak acceleration (50 mS duration)

15.0" Models: 30G peak acceleration (11 mS duration)

17.0" Models: 30G peak acceleration (11 mS duration)

Backlight 12.1" Models: 50,000 typical life

15.0" Models: 50,000 typical life

17.0" Models: 30,000 typical life

Overall Dimensions

(H x W x D)

12.1" Models: 11.46 x 14.41 x 1.92 in. (291.1 x 366.0 x 48.8 mm)

15.0" Models: 13.23 x 17.48 x 2.10 in. (336.0 x 444.0 x 53.3 mm)

17.0" Models: 15.71 x 19.02 x 2.25 in. (399.0 x 483.1 x 57.2 mm)

Cutout Dimensions

(H x W)

12.1" Models: 10.16 x 13.11 in. (258.1 x 333.0 mm)

15.0" Models: 11.77 x 15.94 in. (299.0 x 404.9 mm)

17.0" Models: 14.45 x 17.68 in. (367.0 x 449.1 mm)

Weight 12.1" Models: 12 lbs. (5.5 kg)

15.0" Models: 14 lbs. (6.5 kg)

17.0" Models: 34 lbs. (15.4 kg)

Description Catalog

Number

Price

U.S. $

12.1" Color TFT Display, ELO Touchscreen (glass), AC

15.0" Color TFT Display, ELO Touchscreen (glass), AC

17.0" Color TFT Display, ELO Touchscreen (glass), AC

7585DT-12

7585DT-15

7585DT-17

2,452.

2,787.

4,682.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

Power Pro LT1100, 1700, 3000 and 5000

PanelMate Power Pro

Overview

PanelMate Power Pro

Product Description

The PanelMate Power Pro Operator

Interfaces are a cost-efﬁcient, easy-to-

integrate alternative to traditional

hardwired operator panels in control

systems. The PanelMate Power Pro

products pack the latest advanced-

technology operator interface func-

tionality into a unique, versatile line of

ﬂatpanel designs.

The PanelMate Power Pro products

have the same cutout and stud pattern

as earlier model PanelMate products

and offer increased capabilities.

Control functions, such as machine

status indication and pushbutton-style

control, are accomplished using built-in

templates displayed on a vivid screen.

The PanelMate Power Pro simulates

the action and performance of hard-

wired pushbuttons using sealed,

recessed membrane control buttons

on the touchpanel version or on-screen

buttons on the touchscreen version.

The proven intuitive operation remains

the same in all PanelMate products.

Operators select templates or graphic

images by moving a ﬁnger around

the touchpanel or touchscreen. After

selecting a template, the operator

performs control actions by pressing

control buttons. New functionality also

allows users to navigate and initiate

control action with just one touch

(touchscreen only), if such functionality

is conﬁgured for the unit using the

PanelMate Power Pro Windows-based

conﬁguration software.

Simpliﬁed Machine Control

■Higher level functions such as

machine setup, diagnostics, alarm-

ing, trending and custom graphics

can be conﬁgured easily using the

PanelMate Power Pro conﬁguration

software. This intuitive software

signiﬁcantly reduces the time and

effort needed to create your applica-

tion. The software also provides

complete compatibility of conﬁgura-

tion ﬁles with other PanelMate series

products (Version 2.1 or later).

■Realistic representations of

machines and processes can be

displayed on all PanelMate models.

Detailed symbols can be designed

to the pixel level or selected from a

symbol library of over 3000 custom-

izable and scalable images. These

graphics make displays more mean-

ingful and allow operators to easily

recognize and understand the dis-

played data. The eight-state blinking

feature can be used to highlight

critical functions, provide animation

effects and attract the operator’s

attention to important information.

■Application ﬂexibility is provided by

hardware features that include:

❑Approved for use in Type 4, 4X

and 12 installations when properly

mounted in a correspondingly

rated enclosure. Stainless steel

models available for PanelMate

Power Pro 3000 and 5000 series.

❑Executive ﬁrmware stored in non-

volatile ﬂash memory for easy

upgrades.

❑Battery-backed clock that can be

synchronized externally.

❑Two RS-232/RS-422 serial ports

for communications or printing

alarms and messages (except

PM 1100 models).

❑Optional, high-speed, network

interface boards for connectivity

to a variety of networks.

❑System diagnostics.

❑All PanelMate Power Pro systems

meet UL, CSA, CE requirements

and UL/CSA Class I Division 2

Groups A, B, C, D requirements.

❑All PanelMate Power Pro models

have up to 100-page, 5000-

message capacity.

❑PanelMate Pro LT supports up to

64 I/O references (expandable up

to 512 I/O points) and a single

communication driver.

■Display features on all units provide

VGA (640 x 480) resolution with:

❑256-level grayscale on the gray-

scale versions or 256-color palette

on color versions.

■Touchpanel for all models include

a display with electronics module

and membrane keypad with off-

screen 3 x 5 cell control selection,

cancel key and numeric entry keypad,

with four redeﬁnable membrane

control buttons to the right of the

display. The PanelMate 5000 units

have ﬁve membrane control buttons.

■Touchscreen for all models include a

display with electronics module and

on-screen 3 x 5 cell control selection,

four redeﬁnable on-screen control

buttons, on-screen cancel key and

non-intrusive, pop-up, on-screen

numeric keypad. The PanelMate

5000 units have ﬁve on-screen

control buttons.

Displays Available

■7.4-inch grayscale LCD Flatpanel

(PM Pro LT 1100, PMPP 1700).

■7.7-inch color DSTN Flatpanel

(PM Pro LT 1100, PMPP 1700).

■8.4-inch color TFT Flatpanel

(PMPP 1700).

■10.4-inch color TFT Flatpanel

(PMPP 3000 and 5000).

■Split Architecture 10.4-inch color

TFT Flatpanel (PMPP 5000).

■All models available in touchscreen

and touchpanel (keypad).

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

Power Pro LT 1100, 1700, 3000 and 5000

PanelMate Pro LT 1100

Product Description

The PanelMate Pro LT 1100 is available with a 7.4-inch

grayscale LCD or 7.7-inch color Dual Scan (DSTN) display

with full VGA resolution and 256 shades/colors. Models are

available with either touchscreen (acrylic) or touchpanel for

operator input and can be mounted in a 4-inch deep enclosure.

The PanelMate Pro LT 1100 supports applications with up

to 64 I/O references and a single communication driver. The

number of supported I/O references can be upgraded to 512

I/O points (done in blocks of 64 I/O points — see 1100TAG

Options). The PanelMate Pro LT 1100 requires 24V DC

power input.

Product Selection

Table 23. PanelMate Pro LT 1100 Operator Stations 

Discount Symbol PM-2.

Table 24. PanelMate Pro LT 1100 Spare Parts

Contact factory.

PanelMate Power Pro 1700

Product Description

The PanelMate Power Pro 1700 is available with a 7.4-inch

grayscale LCD, 7.7-inch color Dual-Scan (DSTN) or 8.4-inch

color TFT display with full VGA resolution and 256 shades/

colors. Models are available with either touchscreen (acrylic)

or touchpanel for operator input and can be mounted in a

4-inch deep enclosure. The PanelMate Power Pro models

require 24V DC power input.

Product Selection

Table 25. PanelMate Power Pro 1700 Operator Stations

Add “-CC” after the Catalog Number for comformal coating.

Example: 1755K-CC.

Table 26. PanelMate Power Pro 1700 Spare Parts

Contact factory.

Description Catalog

Number

Price

U.S. $

7.4" Grayscale LCD Display

Touchpanel

Touchscreen

1155K

1155T

1,252.00

7.7" Color DSTN Display

Touchpanel

Touchscreen

1175K

1175T

1,999.00

Description Catalog

Number

Price

U.S. $

7.4" Grayscale LCD Display Assembly for 1155

7.7" Color DSTN Display Assembly for 1175

63-00494

63-00678

927.00

1,159.00

Keypad (4- & 15-position combined with

window) for 1155K, 1175K (gasket 32-01941

required)

63-00742 546.00

Gasket for Keypad (between keypad and display)

for 1155K, 1175K

32-01941 27.25

Touchscreen for 1155T and 1175T

(gaskets 32-01682 and 32-01941 required)

Do not replace 63-00632, contact factory

63-00838 593.00

Gasket for Touchscreen for 1155T, 1175T:

Between touchscreen and front panel

Between touchscreen and display

32-01682

32-01941

33.50

27.25

Front Panel Assembly for 1155K, 1175K

Front Panel Assembly for 1155T, 1175T

91-01913

91-01494

366.00

127.00

Backlight Kit for 1155

Backlight Kit for 1175

87-02144



133.00

—

Ship Kit for 1155K, 1175K

Ship Kit for 1155T, 1175T

86-00078

86-00077

47.25

Description Catalog

Number 

Price

U.S. $

7.4" Grayscale LCD Display

Touchpanel

Touchscreen

1755K

1755T

2,359.00

2,287.00

7.7" Color DSTN Display

Touchpanel

Touchscreen

1775K

1775T

3,528.00

3,425.00

8.4" Color TFT Display

Touchpanel

Touchscreen

1785K

1785T

5,235.00

5,075.00

Description Catalog

Number

Price

U.S. $

7.4" Grayscale LCD Display Assembly for 1755

7.7" Color DSTN Display Assembly for 1775

(units with PN greater than 92-01902)

8.4" Color TFT Display Assembly for 1785

63-00494

63-00678

63-00544

927.00

1,159.00

2,514.00

Keypad (4- & 15-position combined with

window) for 1755K, 1775K (gasket 32-01941

required)

63-00742 546.00

Gasket for Keypad (between keypad and display)

for 1755K, 1775K

Front Panel Gasket for 1755K, 1775K

32-01941

32-02229

27.25

35.25

Keypad (4- & 15-position combined with

window) for 1785K (gasket 32-02208 required)

63-00741 546.00

Gasket for Keypad (between keypad and display)

for 1785K

32-02208 27.25

Touchscreen for 1755T, 1775T (gaskets 32-01682

and 32-01941 required)

Do not replace 63-00632; contact factory

63-00835 593.00

Gasket for Touchscreen for 1755T, 1775T:

Between touchscreen and front panel

Between touchscreen and display

32-01682

32-01941

33.50

27.25

Touchscreen for 1785T (gaskets 32-01682 and

32-02208 required)

63-00831 593.00

Gasket for Touchscreen for 1785T:

Between touchscreen and front panel

Between touchscreen and display

32-01682

32-02208

33.50

27.25

Front Panel Assembly for 1755K, 1775K

Front Panel Assembly for 1785K

Front Panel Assembly for 1755T, 1775T, 1785T

91-01801

91-01826

91-01494

366.00

127.00

Gasket for Mounting 1785T Front Panel

Assembly

32-02005 33.50

Backlight Kit for 1755

Backlight Kit for 1775

Backlight Kit for 1785

87-02144



87-02455

133.00

—

232.00

Ship Kit for 1755K, 1775K, 1785K

Ship Kit for 1755T, 1775T, 1785T

86-00060

86-00059

47.25

Accessories . . . . . . . . . . . . . . . . . . . . . . Page 35

Discount Symbol . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

Power Pro LT 1100, 1700, 3000 and 5000

PanelMate Power Pro 3000

Product Description

The PanelMate Power Pro 3000 is available with a 10.4-inch

color TFT display with full VGA resolution and 256 colors.

Models are available with either touchscreen (glass or

acrylic) or touchpanel for operator input and with painted

steel or stainless steel front panels. These units can be

mounted in a 5-inch deep enclosure. The PanelMate Power

Pro models require 24V DC power input.

Product Selection

Table 27. PanelMate Power Pro 3000 Operator Stations

Add “-CC” after the Catalog Number for comformal coating.

Example: 3985K-CC.

Table 28. PanelMate Power Pro 3000 Spare Parts

PanelMate Power Pro 5000

Product Description

The PanelMate Power Pro 5000 features a large, easy-to-see

10.4-inch color TFT display with full VGA resolution and 256

colors. Models are available with a touchscreen (glass) or

touchpanel for operator input and with painted steel or

stainless steel. The touchpanel versions are available with

either of two designs — single-piece front panel or the split

architecture design. The touchpanel models can be mounted

in a 19-inch rack. The cutout and stud patterns for all models

are the same as earlier versions of PanelMate products that

featured the 13-inch display, including the PanelMate I/II/III.

The PanelMate Power Pro models require 24V DC power

input. The PanelMate Power Pro 5000 can also be ordered

with an ac power converter mounted on the back.

Product Selection

Table 29. PanelMate Power Pro 5000 Operator Stations

Add “-CC” after the Catalog Number for comformal coating.

Example: 5785K-CC.

Description Catalog

Number 

Price

U.S. $

10.4-Inch Color TFT Display

Touchpanel Painted Steel

Touchpanel Stainless Steel

Touchscreen (glass) Painted Steel

Touchscreen (glass) Stainless Steel

Touchscreen (acrylic) Painted Steel

Touchscreen (acrylic) Stainless Steel

3985K

3985SK

3985T

3985ST

3985AT

3985SAT

6,275.00

7,675.00

6,110.00

7,605.00

6,605.00

8,065.00

Description Catalog

Number

Price

U.S. $

10.4" Color TFT Display Assembly for 3985 63-00778 2,838.00

Keypad (4- & 15-position combined with window)

for 3985K

Plexi-Glass Window for 3985K Series

63-00740

32-02151

507.00

25.75

Touchscreen (glass) for 3985T and 3885ST

Touchscreen (acrylic) for 3985AT and 3985SAT

63-00585

63-00592

494.00

984.00

Front Panel for 3985K (gasket 32-02143 required)

Front Panel for 3985SK (gasket 32-02143 required)

Gasket for Front Panel for 3985K and 3985SK

32-02141

32-02288

32-02143

368.00

1,453.00

35.25

Front Panel for 3985T and 3985AT

(gaskets 32-02144 and 32-02145 required)

Front Panel for 3985ST and 3985SAT

(gaskets 32-02144 and 32-02145 required)

Gasket for Front Panel for 3985T, 3985ST, 3985AT

and 3985SAT

Gasket for Touchscreen for 3985T, 3985ST, 3985AT

and 3985SAT

32-02142

32-02289

32-02144

32-02145

261.00

1,360.00

21.00

Backlight Kit for 3985 87-02379 232.00

Ship Kit for 3985 86-00066 47.25

Description Catalog

Number 

Price

U.S. $

10.4" Color TFT, Single Piece Front Panel

Touchpanel Painted Steel

Touchpanel Stainless Steel

Touchpanel Painted with ac Power Converter

Touchscreen Painted Steel

Touchpanel Stainless Steel

Touchscreen Painted with ac Power Converter

5785K

5785SK

5785K-AC

5785T

5785ST

5785T-AC

9,160.00

10,395.00

9,425.00

8,900.00

10,300.00

9,160.00

10.4" Color TFT, Split Architecture Design

Touchpanel Painted Steel

Touchpanel Stainless Steel

Touchpanel Painted with ac Power Converter

5485K

5485SK

5485K-AC

9,160.00

10,395.00

9,425.00

Accessories . . . . . . . . . . . . . . . . . . . . . . . Page 35

Discount Symbol . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

Power Pro LT 1100, 1700, 3000 and 5000

Table 30. PanelMate Power Pro 5000 Spare Parts

Description Catalog

Number

Price

U.S. $

10.4" Color TFT Display Assembly for 5485, 5785

10.4" Backlight Kit for 5485, 5785

10.4" Front Panel for 5585K, 5785K

(gasket 32-02301 and 32-02145 required)

63-00778

87-02379

47-50632

2,838.00

232.00

408.00

10.4" Front Panel (SST) for 5585SK, 5785SK

(gasket 32-02301 and 32-02145 required)

10.4" Front Panel for 55885T, 5785T

(gaskets 32-02204 and 32-02145 required)

10.4" Front Panel (SST) for 5585ST, 5785ST

(gaskets 32-02204 and 32-02145 required)

47-50632-2

47-51017

47-51017-2

3,075.00

345.00

1,221.00

10.4" Front Panel (Upper) for 5285K, 5485K

(gasket 32-02308 and 32-02145 required)

10.4" Front Panel (Upper, SST) for 5285SK, 5485SK

(gasket 32-02308 and 32-02145 required)

10.4" Gasket for Front Panel for 5585K, 5585SK, 5785K, 5785SK

10.4" Gasket for Front Panel

10.4" Touchscreen Glass for 5585T, 5785T

47-51016

47-51016-2

32-02301

32-02145

63-00585

363.00

3,631.00

56.50

21.00

494.00

13.0" Color TFT Display Assembly for 5485, 5785

13.0" Touchscreen for 5585T, 5785T

13.0" Front Panel for 5585K, 5785K (gasket 32-02301 required)

13.0" Front Panel (SST) for 5585SK, 5785SK (gasket 32-02301 required)

PM5000-DSPKIT

63-00658

32-02206

32-02432

3,204.00

727.00

408.00

3,075.00

13.0" Front Panel for 55885T, 5785T

(gaskets 32-02204 and 32-02066 required)

13.0" Front Panel (SST) for 5585ST, 5785ST

(gaskets 32-02204 and 32-02066 required)

13.0" Front Panel (Upper) for 5285K, 5485K (gasket 32-02308 required)

32-02200

32-02430

32-02297

345.00

1,221.00

363.00

13.0" Front Panel (Upper, SST) for 5285SK, 5485SK

(gasket 32-02308 required)

13.0" Gasket for Front Panel for 5585K, 5585SK, 5785K, 5785SK

13.0" Gasket for Touchscreen for 5585T, 5585ST

32-02433

32-02301

32-02066

3,631.00

56.50

28.75

Gasket for Front Panel for 5585T, 5585ST

Gasket for Upper Front Panel for 5285K, 5285SK, 5485K, 5485SK

32-02204

32-02308

42.00

49.00

Membrane Keypad (5- & 15-position combined) for 5585K, 5785K

Membrane Keypad (5-position) for 5285K, 5485K

Membrane Keypad (15-position) for 5285K, 5485K

63-00714

63-00715

63-00375

649.00

582.00

639.00

Front Panel (Lower) for 5285K, 5485K (gasket 32-01392 required)

Front Panel (Lower, SST) for 5285SK, 5485SK

(gasket 32-01392 required)

32-02303

32-01388

194.00

515.00

Gasket for Lower Front Panel for 5285K, 5285SK, 5485K, 5485SK 32-01392 21.00

Backlight Kit for 5585, 5285 87-02137 311.00

Add-On 115/230V AC to 24V DC Power Converter for PanelMate Power

Pro 5000, all models Mounts on back of unit and adds 1.5" of depth

PM5000-ACKIT 464.00

Ship Kit for 5585K, 5785K

Ship Kit for 5585T, 5785T

Ship Kit for 5285K, 5485K

86-00067

86-00068

86-00069

47.25

Accessories . . . . . . . . . . . . . . . . . . . . . . Page 35

Discount Symbol . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

PC Pro Runtime Hardware Key

PanelMate PC Pro Runtime

Hardware Key

Product Description

PanelMate PC Pro is an online version

of the PanelMate Power Pro executive

software and communication drivers,

designed to run on an industry-standard

Intel-based personal computer and the

Windows NT 4.0 operating system.

PanelMate PC Pro is a full 32-bit,

Windows NT-compliant software

package with 32-bit Windows NT PLC

drivers, created to take advantage of

standard, open architecture hardware

and software developed by other ven-

dors, while maintaining the PanelMate’s

legendary simplicity and ease of use.

PanelMate PC Pro System

Requirements

PanelMate PC Pro software can be

installed on any PC running Windows

NT 4.0 or greater which meets the

following minimum requirements:

■Intel Pentium 133 MHz (200 MHz

recommended).

■32 MB DRAM (64 MB recom-

mended).

■1 GB hard drive.

■VGA controller and monitor.

■Pointing device (touchscreen

preferred).

■Windows NT Workstation V 4.0.

Beneﬁts

■PanelMate PC Pro allows the user to

tap into the valuable data in Panel-

Mate from other PC applications

because PanelMate PC Pro is open

— Bring data from the plant level

down to PanelMate, or feed data

from PanelMate PC Pro to other

information systems in the plant.

■PanelMate PC Pro adheres to

Windows standards and is 100%

Windows compatible, allowing you

to use the extensive networking

capabilities of Windows NT.

■Use of an open hardware/software

platform allows the customer to

precisely meet their ever-changing

needs with easy processor or capacity

upgrades, using off-the-shelf hard-

ware. Supplemental functionality

can be added using off-the-shelf

software, allowing the user to incor-

porate control, operator interface,

analysis, reporting, communications,

etc., into one workstation.

■Use an efﬁcient, Dynamic Link

Library (DLL) interface to connect

the tried-and-true PanelMate operator

interface with Steeplechase’s popular

Visual Logic Controller soft logic PC

control package.

■PanelMate PC Pro has the same

functionality as the PanelMate

Power Pro and is fully compatible

with applications created for Panel-

Mate Power Series/PanelMate

Power Pro products. Any Power

Series/Power Pro application will

run on PanelMate PC Pro.

Note: When purchasing a PanelMate ePro

PS Classic Operator Interface, PanelMate PC

Pro is already integrated and ready to run.

Product Selection

Table 31. PanelMate PC Pro Runtime Hardware Key and License

Note: Runtime software is included with PanelMate Conﬁguration Software #PMPROSW and

#PMPROSWSL, see Page 30.

Description Catalog

Number

Price

U.S. $

Runtime Hardware Key to Enable PanelMate PC Pro Runtime Software

Key connects to the PC parallel port and has pass-through capabilities.

The hardware key is required for PanelMate online operation.

PMPC-RT 2,230.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

Software

PanelMate Power Pro and

PanelMate PC Pro

Conﬁguration Software

Application Description

Windows-based conﬁguration

software is used to create PanelMate

Power Pro, PanelMate PC Pro and

PanelMate ePro conﬁgurations ofﬂine

on a PC. It also permits the editing of

character-based conﬁgurations from

earlier-version PanelMate Series

products. The following items can be

conﬁgured:

■One-touch control (for touchscreen

models).

■Customizable pixel-level graphics.

■8-state blink (for 256-level/color

models).

■3-level password protection.

■International character set support.

■Page change by operators and/or

PLC.

■User-deﬁnable online system

prompts to permit non-English or

customized text that can be toggled

with standard online prompts by

operators.

■Alarm window with a 100-alarm

capacity.

Features

■Indicator templates.

■Readout templates.

■Bar templates.

■Display templates.

■Trend templates.

■Table templates.

■Variable-size control button

templates.

■Pop-up maintenance window.

■Alarm window.

■Advanced trend templates.

■Tag name ﬁle support.

■Expression management.

■3000 symbol factory clipart.

PLC Communication Interfaces

Communication interfaces are avail-

able for the following programmable

controllers and are downloaded from

the conﬁguration software.

Note: Multiple interfaces may be run

simultaneously on PanelMate Power Pro

1700, 2000, 3000, 4000 and 5000 units.

■Allen-Bradley PLC-2, PLC-3, PLC-5

and SLC-500.

■Cutler-Hammer D50, D300, D320.

■GE Fanuc Series 5, 6, 90.

■Mitsubishi “A” Series and “FX”

Series.

■Modicon Modbus ASCII/RTU.

■Omron “C” Series plus CV500,

CV1000.

■PLC-Direct DL 405 Family.

■Square D SyMax.

■Siemens S5 Series, 3964R Protocol,

AS511.

■Simatic TI 305/405 and 500/505

Series.

■Reliance AutoMate.

■Toshiba T2.

High Speed Direct Connectivity Available

■Allen-Bradley Data Highway and

Data Highway Plus.

■Allen-Bradley Remote I/O Link.

■GE Fanuc Genius I/O Network.

■DeviceNet.

■Modicon Modbus Plus.

■PROFIBUS.

Transfer Cables

PanelMate conﬁguration software pack-

ages #PMPROSW and #PMPROSWSL

include a PanelMate 1100, 1700, 3000,

5000 (#0518) Transfer Serial Cable.

Product Selection

Table 32. Windows Conﬁguration Software for PanelMate Power Pro and PanelMate PC Pro

Description Catalog

Number

Price

U.S. $

PanelMate Power Pro Windows Conﬁguration Software and

Manuals with Communication Software Interfaces for all major

PLCs and High Speed Industrial Networks on CD-ROM with Tag and

Expression Management and Symbol Factory Clipart.

#PMPROSW includes transfer serial cable for PM1700, 3000, 5000

(#0518). #PMPROSW includes electronic copies of manuals in .PDF

format. Single User License.

PMPROSW 639.

Site License — See PMPROSW (for all users at 1 site location) PMPROSWSL 1,906.

PanelMate Power Pro Upgrade from previous PanelMate Power

Series Software to PanelMate Power Pro software version on CD-

ROM. Requires earlier version of PanelMate Power Series software

for installation. Single User License.

PMPROSWUP 210.

PanelMate Power Pro Software Upgrade — Site License

Requires previous installation of PanelMate Power Pro Software

Site License (PMPROSWSL). On CD-ROM.

PMPROSWSLUP 608.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

Software

Canvas Editing Software

Canvas Editor

Canvas Editor with Page Thumbnails

Canvas Application

Product Description

The Canvas Software includes the

Canvas® application development

software in addition to the Runtime

software for the PanelMate ePro PS

and the OPC servers/drivers. Canvas

software is used to develop Operator

Interface applications for PanelMate

ePro PS industrial Operator Interface

products. The powerful editing

environment in Canvas delivers state-

of-the-art features previously available

only on more expensive, high-end

SCADA packages. The included drivers

in the form of OPC servers support

Ethernet and serial connectivity to

virtually any PLC platform or network,

as well as a wide array of drives,

motion controllers and databases.

No additional fees are required.

Because the typical application devel-

opment expense of a Human Machine

Interface (HMI) often far outweighs the

expense of the hardware, the demand

to design and implement these

advanced solutions quickly is of para-

mount importance. That is why the

Canvas advanced Operator Interface

software package was designed with

ease of use and timesavings in mind.

Consistent functionality in Canvas

from one control to the next and from

one area to the next will help you

maintain your sense of place within

the project and shorten the develop-

ment time. Canvas makes it easy to

create and maintain an application

with advanced features such as multi-

language, security, recipe manage-

ment and data archiving. Data may

be exported, edited and imported

with Microsoft Excel, saving time

and ultimately reducing the cost of

the project.

Features

■Operator Interface — Monitor and

Control

■High-resolution graphical interface

■Built-in two-touch control for safety

applications

■Process/Machine Diagnostics

■Conversion of Legacy PanelMate

Conﬁgurations

■Secure Document and Web/Network

Browser

■Full Mathematical Evaluation

■Advanced Search and Replace

■Security (Passwords and other

Security Devices)

■Recipe Management

■Real-time and Historical Alarms and

Events

■Real-time and Historical Data

Archiving and Trending

■Notiﬁcation of Data and Events via

e-Mail

■Import/Export from XML

■Customizable Templates/Controls

■Scripting (IF, THEN, ELSE, GOTO

capability)

■Launch and Control of 3rd Party

Applications

■Multi Language

■Reusable Controls, Images and

Pages via Index Lists

■Master Pages

■Online and Ofﬂine Simulation

■Interface for DVT & Cognex Vision

Systems

Hardware Requirements

System Requirements for Running Canvas

Software 

■Operating system — Microsoft®

Windows XP (SP1 or later) or

Microsoft® Windows Vista (Canvas

V3.3 or later)

■Minimum Video Resolution — XGA

(1024 x 768)

File transfers can be done via Ethernet or

USB memory devices.

Product Selection

Table 33. Canvas

Description Catalog

Number

Price

U.S. $

Includes Canvas software for developing applications, Runtime

software for the PanelMate ePro PS Series and supporting OPC

servers/drivers. Single User License. On CD-ROM. Development

software requires Windows 2000 or Windows XP Operating System.

CANVASPRO 965.

Site License — See CANVASPRO (for all users at 1 site location) CANVASPROSL 2,895.

Installation CD and licensing to run Canvas runtime software on a

PC with Windows XP Professional OS. Licenses for Kepware OPC

servers, Data Archiving and Recipe Management are included.

CANVASPC 2,163.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

Connectivity: Utilities, Interfaces & Cables

Allen-Bradley Connectivity

Remote I/O, Data Highway, Data Highway Plus

Accelerate/On Interface

Licensed under A-B patented technology, the interface provides

a communication port for connecting directly to the user’s

choice of Allen-Bradley PLC networks: Remote I/O Link, Data

Highway or Data Highway Plus. Can be used simultaneously

with PanelMate 1700, 3000 and 5000 serial ports.

Table 34. Remote I/O, Data Highway, Data Highway Plus

Note: Includes royalty for license under Allen-Bradley patented

technology.

Allen-Bradley PLC Network Upload/Download

“One-time use” diskette enables the PanelMate unit to

upload and download PanelMate conﬁgurations to PCs via

Allen-Bradley PLC networks. This Upload/Download feature

can be used to conduct the following operations without

having to disconnect the PanelMate Unit from the PLC, or

open the enclosure to access the serial ports:

■Download conﬁgurations from a PC in a central location

to PanelMate units on a network.

■Upload PanelMate conﬁgurations (while units are

monitoring and controlling) to a PC for backup.

■Download new PanelMate software enhancements

to units.

Note: Requires Accelerate/On Interface (#XX41) and Windows

Conﬁguration Software or Transfer Utility option #0621.

■Requires A-B RSLinx-OEM version 2.0 or higher or A-B

Interchange software.

Table 35. Allen-Bradley PLC Network Upload/Download

Allen-Bradley DH-485 (SLC-500) Communications

“One-time use” diskette. Licensed under A-B patented

technology, this option enables communications to Allen-

Bradley SLC-500 PLCs through the DH-485 network in a

single target Power Series online unit. A-B 1747-AIC Module

is only required when simultaneous interface to PanelMate

and PLC programming equipment is desired.

Table 36. DH-485

Note: Includes royalty for license under Allen-Bradley patented

technology.

Allen-Bradley Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 and ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for

communications between a PanelMate 1100, 1700, 3000,

5000 or ePro unit serial port and the PLC communications

port using D-Shell connectors. Cables used with PanelMate

ePro require a DB9(M)/DB9(F) converter (converts DB9(M)

to DB9(F)).

Table 37. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 and ePro

Eaton’s Cutler-Hammer Connectivity

Cutler-Hammer Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700, 3000,

5000, ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate 1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors.

Table 38. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000, ePro

Description Catalog

Number

Price

U.S. $

Accelerate/On™ Interface

Direct connect to Remote I/O Link, Data

Highway or Data Highway Plus

PanelMate Power Pro 1100, 1700

PanelMate Power Pro 3000, 5000

1241

1251

758.

1,252.

Description Catalog

Number

Price

U.S. $

One-time use diskette. Enables upload/

download on operator station.

0524 439.

Description Catalog

Number

Price

U.S. $

Allen-Bradley DH-485 (SLC-500)

Communications — One-time use diskette

PanelMate Power Pro 1100, 1700

PanelMate Power Pro 3000, 5000

1525

0725

134.

366.

Description Catalog

Number

Price

U.S. $

1785-KE, 1771-KC, KD, KE, KF, KG

AB 1747 AIC for SLC 500 (DH-485 INTFC)

AB21

AB23A

125.

AB SLC 500 Direct (6 ft./1.8 m) Cable

AB SLC503/504 (RS-232) Channel 0

AB PLC5 (RS-232) Channel 0, DF1

AB24A

AB25

AB26

125.

AB PLC5 (RS-422) Channel 0, DF1 Cable

AB 1747 AIC for SLC 500, CPU Connector (J1)

AB MicroLogix Adapter Cable (1 ft./.3 m)

(DB9F to DB9M)

AB27A

AB28A

AB29

125.

Description Catalog

Number

Price

U.S. $

Cutler-Hammer D200 Cable, for use with 1100,

1700, 3000 or 5000 only

CH21A 125.

Cutler-Hammer D50/D150/D300/D320 (RS-485)

Cable, for use with 1100, 1700, 3000 or 5000 only

CH22A 125.

Cutler-Hammer D50/D320/D32LT (RS-232)

Cable for use with ePro and PMPC-RT only —

requires D50CPM485

CH23 150.

ELC (RS-485) Cable for use with ePro PS and

Power Pro only

CH24 125.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

Connectivity: Utilities, Interfaces & Cables

DeviceNet Connectivity

The PanelMate DeviceNet implementation features the ability

to “monitor” status from other slave devices without the

need for active involvement from the master device. When

installed on DeviceNet, PanelMate can update its screens

with data from the slave devices or from the PC. It can also

input control (pushbutton) operations or numeric informa-

tion to the PC. These capabilities permit PanelMate units to

function as complete control and monitoring stations on

DeviceNet.

Table 39. DeviceNet Interface

General Electric Connectivity

GE Fanuc GEnius I/O Interface to GE PLCs

This interface provides a communication port for connection to

GE Series 6 and Series 90 PLCs over the GEnius I/O Network.

Table 40. GEnius I/O Interface

General Electric Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or e-Pro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate 1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors. Cables used with PanelMate ePro require

a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).

Table 41. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

Mitsubishi Connectivity

Mitsubishi Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate 1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors. Cables used with PanelMate ePro require

a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).

Table 42. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

Modicon Connectivity

Modicon Modbus Plus PLC Network Upload/Download

“One-time use” diskette enables the PanelMate unit to

upload and download PanelMate conﬁgurations to PCs via

Modicon Modbus Plus PLC networks. This Upload/Down-

load feature can be used to conduct the following operations

without having to disconnect the PanelMate Unit from the

PLC, or open the enclosure to access the serial ports:

■Download conﬁgurations from a PC in a central location

to PanelMate units on a network.

■Upload PanelMate conﬁgurations (while units are

monitoring and controlling) to a PC for backup.

■Download new PanelMate software enhancements to units.

Note: Requires Modbus Plus Interface, Conﬁguration Software

or Transfer Utility.

Table 43. Modicon Modbus Plus Network Upload/Download

Modbus Plus Communications and PanelMate

This interface provides a communication port for connection

to Modicon PLCs over the Modbus Plus network. Interface

mounts to the back of the online unit and can be mounted in

a 4-inch (102 mm) deep enclosure.

Table 44. Modbus Interface

Modicon Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700, 3000,

5000 or ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate 1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors. Cables used with PanelMate ePro require

a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).

Table 45. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

Description Catalog

Number

Price

U.S. $

For all PanelMate Power Pro 1100, 1700,

3000, 5000

1245DN 835.

Description Catalog

Number

Price

U.S. $

GEnius I/O Interface

For all PanelMate Power Pro 1100, 1700,

3000, 5000

1243 1,303.

Description Catalog

Number

Price

U.S. $

Series 90 Programming Port

Series 90 (RS-422) Com 311/711 Module

Series 90 (RS-232) Com 311/711 Module

GE21A

GE22

GE23

125.

Series 6/6+ (RS-422) Com 2 – J1 Port

Series 6/6+ (RS-232) Com 2 – J2 Port

GE24

GE25

125.

Description Catalog

Number

Price

U.S. $

A Series — AJ71C24 Module (RS-232)

A Series — AJ71C24 Module (RS-422) Cable

FX/FXo Series — (RS-232/RS-422) Converter

MI21

MI22A

MI23

125.

Description Catalog

Number

Price

U.S. $

One-time use diskette. Enables upload/down-

load on operator station. To operate,

customer requires:

1) Modbus Plus Interface (1248) to be installed

in unit

2) Windows Conﬁguration Software OR

Transfer Utility on the PC

0548 387.

Description Catalog

Number

Price

U.S. $

Direct Modbus Plus Interface

PanelMate Power Pro 1100, 1700, 3000, 5000 1248 783.

Description Catalog

Number

Price

U.S. $

9-Pin Modbus

Micro PLC (RJ-45) Modbus Cable

MB21

MB22

125.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

Connectivity: Utilities, Interfaces & Cables

Omron Connectivity

Omron Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors. Cables used with PanelMate ePro require

a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).

Table 46. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

PROFIBUS DP Connectivity

PROFIBUS DP Interface

This PROFIBUS DP Slave Adapter interface provides com-

munications between a PanelMate operator interface and a

PROFIBUS network without requiring any additional com-

munications modules. A maximum of one interface can be

installed on each PanelMate unit.

Table 47. PROFIBUS DP Interface

Siemens Connectivity

PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate 1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors. Cables used with PanelMate ePro require

a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).

Table 48. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

Simatic TI Connectivity

Simatic TI Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate 1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors. Cables used with PanelMate ePro require

a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).

Table 49. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

Square D Connectivity

Square D Communication Cables

PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

One 15-foot (4.6 m) cable, unless otherwise stated, for commu-

nications between a PanelMate 1100, 1700, 3000, 5000 or

ePro unit serial port and the PLC communications port using

D-Shell connectors. Cables used with PanelMate ePro require

a DB9(M)/DB9(F) converter (converts DB9(M) to DB9(F)).

Table 50. PLC Interface Cables for PanelMate Power Pro 1100, 1700,

3000, 5000 or ePro

Description Catalog

Number

Price

U.S. $

C Series (RS-232)

CV Series (RS-232)

OM21

OM22

125.

C Series (RS-422) Cable

CV Series (RS-422) Cable

OM23A

OM24A

125.

CS/CQ Series (RS-232) Cable OM25 125.

Description Catalog

Number

Price

U.S. $

PROFIBUS DP Slave I/O Interface

For all PanelMate Power Pro 1100, 1700,

3000, 5000

1247 1,211.

Description Catalog

Number

Price

U.S. $

Siemens (RS-232)

Siemens S7 HMi Cable

SI21

SI22

125.

Description Catalog

Number

Price

U.S. $

TI 500, 305 (RS-232)

TI 405 (RS-232)

TI 545 (RS-232)

TI21

TI22

TI23

125.

TI 305-02DM, TI 405 DCM (RS-422) Cable

TI 545-1101 (RS-422) Cable

TI 545-12102, 1104, 1105 Cable

TI25A

TI26A

TI27A

125.

Description Catalog

Number

Price

U.S. $

PLC Processor Cable

NIM Network Interface Module Cable

SD21A

SD22A

125.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

PanelMate Operator Interface

Accessories

Transfer Serial Cable

One 15-foot (4.6 m), RS-232 cable with DB9 connectors on

each end, for upload/download between standard serial PC

communication port and PanelMate serial port.

Table 51. Transfer Serial Cable

Included in configuration software package #PMPROSW and

#PMPROSWSL.

Converter Connectors

Connectors that convert a 9-pin D-Shell connector to a RJ11

phone jack-style connector.

Table 52. Converter Connectors

Table 53. Storage Modules for PanelMate 1100, 1700, 3000, 5000

Mounting Collars and Plates

Mounting plates and collars can be used when replacing

older PanelMate products with newer models with no or

minimal cutout changes required.

Table 54. Adapter Plates (Similar Look to a Painted Steel Front Panel)

Cutting is required to make the cutout wider; drilling is required for

new stud holes. For touchpanel units, see Table 55 if cutting and drill-

ing is not an option.

Description Catalog

Number

Price

U.S. $

PanelMate 1100, 1700, 3000, 5000 Additional 0518 125.

Description Catalog

Number

Price

U.S. $

RS-232 DB9 (F) / RJ11 (M) converter [converts

DB9 (M) to RJ11 (M)]. Ideal for converting

PMPP 1700 cables for use with PMPS 1500

0820 125.

RS-232 RJ11 (F) / DB9 (M) converter [converts

RJ11 (M) to DB9 (M)]. Ideal for converting

PMPS 1500 cables for use with PMPP 1700

0821 125.

Description Catalog

Number

Price

U.S. $

Conﬁguration Storage Module

Memory unit that allows transfer of one

conﬁguration to or from the target PanelMate

unit.

0614 541.

Description Catalog

Number

Price

U.S. $

Micro PanelMate (D820, D830, D840) to 2- or

4-line ELC Graphics Panel (ELC-GPxx) Keypad

APPM1ELCGP4 202.

6" PM 500, 1000 to 6" (HMI06xx) Touchscreen

and Function Buttons

APPM1HMI6 202.

8" PM (11xxK, 17xxK, 75xxK-8) Keypad

to 8" (11xxT, 17xxT, 75xxT-8, 76xxT-8x)

Touchscreen

APPS8A 287.

8" PM (11xxK, 17xxK, 75xxK-8) Keypad

to 8" (HMI08CE) Touchscreen

APPM1HMI8 287.

9" PM 2000/Compact (24xx/25xx) Keypad to

8" PM (11xxK, 17xxK, 75xxK-8) Keypad 

1524TP 287.

9" PM 2000/Compact (24xx/25xx) Keypad

to 8" PM (11xxT, 17xxT, 75xxT-8, 76xxT-8x)

Touchscreen

1524TPTS 287.

9" PM 2000 (26xx/27xx) Keypad to 8" PM

(11xxK, 17xxK, 75xxK-8) Keypad 

1527TP 287.

9" PM 2000 (26xx/27xx) Keypad to 8" PM

11xxT, 17xxT, 75xxT-8, 76xxT-8 Touchscreen

1527TPTS 287.

9" PM 2000 (26xx/27xx) Touchscreen to 8" PM

(11xxT, 17xxT, 75xxT-8, 76xxT-8x)

Touchscreen 

1527TS 287.

10" PM 3000 (39xxK, 75xxK-10) Keypad

to 10" (HMI10CE) Touchscreen and Function

Buttons

APPM2HMI10 351.

10" PM 3000 (39xxT, 75xxT-10, 76xxT-10x)

Touchscreen to (HMI10CE) Touchscreen and

Function Buttons

APPM1HMI10 351.

10" PM ePro (7585K-10) Keypad to 10"

ePro PS (76xxT-10x) Touchscreen

APPS10A 351.

13" PM 5000 (54xx) Keypad-Split to 12"

(76xxT-12x) Touchscreen

APPS12B 351.

14" PM 4000 (45xx), 13" 5000 (55xx/57xx)

Keypad to 12" PM ePro PS 12" (7685T-12)

Touchscreen

APPS12A 351.

14" PM 4000 (45xx), 13" 5000 (55xx/57xx)

Keypad to 15" (7585DT-15) Remote

Touchscreen Display

APFP15A 351.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

For more information visit: www.eaton.com CA04801001E

Operator Interface Products

PanelMate Operator Interface

Accessories

Table 55. Adapter Collars (Raises front of PanelMate 1.00-Inch

(25.4 mm) from the Mounting Surface)

PanelMate Overlay Kits

The overlay kits are ideal for protecting your screens from dirt,

grime and abrasion and are particularly desirable for Panel-

Mate touchscreen models installed in dirty environments.

These overlays can be ordered as clear or with an additional

anti-glare feature. The overlays simply adhere to the front of

the display and can be easily removed and replaced when

required. Five overlays are included in each kit.

Table 56. Overlay Kits

PanelMate Pro LT 1100 Tags

The PanelMate Pro LT 1100 I/O Reference Point Expansion is

an upgrade kit that includes a hardware key and download

software. The upgrades are provided on the hardware key and

are downloaded to a PanelMate Pro LT 1100 from a PC using

the provided hardware key and software. The PanelMate Pro

LT supports 64 I/O points as standard and can be upgraded to

support a maximum of 512 I/O points (7 upgrades installed).

Table 57. PanelMate Pro LT Expansion 

Discount Symbol PM-2.

PanelMate ePro PS Restore Kits

Each Restore Kit provides a simple way to reset the load of

the PanelMate ePro PS internal CompactFlash that holds

the operating system to the factory-installed image. This kit

is typically used as a ﬁeld-recovery method for operating

system problems, but it can also be used to upgrade the

image load of installed units.

Each Restore Kit can be re-used to restore multiple Panel-

Mate ePro PS units or to restore the same PS unit multiple

times. The kit used for restoring the factory-installed image

must match the model type of the unit being restored to

maintain product integrity.

Installation requires a Microsoft-compatible USB keyboard

and mouse and an Ethernet network connection.

Table 58. PanelMate ePro PS Restore Kits

RoHS compliant units have a silver-colored galvanized steel back

cover. Non-RoHS compliant units have a gold-colored plated steel

back cover.

Description Catalog

Number

Price

U.S. $

PM 2000/Compact (24xx) Touchpanel to PM

11xxK, 17xxK, 75xxK-8 Touchpanel Collar.

For Type 12 installations only.

1524TPCOLLAR 287.

PM 2000 (26xx/27xx) Touchpanel to PM

11xxK, 17xxK, 75xxK-8 Touchpanel Collar.

For Type 12 installations only.

1527TPCOLLAR 287.

Description Catalog

Number

Price

U.S. $

8.4" Anti-Glare Overlay Kit, 5 overlays/kit, for

use with PanelMate 11xxT, 15xxT, 17xxT,

75xxT-8, 76xxT-8x

17AGT 156.

8.4" Clear Protective Overlay Kit, 5 overlays/kit,

for use with PanelMate 11xxT, 15xxT, 17xxT,

75xxT-8, 76xxT-8x

17CPT 156.

10.4" Anti-Glare Overlay Kit, 5 overlays/kit, for

use with PanelMate Power Pro 3000, 5000 (All

10.4" Models), 75xx-10 (All Models), 76xxT-10x

39AG 156.

10.4" Clear Protective Overlay Kit, 5 overlays/

kit, for use with PanelMate Power Pro 3000,

5000 (All 10.4" Models), 75xx-10 (All Models),

76xxT-10x

39CP 156.

13.0" Anti-Glare Overlay Kit, 5 overlays/kit, for

use with PanelMate Power Pro 5000 (All 13.0"

Models)

55AG 156.

13.0" Clear Protective Overlay Kit, 5 overlays/

kit, for use with PanelMate Power Pro 5000 (All

13.0" Models)

55CP 156.

12.1" Anti-Glare Overlay Kit, 5 overlays/kit for

use with 12" PanelMate ePro PS 12" models

(76xxT-12x) and 12" Stand-Alone Touchscreen

Displays (7585DT-12)

AG-12 156.

15.0" Anti-Glare Overlay Kit, 5 overlays/kit for

use with PanelMate ePro PS 15" models

(76xxT-15x) and 15" Stand-Alone Touchscreen

Displays (7585DT-15)

AG-15 156.

17.0" Anti-Glare Overlay Kit, 5 overlays/kit for

use with 17" Stand-Alone Touchscreen Dis-

plays (7585DT-17)

AG-17 156.

Description Catalog

Number

Price

U.S. $

I/O Reference Point Expansion

(64 points per upgrade)

1 x 64 I/O point expansion

5 x 64 I/O point expansion

10 x 64 I/O point expansion

50 x 64 I/O point expansion

1100TAG1

1100TAG5

1100TAG10

1100TAG50

412.

1,685.

2,972.

13,910.

Description Catalog

Number

Price

U.S. $

New RoHS Compliant Models 

Kit to restore PanelMate ePro PS, OD, and Classic

units to the current factory image load

76MLPS 577.

Kit to restore PanelMate ePro PS EE units to the

current factory image load

76MLEE 577.

Legacy Non-RoHS Compliant Models 

Kit to restore PanelMate ePro PS and PS OD

Display units to the current factory image load

76MLPSD 577.

Kit to restore PanelMate ePro PS Blind Node

units to the current factory image load

76MLPSB 577.

Kit to restore PanelMate ePro PS EE Display units

to the current factory image load

76MLEED 577.

Kit to restore PanelMate ePro PS EE Blind Node

units to the current factory image load

76MLEEB 577.

Kit to restore PanelMate ePro PS Classic Display

units to the current factory image load

76MLPSCD 577.

Kit to restore PanelMate ePro PS Classic Blind

Node units to the current factory image load

76MLPSCB 577.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

CA04801001E For more information visit: www.eaton.com

Operator Interface Products

March 2008

PanelMate Operator Interface

Legacy Products Spare Parts

Table 59. PanelMate ePro (75xx Series) Spare Parts

Table 60. PanelMate Power Series 2000 Spare Parts

Table 61. PanelMate Power Series 3000 Spare Parts

Contact factory.

Description Catalog

Number

Price

U.S. $

7.7" Color DSTN Display Assembly for 7575T-8 Series

8.4" Color TFT Display Assembly for 7585K-8 and 7585T-8 Series

10.4" Color TFT Display Assembly for 7585K-10 and 7585T-10 Series

63-00678

63-00544

63-00778

1,159.00

2,514.00

2,838.00

Keypad with Window for 7585K-8 Series 63-00796 727.00

Touchscreen for 7575T-8 Series (gaskets 32-01682 and 32-02437 required) 63-00837 593.00

Gasket for Touchscreen (between touchscreen and front panel)

for 7575T-8 Series

Gasket for Touchscreen (between touchscreen and display)

for 7575T-8 Series

32-01682

32-02437

33.50

27.25

Touchscreen for 7585T-8 Series (gaskets 32-01682 and 32-02208 required) 63-00832 593.00

Gasket for Touchscreen (between touchscreen and front panel)

for 7585T-8 Series

Gasket for Touchscreen (between touchscreen and display)

for 7585T-8 Series

32-01682

32-02208

33.50

27.25

Keypad for 7585K-10 Series (does not include window)

Plexi-Glass Window for 7585K-10 Series

63-00805

32-02151

855.00

25.75

Touchscreen for 7585T-10 Series 63-00585 494.00

Gasket for Touchscreen for 7585T-10 Series

(between touchscreen and display)

32-02145 21.00

Front Panel Assembly for 7585K-8 Series 91-01985 430.00

Front Panel Assembly for 7575T-8 and 7585T-8 Series 91-01494 127.00

Front Panel for 7585T-10 Series (gaskets 32-02144 and 32-02145 required)

Gasket for Front Panel for 7585T-10 Series

Gasket for Touchscreen for 7585T-10 Series

32-02444

32-02144

32-02145

582.00

21.00

Backlight Kit for 7585K-8 and 7585T-8 Series

Backlight Kit for 7585K-10 and 7585T-10 Series

87-02455

87-02379

232.00

Ship Kit for 7585K-8 Series

Ship Kit for 7575T-8 and 7585T-8 Series

Ship Kit for 7585T-10 Series

86-00086

86-00083

86-00085

47.25

ISA 1 Port PanelMate PC Adapter D712-DHP-ISA 2,130.00

Description Catalog

Number

Price

U.S. $

Display Assembly for 24xx

Display Assembly for 26xx

91-01430

91-01425

1,206.

PanelMate Power Series Upgrade Kit (adds high capacity, dynamic

graphics, advanced trending and Modbus enabler)

PMUPGRADE 273.

Membrane Keypad (4-position) for 24xx, 26xx, 27xx 63-00395 317.

Description Catalog

Number

Price

U.S. $

Keypad with Window for 39xx

Touchscreen for 39xx

63-00743

63-00285

1,267.

927.

PanelMate Power Series Upgrade Kit (adds high capacity, dynamic

graphics, advanced trending and Modbus enabler)

PMUPGRADE 273.

Backlight Kit for 37xx

Backlight Kit for 39xx

87-01216



232.

—

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

March 2008

38 Operator Interface Products

Eaton Corporation

Electrical Group

1000 Cherrington Parkway

Moon Township, PA 15108

United States

877-ETN CARE (877-386-2273)

Eaton.com PowerChain Management

is a trademark of Eaton

Corporation. All other

trademarks are property

of their respective owners.

Printed in USA

Publication No. CA04801001E/CPG

March 2008

PanelMate Operator Interface

Legacy Products Spare Parts

Table 62. PanelMate Power Series 4000 Spare Parts

Table 63. PanelMate Power Series 5000 Spare Parts

Table 64. PanelMate Power Series 1000 Spare Parts

Contact factory.

Description Catalog

Number

Price

U.S. $

Display Assembly for 42xx, 45xx 91-01538 2,600.

Membrane Keypad (5-position) for 42xx

Membrane Keypad (15-position) for 42xx

Cable for Remote Keypad

63-00376

63-00375

90-00594

504.

639.

203.

Membrane Keypad (5-position) for 45xx 63-00391 504.

PanelMate Power Series Upgrade Kit (adds high capacity, dynamic

graphics, advanced trending and Modbus enabler)

PMUPGRADE 273.

Touchscreen for 45xx 63-00773 1,309.

Description Catalog

Number

Price

U.S. $

Membrane Keypad (5-position) for 52xx

Membrane Keypad (15-position) for 52xx

Cable and Remote Keypad for 52xx

63-00458

63-00375

90-00594

504.

639.

203.

Membrane Keypad (5-position) for 55xx 63-00372 504.

Touchscreen for 55xx

Touchscreen Cable for 55xx

63-00773

90-00715

1,309.

290.

PanelMate Power Series Upgrade Kit (adds high capacity, dynamic

graphics, advanced trending and Modbus enabler)

PMUPGRADE 273.

Backlight Kit for 52xx, 55xx 87-01783 311.

Description Catalog

Number

Price

U.S. $

Front Panel, Keypad Assembly, Painted Steel for 1218

Front Panel, Keypad Assembly, Stainless Steel for 218S

FRPNL-1218



335.

—

Backlight Kit for 1218, 218S 87-02143 133.

Discount Symbol . . . . . . . . . . . . . . . . . . . . . . . . PM-1

Eaton Electrical Ca04801001E Users Manual

ca04801001e d2841bb7-1df3-4b82-89fc-9e4f0b937623 Eaton Electrical Dishwasher CA04801001E User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
