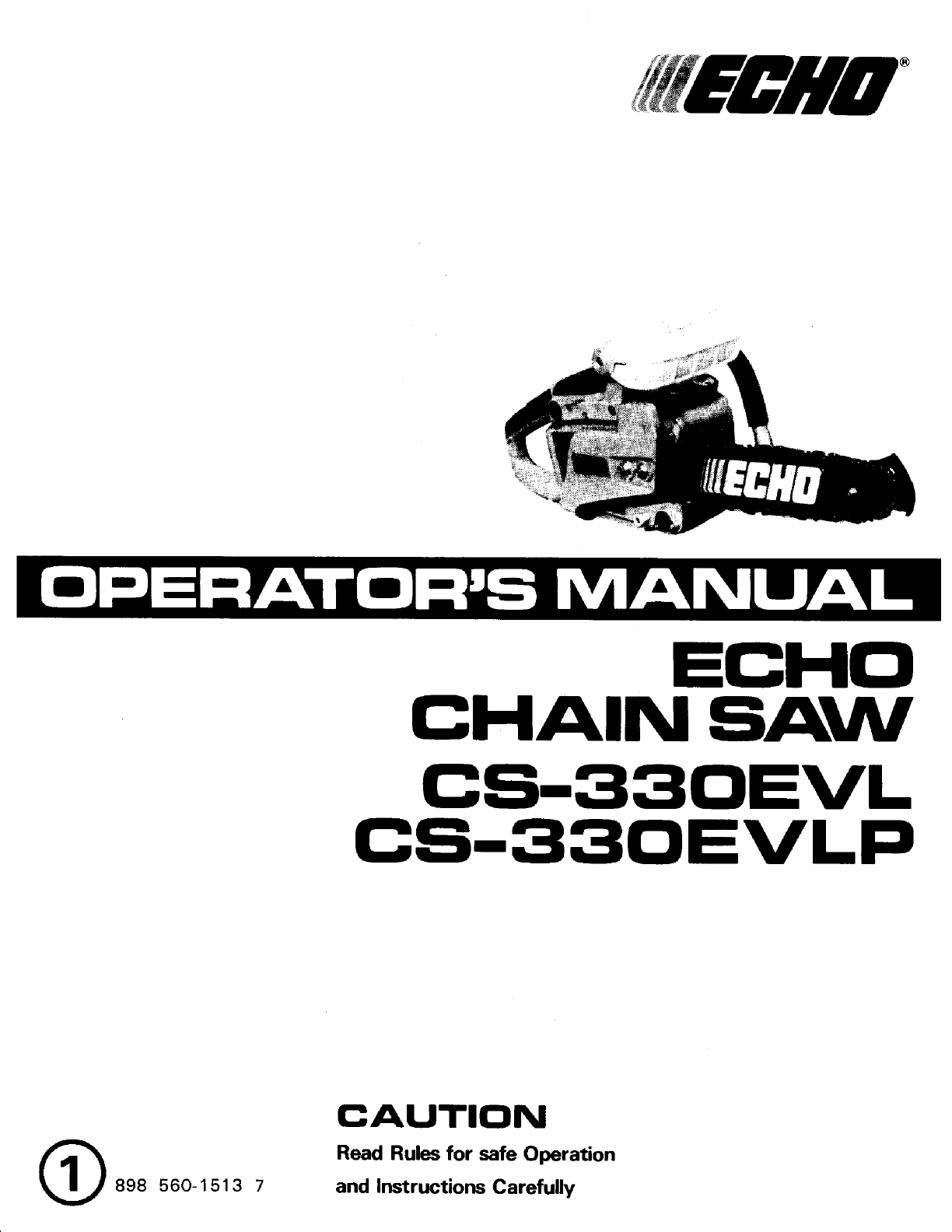

_®

ECHO

CHAIN SAW

CS-330EVL

CS-330EVLP

898 560-1513

CAUTION

Read Rules for safe Operation

and Instructions Carefully

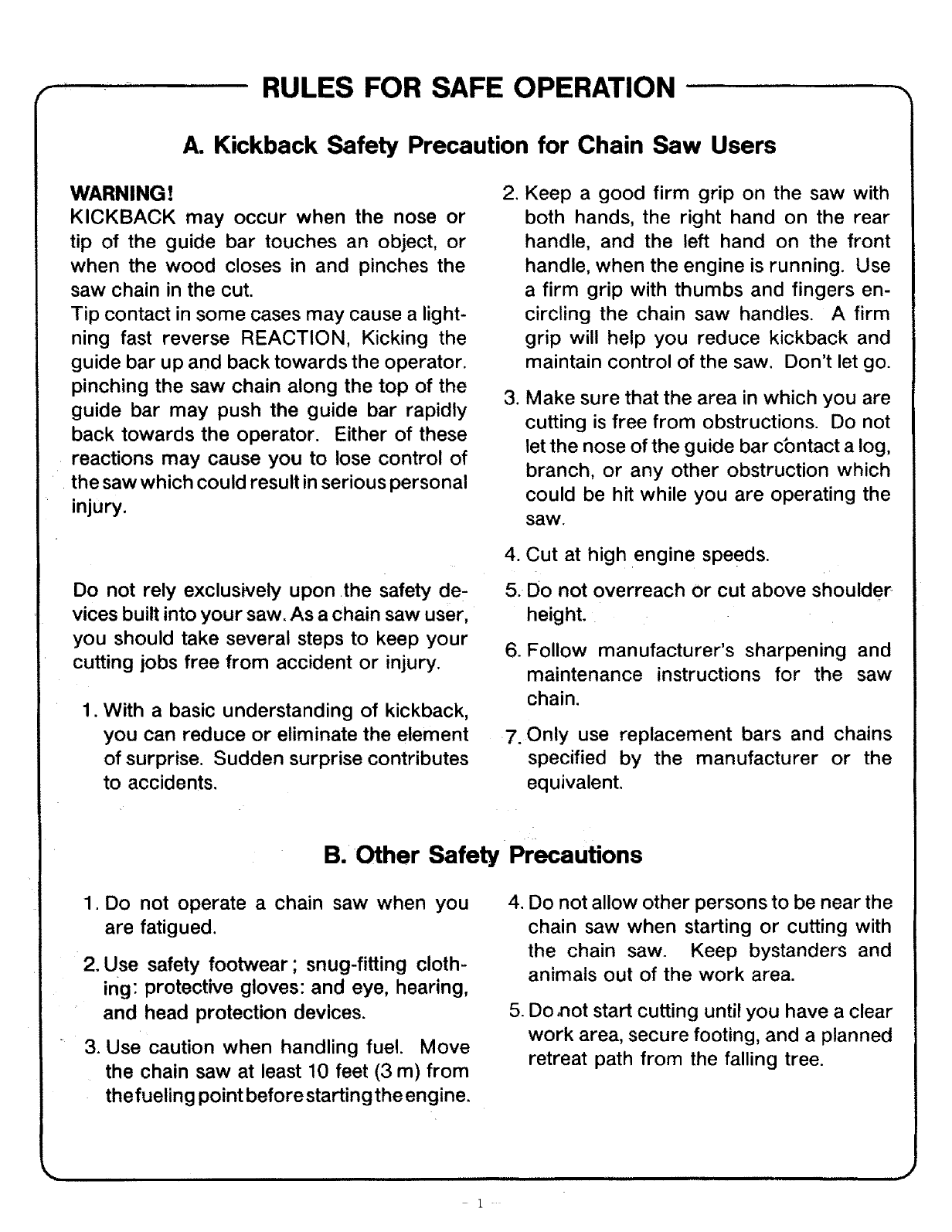

:' RULES FOR SAFE OPERATION -

A. Kickback Safety Precaution for Chain Saw Users

WARNING! 2.

KICKBACK may occur when the nose or

tip of the guide bar touches an object, or

when the wood closes in and pinches the

saw chain in the cut.

Tip contact in some cases may cause a light-

ning fast reverse REACTION, Kicking the

guide bar up and back towards the operator.

pinching the saw chain along the top of the 3.

guide bar may push the guide bar rapidly

back towards the operator. Either of these

reactions may cause you to lose control of

the saw which could result in serious personal

injury.

Keep a good firm grip on the saw with

both hands, the right hand on the rear

handle, and the left hand on the front

handle, when the engine is running. Use

a firm grip with thumbs and fingers en-

circling the chain saw handles. A firm

grip will help you reduce kickback and

maintain control of the saw. Don't let go.

Make sure that the area in which you are

cutting is free from obstructions. Do not

let the nose of the guide bar contact a log,

branch, or any other obstruction which

could be hit while you are operating the

saw.

Do not rely exclusively upon the safety de-

vices built into your saw. As a chain saw user,

you should take several steps to keep your

cutting jobs free from accident or injury.

1. With a basic understanding of kickback,

you can reduce or eliminate the element

of surprise. Sudden surprise contributes

to accidents.

4. Cut at high engine speeds.

5. Do not overreach Or cut above shoulder

height.

6. Follow manufacturer's sharpening and

maintenance instructions for the saw

chain.

7. Only use replacement bars and chains

specified by the manufacturer or the

equivalent.

B. Other Safety Precautions

Do not operate a chain saw when you

are fatigued.

Use safety footwear; snug-fitting cloth-

ing: protective gloves: and eye, hearing,

and head protection devices.

Use caution when handling fuel. Move

the chain saw at least 10 feet (3 m) from

the fueling point before starting the engine.

.Do not allow other persons to be near the

chain saw when starting or cutting with

the chain saw. Keep bystanders and

animals out of the work area.

5. Do,not start cutting until you have a clear

work area, secure footing, and a planned

retreat path from the falling tree.

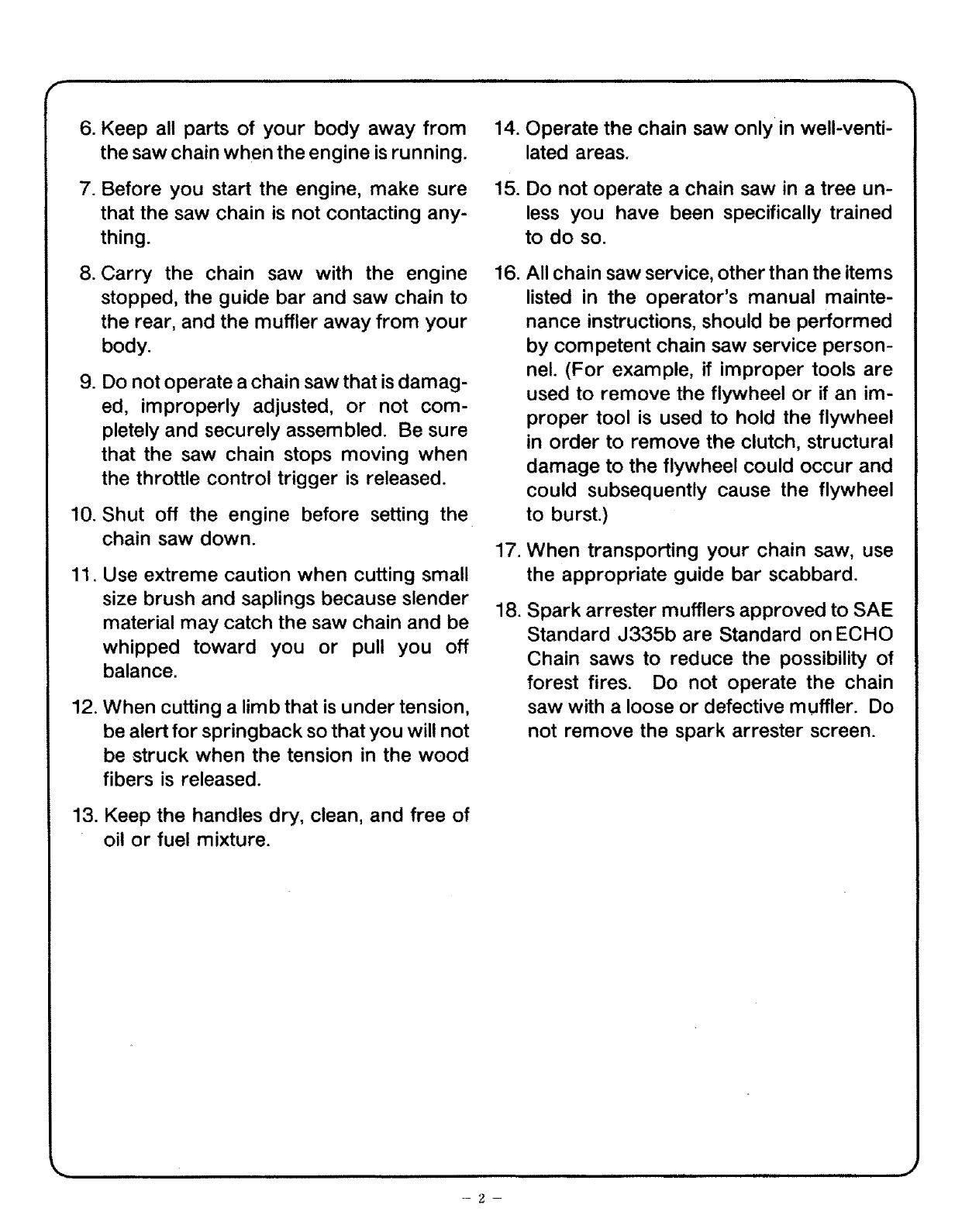

6. Keep all parts of your body away from

the saw chain when the engine is running.

7. Before you start the engine, make sure

that the saw chain is not contacting any-

thing.

.Carry the chain saw with the engine

stopped, the guide bar and saw chain to

the rear, and the muffler away from your

body.

.Do not operate a chain saw that is damag-

ed, improperly adjusted, or not com-

pletely and securely assembled. Be sure

that the saw chain stops moving when

the throttle control trigger is released.

10. Shut off the engine before setting the

chain saw down.

11. Use extreme caution when cutting small

size brush and saplings because slender

material may catch the saw chain and be

whipped toward you or pull you off

balance.

12. When cutting a limb that is under tension,

be alert for springback so that you will not

be struck when the tension in the wood

fibers is released.

13. Keep the handles dry, clean, and free of

oil or fuel mixture.

14. Operate the chain saw only in well-venti-

lated areas.

15. Do not operate a chain saw in a tree un-

less you have been specifically trained

to do so.

16. All chain saw service, other than the items

listed in the operator's manual mainte-

nance instructions, should be performed

by competent chain saw service person-

nel. (For example, if improper tools are

used to remove the flywheel or if an im-

proper tool is used to hold the flywheel

in order to remove the clutch, structural

damage to the flywheel could occur and

could subsequently cause the flywheel

to burst.)

17.

18.

When transporting your chain saw, use

the appropriate guide bar scabbard.

Spark arrester mufflers approved to SAE

Standard J335b are Standard on ECHO

Chain saws to reduce the possibility of

forest fires. Do not operate the chain

saw with a loose or defective muffler. Do

not remove the spark arrester screen.

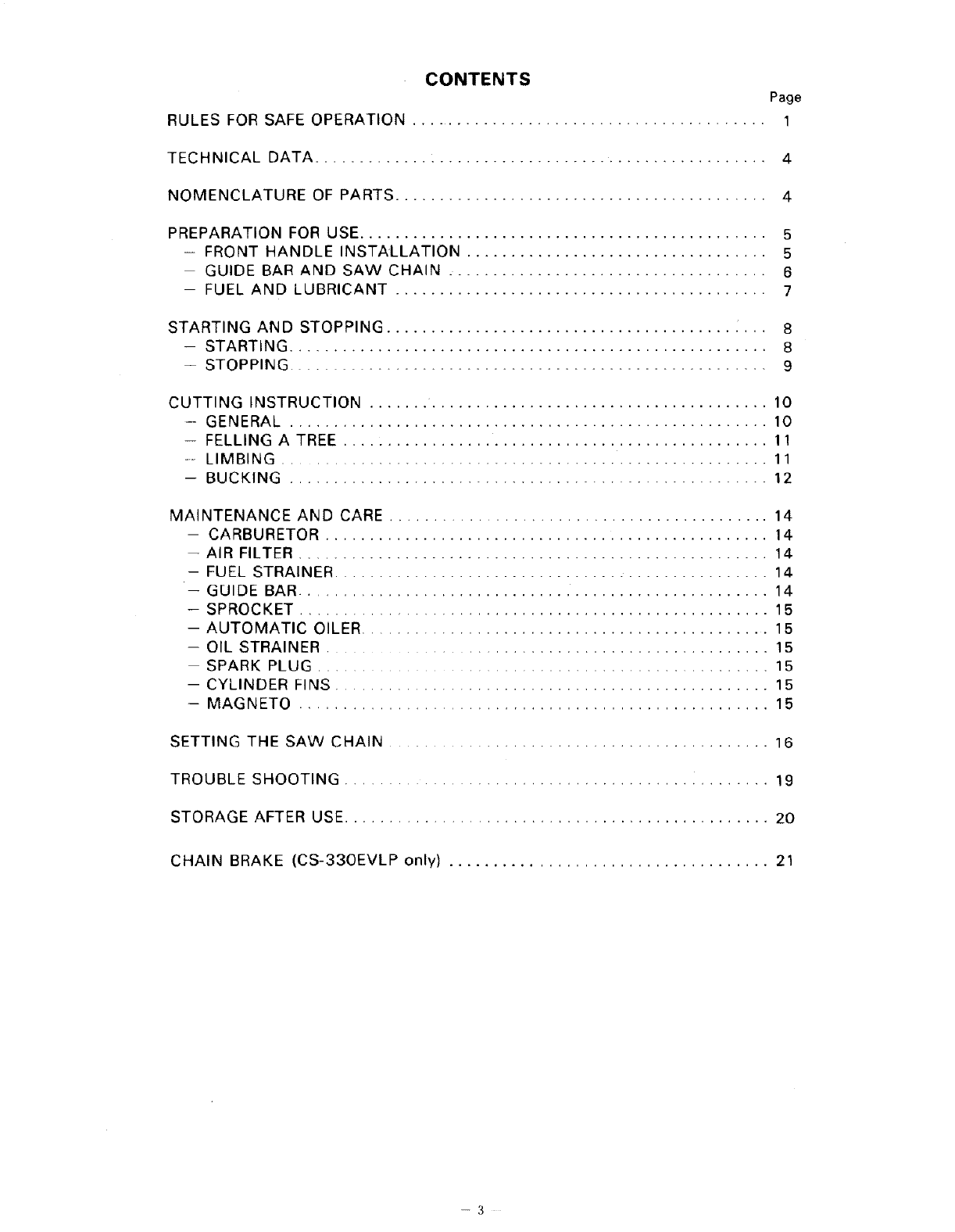

CONTENTS

Page

RULES FOR SAFE OPERATION ........................................ 1

TECHNICAL DATA ................................................... 4

NOMENCLATURE OF PARTS .......................................... 4

PREPARATION FOR USE .............................................. 5

- FRONT HANDLE INSTALLATION .................................. 5

GUIDE BAR AND SAW CHAIN .................................... 6

-- FUEL AND LUBRICANT .......................................... 7

STARTING AND STOPPING ........................................... 8

- STARTING ...................................................... 8

-- STOPPING ............................................... 9

CUTTING INSTRUCTION ....... ...................................... 10

- GENERAL ...................................................... 10

- FELLING A TREE ................................................ 11

-- LIMBING ....................................................... 11

-- BUCKING ...................................................... 12

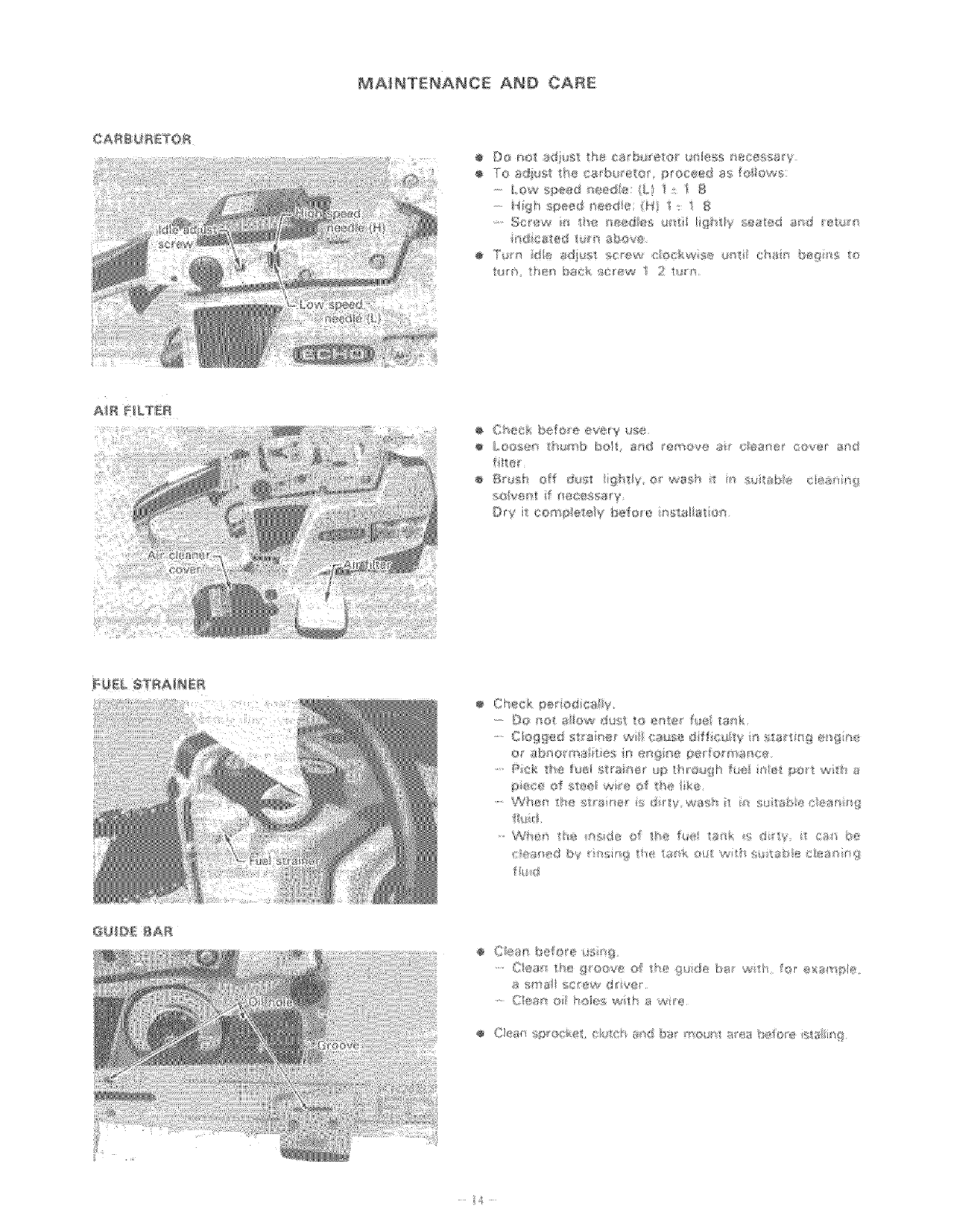

MAINTENANCE AND CARE ........................................... 14

- CARBURETOR .................................................. 14

- AIR FILTER ..................................................... 14

- FUEL STRAINER ................................................. 14

-- GUIDE BAR ..................................................... 14

-- SPROCKET ..................................................... 15

- AUTOMATIC OILER .............................................. 15

-- OIL STRAINER .................................................. 15

SPARK PLUG ................................................... 15

-- CYLINDER FINS ................................................. 15

-- MAGNETO ..................................................... 15

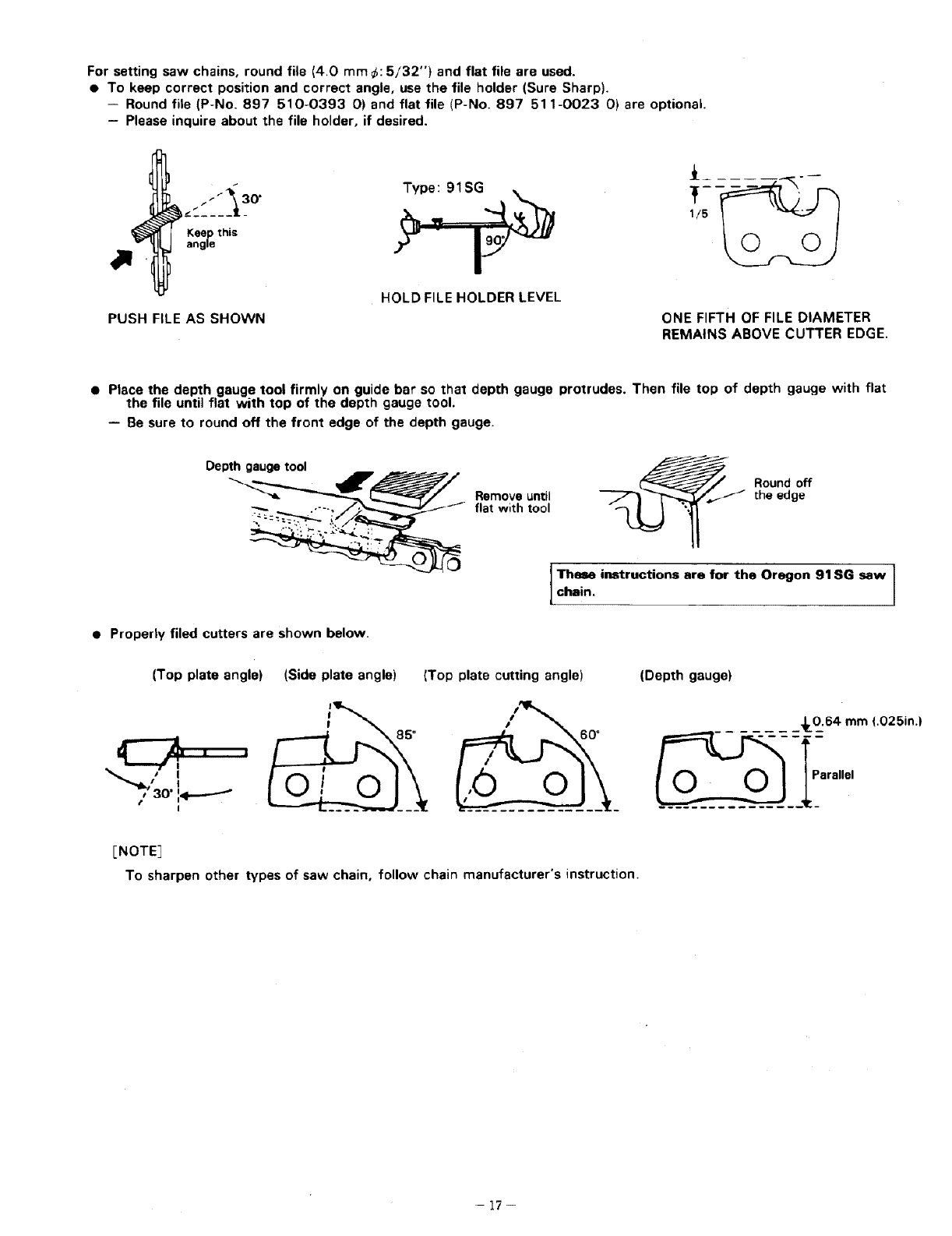

SETTING THE SAW CHAIN ........................................... 16

TROUBLE SHOOTING ................................................ 19

STORAGE AFTER USE ................................................ 20

CHAIN BRAKE (CS-33OEVLP only) .................................... 21

--3

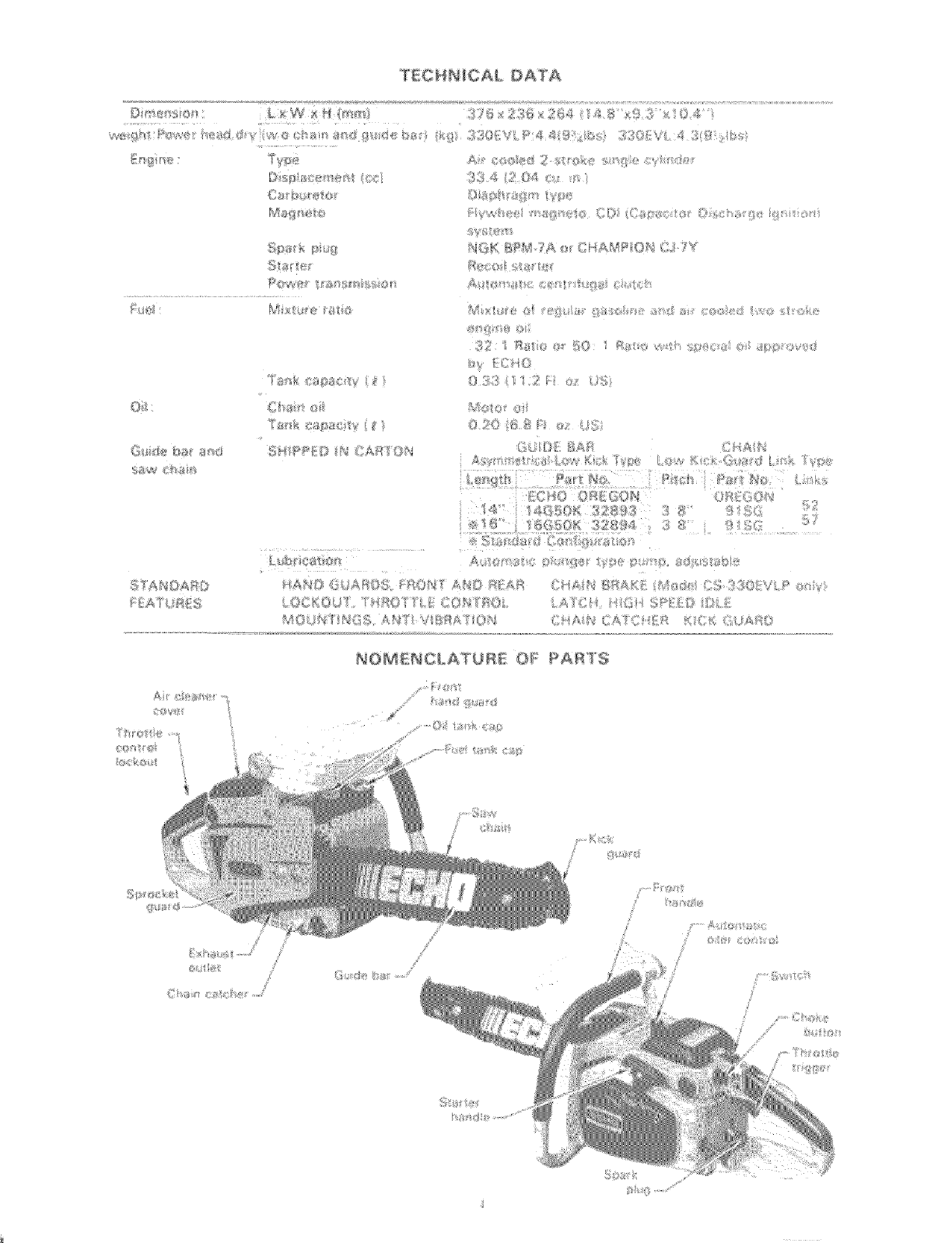

E,C_@_CAL DATA

(

M@qs%¸_%@

HOM:_;_C_ASUR8 OF PARTS

......./# F

CS-330EVL only PREPARATION FOR USE

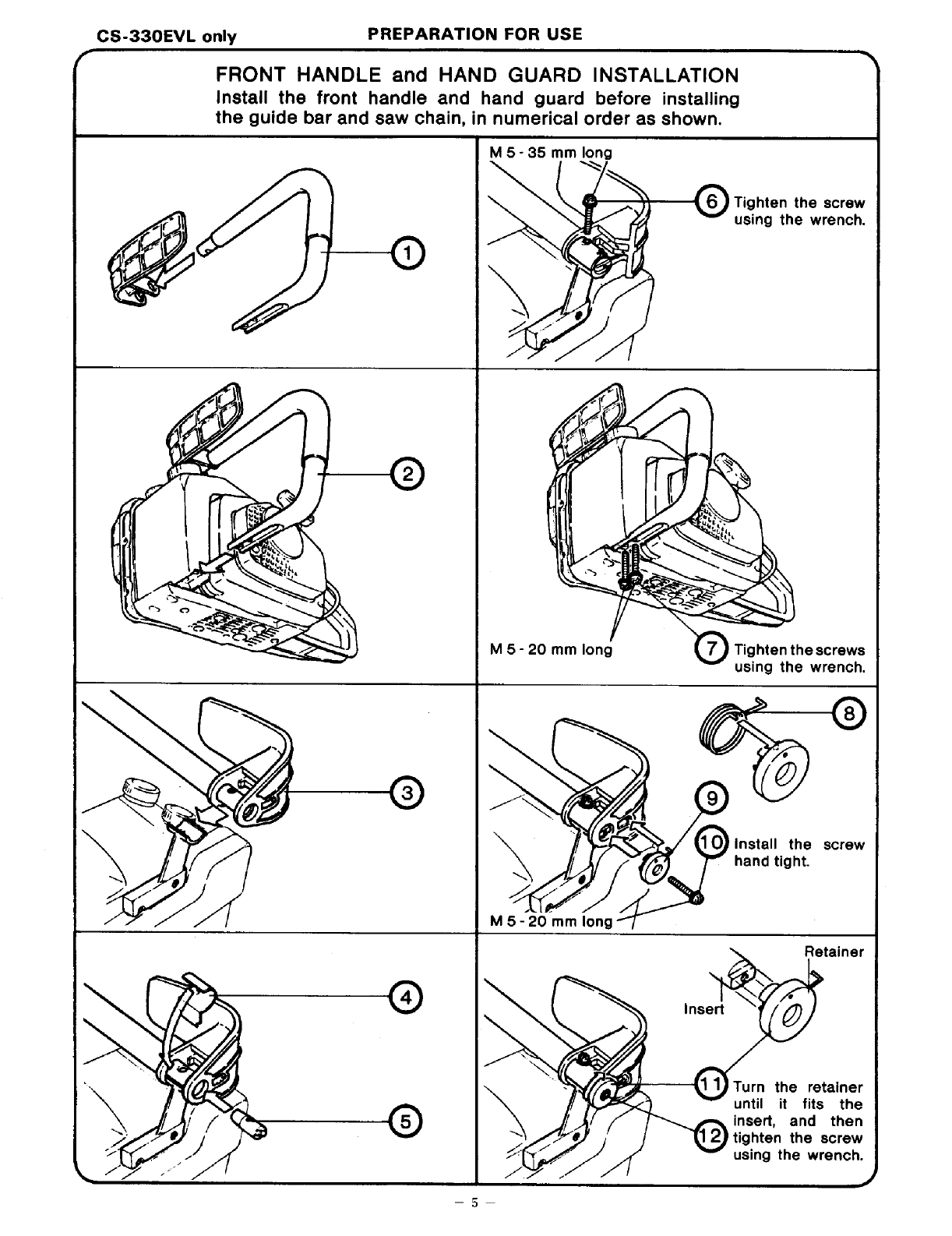

FRONT HANDLE and HAND GUARD INSTALLATION

Install the front handle and hand guard before installing

the guide bar and saw chain, in numerical order as shown.

M 5- 35 mm long

Tighten the screw

using the wrench.

M 5- 20 mm long

M5- 20 mm Ion

Tighten the screws

using the wrench.

Install the screw

hand tight.

Retainer

Turn the retainer

until it fits the

insert, and then

tighten the screw

using the wrench.

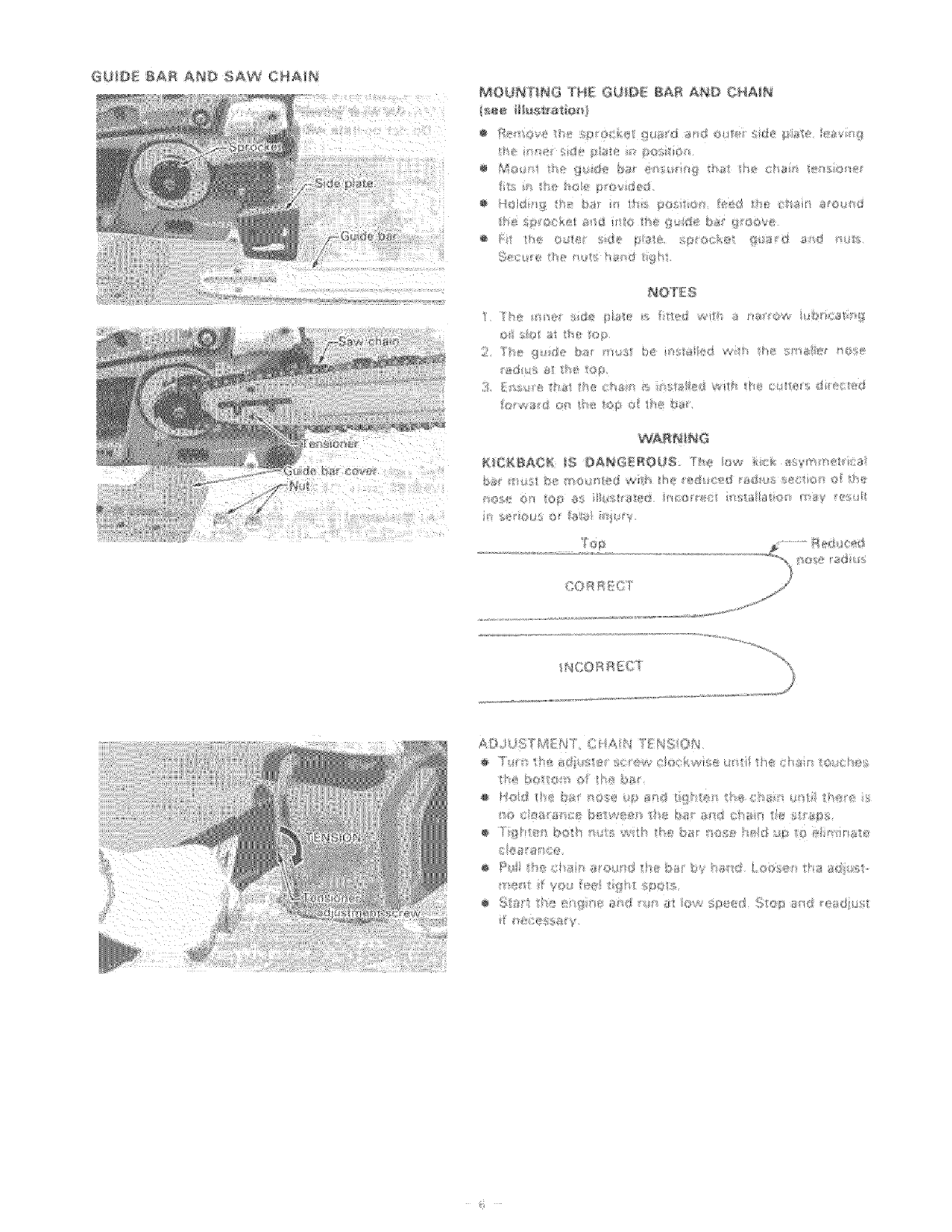

GU_©E 6A_ A_D SAw 8HA!_

F_OUNT_HG TH8 GU£_E BAR AH_ CHAiPa

%@c_gr!,;h@ gs h_i_w_:9h

HOTEB

f:_d,_,:, J /,e o;,

NGOR R£C_

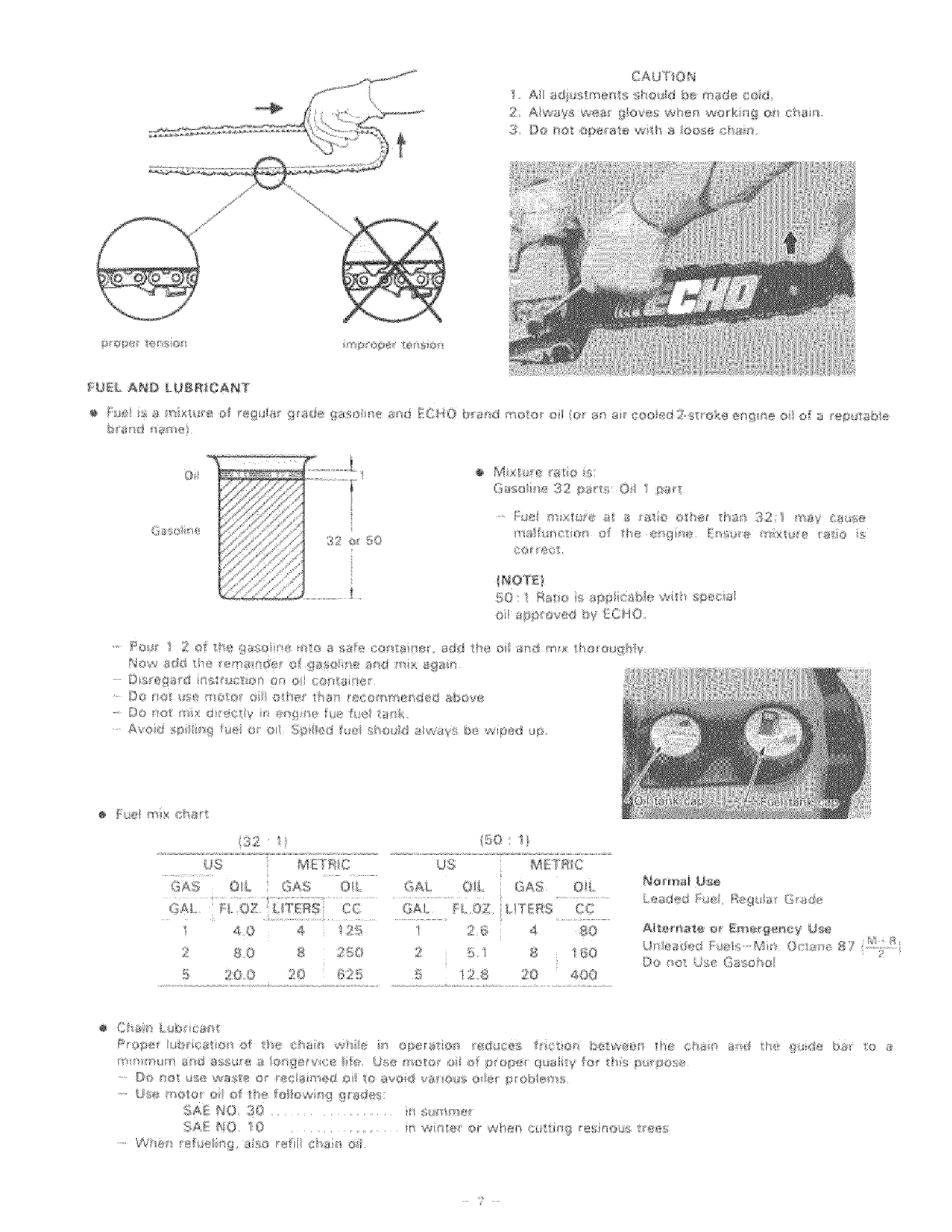

CAU] ON

AI acS,;s mea s sho,_@ b® made cod

2: AM_a,¢!;_dsa gove_, _heB _v@kng @ sham

3 Do ootopea@ wts a oosecbss

j.J'

P@/?@ {;!'_5 @

q-_: >,

") ,

,' s s' "> _;_ /,,£ }

r4,, 4_ .

nsh,_ncloo o the e;_}_® f,9,d,_e ;t £ue a e s

SO 1 Hsto sap c be,A_t S ecgI

el ,;_}p_o_®d by LCH0

F_o_ma_ Use

[,_,_sded I%_eS Heg_ls_ @aBe

},,}@l_ Mi} :3: ,_'e 87

• ?

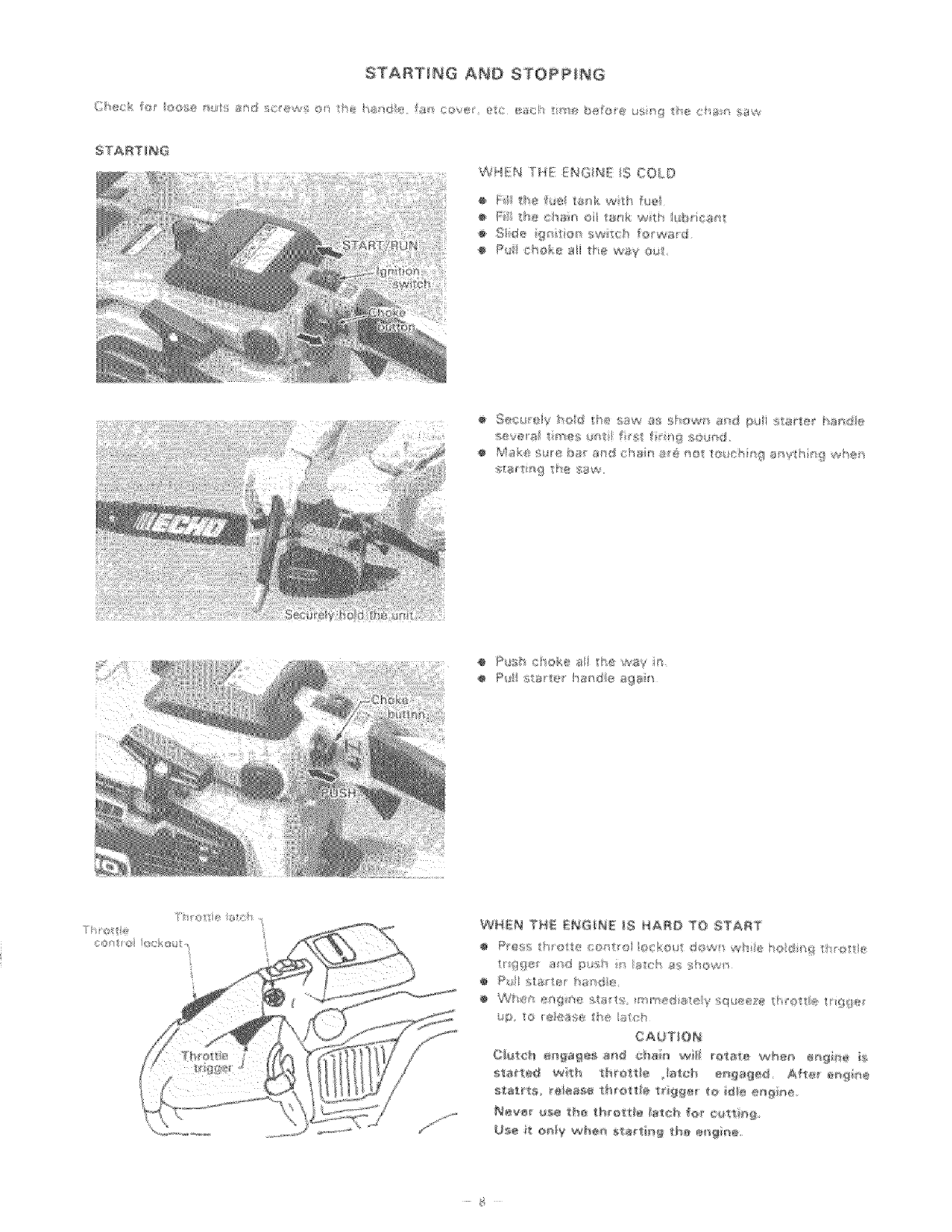

SWART!NG AND STOPPING

STAR:T/NG

WH:N [HE ENG _-_[ IS

÷ F _e _e ts_k,_sth f_e

Pqs csoke aii t_e way ou_

÷ P s} c'oil_e ali lhe _s,_ in

÷ t1/1/1_'_,- s,,

e CP_om_yb_used ne_{'ssa y _)t, be s __ to _/_u;:_ht

ST@PP_NG

e Reeas_' t_4rot b tr_;_(}_:_ and slde s,_,, ch _ac

_0T8

8 ®ok a_"_d @pa g os _:_,_t8 Sa::o@ sa_ a_ the

e9r_e a¢_a _

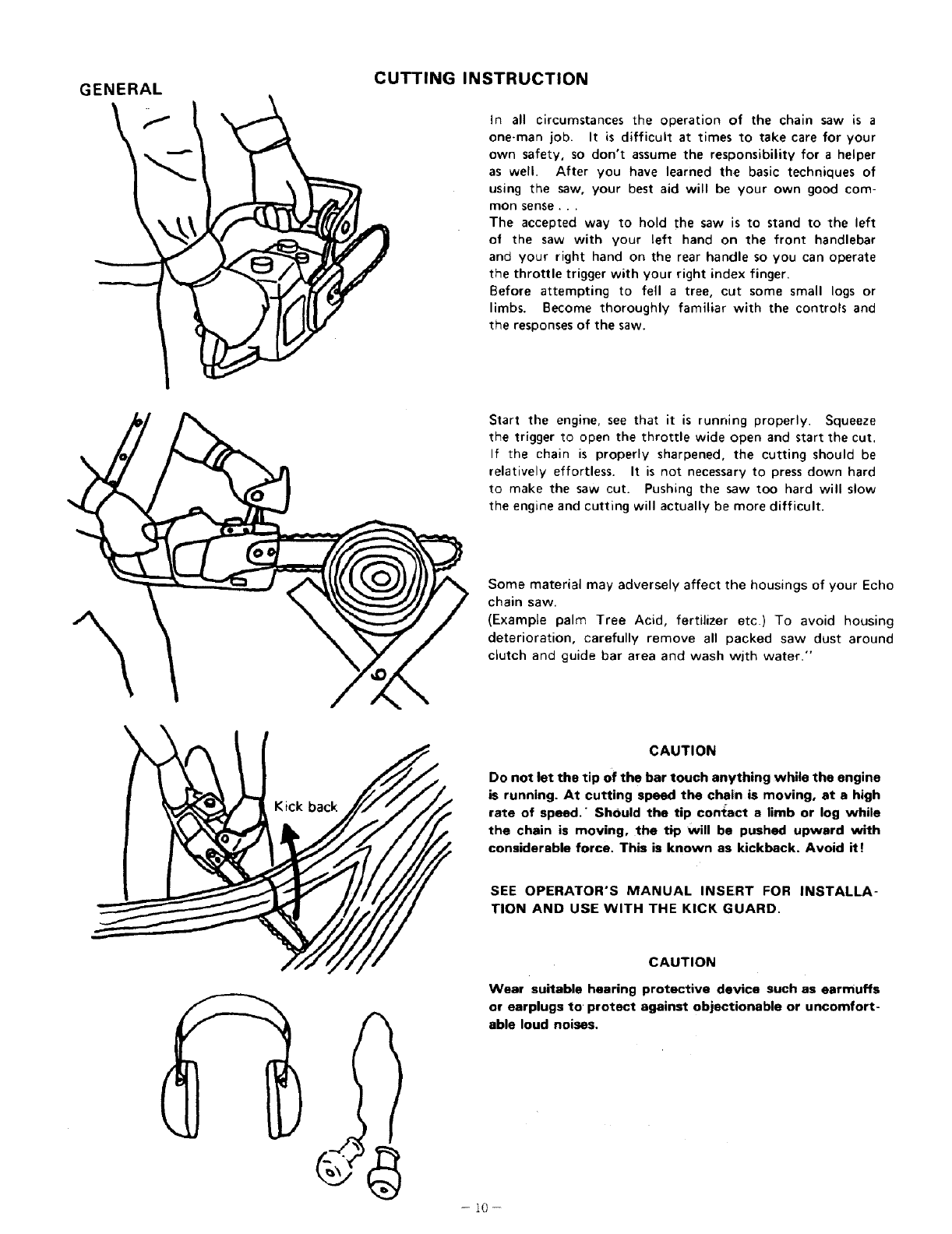

CUTTING INSTRUCTION

GENERAL

In all circumstances the operation of the chain saw is a

one-man job. It is difficult at times to take care for your

own safety, so don't assume the responsibility for ahelper

as well. After you have learned the basic techniques of

using the saw, your best aid will be your own good com-

monsense...

The accepted way to hold the saw i$ to stand to the left

of the saw with your left hand on the front handlebar

and your right hand on the rear handle so you can operate

the throttle trigger with your right index finger.

Before attempting to fell a tree, cut some small logs or

limbs. Become thoroughly familiar with the controls and

the responses of the saw.

Start the engine, see that it is running properly. Squeeze

the trigger to open the throttle wide open and start the cut.

If the chain is properly sharpened, the cutting should be

relatively effortless. It is not necessary to press down hard

to make the saw cut. Pushing the saw too hard will slow

the engine and cutting will actually be more difficult.

Some material may adversely affect the housings of your Echo

chain saw.

(Example palm Tree Acid, fertilizer etc.) To avoid housing

deterioration, carefully remove all packed saw dust around

clutch and guide bar area and wash with water."

Kick back

- 10--

CAUTION

Do not let the tip of the bar touch anything while the engine

is running. At cutting speed the cha|n is moving, at a high

rate of speed. Should the tip con_act a limb or log while

the chain is moving, the tip will be pushed upward with

considerable force. This is known as kickback. Avoid it!

SEE OPERATOR'S MANUAL INSERT FOR INSTALLA-

TION AND USE WITH THE KICK GUARD.

CAUTION

Wear suitable hearing protective device such as earmuffs

or earplugs to protect against objectionable or uncomfort-

able loud noises.

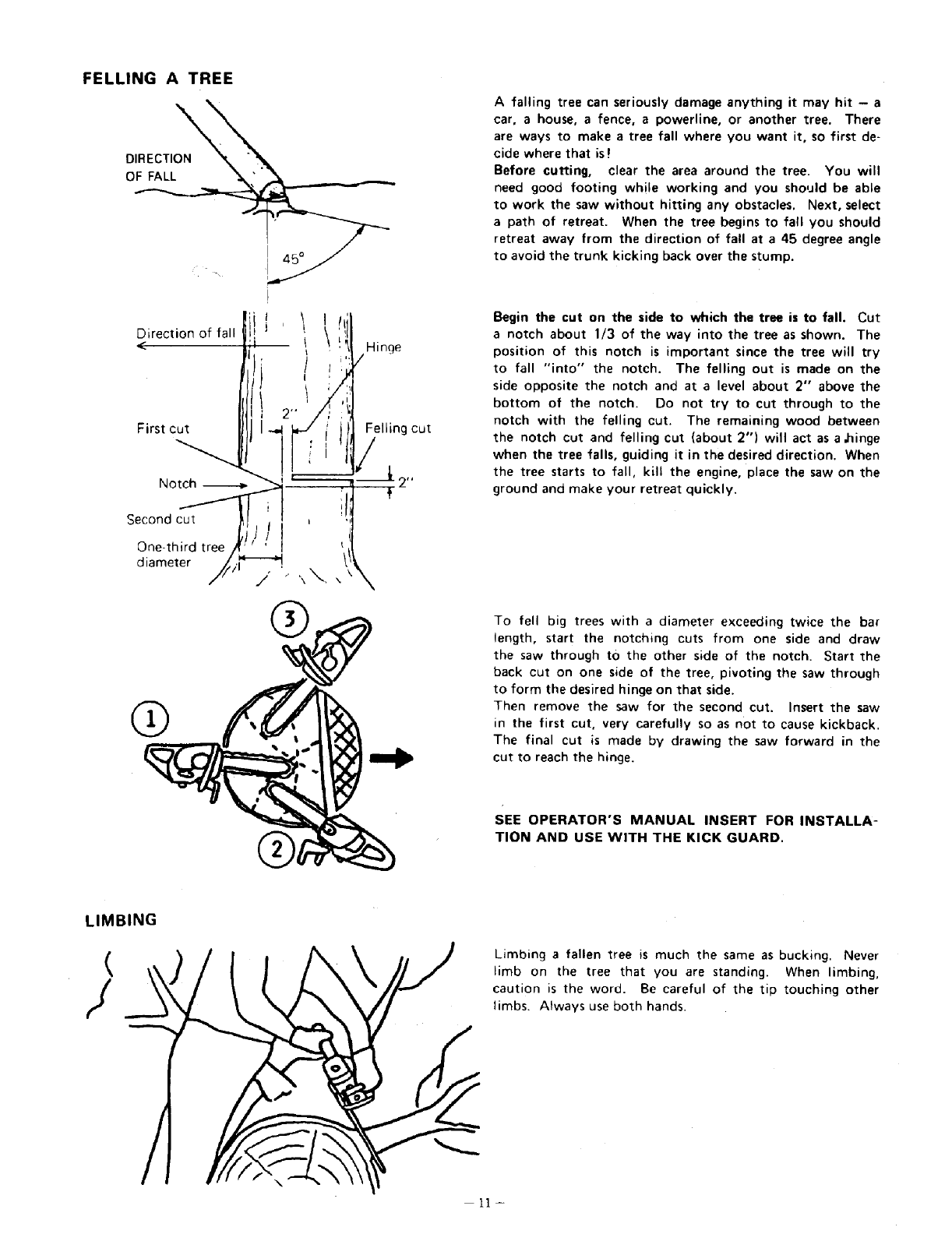

FELLING A TREE

DIRECTION__-.

Direction of fall

First cut

Hinge

Felling cut

Notch

Second cut

One-third tree

diameter \

2 Id

Afalling tree can seriously damage anything it may hit - a

car, a house, a fence, a powerline, or another tree. There

are ways to make a tree fall where you want it, so first de-

cide where that is!

Before cutting, clear the area around the tree. You will

need good footing while working and you should be able

to work the saw without hitting any obstacles. Next, select

apath of retreat. When the tree begins to fall you should

retreat away from the direction of fall at a 45 degree angle

to avoid the trunk kicking back over the stump.

Begin the cut on the side to which the tree is to fall. Cut

a notch about 1/3 of the way into the tree as shown. The

position of this notch is important since the tree will try

to fall "into" the notch. The felling out is made on the

side opposite the notch and at a level about 2" above the

bottom of the notch. Do not try to cut through to the

notch with the felling cut. The remaining wood between

the notch cut and felling cut (about 2") will act as a _inge

when the tree falls, guiding it in the desired direction. When

the tree starts to fall, kill the engine, place the saw on the

ground and make your retreat quickly.

To fell big trees with a diameter exceeding twice the bar

length, start the notching cuts from one side and draw

the saw through to the other side of the notch. Start the

back cut on one side of the tree, pivoting the saw through

to form the desired hinge on that side.

Then remove the saw for the second cut. Insert the saw

in the first cut, very carefully so as not to cause kickback•

The final cut is made by drawing the saw forward in the

cut to reach the hinge.

SEE OPERATOR'S MANUAL INSERT FOR INSTALLA-

TION AND USE WITH THE KICK GUARD.

LIMBING

7Limbing a fallen tree is much the same as bucking• Never

limb on the tree that you are standing. When limbing,

caution is the word. Be careful of the tip touching other

limbs. Always use both hands.

11-

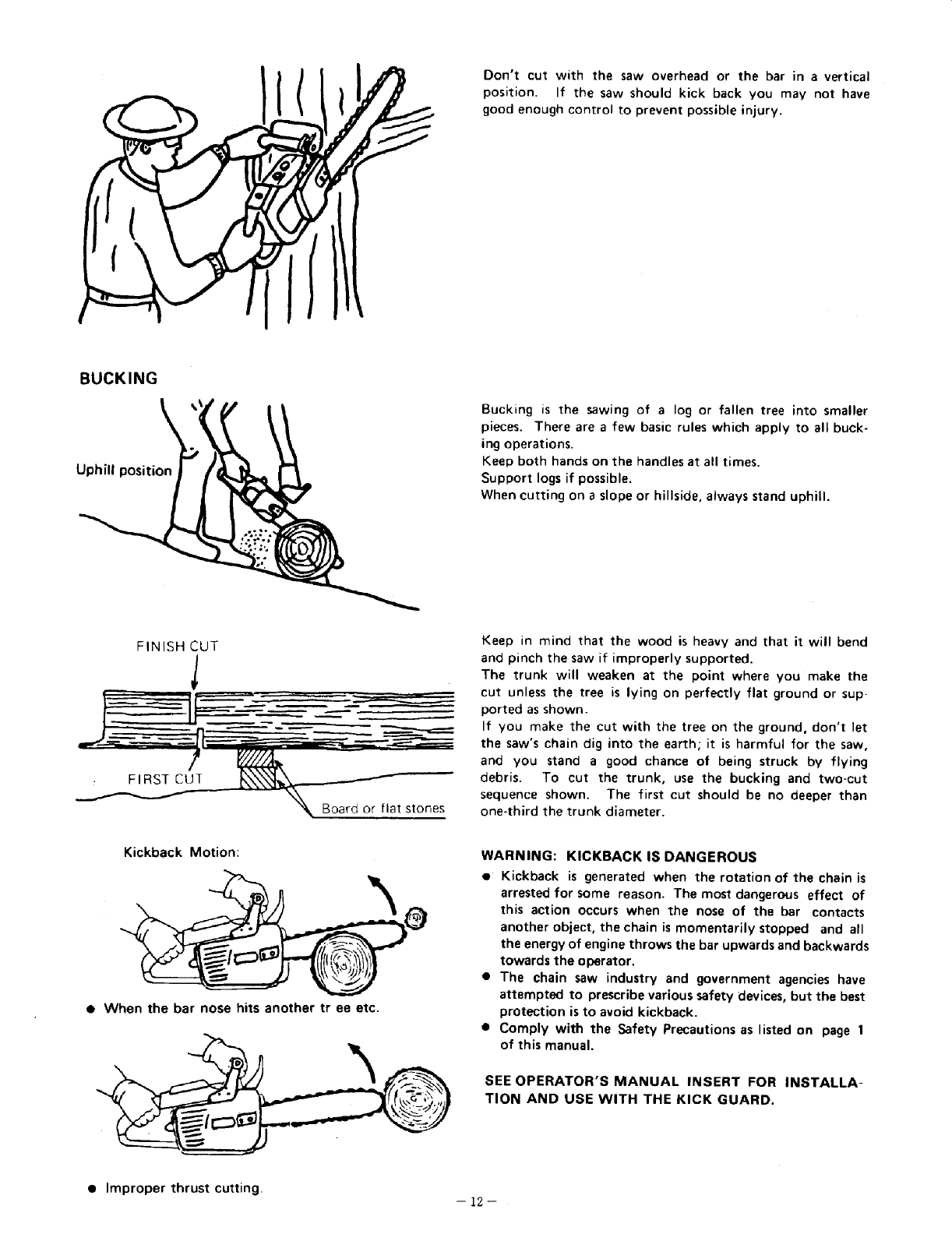

Don't cut with the saw overhead or the bar in avertical

position. If the saw should kick back you may not have

good enough control to prevent possible injury.

BUCKING

Uphill position

Bucking is the sawing of a log or fallen tree into smaller

pieces. There are a few basic rules which apply to all buck-

ing operations.

Keep both hands on the handles at all times.

Support logs if possible.

When cutting on aslope or hillside, always stand uphill.

FINISH CUT

• FIRST CUT I'x\\\_\

Keep in mind that the wood is heavy and that it will bend

and pinch the saw if improperly supported.

The trunk will weaken at the point where you make the

cut unless the tree is lying on perfectly flat ground or sup-

ported as shown.

If you make the cut with the tree on the ground, don't let

the saw's chain dig into the earth; it is harmful for the saw,

and you stand a good chance of being struck by flying

debris. To cut the trunk, use the bucking and two-cut

sequence shown. The first cut should be no deeper than

one-third the trunk diameter.

Kickback Motion:

• When the bar nose hits another tree etc.

WARNING: KICKBACK IS DANGEROUS

•Kickback is generated when the rotation of the chain is

arrested for some reason. The most dangerous effect of

this action occurs when the nose of the bar contacts

another object, the chain is momentarily stopped and all

the energy of engine throws the bar upwards and backwards

towards the operator.

•The chain saw industry and government agencies have

attempted to prescribe various safety devices, but the best

protection is to avoid kickback.

•Comply with the Safety Precautions as listed on page 1

of this manual.

SEE OPERATOR'S MANUAL INSERT FOR INSTALLA-

TION AND USE WITH THE KICK GUARD.

• Improper thrust cutting. -12-

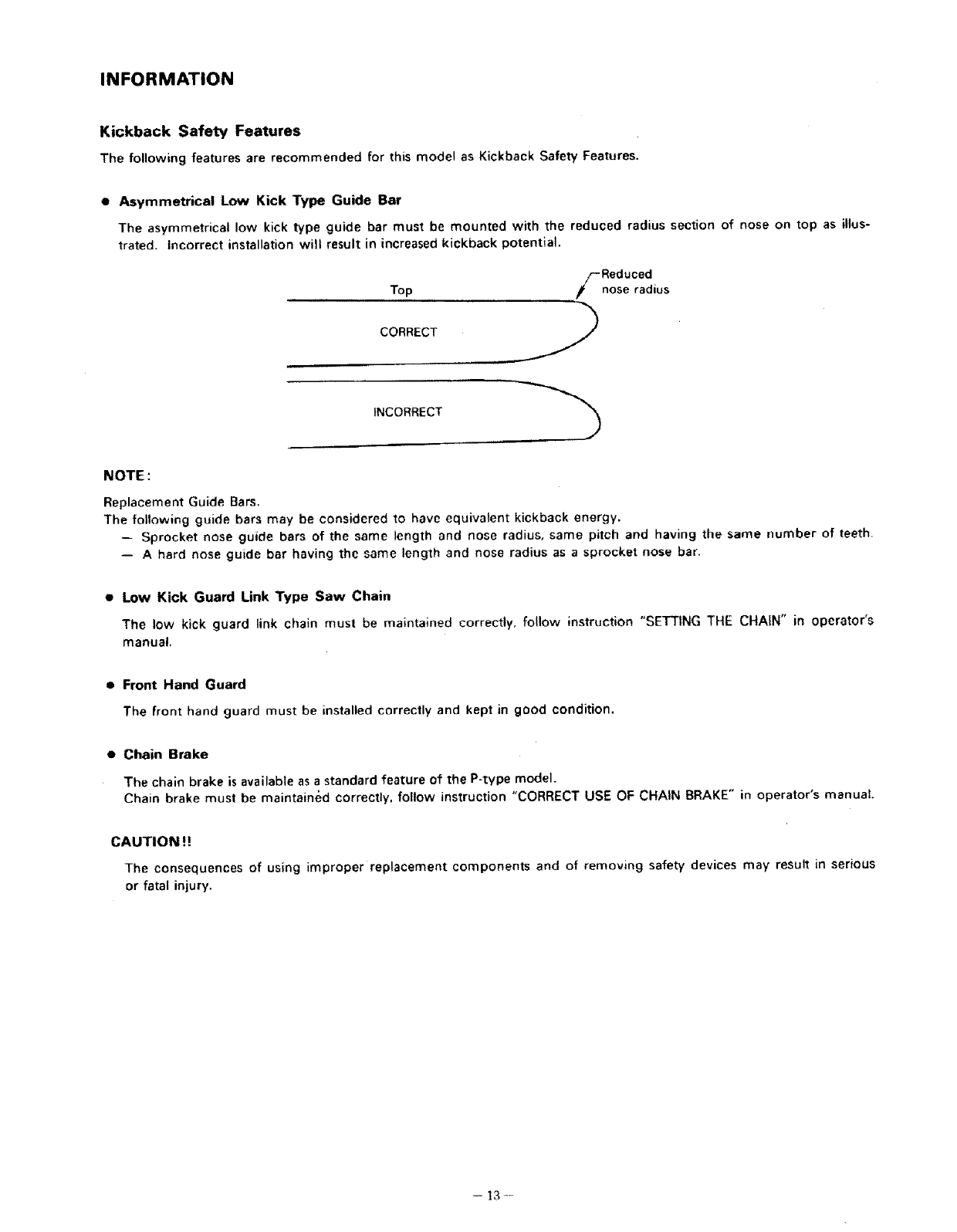

INFORMATION

Kickback Safety Features

The following features are recommended for this model as Kickback Safety Features.

• Asymmetrical Low Kick Type Guide Bar

The asymmetrical low kick type guide bar must be mounted with the reduced radius section of nose on top as illus-

trated. Incorrect installation will result in increased kickback potential.

/-Reduced

Top /_ nose radius

CORRECT

INCORRECT

NOTE :

Replacement Guide Bars,

The following guide bars may be considered to have equivalent kickback energy.

-- Sprocket nose guide bars of the same length and nose radius, same pitch and having the same number of teeth.

-- A hard nose guide bar having the same length and nose radius as asprocket nose bar.

• Low Kick Guard Link Type Saw Chain

The low kick guard link chain must be maintained correctly, follow instruction "SETTING THE CHAIN" in operator's

manual.

• Front Hand Guard

The front hand guard must be installed correctly and kept in good condition,

• Chain Brake

The chain brake is available as a standard feature of the P-type model.

Chain brake must be maintained correctly, follow instruction "CORRECT USE OF CHAIN BRAKE" in operator's manual.

CAUTION !!

The consequences of using improper replacement components and of removing safeW devices may result in serious

or fatal injury.

--]3--

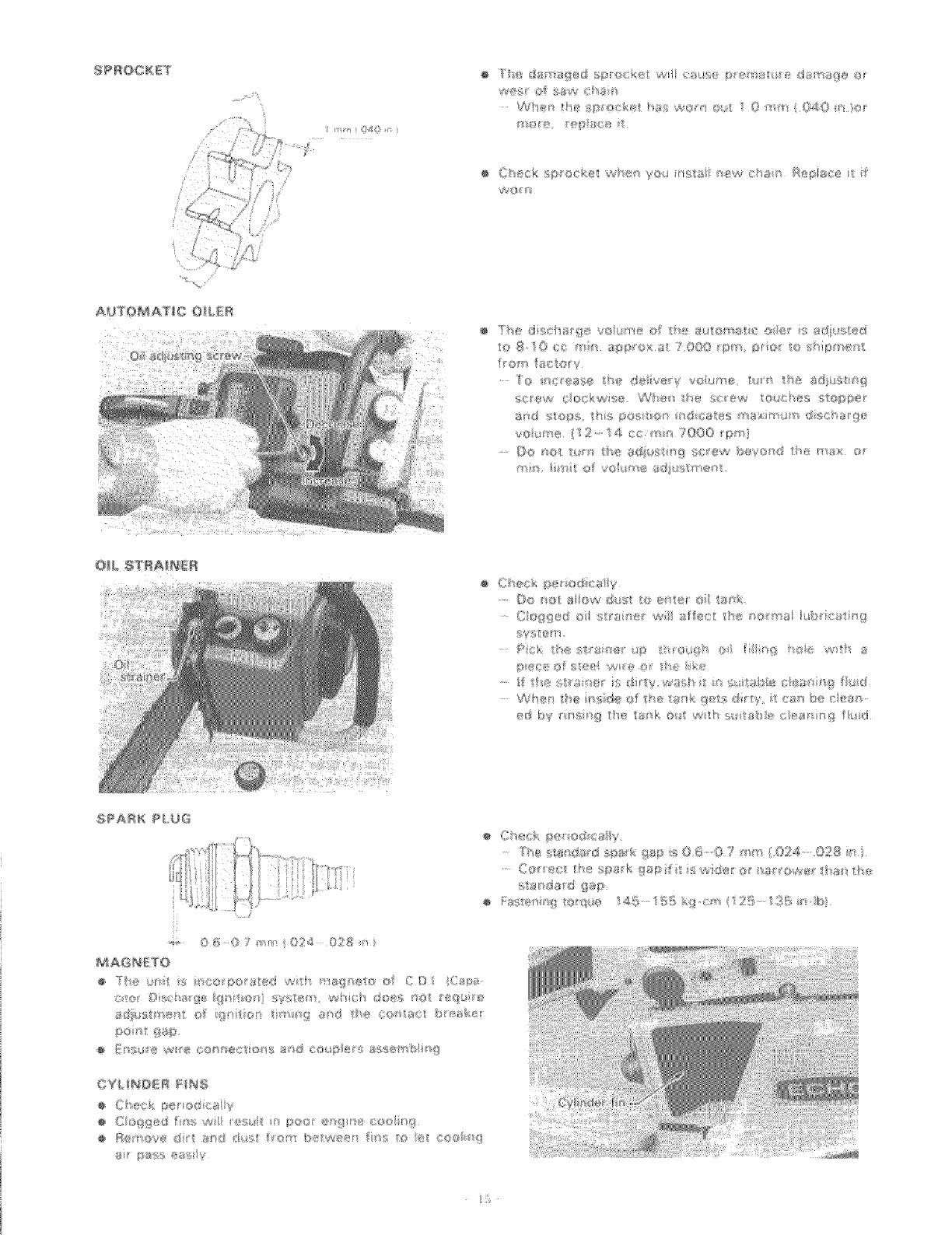

MAINTENANCE ANB CARE

CA_B UB_T©_

e C e8 befoe ew_ry use

he!

SO VSF_I @ _55_ff ,

G I]H]I I_I

i!i¸

......Ce8_ @ hoeswsts a _A_8

÷ Ciei_n i_I11 t_}d llS "e;;_ >cole %1 ii'q

SPROCKET

_!v85 _s_S4_A

AUT@MAT_C @iLIIR

O $ O _:_ a_sGexa 7000 I_p $}_0 O ship_>_e

veu_ne s2 SI ccss, 8;_OO@ B_'_

@o sos _,_,_ dse sees q9 sse_ be_es@ e _sss 0_'

SPA_e( PL(S(_

CYL IIQI.I FHS

[/"t_eck p_s_rod ca iy

BImev8 dr( #r_@ d sI %ss bewae _s O 8_ ¢05 sg

a_' _:_ssu easy

i !!%

SETTING THE CHAIN

NOMENCLATURE OF PARTS

PRESET

TIE STRAP LEFT HAND

CUTTER

GUARD LINK

LINK

• Guard links reduce the potential

of kickback.

CUTTER PART NAMES

FTop Plate

-Side Plate

Depth

Gauge

River

Hole

Pitch= One half of

this distance

Gauge

I I

•Gauge is thickness of drive links.

Depth gauge setting

• Depth gauge controls the

cutting depth.

Important points for proper maintenance of saw chain:

• Keep the cutters sharp at all times.

• Keep the left and the right cutters properly aligned.

-- Please note that blunt or irregular cutters wil! result in poor cutting performance, ,1creased vibration of chains and

premature breakage of the saw chain.

•Drive link serves to remove sawdust from the groove of the guide bar. Therefore, keep the lower edge of the drive link

indicated by the arrow, sharp.

Sharpen

lower edge

-- When setting of the chain is finished, soak it in oil and wash away filings completely before using.

-- When chain has been filed on the bar, supply sufficient oil to it, rotate the chain slowly to wash away the filings

before using again.

-If the chain saw is operated with filings clogged in the groove, the saw chain and the guide bar will be damaged

prematurely.

- If the saw chain becomes soiled with restance, clean it with kerosene and soak it in oil.

-16-

Forsettingsawchains,round file (4.0 mm _: 5/32") and flat file are used.

• To keep correct position and correct angle, use the file holder (Sure Sharp).

-- Round file (P-No. 897 510-0393 0) and flat file (P-No. 897 511-0023 0) are optional.

-- Please inquire about the file holder, if desired.

angle

PUSH FILE AS SHOWN

Type: 91 SG

HOLD FILE HOLDER LEVEL

1/5

ONE FIFTH OF FILE DIAMETER

REMAINS ABOVE CUTTER EDGE.

• Place the depth gauge tool firmly on guide bar so that depth gauge protrudes. Then file top of depth gauge with flat

the file until flat with top of the depth gauge tool.

-- Be sure to round off the front edge of the depth gauge.

Depth gauge tool

Remove until

flat with tool

_f Round off

J the edge

l These instructions are for the Oregon 91SG saw I

chain. I

• Properly filed cutters are shown below.

(Top plate angle) (Side plate angle) (Top plate cutting angle) (Depth gauge)

85=

€

60 °

[NOTE]

To sharpen other types of saw chain, follow chain manufacturer's instruction.

-17--

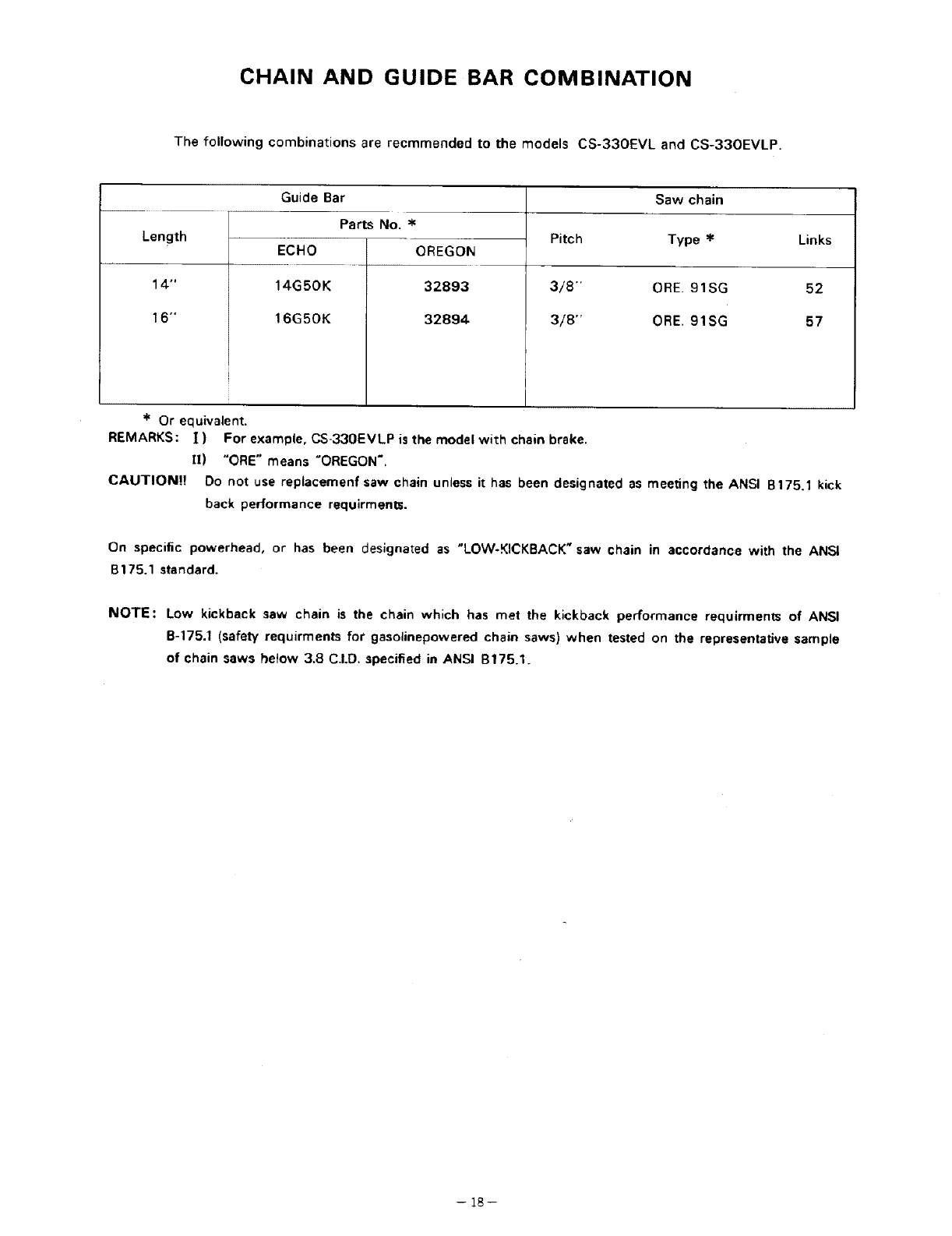

CHAIN AND GUIDE BAR COMBINATION

The following combinations are recmmended to the models CS-330EVL and CS-330EVLP.

Length

14"

16"

Guide Bar

Parts No.

ECHO

14G50K

16G50K

OREGON

32893

32894

Saw chain

Pitch Type • Links

3/8" ORE. 91SG 52

3/8" ORE. 91SG 57

'_ Or equivalent.

REMARKS: I) For example, C$-330EVLP is the model with chain brake.

[I) "ORE" means "OREGON".

CAUTION!! Do not use replacemenf saw chain unless k has been designated as meeting the ANSI B175.1 kick

back performance requirments.

On specific powerhead, or has been designated as "LOW-KICKBACK" saw chain in accordance with the ANSI

B175.1 standard.

NOTE: Low kickback saw chain is the chain which has met the kickback performance requirments of ANSI

B-175.1 (safety requirments for gasolinepowered chain saws} when tested on the representative sample

of chain saws below 3.8 C.I.D. specified in ANSI B175.1.

--18--

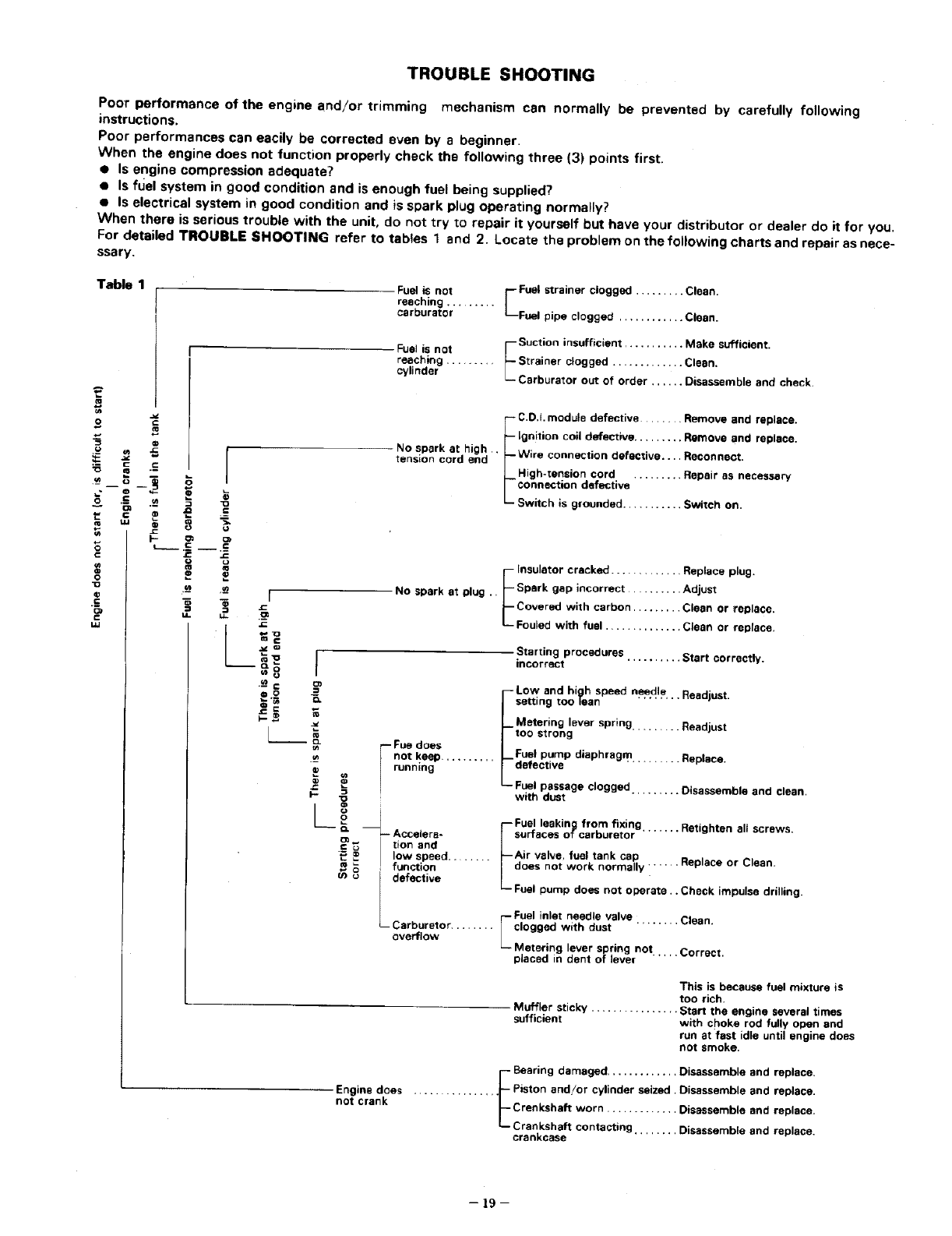

TROUBLE SHOOTING

Poor performance of the engine and/or trimming mechanism can normally be prevented by carefully following

instructions.

Poor performances can eacily be corrected even by abeginner.

When the engine does not function properly check the following three (3) points first.

• Is engine compression adequate?

• Is fL;elsystem in good condition and is enough fuel being supplied?

•Is electrical system in good condition and is spark plug operating normally?

When there is serious trouble with the unit, do not try to repair it yourself but have your distributor or dealer do it for you.

For detailed TROUBLE SHOOTING refer to tables 1 and 2. Locate the problem on the following charts and repair as nece-

ssary.

Table 1 Fuel is not i_Fuel strainer clogged ......... Clean.

reaching ......... !

carburat0r L--Fuel pipe clogged .......... Clean.

_3 == ._-

o ,-=

_u-.-..£

cJ=

o o

.s -_

€

Fuel is not r--Suction insufficient ........... Make sufficient.

reaching ......... _-- Strainer clogged ............. Clean,

cylinder L.. Carburator out of order ...... Disassemble and check.

.€

,8 I

,,= ._=

®o

===

-C.D.L module defective ........ Remove and replace.

- ignition coll defective ......... Remove and replace.

No spark at high,. -Wire connection defective .... Reconnect,

tension cord end

High.tension cord ......... Repair as necessary

--connection defective

- Switch is grounded ........... Switch on.

-Insulator cracked ............. Replace plug.

[

No spark at plug., [- Spark gap incorrect ........ Adjust

--Covered with carbon ......... Clean or replace.

- Fouled with fuel .............. Clean or replace,

_- Fue does

not keep ..........

*) _running

I-- :3 I

overflow

Starting procedures .......... Start correctly.

incorrect

Low and high speed needle Read ust

setting too lean ........ ""

Metering lever spring i

too strong ......... Read ust

Fuel pump diaphragm Replace

detective .......... _ "

Fuel passage clogged ......... Disasaemb •and clean,

with dust

Fuel leaking from fixing Retighten all screws.

surfaces of carburetor .......

Air valve, fuel tank cap =_=_ =.... p=_

does not work normally ......... _"............

Fuel pump does not operate.. Check impulse drilling.

r-Fuel inlet needle valve

Lclogged with dust ....... Clean.

Metering lever spring not ,, Correct.

placed in dent of lever " "

This is because fuel mixture is

too rich.

Muffler sticky ................ Start the engine several times

sufficient with choke rod fully open and

run at fast idle until engine does

not smoke.

Engine does

not crank

r- Bearing damaged ............. Disassemble and replace,

_- Piston end/or cylinder seized. Disassemble and replace.

--Crenkshaft worn ............. Disassemble and replace.

Crankshaft contacting ........ Disassemble and replace,

crankcase

-- 19--

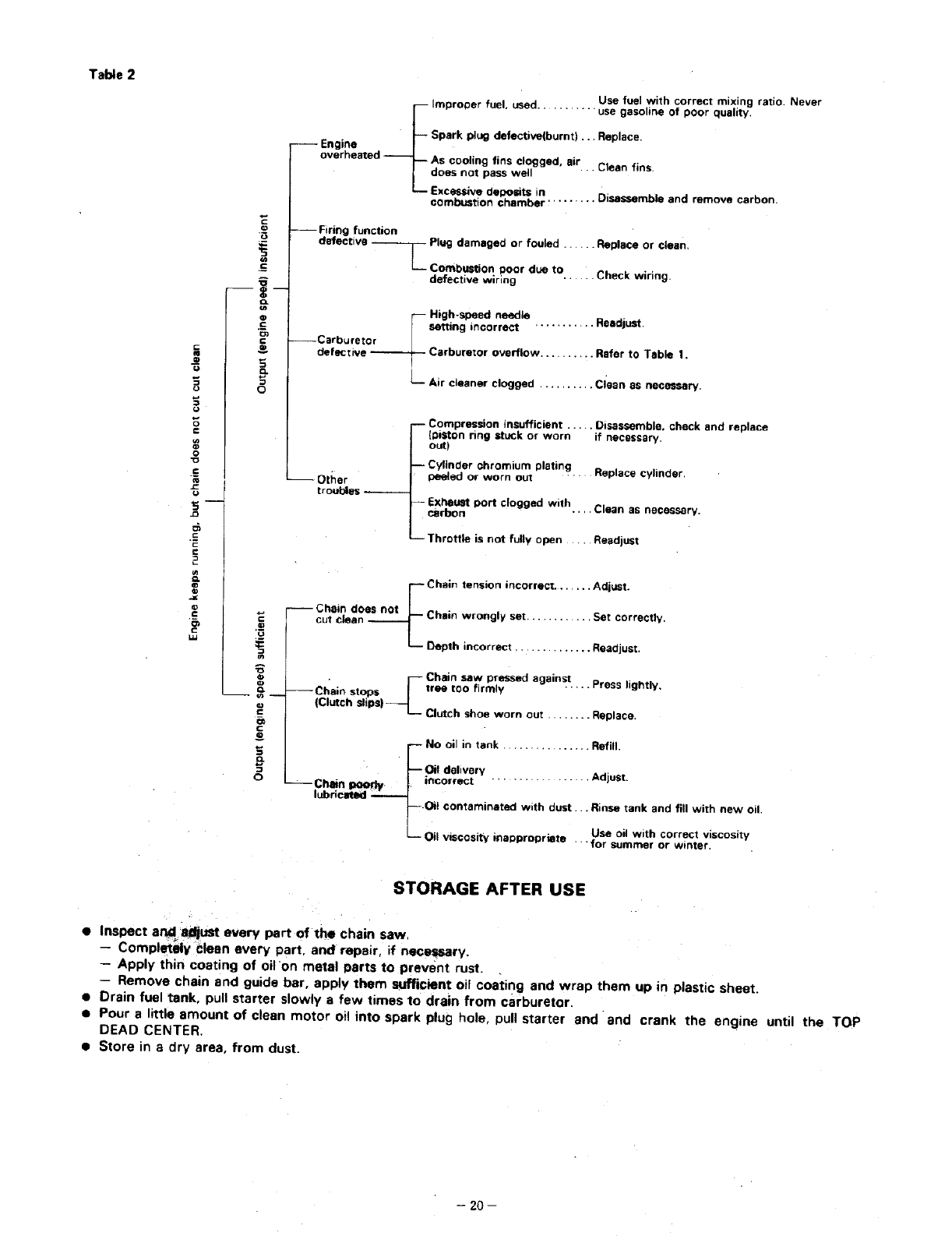

Table 2

.€

¢J

.a¢

¢P

.£

€

.... _ , ._ Use fuel with correct mixing ratio. Never

r-- _mpru_=, +Me., useu ........... use .....

tgaso,ne ot poor qual=ty.

-- Engine rSpark plug defectiveIburnt) ... Replace•

overheated _As cooling fins clogged, air Clean fins

does not pass well ....

L_ Excessive deposits in

combustion chamber ......... Disassemble and remove carbon.

-- Firing function

defective _Plug damaged or fouled ...... Replace or clean,

L._ CombuStion poor due to

defective wiring ...... Check wiring

--Carburetor

defective

-- High-speed needle

setting incorrect ........... Readjust.

-- Carburetor overflow .......... Refer to Table I.

L_. Air cleaner clogged .......... Clean as necessary.

-- Other

troubles --

-- Compression insufficient ..... Disassemble. check and replace

{_ston ring stuck or worn if necessary•

out)

-- Cylinder ahromium plating

peeled or worn out ..... Replace cylinder.

-- Exhaust port clogged with

carbon .... Clean as neCessary.

-- Throttle is not fully open ..... Readjust

r Chain tension incorrect ...... Adjust+

cCh_e:nO_-'--" ' Chain wrongly set ........... Set correctly.

•L-- Depth ncorrect .............. Readjust,

•I--- Chain saw pressed against

Chain stops | tree 1oo firmly ..... Press lightly.

iClutch siips)___ Clutch shoe worn out ........ Replace,

FNo oil in tank ............... Refill.

lubricet_

--+Oil contaminated with dust.. +Rinse tank and fill with new oil.

t--Oi ViaCOS_ nappropriate ...U(rSesu°ilwitpoc°rv_:;nteViSC°Sity

STORAGE AFTER USE

•Inspect ar_l adjust every part of the chain saw

- Completely clean every part. and repair, if necessary.

- Apply thin coating of oil+on metal _arts to prevent rust.

- Remove chain and guide bar, apply them sufficient oil coating and wrap them up in plastic sheet.

• Drain fuel tank, pull starter slowly a few times to drain from carburetor•

•Pour a little amount of clean motor oil into spark plug hole, pull starter and and crank the engine until the TOP

DEAD CENTER

•Store in a dry area, from dust.

- 20--

Echo CS 330EVL User Manual CHAIN SAW Manuals And Guides L0706086

ECHO Chainsaw, Gas Manual L0706086 ECHO Chainsaw, Gas Owner's Manual, ECHO Chainsaw, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
