Add peace of mind to
your Ring Alarm.
Ring Smoke/CO Listener is a smart sound
sensor for your Ring Alarm system. It
works in tandem with one standard
smoke or CO alarm (or smoke/CO
combo).
When your smoke or CO alarm begins
to sound, your Alarm system notifies you
of the problem, wherever you are. If your
system is professionally monitored, our
monitoring center will also be notified.
Before you install...
Smoke and CO alarms have a finite
lifespan, after which they must be
replaced. Refer to the manufacturer’s
recommendations for details. If your
alarm has expired, it must be replaced
before you install your Ring Smoke/CO
Listener.
Contents
1. Diagram
2. In-app Setup
3. Pairing the Listener
4. Physical Installation
5. Additional Information
Begin the setup process near
your Ring Alarm Base Station.
In the Ring app, tap Set Up a Device.
Choose Security Devices, then Sensors,
then Ring Smoke/CO Listener, then tap
Add Device.
To complete the setup process, follow the
in-app instructions.
When prompted, scan the QR
Code or enter the PIN.
This begins the pairing process. The QR
Code and PIN are on the back of your
Listener and in the product packaging.

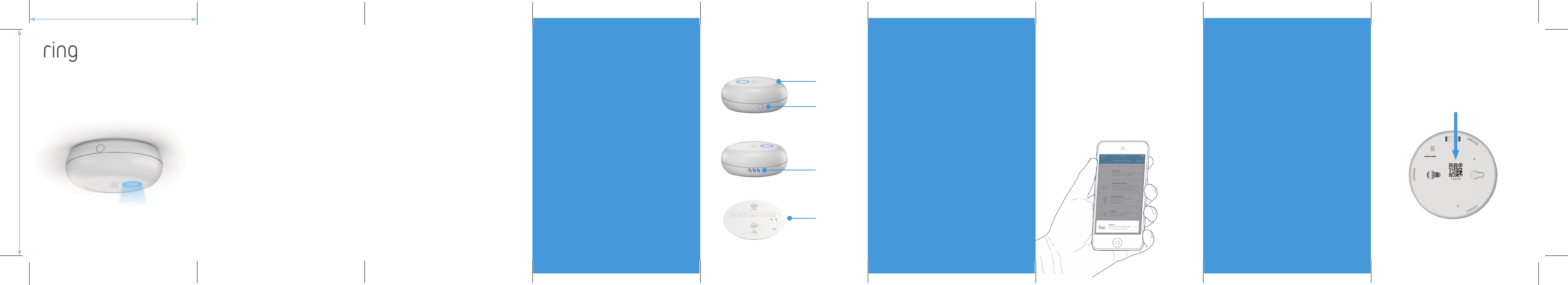

Diagram
Smoke/CO Listener
For Ring Alarm
1.
Say hello to
your Ring
Smoke/CO
Listener.
Mounting
bracket
Microphone
LED ring
Setup button
2.
Set up your
Ring Smoke/
CO Listener in
the Ring app.
3.
Pair your Ring
Smoke/CO
Listener with
your Alarm Base
Station.
74mm
100mm
Test the connection.
Press and release the Setup button
quickly. If the LED ring blinks blue, the
sensor is connected to the Base Station
and is ready to use.
If it blinks red, try connecting again. To
do this, hold the Setup button for three
seconds.

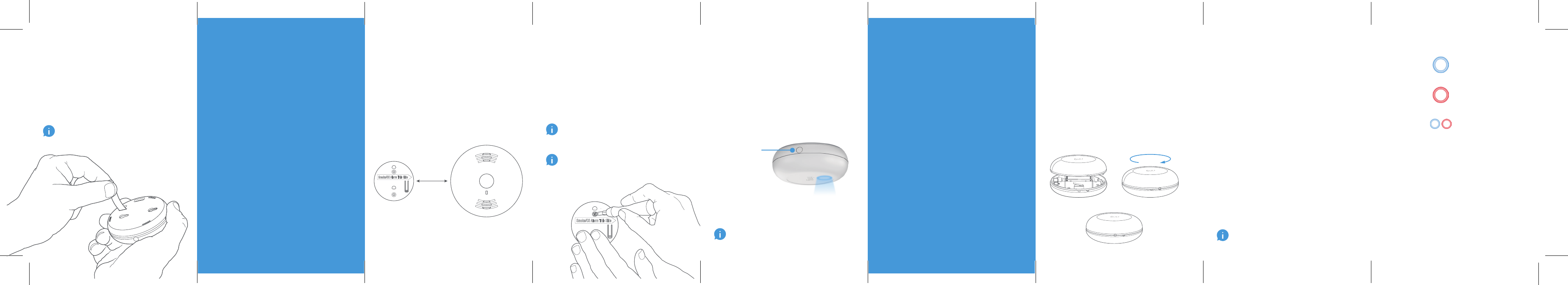

Line up the mounting bracket.
Find a place for the bracket within six
inches (15.25 cm.) of your smoke or CO
alarm.
Position the mounting bracket so that
the arrow marked “Smoke/CO Alarm This
Side” points directly at your smoke or CO
alarm.
Secure the mounting bracket
and mount the Listener.
Once you’ve decided on a location,
secure the bracket to your ceiling with the
included screws.
Place the Listener on the bracket posts,
then slide to lock it in place.
How to replace the battery:
Twist the lid on your Listener counter-
clockwise and lift to remove. Replace
the battery with a fresh CR123A cell. The
Listener then reconnects to your Alarm
Base Station automatically.
Place the lid back on the Listener, taking
care to line up the semi-circle on the rim
of the lid with the “open” semi-circle on
the base. Twist the lid clockwise to lock
it in.
How to remove Ring Smoke/CO
Listener from your system:
Open the side menu in the Ring app and
tap Devices, then Base Station. Next,
select your Listener and tap the gear-
shaped icon. Then tap Remove Device.
When prompted, open the Listener
and remove and reinstall the battery to
complete the removal.
How to perform a factory reset:
If your Listener stops working or will not
connect (even with a good battery), try a
factory reset.
To do this, press and hold the Setup
button for 10 seconds. When the LED ring
stops blinking, your Listener has reset.
Pull out the clear tab.
This turns the Listener on. Your Alarm
Base Station then finds it automatically.
As the Listener pairs to your Alarm Base
Station, its LED ring blinks slowly, then
quickly. Once it pairs, the LED glows blue
for three seconds.
If your Listener cannot connect, try installing
your Alarm Range Extender between your
Listener and Alarm Base Station, following
the included instructions.
During the setup process, the Ring app
prompts you to press the “Test” button on
your Smoke or CO alarm. Mount the Listener
on its bracket before testing your alarm.
When mounting on drywall, pre-drill the
holes and insert the included anchors.
If the Listener does not pair successfully,
the LED ring glows red. To try the pairing
process again, remove and reinstall the
battery inside the Listener.
This process disconnects your Listener from
your Alarm Base Station. To begin using the
Listener again, set it up in the Ring app.
4.
Install your Ring
Smoke/CO
Listener.
5.
Additional
information.
© 2018 Ring LLC or its affiliates.
RING, ALWAYS HOME, and all related logos are trademarks of Ring LLC or its affiliates.
Last updated: 05/15/18
LED status patterns:
Do not paint this device!
Painting your Listener can prevent it from
functioning correctly.
Painting smoke or CO alarms can
degrade their performance as well,
and is strongly discouraged.
1 Blue Blink
Smoke or CO
alert sound
detected
3 Red Blinks
Sensor
tampered
Blue & Red Blinks
Firmware
updating
Setup button
6” or fewer
