Ecolink Intelligent Technology, Inc. Double Toggle Switch
User Manual
© 2018 Ecolink Intelligent Technology Inc. PN DTLS2-ZWAVE5
Z-Wave Plus Smart Switch
Dual Toggle
Installation Guide
A Universal Electronics Company
© 2018 Ecolink Intelligent Technology Inc. PN DTLS2-ZWAVE5

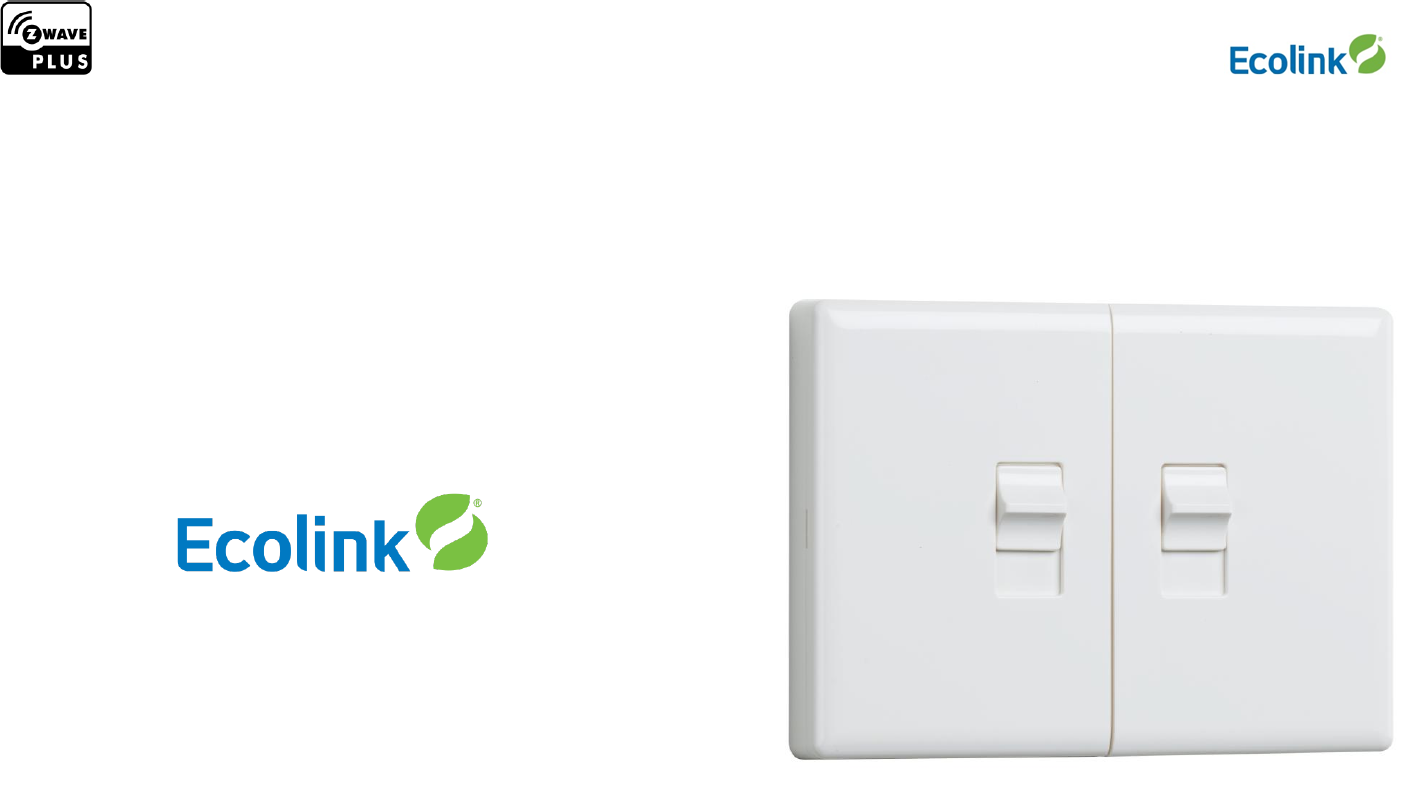

Product Overview
Easily automate overhead lights, table lamps or other accessories with the
Ecolink Z-Wave Plus Smart Switch. Simple to install in minutes by removing
existing switch plate and installing this on the switch. No need to touch any
electrical wiring.
Features
Quick installation, no need to access high voltage wires
Compatible with all Z-wave certified hubs & controllers
Preserves manual control of switch
Senses current status of switch
Works with dual gang toggle type switches
Specifications
For indoor use only
Operating frequency: 908.42, 916 MHz
Operating temperature: 0° – 49°C, 32° – 120°F (ambient
temperature)
Operating humidity 5-95% non-condensing
2 AA batteries per unit
Battery Life: 1 year
Package contents
2 x Z-Wave Plus Smart Switch (Dual Toggle)
4 x AA batteries
1 x Installation Guide
Installation Instructions
(1) Identify location for Z-Wave Plus Smart Switch.
(2) Remove the switch plate cover of the existing dual light switch. Save
the screws for next step.
(3) Remove the switch plate cover of the Z-Wave Plus Smart Switch
with the help of a flat head screw driver.

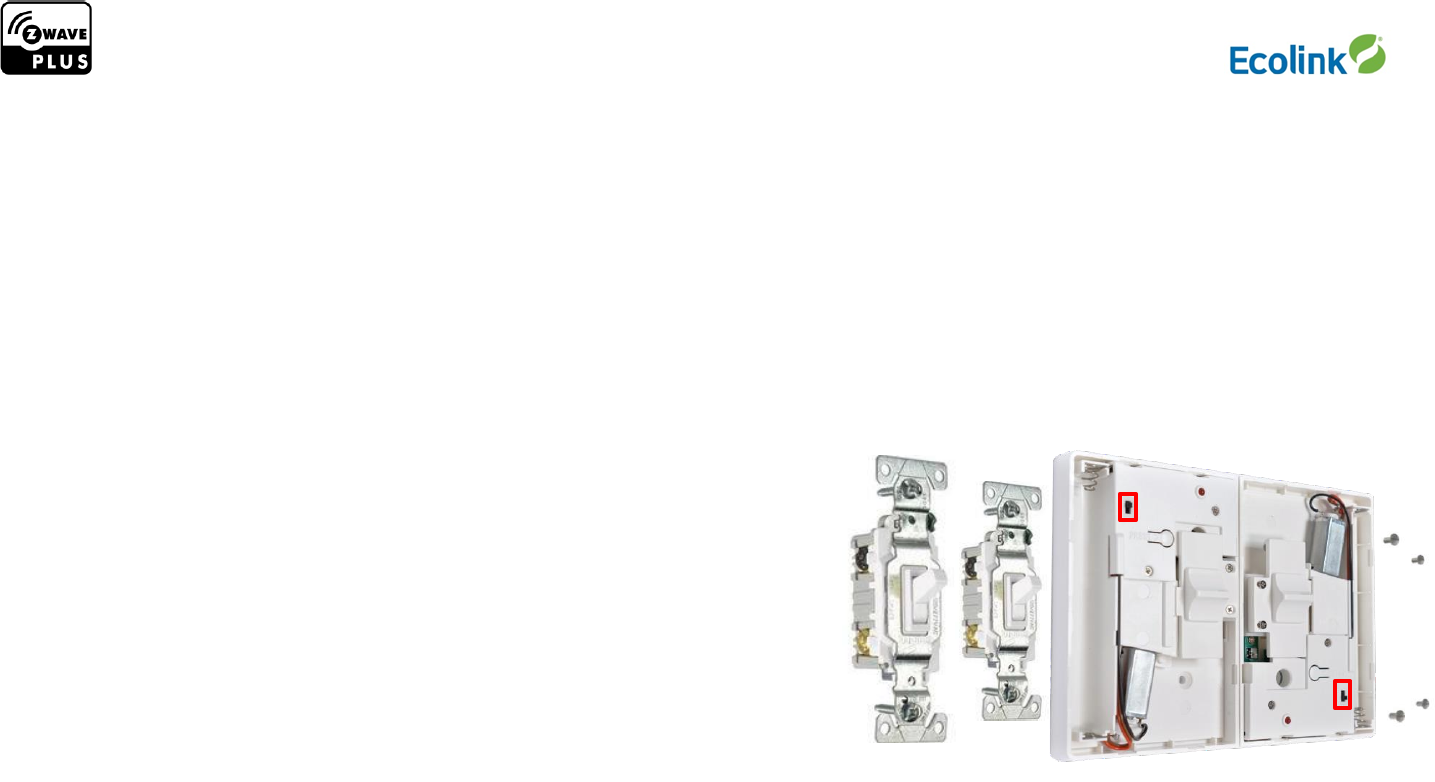

(4) Install the first smart switch on the left existing switch using screws
from step two. It should be oriented such that the batteries are on
the left side. Next, install the second smart switch on the right
existing switch using screws from step two. It should be oriented
such that the batteries are on the right side.
(5) Install 4x AA batteries provided in the package.
(6) Follow the Network Inclusion steps in next section.

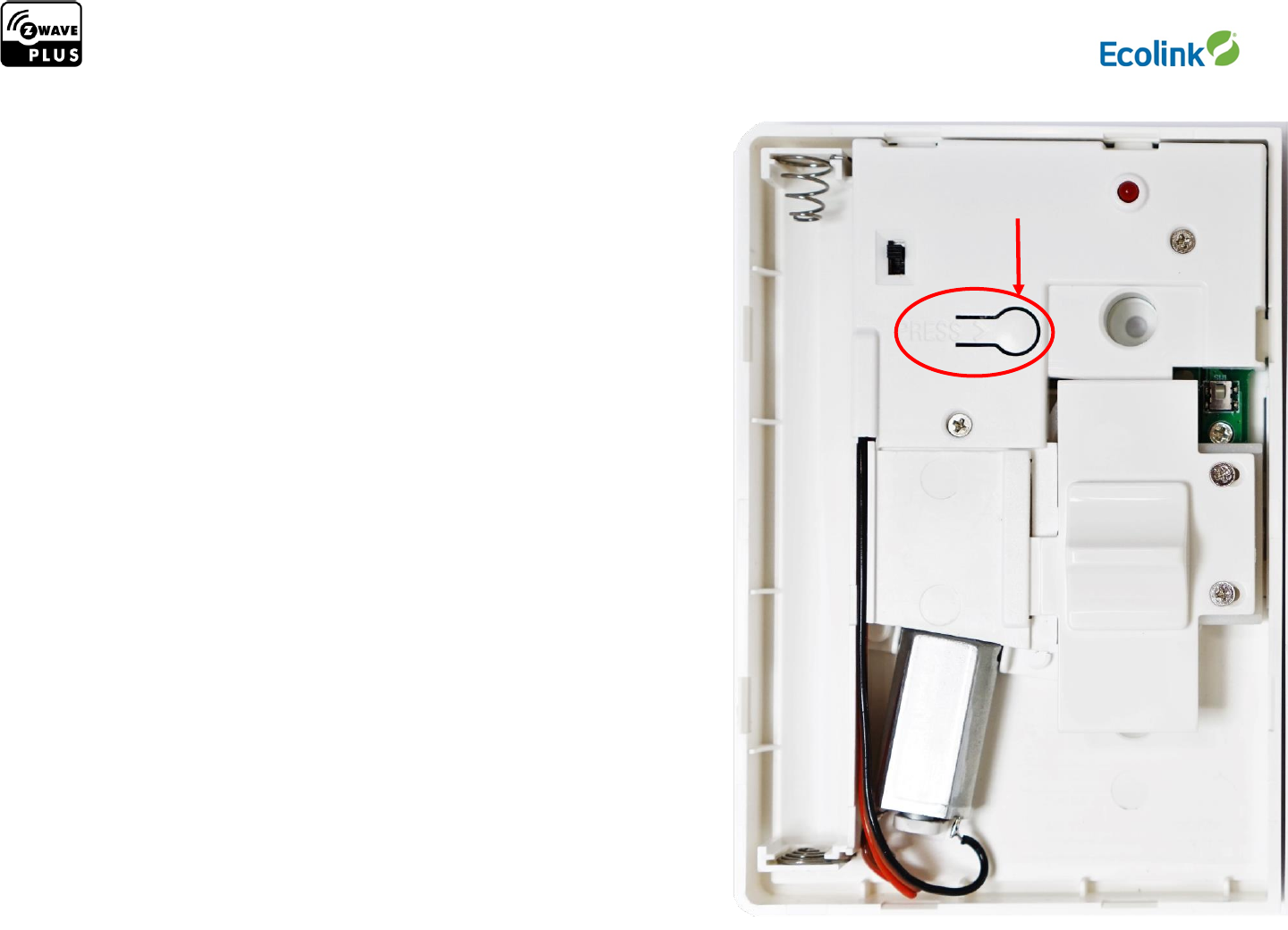

(7) If the switch operates in an inverted state during Z-wave operation
i.e. turns ON instead of OFF and OFF instead of ON, toggle the
position of the orientation switch (red rectangle) to fix this
behavior.
(8) Snap the cover back onto the Z-Wave Plus Smart Switch in the
correct orientation.
© 2018 Ecolink Intelligent Technology Inc. PN DTLS2-ZWAVE5
Network Inclusion
The Z-Wave Plus Smart Switch must be added to a Z-Wave Plus
network prior to use. To include the device in a network both the
device and the network controller must be in inclusion mode at the
same time. Refer to the instructions provided by the manufacturer of
your specific controller for details on initiating the controller’s
inclusion mode.
1) Verify that the Z-Wave Plus controller you are using is compatible
with the Z-Wave Plus Smart Switch.
2) Put your Z-Wave Plus Controller into add (inclusion) mode.
3) Press the inclusion / exclusion button on the Z-Wave Plus Smart
Switch.
4) The LED on the front of the unit will turn off if network inclusion is
successful.
Network Exclusion
1) Any Z-Wave Plus Device can be removed from any Z-Wave Plus
controller. Follow the directions to put your Z-Wave Plus
Controller into exclusion mode.
2) Press the inclusion / exclusion button on the Z-Wave Plus Smart
Switch.
3) The LED in front of the unit will blink steadily if the network
exclusion is successful.
*Please refer to the LED status section for more information on the
LED behavior
© 2018 Ecolink Intelligent Technology Inc. PN DTLS2-ZWAVE5
Notes:
Controller inclusion mode must be activated BEFORE starting
sensor inclusion or exclusion mode.
The device can only be included into one controller network at
a time, and must be excluded from one network before
inclusion in another.
Exclusion mode on the senor is initiated following the same
exact procedure as inclusion.
LED Status
The Z-Wave Plus Smart Switch is equipped with a red LED.
The state of the LED will change based on the state of the device.
LED Blinking - Device not included into a network.
LED On - Device in Learn mode.
LED blink - Device in lower power mode. Remote control off.
Battery State
The Z-Wave Plus Smart Switch will alert the user when the batteries
become low. While the batteries are low, the user will be unable to
change the light state remotely. The Z-Wave Plus Smart Switch will
continue reporting the state of the switch until the batteries are
completely depleted.
Factory Default
The Z-Wave Plus device is automatically factory defaulted when
removed from a Z-Wave Plus network. Please use this procedure only
when the network primary controller is missing or otherwise
inoperable.
Z-Wave Plus Specific Information
Z-Wave Plus is a wireless mesh network and data protocol that allows
devices from many different manufacturers to interoperate. This device
implements Z-Wave Plus functionality, Network Wide Inclusion. The
following information is intended for software engineers working on Z-Wave
Plus controllers and home automation enthusiasts to integrate the Z-Wave
Plus device into their system. This product can be operated in any Z-Wave
network with other Z-Wave certified devices from other manufacturers. All
non-battery operated nodes within the network will act as repeaters
regardless of vendor to increase reliability of the network.
Z-Wave Plus Command Class Basic
For backwards compatibility with older Z-Wave Plus Controllers, the
Basic Command Class is supported in the following manner. A Basic
Set of 0xFF will turn on the light switch. A basic set of 0x00 will turn off
the light switch.
Command Class Association
This Z-Wave Plus Smart Switch has two Association groups of 1 node.
Group one – Group one is the lifeline group. The Light Switch will send
Switch Binary Reports with a value of 0x00 if the light is turned off and
0xFF if the light is turned on to all nodes in group 2.
Group two – The light switch will send basic reports with a value of 0x00
if the light is turned off and 0xFF if the light is turned on to all nodes in
group 2.
Network Wide Inclusion
This device also supports Network Wide Inclusion such that the device
can be included into the Z-Wave network over the mesh network and
not directly near the main controller. This mode is automatically
activated after regular inclusion was not successful.
© 2018 Ecolink Intelligent Technology Inc. PN DTLS2-ZWAVE5
Device Classes
Generic Device Class
GENERIC_TYPE_
BINARY_SWITCH
Specific Device Class
SPECIFIC_TYPE_
POWER_SWITC
H_BINARY
Command
Classes
COMMAND_CLASS_ZWAVEPLUS_INFO
v2
COMMAND_CLASS_VERSION
v2
COMMAND_CLASS_MANUFACTURER_SPEC
IFIC
v2
COMMAND_CLASS_POWERLEVEL
v1
COMMAND_CLASS_BATTERY
v1
COMMAND_CLASS_SWITCH_BINARY
v1
COMMAND_CLASS_ASSOCIATION
v2
COMMAND_CLASS_ASSOCIATION_GRP_IN
FO
v1
COMMAND_CLASS_BASIC
v1
COMMAND_CLASS_FIRMWARE_UPDATE_
MD
v2
Manufacturer
ID
0x014A
Product Type
0x00 06
Product ID
0x00 01
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class
B digital devices, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Re-orient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment to an outlet on a different circuit from the
receiver
Consult the dealer or an experienced radio/TV contractor for
help.
Warning: Changes or modifications not expressly approved by Ecolink
Intelligent Technology Inc. could void the user’s authority to operate the
equipment.
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
C’et appareil est conforme la norme d'Industrie Canada exempts de licence
RSS. Son fonctionnement est soumis aux deux conditions suivantes: (1) c’et
appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit
accepter toute interférence, y compris les interférences qui peuvent causer
un mauvais fonctionnement de la dispositif.
FCC ID: XQC-DTLS2ZWAVE5
IC: 9863B-DTLS2ZWAVE5
© 2018 Ecolink Intelligent Technology Inc. PN DTLS2-ZWAVE5
DISCLAIMER AND LIMITATION OF LIABILITY
OTHER THAN THE LIMITED WARRANTY ABOVE, ECOLINK MAKES NO OTHER
WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. YOU ACKNOWLEDGE THAT YOU ALONE
HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE
REQUIREMENTS OF THE INTENDED USE.
IN NO EVENT SHALL ECOLINK OR ANY OF ITS AFFILIATES BE LIABLE FOR ANY
INCIDENTAL, SPECIAL, INDIRECT, CONSEQUENTIAL, OR MULTIPLE
DAMAGES, INCLUDING BUT NOT LIMITED TO, LOST PROFITS, LOSS OR
DAMAGE TO SOFTWARE OR DATA, OR DAMAGE TO EQUIPMENT ARISING
OUT OF THE USE OF ANY PRODUCT, EVEN IF ECOLINK HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. FURTHER, IN NO EVENT SHALL THE
LIABILITY OF ECOLINK OR ITS AFFILIATIES EXCEED THE INDIVIDUAL PRICE OF
THE PRODUCT ON WHICH LIABILITY IS ASSERTED.
By the act of use, setup or assembly of the product, you accept all resulting
liability. If you as the purchaser or user are not prepared to accept the liability
associated with the use of the product, you are advised to return the product
immediately in new and unused condition to the place of purchase. Some
states do not allow the exclusion or limitation of incidental or consequential
damage, so the above limitations may not apply to you.
LIMITED WARRANTY
This limited warranty is provided by Ecolink Intelligent Technology (“Ecolink”)
to you as the original purchaser of the product. Ecolink warrants this product
to be free from defects in material and workmanship for a period of one (1)
year from the date of original purchase. The determination of whether the
product is defective shall be made by Ecolink in its sole discretion with
consideration given to the overall performance of the product. If Ecolink
determines that any product is defective, Ecolink’s sole obligation and your
sole and exclusive remedy shall be that Ecolink will replace the product.
This warranty does not apply to damage caused by shipping or handling, or
damage caused by accident, abuse, misuse, misapplication, ordinary wear,
improper maintenance, failure to follow instructions or as a result of any
unauthorized modifications. The foregoing limited warranty is and shall be
in lieu of any and all other warranties, whether expressed or implied and of
all other obligations or liabilities on the part of Ecolink. Ecolink neither
assumes responsibility for, nor authorizes any other person purporting to
act on its behalf to modify or to change this warranty, nor to assume for it
any other warranty or liability concerning this product. It is recommended
that the customer check their equipment on a regular basis for proper
operation
RETURN POLICY
Please visit us at www.discoverecolink.com/return to view our return policy.
This product covered by one or more claims of patents found at:
http://sipcollc.com/patent-list/
