User Manual
PN PIRZB1-ECO R1.00 Rev date 6/26/2017
Problem
Solution
Attempt to pair the sensor is unsuccessful.
Reset
the detector to default mode and then set to
pairing mode (see section
3.5).
The sensor and the Touchscreen (control panel)
do not
communicate.
Perform the signal strength testing procedure
described in the control panel installation manual.
Make sure that the signal is sufficient. If
necessar
y
,
replace the sensor’s
ba
tter
y
.
The sensor sends a Low Battery
indication.
To
ensure continuous proper operation, replace the
battery within two weeks of the first Low
Ba
tter
y
indication.
Panel does not arm because of an unrecognized
sensor
malfunction.
Consult with your installer or system provider bef
ore
you disable a zone. Disable the sensor zone (see
the control panel user manual). Note that disa
bling
a sensor zone lowers the overall security level of
your system.
4.
TROUBLESHOO
TING
If you encounter one of the following problems with the PIRZB1-ECO,
use the following solutions to
resolve
the problem:
PIRZB1-ECO
Wireless Digital Pet Resistant PIR
Detector
3rd Party Certifications: FCC, IC, ETL, ZigBee HA, iControl Installation Instructions
1. INTRODUCTION
The PIRZB1-ECO
pet resistant detector is a
microprocessor-controlled wireless digital PIR
detector supported by ZigBee Home
Automation
1.2.
The detector’s features are as
f
ollows:

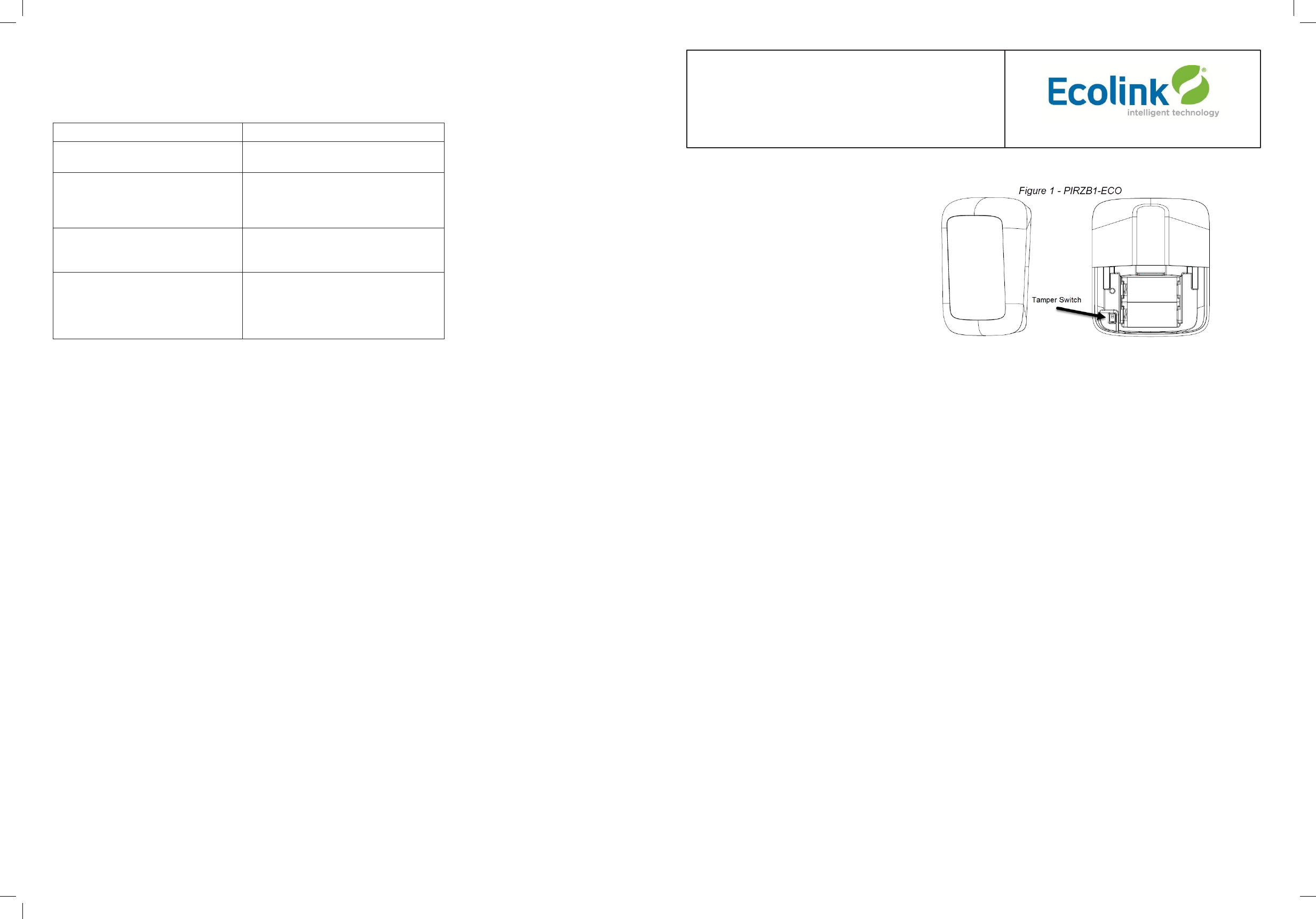

A. Red LED
B. Green LED
C. Tamper
Switch
5. SPECIAL
COMMENTS
Even the most sophisticated detectors can sometimes be defeated or may fail to warn due to: DC
power failure
/
improper connection, malicious masking of the lens, tampering with the optical system, decreased sensitivity in
ambient temperatures close to that of the human body and unexpected failure of a component part. The above
list
includes the most common reasons for failure to detect intrusion, but is by no means comprehensive. It is
therefore
recommended that the detector and the entire alarm system be checked weekly, to ensure
proper performance. An
alarm system should not be regarded as a substitute for insurance. Home and property
owners or renters should be
prudent enough to continue insuring their lives and property, even though they are
protected by an alarm system.
6. COMPLIANCE WITH STAND
ARDS
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B
digital
device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one of the following measures:
•
Reorient
or
relocate
the
receiving
antenna.
•
Increase
the
separation between
the
equipment
and receiver.
•
Connect
the
equipment
into
an
outlet
on
a
circuit
dif
ferent
from
tha
t
to
which
the
receiver
is
connected.
•
Consult
the
dealer
or an
experienced radio/TV technician
for help.
Warning:
Changes or modifications not expressly approved by the Ecolink Intelligent Technology Inc.
could void the user’s authority to operate
the equipment.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est
soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil
doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.
In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be
installed such that a minimum separation distance of 20 cm is maintained from the general population.
Conformément aux exigences d'Industrie Canada en matière d'exposition humaine aux champs de
radiofréquences, l'élément rayonnant doit être installé de telle sorte qu'une distance minimale de 20 cm soit
maintenue par rapport à la population générale.
FCC ID: XQC-PIRZB1ECO
IC ID: 9863B-PIRZB1ECO
Installation shall be done in accordance with the Standard for Installation
and Classification of Burglar and Holdup Alarm Systems, UL
681.
2.
SPECIFICA
TIONS
Detector Type: Two
-
Dual element low-noise pyroelectric sensor
Optical Data:
18
parabolic mirrors for long range
18
parabolic mirrors for close range
Max. Coverage: 15 x 15 m, (49.2 x 49.2 ft)
/ 90°
Pet
Immunity:
Selectable: (1.No immunity 2. Up to 40 lb 3. Up to 85 lb)
ELECTRICAL
Internal
Batteries:
Two 3V Lithium batteries, type CR-123A. For UL installations, use Panasonic
onl
y
Nominal Battery
Capacity:
1400 mAh per
ba
tter
y
Battery Life (with LED on): Typically over 5 years
Note: Inability to connect with wireless network, or wireless link quality resulting in intermittent connection ma
y
significantly reduce the expected battery
life.
Battery Power Test: Performed immediately upon battery insertion and during each transmission to the panel
FUNCTIONAL
Alarm
Period:
3 seconds
Visual
Indications:
Red LED lights for about 3 seconds upon transmission of alarm & tamper messages and upon
motion
Detection in the walk test mode only (walk test mode available for approx. 15 minutes). Red LED
flashes during
the power-up stabilization period, or after restoring (pressing) the tamper switch (power-up stabilization
period is
approx. 1 minutes). LED does not light upon transmissions of supervision messages or alarm detection
after
termination of walk test mode.
Rearm Timer: Rearms the detector 2 minutes after the last alarm. Timer disabled in the walk test mode.
WIRELESS
Supported
Network:
ZigBee H.A
1.2
Frequency: 2.405
–
2.480
Ghz as per IEEE
802.15.4
Tamper
Alert:
Reported when a tamper event occurs and in
any subsequent message, until the tamper switch is restored
MOUNTING
Height:
1.8-2.4 m (6
-
8 ft). For pet rejection, the optimal height is 2.1 m (7 ft)
Installation
Options:
Surface or corner
ENVIRONMENT
AL
Operating Temperatures -10˚ C to 55˚ C (14˚ F to 131˚ F)
Storage Temperatures -20˚ C to 65˚ C (-4˚ F to 149˚ F)
COMPLIANCE WITH STAND
ARDS
USA
CFR 47 part
15,
ANSI/UL
639
PHY
SIC
AL
Size (H x W x D) 83 x 61 x 42 mm (3.27 x 2.4 x
1.66”)
Weight (with battery) 90 g (3.17 oz)
Color White
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interferene and (2) this device must accept any interference received, including interference that may
cause undesired operation.
PN PIRZB1-ECO R1.00 Rev date 6/26/2017
3.
INST
ALLA
TION
3.1 General Guidance
1. Do not install near heating and cooling sources.
2. Do not aim detector at windows due to risk of drafts.
3. Do not install outdoors.
4. Do not install where direct sunlight can strike the
unit.
5. Do not install near high-voltage electrical lines.
6. Do not install behind any obstructions.
7. Do not mount on unstable surfaces.

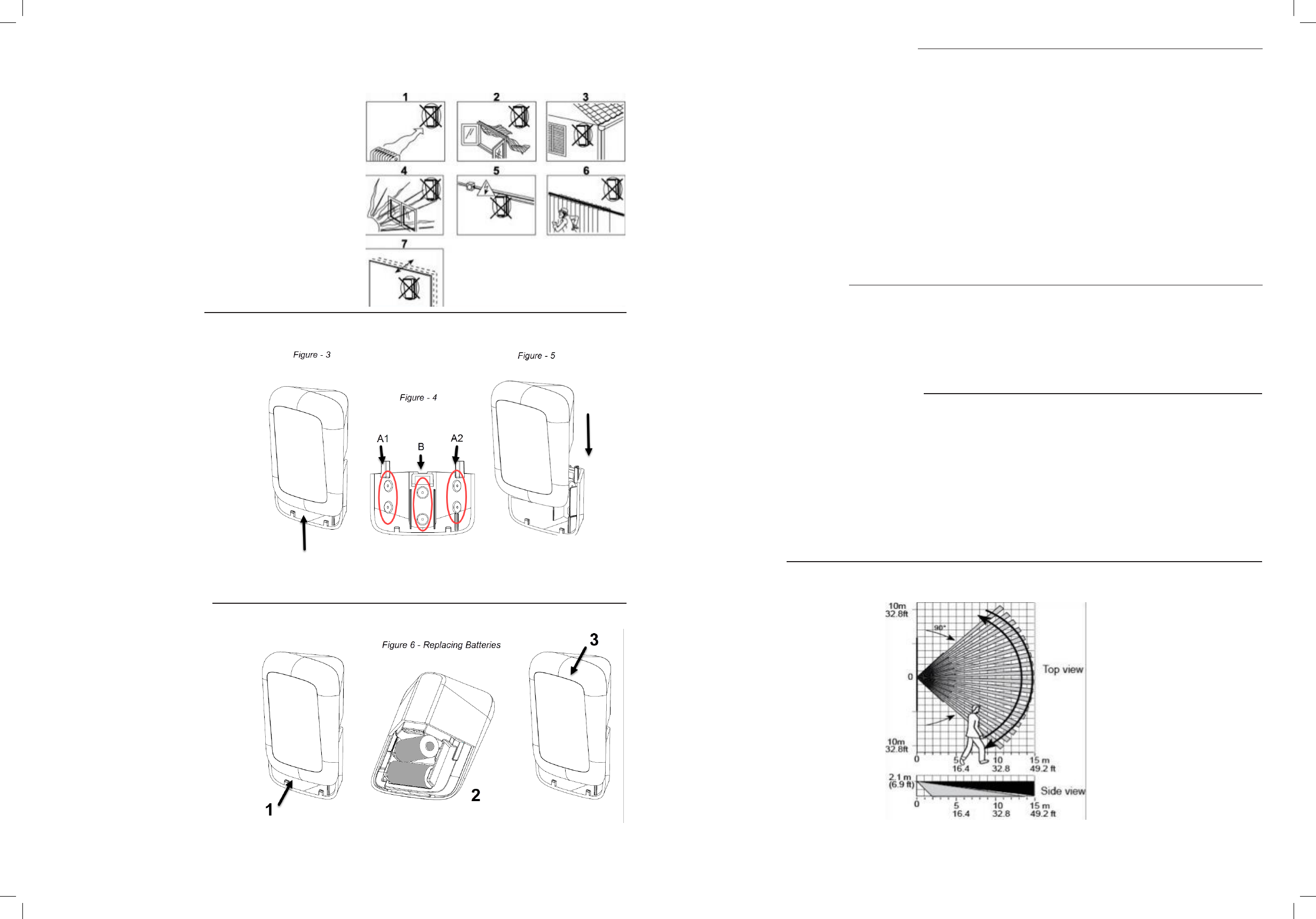

Figure 2. General
Guidelines
3.4 Activating and Pairing the
Detector
To
pair the detector to the Touchscreen (control panel), you must set the detector to pairing mode.
1. First set the Touchscreen (panel) to pairing mode and then the
detector
.
2. To activate, pull the activation strip that protrudes from the back of the
detector
.
3. The green LED (see Figure 1) blinks 3 times every 5 seconds (repeated up to 20 times) to
indicate
that the detector is searching for the Touchscreen (control panel).
Note: If detector pairing is not successful during the searching process
–
by pressing the tamper
switch
–
the searching process will restart.
4. Complete the pairing procedure on the Touchscreen (control panel). See
the pairing instructions in
the Touchscreen (control panel)
installation guide for details..
Note: Pairing should be performed before
installation.
After the installation a good link to the panel is displayed when the Received Signal
Strength
Indicator
(RSSI)
indicated on the panel is higher than -70dBm and the Link Quality Indicator
(LQI)
is
stronger than
250.
If the RSSI and LQI values are lower, you
must change the location of the detector
.
3.2
Installation
Procedur
e
3.5 Rebooting the
Detector
To
reboot the detector, complete the following steps:
1. Remove the battery cover
.
2. Press and release the tamper switch (see Figure – 1) for 1 to 2 seconds
.
3. Close the battery cover
.
1.
Separate detector from bracket. Figure 3.
2.
Remove the bracket.
3.
Mount bracket to wall using the center
screw holes (B) or corner screw holes (A1 &
A2). Figure 4.
4.
Install new batteries OR if batteries are
installed, remove the activation strip.
5.
Remount the detector by sliding it down
onto the bracket until a click is heard. Figure
5.
6.
The unit is ready for walk test.
3.6
Retur
n
the
Detector
to
default
mode
CAUTION! The defaulting process removes the device from the network and enables
re-pairing.
Prerequisite: Separate the detector from the bracket to remove both ba
tteries.
See Figure 6 for details
.
1. Press
and hold down the detectors tamper switch.
2. Insert one of the two batteries into the detector while observing battery polarity
.
3. Release the tamper switch within 4 seconds (the LED blinks 3 times every
5 seconds).
4. To re-pair the detector, follow the instructions in section
3.4.
Note: It is recommended to wait about 1 minute after battery removal, before inserting the new
ba
tter
y
.
3.7
W
alk
T
esting
3.3
Replacing
the
Batteries
Walk across the far end of coverage pattern in both directions. The LED should light for 2-3
seconds
each time your motion is detected.
1. Press upward to separate the detector
from
the bracket.
2. Replace the ba
tteries.
3. Put back the detector on the bracket.
Note: It is recommended to wait
approximately 1 minute after battery
removal before inserting the new
battery.
CAUTION! Risk of explosion if
battery is replace by an incorrect
type. Dispose of used battery
according to the manufacturers
instructions.
Important!
Instruct the user to walk test at
least once a week to verify proper function of
the detector
.
Note:
After battery insertion or closing the
cover (which results in closing the tamper
switch)the LED
flashes for 2 minutes and
the detector goes into walk-test mode for
15 minutes. In walk test mode
the LED
lights
for every motion detected. After 15 minutes
the detector automatically enters normal
mode
i n which the LED
will not blink after
detection.
Figure 7 – Coverage Pattern Walk-Test
