Ecolink Intelligent Technology, Inc. Do Button Installation Instructions
Installation Instructions
P/N 466-xxxx • Rev A • 22NOV17 1 / 1
TX-E121 Command Button
Description
The TX-E121 Command Button allows for up to 3 different commands, scenes, and/or automations to
be triggered through three different button pressing sequences. To the panel, the button appears as 3
unique door/window sensors, each with their own unique TX-ID. Depending on the security panel’s
capability and/or the capability of the interactive services utilized with the panel, triggering any of the
Command Button’s 3 zones can be set up as the initiating action to then trigger a pre-configured
automation.

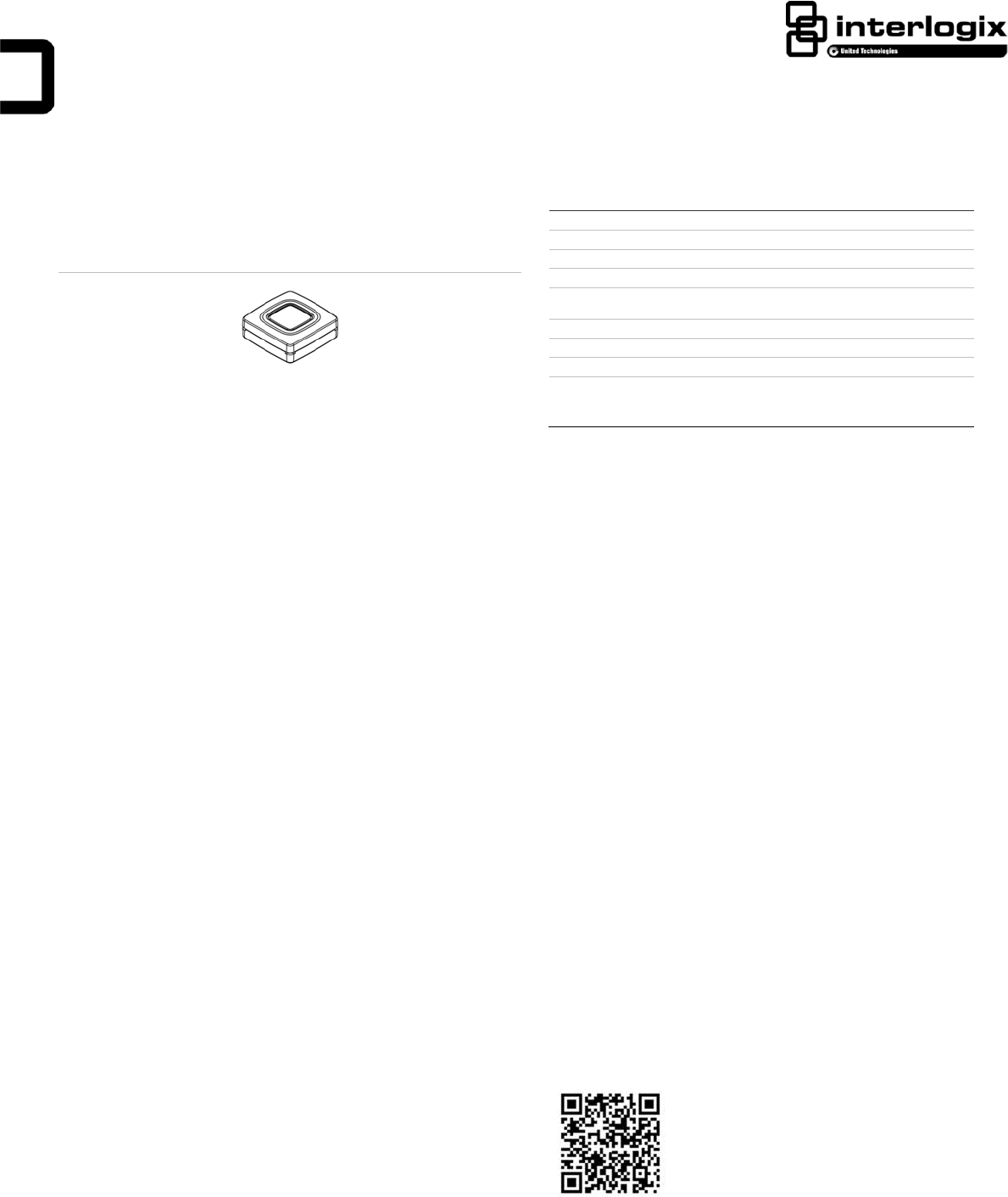

Figure 1: TX-E121 Command Button
Enrolling
To enroll the command-button into the panel utilizing the panel’s “Learn Mode” procedure, the button
needs to be placed into enrollment mode. To enter enrollment mode on the button, follow these steps:
1) Press and hold the button for approximately 10 seconds. During this 10 second time frame,
after the first 2 seconds the led will flash 3 times followed by the standard 3 second continual
illumination that happens during the press and hold command. Continue holding down the button and
after a total of approximately 10 seconds, the LED will quickly flash 5 times indicating that enrollment
mode has been enabled
2) With the panel in learn mode, briefly tap the button once to trigger a tamper transmission for
zone #1. This should successfully learn it into the panel. If the panel does not respond, wait for the
LED to shut off and try pressing the button again, until successful enrollment occurs.
3) Take note that the command button automatically ends the enrollment mode after 15 seconds
of not sending any commands (i.e. after pressing and holding for 10 seconds and verifying enrollment
is enabled with the 5 LED flashes, if the button isn’t pressed for 15 seconds immediately preceding
the enrollment mode activation, it will revert back to its normal operation of sending open + automatic
restorals on button presses vs sending tampers) Depending on how long it takes to set up each zone
on the panel after a zone is learned in, you may need to re-enter enrollment mode again (holding
down for 10 seconds) when ready to enroll zones 2 and 3.
Operating Instructions
Each of the Command Button’s three different command configurations (Single tap, double tap, &
press and hold) can be used as the initiating action to trigger a pre-configured scene, automation, or
other smart device(s). Keep in mind that to the panel, each command appears as a door/window
sensor opening up. When enrolling the device, it is recommended to name each zone accordingly so
they can easily be assigned to the scene of your choice. For instance, zone #1 = “CB1 ST” (command
button single tap), zone #2 = “CB1 DT” (for double tap), and zone #3 = “CB1 PH” (for press and hold).
Briefly tap the button once to trigger an “OPEN” transmission for zone #1. The red LED will
flash once, and then re-illuminate, staying illuminated for approximately 3 seconds. During this
continual illumination period, the sensor is sending an automatic restoral transmission. Wait until the
LED light is no longer illuminated to send another command.
Double tapping the button will trigger an “OPEN” transmission for zone #2. The red LED will
flash twice, and then re--illuminate, staying illuminated for approximately 3 seconds. During this
continual illumination period, the sensor is sending an automatic restoral transmission. Wait until the
LED light is no longer illuminated to send another command.
Press and hold the button for approximately 2 seconds to trigger an “OPEN” transmission for
zone #3. The red LED will flash three times, and then re-illuminate, staying illuminated for
approximately 3 seconds. During this continual illumination period, the
sensor is sending an
automatic restoral transmission. Wait until the LED light is no longer illuminated to send another
command.
Specifications
TX-E121
RF Frequency 319.5 MHz
Compatibility Interlogix 319.5 MHz control panels/receivers
Battery Type CR2032 (Panasonic)
Typical Battery Life Up to 5 years at 68° F (20° C)
Operating Temperature
Range 32° to 110°F (0° to 43°C) Non-pet applications
60° to 110°F (16° to 43°C) Pet applications
Supervisory Interval 64 Minutes
Relative Humidity 0 – 90% non-condensing
Storage Temperature Range -30 to 140°F (-34 to 60°C)
Dimensions
(L x W x H) 1.2 in x 1.2 in x 0.4 in
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by UTC Fire and Security could void the user’s authority to operate
the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis
aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter
toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.
In accordance with FCC requirements of human exposure to radiofrequency fields, the radiating element shall be
installed such that a minimum separation distance of 20 cm is maintained from the general population.
Conformément aux exigences d'Industrie Canada en matière d'exposition humaine aux champs de radiofréquences,
l'élément rayonnant doit être installé de telle sorte qu'une distance minimale de 20 cm soit maintenue par rapport à la
population générale.
FCC:
IC:
This Class B digital apparatus complies with Canadian ICES-3B.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Contact information
For contact information, visit us online at www.interlogix.com.
For technical support, see www.interlogix.com/support
Copyright
Copyright © 2017 United Technologies Corporation. All rights reserved.
Trademarks
Interlogix is a registered trademark of United Technologies Corporation. Interlogix is part of UTC Climate, Controls & Security,
a unit of United Technologies Corporation.
Product Warnings and Disclaimers
THESE PRODUCTS ARE INTENDED FOR SALE TO, AND INSTALLATION BY, AN EXPERIENCED SECURITY
PROFESSIONAL. UTC FIRE & SECURITY CANNOT PROVIDE ANY ASSURANCE THAT ANY PERSON OR
ENTITY BUYING ITS PRODUCTS, INCLUDING ANY “AUTHORIZED DEALER”, IS PROPERLY TRAINED OR
EXPERIENCED TO CORRECTLY INSTALL SECURITY RELATED PRODUCTS.
For more information on warranty disclaimers and product safety information, please check
https://firesecurityproducts.com/policy/product-warning or scan the following code:
