Manual
WST-610
Flood and Freeze Sensor
patent pending
Installation Manual & Users
Guide
SPECIFICATIONS
Frequency: 433 MHz Operating Temperature: 32°-120°F (0°-49°C)
Battery: One 3Vdc lithium CR2450 (620mAH) Operating Humidity: 5-95% RH non condensing
Battery life: up to 10 years Compatible with Honeywell and 2GIG
Detection of standing Water within 1 second Supervisory signal interval: 64 min(approx.)
Across Gold probes Maximum current draw: 23mA during transmission
Detect Freeze at 5C restores at 7C Water resistant to XXX
OPERATION
The WST-610 sensor is designed to detect water across the gold probes and will alert immediately when present.
The Freeze sensor will trigger when temperature is below 5C and will send a restoral at 7C.
ENROLLING
To enroll the sensor, set your panel into sensor learn mode. Refer to your specific alarm panel instruction manual
for details on these menus. On the WST-610, locate the vertical line on the side of the sensor. This indicates the
location of the internal reed switch. To learn in the flood sensor, initiate a transmission by tapping the included
magnet to this spot. Repeat as needed by the control panel. The flood sensor will enroll as Loop 1. To learn in the
freeze sensor, initiate a transmission by holding the magnet to the reed for at least 2 seconds. The freeze sensors will
enroll as Loop 2. You can also trigger the unit by placing a wet finger across the gold probes for a few seconds.
Since the flood/freeze are two sensors in one, you will need to enroll them as TWO separate sensors if you desire to
use them both. **CURRENT SAMPLES DO NOT SUPPORT 2 SECOND FREEZE ENROLLMENT, MUST BE ENROLLED BY
MANUALLY ENTERING THE SERIAL NUMBER ****
PLACEMENT
Place the flood detector anywhere that you wish to detect a flood or freezing temperature. Under a sink,
in or near a hot water heater, a basement or behind a washing machine. If you would like to make sure the flood
does not move from its intended location you can use the provided sensor cover and mount it to the wall or floor
Water Height Adjustment
The Firefighter comes with 2 sets of rubber feet that can be used to adjust the height of the probes to either 3/16th in
or 3/8th in. Place the rubber feet in the position shown below if you wish to raise the detection level of water
Testing the unit
By using the magnet you can send a Flood OR Freeze transmission. Place the magnet on the line on top of the
case and remove it within 1 second, this will send a Flood transmission (Loop1), if you hold the magnet for 2
seconds, it will send a Freeze transmission (Loop2). Placing wet fingers on any two probes will also trigger a flood
Draft Picture

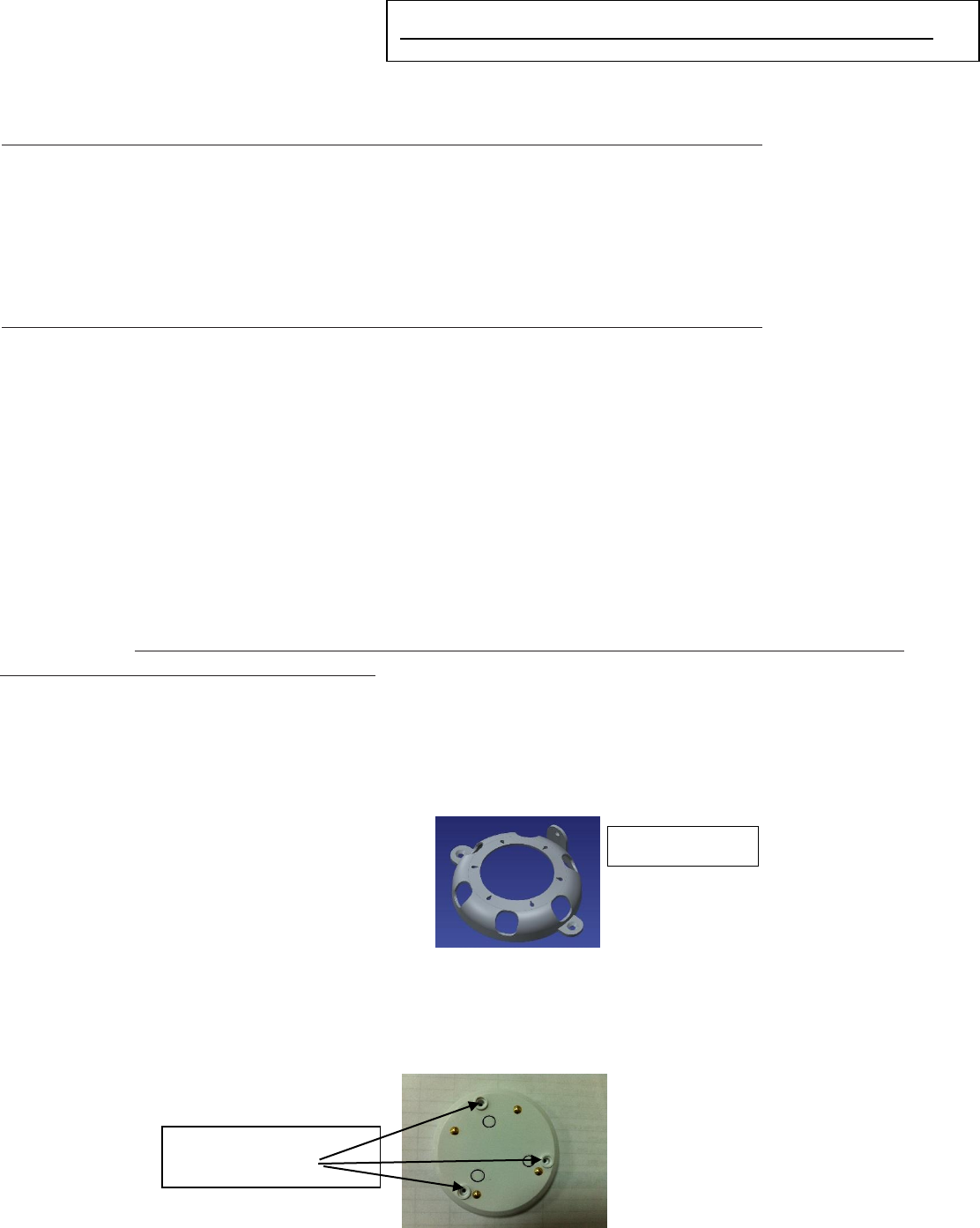

Placement of rubber
feet
DRAFT MANUAL- NOT for PRODUCTION
transmission.
REPLACING THE BATTERY
When the battery is low a signal will be sent to the control panel. To replace the battery:
1. Carefully remove the white rubber feet on the bottom of the flood detector.
2. Remove the 3 screws and open the case. Replace battery with a Panasonic CR2450 Lithium Battery
3. Replace the screws and rubber feet
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Re-orient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet on a different circuit from the receiver
• Consult the dealer or an experienced radio/TV contractor for help.
WARNING: Changes or modifications not expressly approved by Encore Controls could void the user’s authority to operate the equipment.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
C’et appareil est conforme la norme d'Industrie Canada exempts de licence RSS. Son fonctionnement est soumis aux deux conditions suivantes:
(1) c’et appareil ne peut pas provoquer d'interférences, et (2) c’et appareil doit accepter toute interférence, y compris les interférences qui peuvent
causer un mauvais fonctionnement de la dispositif.
FCC ID: XQC-WST610 IC:9863B-WST610
WARRANTY
Ecolink warrants that for a period of 2 years from the date of purchase that this product is free from defects in material and workmanship. This warranty does not apply to damage caused by
shipping or handling, or damage caused by accident, abuse, misuse, misapplication, ordinary wear, improper maintenance, failure to follow instructions or as a result of any unauthorized
modifications. If there is a defect in materials and workmanship under normal use within the warranty period Ecolink shall, at its option, repair or replace the defective equipment upon return of
the equipment to the original point of purchase. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether expressed
or implied and of all other obligations or liabilities on the part of Ecolink neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to modify or to change this
warranty, nor to assume for it any other warranty or liability concerning this product. The maximum liability for Ecolink under all circumstances for any warranty issue shall be limited to a
replacement of the defective product. It is recommended that the customer check their equipment on a regular basis for proper operation.
THE LIABILITY OF ECOLINK , OR ANY OF ITS PARENT OR SUBSIDIARY CORPORATIONS ARISING FROM THE SALE OF THIS SMOKE ALARM DETECTOR OR UNDER THE TERMS OF THIS
LIMITED WARRANTY SHALL NOT IN ANY CASE EXCEED THE COST OF REPLACEMENT OF A SMOKE ALARM DETECTOR AND, IN NO CASE, SHALL ENCORE CONTROLS , OR ANY OF
ITS PARENT OR SUBSIDIARY CORPORATIONS BE LIABLE FOR CONSEQUENTIAL LOSSES OR DAMAGES RESULTING FROM THE FAILURE OF THE SMOKE ALARM DETECTOR OR FOR
BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE COMPANY’S NEGLIGENCE OR FAULT.
The WST-601 detector does not detect the presence of smoke, heat, or fire directly. It relies solely on the presence of an audio alarm signal generated by an existing smoke or fire
detector in proximity to the WST-601 detector to make such a determination. The WST-601 detector must be used with smoke detectors certified according to UL Standards, and in
strict accordance with the installation and operation instructions provided with such detectors. It is the owner’s responsibility to ensure that smoke or fire detectors used in
conjunction with the WST-601 detector are maintained and tested on a regular basis in accordance with the manufacturer’s instructions. Ecolink expressly disclaims any responsibility
for the failure of the WST-601 detector to detect the presence of smoke or fire due to the failure of any smoke or fire detector used in conjunction with the WST-601 detector to
operate properly due to any condition, including improper installation, operation, maintenance or testing of such smoke or fire detector.
Ecolink Intelligent
technology Inc.
2055 Corte Del Nogal
Carlsbad CA 92011
855-632-6546
PN WST-610 R0.01
REV DATE:
patent pending
