1 Product Overview
Winbot Remote Control(2.4G) with the use of the host W730 or W710,Used
to control the host restarts, direction of travel, run, pause and and host
matches.

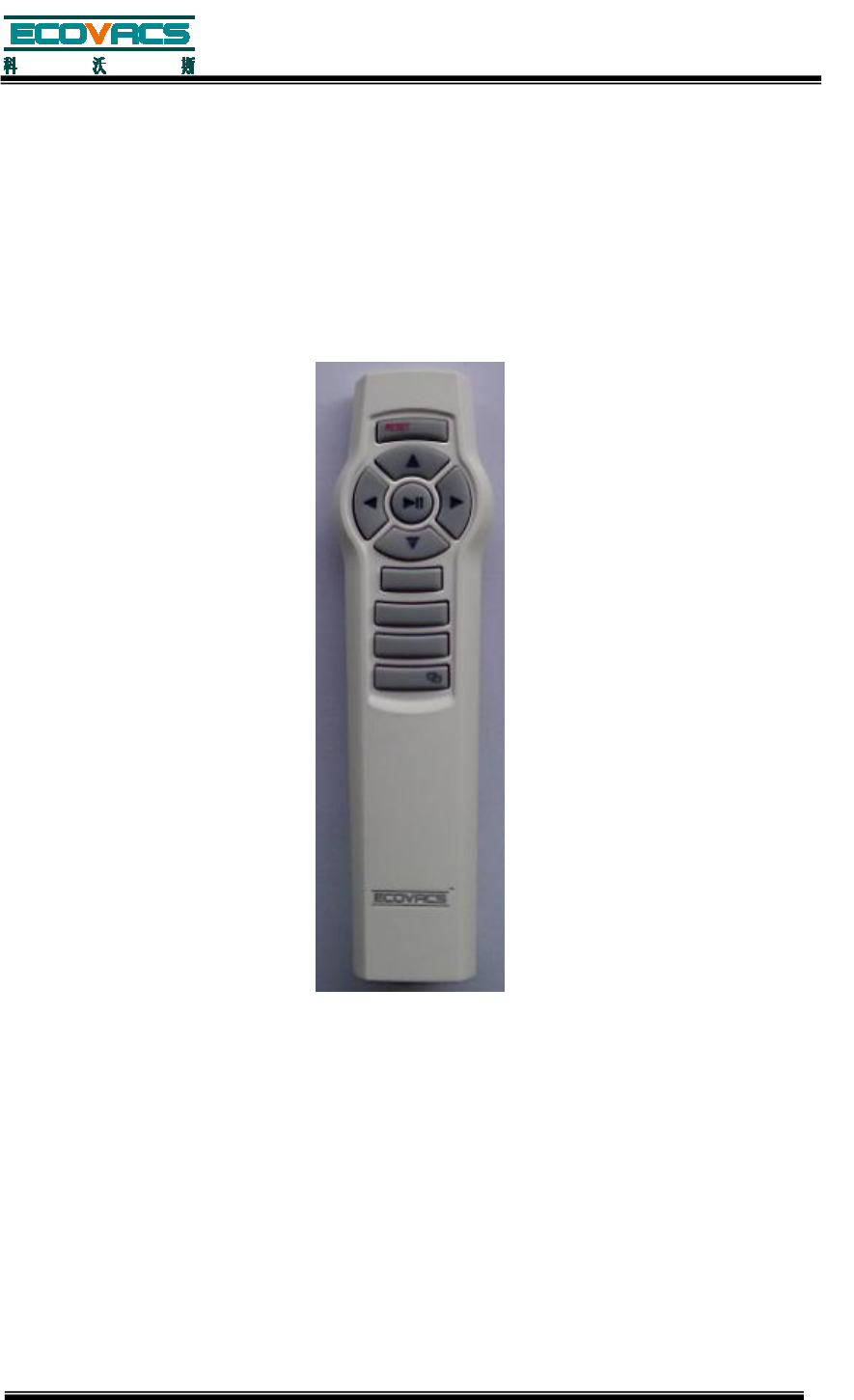

Figure 1 Front view
地址：中国江苏省苏州市吴中区石湖西路 108 号 邮编：215168
ADD: 108 Shihu West Road, Wuzhong District, Suzhou 215168, China
TEL: 86-512-65651488 FAX: 86-512-65613599
第 4 页 / 共 6 页
E
COV
A
CS
R
obot
i
cs
(
Su
Zh
ou)
C
o
.,
L
td
.
科沃斯机器人科技（苏州）有限公司

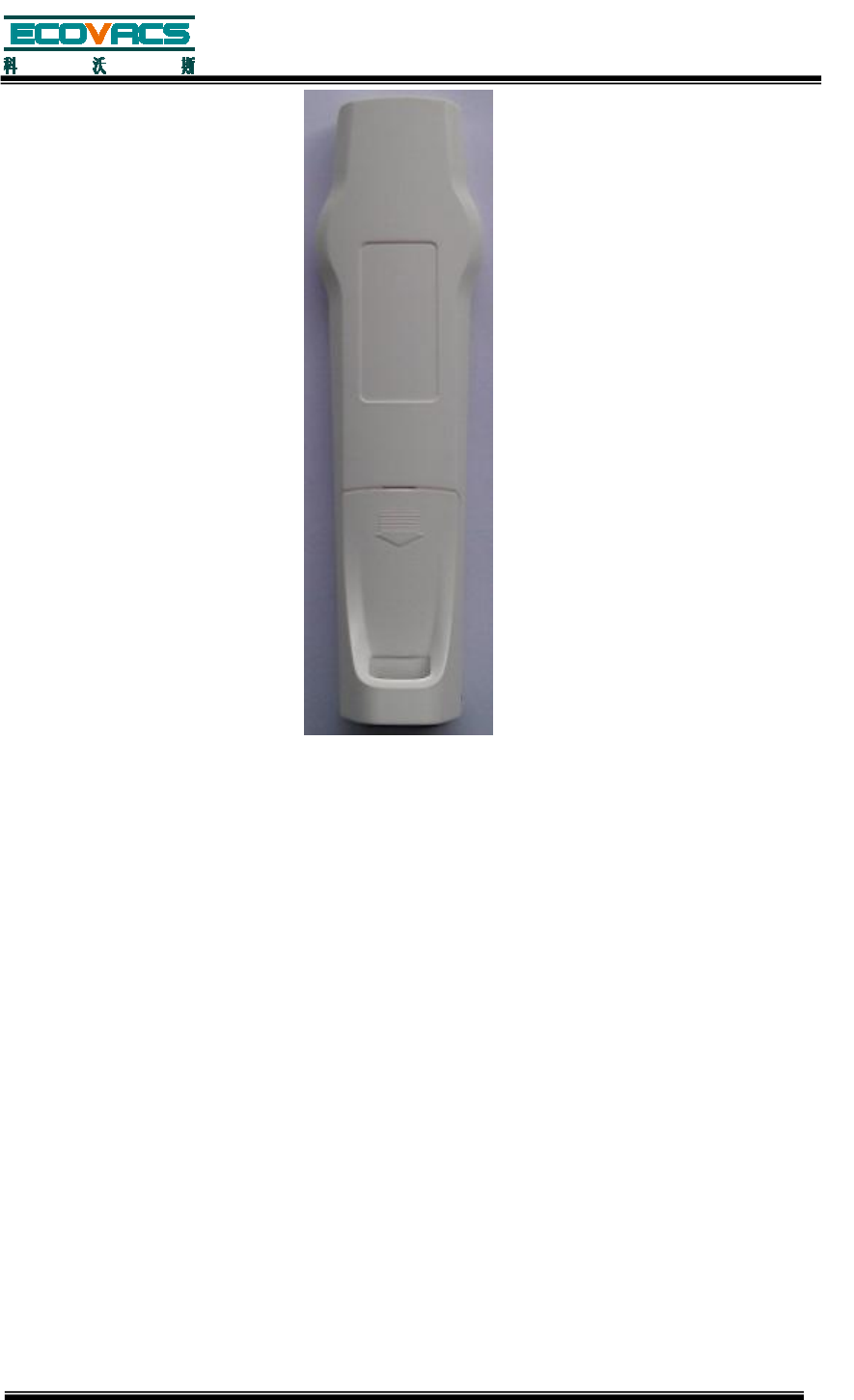

Figure 2 Rear view
2 Instructions for use
Before use, loaded two AAA batteries with electricity, use the following keys:
① RESET: Control host is restarted；
② Up Arrow: Control host forward;
③ Down Arrow: Control host back;
④ Left Arrow: Control host left;
⑤ Right Arrow: Control host right;
⑥ Start/Pause: Control host start,pause；
⑦ Code: Match with the host.
