USER GUIDE
ADSL2 BARRICADE™ N
4-Port ADSL/ADSL2+ Wireless Router
SMC7904WBRAS-N2 v2
No. 1, Creation Road III,
Hsinchu Science Park,
30077, Taiwan, R.O.C.
TEL: +886 3 5770270
Fax: +886 3 5780764
4-Port ADSL/ADSL2+ Wireless Router
User Guide
March 2012
Pub. # 149xxxxxxxxx
SMC-UG-0312-01
Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.
However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or
other rights of third parties which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications
at any time without notice.
Copyright © 2012 by
SMC Networks, Inc.
No. 1 Creation Road III,
Hsinchu Science Park,
30077, Taiwan, R.O.C.
All rights reserved
Trademarks:
SMC is a registered trademark; and Barricade, EZ Switch, TigerStack, TigerSwitch, and TigerAccess
are trademarks of SMC Networks, Inc. Other product and company names are trademarks or
registered trademarks of their respective holders.
– 4 –
WARRANTY AND PRODUCT REGISTRATION
To register SMC products and to review the detailed warranty statement,
please refer to the Support Section of the SMC Website at http://
www.smc.com.
– 5 –
COMPLIANCES
FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following
measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter. This
equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
FCC - PART 68
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment is a
label that contains, among other information, a product identifier in the
C
OMPLIANCES
– 6 –
format US: 1KRDL09BSMC7800A. If requested, this number must be
provided to the telephone company.

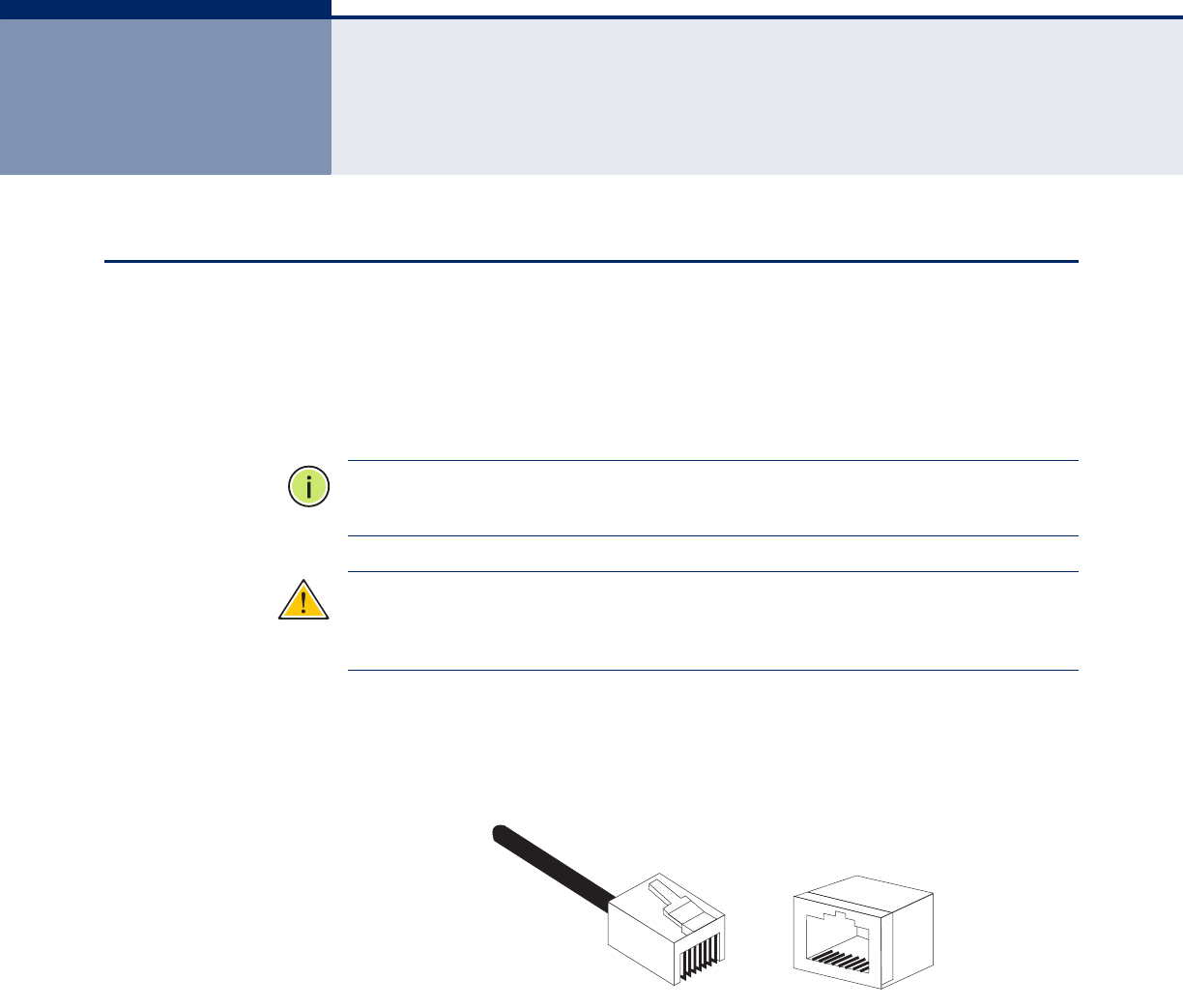

This equipment uses the following USOC jacks: RJ-11.
The REN is useful to determine the quantity of devices you may connect to
your telephone line and still have those entire devices ring when your
telephone number is called. In most, but not all areas, the sum of the REN
of all devices connected to one line should not exceed five (5.0). To be
certain of the number of devices you may connect to you line, as
determined by the REN, you should contact your local telephone company
to determine the maximum REN for your calling area.
If your equipment causes harm to the telephone network, the telephone
company may discontinue your service temporarily. If possible, they will
notify you in advance. But if advance notice is not practical, you will be
notified as soon as possible. You will be informed of your right to file a
complaint with the FCC. Your telephone company may make changes in its
facilities, equipment, operations or procedures that could affect the proper
functioning of your equipment. If they do, you will be notified in advance to
give you an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, please contact
please contact our company at the numbers shown on back of this manual
for information on obtaining service or repairs. The telephone company
may ask that you disconnect this equipment from the network until the
problem has been corrected or until you are sure that the equipment is not
malfunctioning.
This equipment may not be used on coin service provided by the telephone
company. Connection to party lines is subject to state tariffs.
REN (RINGER EQUIVALENT NUMBERS) STATEMENT
Notice: The Ringer Equivalence Number (REN) assigned to each terminal
device provides an indication of the maximum number of terminals allowed
to be connected to a telephone interface. The termination on an interface
may consist of any combination of devices subject only to the requirement
that the sum of the Ringer Equivalence Numbers of all the devices does not
exceed 5.
ATTACHMENT LIMITATIONS STATEMENT
Notice: This equipment meets telecommunications network protective,
operational and safety requirements as prescribed in the appropriate
Terminal Equipment Technical Requirements document(s). This is
confirmed by marking the equipment with the Industry Canada certification
number. The Department does not guarantee the equipment will operate to
the user's satisfaction.
Before installing this equipment, users should ensure that it is permissible
to be connected to the facilities of the local telecommunications company.
The equipment must also be installed using an acceptable method of
connection. The customer should be aware that compliance with the above
conditions may not prevent degradation of service in some situations.
C
OMPLIANCES
– 7 –
Repairs to certified equipment should be coordinated by a representative
designated by the supplier. Any repairs or alterations made by the user to
this equipment, or equipment malfunctions, may give the
telecommunications company cause to request the user to disconnect the
equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic water
pipe system, if present, are connected together. This precaution may be
particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves,
but should contact the appropriate electric inspection authority, or
electrician, as appropriate.
CE MARK DECLARATION OF CONFORMANCE FOR EMI AND SAFETY (EEC)
SMC contact for these products in Europe is:
SMC Networks Europe,
C/Fructuós Gelabert 6-8, 2o, 2a,
Edificio Conata II,
08970 - Sant Joan Despí, Barcelona, Spain.
This is a class B product. In a domestic environment, this product may
cause radio interference, in which case the user may be required to take
adequate measures.
NATIONAL RESTRICTIONS
This device is intended for home and office use in all EU countries (and
other countries following the EU directive 1999/5/EC) without any
limitation except for the countries mentioned below:
N
OTE
:
Do not use the product outdoors in France.
Country Restriction Reason/Remark
Bulgaria None General authorization required for outdoor use and
public service
France Outdoor use
limited to 10 mW
e.i.r.p. within the
band 2454-2483.5
MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow
current relaxed regulation. Full implementation
planned 2012
italy None If used outside of own premises, general
authorization is required
Luxembourg None General authorization required for network and
service supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical
area within a radius of 20 km from the centre of Ny-
Ålesund
Russian
Federation None Only for indoor applications
C
OMPLIANCES
– 8 –
EUROPE - EU DECLARATION OF CONFORMITY
This device complies with the essential requirements of the R&TTE
Directive 1999/5/EC. The following test methods have been applied in
order to prove presumption of conformity with the essential requirements
of the R&TTE Directive 1999/5/EC:
EN 60950-1:2006 + A11: 2009
Safety of Information Technology Equipment.
EN 300 328 V1.7.1: 2006-10
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband transmission systems; Data transmission equipment
operating in the 2,4 GHz ISM band and using wide band modulation
techniques; Harmonized EN covering essential requirements under
article 3.2 of the R&TTE Directive.
EN 301 489-17 V1.8.1/ 2008-04
EN 301 489-17 V2.1.1/ 2009-05
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2.4 GHz wideband
transmission systems and 5 GHz high performance RLAN equipment.
EN 55022: 2006 + A1: 2007
Limits and methods of measurement of radio disturbance
characteristics of information technology equipment.
EN 55024: 1998 + A1: 2001 + A2: 2003
Information technology equipment immunity characteristics limits and
methods of measurement.
EN 62311: 2008
Assessment of electronic and electrical equipment related to human
exposure restrictions for electromagnetic fields (0 Hz - 300 GHz).
This device is a 2.4 GHz wideband transmission system (transceiver),
intended for use in all EU member states and EFTA countries, except in
France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France
and in some areas the RF output power may be limited to 10 mW EIRP in
the frequency range of 2454 - 2483.5 MHz. For detailed information the
end-user should contact the national spectrum authority in France.
C
OMPLIANCES
– 9 –
This equipment may be operated in:
The official CE certificate of conformity can be downloaded by selecting the
relevant model/ part number from www.smc.com -> support -> download.
Bulgarian
Български
С настоящето, SMC Networks декларира, че това безжично устройство е в
съответствие със съществените изисквания и другите приложими разпоредби на
Директива 1999/5/EC.
Czech
Česky
Manufacturer tímto prohlašuje, že tento Radio LAN device je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Danish
Dansk
Undertegnede Manufacturer erklærer herved, at følgende udstyr Radio LAN device
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
Dutch
Nederlands
Hierbij verklaart Manufacturer dat het toestel Radio LAN device in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Bij deze Manufacturer dat deze Radio LAN device voldoet aan de essentiële eisen en aan
de overige relevante bepalingen van Richtlijn 1999/5/EC.
English Hereby, Manufacturer, declares that this Radio LAN device is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Estonian
Eesti
Käesolevaga kinnitab Manufacturer seadme Radio LAN device vastavust direktiivi 1999/
5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Finnish
Suomi
Valmistaja Manufacturer vakuuttaa täten että Radio LAN device tyyppinen laite on
direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
French
Français
Par la présente Manufacturer déclare que l'appareil Radio LAN device est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE
German
Deutsch
Hiermit erklärt Manufacturer, dass sich dieser/diese/dieses Radio LAN device in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)
Hiermit erklärt Manufacturer die Übereinstimmung des Gerätes Radio LAN device mit den
grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie
1999/5/EG. (Wien)
Greek
Ελληνική
με την παρουσα Manufacturer δηλωνει οτι radio LAN device συμμορφωνεται προσ τισ
ουσιωδεισ απαιτησεισ και τισ λοιπεσ σχετικεσ διαταξεισ τησ οδηγιασ 1999/5/εκ.
Hungarian
Magyar
Alulírott, Manufacturer nyilatkozom, hogy a Radio LAN device megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Italian
Italiano
Con la presente Manufacturer dichiara che questo Radio LAN device è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latvian
Latviski
Ar šo Manufacturer deklarē, ka Radio LAN device atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lithuanian
Lietuvių
Šiuo Manufacturer deklaruoja, kad šis Radio LAN device atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
C
OMPLIANCES
– 10 –
SAFETY PRECAUTIONS
Read the following information carefully before operating the device. Please
follow the following precaution items to protect the device from risks and
damage caused by fire and electric power:
Use the power adapter that is included with the device package.
Pay attention to the power load of the outlet or prolonged lines. An
overburdened power outlet or damaged cords and plugs may cause
electric shock or fire. Check the power cords regularly, if you find any
damage, replace it at once.
Proper space for heat dissipation is necessary to avoid any damage
caused by device overheating. The ventilation holes on the device are
designed for heat dissipation to ensure that the device works normally.
Do not cover these ventilation holes.
Do not put this device close to a place where a heat source exits or high
temperature occurs. Avoid placing the device in direct sunshine.
Do not put this device close to a place which is damp or wet. Do not
spill any fluid on this device.
Please follow the instructions in the user manual/quick install guide
carefully to connect the device to your PC or other electronic product.
Any invalid connection may cause a power or fire risk.
Do not place this device on an unstable surface or support.
Maltese
Malti
Hawnhekk, Manufacturer, jiddikjara li dan Radio LAN device jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Polish
Polski
Niniejszym Manufacturer oświadcza, że Radio LAN device jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Portuguese
Português
Manufacturer declara que este Radio LAN device está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Romanian
Romană
SMC Networks declară că acest dispozitiv fără fir respectă cerinţele esenţiale precum şi
alte dispoziţii relevante ale Directivei 1999/5/EC.
Slovak
Slovensky
Manufacturer týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Slovenian
Slovensko
Manufacturer izjavlja, da je ta radio LAN device v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Spanish
Español
Por medio de la presente Manufacturer declara que el Radio LAN device cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE
Swedish
Svenska
Härmed intygar Manufacturer att denna Radio LAN device står I överensstämmelse med
de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Turkish
Turk
SMC Networks bu kablosuz cihazın temel gereksinimleri ve 1999/5/EC yonergesindeki
ilgili koşulları karşıladığını beyan eder.
C
OMPLIANCES
– 11 –
PRÉCAUTIONS DE SÉCURITÉ
Lisez attentivement les informations suivantes avant d’utiliser votre
appareil. Respectez toutes les précautions afin de protéger l’appareil des
risques et dégâts provoqués par un incendie et l’alimentation électrique :
Utilisez exclusivement l’adaptateur d’alimentation fourni avec cet
appareil.
Faites attention à la puissance de charge de la prise de courant ou des
rallonges électriques. Une prise surchargée ou des cordons et des
fiches endommagés peuvent provoquer une électrocution ou un
incendie. Vérifiez régulièrement votre câble électrique. Si vous
constatiez le moindre défaut, remplacez-le immédiatement.
Il est primordial de laisser suffisamment d’espace autour de l’appareil
pour permettre la dissipation de la chaleur et éviter les dégâts
provoqués par une surchauffe de l’appareil. Les orifices de ventilation
de l’appareil sont conçus pour permettre la dissipation thermique et
garantir le bon fonctionnement de l’appareil. Ne couvrez jamais ces
orifices.
Ne placez pas cet appareil à proximité d’une source de chaleur ou dans
un endroit exposé à des températures élevées. Evitez également de
l’exposer à la lumière directe du soleil.
Ne placez pas cet appareil à proximité d’un lieu humide ou mouillé.
Prenez garde à ne renverser aucun liquide sur cet appareil.
Merci de suivre les instructions du manuel d'utilisateur / guide
d’installation rapide attentivement pour connecter l'appareil à votre PC
ou à tout autre produit électronique. Toute connexion non valide peut
provoquer un problème électrique ou un risque d'incendie.
Ne placez pas cet appareil sur une surface ou un support instable.
SICHERHEITSMAßNAHMEN
Lesen Sie vor der Inbetriebnahme des Gerätes aufmerksam die
nachstehenden Informationen. Bitte befolgen Sie die nachstehenden
Sicherheitsmaßnahmen, damit das Gerät nicht beschädigt wird oder
Gefahren durch Brand oder elektrische Energie entstehen:
Verwenden Sie nur das beim Gerät mitgelieferte Netzteil.
Achten Sie auf die Last der Steckdose oder des Verlängerungskabels.
Eine überlastete Steckdose oder beschädigte Kabel und Stecker können
Stromschläge und Brand verursachen. Prüfen Sie die Netzkabel
regelmäßig. Ersetzen Sie sie umgehend, falls sie beschädigt sind.
Achten Sie zur Vermeidung von Geräteschäden aufgrund von
Überhitzung darauf, dass genügend Freiraum zur Wärmeabfuhr
vorhanden ist. Die Belüftungffnungen am Gerät dienen der
Wärmeabfuhr und damit der Gewährleistung eines normalen
Gerätebetriebs. Decken Sie diese Belüftungsöffnungen nicht ab.
C
OMPLIANCES
– 12 –
Stellen Sie dieses Gerät nicht in der Nähe von Wärmequellen oder an
Orten mit hohen Temperaturen auf. Platzieren Sie das Gerät nicht im
direkten Sonnenlicht.
Stellen Sie dieses Gerät nicht an feuchten oder nassen Orten auf.
Achten Sie darauf, keine Flüssigkeiten über dem Gerät zu verschütten.
Befolgen Sie die Hinweise im Benutzerhandbuch (bzw. in der
Kurzanleitung) zum Anschluß des Gerätes an einen PC oder ein anderes
Elektrogerät. Jegliche unzulässige Verbindung birgt die Gefahr von
Stromschlägen und Brandgefahr.
Platzieren Sie dieses Gerät nicht auf einer instabilen Oberfläche oder
Halterung.
PRECAUCIONES DE SEGURIDAD
Lea la siguiente información detenidamente antes de utilizar el dispositivo.
Siga las indicaciones de precaución que se mencionan a continuación para
proteger el dispositivo contra riesgos y daños causados por el fuego y la
energía eléctrica:
Utilice el adaptador de alimentación incluido en el paquete del
dispositivo.
Preste atención a la carga de potencia de la toma de corriente o de los
alargadores. Una toma de corriente sobrecargada o líneas y enchufes
dañados pueden provocar descargas eléctricas o un incendio.
Compruebe los cables de alimentación con cierta frecuencia. Si detecta
algún daño, reemplácelos inmediatamente.
Deje un espacio adecuado para que se disipe el calor y evitar así
cualquier daño en el dispositivo causado por sobrecalentamiento. Los
orificios de ventilación del dispositivo están diseñados para disipar el
calor y garantizar que dicho dispositivo funciona con normalidad. No
tape estos orificios de ventilación.
No coloque este dispositivo cerca de un lugar donde haya una fuente de
calor o temperaturas elevadas. Evite exponer el dispositivo a la luz
solar directa.
No coloque este dispositivo junto a un lugar húmedo o mojado. No
derrame ningún fluido sobre el dispositivo.
Por favor, siga cuidadosamente las instrucciones que figuran en el
manual/guía de instalación rápida para conectar el dispositivo a su PC o
a cualquier otro producto electrónico. Cualquier conexión no válida
podría causar riesgo de descarga o de incendio.
No coloque este dispositivo en una superficie o soporte inestable.
C
OMPLIANCES
– 13 –
PRECAUÇÕES DE SEGURANÇA
Leia atentamente as seguintes informações antes de utilizar o dispositivo.
Respeite as seguintes indicações de segurança para proteger o dispositivo
contra riscos e danos causados por fogo e energia eléctrica:
Utilize o transformador incluído na embalagem do dispositivo.
Respeite a potência da tomada eléctrica e das extensões. Uma tomada
eléctrica sobrecarregada ou cabos e fichas danificadas podem causar
choques eléctricos ou fogo. Verifique regularmente os cabos de
alimentação. Caso algum se encontre danificado, substitua-o
imediatamente.
É necessário deixar algum espaço livre em volta do dispositivo para
dissipação de calor, de forma a evitar danos causados pelo
sobreaquecimento do dispositivo. Os orifícios de ventilação do
dispositivo foram concebidos para dissipar o calor e assegurar que o
mesmo funciona normalmente. Não bloqueie esses orifícios de
ventilação.
Não coloque este dispositivo junto a fontes de calor ou em locais com
temperaturas elevadas. Evite colocar o dispositivo sob luz solar directa.
Não coloque este dispositivo junto a locais molhados ou com humidade.
Não derrame líquidos sobre o dispositivo.
Por favor siga atentamente as instruções do manual / guia de
instalação rápida para conectar o dispositivo ao seu PC ou a qualquer
outro dispositivo electrónico. Atenção que qualquer tipo de ligação
inválida pode originar risco de choque eléctrico ou de incêndio.
Não coloque este dispositivo numa superfície ou suporte instáveis.
C
OMPLIANCES
– 14 –
ENVIRONMENTAL STATEMENT
The manufacturer of this product endeavours to sustain an
environmentally-friendly policy throughout the entire production process.
This is achieved though the following means:
Adherence to national legislation and regulations on environmental
production standards.
Conservation of operational resources.
Waste reduction and safe disposal of all harmful un-recyclable by-
products.
Recycling of all reusable waste content.
Design of products to maximize recyclables at the end of the product’s
life span.
Continual monitoring of safety standards.
END OF PRODUCT LIFE SPAN
This product is manufactured in such a way as to allow for the recovery and
disposal of all included electrical components once the product has reached
the end of its life.
MANUFACTURING MATERIALS
There are no hazardous nor ozone-depleting materials in this product.
DOCUMENTATION
All printed documentation for this product uses biodegradable paper that
originates from sustained and managed forests. The inks used in the
printing process are non-toxic.
– 15 –
ABOUT THIS GUIDE
PURPOSE This guide gives specific information on how to install the ADSL Gateway
Router and its physical and performance related characteristics. It also
gives information on how to operate and use the management functions of
the ADSL Gateway Router.
AUDIENCE This guide is for users with a basic working knowledge of computers. You
should be familiar with Windows operating system concepts.
CONVENTIONS The following conventions are used throughout this guide to show
information:
N
OTE
:
Emphasizes important information or calls your attention to related
features or instructions.
C
AUTION
:
Alerts you to a potential hazard that could cause loss of data, or
damage the system or equipment.
W
ARNING
:
Alerts you to a potential hazard that could cause personal injury.
REVISION HISTORY This section summarizes the changes in each revision of this guide.
MARCH 2012 REVISION
This is the first revision of this guide.
– 16 –
CONTENTS
WARRANTY AND PRODUCT REGISTRATION 4
COMPLIANCES 5
ABOUT THIS GUIDE 15
CONTENTS 16
FIGURES 21
TABLES 24
SECTION I GETTING STARTED 25
1INTRODUCTION 26
Features and Benefits 26
Description of Hardware 27
Power Connector 29
Power Button 29
WLAN Button 29
WPS Button 29
Reset Button 29
2INSTALLING THE ROUTER 30
Package Contents 30
System Requirements 30
Cable Connections 31
Powering On 32
Configuring the TCP/IP Protocols 32
SECTION II WEB CONFIGURATION 35
3SYSTEM CONFIGURATION 36
Using the Web Interface 36
C
ONTENTS
– 17 –
Home Page 37
Setup Wizard 40
Step 1 - Getting Started 40
Step 2 - Time Zone 40
Step 3 - ADSL Settings 41
Step 4 - Wireless Settings 43
Step 4 - Configuration Saving 44
4DEVICE INFORMATION 45
System Status 45
LAN Status 46
WLAN Status 47
WAN Status 48
Port Mapping 49
Traffic Statistics 50
DSL Statistics 51
ARP Table 52
5 WLAN CONFIGURATION 54
WLAN Basic Settings 55
Advanced Settings 57
Wireless Security Setup 59
Common Wireless Parameters 59
WEP Security 60
WPA Security 62
Access Control 63
Wi-Fi Protected Setup (WPS) 65
MBSSID 66
WDS 68
6 LAN SETTINGS 72
LAN Interface 73
IPv6 LAN Configuration 74
DHCP Settings 76
DHCP Disabled 76
DHCP Relay 77
DHCP Server 78
DHCP Static IP 80
C
ONTENTS
– 18 –
7 WAN SETTINGS 81
Channel Configuration 82
ATM Settings 84
ADSL Settings 86
8SERVICES 88
DNS Settings 89
DNS Server 89
IPv6 DNS 89
DDNS 90
Access Control Lists 92
LAN ACLs 92
WAN ACLs 93
IP/Port Filtering 95
NAT/NAPT Settings 97
Virtual Servers 97
NAT Exclude IP 99
NAT Forwarding 99
NAT ALG and Pass-Through 100
NAT Port Trigger 101
FTP ALG Configuration 102
NAT IP Mapping 102
Quality of Service 103
MAC Filtering 105
DMZ 106
URL Blocking 107
Software Forbidden 108
DoS 109
IGMP Proxy Configuration 111
RIP Configuration 113
ARP Binding Configuration 114
9ADVANCED 115
Bridge Setting 116
Log Setting 117
Routing Configuration 118
UPnP 120
SNMP Protocol Configuration 121
C
ONTENTS
– 19 –
System Time Configuration 122
Other Advanced Configuration 123
Port Mapping 124
10 DIAGNOSTICS 125
Diagnostic Test 126
Ping 127
Ping6 127
Traceroute 128
ADSL Tone Diagnostics 130
11 ADMINISTRATION SETTINGS 132
Commit/Reboot 133
Backup/Restore Settings 134
Password Setup 135
Upgrade Firmware 136
TR-069 Configuration 137
SECTION III APPENDICES 140
ATROUBLESHOOTING 141
Diagnosing Gateway Indicators 141
If You Cannot Connect to the Internet 142
Problems Accessing the Management Interface 142
BHARDWARE SPECIFICATIONS 143
Physical Characteristics 143
Wireless Characteristics 144
Software Features 144
Standards 146
Compliances 146
CCABLES AND PINOUTS 147
Twisted-Pair Cable Assignments 147
10/100BASE-TX Pin Assignments 148
Straight-Through Wiring 148
Crossover Wiring 149
RJ-11 Port 150
C
ONTENTS
– 20 –
GLOSSARY 151
INDEX 154
– 21 –
FIGURES
Figure 1: Top Panel 27
Figure 2: Rear Panel 28
Figure 3: Front Panel LEDs 28

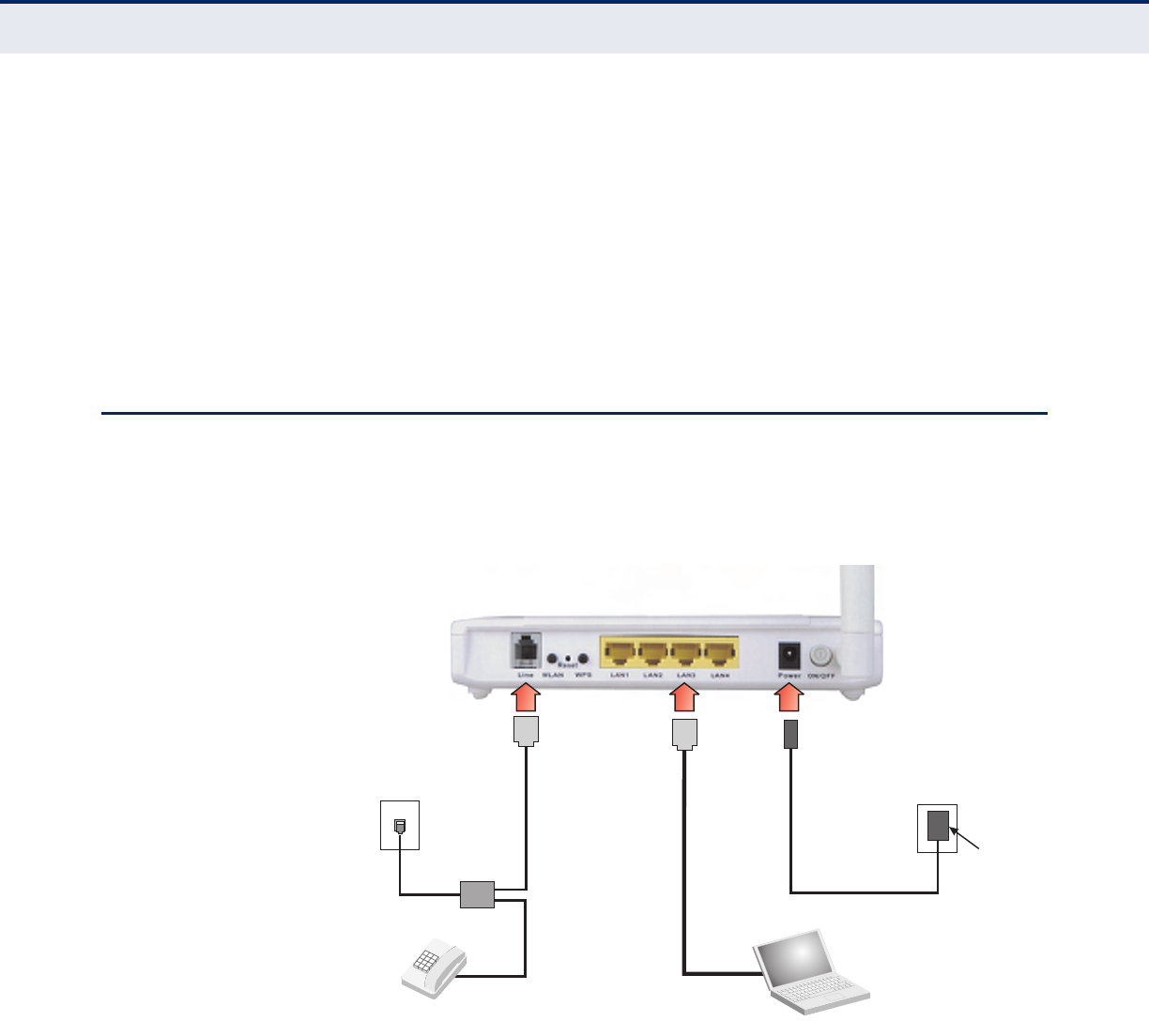

Figure 4: Connecting the Router 31

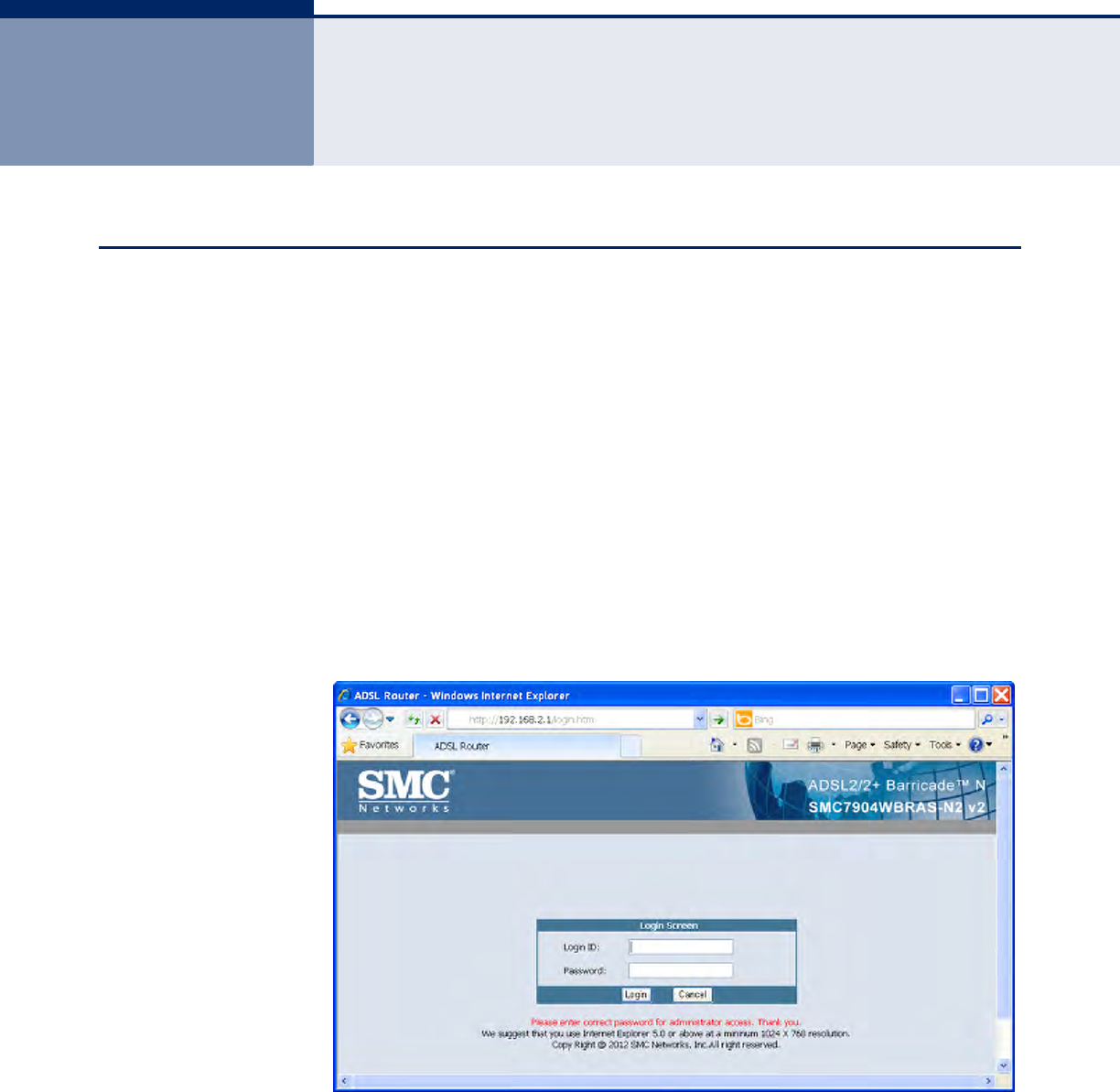

Figure 5: Web Login 36
Figure 6: Home Page 37

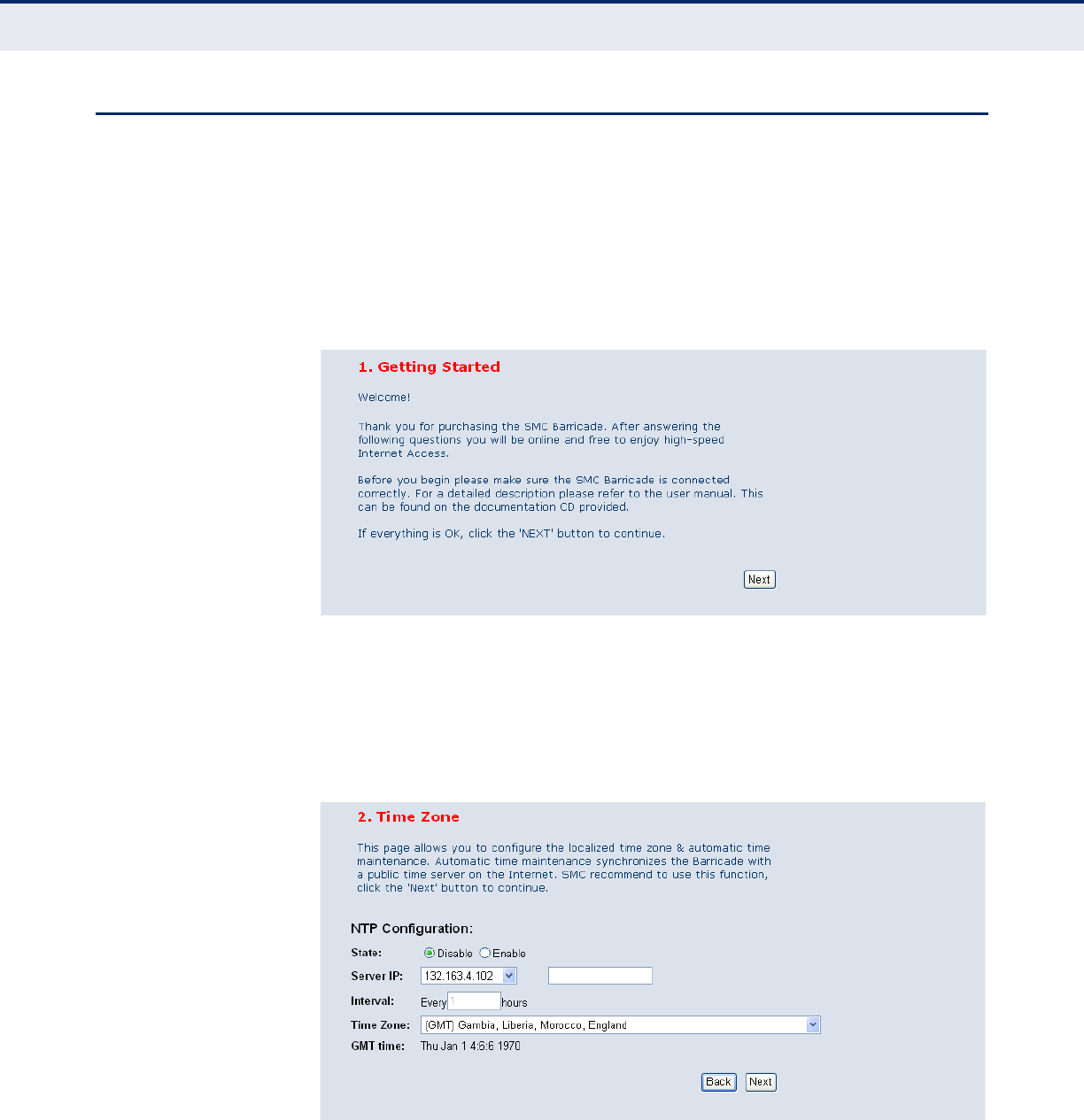

Figure 7: Wizard Step 1 - Getting Started 40
Figure 8: Wizard Step 2 - Time Zone Configuration 40

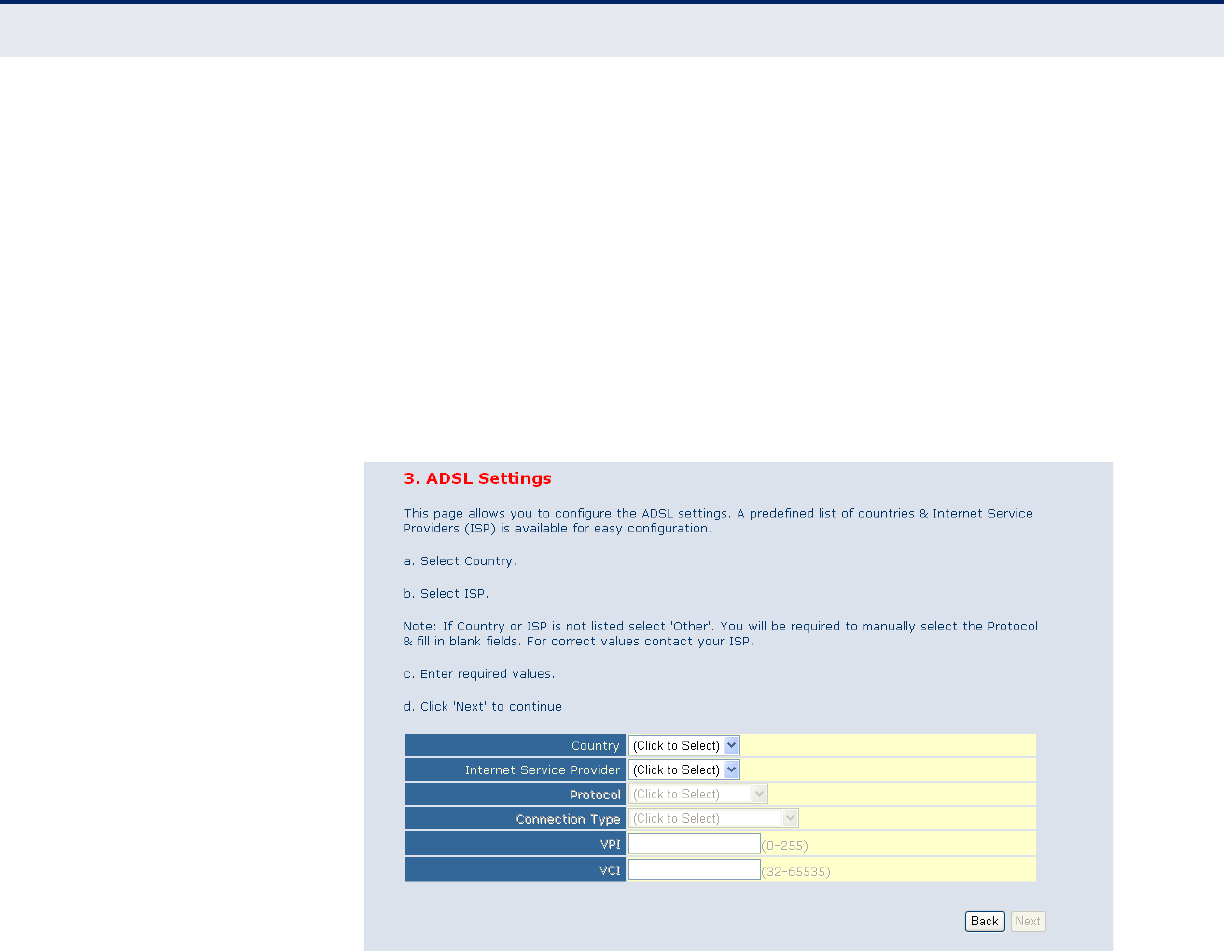

Figure 9: Wizard Step 3 - ADSL Settings 41

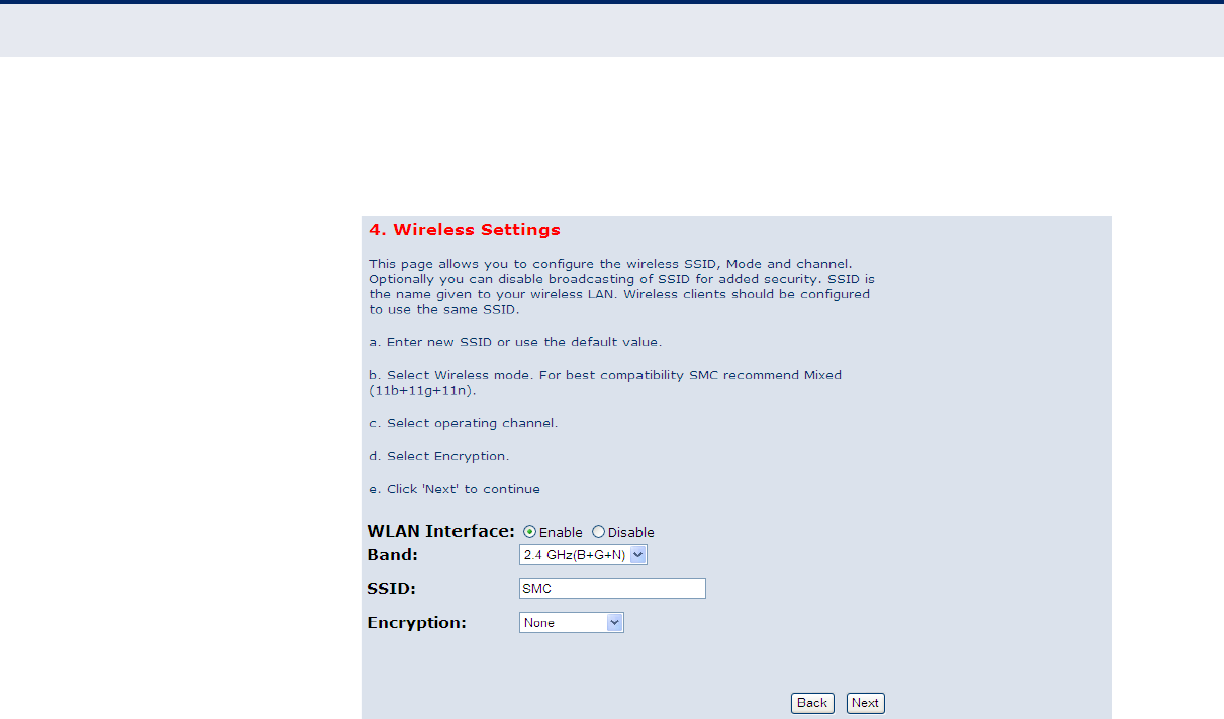

Figure 10: Wizard Step 4 - Wireless Settings 43

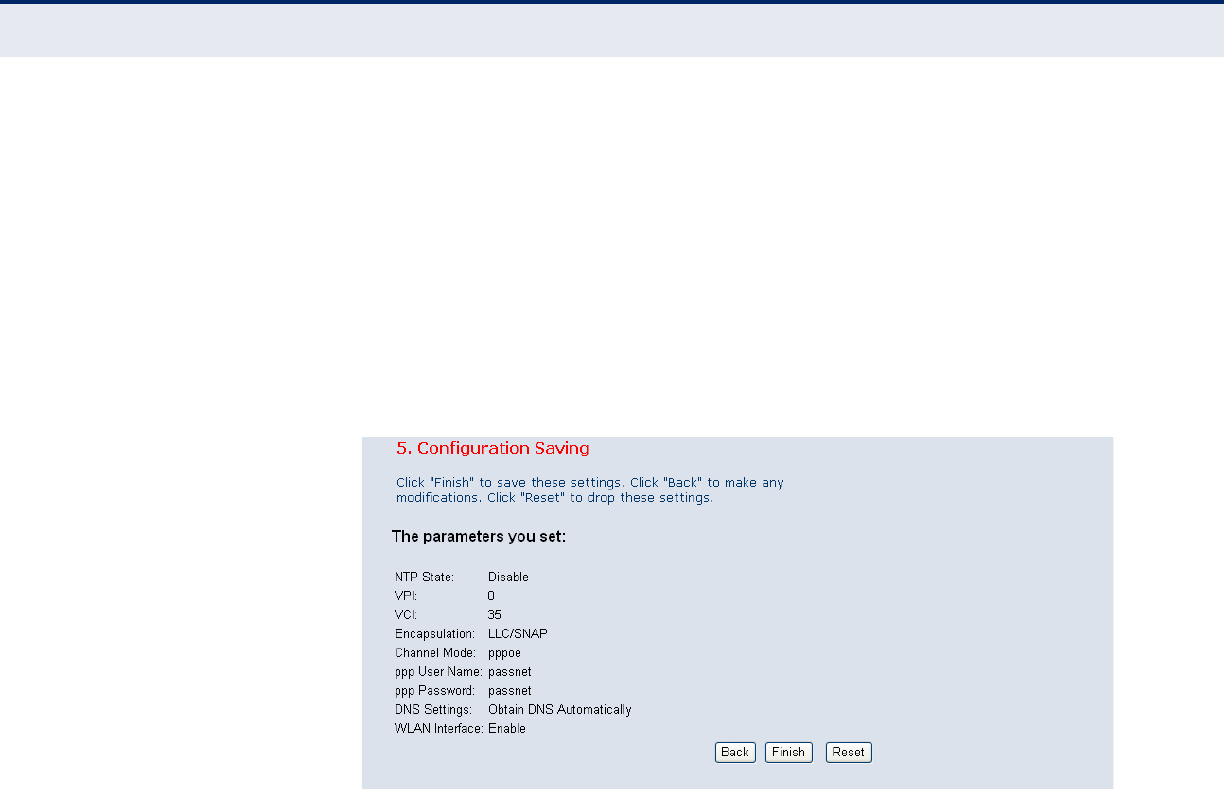

Figure 11: Wizard Step 3 - Configuration Saving 44

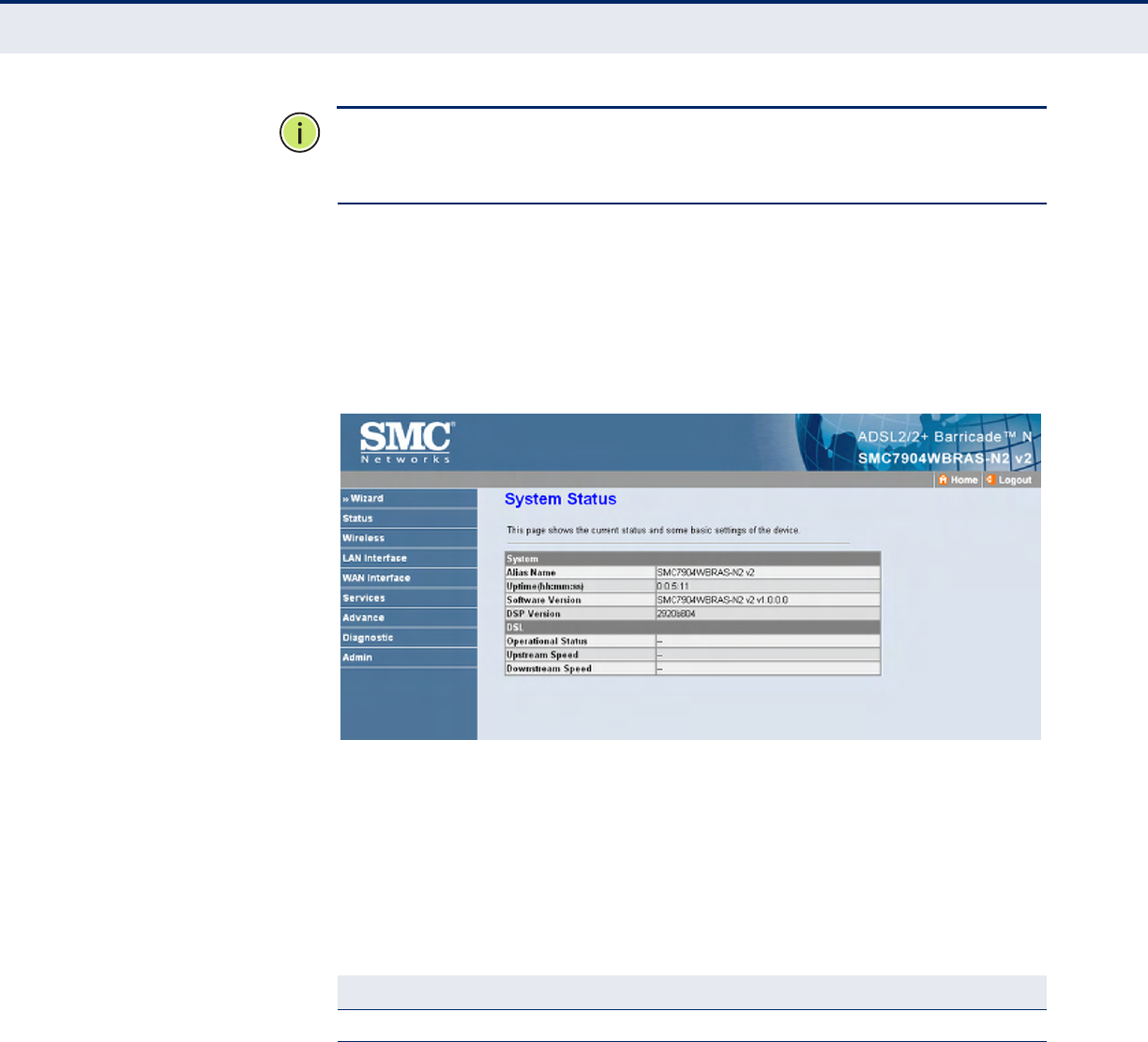

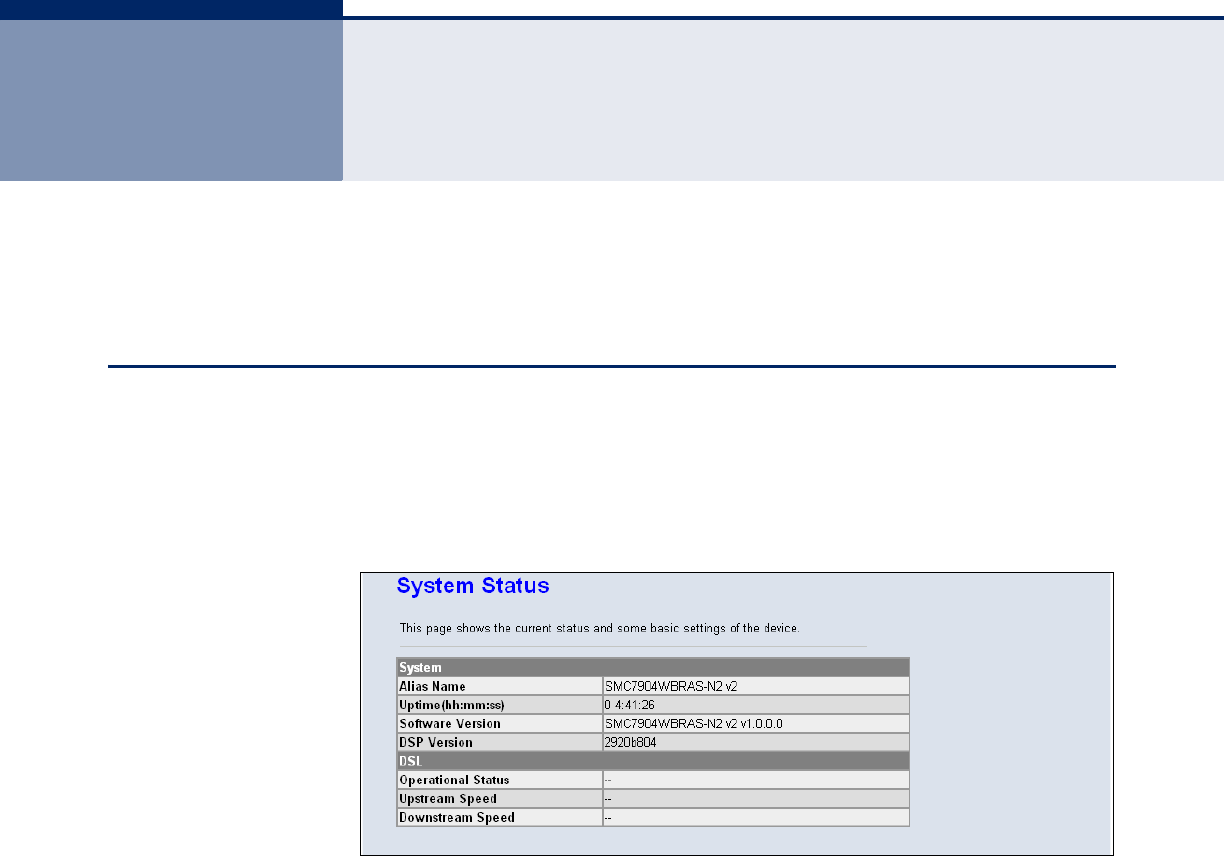

Figure 12: System Status 45

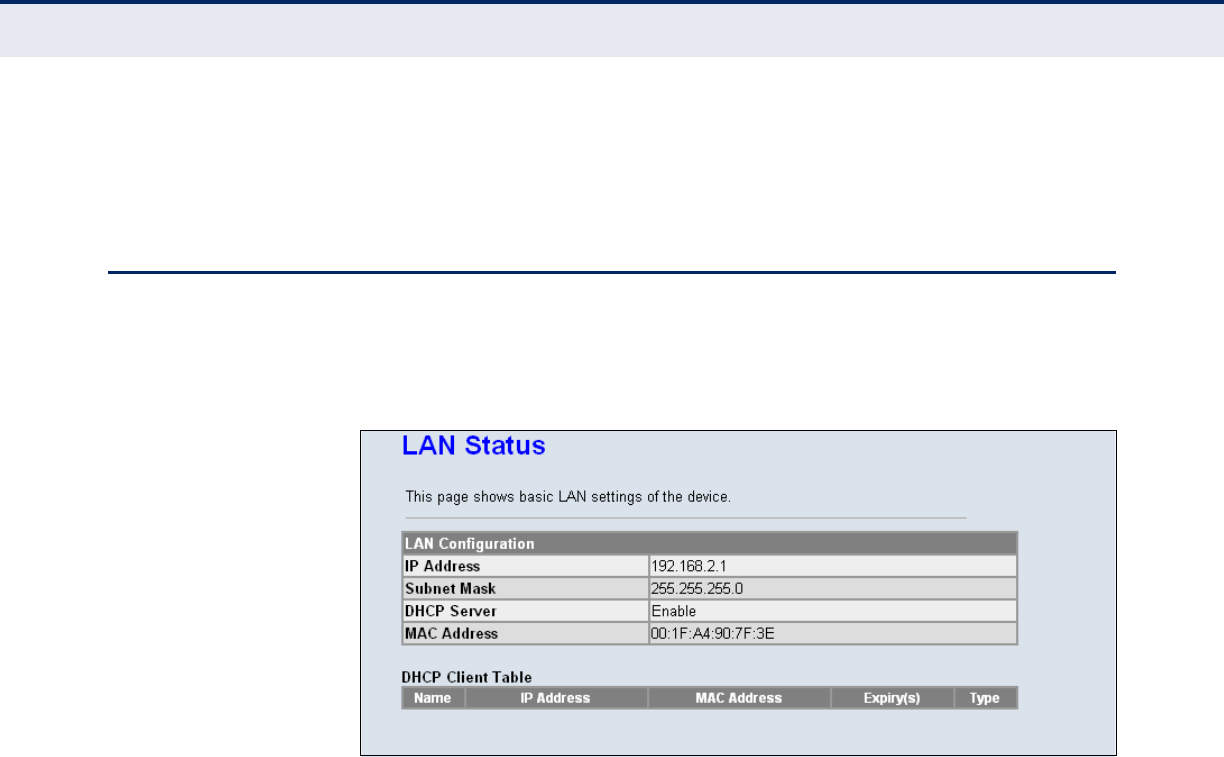

Figure 13: Status - LAN 46

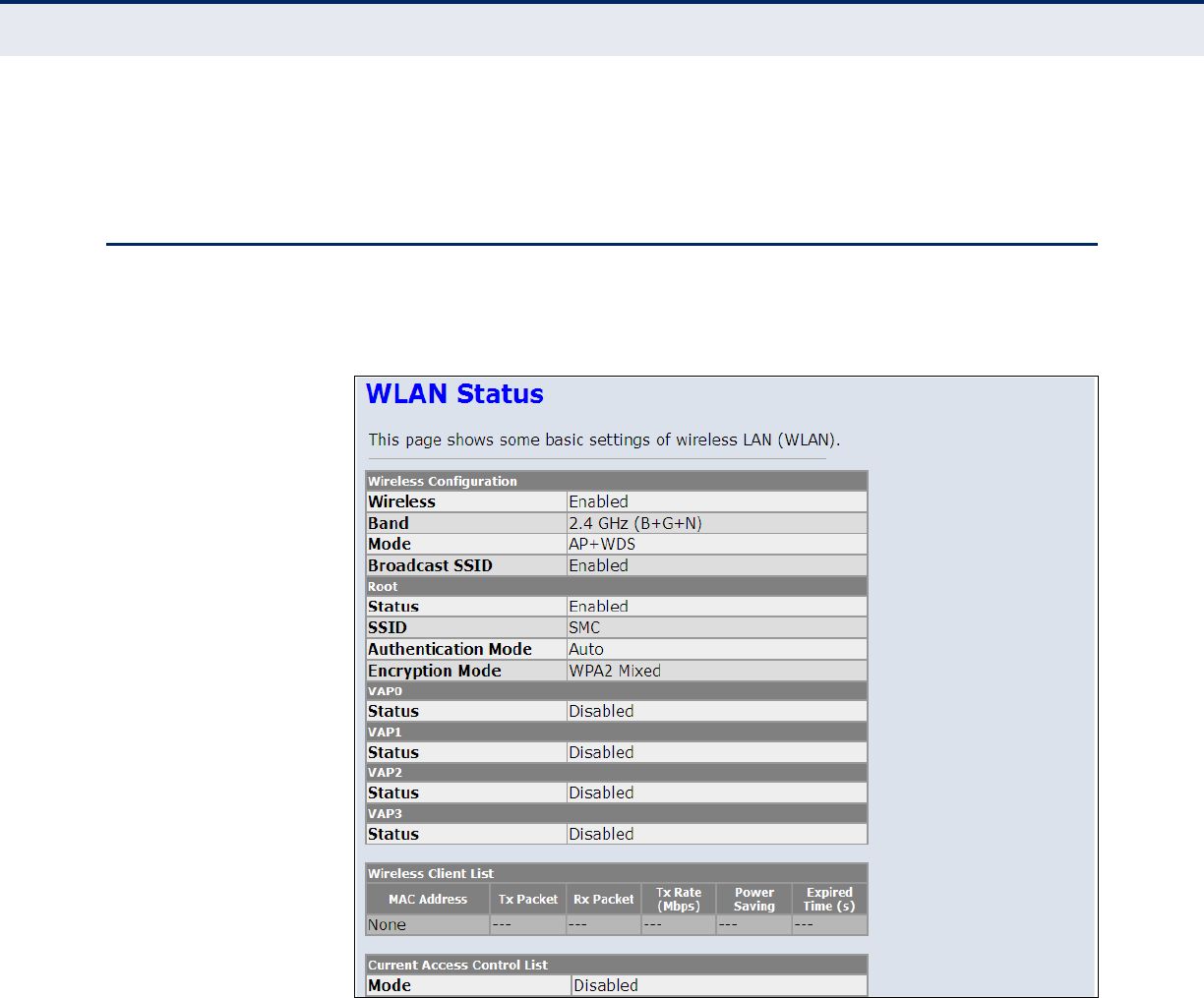

Figure 14: Status - WLAN 47
Figure 15: Status - WAN 48

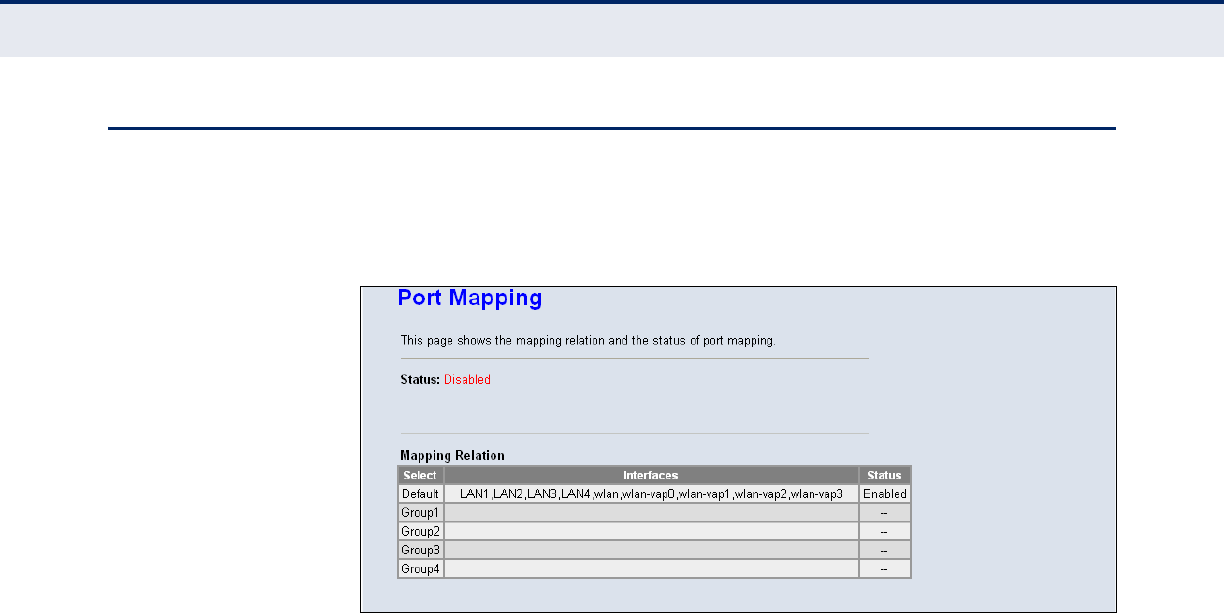

Figure 16: Status - Port Mapping 49
Figure 17: Status - Traffic Statistics 50

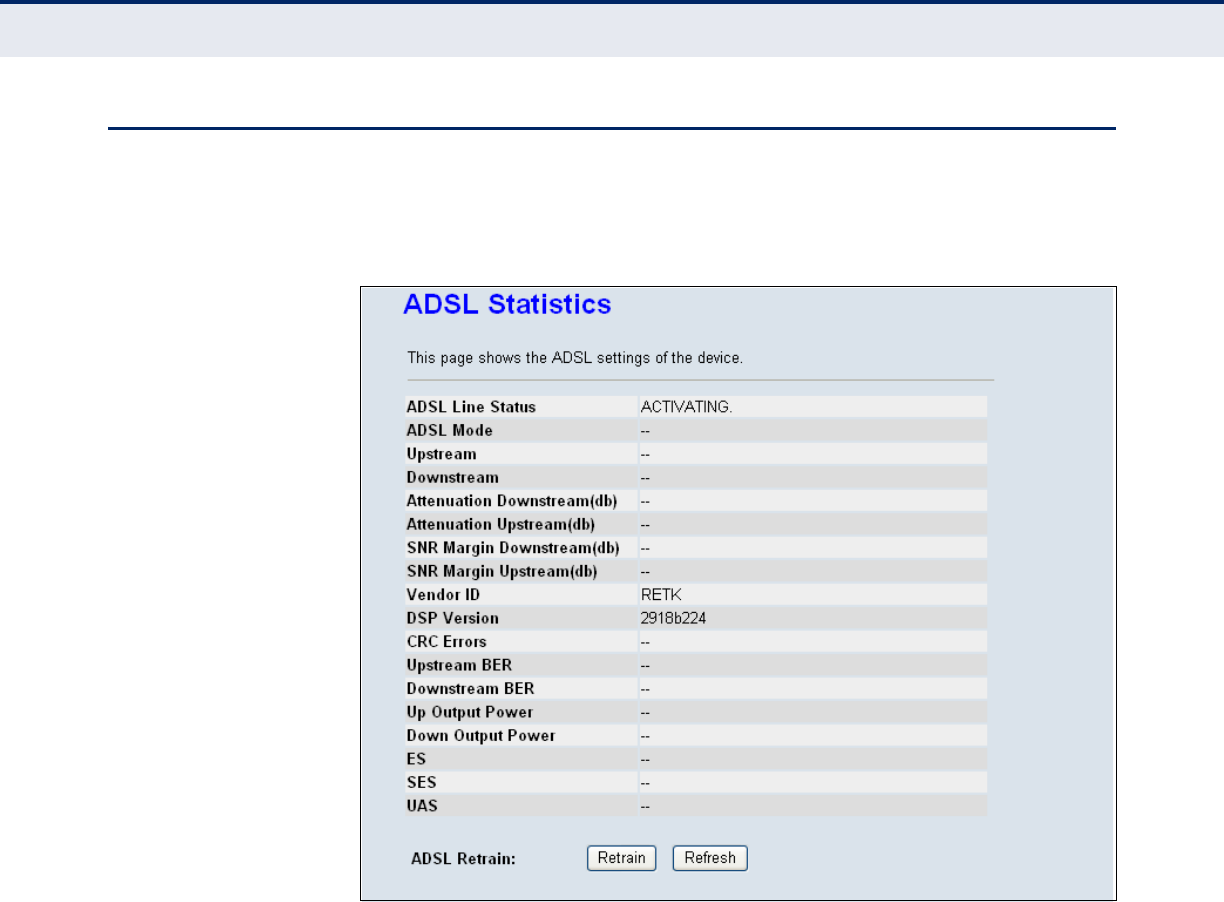

Figure 18: Status - DSL Statistics 51

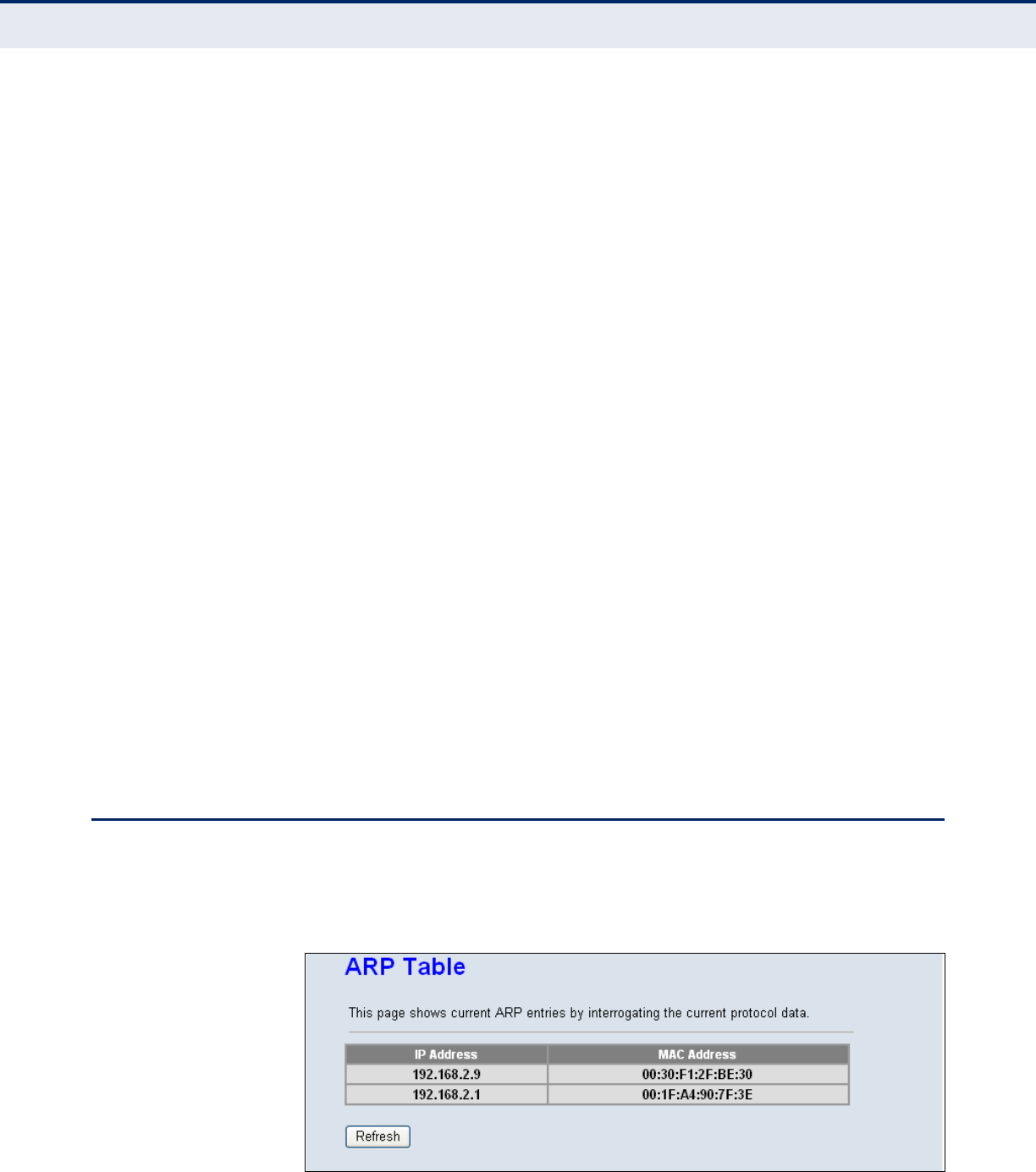

Figure 19: Status - ARP Table 52

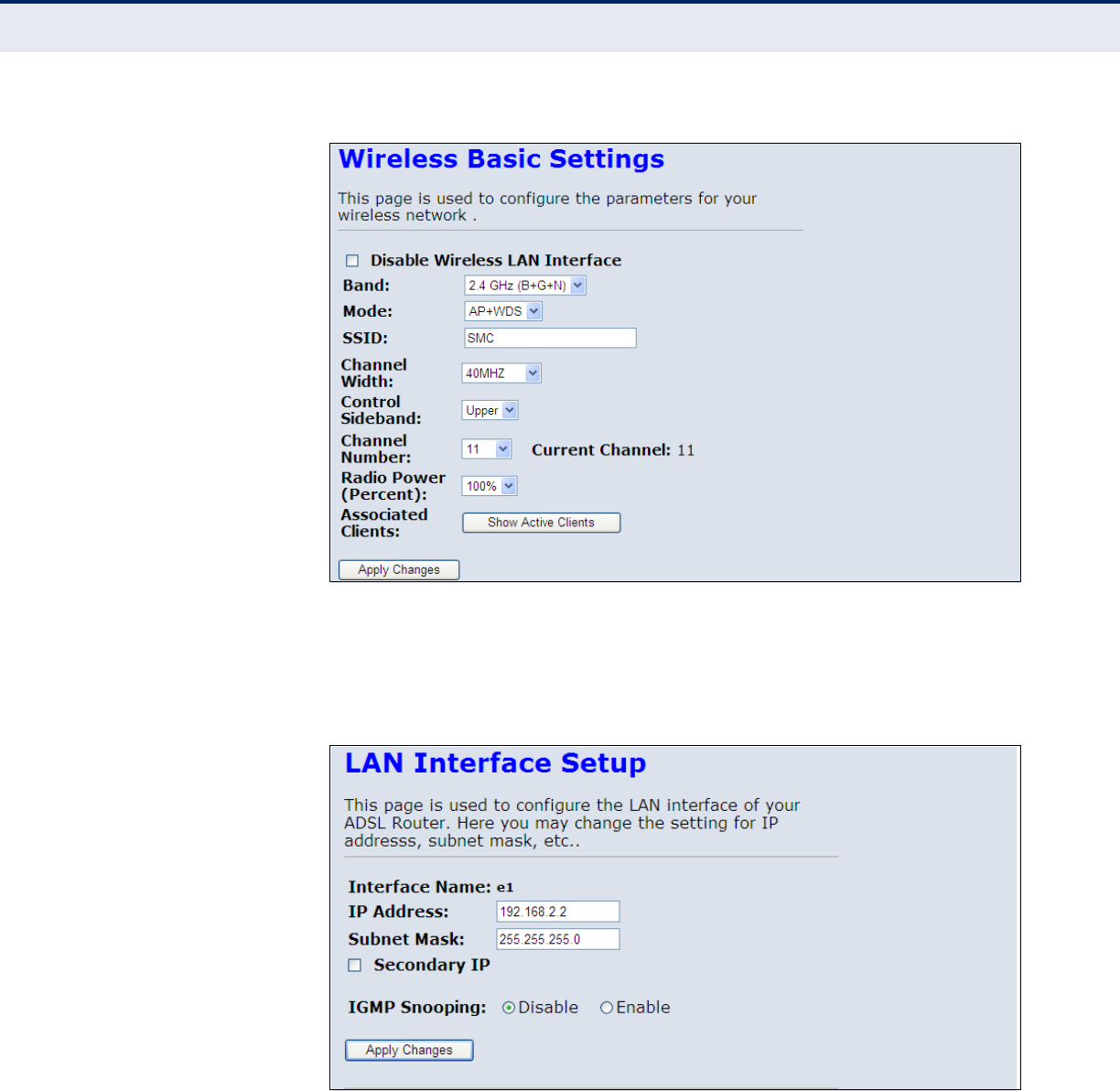

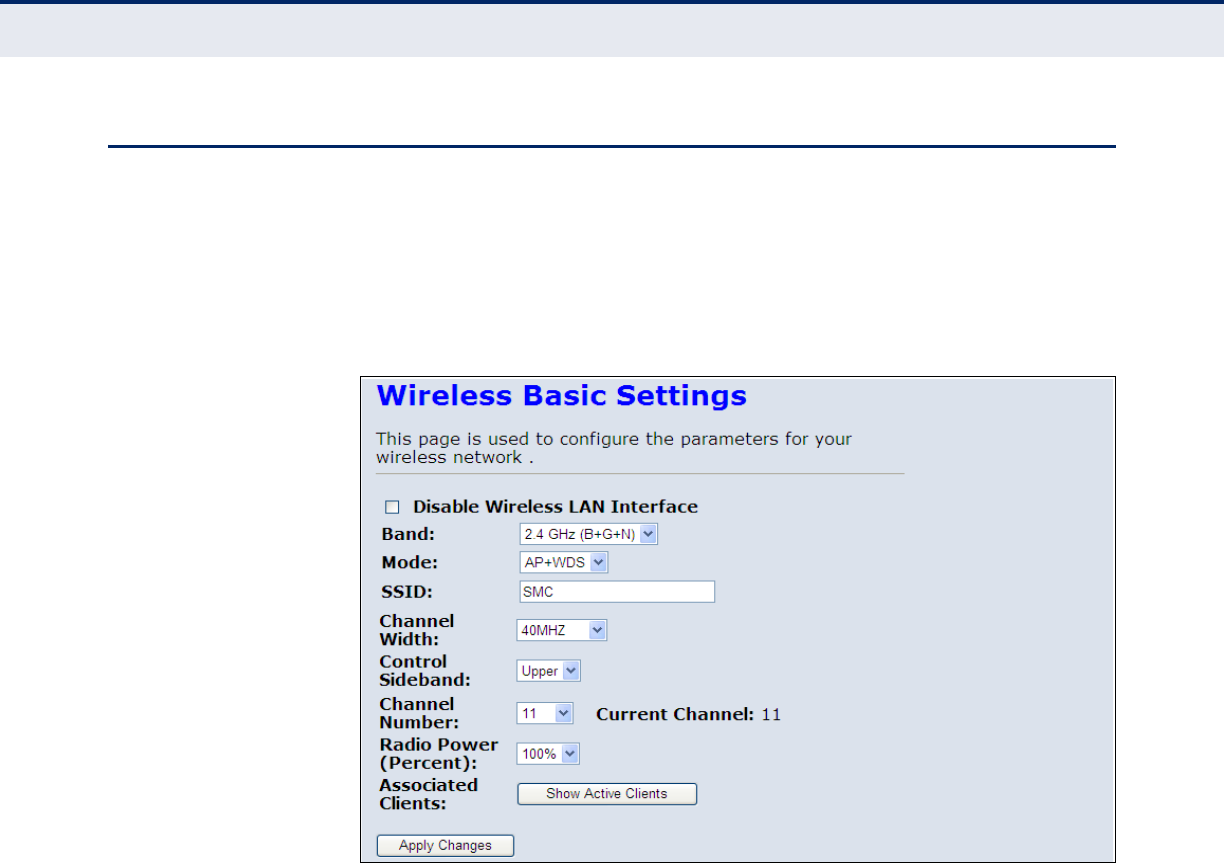

Figure 20: WLAN Basic Settings 55

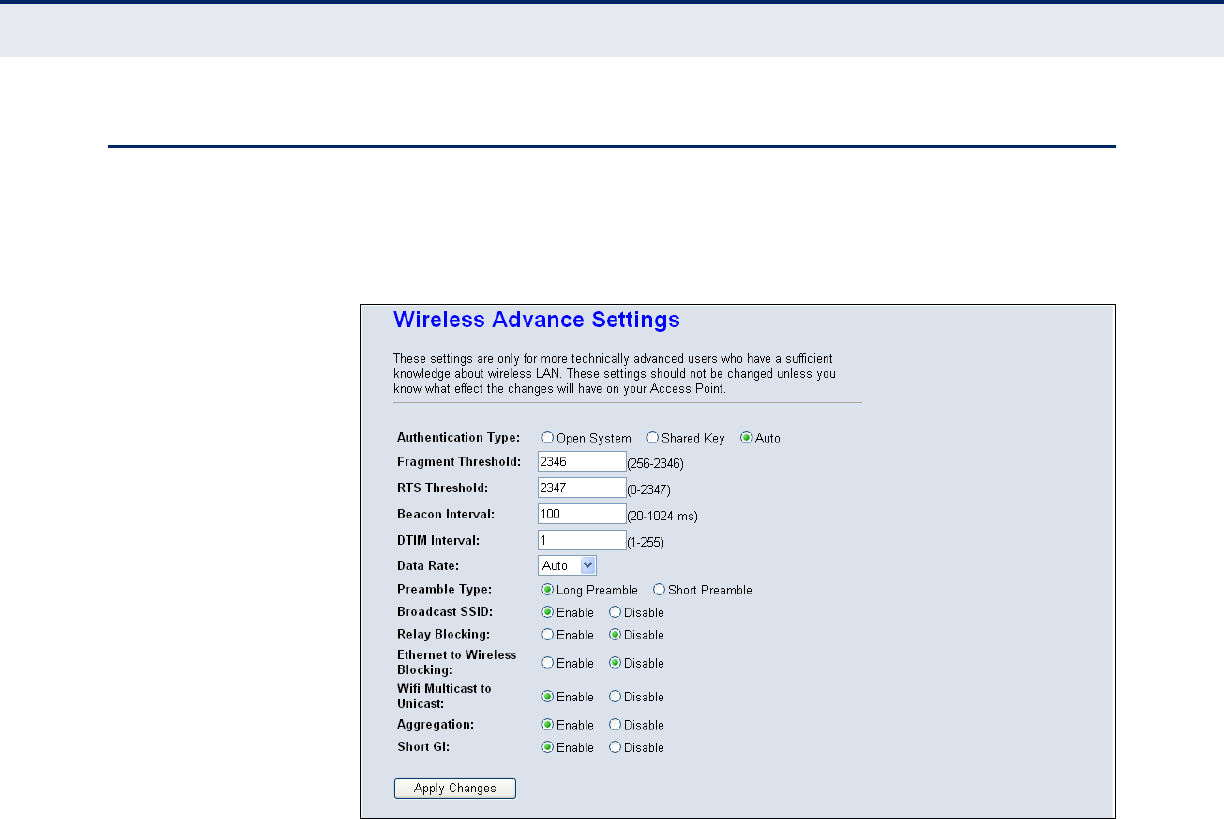

Figure 21: Wireless Security Setup - Advanced Settings 57
Figure 22: Wireless Security Setup - None 59

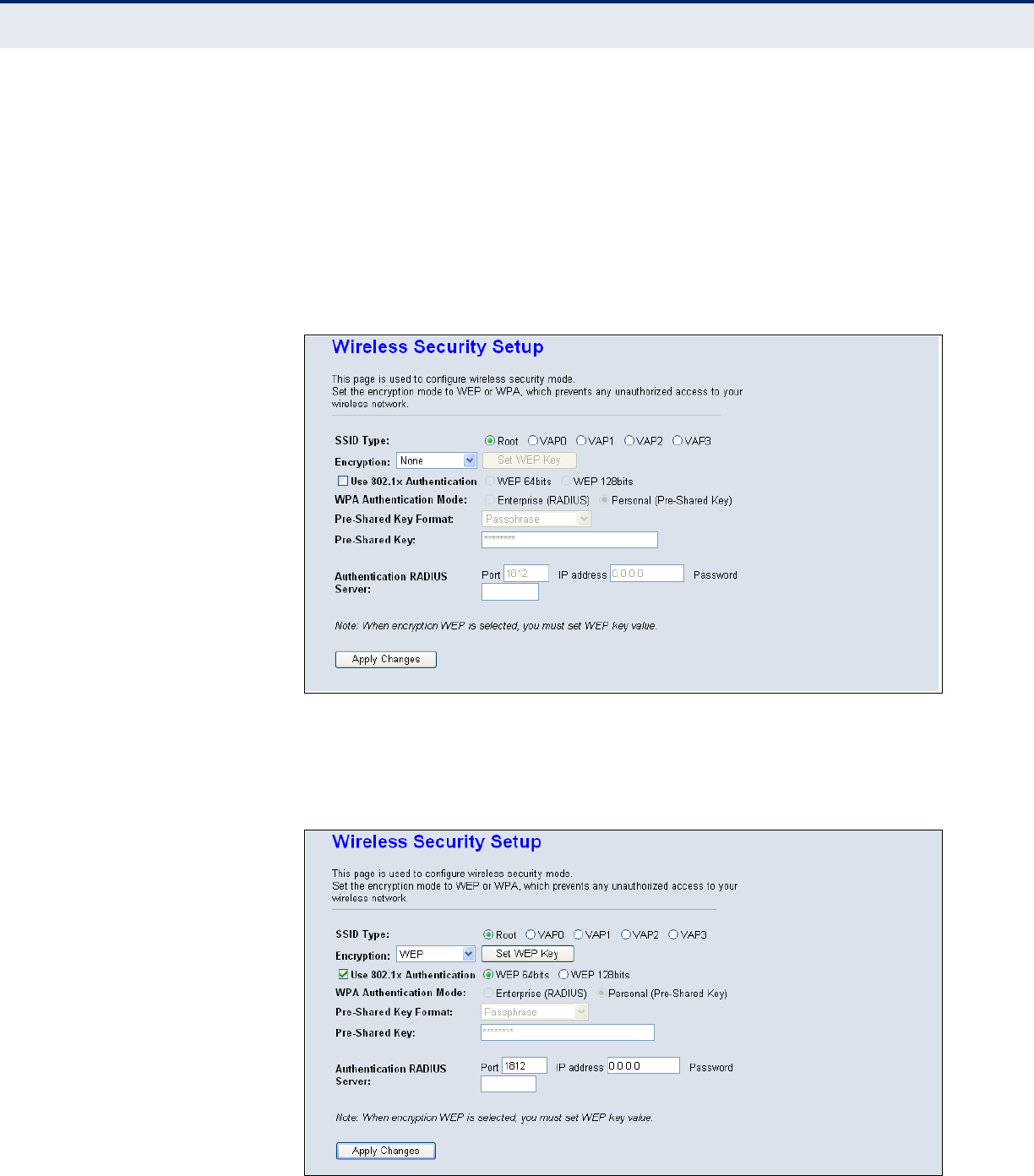

Figure 23: Wireless Security Setup - None 60
Figure 24: Wireless Security Setup - WEP 60

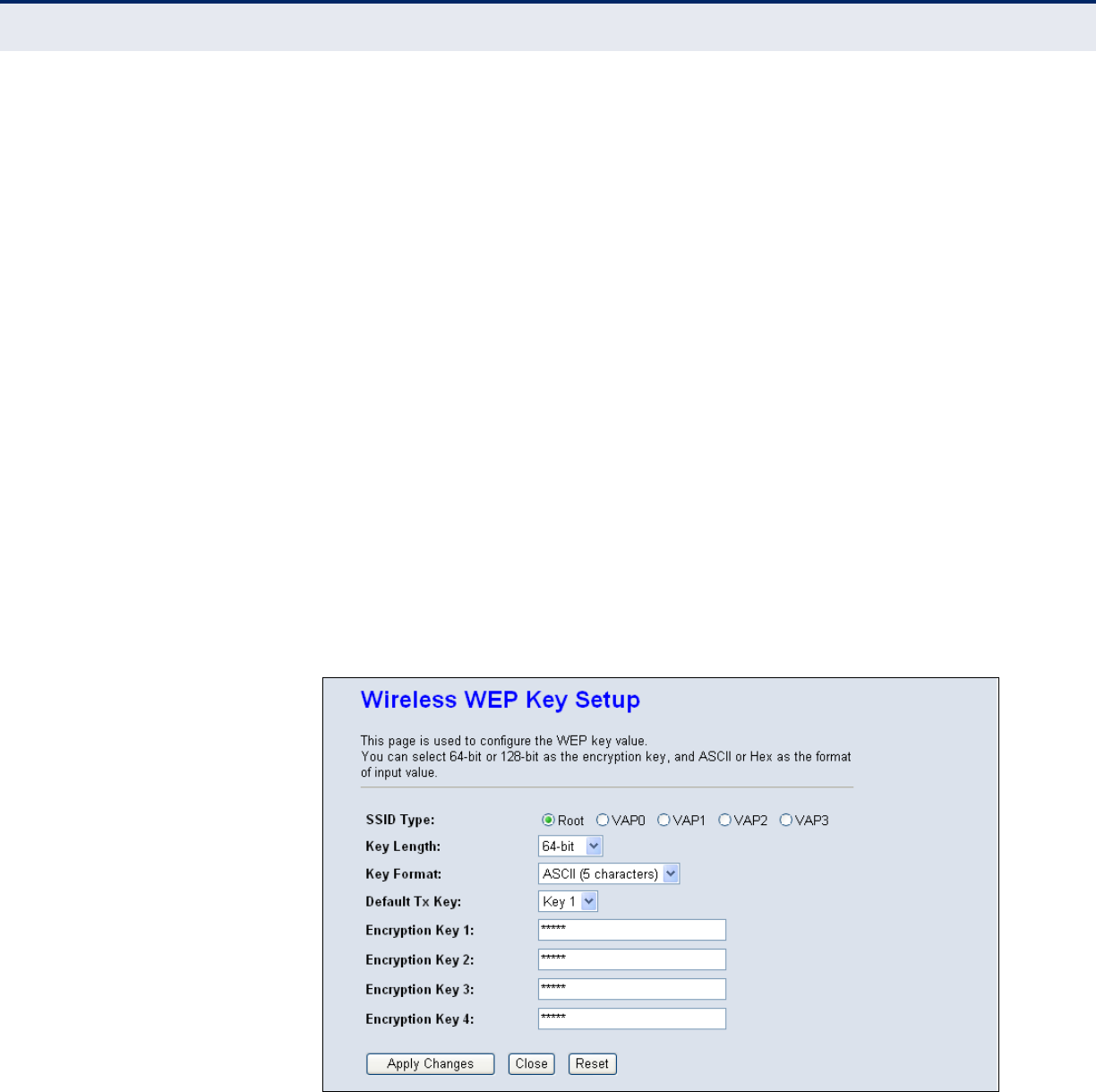

Figure 25: Wireless Security Setup - WEP Key Setup 61

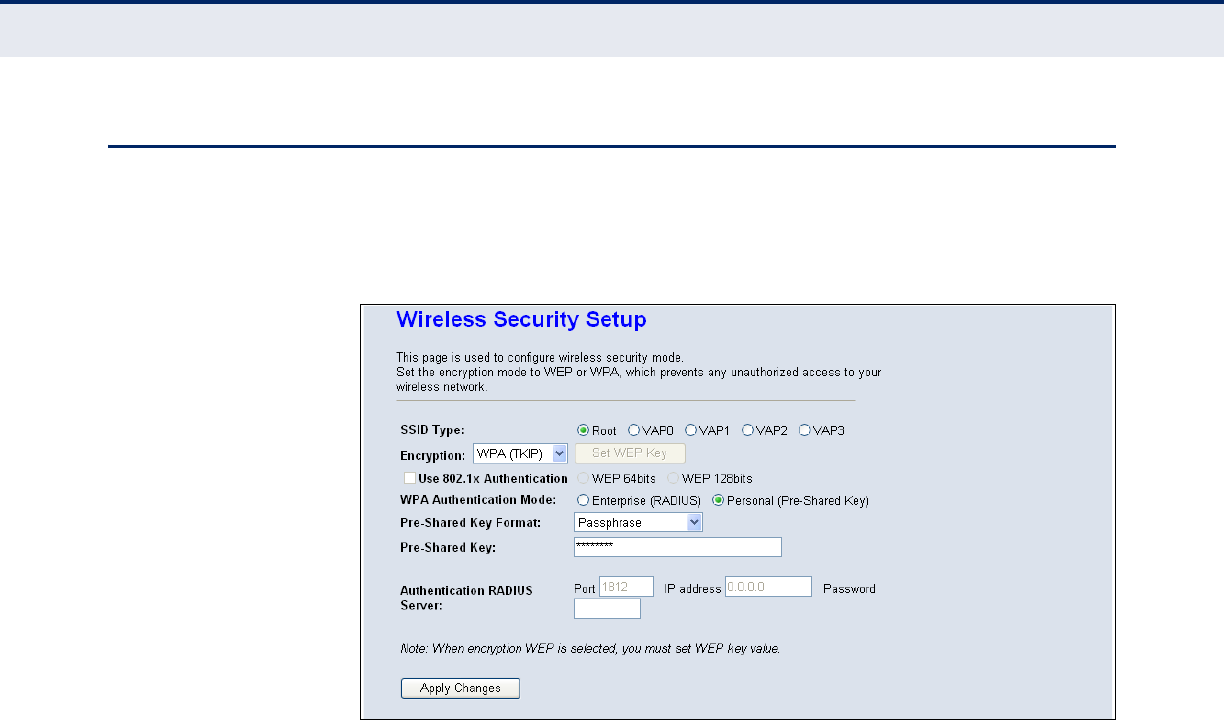

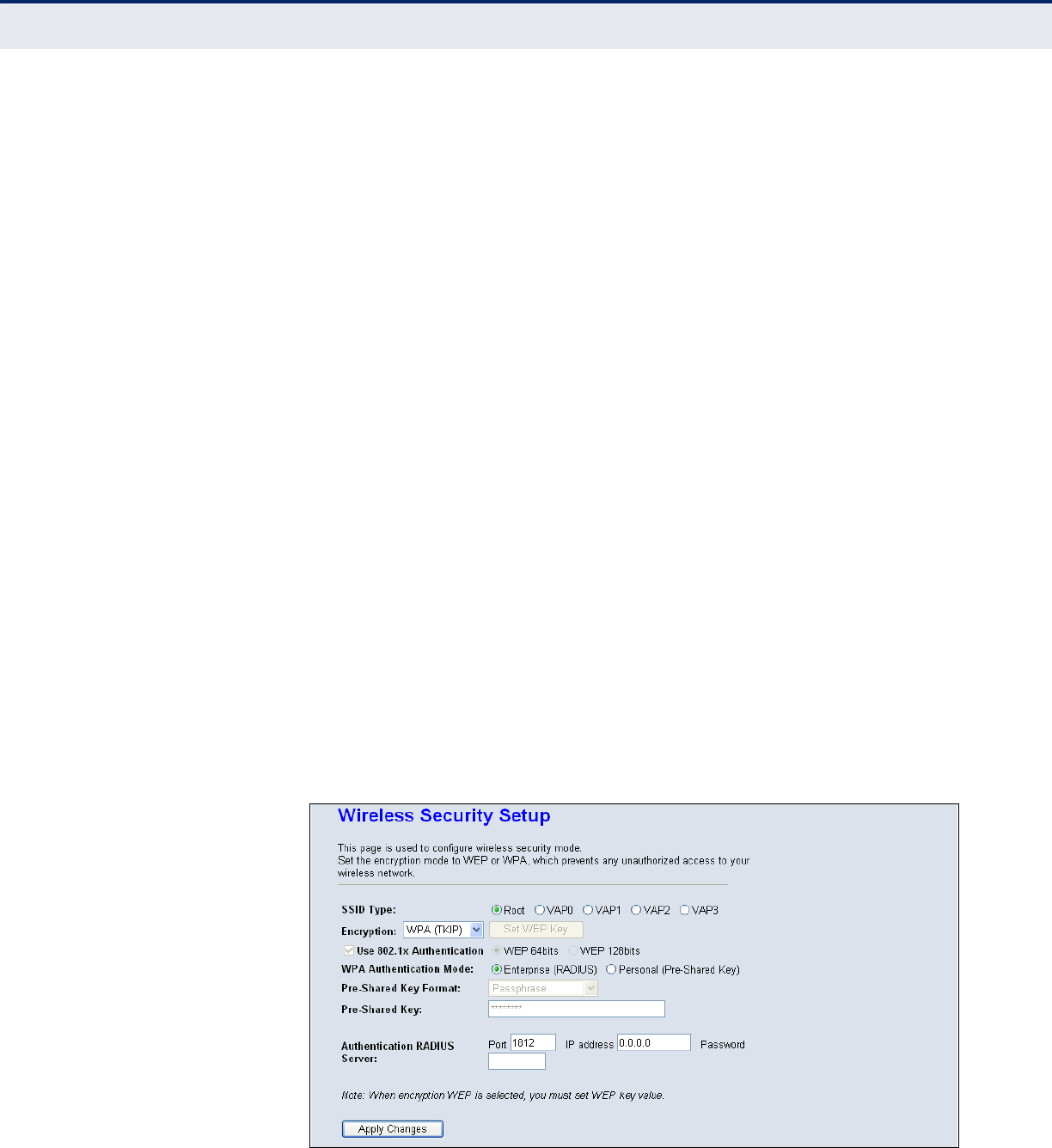

Figure 26: Wireless Security Setup - WPA/WPA2 Setup 62

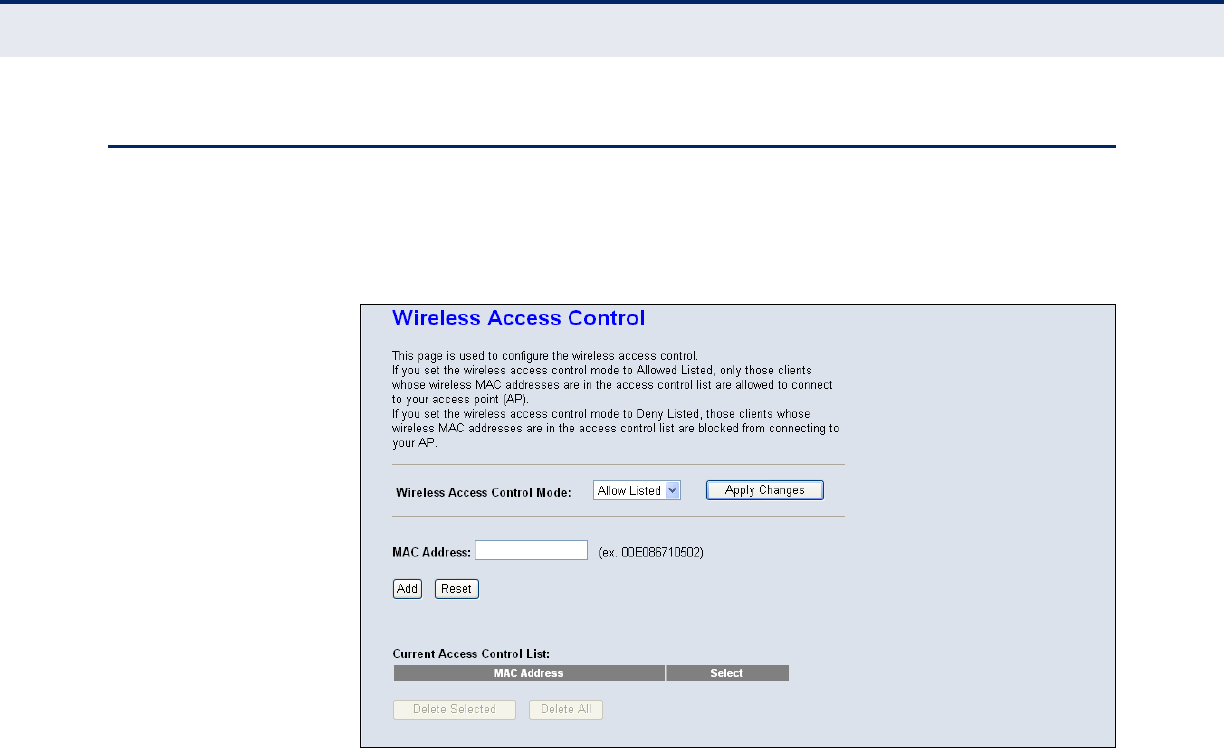

Figure 27: Wireless Security Setup - Wireless Access Control 64

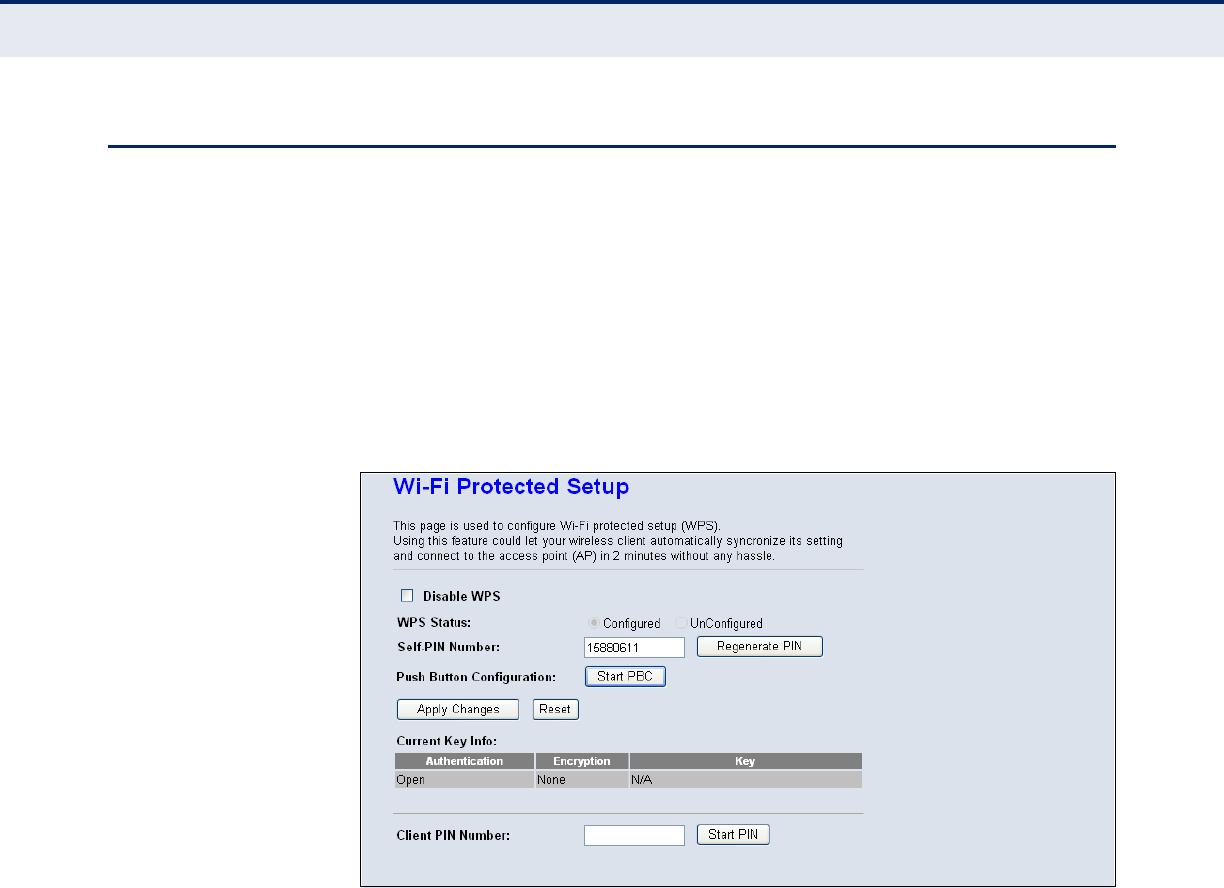

Figure 28: WPS Configuration 65

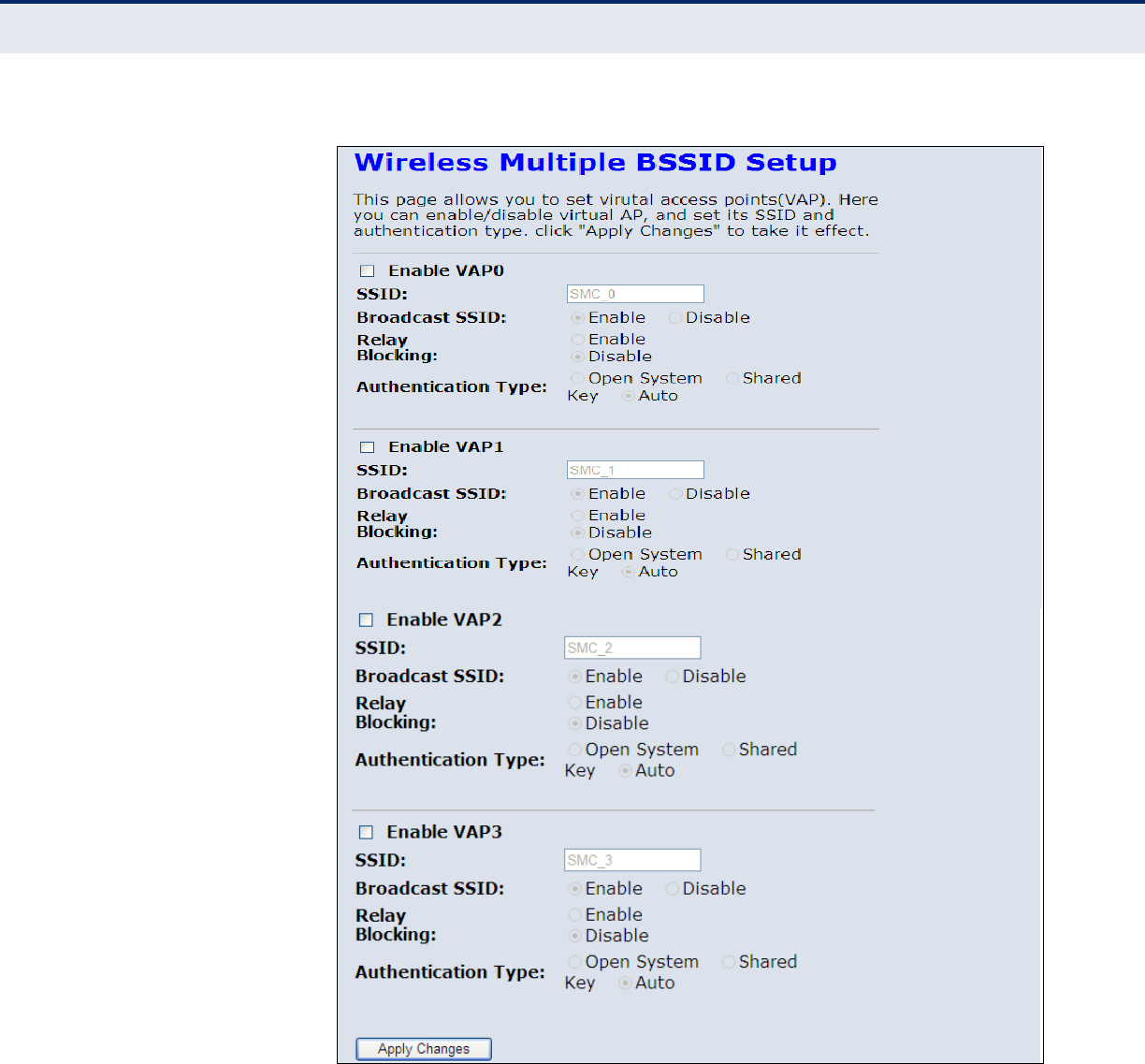

Figure 29: Second BSSID 67

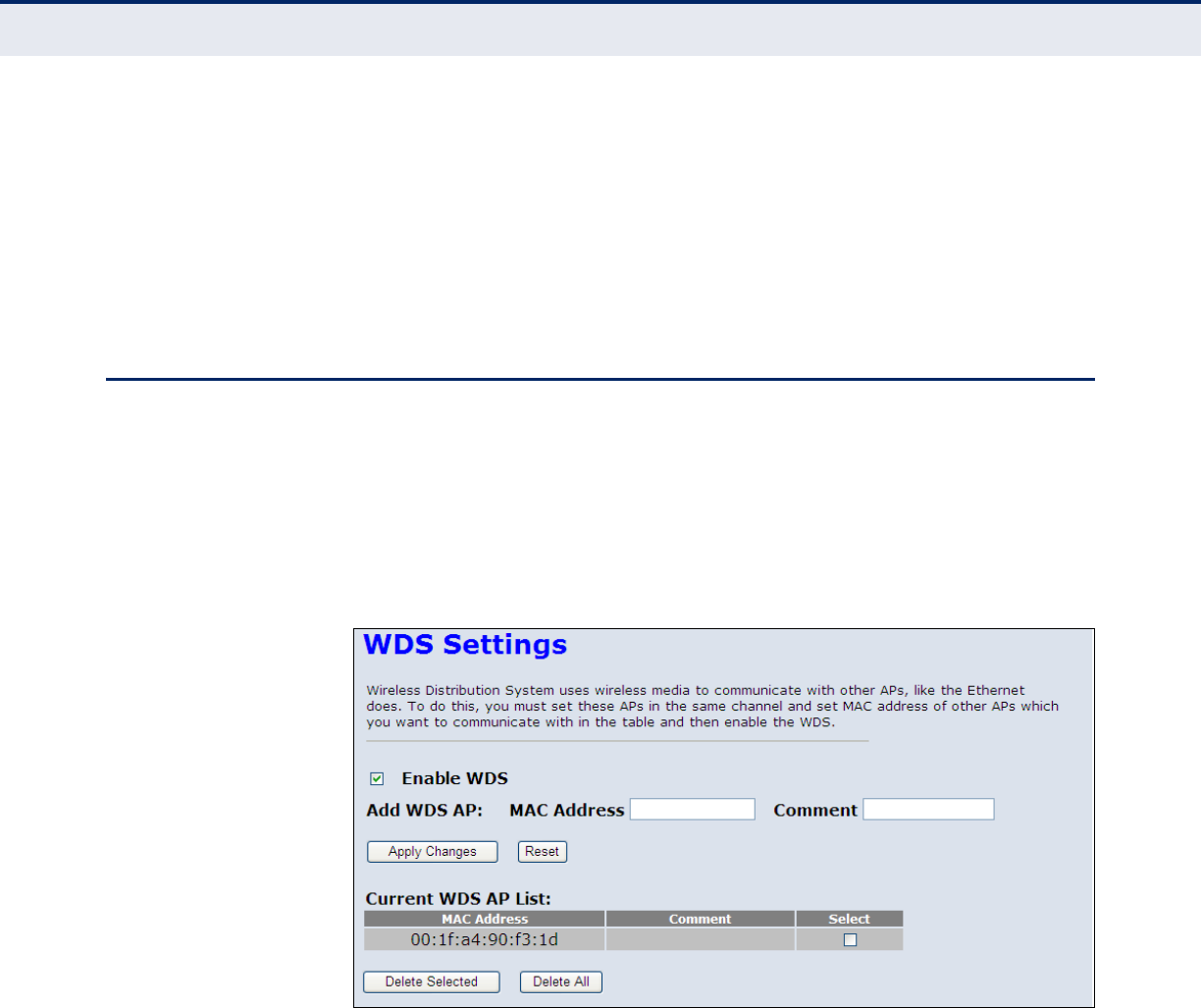

Figure 30: WDS Configuration 68
Figure 31: WDS Wireless Setup 69
F
IGURES
– 22 –
Figure 32: LAN Basic Setup 69
Figure 33: Disabling DHCP 70

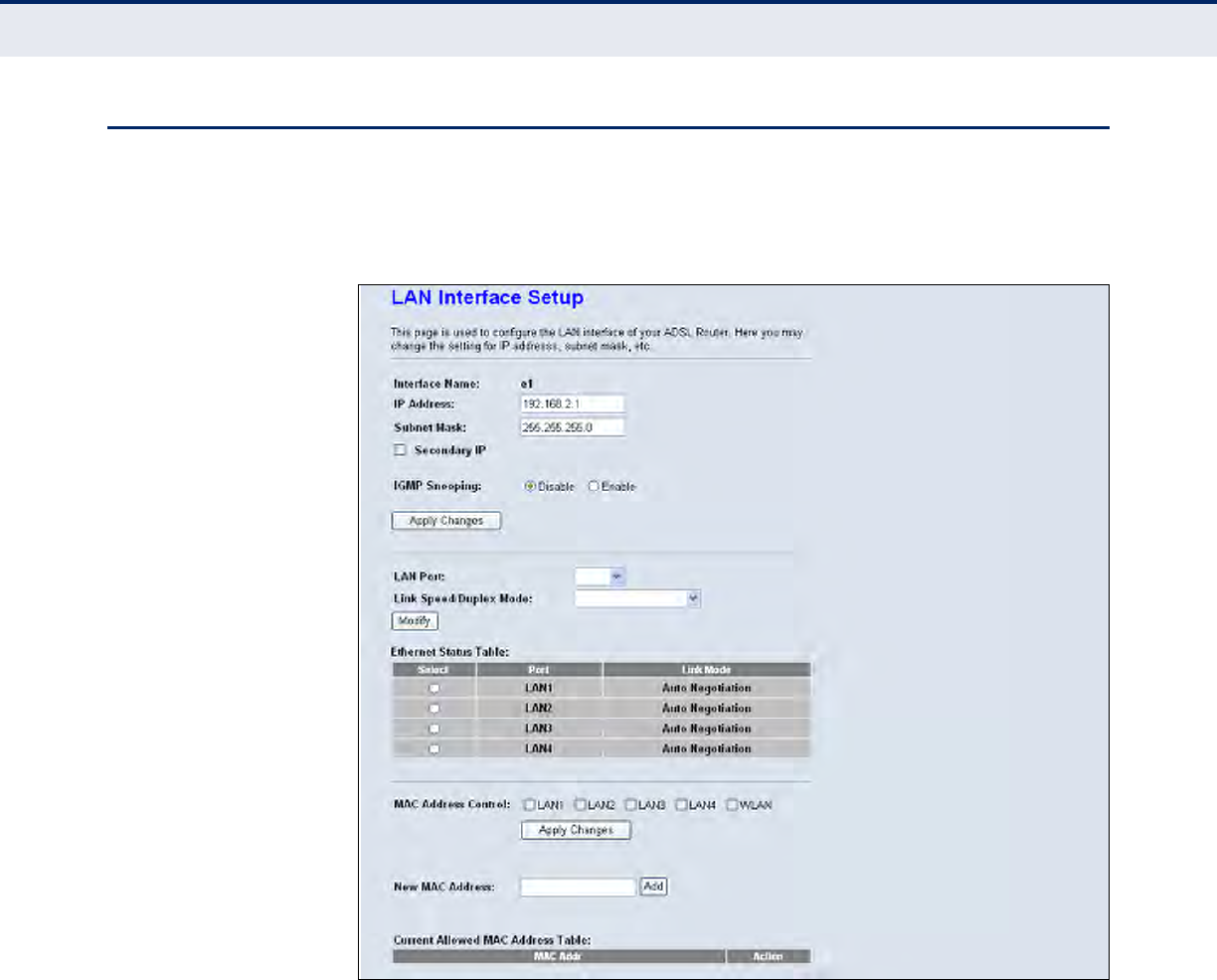

Figure 34: LAN Configuration 73

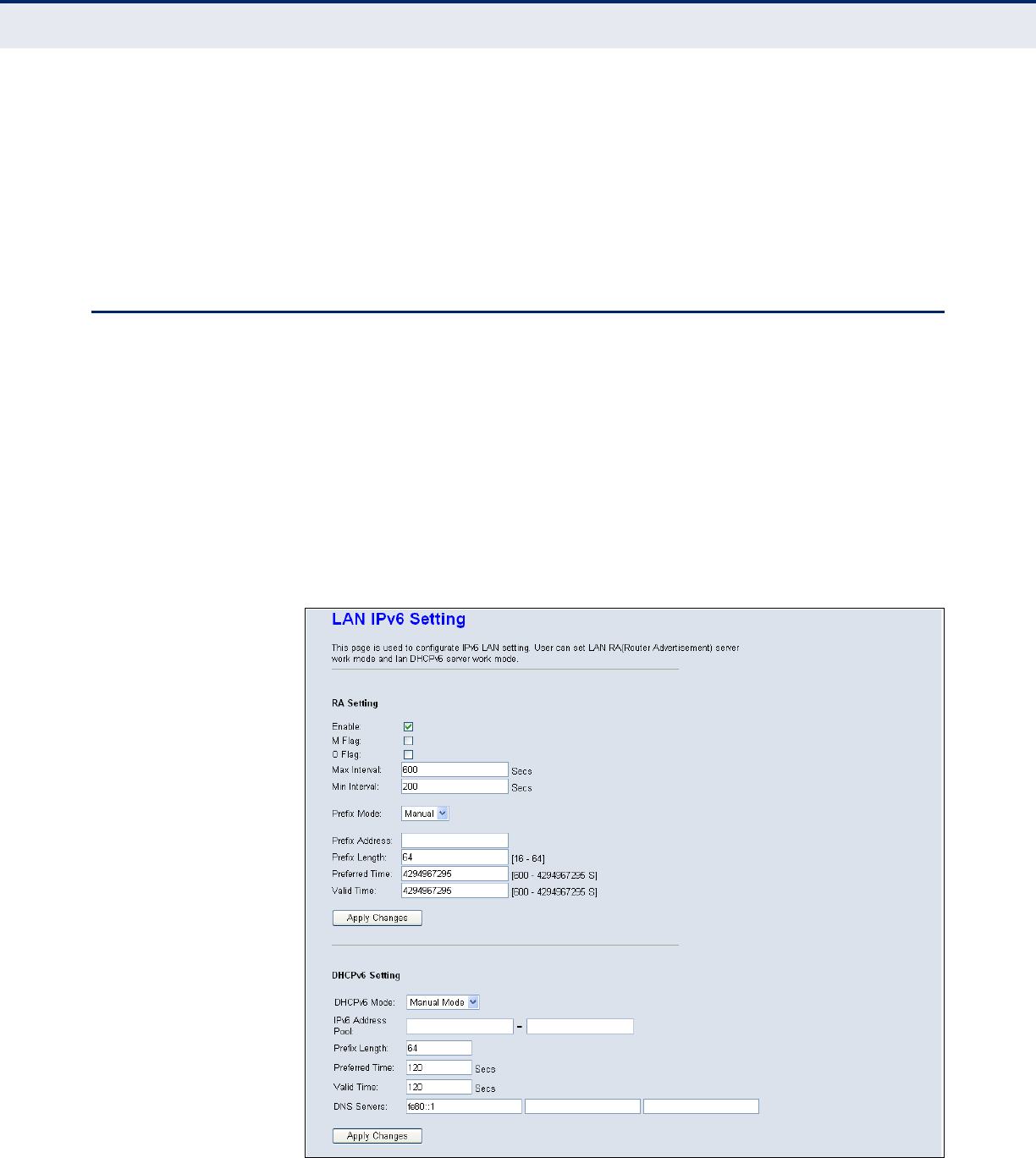

Figure 35: IPv6 LAN Configuration 74

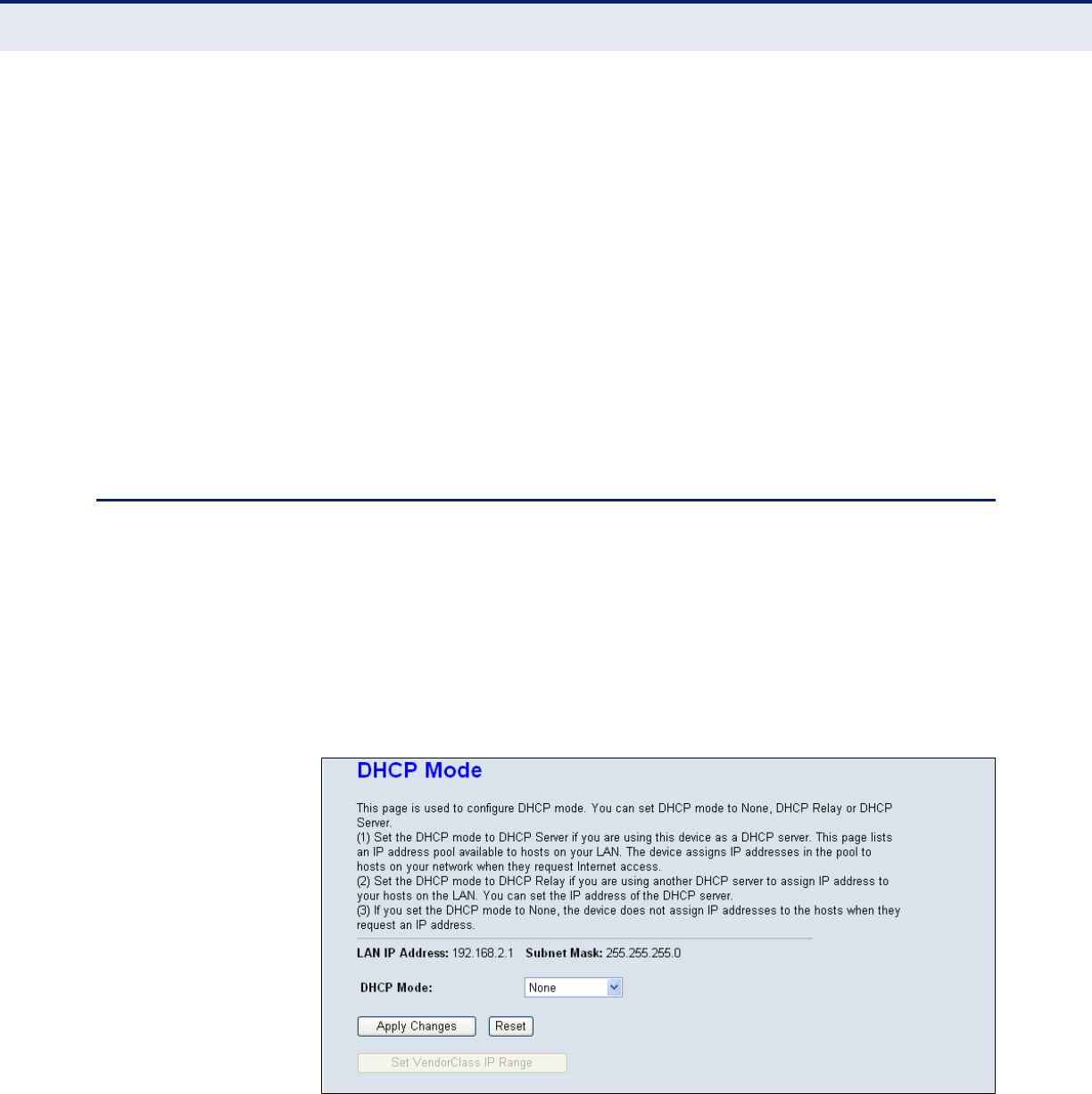

Figure 36: DHCP Disabled 76

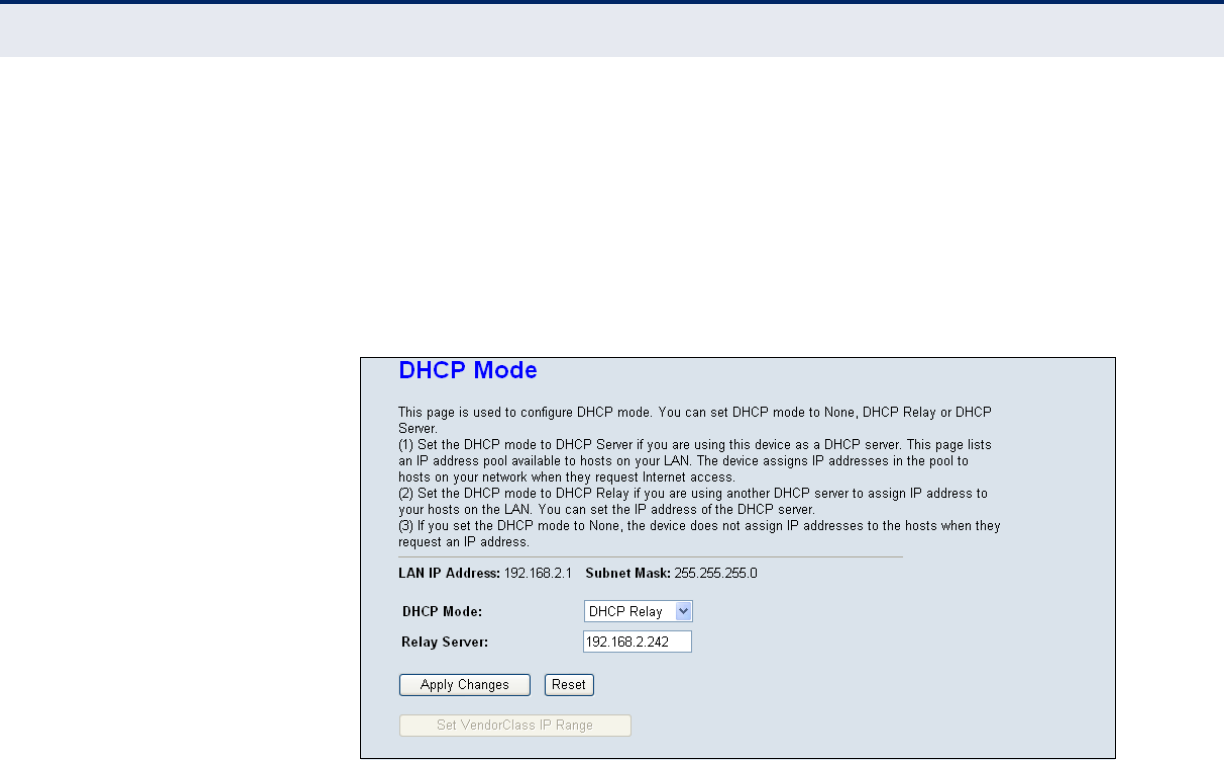

Figure 37: DHCP Relay 77

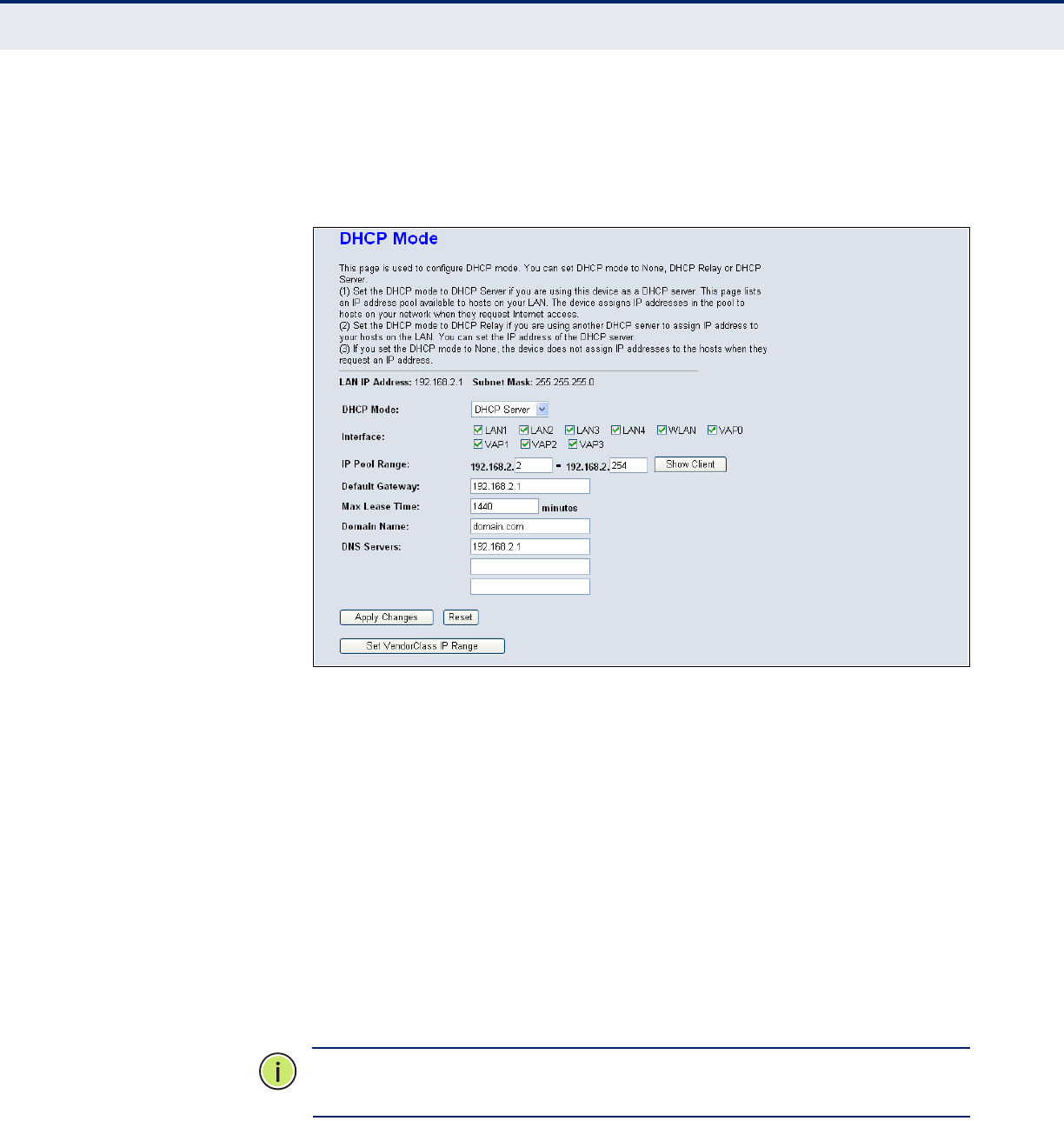

Figure 38: DHCP Server 78

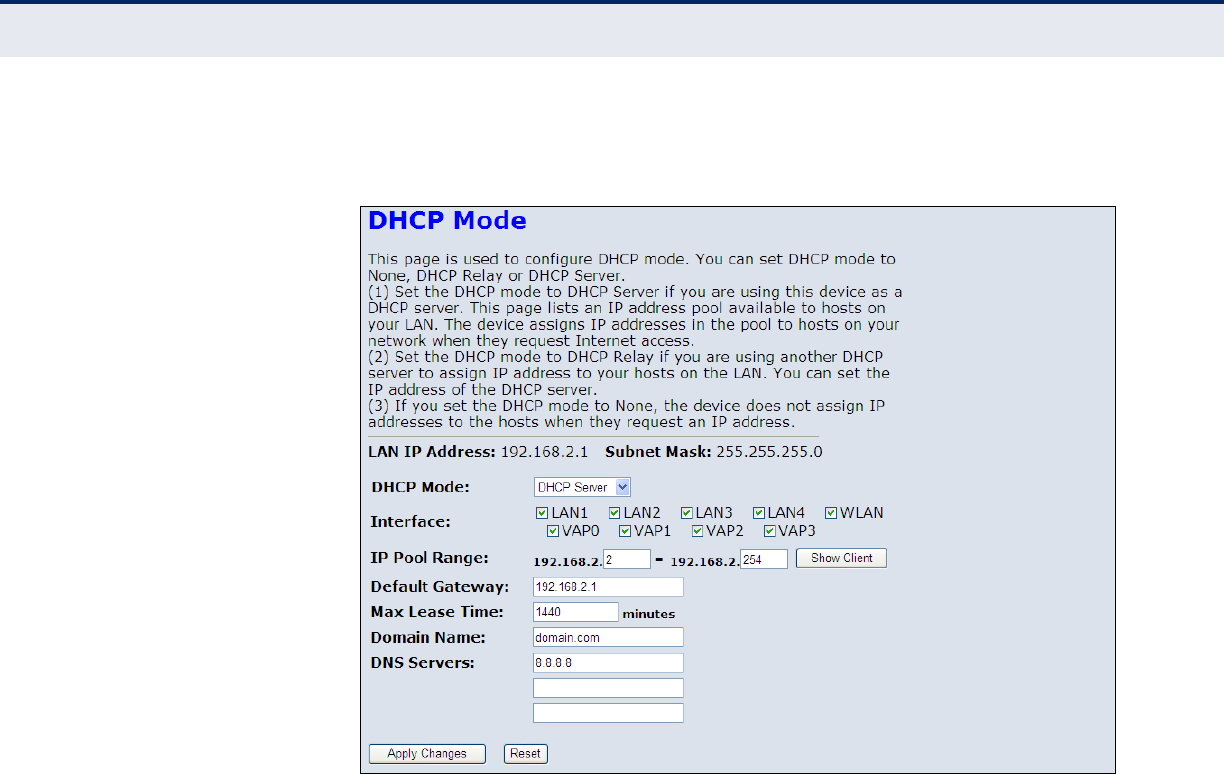

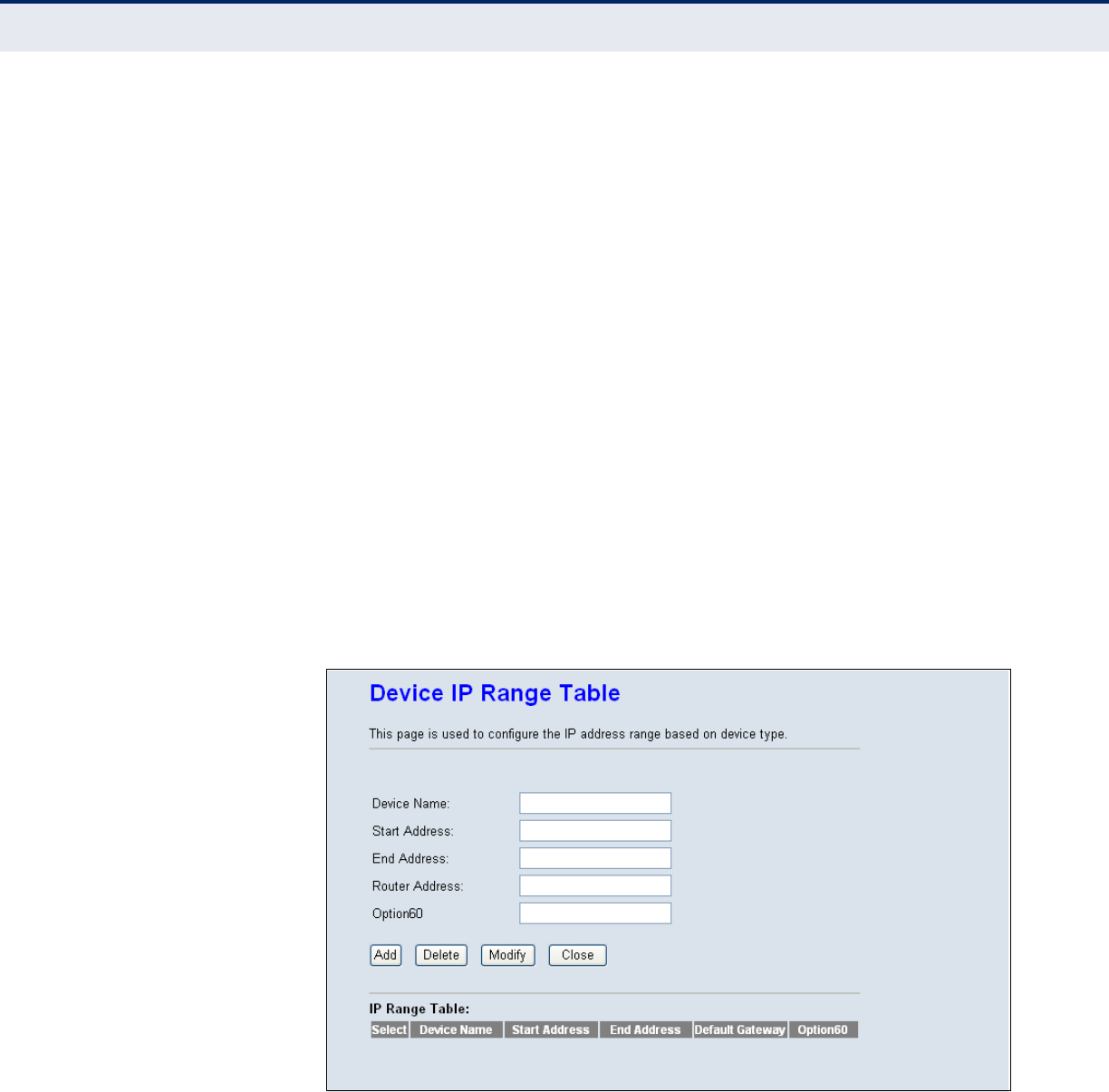

Figure 39: Device IP Range Table 79

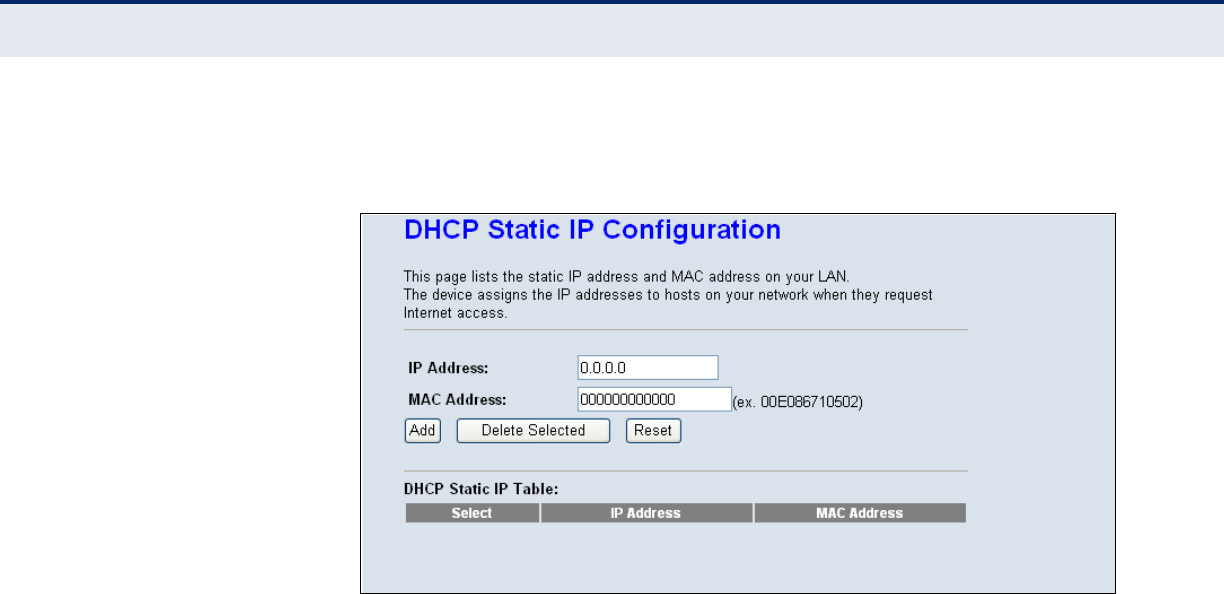

Figure 40: DHCP Static IP Assignment 80

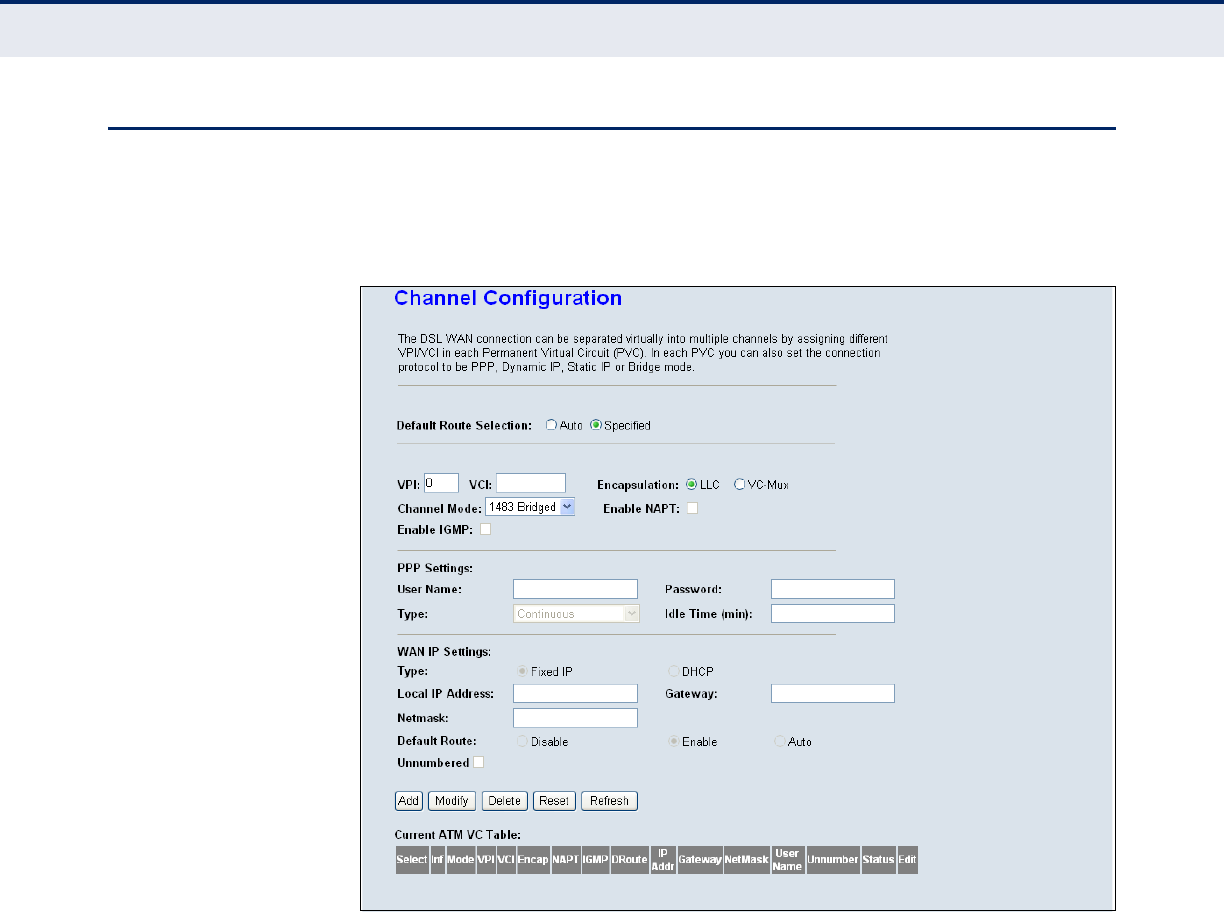

Figure 41: WAN Configuration 82

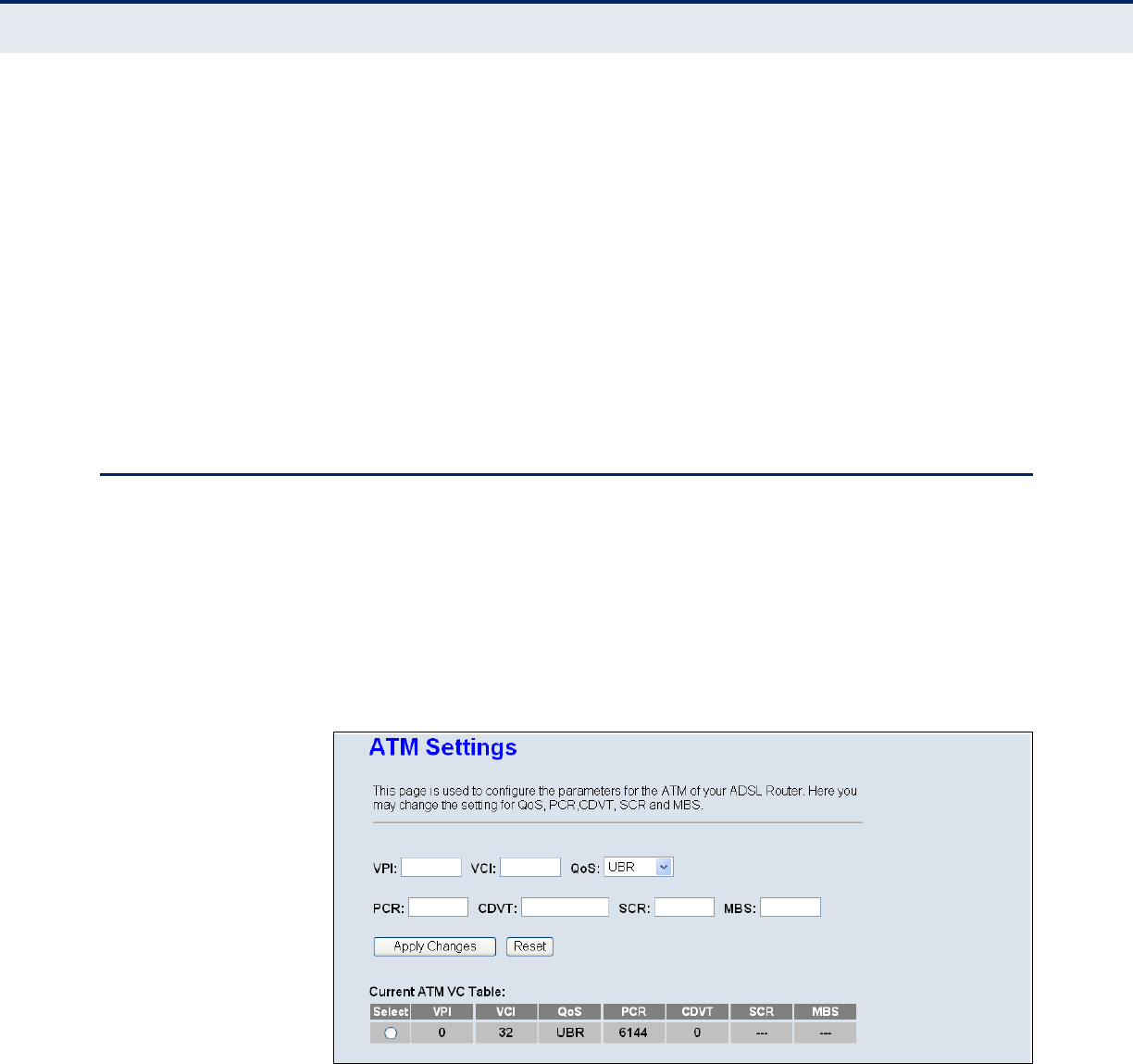

Figure 42: ATM Settings 84
Figure 43: ATM Settings 86

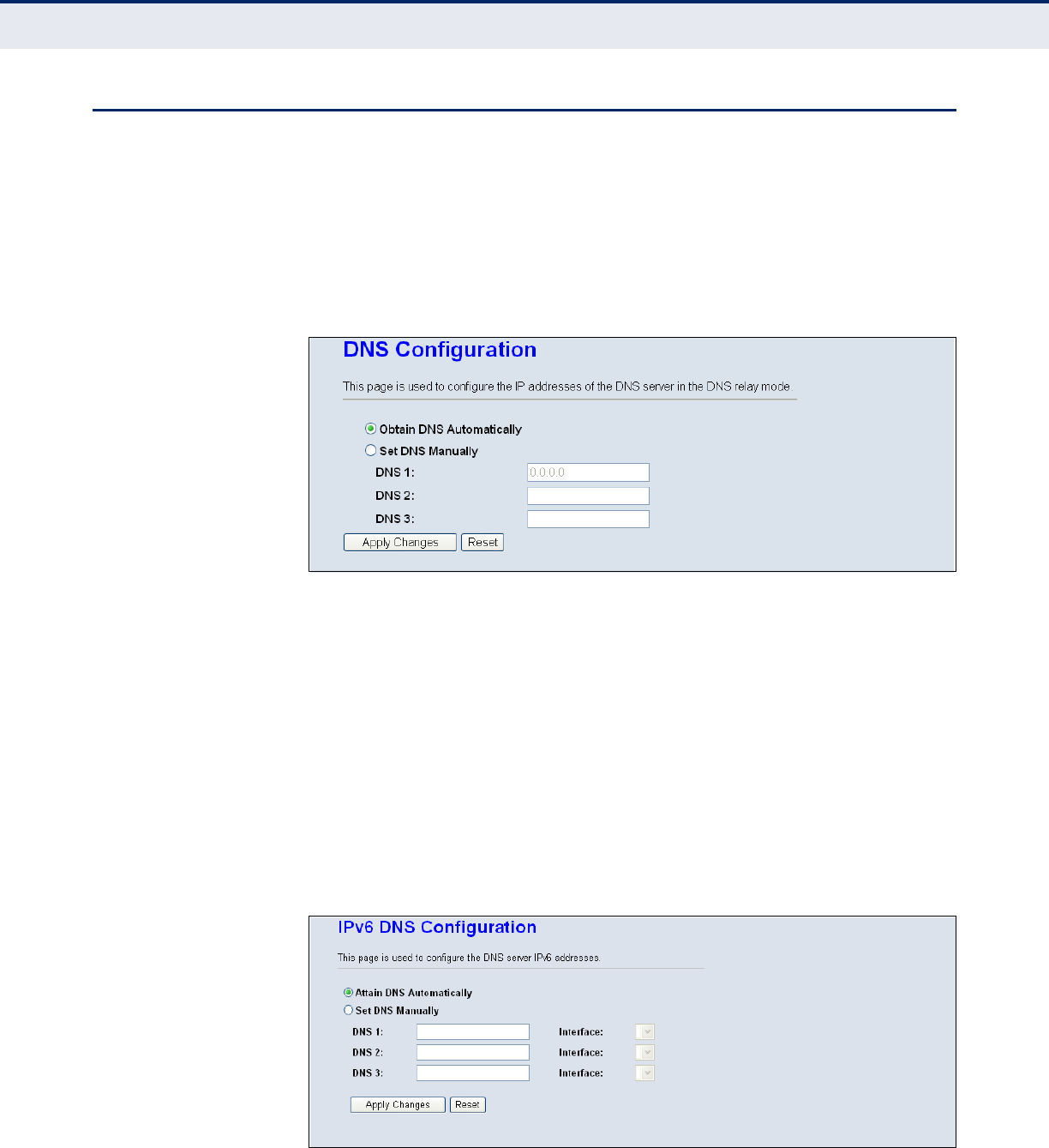

Figure 44: DNS Server Configuration 89
Figure 45: IPv6 DNS Server Configuration 89

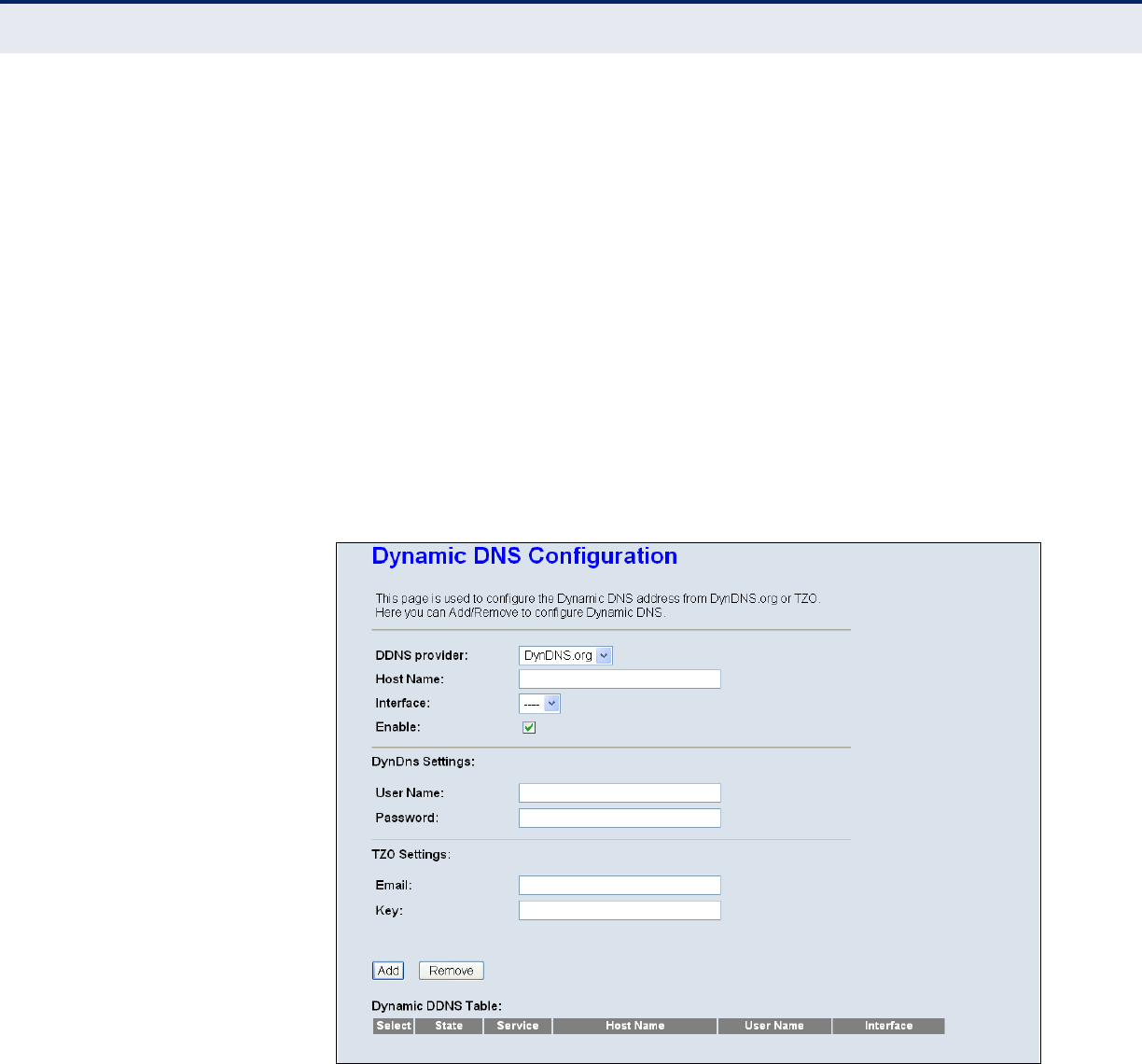

Figure 46: DDNS DynDns 90

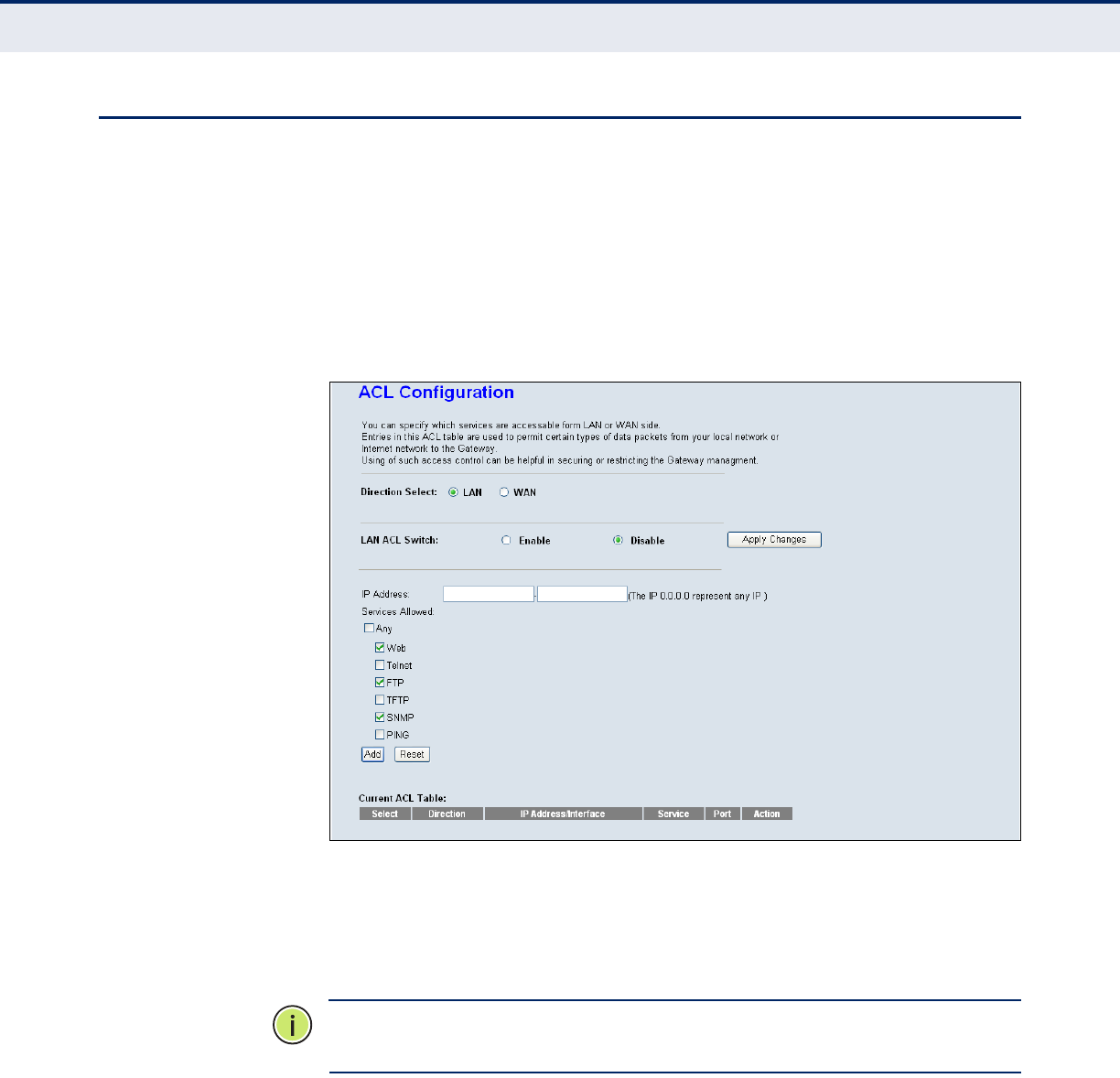

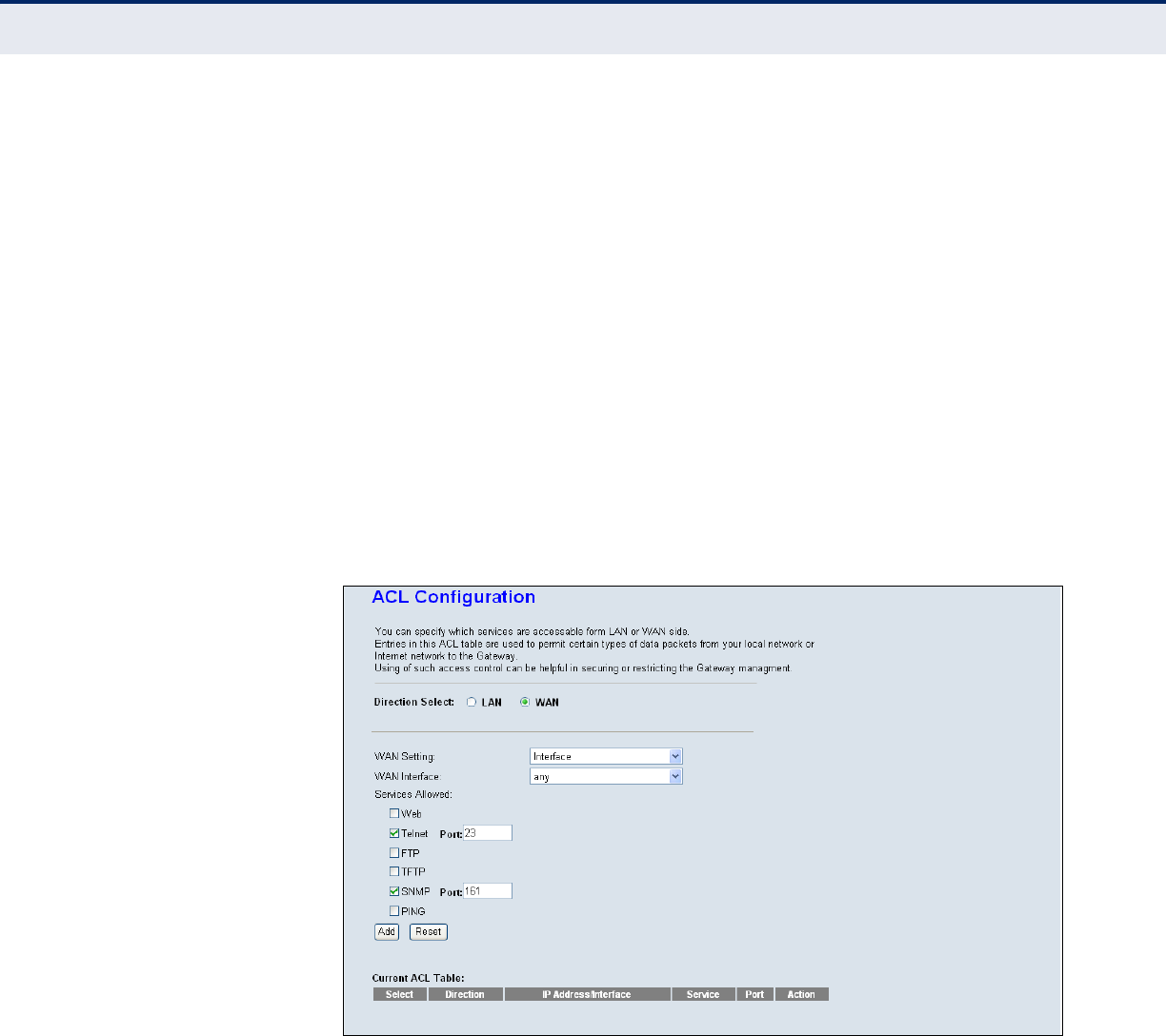

Figure 47: LAN ACL Configuration 92
Figure 48: WAN ACL Configuration 93

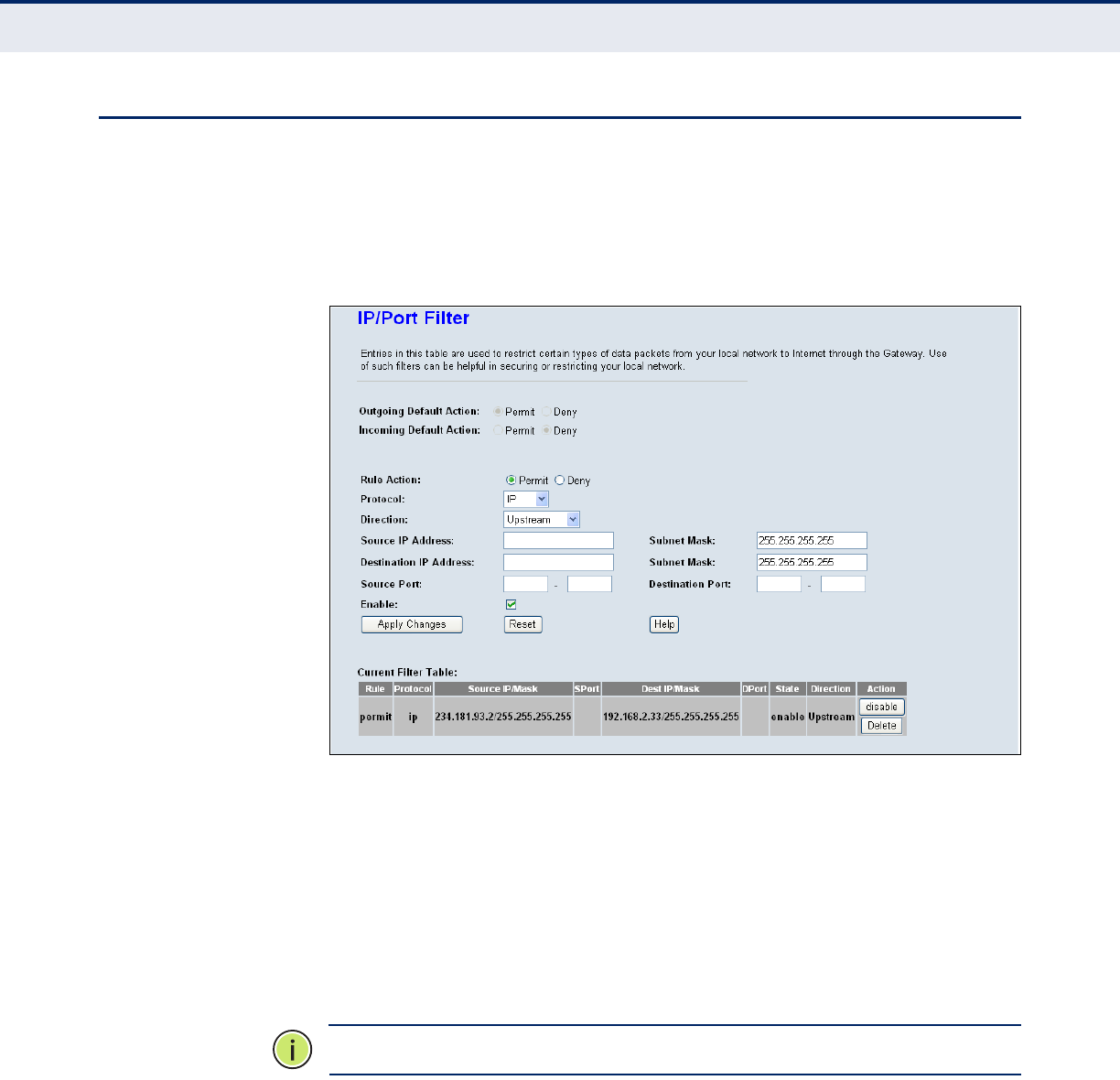

Figure 49: IP/Port Filtering Settings 95
Figure 50: NAT — Virtual Servers 98

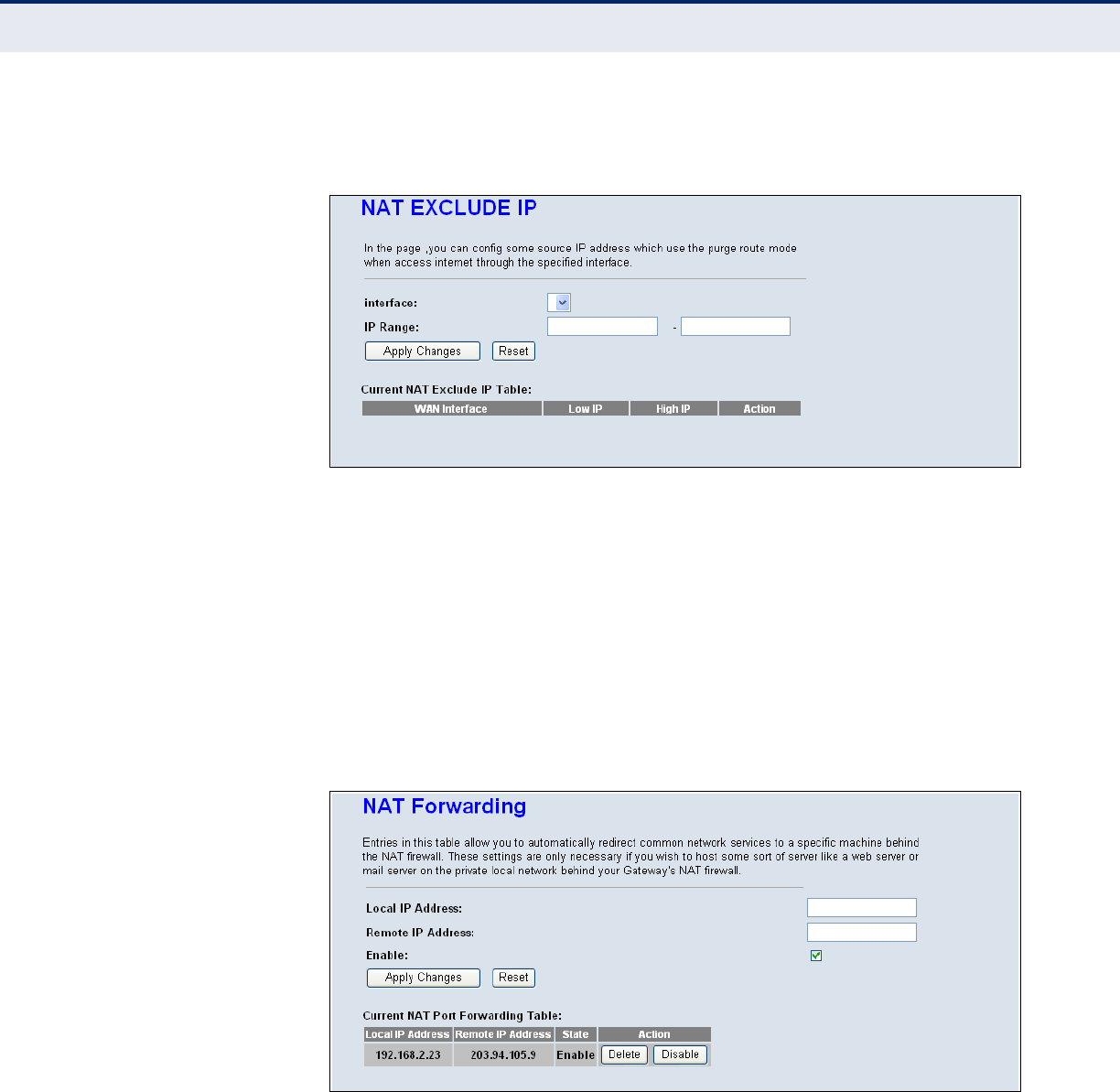

Figure 51: NAT — Exclude IP 99
Figure 52: NAT Forwarding Settings 99

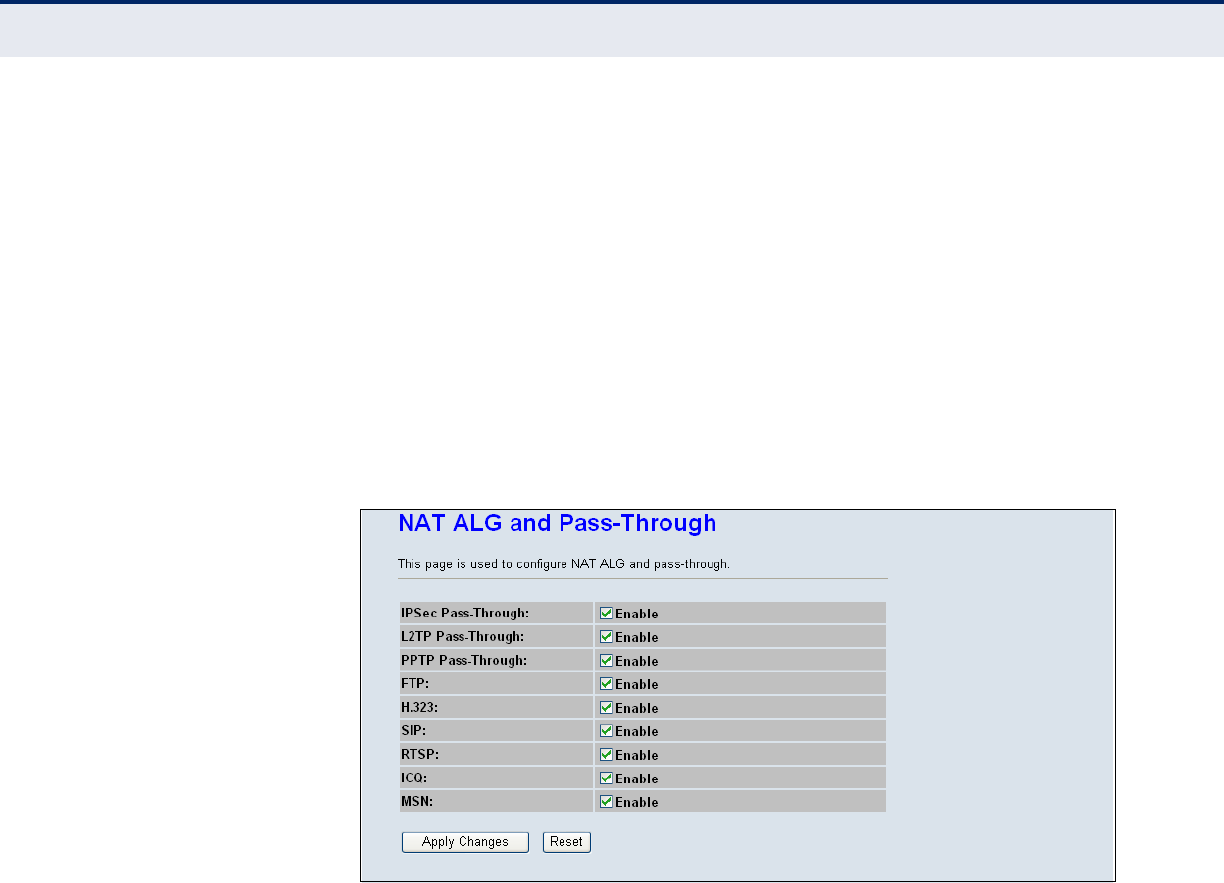

Figure 53: NAT ALG and Pass-Through 100

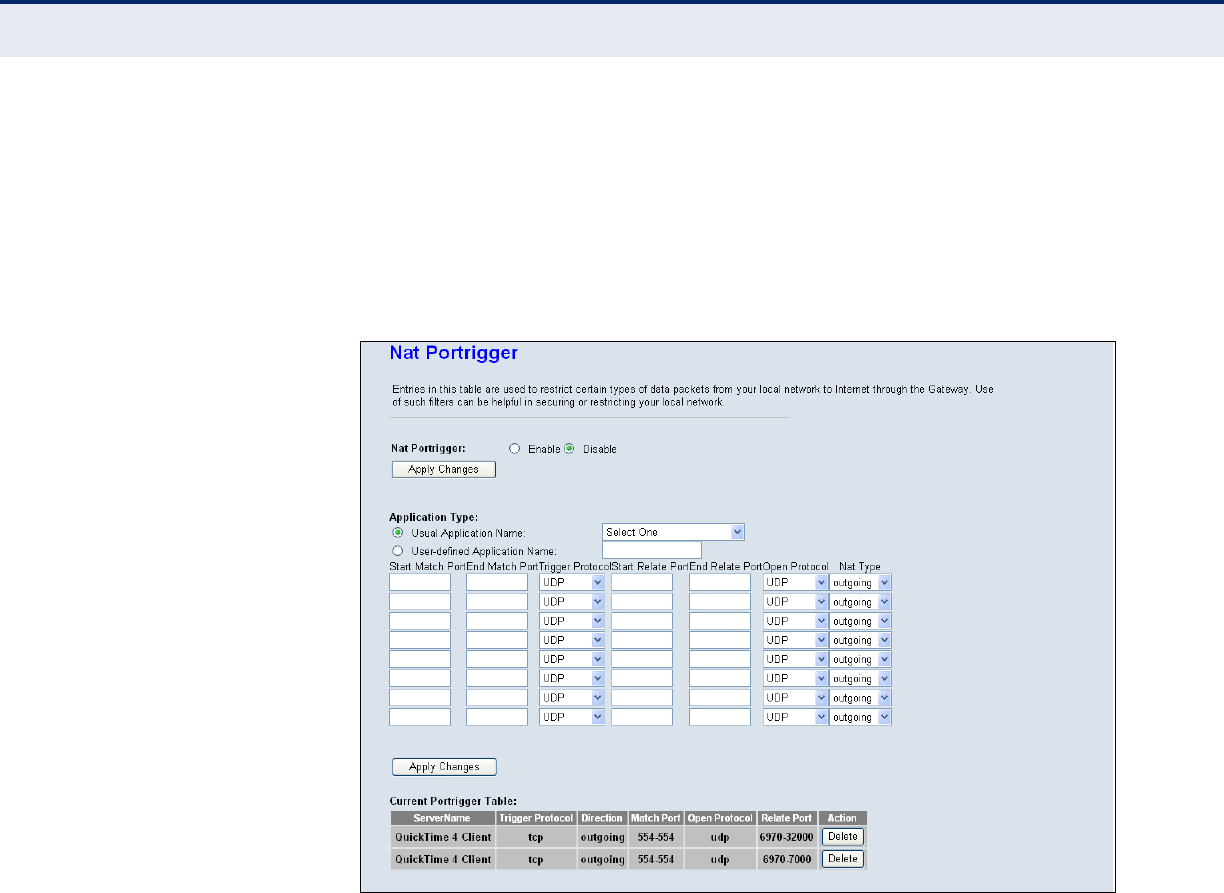

Figure 54: NAT — Port Trigger 101
Figure 55: NAT — FTP ALG Configuration 102
Figure 56: NAT — IP Mapping 102

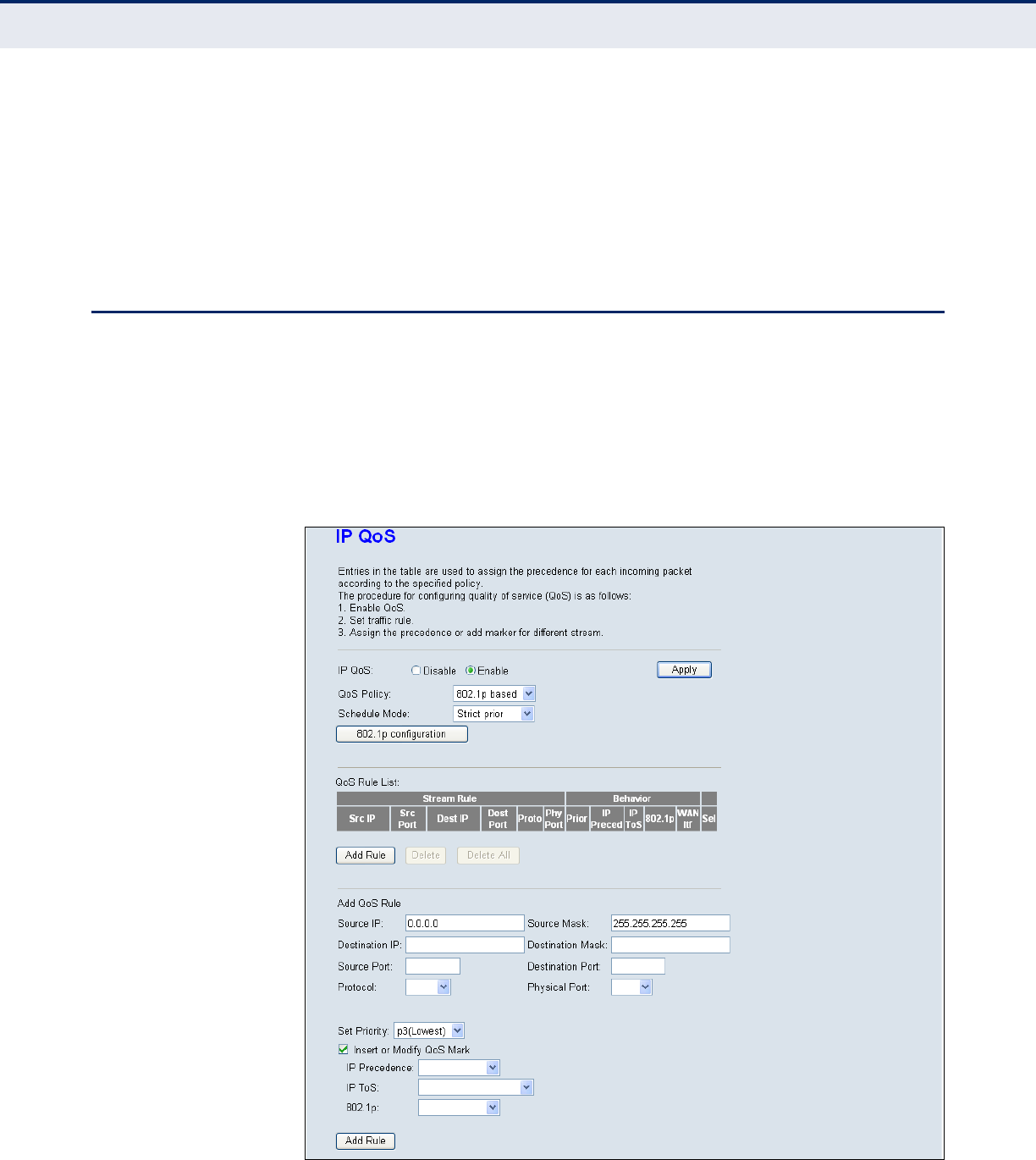

Figure 57: Quality of Service 103

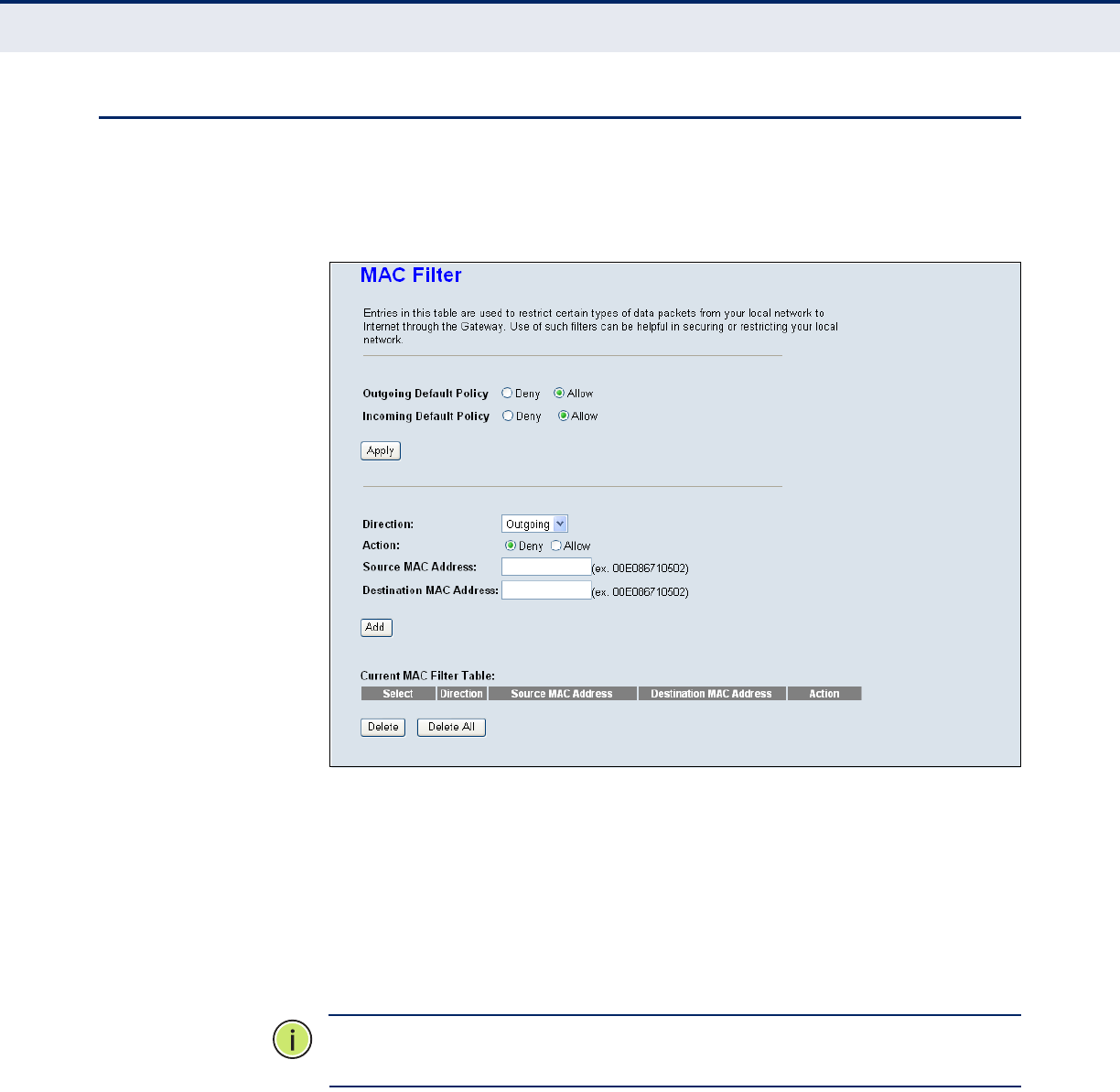

Figure 58: MAC Filtering Settings 105

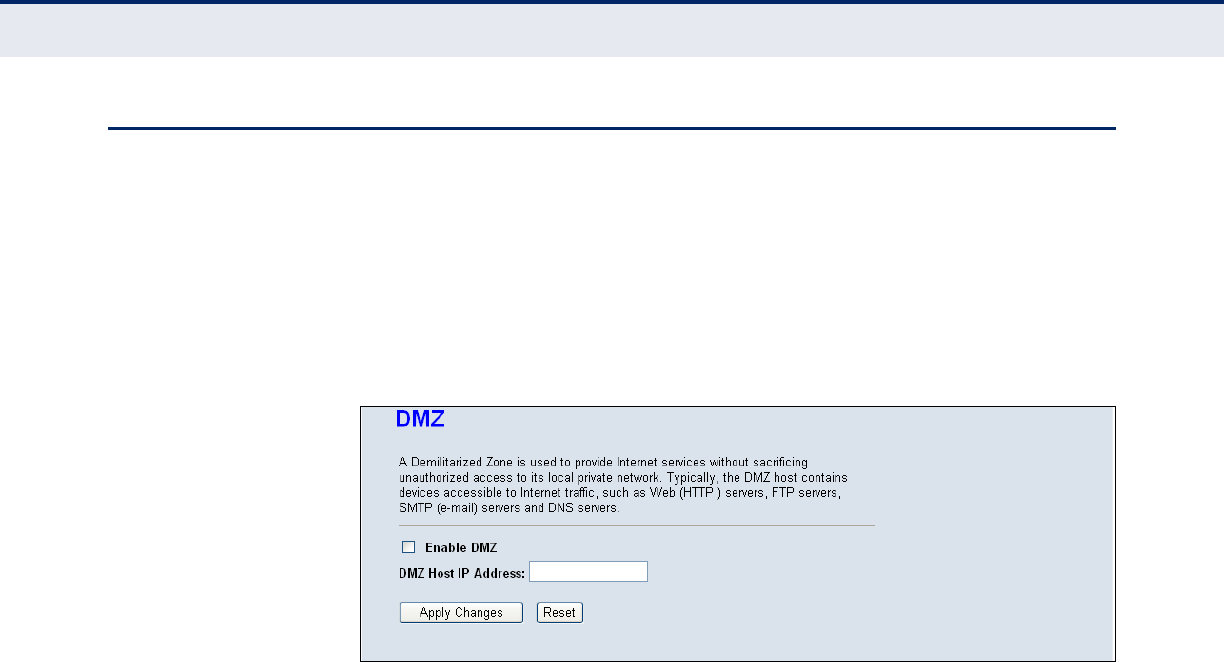

Figure 59: DMZ Settings 106

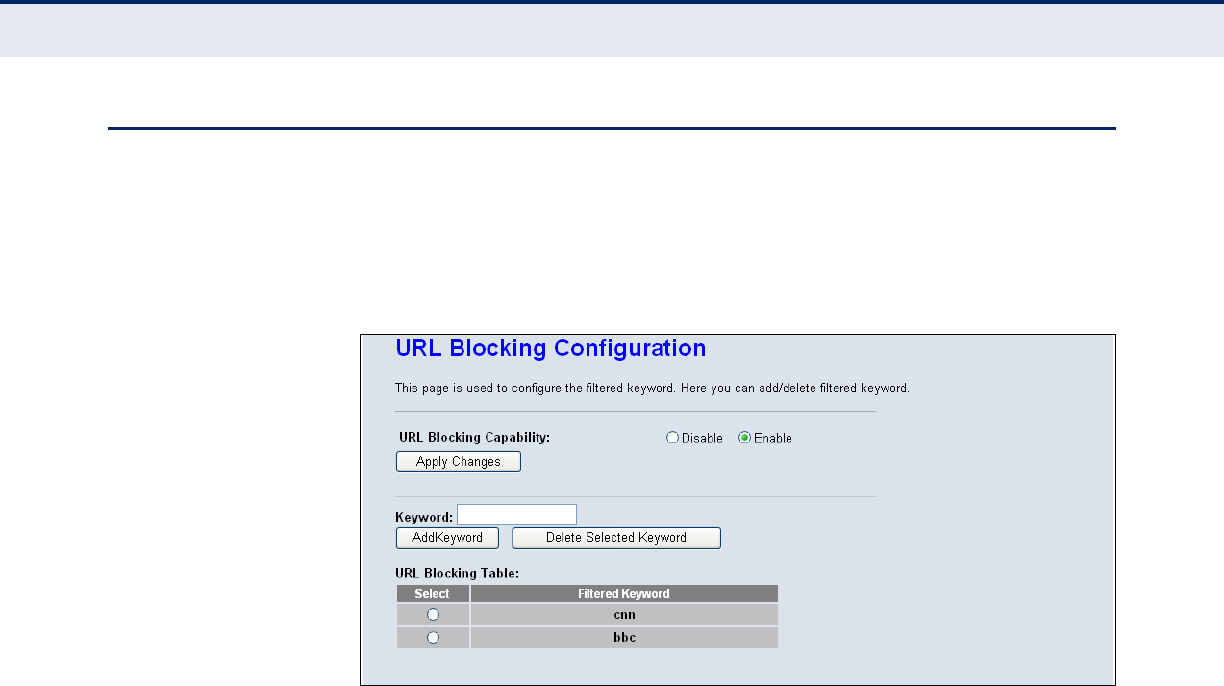

Figure 60: URL Blocking Settings 107

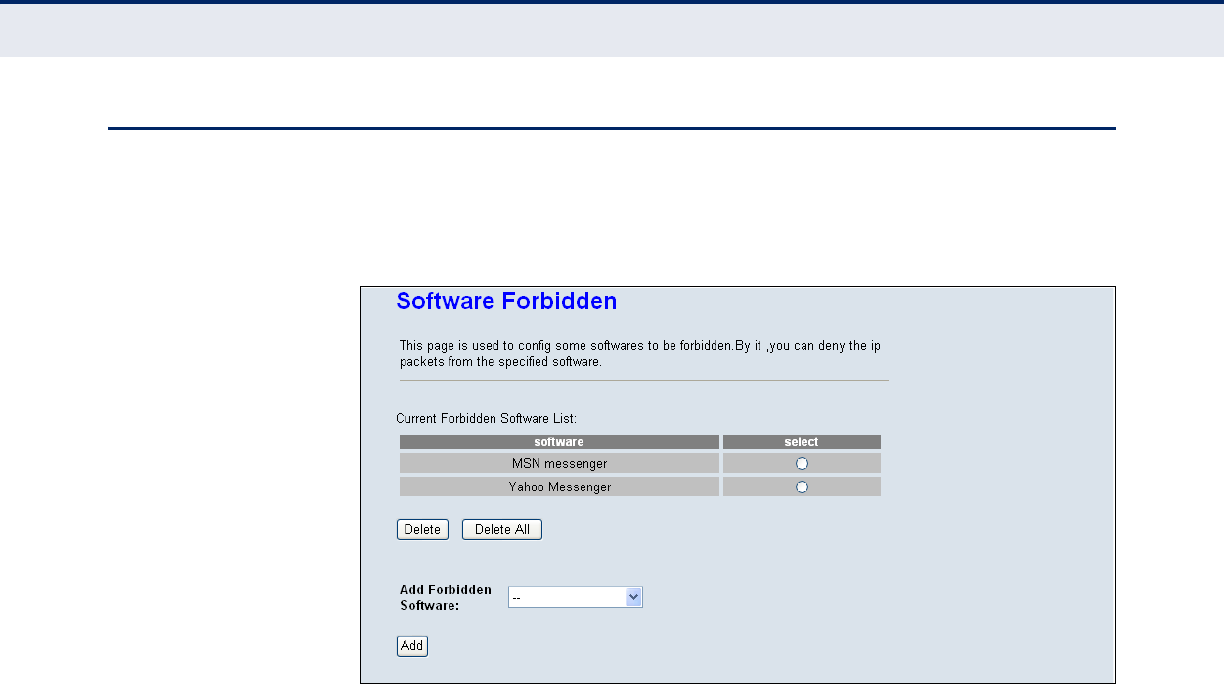

Figure 61: Software Forbidden Settings 108

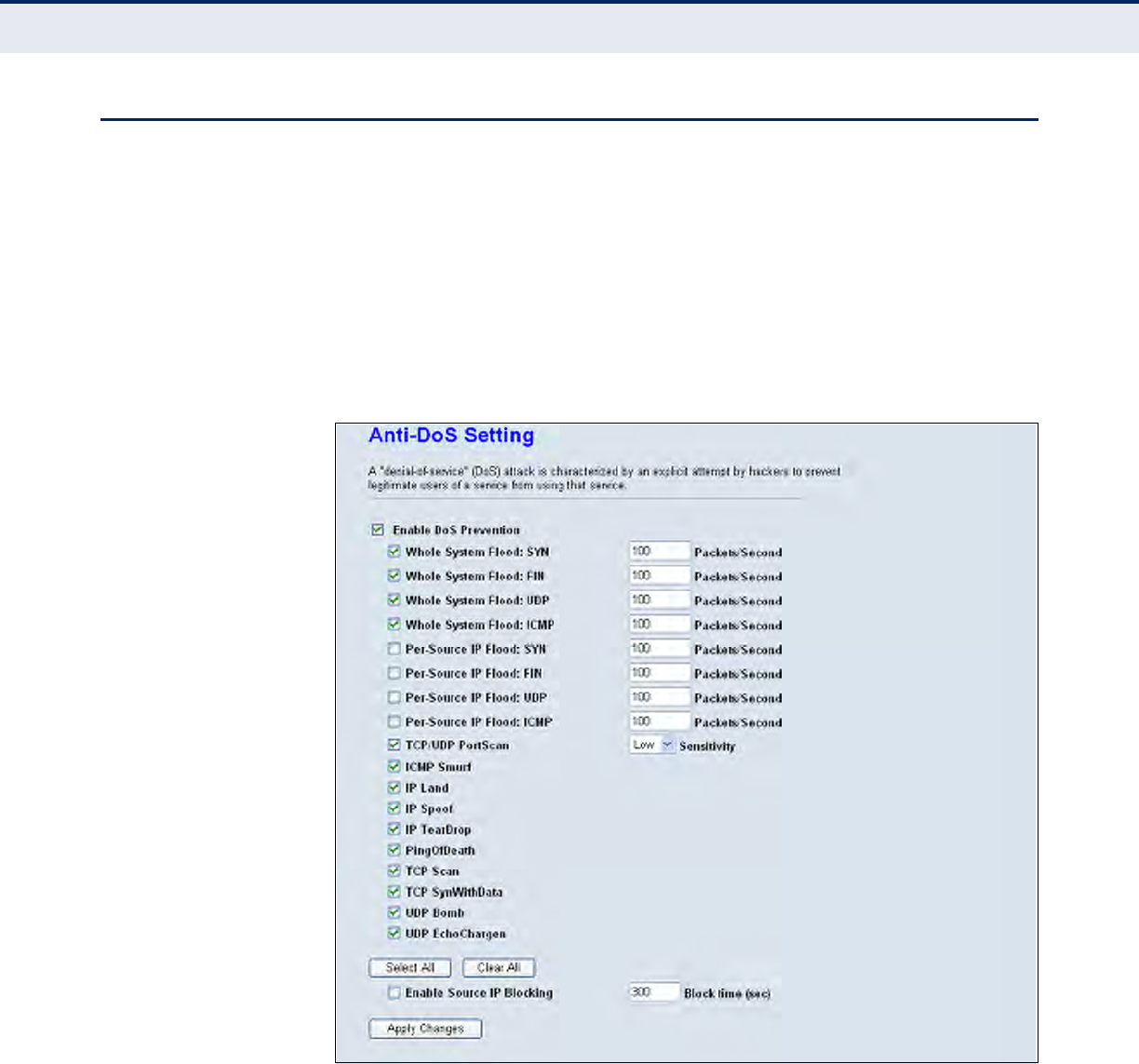

Figure 62: DoS Settings 109

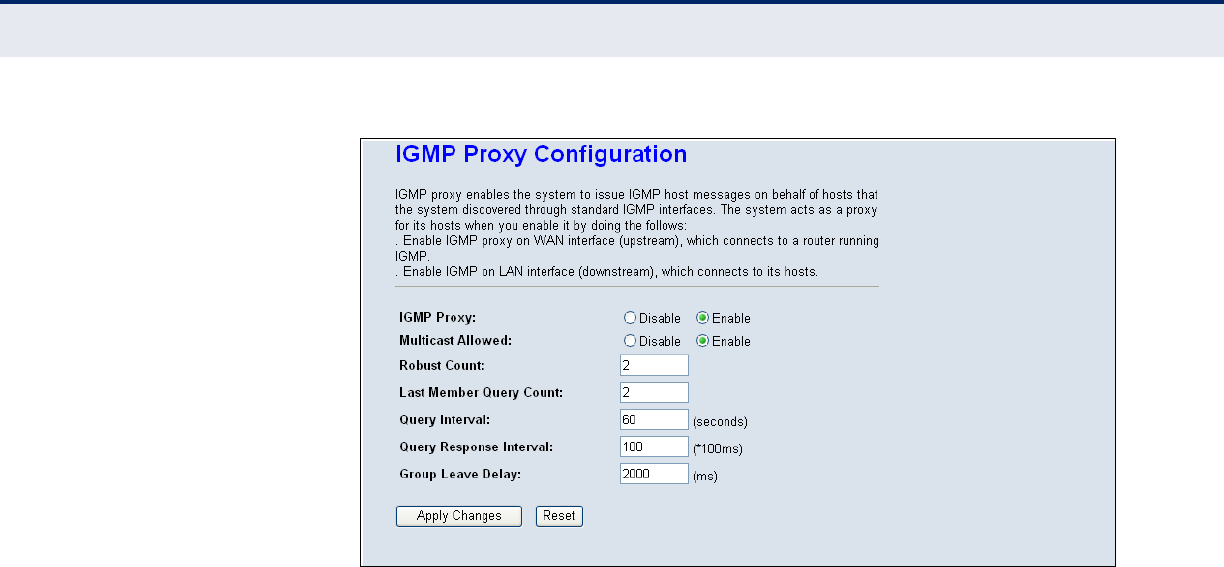

Figure 63: IGMP Proxy Configuration 112

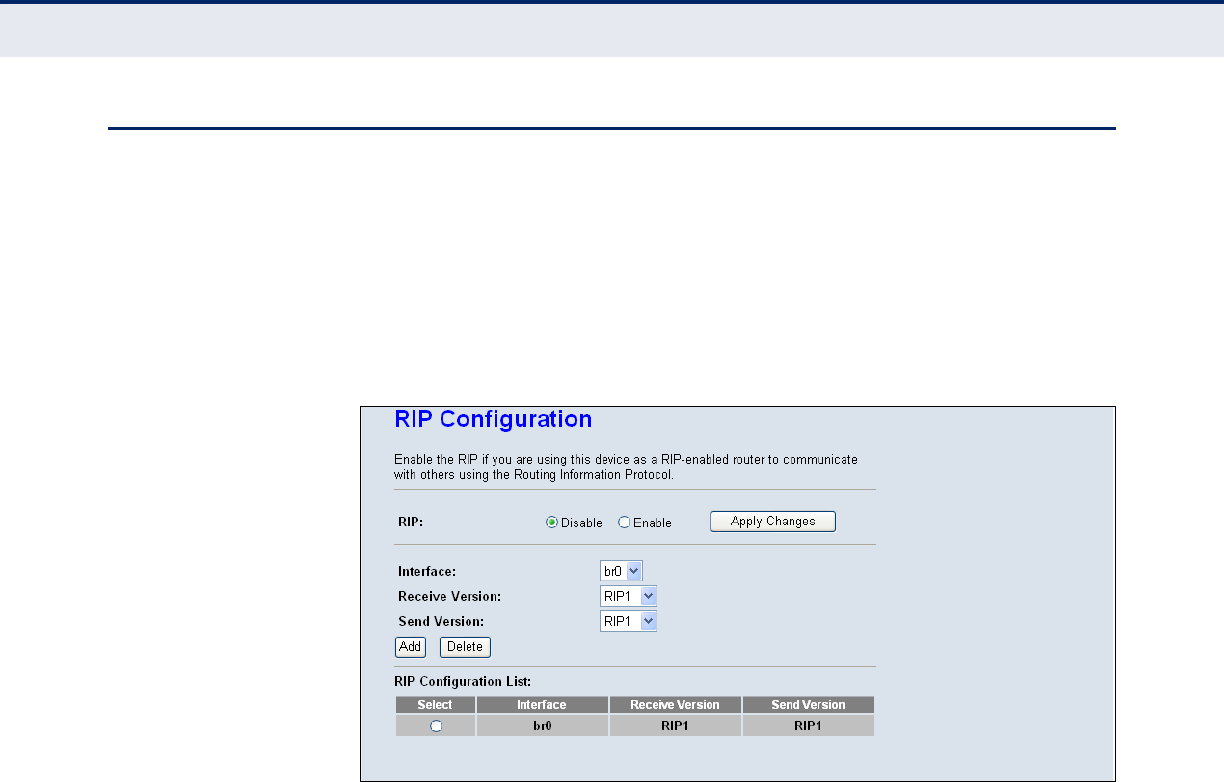

Figure 64: RIP Configuration 113

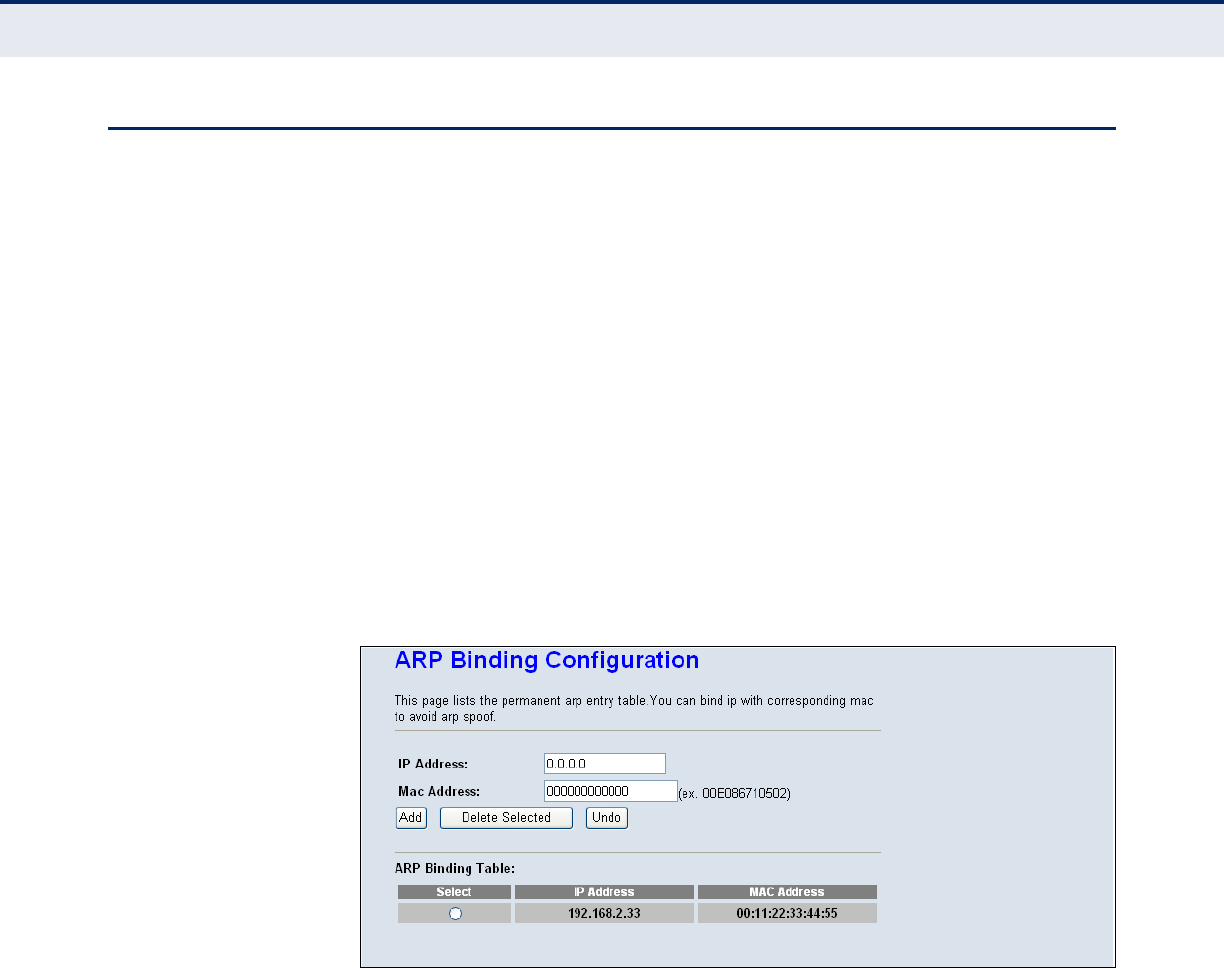

Figure 65: ARP Binding Configuration 114
Figure 66: Bridge Setting 116

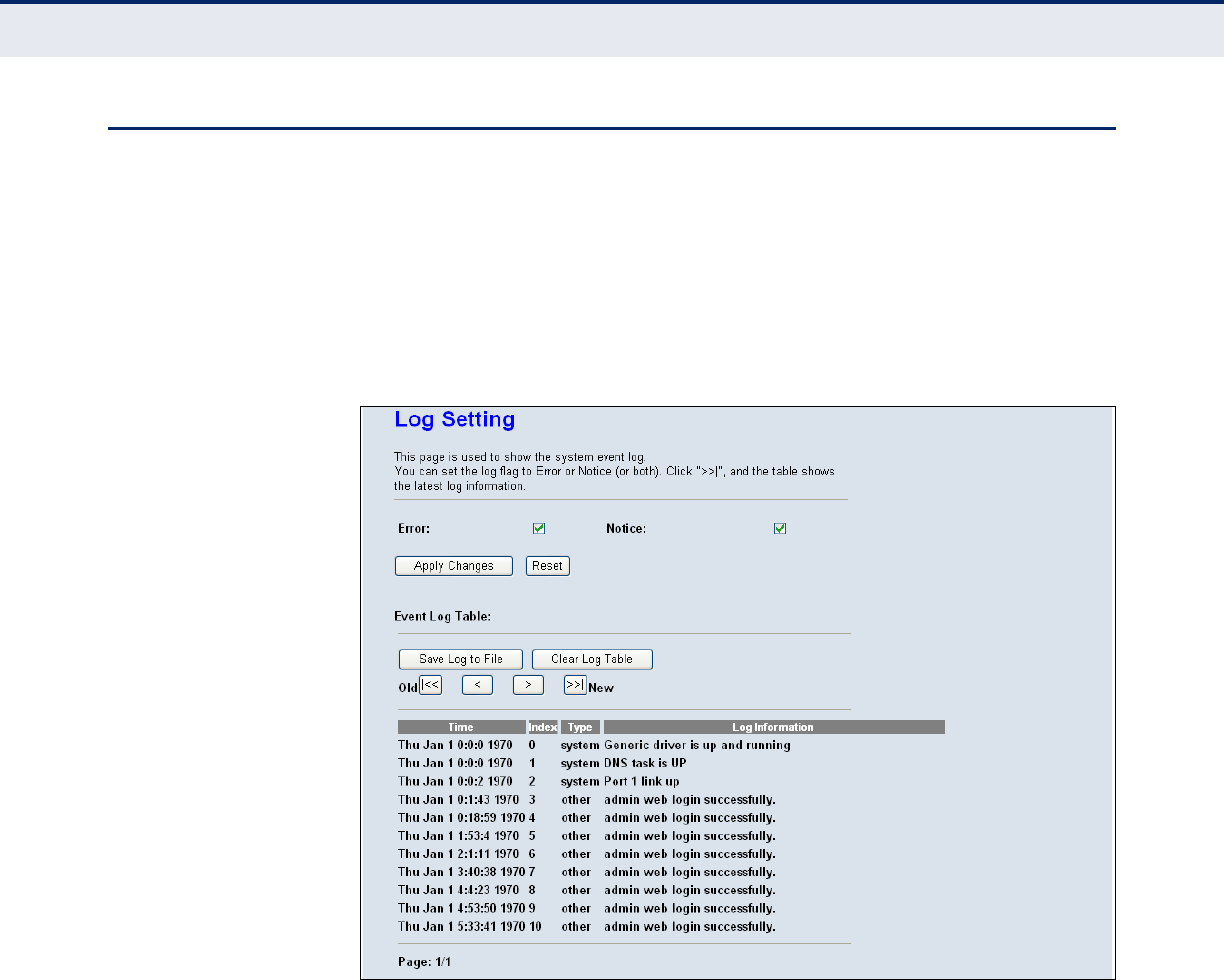

Figure 67: Log Setting 117
F
IGURES
– 23 –

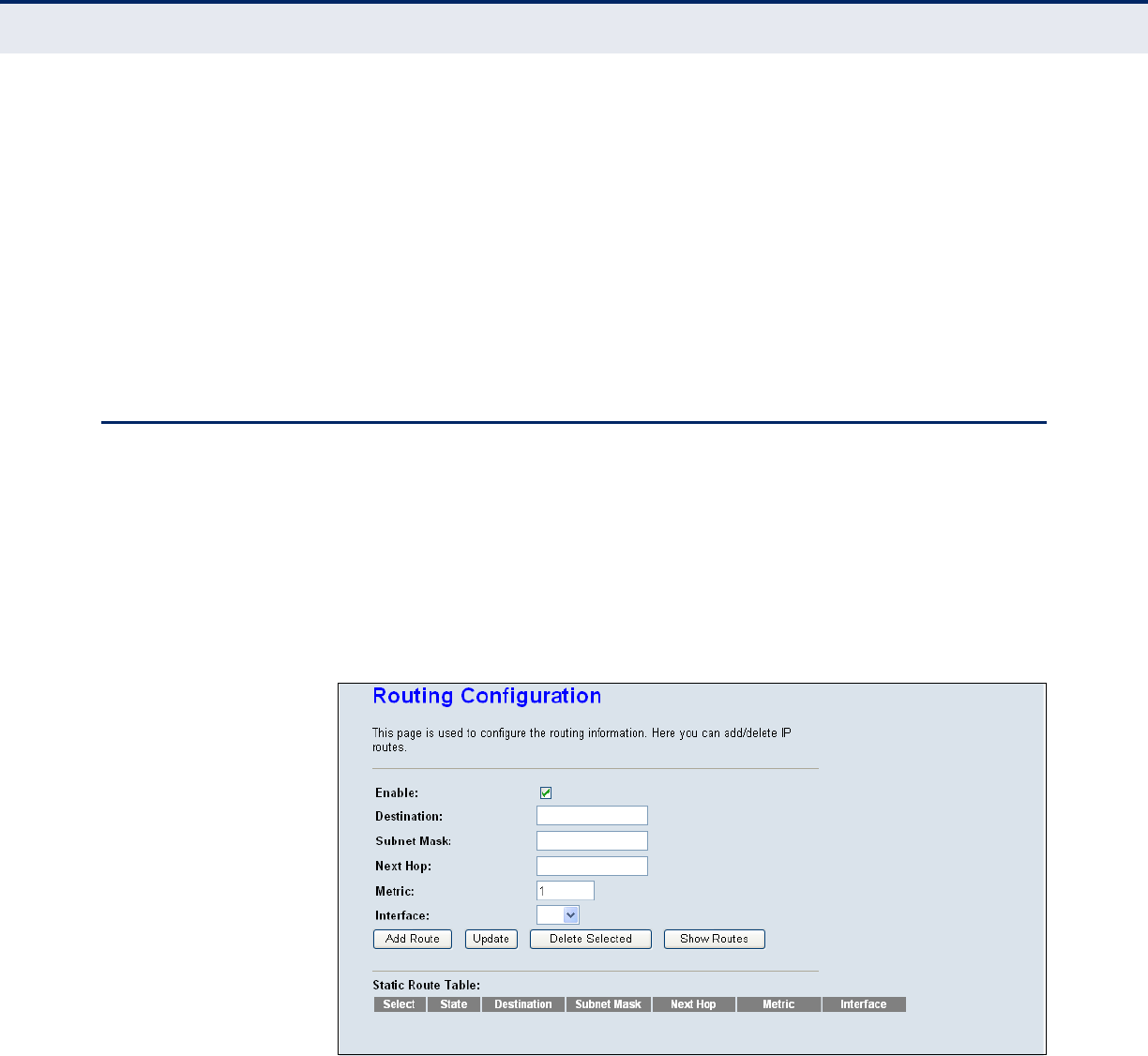

Figure 68: Routing Configuration 118

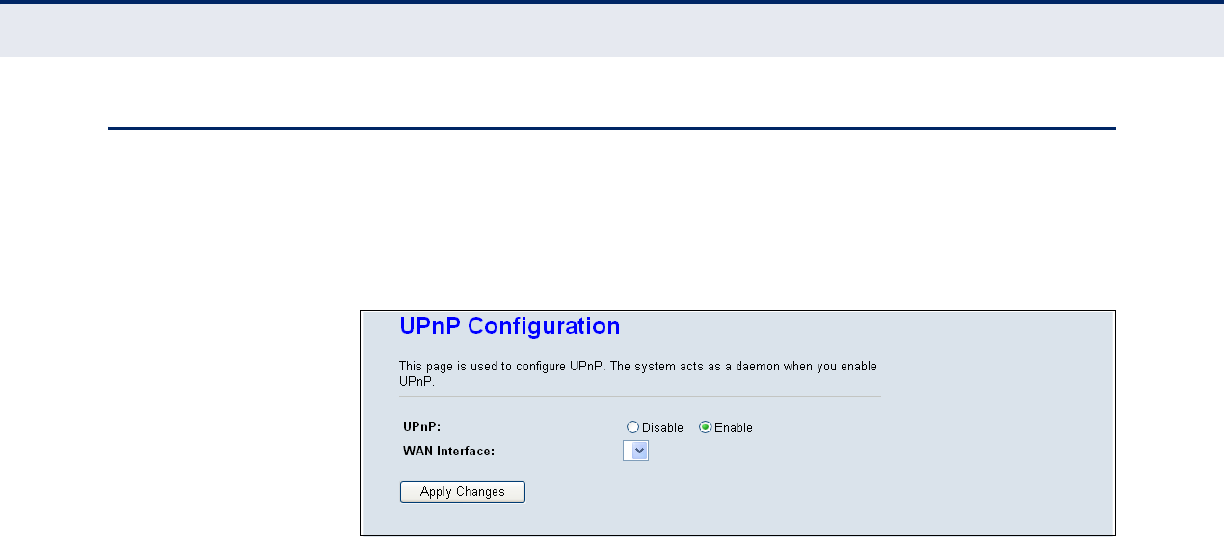

Figure 69: UPnP 120

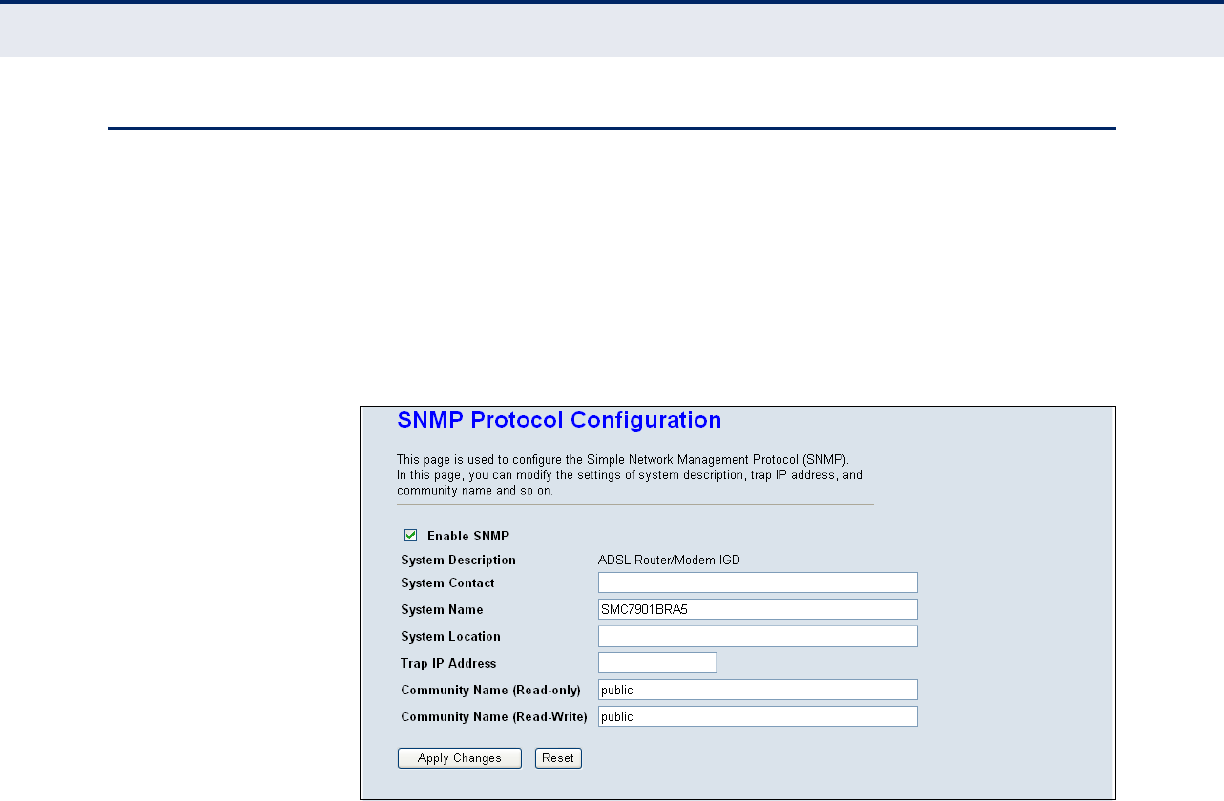

Figure 70: SNMP Configuration 121

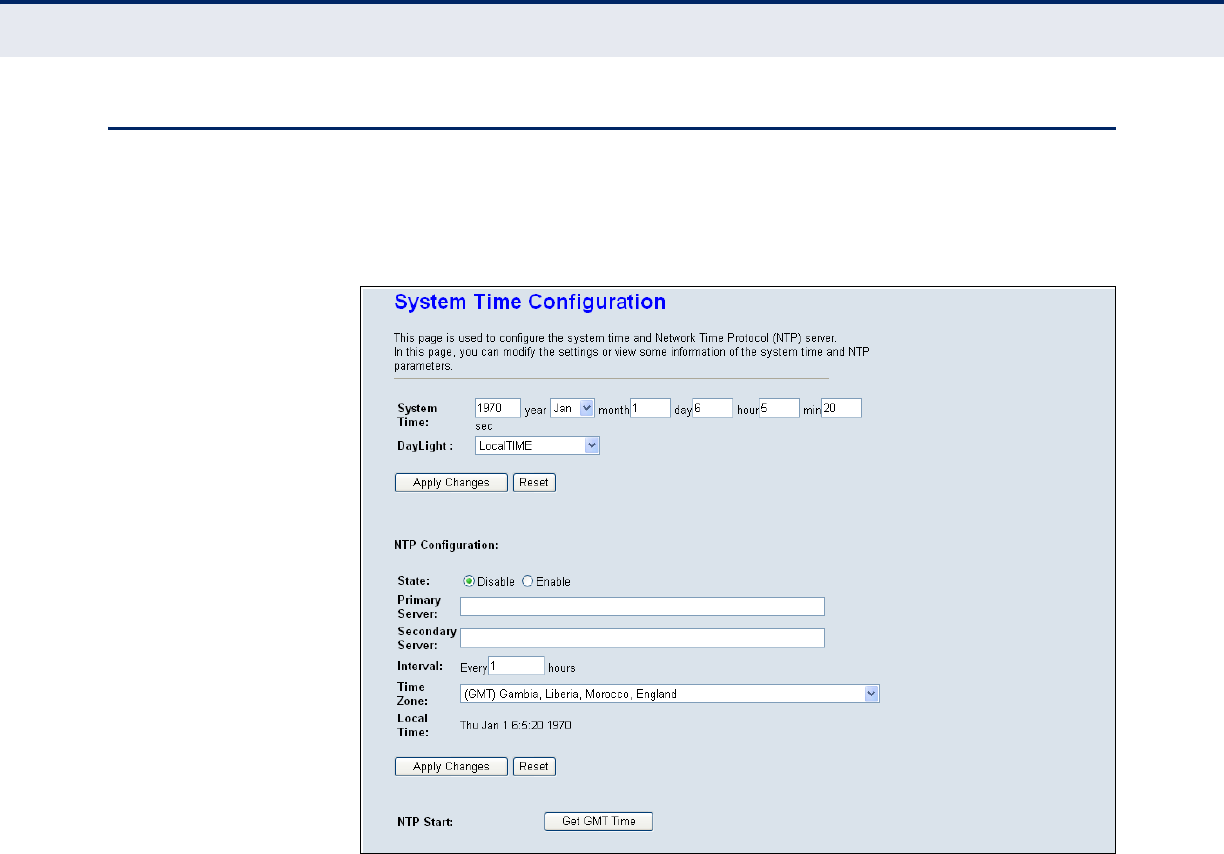

Figure 71: System Time Configuration 122

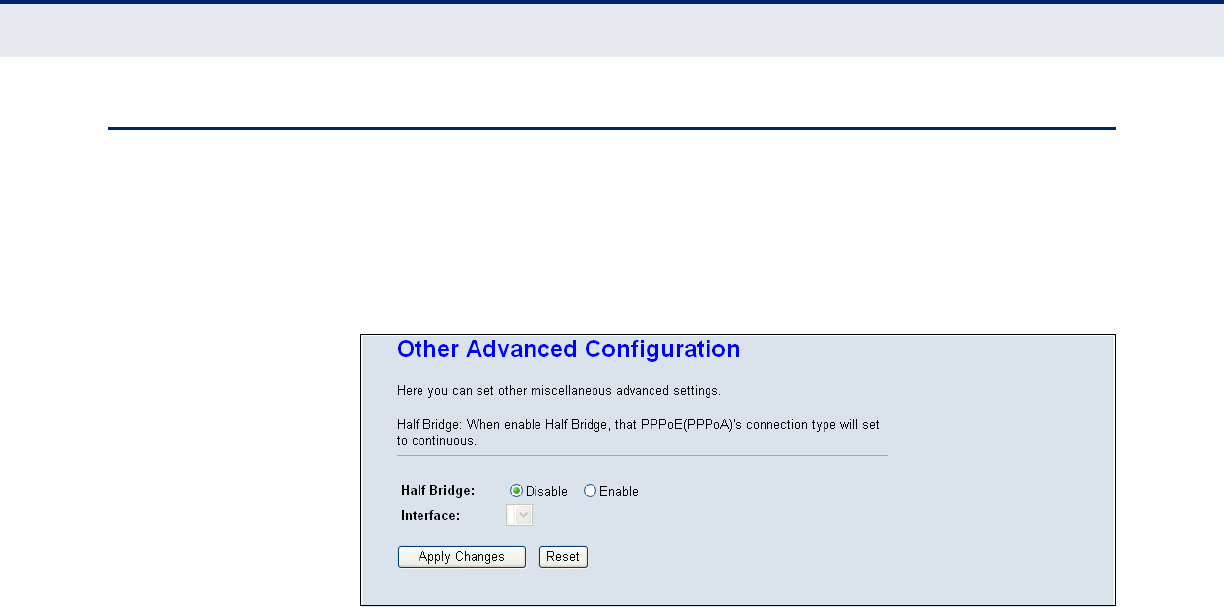

Figure 72: Other Advanced Configuration 123

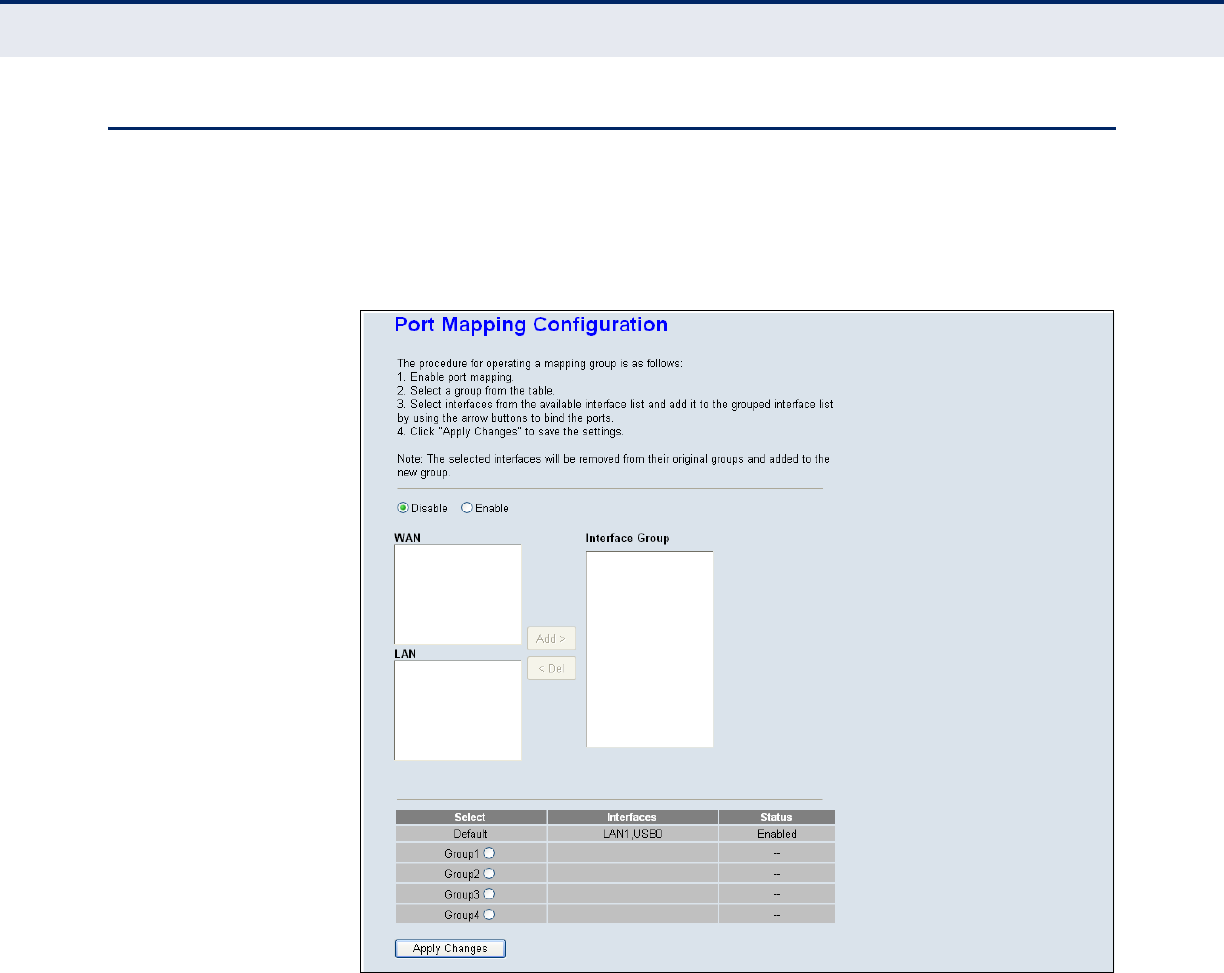

Figure 73: Port Mapping Configuration 124
Figure 74: Diagnostic Test 126

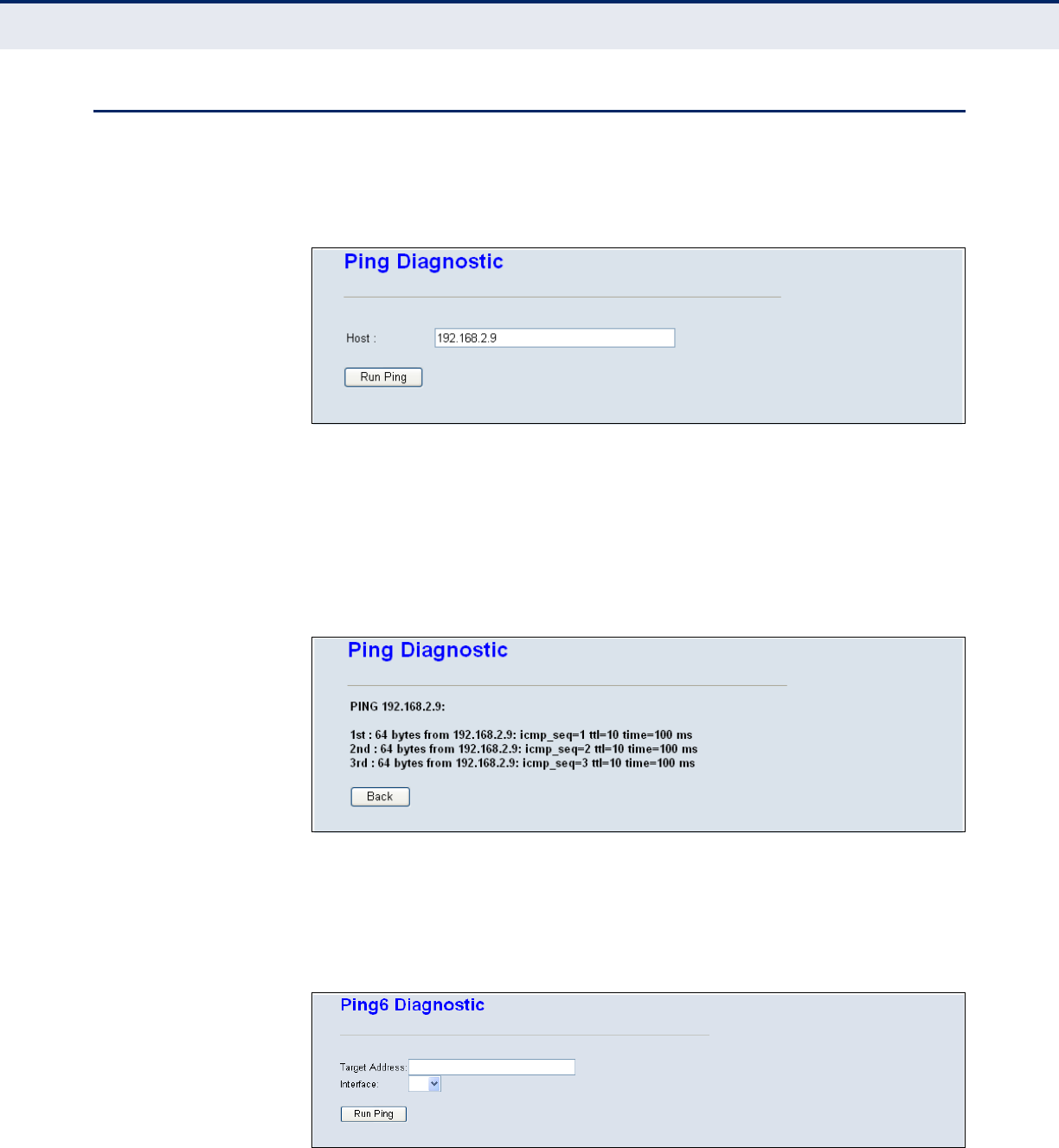

Figure 75: Ping 127
Figure 76: Ping Result 127
Figure 77: Ping6 127

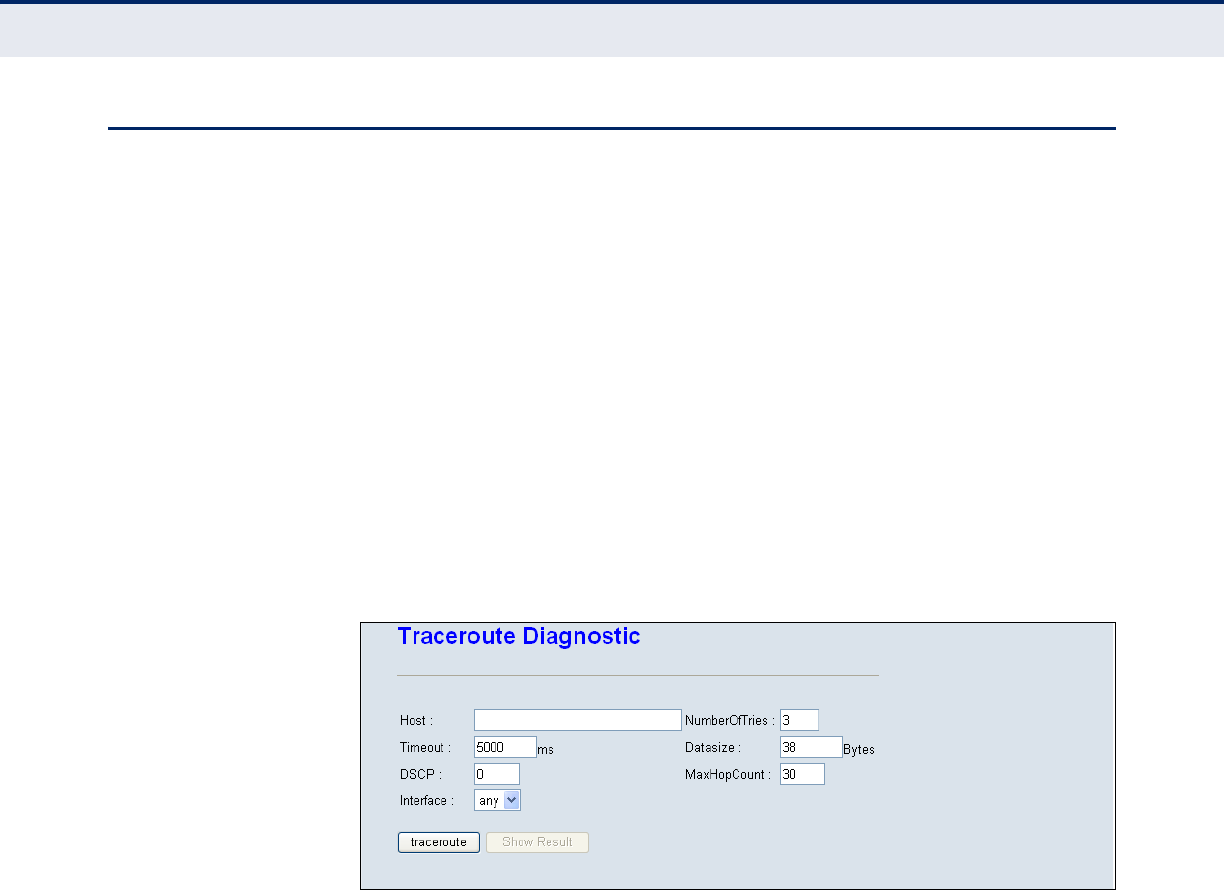

Figure 78: Traceroute 128
Figure 79: Traceroute Result 129
Figure 80: ADSL Tone Diagnostics 130

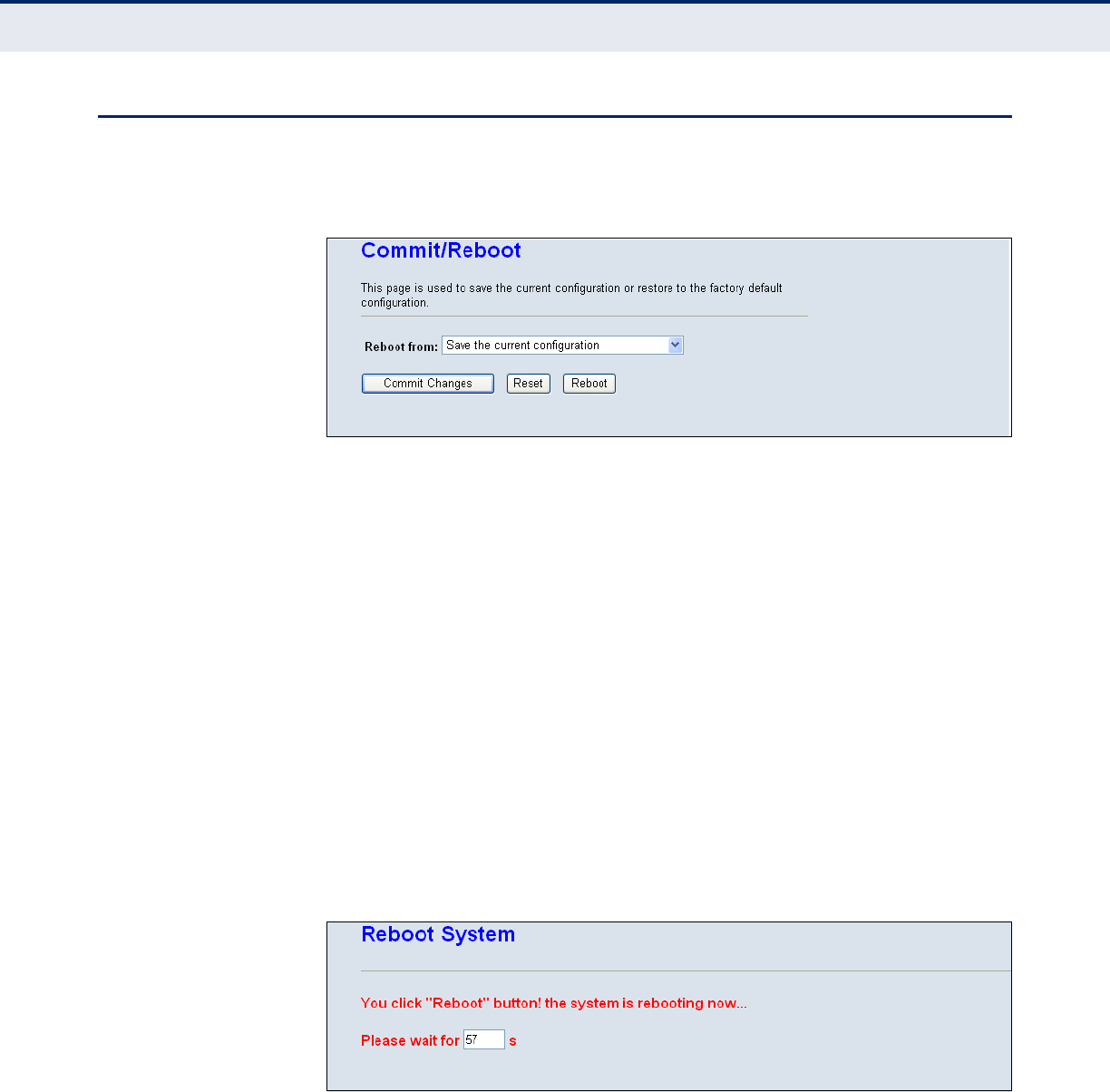

Figure 81: Commit/Reboot 133
Figure 82: Rebooting 133

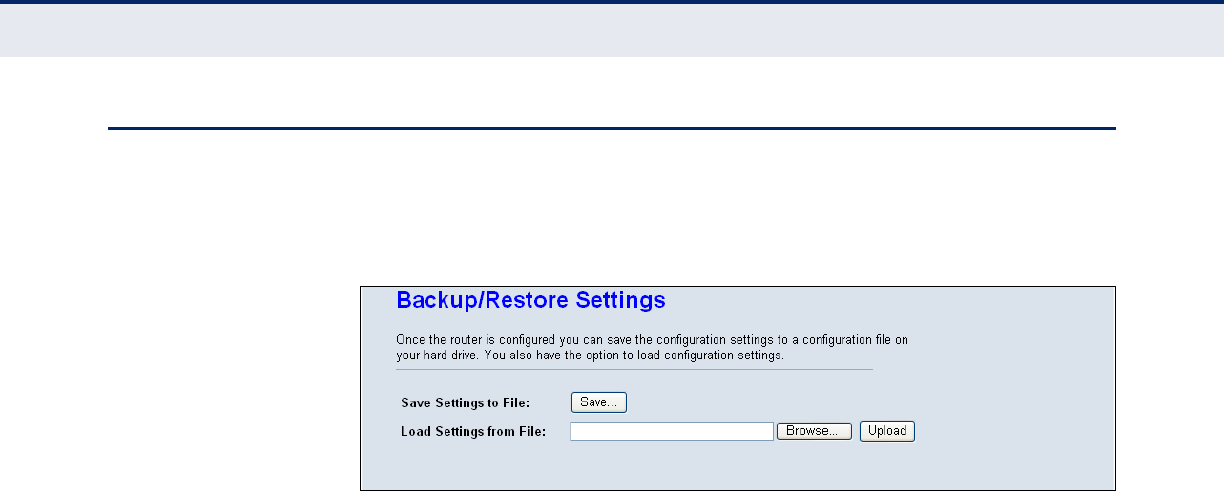

Figure 83: Backup/Restore Settings 134
Figure 84: Password Setup 135

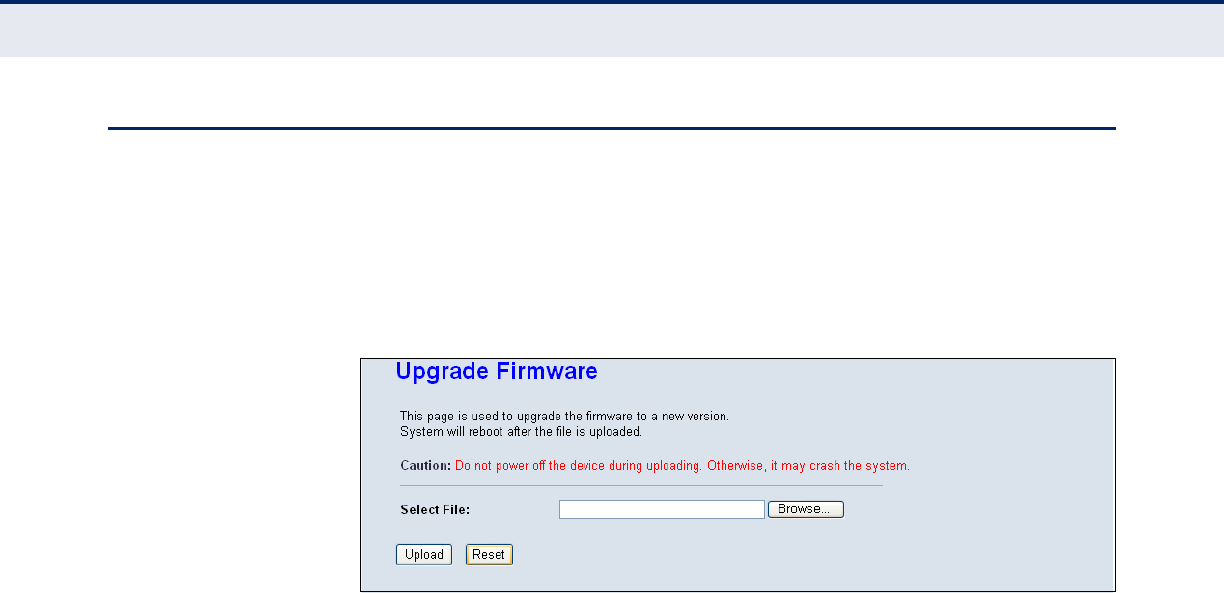

Figure 85: Upgrade Firmware 136
Figure 86: TR-069 Configuration 137
Figure 87: RJ-45 Connector 147

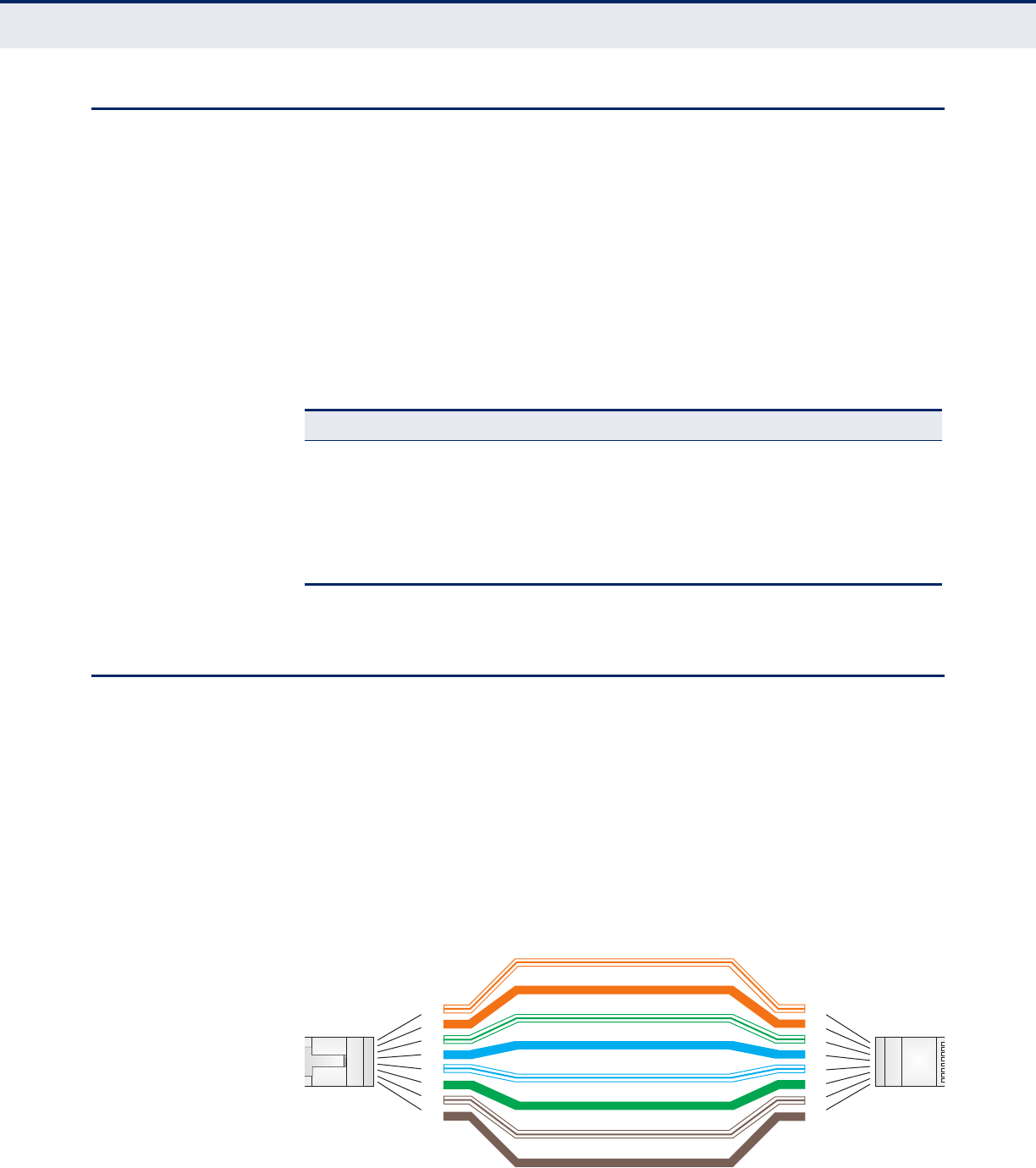

Figure 88: Straight-through Wiring 148

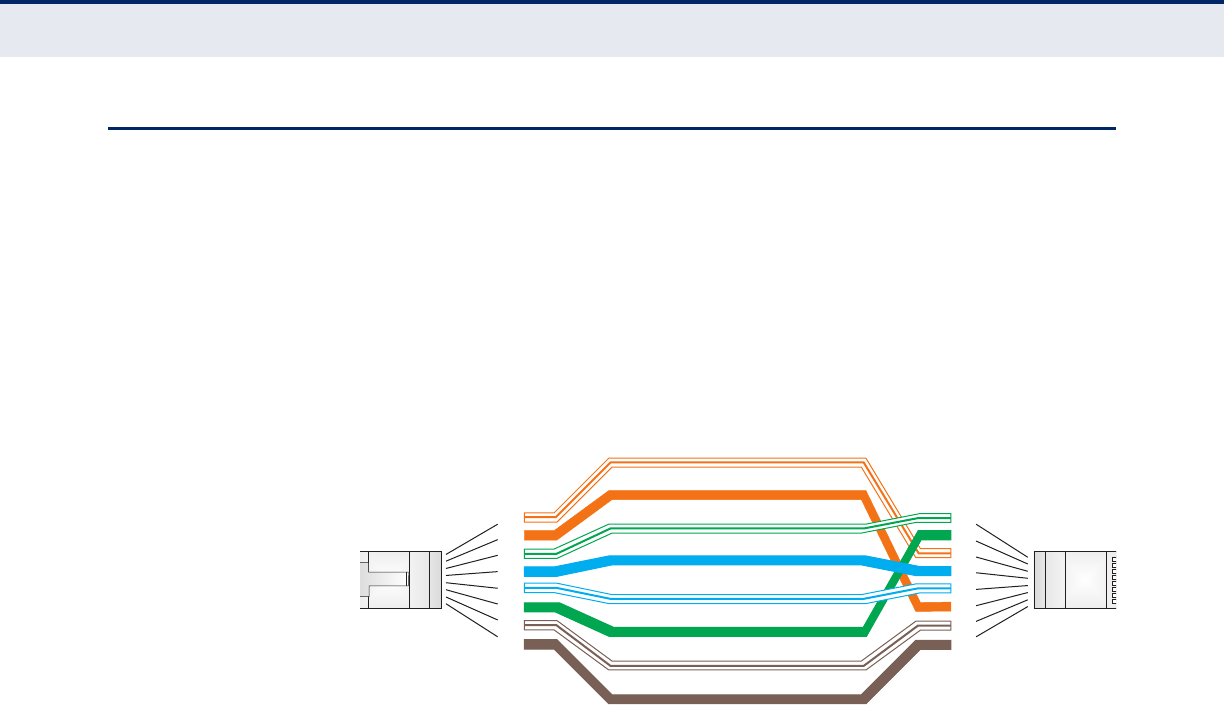

Figure 89: Crossover Wiring 149

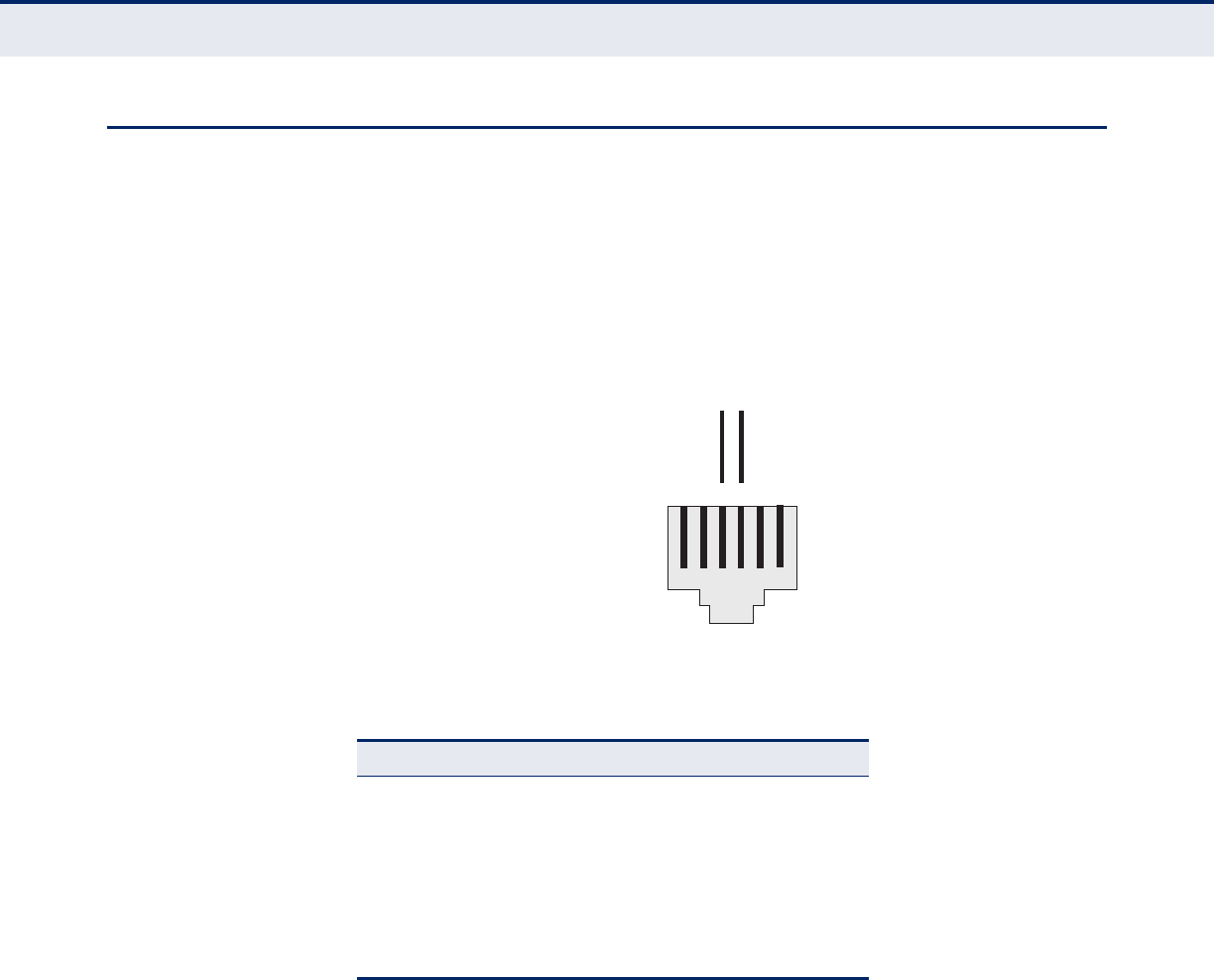

Figure 90: RJ-11 Wiring 150
– 24 –
TABLES
Table 1: LED Display Indicators 28
Table 2: Configuration Menu 37
Table 3: LED Troubleshooting Chart 141
Table 4: Web Access Troubleshooting Chart 142
Table 5: 10/100BASE-TX MDI and MDI-X Port Pinouts 148
Table 6: RJ-11 Port Pinouts 150
– 25 –
S
ECTION
I
GETTING STARTED
This section provides an overview of the ADSL Gateway Router, and
describes how to install and mount the unit.
This section includes these chapters:
“Introduction” on page 26
“Installing the Router” on page 30
– 26 –
1INTRODUCTION
The Barricade ADSL Gateway Router (SMC7904WBRAS-N2 v2) is an
ADSL2/2+ modem contained in a compact unit. The router enables
multiple wired and wireless users to securely access the Internet through a
single-user account with the ADSL service provider. The router provides
four 10/100 Mbps Ethernet ports for connection to end users, an IEEE
802.11b/g/n wireless interface, and one ADSL line for connection to the
Internet service provider.
FEATURES AND BENEFITS
The features of the ADSL Gateway Router include:
Full-rate ADSL router, support for Router and Bridge modes
ITU G.992.3(ADSL2) and ITU G.992.5(ADSL2+)
ITU G.992.1 (G.dmt) Annex A and ITU G.992.2 (G.lite)
ANSI T1.413 Issue 2
Provides 24 Mbps downstream and 1 Mbps upstream
Maximum transmission range: 5.4 Kilometers
Four Ethernet ports, 10/100 Mbps Auto-MDI/MDIX
802.11n 2.4 GHz radio supporting four SSID interfaces
Friendly web-based user interface for configuration
Configurable as a DHCP server on your network
Compatible with all standard Internet applications
Industry standard and interoperable DSL interface
Simple web-based status page displays a snapshot of your
configuration, and links to the configuration pages.
Downloadable flash software upgrades
Support of up to 8 Permanent Virtual Circuits (PVC)
Support of up to 8 PPPoE sessions
C
HAPTER
1
| Introduction
Description of Hardware
– 27 –
DESCRIPTION OF HARDWARE
This ADSL Gateway Router is a high bit-rate Digital Subscriber Line (DSL)
modem that can connect to an ADSL Internet service provider.
This unit provides the following ports on the rear panel:
One RJ-11 port for connection to your ADSL service provider’s incoming
line.
Four RJ-45 ports for connection to PCs, or to a 10/100BASE-TX
Ethernet Local Area Network switch. The ports operate at 10/100 Mbps,
half/full duplex. It supports automatic MDI/MDI-X operation, so you can
use straight-through cables for all network connections. (See “10/
100BASE-TX Pin Assignments” on page 148.)
The following two figures show the components of the Gateway:

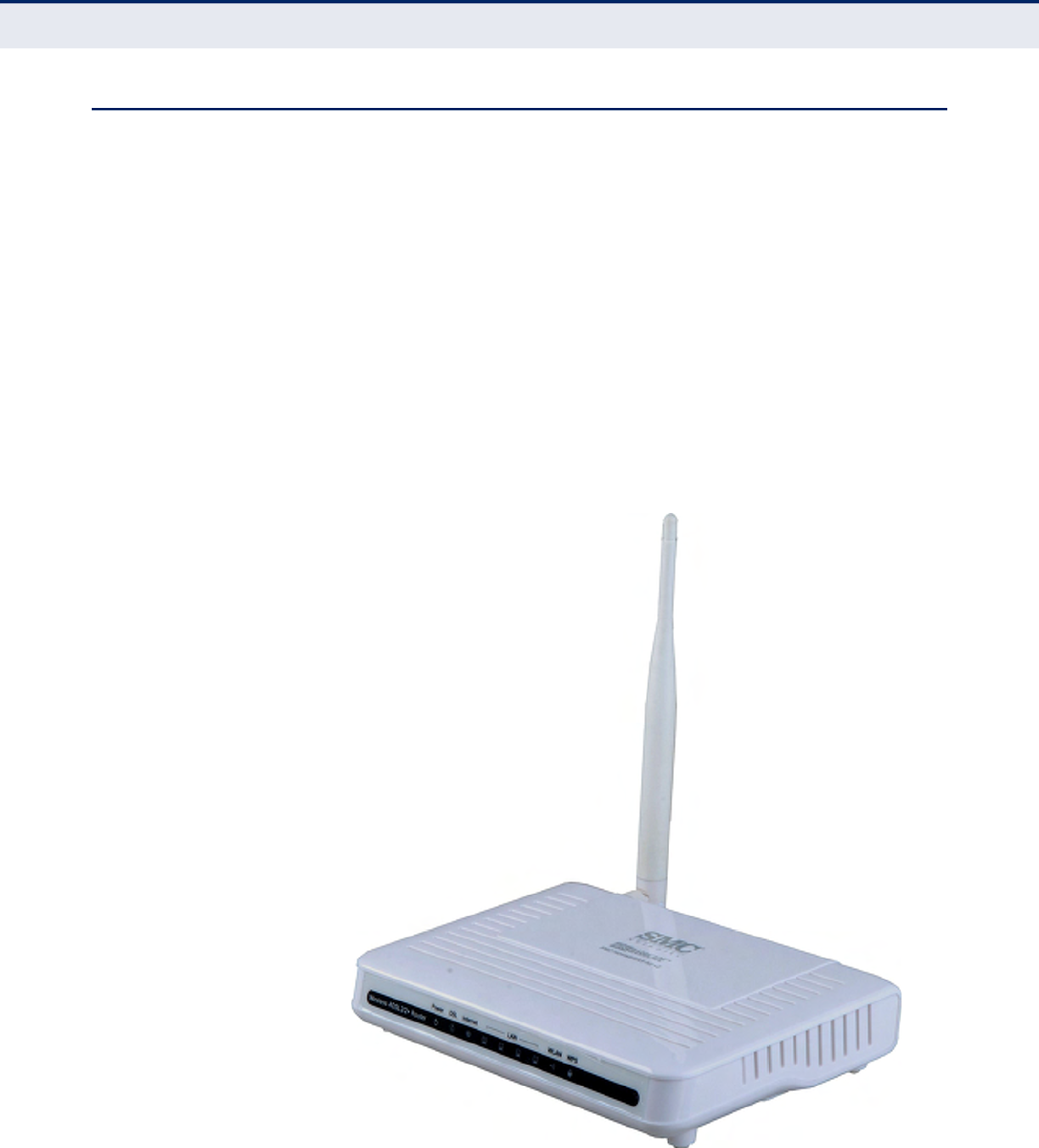

Figure 1: Top Panel
C
HAPTER
1
| Introduction
Description of Hardware
– 28 –

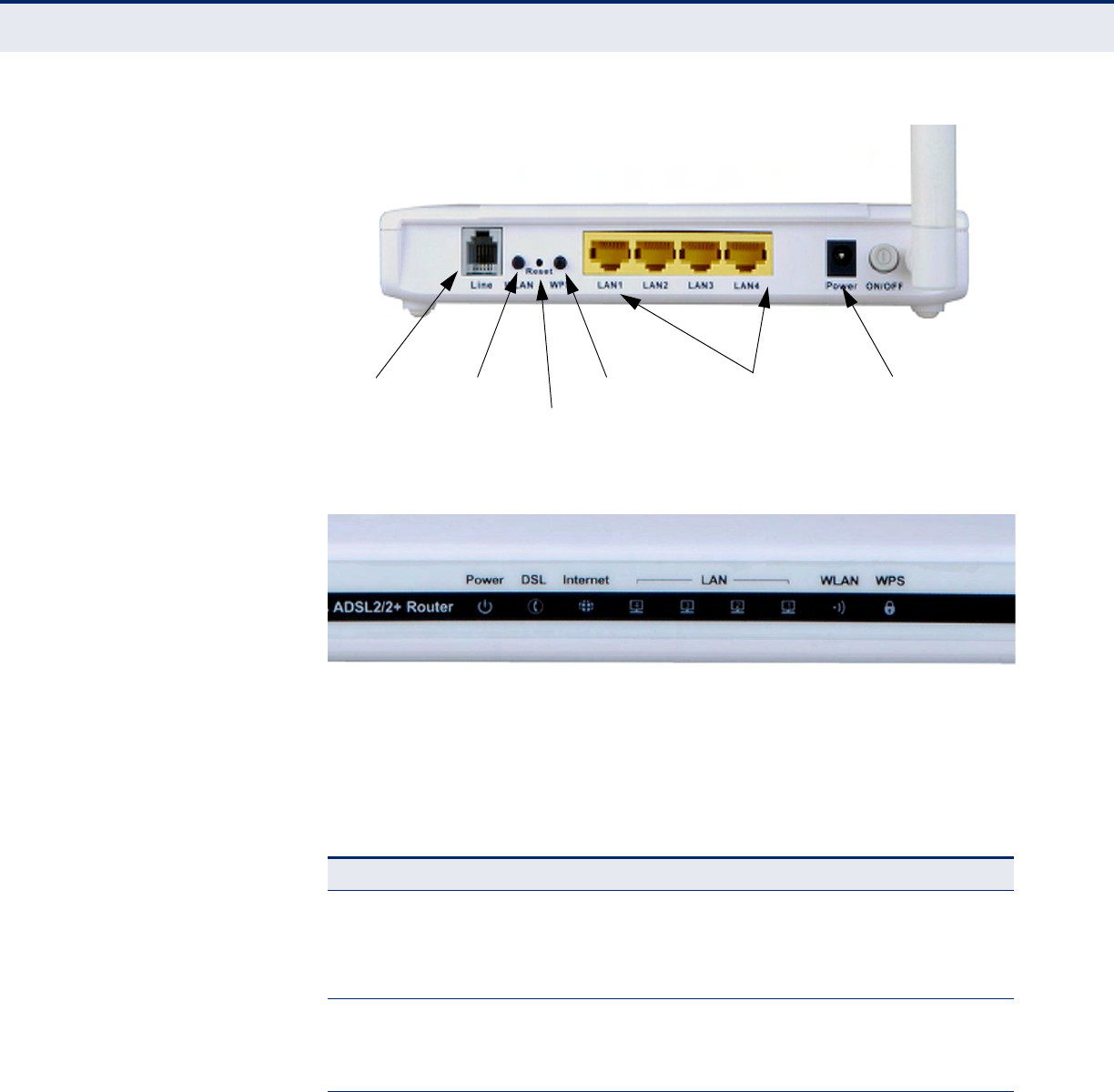

Figure 2: Rear Panel
Figure 3: Front Panel LEDs
The ADSL Gateway Router includes key system and port indicators that
simplify installation and network troubleshooting. The LEDs, which are
located on the top of the unit for easy viewing, are described in the
following table.
Table 1: LED Display Indicators
LED Status Description
Power On Green The router is being supplied with power.
On Red The router is running its self-test or the self-test has
failed.
Off The router is not receiving power.
DSL On Green The DSL Line port has a link with the service provider.
Fast Blinking Green A DSL link is being established with the service provider.
Slow Blinking Green No DSL signal detected.
Internet On Green The Internet connection is in its normal routing mode
(for example, PPP dial-up is successful), but no data is
being transmitted.
Blinking Green Internet data is being transmitted in routing mode.
On Red The Internet connection has failed after successful
synchronization in routing mode (for example, PPP dial-
up has failed).
Off The device is in bridge mode.
WAN Port Power Socket and
On/Off Switch
WLAN On/Off Ethernet Ports
Reset Button
WPS Button
C
HAPTER
1
| Introduction
Description of Hardware
– 29 –
POWER CONNECTOR The ADSL Gateway Router must be powered with its supplied power
adapter. Failure to do so results in voiding of any warrantly supplied with
the product. The power adapter automatically adjusts to any voltage
between 100~240 volts at 50 or 60 Hz, and supplies 12 volts DC power to
the unit. No voltage range settings are required.
POWER BUTTON The ADSL Gateway Router has a power button. When the AC power
adapter is attached and connected to a power source, the power button
must be depressed to power on the unit.
WLAN BUTTON Turns the ADSL Gateway Router’s Wi-Fi radio on or off. The WLAN LED on
the front panel indicates when the Wi-Fi radio is enabled.
WPS BUTTON Push this button to start WPS authentication of a wireless device. After a
device is successfully added to the network by WPS, the WPS LED will
remain on for about 5 minutes and then turn off.
RESET BUTTON This button is used to restore the factory default configuration. If you press
and hold down the button for 8 seconds or more, any configuration
changes you may have made are removed, and the factory default
configuration is restored to the unit.
LAN
(1-4) On Green Ethernet port has a valid link with attached device.
Blinking Green Data is being transmitted or received on the port.
Off Ethernet port has no link with an attached device.
WLAN On Green The Wi-Fi radio is enabled.
Blinking Green Data is being transmitted through the WLAN interface.
Off The Wi-Fi radio is disabled.
WPS On Green WPS is activated and the router is waiting for negotiation
with wireless clients.
Off WPS is not activated.
Table 1: LED Display Indicators (Continued)
LED Status Description
– 30 –
2INSTALLING THE ROUTER
Before installing the ADSL Gateway Router, verify that you have all the
items listed in “Package Contents.” If any items are missing or damaged,
contact your local distributor. Also, be sure you have all the necessary tools
and cabling before installing the router.
PACKAGE CONTENTS
After unpacking the ADSL Gateway Router, check the contents of the box to
be sure that you have received the following components:
Barricade ADSL Gateway Router, SMC7904WBRAS-N2 v2
RJ-45 Category 5 network cable
RJ-11 telephone cable
ADSL splitter
AC power adapter
Quick Installation Guide
Documentation CD
SMC warranty information card
Please inform your dealer if there are any incorrect, missing, or damaged
parts. If possible, retain the carton, including the original packing materials
in case there is a need to return the unit for repair.
SYSTEM REQUIREMENTS
Before you start installing the router, make sure you can provide the right
operating environment. See the following installation requirements:
A PC or Macintosh with a 10/100 Mbps Ethernet adapter card installed.
Or, a Windows PC with an available USB port.
For Internet access, the computer must be configured for TCP/IP.
C
HAPTER
2
| Installing the Router
Cable Connections
– 31 –
Power requirements: 12 VDC using the included AC power adapter.
Make sure that a properly grounded power outlet is within 1.8m (6 ft)
of the router.
The router should be located in a cool dry place, with at least
5 cm (2 in.) of space on all sides for ventilation.
Place the router out of direct sunlight, and away from heat sources or
areas with a high amount of electromagnetic interference. The
temperature and humidity should be within the ranges listed in the
specifications.
CABLE CONNECTIONS
The ADSL Gateway Router needs to be connected to the DSL telephone line
from the service provider, and to a computer or LAN switch.
Figure 4: Connecting the Router
To install the router, follow these steps:
1. Using standard telephone cable, connect the Line port on the included
ADSL splitter to the RJ-11 telephone wall jack providing the ADSL
service.
2. Using standard telephone cable, connect the Modem port on the
included ADSL splitter to the RJ-11 Line port on the ADSL Gateway
Router.
Category 5
UTP Cable
Computer
AC Power
Adapter
AC Power Outlet
Telephone Wall Jack
Standard
Telephone
Cable
Splitter
Telephone
C
HAPTER
2
| Installing the Router
Powering On
– 32 –
3. The Phone port on the ADSL splitter can be connected to a standard
telephone set using telephone cable.
4. Connect one end of the included Ethernet cable to an Ethernet port on
the ADSL Gateway Router, and the other end to a PC’s RJ-45 network
port. Alternatively, you can connect an Ethernet port to a LAN switch.
C
AUTION
:
Do not plug a phone jack connector into any RJ-45 port. Use only
twisted-pair cables with RJ-45 connectors that conform to FCC standards.
N
OTE
:
When connecting to any network device (such as a PC, hub or
switch), you can use either straight-through or crossover cabling. (Refer to
“Cables and Pinouts” on page 147 for a description of cable types.)
N
OTE
:
Make sure the twisted-pair Ethernet cable connected to the router’s
Ethernet port does not exceed 100 meters (328 feet).
POWERING ON
Plug the power adapter cord into the DC 12V power socket on the router,
and then plug the power adapter directly into a power outlet. Check the
LED marked “Power” on the top of the unit to be sure it is on. If the Power
indicator does not light up, refer to “Troubleshooting” on page 141.
If the router is properly configured, it will take about 30 seconds to
establish a connection with the ADSL service provider after powering up.
During this time the Link indicator will blink during synchronization. After
the ADSL connection has been established, the Link indicator will stay on.
CONFIGURING THE TCP/IP PROTOCOLS
To connect the router to a computer through its Ethernet port, the
computer must have an Ethernet network adapter card installed, and be
configured for the TCP/IP protocol. Your service provider will configure
TCP/IP for client computers automatically using a networking technology
known as Dynamic Host Configuration Protocol (DHCP).
Carry out the following steps to check that the computer’s Ethernet port is
correctly configured for DHCP.
WINDOWS 95/98/NT
1. Click “Start/Settings/Control Panel.
2. Click the “Network” icon.
3. For Windows NT, click the “Protocols” tab.
C
HAPTER
2
| Installing the Router
Configuring the TCP/IP Protocols
– 33 –
4. Select “TCP/IP” from the list of network protocols; this may include
details of adapters installed in your computer.
5. Click “Properties.
6. Check the option “Obtain an IP Address.
WINDOWS 2000
1. Click “Start/Settings/Network/Dial-up Connections.
2. Click “Local Area Connections.
3. Select “TCP/IP” from the list of network protocols.
4. Click on “Properties.
5. Select the option “Obtain an IP Address.
WINDOWS XP
1. Click “Start/Control Panel/Network Connections.
2. Right-click the “Local Area Connection” icon for the adapter you want to
configure.
3. Highlight “Internet Protocol (TCP/IP).
4. Click on “Properties.
5. Select the option “Obtain an IP address automatically” and “Obtain DNS
server address automatically.
WINDOWS VISTA
1. Click Start/Control Panel.
2. Double-click “Network and Sharing Center.
3. Click “View status.
4. Click “Properties.” If the “User Account Control” window appears, click
“Continue.
5. Highlight “Internet Protocol Version 6 (TCP/IPv6)” or “Internet Protocol
Version 4 (TCP/IPv4),” and click “Properties.
6. Select the option “Obtain an IP address automatically” and “Obtain DNS
server address automatically.
MAC OS
1. Pull down the Apple Menu. Click “Control Panels” and select “TCP/IP.
2. In the TCP/IP dialog box, verify that “Ethernet” is selected in the
“Connect Via:” field.
C
HAPTER
2
| Installing the Router
Configuring the TCP/IP Protocols
– 34 –
3. IfUsing DHCP Server is already selected in theConfigure field, your
computer is already configured for DHCP. Otherwise, select “Using
DHCP Server” in the “Configure” field and close the window.
4. Another box will appear asking whether you want to save your TCP/IP
settings. Click “Save.
5. Your service provider will now be able to automatically assign an IP
address to your computer.
– 35 –
S
ECTION
II
WEB CONFIGURATION
This section describes the basic settings required to access the web
management interface and provides details on configuring the Gateway.
This section includes these chapters:
“System Configuration” on page 36
“Device Information” on page 45
“WLAN Configuration” on page 54
“LAN Settings” on page 72
“WAN Settings” on page 81
“Services” on page 88
Advanced” on page 115
“Diagnostics” on page 125
Administration Settings” on page 132
– 36 –
3SYSTEM CONFIGURATION
USING THE WEB INTERFACE
The router provides a web-based management interface for configuring
device features and viewing statistics to monitor network activity. This
interface can be accessed by any computer on the network using a
standard web browser (such as Internet Explorer 5.0, Netscape 6.2, Mozilla
Firefox 2.0, or above).
To make an initial connection to the management interface, connect a PC
to one of the router’s LAN ports. Set your PC with a static address within
the same subnet as that used by the router (that is, 192.168.2.x with the
subnet mask 255.255.255.0).
To access the configuration menu, follow these steps:
1. Use your web browser to connect to the management interface using
the default IP address of 192.168.2.1.
Figure 5: Web Login
2. Log in to the router’s management interface using this account:
Login ID: admin
Password: smcadmin
C
HAPTER
3
| System Configuration
Using the Web Interface
– 37 –
N
OTE
:
It is strongly recommended to change the default password the first
time you access the web interface. For information on changing the
password, see “Password Setup” on page 135.
HOME PAGE When your web browser connects with the router’s web agent, the home
page is displayed as shown below. Basic information can be viewed using
the Status menu. To carry out detailed configuration tasks, use the other
menu items.
Figure 6: Home Page
The main menu is displayed on the left side of the screen. Click on any of
these items to open the sub-menu list. The information in this chapter is
organized to reflect the structure of the web management screens for easy
reference. The configuration pages include the options listed in the table
below. For details on configuring each feature, refer to the corresponding
page number.
Table 2: Configuration Menu
Menu Description Page
Wizard Starts the setup wizard 40
Status
System Shows hardware/software version numbers, DSL
connection status, and Internet connection settings 45
LAN Shows the LAN IP and DHCP server settings 46
WLAN Shows wireless interface settings 47
WAN Shows WAN interface functional status (including
connection mode – single or multiple service, IGMP), and
connection status
48
Port Mapping Shows the port mapping settings 49
Statistics
C
HAPTER
3
| System Configuration
Using the Web Interface
– 38 –
Statistics Shows the network traffic statistics 50
DSL Statistics Shows the ADSL line statistics 51
ARP Shows entries in the ARP table 52
Wireless
Basic Settings Configures basic wireless settings 55
Advanced Settings Configures advanced wireless settings 57
Security Configures wireless security settings 59
Access Control Configures wireless access control settings 64
WPS Configures WPS security 65
MBSSID Enables multiple SSID interfaces 66
WDS Configures Wireless Distribution System settings 68
LAN Interface
LAN Interface Configures the LAN management interface, including IP
address, and IGMP snooping on LAN side 73
IPv6 LAN Config Configures IPv6 LAN settings 74
DHCP Config
DHCP Mode Sets DHCP server and DHCP relay settings 76
Static IP Configures static DHCP assignments 80
WAN Interface
Channel Config Configures the DSL channel settings 82
ATM Settings Configures DSL ATM settings 84
ADSL Settings Configures ADSL settings 86
Services
DNS
DNS Server Configures DNS server settings 89
IPv6 DNS Configures IPv6 DNS server settings 89
Dynamic DNS Configures DDNS settings 90
Access Control List
ACL Config Configures ACLs for LAN or WAN interfaces 92
IP/Port Filtering Configures IP filtering settings 95
NAT/NAPT
Virtual Server Configures the virtual server forwarding table 97
NAT Exclude IP Configures excluded IPs on the WAN interface 99
NAT Forwarding Configures forwarding for access to local servers 99
NAT ALG and Pass-
Through Configures NAT passthrough for specific application
protocols 100
NAT Port Trigger Restricts Internet access for specific ports 101
Table 2: Configuration Menu (Continued)
Menu Description Page
C
HAPTER
3
| System Configuration
Using the Web Interface
– 39 –
FTP ALG
Configuration Configures FTP server and client ports 102
NAT IP Mapping Configures IP address mapping for NAT 102
IP QoS Configures IP-based QoS settings 103
MAC Filtering Configures MAC address filtering 105
DMZ Configures DMZ settings 106
URL Block Sets URL key words to block 107
Software Forbidden Blocks Internet access for specific software 108
DoS Setting Configures denial-of-service settings 109
IGMP Proxy Configures IGMP Proxy settings for multicast traffic 111
RIP Configures Routing Information Protocol settings 113
ARP Binding Configures Address Resolution Protocol binding 114
Advance
Bridge Setting Configures aging time and Spanning Tree settings 116
Log Setting Configures system log settings 117
Routing Configures static routing 118
UPnP Enables UPnP for the WAN interface 120
SNMP Configures SNMP settings 121
System Time Configures NTP time server settings 122
Others Configures Half Bridge settings 123
Port Mapping Maps LAN ports to WAN interfaces 124
Diagnostic
Diag-Test Runs diagnostic tests for the ADSL link 126
Ping Sends Ping echo requests to other devices 127
Ping6 Sends IPv6 Ping echo requests to other devices 127
Traceroute Checks routes to other devices 128
ADSL Runs ADSL diagnostic tone tests 130
Admin
Commit/Reboot Reboots the unit and/or restores factory defaults 133
Backup/Restore Backs up or restores configuration settings 134

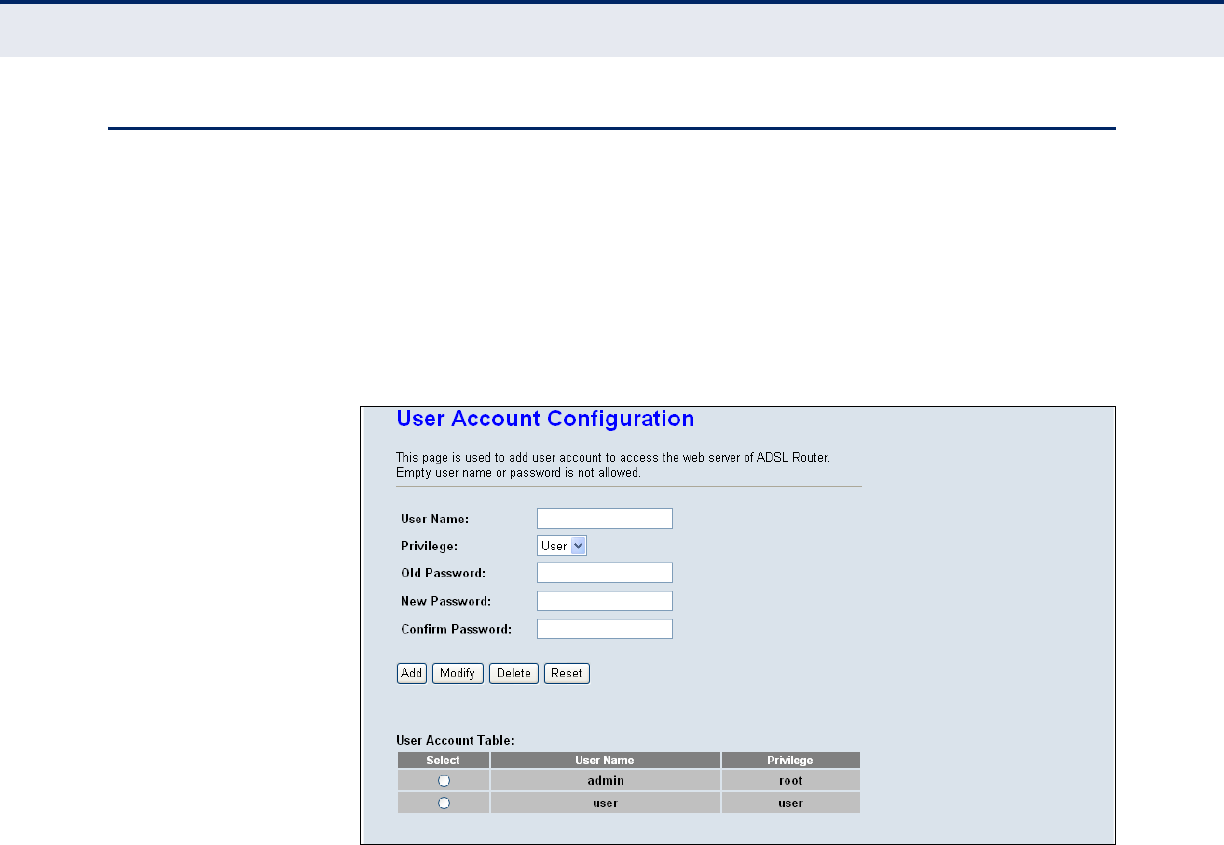

Password Setup Changes the web access passwords 135
Upgrade Firmware Upgrades the unit’s software version 136
Configure TR-069 Configures parameters for establishing a connection
between the router and an auto-configuration server 137
Table 2: Configuration Menu (Continued)
Menu Description Page
C
HAPTER
3
| System Configuration
Setup Wizard
– 40 –
SETUP WIZARD
The Wizard is designed to help you configure the basic settings required to
get the ADSL Gateway Router up and running. Click “Wizard” in the main
menu to get started.
STEP 1 - GETTING
STARTED
After reading the wizard welcome message, click Next to continue.
Figure 7: Wizard Step 1 - Getting Started
STEP 2 - TIME ZONE Configure a Network Time Protocol (NTP) server to poll for time updates.
To synchronize the router with an NTP server, specify the IP address of a
public time server, select your local time zone, and click Next.
Figure 8: Wizard Step 2 - Time Zone Configuration
The following items are displayed on this page:
Status – Enables or disables time synchronization with external
servers.
C
HAPTER
3
| System Configuration
Setup Wizard
– 41 –
Server IP – Specifies the IP address of a public NTP time server on the
Internet.
Interval – Specifies the time interval for polling the NTP server.
Time Zone – A drop-down box provides access to predefined time
zones. Each choice indicates it’s offset from GMT and lists at least one
major city or commonly known zone name covered by the time zone.
STEP 3 - ADSL
SETTINGS
The third page of the wizard configures the ADSL country settings, Internet
service provider, protocol, connection type and username and password.
Figure 9: Wizard Step 3 - ADSL Settings
The following items are displayed on the first page of the Wizard:
Country — Choose your country of operation from the drop down
menu. If your country is not listed, contact your service provider for
detailed settings.
Internet Service Provider — The chosen country will determine the
list of available Internet Service Providers. Choose the service provider
with which you have a contract.
Protocol — The protocol used will be specified by your service
provider. Choose from the following options:
PPPoE — Point-to-Point Protocol over Ethernet (PPPoE).
PPPoA — Point-to-Point Protocol over Asynchronous Transfer Mode
(PPPoA).
C
HAPTER
3
| System Configuration
Setup Wizard
– 42 –
1483 MER : DHCP — 1483 MER is an RFC standard MAC
Encapsulated Routing protocol.
1483 MER : Static IP — 1483 MER is an RFC standard MAC
Encapsulated Routing protocol.
1483 Bridged — The Bridged RFC 1483 Encapsulated Traffic over
ATM feature allows you to send bridged RFC 1483 encapsulated
packets over ATM switched virtual circuits (SVCs).
1483 Routed — Allows you to send routed RFC 1483 encapsulated
packets over ATM switched virtual circuits (SVCs).
IPoA — Dynamic IP over ATM (IPoA).
Connection Type — Your connection type will also be specified by your
service provider. Choose from the following options:
VC-Mux — Virtual circuit multiplexing (VC-Mux).
LLC — Logical Link Control (LLC).
VPI — The ATM Virtual Path Identifier. (Range: 0-255)
VCI — The ATM Virtual Channel Identifier. (Range: 32-65535)
Username — Enter the username provided by your service provider.
Password — Enter the password provided by your service provider.
Confirm Password — Re-enter your password.
C
HAPTER
3
| System Configuration
Setup Wizard
– 43 –
STEP 4 - WIRELESS
SETTINGS
The fourth page of the wizard configures wireless settings for the ADSL
router.
Figure 10: Wizard Step 4 - Wireless Settings
The following items are displayed on the first page of the Wizard:
WLAN Interface — Enables/disables the wireless 802.11b/g/n
interface.
Band — Selects the operating band and mode. The router supports the
2.4 GHz band and can operate in any combination of 802.11b, g, or n
modes.
SSID — Specifies an SSID (service set identifier) which must be the
same as that on all wireless clients that wish to associate with the unit.
Encryption — Specifies the security used to protect your wireless
network. (Default: None)
None: Allows any wireless client within range to associate with the
ADSL/Router.
WEP: Provides a basic level of security using static shared keys that
are distributed to all clients. Be sure to configure at least one static
key. Alternatively, enable 802.1X authentication to dynamically
create and distribute keys from a RADIUS server.
WPA(TKIP/AES): Wi-Fi Protected Access (WPA) using either a
static pre-shared key, or 802.1X authentication through a RADIUS
server. The encryption used is either TKIP or AES.
C
HAPTER
3
| System Configuration
Setup Wizard
– 44 –
WPA2(TKIP/AES): WPA2 using either a static pre-shared key, or
802.1X authentication through a RADIUS server. The encryption
used is either TKIP or AES.
WPA2 Mixed: WPA and WPA2 using either a static pre-shared key,
or 802.1X authentication through a RADIUS server. Either TKIP or
AES encryption is used depending on the client.
STEP 4 -
CONFIGURATION
SAVING
The final step in the setup wizard saves the configuration changes. Click
Finish to complete the wizard, then click Save.
Figure 11: Wizard Step 3 - Configuration Saving
– 45 –
4DEVICE INFORMATION
The Status pages display information on hardware/software versions, LAN
and WAN connection status, statistics, and the ARP table.
SYSTEM STATUS
The System Status page displays the hardware and software versions, and
the WAN connection status and speed.
Click Status, System.
Figure 12: System Status
The following items are displayed on this page:
SYSTEM:
Alias Name – An alias for the ADSL Router, enabling the device to be
uniquely identified on the network.
Uptime – The length of time in minutes that the unit has been powered
on.
Software Version – The current version of firmware running on the
unit.
DSP Version – The current hardware version of the digital signal
processor (DSP).
DSL:
Operational Status – Displays the status of the DSL connection.
C
HAPTER
4
| Device Information
LAN Status
– 46 –
Upstream Speed – The current upload speed of the DSL connection.
Downstream Speed – The current download speed of the DSL
connection.
LAN STATUS
The ADSL Router LAN window displays basic LAN port settings including
DHCP information.
Figure 13: Status - LAN
The following items are displayed on this page:
LAN STATUS
Displays the basic information of the LAN port.
IP Address — Displays an IP address for local area connection to the
ADSL Router.
Subnet Mask — Displays the local subnet mask.
DHCP Server — Displays whether the DHCP server has been enabled
or not.
MAC Address — Displays the physical layer address of the LAN port.
DHCP CLIENT TABLE
Displays information on the DHCP configuration and lease time.
Name — Displays the name of the client device.
IP Address — Displays the DHCP Client IP address.
MAC Address — Displays the physical layer address of the DHCP
Client.
C
HAPTER
4
| Device Information
WLAN Status
– 47 –
Expiry(s) — Displays the duration of the lease time.
Type — Indicates if the entry is dynamic or static.
WLAN STATUS
The WLAN Status window displays basic wireless interface settings.
Figure 14: Status - WLAN
The following items are displayed on this page:
Wireless Configuration — Indicates wireless interfaces that are
enabled. The router supports four multiple SSID interfaces: Root, and
VAP0-VAP3.
Wireless Client List — Lists all wireless clients associated to the
router.
Wireless Access Control List — Displays current wireless access
control list settings.
C
HAPTER
4
| Device Information
WAN Status
– 48 –
WAN STATUS
The ADSL Router WAN window displays basic IPv4 and IPv6 WAN port
settings.
Figure 15: Status - WAN
The following items are displayed on this page:
Interface — Displays the interface identifier.
VPI/VCI — Displays the ATM channel identifiers.
Encapsulation — Displays the encapsulation type chosen, either LLC
to VX-Mux.
Default Route — Dipslays if a default route has been enabled.
Protocol — Displays the protocol used for transmission of data packets
IP Address — Displays the local IP address of the WAN port.
Default Gateway — Displays the network route, or gateway used by
the unit when no other known route exists for a given IP packet's
destination address.
Status — Specifies the status of the interface.
DNS ServersSpecifies the IP addresses of DNS servers.
C
HAPTER
4
| Device Information
Port Mapping
– 49 –
PORT MAPPING
The Port Mapping status shows the mapping of WAN and LAN interfaces to
specific groups.
Figure 16: Status - Port Mapping
The following items are displayed on this page:
Status — Indicates if port mapping is enabled or disabled.
Select — Indicates the group identification.
Interfaces — Specifies the WAN and LAN interfaces in the group.
Status — Indicates if the group mapping is enabled.
C
HAPTER
4
| Device Information
Traffic Statistics
– 50 –
TRAFFIC STATISTICS
The ADSL Router Traffic Statistics - Interfaces window displays received
and transmitted packet statistics for all interfaces on the ADSL Router.
Figure 17: Status - Traffic Statistics
The following items are displayed on this page:
Interface — Displays the interface on which traffic is being monitored.
Rx Packet — Displays the total number of packets received by the
specified interface.
Rx Error — Displays the total number of packet errors received by the
specified interface, if any.
Rx Drop — Displays the total number of received packets dropped by
the specified interface.
Tx Packet — Displays the total number of packets transmitted by the
specifed interface.
Tx Error — Displays the total number of packet errors occured during
transmission by the specified interface.
Tx Drop — Displays the total number of packets transmitted but
dropped by the specified interface.
Refresh — Updates the statistical table for all interfaces.
C
HAPTER
4
| Device Information
DSL Statistics
– 51 –
DSL STATISTICS
The ADSL Router DSL Statistics window displays received and transmitted
packet statistics for all interfaces on the ADSL Router.
Figure 18: Status - DSL Statistics
The following items are displayed on this page:
ADSL Status — Displays the ADSL connection status (“activating”,
“up” or null).
ADSL Mode — Displays the connection mode for the ADSL Router,
which is fixed at ADSL2+.
Upstream — Displays the actual payload carried on the upstream
channels.
Downstream — Displays the actual payload carried on the
downstream channels.
Attentuation Downstream/Upstream (db) — Displays the amount
of attenuation in signal strength due to conductive losses in
transmission medium. Attenuation affects the propagation of waves
and signals in electrical circuits, expressed in decibels (dB).
C
HAPTER
4
| Device Information
ARP Table
– 52 –
SNR Margin Downstream/Upstream (db) — Displays the current
signal-to-noise margin expressed in decibels (dB). SNR is the ratio of
signal power to the noise power corrupting the signal.
Vendor ID – The vendor name of the digital signal processor (DSP).
DSP Version – The current hardware version of the digital signal
processor (DSP).
CRC Errors — Displays the CRC (cyclic redunancy check) - a type of
function that takes as input a data stream of any length, and produces
as output a value of a certain space, commonly a 32-bit integer.
Upstream/Downstream BER – The the rate at which bits in the data
stream that have been altered by noise.
Up/Down Output Power — Displays the upstream/downstream
power level employed for ADSL port filtering.
ES — Displays the total error seconds, the number of second intervals
during which there was one or more CRC anomalies, or one or more
Loss of Signal (LOS) or Loss of Framing (LOF) defects.
SES — Displays the total severly errored seconds. The number of
second intervals containing 18 or more CRC-8 anomalies, one or more
Loss of Signal (LOS) defects, one or more Severely Errored Frame
(SEF) defects, or one or more Loss of Power (LPR) defects.
UAS — Displays the total unavailable errored seconds, the number of
seconds during which the ADSL transceiver is powered up but not
available.
ADSL Retrain — Retrains the DSL line.
ARP TABLE
The ARP page displays IP address to MAC address mapping entries
determined by the Address Resolution Protocol.
Figure 19: Status - ARP Table
C
HAPTER
4
| Device Information
ARP Table
– 53 –
The following items are displayed on this page:
IP Address — IP address of a local entry in the cache.
MAC Address — MAC address mapped to the corresponding IP
address.
Refresh — Sends a request to update the current parameters.
– 54 –
5WLAN CONFIGURATION
This chapter describes wireless configuration on the ADSL Router. The unit
contains an onboard IEEE 802.11b/g/n access point (AP), which provides
wireless data communications between the router and wireless devices.
WLAN Configuration contains the following sections:
“WLAN Basic Settings” on page 55
Advanced Settings” on page 57
“Wireless Security Setup” on page 59
Access Control” on page 64
“Wi-Fi Protected Setup (WPS)” on page 65
“MBSSID” on page 66
“WDS” on page 68
C
HAPTER
5
| WLAN Configuration
WLAN Basic Settings
– 55 –
WLAN BASIC SETTINGS
The unit’s access point can function in one of three modes, mixed
802.11b/g, 802.11b only, or 802.11g only. Also note that 802.11g is
backward compatible with 802.11b at slower data rates.
Note that the unit supports two virtual access point (VAP) interfaces.
Figure 20: WLAN Basic Settings
The following items are displayed on this page:
Disable Wireless LAN Interface — Disables the Wireless LAN
interface. (Default: Enabled)
Band — Defines the radio mode. (Default: 2.4Ghz (B+G))
Mode — The unit can function as an access point alone, allowing
connection to wireless clients, or both access point and WDS (wireless
distribution system), allowing WDS transparent bridging between APs.
(Default: AP+WDS)
SSID — The service set identifyer for the access point.
(Default: SMC)
Channel Width — The router provides a channel bandwidth of 40 MHz
by default giving an 802.11g connection speed of 108 Mbps
(sometimes referred to as Turbo Mode) and a 802.11n connection
speed of up to 150 Mbps. Setting the HT Channel Bandwidth to 20 MHz
slows connection speed for 802.11g and 802.11n to 54 Mbps and 74
C
HAPTER
5
| WLAN Configuration
WLAN Basic Settings
– 56 –
Mbps respectively and ensures backward compliance for slower
802.11b devices. (Default: 40MHz)
Control Sideband — Specifies if the extension channel should be in
the Upper or Lower sideband. When a 40MHz channel bandwidth has
been set, the extension channel option will be enabled in the upper or
lower sideband. The extension channel allows you to get extra
bandwidth.
Channel Number — The radio channel that the ADSL Router uses to
communicate with wireless clients. When multiple access points are
deployed in the same area, set the channel on neighboring access
points at least five channels apart to avoid interference with each other.
For example, you can deploy up to three access points in the same area
using channels 1, 6, 11. Note that wireless clients automatically set the
channel to the same as that used by the ADSL Router to which it is
linked. (Default: Auto; Range: 1~11)
Radio Power (percent) — Adjusts the power of the radio signals
transmitted from the access point. The higher the transmission power,
the farther the transmission range. Power selection is not just a trade
off between coverage area and maximum supported clients. You also
have to ensure that high-power signals do not interfere with the
operation of other radio devices in the service area. (Default: 100%;
Range: 100%, 80%, 50%, 25%, 10%)
Associated Clients — Opens a window that displays information on
current connected wireless clients.
C
HAPTER
5
| WLAN Configuration
Advanced Settings
– 57 –
ADVANCED SETTINGS
The advanced radio configuration settings are described in the page that
follows.
Figure 21: Wireless Security Setup - Advanced Settings
The following items are displayed on this page:
Authentication Type — Sets the basic authentication method.
Fragment Threshold — Configures the minimum packet size that can
be fragmented when passing through the wireless interface.
Fragmentation of the PDUs (Package Data Unit) can increase the
reliability of transmissions because it increases the probability of a
successful transmission due to smaller frame size. If there is significant
interference present, or collisions due to high network utilization, try
setting the fragment size to send smaller fragments. This will speed up
the retransmission of smaller frames. However, it is more efficient to
set the fragment size larger if very little or no interference is present
because it requires overhead to send multiple frames. (Range: 256-
2346 bytes; Default: 2346 bytes)
RTS Threshold — Sets the packet size threshold at which a Request to
Send (RTS) signal must be sent to a receiving station prior to the
sending station starting communications. The wireless interface sends
RTS frames to a receiving station to negotiate the sending of a data
frame. After receiving an RTS frame, the station sends a CTS (clear to
send) frame to notify the sending station that it can start sending data.
Beacon Interval — The rate at which beacon signals are transmitted
from the wireless interface. The beacon signals allow wireless clients to
C
HAPTER
5
| WLAN Configuration
Advanced Settings
– 58 –
maintain contact with the ADSL Router. They may also carry power-
management information. (Range: 20-1000 TUs; Default: 100 TUs)
DTIM Interval — The rate at which stations in sleep mode must wake
up to receive broadcast/multicast transmissions.
Known also as the Delivery Traffic Indication Map (DTIM) interval, it
indicates how often the MAC layer forwards broadcast/multicast traffic,
which is necessary to wake up stations that are using Power Save
mode. The default value of one beacon indicates that the access point
will save all broadcast/multicast frames for the Basic Service Set (BSS)
and forward them after every beacon. Using smaller DTIM intervals
delivers broadcast/multicast frames in a more timely manner, causing
stations in Power Save mode to wake up more often and drain power
faster. Using higher DTIM values reduces the power used by stations in
Power Save mode, but delays the transmission of broadcast/multicast
frames. (Range: 1-255 beacons; Default: 1 beacon)
Data Rate — The maximum data rate at which the wireless interface
transmits multicast and broadcast packets. (Options: Auto, 1, 2, 5.5,
11, 6, 9, 18, 24, 36, 48, 54 Mbps; Default: Auto)
Preamble Type — Sets the length of the signal preamble that is used
at the start of a data transmission. (Default: Long)
Long Preamble: Sets the preamble to long (192 microseconds).
Using a long preamble ensures the wireless interface can support all
802.11b and 802.11g clients.
Short Preamble: Sets the preamble according to the capability of
clients that are currently asscociated. Uses a short preamble (96
microseconds) if all associated clients can support it, otherwise a
long preamble is used. The wireless interface can increase data
throughput when using a short preamble, but will only use a short
preamble if it determines that all associated clients support it.
Broadcast SSID — Enables/disables the wireless interface to
broadcast an SSID (service set identifier) to uniquely identify it on the
network.
Aggregation — This option enables Mac Service Data Unit (MSDU)
aggregation. (Default: Enabled)
Short GI — The guard interval between symbols helps receivers
overcome the effects of multipath delays. You can enable a short
interval to increase throughput. (Default: Enabled)
C
HAPTER
5
| WLAN Configuration
Wireless Security Setup
– 59 –
WIRELESS SECURITY SETUP
Describes the wireless security settings for each VAP, including association
mode, encryption, and authentication.
Figure 22: Wireless Security Setup - None
COMMON WIRELESS
PARAMETERS
The following items are displayed all pages of the Wireless Security Setup:
SSID TYPE — Selects the VAP to apply security settings to.
(Options: Root, VAP0-VAP3)
Encryption — Selects the encryption type to deploy on the specified
VAP. The options are:
None: No security.
WEP: WEP is used as the multicast encryption cipher. You should
select WEP only when both WPA and WEP clients are supported.
WPA(TKIP/AES): WPA employs a combination of several
technologies to provide an enhanced security solution for 802.11
wireless networks. TKIP or AES is used as the multicast encryption
cipher.
WPA2(TKIP/AES): WPA2 – WPA was introduced as an interim
solution for the vulnerability of WEP pending the ratification of the
IEEE 802.11i wireless security standard. In effect, the WPA security
features are a subset of the 802.11i standard. WPA2 includes the
now ratified 802.11i standard, but also offers backward
compatibility with WPA. Therefore, WPA2 includes the same 802.1X
C
HAPTER
5
| WLAN Configuration
Wireless Security Setup
– 60 –
and PSK modes of operation. TKIP or AES is used as the multicast
encryption cipher.
WPA2(Mixed): Clients using WPA or WPA2 are accepted for
authentication. TKIP or AES is used as the multicast encryption
cipher.
The following figures illustrate the various options available with each
security setting:
Figure 23: Wireless Security Setup - None
WEP SECURITY The following page describes the WEP security setup on the ADSL Router.
Figure 24: Wireless Security Setup - WEP
C
HAPTER
5
| WLAN Configuration
Wireless Security Setup
– 61 –
The following items are displayed on this page:
Set WEP Key — Configures the WEP key setup. This is displayed in the
screen below.
Use 802.1x Authentication — Enables/disables 802.1x
authentication. When enabled the above screen displays.
WEP 64bits/128bits — Selects between 64 bit and 128 bit keys.
RADIUS SERVER
Port — Specifies the port number used to communicate with the
RADIUS server.
IP Address — Specifies the IP address used to communicate with the
RADIUS server.
Password — Specifies the key necessary for RADIUS server
authentication.
WEP KEY SETUP
The following page describes the WEP key setup.
Figure 25: Wireless Security Setup - WEP Key Setup
The following items are displayed on this page:
SSID Type — Selects the VAP to configure the WEP security settings
to.
C
HAPTER
5
| WLAN Configuration
Wireless Security Setup
– 62 –
Authentication Type — Selects the authentication type to use.
Options are:
Open System: If you don’t set up any other security mechanism
on the access point, the network has no protection and is open to all
users. This is the default setting.
Shared Key: Sets the access point to use WEP shared keys. If this
option is selected, you must configure at least one key on the
access point and all clients.
Auto: Automatically selects the best authentication type to use.
Key Length — Selects between 64 bit and 128 bit keys.
Key Format — Selects the preferred method of entering WEP
encryption keys on the unit:
Alphanumeric: Enter keys as 5 alphanumeric characters for 64 bit
keys, 13 alphanumeric characters for 128 bit keys. This is the
default setting.
Hexadecimal: Enter keys as 10 hexadecimal digits (0-9 and A-F) for
64 bit keys, or 26 hexadecimal digits for 128 bit keys.
Default Tx Key — Selects the default key used for transmission.
Encryption Key 1~4 — Specifies the user defined WEP keys.
WPA SECURITY The following section describes WPA, WPA2 and WPA2-mixed settings.
Figure 26: Wireless Security Setup - WPA/WPA2 Setup
The following items are displayed on this page:
C
HAPTER
5
| WLAN Configuration
Wireless Security Setup
– 63 –
WPA Authentication Mode — Selects between modes of WPA
authentication. Options are:
Enterprise: Uses a RADIUS server for authentication. This applies
to enterprise deployment.
Personal: Uses a pre-shared key for authentication.
ENTERPRISE (RADIUS)
Port — Specifies the port number used to communicate with the
RADIUS server.
IP Address — Specifies the IP address used to communicate with the
RADIUS server.
Password — Specifies the password necessary for access to RADIUS
server authentication.
PERSONAL (PRE-SHARED KEY)
Pre-Shared Key Format — Selects the format of the pre-shared key
from the following options:
Passphrase: Enter a key as an easy-to-remember form of letters
and numbers. The string must be from 8 to 63 characters, which
can include spaces.
Hexadecimal: Enter a key as a string of 64 hexadecimal numbers.
Pre-Shared Key — Enter the pre-shared key noting the type chosen.
C
HAPTER
5
| WLAN Configuration
Access Control
– 64 –
ACCESS CONTROL
Access control configures ACLs (access control lists) which allow or deny
wireless traffic based on the sender’s MAC address.
Figure 27: Wireless Security Setup - Wireless Access Control
The following items are displayed on this page:
Wireless Access Control Mode — Enables/disables ACLs on the ADSL
Router. Options are:
Disable: Disables all ACLs.
Allow Listed: Configures an allowed list of MAC addresses. Those
MAC addresses not in the allowed list will not be allowed to connect
to the wireless interface.
Deny Listed: Configures a denied list of MAC addresses. The MAC
addresses specified will not be allowed to connect to the wireless
interface.
MAC Address — The specified MAC address in the ACL Allowed or
Denied list.
Select — Selects a MAC address from the list.
Delete Selected — Deletes a selected MAC address.
Delete All — Deletes all entries from the ACL table.
C
HAPTER
5
| WLAN Configuration
Wi-Fi Protected Setup (WPS)
– 65 –
WI-FI PROTECTED SETUP (WPS)
Wi-Fi Protected Setup (WPS) is designed to ease installation and activation
of security features in wireless networks. WPS has two basic modes of
operation, Push-button Configuration (PBC) and Personal Identification
Number (PIN). The WPS PIN setup is optional to the PBC setup and
provides more security. The WPS button on the router can be pressed at
any time to allow a single device to easily join the network.
The WPS Settings page includes configuration options for setting WPS
device PIN codes and activating the virtual WPS button.
Figure 28: WPS Configuration
The following items are displayed on this page:
Disable WPS — Disables WPS configuration. (Default: Disabled)
WPS Status — Displays if there is currently any WPS traffic connecting
to the router.
Self PIN Number — Displays the PIN Code for the router. The default
is exclusive for each unit.
Regenerate PIN — Click the button to generate a new PIN number
that is used by the router.
Push Button Configuration — The “Start PBC” button has the same
effect as pressing the physical WPS button that is located on the rear of
the router. After clicking on the button you have up to two minutes to
activate WPS on a device that needs to join the network.
Apply Changes — Applies the current WPS settings.
C
HAPTER
5
| WLAN Configuration
MBSSID
– 66 –
Reset — Resets the WPS settings to factory default values.
Client PIN Number — Enters a PIN number of a wireless client device
that needs to join the network. Click “Start PIN” to activate the WPS
process.
MBSSID
This page configures up to four VAPs (virtual access points) on the ADSL
Router. Each VAP functions as a separate access point, and can be
configured with its own Service Set Identification (SSID) and security
settings. However, most radio signal parameters apply to both VAP
interfaces.
The VAPs function similar to a VLAN, with each VAP mapped to its own
VLAN ID. Traffic to specific VAPs can be segregated based on user groups
or application traffic. Each VAP can have its own wireless clients, whereby
the clients associate with these VAPs the same as they would with a
physical access point.
C
HAPTER
5
| WLAN Configuration
MBSSID
– 67 –
Figure 29: Second BSSID
The following items are displayed on this page:
Enable (VAP0-VAP3) Enables up to four VAP interfaces on the
router. (Default: Disabled)
SSID — Configures the service set identifier of a VAP on the wireless
interface.
C
HAPTER
5
| WLAN Configuration
WDS
– 68 –
Broadcast SSID — Enables/disables the wireless interface to
broadcast an SSID (service set identifier) to uniquely identify it on the
network.
Relay Blocking — Blocks traffic between SSID interfaces.
Authentication Type — Sets the basic authentication method for the
VAP interface.
WDS
Each access point radio interface can be configured to operate as a bridge,
which allows it to forward traffic directly to other access point units. To set
up bridge links between access point units, you must configure the wireless
Distribution System (WDS) forwarding table by specifying the wireless MAC
address of all units to which you want to forward traffic. Up to six WDS
bridge links can be specified for each unit in the wireless bridge network.
Figure 30: WDS Configuration
To set up WDS all connected routers should be in the same subnet, with
DHCP disabled on all routers not connected to the WAN and the MAC
address of each router set first.
Follow the steps detailed below:
1. The wireless setup must be the same on all connected routers.
C
HAPTER
5
| WLAN Configuration
WDS
– 69 –
Figure 31: WDS Wireless Setup
2. The MAC addresses on all connected routers must be set.
3. Change the LAN address on routers so as to avoid an IP conflict.
Figure 32: LAN Basic Setup
C
HAPTER
5
| WLAN Configuration
WDS
– 70 –
4. DIsable the DHCP server.
Figure 33: Disabling DHCP
C
HAPTER
5
| WLAN Configuration
WDS
– 71 –
– 72 –
6LAN SETTINGS
This chapter describes LAN configuration on the ADSL Router.
You can use the web browser interface to access IP addressing only if the
ADSL Router already has an IP address that is reachable through your
network.
“LAN Interface” on page 73
“IPv6 LAN Configuration” on page 74
“DHCP Settings” on page 76
C
HAPTER
6
| LAN Settings
LAN Interface
– 73 –
LAN INTERFACE
By default, the ADSL Router is configured with the IP address 192.168.2.1,
subnet mask 255.255.255.0 and a default gateway of 192.168.2.1.
Figure 34: LAN Configuration
The following items are displayed on this page:
Interface Name — Displays the name assigned to the interface.
IP Address — Specifies an IP address for management of the ADSL
Router. Valid IP addresses consist of four decimal numbers, 0 to 255,
separated by periods. (Default: 192.168.2.1.)
Subnet Mask — Indicates the local subnet mask.
(Default: 255.255.255.0)
Secondary IP Address — Specifies a secondary IP address for
management of the unit.
IGMP Snooping — Enables Internet Group Management Protocol
(IGMP) multicast filtering.
C
HAPTER
6
| LAN Settings
IPv6 LAN Configuration
– 74 –
LAN Port — Selects the LAN port.
Link Speed/Duplex Mode — Selects the port speed and duplex
mode, or sets the port for auto-negotiation.
MAC Address ControlFilters out traffic with source MAC addresses
not configured in the table. For devices that need Internet access
through the LAN port, enter the MAC address and click Add.
IPV6 LAN CONFIGURATION
This section describes how to configure an initial IPv6 interface for
management access over the network, or for creating an interface to
multiple subnets. This router supports both IPv4 and IPv6, and can be
managed through either of these address types.
IPv6 includes two distinct address types – link-local unicast and global
unicast. A link-local address makes the router accessible over IPv6 for all
devices attached to the same local subnet. However, to connect to a larger
network with multiple segments, the router must be configured with a
global unicast address.
Figure 35: IPv6 LAN Configuration
C
HAPTER
6
| LAN Settings
IPv6 LAN Configuration
– 75 –
The following items are displayed on this page:
RA SETTING
Enable — Enables IPv6 router advertisements on the router.
M Flag — Sets the router advertisement “Managed address
configuration" flag. When set, the router will use DHCPv6 to obtain
stateful addresses.
O Flag — Sets the router advertisement “other stateful configuration”
flag. When set, the router will attempt to acquire other non-address
configuration information (such as a default gateway or DNS).
Max Interval — The amount of time that a remote IPv6 node is
considered reachable.
Min Interval — The interval between transmitting IPv6 neighbor
solicitation messages.
Prefix Mode — Enables manual or automatic configuration of IPv6
addresses on the router.
Auto — Enables automatic configuration of IPv6 addresses on
interfaces and enables IPv6 functionality on the router. The network
portion of the address is based on prefixes received in IPv6 router
advertisement messages, and the host portion is automatically
generated using the modified EUI-64 form of the interface identifier
(that is, the router’s MAC address).
Manual — If auto-configuration is not selected, then an address
must be manually configured using the fields described below.
Prefix Address — The IPv6 address prefix sent in router
advertisements.
Prefix Length — The length of the IPv6 address prefix sent in router
advertisements. For IPv6 unicast addresses, this is set to 64.
Preferred Time — The time over which the configured address is
preferred.
Valid Time — The time over which the configured address is valid.
DHCPV6 SETTING
DHCPv6 Mode — The DHCPv6 mode setting.
None — DHCPv6 is disabled.
Manual — If auto-configuration is not selected, then an IPv6
address pool must be manually configured.
Auto — Enables automatic assignment of IPv6 addresses on the
router. The network portion of the address is based on prefixes
received in IPv6 router advertisement messages, and the host
C
HAPTER
6
| LAN Settings
DHCP Settings
– 76 –
portion is automatically generated using the modified EUI-64 form
of the client identifier (that is, the client MAC address).
IPv6 Address Pool — The address range available for DHCPv6
assignment.
Prefix Length — The length of the IPv6 address prefix sent in DHCPv6
assignments. For IPv6 unicast addresses, this is set to 64.
Preferred Time — The time over which assigned addresses are
preferred.
Valid Time — The time over which the assigned addresses are valid.
DNS ServersSpecifies up to three IPv6 Domain Name servers for
IPv6 addresses.
DHCP SETTINGS
The ADSL Router includes a Dynamic Host Configuration Protocol (DHCP)
server that can assign temporary IP addresses to any attached host
requesting the service, as well as a DHCP relay serivce that will route the
DHCP service to other subnets than that of the unit.
DHCP DISABLED By selecting “None,” you can disable DHCP on the ADSL Router.
Figure 36: DHCP Disabled
The following items are displayed on this page:
DHCP Mode — When set to “None,” disables DHCP on the unit.
C
HAPTER
6
| LAN Settings
DHCP Settings
– 77 –
DHCP RELAY Dynamic Host Configuration Protocol (DHCP) can dynamically allocate an
IP address and other configuration information to network clients that
broadcast a request. To receive the broadcast request, the DHCP server
would normally have to be on the same subnet as the client. However,
when the access point’s DHCP relay agent is enabled, received client
requests can be forwarded directly by the access point to a known DHCP
server on another subnet. Responses from the DHCP server are returned to
the access point, which then broadcasts them back to clients.
Figure 37: DHCP Relay
The following items are displayed on this page:
DHCP Mode — When set to “DHCP Relay,enables routing of the DHCP
service to units on a different subnet.
Relay Server — Enter the address of the DHCP server for routing to
other units.
C
HAPTER
6
| LAN Settings
DHCP Settings
– 78 –
DHCP SERVER The unit can support up to 253 local clients. Addresses are assigned to
clients from a common address pool configured on the unit. Configure an
address pool by specifying start and end IP addresses. Be sure not to
include the unit's IP address in the address pool range.
Figure 38: DHCP Server
The following items are displayed on this page:
LAN IP Address — Displays the LAN IP address for management of
the ADSL Router. (Default: 192.168.2.1.)
Subnet Mask — Displays the local subnet mask.
(Default: 255.255.255.0)
DHCP Mode — When set to “DHCP Server,” enables the ADSL Router to
act as a DHCP server.
Interface — Selects either the RJ-45 LAN ports, or wireless interfaces.
IP Pool Range — Configures the IP address pool for the DHCP server
and determines how many IP addresses can be assigned.
N
OTE
:
Do not enter the ADSL Router’s LAN IP address as part of the IP Pool
range.
Show Client — Displays the current DHCP client table.
Default Gateway — Specifies the gateway address through which
traffic is routed from. Usually the LAN IP address of the ADSL Router
C
HAPTER
6
| LAN Settings
DHCP Settings
– 79 –
MAX Lease Time — Select a time limit for the use of an IP address
from the IP pool. When the time limit expires, the client has to request
a new IP address. The lease time is expressed in seconds.
(Default: 86400 seconds; Range: 60~86400 seconds; -1 indicates an
infinite lease time)
Domain Name — Specifies the unique name used to identify the ADSL
Router on the network.
DNS Servers — Sets up to three domain name server IP addresses.
Set VendorClass IP Range — Click on this option to assign IP
address ranges to specific device types.
Device Name — Describes the device type.
Start/End Address — Specifies the IP addresses from the DHCP IP
pool to assign to this device type.
Router Address — Specifies a default router IP address to use for
traffic from this device.
Option 60 — Specifies the DHCP Option 60 vendor class identifier
that indicates the device type.
Figure 39: Device IP Range Table
C
HAPTER
6
| LAN Settings
DHCP Settings
– 80 –
DHCP STATIC IP Assigns a physical MAC address to the DHCP pool by mapping it to a
corresponding IP address.
Figure 40: DHCP Static IP Assignment
The following items are displayed on this page:
IP Address — Enter the IP address from the DHCP address pool to
assign to the specified MAC address.
MAC Address — Enter the MAC address to be assigned to a static IP
address from the DHCP address pool.
Add — Selecting this option enters the mapped MAC address and IP
address into the DHCP Static IP Table.
Delete Selected — Once you select and entry in the table by clicking
its corresponding radio button, this option deletes the entry.
Reset — Clears the IP and MAC address fields.
– 81 –
7WAN SETTINGS
This chapter describes WAN configuration on the ADSL Router. The WAN
pages are used to configure standard WAN services, including VPI, VCI,
encapsulation, service type (PPPoE, IPoE, bridging), ATM settings and ADSL
settings. It includes the following sections:
“Channel Configuration” on page 82
ATM Settings” on page 84
ADSL Settings” on page 86
C
HAPTER
7
| WAN Settings
Channel Configuration
– 82 –
CHANNEL CONFIGURATION
The Channel Configuration page configures channel operation modes of the
ADSL Router.
Figure 41: WAN Configuration
The following items are displayed on this page:
Default Route Selection – Enables the default route to be specified or
selected automatically.
VPI (Virtual Path Identifier) – A grouping of virtual channels which
connect the same end-points, and which share a traffic allocation.
VCI (Virtual Channel Identifier) – A specific virtual channel connecting
two end-points.
Encapsulation:
LLC (Logical Link Control) – This encapsulation method allows
multiplexing of multiple protocols over a single ATM virtual
connection. In some cases, the LLC header is followed by a SNAP
header which uniquely identifies a routed or bridged protocol. (This
is the default packet encapsulation format used for carrying IP
datagrams over AAL5 ATM.)
C
HAPTER
7
| WAN Settings
Channel Configuration
– 83 –
VC/MUX (Virtual Circuit Multiplexing) – When using this mode, the
communicating hosts agree on the high-level protocol for a given
circuit, which tends to reduce fragmentation overhead. This allows a
sender to pass each datagram directly to AAL5 for transfer, and
requires nothing to be sent besides the datagram and the AAL5
trailer. The chief disadvantage of this scheme is that a host must
create a separate virtual circuit for each high-level protocol if more
than one protocol is used. Because most carriers charge for each
virtual circuit, customers try to avoid using multiple circuits because
it adds unnecessary cost.
Channel Mode — The protocol used on the channel, as specified by
the service provider. Choose from the following options:
1483 Bridged — The Bridged RFC 1483 Encapsulated Traffic over
ATM feature allows you to send bridged RFC 1483 encapsulated
packets over ATM switched virtual circuits (SVCs).
1483 MER — 1483 MER is an RFC standard MAC Encapsulated
Routing protocol.
PPPoE — Point-to-Point Protocol over Ethernet (PPPoE).
PPPoA — Point-to-Point Protocol over Asynchronous Transfer Mode
(PPPoA).
1483 Routed — Allows you to send routed RFC 1483 encapsulated
packets over ATM switched virtual circuits (SVCs).
IPoA — Dynamic IP over ATM (IPoA).
Enabled NAPT — Enables Network Address Port Translation for the
channel.
Enable IGMP — Enables IGMP for the channel.
PPP Settings — Configures settings for PPPoE and PPPoA modes.
User Name — The PPP access user name provided by the ISP.
Password — The PPP access password provided by the ISP.
Type — Selects the connection type; Continuous, Connect on
Demand, or Manual.
Idle Time — The number of minutes you want to have elapsed
before your Internet access disconnects in Connect-on-Demand
mode.
WAN IP Settings — Configures settings for 1483 MER, 1483 Routed,
and IPoA modes.
Type — Selects fixed IP or DHCP. When fixed IP is selected, enter
the local IP address, gateway, and subnet mask. When DHCP is
C
HAPTER
7
| WAN Settings
ATM Settings
– 84 –
selected, the WAN interface IP address is assigned by the remote
DHCP server.
Local IP address — The IP address of the WAN interface provided
by the ISP.
Gateway — The IP address of the remote gateway router provided
by the ISP.
Netmask — The subnet mask for the local IP address.
Default Route — Enables or disables the default route IP address.
Unnmbered — Enables the IP unnumbered feature.
ATM SETTINGS
The ATM Settings page is used to configure the settings between your
ADSL Router and the remote ATM PVC switch, including connection mode
(single or multiple service over one connection), and packet level QoS.
The ATM Settings parameters form a Traffic Contract that informs the
network what type of traffic is to be transported and the performance
requirements of the traffic.
Figure 42: ATM Settings
The following items are displayed on this page:
Select — Clicking the radio button associated with the connection
makes the parameters editable.
VPI (Virtual Path Identifier) — Adds a VPI entry to the table. (Range:
0-255; Default: 0)
C
HAPTER
7
| WAN Settings
ATM Settings
– 85 –
VCI (Virtual Channel Identifier) — Adds a VCI entry to the table.
(Range: 32-65535; Default: 35)
QoS — Selects packet level Quality of Service (QoS) for the connection.
Options are:
UBR (Unspecified Bitrate): Configures a PVC with a Peak Cell Rate
indicating the maximum number of ATM cells that can be sent in a
burst.
CBR (Constant Bitrate): Configures a PVC at a constant bit rate.
This option may be required for connections that depend on precise
clocking to ensure undistorted delivery.
nrt-VBR (non-realtime Variable Bitrate): Configures a PVC at a
non-realtime variable bit rate. This option may be used for
applications not sensitive to changes in available bandwidth, such
as data.
rt-VBR (realtime Variable Bitrate): Configures a PVC at a real-time
variable bit rate. This option may be used for applications that have
a lot of variance in required bandwidth, such as voice.
PCR (Peak Cell Rate) — Configures the maximum allowable rate at
which cells can be transported along a connection in the ATM network.
The PCR is the determining factor in how often cells are sent in relation
to time in an effort to minimize jitter.
CDVT (Cell Delay Variation Tolerance) — Configures the maximum
amount of jitter permissable.
SCR (Sustainable Cell Rate) — Configures the average allowable, long-
term cell transfer rate on a specific connection.
MBS (Maximum Burst Size) — Configures the maximum allowable
burst size of cells that can be transmitted contiguously on a particular
connection.
Current ATM VC Table — The Current ATM VC Table lists the current
ATM settings configured on your ADSL Router. By selecting the
connection using the radio button associated with it you can edit the
connection parameters.
C
HAPTER
7
| WAN Settings
ADSL Settings
– 86 –
ADSL SETTINGS
The ADSL Settings page configures the ADSL modulation type, ADSL2+
related parameters, capabilities and the ADSL tone mask.

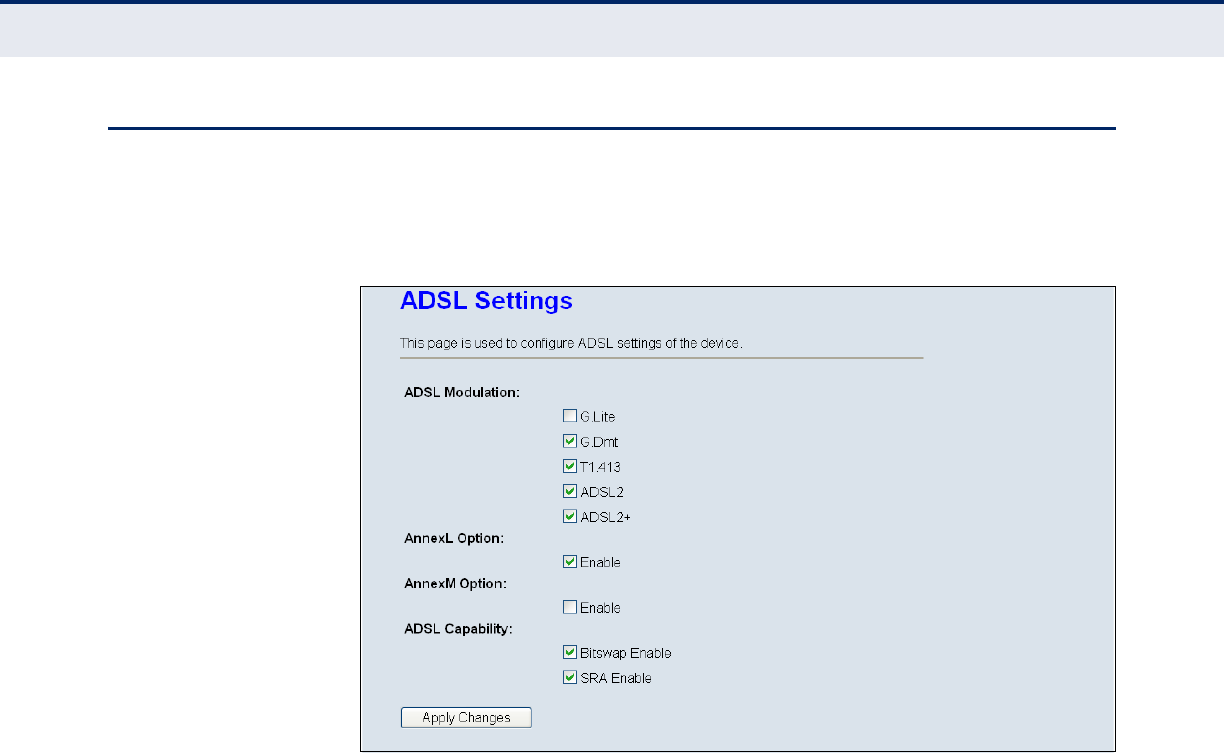

Figure 43: ATM Settings
The following items can be enabled on this page:
ADSL Modulation — ADSL Modulation refers to a frequency-division
multiplexing (FDM) scheme utilized as a digital multi-carrier
modulation method for DSL. A large number of closely-spaced
orthogonal sub-carriers are used to carry data. The data is divided into
several parallel data streams or channels, one for each sub-carrier.
Each sub-carrier is modulated with a conventional modulation scheme
(such as G.lite, ADSL2, etc. or more commonly ADSL2+).
G.lite — A standard that defines the more economical splitterless
ADSL connection that transmits data at up to 1.5 Mbps downstream
and 512 Kbps upstream. This ADSL option can be installed without
an on-site visit by the service provider.
G.dmt — A standard that defines full-rate ADSL, and utilizes
Discrete Multi-Tone (DMT) signaling to transmit data at up to 8
Mbps downstream and 640 Kbps upstream.
T1.413 — ANSI standard that defines the requirements for ADSL
for the interface between the telecommunications network and the
customer installation in terms of their interaction and electrical
characteristics. (The Gateway complies with Issue 2 of this
standard.)
C
HAPTER
7
| WAN Settings
ADSL Settings
– 87 –
ADSL2 — This standard extends the capability of basic ADSL data
rates to 12 Mbit/s downstream and 3 Mbit/s upstream (with a
mandatory capability of ADSL2 transceivers of 8 Mbit/s downstream
and 800 Kbit/s upstream.
ADSL2+ — This standard extends the capability of basic ADSL data
rates to 24 Mbit/s downstream and 1.4 Mbit/s upstream depending
on the distance from the DSLAM to the customer's home.
AnnexL Option — Annex L is an optional specification in the ITU-T
ADSL2 recomendation G.992.3 titled “Specific requirements for a Reach
Extended ADSL2 (READSL2) system operating in the frequency band
above POTS.” It is often referred to as Reach Extended ADSL2 or
READSL2. Once enabled AnnexL increases the range of DSL service,
enabling the link to work at a distance of 7 kilometers, or 23,000 feet.
AnnexM Option — Annex M is an optional specification in ITU-T
recomendations G.992.3 (ADSL2) and G.992.5 (ADSL2+), also referred
to as ADSL2 M and ADSL2+ M. This specification extends the capability
of commonly deployed Annex A by more than doubling the number of
upstream bits.
Once enabled AnnexM increases upload speeds by the shifting the
upstream/downstream frequency split from 138 kHz up to 276 kHz,
allowing the maximum upstream bandwidth to be increased from 1.4
Mbit/s to 3.3 Mbit/s.
ADSL Capability — ADSL Capability refers to means of manipulating
the bit loading of a connection to increase quality of signal or
transmission rate.
Bitswap — Enables bit swapping. Bit swapping is a way of
swapping the bit-loading of a noisy tone with another tone in the
symbol which is not as noisy. The bit loading from a specific tone
can be increased or decreased. In addition, the TX power can be
increased or decreased for a specific tone. However, there is no
change in the overall payload rate after the bit swap operation.
SRA — Enables seamless rate adaptation to set the optimal
transmission rate based on existing line conditions.
– 88 –
8SERVICES
The Advanced Configuration settings for the ADSL Router contain advanced
system management configuration settings such as DNS setup, routing
configuration, bridging, SNMP and TR-069 settings.
The following sections are contained in this chapter:
“DNS Settings” on page 89
Access Control Lists” on page 92
“IP/Port Filtering” on page 95
“NAT/NAPT Settings” on page 97
“Quality of Service” on page 103
“MAC Filtering” on page 105
“DMZ” on page 106
“URL Blocking” on page 107
“Software Forbidden” on page 108
“DoS” on page 109
“IGMP Proxy Configuration” on page 111
“RIP Configuration” on page 113
ARP Binding Configuration” on page 114
C
HAPTER
8
| Services
DNS Settings
– 89 –
DNS SETTINGS
Sets Domain Name Server (DNS) and Dynamic DNS settings.
DNS SERVER The Domain Name Server (DNS) implements a human recognizable web
address to a numerical IP address. DNS can be set automatically or
manually.
Figure 44: DNS Server Configuration
The following items are displayed on this page:
Obtain DNS Automatically — The DNS server IP address is
automatically configured during dynamic IP assignment.
Set DNS Manually — Allows the user to set up to three DNS server IP
addresses.
IPV6 DNS The IPv6 Domain Name Server (DNS) implements a human recognizable
web address to a numerical IPv6 address. DNS can be set automatically or
manually.
Figure 45: IPv6 DNS Server Configuration
C
HAPTER
8
| Services
DNS Settings
– 90 –
The following items are displayed on this page:
Obtain DNS Automatically — The DNS server IPv6 address is
automatically configured during dynamic IP assignment.
Set DNS Manually — Allows the user to set up to three DNS server
IPv6 addresses.
DDNS Dynamic DNS (DDNS) provides users on the Internet with a method to tie
a specific domain name to the units dynamically assigned IP address.
DDNS allows your domain name to follow your IP address automatically by
changing your DNS records when your IP address changes.
The ADSL Router provides access to two DDNS service providers,
DynDns.org, and TZO. To set up an DDNS account, visit the websites of
these service providers at www.dyndns.org,or www.tzo.com.
Figure 46: DDNS DynDns
The following items are displayed on these pages:
DDNS provider — Specify the DDNS provider from the drop down
menu. Options are: DynDns, or TZO. (Default: DynDns.org)
Host Name — Specifies the prefix to identify your presence on the
DDNS server, either URL or IP address.
Interface — Selects the WAN interface for the DDNS service.
C
HAPTER
8
| Services
DNS Settings
– 91 –
Enable — Enables DDNS. (Default: Enabled)
DYNDNS SETTINGS
The following parameters apply to the default DynDns setting.
User Name — Specifies your username for the DDNS service.
Password — Specifies your password for the DDNs service.
TZO
The following parameters apply to the TZO setting.
Email — Specifies your contact email address for the DDNS service.
Key — Specifes an encryption key for the DDNS service.
DYNAMIC DDNS TABLE
This table displays the configured servers in the DDNS setup.
Select — Highlights an entry in the Dynamic DDNS Table.
State — Displays the state of the server entry, enabled or disabled.
Service — Displays the type of DDNS service.
Host Name — Displays the URL or IP address of the DDNS service
provider.
User Name — Displays the user name or contact email of the DDNS
user.
Interface — The WAN interface for the DDNS service.
C
HAPTER
8
| Services
Access Control Lists
– 92 –
ACCESS CONTROL LISTS
The ADSL Router supports Access Control Lists that filter IP addresses
allowed access on the unit's LAN and WAN interfaces. Only traffic from IP
addresses in the ACL table are allow access to the ADSL Router.
LAN ACLSWhen you select LAN for the ACL “direction,” you can configure ACLs that
apply to the LAN interfaces.
Figure 47: LAN ACL Configuration
The following items are displayed on this page:
LAN ACL Switch — Enables LAN ACLs on the ADSL Router.
(Default: Disabled)
N
OTE
:
Do not enable ACLs without first configuring your host IP address in
the ACL table, otherwise you will not be able to access the unit.
Apply Changes — Implements the ACL settings on the ADSL Router.
IP Address — Specify a LAN IP address or range of addresses that are
allowed access to the ADSL Router.
Services Allowed — Specifies services that are allowed access from
LAN interfaces, or allows “any.
Add — Adds the ACL to the ACL Table.
C
HAPTER
8
| Services
Access Control Lists
– 93 –
CURRENT ACL TABLE
Lists the configured ACLs on the LAN ports.
Select — The number of the entry in the table.
Direction — Displays if the ACL is applied to a LAN or WAN interface.
IP Address/Interface — Displays the allowed IP address or range.
Service — Dispays the allowed service.
Port — Displays the TCP/UDP port of the allowed service.
Action — Click the button to remove the entry from the table.
WAN ACLSWhen you select WAN for the ACL “direction,” you can configure ACLs that
apply to WAN interfaces.
Figure 48: WAN ACL Configuration
The following items are displayed on this page:
WAN Setting — Selects a WAN interface or IP address.
WAN Interface — Specifies a configured WAN interface for the
ACL.
IP Address — Specify a LAN IP address or range of addresses that
are allowed access to the ADSL Router.
Services Allowed — Specifies services that are allowed access from
LAN interfaces, or allows “any.
C
HAPTER
8
| Services
Access Control Lists
– 94 –
Add — Adds the ACL to the ACL Table.
CURRENT ACL TABLE
Lists the configured ACLs on the LAN ports.
Select — The number of the entry in the table.
Direction — Displays if the ACL is applied to a LAN or WAN interface.
IP Address/Interface — Displays the allowed IP address or range.
Service — Dispays the allowed service.
Port — Displays the TCP/UDP port of the allowed service.
Action — Click the button to remove the entry from the table.
C
HAPTER
8
| Services
IP/Port Filtering
– 95 –
IP/PORT FILTERING
IP/Port filtering restricts connection parameters to limit the risk of intrusion
and defends against a wide array of common hacker attacks. IP/Port
filtering allows the unit to permit, deny or proxy traffic through its ports
and IP addresses.
Figure 49: IP/Port Filtering Settings
The following items are displayed on this page:
Outgoing Default Action — Sets the default filtering action for
outgoing packets that do not match a rule in the filter table. (Default:
Permit, maximum 32 entries are allowed.)
Incoming Default Action — Sets the default filtering action for
incoming packets that do not match a rule in the filter table. (Default:
Deny, maximum 32 entries are allowed.)
N
OTE
:
The default incoming action denies all packets from the WAN port.
Rule Action — Specifies if traffic should be permitted or denied.
(Default: Permit)
Protocol — Specifies the destination port type, TCP, UDP or ICMP.
(Default: TCP).
Direction — Specifies the packet destination. (Default: Outgoing)
C
HAPTER
8
| Services
IP/Port Filtering
– 96 –
Source IP Address — Specifies the source IP address to block or allow
traffic from.
Destination IP Address — Specifies the destination IP address to
block or allow traffic from.
Subnet Mask Specifies a subnet mask.
Source Port — Specifies a range of ports to block traffic from the
specified LAN IP address.
Destination Port — Specifies a range of ports to block traffic from the
specified LAN IP address from reaching.
Apply Changes — Adds a newly configured packet filter that denies
forwarding in to the local area network to the list.
CURRENT FILTER TABLE
The Current Filter Table displays the configured IP addresses and ports that
are permitted or denied access to and from the ADSL Router.
Rule — Displays if the specified traffic is allowed or denied.
Protocol — Displays the destination port type.
Source IP/Mask — Displays the source IP address.
SPort — Displays the source port range.
Dest IP/Mask — Displays the destination IP address.
DPort — Displays the destination port range.
State — Indicates if an entry is enabled.
Direction — Displays the direction in which the rule has been applied.
Action — Enables/disables or deletes the selected entry from the table.
C
HAPTER
8
| Services
NAT/NAPT Settings
– 97 –
NAT/NAPT SETTINGS
Network Address Translation (NAT) is a standard method of mapping
multiple “internal” IP addresses to one “external” IP address on devices at
the edge of a network. For the router, the internal (local) IP addresses are
the IP addresses assigned to local PCs by the DHCP server, and the
external IP address is the IP address assigned to the specified WAN
interface.
The NAT function on the router enables the support of Virtual Servers, Port
Triggering, and other features.
Some applications, such as Internet gaming, videoconferencing, Internet
telephony and others, require multiple connections. These applications
may not work with Network Address Translation (NAT) enabled. If you need
to run applications that require multiple connections, use Port Triggering to
specify the additional public ports to be opened for each application.
Alternatively, you can open up a client to unrestricted two-way Internet
access by defining it as DMZ (demilitarized-zone) host.
VIRTUAL SERVERS Using the NAT Virtual Server feature, remote users can access different
servers on your local network using your single public IP address.
Remote users accessing services such as web or FTP at your local site
thorugh your public IP address, are redirected (mapped) to other local
server IP addresses and TCP/UDP port numbers. For example, if you set
Type/Public Port to TCP/80 (HTTP or web) and the Private IP/Port to
192.168.7.9/80, then all HTTP requests from outside users forwarded to
192.168.7.9 on port 80. Therefore, by just using your external IP address
provided by your ISP, Internet users can access the services they need at
the local addresses to which you redirect them.
The more common TCP service port numbers include: HTTP: 80, FTP: 21,
Telnet: 23, and POP3: 110. Up to 32 entries can be configured in the
Virtual Servers table.
C
HAPTER
8
| Services
NAT/NAPT Settings
– 98 –
Figure 50: NAT — Virtual Servers
The following items are displayed on this page:
Service Type – Sets a name to describe the virtual server service.
Usual Service Name – Select a name from the list of common
applications.
User-defined Service Name – Set a custom name to describe the
service.
Protocol – Specifies the port type. (Options: TCP or UDP; Default:
TCP)
WAN Setting – Selects a WAN interface or IP address. Depending on
the selection, either the WAN Interface or WAN IP Address setting
displays.
WAN Interface – Select the WAN interface for the virtual server.
WAN IP Address – Specify the WAN IP address for the virtual
server.
WAN Port – Specifies the public TCP/UDP port number, or port range,
used for the service on the WAN interface. (Range: 1-65535)
LAN Open Port – Specifies the TCP/UDP port number, or port range,
used on the local server for the service. (Range: 1-65535)
LAN IP Address – The IP address of the server on the local Ethernet
network. The specified address must be in the same subnet as the
router and its DHCP server address pool. (Range: 192.168.2.2 to
192.168.2.254)
C
HAPTER
8
| Services
NAT/NAPT Settings
– 99 –
NAT EXCLUDE IP You can use the Exclude IP feature to block an IP address or range of IP
addresses from accessing WAN interfaces.
Figure 51: NAT — Exclude IP
The following items are displayed on this page:
Interface – Select the WAN interface for the Exclude IP service.
IP Range – Specifies an IP address range to block on the WAN
interface.
NAT FORWARDING Forwarding allows an external user to reach a private IP address (inside a
LAN) from the outside through a NAT-enabled router.
Figure 52: NAT Forwarding Settings
The following items are displayed on this page:
Local IP Address — Specifies the IP address of a computer on the
local network.
C
HAPTER
8
| Services
NAT/NAPT Settings
– 100 –
Remote IP Address — Specifies the source IP address on the WAN to
allow access from. Leaving this parameter blank allows access from all
traffic.
Enable — Checking this box activates the parameters configurated
once added to the Current NAT Port Forwarding Table.
(Default: Enabled)
NAT ALG AND PASS-
THROUGH
Application Layer Gateway (ALG) and passthrough is a useful feature when
a host computer or server on the Local Area Network must be accessible
from the Internet using specific protocols. This can be necessary with
certain software applications that do not function reliably through Network
Address Translation.
Figure 53: NAT ALG and Pass-Through
The following items are displayed on this page:
IPSec Pass Through — Enables IPsec passthrough.
(Default: Enabled)
L2TP Pass Through — Enables L2TP passthrough. (default: Enabled)
PPTP Pass Through — Enables PPTP passthrough. (Default: Enabled)
FTP — Enables FTP passthrough. (Default: Enabled)
H.323 — Enables H.323 (Windows Netmeeting) passthrough.
(Default: Enabled)
SIP — Enables SIP passthrough. (Default: Enabled)
RTSP — Enables RTSP passthrough. (Default: Enabled)
ICQ — Enables ICQ passthrough. (Default: Enabled)
C
HAPTER
8
| Services
NAT/NAPT Settings
– 101 –
MSN — Enables MSN passthrough. (Default: Enabled)
NAT PORT TRIGGER Port triggering is a way to automate port forwarding in which outbound
traffic on predetermined ports (“triggering ports”) causes inbound traffic to
specific incoming ports to be dynamically forwarded to the initiating host
while the outbound ports are in use.
Figure 54: NAT — Port Trigger
The following items are displayed on this page:
Port Trigger – Enables the feature. (Default: Disabled)
Application Type – Select a name from the list of common
applications, or set a custom name to describe the service.
Start/End Match Port — Specifies the trigger port range. (Range: 1-
65535)
Trigger Protocol — Specifies the trigger port type used, TCP, UDP, or
both.
Start/End Relate Port — Specifies the public port range. (Range: 1-
65535).
Open Protocol — Specifies the public port type used, TCP, UDP, or
both.
NAT Type — Specifies outgoing or incoming traffic.
C
HAPTER
8
| Services
NAT/NAPT Settings
– 102 –
FTP ALG
CONFIGURATION
FTP ALG Configuration specifies a non-standard FTP port for passthrough
traffic. The standard port for FTP connections is TCP port 21, and the router
monitors port 21 to ensure the NAT passthrough of FTP. When the FTP
server port is not 21, you must specify the TCP port to ensure NAT
passthrough of FTP.
Figure 55: NAT — FTP ALG Configuration
The following items are displayed on this page:
FTP ALG Port – Specifies a non-standard FTP port for passthrough
traffic. (Range: 0~65535)
Add Dest Ports – Adds the specified port to the FTP ALG Ports Table.
Delete Selected Dest Port – Removes the selected port from the FTP
ALG Ports Table.
NAT IP MAPPING IP Mapping enables a pool of local LAN IP addresses to be dynamically
mapped to a pool of external (global) IP addresses.
Figure 56: NAT — IP Mapping
C
HAPTER
8
| Services
Quality of Service
– 103 –
The following items are displayed on this page:
Type – Selects the type of mapping to use. Either one-to-one, one-to-
many, many-to-many, or many-to-one.
Local Start/End IP – Defines a local IP address pool range.
Global Start/End IP – Defines an external IP address pool range.
QUALITY OF SERVICE
The Quality of Service page is used to enable or disable QoS, and set the
default priority for packets not matching any classification rules.
Click Services, IP QoS. If QoS is enabled, the default priority should also be
set to an appropriate value. After setting any of the attributes on this page,
click Apply.
Figure 57: Quality of Service
C
HAPTER
8
| Services
Quality of Service
– 104 –
The following items are displayed on this page:
IP QoS – If enabled, QoS rules will be applied to traffic entering the
Gateway.
QoS Policy – Selects Stream-based, 802.1p-based, or DSCP-based
policy.
Schedule Mode – Selects either Strict or Weighted Fair Queueing
(WFQ) as the port priority mode.
802.1p Configuration – When the QoS Policy is 802.1p-based, you
can map the 802.1p values to port priority queues.
DSCP Configuration – When the QoS Policy is DSCP-based, you can
map the DSCP values to port priority queues
Add QoS Rule – Specifies traffic classification rules based on protocol
type and destination/source MAC address; and to set the resulting
priority queue, re-marked IP Precedence, IP ToS, or 802.1p priority.
Source IP/ Mask – The source IP address and network mask.
Destination IP/ Mask – The destination IP address and network
mask.
Source Port – The TCP/UDP source port.
Destination Port – The TCP/UDP destination port.
Protocol – The network protocol; TCP, UDP, or ICMP.
Physical Port – Select the physical interface; LAN or USB.
Set Priority – The port queue to which a matching packet is
assigned.
Insert or Modify QoS Mark – Re-marks the matching packet with
the selected IP Precedence, IP ToS, or 802.1p value.
C
HAPTER
8
| Services
MAC Filtering
– 105 –
MAC FILTERING
MAC based packet filtering enables the router to filter clients based on their
physical layer address.
Figure 58: MAC Filtering Settings
The following items are displayed on this page:
Outgoing Default PolicyA default action for MAC addresses not
configured in the filter table. (Default: Allow, maximum 32 entries are
allowed.)
Incoming Default Policy — A default action for MAC addresses not
configured in the filter table. (Default: Allow, maximum 32 entries.)
N
OTE
:
The default outgoing and incoming defaults allow traffic from all MAC
addresses.
Direction — Specifies the packet destination. (Default: Outgoing)
Action — Specifies if traffic should be permitted or denied. (Options:
Deny, Allow; Default: Deny)
Source MAC Address — Specifies a source MAC address.
Destination MAC Address — Specifies a destination MAC address.
C
HAPTER
8
| Services
DMZ
– 106 –
DMZ
DMZ enables a specified host PC on the local network to access the
Internet without any firewall protection. Some Internet applications, such
as interactive games or videoconferencing, may not function properly
behind the router's firewall. By specifying a Demilitarized Zone (DMZ) host,
the PC's TCP ports are completely exposed to the Internet, allowing open
two-way communication. The host PC should be assigned a static IP
address.
Figure 59: DMZ Settings
The following items are displayed on this page:
Enable DMZ — Sets the DMZ status to enabled, but changes do not
take affect until the Apply changes button has been pressed and
changes are saved to the running configuration. (Default: disabled)
DMZ Host IP Address — Specifies an IP address on the local network
allowed unblocked access to the WAN.
C
HAPTER
8
| Services
URL Blocking
– 107 –
URL BLOCKING
By filtering inbound Uniform Resource Locators (URLs) the risk of
compromising the network can be reduced. URLs are commonly used to
point to websites. By specifying a URL or a keyword contained in a URL
traffic from that site may be blocked.
Figure 60: URL Blocking Settings
The following items are displayed on this page:
URL Blocking Capability — Enables or disables URL blocking.
(Default: Enabled)
Apply Changes — Implements the selected URL blocking.
Keyword — Specifies a string that traffic is to be blocked from. May be
in the form of a text or number string with no spaces.
Add Keyword — Adds a defined URL keyword to the blocking table.
C
HAPTER
8
| Services
Software Forbidden
– 108 –
SOFTWARE FORBIDDEN
The Software Forbidden page enables traffic from listed application
software to be blocked by the router.
Figure 61: Software Forbidden Settings
The following items are displayed on this page:
Current Forbidden Software List — Software applications that are
currently blocked by the router.
Add Forbidden Software — Lists pre-defined software applications
that can be added to the Forbidden Software table.
C
HAPTER
8
| Services
DoS
– 109 –
DOS
Denial of Service (DoS) is an attempt by a hacker to flood an IP address,
domain, or server with repeated external communincation requests,
effectively saturating the system with an information flood that renders it
slow or effectively inoperable for genuine users to access it. DoS attacks
are also referred to as non-intrusion attacks, the goal of which is to cripple
your system but not steal data.
The DoS Settings on the router enable the user to block many of the
common DoS attacks a network might suffer.
Figure 62: DoS Settings
The following items are displayed on this page:
Enable DoS Blocking — Activates the DoS check boxes and
configurable parameters associated with them. (Default: Disabled)
Whole System Flood: SYN: Prevents a SYN (synchronise) attack
in which the process of the common three way TCP handshake is
interupted and the acknowledge response gets sent to a maicious IP
address, or the system is flooded with false SYN requests.
C
HAPTER
8
| Services
DoS
– 110 –
Whole System Flood: FIN: Prevents a FIN (no more data from
sender) flood in which part of a TCP packet from an invalid (or
spoofed) IP address floods the network with connection resets.
Whole System Flood: UDP: Prevents a flood of large numbers of
raw UDP (User Datagram Protocol) packets targeted at the unit.
Whole System Flood: ICMP: Prevents a flood of ICMP (internet
control message protocol) messages from an invalid IP address
causing all TCP requests to be halted.
Per Source IP Flood: SYN: Prevents a SYN attach on a specified
IP address, usually that of the LAN port.
Per Source IP Flood: FIN: Prevents a FIN attach on the LAN port
IP address.
Per Source IP Flood: UDP: Prevents a UDP attack on the LAN port
IP address.
Per Source IP Flood: ICMP: Prevents an ICMP attack on the LAN
port IP address.
TCP/UDP Port Scan: Prevents a situation whereby a hacker sends
a series of systematic queries to the unit for open ports through
which to route traffic.
TCMP Smurf: Prevents a situation whereby a hacker forges the IP
address of the unit and sends repeated ping requests to it flooding
the network.
IP Land: Prevents an attack that involves a synchronise request
being sent as part of the TCP handshake to an open port specifying
the port as both the source and destination effectively locking the
port.
IP Spoof: Prevents a situation where a hackerby a hacker creates
an alias (spoof) of the units IP address to which all traffic is
redirected.
IP Teardrop: Prevents a Teardrop attack that involves sending
mangled IP fragments with overlapping, over-sized, payloads to the
unit. The fragmented packets are processed by the unit causing it to
crash.
PingofDeath: Prevents the receival of an oversized ping packet
that the unit cannot handle. Normal ping packets are 56 bytes, or
84 bytes with the IP header attached. The Ping of Death will exceed
the maximum IP packet size of 65,535 bytes.
TCP Scan: Prevents the probing of the unit by a hacker for open
TCP ports to then block.
C
HAPTER
8
| Services
IGMP Proxy Configuration
– 111 –
TCP SynWithData: Prevents the hacker sending a volume of
requests for connections that cannot be completed.
UDP Bomb: Also called a UDP Flood or packet storm. Prevents the
hacker congesting the network by generating a flood of UDP packets
between it and the unit using the UDP chargen service (a testing
utility that generates a character string for every packet it
receives).
UDP EchoChargen: Prevents the hacker from sending a UDP
packet to the echo server with a source port set to the chargen
port.
packets/second: Enter the number of packets per second that you
want to scan for malicious activity.
Sensitivity: Specifies the sensivity of the TCP/UDP port scan
prevention. (Options: High, Low; Default: Low)
Select All — Selects all DoS prevention measures listed.
Clear All — Clears all fields.
Enable Source IP Blocking — When multiple attacks are detected
from each of the fields listed above, or the packet threshold has been
exceeded - the IP address of the hacker is blocked.
Block Time (sec) — Sets the length of time in seconds the IP address
should remain blocked.
IGMP PROXY CONFIGURATION
Multicasting is useful when the same data needs to be sent to more than
one host. Using multicasting as opposed to sending the same data to the
individual hosts uses less network bandwidth. The multicast feature also
enables you to receive multicast video stream from multicast servers.
IP hosts use Internet Group Management Protocol (IGMP) to report their
multicast group memberships to neighboring routers. Similarly, multicast
routers use IGMP to discover which of their hosts belong to multicast
groups. This device supports IGMP proxy that handles IGMP messages.
When enabled, this device acts as a proxy for a LAN host making requests
to join and leave multicast groups, or a multicast router sending multicast
packets to multicast group on the WAN side.
When you enable IGMP Proxy, make sure IGMP is also enabled on the WAN
interface (upstream) that connects to a router running IGMP. You must also
enable IGMP on the LAN interface (downstream) that is connected to hosts.
C
HAPTER
8
| Services
IGMP Proxy Configuration
– 112 –
Figure 63: IGMP Proxy Configuration
The following items are displayed on this pages:
IGMP Proxy — Enables IGMP proxy. When enabled, the upstream
interface acts as a host interface, sending query messages periodically
to the downstream interfaces, sending join and leave messages to the
upstream multicast router when a first join or last leave message is
received from a downstream interface, and sending membership
reports in response to query messages from the multicast router.
Multicast Allowed — Enables multicast forwarding. (Default: Enabled)
Robustness Count — Specifies the robustness (or expected packet
loss) for interfaces. The robustness value is used in calculating the
appropriate range for other IGMP variables. (Range: 1-255; Default: 2)
Last Member Query Count — The number of query messages sent
before the router determines that there are no remaining members of
the specific host group being queried on the interface. (Range: 1-255;
Default: 2)
Query Interval — The interval between sending IGMP general queries.
(Range: 2-31744 seconds; Default: 60 seconds)
Query Response Interval — The maximum time the system waits for
a response to general queries. (Range: 10-31744 tenths of a second;
Default: 10 seconds)
Group Leave Delay — The time duration it takes a device to stop
forwarding multicast frames after an IGMP Leave Group message has
been successfully sent to the device. (Default: 2000 ms)
C
HAPTER
8
| Services
RIP Configuration
– 113 –
RIP CONFIGURATION
RIP is an Internet protocol you can set up to share routing table
information with other routing devices on your LAN, at your ISP’s location,
or on remote networks connected to your network via the ADSL line. Most
small home or office networks do not need to use RIP; they have only one
router, such as the router, and one path to an ISP. In these cases, there is
no need to share routes, because all Internet data from the network is sent
to the same ISP gateway.
Figure 64: RIP Configuration
The following items are displayed on this pages:
RIP — Enables or disables RIP on the unit. (Default: Disabled)
Interface — The name of the interface on which you want to enable
RIP. (Default: br0)
Receive Version — Indicate the RIP version in which information must
be passed to the DSL device in order for it to be accepted into its
routing table.
Send Version — Indicate the RIP version this interface will use when it
sends its route information to other devices.
C
HAPTER
8
| Services
ARP Binding Configuration
– 114 –
ARP BINDING CONFIGURATION
The router uses its tables to make routing decisions, and uses Address
Resolution Protocol (ARP) to forward traffic from one hop to the next. ARP
is used to map an IP address to a physical layer MAC address. When an IP
frame is received by the router, it first looks up the MAC address
corresponding to the destination IP address in the ARP cache. If the
address is found, the router writes the MAC address into the appropriate
field in the frame header, and forwards the frame on to the next hop. IP
traffic passes along the path to its final destination in this way, with each
routing device mapping the destination IP address to the MAC address of
the next hop toward the recipient, until the packet is delivered to its final
destination.
For devices that do not respond to ARP requests or do not respond in a
timely manner, traffic will be dropped because the IP address cannot be
mapped to a MAC address. If this occurs, you can use ARP Binding to
manually map an IP address to the corresponding MAC address in the ARP
cache.
Figure 65: ARP Binding Configuration
The following items are displayed on this pages:
IP Address – IP address statically mapped to a physical MAC address.
(Valid IP addresses consist of four numbers, 0 to 255, separated by
periods, and must match a known network interface)
MAC Address – MAC address statically mapped to the corresponding
IP address. (Valid MAC addresses are hexadecimal numbers in the
format: xxxxxxxxxxxx)
– 115 –
9ADVANCED
The Advanced Configuration settings for the ADSL Router contain advanced
system management configuration settings.
The following sections are contained in this chapter:
“Bridge Setting” on page 116
“Log Setting” on page 117
“Routing Configuration” on page 118
“UPnP” on page 120
“SNMP Protocol Configuration” on page 121
“System Time Configuration” on page 122
“Other Advanced Configuration” on page 123
“Port Mapping” on page 124
C
HAPTER
9
| Advanced
Bridge Setting
– 116 –
BRIDGE SETTING
This feature allows you to set the bridge aging time and to enable
Spanning Tree.
The Spanning Tree Protocol (STP) can be used to detect and disable
network loops, and to provide backup links between bridges. This allows a
wireless bridge to interact with other bridging devices (that is, an STP-
compliant switch, bridge or router) in your network to ensure that only one
route exists between any two stations on the network, and provide backup
links which automatically take over when a primary link goes down.

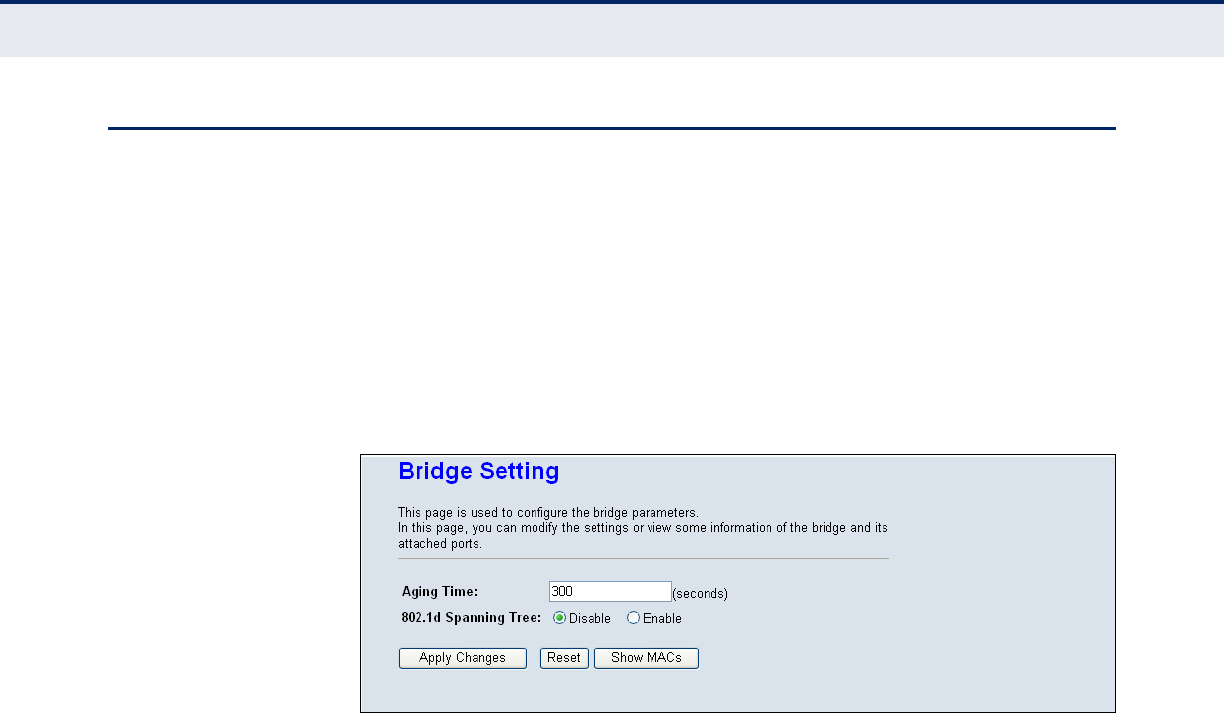

Figure 66: Bridge Setting
The following items are displayed on this page:
Ageing Time — Sets the MAC address ageing time, in seconds. After
the aging time has been reached with no traffic received, the unit will
delete the address from the forwarding database. (Default: 300
seconds)
802.1d Spanning Tree — Enables/disables the Spanning Tree
Protocol on the ADSL Router. (Default: Disabled)
C
HAPTER
9
| Advanced
Log Setting
– 117 –
LOG SETTING
The ADSL Router supports a logging process that controls error messages
saved to memory. The logged messages serve as a valuable tool for
isolating ADSL Router and network problems.
The Log Setting page displays the latest messages logged in chronological
order. Log messages saved in the ADSL Router’s memory are erased when
the device is rebooted.
Figure 67: Log Setting
The following items are displayed on this page:
Error: Selects the Error level of messages to be displayed by the ADSL
Router.
Notice: Selects the Notice level of messages to be displayed by the
ADSL Router.
Save Log to File — Saves the currently recorded system logs to file.
Clear Log Table — Clears the system log table.
Old/New — Displays the previous or next page of log entries.
C
HAPTER
9
| Advanced
Routing Configuration
– 118 –
EVENT LOG TABLE
Displays the current entries in the System Log table.
Time — Displays the date and time the log entry was created.
Index — The number of the log entry.
Type — Displays the source of the log message.
Log Information — Information that identifies the cause of the event
that prompted the system log message.
ROUTING CONFIGURATION
This page displays the information necessary to forward a packet along the
best path toward its destination. Each packet contains information about
its origin and destination. When a packet is received, a network device
examines the packet and matches it to the routing table entry providing
the best match for its destination. The table then provides the device with
instructions for sending the packet to the next hop on its route across the
network.
Figure 68: Routing Configuration
The following items are displayed on this page:
Enable — Enables static routing on the ADSL Router.
(Default: Enabled)
Destination — The network IP address of the subnet. The destination
can be specified as the IP address of a subnet or a specific host in the
subnet. It can also be specified as all zeros to indicate that this route
should be used for all destinations for which no other route is defined.
C
HAPTER
9
| Advanced
Routing Configuration
– 119 –
Subnet Mask — The network mask of the destination subnet. The
default gateway uses a mask of 0.0.0.0.
Next Hop — The IP address of the next hop through which traffic will
flow towards the destination subnet.
Metric — Defines the number of hops between network nodes that
data packets travel. The default value is 0, which means that the
subnet is directly one hop away on the local LAN network.
Interface — The WAN interface to which a static routing subnet is to
be applied.
Add Route — Adds a static route to the Static Route Table.
Update — Clears the above fields.
Delete Selected — Deletes the specified static route.
STATIC ROUTE TABLE
This table displays all the configured static routes.
Select — Highlights an entry in the Static Route Table.
State — Displays if the route is enabled or disabled.
Destination — Displays the final destination of the routed packets.
Subnet Mask — Displays the subnet mask.
Next Hop — The next hop that the packets will be routed to on their
way to their final destination.
Metric — Displays the number of hops from router to router that the
packets must make before reaching their final destination.
Interface — Displays the interface the packets will be routed on.
C
HAPTER
9
| Advanced
UPnP
– 120 –
UPNP
UPnP (Universal Plug and Play) provides inter-connectivity between devices
supported by the same standard. UPnP is based on standard Internet
protocols, such as TCP/IP, UDP, and HTTP.
Figure 69: UPnP
The following items are displayed on this page:
UPnP — Enables UPnP on the ADSL Router. (Default: Enabled)
WAN Interface — Selects the WAN interface for the UPnP service.
C
HAPTER
9
| Advanced
SNMP Protocol Configuration
– 121 –
SNMP PROTOCOL CONFIGURATION
Simple Network Management Protocol (SNMP) is a communication protocol
designed specifically for managing devices on a network. SNMP is typically
used to configure devices for proper operation in a network environment,
as well as to monitor them to evaluate performance or detect potential
problems.
The ADSL Router can be managed locally or remotely by SNMP.
Figure 70: SNMP Configuration
The following items are displayed on this pages:
SNMP — Enables/disables SNMP. (Default: Enabled)
System Description — A name given to identify the ADSL Router.
System Contact — The name of the system contact person.
System Name — A description of the unit. (Default: Wireless ADSL
Modem/Router)
System Location — The location of the ADSL Router.
Trap IP Address — Destination IP address of the SNMP trap.
Community Name (Read-only) — Name of the read-only
community. This read-only community allows read operation to all
objects in the Management Information Base (MIB).
Community Name (Read-Write) — Name of the write-only
community. This write-only community allows write operations to
objects defined as read-writable in the MIB.
C
HAPTER
9
| Advanced
System Time Configuration
– 122 –
SYSTEM TIME CONFIGURATION
The System Time page allows you to manually configure time settings or
enable the use of an NTP server.
Figure 71: System Time Configuration
The following items are displayed on this page:
System Time — Displays the current date and time and allows you to
manually configure time settings.
DayLight — Enables daylight saving time to be configured.
State — Enables NTP (Network Time Protocol). (Default: Disabled)
Primary/Secondary Server — Specifies NTP servers to poll for time
updates.
Interval — Specifies the interval to poll for time updates.
Time Zone — Allows you to select your current location or nearest
city. All time zones are given in Greenwich Mean Time (GMT).
Local Time — Displays the current date and time and allows you to
manually configure time settings.
NTP Start — Initiates a time update from an NTP server.
C
HAPTER
9
| Advanced
Other Advanced Configuration
– 123 –
OTHER ADVANCED CONFIGURATION
Enables the Half Bridge feature for PPPoE (PPPoA) connections. When the
router is set to Half Bridge, it establishes the PPPoE/PPPoA connection with
the ISP, then forwards all other traffic to DHCP clients connected to the
router.
Figure 72: Other Advanced Configuration
The following items are displayed on this page:
Half Bridge — Displays the current date and time and allows you to
manually configure time settings.
Interface — Selects the WAN interface for the Half Bridge feature.
C
HAPTER
9
| Advanced
Port Mapping
– 124 –
PORT MAPPING
Port Mapping supports multiple ports to WAN interfaces and bridging
groups. Each group performs as an independent network. You can create
up to four groups on the router.
Figure 73: Port Mapping Configuration
The following items are displayed on this page:
WAN – The WAN interfaces that can be grouped.
LAN – The LAN interfaces that can be grouped.
Interfaces Group — The grouped WAN and LAN interfaces.
Apply Changes — Sets the Interfaces Group as the selected group in
the table.
– 125 –
10 DIAGNOSTICS
The Diagnostics page is used to test the local Ethernet connection, or the
WAN connection for the DSL signal and the connection to DSL provider
network.
This chapter contains the following sections:
“Diagnostic Test” on page 126
“Ping” on page 127
“Traceroute” on page 128
ADSL Tone Diagnostics” on page 130
C
HAPTER
10
| Diagnostics
Diagnostic Test
– 126 –
DIAGNOSTIC TEST
The diagnostic test shows the test results for the connectivity of the
physical layer and protocol layer for both LAN and WAN sides.
Figure 74: Diagnostic Test
The following items are displayed on this page:
Select the Interface — Selects the WAN connection. (Default: vc0)
Run Diagnostic Test — Performs a diagnostic test on the LAN and
WAN side connections.
LAN CONNECTION CHECK
Displays the result of a test for connectivity on the LAN port.
Test Ethernet LAN Connection — Displays the connectivity of the
Ethernet LAN port.
ADSL CONNECTION TEST
Displays the results of a test for connectivity on the WAN port.
Test ADSL Synchronization — Displays the connectivity of the ADSL
synchronisation.
Test ATM OAM F5 Segment Loopback — Displays the connectivity of
an F5 segment loopback of the permanent virtual circuit (PVC)
connection with your service provider.
Test ATM OAM F5 End-to-end Loopback — Displays the connectivity
of an F5 end-to-end loopback integrity test of the permanent virtual
circuit (PVC) connected to your service provider.
Test ATM OAM F4 Segment Loopback — Displays the connectivity of
an F4 segment loopback of the permanent virtual circuit (PVC)
connection with your service provider.
Test ATM OAM F4 End-to-end Loopback — Displays the connectivity
of an F4 end-to-end loopback integrity test of the permanent virtual
circuit (PVC) connected to your service provider.
C
HAPTER
10
| Diagnostics
Ping
– 127 –
PING
The ADSL Router provides the function of “pinging” its own IP address or
URL to test for connectivity.
Figure 75: Ping
The following items are displayed on this page:
Host — The host IP address or URL to test for connectivity.
Run Ping — Sends the ping request, resulting in the the following
page:
Figure 76: Ping Result
PING6The ADSL Router can also ping IPv6 addresses on specific interfaces to test
for connectivity.
Figure 77: Ping6
C
HAPTER
10
| Diagnostics
Traceroute
– 128 –
TRACEROUTE
Traceroute discovers the routes that packets take when traveling to a
destination. Traceroute works by taking advantage of the error messages
generated by routers when a packet exceeds its time-to-live (TTL) value.
The traceroute command first sends probe datagrams with the TTL value
set at one. This causes the first router to discard the datagram and return
an error message. The trace function then sends several probe messages
at each subsequent TTL level and displays the roundtrip time for each
message. Not all devices respond correctly to probes by returning an “ICMP
port unreachable” message. If the timer goes off before a response is
returned, the trace function prints a series of asterisks and the “Request
Timed Out” message. A long sequence of these messages, terminating only
when the maximum timeout has been reached, may indicate this problem
with the target device. A trace terminates when the destination responds,
when the maximum timeout (TTL) is exceeded, or the maximum number of
hops is exceeded.
Figure 78: Traceroute
The following items are displayed on this page:
Host — The IP address of the destination host.
Number of Tries — The number of datagrams to be sent at each TTL
level. The default count is 3. (Range: 1–10)
Timeout — The number of seconds to wait for a response to a probe
packet. The default is 5000 ms. (Range: 1–65535)
Datasize — Number of bytes in the packet. The default is 38 bytes.
(Range: 64-1518)
DSCP — The DSCP value in the IP Header of the packet. (Range: 0-63)
Max Hop Count — The largest TTL value that can be used. The
traceroute terminates when the destination is reached or when this
value is reached. The default is 30. (Range: 1–255)
Interface — Selects the interface on which to run the traceroute.
C
HAPTER
10
| Diagnostics
Traceroute
– 129 –
Figure 79: Traceroute Result
C
HAPTER
10
| Diagnostics
ADSL Tone Diagnostics
– 130 –
ADSL TONE DIAGNOSTICS
The ADSL page displays diagnostic testing for the ADSL connection.
Figure 80: ADSL Tone Diagnostics
The following items are displayed on this page:
Start — Starts the diagnostics test.
Downstream/Upstream — Displays downstream and upstream
traffic.
Hlin Scale — Displays the scaling factor for H.Real and H.Image
represented in fixed-point format.
Loop Attenuation (dB) — Displays the attentuation of the link to the
ADSL Router and the service provider in decibels.
Signal Attenuation (dB) — Displays the signal attentuation of the
link which determines the frequency in decibels.
SNR Margin (dB) — Displays the signal-to-noise ratio of the link in
dedibels.
Attainable Rate (Kbps) — Displays the attainable rate of the link to
the service provider in kilobits per second.
C
HAPTER
10
| Diagnostics
ADSL Tone Diagnostics
– 131 –
Output Power (dBm) — Displays the output power of the unit in
decibels per milliwatt.
Tone Number — Displays the tone number of the ADSL signal.
(Range: 0~255)
H.Real — Displays the real part of channel transfer function of each
subcarrier.
H.Image — Displays the imaginary part of channel transfer function of
each subcarrier.
SNR — Displays the SNR (Singal to Noise Ratio) of each subcarrier
expressed in decibels.
QLN — Displays the Quite Line Noise of each subcarrier, expressed in
dBm/Hz.
Hlog — Displays the amplitude response of channel transfer function of
each subcarrier, expressed in decibels.
– 132 –
11 ADMINISTRATION SETTINGS
The Admin pages are used to manage configuration files, system logs, TR-
069 ACS, passwords; and also to update software and reboot the system.
This chapter contains the following sections:
“Commit/Reboot” on page 133
“Backup/Restore Settings” on page 134
“Password Setup” on page 135
“Upgrade Firmware” on page 136
“TR-069 Configuration” on page 137
C
HAPTER
11
| Administration Settings
Commit/Reboot
– 133 –
COMMIT/REBOOT
Use this page to save the current configuration and reboot the system.
Figure 81: Commit/Reboot
The following items are displayed on this page:
Reboot from — Select the option for router’s configuration:
Save the current configuration — Select this option if you want
to save your changes for the next reboot.
Restore to the factory default configuration — Select this
option if you want to return all changes to default values.
Commit Changes — Sets the selected configuration option.
Reset — Resets the selected option on the page.
Reboot — Restarts the router.
When rebooting the system the following page displays and a countdown
from 64 seconds begins.
Figure 82: Rebooting
C
HAPTER
11
| Administration Settings
Backup/Restore Settings
– 134 –
BACKUP/RESTORE SETTINGS
The Backup/Restore Settings page allows you to backup current settings to
a local file, and load previously saved settings to the unit.
Figure 83: Backup/Restore Settings
The following items are displayed on this page:
Save Settings to File — Saves the current configuration to a file
locally on the management PC.
Load Settings from File — Allows the user to load previously saved
configuration files from a local file on the management PC.
C
HAPTER
11
| Administration Settings
Password Setup
– 135 –
PASSWORD SETUP
Management access to the ADSL Router is controlled through different
levels of user name and password.
To protect access to the management interface, you need to configure a
new Administrator’s password as soon as possible. If a new password is not
configured, then anyone having access to the ADSL Router may be able to
compromise the unit's security by entering the default values.
Figure 84: Password Setup
The following items are displayed on this page:
User Name — Specifies the user name to configure:
Privilege — Configures the access privileges that the user has. Select
between:
Admin: Grants administrator level access, no restrictions.
User: Grants user level access, some configuration restrictions.
Old Password — The password for management access. The default
passwords preset for access to the unit is “smcadmin” for admin and
user level. (Length: 3-16 characters, case sensitive)
New Password — Enter a new password.
Confirmed Password — Enter the new password again for
verification.
C
HAPTER
11
| Administration Settings
Upgrade Firmware
– 136 –
UPGRADE FIRMWARE
You can update the ADSL Router’s firmware by using the Upgrade Firmware
facility which allows you to upload new firmware manually by specifying a
file path. Make sure the firmware file you want to use is on the local
computer by clicking Browse to search for the file to be used for the
update.
Figure 85: Upgrade Firmware
The following items are displayed on this page:
Select File — Specifies the firmware file for the upgrade. The file
location must be on the local management PC. You can use the Browse
button to find the file.
Browse — Opens a directory on the local hard drive for specifying the
path of file required for uploading.
Upload — Starts the upload procedure.
Reset — Clears all file directory fields.
C
HAPTER
11
| Administration Settings
TR-069 Configuration
– 137 –
TR-069 CONFIGURATION
The Technical Report 069 (TR069) protocol defines a specification for
remote management of CPE devices. The protocol uses HTTP for two-way
communication between the CPE device and an Auto Configuration Server
(ACS), allowing service providers to provide CPE configuration, software
upgrades, and other service functions for end-users.
The ADSL Router’s TR-069 parameters need to be defined to allow
communication with the remote ACS.
Figure 86: TR-069 Configuration
C
HAPTER
11
| Administration Settings
TR-069 Configuration
– 138 –
The following items are displayed on this pages:
ACS
Defines the Auto Configuration Server parameters.
Enable — Enables/disables TR-069 support. (Default: Enabled)
URL — Speceifies the URL required for the CPE to connect to the ACS.
User Name — Enter the user name that the ADSL Router should use
when connecting to the ACS.
Password — Enter the password that the ADSL Router should use
when connecting to the ACS.
Periodic Inform Enable — When this field is enabled, the DSL device
will send an Inform RPC to the ACS server at the system startup, and
will continue to send it periodically at an interval defined in Periodic
Inform Interval field; When this field is disabled, the DSL device will
only send Inform RPC to the ACS server once at the system startup.
(Default: Enabled)
Periodic Inform Interval — Time interval in seconds to send Inform
RPC.
CONNECTION REQUEST
Defines the connection from the ADSL Router to the ACS.
User Name — The user name the remote ACS should use when
connecting to this device.
Password — The password the remote ACS should use when
connecting to this device.
Path — The path of the device ConnectionRequestURL. The device
ConnectionRequestURL should be configured based on the Device_IP,
Path and Port as follows: http://Device_IP:Port/Path
Port — The port of the device ConnectionRequestURL.
DEBUG
Sets options for displaying debug messages for the ACS connection.
ACS Certificates CPE — Selects if digital certificates are used on the
CPE.
Show Message — Displays ACS SOAP messages on the serial console.
CPE sends GetRPC — The router contacts the ACS to obtain Remote
Procedure Call methods.
C
HAPTER
11
| Administration Settings
TR-069 Configuration
– 139 –
Skip MReboot — Specifies whether to send an MReboot event code in
the inform message.
Delay — Specifies whether to start TR-069 after a short delay.
Auto-Execution — Specifies whether to automatically start TR-069
after the router is powered on.
CERTIFICATE MANAGEMENT
Defines the digital certificate files used for authentication between the
ADSL Router and the ACS.
CPE Certificate Password — The password to use with the ADSL
Router's digital certificate file.
CPE Certificate — The unique digital security certificate used by the
ADSL Router to authenticate with the ACS server. Click the “Browse”
button to locate the file on your local PC and upload it to the unit using
the “Upload” button.
CA Certificate — The digital security certificate issued by a Certified
Authority to be used by the unit when authenticating the ACS server.
Click the “Browse” button to locate the file on your local PC and upload
it to the unit using the “Upload” button.
– 140 –
S
ECTION
III
APPENDICES
This section provides additional information and includes these items:
“Troubleshooting” on page 141
“Hardware Specifications” on page 143
“Cables and Pinouts” on page 147
– 141 –
ATROUBLESHOOTING
DIAGNOSING GATEWAY INDICATORS
Gateway operation is easily monitored via the LED indicators to identify
problems. The table below describes common problems you may encounter
and possible solutions. If the solutions in the table fail to resolve the
problem, contact technical support for advice.
Table 3: LED Troubleshooting Chart
Symptom Cause Solution
Power
indicator does not
light up after power
on.
Power outlet, power
cord, or external
power adapter may
be defective.
Check the power outlet by plugging in
another device that is functioning properly.
Check the power adapter with another
router.
Ethernet
link indicator does
not light up after
making a
connection.
Network interface
(e.g., a network
adapter card in the
attached computer),
network cable, or
router LAN port may
be defective.
Verify that the router and computer are
powered on.
Be sure the cable is plugged into both the
router and the computer.
Verify that the proper cable type is used and
its length does not exceed specified limits.
Check the network adapter in the computer
and cable connections for possible defects.
Replace the defective adapter or cable if
necessary.
Link
indicator is off or
does not stop
blinking (i.e.,
synchronizing)
after making a
connection.
Cabling or router
DSL port may be
defective.
Be sure the cable is plugged into both the
router, ADSL Splitter, and an RJ-11
telephone jack.
Verify that the cable length does not exceed
specified limits. (Check with your service
provider for this information.)
Check the cable connections on the router,
ADSL Splitter, and wall jack for possible
defects. Replace the defective cable if
necessary.
A
PPENDIX
A
| Troubleshooting
If You Cannot Connect to the Internet
– 142 –
IF YOU CANNOT CONNECT TO THE INTERNET
Check that your computer is properly configured for TCP/IP. For more
information, see “Configuring the TCP/IP Protocols” on page 32.
Make sure the correct network adapter driver is installed for your PC
operating system. If necessary, try reinstalling the driver.
Check that the network adapter’s speed or duplex mode has not been
configured manually. We recommend setting the adapter to auto-
negotiation when installing the network driver.
PROBLEMS ACCESSING THE MANAGEMENT INTERFACE
Table 4: Web Access Troubleshooting Chart
Symptom Action
Cannot connect using a
web browser Be sure the router is powered up.
Check the network cabling between the management
station and the router.
Check that you have a valid network connection to the
router and that the port you are using has not been
disabled.
Be sure the management station has an IP address in the
same subnet as the router’s IP interface to which it is
connected.
Forgot or lost the
password Press and hold down the Reset button for 3 seconds or
more to restore the unit’s factory default settings, then use
the default password to access the web interface.
– 143 –
BHARDWARE SPECIFICATIONS
PHYSICAL CHARACTERISTICS
PORTS 1 RJ-11 DSL line (to phone jack in the wall)
4 RJ-45 10/100BASE-TX (Ethernet connection to PC)
ETHERNET INTERFACE RJ-45 connector, auto MDI/X pinout detection
10BASE-T: 100-ohm, UTP cable; Category 3 or better
100BASE-TX: 100-ohm, UTP cable; Category 5 or better
*Maximum Cable Length - 100 m (328 ft)
DSL INTERFACE RJ-11 connector, using standard phone cable (26 AWG)
LED INDICATORS Power, DSL, Internet, LAN, WLAN, WPS
INPUT POWER 12 VDC (via AC power adapter), 800 mA maximum
SIZE 140 x 104 x 28.5 mm (5.51 x 4.09 x 1.12 in.)
WEIGHT 177 g (6.2 oz)
TEMPERATURE Operating: 0 °C to 40 °C (32 °F to 104 °F)
HUMIDITY Operating: 10% to 95% (non-condensing)
A
PPENDIX
B
| Hardware Specifications
Wireless Characteristics
– 144 –
WIRELESS CHARACTERISTICS
FREQUENCY BAND 2.4 ~ 2.484 GHz
RADIO DATA RATE 11b: 11/5.5/2/1M (Automatic)
11g: 54/48/36/24/18/12/9/6M (Automatic)
11n: HT40 up to 150 Mbps, HT20 up to 65 Mbps (Automatic)
CHANNELS Up to 14 (depending on region)
MODULATION 802.11b: 64-QAM, 16-QAM, QPSK, BPSK, DSSS
802.11g: CCK, DQPSK, DBPSK
802.11n, HT20 and HT40: 64-QAM, 16-QAM, QPSK, BPSK
SECURITY WEP/WPA/WPA2/WPA2-PSK/WPA-PSK
SOFTWARE FEATURES
ATM FEATURES Support up to 8 ATM PVCs
Support ATM Forum UNI 3.1/4.0 PVC
Support UBR, CBR, and rt-VBR and nrt-VBR service classes
Provide ATM layer functionality
Support up to 8 PVCs – traffic shaping (CBR, UBR, rt/nrt-VBR)
Support PPPoA (RFC2364)
Support MPoA functionality (RFC2684)
Support IP over ATM (IPoA)
Support ATM cell format ITU -T I.361
Support OAM F4/F5 loopback
PPP FUNCTIONS Point-to-Point Protocol (RFC1661)
PPP over ATM (RFC2364)
PPP over Ethernet (RFC2516)
User Authentication
- CHAP (RFC1994)
- PAP (RFC1334)
A
PPENDIX
B
| Hardware Specifications
Software Features
– 145 –
BRIDGE FEATURES Ethernet bridging
Support for transparent bridging
- MAC address learning
- MAC address filtering and protocol filtering for up-link
ROUTING FEATURES RIP v1/v2
Static routing
PPP/PPPoE (RFC 2516)
NAT with ALGs
NAPT
IGMP v1/v2
IGMP proxy and snooping
IPv4
IP pass-through
ARP binding
Port mapping
SECURITY Stateful Packet Inspection (SPI)
Management Access Control for WAN
User authentication for PPP (PAP/CHAP)
DDoS (Dynamic DoS) Protection
FIREWALL NAT
DMZ
Filtering – IP Filtering, MAC Filtering, URL Filtering
ACL (Access Control List)
VPN (IPSec, PPTP, L2TP) pass-through
Software Forbidden
MANAGEMENT Access administration
Web-based configuration - HTTP server
System configuration backup and restore
SNMP Support (V.1 and V.2C) – MIB I, MIB II (RFC1213)
Firmware upgrade by Web/TFTP
Remote firmware upgrade
UPnP
EZ Setup Wizard
TR069 remote management diagnostic
TR067 ensures product meets all ADSL IOT tests
QOS IP ToS function (RFC 1349)
A
PPENDIX
B
| Hardware Specifications
Standards
– 146 –
802.1p bit remarking
Traffic classification by port, 802.1p , ToS, and DSCP
STANDARDS
ETHERNET STANDARDS IEEE 802.3-2005 Ethernet Access
Ethernet, Fast Ethernet
Full-duplex flow control (ISO/IEC 8802-3)
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p priority tags
WIRELESS STANDARDS 802.11b
802.11g
802.11n
ADSL COMPLIANCE ANSI T1.413 Issue 2
G.992.1 (G.dmt) Annex A
G.992.2 (G.lite) Annex A
G.992.3 ADSL2 (G.dmt.bis) Annex A/J/K/L/M
G.992.4 ADSL2 (G.lite.bis)
G.992.5 ADSL2+
COMPLIANCES
EMISSIONS FCC Part 15B Class B
FCC Part 68
CE Mark
CCC Class B
ENVIRONMENTAL RoHS compliant
SAFETY UL
– 147 –
CCABLES AND PINOUTS
TWISTED-PAIR CABLE ASSIGNMENTS
For 10/100BASE-TX connections, a twisted-pair cable must have two pairs
of wires. For 1000BASE-T connections the twisted-pair cable must have
four pairs of wires. Each wire pair is identified by two different colors. For
example, one wire might be green and the other, green with white stripes.
Also, an RJ-45 connector must be attached to both ends of the cable.
N
OTE
:
Each wire pair must be attached to the RJ-45 connectors in a specific
orientation.
C
AUTION
:
DO NOT plug a phone jack connector into the RJ-45 port. Use
only twisted-pair cables with RJ-45 connectors that conform with FCC
standards.
The following figure illustrates how the pins on the RJ-45 connector are
numbered. Be sure to hold the connectors in the same orientation when
attaching the wires to the pins.
Figure 87: RJ-45 Connector
1
881
A
PPENDIX
C
| Cables and Pinouts
10/100BASE-TX Pin Assignments
– 148 –
10/100BASE-TX PIN ASSIGNMENTS
Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for
RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps
connections. Also be sure that the length of any twisted-pair connection
does not exceed 100 meters (328 feet).
The RJ-45 port on the router supports automatic MDI/MDI-X operation, so
you can use straight-through or crossover cables for all network
connections to PCs, switches, or hubs. In straight-through cable, pins 1, 2,
3, and 6, at one end of the cable, are connected straight through to pins 1,
2, 3, and 6 at the other end of the cable.
STRAIGHT-THROUGH WIRING
If the twisted-pair cable is to join two ports and only one of the ports has
an internal crossover (MDI-X), the two pairs of wires must be straight-
through. (When auto-negotiation is enabled for any RJ-45 port on this
gateway, you can use either straight-through or crossover cable to connect
to any device type.)
Figure 88: Straight-through Wiring
Table 5: 10/100BASE-TX MDI and MDI-X Port Pinouts
PIN MDI Signal Namea
a. The “+” and “-” signs represent the polarity of the wires that make up each wire pair.
MDI-X Signal Name
1 Transmit Data plus (TD+) Receive Data plus (RD+)
2 Transmit Data minus (TD-) Receive Data minus (RD-)
3 Receive Data plus (RD+) Transmit Data plus (TD+)
6 Receive Data minus (RD-) Transmit Data minus (TD-)
4, 5, 7, 8 Not used Not used
White/Orange Stripe
Orange
White/Green Stripe
Green
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Straight-through Cable
End A End B
Blue
White/Blue Stripe
Brown
White/Brown Stripe
A
PPENDIX
C
| Cables and Pinouts
Crossover Wiring
– 149 –
CROSSOVER WIRING
If the twisted-pair cable is to join two ports and either both ports are
labeled with an “X” (MDI-X) or neither port is labeled with an “X” (MDI), a
crossover must be implemented in the wiring. (When auto-negotiation is
enabled for any RJ-45 port on this gateway, you can use either straight-
through or crossover cable to connect to any device type.)
Figure 89: Crossover Wiring
White/Orange Stripe
Orange
White/Green Stripe
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Crossover Cable
End A End B
Green
Blue
White/Blue Stripe
Brown
White/Brown Stripe
A
PPENDIX
C
| Cables and Pinouts
RJ-11 Port
– 150 –
RJ-11 PORT
Standard telephone RJ-11 connectors and cabling can be found in several
common wiring patterns. These six-pin connectors can accommodate up to
three wire-pairs (three telephone lines), but usually only one or two pairs
of conductor pins and wires are implemented.
The RJ-11 port on this device contains one wire-pair, an inner pair on pins
3 and 4. This wire-pair carries the digital data.
Figure 90: RJ-11 Wiring
Table 6: RJ-11 Port Pinouts
Pin Signal Name Wire Color
1Not used
2Not used
3 Line 1 Ring Red or Blue/White
4 Line 1 Tip Green or White/Blue
5Not used
6Not used
123456
Red or
Blue/White
Green or
White/Blue
RT
R = Ring T = Tip
– 151 –
GLOSSARY
10BASE-T IEEE 802.3-2005 specification for 10 Mbps Ethernet over two pairs of
Category 3 or better UTP cable.
100BASE-TX IEEE 802.3-2005 specification for 100 Mbps Fast Ethernet over two pairs of
Category 5 or better UTP cable.
1000BASE-T IEEE 802.3ab specification for 1000 Mbps Gigabit Ethernet over four pairs
of Category 5 or better UTP cable.
BACKBONE The core infrastructure of a network. The portion of the network that
transports information from one central location to another central location
where it is unloaded onto a local system.
DHCP Dynamic Host Configuration Protocol: Provides a framework for passing
configuration information to hosts on a TCP/IP network. DHCP is based on
the Bootstrap Protocol (BOOTP), adding the capability of automatic
allocation of reusable network addresses and additional configuration
options.
ETHERNET A popular local area data communications network, which accepts
transmission from computers and terminals.
FIREWALL A firewall is designed to prevent unauthorized access to or from a private
network.
FTP File Transfer Protocol: A TCP/IP protocol used for file transfer.
HTTP Hypertext Transfer Protocol: HTTP is a standard used to transmit and
receive all data over the World Wide Web.
ISP Internet Service Provider. A company that provides access to the Internet.
This may be your local telephone company, or a dedicated Internet service
company.
G
LOSSARY
– 152 –
ITU International Telecommunication Union
ITU-T Telecommunication Standardization Section of ITU
LAN Local Area Network: A group of interconnected computers and support
devices.
MAC ADDRESS The physical layer address used to uniquely identify network nodes.
MTU Maximum Transfer Unit. The maximum transfer unit for traffic crossing this
device. MTU should be set to a value that minimizes unnecessary
fragmentation and maximizes the transfer of large sequential data
streams.
NTP Network Time Protocol: NTP provides the mechanisms to synchronize time
across the network. The time servers operate in a hierarchical-master-
slave configuration in order to synchronize local clocks within the subnet
and to national time standards via wire or radio.
PING A utility used to determine whether a specific IP address is accessible. It
works by sending a packet to the specified address and waiting for a reply.
POTS Plain Old Telephone Service. One of the services using voice band.
Sometimes used as a descriptor for all voice band services.
PPP Point-to-Point Protocol. A protocol for connecting remote hosts to the
Internet using TCP/IP.
PPPOEPPP over Ethernet. A protocol for connecting remote hosts to the Internet
over an always-on connection by simulating a dial-up connection.
PSTN Public Switched Telephone Network.
QOSQuality of Service. A network protocol used to specify a guaranteed
throughput level. This protocol is often used by Internet service providers
to guarantee their customers a minimum end-to-end latency.
RATE ADAPTIVE A DSL service that automatically adjusts the transmission rate depending
on line quality and loading to ensure data quality (such as, keeping within
a maximum error rate).
G
LOSSARY
– 153 –
RJ-45 CONNECTOR A connector for twisted-pair wiring.
SPLITTER A filter to separate DSL signals from POTS signals to prevent mutual
interference.
SNTP Simple Network Time Protocol: SNTP allows a device to set its internal
clock based on periodic updates from a Network Time Protocol (NTP)
server. Updates can be requested from a specific NTP server, or can be
received via broadcasts sent by NTP servers.
TCP/IP Transmission Control Protocol/Internet Protocol. Protocol suite that
includes TCP as the primary transport protocol, and IP as the network layer
protocol.
TIA Telecommunications Industry Association
UDP User Datagram Protocol. UDP provides a datagram mode for packet-
switched communications. It uses IP as the underlying transport
mechanism to provide access to IP-like services. UDP packets are delivered
just like IP packets – connection-less datagrams that may be discarded
before reaching their targets. UDP is useful when TCP would be too
complex, too slow, or just unnecessary.
UPNPUniversal Plug-and-Play. A set of protocols that allows devices to connect
seamlessly and simplifies the deployment of home and office networks,
using auto-discovery of other network devices, acquiring information about
device capabilities, and requests for services.
UTP Unshielded twisted-pair cable.
VPN Virtual Private Network. A secure tunnel used to protect data passing from
one network to another over the Internet.
WAN Wide Area Network. A computer network that spans a relatively large
geographical area. Typically, a WAN consists of two or more local-area
networks (LANs).
– 154 –
INDEX
NUMERICS
10/100BASE-TX pin assignments 148
100BASE-TX 27
10BASE-T 27
A
access control 63
ACLs 92
ADSL capability 87
ADSL modulation 86
ADSL settings 86
ADSL tone diagnostics 130
advanced settings 57
AnnexL option 87
AnnexM option 87
ARP table 52
ATM settings 84
B
backup/restore settings 134
bridge configuration 116
buttons
Reset 29
C
cable connections 31
channel configuration 82
commit/reboot 133
compliances
emissions 146
environmental 146
crossover cables 149
current ATM VC table 85
D
DDNS 90
default settings, reset 29
denial of service (DoS) 109
DHCP settings 76
DHCP relay 77
DHCP server 78
no DHCP 76
DMZ 106
DNS server 89
DSL statistics 51
E
Ethernet 27
F
factory defaults, resetting 29
front panel 27, 28
G
Gateway
features 26
guard interval 58
H
hardware, description 27
HT channel bandwidth 55
I
IGMP proxy configuration 111
installation
connecting cables 31
powering on 32
IP/Port filtering 95
L
LAN interface 73, 74
LAN status 46
LAN/WAN diagnostics test 126
LED indicators 28
M
MAC filtering 105
P
package contents 30
password setup 135
PBC mode, WPS 65
pin assignments
RJ-11 150
PIN code, WPS 65
ping 127
pinouts, cable 147
I
NDEX
– 155 –
port
RJ-11 27
RJ-45 27
port indicators 28
power adapter, details 29
power connector 29
powering on 32
problems, troubleshooting 141
R
rear panel 27, 28
Reset button 29
RIP configuration 113
RJ-11
pin assignments 150
port 27
RJ-45 connector pins 147
RJ-45 port 27
routing configuration 118
S
second BSSID 66
SNMP protocol configuration 121
specifications
component 143, 144
environmental 143
power 143
specifications, hardware 143
standards
IEEE 146
ITU-T 146
straight-through cables 148
system
indicators 28
requirements 30
system log 117
T
TCP/IP, PC configuration 32
time zone 122
TR-069 configuration 137
traffic statistics 50
troubleshooting 141
Internet connection 142
management access 142
twisted-pair cable assignments 147
U
upgrade firmware 136
UPnP 120
URL blocking 107
UTP cable pinouts 148
W
WAN status 47, 48
Web interface
access requirements 36
home page 37
wireless security setup 59
common wireless parameters 59
WEP security 60
WLAN basic settings 55
WPA security 62
WPS security 65
