Edgecore Networks ECW5211O 802.11ac Wireless Access Point User Manual ECW5211 O Users manual rev
Edgecore Networks Corporation 802.11ac Wireless Access Point ECW5211 O Users manual rev
User Manual
For a world always connected…
The ECW75211-O is an Wave 2 indoor 802.11a/b/g/n/ac dual-band, dual-radio 2x2 MIMO enterprise Indoor
AP to submit OCP(Open Compute Project) with ONIE(Open Network Install Environment) support.
Through its Gigabit Ethernet port the 802.11ac dual-band wireless AP can connect to the backbone network.
The ECW5211-O supports 802.3af PoE, which enables the AP to be powered remotely by a PoE switch. An
AC power adapter option is also included for locations where PoE is not available.

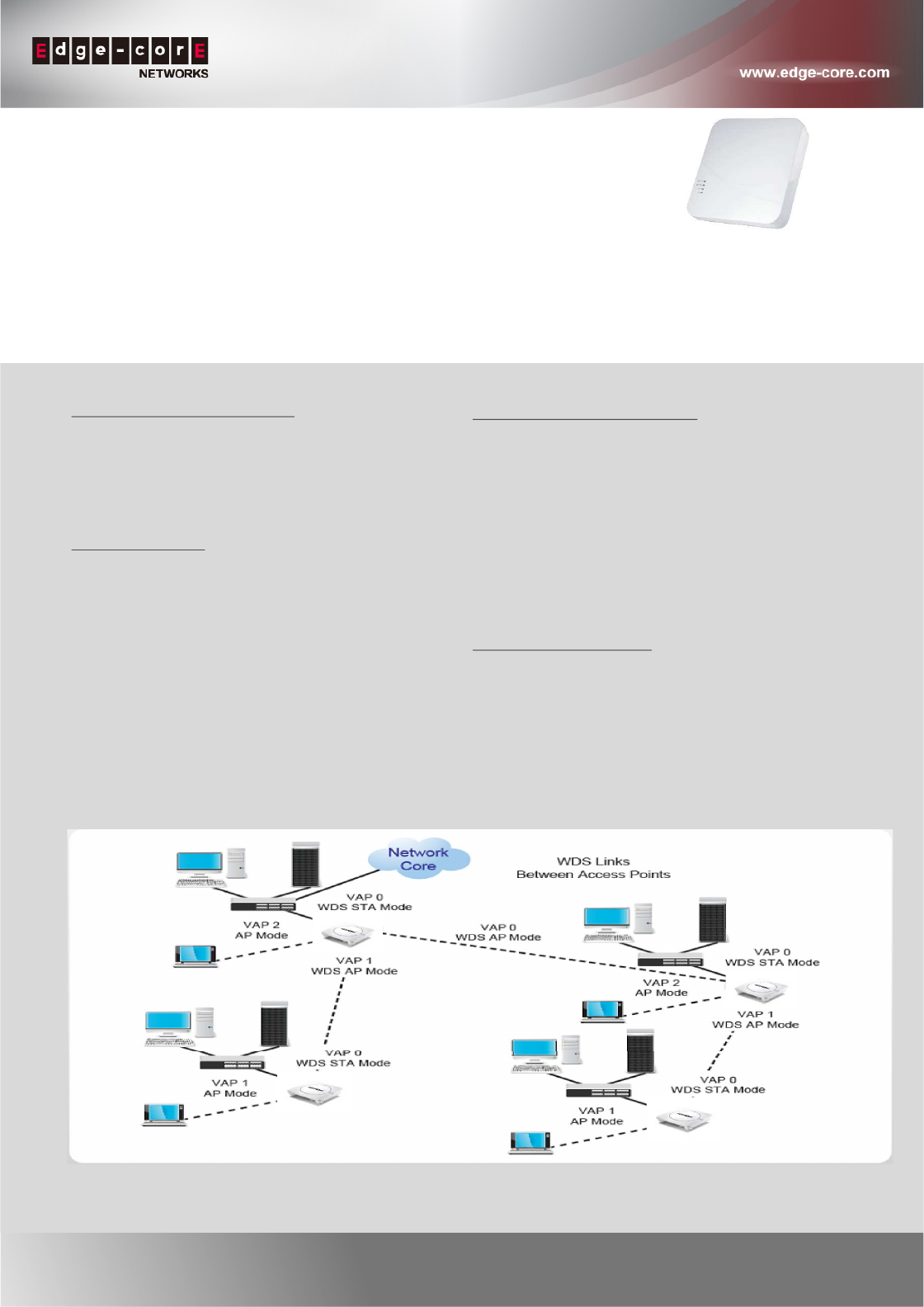

Product Overview
ECW5211-O
802.11ac OCP Wireless Access Point
DATASHEET
Wireless 802.11ac Technology
Using 802.11ac MIMO (Multiple Input Multiple)
wireless technology, the AP supports three
and three receiving antennas that extend range and
increase the throughput by up to nine times that of
existing Wi-Fi.
Wave 2, MU-MIMO
Support 4 clients at the same time. Also, it supports
beamforming and channel bonding(80MHzÆ160MHz)
Advanced Traffic Management
Support for up to eight Virtual Access Point (VAP)
interfaces per radio, which allows traffic to be separated
for different user groups within the same service area.
Each radio can support up to 100 wireless clients,
shared between all VAPs, whereby the clients associate
with each VAP in the same way as they would with
physically separate APs. This means that each VAP
can be configured with its own Service Set Identification
(SSID), security settings, VLAN assignments, and other
parameters, allowing the AP to serve a diverse range of
client needs from a single unit.
Dual-Band Access Point
Easy on your budget and simple to install, the AP uses
dynamic rate shifting to automatically match the best
connection speed, keeping users connected to the
network even while roaming.
Key Features and Benefits
Application Diagram
TEL: 886-3-5638888 FAX: 886-3-6686111
1, Creation Rd. III, Hsinchu Science Park, Taiwan 30077
sales_ec@edge-core.com
www.edge-core.com
ECW5211-O Product Specifications
Physical Features Network Management
Standards
Wireless Frequency
Antenna
Warranty
Features
One 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with
802.3af-compliant Power over Ethernet (PoE) support
One 10/100/1000BASE-T Gigabit Ethernet (RJ-45)
One USB Port (optional)
One Reset Button
Five LEDs: Power, WLAN 2.4G, WLAN 5G, Eth1/PoE/ Eth2
PoE 802.3af compliant
IEEE 802.11n 2.4 GHz and 5.0 GHz
IEEE 802.11ac/a 5.0 GHz
IEEE 802.11b/g, 2.4 GHz
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.11h Regulatory Domain Selection
IEEE 802.11i
Wi-Fi Multimedia (WMM)
Wireless Distribution System (WDS)
802.11g/n:
2.4 ~ 2.4835 GHz (US, Canada)
2.4 ~ 2.4835 GHz (ETSI, Japan)
802.11b:
2.4 ~ 2.4835 GHz (US, Canada)
2.4 ~ 2.4835 GHz (ETSI)
2.4 ~ 2.497 GHz (Japan)
802.11a/n/ac:
5.15 ~ 5.25 GHz (lower band) US/Canada, Europe, Japan
5.25 ~ 5.35 GHz (middle band) US/Canada, Europe, Japan
5.725 ~ 5.825 GHz (upper band) US/Canada
5.50 ~ 5.70 GHz Europe
5.47 ~ 5.725GHz
Telent
Web-based Management (HTTP and HTTPS)
SNMP management v1/v2c
Software download and upgrade by TFTP, HTTP
Configuration file backup and restore
System Information – AP status, station status, event logs
SNTP
Country selection
IPv4 and IPv6 dual stack support
Remote Management
UPNP
Upstream / Downstream Rate Limit
Type: PCB type
Gain: 3dBi in 2.4GHz, 5dBi in 5GHz
Please check www.edge-core.com for the warranty terms in
your country/region.
Wireless Features
VAP (Virtual Access Point) support with up to 16
SSIDs(2.4GHz: 8, 5GHz: 8)
Operation modes: AP Mode, Point-to-Point WDS, Point-to-
Multiple points WDS, WDS With AP
Transmit power adjustment
Dynamic Channel Selection for noisy environment
Auto-channel selection
Support Multi-cast
Security
WEP 64/128-bits
Wi-Fi Protected Access (WPA/WPA2)
WPA/WPA2 (PSK) over WDS
Secure SSH (Secure Sockets Shell), Telnet
SSID broadcast enable/disable
Regulatory Compliance
FCC Part 15 Subpart B
CE
Radio Signal Certification
FCC Part 15C 15.247, 15.207 (2.4GHz)
EN 300 328
EN 301 489-1
EN 301 489-17
Mechanical
Dimensions: 146.8 x 146.7 x 36.5mm
Weight: 0.357 kg
Power
Input: 100 or 240 VAC, 50-60 Hz
Output: 12V 1A (or Ethernet PoE 802.3af/ at compatible)
Power Consumption: 8 W maximum
Environmental Specification
Temperature:
Standard Operating: 0°C to 50°C
Storage: -20°C to 70°C
Humidity: 10% to 90% (non-condensing)
For More Information
To find out more about Edge-Core Networks products and solutions, visit
www.edge-core.com
About Edge-Core Networks
Edge-Core Networks is in the business of providing innovative network
solutions. In the service provider network, in the data center or in the cloud,
Edge-Core Networks delivers the software and systems that transform the
way the world connects. Edge-Core Networks serves customers and partners
worldwide. Additional information can be found at www.edge-core.com.
© Copyright 2012 Edge-Core Networks Corp. The information contained herein is subject to change
expressed or implied, concerning any equipment, equipment feature, or service offered by Edge-Core
Networks. Edge-Core Networks shall not be liable for technical or editorial errors or omissions contained
herein.
&ĞĚĞƌĂůŽŵŵƵŶŝĐĂƚŝŽŶŽŵŵŝƐƐŝŽŶ/ŶƚĞƌĨĞƌĞŶĐĞ^ƚĂƚĞŵĞŶƚ
&ĞĚĞƌĂůŽŵŵƵŶŝĐĂƚŝŽŶŽŵŵŝƐƐŝŽŶ/ŶƚĞƌĨĞƌĞŶĐĞ^ƚĂƚĞŵĞŶƚ&ĞĚĞƌĂůŽŵŵƵŶŝĐĂƚŝŽŶŽŵŵŝƐƐŝŽŶ/ŶƚĞƌĨĞƌĞŶĐĞ^ƚĂƚĞŵĞŶƚ
&ĞĚĞƌĂůŽŵŵƵŶŝĐĂƚŝŽŶŽŵŵŝƐƐŝŽŶ/ŶƚĞƌĨĞƌĞŶĐĞ^ƚĂƚĞŵĞŶƚ
dŚŝƐĚĞǀŝĐĞĐŽŵƉůŝĞƐǁŝƚŚWĂƌƚϭϱŽĨƚŚĞ&ZƵůĞƐ͘KƉĞƌĂƚŝŽŶŝƐƐƵďũĞĐƚƚŽƚŚĞ
ĨŽůůŽǁŝŶŐƚǁŽĐŽŶĚŝƚŝŽŶƐ͗;ϭͿdŚŝƐĚĞǀŝĐĞŵĂLJŶŽƚĐĂƵƐĞŚĂƌŵĨƵůŝŶƚĞƌĨĞƌĞŶĐĞ͕
ĂŶĚ ;ϮͿ ƚŚŝƐ ĚĞǀŝĐĞ ŵƵƐƚ ĂĐĐĞƉƚ ĂŶLJ ŝŶƚĞƌĨĞƌĞŶĐĞ ƌĞĐĞŝǀĞĚ͕ ŝŶĐůƵĚŝŶŐ
ŝŶƚĞƌĨĞƌĞŶĐĞƚŚĂƚŵĂLJĐĂƵƐĞƵŶĚĞƐŝƌĞĚŽƉĞƌĂƚŝŽŶ͘
dŚŝƐĞƋƵŝƉŵĞŶƚŚĂƐďĞĞŶƚĞƐƚĞĚĂŶĚĨŽƵŶĚƚŽĐŽŵƉůLJǁŝƚŚƚŚĞůŝŵŝƚƐĨŽƌĂůĂƐƐ
ĚŝŐŝƚĂů ĚĞǀŝĐĞ͕ ƉƵƌƐƵĂŶƚ ƚŽ WĂƌƚ ϭϱ ŽĨ ƚŚĞ & ZƵůĞƐ͘ dŚĞƐĞ ůŝŵŝƚƐ ĂƌĞ
ĚĞƐŝŐŶĞĚ ƚŽ ƉƌŽǀŝĚĞ ƌĞĂƐŽŶĂďůĞ ƉƌŽƚĞĐƚŝŽŶ ĂŐĂŝŶƐƚ ŚĂƌŵĨƵů ŝŶƚĞƌĨĞƌĞŶĐĞ ŝŶ Ă
ƌĞƐŝĚĞŶƚŝĂů ŝŶƐƚĂůůĂƚŝŽŶ͘ dŚŝƐ ĞƋƵŝƉŵĞŶƚ ŐĞŶĞƌĂƚĞƐ͕ ƵƐĞƐ ĂŶĚ ĐĂŶ ƌĂĚŝĂƚĞ ƌĂĚŝŽ
ĨƌĞƋƵĞŶĐLJ ĞŶĞƌŐLJ ĂŶĚ͕ ŝĨ ŶŽƚ ŝŶƐƚĂůůĞĚ ĂŶĚ ƵƐĞĚ ŝŶ ĂĐĐŽƌĚĂŶĐĞ ǁŝƚŚ ƚŚĞ
ŝŶƐƚƌƵĐƚŝŽŶƐ͕ ŵĂLJ ĐĂƵƐĞ ŚĂƌŵĨƵů ŝŶƚĞƌĨĞƌĞŶĐĞ ƚŽ ƌĂĚŝŽ ĐŽŵŵƵŶŝĐĂƚŝŽŶƐ͘
,ŽǁĞǀĞƌ͕ƚŚĞƌĞŝƐŶŽŐƵĂƌĂŶƚĞĞƚŚĂƚŝŶƚĞƌĨĞƌĞŶĐĞǁŝůůŶŽƚŽĐĐƵƌŝŶĂƉĂƌƚŝĐƵůĂƌ
ŝŶƐƚĂůůĂƚŝŽŶ͘ /Ĩ ƚŚŝƐ ĞƋƵŝƉŵĞŶƚ ĚŽĞƐ ĐĂƵƐĞ ŚĂƌŵĨƵů ŝŶƚĞƌĨĞƌĞŶĐĞ ƚŽ ƌĂĚŝŽ Žƌ
ƚĞůĞǀŝƐŝŽŶ ƌĞĐĞƉƚŝŽŶ͕ ǁŚŝĐŚ ĐĂŶ ďĞ ĚĞƚĞƌŵŝŶĞĚ ďLJ ƚƵƌŶŝŶŐ ƚŚĞ ĞƋƵŝƉŵĞŶƚ ŽĨĨ
ĂŶĚŽŶ͕ƚŚĞƵƐĞƌŝƐĞŶĐŽƵƌĂŐĞĚƚŽƚƌLJƚŽĐŽƌƌĞĐƚƚŚĞŝŶƚĞƌĨĞƌĞŶĐĞďLJŽŶĞŽĨƚŚĞ
ĨŽůůŽǁŝŶŐŵĞĂƐƵƌĞƐ͗
Ͳ ZĞŽƌŝĞŶƚŽƌƌĞůŽĐĂƚĞƚŚĞƌĞĐĞŝǀŝŶŐĂŶƚĞŶŶĂ͘
Ͳ /ŶĐƌĞĂƐĞƚŚĞƐĞƉĂƌĂƚŝŽŶďĞƚǁĞĞŶƚŚĞĞƋƵŝƉŵĞŶƚĂŶĚƌĞĐĞŝǀĞƌ͘
Ͳ ŽŶŶĞĐƚƚŚĞĞƋƵŝƉŵĞŶƚŝŶƚŽĂŶŽƵƚůĞƚŽŶĂĐŝƌĐƵŝƚĚŝĨĨĞƌĞŶƚĨƌŽŵƚŚĂƚ
ƚŽǁŚŝĐŚƚŚĞƌĞĐĞŝǀĞƌŝƐĐŽŶŶĞĐƚĞĚ͘
Ͳ ŽŶƐƵůƚƚŚĞĚĞĂůĞƌŽƌĂŶĞdžƉĞƌŝĞŶĐĞĚƌĂĚŝŽͬdsƚĞĐŚŶŝĐŝĂŶĨŽƌŚĞůƉ͘
& ĂƵƚŝŽŶ͗ ŶLJ ĐŚĂŶŐĞƐ Žƌ ŵŽĚŝĨŝĐĂƚŝŽŶƐ ŶŽƚ ĞdžƉƌĞƐƐůLJ ĂƉƉƌŽǀĞĚ ďLJ ƚŚĞ
ƉĂƌƚLJ ƌĞƐƉŽŶƐŝďůĞ ĨŽƌ ĐŽŵƉůŝĂŶĐĞ ĐŽƵůĚ ǀŽŝĚ ƚŚĞ ƵƐĞƌΖƐ ĂƵƚŚŽƌŝƚLJ ƚŽ ŽƉĞƌĂƚĞ
ƚŚŝƐĞƋƵŝƉŵĞŶƚ͘
dŚŝƐƚƌĂŶƐŵŝƚƚĞƌŵƵƐƚŶŽƚďĞĐŽͲůŽĐĂƚĞĚŽƌŽƉĞƌĂƚŝŶŐŝŶ ĐŽŶũƵŶĐƚŝŽŶǁŝƚŚĂŶLJ
ŽƚŚĞƌĂŶƚĞŶŶĂŽƌƚƌĂŶƐŵŝƚƚĞƌ͘
KƉĞƌĂƚŝŽŶƐŝŶƚŚĞϱ͘ϭϱͲϱ͘Ϯϱ',njďĂŶĚĂƌĞƌĞƐƚƌŝĐƚĞĚƚŽŝŶĚŽŽƌƵƐĂŐĞŽŶůLJ͘
ZĂĚŝĂƚŝŽŶdžƉŽƐƵƌĞ^ƚĂƚĞŵĞŶƚ͗
ZĂĚŝĂƚŝŽŶdžƉŽƐƵƌĞ^ƚĂƚĞŵĞŶƚ͗ZĂĚŝĂƚŝŽŶdžƉŽƐƵƌĞ^ƚĂƚĞŵĞŶƚ͗
ZĂĚŝĂƚŝŽŶdžƉŽƐƵƌĞ^ƚĂƚĞŵĞŶƚ͗
dŚŝƐ ĞƋƵŝƉŵĞŶƚ ĐŽŵƉůŝĞƐ ǁŝƚŚ & ƌĂĚŝĂƚŝŽŶ ĞdžƉŽƐƵƌĞ ůŝŵŝƚƐ ƐĞƚ ĨŽƌƚŚ ĨŽƌ ĂŶ
ƵŶĐŽŶƚƌŽůůĞĚ ĞŶǀŝƌŽŶŵĞŶƚ͘ dŚŝƐ ĞƋƵŝƉŵĞŶƚ ƐŚŽƵůĚ ďĞ ŝŶƐƚĂůůĞĚ ĂŶĚ ŽƉĞƌĂƚĞĚ
ǁŝƚŚŵŝŶŝŵƵŵĚŝƐƚĂŶĐĞϮϴĐŵďĞƚǁĞĞŶƚŚĞƌĂĚŝĂƚŽƌΘLJŽƵƌďŽĚLJ͘
