1. Unpack the AP and Check Contents
ECW7212-L
802.11a/ac/b/g/n
Wireless Access Point
AC power adapter
Four adhesive rubber feet
Wall-mount kit—2 wall plugs and 2 screws
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note:
For safety and regulatory information, refer to the
Safety and Regulatory Information document included with
the AP.

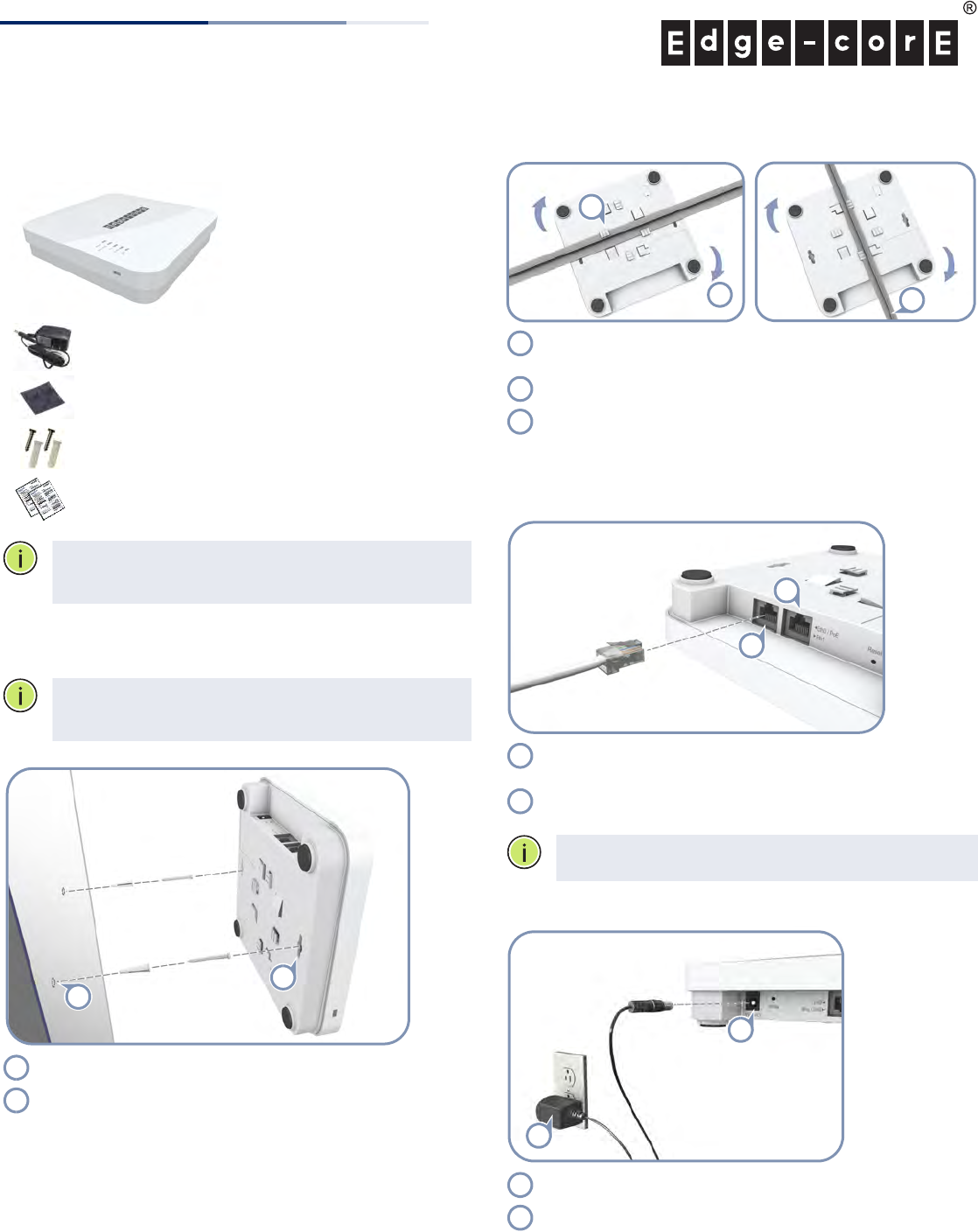

2. Mount the AP
The AP can be mounted on a desktop, wall, or ceiling T-bar.
Note:
The AP can be placed on a desktop using the
included rubber feet. When mounting the AP on a wall or
ceiling, do not attach the rubber feet.
a. Mounting on a Wall
Set two screws in the wall 140 mm (5.51 in.) apart.
Slide the AP’s wall mounting slots down onto the screws so
that the unit is secure.
1
2
1
2
b. Mounting on a Ceiling T-Bar
Position the AP’s ceiling-mount clip holders on either side of
the T-bar.
Turn the AP until the two clips lock it to the T-bar.
The AP mounting supports two different sizes of suspended
ceiling T-bars. The position illustrated above left is for 15 mm
bars. Use the position at a 90 degrees angle for 24.5 mm bars.
3. Connect LAN Cable
Connect Category 5e or better cable to the Eth0/PoE
1000BASE-T RJ-45 port.
(Optional) Connect a local LAN switch or computer to the
Eth1 1000BASE-T RJ-45 port.
Note:
The Eth0/PoE port connection can also provide PoE
power to the unit.
3. (Optional) Connect AC Power Adapter
Connect the power adapter to the power socket on the AP.
Plug the power adapter into a nearby AC power source.
2
1
3
1
2
3
1
2
1
2
1
2
1
2
E012017-CS-R01
150200001485A
www.edge-core.com
802.11a/ac/b/g/n Wireless Access Point
ECW7212-L
Quick Start Guide
– 2 –

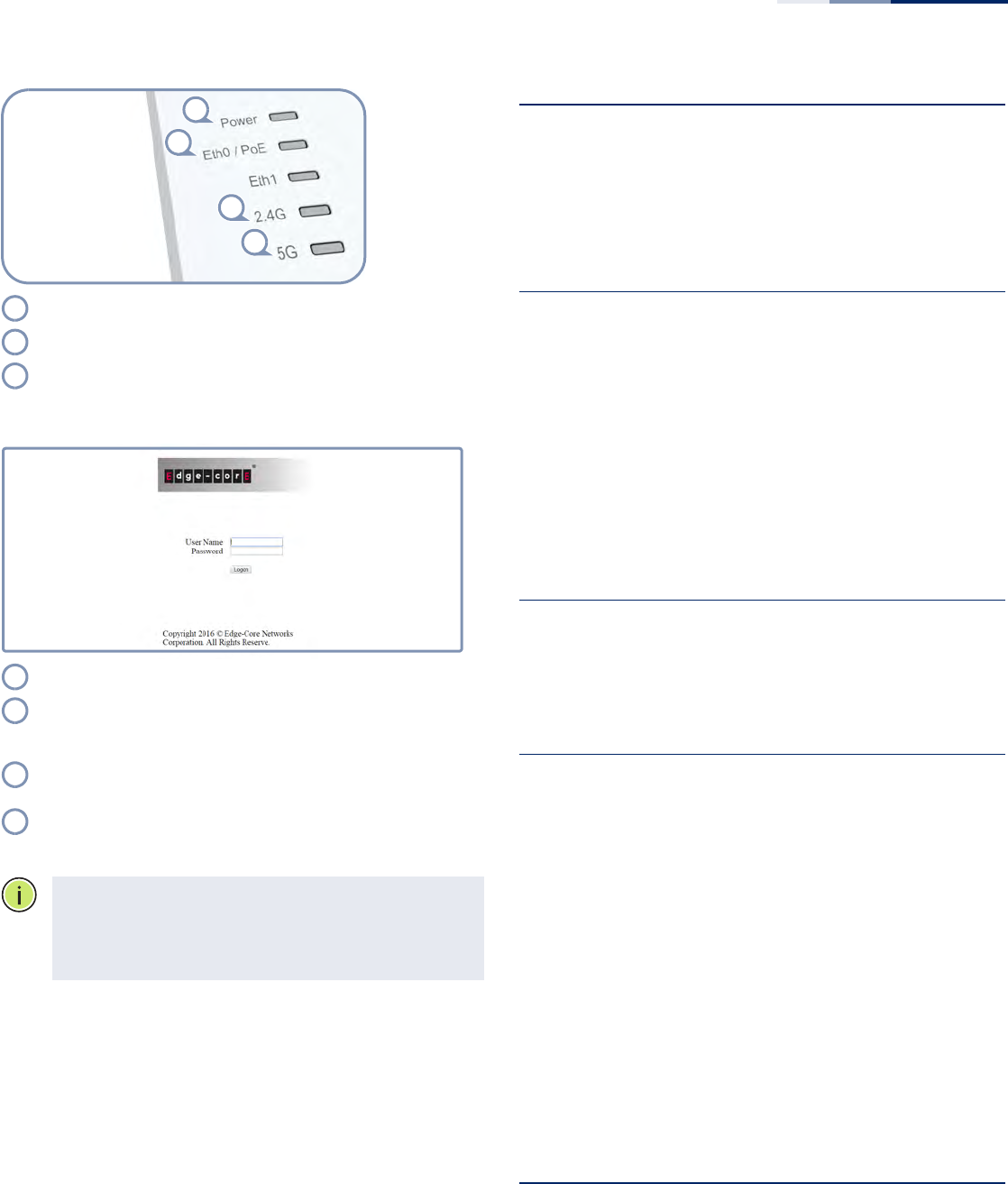

4. Verify AP Operation
Power — on red for normal operation.
Eth0/Eth1 — on/blinking green for a valid RJ-45 port link.
2.4G/5G — on/blinking green for radio enabled.
5. Connect to the Web User Interface
Connect a PC directly to one of the AP’s LAN ports.
Set the PC IP address to be on the same subnet as the AP
(that is, the PC and AP addresses must both start 192.168.1.x
with subnet mask 255.255.255.0).
Enter the AP’s default management IP address of
192.168.1.10 into the web browser address bar.
Log in to the web interface using default settings:
User Name = admin
Password = admin
Note:
To reset the AP to factory defaults, press the Reset
button for more than 5 seconds.
Note:
For more information on AP configuration using the
web interface, refer to the Management Guide, which is on
the Edgecore web site, www.edge-core.com.
1
2
3
3
1
2
3
1
2
3
4
Hardware Specifications
Chassis
Size (W x D x H) 176.3 x 176.3 x 40.4 mm (6.94 x 6.94 x 1.59 in.)
Weight 362 g (12.77 oz)
Temperature Operating: 0 °C to 45 °C (32 °F to 113 °F)
Storage: -40 °C to 70 °C (-40 °F to 158 °F)
Humidity Operating: 5% to 95% (non-condensing)
Network Interfaces
Ports Eth0/PoE RJ-45 Port: 1000BASE-T, PoE PD
Eth1 RJ-45 Port: 1000BASE-T
2.4 GHz Radio IEEE 802.11b/g/n
5 GHz Radio IEEE 802.11a/ac/n
Radio Frequencies 2.4 – 2.4835 GHz (US, Canada, ETSI)
2.412 – 2.462 GHz (NCC)
5.15 – 5.25 GHz (lower band) US/Canada,
Europe
5.725 – 5.825 GHz (upper band) US/Canada
5.280 – 5.320 GHz (NCC)
5.745 – 5.825 GHz (NCC)
Power Supply
PoE Input Power 48 VDC, 802.3af-standard compliant
AC Power Adapter AC Input: 100 ~ 240 VAC, 50/60 Hz
DC Output: 12 VDC, 1.0 A
Power Consumption 11 W maximum
Regulatory Compliances
Radio EN 300 328 V1.9.1 (2015-02)
EN 301 893 V1.8.1 (2015-03)
EN 301 489-1 V1.9.2 (2011-09)
EN 301 489-17 V2.2.1 (2012-09)
47 CFR FCC Part 15 Subpart C 15.247 (2400-
2483.5 MHz)
47 CFR FCC Part 15 Subpart E 15.407 (5150-
5250 MHz / 5725-5850 MHz)
Emissions EN 55022 2010+AC:2011
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55032:2012/AC:2013
Canada Standard ICES-003, Issue 6
FCC Class B Part 15, 2014
Immunity EN 55024 : 2010
Safety UL (CSA 22.2 No. 60950-1 & UL60950-1)
CB (IEC/EN60950-1)
FCC Statement
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
●Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor
environment only.
This device is restricted for indoor use.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
