SMCWBR14N5V2 User Manual HTML Version

User Manual

USER GUIDE

BARRICADE™ N

300Mbps 4-Port Wireless Broadband Router

SMCWBR14-N5

No. 1, Creation Road III,

Hsinchu Science Park,

30077, Taiwan, R.O.C.

TEL: +886 3 5638888

Fax: +886 3 6686111

Wireless Broadband Router

User Guide

E012013-AP-R06

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or

other rights of third parties which may result from its use. No license is granted by implication or

otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications

at any time without notice.

SMC Networks, Inc.

No. 1 Creation Road III,

Hsinchu Science Park,

30077, Taiwan, R.O.C.

Trademarks:

SMC is a registered trademark; and Barricade, EZ Switch, TigerStack, TigerSwitch, and TigerAccess

are trademarks of SMC Networks, Inc. Other product and company names are trademarks or

registered trademarks of their respective holders.

– 4 –

WARRANTY AND PRODUCT REGISTRATION

To register SMC products and to review the detailed warranty statement,

please refer to the Support Section of the SMC Website at http://

www.smc.com.

– 5 –

COMPLIANCES

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

◆Reorient or relocate the receiving antenna

◆Increase the separation between the equipment and receiver

◆Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected

◆Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate

this equipment.

OTE

The manufacturer is not responsible for any radio or TV interference

caused by unauthorized modifications to this equipment. Such

modifications could void the user’s authority to operate the equipment.

IMPORTANT NOTE:

FCC RADIATION EXPOSURE STATEMENT

This equipment complies with FCC RF radiation exposure limits set forth for

an uncontrolled environment. This device and its antenna must not be co-

located or operating in conjunction with any other antenna or transmitter.

– 6 –

“To comply with FCC RF exposure compliance requirements, this grant is

applicable to only Mobile Configurations. The antennas used for this

transmitter must be installed to provide a separation distance of at least 20

cm from all persons and must not be co-located or operating in conjunction

with any other antenna or transmitter.”

TAIWAN NCC

根據國家通信傳播委員會低功率電波輻射性電機管理辦法規定：

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更

頻率、加大功率或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應

立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之

無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機

設備之干擾。

本機限在不干擾合法電台與不受被干擾保障條件下於室內使用。

減少電磁波影響，請妥適使用。

安全諮詢及注意事項

◆請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。

◆清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。

◆注意防潮，請勿將水或其他液體潑灑到本產品上。

◆插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。

CE MARK WARNING

This is a class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.

NATIONAL RESTRICTIONS

This device is intended for home and office use in all EU countries (and

other countries following the EU directive 1999/5/EC) without any

limitation except for the countries mentioned below:

Country Restriction Reason/Remark

Bulgaria None General authorization required for outdoor use and

public service

France Outdoor use

limited to 10 mW

e.i.r.p. within the

band 2454-2483.5

MHz

Military Radiolocation use. Refarming of the 2.4 GHz

band has been ongoing in recent years to allow

current relaxed regulation. Full implementation

planned 2012

italy None If used outside of own premises, general

authorization is required

Luxembourg None General authorization required for network and

service supply(not for spectrum)

– 7 –

OTE

Do not use the product outdoors in France.

EUROPE - EU DECLARATION OF CONFORMITY

This device complies with the essential requirements of the R&TTE

Directive 1999/5/EC. The following test methods have been applied in

order to prove presumption of conformity with the essential requirements

of the R&TTE Directive 1999/5/EC:

◆EN 60950-1:2006 + A11: 2009

Safety of Information Technology Equipment.

◆EN 300 328 V1.7.1: 2006-10

Electromagnetic compatibility and Radio spectrum Matters (ERM);

Wideband transmission systems; Data transmission equipment

operating in the 2,4 GHz ISM band and using wide band modulation

techniques; Harmonized EN covering essential requirements under

article 3.2 of the R&TTE Directive.

◆EN 301 489-17 V1.8.1/ 2008-04

EN 301 489-17 V2.1.1/ 2009-05

Electromagnetic compatibility and Radio spectrum Matters (ERM);

Electromagnetic Compatibility (EMC) standard for radio equipment and

services; Part 17: Specific conditions for 2.4 GHz wideband

transmission systems and 5 GHz high performance RLAN equipment.

◆EN 55022: 2006 + A1: 2007

Limits and methods of measurement of radio disturbance

characteristics of information technology equipment.

◆EN 55024: 1998 + A1: 2001 + A2: 2003

Information technology equipment immunity characteristics limits and

methods of measurement.

◆EN 62311: 2008

Assessment of electronic and electrical equipment related to human

exposure restrictions for electromagnetic fields (0 Hz - 300 GHz).

This device is a 2.4 GHz wideband transmission system (transceiver),

intended for use in all EU member states and EFTA countries, except in

France and Italy where restrictive use applies.

Norway Implemented This subsection does not apply for the geographical

area within a radius of 20 km from the centre of Ny-

Ålesund

Russian

Federation None Only for indoor applications

Country Restriction Reason/Remark

– 8 –

In Italy the end-user should apply for a license at the national spectrum

authorities in order to obtain authorization to use the device for setting up

outdoor radio links and/or for supplying public access to

telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France

and in some areas the RF output power may be limited to 10 mW EIRP in

the frequency range of 2454 - 2483.5 MHz. For detailed information the

end-user should contact the national spectrum authority in France.

This equipment may be operated in:

The official CE certificate of conformity can be downloaded by selecting the

relevant model/ part number from www.smc.com -> support -> download.

Bulgarian

Български

С настоящето, SMC Networks декларира, че това безжично устройство е в

съответствие със съществените изисквания и другите приложими разпоредби на

Директива 1999/5/EC.

Czech

Česky

SMC Networks tímto prohlašuje, že tento Radio LAN device je ve shodě se základními

požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.

Danish

Dansk

Undertegnede SMC Networks erklærer herved, at følgende udstyr Radio LAN device

overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF

Dutch

Nederlands

Hierbij verklaart SMC Networks dat het toestel Radio LAN device in overeenstemming is

met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG

Bij deze SMC Networks dat deze Radio LAN device voldoet aan de essentiële eisen en

aan de overige relevante bepalingen van Richtlijn 1999/5/EC.

English Hereby, SMC Networks, declares that this Radio LAN device is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

Estonian

Eesti

Käesolevaga kinnitab SMC Networks seadme Radio LAN device vastavust direktiivi

1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele

sätetele.

Finnish

Suomi

Valmistaja SMC Networks vakuuttaa täten että Radio LAN device tyyppinen laite on

direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen

mukainen.

French

Français

Par la présente SMC Networks déclare que l'appareil Radio LAN device est conforme aux

exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE

– 9 –

SAFETY PRECAUTIONS

Read the following information carefully before operating the device. Please

follow the following precaution items to protect the device from risks and

damage caused by fire and electric power:

◆Use the power adapter that is included with the device package.

◆Pay attention to the power load of the outlet or prolonged lines. An

overburdened power outlet or damaged cords and plugs may cause

electric shock or fire. Check the power cords regularly, if you find any

damage, replace it at once.

German

Deutsch

Hiermit erklärt SMC Networks, dass sich dieser/diese/dieses Radio LAN device in

Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten

Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)

Hiermit erklärt SMC Networks die Übereinstimmung des Gerätes Radio LAN device mit

den grundlegenden Anforderungen und den anderen relevanten Festlegungen der

Richtlinie 1999/5/EG. (Wien)

Greek

Ελληνική

με την παρουσα SMC Networks δηλωνει οτι radio LAN device συμμορφωνεται προσ τισ

ουσιωδεισ απαιτησεισ και τισ λοιπεσ σχετικεσ διαταξεισ τησ οδηγιασ 1999/5/εκ.

Hungarian

Magyar

Alulírott, SMC Networks nyilatkozom, hogy a Radio LAN device megfelel a vonatkozó

alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Italian

Italiano

Con la presente SMC Networks dichiara che questo Radio LAN device è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Latvian

Latviski

Ar šo SMC Networks deklarē, ka Radio LAN device atbilst Direktīvas 1999/5/EK

būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

Lithuanian

Lietuvių

Šiuo SMC Networks deklaruoja, kad šis Radio LAN device atitinka esminius reikalavimus

ir kitas 1999/5/EB Direktyvos nuostatas.

Maltese

Malti

Hawnhekk, SMC Networks, jiddikjara li dan Radio LAN device jikkonforma mal-ħtiġijiet

essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.

Polish

Polski

Niniejszym SMC Networks oświadcza, że Radio LAN device jest zgodny z zasadniczymi

wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

Portuguese

Português

SMC Networks declara que este Radio LAN device está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

Romanian

Romană

SMC Networks declară că acest dispozitiv fără fir respectă cerinţele esenţiale precum şi

alte dispoziţii relevante ale Directivei 1999/5/EC.

Slovak

Slovensky

SMC Networks týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a

všetky príslušné ustanovenia Smernice 1999/5/ES.

Slovenian

Slovensko

SMC Networks izjavlja, da je ta radio LAN device v skladu z bistvenimi zahtevami in

ostalimi relevantnimi določili direktive 1999/5/ES.

Spanish

Español

Por medio de la presente SMC Networks declara que el Radio LAN device cumple con

los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la

Directiva 1999/5/CE

Swedish

Svenska

Härmed intygar SMC Networks att denna Radio LAN device står I överensstämmelse

med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av

direktiv 1999/5/EG.

Turkish

Turk

SMC Networks bu kablosuz cihazın temel gereksinimleri ve 1999/5/EC yonergesindeki

ilgili koşulları karşıladığını beyan eder.

– 10 –

◆Proper space for heat dissipation is necessary to avoid any damage

caused by device overheating. The ventilation holes on the device are

designed for heat dissipation to ensure that the device works normally.

Do not cover these ventilation holes.

◆Do not put this device close to a place where a heat source exits or high

temperature occurs. Avoid placing the device in direct sunshine.

◆Do not put this device close to a place which is damp or wet. Do not

spill any fluid on this device.

◆Please follow the instructions in the user manual/quick install guide

carefully to connect the device to your PC or other electronic product.

Any invalid connection may cause a power or fire risk.

◆Do not place this device on an unstable surface or support.

PRÉCAUTIONS DE SÉCURITÉ

Lisez attentivement les informations suivantes avant d’utiliser votre

appareil. Respectez toutes les précautions afin de protéger l’appareil des

risques et dégâts provoqués par un incendie et l’alimentation électrique :

◆Utilisez exclusivement l’adaptateur d’alimentation fourni avec cet

appareil.

◆Faites attention à la puissance de charge de la prise de courant ou des

rallonges électriques. Une prise surchargée ou des cordons et des

fiches endommagés peuvent provoquer une électrocution ou un

incendie. Vérifiez régulièrement votre câble électrique. Si vous

constatiez le moindre défaut, remplacez-le immédiatement.

◆Il est primordial de laisser suffisamment d’espace autour de l’appareil

pour permettre la dissipation de la chaleur et éviter les dégâts

provoqués par une surchauffe de l’appareil. Les orifices de ventilation

de l’appareil sont conçus pour permettre la dissipation thermique et

garantir le bon fonctionnement de l’appareil. Ne couvrez jamais ces

orifices.

◆Ne placez pas cet appareil à proximité d’une source de chaleur ou dans

un endroit exposé à des températures élevées. Evitez également de

l’exposer à la lumière directe du soleil.

◆Ne placez pas cet appareil à proximité d’un lieu humide ou mouillé.

Prenez garde à ne renverser aucun liquide sur cet appareil.

◆Merci de suivre les instructions du manuel d'utilisateur / guide

d’installation rapide attentivement pour connecter l'appareil à votre PC

ou à tout autre produit électronique. Toute connexion non valide peut

provoquer un problème électrique ou un risque d'incendie.

◆Ne placez pas cet appareil sur une surface ou un support instable.

– 11 –

SICHERHEITSMAßNAHMEN

Lesen Sie vor der Inbetriebnahme des Gerätes aufmerksam die

nachstehenden Informationen. Bitte befolgen Sie die nachstehenden

Sicherheitsmaßnahmen, damit das Gerät nicht beschädigt wird oder

Gefahren durch Brand oder elektrische Energie entstehen:

◆Verwenden Sie nur das beim Gerät mitgelieferte Netzteil.

◆Achten Sie auf die Last der Steckdose oder des Verlängerungskabels.

Eine überlastete Steckdose oder beschädigte Kabel und Stecker können

Stromschläge und Brand verursachen. Prüfen Sie die Netzkabel

regelmäßig. Ersetzen Sie sie umgehend, falls sie beschädigt sind.

◆Achten Sie zur Vermeidung von Geräteschäden aufgrund von

Überhitzung darauf, dass genügend Freiraum zur Wärmeabfuhr

vorhanden ist. Die Belüftungsöffnungen am Gerät dienen der

Wärmeabfuhr und damit der Gewährleistung eines normalen

Gerätebetriebs. Decken Sie diese Belüftungsöffnungen nicht ab.

◆Stellen Sie dieses Gerät nicht in der Nähe von Wärmequellen oder an

Orten mit hohen Temperaturen auf. Platzieren Sie das Gerät nicht im

direkten Sonnenlicht.

◆Stellen Sie dieses Gerät nicht an feuchten oder nassen Orten auf.

Achten Sie darauf, keine Flüssigkeiten über dem Gerät zu verschütten.

◆Befolgen Sie die Hinweise im Benutzerhandbuch (bzw. in der

Kurzanleitung) zum Anschluß des Gerätes an einen PC oder ein anderes

Elektrogerät. Jegliche unzulässige Verbindung birgt die Gefahr von

Stromschlägen und Brandgefahr.

◆Platzieren Sie dieses Gerät nicht auf einer instabilen Oberfläche oder

Halterung.

PRECAUCIONES DE SEGURIDAD

Lea la siguiente información detenidamente antes de utilizar el dispositivo.

Siga las indicaciones de precaución que se mencionan a continuación para

proteger el dispositivo contra riesgos y daños causados por el fuego y la

energía eléctrica:

◆Utilice el adaptador de alimentación incluido en el paquete del

dispositivo.

◆Preste atención a la carga de potencia de la toma de corriente o de los

alargadores. Una toma de corriente sobrecargada o líneas y enchufes

dañados pueden provocar descargas eléctricas o un incendio.

Compruebe los cables de alimentación con cierta frecuencia. Si detecta

algún daño, reemplácelos inmediatamente.

– 12 –

◆Deje un espacio adecuado para que se disipe el calor y evitar así

cualquier daño en el dispositivo causado por sobrecalentamiento. Los

orificios de ventilación del dispositivo están diseñados para disipar el

calor y garantizar que dicho dispositivo funciona con normalidad. No

tape estos orificios de ventilación.

◆No coloque este dispositivo cerca de un lugar donde haya una fuente de

calor o temperaturas elevadas. Evite exponer el dispositivo a la luz

solar directa.

◆No coloque este dispositivo junto a un lugar húmedo o mojado. No

derrame ningún fluido sobre el dispositivo.

◆Por favor, siga cuidadosamente las instrucciones que figuran en el

manual/guía de instalación rápida para conectar el dispositivo a su PC o

a cualquier otro producto electrónico. Cualquier conexión no válida

podría causar riesgo de descarga o de incendio.

◆No coloque este dispositivo en una superficie o soporte inestable.

PRECAUÇÕES DE SEGURANÇA

Leia atentamente as seguintes informações antes de utilizar o dispositivo.

Respeite as seguintes indicações de segurança para proteger o dispositivo

contra riscos e danos causados por fogo e energia eléctrica:

◆Utilize o transformador incluído na embalagem do dispositivo.

◆Respeite a potência da tomada eléctrica e das extensões. Uma tomada

eléctrica sobrecarregada ou cabos e fichas danificadas podem causar

choques eléctricos ou fogo. Verifique regularmente os cabos de

alimentação. Caso algum se encontre danificado, substitua-o

imediatamente.

◆É necessário deixar algum espaço livre em volta do dispositivo para

dissipação de calor, de forma a evitar danos causados pelo

sobreaquecimento do dispositivo. Os orifícios de ventilação do

dispositivo foram concebidos para dissipar o calor e assegurar que o

mesmo funciona normalmente. Não bloqueie esses orifícios de

ventilação.

◆Não coloque este dispositivo junto a fontes de calor ou em locais com

temperaturas elevadas. Evite colocar o dispositivo sob luz solar directa.

◆Não coloque este dispositivo junto a locais molhados ou com humidade.

Não derrame líquidos sobre o dispositivo.

◆Por favor siga atentamente as instruções do manual / guia de

instalação rápida para conectar o dispositivo ao seu PC ou a qualquer

outro dispositivo electrónico. Atenção que qualquer tipo de ligação

inválida pode originar risco de choque eléctrico ou de incêndio.

◆Não coloque este dispositivo numa superfície ou suporte instáveis.

– 13 –

BSMI NOTICE

在進行安裝及設定之前，建議您先閱讀以下注意事項：

1. 確認寬頻的線路是否正常：請先確認當 ADSL 或 Cable 或是對外的線路，直接結到您

的電腦時，是否能正常的連接到網際網路。

2. 移除撥號軟體：若您已經安裝 ISP 所提供的 ADSL 撥接（號）軟體，請先將其移除后

再開始進行連線設定。

3. 系統需求：本產品只需要使用網頁瀏覽器（Browser）來進行設定安裝，不需要額

外安裝任何程式，在開始設定之前，建議您使用 Internet Explorer 6.0 或更新的

版本來進行安裝設定。

4. 設定時無需連上網際網路（Internet），只需要透過區域連線（LAN）即可進行設

定。 ※ 僅需從電腦端拉一條網路線連接至 SMCWBR14-N5 的LAN 埠，WAN 埠則先不

要連上 ISP 線路。此動作作用是用來確認您可以正常連到此設備。

5. SMCWBR14-N5只需要設定一次，其餘要透過SMCWBR14-N5的電腦或者設備只需要做相

關的 TCP/IP 設定即可。

– 14 –

ABOUT THIS GUIDE

PURPOSE This guide details the hardware features of the wireless router, including its

physical and performance-related characteristics, and how to install the

device and use its configuration software.

AUDIENCE This guide is for PC users with a working knowledge of computers. You

should be familiar with Windows operating system concepts.

CONVENTIONS The following conventions are used throughout this guide to show

information:

OTE

Emphasizes important information or calls your attention to related

features or instructions.

AUTION

Alerts you to a potential hazard that could cause loss of data, or

damage the system or equipment.

ARNING

Alerts you to a potential hazard that could cause personal injury.

RELATED PUBLICATIONS The following publication gives basic information on how to install and use

the wireless router.

Quick Installation Guide

Also, as part of the wireless router’s software, there is online help that

describes all configuration related features.

REVISION HISTORY This section summarizes the changes in each revision of this guide.

DECEMBER 2012 REVISION

This is the sixth revision of this guide. It includes the following change:

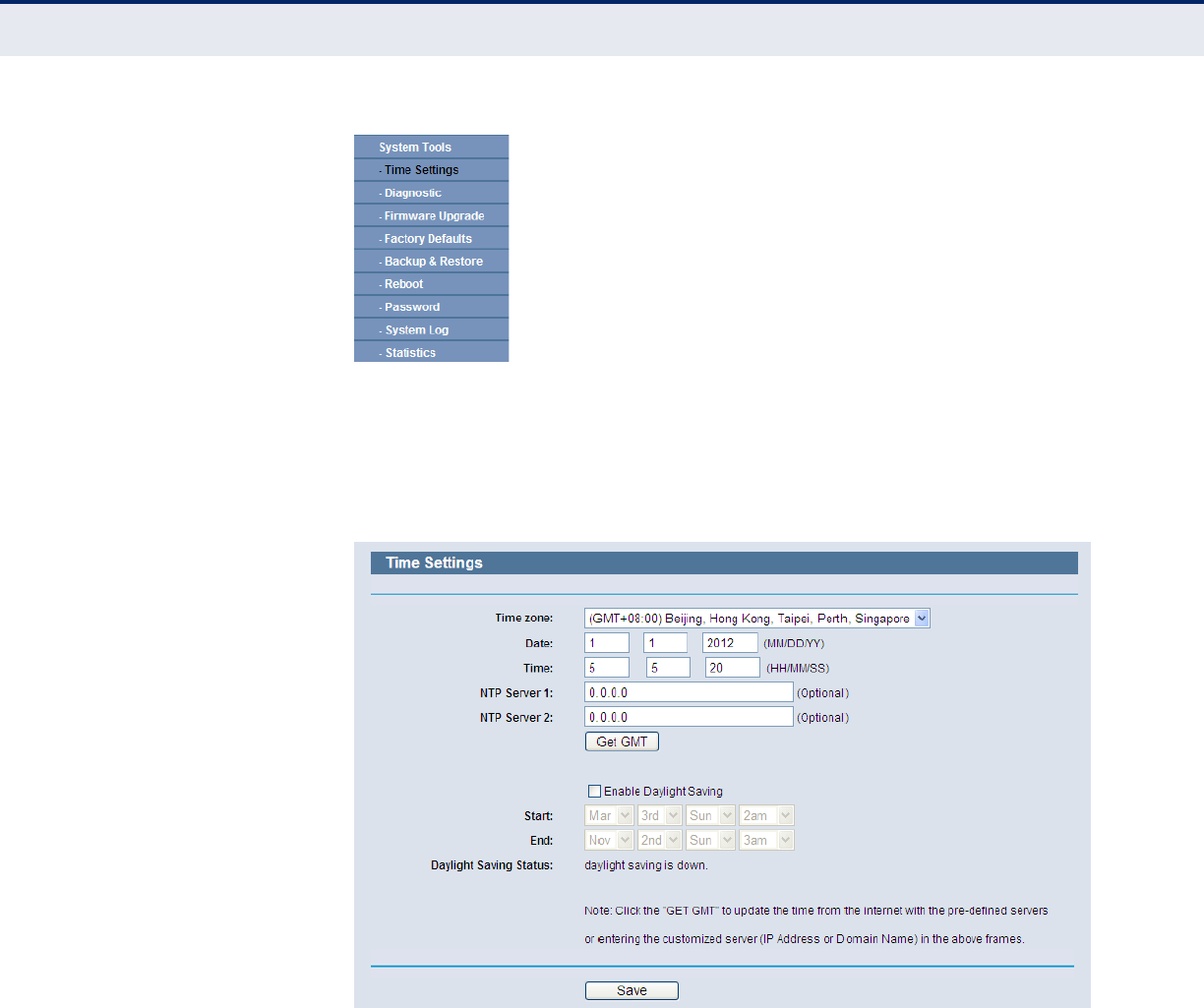

◆Added Daylight Saving to Time Settings.

OCTOBER 2012 REVISION

This is the fifth revision of this guide. It includes the following change:

– 15 –

BOUT

HIS

UIDE

◆Add BSMI Notice to the Compliances section.

SEPTEMBER 2012 REVISION

This is the fourth revision of this guide. It includes the following change:

◆Updated the Compliances section.

NOVEMBER 2011 REVISION

This is the third revision of this guide. It includes the following change:

◆Updated the Compliances section.

SEPTEMBER 2011 REVISION

This is the second revision of this guide. It includes the following change:

◆Updated the Compliances section.

JULY 2011 REVISION

This is the first revision of this guide.

– 16 –

CONTENTS

WARRANTY AND PRODUCT REGISTRATION 4

COMPLIANCES 5

ABOUT THIS GUIDE 14

CONTENTS 16

FIGURES 19

TABLES 23

NTRODUCTION 24

Overview of the Router 24

Main Features 25

Key Hardware Features 25

Package Contents 26

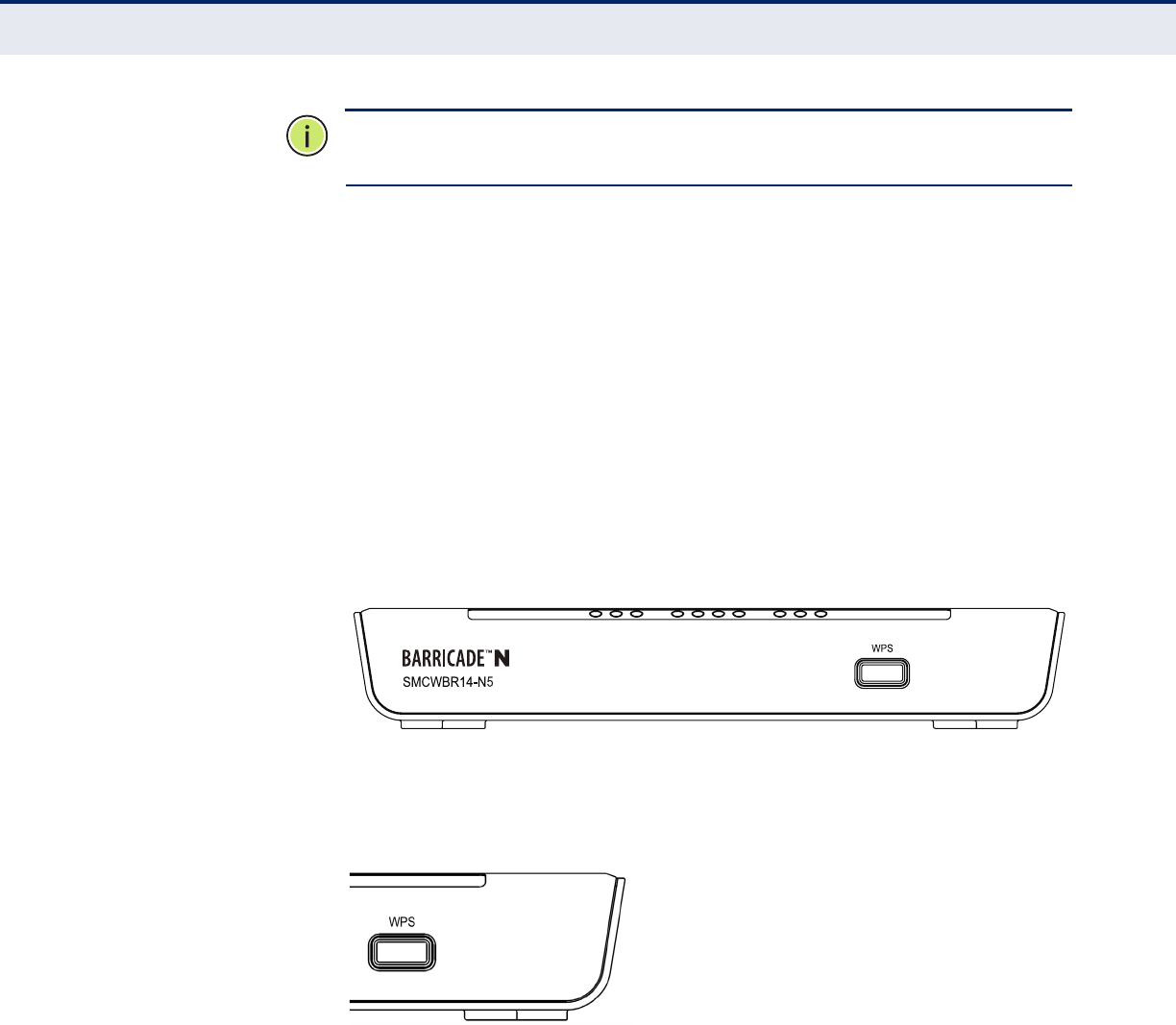

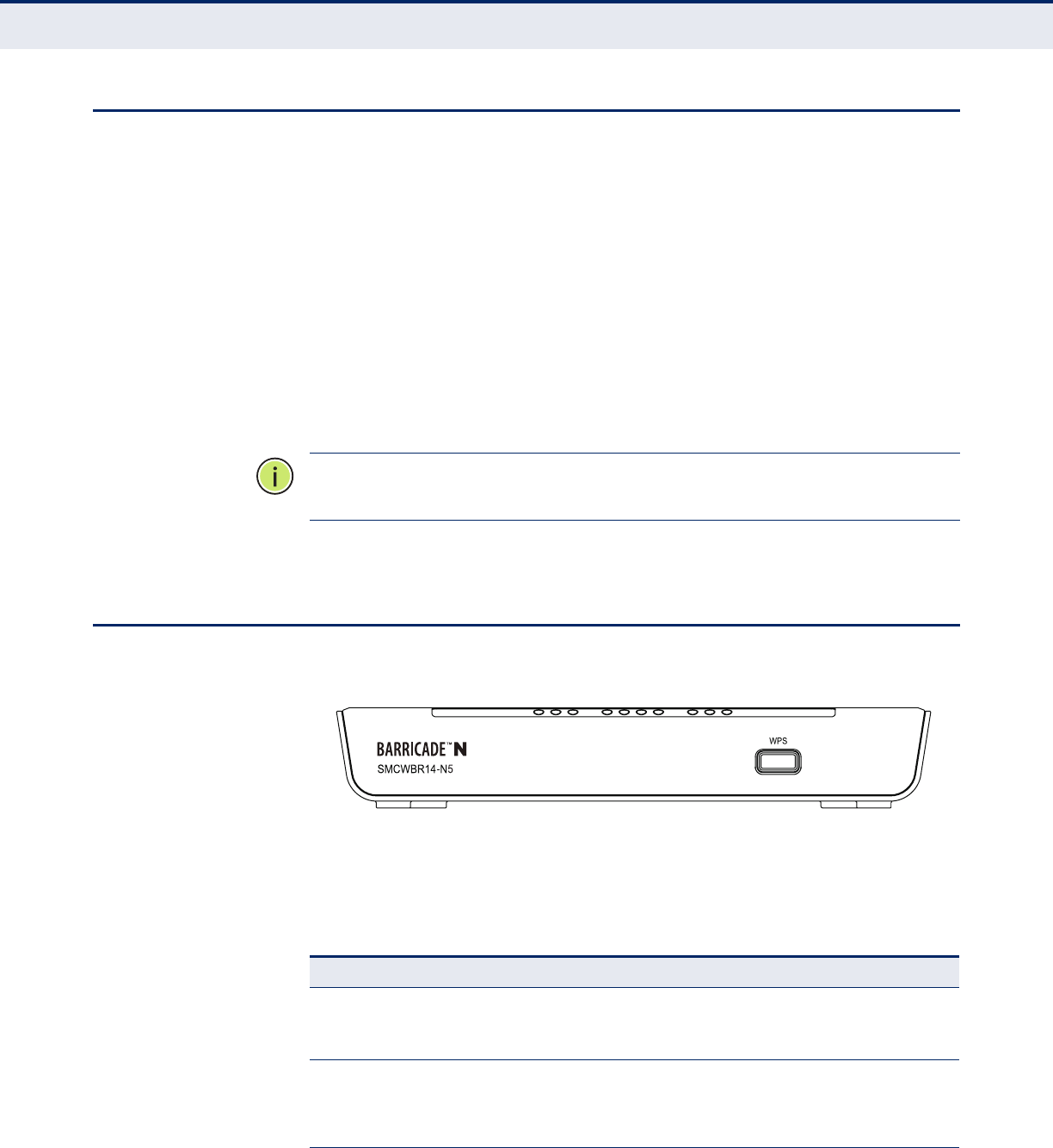

Front Panel 26

LED Indicators 26

WPS Button 27

Rear Panel 27

Wireless Antennas 27

Power 27

Ethernet WAN Port 28

Ethernet LAN Ports 28

2CONNECTING THE ROUTER 29

System Requirements 29

Installation Environment Requirements 29

Connecting the Router 29

Connecting the Router in Router Mode 29

3QUICK INSTALLATION GUIDE 31

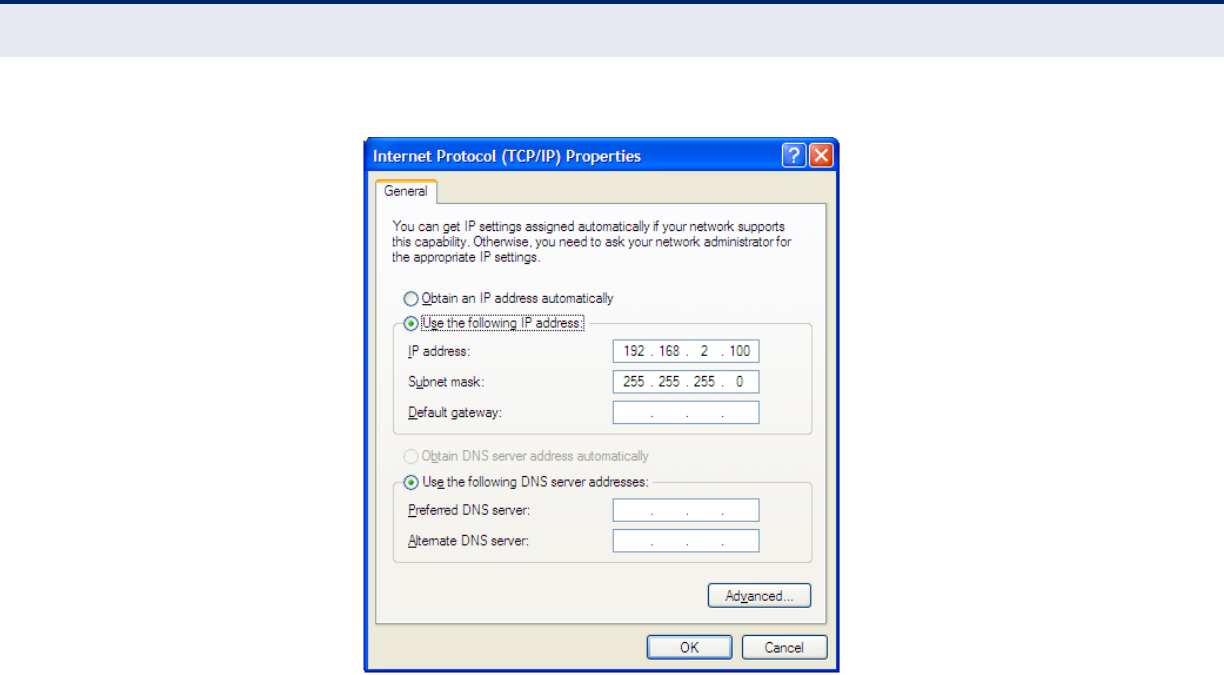

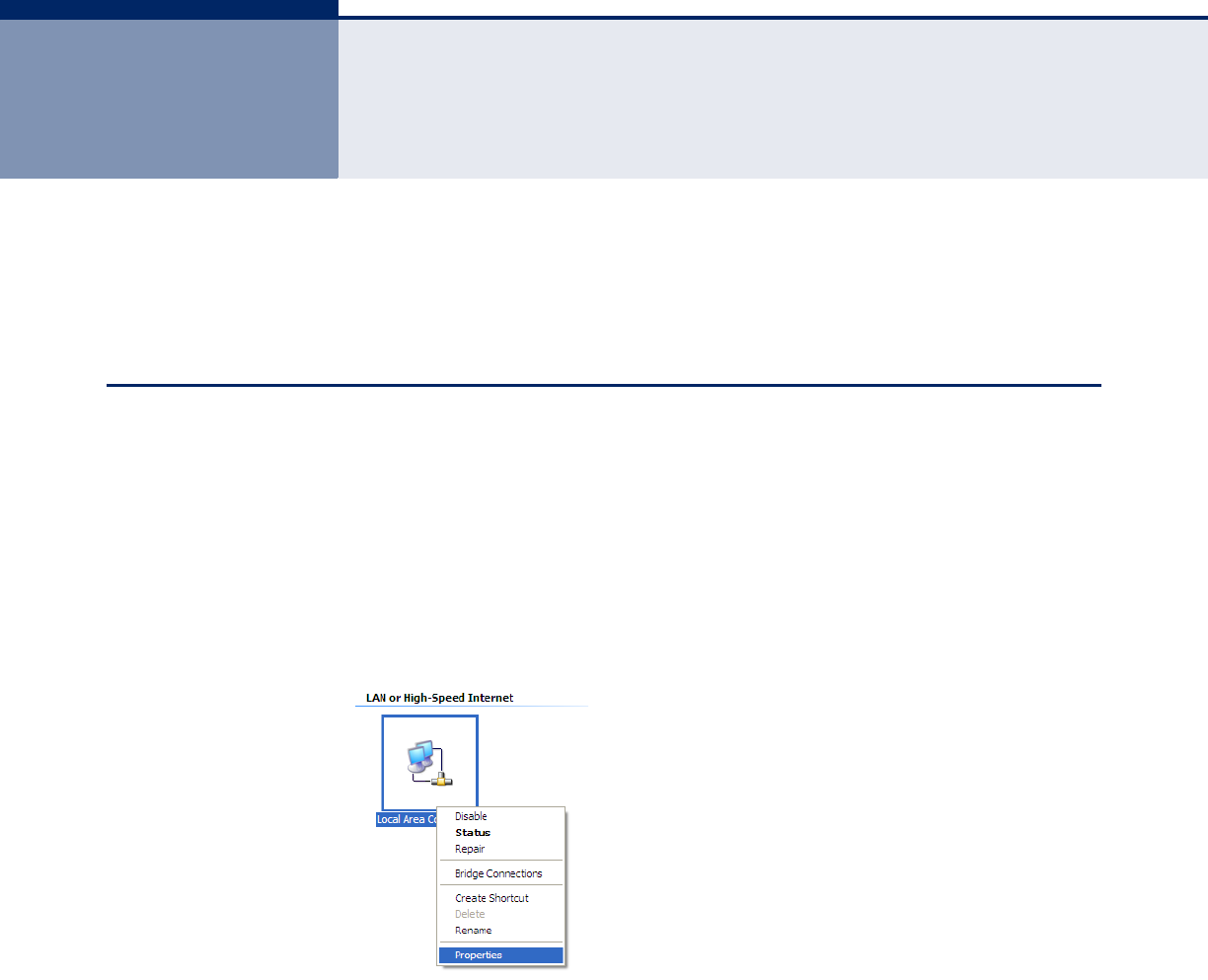

TCP/IP Configuration 31

Quick Installation Guide 33

ONTENTS

– 17 –

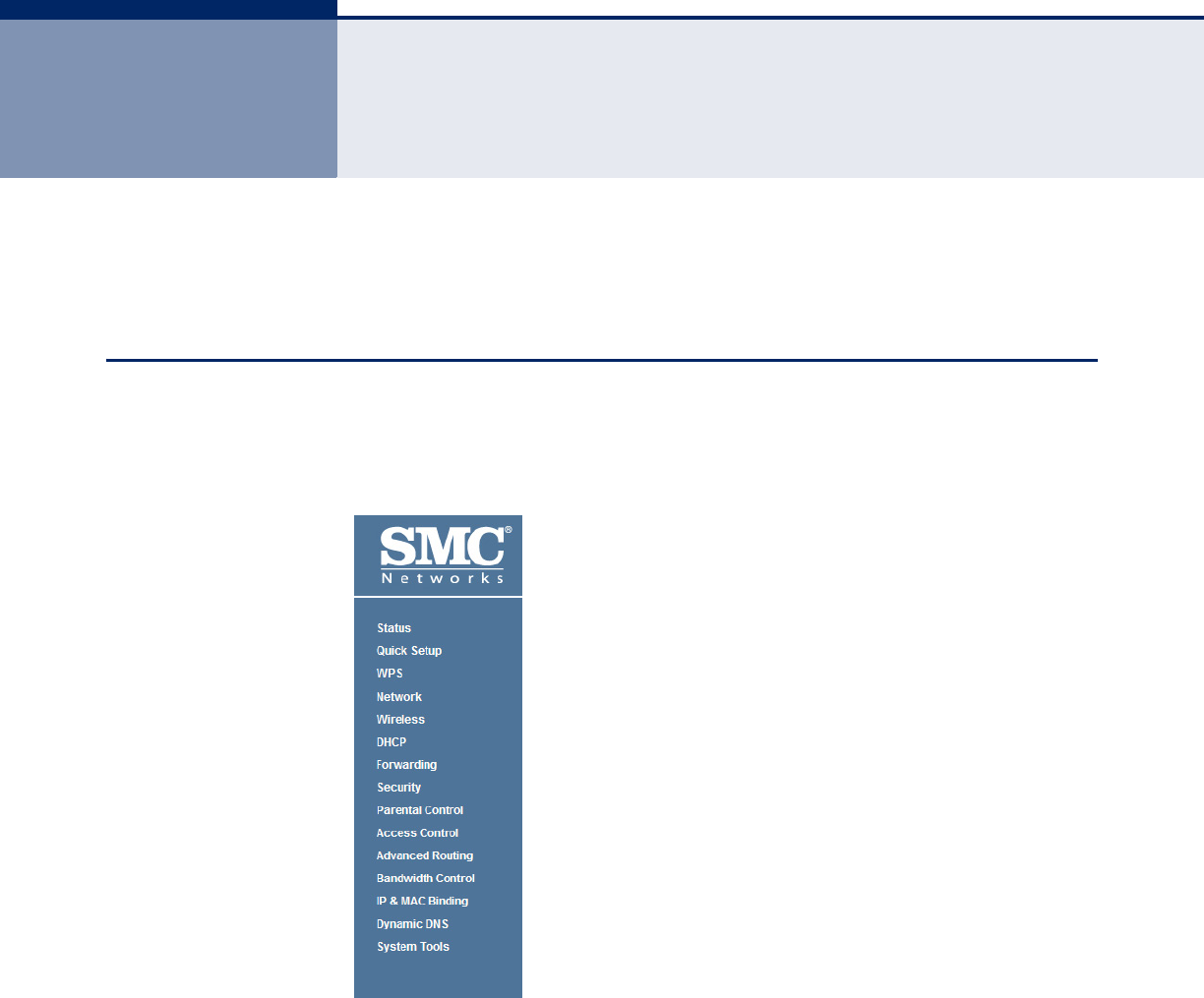

4CONFIGURING THE ROUTER 39

Status 40

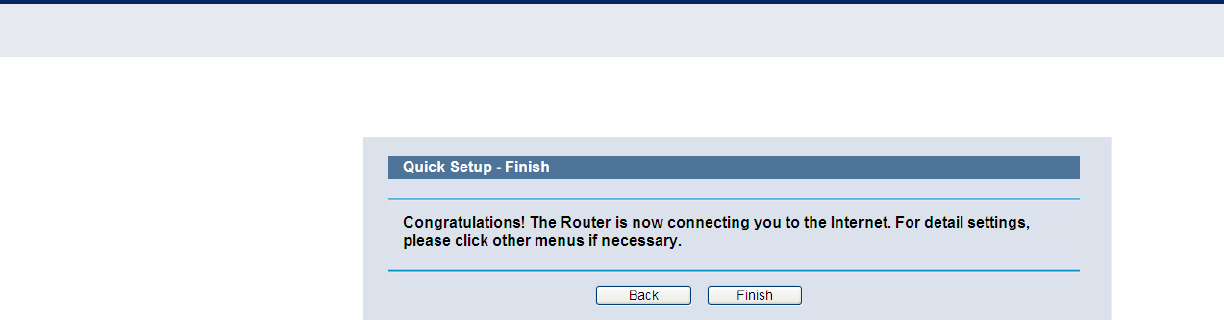

Quick Setup 41

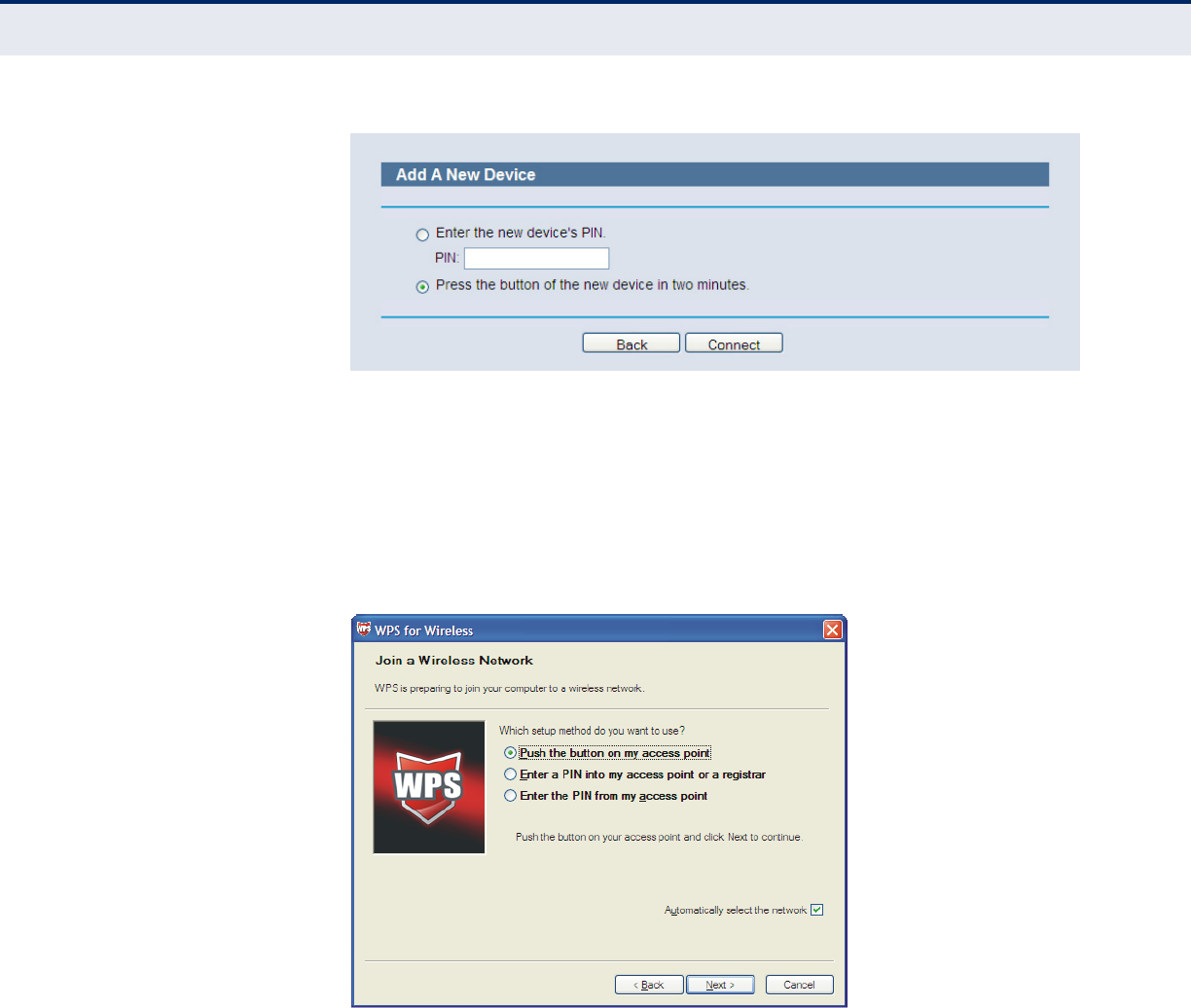

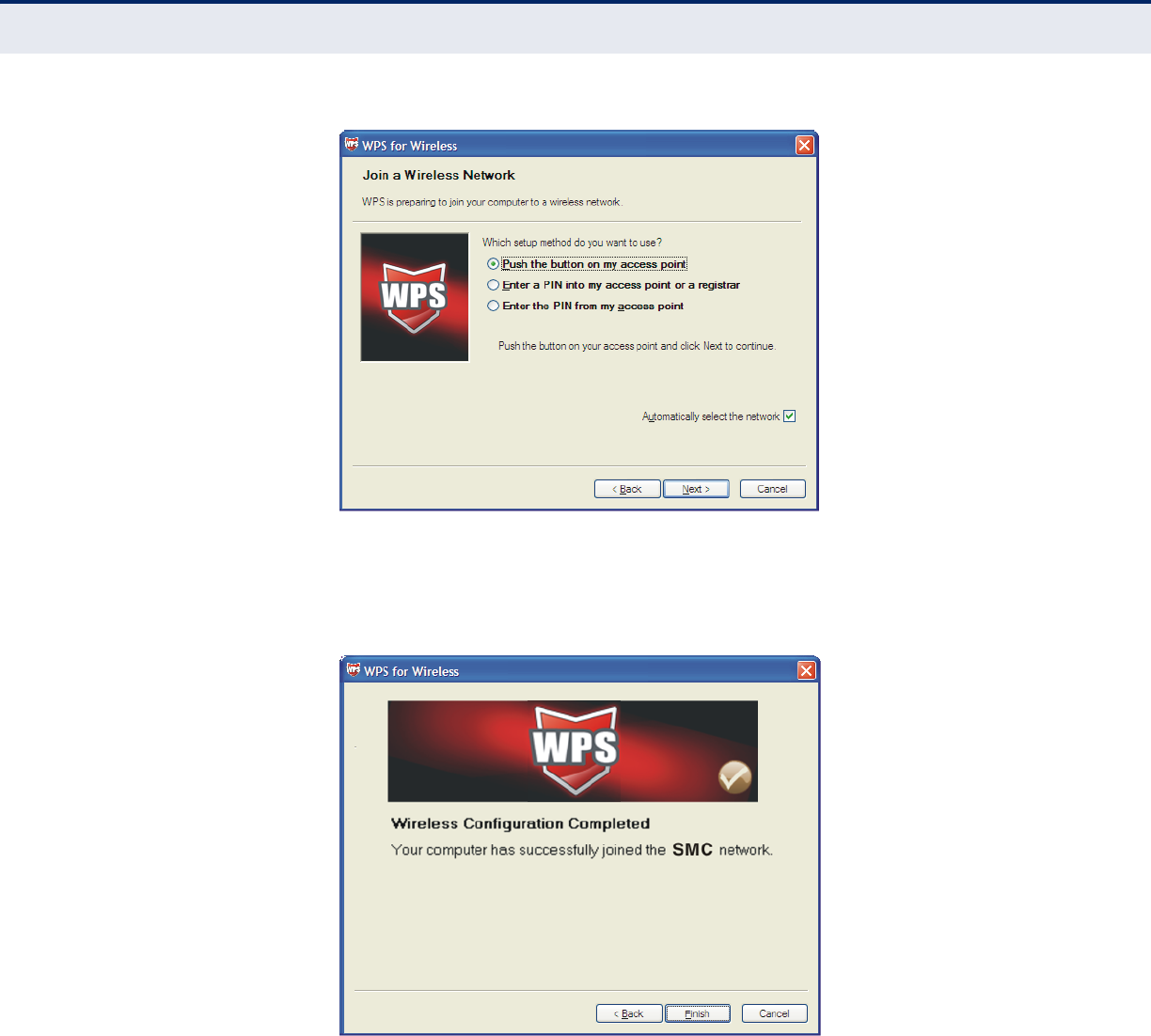

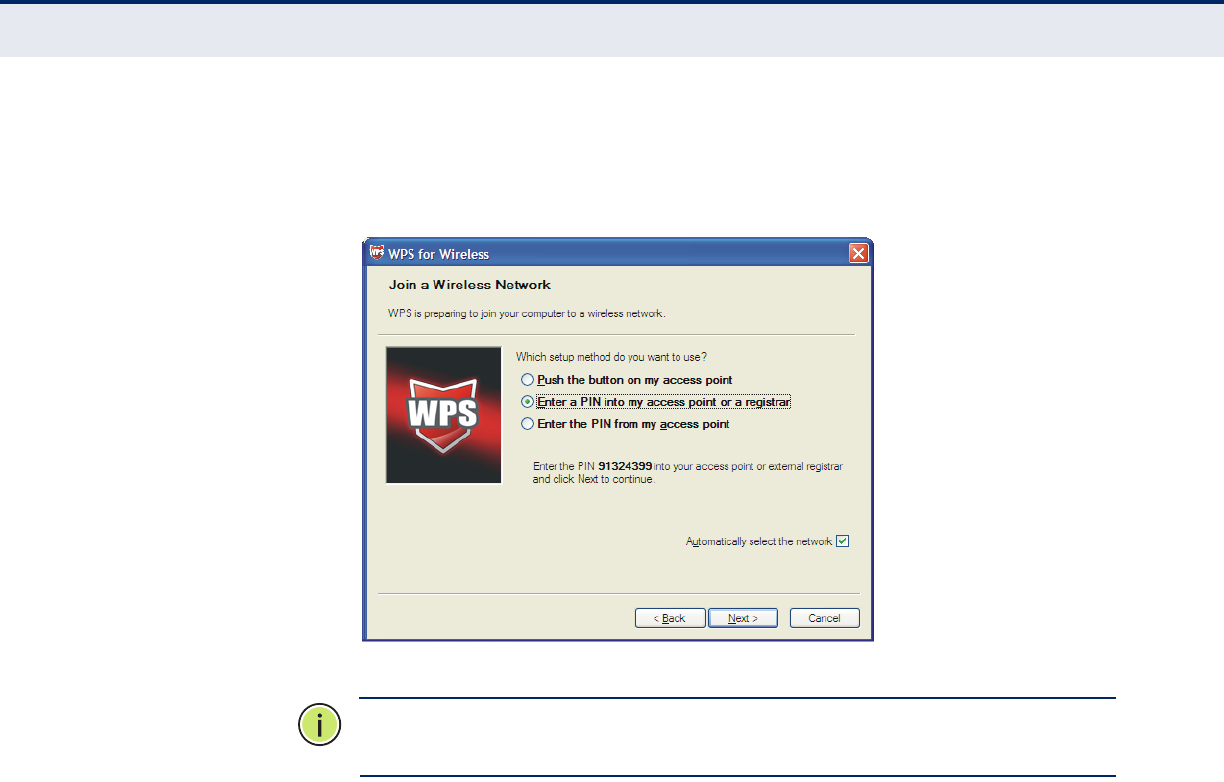

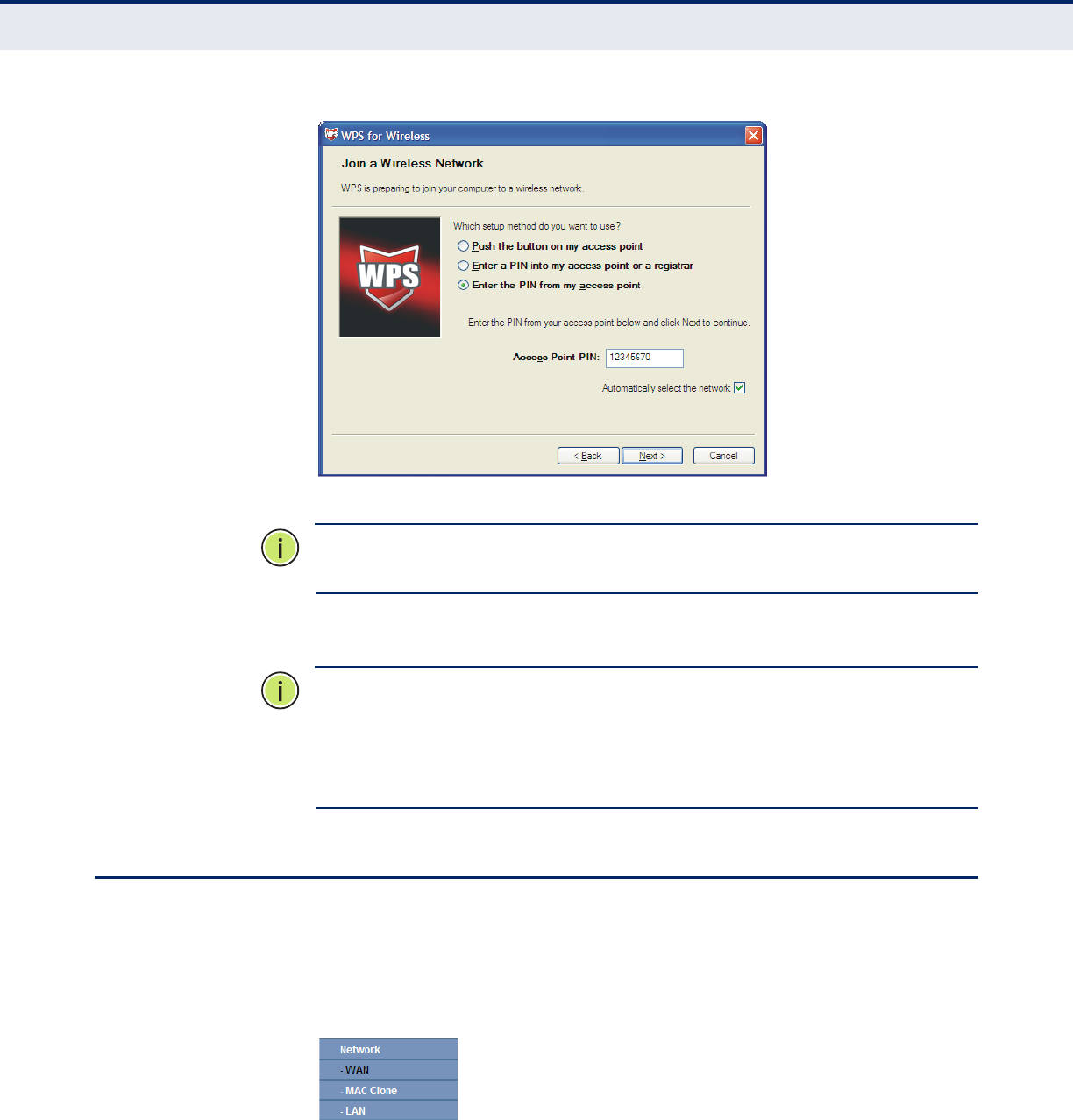

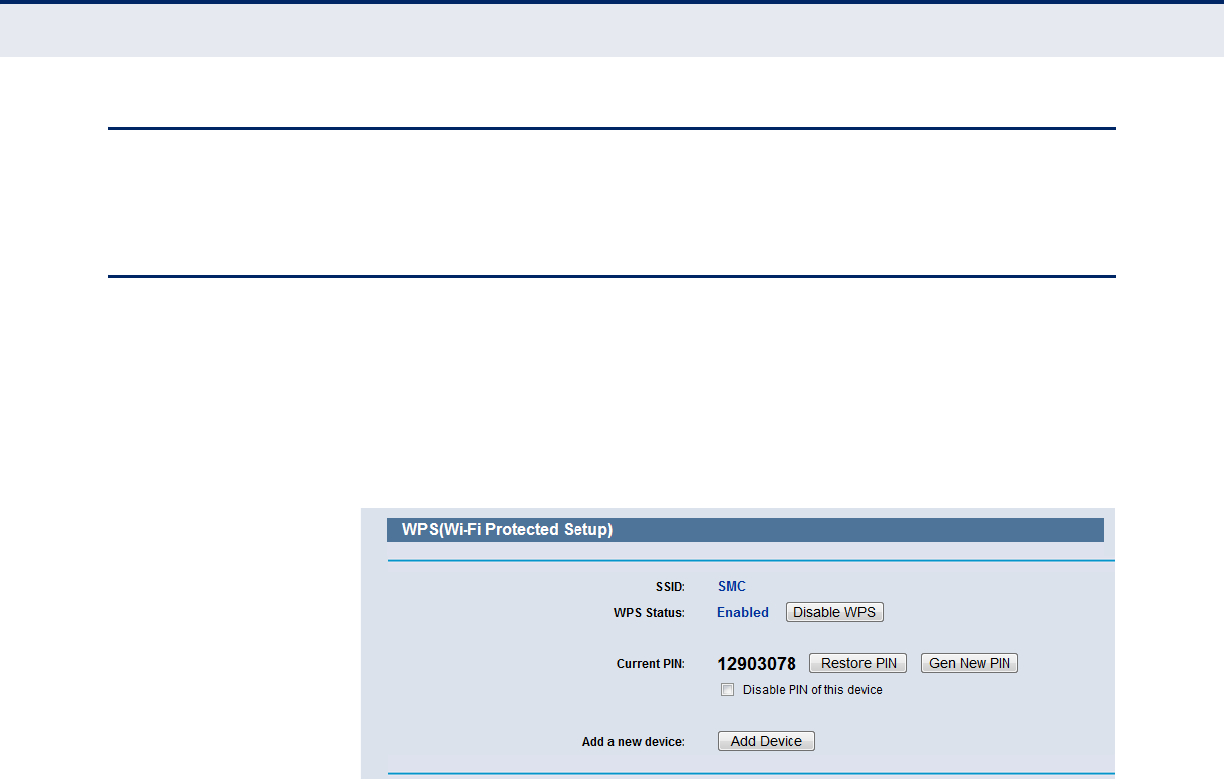

WPS 41

Network 48

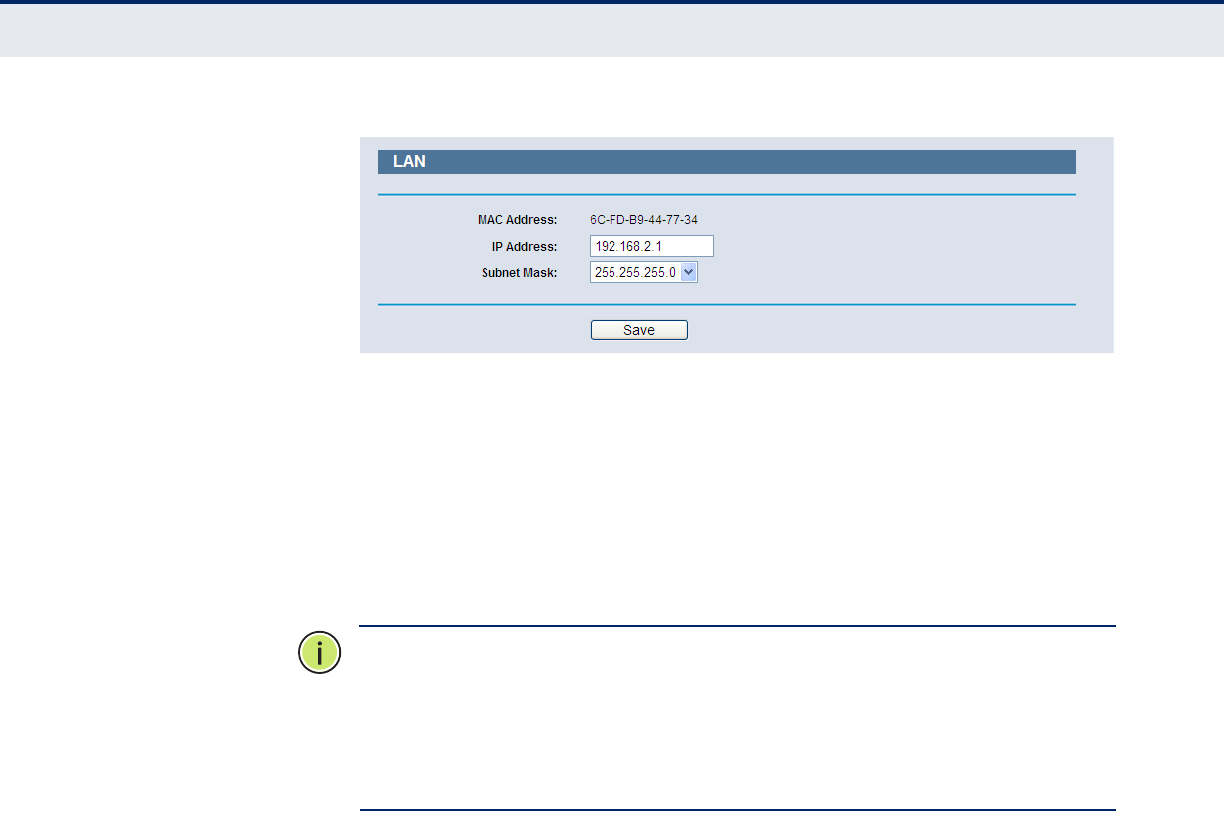

LAN 48

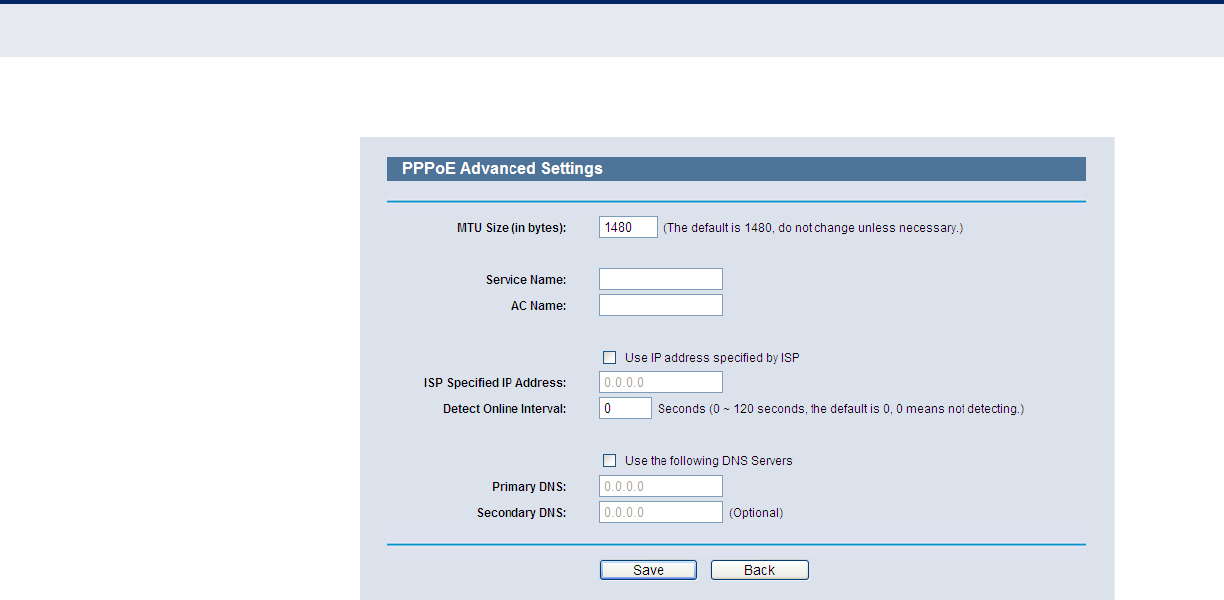

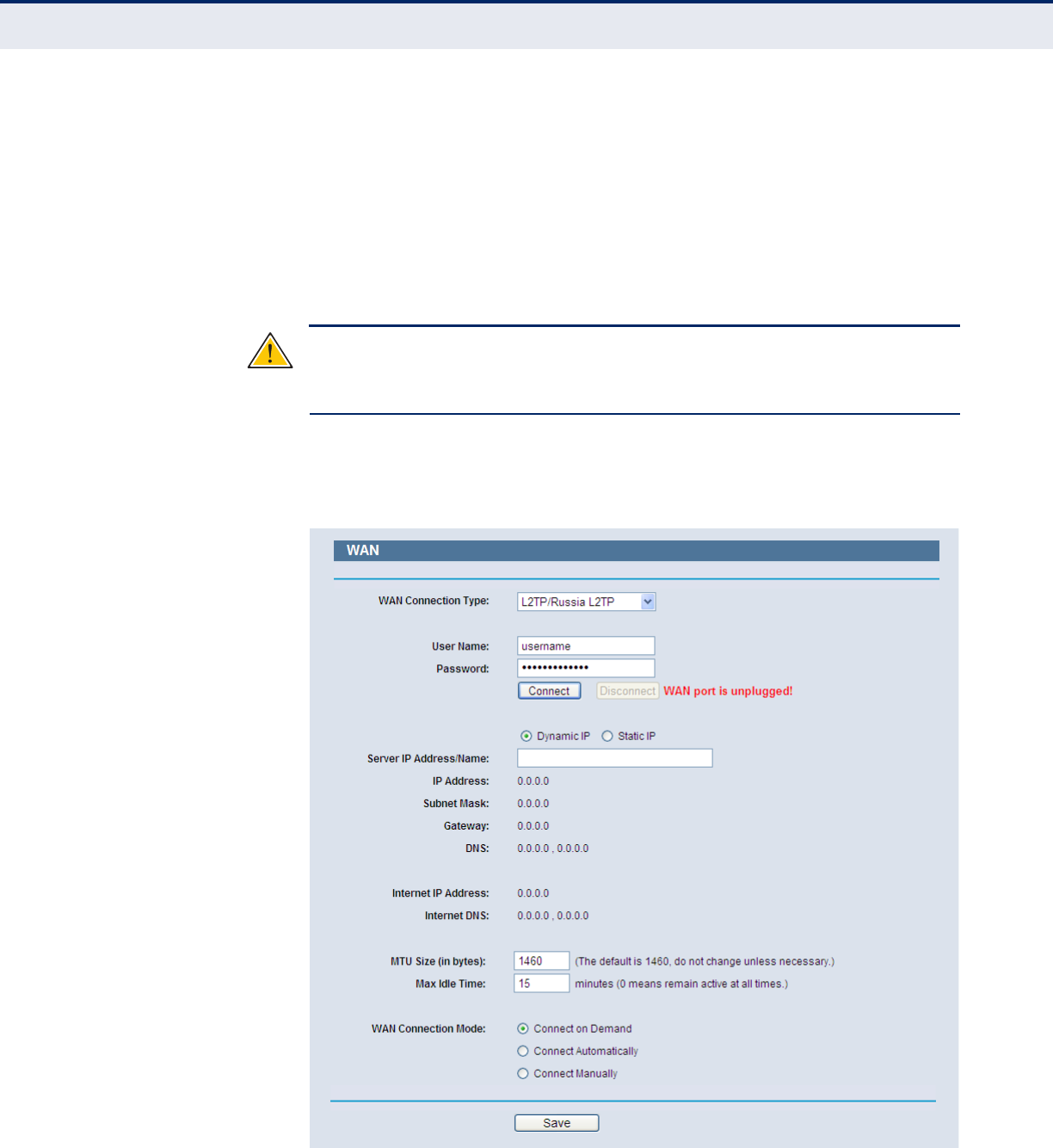

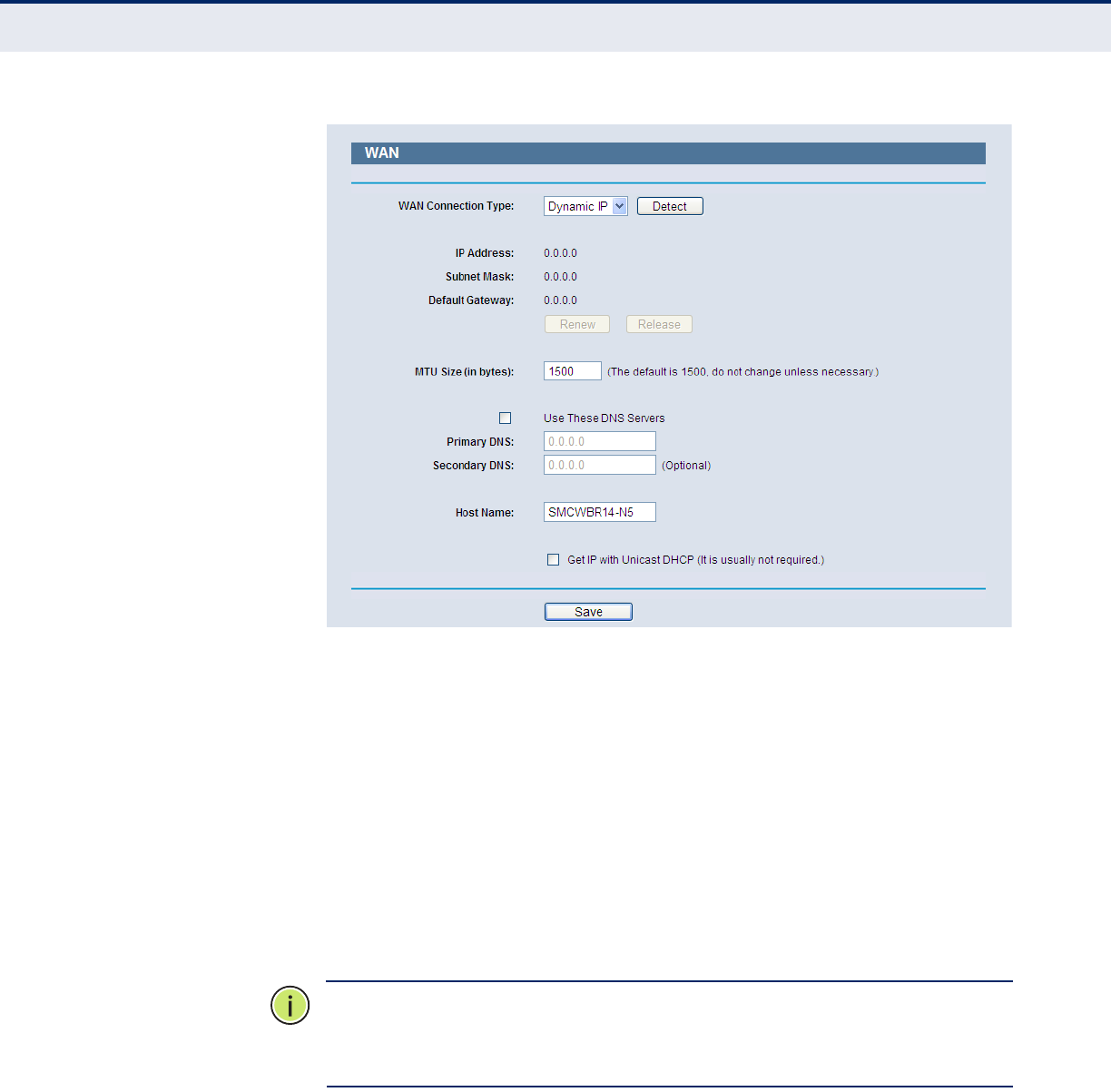

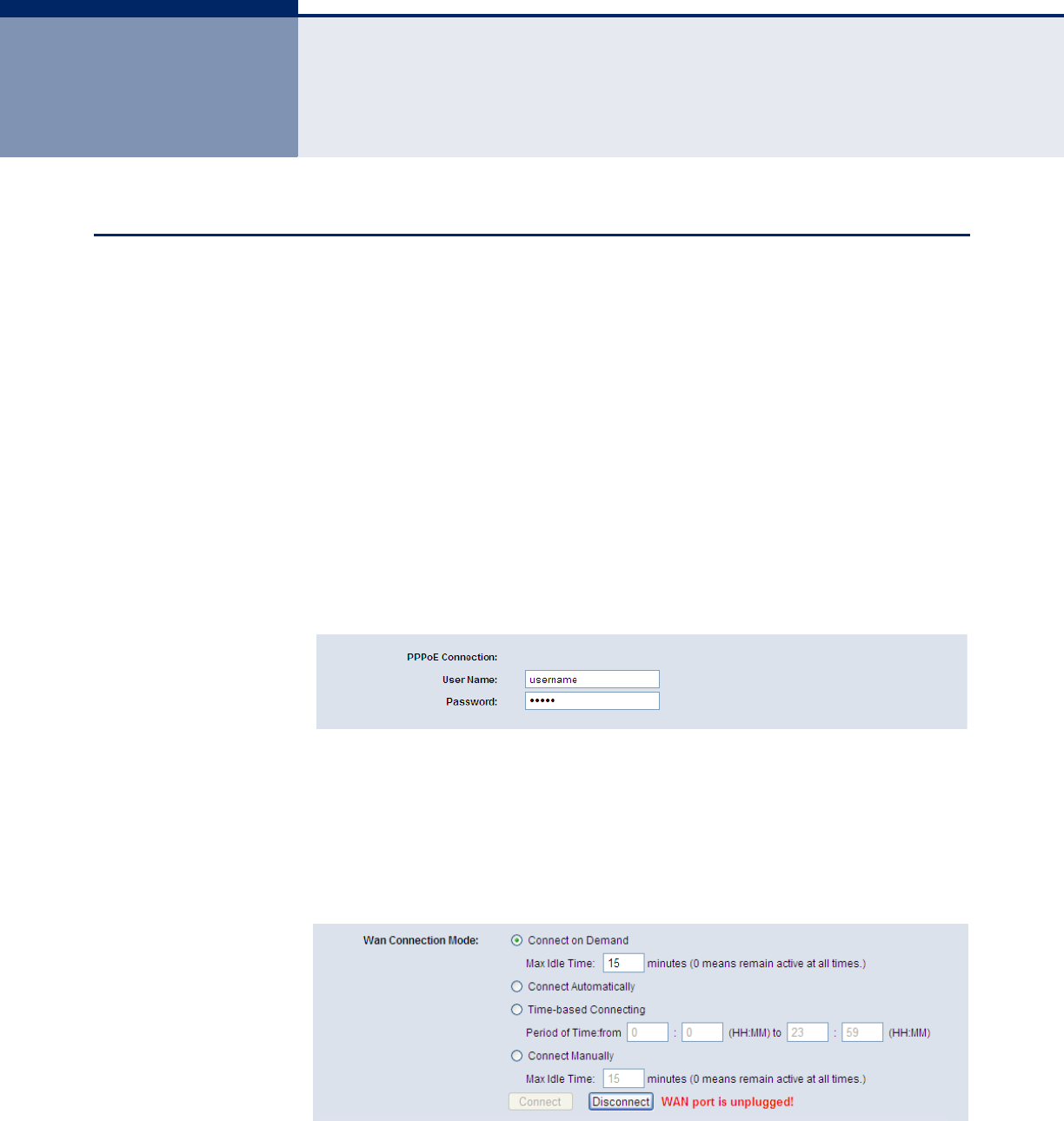

WAN 49

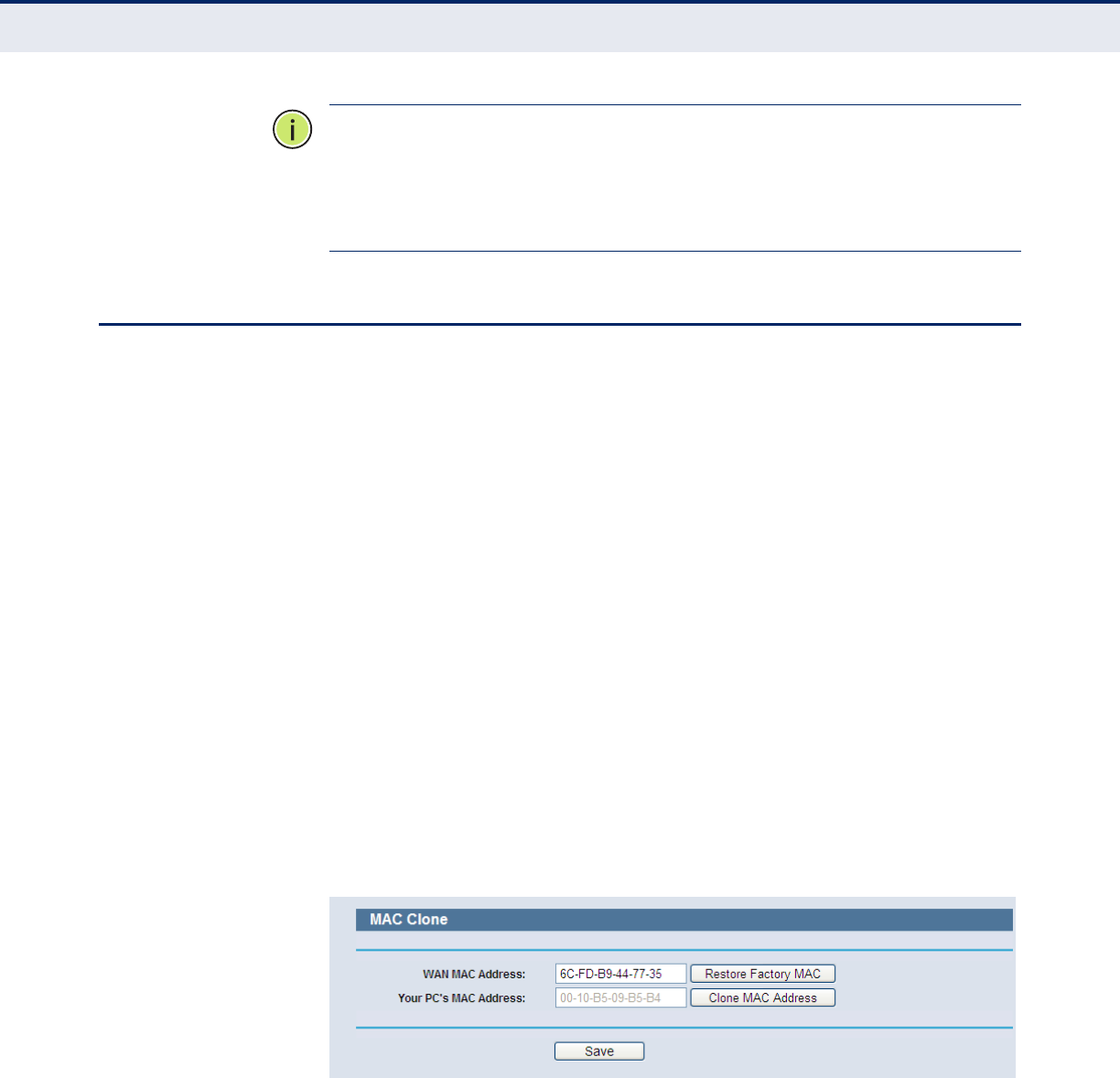

MAC Clone 59

Wireless 60

Wireless Settings

(Router Mode) 60

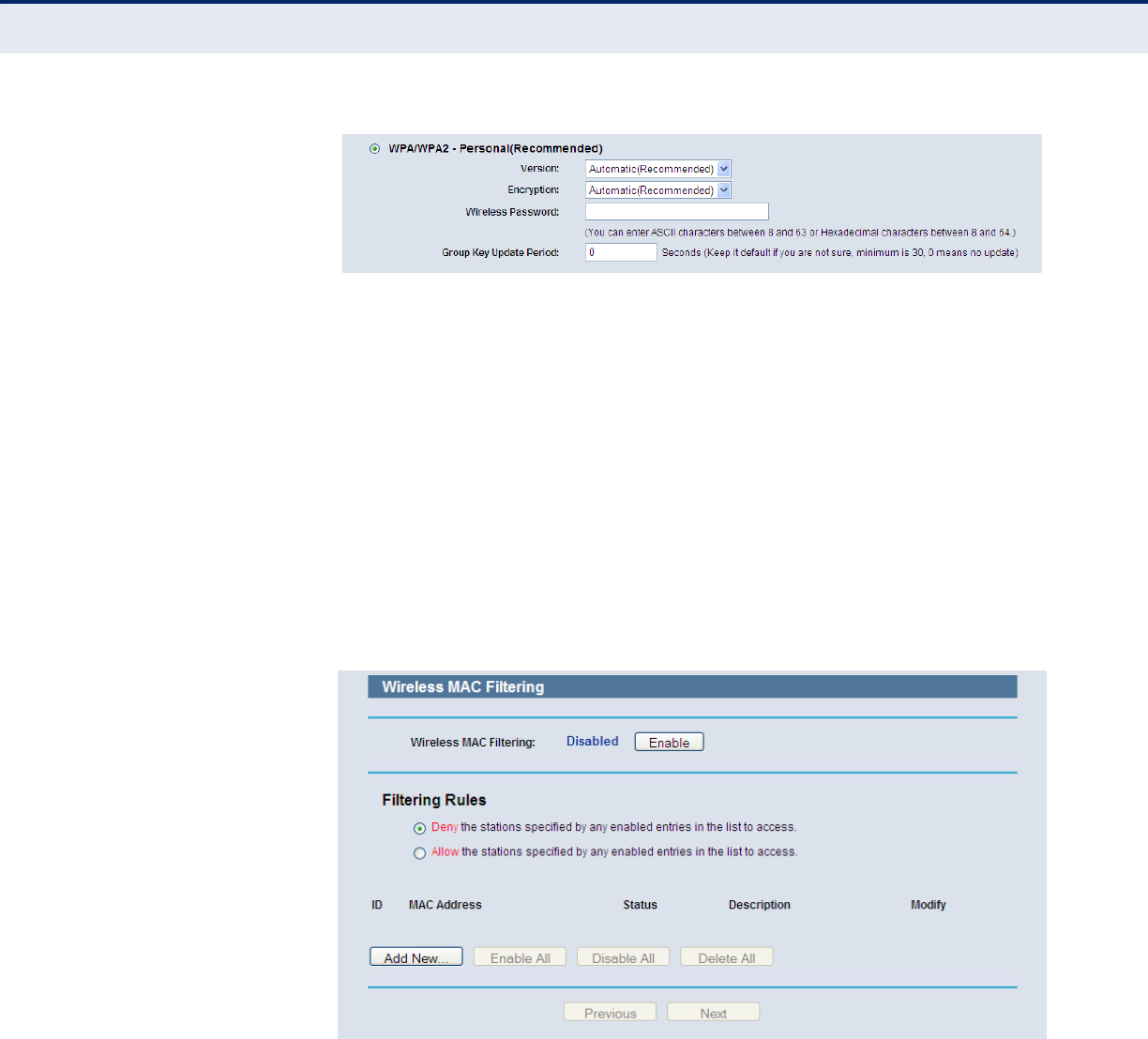

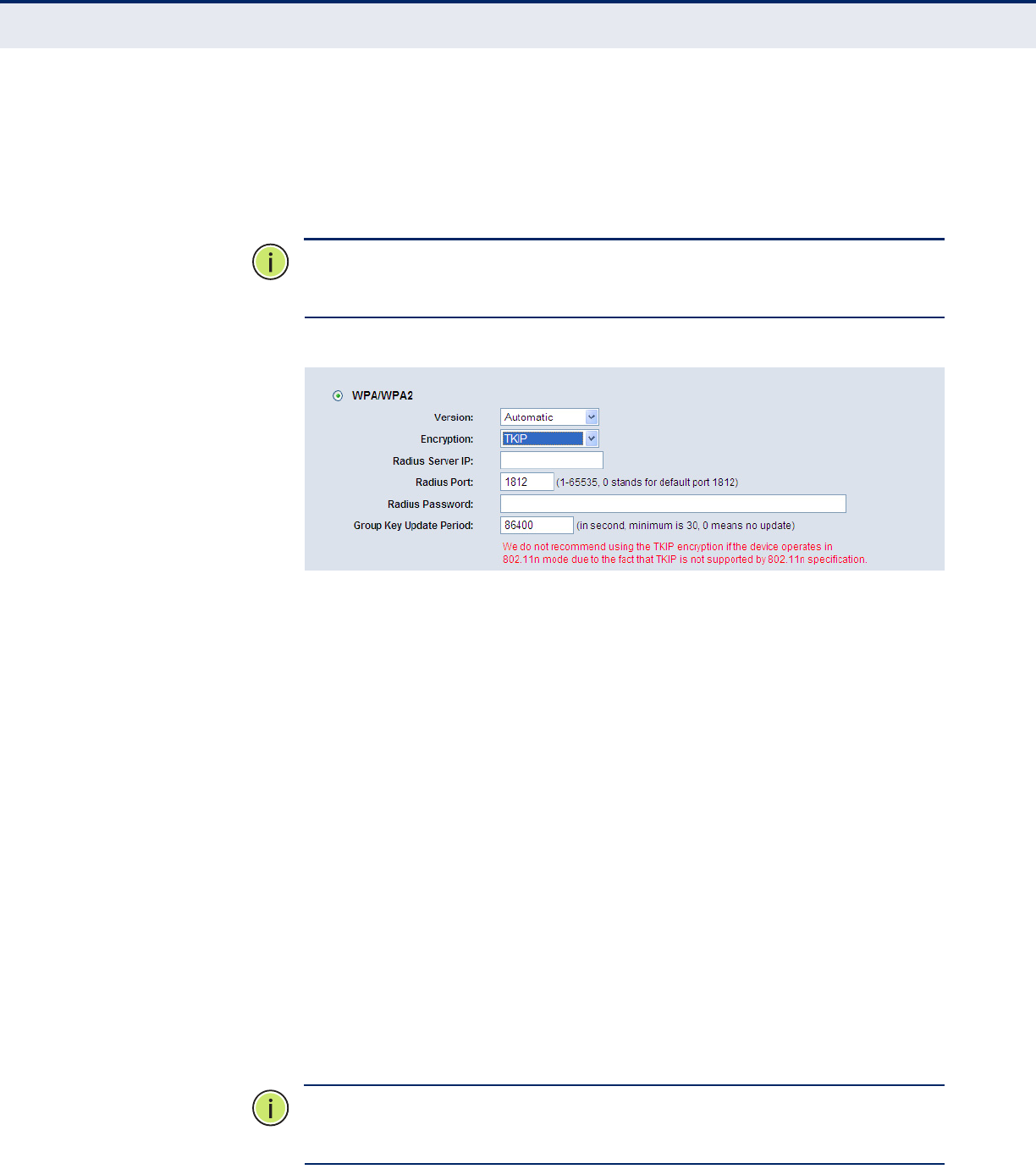

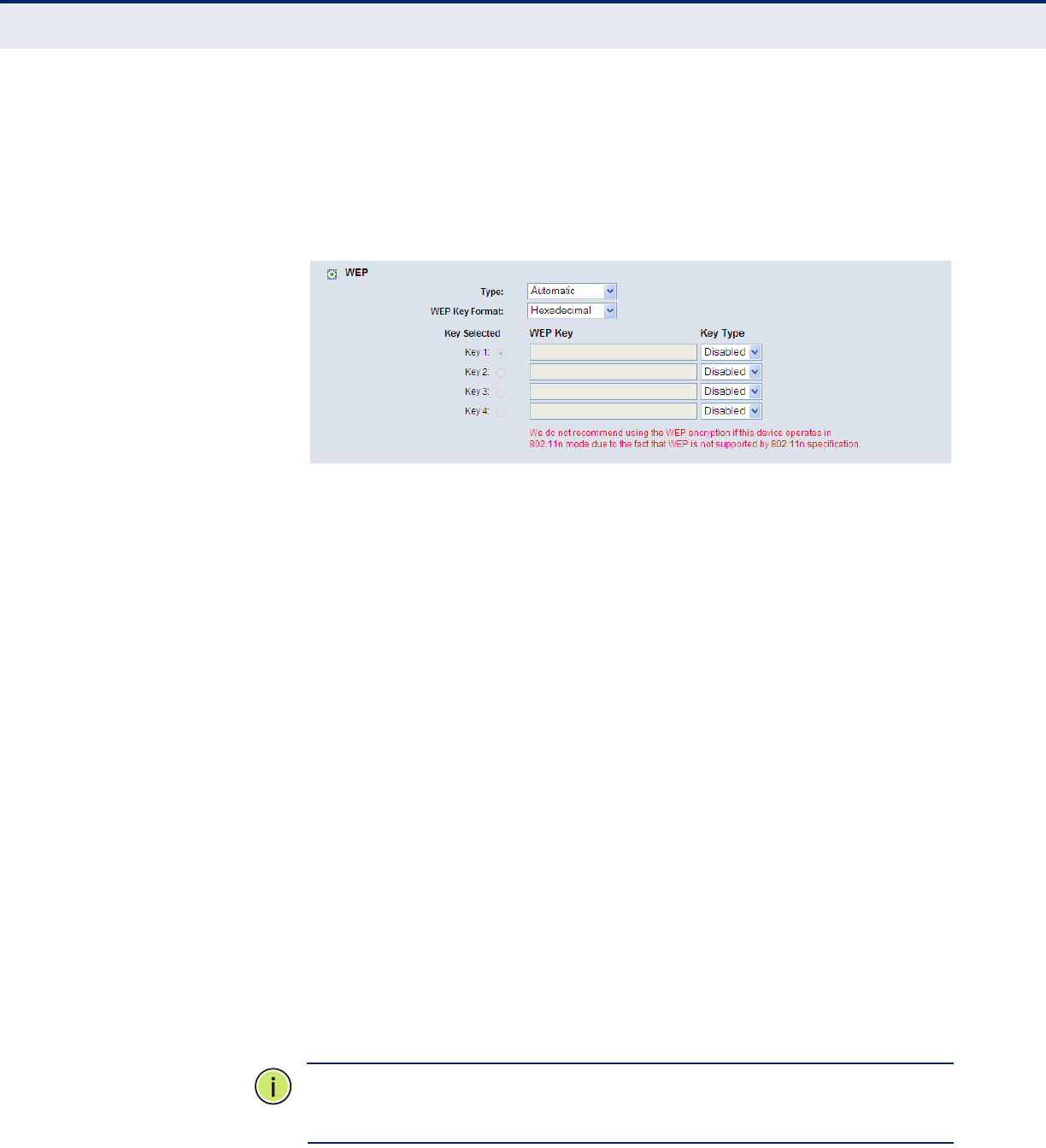

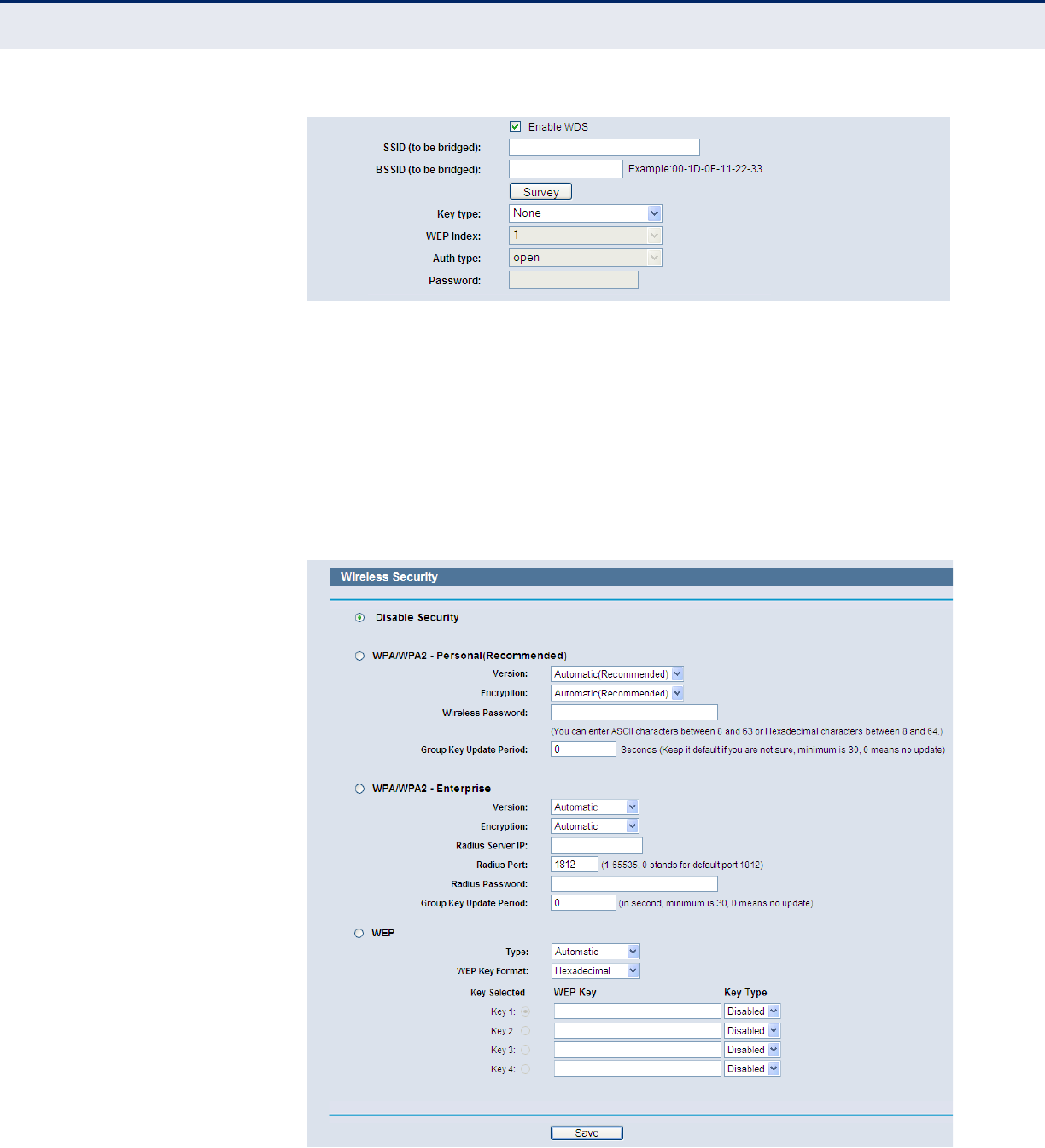

Wireless Security 63

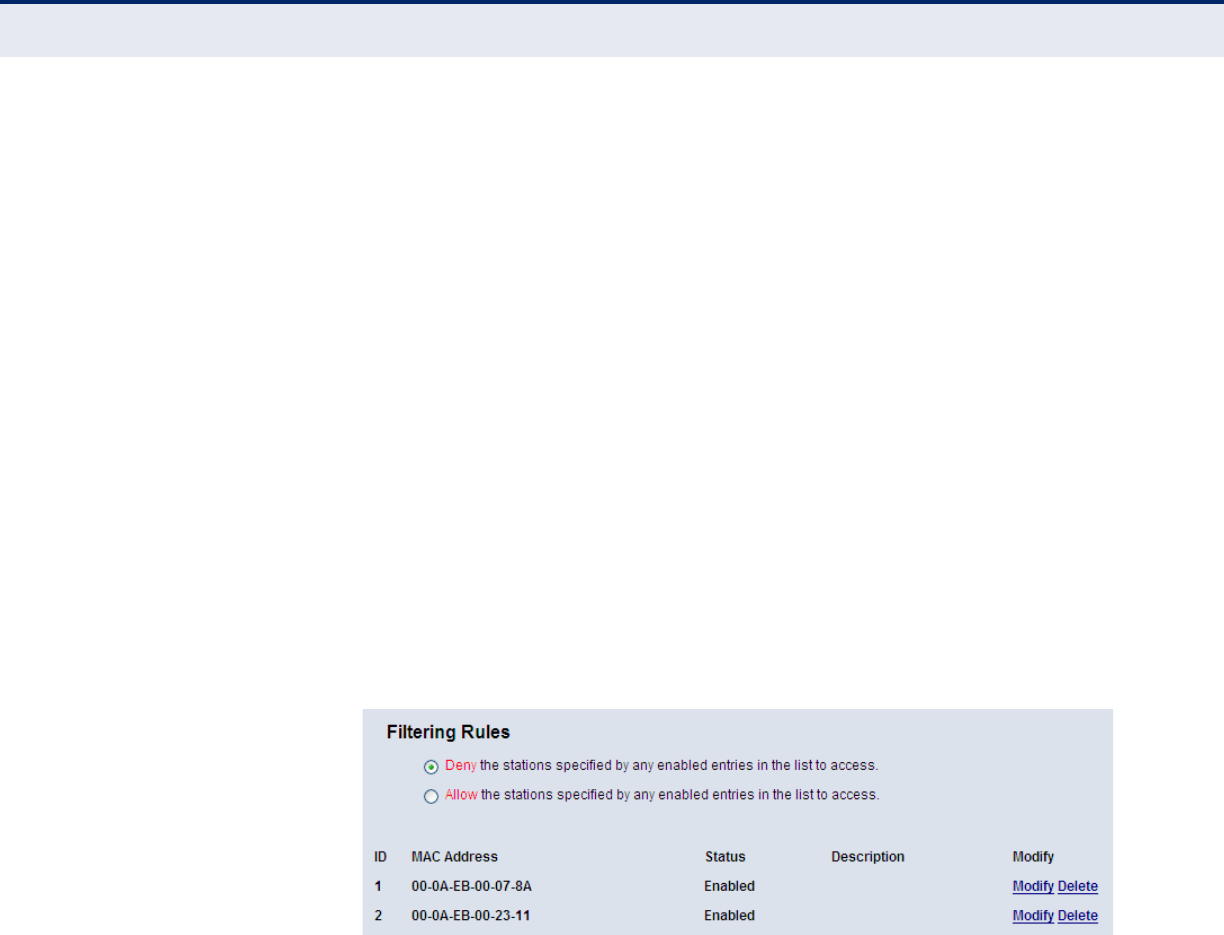

Wireless MAC Filtering 66

Wireless Advanced 69

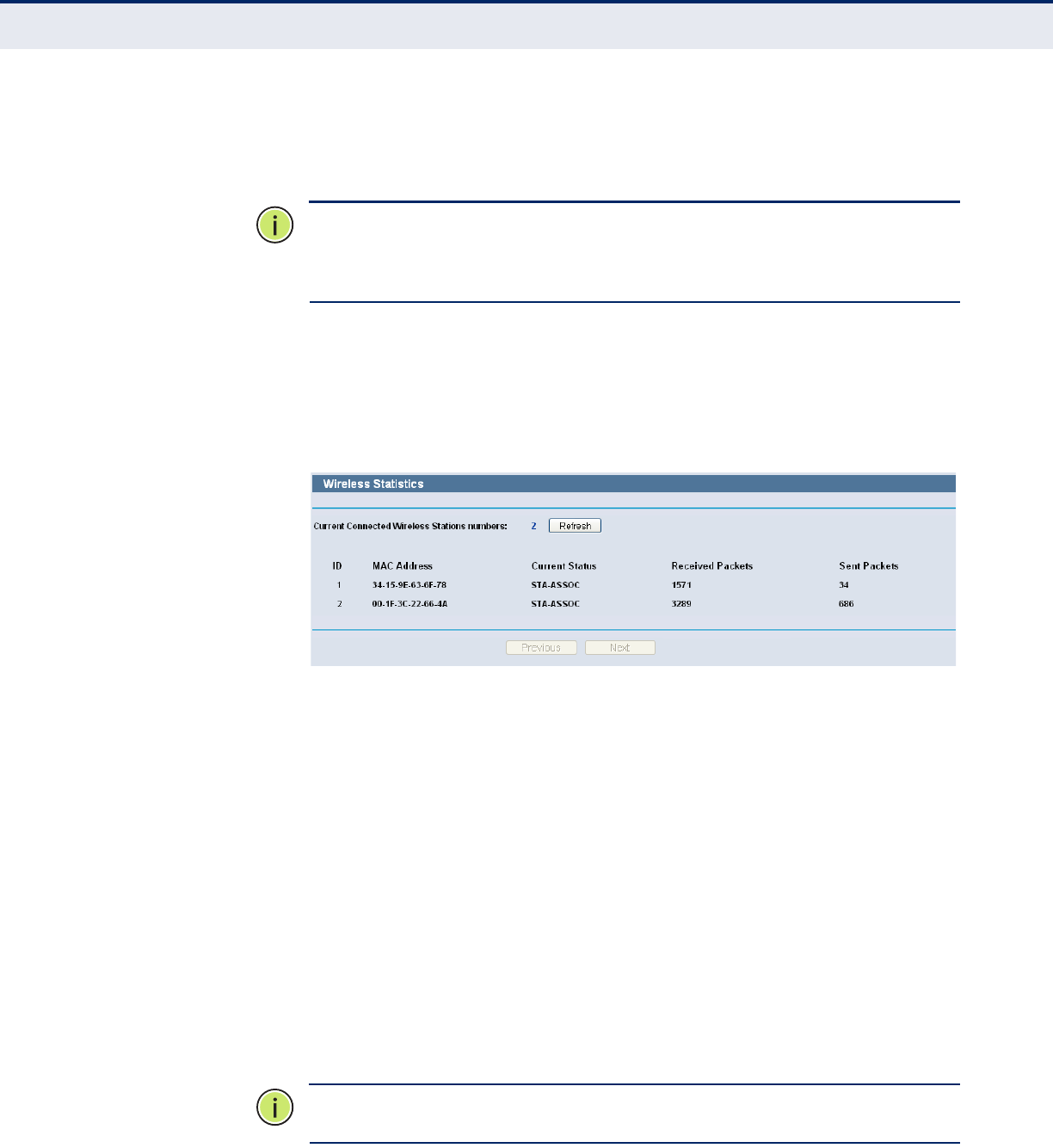

Wireless Statistics 70

DHCP 71

DHCP Settings 71

DHCP Clients List 72

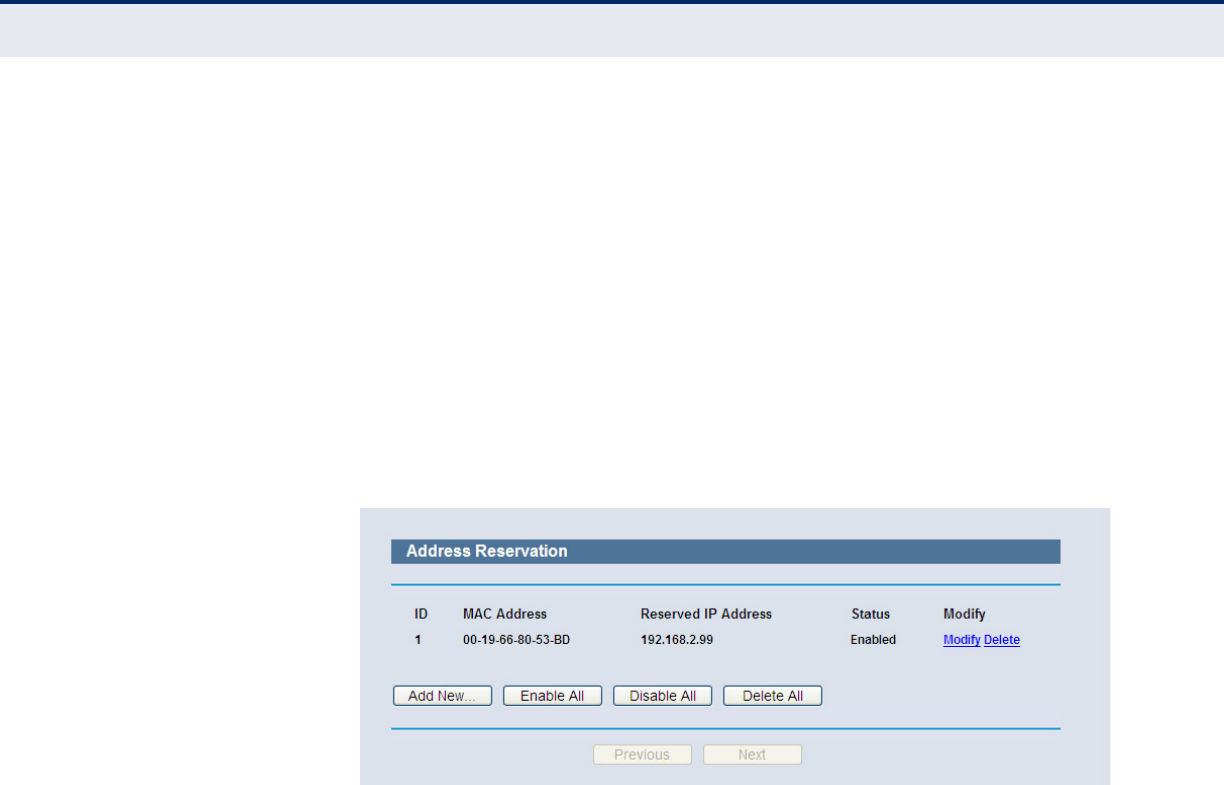

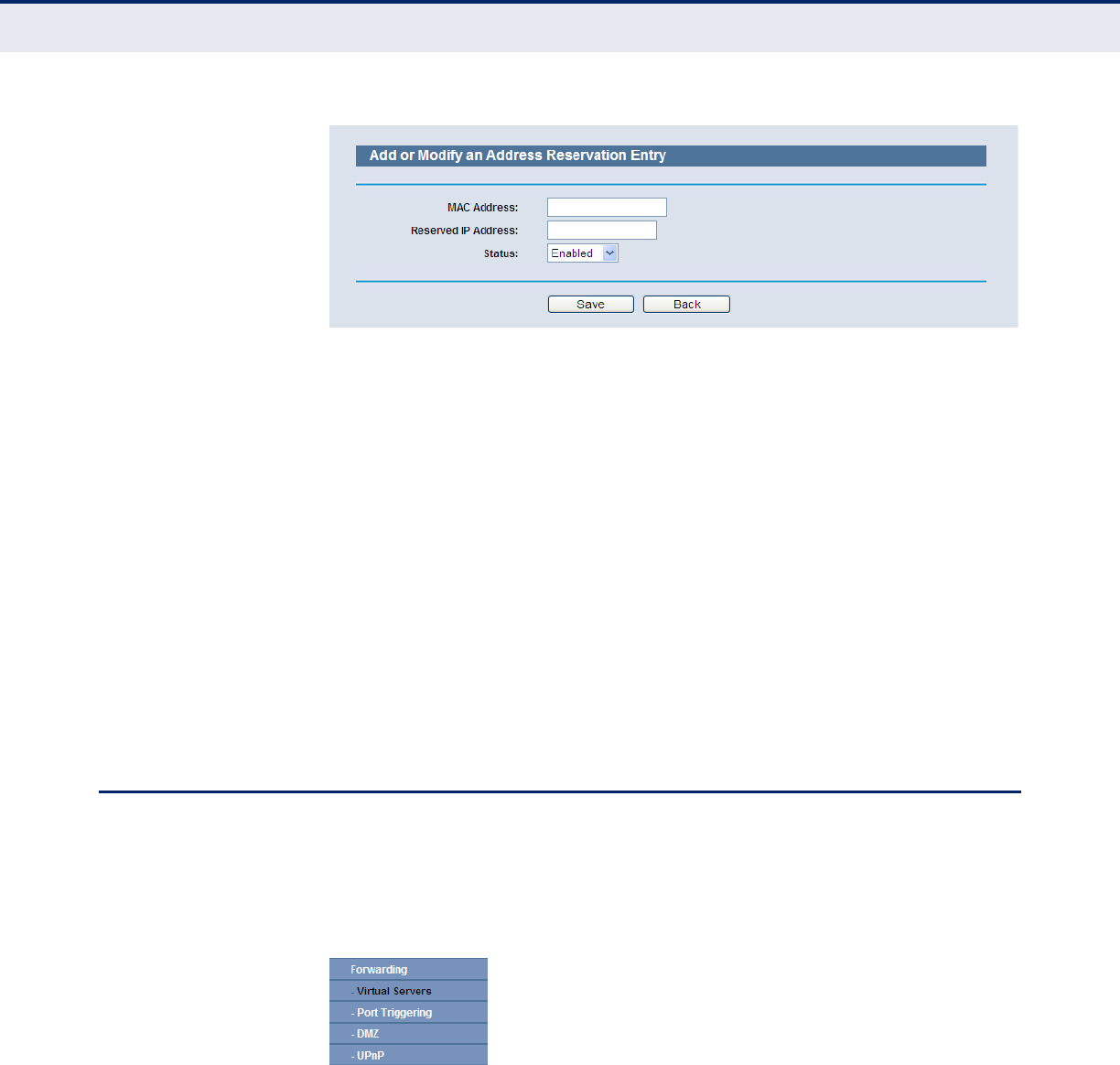

Address Reservation 73

Forwarding 74

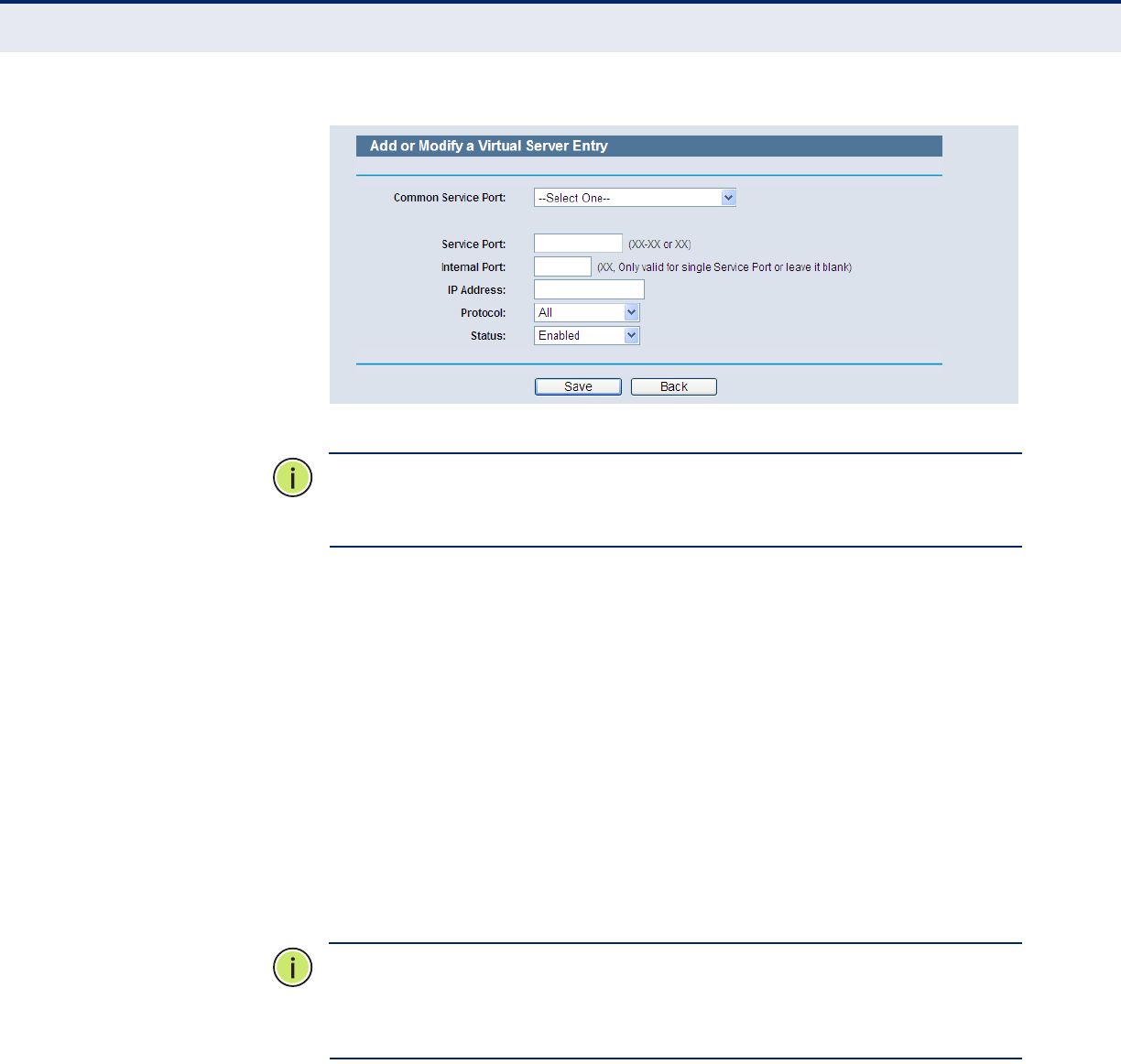

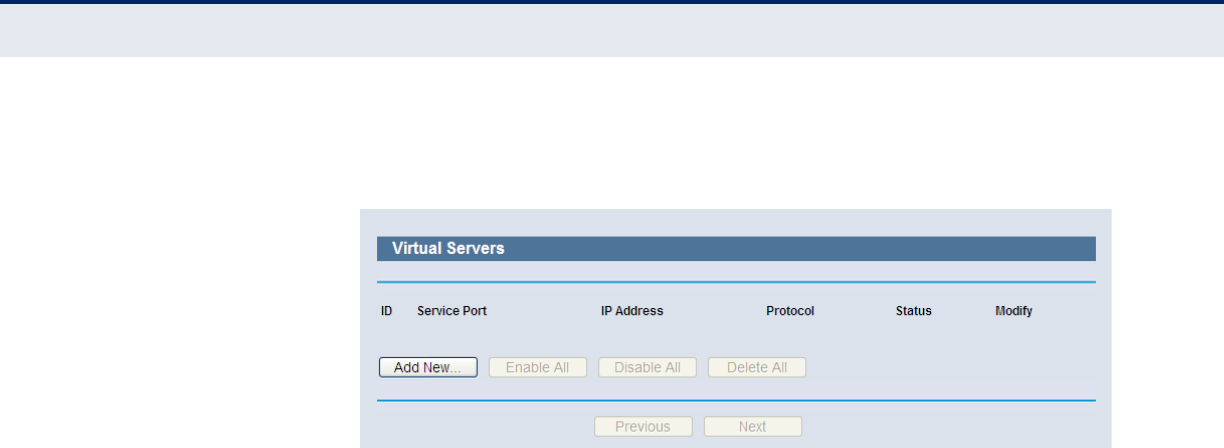

Virtual Servers 74

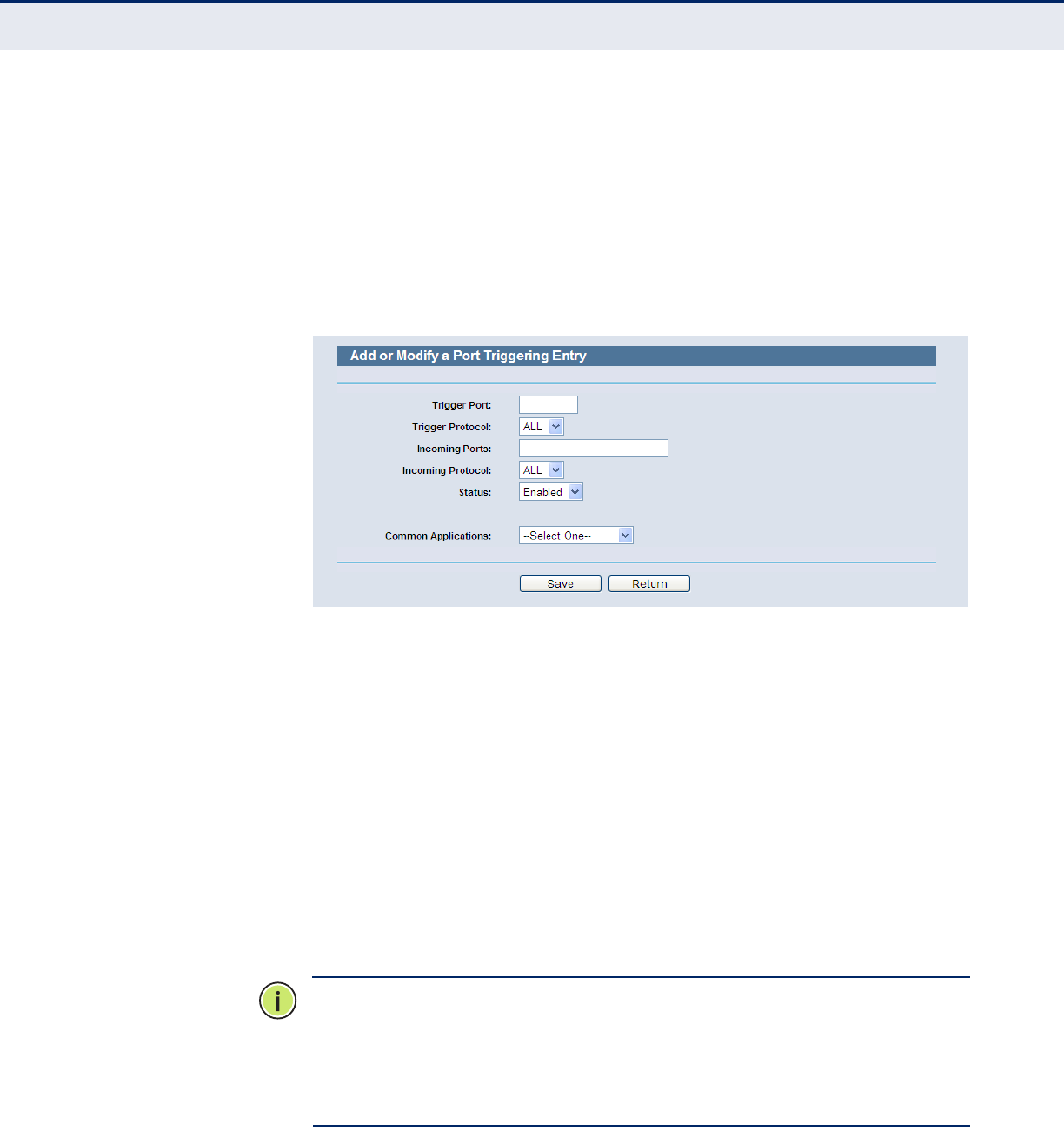

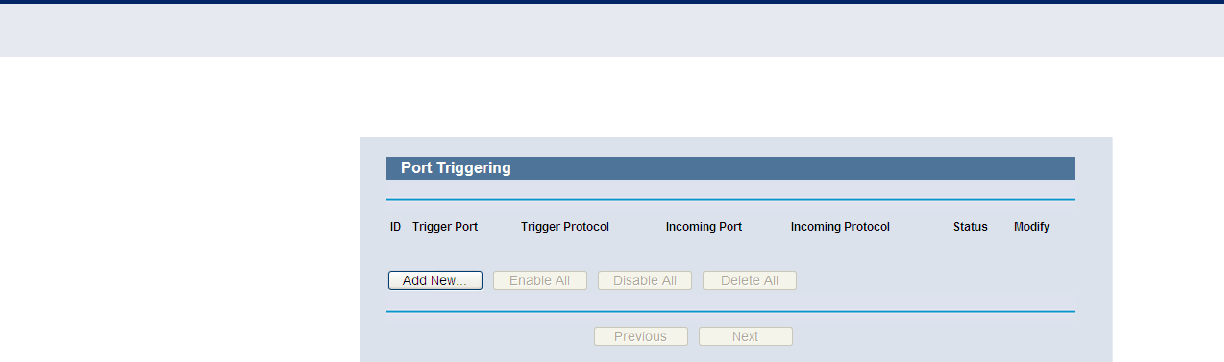

Port Triggering 76

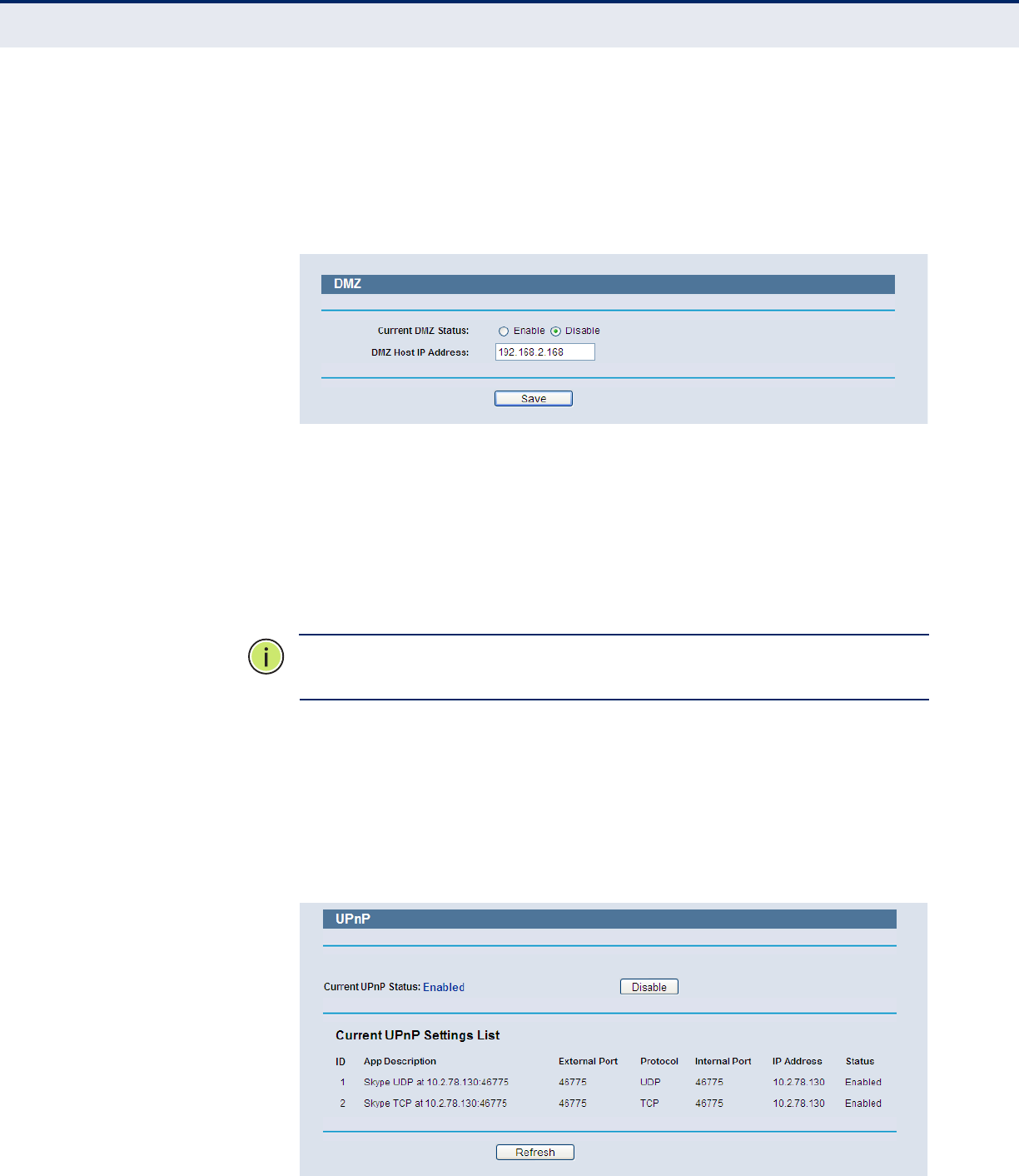

DMZ 78

UPnP 79

Security 80

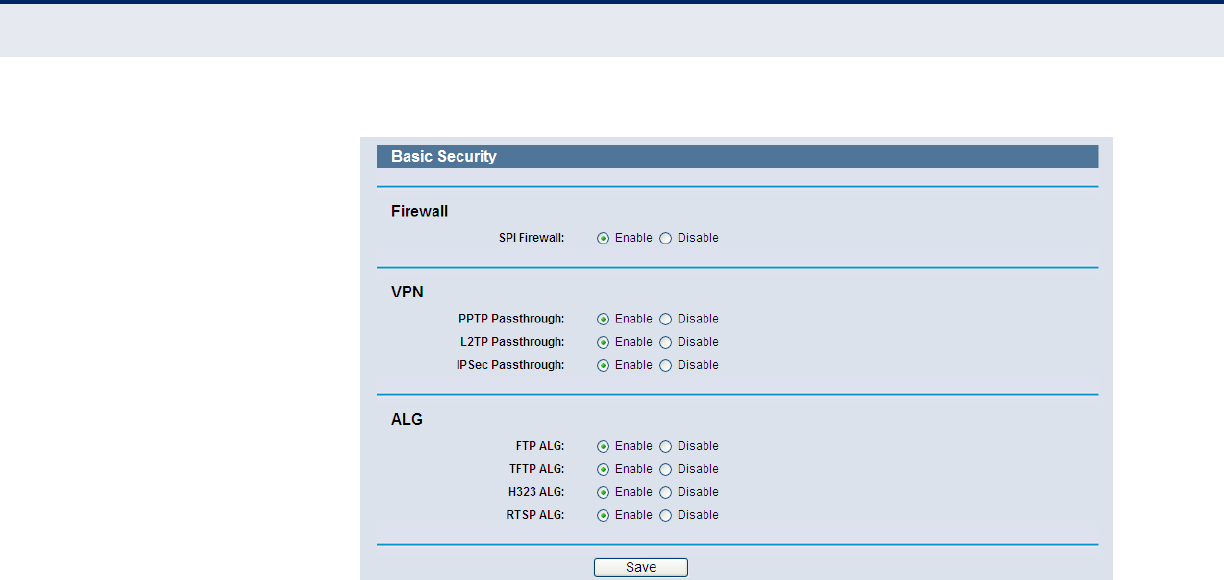

Basic Security 80

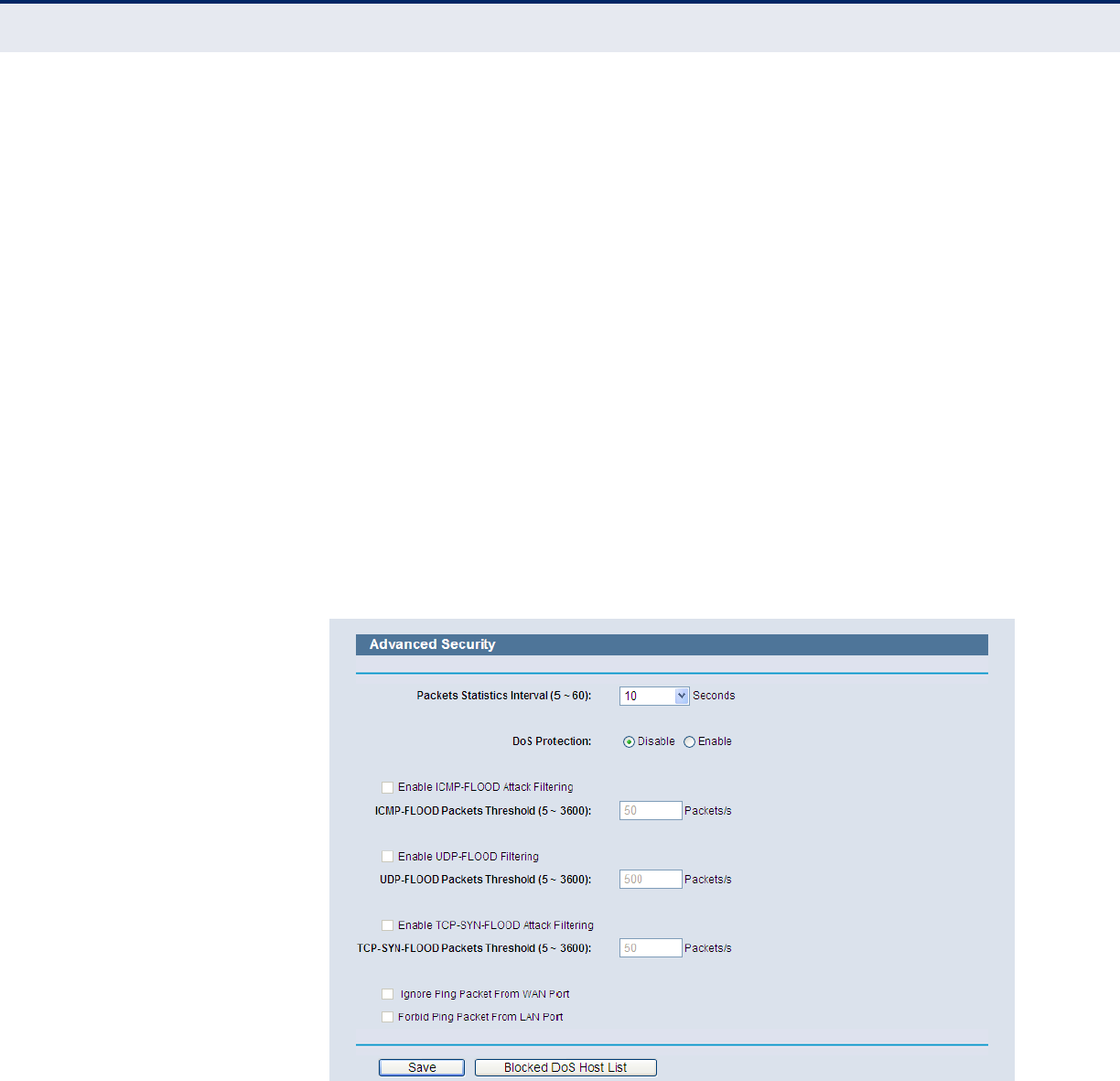

Advanced Security 82

Local Management 84

Remote Management 84

Parental Control 85

Access Control 88

Rule 88

Host 91

Target 93

Schedule 95

Advanced Routing 97

ONTENTS

– 18 –

Bandwidth Control 98

Control Settings 98

Rules List 99

IP & MAC Binding 100

Binding Setting 100

ARP List 102

DDNS 103

System Tools 105

Time Settings 106

Diagnostic 108

Firmware Upgrade 109

Factory Defaults 110

Backup & Restore 111

Reboot 111

Password 112

System Log 113

Statistics 115

ACONFIGURING THE PC 117

Install TCP/IP Components 117

BFAQ 121

How do I configure the Router for Internet access by ADSL users? 121

How do I configure the Router for Internet access by Ethernet users? 122

I want to use Netmeeting, what do I need to do? 123

I want to build a WEB Server on the LAN, what should I do? 125

Wireless stations cannot connect to the Router 126

CSPECIFICATIONS 128

GLOSSARY 130

INDEX 132

– 19 –

FIGURES

Figure 1: Front Panel 26

Figure 2: Rear Panel 27

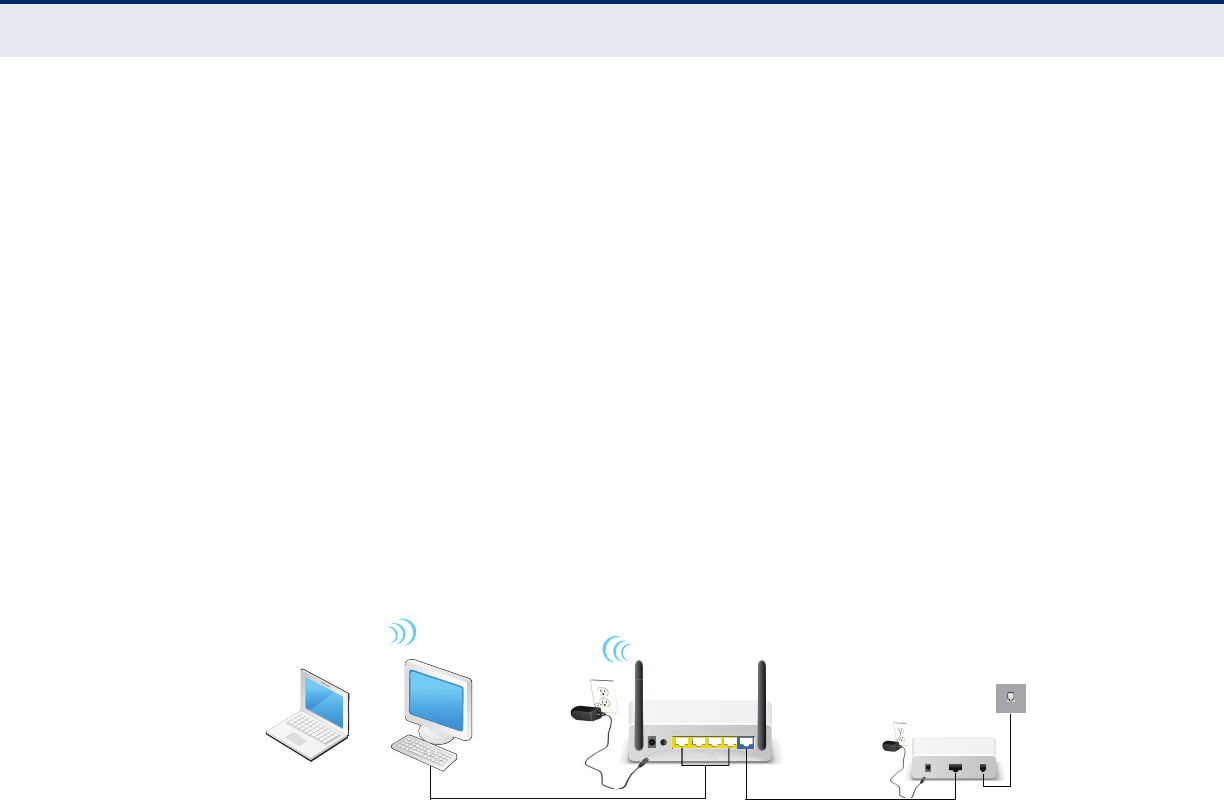

Figure 3: Harewall Installation 30

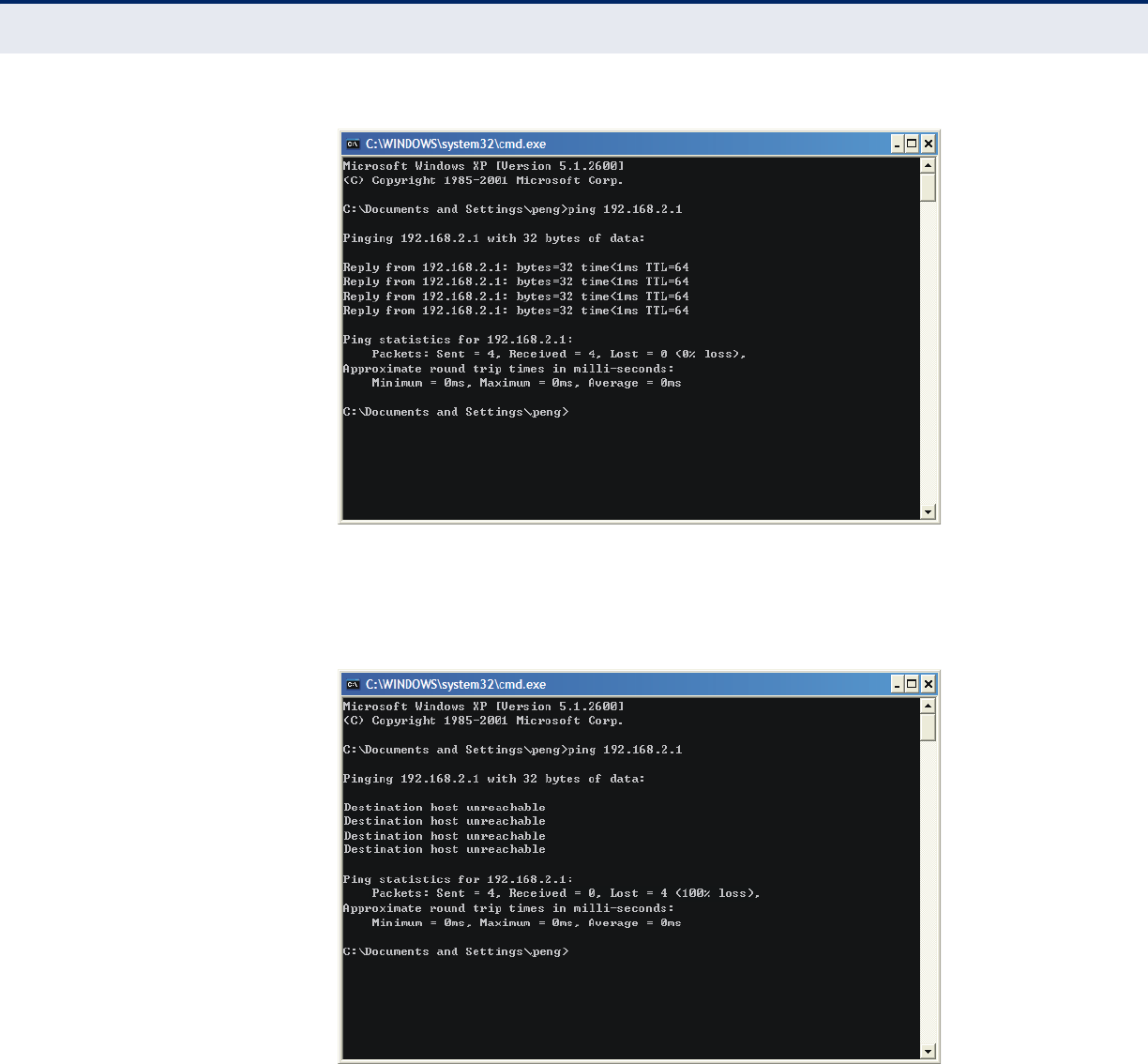

Figure 4: Success Result of a Ping Command 32

Figure 5: Failure of a Ping Command 32

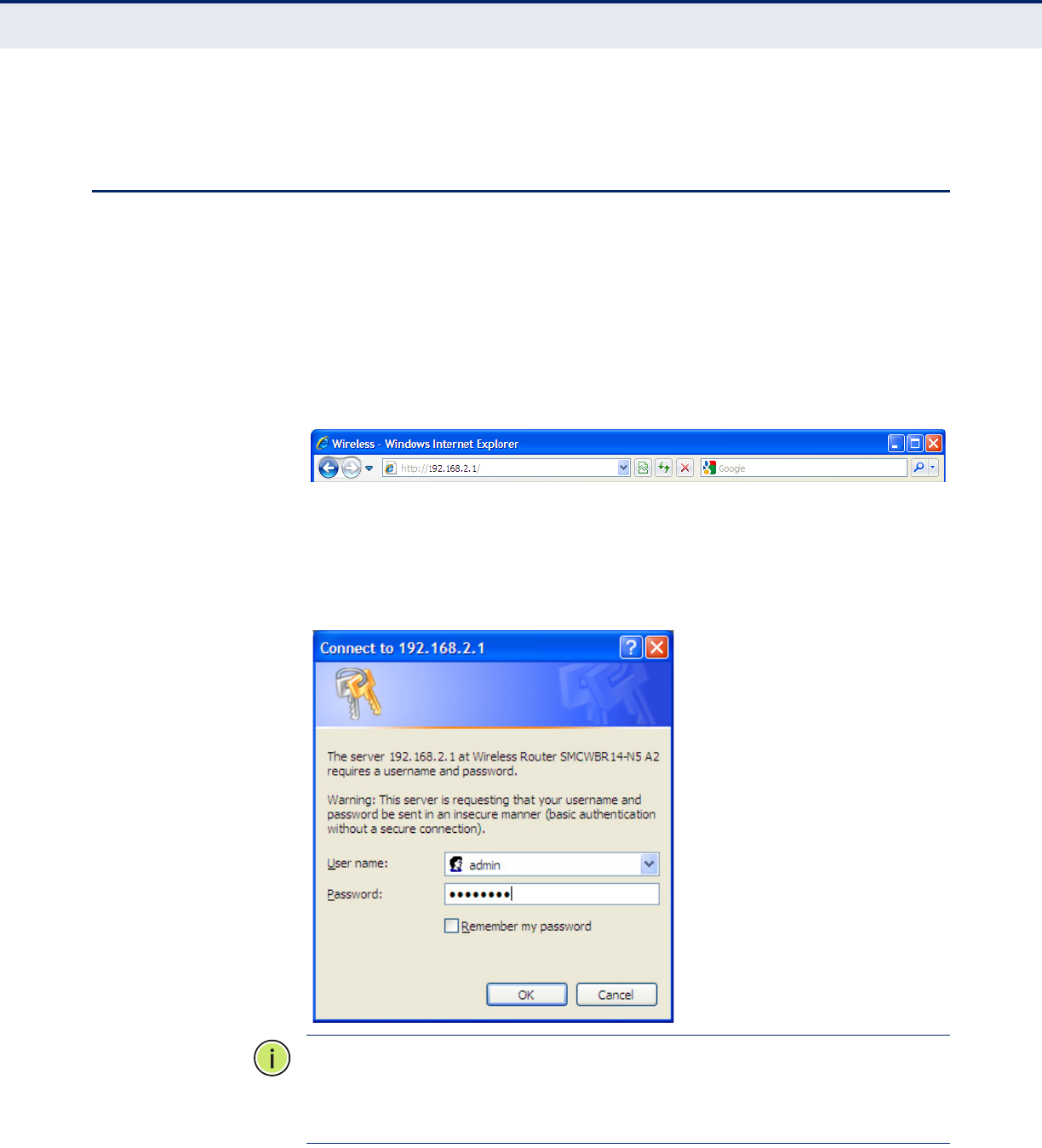

Figure 6: Log in to the Router 33

Figure 7: Windows Login 33

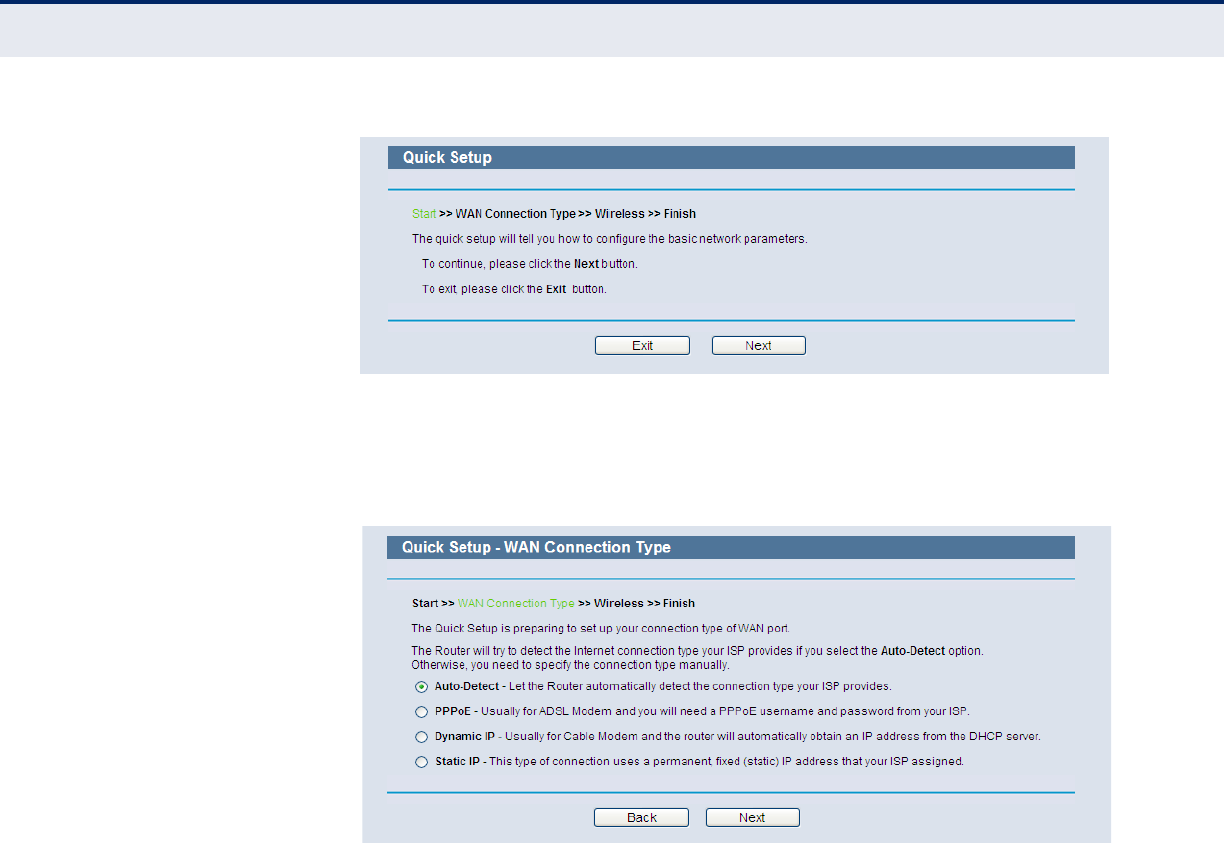

Figure 8: Quick Setup 34

Figure 9: Choose the WAN Connection Type 34

Figure 10: Quick Setup – PPPoE 35

Figure 11: Quick Setup - Static IP 35

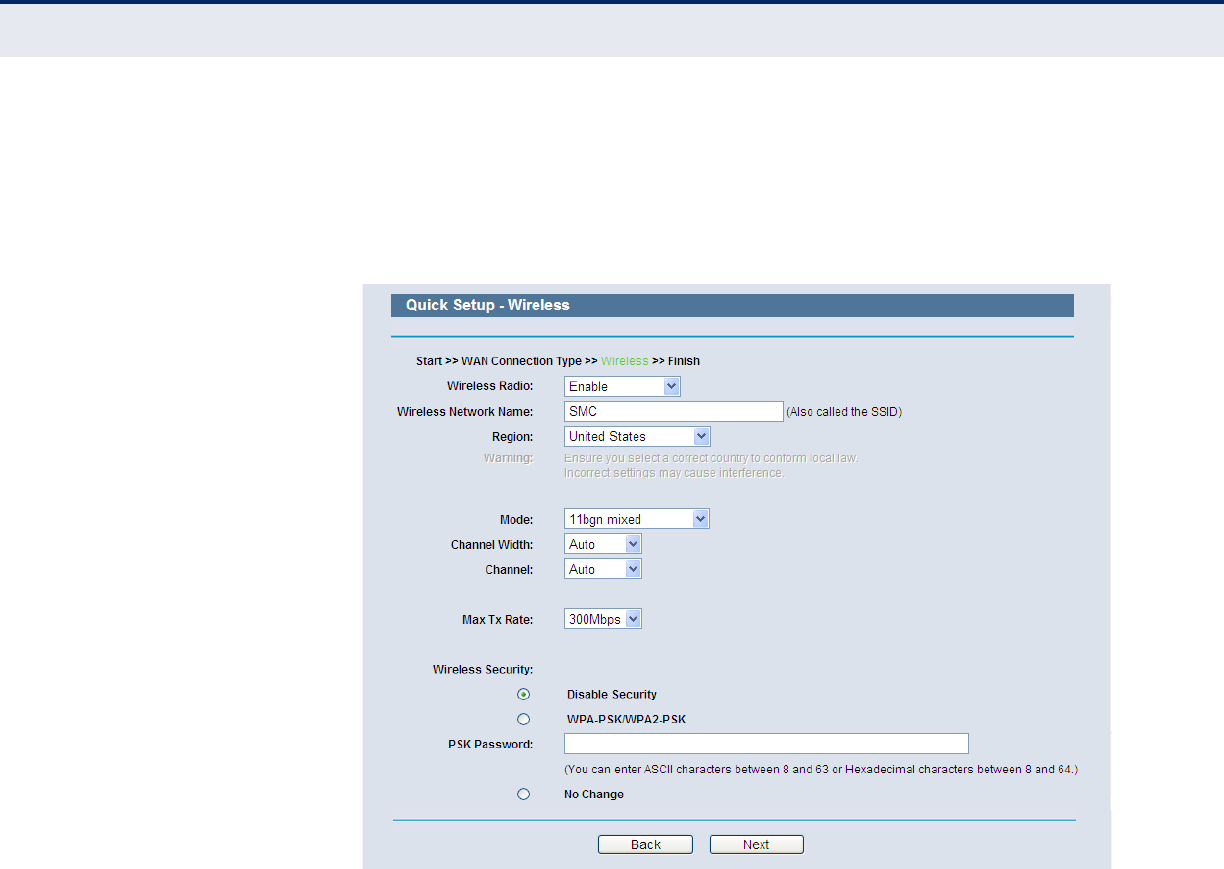

Figure 12: Quick Setup – Wireless 36

Figure 13: Quick Setup – Finish 38

Figure 14: The Main Menu 39

Figure 15: Status 40

Figure 16: WPS (Wi-Fi Protected Setup) 41

Figure 17: Front Panel 42

Figure 18: WPS Button 42

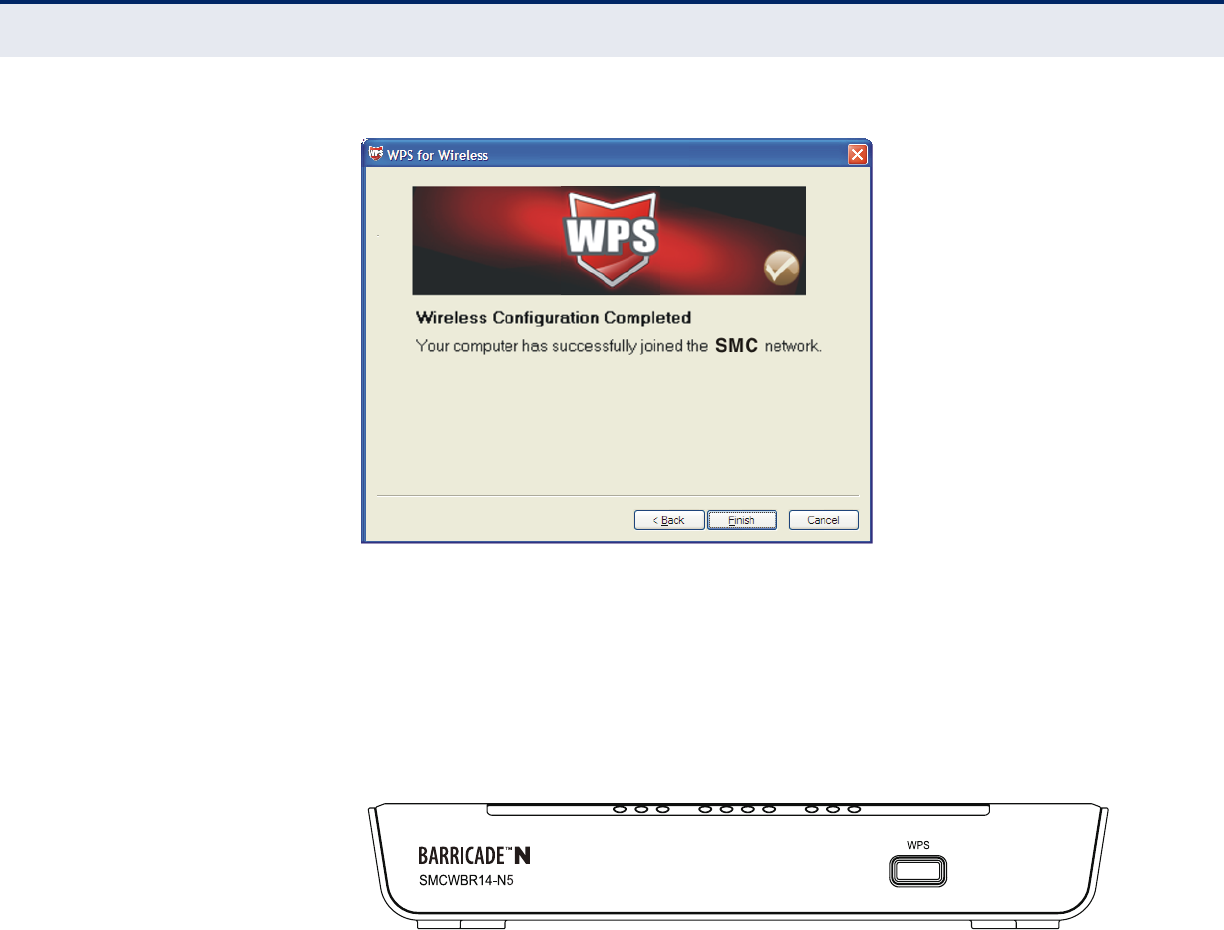

Figure 19: WPS-Wireless Configuration Completed 43

Figure 20: Front Panel 43

Figure 21: WPS-Push the button on my access point 44

Figure 22: WPS-Wireless Configuration Completed 44

Figure 23: Add A New Device 45

Figure 24: WPS-Push the button on my access point 45

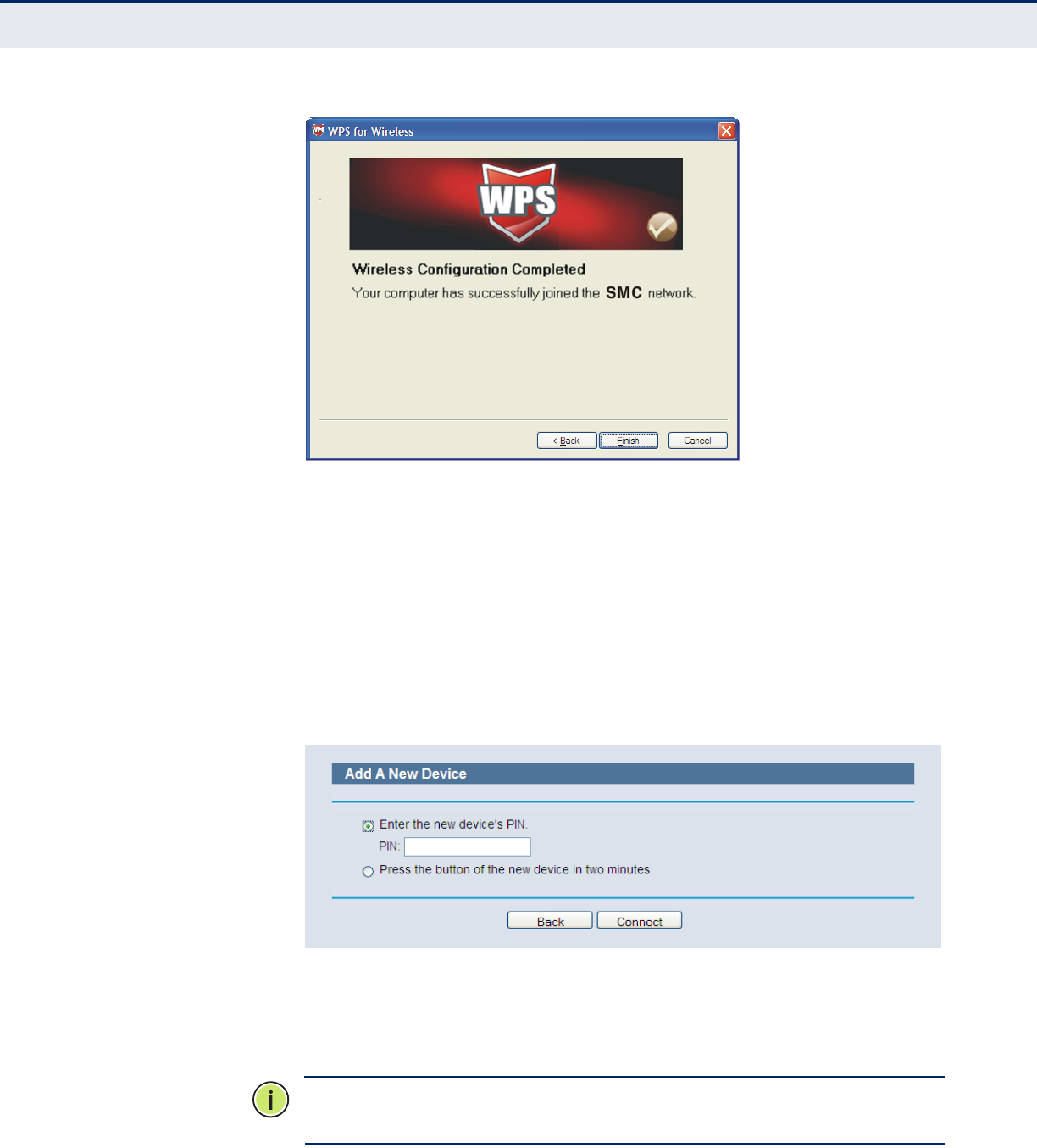

Figure 25: WPS-Wireless Configuration Completed 46

Figure 26: Add Device 46

Figure 27: WPS-Enter a PIN into my access point 47

Figure 28: WPS-Enter a PIN from my access point 48

Figure 29: The Network Menu 48

Figure 30: LAN 49

Figure 31: WAN-Dynamic IP 50

ONTENTS

– 20 –

Figure 32: WAN-Static IP 51

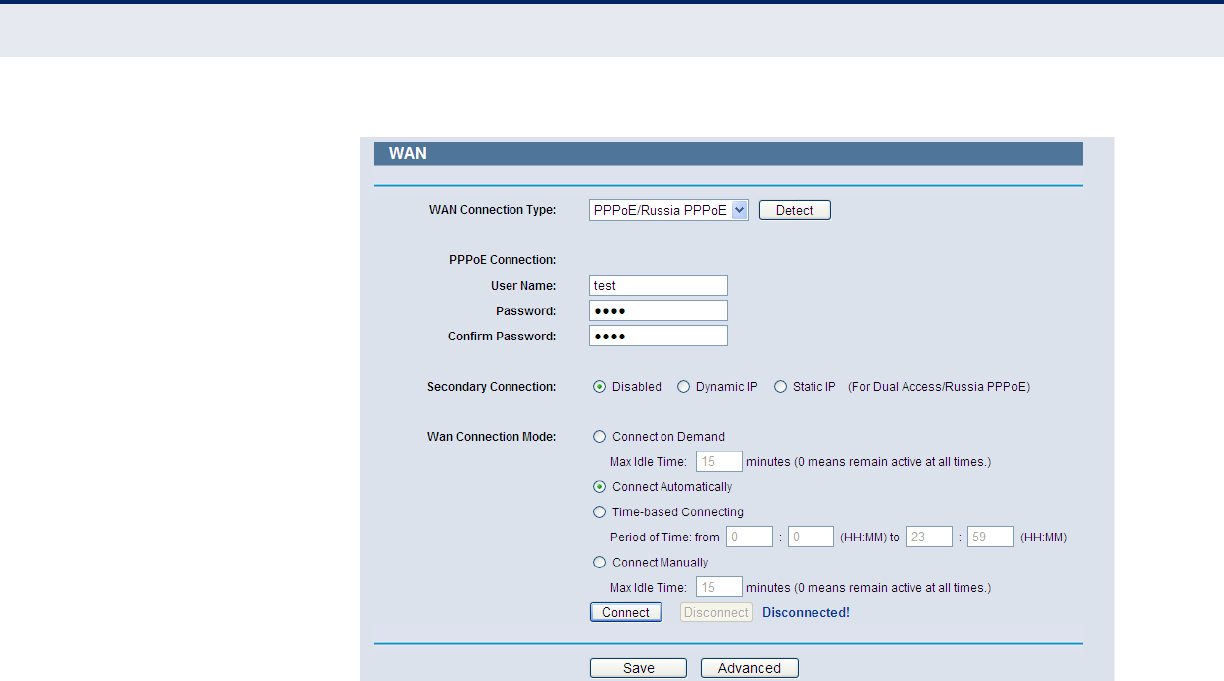

Figure 33: WAN-PPPoE 52

Figure 34: WAN-PPPoE Advanced Settings 54

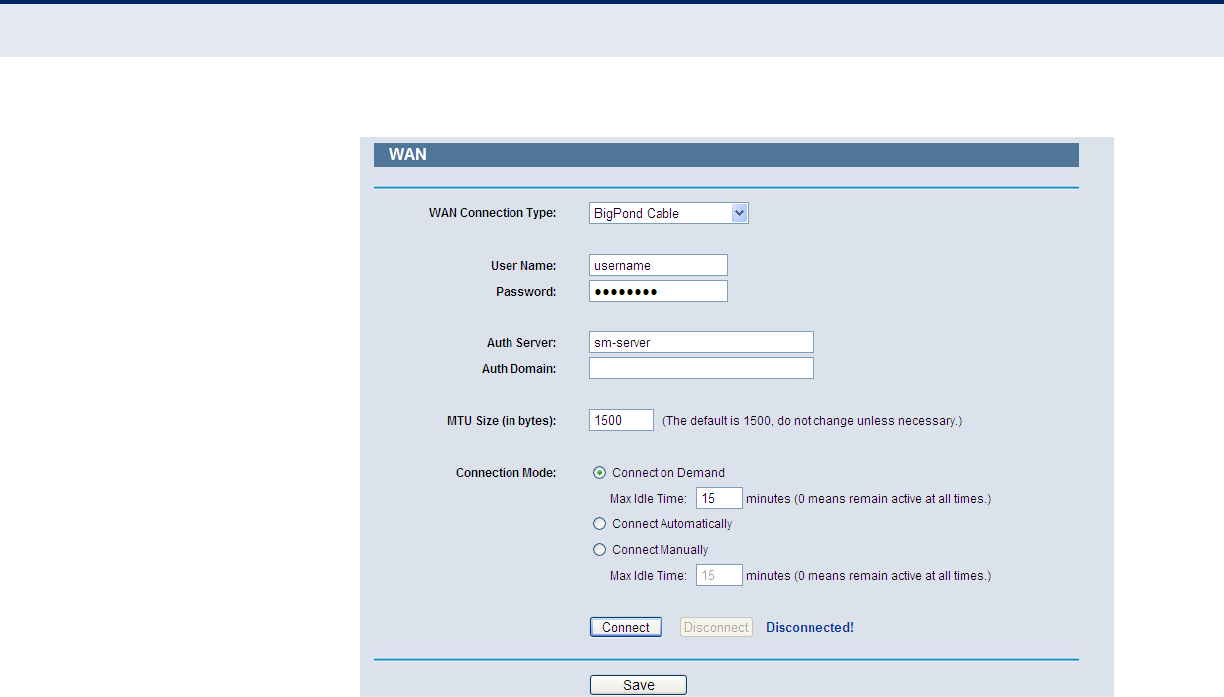

Figure 35: WAN-BigPond Cable 55

Figure 36: WAN-L2TP 56

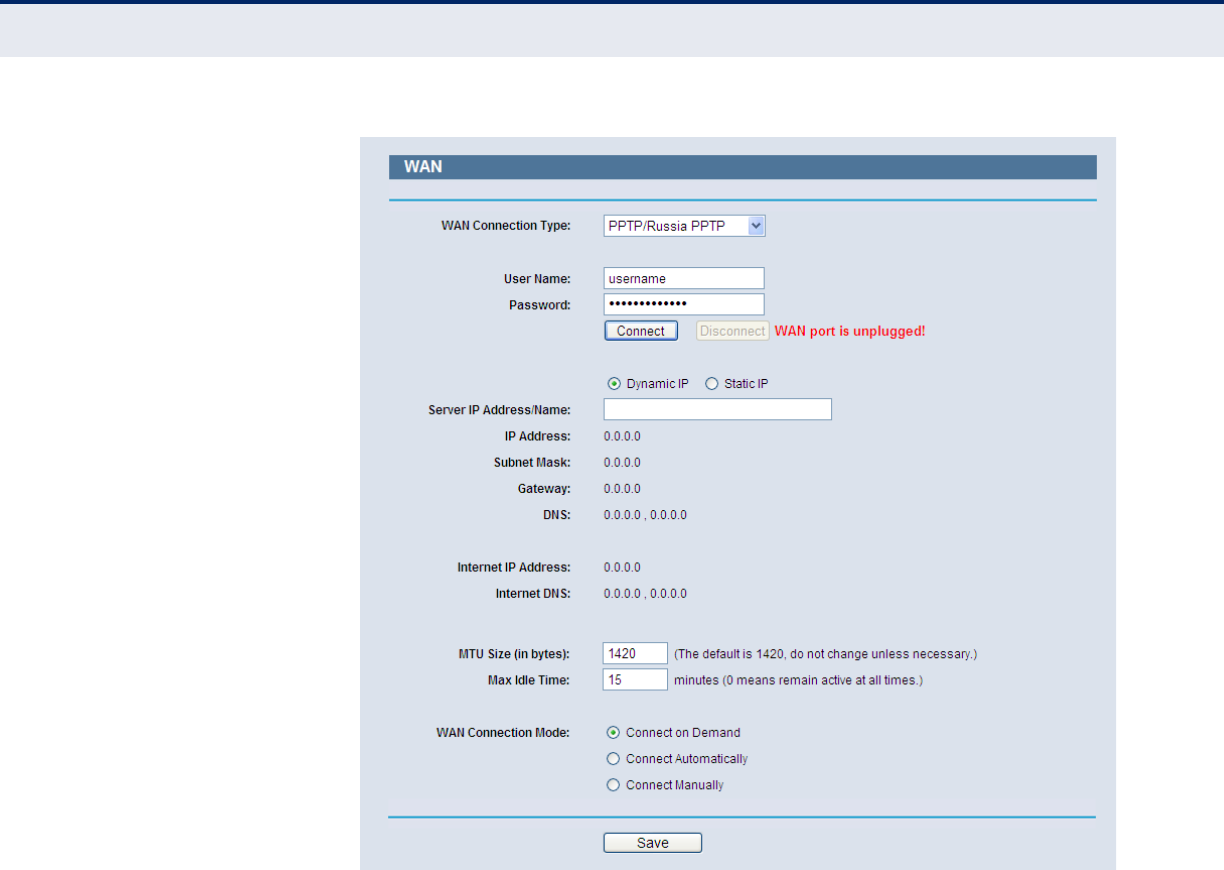

Figure 37: WAN-PPTP 58

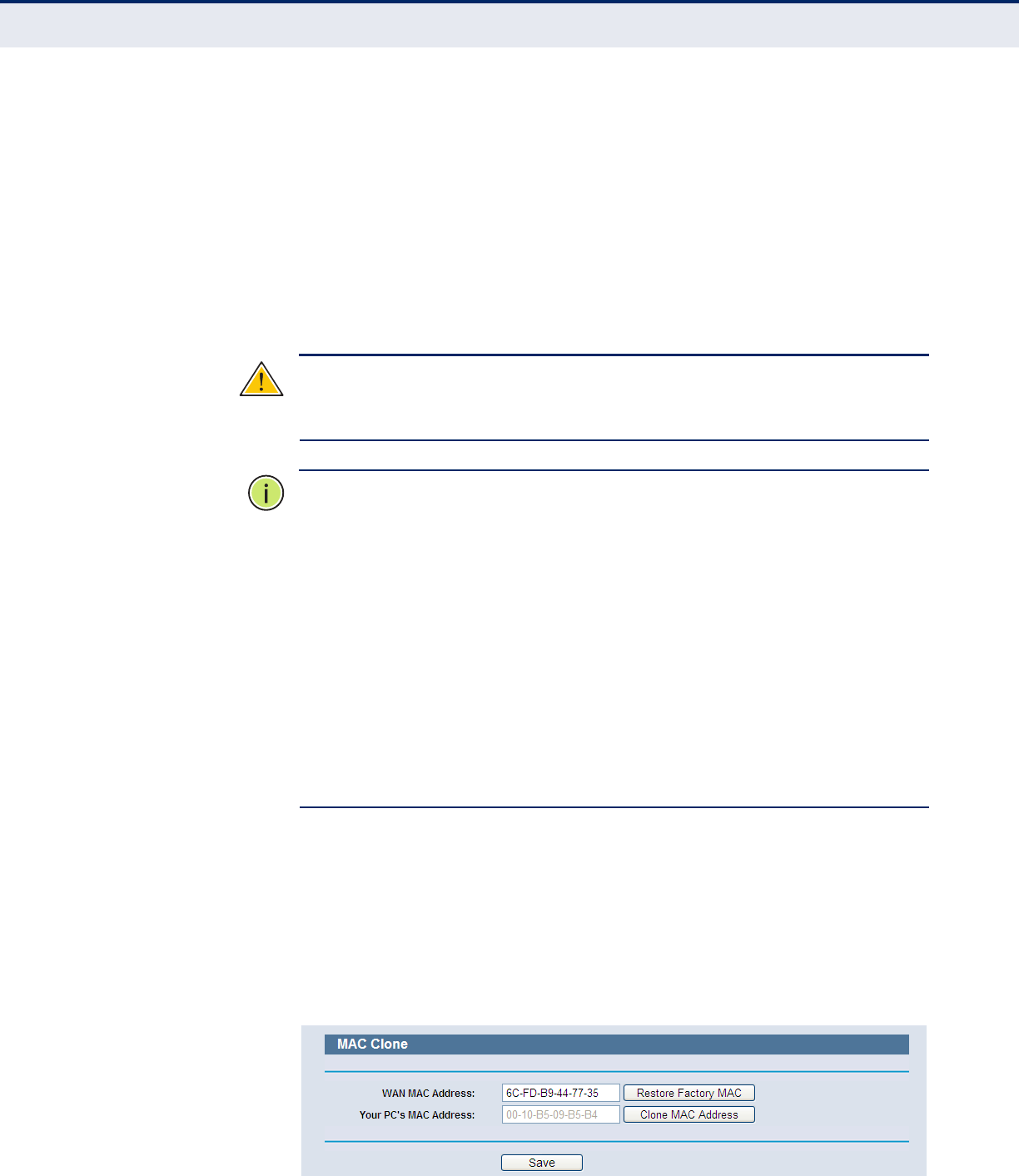

Figure 38: MAC Address Clone 59

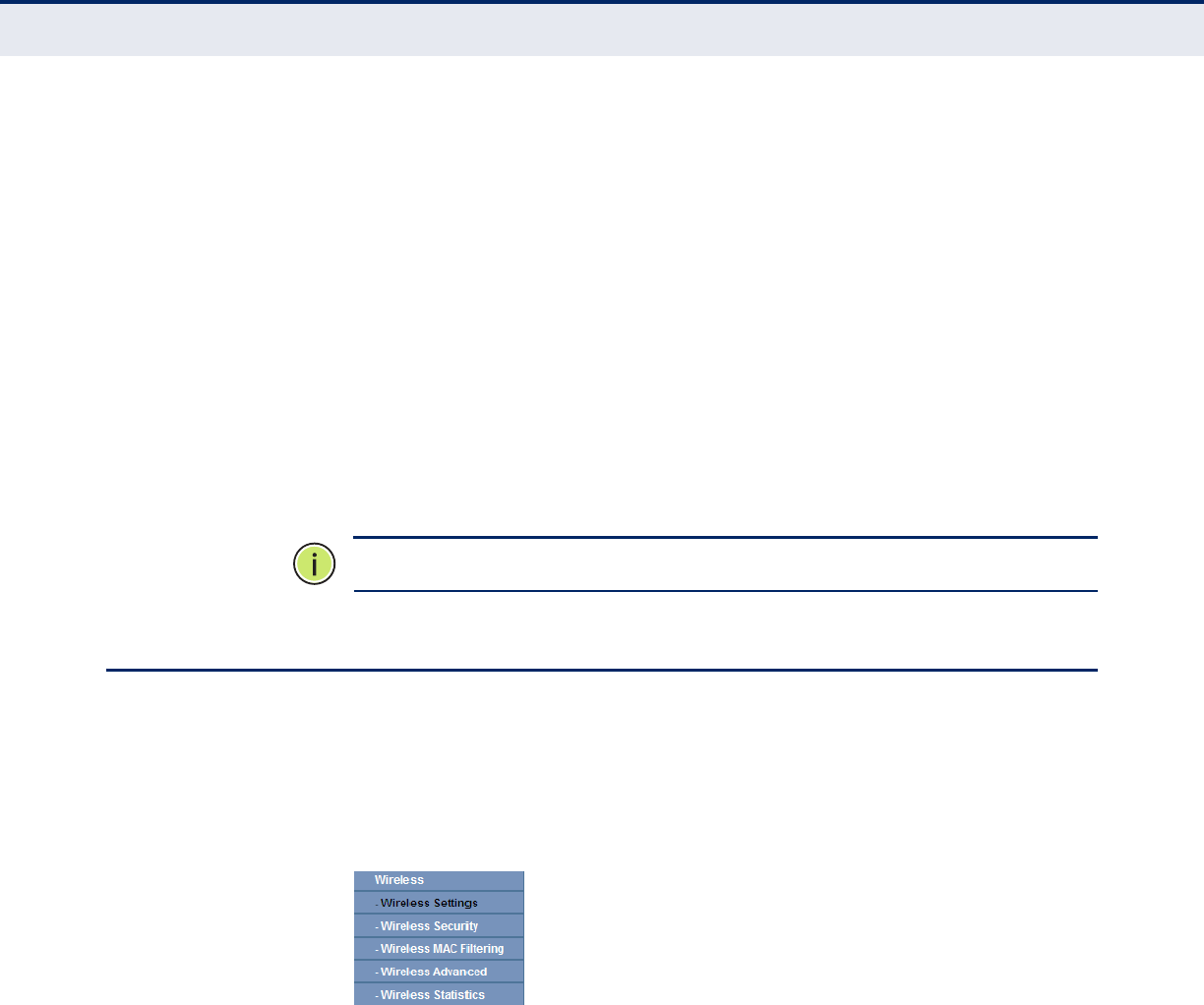

Figure 39: Wireless Menu 60

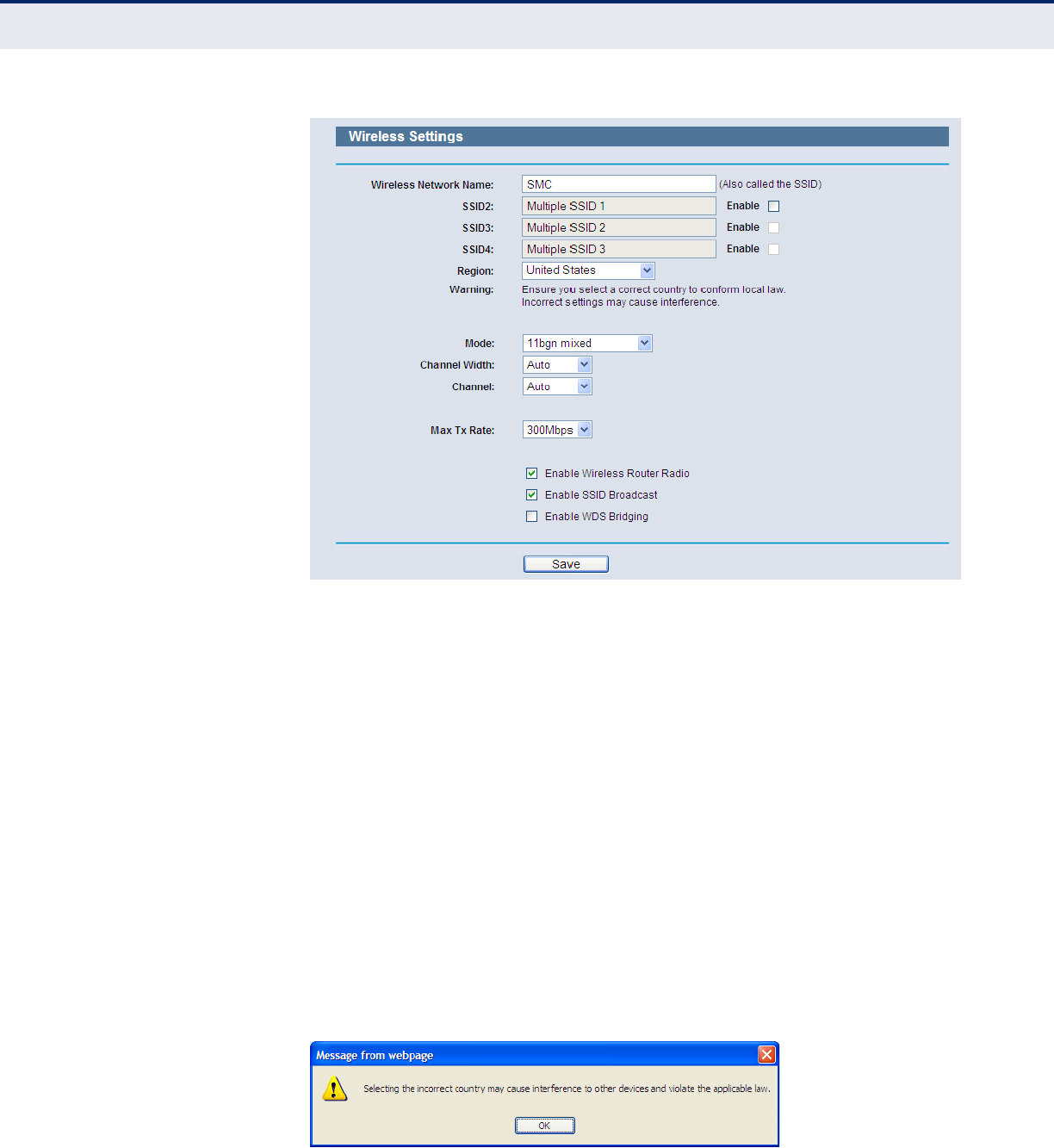

Figure 40: Wireless Settings 61

Figure 41: Note Dialog 61

Figure 42: Enable WDS 63

Figure 43: Wireless Security 63

Figure 44: WEP 64

Figure 45: WPA/WPA2-Enterprise 65

Figure 46: WPA/WPA2 - Personal(Recommended) 66

Figure 47: Wireless MAC Address Filtering 66

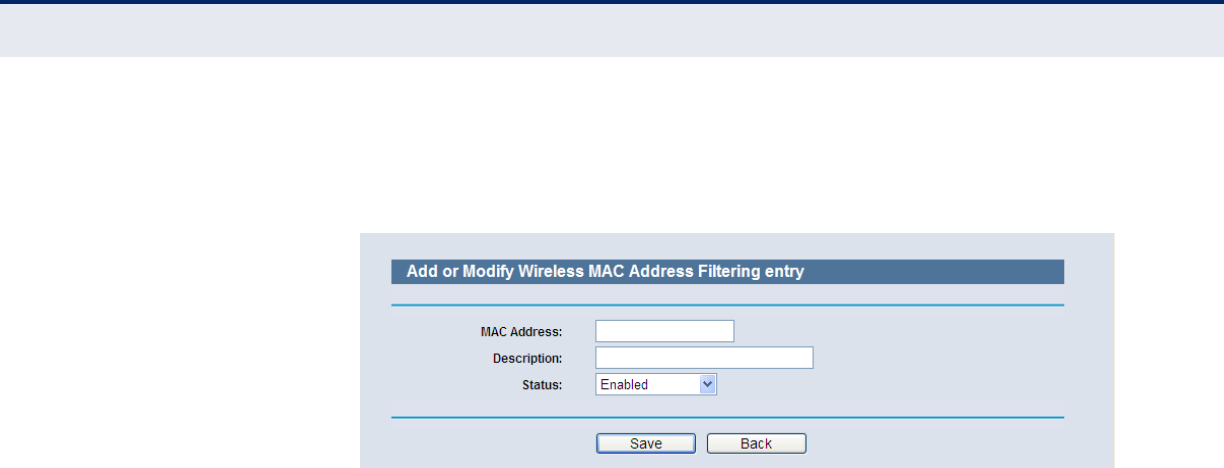

Figure 48: Add or Modify Wireless MAC Address Filtering Entry 67

Figure 49: Filtering Rules 68

Figure 50: Wireless Advanced 69

Figure 51: Wireless Statistics 70

Figure 52: The DHCP Menu 71

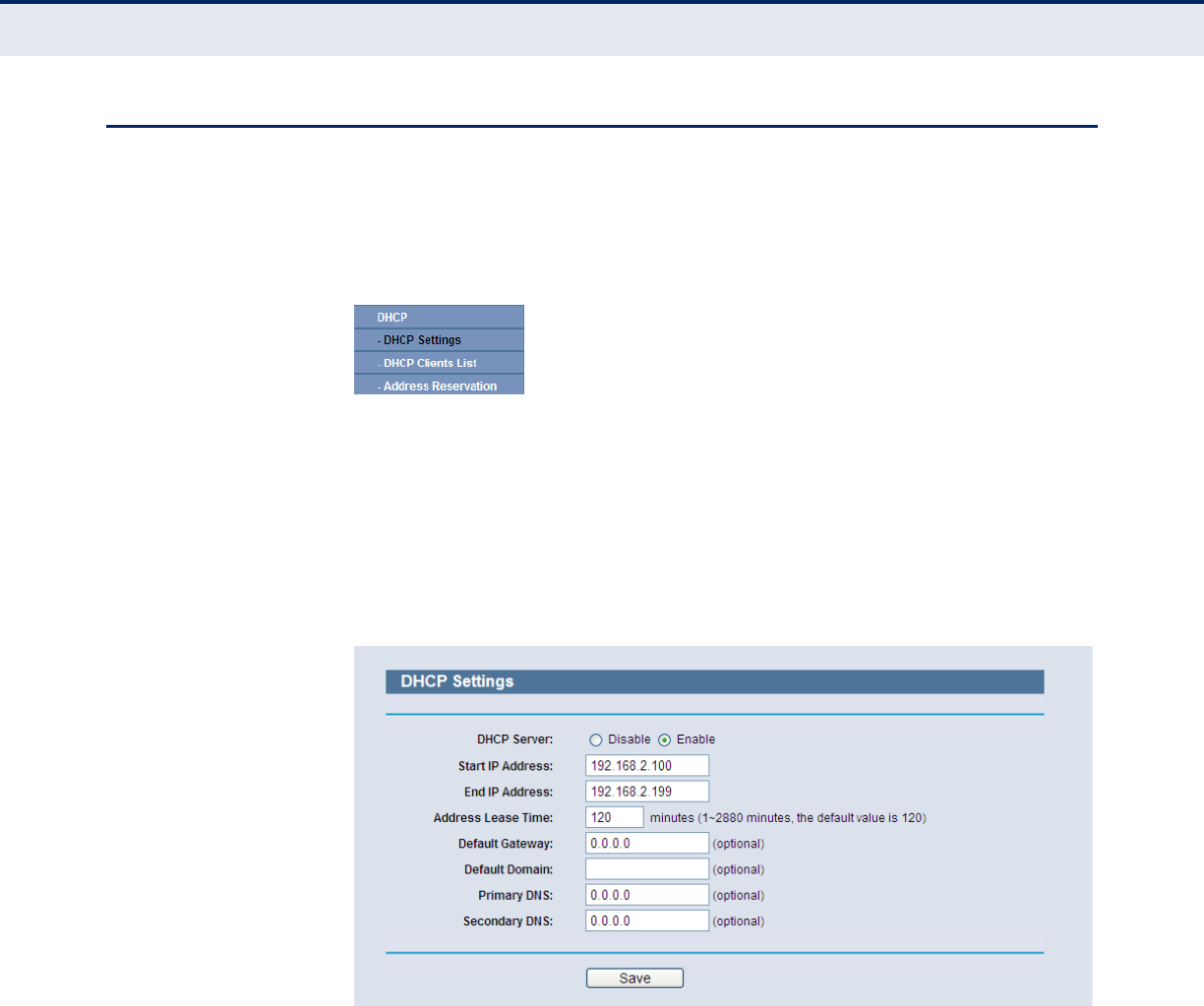

Figure 53: DHCP Settings 71

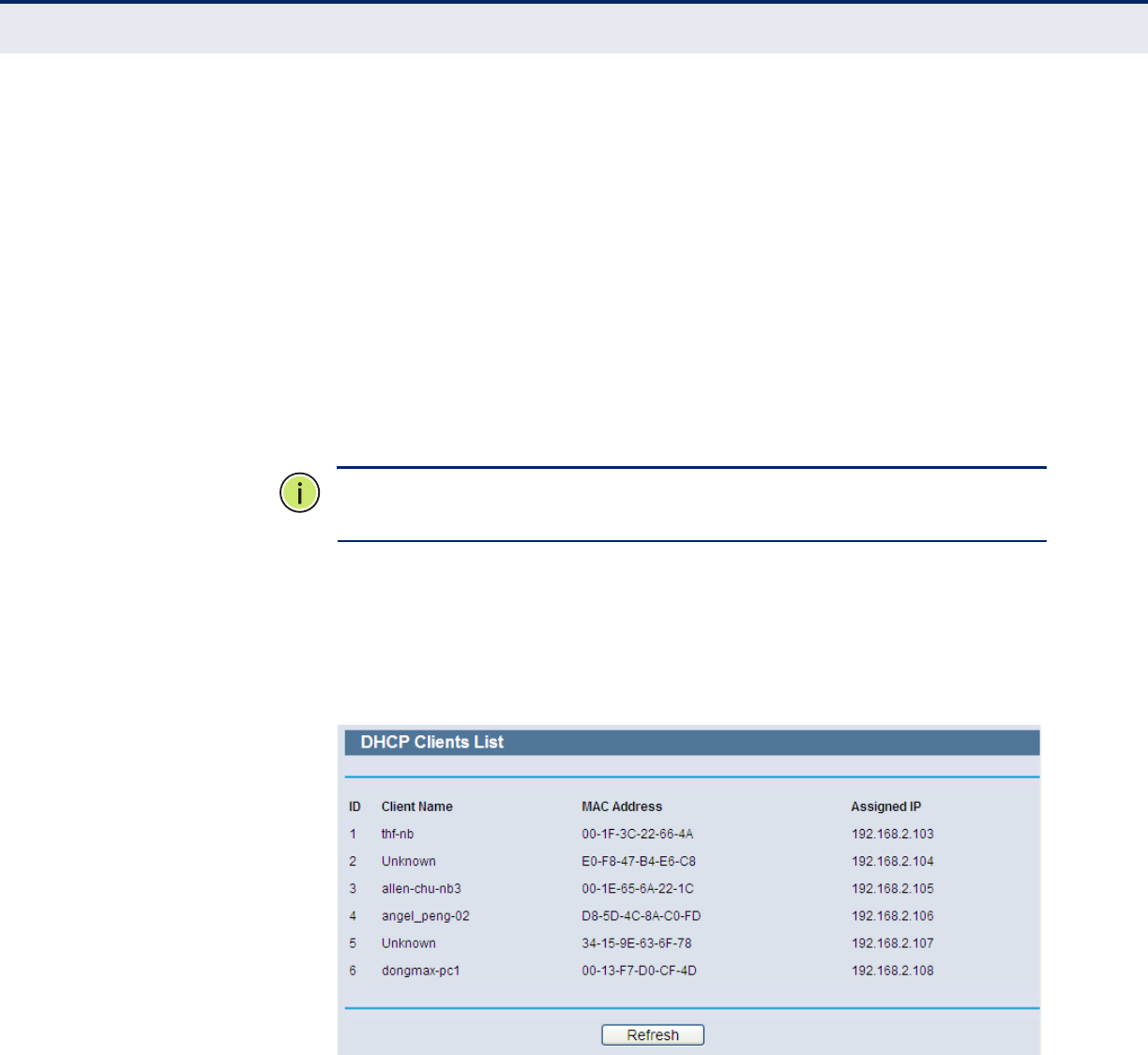

Figure 54: DHCP Clients List 72

Figure 55: Address Reservation 73

Figure 56: Add or Modify an Address Reservation Entry 74

Figure 57: The Forwarding Menu 74

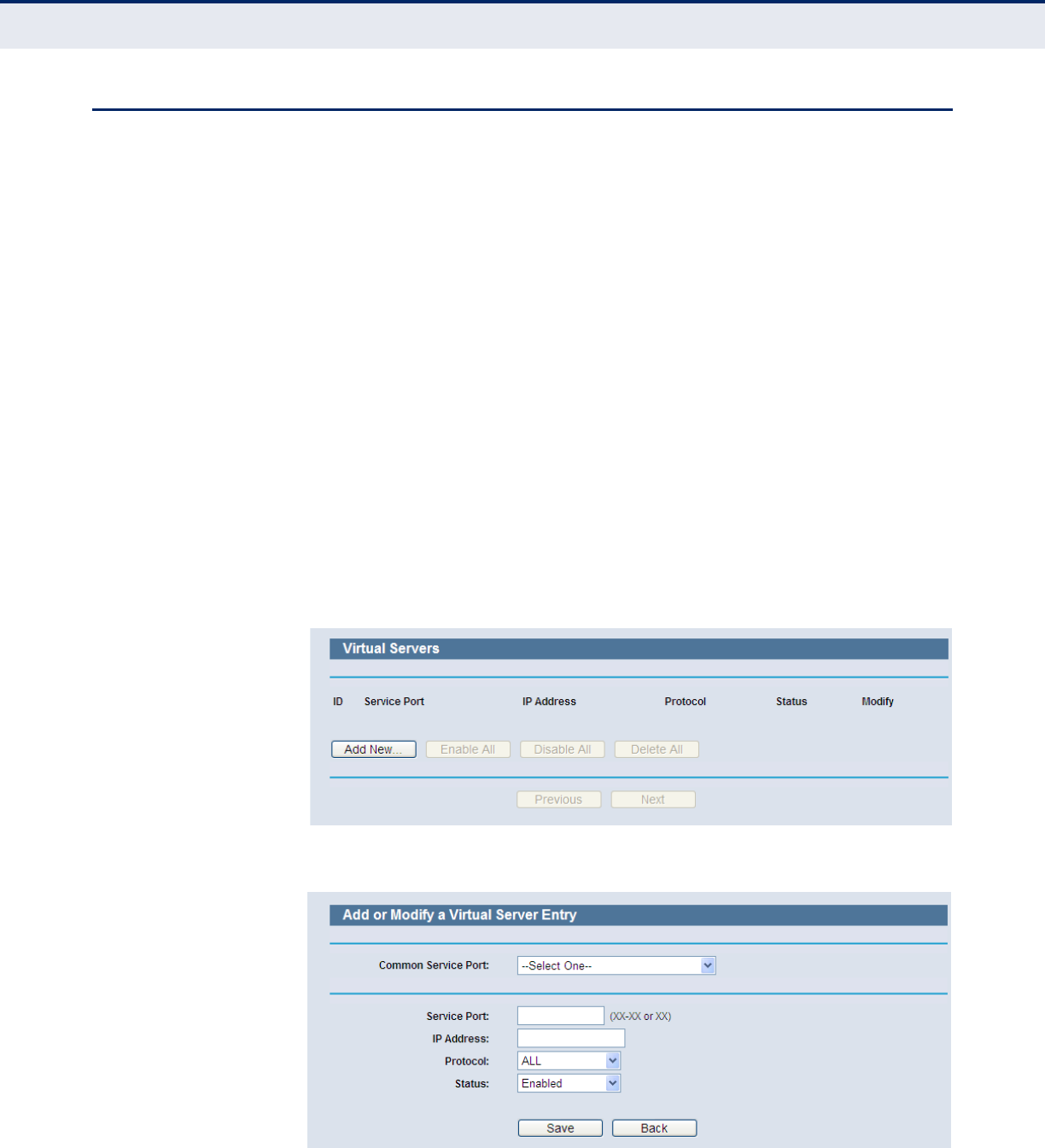

Figure 58: Virtual Servers 75

Figure 59: Add or Modify a Virtual Server Entry 76

Figure 60: Port Triggering 77

Figure 61: Add or Modify a Triggering Entry 78

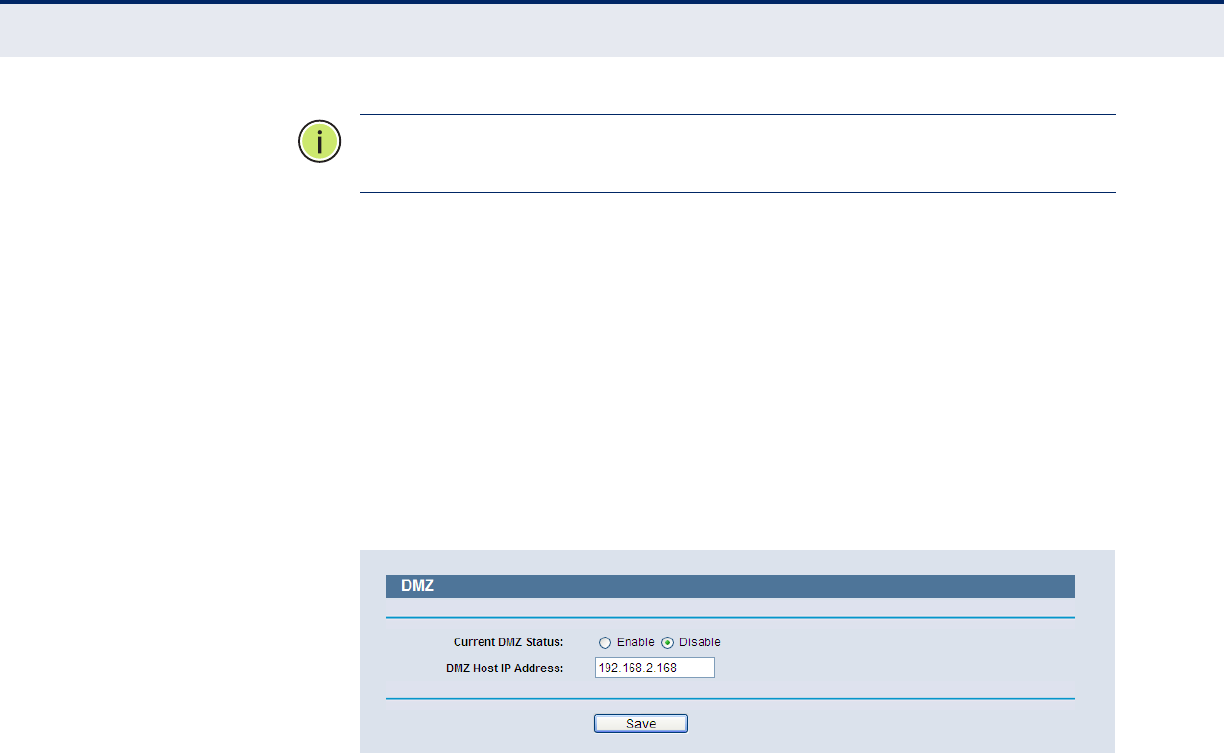

Figure 62: DMZ 79

Figure 63: UPnP 79

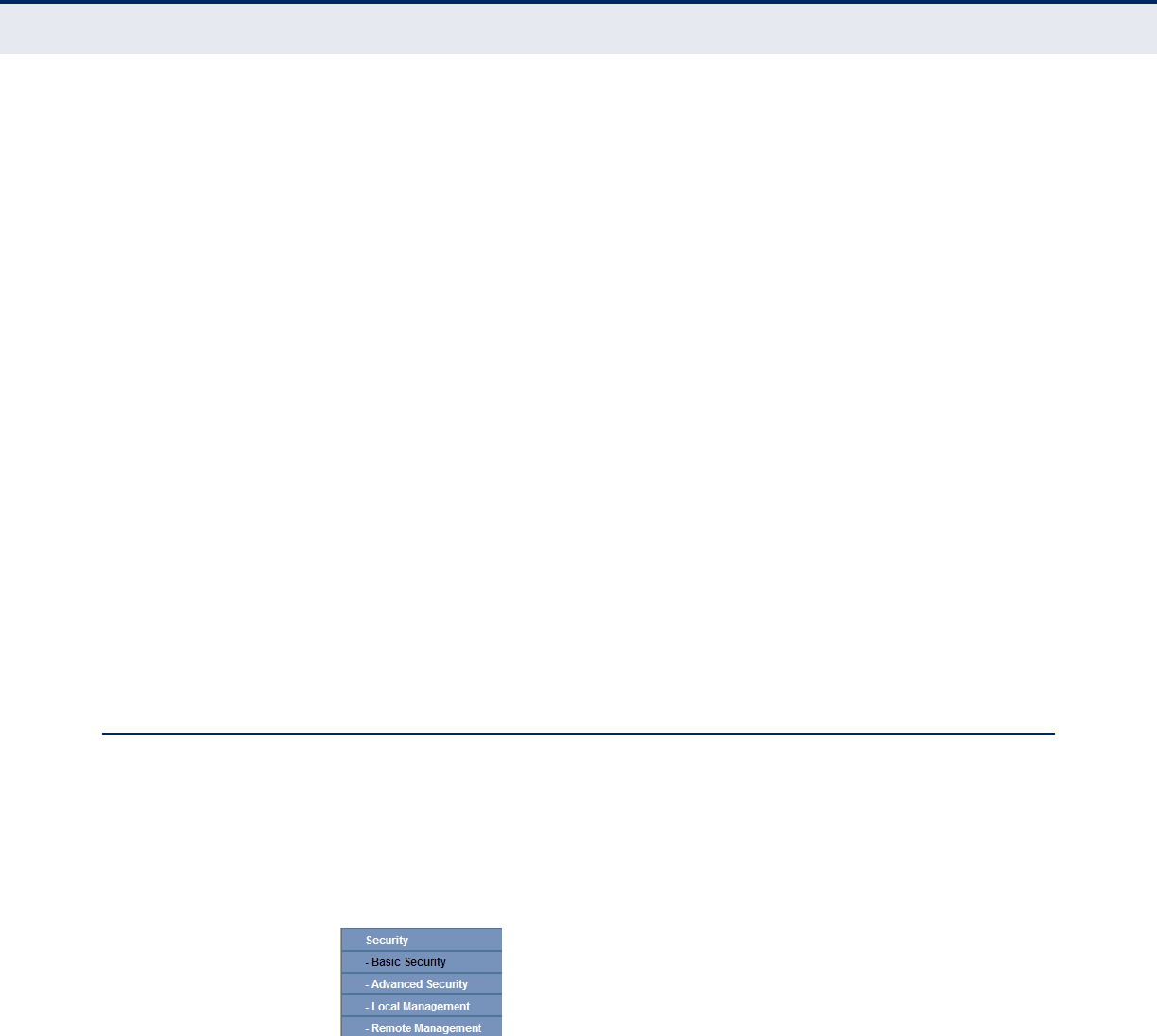

Figure 64: The Security Menu 80

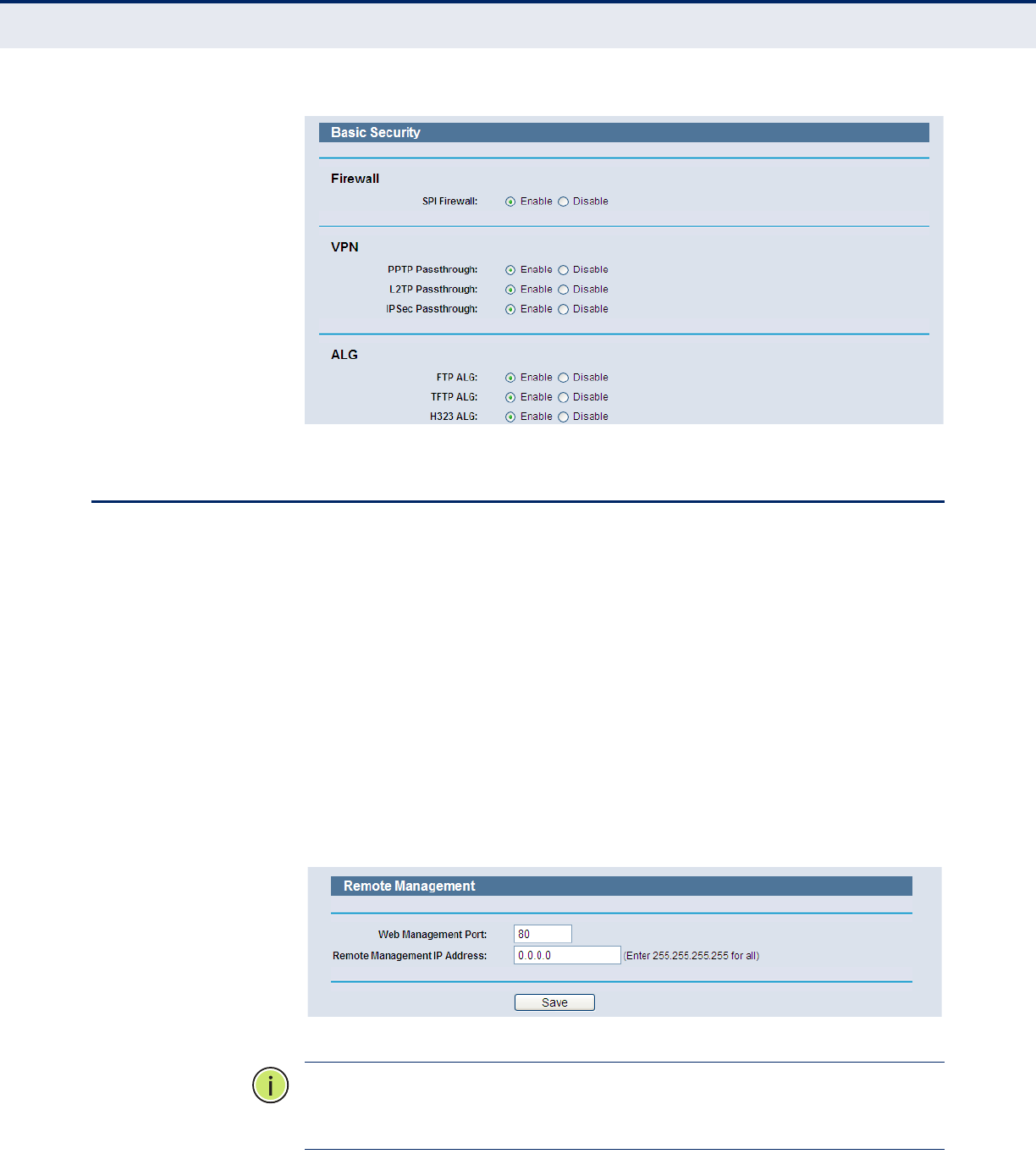

Figure 65: Basic Security 81

Figure 66: Advanced Security 82

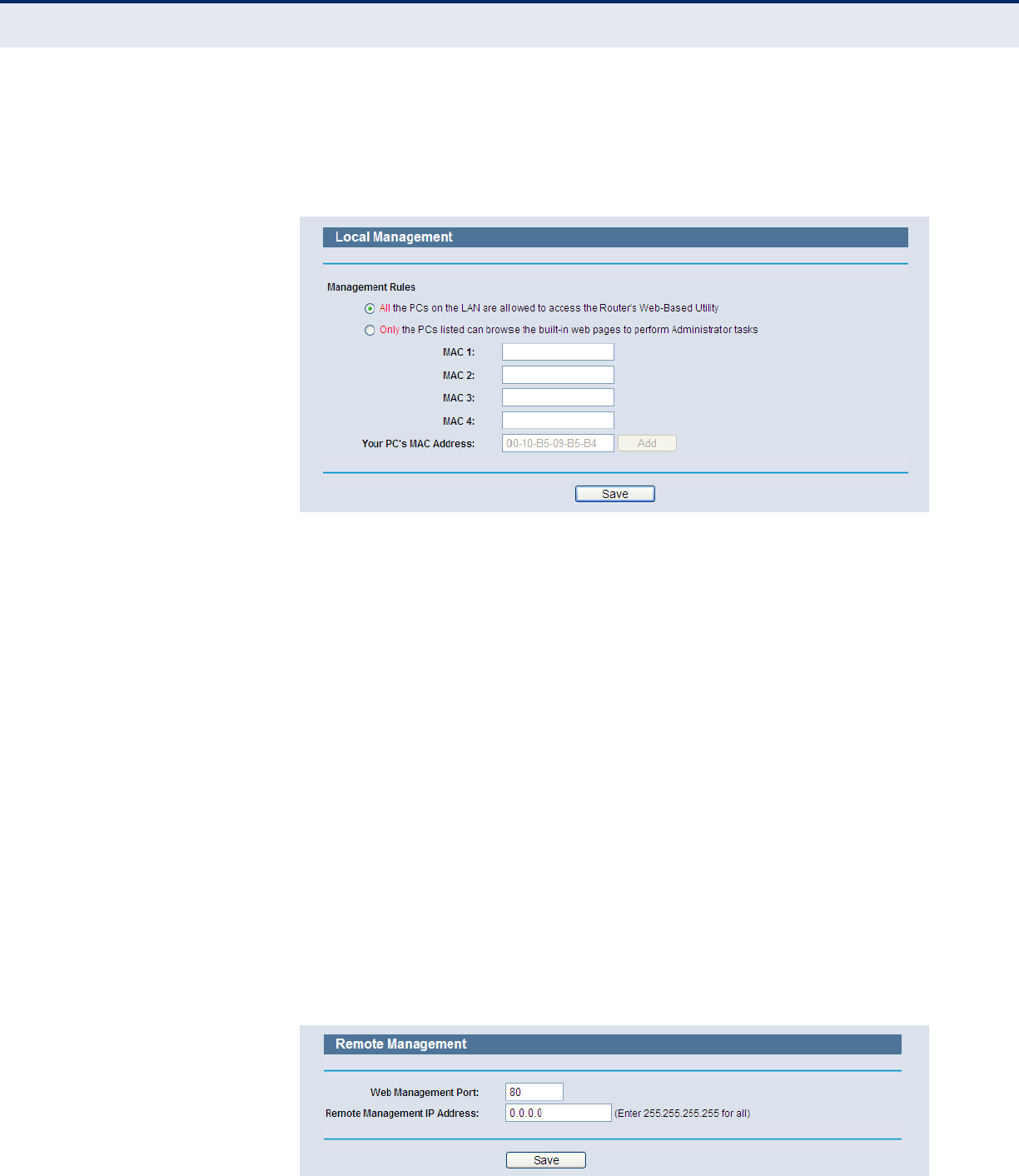

Figure 67: Local Management 84

ONTENTS

– 21 –

Figure 68: Remote Management 84

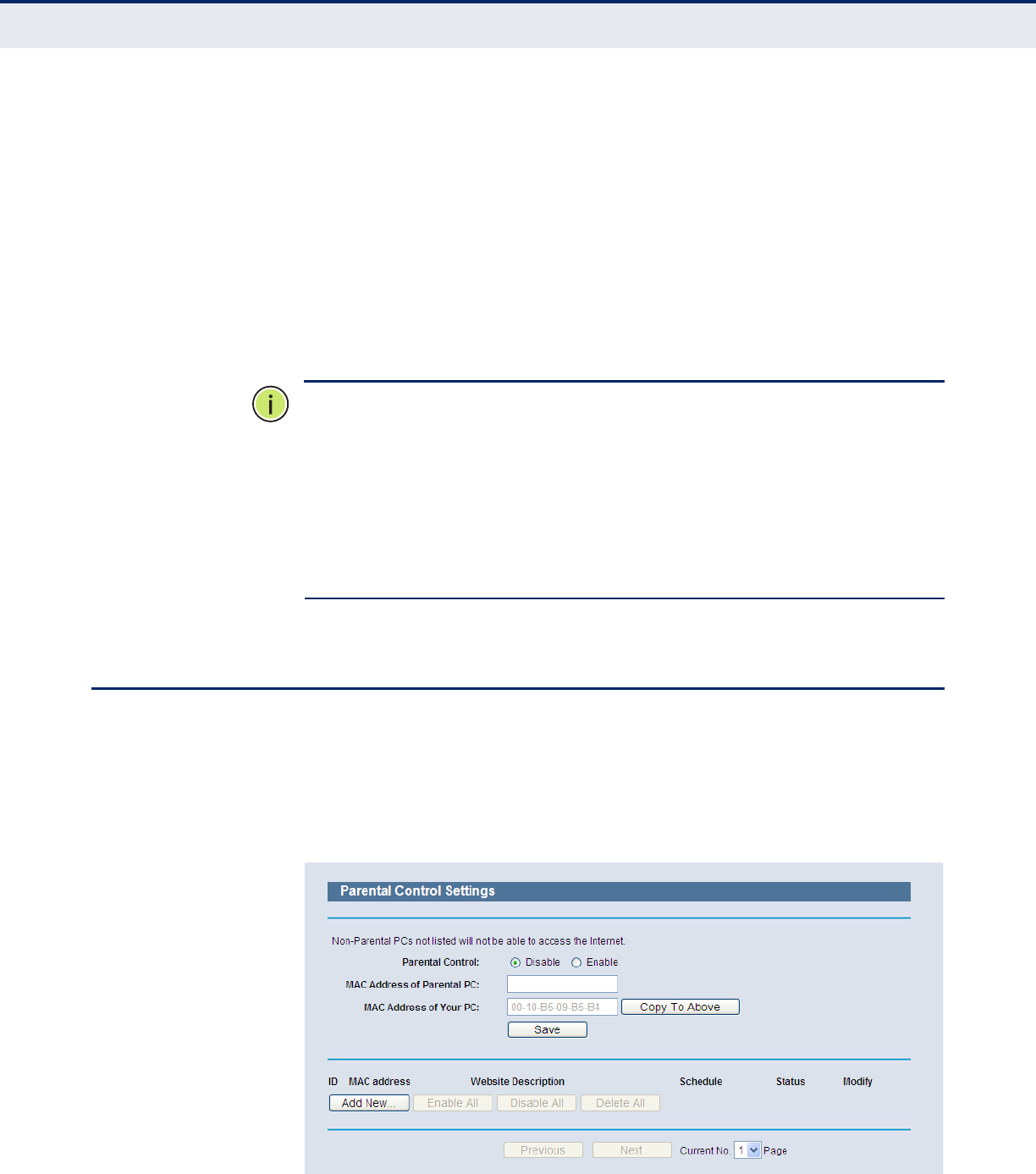

Figure 69: Parental Control Settings 85

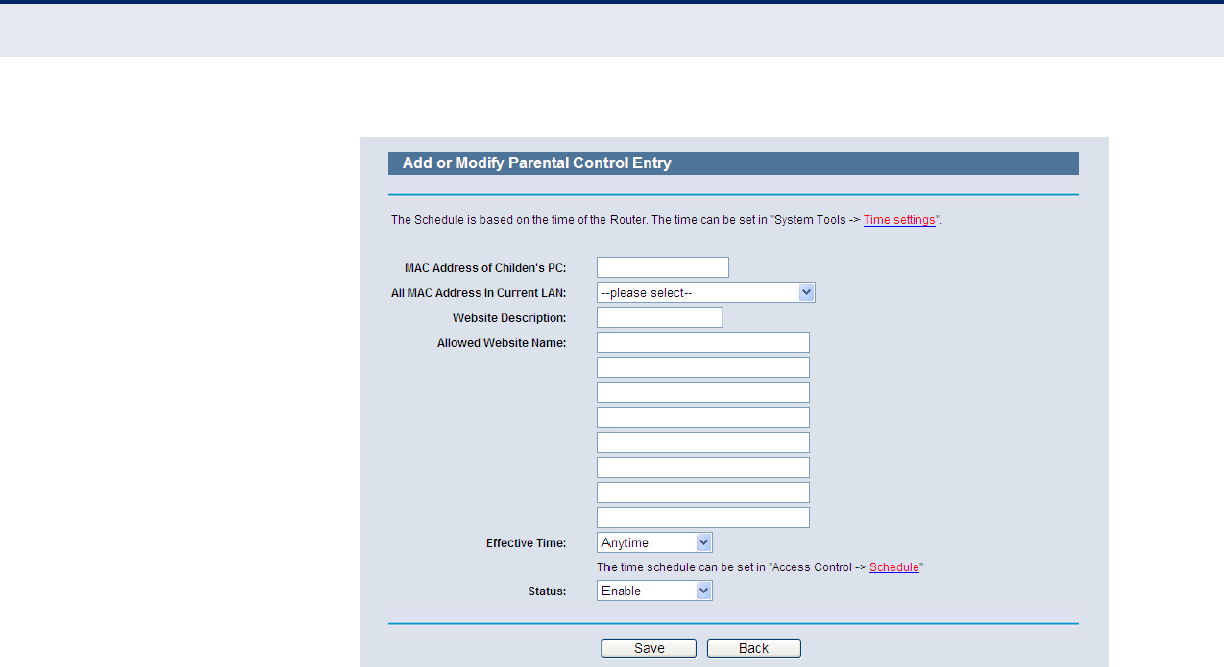

Figure 70: Add or Modify Parental Control Entry 87

Figure 71: Parental Control Settings 88

Figure 72: Access Control 88

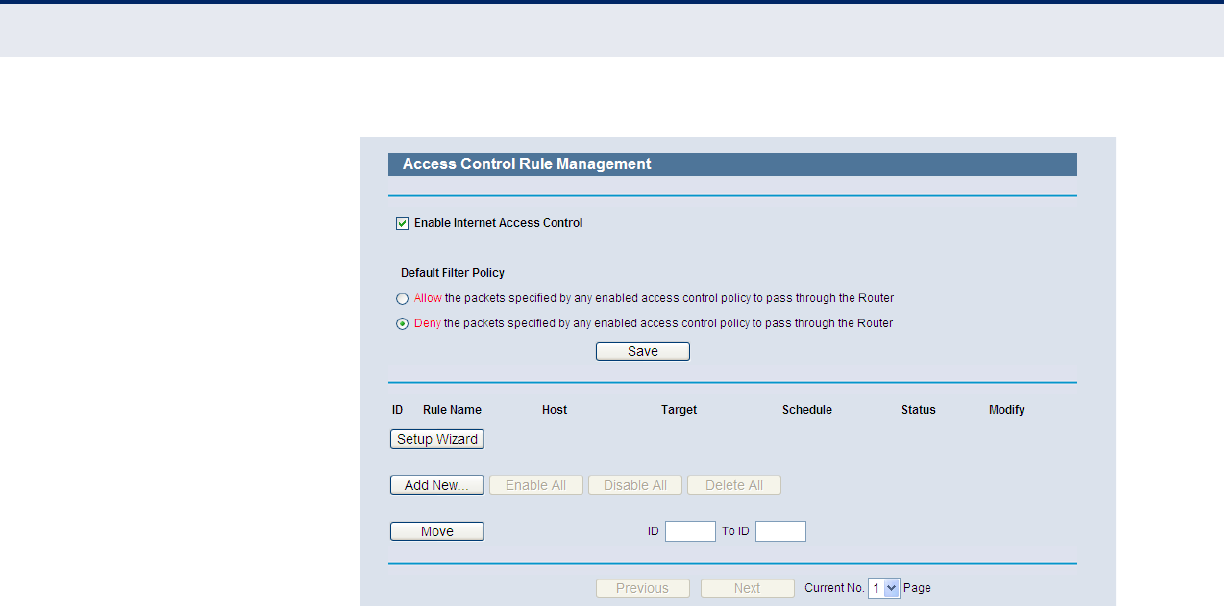

Figure 73: Access Control Rule Management 89

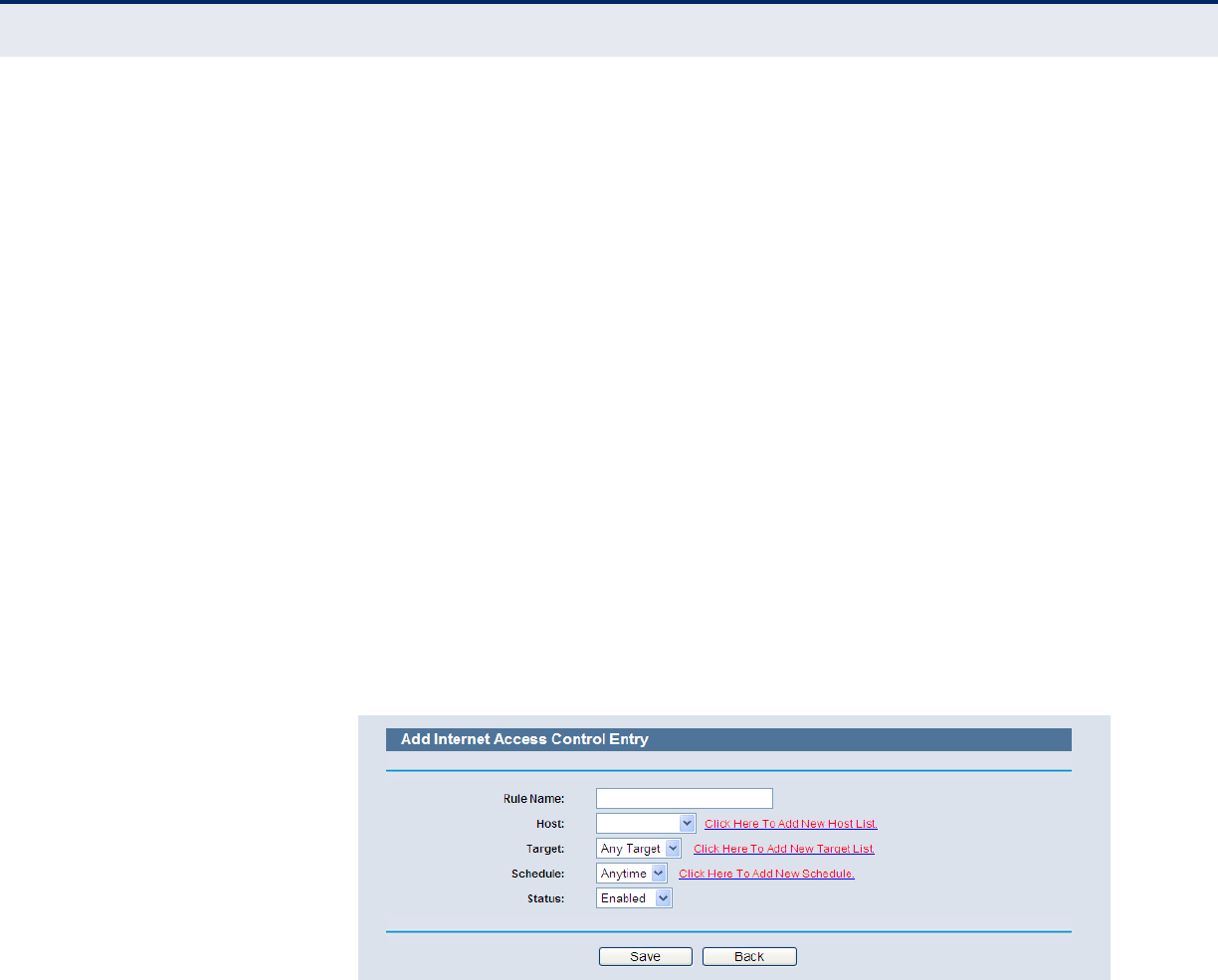

Figure 74: Add or Modity Internet Access Control Entry 90

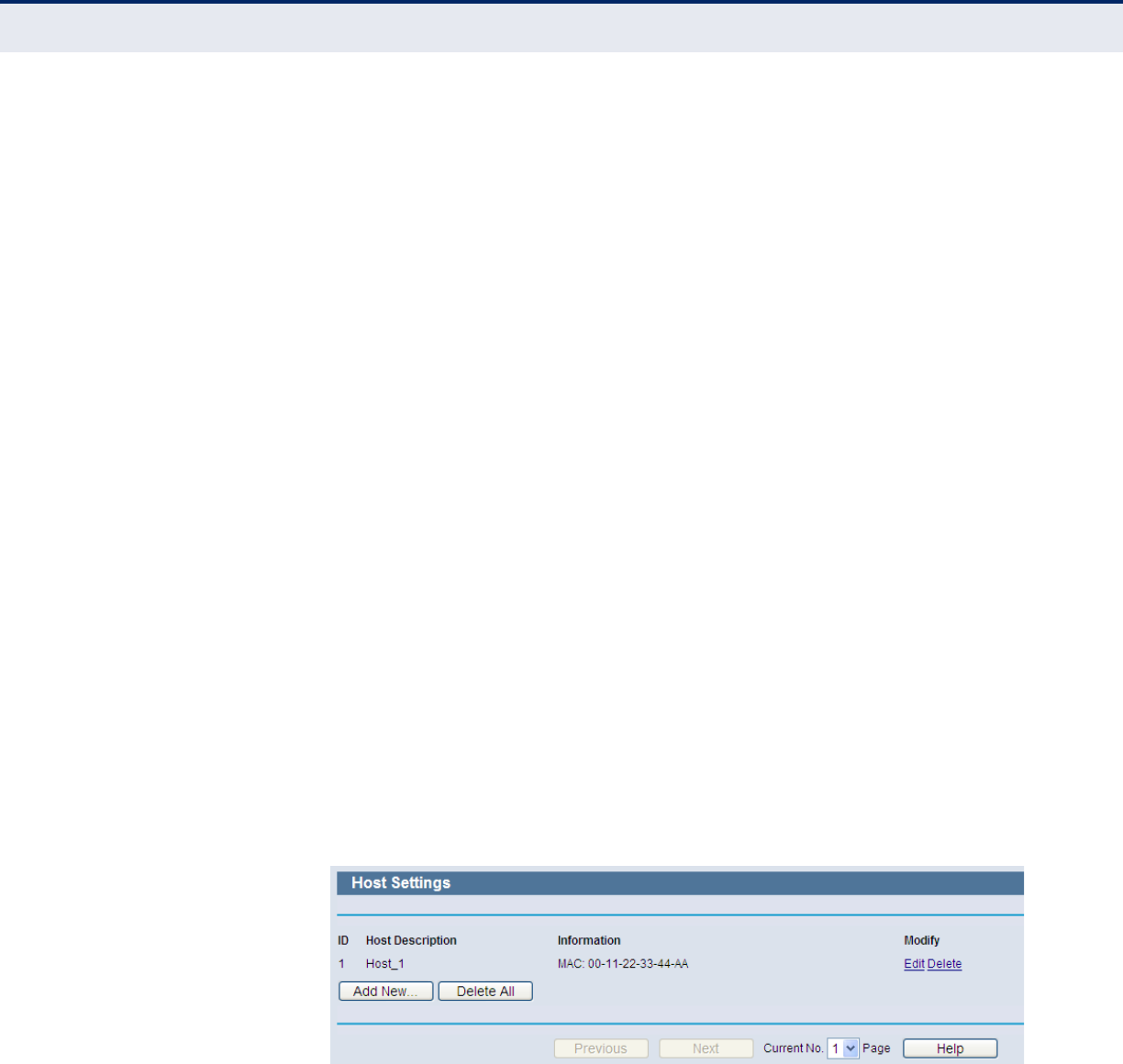

Figure 75: Host Settings 91

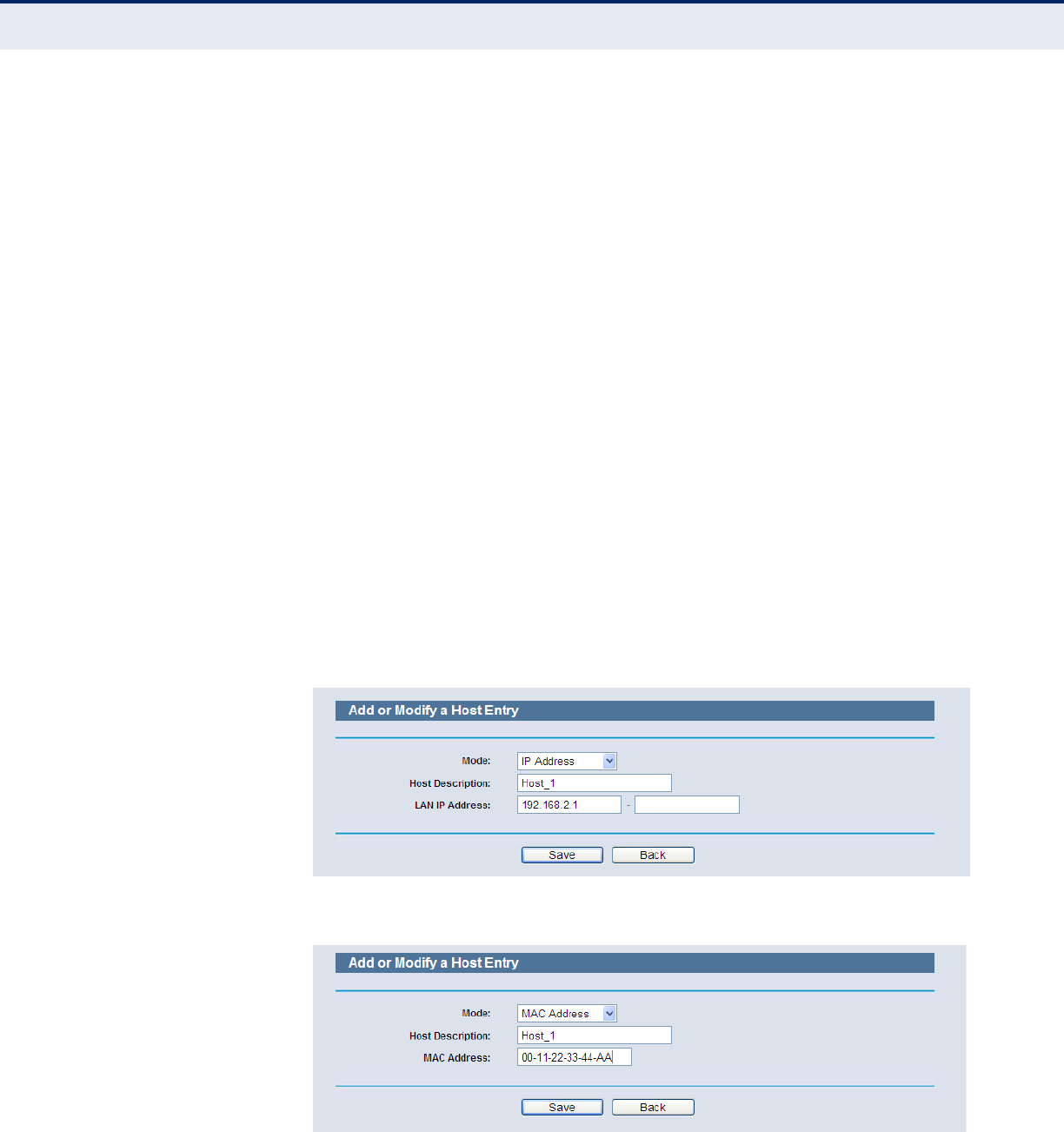

Figure 76: Add or Modify an IP Host Entry 92

Figure 77: Add or Modify a MAC Host Entry 92

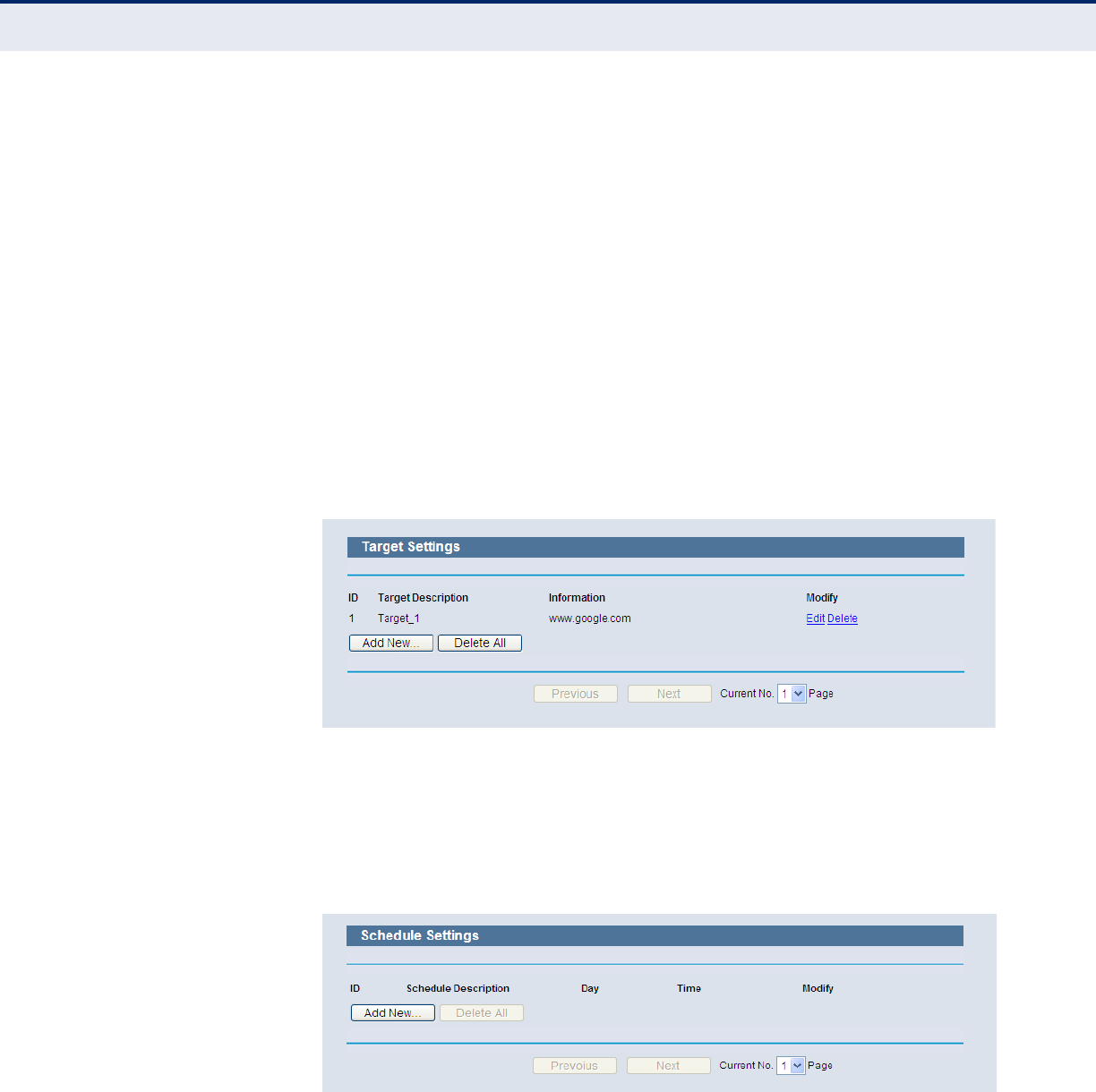

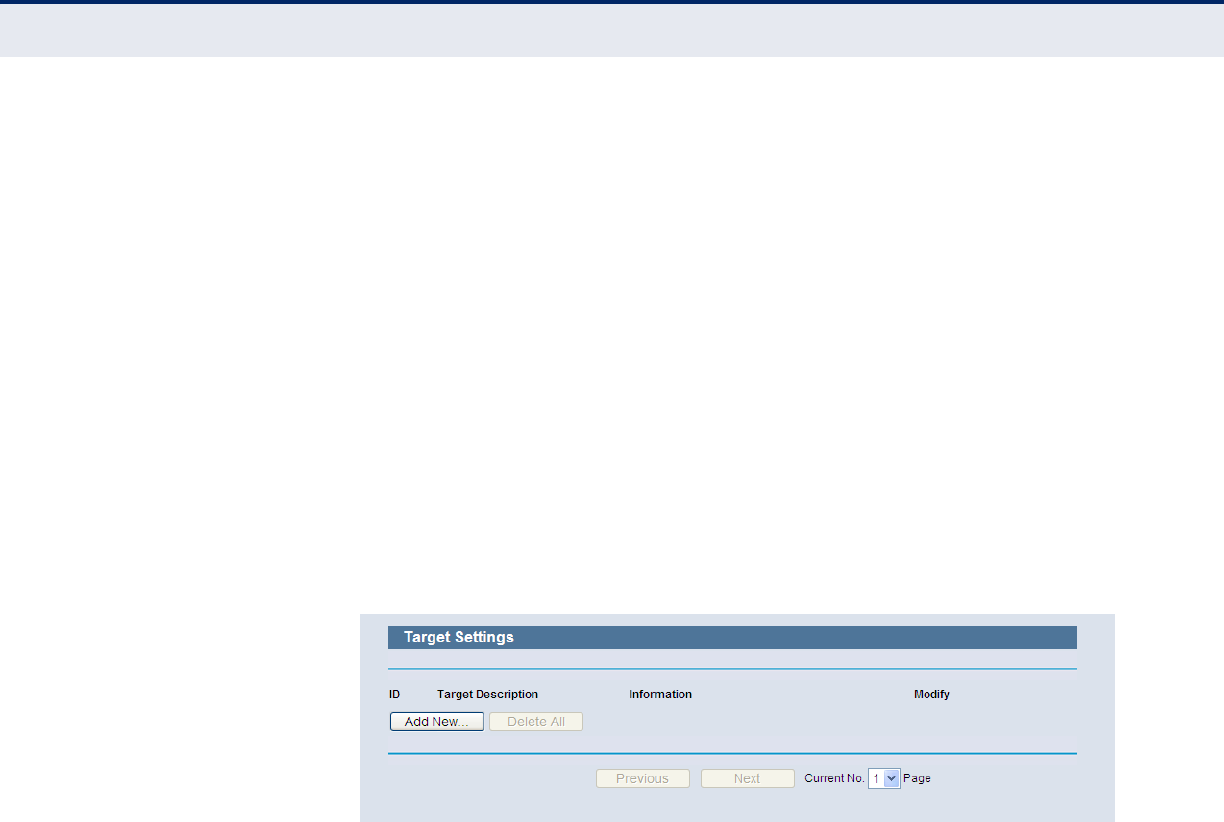

Figure 78: Target Settings 93

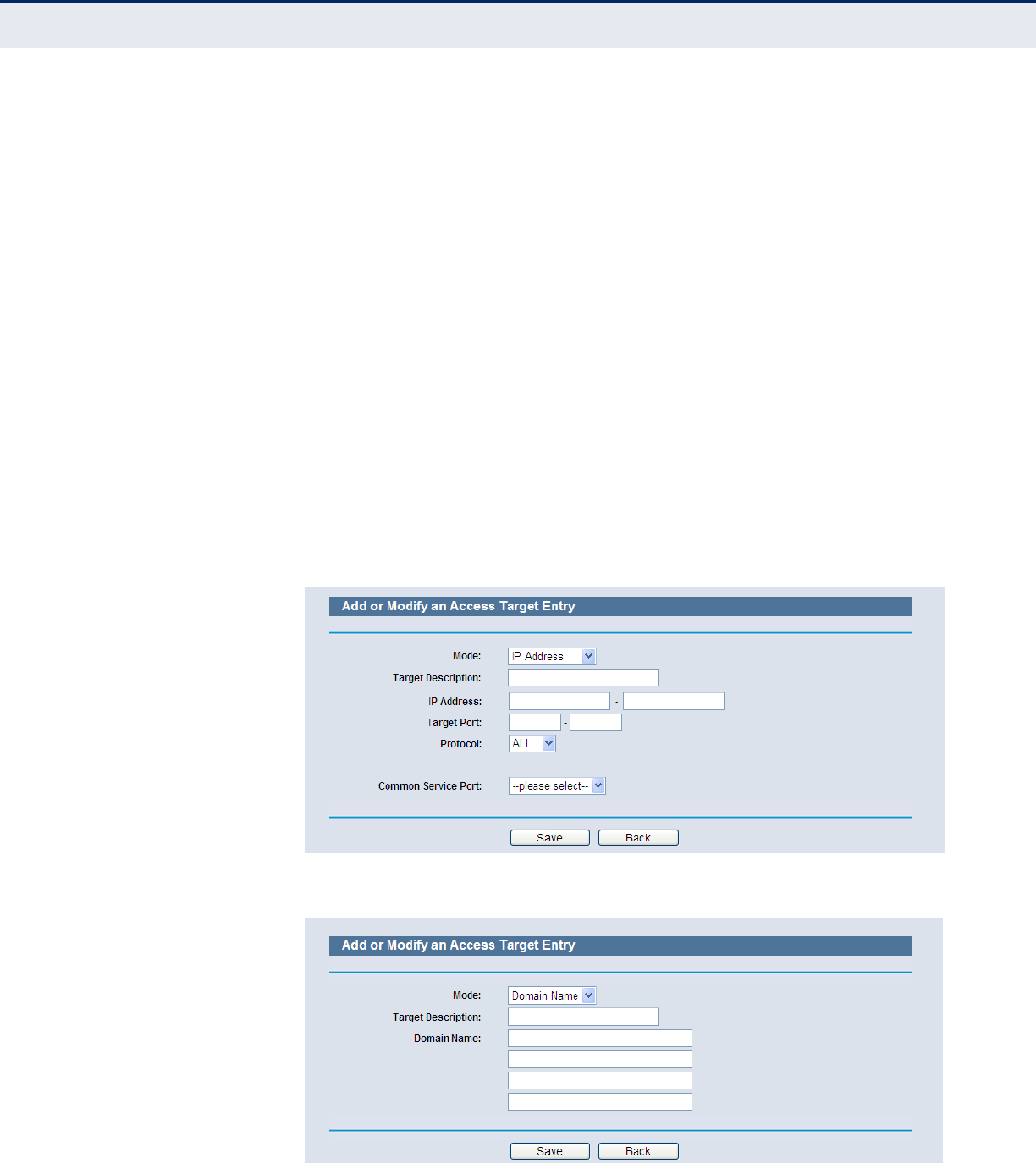

Figure 79: Add or Modify an IP Access Target Entry 94

Figure 80: Add or Modify a Domain Name Access Target Entry 94

Figure 81: Target Setting 95

Figure 82: Schedule Settings 95

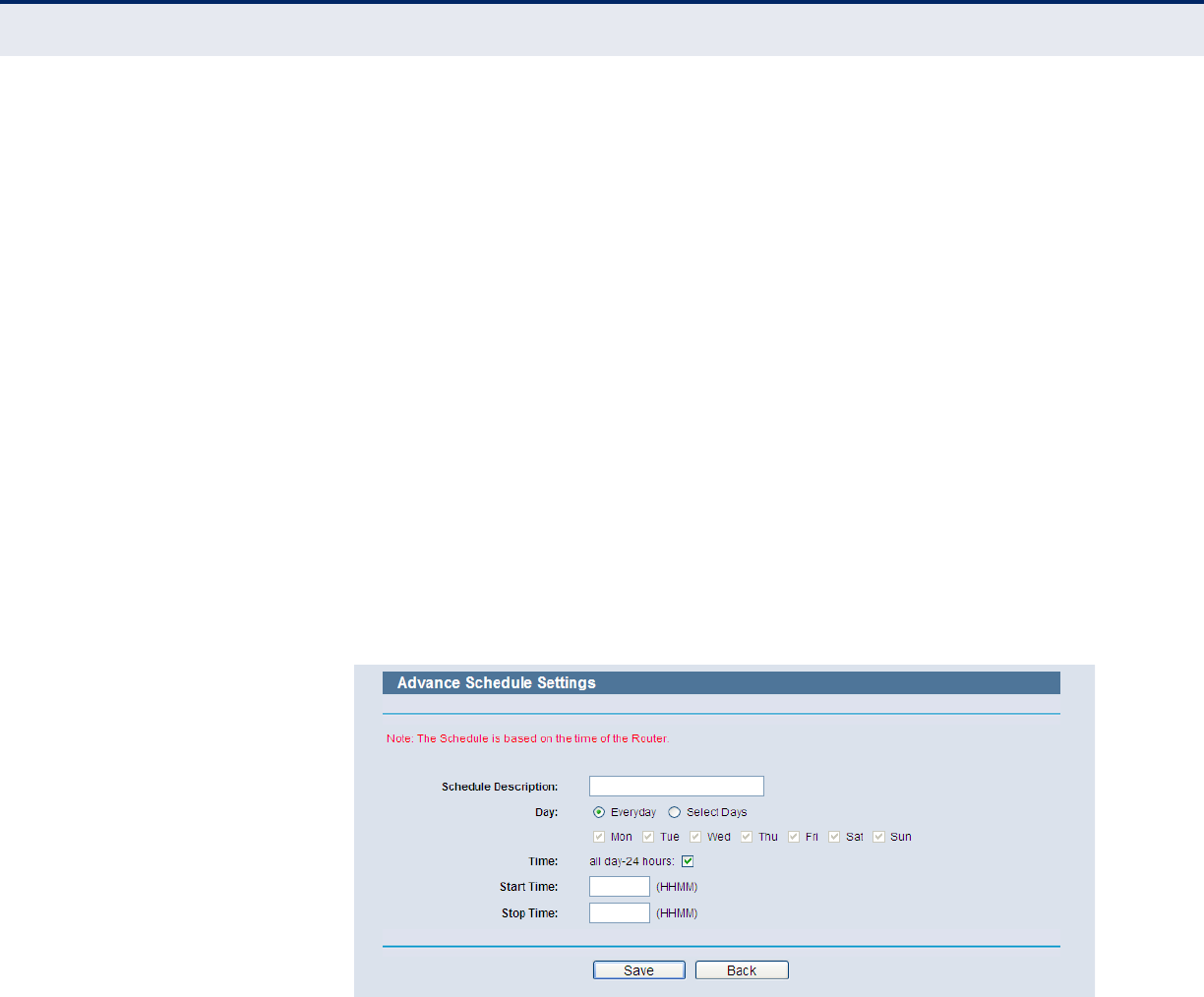

Figure 83: Advanced Schedule Settings 96

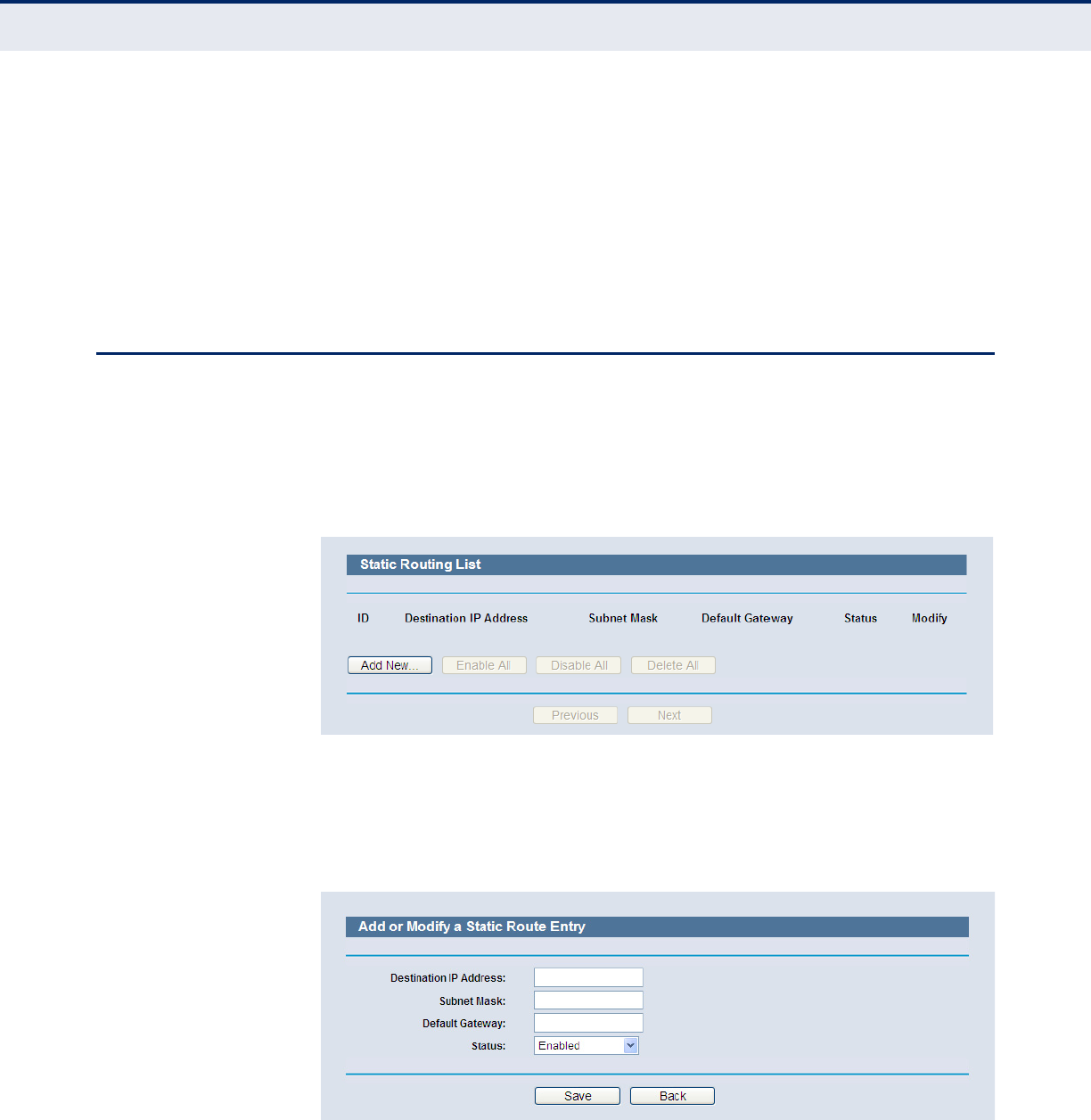

Figure 84: Static Routing 97

Figure 85: Add or Modify a Static Route Entry 97

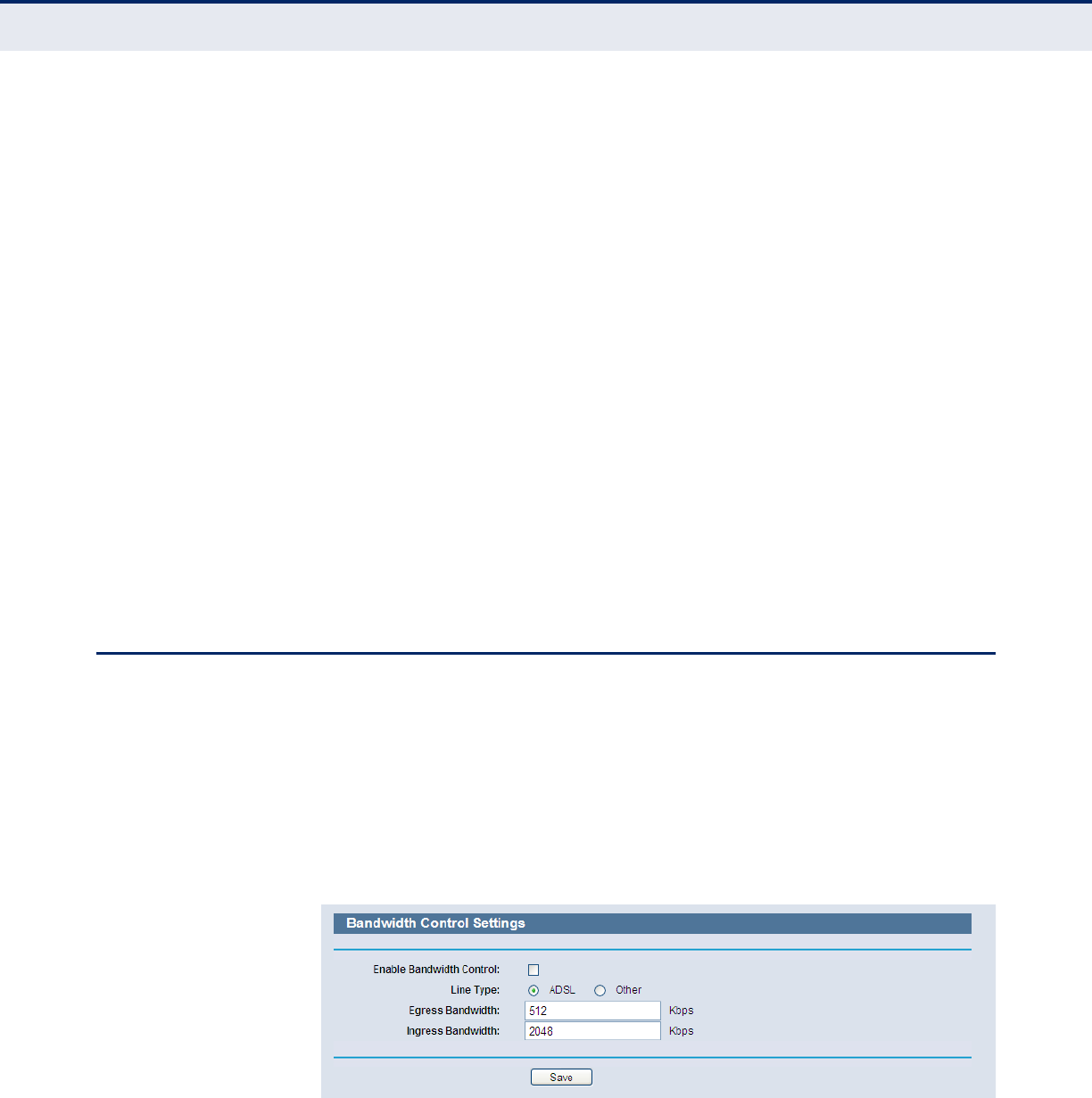

Figure 86: Bandwidth Control 98

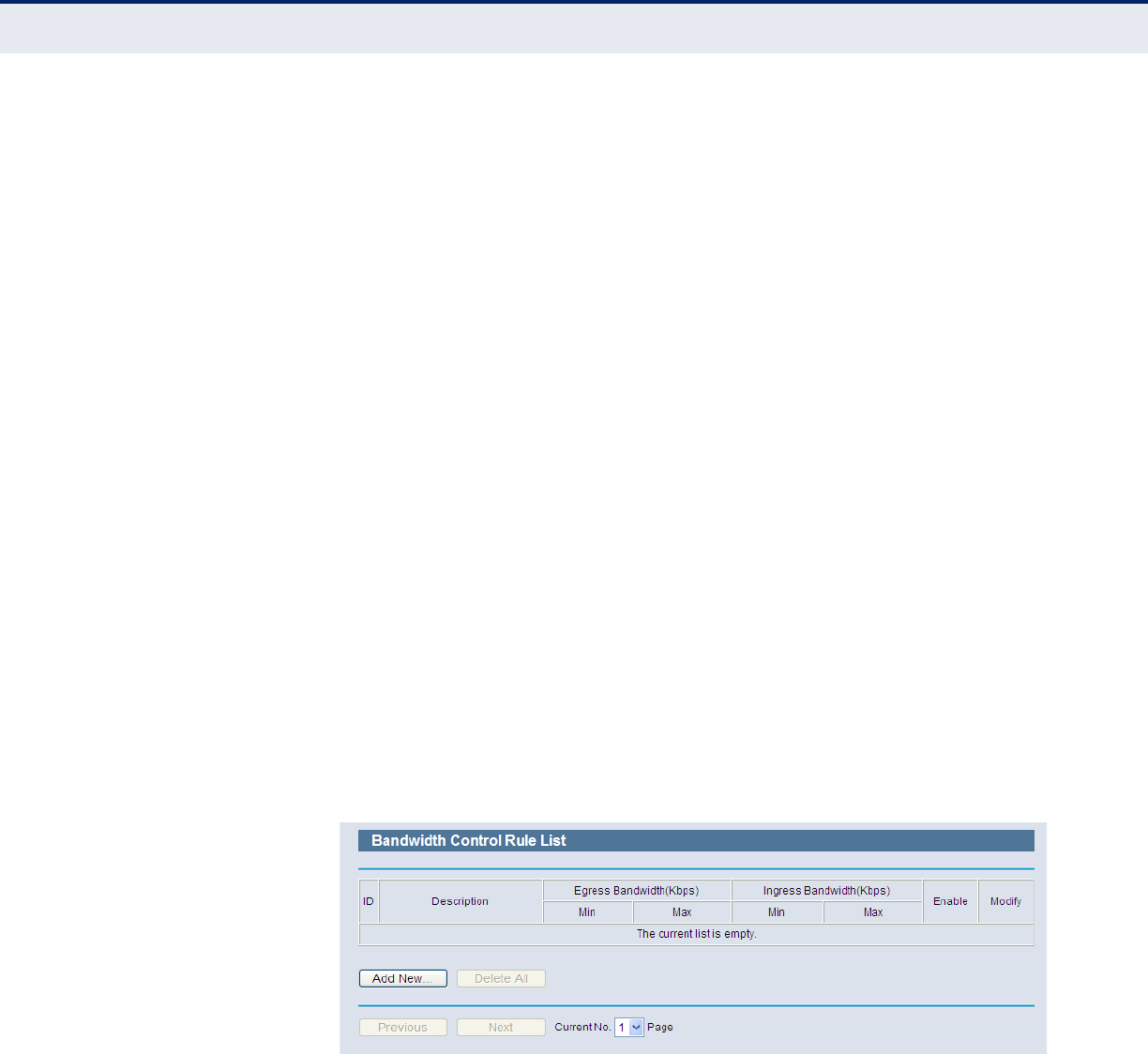

Figure 87: Rule List 99

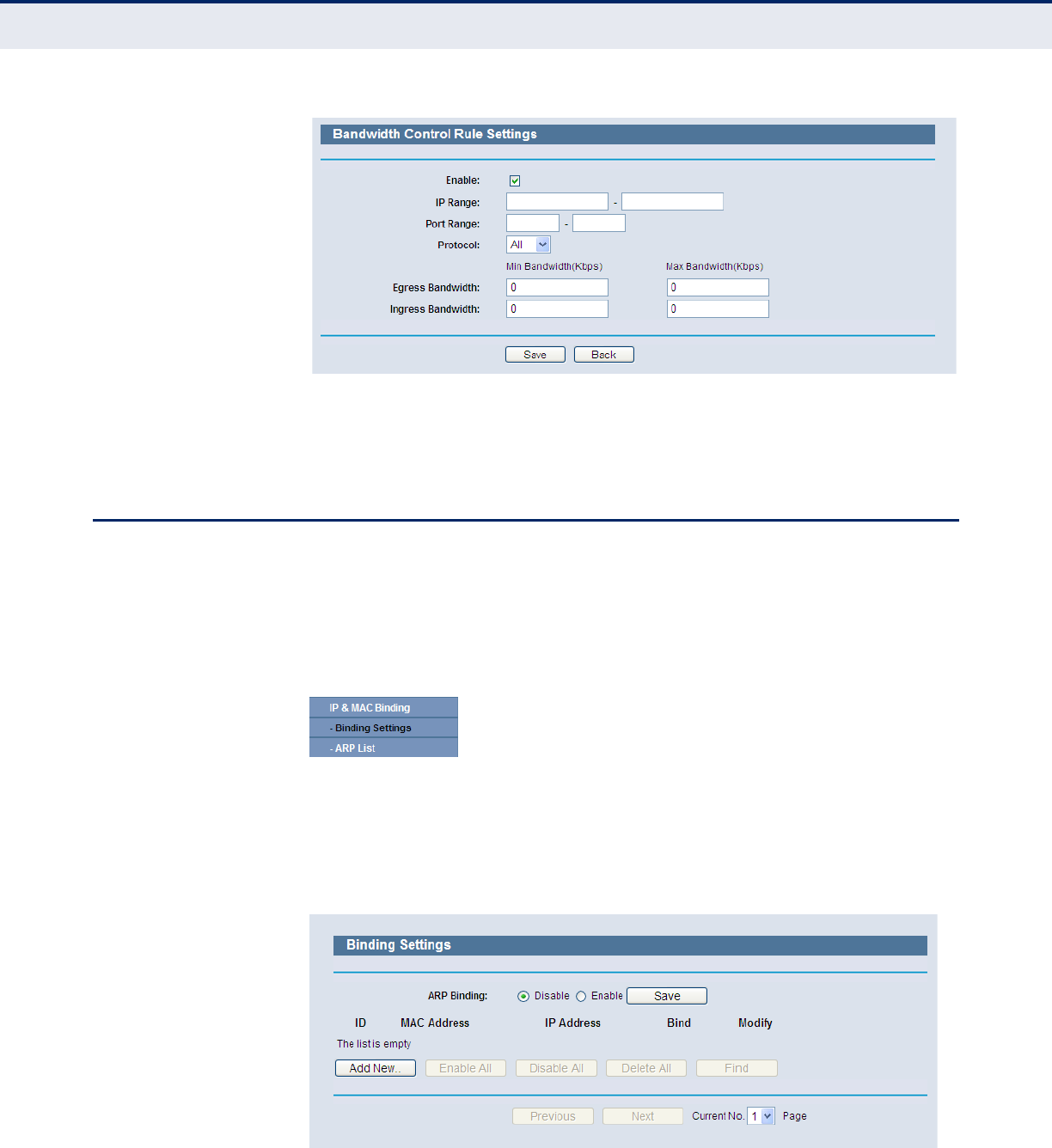

Figure 88: Rule Settings 100

Figure 89: The IP & MAC Binding Menu 100

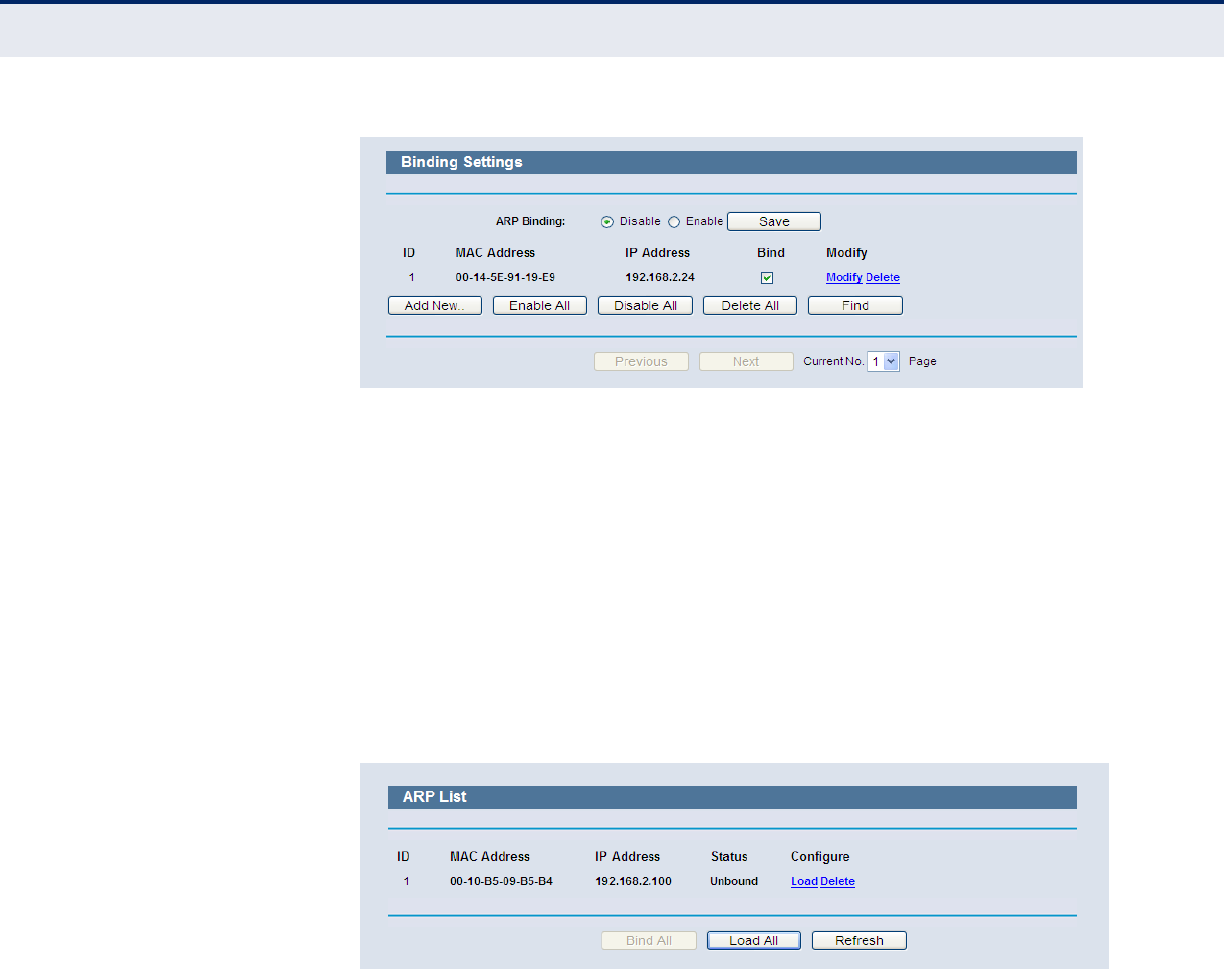

Figure 90: Binding Setting 100

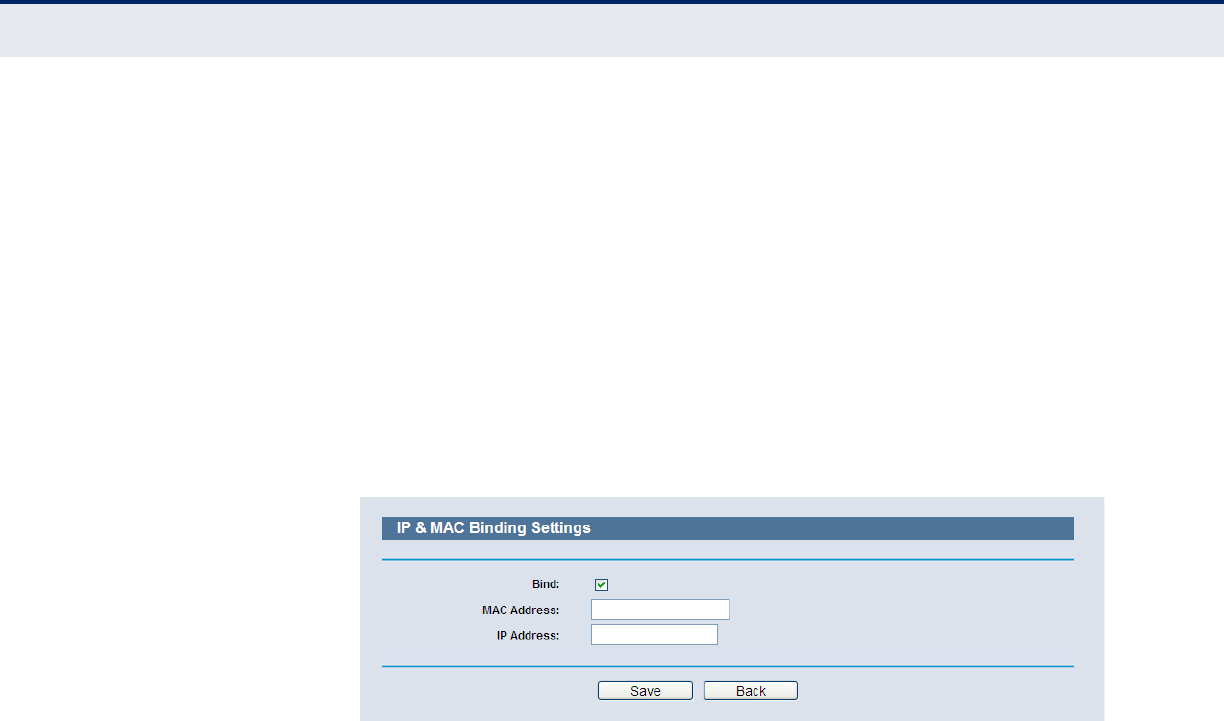

Figure 91: IP & MAC Binding Setting (Add & Modify) 101

Figure 92: Find IP & MAC Binding Entry 102

Figure 93: ARP List 102

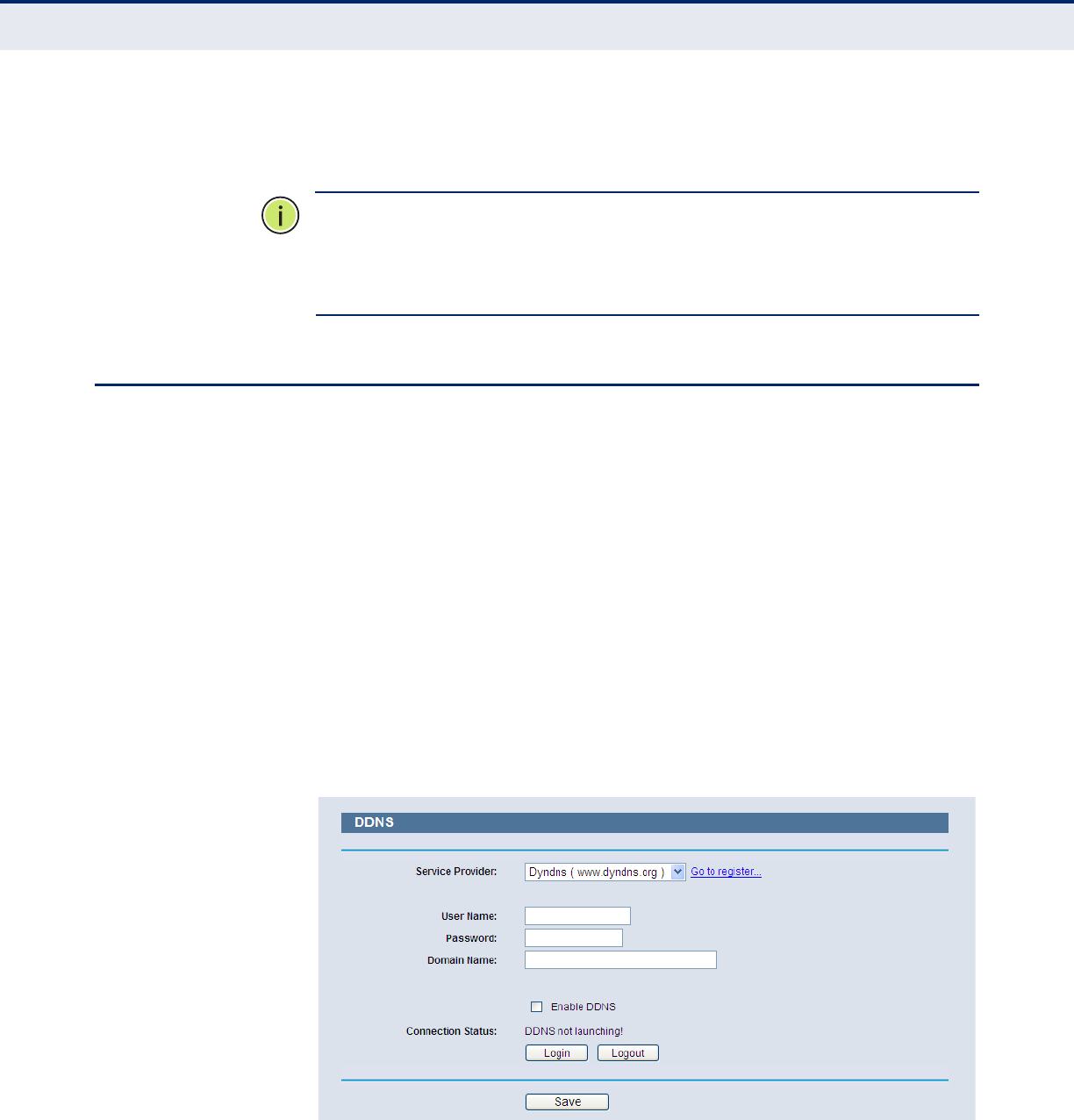

Figure 94: Dyndns.org DDNS Settings 103

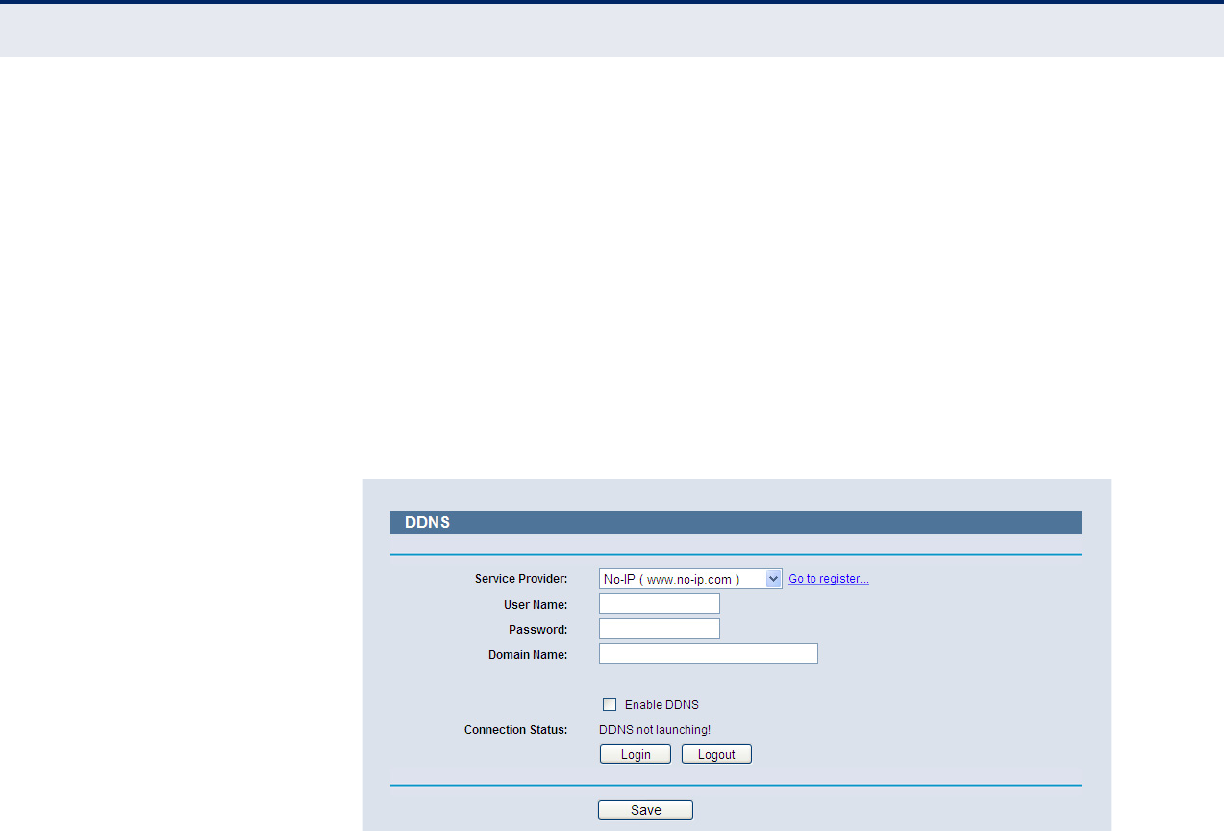

Figure 95: No-ip.com DDNS Settings 104

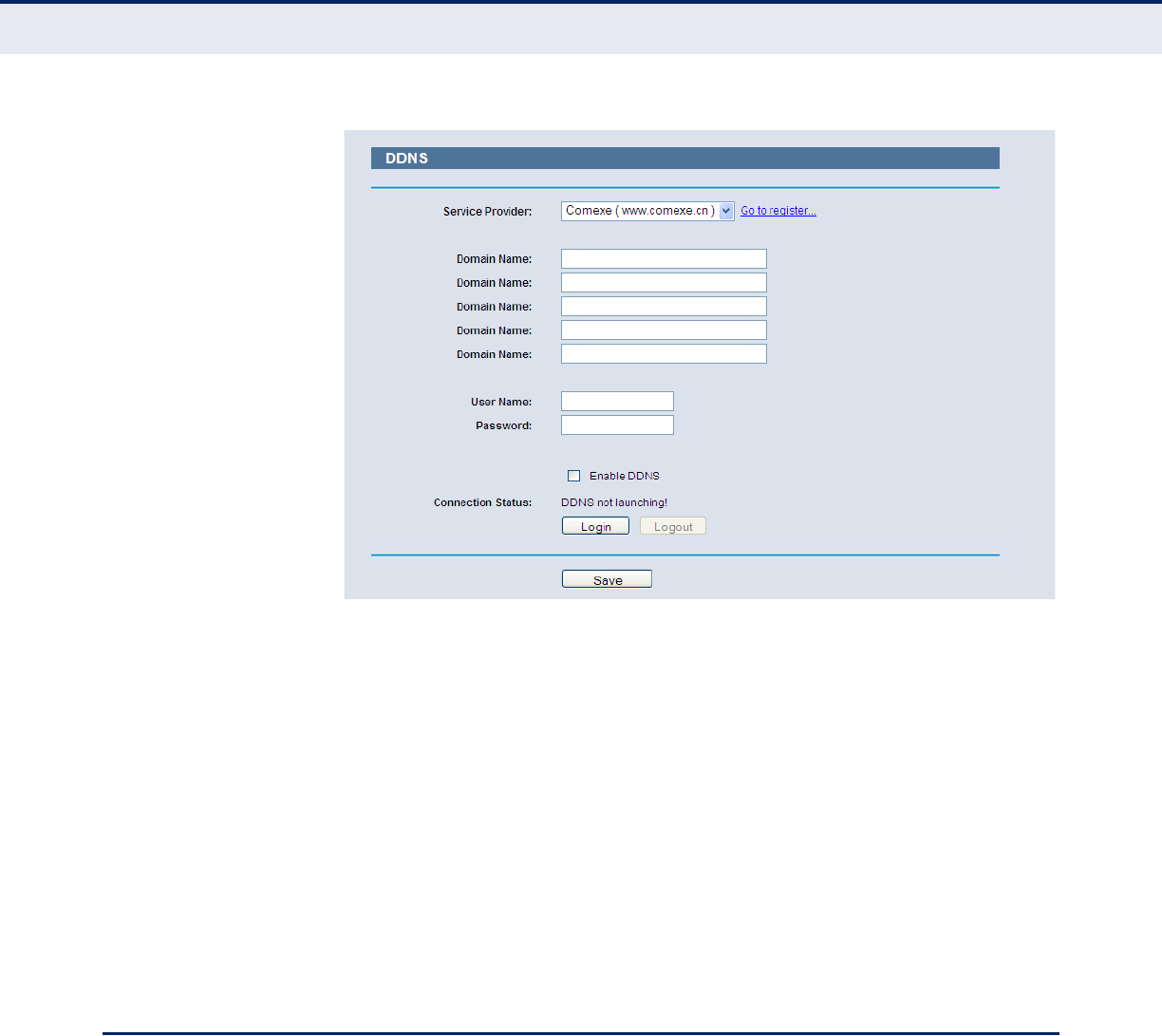

Figure 96: Comexe.cn DDNS Settings 105

Figure 97: The System Tools Menu 106

Figure 98: Time Settings 106

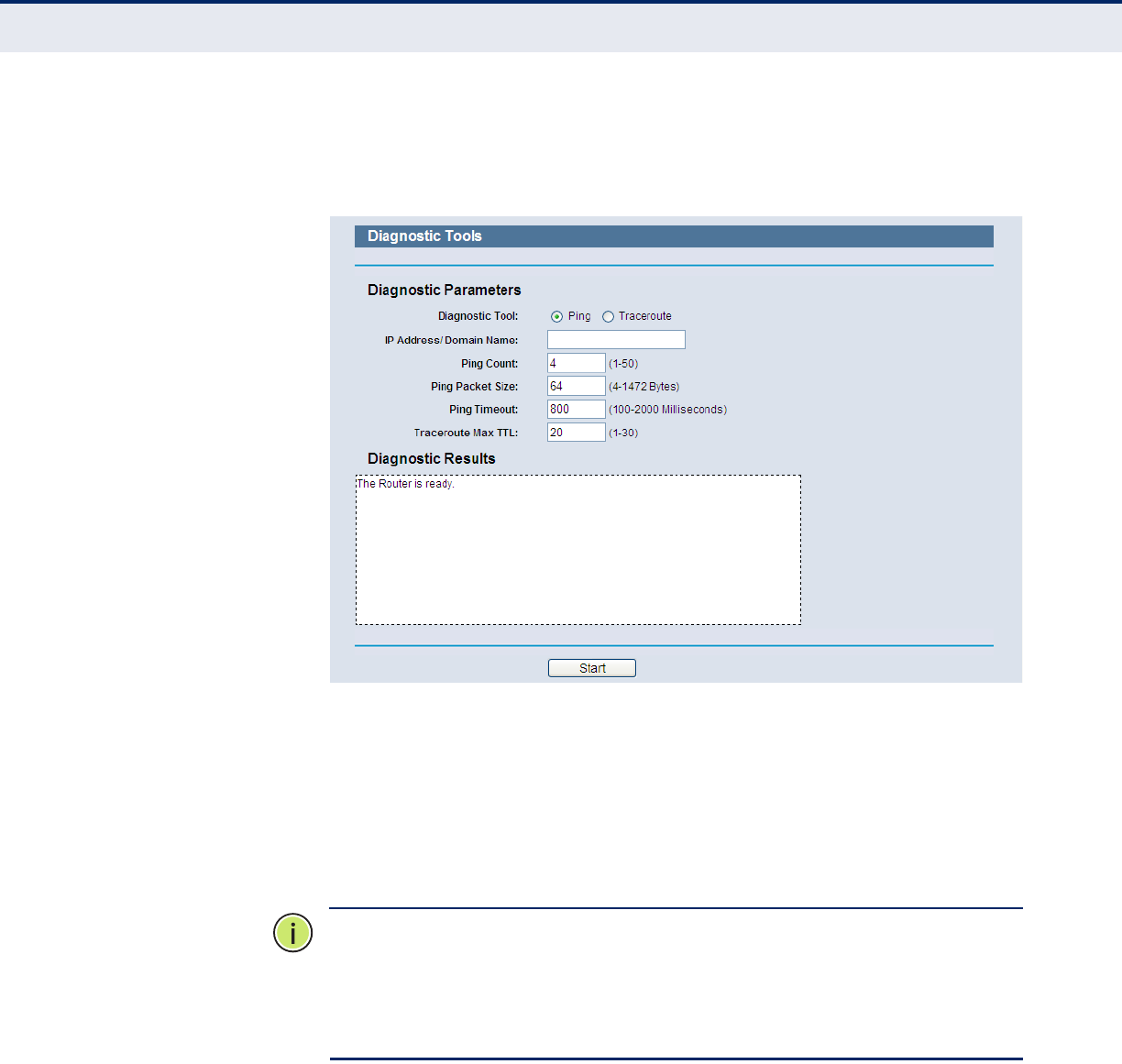

Figure 99: Diagnostic Tools 108

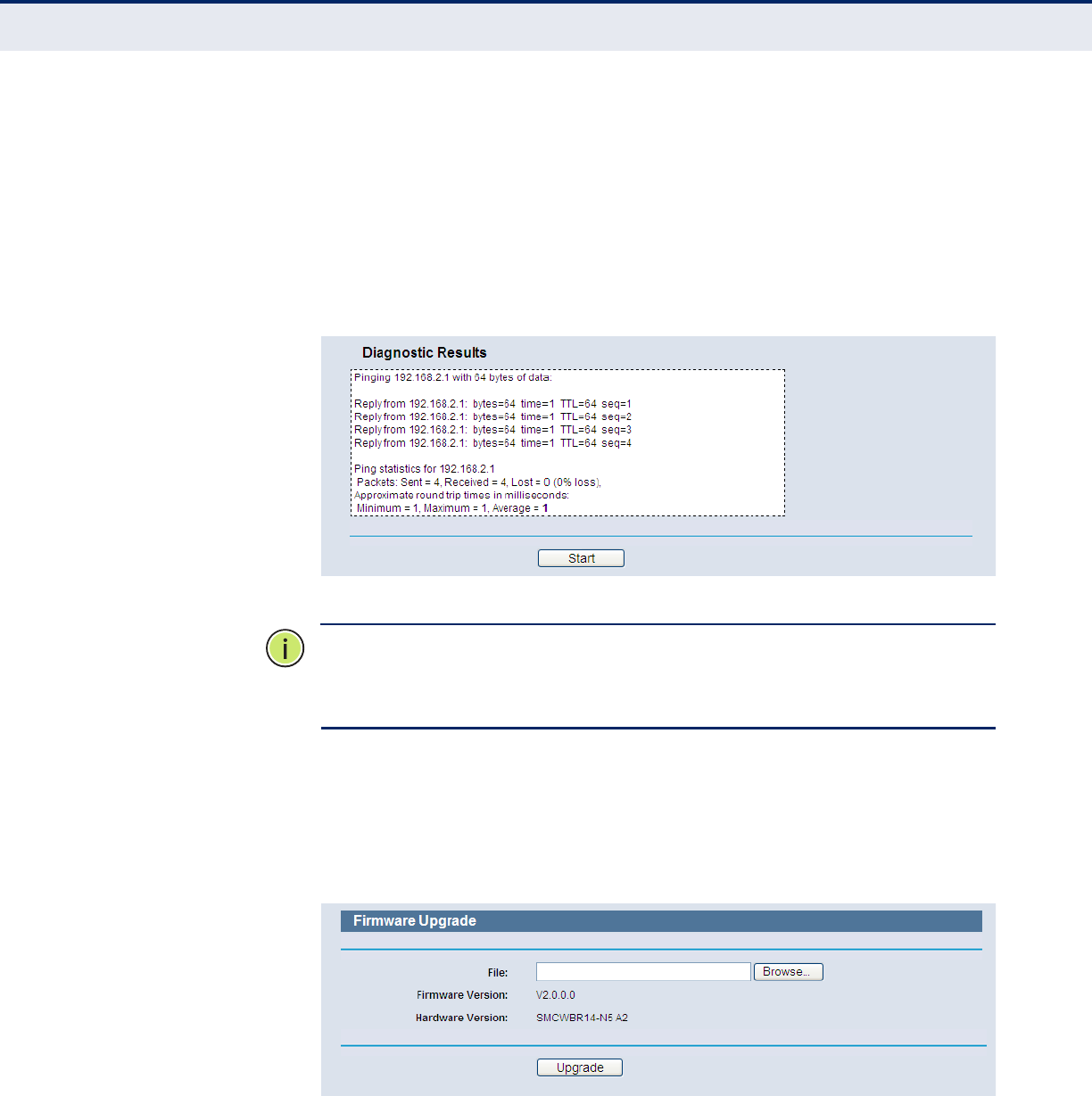

Figure 100: Diagnostic Results 109

Figure 101: Firmware Upgrade 109

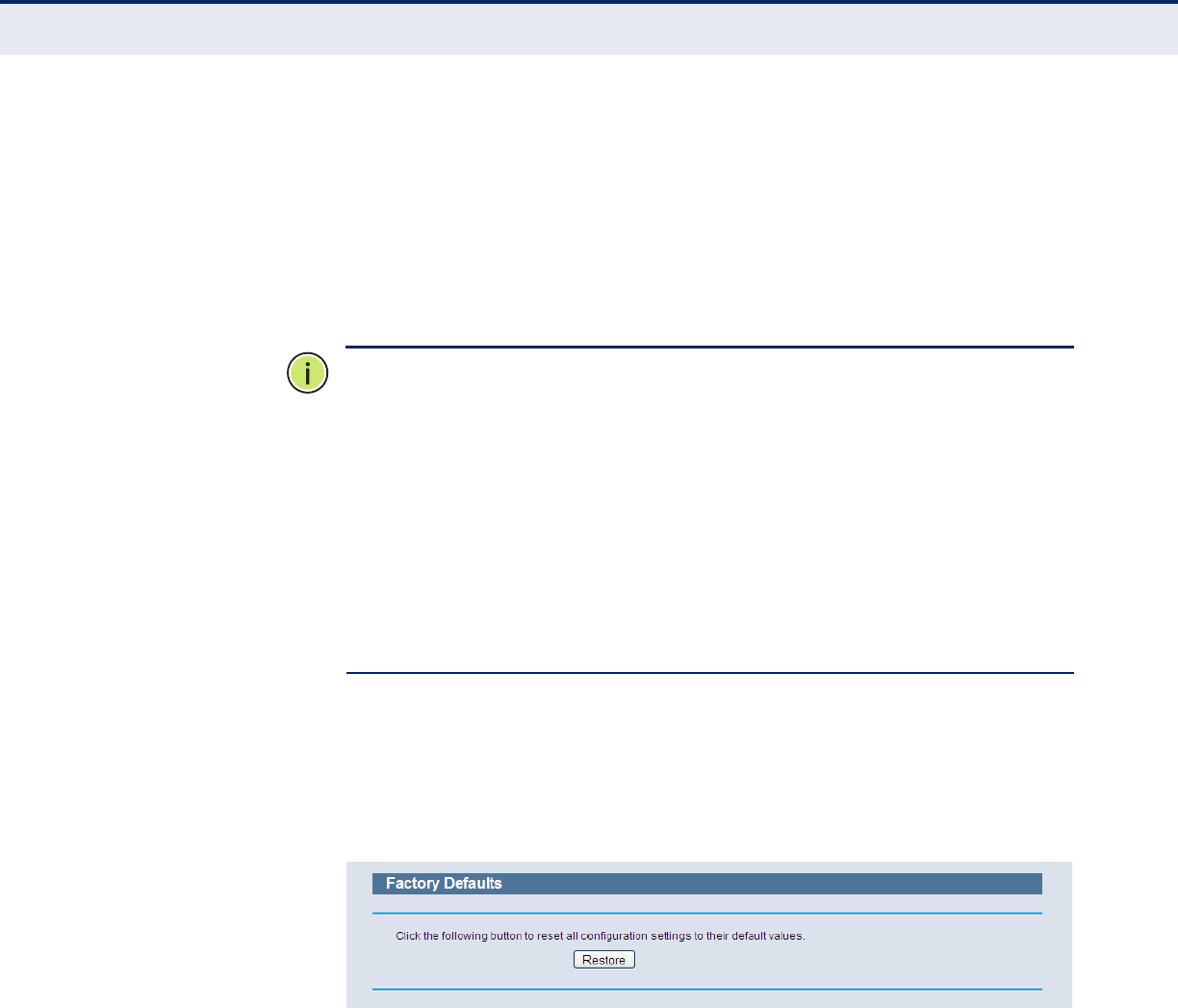

Figure 102: Restore Factory Default 110

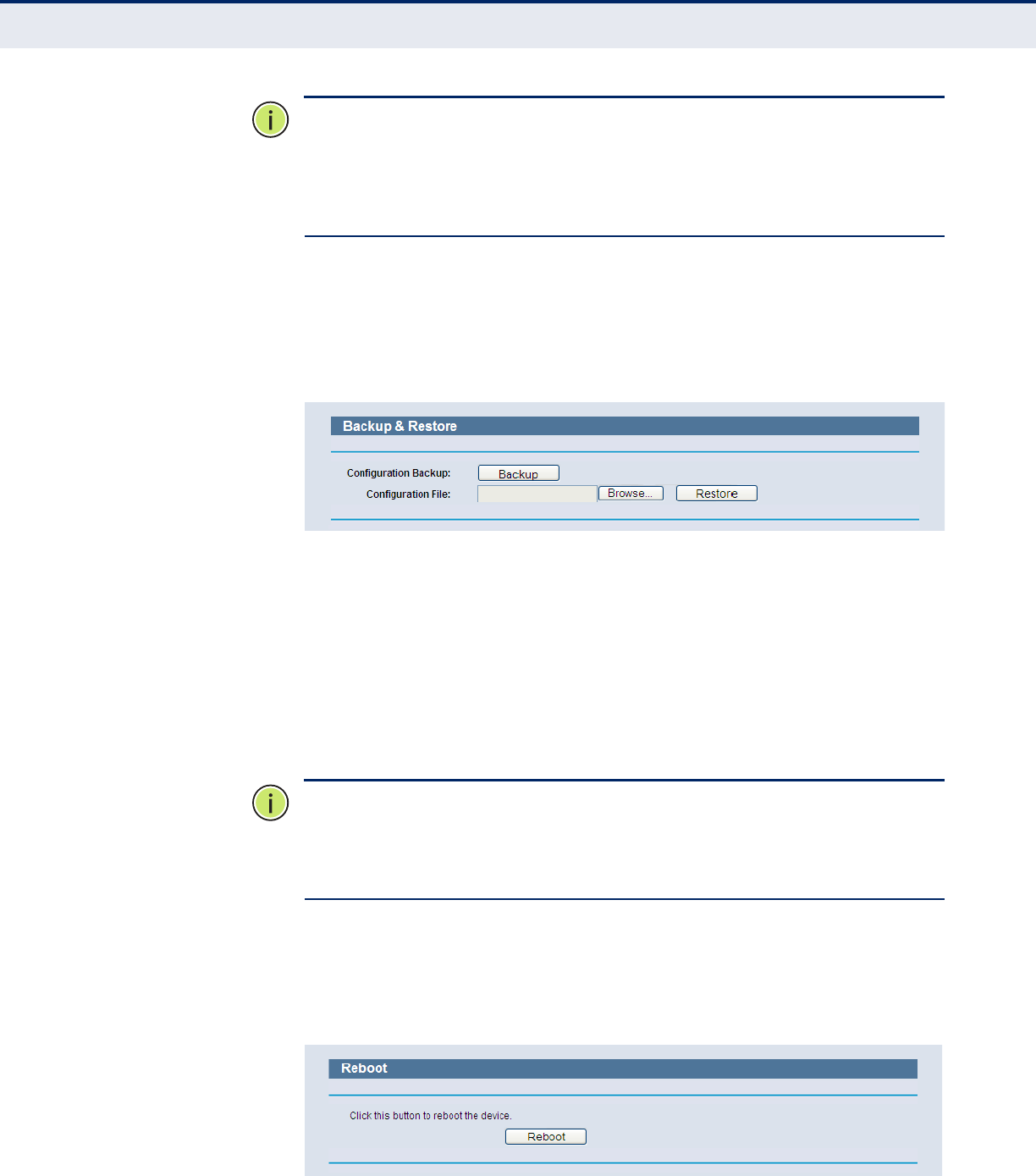

Figure 103: Backup & Restore Configuration 111

ONTENTS

– 22 –

Figure 104: Reboot 111

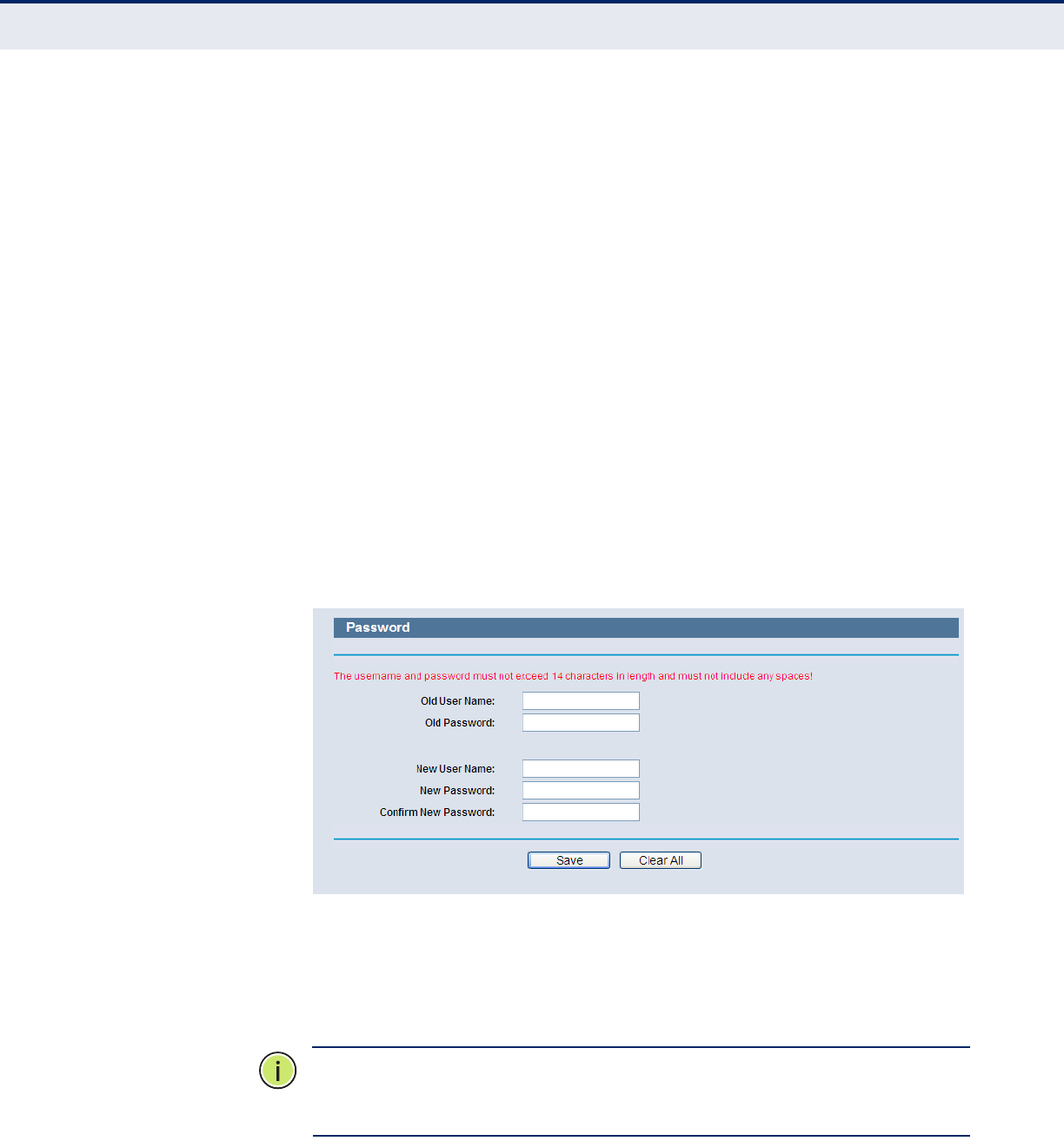

Figure 105: Password 112

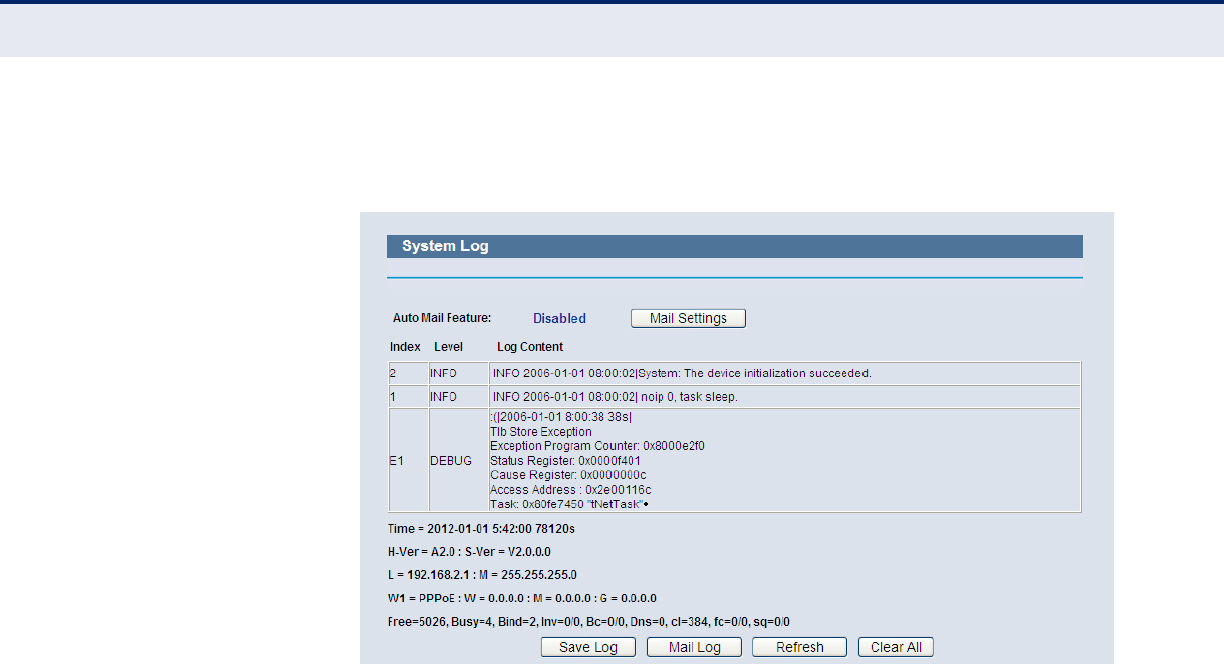

Figure 106: System Log 113

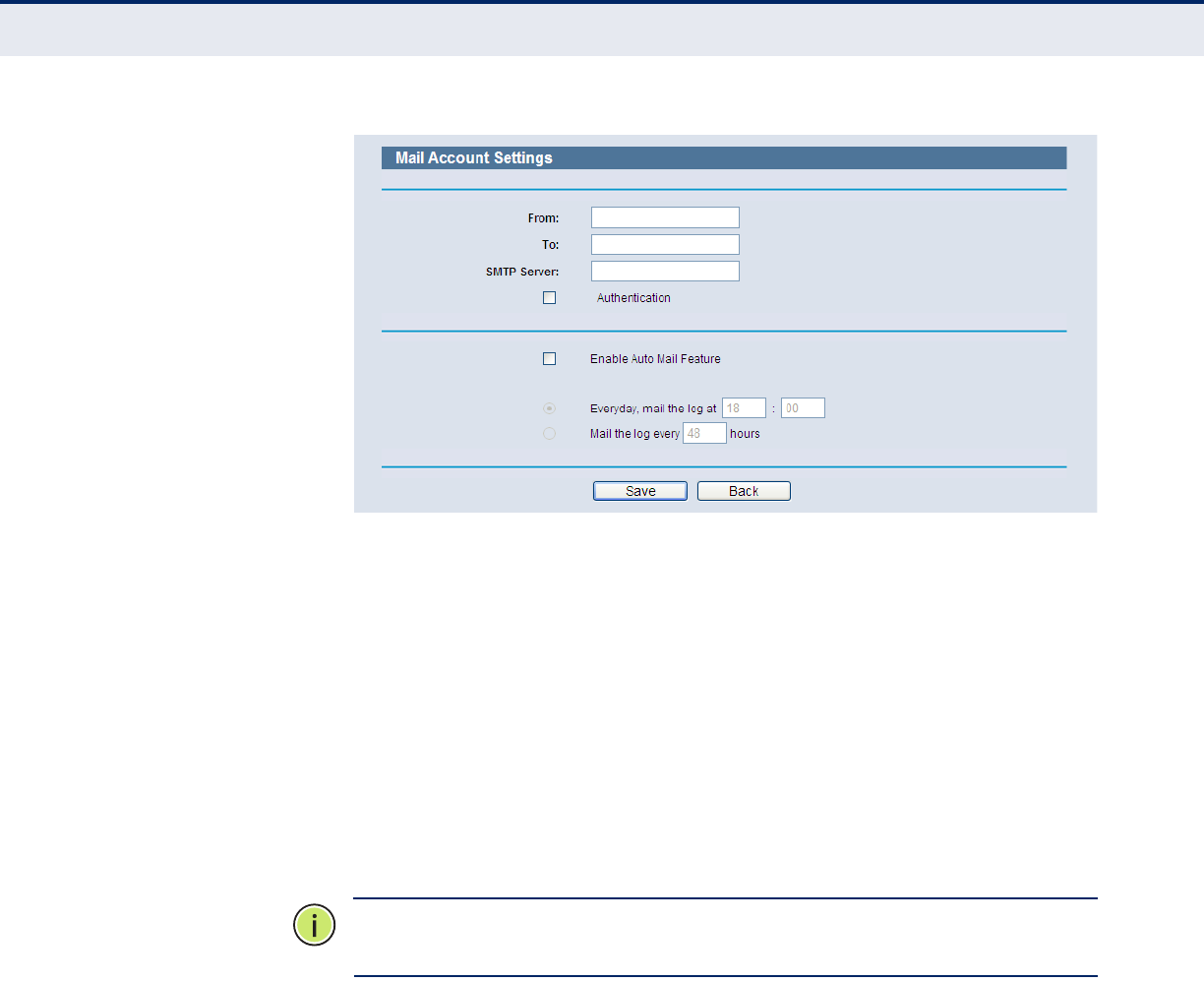

Figure 107: Mail Account Settings 114

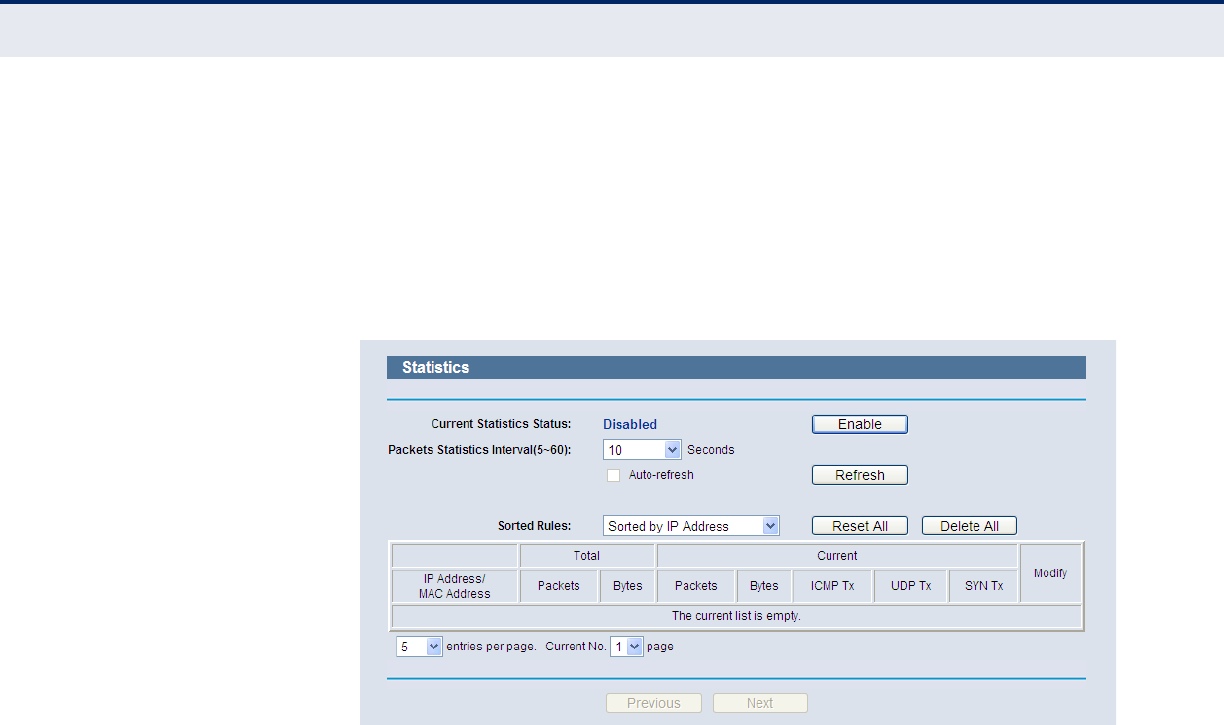

Figure 108: Statistics 115

Figure 109: TCP/IP 117

Figure 110: Internet Protocol 118

Figure 111: Internet Protocol Properties 119

Figure 112: Setting the IP Address Manually 120

Figure 113: PPPoE Connection Type 121

Figure 114: PPPoE Connection Mode 121

Figure 115: MAC Clone 122

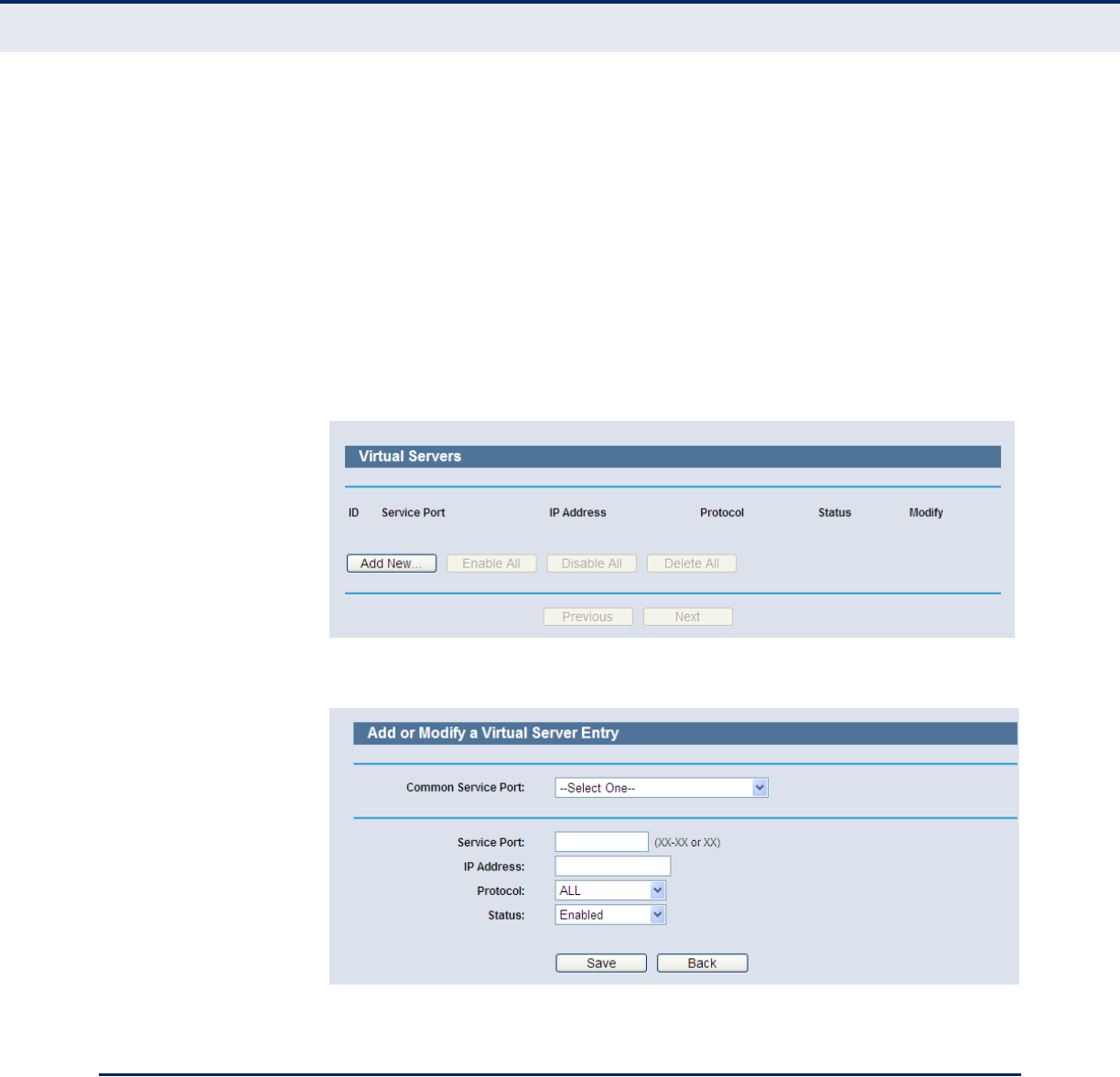

Figure 116: Virtual Servers 123

Figure 117: Add or Modify a Virtual Server Entry 123

Figure 118: DMZ 124

Figure 119: Basic Security 125

Figure 120: Remote Management 125

Figure 121: Virtual Servers 126

Figure 122: Add or Modify a Virtual Server Entry 126

– 23 –

TABLES

Table 1: Key Hardware Features 25

Table 2: LED Behavior 26

– 24 –

1INTRODUCTION

OVERVIEW OF THE ROUTER

The Barricade™ SMCWBR14-N5 300Mbps 4-Port Wireless Broadband

Router delivers exceptional range and speed, which can fully meet the

needs of Small Office/Home Office (SOHO) networks and users demanding

higher network performance. The router integrates a 4-port switch,

firewall, NAT router, and wireless access point (AP).

INCREDIBLE SPEED

The SMCWBR14-N5 provides up to 300 Mbps wireless connections with

other 802.11n wireless clients, and the speed makes the routers ideal for

handling multiple data streams at the same time, which ensures your

network remains stable and smooth. The routers are compatible with all

IEEE 802.11g and IEEE 802.11b products.

MULTIPLE SECURITY PROTECTIONS

With multiple protection measures, including SSID broadcast control, 64/

128/152-bit WEP encryption, Wi-Fi protected Access (WPA2-PSK, WPA-

PSK), as well as advanced firewall protection, the routers provide complete

data privacy.

FLEXIBLE ACCESS CONTROL

The routers provide flexible access control, so that parents or network

administrators can establish restricted access policies for children or staff.

It also supports Virtual Server and DMZ host for Port Triggering, and then

the network administrators can manage and monitor the network in real

time with the remote management function.

SIMPLE INSTALLATION

Since the routers are compatible with all major operating systems, it is

easy to manage. A Quick Setup Wizard is supported and detailed step-by-

step instructions are provided in this User Guide. Before installing the

router, read through this guide to understand all the router’s features.

HAPTER

| Introduction

Main Features

– 25 –

MAIN FEATURES

◆IEEE 802.11n wireless technology provides a wireless data rate of up to

300 Mbps.

◆One 10/100 Mbps Auto-Negotiation RJ-45 WAN port, four 10/100 Mbps

Auto-Negotiation RJ-45 LAN ports, supporting Auto MDI/MDIX.

◆Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES

encryption security.

◆Shares data and Internet access for users, supporting dynamic IP/static

IP/PPPoE Internet access.

◆Supports Virtual Server, Forwarding, and DMZ host.

◆Supports UPnP, DDNS, Static Routing.

◆Provides automatic and scheduled connection to the Internet.

◆Connects to the Internet on demand, and disconnects from the Internet

when idle for PPPoE.

◆Built-in NAT and DHCP server supporting static IP address assignment.

◆Supports Stateful Packet Inspection.

◆Supports VPN Passthrough.

◆Supports Parental Control and Access Control.

◆Provides 64/128/152-bit WEP encryption security and wireless LAN ACL

(Access Control List).

◆Supports Flow Statistics.

◆Supports firmware upgrade and Web management.

KEY HARDWARE FEATURES

The following table describes the main hardware features of the Router.

Table 1: Key Hardware Features

Feature Description

WAN Port One 100BASE-TX RJ-45 port for connecting to the Internet.

LAN Port Four 100BASE-TX RJ-45 ports for local network connections.

WPS Button For WPS security and resetting the unit.

LEDs Provides LED indicators for Power, WAN port, LAN port, and WLAN

status.

HAPTER

| Introduction

Package Contents

– 26 –

PACKAGE CONTENTS

The following items should be found in your package:

◆SMCWBR14-N5 300Mbps 4-Port Wireless Broadband Router,

◆AC Power Adapter

◆Quick Installation Guide

◆Resource CD, including:

◆This Guide

◆Other Helpful Information

OTE

Make sure that the package contains the above items. If any of the

listed items are damaged or missing, please contact with your distributor.

FRONT PANEL

Figure 1: Front Panel

LED INDICATORS The

Router

includes eight status LED indicators, as described in the

following table.

Table 2: LED Behavior

LED Status Description

Power On The unit is receiving power and is operating normally.

Off There is no power currently being supplied to the

unit.

System On The Router is initializing or may have a system error.

Blinking The Router is working properly.

Off The Router has a system error.

WLAN On/Blinking The Wireless function is enabled.

Off The Wireless function is disabled.

HAPTER

| Introduction

Rear Panel

– 27 –

WPS BUTTON Push this button to start WPS authentication of a wireless device. Push and

hold down this button for more than 5 seconds to reset the unit.

OTE

After a device is successfully added to the network by WPS, the WPS

LED will remain on for about 5 minutes and then turn off. When press and

hold the WPS Button for more than 5 seconds, you will reset the router.

REAR PANEL

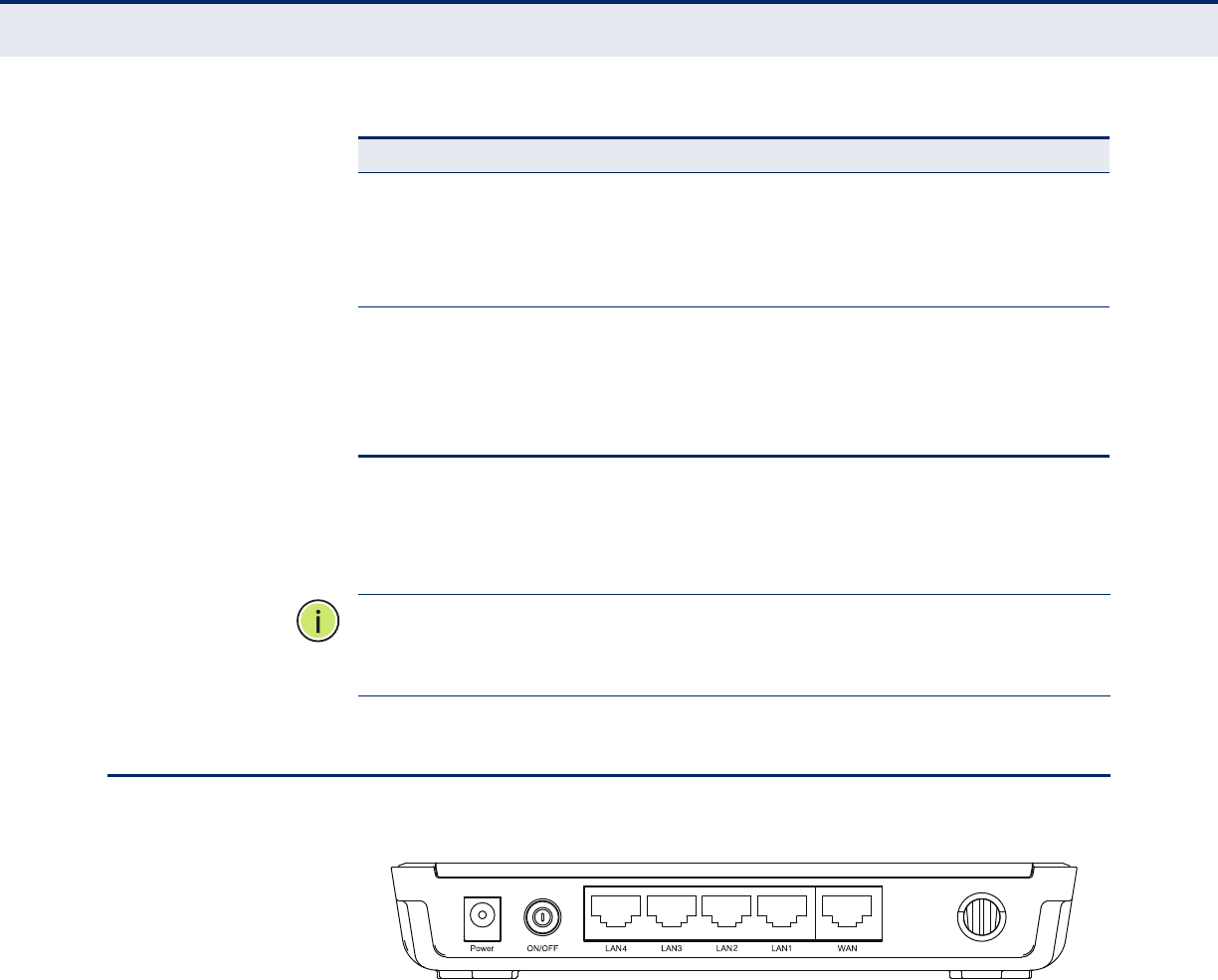

Figure 2: Rear Panel

The following items are located on the rear panel (from left to right).

WIRELESS ANTENNAS Receives and transmits wireless data.

POWER The Power socket is where you connect the power adapter. Use the power

adapter provided with the Router.

WAN

LAN (1-4) On There is a device linked to the corresponding port, but

there is no activity.

Blinking There is an active device linked to the corresponding

port.

Off There is no device linked to the corresponding port.

WPS On A wireless device has been successfully added to the

network by WPS. The LED will remain on for about 5

minutes.

Slow Blinking A wireless device is connecting to the network by

WPS. This process lasts for about 2 minutes.

Off WPS is not in progress.

Table 2: LED Behavior (Continued)

LED Status Description

HAPTER

| Introduction

Rear Panel

– 28 –

ETHERNET WAN PORT This WAN port is where you connect the DSL/cable Modem.

ETHERNET LAN

PORTS

LAN1,2,3,4: These ports (1, 2, 3, 4) connect the Router to local PCs.

– 29 –

2CONNECTING THE ROUTER

SYSTEM REQUIREMENTS

You must meet the following minimum requirements:

◆Broadband Internet Access Service (DSL/Cable/Ethernet)

◆One DSL/Cable Modem that has an RJ-45 connector.

◆PCs with working Ethernet adapters and Ethernet cables with RJ-45

connectors.

◆TCP/IP protocol on each PC.

◆Web browser, such as Microsoft Internet Explorer, Mozilla Firefox, or

Apple Safari.

INSTALLATION ENVIRONMENT REQUIREMENTS

◆Place the Router in a well ventilated place far from any heater or

heating vent

◆Avoid direct exposure to any strong light (such as sunlight)

◆Keep at least 2 inches (5 cm) of clear space around the Router

◆Operating Temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F)

◆Operating Humidity: 10% ~ 90% RH, Non-condensing

CONNECTING THE ROUTER

Before installing the Router, make sure your PC is successfullyconnected to

the Internet through the broadband service. If there are any problems,

first contact your ISP. After that, install the Router according to the

following steps.

CONNECTING THE

ROUTER IN ROUTER

MODE

1. Power off your PC, Cable/DSL Modem, and the Router.

HAPTER

| Connecting the Router

Connecting the Router

– 30 –

2. Locate an optimum location for the Router. The best place is usually at

the center of your network. The place must meet the Installation

Environment Requirements.

3. Adjust the direction of the antennas. Normally, upright is the best

direction.

4. Connect PCs and any switch in your LAN to the LAN Ports on the Router,

as shown in Figure 3.

5. Connect the DSL/Cable Modem to the WAN port on the Router, as

shown in Figure 3.

6. Connect the AC power adapter to the power socket on the Router, and

the other end into an electrical outlet. The Router will start to work

automatically.

7. Power on your PC and Cable/DSL Modem.

Figure 3: Harewall Installation

PCNoteboook

Cable Modem

– 31 –

3QUICK INSTALLATION GUIDE

This chapter shows you how to quickly configure the basic functions of your

Router using the Quick Setup Wizard.

TCP/IP CONFIGURATION

The default IP address of the Router is 192.168.2.1. And the default

Subnet Mask is 255.255.255.0. These values can be changed as you

desire. In this guide, all the default values are used for descriptions.

Connect local PCs to the LAN ports of the Router. And then you can

configure the IP address for your PC in the following two ways.

CONFIGURE THE IP ADDRESS MANUALLY

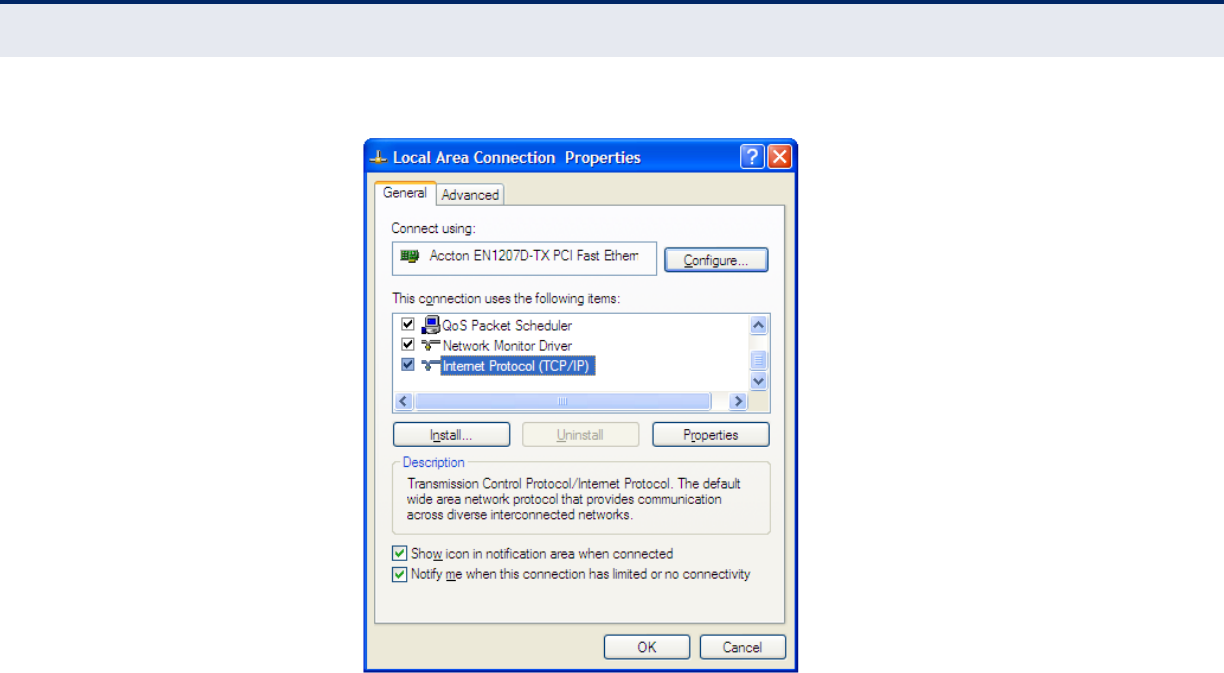

1. Set up the TCP/IP Protocol for your PC. If you need instructions on how

to do this, refer to Appendix A: “Configuring the PC” on page 117.

2. Configure the network parameters. The IP address is 192.168.2.xxx

(“xxx” is any number from 2 to 254), Subnet Mask is 255.255.255.0,

and Gateway is 192.168.2.1 (the Router's default IP address).

OBTAIN AN IP ADDRESS AUTOMATICALLY

1. Set the TCP/IP Protocol to “Obtain an IP address automatically” mode

on your PC. If you need instructions as to how to do this, refer to

Appendix A: “Configuring the PC” on page 117.

2. Then the built-in DHCP server will assign IP address for the PC.

Now you can run the Ping command at the command prompt to verify the

network connection between your PC and the Router. The following

example is for Windows 2000.

Open a command prompt and type “ping 192.168.2.1”, and then press

Enter.

If the result displayed is similar to the Figure 4 on page 32, it means a

connection between your PC and the Router has been established.

HAPTER

| Quick Installation Guide

TCP/IP Configuration

– 32 –

Figure 4: Success Result of a Ping Command

If the result displayed is similar to Figure 5, it means the connection

between your PC and the Router has failed.

Figure 5: Failure of a Ping Command

Follow these steps to check the connection:

1. Is the connection between your PC and the Router correct?

The LAN port LED on the Router and the LED on your PC's adapter

should be on.

2. Is the TCP/IP configuration for your PC correct?

HAPTER

| Quick Installation Guide

Quick Installation Guide

– 33 –

If the Router's IP address is 192.168.2.1, your PC's IP address must be

within the range of 192.168.2.2 ~ 192.168.2.254.

QUICK INSTALLATION GUIDE

Using the Web-based utility, it is easy to configure and manage the Router.

The Web-based utility can be used on any Windows, Macintosh, or UNIX

system with a Web browser, such as Microsoft Internet Explorer, Mozilla

Firefox, or Apple Safari.

1. To access the configuration utility, open a web-browser and type in the

default address http://192.168.2.1 in the address field of the browser.

Figure 6: Log in to the Router

After a moment, a login window appears similar to Figure 7. Enter “admin”

for the User Name and “smcadmin” for the Password, both in lower case

letters. Then click the OK button or press the Enter key.

Figure 7: Windows Login

OTE

If the above screen does not display, it means that your Web-

browser has been set to a proxy. Go to Tools menu>Internet

Options>Connections>LAN Settings, and in the screen that displays,

cancel the “Using Proxy” checkbox, and click OK.

2. After successfully logging in, click “Quick Setup” to quickly configure

your Router.

HAPTER

| Quick Installation Guide

Quick Installation Guide

– 34 –

Figure 8: Quick Setup

3. Click Next. The WAN Connection Type page will appear, as shown in

Figure 9.

Figure 9: Choose the WAN Connection Type

The Router provides an auto-detect function and supports three popular

ways (PPPoE, Dynamic IP, and Static IP) to connect to the Internet. It is

recommended that you make use of the auto-detect function. If you are

sure of what kind of connection type your ISP provides, you can select the

type and click Next to go on configuring.

4. If you select auto-detect, the Router will automatically detect the

connection type your ISP provides. Make sure the cable is securely

plugged into the WAN port before detection. The appropriate

configuration page will be displayed when an active Internet service is

successfully detected by the Router.

a. If the connection type detected is PPPoE, the screen shown in

Figure 10 will display.

HAPTER

| Quick Installation Guide

Quick Installation Guide

– 35 –

Figure 10: Quick Setup – PPPoE

●User Name and Password — Enter the User Name and

Password provided by your ISP. These fields are case sensitive.

If you have difficulty with this process, contact your ISP.

b. If the connection type detected is Dynamic IP, the screen shown in

Figure 12 will display. You can then continue with the wireless

configuration.

c. If the connection type detected is Static IP, the screen shown in

Figure 11 will display.

Figure 11: Quick Setup - Static IP

●IP Address - This is the WAN IP address as seen by external

users on the Internet (including your ISP). Enter the IP address

into the field.

●Subnet Mask - The Subnet Mask is used for the WAN IP

address, it is usually 255.255.255.0.

●Default Gateway - Enter the gateway IP address into the box,

if required.

●Primary DNS - Enter the DNS Server IP address into the box, if

required.

HAPTER

| Quick Installation Guide

Quick Installation Guide

– 36 –

●Secondary DNS - If your ISP provides another DNS server,

enter it into this field.

5. Click Next to continue. The Wireless settings page will appear, as shown

in Figure 12.

Figure 12: Quick Setup – Wireless

■Wireless Radio - Enable or disable the wireless radio choosing

from the pull-down list.

■Wireless Network Name - Enter a value of up to 32 characters.

The same name of SSID (Service Set Identification) must be

assigned to all wireless devices in your network. Considering your

wireless network security, the default SSID is set to “SMC”. This

value is case-sensitive. For example, “TEST” is NOT the same as

“test”.

■Region - Select your region from the pull-down list. This field

specifies the region where the wireless function of the Router can be

used. It may be illegal to use the wireless function of the Router in a

region other than one of those specified in this field. If your country

or region is not listed, contact your local government agency for

assistance.

■Mode - This field determines the wireless mode in which the Router

works.

HAPTER

| Quick Installation Guide

Quick Installation Guide

– 37 –

■Channel Width - Select any channel width from the pull-down list.

The default setting is automatic, which can adjust the channel width

for your clients automatically.

■Channel - This field determines which operating frequency will be

used. The default channel is set to Auto, so the AP will choose the

best channel automatically. It is not necessary to change the

wireless channel unless you notice interference problems with

another nearby access point.

■Max Tx Rate - You can limit the maximum transmission rate of the

Router through this field.

■Disable Security - The wireless security function can be enabled or

disabled. If disabled, the wireless stations will be able to connect

the Router without encryption. It is recommended strongly that you

choose one of following options to enable security.

■WPA-PSK/WPA2-PSK - Select WPA based on pre-shared

passphrase.

●PSK Password - You can enter ASCII or Hexadecimal characters.

For ASCII, the key can be made up of any numbers 0 to 9 and

any letters A to Z, the length should be between 8 and 63

characters.

For Hexadecimal, the key can be made up of any numbers 0 to

9 and letters A to F, the length should be between 8 and 64

characters.

Please also note the key is case sensitive, this means that upper

and lower case keys will affect the outcome. It would also be a

good idea to write down the key and all related wireless security

settings.

■No Change - If you chose this option, wireless security

configuration will not change.

These settings are only for basic wireless parameters. For advanced

settings, please refer to “Wireless” on page 60.

6. Click the Next button. You will then see the Finish page.

If you don’t make any changes on the Wireless page, you will see the

Finish page, as shown in Figure 13. Click the Finish button to finish

the Quick Setup.

HAPTER

| Quick Installation Guide

Quick Installation Guide

– 38 –

Figure 13: Quick Setup – Finish

– 39 –

4CONFIGURING THE ROUTER

This chapter shows each Web page's key functions and the configuration

method.

After successful login, you see the main menu on the left of the Web page.

On the right, there are the corresponding explanations and instructions.

Figure 14: The Main Menu

The detailed explanations for each Web page’s key functions are listed

below.

HAPTER

| Configuring the Router

Status

– 40 –

STATUS

The Status page provides the current status information about the Router.

All information is read-only.

Figure 15: Status

HAPTER

| Configuring the Router

Quick Setup

– 41 –

QUICK SETUP

Refer to “Quick Installation Guide” on page 31.

WPS

This section shows how to quickly add a new wireless device to an existing

network using WPS (Wi-Fi Protected Setup).

1. Select WPS from the menu. You will see the next screen, as shown in

Figure 16.

Figure 16: WPS (Wi-Fi Protected Setup)

■WPS Status - Enable or disable the WPS function here.

■Current PIN - The current value of the Router's PIN is displayed

here. The default PIN of the Router can be found in the label or User

Guide.

■Restore PIN - Restore the PIN of the Router to its default.

■Gen New PIN - Click this button, and then you can get a new

random value for the Router's PIN. You can ensure the network

security by generating a new PIN.

■Add device - You can add a new device to the existing network

manually by clicking this button.

TO ADD A NEW DEVICE:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can

establish a wireless connection between wireless adapter and Router using

either Push Button Configuration (PBC) method or PIN method.

HAPTER

| Configuring the Router

WPS

– 42 –

OTE

To make a successful connection using WPS, you should also

perform the corresponding WPS configuration on the new device.

For the configuration of a new device, this example uses an SMC Wireless

Adapter.

BY PBC

If the wireless adapter supports Wi-Fi Protected Setup and the Push Button

Configuration (PBC) method, you can add it to the network by PBC with the

following two methods.

Method One:

1. Enable the WPS function from Web management page.

2. Press the WPS button on the front panel of the Router.

Figure 17: Front Panel

3. Press and hold the WPS button of the wireless client for 2 or 3 seconds.

Figure 18: WPS Button

4. Wait until the next screen appears. Click Finish to complete the WPS

configuration.

HAPTER

| Configuring the Router

WPS

– 43 –

Figure 19: WPS-Wireless Configuration Completed

Method Two:

1. Enable the WPS function from Web management page.

2. Press the WPS button on the front panel of the Router.

Figure 20: Front Panel

3. For the configuration of the wireless adapter, select “Push the button

on my access point” in the WPS configuration, as below, and click

Next.

HAPTER

| Configuring the Router

WPS

– 44 –

Figure 21: WPS-Push the button on my access point

4. Wait until the next screen appears. Click Finish to complete the WPS

configuration.

Figure 22: WPS-Wireless Configuration Completed

Method Three:

1. Keep the default WPS Status as Enabled and click the “Add device”

button in Figure 23, then the following screen will appear.

HAPTER

| Configuring the Router

WPS

– 45 –

Figure 23: Add A New Device

2. Select “Press the button of the new device in two minutes” and click

Connect.

3. For the configuration of the wireless adapter, select “Push the button on

my access point” in the WPS configuration utility, as below, and click

Next.

Figure 24: WPS-Push the button on my access point

4. Wait until the next screen appears. Click Finish to complete the WPS

configuration.

HAPTER

| Configuring the Router

WPS

– 46 –

Figure 25: WPS-Wireless Configuration Completed

BY PIN

If the new device supports Wi-Fi Protected Setup and the PIN method, you

can add it to the network by PIN with the following two methods.

Method One: Enter the PIN into my Router.

1. Keep the default WPS Status as Enabled and click the “Add device”

button in Figure 26, then the following screen will appear.

Figure 26: Add Device

2. Select “Enter the new device's PIN” and enter the PIN code of the

wireless adapter in the field after PIN, as shown in the figure above.

Then click Connect.

OTE

The PIN code of the adapter is always displayed on the WPS

configuration screen.

HAPTER

| Configuring the Router

WPS

– 47 –

3. For the configuration of the wireless adapter, selected “Enter a PIN into

my access point or a registrar” in the WPS configuration, as below, and

click Next.

Figure 27: WPS-Enter a PIN into my access point

OTE

In this example, the default PIN code of the adapter is 16952898, as

shown in the above figure.

Method Two: Enter the PIN from my Router.

1. Read the Current PIN code of the Router in Figure 23 (each Router has

its unique PIN code. This example has the Router PIN code 12345670).

2. For the configuration of the wireless adapter, select “Enter a PIN from

my access point” in the WPS configuration utility, as below, and enter

the PIN code of the Router into the field after “Access Point PIN”. Then

click Next.

HAPTER

| Configuring the Router

Network

– 48 –

Figure 28: WPS-Enter a PIN from my access point

OTE

The default PIN code of the Router can be found on its label, or in

the WPS configuration screen, as shown in Figure 23.

Then the new device successfully connected to the network.

OTE

The WPS LED on the Router will turn on green for five minutes when

a device has been successfully added to the network.

OTE

The WPS function cannot be configured if the wireless function of the

Router is disabled. Make sure the wireless function is enabled before

configuring WPS.

NETWORK

There are three submenus under the Network menu (shown in Figure 29):

WAN, MAC Clone and LAN. Click any of them to configure the

corresponding function.

Figure 29: The Network Menu

LAN Choose menu “Network-> LAN”, you can configure the IP parameters of

the LAN on the screen as below.

HAPTER

| Configuring the Router

Network

– 49 –

Figure 30: LAN

◆MAC Address - The physical address of the Router, as seen from the

LAN. The value cannot be changed.

◆IP Address - Enter the IP address of your Router or reset it in dotted-

decimal notation (factory default: 192.168.2.1).

◆Subnet Mask - An address code that determines the size of the

network. Normally use 255.255.255.0 as the subnet mask.

OTE

If you change the IP Address of LAN, you must use the new IP

Address to login the Router.

OTE

If the new LAN IP Address you set is not in the same subnet, the IP

Address pool of the DHCP server will change accordingly at the same time,

while the Virtual Server and DMZ Host will not take effect until they are re-

configured.

WAN Select “Network>WAN”, you can configure the IP parameters of the WAN

on the screen below.

1. If your ISP provides the DHCP service, choose Dynamic IP, and the

Router will automatically receive IP parameters from your ISP. You can

see the page as follows (Figure 31).

HAPTER

| Configuring the Router

Network

– 50 –

Figure 31: WAN-Dynamic IP

This page displays the WAN IP parameters assigned dynamically by your

ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the

Renew button to renew the IP parameters from your ISP. Click the Release

button to release the IP parameters.

◆MTU Size - The normal MTU (Maximum Transmission Unit) value for

most Ethernet networks is 1500 Bytes. It is not recommended that you

change the default MTU Size unless required by your ISP.

◆Use These DNS Servers - If your ISP gives you one or two DNS

addresses, select Use These DNS Servers and enter the primary and

secondary addresses into the correct fields. Otherwise, the DNS servers

will be assigned dynamically from your ISP.

OTE

If you find an error when you go to a Web site after entering the

DNS addresses, it is likely that your DNS servers are set up improperly. You

should contact your ISP to check the DNS server addresses.

◆Get IP with Unicast DHCP - Some ISP DHCP servers do not support

broadcast applications. If you cannot get the IP Address normally, you

can choose this option. (It is rarely required.)

Click the Save button to save your settings.

HAPTER

| Configuring the Router

Network

– 51 –

2. If your ISP provides a static or fixed IP Address, Subnet Mask, Gateway

and DNS setting, select Static IP. The Static IP settings page will

appear, shown in Figure 32.

Figure 32: WAN-Static IP

◆IP Address - Enter the IP address in dotted-decimal notation provided

by your ISP.

◆Subnet Mask - Enter the subnet Mask in dotted-decimal notation

provided by your ISP, usually is 255.255.255.0.

◆Default Gateway - (Optional) Enter the gateway IP address in dotted-

decimal notation provided by your ISP.

◆MTU Size - The normal MTU (Maximum Transmission Unit) value for

most Ethernet networks is 1500 Bytes. It is not recommended that you

change the default MTU Size unless required by your ISP.

◆Primary/Secondary DNS - (Optional) Enter one or two DNS

addresses in dotted-decimal notation provided by your ISP.

Click the Save button to save your settings.

3. If your ISP provides a PPPoE connection, select PPPoE option. And you

should enter the following parameters (Figure 33):

HAPTER

| Configuring the Router

Network

– 52 –

Figure 33: WAN-PPPoE

◆User Name/Password - Enter the User Name and Password provided

by your ISP. These fields are case-sensitive.

◆Secondary Connection - It is available only for PPPoE Connection. If

your ISP provides an extra Connection type such as Dynamic/Static IP

to connect to a local area network, then you can check the radio button

of Dynamic/Static IP to activate this secondary connection.

■Disabled - The Secondary Connection is disabled by default, so

there is PPPoE connection only. This is recommended.

■Dynamic IP - You can check this radio button to use Dynamic IP as

the secondary connection to connect to the local area network

provided by ISP.

■Static IP - You can check this radio button to use Static IP as the

secondary connection to connect to the local area network provided

by ISP.

HAPTER

| Configuring the Router

Network

– 53 –

◆Connect on Demand - In this mode, the Internet connection can be

terminated automatically after a specified inactivity period (Max Idle

Time) and be re-established when you attempt to access the Internet

again. If you want your Internet connection keeps active all the time,

please enter “0” in the Max Idle Time field. Otherwise, enter the

number of minutes you want to have elapsed before your Internet

access disconnects.

◆Connect Automatically - The connection can be re-established

automatically when it was down.

◆Time-based Connecting - The connection will only be established in

the period from the start time to the end time (both are in HH:MM

format).

OTE

Only when you have configured the system time on System Tools ->

Time page, will the Time-based Connecting function can take effect.

◆Connect Manually - You can click the Connect/ Disconnect button to

connect/disconnect immediately. This mode also supports the Max Idle

Time function as Connect on Demand mode. The Internet connection

can be disconnected automatically after a specified inactivity period and

re-established when you attempt to access the Internet again.

AUTION

Sometimes the connection cannot be terminated although you

specify a time to Max Idle Time, since some applications are visiting the

Internet continually in the background.

4. If you want to do some advanced configurations, please click the

Advanced button, and the page shown in Figure 34 will then appear:

HAPTER

| Configuring the Router

Network

– 54 –

Figure 34: WAN-PPPoE Advanced Settings

◆MTU Size - The default MTU size is “1480” bytes, which is usually fine.

It is not recommended that you change the default MTU Size unless

required by your ISP.

◆Service Name/AC Name - The service name and AC (Access

Concentrator) name, which should not be configured unless you are

sure it is necessary for your ISP. In most cases, leaving these fields

blank will work.

◆ISP Specified IP Address - If your ISP does not automatically assign

IP addresses to the Router during login, please click “Use IP address

specified by ISP” check box and enter the IP address provided by your

ISP in dotted-decimal notation.

◆Detect Online Interval - The Router will detect Access Concentrator

online at every interval. The default value is “0”. You can input the

value between “0”and “120”. The value “0” means no detect.

◆DNS IP address - If your ISP does not automatically assign DNS

addresses to the Router during login, please click “Use the following

DNS servers” check box and enter the IP address in dotted-decimal

notation of your ISP’s primary DNS server. If a secondary DNS server

address is available, enter it as well.

Click the Save button to save your settings.

5. If your ISP provides BigPond Cable (or Heart Beat Signal) connection,

please select BigPond Cable. And you should enter the following

parameters (Figure 33):

HAPTER

| Configuring the Router

Network

– 55 –

Figure 35: WAN-BigPond Cable

◆User Name/Password - Enter the User Name and Password provided

by your ISP. These fields are case-sensitive.

◆Auth Server - Enter the authenticating server IP address or host

name.

◆Auth Domain - Type in the domain suffix server name based on your

location.

For example:

NSW / ACT - nsw.bigpond.net.au

VIC / TAS / WA / SA / NT - vic.bigpond.net.au

QLD - qld.bigpond.net.au

◆MTU Size - The normal MTU (Maximum Transmission Unit) value for

most Ethernet networks is 1500 Bytes. It is not recommended that you

change the default MTU Size unless required by your ISP.

◆Connect on Demand - In this mode, the Internet connection can be

terminated automatically after a specified inactivity period (Max Idle

Time) and be re-established when you attempt to access the Internet

again. If you want your Internet connection keeps active all the time,

please enter “0” in the Max Idle Time field. Otherwise, enter the

number of minutes you want to have elapsed before your Internet

access disconnects.

HAPTER

| Configuring the Router

Network

– 56 –

◆Connect Automatically - The connection can be re-established

automatically when it was down.

◆Connect Manually - You can click the Connect/Disconnect button to

connect/disconnect immediately. This mode also supports the Max Idle

Time function as Connect on Demand mode. The Internet connection

can be disconnected automatically after a specified inactivity period and

re-established when you attempt to access the Internet again. Click the

Connect button to connect immediately. Click the Disconnect button to

disconnect immediately.

AUTION

Sometimes the connection cannot be terminated although you

specify a time to Max Idle Time because some applications are visiting the

Internet continually in the background.

6. If your ISP provides L2TP connection, please select L2TP option. And

you should enter the following parameters (Figure 36):

Figure 36: WAN-L2TP

HAPTER

| Configuring the Router

Network

– 57 –

◆User Name/Password - Enter the User Name and Password provided

by your ISP. These fields are case-sensitive.

◆Dynamic IP/ Static IP - Choose either as you are given by your ISP.

Click the Connect button to connect immediately. Click the Disconnect

button to disconnect immediately.

◆Connect on Demand - You can configure the Router to disconnect

from your Internet connection after a specified period of inactivity

(Max Idle Time). If your Internet connection has been terminated due

to inactivity, Connect on Demand enables the Router to automatically

re-establish your connection as soon as you attempt to access the

Internet again. If you wish to activate Connect on Demand, click the

radio button. If you want your Internet connection to remain active at

all times, enter 0 in the Max Idle Time field. Otherwise, enter the

number of minutes you want to have elapsed before your Internet

connection terminates.

◆Connect Automatically - Connect automatically after the Router is

disconnected. To use this option, click the radio button.

◆Connect Manually - You can configure the Router to make it connect

or disconnect manually. After a specified period of inactivity (Max Idle

Time), the Router will disconnect from your Internet connection, and

you will not be able to re-establish your connection automatically as

soon as you attempt to access the Internet again. To use this option,

click the radio button. If you want your Internet connection to remain

active at all times, enter "0" in the Max Idle Time field. Otherwise,

enter the number in minutes that you wish to have the Internet

connecting last unless a new link is requested.

AUTION

Sometimes the connection cannot be disconnected although you

specify a time to Max Idle Time, since some applications is visiting the

Internet continually in the background.

7. If your ISP provides PPTP connection, please select PPTP option. And

you should enter the following parameters (Figure 37):

HAPTER

| Configuring the Router

Network

– 58 –

Figure 37: WAN-PPTP

◆User Name/Password - Enter the User Name and Password provided

by your ISP. These fields are case-sensitive.

◆Dynamic IP/ Static IP - Choose either as you are given by your ISP

and enter the ISP’s IP address or the domain name. If you choose static

IP and enter the domain name, you should also enter the DNS assigned

by your ISP. And click the Save button. Click the Connect button to

connect immediately. Click the Disconnect button to disconnect

immediately.

◆Connect on Demand - You can configure the Router to disconnect

from your Internet connection after a specified period of inactivity (Max

Idle Time). If your Internet connection has been terminated due to

inactivity, Connect on Demand enables the Router to automatically re-

establish your connection as soon as you attempt to access the Internet

again. If you wish to activate Connect on Demand, click the radio

button. If you want your Internet connection to remain active at all

times, enter 0 in the Max Idle Time field. Otherwise, enter the number

of minutes you want to have elapsed before your Internet connection

terminates.

HAPTER

| Configuring the Router

Network

– 59 –
