User Manual (WAP3110 L).pdf
– 1 –
Quick Start Guide
IEEE 802.11b/g/n Enterprise Access Point
WAP3110-L
The WAP3110-L is a IEEE 802.11b/g/n access point (AP) that is designed to deliver
high-performance wireless services for clients in an enterprise environment.
Housed in a compact enclosure, the unit includes its own built-in options for
mounting on a wall, or suspended ceiling T-rail. The unit can be powered through a
PoE cable connection from a PoE network switch, or from its AC power adapter.
In addition, the AP supports network management from an SMC WAC4502 wireless
access controller throught the Control and Provisioning of Wireless Access Points
(CAPWAP) protocol.
N
OTE
:
For detailed access point (AP) installation information, refer to the
Installation Guide, which is on the Documentation CD included with the AP.
N
OTE
:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the AP.
The AP includes its own built-in features for mounting the unit to a wall or
suspended ceiling T-rail.
Caution:
The planning and installation of the AP requires professional personnel
that are trained in the installation of radio transmitting equipment. The user is
E042013-AP-R01
www.smc.com
Quick Start Guide
– 2 –
responsible for compliance with local regulations concerning items such as
antenna power, use of lightning arrestors, grounding, and radio mast or tower
construction. Therefore, it is recommended to consult a professional contractor
knowledgeable in local radio regulations prior to equipment installation.
Follow these steps to install the AP:
1. Unpack the AP Unpack the AP and check the package contents.
◆WAP3110-L Enterprise Access Point
◆AC Power adapter
◆Console cable (RJ-45 to DB-9)
◆Quick Start Guide (this guide)
◆Regulatory and Safety Information
◆Documentation CD — includes Installation Guide
2. Mount the AP After planning your installation, mount the unit on a wall or suspended ceiling
T-rail.
.

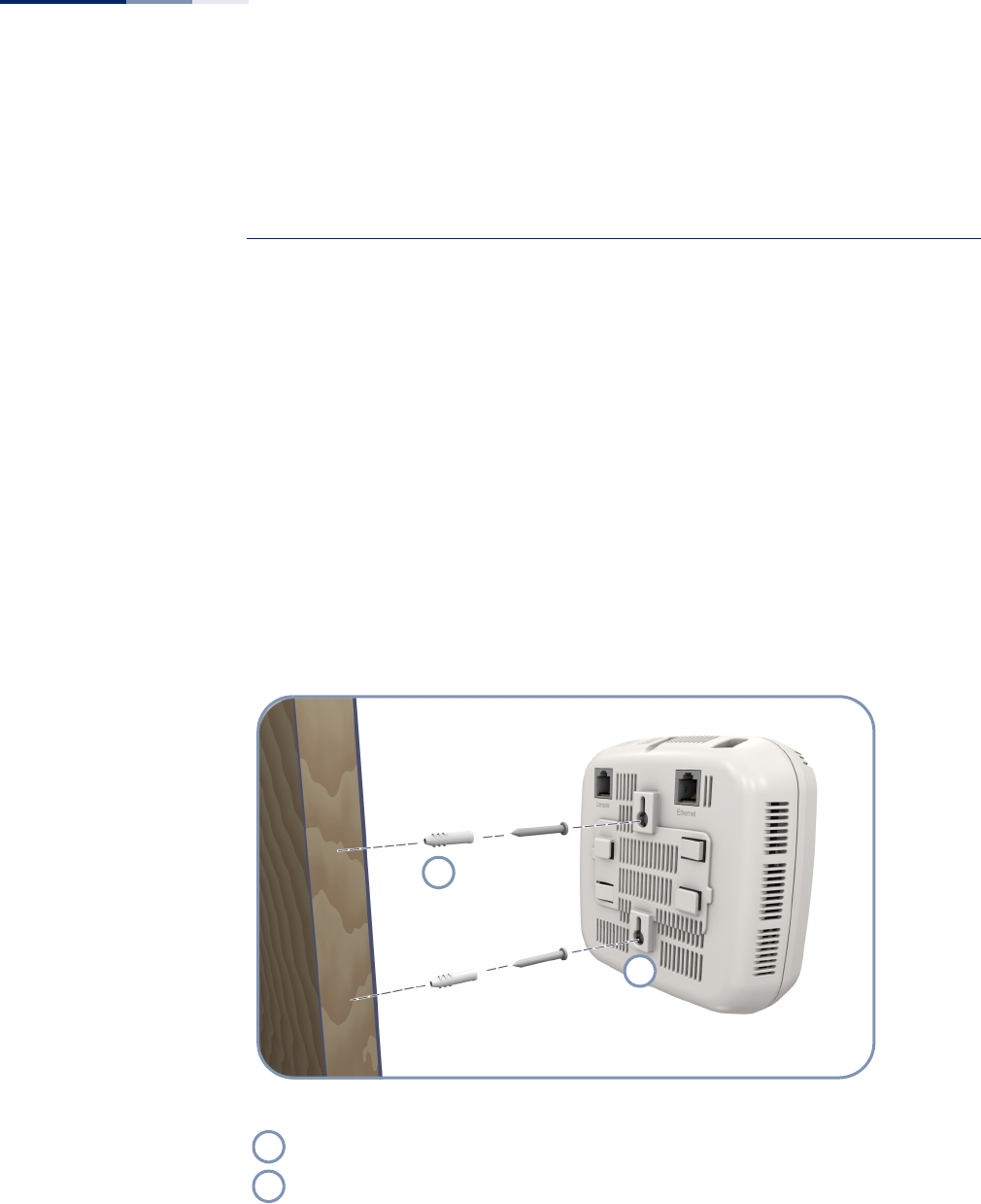

Mounting on a Wall
Set two screws in the wall 6.2 mm (2.4 in.) apart.
Slide the AP’s wall mounting slots down onto the screws so that the unit is secure.
1
2
1
2
Quick Start Guide
– 3 –
3. Connect Cables Connect network cable to the RJ-45 port for your network connection. The RJ-45
port connection can also provide PoE power to the unit.
1
2
.
Mounting on a Ceiling T-rail
Position the AP’s ceiling-mount clip holders on either side of the T-rail.
Turn the AP until the two clips lock the AP to the T-rail.
1
2
Connect Category 5e or better cable to the RJ-45 port.
1
1
Quick Start Guide
– 4 –

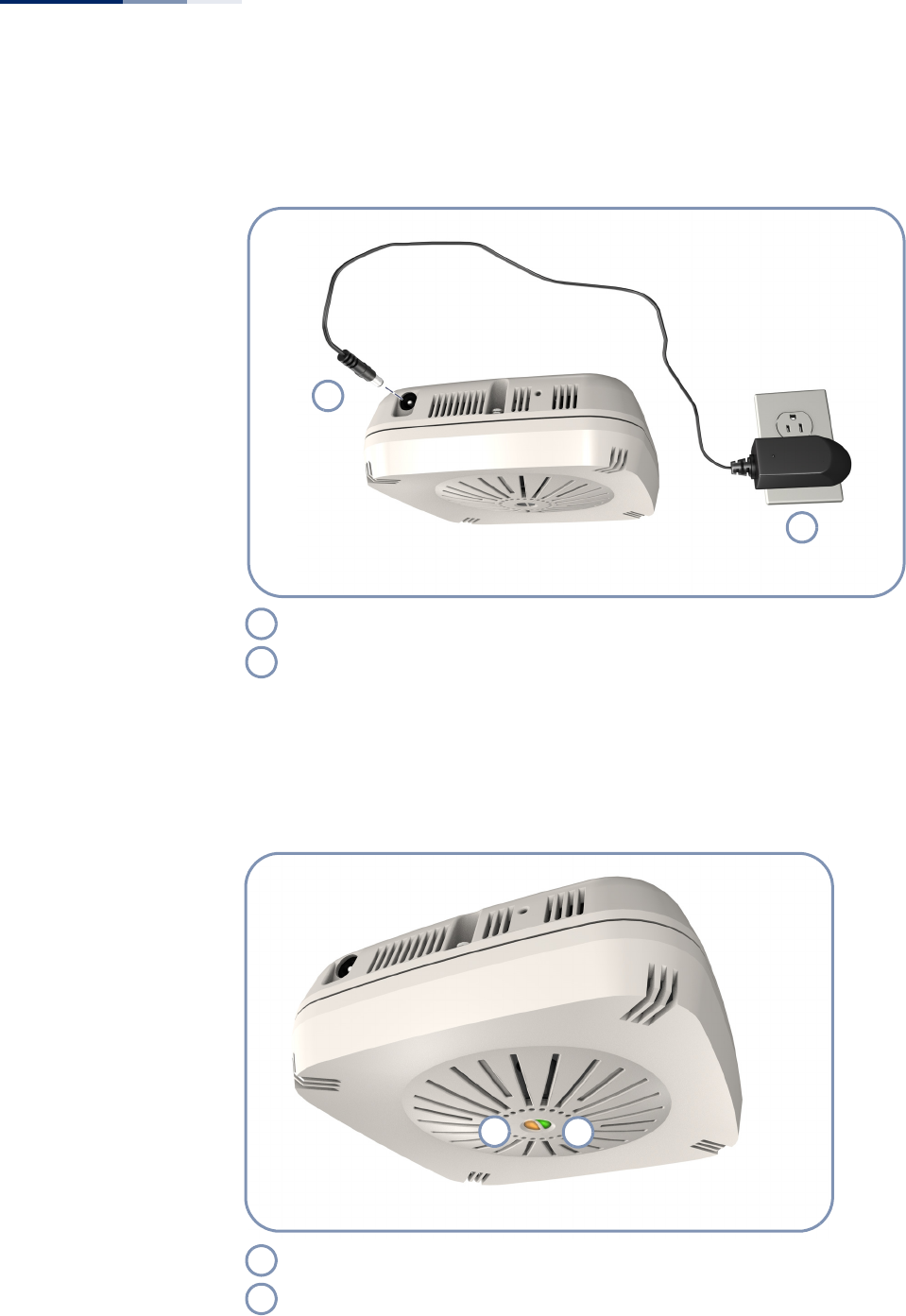

4. Connect Power If you do not power the unit using PoE, connect the AC power adapter to the AP
and to an AC power source.
5. Verify AP Operation Verify basic AP operation by checking the system LEDs.
The Power LED should be on green and the Network LED on or flashing amber.
Connect the power adapter to the power socket.
Connect the power adapter to a nearby AC power source.
1
2
1
2
Network Link/Activity
Power/Diagnostic
2
1
1
2
Quick Start Guide
– 5 –

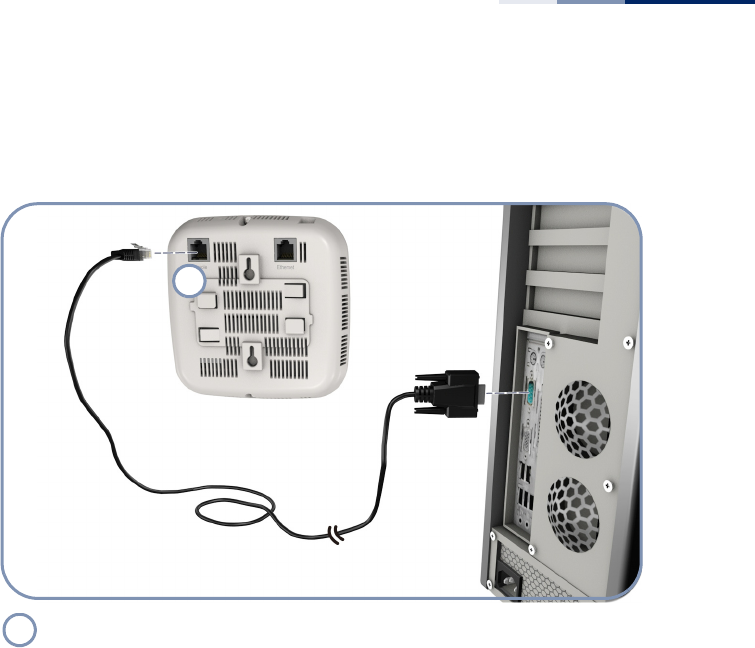

6. Connect to the
Console Port
To make initial configuration changes to the AP, connect a PC to the AP’s console
port using the included console cable.
From a PC running VT-100 terminal emulator software, use the following settings:
◆Baud rate — 115,200 bps
◆Character Size — 8 Characters
◆Parity — None
◆Stop bit — One
◆Data bits — 8
◆Flow control — none
Log in to the command-line interface (CLI) using default settings:
◆Login Name — admin
◆Password — null (there is no default password)
For information on manually configuring an IP address for the AP, refer to the
Installation Guide, which is on the Documentation CD included with the AP.
For further information on AP configuration and CLI commands, refer to the
Management Guide, which is on the Documentation CD included with the AP.
Console Port
1
1
Quick Start Guide
– 6 –
Hardware Specifications
Item Specification
Chassis Specifications
Size W x D x H: 140 x 140 x 47.8 mm (5.51 x 5.51 x 1.88 inches)
Weight 500 g (1.10 lbs)
Temperature Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 70 °C (-4 °F to 158 °F)
Humidity Operating: 5% to 95% (non-condensing)
Network Interfaces
Ports One RJ-45 Port: 1000BASE-T, PoE (PD)
2.4GHz Radio IEEE 802.11b/g/n
Radio Frequencies 2400 ~ 2483.5 MHz
2412 ~ 2472 MHz
Power Supply Specifications
PoE Input Power 48 VDC, 0.3A
AC Power Adapter AC Input: 100 ~ 240 VAC
DC Output: 12 VDC, 2 A
Power Consumption 22.5 W maximum
Regulatory Compliances
Radio ETSI 300 328 (802.11b/g)
ETSI 301 893 (802.11a Full range)
ETSI 301 489 (DC power)
FCC Part 15C 15.247/15.207 (2.4-2.4835GHz)
NCC LP0002 (2.4-2.4835GHz)
Emissions EN 55022:2007, Class A/B
IEC 61000-3-2/3
FCC Class B Part 15
CNS13438
Immunity EN 55024:2001 + A2:2003
IEC 61000-4-2/3/4/5/6/8/11
Safety CSA c us (CSA/UL60950-1)
CB (IEC60950-1)
Quick Start Guide
– 7 –
Safety and Regulatory Information
IEEE 802.11b/g/n Enterprise Access Point
WAP3110-L
This document provides information on switch safety, regulatory statements and
compliances. It includes these sections:
◆“Compliances and Safety Statements” on page 7
◆“Warnings and Cautionary Messages” on page 12
Compliances and Safety Statements
FCC Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. This transmitter must not be co-
located or operating in conjunction with any other antenna or transmitter.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
◆Reorient or relocate the receiving antenna
◆Increase the separation between the equipment and receiver
◆Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
◆Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
Quick Start Guide
– 8 –
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20 cm between the radiator and your body.
NCC (Taiwan) 低功率電波輻射性電機管理辦法：
第十二條 : 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用
者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。
第十四條 : 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現
有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通
信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工
業、科學及醫療用電波輻射性電機設備之干擾。
CE Mark CE Mark Declaration of Conformance for EMI and Safety (EEC)
This is a class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other
countries following the EU directive 1999/5/EC) without any limitation except for
the countries mentioned below:
Country Restriction Reason/Remark
Bulgaria None General authorization required for outdoor use and
public service
France Outdoor use limited
to 10 mW e.i.r.p.
within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz band
has been ongoing in recent years to allow current relaxed
regulation. Full implementation planned 2012
italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area
within a radius of 20 km from the centre of Ny-Ålesund
Russian
Federation None Only for indoor applications
Quick Start Guide
– 9 –
Note:
Do not use the product outdoors in France.
Europe - EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/
5/EC. The following test methods have been applied in order to prove presumption
of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
◆EN 60950-1:2006 + A11: 2009
Safety of Information Technology Equipment.
◆EN 300 328 V1.7.1: 2006-10
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband
transmission systems; Data transmission equipment operating in the 2,4 GHz
ISM band and using wide band modulation techniques; Harmonized EN
covering essential requirements under article 3.2 of the R&TTE Directive.
◆EN 301 489-17 V1.8.1/ 2008-04
EN 301 489-17 V2.1.1/ 2009-05
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2.4 GHz wideband transmission
systems.
◆EN 55022: 2006 + A1: 2007
Limits and methods of measurement of radio disturbance characteristics of
information technology equipment.
◆EN 55024: 1998 + A1: 2001 + A2: 2003
Information technology equipment immunity characteristics limits and
methods of measurement.
◆EN 62311: 2008
Assessment of electronic and electrical equipment related to human exposure
restrictions for electromagnetic fields (0 Hz - 300 GHz).
This device is a 2.4 GHz wideband transmission system (transceiver), intended for
use in all EU member states and EFTA countries, except in France and Italy where
restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities
in order to obtain authorization to use the device for setting up outdoor radio links
and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in
some areas the RF output power may be limited to 10 mW EIRP in the frequency
range of 2454 - 2483.5 MHz. For detailed information the end-user should contact
the national spectrum authority in France.
Quick Start Guide
– 10 –
This equipment may be operated in:
Bulgarian
Български
С настоящето, SMC декларира, че това безжично устройство е в съответствие със
съществените изисквания и другите приложими разпоредби на Директива 1999/5/
EC.
Czech
Česky
SMC tímto prohlašuje, že tento Radio LAN device je ve shodě se základními požadavky
a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Danish
Dansk
Undertegnede SMC erklærer herved, at følgende udstyr Radio LAN device overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
Dutch
Nederlands
Hierbij verklaart SMC dat het toestel Radio LAN device in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Bij deze SMC dat deze Radio LAN device voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English Hereby, SMC, declares that this Radio LAN device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Estonian
Eesti
Käesolevaga kinnitab SMC seadme Radio LAN device vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Finnish
Suomi
Valmistaja SMC vakuuttaa täten että Radio LAN device tyyppinen laite on direktiivin 1999/
5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
French
Français
Par la présente SMC déclare que l'appareil Radio LAN device est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE
German
Deutsch
Hiermit erklärt SMC, dass sich dieser/diese/dieses Radio LAN device in
Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)
Hiermit erklärt SMC die Übereinstimmung des Gerätes Radio LAN device mit den
grundlegenden Anforderungen und den anderen relevanten Festlegungen der Richtlinie
1999/5/EG. (Wien)
Greek
Ελληνική
με την παρουσα SMC δηλωνει οτι radio LAN device συμμορφωνεται προσ τισ ουσιωδεισ
απαιτησεισ και τισ λοιπεσ σχετικεσ διαταξεισ τησ οδηγιασ 1999/5/εκ.
Hungarian
Magyar
Alulírott, SMC nyilatkozom, hogy a Radio LAN device megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Italian
Italiano
Con la presente SMC dichiara che questo Radio LAN device è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latvian
Latviski
Ar šo SMC deklarē, ka Radio LAN device atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Quick Start Guide
– 11 –
Lithuanian
Lietuvių
Šiuo SMC deklaruoja, kad šis Radio LAN device atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Maltese
Malti
Hawnhekk, SMC, jiddikjara li dan Radio LAN device jikkonforma mal-ħtiġijiet essenzjali u
ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Polish
Polski
Niniejszym SMC oświadcza, że Radio LAN device jest zgodny z zasadniczymi wymogami
oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Portuguese
Português
SMC declara que este Radio LAN device está conforme com os requisitos essenciais e
outras disposições da Directiva 1999/5/CE.
Romanian
Romană
SMC declară că acest dispozitiv fără fir respectă cerinţele esenţiale precum şi alte
dispoziţii relevante ale Directivei 1999/5/EC.
Slovak
Slovensky
SMC týmto vyhlasuje, že Radio LAN device spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Slovenian
Slovensko
SMC izjavlja, da je ta radio LAN device v skladu z bistvenimi zahtevami in ostalimi
relevantnimi določili direktive 1999/5/ES.
Spanish
Español
Por medio de la presente SMC declara que el Radio LAN device cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/
5/CE
Swedish
Svenska
Härmed intygar SMC att denna Radio LAN device står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Turkish
Turk
SMC bu kablosuz cihazın temel gereksinimleri ve 1999/5/EC yonergesindeki ilgili
koşulları karşıladığını beyan eder.
Quick Start Guide
– 12 –
Warnings and Cautionary Messages
Warning
:
This product does not contain any serviceable user parts.
Warning
:
Installation and removal of the unit must be carried out by qualified
personnel only.
Warning
:
When connecting this device to a power outlet, connect the field
ground lead on the tri-pole power plug to a valid earth ground line to prevent
electrical hazards.
Caution
:
Wear an anti-static wrist strap or take other suitable measures to prevent
electrostatic discharge when handling this equipment.
Caution
:
Do not plug a phone jack connector in the RJ-45 port. This may damage
this device.
Caution
:
Use only twisted-pair cables with RJ-45 connectors that conform to FCC
standards.
Caution:
The planning and installation of the AP requires professional personnel
that are trained in the installation of radio transmitting equipment. The user is
responsible for compliance with local regulations concerning items such as
antenna power, use of lightning arrestors, grounding, and radio mast or tower
construction. Therefore, it is recommended to consult a professional contractor
knowledgeable in local radio regulations prior to equipment installation.
