Edifier EDF05 Multimedia Speaker User Manual

Spinnaker – e30

User Manual

Page 1 Important safety instruction

Thank you for purchasing your new Edifier product. Edifier strives to provide high quality speaker products that exceed the

needs of our customers, even the most demanding ones. This product will add great sound performance to your home

entertainment, personal computer, MP3 portable audio device or mini home theatre. Please read this manual carefully to

achieve the maximum results of this system.

maintenance (servicing) instructions within the user manual accompanying the product.

SAFETY INSTRUCTIONS

Please read all the instructions in this manual. Please retain this manual safely for future reference.

Please heed all safety warnings. Please install in accordance with the manufacturer's instructions.

Please adjust the volume control to a comfortable level to avoid damaging your hearing and the system.

• Do not expose this apparatus to rain or moisture.

• Do not use the speakers near water, and do not immerse them in any liquid or pour any liquid on them.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

• Place the speakers in a stable location so that it will not fall causing damage to the speakers or bodily harm.

• Unplug the speakers from the computer and from the electrical outlet before cleaning them with a damp cloth.

• Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or

moisture, does not operate normally, or has been dropped. Refer all servicing to qualified service personnel only.

Note: the marking is located on the bottom enclosure of the speaker.

Danger of explosion if the battery is incorrectly replaced.Replace only with the same or equivalent

type.

"Changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the

equipment."

2. FCC Statement:

"This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

" This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation."

wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return

and collection systems in your area or contact the retailer where the product was purchased. They can take this product for

environmentally safe recycling.

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does

not require a safety connection to electrical earth or ground.

Connectivity

Note: Please adjust the volume to a minimum before connecting to your external audio device, once the connection is complete,

play the music and adjust the volume to a desired level.

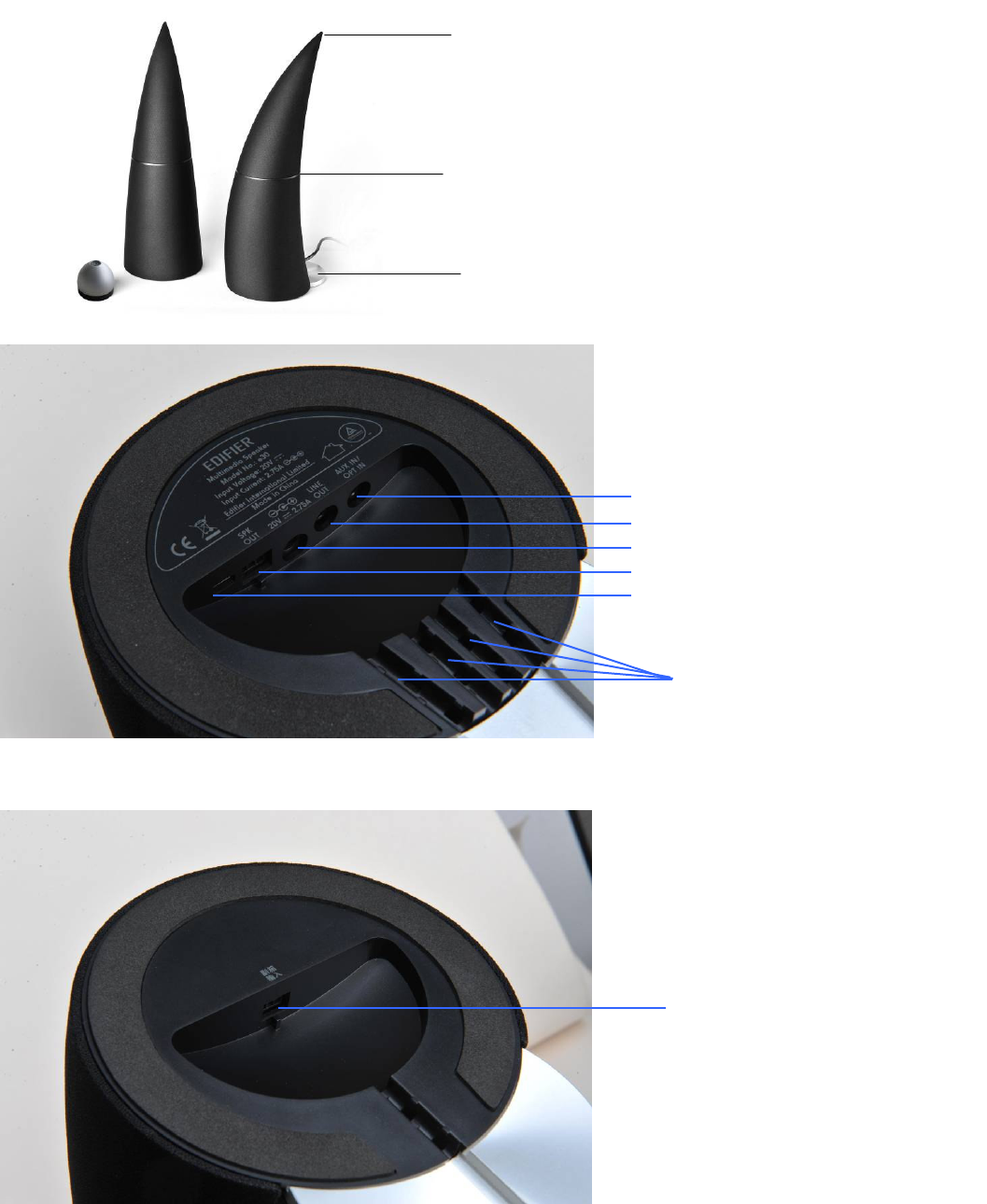

Page 3 Illustrations

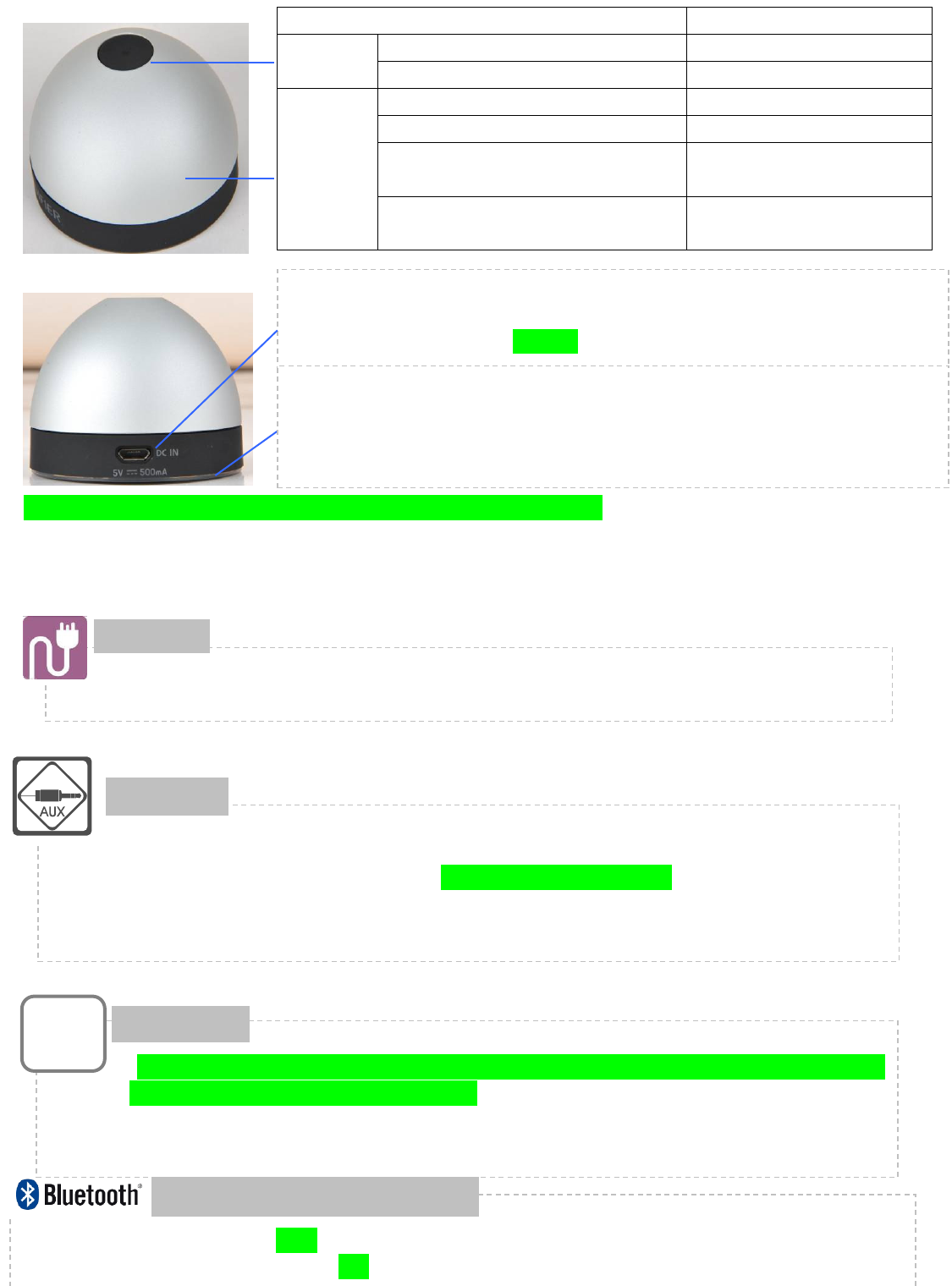

Remote control

LED indicator:

Audio input

Speaker connecting cable

Bluetooth

Connectors on the bottom of active speaker

Page 5 Operational guide for remote control

Page 8 Specifications

Total power: RMS 10W×2(treble)+10W×2(Mid-range) + 25W×2 (bass)

Signal to noise rate: ≥90dBA

Mid-range unit: 2¾inch (70mm), magnetically shielded, 4Ω

General guideline for computer connection

 Turn on your Bluetooth settings on your computer to be discoverable and enabled.

 If your computer does not have Bluetooth built-in, connect your external Bluetooth adapter and follow the device

set up procedures.

 Within your computer Bluetooth settings, add and search for new devices. The speaker name is “EDIFIER

Spinnaker”.

 Select the “EDIFIER Spinnaker” system to pair/ make the Bluetooth connection. Once complete, the screen will

display “Bluetooth Connected”.

System dimension: 140 mm×413 mm×189 mm (W x H x D)

Please first check if the speaker wires are connected securely;

then check if the line-in connectors are reversed; check also if the audio source is at fault.

Please refer to the manual of CD-ROM and sound card to adjust the wire connection.

Since some of the USB Bluetooth soundcard driver will not automatically enable SBC codec, please press and hold the FUNC

button to disconnect with the soundcard, then set up the connection again from PC.

1. Please check if power is connected, and if the wall outlet is switched on.

2. Please check if the amplifier is still in STBY mode.

3. Please check if the master volume is turned to minimum.

4. Please check if the audio input cable is connected correctly.

5. Please check if there is signal from audio source.

This system is completely magnetically shielded, and can be placed near TV or monitor. But since magnet of the subwoofer

driver is large, some magnetism leakage is inevitable when the system is too close to the monitor, and it is recommended to

keep a 1 meter distance between the speaker system and monitor or TV set.

1-877-EDIFIER (334-3437).
