Edifier EDF06 Multimedia Speaker User Manual iF600BT English

Edifier International Limited Multimedia Speaker iF600BT English

User manual _English

BreatheBT
iF600BT Multimedia Speaker
User Manual
Please carefully read this manual before operating the system
Page 1 Important safety instructions
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Thank you for purchasing this Edifier product. For generations, Edifier tries to provide powered speaker products to
satisfy the need of our end customers, even the most demanding ones. This product can add to your home
entertainment, personal computer, and mini home theater great sound performance. Please read this manual
carefully to obtain the best of this system.
1. Read these instructions. 2. Keep these instructions.
3. Heed all warnings. 4. Follow all instructions.
5. Do not use this apparatus near water. 6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
The lightning flash with arrowhead inside
the triangle, is intended to alert the user
to the presence of un-insulated dangerous
voltage within the product's enclosure
that may be of a sufficient magnitude to
constitute a risk of electric shock to persons.
To prevent the risk of electric shock, do not
remove cover (or back). No user-serviceable
Parts inside. Refer servicing to qualified
Service personnel only.
The exclamation point inside the triangle
is intended to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
Note: The marking is located on the bottom enclosure of the speaker. There is a rechargeable Li-ion battery in the
remote control.
The battery shall not be exposed to excessive heat such as sunshine, fire or the like. Danger of explosion if the
battery is incorrectly replaced.
Replace only with the same or equivalent type.
The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily
operable.
FCC Caution:
"Changes or modifications not expressly approved by the part responsible for compliance could void the user's
authority to operate the equipment."
FCC statement:
"This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation."
"This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help."
IC statement:
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
This Class【B】digital apparatus complies with Canadian ICES-003.
Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard.
(1) cet appareil ne peut pas causer l’intervention, et
(2) cet appareil doit accepter de l’intervention, y compris l’intervention qui peut causer l’opération non désirée de.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from
tip-over.
Correct Disposal of this product. This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that
it does not require a safety connection to electrical earth.
Page 2 Unpack the box

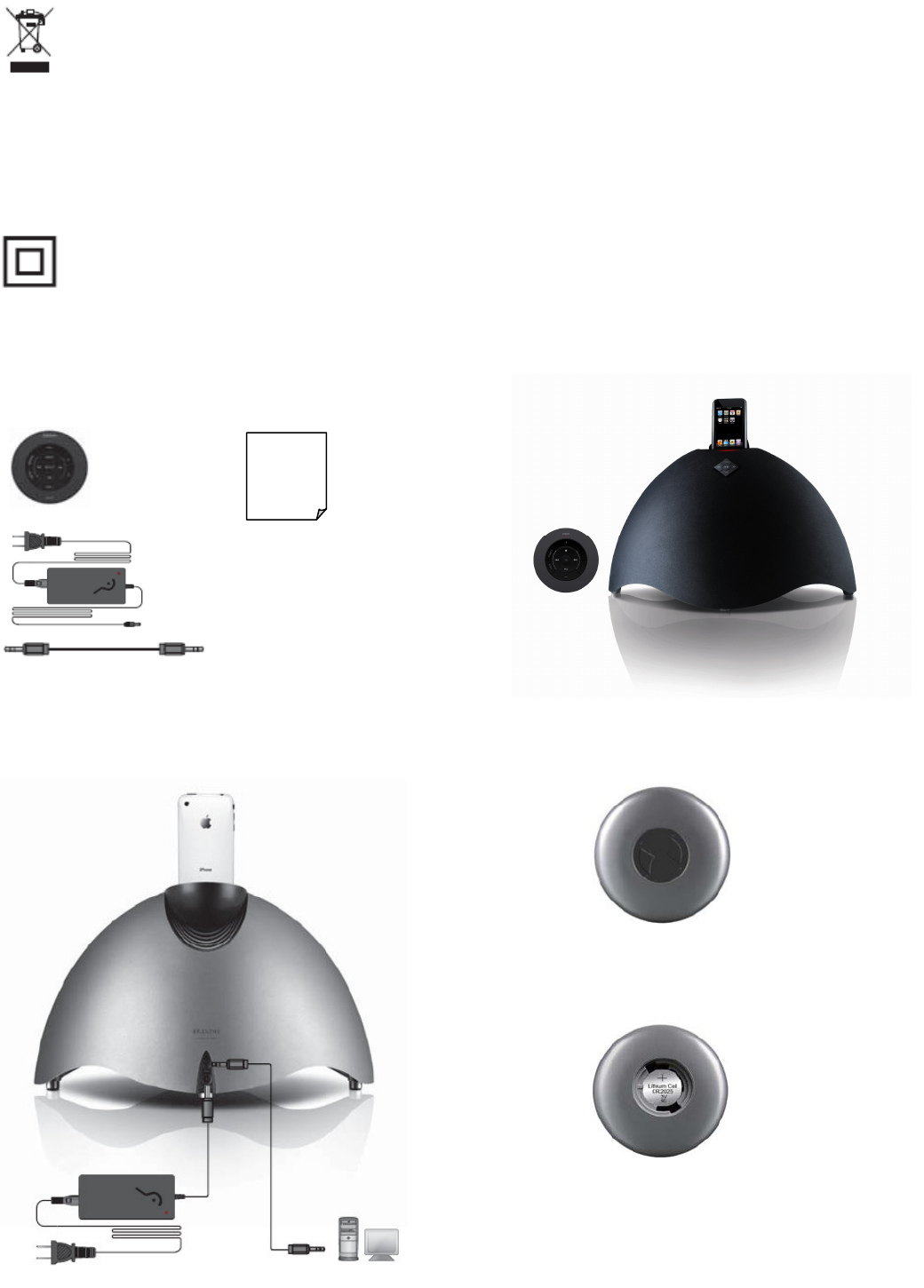

Box contents
Remote control
Power adapter & power cord
3.5mm-3.5mm audio connecting cable
Page 3 Connectivity & How to replace the battery
Breathe
BT
User
manual
Fig.1: Firmly hold the remote whilst pushing down the
black cover underneath the remote and twist cover to
the left.
Fig.2: Battery must be inserted at a slight downward
angle towards metal retaining clip. Battery must sit flush
in the housing. The positive symbol (+) must be facing
up as in the photo.
Page 4 Illustrations and Operating Functions
Page 5 Remote control illustration
Page 6 Operational guidance
V1.0

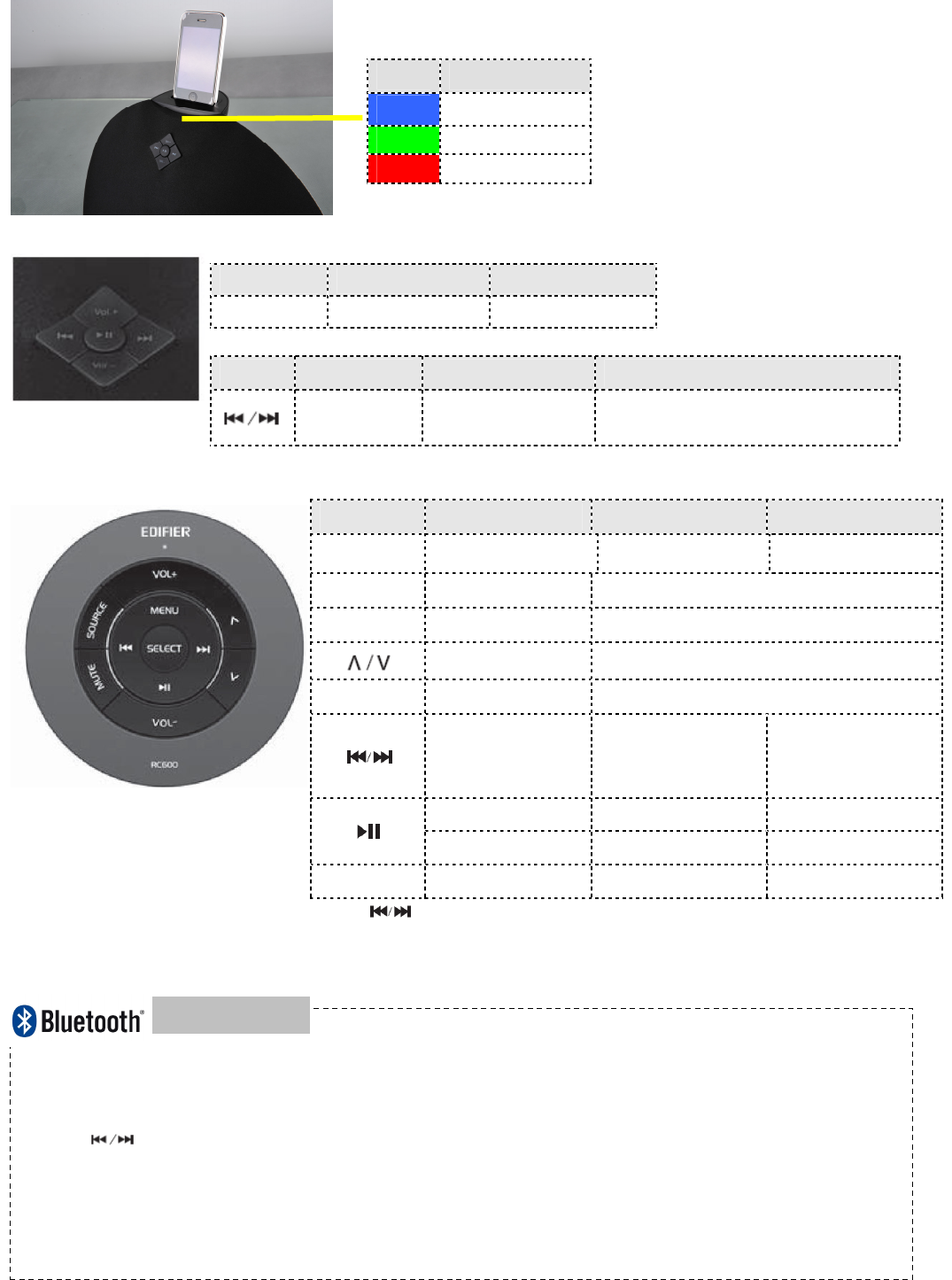

Buttons on front grille of speaker
Buttons Input Press or hold
Vol. + / Vol. -
Bluetooth/iPod/AUX
Volume up/down
Buttons
Input Press Press & hold
Bluetooth/ iPod
Previous/next track Fast rewind / forward in current track
(iPod mode only)
Input indicator
LED Input
Blue Bluetooth
Green
AUX
Red iPod / iPhone
Buttons Input Press Press & hold
SOURCE Bluetooth/iPod/AUX Select audio source
N/A
MUTE Bluetooth/iPod/AUX
Mute
VOL+ / VOL-
Bluetooth/iPod/AUX
Volume up/down
iPod Previous/next items;
MENU iPod Open the menu of iPod/ iPhone
Bluetooth / iPod Previous/next track
Fast rewind / forward
in current track for
iPod mode only
Bluetooth / iPod Play/Pause Standby
AUX N/A Standby
SEL iPod Select and play N/A
Note: are not available in AUX input.
.Press SOURCE to select Bluetooth input, the LED under the iPod/iPhone dock is blue.
. Set you device (mobile phone, tablet device, MP3 player etc.,) to search and select “EDIFIER Breathe”.
. Play your audio device.
Note: ● are available only for the source devices support AVRCA (Audio/Video Remote Control Profile).
● When connecting to a Bluetooth Source device (e.g. mobile phone), make sure the source device supports A2DP
(Advanced Audio Distribution Profile)
● PIN code for connection is “0000” if needed.
For specific details about Bluetooth setup and connectivity, please refer to the user manual for your computer.
Note:
1. Default input is Bluetooth.
2. When system is MUTE, the LED blinks.
3. When system is in standby mode, the
LED fades in and fades out.
Bluetooth
input
Page 7 Specifications
Power output: RMS 7.5W × 2 (treble) + 7.5W × 2 (mid-range) + 30W (bass) (THD+N=10%, f0=1KHz)
Signal to Noise ratio: ≥85 dBA
Distortion: ≤0.5%
Frequency response: 3.8KHz~20KHz
Input sensitivity: AUX: 1000 mV ± 50 mV, iPod: 850 mV ± 50 mV
Input type: Bluetooth / iPod / AUX
Bass unit: 5¾ inch (Φ148mm), magnetically shielded, 6Ω
Midrange unit: 2¾ inch (Φ70mm), magnetically shielded, 4Ω
Tweeter unit: Φ19mm silk dome, magnetically shielded, 4Ω
Dimension: 420 mm x257 mm x244 mm (W×H×D)
Net weight: 4.8kg
Gross weight: 6.2kg
Page 8 Troubleshooting
● Not all speakers function:
Please first check if the speaker wires are connected securely; then check if the Line-in connectors are reversed; check also if the
audio source is at fault.
● System does not work at all
1. Please check if power is connected, and if the wall outlet is switched on.
2. Please check if the system is in standby.
3. Please check if the master volume is turned to minimum.
4. Please check if the audio input cable is connected correctly.
5. Please check if there is signal from audio source.
● Noise coming from speakers
Amplifier circuitry of this product generates little noise, while the background noise of some VCD/DVD player or computer sound card
are too high. Please keep the system in active mode and remove the audio source, if no sound can be heard at 1 meter away from
the system, then there is no problem with this product.
iPod
iPhone
. Connect iPod /iPhone (MP3 or WMA audio format) into the dock.
. Press SOURCE to select iPod input, the LED under the iPod/iPhone dock is red.
. Play your audio device.
. Press & hold to set system to standby mode.
. Press & hold again to wake up system, press to play music.
. Press SOURCE to select AUX input, the LED under the iPod/iPhone dock is green.
. Play your audio device.
. Adjust the volume to a comfortable level.
. Press & hold to set system to standby mode.
. Press & hold again to wake up system
AUX input
iPod
input
● Magnetic interference
This system is complete magnetically shielded, and can be placed near TV or monitor. But since magnet of the subwoofer driver is
large, some magnetism leakage is inevitable when the system is too close to the monitor, and it is recommended to keep a 1 meter
distance between the speaker system and monitor or TV set.
If you have any further questions or concerns regarding Edifier Products
Please visit our website at: www.edifier.com, or email Edifier Support for further assistance at: main@edifier.com, If you prefer, you
may contact us by phone, Toll Free: 1-877-EDIFIER (334-3437).
