iF330BT
User Manual
Page 2 Unpack the Box

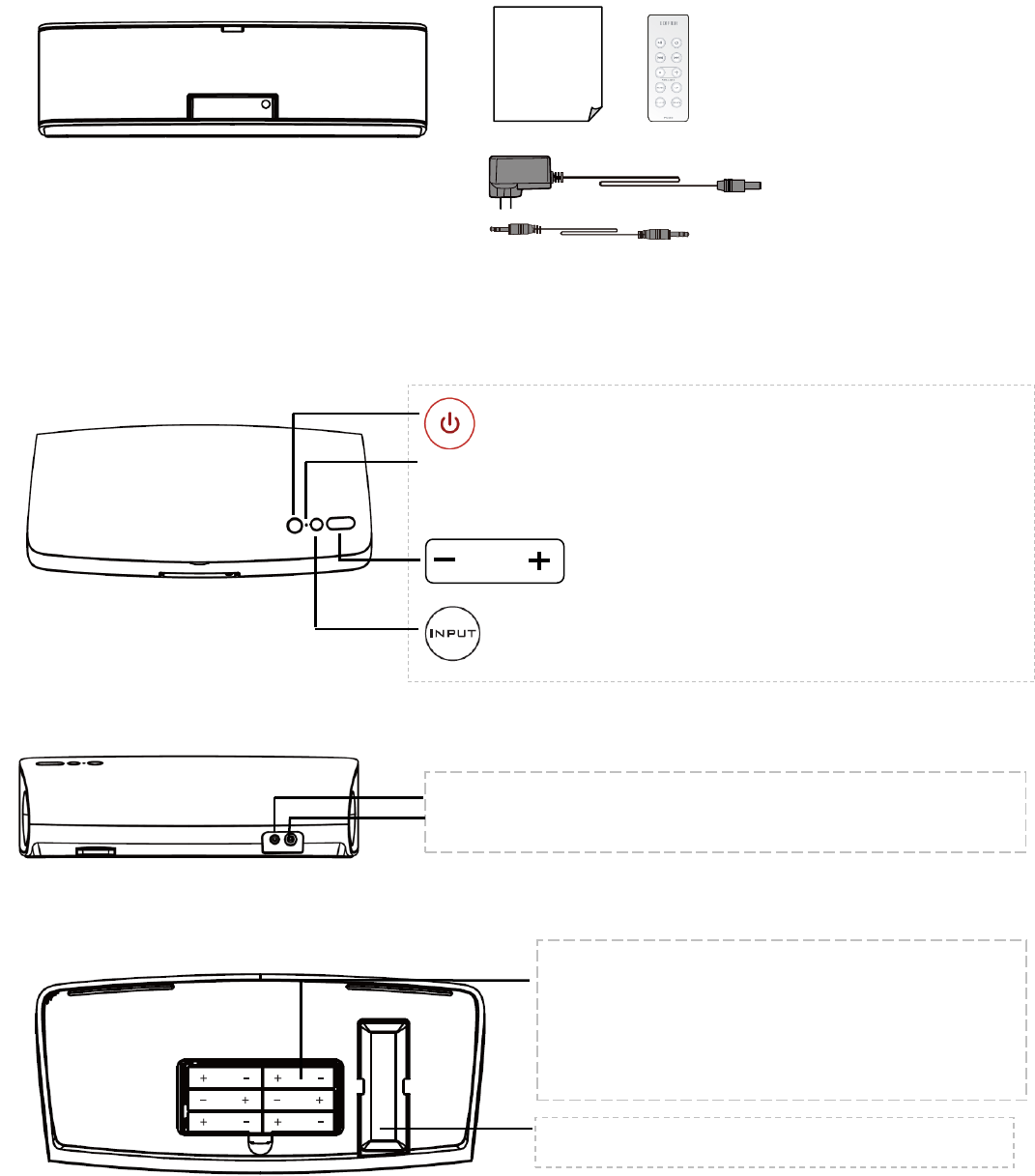

Box contents
iF330BT
Page 3 Illustrations
Bottom side
User
Manual
Vol.
Power adapter (12V/20W)
3.5mm ~ 3.5mm audio cable
Remote control
(installed at the bottom of the
speaker)
Standby/ON
Press to select input mode: AUX iPod/iPhone - Bluetooth
Top view
6 x AA type batteries (not included).
Ni-MH rechargeable batteries applicable.
Remote control storage
AUX: AUX input (PC sound card, MP3/MP4 player etc.)
DC IN (12V): Connect to power adapter
Rear view
Page 4 Operational guide
Power on
LED: red


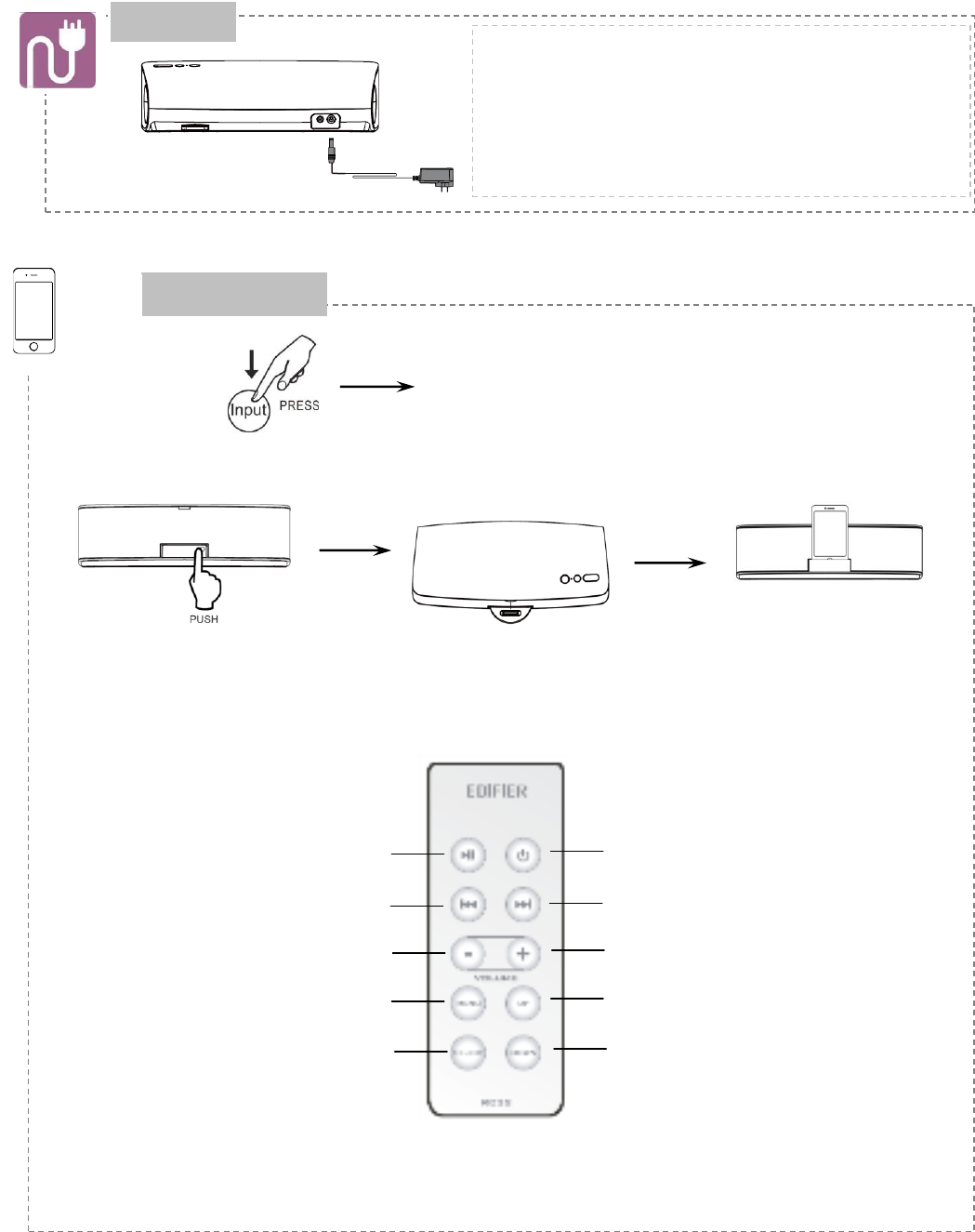

Swivel the docking stand out from the front of the unit. Dock your iPod/iPhone. Play the selected playlist.
Adjust the volume to a desired level.

Available keys:
iPod/iPhone input
iPod
iPhone
Connect the power adapter to the speaker, then to the
wall socket. The system is on and the indicator is green.
Or, insert the batteries into the unit and close the battery
cover.
Standby/On
Press: next track;
Press & hold: fast forward
Volume increase
Previous playlist, track
Next playlist, track
Play/Pause
Press: previous track;
Press & hold: fast rewind
Volume decrease
Open iPod/ iPhone menu options
Select and play
Page 5 Operational guide
LED: blue

Set you device (mobile phone, tablet device, MP3/MP4 player etc.,) to search and select EDIFIER iF330BT.
Pair your device with the “EDIFIER Bric BT”


Available keys:

Note:
1. “Previous/Next track” are available only for devices that support AVRCP (Audio / Video Remote Control Profile).
2. When connecting to a Bluetooth device (e.g. mobile phone), please ensure the source device supports A2DP
(Advanced Audio Distribution Profile).
3. PIN code for connection is “0000” if needed.
Bluetooth
Play the music on the paired device and adjust the
volume to a desired level.
Standby/On
Press: next track;
Volume increase
Play/Pause
Press: previous track;
Volume decrease
Page 6 Operational guide
Page 6 Operational guide for remote control
LED: green



Available keys:

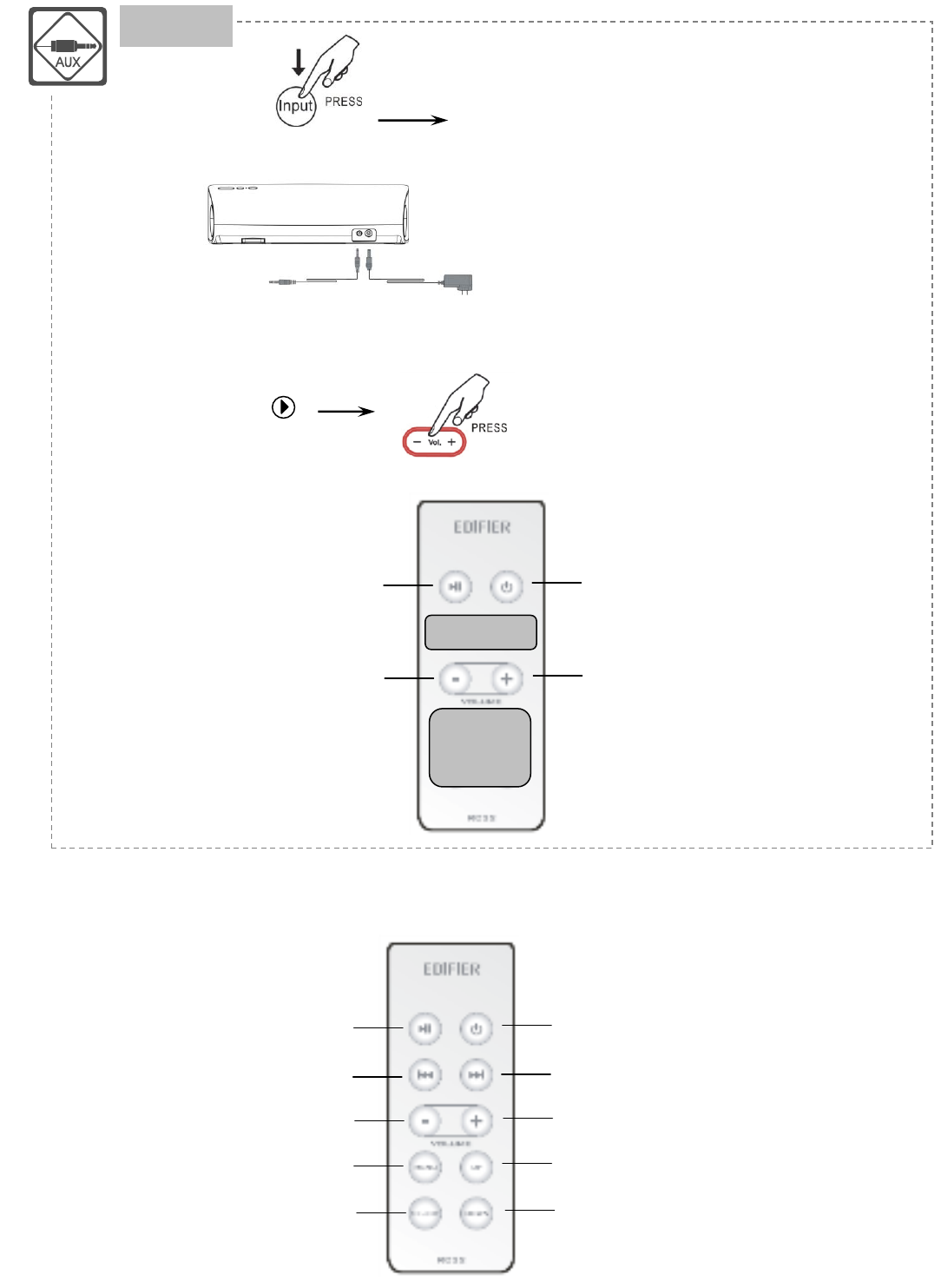

AUX input
Connect the AUX on back panel to the external
PC sound card, MP3/MP4 player or other audio
source with the 3.5mm to 3.5mm audio cable.
Play the connected device and adjust the
volume to a desired level.
Standby/On
Press: next track;
Press & hold: fast forward (iPod/iPhone input)
Volume increase
Previous playlist, track (iPod/iPhone input)
Next playlist, track
Play/Pause
Press: previous track;
Press & hold: fast rewind (iPod/iPhone input)
Volume decrease
Open iPod/ iPhone menu options
(iPod/iPhone input)
Select and play(iPod/iPhone input)
Standby/On
Volume increase
Play/Pause
Volume decrease
Page 7 Specifications
Power output: RMS 6W×2 (THD+N=10%, f0=1KHz, DRC off)
Signal to noise ratio: ≥80 dBA
Distortion: ≤ 0.5% (@½ output)
Frequency response: 200Hz~20KHz (@+/-6db)
Input type: AUX/iPod/iPhone/Bluetooth
Input sensitivity: iPod: 800 mV ± 50mV (THD+N=1%)
Adjustment: Buttons on the top of speaker, remote control
Speaker unit: inch (70mm), magnetically shielded, 8ohm
Dimension: 300(W) × 90(H) × 133(D) mm
Net Weight: Approx. kg
Gross Weight: Approx. kg
Page 8 Trouble shooting
Not all speakers function:
Please first check if the speaker wires are connected securely; then check if the Line-in connectors are
reversed; check also if the audio source is at fault.
One satellite speaker does not function when playing CD from computer:
This kind of phenomena is prone to happen on new computer systems that one satellite does not function
when playing CD, but system works fine when playing WAV formatted files. This is mainly due to the fault connection
of CD-ROM and sound card, that one channel of signal is shorted to the ground. Please refer to the manual of
CD-ROM and sound card to adjust the wire connection.
System does not work at all:
1. Please check if power is connected, and if the wall outlet is switched on.
2. Please check if the amplifier is still in STBY mode.
3. Please check if the master volume is turned to minimum.
4. Please check if the audio input cable is connected correctly.
5. Please check if there is signal from audio source.
Noise coming from speakers:
Amplifier circuitry of this product generates little noise, while the background noise of some VCD/DVD player
or computer sound card are too high. Please keep the system in active mode and remove the audio source, if no

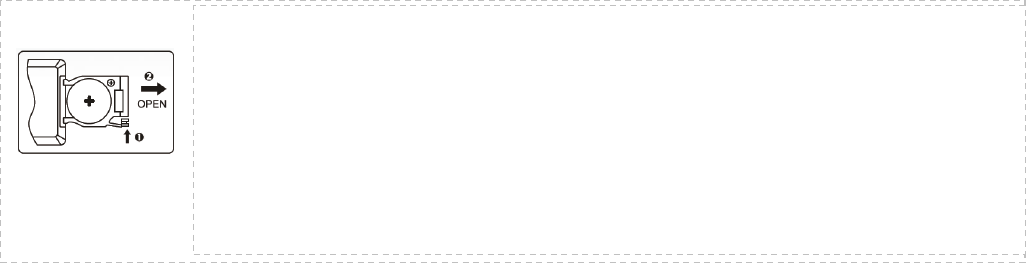

Battery loading: Please refer to the illustration on the right side to open the battery
compartment, insert the included AA size, CR 2025 battery and close the compartment.
Note: Do not place the remote control in places that are hot and humid.
Remove the batteries when unused for long period of time.
The battery (battery or batteries or battery pack) should not be exposed to excessive
heat such as direct sun, fire or similar.
sound can be heard at 1 meter away from the system, then there is no problem with this product.
Magnetic interference:
This system is complete magnetically shielded, and can be placed near TV or monitor.
But since magnet of the subwoofer driver is large, some magnetism leakage is inevitable when the system is too
close to the monitor, and it is recommended to keep a 1 meter distance between the speaker system and monitor
or TV set.
If you have any further questions or concerns regarding Edifier Products:
Please visit our website at: www.edifier.com, or email Edifier Support for further assistance
at: main@edifier.com, If you prefer, you may contact us by phone, Toll Free: 1-877-EDIFIER (334-3437).
