Edimax Technology Co 9510011802 AirBox User Manual
Edimax Technology Co Ltd AirBox Users Manual
Users Manual
AI-1001W V2
Quick Installation Guide
07-2018 / v1.2
Installation Reminder / Safety Guide
For effective sensing and retrieval of environmental data, please install the unit in semi-outdoor spaces
with certain safety restrictions outlined below:
Must be in locations with good air circulation.
Must be vertically positioned for proper air intake to achieve cross ventilation.
The air inlet must be kept clear and should be rechecked regularly.
Must be in locations close to a power supply and have good Wi-Fi internet signal capable of
connecting to the Internet.
Must be in well ventilated semi-outdoor spaces such as eaves of a house, verandah, balcony, porch,
covered patios, etc…
Must not be installed in locations that are subject to extremes of humidity or temperature such as
near fire or other heat sources.
Must not be installed in locations that are subject to extreme weather conditions such as typhoon,
heavy rain or dust storm; or it must be sheltered from the conditions.
Must not be installed in locations directly exposed to sunlight or reflected light source.
Must not be installed in corrosive environments such as in environments with salty, acidic or basic
air, or places with storage of corrosive liquids.
Must be placed at least 100cm above ground.
Do not inject gas, contaminants, or smoke directly into the unit.
It is recommended to keep a 150m distance between each unit to achieve map positioning and air
quality data accuracy.
If you wish to monitor a specific location, please also follow the restrictions above.
If you have any questions, please contact our technical support via email: service@edimax.com.tw.
Device Cleaning
Choose either A or B depending on the cleaning tool you have.
NOTE: If you have other pump-like cleaning tools available (e.g. for computers), you may also utilize
them. Please be careful to not exert extremes of force or temperature / humidity onto the sensors to
prevent damaging them.

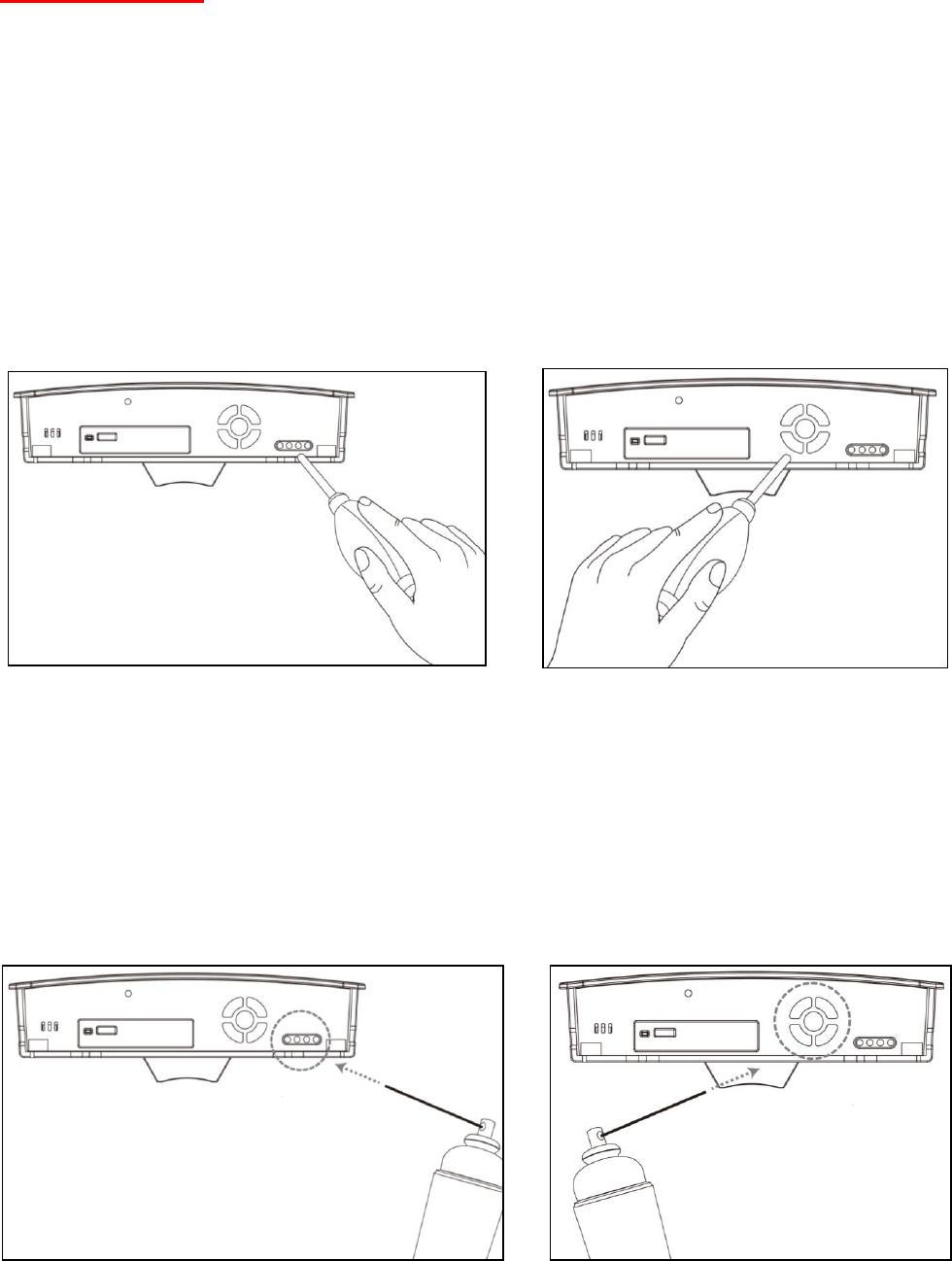

A. Air Pump Cleaner
1. Direct the nozzle of the air pump cleaner at an opening (Figure 1 or Figure 2) of a sensor.
2. Squeeze the bulb to blow air at the sensors.
3. Do this for 5-10 times and make sure all sensor openings are cleaned.
Figure 1
Figure 2
B. Dust-off Canned Compressed Air
1. Direct the nozzle of the compressed air at an opening (Figure 3 or Figure 4) of a sensor.
2. Keep the nozzle at 10cm from the sensor opening.
3. Use short bursts (1-2 seconds) of air spray a few times to clean the sensor.
4. Make sure all sensor openings are cleaned.
Figure 3
Figure 4
It is recommended to clean the sensors every 3-6 months for maximum sensor
functionality.
1

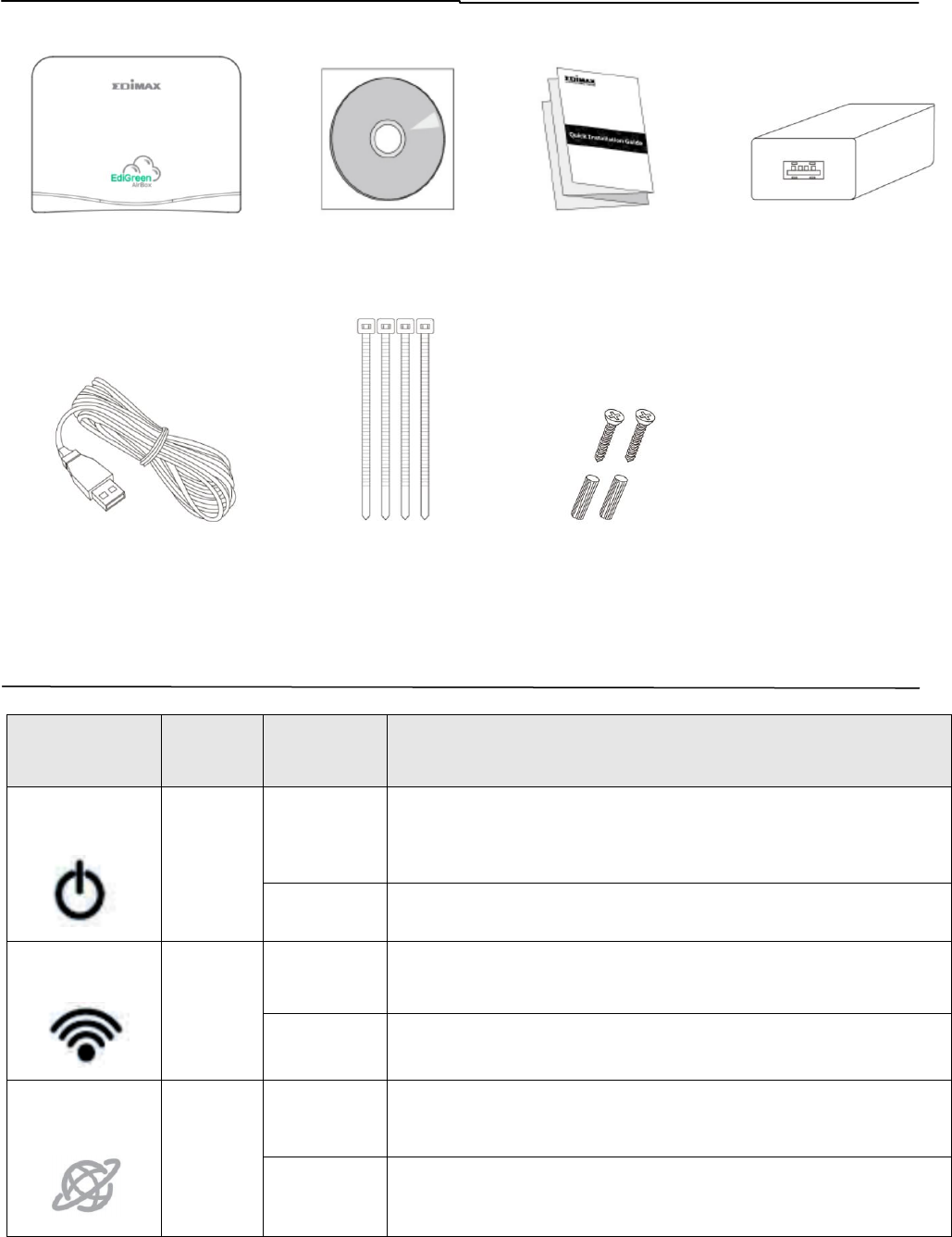

Package Contents
LED Status
LED
Color
Status
Description
Power
Red
Flashing
AirBox is waiting for setup.
Off
AirBox is finish configuration.
Wi-Fi
Green
On
Wi-Fi is connected.
Flashing
Wi-F is active but not connected.
Internet
Green
On
Internet is connected.
Flashing
Internet is not connected.
USB Cable
Cable ties
Screws
Power Adapter
AI-1001W
CD
QIG
2
Setup & App

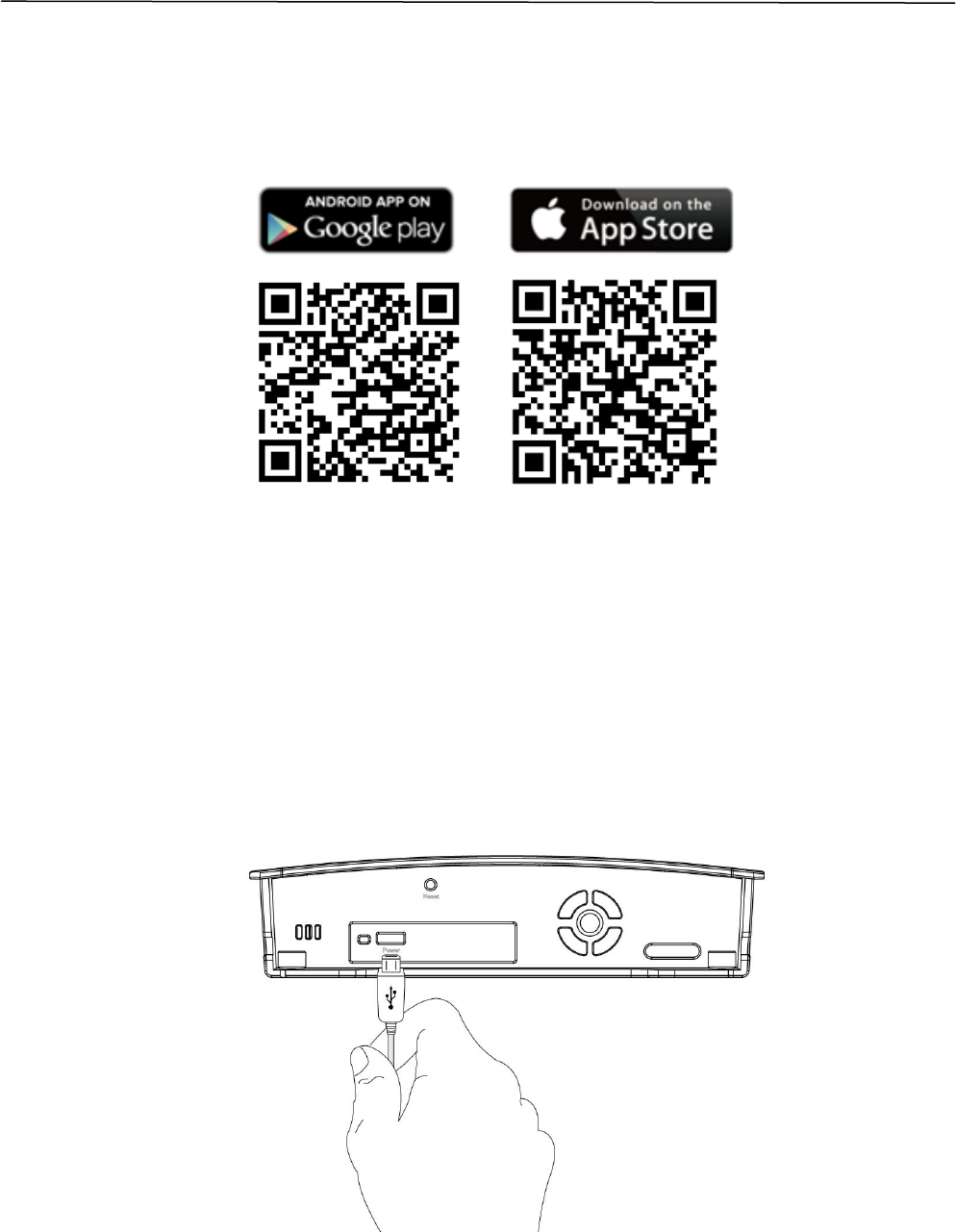

1. Use your Smartphone or tablet to search, download and install the
EdiGreen app from Google Play or the Apple App Store.
2. The best location for your AirBox is outdoors with shelter/cover from rain.
The unit is water-resistant but not water-proof. Screw and cable tie sets
are also included to help mount the device to a wall if you wish.
3. Connect the USB power adapter to the AirBox using the USB cable, and
plug in the power adapter. The red power LED will flash.
3

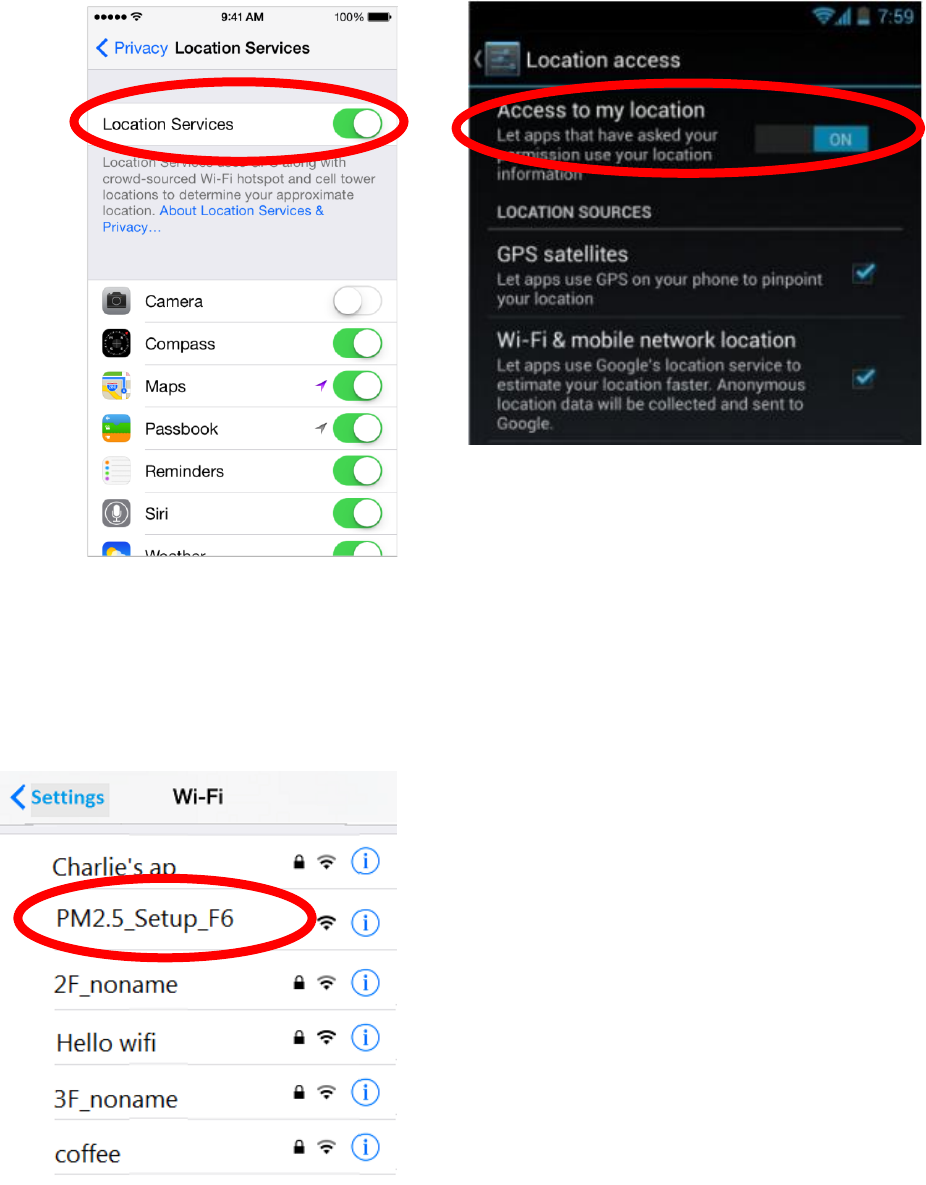

4. Ensure that your Smartphone is connected to your existing Wi-Fi and that
GPS/location tracking is enabled.
iOS Android
5. For iOS users, go to your iPhone’s Wi-Fi settings and connect to your
AirBox’s SSID (PM2.5_Setup **), before opening the EdiGreen app. The last
two characters are unique to your device. Continue to Step 8.
4

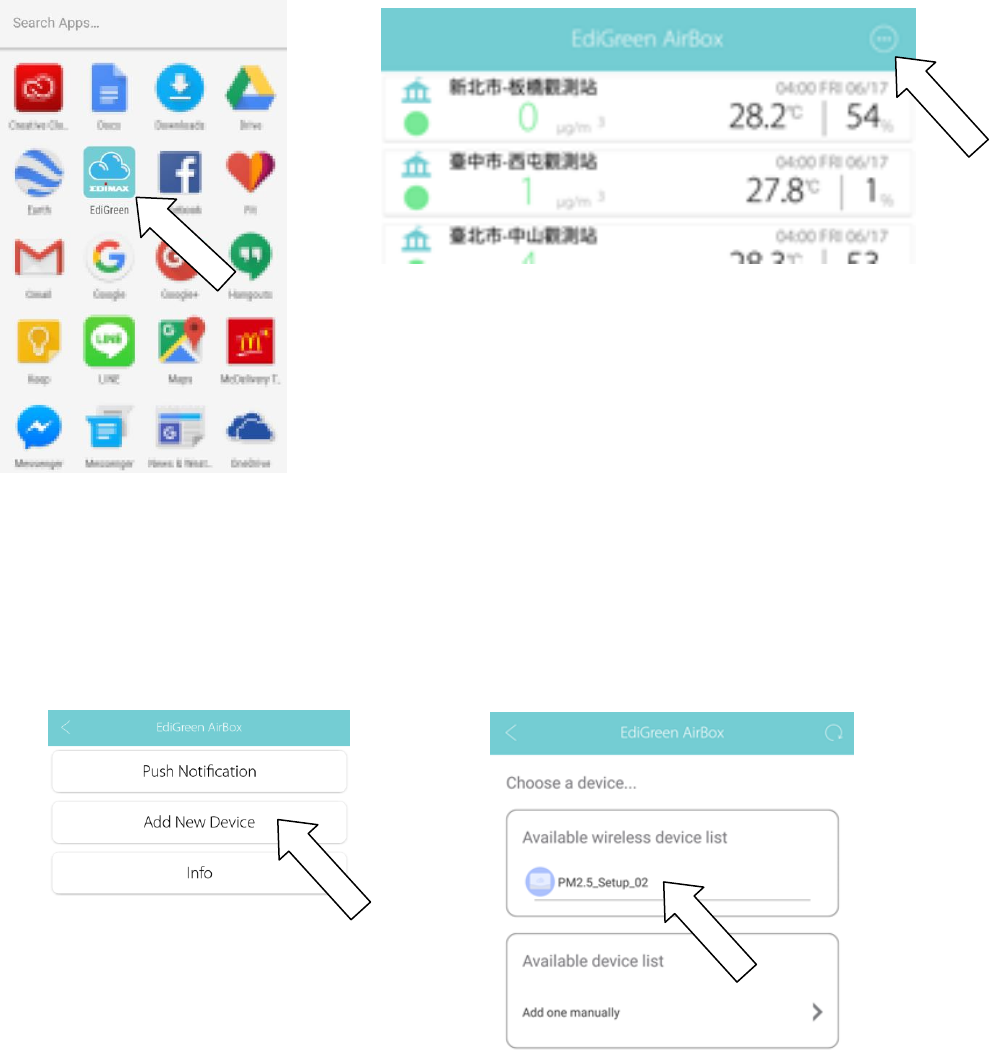

6. Android users open the EdiGreen app and tap the icon in the top right
corner of the screen.
7. Select Add New Device and select your AirBox (PM2.5_Setup **), from the
Available wireless device list. The last two characters are unique to your
device.
5

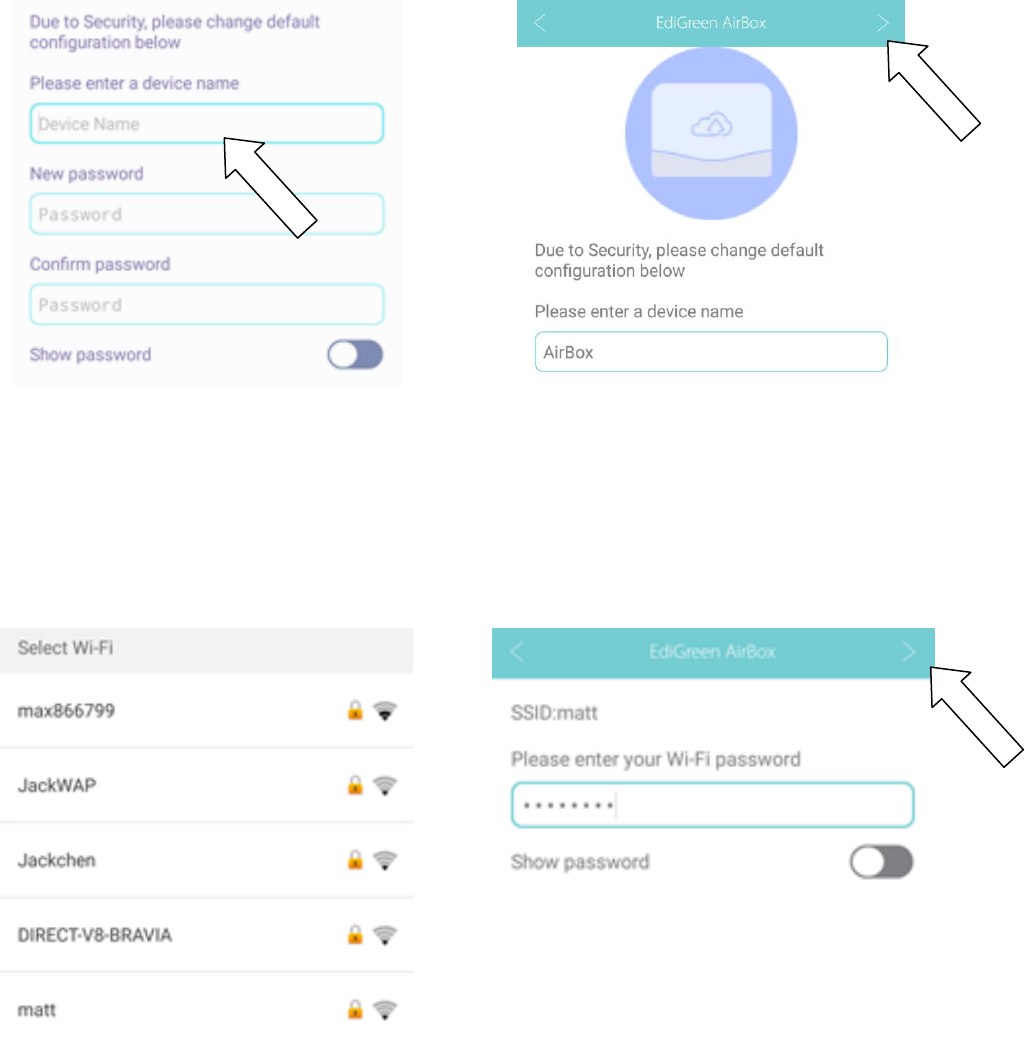

8. For better security, enter a new device name and password when
prompted. After setup, you can use this new name and password to login,
including from a second device. Tap the > icon to continue.
9. Select your Wi-Fi network from the list and then enter your Wi-Fi password,
before clicking the > icon to complete setup.
6

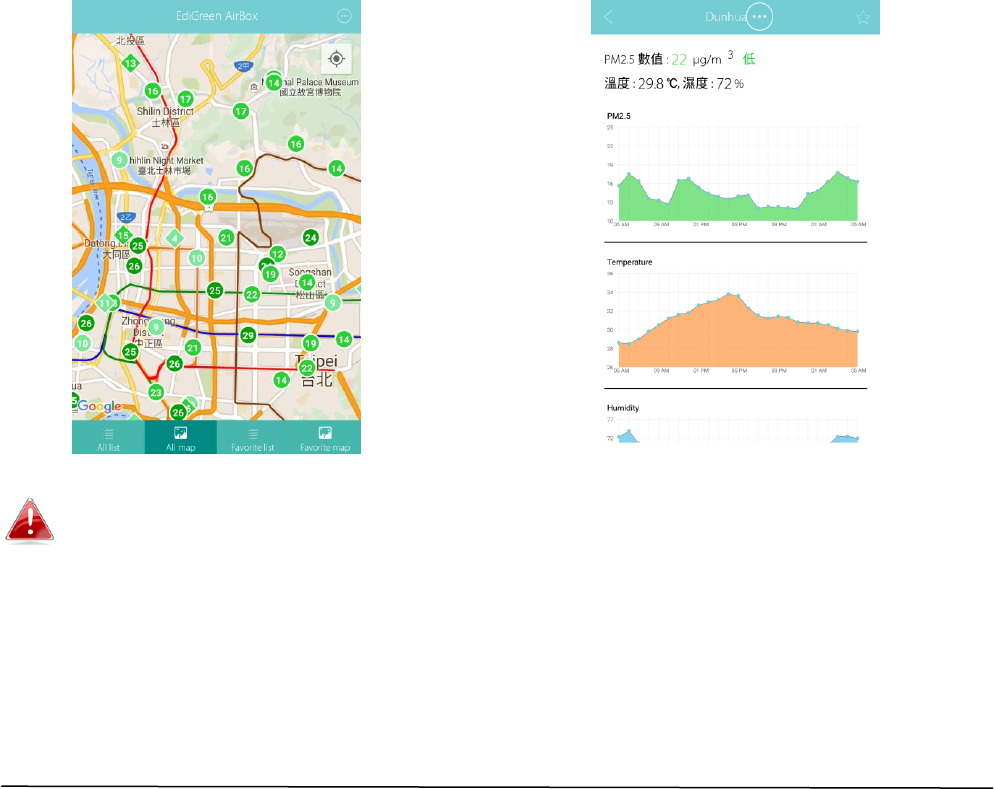

10. Setup is complete. Your AirBox will be listed in the All and Favorite Lists
and Maps. You can tap on any AirBox for more detailed data, and create a
list of favorites. Explore the app!
You can also connect to your AirBox on a second Wi-Fi device. Just
download the app and add it in the same way. If you’re connected to a
different Wi-Fi network, then select “Add one manually” and input the
MAC address printed on the AirBox label.
FAQs
How do I add my AirBox to another mobile device?
After setup, you can add your AirBox to the EdiGreen app on another mobile device,
from any network. Tap the main menu icon in the top right and select Add New
Device. Then:
a. If your mobile device is on the same Wi-Fi as your AirBox, your AirBox will
display in the Available Device List. Select it and enter the username and
password.
b. From any other network, select Add One Manually and enter the MAC
Address, username and password.
7
How do I change the name or location of my AirBox?

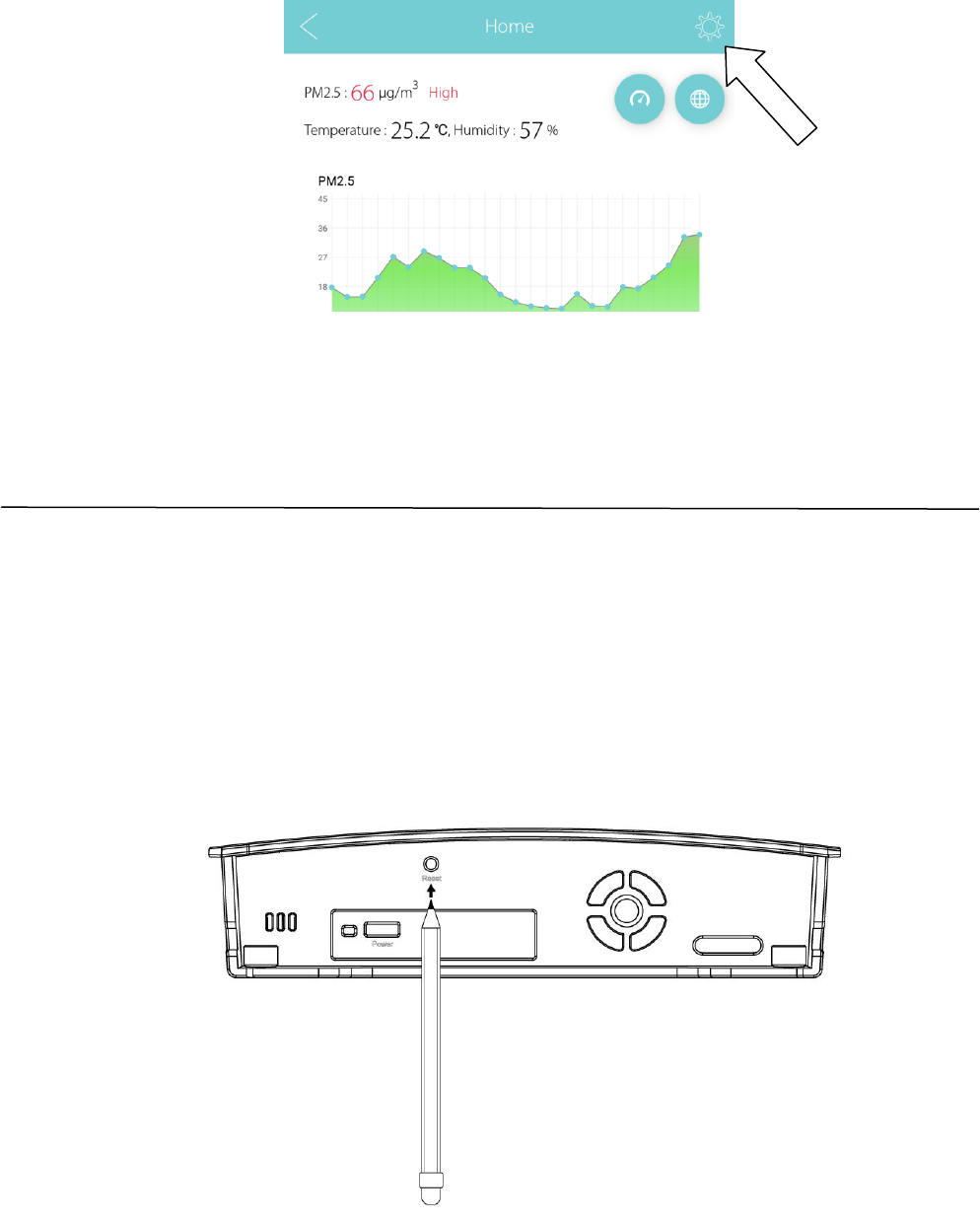

Go into your AirBox in the EdiGreen app and tap the settings icon in the top right.
From here you select Change Name or Change Location. When you change the
location, tap and hold the map pin and drag it to the new location.
Reset
If you experience problems with your AirBox, you can reset the AirBox back to
its factory default settings. This resets all settings back to default.
Use a pencil or other object with a fine tip to press and hold the Reset button
on the back panel for at least 10 seconds. Release the button when the red
power LED is flashing, and wait a couple of minutes for the unit to restart.
8
COPYRIGHT
Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written
permission from Edimax Technology Co., Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any warranties,
merchantability, or fitness for any particular purpose. Any software described in this
manual is sold or licensed as is. Should the programs prove defective following their
purchase, the buyer (and not this company, its distributor, or its dealer) assumes the
entire cost of all necessary servicing, repair, and any incidental or consequential damages
resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right
to revise this publication and to make changes from time to time in the contents hereof
without the obligation to notify any person of such revision or changes.
The product you have purchased and the setup screen may appear slightly different from
those shown in this QIG. The software and specifications are subject to change without
notice. Please visit our website www.edimax.com for updates. All brand and product
names mentioned in this manual are trademarks and/or registered trademarks of their
respective holders.
9
Federal Communication Commission Interference Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance
could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired operation
of the device.
FCC RF Radiation Exposure Statement:
This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator
and your body.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual
recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to
ensure the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Bulgaria, Cyprus, Czech,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom. The ETSI
version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and
Switzerland.
EU Countries Not Intended for Use
None
10
EU Declaration of Conformity
English: This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU, 2014/35/EU.
Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la
directive 2014/53/EU, 2014/35/EU.
Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními
směrnic 2014/53/EU, 2014/35/EU.
Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami
określonymi Dyrektywą UE 2014/53/EU, 2014/35/EU.
Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 2014/53/UE, 2014/35/UE.
Русский: Это оборудование соответствует основным требованиям и положениям Директивы
2014/53/EU, 2014/35/EU.
Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek
(2014/53/EU, 2014/35/EU).
Türkçe: Bu cihaz 2014/53/EU, 2014/35/EU direktifleri zorunlu istekler ve diğer hükümlerle ile
uyumludur.
Українська: Обладнання відповідає вимогам і умовам директиви 2014/53/EU, 2014/35/EU.
Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc
2014/53/EU, 2014/35/EU.
Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 2014/53/EU, 2014/35/EU.
Español: El presente equipo cumple los requisitos esenciales de la Directiva 2014/53/EU,
2014/35/EU.
Italiano: Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili
della Direttiva 2014/53/EU, 2014/35/UE.
Nederlands: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen
van richtlijn 2014/53/EU, 2014/35/EU.
Português: Este equipamento cumpre os requesitos essênciais da Directiva 2014/53/EU, 2014/35/EU.
Norsk: Dette utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direktiv
2014/53/EU, 2014/35/EU.
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta
bestämmelser i direktiv 2014/53/EU, 2014/35/EU.
Dansk: Dette udstyr er i overensstemmelse med de væ sentligste krav og andre relevante
forordninger i direktiv 2014/53/EU, 2014/35/EU.
suomen kieli: Tämä laite täyttää direktiivien 2014/53/EU, 2014/35/EU. oleelliset vaatimukset ja muut
asiaankuuluvat määräykset.
-----------------------------------------------------------------------------------------------------------------------
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste. It
should be handed over to the applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.
11
Declaration of Conformity
We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the
equipment described below complies with the requirements of the European Radio
Equipment directives.
Equipment:
Air Box
Model No.:
AI-1001W V2
The following European standards for essential requirements have been followed:
Directives 2014/53/EU
Spectrum
:
EN 300 328 V2.1.1 (2016-11)
EMC
:
EN 301 489-1 V2.2.0 (2017-03)
EN 301 489-17 V3.2.0 (2017-03)
EMF
:
EN 62311:2008
Directives 2014/35/EU
Safety (LVD)
:
IEC 60950-1:2005 (2nd Edition)+Am 1:2009+Am 2:2013
EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Date of Signature:
June, 2017
Signature:
Printed Name:
Albert Chang
Title:
Director
Edimax Technology Co., Ltd.
Edimax Technology Europe B.V.
Fijenhof 2,
5652 AE Eindhoven,
The Netherlands
a company of :
Edimax Technology Co., Ltd.
No. 278, Xinhu 1st Rd.,
Neihu Dist., Taipei City,
Taiwan
Signature:
Printed Name:
Vivian Ma
Title:
Director
Edimax Technology Europe B.V.
