I. Product Information
I-1. Package Contents
I-2. System Requirements
- Intel Pentium 4 2.4GHz (above or similar)
- VGA card (1024*768 or above)
- CD-ROM Drive
- At least 128MB hard disk space (256 MB recommended)
- Windows XP, Vista, 7 or 8, Mac OS X or above
- Web browser (Internet Explorer 7.0, Firefox 3.6, Chrome 10, Opera 11,
Safari 5 or above)
QIG
CD-ROM
Power
Adapter
Ethernet
Cable
Screws
IC-5150W
Wall Mount
7

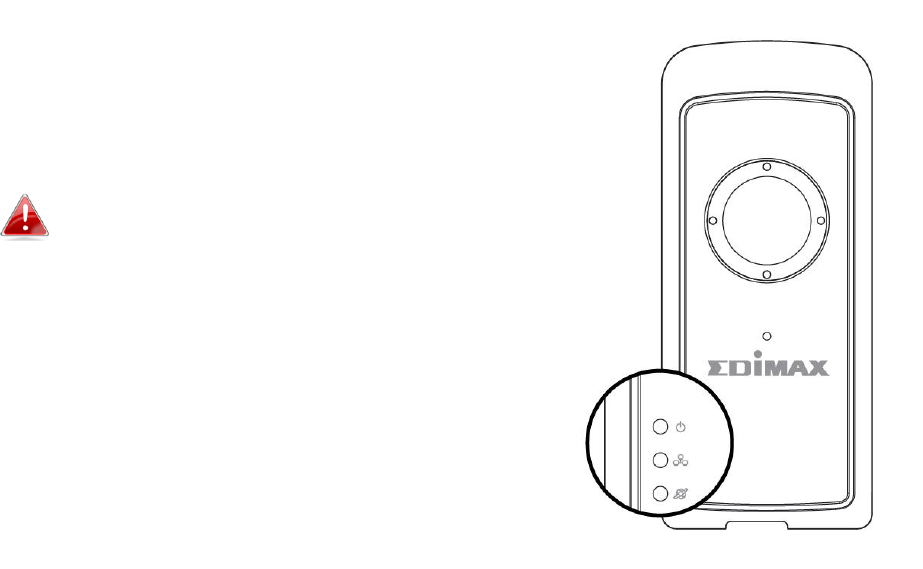

I-3. LED Status
LED
LED Color
LED Status
Description
Power
Green
On
Network camera is on and
connected to cloud server.
Quick Flashing
Network camera is restarting.
Slow Flashing (1 x
per second)
Network camera is starting up or
network camera is not connected
to cloud server.
LAN
Green
On
Network camera is connected to
the local network.
Quick Flashing
LAN activity (transferring data).
Slow Flashing (1 x
per second)
WPS is active.
Internet
Orange
On
Connected to Internet.
Slow Flashing (1 x
per second)
Not connected to Internet.
8
I-4. Product Label
The product label located on the underside of the network camera displays
the serial number, MAC address, cloud ID and setup SSID of your network
camera.
The MAC address and cloud ID are the same for easy reference.
The cloud ID allows you to view a live stream from your network camera
remotely (from any Internet connection) as described later in V.
Myedimax.com.
9
I-5. Reset
If you experience problems with your network camera, you can reset the
camera back to its factory default settings. This resets all settings back to
default.
1. Press and hold the WPS/Reset button found on the side panel for at least
10 seconds.
2. Release the button when the green power LED is flashing quickly.
3. Wait for the network camera to
restart. The camera is ready when the
green power LED is flashing slowly.
After setup, the green power LED
will display on to indicate a
successful connection to the cloud
server.
10
II. Camera Setup
II-1. EdiLife App
Follow the instructions below to connect your network camera to your Wi-Fi
using the EdiLife smartphone app.
Your network camera’s unique SSID is displayed on the product label on
the network camera and consists of “EdiView.Setup **” where ** are the
last two characters of your camera’s unique MAC address.

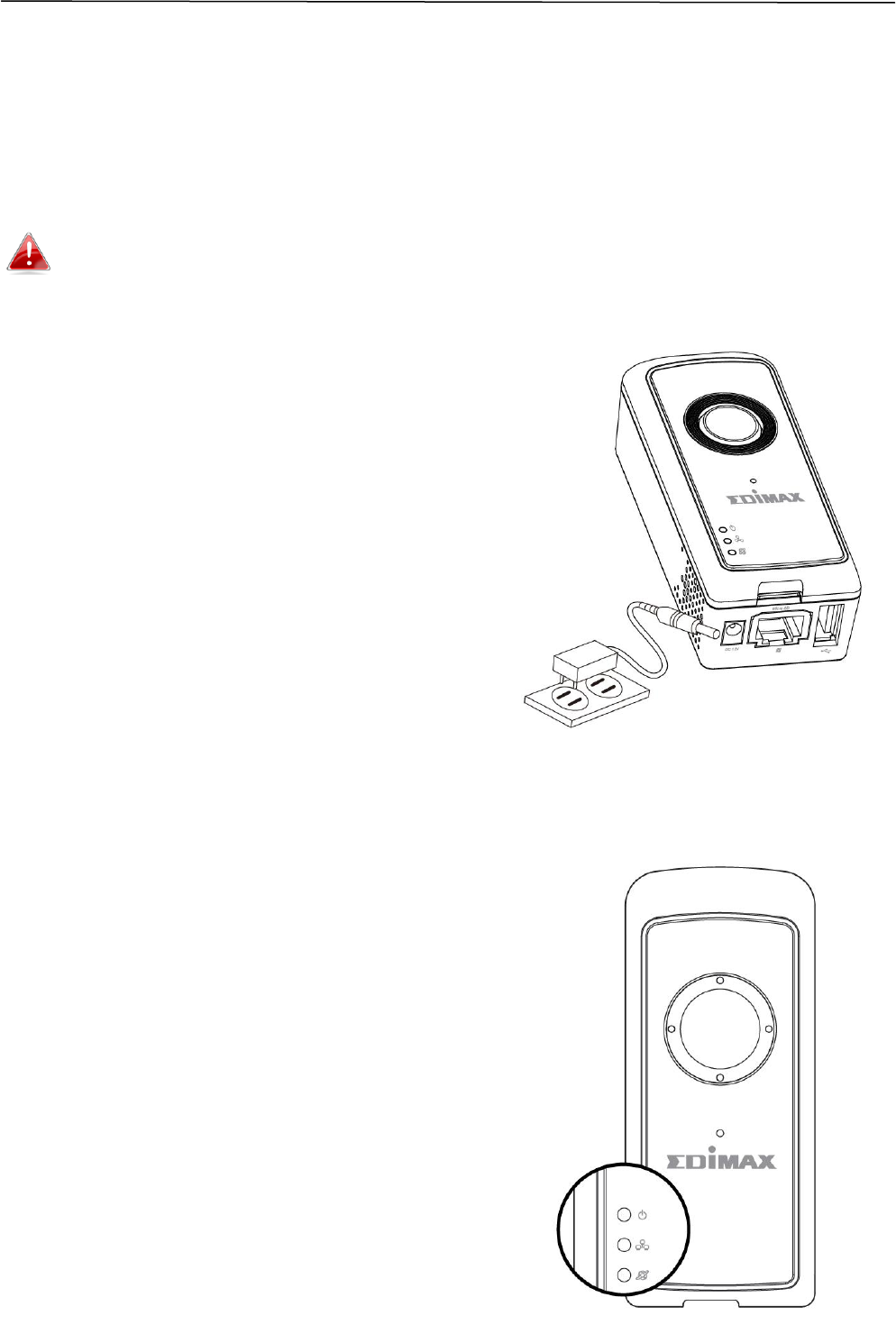

1. Connect the network camera to a
power supply using the included
power adapter.
2. Wait a moment for the camera to
power on. The green power LED will flash slowly when it’s ready.
11

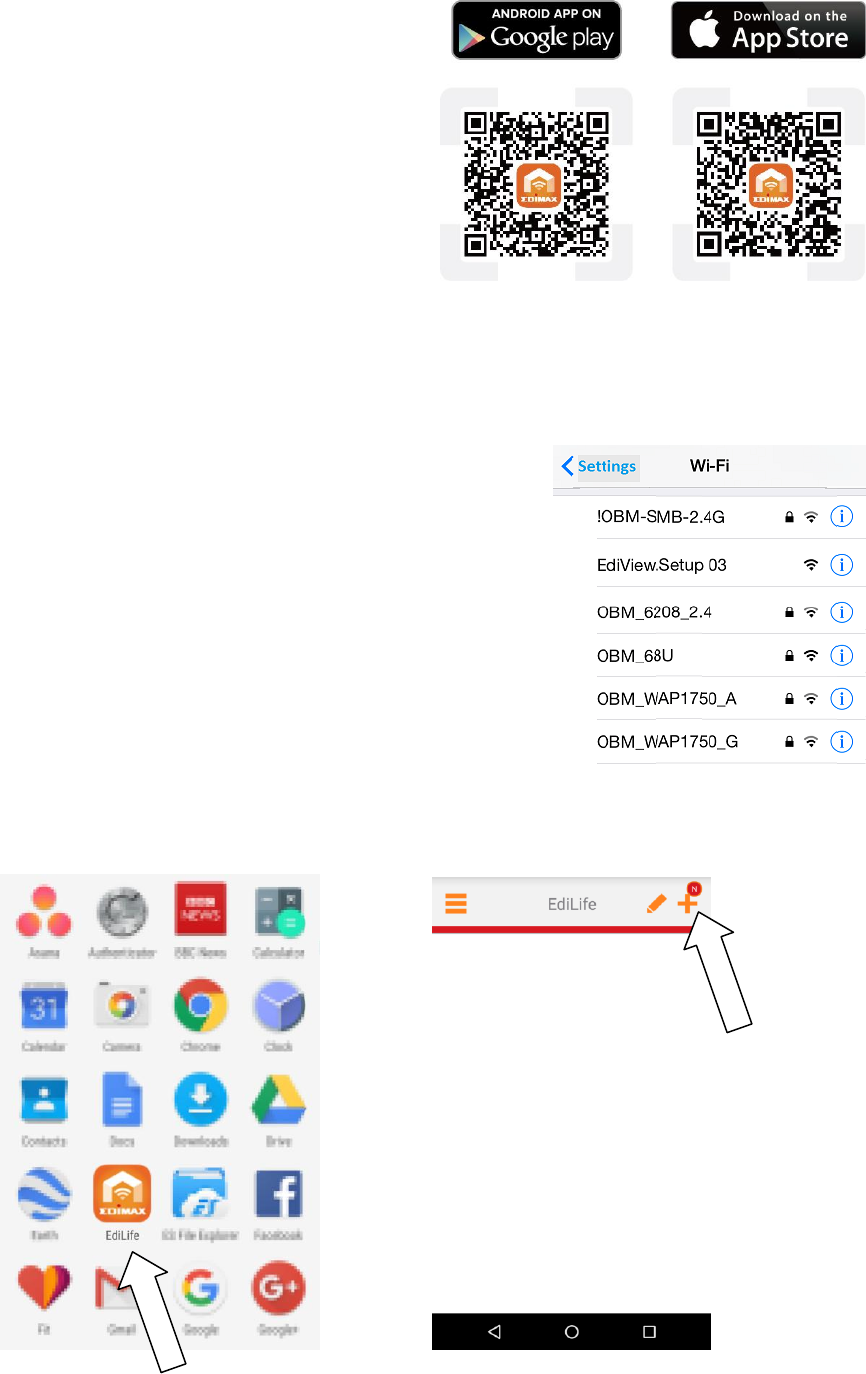

3. Use a smartphone or tablet to search, download and install the EdiLife app
from Google Play or the Apple App Store.
4. For iOS users, go to your iPhone’s Wi-Fi settings and connect to your
network camera’s SSID (EdiView.Setup **), before opening the EdiLife app.
Continue to Step 7.

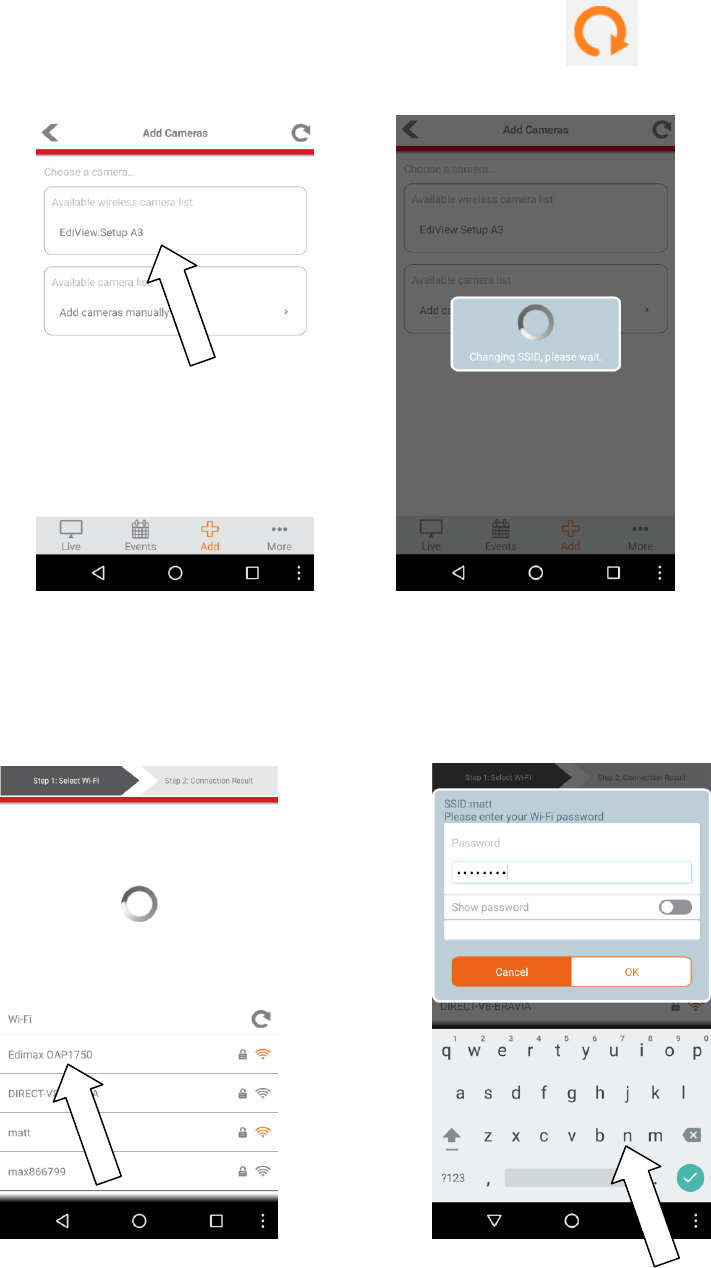

5. Android users open the EdiLife app and tap the + icon in the top-right
corner of the screen.
12

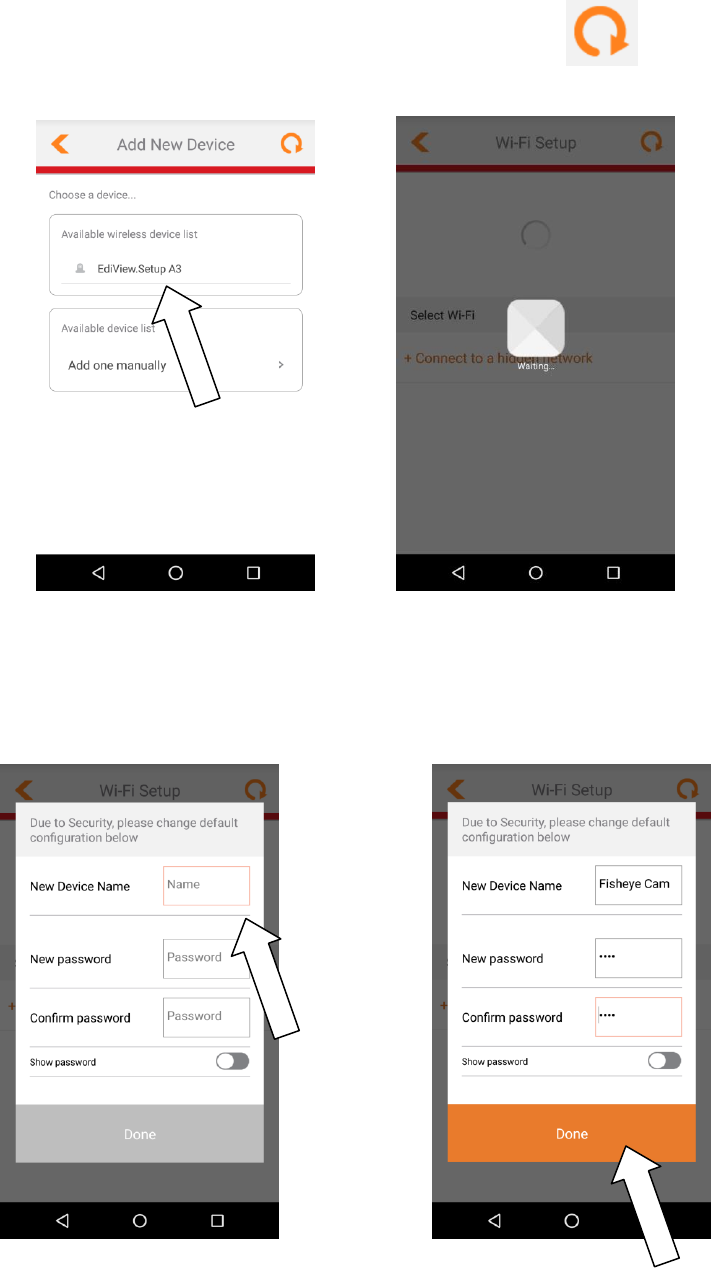

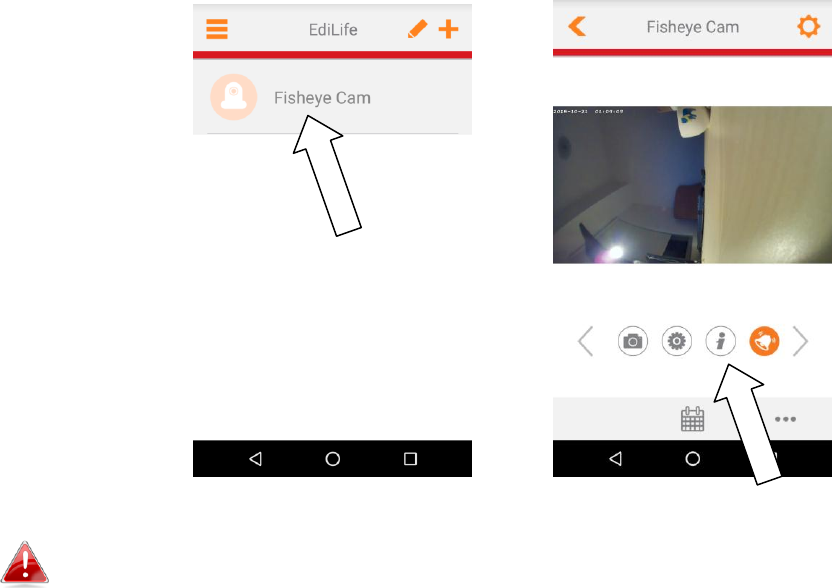

6. Android users select your camera from the available wireless device list
and wait a moment for the app to make a connection.
Tap refresh in the top right corner if your
camera isn’t listed.
7. For better security, enter a new device name and password when
prompted. Tap Done to continue.
13

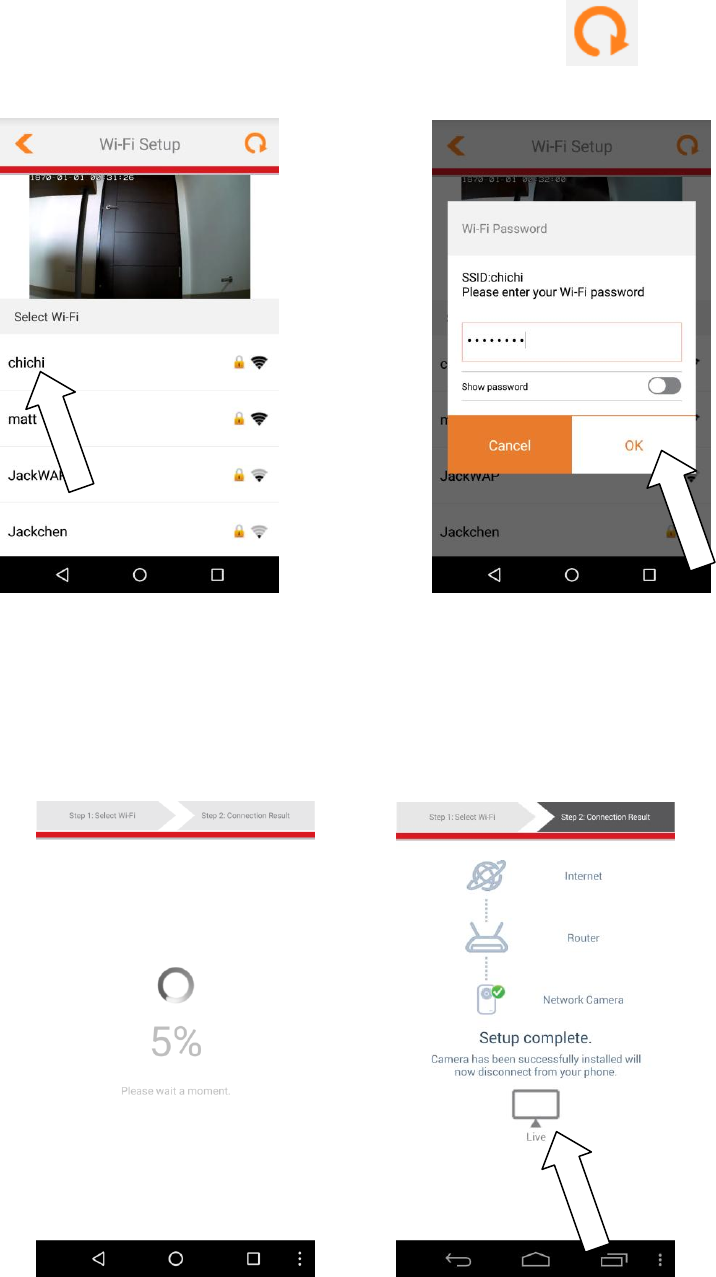

8. Select your Wi-Fi from the list and enter your Wi-Fi password. Tap OK to
continue.
Tap refresh in the top right corner if your Wi-Fi
isn’t listed.
9. Please wait a moment while your camera connects to your Wi-Fi. When
you see the Setup complete screen, click the LIVE icon or tap the arrow to
continue.
14
10. Setup is complete. The camera’s green power LED & orange Internet
LED should display on. Your camera should be listed on the EdiLife home
screen. Tap your camera to see a live stream which you can view anytime
you are connected to the Internet.
You can configure your camera’s settings and functions using the icons
below the live image.
11. If you have a microSD card, insert the card into the microSD slot on
the back on the network camera.
15
II-2. EdiView II App
Follow the instructions below to connect your network camera to your Wi-Fi
using the EdiView II smartphone app.
Your network camera’s unique SSID is displayed on the product label on
the network camera and consists of “EdiView.Setup **” where ** are the
last two characters of your camera’s unique MAC address.
1. Connect the network camera to a
power supply using the included
power adapter.
2. Wait a moment for the camera to
power on. The green power LED will flash slowly when it’s ready.
16

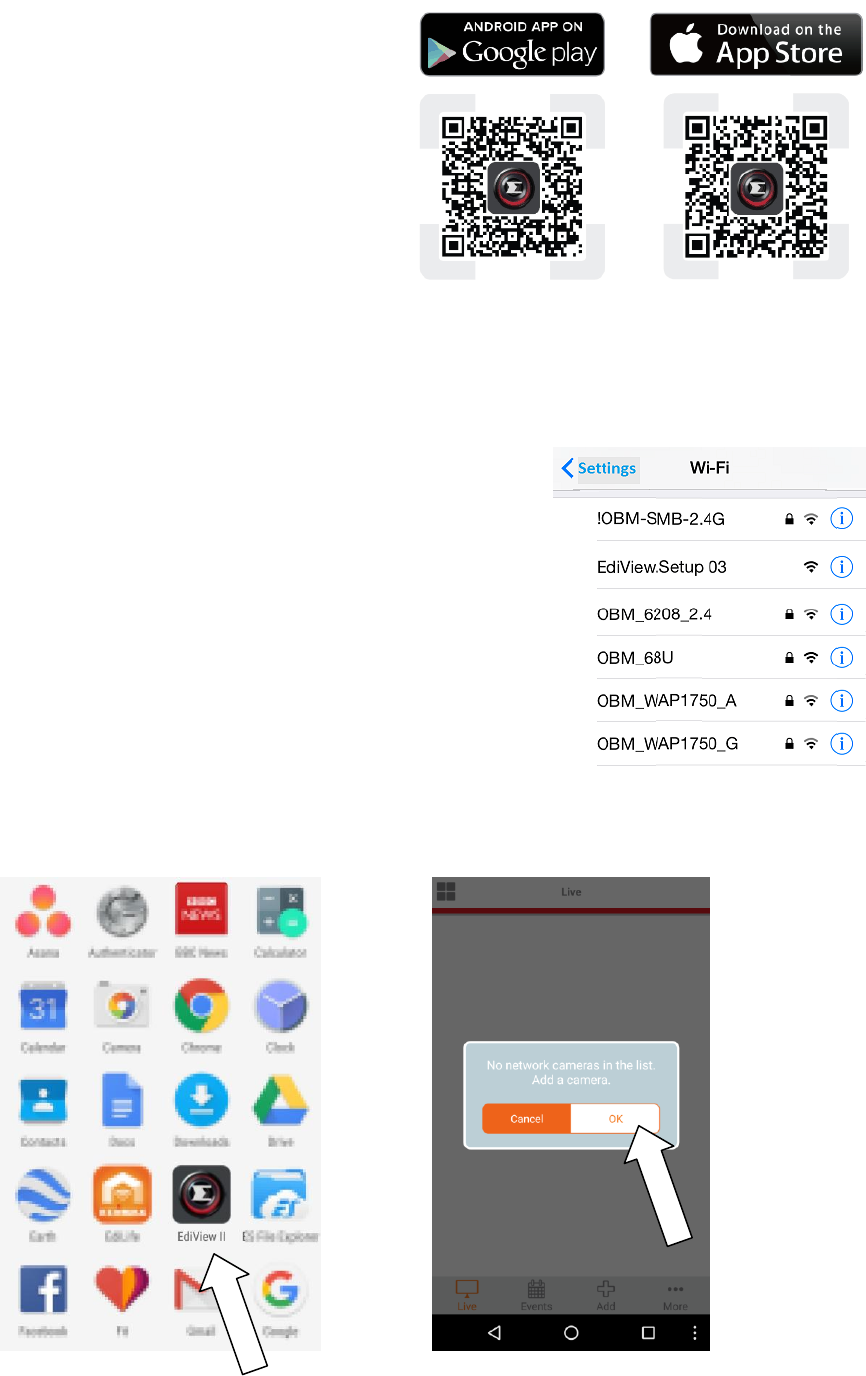

3. Use a smartphone or tablet to search, download and install the EdiView II
app from Google Play or the Apple App Store.
4. For iOS users, go to your iPhone’s Wi-Fi settings and connect to your
network camera’s SSID (EdiView.Setup **), before opening the EdiView II
app. Continue to Step 7.
5. Android users open the EdiView II app and tap OK to continue.
17
6. Android users select your camera from the available wireless camera list
and wait a moment for the app to make a connection.
Tap refresh in the top right corner if your
camera isn’t listed.
7. Android & iOS users select your Wi-Fi network from the list and then enter
your Wi-Fi password, before clicking “OK”.
18
8. Select your Wi-Fi from the list and enter your Wi-Fi password. Tap OK to
continue.
Tap refresh in the top right corner if your Wi-Fi
isn’t listed.
9. Please wait a moment while your camera connects to your Wi-Fi. When
you see the Setup complete screen, click the LIVE icon or wait for a
moment to continue automatically.
19
10. Setup is complete. The camera’s green power LED & orange Internet
LED should display on. You will see a live stream which you can view
anytime you are connected to the Internet.

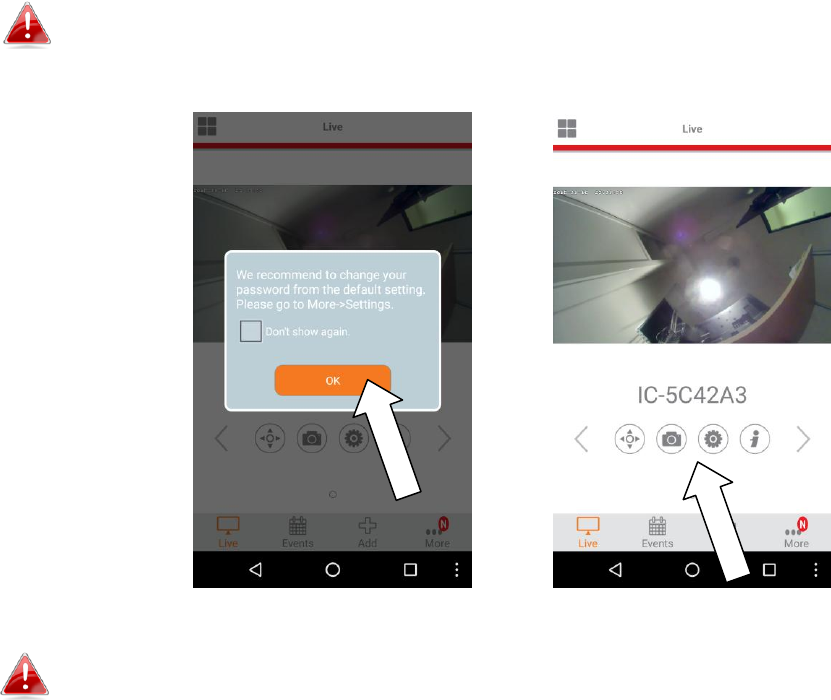

It is recommended that you change your camera’s password. Go to
“More” in the bottom right corner and select “Settings”.
You can configure your camera’s settings and functions using the icons
below the live image.
11. If you have a microSD card, insert the card into the microSD slot on
the back on the network camera.
20
II-3. EdiView Finder
Ensure your computer is connected to the same router as the
network camera using an Ethernet cable.
II-3-1. Windows
1. Insert the included CD into your CD-ROM drive and if the setup utility does
not automatically open, please locate and open the “Autorun.exe” file in
the “Autorun” folder.
2. Click “Setup Utility” to install the EdiView Finder software utility.
3. Click “Next” and follow the on-screen instructions to install the EdiView
Finder software utility.
21
4. When installation is complete, select “Launch EdiView Finder Utility”
before clicking “Finish”. Or double click the ”EdiView Finder Utility” icon on
your desktop to launch EdiView Finder.
22

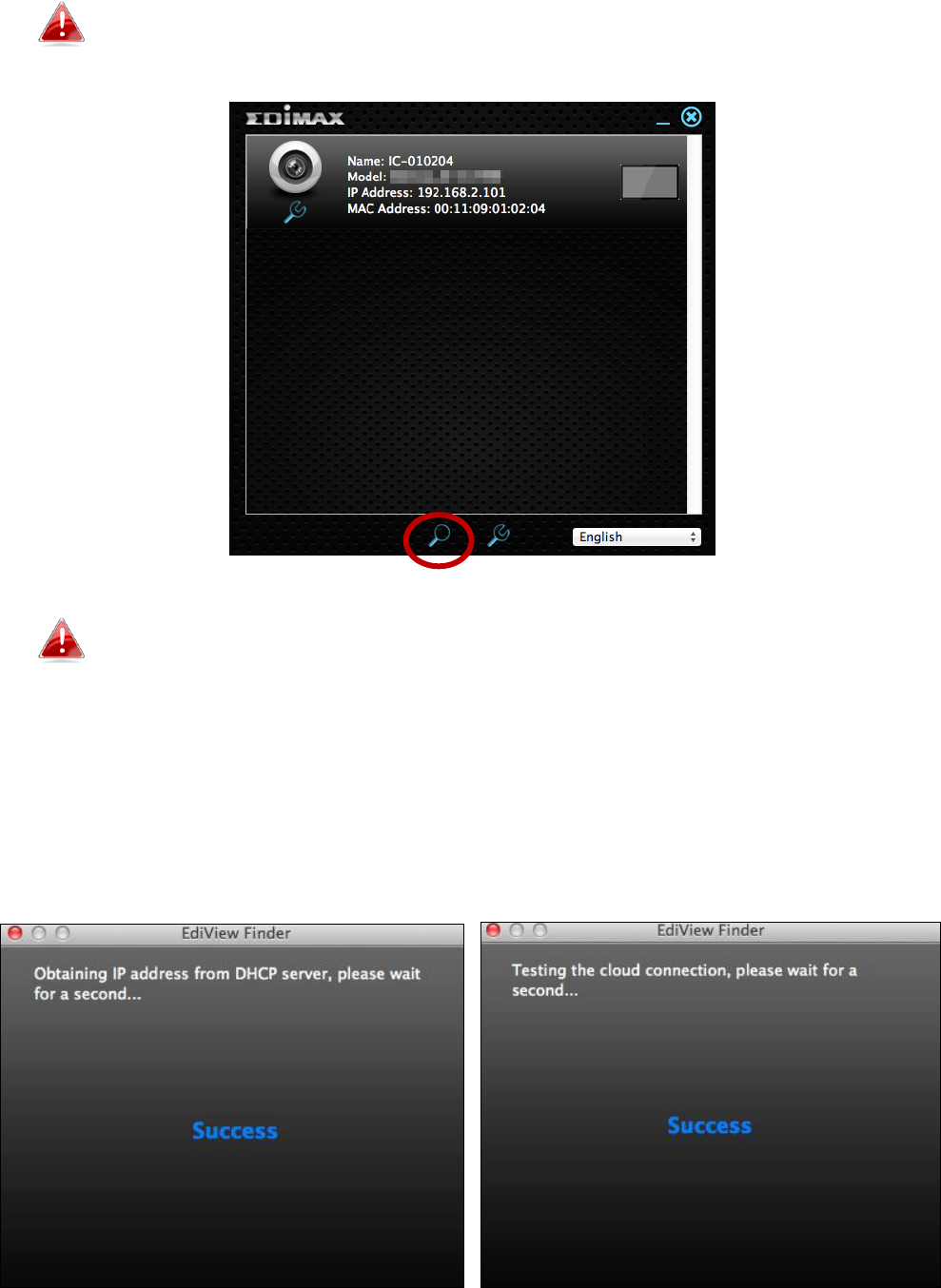

5. EdiView Finder will list all cameras on your local network, along with each
camera’s name, model, IP address and MAC address.
Click the search icon to refresh the list if your camera is not
displayed.
The network camera’s IP address is displayed on this screen. After
setup, you can enter this IP address into the URL bar of a web
browser on the same local network to access your network
camera’s web-based configuration interface.
6. Double click your camera and then choose “Yes” or “No” if you wish to set
up a wireless connection. If you choose “No” please go to step 10.
The IC-5150W is a wireless camera, you can choose “Yes” to set
up your wireless connection.
23
7. Select your wireless network from the list and enter the correct password
in the “Password” field, before clicking “OK”. This is the wireless network
which your camera will connect to.

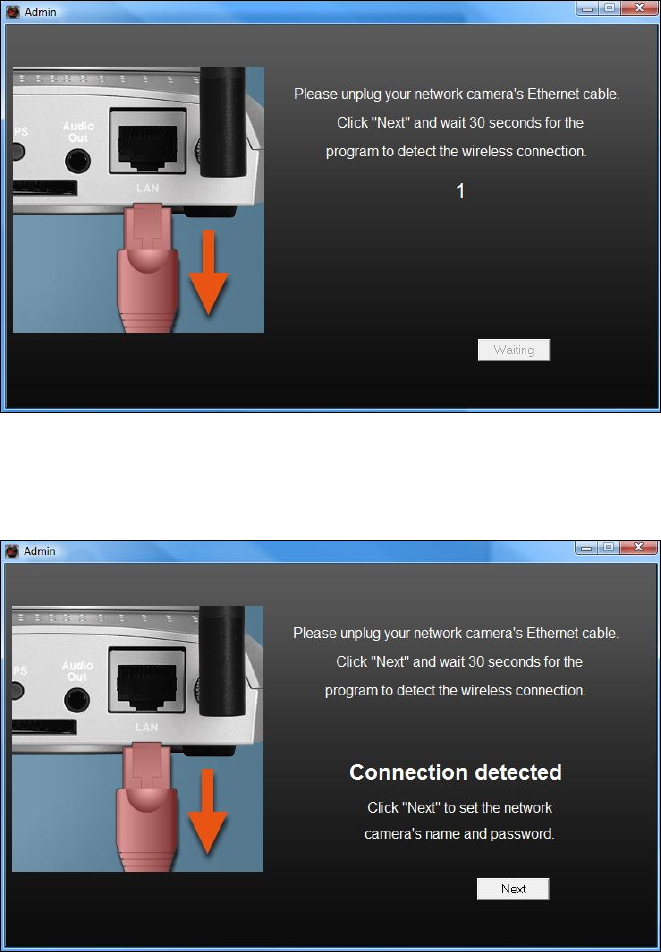

8. Unplug the Ethernet cable from your network camera and click “Next”.
Please wait a moment for the camera to detect the connection.
24
9. When the connection is detected as shown below, please click “Next”.

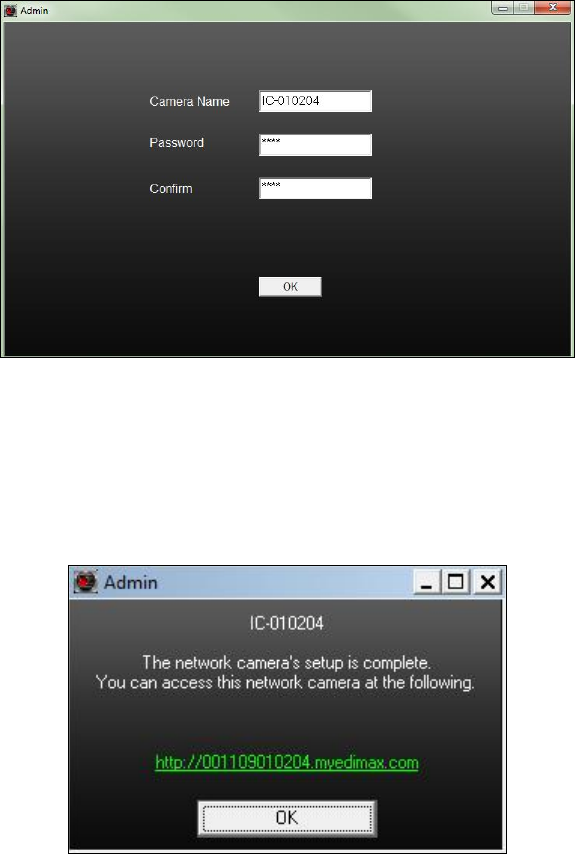

10. Enter a name and password for your camera. The password will be
used later to log in to your camera remotely via its cloud ID, web interface
or via the EdiView II smartphone app. Click “OK” to continue.
25
11. The next screen will indicate that setup is complete. The camera is
operational and ready for use. Click “OK”or click the URL and a preview
window showing a live stream from your camera may open.
26
II-3-2. Mac
EdiView Finder for Mac will not set up your network camera’s
wireless connection. After this chapter, please continue to IV-1-2.
Wireless to set up the camera’s wireless connection.
1. Insert the included CD into your CD-ROM drive and browse to the “Mac”
folder.
2. Copy the “EdiView Finder” file to your desktop and double click the icon to
open EdiView Finder.
EdiView Finder is also available for download from
the Edimax website:
http://www.edimax.com/EdiViewFinder.htm
27
3. EdiView Finder will list all cameras on your local network, along with each
camera’s name, model, IP address and MAC address.
Click the search icon to refresh the list if your camera is not
displayed.
The network camera’s IP address is displayed on this screen. After
setup, you can enter this IP address into the URL bar of a web
browser on the same local network to access your network
camera’s web-based configuration interface.
4. Double click your network camera and wait a moment for the network
camera to obtain an IP address and test the cloud connection. EdiView
should display “Success” as shown below.
28

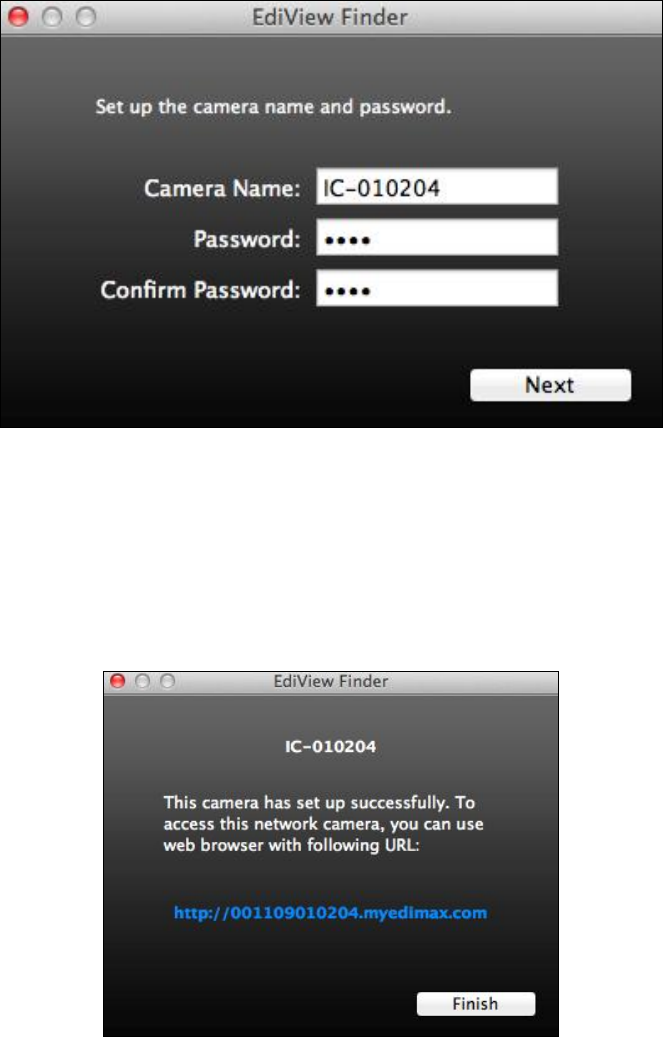

5. Enter a name and password for your camera. The password will be used
later to log in to your camera remotely via its cloud ID, web interface or via
the EdiView II smartphone app. Click “Next” to continue.
6. The next screen will indicate that setup is complete. The camera is
operational and ready to be configured for a wireless connection. Click
“Finish” and a preview window showing a live stream from your camera
may open.
7. To setup your network camera’s wireless connection, please follow IV-1-2.
Wireless.
29
II-3-3. Using EdiView Finder
You can also use EdiView Finder to find your network camera’s IP address,
view a live stream, or modify the network camera’s IP address. Double click
the TV icon on the right side to view a live stream in a pop-up window, or click
the wrench icon to open a new window with the network camera’s IP address
settings:
30
EdiView Finder will locate your network camera as long as you
are on the same local network. Static IP users who may be using a
different IP address subnet to the network camera should still be
able to locate the network camera with EdiView Finder. If you
encounter difficulties, it is recommended that you use a DHCP
server – though you can manually set the network camera’s IP
address using EdiView Finder (above) or using the web-based
configuration interface (see IV-1-1. Network) if you need.
31
II-4. WPS (Wi-Fi Protected Setup)
The WPS (Wi-Fi Protected Setup) button is a quick and easy alternative to
establish a secure wireless connection between your network camera and
your wireless router/access point.

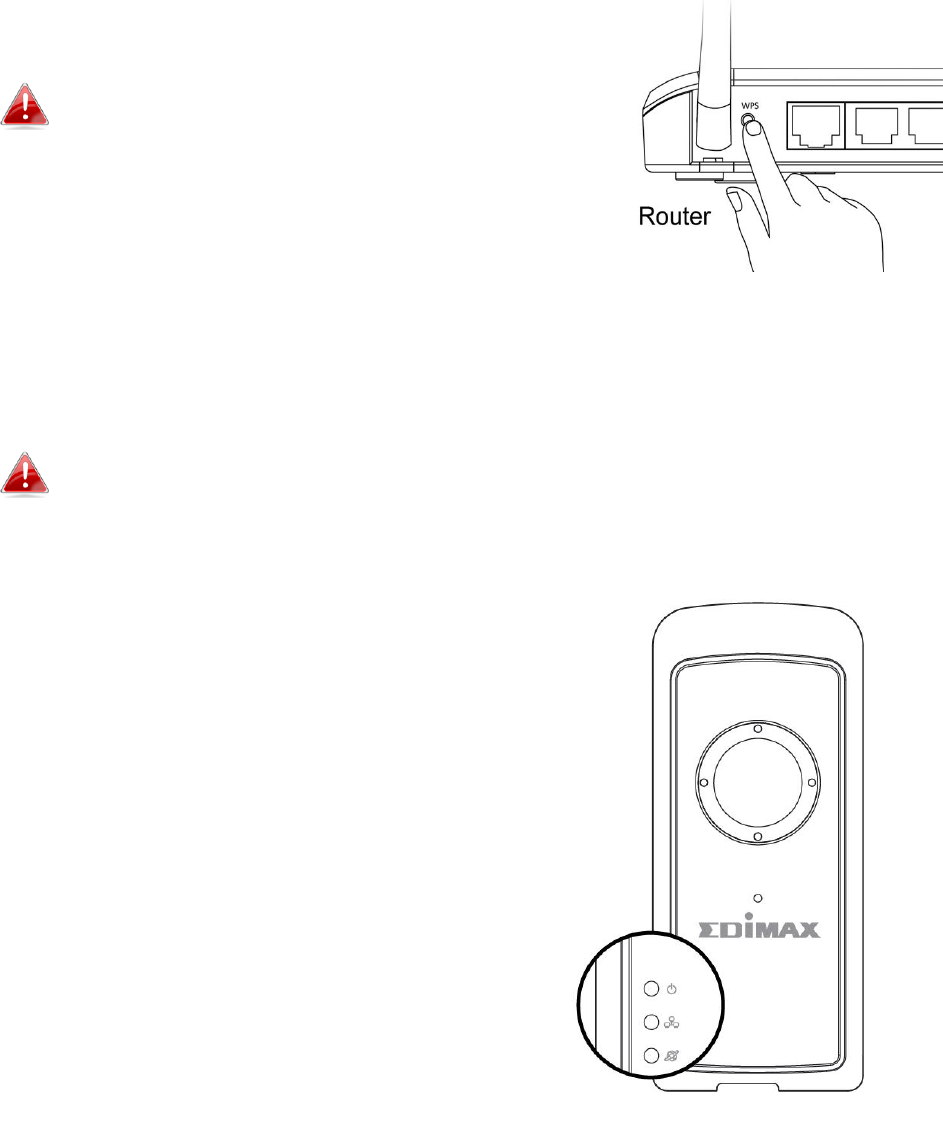

1. Press and hold the WPS button on your wireless router/access point for
the correct length of time to activate its WPS.
Please check the instructions for your
wireless router/access point for how long
you need to hold down its WPS button to
activate WPS.
2. Within two minutes, press the WPS/Reset button on the network camera
for 2 – 5 seconds to activate WPS. The green LAN LED will flash slowly to
indicate that WPS is active.
Take care not to hold the WPS/Reset button too long and reset
your network camera.
3. The devices will establish a secure
wireless connection. The green LAN
LED will flash quickly for two minutes
to indicate a successful WPS
connection.
32
III. Wall Mount
A wall mount is included in the package contents to fix your camera to the
wall. The stand requires some assembly.

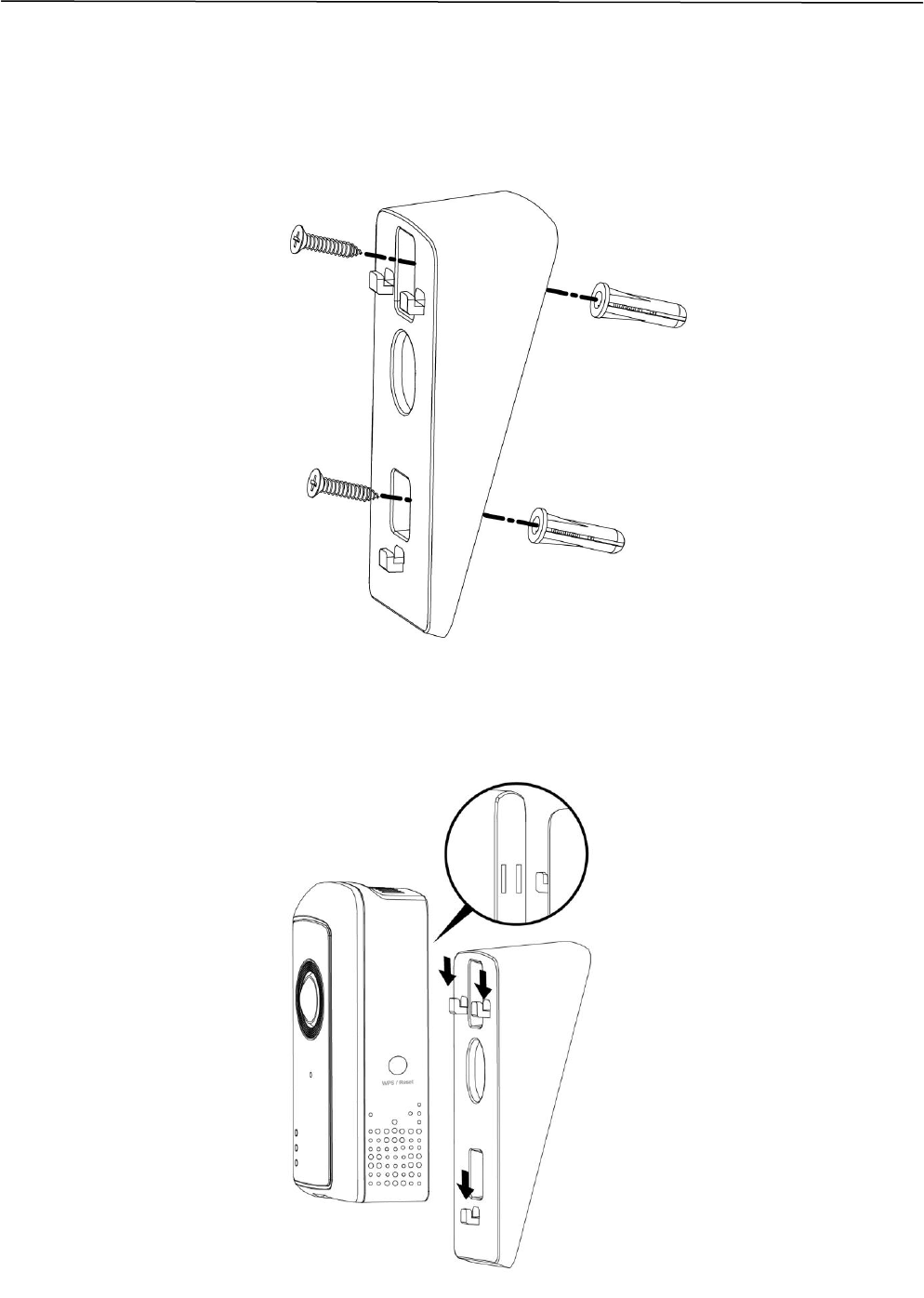

1. Attach the wall-mount to a wall using the included screws as shown below:
2. Attach the rear of the network camera to the mounting stand and tighten
into place, as shown below:
33
IV. Web-Based Management Interface
When you are using the same local network as your camera, you can use the
web-based management interface to view or configure the camera and to use
the camera’s functions.
You can access the web-based management interface with a web browser on
a smartphone or computer. For smartphone users, the appearance of the
interface will vary slightly to that which is displayed here, though the menu
functions which are described later from IV-1. Basic onwards are the same.

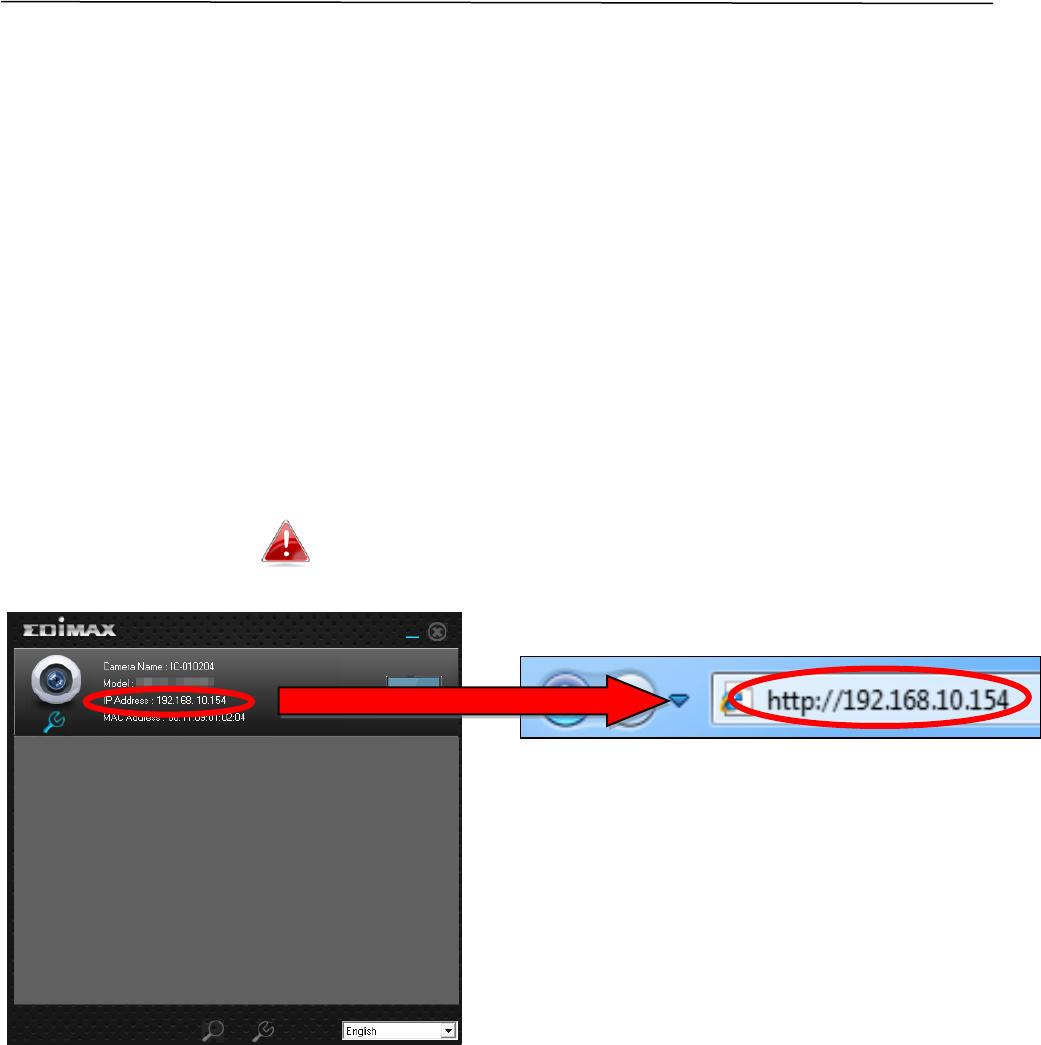

1. Enter the network camera’s IP address into the URL bar of a web browser.
The camera’s IP address can be found by opening EdiView Finder, as
displayed below:
Internet Explorer is recommended.
34

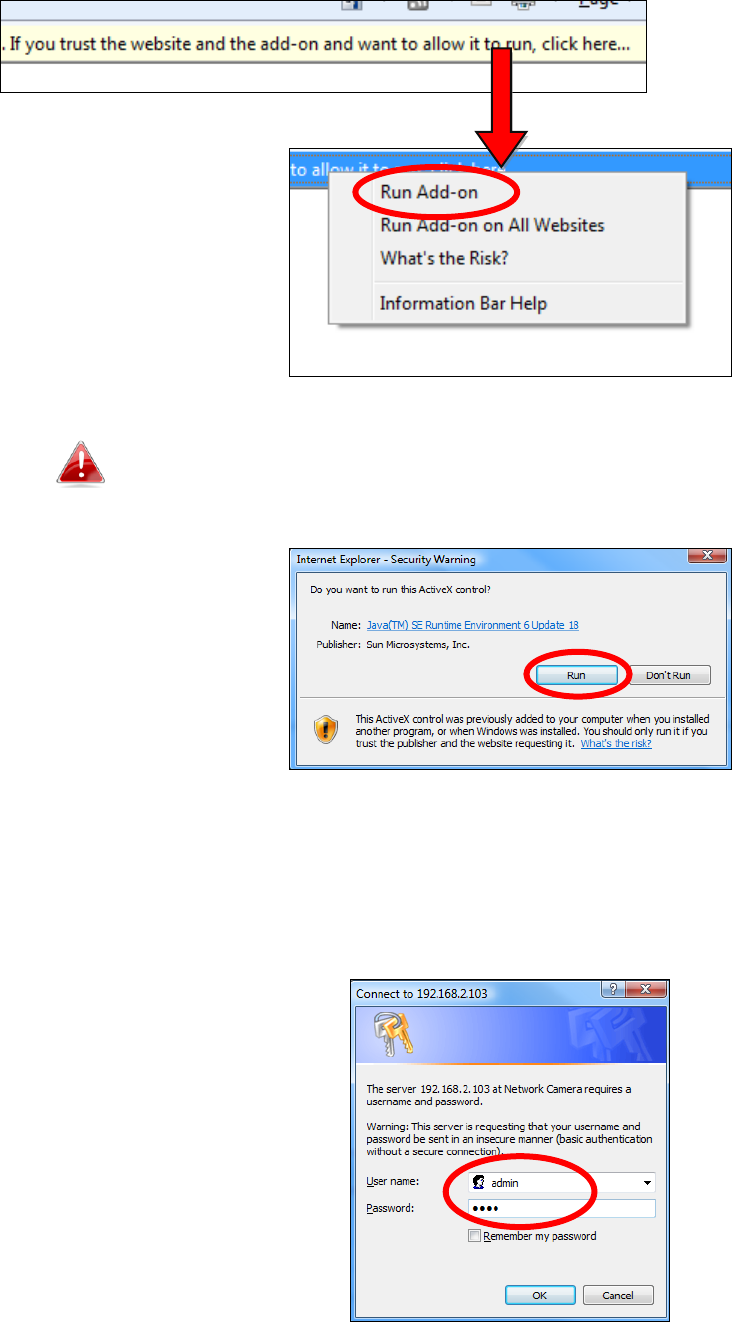

2. You may be prompted to allow a Java add-on to run. Please click the
message where it says “click here” and then click “Run Add-on”.
If any other security warnings/prompts appear, please select
“Run” or “Allow” or similar, depending on your browser.
3. Enter the username and password for your network camera (default
username: admin default password: 1234). The network camera’s web-
based management interface will then be displayed in your browser.
35
4. For computer users, the “Live View” screen will be displayed, as shown
below. On the live view screen you can see a live stream from your camera
and use the icons on the left side to pan, tilt and take snapshots or
recordings.
Snapshot
Save a snapshot (image) of the network
camera’s current view. You will be prompted
to select a location to save the image.
Record
Record video. You will be prompted to select
a location to save the recording. The icon will
display blue while recording, click the icon
again to stop recording.

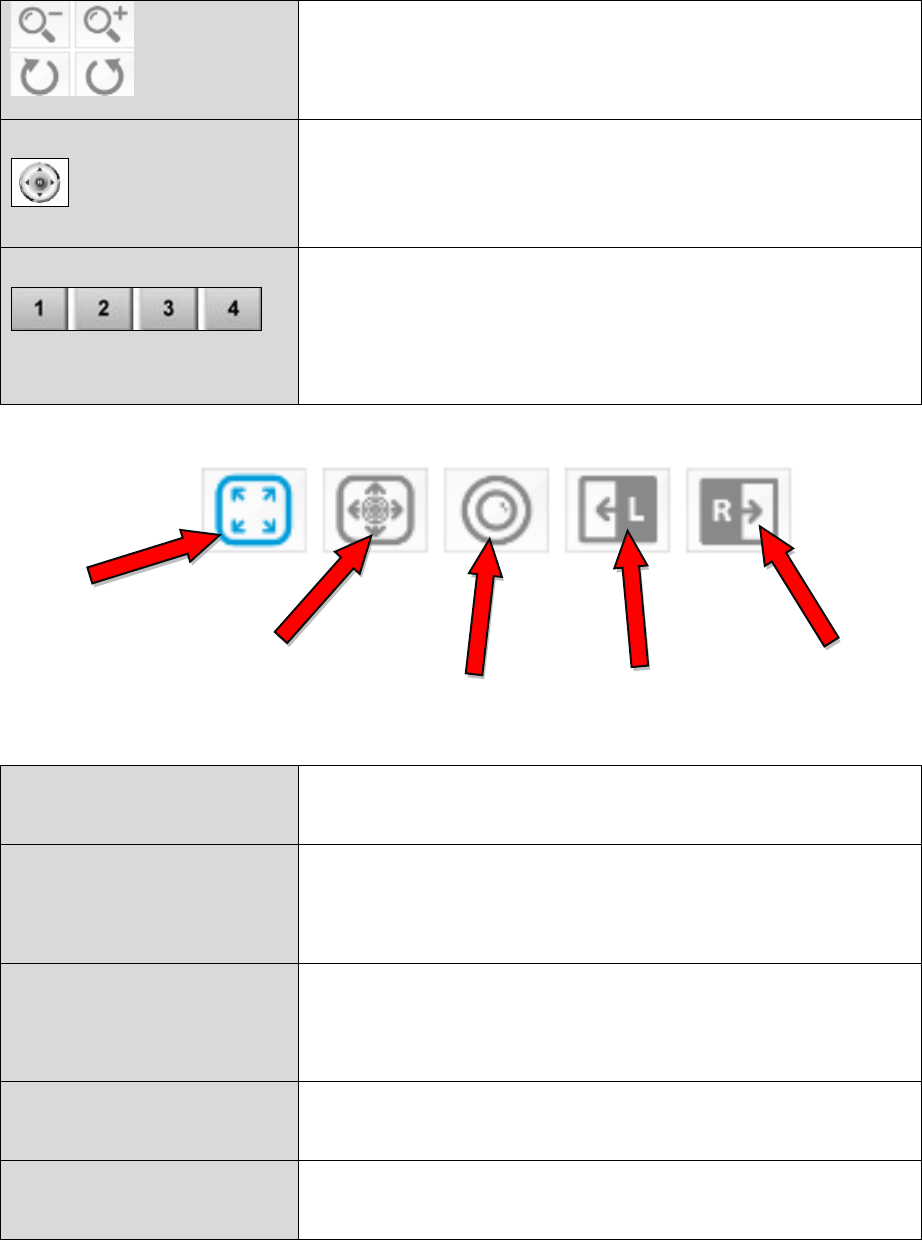

Image (Full Screen)
Click the icon to display the live view in full
screen mode.
Volume
Use the drop down menu to adjust the
volume level of the camera’s sound. Click the
microphone icon to mute the sound.
36
When ePTZ is selected (see below), use the
icons to zoom in and out and rotate left and
right.
Remote Control
When ePTZ is selected (see below), use the
remote control to pan/tilt the camera and
adjust the viewing position.
Preset
Adjust the camera’s viewing position to any of
four preset viewing points. Presets can be

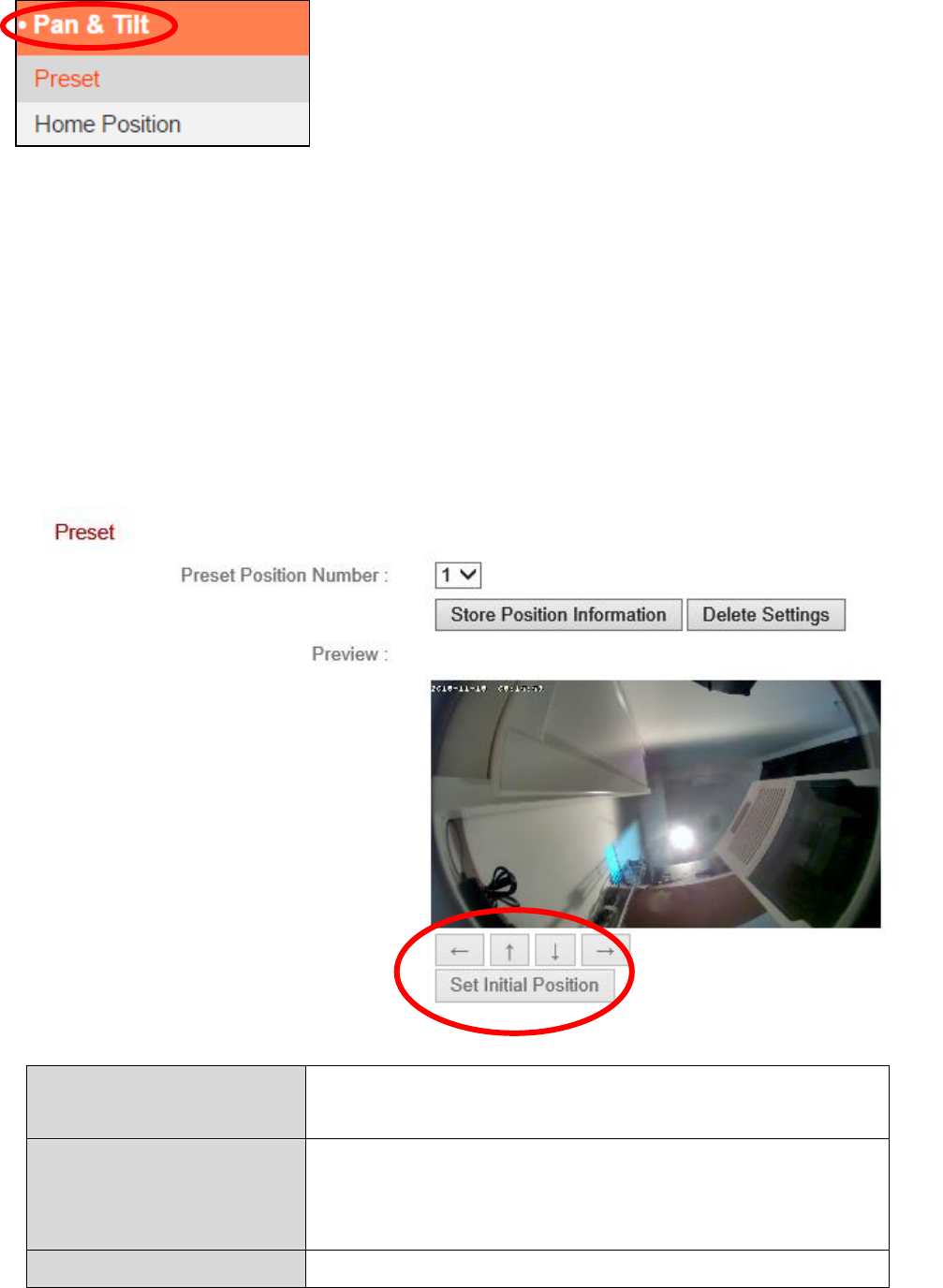

configured in Pan & Tilt Preset (refer to IV-
5-2. Preset)
Stretch
Stretch the fish eye view to a flat image.
ePTZ
Enable the electronic pan, tilt and zoom
functions and use the buttons on the left side
for control.
Fish Eye
Click the icon to display the standard fish eye
view.
Stretch Left
Display the left side of the view as the full
available image.
Stretch Right
Display the right side of the view as the full
available image.

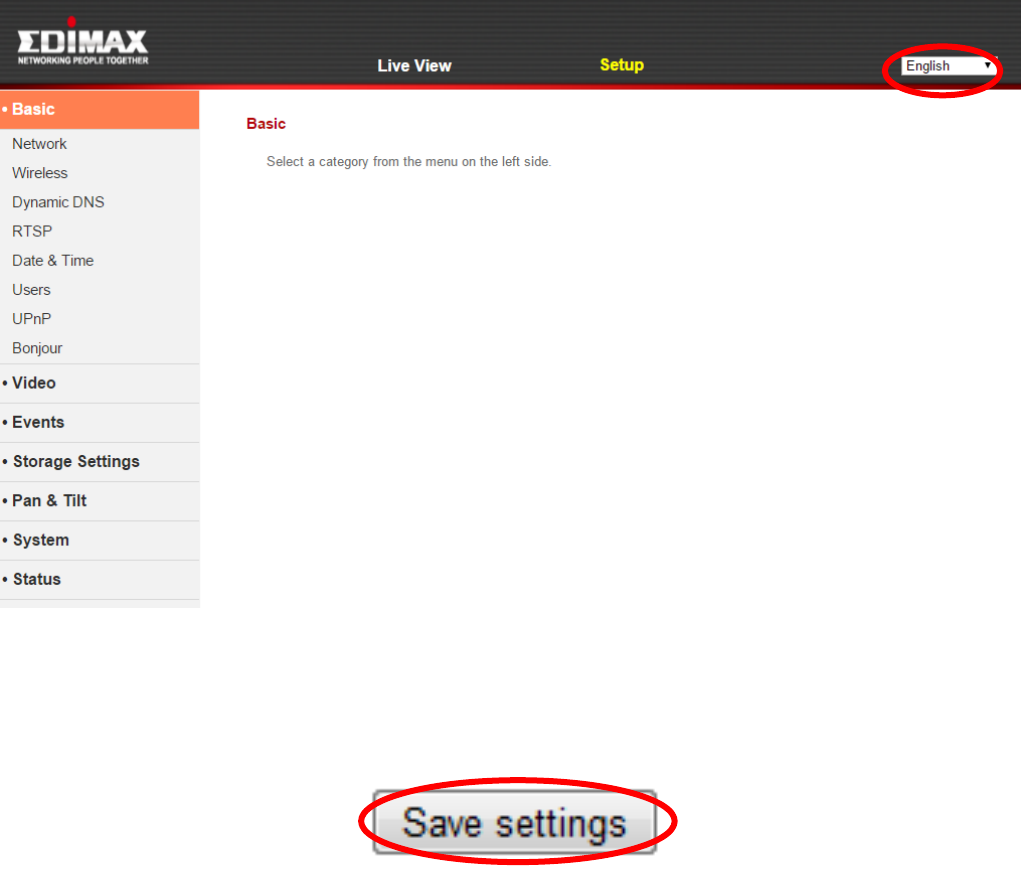

5. Select “Setup” at the top center and use the menu down the left side to
navigate to the network camera’s various settings. Each menu item is
described in the following chapters.
ePTZ
Fish Eye
Stretch Right
Stretch Left
Stretch
37
6. After making any changes, click “Save Settings” to save the settings and
bring the changes into effect.
38
IV-1. Basic
The “Basic” menu opens a submenu with eight
categories of settings for your network camera’s basic
operation. Select a category and refer to the
appropriate chapter.
39
IV-1-1. Network
Network settings are displayed on this page, as shown below. You can
configure your network camera to dynamically receive a local IP address from
your router’s DHCP server or you can specify a local static IP address for your
network camera.
Network Type
Select “DHCP” to automatically assign an IP
address to your network camera from your
router or “Static IP” to manually set a static IP
address using the fields below.
IP Address
Static IP users specify an IP address here,
which will be the IP address of your network
camera.
Subnet Mask
Enter the subnet mask of the IP address.
Gateway
Enter the gateway address of your network.
Primary DNS
Enter the IP address of your primary DNS
server.
Secondary DNS
Enter the IP address of your secondary DNS
server (optional).
HTTP Port
You can edit the HTTP port number to any
value between 1024 – 65535. The default
value is 80.
40
IV-1-2. Wireless
The wireless page allows you to configure settings for your network camera’s
wireless connection. For Windows users, your wireless connection should
have been set up already using EdiView Finder, though you can still use this
page to revise the settings if you need.
Mac users need to configure these settings manually since EdiView Finder on
Mac will not set up your camera’s wireless connection. A quick guide to set up
your network camera’s wireless connection using a smartphone or a
computer is included below.
Mac users setting their network camera’s wireless connection for
the first time please ensure your network camera is connected to
your router/access point/switch via Ethernet cable.
You can also use the “wireless” page for Wi-Fi Protected Setup (WPS): to
either activate push-button WPS (the same effect as physically pushing the
hardware WPS button built into the camera), or PIN code WPS (using a PIN
code for verification between the two wireless devices for additional security.)
41
IV-1-2-1. Computer

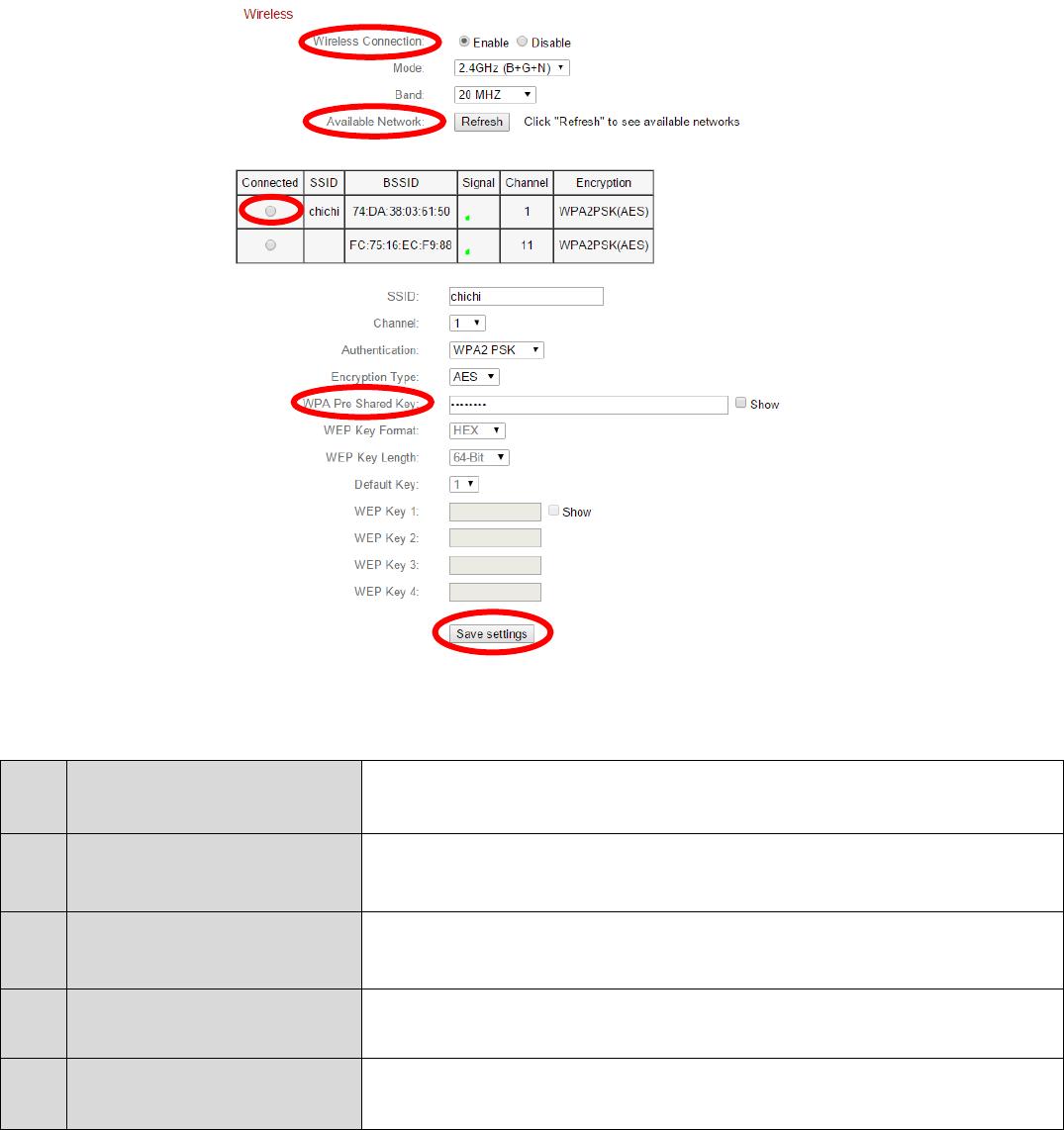

1. Configure the wireless settings A – E shown in the table below:
2. After the settings are saved, remove the Ethernet cable from your
network camera. Your camera should now be connected to your Wi-Fi.
A
Wireless Connection
Select “Enable” to enable the wireless connection.
B
Available Network
Click “Refresh” to display all available Wi-Fi
networks.
C
Connected
Select your Wi-Fi network from the list. This is the
wireless network which your camera will connect to.
D
WPA Pre Shared Key
Enter your Wi-Fi password.
E
Save Settings
Click “Save Settings” to save your settings.
A
C
D
E
B
42
IV-1-2-3. WPS

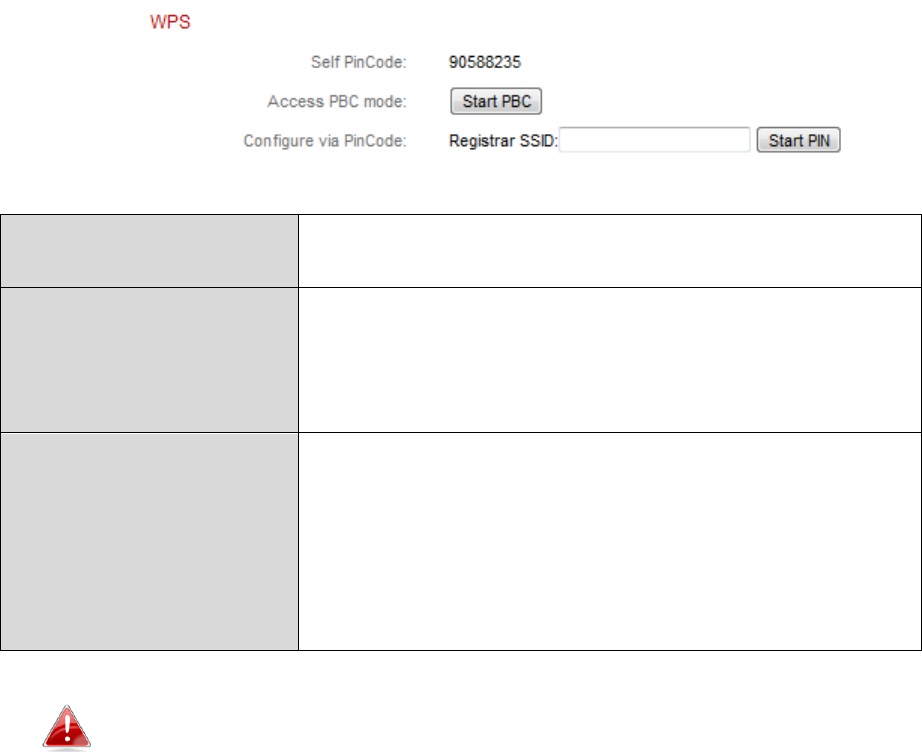

WPS (Wi-Fi Protected Setup) is a quick and easy way to set up wireless
connections between compatible devices. Use the “Start PBC” or “Start PIN”
button to activate WPS on your network camera. Your network camera’s WPS
PIN code is also listed next to “Self PinCode”.
Self PinCode
Your network camera’s WPS PIN code is listed
here.
Access PBC Mode
Click “Start PBC” to activate push-button WPS
on your network camera. This has the same
effect as physically pushing the built-in
hardware WPS button.
Configure via
PinCode
Enter the SSID you wish to connect to and
click “Start PIN” to activate PIN code WPS.
You will then need to enter the network
camera’s “Self PinCode” into your wireless
router’s web U.I. and activate your router’s
PIN code WPS.
Please refer to your wireless router’s instructions for help
accessing its web-based interface and activating WPS.
43

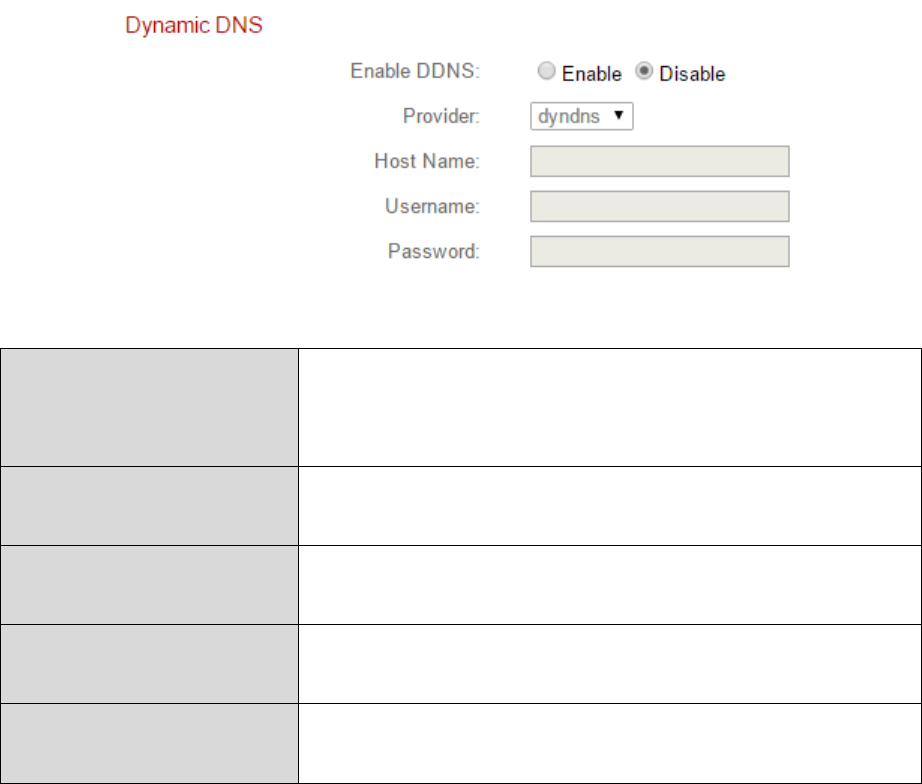

IV-1-3. Dynamic DNS
Dynamic DNS (DDNS) is a service which provides a hostname-to-IP service for
dynamic IP users. If your Internet service provider didn’t issue a fixed IP
address, you can use a third-party dynamic DNS provider to map your current
IP address to a fixed IP address. Several free or paid DDNS services are
available online, please use the information provided by your DDNS provider
to configure the settings on this page.
Enable DDNS
Select “Enable” to enable DDNS functionality,
or select “Disable” to disable DDNS
functionality.
Provider
Select your dynamic DNS service provider
from the dropdown menu.
Host Name
Enter the hostname you registered with the
DDNS service provider.
User Name
Enter the user name you registered with the
DDNS service provider.
Password
Enter the password you registered with the
DDNS service provider.
44
IV-1-4. RTSP
Real Time Streaming Protocol (RTSP) enables the network camera to be used
with a streaming media server. Enter the required RTSP settings.
RTSP Port
Enter the RTSP port.
H.264 RTSP Path
(HD)
Enter the H.264 RTSP path.
H.264 RTSP Path
(Mobile)
Enter the H.264 Mobile RTSP path.
RTP Port Range
Enter the RTP port range.
Verification
Select a verification type from the drop down
menu.
45
IV-1-5. Date & Time
You can set and adjust the network camera’s system time and date on this
page. Maintaining a correct system time is particularly important for recorded
video organization/playback.
Mode
Select ”NTP” or “Manual Setting”. NTP
(Network Time Protocol) can set and maintain
the time and date automatically via an NTP
server on the local network, if available.
Set Time & Date
Manually
For manual setting mode, enter the correct
time and date in the following format:
YYYY/MM/DD HH:MM:SS
Synchronize to PC
time
Click here to automatically enter the same
time and date as your computer.
NTP Server
For NTP mode, enter the NTP server’s
hostname or IP address.
Time Zone
Select the correct time zone.
Daylight Saving
Enable or disable daylight saving according
your local time zone.
46
IV-1-6. Users
In addition to the default administrator account, you can configure several
different login accounts for the network camera, with two different levels of
access – operator and guest.
Operator accounts can configure partial functions of the network camera
similar to the administrator account, while guest accounts can only view the
camera’s image.
User List
Existing users are listed here. Select a user
here to modify the settings.
User Name
Input user’s name here.
Password
Input user’s password here.
Confirm password
Input user’s password here again for
confirmation.
47
Authority
Select the user’s authority:
Operators can view video and configure some
settings, while guests can only view video.
Add
Add a new user.
Modify
Save the changes to an existing, selected user.
Remove
Remove selected user.
Anonymous Login
Enable or disable anonymous login.
Anonymous login allows anyone to login to
the network camera and view images. This
function is useful if you want to setup a
remote video server.
48

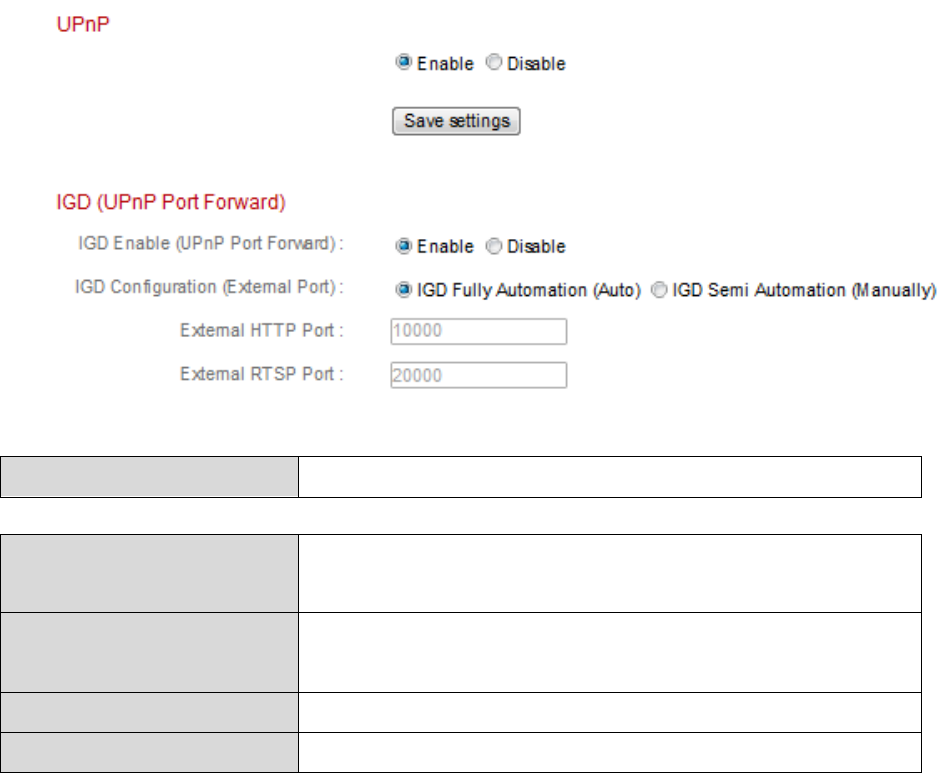

IV-1-7. UPnP
Universal plug-and-play (UPnP) is a set of networking protocols which enables
network devices to communicate and automatically establish working
configurations with each other. When enabled, Windows computers can
automatically discover the network camera on the local area network. The
network camera also supports IGD.
Enable/Disable
Enable or disable UPnP.
IGD Enable (UPnP
Port Forward)
Enable or disable Internet Gateway Device
(IGD).
IGD Configuration
(External Port)
Select fully-automated or semi-automated
IGD.
External HTTP Port
Enter an external HTTP port.
External RTSP Port
Enter an external RTSP port.
49

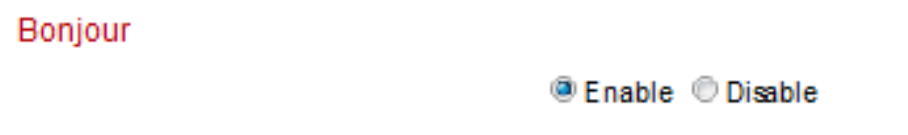

IV-1-8. Bonjour
Bonjour is a feature of Mac computers which allows Safari web browser to
discover devices and services on the local network and provide a quick
shortcut for access. When enabled, Safari users on the local network can find
a shortcut to the network camera under Safari’s “Bonjour” menu. Select
“Enable” or “Disable”.
50
IV-2. Video

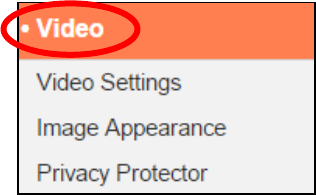

The “Video” menu consists of three categories for
configuring the network camera’s video settings.
Select an item from the submenu and refer to the
appropriate following chapter.
51
IV-2-1. Video Settings
The “Video Settings” page enables you to modify the network camera’s
resolution and frame rate settings for different formats: H264 & MJPEG, as
well as configure specific settings for smartphone viewing.
H264
H264 Resolution
Select a H264 video resolution from the
dropdown menu. A higher resolution provides
more detailed video but requires more
bandwidth.
Maximum Frame
rate
Select the maximum video frame rate. A
higher frame rate provides smoother video,
but also requires more bandwidth.
H264 Maximum Bit
Rate
Select a maximum bit rate for H264 videos
from the dropdown menu. A higher bit rate
provides more detailed video but requires
more bandwidth. The bit rate is accurate
±20%.
MJPEG
MJPEG Resolution
Select a MJPEG video resolution from the
dropdown menu. A higher resolution provides
52
more detailed video but requires more
bandwidth.
Maximum Frame
rate
Select the maximum video frame rate. A
higher frame rate provides smoother video,
but also requires more bandwidth.
MJPEG Quality
Select a quality level for MJPEG videos from
the drop down menu. Higher quality requires
more bandwidth.
For Smartphone
H264 Resolution
Select a H264 video resolution from the
dropdown menu. A higher resolution provides
more detailed video but requires more
bandwidth.
Maximum Frame
rate
Select the maximum video frame rate. A
higher frame rate provides smoother video,
but also requires more bandwidth.
H264 Maximum Bit
Rate
Select a maximum bit rate for H264 videos
from the dropdown menu. A higher bit rate
provides more detailed video but requires
more bandwidth. The bit rate is accurate
±20%.
Power frequency
Adjust the power frequency to 50 Hz or 60 Hz
frequency depending on your local region, in
order to reduce flicker/improve playback in
your videos.
Rotate Image
Rotate the camera’s image by the specified
angle.
OSD
Set the network camera’s on-screen display
(OSD) consisting of time & date to on or off
for all live video and video recordings.
53
IV-2-2. Image Appearance

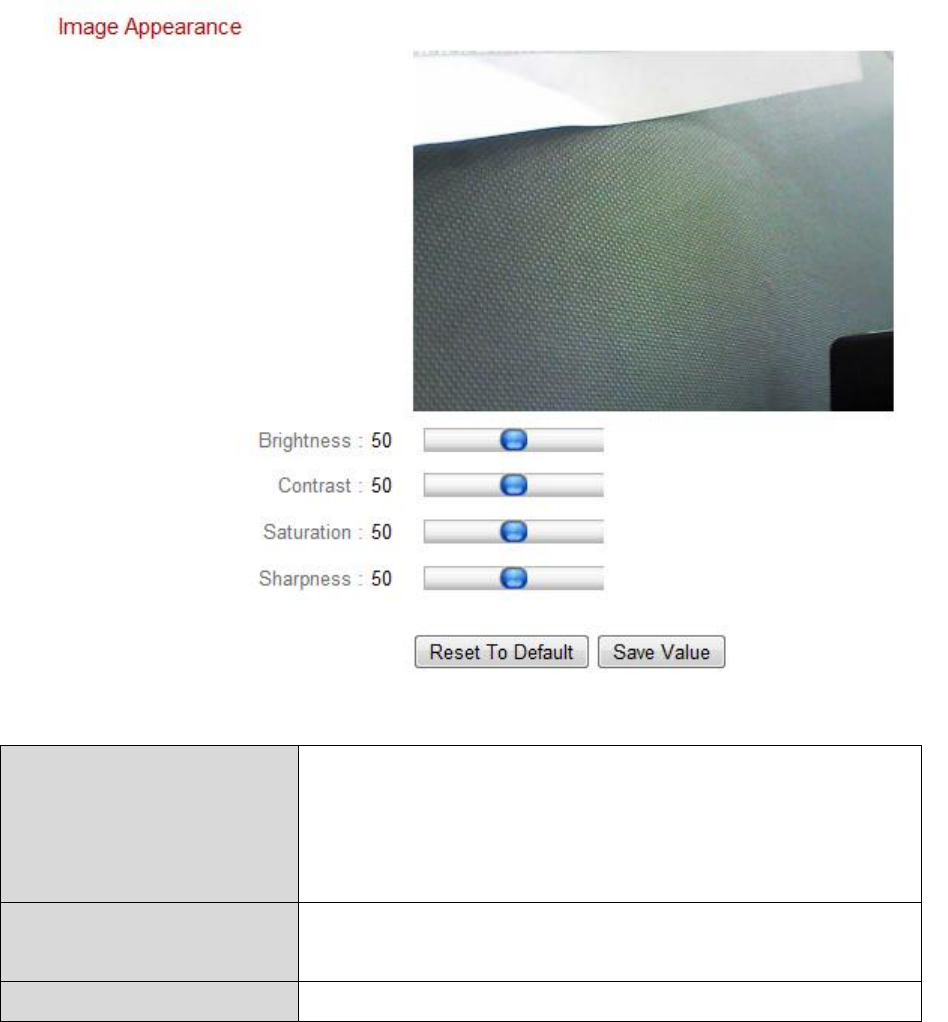

The “Image Appearance” page allows you to adjust various parameters
relating to the network camera’s image appearance using the sliders shown
below.
Brightness/
Contrast/
Saturation/
Sharpness/
Click and drag the blue lever to change the
value according to your preference for each
category.
Reset to default
Click to reset all settings back to the default
value of 50.
Save value
Save changes.
54

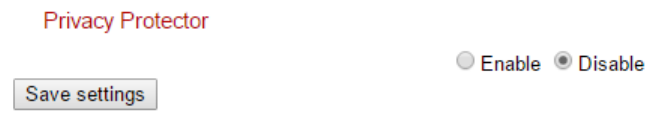

IV-2-3. Privacy Protector
Privacy Protector is a function which will display the camera’s live view as a
black screen. This can be a useful tool when occupants are at home to address
privacy concerns about network intruders.
55
IV-3. Events

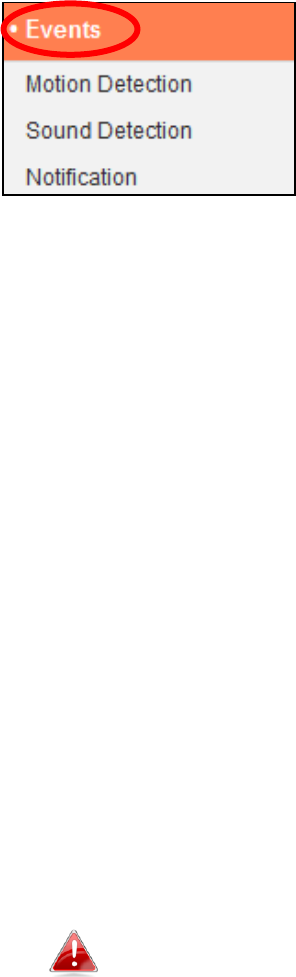

Select an item from the “Events” menu and refer to
the appropriate following chapter. You can configure
settings for motion detection, scheduling, SMTP and
FTP.
IV-3-1. Motion Detection
IV-3-1-1. Motion Detection
The network camera features a motion detection function and various options
for (motion detection) events notification. When motion is detected, it is
defined as an “event” and the camera will record for a specified length of time.
You can set the camera to send this recording as a notification via email or
FTP, and/or to local storage such as a NAS or microSD card inside the camera.
You can also set the camera to send a push notification for each event to a
smartphone with EdiView II or EdiLife installed. You can view a 10 second
recording of the event, which is automatically stored in the network camera’s
memory, from the app’s “Events” menu.
Recordings stored automatically in the network camera are
limited to 10 seconds and only a limited quantity can be stored.
These recordings are separate from any recordings saved to local
storage or sent via email/FTP, and will be overwritten as new
recordings are created.
56

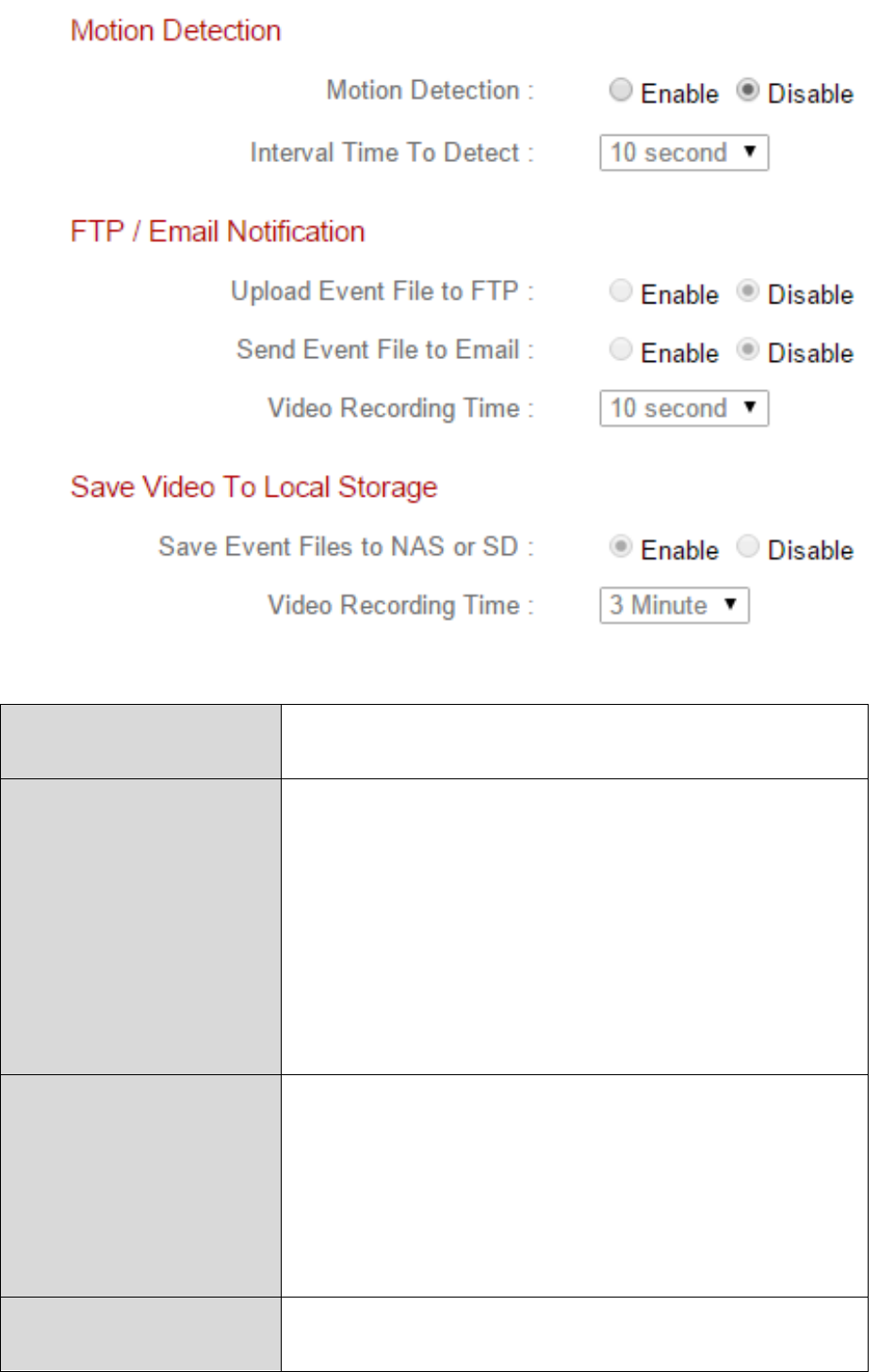

Motion Detection
Enable or disable the motion detection
function of your network camera.
Interval Time To
Detect
After motion is detected, the network camera
will not detect motion again for this length of
time. For example, using an “Interval Time To
Detect” of 20 seconds means that after
motion is detected, the camera will not
detect any further motion for 20 seconds.
Then after 20 seconds, the camera will detect
motion again.
Upload Event File to
FTP
A video recording of a detected event can be
sent to a designated FTP server. Select
“Enable” or “Disable” for this function. When
enabled, you need to configure the FTP server
information on the “FTP” page of the “Events
Notification” menu.
Send Event File to
Email
A video recording of a detected event can be
sent to a designated email recipient. Select
57
“Enable” or “Disable” for this function. When
enabled, you need to configure email settings
in the “Events Notifications Mail
Settings” menu.
Video Recording
Time
Specify the length of time for the email or FTP
video recording here.
Save Event Files to
NAS or SD
Enable or disable the camera’s function to
save video files to NAS or MicroSD card.
When enabled, you need to configure the
settings in the “Storage Settings” menu.
Video Recording
Time
Specify the length of time for the NAS or
microSD video recording here.
58

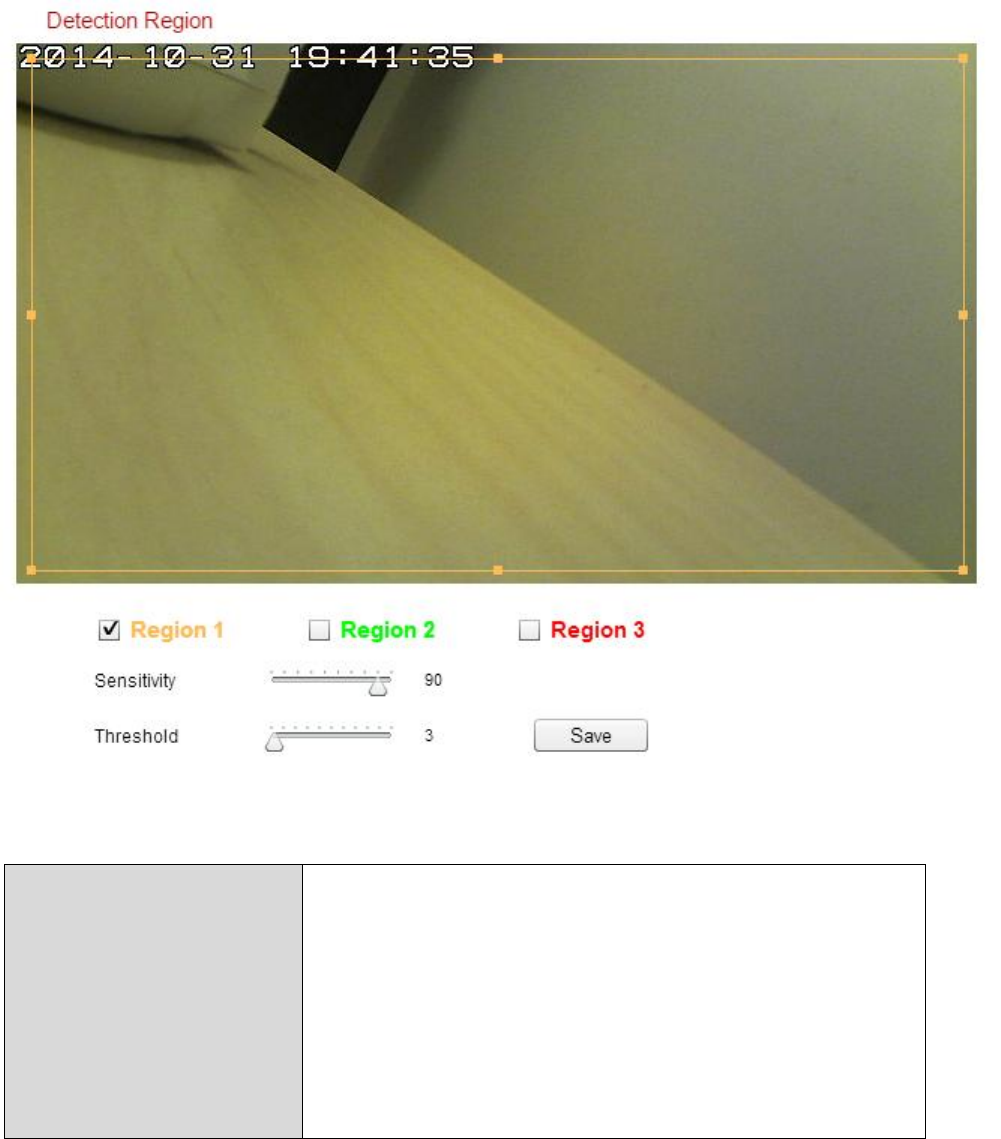

IV-3-1-2. Detection Region
When using the network camera’s motion detection function, you can specify
the areas in the video where the network camera should be sensitive to
motion. Motion outside of the detection regions will be ignored by the
network camera. This is useful to avoid false alarms.
Region 1 /
Region 2 /
Region 3
Check the box to enable up to three motion
detection regions. A color-coded rectangle
will appear on the video view for each
enabled region. Adjust the size and position
of each box according to your preference by
clicking and dragging inside the box (move) or
on the edges (resize).
59
Sensitivity
Adjust the sensitivity level of motion
detection for each region. A higher value will
trigger the alarm for minor motion in the
video and vice-versa. You can reduce the
sensitivity level if you receive unnecessary
event notifications.
Threshold
Adjust the motion detection threshold level
for each region. A higher value will trigger the
alarm for large objects in the video, a lower
value will trigger the alarm for smaller
objects.
Save
Save your settings.
60

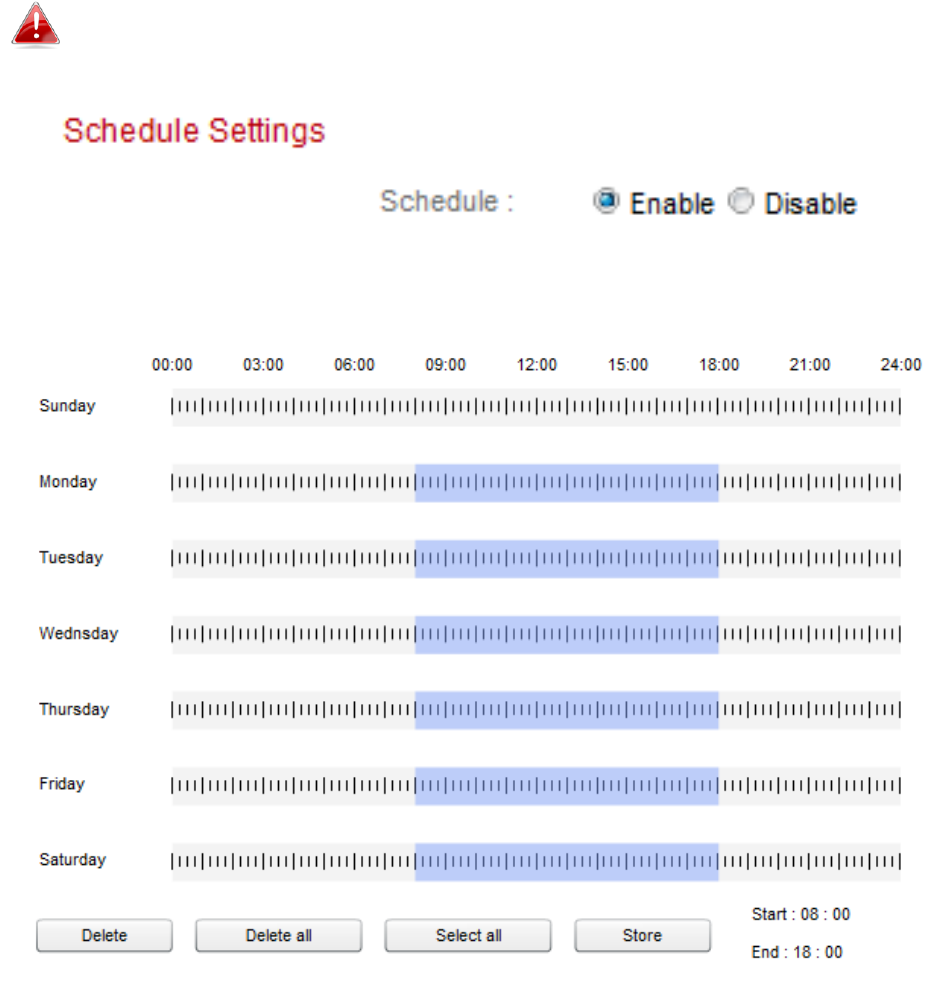

IV-3-1-3. Schedule Settings
The network camera’s motion detection function can be scheduled to be
active on/at specified times and days. Select “Enable” to enable this feature
and then define which times the network camera’s motion detection will be
active using the table below.

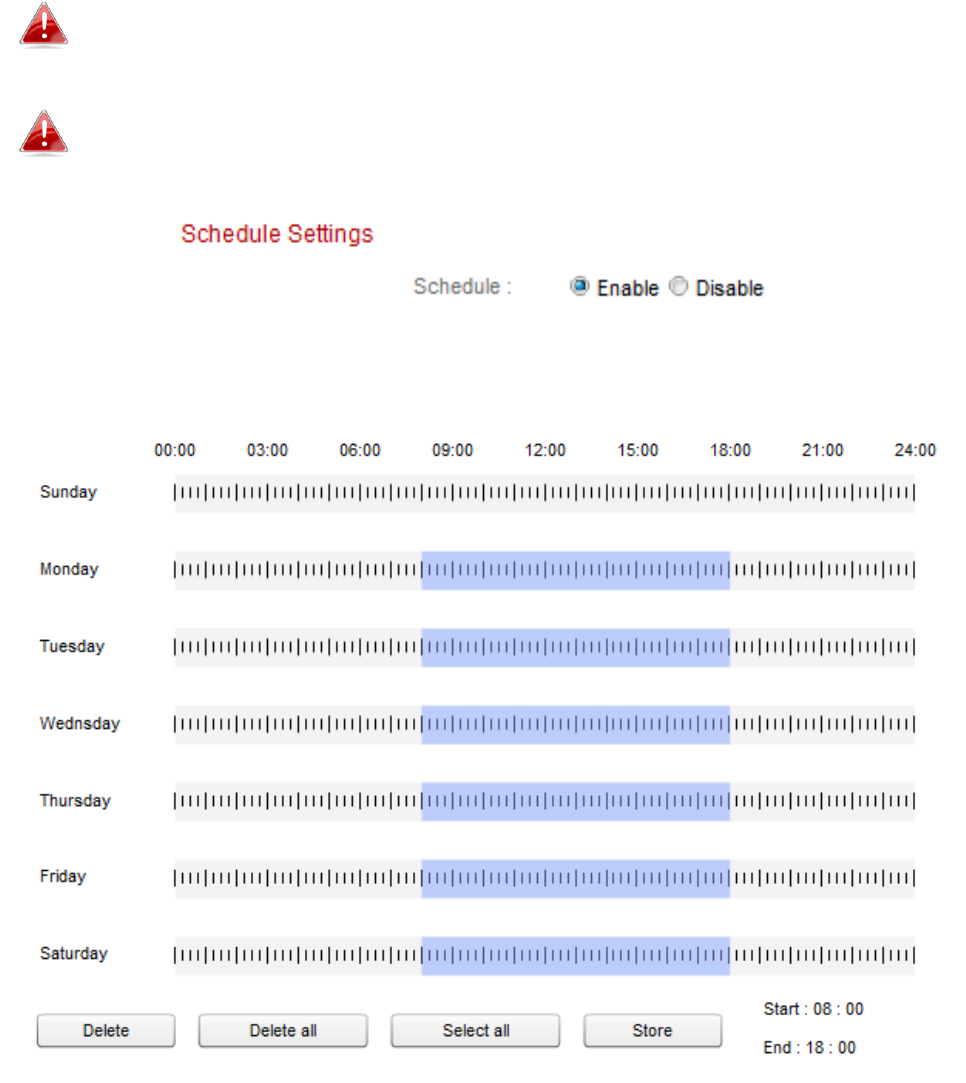

For each day, click and drag across the timeline on the times which you want
motion detection to be active. A blue box indicates a scheduled recording. In
the example below, motion detection is scheduled for 8am – 6pm Monday to
Saturday.
By default, the schedule may be full. Delete existing entries if
necessary. For scheduled recording, see Storage Settings
Schedule Settings.
61
Delete
Delete the selected blue recording block on
the timeline.
Delete All
Delete all blue recording blocks on the
timeline.
Select All
Select all blue recording blocks.
Store
Store the recording settings on the timeline.
62
IV-3-2. Sound Detection
IV-3-2-1. Sound Detection
The network camera features a sound detection function and various options
for (sound detection) events notification. When sound is detected, it is
defined as an “event” and the camera will record for a specified length of time.
You can set the camera to send this recording as a notification via email or
FTP, and/or to local storage such as a NAS or microSD card inside the camera.
You can also set the camera to send a push notification for each event to a
smartphone with EdiView II or EdiLife installed. You can view a 10 second
recording of the event, which is automatically stored in the network camera’s
memory, from the app’s “Events” menu.
Recordings stored automatically in the network camera are
limited to 10 seconds and only a limited quantity can be stored.
These recordings are separate from any recordings saved to local
storage or sent via email/FTP, and will be overwritten as new
recordings are created.
63
64

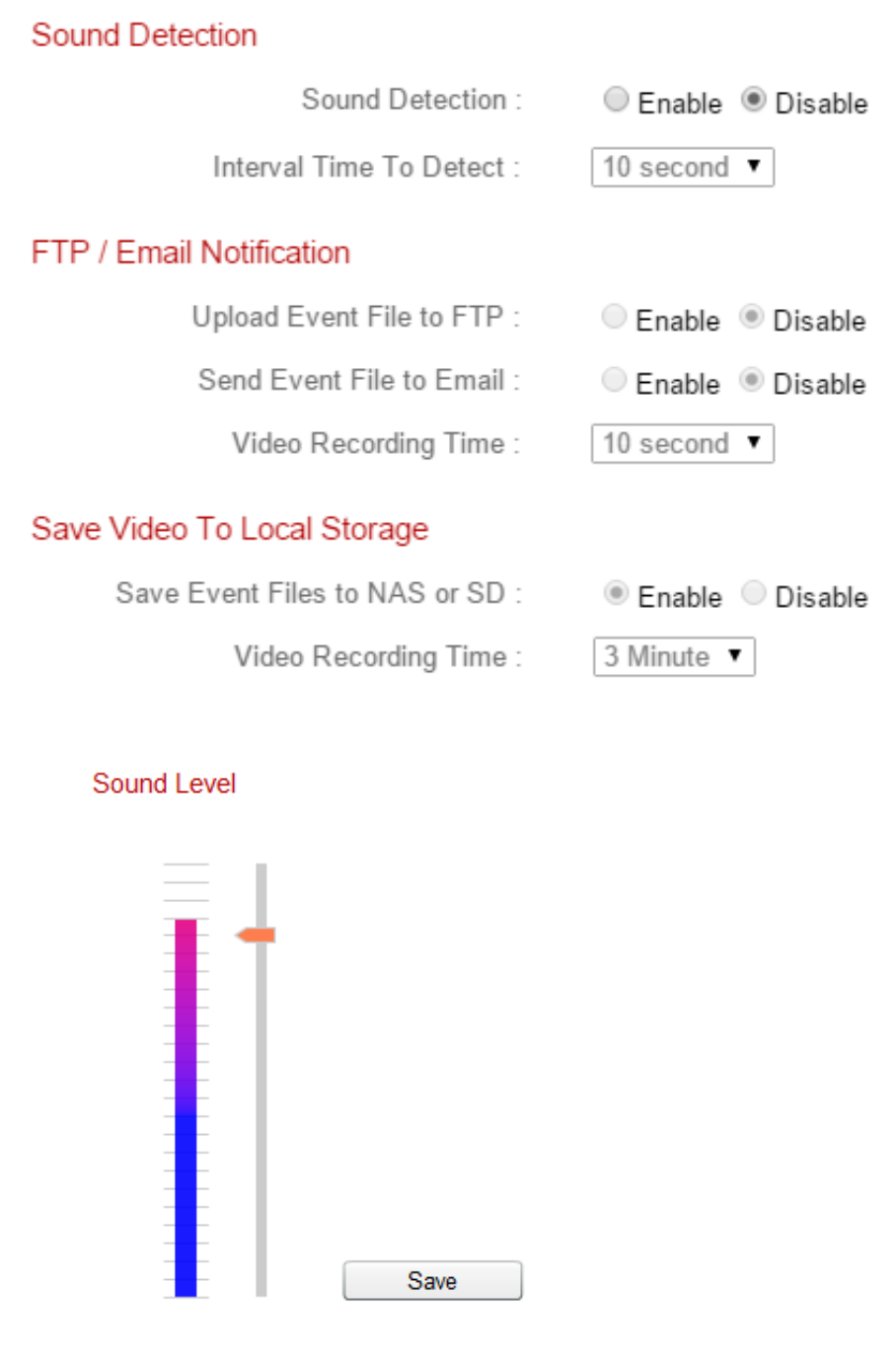

Sound Detection
Enable or disable the sound detection
function of your network camera.
Interval Time To
Detect
After sound is detected, the network camera
will not detect sound again for this length of
time. For example, using an “Interval Time To
Detect” of 20 seconds means that after sound
is detected, the camera will not detect any
further sound for 20 seconds. Then after 20
seconds, the camera will detect sound again.
Upload Event File to
FTP
A video recording of a detected event can be
sent to a designated FTP server. Select
“Enable” or “Disable” for this function. When
enabled, you need to configure the FTP server
information on the “FTP” page of the “Events
Notification” menu.
Send Event File to
Email
A video recording of a detected event can be
sent to a designated email recipient. Select
“Enable” or “Disable” for this function. When
enabled, you need to configure the SMTP
server information on the “SMTP” page of the
“Events Notification” menu.
Video Recording
Time
Specify the length of time for the email or FTP
video recording here.
Save Event Files to
NAS or SD
Enable or disable the camera’s function to
save video files to NAS or MicroSD card.
When enabled, you need to configure the
settings in the “Storage Settings” menu.
Video Recording
Time
Specify the length of time for the NAS or
microSD video recording here.
Sound Level
Set the level of sound which will trigger a
detection event. Adjust the slider up/down to
your preferred sound level. The vertical
display to the left of the slider indicates the
current sound level picked up by the camera’s
built-in microphone.
65
IV-3-2-2. Schedule Settings
The network camera’s sound detection function can be scheduled to be active
on/at specified times and days. Select “Enable” to enable this feature and
then define which times the network camera’s motion detection will be active
using the table below.
For each day, click and drag across the timeline on the times which you want
motion detection to be active. A blue box indicates a scheduled recording. In
the example below, motion detection is scheduled for 8am – 6pm Monday to
Saturday.
By default, the schedule may be full. Delete existing entries if
necessary. For scheduled recording, see Storage Settings
Schedule Settings.
66
Delete
Delete the selected blue recording block on
the timeline.
Delete All
Delete all blue recording blocks on the
timeline.
Select All
Select all blue recording blocks.
Store
Store the recording settings on the timeline.
67
IV-3-3. Notification
IV-3-3-1. Mail Settings

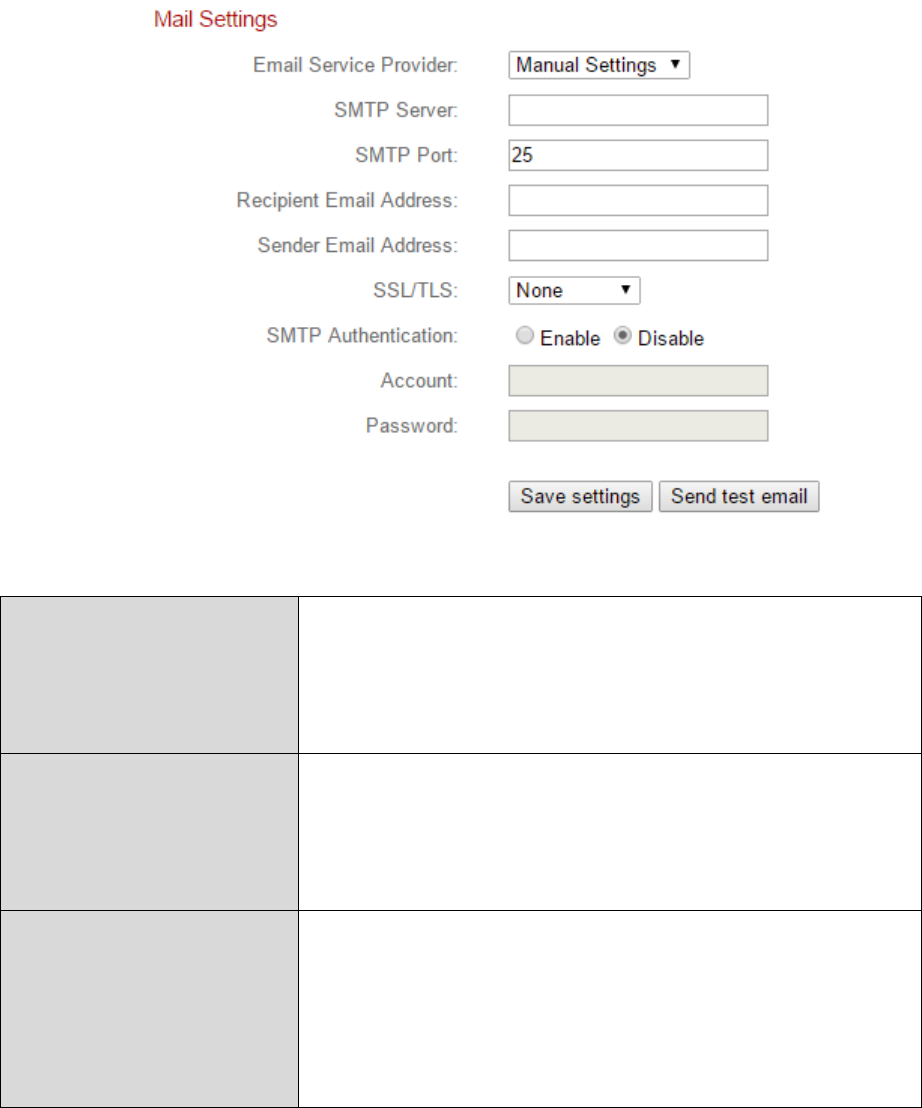

Recordings of events (motion or sound detected) can be sent to a designated
email recipient. This function must be enabled in “Motion Detection” or
“Sound Detection” settings in the “Events” menu. Enter the required
information about your sender and recipient email accounts as shown below.
Email Service
Provider
Select “Manual Settings” to enter the
information manually or select a common
email provider to enter some of the
information automatically.
SMTP Server
Input the host name or IP address of the
SMTP server for the email sender. This
information can be provided by your email
service provider.
SMTP Port
Input the SMTP port number for the email
sender. Most SMTP servers use port number
25, while some SMTP servers use encrypted
connections with a port number of 465. This
information can be provided by your email
68
service provider.
Recipient E-Mail
Address
Enter the email recipient’s email address
here.
Sender E-Mail
Address
Enter the sender’s email address here to
avoid spam filter issues.
SSL/TLS
Select ‘SSL or TLS’ when your SMTP server
requires encryption.
Consult your mail server administrator when
in doubt.
SMTP
Authentication
Select ‘Enable’ when your SMTP server
requires authentication. This information can
be provided by your email service provider.
Account
Input the SMTP account name when your
SMTP server requires authentication. This
information can be provided by your email
service provider.
Password
Input the password used for SMTP server
authentication.
Send Test Email
Click here to send a test email with the
current settings.

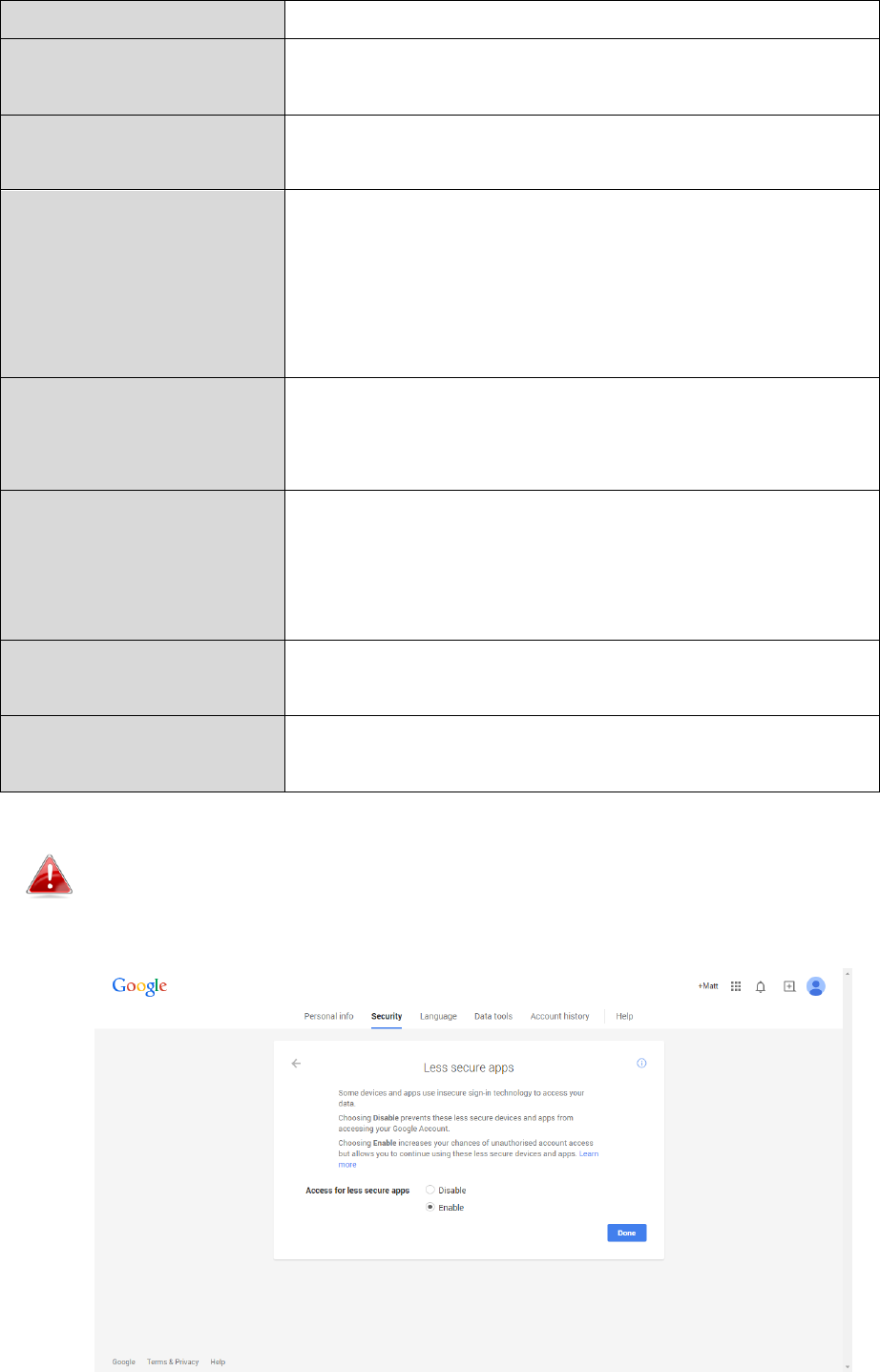

Gmail users please ensure that “Less Secure Apps” is enabled in
your Google account “Security” settings, otherwise your email
password may be rejected.
69
IV-3-3-2. FTP

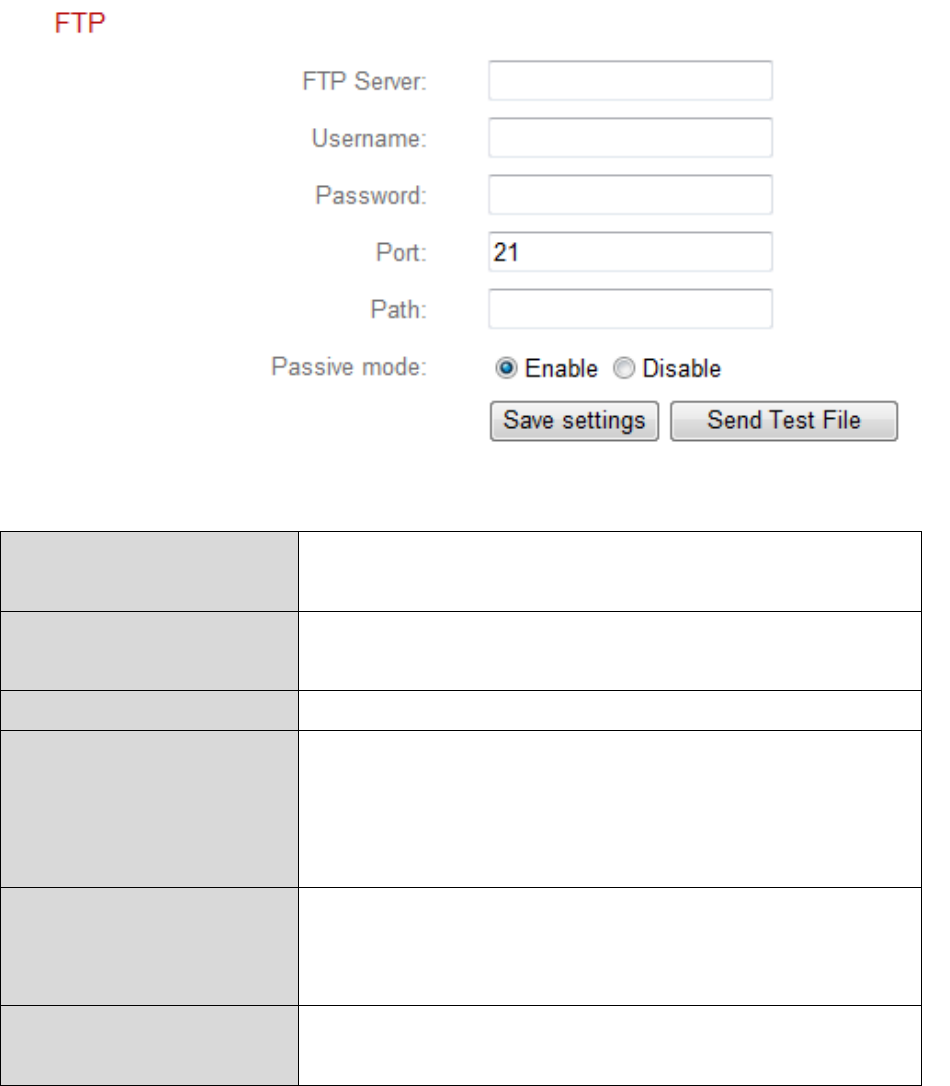

Recordings of events (motion or sound detected) can be sent to a designated
FTP server. This function must be enabled in “Motion Detection” or “Sound
Detection” settings in the “Events” menu. Enter the required information
about your FTP server as shown below.
FTP Server
Enter the IP address or host name of the FTP
server.
User Name
Enter the user name required by the FTP
server.
Password
Enter the password of the FTP server.
Port
Enter the port number of the FTP server. This
value should be an integer between 1 and
65535. Please don’t change this value unless
advised by the FTP server’s administrator.
Path
Enter a path (folder) to save files on the FTP
server. If blank, files will be saved in the FTP
server’s default root folder.
Passive mode
Enable or disable passive mode according to
your FTP server.
70

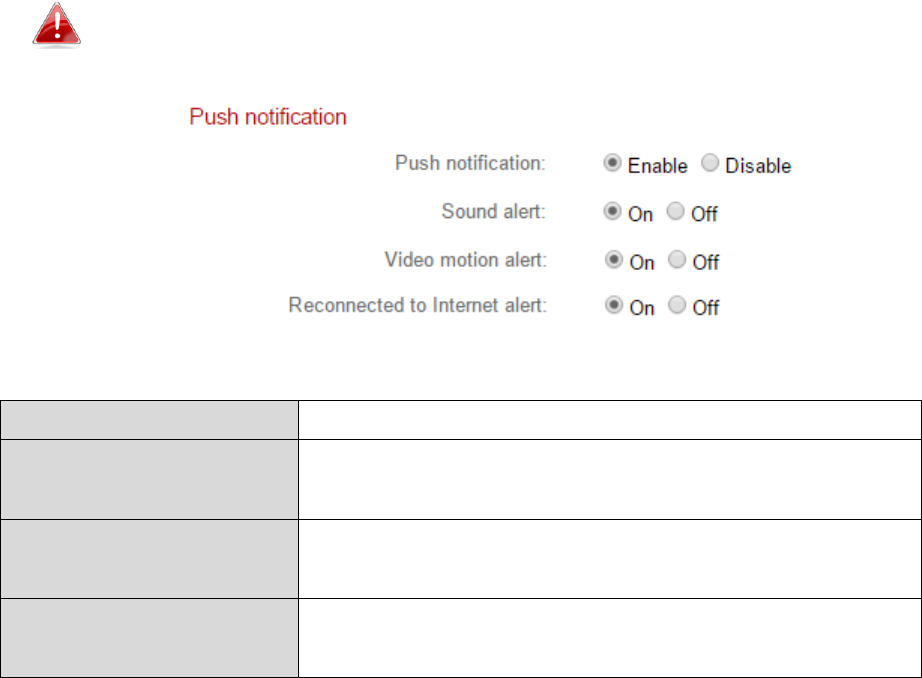

IV-4-3-3. Push
The network camera can send push notifications to your smartphone if you
have the EdiView II or EdiLife app installed. Push notifications can be sent
based on motion detection and sound detection events, and also when your
camera reconnects to the Internet after a disconnection.
Reconnection alerts are sent when the camera actually
reconnects to the Internet, not when a disconnection occurs.
Push notification
Enable or disable all push notifications.
Sound alert
Switch push notifications for sound alerts on
or off.
Video/Human
motion alert
Switch push notifications for motion
detection events on or off.
Reconnected to
Internet alert
Switch push notifications for Internet
reconnection on or off.
71
IV-4. Storage Settings
The “Storage Settings” menu enables you to
configure the settings for local storage of motion or
sound detection events/recordings. You can also
configure scheduled recording.

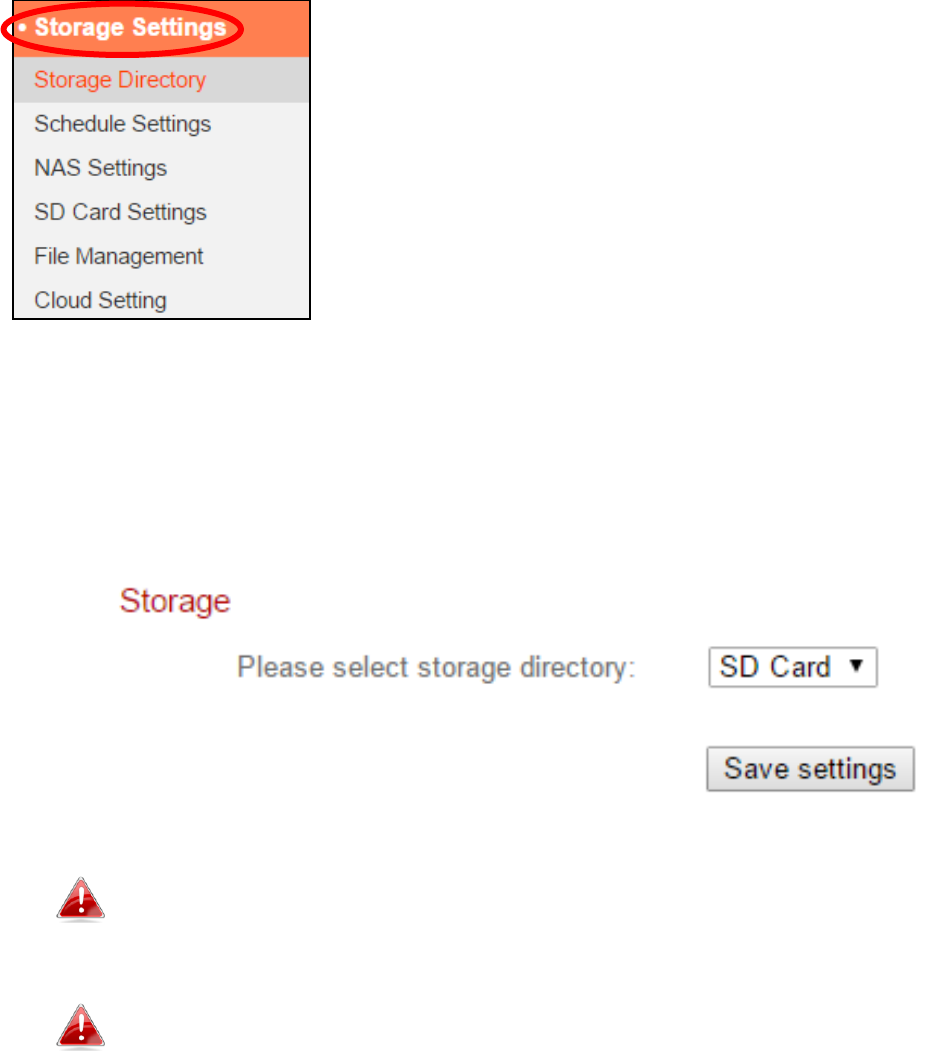

IV-4-1. Storage Directory
The network camera can store recordings of motion detection events to local
storage: NAS or MicroSD. Select your storage location and click “Save settings”.
A MicroSD card must be installed in the network camera to use
this function.
Configure the settings for your NAS or MicroSD card in the “NAS
Settings” or “SD Card Settings” menu respectively.
72
IV-4-2. Schedule Settings
The network camera can be scheduled to record automatically at/on specified
times and days. Select “Enable” to enable this feature and then define at
which times the network camera will record using the table below.
For each day, click and drag across the timeline on the times which you want
to record. A blue box indicates a scheduled recording. In the example below,
recording is scheduled for 8am – 6pm Monday to Saturday.
By default, the schedule may be full. Delete existing entries if
necessary.
To set the limit for individual file sizes for scheduled recording, go
to Storage Settings
NAS Settings or SD Card Settings depending
on your storage location.
73

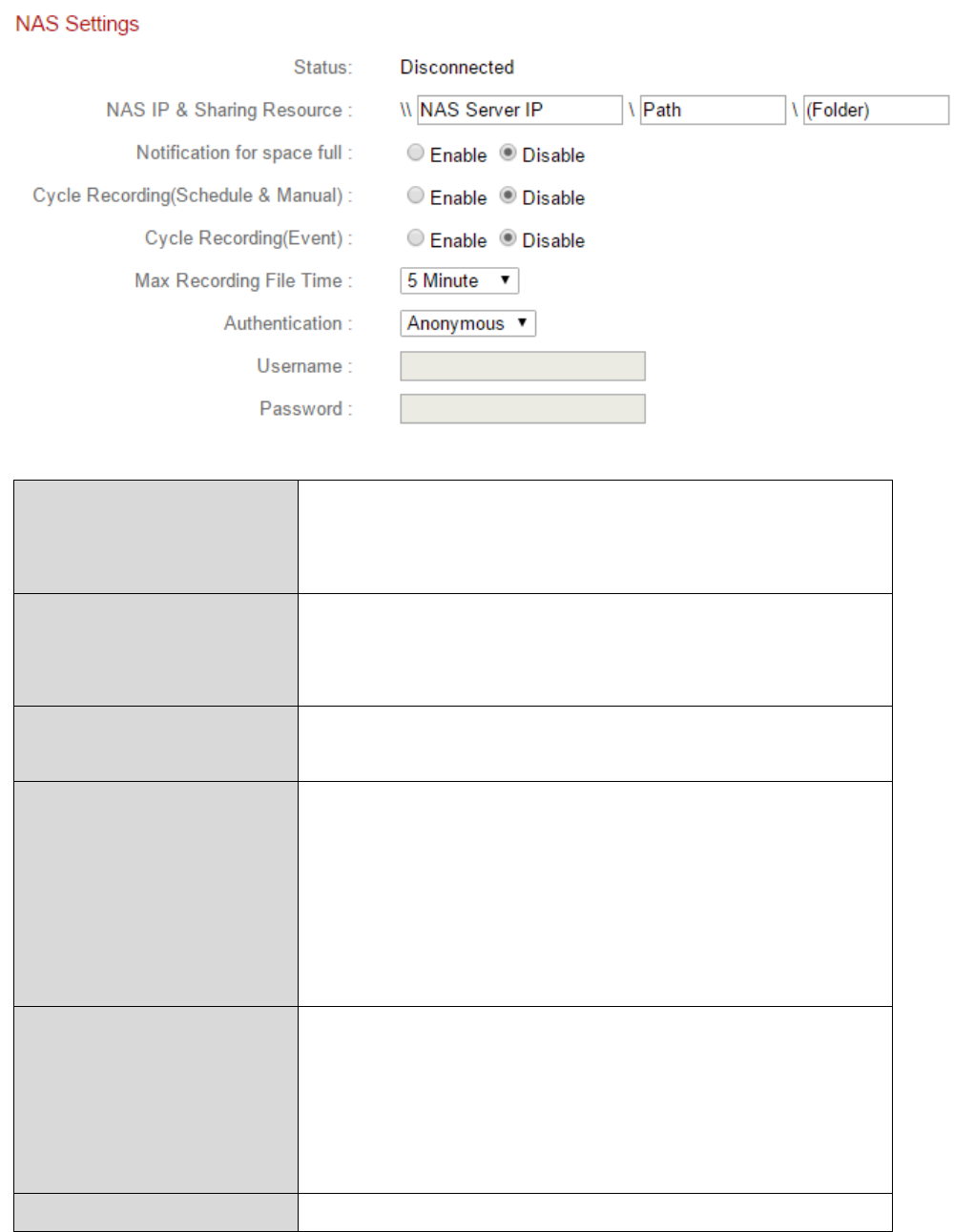

IV-4-3. NAS Settings
If using a NAS server for local storage, configure the settings on this page
according to your NAS.
Status
Displays the status (connected or
disconnected) of your network camera and
NAS server.
NAS IP & Sharing
Resource
Enter the local IP address of your NAS and the
path of a shared folder to store your network
camera’s recordings.
Notification for
space full
Enable or disable email notifications when
your storage space is full.
Cycle Recording
(Schedule &
Manual) (Event)
Enable or disable cycle recording for either
scheduled or manual recording, or event
recording. When enabled, cycle recording will
overwrite the earliest recordings when the
storage space becomes full. When disabled,
recording will stop when storage is full.
Max Recording File
Time
Set the maximum recording time for each file.
This applies to scheduled recordings only. For
motion or sound detection recording file
times, refer to “Events Motion/Sound
Detection”.
Authentication
Select “Account” and enter the username and
74
password in the fields below if your NAS
server requires authentication. Select
“Anonymous” if no authentication is required.
Username
Enter the username if “Account” is selected
above.
Password
Enter the password if “Account” is selected
above.

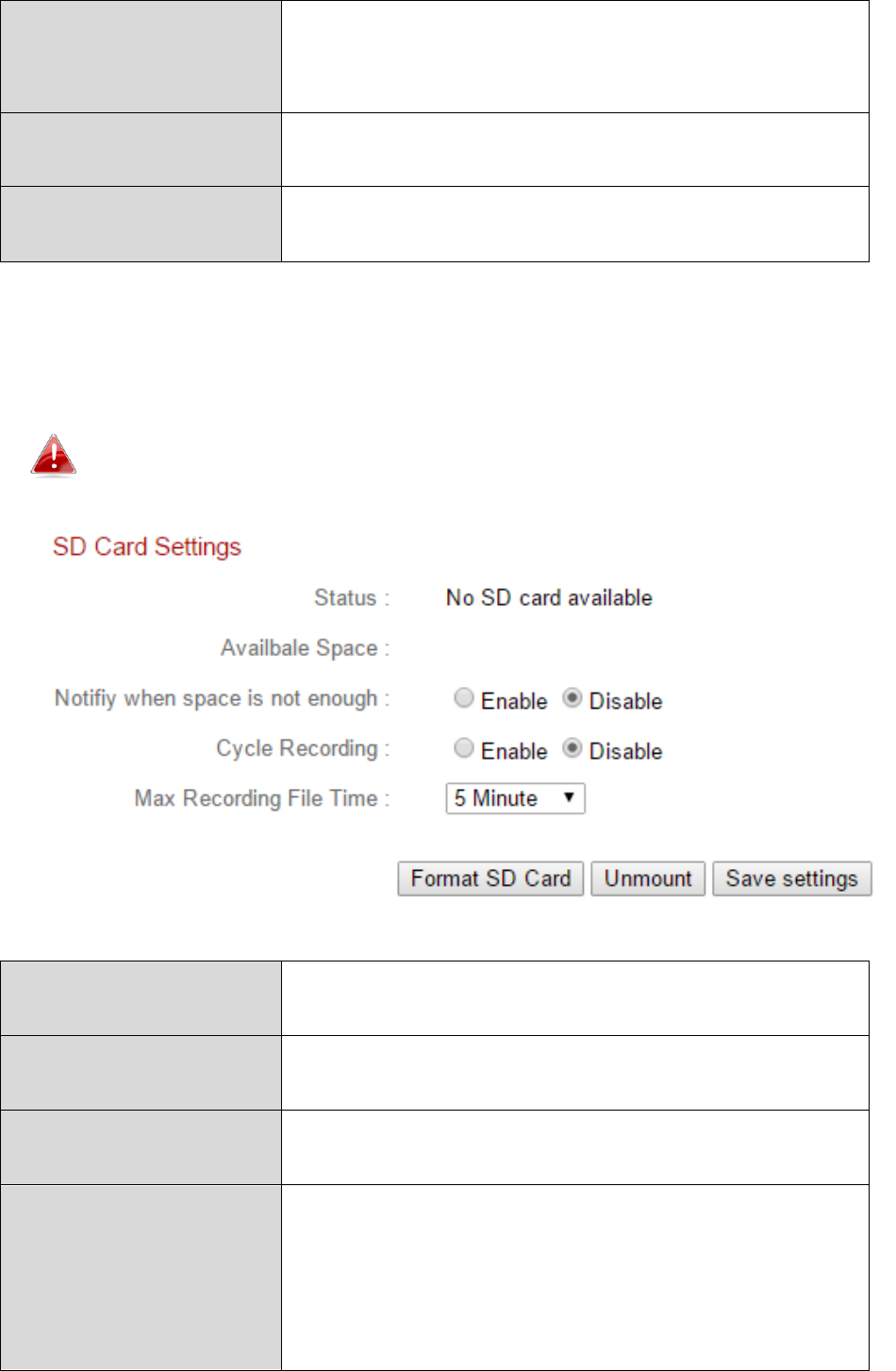

IV-4-4. SD Card Settings
Unmount your MicroSD card using the “Unmount” button before
removing the card from your network camera.
Status
Displays the MicroSD card status of your
network camera: available or unavailable.
Available Space
Displays the available space on the MicroSD
card in your network camera.
Notify when space is
not enough
Enable or disable email notifications when
your storage space is full.
Cycle Recording
(Schedule &
Manual) (Event)
Enable or disable cycle recording for
scheduled & manual or event recording.
When enabled, cycle recording will overwrite
the earliest recordings when the storage
space becomes full. When disabled, recording
75
will stop when storage is full.
Max Recording File
Time
Set the maximum recording time for each file.
This applies to scheduled recordings only. For
motion or sound detection recording file
times, refer to “Events Motion/Sound
Detection”.
Format SD Card
Click to format your MicroSD card. This will
erase all data on your MicroSD card.
Unmount
Click to unmount your MicroSD card from the
network camera. This is recommended before
removing the MicroSD card from the camera.

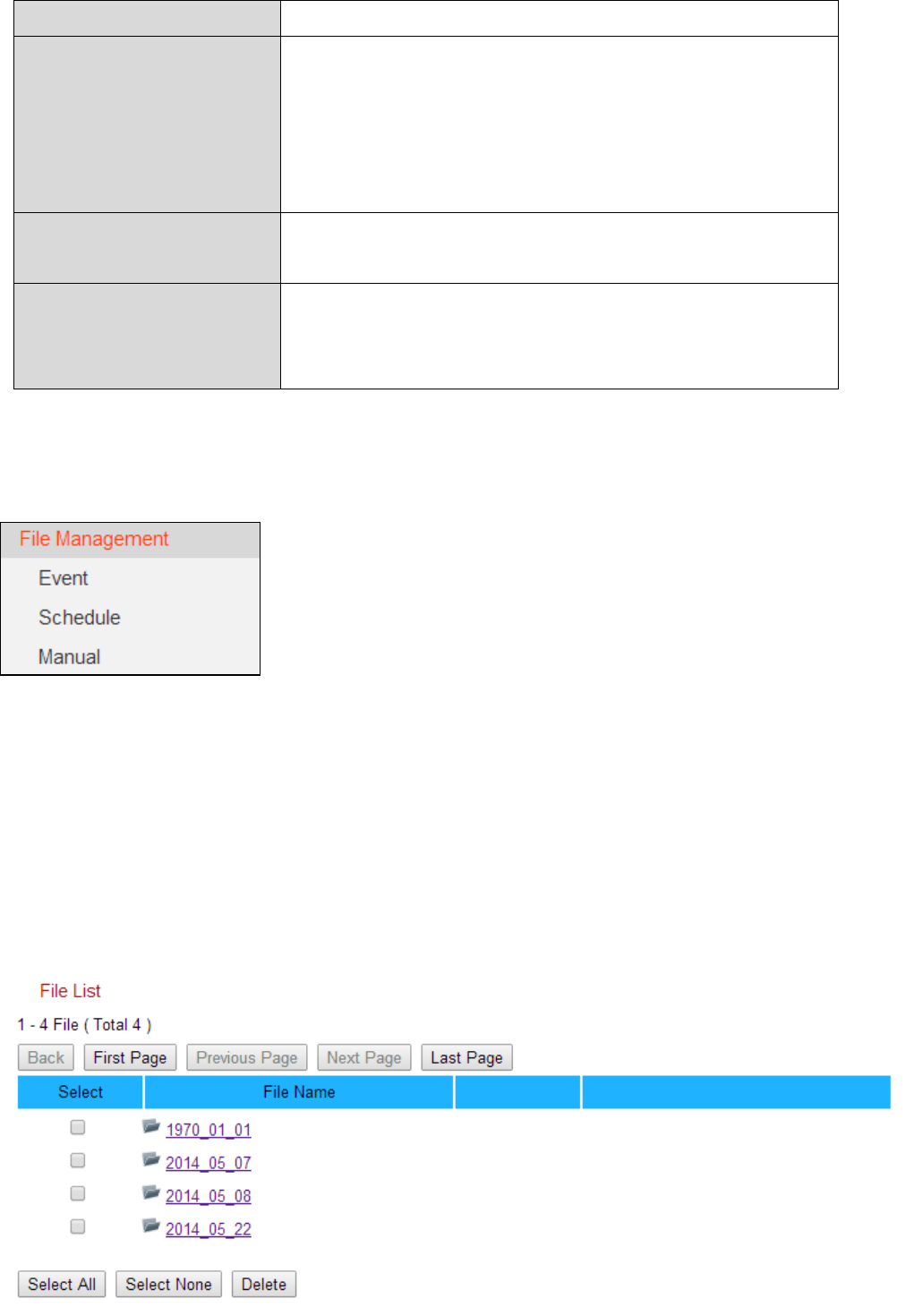

IV-4-5. File Management
The file management tool enables you to browse,
download and delete recording files on your MicroSD
card. Files are grouped according to the following
categories:
Event: Recordings or images from motion detection events are
displayed here.
Schedule: Recordings from scheduled recording are displayed here.
Manual: Manual recordings are displayed here.
Select Event, Schedule or Manual and use the file browser to navigate. Folders
are organized by date, and then grouped chronologically beginning with 001.
Individual file names consist of the date and time of the recording.
76
Back
Go back to the previous page in the file
browser.
First Page
Go back to the first page in the file browser.
Previous Page
Go back to the previous page in the file
browser.
Next Page
Go to the next page in the file browser.
Last Page
Go to the last page in the file browser.
Select All
Select all files or folders visible in the file
browser.
Select None
Deselect all selected files or folders.
Delete
Delete selected files or folders.
77

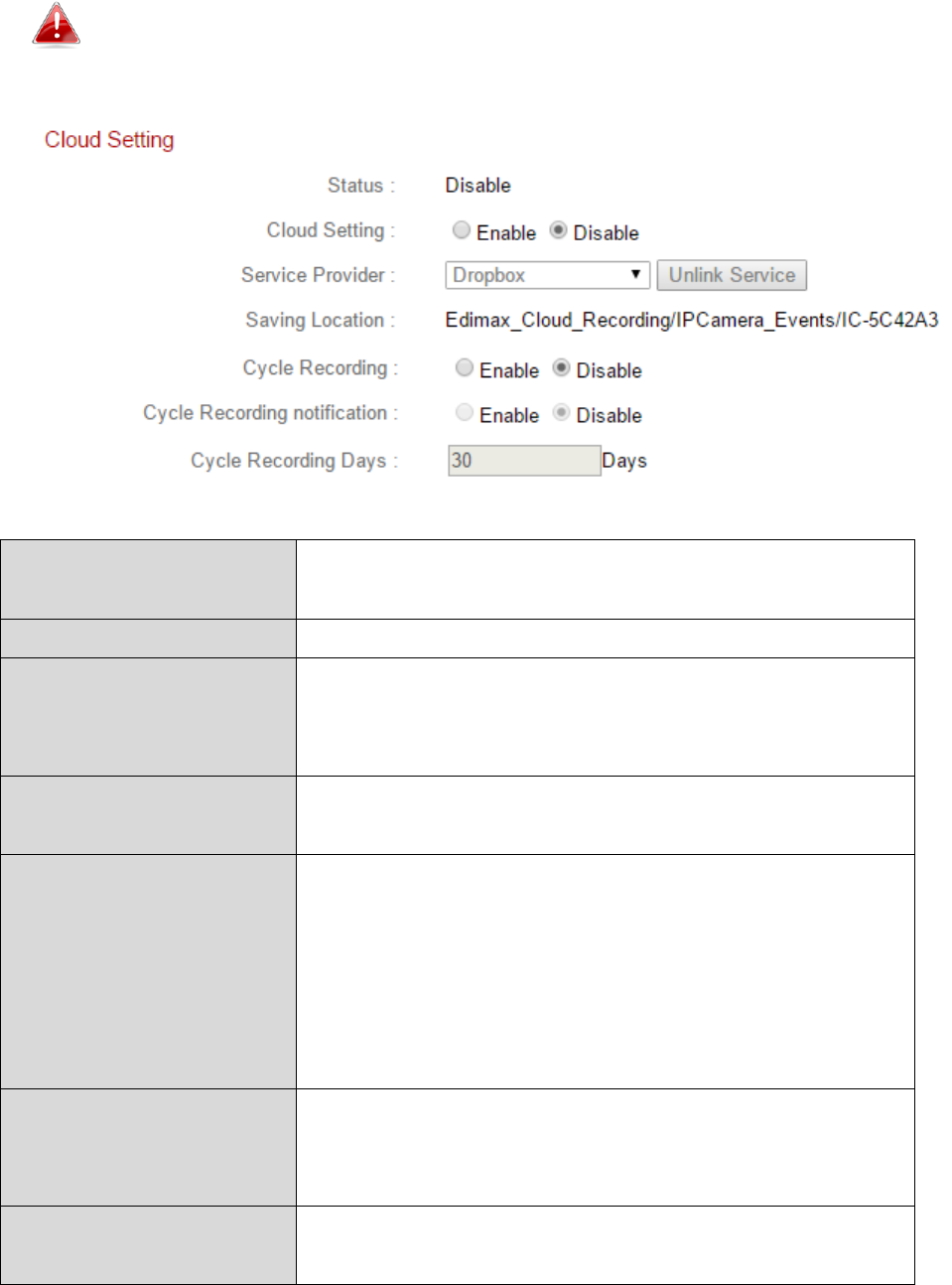

IV-4-6. Cloud Setting
The network camera can store recordings of motion and sound detection
events to online cloud storage services such as Dropbox.
Setup your Dropbox account using the EdiLife/ EdiView II app in
Settings
Advanced
Cloud Storage.
Status
Displays the status of the cloud storage
function.
Cloud Setting
Enable or disable the cloud storage function.
Service Provider
Select a provider from the dropdown list if
you want to unlink your cloud storage
account from the camera.
Folder Location
Displays the folder location where recordings
will be saved in your account.
Cycle Recording
Enable or disable cycle recording. When
enabled, cycle recording will overwrite the
earliest recordings when the storage space
becomes full or at the specified number of
days (below). When disabled, recording will
stop when storage is full.
Cycle Recording
Notification
Enable or disable notifications when a new
recording cycle occurs and begins to
overwrite previous recordings.
Cycle Recording
Time
Specify how many days a recording cycle can
occur before beginning to overwrite earlier
78
recordings.
79
IV-5. Pan & Tilt
The network camera features an electronic pan, tilt
& zoom capability which can be configured here.
Select a category from the submenu and refer to the
appropriate following chapter.
IV-5-1. Preset
The network camera can save up to four preset points within its range of
motion, which can then be viewed using the 1 – 4 shortcut icons in “Live
View”. This function allows you to avoid manually adjusting the camera’s
viewing position each time and instead provides a convenient shortcut to the
viewing positions which you use the most.
Preset Position
Number
Select a preset 1 – 4 from the drop down
menu.
Store Position
Information
Click to save the current position shown in the
“Preview” window as the selected preset
point.
Delete Settings
Delete the settings for the selected preset.
80
Preview
Displays a preview of the network camera’s
viewing position. Adjust the position using the
arrows below the preview window according
to your preference, and then click “Store
Position Information” (above) to save the
position as a selected preset.
Set Initial Position
Reset the preview window/viewing position
back to the network camera’s default
position.

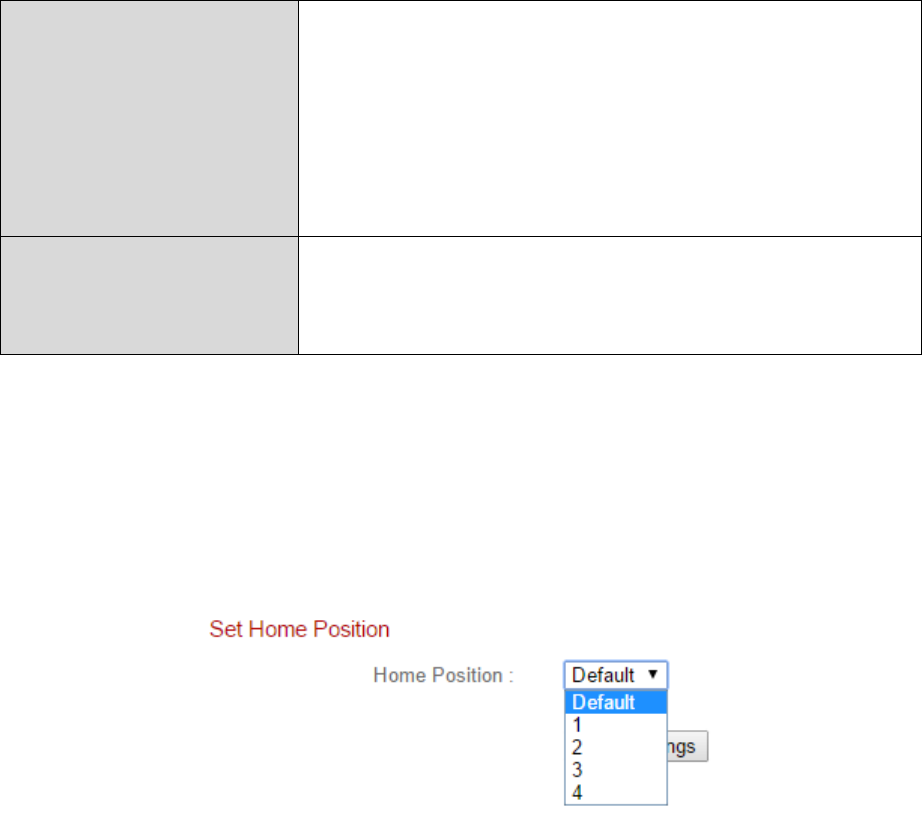

IV-5-2. Home Position
Set the network camera’s default “home” position – select a preset from 1 – 4.
You can adjust preset positions in Pan & Tilt > Preset.
81
IV-6. System
The “System” menu consists of three categories,
“Basic”, “Advanced” and “Cloud Service”. Select a
category and follow the appropriate chapter for more
information.
IV-6-1. Basic
The “Basic” menu enables you to set the camera’s name and administrator
password, as well as switch the LED(s) on/off according to your preference.
Network Camera
Name
Set the name of the network camera for
reference/identification purposes. This is
especially useful when managing multiple
network cameras.
Administrator
Password
Enter your desired administrator password
here. This is the password used to log into the
camera with the “admin” account. The
default password is 1234.
Confirm Password
Confirm your desired administrator password
here.
LED Indication
Select “On” or “Off” to switch the network
camera’s LED(s) on or off. Switching off the
LEDs can be a power saving measure or can
be for security purposes, so that anybody
who can see the network camera is unaware
if the camera is active.
82
IV-6-2. Advanced
The “Advanced” page allows you to upgrade the network camera’s firmware,
backup or restore the network camera’s settings, and reset or restart the
network camera. Please check the Edimax website for the latest firmware for
your network camera.
Do not switch off or disconnect the device during a firmware
upgrade, as this could damage the device.
Firmware Filename
Click “Browse” to locate the firmware file on
your computer.
Upgrade Firmware
Click to upgrade the firmware to your
selected file.
Backup Settings
Click “Apply” to save the current settings on
your computer as config.bin file.
Restore Settings
Click “Browse” to find a previously saved
config.bin file and then click “Upload” to
replace your current settings.
Restart
Click “Restart Network Camera” to restart the
network camera. Please wait a couple of
minutes for network camera to boot up after
a restart. Restarting will not affect the
camera’s current configuration.
Reset to default
Select “Keep Network Settings” or “Default
83
Settings” and then click “Reset to Default”.
When the camera resets, “Keep Network
Settings” will reset all settings but keep the
current network settings. The network
camera’s IP address will remain the same.
“Default Settings” will reset all of the
camera’s settings, including network settings,
back to the factory default status.
84
IV-6-3. Cloud Service
Edimax Plug & View is a function to allow you to view your network camera
remotely via a cloud server (see V. Myedimax.com). You can enable or disable
this feature here.
85
IV-7. Status
The “Status” menu provides important information
about the status of the network camera. This
information is useful for troubleshooting purposes or
for network configuration.
86
IV-7-1. System Information
A summary of system-wide information about the network camera is
displayed on this page, displayed under four categories: System, LAN, Wireless
LAN and IGD (UPnP Port Forward).
87

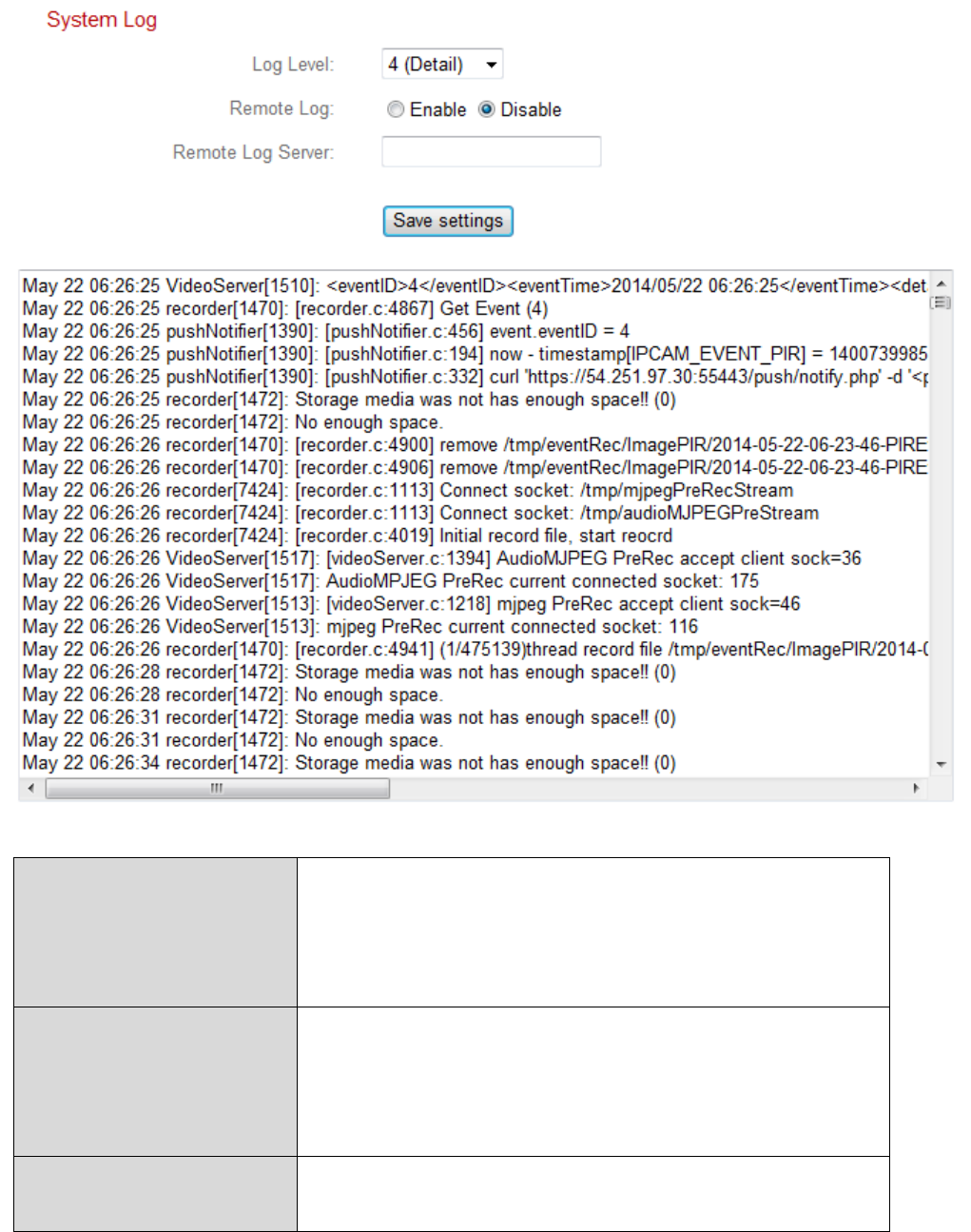

IV-7-2. System Log
A system log provides information about the network camera’s usage and
actions. The system log can also be sent to a remote server for archiving.
Log Level
Select a level of detail for the log from the
dropdown list, from 0 - 4. 0 (minimum) will
only log critical information, while 4
(maximum) will log everything.
Remote Log
Enable or disable the network camera’s
remote log function, to send the log to a
remote server for archiving. The network
camera supports syslog log servers.
Remote Log Server
Enter the IP address or host name of the log
server you wish to use.
88
V. Myedimax.com
You can use your network camera’s Myedimax.com cloud ID to monitor your
camera remotely using a web browser from any Internet connection. The
network camera’s green power LED must display on to indicate a successful
cloud connection, in order for this function to work.
1. Identify your network camera’s cloud ID. The cloud ID is displayed in
EdiView Finder (see II-2. EdiView Finder) and on the product label on the
back of the network camera (see I-4. Product Label).
The cloud ID is a string of 12 characters consisting of numbers 0 –
9 and letters A – F which is unique to your network camera.
2. Enter cloudID.myedimax.com into the URL bar of a web browser.
For example, if your cloud ID is 001109010204 then enter
001109010204.myedimax.com into your web browser.
Internet Explorer is recommended.
3. You may be prompted to allow a Java add-on to run. Please click the
message where it says “click here” and then click “Run Add-on”.
89
If any other security warnings/prompts appear, please select
“Run” or “Allow” or similar, depending on your browser.
4. Enter your camera’s password (default password: 1234) and click “OK” to
see a live stream from your network camera.
90

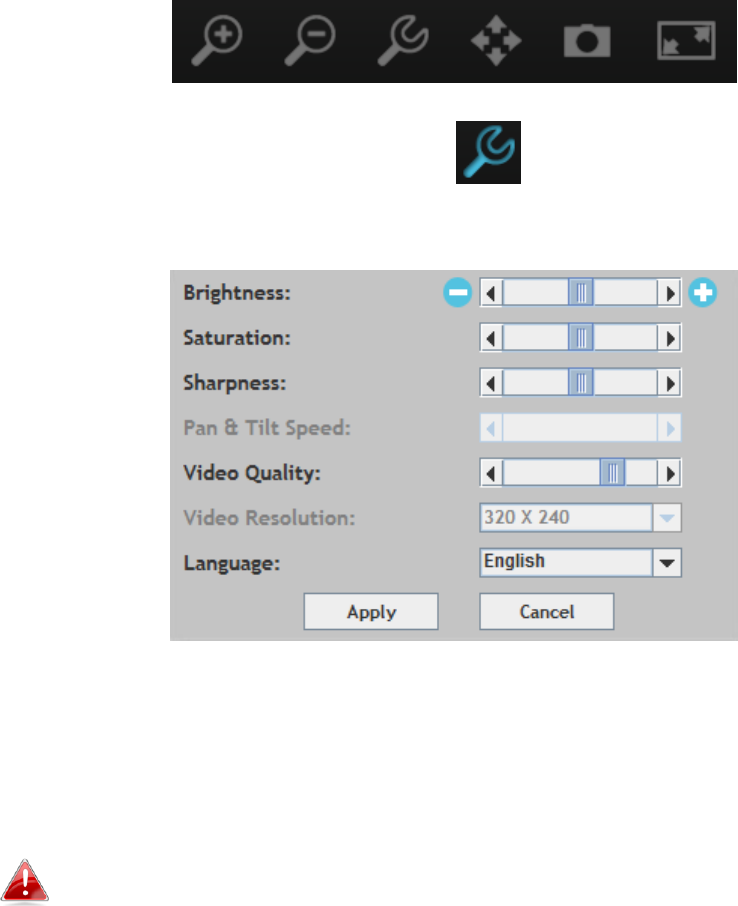

5. The network camera can be operated and configured using the icons in the
toolbar located below the image.
To configure the network camera, click to show the configuration menu
window:
6. Use the slider controls to change the image brightness, saturation,
sharpness, video quality and pan & tilt speed. Use the dropdown lists to
change the video resolution and operating language, and click “Apply”
when finished.
Functionality of myedimax.com may vary according to version.
91
VI. 16 Channel Viewer for Windows
The included 16 channel viewing software provides powerful access to your
network camera’s functions, along with the capability to view and manage up
to 16 network camera simultaneously.
VI-1. Installation
1. Insert the included CD into your CD-ROM drive and if the setup utility does
not automatically open, please locate and open the “Autorun.exe” file in
the “Autorun” folder.
2. Click “16 Channel Viewer” to install the EdiView Finder software utility.
3. Click “Next” and follow the on-screen instructions to install the 16 channel
viewer software.
92

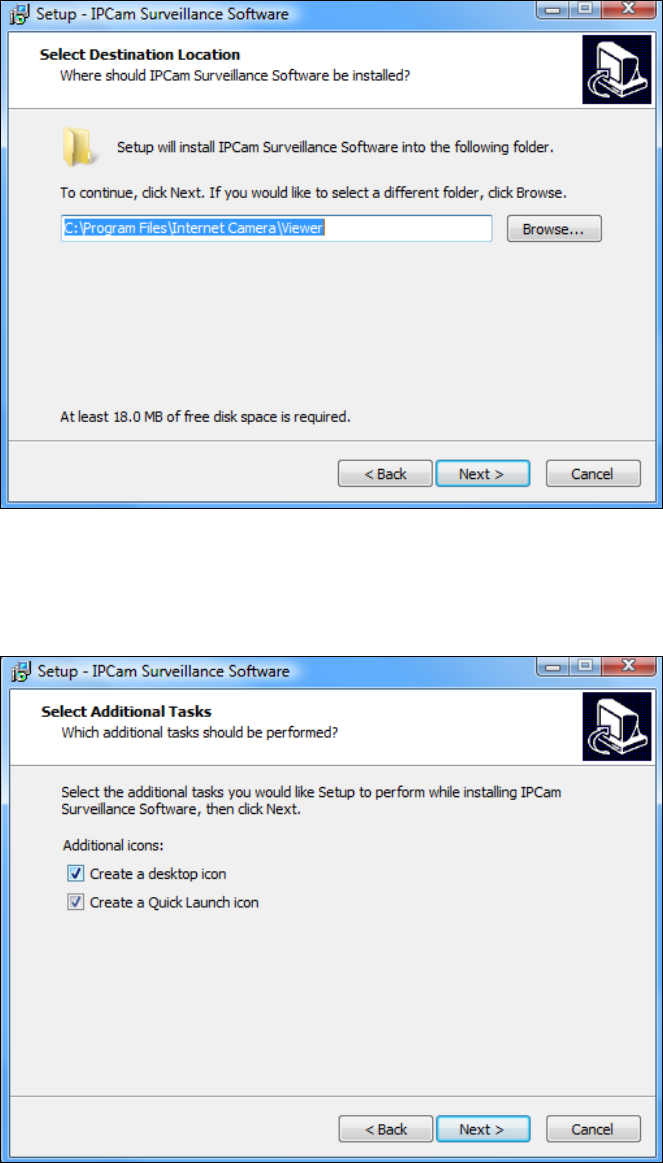

4. Check the installation location and click ‘Next’ to continue.
5. Click “Next” to continue.

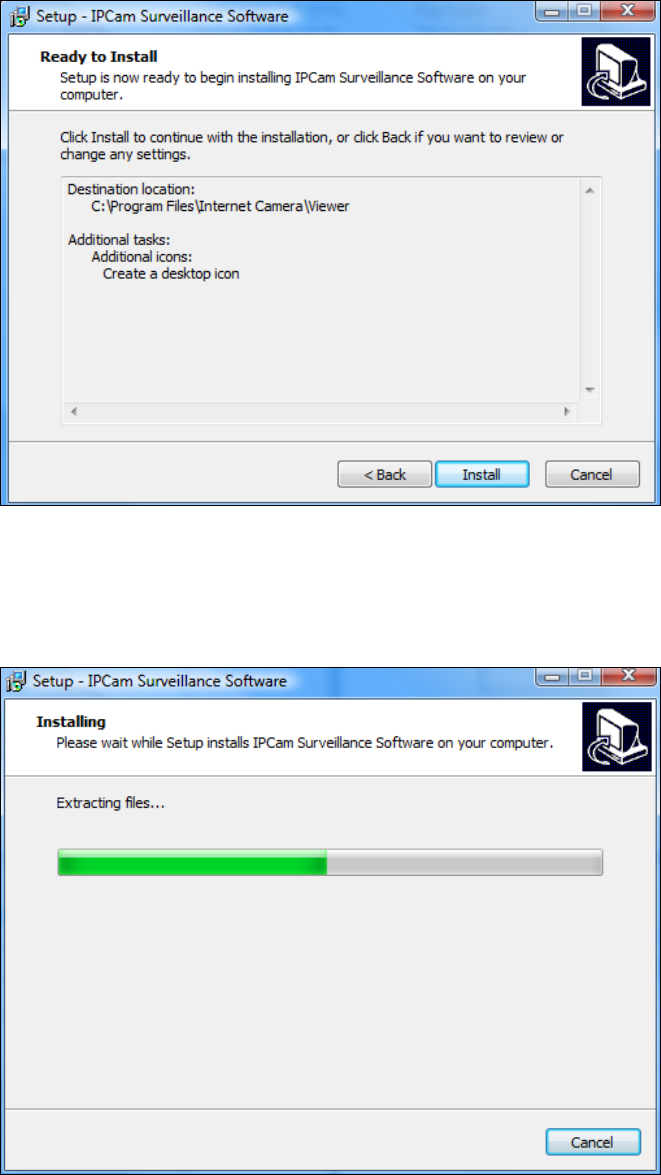

6. A summary of your installation will be displayed. Please check everything is
correct and click “Install” to begin the installation.
93
7. Please wait a moment for the installation to complete.

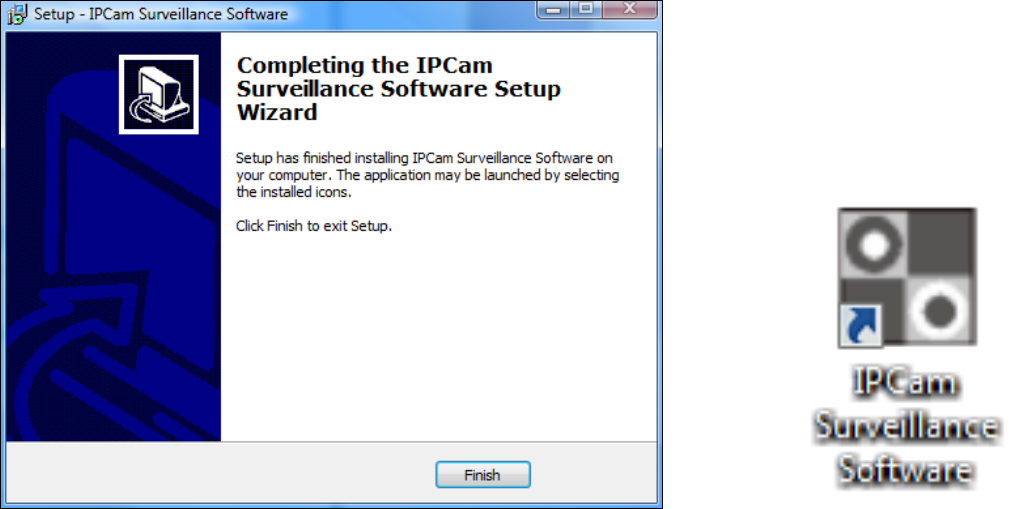

8. Click “Finish” and then double click the “IPCam Surveillance Software” icon
on your desktop to open the software.
94
95
VI-2. Using the 16 Channel Viewer
Your monitor’s resolution must be “1024 x 768” for the 16 channel
viewer to work properly. Please set your monitor’s resolution to
“1024 x 768”.

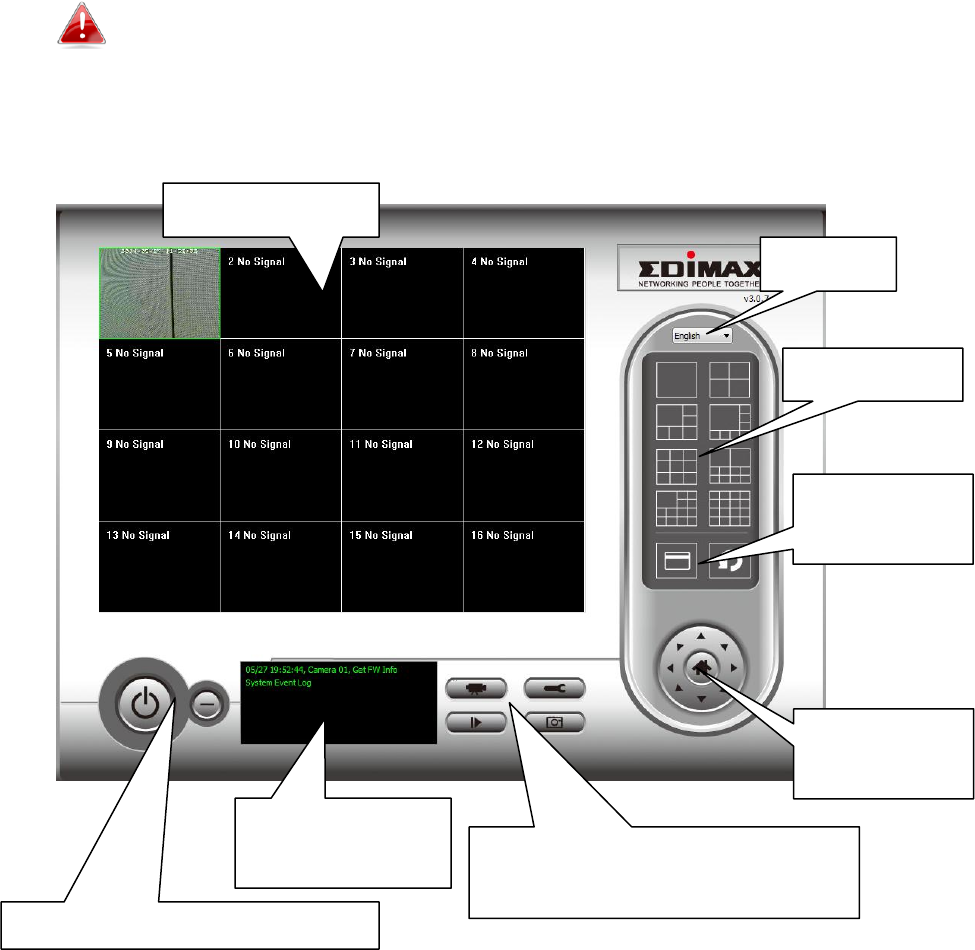

The main screen of the 16 channel viewer is described below:
Language
Display Layout
Full screen &
Scan
PTZ Control &
Home
Recording & System Configuration
Playback & Snapshot
Close Program & Minimize Window
Video display area
Message Display
Box
96
Video display area
A live image of up to 16 connected cameras
will be displayed in this area.
Language
Select a language from this dropdown menu
to change the display language.
Display layout
Change camera image display layout (click a
layout icon to change camera display layout).
There are 8 kinds of display layouts available.
Full screen
Click this button to switch to full screen mode
(only display all camera’s image), press “ESC”
key to quit full screen mode.
Scan
Click this button and the network camera
surveillance software will switch through the
images of all connected camera
automatically. Click this button once to
activate the scan function (scan icon will
become blue ), click again to stop scanning
(scan icon will become white ).
PTZ control
There are 8 directions in the Pan Tilt Zoom
(PTZ) control ring. If the camera you connect
to supports PTZ, you can use the PTZ control
ring to change the direction that the camera
faces.
This function is only available for supported
cameras.
Home
Click this button to return the camera to
“Home” (default) position.
This function is only available for supported
cameras.
Recording
Start video recording.
System
Configuration
Camera configuration and general options.
Playback
Play back a recorded video file. A new
window will open to locate recorded files.

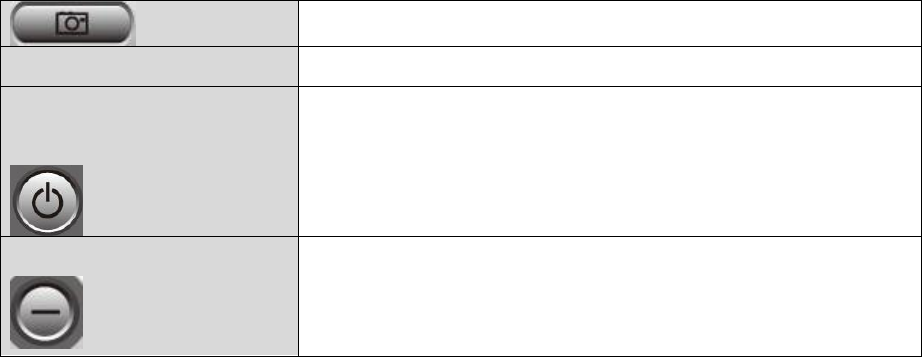

Snapshot
Take a snapshot of current the camera image.
97
Message display
Displays all system messages.
Close window (stop
surveillance)
Terminates network camera surveillance
software.
Minimize window
Minimizes network camera surveillance
software window.
98
VI-3. Configuring the 16 Channel Viewer
VI-3-1. Add Camera/Camera Configuration
In order to use the 16 channel viewer software, you must configure/add each
camera(s) that you wish to connect. Please click the wrench icon ( ) and a
popup menu will appear:
Please select “Camera Configuration” to configure/add cameras:
Please select “Unblock” if you are prompted by Windows Security
Alert that “IPCamViewer” has been blocked, or similar.
99

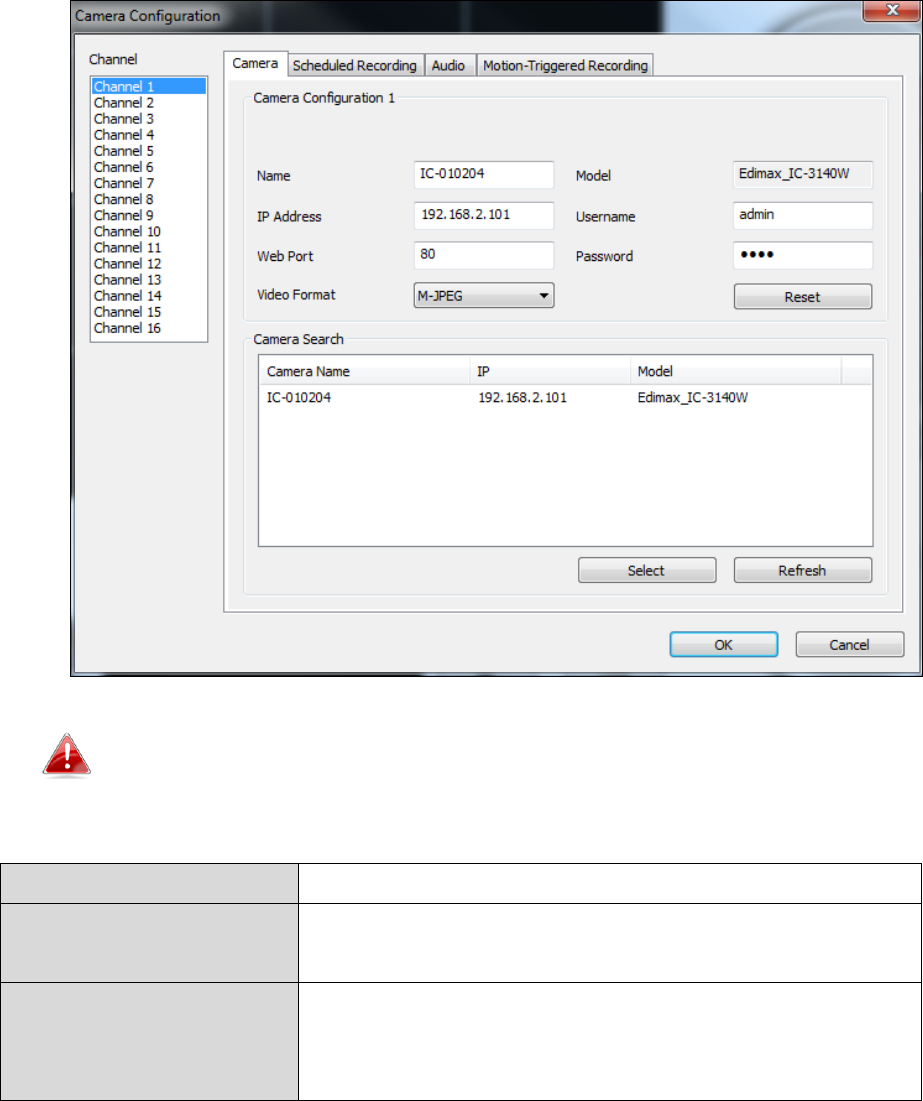

VI-3-1-1. Camera
In the “Camera Configuration” tab you can add and configure all the cameras
you wish to connect to the viewer software. To connect a camera to the
viewer software, you need to enter the required information in the “Camera
Configuration” box. You can do this automatically by selecting your camera
listed in the “Camera Search” box and clicking “Select” (recommended) or you
can enter the information manually.
All of the information required to add your network camera can
be completed automatically by selecting your camera listed in the
“Camera Search” box and clicking “Select”.
Channel
Select the channel number you wish to use.
Camera Search
All cameras found on your local network will
be displayed in the “Camera Search” box.
Select
Select a camera listed in the “Camera Search”
box, and click the “Select” button to
automatically enter the required information
100
to connect the selected camera in the
“Camera Configuration” box.
Refresh
Refresh the list of cameras on your local
network.
Name
Enter a reference name for the camera here.
The default name is the first 6 characters of
the camera’s MAC address. The camera name
can be used to easily identify its location for
example.
Model
Displays the model of the selected camera.
IP Address
Input the IP address of the camera.
Username
Input the user name of the camera.
Web Port
Input the web port of the camera. The default
value is“80”.
Password
Input the password of the camera. The
default password is “1234”. If you changed
the password of the selected camera, enter
the new password.
Video Format**
Select the video encoding format of this
camera (MJPEG or H.264).
Reset
Clear all fields in the ‘Camera Configuration’
section.
** Only available for cameras which support this function.
Click “OK” to save the settings and your network camera’s image will be
displayed in your selected channel on the 16 channel viewer’s main screen:
101

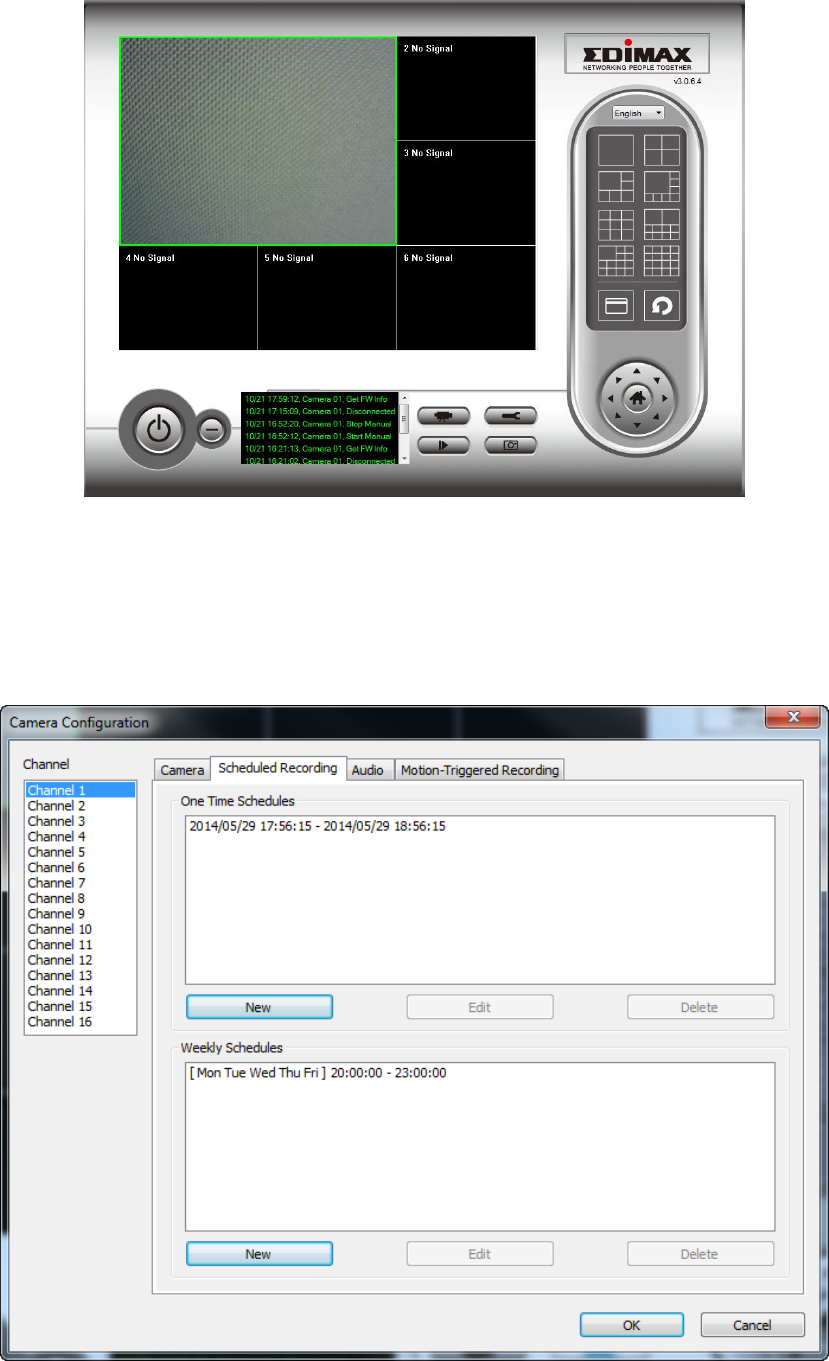

VI-3-1-2. Scheduled Recording
You can schedule your network camera(s) to record automatically according
to weekly schedules, or unique “one-time” schedules.
102
Channel
Select the channel number you wish to set.
One Time Schedules
You can specify the one-time schedule for a
selected camera; this schedule will be
executed once only.
New
(One Time
Schedules)
Please specify the time duration of this one-
time schedule (the date and time of ‘From’
and ‘To’), then click ‘OK’ to save settings.
Please note you must set a schedule that will
happen in the future, you cannot set a
schedule in the past.
Edit
You can modify a scheduled recording item.
Select a schedule in ‘One Time Schedules’ list,
and click the ‘Edit’ button to edit the start and
end time of this schedule.
Delete
Delete a selected schedule item.
New
(Weekly Schedules)
You can define a weekly recording schedule
for specified times and days. Check the days
to include in the schedule, and set the daily
103
start and finish time in the “From” and “To”
fields (format HH:MM:SS). The “Continuous
Recording” button will set the schedule to
record everyday from 12:00:00AM to
11:59:59PM i.e. continuously.
Edit
You can modify a scheduled recording item.
Select a schedule in the ‘One Time Schedules’
list, and click the ‘Edit’ button to edit the start
and end time of this schedule.
Delete
Delete a selected schedule item.
104

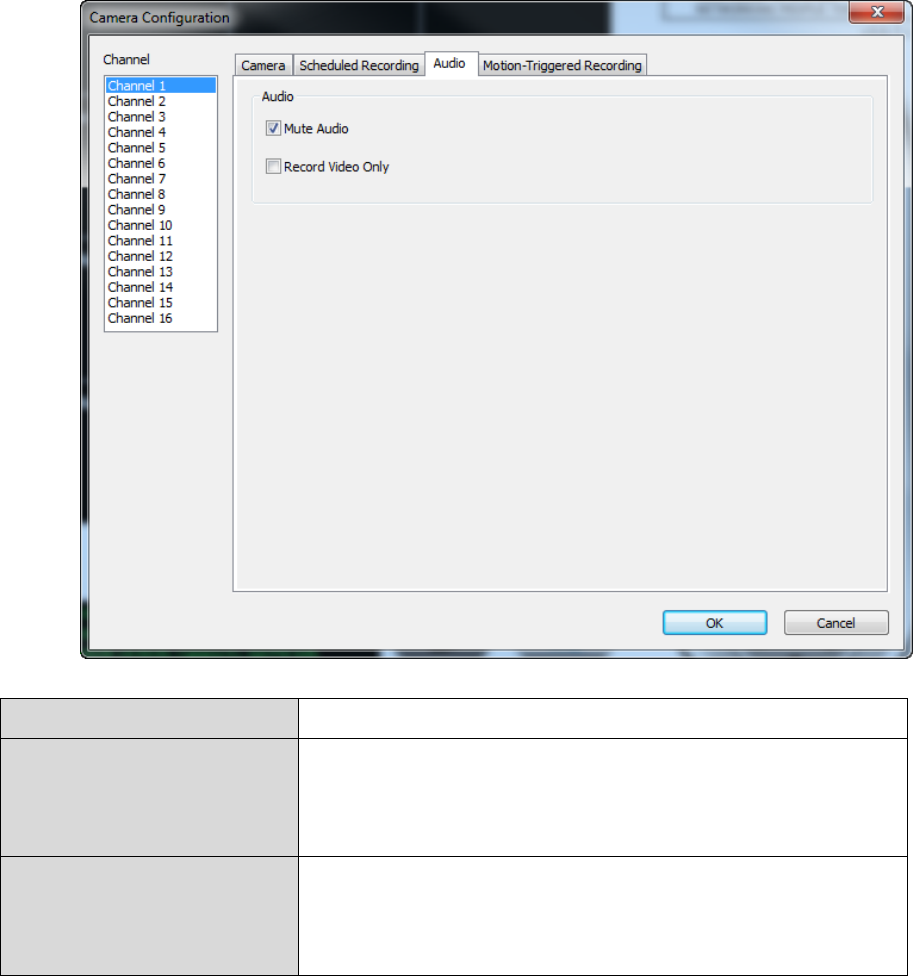

VI-3-1-3. Audio
For cameras that support audio, you can use this tab to decide if you wish to
hear the audio captured by the selected camera.
Channel
Select the channel number you wish to set.
Mute Audio
Check this box and the network camera
surveillance software will not play the audio
captured by this camera.
Record Video Only
Check this box and the network camera
surveillance software will not record the
audio captured by this camera.
105
VI-3-1-4. Motion Recording
The network camera features a motion detection function and various options
for (motion detection) events notification. On this page you can enable or
disable motion detection and set the camera to send an email or trigger an
alarm when motion is detected.
Please note that when using the camera for security purposes, it
is important to monitor the camera’s stream even when using
motion detection. Motion detection may not be 100% accurate.
Channel
Select the channel number you wish to set.
Enable
Enable motion record function.
Disable
Disable motion record function.
Video Length
Select the time duration from the dropdown
menu, in seconds, that the camera will record
when a motion has been detected.
Invoke alarm when
motion is triggered
Send an alarm when a motion has been
detected by the camera.
106
Send email when
motion is triggered
Send an email to a pre-defined address when
a motion has been detected by the camera.
107

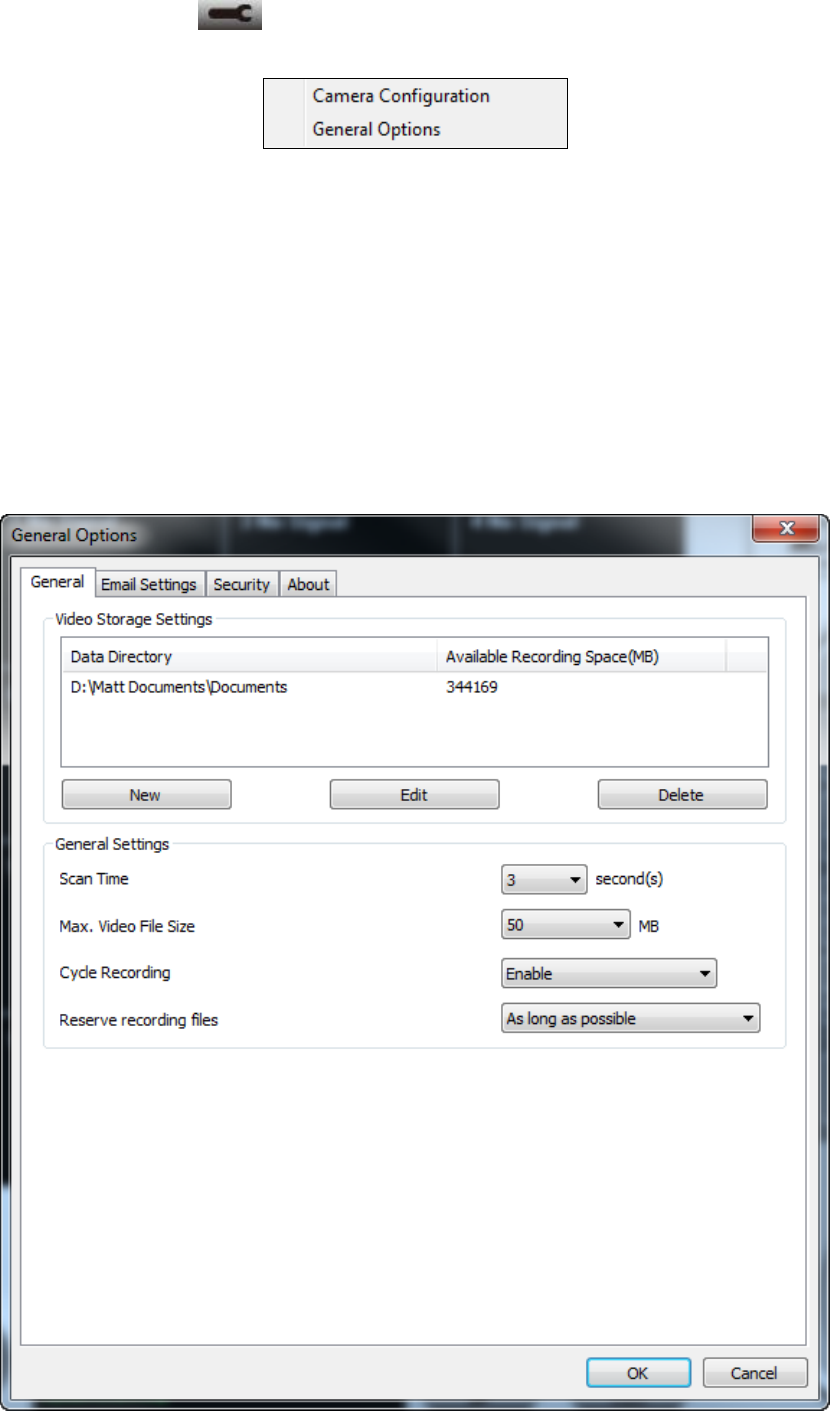

VI-3-2. General Options
Click the wrench icon( ) and a popup menu will appear:
When you select “General Options”, please refer to the appropriate following
chapter:
VI-3-2-1. General
All general settings such as the file storage directory and recording spaces can
be set here.
108
Video Storage
Settings
Use the “New”, “Edit” and “Delete” buttons
to set the directory for local video storage.
Available space in the specified directory will
be displayed.
Scan Time
Define the time period to pause between
every camera switch when you activate the
‘Scan’ function.
Max Video File Size
Set the maximum file size of every video file.
When the size of the file exceeds this value,
the network camera surveillance software will
open another file to record the video.
Cycle Recording
Enable or disable cycle recording. When
enabled, cycle recording will overwrite the
earliest recordings when the storage space
becomes full. When disabled, recording will
stop when storage is full.
109
VI-3-2-2. Email Settings
If you set your network camera to send email notifications for motion
detection events (see VI-3-1-4. Motion Detection), you need to configure
your email settings here.
E-Mail Subject
Specify the subject of the email notification
you will receive.
Recipient E-Mail
Address
Use the “New”, “Edit” and “Delete” buttons
to enter the email address for the recipient(s)
of the email notification.
Sender E-Mail
Specify the email address which will send the
110
Address
notification email.
SMTP Server
Specify the IP address or host name of the
SMTP server for the sender email. Your ISP
can provide this information if you are
unsure.
SMTP port
Specify the port number of the SMTP server
you wish to use here. The default value is 25.
SMTP
Authentication
Enable or disable SMTP authentication. If you
are unsure, check with your ISP.
SMTP Account
If using SMTP authentication (above), then
enter the SMTP account (username) of your
SMTP server here. In most cases, it’s the same
as your POP3 username (the one you use to
receive email). Contact your ISP if you are
unsure.
SMTP Password
Enter the SMTP password of your SMTP
server here. In most cases, it’s the same as
your POP3 password (the one you use to
receive email). Contact your ISP if you are
unsure.
111
VI-3-2-3. Security
You can set a password to protect the 16 channel viewer software. When
enabled, the password will be required each time to open the 16 channel
viewer software.

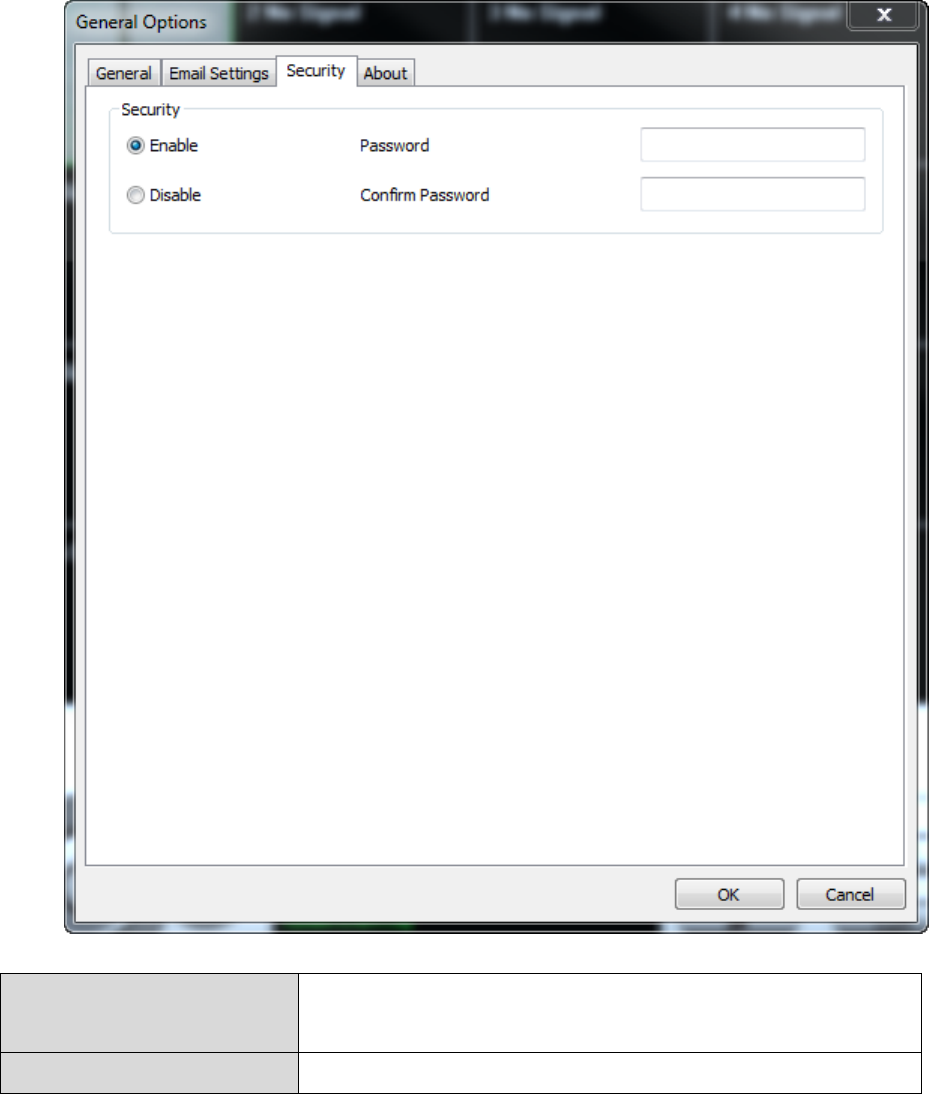

To set the password, please use the ‘Security’ tab in the ‘General Options’
menu:
Enable
When enabled, the password is required to
open the 16 channel viewer software.
Disable
No password is required when disabled.
112
Password
Enter the password you wish to use here.
Confirm Password
Enter the password you wish to use here
again.

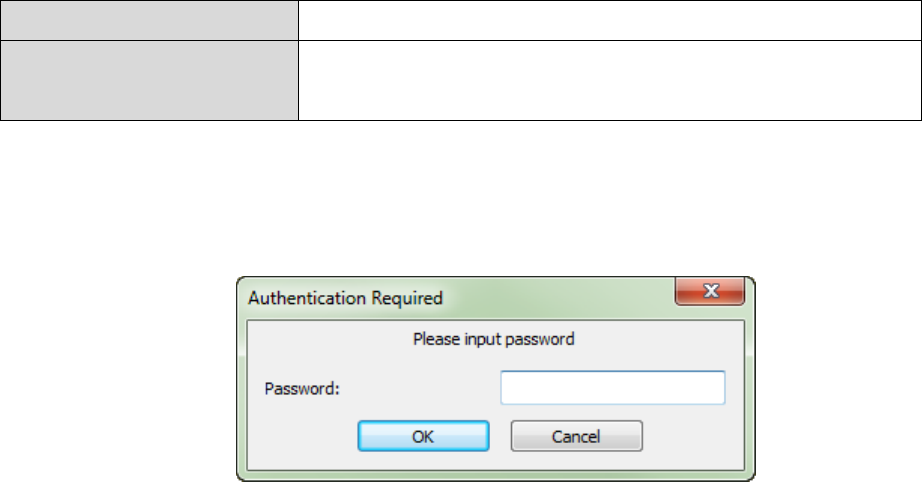

When you open the 16 channel viewer software, you will be prompted to
enter the password:
113
VI-3-2-4. About
The “About” tab displays the software version number.
114

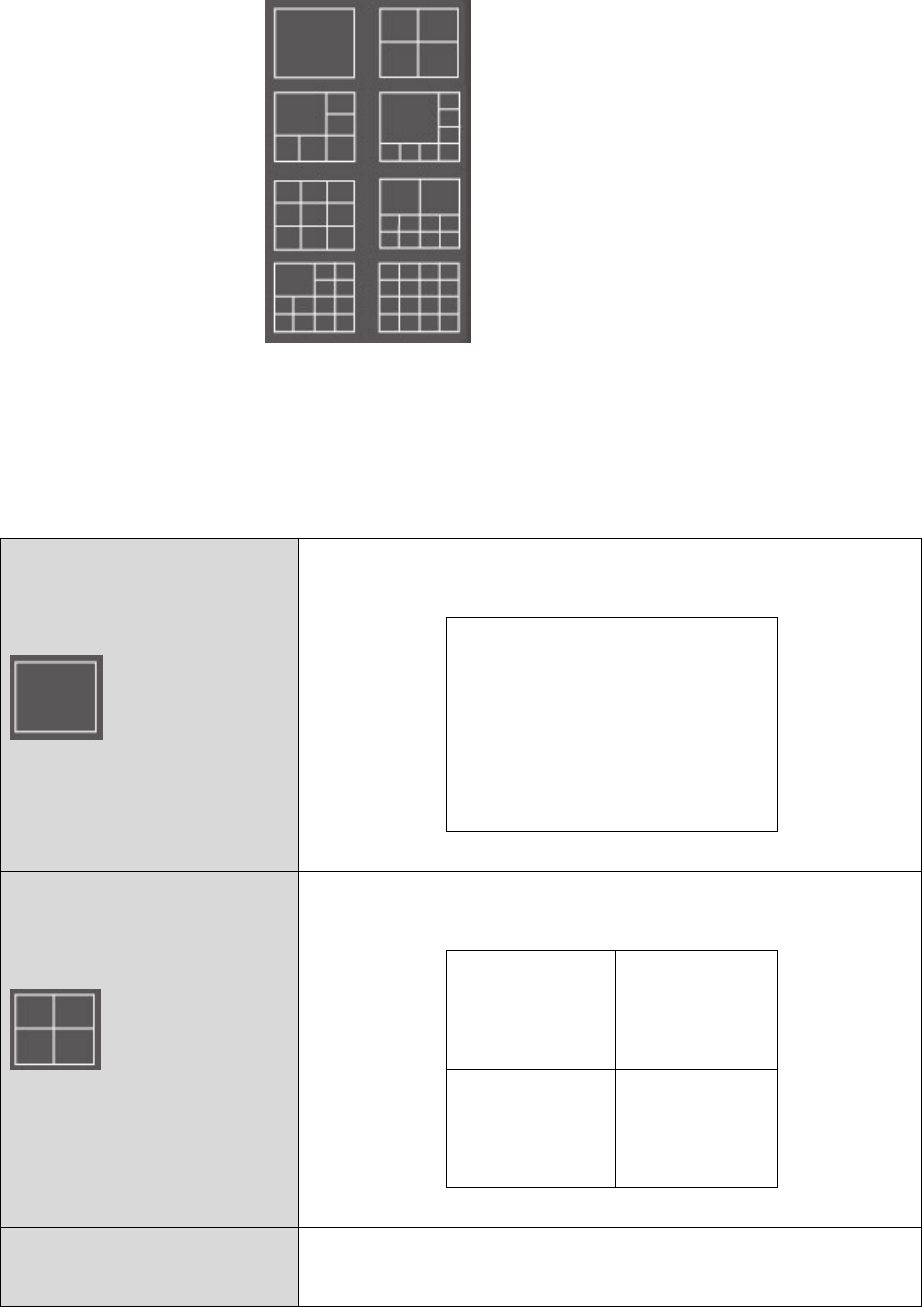

VI-4. Changing the Display Layout
This network camera surveillance software provides eight display layouts:
Each layout displays a different number of cameras in different arrangements.
Click the icon which represents your preferred layout and the video display
area will change accordingly.
Layout style 1: 1
Camera only
Displays the video of 1 camera only.
Layout style 2: 4
Cameras
Displays the video of up to 4 cameras.

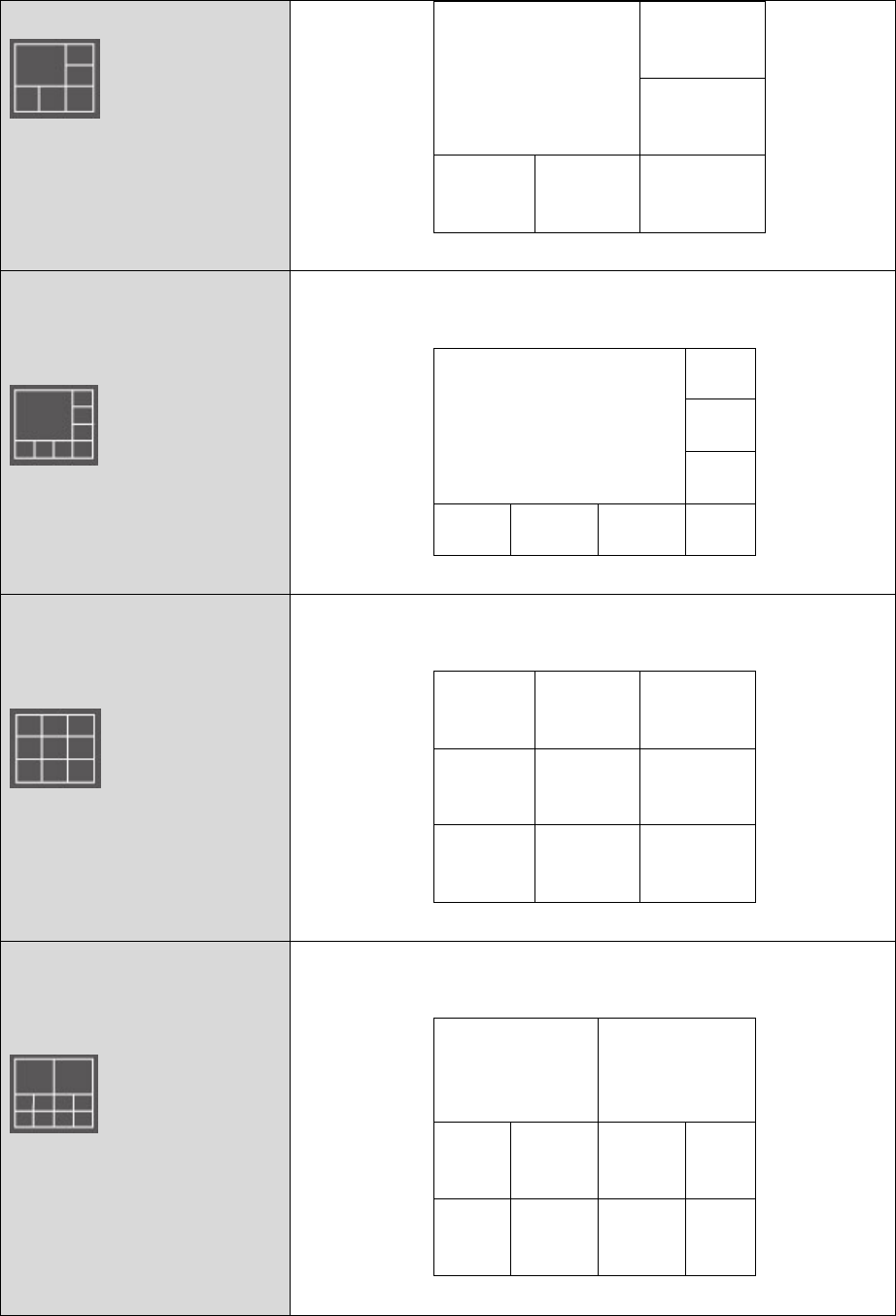

Layout style 3: 6
Cameras
Displays the video of up to 6 cameras.
115
Layout style 4: 8
Cameras
Displays the video of up to 8 cameras.
Layout style 5: 9
Cameras
Displays the video of up to 9 cameras.
Layout style 6: 10
Cameras
Displays the video of up to 10 cameras.
116

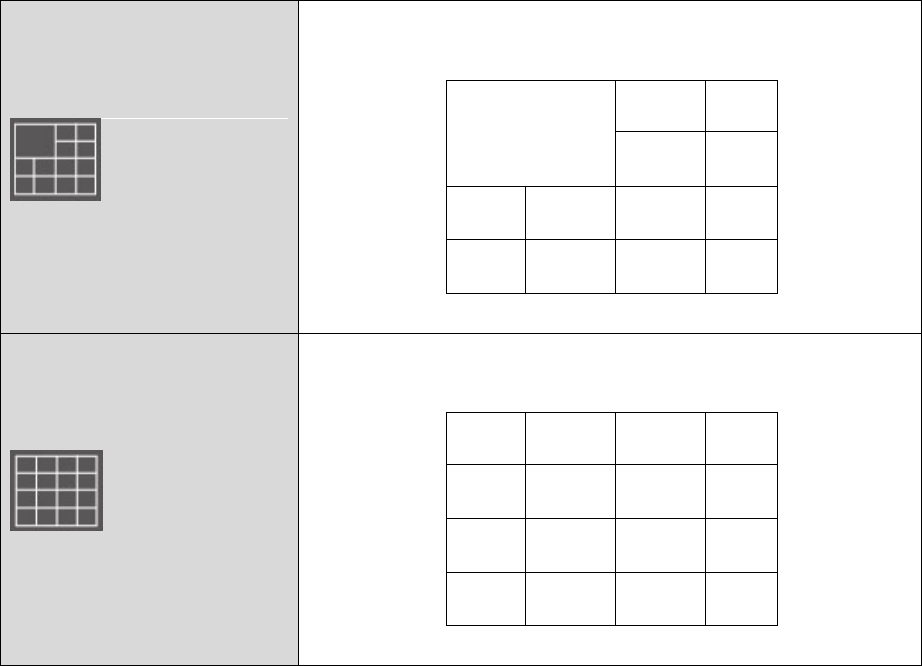

Layout style 7: 13
Cameras
Displays the video of up to 13 cameras.
Layout style 8: 16
Cameras
Displays the video of up to 16 cameras.
117

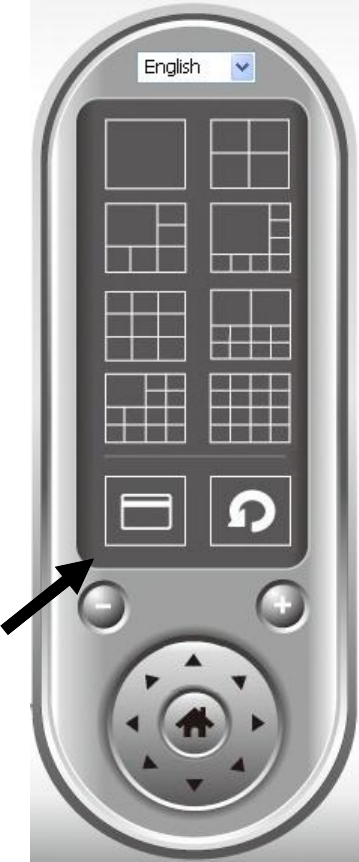

VI-5. Full Screen Mode
Click the ‘Full Screen’ button to switch the display mode to full-screen mode.
This uses all available space on your monitor to display the surveillance image.
Press the “ESC” key to exit full-screen mode.
118

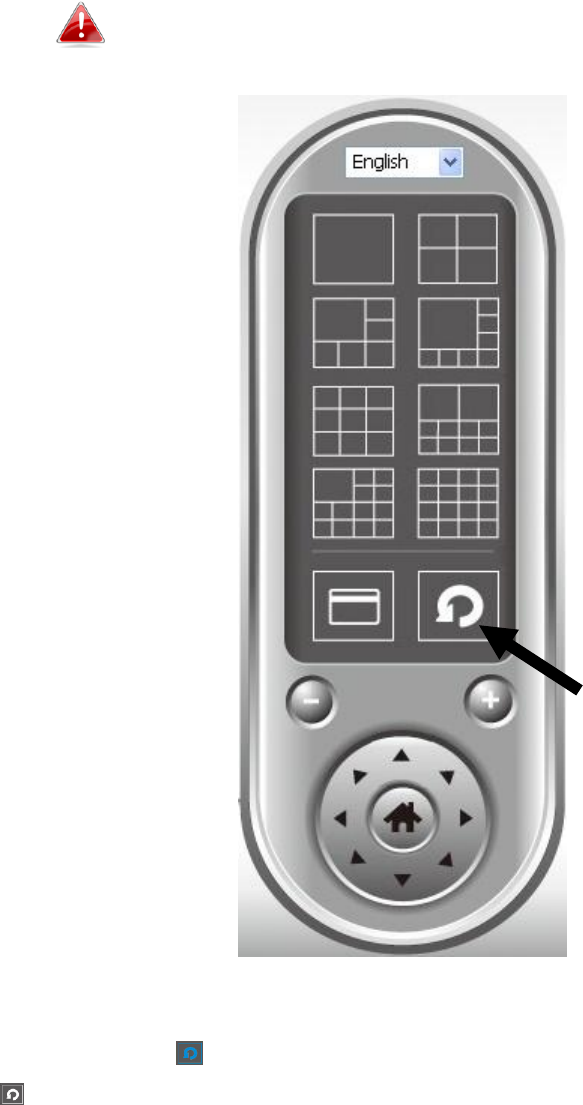

VI-6. Scan
If you have more than one camera configured, the “Scan” button will switch
the display between cameras.
“Disconnected” will be displayed in the image window when a
configured camera is disconnected.
Click the ‘Scan’ button once to activate the scan function (the scan icon will
become blue ), click again to stop scanning (the scan icon will become white
).
119

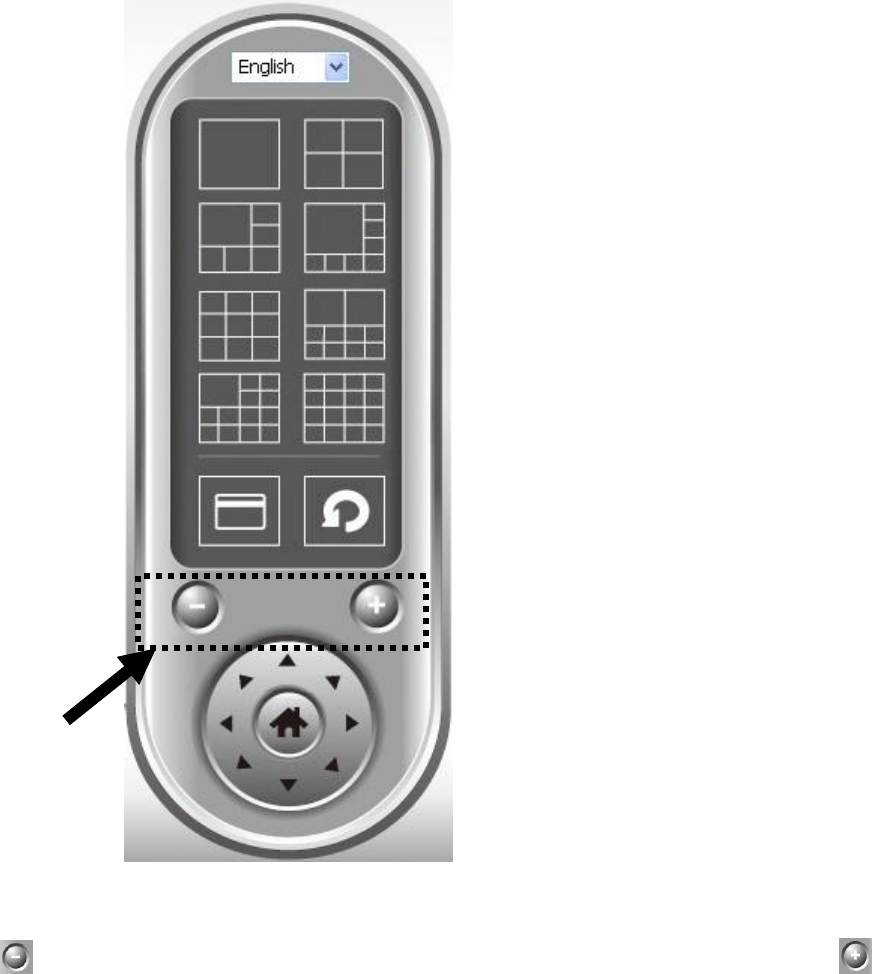

VI-7. Zoom In/Out
For cameras which support the zoom-in/zoom-out function, you can use this
function to enlarge or reduce the image size according to your requirements
e.g. to see a certain object in greater detail.
Please select a camera in the video display area by clicking on its image, then
click the button to see more objects within the camera’s view, or click
to enlarge the image size of a certain object to see it in more detail (before
zooming in, you may need to use the PTZ buttons - described in the next
section - to find the object you wish to see in detail).
120

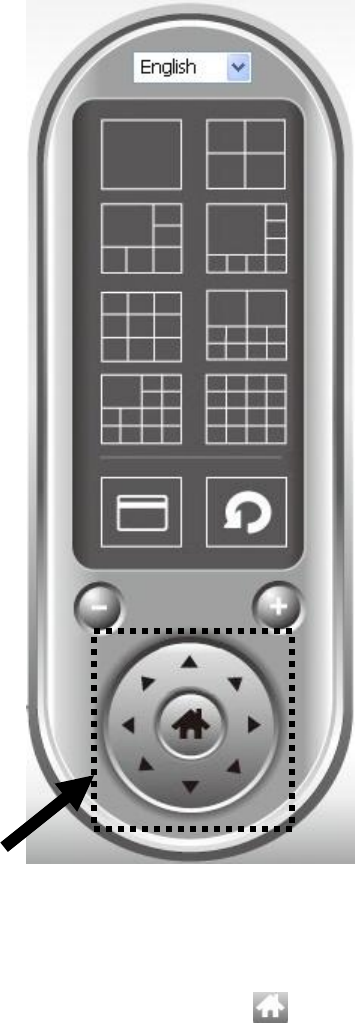

VI-8. Pan & Tilt
For cameras which support pan & tilt functions, you can adjust the direction
the network camera is facing.
Please select a camera in the video display area by clicking on its image, and
then click the directions you wish the camera to move to (total 8 directions
available). Click the ‘Home’ button ( ) to return to the camera’s home
(default) position.
121

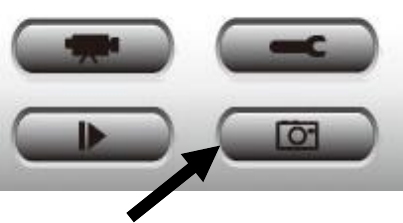

VI-9. Snapshot
You can take a snapshot of a selected camera and save it to a ‘Snapshot’ sub-
folder in a pre-defined data directory.
Click the snapshot button once to take a snapshot; you can take as many
snapshots as you want until the hard disk is full.
122

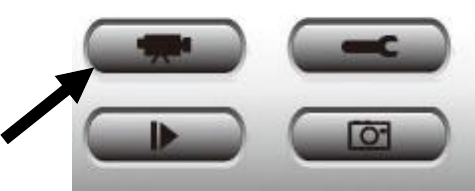

VI-10. Recording
You can start video recording a selected camera’s image by clicking the ‘Start
Recording’ button:
When recording starts, you’ll see a message displayed in the message display
box, such as ‘1/1 10:00:00, Camera 2 Start Manual’, which means camera 2
started recording manually on 1/1 at 10:00:00.
To stop recording, click the ‘Start Recording’ button again, and you’ll see a
message displayed in the message display box such as ‘1/1 10:00:00, Camera
2 Stop Manual’.
123

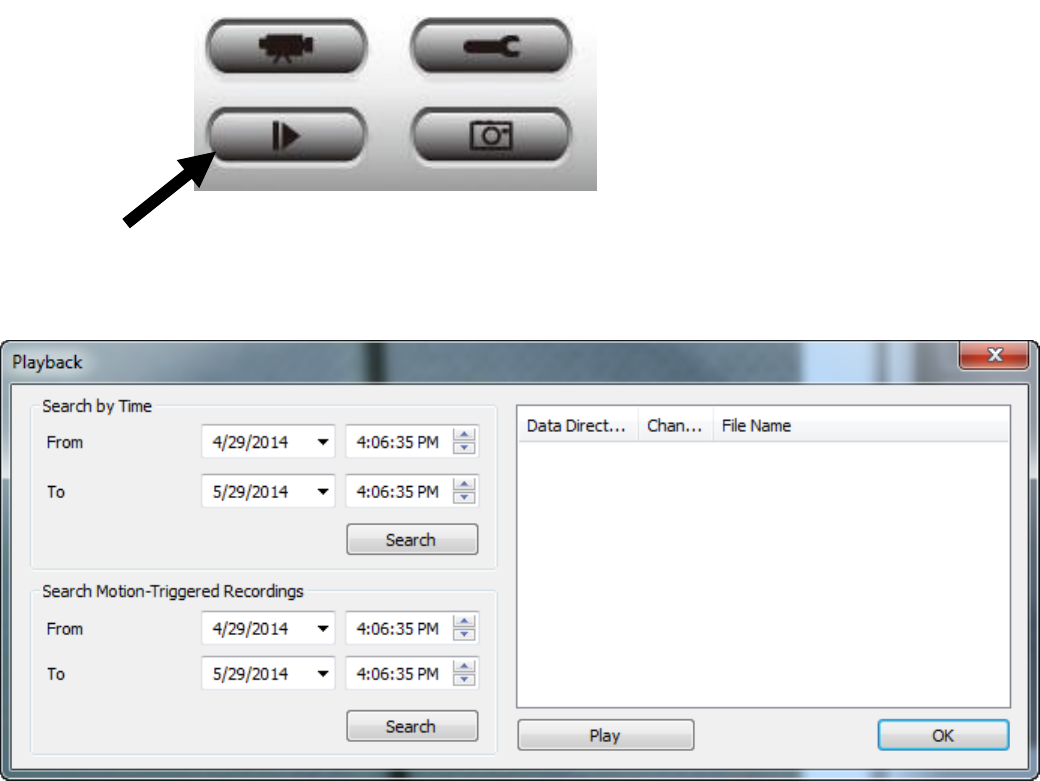

VI-11. Video Playback
You can playback all recorded video by clicking this button.
A new window will appear:
You have to search the video file before you can play it. There are two kinds of
video search: Time Search (search all videos file that fall within a specific
period of time) and Motion Search (search all videos recorded by the motion
detection function and fall within a specific period of time).
Please define the start and end date / time of the time period you wish to
search, and then click the ‘Search’ button (under ‘Time Search’ or ‘Motion
Search’). All found videos will be displayed, select the video you wish to play
and click the ‘Play’ button to playback.
124
VII. FAQs
If you are experiencing problems with your camera, please check below
before contacting your dealer of purchase for help.
1. How can I setup my IC-5150W to store recordings to a Dropbox
account?

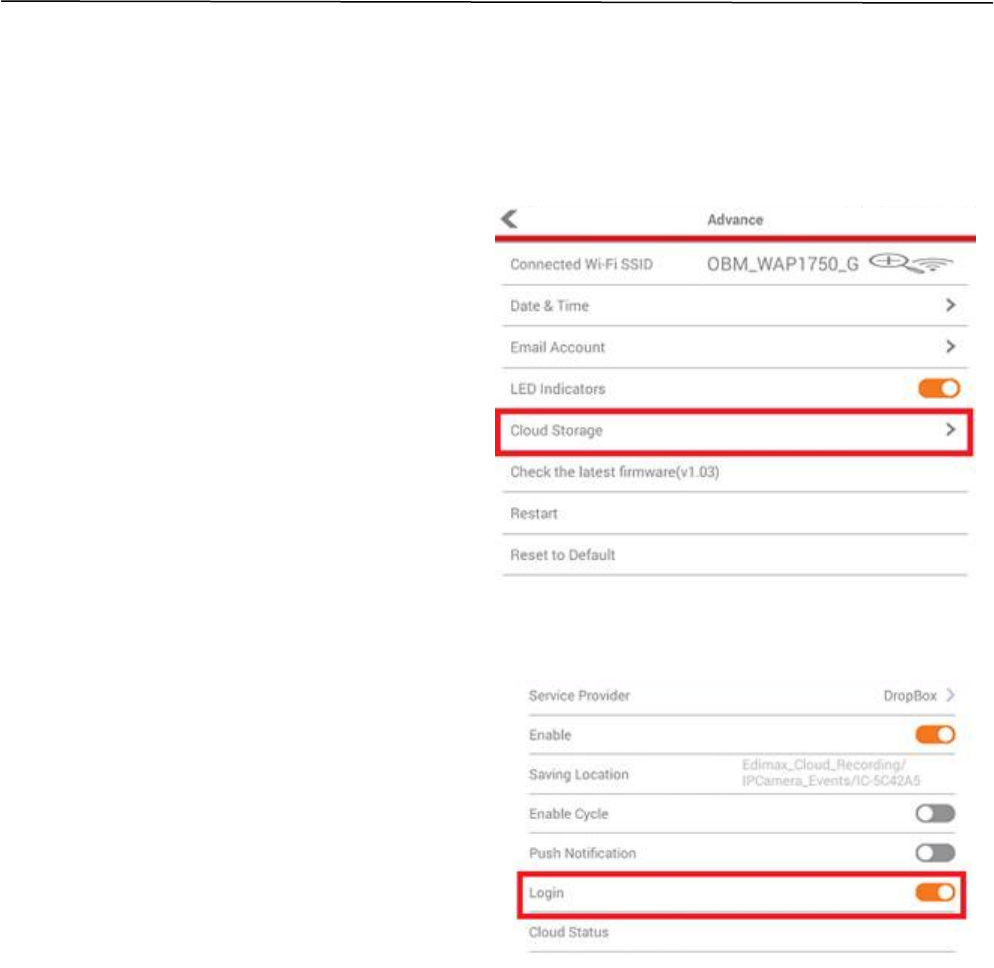

a. You need to enter your Dropbox
account login credentials into the
EdiLife/EdiView II app after the
camera is setup and working
properly.
Go to Settings Advanced
Cloud Storage.
Tap the Login switch to login to your
account. You can enable cycle
recording (overwrite earlier
recordings when data storage is full)
with push notifications and check
the cloud status, as well as enable or
disable the cloud service function
altogether.
2. Are there any microSD/SDHC cards recommended for the IC-
5150W, IC-9110W, IC-7113W & IC-3140W?
b. Minimum 8GB capacity is recommended with Class 10 speed rating. Below 2GB
and above 32GB are not supported.
The following Class 10 cards have been tested for compatibility without issues:
Kingston 4GB
Sandisk 4GB
Sandisk 8GB
125
Toshiba 8GB
Sandisk Ultra 16GB
Kingston 32GB
Fujitsu 32GB
3. How do I remove my microSD card from the camera?
a. Never unplug the card while the camera is on. This can damage your card.
Ensure all recording functions such as event triggers are disabled and switch off
your camera before removing the card.
b. Alternatively go to ‘SD Card Settings’ in the camera’s user interface and click
“unmounts” before removing the card.
4. I see the error message “SD card has unexpected error, device
system cannot write file anymore”. Can my card still record?
a. No, there’s a problem with your card. Typically microSD/SDHC cards have
limited read-write times. After frequent or long-term usage, the file system can
encounter this error. Format your card and try again or contact the card
manufacturer for support. Be aware that formatting your card removes all
existing data, and backup accordingly.
5. My camera stopped recording to my microSD/SDHC card.
a. Go to ‘SD Card Settings’ in the camera’s user interface:
1. Ensure there is enough space on your microSD/SDHC card.
2. Try using “cycle recording” to periodically overwrite old recordings.
b. Alternatively you can try formatting your SD card. Be aware that formatting your
card removes all existing data, and backup accordingly.
6. My camera image is not clear?
a. You can adjust the lens focus for a better image as described in the QIG & user
manual.
b. Additionally try cleaning the lens with cleaning fabric as it may accumulate
dust/fingerprints etc. over time and affect image quality.
126
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the
authority to operate equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels
is not possible. This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual
recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to
ensure the safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria, Belgium, Bulgaria, Cyprus, Czech,
Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom. The ETSI
version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and
Switzerland.
EU Countries Not Intended for Use
None
127
EU Declaration of Conformity
English: This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1995/95/EC, 2011/65/EC.
Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la
directive 1995/95/CE, 2011/65/CE.
Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními
směrnic 1995/95/ES, 2011/65/ES.
Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami
określonymi Dyrektywą UE 1995/95/EC, 2011/65/EC..
Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 1995/95/CE, 2011/65/CE.
Русский: Это оборудование соответствует основным требованиям и положениям Директивы
1995/95/EC, 2011/65/EC.
Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek
(1995/95/EK, 2011/65/EK).
Türkçe: Bu cihaz 1995/95/EC, 2011/65/EC direktifleri zorunlu istekler ve diğer hükümlerle ile
uyumludur.
Українська: Обладнання відповідає вимогам і умовам директиви 1995/95/EC, 2011/65/EC.
Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc
1995/95/ES, 2011/65/ES.
Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 1995/95/EC, 2011/65/EC.
Español: El presente equipo cumple los requisitos esenciales de la Directiva 1995/95/EC,
2011/65/EC.
Italiano: Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili
della Direttiva 1995/95/CE, 2011/65/CE.
Nederlands: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen
van richtlijn 1995/95/EC, 2011/65/EC..
Português: Este equipamento cumpre os requesitos essênciais da Directiva 1995/95/EC, 2011/65/EC.
Norsk: Dette utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direktiv
1995/95/EC, 2011/65/EC.
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta
bestämmelser i direktiv 1995/95/EG, 2011/65/EG.
Dansk: Dette udstyr er i overensstemmelse med de væ sentligste krav og andre relevante
forordninger i direktiv 1995/95/EC, 2011/65/EC.
suomen kieli: Tämä laite täyttää direktiivien 1995/95/EY, 2011/65/EY oleelliset vaatimukset ja muut
asiaankuuluvat määräykset.
-----------------------------------------------------------------------------------------------------------------------
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste. It
should be handed over to the applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.
128
Declaration of Conformity
We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the
equipment described below complies with the requirements of the European R&TTE
directive (1999/5/EC, 2006/95/EC) .
Equipment:
2MP Fisheye Wi-Fi Network Camera
Model No.:
IC-5150W
The following European standards for essential requirements have been followed:
Spectrum:
ETSI EN 300 328 V1.9.1 (2015-02)
EMC:
EN 301 489-1 V1.9.2 (2011-09);
EN 301 489-17 V2.2.1 (2012-09)
EMF:
EN 62311:2008
Safety (LVD):
IEC 60950-1:2005 (2nd Edition);Am1:2009;Am2:2013
EN-60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Edimax Technology Europe B.V. a company of :
Fijenhof 2, Edimax Technology Co., Ltd.,
5652 AE Eindhoven No. 3, Wu Chuan 3rd Road,
THE NETHERLANDS Wu-Ku Industrial Park,
New Taipei City, Taiwan
Date of Signature:
Dec. 30, 2015
Signature:
Printed Name:
John Hsieh
Title:
Director
Edimax Technology Co., Ltd.
Signature:
Printed Name:
Vivian Ma
Title:
Director
Edimax Technology Europe B.V.
129
Notice According to GNU General Public License Version 2
This product includes software that is subject to the GNU General Public License version 2. The program is free software and
distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more
than the costs of physically performing source distribution, a complete machine-readable copy of the corresponding source
code.
Das Produkt beinhaltet Software, die den Bedingungen der GNU/GPL-Version 2 unterliegt. Das Programm ist eine sog. „Free
Software“, der Autor stellt das Programm ohne irgendeine Gewährleistungen zur Verfügung. Wir bieten Ihnen für einen
Zeitraum von drei Jahren an, eine vollständige maschinenlesbare Kopie des Quelltextes der Programme zur Verfügung zu
stellen – zu nicht höheren Kosten als denen, die durch den physikalischen Kopiervorgang anfallen.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA
Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free
for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other
program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser
General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive
source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that
you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender
the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you
modify it.
For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights
that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms
so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for
this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they
have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a
free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have
made it clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The ‘“Program’“, below, refers to any such program or work, and a
‘“work based on the Program’“ means either the Program or any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term ‘“modification’“.) Each licensee is addressed as ‘“you’“.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The
act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a
work based on the Program (independent of having been made by running the Program). Whether that is true depends on
what the Program does.
130
1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep
intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the
Program a copy of this License along with the Program.
You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in
exchange for a fee.
2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and
copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these
conditions:
a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any
change.
b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the
Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this
License.
c) If the modified program normally reads commands interactively when run, you must cause it, when started running
for such interactive use in the most ordinary way, to print or display an announcement including an appropriate
copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users
may redistribute the program under these conditions, and telling the user how to view a copy of this License.
(Exception: if the Program itself is interactive but does not normally print such an announcement, your work based
on the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the
Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms,
do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as
part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License,
whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent
is to exercise the right to control the distribution of derivative or collective works based on the Program.
In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the
Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.
3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under
the terms of Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the
terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than
your cost of physically performing source distribution, a complete machine-readable copy of the corresponding
source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for
software interchange; or,
c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This
alternative is allowed only for noncommercial distribution and only if you received the program in object code or
executable form with such an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for making modifications to it. For an executable work,
complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus
the scripts used to control compilation and installation of the executable. However, as a special exception, the source code
distributed need not include anything that is normally distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component
itself accompanies the executable.
If distribution of executable or object code is made by offering access to copy from a designated place, then offering
equivalent access to copy the source code from the same place counts as distribution of the source code, even though third
parties are not compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights
under this License. However, parties who have received copies, or rights, from you under this License will not have their
licenses terminated so long as such parties remain in full compliance.
5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to
modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.
131
Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of
this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license
from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not
impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing
compliance by third parties to this License.
7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent
issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of
this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy
simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not
distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License
would be to refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is
intended to apply and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity
of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system,
which is implemented by public license practices. Many people have made generous contributions to the wide range of
software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to
decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.
This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces,
the original copyright holder who places the Program under this License may add an explicit geographical distribution
limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such
case, this License incorporates the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time.
Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or
concerns.
Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies
to it and ‘“any later version’“, you have the option of following the terms and conditions either of that version or of any later
version published by the Free Software Foundation. If the Program does not specify a version number of this License, you
may choose any version ever published by the Free Software Foundation.
10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different,
write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the
Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of
preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT
PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER
PARTIES PROVIDE THE PROGRAM ‘“AS IS’“ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE
DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY
OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR
DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE
OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
132
