User Manual

Wireless N Broadband Router

User’s Manual

Version: 1.0

(August, 2009)

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any

language or computer language, in any form or by any means, electronic, mechanical, magnetic,

optical, chemical, manual or otherwise, without the prior written permission of this company

This company makes no representations or warranties, either expressed or implied, with respect

to the contents hereof and specifically disclaims any warranties, merchantability or fitness for

any particular purpose. Any software described in this manual is sold or licensed "as is". Should

the programs prove defective following their purchase, the buyer (and not this company, its

distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any

incidental or consequential damages resulting from any defect in the software. Further, this

company reserves the right to revise this publication and to make changes from time to time in

the contents thereof without obligation to notify any person of such revision or changes.

Federal Communication Commission

Interference Statement

FCC Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This equipment must be installed and operated in accordance with provided instructions and a

minimum 20 cm spacing must be provided between computer mounted antenna and person’s

body (excluding extremities of hands, wrist and feet) during wireless modes of operation.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the authority to operate equipment.

Federal Communication Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment.

In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human

proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

The antenna(s) used for this transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

The equipment version marketed in US is restricted to usage of the channels 1-11 only.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN

PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication

terminal Equipment and the mutual recognition of their conformity (R&TTE).

The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications

Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it.

However, special attention must be paid to the dangers of electric shock and static electricity

when working with electrical equipment. All guidelines of this and of the computer manufacture

must therefore be allowed at all times to ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark,

Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain,

Sweden, and the United Kingdom.

The ETSI version of this device is also authorized for use in EFTA member states: Iceland,

Liechtenstein, Norway, and Switzerland.

EU Countries Not intended for use

None.

C A T A L O G

CHAPTER 1 INTRODUCTION ..................................................................................................................... 1

1.1 FEATURES ................................................................................................................................................ 1

1.2 SAFETY INFORMATION ................................................................................................................................ 2

1.3 MINIMUM REQUIREMENTS ......................................................................................................................... 3

1.4 PACKAGE CONTENT ................................................................................................................................... 3

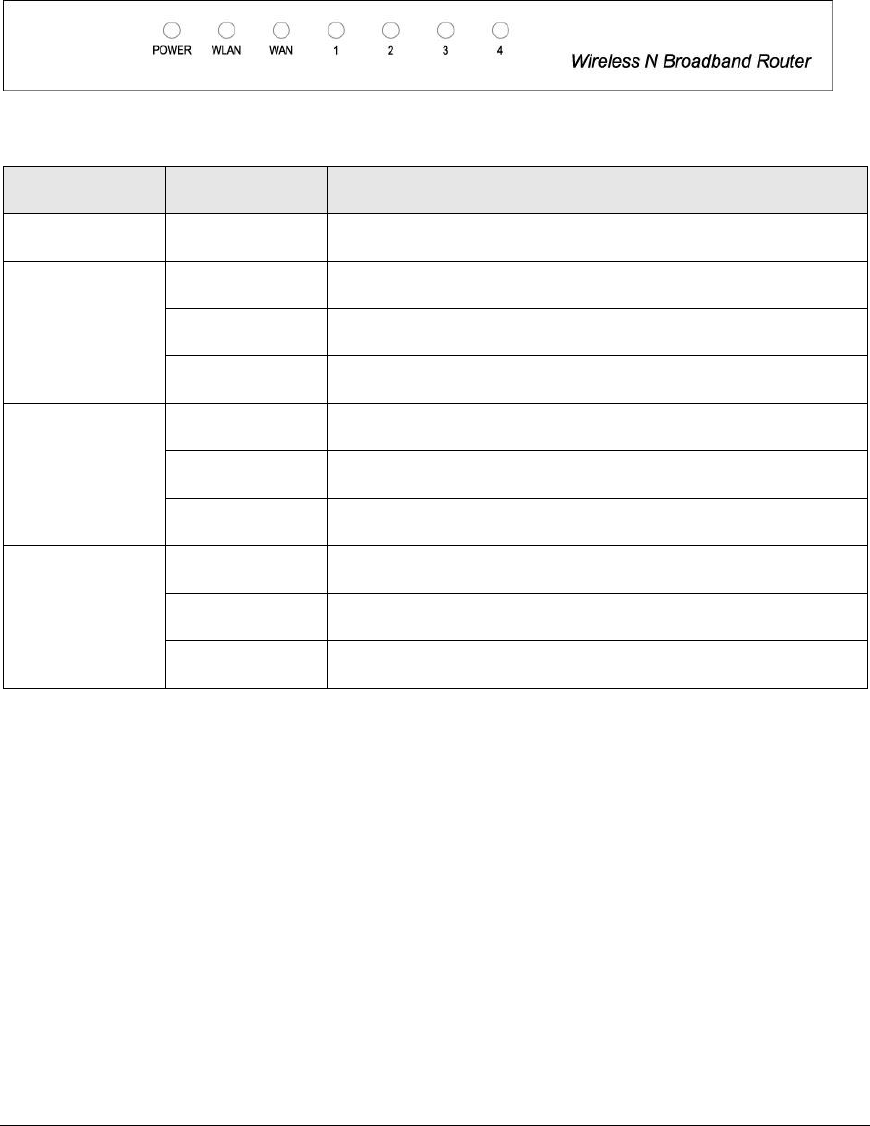

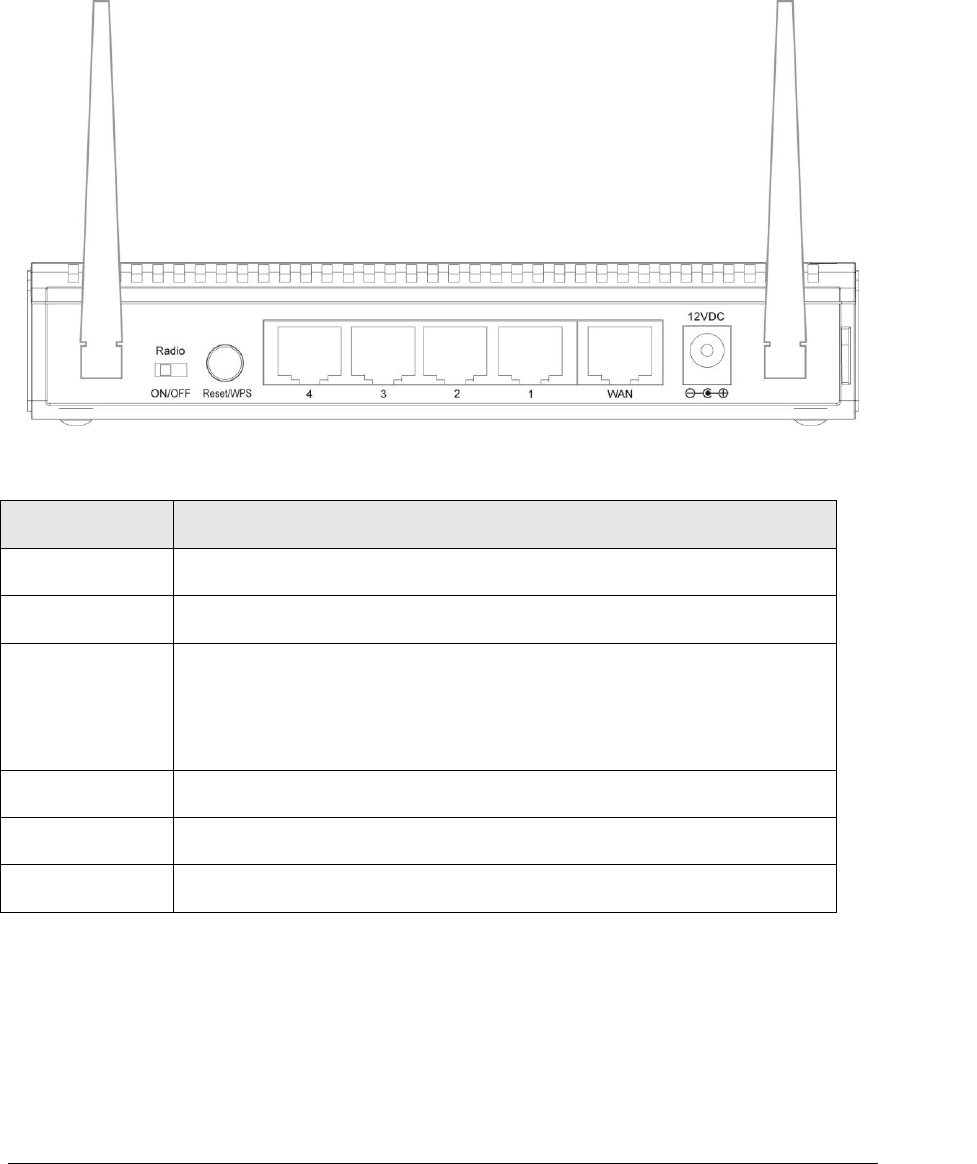

1.5 FAMILIAR WITH YOUR NEW WIRELESS BROADBAND ROUTER ............................................................................... 4

CHAPTER 2 SYSTEM AND NETWORK SETUP ............................................................................................. 6

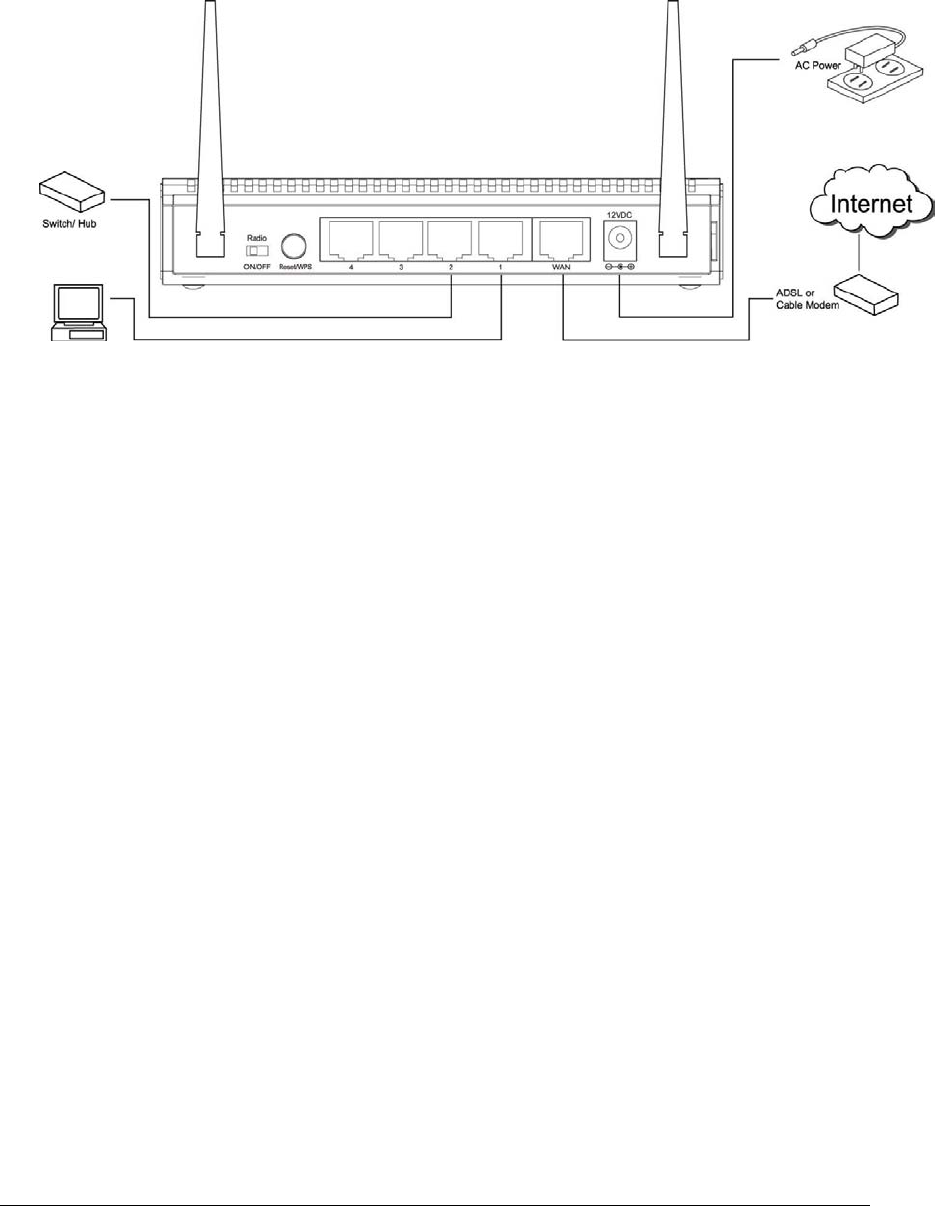

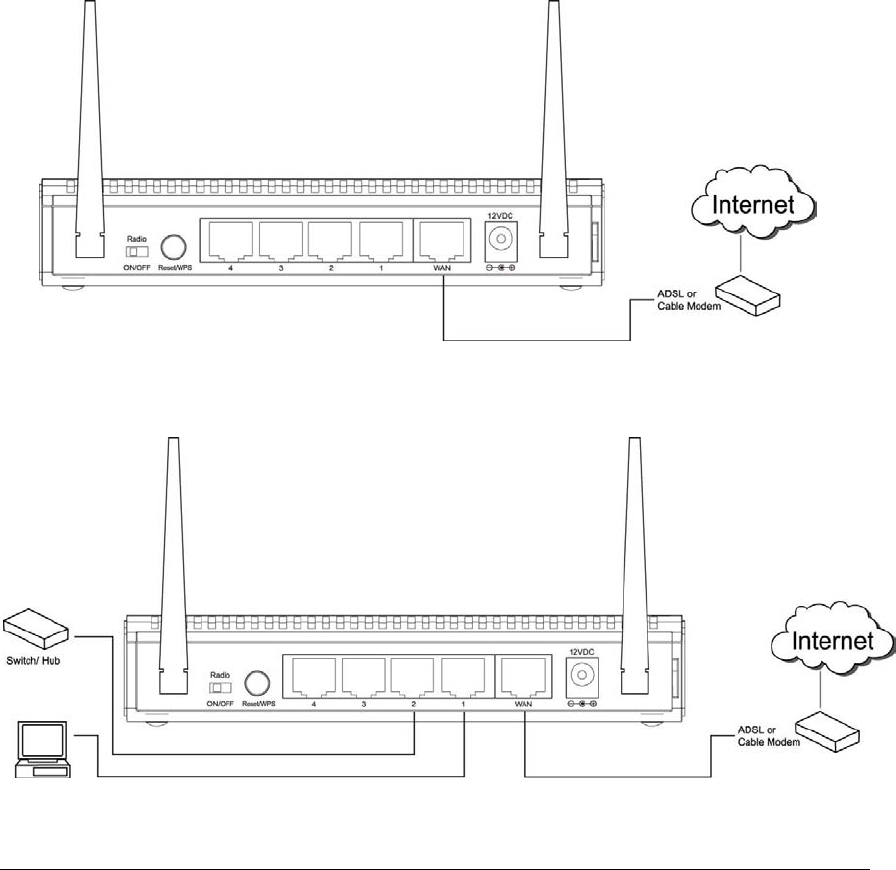

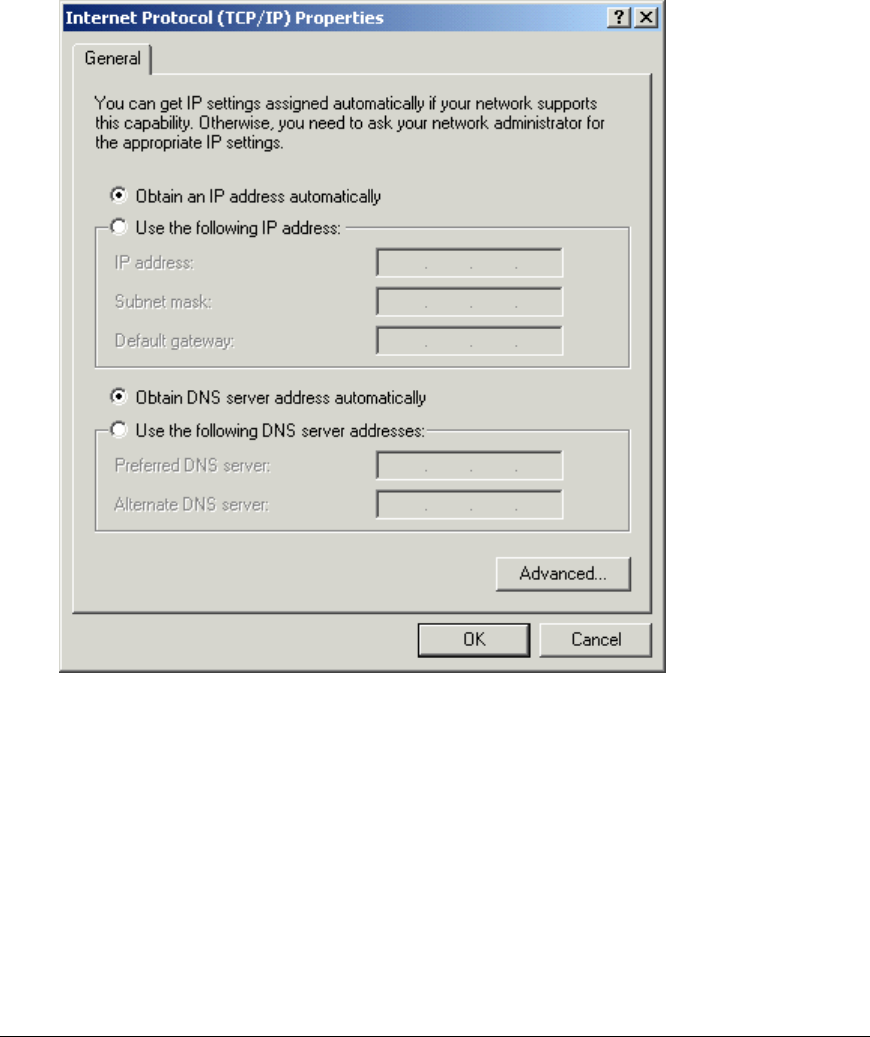

2.1 BUILD NETWORK CONNECTION .................................................................................................................... 6

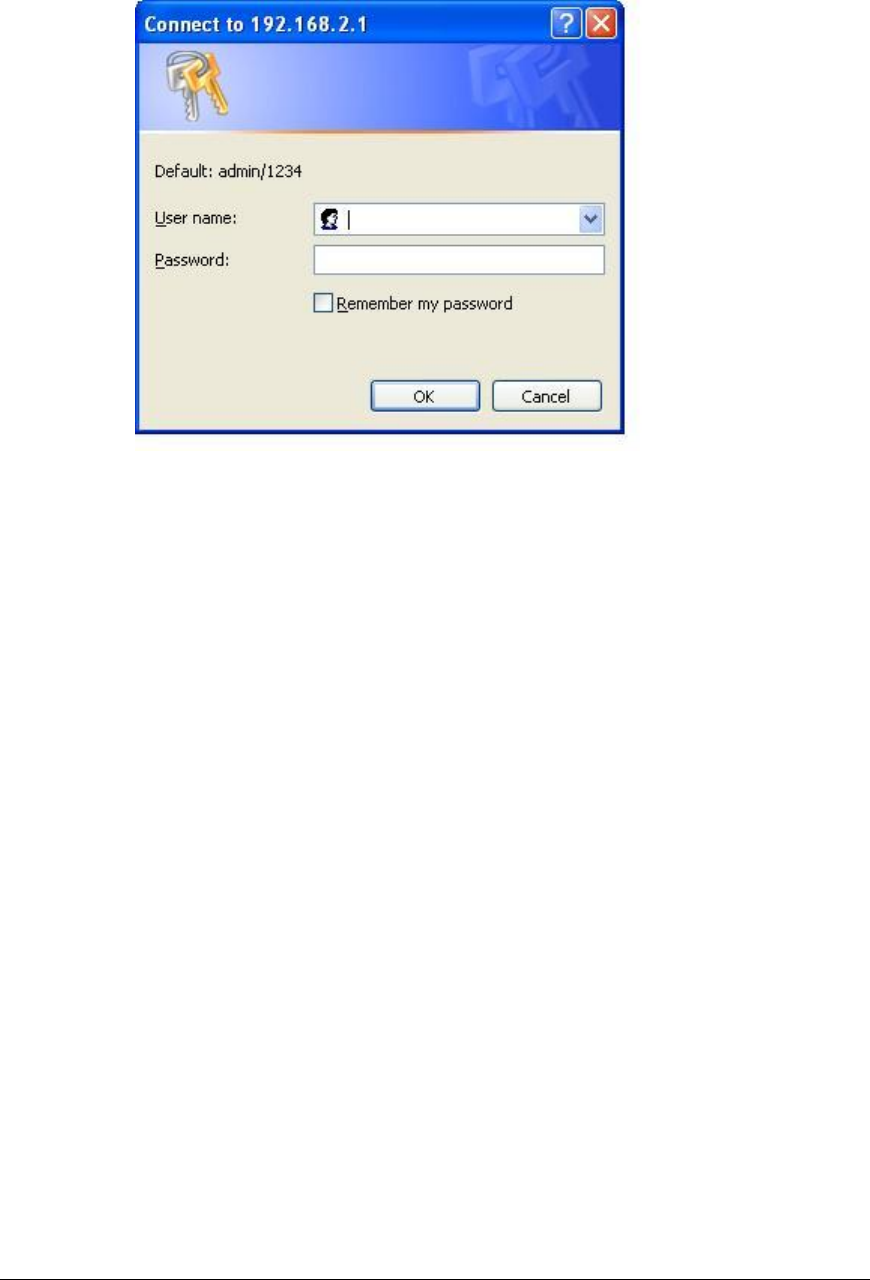

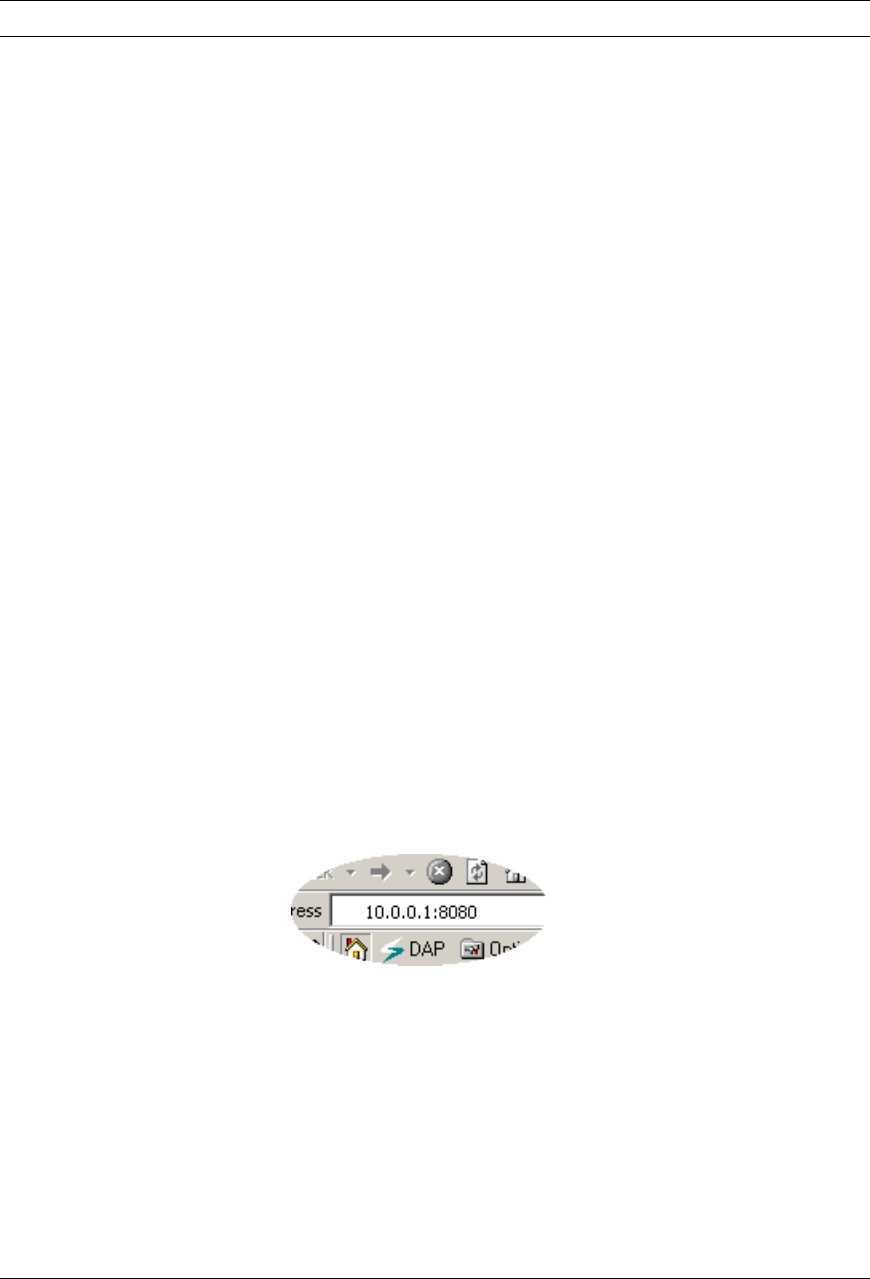

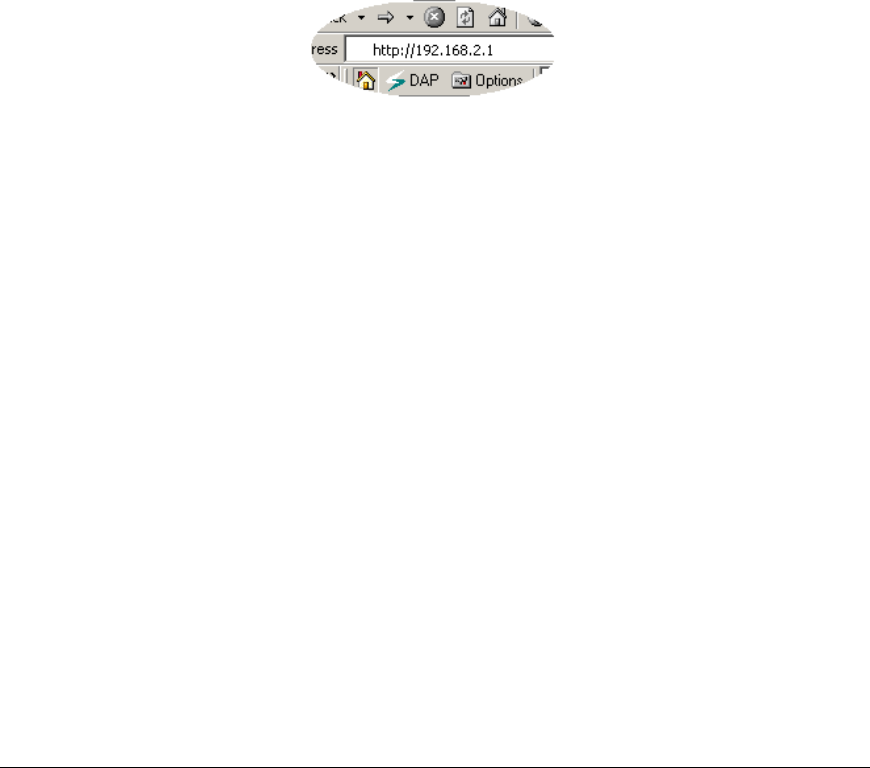

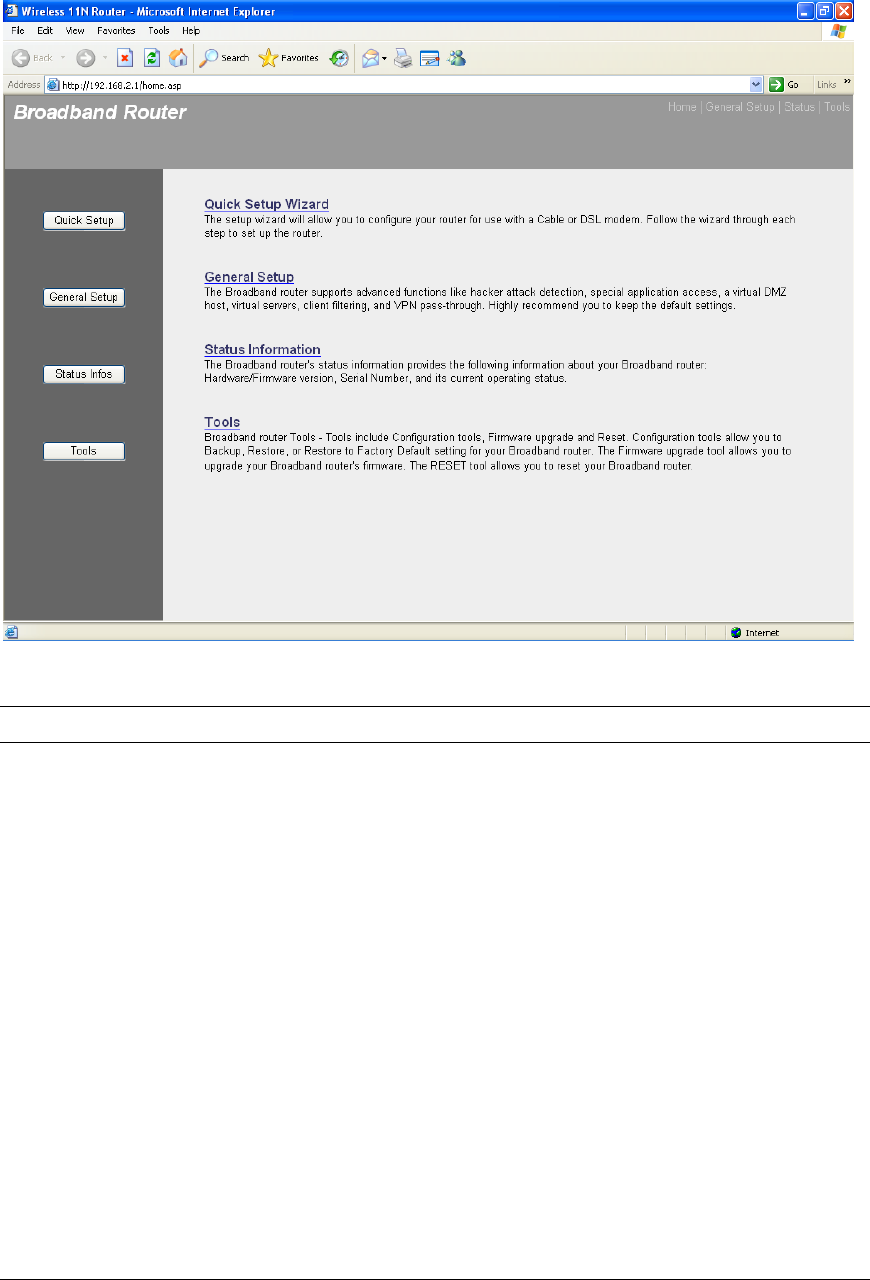

2.2 CONNECTING TO WIRELESS BROADBAND ROUTER BY WEB BROWSER .................................................................... 8

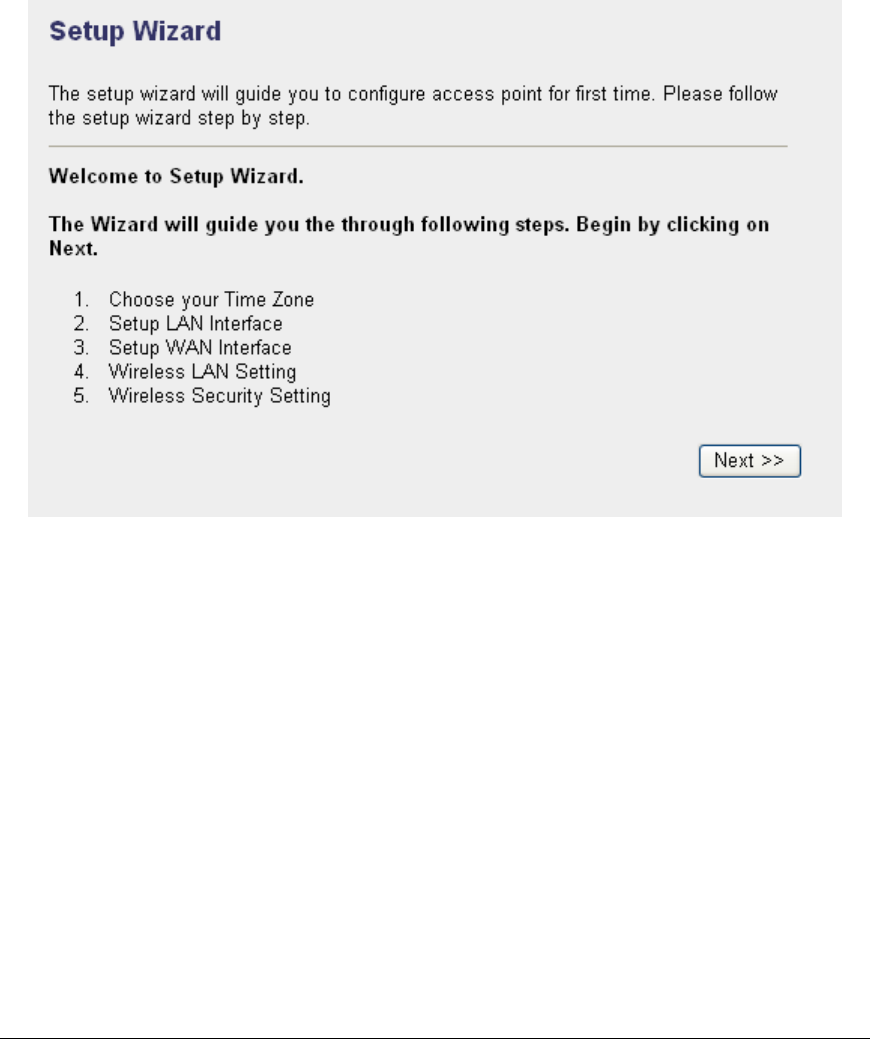

CHAPTER 2 QUICK SETUP ....................................................................................................................... 19

2.1 TIME ZONE ............................................................................................................................................ 19

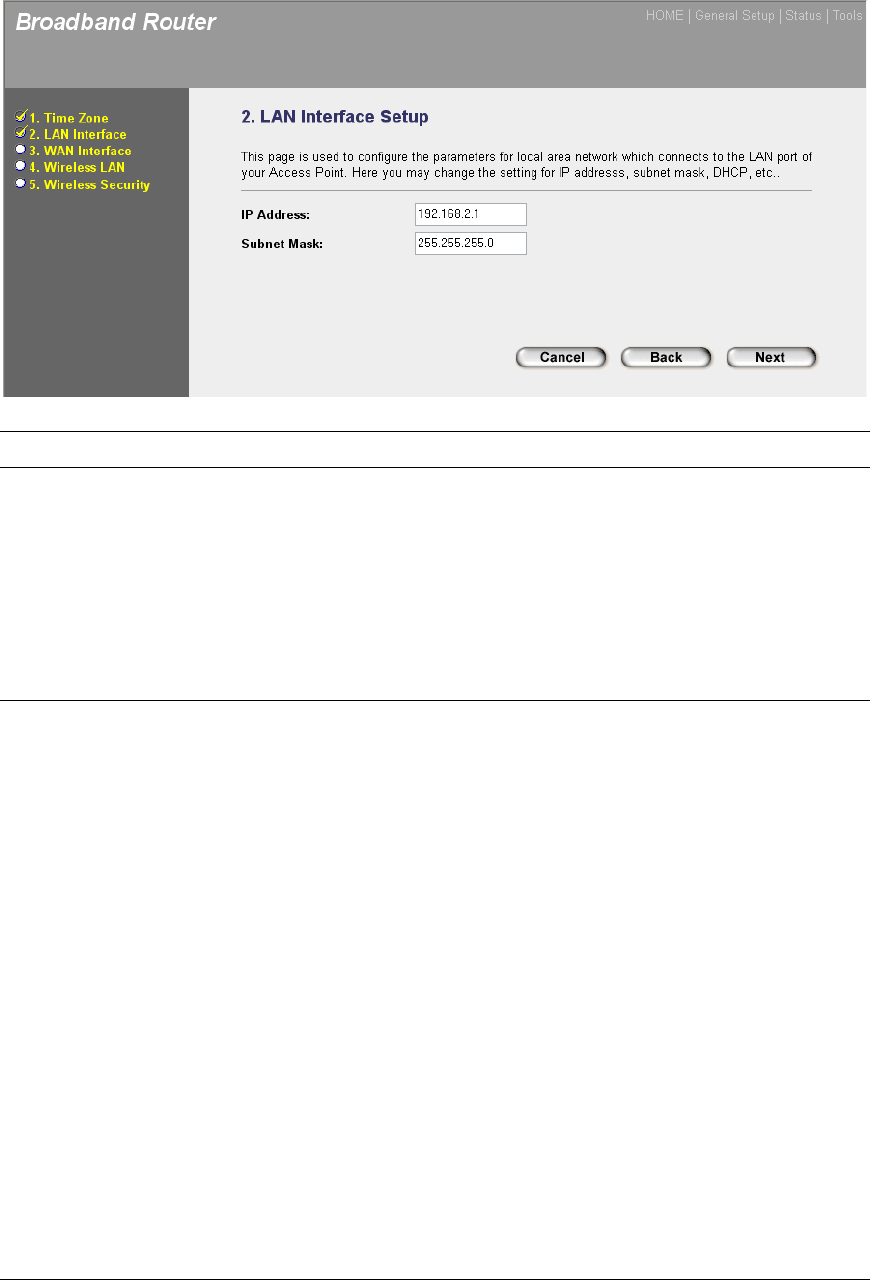

2.2 LAN INTERFACE ...................................................................................................................................... 20

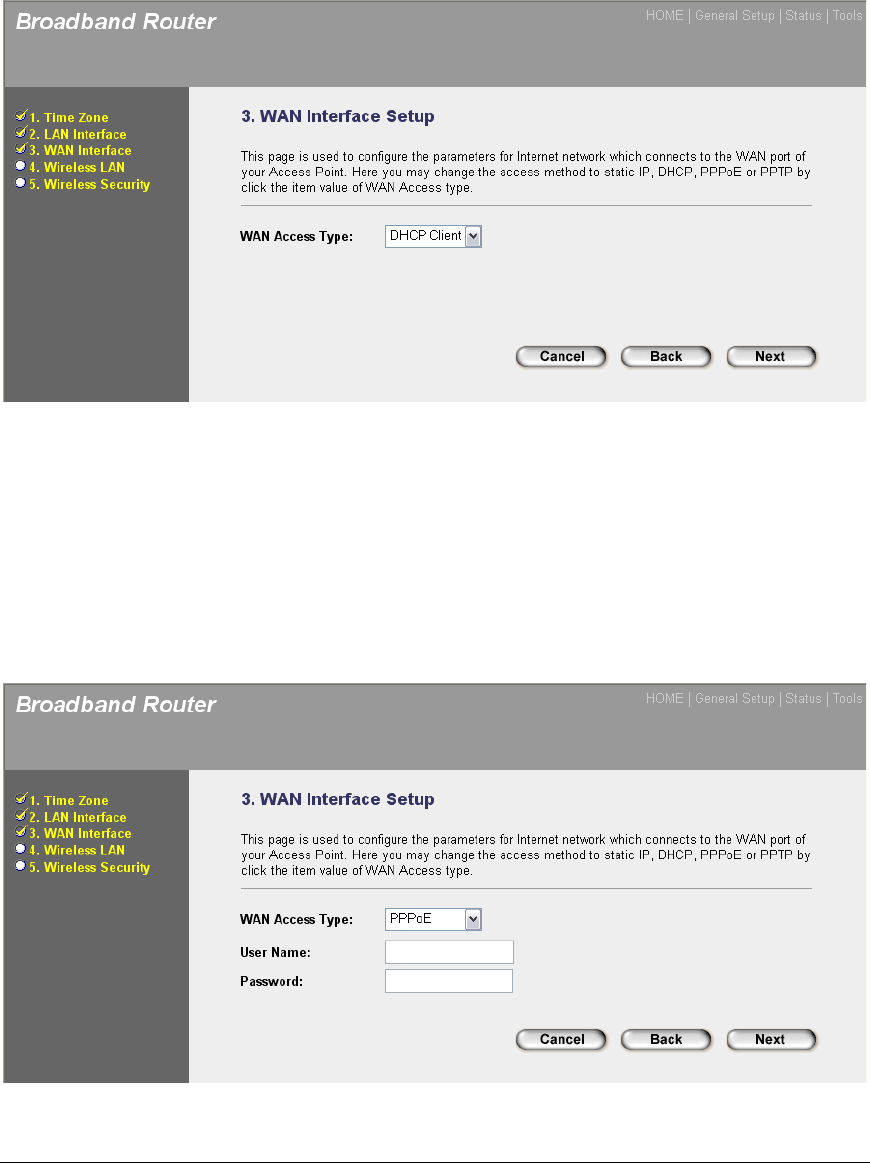

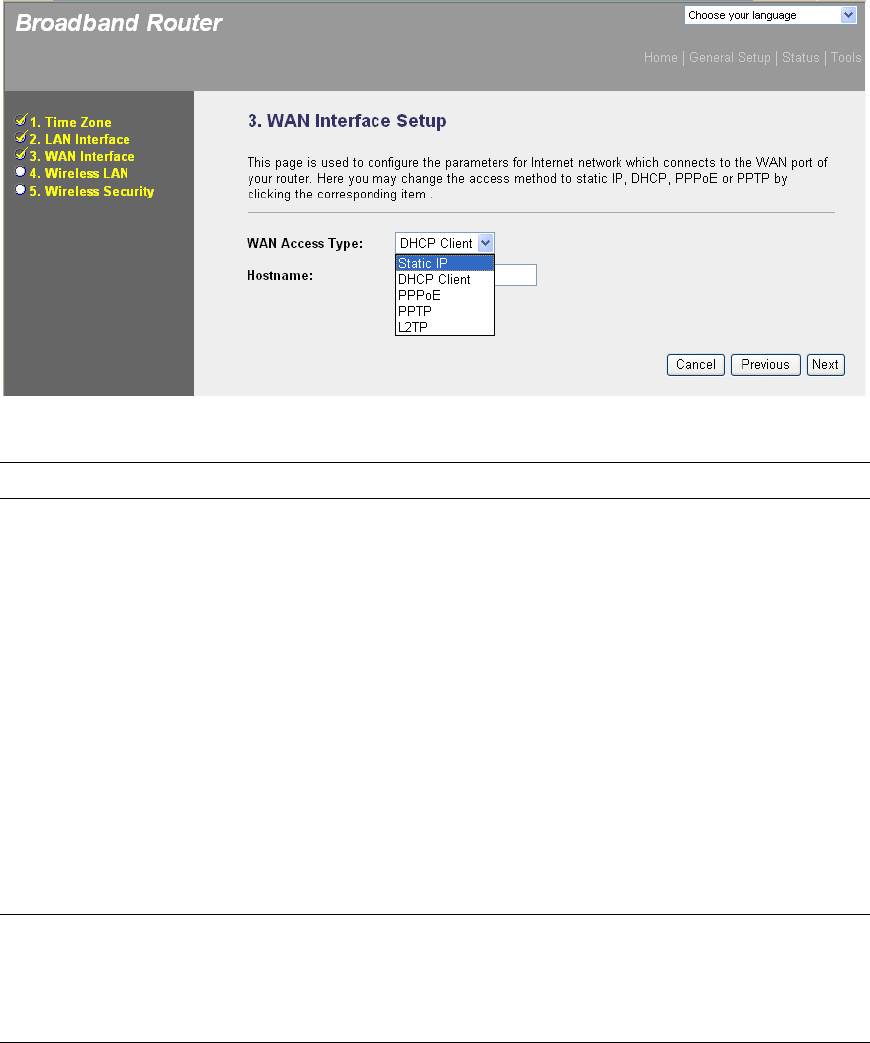

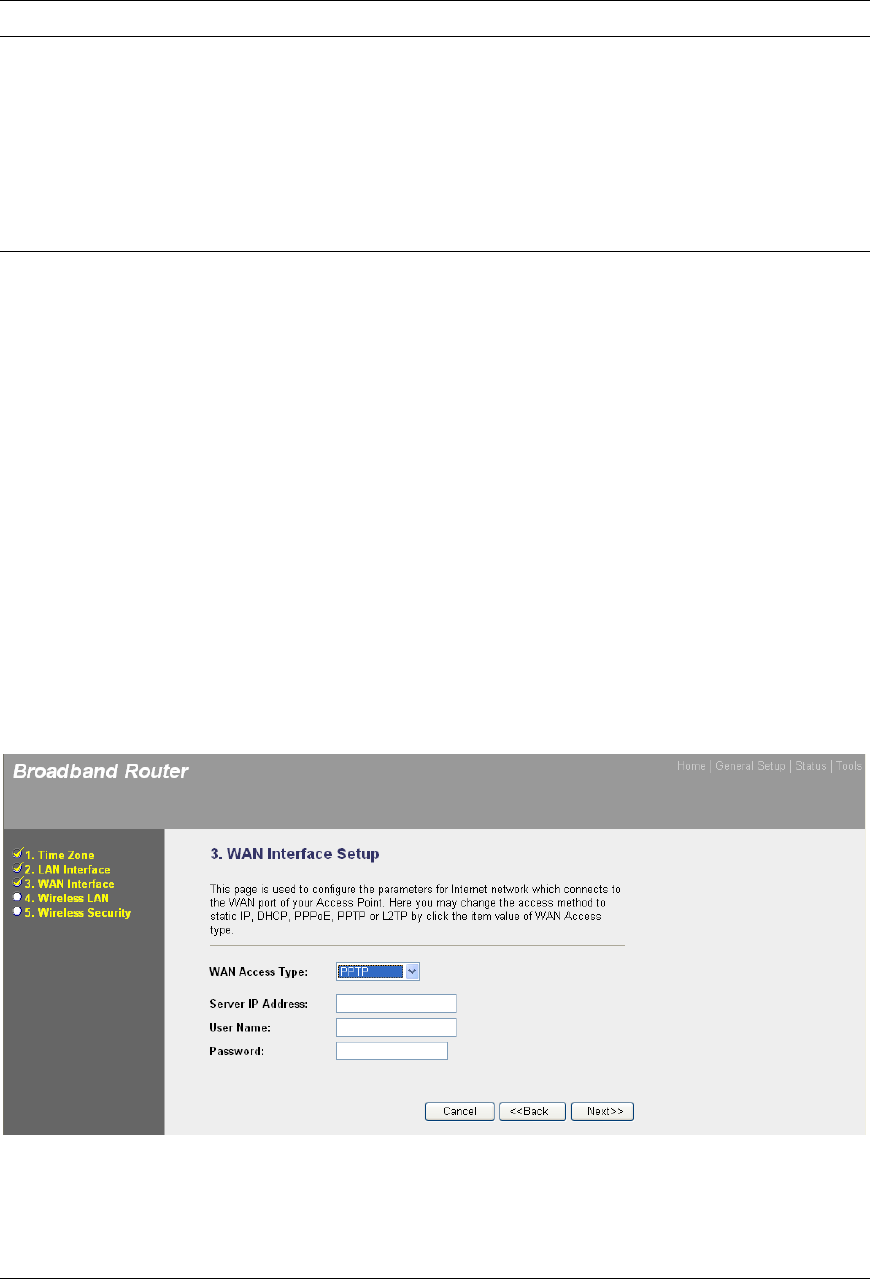

2.3 WAN INTERFACE .................................................................................................................................... 22

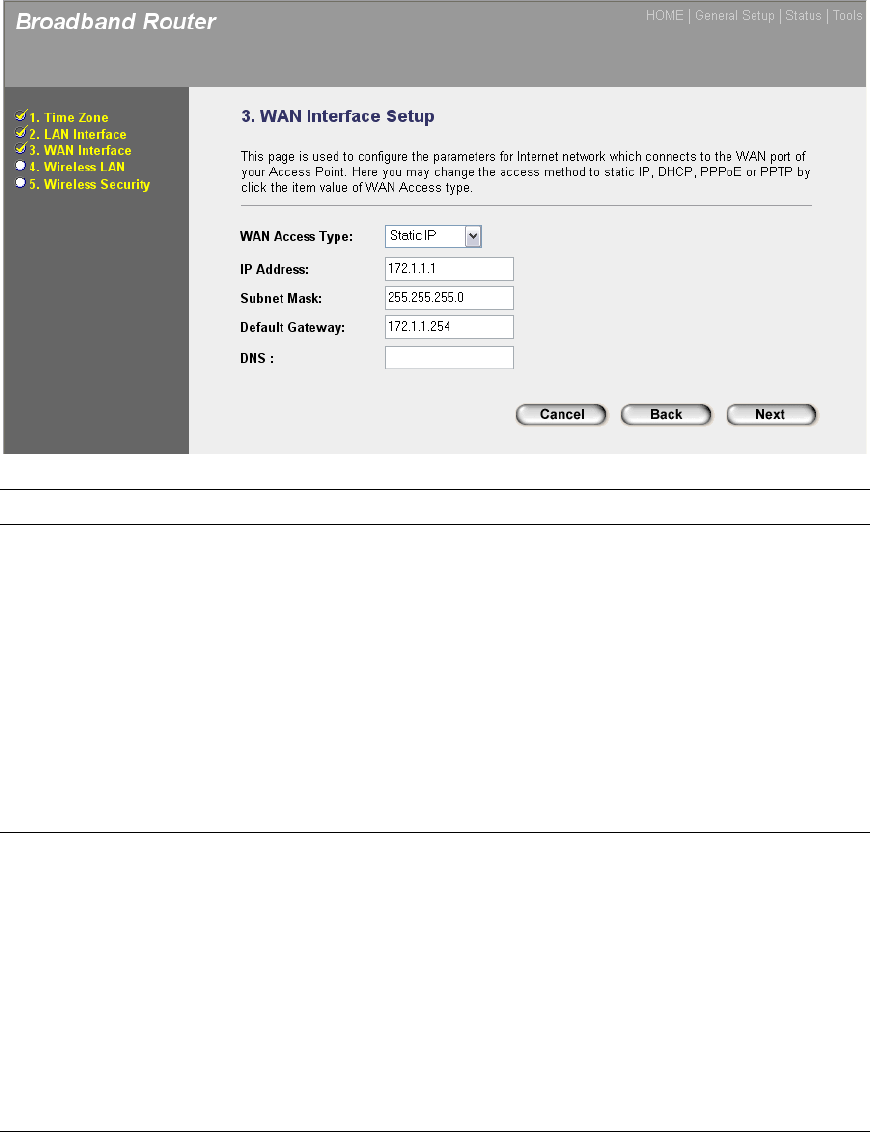

2.3.1 Static IP ....................................................................................................................................... 23

2.3.2 DHCP Client ................................................................................................................................. 24

2.3.3 PPPoE .......................................................................................................................................... 24

2.3.4 PPTP ............................................................................................................................................ 25

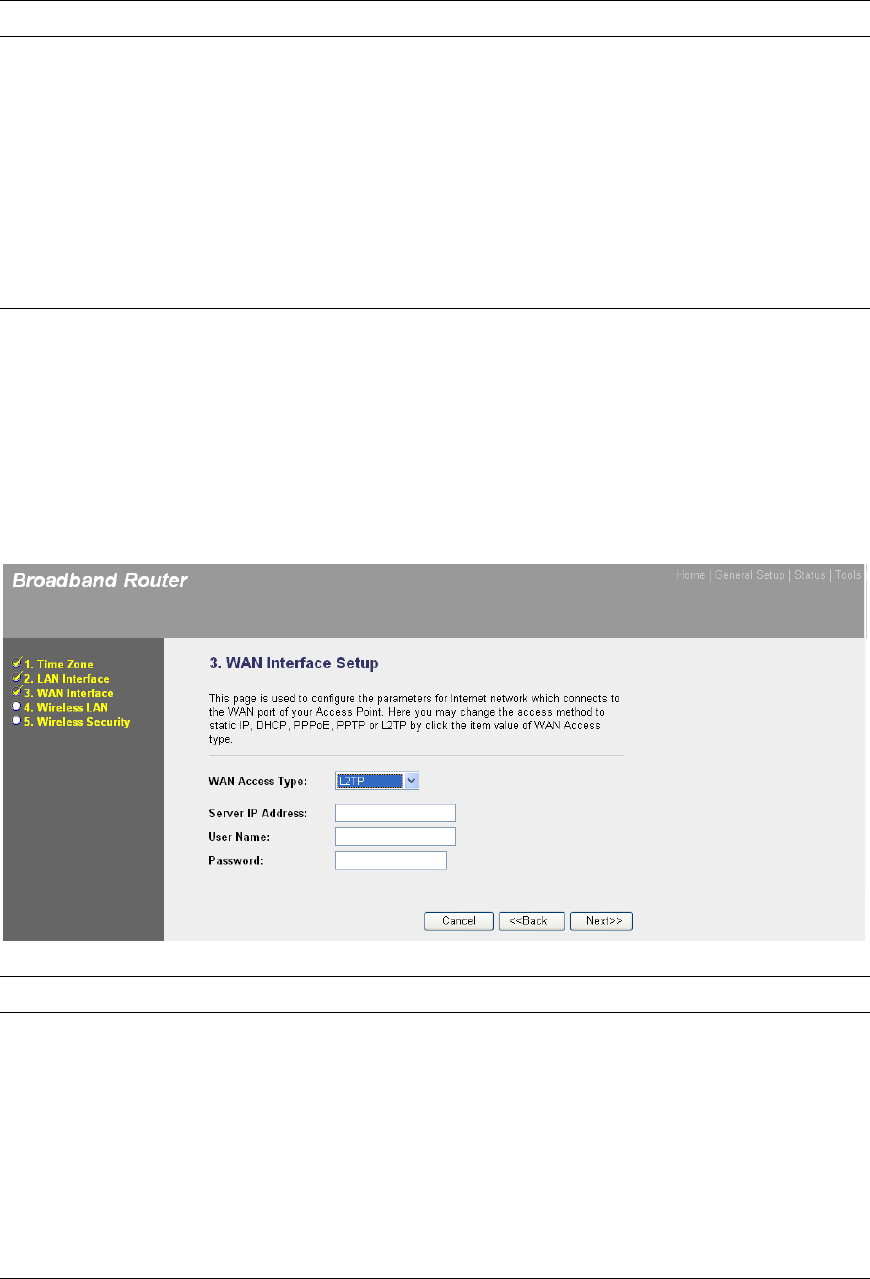

2.3.5 L2TP ............................................................................................................................................ 26

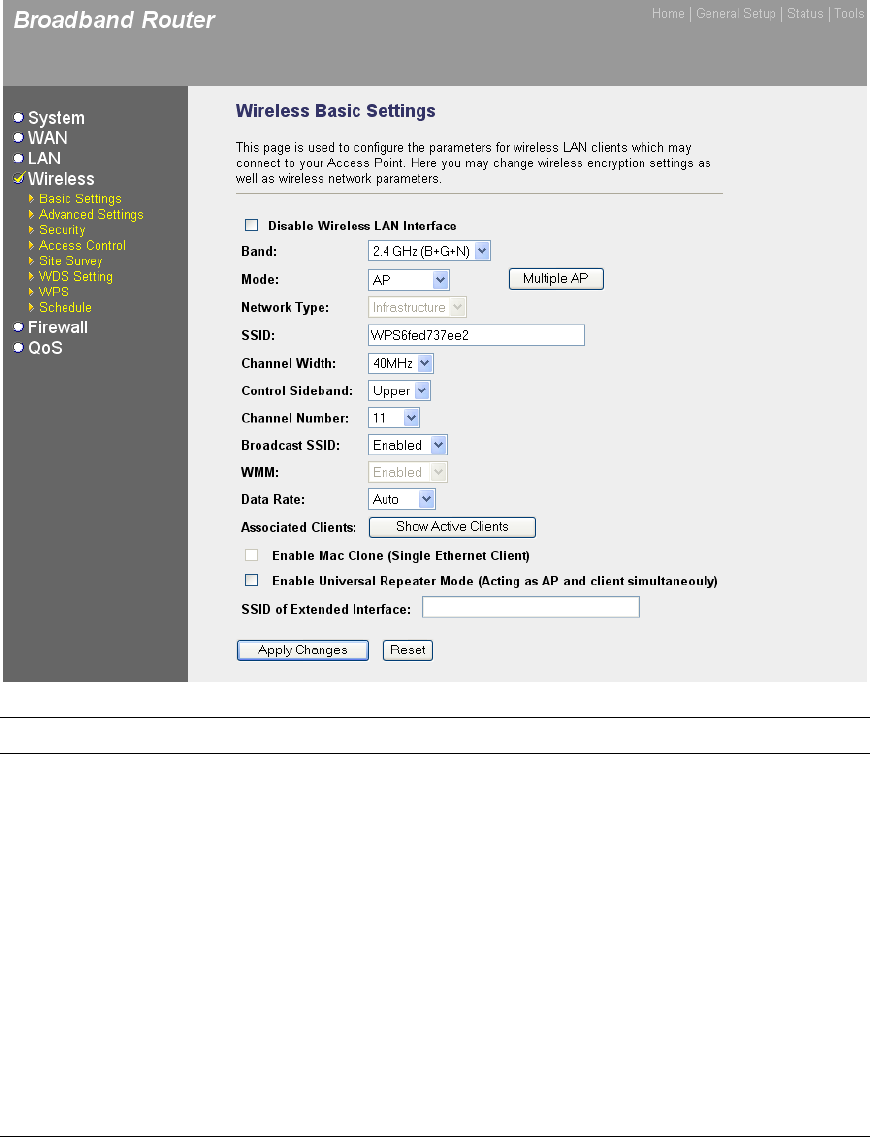

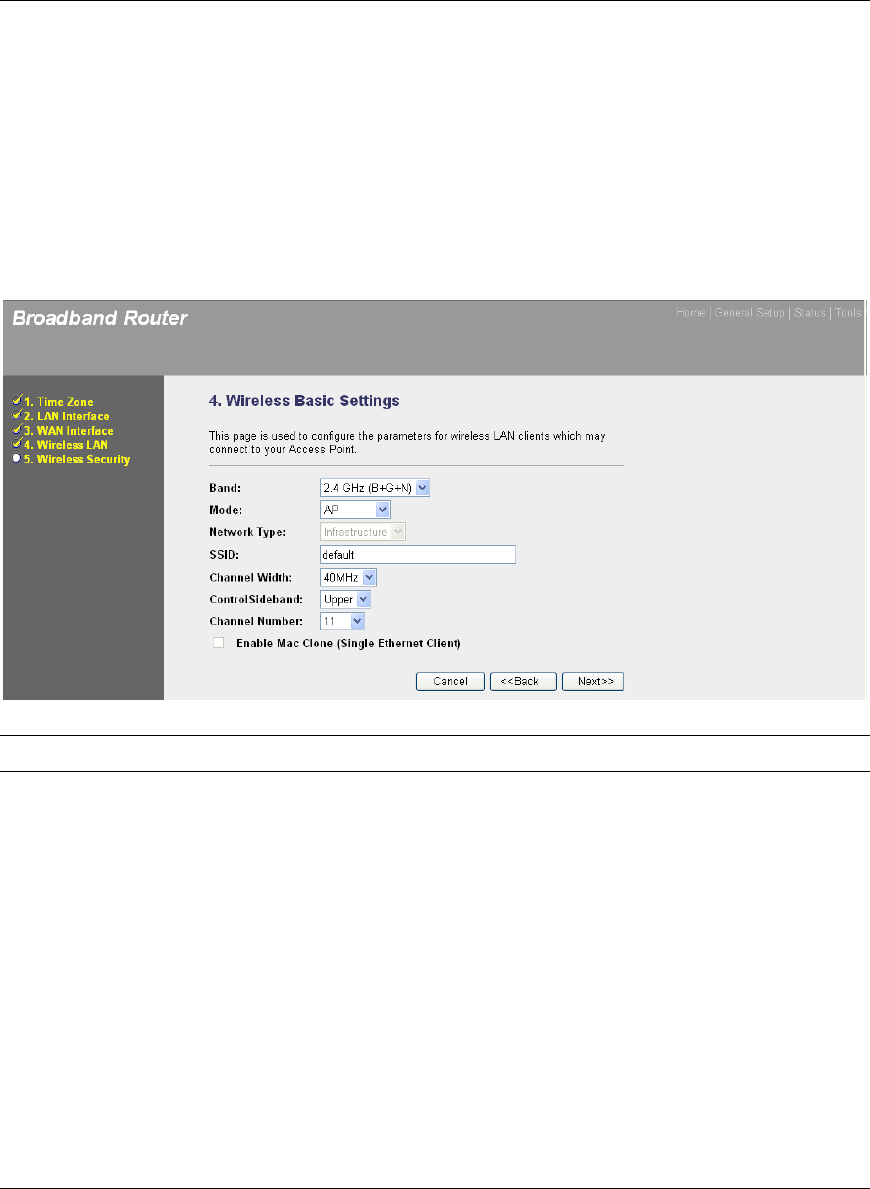

2.4 WIRELESS BASIC SETTINGS ........................................................................................................................ 27

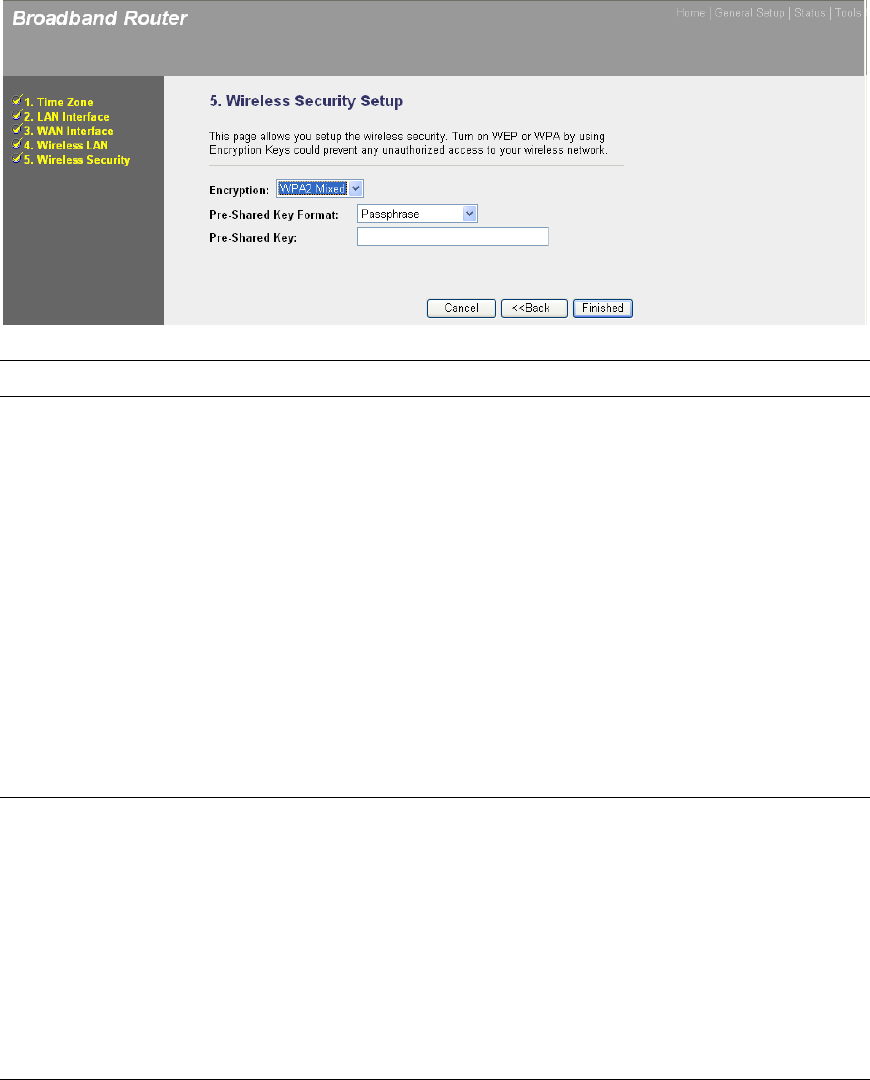

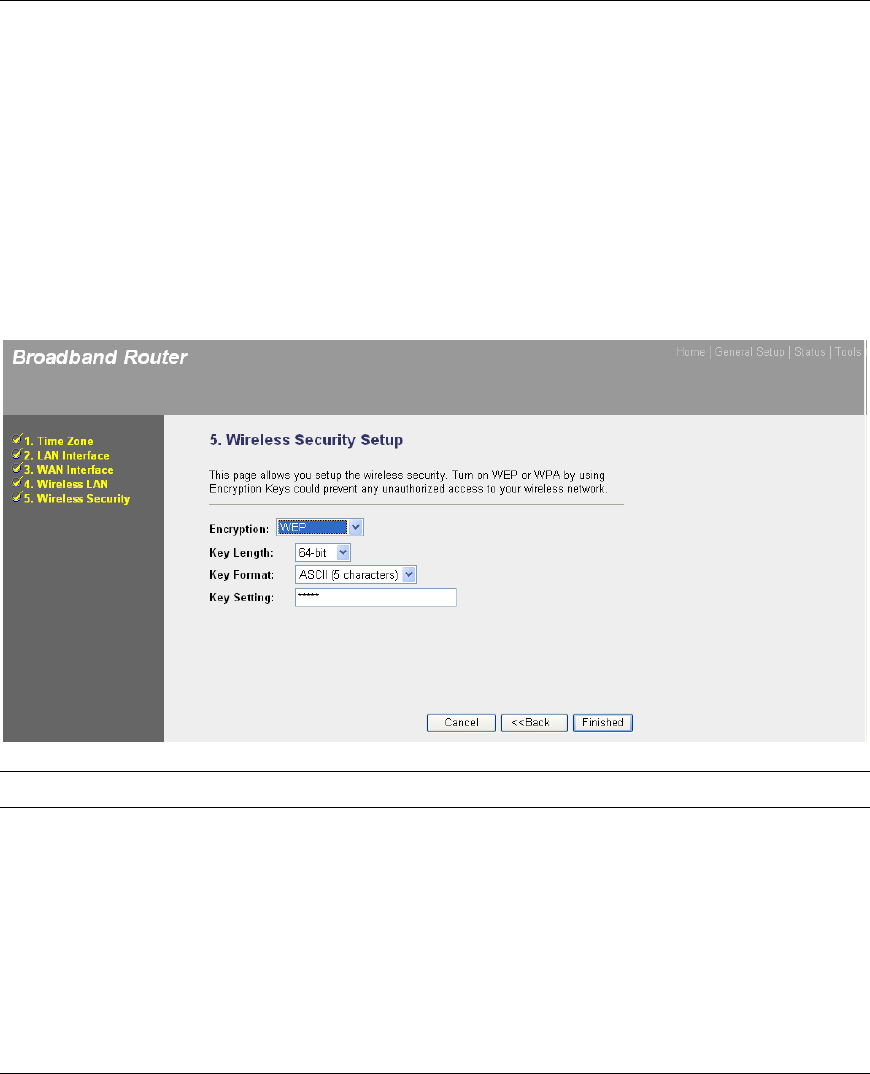

2.5 WIRELESS SECURITY SETTINGS ................................................................................................................... 29

2.5.1 WEP ............................................................................................................................................. 30

2.5.2 WPA(TKIP) ................................................................................................................................... 32

2.5.3 WPA2(AES) .................................................................................................................................. 33

2.5.4 WPA2 Mixed ............................................................................................................................... 34

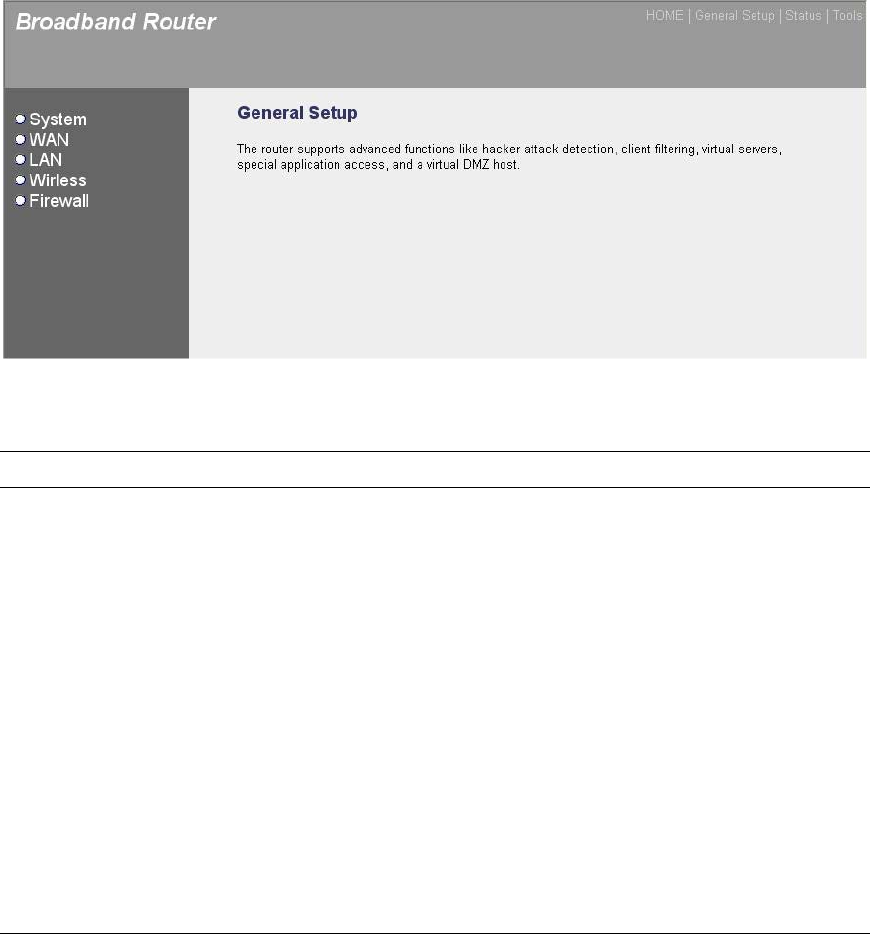

CHAPTER 3 GENERAL SETTINGS .............................................................................................................. 35

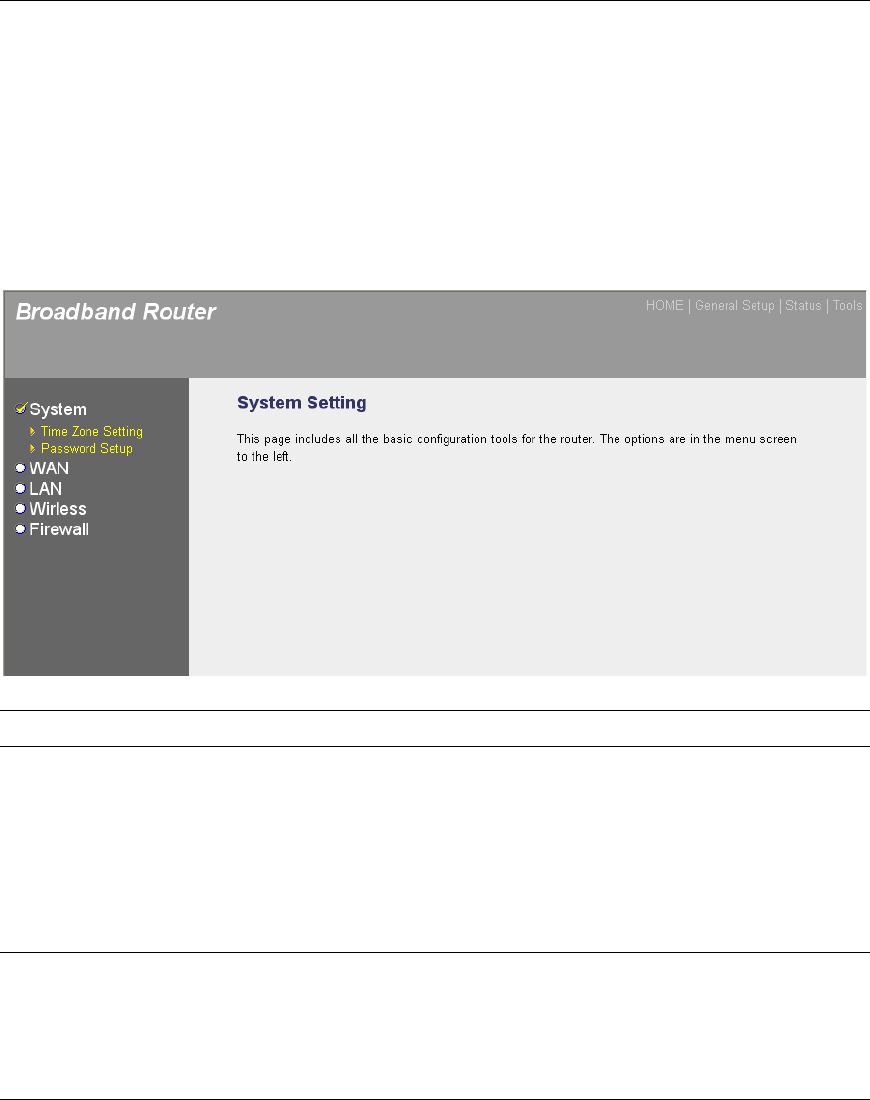

3.1 SYSTEM ................................................................................................................................................. 36

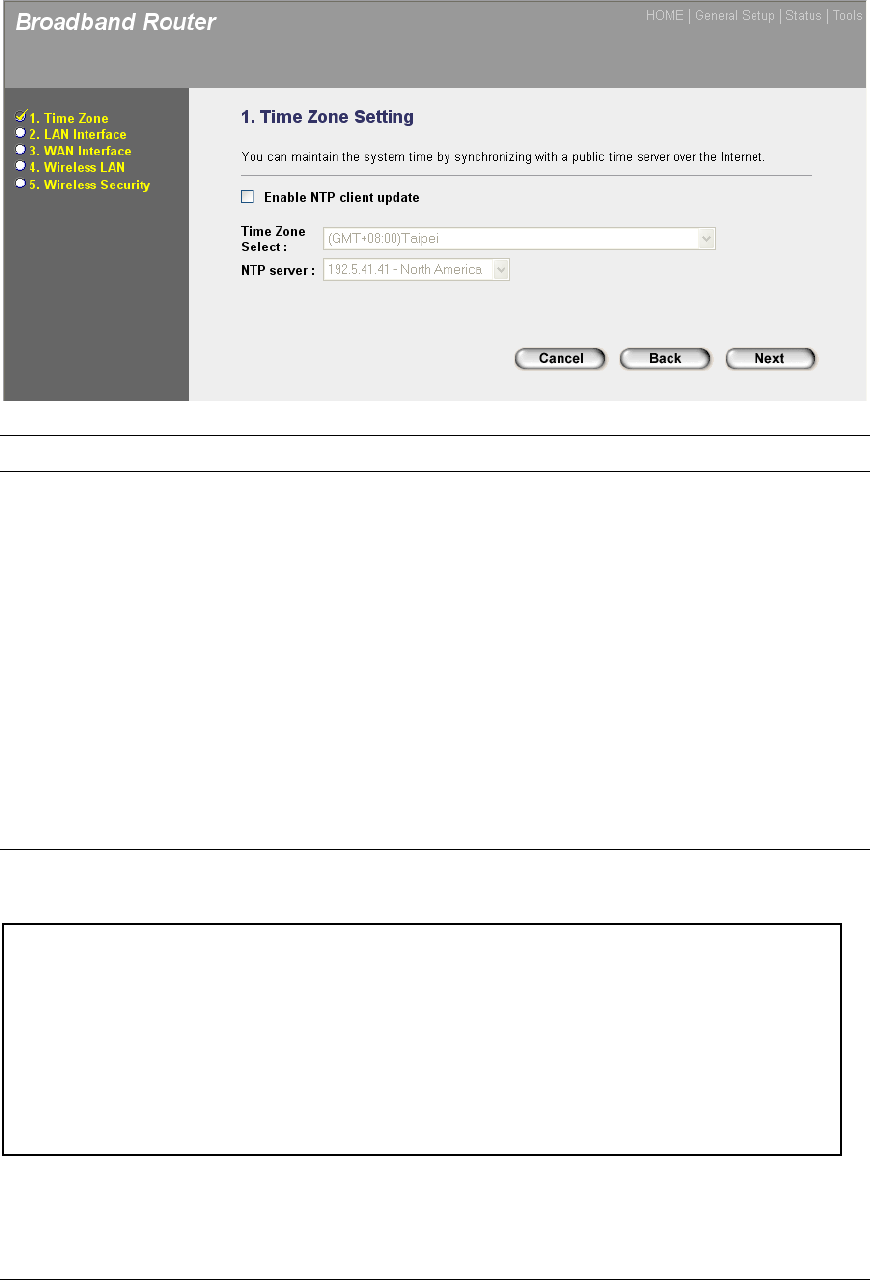

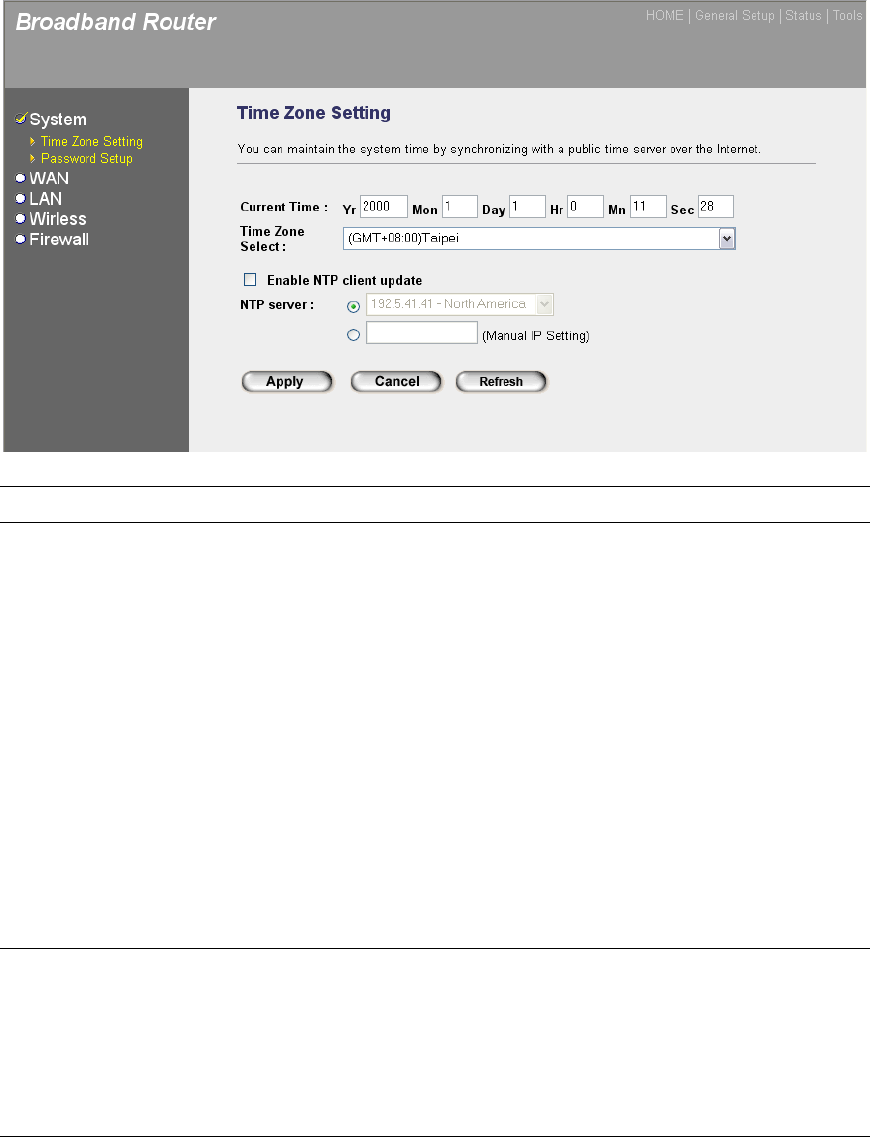

3.1.1 Time Zone Setting ....................................................................................................................... 37

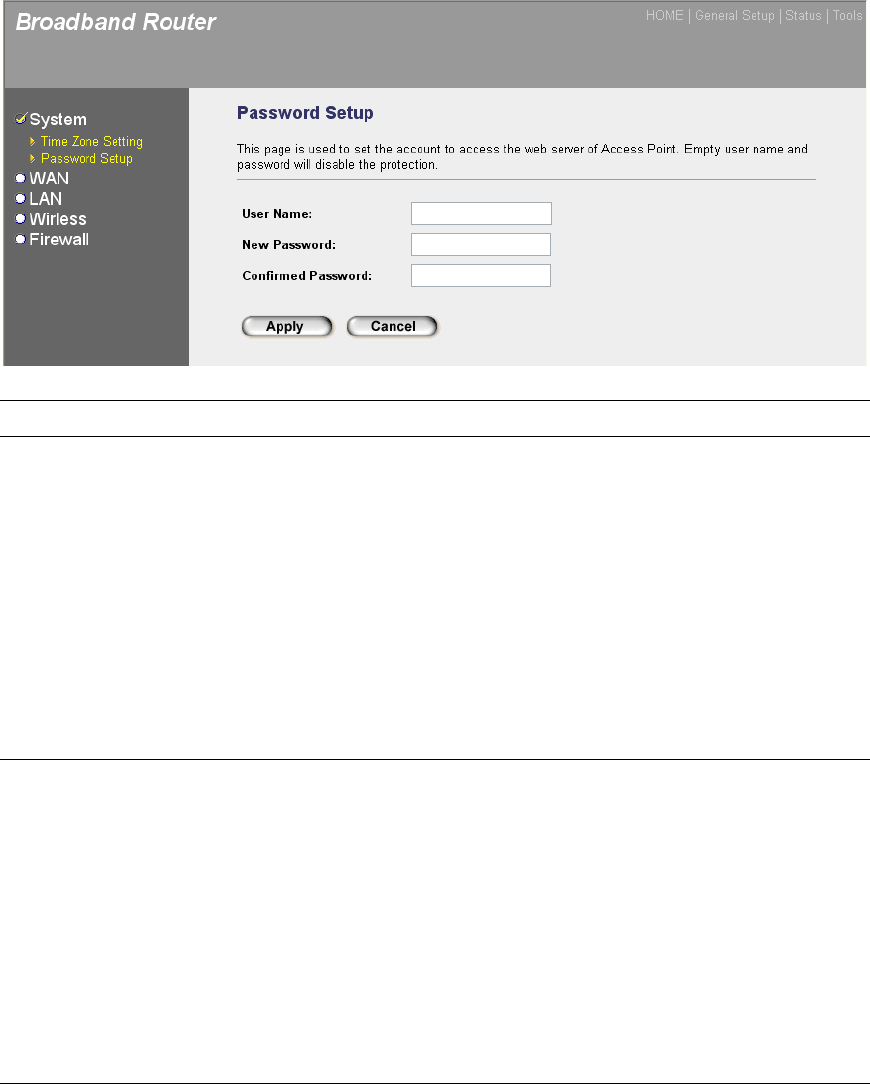

3.1.2 Password Setup ........................................................................................................................... 38

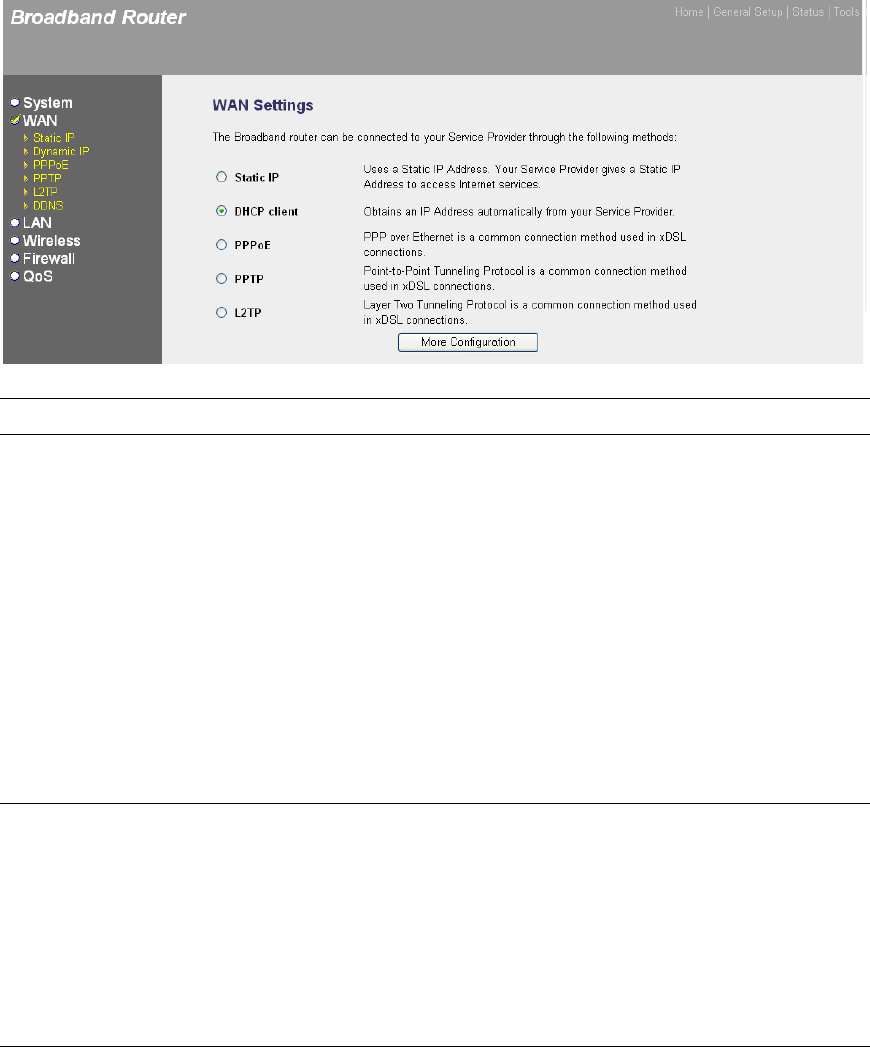

3.2 WAN ................................................................................................................................................... 39

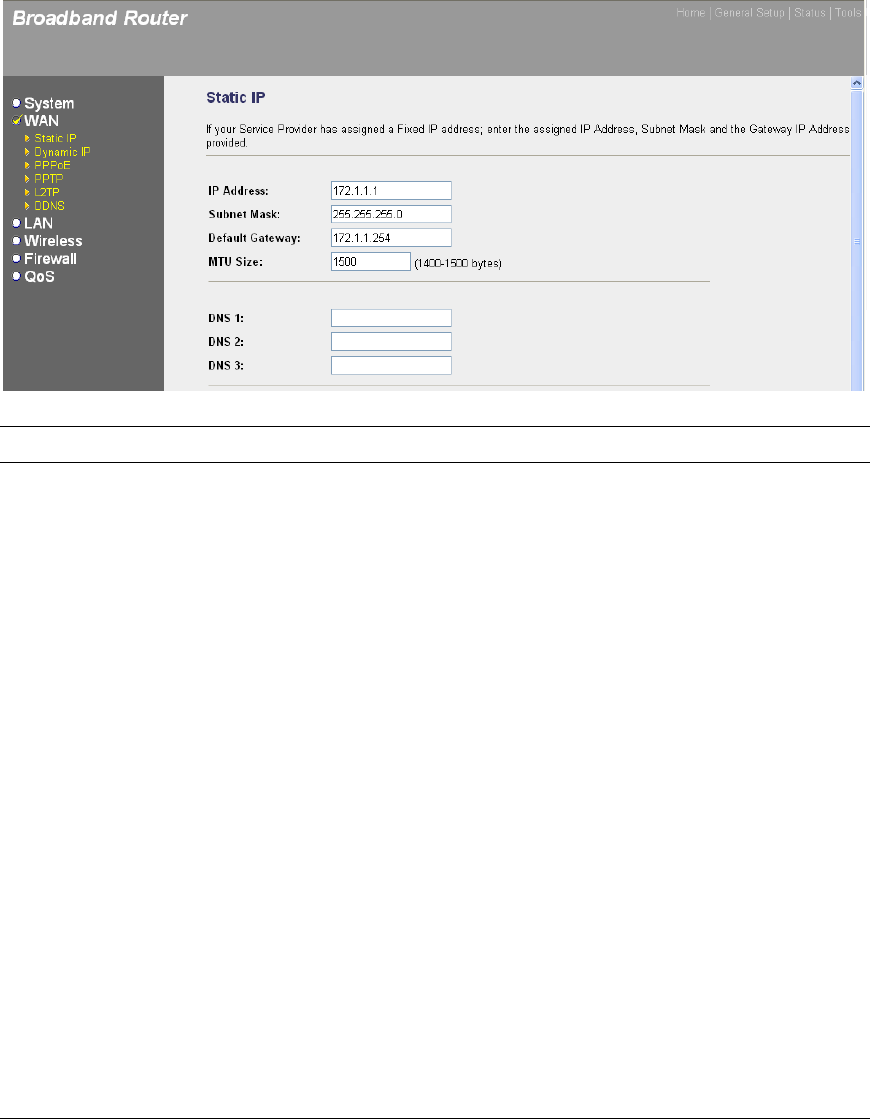

3.2.1 Static IP ....................................................................................................................................... 40

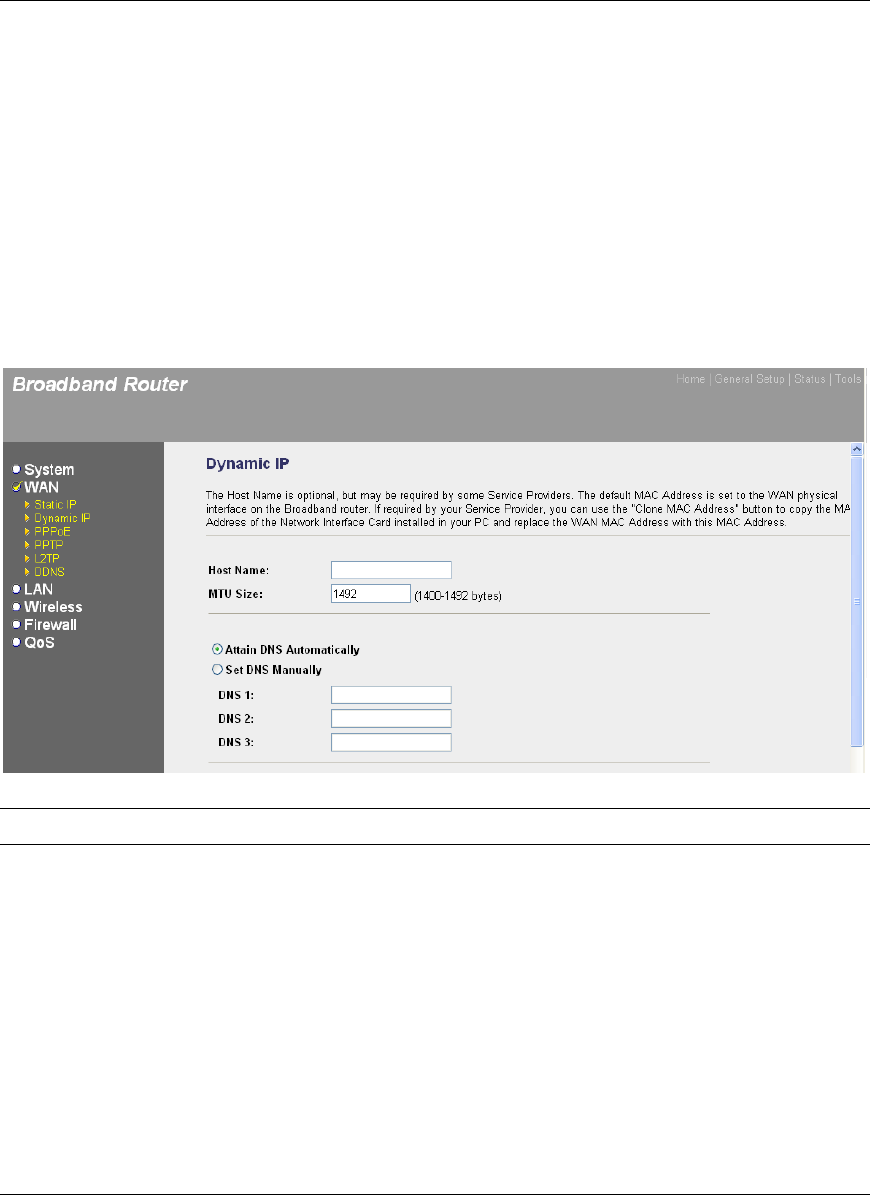

3.2.2 DHCP Client ................................................................................................................................. 41

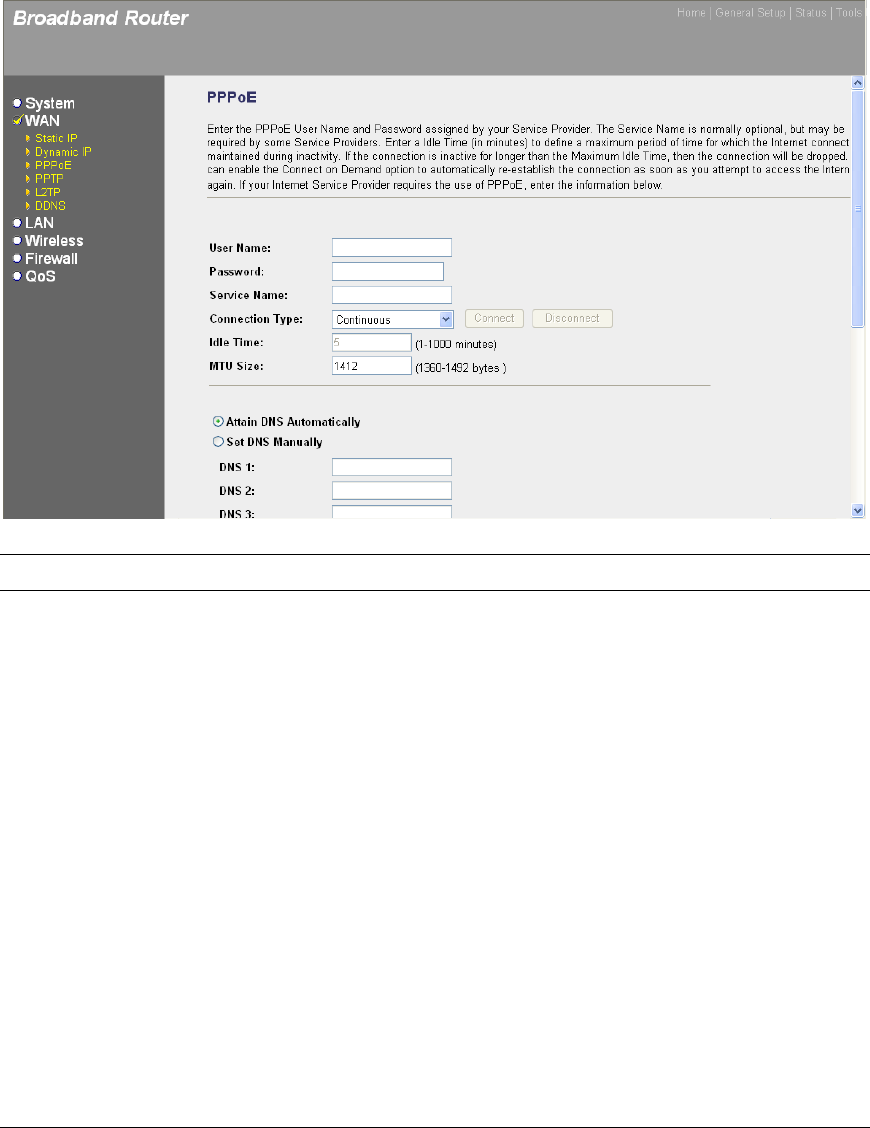

3.2.3 PPPoE (PPP over Ethernet) .......................................................................................................... 43

3.2.4 PPTP ............................................................................................................................................ 45

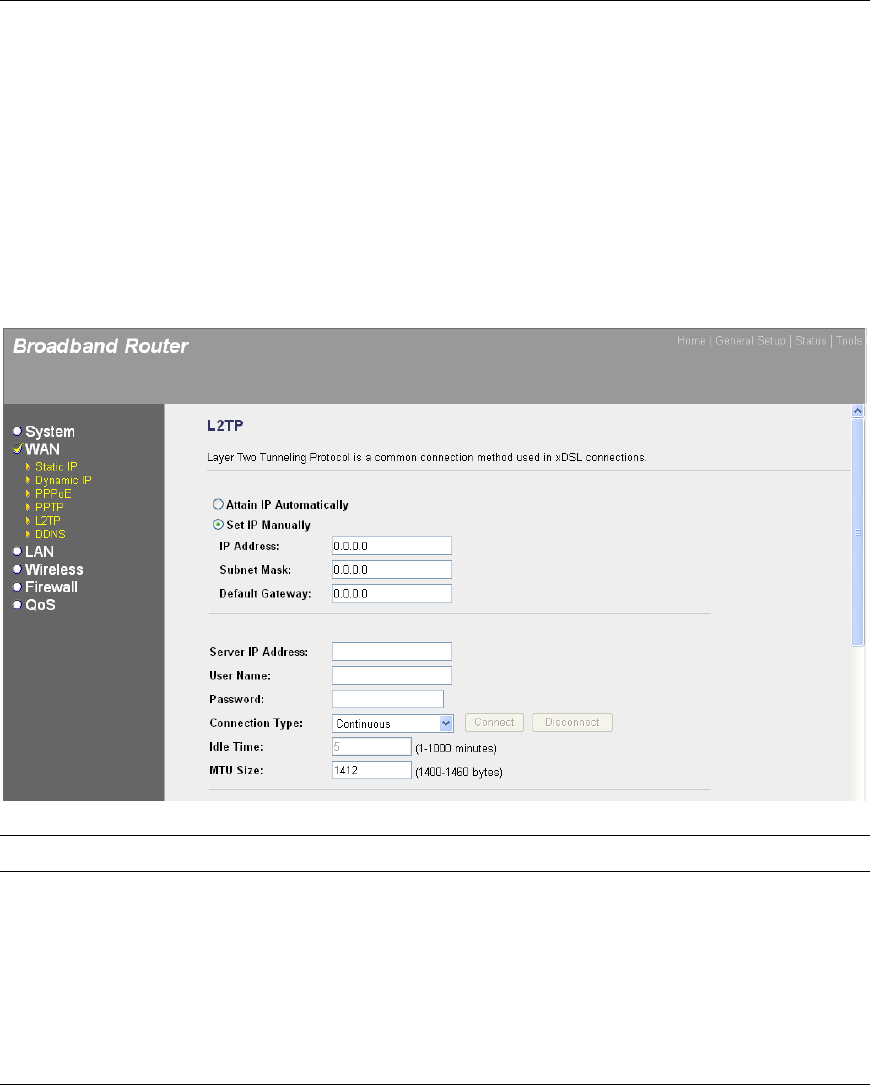

3.2.5 L2TP ............................................................................................................................................ 47

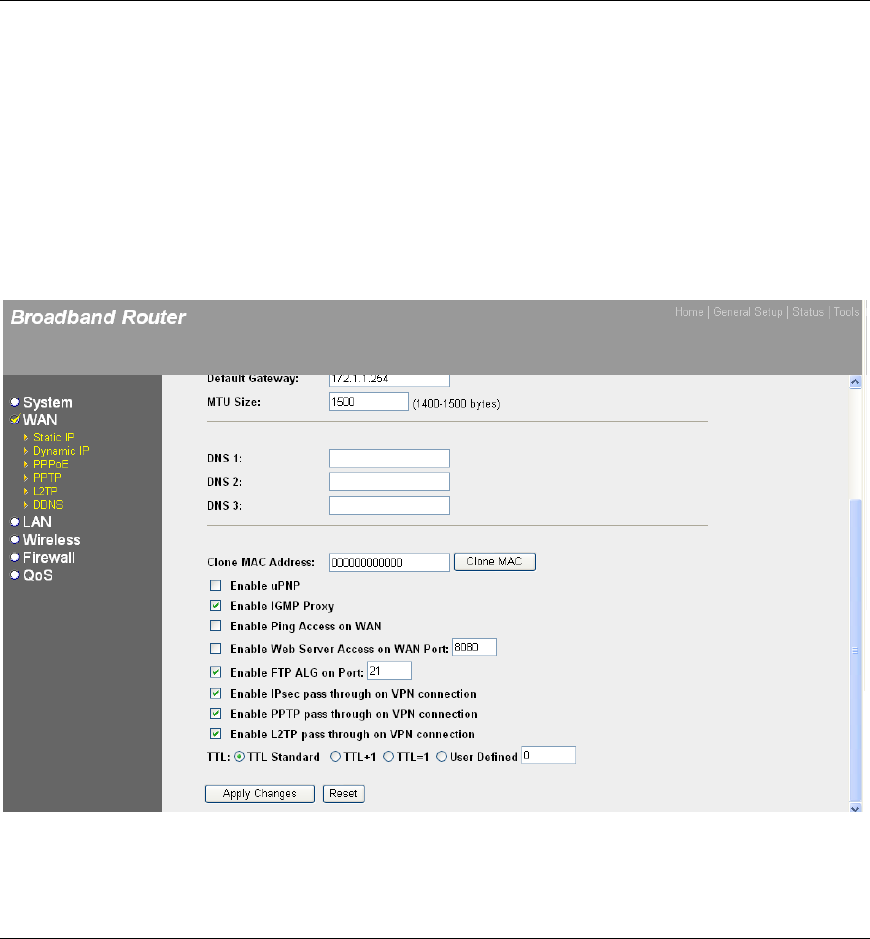

3.2.6 WAN Advanced Settings ......................................................................................................... 49

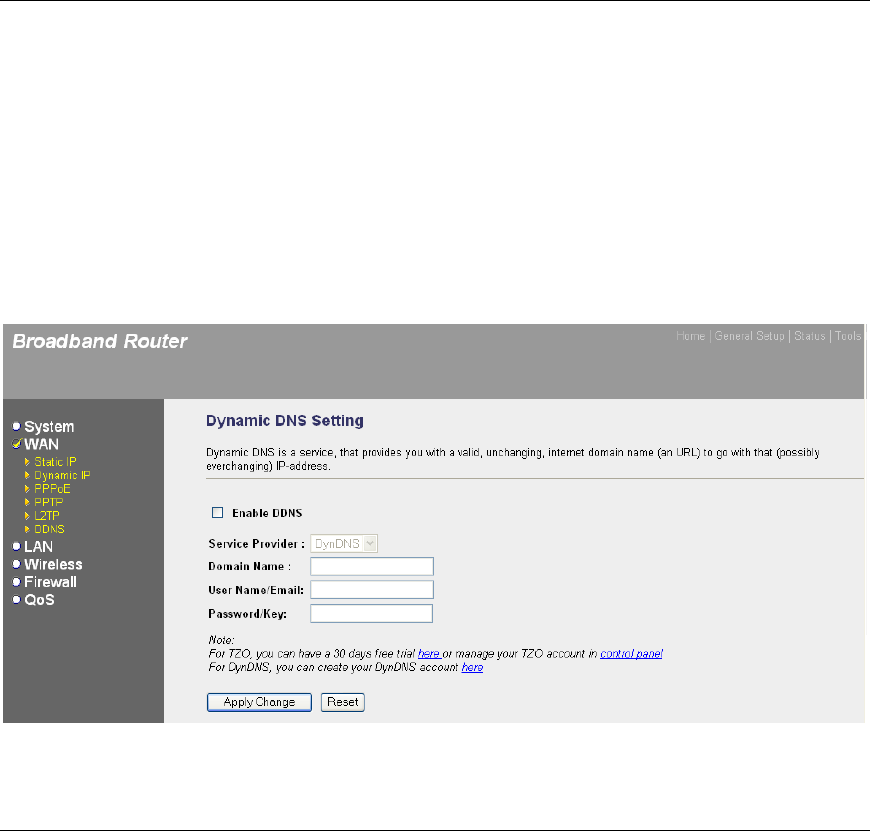

3.2.7 DDNS ........................................................................................................................................... 51

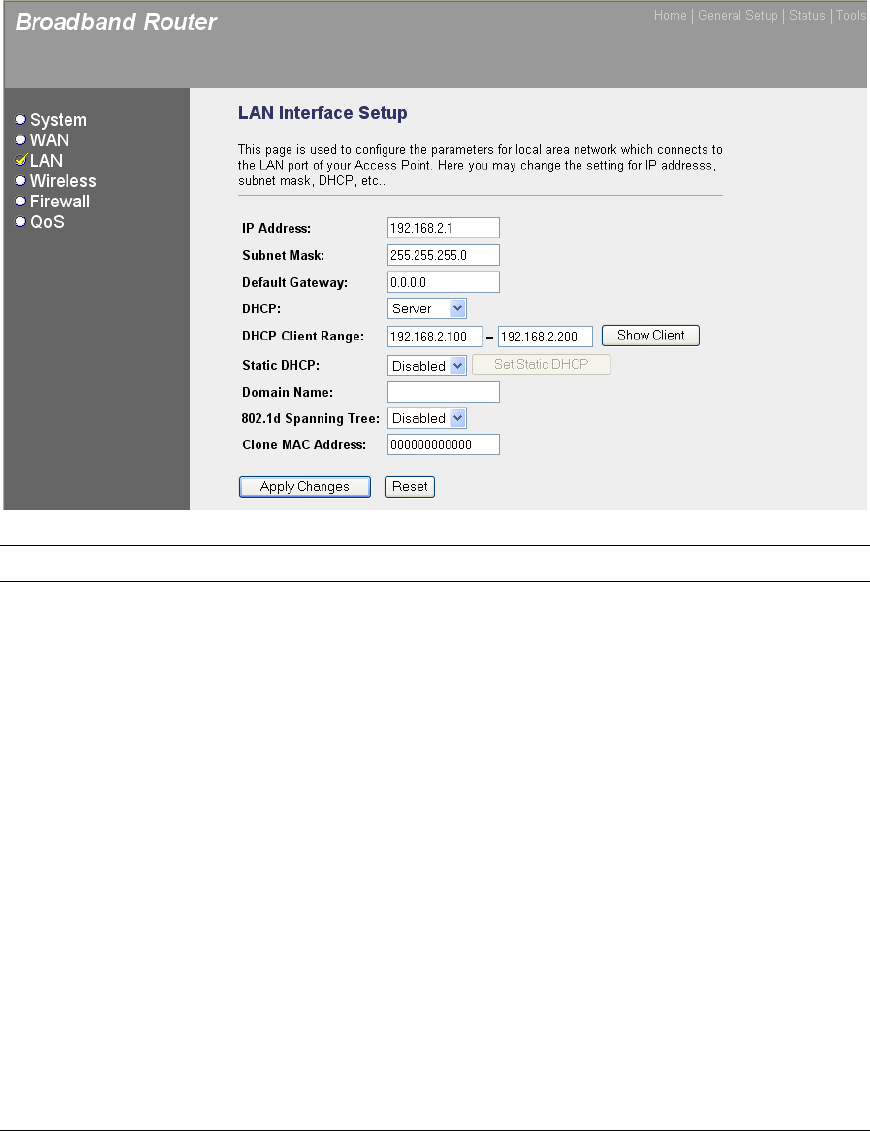

3.3 LAN ..................................................................................................................................................... 53

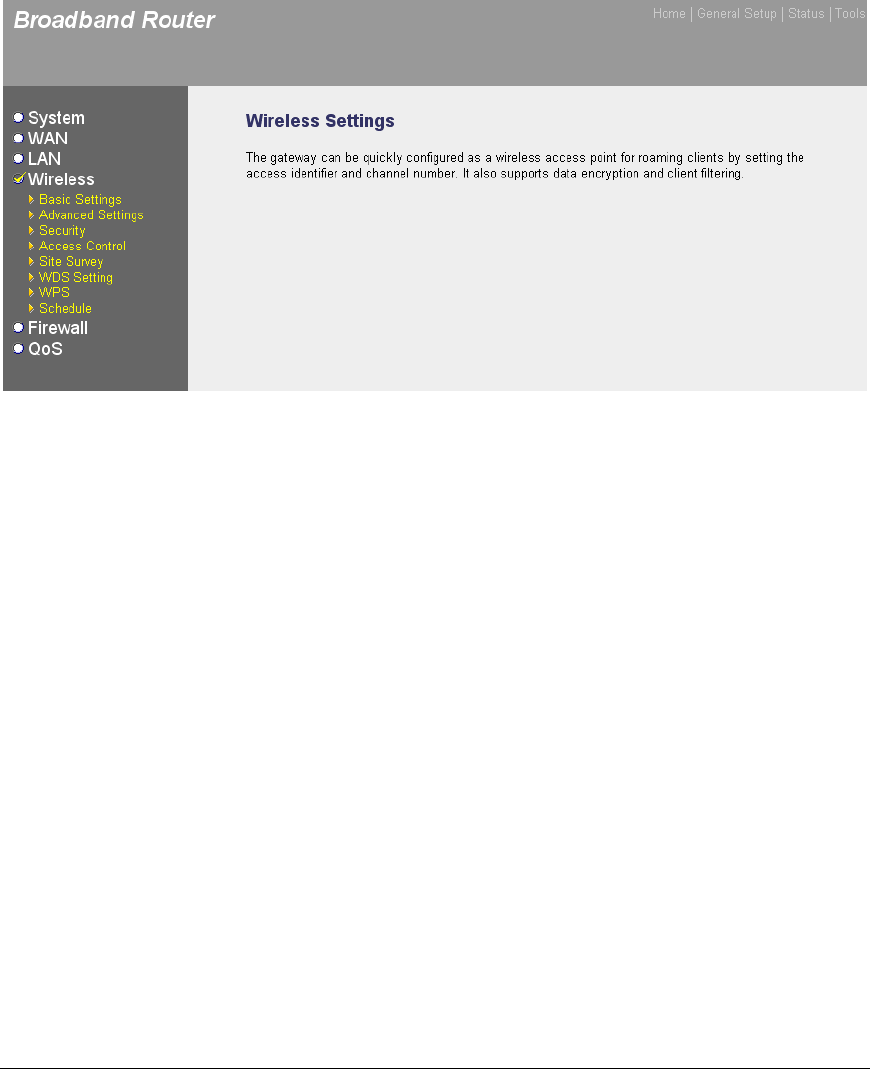

3.4 WIRELESS .............................................................................................................................................. 55

3.4.1 Basic Settings .............................................................................................................................. 56

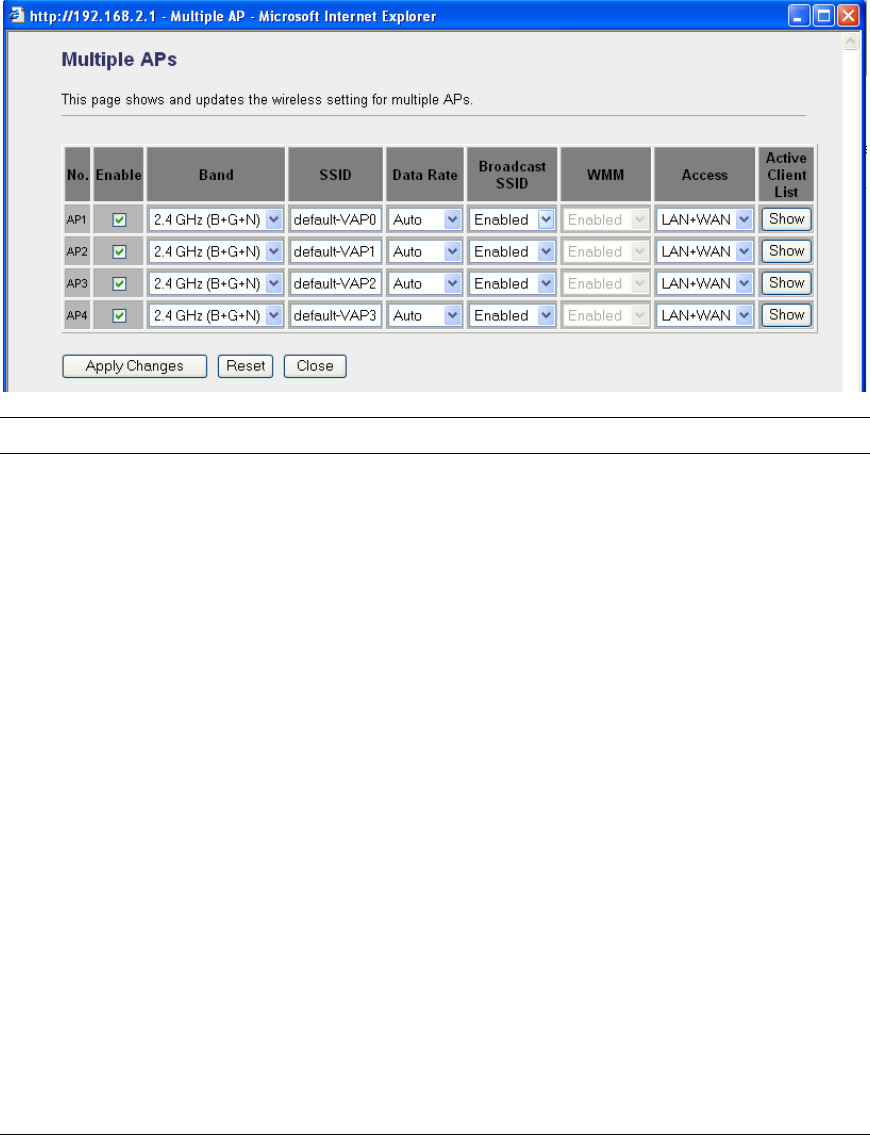

3.4.2.1 Multiple AP .............................................................................................................................. 60

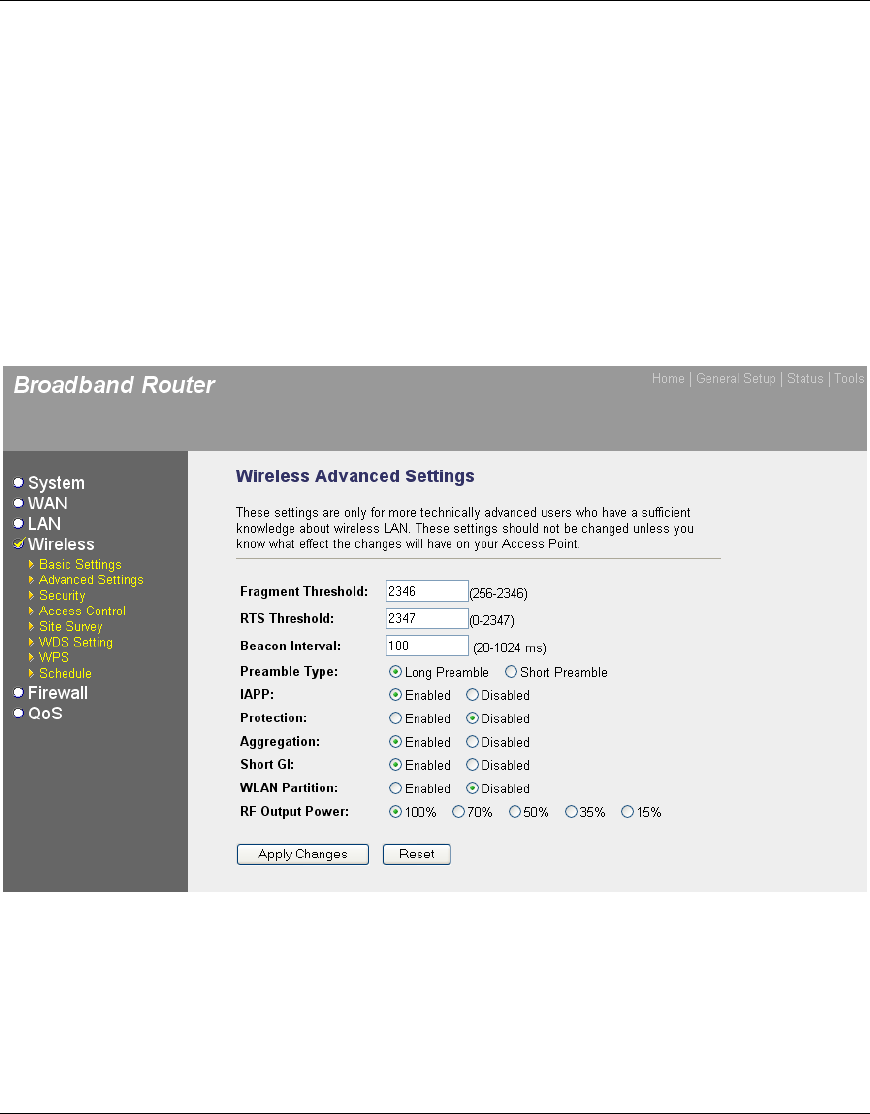

3.4.2 Advanced Settings ....................................................................................................................... 62

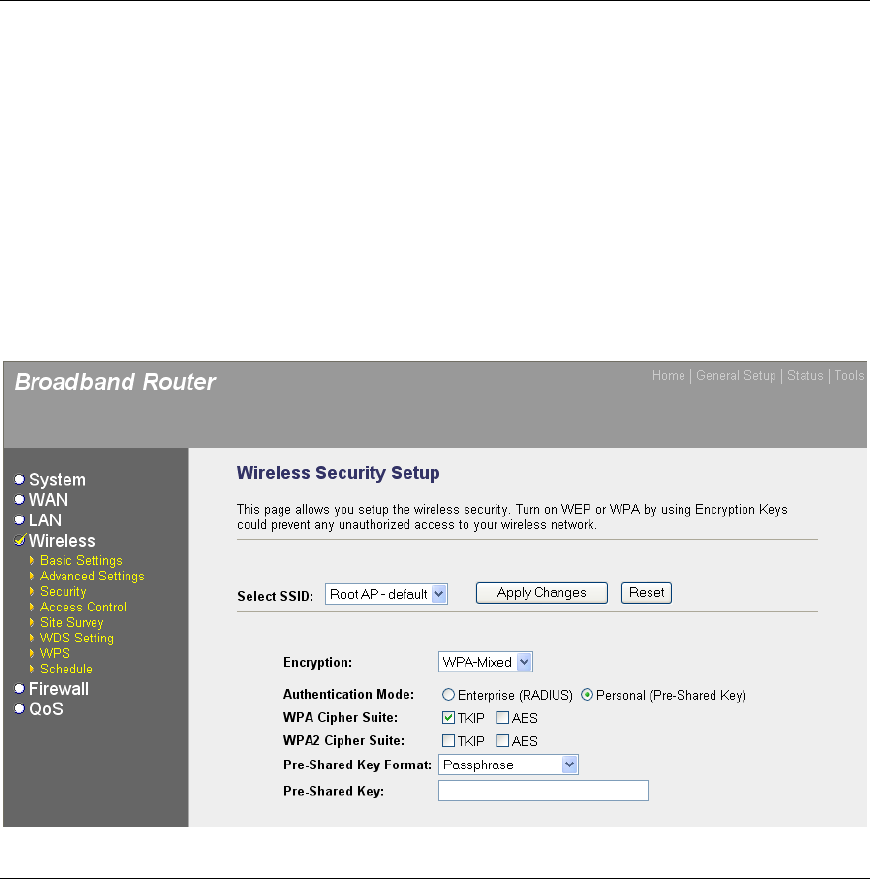

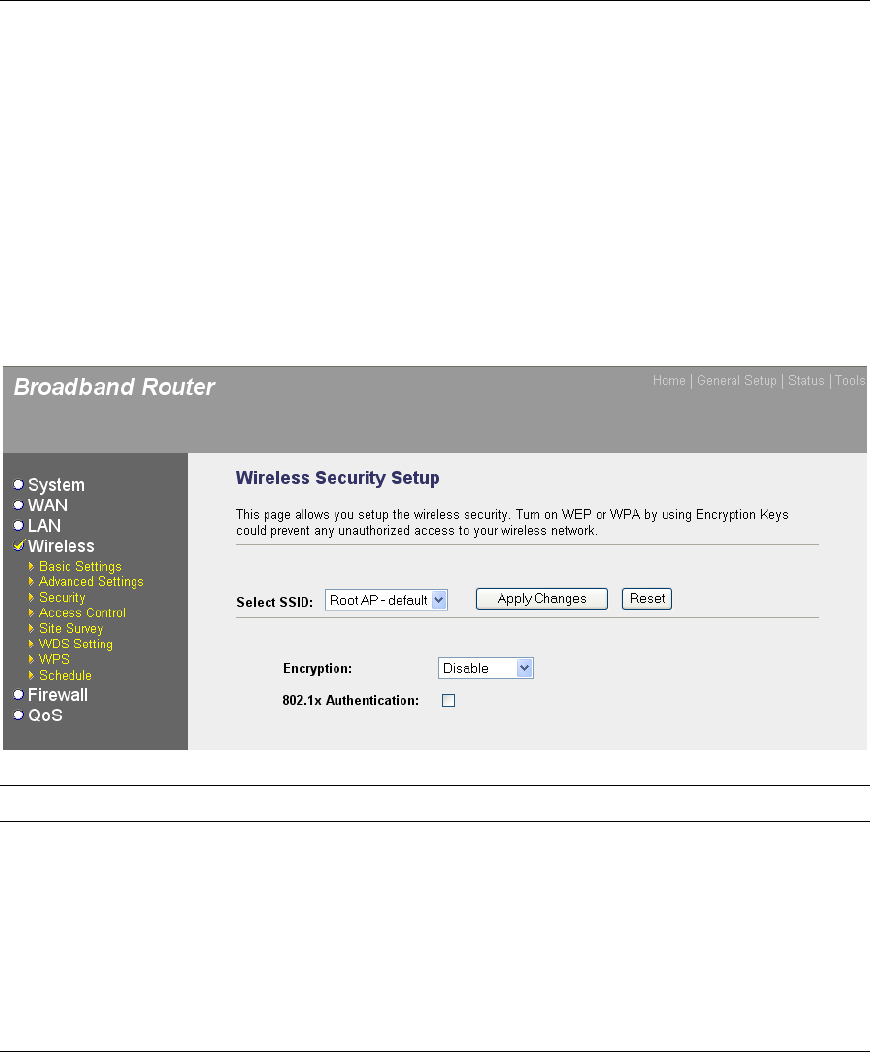

3.4.3 Security ....................................................................................................................................... 64

3.4.3.1 WEP .......................................................................................................................................... 65

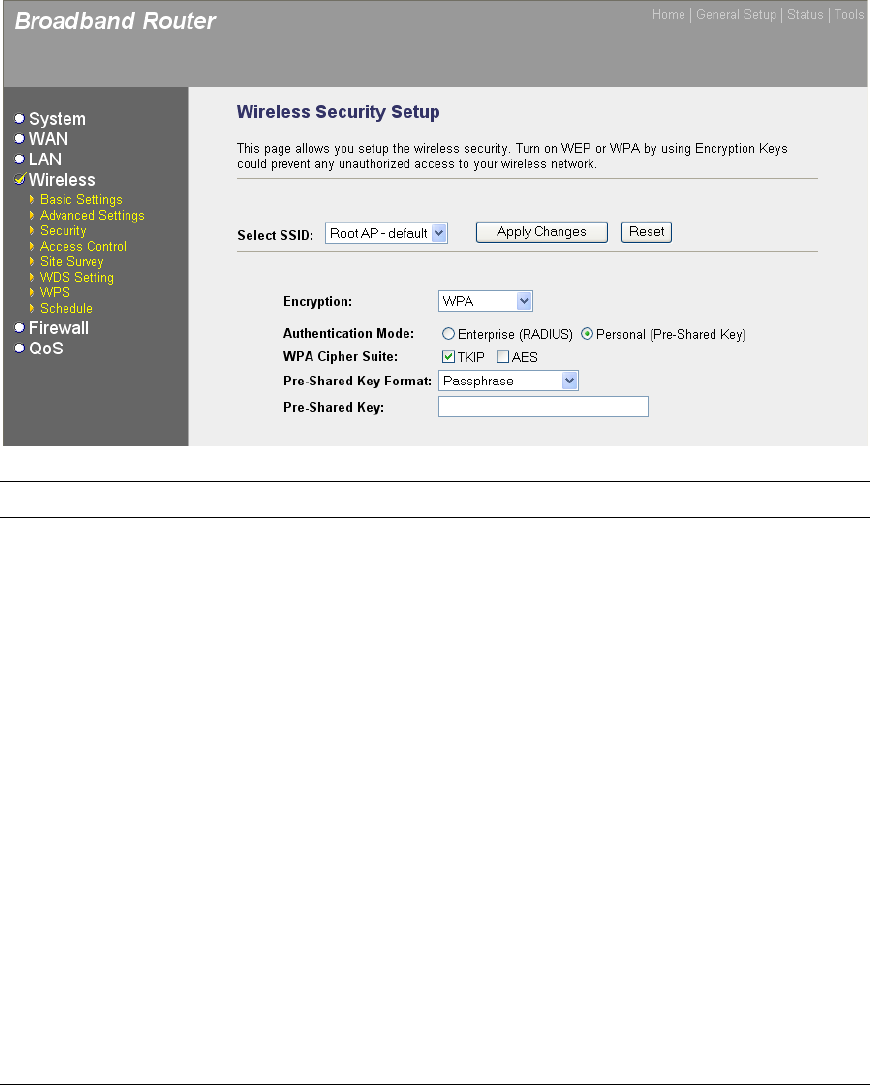

3.4.3.2 WPA ......................................................................................................................................... 67

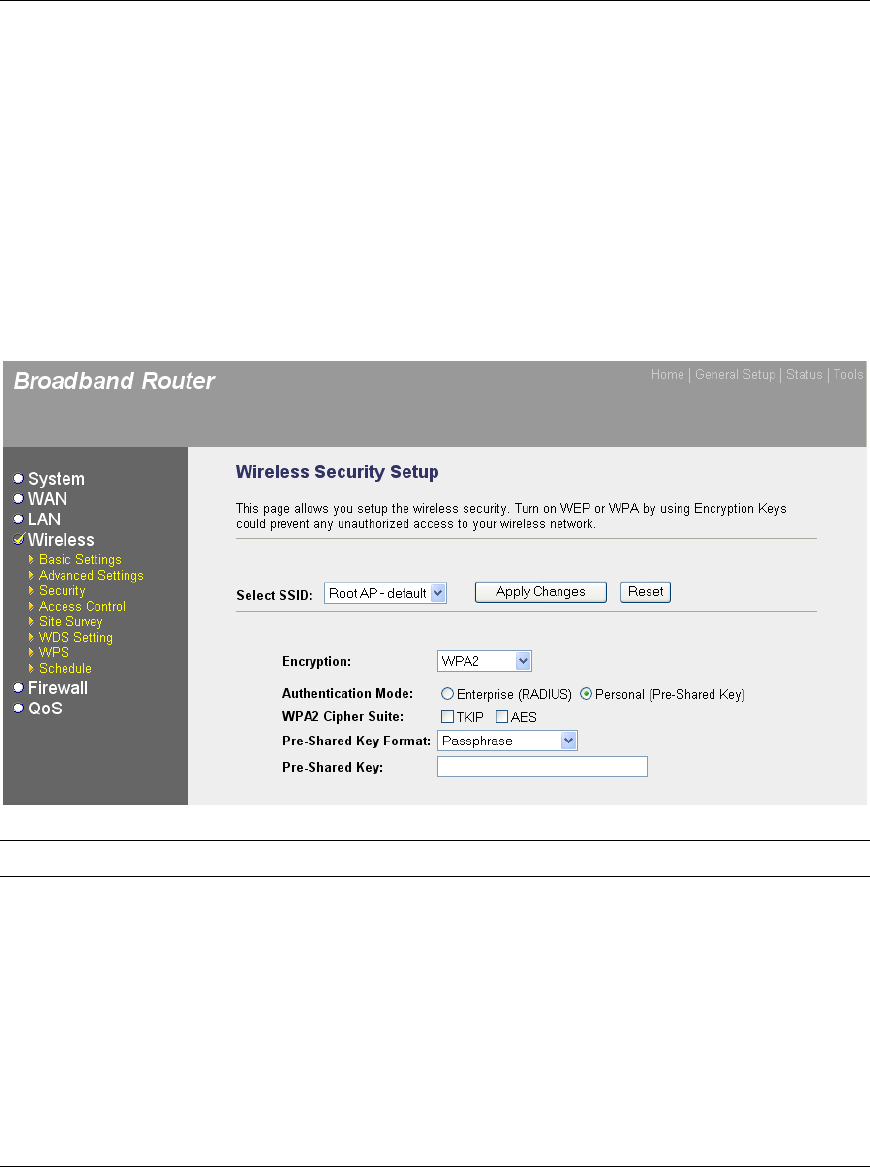

3.4.3.3 WPA2(AES) ............................................................................................................................... 68

3.4.3.4 WPA2Mixed ............................................................................................................................. 69

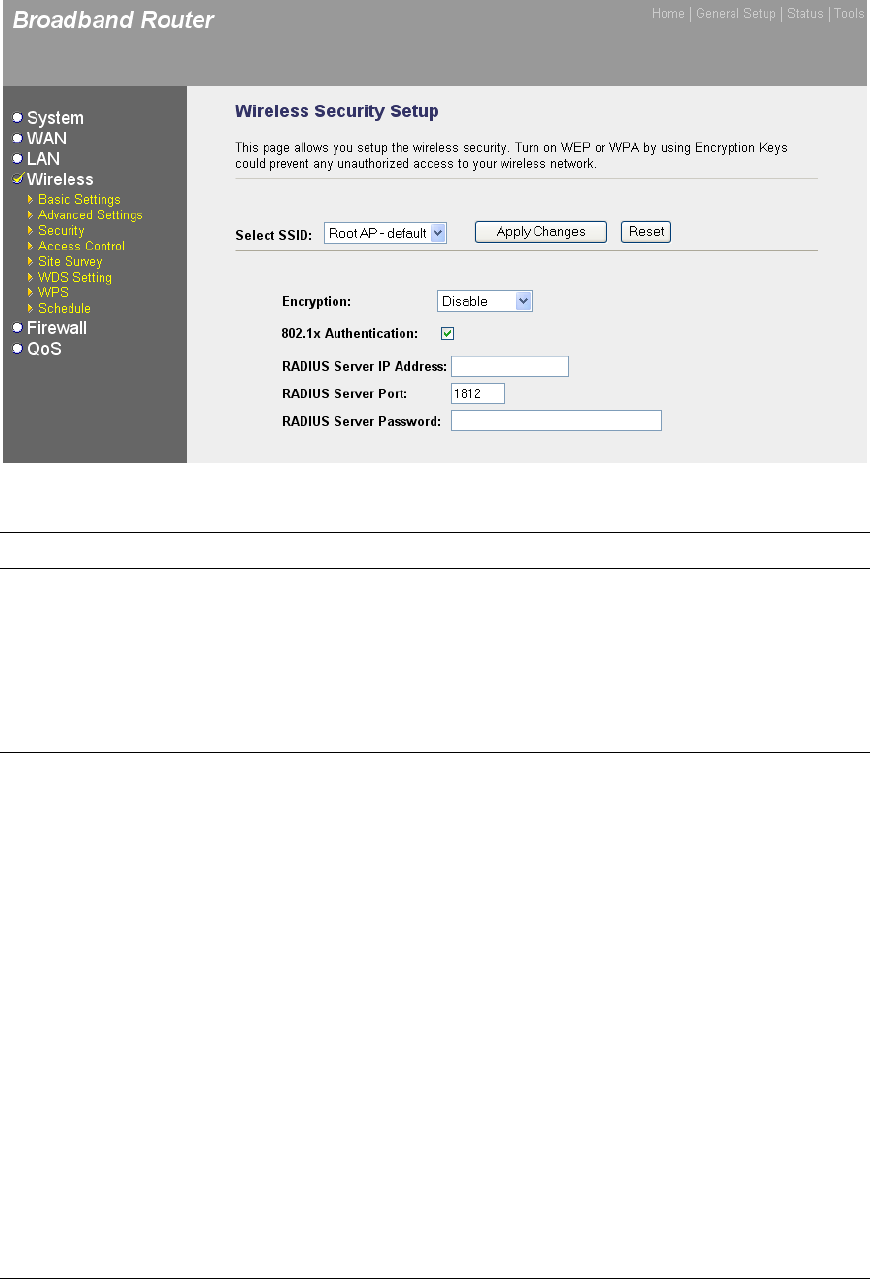

3.4.3.5 RADIUS Server .......................................................................................................................... 70

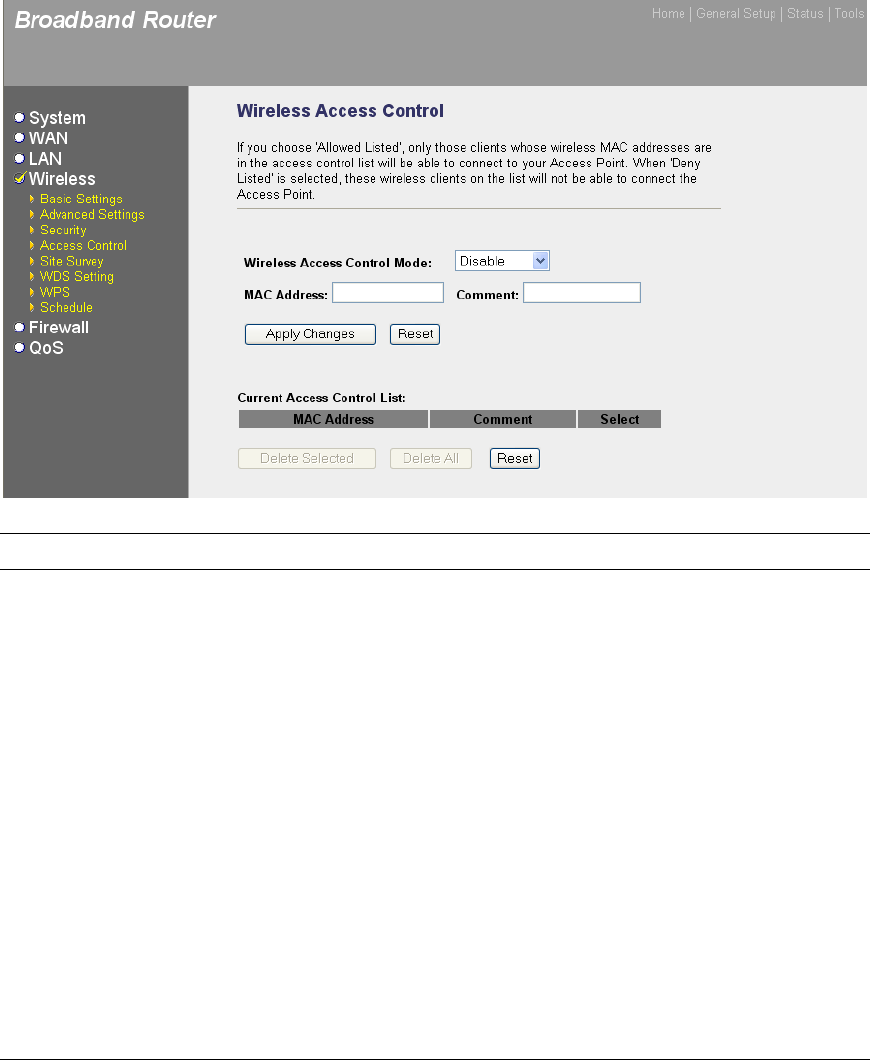

3.4.4 Access Control ............................................................................................................................. 72

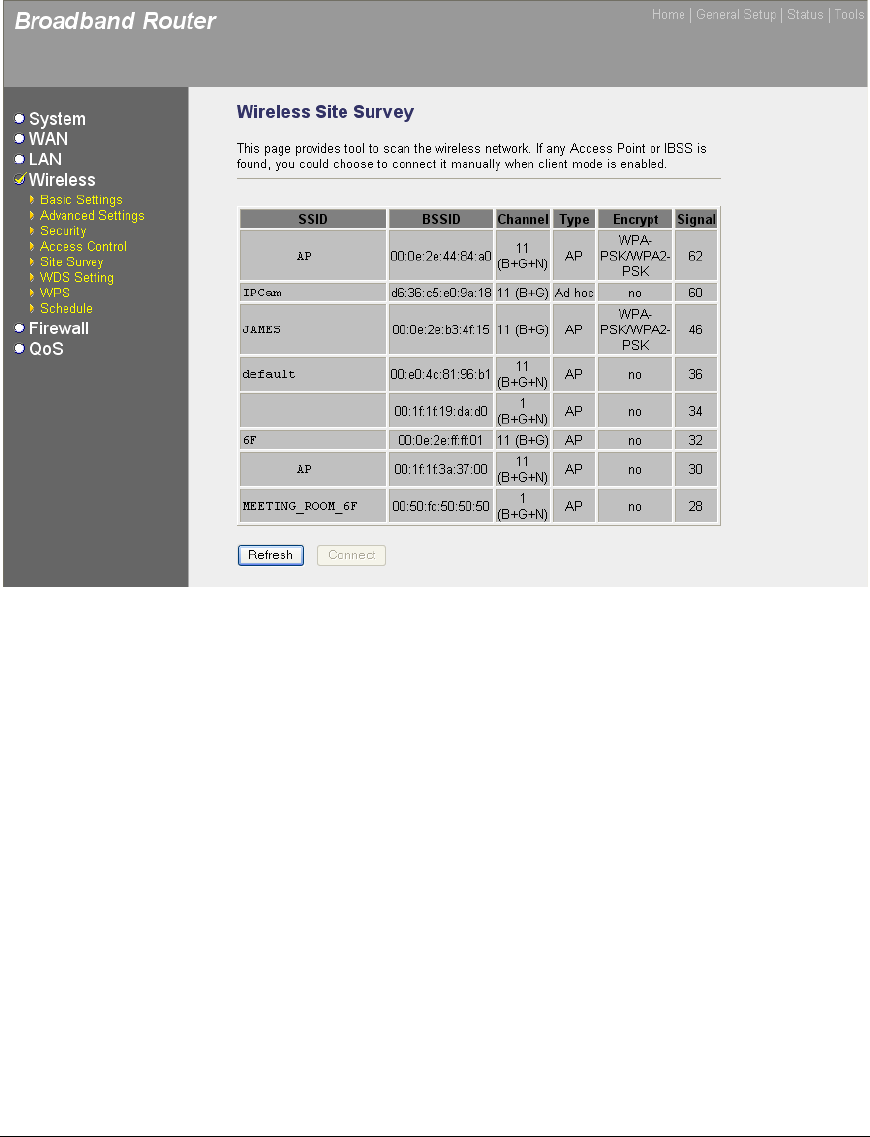

3.4.5 Site Survey ................................................................................................................................... 74

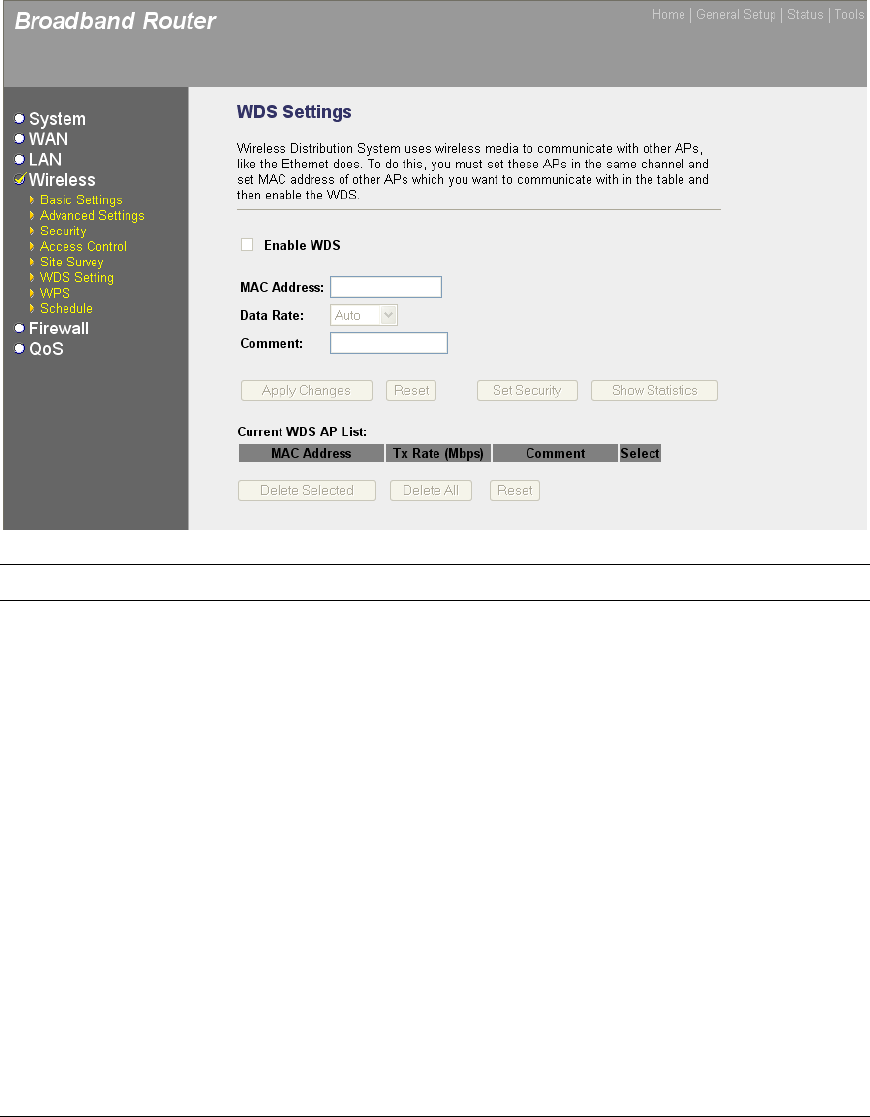

3.4.6 WDS Settings ............................................................................................................................... 75

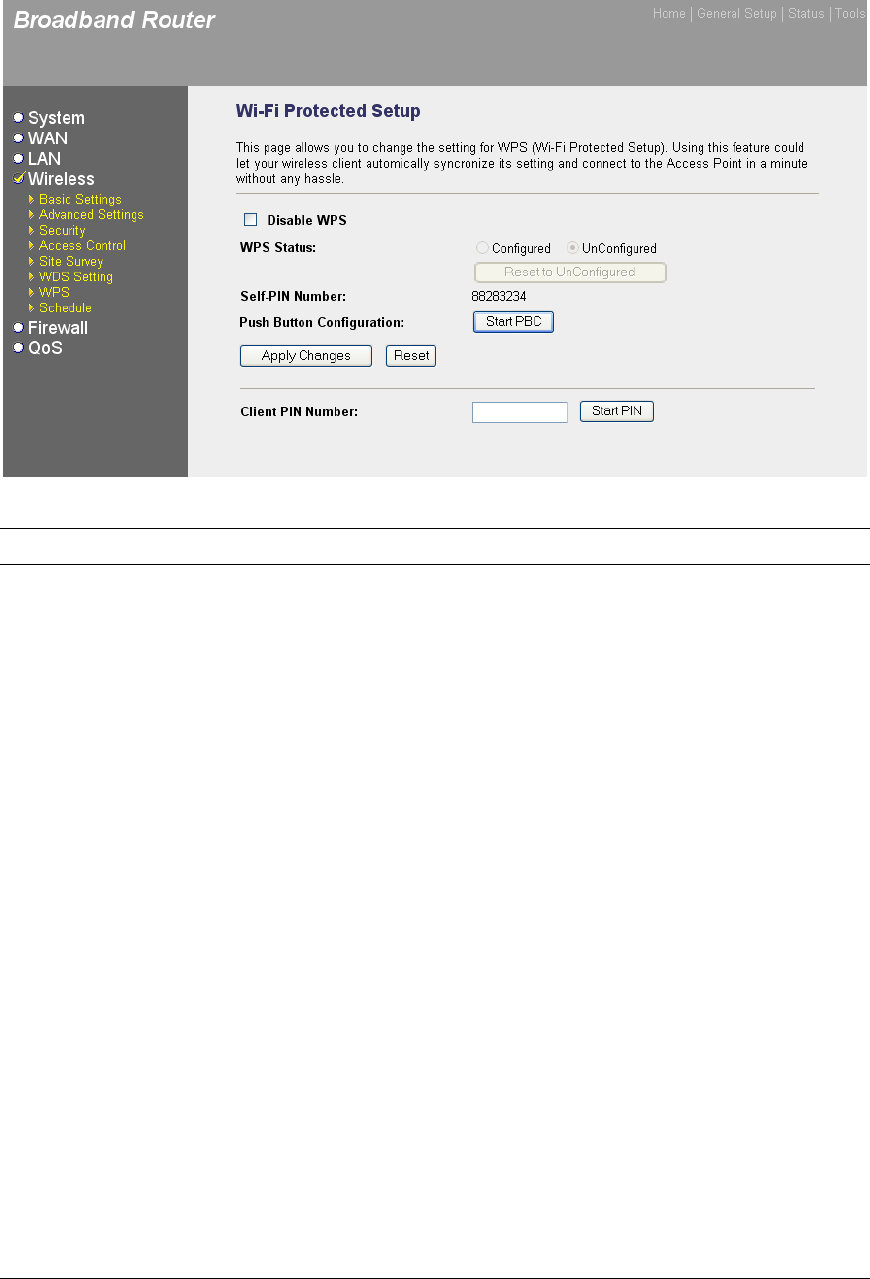

3.4.7 WPS ............................................................................................................................................. 76

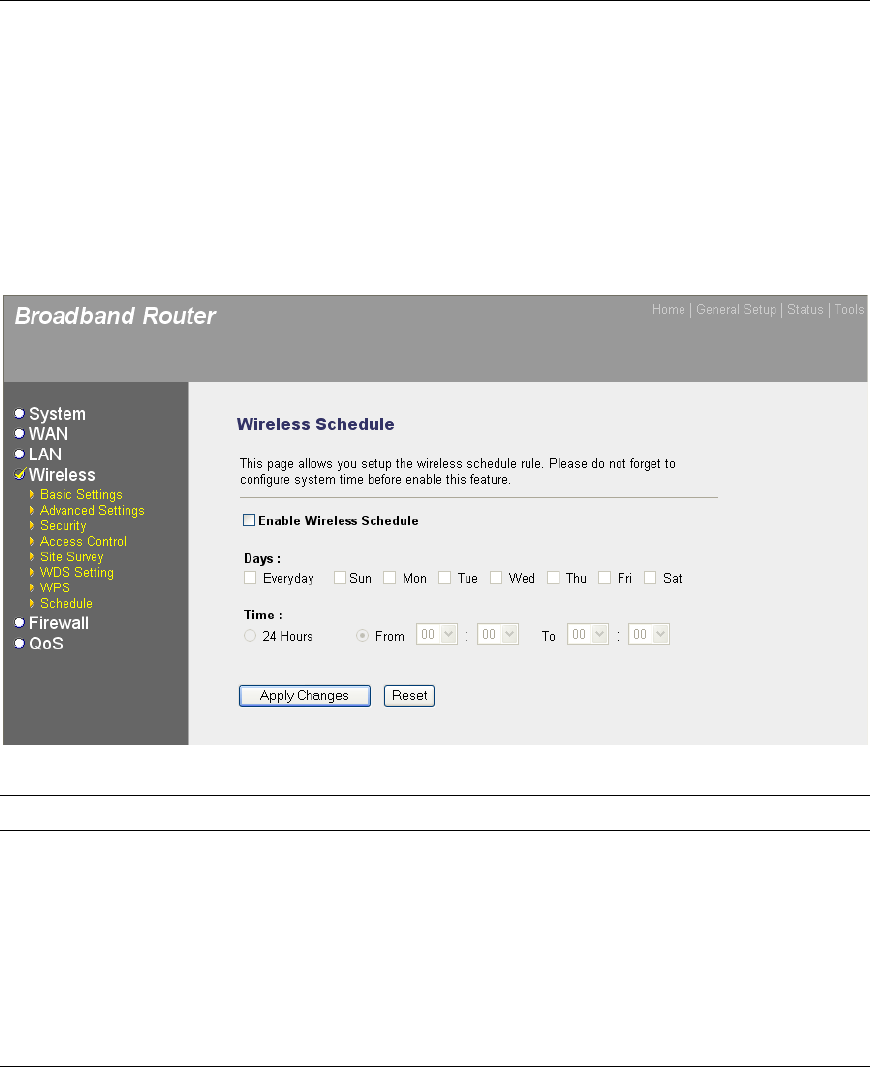

3.4.8 Schedule ...................................................................................................................................... 78

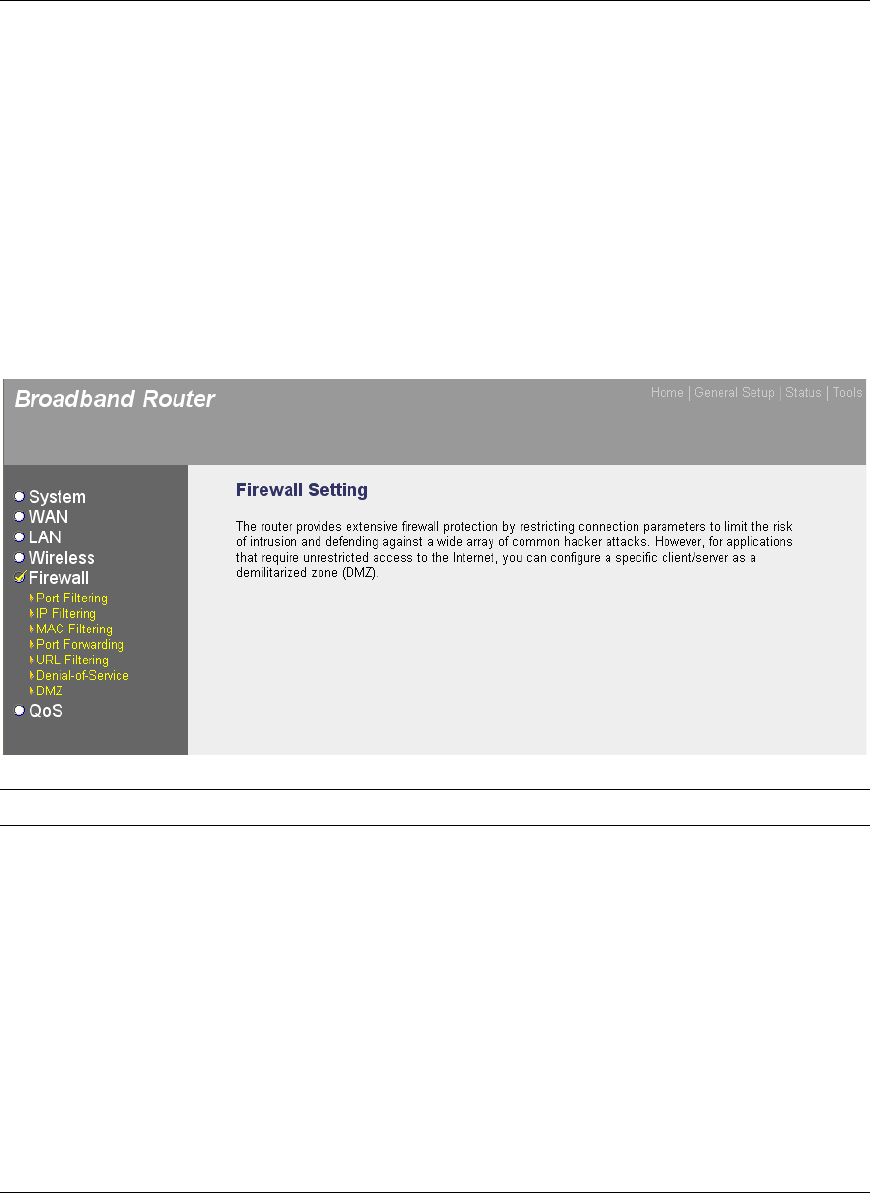

3.5 FIREWALL .............................................................................................................................................. 79

3.5.1 Port Filtering ............................................................................................................................... 81

3.5.2 IP Filtering ................................................................................................................................... 82

3.5.3 MAC Filtering .............................................................................................................................. 83

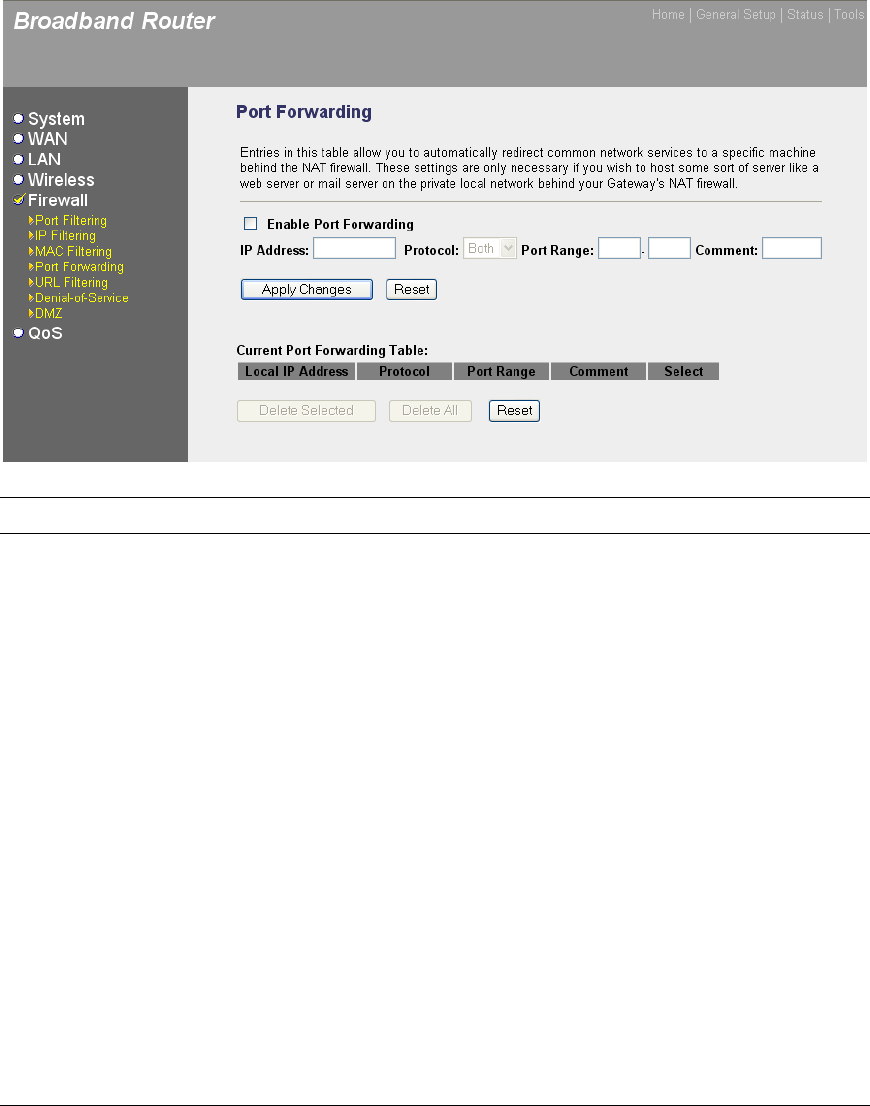

3.5.4 Port Forwarding .......................................................................................................................... 85

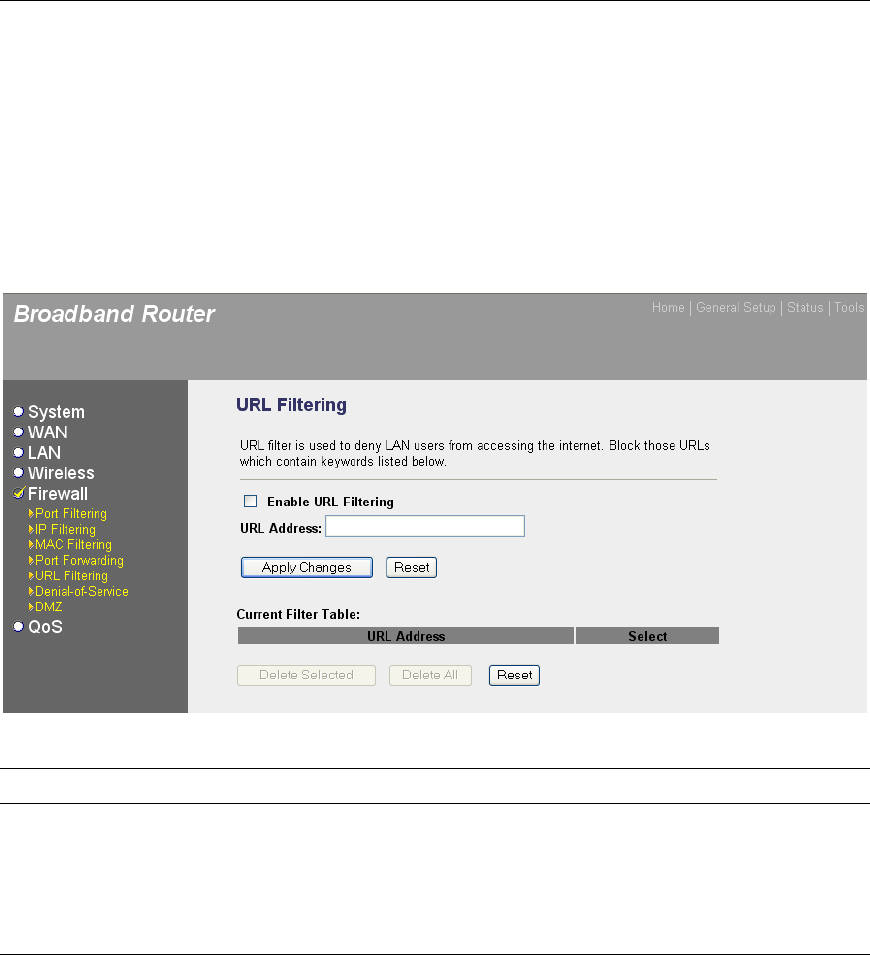

3.5.5 URL Filtering ................................................................................................................................ 86

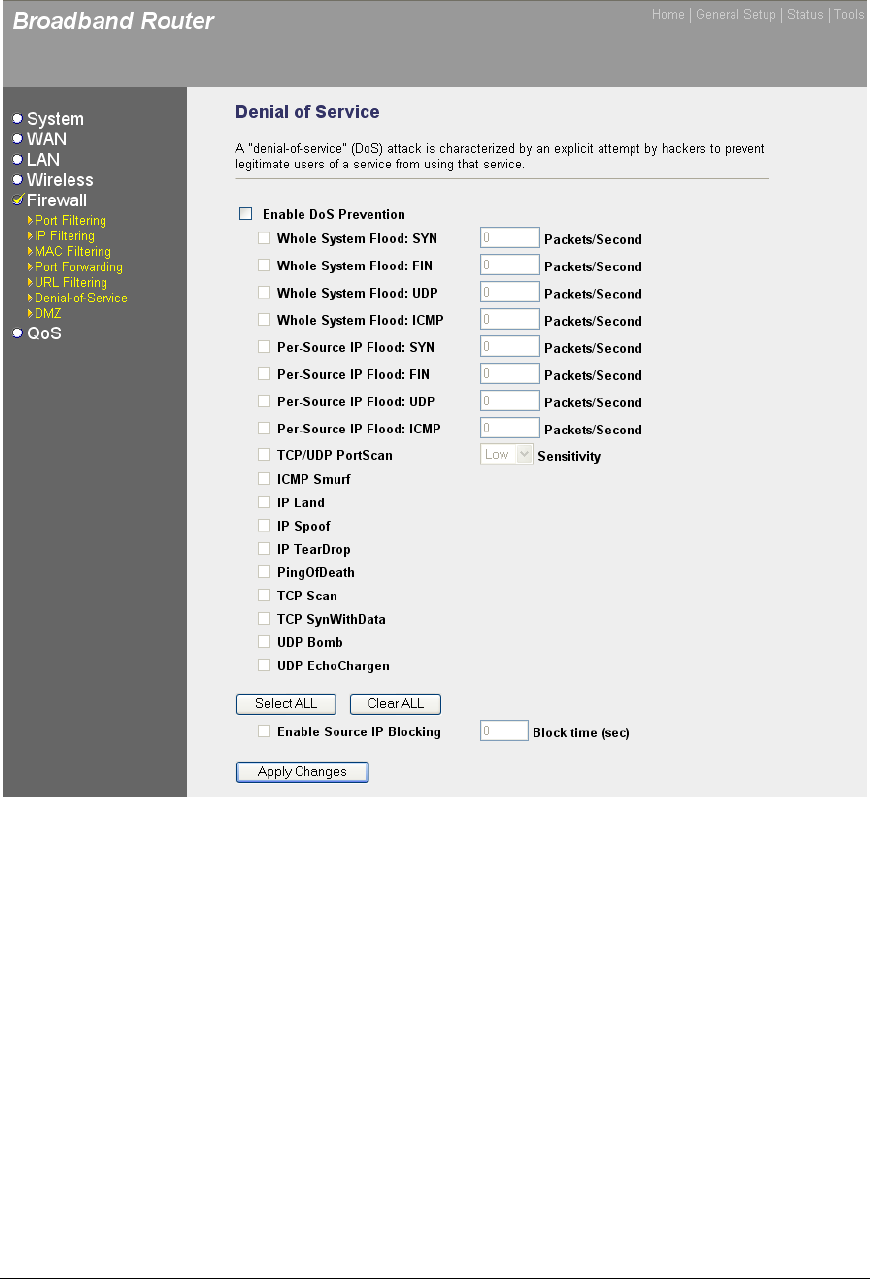

3.5.6 Denial-of-Service ......................................................................................................................... 87

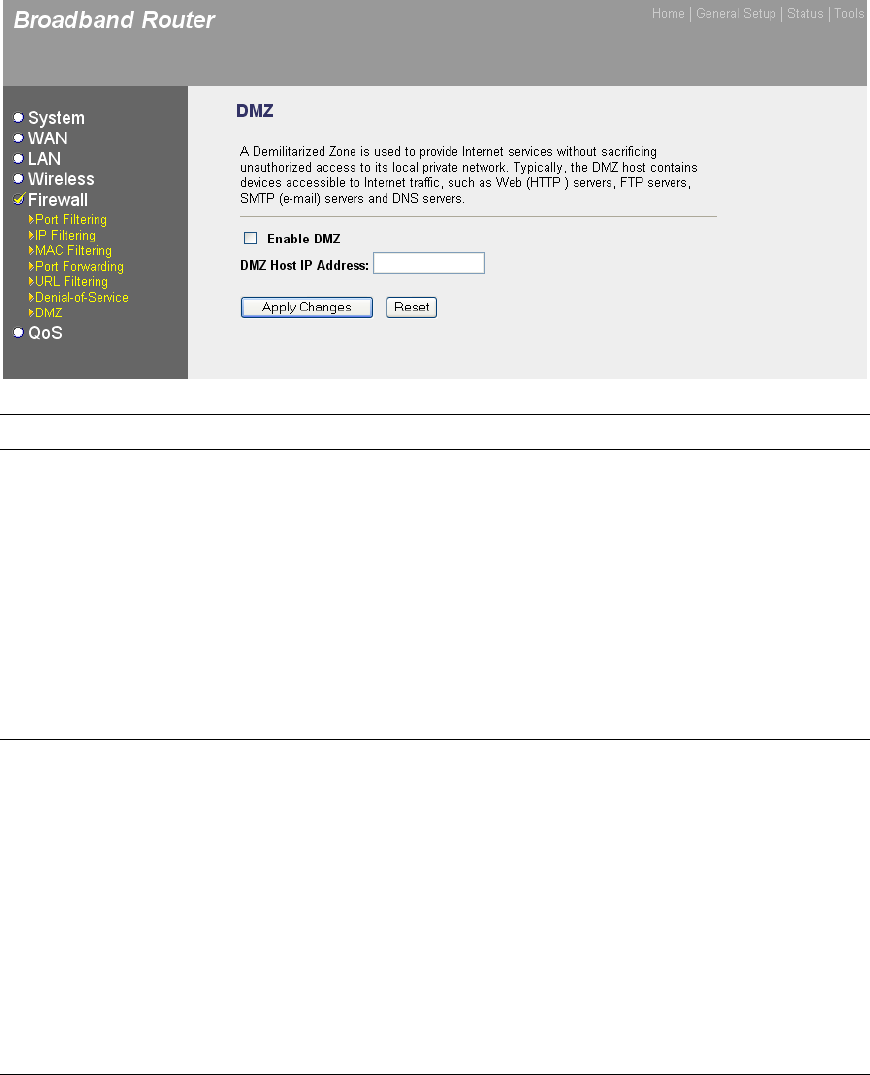

3.5.7 DMZ ............................................................................................................................................ 89

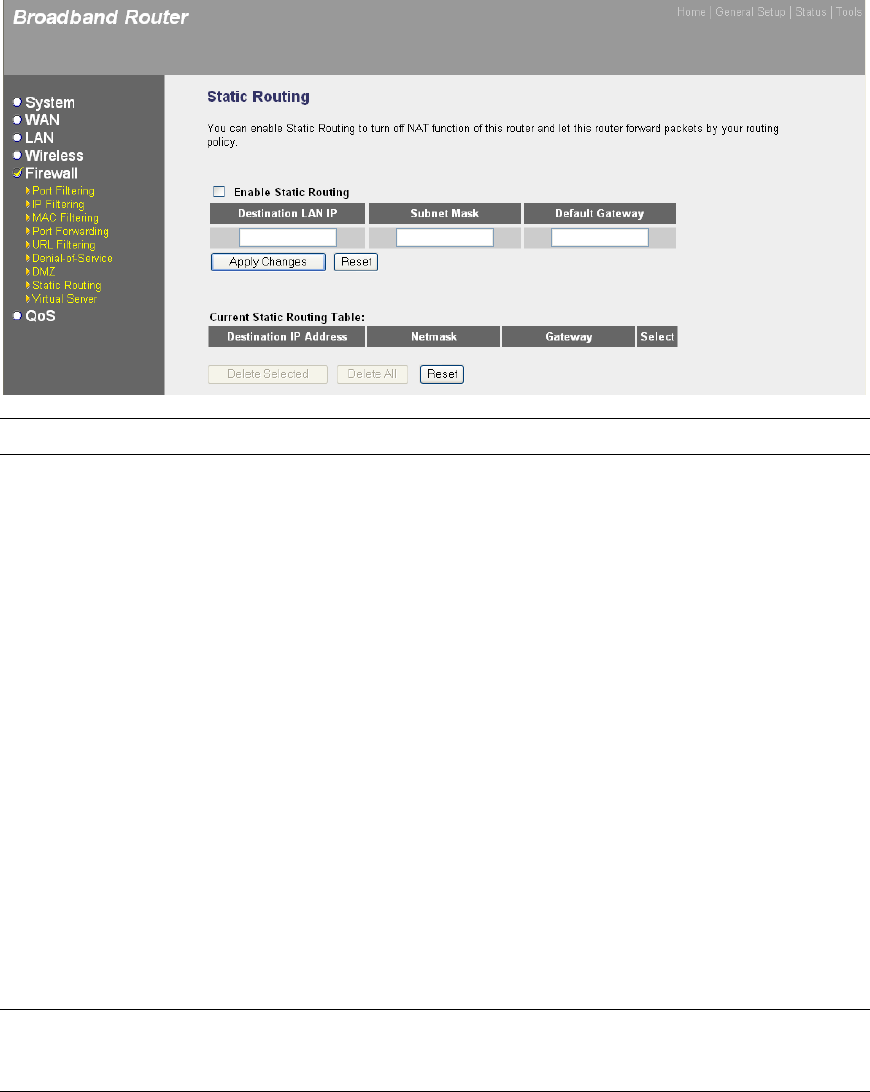

3.5.8 Static Routing .............................................................................................................................. 90

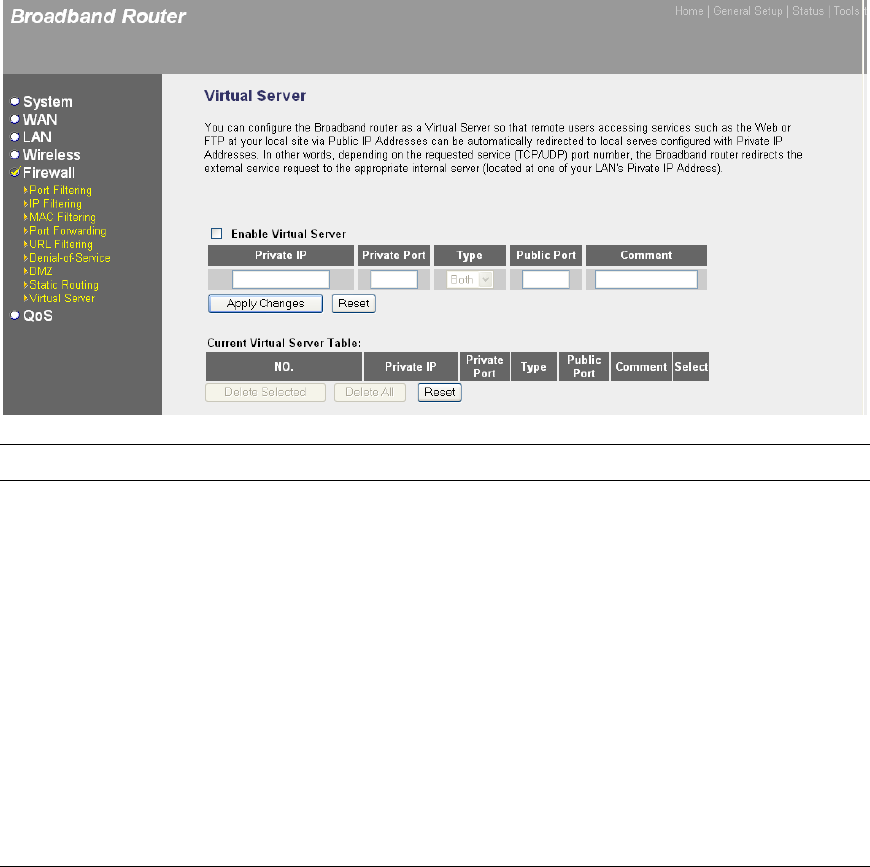

3.5.9 Virtual Server .............................................................................................................................. 91

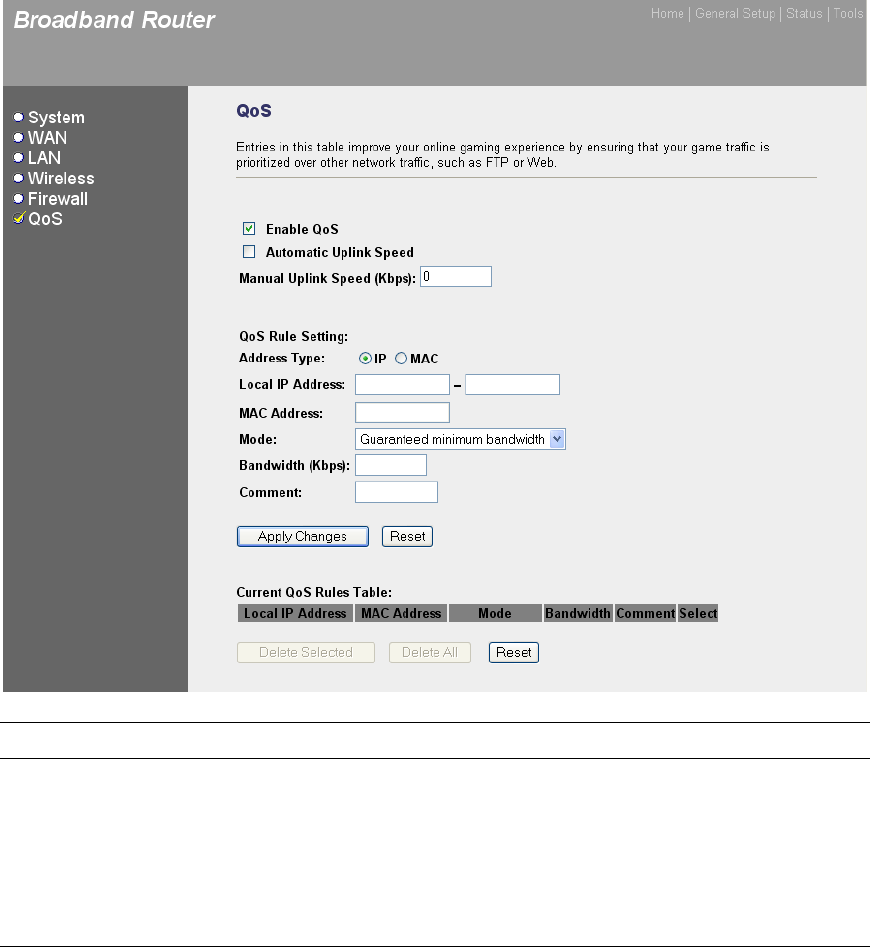

3.6 QOS ..................................................................................................................................................... 93

CHAPTER 4 STATUS ................................................................................................................................ 95

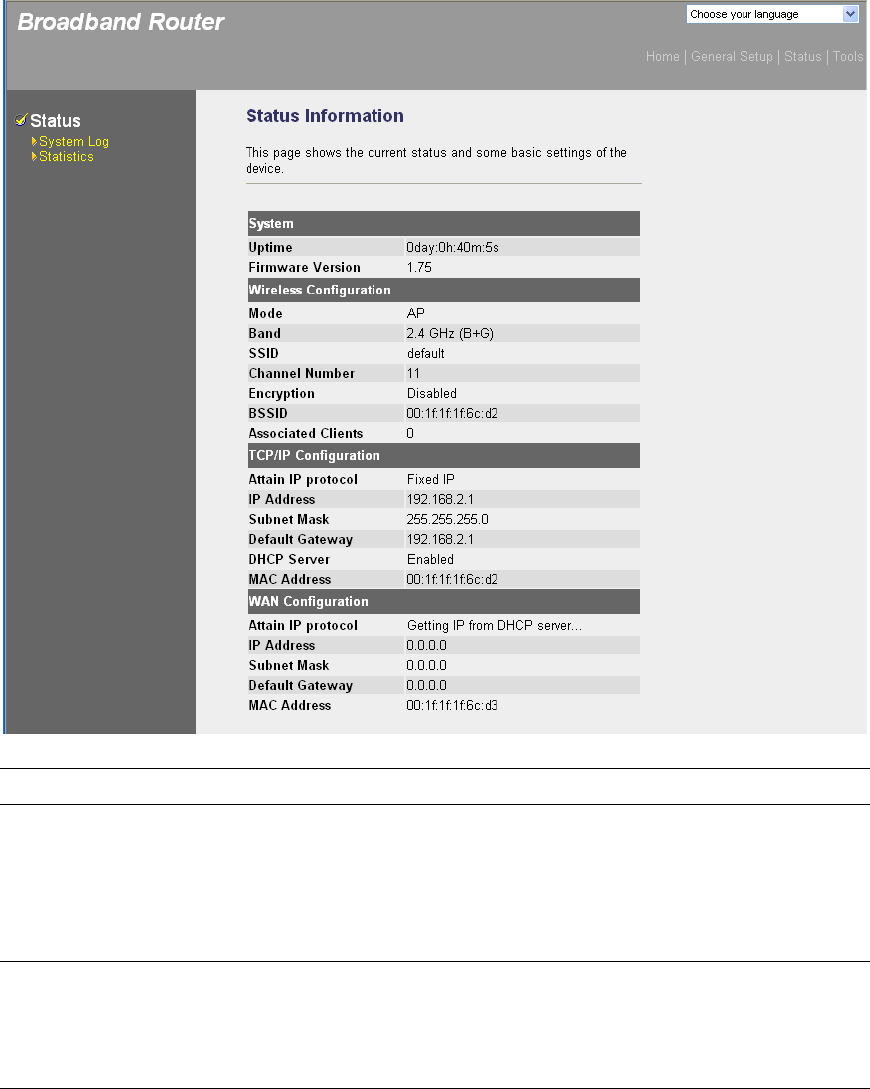

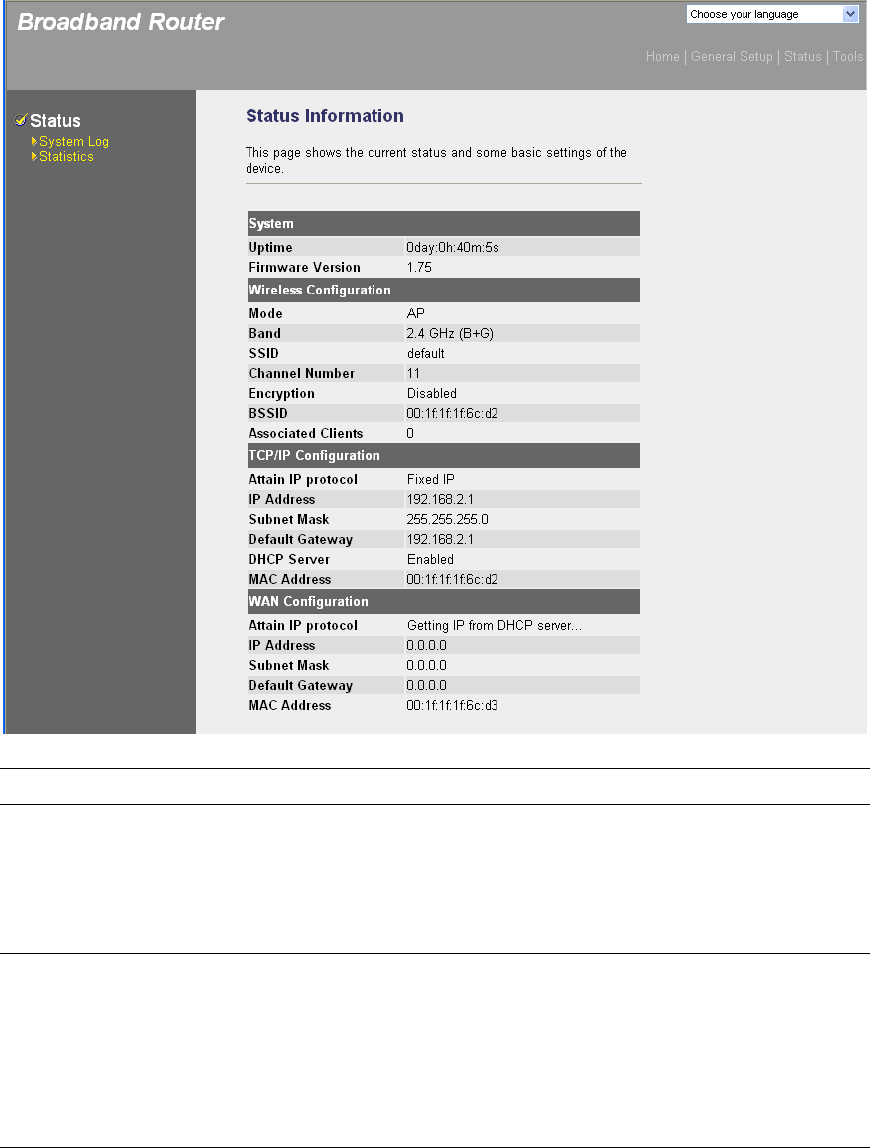

4.1 STATUS ................................................................................................................................................. 96

4.2 SYSTEM LOG ........................................................................................................................................... 97

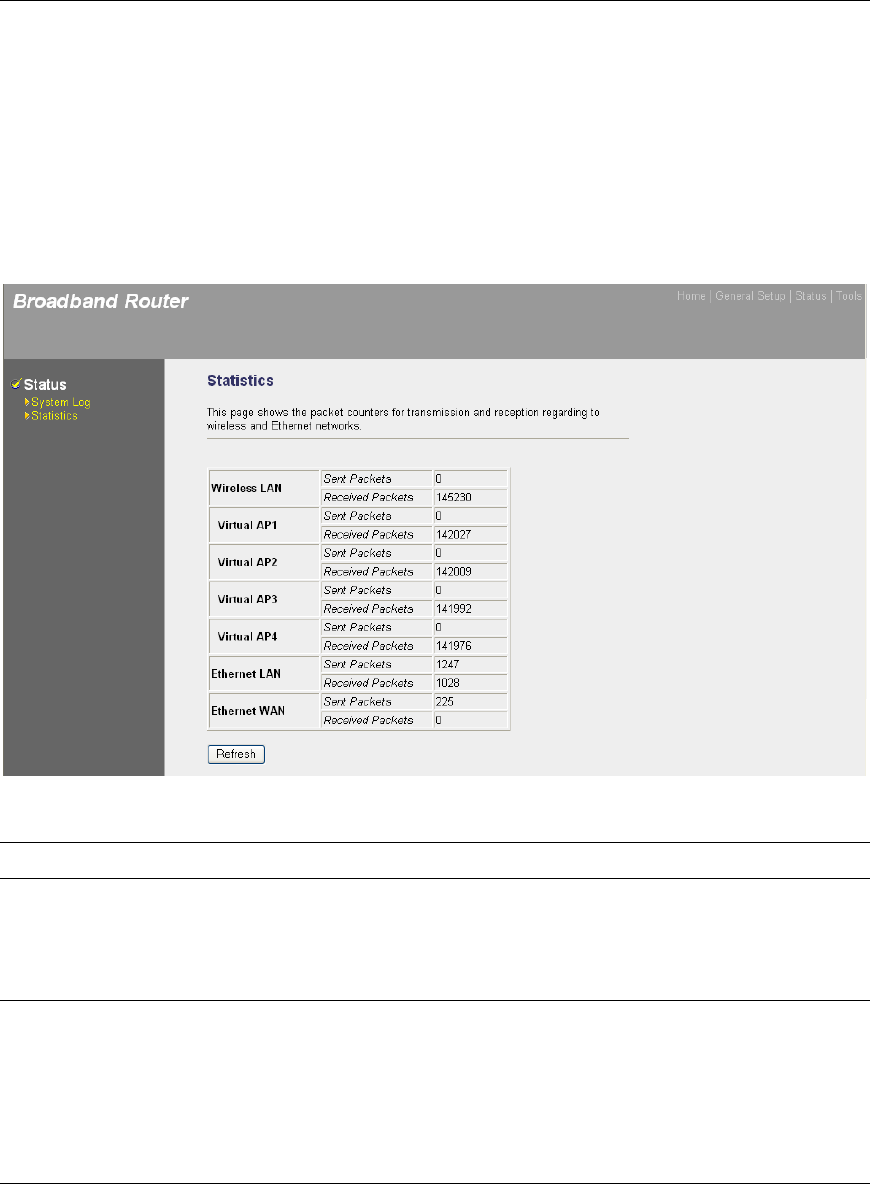

4.3 STATISTICS ............................................................................................................................................. 98

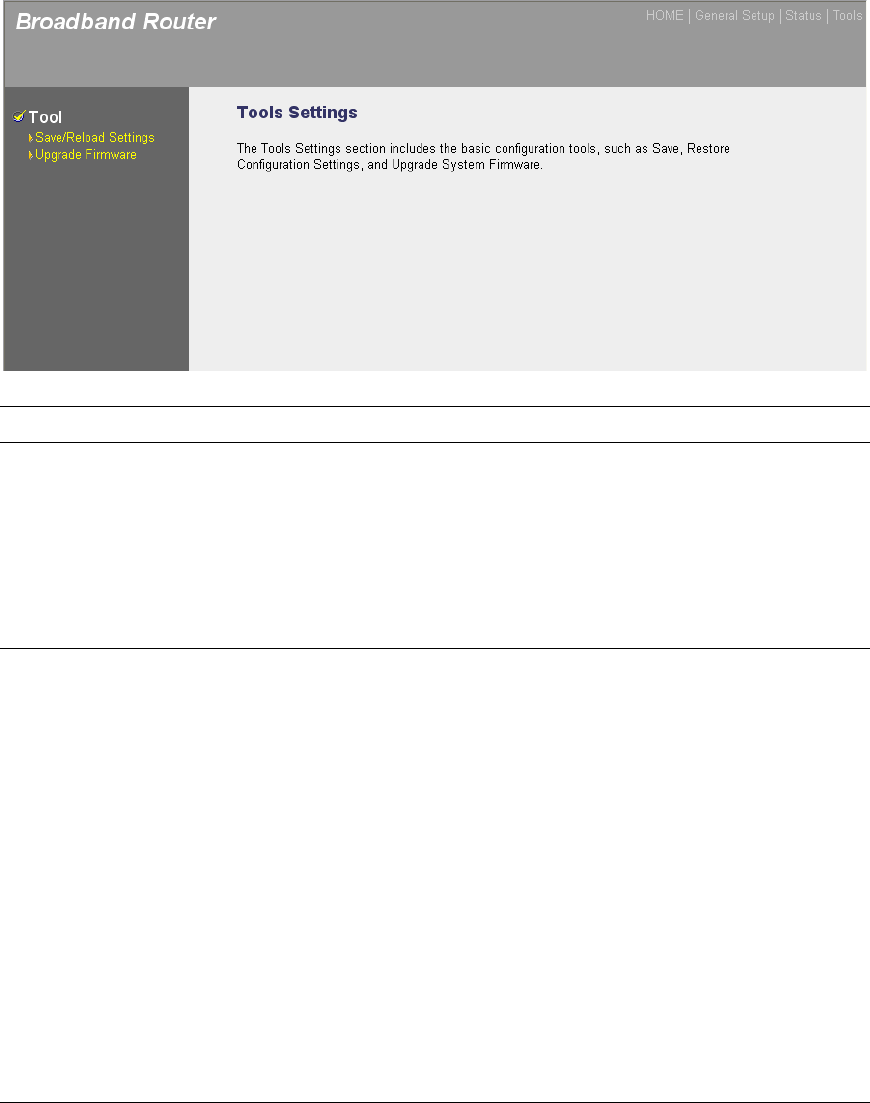

CHAPTER 5 TOOL .................................................................................................................................... 99

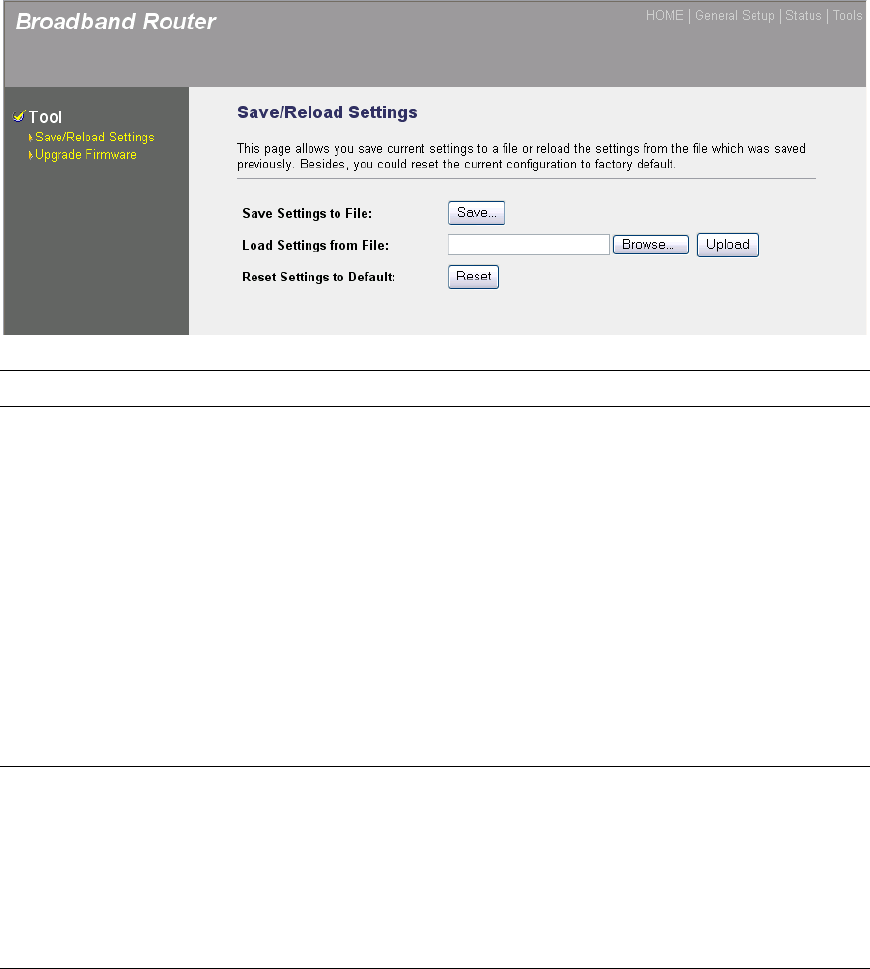

5.1 SAVE/RELOAD SETTINGS ......................................................................................................................... 100

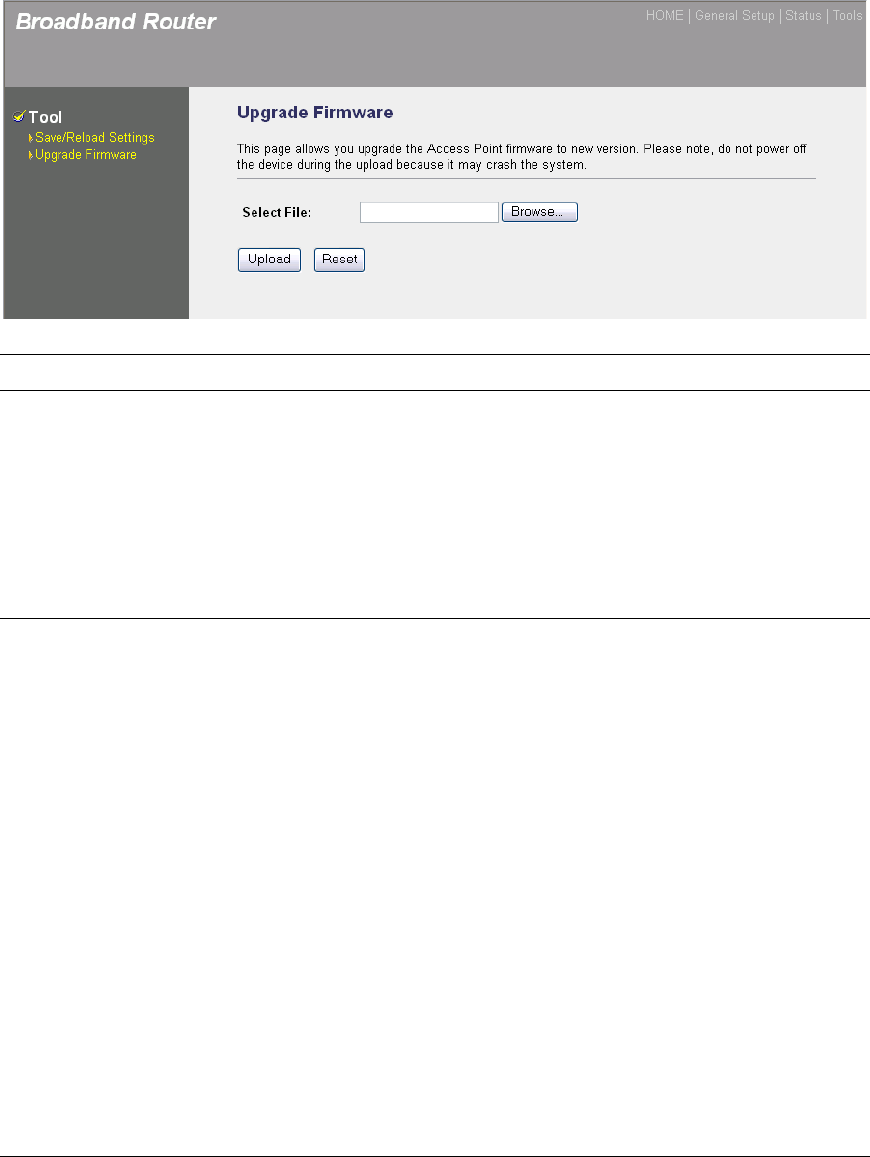

5.2 FIRMWARE UPGRADE ............................................................................................................................. 101

APPENDIX A ......................................................................................................................................... 102

GLOSSARY ............................................................................................................................................ 104

Chapter 1 Introduction

Thank you for purchasing this wireless broadband router! This high cost-efficiency router is the

best choice for Small office / Home office users, all computers and network devices can share a

single xDSL / cable modem internet connection at high speed. Easy install procedures allows any

computer users to setup a network environment in very short time - within minutes, even

inexperienced. When the number of your computers and network-enabled devices grow, you can

also expand the number of network slot by simple attach a hub or switch, to extend the scope of

your network!

With built-in IEEE 802.11b/g/Draft-N wireless network capability, all computers and wireless-

enabled network devices (including PDA, cellular phone, game console, and more!) can connect

to this wireless router without additional cabling. New Draft-N wireless capability also gives you

the highest speed of wireless experience ever! With a compatible wireless card installed in your

PC, you can transfer file for up to 300Mbps (transfer data rate)! The radio coverage is also

doubled, so don‟t worry if your office or house is really big!

1.1 Features

 High Internet Access throughput

 Allow multiple users to share a single Internet line

 Supports up to 253 users

 Share a single Cable or xDSL internet connection

 Access private LAN servers from the internet

 Four wired LAN ports (10/100M) and one WAN port (10/100M)

 Provides IEEE 802.11b/g/Draft-N wireless LAN capability

 Support DHCP (Server/Client) for easy IP-address setup

 Support multiple wireless modes like: AP, Client, WDS and AP with WDS.

 Advanced network and security features like: QoS, DMZ, Virtual Servers, Access Control,

Firewall.

 Easy to use Web-based GUI for network configuration and management purposes

 Auto MDI / MDI-X function for all wired Ethernet ports.

1.2 Safety Information

In order to keep the safety of users and your properties, please follow the following safety

instructions:

1. This router is designed for indoor use only; DO NOT place this router outdoor.

2. DO NOT put this router at or near hot or humid places, like kitchen or bathroom. Also, do not

left this router in the car in summer.

3. DO NOT pull any connected cable with force; disconnect it from the router first.

4. If you want to place this router at high places or hang on the wall, please make sure the router

is firmly secured. Falling from high places would damage the router and its accessories, and

warranty will be void.

5. Accessories of this router, like antenna and power supply, are danger to small children under 3

years old. They may put the small parts in their nose or month and it could cause serious damage

to them. KEEP THIS ROUTER OUT THE REACH OF CHILDREN!

6. The router will become hot when being used for long time (This is normal and is not a

malfunction). DO NOT put this router on paper, cloth, or other flammable materials.

7. There‟s no user-serviceable part inside the router. If you found that the router is not working

properly, please contact your dealer of purchase and ask for help. DO NOT disassemble the

router, warranty will be void.

8. If the router falls into water when it‟s powered, DO NOT use your hand to pick it up. Switch the

electrical power off before you do anything, or contact an experienced technician for help.

9. If you smell something strange, or even see some smoke coming out from the router or power

supply, remove the power supply or switch the electrical power off immediately, and call dealer of

purchase for help.

1.3 Minimum Requirements

 Computer or network devices with wired or wireless network interface card.

 Web browser (Microsoft Internet Explorer 4.0 or above, Netscape Navigator 4.7 or above,

Opera web browser, or Safari web browser).

 An available AC power socket (100 – 240V, 50/60Hz)

1.4 Package Content

Before you starting to use this router, please check if there‟s anything missing in the package,

and contact your dealer of purchase to claim for missing items:

 Broadband router (main body, 1 pcs)…………………………… 1

 Quick installation guide (1 pcs) ………………………………… 2

 User manual CDROM (1 pcs) ………………………………….. 3

 A/C power adapter (1 pcs) ……………………………………..... 4

1.5 Familiar with your new wireless broadband router

Front Panel

LED Name

Light Status

Description

PWR

Router is switched on and correctly powered.

WLAN

Wireless WPS function is enabled.

Off

Wireless network is switched off.

Flashing

Wireless LAN activity (transferring or receiving data).

WAN

LNK/ACT

WAN port is connected.

Off

WAN port is not connected.

Flashing

WAN activity (transferring or receiving data).

LAN 1-4

LNK/ACT

LAN port is connected.

Off

LAN port is not connected.

Flashing

LAN activity (transferring or receiving data).

Back Panel

Item Name

Description

Antenna A/B

These antennas are 3dBi dipole antennas.

Radio ON/OFF

Switch the button to activate or deactivate the wireless functions.

Reset / WPS

Reset the router to factory default settings (clear all settings) or start

WPS function. Press this button and hold for 10 seconds to restore all

settings to factory defaults, and press this button for less than 5 seconds

to start WPS function.

1 - 4

Local Area Network (LAN) ports 1 to 4.

WAN

Wide Area Network (WAN / Internet) port.

Power

Power connector, connects to A/C power adapter.

Antenna A

Antenna B

Chapter 2 System and Network Setup

2.1 Build Network Connection

Please follow the following instruction to build the network connection between your new

WIRELESS router and your computers, network devices:

1. Connect your xDSL / cable modem to the WAN port of router by Ethernet cable.

2. Connect all your computers, network devices (network-enabled consumer devices other than

computers, like game console, or switch / hub) to the LAN port of the router.

3. Connect the A/C power adapter to the wall socket, and then connect it to the „Power‟ socket

of the router.

Please check all LEDs on the front panel. „PWR‟ LED should be steadily on, WAN and LAN LEDs

should be on if the computer / network device connected to the respective port of the router is

powered on and correctly connected.

2.2 Connecting to wireless broadband router by web

browser

This is a step-by-step instruction on how to start using the router and get connected to the

Internet.

1) Setup your network as shown in the setup diagram above (fig 1.1).

2) You then need to set your LAN PC clients so that it can obtain an IP address automatically.

All LAN clients require an IP address. Just like an address, it allows LAN clients to find one

another. (If you have already configured your PC to obtain an IP automatically then proceed

to step 3, page 11)

Configure your PC to obtain an IP address automatically

By default the broadband router‟s DHCP is on, this means that you can obtain an IP address

automatically once you‟ve configured your PC to obtain an IP address automatically. This

section will show you how to configure your PC‟s so that it can obtain an IP address

automatically for either Windows 95/98/Me, 2000 or NT operating systems. For other

operating systems (Macintosh, Sun, etc.), follow the manufacturer‟s instructions. The

following is a step-by-step illustration on how to configure your PC to obtain an IP address

automatically for 2a) Windows 95/98/Me, 2b) Windows XP, 2c) Windows 2000, 2d)

Windows NT, and 2e) Windows Vista.

2a) Windows 95/98/Me

1: Click the Start button and select Settings, then click Control Panel. The Control Panel

window will appear.

2: Double-click Network icon. The Network window will appear.

3: Check your list of Network Components. If TCP/IP is not installed, click the Add button to

install it now. If TCP/IP is installed, go to step 6.

4: In the Network Component Type dialog box, select Protocol and click Add button.

5: In the Select Network Protocol dialog box, select Microsoft and TCP/IP and then click the

OK button to start installing the TCP/IP protocol. You may need your Windows CD to

complete the installation.

6: After installing TCP/IP, go back to the Network dialog box. Select TCP/IP from the list of

Network Components and then click the Properties button.

7: Check each of the tabs and verify the following settings:

 Bindings: Check Client for Microsoft Networks and File and printer sharing for

Microsoft Networks.

 Gateway: All fields are blank.

 DNS Configuration: Select Disable DNS.

 WINS Configuration: Select Disable WINS Resolution.

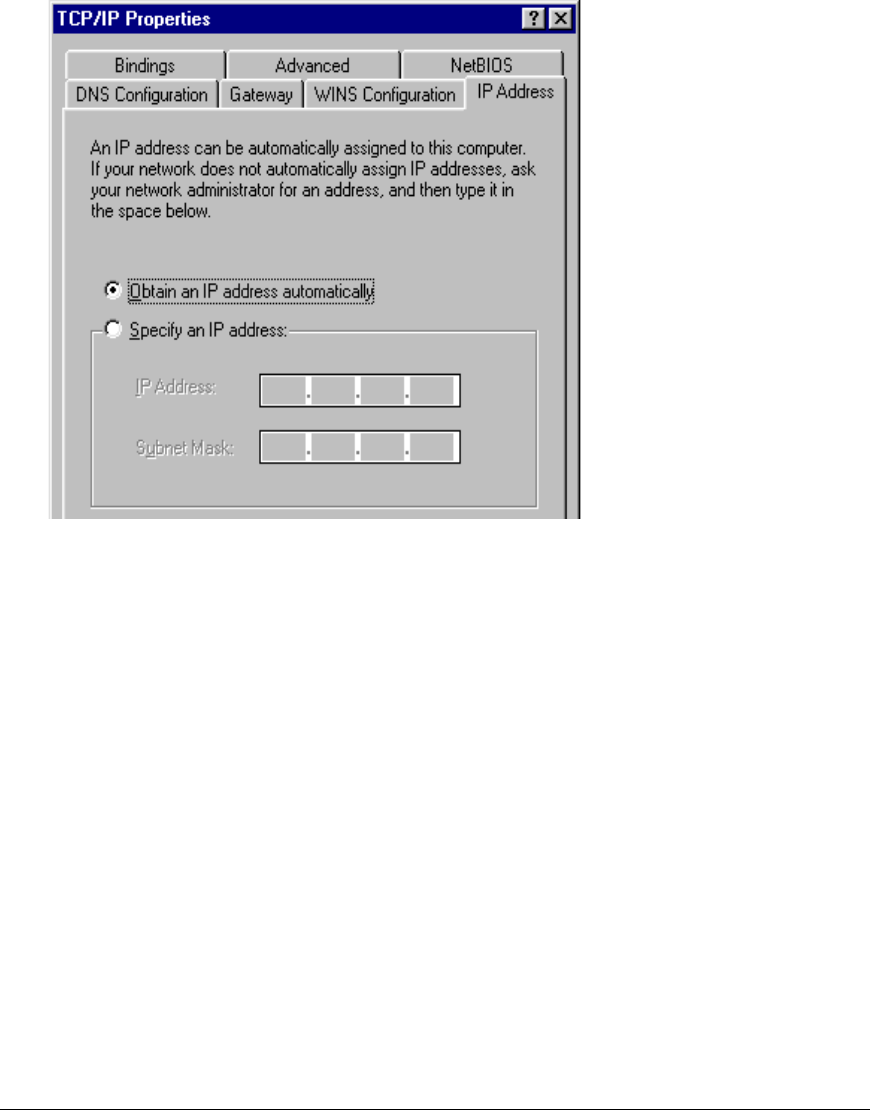

 IP Address: Select Obtain IP address automatically.

8: Reboot the PC. Your PC will now obtain an IP address automatically from your

Broadband Router‟s DHCP server.

Note: Please make sure that the Broadband router‟s DHCP server is the only DHCP server

available on your LAN.

Once you‟ve configured your PC to obtain an IP address automatically, please proceed to

Step 3

2b) Windows 2000

1: Click the Start button and select Settings, then click Control Panel. The Control Panel

window will appear.

2: Double-click Network and Dial-up Connections icon. In the Network and Dial-up

Connection window, double-click Local Area Connection icon. The Local Area

Connection window will appear.

3: In the Local Area Connection window, click the Properties button.

4: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on

your list. Select it and click the Properties button.

5: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address

automatically and Obtain DNS server address automatically as shown on the following

screen.

6: Click OK to confirm the setting. Your PC will now obtain an IP address automatically

from your Broadband Router‟s DHCP server.

Note: Please make sure that the Broadband router‟s DHCP server is the only DHCP server

available on your LAN.

Once you‟ve configured your PC to obtain an IP address automatically, please proceed to

Step 3.

2c) Windows NT

1: Click the Start button and select Settings, then click Control Panel. The Control Panel

window will appear.

2: Double-click Network icon. The Network window will appear. Select the Protocol tab from

the Network window.

3: Check if the TCP/IP Protocol is on your list of Network Protocols. If TCP/IP is not

installed, click the Add button to install it now. If TCP/IP is installed, go to step 5.

4: In the Select Network Protocol window, select the TCP/IP Protocol and click the Ok

button to start installing the TCP/IP protocol. You may need your Windows CD to

complete the installation.

5: After you install TCP/IP, go back to the Network window. Select TCP/IP from the list of

Network Protocols and then click the Properties button.

6: Check each of the tabs and verify the following settings:

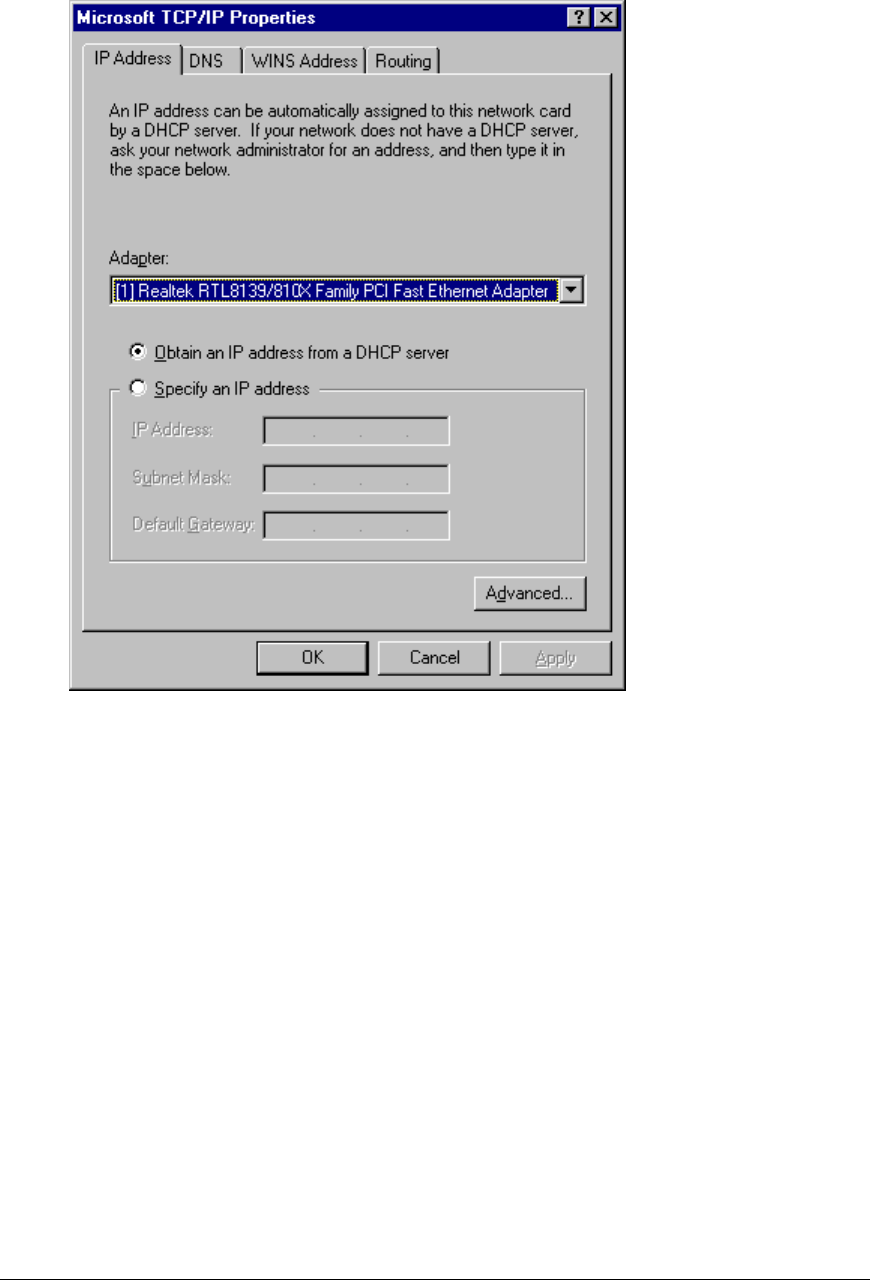

 IP Address: Select Obtain an IP address from a DHCP server.

 DNS: Let all fields are blank.

 WINS: Let all fields are blank.

 Routing: Let all fields are blank.

7: Click OK to confirm the setting. Your PC will now obtain an IP address automatically

from your Broadband Router‟s DHCP server.

Note: Please make sure that the Broadband router‟s DHCP server is the only DHCP server

available on your LAN.

Once you‟ve configured your PC to obtain an IP address automatically, please proceed to

Step 3.

2d) Windows XP

1: Click the Start button and select Settings, then click Network Connections. The Network

Connections window will appear.

2: Double-click Local Area Connection icon. The Local Area Connection window will appear.

3: Check your list of Network Components. You should see Internet Protocol [TCP/IP] on

your list. Select it and click the Properties button.

4: In the Internet Protocol (TCP/IP) Properties window, select Obtain an IP address

automatically and Obtain DNS server address automatically as shown on the following

screen.

5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically

from your Broadband Router‟s DHCP server.

Note: Please make sure that the Broadband router‟s DHCP server is the only DHCP server

available on your LAN.

Once you‟ve configured your PC to obtain an IP address automatically, please proceed to

Step 3.

2e) Windows Vista

1: Click the Start button and select Settings and then select Control Panel. Double click

Network and Sharing Center, the Network and Sharing Center window will appear.

2: Click Manage network connections and right click on the Local Area Connection icon and

select Properties. The Local Area Connection window will appear.

3: Check your list of Network Components. You should see Internet Protocol Version 4

(TCP/IPv4) on your list. Select it and click the Properties button.

4: In the Internet Protocol Version 4 (TCP/IPv4) Properties window, select Obtain an IP

address automatically and Obtain DNS server address automatically as shown on the

following screen.

5: Click OK to confirm the setting. Your PC will now obtain an IP address automatically

from your router‟s DHCP server.

Note: Please make sure that the Broadband router‟s DHCP server is the only DHCP server

available on your LAN.

Once you‟ve configured your PC to obtain an IP address automatically, please proceed to

Step 3.

3) Once you have configured your PCs to obtain an IP address automatically, the router‟s

DHCP server will automatically give your LAN clients an IP address. By default the

Broadband Router‟s DHCP server is enabled so that you can obtain an IP address

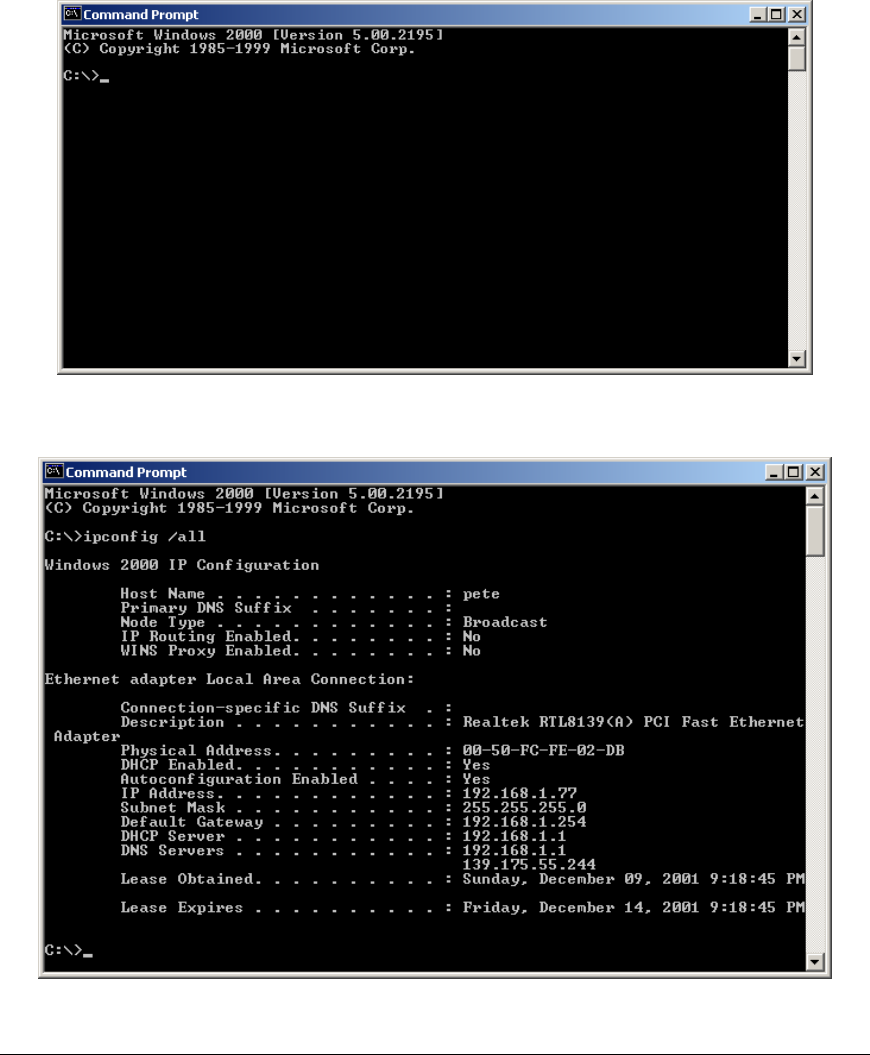

automatically. To see if you have obtained an IP address, see Appendix A.

Note: Please make sure that the Broadband router‟s DHCP server is the only DHCP server

available on your LAN. If there is another DHCP on your network, then you‟ll need to switch

one of the DHCP servers off. (To disable the Broadband router‟s DHCP server see chapter 3

LAN Port)

4) Once your PC has obtained an IP address from your router, enter the default IP address

192.168.2.1 (broadband router‟s IP address) into your PC‟s web browser and press <enter>

5) The login screen below will appear. Enter the “User Name” and “Password” and then click

<OK> to login.

Note: By default the user name is “admin” and the password is “1234”. For security

reasons it is recommended that you change the password as soon as possible (in

General setup/system/password, see chapter 3)

6) The HOME page screen below will appear. The Home Page is divided into four sections,

Quick Setup Wizard, General Setup, Status Information and Tools.

Quick Setup Wizard (Chapter 2)

If you only want to start using the broadband router as an Internet Access device then you

ONLY need to configure the screens in the Quick Setup Wizard section.

General Setup (Chapter 3)

If you want to use more advanced features that the broadband router has to offer, then you‟ll

need to configure the Quick Setup Wizard and the General Setup section. Alternatively, you

can just configure the General Setup section, since the General Setup/WAN and the Quick

Setup Wizard contain the same configurations.

Status Information (Chapter 4)

The Status Information section is for you to monitor the router‟s current status information

only.

Tools (Chapter 5)

If you want to Reset the router (because of problems) or save your configurations or upgrade

the firmware then the Tools section is the place to do this.

Menu Description

Quick Setup Wizard (Chapter 2) Setup your Internet connection type and then

input the configurations needed to connect to

your Internet Service Provider (ISP). Here you

can also configure the wireless settings of the

router.

General Setup (Chapter 3) This section contains configurations for the

Broadband router‟s advance functions such as:

Address Mapping, Access Control, Hacker

Attack Prevention, DMZ, Special applications

and other functions to meet your LAN

requirements.

Status Information (Chapter 4) In this section you can see the Broadband

router's system information, Internet Connection,

Device Status, System Log, Security Log and

DHCP client information.

Tools (Chapter 5) This section contains the broadband router‟s

Tools - Tools include Configuration tools,

Firmware upgrade and Reset. Configuration

tools allow you to Backup (save), Restore, or

Restore to Factory Default configuration for your

Broadband router. The Firmware upgrade tool

allows you to upgrade your Broadband router's

firmware. The RESET tool allows you to reset

your Broadband router.

7) Click on Quick Setup Wizard (see chapter 2) to start configuring settings required by your

ISP so that you can start accessing the Internet. The other sections (General Setup, Status

Information and Tools) do not need to be configured unless you wish to implement/monitor

more advance features/information.

Select the section (Quick Setup Wizard, General Setup, Status Information and Tools) you wish

to configure and proceed to the corresponding chapter. Use the selections on the web

management‟s top right hand page (see below) to navigate around the web-based management

User Interface.

Chapter 2 Quick Setup

The Quick Setup section is designed to get you using the broadband router as quickly as possible.

In the Quick Setup you are required to fill in only the information necessary to access the Internet.

Once you click on the Quick Setup Wizard in the HOME page, you should see the following

screen. Follow the setup procedures described below.

2.1 Time Zone

The Time Zone allows your router to base its time on the settings configured here, this will affect

functions such as Log entries and Firewall settings.

Parameter Description

Enable NTP client update Check this box to enable the auto time synchronization

function. The router will set its time based on your

selection.

Automatically Adjust Daylight Saving If the country you live uses daylight saving, please check

this box.

Time Zone Select You can select your local time zone here. The router will

sync time according to your time zone selection.

NTP server Select the time server to synchronize with.

Click on NEXT to proceed to the next page (step 2) LAN Interface.

2.2 LAN Interface

The LAN Interface settings allow you to configure the parameters for local area network.

NOTE: There are several time servers available on internet:

129.6.15.28 (time-a.nist.gov)

132.163.4.101 (time-a.timefreq.bldrdoc.gov)

131.107.1.10 (time-nw.nist.gov)

If you found that the time of router is incorrect, try another time server.

Parameter Description

IP Address This is the router‟s LAN port IP address (Your LAN

clients default gateway IP address). The default IP

Address is „192.168.2.1‟.

Subnet Mask Specify a Subnet Mask for your LAN segment. The

default subnet mask is „255.255.255.0‟.

Click on NEXT to proceed to the next page (step 3) WAN Interface.

2.3 WAN Interface

In this section you have to select one of five types of connections that you will be using to connect

your broadband router‟s WAN port to your ISP (see screen below).

Note: Different ISP‟s require different methods of connecting to the Internet, please check with

your ISP as to the type of connection it requires.

Menu Description

2.3.1 Static IP Your ISP will give a static IP address to you while you subscribe

the service.

2.3.2 DHCP Client Your ISP will automatically give you an IP address.

2.3.3 PPPoE Your ISP requires you to use a Point-to-Point Protocol over

Ethernet (PPPoE) connection.

2.3.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling Protocol

(PPTP) connection.

2.3.5 L2TP Your ISP requires you to use a Point-to-Point Tunneling Protocol

(L2TP) connection.

Select one of the WAN types and set the manual‟s relevant sub-section (2.3.1, 2.3.2, 2.3.3, or

2.3.4). Click on Back to return to the previous screen.

2.3.1 Static IP

Select Static IP if your ISP has given you a specific IP address for you to use. Your ISP should

provide all the information required in this section.

Parameters Description

IP Address This is the IP address that your ISP has given you.

Subnet Mask Enter the Subnet Mask provided by your ISP.

(e.g. 255.255.255.0)

Default Gateway IP This is the ISP‟s IP address gateway.

DNS This is the ISP‟s DNS server IP address.

Click on NEXT to proceed to the next page (step 4) Wireless Basic Settings.

2.3.2 DHCP Client

Choose DHCP Client if your ISP will automatically give you an IP address.

Click on NEXT to proceed to the next page (step 4) Wireless Basic Settings.

2.3.3 PPPoE

Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP

should provide all the information required in this section.

Parameter Description

User Name Enter the User Name provided by your ISP for the PPPoE

connection.

Password Enter the Password provided by your ISP for the PPPoE

connection.

Click on NEXT to proceed to the next page (step 4) Wireless Basic Settings.

Note

The WAN “idle timeout” auto-disconnect function may not work due to abnormal activities of

some network application software, computer virus or hacker attacks from the Internet. For

example, some software sends network packets to the Internet in the background, even when

you are not using the Internet. So please turn off your computer when you are not using it. This

function also may not work with some ISP. So please make sure this function can work properly

when you use this function in the first time, especially your ISP charge you by time used.

2.3.4 PPTP

Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP

should provide all the information required in this section.

Parameter Description

Server IP Address Enter the IP address of the ISP Gateway.

User Name Enter the User Name provided by your ISP for the PPTP

connection. Sometimes called a Connection ID.

Password Enter the Password provided by your ISP for the PPTP

connection.

Click on NEXT to proceed to the next page (step 4) Wireless Basic Settings.

2.3.5 L2TP

Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP

should provide all the information required in this section.

Parameter Description

Server IP Address Enter the IP address of the ISP Gateway.

User Name Enter the User Name provided by your ISP for the L2TP

connection. Sometimes it is called a Connection ID.

Password Enter the Password provided by your ISP for the L2TP

connection.

Click on NEXT to proceed to the next page (step 4) Wireless Basic Settings.

2.4 Wireless Basic Settings

Wireless Access Point builds a wireless LAN and can let all PCs equipped with IEEE 802.11b or

801.11g wireless network adaptor connect to your Intranet. It supports WEP and WPA2

encryption to enhance the security of your wireless network.

Menu Description

Band Please select the radio band from one of the following options.

2.4GHz(B): 2.4GHz band, only allows 802.11b wireless network

client to connect this router (maximum transfer rate 11Mbps).

2.4 GHz (N): 2.4GHz band, only allows 802.11n wireless network

client to connect this router (maximum transfer rate 150Mbps).

2.4 GHz (B+G):2.4GHz band, only allows 802.11b and 802.11g

wireless network client to connect this router (maximum transfer

rate 11Mbps for 802.11b clients, and maximum 54Mbps for

802.11g clients).

2.4 GHz (G): 2.4GHz band, only allows 802.11g wireless

network client to connect this router (maximum transfer rate

54Mbps).

2.4 GHz (B+G+N): 2.4GHz band, allows 802.11b, 802.11g, and

802.11n wireless network client to connect this router (maximum

transfer rate 11Mbps for 802.11b clients, maximum 54Mbps for

802.11g clients, and maximum 150Mbps for 802.11n clients).

Mode It allows you to set the router to AP, Client, WDS or AP + WDS

mode.

Network Type In client mode, you can specify your client to connect as an

infrastructure client or an ad hoc client.

SSID This is the name of wireless router. You can type any

alphanumerical characters here, maximum 32 characters. SSID

is used to identify your own wireless router from others when

there are other wireless routers in the same area. Default SSID

is „default‟, it‟s recommended to change default SSID value to

the one which is meaningful to you, like myhome, office_room1,

etc.

Channel Width Set channel width of wireless radio. Do not modify default value

if you don‟t know what it is, default setting is „40 MHz‟.

ControlSideBand Select the upper band or lower band for your radio frequency.

While upper band is selected, the channel number you can

select is from channel 5 to channel 11. While lower band is

selected, the channel number you can select is from channel 1 to

channel 7.

Channel Number Please select a channel from the dropdown list of „Channel

Number‟, available channel numbers are 1 to 13 for European

countries, 1 to 11 for USA. You can choose any channel number

you want to use, and almost all wireless clients can locate the

channel you‟re using automatically without any problem.

However, it‟s still useful to remember the channel number you

use, some wireless client supports manual channel number

select, and this would help in certain scenario when there is

some radio communication problem.

Enable MAC Clone Check the check box will let router copy the first seen MAC

(Single Ethernet Client) address to the WLAN MAC.

Click on NEXT to proceed to the next page (step 5) Wireless Security.

2.5 Wireless Security Settings

This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys

could prevent any unauthorized access to your wireless network.

Menu Description

None Do not apply any encryption to wireless usage. Everyone can

access the wireless without permission.

2.5.1 WEP You can select the WEP key length for encryption, 64-bit or 128-

bit. Larger WEP key length will provide higher level of security,

but the throughput will be lower.

2.5.2 WPA(TKIP) You can use a pre-shared key to authenticate wireless stations

and encrypt data during communication. And use TKIP to

change the encryption key frequently.

2.5.3 WPA2(AES) You can use a pre-shared key to authenticate wireless stations

and encrypt data during communication. And use CCMP(AES) to

change the encryption key frequently.

2.5.4 WPA2 Mixed This will use TKIP or AES based on the other communication

peer automatically.

Select one of the Security types and set the manual‟s relevant sub-section (2.5.1, 2.5.2, 2.5.3, or

2.5.4). Click on Back to return to the previous screen.

2.5.1 WEP

When you select 64-bit or128-bit WEP key, you have to enter WEP keys to encrypt data. You can

generate the key by yourself and enter it. You can enter four WEP keys and select one of them

as default key. Then the router can receive any packets encrypted by one of the four keys.

Parameters Description

Key Length You can select the WEP key length for encryption, 64-bit

or 128-bit. Larger WEP key length will provide higher

level of security, but the throughput will be lower.

Key Format You may select to select ASCII Characters

(alphanumeric format) or Hexadecimal Digits (in the "A-

F", "a-f" and "0-9" range) to be the WEP Key.

For example:

ASCII Characters: guest

Hexadecimal Digits: 12345abcde

Key Setting The WEP key are used to encrypt data transmitted in the

wireless network. Fill the text box by following the rules

below.

64-bit WEP: input 10-digit Hex values (in the "A-F", "a-f"

and "0-9" range) or 5-digit ASCII character as the

encryption keys.

128-bit WEP: input 26-digit Hex values (in the "A-F", "a-

f" and "0-9" range) or 13-digit ASCII characters as the

encryption keys.

Clicking on OK to save and active all the settings. Now, you can start to use the router as your

internet gateway.

2.5.2 WPA(TKIP)

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key

to authenticate wireless stations and encrypt data during communication. It uses TKIP to change

the encryption key frequently. So the encryption key is not easy to be broken by hackers. This

can improve security very much.

Parameters Description

Pre-shared Key Format You may select to select Passphrase (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-

9” range) to be the Pre-shared Key. For example:

Passphrase: iamguest

Hexadecimal Digits: 12345abcde

Pre-shared Key The Pre-shared key is used to authenticate and encrypt

data transmitted in the wireless network. Fill the text box

by following the rules below.

Hex: input 64-digit Hex values (in the “A-F”, “a-f” and “0-

9” range) or at least 8 character pass phrase as the pre-

shared keys.

Clicking on OK to save and active all the settings. Now, you can start to use the router as your

internet gateway.

2.5.3 WPA2(AES)

Wi-Fi Protected Access 2(WPA2) is an advanced security standard. You can use a pre-shared

key to authenticate wireless stations and encrypt data during communication. It uses CCMP(AES)

to change the encryption key frequently. So the encryption key is not easy to be broken by

hackers. This can improve security very much.

Parameters Description

Pre-shared Key Format You may select to select Passphrase (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-

9” range) to be the Pre-shared Key. For example:

Passphrase: iamguest

Hexadecimal Digits: 12345abcde

Pre-shared Key The Pre-shared key is used to authenticate and encrypt

data transmitted in the wireless network. Fill the text box

by following the rules below.

Hex: input 64-digit Hex values (in the “A-F”, “a-f” and “0-

9” range) or at least 8 character pass phrase as the pre-

shared keys.

Clicking on OK to save and active all the settings. Now, you can start to use the router as your

internet gateway.

2.5.4 WPA2 Mixed

Wi-Fi Protected Access 2(WPA2) is an advanced security standard. You can use a pre-shared

key to authenticate wireless stations and encrypt data during communication. It uses TKIP or

CCMP(AES) to change the encryption key frequently. So the encryption key is not easy to be

broken by hackers. This can improve security very much.

Parameters Description

Pre-shared Key Format You may select to select Passphrase (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-

9” range) to be the Pre-shared Key. For example:

Passphrase: iamguest

Hexadecimal Digits: 12345abcde

Pre-shared Key The Pre-shared key is used to authenticate and encrypt

data transmitted in the wireless network. Fill the text box

by following the rules below.

Hex: input 64-digit Hex values (in the “A-F”, “a-f” and “0-

9” range) or at least 8 character pass phrase as the pre-

shared keys.

Clicking on OK to save and active all the settings. Now, you can start to use the router as your

internet gateway.

Chapter 3 General Settings

Once you click on the General Setup button at the Home Page, you should see the screen below.

If you have already configured the Quick Setup Wizard you do NOT need to configure anything

thing in the General Setup screen for you to start using the Internet.

The General Setup contains advanced features that allow you to configure the router to meet

your network‟s needs such as: Wireless, Address Mapping, Access Control, Hacker Attack

Prevention, Special Applications, DMZ and other functions.

Below is a general description of what advance functions are available for this broadband router.

Menu Description

3.1 System This section allows you to set the Broadband router‟s system

Time Zone, Password and Remote Management Administrator.

3.2 WAN This section allows you to select the connection method in order

to establish a connection with your ISP. (same as the Quick

Setup Wizard section)

3.3 LAN You can specify the LAN segment‟s IP address, subnet Mask,

enable/disable DHCP and select an IP range for your LAN

3.4 Wireless You can setup the wireless LAN’s SSID, WEP key, MAC filtering.

3.5 Firewall The Firewall section allows you to configure Access Control,

Hacker Prevention and DMZ.

3.6 QoS If you need to setup the bandwidth control for high priority

network traffic, please go to this section.

Select one of the above six General Setup selections and proceed to the manual‟s relevant sub-

section

3.1 System

The system screen allows you to specify a time zone, to change the system password and to

specify a remote management user for the broadband router.

Parameters Description

3.1.1 Time Zone Setting Select the time zone of the country you are currently in.

The router will set its time based on your selection.

3.1.2 Password Setup Allows you to select a password in order to access the

web-based management website.

Select one of the above three system settings selections and proceed to the manual‟s relevant

sub-section

3.1.1 Time Zone Setting

The Time Zone Setting allows your router to reference or base its time on the settings configured

here, which will affect functions such as Log entries and Firewall settings.

Parameter Description

Current Time Set the current time.

Time Zone Select Select the time zone of the country you are currently in.

The router will set its time based on your selection.

Enable NTP client update Check the box to enable router to update time from NTP

server.

Automatically Adjust Daylight Saving If the country you live uses daylight saving, please check

this box.

NTP Server Select one preset time server or manual input a server

IP.

Click <Apply> at the bottom of the screen to save the above configurations. You can now

configure other advance sections or start using the router (with the advance settings in place)

3.1.2 Password Setup

You can change the password required to log into the broadband router's system web-based

management. By default, there is no password. So please assign a password to the Administrator

as soon as possible, and store it in a safe place. Passwords can contain 0 to 12 alphanumeric

characters, and are case sensitive.

Parameters Description

User Name Change your login user name.

New Password Enter your new password

Confirmed Password Enter your new password again for verification purposes

Note: If you forget your password, you‟ll have to reset the router

to the factory default (No password) with the reset button (see

router‟s back panel)

Click <Apply> at the bottom of the screen to save the above configurations. You can now

configure other advance sections or start using the router (with the advance settings in place)

3.2 WAN

Use the WAN Settings screen if you have already configured the Quick Setup Wizard section and

you would like to change your Internet connection type. The WAN Settings screen allows to

specify the type of WAN port connect you want to establish with your ISP. The WAN settings offer

the following selections for the router‟s WAN port, Static IP Address, DHCP Client, PPPoE,

PPTP, L2TP and DDNS. Please choose one type and click „More Configuration‟.

Parameters Description

3.2.1 Static IP Your ISP has given you an IP address already.

3.2.2 DHCP Client Your ISP will automatically give you an IP address.

3.2.3 PPPoE Your ISP requires PPPoE connection.

3.2.4 PPTP Your ISP requires you to use a Point-to-Point Tunneling

Protocol (PPTP) connection.

3.2.5 L2TP Your ISP requires L2TP connection.

Once you have made a selection, proceed to the manual‟s relevant sub-section.

3.2.1 Static IP

Select Static IP address if your ISP has given you a specific IP address for you to use. Your ISP

should provide all the information required in this section.

Parameters Description

IP Address This is the IP address that your ISP has given you.

Subnet Mask Enter the Subnet Mask provided by your ISP. (e.g.

255.255.255.0)

Default Gateway This is the IP address of ISP‟s gateway.

MTU Size MTU (Maximum Transmission Unit) determine the maximum size

of each packet in any transmission within the network. Please

specify the MTU range from 1400 to 1500 bytes. Please input

the MTU value of your network connection here. If you don‟t

know, you can use default value.

DNS 1 Please input the IP address of DNS server provided by your

service provider.

DNS 2 Please input the IP address of additional DNS server provided by

your service provider.

DNS 3 Please input the IP address of additional DNS server provided by

your service provider.

Click <Apply Changes> at the bottom of the screen to save the above configurations. If you want

to configure other advanced settings in this web page, please go to section 3.2.6 for more

information.

3.2.2 DHCP Client

Choose the Dynamic IP selection if your ISP will automatically give you an IP address. Some

ISP‟s may also require that you fill in additional information such as Host Name, Domain Name

and MAC address.

Parameters Description

Host Name Please input host name of your computer, this is optional, and

only required if your service provider asks you to do so.

MTU Size MTU (Maximum Transmission Unit) determine the maximum size

of each packet in any transmission within the network. Please

specify the MTU range from 1400 to 1492 bytes. Please input

the MTU value of your network connection here. If you don‟t

know, you can use default value.

Obtain DNS Automatically The ISP requires you to obtain a DNS by DHCP server before

you connecting to the internet.

Set DNS Manually If your ISP gives you a static DNS server to be used to connect

to the internet, please select this option.

DNS 1 Please input the IP address of DNS server provided by your

service provider.

DNS 2 Please input the IP address of additional DNS server provided by

your service provider.

DNS 3 Please input the IP address of additional DNS server provided by

your service provider.

Click <Apply Changes> at the bottom of the screen to save the above configurations. If you want

to configure other advanced settings in this web page, please go to section 3.2.6 for more

information.

3.2.3 PPPoE (PPP over Ethernet)

Select PPPoE if your ISP requires the PPPoE protocol to connect you to the Internet. Your ISP

should provide all the information required in this section. (See chapter 2 “PPPoE” for more detail)

Parameters Description

User Name Please input user name assigned by your Internet service

provider here.

Password Please input the password assigned by your Internet service

provider here.

Service Name Please give a name to this Internet service, this is optional

Connection Type Please select the connection type of Internet connection you

wish to use. There are 3 options: “Continuous” - keep internet

connection alive, do not disconnect, “connect on Demand“ -

only connects to Internet when there‟s a connect attempt, and

“Manual” - only connects to Internet when „Connect‟ button on

this page is pressed, and disconnects when „Disconnect button

is pressed.

Idle Time Please input idle time out. Specify the time to shutdown internet

connection after no internet activity is detected after a while. This

option is only available when connection type is „Connect on

Demand‟.

MTU Size MTU (Maximum Transmission Unit) determine the maximum size

of each packet in any transmission within the network. Please

specify the MTU range from 1360 to 1492 bytes. Please input

the MTU value of your network connection here. If you don‟t

know, you can use default value.

Obtain DNS Automatically The ISP requires you to obtain a DNS by DHCP server before

you connecting to the internet.

Set DNS Manually If your ISP gives you a static DNS server to be used to connect

to the internet, please select this option.

DNS 1 Please input the IP address of DNS server provided by your

service provider.

DNS 2 Please input the IP address of additional DNS server provided by

your service provider.

DNS 3 Please input the IP address of additional DNS server provided by

your service provider.

Click <Apply Changes> at the bottom of the screen to save the above configurations. If you want

to configure other advanced settings in this web page, please go to section 3.2.6 for more

information.

3.2.4 PPTP

Select PPTP if your ISP requires the PPTP protocol to connect you to the Internet. Your ISP

should provide all the information required in this section.

Parameters Description

Attain IP Automatically Select this option if your ISP will assign IP Address to your router

directly. Please contact your ISP if you don‟t know what you

should select.

Set IP Address This is the IP address that your ISP has given you.

Subnet Mask Enter the Subnet Mask provided by your ISP. (e.g.

255.255.255.0)

Default Gateway This is the IP address of ISP‟s gateway.

Server IP Address Please input the IP address of PPTP gateway assigned by your

Internet service provider here.

User Name Please input user name assigned by your Internet service

provider here.

Password Please input the password assigned by your Internet service

provider here.

Connection Type Please select the connection type of Internet connection you

wish to use. There are 3 options: “Continuous” - keep internet

connection alive, do not disconnect, “connect on Demand“ -

only connects to Internet when there‟s a connect attempt, and

“Manual” - only connects to Internet when „Connect‟ button on

this page is pressed, and disconnects when „Disconnect button

is pressed.

Idle Time Please input idle time out. Specify the time to shutdown internet

connection after no internet activity is detected after a while. This

option is only available when connection type is „Connect on

Demand‟.

MTU Size MTU (Maximum Transmission Unit) determine the maximum size

of each packet in any transmission within the network. Please

specify the MTU range from 1400 to 1460 bytes. Please input

the MTU value of your network connection here. If you don‟t

know, you can use default value.

Request MPPE Encryption MPPE (Microsoft Point-to-Point Encryption) is a method of

encrypting data across PPTP virtual private network connections.

Check this box if it is needed for your virtual private network

links.

Request MPPC Encryption MPPC (Microsoft Point-to-Point Compression) which

compresses data across virtual private network links. Check this

box if it is needed.

Obtain DNS Automatically The ISP requires you to obtain a DNS by DHCP server before

you connecting to the internet.

Set DNS Manually If your ISP gives you a static DNS server to be used to connect

to the internet, please select this option.

DNS 1 Please input the IP address of DNS server provided by your

service provider.

DNS 2 Please input the IP address of additional DNS server provided by

your service provider.

DNS 3 Please input the IP address of additional DNS server provided by

your service provider.

Click <Apply Changes> at the bottom of the screen to save the above configurations. If you want

to configure other advanced settings in this web page, please go to section 3.2.6 for more

information.

3.2.5 L2TP

Select L2TP if your ISP requires the L2TP protocol to connect you to the Internet. Your ISP

should provide all the information required in this section.

Parameters Description

Attain IP Automatically Please select the type of how you obtain IP address from your

service provider here. You can choose “Attain IP automatically”

or use the “Set IP Manually”

Set IP Manually If you select the “Set IP Manually”, please fill in these fields of

the “IP Address” and “Subnet Mask”

IP Address This is the IP address that your ISP has given you.

Subnet Mask Enter the Subnet Mask provided by your ISP. (e.g.

255.255.255.0)

Default Gateway This is the IP address of ISP‟s gateway.

Server IP Address Please input the IP address of L2TP gateway assigned by your

Internet service provider here.

User Name Please input user name assigned by your Internet service

provider here.

Password Please input the password assigned by your Internet service

provider here.

Connection Type Please select the connection type of Internet connection you

wish to use. There are 3 options: “Continuous” - keep internet

connection alive, do not disconnect, “connect on Demand“ -

only connects to Internet when there‟s a connect attempt, and

“Manual” - only connects to Internet when „Connect‟ button on

this page is pressed, and disconnects when „Disconnect button

is pressed.

Idle Time Please input idle time out. Specify the time to shutdown internet

connection after no internet activity is detected after a while. This

option is only available when connection type is „Connect on

Demand‟.

MTU Size MTU (Maximum Transmission Unit) determine the maximum size

of each packet in any transmission within the network. Please

specify the MTU range from 1400 to 1460 bytes. Please input

the MTU value of your network connection here. If you don‟t

know, you can use default value.

Obtain DNS Automatically The ISP requires you to obtain a DNS by DHCP server before

you connecting to the internet.

Set DNS Manually If your ISP gives you a static DNS server to be used to connect

to the internet, please select this option.

DNS 1 Please input the IP address of DNS server provided by your

service provider.

DNS 2 Please input the IP address of additional DNS server provided by

your service provider.

DNS 3 Please input the IP address of additional DNS server provided by

your service provider.

Click <Apply Changes> at the bottom of the screen to save the above configurations. If you want

to configure other advanced settings in this web page, please go to section 3.2.6 for more

information.

3.2.6 WAN Advanced Settings

There are some advanced settings for different WAN connection types. Please refer to the

description as below.

Parameters Description

Clone MAC Address For some applications, you may need to designate a specific

MAC address for the router. Please enter the MAC address here.

If you are connecting the router to a computer, you can simply

press „Clone Mac‟ button to fill the MAC address field with the

MAC address of your computer.

Enable UPnP Check this box to enable UPnP feature here. After you enable

the UPnP feature, all client systems that support UPnP, like

Windows XP, can discover this router automatically and access

the Internet through this router without any configuration. The

NAT Traversal function provided by UPnP can let applications

that support UPnP smoothly connect to Internet sites without any

incompatibility problem due to the NAPT port translation.

Enable IGMP Proxy Check this box if you want to enable the router as IGMP proxy to

implement multicast routing.

Enable Ping Access on WAN When this function is enabled, you will be allowed to ping the IP

address of the router given by ISP from a remote site.

Enable Web Server Please check this box to start the Web Server Access on WAN

Access on WAN Port when you want to access the web-based management from a

remote site. Enter the port number of your Web Server.

Note: When you want to access the web-based management

from a remote site, you must enter the router‟s WAN IP address

(e.g. 10.0.0.1) into your web-browser followed by port number

8080, e.g. 10.0.0.1:8080 (as below).

Enable FTP ALG on Port If you have built up a FTP server in your network, you can

enable this function to let the FTP traffics correctly pass though

the NAT gateway of the router. Enter the port number of your

FTP server.

Enable IPsec pass through Check this box and the router will enable IPsec packets pass

On VPN connection through the router for VPN connection.

Enable PPTP pass through Check this box and the router will enable PPTP packets pass

On VPN connection through the router for VPN connection

Enable L2TP pass through Check this box and the router will enable L2TP packets pass

On VPN connection through the router for VPN connection.

TTL For some special applications, you might need to change the

TTL value for the packets routing to your router. Please select

„TTL Standard‟, „TTL+1‟, „TTL=1‟ or „User Defined” to define a

value. If you don‟t know what it is / not sure if you need it, it‟s

safe to set this option to „TTL Standard‟.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router.

3.2.7 DDNS

DDNS allows you to map the static domain name to a dynamic IP address. You must get an

account, password and your static domain name from the DDNS service providers. This router

supports DynDNS, and TZO.

Parameters Default Description

Enable DDNS Disable Enable/Disable the DDNS function of this router.

Service Provider Select a DDNS service provider.

Domain name Your static domain name that use DDNS.

User Name/Email The account that your DDNS service provider

assigned to you.

Password/Key The password you set for the DDNS service

account above.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.3 LAN

The LAN Port screen below allows you to specify a private IP address for your router‟s LAN ports

as well as a subnet mask for your LAN segment.

Parameters Default Description

IP address 192.168.2.1 This is the router‟s LAN port IP address (Your

LAN clients default gateway IP address).

Subnet Mask 255.255.255.0 Specify a Subnet Mask for your LAN segment.

Default Gateway Specify the default gateway for LAN segment.

DHCP Server You can select the DHCP type for LAN segment.

By selecting the DHCP server, the router will

automatically give your LAN clients an IP

address. By selecting the DHCP client, the

router will get an IP address from LAN DHCP

server automatically. If the DHCP server is not

enabled then you‟ll have to manually set your

LAN client‟s IP addresses; make sure the LAN

Client is in the same subnet as this broadband

router if you want the router to be your LAN

client‟s default gateway.

DHCP Client Range You can select a particular IP address range for

your DHCP server to issue IP addresses to your

LAN Clients.

Note: By default the IP range is from: Start IP

192.168.2.100 to End IP 192.168.2.199. If you

want your PC to have a static/fixed IP address

then you‟ll have to choose an IP address outside

this IP address Pool.

802.1d Spanning Tree Disabled If 802.1d Spanning Tree function is enabled, this

router will use the spanning tree protocol to

prevent from network loop happened in the LAN

ports.

Clone MAC Address Specify the MAC Address for your LAN interface.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4 Wireless

Wireless Access Point builds a wireless LAN and can let all IEEE 802.11b, IEEE 801.11g or IEEE

802.1n wireless stations connect to your Intranet. It supports WEP, WPA and WPA2 encryption to

enhance the security of your wireless network. It also support WPS function for you to easy setup

the wireless connection between the Access Point with other stations.

3.4.1 Basic Settings

You can set parameters that are used for the wireless stations to connect to this router. The

parameters include Mode, ESSID, Channel Number and Associated Client.

Parameters Default Description

Disable Wireless Check this box to disable wireless LAN.

LAN Interface

Band Please select the radio band from one of the

following options.

2.4GHz(B): 2.4GHz band, only allows 802.11b

wireless network client to connect this router

(maximum transfer rate 11Mbps).

2.4 GHz (N): 2.4GHz band, only allows 802.11n

wireless network client to connect this router

(maximum transfer rate 150Mbps).

2.4 GHz (B+G):2.4GHz band, only allows

802.11b and 802.11g wireless network client to

connect this router (maximum transfer rate

11Mbps for 802.11b clients, and maximum

54Mbps for 802.11g clients).

2.4 GHz (G): 2.4GHz band, only allows 802.11g

wireless network client to connect this router

(maximum transfer rate 54Mbps).

2.4 GHz (B+G+N): 2.4GHz band, allows

802.11b, 802.11g, and 802.11n wireless network

client to connect this router (maximum transfer

rate 11Mbps for 802.11b clients, maximum

54Mbps for 802.11g clients, and maximum

150Mbps for 802.11n clients).

Mode It allows you to set the wireless mode of the

router to AP, Client, WDS or AP+WDS mode.

AP : standard wireless access point.

Client : Configure the router to Ethernet device

such us TV, Game player, HDD&DVD to enable

the Ethernet device be a wireless station.

WDS : Connect this router with other WDS-

capable wireless routers, to expand the scope of

network.

AP + WDS (Universal Repeater) : The router

can act as Station and AP at the same time. It

can use Station function to connect to a Root AP

and use AP function to service all wireless

stations within its coverage.

Multiple AP This access point supports multiple APs function.

Please go to section 3.4.1.1 for more information.

Network Type You can set the client mode to Infrastructure or

Ad Hoc mode here.

SSID default This is the name of wireless router. You can

type any alphanumerical characters here,

maximum 32 characters. SSID is used to identify

your own wireless router from others when there

are other wireless routers in the same area.

Default SSID is „default‟, it‟s recommended to

change default SSID value to the one which is

meaningful to you, like myhome, office_room1,

etc.

Channel Width Set channel width of wireless radio. Do not

modify default value if you don‟t know what it is,

default setting is „40 MHz‟.

ControlSideBand Select the upper band or lower band for your

radio frequency. While upper band is selected,

the channel number you can select is from

channel 5 to channel 11. While lower band is

selected, the channel number you can select is

from channel 1 to channel 7.

Channel Number Please select a channel from the dropdown list

of „Channel Number‟, available channel numbers

are 1 to 13 for European countries, 1 to 11 for

USA. You can choose any channel number you

want to use, and almost all wireless clients can

locate the channel you‟re using automatically

without any problem. However, it‟s still useful to

remember the channel number you use, some

wireless client supports manual channel number

select, and this would help in certain scenario

when there is some radio communication

problem.

Broadcast SSID Decide if the wireless router will broadcast its

own SSID or not. You can hide the SSID of your

wireless router (set the option to „Disable‟), so

only people those who know the SSID of your

wireless router can get connected.

WMM The short of Wi-Fi MultiMedia, it will enhance the

data transfer performance of multimedia

contents when they‟re being transferred over

wireless network. If you don‟t know what it is /

not sure if you need it, it‟s safe to set this option

to „Enable‟.

Data Rate Set the wireless data transfer rate to a certain

value. Since most of wireless devices will

negotiate with each other and pick a proper data

transfer rate automatically, it‟s not necessary to

change this value unless you know what will

happen after modification.

Associated Clients Click “Show Active Clients” button, then an

“Active Wireless Client Table” will pop up. You

can see the status of all active wireless stations

that are connecting to the access point.

Enable MAC Clone (Single Ethernet Client) Check the check box will copy the MAC address

of your PC to wireless Interface when the first

packet was received.

Enable Universal Repeater Mode By enable the universal repeater mode, the

(Acting as AP and client simultaneously) router will act as AP and client simultaneously.

SSID of Extended Interface Set the SSID for the extended wireless interface.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.2.1 Multiple AP

This access point supports multiple APs function. With different SSID names, you can separate to

four wireless networks with different wireless security, WMM, access control and etc.

Parameters Default Description

Enable Check this box if you want to enable multiple

access points.

Band Please select the radio band from one of the

following options.

2.4GHz(B): 2.4GHz band, only allows 802.11b

wireless network client to connect this router

(maximum transfer rate 11Mbps).

2.4 GHz (N): 2.4GHz band, only allows 802.11n

wireless network client to connect this router

(maximum transfer rate 150Mbps).

2.4 GHz (B+G):2.4GHz band, only allows

802.11b and 802.11g wireless network client to

connect this router (maximum transfer rate

11Mbps for 802.11b clients, and maximum

54Mbps for 802.11g clients).

2.4 GHz (G): 2.4GHz band, only allows 802.11g

wireless network client to connect this router

(maximum transfer rate 54Mbps).

2.4 GHz (B+G+N): 2.4GHz band, allows

802.11b, 802.11g, and 802.11n wireless network

client to connect this router (maximum transfer

rate 11Mbps for 802.11b clients, maximum

54Mbps for 802.11g clients, and maximum

150Mbps for 802.11n clients).

SSID This is the name of wireless router. You can

type any alphanumerical characters here,

maximum 32 characters. SSID is used to identify

your own wireless router from others when there

are other wireless routers in the same area.

Default SSID is „default-VAP0/1/2/3‟, it‟s

recommended to change default SSID value to

the one which is meaningful to you, like myhome,

office_room1, etc.

Data Rate Set the wireless data transfer rate to a certain

value. Since most of wireless devices will

negotiate with each other and pick a proper data

transfer rate automatically, it‟s not necessary to

change this value unless you know what will

happen after modification.

Broadcast SSID Decide if the wireless router will broadcast its

own SSID or not. You can hide the SSID of your

wireless router (set the option to „Disable‟), so

only people those who know the SSID of your

wireless router can get connected.

WMM The short of Wi-Fi MultiMedia, it will enhance the

data transfer performance of multimedia

contents when they‟re being transferred over

wireless network. If you don‟t know what it is /

not sure if you need it, it‟s safe to set this option

to „Enable‟.

Access If you want to limit stations connect to the

specific access point with the right to access

Internet only, please select „WAN‟. By default, it

is not enabled the access control.

Active Client List Click “Show” button, then an “Active Wireless

Client Table” will pop up. You can see the status

of all active wireless stations that are connecting

to the access point.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.2 Advanced Settings

You can set advanced wireless LAN parameters of this router. The parameters include

Authentication Type, Fragment Threshold, RTS Threshold, Beacon Interval, Preamble Type, etc.

You should not change these parameters unless you know what effect the changes will have on

this router.

Parameters Default Description

Fragment Threshold "Fragment Threshold" specifies the maximum

size of packet during the fragmentation of data

to be transmitted. If you set this value too low, it

will result in bad performance.

RTS Threshold When the packet size is smaller than the RTS

threshold, the wireless router will not use the

RTS/CTS mechanism to send this packet.

Beacon Interval The interval of time that this wireless router

broadcast a beacon. Beacon is used to

synchronize the wireless network.

Preamble Type The “Long Preamble” can provide better

wireless LAN compatibility while the “Short

Preamble” can provide better wireless LAN

performance.

IAPP If you enable “IAPP”, it will allow wireless station

roaming between IAPP enabled access points

within the same wireless LAN.

Protection This is also called CTS Protection. It is

recommended to enable the protection

mechanism. This mechanism can decrease the

rate of data collision between 802.11b and

802.11g/802.11n wireless stations. When the

protection mode is enabled, the throughput of

the AP will be a little lower due to many of frame

traffic should be transmitted.

Aggregation This function is used to join multiple data

packets for transmission as a single unit to

increase network efficiency.

Short GI The 802.11n draft specifies two guard intervals:

400ns (short) and 800ns (long). Support of the 400ns

GI is optional for transmit and receive. Enable this

function will increase network efficiency.

WLAN Partition Enable this function and all the wireless clients cannot

access to each other.

RF Output Power You can set the output power of wireless radio.

Unless you‟re using this wireless router in a

really big space, you may not have to set output

power to 100%. This will enhance security

(malicious / unknown users in distance will

not be able to reach your wireless router).

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router.

3.4.3 Security

This Access Point provides complete wireless LAN security functions, include WEP, IEEE

802.11x, IEEE 802.11x with WEP, WPA with pre-shared key and WPA with RADIUS. With these

security functions, you can prevent your wireless LAN from illegal access. Please make sure your

wireless stations use the same security function.

Parameters Default Description

Select SSID If you have configure multiple access points,

please select the access point you want to

configure.

Encryption You can choose no encryption, WEP, WPA,

WPA2 or WPA2 mixed mode for security.

Use 802.1x Authentication IEEE 802.1x is an authentication protocol. Every

user must use a valid account to login to this

Access Point before accessing the wireless LAN.

The authentication is processed by a RADIUS

server. Check this box to authenticates user by

IEEE 802.1x.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.3.1 WEP

When you select 64-bit or128-bit WEP key, you have to enter WEP keys to encrypt data. You can

generate the key by yourself and enter it. You can enter four WEP keys and select one of them

as default key. Then the router can receive any packets encrypted by one of the four keys.

Parameters Description

Authentication There are two authentication types: "Open System" and

"Shared Key". When you select "Open System", wireless

stations can associate with this wireless router without

WEP encryption. When you select "Shared Key", you

should also setup WEP key in the "Security" page and

wireless stations should use WEP encryption in the

authentication phase to associate with this wireless

router. If you select "Auto", the wireless client can

associate with this wireless router by using any one of

these two authentication types.

Key Length You can select the WEP key length for encryption, 64-bit

or 128-bit. Larger WEP key length will provide higher

level of security, but the throughput will be lower.

Key Format You may select to select ASCII Characters

(alphanumeric format) or Hexadecimal Digits (in the "A-

F", "a-f" and "0-9" range) to be the WEP Key.

For example:

ASCII Characters: guest

Hexadecimal Digits: 12345abcde

Encryption Key The WEP key are used to encrypt data transmitted in the

wireless network. Fill the text box by following the rules

below.

64-bit WEP: input 10-digit Hex values (in the "A-F", "a-f"

and "0-9" range) or 5-digit ASCII character as the

encryption keys.

128-bit WEP: input 26-digit Hex values (in the "A-F", "a-

f" and "0-9" range) or 13-digit ASCII characters as the

encryption keys.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.3.2 WPA

Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key

to authenticate wireless stations and encrypt data during communication. It uses TKIP to change

the encryption key frequently. So the encryption key is not easy to be broken by hackers. This

can improve security very much.

Parameters Description

WPA Authentication WPA can authenticate by Enterprise (RADIUS) or by

Mode Personal (Pre-Shared key). If you enable „Enterprise

(RADIUS)‟, please go to section 3.4.3.5 for more

information.

WPA/WPA2 Cipher Suite You can choose TKIP or AES for WPA/WPA2 key

method.

Pre-shared Key Format You may select to select Passphrase (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-

9” range) to be the Pre-shared Key. For example:

Passphrase: iamguest

Hexadecimal Digits: 12345abcde

Pre-shared Key The Pre-shared key is used to authenticate and encrypt

data transmitted in the wireless network. Fill the text box

by following the rules below.

Hex: input 64-digit Hex values (in the “A-F”, “a-f” and “0-

9” range) or at least 8 character pass phrase as the pre-

shared keys.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.3.3 WPA2(AES)

Wi-Fi Protected Access 2(WPA2) is an advanced security standard. You can use a pre-shared

key to authenticate wireless stations and encrypt data during communication. It uses CCMP(AES)

to change the encryption key frequently. So the encryption key is not easy to be broken by

hackers. This can improve security very much.

Parameters Description

WPA Authentication WPA can authenticate by Enterprise (RADIUS) or by

Mode Personal (Pre-Shared key). If you enable „Enterprise

(RADIUS)‟, please go to section 3.4.3.5 for more

information.

WPA/WPA2 Cipher Suite You can choose TKIP or AES for WPA/WPA2 key

method.

Pre-shared Key Format You may select to select Passphrase (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-

9” range) to be the Pre-shared Key. For example:

Passphrase: iamguest

Hexadecimal Digits: 12345abcde

Pre-shared Key The Pre-shared key is used to authenticate and encrypt

data transmitted in the wireless network. Fill the text box

by following the rules below.

Hex: input 64-digit Hex values (in the “A-F”, “a-f” and “0-

9” range) or at least 8 character pass phrase as the pre-

shared keys.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.3.4 WPA2Mixed

Wi-Fi Protected Access 2(WPA2) is an advanced security standard. You can use a pre-shared

key to authenticate wireless stations and encrypt data during communication. It uses TKIP or

CCMP(AES) to change the encryption key frequently. So the encryption key is not easy to be

broken by hackers. This can improve security very much.

Parameters Description

WPA Authentication WPA can authenticate by Enterprise (RADIUS) or by

Mode Personal (Pre-Shared key). If you enable „Enterprise

(RADIUS)‟, please go to section 3.4.3.5 for more

information.

WPA Cipher Suite You can choose TKIP or AES for WPA key method.

WPA2 Cipher Suite You can choose TKIP or AES for WPA2 key method.

Pre-shared Key Format You may select to select Passphrase (alphanumeric

format) or Hexadecimal Digits (in the “A-F”, “a-f” and “0-

9” range) to be the Pre-shared Key. For example:

Passphrase: iamguest

Hexadecimal Digits: 12345abcde

Pre-shared Key The Pre-shared key is used to authenticate and encrypt

data transmitted in the wireless network. Fill the text box

by following the rules below.

Hex: input 64-digit Hex values (in the “A-F”, “a-f” and “0-

9” range) or at least 8 character pass phrase as the pre-

shared keys.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.3.5 RADIUS Server

IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this

wireless router before accessing the wireless LAN. The authentication is processed by a RADIUS

server. This mode only authenticates user by IEEE 802.1x, but it does not encryption the data

during communication. If there is a RADIUS server in you environment, please enable this

function. Check this box and another sub-menu will appear.

Parameters Description

Radius Server IP Address The IP address of external RADIUS server.

Radius Server Port The service port of the external RADIUS server.

Radius Server Password The password used by external RADIUS server.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.4 Access Control

This function will help you to prevent unauthorized users from connecting to your wireless router;

only those wireless devices who have the MAC address you assigned here can gain access to

your wireless router. You can use this function with other security measures described in previous

section, to create a safer wireless environment.

Parameters Description

Wireless Access Control Mode Enable/Disable wireless access control. You can

choose „Allow Listed‟ if you allow the MAC

Addresses listed in the following table to connect

to the router; choose „Deny Listed‟ if you deny

the MAC Addressed listed in the following table

to connect to the router.

MAC Address Input the MAC address of your wireless devices

here, dash ( - ) or colon ( : ) are not required. (i.e.

If the MAC address label of your wireless device

indicates „aa-bb-cc-dd-ee-ff‟ or aa:bb:cc:dd:ee:ff‟,

just input „aabbccddeeff‟.

Comment You can input any text here as the comment of

this MAC address, like „ROOM 2A Computer‟ or

anything.

Current Access Control List From the table, you can check the access

control settings.

Delete Selected If you want to delete a specific MAC address

entry, check the „select‟ box of the MAC address

you want to delete, then click „Delete Selected‟

button. (You can select more than one MAC

addresses).

Delete All If you want to delete all MAC addresses listed

here, please click „Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.5 Site Survey

This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you

could choose to connect it manually when client mode is enabled.

3.4.6 WDS Settings

In this mode, you can expand the scope of network by combining up to other access points

together, and every access point can still accept wireless clients.

Parameters Description

Enable WDS Check this box to enable Wireless Distribution

System.

MAC Address Input the MAC address of other wireless routers.

Data Rate Designate the transmit data rate for the routers

in the WDS network.

Comment You can input any text here as the comment of

this MAC address, like „ROOM 2A AP‟ or

anything.

Set Security Click this button to configure the security used in

the WDS network.

Show Statistics Click this button and a table will pop up. This

table shows the MAC Address, transmission,

reception packet counters and state information

for each configured WDS AP.

Current WDS AP List From the table, you can check the settings for

each WDS AP.

Delete Selected If you want to delete a specific WDS AP, check

the „select‟ box of the WDS AP you want to

delete, then click „Delete Selected‟ button. (You

can select more than one WDS AP).

Delete All If you want to delete all WDS APs listed here,

please click „Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.7 WPS

Wi-Fi Protected Setup (WPS) is the simplest way to build connection between wireless network

clients and this wireless router. You don‟t have to select encryption mode and input a long

encryption passphrase every time when you need to setup a wireless client, you only have to

press a button on wireless client and this wireless router, and the WPS will do the rest for you.

This wireless router supports two types of WPS: Push-Button Configuration (PBC), and PIN code.

If you want to use PBC, you have to push a specific button on the wireless client to start WPS

mode, and switch this wireless router to WPS mode too. You can push Reset/WPS button of this

wireless router, or click „Start PBC‟ button in the web configuration interface to do this; if you want

to use PIN code, you have to know the PIN code of wireless client and switch it to WPS mode,

then provide the PIN code of the wireless client you wish to connect to this wireless router. The

detailed instructions are listed follow:

Please click „Wireless‟ menu on the left of web management interface, then click „WPS‟, and the

following message will be displayed on your web browser:

Parameters Description

Enable WPS Check this box to enable WPS function.

WPS Status If the wireless security (encryption) function of

this wireless router is properly set, you‟ll see

„Configured‟ message here. If wireless security

function has not been set, you‟ll see

„unConfigured‟.

Reset to UnConfigured Reset the WPS status to unconfigured, please

click this button.

Self-PIN Number This is the WPS PIN code of this wireless router.

This code is useful when you need to build

wireless connection by WPS with other WPS-

enabled wireless devices.

Push Button Configuration Click „Start PBC‟ to start Push-Button style WPS

setup procedure. This wireless router will wait

for WPS requests from wireless clients for 2

minutes. The „WLAN‟ LED on the wireless router

will be steady on for 2 minutes when this

wireless router is waiting for incoming WPS

request.

Client PIN Number Please input the PIN code of the wireless client

you wish to connect, and click „Start PIN‟ button.

The „WLAN‟ LED on the wireless router will be

steady on when this wireless router is waiting for

incoming WPS request.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.4.8 Schedule

This page allows you to set up the wireless schedule rule. You can designate to enable wireless

access point by time or day.

Parameters Description

Enable Wireless Schedule Check this box to enable wireless schedule.

Days Select to enable the wireless access point every

day or some other weekdays.

Time Designate a period of hours in a day to enable

the wireless access point.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5 Firewall

The Broadband router provides extensive firewall protection by restricting connection parameters,

thus limiting the risk of hacker attack, and defending against a wide array of common Internet

attacks. However, for applications that require unrestricted access to the Internet, you can

configure a specific client/server as a Demilitarized Zone (DMZ).

Parameters Description

3.5.1 Port Filtering Entries in this table are used to restrict certain types of data

packets from your local network to Internet through the Gateway.

3.5.2 IP Filtering IP Filtering allows you to specify which IP can or can not be used

to access to internet.

3.5.3 MAC Filtering MAC Filtering allows you to specify which MAC Address can or

can not be used to access to internet.

3.5.4 Port Forwarding You can have different services (e.g. email, FTP, Web etc.)

going to different service servers/clients in your LAN. The Port

Forwarding allows you to re-direct a particular range of service

port numbers (from the Internet/WAN Ports) to a particular LAN

IP address.

3.5.5 URL Filtering You can enable this function to block specific web sites.

3.5.6 Denial-of-Service Denial of Service (DoS) is a common attack measure, by

transmitting a great amount of data or request to your Internet IP

address and server, the Internet connection will become very

slow, and server may stop responding because it is not capable

to handle too much traffics.

3.5.7 DMZ The DMZ function allows you to re-direct all packets going to

your WAN port IP address to a particular IP address in your LAN.

3.5.8 Static Routing You can enable Static Routing to turn off NAT function of your

router and let the router forward packets by your routing policy.

3.5.9 Virtual Server This function allows you to redirect a port on Internet IP address

(on WAN port) to a specified port of an IP address on local

network, so you can setup an Internet service on the computer

on local network, without exposing it on Internet directly. You can

also build many sets of port redirection, to provide many different

Internet services on different local computers via a single

Internet IP address.

Click on one of the firewall selections and proceed to the manual‟s relevant sub-section

3.5.1 Port Filtering

If you want to restrict users from accessing certain Internet applications/services (e.g. Internet

websites, email, FTP etc.), then this is the place to set that configuration. Entries in this table are

used to restrict certain types of data packets from your local network to Internet through the

Gateway. Use of such filters can be helpful in securing or restricting your local network.

Parameters Description

Enable Port Filtering Check this box to enable the port filtering function.

Port Range The range of ports to be forward to the private IP.

Protocol Choose „TCP‟ or „UDP‟ or „Both‟ protocols for port

filtering.

Comment You can input any text here as the comment of this

settings.

Current Filter Table From the table, you can check each port filter setting.

Delete Selected If you want to delete a specific setting, check the „select‟

box of the setting you want to delete, then click „Delete

Selected‟ button. (You can select more than one setting).

Delete All If you want to delete all settings listed here, please click

„Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5.2 IP Filtering

If you want to restrict users from accessing certain Internet applications/services (e.g. Internet

websites, email, FTP etc.), then this is the place to set that configuration. Entries in this table are

used to restrict certain types of data packets from your local network to Internet through the

Gateway. Use of such filters can be helpful in securing or restricting your local network.

Parameters Description

Enable IP Filtering Check this box to enable the IP filtering function.

Local IP Address Input the IP Address you want to filter.

Protocol Choose „TCP‟ or „UDP‟ or „Both‟ protocols for port

filtering.

Comment You can input any text here as the comment of this

settings.

Current Filter Table From the table, you can check each IP filter setting.

Delete Selected If you want to delete a specific setting, check the „select‟

box of the setting you want to delete, then click „Delete

Selected‟ button. (You can select more than one setting).

Delete All If you want to delete all settings listed here, please click

„Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5.3 MAC Filtering

If you want to restrict users from accessing certain Internet applications/services (e.g. Internet

websites, email, FTP etc.), then this is the place to set that configuration. Entries in this table are

used to restrict certain types of data packets from your local network to Internet through the

Gateway. Use of such filters can be helpful in securing or restricting your local network.

Parameters Description

Enable MAC Filtering Check this box to enable the MAC filtering function.

MAC Address Input the MAC address of the devices you want to filter,

dash ( - ) or colon ( : ) are not required. (i.e. If the MAC

address label of your wireless device indicates „aa-bb-

cc-dd-ee-ff‟ or aa:bb:cc:dd:ee:ff‟, just input

„aabbccddeeff‟.

Comment You can input any text here as the comment of this MAC

address, like „ROOM 2A Computer‟ or anything.

Current Filter Table From the table, you can check each MAC Address filter

setting.

Delete Selected If you want to delete a specific MAC address entry,

check the „select‟ box of the MAC address you want to

delete, then click „Delete Selected‟ button. (You can

select more than one MAC addresses).

Delete All If you want to delete all MAC addresses listed here,

please click „Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5.4 Port Forwarding

The Port Forwarding allows you to re-direct a particular range of service port numbers (from the

Internet/WAN Ports) to a particular LAN IP address. It helps you to host some servers behind the

router NAT firewall.

Parameter Description

Enable Port Forwarding Enable Port Forwarding

IP Address This is the private IP of the server behind the NAT

firewall. Note: You need to give your LAN PC clients a

fixed/static IP address for Port Forwarding to work

properly.

Protocol This is the protocol type to be forwarded. You can

choose to forward “TCP” or “UDP” packets only or

select “both” to forward both “TCP” and “UDP” packets.

Port Range The range of ports to be forward to the private IP.

Comment The description of this setting.

Current Port Forwarding Table From the table, you can check each Port forwarding

setting.

Delete Selected If you want to delete a setting, check the „select‟ box of

the setting you want to delete, then click „Delete

Selected‟ button. (You can select more than one setting).

Delete All If you want to delete all settings listed here, please click

„Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5.5 URL Filtering

You can block access to some Web sites from particular PCs by entering a full URL address or

just keyword of the Web site.

Parameter Description

Enable URL Filtering Enable/disable URL Blocking.

URL Address You can enter the full URL address or the keyword of

the web site you want to block.

Current Filter Table From the table, you can check each URL filter setting.

Delete Selected If you want to delete a setting, check the „select‟ box of

the setting you want to delete, then click „Delete

Selected‟ button. (You can select more than one setting).

Delete All If you want to delete all settings listed here, please click

„Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5.6 Denial-of-Service

Denial of Service (DoS) is a common attack measure, by transmitting a great amount of data or

request to your Internet IP address and server, the Internet connection will become very slow,

and server may stop responding because it is not capable to handle too much traffics.

This router has a built-in DoS attack prevention mechanism; when you activate it, the router will

stop the DoS attack for you.

3.5.7 DMZ

If you have a local client PC that cannot run an Internet application (e.g. Games) properly from

behind the NAT firewall, then you can open the client up to unrestricted two-way Internet access

by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN

port IP address to a particular IP address in your LAN.

Parameters Description

Enable DMZ Enable/disable DMZ.

DMZ Host IP Address Input the IP address of a particular host in your LAN that will

receive all the packets originally going to the WAN port/Public IP

address above

Note: You need to give your LAN PC clients a fixed/static IP

address for DMZ to work properly.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5.8 Static Routing

You can enable Static Routing to turn off NAT function of your router and let the router forward

packets by your routing policy.

Parameter Description

Enable Static Routing Enter the IP Address of the destination LAN.

Destination LAN IP Enter the Subnet Mask of the destination LAN.

Default Gateway This is the gateway IP Address where packets are sent.

Input the gateway IP Address.

Current Static Routing Table From the table, you can check each Static Routing

setting.

Delete Selected If you want to delete a setting, check the „select‟ box of

the setting you want to delete, then click „Delete

Selected‟ button. (You can select more than one setting).

Delete All If you want to delete all settings listed here, please click

„Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.5.9 Virtual Server

This function allows you to redirect a port on Internet IP address (on WAN port) to a specified port

of an IP address on local network, so you can setup an Internet service on the computer on local

network, without exposing it on Internet directly. You can also build many sets of port redirection,

to provide many different Internet services on different local computers via a single Internet IP

address.

Parameter Description

Enable Virtual Server Check this box to enable virtual server, and uncheck

this box to disable virtual server.

Private IP Input the IP address of the computer which provides

Internet service.

Private Port Input the port number of the IP address which provides

Internet service.

Type Select the type of connection, TCP or UDP. If you‟re not

sure, please select „Both‟.

Public Port Please select the port number of Internet IP address

which will be redirected to the port number of local IP

address defined above.

Comment Please input any text to describe this mapping.

Current Virtual Server Table From the table, you can check each virtual server

setting.

Delete Selected If you want to delete a setting, check the „select‟ box of

the setting you want to delete, then click „Delete

Selected‟ button. (You can select more than one setting).

Delete All If you want to delete all settings listed here, please click

„Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

3.6 QoS

Quality of service provides an efficient way for computers on the network to share the internet

bandwidth with a promised quality of internet service. Without QoS, all computers and devices on

the network will compete with each other to get internet bandwidth, and some applications which

require guaranteed bandwidth (like video streaming and network telephone) will be affected,

therefore an unpleasing result will occur, like the interruption of video / audio transfer.

With this function, you can limit the maximum bandwidth or give a guaranteed bandwidth for a

specific computer, to avoid said unpleasing result from happening.

Parameter Description

Enable QoS Check this box to enable QoS, and uncheck this box to

disable QoS.

Automatic Uplink Speed Check this box to enable automatic uplink speed.

Manual Uplink Speed (Kbps) You can set the limit of uplink speed in kbits. To disable

uplink bandwidth limitation, input „0‟ here.

Local IP Address Input the IP Address of your computer for configure the

QoS rule.

Mode Select to guarantee a minimum or maximum bandwidth

to the IP Address you designate.

Bandwidth (Kbps) Input the bandwidth in kbits.

Comment Please input any text to describe this QoS rule.

Current QoS Rules Table From the table, you can check each QoS rule setting.

Delete Selected If you want to delete a setting, check the „select‟ box of

the setting you want to delete, then click „Delete

Selected‟ button. (You can select more than one setting).

Delete All If you want to delete all settings listed here, please click

„Delete All‟ button.

Reset You can also click „Reset‟ button to unselect all.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

Chapter 4 Status

The Status section allows you to monitor the current status of your router. You can use the Status

page to monitor: the connection status of the Broadband router's WAN/LAN interfaces, the

current firmware version numbers, and any illegal attempts to access your network.

Parameters Description

5.1 Status Shows the router‟s system information.

5.2 System Log View the Broadband router‟s system log.

5.3 Statistics Shows the statistics.

Select one of the above five Status selections and proceed to the manual‟s relevant sub-section.

4.1 Status

The Status section allows you to view the router‟s system information.

Parameters Description

Information You can see the router‟s system information such as the router‟s:

Uptime, Firmware version, Wireless Configuration, LAN Address

information, WAN Configuration information.

4.2 System Log

View the operation log of the system.

Parameters Description

Enable Log Check this box to enable the logging system.

System all This page shows the current system log of the Broadband router.

It displays any event occurred after system start up.

At the bottom of the page, the system log can be cleared

<Clear> or it can be refreshed <Refresh> to get the most

updated situation. When the system is powered down, the

system log will disappear if not saved to a local file.

Wireless By select this options, you can check wireless log.

DoS By select this options, you can check DoS log.

Enable Remote Log If you want to send all log information to remote server, please

check this box to enable this function and fill the server IP

Address in the “Log Server IP Address” field.

Log Server IP Address Input the server IP address where you want to save the logs.

Click <Apply Changes> at the bottom of the screen to save the above configurations. You can

now configure other advance sections or start using the router (with the advance settings in place)

4.3 Statistics

View the statistics of packets sent and received on WAN, LAN and Wireless LAN.

Parameters Description

Statistics Shows the counters of packets sent and received on WAN, LAN

and Wireless LAN.

Chapter 5 Tool

This page includes the basic configuration tools, such as Configuration Tools (save or restore

configuration settings), Firmware Upgrade (upgrade system firmware) and Reset.

Parameters Description

5.1 Save/Reload Settings You can save the router‟s current configuration, restore the

router‟s saved configuration files and restore the router‟s factory

default settings.

5.2 Upgrade Firmware This page allows you to upgrade the router‟s firmware.

Select one of the above three Tools Settings selection and proceed to the manual‟s relevant

sub-section

100

5.1 Save/Reload Settings

The Save/Reload Settings screen allows you to save (Backup) the router‟s current configuration

setting. Saving the configuration settings provides an added protection and convenience should

problems occur with the router and you have to reset to factory default. When you save the

configuration setting (Backup) you can re-load the saved configuration into the router through the

Restore selection. If extreme problems occur you can use the Restore Settings to Defaults

selection, this will set all configurations to its original default settings (e.g. when you first

purchased the router).

Parameters Description

Configuration Tools Save Settings to File : Click Save button to save the Broadband

router current configuration to a file named "config.bin" on your

PC.

Load Settings from File : Click Browse button to search the file

you have saved before and click Upload button to restore the

saved configuration to the Broadband router.

Restore Settings to Default : Click Reset button if you want to

force the Broadband router to perform a power reset and restore

the original factory settings.

101

5.2 Firmware Upgrade

This page allows you to upgrade the router‟s firmware

Parameters Description

Upgrade Firmware This tool allows you to upgrade the Broadband router‟s system

firmware. To upgrade the firmware of your Broadband router,

you need to download the firmware file to your local hard disk,

and enter that file name and path in the appropriate field on this

page. You can also use the Browse button to find the firmware

file on your PC.

Once you‟ve selected the new firmware file, click <Upload> at the bottom of the screen to start

the upgrade process. (You may have to wait a few minutes for the upgrade to complete). Once

the upgrade is complete you can start using the router.

102

Appendix A

How to manually find your PC’s IP and MAC address?

1) In Window‟s open the Command Prompt program

2) Type Ipconfig /all and <enter>

103

 Your PC‟s IP address is the one entitled IP address (192.168.1.77)

 The router‟s IP address is the one entitled Default Gateway (192.168.1.254)

 Your PC‟s MAC Address is the one entitled Physical Address (00-50-FC-FE-02-DB)

104

Glossary

Default Gateway (Router): Every non-router IP device needs to configure a default gateway‟s

IP address. When the device sends out an IP packet, if the destination is not on the same

network, the device has to send the packet to its default gateway, which will then send it out

towards the destination.

DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives every computer

on your home network an IP address.

DNS Server IP Address: DNS stands for Domain Name System, which allows Internet servers to

have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses (such

as 192.34.45.8). A DNS server keeps a database of Internet servers and their respective domain

names and IP addresses, so that when a domain name is requested (as in typing

"Broadbandrouter.com" into your Internet browser), the user is sent to the proper IP address. The

DNS server IP address used by the computers on your home network is the location of the DNS

server your ISP has assigned to you.

DSL Modem: DSL stands for Digital Subscriber Line. A DSL modem uses your existing phone

lines to transmit data at high speeds.

Ethernet: A standard for computer networks. Ethernet networks are connected by special cables

and hubs, and move data around at up to 10/100 million bits per second (Mbps).

Idle Timeout: Idle Timeout is designed so that after there is no traffic to the Internet for a pre-

configured amount of time, the connection will automatically be disconnected.

IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP address consists

of a series of four numbers separated by periods, that identifies a single, unique Internet

computer host in an IP network. Example: 192.168.2.1. It consists of 2 portions: the IP network

address, and the host identifier.

The IP address is a 32-bit binary pattern, which can be represented as four cascaded decimal

numbers separated by “.”: aaa.aaa.aaa.aaa, where each “aaa” can be anything from 000 to 255,

or as four cascaded binary numbers separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb,

where each “b” can either be 0 or 1.

A network mask is also a 32-bit binary pattern, and consists of consecutive leading

1‟s followed by consecutive trailing 0‟s, such as

11111111.11111111.11111111.00000000. Therefore sometimes a network mask can also be

described simply as “x” number of leading 1‟s.

When both are represented side by side in their binary forms, all bits in the IP address that

correspond to 1‟s in the network mask become part of the IP network address, and the remaining

bits correspond to the host ID.

For example, if the IP address for a device is, in its binary form,

11011001.10110000.10010000.00000111, and if its network mask is,

11111111.11111111.11110000.00000000

It means the device‟s network address is

11011001.10110000.10010000.00000000, and its host ID is,

105

00000000.00000000.00000000.00000111. This is a convenient and efficient method for routers

to route IP packets to their destination.

ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an IP address for

the Internet router located at the ISP's office.

ISP: Internet Service Provider. An ISP is a business that provides connectivity to the Internet for

individuals and other businesses or organizations.

LAN: Local Area Network. A LAN is a group of computers and devices connected together in a

relatively small area (such as a house or an office). Your home network is considered a LAN.

MAC Address: MAC stands for Media Access Control. A MAC address is the hardware address

of a device connected to a network. The MAC address is a unique identifier for a device with an

Ethernet interface. It is comprised of two parts: 3 bytes of data that corresponds to the

Manufacturer ID (unique for each manufacturer), plus 3 bytes that are often used as the product‟s

serial number.

NAT: Network Address Translation. This process allows all of the computers on your home

network to use one IP address. Using the broadband router‟s NAT capability, you can access the

Internet from any computer on your home network without having to purchase more IP addresses

from your ISP.

Port: Network Clients (LAN PC) uses port numbers to distinguish one network

application/protocol over another. Below is a list of common applications and protocol/port

numbers:

Application

Protocol

Port Number

Telnet

TCP

FTP

TCP

SMTP

TCP

POP3

TCP

110

H.323

TCP

1720

SNMP

UCP

161

SNMP Trap

UDP

162

HTTP

TCP

PPTP

TCP

1723

PC Anywhere

TCP

5631

PC Anywhere

UDP

5632

PPPoE: Point-to-Point Protocol over Ethernet. Point-to-Point Protocol is a secure data

transmission method originally created for dial-up connections; PPPoE is for Ethernet

connections. PPPoE relies on two widely accepted standards, Ethernet and the Point-to-Point

Protocol. It is a communications protocol for transmitting information over Ethernet between

different manufacturers

106

Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that

when they interface with each other based on such a protocol, the interpretation of their behavior

is well defined and can be made objectively, without confusion or misunderstanding.

Router: A router is an intelligent network device that forwards packets between different

networks based on network layer address information such as IP addresses.

Subnet Mask: A subnet mask, which may be a part of the TCP/IP information provided by your

ISP, is a set of four numbers (e.g. 255.255.255.0) configured like an IP address. It is used to

create IP address numbers used only within a particular network (as opposed to valid IP address

numbers recognized by the Internet, which must be assigned by InterNIC).

TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and Unreliable Datagram

Protocol (UDP). TCP/IP is the standard protocol for data transmission over the Internet. Both TCP

and UDP are transport layer protocol. TCP performs proper error detection and error recovery,

and thus is reliable. UDP on the other hand is not reliable. They both run on top of the IP (Internet

Protocol), a network layer protocol.

WAN: Wide Area Network. A network that connects computers located in geographically

separate areas (e.g. different buildings, cities, countries). The Internet is a wide area network.

Web-based management Graphical User Interface (GUI): Many devices support a graphical

user interface that is based on the web browser. This means the user can use the familiar

Netscape or Microsoft Internet Explorer to Control/configure or monitor the device being managed.
