AC1200WirelessLAN11ac

Dual‐BandConcurrent

CeilingMountAccessPoint



User’s Manual



EW‐7679WAUserManual

05‐2014/v1.0



Version: 1.0

(October, 2014)



CONTENTS

I.ProductInformation...............................................................................2

I‐1.PackageContents..................................................................................................................2

I‐2.SystemRequirements............................................................................................................2

I.I‐3.HardwareOverview..........................................................................3

I‐4.LEDStatus..............................................................................................................................4

I‐5.Reset......................................................................................................................................5

I‐6.SafetyInformation.................................................................................................................6

II.QuickSetup............................................................................................7

II‐1.InitialSetup............................................................................................................................7

II‐2.BasicSettings.........................................................................................................................9

III.HardwareInstallation...........................................................................13

III‐1.ConnectingtheaccesspointtoarouterorPoEswitch.....................................................13

III‐2.Mountingtheaccesspointtoaceiling..............................................................................14

III‐3.T‐RailMount......................................................................................................................17

IV.BrowserBasedConfigurationInterface.................................................19

IV‐1.Information........................................................................................................................22

IV‐1‐1.SystemInformation...........................................................................................................22

IV‐1‐2.WirelessClients..................................................................................................................26

IV‐1‐3.WirelessMonitor...............................................................................................................28

IV‐1‐4.Log......................................................................................................................................30

IV‐2.NetworkSettings...............................................................................................................32

IV‐2‐1.LAN‐SideIPAddress...........................................................................................................32

IV‐2‐2.LANPort.............................................................................................................................34

IV‐2‐3.VLAN..................................................................................................................................35

IV‐3.WirelessSettings................................................................................................................36

IV‐3‐1.2.4GHz11bgn.....................................................................................................................36

IV‐3‐1‐1.Basic.............................................................................................................................37

IV‐3‐1‐2.Advanced.....................................................................................................................40

IV‐3‐1‐3.Security........................................................................................................................42

IV‐3‐1‐3‐1.NoAuthentication.....................................................................................................43

IV‐3‐1‐3‐2.WEP............................................................................................................................44

IV‐3‐1‐3‐3.IEEE802.1x/EAP..........................................................................................................44

IV‐3‐1‐3‐4.WPA‐PSK....................................................................................................................44

IV‐3‐1‐3‐5.WPA‐EAP....................................................................................................................45

IV‐3‐1‐3‐6.AdditionalAuthentication.........................................................................................45



IV‐3‐1‐4.WDS.............................................................................................................................47

IV‐3‐2.5GHz11ac11an.................................................................................................................49

IV‐3‐2‐1.Basic.............................................................................................................................49

IV‐3‐2‐2.Advanced.....................................................................................................................52

IV‐3‐2‐3.Security........................................................................................................................54

IV‐3‐2‐4.WDS.............................................................................................................................56

IV‐3‐3.WPS......................................................................................................................................58

IV‐3‐4.RADIUS.................................................................................................................................60

IV‐3‐4‐1.RADIUSSettings...........................................................................................................61

IV‐3‐4‐2.InternalServer.............................................................................................................63

IV‐3‐4‐3.RADIUSAccounts.........................................................................................................65

IV‐3‐5.MACFilter..........................................................................................................................67

IV‐3‐6.WMM...................................................................................................................................69

IV‐4.Management.....................................................................................................................71

IV‐4‐1.Admin.................................................................................................................................71

IV‐4‐2.DateandTime....................................................................................................................74

IV‐4‐3.SyslogServer......................................................................................................................76

IV‐4‐4.I’mHere.............................................................................................................................77

IV‐5.Advanced...........................................................................................................................78

IV‐5‐1.LEDSettings.......................................................................................................................78

IV‐5‐2.UpdateFirmware...............................................................................................................79

IV‐5‐3.Save/RestoreSettings........................................................................................................80

IV‐5‐4.FactoryDefault..................................................................................................................82

IV‐5‐5.Reboot................................................................................................................................83

V.Appendix..............................................................................................84

V‐1.ConfiguringyourIPaddress...............................................................................................84

V‐1‐1.WindowsXP.......................................................................................................................85

V‐1‐2.WindowsVista...................................................................................................................87

V‐1‐3.Windows7.........................................................................................................................89

V‐1‐4.Windows8.........................................................................................................................93

V‐1‐5.Mac....................................................................................................................................97

V‐1‐6.Glossary................................................................................................................................99

V‐2.HardwareSpecification....................................................................................................102

V‐3.ENVIRONMENT&PHYSICAL............................................................................................102



2



I. ProductInformation

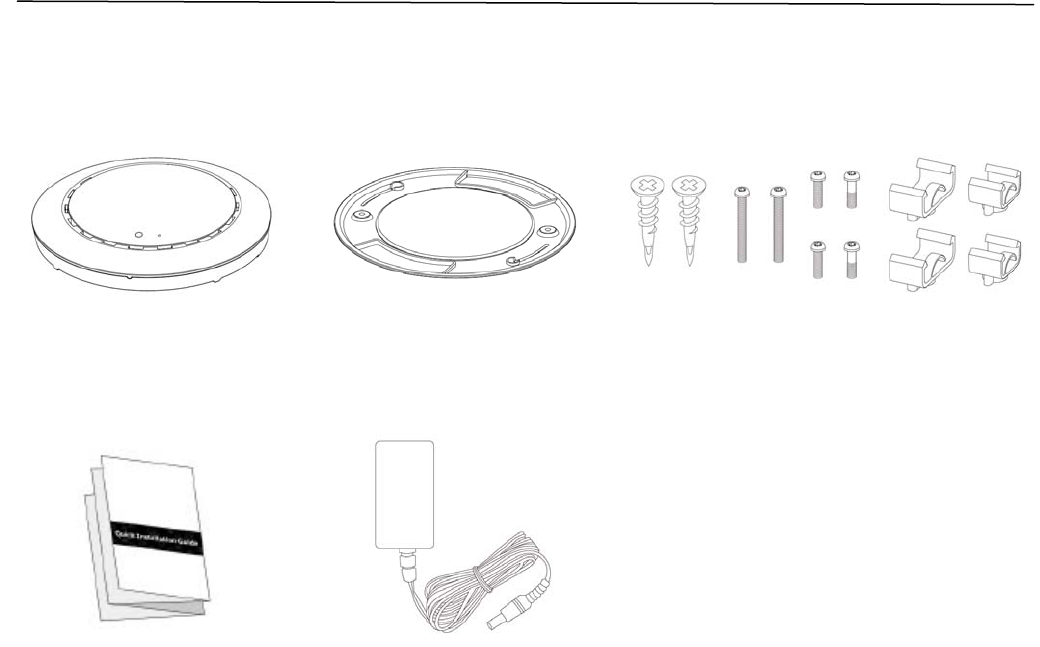

I‐1.PackageContents



1. AccessPoint

2. CeilingMountBracket

3. T‐RailMountingKit&

Screws

4. QuickInstallationGuide

5. PowerAdapter



I‐2.SystemRequirements



‐ Existingcable/DSLmodem&router

‐ Computerwithwebbrowserforaccesspointconfiguration



45

2

13

3



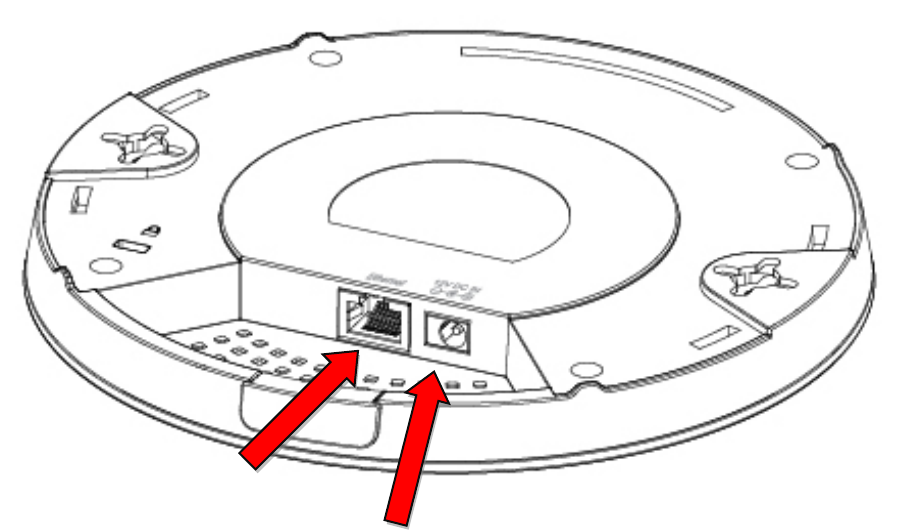

I. I‐3.HardwareOverview





EthernetPort

Power Jack(DCIN)

4



I‐4.LEDStatus



LEDColorLEDStatusDescription

Blue

OnTheaccesspointisstartingup.

Purple

OnTheaccesspointison.

Amber

FlashingError.

Off

OffTheaccesspointisoff.



5



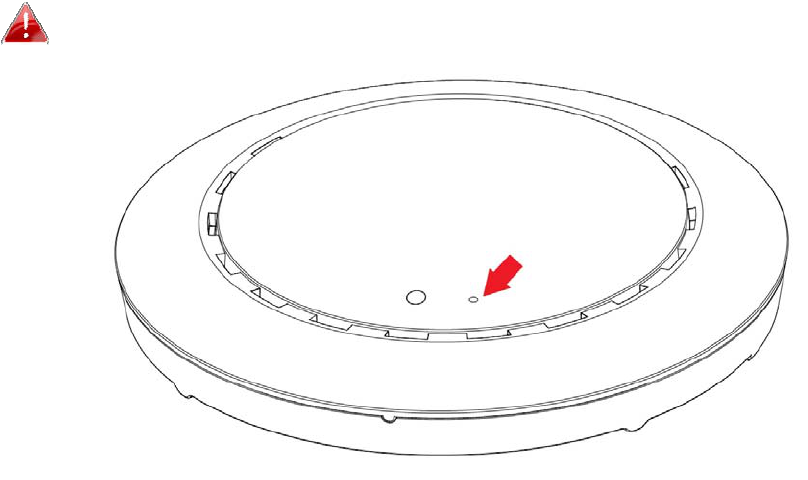

I‐5.Reset



Ifyouexperienceproblemswithyouraccesspoint,youcanresetthedevice

backtoitsfactorysettings.Thisresetsallsettingsbacktodefault.



1. Pressandholdtheresetbuttonontheaccesspointforatleast10seconds

thenreleasethebutton.



Youmayneedtouseapinorsimilarsharpobjecttopushthe

resetbutton.



2. Waitfortheaccesspointtorestart.Theaccesspointisreadyforsetup

whentheLEDisPurple.





6



I‐6.SafetyInformation



Inordertoensurethesafeoperationofthedeviceanditsusers,pleaseread

andactinaccordancewiththefollowingsafetyinstructions.



1.Theaccesspointisdesignedforindooruseonly;donotplacetheaccess

pointoutdoors.



2.Donotplacetheaccesspointinornearhot/humidplaces,suchasakitchen

orbathroom.



3.Donotpullanyconnectedcablewithforce;carefullydisconnectitfromthe

accesspoint.



4.Handletheaccesspointwithcare.Accidentaldamagewillvoidthe

warrantyoftheaccesspoint.



5.Thedevicecontainssmallpartswhichareadangertosmallchildrenunder

3yearsold.Pleasekeeptheaccesspointoutofreachofchildren.



6.Donotplacetheaccesspointonpaper,cloth,orotherflammablematerials.

Theaccesspointmaybecomehotduringuse.



7.Therearenouser‐serviceablepartsinsidetheaccesspoint.Ifyou

experienceproblemswiththeaccesspoint,pleasecontactyourdealerof

purchaseandaskforhelp.



8.Theaccesspointisanelectricaldeviceandassuch,ifitbecomeswetfor

anyreason,donotattempttotouchitwithoutswitchingthepowersupply

off.Contactanexperiencedelectricaltechnicianforfurtherhelp.



9.Ifyousmellburningorseesmokecomingfromtheaccesspointorpower

adapter,thendisconnecttheaccesspointandpoweradapterimmediately,

asfarasitissafelypossibletodoso.Callyourdealerofpurchaseforhelp.



7



II. QuickSetup



Youraccesspointcanbeupandrunninginjustafewminutes.Thisquick

installationguidewillhelptosetupyouraccesspointandconfigureitsbasic

settings.Pleasefollowtheinstructionsinthechaptersbelow:



II‐1.InitialSetup



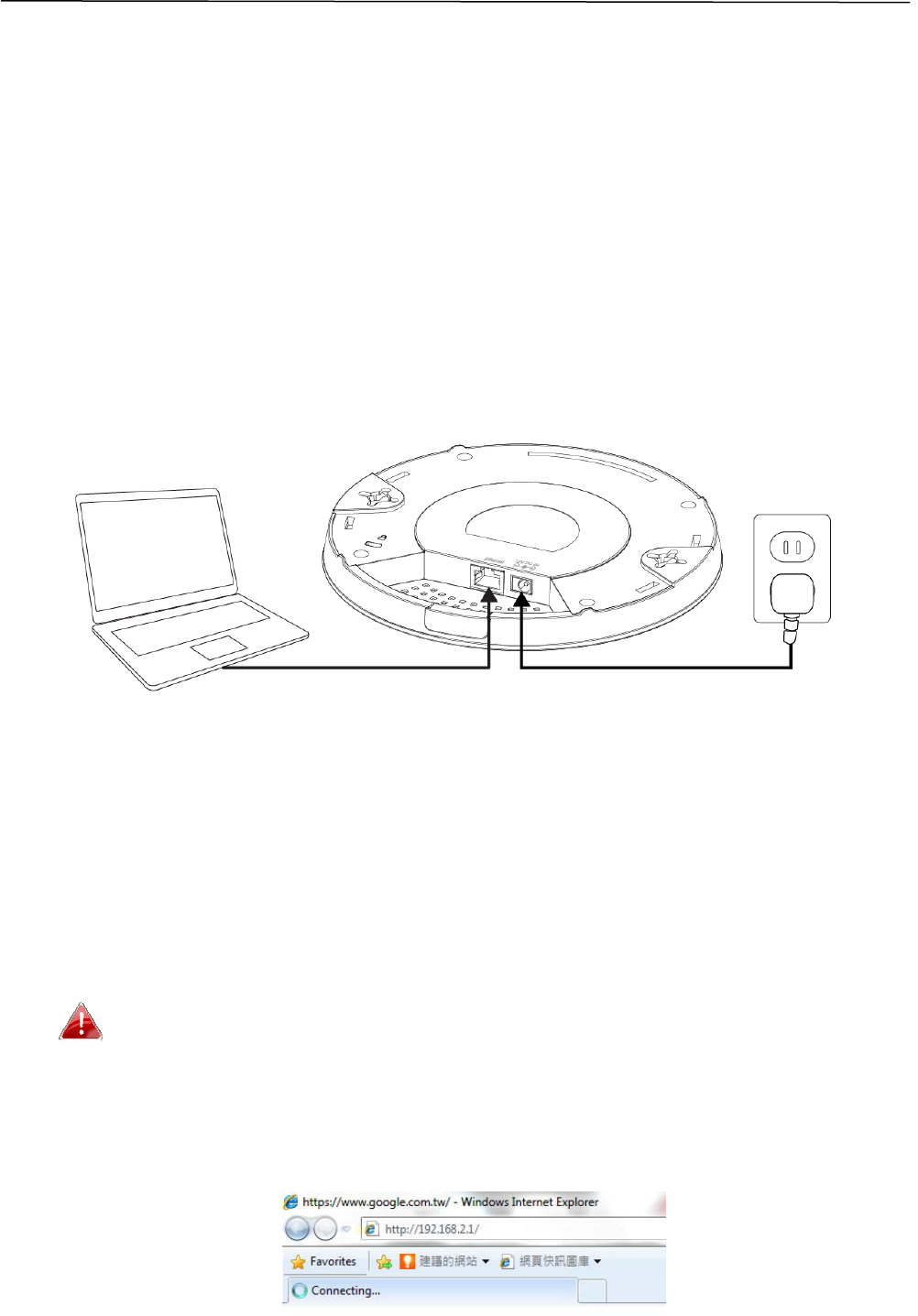

1. ConnecttheaccesspointtoacomputerviaEthernetcable.



2. Connectthepoweradaptertotheaccesspoint’s12VDCportandplugthe

poweradapterintoapowersupplyusingtheincludedcable.



3. Pleasewaitamomentfortheaccesspointtostartup.Theaccesspointis

readywhentheLEDisPurple.



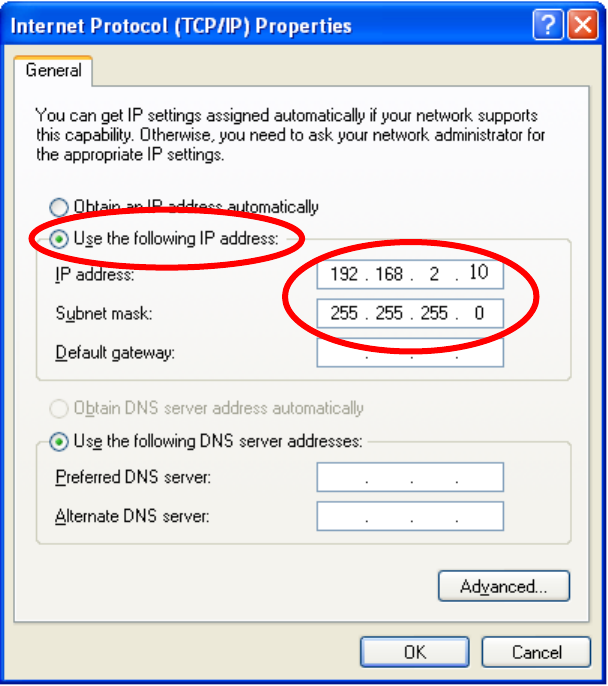

4. Setyourcomputer’sIPaddressto192.168.2.xwherexisanumberinthe

range3–100.Ifyouareunsurehowtodothis,pleaserefertotheuser

manualformoreinformation.



Pleaseensuretherearenootheractivenetworkconnectionson

yourcomputer(disconnectWi‐FiconnectionsandEthernet

cables).



5. Entertheaccesspoint’sdefaultIPaddress192.168.2.1intotheURLbarof

awebbrowser.



8



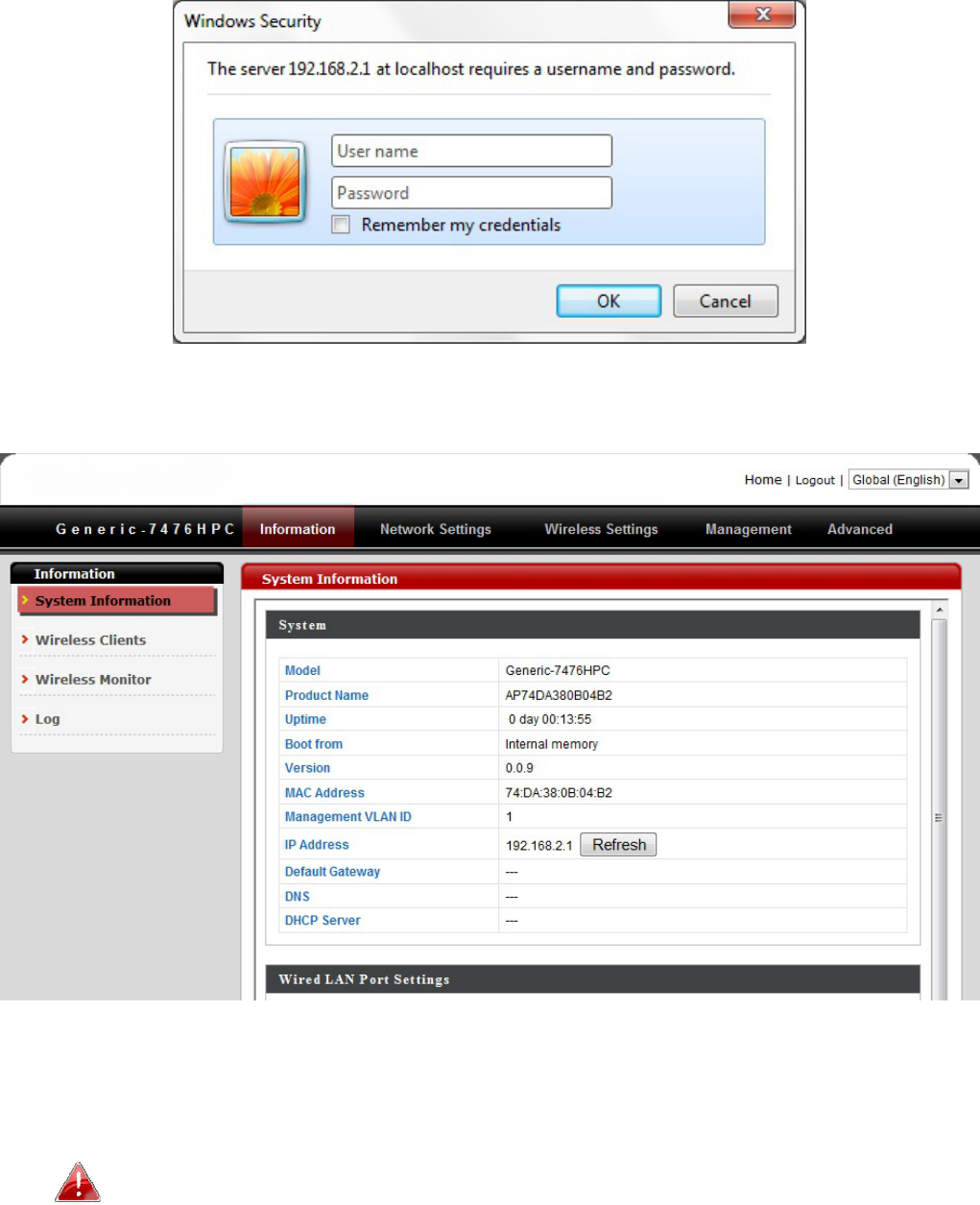

6. Youwillbepromptedforausernameandpassword.Enterthedefault

username“admin”andthedefaultpassword“admin”.



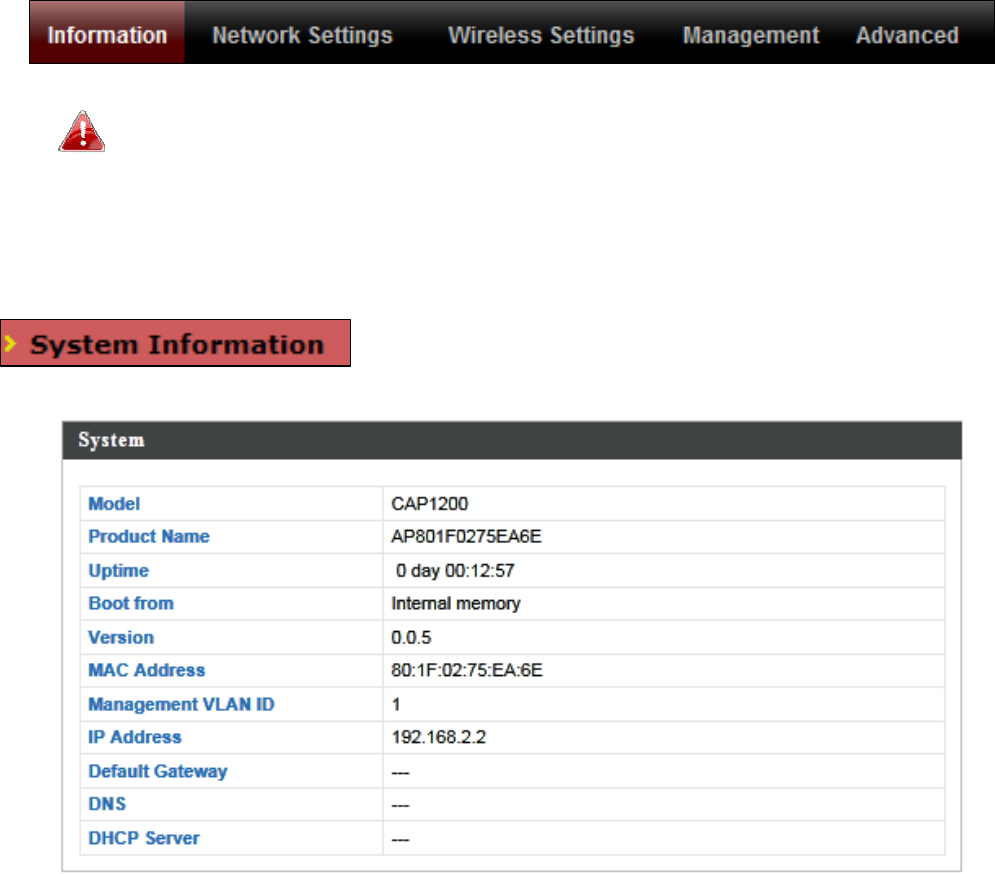

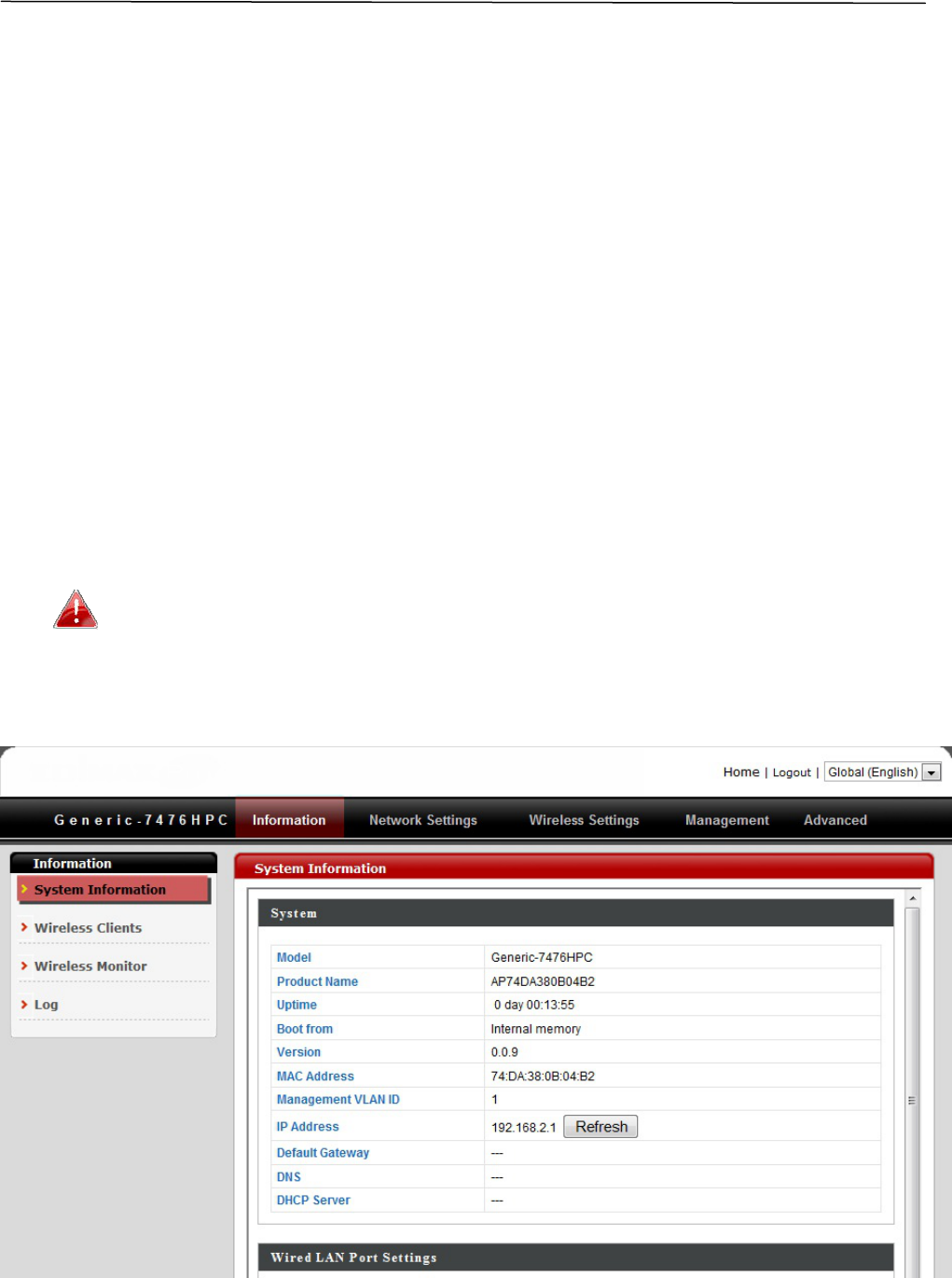

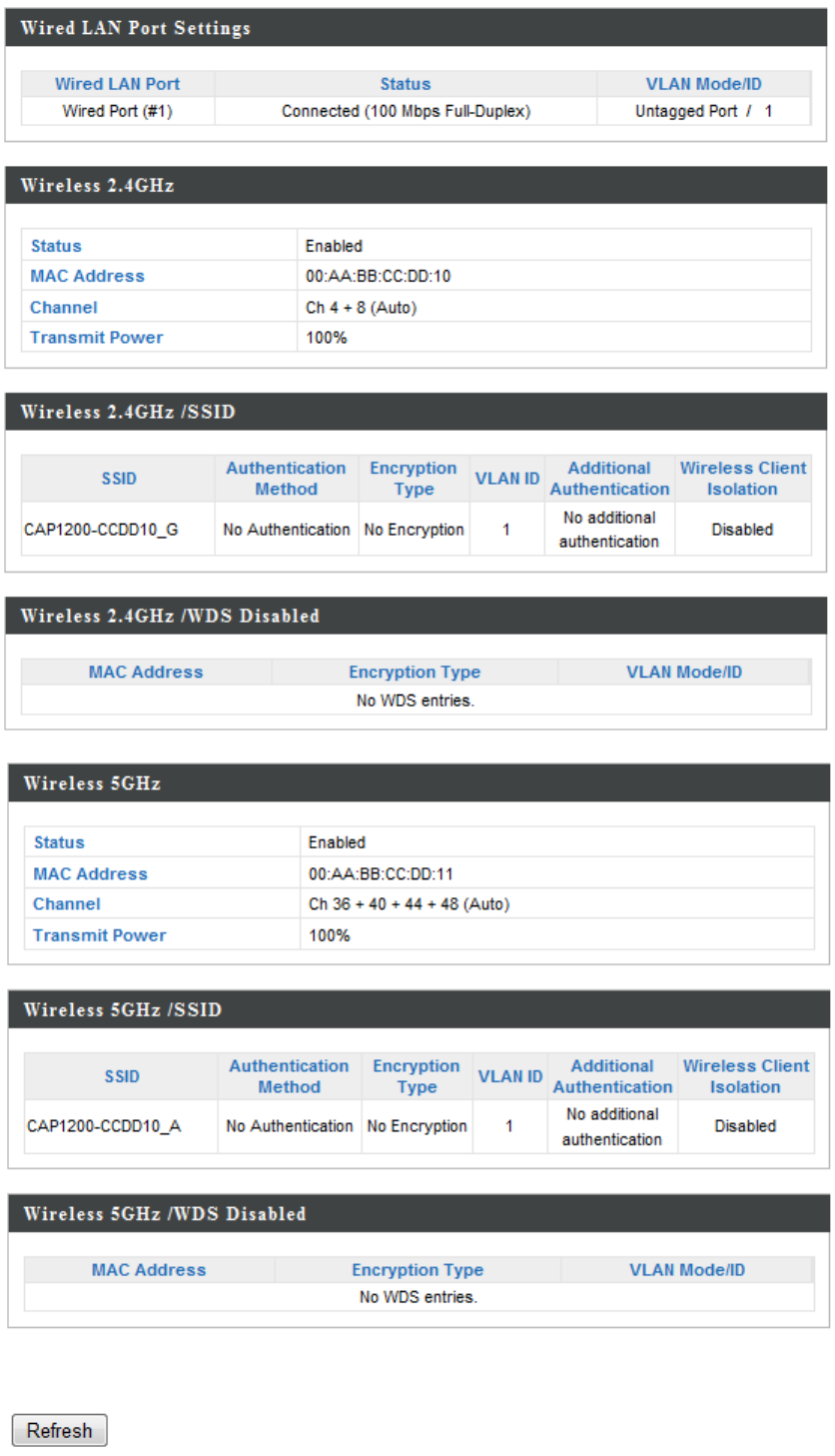

7. Youwillarrivethe“SystemInformation”screenshownbelow.



8. Next,pleasefollowtheinstructionsbelowinII‐2.BasicSettingsto

configuretheaccesspoint’sbasicsettings.



Formoreadvancedconfigurations,pleaserefertoIV.Browser

BasedConfigurationInterface.



9



II‐2.BasicSettings



Theinstructionsbelowwillhelpyoutoconfigurethefollowingbasicsettings

oftheaccesspoint:



‐ LANIPAddress

‐ 2.4GHz&5GHzSSID&Security

‐ AdministratorName&Password

‐ Time&Date



Itisrecommendedyouconfigurethesesettingsbeforeusingthe

accesspoint.



1. Tochangetheaccesspoint’sLANIPaddress,goto“NetworkSettings”>

“LAN‐sideIPAddress”andyouwillseethescreenbelow.



2. EntertheIPaddresssettingsyouwishtouseforyouraccesspoint.You

canuseadynamic(DHCP)orstaticIPaddress,dependingonyournetwork

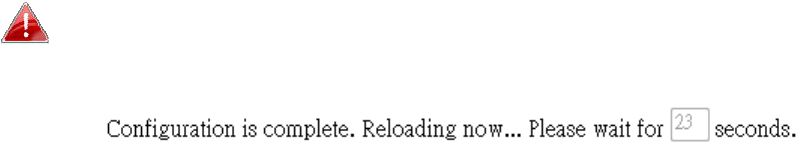

environment.Click“Apply”tosavethechangesandwaitafewmoments

fortheaccesspointtoreload.



Whenyouchangeyouraccesspoint’sIPaddress,youneedtouse

thenewIPaddresstoaccessthebrowserbasedconfiguration

interfaceinsteadofthedefaultIP192.168.2.1.



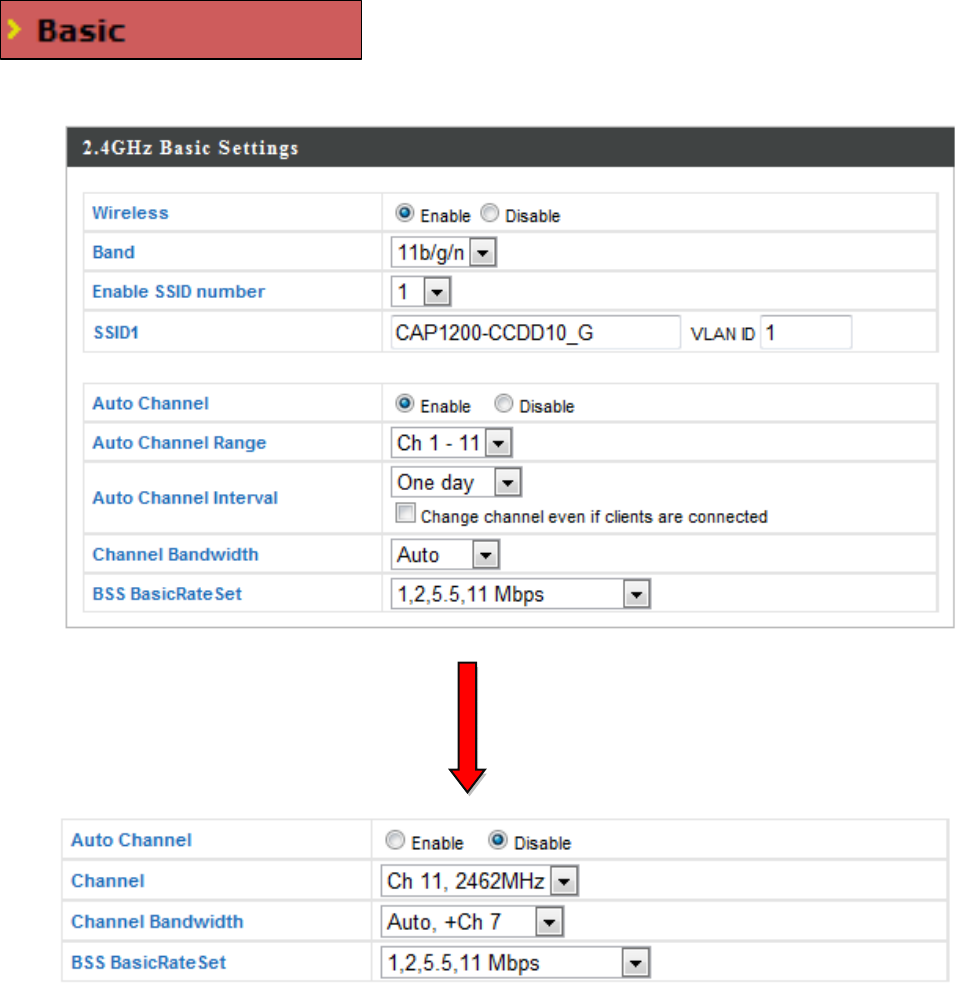

3. TochangetheSSIDofyouraccesspoint’s2.4GHzwirelessnetwork(s),go

to“WirelessSetting”>“2.4GHz11bgn”>“Basic”.EnterthenewSSIDfor

your2.4GHzwirelessnetworkinthe“SSID1”fieldandclick“Apply”.



10



Toutilizemultiple2.4GHzSSIDs,openthedropdownmenu

labelled“EnableSSIDnumber”andselecthowmanySSIDsyou

require.ThenenteranewSSIDinthecorrespondingnumbered

fieldsbelow,beforeclicking“Apply”.



4. Toconfigurethesecurityofyouraccesspoint’s2.4GHzwireless

network(s),goto“WirelessSetting”>“2.4GHz11bgn”>“Security”.Select

an“AuthenticationMethod”andentera“Pre‐sharedKey”or“Encryption

Key”dependingonyourchoice,thenclick“Apply”.



IfusingmultipleSSIDs,specifywhichSSIDtoconfigureusingthe

“SSID”dropdownmenu.



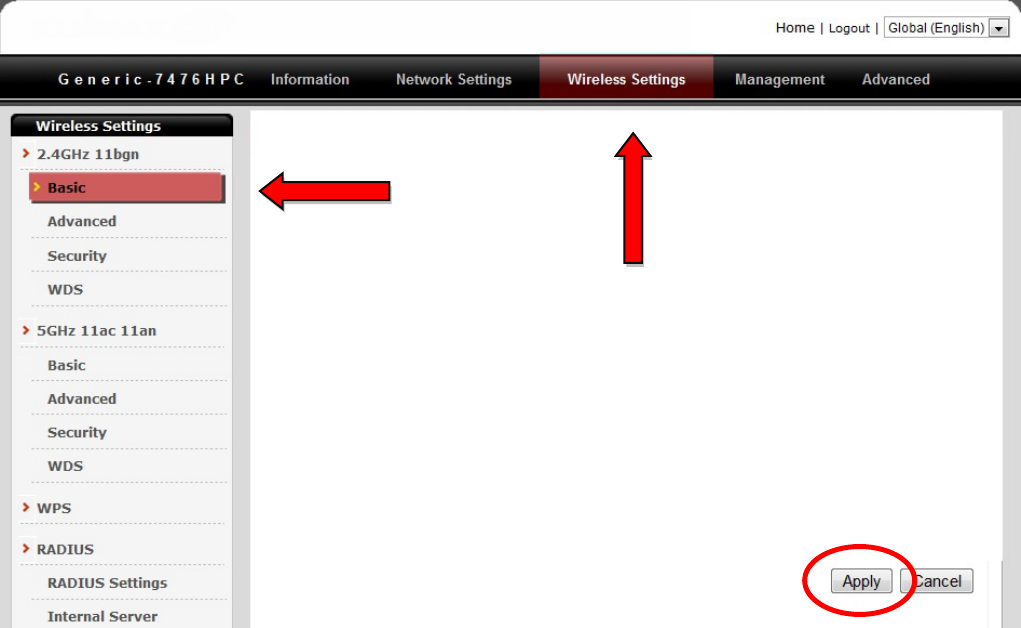

5. Goto“WirelessSetting”>“5GHz11ac11an”andrepeatsteps3&4for

theaccesspoint’s5GHzwirelessnetwork.



6. Tochangetheadministratornameandpasswordforthebrowserbased

configurationinterface,goto“Management”>“Admin”.

11



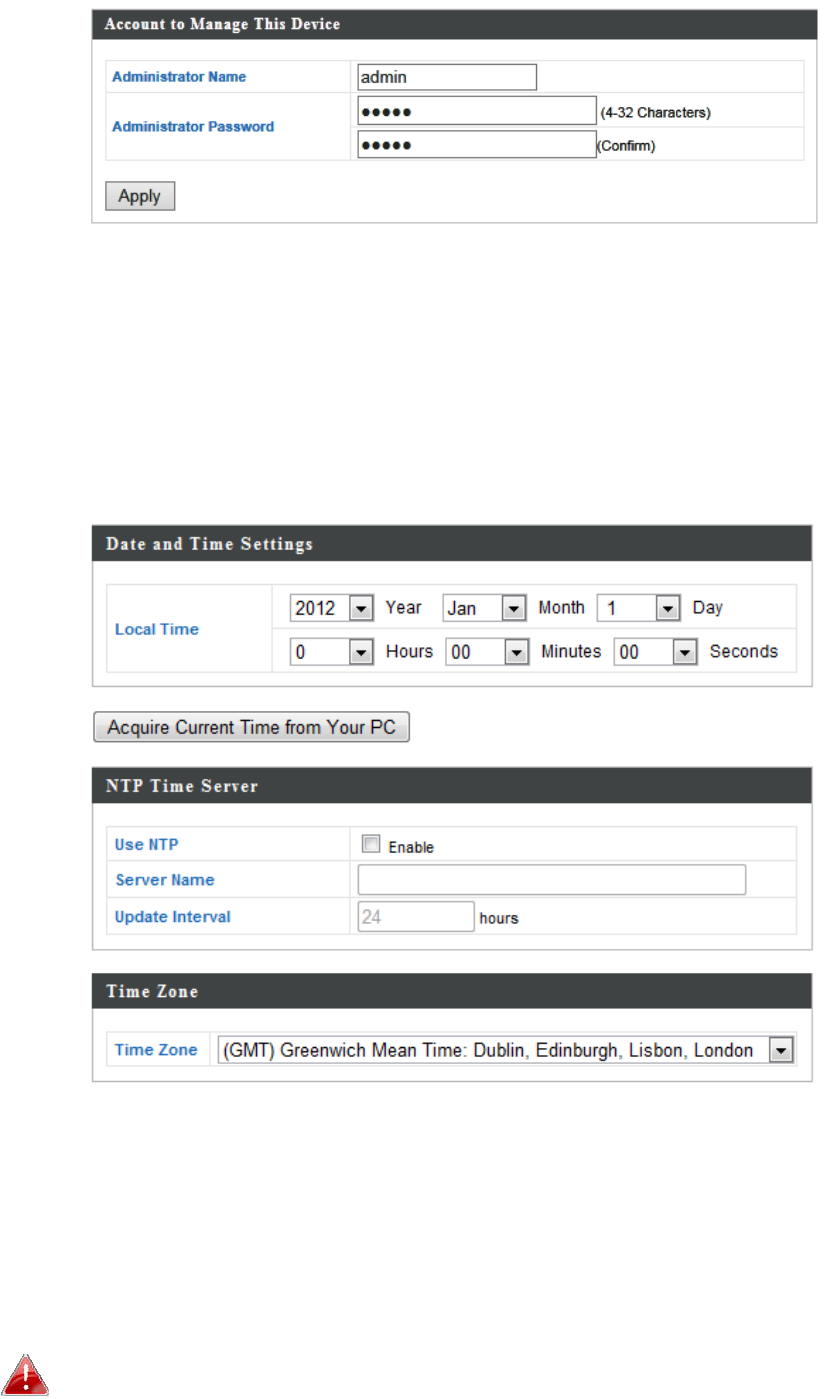

7. Completethe“AdministratorName”and“AdministratorPassword”fields

andclick“Apply”.



8. Tosetthecorrecttimeforyouraccesspoint,goto“Management”>

“DateandTime”.



9. Setthecorrecttimeandtimezoneforyouraccesspointusingthedrop

downmenus.TheaccesspointalsosupportsNTP(NetworkTimeProtocol)

soalternativelyyoucanenterthehostnameorIPaddressofatimeserver.

Click“Apply”whenyouarefinished.



Youcanusethe“AcquireCurrentTimefromyourPC”buttonif

youwishtosettheaccesspointtothesametimeasyourPC.

12



10. Thebasicsettingsofyouraccesspointarenowconfigured.Please

refertoIII.HardwareInstallationforguidanceonconnectingyouraccess

pointtoarouterorPoEswitch.



13



III. HardwareInstallation



III‐1. ConnectingtheaccesspointtoarouterorPoEswitch

1. Ifyouneedto,removethecapfromtheundersideoftheaccesspoint.This

createsextraspaceforyourcablestopassthrough.



2. ConnectarouterorPoEswitchtotheaccesspoint’sLANportusingan

Ethernetcable.



3. Ifyouareusingarouter,thenconnect

thepoweradaptertotheaccesspoint’s

12VDCportandplugthepower

adapterintoapowersupply.



Donotusethepoweradapterif

youareusingaPoEswitch.

14



III‐2. Mountingtheaccesspointtoaceiling

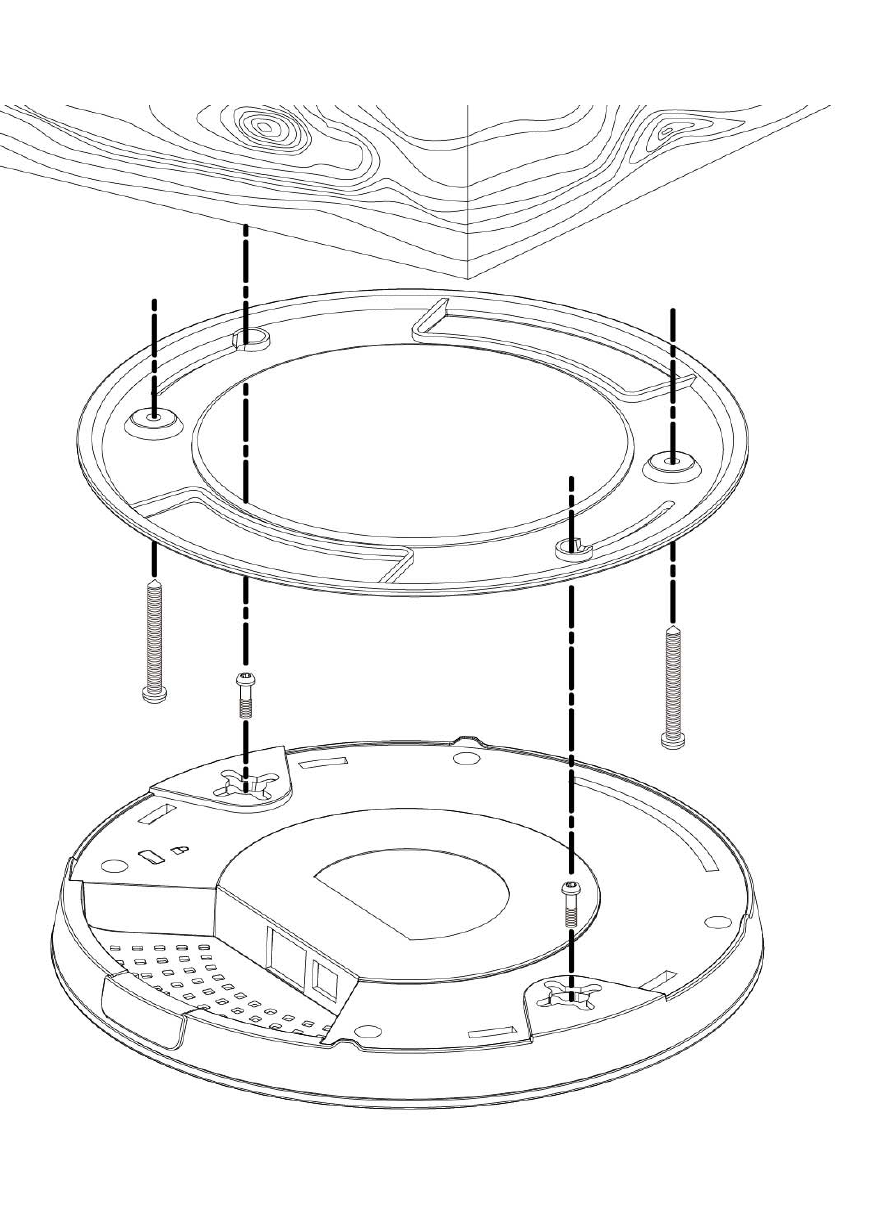

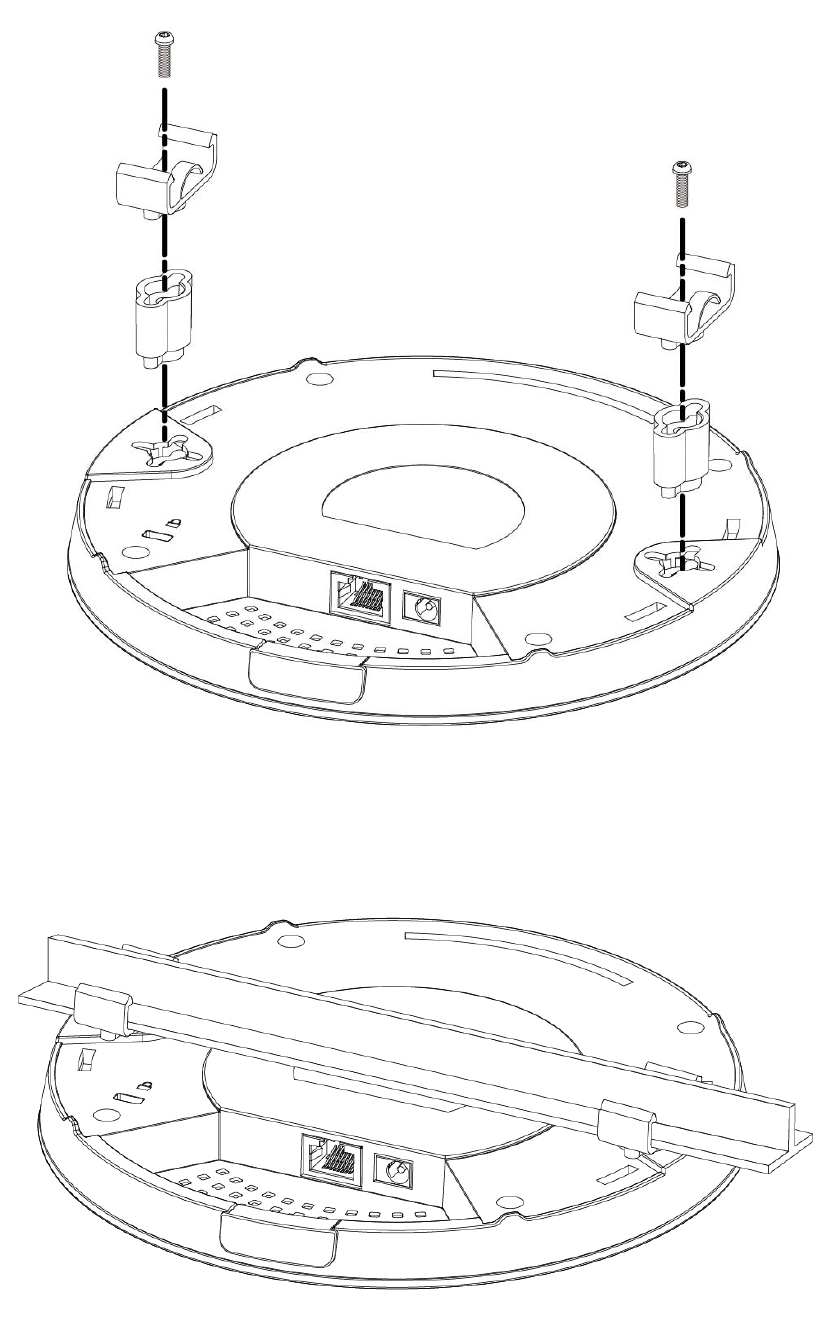

Tomounttheaccesspointtoaceiling,pleasefollowtheinstructionsbelow

andrefertodiagramA&B.



ForWoodenCeilings(refertodiagramA):



1. Placetheceilingmountbrackettoaceilinginyourdesiredlocationand

insertscrewiiithroughholei(x2)andtightentofixthebracketinplace.



2. Whentheceilingbracketisinplace,insetscrewivintoholev(x2)onthe

accesspoint.



3. Fixtheaccesspointtotheceilingbracketbyinsertingtheattachedscrews

ivintoholeviandtwistingtheaccesspoint.



4. Locktheaccesspointfirmlyintoplacewhenbytwistingittoalignscrews

ivwiththegroovesintheceilingmount.



ForOtherCeilings(refertodiagramB):



1. Placetheceilingmountbrackettoaceilinginyourdesiredlocationand

Insertscrewiithroughholei(x2)andtightentofixthebracketinplace,as

showninA.



2. Insertscrewiiithroughholeiandintotherearofscrewiiandtightento

provideadditionalstrength.



3. Whentheceilingbracketisinplace,insertscrewivintoholev(x2)onthe

accesspoint.



4. Fixtheaccesspointtotheceilingbracketbyinsertingtheattachedscrews

ivintoholeviandtwistingtheaccesspoint.



5. Locktheaccesspointfirmlyintoplacebytwistingittoalignscrewsivwith

thegroovesintheceilingmount.



15



A

i

ii

iii

16



B

17



III‐3. T‐RailMount

TomounttheaccesspointtoaT‐Rail,pleasefollowtheinstructionsbelow

andrefertodiagramC,D&E.



1. SelectthecorrectsizeT‐Railbracketfromthetwosizeswhichare

includedinthepackagecontents.



2. AttachtheT‐Railbracketitoholeiiusingscrewiii(x2)asshowninC.



IfyouneedmorespacebetweentheaccesspointandtheT‐Rail,

thenadditionallyusebracketivbetweenbracketiandholeii(x2),

andusethelongerscrews(x2)includedinthepackagecontents.



3. CliptheaccesspointontoyourT‐RailusingthenowattachedT‐Rail

bracket.



C

18



D

E

19



IV. BrowserBasedConfigurationInterface



Thebrowser‐basedconfigurationinterfaceenablesyoutoconfigurethe

accesspoint’sadvancedfeatures.Thedevicefeaturesarangeofadvanced

functionssuchasMACfiltering,MACRADIUSauthentication,VLAN

configurations,upto32SSIDsandmanymore.Toaccessthebrowserbased

configurationinterface:



1. ConnectacomputertoyouraccesspointusinganEthernetcable.



2. Enteryouraccesspoint’sIPaddressintheURLbarofawebbrowser.The

accesspoint’sdefaultIPaddressis192.168.2.1.



3. Youwillbepromptedforausernameandpassword.Thedefault

usernameis“admin”andthedefaultpasswordis“1234”,thoughitwas

recommendedthatyouchangethepasswordduringsetup(seeII‐2.Basic

Settings).



Ifyoucannotrememberyourpassword,resettheaccesspoint

backtoitsfactorydefaultsettings.RefertoI‐5.Reset



4. Youwillarriveatthe“SystemInformation”screenshownbelow.



20



5. Usethemenuacrossthetopanddowntheleftsidetonavigate.





21



6. Click“Apply”tosavechangesandreloadtheaccesspoint,or“Cancel”to

cancelchanges.



Pleasewaitafewsecondsfortheaccesspointtoreloadafteryou

“Apply”changes,asshownbelow.



7. Pleaserefertothefollowingchaptersforfulldescriptionsofthebrowser

basedconfigurationinterfacefeatures.



22



IV‐1. Information



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐1‐1. SystemInformation

The“SystemInformation”pagedisplaysbasic

systeminformationabouttheaccesspoint.



23



24



System

ModelDisplaysthemodelnumberoftheaccess

point.

ProductNameDisplaystheproductnameforreference,

whichconsistsof“AP”plustheMACaddress.

UptimeDisplaysthetotaltimesincethedevicewas

turnedon.

BootFromDisplaysinformationforthebooted

hardware.

VersionDisplays the firmware version.

MACAddressDisplays the accesspoint’sMACaddress.

ManagementVLAN

ID

DisplaysthemanagementVLANID.

IPAddressDisplaystheIPaddressofthisdevice.Click

“Refresh”toupdatethisvalue.

Default

Gateway

DisplaystheIPaddressofthedefault

gateway.

DNSIPaddressofDNS(DomainNameServer).

DHCPServerIPaddressofDHCPServer.



WiredLANPortSettings

WiredLANPort SpecifieswhichLANport.

StatusDisplaysthestatusoftheLANport(connected

ordisconnected).

VLANMode/IDDisplaystheVLANmode(taggedoruntagged)

andVLANIDfortheLANport.SeeIV‐2‐3.

VLAN



Wireless2.4GHz(5GHz)

StatusDisplaysthestatusofthe2.4GHzor5GHz

wireless(enabledordisabled).

MACAddressDisplays the accesspoint’sMACaddress.

ChannelDisplaysthechannelnumberthespecified

wirelessfrequency isusingforbroadcast.

TransmitPower Displaysthewirelessradiotransmitpower

levelasapercentage.



25



Wireless2.4GHz (5GHz)/SSID

SSIDDisplays the SSIDname(s)forthespecified

frequency.

Authentication

Method

Displaystheauthenticationmethodforthe

specifiedSSID.SeeIV‐3.WirelessSettings

EncryptionType Displays the encryptiontypeforthespecified

SSID.SeeIV‐3.WirelessSettings

VLANIDDisplaystheVLANIDforthespecifiedSSID.

SeeIV‐2‐3.VLAN

Additional

Authentication

Displaystheadditionalauthenticationtypefor

thespecifiedSSID.SeeIV‐3.WirelessSettings

WirelessClient

Isolation

Displayswhetherwirelessclientisolationisin

useforthespecifiedSSID.See IV‐2‐3.VLAN



Wireless2.4GHz (5GHz)/WDSStatus

MACAddressDisplays the peeraccesspoint’sMACaddress.

EncryptionType Displaystheencryptiontypeforthespecified

WDS.SeeIV‐3‐1‐4.WDS

VLANMode/IDDisplaystheVLANIDforthespecifiedWDS.

SeeIV‐3‐1‐4.WDS



RefreshClicktorefreshallinformation.



26



IV‐1‐2. WirelessClients

The“WirelessClients”pagedisplays

informationaboutallwirelessclients

connectedtotheaccesspointonthe2.4GHzor5GHzfrequency.



Refreshtime

AutoRefreshTimeSelectatimeintervalfortheclienttablelistto

automaticallyrefresh.

ManualRefresh Clickrefreshtomanuallyrefreshtheclient

table.



2.4GHz(5GHz)WLANClientTable

SSIDDisplaystheSSIDwhichtheclientis

connectedto.

MACAddressDisplaystheMACaddressoftheclient.

TxDisplaysthetotaldatapacketstransmittedby

thespecifiedclient.

RxDisplaysthetotaldatapacketsreceivedby

thespecifiedclient.

Signal(%)Displaysthewirelesssignalstrengthforthe

specifiedclient.

27



ConnectedTime Displaysthetotaltimethewirelessclienthas

beenconnectedtotheaccesspoint.

IdleTimeClientidletimeisthetimeforwhichtheclient

hasnottransmittedanydatapacketsi.e.is

idle.

VendorThevendoroftheclient’swirelessadapteris

displayedhere.



28



IV‐1‐3. WirelessMonitor

WirelessMonitorisatoolbuiltintotheaccess

pointtoscanandmonitorthesurrounding

wirelessenvironment.Selectafrequencyandclick“Scan”todisplayalistof

allSSIDswithinrangealongwithrelevantdetailsforeachSSID.



WirelessMonitor

SiteSurveySelectwhichfrequency(orboth)toscan,and

click“Scan”tobegin.

ChannelSurvey

Result

Afterascaniscomplete,click“Export”tosave

theresultstolocalstorage.



SiteSurveyResults

ChDisplays the channelnumberusedbythe

specifiedSSID.

SSIDDisplaystheSSIDidentifiedbythescan.

MACAddressDisplays the MACaddressofthewireless

router/accesspointforthespecifiedSSID.

SecurityDisplaystheauthentication/encryptiontype

ofthespecifiedSSID.

29



Signal(%)Displaysthecurrentsignalstrengthofthe

SSID.

TypeDisplaysthe802.11wirelessnetworking

standard(s)ofthespecifiedSSID.

VendorDisplaysthevendorofthewireless

router/accesspointforthespecifiedSSID.



30



IV‐1‐4. Log

Thesystemlogdisplayssystemoperation

informationsuchasuptimeandconnection

processes.Thisinformationisusefulfornetworkadministrators.



Whenthelogisfull,oldentriesareoverwritten.



SaveClicktosavethelogasafileonyourlocal

computer.

ClearClearalllogentries.

RefreshRefreshthecurrentlog.



31



Thefollowinginformation/eventsarerecordedbythelog:



 WirelessClient

Connected&disconnected

Keyexchangesuccess&fail

 Authentication

Authenticationfailorsuccessful.

 Association

Successorfail

 WPS

M1‐M8messages

WPSsuccess

 ChangeSettings

 SystemBoot

Displayscurrentmodelname

 NTPClient

 WiredLink

LANPortlinkstatusandspeedstatus

 ProxyARP

ProxyARPmodulestart&stop

 Bridge

Bridgestart&stop.

 SNMP

SNMPserverstart&stop.

 HTTP

HTTPstart&stop.

 HTTPS

HTTPSstart&stop.

 SSH

SSH‐clientserverstart&stop.

 Telnet

Telnet‐clientserverstartorstop.

 WLAN(2.4G)

WLAN(2.4G]channelstatusandcountry/regionstatus

 WLAN(5G)

WLAN(5G)channelstatusandcountry/regionstatus

 ADT



32



IV‐2. NetworkSettings



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐2‐1. LAN‐SideIPAddress

The“LAN‐sideIPaddress”pageallowsyouto

configureyouraccesspointonyourLocalArea

Network(LAN).YoucanenabletheaccesspointtodynamicallyreceiveanIP

addressfromyourrouter’sDHCPserveroryoucanspecifyastaticIPaddress

foryouraccesspoint,aswellasconfigureDNSservers.



Theaccesspoint’sdefaultIPaddressis192.168.2.1.



LAN‐sideIPAddress

IPAddress

Assignment

Select“DHCPClient”foryouraccesspointto

beassignedadynamicIPaddressfromyour

router’sDHCPserver,orselect“StaticIP”to

manuallyspecifyastatic/fixedIPaddressfor

youraccesspoint(below).

IPAddressSpecifytheIPaddresshere.ThisIPaddress

willbeassignedtoyouraccesspointandwill

33



replacethedefaultIPaddress.

SubnetMaskSpecifyasubnetmask.Thedefaultvalueis

255.255.255.0

DefaultGatewayForDHCPusers,select“FromDHCP”toget

defaultgatewayfromyourDHCPserveror

“User‐Defined”toenteragatewaymanually.

ForstaticIPusers,thedefaultvalueisblank.



DHCPuserscanselecttogetDNSservers’IPaddressfromDHCPormanually

enteravalue.ForstaticIPusers,thedefaultvalueisblank.



PrimaryAddressDHCPuserscanselect“FromDHCP”toget

primaryDNSserver’sIPaddressfromDHCPor

“User‐Defined”tomanuallyenteravalue.For

staticIPusers,thedefaultvalueisblank.

SecondaryAddressUserscanmanuallyenteravaluewhenDNS

server’sprimaryaddressissetto

“User‐Defined”.



34



IV‐2‐2. LANPort

The“LANPort”pageallowsyouto

configurethesettingsforyouraccess

point’stwowiredLAN(Ethernet)ports.



WiredLANPortIdentifiesLANport1.

EnableEnable/disableLANport.

Speed&DuplexSelectaspeed&duplextypeforLANport,or

usethe“Auto”value.LANportscanoperateup

to1000Mbpsandfull‐duplexenables

simultaneousdatapackets transfer/receive.

FlowControlEnable/disableflowcontrol.Flowcontrolcan

pausenewsessionrequestuntilcurrentdata

processingiscomplete,inordertoavoid

deviceoverloadsunderheavytraffic.

802.3azEnable/disable802.3az.802.3azisanEnergy

EfficientEthernetfeaturewhichdisables

unusedinterfacestoreducepowerusage.



35



IV‐2‐3. VLAN

The“VLAN”(VirtualLocalAreaNetwork)

enablesyoutoconfigureVLANsettings.A

VLANisalocalareanetworkwhichmaps

workstationsvirtuallyinsteadofphysicallyandallowsyoutogrouptogether

orisolateusersfromeachother.VLANIDs1–4094aresupported.



VLANIDsintherange1–4094aresupported.



VLANInterface

WiredLAN

Port/Wireless

IdentifiesLANport1and wirelessSSIDs

(2.4GHzor5GHz).

VLANModeSelect“TaggedPort”or“UntaggedPort”for

LANinterface.

VLANIDSetaVLANIDforspecifiedinterface,if

“UntaggedPort”isselected.



ManagementVLAN

VLANIDSpecifytheVLANIDofthemanagementVLAN.

OnlythehostsbelongingtothesameVLANcan

managethedevice.



36



IV‐3. WirelessSettings



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐3‐1. 2.4GHz11bgn

The“2.4GHz11bgn”menuallowsyoutoview

andconfigureinformationforyouraccess

point’s2.4GHzwirelessnetworkacrossfour

categories:Basic,Advanced,SecurityandWDS.



37



IV‐3‐1‐1.Basic

The“Basic”screendisplaysbasicsettingsfor

youraccesspoint’s2.4GHzWi‐Finetwork(s).



38



WirelessEnableordisabletheaccesspoint’s2.4GHz

wirelessradio.Whendisabled,no2.4GHz

SSIDswillbeactive.

BandSelectthewirelessstandardusedforthe

accesspoint.Combinationsof802.11b,

802.11g&802.11ncanbeselected.

EnableSSIDNumberSelecthowmanySSIDstoenableforthe

2.4GHzfrequencyfromthedropdownmenu.

Amaximumof16canbeenabled.

SSID#EntertheSSIDnameforthespecifiedSSID(up

to16).TheSSIDcanconsistofany

combinationofupto32alphanumeric

characters.

VLANIDSpecifyaVLANIDforeachSSID.

AutoChannelEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspoint’s2.4GHz

frequencybasedonavailabilityandpotential

interference.Whendisabled,selectachannel

manuallyasshowninthenexttable.

AutoChannelRangeSelectarangefromwhichtheautochannel

setting(above)willchooseachannel.

AutoChannel

Interval

Specifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),40MHz

(higherperformancebutpotentiallyhigher

interference)orAuto(automaticallyselect

basedoninterferencelevel).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



39



Whenautochannelisdisabled,selectawirelesschannelmanually:



Channel Selectawirelesschannelfrom1

–

11(1‐13).

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),40MHz

(higherperformancebutpotentiallyhigher

interference)orAuto(automaticallyselect

basedoninterferencelevel).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



40



IV‐3‐1‐2.Advanced

Thesesettingsareforexperiencedusersonly.

Pleasedonotchangeanyofthevaluesonthis

pageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoint.



ContentionSlot Select“Short”or“Long”

–

thisvalueisusedfor

contentionwindowsinWMM(seeIV‐3‐6.

WMM).

PreambleTypeSetthewirelessradio preambletype.The

preambletypein802.11basedwireless

communicationdefinesthelengthoftheCRC

(CyclicRedundancyCheck)blockfor

communicationbetweentheaccesspointand

roamingwirelessadapters.Thedefaultvalueis

“ShortPreamble”.

GuardIntervalSettheguardinterval. Ashorterintervalcan

improveperformance.

41



802.11gProtectionEnable/disable802.11gprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.

MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

BeaconInterval Setthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



42



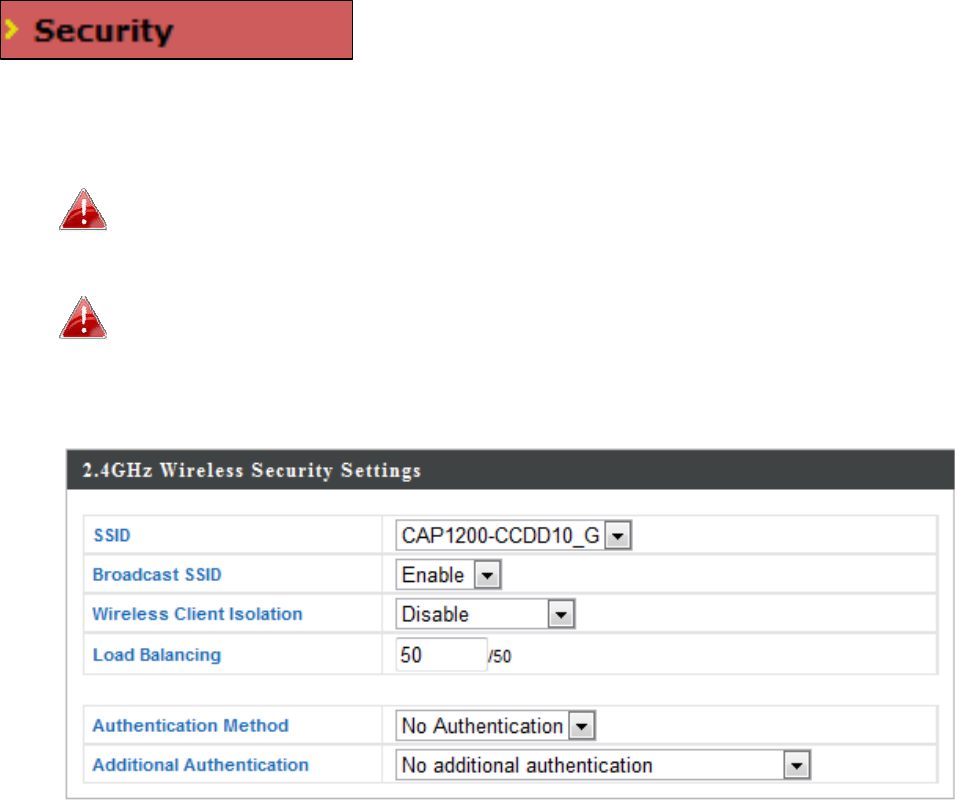

IV‐3‐1‐3.Security

Theaccesspointprovidesvarioussecurityoptions

(wirelessdataencryption).Whendatais

encrypted,informationtransmittedwirelesslycannotbereadbyanyonewho

doesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



43



SSIDSelectionSelect whichSSIDtoconfiguresecuritysettings

for.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsasan

availableWi‐Finetwork.Whendisabled,the

SSIDwillnotbevisibleasanavailableWi‐Fi

networktoclients–clientsmustmanually

entertheSSIDinordertoconnect.Ahidden

(disabled)SSIDistypicallymoresecurethana

visible(enabled)SSID.

WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattacksonclients’

usernamesandpasswords.

LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

Authentication

Method

Selectanauthenticationmethodfromthedrop

downmenuandrefertotheinformation

belowappropriatefor yourmethod.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenuandrefertothe

informationbelow(IV‐3‐1‐3‐6.)appropriatefor

yourmethod.



IV‐3‐1‐3‐1. NoAuthentication

Authenticationisdisabledandnopassword/keyisrequiredtoconnecttothe

accesspoint.



Disablingwirelessauthenticationisnotrecommended.When

disabled,anybodywithinrangecanconnecttoyourdevice’sSSID.



44



IV‐3‐1‐3‐2. WEP

WEP(WiredEquivalentPrivacy)isabasicencryptiontype.Forahigher

levelofsecurityconsiderusingWPAencryption.



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.

KeyTypeChoosefrom“ASCII”(anyalphanumerical

character0‐9,a‐zandA‐Z)or“Hex”(any

charactersfrom0‐9,a‐fandA‐F).

DefaultKeySelectwhichencryptionkey(1

–

4below)isthe

defaultkey.Forsecuritypurposes,youcanset

uptofourkeys(below)andchangewhichis

thedefaultkey.

EncryptionKey1

–



4

Enteryourencryptionkey/passwordaccording

totheformatyouselectedabove.



IV‐3‐1‐3‐3. IEEE802.1x/EAP



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.



IV‐3‐1‐3‐4. WPA‐PSK

WPA‐PSKisasecurewirelessencryptiontypewithstrongdata

protectionanduserauthentication,utilizing128‐bitencryptionkeys.



WPATypeSelectfromWPA/WPA2MixedMode‐PSK,

WPA2orWPAonly.WPA2issaferthanWPA

only,butnotsupportedbyallwirelessclients.

Pleasemakesureyourwirelessclientsupports

yourselection.

EncryptionSelect“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.

Pre‐SharedKeyChoosefrom“Passphrase”(8

–

63

45



Typealphanumericcharacters)or“Hex”(upto64

charactersfrom0‐9,a‐fandA‐F).

Pre‐SharedKeyPleaseenter asecuritykey/passwordaccording

totheformatyouselectedabove.



IV‐3‐1‐3‐5. WPA‐EAP



WPATypeSelectfromWPA/WPA2MixedMode‐EAP,

WPA2‐EAPorWPA‐EAP.

EncryptionSelect“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.



WPA‐EAPmustbedisabledtouseMAC‐RADIUSauthentication.

IV‐3‐1‐3‐6. AdditionalAuthentication

Additionalwirelessauthenticationmethodscanalsobeused:



MACAddressFilter

RestrictwirelessclientsaccessbasedonMACaddressspecifiedintheMAC

filtertable.



SeeIV‐3‐5.MACFiltertoconfigureMACfiltering.



MACFilter&MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessusingbothoftheaboveMACfiltering&

RADIUSauthenticationmethods.



MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessbasedonMACaddressviaaRADIUSserver,or

passwordauthenticationviaaRADIUSserver.



SeeIV‐3‐4.RADIUStoconfigureRADIUSservers.



WPSmustbedisabledtouseMAC‐RADIUSauthentication.See

IV‐3‐3.forWPSsettings.



46



MACRADIUS

Password

SelectwhethertouseMACaddressor

passwordauthenticationviaRADIUSserver.If

youselect“Usethefollowingpassword”,enter

thepasswordinthefieldbelow.Thepassword

shouldmatchthe“SharedSecret”usedin

IV‐3‐4.RADIUS.



47



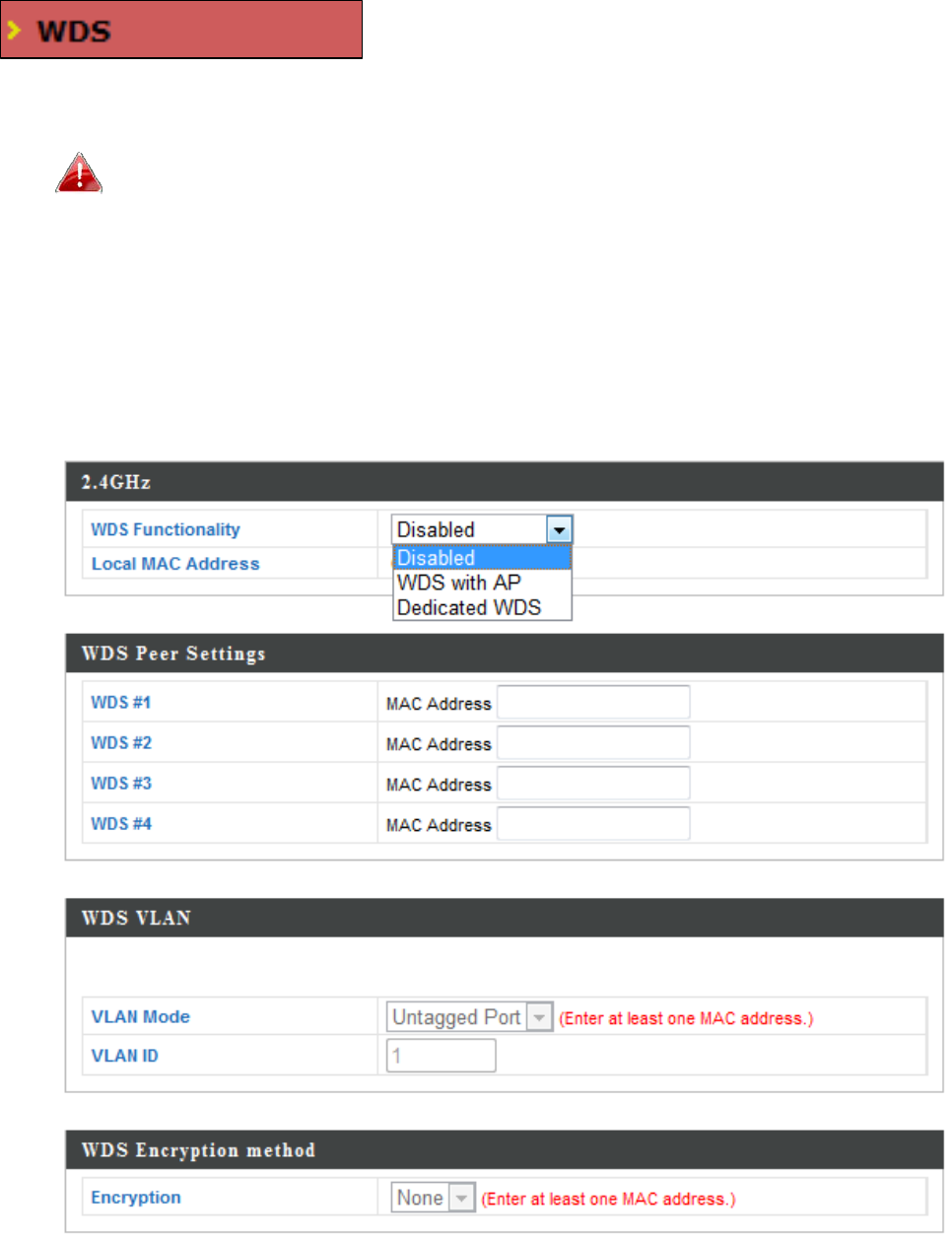

IV‐3‐1‐4.WDS

WirelessDistributionSystem(WDS)can

bridge/repeataccesspointstogetherinan

extendednetwork.WDSsettingscanbeconfiguredasshownbelow.



WhenusingWDS,configuretheIPaddressofeachaccesspointto

beinthesamesubnetandensurethereisonlyoneactiveDHCP

serveramongconnectedaccesspoints,preferablyontheWAN

side.



WDSmustbeconfiguredoneachaccesspoint,usingcorrectMACaddresses.

Allaccesspointsshouldusethesamewirelesschannelandencryption

method.



48



2.4GHz

WDSFunctionalitySelect“WDSwithAP”touseWDSwithaccess

pointor“DedicatedWDS”touseWDSandalso

blockcommunicationwithregularwireless

clients.WhenWDSisused,eachaccesspoint

shouldbeconfiguredwithcorrespondingMAC

addresses,wirelesschannelandwireless

encryptionmethod.

LocalMACAddressDisplaystheMACaddressofyouraccesspoint.



WDSPeerSettings

WDS#EntertheMACaddressforuptofourother

WDS devicesyouwishtoconnect.



WDSVLAN

VLANModeSpecifytheWDSVLANmode to“Untagged

Port” or“TaggedPort”.

VLANIDSpecifytheWDSVLANID when“Untagged

Port”isselectedabove.



WDSEncryptionmethod

EncryptionSelectwhethertouse“None”or“AES”

encryptionandenterapre‐sharedkeyforAES

consistingof 8‐63alphanumericcharacters.



49



IV‐3‐2. 5GHz11ac11an

The“5GHz11ac11an”menuallowsyoutoview

andconfigureinformationforyouraccesspoint’s

5GHzwirelessnetworkacrossfourcategories:Basic,Advanced,Securityand

WDS.



IV‐3‐2‐1.Basic

The“Basic”screendisplaysbasicsettingsfor

youraccesspoint’s5GHzWi‐Finetwork(s).



WirelessEnableordisabletheaccesspoint’s5GHz

wirelessradio.Whendisabled,no5GHzSSIDs

50



willbeactive.

BandSelectthewirelessstandardusedforthe

accesspoint.Combinationsof802.11a,

802.11n&802.11accanbeselected.

EnableSSIDNumberSelecthowmanySSIDstoenableforthe5GHz

frequencyfromthedropdownmenu.A

maximumof16canbeenabled.

SSID#EntertheSSIDnameforthespecifiedSSID(up

to16).TheSSIDcanconsistofany

combinationofupto32alphanumeric

characters.

VLANIDSpecifyaVLANIDforeachSSID.

AutoChannelEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspoint’s5GHz

frequencybasedonavailabilityandpotential

interference.Whendisabled,selectachannel

manuallyasshowninthenexttable.

AutoChannelRangeSelectarangefromwhichtheautochannel

setting(above)willchooseachannel.

AutoChannel

Interval

Specifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),Auto

40/20MHzorAuto80/40/20MHz

(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



Whenautochannelisdisabled,selectawirelesschannelmanually:



Channel Selectawirelesschannel.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),Auto

40/20MHzorAuto80/40/20MHz

51



(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



52



IV‐3‐2‐2.Advanced

Thesesettingsareforexperiencedusersonly.

Pleasedonotchangeanyofthevaluesonthis

pageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoint.



GuardIntervalSettheguardinterval. Ashorterintervalcan

improveperformance.

802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.

MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

53



TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

BeaconInterval Setthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



54



IV‐3‐2‐3.Security

Theaccesspointprovidesvarioussecurityoptions

(wirelessdataencryption).Whendatais

encrypted,informationtransmittedwirelessly

cannotbereadbyanyonewhodoesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



SSIDSelectionSelectwhichSSIDtoconfiguresecuritysettings

for.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsasan

availableWi‐Finetwork.Whendisabled,the

SSIDwillnotbevisibleasanavailableWi‐Fi

networktoclients–clientsmustmanually

entertheSSIDinordertoconnect.Ahidden

(disabled)SSIDistypicallymoresecurethana

visible(enabled)SSID.

55



WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattacksonclients’

usernamesandpasswords.

LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

Authentication

Method

Selectanauthenticationmethodfromthedrop

downmenuandrefertotheinformation

belowappropriateforyourmethod.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenuandrefertothe

informationbelowappropriateforyour

method.



PleasereferbacktoIV‐3‐1‐3.Securityformoreinformationonauthentication

andadditionalauthenticationtypes.



56



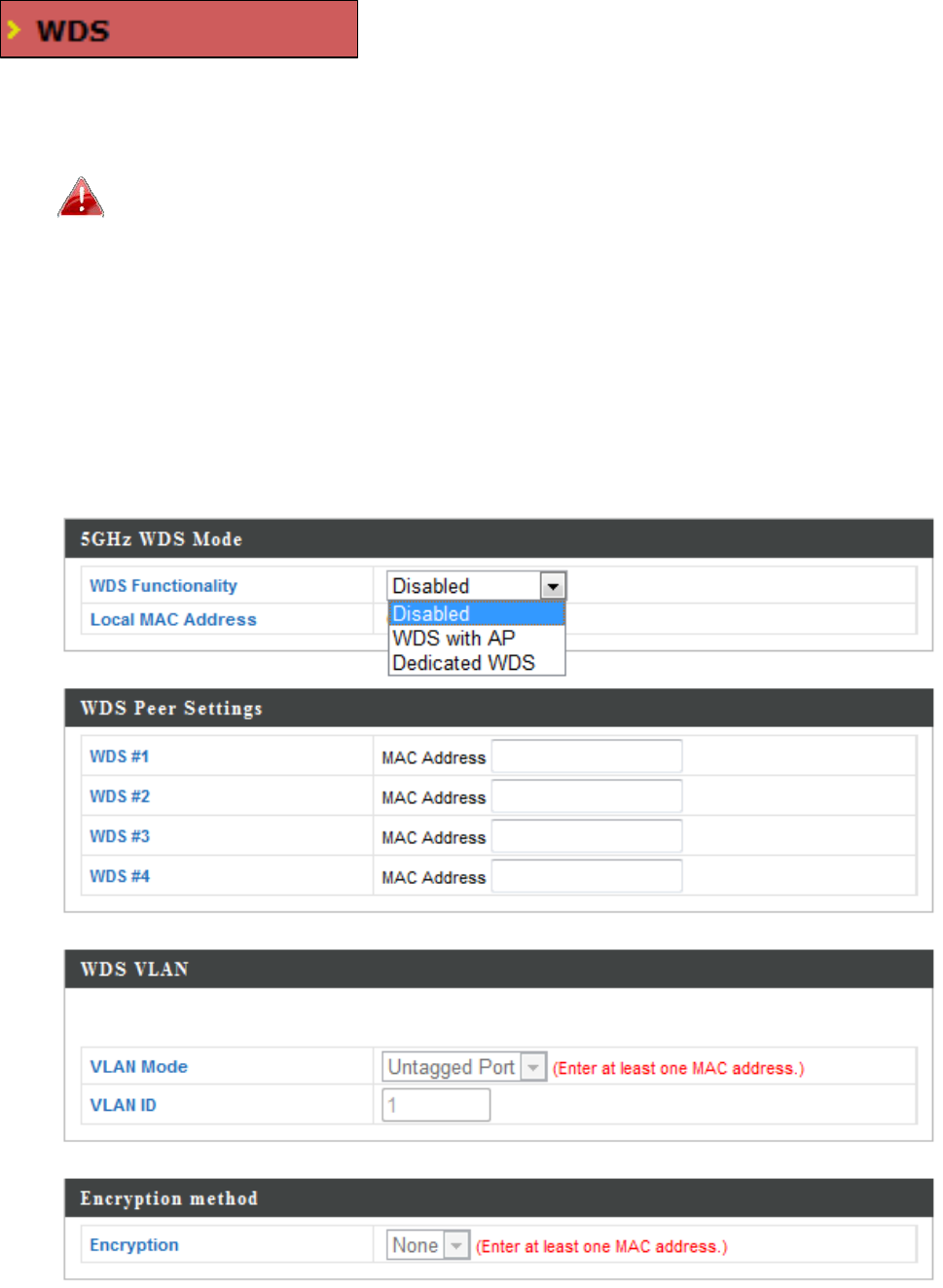

IV‐3‐2‐4.WDS

WirelessDistributionSystem(WDS)can

bridge/repeataccesspointstogetherinan

extendednetwork.WDSsettingscanbe

configuredasshownbelow.



WhenusingWDS,configuretheIPaddressofeachaccesspointto

beinthesamesubnetandensurethereisonlyoneactiveDHCP

serveramongconnectedaccesspoints,preferablyontheWAN

side.



WDSmustbeconfiguredoneachaccesspoint,usingcorrectMACaddresses.

Allaccesspointsshouldusethesamewirelesschannelandencryption

method.



57



5GHzWDSMode

WDSFunctionalitySelect“WDSwithAP”touseWDSwithaccess

pointor“DedicatedWDS”touseWDSandalso

blockcommunicationwithregularwireless

clients.WhenWDSisused,eachaccesspoint

shouldbeconfiguredwithcorrespondingMAC

addresses,wirelesschannelandwireless

encryptionmethod.

LocalMACAddressDisplaystheMACaddressofyouraccesspoint.



WDSPeerSettings

WDS#EntertheMACaddressforuptofourother

WDAdevicesyouwishtoconnect.



WDSVLAN

VLANModeSpecifytheWDSVLANmode to“Untagged

Port” or“TaggedPort”.

VLANIDSpecifytheWDSVLANID when“Untagged

Port” isselectedabove.



WDSEncryption

EncryptionSelectwhethertouse“None”or“AES”

encryptionandenterapre‐sharedkeyforAES

with8‐63alphanumericcharacters.



58



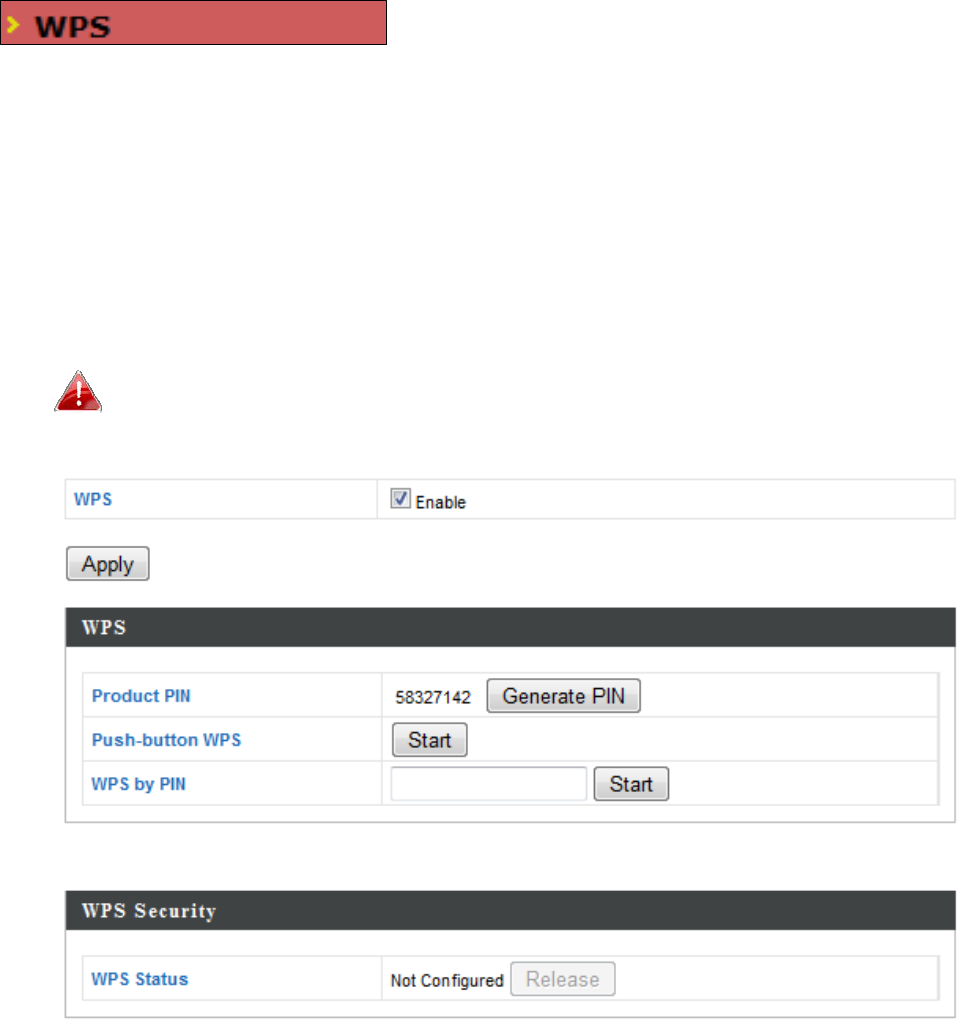

IV‐3‐3.WPS

Wi‐FiProtectedSetupisasimplewayto

establishconnectionsbetweenWPS

compatibledevices.WPScanbeactivatedoncompatibledevicesbypushinga

WPSbuttononthedeviceorfromwithinthedevice’sfirmware/configuration

interface(knownasPBCor“PushButtonConfiguration”).WhenWPSis

activatedinthecorrectmannerandatthecorrecttimefortwocompatible

devices,theywillautomaticallyconnect.“PINcodeWPS”isavariationofPBC

whichincludestheadditionaluseofaPINcodebetweenthetwodevicesfor

verification.



Pleaserefertomanufacturer’sinstructionsforyourotherWPS

device.



59



WPSCheck/uncheckthisboxtoenable/disableWPS

functionality.WPSmustbedisabledwhen

usingMAC‐RADIUSauthentication(see

IV‐3‐1‐3‐6&IV‐3‐4).



ProductPINDisplaystheWPSPINcodeofthedevice,used

forPINcodeWPS.Youwillberequiredtoenter

thisPINcodeintoanotherWPSdeviceforPIN

codeWPS.Click“GeneratePIN”togeneratea

newWPSPINcode.

Push‐ButtonWPSClick“Start”toactivateWPSontheaccess

pointforapproximately2minutes.Thishasthe

sameeffectasphysicallypushingtheaccess

point’sWPSbutton.

WPSbyPINEnterthePINcodeofanotherWPSdeviceand

click“Start”toattempttoestablishaWPS

connectionforapproximately2minutes.



WPSStatusWPSsecuritystatusisdisplayedhere.Click

“Release”tocleartheexistingstatus.



60



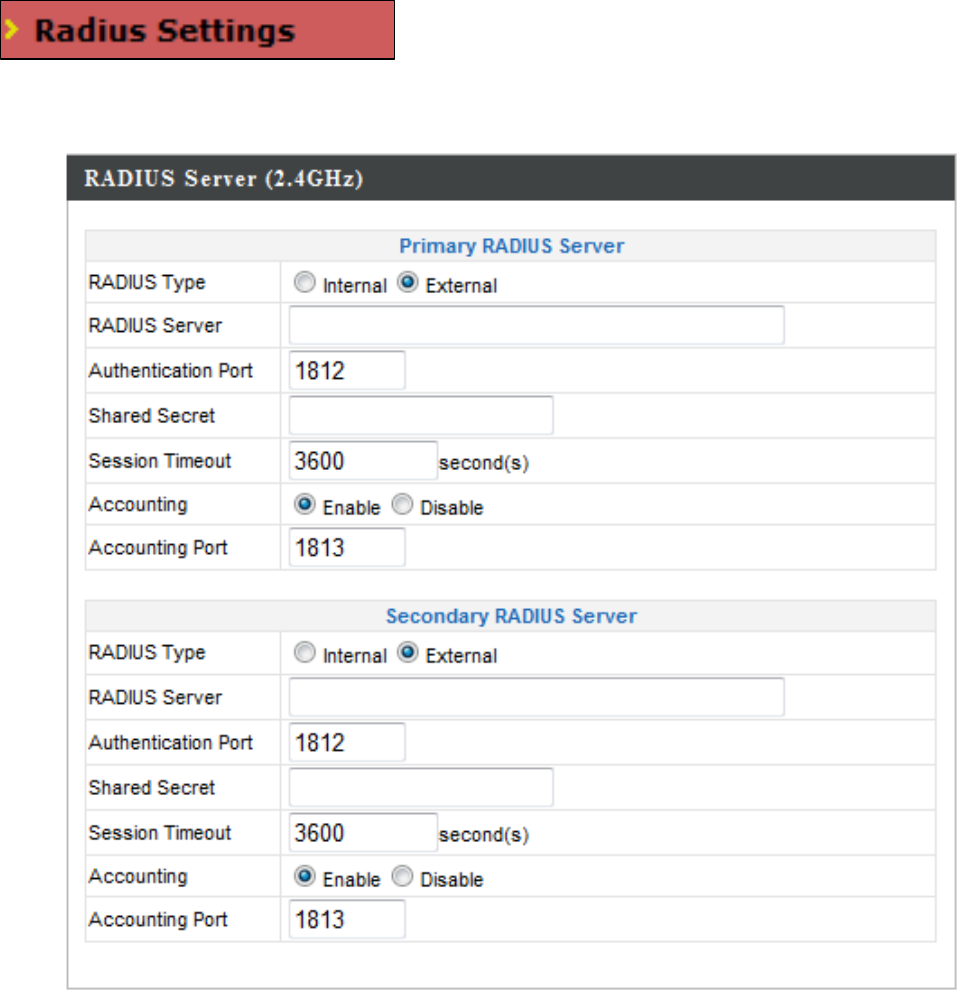

IV‐3‐4.RADIUS

TheRADIUSsubmenuallowsyoutoconfigurethe

accesspoint’sRADIUSserversettings,categorized

intothreesubmenus:RADIUSsettings,InternalServerandRADIUSaccounts.



ARADIUSserverprovidesuser‐basedauthenticationtoimprovesecurityand

offerwirelessclientcontrol–userscanbeauthenticatedbeforegaining

accesstoanetwork.



Theaccesspointcanutilizebothaprimaryandsecondary(backup)RADIUS

serverforeachofitswirelessfrequencies(2.4GHz&5GHz).ExternalRADIUS

serverscanbeusedortheaccesspoint’sinternalRADIUSservercanbeused.



TouseRADIUSservers,goto“WirelessSettings”



“Security”and

select“MACRADIUSAuthentication”



“Additional

Authentication”andselect“MACRADIUSAuthentication”(see

IV‐3‐1‐3.&IV‐3‐2‐3).



61



IV‐3‐4‐1.RADIUSSettings

ConfiguretheRADIUSserversettingsfor

2.4GHz&5GHz.Eachfrequencycanusean

internalorexternalRADIUSserver.



62



RADIUSTypeSelect“Internal”tousetheaccesspoint’s

built‐inRADIUSserveror“external”tousean

externalRADIUSserver.

RADIUSServerEntertheRADIUSserverhostIPaddress.

Authentication

Port

SettheUDPportusedintheauthentication

protocoloftheRADIUSserver.Valuemustbe

between1

–

65535.

SharedSecretEnterasharedsecret/passwordbetween1

–

99charactersinlength.Thisshouldmatchthe

“MAC‐RADIUS”passwordusedinIV‐3‐1‐3‐6or

IV‐3‐2‐3.

SessionTimeout Setadurationofsessiontimeoutinseconds

between0–86400.

AccountingEnableordisableRADIUSaccounting.

63



AccountingPort Whenaccountingisenabled(above),setthe

UDPportusedintheaccountingprotocolof

theRADIUSserver.Valuemustbebetween1–

65535.



IV‐3‐4‐2.InternalServer

Theaccesspointfeaturesabuilt‐inRADIUS

serverwhichcanbeconfiguredasshown

belowusedwhen“Internal”isselectedfor“RADIUSType”inthe“Wireless

Settings”“RADIUS”“RADIUSSettings”menu.



TouseRADIUSservers,goto“WirelessSettings”



“Security”and

select“MACRADIUSAuthentication”



“Additional

Authentication”andselect“MACRADIUSAuthentication”(see

IV‐3‐1‐3.&IV‐3‐2‐3).



InternalServerCheck/unchecktoenable/disabletheaccess

point’sinternalRADIUSserver.

EAPInternal

Authentication

SelectEAPinternalauthenticationtypefrom

thedropdownmenu.

EAPCertificateFile

Format

DisplaystheEAPcertificatefileformat:

PCK#12(*.pfx/*.p12)

64



EAPCertificateFileClick“Upload”toopenanewwindowand

selectthelocationofanEAPcertificatefileto

use.Ifnocertificatefileisuploaded,the

internalRADIUSserverwilluseaself‐made

certificate.

SharedSecretEnter asharedsecret/passwordforuse

betweentheinternalRADIUSserverand

RADIUSclient.Thesharedsecretshouldbe1–

99charactersinlength.Thisshouldmatchthe

“MAC‐RADIUS”passwordusedinIV‐3‐1‐3‐6or

IV‐3‐2‐3.

SessionTimeout Setadurationofsessiontimeoutinseconds

between0–86400.

TerminationActionSelectatermination‐actionattribute:

“Reauthentication”sendsaRADIUSrequestto

theaccesspoint,“Not‐Reathentication”sends

adefaulttermination‐actionattributetothe

accesspoint,“Not‐Send”no

termination‐actionattributeissenttothe

accesspoint.



65



IV‐3‐4‐3.RADIUSAccounts

TheinternalRADIUSservercanauthenticate

upto256useraccounts.The“RADIUS

Accounts”pageallowsyoutoconfigureandmanageusers.



UserNameEntertheuser nameshere,separatedby

commas.

66



AddClick“Add”toaddtheusertotheuser

registrationlist.

ResetCleartextfromtheusernamebox.



SelectChecktheboxtoselectauser.

UserNameDisplaystheusername.

PasswordDisplaysifspecifiedusernamehasapassword

(configured)ornot(notconfigured).

CustomizeClick“Edit”toopenanewfieldtoset/edita

passwordforthespecifiedusername(below).



DeleteSelected Deleteselecteduserfromtheuserregistration

list.

DeleteAllDeleteallusersfromtheuserregistrationlist.



EditUserRegistrationList



UserNameExistingusernameisdisplayedhereandcan

beeditedaccordingtoyourpreference.

PasswordEnteroreditapasswordforthespecifieduser.



67



IV‐3‐5. MACFilter

Macfilteringisasecurityfeaturethatcan

helptopreventunauthorizedusersfrom

connectingtoyouraccesspoint.



Thisfunctionallowsyoutodefinealistofnetworkdevicespermittedto

connecttotheaccesspoint.DevicesareeachidentifiedbytheiruniqueMAC

address.IfadevicewhichisnotonthelistofpermittedMACaddresses

attemptstoconnecttotheaccesspoint,itwillbedenied.



ToenableMACfiltering,goto“WirelessSettings”



“2.4GHz

11bgn/5GHz11ac11an”



“Security”



“Additional

Authentication”andselect“MACFilter”(seeIV‐3‐1‐3.&IV‐3‐2‐3).



TheMACaddressfilteringtableisdisplayedbelow:



AddMACAddressEnteraMACaddressofcomputerornetwork

devicemanuallye.g.‘aa‐bb‐cc‐dd‐ee‐ff’or

entermultiple MACaddressesseparatedwith

68



commas,e.g.

‘aa‐bb‐cc‐dd‐ee‐ff,aa‐bb‐cc‐dd‐ee‐gg’

AddClick“Add”toaddtheMACaddresstothe

MACaddressfilteringtable.

ResetClearallfields.



MACaddressentrieswillbelistedinthe“MACAddressFilteringTable”.Select

anentryusingthe“Select”checkbox.



SelectDeleteselectedorallentriesfromthetable.

MACAddressTheMACaddressislistedhere.

DeleteSelectedDeletetheselectedMACaddressfromthe

list.

DeleteAllDeleteallentriesfromtheMACaddress

filteringtable.

ExportClick“Export”tosaveacopyoftheMAC

filteringtable.Anewwindowwillpopupfor

youtoselectalocationtosavethefile.



69



IV‐3‐6.WMM

Wi‐FiMultimedia(WMM)isaWi‐FiAlliance

interoperabilitycertificationbasedonthe

IEEE802.11estandard,whichprovides

QualityofService(QoS)featurestoIEEE802.11networks.WMMprioritizes

trafficaccordingtofourcategories:background,besteffort,videoandvoice.



ConfiguringWMMconsistsofadjustingparametersonqueuesfordifferent

categoriesofwirelesstraffic.Trafficissenttothefollowingqueues:



BackgroundLow

Priority

Highthroughput,nontimesensitivebulk

datae.g.FTP

BestEffortMedium

Priority

TraditionalIPdata,mediumthroughputand

delay.

VideoHigh

Priority

Timesensitivevideodatawithminimum

timedelay.

VoiceHigh

Priority

TimesensitivedatasuchasVoIPand

streamingmediawithminimumtimedelay.



Queuesautomaticallyprovideminimumtransmissiondelaysforvideo,voice,

multimediaandcriticalapplications.Thevaluescanfurtherbeadjusted

manually:



70



CWMinMinimumContentionWindow(milliseconds):

Thisvalueisinputtotheinitialrandom

backoffwaittimealgorithmforretryofadata

frametransmission.Thebackoffwaittimewill

begeneratedbetween0andthisvalue.Ifthe

frameisnotsent,therandombackoffvalueis

doubleduntilthevaluereachesthenumber

definedbyCWMax(below).TheCWMinvalue

mustbelowerthantheCWMaxvalue.The

contentionwindowschemehelpstoavoid

framecollisionsanddeterminepriorityof

frametransmission.Ashorterwindowhasa

higherprobability(priority)oftransmission.

CWMaxMaximumContentionWindow(milliseconds):

Thisvalueistheupperlimittorandom

backoffvaluedoubling(seeabove).

AIFSNArbitrationInter‐FrameSpace(milliseconds):

Specifiesadditionaltimebetweenwhena

channelgoesidleandtheAP/clientsends

dataframes.TrafficwithalowerAIFSNvalue

hasahigherpriority.

TxOPTransmissionOpportunity(milliseconds):The

maximumintervaloftimeanAP/clientcan

transmit.Thismakeschannelaccessmore

efficientlyprioritized.Avalueof0meansonly

oneframepertransmission.Agreatervalue

effectshigherpriority.



71



IV‐4. Management



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐4‐1. Admin

Youcanchangethepasswordusedtologinto

thebrowser‐basedconfigurationinterfacehere.

Itisadvisedtodosoforsecuritypurposes.



Ifyouchangetheadministratorpassword,pleasemakeanote

ofthenewpassword.Intheeventthatyouforgetthis

passwordandareunabletologintothebrowserbased

configurationinterface,seeI‐5.Resetforhowtoresetthe

accesspoint.



72



AccounttoManageThisDevice

Administrator

Name

Settheaccesspoint’sadministratorname.

Thisisusedtologintothebrowserbased

configurationinterfaceandmustbebetween

4‐16alphanumericcharacters(casesensitive).

Administrator

Password

Settheaccesspoint’sadministratorpassword.

Thisisusedtologintothebrowserbased

configurationinterfaceandmustbebetween

4‐32alphanumericcharacters(casesensitive).



AdvancedSettings

ProductNameEdittheproductnameaccordingtoyour

preferenceconsistingof1‐32alphanumeric

characters.Thisnameisusedforreference

purposes.

73



Management

Protocol

Check/unchecktheboxestoenable/disable

specifiedmanagementinterfaces(seebelow).

WhenSNMPisenabled,completetheSNMP

fieldsbelow.

SNMPVersionSelectSNMPversionappropriateforyour

SNMPmanager.

SNMPGet

Community

EnteranSNMPGetCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐GETrequests.

SNMPSet

Community

EnteranSNMPSetCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐SETrequests.

SNMPTrapEnableordisableSNMPTraptonotifySNMP

managerofnetworkerrors.

SNMPTrap

Community

EnteranSNMPTrapCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐TRAPrequests.

SNMPTrap

Manager

SpecifytheIPaddressorsevername(2‐128

alphanumericcharacters)oftheSNMP

manager.



HTTP

InternetbrowserHTTPprotocolmanagementinterface

HTTPS

InternetbrowserHTTPSprotocolmanagementinterface

TELNET

Clientterminalwithtelnetprotocolmanagementinterface

SSH

ClientterminalwithSSHprotocolversion1or2managementinterface

SNMP

SimpleNetworkManagementProtocol.SNMPv1,v2&v3protocolsupported.

SNMPv2canbeusedwithcommunitybasedauthentication.SNMPv3uses

user‐basedsecuritymodel(USM)architecture.



74



IV‐4‐2. DateandTime



Youcanconfigurethetimezonesettingsofyour

accesspointhere.Thedateandtimeofthe

devicecanbeconfiguredmanuallyorcanbesynchronizedwithatimeserver.



DateandTimeSettings

LocalTimeSettheaccesspoint’sdateandtimemanually

usingthedropdownmenus.

AcquireCurrent

TimefromyourPC

Click“AcquireCurrentTimefromYourPC”to

entertherequiredvaluesautomatically

accordingtoyourcomputer’scurrenttimeand

date.



NTPTimeServer

UseNTPTheaccesspointalsosupportsNTP(Network

TimeProtocol)forautomatictimeanddate

setup.

75



ServerNameEnterthehostnameorIPaddressofthetime

serverifyouwish.

UpdateInterval Specifyafrequency(inhours)fortheaccess

pointtoupdate/synchronizewiththeNTP

server.



TimeZone

TimeZoneSelectthetimezoneofyourcountry/region.If

yourcountry/regionisnotlisted,pleaseselect

anothercountry/regionwhosetimezoneisthe

sameasyours.



76



IV‐4‐3. SyslogServer

Thesystemlogcanbesenttoaserver.



TransferLogsCheck/unchecktheboxtoenable/disablethe

useofasyslogserver,andenterahost

name,domainorIPaddressfortheserver,

consistingofupto128alphanumeric

characters.



77



IV‐4‐4. I’mHere

Theaccesspointfeaturesabuilt‐inbuzzer

whichcansoundoncommandusingthe“I’m

Here”page.Thisisusefulfornetworkadministratorsandengineersworking

incomplexnetworkenvironmentstolocatetheaccesspoint.



Thebuzzerisloud!



DurationofSoundSetthedurationforwhichthebuzzerwill

soundwhenthe“SoundBuzzer”buttonis

clicked.

SoundBuzzerActivatethebuzzersoundfortheabove

specifieddurationoftime.



78



IV‐5. Advanced



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐5‐1. LEDSettings

Theaccesspoint’sLEDscanbemanually

enabledordisabledaccordingtoyour

preference.



PowerLEDSelectonoroff.

DiagLEDSelectonoroff.



79



IV‐5‐2. UpdateFirmware

The“Firmware”pageallowsyoutoupdate

thesystemfirmwaretoamorerecent

version.Updatedfirmwareversionsoften

offerincreasedperformanceandsecurity,aswellasbugfixes.Youcan

downloadthelatestfirmwarefromthewebsite.



Donotswitchoffordisconnecttheaccesspointduringafirmware

upgrade,asthiscoulddamagethedevice.



UpdateFirmware

From

Select“afileonyourPC”touploadfirmware

fromyourlocalcomputer.

FirmwareUpdateFileClick“Browse”toopenanewwindowto

locateandselectthefirmwarefileinyour

computer.

UpdateClick“Update”touploadthespecified

firmwarefiletoyouraccesspoint.



80



IV‐5‐3. Save/RestoreSettings

Theaccesspoint’s“Save/RestoreSettings”

pageenablesyoutosave/backuptheaccess

point’scurrentsettingsasafiletoyourlocalcomputer,andrestoretheaccess

pointtopreviouslysavedsettings.



Save/RestoreSettings

UsingDeviceSelect“UsingyourPC”tosavetheaccess

point’ssettingstoyourlocalcomputer.



SaveSettingstoPC

SaveSettingsClick“Save”tosavesettingsandanew

windowwillopentospecifyalocationto

savethesettingsfile.Youcanalsocheckthe

“Encrypttheconfigurationfilewitha

password”boxandenterapasswordto

protectthefileinthefieldunderneath,ifyou

wish.



81



RestoreSettingsfromPC

RestoreSettings Clickthebrowsebuttontofindapreviously

savedsettingsfileonyourcomputer,then

click“Restore”toreplaceyourcurrent

settings.Ifyoursettingsfileisencryptedwith

apassword,checkthe“Openfilewith

password”boxandenterthepasswordin

thefieldunderneath.



82



IV‐5‐4. FactoryDefault

Iftheaccesspointmalfunctionsorisnot

responding,thenitisrecommendedthatyou

rebootthedevice(seeIV‐5.5)orresetthedevicebacktoitsfactorydefault

settings.Youcanresettheaccesspointbacktoitsdefaultsettingsusingthis

featureifthelocationoftheaccesspointisnotconvenienttoaccessthereset

button.



FactoryDefault Click“FactoryDefault” torestoresettingsto

thefactorydefault.Apop‐upwindowwill

appearandaskyoutoconfirm.



Afterresettingtofactorydefaults,pleasewaitfortheaccess

pointtoresetandrestart.



83



IV‐5‐5. Reboot

Iftheaccesspointmalfunctionsorisnot

responding,thenitisrecommendedthat

yourebootthedeviceorresettheaccesspointbacktoitsfactorydefault

settings(seeIV‐5‐4).Youcanreboottheaccesspointremotelyusingthis

feature.



RebootClick“Reboot”torebootthedevice.A

countdownwillindicatetheprogressofthe

reboot.



84



V. Appendix



V‐1.ConfiguringyourIPaddress



TheaccesspointusesthedefaultIPaddress192.168.2.1.Inordertoaccess

thebrowserbasedconfigurationinterface,youneedtomodifytheIPaddress

ofyourcomputertobeinthesameIPaddresssubnete.g.192.168.2.x(x=3–

254).



TheprocedureformodifyingyourIPaddressvariesacrossdifferentoperating

systems;pleasefollowtheguideappropriateforyouroperatingsystem.



InthefollowingexamplesweusetheIPaddress192.168.2.10thoughyoucan

useanyIPaddressintherange192.168.2.x(x=3–254).



85



V‐1‐1.WindowsXP



1. Clickthe“Start”button(itshouldbelocatedinthelower‐leftcornerof

yourcomputer),thenclick“ControlPanel”.Double‐clickthe“Networkand

InternetConnections”icon,click“NetworkConnections”,andthen

double‐click“LocalAreaConnection”.The“LocalAreaConnectionStatus”

windowwillthenappear,click“Properties”.



2. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



86



87



V‐1‐2.WindowsVista



1. Clickthe“Start”button(itshouldbelocatedinthelower‐leftcornerof

yourcomputer),thenclick“ControlPanel”.Click“ViewNetworkStatusand

Tasks”,thenclick“ManageNetworkConnections”.Right‐click“LocalArea

Network”,thenselect“Properties”.The“LocalAreaConnectionProperties”

windowwillthenappear,select“InternetProtocolVersion4(TCP/IPv4)”,

andthenclick“Properties”.



2. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



88



89



V‐1‐3.Windows7



1. Clickthe“Start”button(itshouldbelocatedinthelower‐leftcornerof

yourcomputer),thenclick“ControlPanel”.



2. Under“NetworkandInternet”click“Viewnetworkstatusandtasks”.



3. Click“LocalAreaConnection”.



90



4. Click“Properties”.



91



5. Select“InternetProtocolVersion4(TCP/IPv4)andthenclick“Properties”.



6. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



92



93



V‐1‐4.Windows8



1. FromtheWindows8Startscreen,youneedtoswitchtodesktopmode.

Moveyourcursertothebottomleftofthescreenandclick.



2. Indesktopmode,clicktheFileExplorericoninthebottomleftofthe

screen,asshownbelow.



94



3. Rightclick“Network”andthenselect“Properties”.



95



4. Inthewindowthatopens,select“Changeadaptersettings”fromtheleft

side.



5. Chooseyourconnectionandrightclick,thenselect“Properties”.



96



6. Select“InternetProtocolVersion4(TCP/IPv4)andthenclick“Properties”.



7. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



97



V‐1‐5.Mac



1. HaveyourMacintoshcomputeroperateasusual,andclickon“System

Preferences”



2. InSystemPreferences,clickon“Network”.



3. Clickon“Ethernet”intheleftpanel.







4. Openthedrop‐downmenulabeled“ConfigureIPv4”andselect

“Manually”.

98



 



5. EntertheIPaddress192.168.2.10andsubnetmask255.255.255.0.Click

on“Apply”tosavethechanges.



99



V‐1‐6.Glossary

DefaultGateway(Accesspoint):Everynon‐accesspointIPdeviceneedsto

configureadefaultgateway’sIPaddress.WhenthedevicesendsoutanIP

packet,ifthedestinationisnotonthesamenetwork,thedevicehastosend

thepackettoitsdefaultgateway,whichwillthensenditouttowardsthe

destination.



DHCP:DynamicHostConfigurationProtocol.Thisprotocolautomaticallygives

everycomputeronyourhomenetworkanIPaddress.



DNSServerIPAddress:DNSstandsforDomainNameSystem,whichallows

Internetserverstohaveadomainname(suchaswww.Broadbandaccess

point.com)andoneormoreIPaddresses(suchas192.34.45.8).ADNSserver

keepsadatabaseofInternetserversandtheirrespectivedomainnamesand

IPaddresses,sothatwhenadomainnameisrequested(asintyping

"Broadbandaccesspoint.com"intoyourInternetbrowser),theuserissentto

theproperIPaddress.TheDNSserverIPaddressusedbythecomputerson

yourhomenetworkisthelocationoftheDNSserveryourISPhasassignedto

you.



DSLModem:DSLstandsforDigitalSubscriberLine.ADSLmodemusesyour

existingphonelinestotransmitdataathighspeeds.



Ethernet:Astandardforcomputernetworks.Ethernetnetworksare

connectedbyspecialcablesandhubs,andmovedataaroundatupto10/100

millionbitspersecond(Mbps).



IPAddressandNetwork(Subnet)Mask:IPstandsforInternetProtocol.AnIP

addressconsistsofaseriesoffournumbersseparatedbyperiods,that

identifiesasingle,uniqueInternetcomputerhostinanIPnetwork.Example:

192.168.2.1.Itconsistsof2portions:theIPnetworkaddress,andthehost

identifier.



TheIPaddressisa32‐bitbinarypattern,whichcanberepresentedasfour

cascadeddecimalnumbersseparatedby“.”:aaa.aaa.aaa.aaa,whereeach

“aaa”canbeanythingfrom000to255,orasfourcascadedbinarynumbers

separatedby“.”:bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb,whereeach“b”

caneitherbe0or1.



100



Anetworkmaskisalsoa32‐bitbinarypattern,andconsistsofconsecutive

leading1’sfollowedbyconsecutivetrailing0’s,suchas

11111111.11111111.11111111.00000000.Thereforesometimesanetwork

maskcanalsobedescribedsimplyas“x”numberofleading1’s.

Whenbotharerepresentedsidebysideintheirbinaryforms,allbitsintheIP

addressthatcorrespondto1’sinthenetworkmaskbecomepartoftheIP

networkaddress,andtheremainingbitscorrespondtothehostID.



Forexample,iftheIPaddressforadeviceis,initsbinaryform,

11011001.10110000.10010000.00000111,andifitsnetworkmaskis,

11111111.11111111.11110000.00000000

Itmeansthedevice’snetworkaddressis

11011001.10110000.10010000.00000000,anditshostIDis,

00000000.00000000.00000000.00000111.Thisisaconvenientandefficient

methodforaccesspointstorouteIPpacketstotheirdestination.



ISPGatewayAddress:(seeISPfordefinition).TheISPGatewayAddressisan

IPaddressfortheInternetaccesspointlocatedattheISP'soffice.



ISP:InternetServiceProvider.AnISPisabusinessthatprovidesconnectivity

totheInternetforindividualsandotherbusinessesororganizations.



LAN:LocalAreaNetwork.ALANisagroupofcomputersanddevices

connectedtogetherinarelativelysmallarea(suchasahouseoranoffice).

YourhomenetworkisconsideredaLAN.



MACAddress:MACstandsforMediaAccessControl.AMACaddressisthe

hardwareaddressofadeviceconnectedtoanetwork.TheMACaddressisa

uniqueidentifierforadevicewithanEthernetinterface.Itiscomprisedof

twoparts:3bytesofdatathatcorrespondstotheManufacturerID(unique

foreachmanufacturer),plus3bytesthatareoftenusedastheproduct’s

serialnumber.



NAT:NetworkAddressTranslation.Thisprocessallowsallofthecomputers

onyourhomenetworktouseoneIPaddress.Usingthebroadbandaccess

point’sNATcapability,youcanaccesstheInternetfromanycomputeron

yourhomenetworkwithouthavingtopurchasemoreIPaddressesfromyour

ISP.

Port:NetworkClients(LANPC)usesportnumberstodistinguishonenetwork

application/protocoloveranother.Belowisalistofcommonapplicationsand

protocol/portnumbers:

101



ApplicationProtocolPortNumber

TelnetTCP23

FTPTCP21

SMTPTCP25

POP3TCP110

H.323TCP1720

SNMPUCP161

SNMPTrapUDP162

HTTPTCP80

PPTPTCP1723

PCAnywhereTCP5631

PCAnywhereUDP5632



Accesspoint:Aaccesspointisanintelligentnetworkdevicethatforwards

packetsbetweendifferentnetworksbasedonnetworklayeraddress

informationsuchasIPaddresses.



SubnetMask:Asubnetmask,whichmaybeapartoftheTCP/IPinformation

providedbyyourISP,isasetoffournumbers(e.g.255.255.255.0)configured

likeanIPaddress.ItisusedtocreateIPaddressnumbersusedonlywithina

particularnetwork(asopposedtovalidIPaddressnumbersrecognizedbythe

Internet,whichmustbeassignedbyInterNIC).

TCP/IP,UDP:TransmissionControlProtocol/InternetProtocol(TCP/IP)and

UnreliableDatagramProtocol(UDP).TCP/IPisthestandardprotocolfordata

transmissionovertheInternet.BothTCPandUDParetransportlayerprotocol.

TCPperformspropererrordetectionanderrorrecovery,andthusisreliable.

UDPontheotherhandisnotreliable.TheybothrunontopoftheIP(Internet

Protocol),anetworklayerprotocol.



WAN:WideAreaNetwork.Anetworkthatconnectscomputerslocatedin

geographicallyseparateareas(e.g.differentbuildings,cities,countries).The

Internetisawideareanetwork.



Web‐basedmanagementGraphicalUserInterface(GUI):Manydevices

supportagraphicaluserinterfacethatisbasedonthewebbrowser.This

meanstheusercanusethefamiliarNetscapeorMicrosoftInternetExplorer

toControl/configureormonitorthedevicebeingmanaged.

102



V‐2.HardwareSpecification



MCU/RF MediaTekMT7620A(2.4GHz)+QCA9882(5GHz)

PHY/SwitchQualcommAtherosAR8035

Memory DDR264MB

Flash 8MB

Physical

Interface

‐LAN:10/100/1000GigabitEthernetwithPoEsupport802.3af(PDIn)

‐ResetButton

‐DCPowerJack

Power

Requirement

PoweroverEthernet,IEEE802.3af

DC:12V/1A

AntennaInternalPIFAAntenna(3dBi2.4GHzx2,4dBi5GHzx2)

OthersInternalBuzzer(Findme)



V‐3.ENVIRONMENT&PHYSICAL



Temperature

Range

Operation:0to40℃(32℉to104℉)

Storage:‐20to60℃(‐4℉to140℉)

Humidity 90%orless–Operating,90%orless‐Storage

CertificationsFCC,CE

Dimensions 176(D)x30(H)mm

Weight 306g



1



transmitted,transcribed,storedinaretrievalsystem,ortranslatedintoanylanguageorcomputer

language,inanyformorbyanymeans,electronic,mechanical,magnetic,optical,chemical,manualor

otherwise,withoutthepriorwrittenpermissionofthiscompany



Thiscompanymakesnorepresentationsorwarranties,eitherexpressedorimplied,withrespecttothe

contentshereofandspecificallydisclaimsanywarranties,merchantabilityorfitnessforanyparticular

purpose.Anysoftwaredescribedinthismanualissoldorlicensed"asis".Shouldtheprogramsprove

defectivefollowingtheirpurchase,thebuyer(andnotthiscompany,itsdistributor,oritsdealer)

assumestheentirecostofallnecessaryservicing,repair,andanyincidentalorconsequentialdamages

resultingfromanydefectinthesoftware.Further,thiscompanyreservestherighttorevisethis

publicationandtomakechangesfromtimetotimeinthecontentsthereofwithoutobligationtonotify

anypersonofsuchrevisionorchanges.



2



FederalCommunicationCommissionInterferenceStatement



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart

15ofFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:



1.Reorientorrelocatethereceivingantenna.

2.Increasetheseparationbetweentheequipmentandreceiver.

3.Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

4.Consultthedealeroranexperiencedradiotechnicianforhelp.



FCCCaution

Thisdeviceanditsantennamustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.Anychangesormodificationsnotexpressly

approvedbythepartyresponsibleforcompliancecouldvoidtheauthoritytooperateequipment.



FederalCommunicationsCommission(FCC)RadiationExposureStatement

ThisequipmentcomplieswithFCCradiationexposuresetforthforanuncontrolledenvironment.Inordertoavoid

thepossibilityofexceedingtheFCCradiofrequencyexposurelimits,humanproximitytotheantennashallnotbe

lessthan2.5cm(1inch)duringnormaloperation.



FederalCommunicationsCommission(FCC)RFExposureRequirements

SARcompliancehasbeenestablishedinthelaptopcomputer(s)configurationswithPCMCIAslotonthesidenear

thecenter,astestedintheapplicationforcertification,andcanbeusedinlaptopcomputer(s)withsubstantially

similarphysicaldimensions,construction,andelectricalandRFcharacteristics.UseinotherdevicessuchasPDAs

orlappadsisnotauthorized.Thistransmitterisrestrictedforusewiththespecificantennatestedinthe

applicationforcertification.Theantenna(s)usedforthistransmittermustnotbeco‐locatedoroperatingin

conjunctionwithanyotherantennaortransmitter.



R&TTEComplianceStatement

ThisequipmentcomplieswithalltherequirementsofDIRECTIVE1999/5/ECOFTHEEUROPEANPARLIAMENTAND

THECOUNCILofMarch9,1999onradioequipmentandtelecommunicationterminalequipmentandthemutual

recognitionoftheirconformity(R&TTE).TheR&TTEDirectiverepealsandreplacesinthedirective98/13/EEC

(TelecommunicationsTerminalEquipmentandSatelliteEarthStationEquipment)AsofApril8,2000.



Safety

Thisequipmentisdesignedwiththeutmostcareforthesafetyofthosewhoinstallanduseit.However,special

attentionmustbepaidtothedangersofelectricshockandstaticelectricitywhenworkingwithelectrical

equipment.Allguidelinesofthisandofthecomputermanufacturemustthereforebeallowedatalltimesto

ensurethesafeuseoftheequipment.



EUCountriesIntendedforUse

TheETSIversionofthisdeviceisintendedforhomeandofficeuseinAustria,Belgium,Bulgaria,Cyprus,Czech,

Denmark,Estonia,Finland,France,Germany,Greece,Hungary,Ireland,Italy,Latvia,Lithuania,Luxembourg,Malta,

Netherlands,Poland,Portugal,Romania,Slovakia,Slovenia,Spain,Sweden,Turkey,andUnitedKingdom.TheETSI

versionofthisdeviceisalsoauthorizedforuseinEFTAmemberstates:Iceland,Liechtenstein,Norway,and

Switzerland.



EUCountriesNotIntendedforUse

None

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm between the radiator & your body.

Edimax Technology Co 9574761413 AC1200 Dual Band Concurrent Ceiling-Mount Access Point User Manual

Edimax Technology Co Ltd AC1200 Dual Band Concurrent Ceiling-Mount Access Point

user manual

Navigation menu

Namespaces

Views

Navigation
