User’s Manual

EW-7679WAUser Manua

Version: 1.0

(October, 2014)

CONTENTS

I. Product Information .............................................................................. 4

I-1. Package Contents .................................................................................................................. 4

I-2. System Requirements ............................................................................................................ 4

I-3. Hardware Overview ............................................................................................................... 5

I-4. LED Status .............................................................................................................................. 6

I-5. Reset ...................................................................................................................................... 7

I-6. Multi-Region Power Adapter ................................................................................................. 8

I-7. Safety Information ................................................................................................................. 9

II. Quick Setup .......................................................................................... 10

II-1. Initial Setup .......................................................................................................................... 10

II-2. Basic Settings ....................................................................................................................... 12

II-3. Wi-Fi Protected Setup (WPS) ............................................................................................... 15

III. Hardware Installation ........................................................................... 16

III-1. Connecting the access point to a router or PoE switch ..................................................... 16

III-2. Mounting the access point to a ceiling .............................................................................. 18

III-3. T-Rail Mount ...................................................................................................................... 21

IV. Browser Based Configuration Interface ................................................. 23

IV-1. System Setup ..................................................................................................................... 25

IV-1-1. Status ................................................................................................................................. 25

IV-1-2. LAN Settings ....................................................................................................................... 27

IV-1-3. System Log ......................................................................................................................... 29

IV-2. Wireless Setting ................................................................................................................. 30

IV-2-1. Status ................................................................................................................................. 30

IV-2-2. 2.4GHz ................................................................................................................................ 32

IV-2-2-1. Basic ............................................................................................................................. 32

IV-2-2-2. Advanced ..................................................................................................................... 34

IV-2-2-3. Security ........................................................................................................................ 36

IV-2-2-3-1. Disable ......................................................................................................................... 38

IV-2-2-3-2. WEP ............................................................................................................................ 38

IV-2-2-3-3. WPA Pre-shared Key .................................................................................................. 39

IV-2-2-3-4. WPA RADIUS .............................................................................................................. 39

IV-2-2-3-5. 802.1x (WEP) .............................................................................................................. 40

IV-2-3. MAC Filter .......................................................................................................................... 41

III-2-3-1. WPS ....................................................................................................................................42

IV-2-3-2. Client List ............................................................................................................................ 44

IV-3. Toolbox ............................................................................................................................... 45

IV-3-1. Admin ................................................................................................................................. 41

IV-3-2. Time Setting ....................................................................................................................... 42

IV-3-3. Diagnosis ............................................................................................................................ 44

IV-3-4. Firmware .............................................................................................................................. 45

IV-3-5. System Setting...................................................................................................................... 45

IV-3-6. Reboot .................................................................................................................................. 46

IV. Appendix ............................................................................................. 51

IV-1. Configuring your IP address ............................................................................................... 51

IV-1-2-1. Windows XP ............................................................................................................... 52

IV-1-2-2. Windows Vista ........................................................................................................... 54

IV-1-2-3. Windows 7 ................................................................................................................. 56

IV-1-2-4. Windows 8 ................................................................................................................. 60

IV-1-2-5. Mac ............................................................................................................................ 64

IV-1-5. Glossary................................................................................................................................ 66

I. Product Information

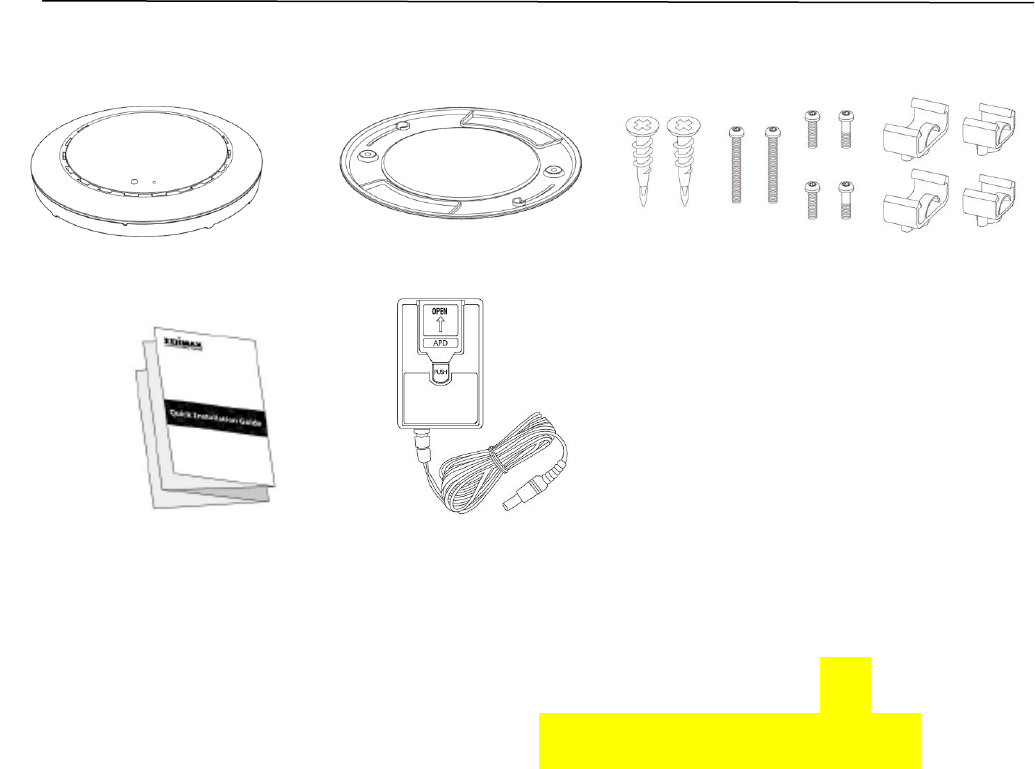

I-1. Package Contents

1. Access Point

2. Ceiling Mount Bracket

3. T-Rail Mounting Kit &

Screws

4. Quick Installation Guide

5. Power Adapter (see I-6.

Multi-Region Power Adapter)

I-2. System Requirements

- Existing cable/DSL modem & router

- Computer with web browser for access point configuration

I-3. Hardware Overview

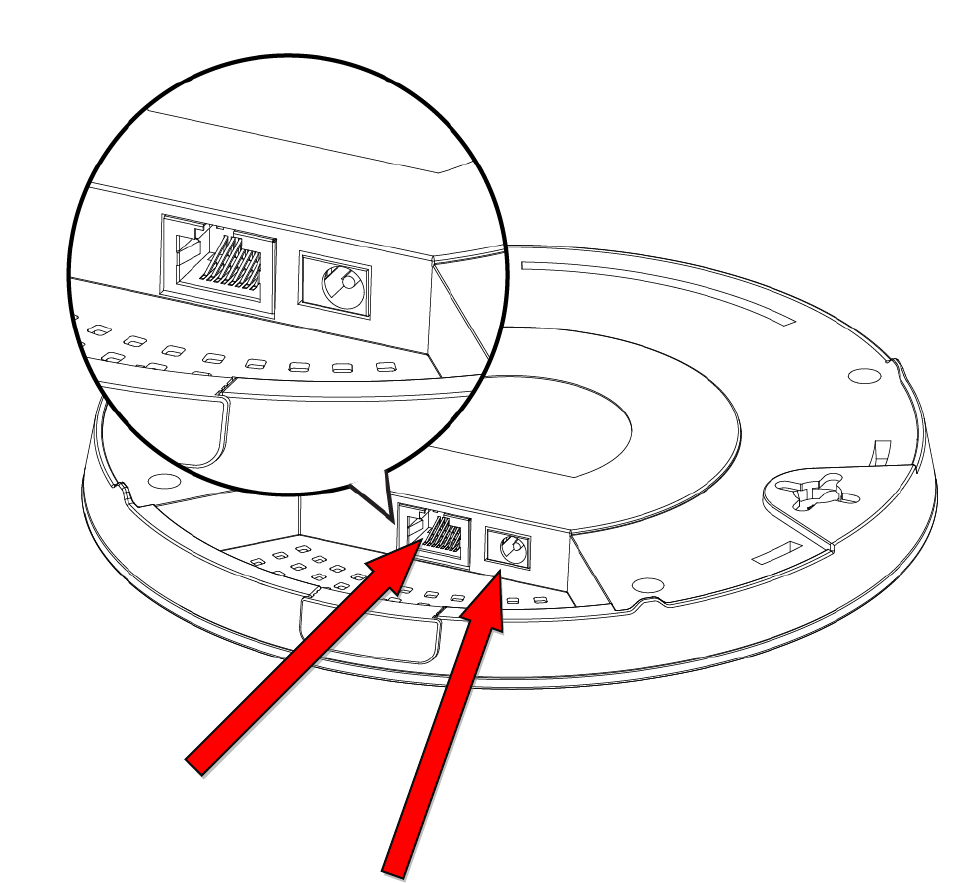

Ethernet Port

Power Port

I-4. LED Status

Blue

Amber

Status

Off

AP is off

Booting up, Going to Reboot

Off

AP is up and every function

working properly

Long Flashing

OFF

Firmware upgrading

Short Flashing

Off

Ready to reset to factory default

Off

Flashing

Error

I-5. Reset

If you experience problems with your access point, you can reset the device

back to its factory settings. This resets all settings back to default.

1. Press and hold the reset button on the access point for at least 10 seconds

then release the button.

You may need to use a pencil or similar sharp object to push the

reset button.

2. Wait for the access point to restart. The access point is ready for setup

when the LED is blue.

I-6. Multi-Region Power Adapter

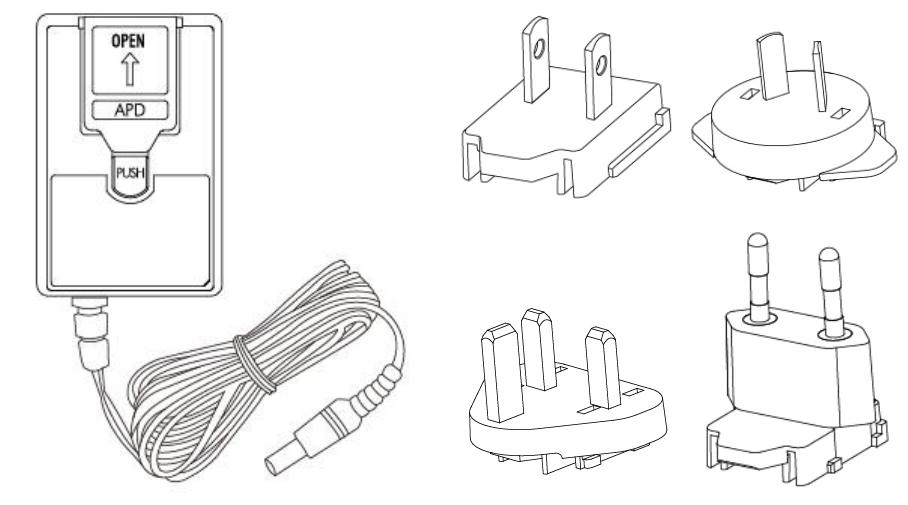

The included power adapter has four changeable heads for different AC

sockets according to your region.

I-7. Safety Information

In order to ensure the safe operation of the device and its users, please read

and act in accordance with the following safety instructions.

1. The access point is designed for indoor use only; do not place the access

point outdoors.

2. Do not place the access point in or near hot/humid places, such as a kitchen

or bathroom.

3. Do not pull any connected cable with force; carefully disconnect it from the

access point.

4. Handle the access point with care. Accidental damage will void the

warranty of the access point.

5. The device contains small parts which are a danger to small children under

3 years old. Please keep the access point out of reach of children.

6. Do not place the access point on paper, cloth, or other flammable materials.

The access point may become hot during use.

7. There are no user-serviceable parts inside the access point. If you

experience problems with the access point, please contact your dealer of

purchase and ask for help.

8. The access point is an electrical device and as such, if it becomes wet for

any reason, do not attempt to touch it without switching the power supply

off. Contact an experienced electrical technician for further help.

9. If you smell burning or see smoke coming from the access point or power

adapter, then disconnect the access point and power adapter immediately,

as far as it is safely possible to do so. Call your dealer of purchase for help.

I. Quick Setup

Please follow the instructions in the chapters below to setup your access point

and then configure its basic settings.

II-1. Initial Setup

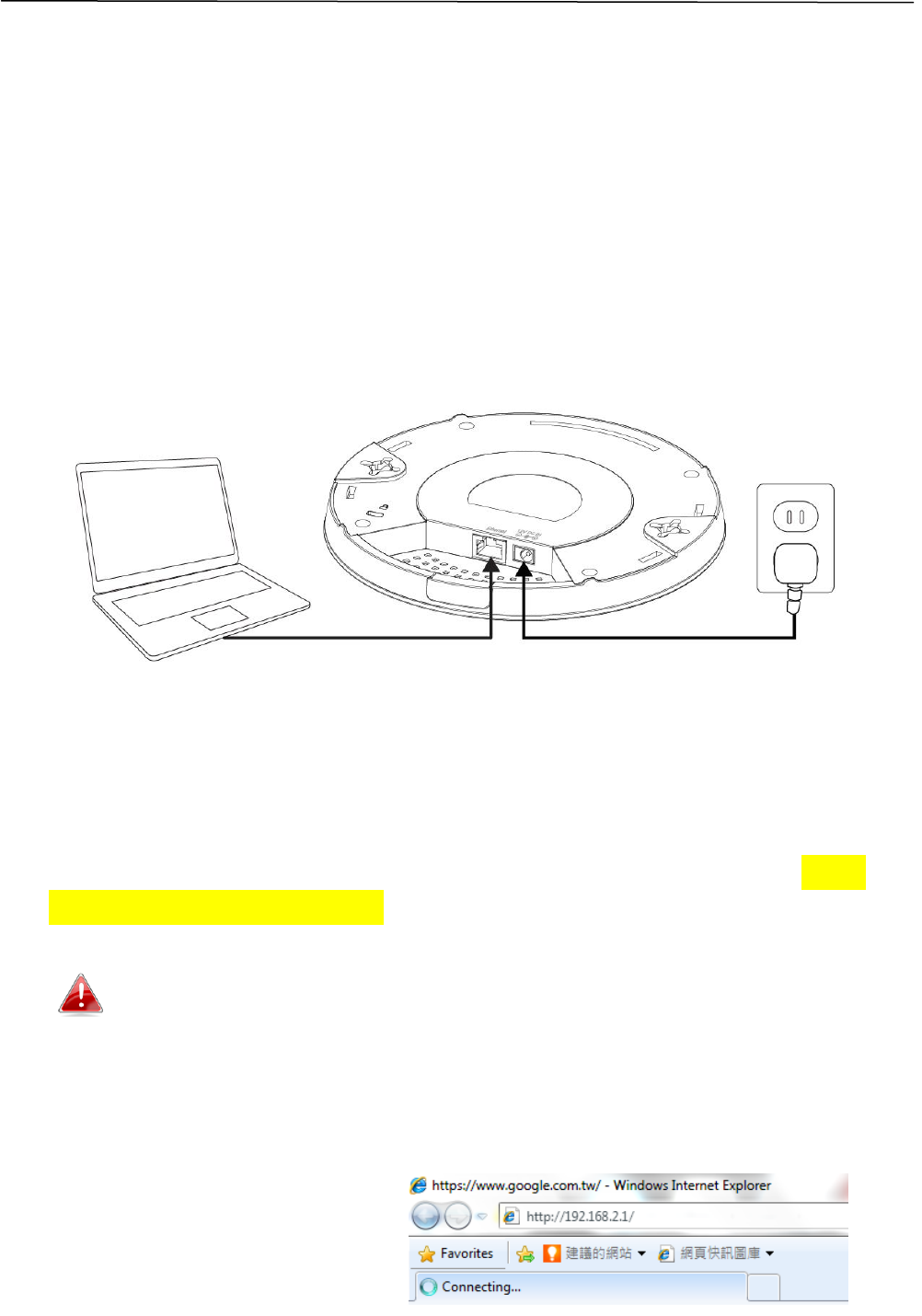

1. Connect the access point to a computer via Ethernet cable.

2. Connect the power adapter to the access point’s 12V DC port and plug the

power adapter into a power supply.

3. Please wait a moment for the access point to start up. The access point is

ready when the LED is blue.

4. Set your computer’s IP address to 192.168.2.x where x is a number in the

range 3 – 100. If you are unsure how to do this, please refer to IV-1.

Configuring your IP address for more information.

Please ensure there are no other active network connections on

your computer (disconnect Wi-Fi connections and Ethernet

cables).

5. Enter the access point’s default IP address 192.168.2.1 into the URL bar of

a web browser.

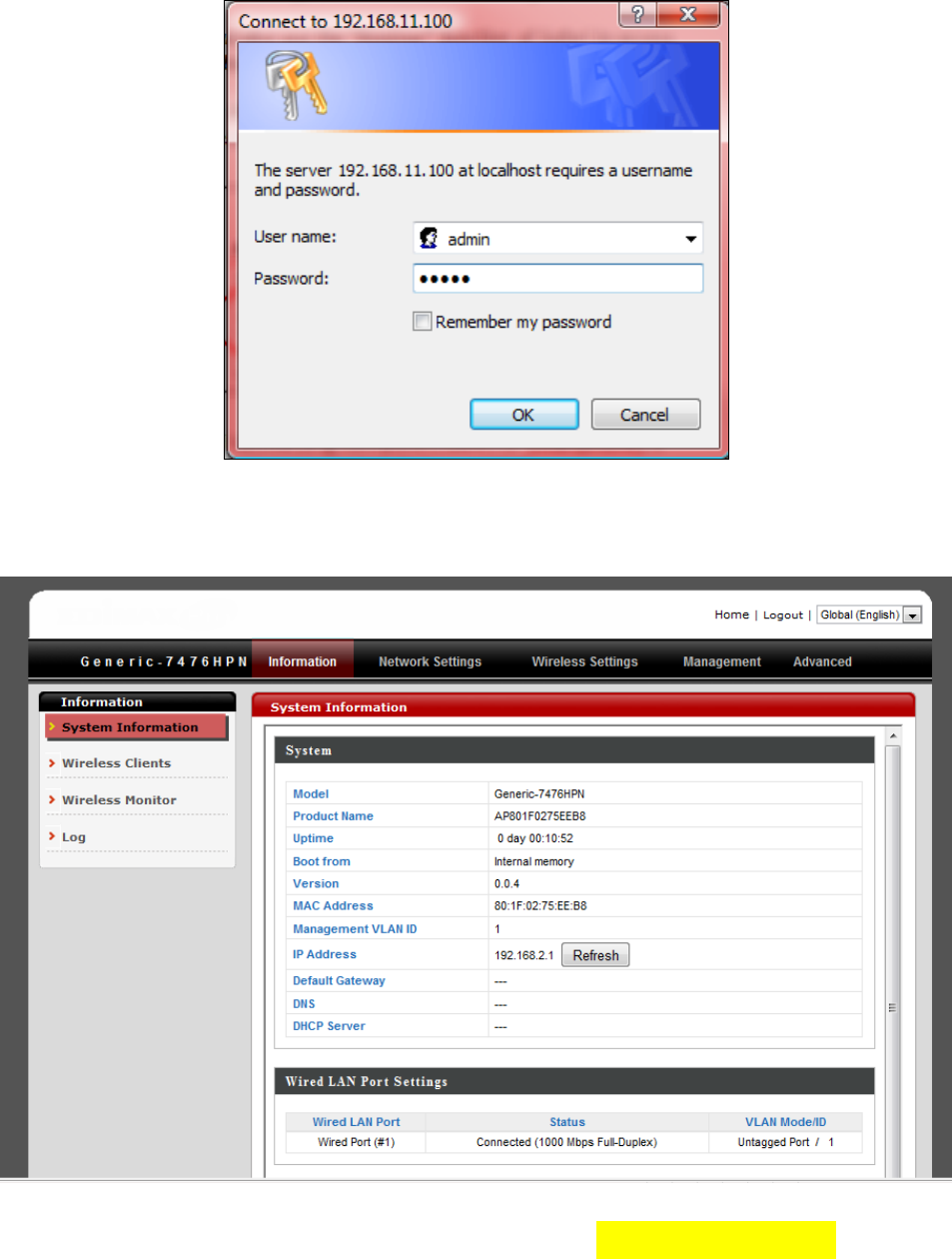

6. You will be prompted for a username and password. Enter the default

username “admin” and the default password “admin”.

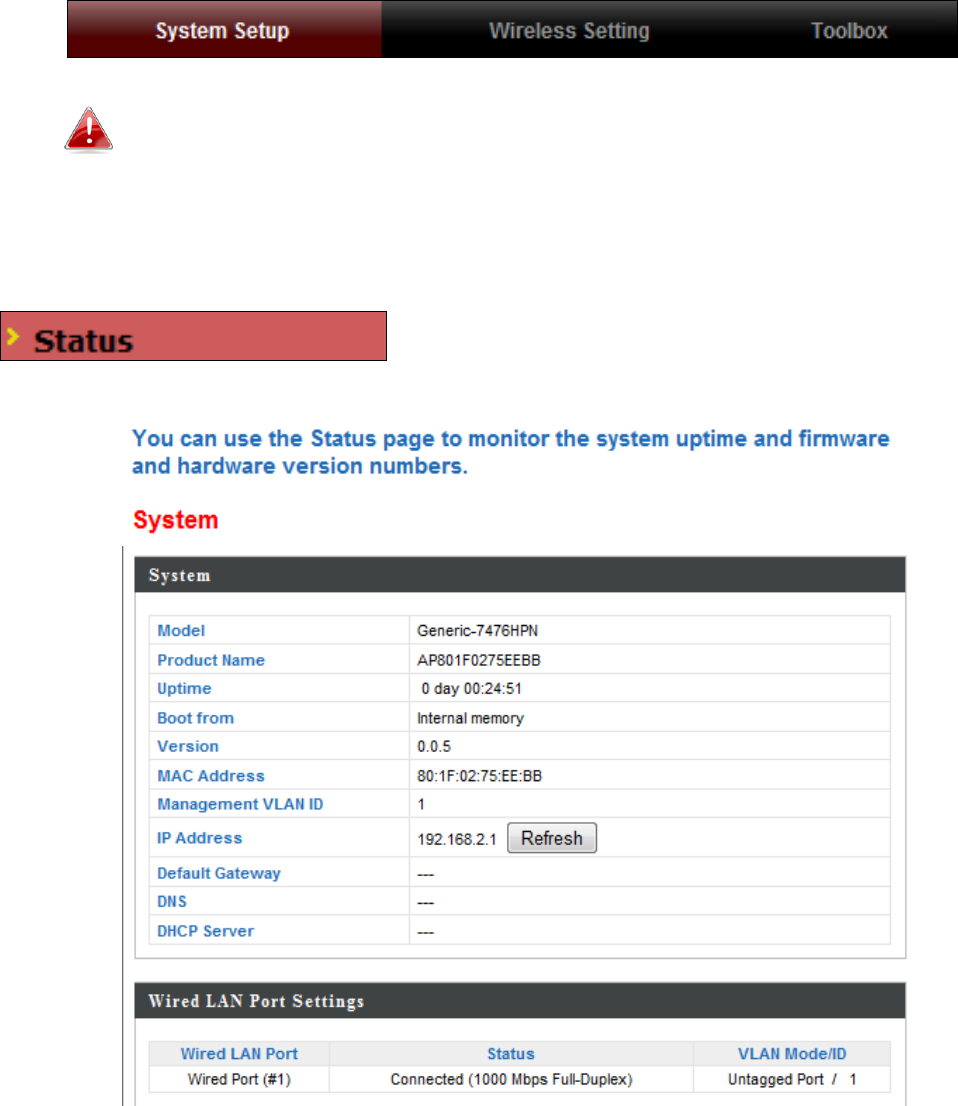

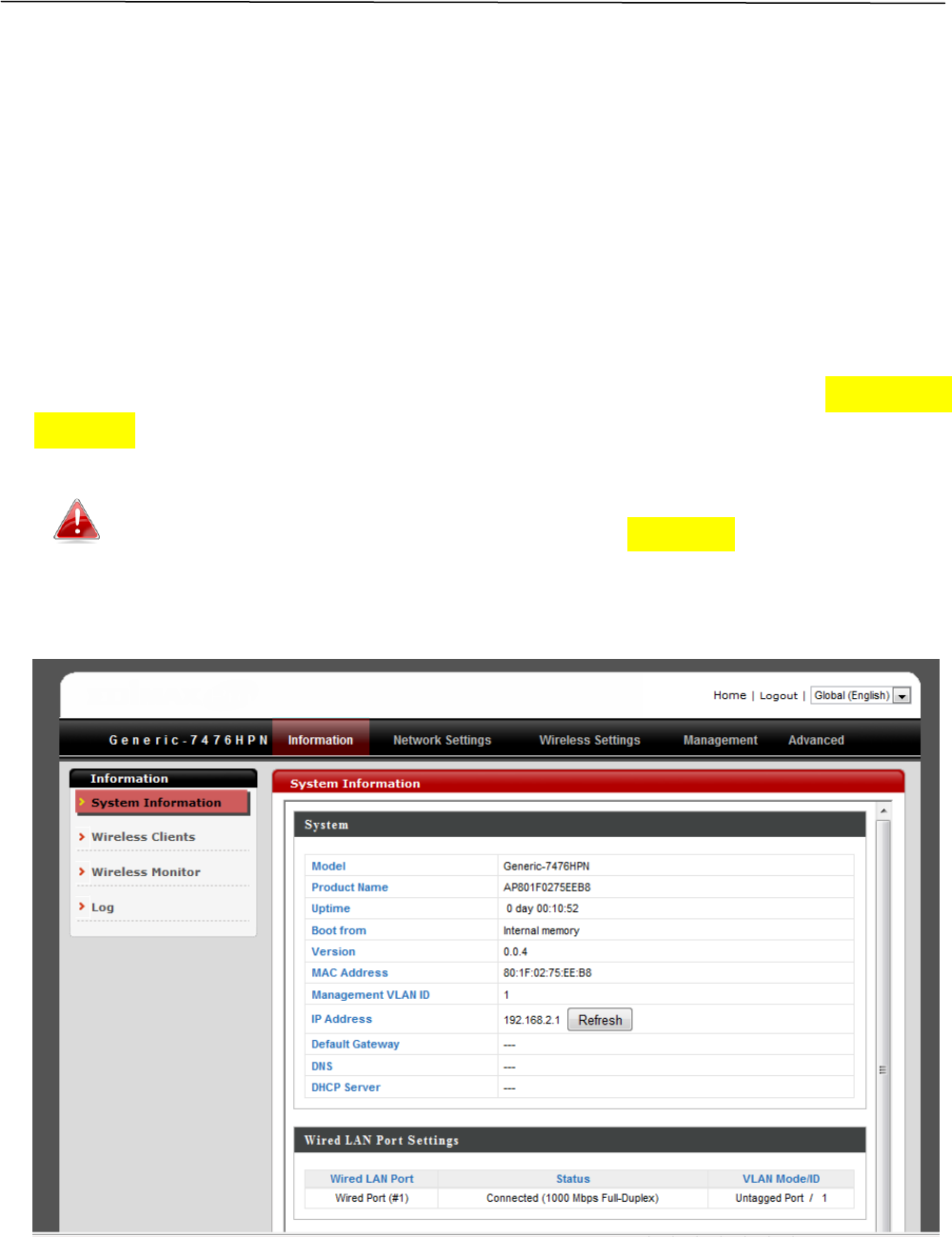

7. You will arrive the “System Information” screen shown below.

8. Next, please follow the instructions below in II-1. Basic Settings to

configure the access point’s basic settings.

For more advanced configurations, please refer to IV. Browser

Based Configuration Interface.

II-2. Basic Settings

The instructions below will help you to configure the following basic settings

of the access point:

It is recommended you configure these settings before using the

access point.

- LAN IP Address

- 2.4GHz SSID & Security

- Login Password

- Time & Date

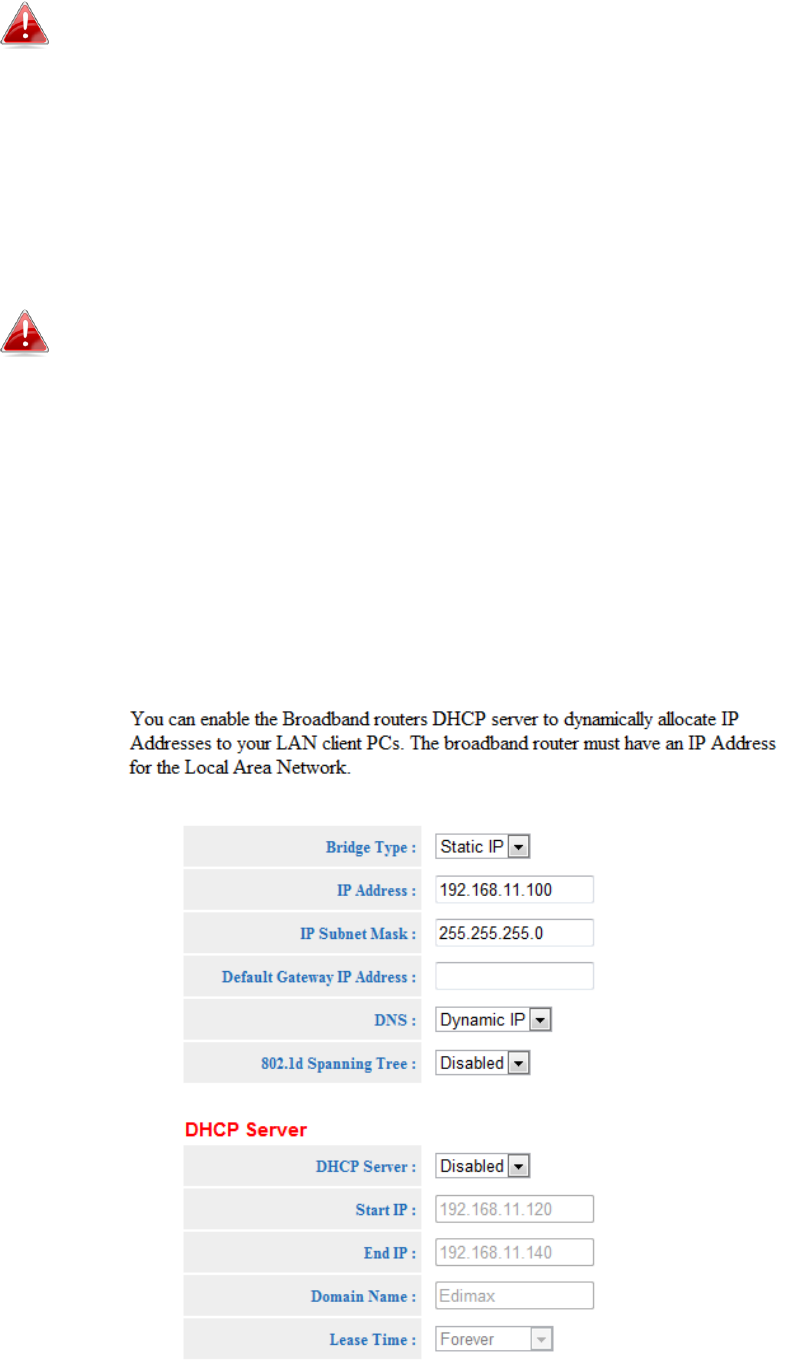

1. To change the access point’s LAN IP address, go to “Network Settings” >

“LAN-side IP Address” and you will see the screen below.

2. Enter the IP address settings you wish to use for your access point. Click

“Apply” to save the changes the wait a few moments for the access point

to reload.

When you change your access point’s IP address, you need to use

the new IP address to access the browser based configuration

interface instead of the default IP 192.168.2.1.

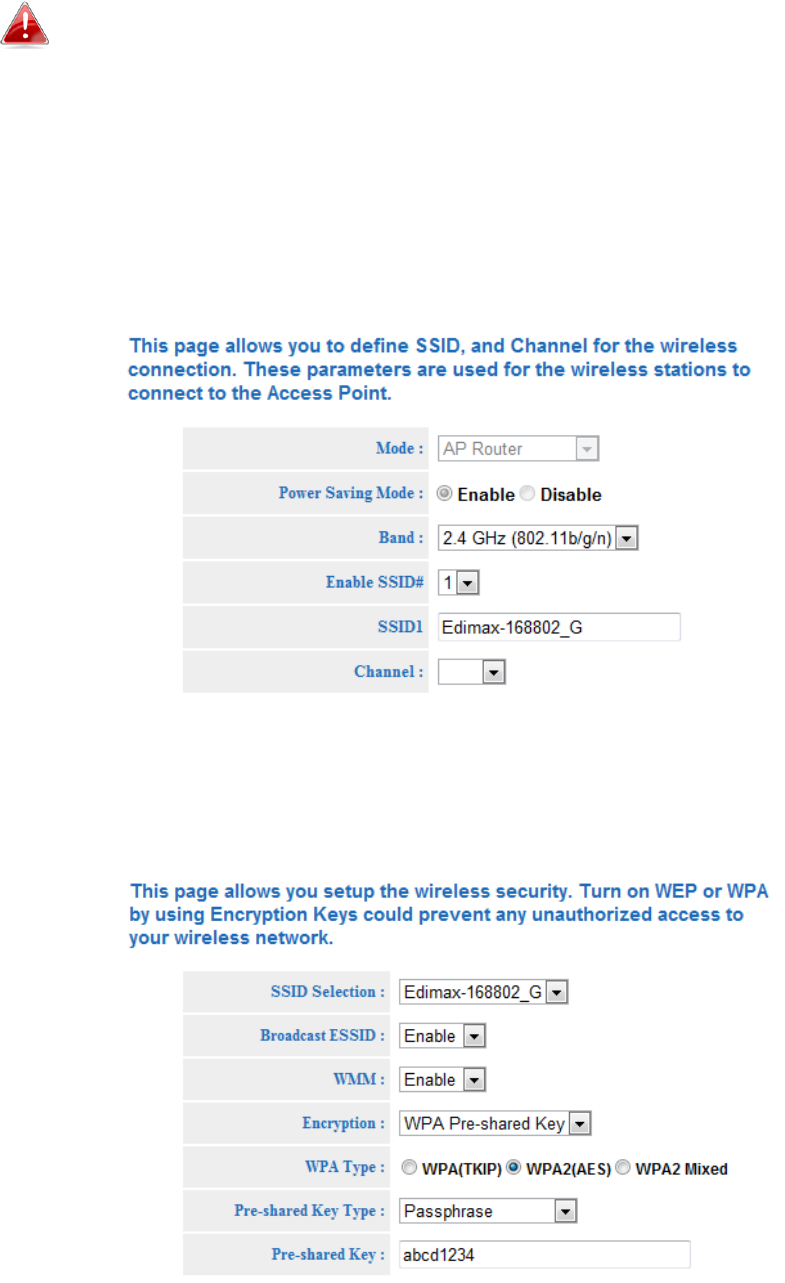

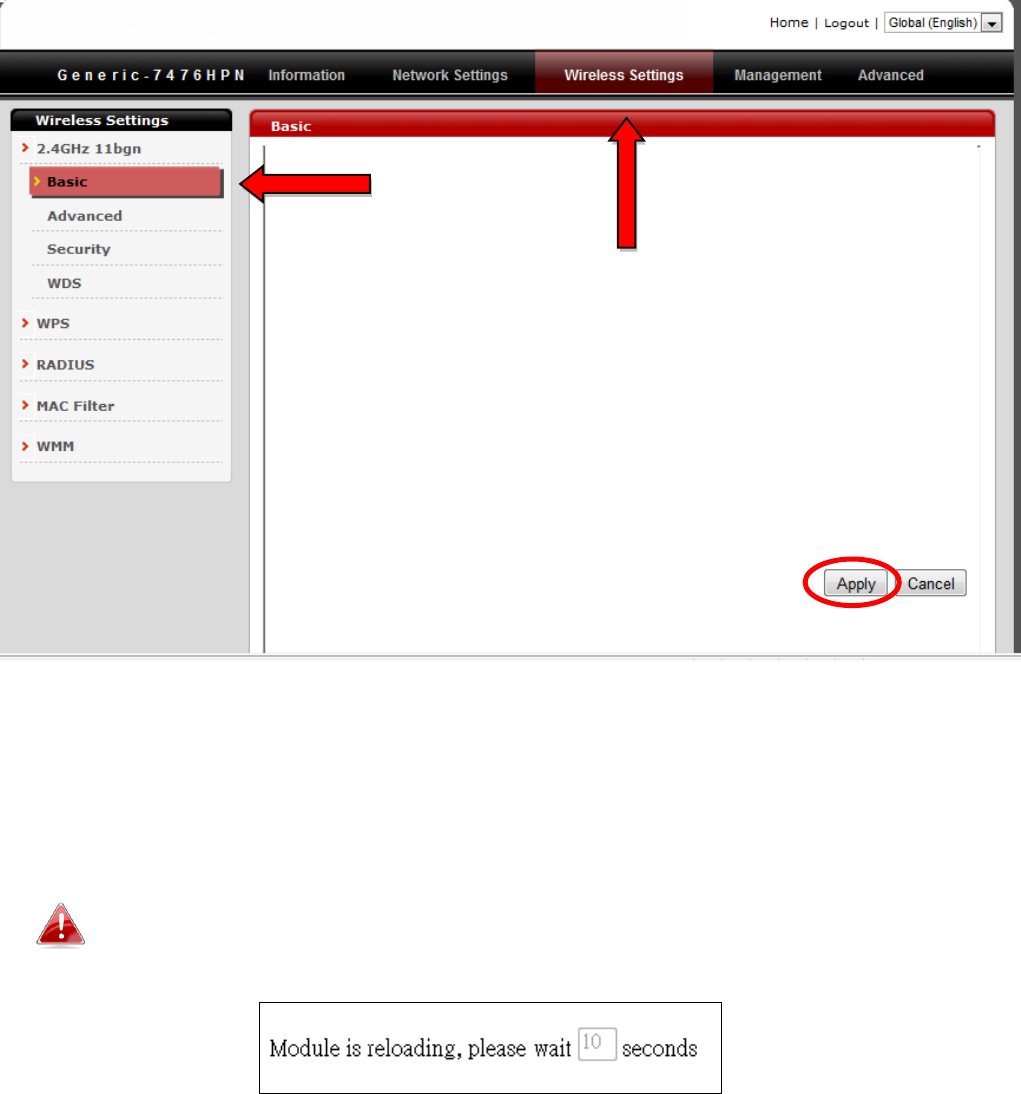

3. To change the SSID and password of your access point’s wireless

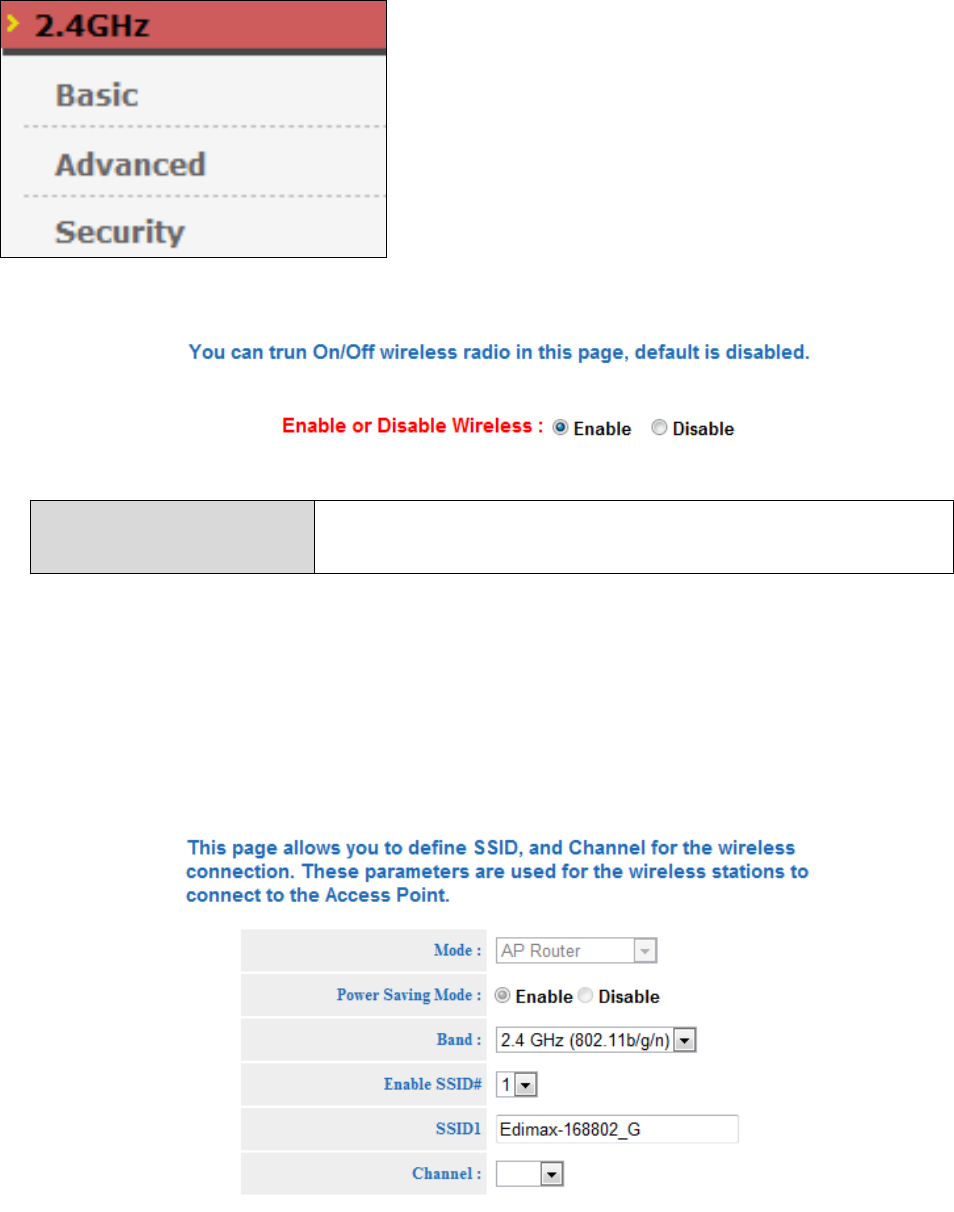

network(s), go to “Wireless Setting” > “2.4GHz” > “Basic”. Enter the new

SSID for your 2.4GHz wireless network in the “SSID1” field and click

“Apply”.

4. Go to “Wireless Setting” > “2.4GHz” > “Security”. Enter a new password

for your 2.4GHz wireless network in the “SSID1” field and click “Apply”.

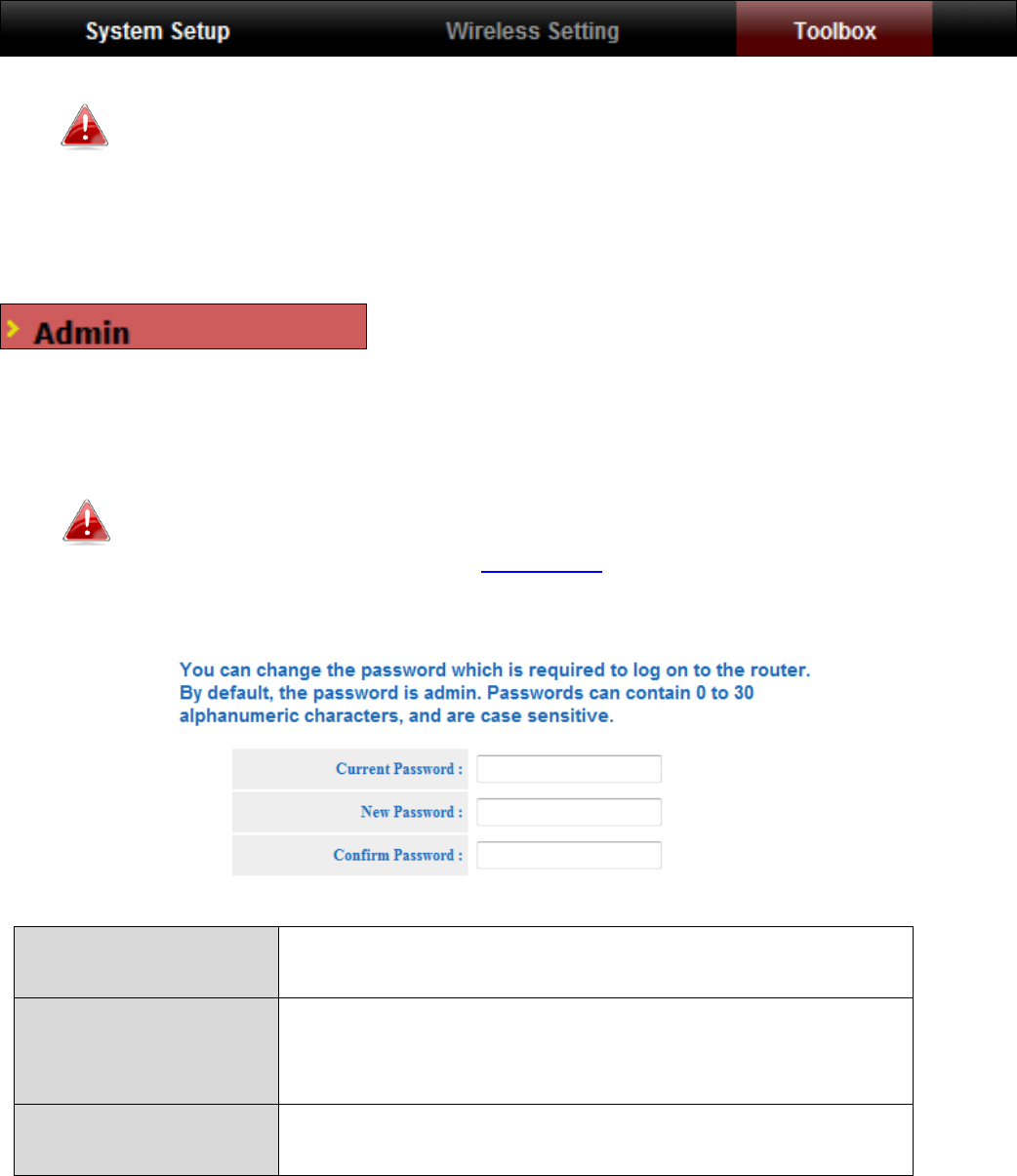

5. To change the login password for the browser based configuration

interface, go to “Toolbox” > “Admin”.

6. Complete the “Current Password”, “New Password” and “Confirm

Password” fields and click “Apply”.

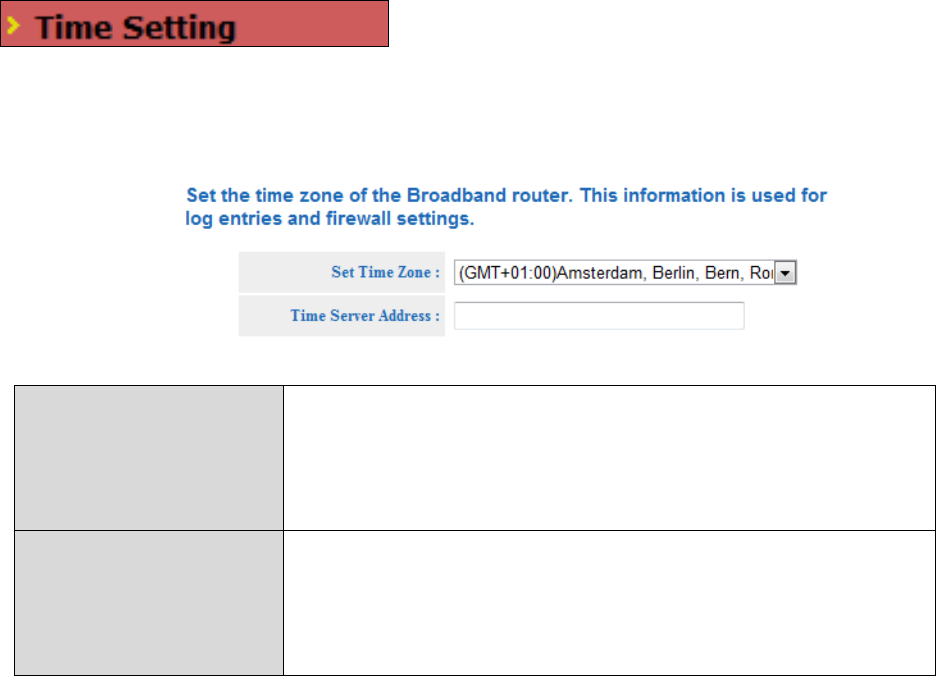

7. To set the correct time for your access point, go to “Toolbox” > “Time

Setting”.

8. Select the correct time zone for your access point from the drop down list.

The access point also supports NTP (Network Time Protocol) so

alternatively you can enter the host name or IP address of a time server.

Click “Apply” when you are finished.

9. The basic settings of your access point are now configured. Please refer to

III. Hardware Installation for guidance on connecting your access point to a

router or PoE switch and/or fixing your access point to a ceiling. Or refer to

IV. Browser Based Configuration Interface for help with advanced

configurations.

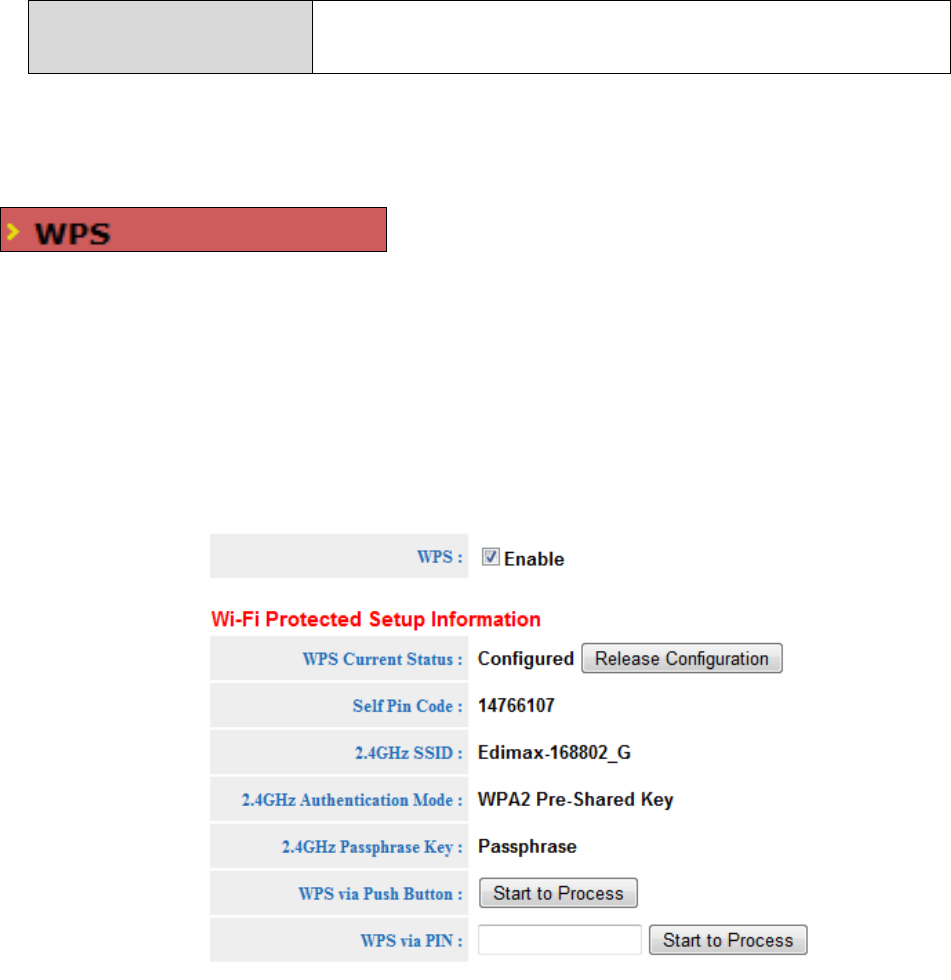

II-3. Wi-Fi Protected Setup (WPS)

Wi-Fi Protected Setup is a simple way to establish connections between WPS

compatible devices.

After you have set up the access point as explained in II. Installation you can

use the WPS button to establish a connection between the access point and a

WPS-compatible wireless device/client.

1. Press and hold the WPS/Reset button on the front of the access point for

2 seconds.

2. Within two minutes, activate WPS on your WPS-compatible wireless

device. Please check the documentation for your wireless device for

information regarding its WPS function.

3. The devices will establish a connection.

II. Hardware Installation

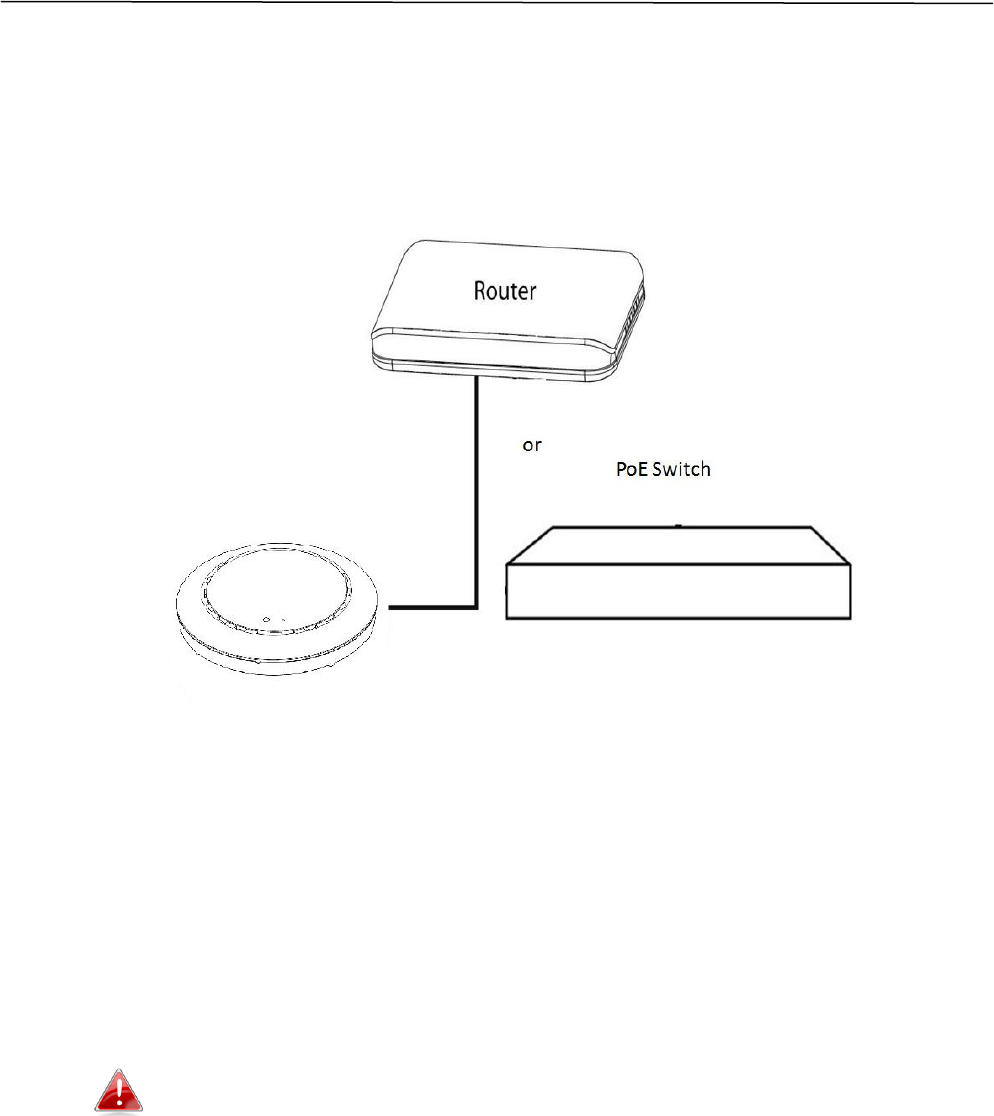

III-1. Connecting the access point to a router or PoE switch

1. Connect the access point to a router or PoE switch via Ethernet cable.

2. If you are using a router, then connect the power adapter to the access

point’s 12V DC port and plug the power adapter into a power supply.

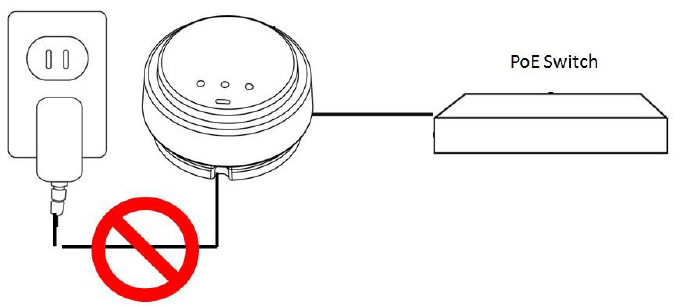

3. If you are using a PoE (Power over Ethernet) switch then it is not

necessary to use the included power adapter, the access point will be

Do not use the power adapter if you are using a PoE switch.

III-2. Mounting the access point to a ceiling

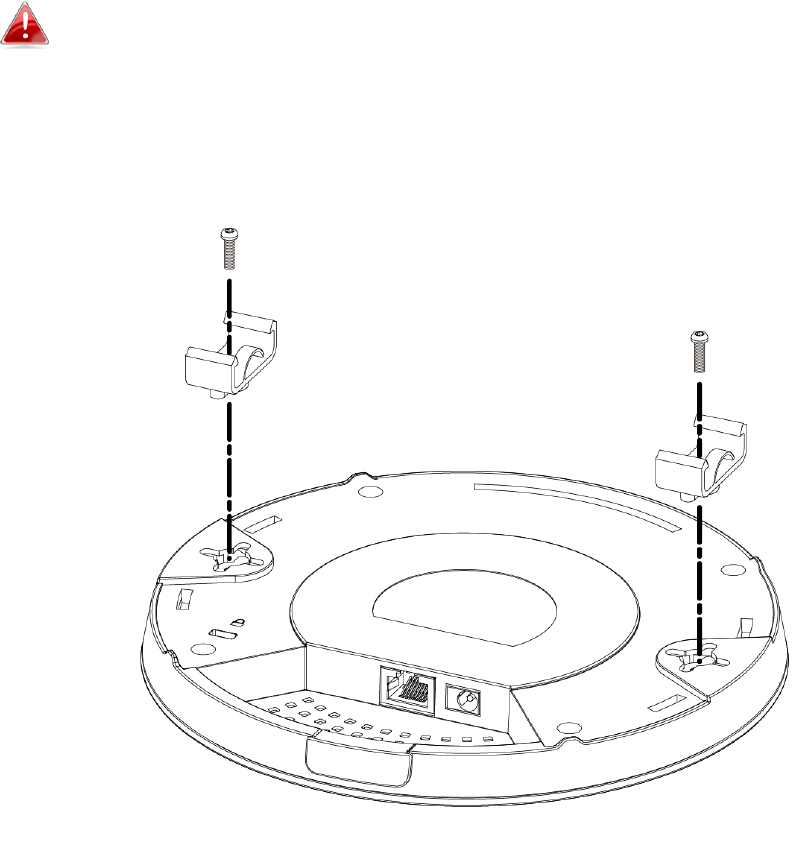

To mount the access point to a ceiling, please follow the instructions below

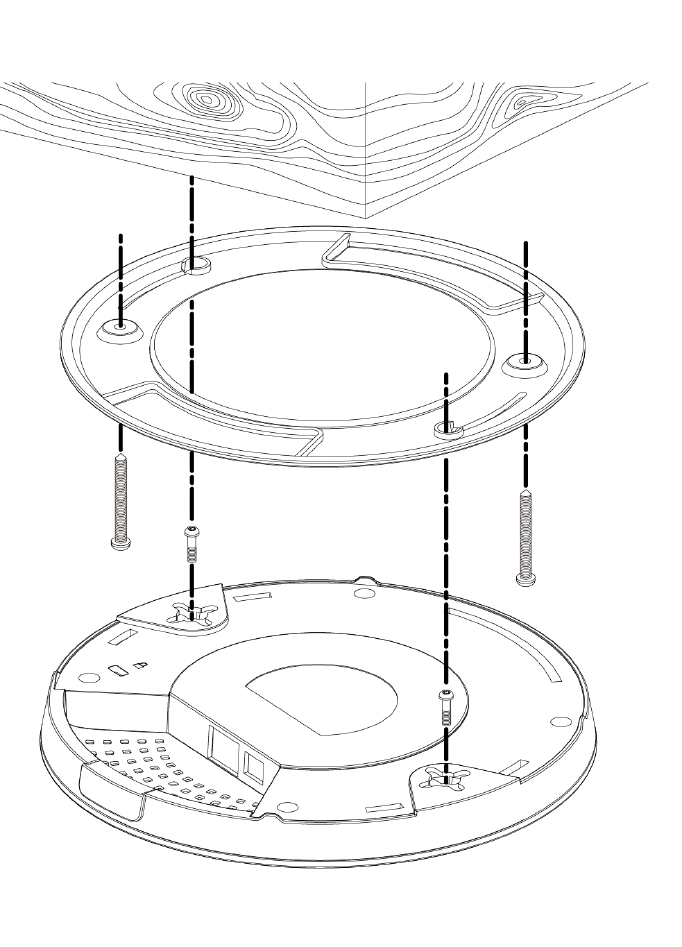

and refer to diagram A & B.

For Wooden Ceilings (refer to diagram A):

1. Place the ceiling mount bracket to a ceiling in your desired location and

insert screw iii through hole i (x 2)and tighten to fix the bracket in place.

2. When the ceiling bracket is in place, inset screw iv into hole v (x 2) on the

access point.

3. Fix the access point to the ceiling bracket by inserting the attached screws

iv into hole vi and twisting the access point.

4. Lock the access point firmly into place when by twisting it to align screws

iv with the grooves in the ceiling mount.

For Other Ceilings (refer to diagram B):

1. Place the ceiling mount bracket to a ceiling in your desired location and

Insert screw ii through hole i (x 2) and tighten to fix the bracket in place, as

shown in A.

2. Insert screw iii through hole i and into the rear of screw ii and tighten to

provide additional strength.

3. When the ceiling bracket is in place, insert screw iv into hole v (x 2) on the

access point.

5. Fix the access point to the ceiling bracket by inserting the attached screws

iv into hole vi and twisting the access point.

6. Lock the access point firmly into place by twisting it to align screws iv with

the grooves in the ceiling mount.

iii

III-3. T-Rail Mount

To mount the access point to a T-Rail, please follow the instructions below

and refer to diagram C, D & E.

1. Select the correct size T-Rail bracket from the two sizes which are

included in the package contents.

2. Attach the T-Rail bracket i to hole ii using screw iii (x 2) as shown in C.

If you need more space between the access point and the T-Rail,

then additionally use bracket iv between bracket i and hole ii (x 2),

and use the longer screws (x 2) included in the package contents.

3. Clip the access point onto your T-Rail using the now attached T-Rail

bracket.

IV. Browser Based Configuration Interface

You can use the browser-based configuration interface to configure advanced

settings.

1. Connect a computer to your access point using an Ethernet cable.

2. Enter your access point’s IP address in the URL bar of a web browser. The

access point’s default IP address is 192.169.2.2.

3. You will be prompted for a username and password. The default

username is “admin” and the default password is “admin”, though it was

recommended that you change the password during setup (see II-2. Basic

Settings).

If you cannot remember your password, reset the access point

back to its factory default settings. Refer to I-5. Reset

4. You will arrive at the “System Setup” screen shown below.

5. Use the menu across the top and down the left side to navigate.

6. Click “Apply” to save changes and reload the access point, or “Cancel” to

cancel changes.

Please wait a few seconds for the access point to reload after you

“Apply” changes, as shown below.

7. Please refer to the following chapters for full descriptions of the browser

based configuration interface features.

IV-1. System Setup

Screenshots displayed are examples. The information shown on

your screen will vary depending on your configuration.

IV-1-1. Status

The “Status” page displays basic system

information about the access point.

Model

Displays the model number of the access

point.

Uptime

Displays the total time since the device was

turned on.

Firmware Version

Displays the firmware version.

Hardware Version

Displays the hardware version.

Serial Number

Displays the operating mode.

Boot Code Version

Displays the access point’s ESSID, also known

as SSID. The ESSID/SSID is the name used to

identify a wireless network.

Runtime Code

Version

Displays the current wireless channel number.

LAN IP Address

Displays the IP address of this device.

LAN Subnet Mask

Displays the subnet mask of the IP address.

LAN Default

Gateway

Displays the IP address of the default

gateway.

LAN MAC address

Displays the device’s MAC address. The MAC

address is a unique, fixed ID for this device, it

cannot be modified.

DNS #1

IP address of DNS (Domain Name Server) #1.

DNS #2

IP address of DNS (Domain Name Server) #2.

IV-1-2. LAN Settings

The “LAN Settings” page allows you to

configure your Local Area Network (LAN). You

can enable the access point to dynamically allocate IP addresses to your LAN

clients, and you can modify the IP address of the access point.

Bridge Type

IP Address

Specify the IP address here. This IP address

will be assigned to your access point and will

replace the default IP address.

IP Subnet Mask

Specify a subnet mask. The default value is

255.255.255.0

Default Gateway IP

Address

Enter the default gateway assigned by your

ISP here. Some ISPs may call this “Default

Route”.

DNS

802.1d Spanning

Tree

Select “Enable” or “Disable” to enable/disable

802.1d Spanning Tree. This creates a tree of

connected layer-2 bridges (typically Ethernet

switches) within a mesh network, and

disables those links that are not part of the

tree, leaving a single active path between any

two network nodes.

DHCP Server

Enable or disable the DHCP server.

Start IP

Enter the start IP address for the DHCP

server’s IP address leases.

End IP

Enter the end IP address for the DHCP

server’s IP address leases.

Domain Name

Enter a domain name for your network.

Lease Time

Select a lease time for the DHCP leases here.

The DHCP client will obtain a new IP address

after the period expires. If there are less than

30 computers connected to the router, you

can select “Forever”.

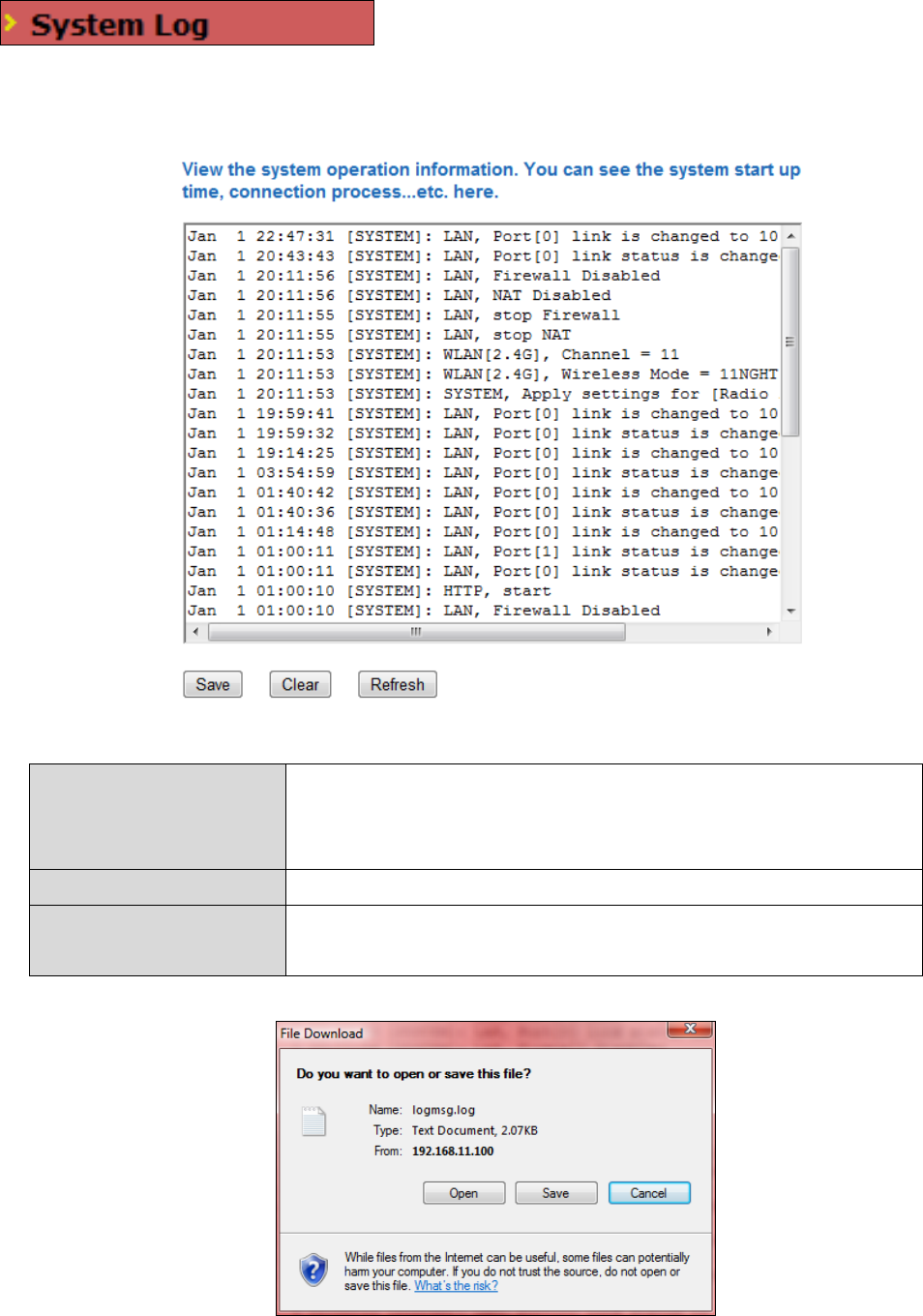

IV-1-3. System Log

The system log displays system operation

information such as up time and connection

processes.

Save

Click “Save” and you will be prompted (example

shown below) to save the log on your computer

as .txt file.

Clear

Click “Clear” to clear/erase the existing log.

Refresh

Click “Refresh” to refresh the log and update any

activity.

IV-2. Wireless Setting

Screenshots displayed are examples. The information shown on

your screen will vary depending on your configuration.

IV-2-1. Status

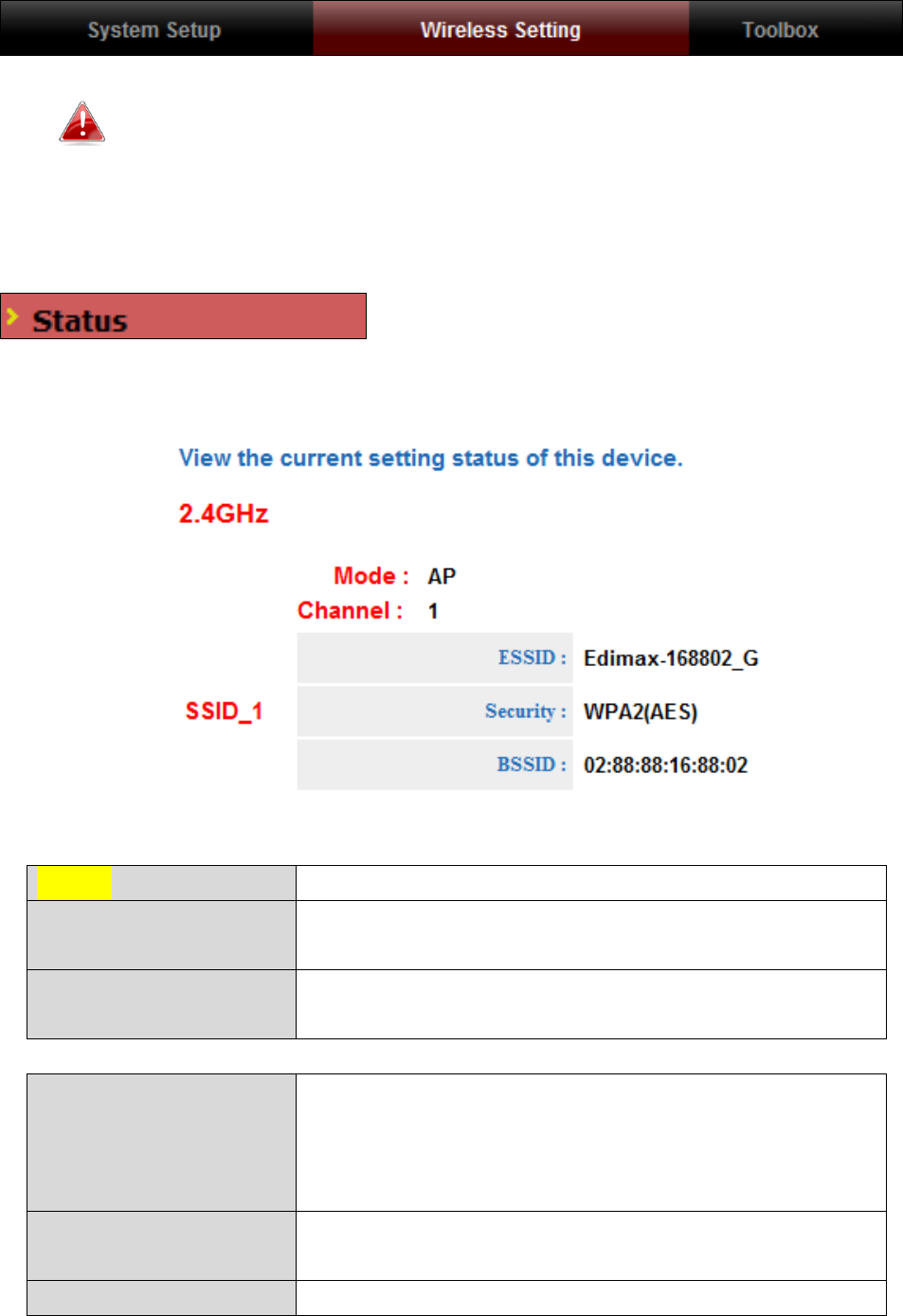

The “Status” page displays a summary of key

information about your access point’s 2.4GHz

wireless networks.

Mode

Channel

Displays the wireless channel number used

for the specified frequency (2.4GHz).

SSID1

Displays which SSID number the following

“ESSID”, “Security” and “BSSID” fields refer to.

ESSID

Displays the ESSID (also referred to as SSID)

for the access point’s specified wireless

network. The ESSID/SSID is the name used to

identify a wireless network

Security

Displays the wireless security/encryption type

for the specified wireless network.

BSSID

Displays the device’s BSSID. The BSSID

identifies this access point in the network,

and is the same as the device’s MAC address.

IV-2-2. 2.4GHz

The “2.4GHz” menu allows you to access basic,

advanced and security settings for your access

point’s 2.4GHz wireless networks. You can also

enable or disable the access point’s 2.4GHz

wireless networks.

Enable/Disable

Enable or disable the access point’s 2.4GHz

wireless network.

IV-2-2-1. Basic

The “Basic” screen displays settings for your access point’s 2.4GHz Wi-Fi

network (s).

Mode

Power Saving Mode

Enable or disable power saving mode on the

access point.

Band

Select the wireless standard used for the

access point. Combinations of 802.11b,

802.11g & 802.11n can be selected.

Enable SSID#

Select how many SSIDs to enable for the

2.4GHz frequency from the drop down menu.

A maximum of four can be enabled.

SSID1,2,3,4

Enter the SSID name for the specified SSID (1,

2, 3 or 4 depending on how many you have

enabled). The SSID can consist of any

combination of up to 32 alphanumeric

characters.

Channel

Select a wireless radio channel or use the

default “Auto” setting from the drop-down

menu.

IV-2-2-2. Advanced

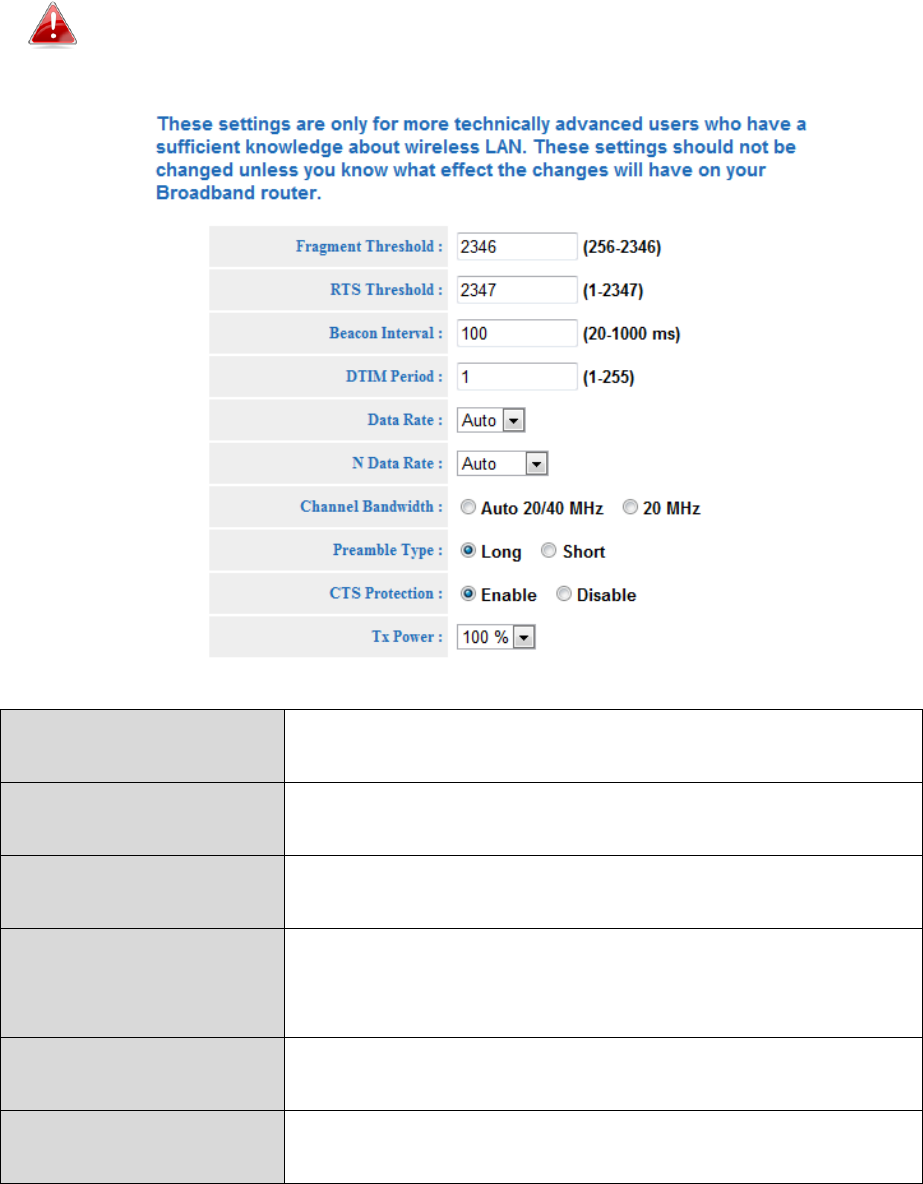

These settings are for experienced users only. Please do not change any of the

values on this page unless you are already familiar with these functions.

Changing these settings can adversely affect the performance of

your access point.

Fragment

Threshold

Set the fragment threshold of the wireless

radio. The default value is 2346.

RTS Threshold

Set the RTS threshold of the wireless radio. The

default value is 2347.

Beacon Interval

Set the beacon interval of the wireless radio.

The default value is 100.

DTIM Period

Set the DTIM (delivery traffic indication

message) period value of the wireless radio.

The default value is 1.

Data Rate

Set the wireless data rate. The default is set to

auto.

N Data Rate

Set the 802.11n wireless data rate. The default

is set to auto.

Channel Bandwidth

Select wireless channel width (analogue signal

bandwidth used by wireless signals from the

device) from “Auto 20/40Mhz” or “20Mhz” –

the recommended value is Auto 20/40MHz.

Preamble Type

Set the wireless radio preamble type. The

default value is “Short Preamble”.

CTS Protection

Enabling this setting will reduce the chance of

radio signal collisions between 802.11b and

802.11g wireless access points. It’s

recommended to set this option to “Auto”.

Tx Power

Set the power output of the wireless radio. You

may not require 100% output power. Setting a

lower power output can enhance security since

potentially malicious/unknown users in distant

areas will not be able to access your signal.

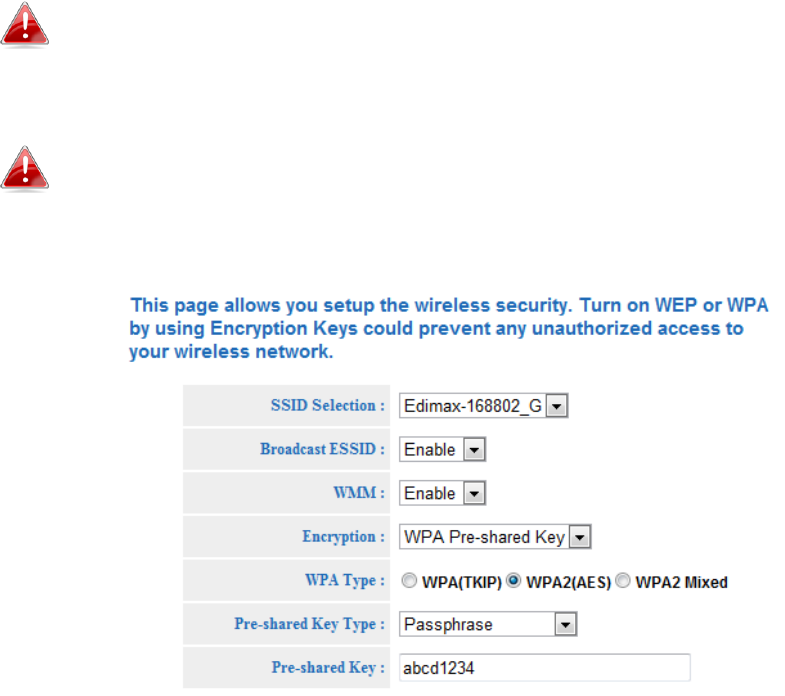

IV-2-2-3. Security

The access point provides various security options (wireless data encryption).

When data is encrypted, information transmitted wirelessly cannot be read by

anyone who does not know the correct encryption key.

It’s essential to configure wireless security in order to prevent

unauthorised access to your network. “WPA Pre-shared Key” is

the recommended security type.

Select hard-to-guess passwords which include combinations of

numbers, letters and symbols, and change your password

regularly.

SSID Selection

Select which SSID to configure security settings

for.

Broadcast ESSID

Enable or disable ESSID broadcast. When

enabled, the ESSID will be visible to clients as

an available Wi-Fi network. When disabled, the

ESSID will not be visible as an available Wi-Fi

network to clients – clients must manually

enter the ESSID in order to connect. A hidden

(disabled) ESSID is typically more secure than a

visible (enabled) SSID.

WMM

Enable or disable WMM. WMM (Wi-Fi

Multimedia) technology can improve the

performance of certain network applications,

such as audio/video streaming, network

telephony (VoIP) and others. When WMM is

enabled, the device will prioritize different

kinds of data and give higher priority to

applications which require instant responses

for better performance.

Encryption

Select an encryption type from the drop-down

menu and refer to the following chapters for

more information. The recommended

encryption type is “WPA Pre-shared Key”.

IV-2-2-3-1. Disable

Encryption is disabled and no password/key is required to connect to the

BR-6428nS V2/nC.

Disabling wireless encryption is not recommended. When

disabled, anybody within range can connect to your device’s SSID.

IV-2-2-3-2. WEP

WEP (Wired Equivalent Privacy) is a basic encryption type. For a higher

level of security consider using WPA encryption.

Authentication

Type

Select “Open System”, “Shared Key” or “Auto”

authentication type.

Key Length

Select 64-bit or 128-bit. 128-bit is more secure

than 64-bit and is recommended.

Key Type

Choose from “ASCII” (any alphanumerical

character 0-9, a-z and A-Z) or “Hex” (any

characters from 0-9, a-f and A-F).

Default Key

Select which encryption key (1 – 4 below) is the

default key. For security purposes, you can set

up to four keys (below) and change which is

the default key.

Encryption Key 1 –

Enter your encryption key/password according

to the format you selected above.

IV-2-2-3-3. WPA Pre-shared Key

WPA Pre-shared key is the recommended and most secure encryption

type.

WPA Type

Select from WPA (TKIP), WPA2 (AES) or WPA2

Mixed. WPA2 (AES) is safer than WPA (TKIP),

but not supported by all wireless clients. Please

make sure your wireless client supports your

selection. WPA2 (AES) is recommended

followed by WPA2 Mixed if your client does not

support WPA2 (AES).

Pre-shared Key

Format

Choose from “Passphrase” (8 – 63

alphanumeric characters) or “Hex” (up to 64

characters from 0-9, a-f and A-F).

Pre-shared Key

Please enter a security key/password according

to the format you selected above.

IV-2-2-3-4. WPA RADIUS

WPA RADIUS is a combination of WPA encryption and RADIUS user

authentication. If you have a RADIUS authentication server, you can

authenticate the identity of every wireless client against a user database.

WPA Type

Select from WPA (TKIP), WPA2 (AES) or WPA2

Mixed. WPA2 (AES) is safer than WPA (TKIP),

but not supported by all wireless clients. Please

make sure your wireless client supports your

selection. WPA2 (AES) is recommended

followed by WPA2 Mixed if your client does not

support WPA2 (AES).

RADIUS Server IP

address

Enter the IP address of the RADIUS

authentication server here.

RADIUS Server Port

Enter the port number of the RADIUS

authentication server here. The default value

is 1812.

RADIUS Server

Password

Enter the password of the RADIUS

authentication server here.

IV-2-2-3-5. 802.1x (WEP)

Enable 802.1x

Authentication

Enable or disable the use of 802.1x user

authentication.

RADIUS Server IP

Address

Enter the IP address of the RADIUS

authentication server here.

RADIUS Server

Port

Enter the port number of the RADIUS

authentication server here. Default value is

1812.

RADIUS Server

Password

Enter the password of the RADIUS

authentication server here.

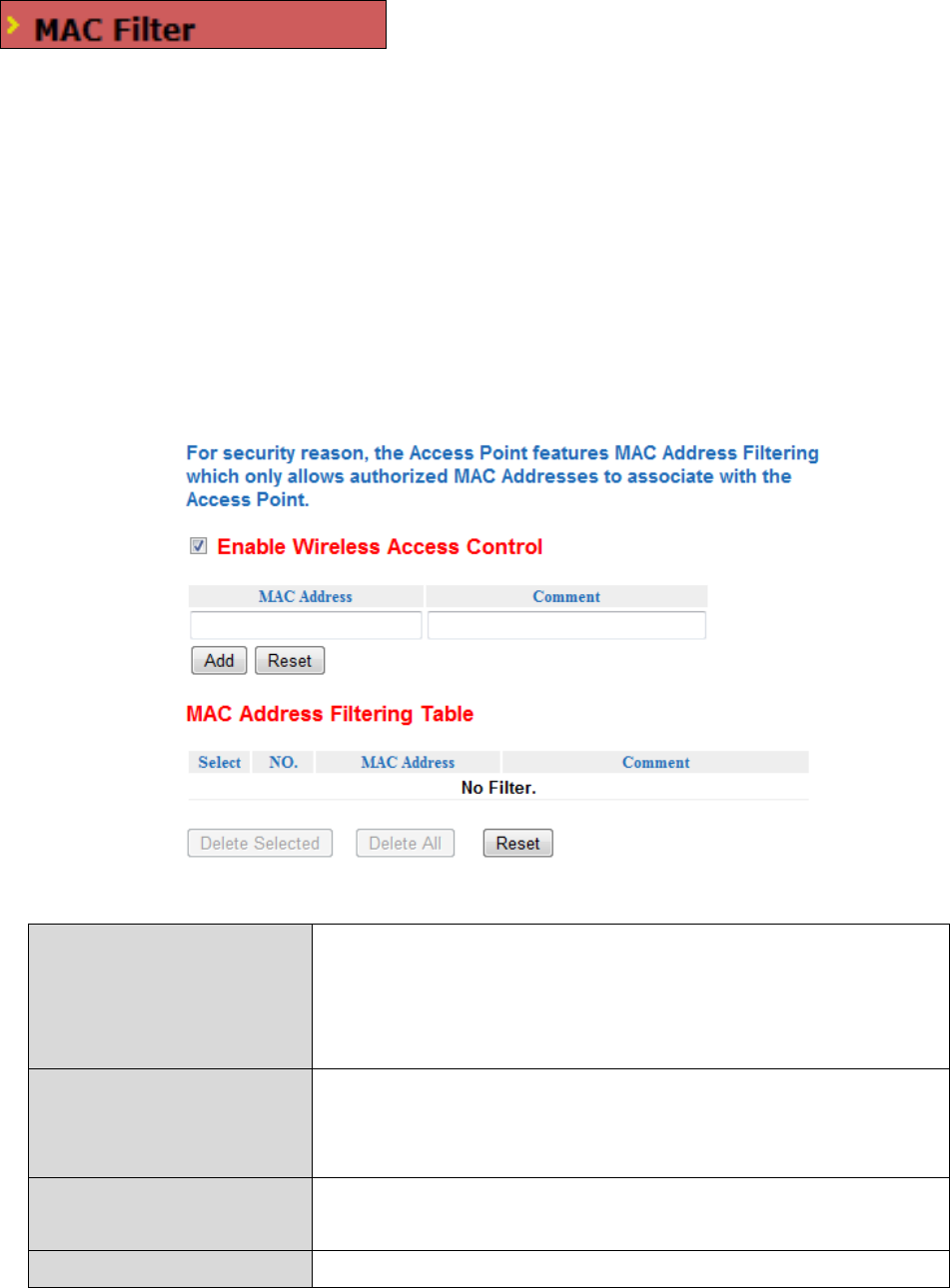

IV-2-3. MAC Filter

Mac filtering is a security feature that can help

to prevent unauthorized users from connecting

to your access point.

This function allows you to define a list of network devices permitted to

connect to the BR-6428nS V2/nC. Devices are each identified by their unique

MAC address. If a device which is not on the list of permitted MAC addresses

attempts to connect to the BR-6428nS V2/nC, it will be denied.

To enable this function, check the box labeled “Enable Wireless Access

Control”.

MAC address

Enter a MAC address of computer or network

device manually without dashes or colons e.g.

for MAC address ‘aa-bb-cc-dd-ee-ff’ enter

‘aabbccddeeff’.

Comment

Enter a comment for reference/identification

consisting of up to 16 alphanumerical

characters.

Add

Click “Add” to add the MAC address to the

MAC address filtering table.

Reset

Clear all fields.

MAC address entries will be listed in the “MAC Address Filtering Table”. Select

an entry using the “Select” checkbox.

Delete Selected/

Delete All

Delete selected or all entries from the table.

IV-2-4. WPS

Wi-Fi Protected Setup is a simple way to

establish connections between WPS

compatible devices. WPS can be activated on compatible devices by pushing a

WPS button on the device or from within the device’s firmware/configuration

interface. When WPS is activated in the correct manner and at the correct

time for two compatible devices, they will automatically connect. PIN code

WPS includes the use of a PIN code between the two devices for verification.

Enable WPS

Check/uncheck this box to enable/disable

WPS.

WPS Current Status

Displays “Configured” or “unConfigured”

depending on whether WPS and

security/encryption settings for the device

have been configured or not, either manually

or using the WPS button.

Self PIN Code

Displays the WPS PIN code of the device.

2.4 GHz SSID

Displays the SSID (ESSID) of the device.

2.4GHz

Authentication

Mode

Displays the wireless security authentication

mode of the device.

2.4GHz Passphrase

Key

Displays the wireless security authentication

key type.

Configure via Push

Button

Click “Start to Process” to activate WPS on the

access point. WPS will be active for 2 minutes.

WPS via PIN

Enter the wireless client’s PIN code here and

click “Start to Process” to activate PIN code

WPS. Refer to your wireless client’s

documentation if you are unsure of its PIN

code.

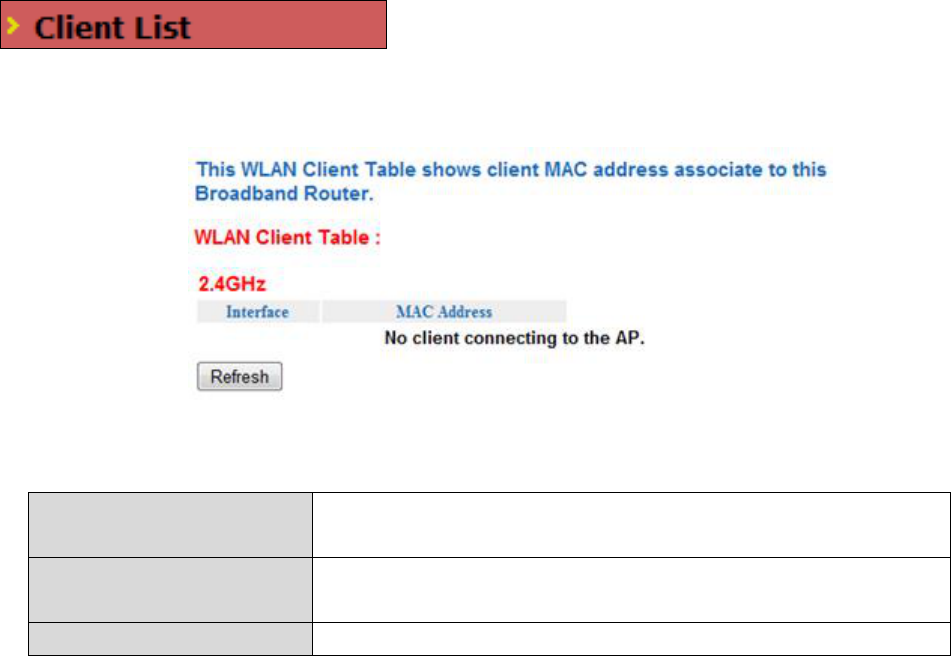

IV-2-5. Client List

The “Client List” page displays a table of all

clients which are connected to the access

point.

Interface

Interface of each client (2.4GHz) is displayed

here.

MAC Address

The MAC address each client connected to the

access point is displayed here.

Refresh

Click to refresh the list of connected clients.

IV-3. Toolbox

Screenshots displayed are examples. The information shown on

your screen will vary depending on your configuration.

IV-3-1. Admin

You can change the password used to login to

the browser-based configuration interface here.

It is advised to do so for security purposes.

If you change the administrator password, please make a note

of the new password. In the event that you forget this

password and are unable to login to the browser based

configuration interface, see II-2. Reset for how to reset the

access point.

Current Password

Enter your current password. The default

password is 1234.

New Password

Enter your desired new password here. You can

use any combination of letters, numbers and

symbols up to 20 characters.

Re-Enter

Password

Confirm your new password.

IV-3-2. Time Setting

You can configure the time zone settings of

your access point here. The date and time of

the device can be configured manually or can be synchronized with a time

server.

Time Zone

Select the time zone of your country/ region. If

your country/region is not listed, please select

another country/region whose time zone is the

same as yours.

Time Server

Address

The access point also supports NTP (Network

Time Protocol) for automatic time and date

setup. Enter the host name or IP address of the

time server if you wish.

IV-3-3. Diagnosis

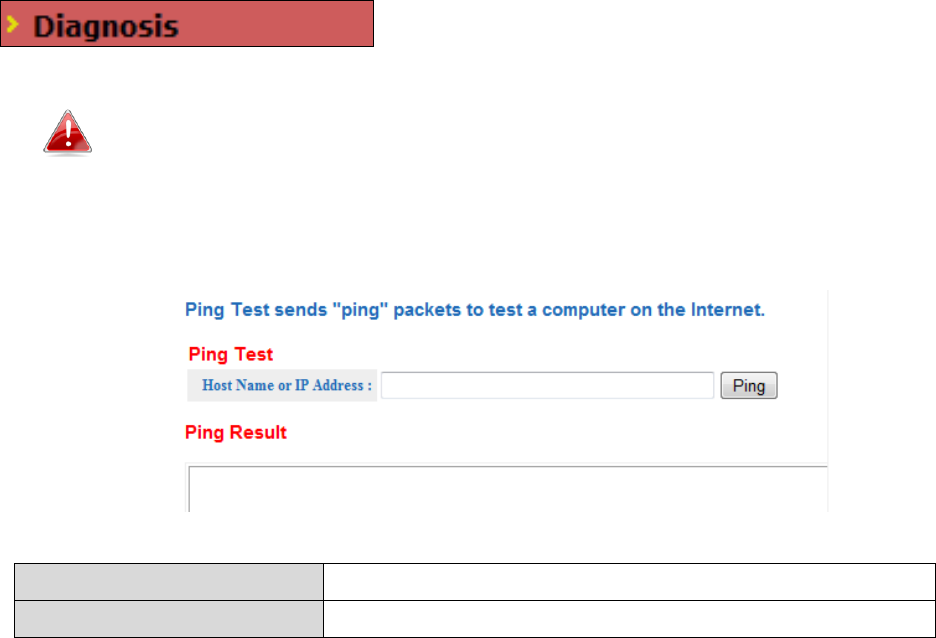

The diagnosis tool can ping a specific IP address

and display the result in the box below.

A “ping” is a test packet of information sent to determine the

reachability of a host on an IP network, and to measure the

round-trip time for messages sent from the originating host to a

destination computer.

Ping Address

Specify the host name or IP address to ping.

Ping

Click “Ping” to begin.

IV-3-4. Firmware

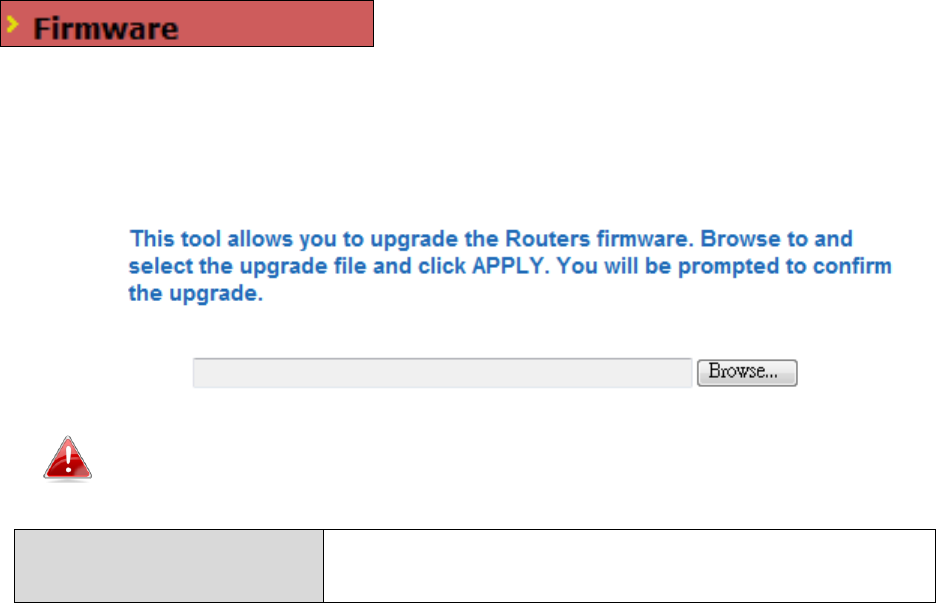

The “Firmware” page allows you to update the

system firmware to a more recent version.

Updated firmware versions often offer increased performance and security, as

well as bug fixes. You can download the latest firmware from the Edimax

website.

Do not switch off or disconnect the access point during a firmware

upgrade, as this could damage the device.

Browse

Open a new window to locate and select the

firmware file in your computer.

IV-3-5. System Setting

The access point’s “System Setting” page

enables you to restore the device back to

factory default settings, back up the current settings, or restore the device to

previously saved settings.

Restore to Factory

Defaults

Click “Reset” to restore settings to the

factory default. A pop-up window will appear

and ask you to confirm and enter your log in

details. Enter your username and password

and click “Ok”. See below for more

information.

Backup Settings

Click “Save” to save the current settings on

your computer as config.bin file.

Restore Settings

Click the browse button to find a previously

saved config.bin file and then click “Upload”

to replace your current settings.

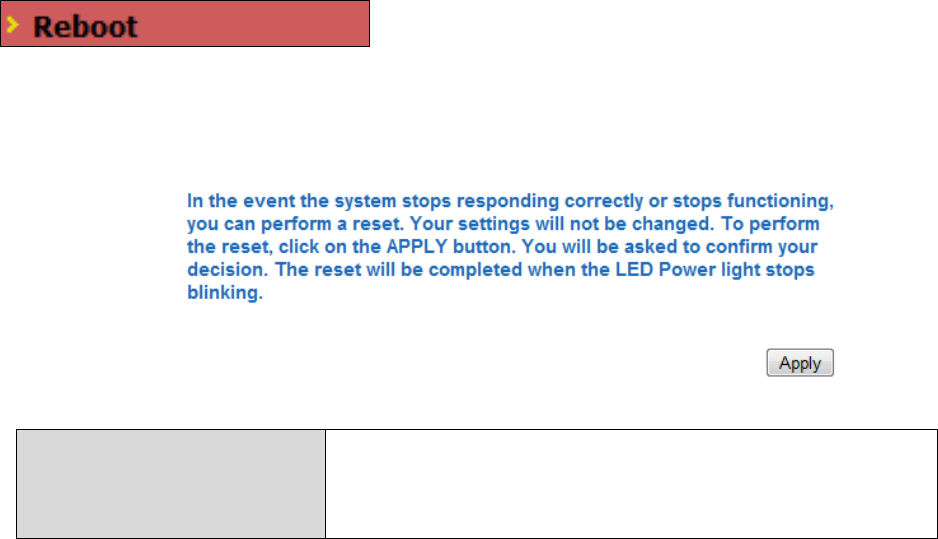

IV-3-6. Reboot

If the access point malfunctions or is not

responding, then it is recommended that you

reboot the device. You can reboot the access point remotely using this feature

if the location of the access point is not convenient.

Apply

Click “Apply” to reboot the device. A

countdown will indicate the progress of the

reboot.

III. Appendix

IV-1. Configuring your IP address

The access point uses the default IP address 192.168.2.2. In order to access

the browser based configuration interface, you need to modify the IP address

of your computer to be in the same IP address subnet e.g. 192.168.2.x (x = 3 –

254).

The procedure for modifying your IP address varies across different operating

systems; please follow the guide appropriate for your operating system.

In the following examples we use the IP address 192.168.2.10 though you can

use any IP address in the range 192.168.2.x (x = 3 – 254).

IV-1-2-1. Windows XP

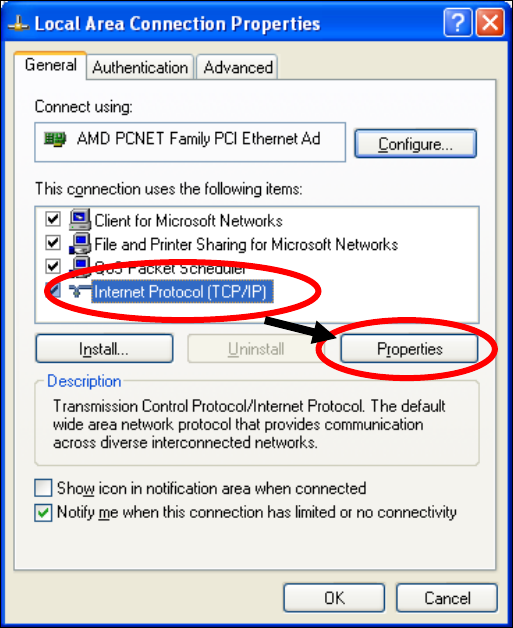

1. Click the “Start” button (it should be located in the lower-left corner of

your computer), then click “Control Panel”. Double-click the “Network and

Internet Connections” icon, click “Network Connections”, and then

double-click “Local Area Connection”. The “Local Area Connection Status”

window will then appear, click “Properties”.

2. Select “Use the following IP address”, then input the following values:

IP address: 192.168.2.10

Subnet Mask: 255.255.255.0

Click ‘OK’ when finished.

IV-1-2-2. Windows Vista

1. Click the “Start” button (it should be located in the lower-left corner of

your computer), then click “Control Panel”. Click “View Network Status and

Tasks”, then click “Manage Network Connections”. Right-click “Local Area

Network”, then select “Properties”. The “Local Area Connection Properties”

window will then appear, select “Internet Protocol Version 4 (TCP / IPv4)”,

and then click “Properties”.

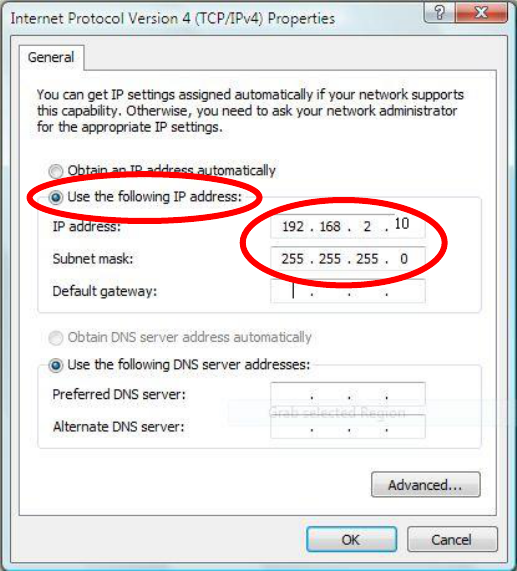

2. Select “Use the following IP address”, then input the following values:

IP address: 192.168.2.10

Subnet Mask: 255.255.255.0

Click ‘OK’ when finished.

IV-1-2-3. Windows 7

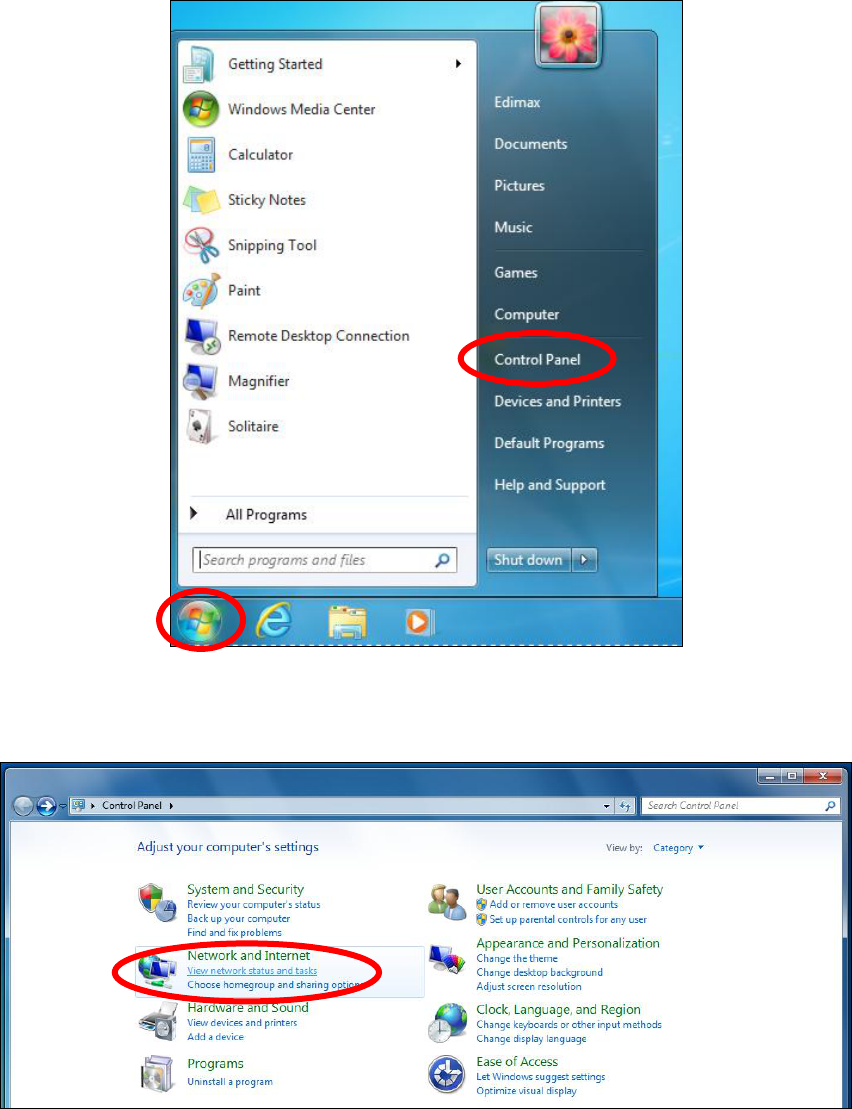

1. Click the “Start” button (it should be located in the lower-left corner of

your computer), then click “Control Panel”.

2. Under “Network and Internet” click “View network status and tasks”.

3. Click “Local Area Connection”.

4. Click “Properties”.

5. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.

6. Select “Use the following IP address”, then input the following values:

IP address: 192.168.2.10

Subnet Mask: 255.255.255.0

Click ‘OK’ when finished.

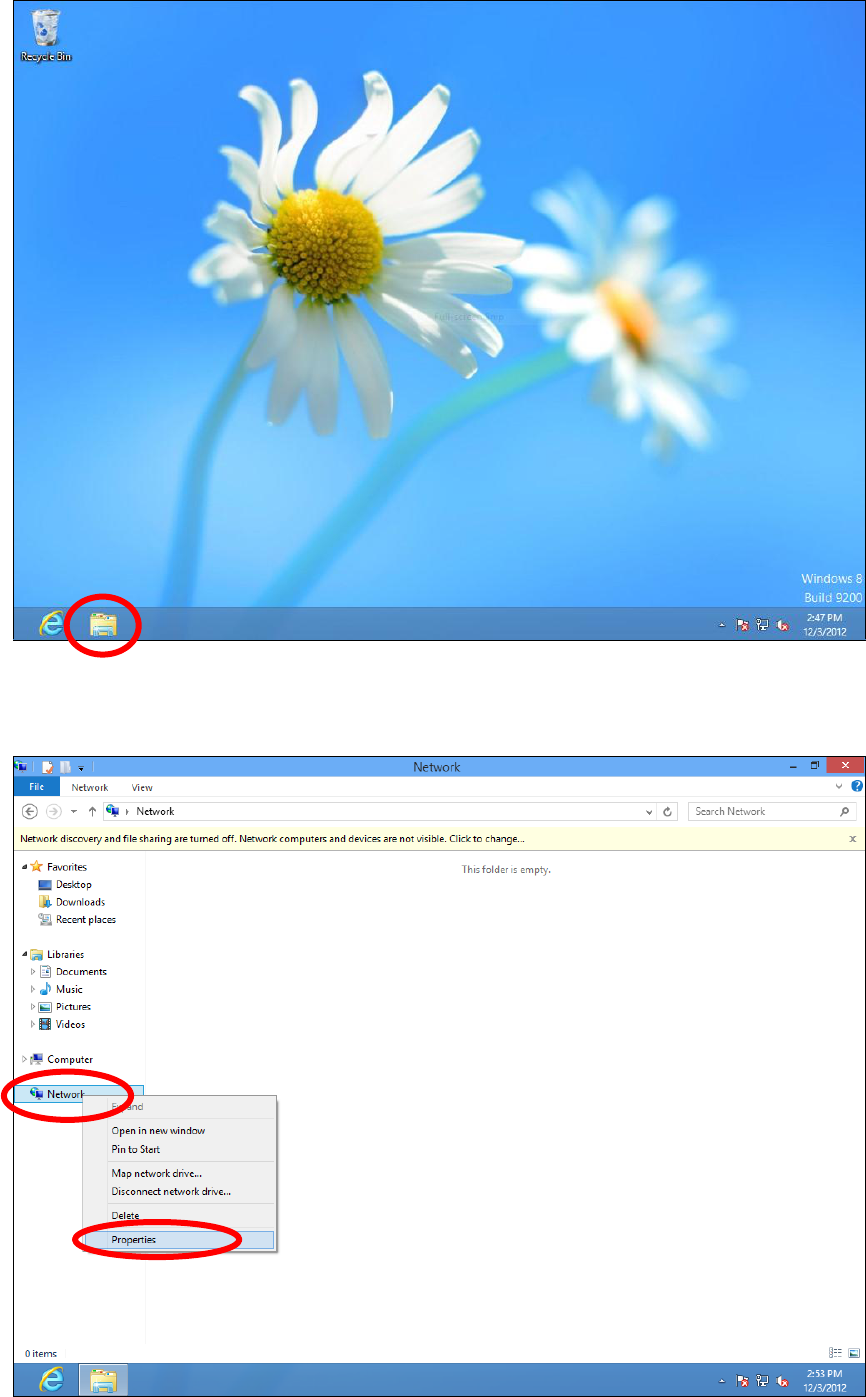

IV-1-2-4. Windows 8

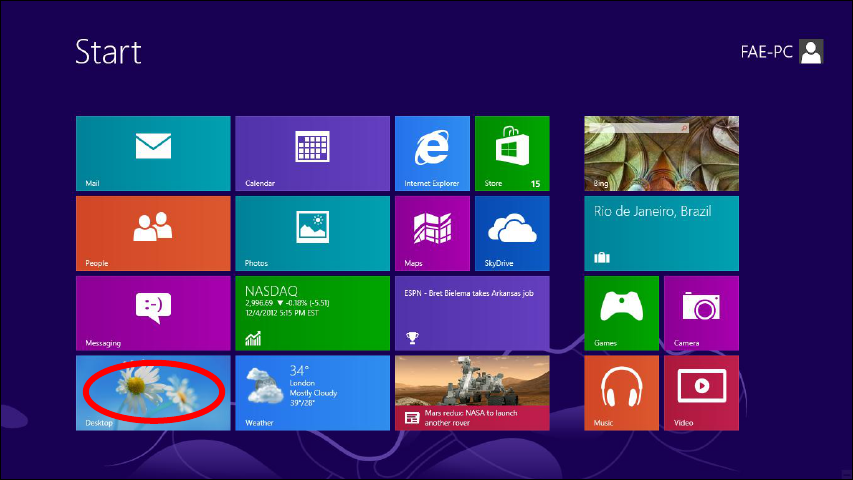

1. From the Windows 8 Start screen, you need to switch to desktop mode.

Move your curser to the bottom left of the screen and click.

2. In desktop mode, click the File Explorer icon in the bottom left of the

screen, as shown below.

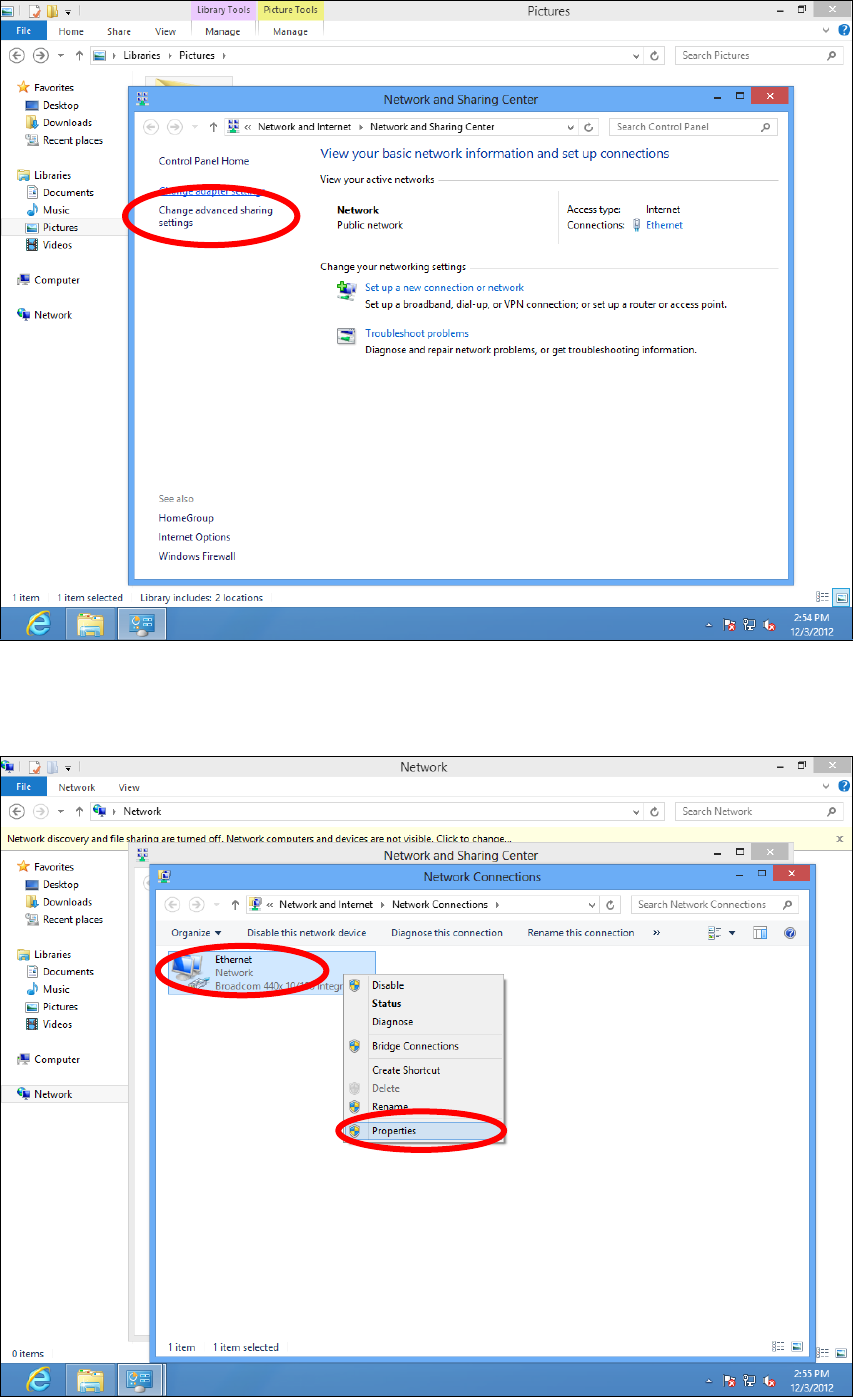

3. Right click “Network” and then select “Properties”.

4. In the window that opens, select “Change adapter settings” from the left

side.

5. Choose your connection and right click, then select “Properties”.

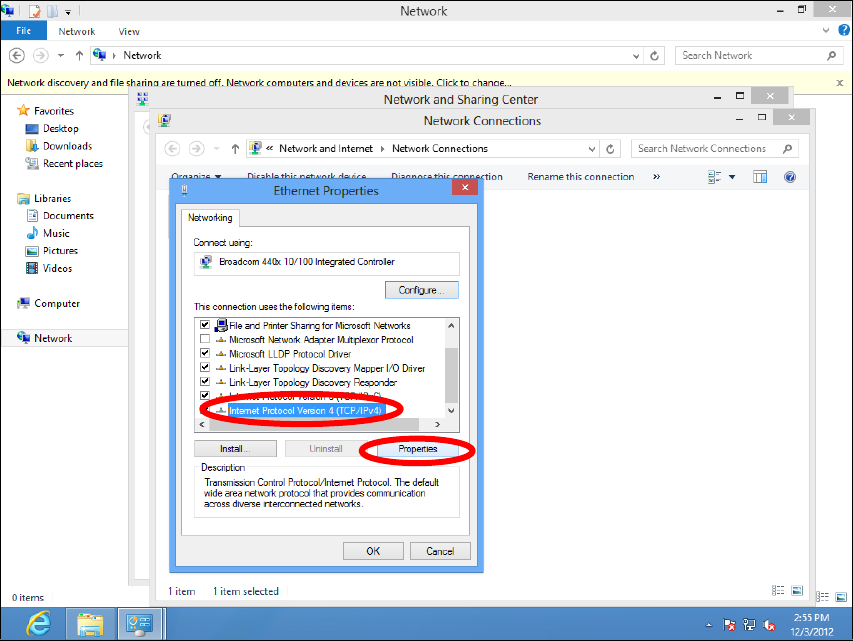

6. Select “Internet Protocol Version 4 (TCP/IPv4) and then click “Properties”.

7. Select “Use the following IP address”, then input the following values:

IP address: 192.168.2.10

Subnet Mask: 255.255.255.0

Click ‘OK’ when finished.

IV-1-2-5. Mac

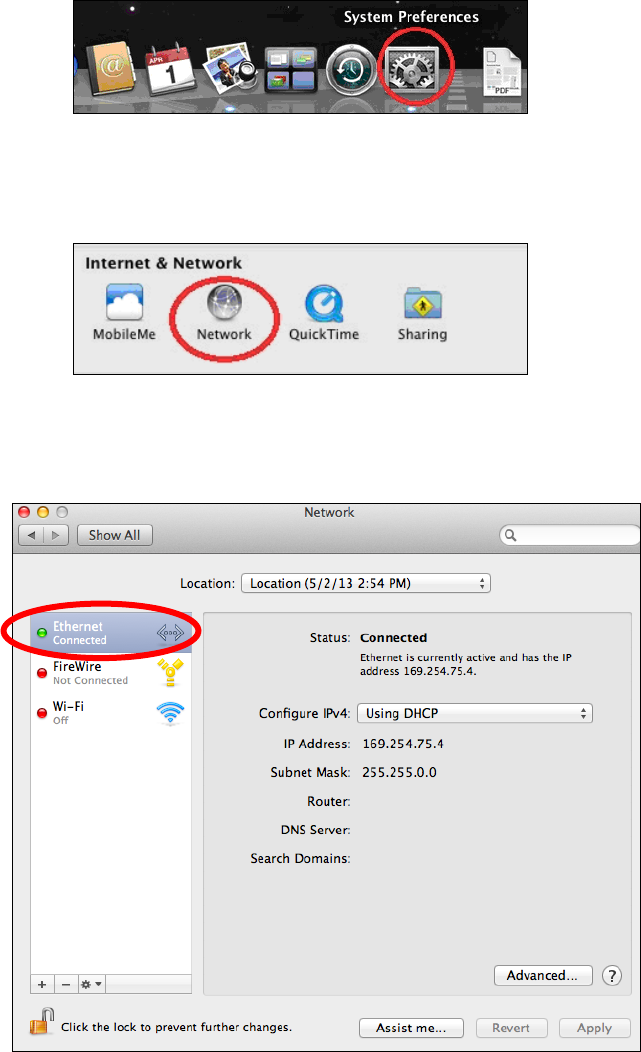

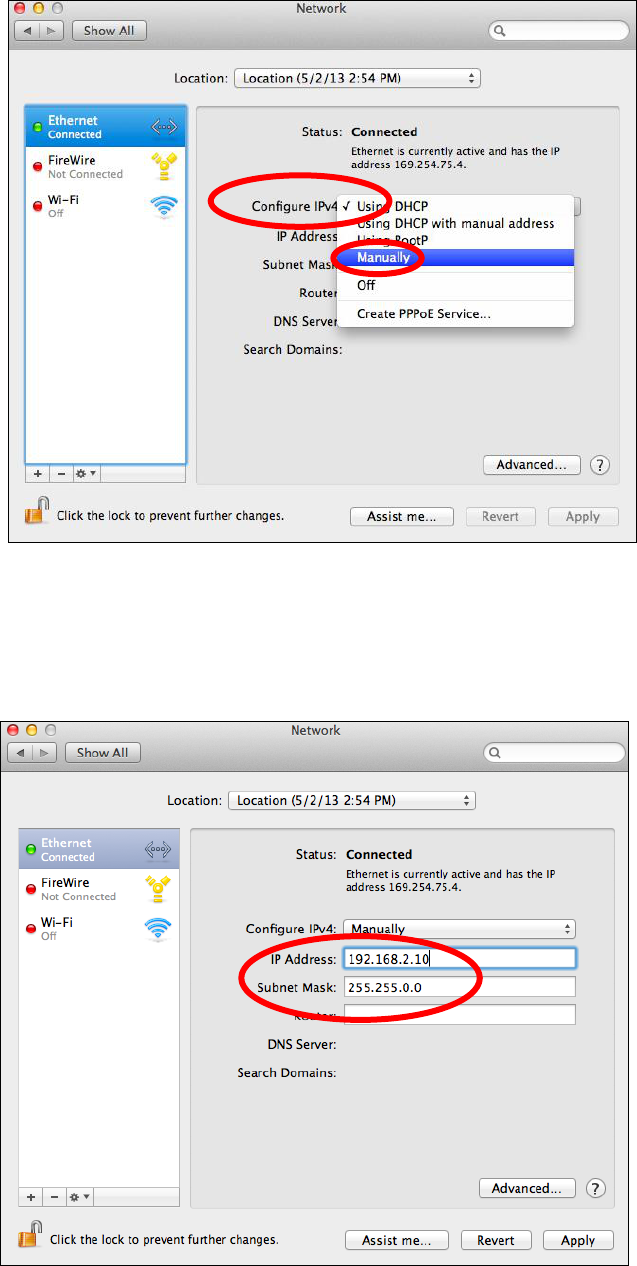

1. Have your Macintosh computer operate as usual, and click on “System

Preferences”

2. In System Preferences, click on “Network”.

3. Click on “Ethernet” in the left panel.

4. Open the drop-down menu labeled “Configure IPv4” and select

“Manually”.

5. Enter the IP address 192.168.2.10 and subnet mask 255.255.255.0. Click

on “Apply” to save the changes.

IV-1-5. Glossary

Default Gateway (Access point): Every non-access point IP device needs to

configure a default gateway’s IP address. When the device sends out an IP

packet, if the destination is not on the same network, the device has to send

the packet to its default gateway, which will then send it out towards the

destination.

DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives

every computer on your home network an IP address.

DNS Server IP Address: DNS stands for Domain Name System, which allows

Internet servers to have a domain name (such as www.Broadbandaccess

point.com) and one or more IP addresses (such as 192.34.45.8). A DNS server

keeps a database of Internet servers and their respective domain names and

IP addresses, so that when a domain name is requested (as in typing

"Broadbandaccess point.com" into your Internet browser), the user is sent to

the proper IP address. The DNS server IP address used by the computers on

your home network is the location of the DNS server your ISP has assigned to

you.

DSL Modem: DSL stands for Digital Subscriber Line. A DSL modem uses your

existing phone lines to transmit data at high speeds.

Ethernet: A standard for computer networks. Ethernet networks are

connected by special cables and hubs, and move data around at up to 10/100

million bits per second (Mbps).

IP Address and Network (Subnet) Mask: IP stands for Internet Protocol. An IP

address consists of a series of four numbers separated by periods, that

identifies a single, unique Internet computer host in an IP network. Example:

192.168.2.1. It consists of 2 portions: the IP network address, and the host

identifier.

The IP address is a 32-bit binary pattern, which can be represented as four

cascaded decimal numbers separated by “.”: aaa.aaa.aaa.aaa, where each

“aaa” can be anything from 000 to 255, or as four cascaded binary numbers

separated by “.”: bbbbbbbb.bbbbbbbb.bbbbbbbb.bbbbbbbb, where each “b”

can either be 0 or 1.

A network mask is also a 32-bit binary pattern, and consists of consecutive

leading 1’s followed by consecutive trailing 0’s, such as

11111111.11111111.11111111.00000000. Therefore sometimes a network

mask can also be described simply as “x” number of leading 1’s.

When both are represented side by side in their binary forms, all bits in the IP

address that correspond to 1’s in the network mask become part of the IP

network address, and the remaining bits correspond to the host ID.

For example, if the IP address for a device is, in its binary form,

11011001.10110000.10010000.00000111, and if its network mask is,

11111111.11111111.11110000.00000000

It means the device’s network address is

11011001.10110000.10010000.00000000, and its host ID is,

00000000.00000000.00000000.00000111. This is a convenient and efficient

method for access points to route IP packets to their destination.

ISP Gateway Address: (see ISP for definition). The ISP Gateway Address is an

IP address for the Internet access point located at the ISP's office.

ISP: Internet Service Provider. An ISP is a business that provides connectivity

to the Internet for individuals and other businesses or organizations.

LAN: Local Area Network. A LAN is a group of computers and devices

connected together in a relatively small area (such as a house or an office).

Your home network is considered a LAN.

MAC Address: MAC stands for Media Access Control. A MAC address is the

hardware address of a device connected to a network. The MAC address is a

unique identifier for a device with an Ethernet interface. It is comprised of

two parts: 3 bytes of data that corresponds to the Manufacturer ID (unique

for each manufacturer), plus 3 bytes that are often used as the product’s

serial number.

NAT: Network Address Translation. This process allows all of the computers

on your home network to use one IP address. Using the broadband access

point’s NAT capability, you can access the Internet from any computer on

your home network without having to purchase more IP addresses from your

ISP.

Port: Network Clients (LAN PC) uses port numbers to distinguish one network

application/protocol over another. Below is a list of common applications and

protocol/port numbers:

Application

Protocol

Port Number

Telnet

TCP

FTP

TCP

SMTP

TCP

POP3

TCP

110

H.323

TCP

1720

SNMP

UCP

161

SNMP Trap

UDP

162

HTTP

TCP

PPTP

TCP

1723

PC Anywhere

TCP

5631

PC Anywhere

UDP

5632

Access point: A access point is an intelligent network device that forwards

packets between different networks based on network layer address

information such as IP addresses.

Subnet Mask: A subnet mask, which may be a part of the TCP/IP information

provided by your ISP, is a set of four numbers (e.g. 255.255.255.0) configured

like an IP address. It is used to create IP address numbers used only within a

particular network (as opposed to valid IP address numbers recognized by the

Internet, which must be assigned by InterNIC).

TCP/IP, UDP: Transmission Control Protocol/Internet Protocol (TCP/IP) and

Unreliable Datagram Protocol (UDP). TCP/IP is the standard protocol for data

transmission over the Internet. Both TCP and UDP are transport layer protocol.

TCP performs proper error detection and error recovery, and thus is reliable.

UDP on the other hand is not reliable. They both run on top of the IP (Internet

Protocol), a network layer protocol.

WAN: Wide Area Network. A network that connects computers located in

geographically separate areas (e.g. different buildings, cities, countries). The

Internet is a wide area network.

Web-based management Graphical User Interface (GUI): Many devices

support a graphical user interface that is based on the web browser. This

means the user can use the familiar Netscape or Microsoft Internet Explorer

to Control/configure or monitor the device being managed.

may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language or computer language, in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written

permission from Edimax Technology Co., Ltd.

Edimax Technology Co., Ltd. makes no representations or warranties, either expressed or

implied, with respect to the contents hereof and specifically disclaims any warranties,

merchantability, or fitness for any particular purpose. Any software described in this

manual is sold or licensed as is. Should the programs prove defective following their

purchase, the buyer (and not this company, its distributor, or its dealer) assumes the

entire cost of all necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software. Edimax Technology Co., Ltd. reserves the right

to revise this publication and to make changes from time to time in the contents hereof

without the obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly different from

those shown in this QIG. The software and specifications are subject to change without

notice. Please visit our website www.edimax.com for updates. All brand and product

names mentioned in this manual are trademarks and/or registered trademarks of their

respective holders.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio technician for help.

FCC Caution

This device and its antenna must not be co-located or operating in conjunction with any other antenna or

transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation. Any changes or modifications not expressly

approved by the party responsible for compliance could void the authority to operate equipment.

Federal Communications Commission (FCC) Radiation Exposure Statement

This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid

the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be

less than 2.5cm (1 inch) during normal operation.

Federal Communications Commission (FCC) RF Exposure Requirements

SAR compliance has been established in the laptop computer(s) configurations with PCMCIA slot on the side near

the center, as tested in the application for certification, and can be used in laptop computer(s) with substantially

similar physical dimensions, construction, and electrical and RF characteristics. Use in other devices such as PDAs

or lap pads is not authorized. This transmitter is restricted for use with the specific antenna tested in the

application for certification. The antenna(s) used for this transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

R&TTE Compliance Statement

This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND

THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal equipment and the mutual

recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC

(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it. However, special

attention must be paid to the dangers of electric shock and static electricity when working with electrical

equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to

ensure the safe use of the equipment.

EU Countries Intended for Use

The ETSI version of this device is intended for home and office use in Austria, Belgium, Bulgaria, Cyprus, Czech,

Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta,

Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Turkey, and United Kingdom. The ETSI

version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and

Switzerland.

EU Countries Not Intended for Use

None

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm between the radiator & your body.

EU Declaration of Conformity

English: This equipment is in compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.

Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la

directive 1999/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE.

Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními

směrnic 1999/5/ES, 2009/125/ES, 2006/95/ES, 2011/65/ES.

Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami

określonymi Dyrektywą UE 1999/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC..

Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale

Directivei 1999/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE.

Русский: Это оборудование соответствует основным требованиям и положениям Директивы

1999/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.

Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek

(1999/5/EK, 2009/125/EK, 2006/95/EK, 2011/65/EK).

Türkçe: Bu cihaz 1999/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC direktifleri zorunlu istekler ve

diğer hükümlerle ile uyumludur.

Українська: Обладнання відповідає вимогам і умовам директиви 1999/5/EC, 2009/125/EC,

2006/95/EC, 2011/65/EC..

Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc

1999/5/ES, 2009/125/ES, 2006/95/ES, 2011/65/ES.

Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 1999/5/EC, 2009/125/EC,

2006/95/EC, 2011/65/EC.

Español: El presente equipo cumple los requisitos esenciales de la Directiva 1999/5/EC,

2009/125/EC, 2006/95/EC, 2011/65/EC.

Italiano: Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili

della Direttiva 1999/5/CE, 2009/125/CE, 2006/95/CE, 2011/65/CE.

Nederlands: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen

van richtlijn 1999/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC..

Português: Este equipamento cumpre os requesitos essênciais da Directiva 1999/5/EC, 2009/125/EC,

2006/95/EC, 2011/65/EC.

Norsk: Dette utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direktiv

1999/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.

Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta

bestämmelser i direktiv 1999/5/EG, 2009/125/EG, 2006/95/EG, 2011/65/EG.

Dansk: Dette udstyr er i overensstemmelse med de væ sentligste krav og andre relevante

forordninger i direktiv 1999/5/EC, 2009/125/EC, 2006/95/EC, 2011/65/EC.

suomen kieli: Tämä laite täyttää direktiivien 1999/5/EY, 2009/125/EY, 2006/95/EY, 2011/65/EY

oleelliset vaatimukset ja muut asiaankuuluvat määräykset.

-----------------------------------------------------------------------------------------------------------------------

WEEE Directive & Product Disposal

At the end of its serviceable life, this product should not be treated as household or general waste. It

should be handed over to the applicable collection point for the recycling of electrical and electronic

equipment, or returned to the supplier for disposal.

Declaration of Conformity

We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the

equipment described below complies with the requirements of the European R&TTE

directive 1999/5/EC, and 2009/125/EC, 2006/95/EC, 2011/65/EC .

Equipment:

N300 Wall-plug Access Point

Model No.:

EW-7438APn

The following European standards for essential requirements have been followed:

Spectrum:

ETSI EN 300 328 V1.7.1 (2006-10)

EMC:

EN 301 489-1 V1.9.2 (2011-09);

EN 301 489-17 V2.1.1 (2009-05)

EMF:

EN 50385:2002

Safety (LVD):

IEC 60950-1:2005 (2nd Edition);

EN-60950-1:2006+A11:2009+A1:2010+A12:2011

Edimax Technology Co., Ltd.

No. 3, Wu Chuan 3rd Road,

Wu-Ku Industrial Park,

New Taipei City, Taiwan

Date of Signature:

November 15, 2011

Signature:

Printed Name:

Albert Chang

Title:

Director

Edimax Technology Co., Ltd.

Notice According to GNU General Public License Version 2

This product includes software that is subject to the GNU General Public License version 2. The program is free software and

distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more

than the costs of physically performing source distribution, a complete machine-readable copy of the corresponding source

code.

Das Produkt beinhaltet Software, die den Bedingungen der GNU/GPL-Version 2 unterliegt. Das Programm ist eine sog. „Free

Software“, der Autor stellt das Programm ohne irgendeine Gewährleistungen zur Verfügung. Wir bieten Ihnen für einen

Zeitraum von drei Jahren an, eine vollständige maschinenlesbare Kopie des Quelltextes der Programme zur Verfügung zu

stellen – zu nicht höheren Kosten als denen, die durch den physikalischen Kopiervorgang anfallen.

GNU GENERAL PUBLIC LICENSE

Version 2, June 1991

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General

Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free

for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other

program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser

General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make

sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive

source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that

you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender

the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you

modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights

that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms

so they know their rights.

We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal

permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for

this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they

have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a

free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have

made it clear that any patent must be licensed for everyone’s free use or not licensed at all.

The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be

distributed under the terms of this General Public License. The ‘“Program’“, below, refers to any such program or work, and a

‘“work based on the Program’“ means either the Program or any derivative work under copyright law: that is to say, a work

containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.

(Hereinafter, translation is included without limitation in the term ‘“modification’“.) Each licensee is addressed as ‘“you’“.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The

act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a

work based on the Program (independent of having been made by running the Program). Whether that is true depends on

what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that

you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep

intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the

Program a copy of this License along with the Program.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in

exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and

copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these

conditions:

a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any

change.

b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the

Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this

License.

c) If the modified program normally reads commands interactively when run, you must cause it, when started

running for such interactive use in the most ordinary way, to print or display an announcement including an

appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty)

and that users may redistribute the program under these conditions, and telling the user how to view a copy of

this License. (Exception: if the Program itself is interactive but does not normally print such an announcement,

your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the

Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms,

do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as

part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License,

whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote

it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent

is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the

Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under

the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under

the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than

your cost of physically performing source distribution, a complete machine-readable copy of the corresponding

source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for

software interchange; or,

c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This

alternative is allowed only for noncommercial distribution and only if you received the program in object code or

executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work,

complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus

the scripts used to control compilation and installation of the executable. However, as a special exception, the source code

distributed need not include anything that is normally distributed (in either source or binary form) with the major

components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component

itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering

equivalent access to copy the source code from the same place counts as distribution of the source code, even though third

parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any

attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights

under this License. However, parties who have received copies, or rights, from you under this License will not have their

licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to

modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.

Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of

this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license

from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not

impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing

compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent

issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of

this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy

simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not

distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by

all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License

would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is

intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity

of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system,

which is implemented by public license practices. Many people have made generous contributions to the wide range of

software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to

decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces,

the original copyright holder who places the Program under this License may add an explicit geographical distribution

limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such

case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time.

Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or

concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies

to it and ‘“any later version’“, you have the option of following the terms and conditions either of that version or of any later

version published by the Free Software Foundation. If the Program does not specify a version number of this License, you

may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different,

write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the

Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of

preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software

generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT

PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER

PARTIES PROVIDE THE PROGRAM ‘“AS IS’“ WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING,

BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE

ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE

DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY

OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR

DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR

INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE

OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER

PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Edimax Technology Co 9574761414 N300 Ceiling-Mount Access Point User Manual

Edimax Technology Co Ltd N300 Ceiling-Mount Access Point

user manual

Navigation menu

Namespaces

Views

Navigation
