User manual



AC1750CeilingMountAP







User’s Manual



EW‐7679WAUser



Version: 1.0

(January, 2016)



CONTENTS

I.ProductInformation ............................................................................... 2

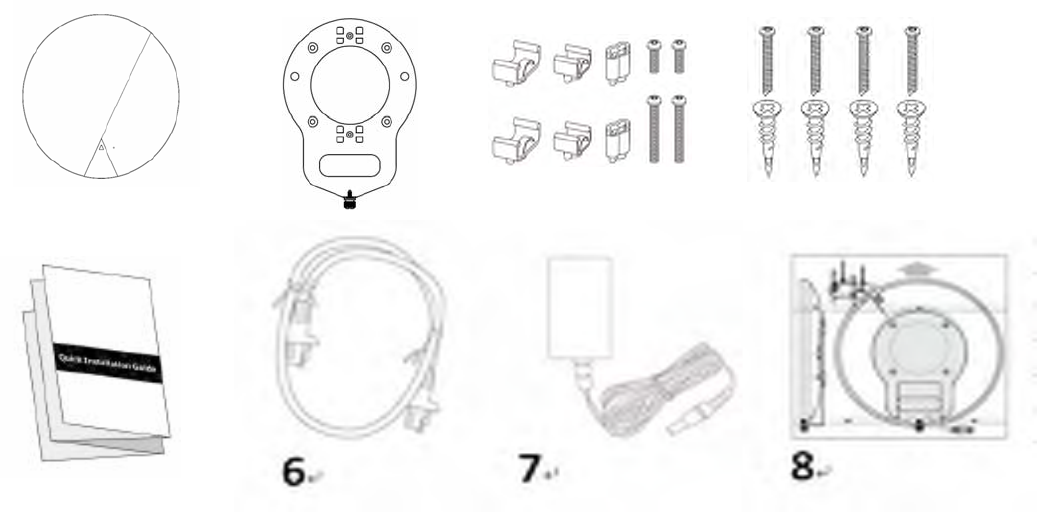

I‐1.PackageContents ..................................................................................................................2

I‐2.SystemRequirements............................................................................................................3

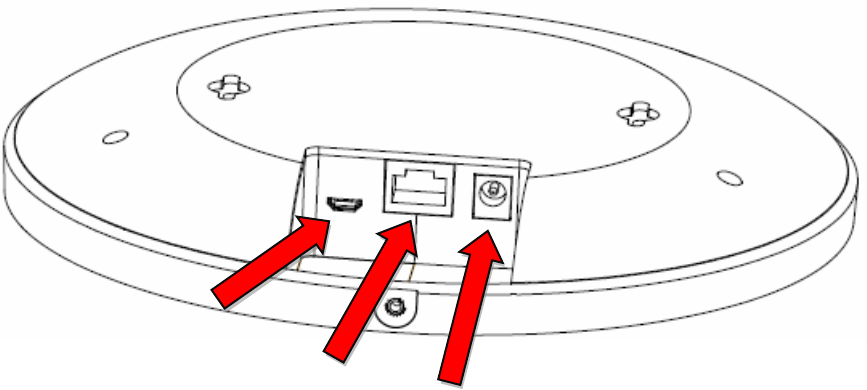

I‐3.HardwareOverview...............................................................................................................3

I‐4.LEDStatus ..............................................................................................................................4

I‐5.Reset ......................................................................................................................................4

I‐6.SafetyInformation.................................................................................................................5

II.QuickSetup ............................................................................................ 6

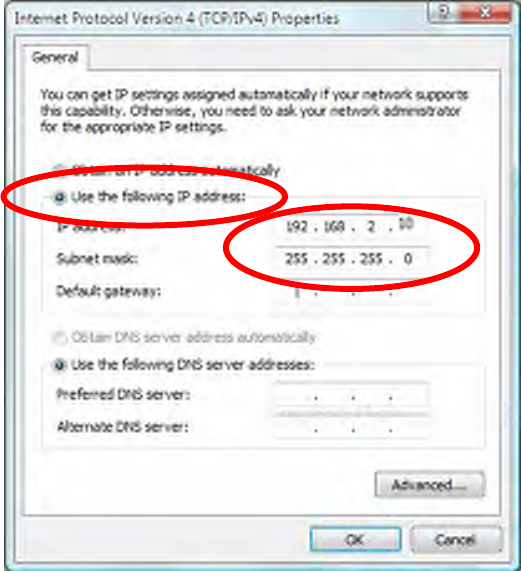

II‐1.InitialSetup............................................................................................................................6

II‐2.APMode:BasicSettings ........................................................................................................8

II‐3.RepeaterMode....................................................................................................................12

III.HardwareInstallation........................................................................... 15

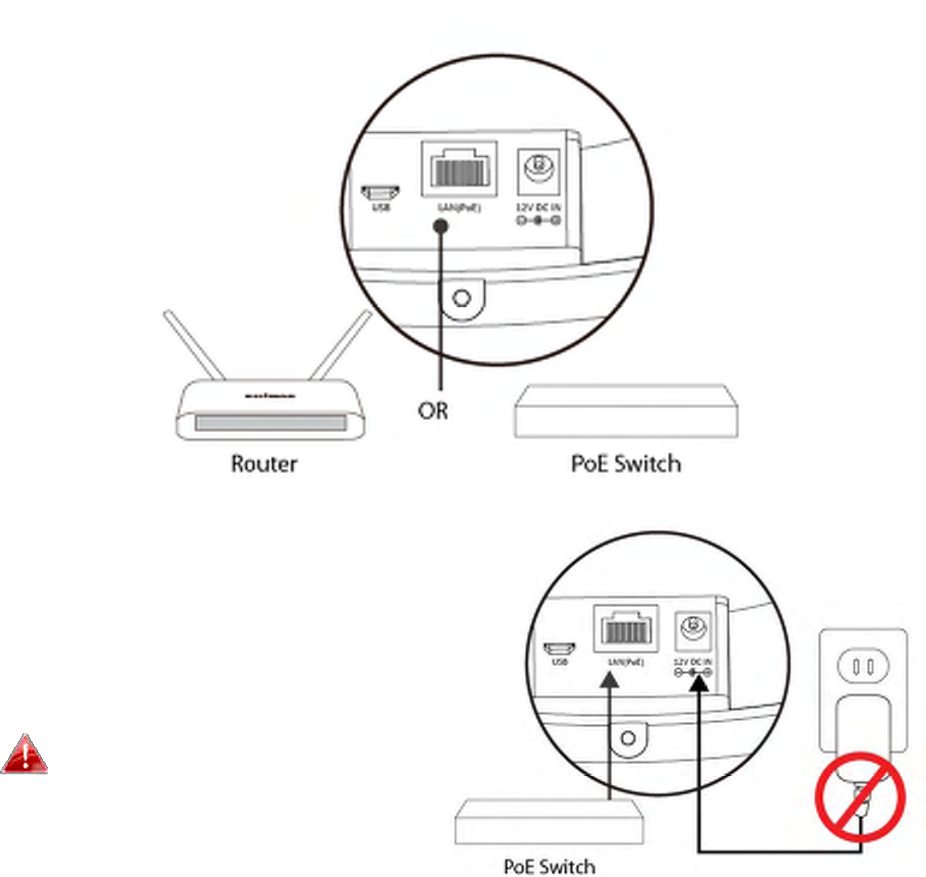

III‐1.ConnectingtheaccesspointtoarouterorPoEswitch.....................................................15

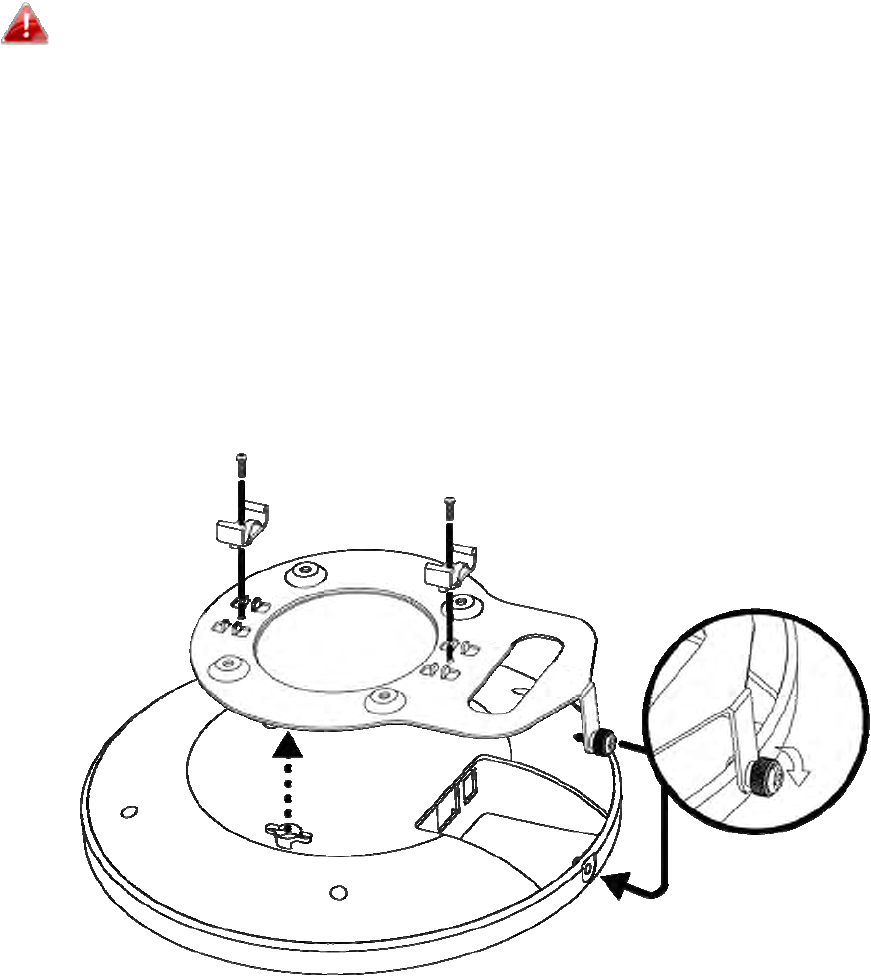

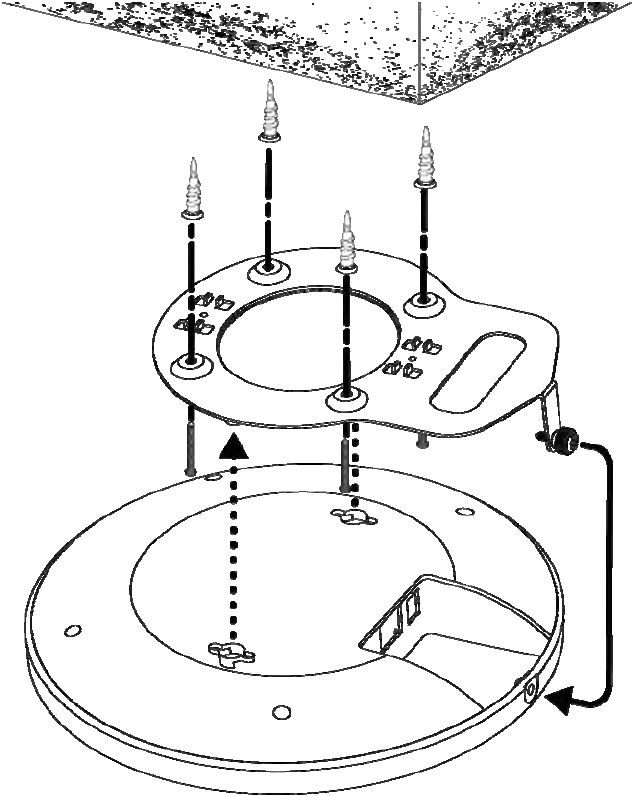

III‐2.Mountingtheaccesspointtoaceiling..............................................................................16

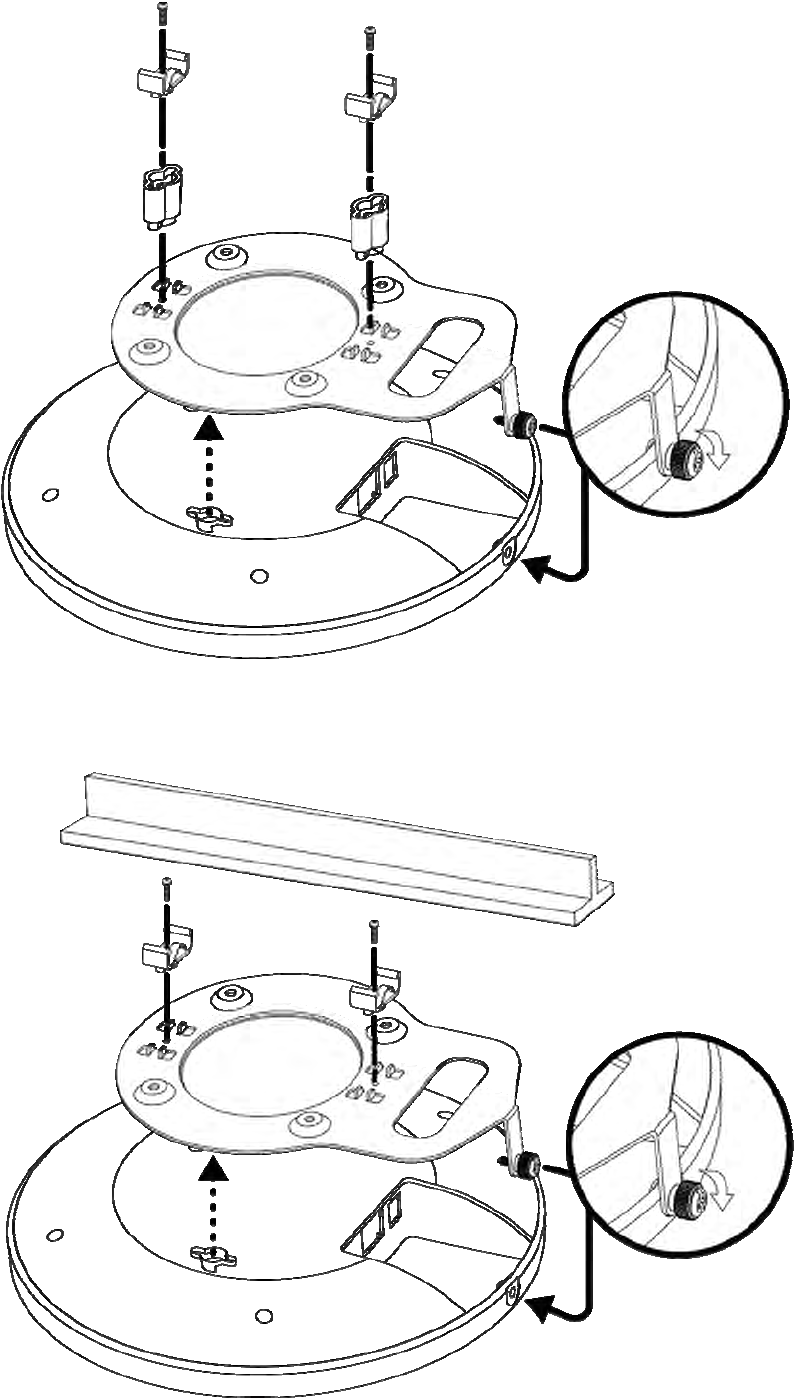

III‐3.T‐RailMount ......................................................................................................................19

IV.BrowserBasedConfigurationInterface................................................. 21

IV‐1.Information........................................................................................................................23

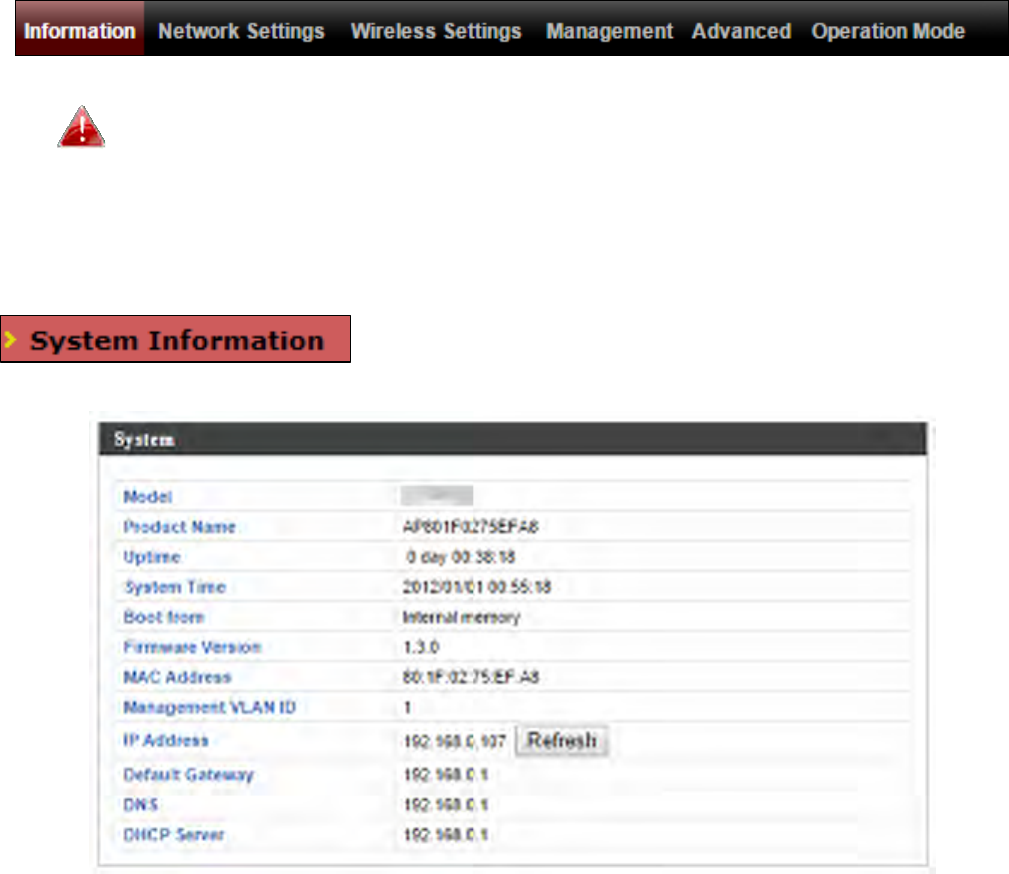

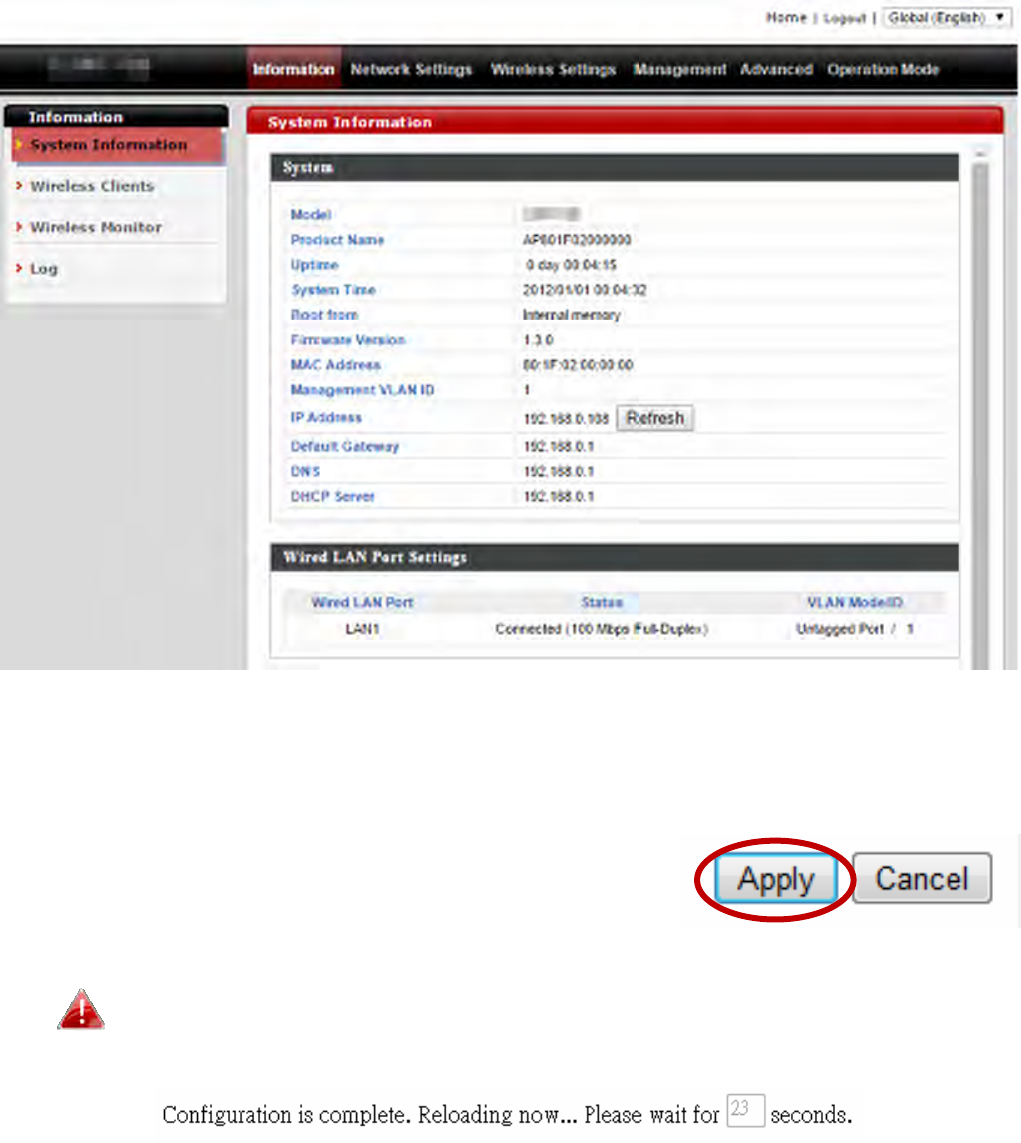

IV‐1‐1.SystemInformation ...........................................................................................................23

IV‐1‐2.WirelessClients..................................................................................................................28

IV‐1‐3.WirelessMonitor ...............................................................................................................30

IV‐1‐4.Log......................................................................................................................................32

IV‐2.NetworkSettings ...............................................................................................................34

IV‐2‐1.LAN‐SideIPAddress...........................................................................................................34

IV‐2‐2.LANPort .............................................................................................................................36

IV‐2‐3.VLAN ..................................................................................................................................37

IV‐3.WirelessSettings................................................................................................................38

IV‐3‐1.WirelessExtender..............................................................................................................38

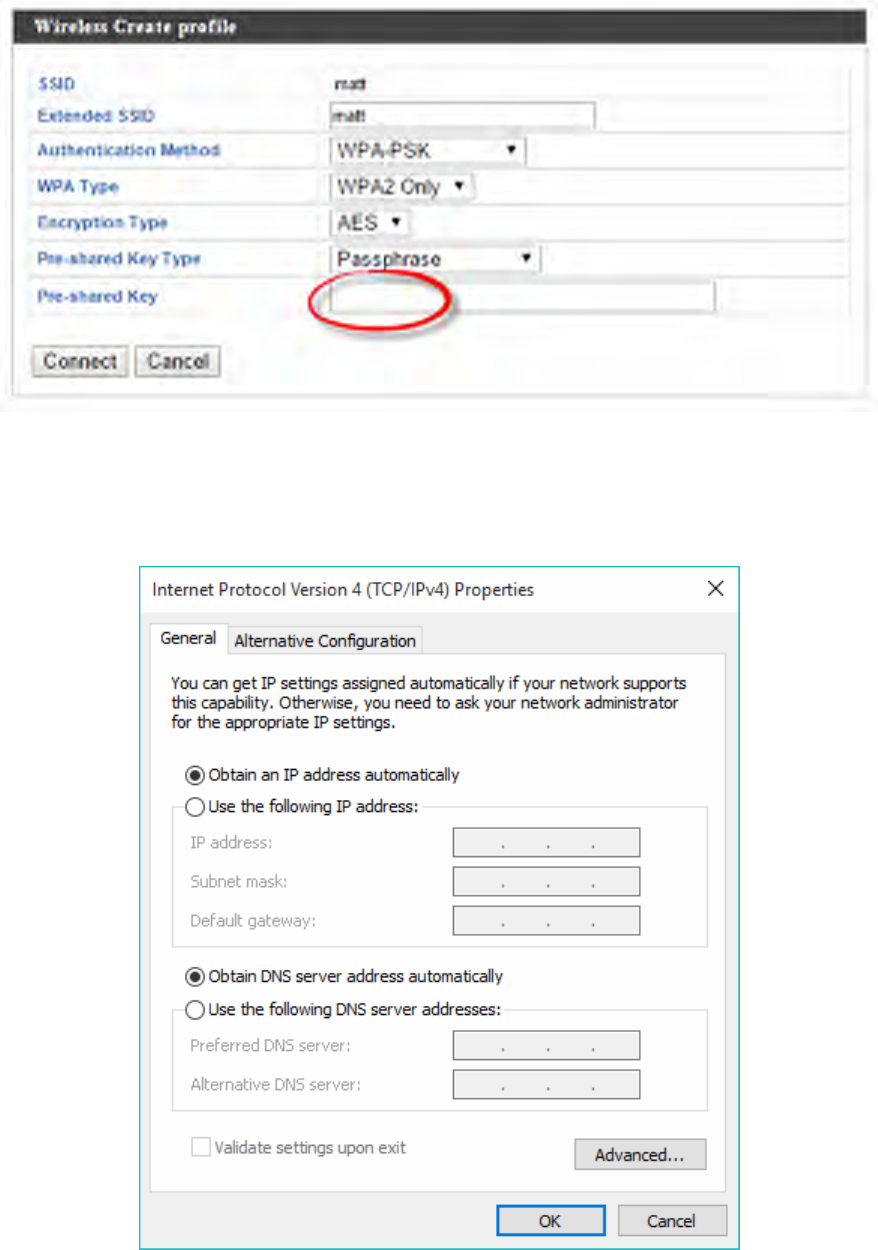

IV‐3‐2.ProfileList ..........................................................................................................................40

IV‐3‐3.2.4GHz11bgn.....................................................................................................................41

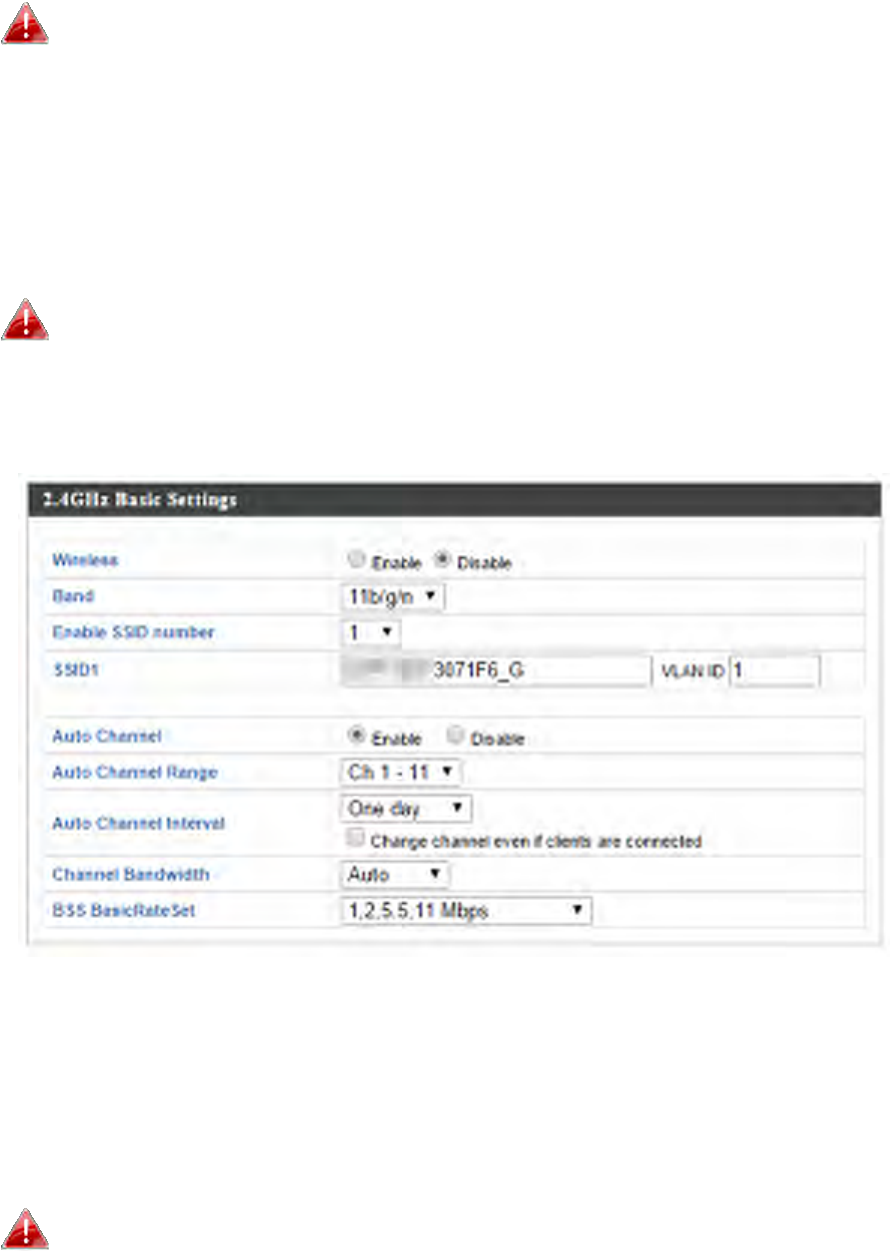

IV‐3‐3‐1.Basic .............................................................................................................................41

IV‐3‐3‐2.Advanced .....................................................................................................................44

IV‐3‐3‐3.Security ........................................................................................................................46

IV‐3‐3‐3‐1.NoAuthentication .....................................................................................................48

IV‐3‐3‐3‐2.WEP............................................................................................................................48

IV‐3‐3‐3‐3.IEEE802.1x/EAP..........................................................................................................48



IV‐3‐3‐3‐4.WPA‐PSK ....................................................................................................................48

IV‐3‐3‐3‐5.WPA‐EAP....................................................................................................................49

IV‐3‐3‐3‐6.AdditionalAuthentication .........................................................................................49

IV‐3‐3‐4.WDS .............................................................................................................................51

IV‐3‐4.5GHz11ac11an .................................................................................................................53

IV‐3‐4‐1.Basic .............................................................................................................................53

IV‐3‐4‐2.Advanced .....................................................................................................................55

IV‐3‐4‐3.Security ........................................................................................................................57

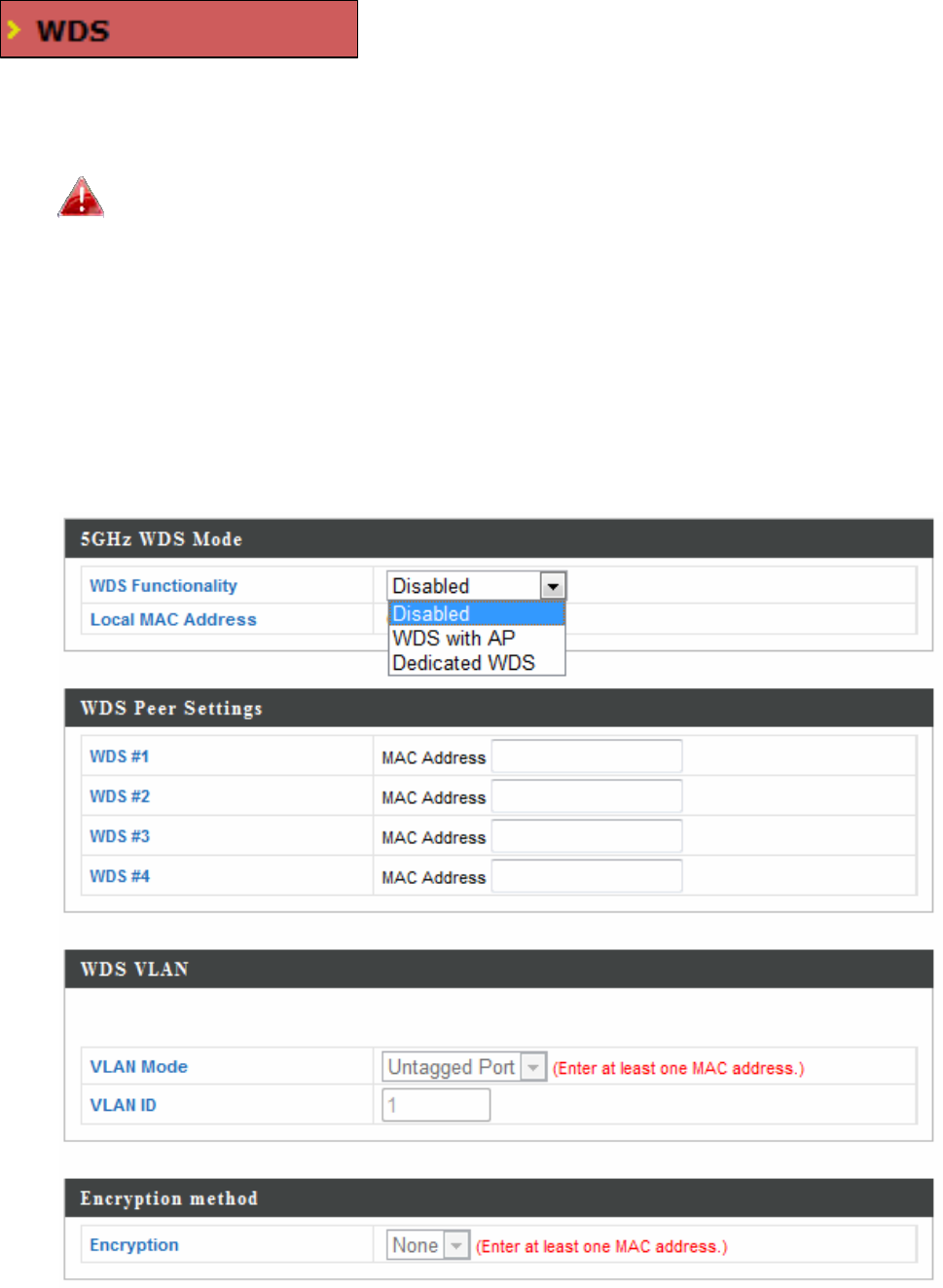

IV‐3‐4‐4.WDS .............................................................................................................................59

IV‐3‐5.WPS......................................................................................................................................61

IV‐3‐6.RADIUS .................................................................................................................................63

IV‐3‐6‐1.RADIUSSettings ...........................................................................................................64

IV‐3‐6‐2.InternalServer .............................................................................................................66

IV‐3‐6‐3.RADIUSAccounts .........................................................................................................68

IV‐3‐7.MACFilter ..........................................................................................................................70

IV‐3‐8.WMM...................................................................................................................................72

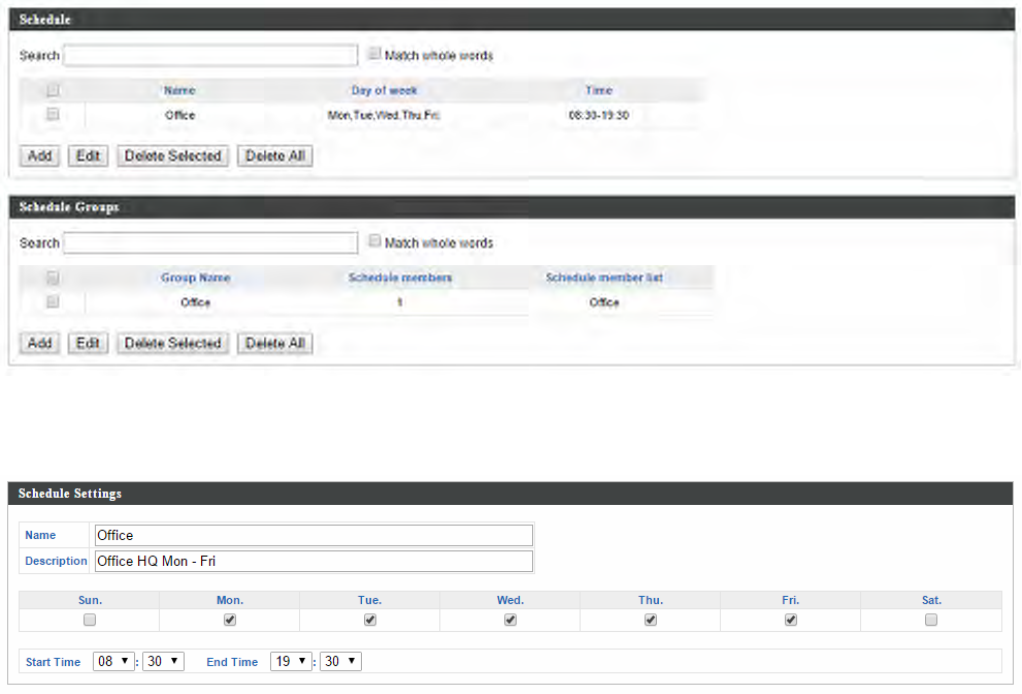

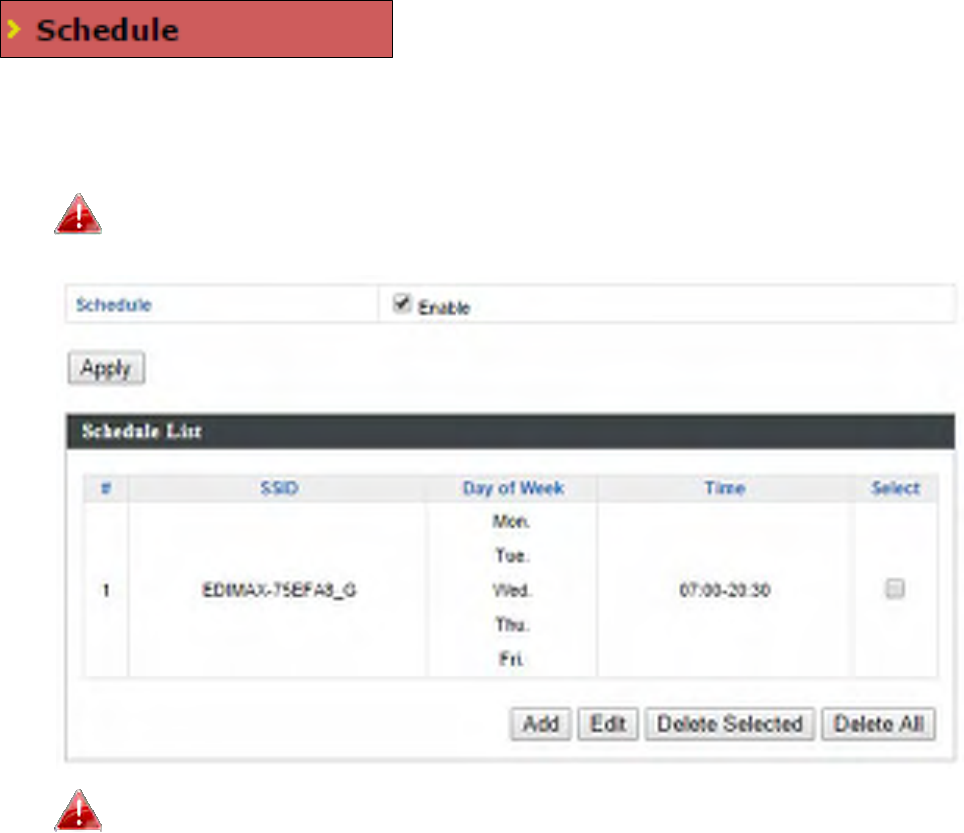

IV‐3‐9.Schedule...............................................................................................................................74

IV‐3‐10.TrafficShaping .....................................................................................................................76

IV‐4.Management .....................................................................................................................78

IV‐4‐1.Admin.................................................................................................................................78

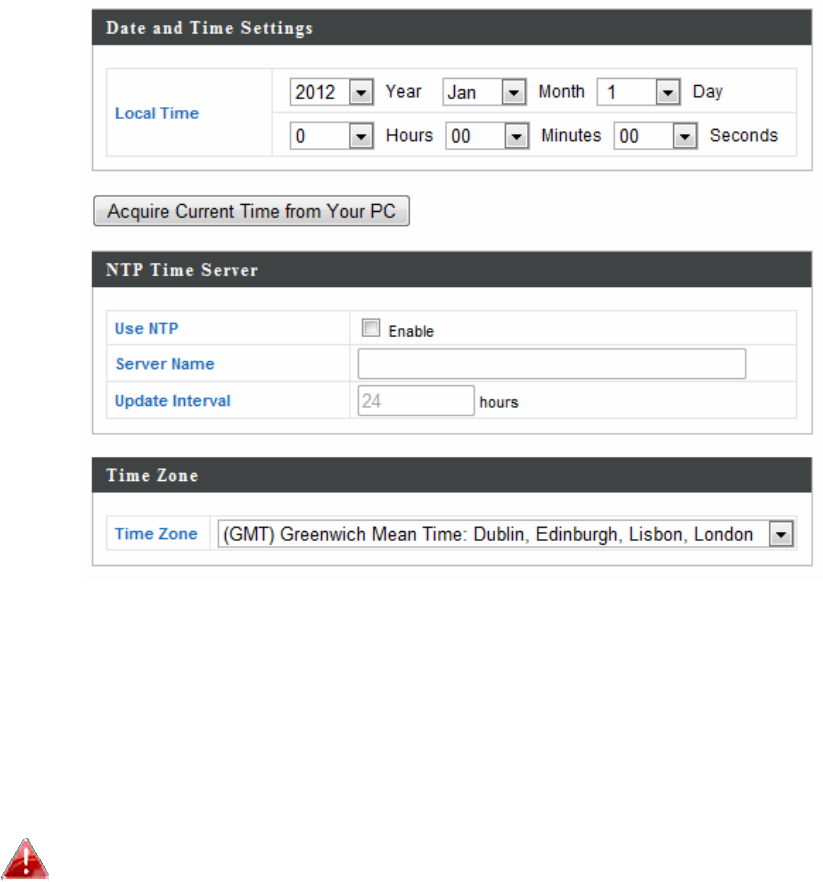

IV‐4‐2.DateandTime....................................................................................................................81

IV‐4‐3.SyslogServer......................................................................................................................83

IV‐4‐4.PingTest.............................................................................................................................84

IV‐4‐5.I’mHere .............................................................................................................................85

IV‐5.Advanced ...........................................................................................................................86

IV‐5‐1.LEDSettings .......................................................................................................................86

IV‐5‐2.UpdateFirmware...............................................................................................................87

IV‐5‐3.Save/RestoreSettings........................................................................................................88

IV‐5‐4.FactoryDefault ..................................................................................................................90

IV‐5‐5.Reboot................................................................................................................................91

IV‐6.OperationMode ................................................................................................................92



NMS

I.ProductInformation ............................................................................. 95

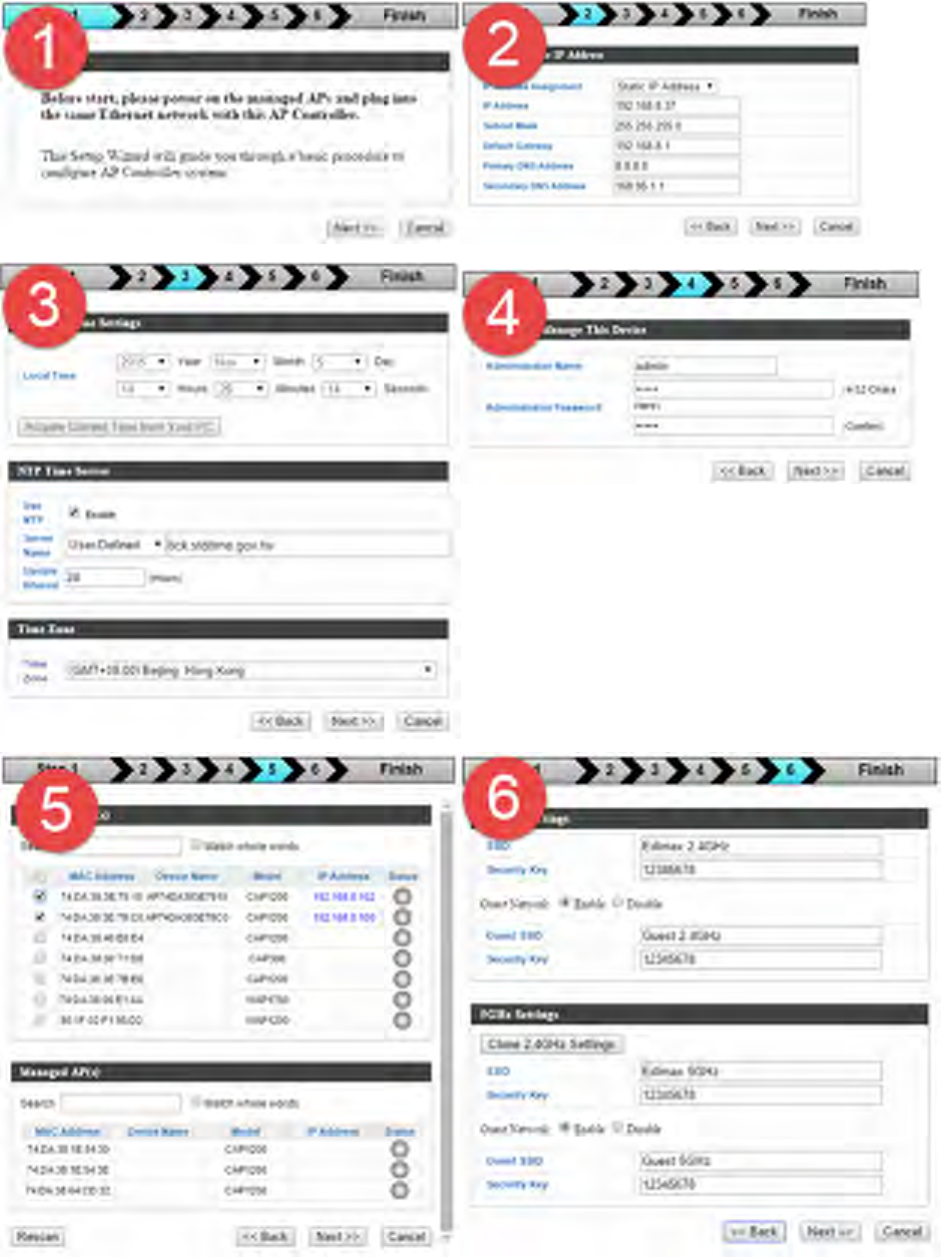

II.QuickSetup .......................................................................................... 96

III.SoftwareLayout ................................................................................. 103

IV.Features ............................................................................................. 110

IV‐1.LOGIN,LOGOUT&RESTART ..............................................................................................110

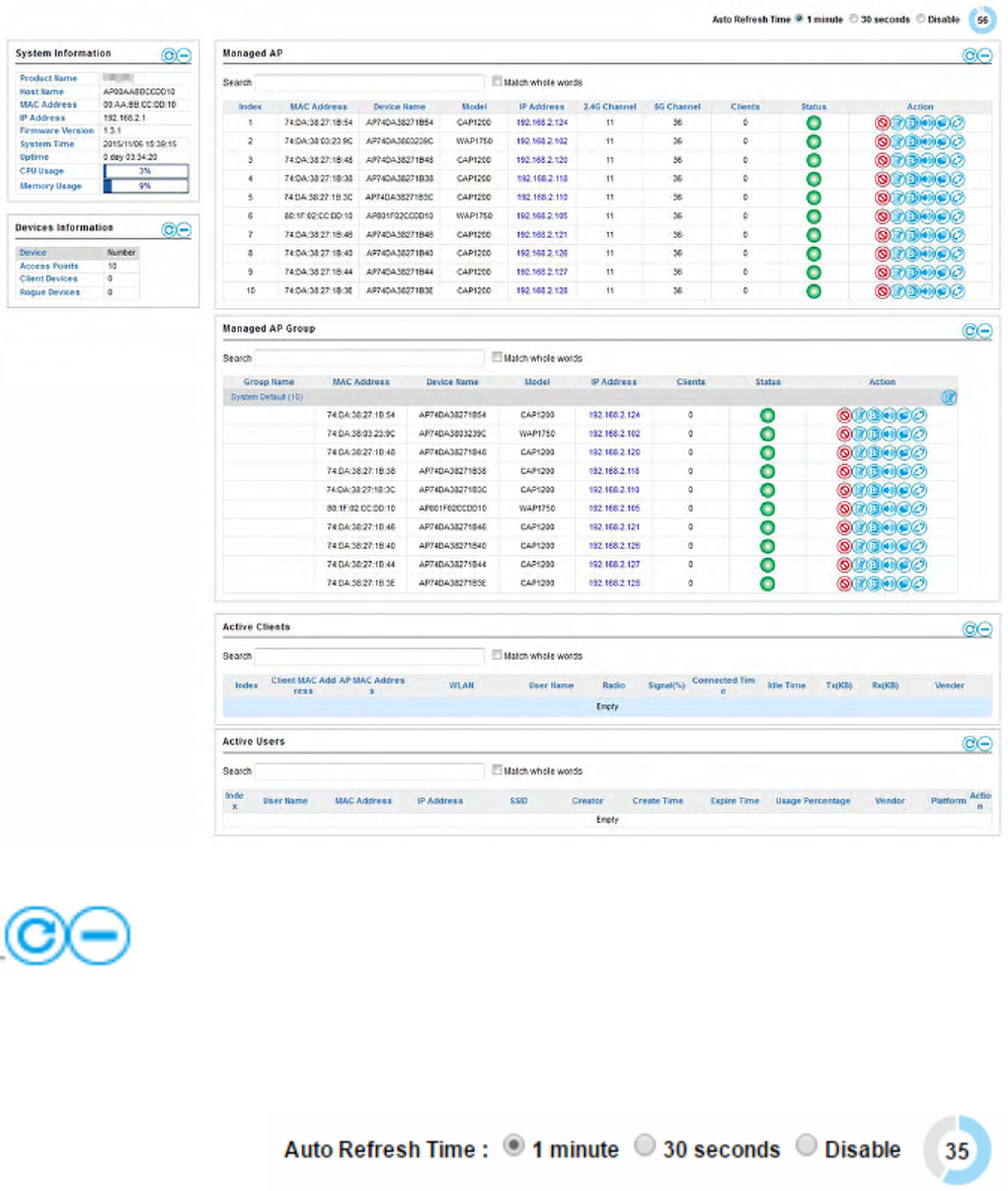

IV‐2.DASHBOARD ......................................................................................................................112

IV‐2‐1.SystemInformation ...........................................................................................................113

IV‐2‐2.DevicesInformation...........................................................................................................113

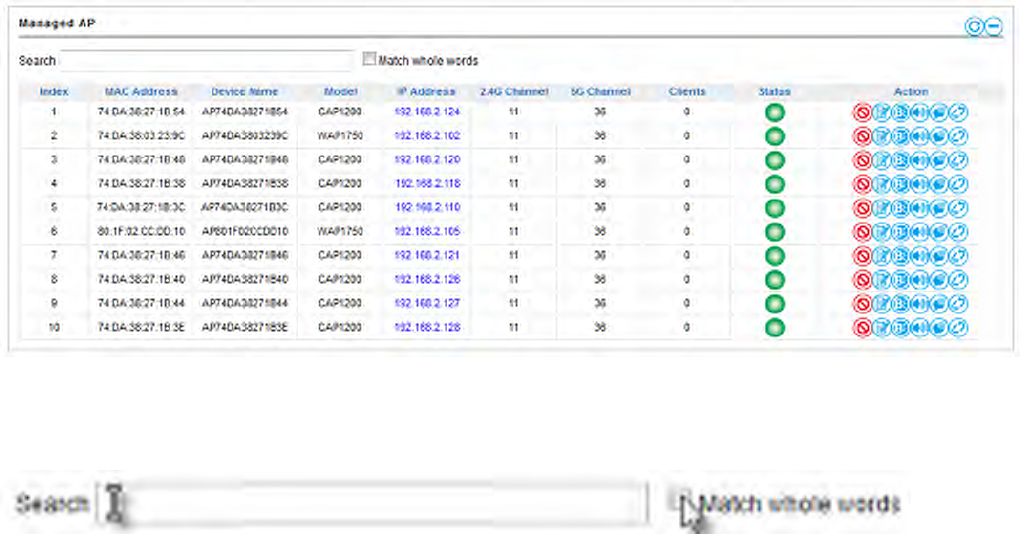

IV‐2‐3.ManagedAP.......................................................................................................................114

IV‐2‐4.ManagedAPGroup............................................................................................................115

IV‐2‐5.ActiveClients .....................................................................................................................116

IV‐2‐6.ActiveUsers .......................................................................................................................117

IV‐3.ZONEPLAN.........................................................................................................................118

IV‐4.NMSMONITOR ..................................................................................................................120

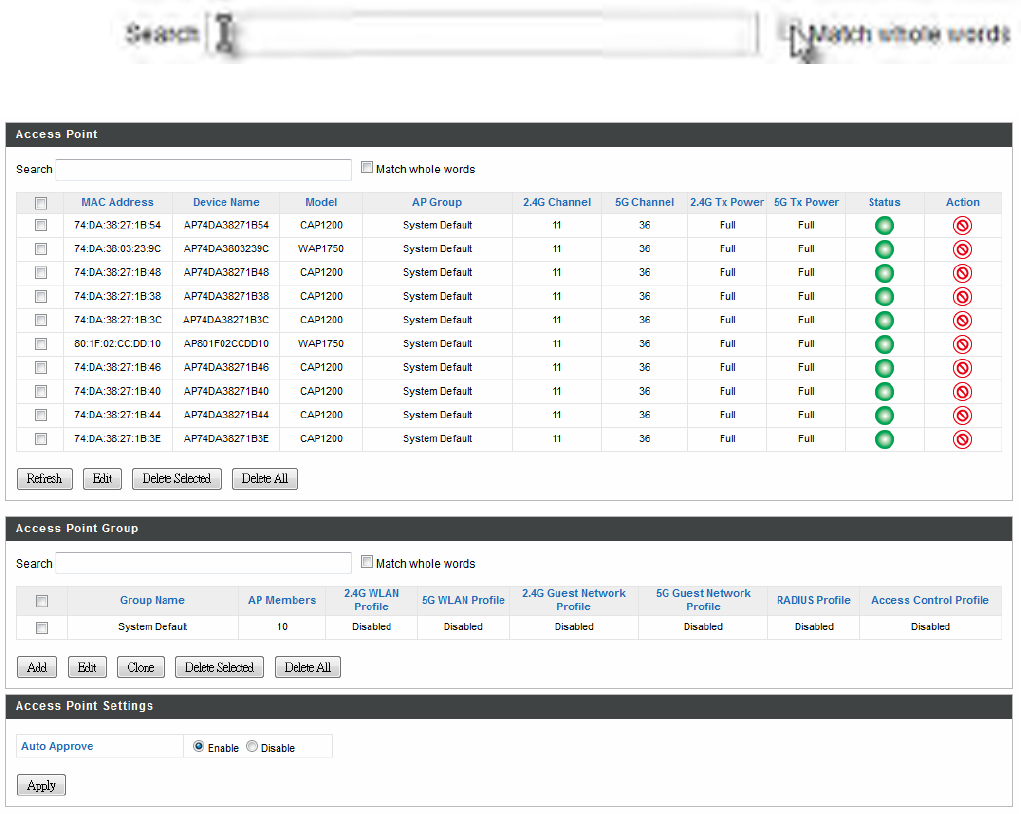

IV‐4‐1.AccessPoint .......................................................................................................................120

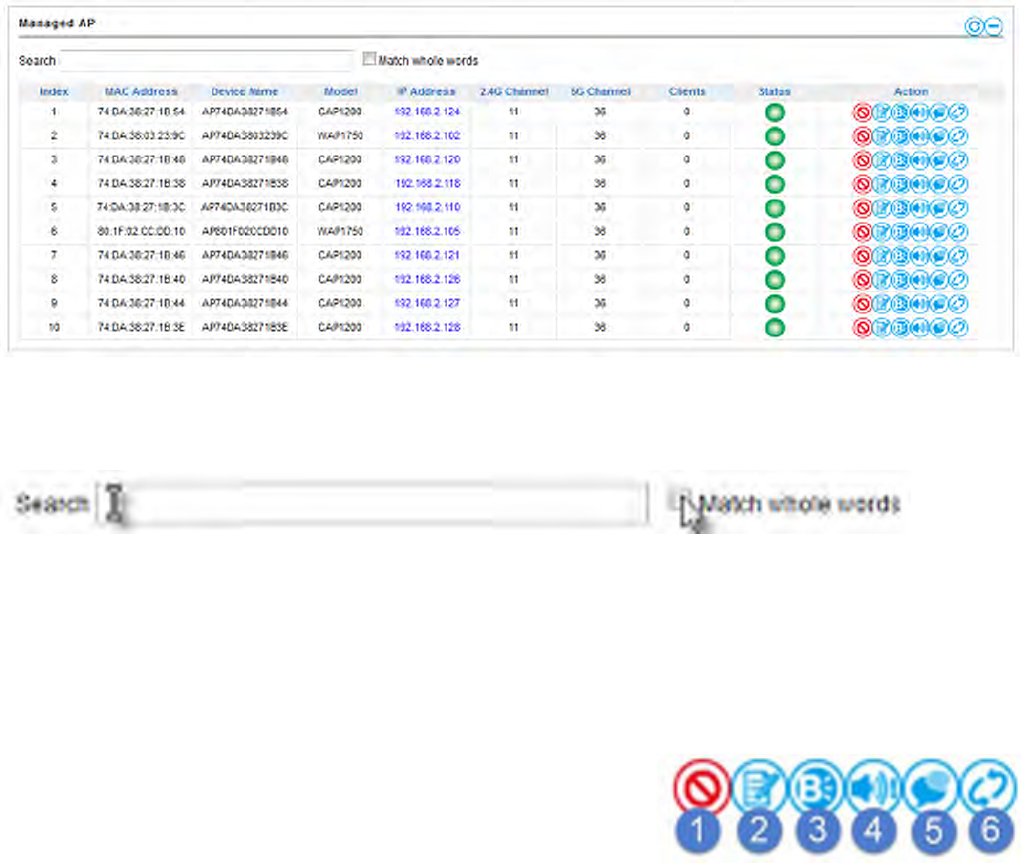

IV‐4‐1‐1.ManagedAP...............................................................................................................120

IV‐4‐1‐2.ManagedAPGroup....................................................................................................122

IV‐4‐2.WLAN .................................................................................................................................124

IV‐4‐2‐1.ActiveWLAN ..............................................................................................................124

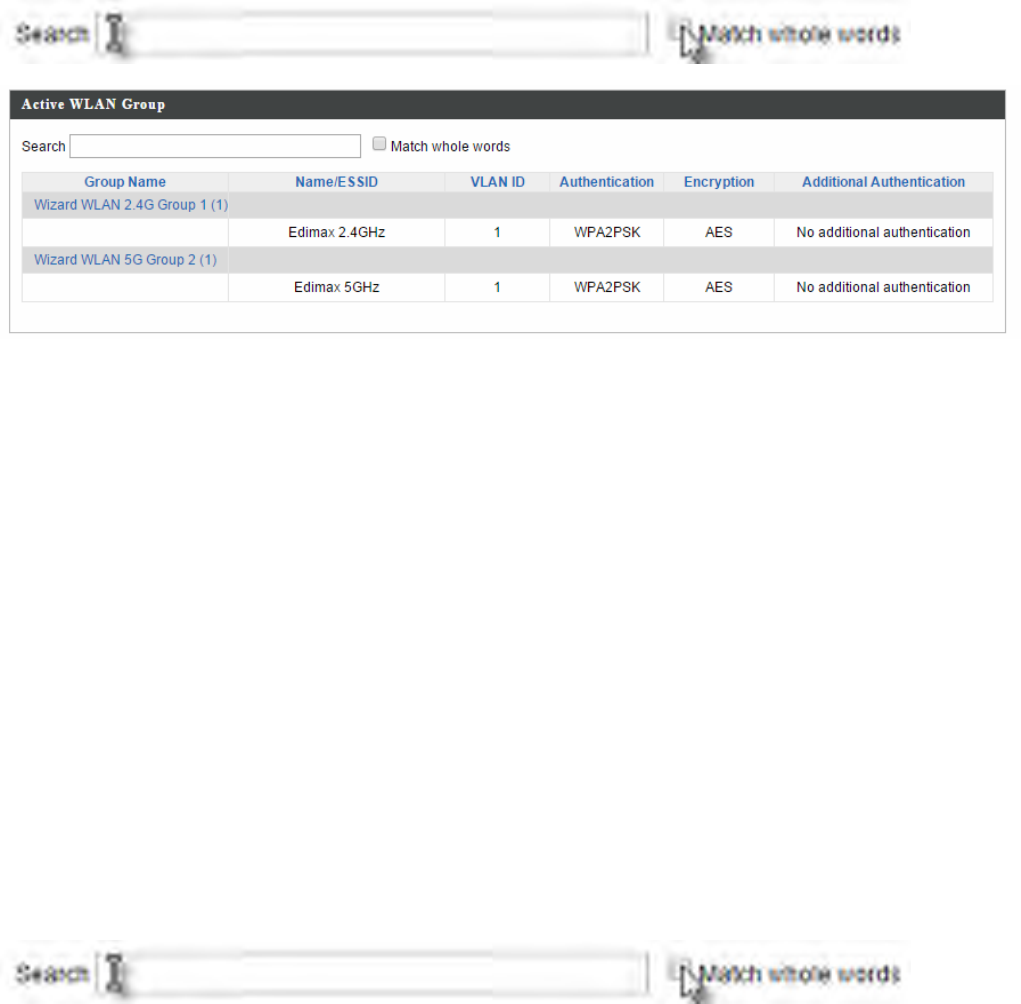

IV‐4‐2‐2.ActiveWLANGroup ...................................................................................................125

IV‐4‐3.Clients ................................................................................................................................125

IV‐4‐3‐1.ActiveClients .............................................................................................................125

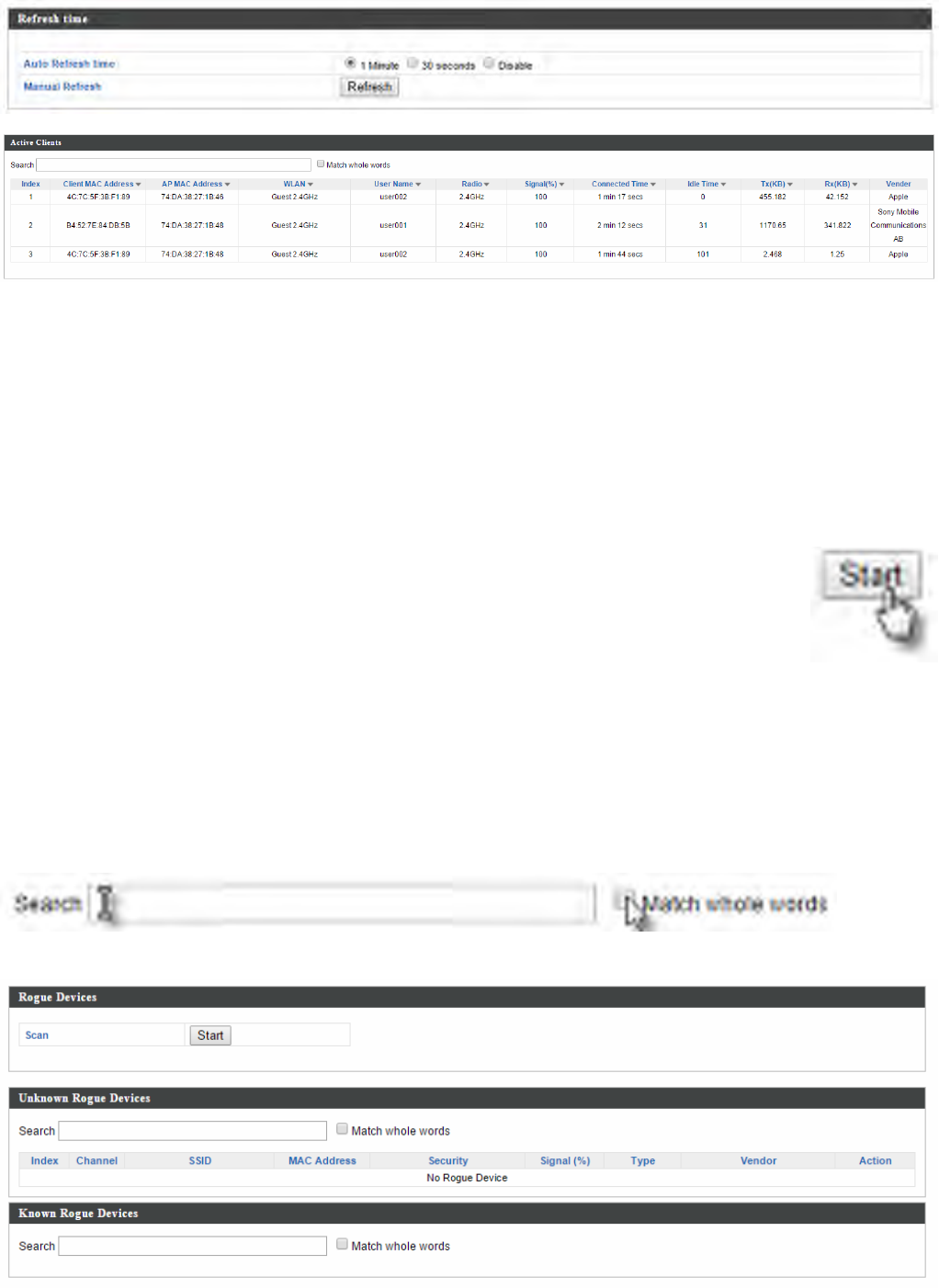

IV‐4‐4.RogueDevices....................................................................................................................126

IV‐4‐5.Information........................................................................................................................127

IV‐4‐5‐1.AllEvents/Activities ...................................................................................................127

IV‐4‐5‐2.Monitoring .................................................................................................................128

IV‐5.NMSSettings......................................................................................................................129

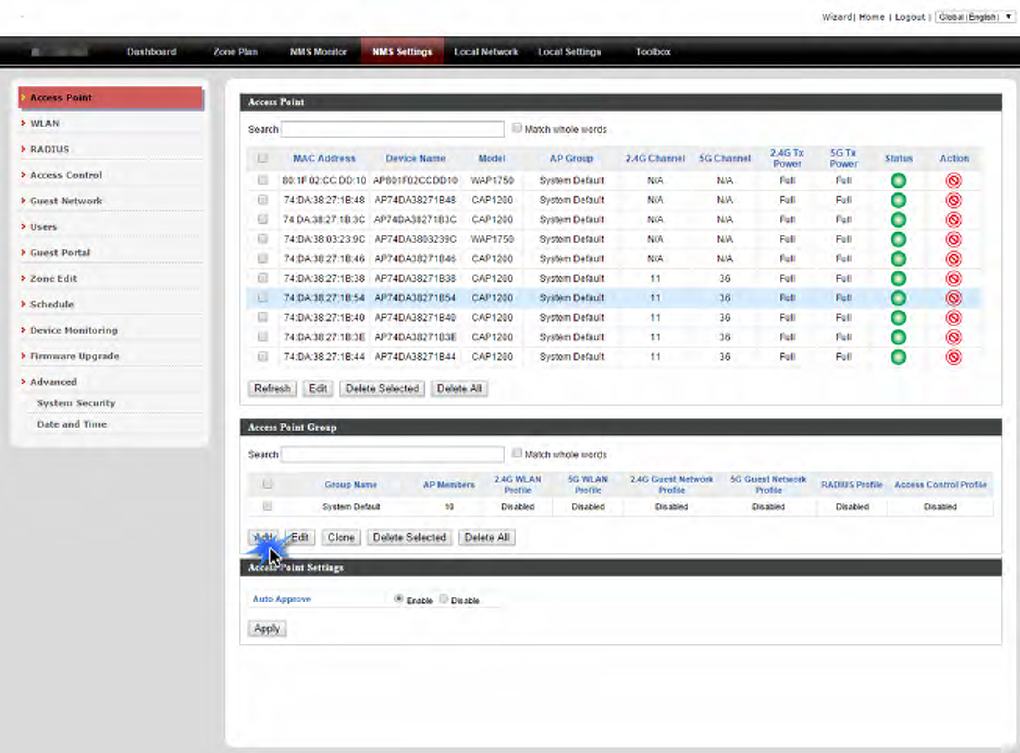

IV‐5‐1.AccessPoint .......................................................................................................................129

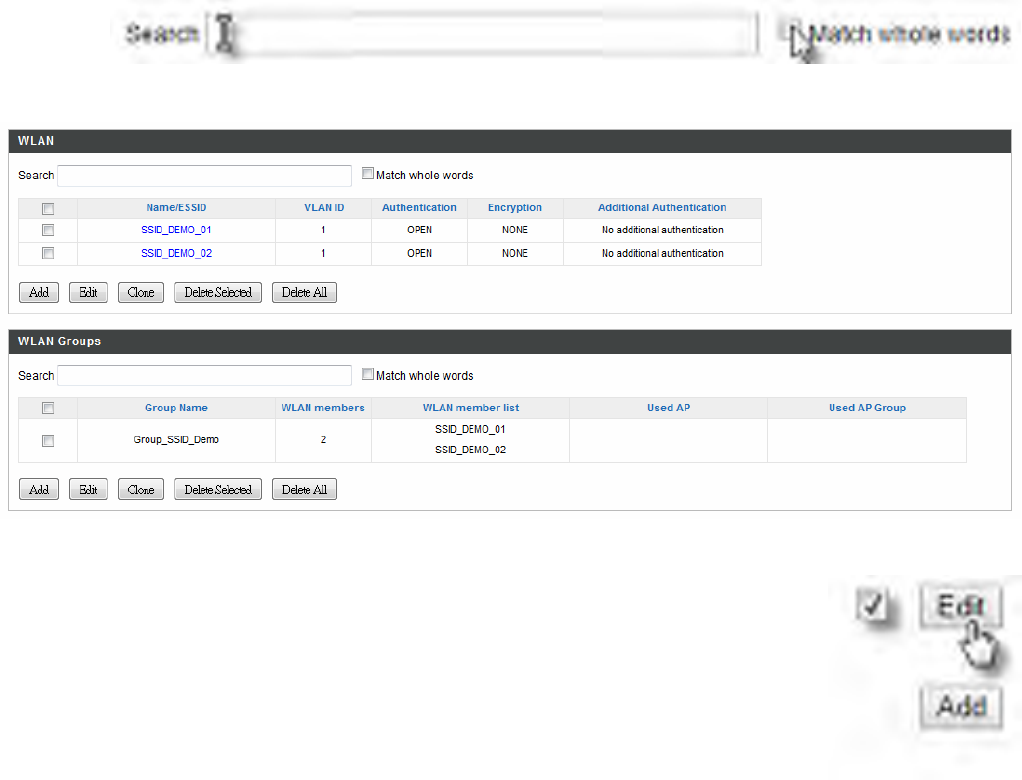

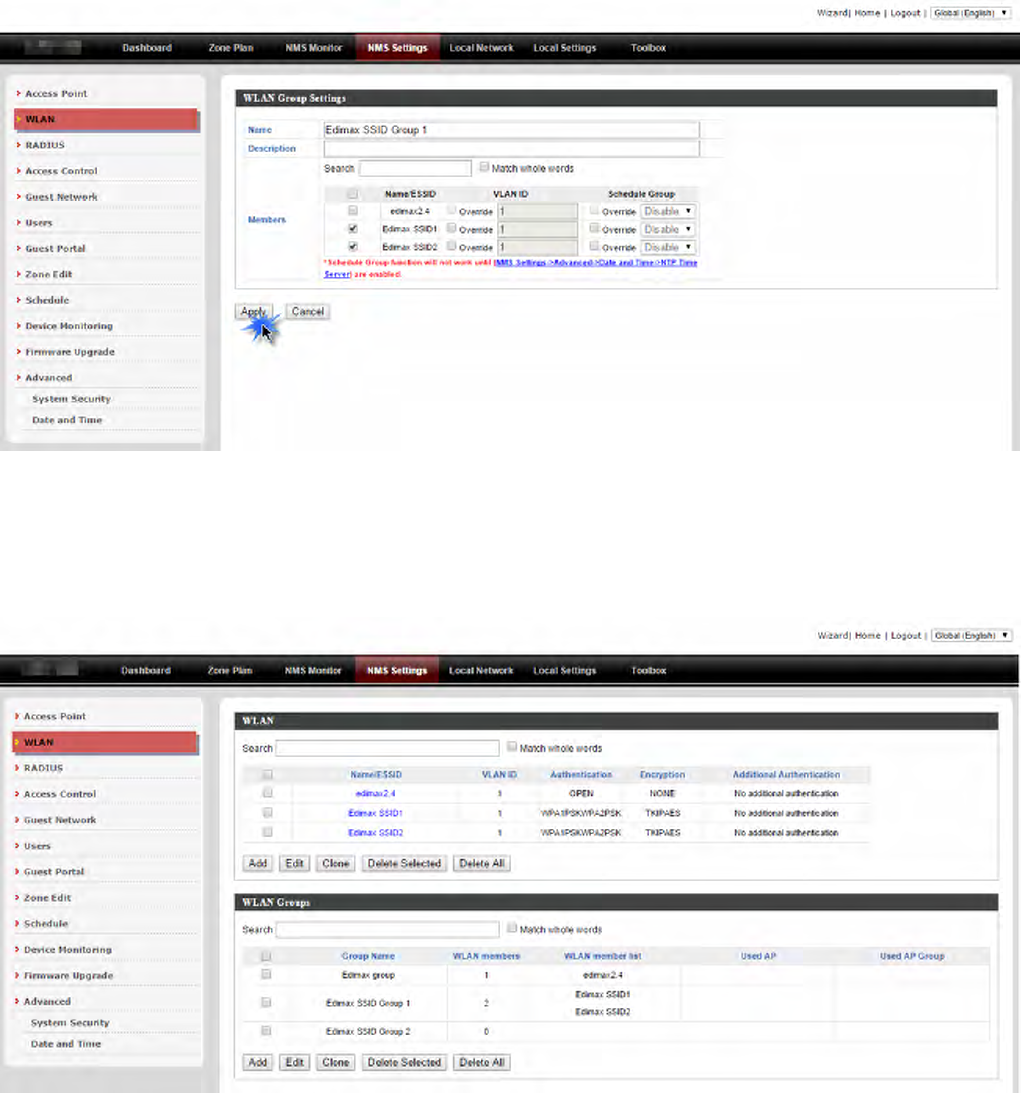

IV‐5‐2.WLAN .................................................................................................................................142

IV‐5‐2‐1.NoAuthentication ...................................................................................................144

IV‐5‐2‐2.WEP..........................................................................................................................144

IV‐5‐2‐3.IEEE802.1x/EAP........................................................................................................145

IV‐5‐2‐4.WPA‐PSK ..................................................................................................................145

IV‐5‐2‐5.WPA‐EAP..................................................................................................................146

IV‐5‐2‐6.AdditionalAuthentication .......................................................................................146



IV‐5‐3.RADIUS ...............................................................................................................................148

IV‐5‐4.AccessControl....................................................................................................................154

IV‐5‐5.GuestNetwork...................................................................................................................157

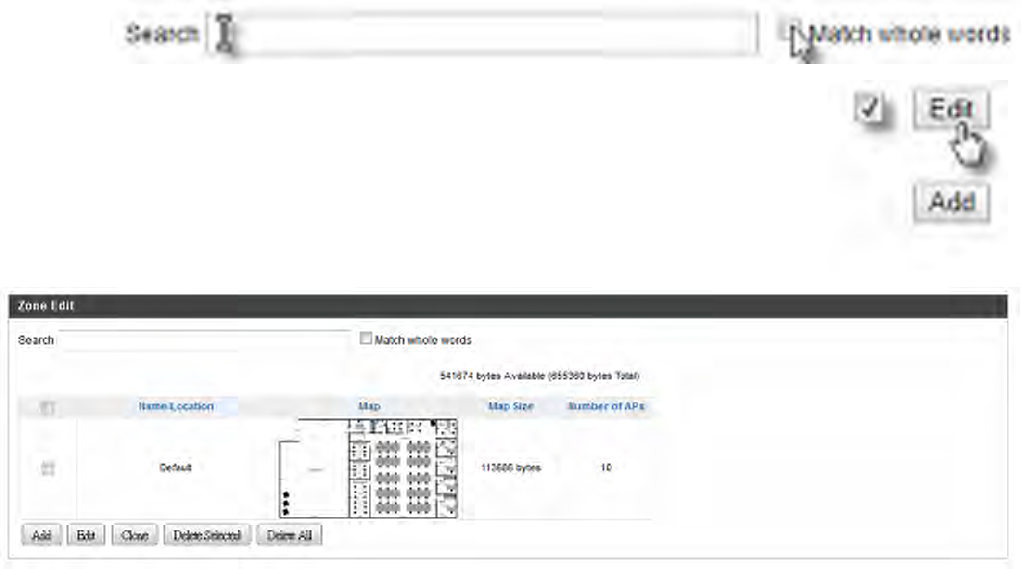

IV‐5‐6.ZoneEdit ............................................................................................................................161

IV‐5‐7.Schedule.............................................................................................................................163

IV‐5‐8.DeviceMonitoring ...........................................................................................................165

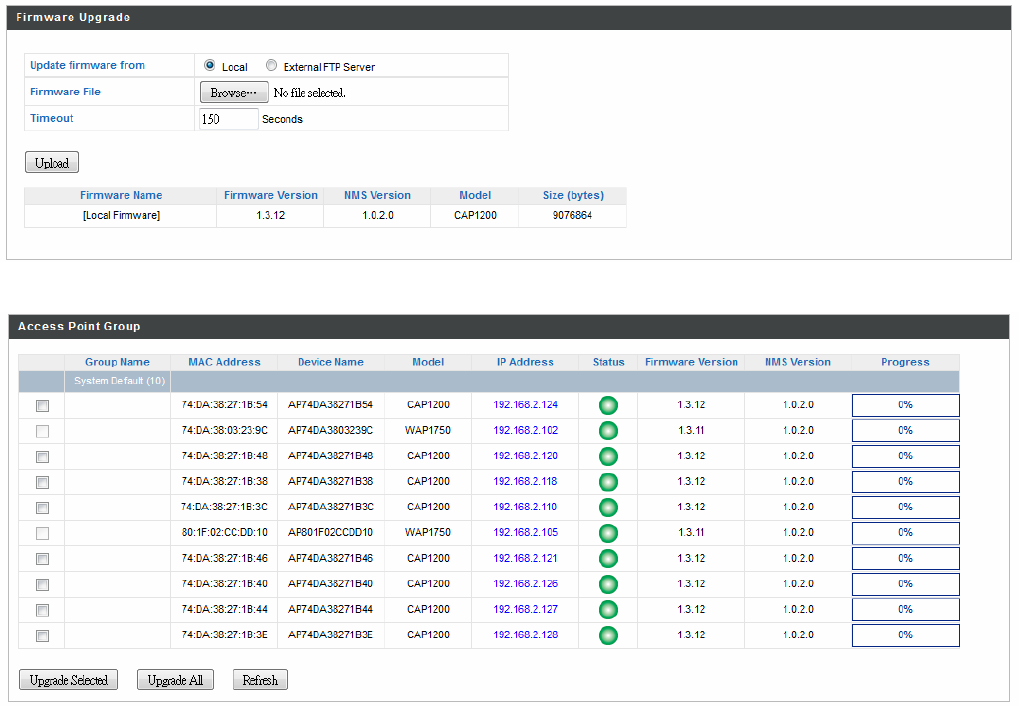

IV‐5‐9.FirmwareUpgrade .............................................................................................................166

IV‐5‐10.Advanced .........................................................................................................................167

IV‐5‐10‐1.SystemSecurity..........................................................................................................167

IV‐5‐10‐2.Date&Time ...............................................................................................................167

IV‐6.LocalNetwork ....................................................................................................................169

IV‐6‐1.NetworkSettings ...............................................................................................................169

IV‐6‐1‐1.LAN‐SideIPAddress...................................................................................................169

IV‐6‐1‐2.LANPortSettings .......................................................................................................172

IV‐6‐1‐3.VLAN ..........................................................................................................................173

IV‐6‐2.2.4GHz11bgn.....................................................................................................................174

IV‐6‐2‐1.Basic ...........................................................................................................................174

IV‐6‐2‐2.Advanced ...................................................................................................................176

IV‐6‐2‐3.Security ......................................................................................................................178

IV‐6‐2‐3‐1.NoAuthentication ...................................................................................................179

IV‐6‐2‐3‐2.WEP..........................................................................................................................179

IV‐6‐2‐3‐3.IEEE802.1x/EAP........................................................................................................180

IV‐6‐2‐3‐4.WPA‐PSK ..................................................................................................................180

IV‐6‐2‐3‐5.WPA‐EAP..................................................................................................................180

IV‐6‐2‐3‐6.AdditionalAuthentication .......................................................................................181

IV‐6‐2‐4.WDS ...........................................................................................................................182

IV‐6‐3.5GHz11ac11an ...............................................................................................................184

IV‐6‐3‐1.Basic ...........................................................................................................................184

IV‐6‐3‐2.Advanced .................................................................................................................186

IV‐6‐3‐3.Security ....................................................................................................................188

IV‐6‐3‐4.WDS ...........................................................................................................................190

IV‐6‐4.WPS....................................................................................................................................192

IV‐6‐5.RADIUS ...............................................................................................................................193

IV‐6‐5‐1.RADIUSSettings .........................................................................................................194

IV‐6‐5‐2.InternalServer ...........................................................................................................195

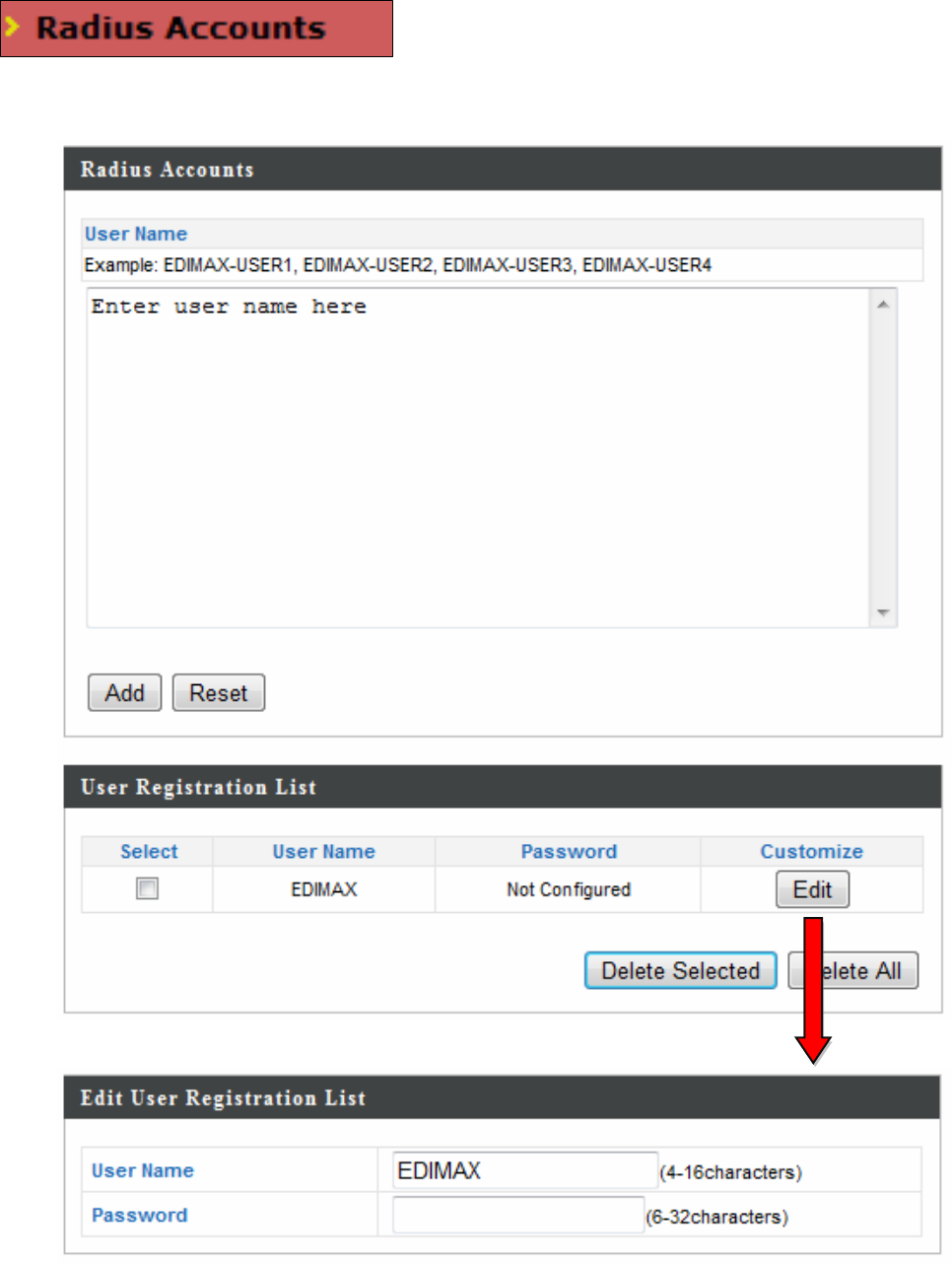

IV‐6‐5‐3.RADIUSAccounts .......................................................................................................197

IV‐6‐6.MACFilter ..........................................................................................................................199

IV‐6‐7.WMM.................................................................................................................................201

IV‐7.LocalSettings .....................................................................................................................203

IV‐7‐1.OperationMode ................................................................................................................203

IV‐7‐2.SystemSettings..................................................................................................................203



IV‐7‐2‐1.SystemInformation .................................................................................................203

IV‐7‐2‐2.WirelessClients..........................................................................................................205

IV‐7‐2‐3.WirelessMonitor .....................................................................................................206

IV‐7‐2‐4.Log............................................................................................................................207

IV‐7‐3.Management .....................................................................................................................208

IV‐7‐3‐1.Admin.......................................................................................................................208

IV‐7‐3‐2.DateandTime..........................................................................................................210

IV‐7‐3‐3.SyslogServer............................................................................................................212

IV‐7‐3‐4.I’mHere ...................................................................................................................213

IV‐7‐4.Advanced ...........................................................................................................................214

IV‐7‐4‐1.LEDSettings ...............................................................................................................214

IV‐7‐4‐2.UpdateFirmware.....................................................................................................215

IV‐7‐4‐3.Save/RestoreSettings..............................................................................................216

IV‐7‐4‐4.FactoryDefault ........................................................................................................217

IV‐7‐4‐5.Reboot......................................................................................................................217

IV‐8.Toolbox ..............................................................................................................................218

IV‐8‐1.NetworkConnectivity ......................................................................................................218

IV‐8‐1‐1.Ping ..........................................................................................................................218

IV‐8‐1‐2.TraceRoute..............................................................................................................218

V.Appendix ............................................................................................ 219

V‐1.ConfiguringyourIPaddress.............................................................................................219

V‐1‐1.WindowsXP .....................................................................................................................220

V‐1‐2.WindowsVista .................................................................................................................222

V‐1‐3.Windows7 .......................................................................................................................224

V‐1‐4.Windows8 .......................................................................................................................228

V‐1‐5.Mac ..................................................................................................................................232

VI.BestPractice....................................................................................... 234

VI‐1.HowtoCreateandLinkWLAN&AccessPointGroups...................................................235



1



OVERVIEW



Youraccesspointcanfunctioninfourdifferentmodes.



ThedefaultmodeforyouraccesspointisAPmode.



APmodeisaregularaccesspointforuseinyourwirelessnetwork.



APControllermodeactsasthedesignatedmasterofanAParray(groupof

linkedaccesspoints).InAPControllermodetheuserinterfacewillswitchto

NMS.



ManagedAPmodeactsasa“slave”APwithintheAParray(controlledbythe

APController“master”).



InRepeatermodetheaccesspointconnectswirelesslytoyourexisting

2.4GHzand/or5GHznetworkandrepeatsthewirelesssignal(s).



2



I. ProductInformation

I‐1.PackageContents



1234











1. AC1750AccessPoint

2. CeilingMountBracket

3. T‐RailMountingKit&Screws

4. CeilingMountingKit&Screws



5. QuickInstallationGuide

6. EthernetCable

7. PowerAdapter

8. CeilingMountScrewTemplate



5



3



I‐2.SystemRequirements



‐ Existingcable/DSLmodem&router

‐ Computerwithwebbrowserforaccesspointconfiguration



I‐3.HardwareOverview



EthernetPort

Power Port

MicroUSBPort



4



I‐4.LEDStatus



LEDColorLEDStatusDescription

OnTheaccesspointison.

LongFlashingUpgradingfirmware.

Blue

ShortFlashing Resettingtofactorydefaults.

OnStartingup.Amber

FlashingError.

OffOffTheaccesspointisoff.



I‐5.Reset



Ifyouexperienceproblemswithyouraccesspoint,youcanresetthedevice

backtoitsfactorysettings.Thisresetsallsettingsbacktodefault.



1. Pressandholdtheresetbuttonontheaccesspointforatleast10

seconds.



Youmayneedtouseapinorsimilarsharpobjecttopushthe

resetbutton.



2. Waitfortheaccesspointtorestart.Theaccesspointisreadyforsetup

whentheLEDisblue.



5



I‐6.SafetyInformation



Inordertoensurethesafeoperationofthedeviceanditsusers,pleaseread

andactinaccordancewiththefollowingsafetyinstructions.



1.Theaccesspointisdesignedforindooruseonly;donotplacetheaccess

pointoutdoors.



2.Donotplacetheaccesspointinornearhot/humidplaces,suchasakitchen

orbathroom.



3.Donotpullanyconnectedcablewithforce;carefullydisconnectitfromthe

accesspoint.



4.Handletheaccesspointwithcare.Accidentaldamagewillvoidthe

warrantyoftheaccesspoint.



5.Thedevicecontainssmallpartswhichareadangertosmallchildrenunder

3yearsold.Pleasekeeptheaccesspointoutofreachofchildren.



6.Donotplacetheaccesspointonpaper,cloth,orotherflammablematerials.

Theaccesspointmaybecomehotduringuse.



7.Therearenouser‐serviceablepartsinsidetheaccesspoint.Ifyou

experienceproblemswiththeaccesspoint,pleasecontactyourdealerof

purchaseandaskforhelp.



8.Theaccesspointisanelectricaldeviceandassuch,ifitbecomeswetfor

anyreason,donotattempttotouchitwithoutswitchingthepowersupply

off.Contactanexperiencedelectricaltechnicianforfurtherhelp.



9. Ifyousmellburningorseesmokecomingfromtheaccesspointorpower

adapter,thendisconnecttheaccesspointandpoweradapterimmediately,

asfarasitissafelypossibletodoso.Callyourdealerofpurchaseforhelp.



10.Thisdevicerequiresprofessionalinstallation.



6



II. QuickSetup



Youraccesspointcanbeupandrunninginjustafewminutes.Itcanfunction

asastandaloneaccesspoint(APmode),aspartofanAParray(ManagedAP

mode)orasawirelessrepeater(repeatermode).



ForuseaManagedAPinanAParray,theaccesspointwillautomatically

switchmodewhenanAPControllerisconfiguredasdescribedinNMS.



II‐1.InitialSetup



1. ConnecttheaccesspointtoacomputerviaEthernetcable.



2. Connectthepoweradaptertotheaccesspoint’s12VDCportandplugthe

poweradapterintoapowersupplyusingtheincludedcable.



3. Pleasewaitamomentfortheaccesspointtostartup.Theaccesspointis

readywhentheLEDisblue.



4. Setyourcomputer’sIPaddressto192.168.2.xwherexisanumberinthe

range3–100.Ifyouareunsurehowtodothis,pleaserefertotheuser

manualformoreinformation.



Pleaseensuretherearenootheractivenetworkconnectionson

yourcomputer(disconnectWi‐FiconnectionsandEthernet

cables).



5. Entertheaccesspoint’sdefaultIPaddress192.168.2.2intotheURLbarof

awebbrowser.



7



6. Youwillbepromptedforausernameandpassword.Enterthedefault

username“admin”andthedefaultpassword“1234”.



7. Youwillarrivethe“SystemInformation”screenshownbelow.



8



8. PleasefollowtheinstructionsbelowinII‐2.BasicSettingstoconfigurethe

accesspoint’sbasicsettingsforuseasastandaloneAPinAPmode.



ForuseaManagedAPinanAParray,theaccesspointwillautomatically

switchmodewhenanAPControllerisconfiguredasdescribedinNMS.



TousetheAPasanAPController(master)inanAParray,refertoNMS.



II‐2.APMode:BasicSettings



Theinstructionsbelowwillhelpyoutoconfigurethefollowingbasicsettings

oftheaccesspoint:



‐ LANIPAddress

‐ 2.4GHz&5GHzSSID&Security

‐ AdministratorName&Password

‐ Time&Date



Itisrecommendedyouconfigurethesesettingsbeforeusingthe

accesspoint.



1. Tochangetheaccesspoint’sLANIPaddress,goto“NetworkSettings”>

“LAN‐sideIPAddress”andyouwillseethescreenbelow.



2. EntertheIPaddresssettingsyouwishtouseforyouraccesspoint.You

canuseadynamic(DHCP)orstaticIPaddress,dependingonyournetwork

environment.Click“Apply”tosavethechangesandwaitafewmoments

fortheaccesspointtoreload.



9



Whenyouchangeyouraccesspoint’sIPaddress,youneedtouse

thenewIPaddresstoaccessthebrowserbasedconfiguration

interfaceinsteadofthedefaultIP192.168.2.2.



3. TochangetheSSIDofyouraccesspoint’s2.4GHzwirelessnetwork(s),go

to“WirelessSetting”>“2.4GHz11bgn”>“Basic”.EnterthenewSSIDfor

your2.4GHzwirelessnetworkinthe“SSID1”fieldandclick“Apply”.



Toutilizemultiple2.4GHzSSIDs,openthedropdownmenu

labelled“EnableSSIDnumber”andselecthowmanySSIDsyou

require.ThenenteranewSSIDinthecorrespondingnumbered

fieldsbelow,beforeclicking“Apply”.



4. Toconfigurethesecurityofyouraccesspoint’s2.4GHzwireless

network(s),goto“WirelessSetting”>“2.4GHz11bgn”>“Security”.Select

an“AuthenticationMethod”andentera“Pre‐sharedKey”or“Encryption

Key”dependingonyourchoice,thenclick“Apply”.



IfusingmultipleSSIDs,specifywhichSSIDtoconfigureusingthe

“SSID”dropdownmenu.



10



5. Goto“WirelessSettings”>“5GHz11ac11an”andrepeatsteps3&4for

theaccesspoint’s5GHzwirelessnetwork.



6. Tochangetheadministratornameandpasswordforthebrowserbased

configurationinterface,goto“Management”>“Admin”.



7. Completethe“AdministratorName”and“AdministratorPassword”fields

andclick“Apply”.



8. Tosetthecorrecttimeforyouraccesspoint,goto“Management”>

“DateandTime”.



11



9. Setthecorrecttimeandtimezoneforyouraccesspointusingthedrop

downmenus.TheaccesspointalsosupportsNTP(NetworkTimeProtocol)

soalternativelyyoucanenterthehostnameorIPaddressofatimeserver.

Click“Apply”whenyouarefinished.



Youcanusethe“AcquireCurrentTimefromyourPC”buttonif

youwishtosettheaccesspointtothesametimeasyourPC.



10. Thebasicsettingsofyouraccesspointarenowconfigured.Please

refertoIV.HardwareInstallationforguidanceonconnectingyouraccess

pointtoarouterorPoEswitch.



12



II‐3.RepeaterMode



Whenyousettheoperationmodetorepeatermode,theAPwillnotgetanIP

addressfromtherouter/rootAP.Youwillneedtosetyourcomputer’sIP

addressandusetheAPsdefaultIPaddresstoaccesstheUIforthefirsttime,

refertoAppendixformorehelp.



WirelessSettingsÆWirelessExtenderdisplaysdetailsabouttheAPswireless

connectioninrepeatermodeandenablesyoutoconnecttoasourceSSIDand

configurethenew(repeater)SSID.Settingsaresavedasprofiles.



1. Setyourcomputer’sIPaddressto192.168.2.xwherexisanumberinthe

range3–100.



Pleaseensuretherearenootheractivenetworkconnectionson

yourcomputer(disconnectWi‐FiconnectionsandEthernet

cables).



2. Entertheaccesspoint’sdefaultIPaddress192.168.2.2intotheURLbarof

awebbrowser.



3. Youwillbepromptedforausernameandpassword.Enterthedefault

username“admin”andthedefaultpassword“1234”.



13



4. GotoWirelessSettingsÆWirelessExtender.



5. ClickScantosearchforanddisplayavailableSSIDsandclickSelectto

connecttoanavailablesourceSSID.SSIDscanbeconfiguredindependently

foreachfrequency2.4GHz&5GHz.



14



6. EditthenewextendedSSIDaccordingtoyourpreferenceandenterthe

securitydetailsforthesourceSSID,andthenclickConnect.



7. TheAPinrepeatermodewillestablishaconnectiontothesourceSSIDand

repeattheextendedSSID.TherepeaterAPwillbecomeaDHCPclientof

therouter/rootAP.SwitchyourcomputerbacktoadynamicIPaddress.



15



III. HardwareInstallation

III‐1. ConnectingtheaccesspointtoarouterorPoEswitch



1. ConnectarouterorPoEswitchtotheaccesspoint’sLANportusingan

Ethernetcable.



2. Ifyouareusingarouter,then

connectthepoweradaptertothe

accesspoint’s12VDCportand

plugthepoweradapterintoa

powersupply.



Donotusethepower

adapterifyouareusinga

PoEswitch.



16



III‐2. Mountingtheaccesspointtoaceiling

Tomounttheaccesspointtoaceiling,pleasefollowtheinstructionsbelow

andrefertodiagramA&B.



ForWoodenCeilings(refertodiagramA):



1. Placetheceilingmountbrackettoaceilinginyourdesiredlocationand

usetheincludedscrewsx4tofixitintoplace(i).



2. Attachtheaccesspointtotheceilingmountbracketbyaligningthe

groovesintheaccesspointtotheceilingmount,asshowninii.



3. Securetheaccesspointfirmlyinplaceusingtheincludedscrewasshown

iniii.



ForOtherCeilings(refertodiagramB):



1. Drillfourholesinyourceilingusingtheceilingmountbracketasaguide,

andinsertthefourincludedwallplugs/screwanchors(i).



2. Aligntheceilingmountbracketwithyourwallplugs/screwanchorsanduse

theincludedscrewsx4tofixitintoplace(ii).



3. Attachtheaccesspointtotheceilingmountbracketbyaligningthe

groovesintheaccesspointtotheceilingmount,asshowniniii.



4. Securetheaccesspointfirmlyinplaceusingtheincludedscrewasshown

iniv.



17



A

i

iiiii



18



B

i

ii

iii

iv



19



III‐3. T‐RailMount

TomounttheaccesspointtoaT‐Rail,pleasefollowtheinstructionsbelow

andrefertodiagramC,D&E.



1. SelectthecorrectsizeT‐Railbracketfromthetwosizeswhichare

includedinthepackagecontents.



2. AttachtheT‐Railbrackettotheceilingmountusingtheincludedscrewsx

2asshownini.



YoucanusetheincludedbracketandlongerscrewsIfyouneed

morespacebetweentheaccesspointandtheT‐Rail.



3. Attachtheaccesspointtotheceilingmountbracketbyaligningthe

groovesintheaccesspointtotheceilingmount,asshowninii.



4. Securetheaccesspointfirmlyinplaceusingtheincludedscrewasshown

iniii.



5. CliptheaccesspointontoyourT‐RailusingthenowattachedT‐Rail

bracket.



Ci

iii



20



D

E

i

ii

iii



21



IV. BrowserBasedConfigurationInterface



InManagedAPmodesomefunctionsofthebrowserbased

configurationinterfacearedisabled.PleaseuseNMSonyour

ControllerAPtoconfigureyourManagedAP(s).



Thebrowser‐basedconfigurationinterfaceenablesyoutoconfigurethe

accesspoint’sadvancedfeatures.TheAC1750featuresarangeofadvanced

functionssuchasMACfiltering,MACRADIUSauthentication,VLAN

configurations,upto32SSIDsandmanymore.Toaccessthebrowserbased

configurationinterface:



1. ConnectacomputertoyouraccesspointusinganEthernetcable.



2. Enteryouraccesspoint’sIPaddressintheURLbarofawebbrowser.The

accesspoint’sdefaultIPaddressis192.168.2.2.



3. Youwillbepromptedforausernameandpassword.Thedefault

usernameis“admin”andthedefaultpasswordis“1234”,thoughitwas

recommendedthatyouchangethepasswordduringsetup(seeIII‐2.Basic

Settings).



Ifyoucannotrememberyourpassword,resettheaccesspoint

backtoitsfactorydefaultsettings.RefertoI‐5.Reset



4. Youwillarriveatthe“SystemInformation”screenshownbelow.



22



5. Usethemenuacrossthetopanddowntheleftsidetonavigate.Click

“Apply”tosavechangesandreloadtheaccesspoint,or“Cancel”tocancel

changes.



Pleasewaitafewsecondsfortheaccesspointtoreloadafteryou

“Apply”changes,asshownbelow.



6. Pleaserefertothefollowingchaptersforfulldescriptionsofthebrowser

basedconfigurationinterfacefeatures.



23



IV‐1. Information



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐1‐1. SystemInformation

The“SystemInformation”pagedisplaysbasic

systeminformationabouttheaccesspoint.



24



25



System

ModelDisplaysthemodelnumberoftheaccess

point.

ProductNameDisplaystheproductnameforreference,

whichconsistsof“AP”plustheMACaddress.

UptimeDisplaysthetotaltimesincethedevicewas

turnedon.

BootFromDisplaysinformationforthebooted

hardware,bootedfromeitherUSBorinternal

memory.

FirmwareVersionDisplaysthefirmwareversion.

MACAddressDisplaystheaccesspoint’sMACaddress.

ManagementVLAN

ID

DisplaysthemanagementVLANID.

IPAddressDisplaystheIPaddressofthisdevice.Click

“Refresh”toupdatethisvalue.

Default

Gateway

DisplaystheIPaddressofthedefault

gateway.

DNSIPaddressofDNS(DomainNameServer)

DHCPServerIPaddressofDHCPServer.



WiredLANPortSettings

WiredLANPortSpecifieswhichLANport.USBistheLANport

attachedviaminiUSBadapter.

StatusDisplaysthestatusofthespecifiedLANport

(connectedordisconnected).

VLANMode/IDDisplaystheVLANmode(taggedoruntagged)

andVLANIDforthespecifiedLANport.See

IV‐2‐3.VLAN



Wireless2.4GHz(5GHz)

StatusDisplaysthestatusofthe2.4GHzor5GHz

wireless(enabledordisabled).

MACAddressDisplaystheaccesspoint’sMACaddress.

ChannelDisplaysthechannelnumberthespecified

wirelessfrequencyisusingforbroadcast.

TransmitPowerDisplaysthewirelessradiotransmitpower

levelasapercentage.

RSSIDisplaysReceivedSignalStrengthIndicator.



26



Wireless2.4GHZ(5GHz)/SSID

SSIDDisplaystheSSIDname(s)forthespecified

frequency.

Authentication

Method

Displaystheauthenticationmethodforthe

specifiedSSID.SeeIV‐3.WirelessSettings

EncryptionTypeDisplaystheencryptiontypeforthespecified

SSID.SeeIV‐3.WirelessSettings

VLANIDDisplaystheVLANIDforthespecifiedSSID.

SeeIV‐2‐3.VLAN

Additional

Authentication

Displaystheadditionalauthenticationtypefor

thespecifiedSSID.SeeIV‐3.WirelessSettings

WirelessClient

Isolation

Displayswhetherwirelessclientisolationisin

useforthespecifiedSSID.SeeIV‐2‐3.VLAN



Wireless2.4GHZ(5GHz)/WDSStatus

MACAddressDisplaysthepeeraccesspoint’sMACaddress.

EncryptionTypeDisplaystheencryptiontypeforthespecified

WDS.SeeIV‐3‐1‐4.WDS

VLANMode/IDDisplaystheVLANIDforthespecifiedWDS.

SeeIV‐3‐1‐4.WDS



RefreshClicktorefreshallinformation.

ExtenderMode:



Wireless2.4GHZ(5GHz)/SSID

ConnectionStatusCurrentstatusoftherepeater’sconnection.

SourceSSIDDisplaystheSSIDname(s)fortherepeater’s



27



source.

ExtendedSSIDDisplaystheSSIDname(s)oftherepeater.

Authentication

Method

Displaystheauthenticationmethodforthe

specifiedSSID.SeeIV‐3.WirelessSettings

EncryptionTypeDisplaystheencryptiontypeforthespecified

SSID.SeeIV‐3.WirelessSettings

MACAddressDisplaystheaccesspoint’sMACaddress.

ChannelDisplaysthechannelnumberthespecified

wirelessfrequencyisusingforbroadcast.

TransmitPowerDisplaysthewirelessradiotransmitpower

levelasapercentage.

RSSIDisplaysReceivedSignalStrengthIndicator.



28



IV‐1‐2. WirelessClients

The“WirelessClients”pagedisplays

informationaboutallwirelessclients

connectedtotheaccesspointonthe2.4GHzor5GHzfrequency.



Refreshtime

AutoRefreshTimeSelectatimeintervalfortheclienttablelistto

automaticallyrefresh.

ManualRefreshClickrefreshtomanuallyrefreshtheclient

table.



2.4GHz(5GHz)WLANClientTable

SSIDDisplaystheSSIDwhichtheclientis

connectedto.

MACAddressDisplaystheMACaddressoftheclient.

TxDisplaysthetotaldatapacketstransmittedby

thespecifiedclient.

RxDisplaysthetotaldatapacketsreceivedby

thespecifiedclient.



29



Signal(%)Displaysthewirelesssignalstrengthforthe

specifiedclient.

ConnectedTimeDisplaysthetotaltimethewirelessclienthas

beenconnectedtotheaccesspoint.

IdleTimeClientidletimeisthetimeforwhichtheclient

hasnottransmittedanydatapacketsi.e.is

idle.

VendorThevendoroftheclient’swirelessadapteris

displayedhere.



30



IV‐1‐3. WirelessMonitor

WirelessMonitorisatoolbuiltintotheaccess

pointtoscanandmonitorthesurrounding

wirelessenvironment.Selectafrequencyandclick“Scan”todisplayalistof

allSSIDswithinrangealongwithrelevantdetailsforeachSSID.



WirelessMonitor

SiteSurveySelectwhichfrequency(orboth)toscan,and

click“Scan”tobegin.

ChannelSurvey

Result

Afterascaniscomplete,click“Export”tosave

theresultstolocalstorage.



SiteSurveyResults

ChDisplaysthechannelnumberusedbythe

specifiedSSID.

SSIDDisplaystheSSIDidentifiedbythescan.

MACAddressDisplaystheMACaddressofthewireless

router/accesspointforthespecifiedSSID.

SecurityDisplaystheauthentication/encryptiontype

ofthespecifiedSSID.



31



Signal(%)Displaysthecurrentsignalstrengthofthe

SSID.

TypeDisplaysthe802.11wirelessnetworking

standard(s)ofthespecifiedSSID.

VendorDisplaysthevendorofthewireless

router/accesspointforthespecifiedSSID.



32



IV‐1‐4. Log

Thesystemlogdisplayssystemoperation

informationsuchasuptimeandconnection

processes.Thisinformationisusefulfornetworkadministrators.



Whenthelogisfull,oldentriesareoverwritten.UsetheSearch

functiontoquicklylocatelogentries.



SaveClicktosavethelogasafileonyourlocal

computer.

ClearClearalllogentries.

RefreshRefreshthecurrentlog.



33



Thefollowinginformation/eventsarerecordedbythelog:



 USB

Mount&unmount

 WirelessClient

Connected&disconnected

Keyexchangesuccess&fail

 Authentication

Authenticationfailorsuccessful.

 Association

Successorfail

 WPS

M1‐M8messages

WPSsuccess

 ChangeSettings

 SystemBoot

Displayscurrentmodelname

 NTPClient

 WiredLink

LANPortlinkstatusandspeedstatus

 ProxyARP

ProxyARPmodulestart&stop

 Bridge

Bridgestart&stop.

 SNMP

SNMPserverstart&stop.

 HTTP

HTTPstart&stop.

 HTTPS

HTTPSstart&stop.

 SSH

SSH‐clientserverstart&stop.

 Telnet

Telnet‐clientserverstartorstop.

 WLAN(2.4G)

WLAN(2.4G]channelstatusandcountry/regionstatus

 WLAN(5G)

WLAN(5G)channelstatusandcountry/regionstatus



34



IV‐2. NetworkSettings



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐2‐1. LAN‐SideIPAddress

The“LAN‐sideIPaddress”pageallowsyouto

configureyouraccesspointonyourLocalArea

Network(LAN).YoucanenabletheaccesspointtodynamicallyreceiveanIP

addressfromyourrouter’sDHCPserveroryoucanspecifyastaticIPaddress

foryouraccesspoint,aswellasconfigureDNSservers.



Theaccesspoint’sdefaultIPaddressis192.168.2.2.



LAN‐sideIPAddress

IPAddress

Assignment

Select“DHCPClient”foryouraccesspointto

beassignedadynamicIPaddressfromyour

router’sDHCPserver,orselect“StaticIP”to

manuallyspecifyastatic/fixedIPaddressfor

youraccesspoint(below).

IPAddressSpecifytheIPaddresshere.ThisIPaddress

willbeassignedtoyouraccesspointandwill

replacethedefaultIPaddress.

SubnetMaskSpecifyasubnetmask.Thedefaultvalueis

255.255.255.0



35



DefaultGatewayForDHCPusers,select“FromDHCP”toget

defaultgatewayfromyourDHCPserveror

“User‐Defined”toenteragatewaymanually.

ForstaticIPusers,thedefaultvalueisblank.



DHCPuserscanselecttogetDNSservers’IPaddressfromDHCPormanually

enteravalue.ForstaticIPusers,thedefaultvalueisblank.



PrimaryAddressDHCPuserscanselect“FromDHCP”toget

primaryDNSserver’sIPaddressfromDHCPor

“User‐Defined”tomanuallyenteravalue.For

staticIPusers,thedefaultvalueisblank.

SecondaryAddressUserscanmanuallyenteravaluewhenDNS

server’sprimaryaddressissetto

“User‐Defined”.



36



IV‐2‐2. LANPort

The“LANPort”pageallowsyouto

configurethesettingsforyouraccess

point’stwowiredLAN(Ethernet)ports.



WiredLANPortIdentifiesLANport.USBistheLANport

attachedviaminiUSBadapter.

EnableEnable/disablespecifiedLANport.

Speed&DuplexSelectaspeed&duplextypeforspecifiedLAN

port,orusethe“Auto”value.LANportscan

operateupto1000Mbpsandfull‐duplex

enablessimultaneousdatapackets

transfer/receive.

FlowControlEnable/disableflowcontrol.Flowcontrolcan

pausenewsessionrequestuntilcurrentdata

processingiscomplete,inordertoavoid

deviceoverloadsunderheavytraffic.

802.3azEnable/disable802.3az.802.3azisanEnergy

EfficientEthernetfeaturewhichdisables

unusedinterfacestoreducepowerusage.



37



IV‐2‐3. VLAN

The“VLAN”(VirtualLocalAreaNetwork)

enablesyoutoconfigureVLANsettings.A

VLANisalocalareanetworkwhichmaps

workstationsvirtuallyinsteadofphysicallyandallowsyoutogrouptogether

orisolateusersfromeachother.VLANIDs1–4095aresupported.



VLANIDsintherange1–4095aresupported.



VLANInterface

WiredLAN

Port/Wireless

IdentifiesLANportnumberandwirelessSSIDs.

USBistheLANportattachedviaminiUSB

adapter.

VLANModeSelect“TaggedPort”or“UntaggedPort”for

specifiedLANinterface.

VLANIDSetaVLANIDforspecifiedinterface,if

“UntaggedPort”isselected.



ManagementVLAN

VLANIDSpecifytheVLANIDofthemanagementVLAN.

OnlythehostsbelongingtothesameVLANcan

managethedevice.



38



IV‐3. WirelessSettings



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.

IV‐3‐1. WirelessExtender



OnlyavailableinRepeaterMode



Thewirelessextenderpagedisplaysdetails

abouttheAPswirelessconnectioninrepeater

modeandenablesyoutoconnecttoasourceSSIDandconfigurethenew

(repeater)SSID.Settingsaresavedasprofiles.ClickScantosearchforand

displayavailableSSIDsandclickSelecttoconnecttoanavailableSSID.SSIDs

canbeconfiguredindependentlyforeachfrequency2.4GHz&5GHz.



39



Wireless2.4GHz/5GHz

SelectClicktoselectanSSIDanddisplayanewCreate

Profilewindowtoentersecurityinformation

(below).

ChannelDisplaysthechannelnumberoflistedSSID.

SSIDDisplaystheSSID.

MACAddressDisplaystheMACaddressofspecifiedSSID.

SecurityDisplaystheexistingsecuritytypeforlisted

SSID.

Signal(%)Displaystheavailablesignalstrengthforlisted

SSID.

TypeDisplaysthewireless802.11standardforeach

SSID.



WirelessCreateProfile

SSIDDisplaystheselectedsourceSSIDforthis

profile.

ExtendedSSIDEditthenewSSIDforthisprofile.

Authentication

Method

SelectthesourceSSIDsauthenticationmethod

andenterencryptionkey/pre‐sharedkey.



40



IV‐3‐2. ProfileList



OnlyavailableinRepeaterMode



Repeatermodesettingsaresavedasprofiles.

Profilescanbeeditedandmultipleprofiles

canbecreatedtoswitchbetweenprofiles

easilyasrequired.SelectanexistingprofileandclickEditorConnect.



WirelessCreateProfile

SSIDDisplaystheselectedsourceSSIDforthis

profile.

ExtendedSSIDEditthenewSSIDforthisprofile.

Authentication

Method

SelectthesourceSSIDsauthenticationmethod

andenterencryptionkey/pre‐sharedkey.



41



IV‐3‐3. 2.4GHz11bgn

The“2.4GHz11bgn”menuallowsyoutoview

andconfigureinformationforyouraccess

point’s2.4GHzwirelessnetworkacrossfive

categories:Basic,Advanced,Security,WDS&Schedule.



IV‐3‐3‐1.Basic

The“Basic”screendisplaysbasicsettingsfor

youraccesspoint’s2.4GHzWi‐Finetwork(s).



42



WirelessEnableordisabletheaccesspoint’s2.4GHz

wirelessradio.Whendisabled,no2.4GHz

SSIDswillbeactive.

BandSelectthewirelessstandardusedforthe

accesspoint.Combinationsof802.11b,

802.11g&802.11ncanbeselected.

EnableSSIDNumberSelecthowmanySSIDstoenableforthe

2.4GHzfrequencyfromthedropdownmenu.

Amaximumof16canbeenabled.

SSID#EntertheSSIDnameforthespecifiedSSID(up

to16).TheSSIDcanconsistofany

combinationofupto32alphanumeric

characters.

VLANIDSpecifyaVLANIDforeachSSID.

AutoChannelEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspoint’s2.4GHz

frequencybasedonavailabilityandpotential

interference.Whendisabled,selectachannel

manuallyasshowninthenexttable.

AutoChannelRangeSelectarangefromwhichtheautochannel

setting(above)willchooseachannel.

AutoChannel

Interval

Specifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),40MHz

(higherperformancebutpotentiallyhigher

interference)orAuto(automaticallyselect

basedoninterferencelevel).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



43



Whenautochannelisdisabled,selectawirelesschannelmanually:



Channel Selectawirelesschannelfrom1–11.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),40MHz

(higherperformancebutpotentiallyhigher

interference)orAuto(automaticallyselect

basedoninterferencelevel).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



44



IV‐3‐3‐2.Advanced

Thesesettingsareforexperiencedusersonly.

Pleasedonotchangeanyofthevaluesonthis

pageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoint.



ContentionSlotSelect“Short”or“Long”–thisvalueisusedfor

contentionwindowsinWMM(seeIV‐3‐6.

WMM).

PreambleTypeSetthewirelessradiopreambletype.The

preambletypein802.11basedwireless

communicationdefinesthelengthoftheCRC

(CyclicRedundancyCheck)blockfor

communicationbetweentheaccesspointand

roamingwirelessadapters.Thedefaultvalueis

“ShortPreamble”.

GuardIntervalSettheguardinterval.Ashorterintervalcan

improveperformance.



45



802.11gProtectionEnable/disable802.11gprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.

MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

BeaconIntervalSetthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



46



IV‐3‐3‐3.Security

Theaccesspointprovidesvarioussecurityoptions

(wirelessdataencryption).Whendatais

encrypted,informationtransmittedwirelesslycannotbereadbyanyonewho

doesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



47



2.4GHzWirelessSecuritySettings

SSIDSelectionSelectwhichSSIDtoconfiguresecuritysettings

for.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsasan

availableWi‐Finetwork.Whendisabled,the

SSIDwillnotbevisibleasanavailableWi‐Fi

networktoclients–clientsmustmanually

entertheSSIDinordertoconnect.Ahidden

(disabled)SSIDistypicallymoresecurethana

visible(enabled)SSID.

WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattacksonclients’

usernamesandpasswords.

LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

Authentication

Method

Selectanauthenticationmethodfromthedrop

downmenuandrefertotheinformation

belowappropriateforyourmethod.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenuandrefertothe

informationbelow(IV‐3‐1‐3‐6.)appropriatefor

yourmethod.



2.4GHzWirelessAdvancedSettings

SmartHandoverEnableordisablesmarthandover.

RSSIThresholdSettheReceivedSignalStrengthIndicator

(RSSI)thresholdtomaintainqualityconnection

speeds(minimumreceiversensitivityrequired

foraconnection).



48



IV‐3‐3‐3‐1. NoAuthentication

Authenticationisdisabledandnopassword/keyisrequiredtoconnecttothe

accesspoint.



Disablingwirelessauthenticationisnotrecommended.When

disabled,anybodywithinrangecanconnecttoyourdevice’sSSID.

IV‐3‐3‐3‐2. WEP

WEP(WiredEquivalentPrivacy)isabasicencryptiontype.Forahigher

levelofsecurityconsiderusingWPAencryption.



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.

KeyTypeChoosefrom“ASCII”(anyalphanumerical

character0‐9,a‐zandA‐Z)or“Hex”(any

charactersfrom0‐9,a‐fandA‐F).

DefaultKeySelectwhichencryptionkey(1–4below)isthe

defaultkey.Forsecuritypurposes,youcanset

uptofourkeys(below)andchangewhichis

thedefaultkey.

EncryptionKey1–

4

Enteryourencryptionkey/passwordaccording

totheformatyouselectedabove.



IV‐3‐3‐3‐3. IEEE802.1x/EAP



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.



IV‐3‐3‐3‐4. WPA‐PSK

WPA‐PSKisasecurewirelessencryptiontypewithstrongdata

protectionanduserauthentication,utilizing128‐bitencryptionkeys.



WPATypeSelectfromWPA/WPA2MixedMode‐PSK,

WPA2orWPAonly.WPA2issaferthanWPA

only,butnotsupportedbyallwirelessclients.

Pleasemakesureyourwirelessclientsupports



49



yourselection.

EncryptionSelect“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.

Pre‐SharedKey

Type

Choosefrom“Passphrase”(8–63

alphanumericcharacters)or“Hex”(upto64

charactersfrom0‐9,a‐fandA‐F).

Pre‐SharedKeyPleaseenterasecuritykey/passwordaccording

totheformatyouselectedabove.



IV‐3‐3‐3‐5. WPA‐EAP



WPATypeSelectfromWPA/WPA2MixedMode‐EAP,

WPA2‐EAPorWPA‐EAP.

EncryptionType

Select“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.



WPA‐EAPmustbedisabledtouseMAC‐RADIUSauthentication.

IV‐3‐3‐3‐6. AdditionalAuthentication

Additionalwirelessauthenticationmethodscanalsobeused:



WPSmustbedisabledtouseadditionalauthentication.SeeIV‐3‐3.

forWPSsettings.



MACAddressFilter

RestrictwirelessclientsaccessbasedonMACaddressspecifiedintheMAC

filtertable.



SeeIV‐3‐5.MACFiltertoconfigureMACfiltering.



MACFilter&MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessusingbothoftheaboveMACfiltering&

RADIUSauthenticationmethods.



50



MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessbasedonMACaddressviaaRADIUSserver,or

passwordauthenticationviaaRADIUSserver.



SeeIV‐3‐4.RADIUStoconfigureRADIUSservers.



WPSmustbedisabledtouseMAC‐RADIUSauthentication.See

IV‐3‐3.forWPSsettings.



MACRADIUS

Password

SelectwhethertouseMACaddressor

passwordauthenticationviaRADIUSserver.If

youselect“Usethefollowingpassword”,enter

thepasswordinthefieldbelow.Thepassword

shouldmatchthe“SharedSecret”usedin

IV‐3‐4.RADIUS.



51



IV‐3‐3‐4.WDS

WirelessDistributionSystem(WDS)can

bridge/repeataccesspointstogetherinan

extendednetwork.WDSsettingscanbeconfiguredasshownbelow.



WhenusingWDS,configuretheIPaddressofeachaccesspointto

beinthesamesubnetandensurethereisonlyoneactiveDHCP

serveramongconnectedaccesspoints,preferablyontheWAN

side.



WDSmustbeconfiguredoneachaccesspoint,usingcorrectMACaddresses.

Allaccesspointsshouldusethesamewirelesschannelandencryption

method.



52



2.4GHz

WDSFunctionalitySelect“WDSwithAP”touseWDSwithaccess

pointor“WDSDedicatedMode”touseWDS

andalsoblockcommunicationwithregular

wirelessclients.WhenWDSisused,each

accesspointshouldbeconfiguredwith

correspondingMACaddresses,wireless

channelandwirelessencryptionmethod.

LocalMACAddressDisplaystheMACaddressofyouraccesspoint.



WDSPeerSettings

WDS#EntertheMACaddressforuptofourother

WDSdevicesyouwishtoconnect.



WDSVLAN

VLANModeSpecifytheWDSVLANmodeto“Untagged

Port”or“TaggedPort”.

VLANIDSpecifytheWDSVLANIDwhen“Untagged

Port”isselectedabove.



WDSEncryptionmethod

EncryptionSelectwhethertouse“None”or“AES”

encryptionandenterapre‐sharedkeyforAES

consistingof8‐63alphanumericcharacters.



53



IV‐3‐4. 5GHz11ac11an

The“5GHz11ac11an”menuallowsyoutoview

andconfigureinformationforyouraccesspoint’s

5GHzwirelessnetworkacrossfivecategories:Basic,Advanced,Security,WDS

&Schedule.

IV‐3‐4‐1.Basic

The“Basic”screendisplaysbasicsettingsfor

youraccesspoint’s5GHzWi‐Finetwork(s).



WirelessEnableordisabletheaccesspoint’s5GHz

wirelessradio.Whendisabled,no5GHzSSIDs

willbeactive.

BandSelectthewirelessstandardusedforthe

accesspoint.Combinationsof802.11a,



54



802.11n&802.11accanbeselected.

EnableSSIDNumberSelecthowmanySSIDstoenableforthe5GHz

frequencyfromthedropdownmenu.A

maximumof16canbeenabled.

SSID#EntertheSSIDnameforthespecifiedSSID(up

to16).TheSSIDcanconsistofany

combinationofupto32alphanumeric

characters.

VLANIDSpecifyaVLANIDforeachSSID.

AutoChannelEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspoint’s5GHz

frequencybasedonavailabilityandpotential

interference.Whendisabled,selectachannel

manuallyasshowninthenexttable.

AutoChannelRangeSelectarangefromwhichtheautochannel

setting(above)willchooseachannel.

AutoChannel

Interval

Specifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),Auto

40/20MHzorAuto80/40/20MHz

(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



Whenautochannelisdisabled,selectawirelesschannelmanually:



Channel Selectawirelesschannel.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),Auto

40/20MHzorAuto80/40/20MHz

(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication



55



framesforwirelessclients.



IV‐3‐4‐2.Advanced

Thesesettingsareforexperiencedusersonly.

Pleasedonotchangeanyofthevaluesonthis

pageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoint.



GuardIntervalSettheguardinterval.Ashorterintervalcan

improveperformance.

802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.



56



MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

BeaconIntervalSetthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



57



IV‐3‐4‐3.Security

Theaccesspointprovidesvarioussecurityoptions

(wirelessdataencryption).Whendatais

encrypted,informationtransmittedwirelessly

cannotbereadbyanyonewhodoesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



SSIDSelectionSelectwhichSSIDtoconfiguresecuritysettings

for.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsasan

availableWi‐Finetwork.Whendisabled,the

SSIDwillnotbevisibleasanavailableWi‐Fi

networktoclients–clientsmustmanually

entertheSSIDinordertoconnect.Ahidden

(disabled)SSIDistypicallymoresecurethana

visible(enabled)SSID.



58



WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattacksonclients’

usernamesandpasswords.

LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

Authentication

Method

Selectanauthenticationmethodfromthedrop

downmenuandrefertotheinformation

belowappropriateforyourmethod.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenuandrefertothe

informationbelowappropriateforyour

method.



PleasereferbacktoIV‐3‐1‐3.Securityformoreinformationonauthentication

andadditionalauthenticationtypes.



59



IV‐3‐4‐4.WDS

WirelessDistributionSystem(WDS)can

bridge/repeataccesspointstogetherinan

extendednetwork.WDSsettingscanbe

configuredasshownbelow.



WhenusingWDS,configuretheIPaddressofeachaccesspointto

beinthesamesubnetandensurethereisonlyoneactiveDHCP

serveramongconnectedaccesspoints,preferablyontheWAN

side.



WDSmustbeconfiguredoneachaccesspoint,usingcorrectMACaddresses.

Allaccesspointsshouldusethesamewirelesschannelandencryption

method.



60



5GHzWDSMode

WDSFunctionalitySelect“WDSwithAP”touseWDSwithaccess

pointor“WDSDedicatedMode”touseWDS

andalsoblockcommunicationwithregular

wirelessclients.WhenWDSisused,each

accesspointshouldbeconfiguredwith

correspondingMACaddresses,wireless

channelandwirelessencryptionmethod.

LocalMACAddressDisplaystheMACaddressofyouraccesspoint.



WDSPeerSettings

WDS#EntertheMACaddressforuptofourother

WDAdevicesyouwishtoconnect.



WDSVLAN

VLANModeSpecifytheWDSVLANmodeto“Untagged

Port”or“TaggedPort”.

VLANIDSpecifytheWDSVLANIDwhen“Untagged

Port”isselectedabove.



WDSEncryption

EncryptionSelectwhethertouse“None”or“AES”

encryptionandenterapre‐sharedkeyforAES

with8‐63alphanumericcharacters.



61



IV‐3‐5.WPS

Wi‐FiProtectedSetupisasimplewayto

establishconnectionsbetweenWPS

compatibledevices.WPScanbeactivatedoncompatibledevicesbypushinga

WPSbuttononthedeviceorfromwithinthedevice’sfirmware/configuration

interface(knownasPBCor“PushButtonConfiguration”).WhenWPSis

activatedinthecorrectmannerandatthecorrecttimefortwocompatible

devices,theywillautomaticallyconnect.“PINcodeWPS”isavariationofPBC

whichincludestheadditionaluseofaPINcodebetweenthetwodevicesfor

verification.



Pleaserefertomanufacturer’sinstructionsforyourotherWPS

device.



62



 



WPSCheck/uncheckthisboxtoenable/disableWPS

functionality.WPSmustbedisabledwhen

usingMAC‐RADIUSauthentication(see

IV‐3‐1‐3‐6&IV‐3‐4).



WPS

ProductPINDisplaystheWPSPINcodeofthedevice,used

forPINcodeWPS.Youwillberequiredtoenter

thisPINcodeintoanotherWPSdeviceforPIN

codeWPS.Click“GeneratePIN”togeneratea

newWPSPINcode.

Push‐ButtonWPSClick“Start”toactivateWPSontheaccess

pointforapproximately2minutes.Thishasthe

sameeffectasphysicallypushingtheaccess

point’sWPSbutton.

WPSbyPINEnterthePINcodeofanotherWPSdeviceand

click“Start”toattempttoestablishaWPS

connectionforapproximately2minutes.



WPSSecurity

WPSStatusWPSsecuritystatusisdisplayedhere.Click

“Release”tocleartheexistingstatus.



Wireless2.4GHz/5GHz

SSIDDisplaystheSSIDname(s)forthespecified

frequency.

SecurityDisplaysthesecurityforthespecifiedSSID.

EncryptionDisplaystheencryptiontypeforthespecified

SSID.SeeIV‐3.WirelessSettings



63



IV‐3‐6.RADIUS

TheRADIUSmenuallowsyoutoconfigurethe

accesspoint’sexternalRADIUSserversettings.



ARADIUSserverprovidesuser‐basedauthenticationtoimprovesecurityand

offerwirelessclientcontrol–userscanbeauthenticatedbeforegaining

accesstoanetwork.



Theaccesspointcanutilizebothaprimaryandsecondary(backup)external

RADIUSserverforeachofitswirelessfrequencies(2.4GHz&5GHz)..



TouseRADIUSservers,goto“WirelessSettings”

“Security”and

select“MACRADIUSAuthentication”

“Additional

Authentication”andselect“MACRADIUSAuthentication”(see

IV‐3‐1‐3.&IV‐3‐2‐3).



64



IV‐3‐6‐1.RADIUSSettings

ConfiguretheRADIUSserversettingsfor

2.4GHz.Eachfrequencycanuseaninternalor

externalRADIUSserver.



65



RADIUSTypeSelect“Internal”tousetheaccesspoint’s

built‐inRADIUSserveror“external”tousean

externalRADIUSserver.

RADIUSServerEntertheRADIUSserverhostIPaddress.

Authentication

Port

SettheUDPportusedintheauthentication

protocoloftheRADIUSserver.Valuemustbe

between1–65535.

SharedSecretEnterasharedsecret/passwordbetween1–

99charactersinlength.Thisshouldmatchthe

“MAC‐RADIUS”passwordusedinIV‐3‐1‐3‐6or

IV‐3‐2‐3.

SessionTimeoutSetadurationofsessiontimeoutinseconds

between0–86400.

AccountingEnableordisableRADIUSaccounting.

AccountingPortWhenaccountingisenabled(above),setthe

UDPportusedintheaccountingprotocolof

theRADIUSserver.Valuemustbebetween1–

65535.



66



IV‐3‐6‐2.InternalServer

Theaccesspointfeaturesabuilt‐inRADIUS

serverwhichcanbeconfiguredasshown

belowusedwhen“Internal”isselectedfor“RADIUSType”inthe“Wireless

Settings”Æ“RADIUS”Æ“RADIUSSettings”menu.



TouseRADIUSservers,goto“WirelessSettings”

“Security”and

select“MACRADIUSAuthentication”

“Additional

Authentication”andselect“MACRADIUSAuthentication”(see

IV‐3‐1‐3.&IV‐3‐2‐3).



InternalServerCheck/unchecktoenable/disabletheaccess

point’sinternalRADIUSserver.

EAPInternal

Authentication

SelectEAPinternalauthenticationtypefrom

thedropdownmenu.

EAPCertificateFile

Format

DisplaystheEAPcertificatefileformat:

PCK#12(*.pfx/*.p12)

EAPCertificateFileClick“Upload”toopenanewwindowand

selectthelocationofanEAPcertificatefileto

use.Ifnocertificatefileisuploaded,the

internalRADIUSserverwilluseaself‐made

certificate.

SharedSecretEnterasharedsecret/passwordforuse

betweentheinternalRADIUSserverand

RADIUSclient.Thesharedsecretshouldbe1–



67



99charactersinlength.Thisshouldmatchthe

“MAC‐RADIUS”passwordusedinIV‐3‐1‐3‐6or

IV‐3‐2‐3.

SessionTimeoutSetadurationofsessiontimeoutinseconds

between0–86400.

TerminationActionSelectatermination‐actionattribute:

“Reauthentication”sendsaRADIUSrequestto

theaccesspoint,“Not‐Reathentication”sends

adefaulttermination‐actionattributetothe

accesspoint,“Not‐Send”no

termination‐actionattributeissenttothe

accesspoint.



68



IV‐3‐6‐3.RADIUSAccounts

TheinternalRADIUSservercanauthenticate

upto256useraccounts.The“RADIUS

Accounts”pageallowsyoutoconfigureandmanageusers.



69



UserNameEntertheusernameshere,separatedby

commas.

AddClick“Add”toaddtheusertotheuser

registrationlist.

ResetCleartextfromtheusernamebox.



SelectChecktheboxtoselectauser.

UserNameDisplaystheusername.

PasswordDisplaysifspecifiedusernamehasapassword

(configured)ornot(notconfigured).

CustomizeClick“Edit”toopenanewfieldtoset/edita

passwordforthespecifiedusername(below).



DeleteSelectedDeleteselecteduserfromtheuserregistration

list.

DeleteAllDeleteallusersfromtheuserregistrationlist.



EditUserRegistrationList



UserNameExistingusernameisdisplayedhereandcan

beeditedaccordingtoyourpreference.

PasswordEnteroreditapasswordforthespecifieduser.



70



IV‐3‐7. MACFilter

Macfilteringisasecurityfeaturethatcan

helptopreventunauthorizedusersfrom

connectingtoyouraccesspoint.



Thisfunctionallowsyoutodefinealistofnetworkdevicespermittedto

connecttotheaccesspoint.DevicesareeachidentifiedbytheiruniqueMAC

address.IfadevicewhichisnotonthelistofpermittedMACaddresses

attemptstoconnecttotheaccesspoint,itwillbedenied.



ToenableMACfiltering,goto“WirelessSettings”

“2.4G

Hz11bgn”

“Security”

“AdditionalAuthentication”andselect

“MACFilter”(seeIV‐3‐1‐3).



TheMACaddressfilteringtableisdisplayedbelow:



AddMACAddressEnteraMACaddressofcomputerornetwork

devicemanuallye.g.‘aa‐bb‐cc‐dd‐ee‐ff’or

entermultipleMACaddressesseparatedwith



71



commas,e.g.

‘aa‐bb‐cc‐dd‐ee‐ff,aa‐bb‐cc‐dd‐ee‐gg’

AddClick“Add”toaddtheMACaddresstothe

MACaddressfilteringtable.

ResetClearallfields.



MACaddressentrieswillbelistedinthe“MACAddressFilteringTable”.Select

anentryusingthe“Select”checkbox.



SelectDeleteselectedorallentriesfromthetable.

MACAddressTheMACaddressislistedhere.

DeleteSelectedDeletetheselectedMACaddressfromthe

list.

DeleteAllDeleteallentriesfromtheMACaddress

filteringtable.

ExportClick“Export”tosaveacopyoftheMAC

filteringtable.Anewwindowwillpopupfor

youtoselectalocationtosavethefile.



72



IV‐3‐8.WMM

Wi‐FiMultimedia(WMM)isaWi‐FiAlliance

interoperabilitycertificationbasedonthe

IEEE802.11estandard,whichprovides

QualityofService(QoS)featurestoIEE802.11networks.WMMprioritizes

trafficaccordingtofourcategories:background,besteffort,videoandvoice.



ConfiguringWMMconsistsofadjustingparametersonqueuesfordifferent

categoriesofwirelesstraffic.Trafficissenttothefollowingqueues:



BackgroundLow

Priority

Highthroughput,nontimesensitivebulk

datae.g.FTP

BestEffortMedium

Priority

TraditionalIPdata,mediumthroughputand

delay.

VideoHigh

Priority

Timesensitivevideodatawithminimum

timedelay.

VoiceHigh

Priority

TimesensitivedatasuchasVoIPand

streamingmediawithminimumtimedelay.



Queuesautomaticallyprovideminimumtransmissiondelaysforvideo,voice,

multimediaandcriticalapplications.Thevaluescanfurtherbeadjusted

manually:



73



CWMinMinimumContentionWindow(milliseconds):

Thisvalueisinputtotheinitialrandom

backoffwaittimealgorithmforretryofadata

frametransmission.Thebackoffwaittimewill

begeneratedbetween0andthisvalue.Ifthe

frameisnotsent,therandombackoffvalueis

doubleduntilthevaluereachesthenumber

definedbyCWMax(below).TheCWMinvalue

mustbelowerthantheCWMaxvalue.The

contentionwindowschemehelpstoavoid

framecollisionsanddeterminepriorityof

frametransmission.Ashorterwindowhasa

higherprobability(priority)oftransmission.

CWMaxMaximumContentionWindow(milliseconds):

Thisvalueistheupperlimittorandom

backoffvaluedoubling(seeabove).

AIFSNArbitrationInter‐FrameSpace(milliseconds):

Specifiesadditionaltimebetweenwhena

channelgoesidleandtheAP/clientsends

dataframes.TrafficwithalowerAIFSNvalue

hasahigherpriority.

TxOPTransmissionOpportunity(milliseconds):The

maximumintervaloftimeanAP/clientcan

transmit.Thismakeschannelaccessmore

efficientlyprioritized.Avalueof0meansonly

oneframepertransmission.Agreatervalue

effectshigherpriority.



74



IV‐3‐9.Schedule

Theschedulefeatureallowsyoutoautomate

thewirelessnetworkforspecifiedtimes.

Check/uncheckthebox“EnableWirelessSchedule”toenable/disablethe

wirelessschedulingfunction.



Theaccesspoint’stimeanddatesettingsmustbesetinorderto

usethisfunction.



Wirelessschedulingcansaveenergyandincreasethesecurityof

yournetwork.



1. CheckEnableandusetheSelect,Add,EditorDeletecheckboxestoselect

andmodifyschedule(s).



2. WhenyouclickAdd,specifyday(s),starttimeandendtimeforthe

scheduleusingthedrop‐downmenusandclickApply.



75



3. RemembertoApplyyourchangesandmakesureEnableischecked.



76



IV‐3‐10.TrafficShaping

Thetrafficshapingfunctionallowsyouto

regulatenetworkdatatransfertoensureor

prioritizeperformancebylimitinguplinkanddownlinkspeedsaccordingto

SSID.



EnableUnlimited:0

Mbps

Check/unchecktoenableordisableunlimited

transferspeed.

Downlink/UplinkSpecifythemaximumdown/uplinkcapacityin



77



MaximumMbps.

DownlinkEnteradownlinklimitinMBforthelisted

SSID.

UplinkEnteranuplinklimitinMBforthelistedSSID.



78



IV‐4. Management



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐4‐1. Admin

Youcanchangethepasswordusedtologinto

thebrowser‐basedconfigurationinterfacehere.

Itisadvisedtodosoforsecuritypurposes.



Ifyouchangetheadministratorpassword,pleasemakeanote

ofthenewpassword.Intheeventthatyouforgetthis

passwordandareunabletologintothebrowserbased

configurationinterface,seeI‐5.Resetforhowtoresetthe

accesspoint.



79



AccounttoManageThisDevice

Administrator

Name

Settheaccesspoint’sadministratorname.

Thisisusedtologintothebrowserbased

configurationinterfaceandmustbebetween

4‐16alphanumericcharacters(casesensitive).

Administrator

Password

Settheaccesspoint’sadministratorpassword.

Thisisusedtologintothebrowserbased

configurationinterfaceandmustbebetween

4‐32alphanumericcharacters(casesensitive).



AdvancedSettings

ProductNameEdittheproductnameaccordingtoyour



80



preferenceconsistingof1‐32alphanumeric

characters.Thisnameisusedforreference

purposes.

HTTPPortSpecifyHTTPportnumber.

HTTPSPortSpecifyHTTPSportnumber.

Management

Protocol

Check/unchecktheboxestoenable/disable

specifiedmanagementinterfaces(seebelow).

WhenSNMPisenabled,completetheSNMP

fieldsbelow.

SNMPVersionSelectSNMPversionappropriateforyour

SNMPmanager.

SNMPGet

Community

EnteranSNMPGetCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐GETrequests.

SNMPSet

Community

EnteranSNMPSetCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐SETrequests.

SNMPTrapEnableordisableSNMPTraptonotifySNMP

managerofnetworkerrors.

SNMPTrap

Community

EnteranSNMPTrapCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐TRAPrequests.

SNMPTrap

Manager

SpecifytheIPaddressorsevername(2‐128

alphanumericcharacters)oftheSNMP

manager.



HTTP

InternetbrowserHTTPprotocolmanagementinterface

TELNET

Clientterminalwithtelnetprotocolmanagementinterface

SNMP

SimpleNetworkManagementProtocol.SNMPv1,v2&v3protocolsupported.

SNMPv2canbeusedwithcommunitybasedauthentication.SNMPv3uses

user‐basedsecuritymodel(USM)architecture.



81



IV‐4‐2. DateandTime



Youcanconfigurethetimezonesettingsofyour

accesspointhere.Thedateandtimeofthe

devicecanbeconfiguredmanuallyorcanbesynchronizedwithatimeserver.



DateandTimeSettings

LocalTimeSettheaccesspoint’sdateandtimemanually

usingthedropdownmenus.

AcquireCurrent

TimefromyourPC

Click“AcquireCurrentTimefromYourPC”to

entertherequiredvaluesautomatically

accordingtoyourcomputer’scurrenttimeand

date.



NTPTimeServer

UseNTPTheaccesspointalsosupportsNTP(Network

TimeProtocol)forautomatictimeanddate

setup.



82



ServerNameEnterthehostnameorIPaddressofthetime

serverifyouwish.

UpdateIntervalSpecifyafrequency(inhours)fortheaccess

pointtoupdate/synchronizewiththeNTP

server.



TimeZone

TimeZoneSelectthetimezoneofyourcountry/region.If

yourcountry/regionisnotlisted,pleaseselect

anothercountry/regionwhosetimezoneisthe

sameasyours.



83



IV‐4‐3. SyslogServer

Thesystemlogcanbesenttoaserveror

toattachedUSBstorage.



SyslogServerSettings

TransferLogsCheck/unchecktheboxtoenable/disablethe

useofasyslogserver,andenterahost

name,domainorIPaddressfortheserver,

consistingofupto128alphanumeric

characters.

CopyLogsto

AttachedUSBDevice

Check/unchecktheboxtoenable/disable

copyinglogstoattachedUSBstorage.



SyslogE‐mailSettings

E‐mailLogsChecktheboxtoenable/disablee‐maillogs.

E‐mailSubjectSpecifythesubjectlineoflogemails.

SMTPServer

Address

SpecifytheSMTPserveraddressusedtosend

logemails.

SMTPServerPortSpecifytheSMTPserverportusedtosendlog

emails.

SenderE‐mailSpecifythesenderemailaddress.

ReceiverE‐mailSpecifytheemailtoreceivelogemails.



84



AuthenticationDisableorselectauthenticationtype:SSLorTLS.

WhenusingSSLorTLS,entertheusernameand

password.

IV‐4‐4. PingTest

Theaccesspointincludesabuilt‐inpingtest

function.Pingisacomputer

networkadministrationutilityusedtotestwhetheraparticularhostis

reachableacrossanIPnetworkandtomeasuretheround‐triptimeforsent

messages.



DestinationAddressEntertheaddressofthehost.

ExecuteClickexecutetopingthehost.



85



IV‐4‐5. I’mHere

Theaccesspointfeaturesabuilt‐inbuzzer

whichcansoundoncommandusingthe“I’m

Here”page.Thisisusefulfornetworkadministratorsandengineersworking

incomplexnetworkenvironmentstolocatetheaccesspoint.



Thebuzzerisloud!



DurationofSoundSetthedurationforwhichthebuzzerwill

soundwhenthe“SoundBuzzer”buttonis

clicked.

SoundBuzzerActivatethebuzzersoundfortheabove

specifieddurationoftime.



86



IV‐5. Advanced



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐5‐1. LEDSettings

Theaccesspoint’sLEDscanbemanually

enabledordisabledaccordingtoyour

preference.



Power/DiagLEDSelectonoroff.



87



IV‐5‐2. UpdateFirmware

The“Firmware”pageallowsyoutoupdate

thesystemfirmwaretoamorerecent

version.Updatedfirmwareversionsoften

offerincreasedperformanceandsecurity,aswellasbugfixes.Youcan

downloadthelatestfirmwarefromthewebsite.



Donotswitchoffordisconnecttheaccesspointduringafirmware

upgrade,asthiscoulddamagethedevice.



UpdateFirmware

From

Select“afileonyourPC”touploadfirmware

fromyourlocalcomputerorfroman

attachedUSBdevice.

FirmwareUpdateFileClick“ChooseFile”toopenanewwindowto

locateandselectthefirmwarefileinyour

computer.

UpdateClick“Update”touploadthespecified

firmwarefiletoyouraccesspoint.



88



IV‐5‐3. Save/RestoreSettings

Theaccesspoint’s“Save/RestoreSettings”

pageenablesyoutosave/backuptheaccess

point’scurrentsettingsasafiletoyourlocalcomputeroraUSBdevice

attachedtotheaccesspoint,andrestoretheaccesspointtopreviouslysaved

settings.



Save/RestoreSettings

UsingDeviceSelect“UsingyourPC”tosavetheaccess

point’ssettingstoyourlocalcomputerorto

anattachedUSBdevice.



SaveSettingstoPC

SaveSettingsClick“Save”tosavesettingsandanew

windowwillopentospecifyalocationto

savethesettingsfile.Youcanalsocheckthe

“Encrypttheconfigurationfilewitha

password”boxandenterapasswordto

protectthefileinthefieldunderneath,ifyou

wish.



RestoreSettingsfromPC

RestoreSettingsClickthebrowsebuttontofindapreviously

savedsettingsfileonyourcomputer,then

click“Restore”toreplaceyourcurrent

settings.Ifyoursettingsfileisencryptedwith



89



apassword,checkthe“Openfilewith

password”boxandenterthepasswordin

thefieldunderneath.



90



IV‐5‐4. FactoryDefault

Iftheaccesspointmalfunctionsorisnot

responding,thenitisrecommendedthatyou

rebootthedevice(seeIV‐5.5)orresetthedevicebacktoitsfactorydefault

settings.Youcanresettheaccesspointbacktoitsdefaultsettingsusingthis

featureifthelocationoftheaccesspointisnotconvenienttoaccessthereset

button.



FactoryDefaultClick“FactoryDefault”torestoresettingsto

thefactorydefault.Apop‐upwindowwill

appearandaskyoutoconfirm.



Afterresettingtofactorydefaults,pleasewaitfortheaccess

pointtoresetandrestart.



91



IV‐5‐5. Reboot

Iftheaccesspointmalfunctionsorisnot

responding,thenitisrecommendedthat

yourebootthedeviceorresettheaccesspointbacktoitsfactorydefault

settings(seeIV‐5‐4).Youcanreboottheaccesspointremotelyusingthis

feature.



RebootClick“Reboot”torebootthedevice.A

countdownwillindicatetheprogressofthe

reboot.



92



IV‐6. OperationMode



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



Theaccesspointcanfunctioninthreedifferentmodes.Settheoperation

modeoftheaccesspointhere.



Youraccesspointcanfunctioninthreedifferentmodes.



ThedefaultmodeforyouraccesspointisAPmode.



APmodeisaregularaccesspointforuseinyourwirelessnetwork.



APControllermodeactsasthedesignatedmasterofanAParray(groupof

linkedaccesspoints).InAPControllermodetheuserinterfacewillswitchto

NMS.



ManagedAPmodeactsasa“slave”APwithintheAParray(controlledbythe

APController“master”).



InRepeatermodetheaccesspointconnectswirelesslytoyourexisting

2.4GHzand/or5GHznetworkandrepeatsthewirelesssignal(s).



InManagedAPmodesomefunctionsoftheaccesspointwillbe

disabledinthisuserinterfaceandmustbesetusingNMSonthe

APController.



93



OperationModeAPModeisastandardaccesspointina

wirelessnetwork.



APControllerModeisthemasterofanAP

arrayandcontrolsallothermanagedAPs

(below)usingNMS.



ManagedAPmodeisanAPwhichispartof

theAParrayandismanagedbythe

ControllerAP.



Whenyousettheoperationmodetorepeatermode,theAPwill

notgetanIPaddressfromtherouter/rootAP.Youwillneedto

setyourcomputer’sIPaddressandusetheAPsdefaultIPaddress

toaccesstheUIforthefirsttime,refertoAppendixformorehelp.



NMS

94



NMS

NMS

95



I. ProductInformation





NetworkManagementSuite(NMS)supportsthecentralmanagementofa

groupofaccesspoints,otherwiseknownasanAPArray.AC1750NMS

supportsupto7accesspointswithnoadditionalwirelesscontrollerrequired,

reducingcostsandfacilitatingefficientremoteAPmanagement.



Accesspointscanbedeployedandconfiguredaccordingtorequirements,

creatingapowerfulnetworkarchitecturewhichcanbeeasilymanagedand

expandedinthefuture,withaneasytouseinterfaceandafullrangeof

functionality–idealforsmallandmid‐sizedofficeenvironments.Asecure

WLANcanbedeployedandadministeredfromasinglepoint,minimizingcost

andcomplexity.



NMS

96



II. QuickSetup



NMSissimpletosetup.Anoverviewofthesystemisshownbelow:



OneAP(accesspoint)isdesignatedastheAPController(master)andother

connectedAPsareautomaticallydesignatedasManagedAPs(slaves).Using

NMSyoucanmonitor,configureandmanageallManagedAPs(upto32)from

thesingleAPController.



WhenusinganNMSAPcontroller,otherconnectedAPsare

automaticallysettoManagedAPs.



NMS

97



Ensureyouhavethelatestfirmwarefromthewebsiteforyour

products.



1. ConnectallAPstoanEthernetorPoEswitchwhichisconnectedtoa

gateway/router.



YoucanuseyourrouterasaDHCPserveroryoucanlater

configureyourAPControllerasaDHCPserver.



2. EnsureallAPsarepoweredonandcheckLEDs.



NMS

98



3. DesignateoneAPastheAPControllerwhichwillmanageallother

connectedAPs(upto8).



4. ConnectacomputertothedesignatedAPControllerusinganEthernet

cable.



NMS

99



5. OpenawebbrowserandentertheAPController’sIPaddressinthe

addressfield.ThedefaultIPaddressis192.168.2.2



Yourcomputer’sIPaddressmustbeinthesamesubnetastheAP

Controller.Refertotheusermanualformorehelp.



IfyouchangedtheAPController’sIPaddress,orifyour

gateway/routerusesaDHCPserver,ensureyouenterthecorrect

IPaddress.Refertoyourgateway/router’ssettings.



6. Entertheusername&passwordtologin.Thedefaultusername&

passwordareadmin&1234.



7. YouwillarriveattheNMSDashboard.Goto“OperationMode”andselect

“APControllerMode”fromthedropdownmenu.



NMS

100



8. Click“Apply”tosavethesettings.



9. NMSincludesawizardtoquicklysetuptheSSID&securityforManaged

APs.Click“Wizard”inthetoprightcornertobegin.



10. FollowtheinstructionscompleteSteps1‐6andclick“Finish”tosave

thesettings.ThewizardwillhelpyousetupLANIPaddress,2.4GHz&

5GHzSSIDandsecurity,administratorname&password,time&date

settingsandManagedAPs.

NMS

101



NMS

102



IfanyofyourManagedAPsarenotfoundduringStep5Select

FreeAPs,resettheManagedAPtoitsfactorydefaultsettings.

RefertotheAP’susermanualforhelp.



11. YourControllerAP&ManagedAPsshouldbefullyfunctional.Usethe

topmenutonavigatearoundNMS.



UseDashboard,ZonePlan,NMSMonitor&NMSSettingstoconfigure

ManagedAPs.



UseLocalNetwork&LocalSettingstoconfigureyourControllerAP.



NMS

103



III. SoftwareLayout



Thetopmenufeatures7panels:Dashboard,ZonePlan,NMSMonitor,NMS

Settings,LocalNetwork,LocalSettings&Toolbox.



Dashboard



TheDashboardpaneldisplaysanoverviewofyournetworkandkeysystem

information,withquicklinkstoaccessconfigurationoptionsforManagedAPs

andManagedAPgroups.Eachpanelcanberefreshed,collapsedormoved

accordingtoyourpreference.



NMS

104



ZonePlan



ZonePlandisplaysacustomizablelivemapofManagedAPsforavisual

representationofyournetworkcoverage.EachAPiconcanbemovedaround

themap,andabackgroundimagecanbeuploadedforuser‐definedlocation

profilesusingNMSSettingsÆZoneEdit.Optionscanbeconfiguredusingthe

menuontherightsideandsignalstrengthisdisplayedforeachAP.



NMS

105



NMSMonitor



TheNMSMonitorpanelprovidesmoredetailedmonitoringinformation

abouttheAPArraythanfoundontheDashboard,groupedaccordingto

categoriesinthemenudowntheleftside.



NMS

106



NMSSettings



NMSSettingsprovidesextensiveconfigurationoptionsfortheAPArray.You

canmanageeachaccesspoint,assignaccesspointsintogroups,manage

WLAN,RADIUS,guestnetwork,guestnetwork,usersandschedulingsettings

aswellasupgradefirmwareacrossmultipleaccesspoints.TheZonePlancan

alsobeconfiguredusing“ZoneEdit”.



NMS

107



LocalNetwork



LocalNetworksettingsareforyourAPController.YoucanconfiguretheIP

addressandDHCPserveroftheAPControllerinadditiontoLANPortand

VLANsettings.



NMS

108



LocalSettings



LocalSettingsareforyourAPController.Youcanviewbasicsystemsettings

andlogsspecificallyfortheAPController,aswellasothermanagement

settingssuchasdate/time,adminaccounts,firmwareandreset.



NMS

109



Toolbox



TheToolboxpanelprovidesanetworkdiagnostictools:pingandtraceroute.



NMS

110



IV. Features



DescriptionsofthefunctionsofeachmainpanelDashboard,ZonePlan,NMS

Monitor,NMSSettings,LocalNetwork,LocalSettings&Toolboxcanbefound

below.WhenusingNMS,click“Apply”tosavechanges:



Screenshotsdisplayedareexamples.Theinformationshownon

yourscreenwillvarydependingonyourconfiguration.



IV‐1.LOGIN,LOGOUT&RESTART



ItisrecommendedthatyoulogintotheAPControllertomake

configurationstoManagedAPs.



1. ConnectacomputertothedesignatedAPControllerusinganEthernet

cable:



2. OpenawebbrowserandentertheAPController’sIPaddressinthe

addressfield.ThedefaultIPaddressis192.168.2.1



NMS

111



Yourcomputer’sIPaddressmustbeinthesamesubnetastheAP

Controller.RefertoVI‐1.ConfiguringyourIPAddressformore

help.



IfyouchangedtheAPController’sIPaddress,orifyour

gateway/routerusesaDHCPserver,ensureyouenterthecorrect

IPaddress.Refertoyourgateway/router’ssettings.



IfusingaDHCPserveronthenetwork,itisadvisedtouseyour

DHCPserver’ssettingstoassigntheAPControllerastaticIP

address.



3. Entertheusername&passwordtologin.Thedefaultusername&

passwordareadmin&1234.



LOGOUT

TologoutfromNMS,click“Logout”inthetoprightcorner:



RESTART

YoucanrestartyourAPControlleroranyManagedAPusingNMS.Torestart

yourAPControllergotoLocalSettingsÆAdvancedÆRebootandclick

“Reboot”.



TorestartManagedAPsclicktheRestarticonforthespecifiedAPonthe

Dashboard:



NMS

112



IV‐2.DASHBOARD



ThedashboarddisplaysanoverviewofyourAParray:



Usetheblueiconsabovetorefreshorcollapseeachpanelinthedashboard.

Clickanddragtomoveapaneltosuityourpreference.Youcansetthe

dashboardtoauto‐refreshevery1minute,30secondsordisableauto‐refresh:



NMS

113



IV‐2‐1.SystemInformation



SystemInformationdisplaysinformationabouttheAPController:Product

Name(model),HostName,MACAddress,IPAddress,FirmwareVersion,

SystemTimeandUptime(timetheaccesspointhasbeenon),CPUUsage&

MemoryUsage.



IV‐2‐2.DevicesInformation



DevicesInformationisasummaryofthenumberofalldevicesinthelocal

network:AccessPoints,ClientsConnected,andRogue(unidentified)Devices.



NMS

114



IV‐2‐3.ManagedAP



ManagedAPdisplaysinformationabouteachManagedAPinthelocal

network:Index(referencenumber),MACAddress,DeviceName,Model,IP

Address,2.4GHz&5GHzWirelessChannelNumber,No.ofClientsconnected

toeachaccesspoint,andStatus(connected,connectingordisconnected).



ThesearchfunctioncanbeusedtolocateaspecificManagedAP.Typeinthe

searchboxandthelistwillupdate:



TheStatusicondisplaysgrey(disconnected),yellow(connecting)orgreen

(connected)foreachManagedAP.



EachManagedAPhas“Action”iconswiththefollowingfunctions:



1. Disallow

RemovetheManagedAPfromtheAParrayanddisableconnectivity.



2. Edit

EditvarioussettingsfortheManagedAP(refertoIV‐5‐1.AccessPoint).



3. BlinkLED

TheManagedAP’sLEDwillflashtemporarilytohelpidentify&locate

accesspoints.

NMS

115



4. Buzzer

TheManagedAP’sbuzzerwillsoundtemporarilytohelpidentify&locate

accesspoints.



5. NetworkConnectivity

Gotothe“NetworkConnectivity”paneltoperformapingortraceroute.



6. Restart

RestartstheManagedAP.



IV‐2‐4.ManagedAPGroup



ManagedAPscanbegroupedaccordingtoyourrequirements.ManagedAP

GroupdisplaysinformationabouteachManagedAPgroupinthelocal

network:GroupName,MACAddress,DeviceName,Model,IPAddress,No.of

Clientsconnectedtoeachaccesspoint,andStatus(connectedor

disconnected).



ToeditManagedAPGroupsgotoNMSSettingsÆAccessPoint(referto

IV‐5‐1.AccessPoint).



ThesearchfunctioncanbeusedtolocateaspecificManagedAPGroup.Type

inthesearchboxandthelistwillupdate:



TheStatusicondisplaysgrey(disconnected),yellow(connecting)orgreen

(connected)foreachindividualManagedAP.

EachManagedAPhas“Action”iconswiththefollowingfunctions:

NMS

116



1. Disallow

RemovetheManagedAPfromtheAParrayanddisableconnectivity.



2. Edit

EditvarioussettingsfortheManagedAP(refertoIV‐5‐1.AccessPoint)



3. BlinkLED

TheManagedAP’sLEDwillflashtemporarilytohelpidentify&locate

accesspoints.



4. Buzzer

TheManagedAP’sbuzzerwillsoundtemporarilytohelpidentify&locate

accesspoints.



5. NetworkConnectivity

Gotothe“NetworkConnectivity”paneltoperformapingortraceroute.



6. Restart

RestartstheManagedAP.



IV‐2‐5.ActiveClients



ActiveClientsdisplaysinformationabouteachclientinthelocalnetwork:

Index(referencenumber),ClientMACAddress,APMACAddress,WLAN,User

Name,Radio(frequency),SignalStrength,ConnectedTime,IdleTime,Tx&Rx

(datatransmittedandreceived)andVendoroftheclientdevice.



Thesearchfunctioncanbeusedtolocateaspecificclient.Typeinthesearch

boxandthelistwillupdate:



NMS

117



IV‐2‐6.ActiveUsers



ActiveUsersdisplaysinformationabouteachuserinthelocalnetworkvia

guestportals:Index(referencenumber),UserName,MACAddress,IPAddress,

SSID,Creator,CreateTime,ExpireTime,UsagePercentage,Vendor&Platform

oftheuserdevice.



Thesearchfunctioncanbeusedtolocateaspecificclient.Typeinthesearch

boxandthelistwillupdate:



NMS

118



IV‐3.ZONEPLAN



TheZonePlancanbefullycustomizedtomatchyournetworkenvironment.

YoucanmovetheAPiconsandselectdifferentlocationimages(upload

locationimagesinNMSSettingsÆZoneEdit)tocreateavisualmapofyour

AParray.



Usethemenuontherightsidetomakeadjustmentsandmouse‐overanAP

iconinthezonemaptoseemoreinformation.ClickanAPiconinthezone

maptoselectitanddisplayactionicons:



NMS

119



ClickanddraganAPicontomovetheiconaroundthezonemap.Thesignal

strengthforeachAPisdisplayedaccordingtothe“Signal”keyinthemenuon

therightside:



LocationSelectapre‐definedlocationfromthedrop

downmenu.Whenyouuploadalocation

imageinNMSSettingsÆZoneEdit,itwillbe

availableforselectionhere.

APGroupYoucanselectanAPGrouptodisplayinthe

zonemap.EditAPGroupsinNMSSettingsÆ

AccessPoint.

SearchUsethesearchboxtoquicklylocateanAP.

RadioUsethecheckboxestodisplayAPsaccording

to2.4GHzor5GHzwirelessradiofrequency.

SignalSignalstrengthkeyforthesignalstrength

displayaroundeachAPinthezonemap.

ZoomUsetheslidertoadjustthezoomlevelofthe

map.

TransparencyUsetheslidertoadjustthetransparencyof

locationimages.

ScaleZonemapscale.

Device/NumberDisplaysnumberandtypeofdevicesinthe

zonemap.

NMS

120



IV‐4.NMSMONITOR



IV‐4‐1.AccessPoint



IV‐4‐1‐1.ManagedAP



DisplaysinformationabouteachManagedAPinthelocalnetwork:Index

(referencenumber),MACAddress,DeviceName,Model,IPAddress,2.4GHz&

5GHzWirelessChannelNumber,No.ofClientsconnectedtoeachaccesspoint,

andStatus(connected,connectingordisconnected).



ThesearchfunctioncanbeusedtolocateaspecificManagedAP.Typeinthe

searchboxandthelistwillupdate:



TheStatusicondisplaysthestatusofeachManagedAP.



StatusIcons

IconColorStatusDefinition

GreyDisconnected

ManagedAPisdisconnected.Please

checkthenetworkconnectionandensure

theManagedAPisinthesameIPsubnet

astheAPController.

Red

Authentication

Failed



Systemsecuritymustbethesameforall

accesspointsintheAParray.Please

checksecuritysettings(refertoIV‐5‐8‐1.

NMS

121



Or



Incompatible

NMSVersion

SystemSecurity).



Accesspointsmustusethesameversion

ofNMS:themanagedAPwillnotbe

abletomakeconfigurations.Pleaseuse

theAPController’sfirmwareupgrade

function(refertoIV‐5‐7.Firmware

Upgrade).



OrangeConfiguringor

Upgrading

PleasewaitwhiletheManagedAPmakes

configurationsorwhilethefirmwareis

upgrading.

YellowConnecting

PleasewaitwhileManagedAPis

connecting.

GreenConnected

ManagedAPisconnected.



BlueWaitingfor

Approval

ManagedAPiswaitingforapproval.

RefertoIV‐5‐1.AccessPoint:Auto

Approval.Note:32ManagedAPsare

supported.AdditionalAPswilldisplaythis

statusuntilanexistingManagedAPis

removed.



EachManagedAPhas“Action”iconswiththefollowingfunctions:



1. Disallow

RemovetheManagedAPfromtheAParrayanddisableconnectivity.



1. Edit

EditvarioussettingsfortheManagedAP(refertoIV‐5‐1.AccessPoint).



2. BlinkLED

TheManagedAP’sLEDwillflashtemporarilytohelpidentify&locate

accesspoints.



3. Buzzer

NMS

122



TheManagedAP’sbuzzerwillsoundtemporarilytohelpidentify&locate

accesspoints.



4. NetworkConnectivity

Gotothe“NetworkConnectivity”paneltoperformapingortraceroute.



5. Restart

RestartstheManagedAP.



IV‐4‐1‐2.ManagedAPGroup



ManagedAPscanbegroupedaccordingtoyourrequirements.ManagedAP

displaysinformationabouteachManagedAPinthelocalnetwork:Index

(referencenumber),MACAddress,DeviceName,Model,IPAddress,2.4GHz&

5GHzWirelessChannelNumber,No.ofClientsconnectedtoeachaccesspoint,

andStatus(connected,connectingordisconnected).



ToeditManagedAPGroupsgotoNMSSettingsÆAccessPoint(referto

IV‐5‐1.AccessPoint).



ThesearchfunctioncanbeusedtolocateaspecificManagedAPGroup.Type

inthesearchboxandthelistwillupdate:



TheStatusicondisplaysgrey(disconnected),red(authentication

failed/incompatibleNMSversion),orange(upgradingfirmware),yellow

(connecting),green(connected)orblue(waitingforapproval)foreach

NMS

123



individualManagedAP.RefertoIV‐4‐1‐1.ManagedAP:StatusIconsforfull

descriptions.



EachManagedAPhas“Action”iconswiththefollowingfunctions:



2. Disallow

RemovetheManagedAPfromtheAParrayanddisableconnectivity.



3. Edit

EditvarioussettingsfortheManagedAP(refertoIV‐5‐1.AccessPoint).



4. BlinkLED

TheManagedAP’sLEDwillflashtemporarilytohelpidentify&locate

accesspoints.



5. Buzzer

TheManagedAP’sbuzzerwillsoundtemporarilytohelpidentify&locate

accesspoints.



6. NetworkConnectivity

Gotothe“NetworkConnectivity”paneltoperformapingortraceroute.



7. Restart

RestartstheManagedAP.



NMS

124



IV‐4‐2.WLAN



IV‐4‐2‐1.ActiveWLAN



DisplaysinformationabouteachSSIDintheAPArray:Index(reference

number),Name/SSID,VLANID,Authentication,Encryption,IPAddressand

AdditionalAuthentication.



ToconfigureencryptionandVLANsforManagedAPsgotoNMSSettingsÆ

WLAN.



ThesearchfunctioncanbeusedtolocateaspecificSSID.Typeinthesearch

boxandthelistwillupdate:



NMS

125



IV‐4‐2‐2.ActiveWLANGroup



WLANgroupscanbecreatedaccordingtoyourpreference.ActiveWLAN

GroupdisplaysinformationaboutWLANgroup:GroupName,Name/SSID,

VLANID,Authentication,Encryption,IPAddressandAdditional

Authentication.



ThesearchfunctioncanbeusedtolocateaspecificActiveWLANGroup.Type

inthesearchboxandthelistwillupdate:



IV‐4‐3.Clients



IV‐4‐3‐1.ActiveClients



DisplaysinformationaboutclientscurrentlyconnectedtotheAPArray:Index

(referencenumber),ClientMACAddress,APMACAddress,WLAN(SSID),User

Name,Radio(2.4GHzor5GHz),SignalStrengthreceivedbyClient,Connected

Time,IdleTime,Tx&Rx(DatatransmittedandreceivedbyClientinKB)..



Youcansetordisabletheauto‐refreshtimefortheclientlistorclick

“Refresh”tomanuallyrefresh.



Thesearchfunctioncanbeusedtolocateaspecificclient.Typeinthesearch

boxandthelistwillupdate:



NMS

126



IV‐4‐4.RogueDevices



Rogueaccesspointdetectioncanidentifyanyunauthorizedaccesspoints

whichmayhavebeeninstalledinthenetwork.



Click“Start”toscanforroguedevices:



UnknownRogueDevicesdisplaysinformationaboutroguedevicesdiscovered

duringthescan:Index(referencenumber),Channel,SSID,MACAddress,

Security,SignalStrength,Type,VendorandAction.



Thesearchfunctioncanbeusedtolocateaknownroguedevice.Typeinthe

searchboxandthelistwillupdate:



NMS

127



IV‐4‐5.Information



IV‐4‐5‐1.AllEvents/Activities



Displaysalogoftime‐stampedeventsforeachaccesspointintheArray–use

thedropdownmenutoselectanaccesspointandviewthelog.



NMS

128



IV‐4‐5‐2.Monitoring



DisplaysgraphicalmonitoringinformationaboutaccesspointsintheArrayfor

2.4GHz&5GHz:TrafficTx(datatransmittedinMB),TrafficRx(datareceived

inMB),No.ofClients,WirelessChannel,TxPower(wirelessradiopower),CPU

UsageandMemoryUsage.



Usethedropdownmenustoselectanaccesspointanddate.



Youcansetordisabletheauto‐refreshtimeforthedata:



NMS

129



IV‐5.NMSSettings



IV‐5‐1.AccessPoint



Displaysinformationabouteachaccesspointandaccesspointgroupinthe

localnetworkandallowsyoutoeditaccesspointsandeditoraddaccess

pointgroups.



Thesearchfunctioncanbeusedtolocateanaccesspointoraccesspoint

group.Typeinthesearchboxandthelistwillupdate:



TheStatusicondisplaysgrey(disconnected),red(authentication

failed/incompatibleNMSversion),orange(upgradingfirmware),yellow

(connecting),green(connected)orblue(waitingforapproval)foreach

individualManagedAP.RefertoIV‐4‐1‐1.ManagedAP:StatusIconsforfull

descriptions.



NMS

130



The“Action”iconsenableyoutoallowordisallowanaccesspoint:



Selectanaccesspointoraccesspointgroupusingthe

check‐boxesandclick“Edit”tomakeconfigurations,orclick

“Add”toaddanewaccesspointgroup:



TheAccessPointSettingspanelcanenableordisableAuto

ApproveforallManagedAPs.Whenenabled,ManagedAPswillautomatically

jointheAPArraywiththeControllerAP.Whendisabled,ManagedAPsmust

bemanuallyapprovedtojointheAPArraywiththeControllerAP.



AccessPointSettings

AutoApproveEnableordisableAutoApproveforall

ManagedAPs.



TomanuallyapproveaManagedAP,usetheallow“Action”iconforthe

specifiedaccesspoint:



EditAccessPoint

ConfigureyourselectedaccesspointonyourLAN.Youcansettheaccess

pointasaDHCPclientorspecifyastaticIPaddressforyouraccesspoint,and

assigntheaccesspointtoanAPgroup,aswellasedit2.4GHz&5GHzwireless

radiosettings.Aneventslogisdisplayedatthebottomofthepage.



YoucanalsouseProfileSettingstoassigntheaccesspointtoWLAN,Guest

Network,RADIUSandAccessControlgroupsindependentlyfromAccessPoint

Groupsettings.



Checkthe“OverrideGroupSettings”boxtousedifferentindividualsettings

foraccesspointsassignedtoAPGroups:



NMS

131



BasicSettings

NameEdittheaccesspointname.Thedefaultname

isAP+MACaddress.

DescriptionEnteradescriptionoftheaccesspointfor

referencee.g.2ndFloorOffice.

MACAddressDisplaysMACaddress.

APGroupUsethedropdownmenutoassigntheAPto

anAPGroup.YoucaneditAPGroupsfrom

theNMSSettingsÆAccessPointpage.

IPAddress

Assignment

Select“DHCPClient”foryouraccesspointto

beassignedadynamicIPaddressfromyour

router’sDHCPserver,orselect“StaticIP”to

manuallyspecifyastatic/fixedIPaddressfor

youraccesspoint(below).Checkthebox

“OverrideGroupSetting”iftheAPisa

memberofanAPGroupandyouwishtouse

adifferentsettingthantheAPGroupsetting.

IPAddressSpecifytheIPaddresshere.ThisIPaddress

willbeassignedtoyouraccesspointandwill

replacethedefaultIPaddress.

SubnetMaskSpecifyasubnetmask.Thedefaultvalueis

NMS

132



255.255.255.0

DefaultGatewayForDHCPusers,select“FromDHCP”toget

defaultgatewayfromyourDHCPserveror

“User‐Defined”toenteragatewaymanually.

ForstaticIPusers,thedefaultvalueisblank.

PrimaryDNSDHCPuserscanselect“FromDHCP”toget

primaryDNSserver’sIPaddressfromDHCPor

“User‐Defined”tomanuallyenteravalue.For

staticIPusers,thedefaultvalueisblank.

SecondaryDNSDHCPuserscanselect“FromDHCP”toget

secondaryDNSserver’sIPaddressfromDHCP

or“User‐Defined”tomanuallyenteravalue.

ForstaticIPusers,thedefaultvalueisblank.



VLANSettings

WiredLANPortIdentifiesLANport1or2.

VLANModeSelect“TaggedPort”or“UntaggedPort”for

specifiedLANinterface.

VLANIDSetaVLANIDforspecifiedinterface,if

“UntaggedPort”isselected.

ManagementVLAN

VLANIDCheck‘OverrideDefaultSetting’tospecifythe

VLANIDofthemanagementVLAN.Onlythe

hostsbelongingtothesameVLANcanmanage

thedevice.



NMS

133



RadioSettings

DomainSettheregulatorydomainfortheaccess

point’swirelesschannelsforeachfrequency.

WirelessEnableordisabletheaccesspoint’s2.4GHzor

5GHzwirelessradio.Whendisabled,noSSIDs

onthatfrequencywillbeactive.

BandSelectthewirelessstandardusedforthe

accesspoint.Combinationsof802.11b,

802.11g,802.11n&802.11accanbeselected.

AutoPilotEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspoint’s2.4GHz

or5GHzfrequencybasedonavailabilityand

potentialinterference.Whendisabled,select

achannelmanually.

AutoPilotRangeSelectarangefromwhichtheautochannel

setting(above)willchooseachannel.

NMS

134



AutoPilotIntervalSpecifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidthoruseAuto

(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



Thesesettingsareforexperiencedusersonly.Pleasedonotchangeanyofthe

valuesonthispageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoint.



AdvancedSettings

ContentionSlotSelect“Short”or“Long”–thisvalueisusedfor

contentionwindowsinWMM(seeIV‐6‐7.

WMM).

PreambleTypeSetthewirelessradiopreambletype.The

preambletypein802.11basedwireless

communicationdefinesthelengthoftheCRC

(CyclicRedundancyCheck)blockfor

communicationbetweentheaccesspointand

roamingwirelessadapters.Thedefaultvalueis

“ShortPreamble”.

GuardIntervalSettheguardinterval.Ashorterintervalcan

improveperformance.

802.11gProtectionEnable/disable802.11gprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

NMS

135



802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.

MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

BeaconIntervalSetthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



ProfileSettings

WLANGroupAssigntheaccesspoint’s2.4GHzor5GHz

SSID(s)toaWLANGroup.YoucaneditWLAN

groupsinNMSSettingsÆWLAN.

GuestNetwork

Group

Assigntheaccesspoint’s2.4GHzor5GHz

SSID(s)toaGuestNetworkGroup.Youcan

editGuestNetworkgroupsinNMSSettings

NMS

136



ÆGuestNetwork.

RADIUSGroupAssigntheaccesspoint’s2.4GHzSSID(s)toa

RADIUSgroup.YoucaneditRADIUSgroupsin

NMSSettingsÆRADIUS.

AccessControl

Group

Assigntheaccesspoint’s2.4GHzSSID(s)toa

RADIUSgroup.YoucaneditRADIUSgroupsin

NMSSettingsÆAccessControl



NMS

137



Add/EditAccessPointGroup

Configureyourselectedaccesspointgroup.Accesspointgroupsettingsapply

toallaccesspointsinthegroup,unlessindividuallysettooverridegroup

settings.



YoucanuseProfileGroupSettingstoassigntheaccesspointgrouptoWLAN,

GuestNetwork,RADIUSandAccessControlgroups.



TheGroupSettingspanelcanbeusedtoquicklymoveaccesspointsbetween

existinggroups:selectanaccesspointandusethedropdownmenuorsearch

toselectaccesspointgroupsanduse<<and>>arrowstomoveAPsbetween

groups.



BasicGroupSettings

NameEdittheaccesspointgroupname.

DescriptionEnteradescriptionoftheaccesspointgroup

forreferencee.g.2ndFloorOfficeGroup.



VLANGroupSettings

WiredLANPortIdentifiesLANport1or2.

VLANModeSelect“TaggedPort”or“UntaggedPort”for

specifiedLANinterface.

VLANIDSetaVLANIDforspecifiedinterface,if

“UntaggedPort”isselected.

ManagementVLAN

VLANIDCheck‘OverrideDefaultSetting’tospecifythe

VLANIDofthemanagementVLAN.Onlythe

hostsbelongingtothesame VLANcanmanage

NMS

138



thedevice.



RadioGroupSettings

DomainSettheregulatorydomainfortheaccess

point’swirelesschannelsforeachfrequency.

WirelessEnableordisabletheaccesspointgroup’s

2.4GHzor5GHzwirelessradio.When

disabled,noSSIDsonthatfrequencywillbe

active.

BandSelectthewirelessstandardusedforthe

accesspointgroup.Combinationsof802.11b,

802.11g,802.11n&802.11accanbeselected.

AutoPilotEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspointgroup’s

2.4GHzor5GHzfrequencybasedon

availabilityandpotentialinterference.When

disabled,selectachannelmanually.

AutoPilotRangeSelectarangefromwhichtheautochannel

NMS

139



setting(above)willchooseachannel.

AutoPilotIntervalSpecifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidthoruseAuto

(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



Thesesettingsareforexperiencedusersonly.Pleasedonotchangeanyofthe

valuesonthispageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoints.



AdvancedSettings

ContentionSlotSelect“Short”or“Long”–thisvalueisusedfor

contentionwindowsinWMM(seeIV‐6‐7.

WMM).

PreambleTypeSetthewirelessradiopreambletype.The

preambletypein802.11basedwireless

communicationdefinesthelengthoftheCRC

(CyclicRedundancyCheck)blockfor

communicationbetweentheaccesspointand

roamingwirelessadapters.Thedefaultvalueis

“ShortPreamble”.

GuardIntervalSettheguardinterval.Ashorterintervalcan

improveperformance.

802.11gProtectionEnable/disable802.11gprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

NMS

140



802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.

MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

BeaconIntervalSetthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



NMS

141



ProfileGroupSettings

WLANGroupAssigntheaccesspointgroup’s2.4GHzor

5GHzSSIDstoaWLANGroup.Youcanedit

WLANgroupsinNMSSettingsÆWLAN.

GuestNetwork

Group

Assigntheaccesspointgroup’s2.4GHzor

5GHzSSIDstoaGuestNetworkGroup.You

caneditGuestNetworkgroupsinNMS

SettingsÆGuestNetwork.

RADIUSGroupAssigntheaccesspointgroup’s2.4GHzSSIDs

toaRADIUSgroup.YoucaneditRADIUS

groupsinNMSSettingsÆRADIUS.

AccessControl

Group

Assigntheaccesspoint’s2.4GHzSSIDstoa

RADIUSgroup.YoucaneditRADIUSgroupsin

NMSSettingsÆAccessControl.



NMS

142



IV‐5‐2.WLAN



DisplaysinformationabouteachWLANandWLANgroupinthelocalnetwork

andallowsyoutoaddoreditWLANs&WLANGroups.WhenyouaddaWLAN

Group,itwillbeavailableforselectioninNMSSettingsÆAccessPointaccess

pointProfileSettings&accesspointgroupProfileGroupSettings(IV‐5‐1.)



ThesearchfunctioncanbeusedtolocateaWLANorWLANGroup.Typein

thesearchboxandthelistwillupdate:



SelectaWLANorWLANGroupusingthecheck‐boxesand

click“Edit”orclick“Add”toaddanewWLANorWLAN

Group:



NMS

143



Add/EditWLAN



WLANSettings

Name/ESSIDEdittheWLANname(SSID).

DescriptionEnteradescriptionoftheSSIDforreference

e.g.2ndFloorOfficeHR.

SSIDSelectwhichSSIDtoconfiguresecurity

settingsfor.

VLANIDSpecifytheVLANID.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsas

anavailableWi‐Finetwork.Whendisabled,

theSSIDwillnotbevisibleasanavailable

Wi‐Finetworktoclients–clientsmust

manuallyentertheSSIDinordertoconnect.

Ahidden(disabled)SSIDistypicallymore

securethanavisible(enabled)SSID.

WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattackson

clients’usernamesandpasswords.

NMS

144



LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

Authentication

Method

Selectanauthenticationmethodfromthe

dropdownmenu.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenu.



Varioussecurityoptions(wirelessdataencryption)areavailable.Whendatais

encrypted,informationtransmittedwirelesslycannotbereadbyanyonewho

doesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



PleaserefertoIV‐5‐2‐1.NoAuthenticationandonwardsbelowformore

informationonauthenticationandadditionalauthenticationtypes.



WLANAdvancedSettings

SmartHandoverEnableordisableSmartHandover.

RSSIThresholdSetaRSSIThresholdlevel.

ScheduleGroupAssigntoaspecifiedschedule(schedulemust

bepre‐configuredinNMSSettingsÆ

Schedule.)



IV‐5‐2‐1. NoAuthentication

Authenticationisdisabledandnopassword/keyisrequiredtoconnecttothe

accesspoint.



Disablingwirelessauthenticationisnotrecommended.When

disabled,anybodywithinrangecanconnecttoyourdevice’sSSID.

IV‐5‐2‐2. WEP

NMS

145



WEP(WiredEquivalentPrivacy)isabasicencryptiontype.Forahigher

levelofsecurityconsiderusingWPAencryption.



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.

KeyTypeChoosefrom“ASCII”(anyalphanumerical

character0‐9,a‐zandA‐Z)or“Hex”(any

charactersfrom0‐9,a‐fandA‐F).

DefaultKeySelectwhichencryptionkey(1–4below)isthe

defaultkey.Forsecuritypurposes,youcanset

uptofourkeys(below)andchangewhichis

thedefaultkey.

EncryptionKey1–

4

Enteryourencryptionkey/passwordaccording

totheformatyouselectedabove.



IV‐5‐2‐3. IEEE802.1x/EAP



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.



IV‐5‐2‐4. WPA‐PSK

WPA‐PSKisasecurewirelessencryptiontypewithstrongdata

protectionanduserauthentication,utilizing128‐bitencryptionkeys.



WPATypeSelectfromWPA/WPA2MixedMode‐PSK,

WPA2orWPAonly.WPA2issaferthanWPA

only,butnotsupportedbyallwirelessclients.

Pleasemakesureyourwirelessclientsupports

yourselection.

EncryptionSelect“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.

Pre‐SharedKey

Type

Choosefrom“Passphrase”(8–63

alphanumericcharacters)or“Hex”(upto64

charactersfrom0‐9,a‐fandA‐F).

Pre‐SharedKeyPleaseenterasecuritykey/passwordaccording

NMS

146



totheformatyouselectedabove.



IV‐5‐2‐5. WPA‐EAP



WPATypeSelectfromWPA/WPA2MixedMode‐EAP,

WPA2‐EAPorWPA‐EAP.

EncryptionSelect“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.



WPA‐EAPmustbedisabledtouseMAC‐RADIUSauthentication.

IV‐5‐2‐6. AdditionalAuthentication

Additionalwirelessauthenticationmethodscanalsobeused:



MACAddressFilter

RestrictwirelessclientsaccessbasedonMACaddressspecifiedintheMAC

filtertable.



SeeIV‐5‐4.MACFiltertoconfigureMACfiltering.



MACFilter&MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessusingbothoftheaboveMACfiltering&

RADIUSauthenticationmethods.



MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessbasedonMACaddressviaaRADIUSserver,or

passwordauthenticationviaaRADIUSserver.



SeeIV‐5‐3.RADIUStoconfigureRADIUSservers.



MACRADIUS

Password

SelectwhethertouseMACaddressor

passwordauthenticationviaRADIUSserver.If

youselect“Usethefollowingpassword”,enter

NMS

147



thepasswordinthefieldbelow.Thepassword

shouldmatchthe“SharedSecret”usedin

IV‐5‐3.RADIUS.



Add/EditWLANGroup



WhenyouaddaWLANGroup,itwillbeavailableforselectioninNMS

SettingsÆAccessPointaccesspointProfileSettings&accesspointgroup

ProfileGroupSettings(IV‐5‐1.)



WLANGroupSettings

NameEdittheWLANGroupname.

DescriptionEnteradescriptionoftheWLANGroupfor

referencee.g.2ndFloorOfficeHRGroup.

MembersSelectSSIDstoincludeinthegroupusingthe

checkboxesandassignVLANIDs.Youcan

overrideindividualschedulesettingsand

assignadifferentschedule.



NMS

148



IV‐5‐3.RADIUS



DisplaysinformationaboutExternal&InternalRADIUSServers,Accountsand

GroupsandallowsyoutoaddoreditRADIUSServers,Accounts&Groups.

WhenyouaddaRADIUSGroup,itwillbeavailableforselectioninNMS

SettingsÆAccessPointaccesspointProfileSettings&accesspointgroup

ProfileGroupSettings(IV‐5‐1.)



ThesearchfunctioncanbeusedtolocateaRADIUSServer,AccountorGroup.

Typeinthesearchboxandthelistwillupdate:



Makeaselectionusingthecheck‐boxesandclick“Edit”or

click“Add”toaddanewWLANorWLANGroup:



NMS

149



Add/EditExternalRADIUSServer



NameEnteranamefortheRADIUSServer.

DescriptionEnteradescriptionoftheRADIUSServerfor

reference.

RADIUSServerEntertheRADIUSserverhostIPaddress.

Authentication

Port

SettheUDPportusedintheauthentication

protocoloftheRADIUSserver.Valuemustbe

between1–65535.

SharedSecretEnterasharedsecret/passwordbetween1–

99charactersinlength.Thisshouldmatchthe

“MAC‐RADIUS”passwordusedinIV‐3‐1‐3‐6or

IV‐3‐2‐3.

SessionTimeoutSetadurationofsessiontimeoutinseconds

between0–86400.

AccountingEnableordisableRADIUSaccounting.

AccountingPortWhenaccountingisenabled(above),setthe

UDPportusedintheaccountingprotocolof

theRADIUSserver.Valuemustbebetween1–

65535.



NMS

150



Add/EditInternalRADIUSServer



UploadEAPCertificateFile

EAPCertificateFile

Format

DisplaystheEAPcertificatefileformat:

PCK#12(*.pfx/*.p12)

EAPCertificateFileClick“Upload”toopenanewwindowand

selectthelocationofanEAPcertificatefileto

use.Ifnocertificatefileisuploaded,the

internalRADIUSserverwilluseaself‐made

certificate.



InternalRADIUSServer

NameEnteranamefortheInternalRADIUSServer.

DescriptionEnteradescriptionoftheInternalRADIUS

Serverforreference.

EAPCertificateFile

Format

DisplaystheEAPcertificatefileformat:

PCK#12(*.pfx/*.p12)

EAPCertificateFileClick“Upload”toopenanewwindowand

selectthelocationofanEAPcertificatefileto

use.Ifnocertificatefileisuploaded,the

internalRADIUSserverwilluseaself‐made

certificate.

NMS

151



EAPInternal

Authentication

SelectEAPinternalauthenticationtypefrom

thedropdownmenu.

SharedSecretEnterasharedsecret/passwordforuse

betweentheinternalRADIUSserverand

RADIUSclient.Thesharedsecretshouldbe1–

99charactersinlength.

SessionTimeoutSetadurationofsessiontimeoutinseconds

between0–86400.

TerminationActionSelectatermination‐actionattribute:

“Reauthentication”sendsaRADIUSrequestto

theaccesspoint,“Not‐Reathentication”sends

adefaulttermination‐actionattributetothe

accesspoint,“Not‐Send”no

termination‐actionattributeissenttothe

accesspoint.



Add/EditRADIUSAccounts



TheinternalRADIUSservercanauthenticateupto256useraccounts.The

“RADIUSAccounts”pageallowsyoutoconfigureandmanageusers.



NMS

152



RADIUSAccounts

UserNameEntertheusernameshere,separatedby

commas.

AddClick“Add”toaddtheusertotheuser

registrationlist.

ResetCleartextfromtheusernamebox.



UserRegistrationList

SelectChecktheboxtoselectauser.

UserNameDisplaystheusername.

PasswordDisplaysifspecifiedusernamehasapassword

(configured)ornot(notconfigured).

CustomizeClick“Edit”toopenanewfieldtoset/edita

passwordforthespecifiedusername(below).



DeleteSelectedDeleteselecteduserfromtheuserregistration

list.

DeleteAllDeleteallusersfromtheuserregistrationlist.



EditUserRegistrationList

UserNameExistingusernameisdisplayedhereandcan

beeditedaccordingtoyourpreference.

PasswordEnteroreditapasswordforthespecifieduser.



NMS

153



Add/EditRADIUSGroup



WhenyouaddaRADIUSGroup,itwillbeavailableforselectioninNMS

SettingsÆAccessPointaccesspointProfileSettings&accesspointgroup

ProfileGroupSettings(IV‐5‐1.)



RADIUSGroupSettings

GroupNameEdittheRADIUSGroupname.

DescriptionEnteradescriptionoftheRADIUSGroupfor

reference.

2.4GHzRADIUSEnable/Disableprimary&secondaryRADIUS

serversfor2.4GHz.

5GHzRADIUSEnable/Disableprimary&secondaryRADIUS

serversfor5GHz.

MembersAddRADIUSuseraccountstotheRADIUS

group.

NMS

154



IV‐5‐4.AccessControl

MACAccessControlisasecurityfeaturethatcanhelptoprevent

unauthorizedusersfromconnectingtoyouraccesspoint.



Thisfunctionallowsyoutodefinealistofnetworkdevicespermittedto

connecttotheaccesspoint.DevicesareeachidentifiedbytheiruniqueMAC

address.IfadevicewhichisnotonthelistofpermittedMACaddresses

attemptstoconnecttotheaccesspoint,itwillbedenied.



TheAccessControlpaneldisplaysinformationaboutMACAccessControl&

MACAccessControlGroupsandGroupsandallowsyoutoaddoreditMAC

AccessControl&MACAccessControlGroupsettings.Whenyouaddan

AccessControlGroup,itwillbeavailableforselectioninNMSSettingsÆ

AccessPointaccesspointProfileSettings&accesspointgroupProfileGroup

Settings(IV‐5‐1.)



ThesearchfunctioncanbeusedtolocateaMACaddressorMACAccess

ControlGroup.Typeinthesearchboxandthelistwillupdate:



Makeaselectionusingthecheck‐boxesandclick“Edit”or

click“Add”toaddanewMACAddressorMACAccessControl

Group:



NMS

155



Add/EditMACAccessControl



AddMACAddressEnteraMACaddressofcomputerornetwork

devicemanuallye.g.‘aa‐bb‐cc‐dd‐ee‐ff’or

entermultipleMACaddressesseparatedwith

commas,e.g.

‘aa‐bb‐cc‐dd‐ee‐ff,aa‐bb‐cc‐dd‐ee‐gg’

AddClick“Add”toaddtheMACaddresstothe

MACaddressfilteringtable.

ResetClearallfields.



MACaddressentrieswillbelistedinthe“MACAddressFilteringTable”.Select

anentryusingthe“Select”checkbox.



SelectDeleteselectedorallentriesfromthetable.

MACAddressTheMACaddressislistedhere.

DeleteSelectedDeletetheselectedMACaddressfromthe

list.

DeleteAllDeleteallentriesfromtheMACaddress

filteringtable.

ExportClick“Export”tosaveacopyoftheMAC

filteringtable.Anewwindowwillpopupfor

youtoselectalocationtosavethefile.



NMS

156



Add/EditMACAccessControlGroup



WhenyouaddanAccessControlGroup,itwillbeavailableforselectionin

NMSSettingsÆAccessPointaccesspointProfileSettings&accesspoint

groupProfileGroupSettings(IV‐5‐1.)



MACFilterGroupSettings

GroupNameEdittheMACAccessControlGroupname.

DescriptionEnteradescriptionoftheMACAccessControl

Groupforreference.

ActionSelect“Blacklist”todenyaccesstospecified

MACaddressesinthegroup,andselect

“Whitelist”topermitaccesstospecifiedMAC

addressinthegroup.

MembersAddMACaddressestothegroup.



NMS

157



IV‐5‐5.GuestNetwork



Youcansetupanadditional“Guest”Wi‐Finetworksoguestuserscanenjoy

Wi‐Ficonnectivitywithoutaccessingyourprimarynetworks.The“Guest”

screendisplayssettingsforyourguestWi‐Finetwork.



TheGuestNetworkpaneldisplaysinformationaboutGuestNetworksand

GuestNetworkGroupsandallowsyoutoaddoreditGuestNetworkand

GuestNetworkGroupsettings.WhenyouaddaGuestNetworkGroup,itwill

beavailableforselectioninNMSSettingsÆAccessPointaccesspointProfile

Settings&accesspointgroupProfileGroupSettings(IV‐5‐1.)



ThesearchfunctioncanbeusedtolocateaGuestNetworkorGuestNetwork

Group.Typeinthesearchboxandthelistwillupdate:



Makeaselectionusingthecheck‐boxesandclick“Edit”or

click“Add”toaddanewGuestNetworkorGuestNetwork

Group.



NMS

158



Add/EditGuestNetwork



GuestNetworkSettings

Name/ESSIDEdittheGuestNetworkname(SSID).

DescriptionEnteradescriptionoftheGuestNetworkfor

referencee.g.2ndFloorOfficeHR.

VLANIDSpecifytheVLANID.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsas

anavailableWi‐Finetwork.Whendisabled,

theSSIDwillnotbevisibleasanavailable

Wi‐Finetworktoclients–clientsmust

manuallyentertheSSIDinordertoconnect.

Ahidden(disabled)SSIDistypicallymore

securethanavisible(enabled)SSID.

WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

NMS

159



connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattackson

clients’usernamesandpasswords.

LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

WMMEnableordisableWMM(Wi‐FiMultimedia)

trafficprioritizing.

Authentication

Method

Selectanauthenticationmethodfromthe

dropdownmenu.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenu.



Varioussecurityoptions(wirelessdataencryption)areavailable.Whendatais

encrypted,informationtransmittedwirelesslycannotbereadbyanyonewho

doesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



PleaserefertoIV‐6‐2‐3.Securityformoreinformationonauthenticationand

additionalauthenticationtypes.



GuestAccessPolicy

GuestPortalSelectaguestportaltouseforthisguest

SSID.GuestportalscanbeconfiguredinNMS

SettingsÆGuestPortal.

TrafficShapingEnableordisabletrafficshapingfortheguest

network.

DownlinkEnteradownlinklimitinMB.

UplinkEnteranuplinklimitinMB.

IPFilteringSelect“Deny”or“Allow”todenyorallow

specifiedIPaddressestoaccesstheguest

network.Select“Disable”todisableIP

NMS

160



filtering.

RulesEnterIPaddressestobefilteredaccordingto

theDenyorAllowrulespecifiedaboveand

checktheboxforeachIPaddresstobe

filtered.



GuestNetworkAdvancedSettings

ScheduleGroupAssignguestSSIDtoaspecifiedschedule

(schedulemustbepre‐configuredinNMS

SettingsÆSchedule.)



Add/EditGuestNetworkGroup



WhenyouaddaGuestNetworkGroup,itwillbeavailableforselectionin

NMSSettingsÆAccessPointaccesspointProfileSettings&accesspoint

groupProfileGroupSettings(IV‐5‐1.)



GuestNetworkGroupSettings

GroupNameEdittheGuestNetworkGroupname.

DescriptionEnteradescriptionoftheGuestNetworkfor

reference.

MembersAddSSIDstotheGuestNetworkgroup.You

canoverrideindividualVLANID&schedule

settingsandassignadifferentVLANIDor

schedule.





NMS

161



IV‐5‐6.ZoneEdit



ZoneEditdisplaysinformationaboutzonesforusewiththeZonePlanfeature

andallowsyoutoaddoreditzones.



Thesearchfunctioncanbeusedtofindexistingzones.Typeinthesearchbox

andthelistwillupdate:



Makeaselectionusingthecheck‐boxesandclick“Edit”or

click“Add”toaddanewzone.



NMS

162



Add/EditZone



UploadZoneImage

ChooseFileClicktolocateanimagefiletobedisplayedas

amapintheZonePlanfeature.Typicallya

floorplanimageisuseful.

ZoneSetting

Name/LocationEnteranameofthezone/location.

DescriptionEnteradescriptionofthezone/locationfor

reference.

MembersAssignaccesspointstothespecified

zone/locationforusewiththeZonePlan

feature.



NMS

163



IV‐5‐7.Schedule



Youcandefineschedulesaccordingtoday,starttimeandendtime‐and

groupmultipleschedulestogetherintoschedulegroups.



SchedulegroupscanbeassignedtoWLANs,WLANGroups&GuestNetwork

atNMSSettingsÆWLANandNMSSettingsÆGuestNetwork.



Add/EditSchedule

Usethecheckboxesanddrop‐downmenustosetupyourschedule.



NMS

164



Add/EditScheduleGroup



WLANGroupSettings

NameEdittheschedulegroupname.

DescriptionEnteradescriptionoftheschedulegroupfor

reference.

MembersSelectindividualschedulestoincludeinthe

schedulegroupusingthecheckboxes.

NMS

165



IV‐5‐8.DeviceMonitoring



DevicemonitoringenablesyoutospecifyandmonitorthestatusanyIP

devicesonthenetworksuchasIPcameras.Thedescriptionandstatusofeach

deviceisdisplayedinthetable.



AddorEditIPdevicesbyenteringtheIPaddress.



NMS

166



IV‐5‐9.FirmwareUpgrade



FirmwareUpgradeallowsyoutoupgradefirmwaretoAccessPointGroups.

First,uploadthefirmwarefilefromalocaldiskorexternalFTPserver:locate

thefileandclick“Upload”–youcansetatimeoutlimitfortheuploadas

desired.ThetablebelowwilldisplaytheFirmwareName,FirmwareVersion,

NMSVersion,ModelandSize.



Thenclick“UpgradeAll”toupgradeallaccesspointsintheArrayorselect

AccessPointgroupsfromthelistusingcheck‐boxesandclick“Upgrade

Selected”toupgradeonlyselectedaccesspoints.



NMS

167



IV‐5‐10. Advanced



IV‐5‐10‐1.SystemSecurity



ConfiguretheNMSsystemloginnameandpassword.



IV‐5‐10‐2.Date&Time



Configurethedate&timesettingsoftheAPArray.Thedateandtimeofthe

accesspointscanbeconfiguredmanuallyorcanbesynchronizedwithatime

server.



DateandTimeSettings

LocalTimeSettheaccesspoint’sdateandtimemanually

usingthedropdownmenus.

AcquireCurrent

TimefromyourPC

Click“AcquireCurrentTimefromYourPC”to

entertherequiredvaluesautomatically

accordingtoyourcomputer’scurrenttimeand

date.



NTPTimeServer

NMS

168



UseNTPTheaccesspointalsosupportsNTP(Network

TimeProtocol)forautomatictimeanddate

setup.

ServerNameEnterthehostnameorIPaddressofthetime

serverifyouwish.

UpdateIntervalSpecifyafrequency(inhours)fortheaccess

pointtoupdate/synchronizewiththeNTP

server.



TimeZone

TimeZoneSelectthetimezoneofyourcountry/region.If

yourcountry/regionisnotlisted,pleaseselect

anothercountry/regionwhosetimezoneisthe

sameasyours.



NMS

169



IV‐6.LocalNetwork



IV‐6‐1.NetworkSettings



IV‐6‐1‐1.LAN‐SideIPAddress



The“LAN‐sideIPaddress”pageallowsyoutoconfigureyourAPControlleron

yourLocalAreaNetwork(LAN).Youcanenabletheaccesspointto

dynamicallyreceiveanIPaddressfromyourrouter’sDHCPserveroryoucan

specifyastaticIPaddressforyouraccesspoint,aswellasconfigureDNS

servers.YoucanalsosetyourAPControllerasaDHCPservertoassignIP

addressestootherdevicesonyourLAN.



Theaccesspoint’sdefaultIPaddressis192.168.2.2



DisableotherDHCPserversontheLANifusingAPControllers

DHCPServer.



LAN‐sideIPAddress

IPAddress

Assignment

Select“StaticIP”tomanuallyspecifya

static/fixedIPaddressforyouraccesspoint.

Select“DHCPClient”foryouraccesspointto

beassignedadynamicIPaddressfromyour

router’sDHCPserver,orselect“DHCPServer”

foryouraccesspointtoactasaDHCPserver

andassignIPaddressesonyourLAN.



StaticIPAddress

IPAddressSpecifytheIPaddresshere.ThisIPaddress

willbeassignedtoyouraccesspointandwill

NMS

170



replacethedefaultIPaddress.

SubnetMaskSpecifyasubnetmask.Thedefaultvalueis

255.255.255.0

DefaultGatewayForDHCPusers,select“FromDHCP”toget

defaultgatewayfromyourDHCPserveror

“User‐Defined”toenteragatewaymanually.

ForstaticIPusers,thedefaultvalueisblank.

PrimaryDNS

Address

ForstaticIPusers,thedefaultvalueisblank.

SecondaryDNS

Address

ForstaticIPusers,thedefaultvalueisblank.



DHCPClient

IPAddressWhen“DHCPClient”isselectedthisvalue

cannotbemodified.

SubnetMaskWhen“DHCPClient”isselectedthisvalue

cannotbemodified.

DefaultGatewaySelect“FromDHCP”orselect“User‐Defined”

andenteradefaultgateway.

PrimaryDNS

Address

Select“FromDHCP”orselect“User‐Defined”

andenteraprimaryDNSaddress.

SecondaryDNS

Address

Select“FromDHCP”orselect“User‐Defined”

andenterasecondaryDNSaddress.



NMS

171



DHCPServer

IPAddressSpecifytheIPaddresshere.ThisIPaddress

willbeassignedtoyouraccesspointandwill

replacethedefaultIPaddress.

SubnetMaskSpecifyasubnetmask.Thedefaultvalueis

255.255.255.0

IPAddressRangeEnterthestartandendIPaddressoftheIP

addressrangewhichyouraccesspoint’sDHCP

serverwillassigntodevicesonthenetwork.

DomainNameEnteradomainname.

LeaseTimeSelectaleasetimefromthedropdown

menu.IPaddresseswillbeassignedforthis

periodoftime.

DefaultGatewayEnteradefaultgateway.

PrimaryDNS

Address

EnteraprimaryDNSaddress.

SecondaryDNS

Address

EnterasecondaryDNSaddress.



Youraccesspoint’sDHCPservercanbeconfiguredtoassignstatic(fixed)IP

addressestospecifiednetworkdevices,identifiedbytheiruniqueMACaddress:



DHCPServerStaticIPAddress

MACAddressEntertheMACaddressofthenetworkdevice

NMS

172



tobeassignedastaticIPaddress.

IPAddressSpecifytheIPaddresstoassignthedevice.

AddClicktoassigntheIPaddresstothedevice.



IV‐6‐1‐2.LANPortSettings



The“LANPort”pageallowsyoutoconfigurethesettingsforyourAP

ControllerswiredLAN(Ethernet)ports.



WiredLANPortIdentifiesLANport.USBistheLANport

attachedviaminiUSBadapter.

Speed&DuplexSelectaspeed&duplextypeforspecifiedLAN

port,orusethe“Auto”value.LANportscan

operateupto1000Mbpsandfull‐duplex

enablessimultaneousdatapackets

transfer/receive.

FlowControlEnable/disableflowcontrol.Flowcontrolcan

pausenewsessionrequestuntilcurrentdata

processingiscomplete,inordertoavoid

deviceoverloadsunderheavytraffic.

802.3azEnable/disable802.3az.802.3azisanEnergy

EfficientEthernetfeaturewhichdisables

unusedinterfacestoreducepowerusage.



NMS

173



IV‐6‐1‐3.VLAN



The“VLAN”(VirtualLocalAreaNetwork)pageenablesyoutoconfigureVLAN

settings.AVLANisalocalareanetworkwhichmapsworkstationsvirtually

insteadofphysicallyandallowsyoutogrouptogetherorisolateusersfrom

eachother.VLANIDs1–4095aresupported.



VLANIDsintherange1–4095aresupported.



VLANInterface

WiredLANPortIdentifiesLANport.USBistheLANport

attachedviaminiUSBadapter.

VLANModeSelect“TaggedPort”or“UntaggedPort”for

specifiedLANinterface.

VLANIDSetaVLANIDforspecifiedinterface,if

“UntaggedPort”isselected.



ManagementVLAN

VLANIDSpecifytheVLANIDofthemanagementVLAN.

OnlythehostsbelongingtothesameVLANcan

managethedevice.



NMS

174



IV‐6‐2.2.4GHz11bgn

The“2.4GHz11bgn”menuallowsyoutoviewandconfigureinformationfor

youraccesspoint’s2.4GHzwirelessnetworkacrossfourcategories:Basic,

Advanced,SecurityandWDS.

IV‐6‐2‐1.Basic

The“Basic”screendisplaysbasicsettingsforyouraccesspoint’s2.4GHzWi‐Fi

network(s).



WirelessEnableordisabletheaccesspoint’s2.4GHz

wirelessradio.Whendisabled,no2.4GHz

SSIDswillbeactive.

BandSelectthewirelessstandardusedforthe

accesspoint.Combinationsof802.11b,

802.11g&802.11ncanbeselected.

EnableSSIDNumberSelecthowmanySSIDstoenableforthe

2.4GHzfrequencyfromthedropdownmenu.

Amaximumof16canbeenabled.

SSID#EntertheSSIDnameforthespecifiedSSID(up

NMS

175



to16).TheSSIDcanconsistofany

combinationofupto32alphanumeric

characters.

VLANIDSpecifyaVLANIDforeachSSID.

AutoChannelEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspoint’s2.4GHz

frequencybasedonavailabilityandpotential

interference.Whendisabled,selectachannel

manuallyasshowninthenexttable.

AutoChannelRangeSelectarangefromwhichtheautochannel

setting(above)willchooseachannel.

AutoChannel

Interval

Specifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),40MHz

(higherperformancebutpotentiallyhigher

interference)orAuto(automaticallyselect

basedoninterferencelevel).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



Whenautochannelisdisabled,selectawirelesschannelmanually:



Channel Selectawirelesschannelfrom1–11.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),40MHz

(higherperformancebutpotentiallyhigher

interference)orAuto(automaticallyselect

basedoninterferencelevel).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



NMS

176



IV‐6‐2‐2.Advanced

Thesesettingsareforexperiencedusersonly.Pleasedonotchangeanyofthe

valuesonthispageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoint.



ContentionSlotSelect“Short”or“Long”–thisvalueisusedfor

contentionwindowsinWMM(seeIV‐6‐7.

WMM).

PreambleTypeSetthewirelessradiopreambletype.The

preambletypein802.11basedwireless

communicationdefinesthelengthoftheCRC

(CyclicRedundancyCheck)blockfor

communicationbetweentheaccesspointand

roamingwirelessadapters.Thedefaultvalueis

“ShortPreamble”.

GuardIntervalSettheguardinterval.Ashorterintervalcan

improveperformance.

802.11gProtectionEnable/disable802.11gprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

NMS

177



802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.

MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

BeaconIntervalSetthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



NMS

178



IV‐6‐2‐3.Security

Theaccesspointprovidesvarioussecurityoptions(wirelessdataencryption).

Whendataisencrypted,informationtransmittedwirelesslycannotbereadby

anyonewhodoesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



SSIDSelectwhichSSIDtoconfiguresecuritysettings

for.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsasan

availableWi‐Finetwork.Whendisabled,the

SSIDwillnotbevisibleasanavailableWi‐Fi

networktoclients–clientsmustmanually

entertheSSIDinordertoconnect.Ahidden

(disabled)SSIDistypicallymoresecurethana

visible(enabled)SSID.

WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattacksonclients’

usernamesandpasswords.

NMS

179



LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

Authentication

Method

Selectanauthenticationmethodfromthedrop

downmenuandrefertotheinformation

belowappropriateforyourmethod.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenuandrefertothe

informationbelow(IV‐6‐2‐3‐6.)appropriatefor

yourmethod.



IV‐6‐2‐3‐1.NoAuthentication

Authenticationisdisabledandnopassword/keyisrequiredtoconnecttothe

accesspoint.



Disablingwirelessauthenticationisnotrecommended.When

disabled,anybodywithinrangecanconnecttoyourdevice’sSSID.

IV‐6‐2‐3‐2.WEP

WEP(WiredEquivalentPrivacy)isabasicencryptiontype.Forahigher

levelofsecurityconsiderusingWPAencryption.



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.

KeyTypeChoosefrom“ASCII”(anyalphanumerical

character0‐9,a‐zandA‐Z)or“Hex”(any

charactersfrom0‐9,a‐fandA‐F).

DefaultKeySelectwhichencryptionkey(1–4below)isthe

defaultkey.Forsecuritypurposes,youcanset

uptofourkeys(below)andchangewhichis

thedefaultkey.

EncryptionKey1–

4

Enteryourencryptionkey/passwordaccording

totheformatyouselectedabove.



NMS

180



IV‐6‐2‐3‐3.IEEE802.1x/EAP



KeyLengthSelect64‐bitor128‐bit.128‐bitismoresecure

than64‐bitandisrecommended.



IV‐6‐2‐3‐4.WPA‐PSK

WPA‐PSKisasecurewirelessencryptiontypewithstrongdata

protectionanduserauthentication,utilizing128‐bitencryptionkeys.



WPATypeSelectfromWPA/WPA2MixedMode‐PSK,

WPA2orWPAonly.WPA2issaferthanWPA

only,butnotsupportedbyallwirelessclients.

Pleasemakesureyourwirelessclientsupports

yourselection.

EncryptionSelect“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.

Pre‐SharedKey

Type

Choosefrom“Passphrase”(8–63

alphanumericcharacters)or“Hex”(upto64

charactersfrom0‐9,a‐fandA‐F).

Pre‐SharedKeyPleaseenterasecuritykey/passwordaccording

totheformatyouselectedabove.



IV‐6‐2‐3‐5.WPA‐EAP



WPATypeSelectfromWPA/WPA2MixedMode‐EAP,

WPA2‐EAPorWPA‐EAP.

EncryptionSelect“TKIP/AESMixedMode”or“AES”

encryptiontype.

KeyRenewal

Interval

Specifyafrequencyforkeyrenewalin

minutes.



WPA‐EAPmustbedisabledtouseMAC‐RADIUSauthentication.

NMS

181



IV‐6‐2‐3‐6.AdditionalAuthentication

Additionalwirelessauthenticationmethodscanalsobeused:



MACAddressFilter

RestrictwirelessclientsaccessbasedonMACaddressspecifiedintheMAC

filtertable.



SeeIV‐6‐6.MACFiltertoconfigureMACfiltering.



MACFilter&MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessusingbothoftheaboveMACfiltering&

RADIUSauthenticationmethods.



MAC‐RADIUSAuthentication

RestrictwirelessclientsaccessbasedonMACaddressviaaRADIUSserver,or

passwordauthenticationviaaRADIUSserver.



SeeIV‐6‐5.RADIUStoconfigureRADIUSservers.



WPSmustbedisabledtouseMAC‐RADIUSauthentication.See

IV‐6‐4.forWPSsettings.



MACRADIUS

Password

SelectwhethertouseMACaddressor

passwordauthenticationviaRADIUSserver.If

youselect“Usethefollowingpassword”,enter

thepasswordinthefieldbelow.Thepassword

shouldmatchthe“SharedSecret”usedin

IV‐6‐5.RADIUS.



NMS

182



IV‐6‐2‐4.WDS

WirelessDistributionSystem(WDS)canbridge/repeataccesspointstogether

inanextendednetwork.WDSsettingscanbeconfiguredasshownbelow.



WhenusingWDS,configuretheIPaddressofeachaccesspointto

beinthesamesubnetandensurethereisonlyoneactiveDHCP

serveramongconnectedaccesspoints,preferablyontheWAN

side.



WDSmustbeconfiguredoneachaccesspoint,usingcorrectMACaddresses.

Allaccesspointsshouldusethesamewirelesschannelandencryption

method.



NMS

183



2.4GHz

WDSFunctionalitySelect“WDSwithAP”touseWDSwithaccess

pointor“WDSDedicatedMode”touseWDS

andalsoblockcommunicationwithregular

wirelessclients.WhenWDSisused,each

accesspointshouldbeconfiguredwith

correspondingMACaddresses,wireless

channelandwirelessencryptionmethod.

LocalMACAddressDisplaystheMACaddressofyouraccesspoint.



WDSPeerSettings

WDS#EntertheMACaddressforuptofourother

WDSdevicesyouwishtoconnect.



WDSVLAN

VLANModeSpecifytheWDSVLANmodeto“Untagged

Port”or“TaggedPort”.

VLANIDSpecifytheWDSVLANIDwhen“Untagged

Port”isselectedabove.



WDSEncryptionmethod

EncryptionSelectwhethertouse“None”or“AES”

encryptionandenterapre‐sharedkeyforAES

consistingof8‐63alphanumericcharacters.



NMS

184



IV‐6‐3. 5GHz11ac11an

The“5GHz11ac11an”menuallowsyoutoviewandconfigureinformationfor

youraccesspoint’s5GHzwirelessnetworkacrossfourcategories:Basic,

Advanced,SecurityandWDS.



IV‐6‐3‐1.Basic

The“Basic”screendisplaysbasicsettingsforyouraccesspoint’s5GHzWi‐Fi

network(s).



WirelessEnableordisabletheaccesspoint’s5GHz

wirelessradio.Whendisabled,no5GHzSSIDs

willbeactive.

BandSelectthewirelessstandardusedforthe

accesspoint.Combinationsof802.11a,

802.11n&802.11accanbeselected.

EnableSSIDNumberSelecthowmanySSIDstoenableforthe5GHz

frequencyfromthedropdownmenu.A

maximumof16canbeenabled.

NMS

185



SSID#EntertheSSIDnameforthespecifiedSSID(up

to16).TheSSIDcanconsistofany

combinationofupto32alphanumeric

characters.

VLANIDSpecifyaVLANIDforeachSSID.

AutoChannelEnable/disableautochannelselection.Auto

channelselectionwillautomaticallysetthe

wirelesschannelfortheaccesspoint’s5GHz

frequencybasedonavailabilityandpotential

interference.Whendisabled,selectachannel

manuallyasshowninthenexttable.

AutoChannelRangeSelectarangefromwhichtheautochannel

setting(above)willchooseachannel.

AutoChannel

Interval

Specifyafrequencyforhowoftentheauto

channelsettingwillcheck/reassignthe

wirelesschannel.Check/uncheckthe“Change

channelevenifclientsareconnected”box

accordingtoyourpreference.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),Auto

40/20MHzorAuto80/40/20MHz

(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



Whenautochannelisdisabled,selectawirelesschannelmanually:



Channel Selectawirelesschannel.

ChannelBandwidthSetthechannelbandwidth:20MHz(lower

performancebutlessinterference),Auto

40/20MHzorAuto80/40/20MHz

(automaticallyselectbasedoninterference

level).

BSSBasicRateSetSetaBasicServiceSet(BSS)rate:thisisa

seriesofratestocontrolcommunication

framesforwirelessclients.



NMS

186



IV‐6‐3‐2. Advanced

Thesesettingsareforexperiencedusersonly.Pleasedonotchangeanyofthe

valuesonthispageunlessyouarealreadyfamiliarwiththesefunctions.



Changingthesesettingscanadverselyaffecttheperformanceof

youraccesspoint.



GuardIntervalSettheguardinterval.Ashorterintervalcan

improveperformance.

802.11nProtectionEnable/disable802.11nprotection,which

increasesreliabilitybutreducesbandwidth

(clientswillsendRequesttoSend(RTS)to

accesspoint,andaccesspointwillbroadcast

CleartoSend(CTS),beforeapacketissent

fromclient.)

DTIMPeriodSettheDTIM(deliverytrafficindication

message)periodvalueofthewirelessradio.

Thedefaultvalueis1.

RTSThresholdSettheRTSthresholdofthewirelessradio.The

defaultvalueis2347.

Fragment

Threshold

Setthefragmentthresholdofthewireless

radio.Thedefaultvalueis2346.

MulticastRateSetthetransferrateformulticastpacketsor

usethe“Auto”setting.

TxPowerSetthepoweroutputofthewirelessradio.You

maynotrequire100%outputpower.Settinga

lowerpoweroutputcanenhancesecuritysince

potentiallymalicious/unknownusersindistant

areaswillnotbeabletoaccessyoursignal.

NMS

187



BeaconIntervalSetthebeaconintervalofthewirelessradio.

Thedefaultvalueis100.

Stationidle

timeout

Settheintervalforkeepalivemessagesfrom

theaccesspointtoawirelessclienttoverifyif

thestationisstillalive/active.



NMS

188



IV‐6‐3‐3. Security

Theaccesspointprovidesvarioussecurityoptions(wirelessdataencryption).

Whendataisencrypted,informationtransmittedwirelesslycannotbereadby

anyonewhodoesnotknowthecorrectencryptionkey.



It’sessentialtoconfigurewirelesssecurityinordertoprevent

unauthorisedaccesstoyournetwork.



Selecthard‐to‐guesspasswordswhichincludecombinationsof

numbers,lettersandsymbols,andchangeyourpassword

regularly.



SSIDSelectwhichSSIDtoconfiguresecuritysettings

for.

BroadcastSSIDEnableordisableSSIDbroadcast.When

enabled,theSSIDwillbevisibletoclientsasan

availableWi‐Finetwork.Whendisabled,the

SSIDwillnotbevisibleasanavailableWi‐Fi

networktoclients–clientsmustmanually

entertheSSIDinordertoconnect.Ahidden

(disabled)SSIDistypicallymoresecurethana

visible(enabled)SSID.

WirelessClient

Isolation

Enableordisablewirelessclientisolation.

Wirelessclientisolationpreventsclients

connectedtotheaccesspointfrom

communicatingwitheachotherandimproves

security.Typically,thisfunctionisusefulfor

corporateenvironmentsorpublichotspots

andcanpreventbruteforceattacksonclients’

usernamesandpasswords.

NMS

189



LoadBalancingLoadbalancinglimitsthenumberofwireless

clientsconnectedtoanSSID.Setaload

balancingvalue(maximum50).

Authentication

Method

Selectanauthenticationmethodfromthedrop

downmenuandrefertotheinformation

belowappropriateforyourmethod.

Additional

Authentication

Selectanadditionalauthenticationmethod

fromthedropdownmenuandrefertothe

informationbelowappropriateforyour

method.



PleasereferbacktoIV‐6‐2‐3.Securityformoreinformationonauthentication

andadditionalauthenticationtypes.



NMS

190



IV‐6‐3‐4.WDS

WirelessDistributionSystem(WDS)canbridge/repeataccesspointstogether

inanextendednetwork.WDSsettingscanbeconfiguredasshownbelow.



WhenusingWDS,configuretheIPaddressofeachaccesspointto

beinthesamesubnetandensurethereisonlyoneactiveDHCP

serveramongconnectedaccesspoints,preferablyontheWAN

side.



WDSmustbeconfiguredoneachaccesspoint,usingcorrectMACaddresses.

Allaccesspointsshouldusethesamewirelesschannelandencryption

method.



5GHzWDSMode

WDSFunctionalitySelect“WDSwithAP”touseWDSwithaccess

pointor“WDSDedicatedMode”touseWDS

andalsoblockcommunicationwithregular

wirelessclients.WhenWDSisused,each

accesspointshouldbeconfiguredwith

correspondingMACaddresses,wireless

channelandwirelessencryptionmethod.

LocalMACAddressDisplaystheMACaddressofyouraccesspoint.



WDSPeerSettings

NMS

191



WDS#EntertheMACaddressforuptofourother

WDAdevicesyouwishtoconnect.



WDSVLAN

VLANModeSpecifytheWDSVLANmodeto“Untagged

Port”or“TaggedPort”.

VLANIDSpecifytheWDSVLANIDwhen“Untagged

Port”isselectedabove.



WDSEncryption

EncryptionSelectwhethertouse“None”or“AES”

encryptionandenterapre‐sharedkeyforAES

with8‐63alphanumericcharacters.



NMS

192



IV‐6‐4.WPS

Wi‐FiProtectedSetupisasimplewaytoestablishconnectionsbetweenWPS

compatibledevices.WPScanbeactivatedoncompatibledevicesbypushinga

WPSbuttononthedeviceorfromwithinthedevice’sfirmware/configuration

interface(knownasPBCor“PushButtonConfiguration”).WhenWPSis

activatedinthecorrectmannerandatthecorrecttimefortwocompatible

devices,theywillautomaticallyconnect.“PINcodeWPS”isavariationofPBC

whichincludestheadditionaluseofaPINcodebetweenthetwodevicesfor

verification.



Pleaserefertomanufacturer’sinstructionsforyourotherWPS

device.



WPSCheck/uncheckthisboxtoenable/disableWPS

functionality.WPSmustbedisabledwhen

usingMAC‐RADIUSauthentication(see

IV‐6‐2‐3‐6.&IV‐6‐5).



ProductPINDisplaystheWPSPINcodeofthedevice,used

forPINcodeWPS.Youwillberequiredtoenter

thisPINcodeintoanotherWPSdeviceforPIN

codeWPS.Click“GeneratePIN”togeneratea

newWPSPINcode.

Push‐ButtonWPSClick“Start”toactivateWPSontheaccess

pointforapproximately2minutes.Thishasthe

sameeffectasphysicallypushingtheaccess

point’sWPSbutton.

WPSbyPINEnterthePINcodeofanotherWPSdeviceand

click“Start”toattempttoestablishaWPS

connectionforapproximately2minutes.

NMS

193



WPSStatusWPSsecuritystatusisdisplayedhere.Click

“Release”tocleartheexistingstatus.



IV‐6‐5.RADIUS

TheRADIUSsubmenuallowsyoutoconfiguretheaccesspoint’sRADIUS

serversettings,categorizedintothreesubmenus:RADIUSsettings,Internal

ServerandRADIUSaccounts.



ARADIUSserverprovidesuser‐basedauthenticationtoimprovesecurityand

offerwirelessclientcontrol–userscanbeauthenticatedbeforegaining

accesstoanetwork.



Theaccesspointcanutilizebothaprimaryandsecondary(backup)RADIUS

serverforeachofitswirelessfrequencies(2.4GHz&5GHz).ExternalRADIUS

serverscanbeusedortheaccesspoint’sinternalRADIUSservercanbeused.



TouseRADIUSservers,goto“LocalNetwork”

“Security”



“AdditionalAuthentication”andselect“MACRADIUS

Authentication”(seeIV‐6‐2‐3.&IV‐6‐3‐3).



NMS

194



IV‐6‐5‐1.RADIUSSettings

ConfiguretheRADIUSserversettingsfor2.4GHz&5GHz.Eachfrequencycan

useaninternalorexternalRADIUSserver.



NMS

195



RADIUSTypeSelect“Internal”tousetheaccesspoint’s

built‐inRADIUSserveror“external”tousean

externalRADIUSserver.

RADIUSServerEntertheRADIUSserverhostIPaddress.

Authentication

Port

SettheUDPportusedintheauthentication

protocoloftheRADIUSserver.Valuemustbe

between1–65535.

SharedSecretEnterasharedsecret/passwordbetween1–

99charactersinlength.Thisshouldmatchthe

“MAC‐RADIUS”passwordusedinIV‐3‐1‐3‐6or

IV‐3‐2‐3.

SessionTimeoutSetadurationofsessiontimeoutinseconds

between0–86400.

AccountingEnableordisableRADIUSaccounting.

AccountingPortWhenaccountingisenabled(above),setthe

UDPportusedintheaccountingprotocolof

theRADIUSserver.Valuemustbebetween1–

65535.



IV‐6‐5‐2.InternalServer

Theaccesspointfeaturesabuilt‐inRADIUSserverwhichcanbeconfiguredas

shownbelowusedwhen“Internal”isselectedfor“RADIUSType”inthe“Local

Network”Æ“RADIUSSettings”menu.



TouseRADIUSservers,goto“WirelessSettings”

“Security”

“AdditionalAuthentication”andselect“MACRADIUS

Authentication”(seeIV‐6‐2‐3.&IV‐6‐3‐3).



NMS

196



InternalServerCheck/unchecktoenable/disabletheaccess

point’sinternalRADIUSserver.

EAPInternal

Authentication

SelectEAPinternalauthenticationtypefrom

thedropdownmenu.

EAPCertificateFile

Format

DisplaystheEAPcertificatefileformat:

PCK#12(*.pfx/*.p12)

EAPCertificateFileClick“Upload”toopenanewwindowand

selectthelocationofanEAPcertificatefileto

use.Ifnocertificatefileisuploaded,the

internalRADIUSserverwilluseaself‐made

certificate.

SharedSecretEnterasharedsecret/passwordforuse

betweentheinternalRADIUSserverand

RADIUSclient.Thesharedsecretshouldbe1–

99charactersinlength.Thisshouldmatchthe

“MAC‐RADIUS”passwordusedinIV‐6‐2‐3‐6or

IV‐6‐3‐3.

SessionTimeoutSetadurationofsessiontimeoutinseconds

between0–86400.

TerminationActionSelectatermination‐actionattribute:

“Reauthentication”sendsaRADIUSrequestto

theaccesspoint,“Not‐Reathentication”sends

adefaulttermination‐actionattributetothe

accesspoint,“Not‐Send”no

termination‐actionattributeissenttothe

accesspoint.



NMS

197



IV‐6‐5‐3.RADIUSAccounts

TheinternalRADIUSservercanauthenticateupto256useraccounts.The

“RADIUSAccounts”pageallowsyoutoconfigureandmanageusers.



UserNameEntertheusernameshere,separatedby

commas.

AddClick“Add”toaddtheusertotheuser

registrationlist.

ResetCleartextfromtheusernamebox.



SelectChecktheboxtoselectauser.

UserNameDisplaystheusername.

PasswordDisplaysifspecifiedusernamehasapassword

(configured)ornot(notconfigured).

CustomizeClick“Edit”toopenanewfieldtoset/edita

passwordforthespecifiedusername(below).

NMS

198



DeleteSelectedDeleteselecteduserfromtheuserregistration

list.

DeleteAllDeleteallusersfromtheuserregistrationlist.



EditUserRegistrationList



UserNameExistingusernameisdisplayedhereandcan

beeditedaccordingtoyourpreference.

PasswordEnteroreditapasswordforthespecifieduser.



NMS

199



IV‐6‐6.MACFilter

Macfilteringisasecurityfeaturethatcanhelptopreventunauthorizedusers

fromconnectingtoyouraccesspoint.



Thisfunctionallowsyoutodefinealistofnetworkdevicespermittedto

connecttotheaccesspoint.DevicesareeachidentifiedbytheiruniqueMAC

address.IfadevicewhichisnotonthelistofpermittedMACaddresses

attemptstoconnecttotheaccesspoint,itwillbedenied.



ToenableMACfiltering,goto“LocalSettings”

“Security”



“AdditionalAuthentication”andselect“MACFilter”(seeIV‐6‐2‐3.

&IV‐6‐3‐3).



TheMACaddressfilteringtableisdisplayedbelow:



AddMACAddressEnteraMACaddressofcomputerornetwork

devicemanuallye.g.‘aa‐bb‐cc‐dd‐ee‐ff’or

entermultipleMACaddressesseparatedwith

NMS

200



commas,e.g.

‘aa‐bb‐cc‐dd‐ee‐ff,aa‐bb‐cc‐dd‐ee‐gg’

AddClick“Add”toaddtheMACaddresstothe

MACaddressfilteringtable.

ResetClearallfields.



MACaddressentrieswillbelistedinthe“MACAddressFilteringTable”.Select

anentryusingthe“Select”checkbox.



SelectDeleteselectedorallentriesfromthetable.

MACAddressTheMACaddressislistedhere.

DeleteSelectedDeletetheselectedMACaddressfromthe

list.

DeleteAllDeleteallentriesfromtheMACaddress

filteringtable.

ExportClick“Export”tosaveacopyoftheMAC

filteringtable.Anewwindowwillpopupfor

youtoselectalocationtosavethefile.



NMS

201



IV‐6‐7.WMM

Wi‐FiMultimedia(WMM)isaWi‐FiAllianceinteroperabilitycertification

basedontheIEEE802.11estandard,whichprovidesQualityofService(QoS)

featurestoIEE802.11networks.WMMprioritizestrafficaccordingtofour

categories:background,besteffort,videoandvoice.



ConfiguringWMMconsistsofadjustingparametersonqueuesfordifferent

categoriesofwirelesstraffic.Trafficissenttothefollowingqueues:



BackgroundLow

Priority

Highthroughput,nontimesensitivebulk

datae.g.FTP

BestEffortMedium

Priority

TraditionalIPdata,mediumthroughputand

delay.

VideoHigh

Priority

Timesensitivevideodatawithminimum

timedelay.

VoiceHigh

Priority

TimesensitivedatasuchasVoIPand

streamingmediawithminimumtimedelay.



Queuesautomaticallyprovideminimumtransmissiondelaysforvideo,voice,

multimediaandcriticalapplications.Thevaluescanfurtherbeadjusted

manually:



CWMinMinimumContentionWindow(milliseconds):

Thisvalueisinputtotheinitialrandom

backoffwaittimealgorithmforretryofadata

frametransmission.Thebackoffwaittimewill

begeneratedbetween0andthisvalue.Ifthe

NMS

202



frameisnotsent,therandombackoffvalueis

doubleduntilthevaluereachesthenumber

definedbyCWMax(below).TheCWMinvalue

mustbelowerthantheCWMaxvalue.The

contentionwindowschemehelpstoavoid

framecollisionsanddeterminepriorityof

frametransmission.Ashorterwindowhasa

higherprobability(priority)oftransmission.

CWMaxMaximumContentionWindow(milliseconds):

Thisvalueistheupperlimittorandom

backoffvaluedoubling(seeabove).

AIFSNArbitrationInter‐FrameSpace(milliseconds):

Specifiesadditionaltimebetweenwhena

channelgoesidleandtheAP/clientsends

dataframes.TrafficwithalowerAIFSNvalue

hasahigherpriority.

TxOPTransmissionOpportunity(milliseconds):The

maximumintervaloftimeanAP/clientcan

transmit.Thismakeschannelaccessmore

efficientlyprioritized.Avalueof0meansonly

oneframepertransmission.Agreatervalue

effectshigherpriority.



NMS

203



IV‐7.LocalSettings

IV‐7‐1.OperationMode

Settheoperationmodeoftheaccesspoint.APmodeisastandaloneaccess

point,APcontrollermodeactsasthedesignatedmasteroftheAParray,and

ManagedAPmodeactsasaslaveAPwithintheAParray.Repeatermodeacts

asawirelessrepeater.



IV‐7‐2.SystemSettings

IV‐7‐2‐1. SystemInformation

The“SystemInformation”pagedisplaysbasicsysteminformationaboutthe

accesspoint.



System

ModelDisplaysthemodelnumberoftheaccess

point.

ProductNameDisplaystheproductnameforreference,

whichconsistsof“AP”plustheMACaddress.

UptimeDisplaysthetotaltimesincethedevicewas

turnedon.

NMS

204



BootFromDisplaysinformationforthebooted

hardware,bootedfromeitherUSBorinternal

memory.

VersionDisplaysthefirmwareversion.

MACAddressDisplaystheaccesspoint’sMACaddress.

ManagementVLAN

ID

DisplaysthemanagementVLANID.

IPAddressDisplaystheIPaddressofthisdevice.Click

“Refresh”toupdatethisvalue.

Default

Gateway

DisplaystheIPaddressofthedefault

gateway.

DNSIPaddressofDNS(DomainNameServer)

DHCPServerIPaddressofDHCPServer.



WiredLANPortSettings

WiredLANPortSpecifieswhichLANport(1or2).

StatusDisplaysthestatusofthespecifiedLANport

(connectedordisconnected).

VLANMode/IDDisplaystheVLANmode(taggedoruntagged)

andVLANIDforthespecifiedLANport.See

IV‐6‐1‐3.VLAN



RefreshClicktorefreshallinformation.



NMS

205



IV‐7‐2‐2.WirelessClients

The“WirelessClients”pagedisplaysinformationaboutallwirelessclients

connectedtotheaccesspointonthe2.4GHzor5GHzfrequency.



Refreshtime

AutoRefreshTimeSelectatimeintervalfortheclienttablelistto

automaticallyrefresh.

ManualRefreshClickrefreshtomanuallyrefreshtheclient

table.



2.4GHz(5GHz)WLANClientTable

SSIDDisplaystheSSIDwhichtheclientis

connectedto.

MACAddressDisplaystheMACaddressoftheclient.

TxDisplaysthetotaldatapacketstransmittedby

thespecifiedclient.

RxDisplaysthetotaldatapacketsreceivedby

thespecifiedclient.

Signal(%)Displaysthewirelesssignalstrengthforthe

specifiedclient.

ConnectedTimeDisplaysthetotaltimethewirelessclienthas

beenconnectedtotheaccesspoint.

IdleTimeClientidletimeisthetimeforwhichtheclient

hasnottransmittedanydatapacketsi.e.is

idle.

VendorThevendoroftheclient’swirelessadapteris

displayedhere.

NMS

206



IV‐7‐2‐3. WirelessMonitor

WirelessMonitorisatoolbuiltintotheaccesspointtoscanandmonitorthe

surroundingwirelessenvironment.Selectafrequencyandclick“Scan”to

displayalistofallSSIDswithinrangealongwithrelevantdetailsforeachSSID.



WirelessMonitor

SiteSurveySelectwhichfrequency(orboth)toscan,and

click“Scan”tobegin.

ChannelSurvey

Result

Afterascaniscomplete,click“Export”tosave

theresultstolocalstorage.



SiteSurveyResults

ChDisplaysthechannelnumberusedbythe

specifiedSSID.

SSIDDisplaystheSSIDidentifiedbythescan.

MACAddressDisplaystheMACaddressofthewireless

router/accesspointforthespecifiedSSID.

SecurityDisplaystheauthentication/encryptiontype

ofthespecifiedSSID.

Signal(%)Displaysthecurrentsignalstrengthofthe

SSID.

TypeDisplaysthe802.11wirelessnetworking

standard(s)ofthespecifiedSSID.

VendorDisplaysthevendorofthewireless

router/accesspointforthespecifiedSSID.





NMS

207



IV‐7‐2‐4. Log

Thisinformationisusefulfornetworkadministrators.Displaysadetailed

informationlogofusersandactivityonthenetwork:ID,DateandTimeof

entry,Categoryofentry,Severity,Users,Event/Activitiesdetails.



Whenthelogisfull,oldentriesareoverwritten.



SaveClicktosavethelogasafileonyourlocal

computer.

ClearClearalllogentries.

RefreshRefreshthecurrentlog.



NMS

208



IV‐7‐3.Management

IV‐7‐3‐1. Admin

Youcanchangethepasswordusedtologintothebrowser‐based

configurationinterfacehere.Itisadvisedtodosoforsecuritypurposes.



Ifyouchangetheadministratorpassword,pleasemakeanote

ofthenewpassword.Intheeventthatyouforgetthis

passwordandareunabletologintothebrowserbased

configurationinterface,seeIV‐7‐4‐4.FactoryDefaultforhowto

resettheaccesspoint.



AccounttoManageThisDevice

Administrator

Name

Settheaccesspoint’sadministratorname.

Thisisusedtologintothebrowserbased

configurationinterfaceandmustbebetween

4‐16alphanumericcharacters(casesensitive).

Administrator

Password

Settheaccesspoint’sadministratorpassword.

Thisisusedtologintothebrowserbased

NMS

209



configurationinterfaceandmustbebetween

4‐32alphanumericcharacters(casesensitive).



AdvancedSettings

ProductNameEdittheproductnameaccordingtoyour

preferenceconsistingof1‐32alphanumeric

characters.Thisnameisusedforreference

purposes.

HTTPPortSpecifyaHTTPportformanagement.

HTTPSPortSpecifyaHTTPSportformanagement.

Management

Protocol

Check/unchecktheboxestoenable/disable

specifiedmanagementinterfaces(seebelow).

WhenSNMPisenabled,completetheSNMP

fieldsbelow.

SNMPVersionSelectSNMPversionappropriateforyour

SNMPmanager.

SNMPGet

Community

EnteranSNMPGetCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐GETrequests.

SNMPSet

Community

EnteranSNMPSetCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐SETrequests.

SNMPTrapEnableordisableSNMPTraptonotifySNMP

managerofnetworkerrors.

SNMPTrap

Community

EnteranSNMPTrapCommunitynamefor

verificationwiththeSNMPmanagerfor

SNMP‐TRAPrequests.

SNMPTrap

Manager

SpecifytheIPaddressorsevername(2‐128

alphanumericcharacters)oftheSNMP

manager.



HTTP

InternetbrowserHTTPprotocolmanagementinterface

HTTPS

InternetbrowserHTTPSprotocolmanagementinterface

TELNET

Clientterminalwithtelnetprotocolmanagementinterface

SSH

ClientterminalwithSSHprotocolversion1or2managementinterface

SNMP

NMS

210



SimpleNetworkManagementProtocol.SNMPv1,v2&v3protocolsupported.

SNMPv2canbeusedwithcommunitybasedauthentication.SNMPv3uses

user‐basedsecuritymodel(USM)architecture.

IV‐7‐3‐2. DateandTime



Youcanconfigurethetimezonesettingsofyouraccesspointhere.Thedate

andtimeofthedevicecanbeconfiguredmanuallyorcanbesynchronized

withatimeserver.



DateandTimeSettings

LocalTimeSettheaccesspoint’sdateandtimemanually

usingthedropdownmenus.

AcquireCurrent

TimefromyourPC

Click“AcquireCurrentTimefromYourPC”to

entertherequiredvaluesautomatically

accordingtoyourcomputer’scurrenttimeand

date.



NTPTimeServer

UseNTPTheaccesspointalsosupportsNTP(Network

TimeProtocol)forautomatictimeanddate

setup.

ServerNameEnterthehostnameorIPaddressofthetime

serverifyouwish.

UpdateIntervalSpecifyafrequency(inhours)fortheaccess

pointtoupdate/synchronizewiththeNTP

server.



NMS

211



TimeZone

TimeZoneSelectthetimezoneofyourcountry/region.If

yourcountry/regionisnotlisted,pleaseselect

anothercountry/regionwhosetimezoneisthe

sameasyours.

NMS

212



IV‐7‐3‐3. SyslogServer

Thesystemlogcanbesenttoaserver,attachedtoUSBstorageorsentvia

email.



SyslogServerSettings

TransferLogsCheck/unchecktheboxtoenable/disablethe

useofasyslogserver,andenterahost

name,domainorIPaddressfortheserver,

consistingofupto128alphanumeric

characters.

CopyLogsto

AttachedUSBDevice

Check/unchecktheboxtoenable/disable

copyinglogstoattachedUSBstorage.



SyslogEmailSettings

EmailLogsCheck/unchecktheboxtoenable/disableemail

logs.Whenenabled,thelogwillbeemailed

accordingtothesettingsbelow.

EmailSubjectEnterthesubjectlineoftheemailwhichwillbe

sentcontainingthelog.

SMTPServer

Address

SpecifytheSMTPserveraddressforthesender

emailaccount.

SMTPServerPortSpecifytheSMTPserverportforthesender

emailaccount.

SenderEmailEnterthesender’semailaddress.

ReceiverEmailSpecifytheemailrecipientofthelog.

AuthenticationSelect“Disable”,“SSL”or“TLS”accordingto

NMS

213



youremailauthentication.

AccountWhenauthenticationisusedabove,enterthe

accountname.

PasswordWhenauthenticationisusedabove,enterthe

password.



IV‐7‐3‐4. I’mHere

Theaccesspointfeaturesabuilt‐inbuzzerwhichcansoundoncommand

usingthe“I’mHere”page.Thisisusefulfornetworkadministratorsand

engineersworkingincomplexnetworkenvironmentstolocatetheaccess

point.



Thebuzzerisloud!



DurationofSoundSetthedurationforwhichthebuzzerwill

soundwhenthe“SoundBuzzer”buttonis

clicked.

SoundBuzzerActivatethebuzzersoundfortheabove

specifieddurationoftime.



NMS

214



IV‐7‐4.Advanced

Wi‐FiMultimedia(WMM)isaWi‐FiAllianceinteroperabilitycertification

basedontheIEEE802.11estandard,whichprovidesQualityofService(QoS)

featurestoIEE802.11networks.WMMprioritizestrafficaccordingtofour

categories:background,besteffort,videoandvoice.

IV‐7‐4‐1.LEDSettings

Theaccesspoint’sLEDscanbemanuallyenabledordisabledaccordingto

yourpreference.



LEDSelectonoroff.



NMS

215



IV‐7‐4‐2. UpdateFirmware

The“Firmware”pageallowsyoutoupdatethesystemfirmwaretoamore

recentversion.Updatedfirmwareversionsoftenofferincreasedperformance

andsecurity,aswellasbugfixes.Youcandownloadthelatestfirmwarefrom

thewebsite.



Thisfirmwareupdateisforanindividualaccesspoint.To

updatefirmwareformultipleaccesspointsintheAParray,go

toNMSSettings

FirmwareUpgrade.



Donotswitchoffordisconnecttheaccesspointduringafirmware

upgrade,asthiscoulddamagethedevice.



UpdateFirmware

From

Select“afileonyourPC”touploadfirmware

fromyourlocalcomputerorfroman

attachedUSBdevice.

FirmwareUpdateFileClick“Browse”toopenanewwindowto

locateandselectthefirmwarefileinyour

computer.

UpdateClick“Update”touploadthespecified

firmwarefiletoyouraccesspoint.



NMS

216



IV‐7‐4‐3. Save/RestoreSettings

Theaccesspoint’s“Save/RestoreSettings”pageenablesyoutosave/backup

theaccesspoint’scurrentsettingsasafiletoyourlocalcomputeroraUSB

deviceattachedtotheaccesspoint,andrestoretheaccesspointtopreviously

savedsettings.



Save/RestoreSettings

UsingDeviceSelect“UsingyourPC”tosavetheaccess

point’ssettingstoyourlocalcomputerorto

anattachedUSBdevice.



SaveSettingstoPC

SaveSettingsClick“Save”tosavesettingsandanew

windowwillopentospecifyalocationto

savethesettingsfile.Youcanalsocheckthe

“Encrypttheconfigurationfilewitha

password”boxandenterapasswordto

protectthefileinthefieldunderneath,ifyou

wish.



RestoreSettingsfromPC

RestoreSettingsClickthebrowsebuttontofindapreviously

savedsettingsfileonyourcomputer,then

click“Restore”toreplaceyourcurrent

settings.Ifyoursettingsfileisencryptedwith

apassword,checkthe“Openfilewith

NMS

217



password”boxandenterthepasswordin

thefieldunderneath.



IV‐7‐4‐4. FactoryDefault

Iftheaccesspointmalfunctionsorisnotresponding,thenitisrecommended

thatyourebootthedevice(seeIV‐7‐4‐5.)orresetthedevicebacktoits

factorydefaultsettings.Youcanresettheaccesspointbacktoitsdefault

settingsusingthisfeatureifthelocationoftheaccesspointisnotconvenient

toaccesstheresetbutton.



FactoryDefaultClick“FactoryDefault”torestoresettingsto

thefactorydefault.Apop‐upwindowwill

appearandaskyoutoconfirm.



Afterresettingtofactorydefaults,pleasewaitfortheaccess

pointtoresetandrestart.



IV‐7‐4‐5. Reboot

Iftheaccesspointmalfunctionsorisnotresponding,thenitisrecommended

thatyourebootthedeviceorresettheaccesspointbacktoitsfactorydefault

settings(seeIV‐7‐4‐4).Youcanreboottheaccesspointremotelyusingthis

feature.



RebootClick“Reboot”torebootthedevice.A

countdownwillindicatetheprogressofthe

reboot.



NMS

218



IV‐8.Toolbox

IV‐8‐1. NetworkConnectivity

IV‐8‐1‐1. Ping

Pingisacomputernetworkadministrationutilityusedtotestwhethera

particularhostisreachableacrossanIPnetworkandtomeasure

theround‐triptimeforsentmessages.



DestinationAddressEntertheaddressofthehost.

ExecuteClickexecutetopingthehost.



IV‐8‐1‐2. TraceRoute

Tracerouteisadiagnostictoolfordisplayingtheroute(path)andmeasuring

transitdelaysofpacketsacrossanIPnetwork.



DestinationAddressEntertheaddressofthehost.

ExecuteClickexecutetoexecutethetraceroute

command.



NMS

219



V. Appendix



V‐1.ConfiguringyourIPaddress



TheaccesspointusesthedefaultIPaddress192.168.2.2.Inordertoaccess

thebrowserbasedconfigurationinterface,youneedtomodifytheIPaddress

ofyourcomputertobeinthesameIPaddresssubnete.g.192.168.2.x(x=3–

254).



TheprocedureformodifyingyourIPaddressvariesacrossdifferentoperating

systems;pleasefollowtheguideappropriateforyouroperatingsystem.



InthefollowingexamplesweusetheIPaddress192.168.2.10thoughyoucan

useanyIPaddressintherange192.168.2.x(x=3–254).



IfyouchangedtheAP’sIPaddress,orifyourgateway/routeruses

aDHCPserver,ensureyouenterthecorrectIPaddress.Referto

yourgateway/router’ssettings.Yourcomputer’sIPaddressmust

beinthesamesubnetastheAPController.



IfusingaDHCPserveronthenetwork,itisadvisedtouseyour

DHCPserver’ssettingstoassigntheAPastaticIPaddress.



NMS

220



V‐1‐1.WindowsXP



1. Clickthe“Start”button(itshouldbelocatedinthelower‐leftcornerof

yourcomputer),thenclick“ControlPanel”.Double‐clickthe“Networkand

InternetConnections”icon,click“NetworkConnections”,andthen

double‐click“LocalAreaConnection”.The“LocalAreaConnectionStatus”

windowwillthenappear,click“Properties”.



NMS

221



2. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



NMS

222



V‐1‐2.WindowsVista



1. Clickthe“Start”button(itshouldbelocatedinthelower‐leftcornerof

yourcomputer),thenclick“ControlPanel”.Click“ViewNetworkStatusand

Tasks”,thenclick“ManageNetworkConnections”.Right‐click“LocalArea

Network”,thenselect“Properties”.The“LocalAreaConnectionProperties”

windowwillthenappear,select“InternetProtocolVersion4(TCP/IPv4)”,

andthenclick“Properties”.



NMS

223



2. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



NMS

224



V‐1‐3.Windows7



1. Clickthe“Start”button(itshouldbelocatedinthelower‐leftcornerof

yourcomputer),thenclick“ControlPanel”.



2. Under“NetworkandInternet”click“Viewnetworkstatusandtasks”.



NMS

225



3. Click“LocalAreaConnection”.



4. Click“Properties”.



NMS

226



5. Select“InternetProtocolVersion4(TCP/IPv4)andthenclick“Properties”.



NMS

227



6. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



NMS

228



V‐1‐4.Windows8



1. FromtheWindows8Startscreen,youneedtoswitchtodesktopmode.

Moveyourcursertothebottomleftofthescreenandclick.



2. Indesktopmode,clicktheFileExplorericoninthebottomleftofthe

screen,asshownbelow.



NMS

229



3. Rightclick“Network”andthenselect“Properties”.



4. Inthewindowthatopens,select“Changeadaptersettings”fromtheleft

side.



NMS

230



5. Chooseyourconnectionandrightclick,thenselect“Properties”.



6. Select“InternetProtocolVersion4(TCP/IPv4)andthenclick“Properties”.



NMS

231



7. Select“UsethefollowingIPaddress”,theninputthefollowingvalues:



IPaddress:192.168.2.10

SubnetMask:255.255.255.0



Click‘OK’whenfinished.



NMS

232



V‐1‐5.Mac



1. HaveyourMacintoshcomputeroperateasusual,andclickon“System

Preferences”



2. InSystemPreferences,clickon“Network”.



3. Clickon“Ethernet”intheleftpanel.







4. Openthedrop‐downmenulabeled“ConfigureIPv4”andselect

“Manually”.

NMS

233



 



5. EntertheIPaddress192.168.2.10andsubnetmask255.255.255.0.Click

on“Apply”tosavethechanges.



NMS

234



V‐2.HardwareSpecification



MCU/RF QualcommAtherosQCA9558(2.4GHz)+QCA9880(5GHz)

PHYQualcommAtherosAR8035

Memory DDR2128MB

Flash 16MB

Physical

Interface

‐LAN:1x10/100/1000GigabitEthernetwith802.3atPoEsupport

‐ResetButton

‐USB2.0interface

‐DCPowerJack

Power

Requirement

PoweroverEthernet,IEEE802.3at

DC:12V/2A

AntennaInternalPIFAAntenna(2.4GHzx3,5GHzx3)

OthersInternalBuzzer(Findme)



V‐3.ENVIRONMENT&PHYSICAL



Temperature

Range

UsePoESwitch:

Operation:0to50℃(32℉to122℉)

Storage:‐20to60℃(‐4℉to140℉)

UsePowerAdapter:

Operation:0to40℃(32℉to104℉)

Storage:‐20to60℃(‐4℉to140℉)

Humidity 90%orless–Operating,90%orless‐Storage

CertificationsFCC,CE

Dimensions 208(D)x32.1(H)mm

Weight 590g



NMS

235



VI. BestPractice



VI‐1.HowtoCreateandLinkWLAN&AccessPointGroups



YoucanuseNMStocreateindividualSSIDsandgroupmultipleSSIDstogether

intoWLANgroups.Youcanthenassignindividualaccesspointstousethose

WLANgroupsettingsand/orgroupmultipleaccesspointstogetherintoaccess

pointgroups,whichyoucanalsoassigntouseWLANgroupsettings.



Followtheexamplebelowto:



A.CreateaWLANgroup.

B.Createanaccesspointgroup.

C.AssigntheaccesspointgrouptousetheSSIDgroupsettings.



A.

1. GotoNMSSettingsÆWLANandclick“Add”intheWLANpanel:



NMS

236



2. EnteranSSIDnameandsetauthentication/encryptionandclick

“Apply”:



3. ThenewSSIDwillbedisplayedintheWLANpanel.Repeattoadd

additionalSSIDsaccordingtoyourpreference,andthenclick“Add”in

theWLANGrouppanel:



NMS

237



4. EnteranamefortheSSIDgroupandchecktheboxestoselectwhich

SSIDstoincludewithinthegroup.Click“Apply”whendone.



5. ThenewWLANgroupwillbedisplayedintheWLANGrouppanel.

RepeattoaddadditionalWLANgroupsaccordingtoyourpreference:



NMS

238



B.



1. GotoNMSSettingsÆAccessPointandclick“Add”intheAccessPoint

GroupPanel:



2. EnteraNameandthenscrolldowntotheGroupSettingspanelanduse

the<<buttontoaddselectedaccesspointsintoyourgroupfromthe

boxontherightside.Click“Apply”whendone.



NMS

239



3. ThenewaccesspointgroupwillbedisplayedintheAccessPointGroup

panel.Repeattoaddadditionalaccesspointgroupsaccordingtoyour

preference:



NMS

240



C.



1. GotoNMSSettingsÆAccessPointandselectanaccesspointgroup

usingthecheckboxesintheAccessPointGrouppanel.Click“Edit”:



2. ScrolldowntotheProfileGroupSettingspanelandcheckthe“Override

GroupSettings”boxforWLANGroup(2.4GHzand/or5GHz).Select

yourWLANgroupfromthedrop‐downmenuandclick“Apply”:



3. Repeatforotheraccesspointgroupsaccordingtoyourpreference.

4. 



241



transmitted,transcribed,storedinaretrievalsystem,ortranslatedintoanylanguageorcomputer

language,inanyformorbyanymeans,electronic,mechanical,magnetic,optical,chemical,manualor

otherwise,withoutthepriorwrittenpermissionofthiscompany



Thiscompanymakesnorepresentationsorwarranties,eitherexpressedorimplied,withrespecttothe

contentshereofandspecificallydisclaimsanywarranties,merchantabilityorfitnessforanyparticular

purpose.Anysoftwaredescribedinthismanualissoldorlicensed"asis".Shouldtheprogramsprove

defectivefollowingtheirpurchase,thebuyer(andnotthiscompany,itsdistributor,oritsdealer)

assumestheentirecostofallnecessaryservicing,repair,andanyincidentalorconsequentialdamages

resultingfromanydefectinthesoftware.Further,thiscompanyreservestherighttorevisethis

publicationandtomakechangesfromtimetotimeinthecontentsthereofwithoutobligationtonotify

anypersonofsuchrevisionorchanges.



242



FederalCommunicationCommissionInterferenceStatement



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart

15ofFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceina

residentialinstallation.Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.

However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoes

causeharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:



1.Reorientorrelocatethereceivingantenna.

2.Increasetheseparationbetweentheequipmentandreceiver.

3.Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

4.Consultthedealeroranexperiencedradiotechnicianforhelp.



FCCCaution

Thisdeviceanditsantennamustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.Anychangesormodificationsnotexpressly

approvedbythepartyresponsibleforcompliancecouldvoidtheauthoritytooperateequipment.



FederalCommunicationsCommission(FCC)RadiationExposureStatement

ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.

Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&

yourbody.



R&TTEComplianceStatement

ThisequipmentcomplieswithalltherequirementsofDIRECTIVE1999/5/ECOFTHEEUROPEANPARLIAMENTAND

THECOUNCILofMarch9,1999onradioequipmentandtelecommunicationterminalequipmentandthemutual

recognitionoftheirconformity(R&TTE).TheR&TTEDirectiverepealsandreplacesinthedirective98/13/EEC

(TelecommunicationsTerminalEquipmentandSatelliteEarthStationEquipment)AsofApril8,2000.



Safety

Thisequipmentisdesignedwiththeutmostcareforthesafetyofthosewhoinstallanduseit.However,special

attentionmustbepaidtothedangersofelectricshockandstaticelectricitywhenworkingwithelectrical

equipment.Allguidelinesofthisandofthecomputermanufacturemustthereforebeallowedatalltimesto

ensurethesafeuseoftheequipment.



EUCountriesIntendedforUse

TheETSIversionofthisdeviceisintendedforhomeandofficeuseinAustria,Belgium,Bulgaria,Cyprus,Czech,

Denmark,Estonia,Finland,France,Germany,Greece,Hungary,Ireland,Italy,Latvia,Lithuania,Luxembourg,Malta,

Netherlands,Poland,Portugal,Romania,Slovakia,Slovenia,Spain,Sweden,Turkey,andUnitedKingdom.TheETSI

versionofthisdeviceisalsoauthorizedforuseinEFTAmemberstates:Iceland,Liechtenstein,Norway,and

Switzerland.



EUCountriesNotIntendedforUse

None

Edimax Technology Co 9576791507 AC1750 Ceiling Mount AP User Manual

Edimax Technology Co Ltd AC1750 Ceiling Mount AP

User manual

Navigation menu

Namespaces

Views

Navigation
