Eeyelog Technology W001 WiFi Read Card User Manual

Shenzhen Eeyelog Technology Co., Ltd. WiFi Read Card

user manual

Quick Start Guide
EPOC MiNi
Content
1.0 -General Information
1.1 -Charge up your Epoc Mini
1.2 -Install Epoc APP on your iPad/iPhone/iPod Touch
1.3 -TurnyourEpocMINIWiFion/O
1.4 -Connect Epoc MINI to iPad/iphone/iPod Touch
2.0 -Introduction to Epoc MINI APP[V1.0]
2.1 -Set your Epoc MINI SSID and password
2.2 -Bridge your Epoc MINI to your WiFi network
2.3 -Setting up your access point mode
3.0 -Use your Epoc MINI as a travel router
4.0 -Reset your Epoc MINI
5.0 -EpocMINIhardwarespecication
6.0 –FAQ
1
1.0 General Information
Package Contents
- USB Cable x 1
- AC Adaptor x 1(Optional)
- Quick Start Guide x 1
- Warranty Card x 1(Optional)
<Default Setting>
SSID:Epoc-XXXXXX
Password:88888888
Hints:A unique SSID is assigned to each Of the Epoc MINI,you can change your Preferred SSID
and Password in setting page(please refer to instruction 2.1)
2
SDCard Slots
Reset
Ethernet Port/
DC IN
Low Battery Warning and Charger
Output 5V power indicator
WiFi Statusv indicator (Blue)
Wi-Fi On/Off

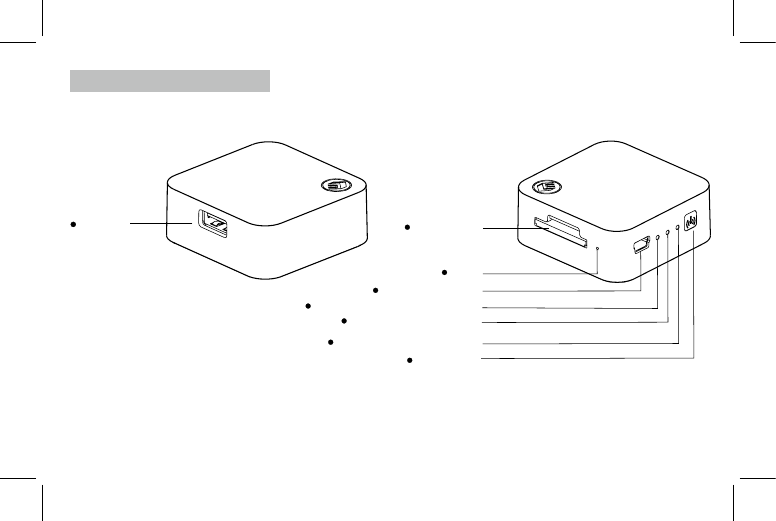

Product Overview
USB Slots
3
1.1 Charge up your EPOC MINI
Priortorsttimeuse,pleasechargetheEpocMINIforatLeast8hours
Normalchargingtimeisabout3hours(WiFiomode)

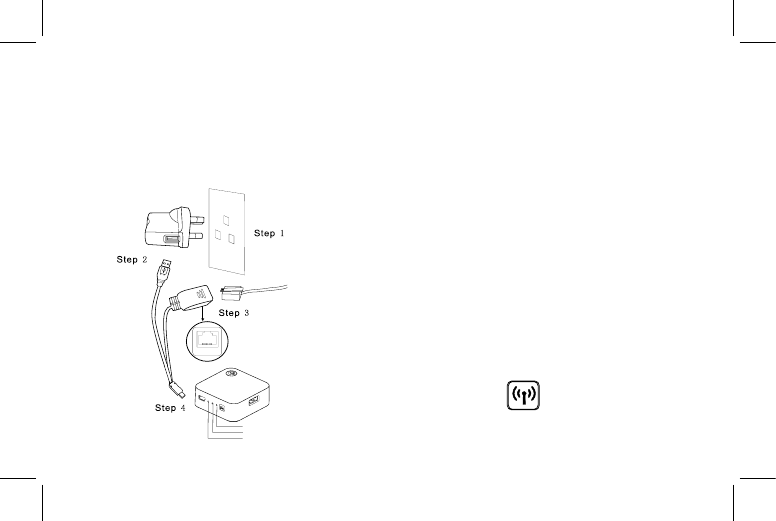

To charge the Epoc MINI,connect the USB cable to the adaptor
And the Epoc MINI as shown in the diagram below.
LED 1
LED 2
LED 3
You can also connect your Epoc MINI to computer for
battery charging.
● LED1:BlinkingRed----BatteryLow/StableRed----
Fully charged
● LED2: Blinking Green ----Charge / Stable green -----
Output 5V power for outside device
● LED3:Stableblue----WiFiactivated,Stableo-----
 WiFio
Note: Chargingwhilepowero,LED1,LED2,LED3cycle
ash
1.1.1 Press the button " ", the LED2 on, enable
USB 5V output functional .
4
1.2 Install Epoc MINI on your Ipad/Iphone/Ipod Touch
Go to Apple App store,search “ Epoc Mini” and Install the App to your Ipad/Iphone/Ipod Touch.
1.3 Turn your Epoc MINI WiFi On/O
Press toturnon/otheEpocMINIWiFi
WiFi Status table below:
Stays on WiFi connecting
Fast Blink Data Transferring
Regular Blink WiFi is ready,iPad/iPhone connected
Slow Blink WiFi is ready,iPad/iPhone not yet Connecten
OFF WiFi
5
1.4 Connect Epoc Mini to iPad/iPhone/iPod Touch

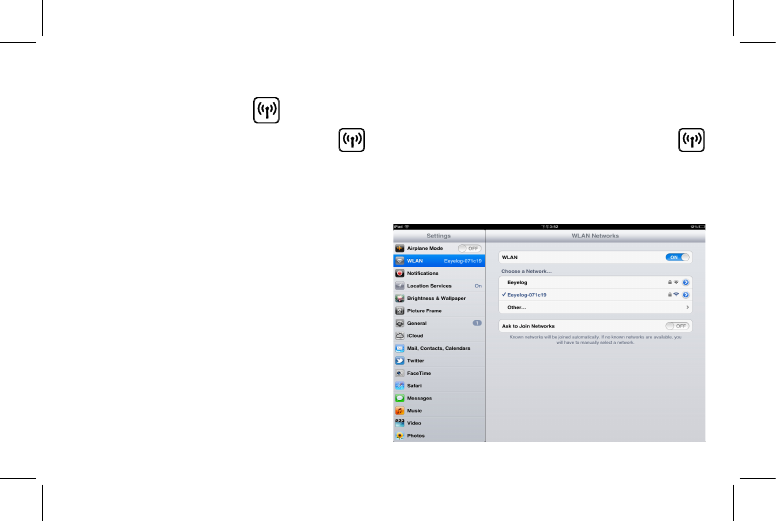

On your Apple device,go to Settings,Press WiFi button
To turn Epoc Mini on, Press and hold the Button more than 2 second , the WiFi indicator
LEDwillturnoninBluecolor.
EpocMinineedsapproximately25-30secondstoinitialize.OnceEpocMiniisready,theblueLED
willstartblinkingatsettings—wi,
you will see the Epoc Mini on your
iPad/iPhone/iPod touch,select Epoc Mini
and input the password 88888888
6
2.0 Introduction to Epoc Mini App[ xxx]
Epoc Mini App may be upgraded from time to time,so the actual interface may be Slightly
dierentfromthediagrambelow.Toensurethatyouhavethelatestsetup

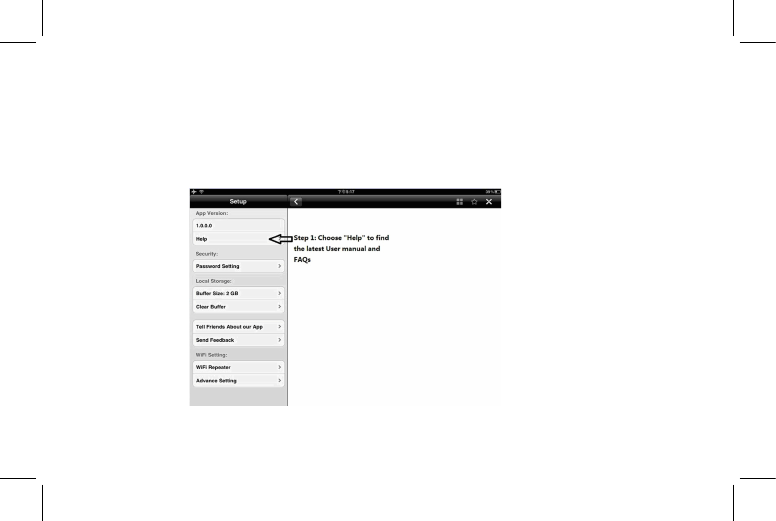

Instructions,please visit our website: www.eeyelog.com or go to setup of Epoc Mini and select
“Help”,you will see the latest user manual.
7

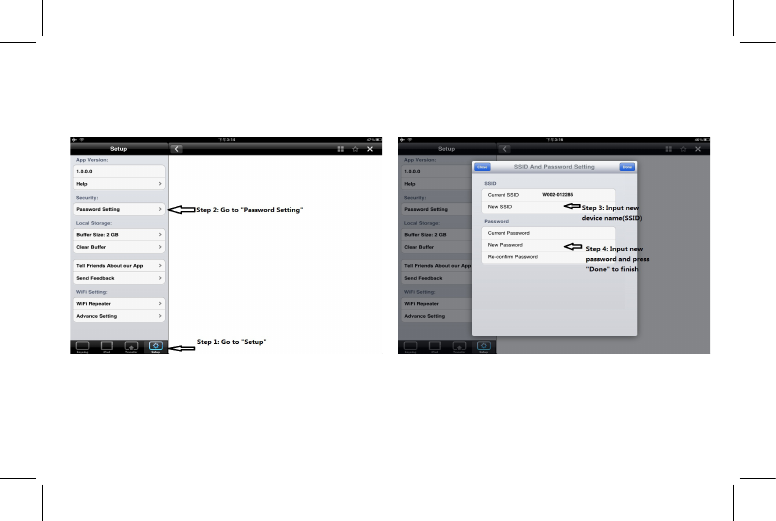

2.1 Set your Epoc Mini SSID and Password
Youcanre-deneyourSSIDandPasswordbythefollowingsteps
8
2.2 Bridge your Epoc Mini to your WiFi network
This “repeater”function allows your iPad/iPhone to connect your Epoc Mini
To the WiFi network while accessing Epoc Mini contents simultaneously.

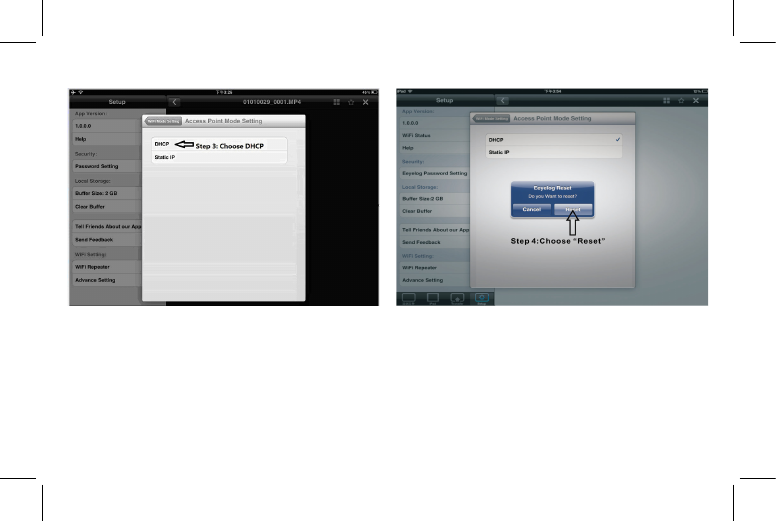

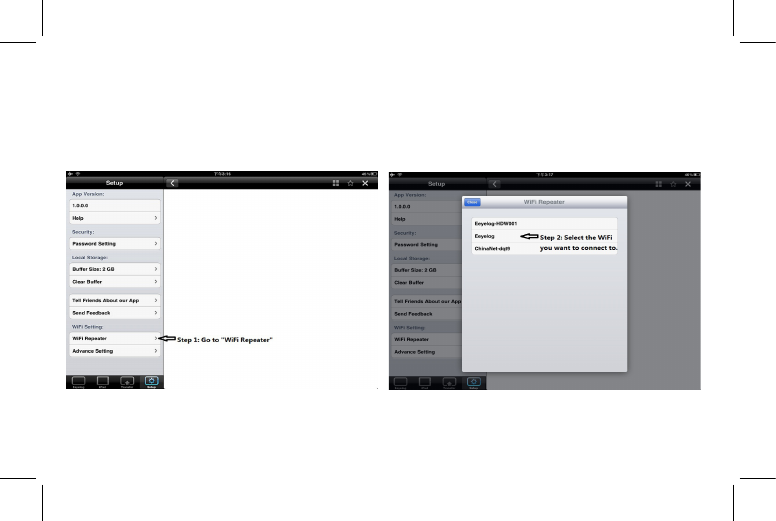

A) (For DHCP-Non-Fixed IP environment)
9
Step 4: Wait for your Epoc “Rebooting”

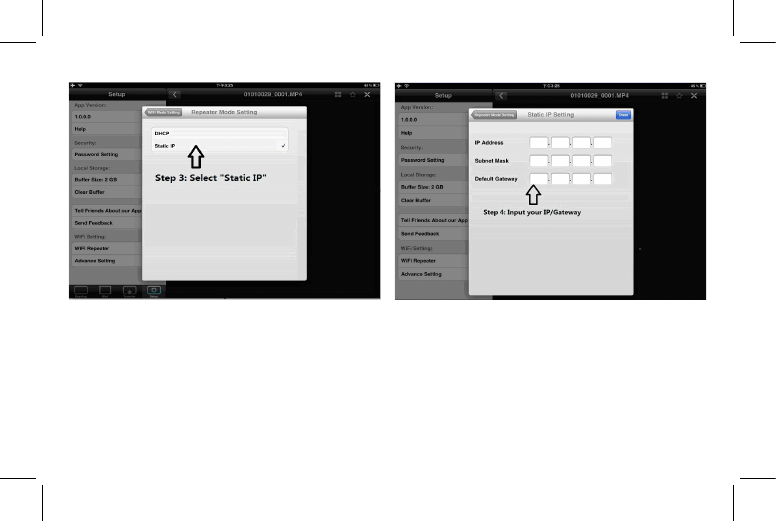

B) For Static IP – Non-dynamic IP environment
10
11
3.0 Use your Epoc Mini as a Travel Router
You can use Epoc Mini as a portable travel router
1) ConnectLANcabletotheEthernetportofEpocMini
2) Epoc will automatically connect to the network by default
As a wireless access point.Ipad or Iphone connected to the Epoc Mini Will then be able to
surf internet.
3) Epoc Mini works as a router at AP mode only.
When the Epoc Mini was set as Repeater
Mode(go to “connection Status”to check
the current setting of your Epoc Mini),

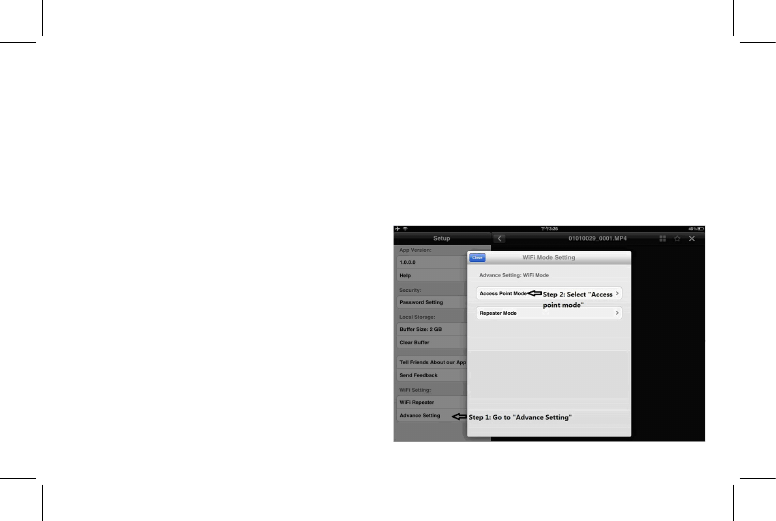

You have to switch the “repeater mode”
to AP mode by choosing”Access point”
Shown as below.
12
13
4) LaunchSafari for web browsing or
for email retrieval Hotels
require you to register at the hotel
default web page.
In order to establish an internet
 connectionyoushouldrstplug
Epoc into the cable and then launch the
browser to connect
To hotels web page,and then log in
accordingly.
14
4.0 Reset your Epoc mini
To reset your Epoc mini to factory default setting,use a pin to Press and hold the “reset” for 15
seconds.
Caution:Epocminimustnotbepoweredoduringthereset.
5.0 Epoc mini hardward Specication
<Connectivity>
- 802.11b/g/n WiFi connection
- Built-in Antenna
- Over 20 meters working distance
<Interface>
- SD Card slot ( support up to 32GB SD Card )
- USB(Support up to 64GB USB Driver)
- Mini USB Port (Epoc comes with cable turn crystal terminal(RJ45) to Mini USB)
<Power>
- Built-in 1250mAh Rechargeable Battery
- 5V 500mA DC in
- 2.5-4 hours operation
<Features>
- Access Point Mode
- WiFi Repeater Mode
15
6.0 FAQ
Please go to “Help”in Epoc App for the latest FAQ or visit our Website www.eeyelog.com/suport.
asp for more detail information About Epoc mini.
16
FCC
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However,there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate this equipment.
