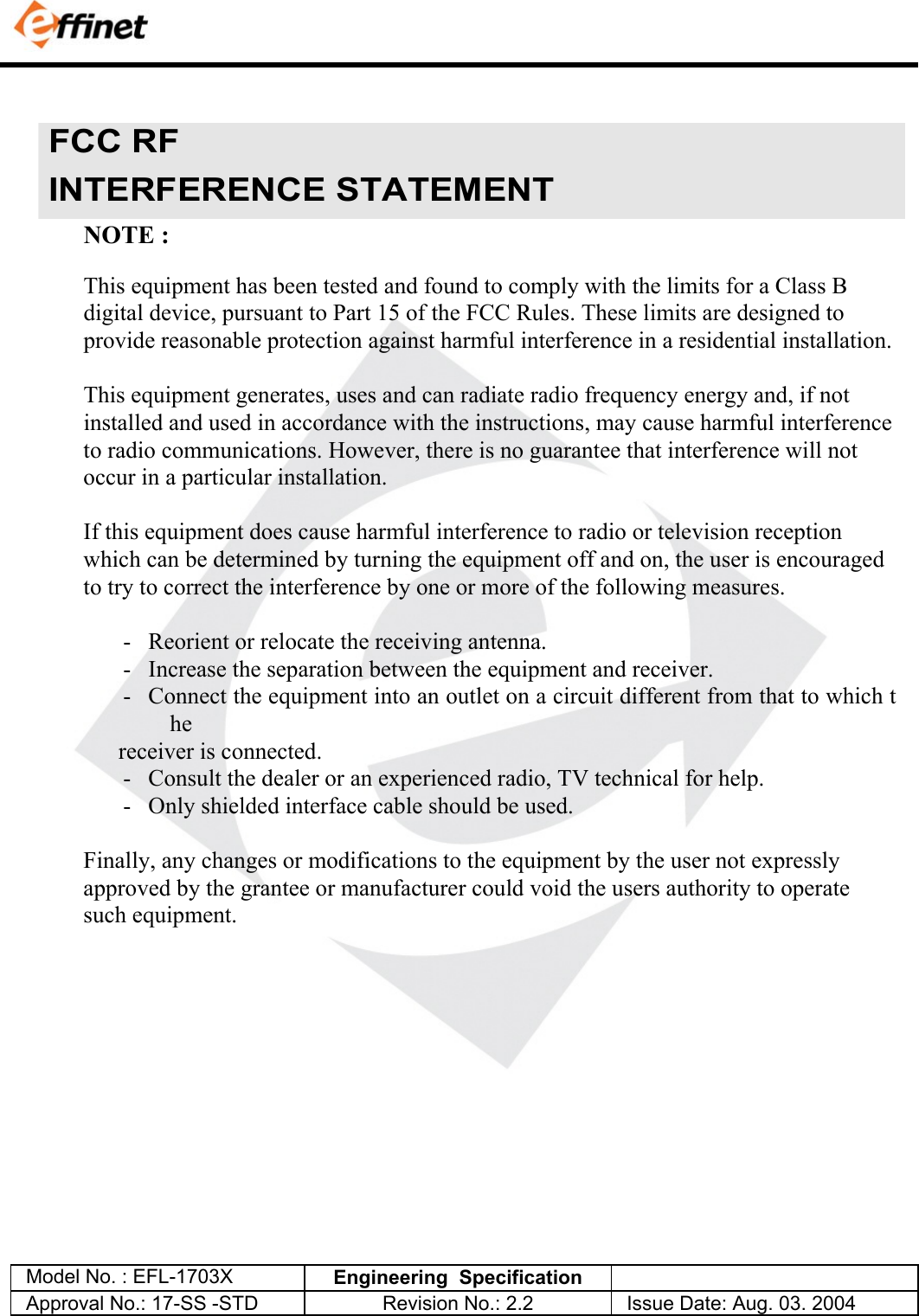

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

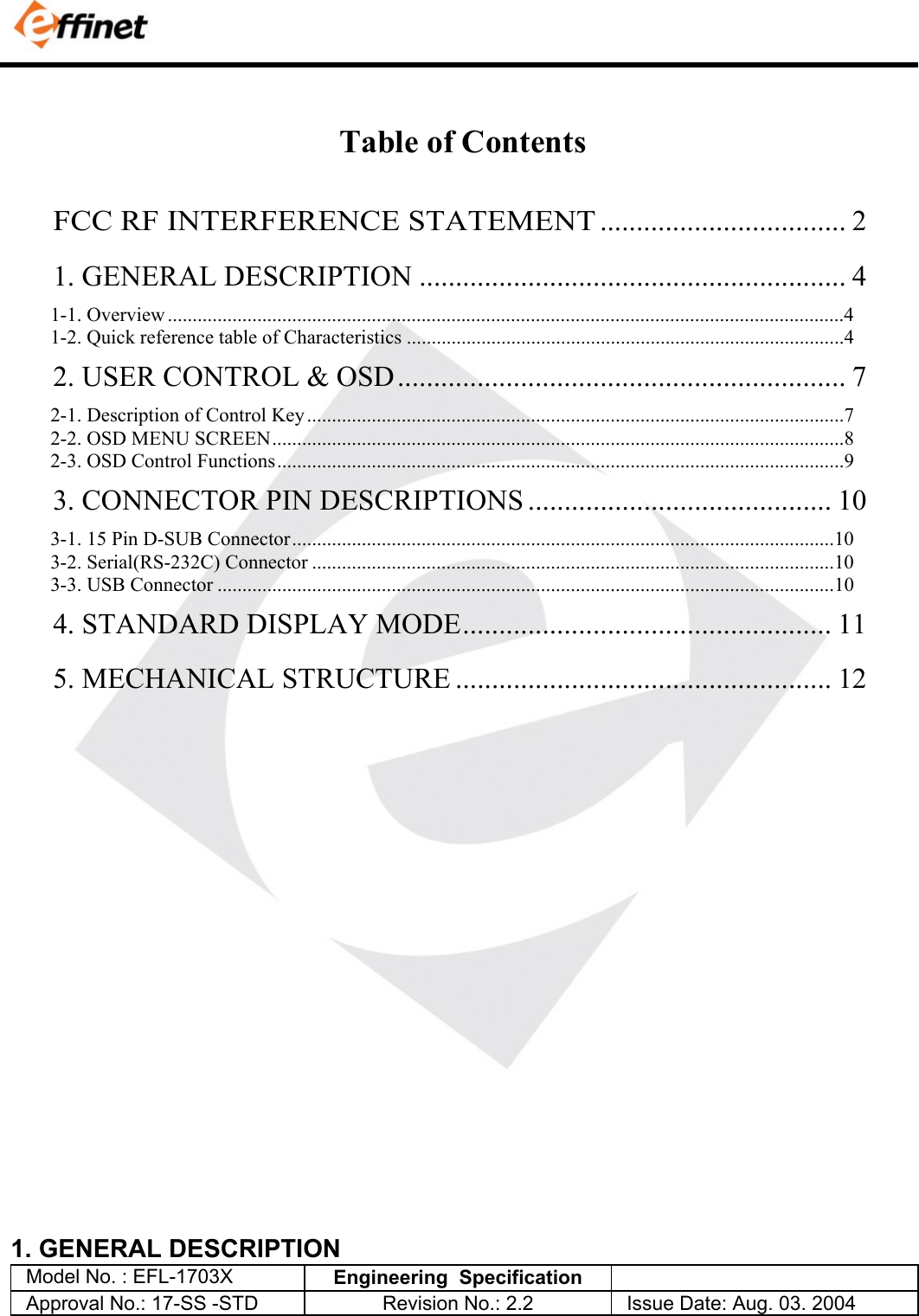

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 Table of Contents FCC RF INTERFERENCE STATEMENT.................................. 2 1. GENERAL DESCRIPTION ........................................................... 4 1-1. Overview ........................................................................................................................................4 1-2. Quick reference table of Characteristics ........................................................................................4 2. USER CONTROL & OSD.............................................................. 7 2-1. Description of Control Key ............................................................................................................7 2-2. OSD MENU SCREEN...................................................................................................................8 2-3. OSD Control Functions..................................................................................................................9 3. CONNECTOR PIN DESCRIPTIONS .......................................... 10 3-1. 15 Pin D-SUB Connector.............................................................................................................10 3-2. Serial(RS-232C) Connector .........................................................................................................10 3-3. USB Connector ............................................................................................................................10 4. STANDARD DISPLAY MODE................................................... 11 5. MECHANICAL STRUCTURE .................................................... 12 1. GENERAL DESCRIPTION

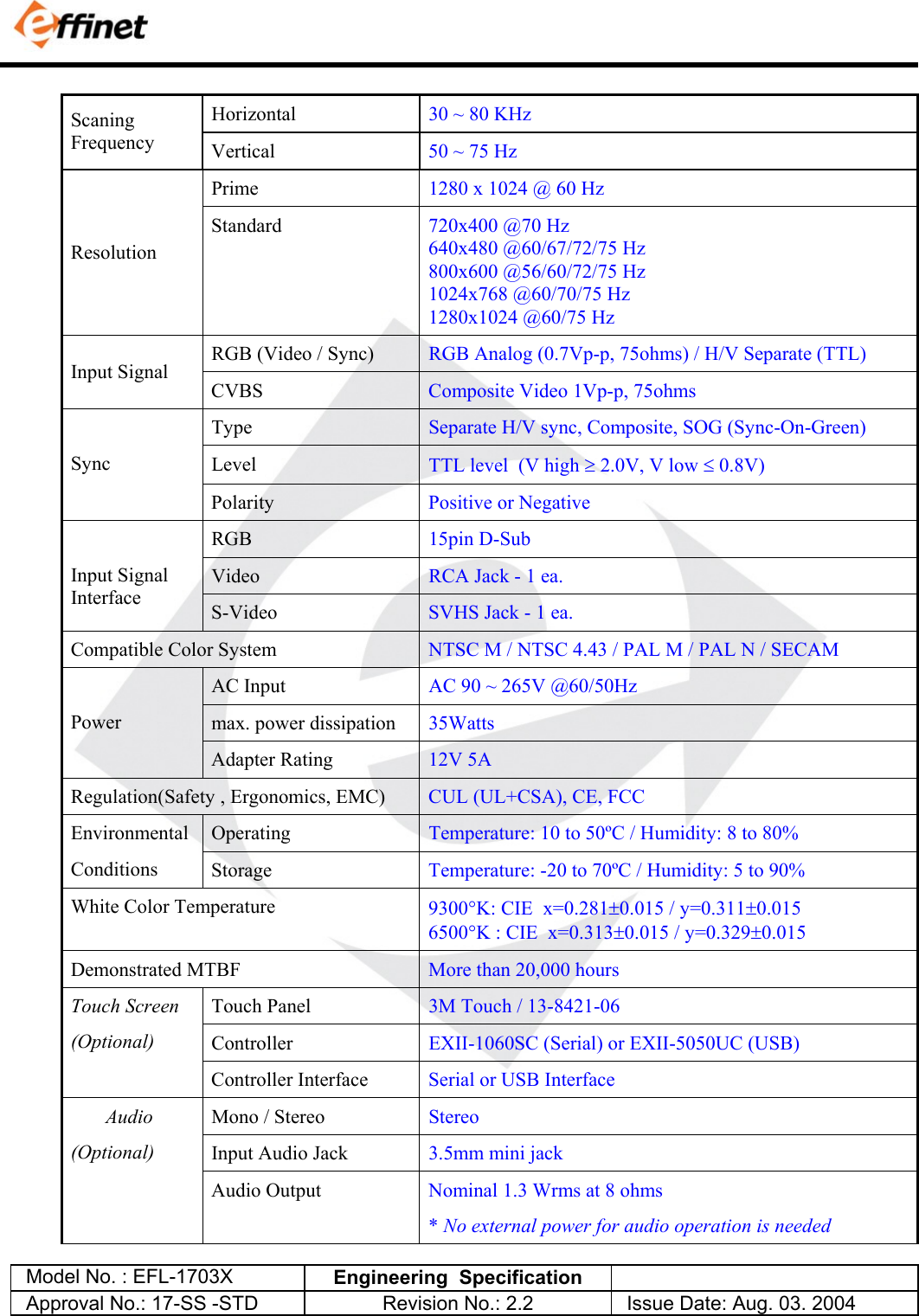

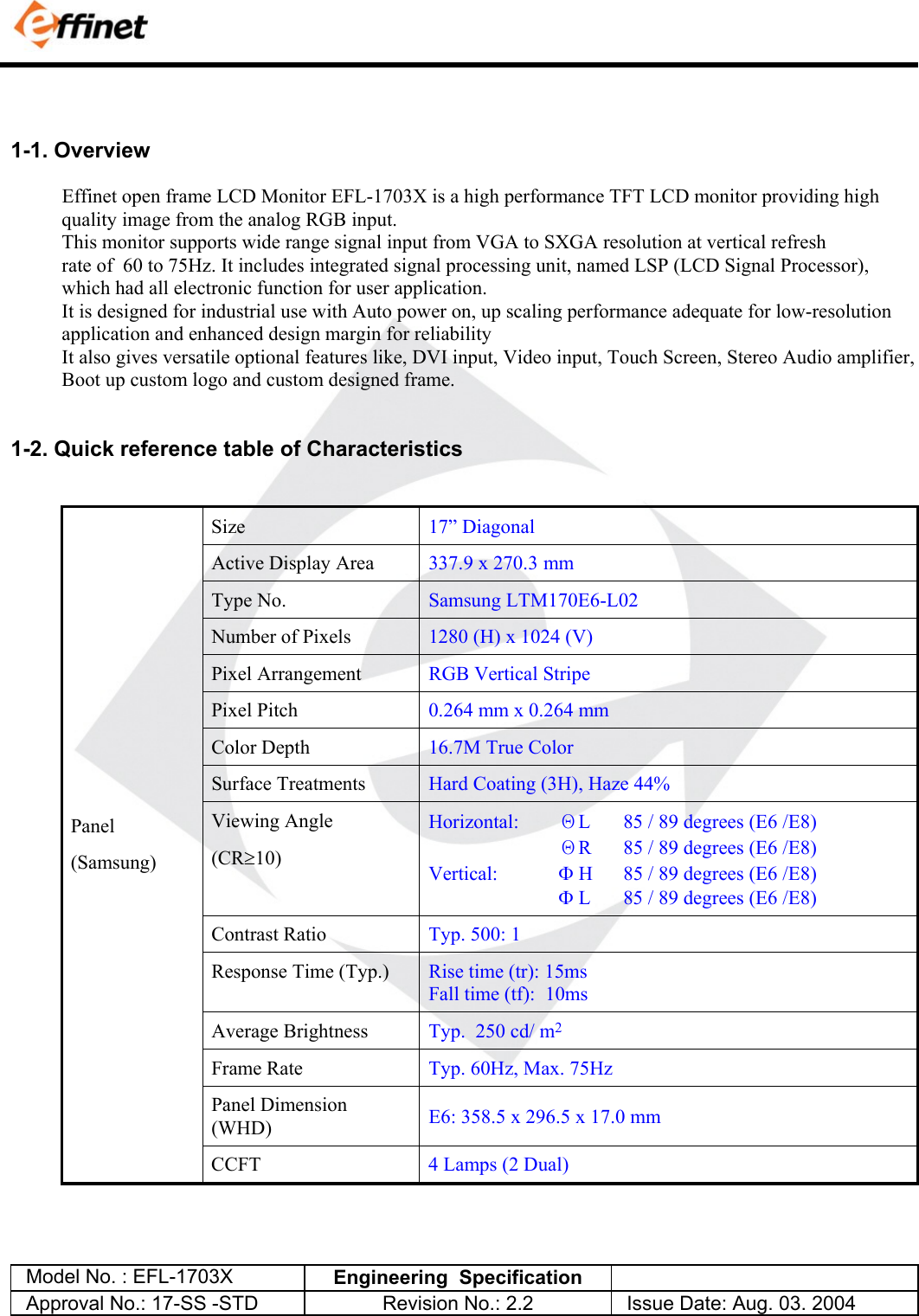

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 Horizontal 30 ~ 80 KHz Scaning Frequency Vertical 50 ~ 75 Hz Prime 1280 x 1024 @ 60 Hz Resolution Standard 720x400 @70 Hz 640x480 @60/67/72/75 Hz 800x600 @56/60/72/75 Hz 1024x768 @60/70/75 Hz 1280x1024 @60/75 Hz RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate (TTL) Input Signal CVBS Composite Video 1Vp-p, 75ohms Type Separate H/V sync, Composite, SOG (Sync-On-Green) Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V) Sync Polarity Positive or Negative RGB 15pin D-Sub Video RCA Jack - 1 ea. Input Signal Interface S-Video SVHS Jack - 1 ea. Compatible Color System NTSC M / NTSC 4.43 / PAL M / PAL N / SECAM AC Input AC 90 ~ 265V @60/50Hz max. power dissipation 35Watts Power Adapter Rating 12V 5A Regulation(Safety , Ergonomics, EMC) CUL (UL+CSA), CE, FCC Operating Temperature: 10 to 50ºC / Humidity: 8 to 80% Environmental Conditions Storage Temperature: -20 to 70ºC / Humidity: 5 to 90% White Color Temperature 9300°K: CIE x=0.281±0.015 / y=0.311±0.015 6500°K : CIE x=0.313±0.015 / y=0.329±0.015 Demonstrated MTBF More than 20,000 hours Touch Panel 3M Touch / 13-8421-06 Controller EXII-1060SC (Serial) or EXII-5050UC (USB) Touch Screen (Optional) Controller Interface Serial or USB Interface Mono / Stereo Stereo Input Audio Jack 3.5mm mini jack Audio (Optional) Audio Output Nominal 1.3 Wrms at 8 ohms * No external power for audio operation is needed

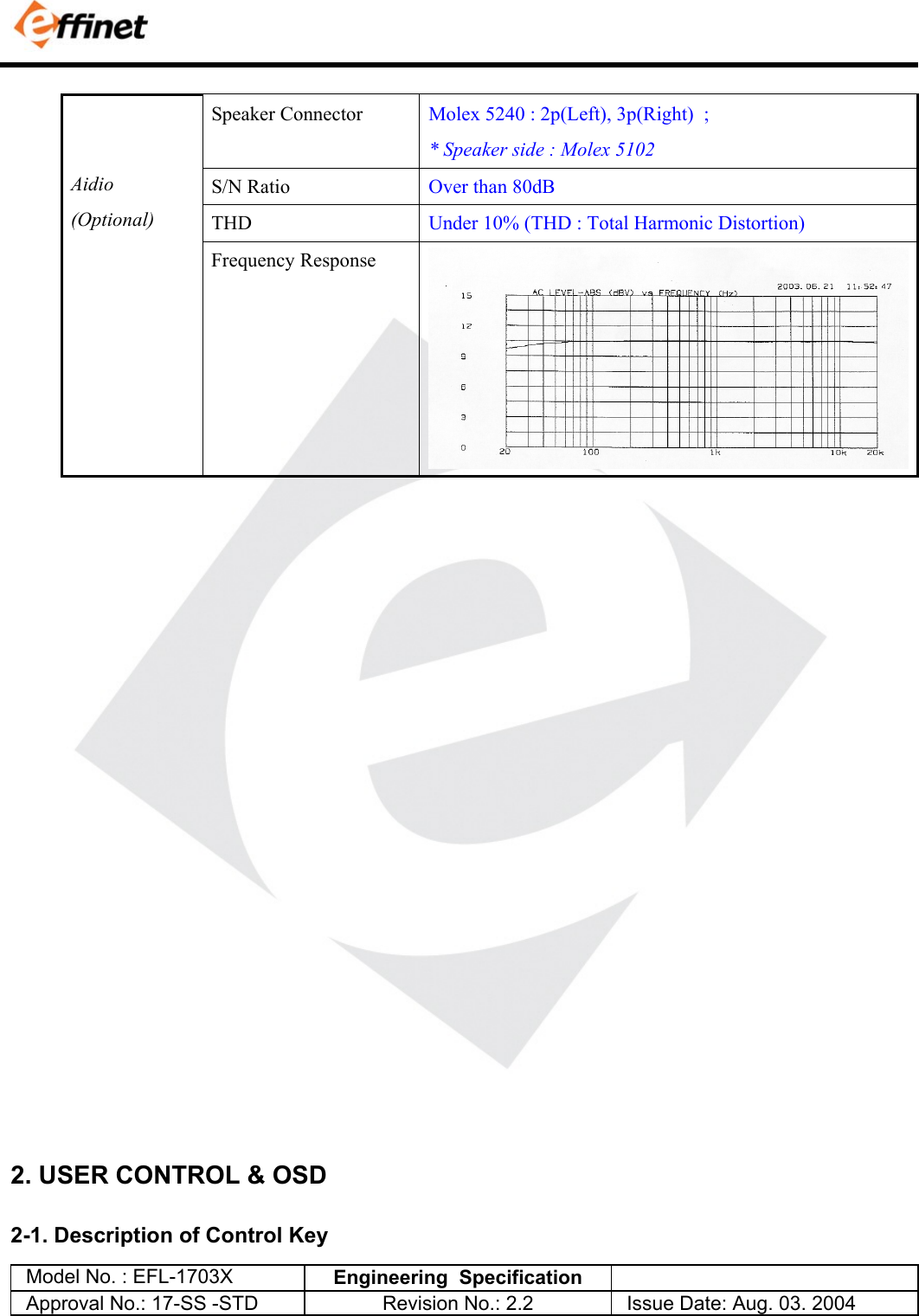

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 Speaker Connector Molex 5240 : 2p(Left), 3p(Right) ; * Speaker side : Molex 5102 S/N Ratio Over than 80dB THD Under 10% (THD : Total Harmonic Distortion) Aidio (Optional) Frequency Response 2. USER CONTROL & OSD 2-1. Description of Control Key

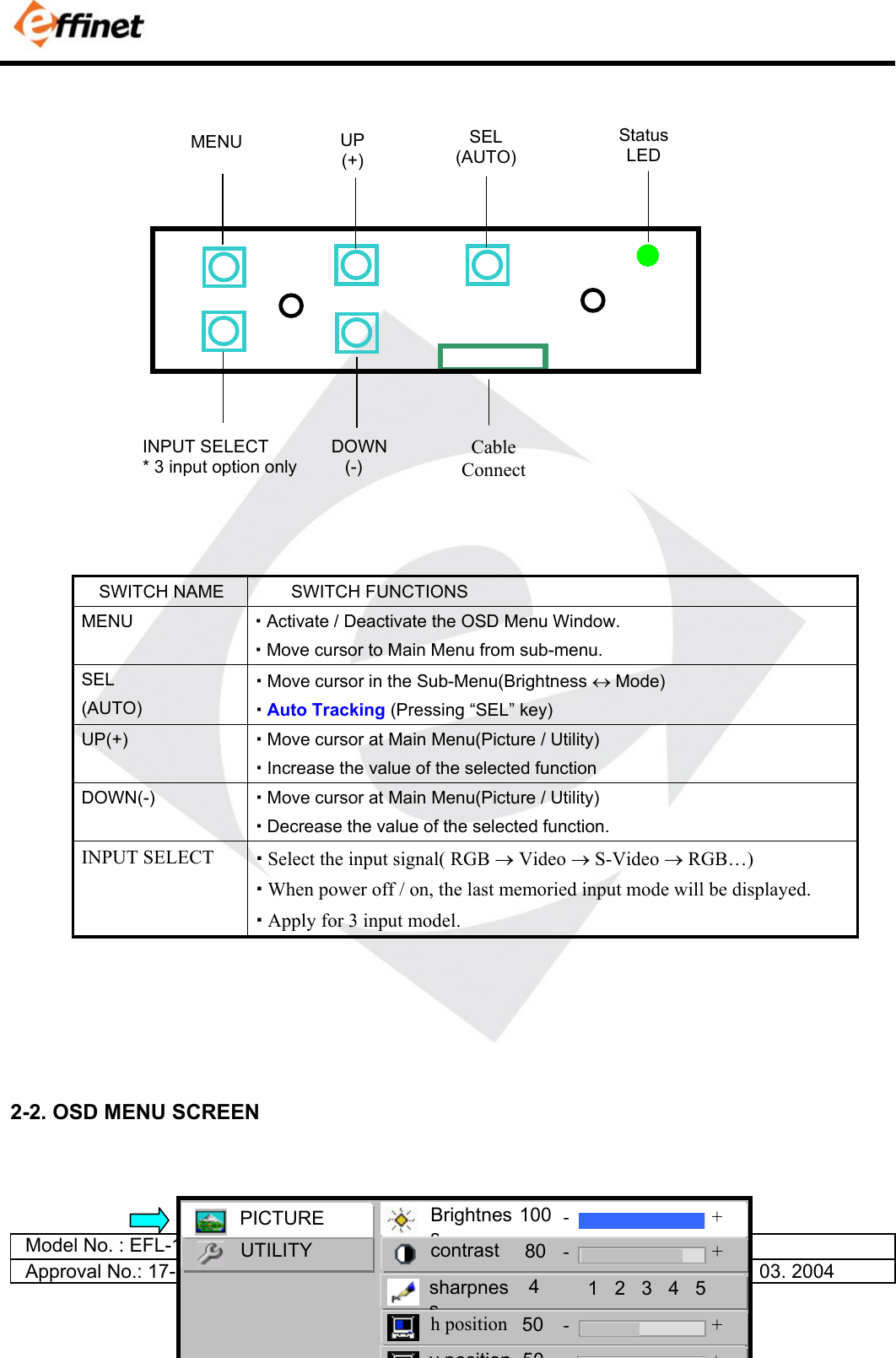

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 SWITCH NAME SWITCH FUNCTIONS MENU  Activate / Deactivate the OSD Menu Window.  Move cursor to Main Menu from sub-menu. SEL (AUTO)  Move cursor in the Sub-Menu(Brightness ↔ Mode)  Auto Tracking (Pressing “SEL” key) UP(+)  Move cursor at Main Menu(Picture / Utility)  Increase the value of the selected function DOWN(-)  Move cursor at Main Menu(Picture / Utility)  Decrease the value of the selected function. INPUT SELECT  Select the input signal( RGB → Video → S-Video → RGB…)  When power off / on, the last memoried input mode will be displayed.  Apply for 3 input model. 2-2. OSD MENU SCREEN Cable ConnectSEL (AUTO)UP (+)DOWN(-) MENU Status LED INPUT SELECT * 3 input option only UTILITY PICTURE Brightness - 100 + contrast - 80 + sharpness 4h position - 50 + v position50+1 2 3 4 5

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004

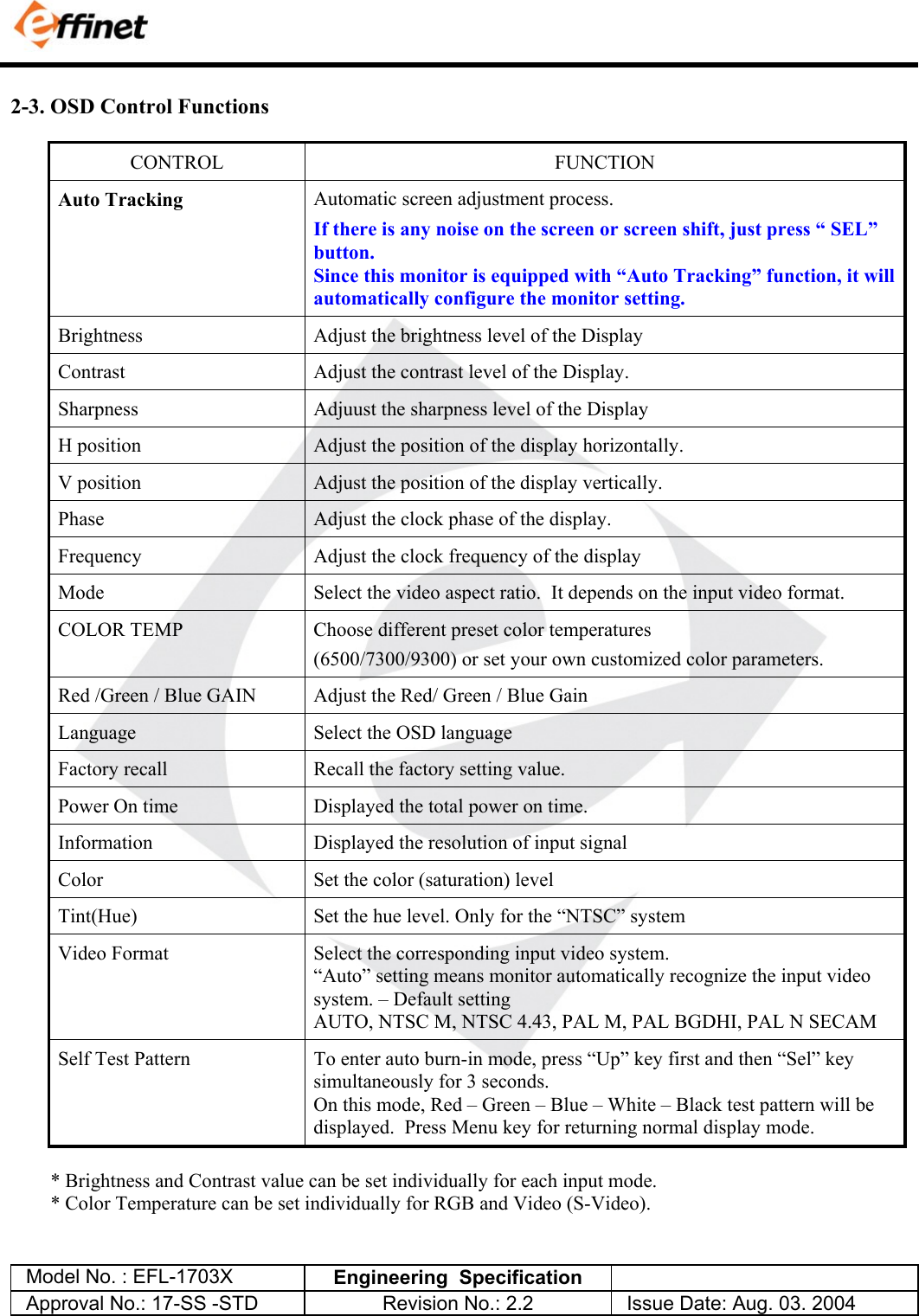

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 2-3. OSD Control Functions CONTROL FUNCTION Auto Tracking Automatic screen adjustment process. If there is any noise on the screen or screen shift, just press “ SEL” button. Since this monitor is equipped with “Auto Tracking” function, it will automatically configure the monitor setting. Brightness Adjust the brightness level of the Display Contrast Adjust the contrast level of the Display. Sharpness Adjuust the sharpness level of the Display H position Adjust the position of the display horizontally. V position Adjust the position of the display vertically. Phase Adjust the clock phase of the display. Frequency Adjust the clock frequency of the display Mode Select the video aspect ratio. It depends on the input video format. COLOR TEMP Choose different preset color temperatures (6500/7300/9300) or set your own customized color parameters. Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain Language Select the OSD language Factory recall Recall the factory setting value. Power On time Displayed the total power on time. Information Displayed the resolution of input signal Color Set the color (saturation) level Tint(Hue) Set the hue level. Only for the “NTSC” system Video Format Select the corresponding input video system. “Auto” setting means monitor automatically recognize the input video system. – Default setting AUTO, NTSC M, NTSC 4.43, PAL M, PAL BGDHI, PAL N SECAM Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key simultaneously for 3 seconds. On this mode, Red – Green – Blue – White – Black test pattern will be displayed. Press Menu key for returning normal display mode. * Brightness and Contrast value can be set individually for each input mode. * Color Temperature can be set individually for RGB and Video (S-Video).

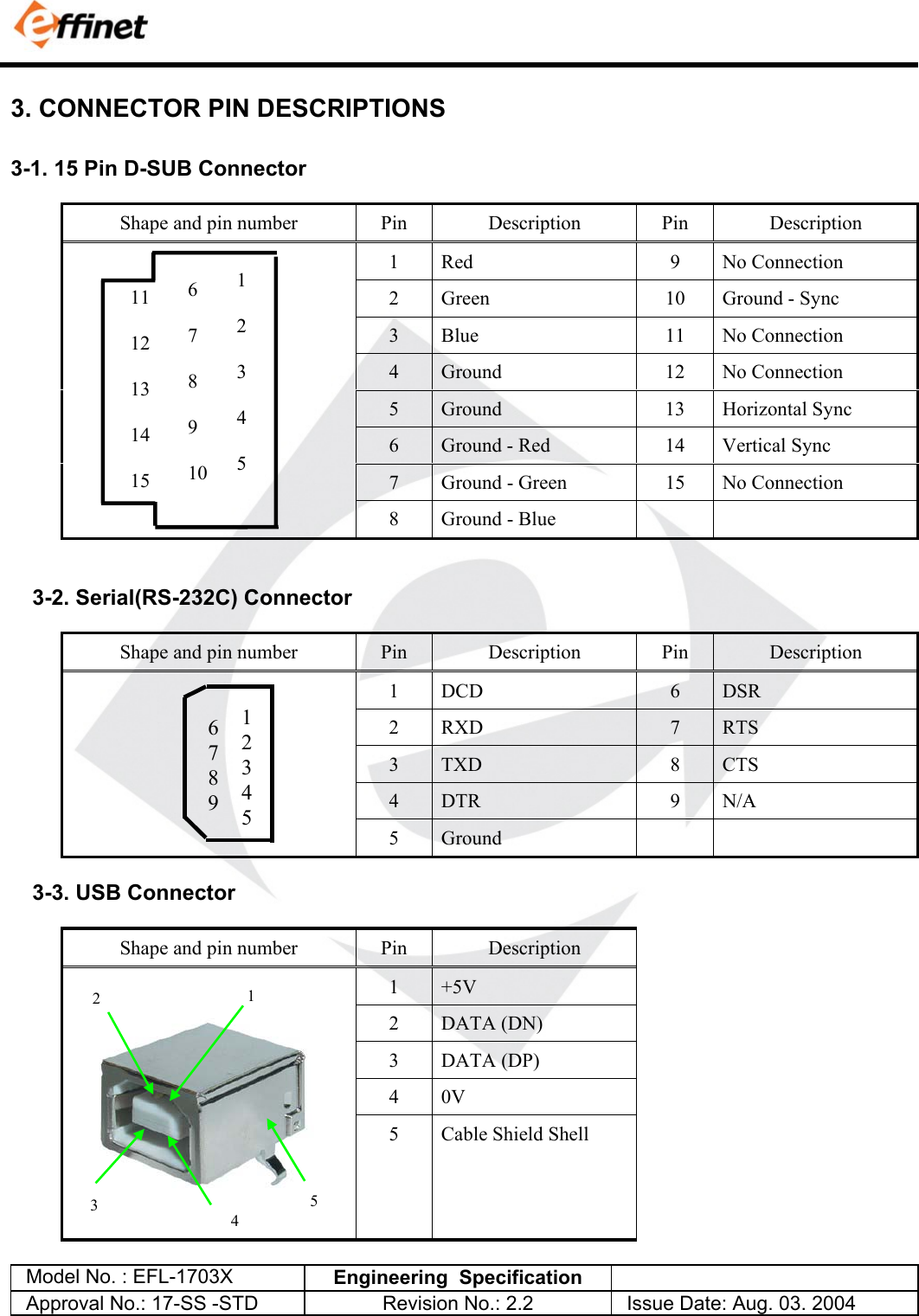

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 3. CONNECTOR PIN DESCRIPTIONS 3-1. 15 Pin D-SUB Connector Shape and pin number Pin Description Pin Description 1 Red 9 No Connection 2 Green 10 Ground - Sync 3 Blue 11 No Connection 4 Ground 12 No Connection 5 Ground 13 Horizontal Sync 6 Ground - Red 14 Vertical Sync 7 Ground - Green 15 No Connection 8 Ground - Blue 3-2. Serial(RS-232C) Connector Shape and pin number Pin Description Pin Description 1 DCD 6 DSR 2 RXD 7 RTS 3 TXD 8 CTS 4 DTR 9 N/A 5 Ground 3-3. USB Connector Shape and pin number Pin Description 1 +5V 2 DATA (DN) 3 DATA (DP) 4 0V 5 Cable Shield Shell 1 2 3 4 56 7 8 9 10 11 12 13 14 15 1 43 5 2 6 7 8 9 12 34 5

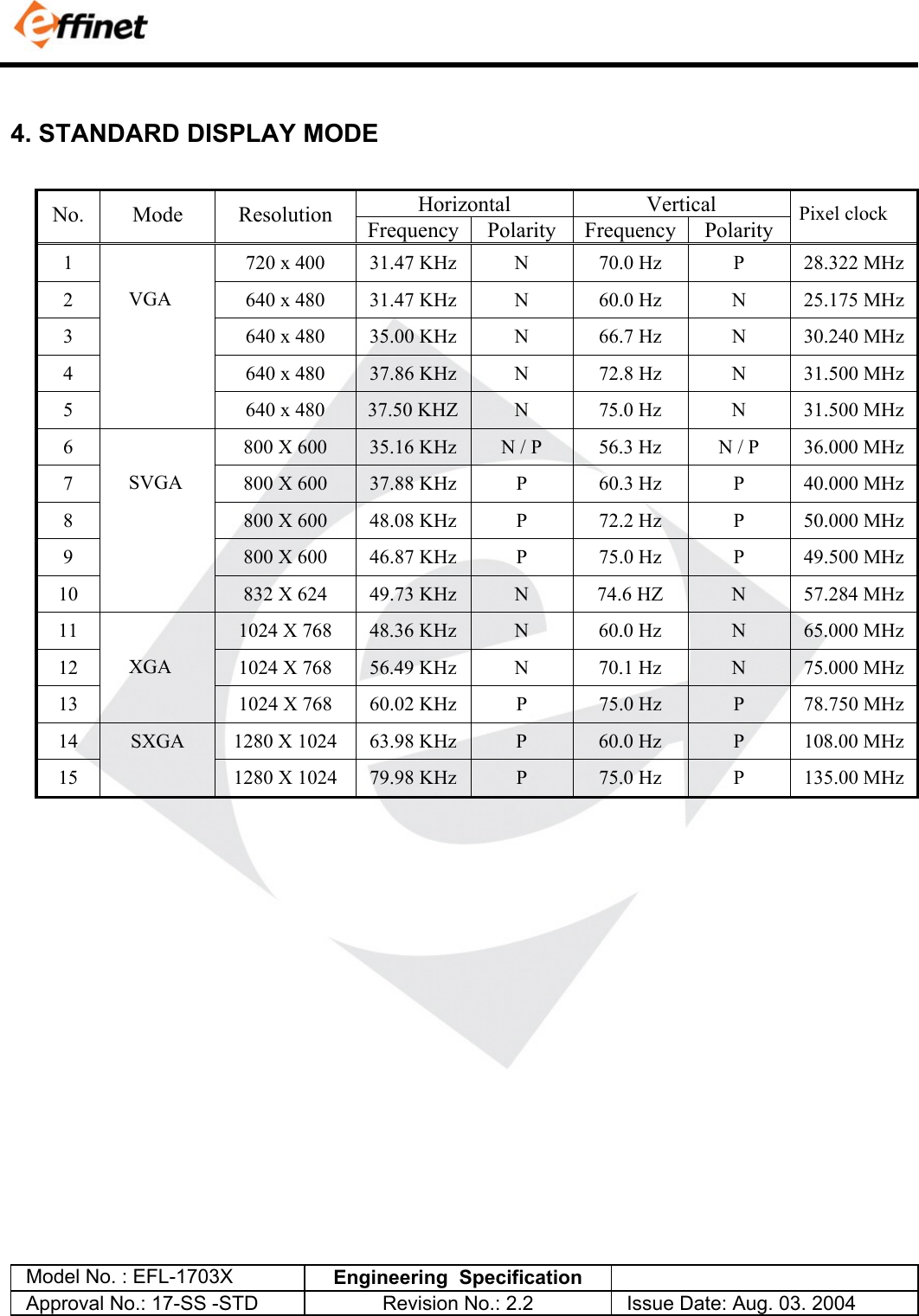

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 4. STANDARD DISPLAY MODE Horizontal Vertical No. Mode Resolution Frequency Polarity Frequency Polarity Pixel clock 1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz2 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz3 640 x 480 35.00 KHz N 66.7 Hz N 30.240 MHz4 640 x 480 37.86 KHz N 72.8 Hz N 31.500 MHz5 VGA 640 x 480 37.50 KHZ N 75.0 Hz N 31.500 MHz6 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz7 800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz8 800 X 600 48.08 KHz P 72.2 Hz P 50.000 MHz9 800 X 600 46.87 KHz P 75.0 Hz P 49.500 MHz10 SVGA 832 X 624 49.73 KHz N 74.6 HZ N 57.284 MHz11 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz12 1024 X 768 56.49 KHz N 70.1 Hz N 75.000 MHz13 XGA 1024 X 768 60.02 KHz P 75.0 Hz P 78.750 MHz14 1280 X 1024 63.98 KHz P 60.0 Hz P 108.00 MHz15 SXGA 1280 X 1024 79.98 KHz P 75.0 Hz P 135.00 MHz

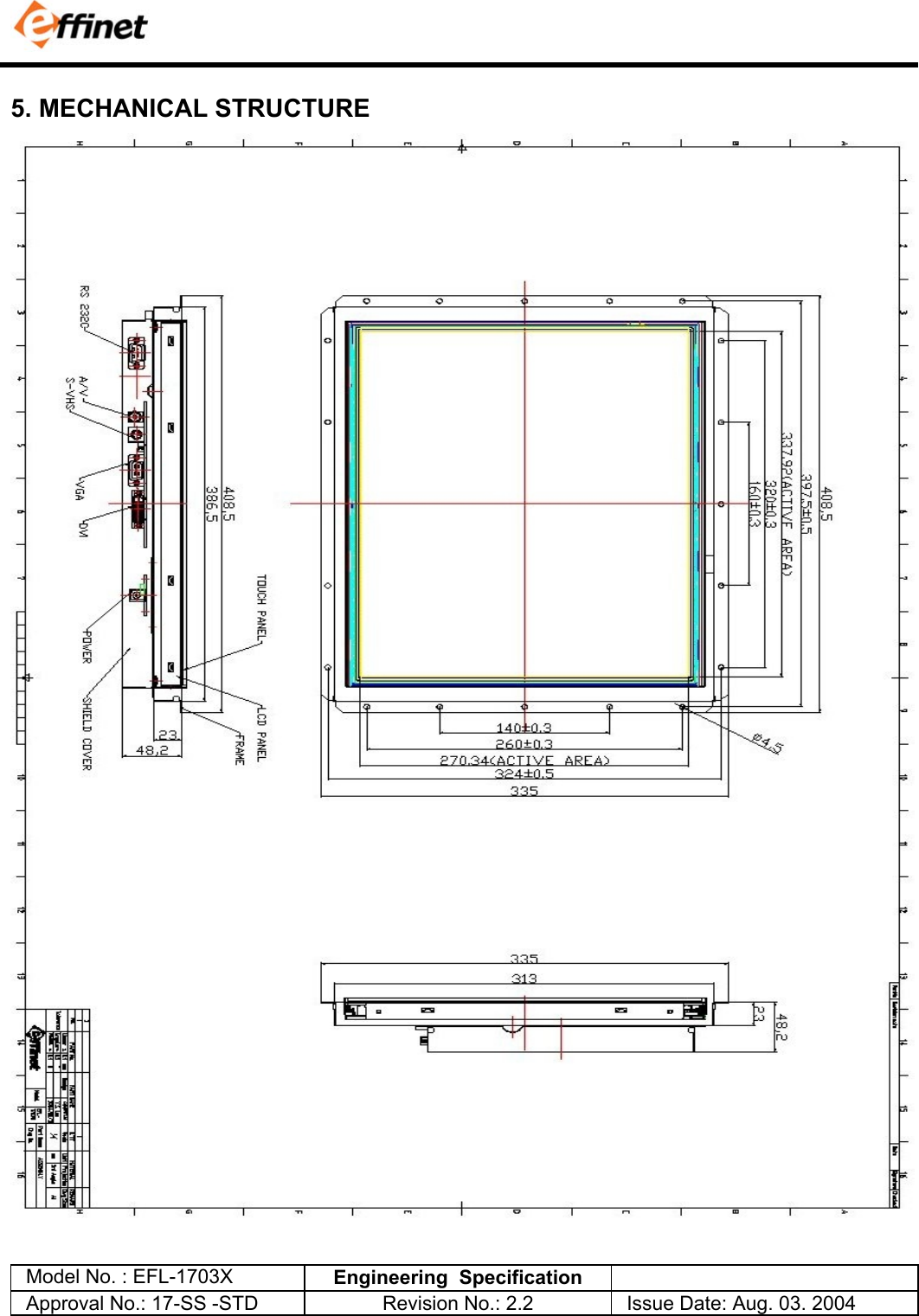

Model No. : EFL-1703X Engineering Specification Approval No.: 17-SS -STD Revision No.: 2.2 Issue Date: Aug. 03. 2004 5. MECHANICAL STRUCTURE
