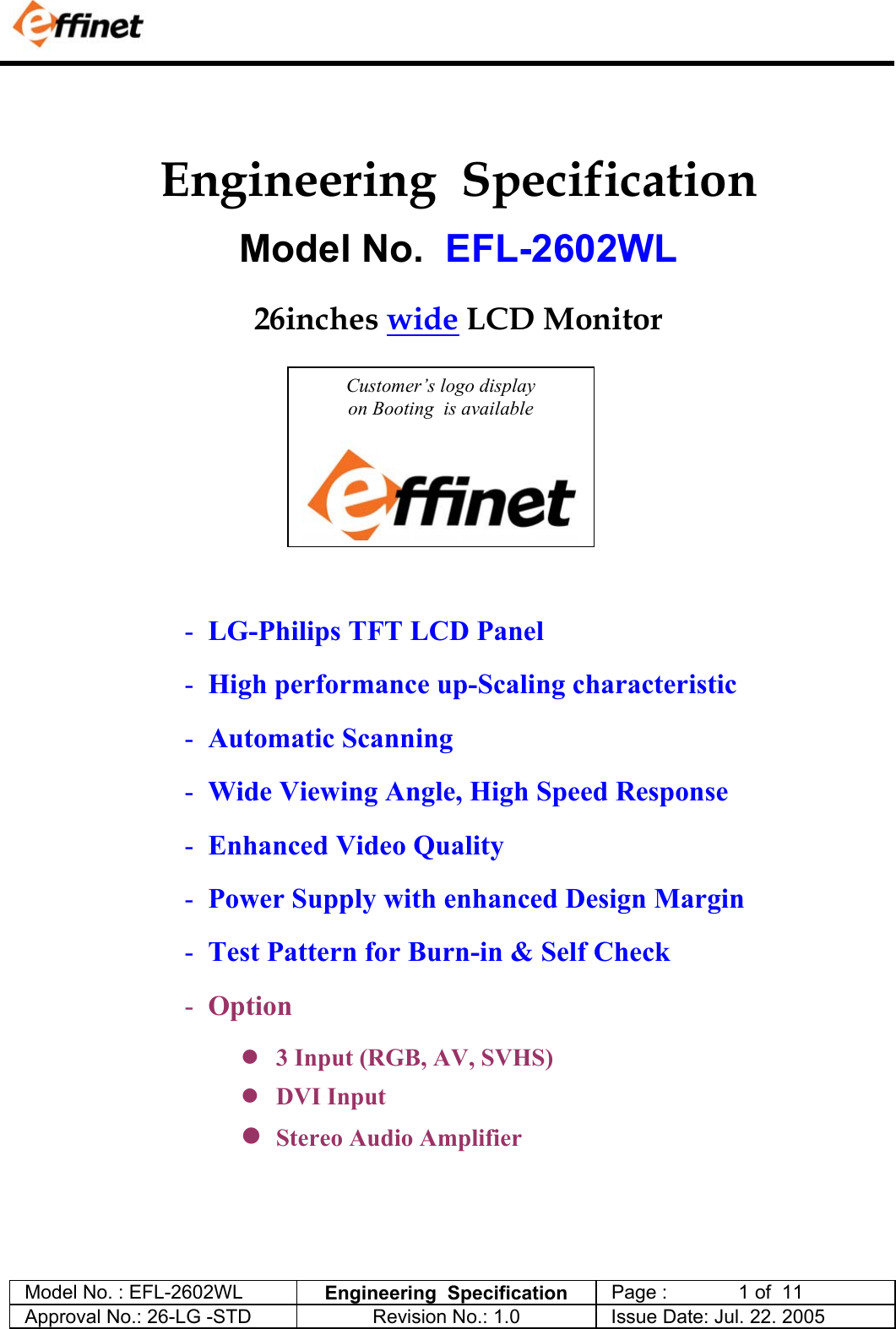

Model No. : EFL-2602WL Engineering Specification Page : 1 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 Engineering Specification Model No. EFL-2602WL 26inches wide LCD Monitor - LG-Philips TFT LCD Panel - High performance up-Scaling characteristic - Automatic Scanning - Wide Viewing Angle, High Speed Response - Enhanced Video Quality - Power Supply with enhanced Design Margin - Test Pattern for Burn-in & Self Check - Option  3 Input (RGB, AV, SVHS)  DVI Input  Stereo Audio Amplifier Customer’s logo display on Booting is available

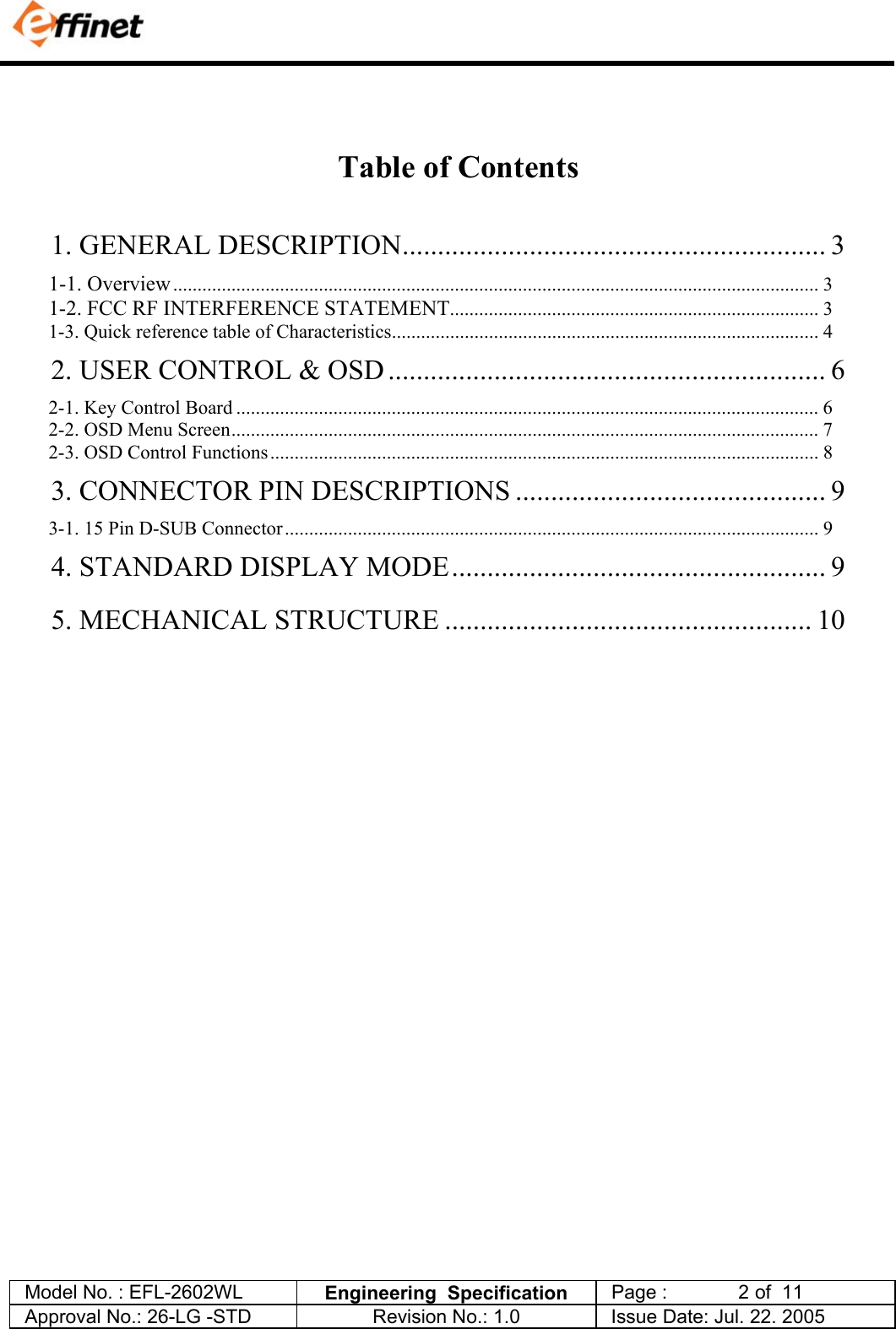

Model No. : EFL-2602WL Engineering Specification Page : 2 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 Table of Contents 1. GENERAL DESCRIPTION............................................................ 3 1-1. Overview..................................................................................................................................... 3 1-2. FCC RF INTERFERENCE STATEMENT............................................................................ 3 1-3. Quick reference table of Characteristics........................................................................................ 4 2. USER CONTROL & OSD .............................................................. 6 2-1. Key Control Board ........................................................................................................................ 6 2-2. OSD Menu Screen......................................................................................................................... 7 2-3. OSD Control Functions................................................................................................................. 8 3. CONNECTOR PIN DESCRIPTIONS ............................................ 9 3-1. 15 Pin D-SUB Connector.............................................................................................................. 9 4. STANDARD DISPLAY MODE..................................................... 9 5. MECHANICAL STRUCTURE .................................................... 10

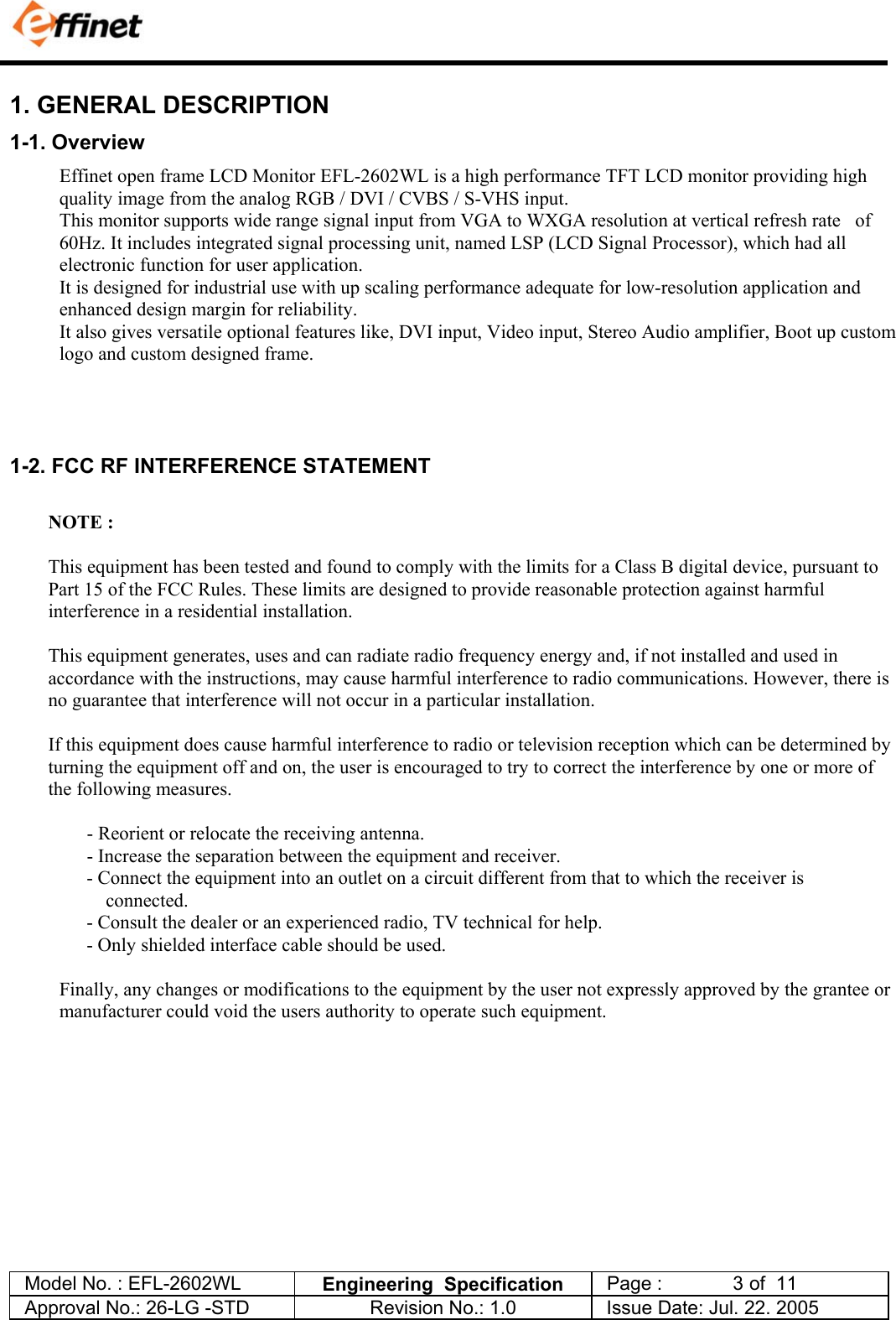

Model No. : EFL-2602WL Engineering Specification Page : 3 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 1. GENERAL DESCRIPTION 1-1. Overview Effinet open frame LCD Monitor EFL-2602WL is a high performance TFT LCD monitor providing high quality image from the analog RGB / DVI / CVBS / S-VHS input. This monitor supports wide range signal input from VGA to WXGA resolution at vertical refresh rate of 60Hz. It includes integrated signal processing unit, named LSP (LCD Signal Processor), which had all electronic function for user application. It is designed for industrial use with up scaling performance adequate for low-resolution application and enhanced design margin for reliability. It also gives versatile optional features like, DVI input, Video input, Stereo Audio amplifier, Boot up custom logo and custom designed frame. 1-2. FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

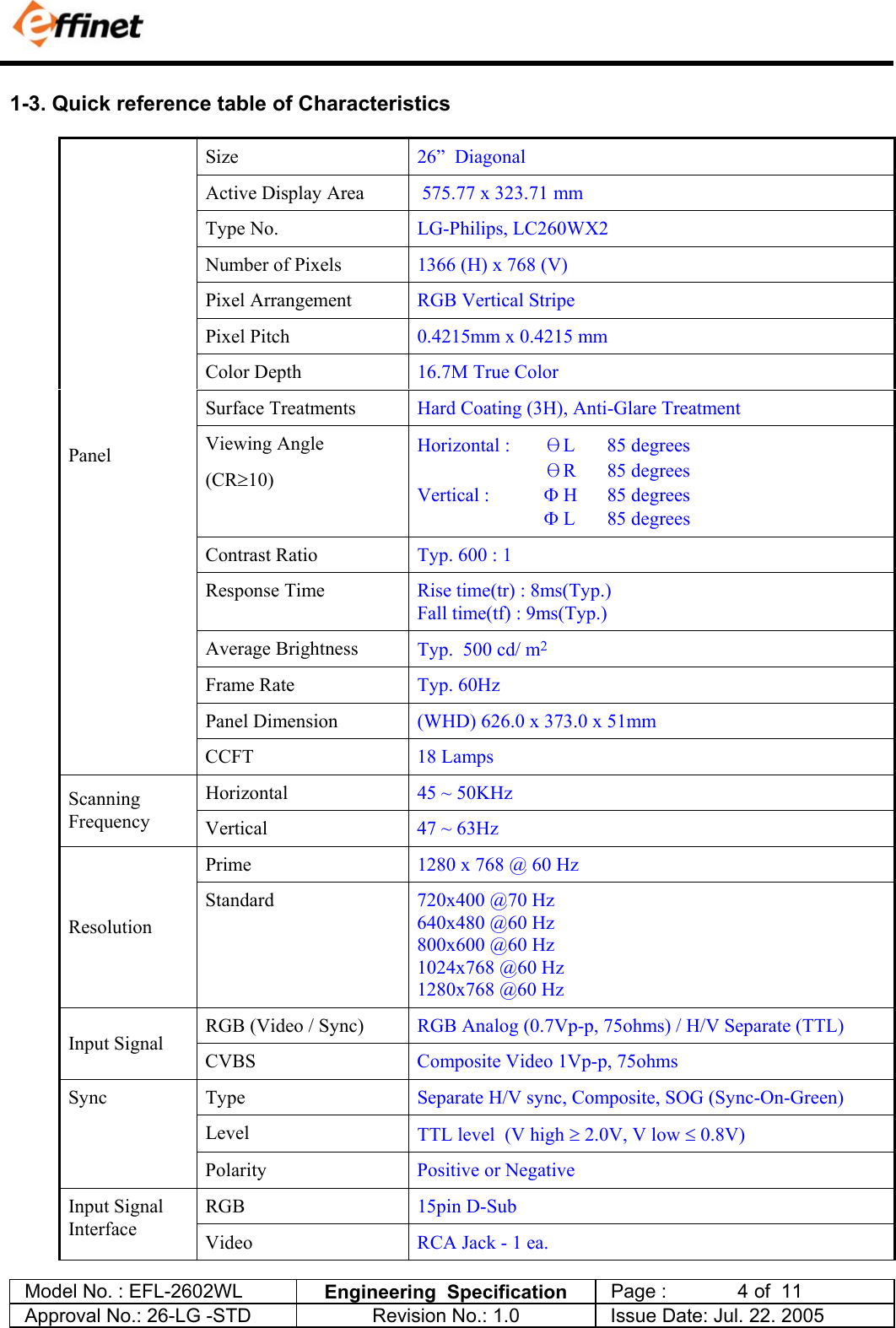

Model No. : EFL-2602WL Engineering Specification Page : 4 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 1-3. Quick reference table of Characteristics Size 26” Diagonal Active Display Area 575.77 x 323.71 mm Type No. LG-Philips, LC260WX2 Number of Pixels 1366 (H) x 768 (V) Pixel Arrangement RGB Vertical Stripe Pixel Pitch 0.4215mm x 0.4215 mm Color Depth 16.7M True Color Surface Treatments Hard Coating (3H), Anti-Glare Treatment Viewing Angle (CR≥10) Horizontal : θL 85 degrees θR 85 degrees Vertical : Φ H 85 degrees Φ L 85 degrees Contrast Ratio Typ. 600 : 1 Response Time Rise time(tr) : 8ms(Typ.) Fall time(tf) : 9ms(Typ.) Average Brightness Typ. 500 cd/ m2 Frame Rate Typ. 60Hz Panel Dimension (WHD) 626.0 x 373.0 x 51mm Panel CCFT 18 Lamps Horizontal 45 ~ 50KHz Scanning Frequency Vertical 47 ~ 63Hz Prime 1280 x 768 @ 60 Hz Resolution Standard 720x400 @70 Hz 640x480 @60 Hz 800x600 @60 Hz 1024x768 @60 Hz 1280x768 @60 Hz RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate (TTL) Input Signal CVBS Composite Video 1Vp-p, 75ohms Type Separate H/V sync, Composite, SOG (Sync-On-Green) Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V) Sync Polarity Positive or Negative RGB 15pin D-Sub Input Signal Interface Video RCA Jack - 1 ea.

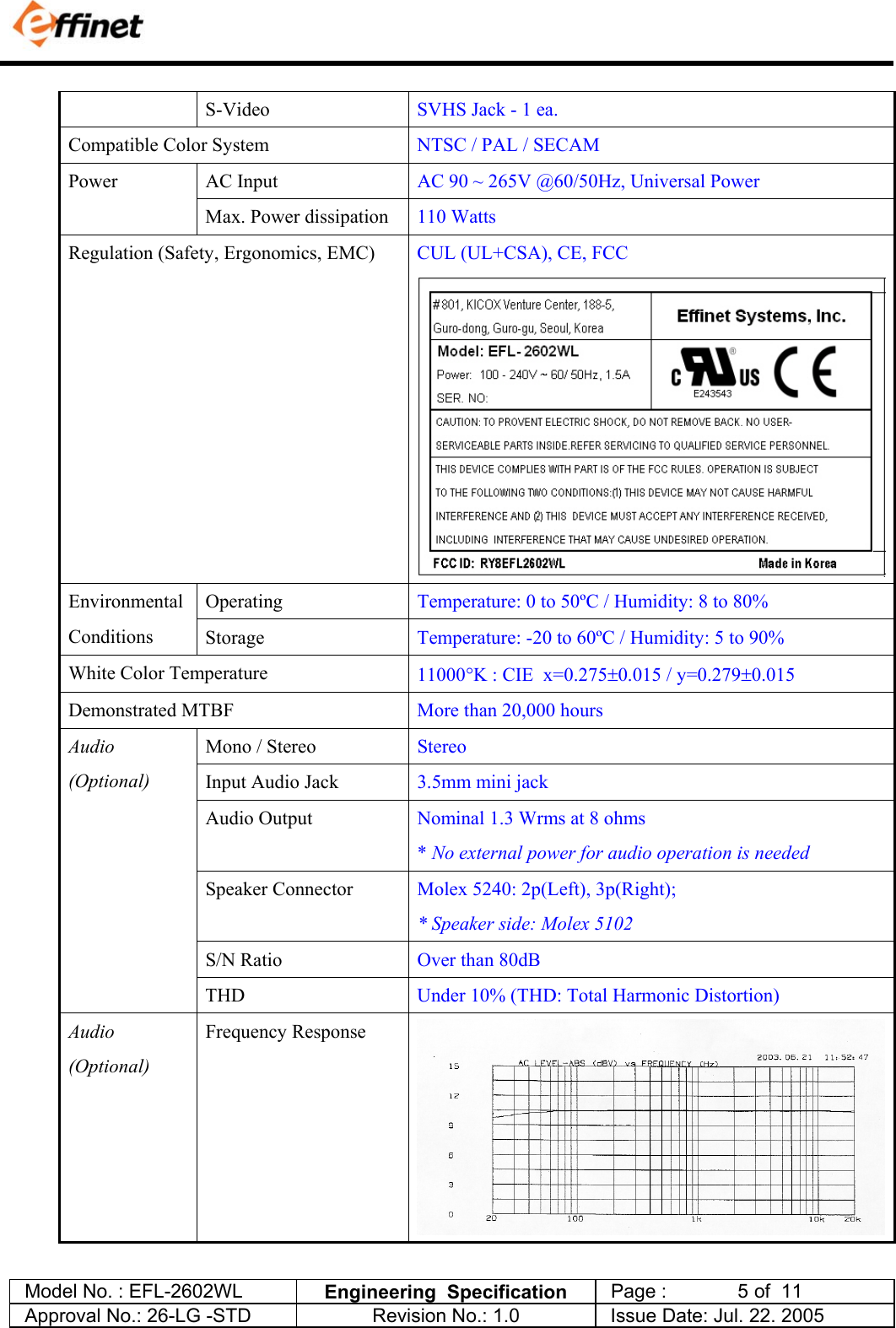

Model No. : EFL-2602WL Engineering Specification Page : 5 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 S-Video SVHS Jack - 1 ea. Compatible Color System NTSC / PAL / SECAM AC Input AC 90 ~ 265V @60/50Hz, Universal Power Power Max. Power dissipation 110 Watts Regulation (Safety, Ergonomics, EMC) CUL (UL+CSA), CE, FCC Operating Temperature: 0 to 50ºC / Humidity: 8 to 80% Environmental Conditions Storage Temperature: -20 to 60ºC / Humidity: 5 to 90% White Color Temperature 11000°K : CIE x=0.275±0.015 / y=0.279±0.015 Demonstrated MTBF More than 20,000 hours Mono / Stereo Stereo Input Audio Jack 3.5mm mini jack Audio Output Nominal 1.3 Wrms at 8 ohms * No external power for audio operation is needed Speaker Connector Molex 5240: 2p(Left), 3p(Right); * Speaker side: Molex 5102 S/N Ratio Over than 80dB Audio (Optional) THD Under 10% (THD: Total Harmonic Distortion) Audio (Optional) Frequency Response

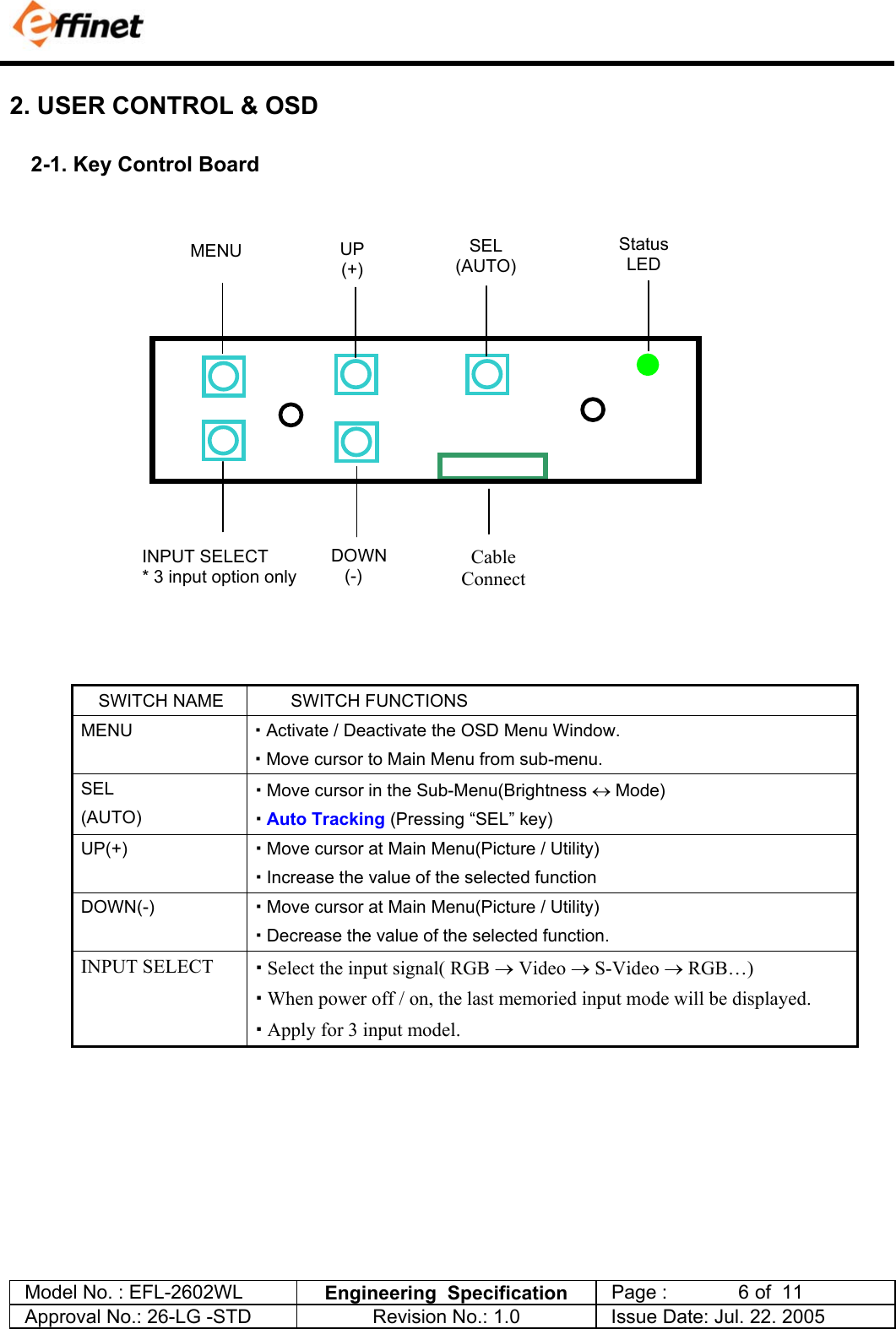

Model No. : EFL-2602WL Engineering Specification Page : 6 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 2. USER CONTROL & OSD 2-1. Key Control Board SWITCH NAME SWITCH FUNCTIONS MENU  Activate / Deactivate the OSD Menu Window.  Move cursor to Main Menu from sub-menu. SEL (AUTO)  Move cursor in the Sub-Menu(Brightness ↔ Mode)  Auto Tracking (Pressing “SEL” key) UP(+)  Move cursor at Main Menu(Picture / Utility)  Increase the value of the selected function DOWN(-)  Move cursor at Main Menu(Picture / Utility)  Decrease the value of the selected function. INPUT SELECT  Select the input signal( RGB → Video → S-Video → RGB…)  When power off / on, the last memoried input mode will be displayed.  Apply for 3 input model. Cable ConnectSEL (AUTO)UP (+) DOWN(-) MENU StatusLEDINPUT SELECT * 3 input option only

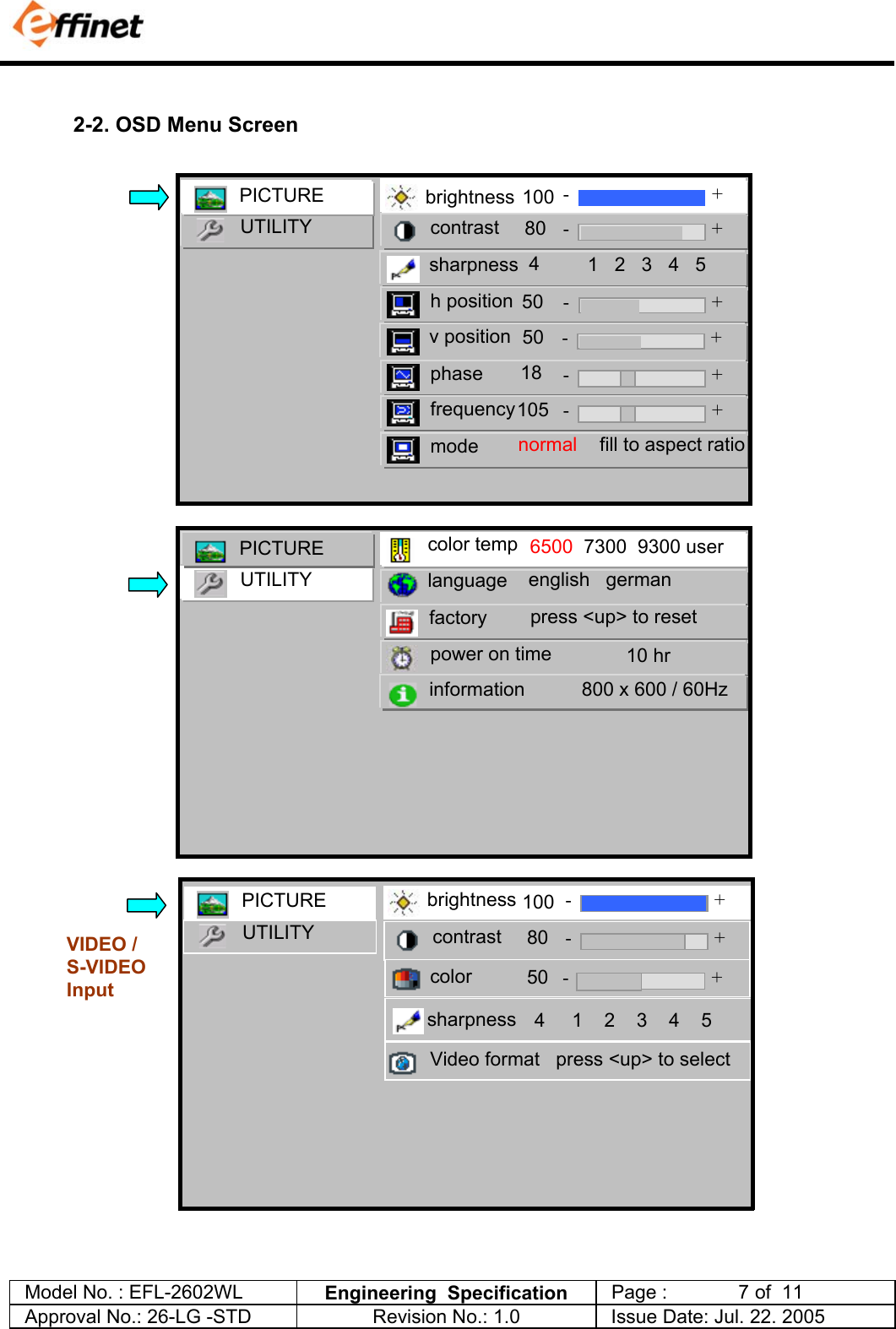

Model No. : EFL-2602WL Engineering Specification Page : 7 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 2-2. OSD Menu Screen UTILITY PICTURE brightness -100 + contrast -80 + sharpness 4h position -50 + v position -50 + phase -18 + frequency -105 + mode normal fill to aspect ratio 1 2 3 4 5 UTILITY PICTURE color temp 6500 7300 9300 user language english german factory press <up> to reset power on time 10 hr information 800 x 600 / 60Hz UTILITY PICTURE brightness -100 + contrast -80 + Video format press <up> to select color -50 + sharpness 4 1 2 3 4 5 VIDEO / S-VIDEO Input

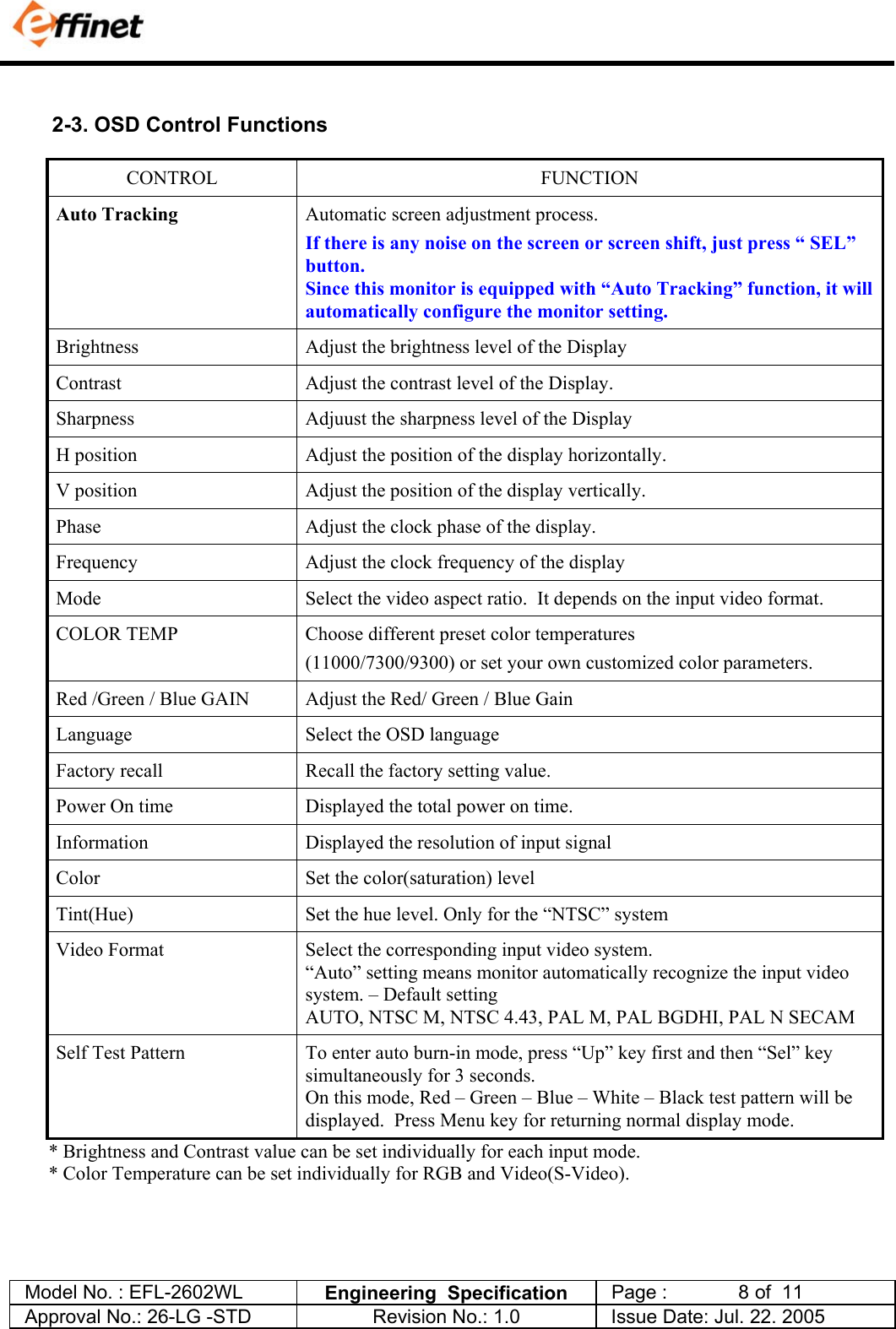

Model No. : EFL-2602WL Engineering Specification Page : 8 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 2-3. OSD Control Functions CONTROL FUNCTION Auto Tracking Automatic screen adjustment process. If there is any noise on the screen or screen shift, just press “ SEL” button. Since this monitor is equipped with “Auto Tracking” function, it will automatically configure the monitor setting. Brightness Adjust the brightness level of the Display Contrast Adjust the contrast level of the Display. Sharpness Adjuust the sharpness level of the Display H position Adjust the position of the display horizontally. V position Adjust the position of the display vertically. Phase Adjust the clock phase of the display. Frequency Adjust the clock frequency of the display Mode Select the video aspect ratio. It depends on the input video format. COLOR TEMP Choose different preset color temperatures (11000/7300/9300) or set your own customized color parameters. Red /Green / Blue GAIN Adjust the Red/ Green / Blue Gain Language Select the OSD language Factory recall Recall the factory setting value. Power On time Displayed the total power on time. Information Displayed the resolution of input signal Color Set the color(saturation) level Tint(Hue) Set the hue level. Only for the “NTSC” system Video Format Select the corresponding input video system. “Auto” setting means monitor automatically recognize the input video system. – Default setting AUTO, NTSC M, NTSC 4.43, PAL M, PAL BGDHI, PAL N SECAM Self Test Pattern To enter auto burn-in mode, press “Up” key first and then “Sel” key simultaneously for 3 seconds. On this mode, Red – Green – Blue – White – Black test pattern will be displayed. Press Menu key for returning normal display mode. * Brightness and Contrast value can be set individually for each input mode. * Color Temperature can be set individually for RGB and Video(S-Video).

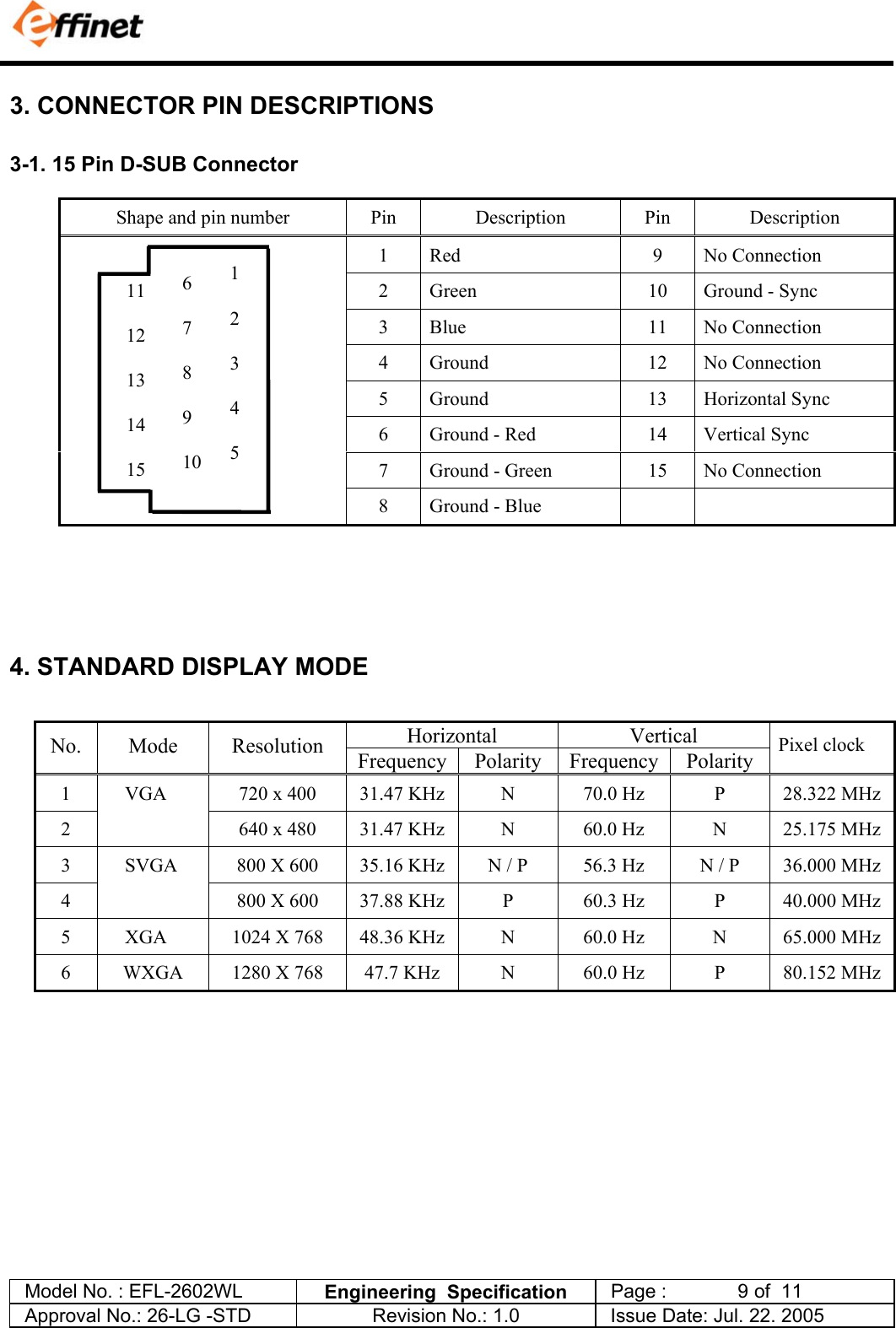

Model No. : EFL-2602WL Engineering Specification Page : 9 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 3. CONNECTOR PIN DESCRIPTIONS 3-1. 15 Pin D-SUB Connector Shape and pin number Pin Description Pin Description 1 Red 9 No Connection 2 Green 10 Ground - Sync 3 Blue 11 No Connection 4 Ground 12 No Connection 5 Ground 13 Horizontal Sync 6 Ground - Red 14 Vertical Sync 7 Ground - Green 15 No Connection 8 Ground - Blue 4. STANDARD DISPLAY MODE Horizontal Vertical No. Mode Resolution Frequency Polarity Frequency Polarity Pixel clock 1 720 x 400 31.47 KHz N 70.0 Hz P 28.322 MHz2 VGA 640 x 480 31.47 KHz N 60.0 Hz N 25.175 MHz3 800 X 600 35.16 KHz N / P 56.3 Hz N / P 36.000 MHz4 SVGA 800 X 600 37.88 KHz P 60.3 Hz P 40.000 MHz5 XGA 1024 X 768 48.36 KHz N 60.0 Hz N 65.000 MHz6 WXGA 1280 X 768 47.7 KHz N 60.0 Hz P 80.152 MHz 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

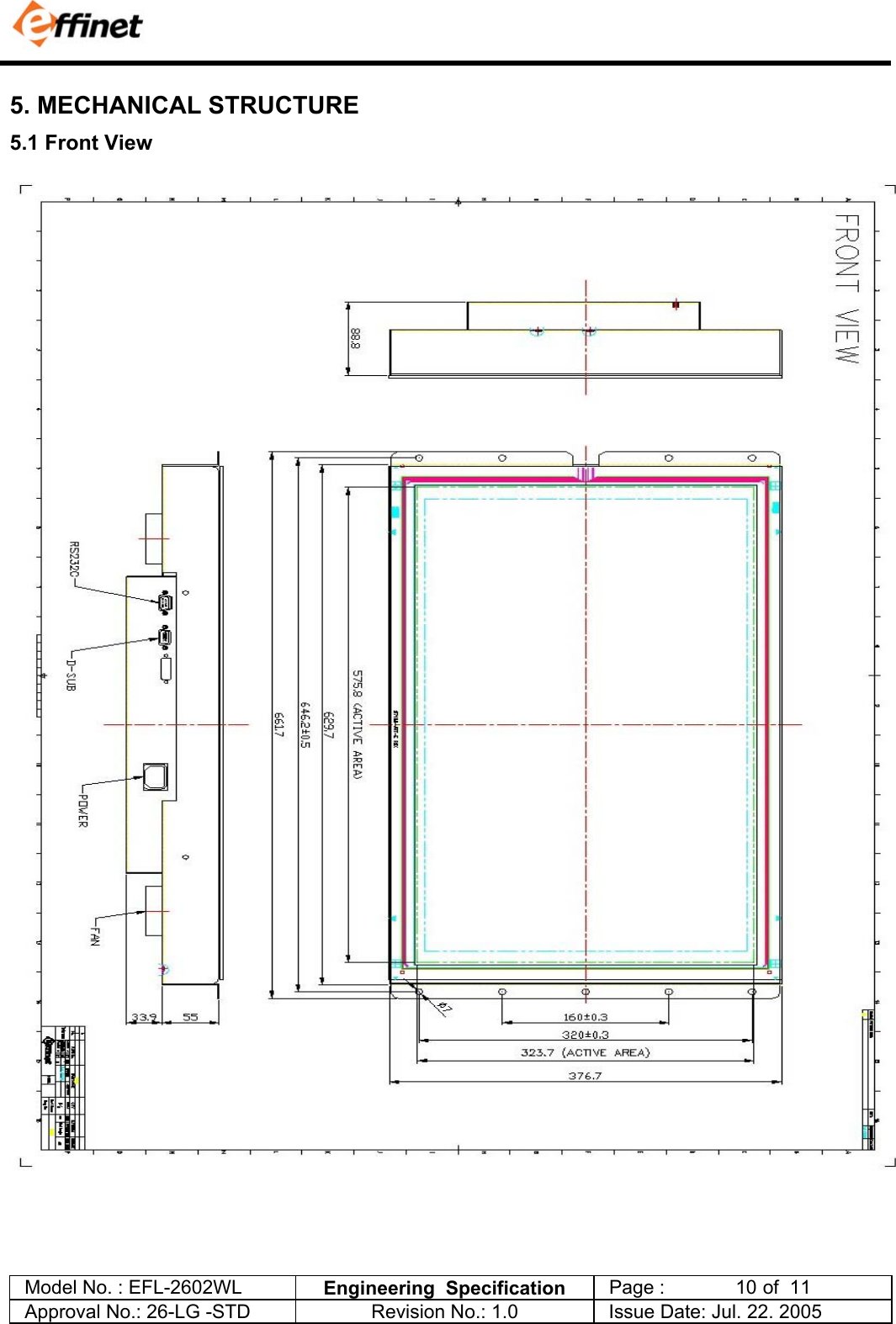

Model No. : EFL-2602WL Engineering Specification Page : 10 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 5. MECHANICAL STRUCTURE 5.1 Front View

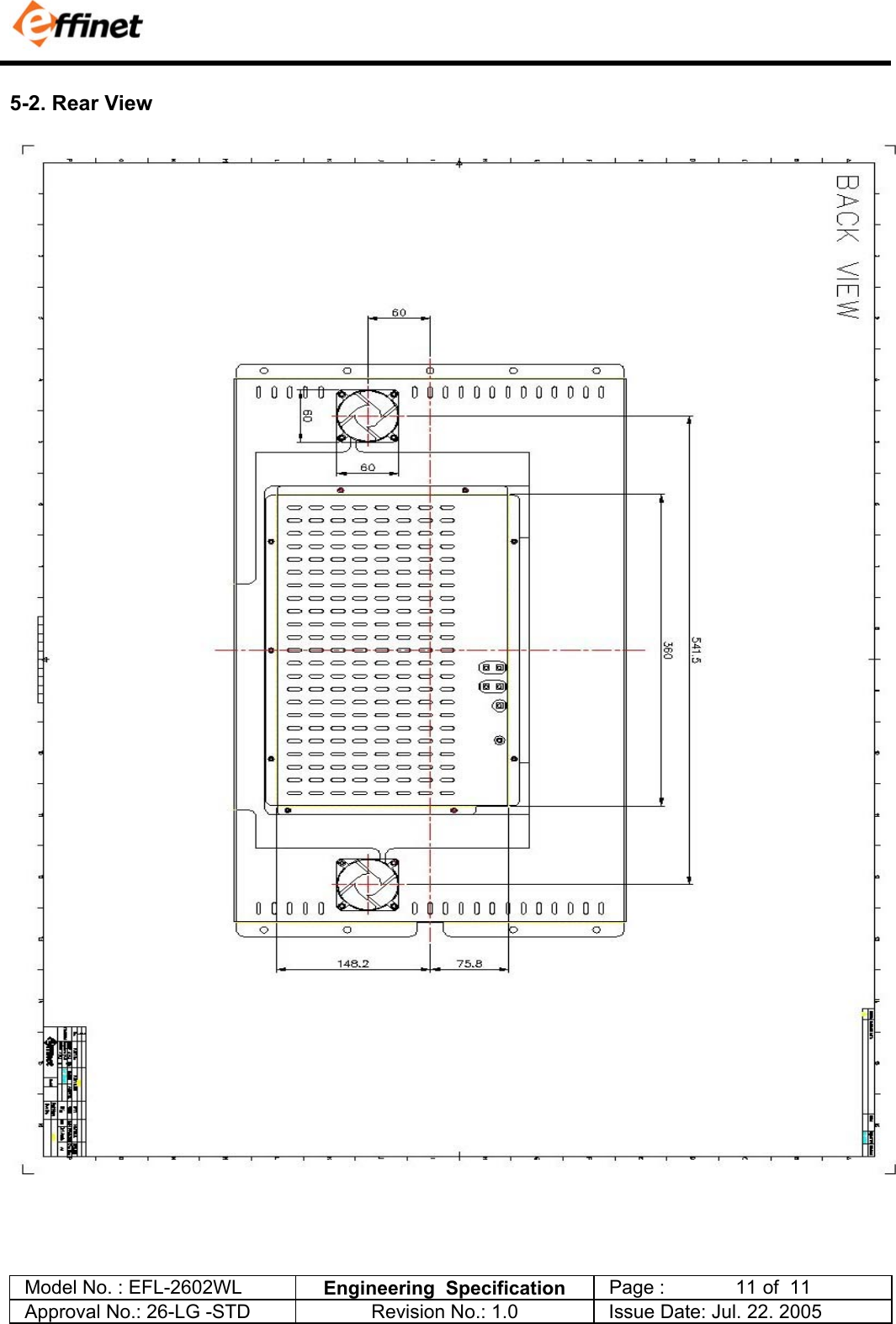

Model No. : EFL-2602WL Engineering Specification Page : 11 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 5-2. Rear View
