Subject: Specification.
1.0 Description.
The FM Transmitter connects to your Ipod nano to your car stereo quickly and easily using FM
radio waves. Just plug the FM Transmitter into your Ipod nano, tune your car stereo or receiver to
clear FM frequency, and enjoy your music experience with more sound and fewer wires.
a. Transmits on FM channels 88.1MHz-88.9MHz.(4 Channel )
b. Operating Range: 10m MAX.
c. Features a flexible steel-neck construction that positions easily inside your car. It works from
any cigarette-lighter outlet.
2.0 Electrical.
2.1 Input Voltage(DC).
a. From 10-12Vdc Norminal.
2.2 Input Current.
a. 1.5A max at 10Vdc.
2.3 Output Voltage and Current( DC )
Output Part Vout Range Iout(min) Lout(max)
IPOD Connector 12V 11.5-12.5V 0A 1A
2.4 LED Indication.
CAR CHARGER : Green light for Nominal Voltage value.
FM Transmitter : 4 Green light for FM Transmitter channel.
3.0 Environment.
3.1 Temperature.
a. Operation: 5 to 40 Deg C.
b. Storage: -40 to 70 Deg C.
3.2 Humidity.
a. Operation: 20-80%.
b. Storage: 10-90%.
5.0 Reliability.
5.1 Life.
a. Average life expectancy of 2 years.
b. Envirnoment amdient:25℃
5.2 Drop- Test.
Test height 110cm, after drop test no function abonormally to be noted.
6.0 Mechanical.
6.1 Plastic Case: Case with ABS material.
3/4

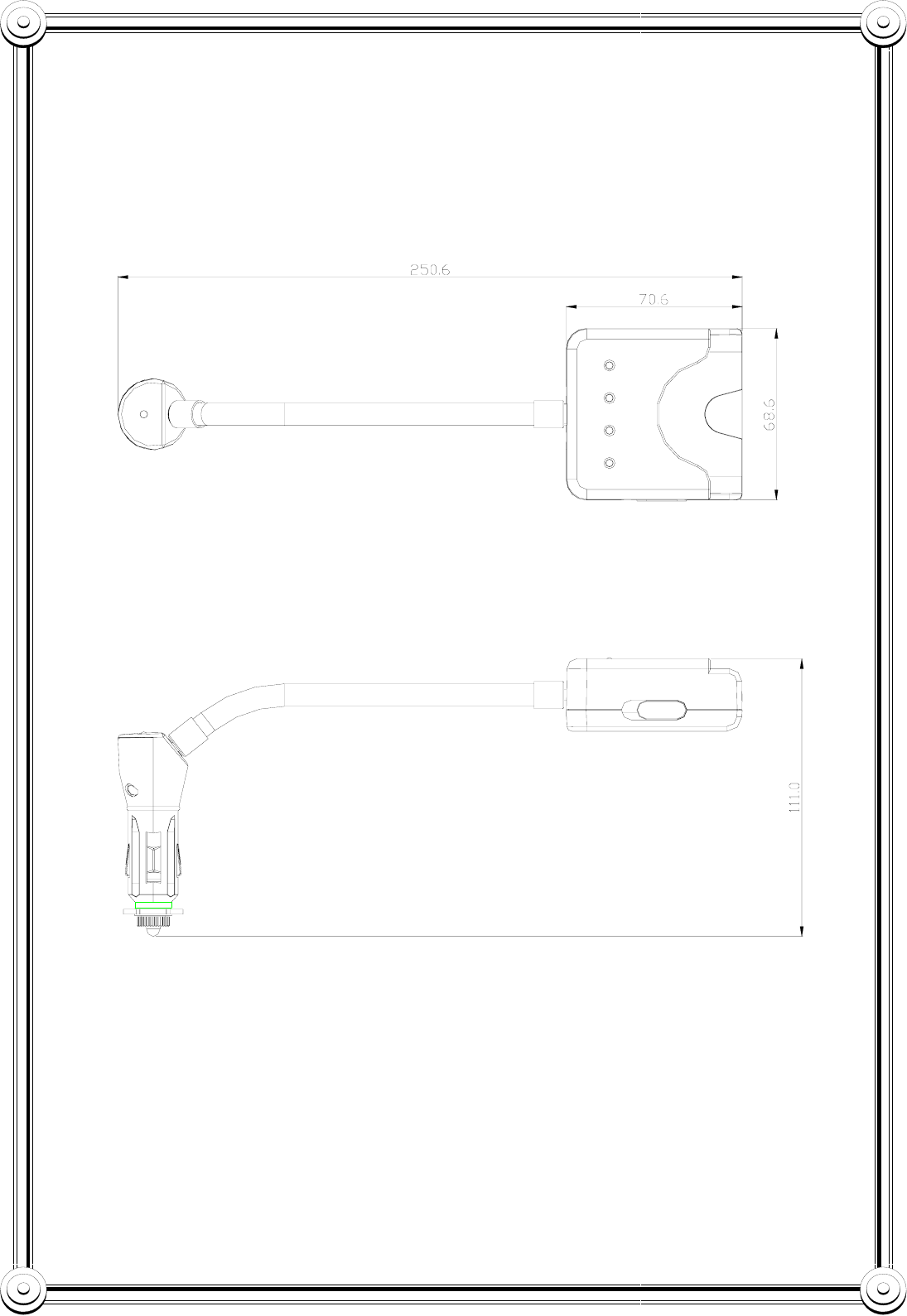

Unit: mm
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
Conduction: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
4/4
