2

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read

them carefully.

Copyright© 2004 EIZO NANAO CORPORATION All rights reserved. No part of this

manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, electronic, mechanical, or otherwise, without the prior written permission of EIZO

NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to EIZO NANAO

CORPORATION’s receipt of said information. Although every effort has been made to ensure

that this manual provides up-to-date information, please note that EIZO monitor

specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

Windows is a registered trademark of Microsoft Corporation.

PowerManager is a trademark of EIZO NANAO CORPORATION.

ScreenManager, FlexScan and EIZO are registered trademarks of EIZO NANAO

CORPORATION in Japan and other countries.

WARNING

Failure to abide by the information in a WARNING may result in serious injury

and can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

As an ENERGY STAR® Partner, EIZO NANAO CORPORATION has determined that

this product meets the ENERGY STAR guidelines for energy efficiency.

English

TABLE OF CONTENTS 3

TABLE OF CONTENTS

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1-1. Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1-2. Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

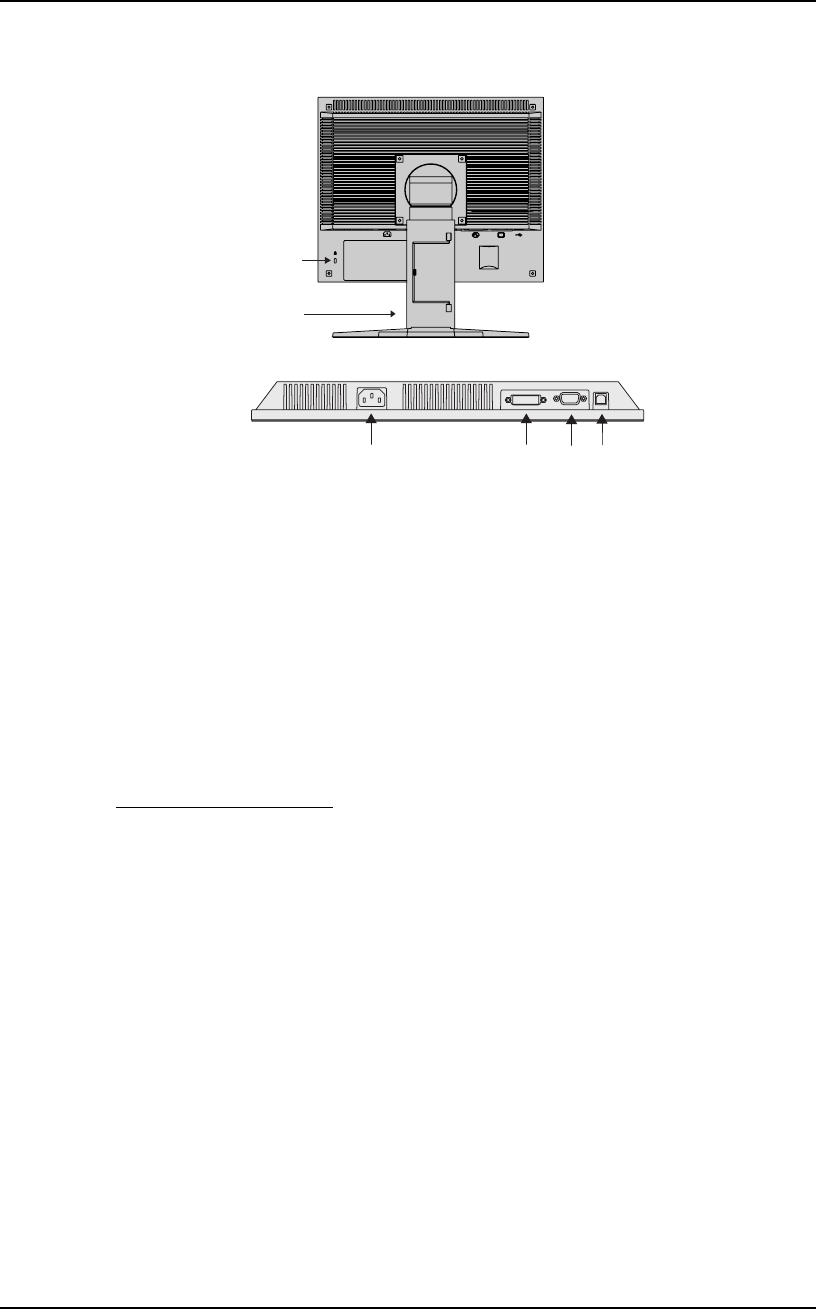

1-3. Controls & Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2. CABLE CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2-1. Before Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

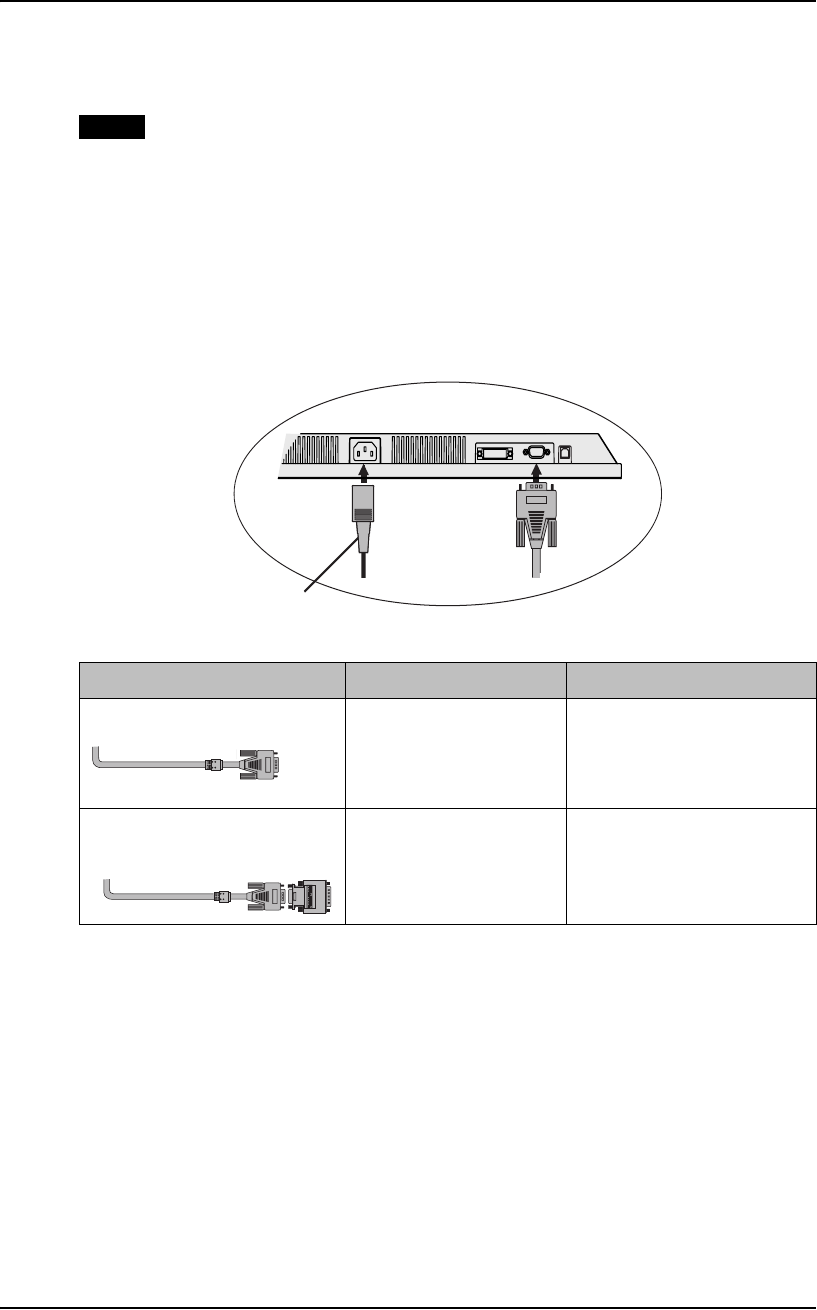

2-2. Connecting the Signal Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2-3. Connecting Two PCs to the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3. SCREENMANAGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

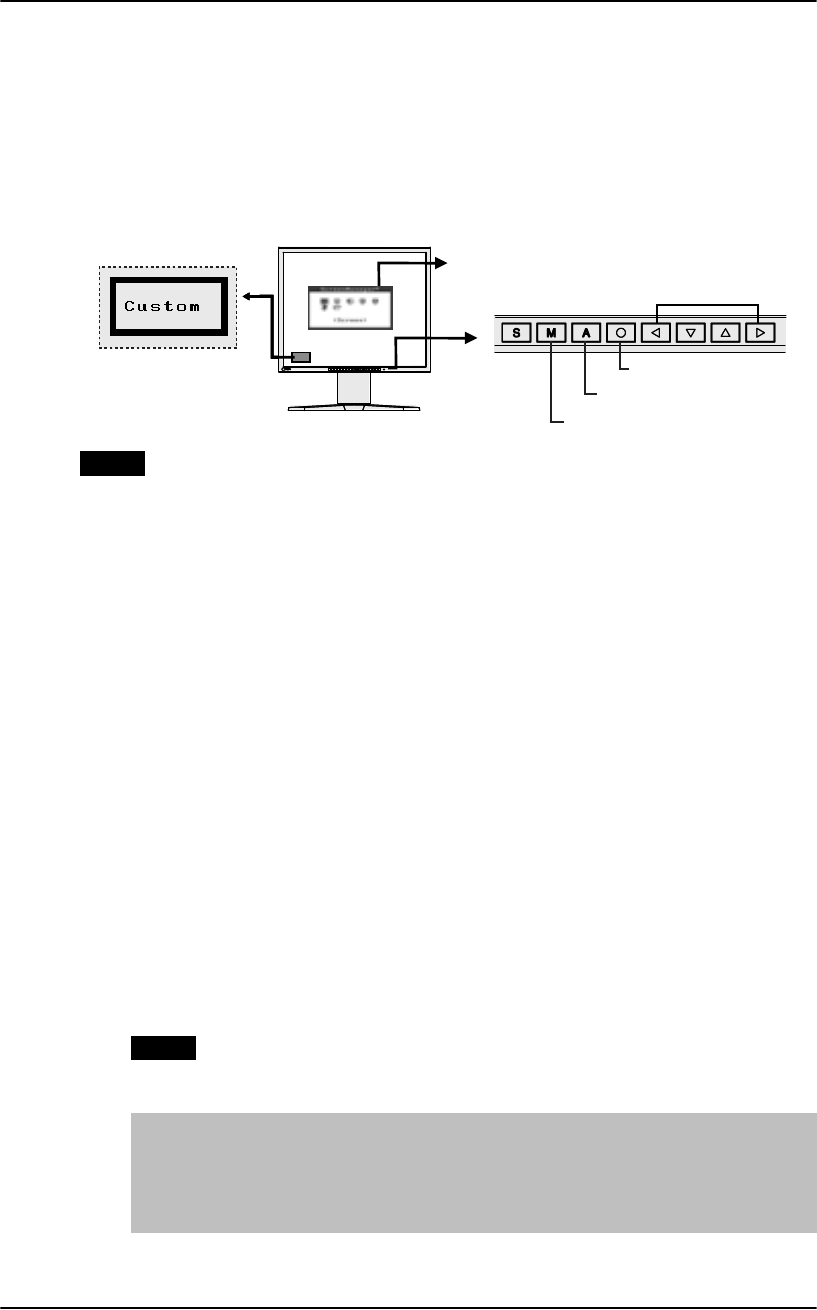

3-1. How to use the ScreenManager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

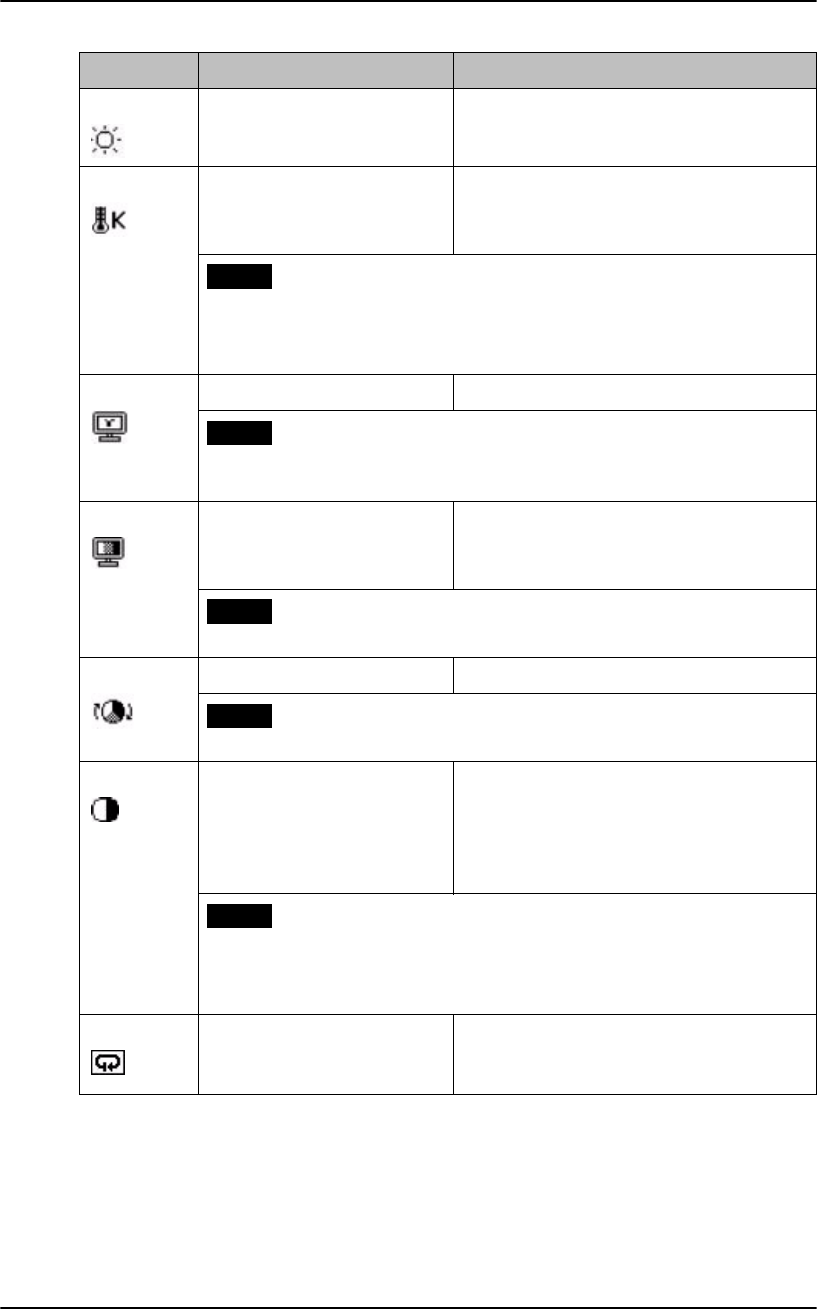

3-2. ScreenManager Adjustments and Settings. . . . . . . . . . . . . . . . . . . . . . . 17

3-3. FineContrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3-4. Useful Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4. ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

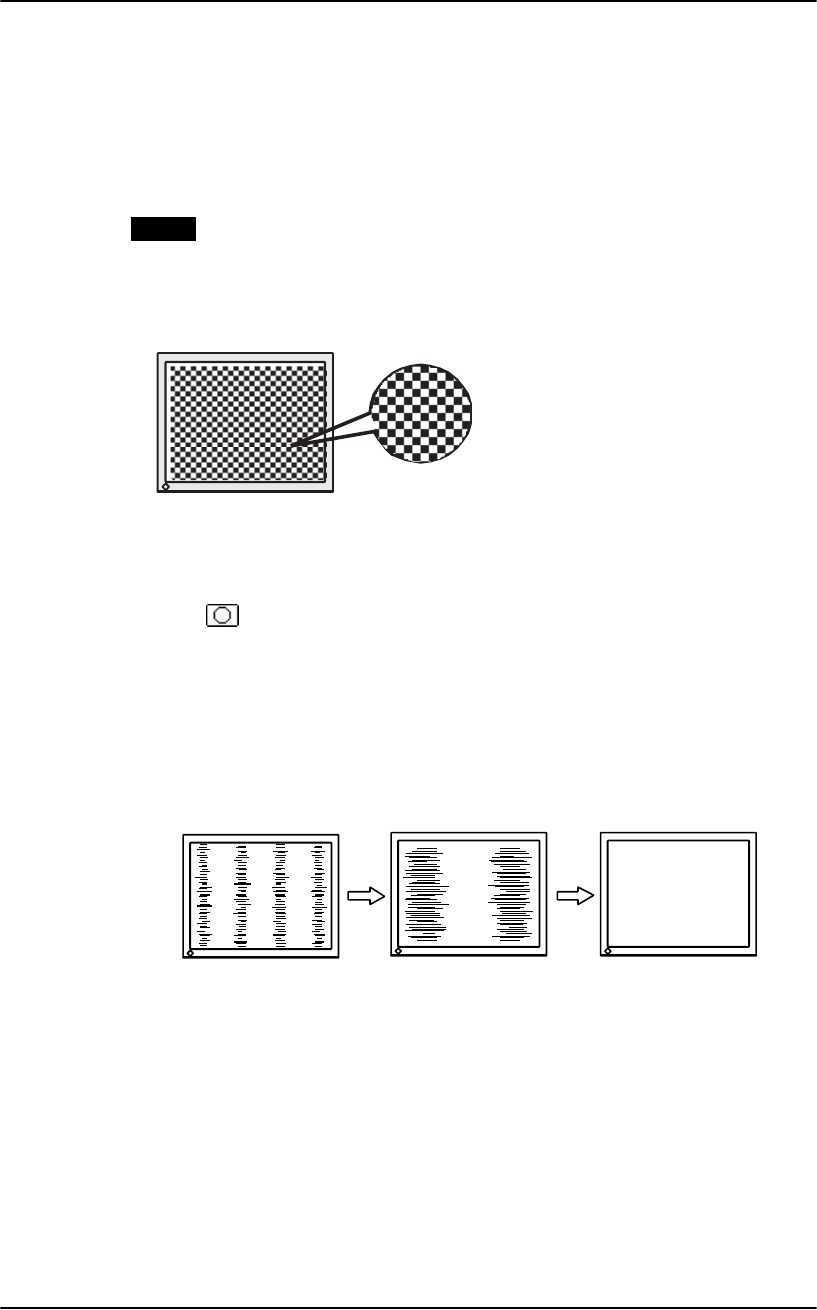

4-1. Screen Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4-2. Color Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4-3. Power-save Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5. ATTACHING AN ARM STAND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7. CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

9. GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

English

4PRECAUTIONS

PRECAUTIONS

IMPORTANT!

zThis product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally

shipped, the product may not perform as stated in the specifications.

zTo ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

WARNING

If the unit begins to emit smoke, smells like something is

burning, or makes strange noises, disconnect all power

connections immediately and contact your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric

shock, or equipment damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire,

electric shock, or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or

removing covers may result in fire, electric shock, or equipment

damage.

English

PRECAUTIONS 5

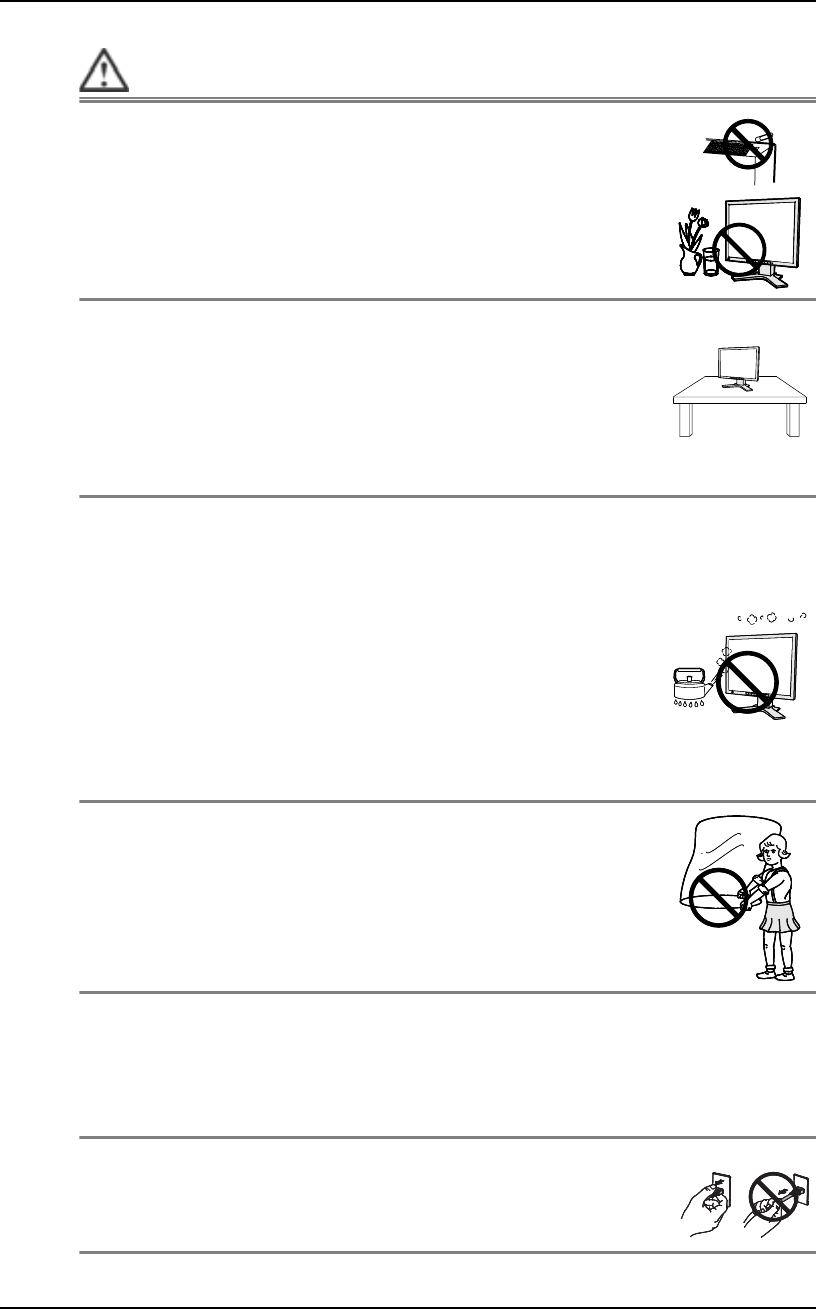

WARNING

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into

the cabinet or spillage into the cabinet may result in fire, electric

shock, or equipment damage. If an object or liquid falls/spills into

the cabinet, unplug the unit immediately. Have the unit checked by

a qualified service engineer before using it again.

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result in

injury or equipment damage.If the unit falls, disconnect the power

immediately and ask your dealer for advice. Do not continue using

a damaged unit. Using a damaged unit may result in fire or

electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

zDo not place outdoors.

zDo not place in the transportation system (ship, aircraft, trains,

automobiles, etc.)

zDo not place in a dusty or humid environment.

zDo not place in a location where the steam comes directly on

the screen.

zDo not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing

bags away from babies and children.

Use the enclosed power cord and connect to the standard

power outlet of your country.

Be sure to remain within the rated voltage of the power cord.Not

doing so may result in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

OKOK

OKOK

English

6PRECAUTIONS

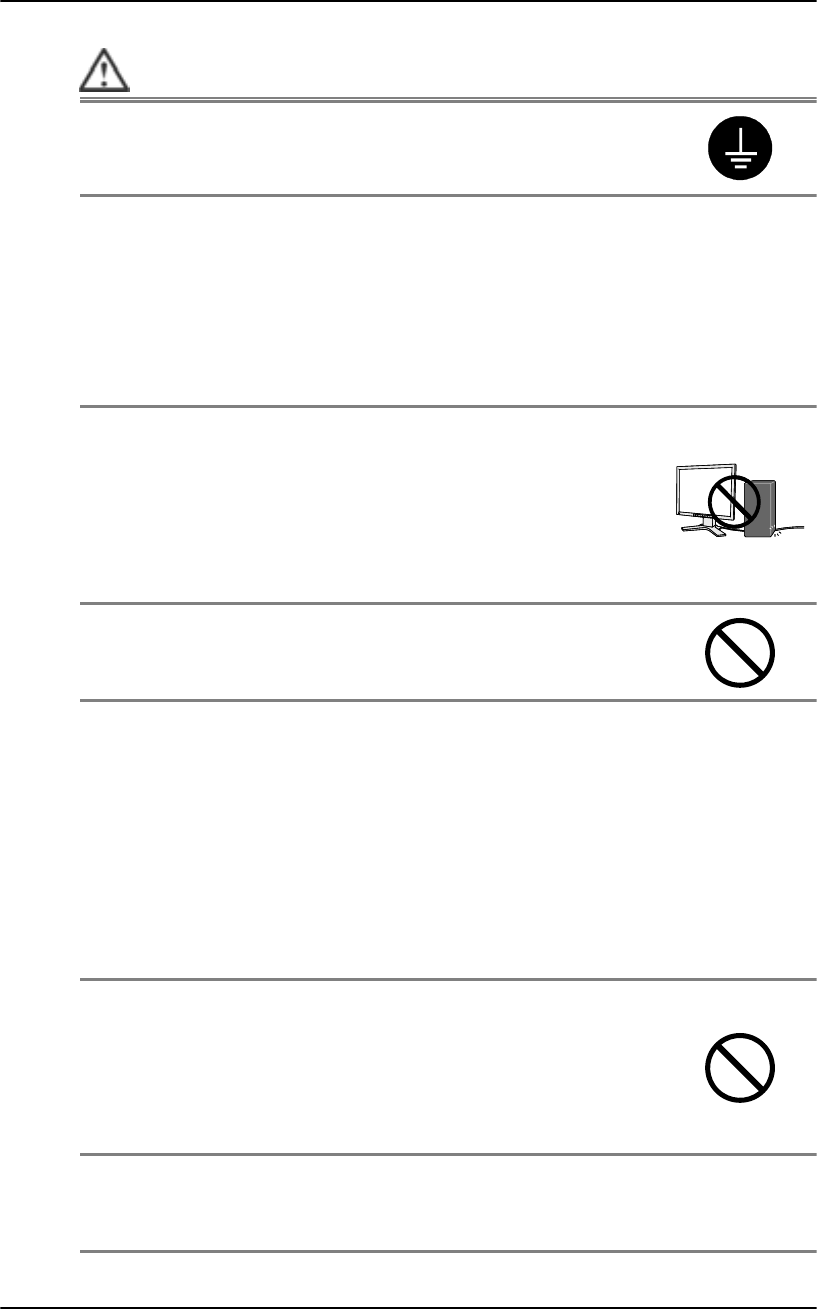

WARNING

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

zThe unit is designed for use with a specific voltage only.

Connection to another voltage than specified in this User’s

Manual may cause fire, electric shock, or equipment damage.

zDo not overload your power circuit, as this may result in fire or

electric shock.

Handle the power cord with care.

zDo not place the cord underneath the unit or other heavy objects.

zDo not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a

damaged cord may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

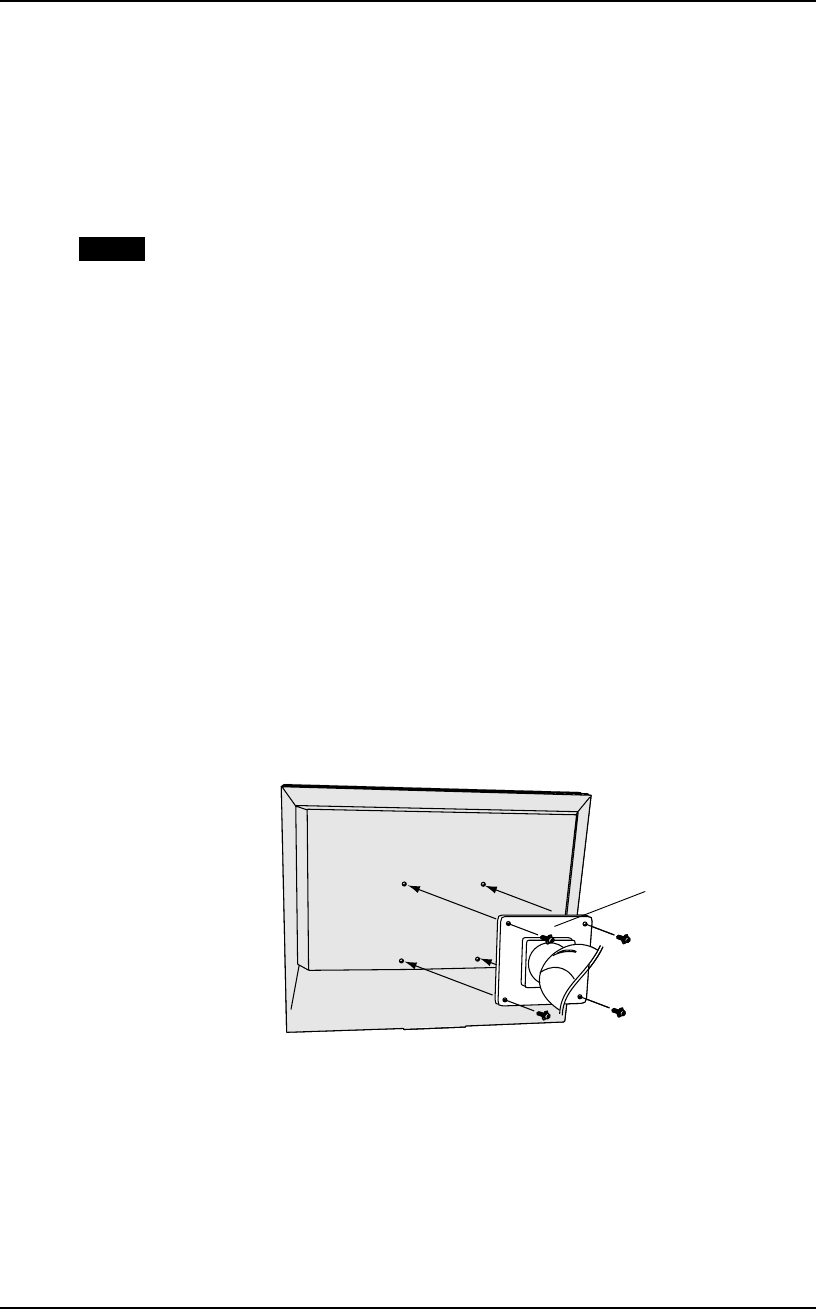

When attaching an arm stand, please refer to the user’s

manual of the arm stand and install the unit securely with

the enclosed screws.

Not doing so may cause the unit to come unattached, which may

result in injury or equipment damage. When the unit is dropped,

please ask your dealer for advice. Do not continue using a

damaged unit. Using a damaged unit may result in fire or electric

shock. When reattaching the tilt stand, please use the same screws

and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it

enters the eyes or mouth. If any part of the skin or body comes in

direct contact with the panel, please wash thoroughly. If some

physical symptoms result, please consult your doctor.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

English

PRECAUTIONS 7

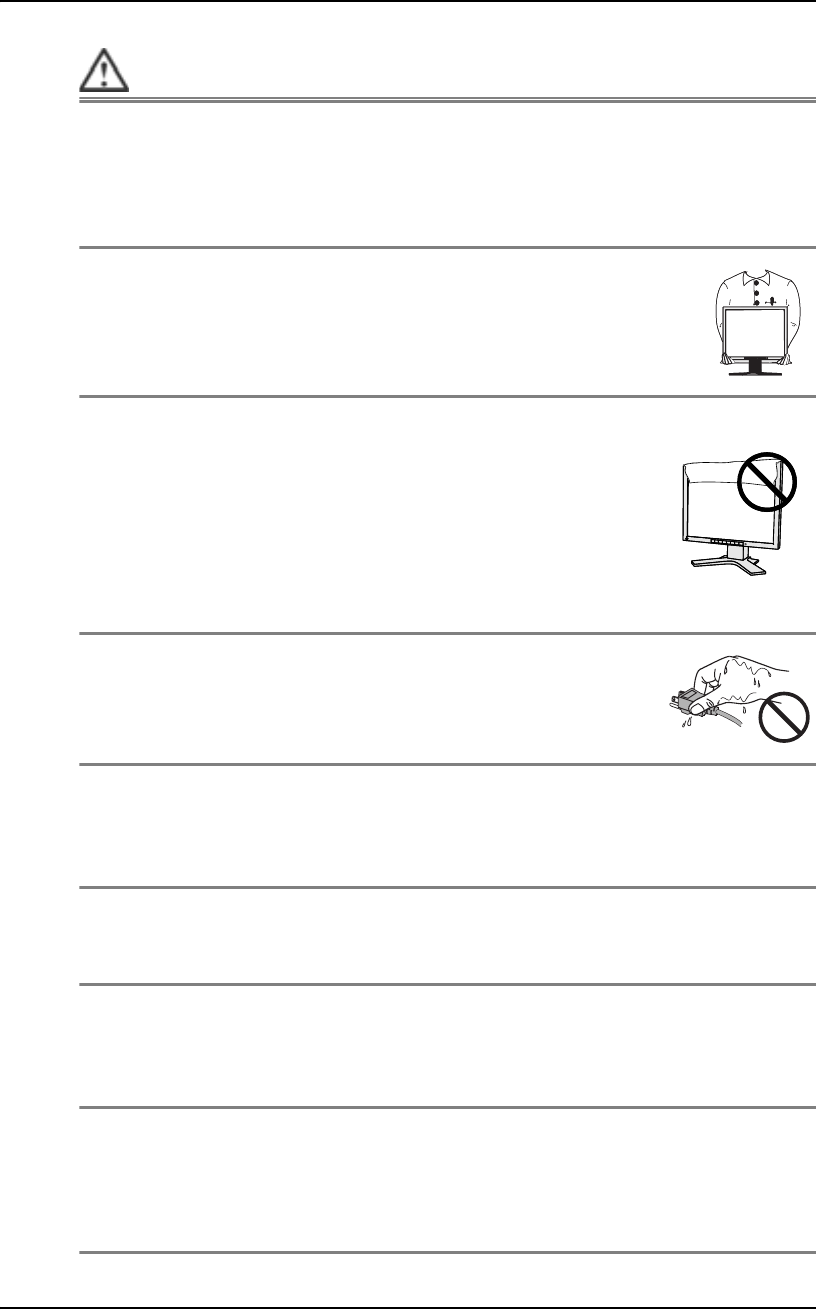

CAUTION

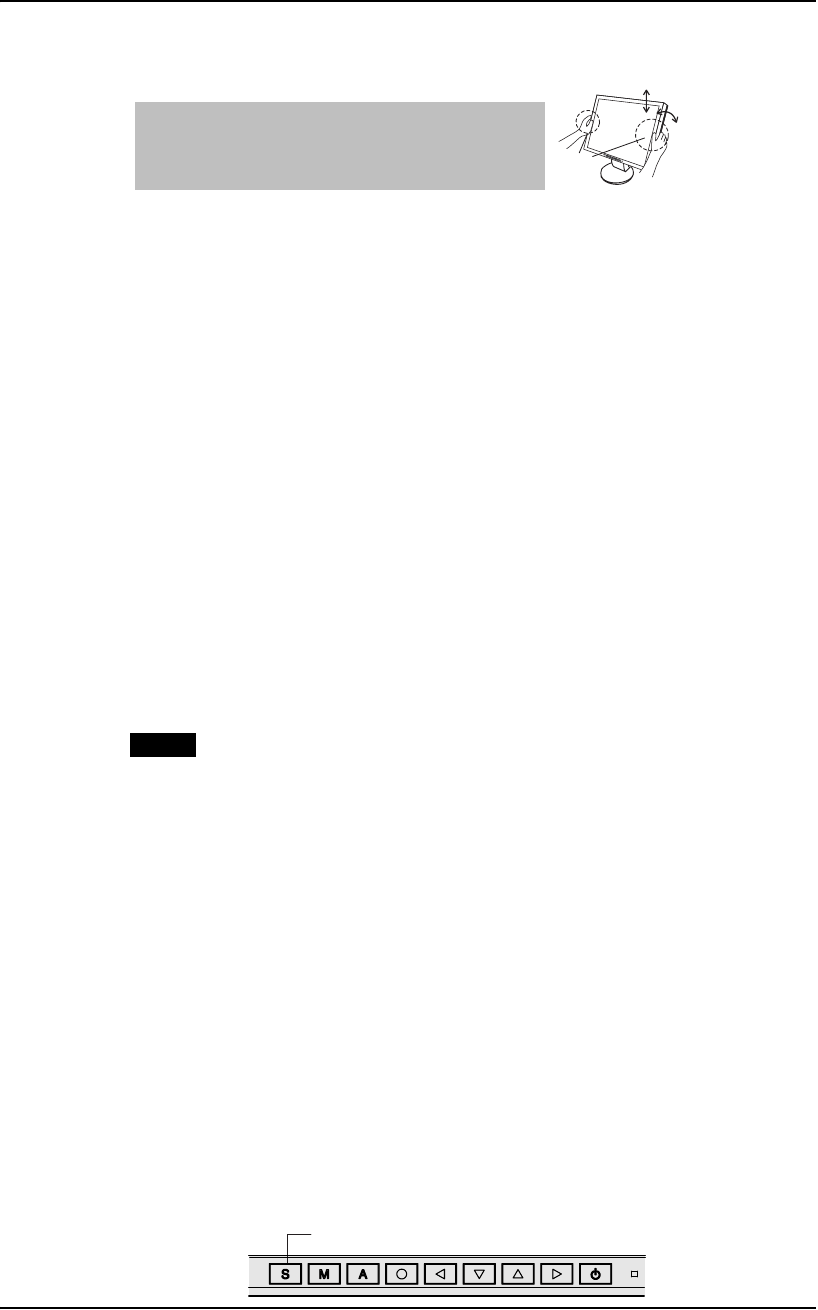

Handle with care when carrying the unit.

Disconnect the power cord and cables when moving the unit.

Moving the unit with the cord attached is dangerous. It may

result in injury.

When handling the unit, grip the bottom of the unit firmly

with both hands ensuring the panel faces outward before

lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

zDo not place any objects on the ventilation slots.

zDo not install the unit in a closed space.

zDo not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may

result in fire, electric shock, or equipment damage.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case

of a problem.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result

in electric shock.

If you plan to leave the unit unused for an extended period,

disconnect the power cord from the wall socket after turning

off the power switch for the safety and the power

conservation.

OKOK

English

8PRECAUTIONS

LCD Panel

When the monitor is cold and brought into a room or the room

temperature goes up quickly, dew condensation may occur inside

and outside the monitor. In that case, do not turn the monitor on

and wait until dew condensation disappears, otherwise it may

cause some damages to it.

In order to suppress the luminosity change by long-term use and to

maintain the stable luminosity, use of a monitor in lower

brightness is recommended.

The screen may have defective pixels. These pixels may appear as

slightly light or dark area on the screen. This is due to the

characteristics of the panel itself, and not the product.

The backlight of the LCD panel has a fixed life span. When the

screen becomes dark or begins to flicker, please contact your

dealer.

Do not press on the panel or edge of the frame strongly, as this

may result in damage to the screen. There will be prints left on the

screen if the pressed image is dark or black. If pressure is

repeatedly applied to the screen, it may deteriorate or damage

your LCD panel. Leave the screen white to decrease the prints.

Do not scratch or press on the panel with any sharp objects, such

as a pencil or pen as this may result in damage to the panel. Do

not attempt to brush with tissues as this may scratch the LCD

panel.

When the screen image is changed after displaying the same image

for extended periods of time, an afterimage may appear. Use the

screen saver or timer to avoid displaying the same image for

extended periods of time.

English

1. INTRODUCTION 9

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

zDual inputs compliant

zDVI Digital input (TMDS) compliant

z[Horizontal scanning frequency] Analog: 24.8 - 80 kHz

Digital: 31 - 64 kHz

[Vertical scanning frequency] Analog: 50 - 75 Hz

Digital: 59 - 61 Hz (VGA text: 69 - 71 Hz)

[Resolution] 1280 dots x 1024 lines

zAuto Adjustment compliant

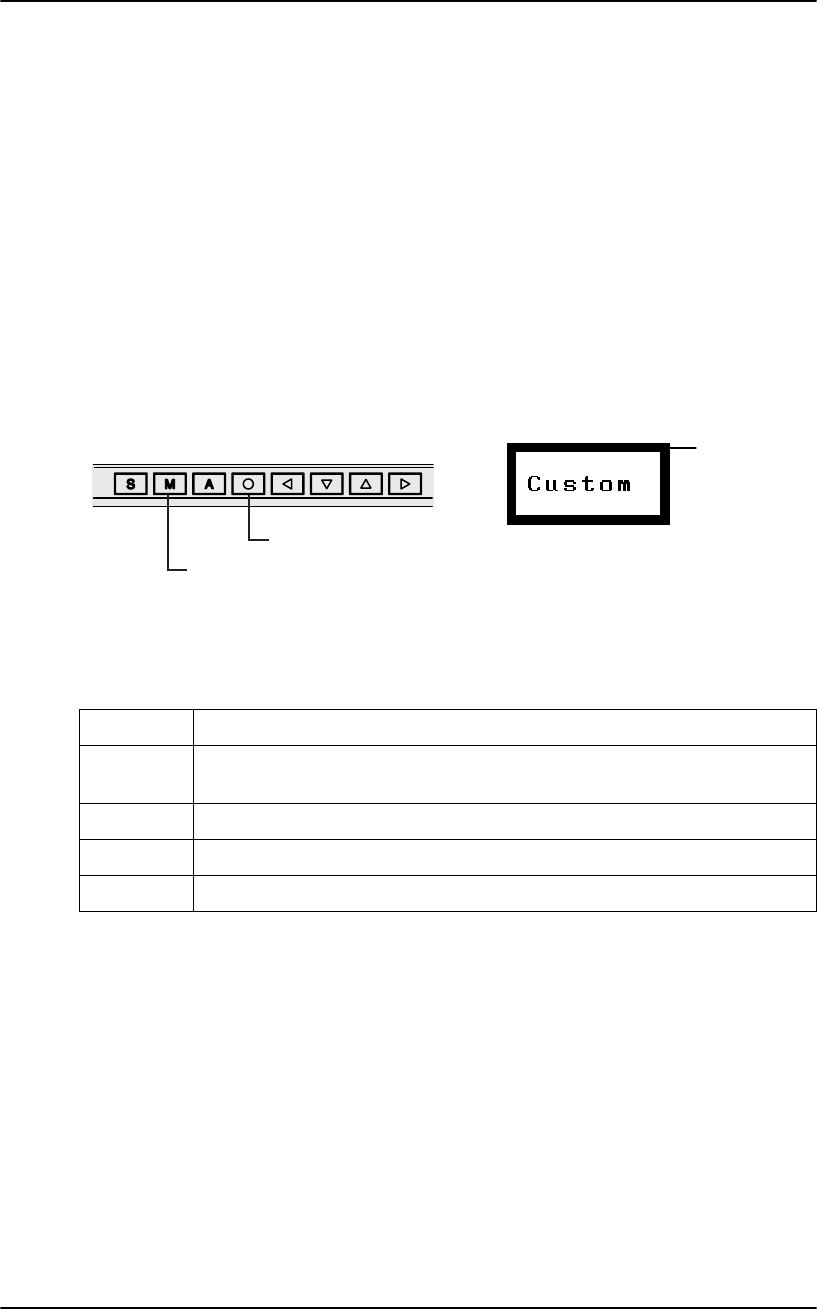

zFineContrast modes, to select the most suitable mode for screen display

zThe EIZO LCD Utility Disk enclosed (See readme.txt in the CD-ROM for details.)

–The utility software “ScreenManager Pro for LCD” (for Windows) to control a

monitor form a PC with a mouse and a keyboard

–The software “DesktopViewer” (for Windows) to display bright and clear still

images

zThe height adjustable stand incorporated

zSupport to sRGB standard

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

zLCD Monitor zUser’s Manual (in the CD-ROM)

zPower Cord zSetup Guide

zSignal Cable (MD-C87) zScreenManager Quick Reference

zSignal Cable (FD-C35/FD-C39) zLIMITED WARRANTY

zEIZO USB Cable (MD-C93) zMounting Screws: M4 x 12 (mm) x 4 pcs

zEIZO LCD Utility Disk

NOTE

zPlease retain the packing materials for future transference.

zThe EIZO USB cable is used when using the software in the EIZO Utility Disk. For

information on the software, refer to the readme.txt in the EIZO LCD Utility Disk.

English

10 1. INTRODUCTION

1-3. Controls & Connectors

Front (L568 is given as an example)

(1) ScreenManager®

(2) Input Signal Selection Button

(3) Mode Button*1

(4) Auto Adjustment Button

(5) Enter Button

(6) Control Buttons (Left, Down, Up, Right)

(7) Power Button

(8) Power Indicator*2

*1 Directly pressing the Mode button allows you to select a FineContrast mode. (The main

menu of ScreenManager and the FineContrast menu cannot be displayed at the same time.)

*2 Regarding the power indicator for the “Off Timer”.

Blue Operation

Yel low Po we r s a v in g

Flashing yellow (2 times for each) Power save mode Digital only

Off Power off

(6)(5) (7) (8)

(1)

(3) (4)(2)

Control Panel

FineContrast Menu

English

1. INTRODUCTION 11

Rear (L568 is given as an example)

(9) Security Lock Slot*3

(10) Stand (Detachable)*4

(11) Power Connector

(12) DVI-D Input Connector

(13) D-Sub mini 15 pin Input Connector

(14) USB Port (1 Upstream)*5

*3 Allows for connection of a security cable. This lock supports Kensington’s MicroSaver

security system. For further information, please consult:

Kensington Technology Group

2855 Campus Drive, San Mateo, CA 94403 USA

Tel.: 800-650-4242, x3348, Intl: 650-572-2700, x3348

Fax: 650-572-9675

http://www.kensington.com

*4 The LCD monitor can be used with an optional arm stand by removing the stand (see

“5. ATTACHING AN ARM STAND”).

*5 USB Port upstream is used when using the software EIZO LCD Utility Disk (p. 15).

(12) (13) (14)

(9)

(11)

POWER INPUT DVI D-SUB

(10)

Bottom

English

12 2. CABLE CONNECTION

2. CABLE CONNECTION

2-1. Before Connecting

Before connecting your monitor to the PC, change the display screen settings

(resolution and frequency) in accordance with the charts below.

NOTE

zThe lower display modes like 640x 480, automatically enlarge to the maximum

display mode (1280 x 1024), and some lines of the characters may become

fuzzy. In this case, use <Smoothing> (p. 24) function to make the lines clear.

zWhen your computer and display support VESA DDC, the suitable resolution and

the refresh rate are set by just plugging your display into the computer without

any manual settings.

Analog Input

Digital Input

The monitor supports the following resolutions only.

Resolution Frequency Dot Clock Remarks

320 ×200 70 Hz

135 MHz (Max.)

VGA Graphic

640 ×480 ~ 75 Hz VGA, VESA

640 ×480 67 Hz Apple Macintosh

720 ×400 70 Hz VGA TEXT

800 ×600 ~ 75 Hz VESA

832 ×624 75 Hz Apple Macintosh

1024 ×768 ~ 75 Hz VESA

1152 ×864 75 Hz VESA

1152 ×870 75 Hz Apple Macintosh

1280 ×960 60 Hz VESA

1280 ×960 75 Hz Apple Macintosh

1280 ×1024 ~ 75 Hz VESA

Resolution Frequency Dot Clock Remarks

640 ×480 60Hz

108 MHz (Max.)

VGA

720 ×400 70Hz VGA TEXT

720 ×480 60Hz VESA Safe Mode

800 ×600 60Hz VESA

1024 ×768 60Hz VESA

1280 ×1024 60Hz VESA

English

2. CABLE CONNECTION 13

2-2. Connecting the Signal Cable

NOTE

zBe sure that the power switches of both the PC and the monitor are OFF.

1. Plug the signal cable into the connector at the rear of the monitor

and the other end of the cable into the video connector on the PC.

After connecting, secure the connection with the screw-in fasteners.

Analog Input

Signal Cable Connector of the PC PC

Signal Cable (enclosed) Video Output Connector /

D-Sub mini 15 pin

zStandard graphics card

zPower Macintosh G3

(Blue & White) / Power

Mac G4 (VGA)

Signal Cable (enclosed) +

Macintosh Adapter (Optional)

Video Output Connector /

D-Sub 15 pin

zMacintosh

Power Cord

English

14 2. CABLE CONNECTION

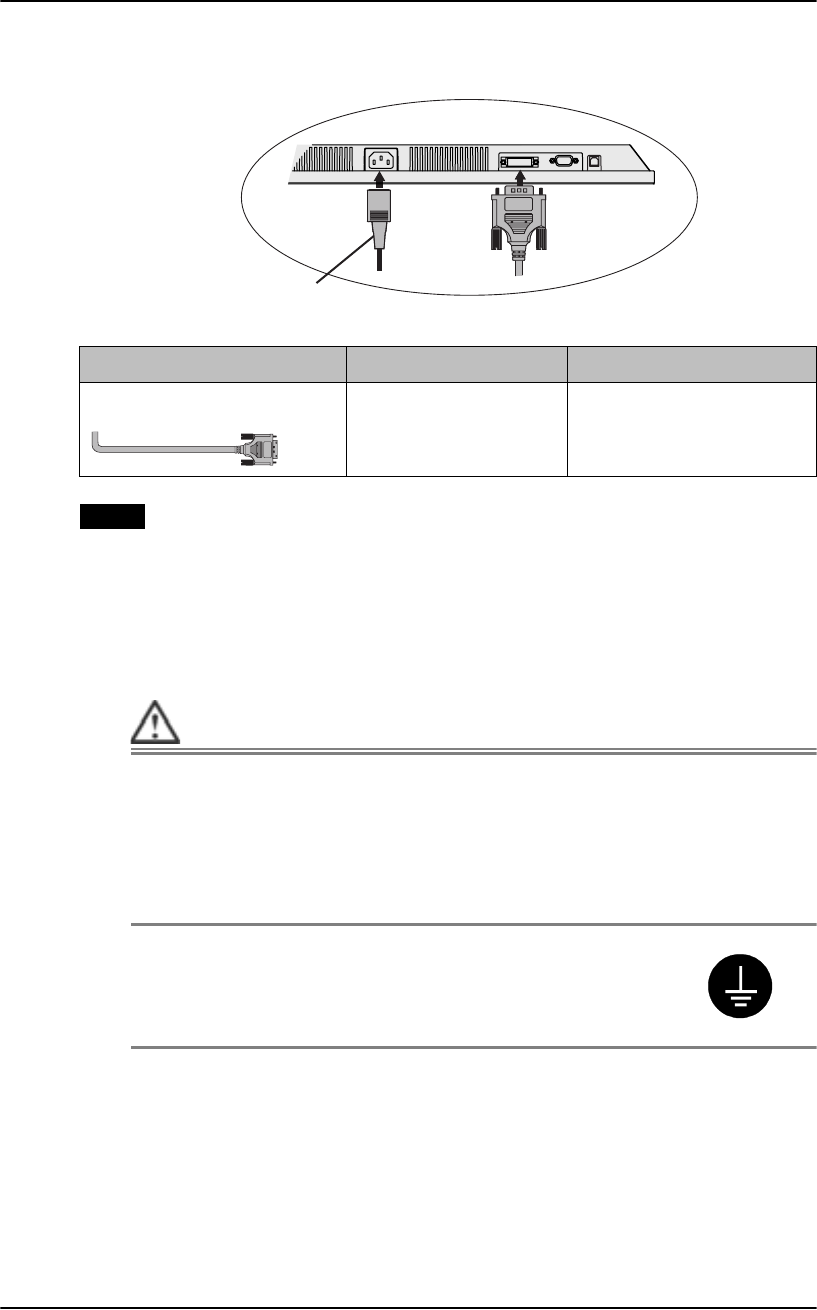

Digital Input

NOTE

zThe monitor is not compatible with a Power Mac G4/G5 (Apple Display

Connector).

2. Plug the power cord into the power connector on the rear of the

monitor. Then, plug the other end of the cord into a power outlet.

WARNING

Use the enclosed power cord and connect to the

standard power outlet of your country.

Be sure to remain within the rated voltage of the power

cord.Not doing so may result in fire or electric shock.

The equipment must be connected to a grounded main

outlet.

Not doing so may result in fire or electric shock.

Signal Cable Connector of the PC PC

FD-C35 / FD-C39 (enclosed) Video Output Connector /

DVI

zDigital Graphics card

zPower Mac G4/G5 (DVI)

Power Cord

English

2. CABLE CONNECTION 15

3. Adjust the “height”, “front and back position” and “angle” of the

monitor (L568-AS only).

(1) Adjust the height of the monitor. To

heighten, push the monitor backward. To lower, pull the monitor forward.

(2) Adjust the position and angle of the monitor.

(3) If necessary, fine adjust the height of the monitor.

4. Turn on the monitor’s main power and then switch on the PC’s

power.

The monitor’s power indicator will light up (blue). If an image does not appear,

refer to the “6. TROUBLESHOOTING” for advice. Whenever finished, turn

off the PC and the monitor.

5. When using the software in the EIZO LCD Utility Disk: Connect

the upstream port of the monitor to the downstream port of the

USB compliant PC or another hub with the USB cable.

After connecting the USB cable, the USB function can be set up automatically.

For further details about the software, refer to the readme.txt in the CD-ROM.

NOTE

zAdjust brightness of the screen depending on the brightness of your

environment. Too dark or too bright of a screen can cause eyestrain.

zBe sure to take adequate rests. A 10-minute rest period each hour is

suggested.

2-3. Connecting Two PCs to the Monitor

Two PCs can be connected to the monitor through the DVI and the D-Sub mini 15 pin

connector on the back of the monitor.

Selecting the Active Input

The Input signal selection button on the control panel can be used to select either DVI

or D-Sub as the active input at any time. Every time the button is pressed, the input

changes. When switching the signal, the kind of the input signal (Analog or Digital) is

displayed for a few seconds on the right top corner of the screen.

Grip both side of the center part of the

monitor and move slowly (refer to the

right figure.)

Input

S

ignal

Both Side of Center

Part of the Monitor

Move Slowly

English

16 3. SCREENMANAGER

3. SCREENMANAGER

3-1. How to use the ScreenManager

ScreenManager allows you to adjust screen performance though the main menu and

select a FineContrast mode easily.

NOTE

zMain Menu and FineContrast Menu cannot be activated at the same time.

1. Entering the ScreenManager

Press the Enter Button once to display the main menu of the ScreenManager.

2. Making Adjustments and Settings

(1) Select the desired sub menu icon using the Control buttons and presspress

the Enter button. The sub menu appears.

(2) Use the Control buttons to select the desired setting icon and press the

Enter button. The setting menu appears.

(3) Use the Control buttons to make all required adjustments and press the

Enter button to save the settings.

3. Exiting the ScreenManager

(1) To return to the main menu, select the <Return> icon or press the Down

button twice, followed by the Enter button.

(2) To exit the ScreenManager, select <Exit> icon or press the Down button

twice, followed by the Enter button.

NOTE

zDouble clicking the Enter button also exits the ScreenManager menu.

FineContrast Menu

Directly pressing the Mode button allows you to select the best suited

mode for screen display from 5 FineContrast modes; Custom, sRGB,

Text, Picture and Movie. To exit the menu, press the Enter button.

Main Menu Control Buttons

Left, Down, Up, Right

Auto Adjustment Button

Enter Button

Mode Button

FineContrast Menu

[Ex.] Custom

English

3. SCREENMANAGER 17

3-2. ScreenManager Adjustments and Settings.

The following table shows all the ScreenManager’s adjustment and setting menus.

“*” indicates adjustments of analog input only and “**” indicates digital input only.

*1 The adjustable functions on the <Color> menu depend on the selected FineContrast mode.

The above table shows the sub menus when the “Custom” mode is selected (see “4-2. Color

Adjustment”).

*2 The displaying time of the FineContrast Menu cannot be changed.

*3 Due to the inspection on the factory, the usage time may not “0 hour” at shipping.

Main menu Sub menu Reference

Screen Clock * 4-1. Screen Adjustment

Phase *

Position *

Range Adjustment *

Smoothing

Color

(Custom)*1

Brightness 4-2. Color Adjustment

Temperature

Gamma

Saturation

Hue

Gain

Reset

Power Manager DVI DMPM ** 4-3. Power-save Setup

VESA DPMS *

Others Input Signal Set the input signal selection of

automatic or manual (p. 20).

Off Timer Set the monitor’s off timer.

VGA Selection * Select the display mode (p. 31).

Menu Position Adjust the menu position

Translucent Set the transparency of the menu.

Menu Off Timer Set the menu displaying time.*2

Reset Return to the factory default settings.

Information Information Review the ScreenManager’s settings,

model name, serial number and usage

time.*3

Language English, German, French,

Spanish, Italian, Swedish

and Japanese

Select the ScreenManager’s language.

English

18 3. SCREENMANAGER

3-3. FineContrast

This function allows you to select the best suited mode for screen display.

To select the Mode

Directly pressing the Mode button allows you to select the best suited mode for screen

display from 5 FineContrast modes; Custom, sRGB, Text, Picture and Movie.

Exit

Press the Enter button to exit the menu. Leaving the Mode button untouched more

than 5 seconds also exits the menu.

FineContrast Mode

Selectable FineContrast modes are as follows.

Color Adjustment of the Mode Settings

The color settings of each mode can be adjusted by using the <Color> menu of the

ScreenManager. (See “4-2. Color Adjustment”.)

Custom To adjust the color settings according to your preference

sRGB To display the screen images based on those original colors (ex. over the

Internet)

Text Text on word processor or spreadsheet software

Picture Photo or picture image

Movie Animated images

FineContrast Menu

Ex.) Custom

Enter Button

Current

Mode

Mode Button

English

3. SCREENMANAGER 19

3-4. Useful Functions

Adjustment Lock

Use the “Adjustment Lock” function to prevent any accidental changes.

[How To lock]

(1) Switch off the monitor’s power by the power button on the control panel.

(2) Press on the Auto adjustment button while switching on the monitor’s power.

[How To unlock]

(1) Switch off the monitor’s power by the power button on the control panel.

(2) Hold down the Auto adjustment button once again and turn the power back on.

Off Timer

The off timer function causes the monitor to automatically enter a power off state

after a predetermined amount of time has lapsed. This function was created to reduce

afterimage characteristics that are particular to LCD monitors when the monitor

screen is left on for a long period without use.

[Procedure]

(1) Select <Off Timer> in the ScreenManager <Others> menu.

(2) Select “Enable” and press the Right and Left buttons to adjust the “On Period”

(1 to 23 hours).

[Off Timer System]

*1 Advance notice (Power Indicator flashing blue) will be given 15 minutes before the monitor

automatically enters the “Power Off” mode. To delay entering the “Power Off” mode,

press the power button during the advance notice period. The monitor will continue to op-

erate for an additional 90 minutes.

Locked function zSettings in the ScreenManager

zAuto adjustment button adjustments

Unlocked function zSelecting of the FineContrast mode by the Mode button.

zBrightness adjustment by Control buttons

zInput signal selection button

zTurning the power on and off by the Power button

PC Monitor Power Indicator

On Period (1H - 23H) Operation Blue

Last 15 min. in “On period” Advance Notice*1Blue Flashing

“On period” expired Power Off Off

English

20 3. SCREENMANAGER

[Power Resumption Procedure]

Press the Power button.

NOTE

zThe off timer function works while the PowerManager is active, but there is no

advance notice before the monitor’s power is switched off.

EIZO Logo Disappearing Function

When switching on the power button on the front panel, the EIZO logo is displyed

for a while. If you desire to display or undisplay this logo, use this function. (Default

is logo appearing.)

[To undisplay]

Switch off the monitor’s power by the power button, then hold down the Enter

button once again and turn the power back on.

[To display]

Switch off the monitor’s power by the power button, then hold down the Enter

button once again and turn the power back on.

Automatically Selecting the Input Signal Function

The monitor will automatically detect the inputted signal of either the connection for

display. (Default: this function is set (“Auto”).)

NOTE

zConnecting Two PCs to the Monitor

When the one computer is switched off or entering the power saving mode, the

monitor will automatically display the other signal.

Use the ScreenManager to switch the input signal manually.

[Procedure]

(1) Select <Input Signal> in the <Others> menu.

(2) Select <Manual>.

English

4. ADJUSTMENT 21

4. ADJUSTMENT

4-1. Screen Adjustment

Screen adjustments for the LCD monitor should be used in suppressing screen

flickering and also for adjusting the screen to its proper position. There is only one

correct position for each display mode. It is also recommended to use the

ScreenManager function when first installing the display or whenever changing the

system. For convenience, an easy set-up Program installed on the utility disk to assist

in the set-up procedure is provided.

NOTE

zAllow the LCD monitor to stabilize for at least 20 minutes before making image

adjustments.

Adjustment Procedure

1. Press the Auto adjustment button on the front panel.

The message “Your setting will be lost, if you press again now.” appears and

remains on the screen for 5 seconds. While the message is on the screen, press

the Auto adjustment button again to automatically adjust the clock, phase,

screen position and resolution. If you do not wish to do adjust the screen, do

not press the Auto adjustment button again.

NOTE

zThe Auto sizing function is intended for use on the Macintosh and on AT-

compatible PC running Windows. It may not work properly in either of the

following cases.When running an AT-compatible PC on MS-DOS (Not

windows). The background color for the “wall paper” or “desktop” pattern is

set to black.

The monitor displays the digital input image correctly based on its pre-

setting data.

If the appropriate screen cannot be made by using the Auto

adjustment button, adjust the screen through the following

procedures. If the appropriate screen can be made, proceed to step 4.

English

22 4. ADJUSTMENT

2. Run the “Screen adjustment program”.

Having read the “Readme.txt” file, run the “Screen adjustment program” in the

enclosed EIZO LCD Utility Disk. Step by step, adjustment is provided by the

wizard guide. (If using the Windows, the program can be directly run from the

menu screen of the CD-ROM.)

NOTE

zIf the user’s operating system has no utility disk (e.g. OS/2), we

recommend setting the desktop pattern to that as shown in the diagram on

the following.

3. Adjust by using <Screen> menu in the ScreenManager.

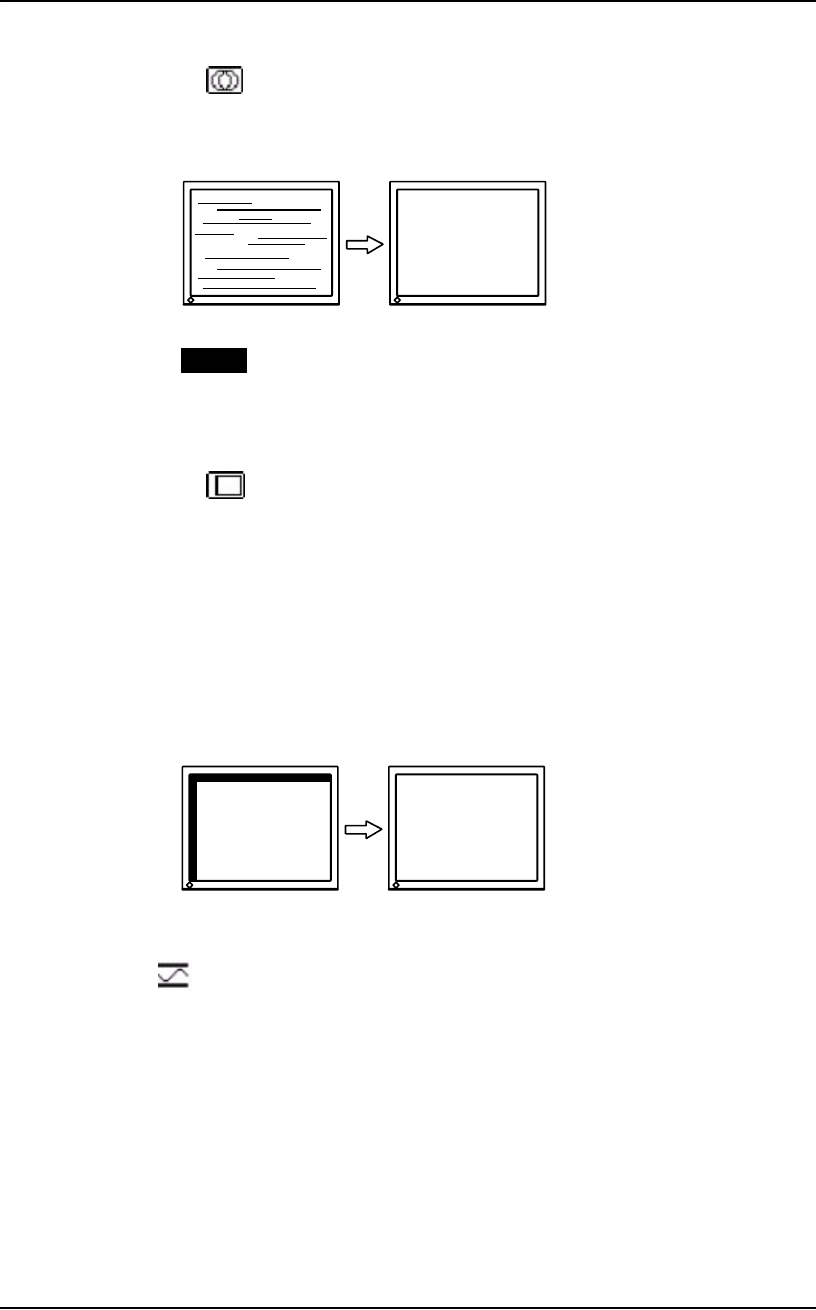

(1) Vertical bars appear on the screen

→ Use the <Clock> adjustment.

Select the <Clock> and eliminate the vertical bars by using the Right and

Left of the Control buttons.

Do not continuously press the Control buttons, as the adjustment value

will change quickly and make it difficult to locate the most suitable

adjustment point. If the horizontal flickering, blur or bars appear, proceed

to <Phase> adjustment as follows.

English

4. ADJUSTMENT 23

(2) Horizontal bars appear on the screen.

→ Use the <Phase> adjustment.

Select the <Phase> and eliminate the horizontal flickering, blurring or

bars by using the Right and Left buttons.

NOTE

zHorizontal bars may not completely disappear from the screen

depending on the PC.

(3) The screen position is incorrect.

→ Use the <Position> adjustment.

The correct displayed position of the monitor is decided because the

number and the position of the pixels are fixed. The <Position>

adjustment moves the image to the correct position.

Select <Position> and adjust the position by using the Up, Down, Right

and Left buttons.

If vertical bars of distortion appear after finishing the <Position>

adjustment, return to <Clock> adjustment and repeat the previously

explained adjustment procedure. Clock → Phase → Position.

4. Adjust the output signal range (Dynamic Range) of the signal.

→ Use the <Range Adjustment> of <Screen> menu.

This controls the level of output signal range to display the whole color

gradation (256 colors).

[Procedure]

Press the Auto adjustment button on the front panel while displaying the

<Range Adjustment> menu to automatically adjust the range. The screen blanks

for a moment and adjusts the color range to display the whole color gradation

of the current output signal.

English

24 4. ADJUSTMENT

5. To smooth the blurred texts of the enlarged screen of the lower

resolutions.

→ Switch the <Smoothing> setting.

Select the suitable level from 1 - 5 (Soft - Sharp).

Select <Smoothing> in the <Screen> menu and adjust by using the Right and

Left buttons.

NOTE

zThe <Smoothing> is disabled in the resolution 1280 x 1024.

zSince the displayed image is enlarged, the blurred texts may not be

necessarily lost completely.

English

4. ADJUSTMENT 25

4-2. Color Adjustment

Color settings of each FineContrast mode can be adjusted and saved by using the

<Color> menu of the ScreenManager.

Adjustment Items

The adjustable items and displayed icons on the <Color> menu depend on the selected

FineContrast mode.

“√”: Settable/Adjustable “–”: Fixed at the factory

NOTE

zAllow the LCD monitor to stabilize for at least 20 minutes before making image

adjustments.

zPerforming the <Reset> of the <Color> menu returns the color settings of the

selected mode to the default settings.

In the analog input, perform the <Range Adjustment> (p. 23) before making

the color adjustments.

Icons Functions FineContrast Modes

Custom sRGB Text Picture Movie

Brightness √√√√√

Temperature √–√√√

Gamma √–√––

Saturation √–√√√

Hue √–√√√

Gain √––––

Reset √–√√√

English

26 4. ADJUSTMENT

0

Menu Function Descriptions Adjustable range

Brightness To set the brightness of the

screen

0 ~ 100 %

Temperature To set the color temperature 4,000 ~ 10,000 K

in 500 K increments (including 9,300 K).

Default setting is off (normal white)

NOTE

zThe values shown in the Kelvin are available only as a reference tool.

zSetting the temperature under 4,000 K or over 10,000 K invalidates the

color temperature setting. (The color temperature’s setting turns “OFF”.)

Gamma To set the gamma value 1.8 ~ 2.6 (in 0.2 increments)

NOTE

zIf setting the gamma value, the using the monitor in the digital signal

input is recommended.

Saturation To change the saturation -128 ~ 127

Setting the minimum level (-128) turns the

image to the monochrome.

NOTE

zThe <Saturation> adjustment may cause undisplayable color tone.

Hue To change the flesh color, etc. -32 ~ 32

NOTE

zThe <Hue> adjustment may cause undisplayable color tone.

Gain To change each color

(red, green and blue)

0 ~ 100%

By adjusting the red, green and blue color

tones for each mode, custom colors can be

defined. Display a white or gray

background image and adjust the <Gain>.

NOTE

z

The values shown in the percentage are available only as a reference tool.

zSetting the <Temperature> invalidates the <Gain> adjustment. <Gain>

setting returns to the defaul.

Reset To return the color settings of

the selected mode to the

default settings

Select the <Reset>.

English

4. ADJUSTMENT 27

4-3. Power-save Setup

The <PowerManager> menu in the ScreenManager enables to set the power-save

setup.

NOTE

zDo your part to conserve energy, turn off the monitor when you are finished using

it. Disconnecting the monitor from the power supply is recommended to save

energy completely.

Analog Input

This monitor complies with the “VESA DPMS”.

[Procedure]

(1) Set the PC’s power saving settings.

(2) Select “VESA DPMS” from the <PowerManager> menu.

[Operation]

[Power Resumption Procedure]

Operate the mouse or keyboard to return to a normal screen.

Digital Input

This monitor complies with the “DVI DMPM”.

[Procedure]

(1) Set the PC’s power saving settings.

(2) Select “DVI DMPM” from the <PowerManager> menu.

[Power Saving System]

PC Monitor Power Indicator

Operation Operation Blue

Power saving STAND-BY

SUSPEND OFF Power saving Yellow

PC Monitor Power Indicator

Operation Operation Blue

Power saving Power saving Yellow

Off mode Power saving*1Flashing yellow

(2 times for each)

English

28 4. ADJUSTMENT

*1 Power saving through the PC’s off mode is only supported when “Manual” is selected on

the ScreenManager’s <Input Signal>.

[Power Resumption Procedure]

Operate the mouse or keyboard to return to a normal screen from the Power save

mode of the PC.

Power on the PC to return a normal screen from the Off mode of the PC.

English

5. ATTACHING AN ARM STAND 29

5. ATTACHING AN ARM STAND

The LCD monitor can be used with an arm stand by removing the tilt stand and

attaching the arm stand to the LCD monitor. Using our optional arm or stand is

recommended. (Ask your local dealer for information.)

NOTE

zIf you will use the arm or stand of other companies, confirm the followings to the

arm or stand maker before selecting.

–Hole spacing on the arm mounting: 100 mm x 100 mm (VESA compliant)

–Supportable Weight: Total weight of the monitor (without stand) and attaching

equipment such as a cable

–TÜV/GS approved arm or stand

zPlease connect cables after attaching an arm stand.

Setup Procedure

1. Lay the LCD monitor down. Do not scratch the panel.

2. Remove the tilt stand by loosening the screws

(4 pcs of M4 x 14 mm).

3. Attach an arm stand to the LCD monitor securely.

Arm-stand

4 Mounting Screws : M4 x 12 mm (Enclosed)

English

30 6. TROUBLESHOOTING

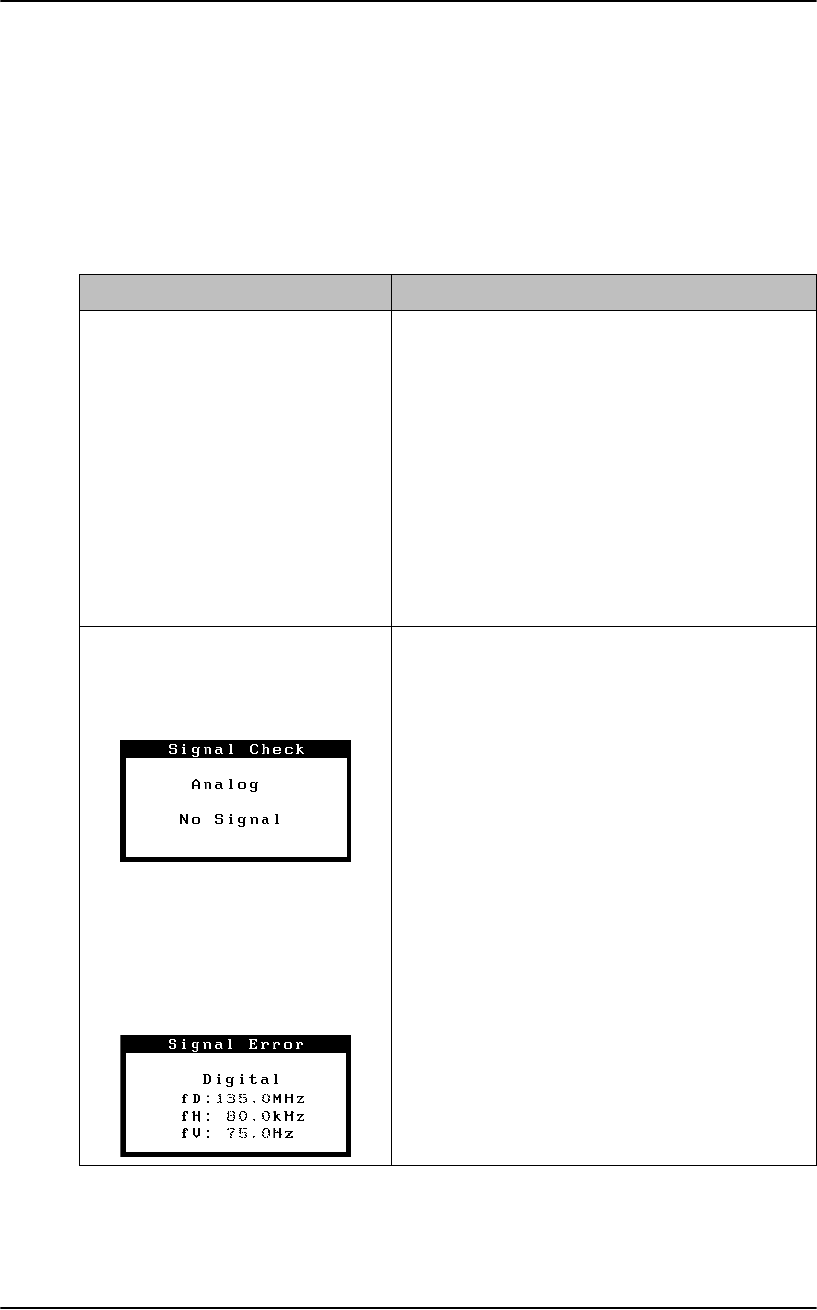

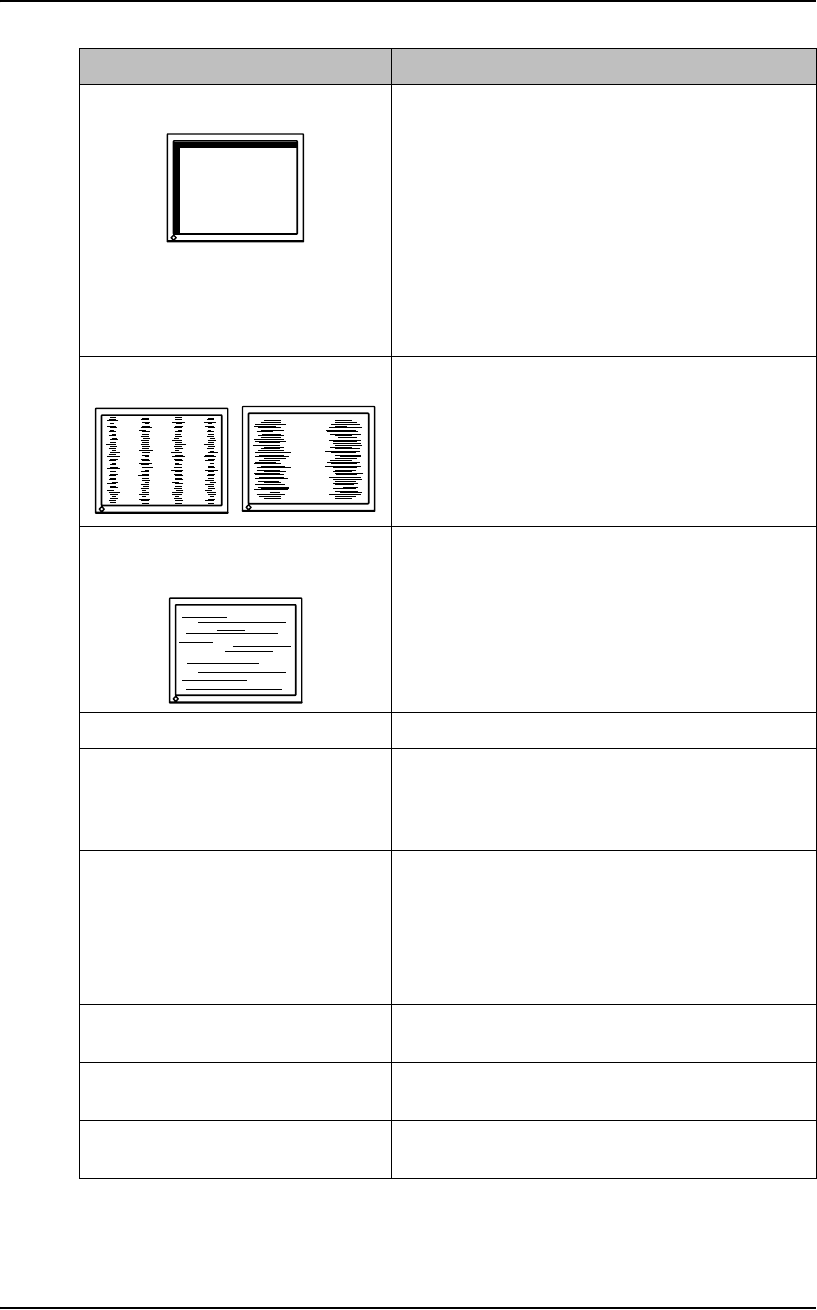

6. TROUBLESHOOTING

If a problem persists even after applying the suggested remedies, contact an EIZO dealer.

zNo picture problems → See No.1 ~ No.2

zImaging problems → See No.3 ~ No.11

zOther problems → See No.12 ~ No.14

Problems Points to check with Possible Solutions

1. No picture

zIndicator status: Off

Check that the power cord is correctly

connected. If the problem persists, turn off the

monitor power for a few minutes, then turn it

back on and try again.

zIndicator status: Blue Check the “Brightness” setting.

Switch the signal input by pressing the Input

Signal Selection Button on the front control

panel.

zIndicator status: Yellow Try pressing a key on the keyboard, or clicking

the mouse.

zIndicator status: Flashing

Yellow (twice for each)

Try pressing the power of the computer (p. 28).

2. Following messages appear.

(Error messages shown below

will remain on the screen for 40

seconds.)

These messages appear when the signal is not

inputted correctly, even if the monitor functions

properly.

When the image is displayed correctly after a

short time, there is no problem with the monitor.

(Some PCs do not output the signal soon after

powering on.)

Check that the signal cable is properly

connected to the PC or graphics board.

Switch the signal input by pressing the Input

signal selection button on the front control panel.

zWhenever an error signal

message appears, the

signal frequency will be

displayed in red.

(Example)

Use the graphics board’s utility software to

change the frequency setting. (Refer to the

manual of the graphics board.)

English

6. TROUBLESHOOTING 31

3. Display position is incorrect. Adjust the image position using the <Position>

(p. 23).

The two display modes, VGA 720 x 400 (70 Hz)

and 320 x 200 (70 Hz), have the same signal

timings. Using <VGA Selection> selects the

appropriate display mode. (This function effects

only when the resolution is VGA 720 x 400 (70

Hz) or 320 x 200 (70 Hz).

If the problem persists, use the graphics

board’s utility software to change the display

position if available.

4. Vertical bars of distortion appear. Decrease the vertical bars using the <Clock>

(p. 22).

5. Horizontal bars of distortion

appear.

Decrease the horizontal bars using the

<Phase> (p. 23).

6. Letters and lines appear blurred. Switch the <Smoothing> (p. 24) mode to “Off”.

7. The screen is too bright or too

dark.

Adjust the <Brightness> (The backlight of the

LCD monitor has a fixed life span. When the

screen becomes dark or begins to flicker,

please contact your dealer.)

8. Afterimages appear. Do you use the screen saver or timer when

displaying the same image for extended

periods of time?

Afterimages are particular to LCD monitors.

Avoid displaying the same image for extended

periods of time.

9. The screen has defective pixels

(e.g. slightly light or dark).

This is due to the characteristics of the panel

itself, and not the LCD product.

10. Fingerprints remain on the

screen.

Leaving the screen white may solve the

problem.

11. The <Smoothing> cannot be

selected.

<Smoothing> is disabled when the screen is

displayed in the 1280 x1024.

Problems Points to check with Possible Solutions

English

32 6. TROUBLESHOOTING

12. The ScreenManager cannot be

activated.

The adjustment lock is probably on.

To unlock (p. 19): switch the LCD monitor off.

Then, while pressing the Auto adjustment

button switch, the power on.

13. The Auto Adjustment Button

does not operate.

The Auto adjustment button does not operate

when the digital signal is inputted

The adjustment lock is probably on.

To unlock (p. 19): switch the monitor off. Then,

while pressing the Auto adjustment button,

switch the monitor on.

14. The Input signal selection button

does not operate.

The computer with digital may be in the off

mode (power indicator flashing yellow). Try to

press the monitor’s power button and press the

Input signal selection button again.

Problems Points to check with Possible Solutions

English

7. CLEANING 33

7. CLEANING

Periodic cleaning is recommended to keep the monitor looking new and to prolong its

operation lifetime.

NOTE

zNever use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol),

abrasive cleaners, or other strong solvents, as these may cause damage to the

cabinet or LCD panel.

Cabinet

To remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild

detergent. Do not spray wax or cleaner directly into the cabinet. (For details, refer to

the manual of the PC.)

LCD Panel

zThe LCD surface can be cleaned with a soft cloth, such as cotton or lens paper.

zIf necessary, stubborn stains can be removed by moistening part of a cloth with

water to enhance its cleaning power.

English

34 8. SPECIFICATIONS

8. SPECIFICATIONS

LCD Panel 43 cm (17.0 inch), TFT color LCD panel with Anti-Glare

Hard Coating, Viewing Angle: H: 178°, V: 178° (CR ≥ 10)

Dot Pitch 0.264 mm

Horizontal Scan Frequency Analog: 24.8 ~ 80 kHz (Automatic)

Digital: 31 ~ 64 kHz

Vertical Scan Frequency Analog: 50 ~ 75 Hz (Automatic)

Digital: 59 ~ 61 Hz (VGA Text: 69 ~ 71 Hz)

Resolution 1280 dots x 1024 lines

Dot Clock (Max.) Analog: 135 MHz, Digital: 108 MHz

Display Colors 16 million colors (max)

Display Area 337 mm (H) x 270 mm (V) (13.3” (H) x 9.1” (V))

(Viewable image size: 430 mm (17.0”))

Power Supply 100 - 120 VAC ±10%, 50/60 Hz, 0.7 A

200 - 240 VAC ±0%, 50 Hz, 0.4 A

Power Consumption Max.: 40 W

Power Saving Mode: Less than 2 W (for single signal input)

Input Connector D-Sub mini 15 pin, DVI-D

Analog Input Signal (Sync) Separate, TTL, Positive/Negative

Analog Input Signal (Video) 0.7 Vp-p / 75 Ω Positive

Input Signal (Digital) TMDS (Single Link)

Signal registration Analog: 45 (Factory preset: 20)

Plug & Play VESA DDC 2B

Dimensions

L568

L568-AS

362 mm (W) x 389 ~ 489 mm (H) x 205 mm (D)

(14.3” (W) x 15.3” ~ 19.3” (H) x 8.1” (D))

362 mm (W) x 280 ~ 406 mm (H) x 200 mm (D)

(14.3” (W) x 11” ~ 16” (H) x 7.9” (D))

Dimensions (without stand) 362 mm (W) x 299 mm (H) x 55 mm (D)

(14.3” (W) x 11.8” (H) x 2.17” (D))

Weight

L568

L568-AS

5.8 kg (12.8 lbs.)

5.6 kg (12.3 lbs.)

Weight (without stand) 3.7 kg (8.2 lbs.)

Temperature Operating: 0°C ~ 35°C (32°F ~ 95°F)

Storage: -20°C ~ 60°C (-4°F ~ 140°F)

Humidity 30% to 80% R.H. Non-condensing

English

8. SPECIFICATIONS 35

*1 Applicable to gray color version only.

*2 Applicable to black color version only.

Default settings

Certifications and Standards

100-120 VAC TCO’03*1, TCO’99*2, NRTL/C-TÜV, FCC-B, EPA ENERGY

STAR Program, TÜV/Rheinland Ergonomics Approved

200-240 VAC TCO’03*1, TCO’99*2, CE, CB, TÜV Rheinland/GS, EPA

ENERGY STAR Program, TÜV/Rheinland Ergonomics

Approved

Analog input Digital input

Brightness 100% 100%

Smoothing 3

FineContrast Mode Custom

PowerManager VESA DPMS DVI DMPM

Input Signal Auto

Off Timer Disable

Language English

English

36 8. SPECIFICATIONS

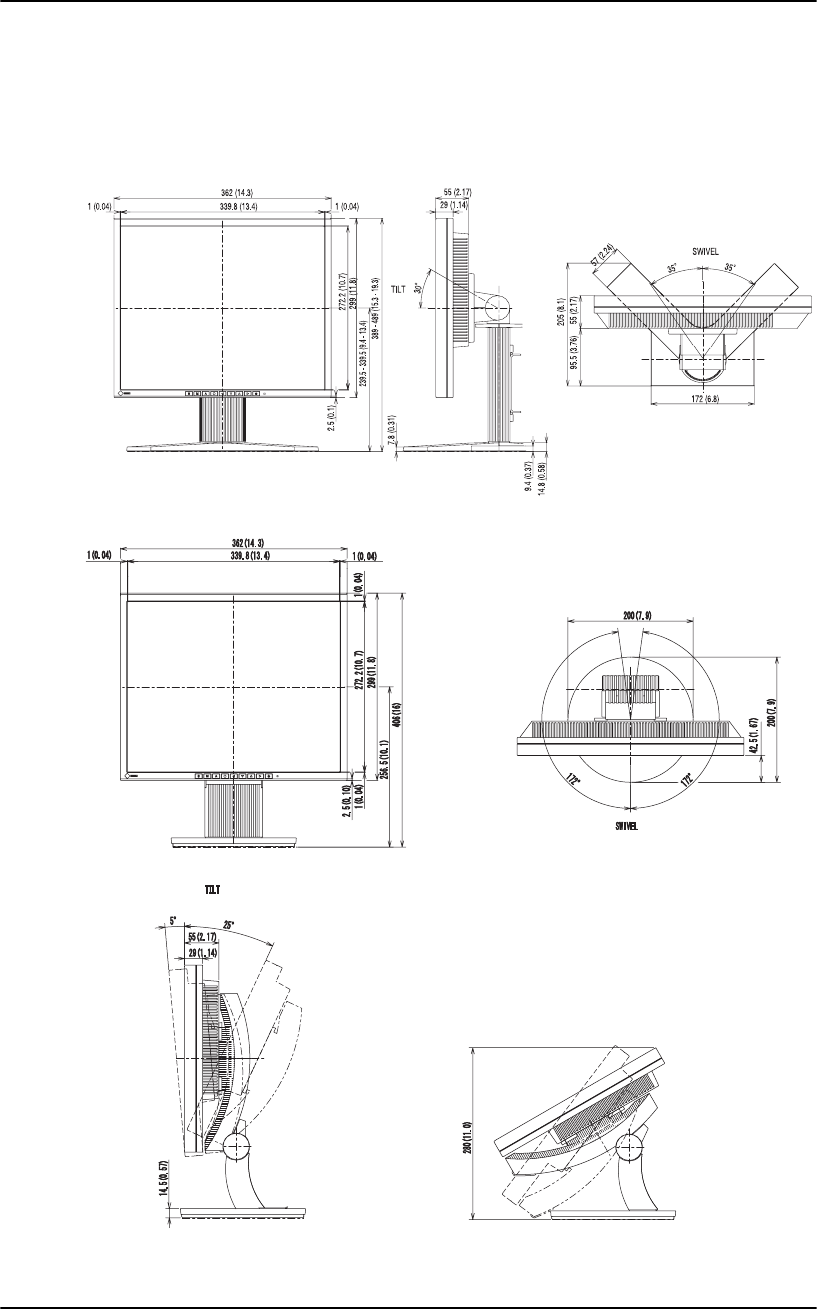

Dimensions

mm (inches)

<L568>

<L568-AS>

English

8. SPECIFICATIONS 37

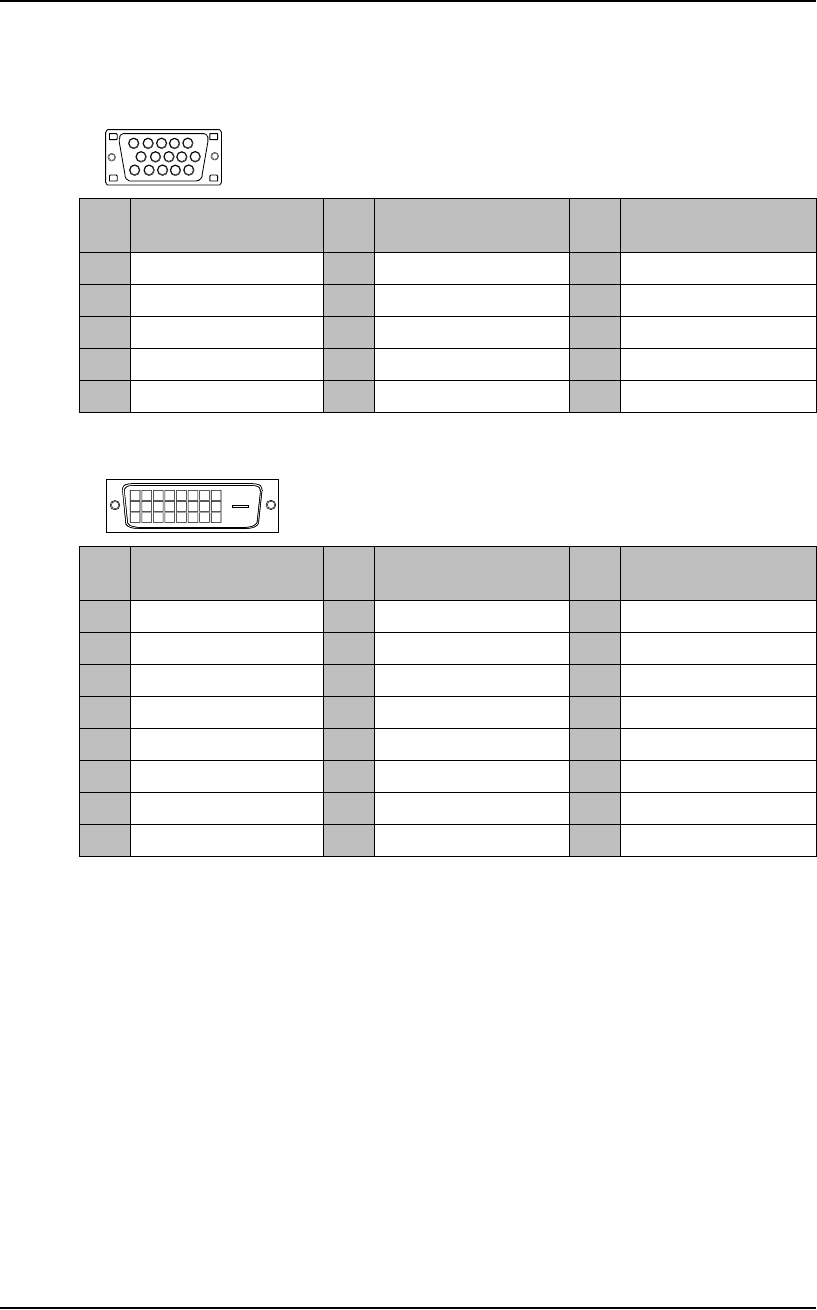

Pin Assignment

D-Sub mini 15 pin connector

DVI-D Connector

Pin

No. Signal Pin

No. Signal Pin

No. Signal

1 Red video 6 Red ground 11 Ground Shorted

2 Green video 7 Green ground 12 Data (SDA)

3 Blue video 8 Blue ground 13 H. Sync

4 Ground 9 No pin 14 V. Sync

5 No pin 10 Ground Shorted 15 Clock (SCL)

Pin

No. Signal Pin

No. Signal Pin

No. Signal

1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-

2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+

3 TMDS Data 2/4 Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield

4NC*12 NC* 20 NC*

5NC*13 NC* 21 NC*

6 DDC Clock (SCL) 14 +5V Power 22 TMDS Clock shield

7 DDC Data (SDA) 15 Ground (For +5V) 23 TMDS Clock+

8NC16 Hot Plug Detect 24 TMDS Clock-

(*NC: No Connection)

51

3

42

876

9

10

12

1314

15 11

12345678

910 11 12 13 14 15 16

19 20 2117 18 22 23 24

English

38 9. GLOSSARY

9. GLOSSARY

Clock

With the analog input signal display, the analog signal is converted to a digital

signal by the LCD circuitry. To convert the signal correctly, the LCD monitor needs

to produce the same number clock pulse as the dot clock of the graphics system.

When the clock pulse is not correctly set, some vertical bars of distortion are

displayed on the screen.

DVI

(Digital Visual Interface)

A digital flat panel interface. DVI can transmit digital data from the PC directly

without loss with the signal transition method “TMDS”.There are two kinds of

DVI connectors. One is DVI-D connector for digital signal input only. The other is

DVI-I connector for both digital and analog signal inputs.

DVI DMPM

(DVI Digital Monitor Power Management)

The Power management system for the digital interface. The “Monitor ON” status

(operation mode) and the “Active Off” status (power-saving mode) are

indispensable for the DVI-DMPM as the monitor’s power mode.

Gain Adjustment

Adjusts each color parameter for red, green and blue. The color of the LCD

monitor is displayed through the color filter of the LCD panel. Red, green and blue

are the three primary colors. The colors on the monitor are displayed by

combining these three colors. The color tone can change by adjusting the

illumination amount passed through each color’s filter.

Gamma

Generally, the relationship that the light intensity values of a monitor change

nonlinearly to the input signal level is called “Gamma Characteristic”. On the

monitor, low gamma values display the whitish images and high gamma values

display the high contrast images.

Phase

The phase adjustment decides the sampling timing point for converting the analog

input signal to a digital signal. Adjusting the phase after the clock adjustment will

produce a clear screen.

English

9. GLOSSARY 39

Range Adjustment

The Range Adjustment controls the level of output signal range to display the

whole color gradation.

Resolution

The LCD panel consists of a fixed number of pixel elements which are illuminated

to form the screen image. This products’ display panel consists of 1280 horizontal

pixels and 1024 vertical pixels. At a resolution of 1280 x 1024, all pixels are

displayed as a full screen.

sRGB

(Standard RGB)

“International Standard for Red, Green, and Blue color space” A color space was

defined with the aim of the color matching between applications and hardware

devices, such as monitors, scanners, printers and digital cameras. As a standard

default space, sRGB allows Internet users to closely match colors.

Temperature

Color Temperature is a method to measure the white color tone, generally

indicated in degrees Kelvin. At high temperatures the white tone appears

somewhat blue, while at lower temperatures it appears somewhat red. Computer

monitors generally give best performance at high temperature settings.

5,000 K: Slightly reddish white.

6,500 K: Warm-white tone, similar to white paper or daylight.

9,300 K: Slightly bluish white.

TMDS

(Transition Minimized Differential Signaling)

A signal transition method for the digital interface.

VESA DPMS

(Video Electronics Standards Association - Display Power Management Signaling)

The acronym VESA stands for “Video Electronics Standards Association”, and

DPMS stands for “Display Power Management Signaling”. DPMS is a

communication standard that PCs and graphics boards use to implement power

savings on the monitor side.

APPENDIX/ANHANG/ANNEXE i

APPENDIX/ANHANG/ANNEXE

Preset Timing Chart for Analog input

Timing-Übersichten für Analog Eingang

Synchronisation des Signaux pour Analog numerique

Based on the signal diagram shown below 20 factory presets have been registered in

the monitor’s microprocessor.

Der integrierte Mikroprozessor des Monitors unterstützt 20 werkseitige

Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme).

25 signaux ont été enregistrés en usine dans le microprocesseur du moniteur,

conformément au diagramme de synchronisation ci-dessous.

Mode Dot Clock

MHz

Sync Polarity Frequencies

H V fH: kHz fV: Hz

VGA Graphic

320 × 200 25.2 Nega Posi 31.5 70.1

VGA

640 × 480 25.2 Nega Nega 31.5 60.0

VGA Text

720 × 400 28.3 Nega Posi 31.5 70.1

Macintosh

640 × 480 30.2 Nega Nega 35.0 66.7

Macintosh

832 × 624 57.3 Posi Posi 49.7 74.6

Macintosh

1152 × 870 100.0 Nega Nega 68.7 75.1

Macintosh

1280 × 960 126.2 Posi Posi 74.8 74.8

VESA

640 × 480 31.5 Nega Nega 37.9 72.8

VESA

640 × 480 31.5 Nega Nega 37.5 75.0

VESA

800 × 600 36.0 Posi Posi 35.2 56.3

VESA

800 × 600 40.0 Posi Posi 37.9 60.3

VESA

800 × 600 50.0 Posi Posi 48.1 72.2

VESA

800 × 600 49.5 Posi Posi 46.9 75.0

ii APPENDIX/ANHANG/ANNEXE

VESA

1024 × 768 65.0 Nega Nega 48.4 60.0

VESA

1024 × 768 75.0 Nega Nega 56.5 70.1

VESA

1024 × 768 78.8 Posi Posi 60.0 75.0

VESA

1152 × 864 108.0 Posi Posi 67.5 75.0

VESA

1280 × 960 108.0 Posi Posi 60.0 60.0

VESA

1280 × 1024 108.0 Posi Posi 64.0 60.0

VESA

1280 × 1024 135.0 Posi Posi 80.0 75.0

Mode Dot Clock

MHz

Sync Polarity Frequencies

H V fH: kHz fV: Hz

[Applicable to gray cabinet version only.]

Congratulations!

The display you have just purchased carries the TCO’03 Displays

label. This means that your display is designed, manufactured

and tested according to some of the strictest quality and

environmental requirements in the world. This makes for a high

performance product, designed with the user in focus that also

minimizes the Impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

zGood visual ergonomics and image quality in order to improve the working

environment for the user and to reduce sight and strain problems. Important

parameters are luminance, contrast, resolution, reflectance, colour rendition and

image stability.

Energy

zEnergy-saving mode after a certain time - beneficial both for the user and environment

zElectrical safety

zEmissions

Electromagnetic fields

zNoise emissions

Ecology

zThe products must be prepared for recycling and the manufacturer must have a

certified environmental management system such as EMAS or ISO 14000

zRestrictions on

chlorinated and brominated flame retardants and polymers

heavy metals such as cadmium, mercury and lead.

The requirements includes in this label have been developed by TCO Development in co-

operation with scientists, experts, users as well as manufacturers all over the world. Since the

end of the 1980s TCO has been involved in influencing the development of IT equipment in a

more user-friendly direction. Our labeling system with displays in 1992 and is now requested

by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

[Applicable to black cabinet version only]

Congratulations!

You have just purchased a TCO’99 approved and labelled

product! Your choice has provided you with a product developed

for professional use. Your purchase has also contributed to

reducing the burden on the environment and also to the further

development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging

the adaptation of goods and services to the environment. The main problem, as far as

computers and other electronics equipment are concerned, is that environmentally harmful

substances are used both in the products and during their manufacture. Since it is not so far

possible to satisfactorily recycle the majority of electronics equipment, most of these potentially

damaging substances sooner or later enter nature.

There are also other characteristics of a computer, such as energy consumption levels, that are

important from the viewpoints of both the work (internal) and natural (external) environments.

Since all methods of electricity generation have a negative effect on the environment (e.g. acidic

and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics

equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international

and environmental labelling of personal computers. The labelling scheme was developed as a

joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska

Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens

Energimyndighet (The Swedish National Energy Administration).

Approval requirements cover a wide range of issues: environment, ergonomics, usability,

emission of electric and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands impose restrictions on the presence and use of heavy metals,

brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among

other things. The product must be prepared for recycling and the manufacturer is obliged to

have an environmental policy which must be adhered to in each country where the company

implements its operational policy.

The energy requirements include a demand that the computer and/or display, after a certain

period of inactivity, shall reduce its power consumption to a lower level in one or more stages.

The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the

reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

You will find a brief summary of the environmental requirements met by this product on the

right. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden

Fax: +46 8 782 92 07

Email (Internet): development@tco.se

Current information regarding TCO’99 approved and labelled products may also be

obtained via the Internet, using the address: http://www.tco-info.com/

Environmental Requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings.

Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in

a computer casing can consist of flame retardant substances. Most flame retardants contain

bromine or chloride, and those flame retardants are chemically related to another group of

environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and

the PCBs are suspected of giving rise to severe health effects, including reproductive damage

in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants

have been found in human blood and researchers fear that disturbances in foetus

development may occur.

The relevant TCO’99 demand requires that plastic components weighing more than 25

grams must not contain flame retardants with organically bound bromine or chlorine. Flame

retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain

computer displays. Cadmium damages the nervous system and is toxic in high doses.

The relevant TCO’99 requirement states that batteries, the colour-generating layers of

display screens and the electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system

and is toxic in high doses.

The relevant TCO’99 requirement states that batteries may not contain any mercury. It also

demands that mercury is not present in any of the electrical or electronics components

associated with the labelled unit.

CFCs (freons)

The relevant TCO’99 requirement states that neither CFCs nor HCFCs may be used during

the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing

printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the

stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks

of skin cancer (malignant melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages

the nervous system and in higher doses, causes lead poisoning.

The relevant TCO’99 requirement permits the inclusion of lead since no replacement has yet

been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms.

** Lead, Cadmium and Mercury are haevy metals which are Bio-accumulative.

For U.S.A, Canada, etc. (rated 100-120 Vac) Only

FCC Declaration of Conformity

We, the Responsible Party EIZO NANAO TECHNOLOGIES INC.

5710 Warland Drive, Cypress, CA 90630

Phone: (562) 431-5011

declare that the product Trade name: EIZO

Model: FlexScan L568/L568-AS

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Note

Use the attached specified cable below or EIZO signal cable with this monitor so as to keep

interference within the limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (enclosed)

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de le classe B est comforme à la norme NMB-003 du Canada.

Hinweis zur Ergonomie :

Dieser Monitor erfüllt die Anforderungen an die Ergonomie nach EK1-ITB 2000 mit dem

Videosignal, 1280 Punkte × 1024 Zeilen, RGB analog, 0,7 Vp-p und mindestens 75,0 Hz

Bildwiederholfrequenz, non interlaced. Weiterhin wird aus ergonomischen Gründen

empfohlen, die Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden (schlechte

Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast.)

Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor

Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum

Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter

anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die

nachstehenden Hinweise zu berücksichtigen:

Der Standfuß muß den nachfolgenden Anforderungen entsprechen:

a) Der Standfuß muß eine ausreichende mechanische Stabilität zur Aufnahme des

Gewichtes vom Bildschirmgerät und des spezifizierten Zubehörs besitzen. Das Gewicht

des Bildschirmgerätes und des Zubehörs sind in der zugehörenden Bedienungsanleitung

angegeben.

b) Die Befestigung des Standfusses muß derart erfolgen, daß die oberste Zeile der

Bildschirmanzeige nicht höher als die Augenhöhe eines Benutzers in sitzender Position

ist.

c) Im Fall eines stehenden Benutzers muß die Befestigung des Bildschirmgerätes derart

erfolgen, daß die Höhe der Bildschirmmitte über dem Boden zwischen 135 – 150 cm

beträgt.

d) Der Standfuß muß die Möglichkeit zur Neigung des Bildschirmgerätes besitzen (max.

vorwärts: 5°, min. nach hinten ≥ 5°).

e) Der Standfuß muß die Möglichkeit zur Drehung des Bildschirmgerätes besitzen (max. ±

180°). Der maximale Kraftaufwand dafür muß weniger als 100 N betragen.

f) Der Standfuß muß in der Stellung verharren, in die er manuell bewegt wurde.

g) Der Glanzgrad des Standfusses muß weniger als 20 Glanzeinheiten betragen

(seidenmatt).

h) Der Standfuß mit Bildschirmgerät muß bei einer Neigung von bis zu 10° aus der

normalen aufrechten Position kippsicher sein.

Recycle Auskunft

Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland

zusammen mit dem Partner eds-r gmbh rücknahmesysteme. Dort werden die Geräte in ihre

Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden. Um einen

Abholtermin zu vereinbaren und die aktuellen Kosten zu erfahren, benutzen Sie bitte

folgende Rufnummer: 02153-73 35 00. Weitere Informationen finden Sie auch unter der

Internet-Adresse: www.eizo.de.

Recycling Information for customers in Switzerland:

All recycling information is placed in the SWICO’s website.

http://www.swico.ch

Recycling-Information für Kunden in der Schweiz:

Alle Informationen zum Thema Recycling finden Sie auf der Homepage des

Brancheverbandes SWICO.

http://www.swico.ch

Renseignements de recyclage pour les clients en Suisse:

Vous trouvez tous les renseignements pour le sujet de recyclage sur la page WEB de I’UNION

DE BRAN CHE SWICO.

http://www.swico.ch

Recycling Information for customers in USA:

All recycling information is placed in the EIZO Nanao Technologies, Inc’s website.

http://www.eizo.com/contact/index.html

Återvinnings information för kunder i Sverige:

All information om återvinning finns på Eizo Nordics hemsida:

www.eizo.se
