Users Manual

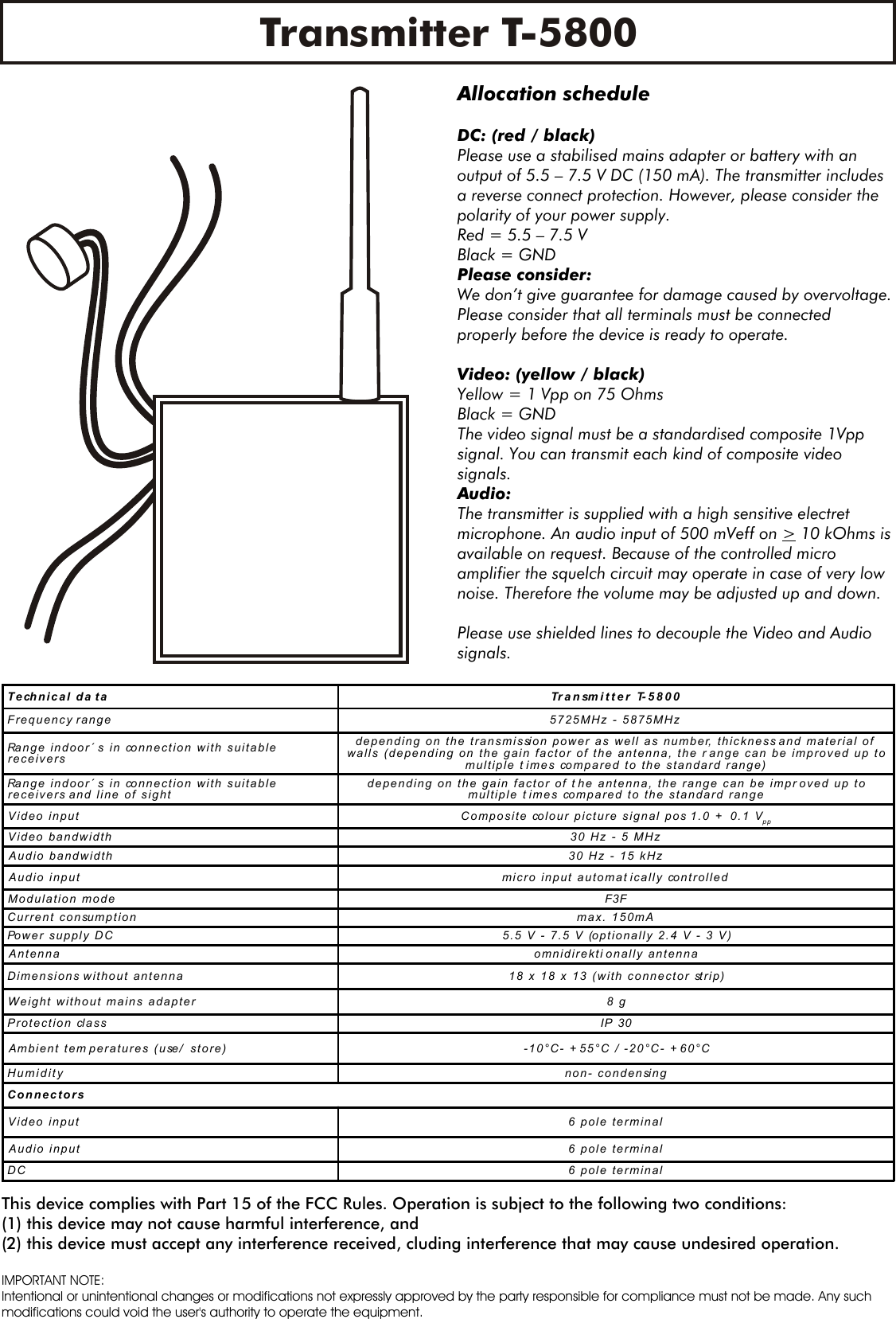

Transmitter T-5800Allocation scheduleDC: (red / black)Please use a stabilised mains adapter or battery with an output of 5.5 – 7.5 V DC (150 mA). The transmitter includes a reverse connect protection. However, please consider the polarity of your power supply.Red = 5.5 – 7.5 V Black = GNDPlease consider:We don’t give guarantee for damage caused by overvoltage.Please consider that all terminals must be connected properly before the device is ready to operate.Video: (yellow / black)Yellow = 1 Vpp on 75 OhmsBlack = GNDThe video signal must be a standardised composite 1Vpp signal. You can transmit each kind of composite video signals.Audio: The transmitter is supplied with a high sensitive electret microphone. An audio input of 500 mVeff on > 10 kOhms is available on request. Because of the controlled micro amplifier the squelch circuit may operate in case of very low noise. Therefore the volume may be adjusted up and down.Please use shielded lines to decouple the Video and Audio signals.Technical da ta Transmitter T-5800Frequency range 5725MHz - 5875MHzRange indoor´ s in connection with suitablereceiversdepending on the transmission power as well as number, thickness and material ofwalls (depending on the gain factor of the antenna, the r ange can be improved up tomultiple times compared to the standard range)Range indoor´ s in connection with suitablereceivers and line of sight depending on the gain factor of the antenna, the range can be improved up tomultiple times compared to the standard rangeVideo input Composite colour picture signal pos 1.0 + 0.1 VppVideo bandwidth 30 Hz - 5 MHzAudio bandwidth 30 Hz - 15 kHzAudio input micro input automatically controlledModulation mode F3FCurrent consumption max. 150mAPower supply DC 5.5 V - 7.5 V (optionally 2.4 V - 3 V)Antenna omnidirektionally antennaDimensions without antenna 18 x 18 x 13 (with connector strip)Weight without mains adapter 8 gProtection class IP 30Ambient temperatures (use/ store) -10°C- +55°C / -20°C- + 60°CHumidity non- condensingConnectorsVideo input 6 pole terminalAudio input 6 pole terminalDC 6 pole terminalThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, cluding interference that may cause undesired operation.IMPORTANT NOTE:Intentional or unintentional changes or modifications not expressly approved by the party responsible for compliance must not be made. Any suchmodifications could void the user's authority to operate the equipment.
