Force i25
Dual 15-Inch Two-Way
Full-Range Speaker System
Technical Specifications:
General Description:
The Force i25 is a dual 15" two-way system with the
heart and soul of a subwoofer. Utilizing a two element
shaded array, the upper woofer covers bass and mids
while the lower woofer combines to drive the huge bass
port with room-shaking efficiency. EV’s Ring Mode
Decoupling (RMD) technology assures that voices and
instruments will stay smooth and detailed regardless
of level. The DH3 one inch exit true compression driver
has a pure titanium diaphragm for sparkling, crystal
clear highs. Coupled with our proven 80° x 55° low
distortion Constant Directivity™ horn, your audience
will hear more details more clearly throughout more of
the room than with typical competitive 90° horns. The
large single handle on the top of the enclosure makes
it easy to tilt and roll the Force i25 on its built-in pocket
wheels. For truly outstanding performance, power a
pair of Electro-Voice Force i25’s with an Electro-Voice
CP2200 power amplifier or a Dynacord PowerMate™
powered mixer.
Key Features:
••
••
•Two-Element Shaded Array
••
••
•RMDTM - Ring-Mode Decoupling
••
••
•1-inch Exit Pure Titanium True
Compression Driver
••
••
•80o x 55o true Constant-Directivity horn
••
••
•High Power Crossover Network
••
••
•Built-in Wheels for Easy Transport
••
••
•Manufactured in the United States
)Bd3-(esnopseR.qerF
1
:zHk81-zH64
)Bd01-(egnaR.qerF
1
:zHk02-zH53
:)m1/W1(ytivitisneSBd001
:LPS.claC.xaMBd431
:gnildnaHrewoPW006
:egarevoC°55x°08
:)lanimoN(ecnadepmIsmho4
:srecudsnarTFLsrevirDFL)mm183("51,E51-VE)2(
:recudsnarTFH FHtixE)mm4.52("1,3HD revirDnoisserpmoC
:ycneuqerFrevossorCzHk51.2
:hsiniFtepraCkcalBytuDyvaeH
:srotcennoCnokaepS)2(
®
4LN
:ellirGleetSdetaoCredwoP
:ni)DxWxH(miD”52.02x”29.71x”89.54
:mm)DxWxH(miDmm415xmm554xmm8611
:thgieWteN)gk1.84(sbl601
:thgieWgnippihS)gk7.25(sbl611
1 Frequency Response 1/2 Space

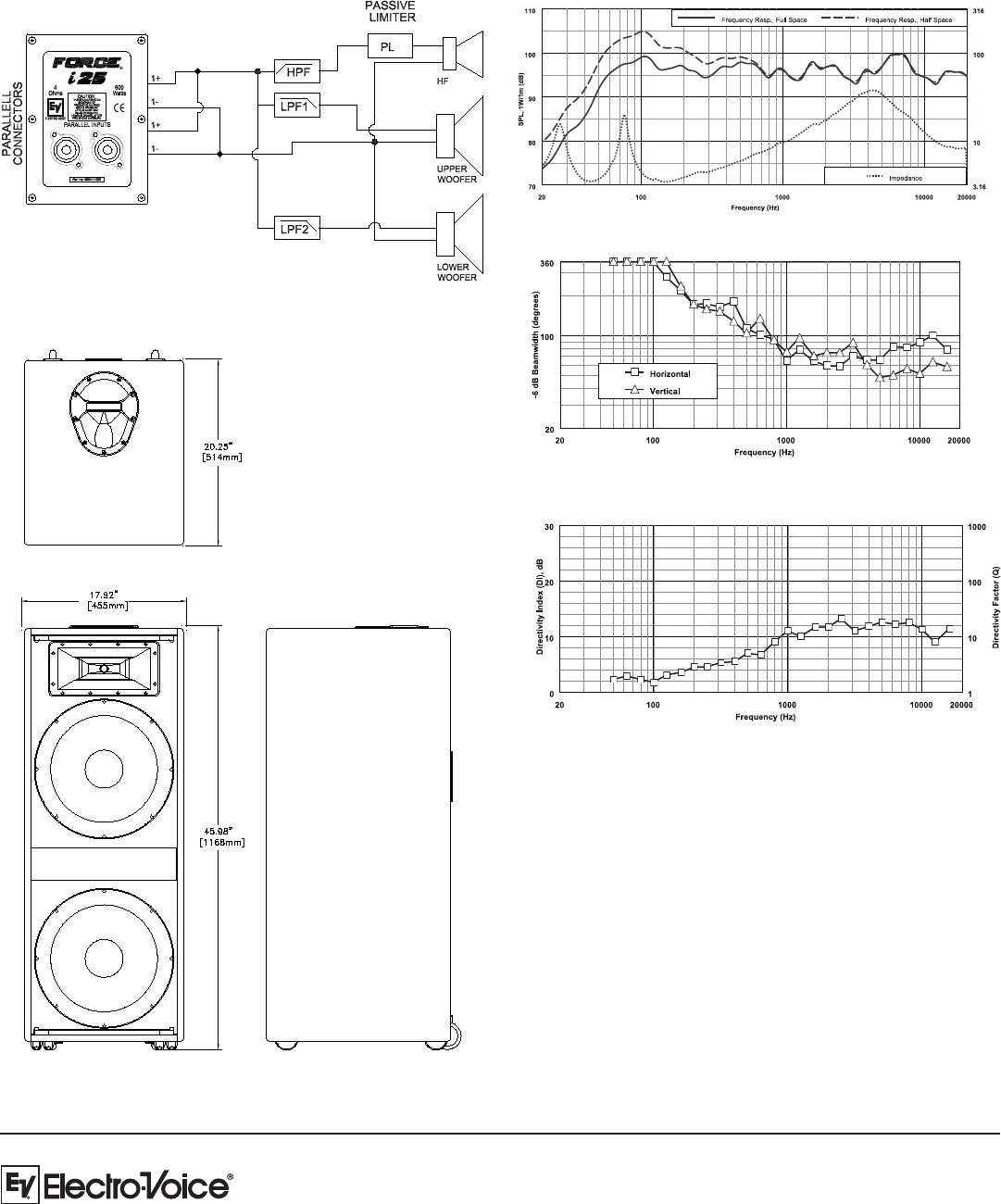

Block Diagram:
U.S.A. and Canada only. For customer orders, contact Customer Service at:
800/392-3497 Fax: 800/955-6831
Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:
+ 49 9421-706 0 Fax: + 49 9421-706 265
Other International locations. For customer orders, contact Customer Service at:
+ 1 952 884-4051 Fax: + 1 952 887-9212
For warranty repair or service information, contact the Service Repair department at:
800/685-2606
For technical assistance, contact Technical Support at: 866/78AUDIO
Specifications subject to change without notice.
12000 Portland Avenue South, Burnsville, MN 55337
Phone: 952/884-4051, Fax: 952/884-0043
www.electrovoice.com
© Telex Communications, Inc. 3/2006
Part Number 38110-458 Rev A
Beamwidth:
Frequency Response:
Directivity:
Side
Front
Top
Performance Match:
• Electro-Voice® CP2200 Power Amplifier
• Dynacord® PowerMate 600 Powered Mixer
• Dynacord® PowerMate 1000 Powered Mixer
• Dynacord® PowerMate 1600 Powered Mixer
Dimension Drawings:
