Installation Instructions
Slide In Gas Cooktop

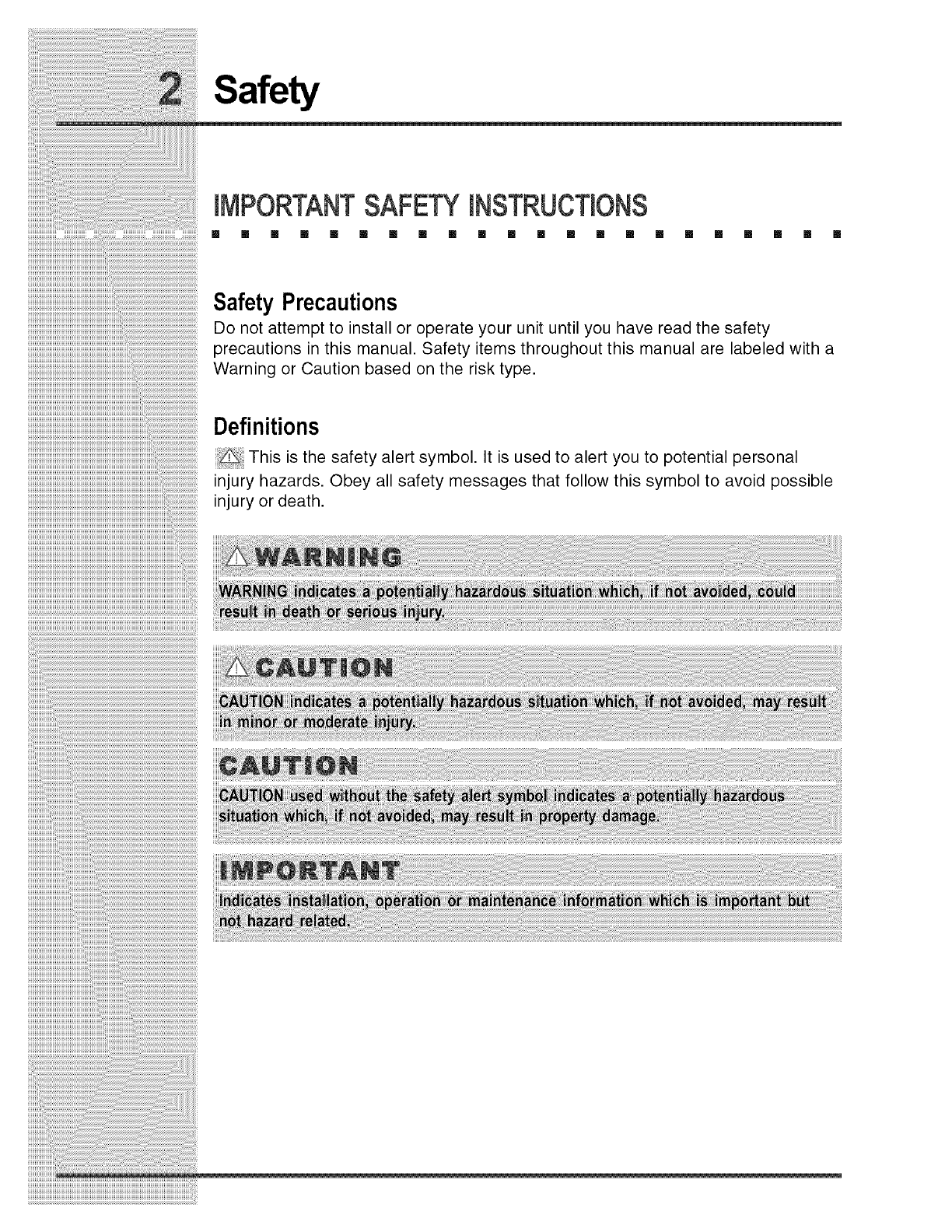

Safety
(MPORTANTSAFETY(NSTRUCT(ONS
..............................................m [] [] m [] [] [] m [] [] [] m [] [] [] m [] [] [] m [] []
))))))))))))))))))))))))))))))))))))))))))))))))))))))))))))_i!i¸!!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii)
Safety Precautions
Do notattemptto install oroperateyour unit until you have readthesafety
precautions in this manual. Safety itemsthroughoutthis manual are labeled with a
Warning or Caution based onthe risktype.
Definitions
_Thisisthesafetyalertsymbol. Itisusedtoalertyoutopotentialpersonal
iniuiyhazards. Obeyallsafetymessagesthatfollowthissymboltoavoid possible
injuryordeath.

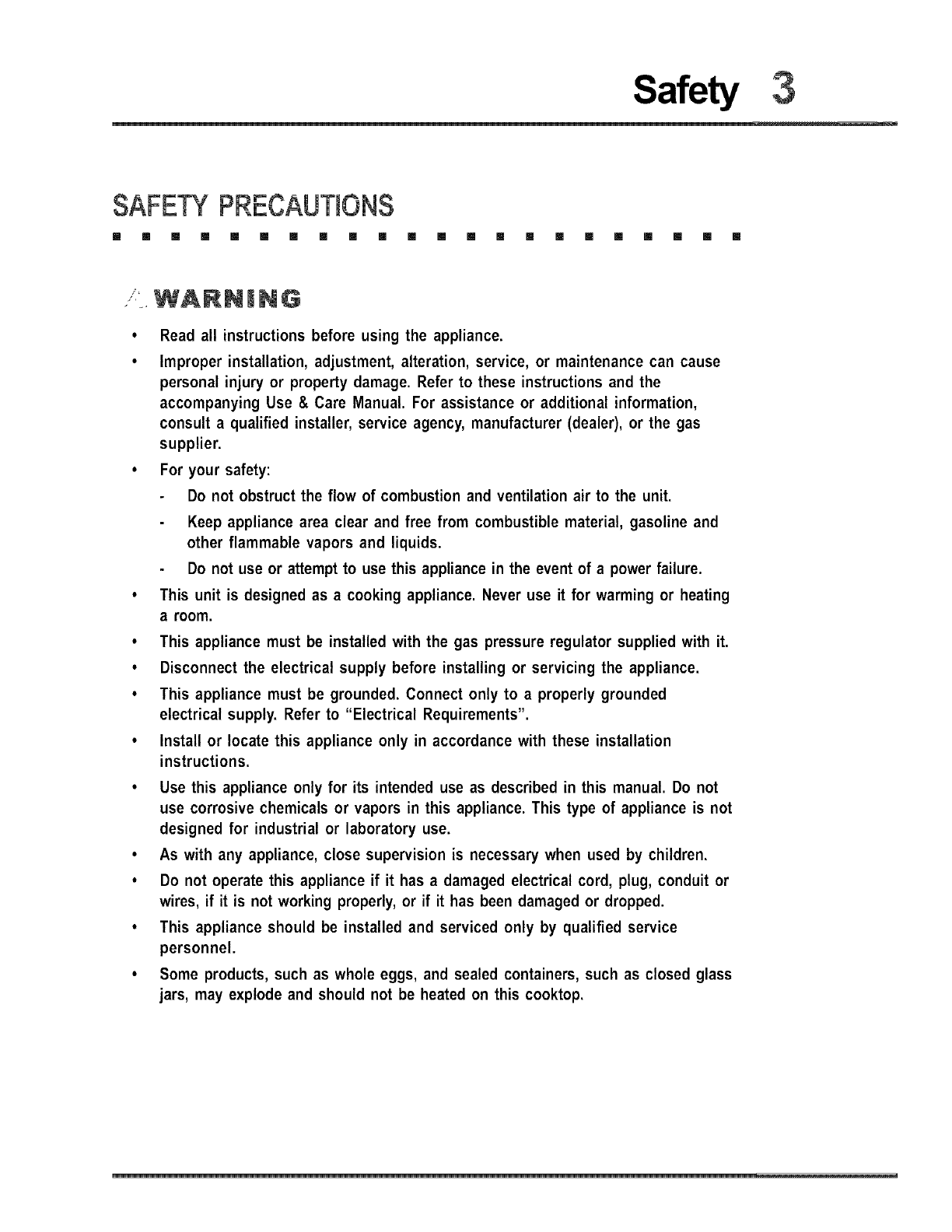

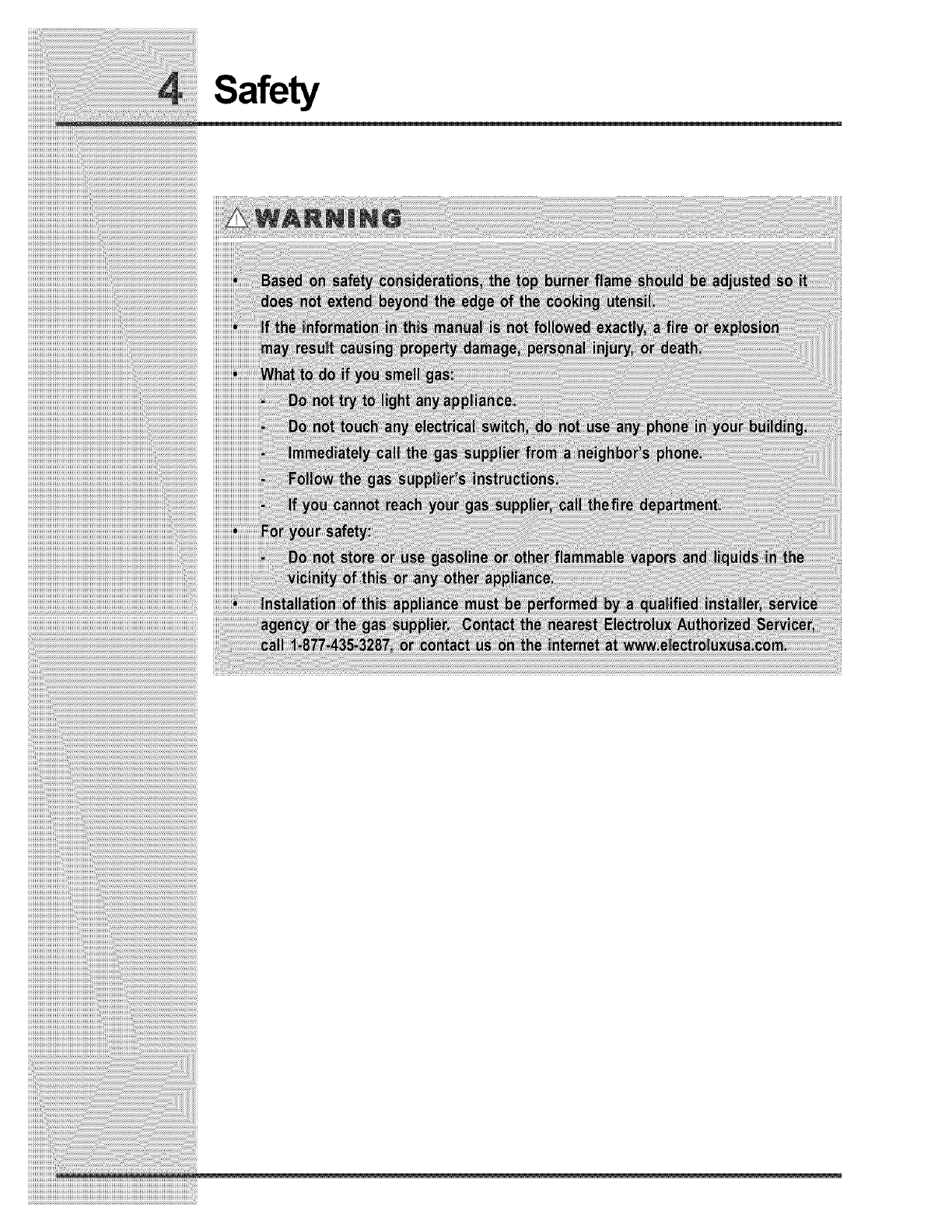

Safety 3
SAFETYPRECAUTIONS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
,,%,WARNING
•Read all instructions before using the appliance.
•Improper installation, adjustment, alteration, service, or maintenance can cause
personal injury or property damage. Refer to these instructions and the
accompanying Use & Care Manual. For assistance or additional information,
consult a qualified installer, service agency, manufacturer (dealer), or the gas
supplier.
•For your safety:
Do not obstruct the flow of combustion and ventilation air to the unit.
Keep appliance area clear and free from combustible material, gasoline and
other flammable vapors and liquids.
Do not use or attempt to use this appliance in the event of a power failure.
•This unit is designed as a cooking appliance. Never use it for warming or heating
aroom.
•This appliance must be installed with the gas pressure regulator supplied with it.
•Disconnect the electrical supply before installing or servicing the appliance.
•This appliance must be grounded. Connect only to a properly grounded
electrical supply. Refer to "Electrical Requirements".
•Install or locate this appliance only in accordance with these installation
instructions.
•Use this appliance only for its intended use as described in this manual. Do not
use corrosive chemicals or vapors in this appliance. This type of appliance is not
designed for industrial or laboratory use.
•As with any appliance, close supervision is necessary when used by children.
•Do not operate this appliance if it has a damaged electrical cord, plug, conduit or
wires, if it is not working properly, or if it has been damaged or dropped.
•This appliance should be installed and serviced only by qualified service
personnel.
•Some products, such as whole eggs, and sealed containers, such as closed glass
jars, may explode and should not be heated on this cooktop.
Safety

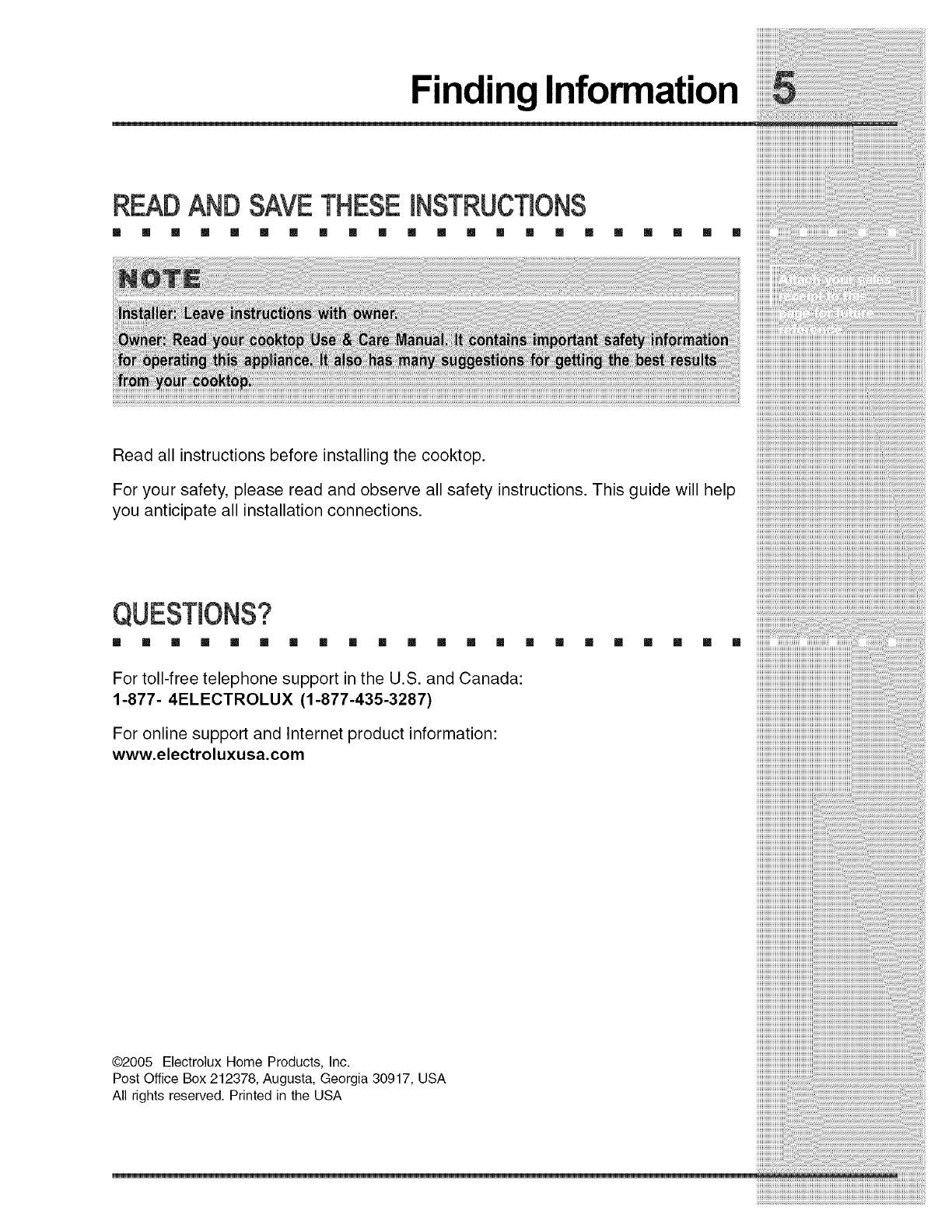

Finding Information
READANDSAVETHESEINSTRUCTIONS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
@2005 Eiectroiux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA
Finding Information

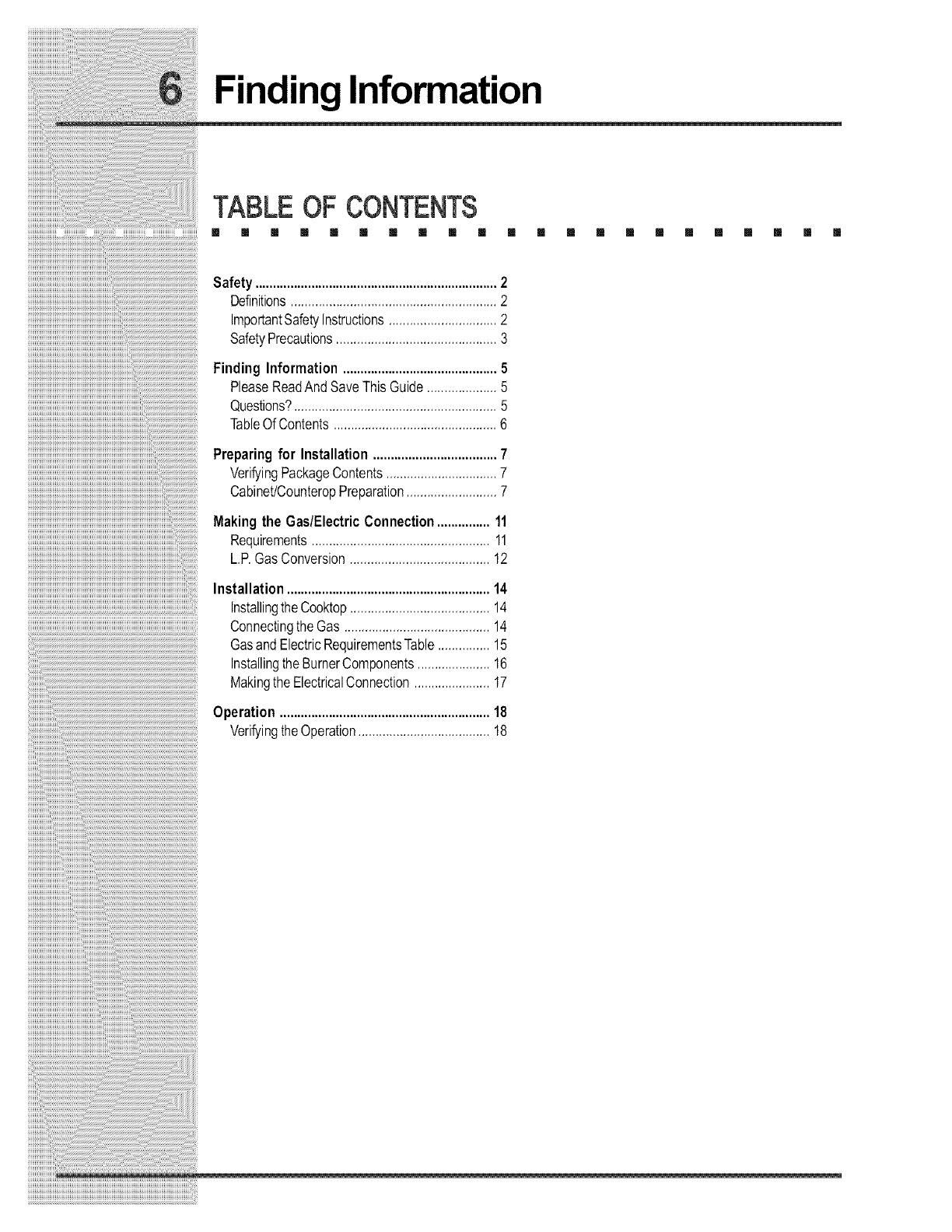

TABLEOF CONTENTS
Safety .....................................................................2
Definitions...........................................................2
ImportantSafetyInstructions...............................2
SafetyPrecautions .............................................. 3
Finding Information............................................5
PleaseReadAndSaveThisGuide....................5
Questions?..........................................................5
TableOfContents...............................................6
Preparing for Installation ...................................7
VerifyingPackageContents................................7
Cabinet/CounteropPreparation..........................7
Makingthe GaslElectricConnection ...............11
Requirements...................................................11
L,P,GasConversion........................................12
Installation ..........................................................14
...........................................................................................................................InstallingtheCooktop........................................14
ConnectingtheGas ..........................................14
GasandElectricRequirementsTable...............15

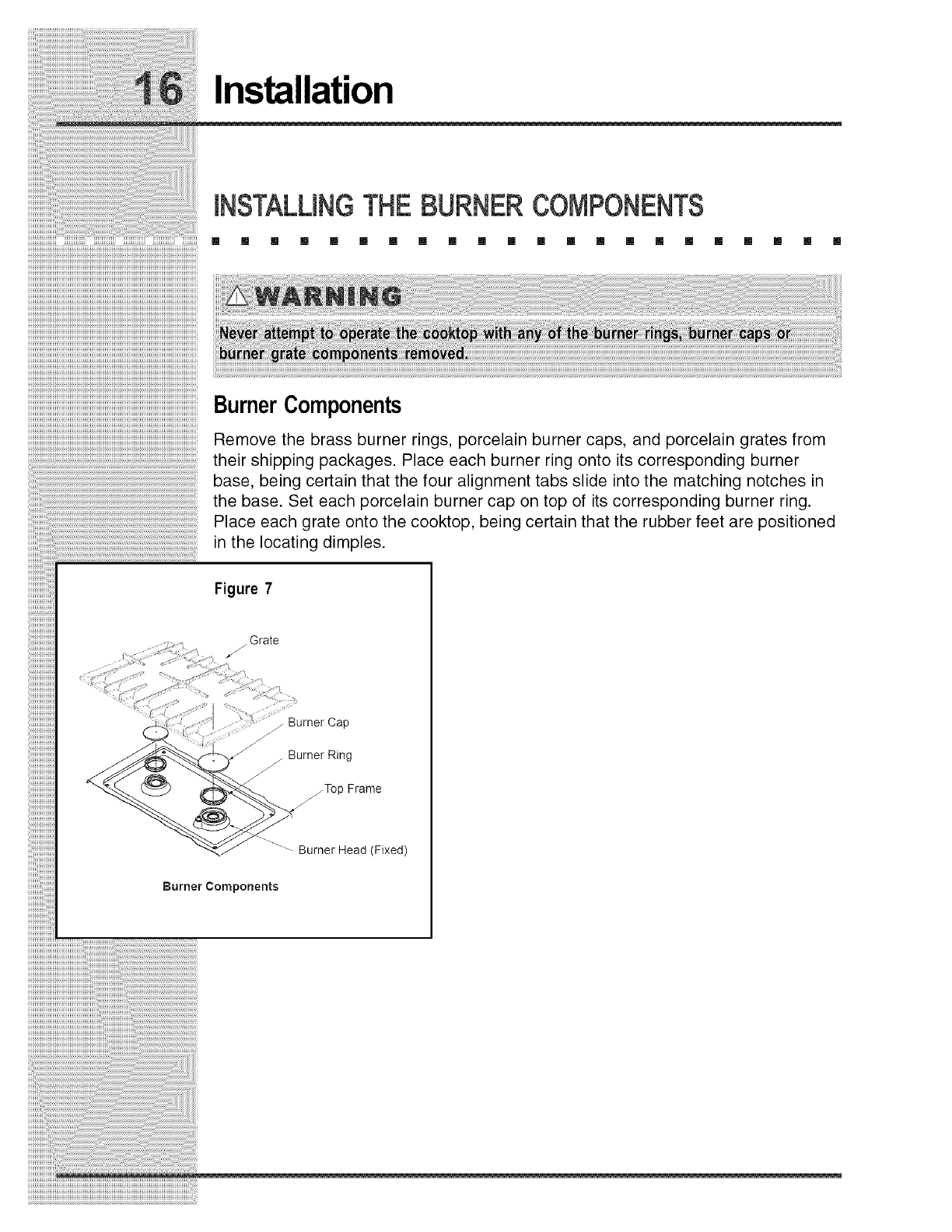

InstallingtheBurnerComponents.....................16
MakingtheElectricalConnection......................17

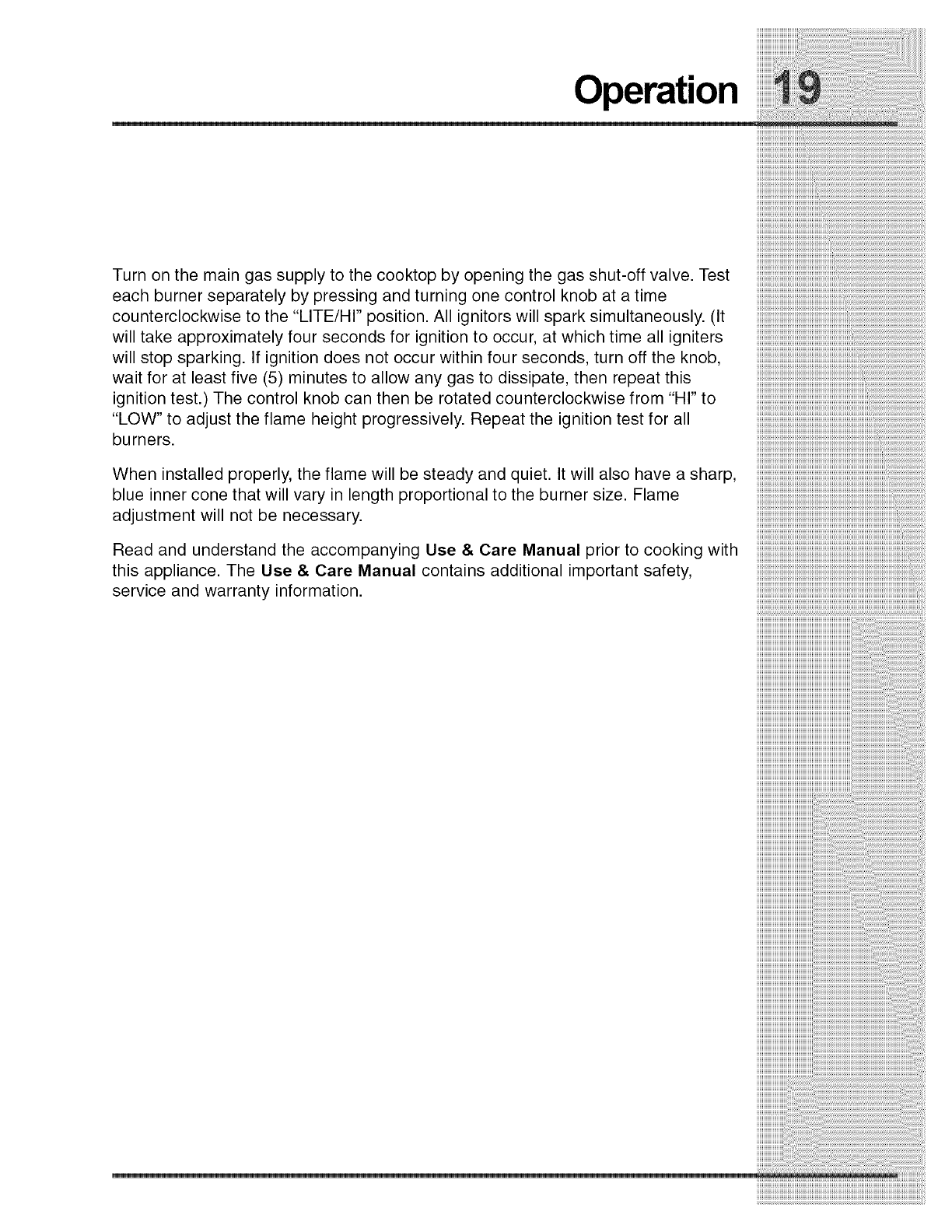

Operation............................................................18

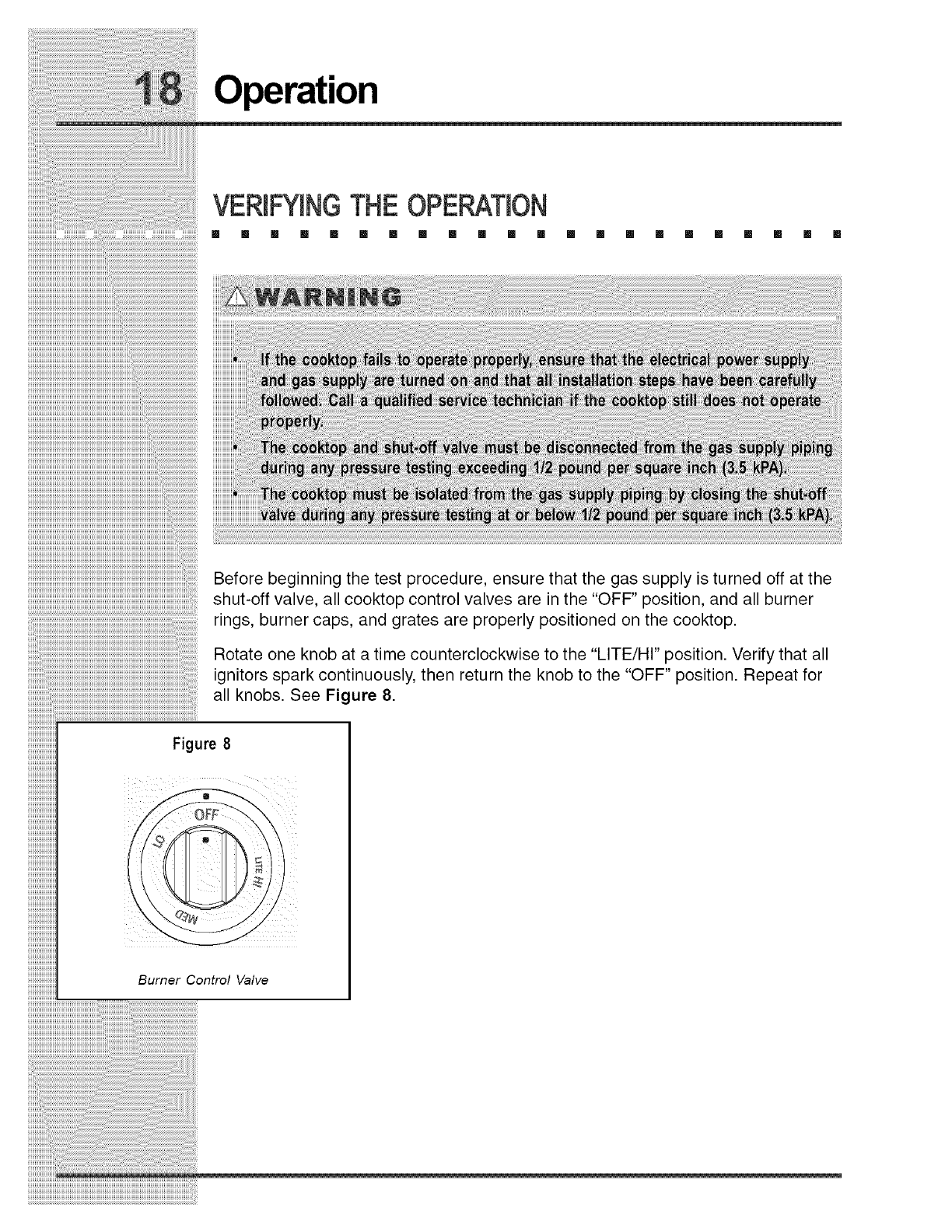

VerifyingtheOperation......................................18

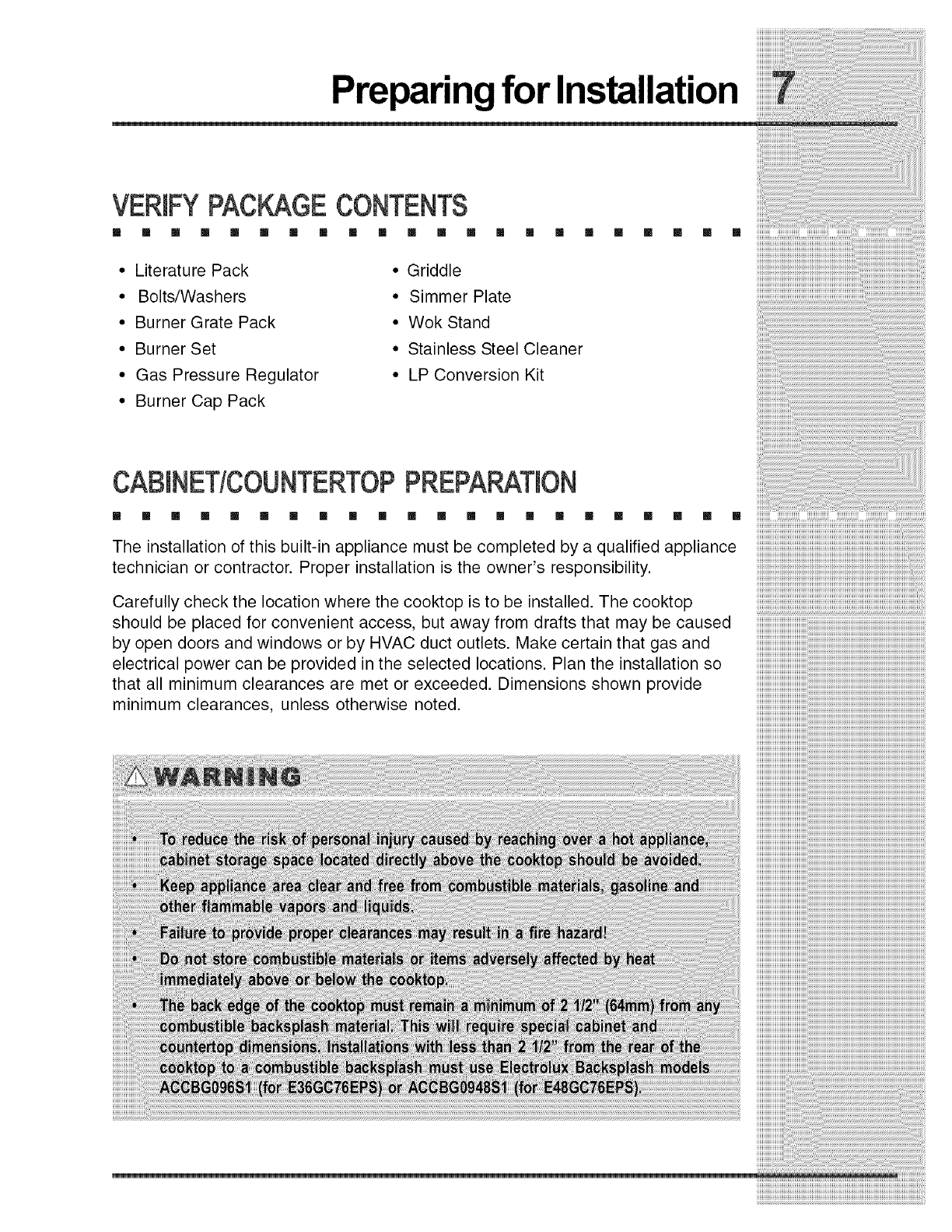

Preparingfor Installation
VERIFYPACKAGECONTENTS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
• Literature Pack
• Bolts/Washers
• Burner Grate Pack
• Burner Set
• Gas Pressure Regulator
• Burner Cap Pack
• Griddle
• Simmer Plate
• Wok Stand
• Stainless Steel Cleaner
• LP Conversion Kit
[] [] [] [] [] []
CABINET/COUNTER'FOPPREPARATION
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The installation of this built-in appliance must be completed by a qualified appliance
technician or contractor. Proper installation is the owner's responsibility.
Carefully check the location where the cooktop is to be installed. The cooktop
should be placed for convenient access, but away from drafts that may be caused
by open doors and windows or by HVAC duct outlets. Make certain that gas and
electrical power can be provided in the selected locations. Plan the installation so
that all minimum clearances are met or exceeded. Dimensions shown provide
minimum clearances, unless otherwise noted.

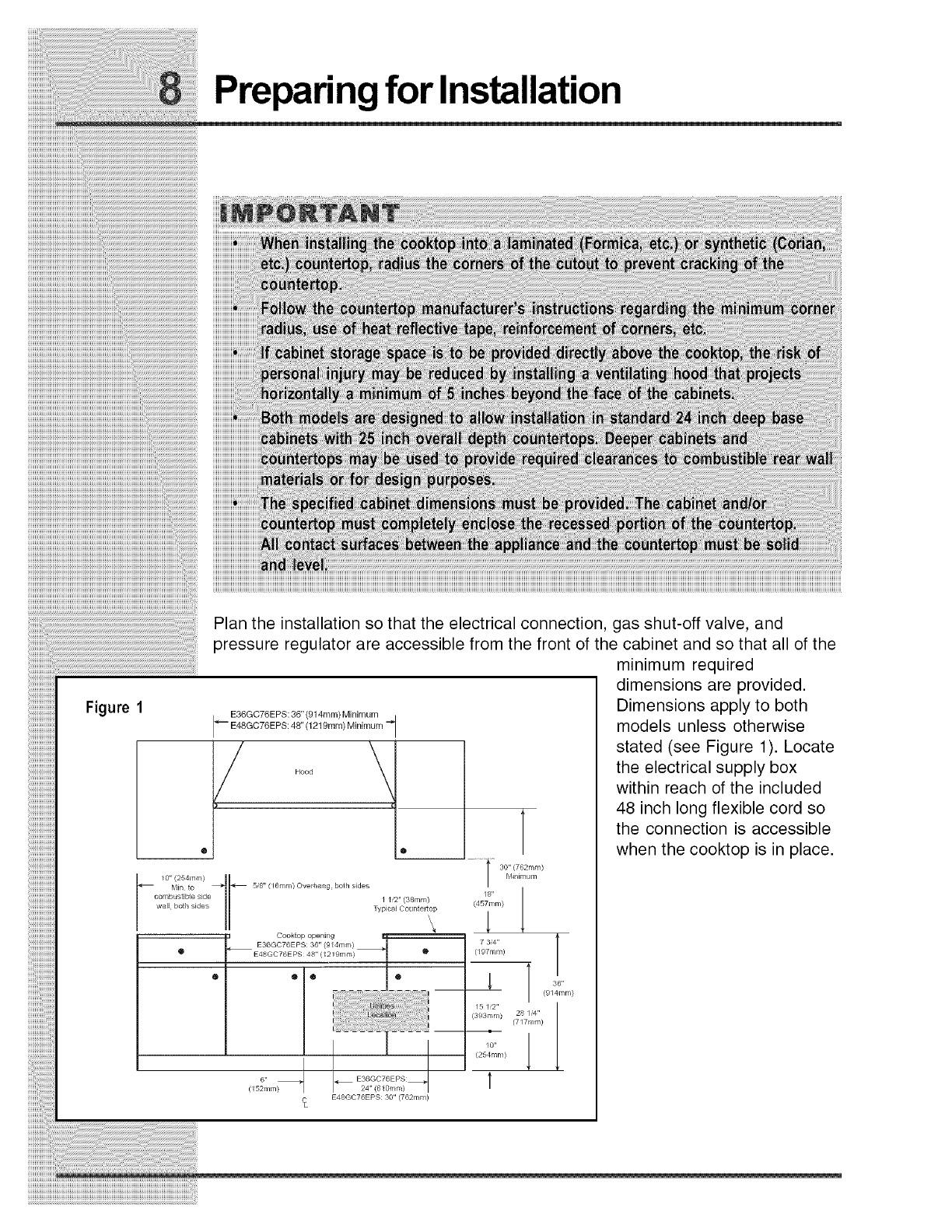

Preparing for Installation
Figure 1
Plan the installation so that the electrical connection, gas shut-off valve, and
pressure regulator are accessible from the front of the cabinet and so that all of the
E36GC76EPS: 36" (914mm) Minimum
E48GC76EPS: 48" (1219mm) Minimum
Hood
Min to 5,8" (16turn) Overhar_g, both sides
combustib]e side / _,2" (38ram)
wall both sides Typical Cour_te_op
Q ®
• ® ® •
6 I
E48GC76EPS 30" (762mm)
V
...... 30" {762turn)
Minimum
/8" J
(457mm}
1
7 3_4" ]
H97mm)
-- (g14mm)
/5 1_2rr
(393mm) 28 /4"
(7/7mm)
/0" J
/254mm)
T
minimum required
dimensions are provided.
Dimensions apply to both
models unless otherwise
stated (see Figure 1). Locate
the electrical supply box
within reach of the included
48 inch long flexible cord so
the connection is accessible
when the cooktop is in place.
Preparingfor Installation

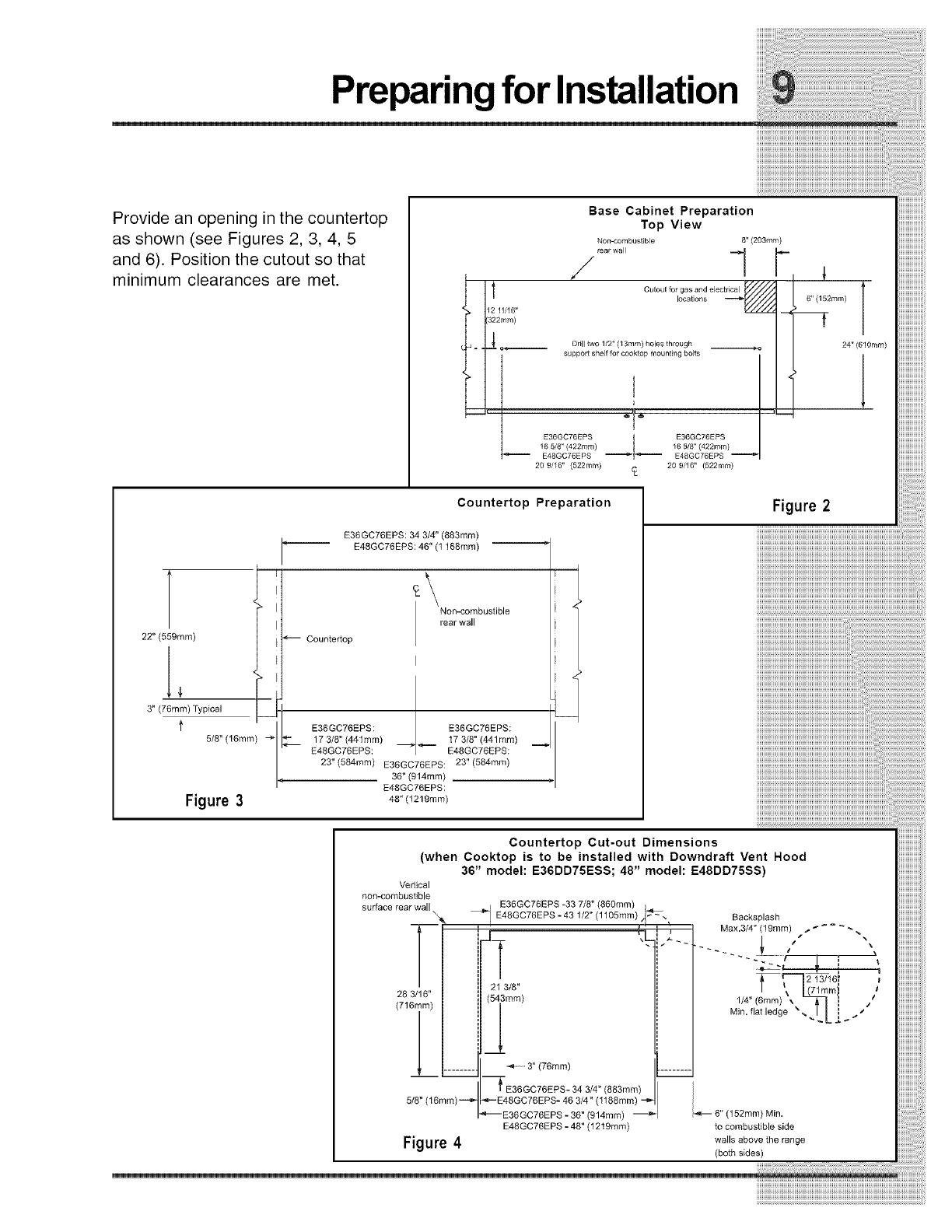

Figure 3
+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
Countertop Cut-out Dimensions
(when Cooktop is to be installed with Downdraft Vent Hood
36" model: E36DD75ESS; 48" model: E48DD75SS)
Vertical
non-combustible
surface rear wall .,_ E36GC76EPS-33 7/8" (860mm) I_
"_. _ E48GC76EPS - 43 1/2" (1105mm) z _['_-. Backsplash
_1 _ I i I Max.3/4" (19ram) _--_,
/ = Ii / _[--]213/_+; ,
........ I i21 3/8" Ii / /'_ 1_7_mm i
...... (543mm) Ii | 1/4" (6mm) ",, _ t "_
(716r_m) I i I Ii / Min. flatledge _ T I i ,,"
3" (76ram)
-- _ _E36 GC76EPS-34 3/4'+ (883mm)/ I
5/8" (16ram) E48GC76EPS- 46 3/4" (1188mm) --_
'_-_ E36GC76EPS - 36" (914rnm) _ _._ 6'+ (152mm) Min.
E48GC76EPS - 48" (1219mm) to combustible side
Figure 4 walls above the range
(both sides)
iiiiiiiiiiii
Preparing for Installation
OPTIONAL STAINLESS
STEEL BACKSPLASH
ACCBGO9 a6SI
Ea6GC76EPS: ACCBD09 4SS_
E#SDC76EPS:

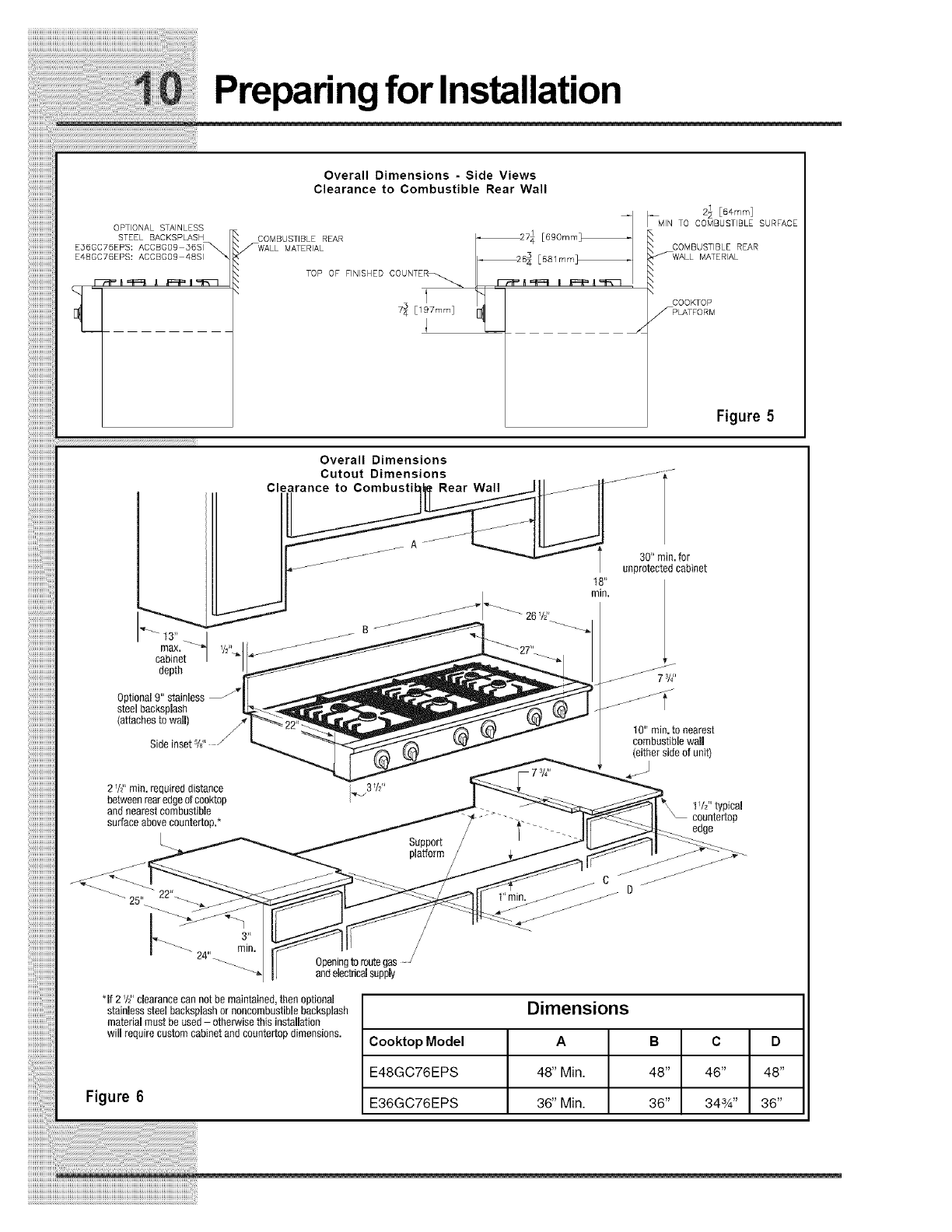

Overall Dimensions - Side Views
Clearance to Combustible Rear Wall
COMBUSTIBLE REAR
FWALL MATERIAL
TOP OF FINISHED COUNTER_
743 E197mm]
2½Ee4r_m]
Figure 5
Optional 9" stainless
steel backsplash
(attaches to wall) /
Side inset s/8"
Overall Dimensions
Cutout Dimensions _ ............. _:_
Clearance to Combusti
10" min. to nearest
combustible wall
(either side of unit)
2 W' min. required distance
between rearedgeof cooktop
and nearest combustible
surface abovecountertop.*
I,_3 Y2"
Suppo_
pla_orm
t/2" typical
countertop
edge
Openingto routegas /
and electricalsupply
*If 2 W' clearance can not be maintained, then optional
stainless steel backsplash or noncombustible backsplash
material must be used - otherwise this installation
will require custom cabinet and countertop dimensions.
Figure 6
Dimensions
Cooktop Model A B C D
E48GC76EPS 48" Min. 48" 46" 48"
E36GC76EPS 36" Min. 36" 34sA'' 36"
Making the Gas/ElectricConnection
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
GasSupplyRequirements
Check your local building codes for the proper method of installation. In the
absence of local codes, this appliance should be installed in accordance with the
National Fuel Gas Code ANSI Z223.1/NFPA 54. Be certain that the appliance being
installed is correct for the gas service being provided. Refer to the data plate
located on the bottom of the cooktop chassis.
Making the Gas/ElectricConnection

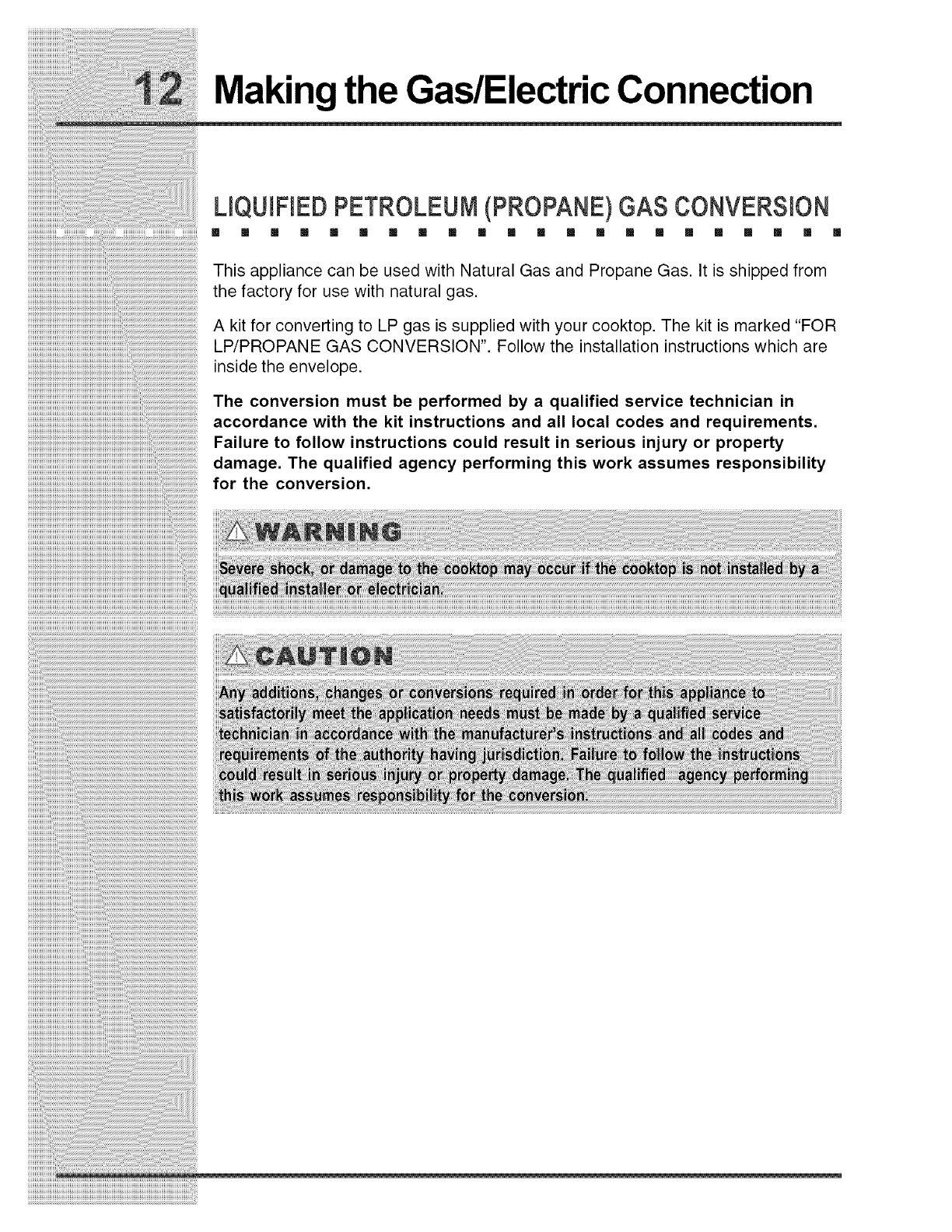

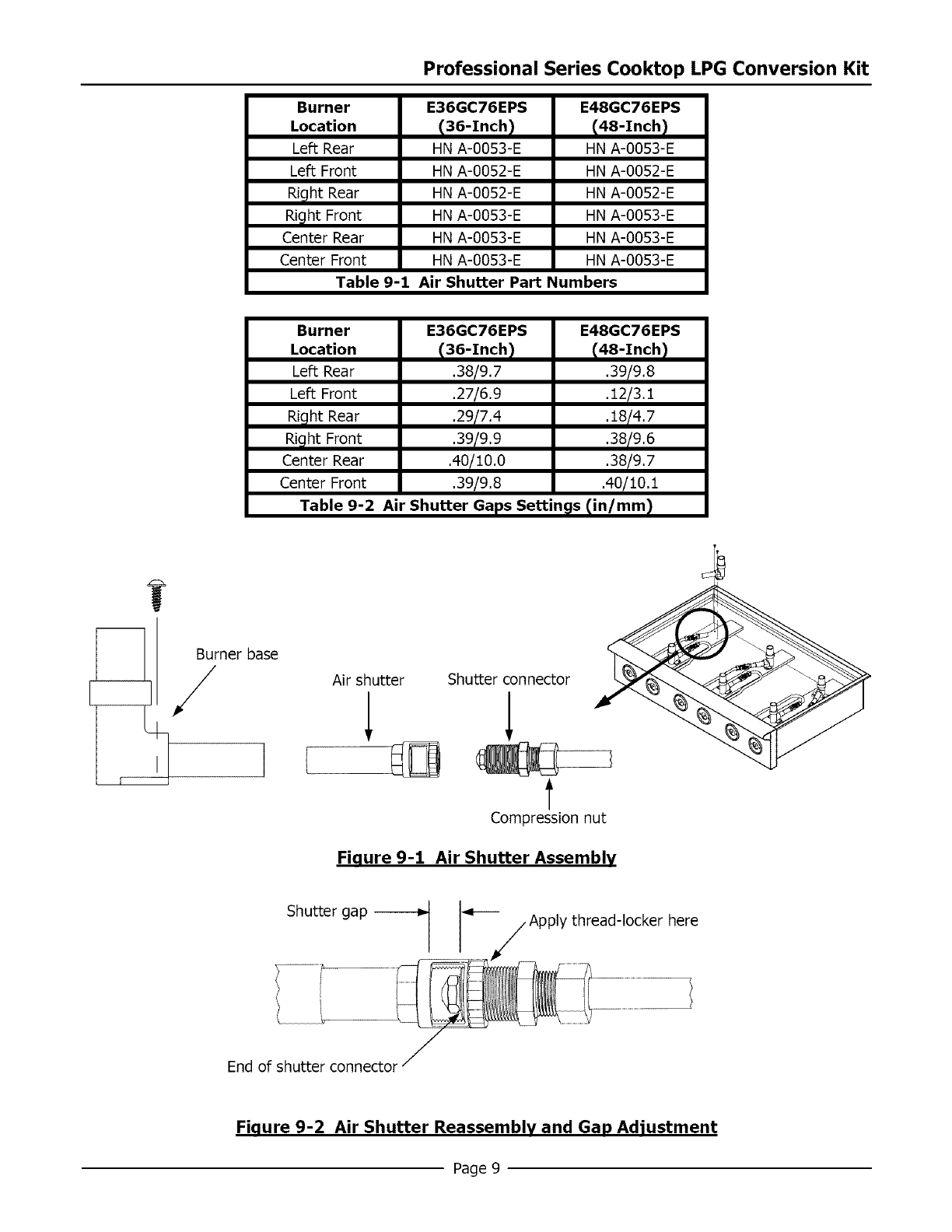

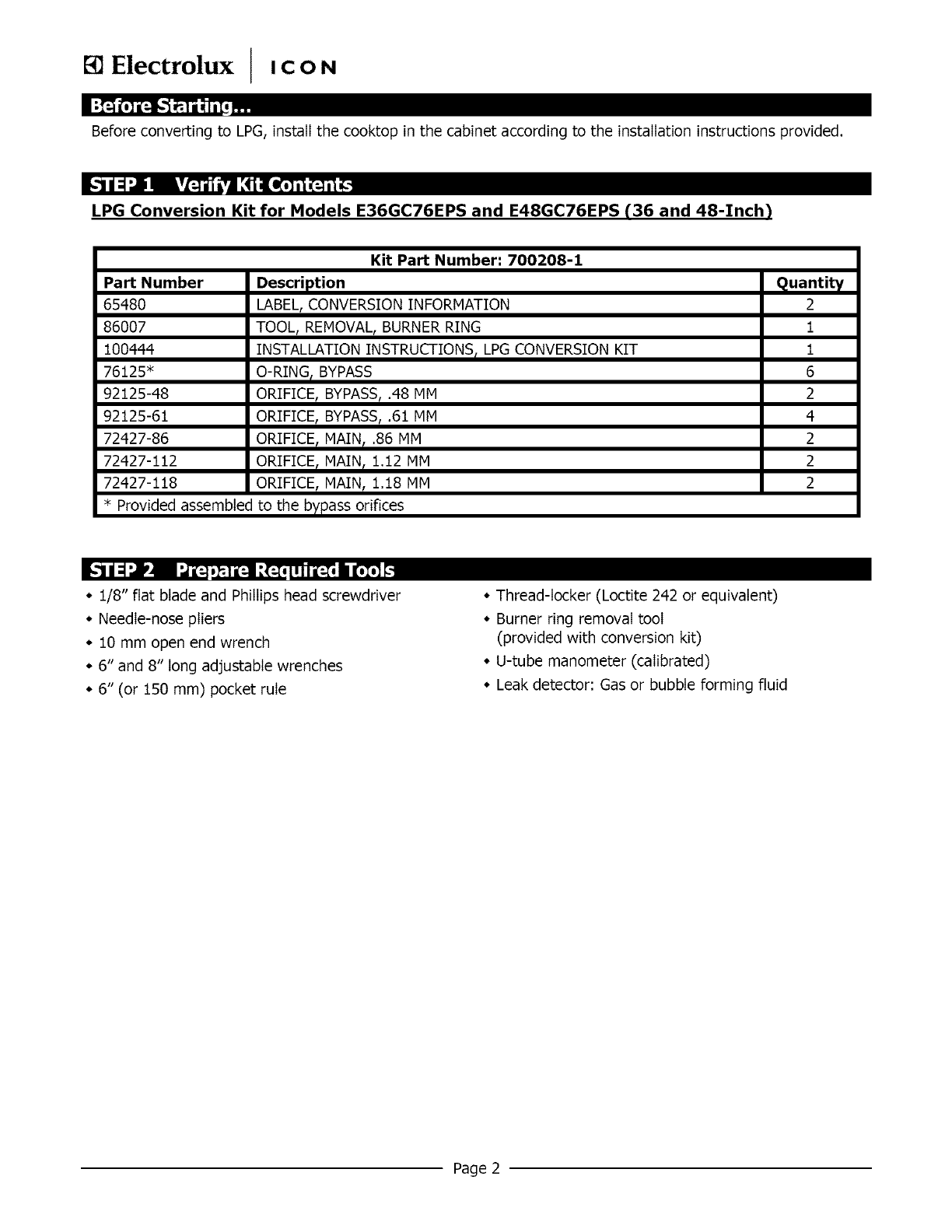

LiQU(FIEDPETROLEUM(PROPANE)GASCONVERS(ON
This appliance can be used with Natural Gas and Propane Gas. It is shipped from
the factory for use with natural gas.
A kit for converting to LP gas is supplied with your cooktop. The kit is marked "FOR
LP/PROPANE GAS CONVERSION". Follow the installation instructions which are
inside the envelope.
The conversion must be performed by a qualified service technician in
accordance with the kit instructions and all local codes and requirements.
Failure to follow instructions could result in serious injury or property
damage. The qualified agency performing this work assumes responsibility
for the conversion.
Making the Gas/Electric Connection i
iiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

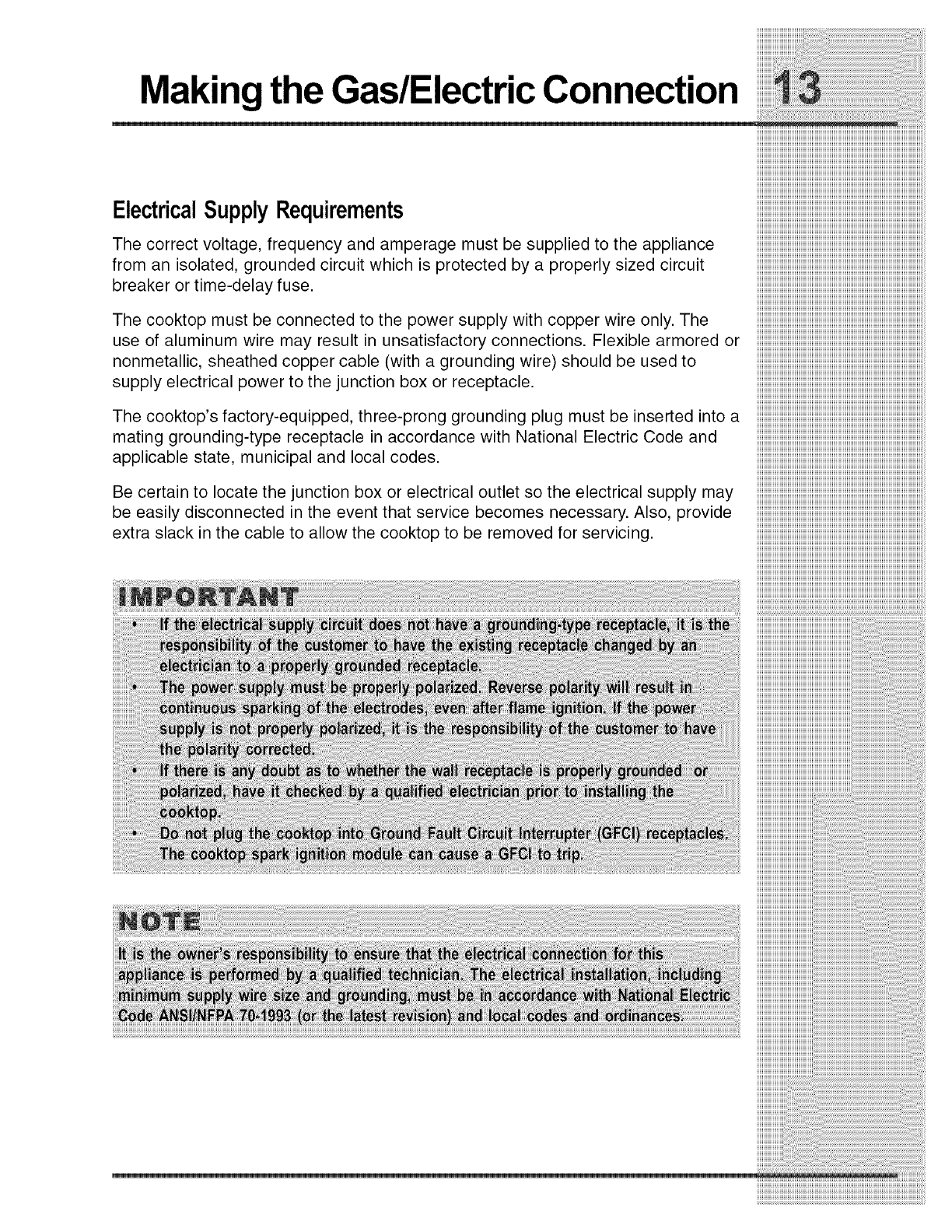

ElectricalSupplyRequirements iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
The correctvoltage, frequencyand amperage mustbe suppliedtothe appliance iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
from an isolated, groundedcircuitwhich isprotectedbyaproperlysizedcircuit iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
breakerortime-delayfuse, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_
Thecooktopmustbeconnectedtothepowersupplywithcopperwireonly. The iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
use of aluminum wire may result in unsatisfactoryconnections. Flexible armored or iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
nonmetallic, sheathedcoppercable(withagroundingwire) shouldbeusedto iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
supplyelectricalpowertothejunctionboxorreceptacle, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
The cooktop'sfactory-equipped, three-prong grounding plug mustbe inserted into a iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
matinggrounding-type receptacle inaccordancewith National ElectricCodeand iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
applicablestate, municipalandlocalcodes, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
Becertaintolocatethejunctionboxorelectricaloutletsotheelectricalsupplymay iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
be easilydisconnected inthe eventthatservice becomes necessary. Also, provide iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
extraslackinthecabletoallowthecooktoptoberemovedforservicing, iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
HHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHHH_
Installation

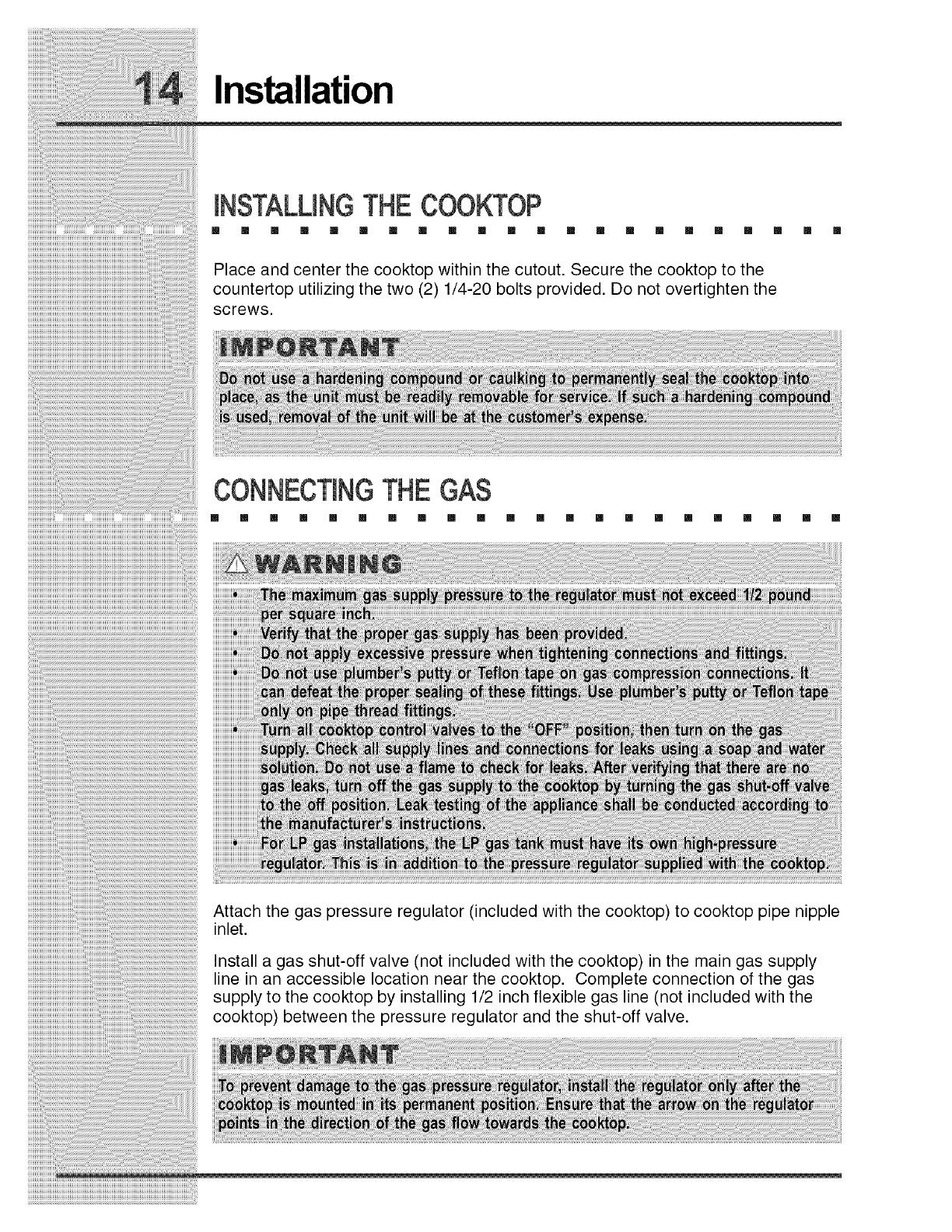

INSTALLINGTHECOOKTOP
m [] [] m [] [] [] m [] [] [] m [] [] [] m [] [] [] m [] []
Place and center the cooktop within the cutout. Secure the cooktop to the
countertop utilizing the two (2) 1/4-20 bolts provided. Do not overtighten the
screws.
CONNECTINGTHEGAS
m m [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Attach the gas pressure regulator (included with the cooktop) to cooktop pipe nipple
inlet.
Install a gas shut-off valve (not included with the cooktop) in the main gas supply
line in an accessible location near the cooktop. Complete connection of the gas
supply to the cooktop by installing 1/2 inch flexible gas line (not included with the
cooktop) between the pressure regulator and the shut-off valve.
Installation

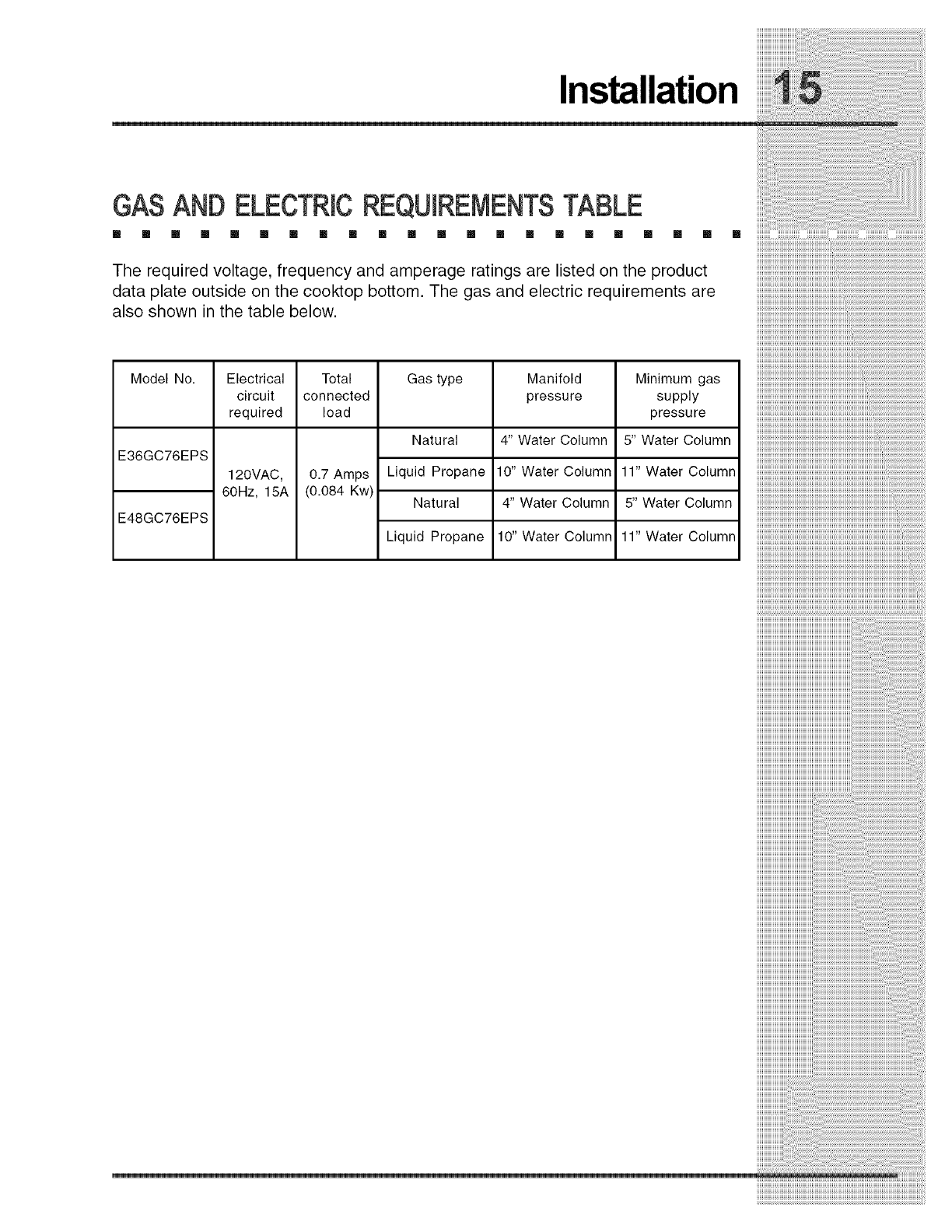

GASAND ELECTR(CREQU(REMENTSTABLE
[] [] [] [] [] [] Bll [] [] [] [] [] [] [] [] Bll [] [] [] [] []
The required voltage, frequency and amperage ratings are listed on the product
data plate outside on the cooktop bottom. The gas and electric requirements are
also shown in the table below.
Model No.
E36GC76EPS
E48GC76EPS
Electrical
circuit
required
120VAC,
60Hz, 15A
Total
connected
load
0.7 Amps
(0.084 Kw)
Gas type
Natural
Liquid Propane
Natural
Liquid Propane
Manifold
pressure
4" Water Column
10" Water Column
4" Water Column
10" Water Column
Minimum gas
supply
pressure
5" Water Column
11" Water Column
5" Water Column
11" Water Column
((((((((((((((((((((((((((((((((((((((((((((((((((((((((((((((((,_
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_
Installation
(NSTALUNGTHEBURNERCOMPONENTS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
BurnerComponents
Remove the brass burner rings, porcelain burner caps, and porcelain grates from
their shipping packages. Place each burner ring onto its corresponding burner
base, being certain that the four alignment tabs slide into the matching notches in
the base. Set each porcelain burner cap on top of its corresponding burner ring.
Place each grate onto the cooktop, being certain that the rubber feet are positioned
in the locating dimples.
Figure 7
Grate
J
Burner Cap
Burner Ring
J
/Top Frame
........... Burner Head (Fixed)
Burner Components
Installation
MAK(NGTHE ELECTR(CALCONNECT(ON
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Plug the three-prong plug from the appliance into the properly grounded and
polarized wall receptacle.
Operation
VER(FY(NGTHEOPERAT(ON
..............................................m m [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Before beginning the test procedure, ensure that the gas supply is turned off at the
shut-off valve, all cooktop control valves are in the "OFF" position, and all burner
rings, burner caps, and grates are properly positioned on the cooktop.
Rotate one knob at a time counterclockwise to the "LITE/Hr' position. Verify that all
ignitors spark continuously, then return the knob to the "OFF" position. Repeat for
all knobs. See Figure 8.
Figure 8
Burner Control Valve
Operation
Turn on the main gas supply to the cooktop by opening the gas shut-off valve. Test
each burner separately by pressing and turning one control knob at a time
counterclockwise to the "LITE/Hr' position. All ignitors will spark simultaneously. (It
will take approximately four seconds for ignition to occur, at which time all igniters
will stop sparking. If ignition does not occur within four seconds, turn off the knob,
wait for at least five (5) minutes to allow any gas to dissipate, then repeat this
ignition test.) The control knob can then be rotated counterclockwise from "HI" to
"LOW" to adjust the flame height progressively. Repeat the ignition test for all
burners.
When installed properly, the flame will be steady and quiet. It will also have a sharp,
blue inner cone that will vary in length proportional to the burner size. Flame
adjustment will not be necessary.
Read and understand the accompanying Use & Care Manual prior to cooking with
this appliance. The Use & Care Manual contains additional important safety,
service and warranty information.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii !i!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iii
IICON
Professional series
Liquid Petroleum Gas (LPG) Conversion Kit
Instructions
Cooktop Models:
E36GC76EPS, E48GC76EPS
Model E36GC76EPS shown
----_ WARNING: This conversion kit shall be installed by a qualified service agency in accordance
with the manufacturer's instructions and all applicable codes and requirements of
the authority having jurisdiction, If the information in these instructions is not
followed exactly, a fire, explosion, or production of carbon monoxide may result
causing property damage, personal injury, or loss of life, The qualified service
agency is responsible for the proper installation of this kit, The installation is not
proper and complete until the operation of the converted appliance is checked as
specified in the manufacture's instructions supplied with the kit,
_CAUTION"
• Before proceeding with the conversion, shut off the
gas supply to the appliance prior to disconnecting the
electrical power.
• Do not reconnect electrical power until all leak tests
have been performed.
• Only a qualified service technician should convert or
service this appliance.
• Be sure the unit is unplugged and coot before
proceeding with the conversion.
_IMPORTANT:
Read and save these instructions for future use and
for use by the building inspector.
The cooktop will not operate properly unless the
correct sized orifices and air shutters are installed for
each burner and valve and the air shutters for each
burner are properly adjusted.
The cooktop will not operate properly unless the
regulator is converted according to these instructions.
After installing the LPG orifices, be sure to keep the
original factory installed orifices for future conversion
back to natural gas. See page 12 for instructions on
how to convert this appliance to natural gas from
LPG.
Part No. 100444 Rev. 3
[] Electrolux I Ic oN
Before converting to LPG, install the cooktop in the cabinet according to the installation instructions provided.
LPG Conversion Kit for Models E36GC76EPS and E48GC76EPS (36 and 48-Inch)
Part Number
65480
86007
100444
76125*
92125-48
92125-61
72427-86
72427-112
72427-118
Kit Part Number: 700208-1
Description
LABEL, CONVERSION INFORMATION
TOOL, REMOVAL, BURNER RING
INSTALLATION INSTRUCTIONS rLPGCONVERSION KIT
O-RING rBYPASS
ORIFICE, BYPASS, .48 MM
ORIFICE, BYPASS, .61 MM
ORIFICE rMAINr.86 MM
ORIFICE rMAINr1.12 MM
ORIFICE, MAIN, 1.18 MM
* Provided assembled to the bypass orifices
quantity
2
1
1
6
2
4
2
2
2
I,."i | =I",_ ___ "-.,i+;..l,_+ 1:._1<_,|_iiiL._,Ii [,_ F
• 1/8" flat blade and Phillips head screwdriver
• Needle-nose pliers
° 10 mm open end wrench
° 6" and 8" long adjustable wrenches
° 6" (or 150 mm) pocket rule
° Thread-locker (Loctite 242 or equivalent)
° Burner ring removal tool
(provided with conversion kit)
° U-tube manometer (calibrated)
° Leak detector: Gas or bubble forming fluid
Page 2
Professional Series Cooktop LPG Conversion Kit

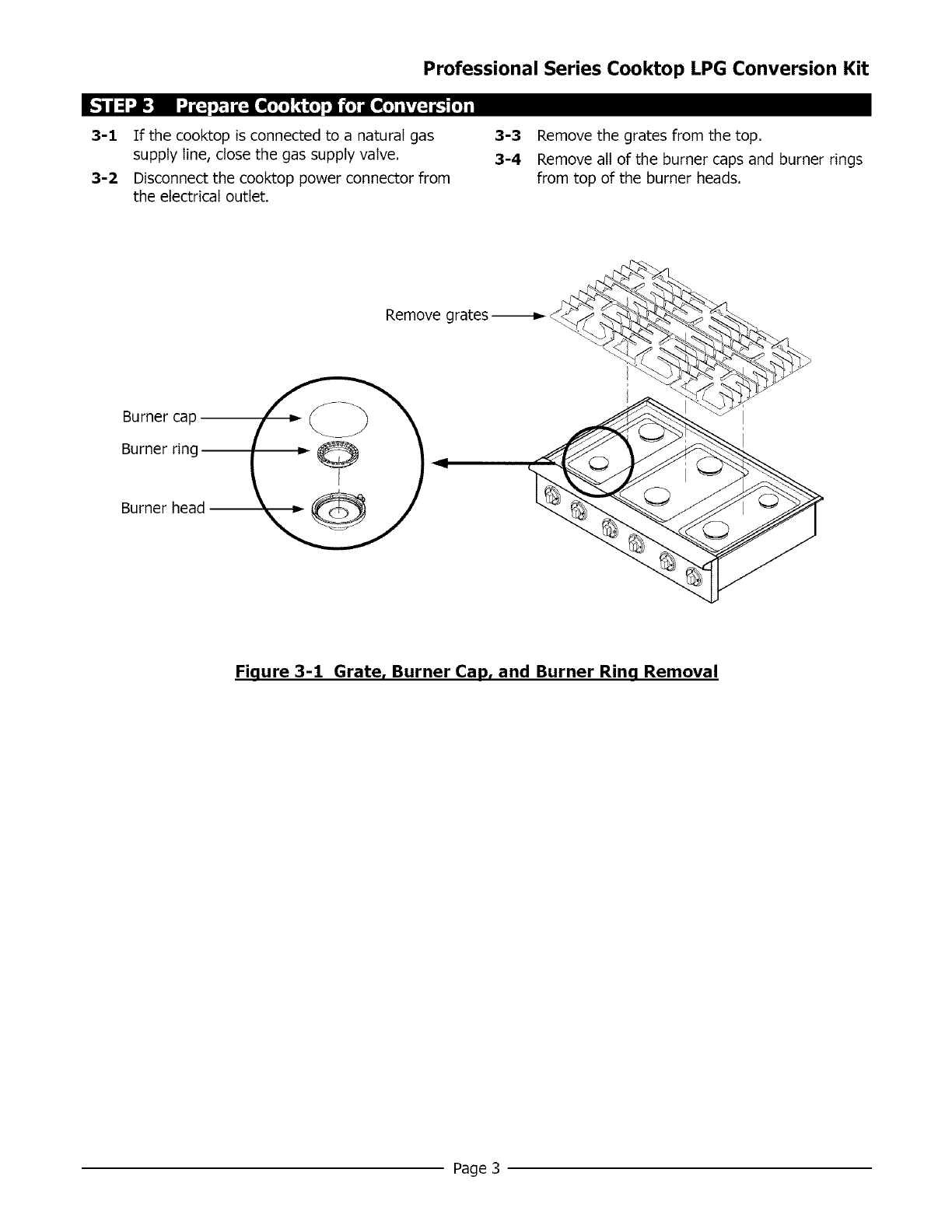

3-1 If the cooktop is connected to a natural gas
supply line, close the gas supply valve.
3-2 Disconnect the cooktop power connector from
the electrical outlet.
3-3 Remove the grates from the top.
3-4 Remove all of the burner caps and burner rings
from top of the burner heads.
Remove grates-_
Burner cap
Burner ring-
Burner head--
Fiqure 3-1 Grate, Burner Cap, and Burner Rinq Removal
Page 3
[] Electrolux [ mc oN
4-1 Locate the regulator. It is underneath the
cooktop, below the right rear burner.
4-2 Remove the regulator cap from the regulator.
Make sure that the regulator spring remains in
place.
4-3 Remove the spool from the cap and insert the
opposite side, The large end of the spool must
insert into the regulator first for LPG operation,
4-4 Replace the cap, inserting the end of the spool
into the center of the regulator spring,
Regulator spring
Spool: Direction _
forLPG _ _
Regulator cap "_
\
Spool: Direction
for natural gas Regulator Location
Fiqure 4-1 Requlator Conversion
Page 4
Professional Series Cooktop LPG Conversion Kit

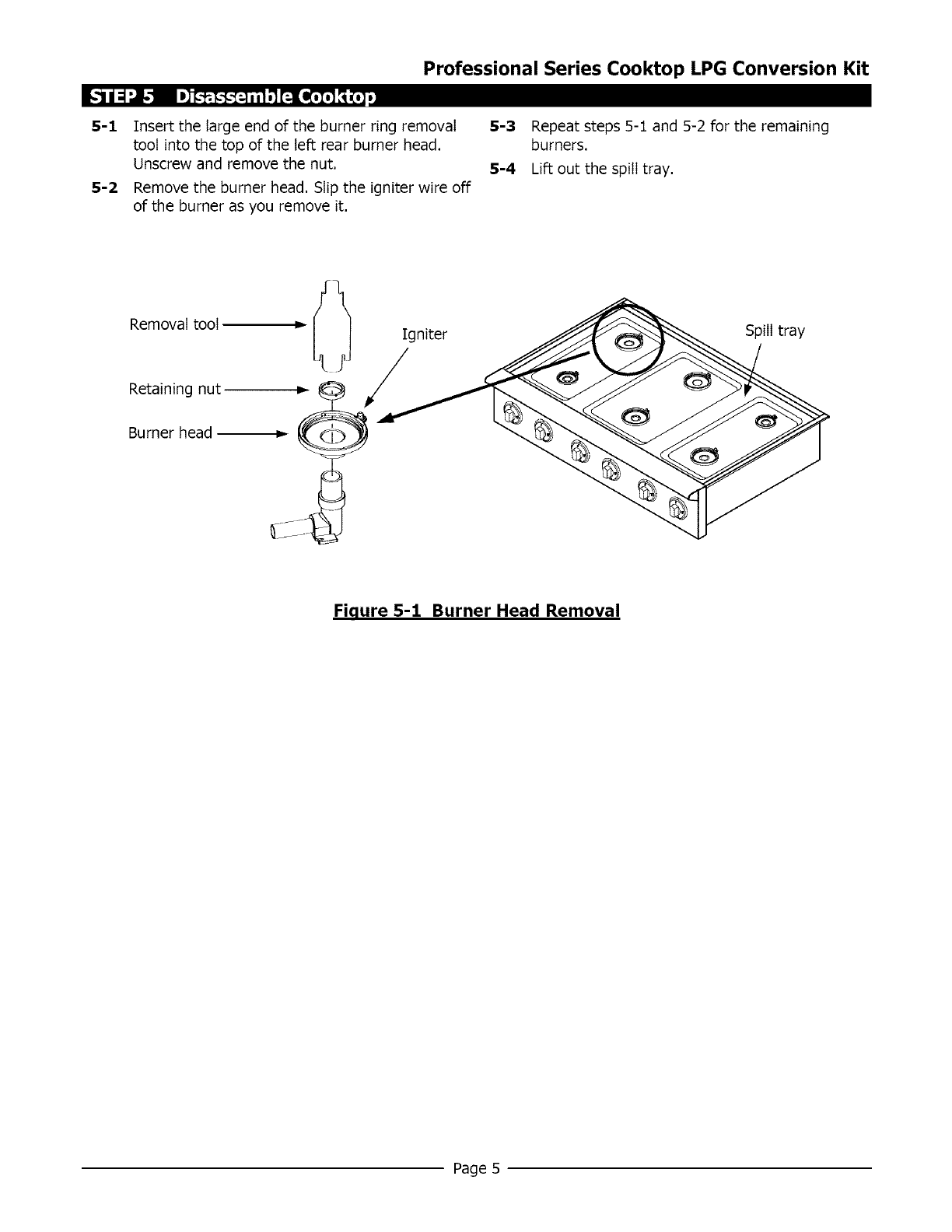

5-1 Insert the large end of the burner ring removal
toot into the top of the left rear burner head.
Unscrew and remove the nut.
5-2 Remove the burner head, Slip the igniter wire off
of the burner as you remove it.
5-3 Repeat steps 5-1 and 5-2 for the remaining
burners.
5-4 Lift out the spill tray.
Removal toot
Retaining nut
Burner head
Igniter
/Spill tray
Fiqure 5-1 Burner Head Removal
Page 5
[] Electrolux [ Ic o N
6-1 Make sure all knobs are in the off position,
6-2 Remove all of the burner knobs from the front of
the cooktop,
6-ai Insert the fiat-blade screwdriver into the valve
stem hole for the left rear burner, Unscrew the
bypass orifice from the right side of the valve
assembly,
6-4 Identify the appropriate bypass orifice from
Table 6-1. Match both the model number and
the burner location, The bypass orifice's size is
stamped on its head,
6-5 Insert the bypass orifice and the attached o-ring
into the right side of the valve with the needle
nose pliers. Tighten into place with the fiat-blade
screwdriver.
6-6 Repeat steps 6-1 through 6-5 for the remaining
burner valves,
6-7 Replace the knobs.
Burner E36GC76EPS E48GC76EPS
Location {36-Inch) {48-Inch)
Left Rear 61 61
Left Front 48 48
Right Rear 48 48
I
Right Front 61 61
i
Center Rear 61 61
Center Front 61 61
Table 6-1 Bypass Orifice Sizes (x 100 mm)
J
__ Valve assembly
Bypass orifice
Valve stem hole
Fiqure 6-1 Bypass Orifice Conversion
Page 6
Professional Series Cooktop LPG Conversion Kit

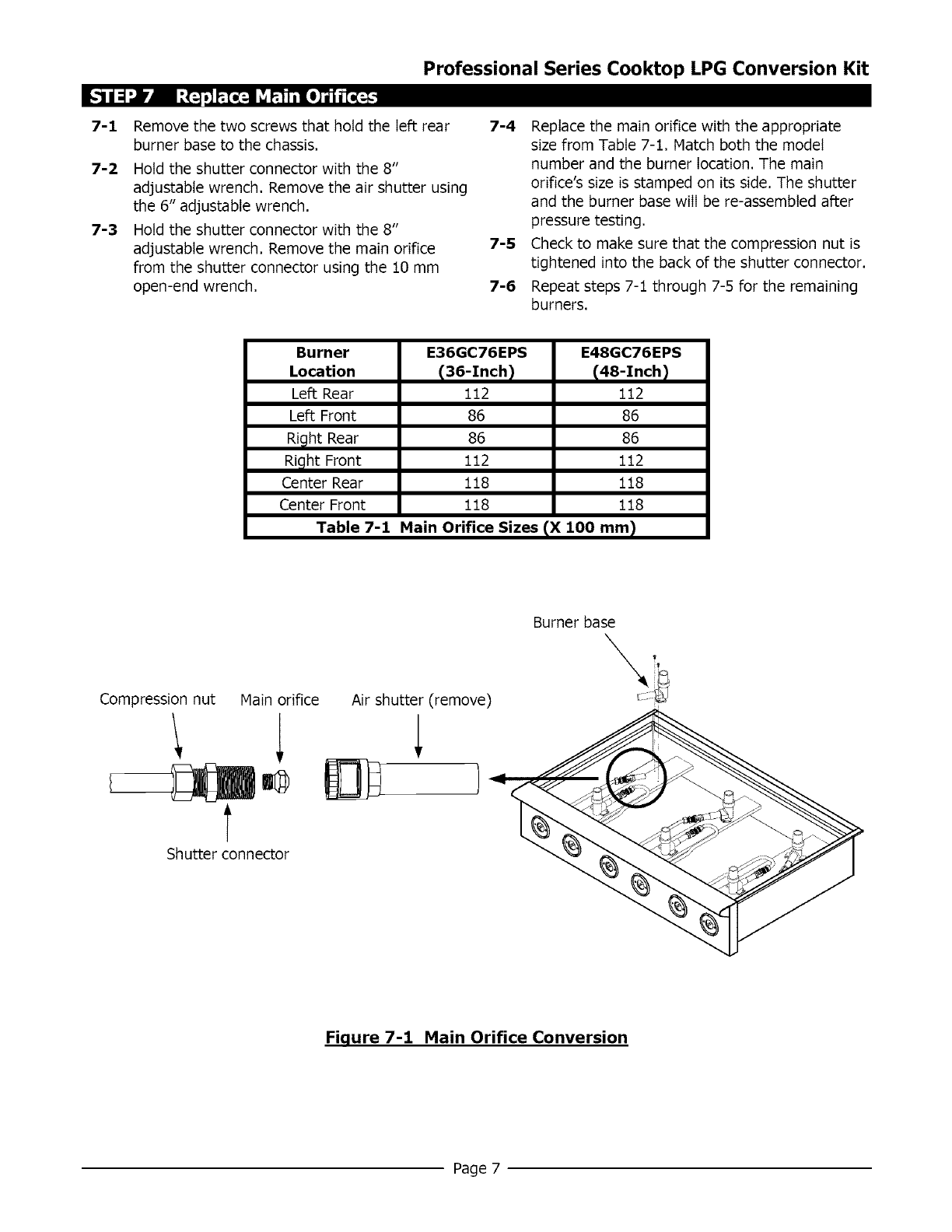

7-1 Remove the two screws that hold the left rear
burner base to the chassis.
7-2 Hold the shutter connector with the 8"
adjustable wrench. Remove the air shutter using
the 6" adjustable wrench.
7-3 Hold the shutter connector with the 8"
adjustable wrench. Remove the main orifice
from the shutter connector using the 10 mm
open-end wrench.
7-4 Replace the main orifice with the appropriate
size from Table 7-1, Match both the model
number and the burner location. The main
orifice's size is stamped on its side, The shutter
and the burner base will be re-assembled after
pressure testing,
7-5 Check to make sure that the compression nut is
tightened into the back of the shutter connector.
7-6 Repeat steps 7-1 through 7-5 for the remaining
burners.
Burner E36GC76EPS E48GC76EPS
Location _36-Inch_ _48-Inch_
Left Rear 112 112
Left Front 86 86
Right Rear 86 86
I
Ricjht Front 112 112
i
Center Rear 118 118
Center Front 118 118
Table 7-1 Main Orifice Sizes (X 100 mm)
Burner base
Compression nut Main orifice
Shutter connector
Air shutter (remove)
Fiqure 7-1 Main Orifice Conversion
Page 7
[] Electrolux [ ic oN
I_'t / _ "Jl: -I _:'_'1 D1 iiiI _i i_-!-I ! I iC_II 1_-_ !-
8-1 Connect the U-tube manometer to the LPG
supply line.
8-2 With electrical power to the cooktop
disconnected, open the LPGsupply valve.
8-3 Verify that the pressure is above 11 inches water
column (WC) and below 1/2PSI. Consult the
factory if the pressure is not within the limits.
8-4 Close the LPG supply valve. Connect the cooktop
to the LPG supply line.
8-5 Make sure all knobs on the front of the cooktop
are in the off position.
8-6 Connect the U-tube manometer to the left rear
burner's main orifice with 3/8" surgical tubing.
8-7 Open the LPG supply valve. Turn on the left rear
burner. The manometer should read 10 inches
WC +/- 1/2inch. Contact the factory if the
reading is not within the limits.
8-8 Turn off the burner and the gas supply valve.
Place end of tube over main orifice
7
Fiqure 8-1 Pressure Test Set-up
9-1 Determine the appropriate air shutter part
number for the left rear burner from Table 9-t
on page 9. Be sure to match the model number
and burner location. The shutter part number
appears on its side.
9-2 Thread the air shutter onto the left rear shutter
connector about 6 turns (see Figure 9-1).
9-3 Reinstall the burner base.
9-4 Measure the gap between the end of the shutter
connector and the opposite end of the shutter
opening with the pocket rule (see Figure 9-2).
9-5 Compare the measured gap to the gap listed in
Table 9-2 for the appropriate model number and
the burner location.
9-6 Hold the shutter connector with the 8"
adjustable wrench. Adjust the air shutter using
the 6" adjustable wrench until the gap is to
within 1/16" (1.6 mm) of the gap indicated in
the table.
9-7 Secure the shutter with thread-locker (see
Figure 9-2).
9-8 Check to make sure that the compression nut is
still tightened into the back of the shutter
connector,
9-9 Repeat steps 9-I through 9-8 for the remaining
burners.
Page 8
Professional Series Cooktop LPG Conversion Kit
Burner E36GC76EPS E48GC76EPS
Location _36-Inch_ _48-Inch_
Left Rear HN A-0053-E HN A-0053-E
Left Front HN A-0052-E HN A-0052-E
Right Rear HN A-0052-E HN A-0052-E
/
Right Front HN A-0053-E HN A-0053-E
i
Center Rear HN A-0053-E HN A-0053-E
Center Front HN A-0053-E HN A-0053-E
Table 9-1 Air Shutter Part Numbers
Burner E36GC76EPS E4BGC76EPS
Location _36-Inch) _48-Inch)
Left Rear .38/9.7 .39/9.8
Left Front .27/6.9 .12/3.1
Ric_ht Rear .29/7.4 .18/4.7
Ric_ht Front .39/9.9 .38/9.6
Center Rear .40/10.0 .38/9.7
Center Front .39/9.8 .40/10.1
Table 9-2 Air Shutter Gaps Settings (in/mm)
_L_ Buiner base (
Air shutter Shutter connector
!
t
Compression nut
Fiqure 9-1 Air Shutter Assembly
Shutter gap _
Apply thread-locker here
I2-2
End of shutter connector"
Fiqure 9-2 Air Shutter Reassembly and Gap Ad|ustment
Page 9
[] Electrolux I Ic o N

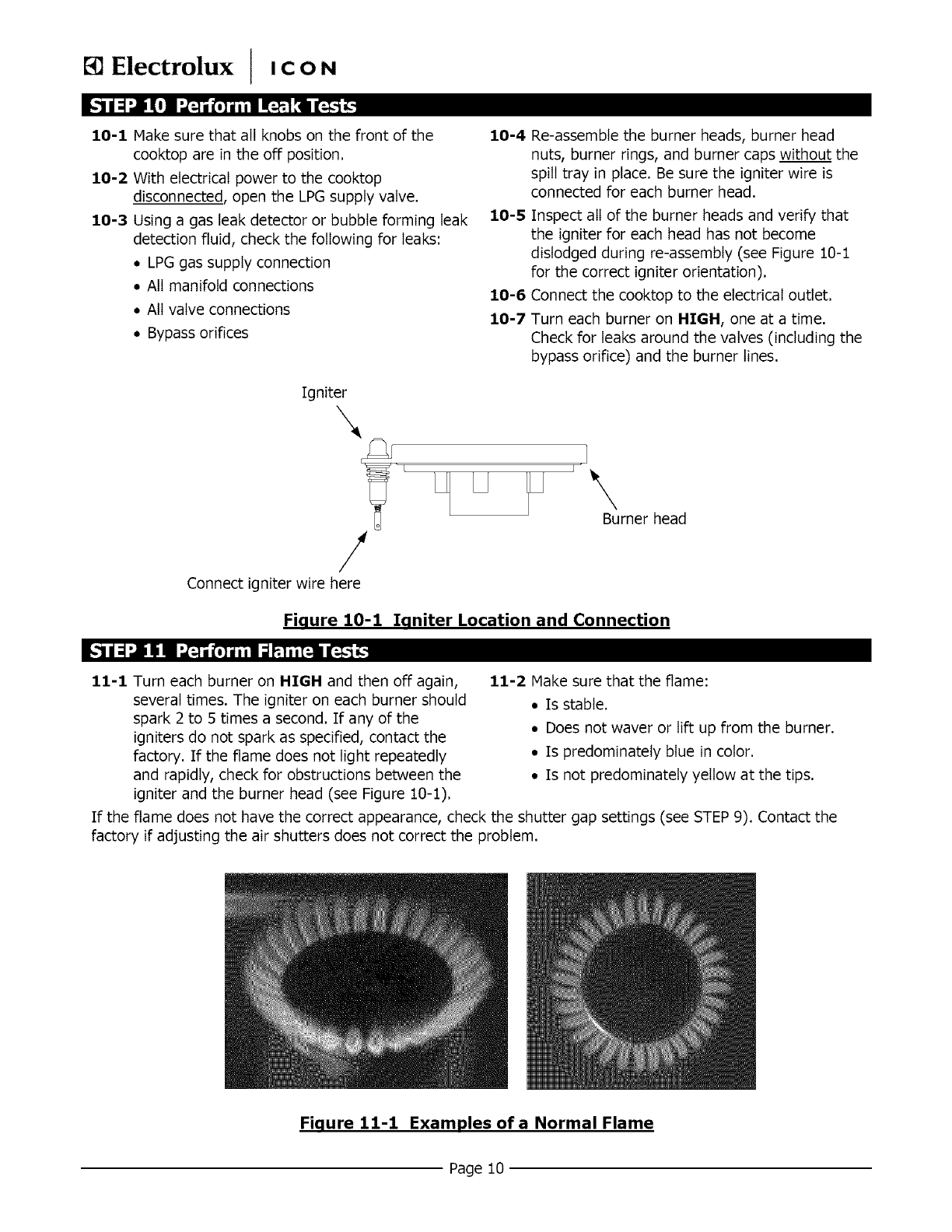

10-1
10-2
10-3
Hake sure that all knobs on the front of the 10-4
cooktop are in the off position.
With electrical power to the cooktop
disconnected, open the LPGsupply valve.
Using a gas leak detector or bubble forming leak 10-5
detection fluid, check the following for leaks:
• LPG gas supply connection
• All manifold connections 10-6
•All valve connections 10-7
• Bypass orifices
Re-assemble the burner heads, burner head
nuts, burner rings, and burner caps without the
spill tray in place. Be sure the igniter wire is
connected for each burner head.
Inspect all of the burner heads and verify that
the igniter for each head has not become
dislodged during re-assembly (see Figure 10-1
for the correct igniter orientation).
Connect the cooktop to the electrical outlet.
Turn each burner on HIGH, one at a time.
Check for leaks around the valves (including the
bypass orifice) and the burner lines.
Igniter
/
Connect igniter wire here
J1
\Burner head
Fiqure 10-1 Iqniter Location and Connection
11-1 Turn each burner on HIGH and then off again,
several times. The igniter on each burner should
spark 2 to 5 times a second. If any of the
igniters do not spark as specified, contact the
factory. If the flame does not light repeatedly
and rapidly, check for obstructions between the
igniter and the burner head (see Figure 10-1).
If the flame does not have the correct appearance, check the shutter gap settings (see STEP 9). Contact the
factory if adjusting the air shutters does not correct the problem.
11-2 Make sure that the flame:
• Is stable.
• Does not waver or lift up from the burner.
• Is predominatety blue in color.
• Is not predominately yellow at the tips.
Fiqure 11-1 Examples of a Normal Flame
Page 10
Professional Series Cooktop LPG Conversion Kit

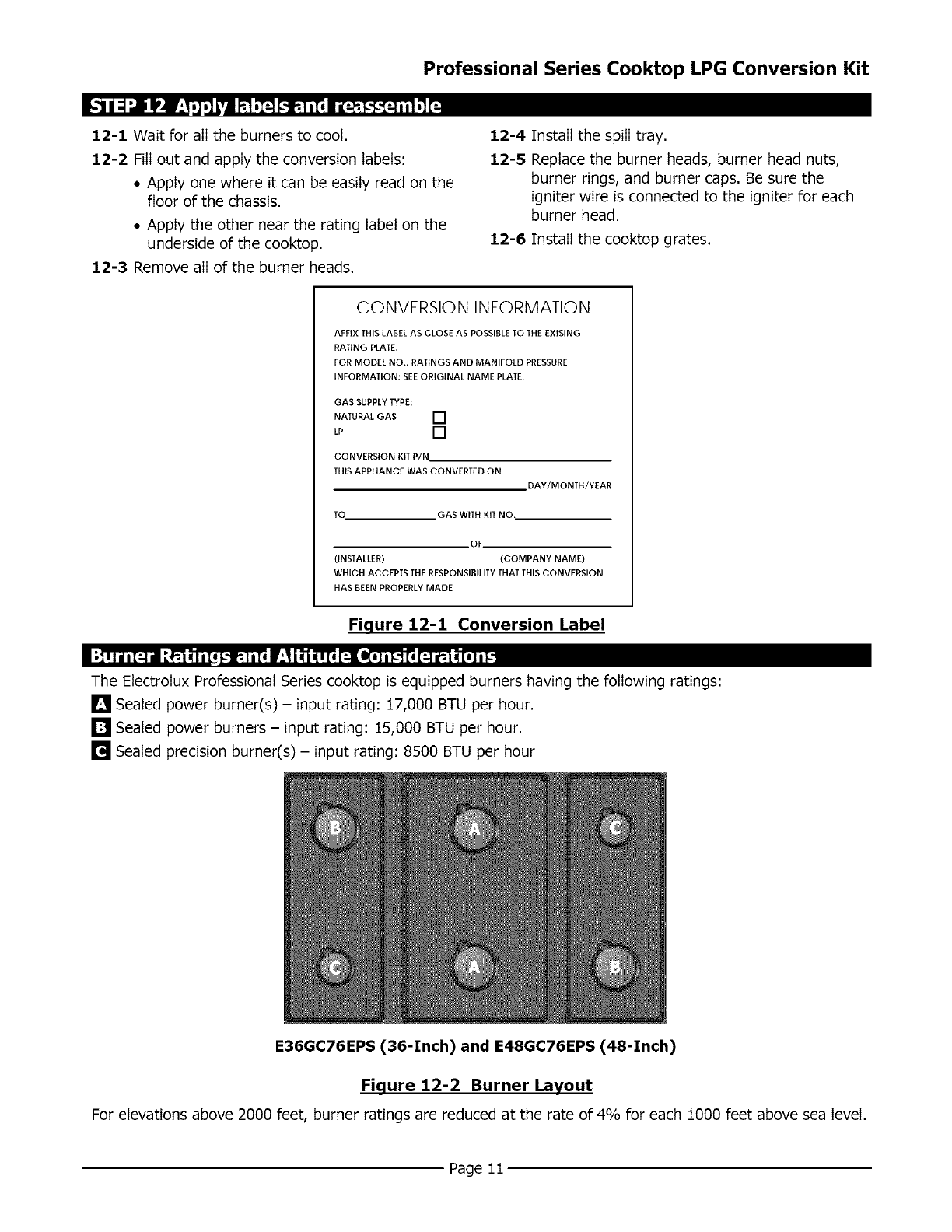

12-1 Wait for all the burners to coot.
12-2 Fill out and apply the conversion labels:
•Apply one where it can be easily read on the
floor of the chassis.
• Apply the other near the rating label on the
underside of the cooktop.
12-3 Remove all of the burner heads.
12-4 Install the spill tray.
12-5 Replace the burner heads, burner head nuts,
burner rings, and burner caps. Be sure the
igniter wire is connected to the igniter for each
burner head.
12-6 Install the cooktop grates.
CONVERSION INFORMATION
AFFIX THIS LABEL AS CLOSE AS POSSIBLE TO THE EXISING
RATING PLATE.
FOR MODEL NO., RATINGS AND MANIFOLD PRESSURE
iNFORMATiON: SEE ORIGINAL NAME PLATE,
GAS SUPPLY TYPE:
NATURAL GAS []
LP []
CONVERSION KIT P/N.
THIS APPLIANCE WAS CONVERTED ON
DAY/MONTH/YEAR
TO GAS WITH KIT NO.
OF,
(INSTALLER) (COMPANY NAME)
WHICH ACCEPTS THE RESPONSIBILITY THAT THIS CONVERSION
HAS BEEN PROPERLY MADE
Fiqure 12-1 Conversion Label
I ;_lUI itn[;1il [I_'1_I l [__.1_.11To|z_ iili['r[i _J[t[o] l1.1[_[;] _| _[o]nT.
The ElectroIux Professional Series cooktop is equipped burners having the following ratings:
[] Sealed power burner(s) - input rating: 17,000 BTU per hour.
[] Sealed power burners - input rating: 15,000 BTU per hour.
[] Sealed precision burner(s) - input rating: 8500 BTU per hour
E36GC76EPS (36-Inch) and E48GC76EPS (48-Inch)
Fiqure 12-2 Burner Layout
For elevations above 2000 feet, burner ratings are reduced at the rate of 4% for each 1000 feet above sea level.
Page 11
If itisnecessaryto returnthecooktopto naturalgasservice,repeatallofthestepsinthisprocedureusingthe
partsthat havebeenremoved.Usethechartbelowto determinetheorificesizes,shuttergaps,andtheair
shutterpartnumbers.
Natural Gas Conversion Specifications
Burner Bypass Orifice Main Orifice Air Shutter Air Shutter
Location _X 100 mm) _X 100 mm) Part No. Gap
Left Rear 81 184 HN A-0053-E .37/9.5
Left Front 72 135 HN A-0052-E .09/2.3
Ric_htRear 72 135 HN A-0052-E .09/2.3
Ricjht Front 81 184 HN A-0053-E .37 9.4
Center Rear 81 194 HN A-0053-E .37/9.5
Center Front 81 194 HN A-0053-E .38/9.6
Model E36GC76EPS (36-Inch)
Burner Bypass Orifice Main Orifice Air Shutter Air Shutter
Location _X 100 ram) _X 100 ram) Part No. Gap
Left Rear 81 184 HN A-0053-E .38/9.6
Left Front 72 135 HN A-0052-E .09/2.3
Right Rear 72 135 HN A-0052-E .09/2.3
Ric_htFront 81 184 HN A-0053-E .39/9.9
Center Rear 81 194 HN A-0053-E .37/9.5
Center Front 81 194 HN A-0053-E .38/9.7
Model E48GC76EPS (48-Inch)
The Electrolux Group
USA • 250 Bobby Jones Expressway * Augusta, GA 30907
1-877-4electrolux (1-877-453-8287) • www.etectroluxusa.com
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4
1-800-888-4608 • www.electroluxca.corn
Page 12

Navigation menu
