Elco 700HP
The most
compact solution
for your kitchen

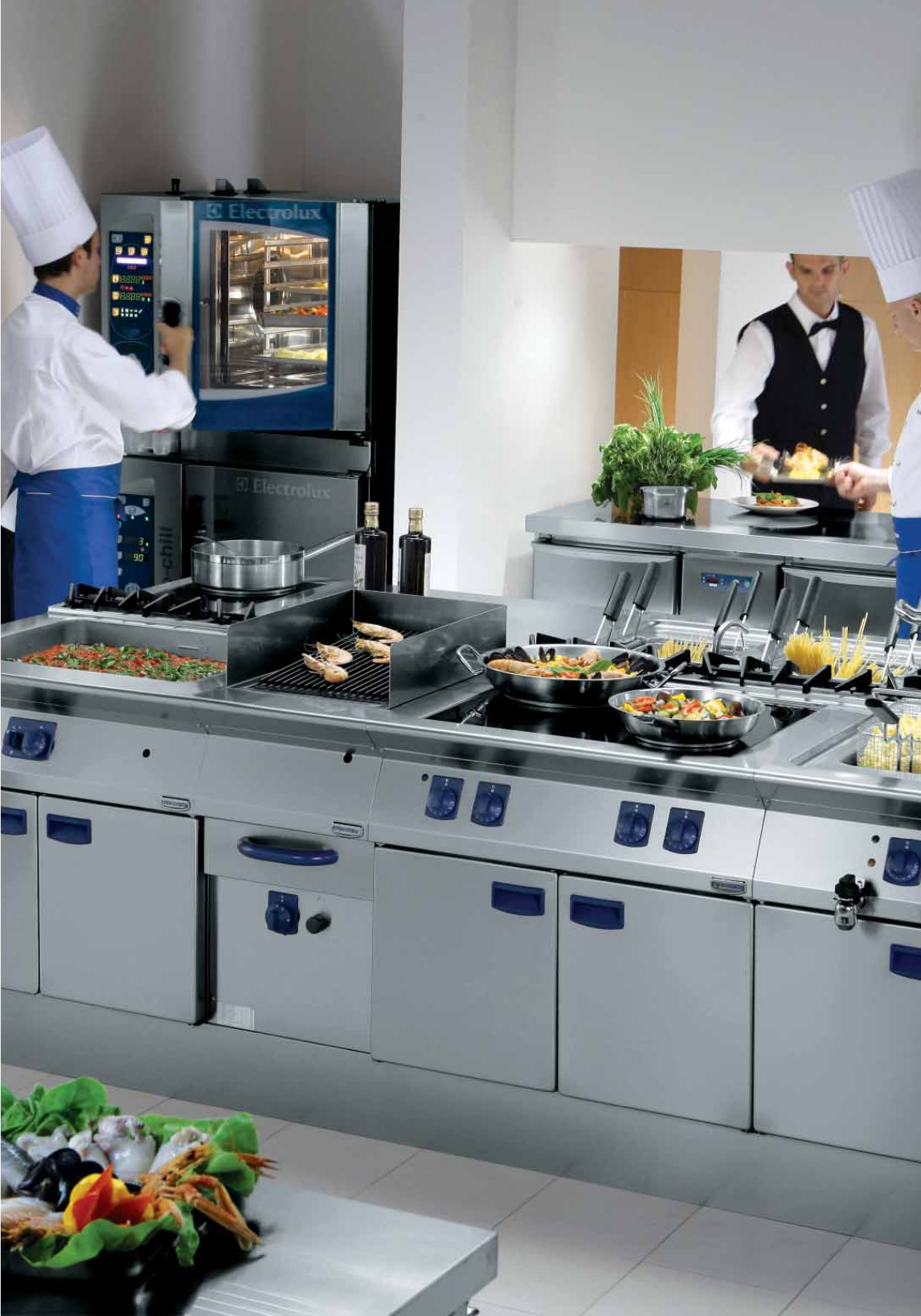

Elco 700HP:
High performance in compact
spaces
Elco 700HP Line: the perfect solution to satisfy all your requirements while
saving space. Choose between 16 different functions answering to every
need.
Pubs and bars
The best solution for small
environments needing all the main
functions that a larger kitchen usually
provides.
Self-service in exhibitions,
hypermarkets, motorway
restaurants
A quick and dynamic service for
customers with no time to wait in line.
Small hotels and restaurants
The perfect choice for small and
medium sized kitchens needing a
multifunctional structure for different
requirements.
Small staff canteens
(kindergardens, schools)
The right choice when you need to
prepare a large number of high quality
meals in a short time.
3electrolux Elco 700HP
Main Features
Ergonomic design and specifi c incorporated features ensure that Elco
700HP cooking equipments are simple and safe to use.
New dimensions. Higher productivity!
Elco 700HP has increased from 700 mm to 730 mm in
depth and provides a new modularity for higher productivity
in each module.
The modules are now 400, 800 and 1200 mm wide and are
available as freestanding or top modules.
Reliable and heavy duty
In addition to its compact dimensions Elco 700HP line
guarantees a solid structure able to fulfi l every need thanks
to the careful selection of stainless steel materials and a
sturdy working surface (1,5 mm thick).
Thanks to the technologically advanced construction Elco
700HP guarantees the same high quality performance at all
times.
Easy to clean
All the elements can be easily cleaned thanks to the large
pressed one-piece tops with round corners, reduced
joints and sealed cooking tops. Its laser cut fi nishing guar-
antees a minimum gap between all the functions to avoid
liquid infi ltrations.
Installation
on kicking strip (feet always included)
on wheels
back to back also with Elco 900
•
•
•
Elco 700HP back to back with Elco 900
Sturdy working surface
Large pressed one-piece top
4electrolux Elco 700HP

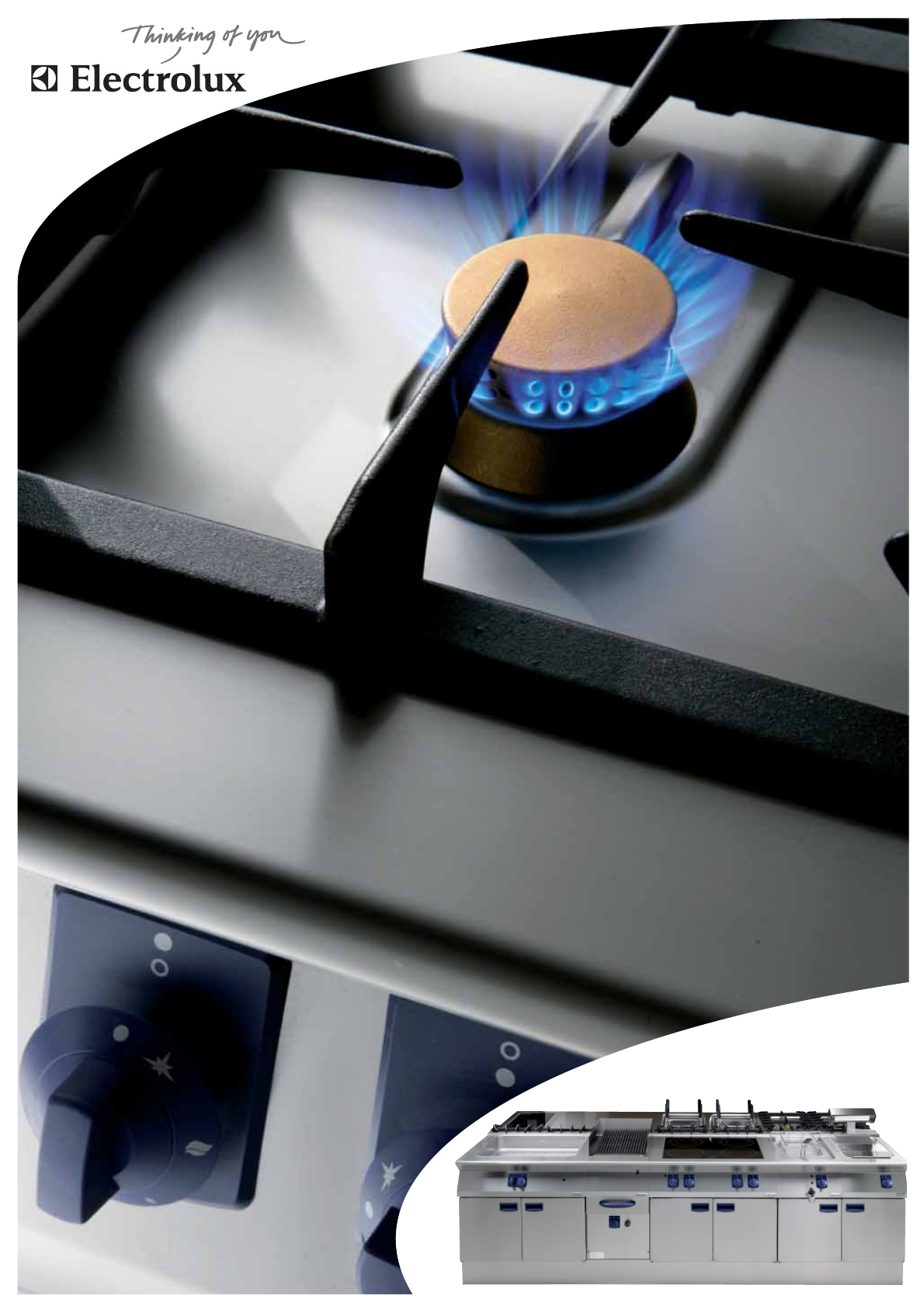

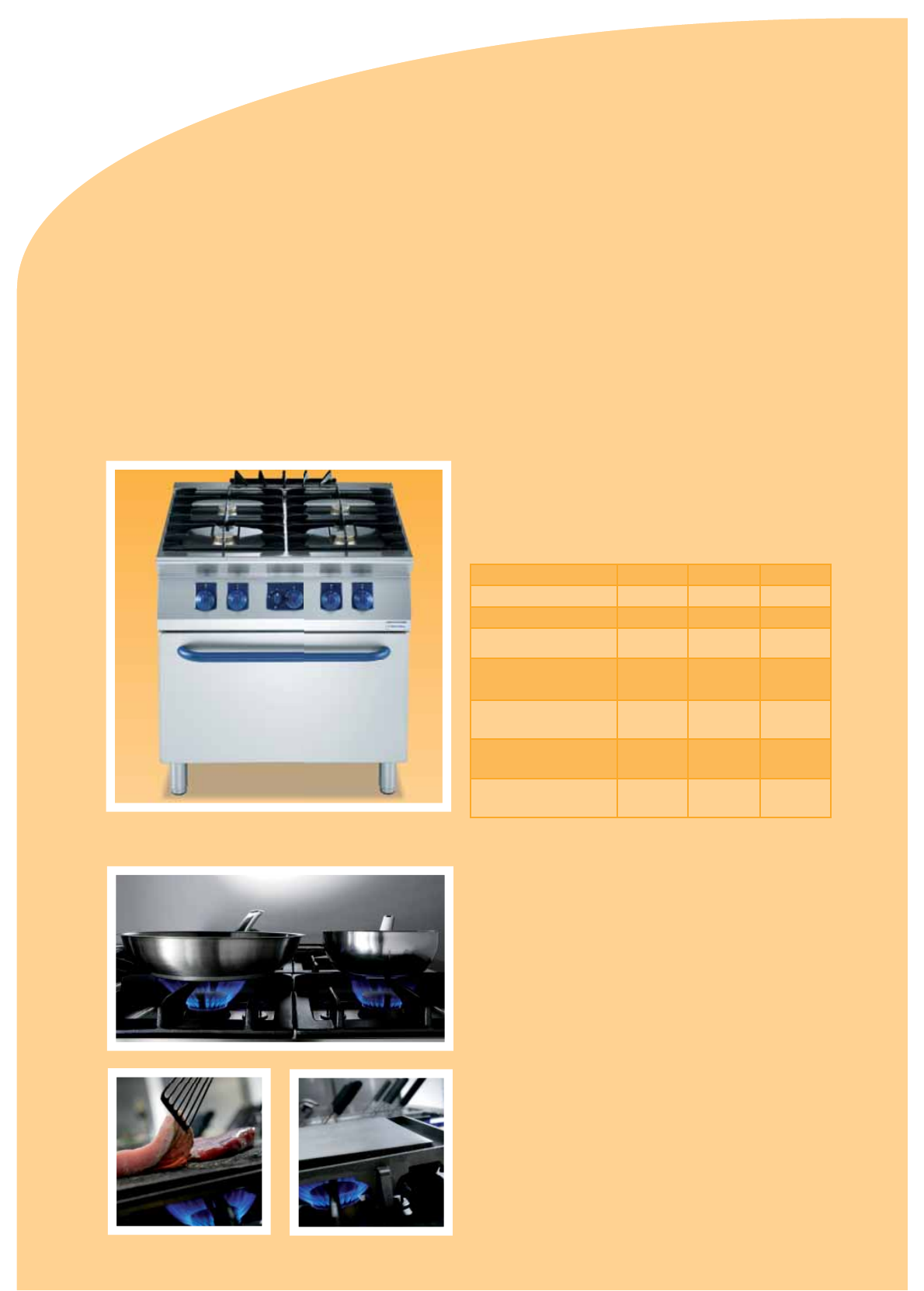

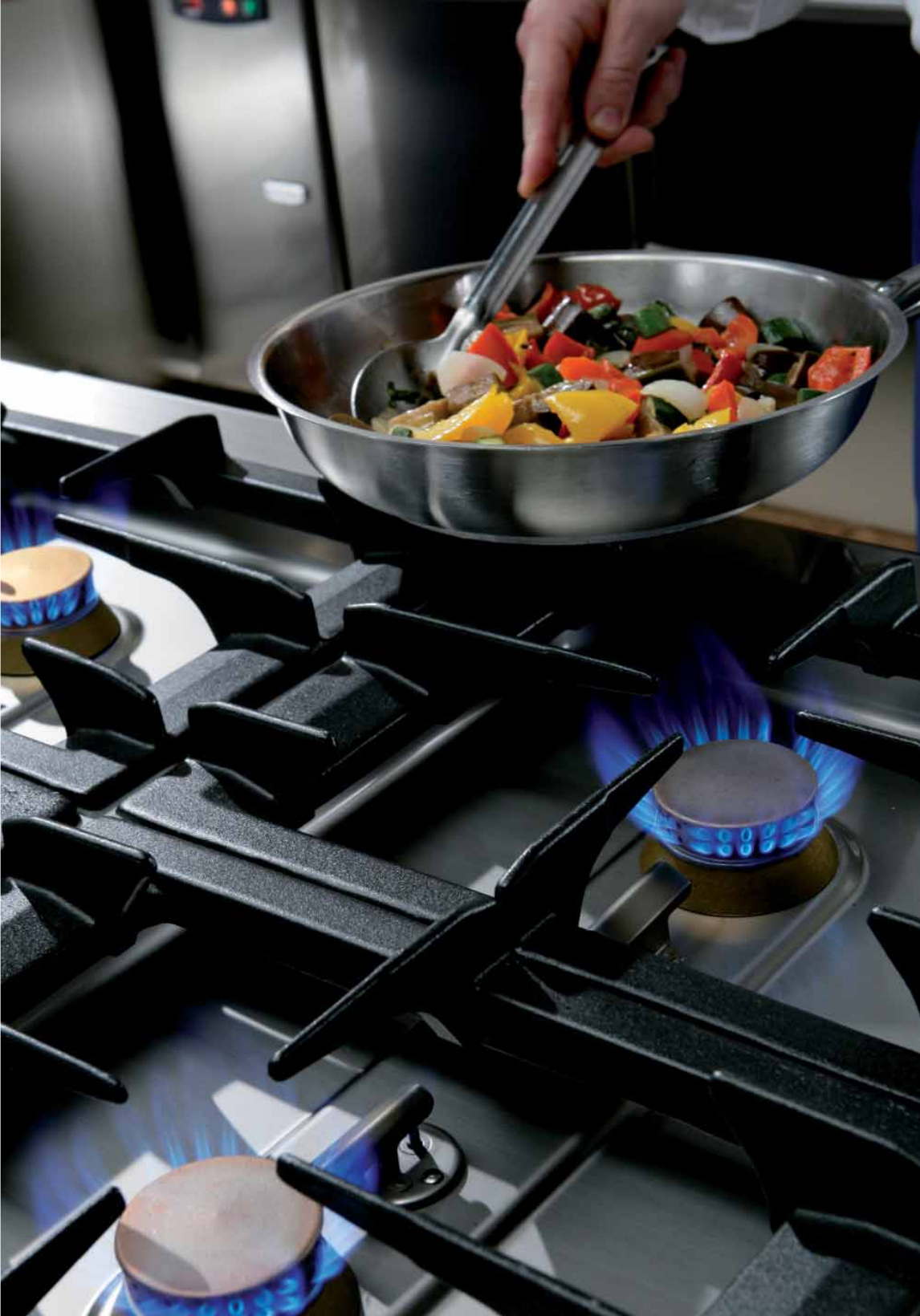

Gas cookers
The core element for your professional kitchen. Boil, braise and even grill
with the best open burner in the world.
The range consists of 2, 4 or 6-burner gas cookers. The 4
and 6-burner models are available with gas or electric oven.
The high effi ciency is guaranteed by the precise control
which supplies the right amount of energy for every type
of cooking, with all types of pans
•
(*) Oven available in 230V version
The fl ower fl ame, one burner for all your needs, thanks
to its truly unique shape, expands both horizontally and
vertically to allow for perfect cooking with pots and pans
of any shape or size, while guaranteeing the best results
and effi ciency. The fl ame adapts itself to the pots
diameter to always give the chef maximum coverage.
No more small burners for small pots. The fl ower
fl ame provides the needed power, with a continuous
emission from 1,5 to 5,5 kW, avoiding energy dispersion
The wide choice of accessories such as ribbed,
smooth and radiant plates allows you to optimize your
cooking space and make it multifunctional.
Grill your meat and vegetables directly on the plates
positioned on the gas burners or place more than one pot
or pan per zone
•
•
Ribbed plate Smooth plate
2-burner 4-burner 6-burner
Burner power kW 11 22 33
Top 400 mm 800 mm
Freestanding 800 mm 1200 mm
Gas oven
540x650x300 (6 kW) 800 mm
Gas oven + open
compartment (6 kW) 1200 mm
Gas large oven
760x540x390 (9 kW) 900 mm
Electric oven
540x650x300 (6 kW) 800 mm (*) 1200 mm
Flower fl ame
6electrolux Elco 700HP
Solid tops and simple service

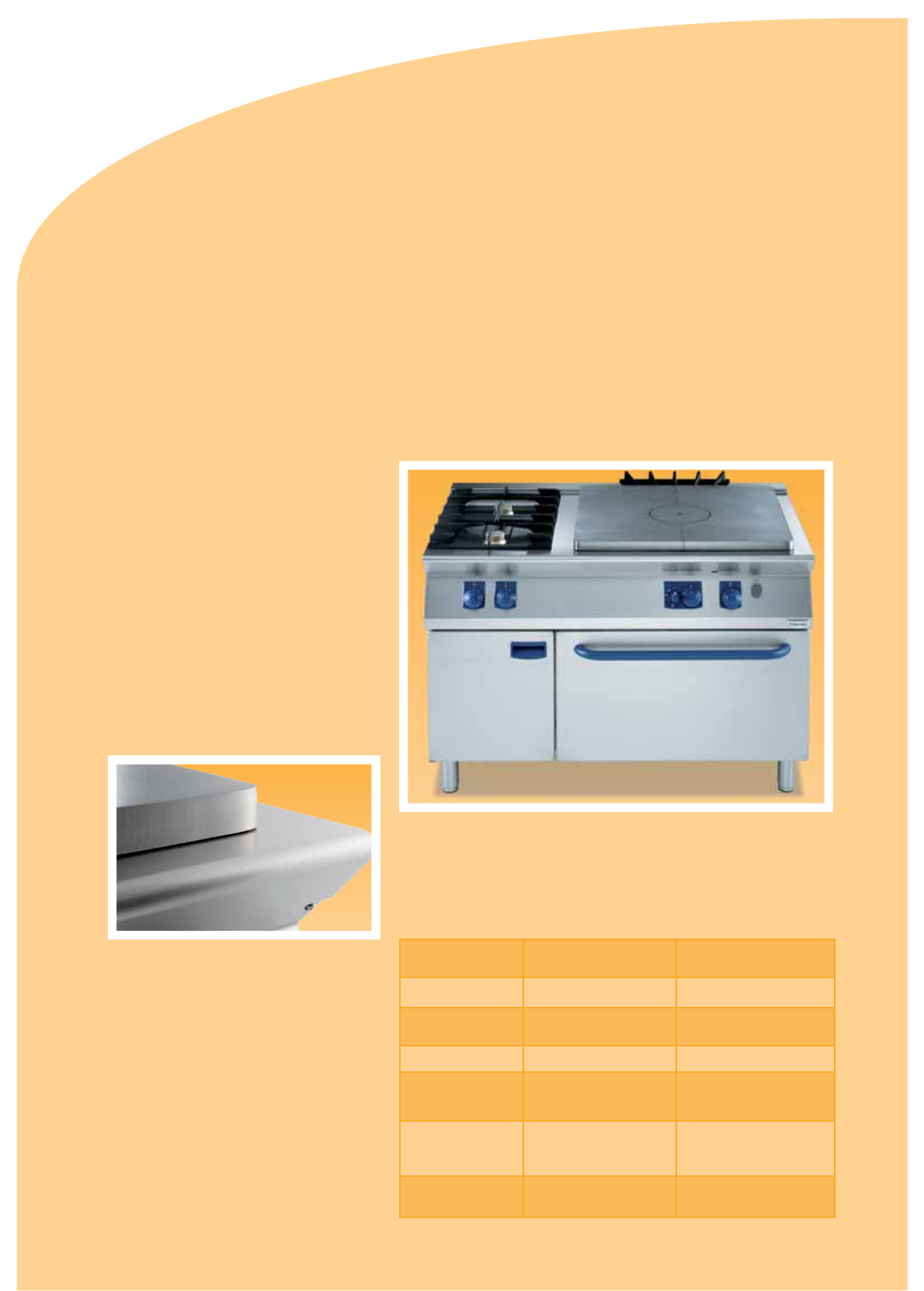

Combine two cooking solutions to optimise your kitchen space. Prepare
delicious sauces, soups and stews all at the same time. Begin cooking on
the burners then move to the solid top to continue simmering.
Large range of possible combinations of a
solid top together with or without gas burners
in half of full modules, with or without gas
ovens on base element.
Power of solid top zone: 3,8 kW for half
module, 7 kW for full module
Cooking plate with differentiated heating
zones: 500°C in the centre, 200°C on the
outer area
Piezo and pilot fl ame
Solid tops are really versatile; they can
be used to boil with big pots (up to 40
cm diameter, 30-40 lt. capacity), to gently
simmer tomato sauce or keep food warm,
all at the same time
•
•
•
•
Cast-iron cooking plate
The cooking surface is large and
sturdy: 690x590 mm for full module or
340x590 mm for half module
The solid top is 30 mm thick made of a
long lasting cast iron plate
•
•
Solid top
1/2 module
Solid top
full module
On base 800 mm width
On base + 2
burners (11 kW) 800 mm width
On oven (6 kW) 800 mm width
On oven (6 kW)
+ 2 burners (11 kW) 800 mm width
On oven (6 kW)
+ base + 2 burners
(11 kW)
1200 mm width
Solid top
power kW 3,6 7
8electrolux Elco 700HP
Electric cookers

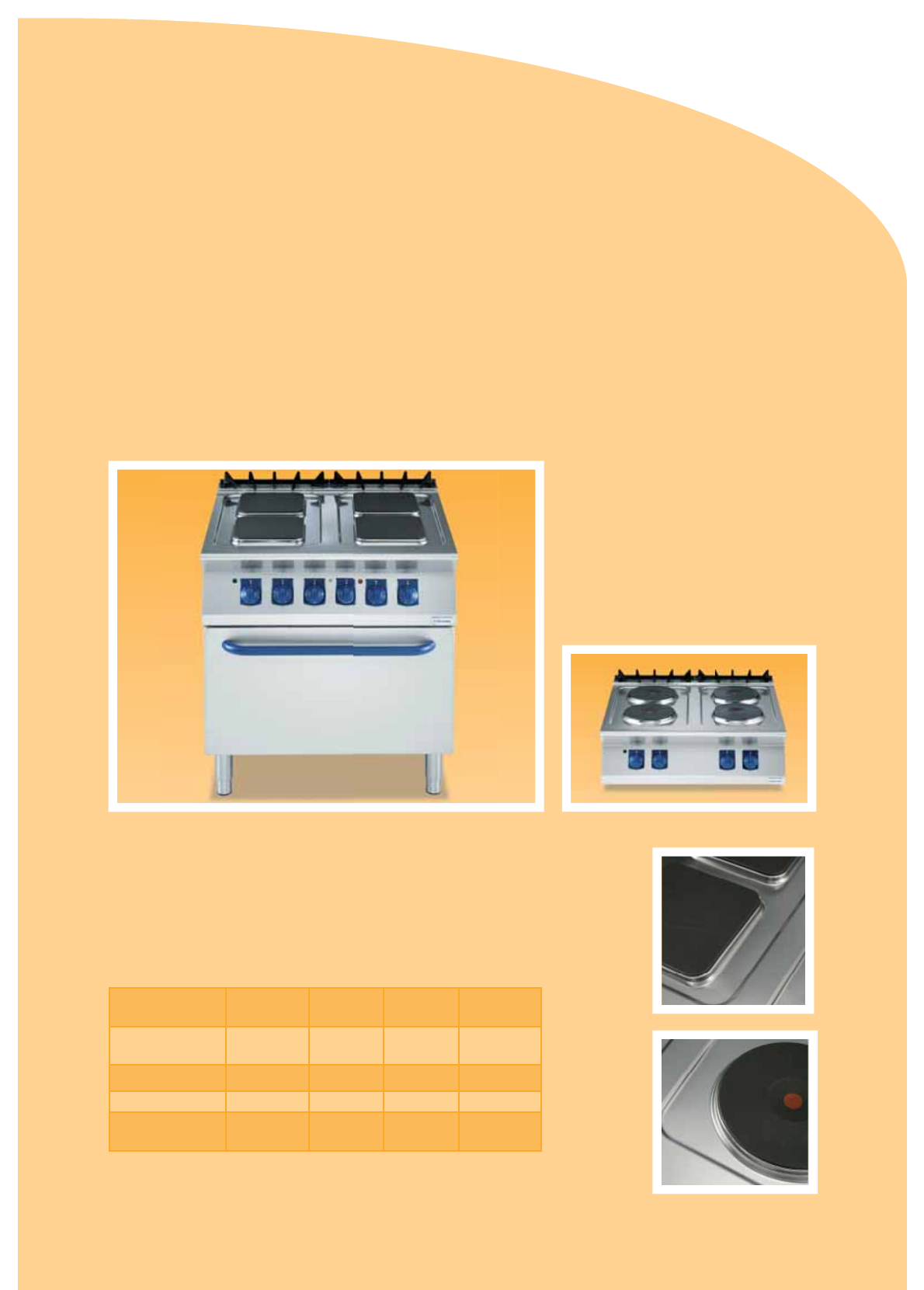

Choose between a wide selection of square and round electric plates.
Round
2 zones
Round
4 zones
Round
6 zones
Square
4 zones
Power kW
(only top function) 5,2 10,4 15,6 10,4
Top 400 mm (*) 800 mm (*) 800 mm (*)
Freestanding 800 mm 1200 mm 800 mm
Electric oven
(6 kW) 800 mm (*) 800 mm (*)
All plates are hermetically sealed to the one-piece top to avoid
liquid infi ltrations
Square cast iron models of generous dimension (230x230 mm) are
controlled by specially designed control knobs guaranteed against
water infi ltration
•
•
Round plates
Square plates
(*) Available in 230V version
Wide variety of 2, 4 and 6-cooking zone
versions with round or square plates powered
at 2,6 kW each zone. Available top version, on
open base or on electric static gastronorm 2/1
oven.
9electrolux Elco 700HP

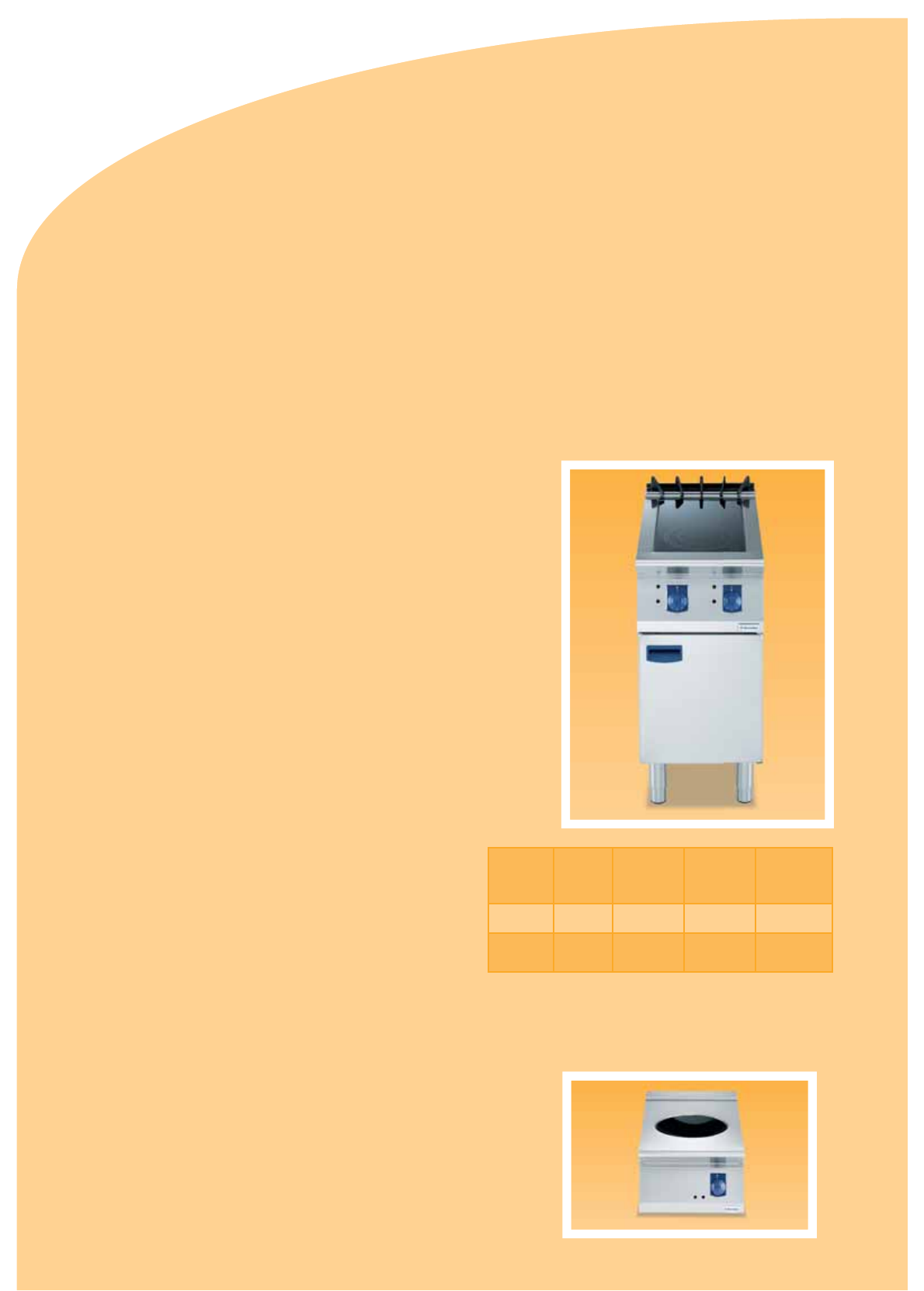

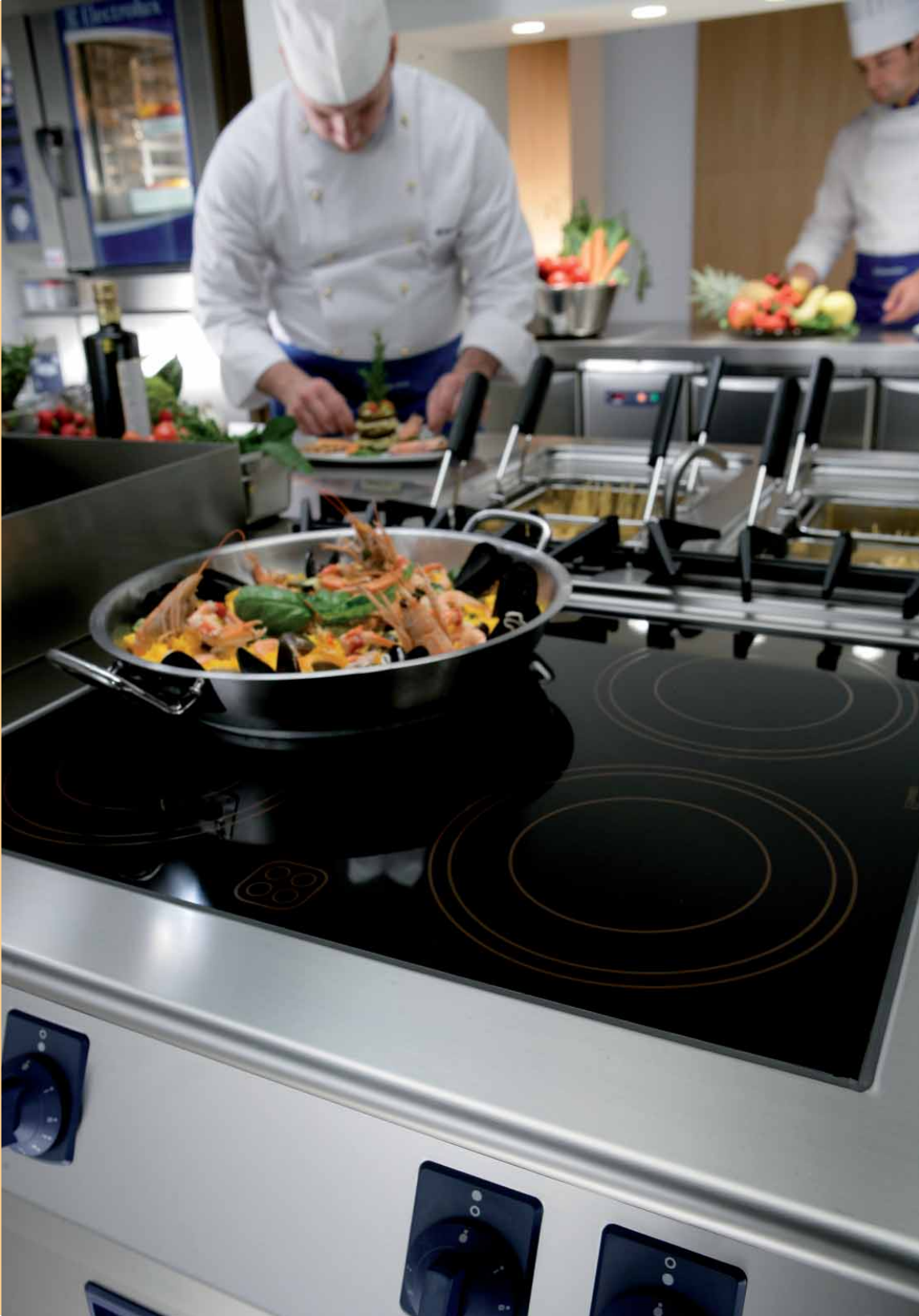

Induction cookers
The induction cookers are the ideal solution for your express service thanks
to their immediate activation upon contact with pots and to their low energy
consumption.
Induction wok
The range consists of 2 or 4-hot plates tops.
The induction cookers are provided with an energy regulator which
allows for perfect control based on the cooking requirements, you
can either work with a low power energy level for delicate recipes
or with a full power range for fast service. The induction zones are
powered at 3,5 kW each, the short heat up time is ideal for express
cooking.
Great energy savings (50% less energy consumption than a
gas range) thanks to the pan detection device that activates the
induction zone only when the pan is positioned on the surface. To be
used only with induction friendly pans, if the pan positioned on
the surface is not specifi c for induction, a warning light will fl ash
Enjoy a more comfortable work environment since there is less
heat dispersion from the cooking surface towards the chef
The glass ceramic surface only heats up upon direct contact with
specifi c induction pots and pans, thus guaranteeing a safe cleaning
and working process
A horizontal two front induction zones with gastronorm container is
also available in the range, ideal for front cooking and for making
sauces. The gastronorm container support, equipped with an overfl ow
drain, can be fi lled with ice to keep the ingredients cold
•
•
•
•
For even more creative cooking an induction wok, having the same
characteristics of the tops, is also available.
The heavy duty ceran glass bowl is designed and shaped to
position wok induction pans
The induction zone is powered at 3,5 kW to allow very fast cooking
and optimal results
•
•
Wok 2
zones
4
zones
2 zones
+ GN
container
Top 400 mm 400 mm (*) 800 mm (*) 800 mm
Power
kW 3,5 7 14 7
Perfect for vegetables, sautées and Asian style dishes.
(*) Available in 230V version
10 electrolux Elco 700HP

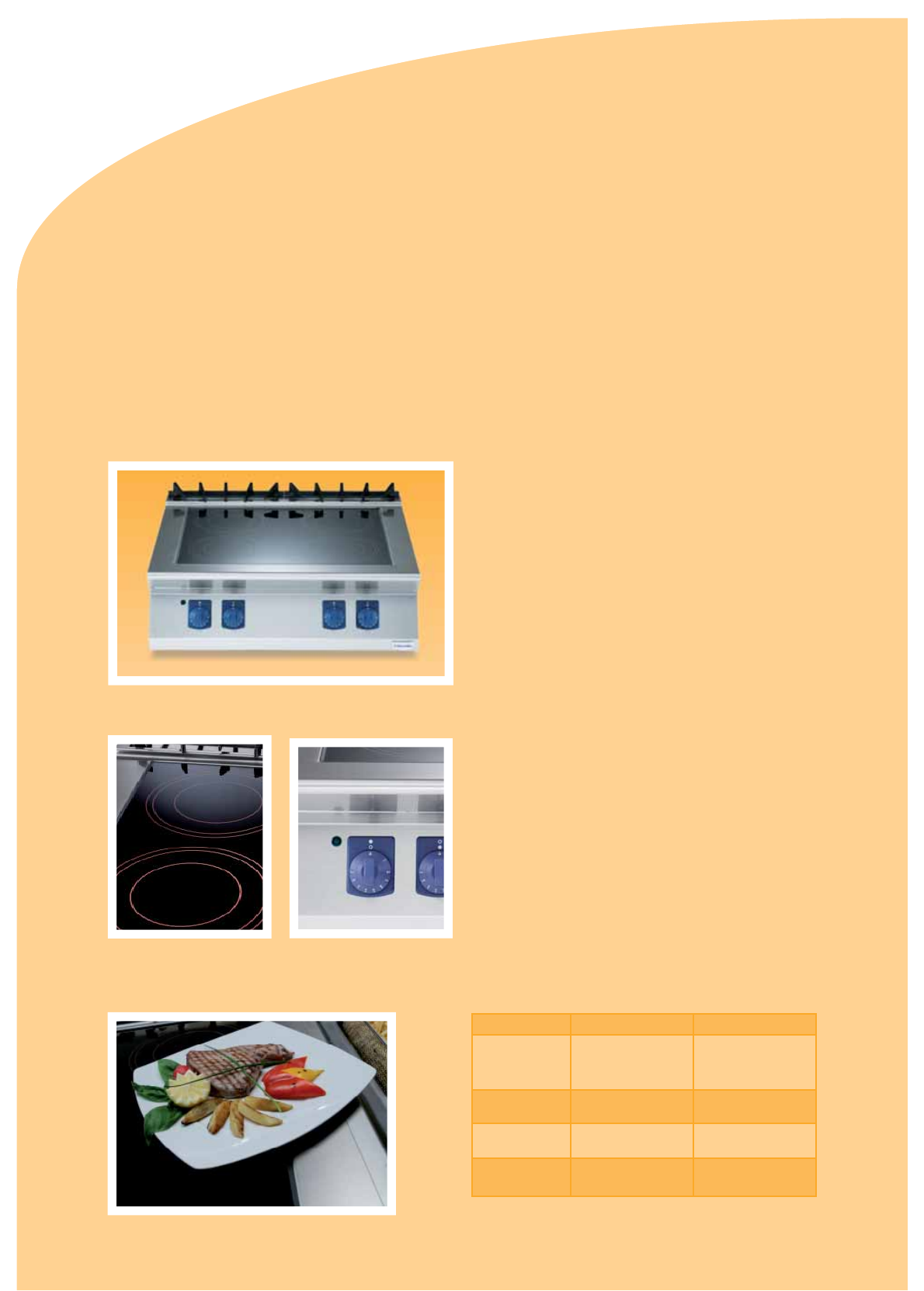

Infrared cookers
The infrared cookers help to provide a comfortable working environment
thanks to the reduced heat dispersion. They are easy to clean and able to
hold different pots and pans at the same time despite their compact size.
Ceran surface Green lamp
Available as top line with 2 or 4-heating zones or
freestanding in the 4-zone version structured on a 6 kW
2/1 gastronorm oven or on a open base.
Top models can be easily mounted on open base
cupboards or bridge supports
Pans can be easily moved around on the 6 mm thick
ceran cooking surface
The cooking top is sealed to prevent liquid infi ltration
inside the unit, thus guaranteeing the utmost hygiene
The ceran surface is very easy to clean
The whole range is equipped with both inner and outer
heating elements (internal power of 700 W, external
1500 W) for each zone in order to properly modulate
the power. The concentric heating zones measuring
230 mm in diameter allow the heating area to match
the pot or pan size
Safety is assured by a red safety lamp beneath the
ceramic glass surface which highlights when the
surface temperature is above 50°C. In addition a green
lamp warns you when the power is on
•
•
•
•
•
•
2 zones 4 zones
Power only
top functions
(kW)
4,4 8,8
Top 400 mm (*) 800 mm (*)
Freestanding 800 mm
Electric oven
(6 kW) 800 mm (*)
(*) Available in 230V version
12 electrolux Elco 700HP
Gas and electric static ovens
Designed to be compact and deep at the same time. The static
ovens are ideal for “au gratin”, simple baking, toasting and holding.
Choose the top function you prefer and place it on a static
oven for a freestanding confi guration. The static ovens are
available in both gas and electric versions.
Precise temperature control assures better results
Control panel is ergonomically placed on the top front side
of the oven
The oven construction makes cleaning operations quick
and easy; the cooking chamber, in fact, is made from a
single piece in AISI 430 stainless steel which has rounded
corners
Choose between different cooking systems: lower heating
system, upper heating (grill function only for electric models)
or a combination of both (for a uniform cooking style)
While one level is better for cooking or baking, the other
can be ideal for keeping food warm. The standard grill
function allows you to use the oven as a grill salamander,
keeping the door open in order to release the steam
The entire volume of the chamber can be utilized thanks to
the ribbed base which helps to avoid burning. This allows
you to insert a roasting pan directly on the bottom plate of
the oven
Electric ovens with 3 cooking cycles:
- Internal irradiation: for roasted meats and classical recipes
- External grilling: for toasting
- Irradiation and grilling: for pastries and pizza
Gas ovens are ideal for cooking meats, savoury
foods and pastry
•
•
•
•
•
•
•
•
Ribbed base avoids the risk of burning
since the pan is placed on a raised surface
and not on a completely fl at surface
40 mm thick door for
heat insulation
Perfect closure,
no need of gaskets
thanks to the pressed
internal panel
Electric oven
540x650x300
(6 kW)
Gas oven
540x650x300
(6 kW)
Gas oven large
760x540x390
(9 kW)
Gas burners •• •
Electric cookers •
Infrared cookers •
Gas solid tops •
13electrolux Elco 700HP

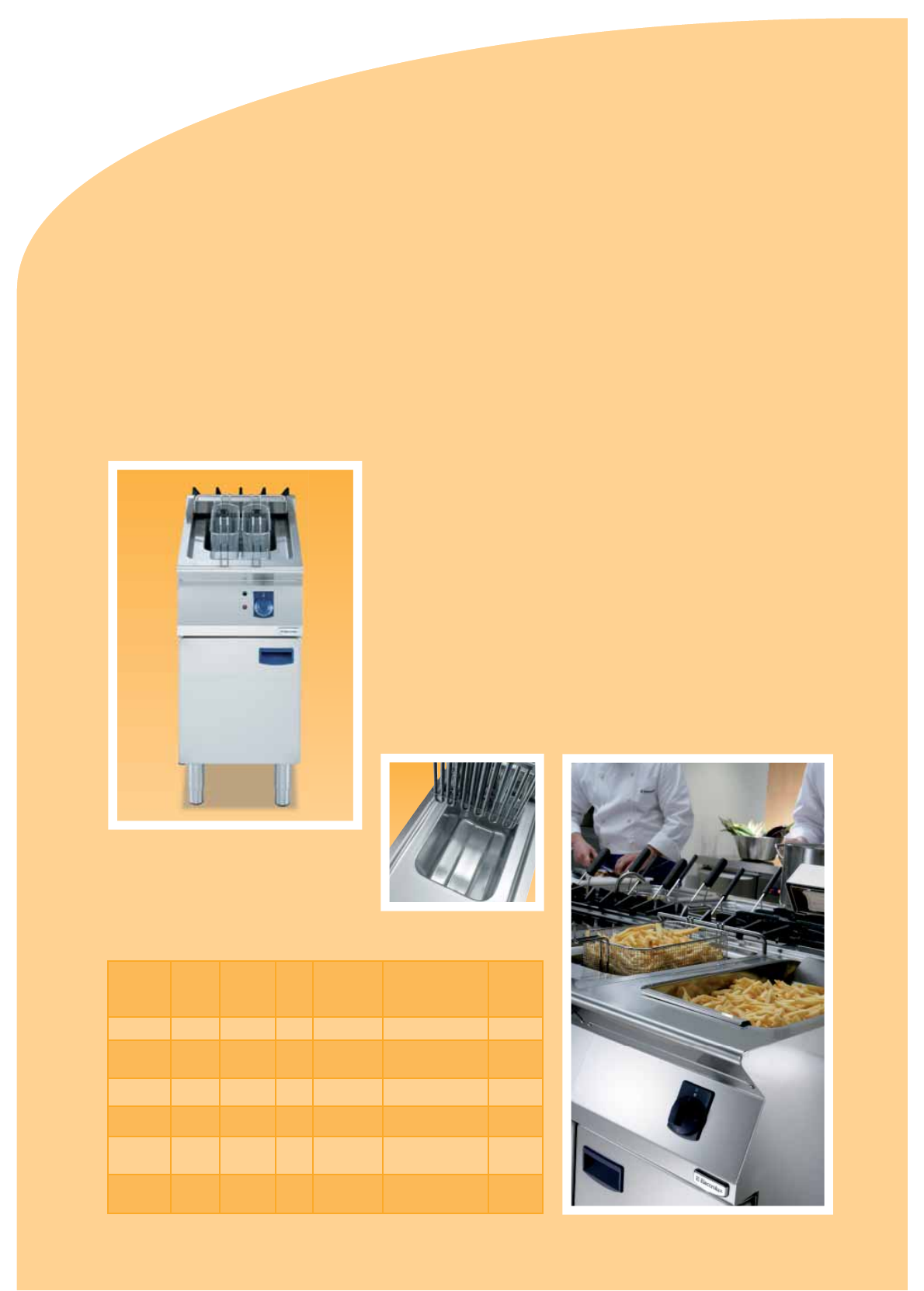

Fryers
Thanks to the speed of Electrolux fryers you guarantee your customer high
quality fried dishes without the wait.
The range is made of a wide selection of electric and gas fryers with 1 or 2
wells, with 5 to 34 lt. capacity.
Electric models with swivelling heating elements in the cooking well for
any kind of frying
Models with gas tube burners in the cooking well are perfect for
breaded products
The V-shaped well version with external gas or electric heating
elements, thanks to its power, its effi ciency and its ability to bring oil up
to the ideal frying temperature quickly, guarantees:
- Higher productivity, even for the most demanding chefs
- Improved hygiene. No more dirt traps inside the well
- Oil longer life (about 30%) thanks to the uniform distribution of the heat
- An easier and safer cleaning process. No direct contact with heating
elements
•
•
•
Well
capacity
(lt.)
Single
well
Double
well Top Free-
standing Heating system Power
supply
5•• Internal elements Electric
7•••• Indirect “V”
shape
Gas/
Electric
12 ••• Internal elements Electric
14 •• •
Internal elements Electric
15 •• • Indirect “V”
shape
Gas/
Electric
34 ••
Internal tube
burners Gas
Accessories included
All fryers are equipped with baskets and
feet.
Heating elements
14 electrolux Elco 700HP
The infrared lamp for heating your fried food is positioned on the back
of the unit
A perforated drip pan for excess oil is included
The 1/3 gastronorm well is pressed for an easy cleaning

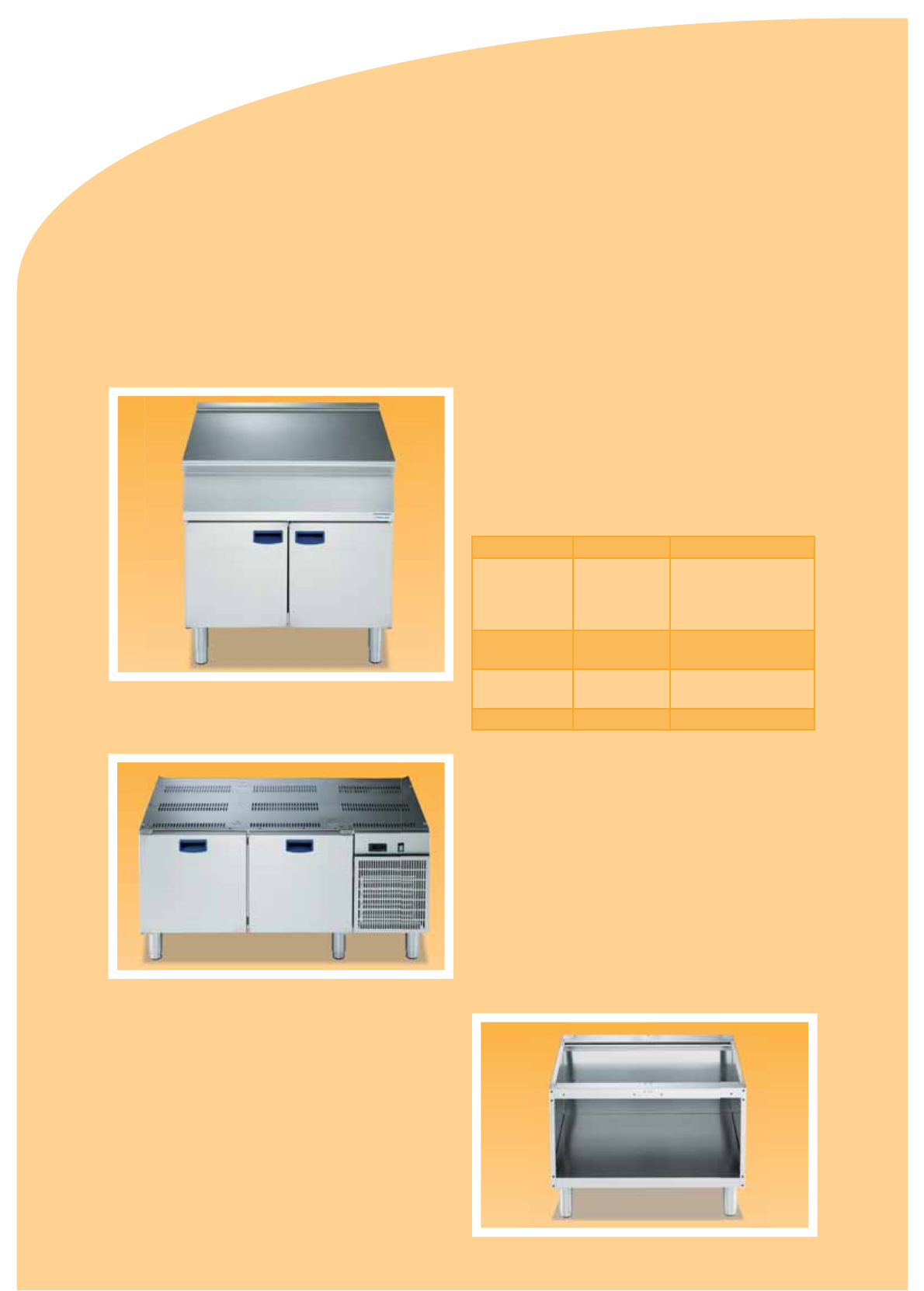

The model can be mounted on refrigerated base, open base cupboard
or bridge support
•
•
•
•
Chip Scuttle
Ideal for maintaining your fried food warm and crispy. Chips, fi sh, breaded
vegetables and meat are perfect every time.

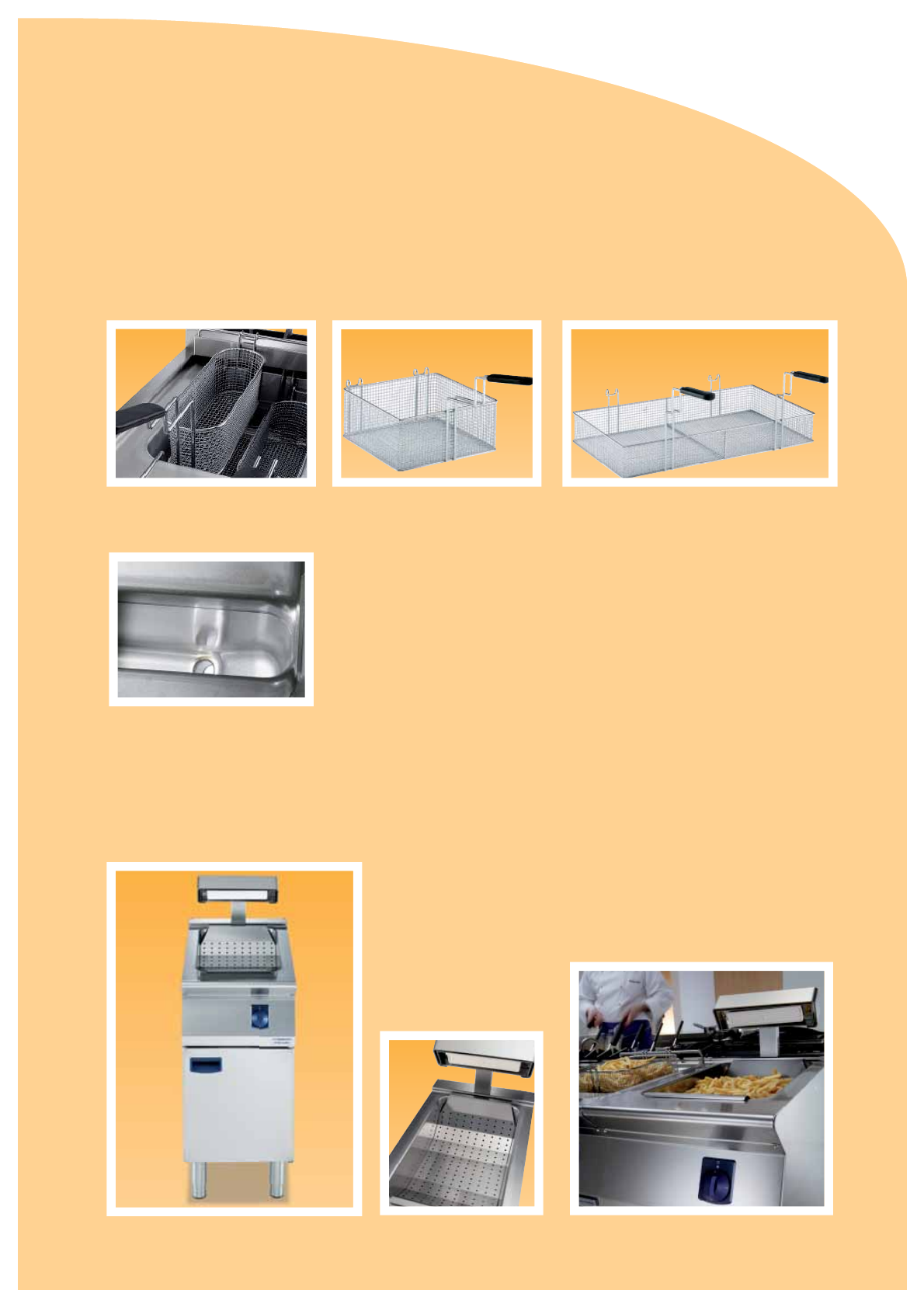

Wide selection of baskets
Well construction
15 lt. fryer tanks are now only two pieces welded together instead of three.
The welding procedure is completed with laser technology that guarantees total
uniformity of the surface as if it was a single unique piece.
This new construction guarantees maximum hygiene and reliability.
V-shaped well
2 half baskets for 14-15 lt. fryers Basket for 14-36 lt. freestanding fryers Baskets for 34-36 lt. fryers
15electrolux Elco 700HP

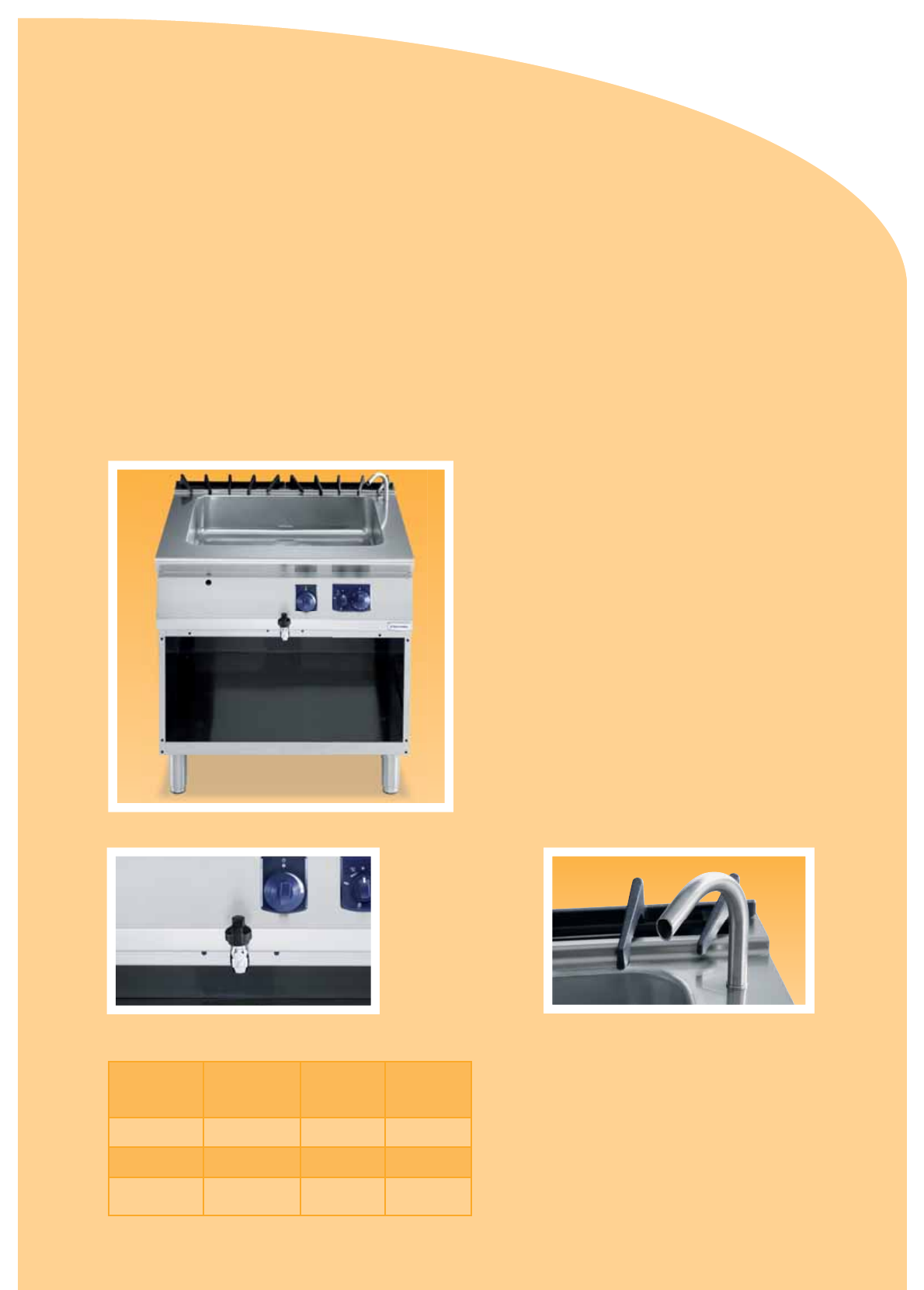

Pasta cookers
The Electrolux pasta cooker is not only the ideal solution for your delicate
fi rst course recipes, it is a cooker that allows you to boil meat, vegetables,
potatoes, rice and cereals as well.

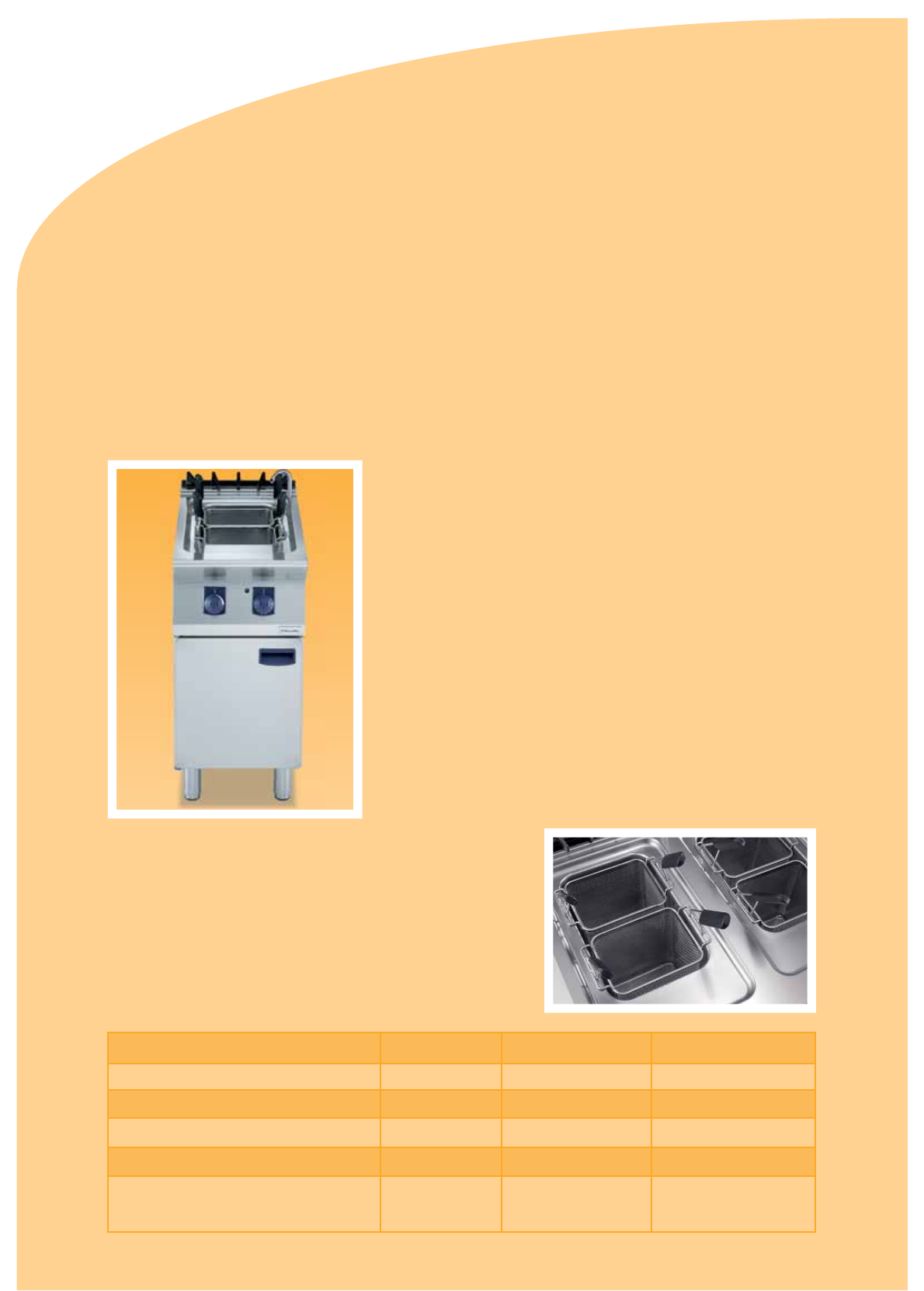

Automatic pasta cooker (1/2 module) with automatic basket
lifting system
5 different lifting programs available per basket. Each program is
very easy to change
4 boiling cycles for different cooking solutions: full power or gentle
cycle for fresh pasta
Rapid automatic water fi lling thanks to the instant boiling
system that pre-heats the water before having to refi ll the well.
Always continuous hot water available
Thermostatic control for a perfect regeneration of pre-cooked
foods
•
•
•
•
The pasta cooker is available in two versions: 24,5 and 40 lt. capacity.
The 24,5 lt. models are gas or electric heated in the choice of standard
or with automatic basket lifting system.
The 40 lt. models are only electric heated both with automatic water
fi lling or with automatic basket lifting device.
The deep drawn well in AISI 316 stainless steel assures long lasting
results even in aggressive humid environments
In the models with boilers, the high productivity of the appliances is
assured by the continuous refi lling of the well with hot water which
is absorbed by the food in the basket during cooking operations
A wide offer of high quality baskets with thermo-insulated handles
completes the range
The pasta cooker can even be used as a bain-marie or for steam
cooking by simply using the appropriate basket or container
•
•
•
•
24,5 lt. gas 24,5 lt. electric 40 lt. electric
1 well 400 mm - 10,5 kW 400 mm - 6 kW
1 well with automatic water fi lling (boiler) 800 mm - 13 kW
2 wells 800 mm - 21 kW 800 mm - 12 kW
1 well with automatic lifting 800 mm - 10 kW
Full electronic:
1 well with automatic
lifting and water fi lling (boiler)
400 mm - 9 kW
16 electrolux Elco 700HP

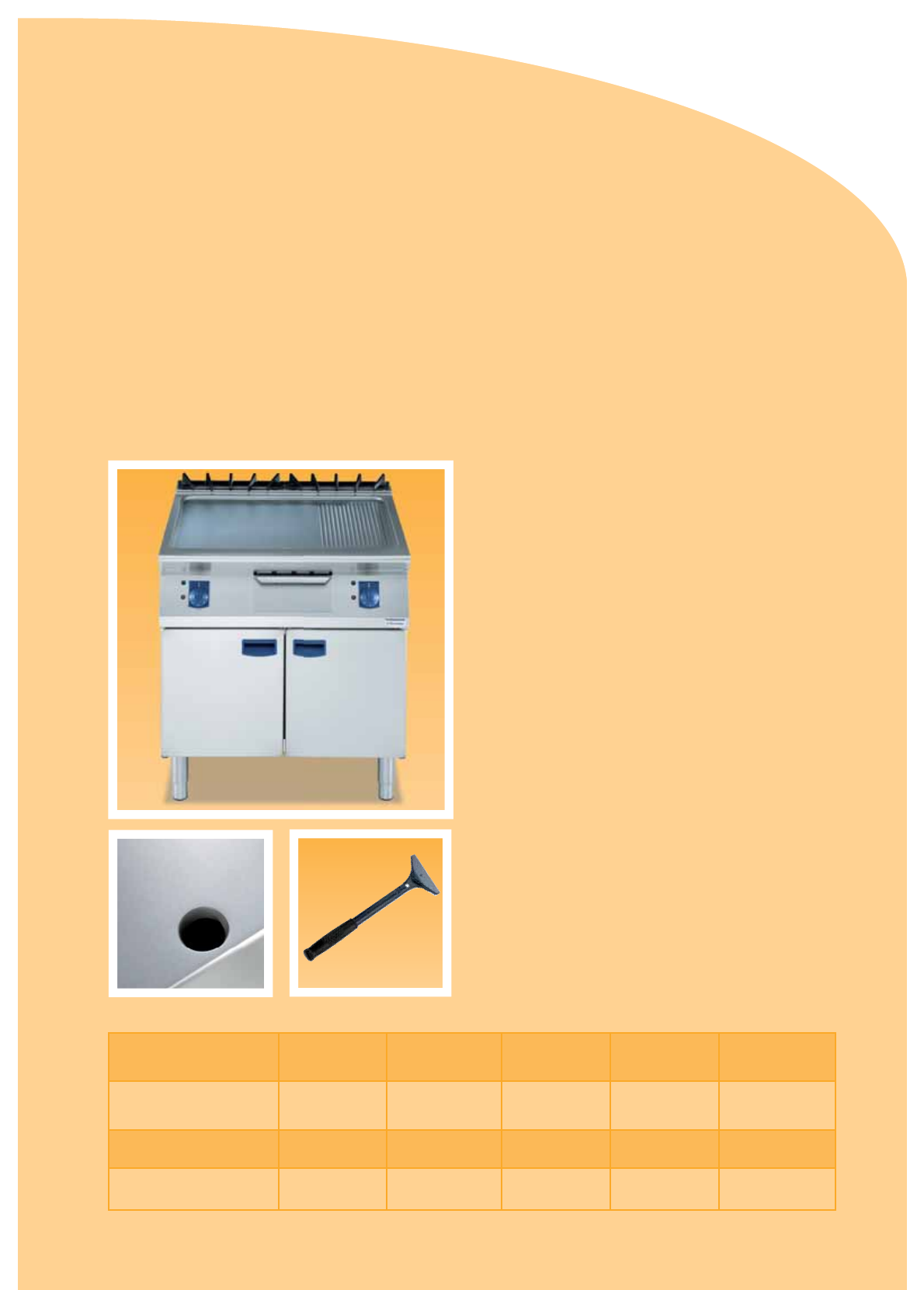

Frytops
Electrolux frytop is the essential component for direct cooking. It allows you
to griddle meat, fi sh and vegetables while at the same time maintaining the
natural fl avours of the food.
Great variety of choices: half and full models, top and
freestanding, gas and electric, with chrome plate or mild steel
cooking surface.
The 12 mm thick cooking surface is available as smooth,
ribbed or a combination of both for different cooking
styles
More than powered: highly effi cient for fast recovery time
Wide surface for high productivity
The new pressed work top is made out of one piece to
guarantee better hygiene and a larger cooking surface
The cooking surface has wide and round corners for easy
cleaning
A sloped cooking surface, in either chrome or mild steel,
permits the oil/grease to drain away from the food. A
specifi c model in mild steel is available with a horizontal
plate ideal for shallow frying foods
Chrome plated is ideal for:
Cooking on contact, assures low heat emissions for a
better working environment
Cooking sliced vegetables, fi sh and thin pieces of meat
(1 cm)
Especially indicated for preparing different entrèes at once
No fl avour transfer between the foods on the plate
Easy to clean, with special scraper included as standard
Mild steel plate is ideal for:
Cooking thick pieces of meat (2-3 cm)
Frying huge quantities of food in a short time
•
•
•
•
•
•
•
•
•
•
•
•
Scraper for smooth plate
Electric*Electric* Electric*Gas*Gas*
Power (kW)
1/2 module - full module 4,5 - 9 4,5 - 9 4,5 7 - 14 7 - 14
Cooking surface Sloped, smooth,
ribbed or both
Sloped, smooth,
ribbed or both
Horizontal -
smooth
Sloped, smooth,
ribbed or both
Sloped, smooth,
ribbed or both
Cooking surface material mild steel chrome fi nish mild steel mild steel chrome fi nish
(*) Available in top and freestanding versions. For more details, see technical sheets.
Large drain hole
17electrolux Elco 700HP

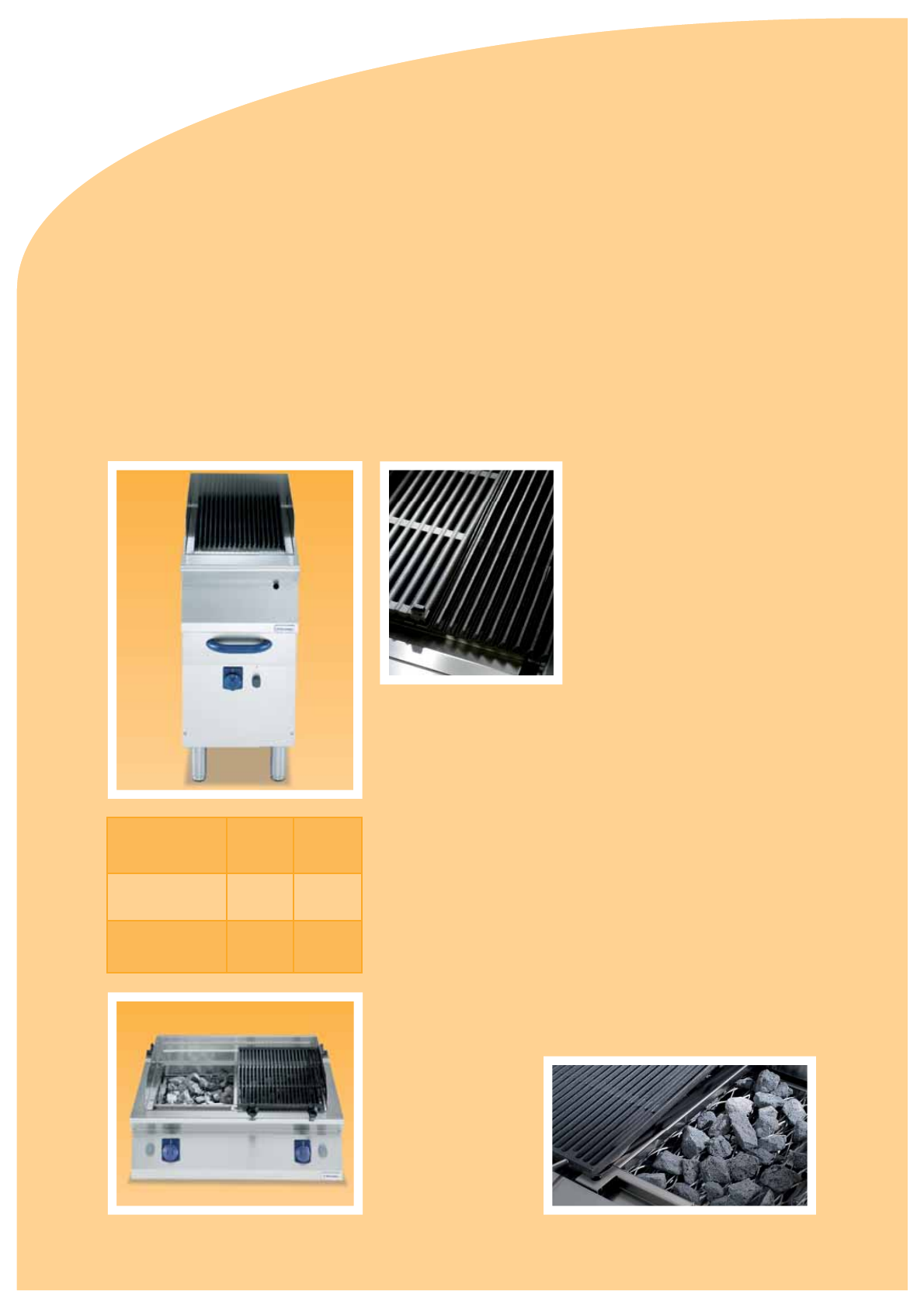

Grills

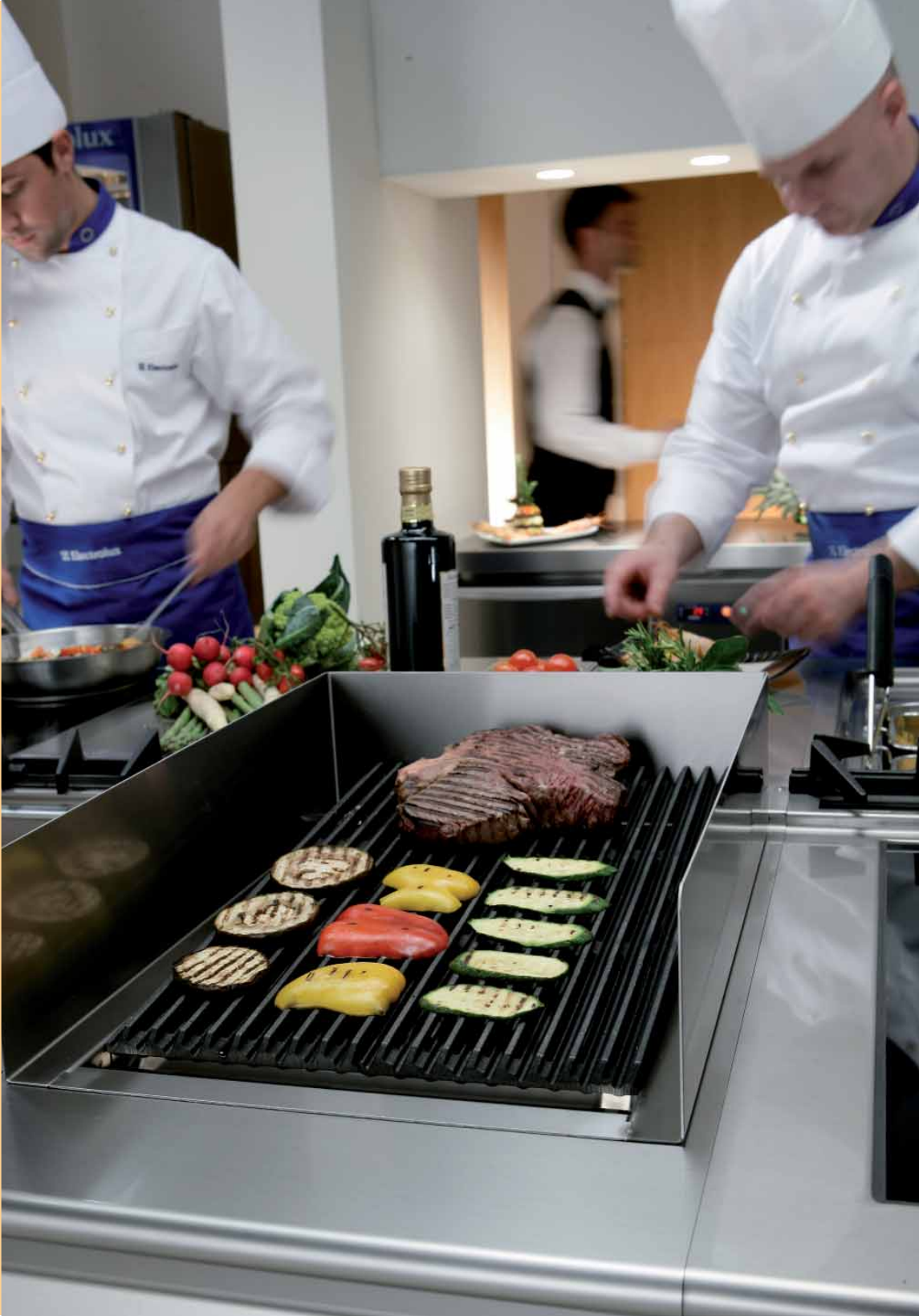

Serve your customer a delicious barbeque. With Electrolux grills you will be
able to grill fresh fi sh, meat and vegetables with a perfect cooking style.
Versatile cast iron cooking surface with double sided grids. Each side
has a different shape, one is ribbed, ideal for cooking big pieces of
meat and fi sh with grease drains and the other is smooth for delicate
fi sh and vegetables
The collection drawer is easy to clean thanks to its dimensions and
shape which allows you to place it directly in the dishwasher
Water can be placed within the drawer thus reducing heat radiation to
the fl oor while maintaining the meat tender and juicy
Water valves (available as option) permit a direct fl ow of water in the
drawer without having to remove it
•
•
•
•
Freestanding or top confi guration are available.
Freestanding models can be either gas or
electric heated. Regulate the power directly
from the heating elements or by reducing the
fl ame. The included large grease collection
drawer avoids any spillage
Top models can be electric heated or gas
with lava-stone. In top models both grids
have handles for easier movement.
A grease collection tray is included
Innovative design and construction are key
factors in obtaining high productivity with
excellent results
•
•
•
Electric Gas
Top
(1/2 - full module) 6 - 12 kW 7 - 14 kW
Freestanding
(1/2 - full module) 6 - 12 kW 8 - 16 kW The lava-stone solution will give you that perfect characteristic barbeque
taste greatly appreciated by your customers without the hassle of
traditional cleaning
The advantage of this kind of grill is to have stones placed under the grid
to absorb the heat and release it gradually during cooking
Table top appliances are the ideal choice when space is critical in the
kitchen
•
•
•
Double sided grid
18 electrolux Elco 700HP
Multifunctional cookers
3 appliances in one! The perfect solution for small to medium capacity
kitchens with limited space. A fry top for griddling and broiling, a braising pan
for damp cooking and a dry bain-marie for keeping warm.
Available in electric or gas version with a choice of 11 and
22 lt. capacity, 1/1 or 2/1 gastronorm pressed wells.
Thermostatically controlled with an energy regulator on
electric models or with a thermostatic modulating valve on
gas models for more precise cooking of delicate foods
The large drain hole allows quick removal of liquid based
foods into a gastronorm container
The cooking surface is manufactured from 15 mm
compound bottom, that is the composition of a 12 mm
thick lower layer of mild steel and a 3 mm thick upper
layer of 316 AISI stainless steel.
Mild steel is the best material to resist high temperature
stress and to spread heat, coming from infrared radiant
plates (electric version), evenly over the cooking surface,
while 316 AISI stainless steel is ideal to protect the
appliance from corrosion
Accessories included as standard are: stopper, scraper
for smooth plate and draining pipe for easy food collection
•
•
•
•
Electric Electric Gas Gas
Capacity (lt.) 11 22 11 22
Power (kW) 510714
Cooking surface Compound Compound Compound Compound
Working temperature
min/max - °C 100/250 100/250 100/250 100/250
Easy cleaning round corner and edges
20 electrolux Elco 700HP
Bain-maries
The bain-marie is ideal for maintaining food warm and for preparing pastry
creams and delicate sauces.
Available in freestanding or top version, either gas or
electric.
Both gas and electric models are provided with a
temperature control from 60°C to 90°C. In the electric
models, the green light indicates when the appliance is
in operation
The well, in AISI 304 stainless steel, has round cor-
ners and edges for easy cleaning
Each unit can hold gastronorm containers up to 150
mm high
Available, on request, perforated false bottom plate
and water tap
•
•
•
•
Front water drain valve (safety type - push and turn)
Electric Electric Gas
1/2 module Full module Full module
Top 1,5 kW 3.0 kW
Freestanding 3.0 kW 4,5 kW
Water fi lling tap
21electrolux Elco 700HP

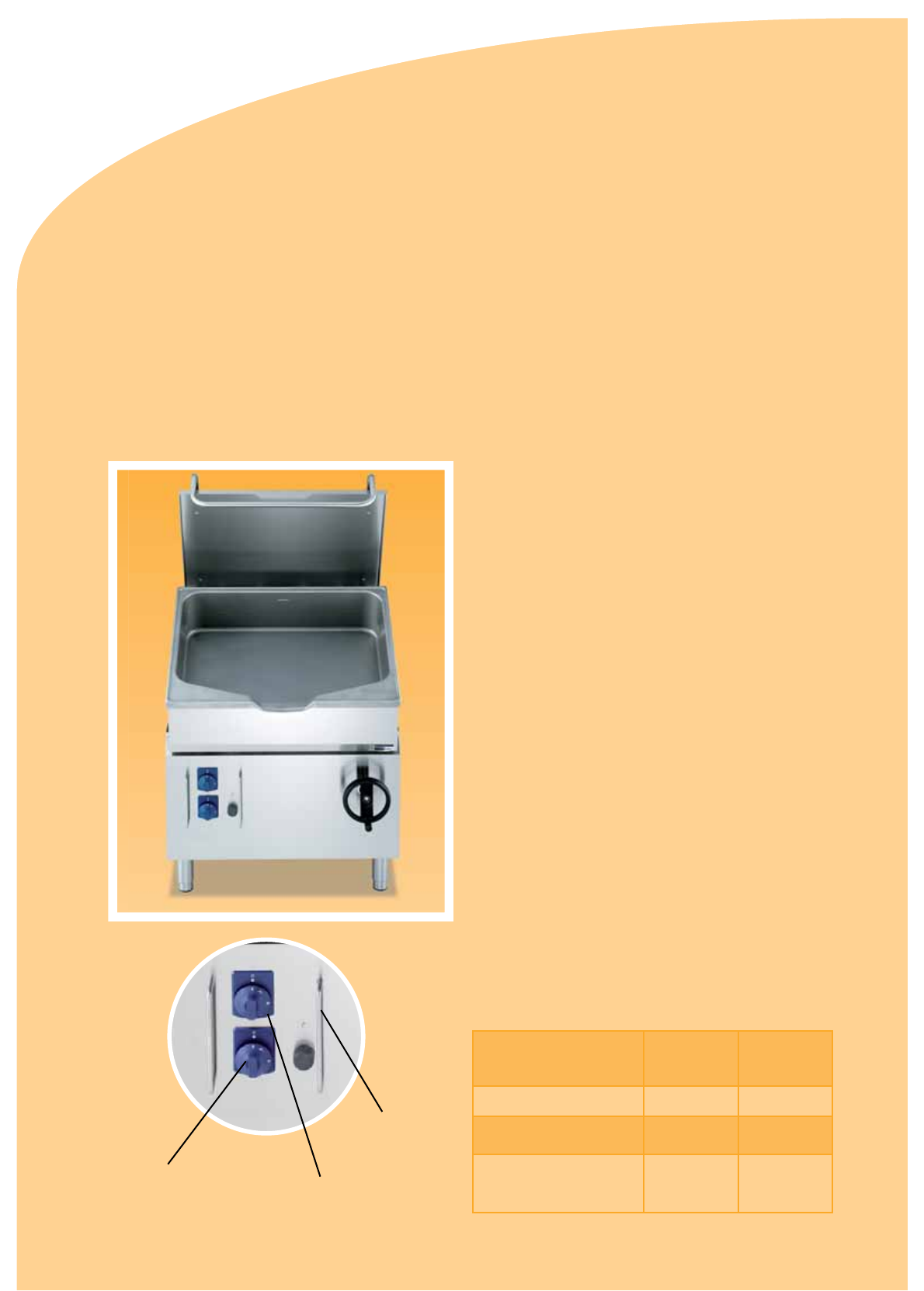

Braising pans
Cook large quantities of food in a short time by simply choosing the correct
cooking processes. The moist cooking system, perfect for casseroles and
bolognese sauce or dry cooking, ideal for bacon, scrambled eggs and steaks.
Different choices of gas or electric versions with different
well cooking surfaces. The bottom tank in either AISI 304
stainless steel, 8 mm (ideal for damp cooking, sauces) or
mild steel (ideal for dry cooking and shallow frying).
Huge capacity: maximum nominal capacity is 60 lt.
Working temperature controlled through a thermostat.
The gas model temperature range varies from 90°C to
290°C; the electric models from 120°C to 280°C
Reliability is guaranteed by the burners which are in
chrome plated steel with optimized combustion (gas
models) and the heating elements are in stainless steel
(electric models)
The lid is counter balanced and is equipped with a
stainless steel handle for easy and ergonomic
movement
Deep drawn one piece well, for top hygiene
Integrated water tap on the front panel
Easy to use, thanks to the manual tilting mechanism,
which is perfectly balanced to facilitate the emptying
of the bratt pan. When the base of the pan tilts for
pouring, the power is automatically switched off
•
•
•
•
•
•
•
Temperature level
Water tap
Electric Gas
Power (kW) 11 16
Well capacity (lt.) 60 60
Working temperature
min/max - °C 90, 290 90, 290
Protection handles
22 electrolux Elco 700HP
Boiling pans

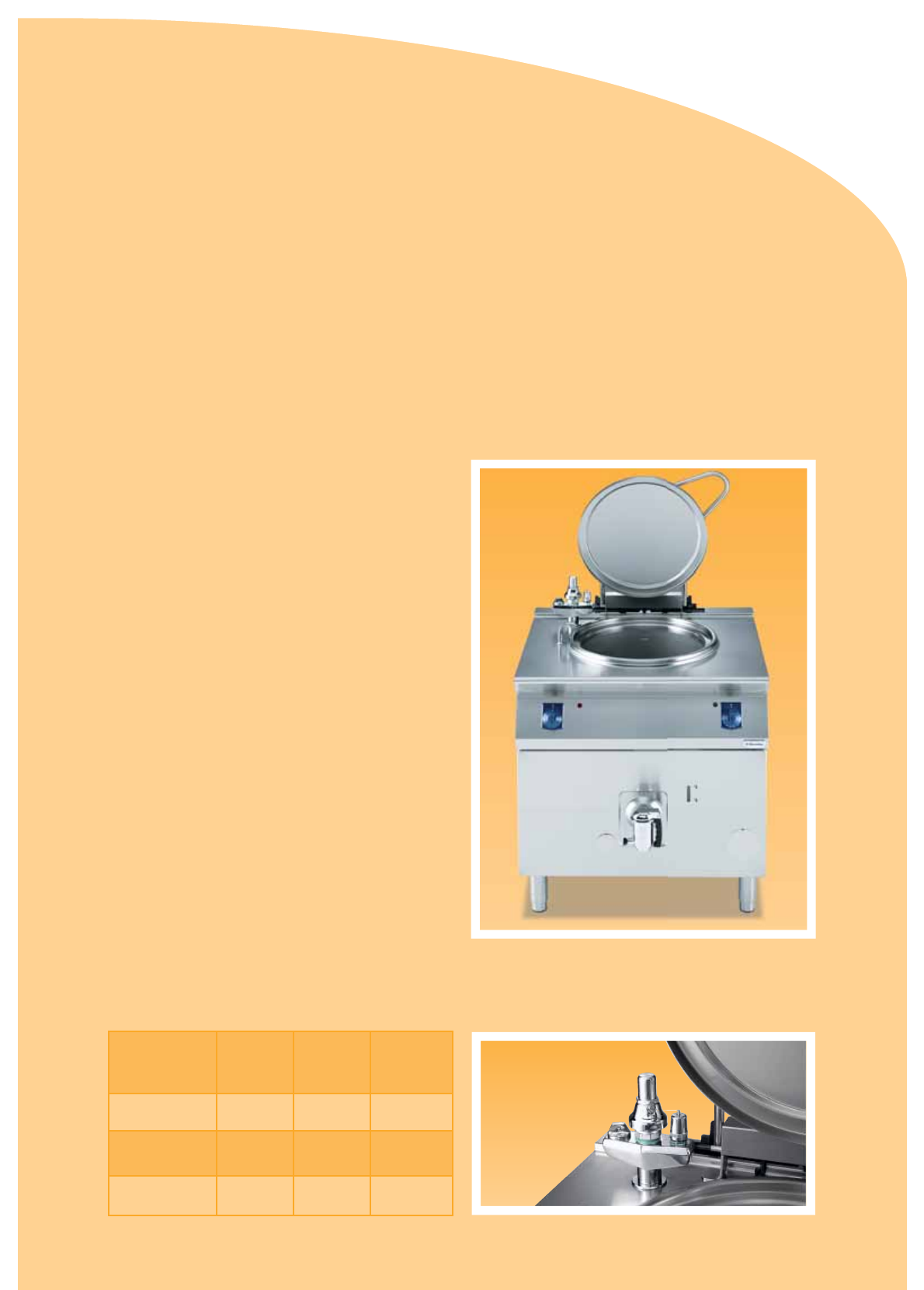

Soups, sauces, creams, stews and much more. Serve the most delicious
recipes for hundreds of customers.
Available in both electric version or gas version with direct
or indirect heating.
Huge capacity: all the models (electric indirect
heated, gas direct and indirect heated) have the same
nominal capacity of 60 lt.
Vessel in AISI 316 stainless steel in order to prevent
the corrosive action of salty water
Hot and cold water fi lling through a tap (solenoid water
valve) integrated in the construction
Indirect heated models are equipped with a pressure
switch control to reduce energy consumption
Indirect heating allows a constant cooking
temperature of 100°C which avoids the risk of food
burning or sticking to the bottom of the cooking
surface. The indirect heating system is ideal for sauces
and cream based soups
Direct heating is ideal for fast cooking results. The
vessel should be fi lled completely to avoid overheating.
A safety valve (on indirect heating models) guarantees
a working pressure in accordance with regulations,
when the pressure is too high the valve will release the
steam
•
•
•
•
•
•
•
Electric Gas
Gas with
pressure
switch
Power (kW) 9,4 14 14
Well capacity
(lt.) 60 60 60
Heating type Indirect Direct Indirect
Safety valve on indirect heating models
23electrolux Elco 700HP
Worktops and Base Units
A wide range of worktops as complement the Elco 700HP line
Refrigerated and freezer bases:
The internal temperature for the refrigerated bases
goes from -2°C to +10°C and, for freezers, from -15°C
to - 20°C
The refrigerated base is available in 2 models:
1200mm, 152 lt.
1600mm, 240 lt.
Possible installation on wheels (on request)
Tropicalized: designed for perfect operation even in
temperatures reaching a maximum of 43°C with
40% relative humidity
•
•
•
•
Width (mm) Variations
Worktops
200
400
800
top and closed base
top
top, open base and with
drawer
Open bases 400 - 800
1200
Refrigerated
bases 1200 - 1600 doors and drawers
Freezer base 1200 drawers

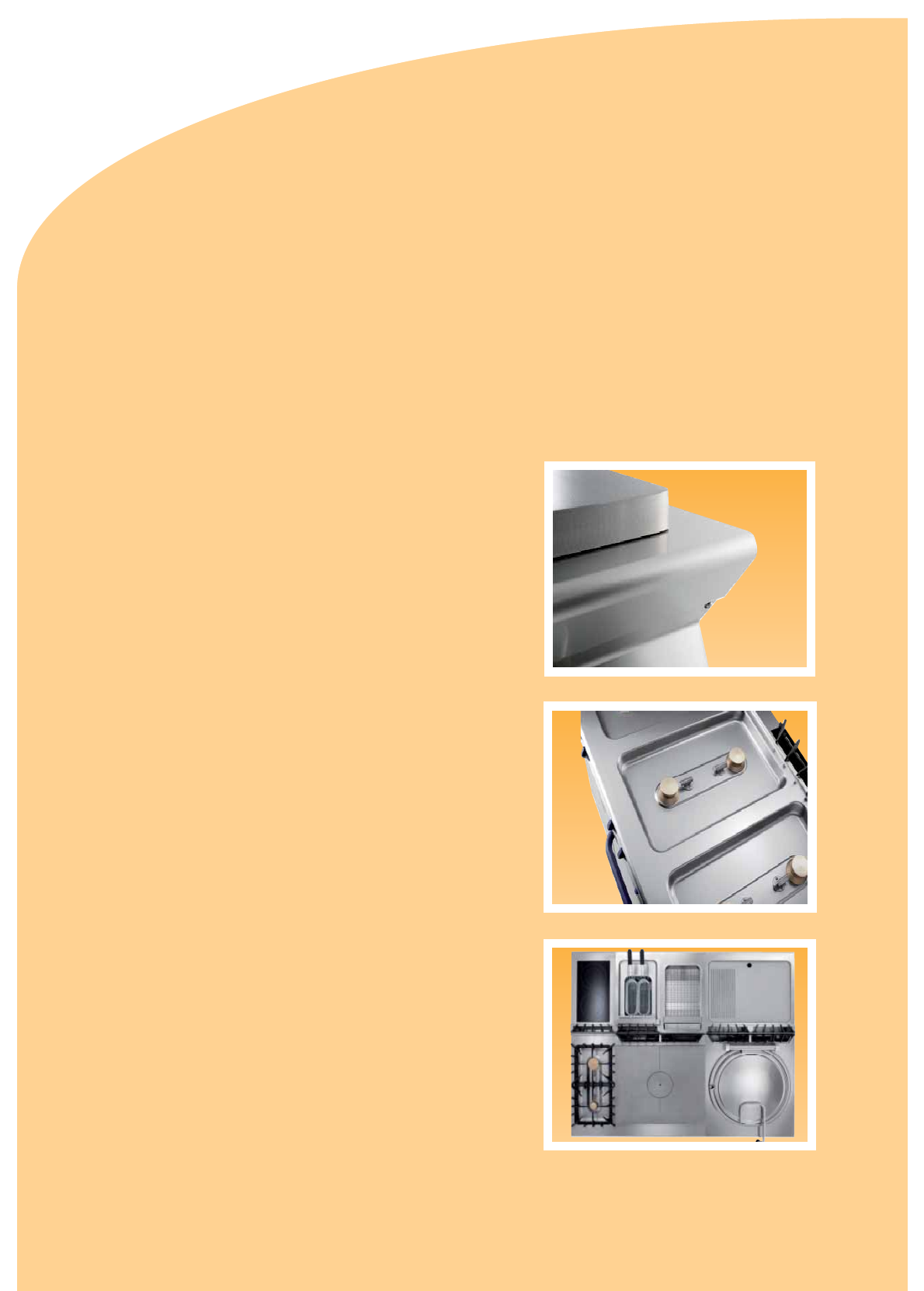

Elco 700HP line offers many solutions for optimizing
kitchen space.
A range of top models of 400 and 800 mm can be
easily mounted on the refrigerated bases, open bases,
cupboards or bridge supports.
Open bases:
All models are made from AISI 430 stainless steel
The open bases can be equipped with: doors, runners
for GN containers, heating kits and drawers
Side and back panels are composed by a single
bended panel in order to create a sturdier structure
avoiding connecting points and dirt traps
•
•
•
24 electrolux Elco 700HP
Elco700HP:
High Performance in limited space
730 mm
Elco 700HP line is the ideal solution for customers with limited space. 730 mm deep and a new
modularity of 400, 800 and 1200 mm wide. The new modularity allows for back to back installation
with the larger Elco 900 line.
ELCO
700 HP
ELCO
900
930 mm
400 mm 800 mm
25electrolux Elco 700HP

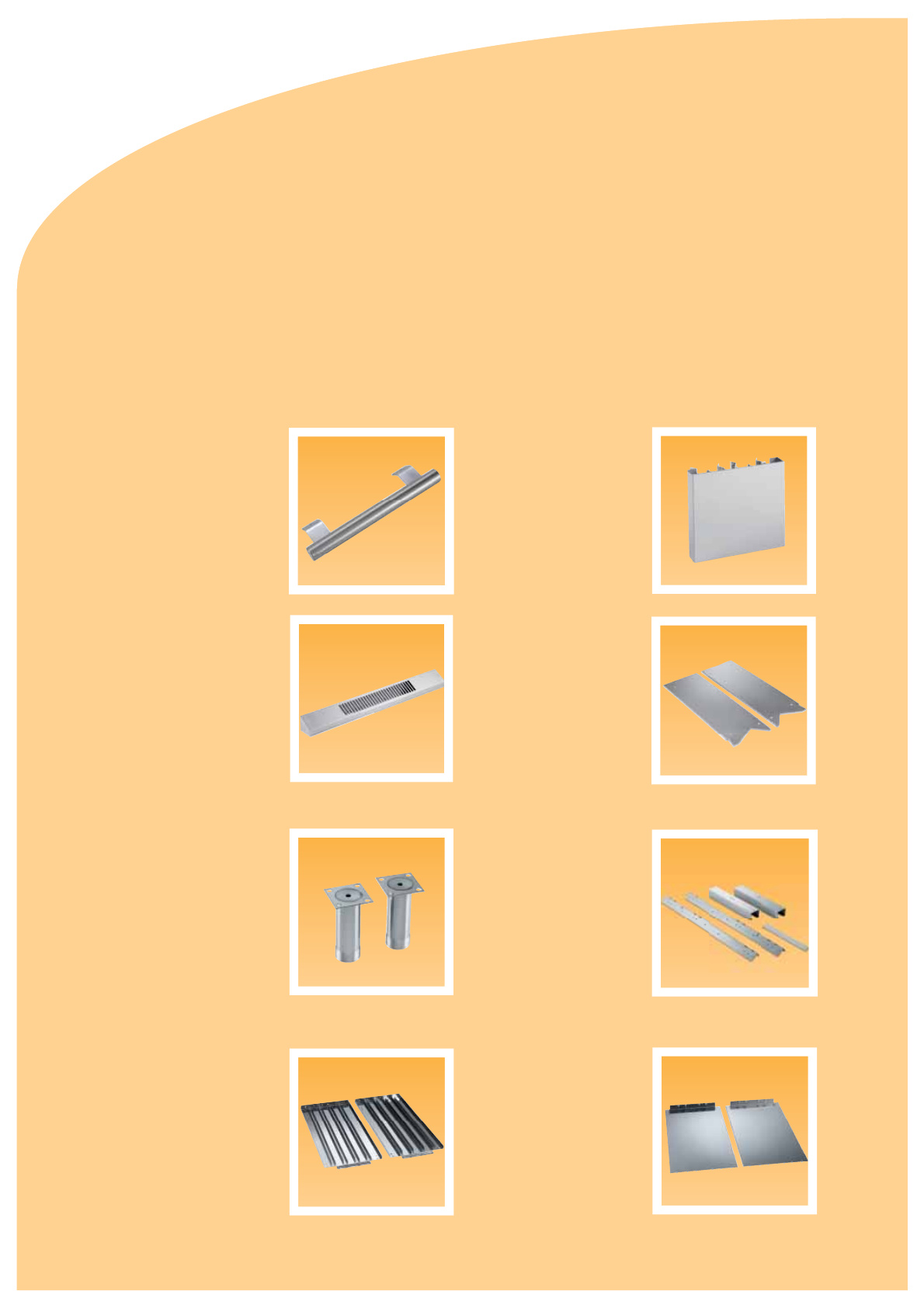

Accessories
Frontal handrail,
400-800mm
Cover of chimney
Flanged feet kit
2 supports with side
runners for 4 1/1 GN
containers for open base
cupboards
Frontal kicking strip for
better hygiene
(200-400-800-1000-1200-
1600 mm)
2 side covering panels for
top
Support for bridge system
Side support for
installation of drawers and
grid supports in open base
cupboards of 400-800-
1200 mm
Installation
26 electrolux Elco 700HP
Base

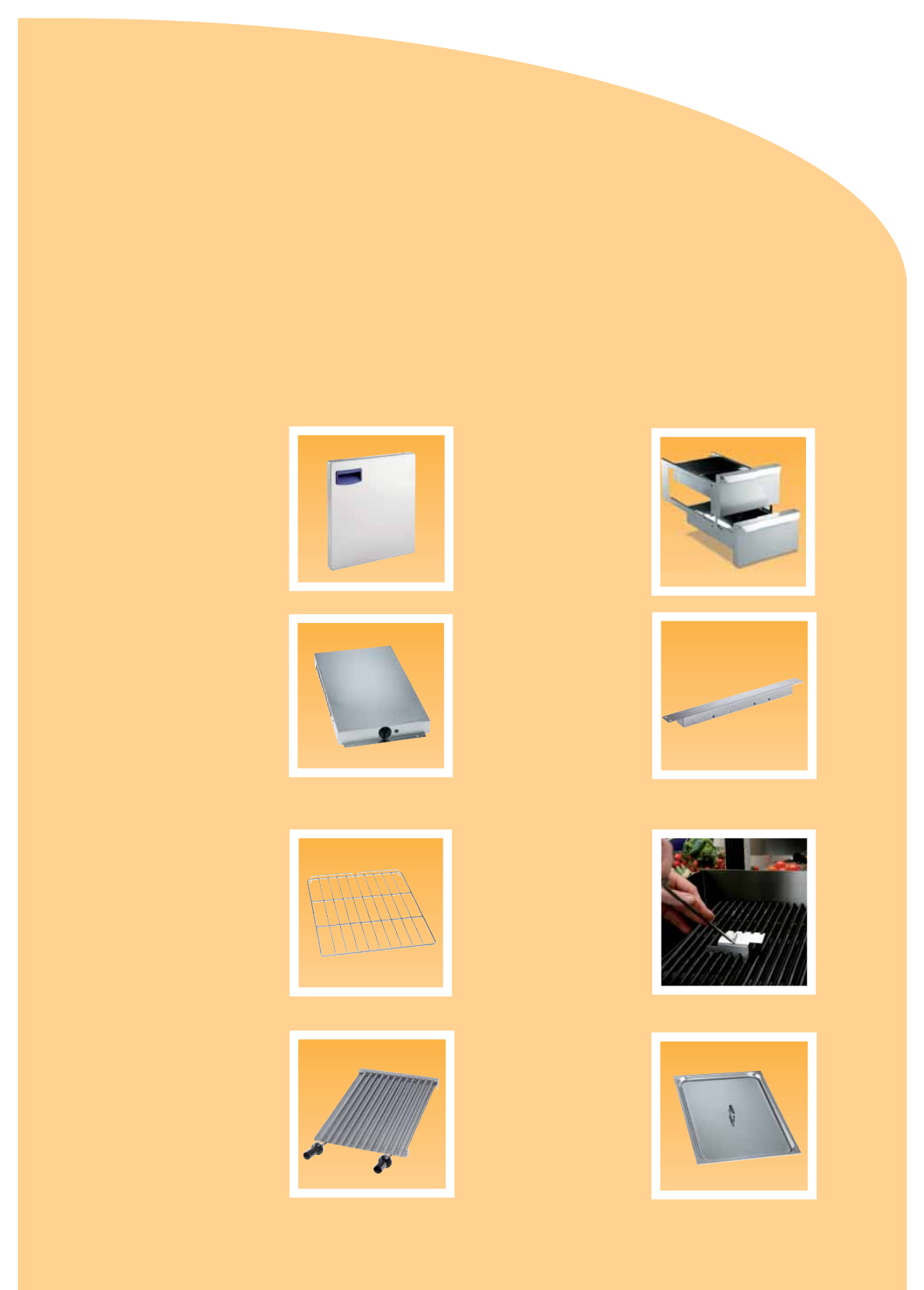

2 drawers for open base
Central support for
installation of drawers and
grid supports for open
base cupboards
2/1 gastronorm chrome
grid for static ovens
Right side door for open
base cupboard
Electric heating kit for
cupboards to keep plates
warm
Other accessories
Scraper for cleaning
the grill (for freestanding
models only)
Lid for 11 lt. multifunctional
cooker
Stainless steel grid with
drainage channels for
lava-stone grills
27electrolux Elco 700HP
www.electrolux.com/foodservice
Share more of our thinking at www.electrolux.com
The Company reserves the right to change specifications without notice.
9JEDAU
