Crosswise Convection

Gas Convection Oven, 10

GN1/1

ITEM #

MODEL #

NAME #

SIS #

AIA #

Short Form Specification

Item No.

APPROVAL:

Electrolux Professional

www.electrolux.com/foodservice

foodservice@electrolux.com

Crosswise Convection

Gas Convection Oven, 10 GN1/1

Crosswise Convection

Gas Convection Oven, 10 GN1/1

260701 (FCG101)Gas convection oven

10x1/1GN, crosswise

Main structure in stainless steel, with seamless joints in the oven cavity. Double-

glazed door with tempered glass. Cavity lighting. Unique air-flow channel system.

Cooking cycles: air convection, convection with 5 stage humidification. Max.

temperature of 300°C.

Functional level: base, manual.

"Cross-wise" pan rack suitable for 10x1/1GN. The pan rack, fixed, can be converted

into a roll-in rack by using an optional kit.

Supplied with n. 1 pan rack, 60mm pitch (made up of n. 2 side hangers).

Main Features

•IPX4 water resistance certification.

•Racks can be easily removed without the need for

special tools.

•Unique air-flow system guarantees perfect distribution

of heat throughout the oven cavity.

•Maximum temperature of 300°C.

•Food temperature probe available as accessory.

•Rapid cooling of oven cavity.

•Halogen lighting and “crosswise” pan supports allow

clear and unobstructed view of the products being

cooked.

•5 Stage humidification control, to ensure perfect

pastries and succulent roasts.

•Meets the requirements of CE, VDE and DVGW for

safety.

Construction

•Height adjustable feet.

•Access to all components from the front.

•Stainless steel oven cavity with rounded corners.

•Double-glazed door with tempered glass.

•External access door for electrical connections.

•All connections made on the left side below the oven.

•Integrated drain outlet.

Included Accessories

•1 of 60mm pitch side hangers 10x1/1GN

gas oven (included with the oven)PNC 922122

Crosswise Convection

Gas Convection Oven, 10

GN1/1

Crosswise Convection

Gas Convection Oven, 10 GN1/1

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.09.28

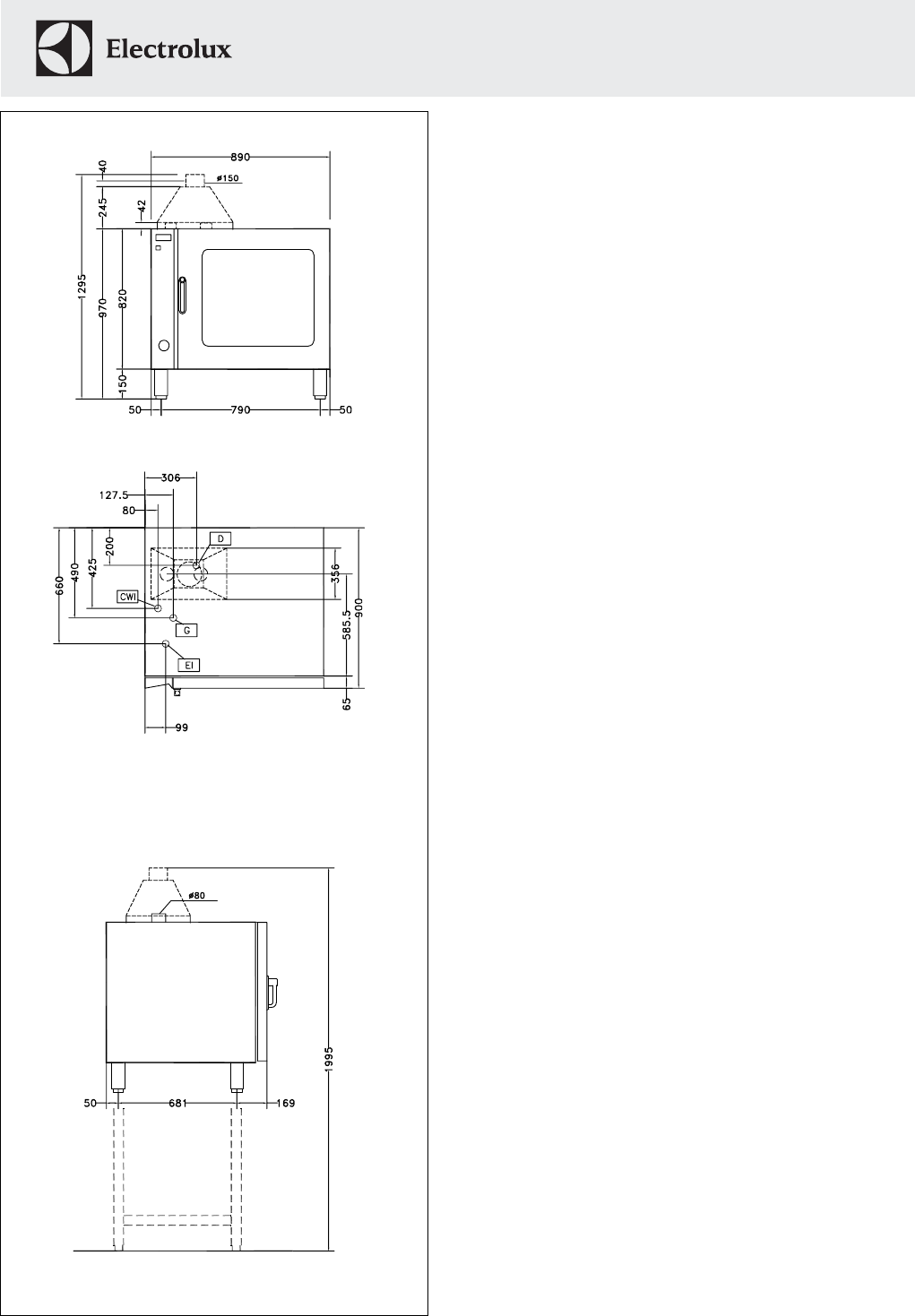

Front

Top

CWI=Cold Water inlet

D=Drain

EI=Electrical connection

G=Gas connection

Side

Crosswise Convection

Gas Convection Oven, 10

GN1/1

Crosswise Convection

Gas Convection Oven, 10 GN1/1

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.09.28

Electric

Supply voltage:

260701(FCG101)220/230 V/1N ph/50 Hz

Auxiliary:0.35 kW

Connected load:0.35 kW

Gas

Gas Power:63066.5 Btu/hr (18.5 kW)

Capacity:

Shelf capacity:10

Key Information:

External dimensions, Height:970 mm

External dimensions, Width:890 mm

External dimensions, Depth:900 mm

Net weight:136 kg

Functional level:Basic;Manual

Type of grids:1/1 Gastronorm

Runners pitch:60 mm

Cooking cycles - air-convection:300 °C

Internal dimensions, width:590 mm

Internal dimensions, depth:479 mm

Internal dimensions, height:680 mm

Crosswise Convection

Gas Convection Oven, 10

GN1/1

Crosswise Convection

Gas Convection Oven, 10 GN1/1

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

2012.09.28

Optional Accessories

•Pair of 1/1GN AISI 304 stainless steel gridsPNC 921101 ❑

•Support for 1/2GN pan (2pcs)PNC 921106 ❑

•Automatic water softener for ovens PNC 921305 ❑

•Resin sanitizer for water softenerPNC 921306 ❑

•Fat filter for gas 10 and 20 1/1 and 2/1 GN

ovens (2 filters are necessary for 20-grid

ovens)

PNC 921700 ❑

•Flue condenser for gas ovens 10x1/1-2/1PNC 921701 ❑

•Probe for ovens 6 and 10x1/1GNPNC 921702 ❑

•Guide kit for 1/1GN drain panPNC 921713 ❑

•Couple of grids for whole chicken 1/1GN (8

per grid)PNC 922036 ❑

•Base for oven 10x1/1GNPNC 922102 ❑

•Shelf guides for 10x1/1GN, ovens basePNC 922106 ❑

•Cupboard stand for oven 10x1/1GN PNC 922109 ❑

•Hot cupboard stand for convection oven

10x1/1GN PNC 922112 ❑

•Base on castors for 10x1/1GN ovensPNC 922114 ❑

•80mm pitch side hangers 10x1/1GN gas

ovenPNC 922116 ❑

•60mm pitch side hangers 10x1/1GN gas

oven (included with the oven)PNC 922122 ❑

•Feet for ovens 6x1/1GN, 10x1/1 and 2/1GNPNC 922127 ❑

•Trolley for 10x1/1GN roll-in rackPNC 922130 ❑

•Thermal blanket for slide-in rack 10x1/1GNPNC 922150 ❑

•Retractable hose reel spray unitPNC 922170 ❑

•Side external spray unit (needs to be

mounted outside and includes support for

mounting to oven)

PNC 922171 ❑

•Water filter for ovensPNC 922186 ❑

•Frying griddle GN 1/1 PNC 922215 ❑

•2 frying baskets for ovensPNC 922239 ❑

•Grid for whole chicken 1/1GN (8 per grid -

1,2kg each)PNC 922266 ❑
