air-o-system User Guide

2 electrolux user guide

Index

Banqueting: the integrated solution page 6

Level A control panel description page 12

Level B control panel description page 13

Cooking mode explanation and symbols page 14

Advanced function explanation and symbols page 15

User tips for cooking with air-o-steam®page 18

Cooking mode detailed explanations page 23

L.T.C. (low temperature cooking) page 30

Guide to core temperature cooking page 33

Cook&Hold page 35

Eco Delta cooking page 36

Selecting pre-set cooking cycles page 37

Cooking guide (for pre-set cooking cycles) page 38

Multi-phase cooking examples page 48

Oven capacities for roasting chickens page 53

Operating instructions for air-o-steam®page 55

Maintenance for air-o-steam®page 69

air-o-chill® control panel description page 74

Explanation of cycles and advanced functions page 75

Useful tips for blast chilling page 79

Storage of food after blast chilling page 84

Regenerating chilled cooked food page 85

Blast freezing page 86

Operating instructions for air-o-chill®page 87

air-o-defrost page 93

Operating instructions for air-o-defrost page 95

Recipe selection page 99

Meat/poultry/game page 101

Farinaceous dishes page 107

Miscellaneous page 111

Seafood page 115

Vegetables page 119

Desserts page 123

Cooking cycle chart page 132

A special thanks to all the Chefs from Electrolux Professional Chefs Academy

who contributed with their international experience.

3electrolux user guide

4 electrolux user guide

Feuerbach coined this expression when he reviewed a book

on nutrition in 1850. He was of course right. We are what we eat.

Or we will soon become it... It is therefore important that we eat correctly.

For most of us nowadays the main meal of the day is prepared

in a catering kitchen. So it is even more important than ever

that the food served is appetising and nutritious.

We help make sure this is the case with our new Electrolux Cook and Chill

air-o-system. With our precise (patented) humidity control

and air circulation within the cooking chamber it is now even easier.

L. Feuerbach, German philosopher, 1804-72

You are what

you eat

5electrolux user guide

Banqueting:

the integrated solution

Express your talent in total freedom, is the great

opportunity of air-o-system. Modularity, technology,

evolution of design will please you in a very special way.

Regenerating

Preparation

Serving

Raw material

Portioning-Plating

Cooking: air-o-steam®

Food quality

• Perfect food, sure and safe

• More menu flexibility

• Sous-vide application

• Only one production kitchen

for different meals, avoiding risk

of food contamination

The air-o-system:

Added Value package

= Higher Quality

= Greater Savings

= Higher Margins

• Selective purchasing

• Easier handling – less labour costs

• More efficient work-flow

management

• Improved offer – higher turnover

• Energy savings due to reduced

cooking times

• Reduced weight loss

• Increased profits

Chilling: air-o-chill®Holding

7electrolux user guide

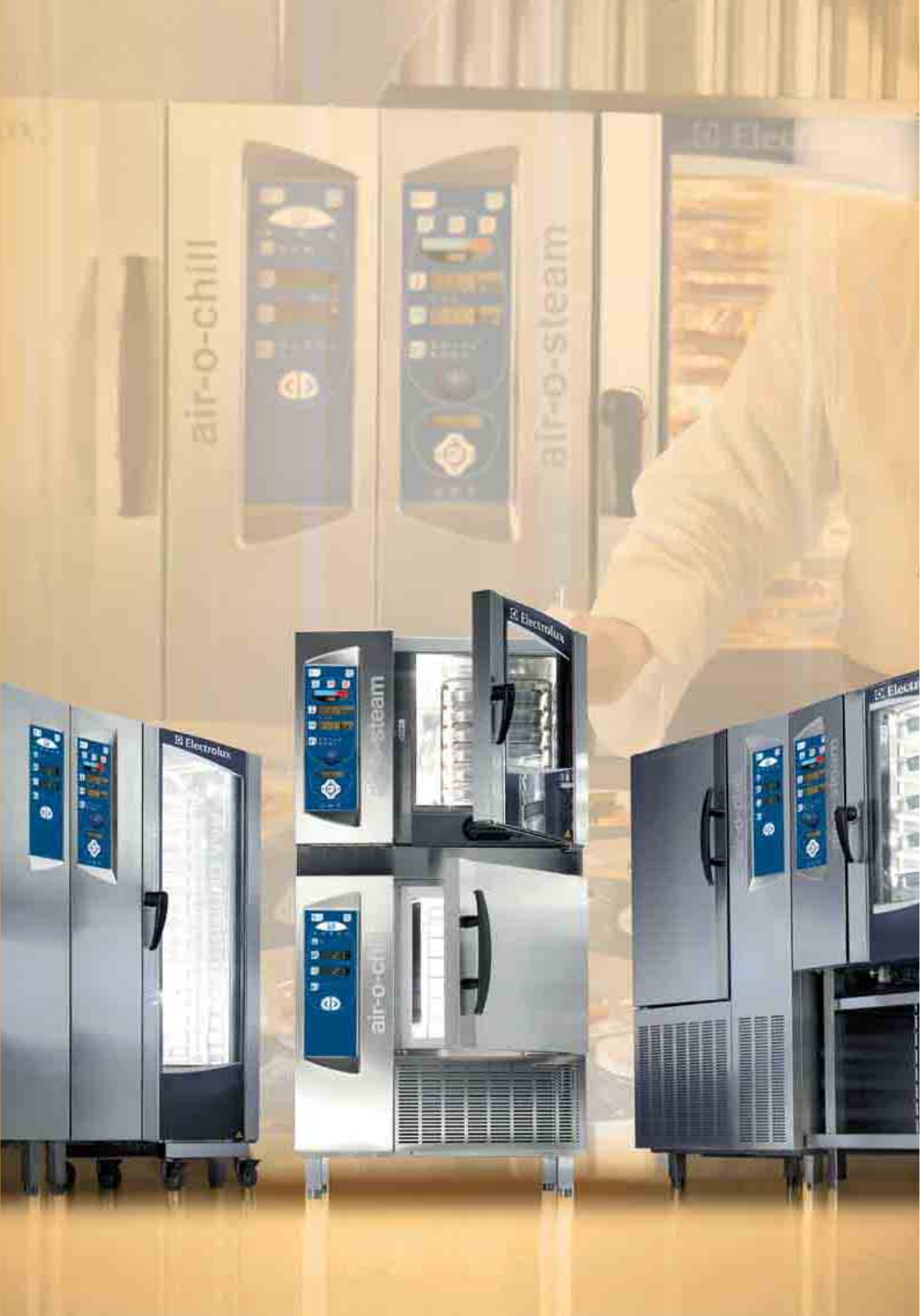

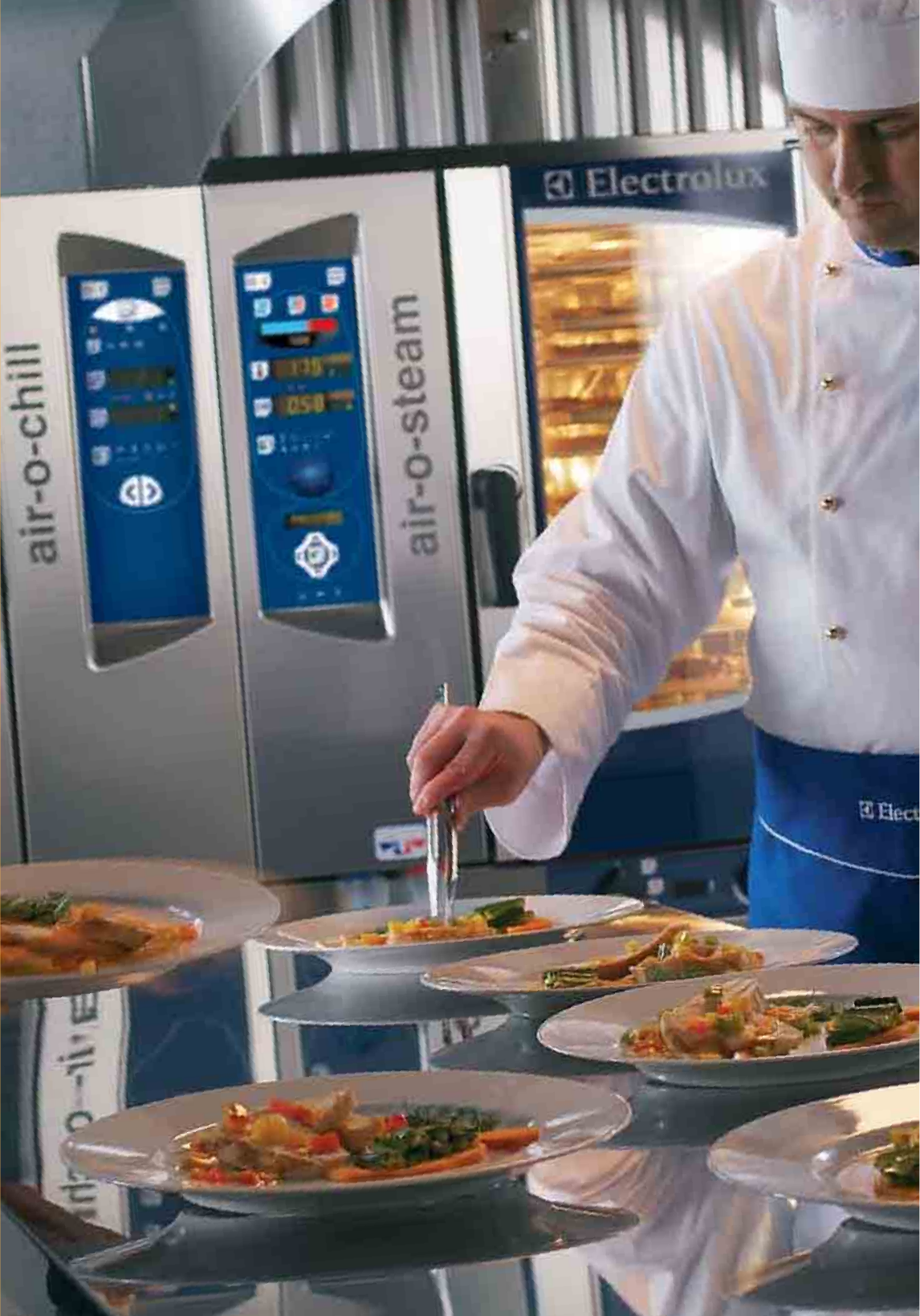

air-o-system

from Electrolux

Perfect food, sure and safe!

air-o-system

Perfect cooking

... in the air-o-steam®, thanks to:

• air-o-clima: perfect atmosphere for all kinds of cooking

• air-o-flow: uniform heat distribution

•6 Point Multi Sensor probe

Safe chilling

... in the air-o-chill®:

• UK and NF regulation compliant pre-programmed chilling

and freezing cycles

• Customized chilling, freezing and holding cycles

• air-o-check: electronic control of chilling and freezing cycles

Time saving

Integrated system solution

• Complete banqueting and handling accessories - designed to perfectly fit both appliances

• Integrated handling throughout the air-o-steam® process

Easy to use

•air-o-clean: Automatic integrated built-in cleaning system

• Easy to see control panels (visible from 12 m away)

• Matching control panel design and logic on

air-o-steam®and air-o-chill®

Saving money with air-o-system

• Reduced weight loss - more servings

• No added fats required - healthier foods

• Allows planning the workflow in the kitchen more efficiently

and effectively

• Perfect food quality throughout from preparation to consumption

9electrolux user guide

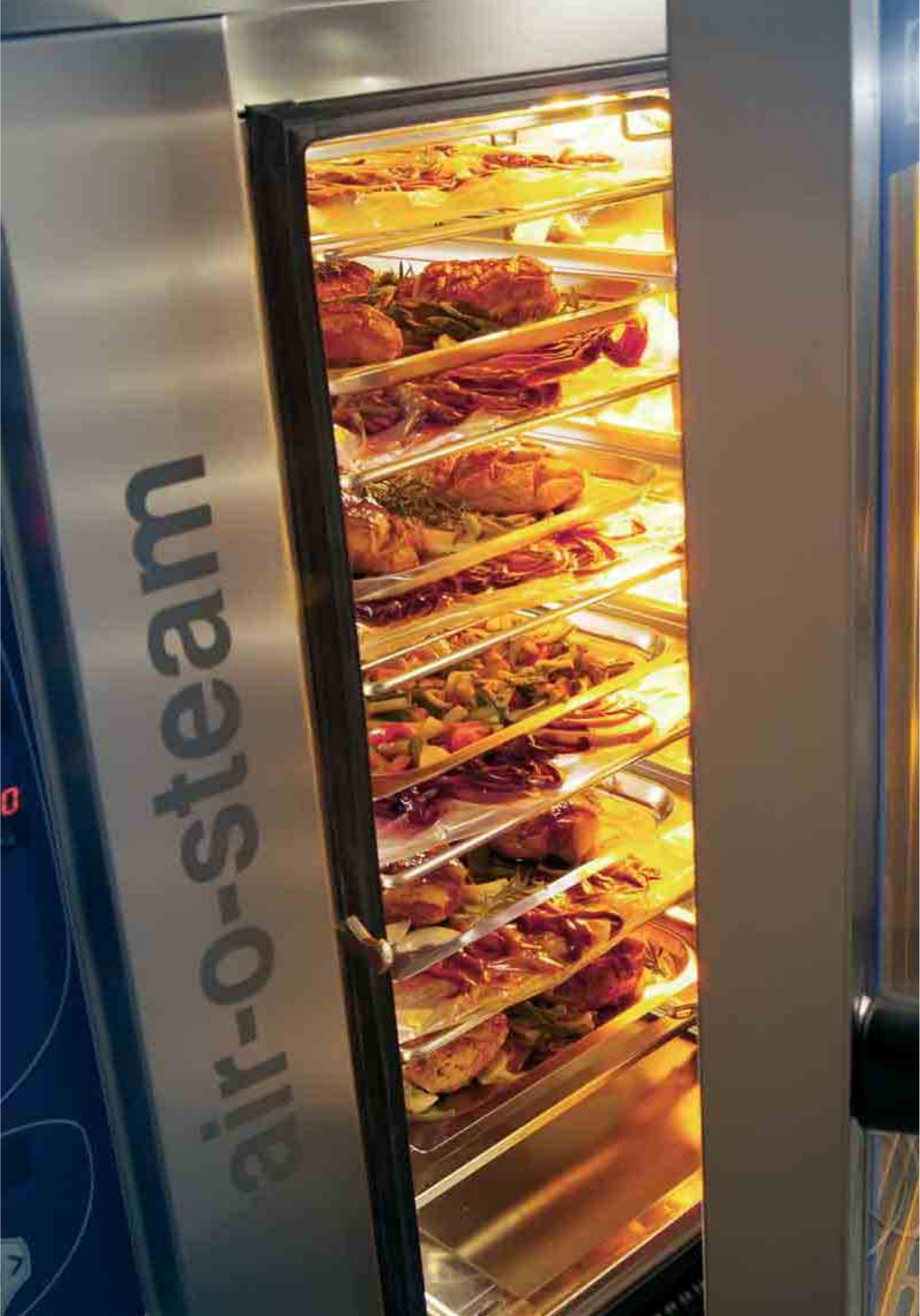

air-o-steam®

11electrolux user guide

A and B

air-o-steam®

Programs Control Set

• Program Settings

• Cooking library

• Delay start

• air-o-clean® programs

• Low temperature cooking

with ARTE (Algorithm for

Residual Time Estimation)

air-o-clima humidity control

(preset and actual humidity)

Pre-set temperature

Pre-set time

Core temperature

Main control knob

Manual functions

• Instant humidity

• Manual boiler drain

• Rapid cool down

Advanced functions

Cooking cycle selection

• Steam

• Combi cycle: steam + convection

• Convection

Actual temperature

Actual time remaining

Core temperature

• Open door indicator

• Steam generator scale

build-up indicator

• Steam generator

status indicator

Patent pending

Patented

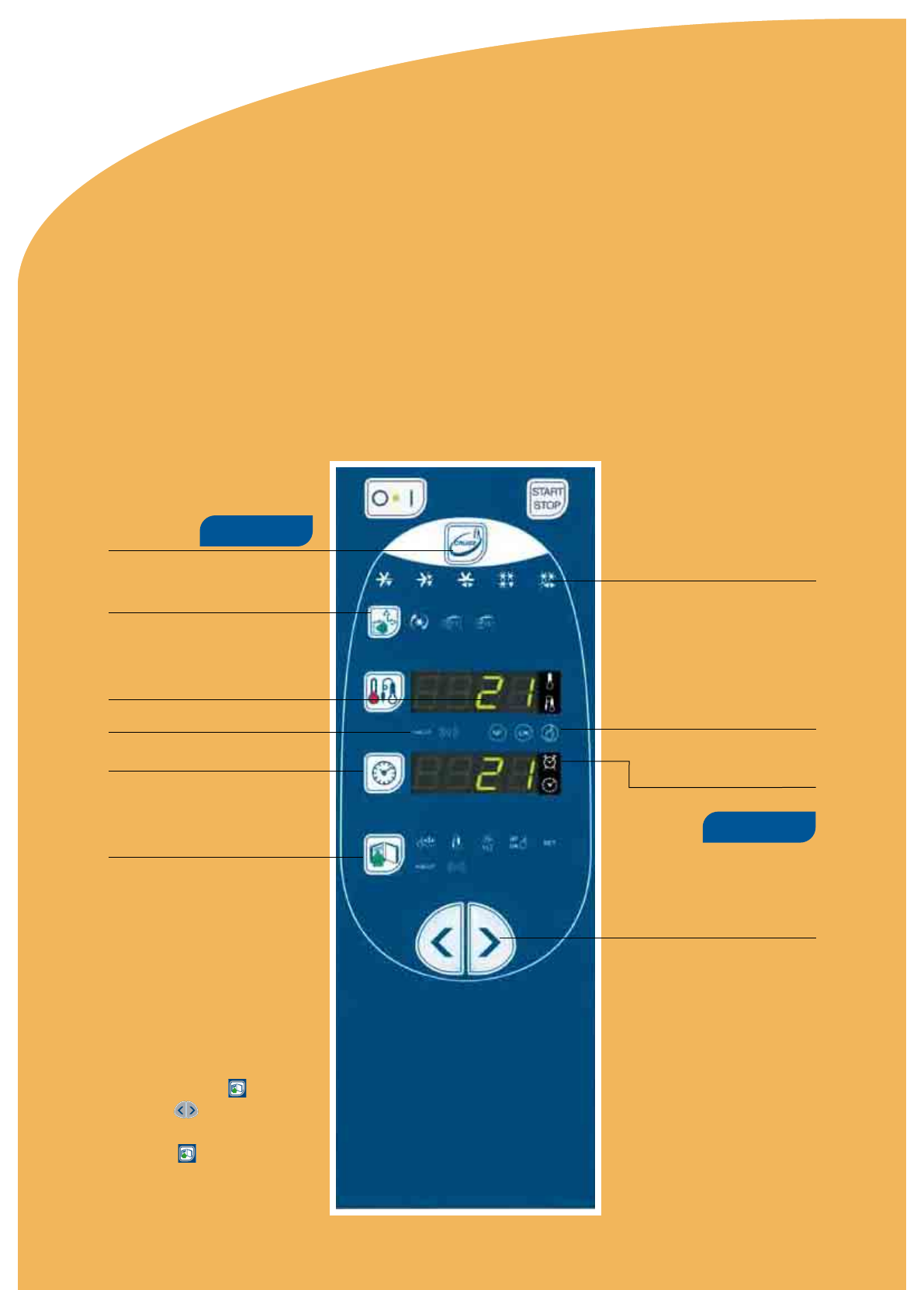

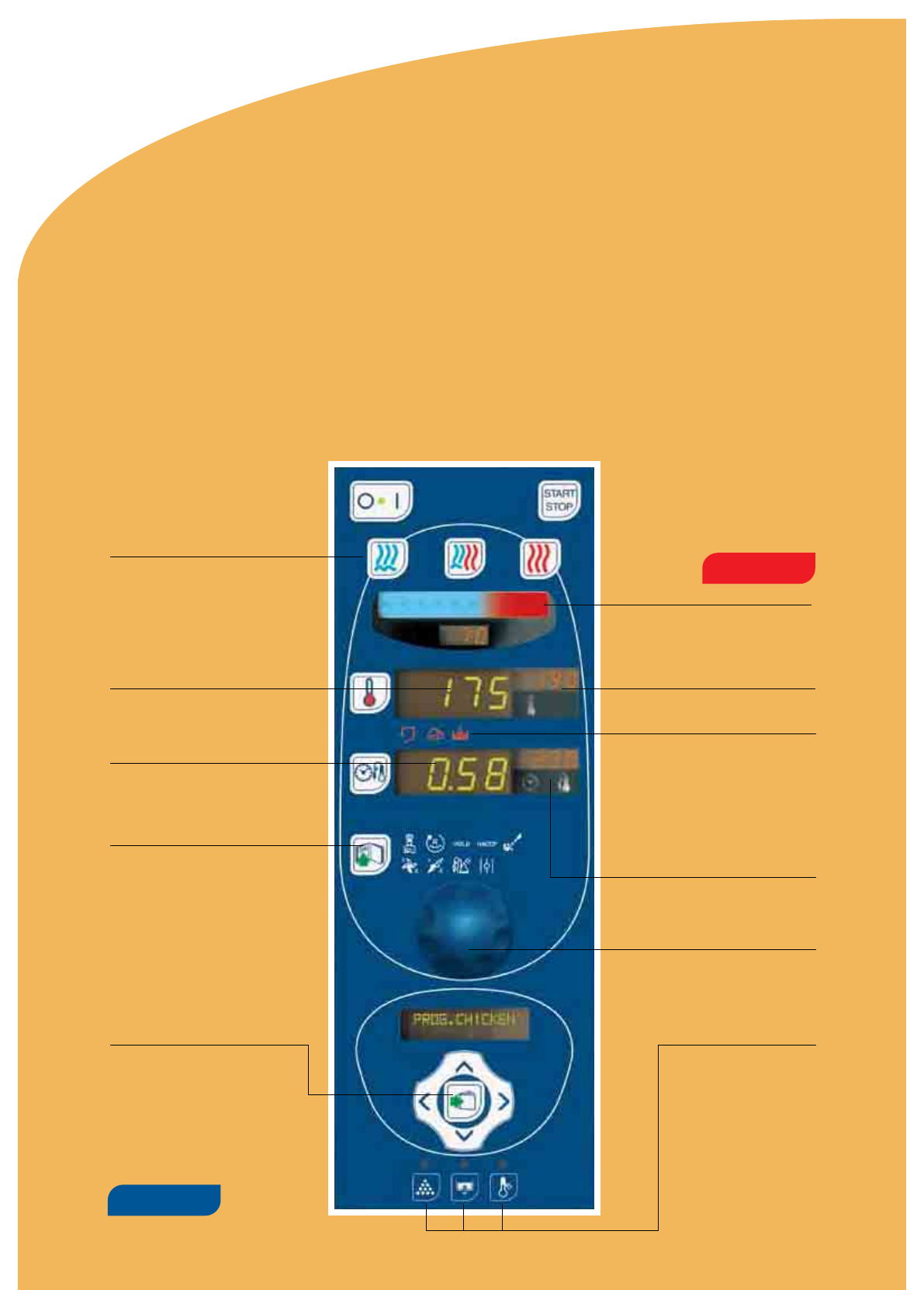

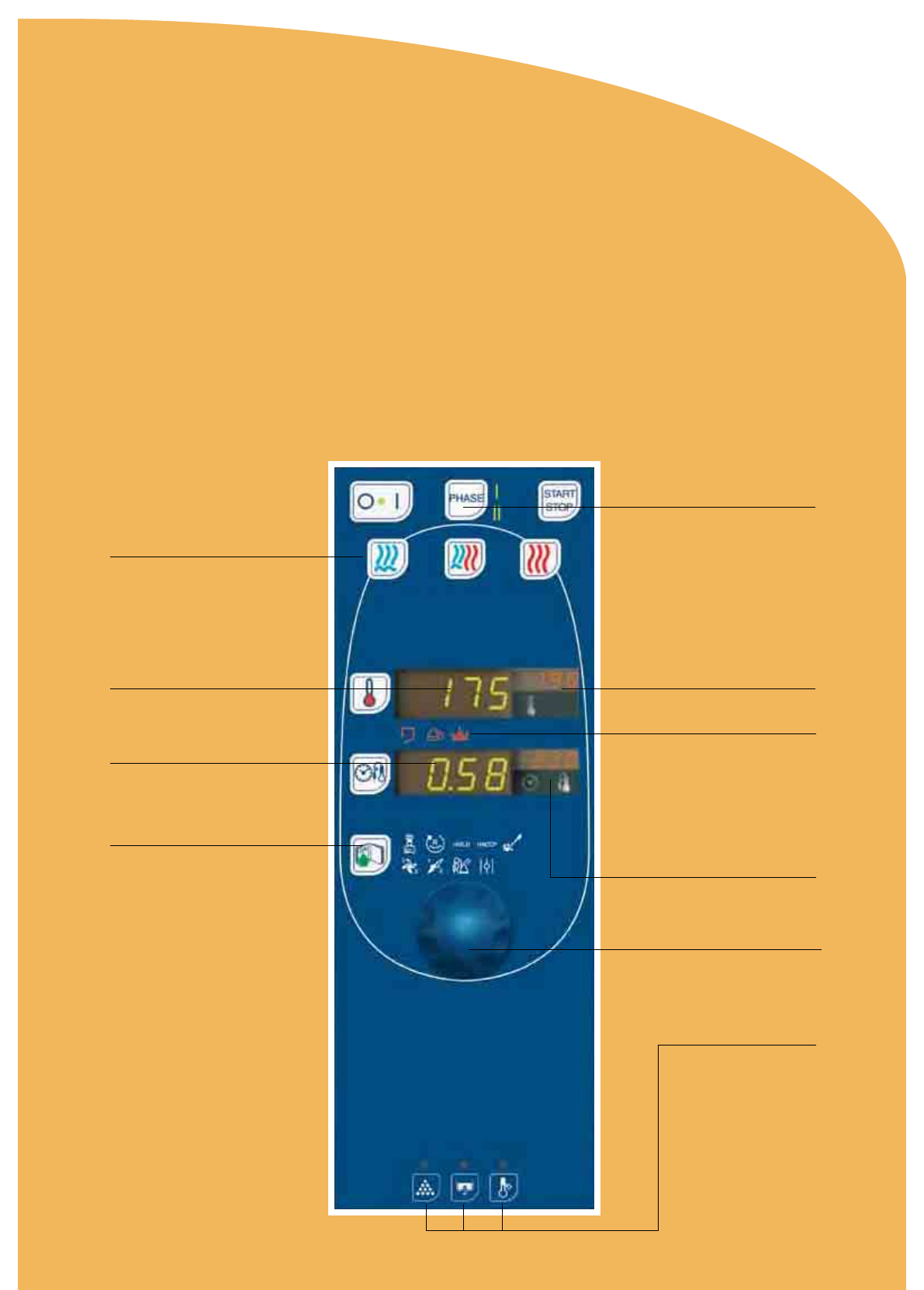

Control Panel A

12 electrolux user guide

Pre-set temperature

Pre-set time

Core temperature

Main control knob

Advanced functions

Cooking cycle selection

• Steam

• Combi cycle: steam + convection

• Convection

Actual temperature

Actual time remaining

Core temperature

• Open door indicator

• Steam generator scale

build-up indicator

• Steam generator

status indicator

Control Panel B

Phase I and II

• for 2 step cooking

Manual functions

• Instant humidity

• Manual boiler drain

• Rapid cool down

13electrolux user guide

Combi cycle

Max. 250 °C

Steam cycle

25 °C to 130 °C

There are 3 steam cooking modes,

• Low Temperature Steam where you can select from 25 up to 99 °C

• Normal Steam cooking at 100 °C

• Super Heated Steam from 101 up to 130 °C

Steaming is ideal for all foods that can be cooked in water (with exception to

pasta), low temperature steam cooking is perfect for delicate foods, sous – vide

while super heated steam is excellent for frozen vegetables for example.

Electrolux has a unique Humidity Control system called “Lambda Sensor” which

guarantees precise humidity control and when steaming foods this guarantees

100% steam saturation inside the cooking chamber.

This cycle uses dry hot air with a maximum temperature of 300 °C.

We have today 3 types of Convection cooking available, the first is with

the oven’s vent in the closed position, the second is with the vent open and

third we use the Lambda Sensor to keep the humidity level at the optimum

for giving perfect cooking results. The Lambda Sensor is measuring

the humidity coming from the food and does not use steam from the boiler.

Convection cooking is ideal for roasting meats, grilling meats on the oven

grid, au gratin, breads, pastries, fresh or frozen convenience products,

baking and browning.

When selecting a temperature of 300 °C we have a time limit of 10 minutes

after which the oven will automatically reduce the temperature to 280 °C.

Convection cycle

Max. 300 °C

This cycle is a combination of Convection and Steam cooking modes

having a maximum temperature of 250 °C. It’s ideal for meat with bone,

example – poultry, ribs, saddle etc. Also stuffed vegetables, lasagne, seafood,

some bakery products and desserts.

Advantages; Reduced cooking and re –heating times, less food shrinkage

meaning higher yields, perfect baking results and with the aid of the

Lambda Sensor you are able to select the perfect humidity level to give

you the best results.

For Proving Dough’s select Combi and a temperature below 50 °C,

we suggest 33deg, you will see “Fer” in the humidity display which means

“Fermenting” and the Humidity level is automatically controlled by the oven. The

fan also runs at a reduced speed for a gentle environment.

Cooking cycles

automatic pre-heat function (removable via software)

Advanced functions

Pause

Delay Start and allows to insert a pause between sequential cooking phases or

at the end of a program.

Regeneration

Pre-programmed, ideal cooking atmosphere for regenerating whole menus,

single or multiple portions, banqueting.

14 electrolux user guide

HOLD

Cook and Hold

Ideal for large joints of meat, overnight cooking, can be combined with

hot air and steam cooking cycles. It can be also used to keep the food warm

and ready to be served. Its gentle intermittent ventilation is suitable for very

light items.

HACCP

HACCP monitoring via a local printer (HACCP BASIC) or an integrated PC

network (HACCP advanced).

Semi automatic cleaning cycle

Requires manual detergent spraying inside cooking chamber when prompted

by display reading “SOAP”. At end of cycle use intergrated hand shower to

rinse out cooking chamber.

1/2 fan speed

For delicate cooking such as baking cakes, soufflés, fish, large roasts, filets,

and other delicate foods. Compatible with all cooking cycles.

1/2 energy

For small loads and overnight cooking, avoids power peaks and reduces

running costs.

ECO-Delta

Enables you to select either “Linear” delta single phase cooking cycle or

“Progressive” multi-phase cycle for superior quality and reduced weight loss.

Cooking chamber exhaust valve control

Keeps the exhaust valve open to avoid excess humidity in the chamber.

Manual water injection

By pressing this button you will get 30 seconds of high humidity injection to

cooking chamber. Ideal for “crusting” bread.

If you require less time simply push the botton again to stop humidity injection.

Manual boiler emptying

By pressing this button you will activate the drain valve, LED light above button

will illuminate. To close the drain valve push button again, the LED light will blink

to indicate closing.

Quick cool down

Quick cool down can be activated manually to pass from one type of cooking

to another. Quick cool down is activated automatically when necessary

(e.g. before air-o-clean starts if temperature in the air-o-steam® is above 70 °C).

15electrolux user guide

user tips

for cooking with

air-o-steam®

17electrolux user guide

Useful tips for cooking

with air-o-steam®

air-o-steam®

When the appliance is energised (turned on) the digital display will do a self

“lamp” test where by all the display panel will illuminate for a few seconds.

Control panel has very bold illuminated digital display which can be easily read

from up to 11 metres away.

At the end of a cooking cycle “END” appears and flashes to let the operator

know the cooking cycle has ended, This is very important in a busy noisy

kitchen as quite often the operator does not hear the end of cycle alarm and

foods can be over cooked.

Note; Every time a cooking mode is selected, temperature set and either a

cooking time or core temperature target set, when you press the start/stop

button the oven will automatically Pre Heat. If the temperature you have

selected is 130 °C or less the oven will heat up to that set point.

If the temperature you have selected is higher than 130 °C then the oven will

automatically pre heat 20 °C higher to help compensate for the heat loss when

door is opened to load with product.

Note; when oven is not used for some minutes the lights will turn off to save

energy.

Steam mode, When you press this button the temperature display will show

100 °C which is the default setting, If you want either “Low” or “Super heated”

steam then press the temperature button and select any temperature between

25 up to 130 °C.

Combi mode, ( combination of Steam and Convection – dry hot air ). When

you select this cooking mode you will see in the coloured bar the number

50, this is the pre set Humidity level. If you want a different % of humidity

simply push the combi button a second time and using the main control dial

select the level you desire while the number is flashing.

The Humidity level is controlled by a Lambda sensor – Unique to

Electrolux! measuring the REAL humidity within the cooking chamber.

Whether cooking a single portion or full load you are able to control

the level of humidity you desire.

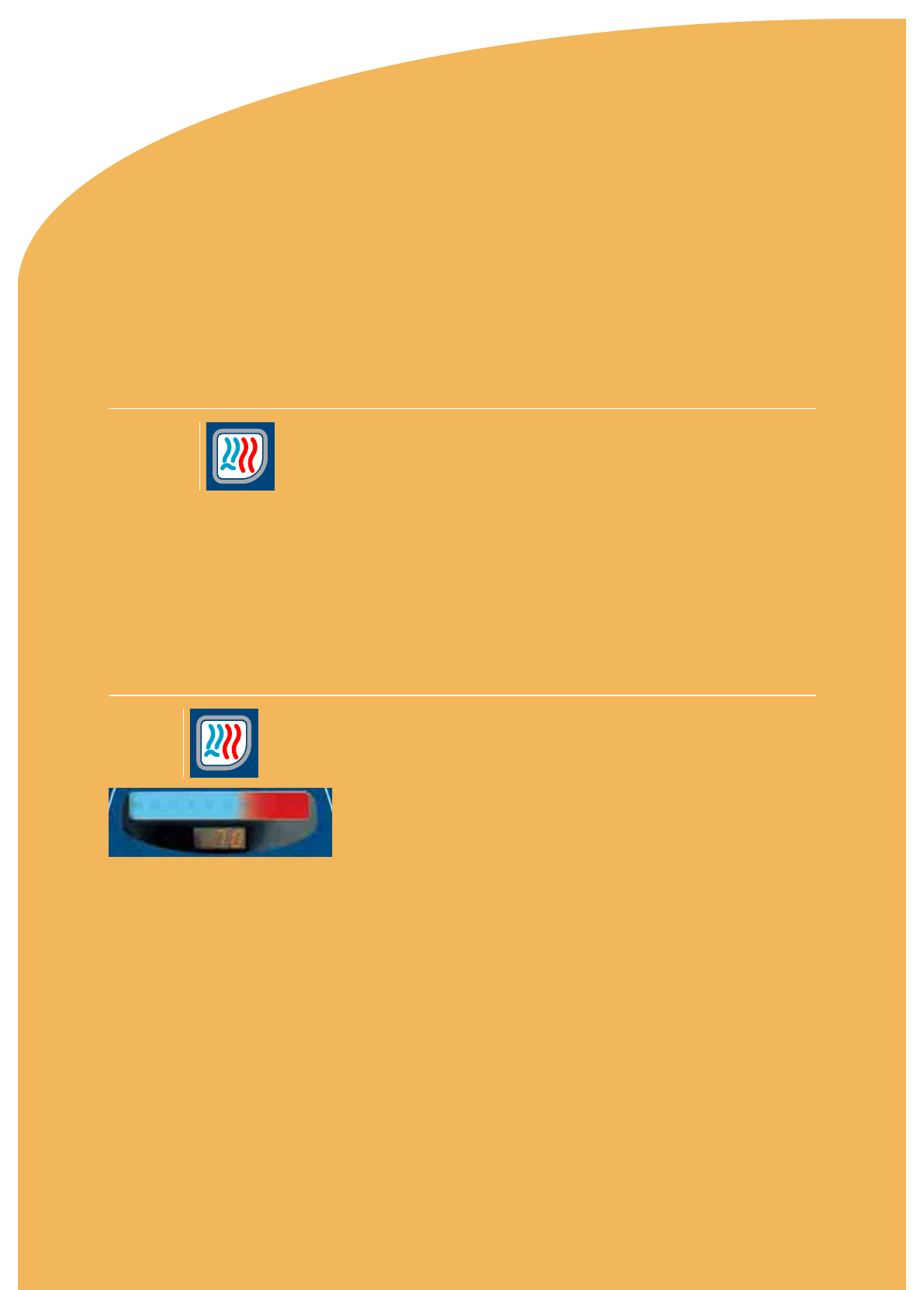

Convection mode – 3 choices.

When selecting convection mode the cycle will operate with “vent closed”

trapping the humidity coming from the food being cooked inside the oven.

This can create some problems regarding “browning” as too much humidity

will make browning – meats in particular – difficult.

Cooking modes are simple to select and feature the following:

18 electrolux user guide

Press the convection mode button a second time and you can now select

(using the main control knob) the level of humidity you desire. This is

controlled by a second “inlet vent”. So that when the level of humidity you

have selected is reached (this humidity being “relative humidity”), it is displayed

in blue on the coloured bar together with red (indicating the percentage of

humidity and dry air visually).

The vent will automatically open and being positioned within the circumference

of the oven fan where a negative force (vacuum) is generated, it will allow fresh

air from the kitchen to be drawn into the oven chamber.

This “fresh” air is then blown through the heating elements into the cooking

chamber, which has no detrimental effect on the product you are cooking

(as the air is pre – heated) and which will then force the humidified air out

of the second vent.

Once the level of humidity has been stabilised the vents automatically

close again.

Third choice of Convection cooking is with oven vent open fully during

cooking, this is achieved by entering “advanced functions” and selecting the

open vent symbol which allows a continuous release of humidity from the

oven chamber.

Every time you select a cooking cycle either manually or from the program

library, the oven will automatically “pre-heat” to ensure the correct temperature

is reached prior to loading. If you select a temperature up to 130 °C the

cooking chamber will pre-heat up to that temperature. If you select

a temperature above 130 °C the oven will automatically pre-heat 20 °C higher

to compensate temperature loss when door is opened to load product.

When oven is ready, it will beep and display “LOAD” on the control panel.

After loading the product into the oven, close the door and press the

START

STOP button to activate the cooking cycle. If you forget this step the oven will

remain on pre-heating and timer will not be activated.

air-o-steam®

The oven has 100 free spaces for operators to store cooking programs.

Plus 4 pre – heating cycles, “baking – roasting – steaming & banquet”

Plus 4 cleaning cycles – soft – medium – strong & extra strong. When

the cleaning cycle has ended and the oven is not touched for two

minutes it will automatically turn itself onto “Standby mode”. All you

will see on the display is “Stby” which means Standby. The only

electrical energy being used is for the LCD screen.

The next time someone touches the oven it will start automatically.

Plus 21 memorised cooking cycles which start with the letter “F” to

denote they are factory set cooking cycles.

19electrolux user guide

The Pause mode can be utilised in several functions

To delay the starting of the appliance (remember that you have 6 phases each

with up to 8 hours of controlled time) so in theory you could use 5 phases,

giving 5 x 8 which = 40 hrs of pause mode (which means only the timer is

operating, no power to elements or fan) then the 6th phase could be used to

pre –heat the oven ready for use.

To give a “rest period” within a cooking cycle, for example if cooking a large

Turkey you may select to start the cooking cycle with convection at a higher

than normal cooking temperature to “adhere” the spices to the skin. Then you

may wish to allow the oven temperature to fall slowly so the second phase

could be a pause mode for 10 minutes. The third phase could then be a

combi cycle which then introduces steam into the oven chamber etc.

As a Safety feature at the end of cooking cycles, important when appliances

are installed in “Chain operations” where unskilled young adults are working.

This allows the cooking time for example, Muffins which may take 18 minutes,

the 1st cooking phase would be set at 16 minutes and the second phase

would be a pause mode set at 2 minutes.

At the second phase the oven heating elements and fan turn off, as the fan

takes approx. 1 1/2 minutes to stop rotating it is still circulating hot air around

the food being cooked thus not affecting the final result.

When the timer goes off and the audible alarm sounds indicating cycle has

ended, when the operator opens the oven door there is no rush of hot air

being blown out as the fan has already stopped.

air-o-steam®

20 electrolux user guide

ECO - Delta Cooking

It is a unique method of controlling the oven chamber temperature in

conjunction with the core temperature of the food. The operator is able

to select a “delta” value between 1 °C < 120 °C, we recommend using

between 20 °C < 70 °C

An example of Linear ECO - Delta Cooking

This type of cooking is ideally suited to large joints of meat and the way to

use it is to select the cooking mode, e.g. Combi. Then select a core

temperature value, then go into functions and select ECO - Delta. At this

point you will see on the oven temperature display “20 °C” which is a “delta”

value you may select. Using the dial knob select the “delta” value you wish,

for example 40 °C.

Close the oven door and press the start button to activate the cooking cycle

(if you wish you could also put in the second phase of a pause mode for

2 minutes, this would start when the core temperature you selected had been

reached).

The core temperature of the meat may be for example 14 °C when the

cooking cycle has started, the oven temperature will then go to approx. 54

°C, which is 40 °C above the core temperature. As the core temperature

of the meat rises by one degree so too does the oven temperature, with the

difference being maintained at 40 °C which is the “delta” value you selected.

If you selected a final core temperature of say 68 °C then the oven chamber

temperature would be 108 °C at the end of the cooking cycle.

This cooking method is much slower than the “normal” way of cooking but

the benefits are higher yields which translate to bigger profits!

Note For a more detailed explanation of ECO - Delta cooking refer

to page 36.

air-o-steam®

21electrolux user guide

air-o-steam®

“Selected Temperature” and the “Actual Temperature”

“Selected Time” and the “Time Remaining”

“Selected Core Temperature” and the “Actual Core Temperature”

This is to let the operator know (and supervisors) what has been selected for

various cooking cycles, should an operator select the wrong choice then it’s

easier for another person to see this and correct it.

During a cooking cycle, if the operator/supervisor sees that a wrong

temperature, time, cooking mode etc has been selected, to correct it they

simply press the correct button and hold for a few seconds which will then

prompt the display to “flash”.

At this point the correct input can be made then the oven will memorise this

and change the cycle accordingly, without having to stop and restart the cycle.

After 2 hours of steam operation, the air-o-steam® memory will send a

command to release the water from the steam generator. This will only

happen when the water temperature inside the boiler drops to 50 °C or below,

normally the next time the oven’s main power is turned on.

At the end of any of the 4 Cleaning cycles the oven will automatically go on

“stand-by” mode which turns power off to the steam generator elements,

shuts off the oven lights so the only energy consumption is on the led display.

This allows the operator to start a cleaning cycle then go home.

The air-o-steam® display always shows the:

22 electrolux user guide

air-o-steam®

air-o-steam® Combi Oven

Has reached for the future with a precise control of both humidity

and air circulation within the cooking chamber

Even while cooking with Convection (Dry) forced air you can select a humidity

level for optimum results.

With a new airflow system and a larger oven cavity uneven cooking is a thing

of the past.

The following is a brief explanation of the various cooking modes available and

how to best use them for optimum results.

Humidity and Cooking

Having the option now to be able to select a “humidity” level while using

either the Combi or Convection cooking modes enables (with practice)

the Chef/operator to fine tune the cooking procedure to optimise results.

You must realise that food is a delicate product and ALL food consists

mostly of moisture, for example meats are at least 88% water,

vegetables even higher.

With the two different cooking modes you have two different humidity factors

to take into consideration, firstly with Convection cooking you are able

to select (by pressing the Convection mode button twice) a humidity level

you don’t wish to exceed. This humidity you will find present in the oven

chamber once the food starts heating up and cooking is coming ONLY

from the food itself.

This is very noticeable when cooking, for example, a full load of beef rissoles,

as with the amount of moisture coming out from the product you can get in

excess of 90% humidity, this then makes “browning” very difficult.

With the Electrolux patented Humidity control system you can select as

an example 30% humidity and when the ACTUAL humidity level approaches

30% the oven will automatically discharge humidity into the airspace above

the oven.

When cooking with the Combi cycle the humidity level is normally set

at 50%, this humidity is coming from the steam generator and introduced

to the cooking chamber via a vent pipe.

Now you have the possibility to also select a desired humidity level which will

be controlled by the oven through the patented Humidity control system

using a “lambda” sensor so when cooking for example ribs (mostly bone with

little meat) you need a higher humidity level than if you were cooking a large

roast beef. The reason is you must help the ribs retain as much moisture as

possible to get a nice juicy meat.

23electrolux user guide

air-o-steam®

Convection

Dry Hot air cycle

With a maximum available temperature of 300 °C, this cycle is mainly used

for baking products such as bread, pastries, cakes, biscuits, pies, flans,

strudels etc.

Quick grilling of meats (steaks, cutlets, rissoles, burgers etc.)

As with all cooking modes it is very important to pre-heat the oven prior

to placing the food inside, generally pre-heat the oven to 30-50 °C abovethe

desired cooking temperature.

When grilling steaks at 250-270 °C pre-heat the air-o-steam® to 300 °C

for at least 10 minutes first.

With oven ventilation closed

This is activated by selecting open ventilation from the Advanced functions.

Again on this cycle a maximum temperature of 300 °C is attainable - for

a maximum time of 10 minutes.

This cycle is used for cooking for example puff pastry sheets for custard slice,

browning and crisping skin on poultry, pork etc.

Cooking full loads of meat rissoles, which as they heat up produce excessive

humidity levels, the open vent allows excessive humidity to escape.

24 electrolux user guide

air-o-steam®

Convection cooking

Cooking with the Electrolux patented air-o-clima Humidity level control

(activated by pressing the convection mode selection button twice)

This cycle lets you program a maximum humidity level to be obtained

within the cooking chamber. This is a necessity, as during cooking all types

of food when it starts heating up, moisture from within the food escapes

creating humidity inside the oven.

This is evident when opening the door and observing the steam rise into

the kitchen.

When cooking full load of, for example, chicken or meat rissoles, the amount

of humidity within the cooking chamber (vent closed) can reach in excess

of 95%!

Electrolux has overcome this problem thanks to its patented air-o-clima

humidity control system! Just select the humidity level you desire and leave

the rest up to the Electrolux air-o-steam® Combi Oven.

25electrolux user guide

air-o-steam®

Combi Cooking mode

Combination of convection and steam cooking.

In this cooking mode the maximum attainable temperature is 250 °C

This cycle is best used for cooking all types of meat on the bone including

seafood and for the regeneration of pre-cooked foods.

When cooking meats (and remember the water content in most meats

exceeds 88%) the steam is assisting heat transfer into the food mass thus

accelerating the cooking process.

Steam is ideal for cooking these foods, but the maximum temperature being

only 100 °C it is impossible to obtain the desired browning (caused by the

caramelisation of meat juices).

With the Combination cooking mode a temperature of 250 °C can be

obtained, because the cavity is heated (either by electric elements or gas

heated tubes). It is therefore possible to obtain the desired browning effect.

The patented air-o-clima humidity control system is the only system that

determines the real humidity level inside the cavity of the oven, through direct

measurement using a Lambda sensor.

This system allows for real humidity control through injection of steam only

when necessary, and the aspiration into the cavity of dry air when humidity

level inside the cavity is in excess of the desired level for optimum cooking

results.

All you need to do is select the desired humidity level by twice pressing the

combi mode selection button, then using the main control dial to select

humidity %.

The air-o-clima will automatically keep the humidity, temperature and clima

inside the cavity at the ideal levels.

Using the Electrolux patented air-o-clima humidity control system

26 electrolux user guide

air-o-steam®

Steam cycle

This cycle is used for a wide variety of cooking needs, most foods traditionally

boiled in a pot can be cooked on this cycle, the benefits include reduced

cooking times, better quality, retention of nutrients, vitamins, colour and most

importantly flavour.

Remember to use perforated cooking pans to allow the distribution of fan

forced steam around the product and not to overload the pans with food.

For optimum results 65 mm pans should be the deepest used.

Perforated pans also allow the condensation to escape so the product is not

sitting in water.

The Electrolux air-o-steam® level ‘A’ Combi oven guarantees 100% Steam

Saturation inside the cooking chamber regardless of the temperature selected.

This is controlled using the LAMBDA Sensor-Unique to Electrolux.

Steam cycle-maximum temperature 100 °C

To select “Super Heated Steam” press the steam button, now press the

temperature button and use main control dial to select a steaming temperature

between 101 °C up to 130 °C.

Super heated steam-maximum temperature 130 °C

With a temperature range from 25 to 100 °C, the Steam cooking mode is also

ideal for cooking delicate foods such as small fish fillets, scallops, scampi,

chicken breast, sausages, sous-vide, leafy vegetables, light egg custards etc.

Low temperature steam cycle

It is not always the case that the Chefs or operators are cooking large

quantities of food, thus when loading up to 40% of the ovens capacity you

have the option of selecting either half energy (power) and/or half fan speed to

reduce operating costs.

Another benefit is when cooking very delicate items such as soufflé or

meringues, you can select low fan speed to prevent “pulling” foods into the

direction of fan.

Full or half Energy Power and/or Fan Speed

27electrolux user guide

air-o-steam®

Super steam cycle

Super Steam is using the assistance of the air-o-steam® heating elements to

boost the chamber temperature (also possible in gas heated models) thus

speeding up the cooking process of more robust foods such as Potatoes,

Sweet Potatoes, Pumpkin, Rice, some meats etc.

Super Heated Steam is ideal for cooking frozen vegetables for example, as

the temperature recovery is much faster due to the assistance of the oven

heating system.

Note that this cycle should never be used for cooking green vegetables as

the high temperature will spoil the foods natural colour, texture and taste.

28 electrolux user guide

air-o-steam®

And there’s More!!!

Other options include the following

This is a method of using two or more styles of cooking for the same food

for example roast loin of pork:

The first step is to steam the pork as this keeps it moist and finally finishing

with a Combi cycle, then using a convection cycle with vent open to

crispen skin.

Cook step 1 (or phase 1)

After pre-heating the oven (on Combi cycle to 110 °C), place the pork which

has been put on a wire grid over a roasting pan into the oven.

Insert the core temperature probe, select steam cycle at 100 °C, select a core

temperature of 65 °C then go to cook step 2.

Sequential cooking

Cook step 2 (or phase 2)

Select Combi cycle with a humidity level of 40%, set oven temperature

at 190 °C with a core temperature set at 72 °C, then go to cook step 3.

Cook step 3 (or phase 3)

Select convection cycle with ventilation open and set oven temperature at

260 °C and core temperature at 76 °C, now press the start button to start

cooking cycle, commencing with cook step 1 and finishing with cook step 3.

Tip: Scoring the pork skin with a knife every 1 cm and rubbing it with salt over

the surface will assist in achieving crisp skin.

29electrolux user guide

L.T.C. Low Temperature

Cooking in AOS

Low Temperature Cooking has been developed over a period of time with vast testing in our own laboratory and in

conjunction with the University of Udine Italy. Using this method guarantees optimum yields every time from all types

of meat that would be otherwise roasted in the “traditional” way.

Another factor determining yields is whether or not the meat has been “manipulated” meaning if it has been

“boned out” stuffed with a filling, rolled and tied as you would with a shoulder joint or loin for example.

If the meat being cooked is a single piece meaning a leg with bone in, prime beef rib on the bone then the yields

are higher due to the meat not being cut open to remove the bone which increases the surface area being

exposed to heat during cooking.

Another tip is NOT to use any salt on the meat prior to cooking as all this does is “draw out” water from the meat which

can result in up to an additional 7% weight loss !! and has NO effect on the meats taste.

Season the meat AFTER it has been cooked.

30 electrolux user guide

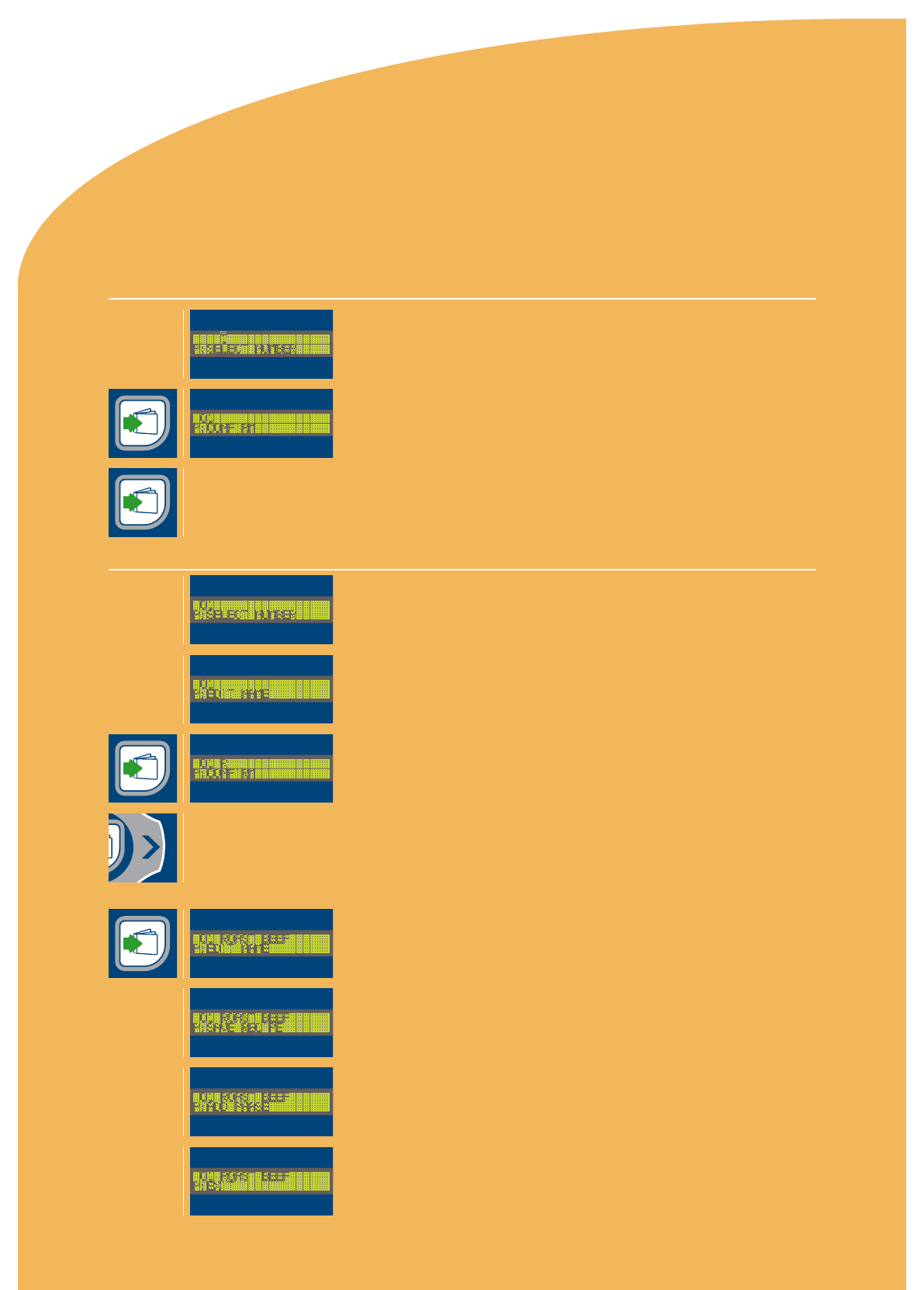

In the Electrolux AOS – air o steam oven you will find

the LTC program in the library, press the P button

and turn main control dial to find Low Temperature

Cooking. Press the start / stop button to activate the

cycle which will go through a sequence as described

below; Another tip is to hang the 6 point multi sensor

probe out over the top of oven door during the

preheating phase so it’s not hot to handle later.

• First the oven will preheat, indicated by “Preh”

on the led screen where the temperature display

is normally. The factory default temperature for the

preheating phase is 140 °C, if you prefer you can

press the temp button and using the main control

dial select a higher temperature. All this will do is

increase the browning of the meat during the initial

cooking phase.

Prepare the meat by placing it on a wire grid ( not in

a roasting pan ) and rub with herbs, mustard etc to

your desire.

• When oven has preheated it will Beep and you will

see “Load” appear, open the door with caution and

place the meat inside on the rack, place an empty

gastronorm container below on the next runner to

capture any fat melting off the meat. Insert the probe

( if cooking pork with skin on make a small hole with

a sharp knife to enable easy penetration of the probe

shaft ) then select a target core temperature.

• Close oven door, now you will see “strt” on

the display, press the start / stop button again

to continue the cycle, Now the oven goes into a

“Searing” phase which lasts approx 10 minutes at

the same temperature used for pre heating, this is to

“Seal” the meat, kill surface bacteria and to brown

the outer surface of the meat.

• After the “Searing” phase has finished then the oven goes into “Rapid Cool Down” and will stop when the oven

temperature has fallen to approx 20 °C Above the target core temperature you have selected. So if your target is 60 °C

then the oven will cool down to 80 °C.

• Now the “Maturing” phase ( low temp cooking ) starts, the fan in the oven cycles on & off with half speed to create a

gentle airflow around the meat, as the core temperature of the meat rises the oven temperature will slowly keep falling.

• When the target core temperature has been reached the temperature inside the oven will be 5 °C above your target core

temp. The oven then switches off until the oven temp falls to the same as your target core temp.

• Now the “Hold” phase starts, this is a gentle cycle where the fan turns on approx 2 seconds every 2 minutes at half

speed.

Every 40 minutes the oven will do a total air exchange for 1 minute to prevent bad odors building up.

• The LTC cycle has a recommended maximum time frame of 24 hours, from when the meat is first placed in the oven

to when they should be taken out. With “red” meats for every 1 hour in the Holding phase it equates to approx 2 days

“hanging” so it becomes even more tender.

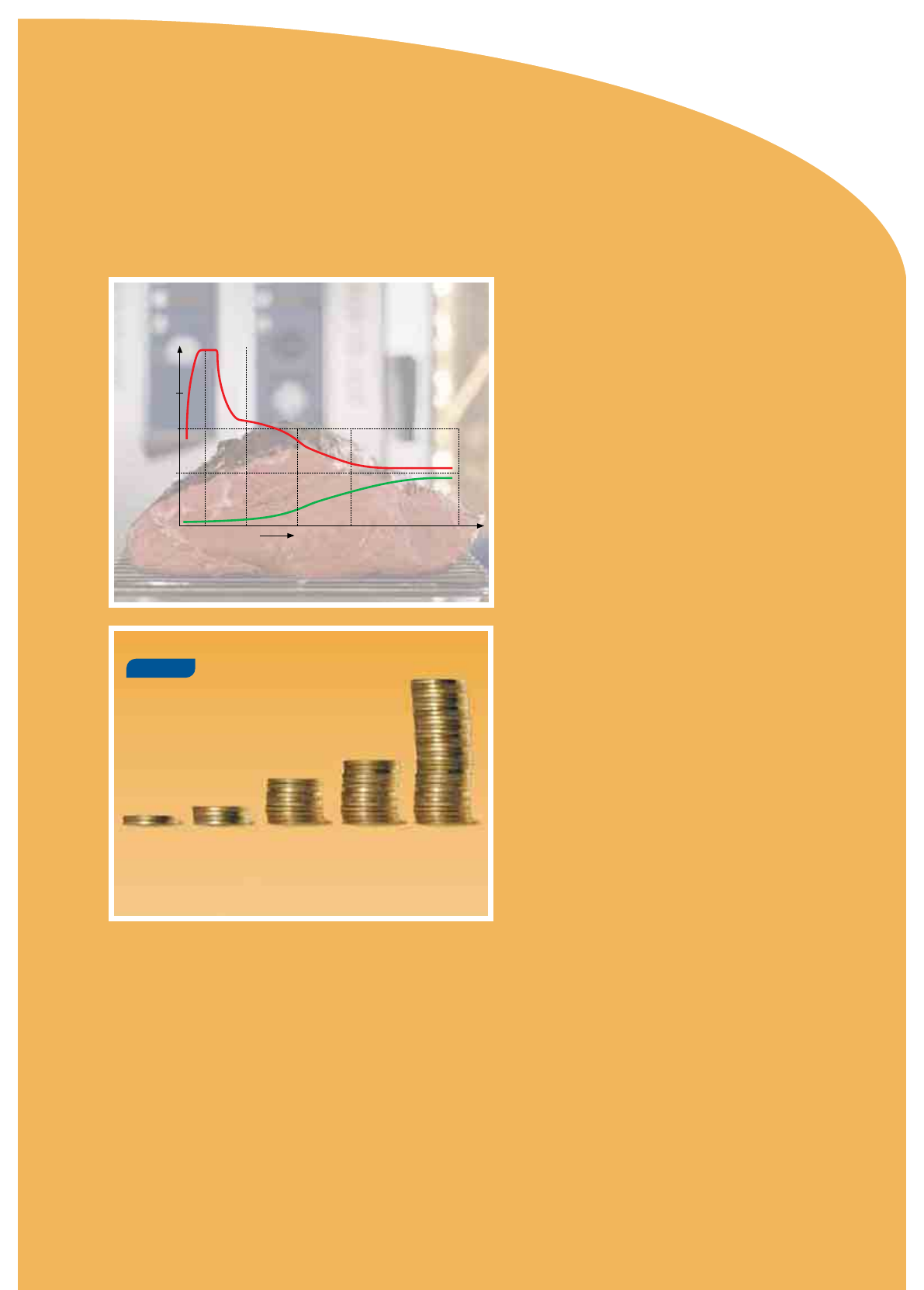

Searing

phase

Temperature

COOKING CHAMBER TEMP

CORE TEMP

Progressive

cooling-down

phase

Time

200 °C

160 °C

120 °C

65 °C

0 °C

0 h 0,5 h Up to 24 hrs.

Cook and hold

Finishing-off phase

(actual core temperature=

target core temperature)

Preheating

phase

Annual savings with LTC

small restaurant

100 meals a day

kitchen staff:

3 people

280 working

days a year

€ 1.867,00

large restaurant

250 meals a day

kitchen staff:

8 people

280 working

days a year

€ 4.667,00

€ 12.167,00

€ 24.337,00

€ 56.000,00

hotel

500 meals a day

kitchen staff:

16 people

365 working

days a year

hospital

1000 meals a day

kitchen staff:

32 people

365 working

days a year

central

production kitchen

3000 meals a day

kitchen staff:

100 people

280 working

days a year

Patent pending

31electrolux user guide

air-o-steam®

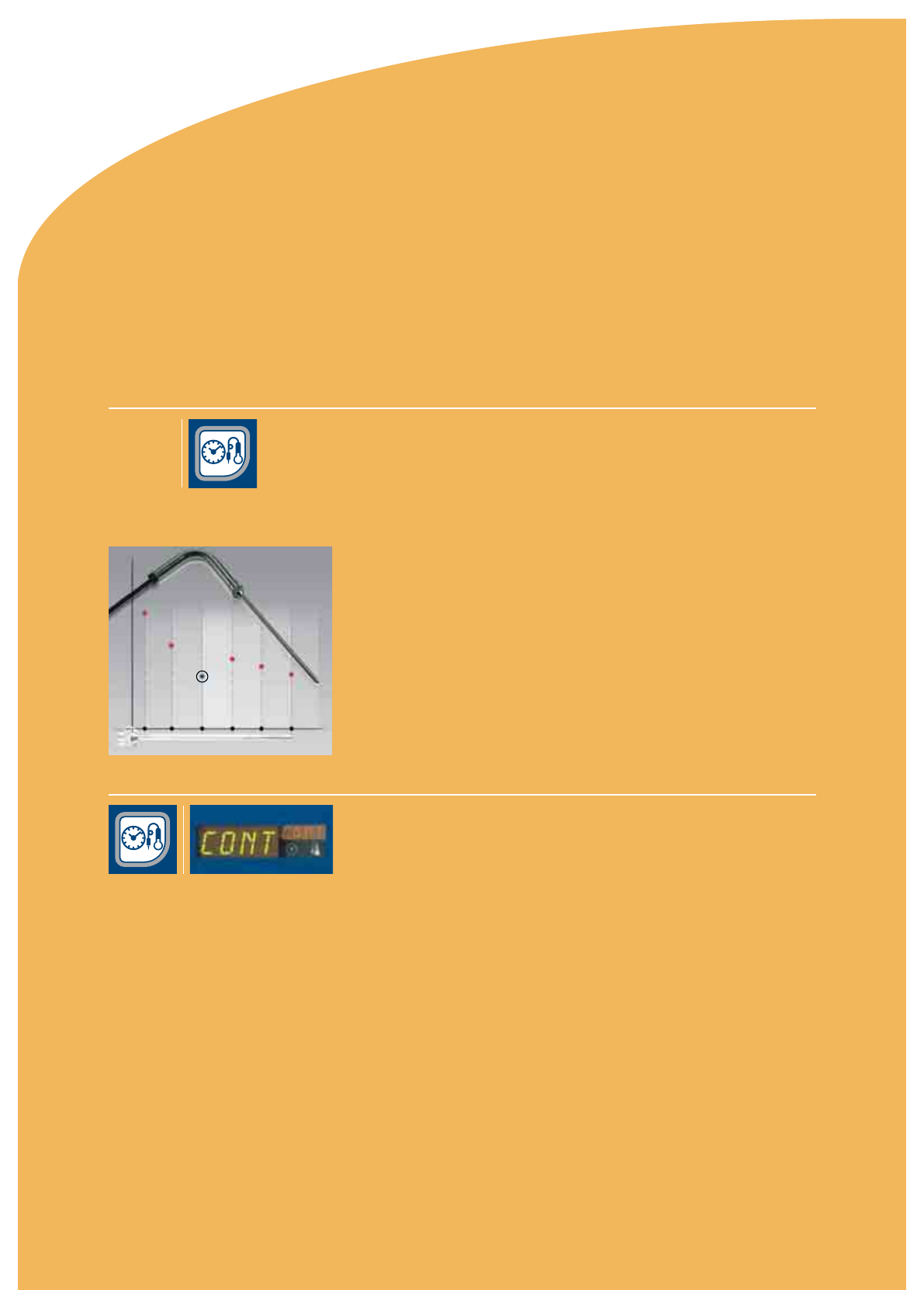

The 6-Point multi sensor probe is like having an expert watching over your

food while it is being cooked or regenerated.

All the guesswork has been eliminated and now your food will always be

cooked to perfection.

The Electrolux 6-Point multi sensor Probe has 6 sensors for more precise

measurement of temperature. Of the six temperature measurements taken,

only the lowest is taken into consideration. This guarantees that even if the

core probe is not perfectly positioned within the food product, perfect cooking

results are achieved, under perfectly safe cooking conditions.

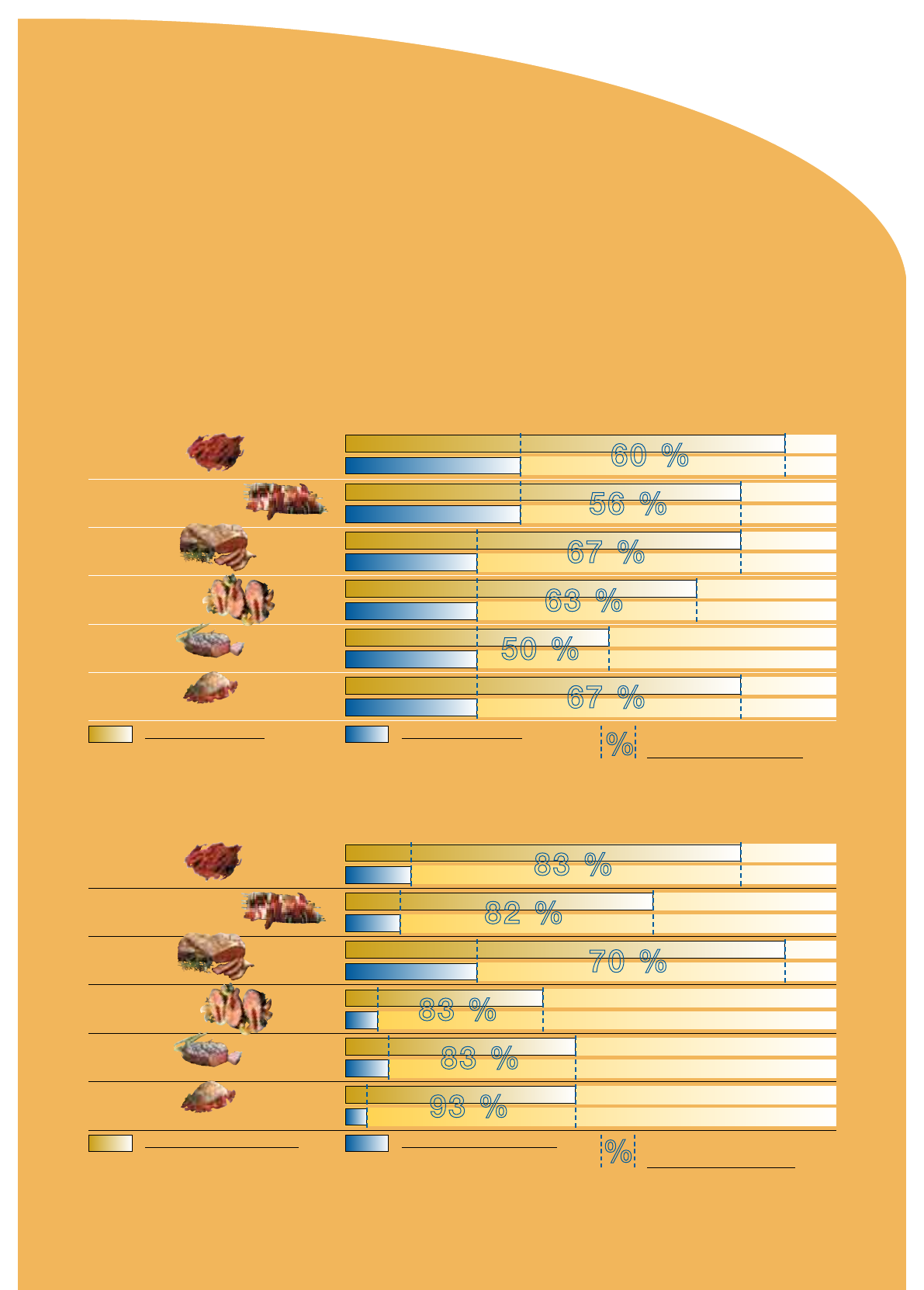

The following is a guide to core temperatures for achieving best cooking

results in various foods (pg 30 and 31).

12 3 4 5 6

°C

Lowest measured

temperature

Cooking with the Electrolux 6-Point Multi Sensor Probe

This cycle is preferred during a meal service period which may run for

2-3 hours for example. You can choose a cooking mode and oven

temperature, for example, combi cycle at 30% humidity with an oven

temperature of 155 °C, then instead of selecting a time value (or core

temperature value) the continuous mode is selected.

Then press the start button to activate the continuous cycle, the air-o-steam®

will run continuously until it is stopped.

Continuous cycle also runs when using the “Holding phase”.

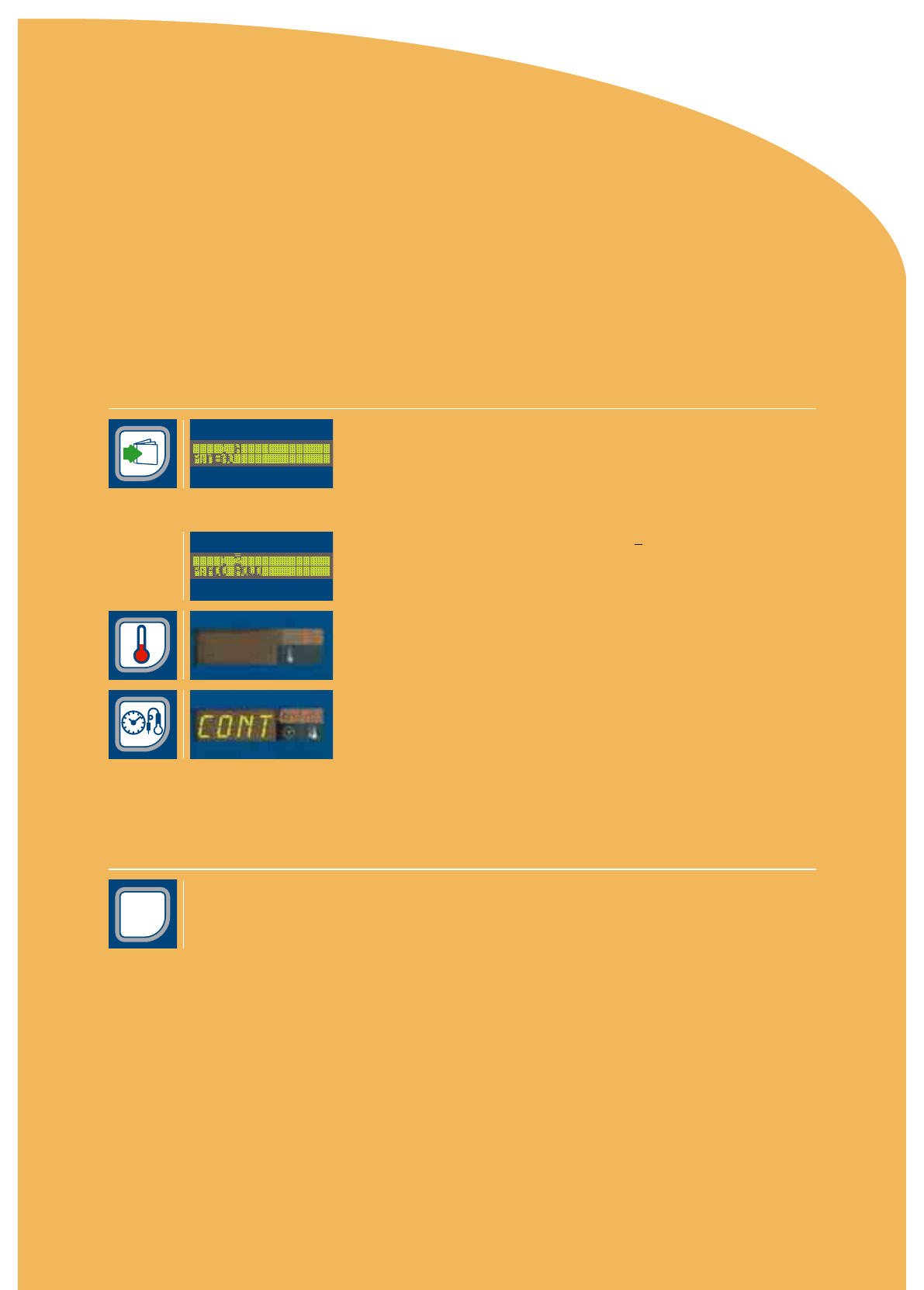

Continuous operation “cont”

32 electrolux user guide

air-o-steam®

Guide to core temperature

Refer to your country legislation (if any) temperatures are in degree Celcius

80 Do not Regenerate!

75 75

Beef Roast

Rare

Med - Rare

Medium

Med - Well

Well - Done

52 - 55

56 - 59

60 - 64

65 - 69

70 - 75

50 - 52

54 - 57

58 - 62

63 - 67

68 - 72

72 68

(As for Roast Beef)

80 77

Medium

Well - Done

63 - 68

70 - 75

60 - 65

67 - 72

75 - 78 72 - 75

Sequential cooking Cooked for consumption Cooked for Blast chilling,

prior to Regeneration

Rare

Strip loin

T - Bone

Beef Braids

Beef Fillet

Shoulder

Rib

Thigh

Beef Boiled

Beef Rissole

Lamb Roast

Pork Roast

75 72

Pork Knuckle

70 - 72 68 - 70

Ham / Gammons

65 - 70 63 - 67

Veal Roast / Fillet

Med - Well

78 - 80

75 - 77

70 - 72

75 - 77

75 - 78

67 - 68

73 - 75

67 - 68

73 - 75

Poultry

Free Range Chicken

Fresh Farmed Chicken

Chicken Legs

Chicken Breast

Frozen Chicken (defrosted)

Turkey

Duck (whole)

Duck Breast

Pheasant

Goose

Pork Pie

Shepherd’s Pie

33electrolux user guide

Steak and Kidney Pie

Sequential cooking Cooked for consumption Cooked for Blast chilling,

prior to Regeneration

75 75

Pâtés/Terrines

68 - 75 Do not Regenerate!

Meat Loaf

75 70 - 72

Beef Cabbage rolls

72 70

Game

Venison Roast

Elk Roast

Reindeer Roast

Sausage

Do not Regenerate!

Pork

Beef

Chicken

Frankfurters

Fish

70 - 72

Fillet

Whole

Pâté

70 Do not Regenerate!

Terrine

70 Do not Regenerate!

Potato Dishes

Whole for mashing

Lyonnaise

Roasted Whole

Whole for scouping

95 95Out and Filling

Casserole Dishes

72 - 75

70 - 72

75 -77

68 - 70

75 - 77

60 - 62

68 - 70

70 - 72

68 - 70

73 - 75

65 - 67

73 - 75

58 - 60

66 - 68

Pork (cubed) in sauce

Chicken pieces - no bone in sauce

Chicken pieces - with bone in sauce

Beef (cubed) in sauce

Lamb (cubed) in sauce

Veal (cubed) in sauce

Duck pieces - with bone in sauce

Vegetable mix - no potato in sauce

Vegetable mix - with potato in sauce

Meat in Pastry

Beef must be “sealed” on a hot grill then chilled prior to wrapping with pastry

52 - 55

60 - 64

70 - 75

50 - 52

58 - 62

68 - 72

Rare

Medium

Well Done

34 electrolux user guide

air-o-steam®

The cook and hold method was developed hundreds years ago (in the days

before the modern oven) when tribesmen would dig a hole in the ground and

make a big fire heating river stones. When the flames died down they would

cover the hot stones with large leaves, lay large pieces of meat over the

leaves, cover the meat with more leaves then bury (cover with a layer of 1/2

meter soil) the lot.

This was left to slow “Cook and Hold” for the entire day, to be dug up and

consumed in the early evening (after the sun had gone down) with the result

being a tender and juicy piece of meat with little shrinkage.

Now you can duplicate this (without filling the oven with soil) by selecting the

first cooking phase, oven and core temperature value, then proceeding to

phase 2 and choosing the “Hold” function.

Now you select a holding temperature, remember that this is the temperature

inside the oven cavity. Once the desired core temperature (and remember to

set the core temperature value approx. 5 °C lower than if you were going to

cook and remove the product without Holding) value has been reached the

oven will switch from a Cooking cycle to a Holding cycle and remain so until

you stop the cycle and remove the product.

This method of cooking is best suited for large joints of meat in excess

of 8 kg, for example Roast Beef.

Cook and Hold

HOLD

Cook step 1 (or phase 1)

Select Combi cooking mode at 40% humidity, oven temperature at 120 °C

and core temperature at 55 °C with the 6-Point multi sensor probe inserted.

Then select 1/2 energy and 1/2 fan speed, then go to second cook step.

Cook step 2 (or phase 2)

Using the Program control set, select with the main control knob from

the menu “Add hold”. Now select the oven holding temperature of 60 °C,

then press the Start Button to activate cycle. The Cook and Hold cycle is

now in operation.

U

35electrolux user guide

ECO - Delta cooking is a special cooking process ensuring high quality

results in all types of large joints for roasting. The process guarantees a

constant difference (“delta”) between the core temperature of the food to be

cooked and the temperature inside the oven cavity.

This “delta” cooking cavity temperature value can be set (we recommend)

anywhere in the range of 30-70 °C (Convection cycle) or 20-50 °C

(Combi cycle) higher than the core temperature value and increases

proportionally with it. The full range of temperature can be set between

1 °C up to 120 °C.

Special ECO - Delta

Advantages:

• Extremely low energy and water consumption

• Excellent quality and minimum shrinkage

• Cooking can be shifted to quiet periods or night-time

• Higher quality through gentle cooking process

• There are two types of ECO - Delta cooking; “Linear” and “Progressive”

•Linear this is when the temperature difference between the core product and

oven cavity remain constant.

•Progressive This is when the temperature difference between the core

product and oven cavity closes towards the end of the cooking process. e.g.

•Start of cycle

core temperature is +12 °C “delta” 35 °C - oven temperature will be 47 °C

core temperature is +35 °C “delta” 35 °C - oven temperature will be 70 °C

core temperature is +55 °C “delta” 20 °C - oven temperature will be 75 °C

core temperature is +58 °C “delta” 10 °C - oven temperature will be 68 °C

core temperature is +60 °C “delta” 5 °C - oven temperature will be 65 °C

36 electrolux user guide

air-o-steam®

Selecting pre-set cooking cycle

pre-set or memorised

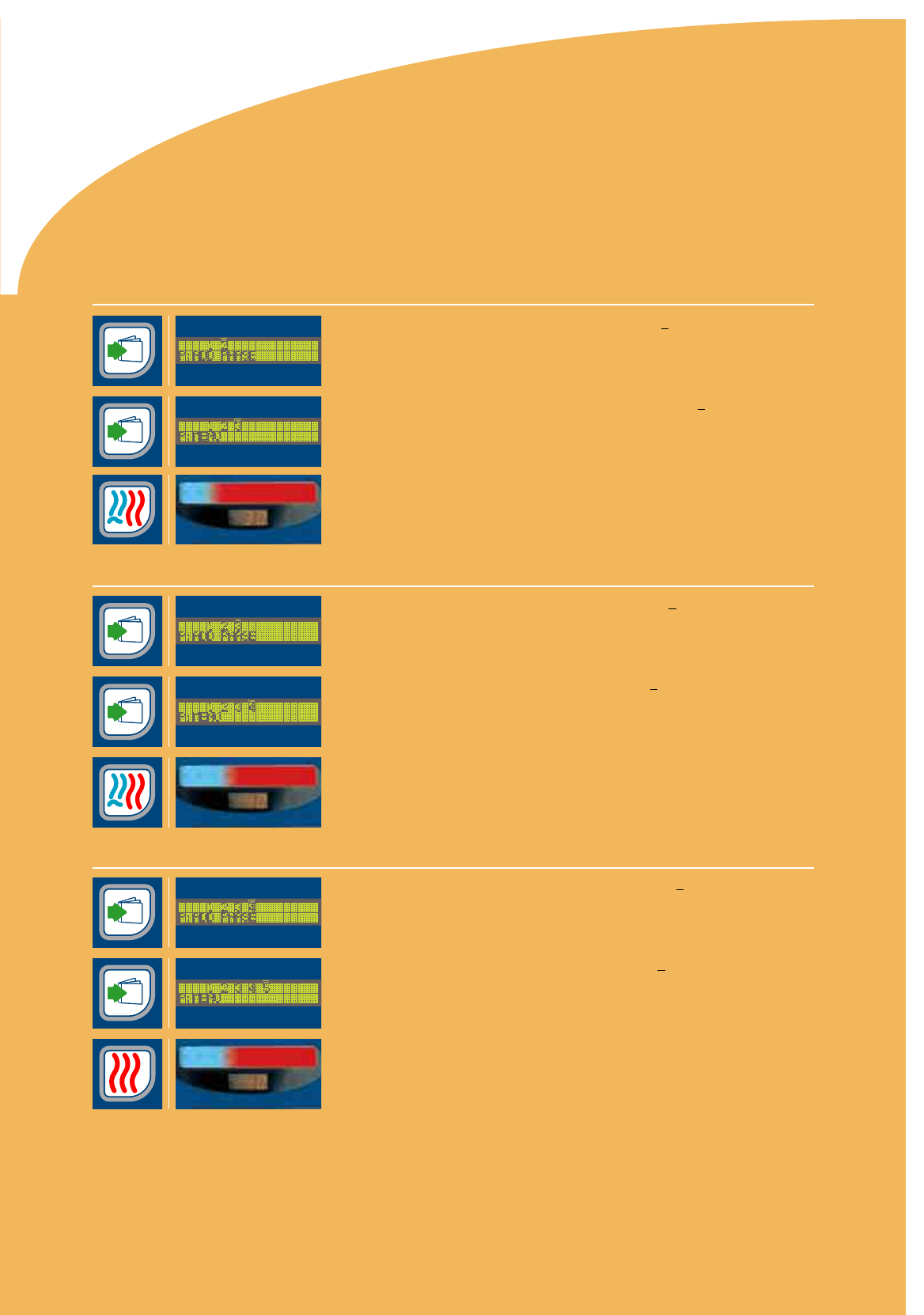

To select a pre – set cooking cycle or one that you have memorised follow

this procedure.

Operation 1

When the oven is first turned on and after the lamp test you will see the three

cooking mode buttons flashing together with the Advanced functions

button and the Programs control set button.

Now press the Programs control set button, and using the main control

dial turn until you see in the led display above the Program control set

button the program number you have your cooking cycle on or one of the

pre–set oven cooking cycle program numbers.

Then press Start/Stop button, to activate cycle.

Note remember first to pre – heat the oven according to the product you wish

to cook!

U

START

STOP

Operation 2

If the air-o-steam® has been used for another cooking or pre – heating cycle,

you must press the Programs control set button, release your finger then

press again and hold for approx. 1.5 seconds until the led display is clear.

You will see the three cooking mode buttons flashing again together with the

Advanced functions and the Programs control set button.

Now press the Programs control set button and using the main control

dial select the pre – stored cooking cycle you wish to use.

Note when the cycle number first appears it takes approx. 1.5 seconds for the

cycle name to appear.

U

37electrolux user guide

air-o-steam®

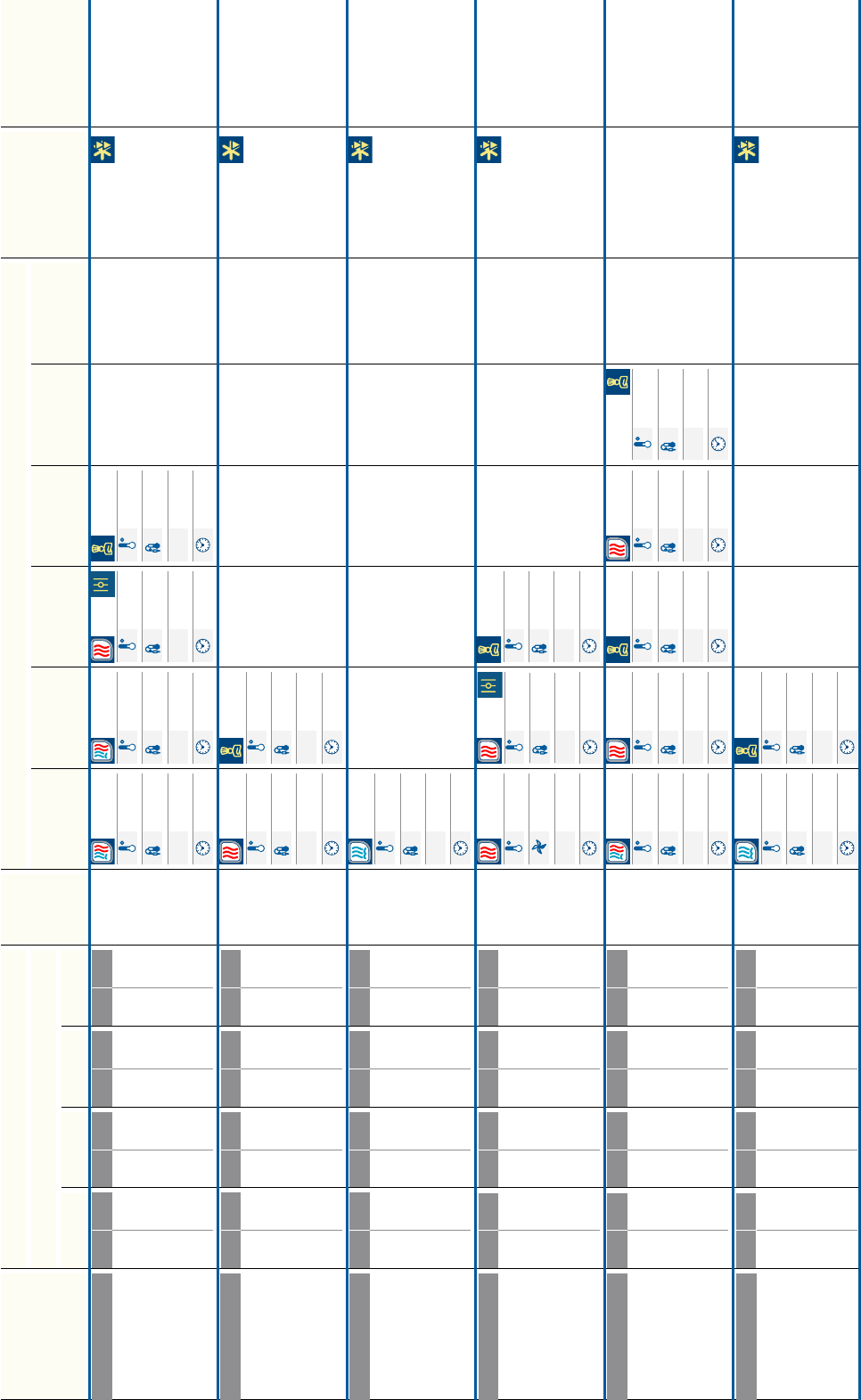

Cooking guide

For pre-set cycles

Recipe suggestions/guide for air-o-steam® by Electrolux

1. Roast Beef

Cooking cycle suggestionTips

Trim off excess fat, dry meat and rub with seasoning/herbs of your choice.

Cook on a trivet or mire-poix of rough cut raw vegetables to allow airflow

to circulate around the meat. The cooked mire-poix adds delicious flavour to the

sauce made from pan juices.

HOLD

Phase 3 (optional)

Hold 60 °C

on Continuous

Phase 1

160 °C for 10’

Phase 2

70 °C

Core Probe

52 °C

2. Roast pork

Cooking cycle suggestionTips

Clean meat well, dry skin and using a sharp knife make 2-3 mm deep incisions

spaced at approx. 1 cm running parallel to each other. Rubbing some salt into the

cuts helps draw out moisture giving a crisper skin. Cook on a trivet or mire-poix of

rough cut raw vegetables. Phase 2

150 °C

20% humidity, half fan speed

Core Probe

55 °C

Phase 1

100 °C for 20’

Phase 3

170 °C

20% humidity, half fan speed

Core Probe

68 °C

Phase 4

for 3’

38 electrolux user guide

3. Lamb Rack

Cooking cycle suggestionTips

Trim off excess fat and trim points, remove chine bone. Season as desired and cook

with bone side down. Depending on thickness of cutlet bones you may have to wrap

tips in aluminium foil for protection and to keep them white.

Phase 1

180 °C

60% humidity

Core Probe

40 °C

Phase 2

190 °C

10% humidity

Core Probe

55 °C

Phase 3

for 2’

4. Chicken Legs

Cooking cycle suggestionTips

Dry skin of legs with paper towel, a dry seasoning mix can be sprinkled over the legs.

Place on either 1/1 stainless steel wire grids or in 1/1 GN pans 20 mm deep.

Phase 1

200 °C

60% humidity, for 10’

Phase 2

190 °C

20% humidity

Core Probe

82 °C

Phase 3

for 1’

39electrolux user guide

air-o-steam®

5. BBQ chicken

Cooking cycle suggestionTips

Remove any offal parts from inside the chicken, wash chicken under cold running

water then dry with paper towel. Seasoning (stuffing) may be placed inside bird to give

a nice flavour. A dry seasoning mix can be sprinkled over the outside of the bird.

Place on “Chicken Grids” or standard GN 1/1 stainless steel wire grids back side

down 5-6 per grid.

Phase 1

190 °C

10% humidity, for 10’

per bird of approx. 1.3 kg weight.

• 30 gm finely chopped onion

• 150 gm sliced white bread cut into 1cm square pieces without the crust,

lay the sliced bread out individually on the bench to let it dry

a little - this makes it easier to cut.

• 100 gm chicken livers - cleaned and sliced.

•1/4 teaspoon dry thyme

•1/4 teaspoon dry sage

•1/4 teaspoon ground black pepper

•1/2 teaspoon fine grain salt

•1/2 bay leaf broken into pieces

• 2 teaspoons fresh chopped parsley

• 75 gm salted butter

• 100 ml milk

Method

Melt butter in sauté pan over medium heat, add onion and cook without

colour, stir with wooden spoon until onion is “transparent”.

Add chicken livers and cook until lightly browned but not cooked all the

way through then add all the herbs, salt, pepper and bread. Mix together

then lastly add the milk. Allow to cool so it’s easier to handle. The stuffing

can be made in advance and kept after in an air – tight container in the

refrigerator for 3 days prior to using.

Suggested Seasoning recipe

Phase 2

175 °C

40% humidity, for 10’

Phase 3

180 °C

30% humidity, for 10’

Phase 4

175 °C

10% humidity, for 5’

Phase 5

190 °C

Vent open

Core Probe

82 °C

40 electrolux user guide

6. Roast chicken

Cooking cycle suggestionTips

7. Croissants - frozen ready to bake

Cooking cycle suggestionTips

For better results use 1/1 GN perforated aluminium baking sheets. Allow enough

space between croissants so they don’t stick together during cooking.

Phase 1

160 °C

30% humidity, for 15’

Phase 2

for 1’

Phase 1

210 °C

10% humidity, for 8’

Phase 2

190 °C

90% humidity, for 10’

Phase 3

190 °C

60% humidity, for 8’

Phase 4

230 °C

40% humidity, for 5’

Remove any offal parts from inside the chicken, wash chicken under cold running

water then dry with paper towel. Seasoning (stuffing) may be placed inside bird to give

a nice flavour. A dry seasoning mix can be sprinkled over the outside of the bird.

Place on “Chicken Grids” or standard GN 1/1 stainless steel wire grids back side

down 5-6 per grid.

Phase 5

195 °C

Vent open

Core Probe

82 °C

Phase 6

for 2’

41electrolux user guide

air-o-steam®

8. Lasagne

Cooking cycle suggestionTips

Pre make into 65 mm deep GN 1/1 pans or 1/2 size pans. 5 kg max per pan. Phase 1

165 °C

30% humidity, for 20’

Phase 2

160 °C

Vent open, for 20’

Phase 3

for 2’

9. Kebabs/Satay Beef, Chicken or Pork

Cooking cycle suggestionTips

Cut meat pieces into approx. 1 1/2 cm square pieces. Use beef and pork fillet

to ensure tenderness. Soak wooden skewers in water for an hour prior to pushing

on the meat pieces. Meat can be alternated with pieces of red, green or yellow

pepper and small mushrooms if desired. Meat can also be marinated and seasoned

prior to placing on skewers. Cook on 1/1 GN 20 mm deep Teflon pans or use

baking paper under them.

Phase 1

180 °C

60% humidity, for 10’

Phase 2

200 °C

20% humidity, for 5’

Phase 3

for 1’

10. Hamburgers - Approx. 100gm each – 15 per GN 1/1 tray

Cooking cycle suggestionTips

Cook on either Teflon coated or black iron trays. Brush with melted butter and sprinkle

with seasoning prior to cooking.

Phase 1

195 °C

20% humidity, for 8’

Phase 2

200 °C

Vent open, for 3’

Phase 3

for 2’

42 electrolux user guide

11. Rice - Pilaf Style

Cooking cycle suggestionTips

Wash the rice well, place in GN 1/1 pans 65 mm deep. 1 1/2 kg rice

to 3 litres water/stock. Add approx. 100 gm butter to each pan. Water / Stock can

be reduced to 1 1/4 x volume of rice which will give a slightly shorter cooking time.

Note If using Hot water or Hot stock reduce the cooking time on Phase 1 to 15

minutes.

Long grain rice is best, it can also be mixed with short grain rice 50/50.

Phase 1

150 °C

80% humidity, for 25’

Phase 2

140 °C

40% humidity, for 3’

Phase 3

for 2’

12. Boiled eggs

Cooking cycle suggestionTips

Eggs should be at room temperature, placed into perforated 1/1 GN steam pans

single layer. Pre heat oven to 140 °C on Combi cycle 40 % humidity.

Note This will give a “Hard Boiled” egg. When cooked, place eggs into cold water to

help release the shell from the egg.

Phase 1

110 °C

100% humidity, for 8’

Phase 2

100 °C

for 5’

Phase 3

for 2’

13. Idaho/Jacket Potatoes

Cooking cycle suggestionTips

Select potatoes which are approx. the size of a tennis ball, wash well and wrap in

aluminium foil. Place on GN 1/1 pans 20 mm deep on a bed of rough salt.

Phase 1

180 °C

60% humidity, for 30’

Phase 2

175 °C

40% humidity, for 15’

Phase 4

for 2’

Phase 3

150 °C

50% humidity, for 10’

43electrolux user guide

air-o-steam®

14. Frozen mixed vegetables

Cooking cycle suggestionTips

Place vegetables into GN 1/1 x 65 mm deep perforated pans loosely – not as a solid

frozen block !

2 – 2 1/2 kg per pan. Pre heat oven to 160 °C on Combi cycle, 60 % humidity.

Phase 1

130 °C

for 15’

Phase 2

100 °C

for 15’

Phase 3

for 3’

15. Whole Baked Fish

Cooking cycle suggestionTips

Clean fish well with cold water, remove any intestines. Place in GN 1/1 pan 40 mm

deep together with some cherry tomatoes, sliced white onions, fresh basil leaves,

peppercorns and 1/2 litre water or fish stock. 100 ml Olive oil.

Phase 1

170 °C

40% humidity

Core Probe

66 °C

Phase 2

for 2’

16. Salmon Filet

Cooking cycle suggestionTips

Remove any bones using long nose pliers or tweezers. Place in 1/1 GN pans 20-25

mm deep which have been brushed with melted butter. Dry the surface of the fish with

a paper towel. Brush the fish with melted butter and sprinkle with a little seasoning if

desired.

Phase 1

105 °C

80% humidity, for 3’

Phase 2

100 °C

for 5’

Phase 3

for 1’

44 electrolux user guide

17. Tartlets - individual portions, each 1 1/2 cm deep

Cooking cycle suggestionTips

Place on perforated aluminium baking sheets. Phase 1

185 °C

30% humidity, for 3’

Phase 2

165 °C

20% humidity, for 9’

Phase 3

for 1’

18. Apple Strudel - individual portions

Cooking cycle suggestionTips

Place on baking paper on perforated aluminium baking sheets. Phase 1

185 °C

20% humidity, for 10’

Phase 2

165 °C

Vent open, for 6’

Phase 3

for 2’

19. Meat Balls - approx. 60 gm each

Cooking cycle suggestionTips

Place on Teflon 1/1 20 mm deep pans or on baking paper on 1/1 stainless steel pans. Phase 1

195 °C

30% humidity, for 8’

Phase 2

180 °C

Vent open, for 5’

Phase 3

for 2’

45electrolux user guide

air-o-steam®

20. Par–Bake baguette and small rolls

Cooking cycle suggestionTips

Place on perforated aluminium baking sheets. Phase 1

180 °C

30% humidity, for 10’

Phase 2

170 °C

Vent open, for 5’

Phase 3

for 2’

21. Apple (or fruit) crumble

Cooking cycle suggestionTips

Cook in round cake tins or in 40 mm deep GN 1/1 pans. Phase 1

160 °C

for 25’

Phase 3

for 2’

Phase 2

160 °C

Vent open, for 5’

46 electrolux user guide

multiphase

cooking

47electrolux user guide

air-o-steam®

Multi-phase cooking

Examples of multi phase cycles

Item Cooking cycle

Roast Beef

Convection cycle

200 °C

for 10’

Combi cycle

180 °C

30 % humidity

Core probe

50 °C

Pause 10’

Combi cycle

140 °C

40 % humidity

Half fan

Core probe

55 °C

Convection cycle

180 °C

10 % humidity

Half fan

Core probe

58 °C

Pause 5’

Phase 2

Phase 3

Phase 4

Phase 5

Phase 6

Phase 1

48 electrolux user guide

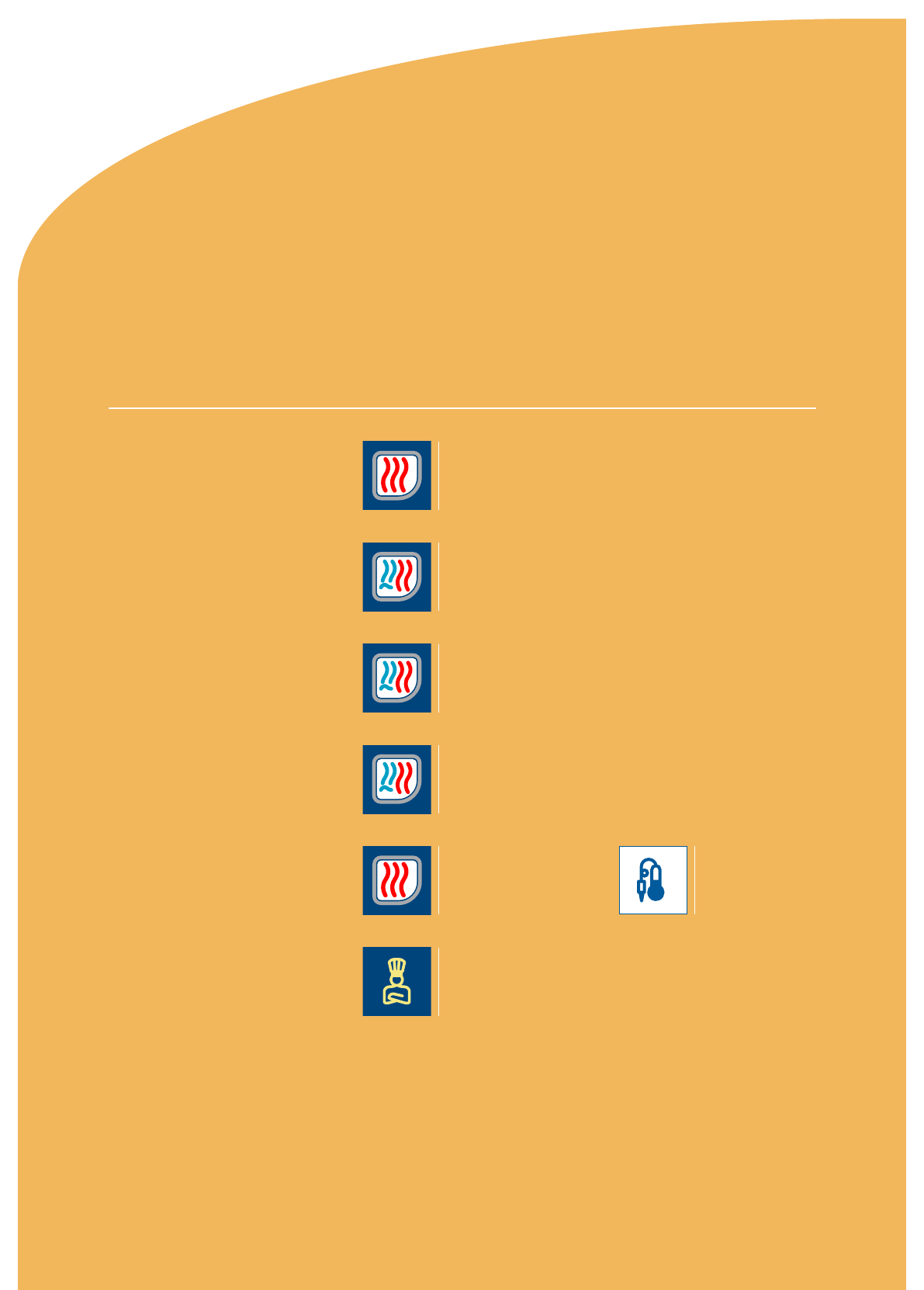

Item

Roast Chicken

Cooking cycle

Convection cycle

210 °C

10 % humidity

for 8’

Combi cycle

190 °C

90 % humidity

for 10’

Convection cycle

190 °C

60 % humidity

for 8’

Combi cycle

230 °C

40 % humidity

for 5’

Convection cycle

195 °C

Vent open

Pause 2’

Core probe

82 °C

Phase 2

Phase 3

Phase 4

Phase 5

Phase 6

Phase 1

49electrolux user guide

air-o-steam®

Phase 2

Steam cycle

75 °C

Half fan

Pause 5’

Convection cycle

160 °C

20 % humidity

for 20’

Convection cycle

180 °C

10 % humidity

for 15’

Core probe

68 °C

Item Cooking cycle

Meat Terrine Phase 1

Quiche Phase 1

Phase 2

Phase 3

Pause 2’

Combi cycle

150 °C

80 % humidity

for 25’

Combi cycle

140 °C

40 % humidity

for 3’

Pause 2’

Pilaf Rice Phase 1

Phase 2

Phase 3

50 electrolux user guide

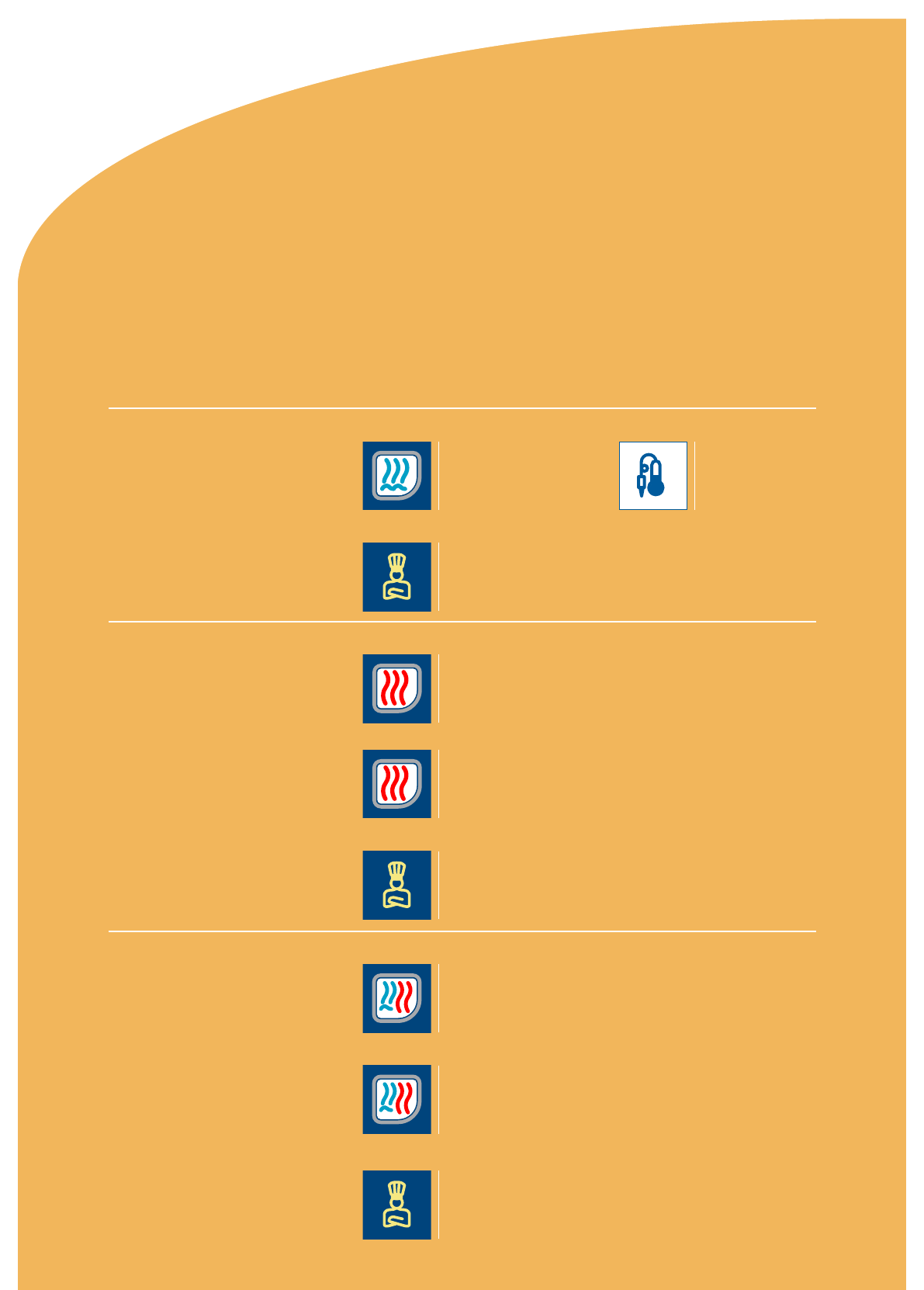

Convection cycle

165 °C

for 20’

30 % humidity

Combi cycle

170 °C

40 % humidity

Steam cycle

100 °C

for 10’

Pause 1’

Pause 2’

Convection cycle

160 °C

Vent open

for 20’

Phase 2

Core probe

66 °C

Phase 3

Phase 2

Phase 1Cauliflower

Phase 1Baked Fish

Item Cooking cycle

Lasagne Phase 1

51electrolux user guide

air-o-steam®

Phase 2

Item Cooking cycle

Phase 1

Croissants Phase 1

Phase 2

Steam cycle

93 °C

for 18’

Pause 2’

Convection cycle

160 °C

30 % humidity, for 18’

Pause 2’

Poached Fruit sous-vide

52 electrolux user guide

air-o-steam®

Capacities for roasting chickens

Based on 1.2 kg chickens

6 x 1/1 GN

10 x 1/1 GN

10 x 2/1 GN

20 x 1/1 GN

20 x 2/1 GN

(60 mm pitch runners)

Whole Chickens 20 x 1/1 wire grids, 6 birds each = 120 chickens

Chickens (butterflied) 40 x 1/1 wire grids, 4 birds each = 160 chickens

(60 mm pitch runners)

Whole Chickens 10 x 1/1 wire grids, 6 birds each = 60 chickens

Chickens (butterflied) 20 x 1/1 wire grids, 4 birds each = 80 chickens

(60 mm pitch runners)

Whole Chickens 10 x 1/1 wire grids, 6 birds each = 60 chickens

Chickens (butterflied) 20 x 1/1 wire grids, 4 birds each = 80 chickens

(60 mm pitch runners)

Whole Chickens 5 x 1/1 wire grids, 6 birds each = 30 chickens

Chickens (butterflied) 10 x 1/1 wire grids, 4 birds each = 40 chickens

(60 mm pitch runners)

Whole Chickens 3 x 1/1 wire grids, 6 birds each = 18 chickens

Chickens (butterflied) 6 x 1/1 wire grids, 4 birds each = 24 chickens

53electrolux user guide

air-o-steam®

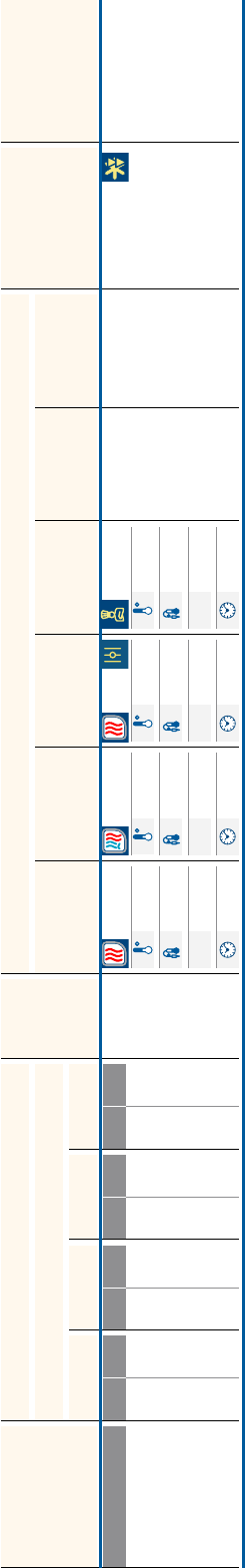

Cooking cycle

For Roast chickens (whole)

Item Cooking cycle

Phase 1

Convection cycle

190 °C

Vent open

Core probe

82 °C

Pause 2’

Combi cycle

175 °C

10 % humidity

for 5’

Combi cycle

180 °C

for 5’

Combi cycle

175 °C

40 % humidity

for 10’

Convection cycle

190 °C

10 % humidity

for 10’

Phase 2

Phase 3

Phase 4

Phase 5

Phase 6

54 electrolux user guide

operating

instructions

air-o-steam®

55electrolux user guide

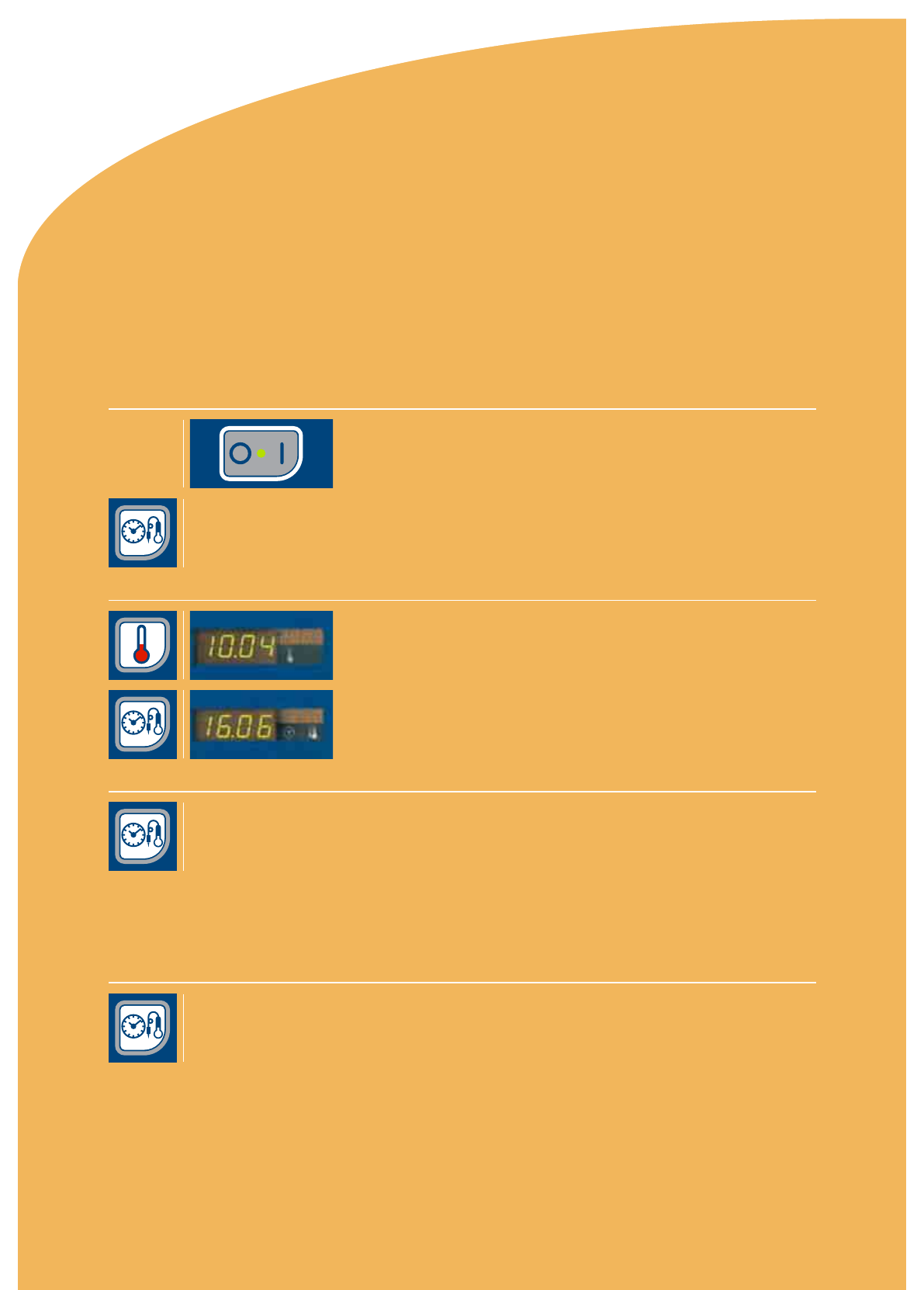

Operation 1

Turn on power to oven by pressing on/off button. Now press and hold for

approx. 1.5 seconds.

The time/core temperature button.

Operation 2

You will see in the display for example

Operation 3

The number 16 will be flashing, this is the Hour. To change use main control

dial to select the real hour time. Remember that the clock is a 24 hr clock!

To select minutes, press the time/core temperature button.

The minutes will flash, use main control dial to select actual time in minutes.

Operation 4

To select the day/date, press again the time/core temperature button.

The 10 will flash, use main control dial to select day/date. Now to select

month press again the time/core temperature button, the 04 will flash.

Use main control dial to set month.

To select year, press again the time/core temperature button then use main

control dial to select year.

Wait for several seconds until the numbers stop flashing, the new data has

been stored in the memory.

air-o-steam®

Setting time and date

Operating Instructions

56 electrolux user guide

air-o-steam®

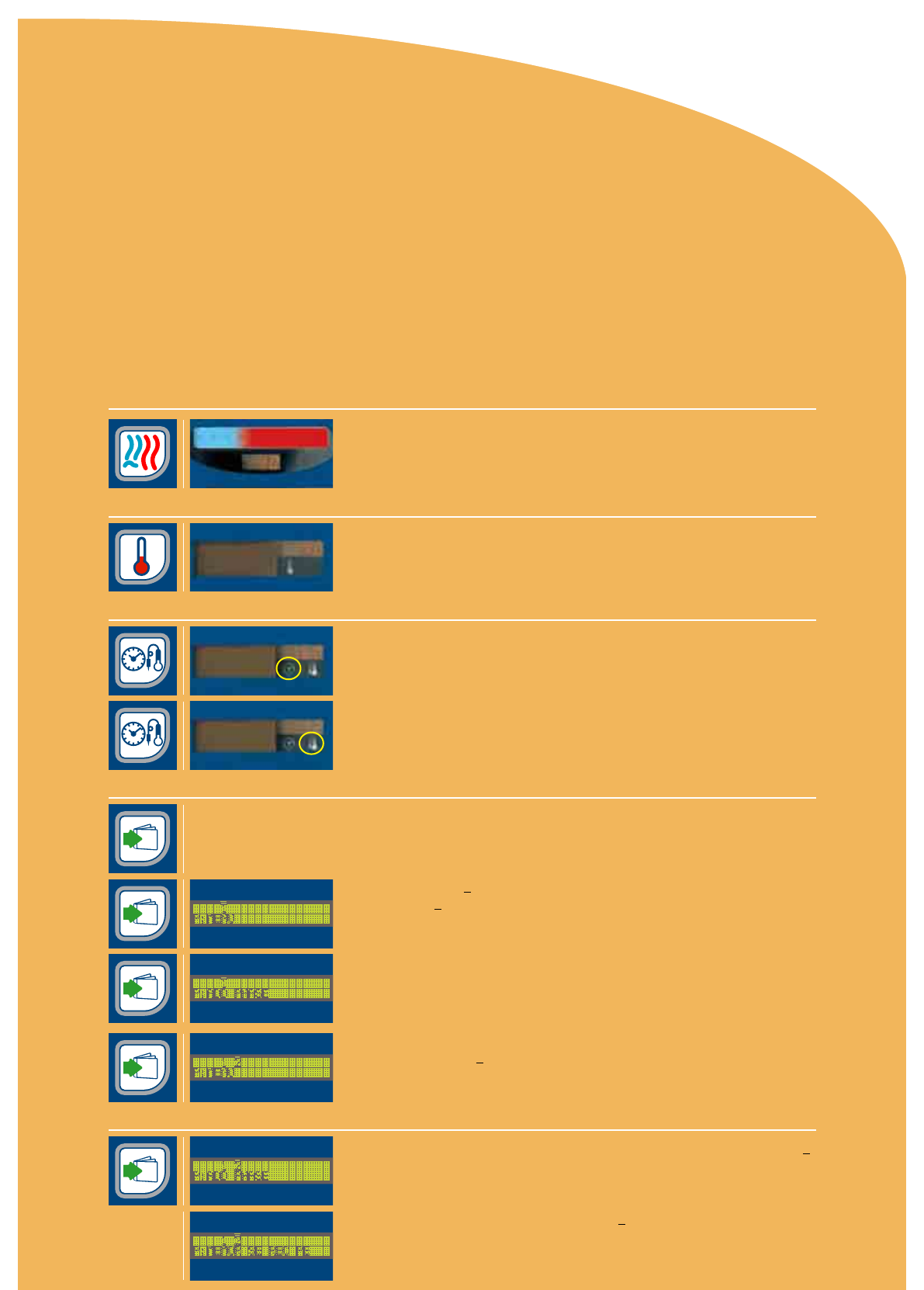

Storing cooking cycle in memory

e.g. Roast Beef

Operation 5

To store (memorise recipe) press program control set again, you will see 12

P: ADD PHASE.

Now turn main control dial until you see 1 2 P: MEMORISE RECIPE.

Press program control set to confirm.

Select Combi mode with 40% humidity, press the Combi button twice then

use main control dial to select humidity at 40%.

Select air-o-steam® temperature by pressing the actual temperature button.

Use main control dial to select air-o-steam® temperature (e.g. 140 °C).

Operation 2

Operation 3

Select either pre-set time or core temperature probe by pressing the

actual time/core temperature button.

Turn main control dial to pre-set time or core temperature.

Press program control set to confirm.

Now you will see 1 2 P: MENU.

Add another cooking step by repeating steps Operation 4.

Operation 4

To select 2nd cook step press program control set.

You will then see 1 P: MENU now press program control set again,

you will see 1 P: ADD PHASE.

Operation 1

57electrolux user guide

Press program control set again, you will see 01 ROAST BEEF P: EDIT

NAME.

Now turn dial until you see 01 ROAST BEEF P: STORE.

Press program control set, you will see 01 ROAST BEEF P: ADD PHASE.

Turn main control dial until you see 01 ROAST BEEF P: EXIT.

Now you will see 1 P: SELECT NUMBER. Press program control set then

you will see 01 P: CONFIRM.

Operation 6

A number 01 will appear and flash here, asking you to accept or change to

another number of your choice.

To confirm press program control set.

Now you will see 01 P: SELECT NUMBER.

Now turn main control dial until you see 01 P: EDIT NAME.

Press program control set again, you will see 01 R P: CONFIRM

(R): turn main control dial to select number or letter here.

When number/letter has been selected press right hand arrow to move to

next space for number/letter input.

Turn dial again to select new number/letter.

Repeat until the “name” has been written.

58 electrolux user guide

START

STOP

Operation 7

To select memorised cooking cycle press program control set then turn

main control dial to select corresponding number – wait a couple of seconds

and the name of cycle will appear.

To activate cycle, press start/stop button.

START

STOP

Press program control set again, you will see 01 ROAST BEEF

P: CONFIRM.

Press program control set button for 1-5 seconds, the display will now clear

– you have saved cooking cycle into program memory.

59electrolux user guide

Operation 1

air-o-steam®

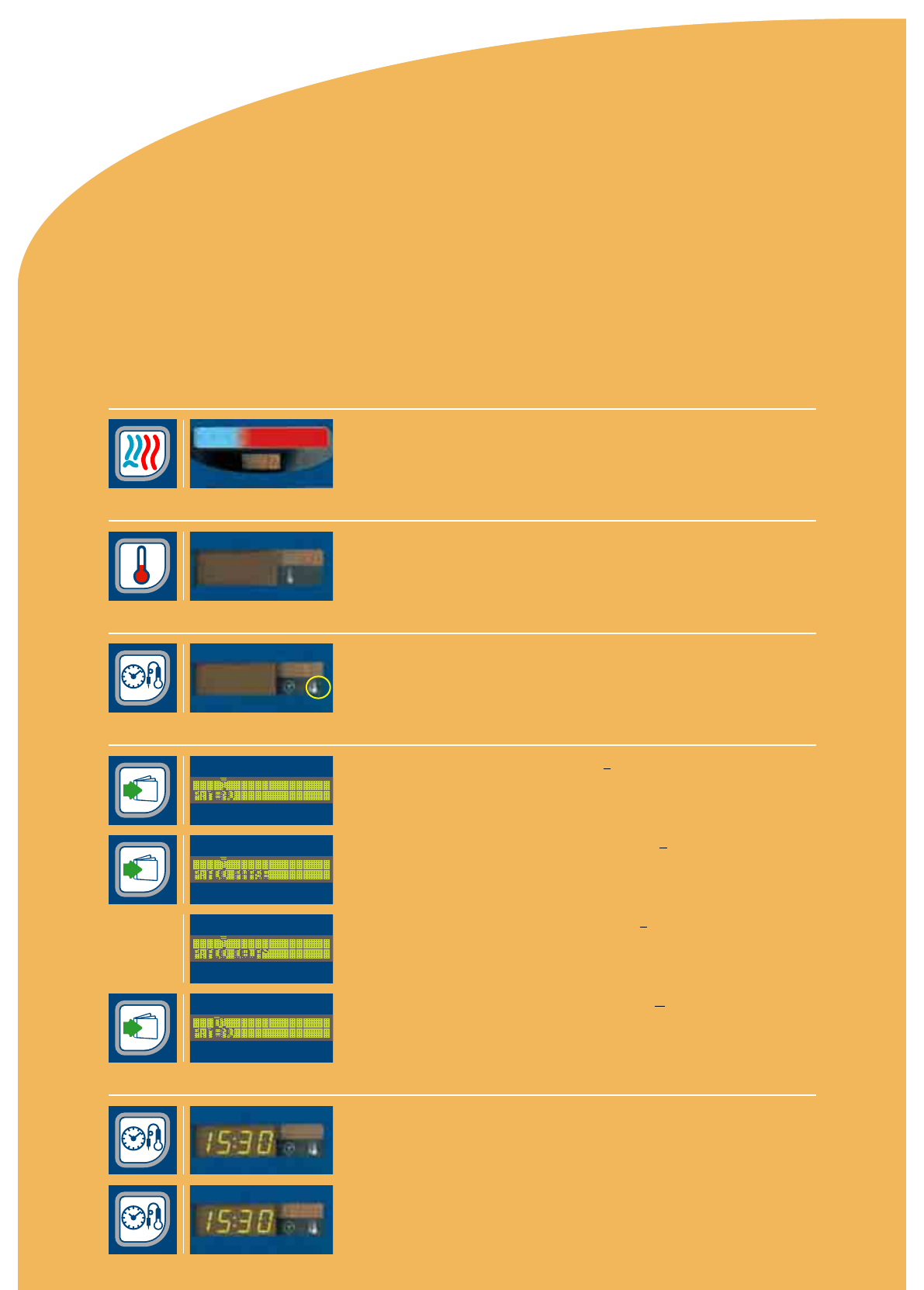

Adding a Delay at beginning of a cycle

e.g. You want to cook a large Beef roast approx. 15 kg, The chamber must be at

Ambient (room) temperature and the meat must be chilled at approx. 2-4 °C.

Select Combi mode with 40% humidity, press the Combi button twice then

use main control dial to select humidity at 40%.

Operation 2

Select air-o-steam® temperature by pressing the actual temperature button.

Use main control dial to select air-o-steam® temperature (e.g. 140 °C).

Operation 3

Now press core temperature button to select a core temperature value

of say 57 °C.

Operation 4

Press program control set, you will see 1 P: MENU.

Press program control set again and you will see 1 P: ADD PHASE.

Now using the main control dial turn to select 1 P: ADD DELAY.

Now press program control set and you will see D1 P: MENU.

In the display time/core temperature you will see the actual time.

You want the cooking cycle to start at 18:00 for example.

Using main control dial turn to select 18:00 in the time display

(red numbers).

e.g.

60 electrolux user guide

Operation 5

Press start/stop button to activate cycle.

The oven lights will go off and the display above program control set

will show D1 •1 alternately.

After the delay period (time) has passed the cooking cycle will automatically

start.

START

STOP

61electrolux user guide

air-o-steam®

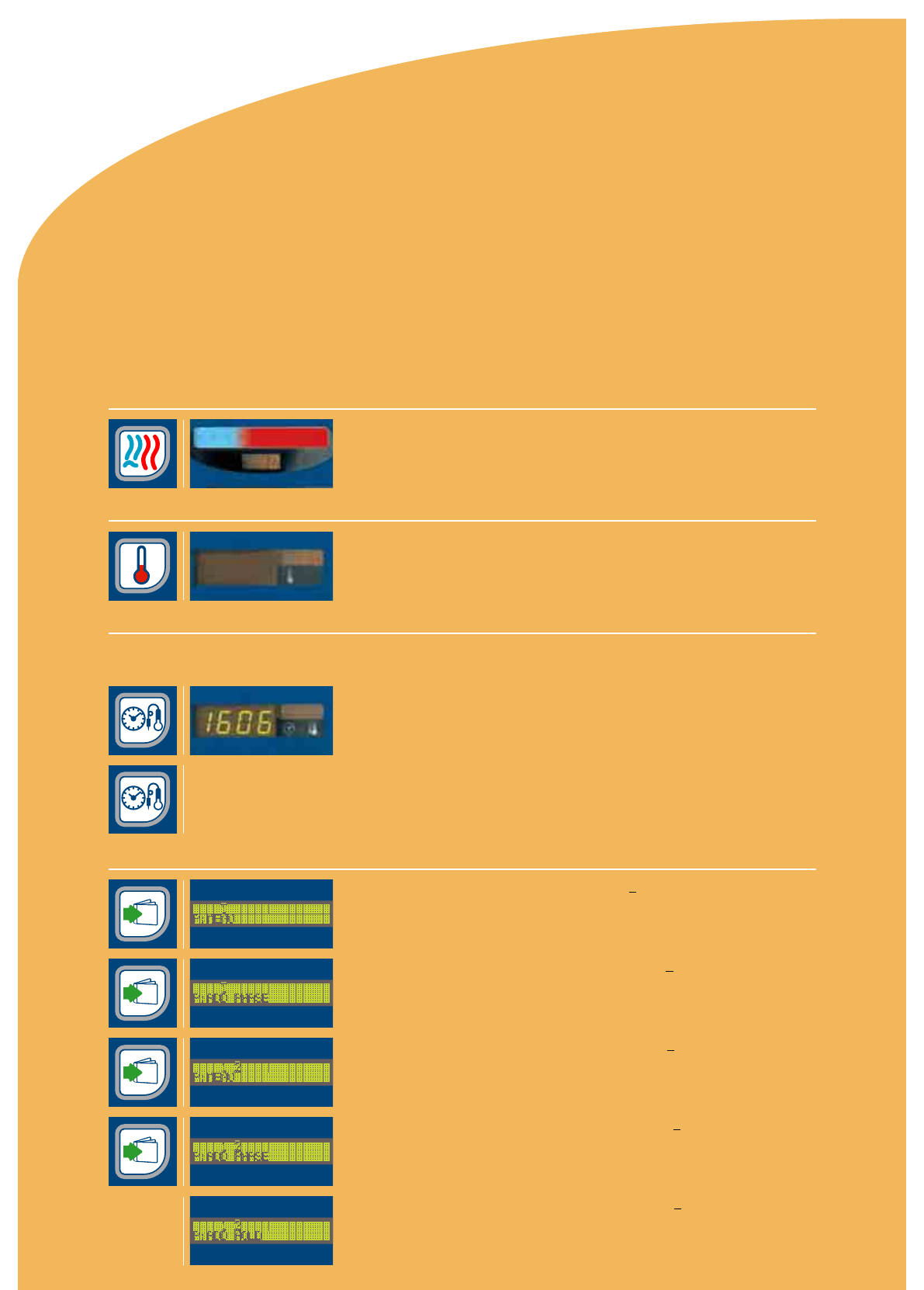

Cook and Hold

e.g. Roast Beef (pre-heat “air-o-steam®” to 190 °C)

Operation 1

Operation 4

Operation 2

Operation 3

Now press program control set you will see 1 P: MENU

Select Combi mode with 40% humidity, press the Combi button twice then

use main control dial to select humidity at 40%.

Select air-o-steam® temperature by pressing the actual temperature button.

Use main control dial to select air-o-steam® temperature (e.g. 160 °C).

Now set the core temperature value at approx. 6 – 9 °C below what you

would normally select if cooking and serving.

Press core temperature button if the time symbol is showing

Press again the time/core temperature button and while the numbers are

flashing use main control dial to select the core temperature value of your

choice.

Press program control set again, you will now see 1 P: ADD PHASE

Press program control set again and you will see 12 P: MENU

Press program control set again, you will now see 12 P: ADD PHASE

Now using the main control dial, turn until you see 12 P: ADD HOLD

62 electrolux user guide

Now press main control dial you will see 1 H P: MENU

In the temperature display you will see 12 P: ADD HOLD

The word “Hold” will also be illuminated in the “Cooking advanced

modes” area. Now using the main control dial turn to select a

Holding temperature, e.g. 65 °C.

Now press start/stop button to activate cycle.

When the meat has reached the target core temperature the oven will

automatically switch to Hold function. The chamber fan will operate

intermittently, approx. 50 seconds pause followed by approx. 5 seconds on

–1/2 speed.

START

STOP

Operation 5

63electrolux user guide

air-o-steam®

ECO - Delta cooking

Using “Linear Process”

e.g.: Roast Beef

Operation 1

U

START

STOP

Operation 2

Operation 3

Operation 4

Operation 5

Select Combi and press button again to set the humidity level – using the

main control dial to 45%.

Now select a target core temperature, e.g. 57 °C by pressing the time and

core temperature button while the numbers are flashing use main control

dial to select 57 °C.

Now press the advanced functions button, and using the main control

dial select the ECO-Delta symbol. You will see in the temperature display

“20”. This represents the temperature value difference between the core

temperature of the food and the oven chamber temperature.

The “delta” temperature range available is from +1 °C up to 120 °C.

If you want a “delta” value of 40 °C press and using main control dial

select 40 °C

Insert 6 point multi sensor probe into the beef, close oven door and press

start/stop button to activate cycle.

The temperature inside the oven chamber will always be approx. 40 °C above

the core temperature of the beef.

When the beef has reached the target temperature the oven will stop

automatically. You may notice that the meat surface is not brown, due to the

fact that at the end of the cooking cycle the oven chamber temperature is only

97 °C (we need at least 130 °C to achieve browning).

So we remove the beef from the oven, select Convection at 225 °C and

pre – heat oven for approx. 10 minutes, then place the beef inside to brown

surface. This may take approx. 12 minutes.

64 electrolux user guide

air-o-steam®

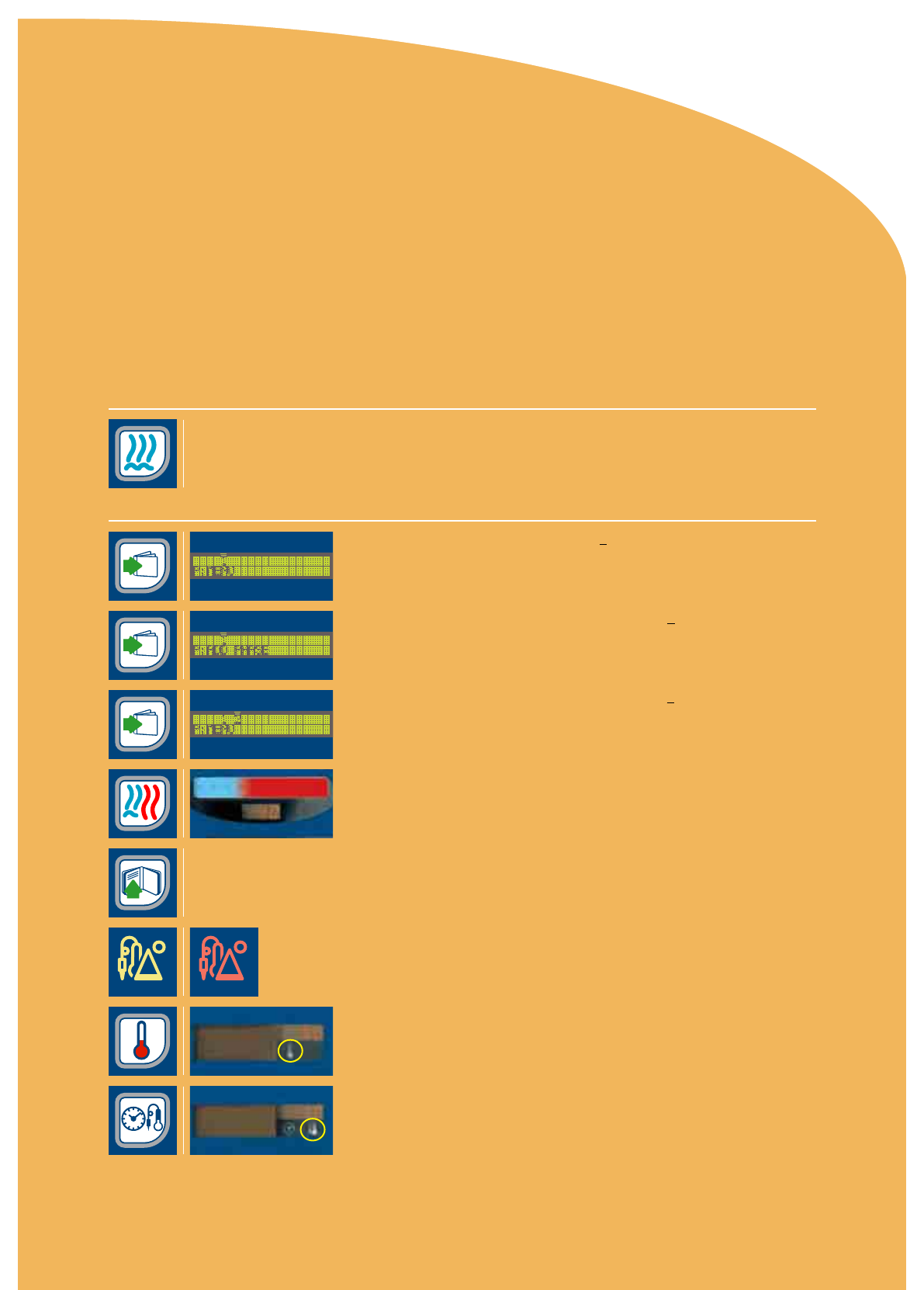

ECO - Delta cooking

Using “Progressive” process

e.g. Roast Beef (pre-heat “air-o-steam®” to 100 °C for 10‘)

Operation 1

U

Operation 2

Now select Steam cycle at 100 °C (1st phase) and set a time of 10’.

Press program control set you will see 1 P: MENU

Now press program control set again, you will see 1 P: ADD PHASE

Press program control set again and you will see 12 P: MENU

Now select Combi cycle and set humidity level (by pressing Combi button

again) to 40%.

Now press Advanced functions button

And using main control dial select the ECO - Delta icon by making it

illuminate red.

Press the temperature button and using main control dial select 60 °C.

Now press the time/core temperature button and choose a core

temperature value of 30 °C.

65electrolux user guide

Press program control set again and you will see 12 P: ADD PHASE

Operation 4

Press program control set again and you will see 123 P: ADD PHASE.

Operation 5

Operation 3

Press program control set again you will see 1234 P: MENU.

Now select Combi cycle at 40% humidity and a ECO - Delta temperature

value of 35 °C, core probe temperature at 50 °C.

Press program control set again and you will now see 123 P: MENU

Now select Combi cycle at 30% humidity and a ECO - Delta temperature

value of 40 °C, core probe temperature at 40 °C.

Press program control set again and you will see 1234 P: ADD PHASE.

Press program control set again you will see 12345 P: MENU.

Now select Convection cycle at 40% humidity by pressing the Convection

button twice.

Using the main control dial select 40%.

Select a ECO - Delta temperature value of 25 °C, core probe

temperature of 58 °C.

66 electrolux user guide

Operation 6

Press program control set again and you will see 12345 P: ADD PHASE.

START

STOP

U

Now press program control set again, you will see 123456 P: MENU.

Now press advanced functions button and using the main control dial,

select pause, set the time for 2 minutes.

Now press the start/stop button to activate the cycle.

This cycle is suited to other meats, just set the final core temperature

to suit product.

67electrolux user guide

Notes:

68 electrolux user guide

maintenance

instructions

69electrolux user guide

air-o-steam®

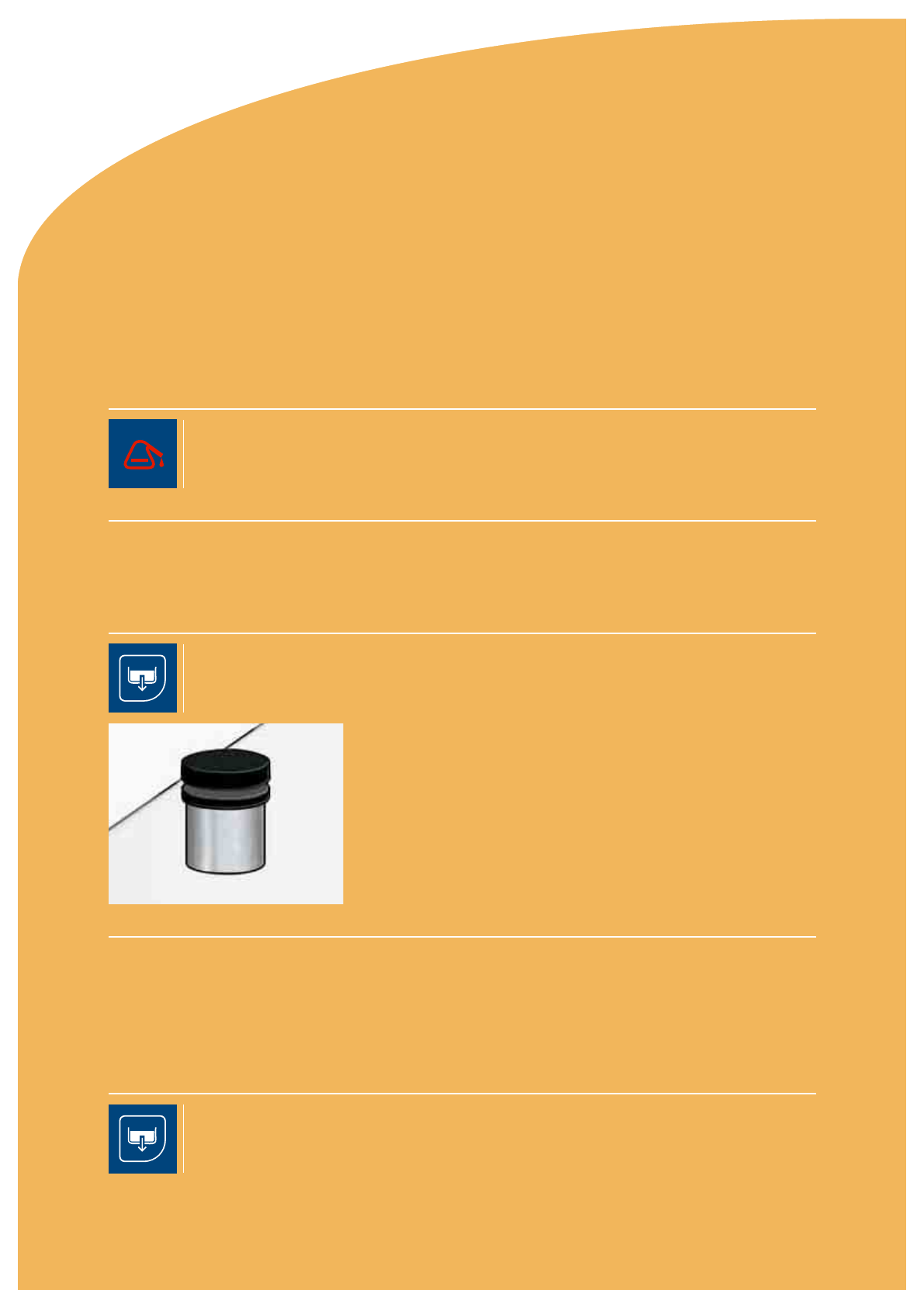

Descaling steam generator

Guide

Warning

When the indicator light comes on it is letting you know that the steam

generator tank requires cleaning/descaling.

Turn off the water supply to air-o-steam® (oven must be on but not in

operation).

Press the manual steam generator emptying button until the light comes

on, this will automatically open the drain valve and the water from the steam

generator tank will be released.

Remove the black rubber stopper from the steam generator vent pipe located

on left hand top of air-o-steam® and pour in, using a funnel

6 grid = 5 Litres

10 grid = 5 Litres

20 grid = 8.2 Litres

40 grid = 16 Litres

of pure white vinegar or an approved descaling chemical

Replace black rubber stopper, turn on water supply which will top up steam

generator tank to correct level.

Now leave the oven on – but not in operation for at least 2 hours. This allows

the vinegar/chemical inside boiler tank to warm up and dissolve the lime scale

build up.

Next turn off water supply to oven, press again the manual steam generator

emptying button, the light will come on and the chemical will drain out.

Remove the black rubber stopper and using a funnel, pour in approx. 4-5 litres

of cool water to flush out sediment.

Turn on water supply to oven, press manual steam generator emptying

button to close the drain valve (light flashing). Now the air-o-steam® is ready

for operation again – check that the black rubber stopper is replaced.

Operation 1

Operation 2

Operation 3

Operation 4

70 electrolux user guide

air-o-steam®

Cleaning cooking chamber

Guide

Operation 1

For best results remove cooking trays, wire grids etc from the roll-in rack/pan

support. The oven temperature must be below 70 °C prior to starting the

cleaning cycle, if it is higher select the quick cool down button (with the

door in the closed position).

Operation 2

When the fan starts spinning, open the oven door to speed up the cooling

down process. When the oven cavity temperature display shows less than

70 °C, close the oven door and press again the quick cool down button

to stop the cycle.

Operation 3

Press program button.

After you press the Program button, you can select a pre-stored cooking

cycle, cleaning cycle or LTC, if the display shows 1 P: MENU, then press

again and hold for 1-5 seconds the P button to clear display. Now press the

P button, using main control dial turn until you see the cleaning cycles. Turn

dial to select either “ soft”, “medium”, “strong”, or “x-strong”.

Press the

START

STOP button to activate cycle.

Operation 4

Be sure the detergent and rinse chemical containers are full and the water

supply to oven is turned on.

Now press the start/stop button to activate cycle.

Note Do not open the oven door during the cleaning cycle.

When cycle has ended, remove rack trolley and guide then wipe oven floor

with a damp cloth. Check the drain cover is not blocked with food scraps.

Check behind fan cover periodically and clean as necessary, secure fan

cover after cleaning behind. Take care when cleaning around fan and heating

elements, wear protective gloves when using cleaning chemicals. The oven

door has an inner glass panel that can be opened by pressing the two clips

located top and bottom, the panel is hinged for easy access.

START

STOP

71electrolux user guide

Notes:

72 electrolux user guide

air-o-chill®

73electrolux user guide

Blast chiller and Freezer

air-o-chill®

Turbo cooling and programs

(2 per cycle)

Customizable, by the ice-cream cycles

they can be replaced via software

Real time with self-diagnostic

Advanced functions

• Manual start for

the defrost function

• Core Probe selector

(up to 3 probes)

• UV sterilizing

• Norms profile selection

(UK, NF, CUSTOM)

• Advanced settings

• HACCP recall

• Operation Alarms recall

To select anyone of the advanced

functions first press

U

then using move to illuminate

the function you need.

Then press

U

again to confirm.

NF/UK standards

or customized settings

Central selector arrows

• Cycle

• Time

• Core temperature

• Advanced functions

HACCP and malfunction alarms

Chamber/core

temperature value

Cruise cycle

Chilling/freezing cycle selection:

• Soft chilling

• Hard chilling

• Positive holding

• Shock freezing

• Freeze holding

Residual time estimation

for probe driven cycle

Patent pending

74 electrolux user guide

Chilling cycles

with probe the ARTE (Algorithm for Residual Time Estimation) activates automatically

Advanced functions

Patent pending

Cruise Automatically adjusts the working temperature to the type of food. It reduces

the chilling time and prevents superficial burns.

Soft Chilling

air temperature: -2 °C

Ideal for delicate foods, such as leafy or cut vegetables, seafood, small portions

of meat, pastries, small cakes, biscuits, pasta.

Hard Chilling

air temperature: -20 °C

Ideal for solid or firm foods, such as vegetables (grown below the ground),

soups, stocks and sauces, stews and casseroles, whole joints of meat and

poultry.

Shock freezing

air temperature: -36 °C

Ideal for freezing all kinds of food – raw, half or fully cooked – that need to be

stored over a long period of time. (Version chiller-freezers)

Holding at:

+3 °C

-22 °C

Automatically activated at the end of each cycle, to save energy and maintain

the target temperature.

Can also be activated manually to turn air-o-chill® into a storage refrigerator or

freezer. (Version chiller-freezers)

Turbo cooling Alarms the user to set a working temperature between -36 and +3 °C.

Indicated for countinuous and bulk production.

Customizable

Programs

(2 per cycle)

Can be replaced (via software) by the “ICE CREAM” Freeze and Hold

and the “ICE CREAM” turbo cooling cycles.

Manual start

for the defrost function

Intelligent defrost cycle is activated automatically whenever necessary and as

long as necessary.

Can also be activated manually.

Core Probe selector It allows to alternately monitor the temperature of 3 different core probes

(optional) inserted in different kinds or sizes of food.

UV sterilizing Built–in UV lamps (only on request) to sterilize the cooling chamber after use.

Norms profile selection Through this function, it is possible to select the reference norms

(UK and NF are pre-programmed).

A third profile, can be created to match local or customer specific regulations.

SET

Settings Setting of the following parameters:

• date and time • customer profile limits • alarms and HACCP options •

bactericide cycle time (only with UV lamps)

HACCP

HACCP recall Calls up the HACCP events stored in the memory.

Operation Alarms recall Calls up the operational events registered by the auto-diagnostic system.

75electrolux user guide

air-o-chill®

The “Cruise” cycle controls automatically the chilling process.

It tries to terminate the process within the normative limits and preserves

the food quality. Simply insert the core temperature probe into the hot food,

close the door and press the CRUISE button.

It works by first starting in a “soft” chill mode where the working air

temperature inside the blast chiller is -2 °C.

When the air temperature reaches 0°C the AOC reads the food temperature,

if the food has not started to chill then the working air temperature target will

be automatically set at -11 °C ( Medium Chill ).

When the air temperature falls to -9 °C the food temp is measured again and

if it has still not started to chill then automatically it will change to a Hard Chill

cycle with the air temp set at -22 °C.

Cruise function

Turbo Cooling

The “Turbo Cooling” cycle allows the user to set a working temperature

between -36 and +3 °C. The Chiller works to keep the set temperature,

the impellers stay on always and the defrosting is automatically managed

To set the cycle press the “M” button and the symbol will light up, now press

the temperature / core probe button and hold for 2 seconds if you want to

change the target air temperature from what was previously used. When the

number is flashing use the right or left button at bottom of control panel to

select a new working air temperature. Then press again the temp/core button

to confirm new set temp.

• For continuous production: when the operator is cooking batches of food

and needs to chill several loads one after the other.

76 electrolux user guide

Ice Cream Freezing Cycles

There are two ice cream freezing cycles:

the first P1 is for fresh ice cream that is usually made in a batch freezer ice

cream machine and is then dispensed into containers at approx -6 °C.

These containers of ice cream are then placed into the air-o-chill® with

the food probe inserted into the ice cream.

The target temperature for freezing is set at -14 °C and the working

temperature inside the cabinet is set at -20 °C. When the ice cream has

reached -14 °C, air-o-chill automatically switches over to the freeze holding

mode.

The second ice cream freezing cycle, P2 is used for Gelato, with the working

temperature inside the cabinet set at -16 °C, it runs continuously – no time

and no probe are used.

How to find the Ice Cream Freezing Cycle

(1) Press the

U

button and using the select SET. It will be red in colour,

press the

U

button again to confirm.

(2) By pressing the right arrow 19 times you will see in the

temperature display and in the time display.

(3) Press the time button to make the flash, then press the

button again and pressing the left or right arrow select .

Press the time button to confirm.

(4) Now press the

U

to escape.

(5) To select the freezing cycle for ice cream simply press the Mbutton then

using select either P1 for fresh ice cream or P2 for Gelato.

To return air-o-chill® to normal operation repeat steps (1) to (3).

Change to press the to confirm and press

U

to escape.

77electrolux user guide

Notes:

78 electrolux user guide

useful tips for

blast chilling

with air-o-chill®

79electrolux user guide

air-o-chill®

Useful tips for Blast Chilling

With the new Electrolux air-o-chill® Blast chiller/freezer it is not necessary

to pre-chill appliance prior to loading and starting of cycle for most products.

Very small items may require air-o-chill® to be turned on approx.

5 minutes prior to loading. This enables the “Prep” cycle to run then

the chilling process will start.

Remember to always have the plug in place – in the drain outlet inside cavity.

Check the pull out plastic tray under the appliance prior to using each

day – tip out any water and clean with detergent and replace.

The drain outlet can also be connected using a hose to a floor drain for

convenience.

80 electrolux user guide

air-o-chill®

Soft Chilling

Remember the air temperature inside the cavity will be minus 2 °C

Pasta and similar foods

Firstly cook the pasta to “just done” (slightly under-cooked), remove from

cooking vessel and drain well – do not rinse with cold water as this will remove

most of the flavour.

Have ready the required number of 2 1/2” (65 mm) deep stainless steel pans

(not plastic as it is a poor conductor of heat and cold), and splash a little good

quality olive oil in base of pans.

Pour in the hot pasta – sprinkle a little more olive oil over and give it a stir prior

to loading into air-o-chill®.

During the blast chilling cycle, stir the pasta approx. every 5 minutes, touch

underside of pan and when cold, the pasta is ready to transfer to normal

chiller or walk-in cool room. Always cover with a lid or plastic wrap when

transferring to storage.

Don’t allow pasta to remain into air-o-chill® for too long as it will freeze and

thus be of poor quality.

• vegetables grown above the ground

• seafood

• small portions of meat e.g. chicken breast fillet, ribs

• egg custard

• pastries, small cakes, biscuits

• pasta

Remember that the maximum depth pan to use is 2 1/2” (65 mm) and a gap

of at least 1-1 1/2” (20-30 mm) must be allowed between the top of one

pan and the bottom of the pan above, to allow sufficient cold air to circulate

around the pans.

Always supervise the chilling process; most foods don’t require the full time of

cycle to chill down ready for transferring to a holding chiller or cold room.

Follow these guides for good results:

Soft Chilling - cycle is for delicate foods e.g.

81electrolux user guide

air-o-chill®

After cooking vegetables, e.g. in a steamer – remember to cook to “just

cooked” stage as they will still cook slightly more until they have started to chill

– if you normally cook beans for 6 minutes, reduce the cooking time

by 2 minutes as the time taken to remove from steamer and place into the

air-o-chill® will equate to having allowed the full 6 minutes of cooking time.

Vegetables

If cooking fillets of fish, try to only cook until the core temperature inside

the fish reads approx. 72 °C as the flesh will continue cooking after taking

out of oven.

It is not necessary to cover the fish when placing inside the air-o-chill® – this

applies to nearly all food, as covering will only lengthen the chilling process.

This is due to the cold air not coming into direct contact with the food.

Never stack fillets (cooked) on top of each other, it is best to use extra pans

which will also speed up the chilling process – again watch them – don’t allow

to freeze. If the fillets are thick enough insert the probe into one of them.

Seafood

82 electrolux user guide

air-o-chill®

Hard Chilling

Remember that the air temperature inside the cavity will be approx. minus 20 °C

• vegetables grown below the ground

• soups

• stocks and sauces

• stews and casseroles

• whole joints of meat and poultry – don’t put in joints larger than approx.

4-5 kg as it is difficult for the cold air to penetrate into centre unless it is

long strip like loin etc.

When chilling liquid based products, use the 2 1/2” (65 mm) deep s/steel pans

and fill to 3/4 for ease of handling when hot.

For optimum results use the 2” (40 mm) deep pans. Allow a space between

each pan of approx. 1-1 1/2” (25/30 mm) for chilled air circulation.

Some foods, e.g. stews, curry etc. are chilled faster if during the chilling cycle

they are gently stirred to blend in the cold food around edge of pan.

Using the core temperature probe. Try to use the core temperature probe

as this will monitor the internal temperature of the food being chilled.

When the hot food has been placed inside the air-o-chill®, insert the probe

before starting the cycle.

The air-o-chill® will know when the probe is being used due to the difference

in temperature between the probe and internal-cavity-temperature sensor.

When the probe is being used the display will show the internal temperature

of the food and when it has chilled to approx. 3 °C the chilling cycle will end.

After the cycle has ended the air-o-chill® will automatically start a defrost cycle,

then go to “holding temperature” of 3 °C.

After the defrosting cycle has ended the air-o-chill® will operate as a normal

chiller at 3 °C, e.g. if you load it with cooked product at end of day, the

appliance will hold the food at 3 °C until operator removes it next morning.

When finished with air-o-chill® always clean cavity with a soft cloth and mild

soapy water, rinse clean and sterilize using a wet cloth and white vinegar or an

approved anti-bacterial cleaner.

Leave door ajar (slightly open) using either the plug or a clean, unused piece

of sponge foam as a spacer. Remember to empty and wash drip pan under

appliance.

Hard Chilling - This cycle is used for more solid or firm foods e.g.

83electrolux user guide

air-o-chill®

Storage of food after Blast chilling

Remember to always cover food with a lid or plastic wrap to prevent drying and

odour transfer to other products in chiller

Sauce based foods, curry pastes etc. can be measured into vacuum bags

(after initial Blast chilling) then vacuum-sealed which will give a longer

shelf life – up to 35 days – depending on product.

If you require a longer shelf life, vacuum packed sauces, stocks, pastas,

casseroles etc. can be blast frozen (if you have a Blast Freezer). However if

the food is packaged in such a way that the shape of bag is like a “flat pillow”,

they can also be frozen if placed on wire grids (shelves) inside the air-o-chill®

which is set on Hard Cycle.

Lay the flat bags directly onto the cold racks (shelves) without overlapping the

bags, then let the air-o-chill® run for the complete Hard Cycle time duration.

The product will be frozen at end of cycle.

Remember to remove them once cycle has ended and transfer to a freezer

room or upright freezer; they can be held in baskets. Always label the

bags with production date/product name/volume and expiry date for future

reference.

Note to conform to most health requirements, the shelf life of products

mentioned above needs to be validated by a qualified food technologist.

This is due to ingredients used, method of preparation, handling and

cooking methods.

84 electrolux user guide

air-o-steam®

Regenerating chilled cooked food

U

START

STOP

It is important to regenerate/reheat pre-cooked chilled food to a safe serving

temperature. Some countries have laws governing this so be sure to check

with local health authorities.

Operation 1

Press the advanced functions button and using the main control dial

select the regeneration cycle then press the cooking advanced mode

button again to confirm.

The symbol will be orange in colour.

Operation 2

Once you confirm you will see a number displayed below the coloured bar using

the main control dial while the number is flashing, select the humidity level you

wish to use.

For example if you wish to regenerate cooked/chilled chicken breast filled with a

light herb stuffing, select 40 % humidity.

Operation 3

Now select the internal chamber temperature (remember to pre heat to

160 °C) ranging between 120 °C up to 140 °C by pressing the actual

temperature button and using main control dial to select the desired

temperature.

Operation 4

When regenerating it is better to use the 6 point multi sensor probe to

guarantee the correct serving temperature has been reached.

Press the cook time/core temperature button which selects both cooking

time or core temperature.

Now use the main control dial to select “core temperature” and insert the

probe into the chicken breast, close oven door and press the start/stop

button to activate cycle.

85electrolux user guide

air-o-chill®

Blast freezing

air-o-chill®/freezer

The air temperature inside the blast freezer reaches minus 35 °C and at the

end of the cycle holds product at minus 22 °C.

Product can be blast frozen either in vacuum bags, suitable sturdy plastic

containers that are no more than 40 mm deep and Gastronorm pans with

a maximum depth of 40 mm.

For optimum results when blast freezing liquid based products it is better to

first blast chill on hard cycle then place into suitable sized containers for blast

freezing.

Once product is frozen, cover with a tight fitting lid or place in airtight

container/vacuum bag to prevent dehydration in freezer.

Remember that when freezing product in vacuum sealed bags, be sure to

press flat to increase surface area which speeds up the freezing process.

If freezing small items such as vegetables, prawn cutlets, meat balls etc place

them on flat trays so they are not touching each other, once frozen they can

then be placed loose into sealed bags as “free flow”.

86 electrolux user guide

operating

instructions

air-o-chill®

87electrolux user guide

air-o-chill®

Chilling cycles

Operation 1

Turn on power to air-o-chill® by pressing on/off button.

After lamp test press central selector arrows button to select any of the

below cycles:

• Soft Chilling - 2 °C

• Hard Chilling - 20 °C

• Chill Storage + 3 °C

• Blast Freezing - 35 °C

• Freeze Storage - 22 °C

• Turbo Chilling - 20 °C

The selected symbol will become orange colour.

Press start/stop button to activate cycle.

Sometimes you will see “PREP” on the display

This is a function (air-o-start) to stabilise pressure inside the chilling system.

After a short time the cycle will start.

Operation 3

Soft Chilling

e.g.

START

STOP

Operation 2

88 electrolux user guide

air-o-chill®

To change from NF to UK settings

or vice/versa

Operation 1

Operation 2.a

Press advanced functions button

Then press central selector arrows button

Until the norms profile selection lights up

Press again advanced functions button to confirm

Operation 2.b

U

Using central selector arrows button

Select or

Wait a few seconds and it will vanish from view – you have now changed

the “norms”.

89electrolux user guide

air-o-chill®

Customise time

and temperature setting

Select the cycle you wish to modify, e.g. soft chilling cycle.

Now press the personalised programs button.

You will see the program 1 icon becoming red colour.

To change the air temperature, press chamber/core temperature button

and be sure the cavity temperature light is on -2 °C.

Keep your finger pressed for 3 seconds, you will then see the -2 numeral

flash.

P1P1

cavity temperature

probe temperature

Now press the central selector arrows button to select the temperature

you require. Remember the range is between –2 up to +10 °C.

Once you have selected the temperature, it will flash for 3 seconds then

remain on.

Operation 2

Operation 3

If you want to change the time of cycle duration press the real time button

and hold for 3 seconds.

The number in the display will flash, using the central selector arrows

button select the required time.

It will flash for 3 seconds then remain on.

You have now set custom temperature and time which will remain in

memory until you choose to change it.

Operation 1

90 electrolux user guide

air-o-chill®

Operation 4

P2P2

If you want to set a custom cycle on program 2 press the central selector

arrows button

You will see the program 2 icon becoming red colour.

Note The reason for being able to customise the time of cycle and cavity air

temperature is to allow total flexibility for the operator.

e.g.

Chilling 80 gm fillets of fish requires only 4 – 9 minutes depending on the

thickness of fillet, if you allow the cycle to run for it’s duration of 110 minutes

the fish will be frozen.

Use soft cycle for thin fillets and hard cycle for thick fillets with a temperature

of –12 °C and time of cycle to between 4 – 9 minutes. Once cycle has ended

the air o chill reverts to a holding chiller at +3 °C.

The above method applies also to:

Hard chilling, temperature range between -20 °C up to +10 °C

Positive Holding, temperature range between 0 °C up to +10 °C

Blast freezing, temperature range between -18 °C down to -35 °C

Freeze Holding, temperature range between -2 °C down to -25 °C

91electrolux user guide

air-o-chill®

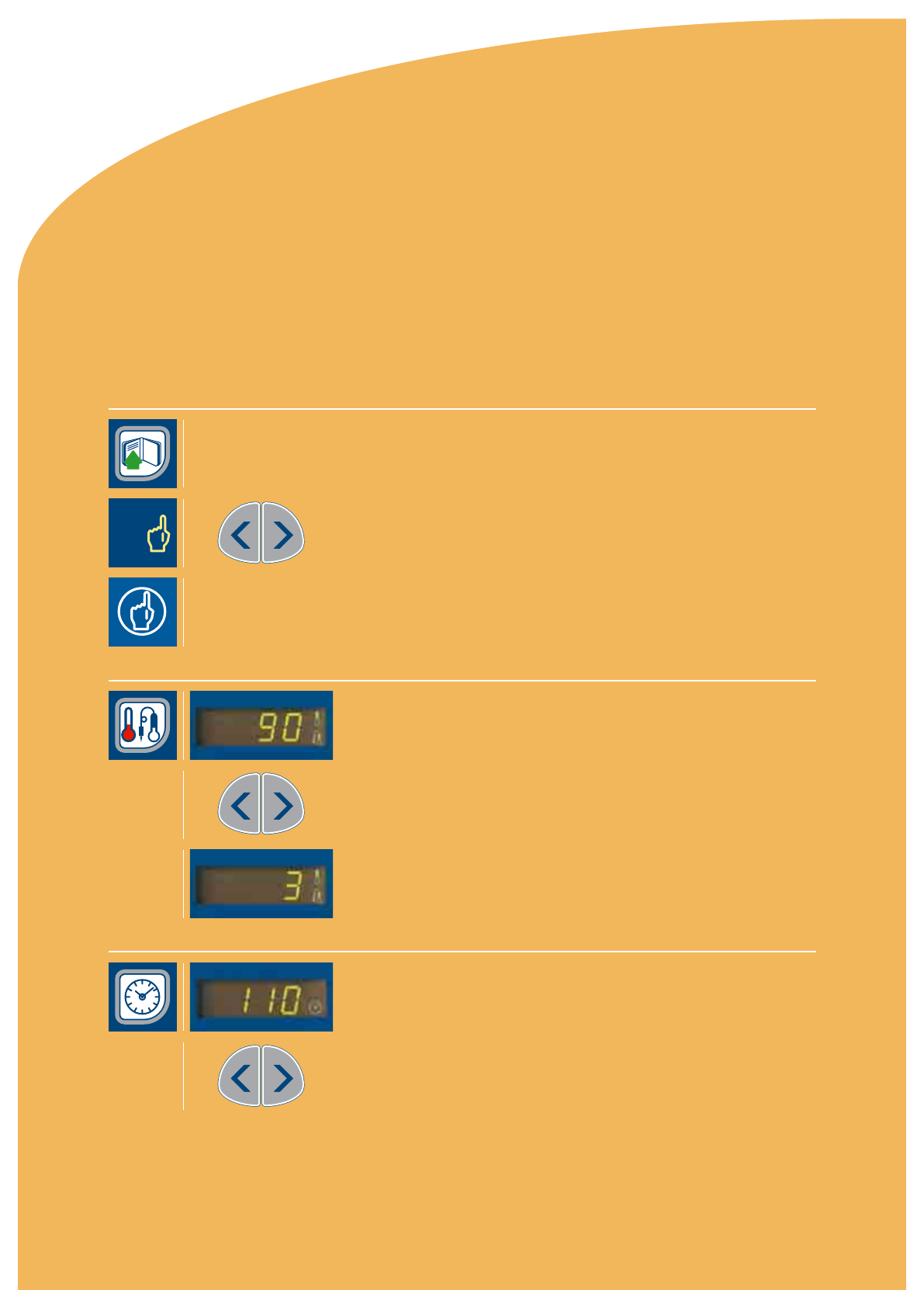

To customise set parameters

Operation 1

Press advanced functions button.

Using central selector arrows button (right-hand) select norms profile

selection.

Now using central selector arrows button (right-hand), select hand icon

while this symbol is illuminated.

U

Operation 2

Press chamber/core temperature button and “hold” until the number starts

flashing.

By using central selector arrows button you can change “temperature

max” from 90 °C (maximum temperature of cooked food going into the blast

chiller/freezer) down to a minimum of +3 °C.

Operation 3

To change “time” press real time button.

Then using central selector arrows button you can select time of cycle

duration.

92 electrolux user guide

air-o-defrost

93electrolux user guide

air-o-chill®

air-o-defrost

Fresh food directly from the freezer!

The Electrolux air-o-defrost uses a unique method of combining Low

Temperature Steam and high velocity air circulation to thaw frozen products.

The “target” thawed temperature can be set between –1 °C up to +2 °C in

increments of 1/10th of a degree.

When thawing meat for slicing it is best to thaw to -1 °C as this will facilitate

slicing as the meat will still be firm and hold it’s shape when slicing.

94 electrolux user guide

After turning on air-o-defrost

To defrost frozen products you simply place them into the perforated

containers, make a small hole in the product using the supplied “hand drill”

insert the core temperature probe, close the door, set target temperature and

leave the rest to air-o-defrost.

The thawing process involves the sensor in the probe monitoring the

product temperature, when it registers a big difference between the cabinet

temperature and core temperature the thawing process is activated.

The temperature inside the cabinet will increase via the steam generator in

steps up to +15 °C. first +7, then +10, +12 and finally +15 °C where it will

stabilise.

During the thawing mode the internal fan is on high speed with a constant

input of steam, which as it comes into contact with the frozen food

condensates back to water thus ensuring the food surface is always

very moist.

Note that the surface temperature of the food never exceeds +5 °C, this is

due to the physics of the reaction of the coldness coming from within the food

mass and passing through the foods surface. The opposite happens when

cooking food in that the temperature from the cooking appliance is penetrating

through the surface into the food mass.

Once the temperature of the food has reached 3 °C from your target

temperature then the refrigeration cycle will start and pull down the cabinet

temperature to +7 °C and stay at this temperature until the target temperature

has been reached and stabilised for 5 minutes.

The air-o-defrost cabinet will now pull down to +3 °C, the steam input will stop

and the fan speed reduce to a gentle air flow.

At approx. 40 minutes intervals the steam will input for a few seconds, this is

to keep the food product in a very moist environment.

95electrolux user guide

Capacity

The model 180 has a recommended maximum load of 35 – 40 kg

(77 – 88 lbs) and the thawing process only uses steam.

The model 1200 has a recommended maximum capacity of 150 – 200 kg

(330 – 440 lbs) and the thawing process uses both steam and heating

elements to raise the cabinet temperature to +15 °C.

Cleaning

After use clean the inside (after first removing the side support racks and rear

perforated cover) with mild detergent and warm water, rinse out then turn the

control dial to the “brush” symbol.

This will activate the steam cycle and take the cabinet temperature up to

approx. 85 °C and hold for 5 minutes. This is to sterilise the cabinet.

96 electrolux user guide

3 %

9 %

Filet of Cod

traditional thawing

cold room at 3 °C

4 %

10 %

4 %

9 %

3 %

9 %

3 %

8 %

3 %

6 %

innovative thawing

air-o-defrost

Minced Meat

Roast Beef

Filet of Salmon

Tenderloin

Cubes/Sliced Beef meat

Comparative weight loss

60 %

56 %

67 %

63 %

50 %

67 %

%reduction of weight loss

Filet of Cod

traditional thawing - hrs

cold room at 3 °C

innovative thawing - hrs

air-o-defrost

Minced Meat

Roast Beef

Filet of Salmon

Tenderloin

Cubes/Sliced Beef meat

Comparative thawing time

83 %

82 %

70 %

83 %

93 %

%time saved percentage

97electrolux user guide

Notes:

98 electrolux user guide

recipe selection

99electrolux user guide

meat/poultry/game

101electrolux user guide

Roast Beef

3 - 4,5 kg piece

2 per rack 11 34 581016

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

160 °C

10’

% H

70 °C

52 °C

% H

With probe

Generally sliced

cold, then

regenerated as

plated meal

Roast Pork

3 - 4,5 piece

2 per rack 11 34 581016

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

20’

% H

150 °C

55 °C

% H

170 °C

68 °C

% H

With probe

Generally sliced

cold, then

regenerated as

plated meal

Rack of lamb

(5-6 pt)

10 per rack 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

40 °C

% H % H

190 °C

55 °C

With probe

Beef casserole

use 65 mm

deep G/N 1/1

pans

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

130 °C

120’

% H

With probe

130 °C

65 °C

% H

140 °C

65 °C

% H

% H humidity level

50 °C

with LTC 11 34 58 1016

64 °C

with LTC 11 34 58 1016

78 °C

with LTC 3 4 5 8 10 16 20 32

Pork casserole

in 65 mm deep

G/N 1/1 pans 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

150 °C

% H

140 °C

65 °C

% H

With probe

with LTC 3 4 5 8 10 16 20 32 64 °C

3’

% H

2’

% H

60 °C

Cont.

% H

HOLD

102

Lamb casserole

in 65 mm deep

G/N 1/1 pans 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

140 °C

60’

% H

120 °C

20’

% H

2’

% H

With probe

140 °C

65 °C

% H

Food item

GN 1/1 trays

air-o-steam®

10 20 40

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Cut into portions

Roast duck

3 per rack

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

160 °C

20’

% H

160 °C

10’

% H

195 °C

20’

% H

195 °C

82 °C

% H

With probe

130 °C

70 °C

% H

% H humidity level

Cottage pie

brush top

with melted

butter

34 541082016

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

160 °C

35’

% H

180 °C

15’

% H

2’

% H

With probe

Bacon slices

arranged

on 20 mm trays 6 4 10 4 20 8 40 16

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

200 °C

2’

% H

210 °C

3’

% H

Check after 6’

140 °C

65 °C

% H

140 °C

3’

% H

1’

% H

Cut into portions

Roast chicken

1-2 kg piece

5-6 per rack 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

210 °C

8’

% H

190 °C

10’

% H

230 °C

5’

% H

195 °C

82 °C

% H

With probe

190 °C

8’

% H

130 °C

70 °C

% H

2’

% H

BBQ chicken

1-2 kg piece

5-6 per rack 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

190 °C

10’

% H

175 °C

10’

% H

175 °C

5’

% H

190 °C

82 °C

% H

180 °C

10’

% H

103

Chicken legs

15 per rack

6 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

200 °C

10’

% H

With probe

Hamburger

100 gr each

15 per tray

GN 20 mm

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

195 °C

8’

% H

Check after 20’

140 °C

65 °C

% H

135 °C

8’

% H

1’

% H

190 °C

82 °C

% H

2’

% H

200 °C

3’

% H

% H humidity level

Stuffed chicken

breast

12 per tray

GN 20 mm

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

165 °C

6’

% H

160 °C

72 °C

% H

With probe

Chicken breast

(fresh)

12 per tray

GN 20 mm

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

160 °C

6’

% H

160 °C

72 °C

% H

135 °C

65 °C

% H

135 °C

65 °C

% H

With probe

66 °C

with LTC 64 10820164032

66 °C

with LTC 64 10820164032

175 °C

70 °C

% H

Veal shoulder

roast

1 joint per rack 11 22 44 88

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

40’

% H

Not suitable

in one piece.

Cut into 2-3 kg

size, hard with

probe

Normally sliced

and served cold

with LTC 11 22 44 88 67 °C

104

Food item

GN 1/1 trays

air-o-steam®

10 20 40

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

% H humidity level

Meat terrine

2 terrines

per rack 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

75 °C

% H

With probe Not suitable for

regeneration

5’

% H

Ox tongue

5 kg per 65 mm

GN pans 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

150’

% H

With probe

Hare/Rabbit

4 kg per GN

pans 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

200 °C

5’

% H

140 °C

65 °C

% H

With probe

210 °C

62 °C

% H

Normally sliced

and served cold

Regenerate portioned

as plated meals or

with sauce in GN pans

8’

% H

135 °C

65 °C

% H

Sliced as plated meals

or sliced in sauce,

regenerated in pans.

130 °C

Not suitable for

regeneration but

with a covered dish

Kebab (chicken,

beef, lamb): cook

time depends on

size of meat pieces

(GN 20 mm pans)

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

10’

% H

200 °C

5’

% H

Check after 12-15’

Boned, stuffed

rolled loin of pork

2 pieces per GN

40 mm pans

22 541082016

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

120 °C

30’

% H

5’

% H

With probe

180 °C

70 °C

% H

195 °C

75 °C

% H

2’

% H

165 °C

65 °C

% H

Meat balls

6 4 10 8 2018 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

2’

% H

195 °C

8’

% H

180 °C

5’

% H

1’

% H

1’

% H

105

farinaceous dishes

107electrolux user guide

65 °C

Normally eaten cold

portioned

in pan use

Quiche

number per grid

depends on size 3 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

160 °C

20’

% H

180 °C

15’

% H

With probe

Vegetable au

gratin

in 40 mm GN

pans

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

160 °C

20’

% H

180 °C

15’

% H

3’

% H

With probe

Rice-pilaf style

65 mm pans,

1.5 litre hot

stock per 1 kg

rice

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

150 °C

25’

% H

140 °C

3’

% H

With probe

(stir rice every 5-8’)

Lasagne

65 mm pans,

5 kg each 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

165 °C

20’

% H

140 °C

20’

% H

With probe

Vegetable

lasagne

65 mm pans,

3 kg each

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

165 °C

20’

% H

160 °C

15’

% H

With probe

Baked pasta

65 mm pans,

3 kg each 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

175 °C

15’

% H

170 °C

15’

% H

130 °C

% H

140 °C

% H

140 °C

% H

130 °C

5’

% H

140 °C

65 °C

in pan use 65 °C

65 °C

8’

% H

With probe

% H humidity level

2’

% H

2’

% H

2’

% H

2’

% H

2’

% H

108

portioned

120 °C

8’

% H

Gnocchi alla

romana

40 mm pans 3 4 5 8 10 16 20 32

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

170 °C

20’

% H

170 °C

3’

% H With probe

If regenerated

% H humidity level

2’

% H

109

miscellaneous

111electrolux user guide

Boiled eggs

(20 °C) perforated

tray, 60 eggs per

tray (time depends

on soft/hard)

6 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

110 °C

100

8’

% H

Place in cold water

Yorkshire

pudding

in tins on grids 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

220 °C

5’

% H

220 °C

10’

% H

250 °C

3-5’

% H

Not suitable for

regeneration

Par baked

baguettes and

small rolls

perforated

baking sheet

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

10’

% H

170 °C

5’

% H

Scrambled eggs

pour mixture into

greased 65 mm

pans,

4 litre per pan

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

120 °C

10-15’

% H

Duchess potatoes

pipe mix onto

greased baking

sheets or 20 mm

pans. 50-60 per tray

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

5’

% H

165 °C

3’

% H

Idaho potatoes

on wire grids,

do not stack

on top of each

other

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

30’

% H

175 °C

15’

% H

150 °C

10’

% H

130 °C

65 °C

% H

2’

% H

With probe

2’

% H

1’

% H

% H humidity level

2’

% H

100 °C

5’

% H

2’

% H

1’

% H

112

Scotch eggs

double crumb

20 mm tray,

24-30 per tray

3 4 5 8 10 16 20 32

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

160 °C

10’

% H

150 °C

7’

% H

150 °C

2’

% H

With probe Not suitable for

regeneration

% H humidity level

1’

% H

113

seafood

115electrolux user guide

116

% H humidity level

1’

% H

2’

% H

Fish kebab

20 mm tray

with grid

Approximately

2 kg per tray

6 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

180 °C

8’

% H

180 °C

2’

% H

120 °C

4-6’

% H

Check after 10’

Whole fish

approximately

280-320 g.

40 mm GN pans,

9 per pan

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

170 °C

66 °C

% H

Salmon filets

poached

40 mm pans,

15 fillets per pan,

depends on size

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

58 °C

% H

120 °C

4-6’

% H

Check after 10’

Lobster

20 mm

perforated 3-4

kg per pan

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

18’

% H

Plunge into

cold water

Crab

65 mm

perforated pan,

8-10 crabs per

pan

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

9’

% H

Plunge into

cold water

Seafood terrine

on wire grids,

3 per grid 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

80 °C

72 °C

% H

With probe

117

Fish filets boiled

20 mm pans-solid

6 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

80 °C

68 °C

% H With probe

If regenerated

With probe

Fish balls

20 mm pans-solid,

50 per pan 6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

6-8’

% H

130 °C

65 °C

% H

120 °C

4-6’

% H

% H humidity level

vegetables

119electrolux user guide

Asparagus

20 mm

perforated pans,

1.5 kg per pan

6 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

100 °C

7’

% H

1’

% H

Check after 10’ As for plated meals

Beans (fresh)

40 mm

perforated,

2.5 kg per pan

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

8’

% H

Check after 10’ As for plated meals

As for plated meals

Beans (frozen)

40 mm perforated,

2.5 kg per pan 6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

105 °C

10’

% H

Check after 10’

Broccoli (fresh)

40 mm

perforated,

1.5 kg per pan

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

8’

% H

Check after 10’

Cauliflower

40 mm

perforated,

2 kg per pan

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

10’

% H

Check after 10’

Cabbage

shredded

40 mm

perforated,

2.5 kg per pan

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

4’

% H

1’

% H

Check after 10’

% H humidity level

1’

% H

1’

% H

1’

% H

1’

% H

120

% H humidity level

Mousaka

20 mm solid

pans 6 4 10 8 2016 2032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

150 °C

20’

% H

165 °C

18’

% H

With probe As for plated meals

Corn cob

40 mm

perforated,

12 per pan

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

15’

% H

95 °C

5’

% H

As for plated meals

Leeks

40 mm perforated,

2 kg per pan 6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

100 °C

5’

% H

2’

% H

Check after 10’

Stuffed peppers

40 mm solid pans,

20 pieces per pan 3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

170 °C

7-8’

% H

170 °C

20’

% H

140 °C

65 °C

% H

With probe

1’

% H

1’

% H

1’

% H

Frozen mixed

vegetables

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

120 °C

15-18’

% H

2’

% H

121

desserts

123electrolux user guide

Food item

GN 1/1 trays

air-o-steam®

10 20 40

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Bread and

butter pudding

65 mm solid

pans, 24-30

portions

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

150 °C

15’

% H

160 °C

6’

% H

165 °C

5’

% H

1’

% H

With probe Served cold

Din cake

20 mm solid

trays,

1-3 kg butter

on each

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

23’

% H

2’

% H

Check after 10’ Served cold

Served cold

Crème caramel

40 mm solid pans,

18-24 pieces per

pan. Cover with

cling wrap

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

85 °C

35-40’

% H

With cover on

check after 15’

Fruit crumble

65 mm solid

24-30 portions

per pan U-PAN

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

160 °C

25’

% H

With probe

Baked stuffed

apples

20 mm solid

pan, 20 apples

per pan

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

110 °C

18’

% H

100 °C

10’

% H

5’

% H

100 °C

75 °C

% H

1’

% H

Poached apples

and pears

in vacuum bags

with syrup, spice

Cooked on grids

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

93 °C

15-18’

% H

2’

% H

With probe

% H humidity level

1/2 vel. vent.

160 °C

5’

% H

2’

% H

124

% H humidity level

Fruit muffins

in muffin tins on

wire grids,

18 per grid

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

180 °C

10’

% H

160 °C

7’

% H

1’

% H

Fruit cake

in round tins,

23 cm diameter,

2 per grid

3 4 5 8 10 16 20 32

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

175 °C

15’

% H

180 °C

10’

% H

180 °C

5’

% H

1’

% H

Food item

GN 1/1 trays

air-o-steam®

10 20 40

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

125

Croissants

proved ready to

bake 20 mm pans

or baking sheet,

10 per sheet

6 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

160 °C

18’

% H

Choux buns

20 mm pans

or baking sheet,

24-30 per sheet

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

190 °C

18-20’

% H

1’

% H

Danish Pastries

perforated baking

sheet, 10-12

per sheet

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

190 °C

2’

% H

190 °C

8-10’

% H

1’

% H

French tartlets

perforated

sheets, 18-20

per sheet

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

165 °C

3’

% H

165 °C

9’

% H

Sausage rolls

perforated

baking sheets,

20-24 per sheet

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

185 °C

5’

% H

185 °C

10’

% H

2’

% H

Apple strudel

perforated

baking sheets,

2 strudels per

sheet

6 4 10 8 2016 4032

Pitch - mm 60 80 60 80 60 80 60 80

Automatic

185 °C

10’

% H

% H humidity level

2’

% H

2’

% H

165 °C

6’

% H

2’

% H

126

Christmas

mince pies

individual

recessed baking

tins, 24 per shelf

6 4 10 8 2016 4032

Food item

Pitch - mm 60

GN 1/1 trays

air-o-steam®

10 20 40

80 60 80 60 80 60 80

Pre-heating

temperature

Cooking air-o-steam®

123456

Chilling

air-o-chill®

Regeneration

air-o-steam®

Automatic

175 °C

10’

% H

165 °C

6’

% H

2’

% H

% H humidity level

127

Notes:

128 electrolux user guide

appendix

129electrolux user guide

Notes:

130 electrolux user guide

air-o-system

How to use

The following pages (132 and 133):

“Cooking cycle chart” and “Cook/ Chill/ Regeneration chart” are for you to

record your personal cooking programs.

Please use these pages as a “master copy” and keep blank!

Photocopy them as required to record your own data, which you can keep

near the air-o-system appliances for a quick reference.

This will make retrieval of pre-programmed cycles much easier to find and

enable you to collect over time a comprehensive file.

131electrolux user guide

air-o-steam®

Cooking cycle chart

Program number Time/ProbeName of dish

132 electrolux user guide

Food item Cooking Chilling Regeneration

Cook/ Chill/ Regeneration chart

The Company reserves the right to change specifications without notice.

Electrolux Professional SpA

Viale Treviso, 15 - 33170 Pordenone - Italy - Tel. (+39) 0434 3801

www.electrolux.com/foodservice

Share more of our thinking at www.electrolux.com

Electrolux Welder 180 Users Manual

180 to the manual 517758db-355f-40ef-93a6-4e9b5ed4edb7

Navigation menu

Versions of this User Manual:

Views

Navigation
