INSTRUCTION BOOK

8221912-28

Model EMS 2485

For the user

Before using your microwave oven 4

Maff rating 4

Safety Instructions 5

Utensil safety 5

Testing suitability of cookware 5

Foil containers 6

Food safety 6

Safety instructions when cooking by Grill 7

Oven utensils and accessories guide 8

Description of the microwave oven and accessories

The microwave oven 9

Accessories 10

Control panel 11

Before using your microwave oven for the first time

Cleaning 12

Setting the clock 12

General operating instructions 13

How to operate your microwave oven

Microwave cooking 15

Microwave setting guide 16

Minute timer with alarm 16

Grill cooking 17

Microwave and Grill cooking 18

Automatic programmes 19

Auto Defrost 19

Automatic Cooking Programmes 21

Combination cooking Microwave and Grill 22

Quick Start 22

Child Lock 23

Microwave Hints 23

Charts

Defrosting 24

Cooking vegetables 26

Cooking fish 26

Grilling table 27

Combined Microwave and Grilling table 27

Care and cleaning 28

Care and cleaning (grill) 28

Cleaning the accessories (turntable, support

(turntable, support and rack) 28

Cleaning the interior 28

Cleaning the exterior 28

Service and Spare Parts 29

Guarantee Conditions

Standard guarantee conditions 30

Exclusions 30

For the installer

Installation

Electrical connections 31

Build-In model 32

Connecting to the mains 32

Technical data 32

EEMMSS22448855UUKK

CCoonntteennttss

EEMMSS 22448855UUKK

Read through the instruction manual carefully. The fol-

lowing instructions have been prepared so that you can

get the best from your new Electrolux microwave oven.

It is important that this instruction book is retained with

the appliance for future reference. Should the appliance

be sold or transferred to another owner, or if you move

house and leave the appliance, always ensure that the

book is supplied with the appliance so that the new

owner can become acquainted with the functioning of

the appliance and the relevant warnings. Please ensure

you have read the whole instruction book before using

the appliance and that you follow the recommendations

given.

BBeeffoorree uussiinngg yyoouurr mmiiccrroowwaavvee oovveenn

N.B. When you unpack the oven, check that the pro-

duct is free from damage. Damage or any missing parts

must be reported immediately to the retailer. The oven,

parts of the oven or the accessories may be wrapped by

a protection foil. If so, you must remove this foil before

using the oven. Do not leave packing material so that

small children can play with it. This can be hazardous.

Unpacking

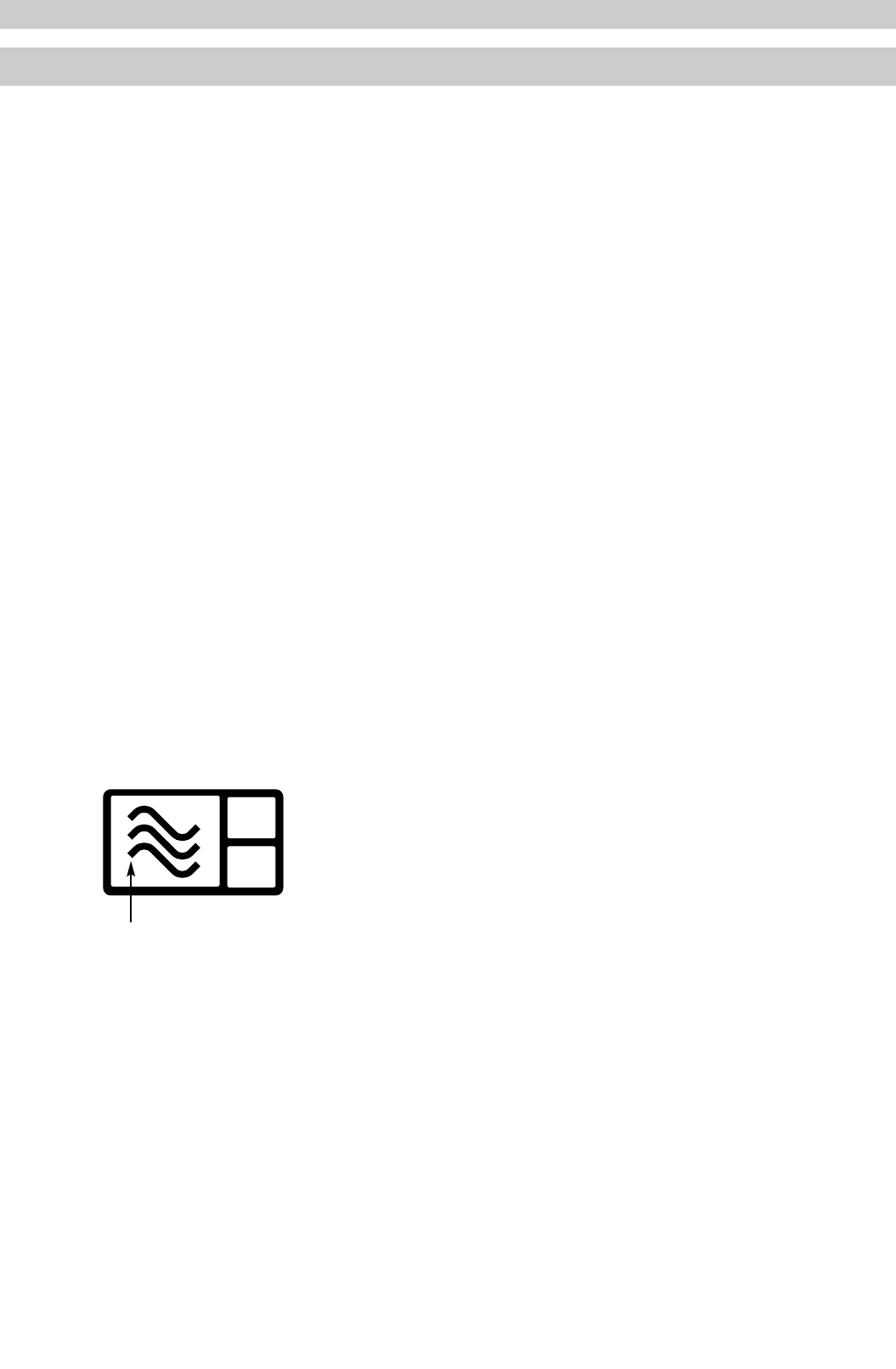

Explanation of the heating category label for microwave ovens and small packs of food

(up to 500g / 1 lb, typical of ready meals for 1 or 2 people)

as agreed by MAFF (the Ministry of Agriculture, Fisheries and Food)

in conjunction with food and Microwave Oven manufacturers.

Power Rating in Watts

Heating Category

Microwave Symbol

900W

MAFF RATING

EEMMSS 22448855UUKK

 The built-in safety interlock switches prevent

the microwave oven from operating when the door

is open.

 Do not tamper with them, or attempt to operate the oven

with the door open as open door operation can result

in exposure to microwave energy.

 Do not allow food spills or cleaner residue to accumu-

late on door sealing surfaces. See the Cleaning and

Care section for cleaning instructions.

 It is particularly important that the oven door closes pro-

perly and that there is no damage to the:

(1) door (warped), (2) hinges and latches (broken or

insecure), (3) door seals and sealing surface.

If the door, hinges/latches or door seals are

damaged, the microwave must not be operated

until it has been repaired by an authorized ser-

vice engineer.

It is hazardous for anyone other than factory

trained service personnel to service or make

adjustments to this oven. Contact your local

Electrolux Service Force Centre if service should

be required.

 Do not remove the outer case, door or control panel at

any time. Doing so may cause exposure to extremely

high voltage.

 Install or locate this oven only in accordance with

installation instructions found in this manual.

 Use the appliance for its intended use as described in

this manual. Do not use corrosive chemicals in this

appliance. This type of oven is specifically designed

to heat, cook, or defrost food. It is not designed for

industrial or laboratory use neither for commercial use

as this will invalidate the guarantee.

 Do not operate the oven without the turntable correctly

positioned nor empty. If food or water is not present to

absorb the microwave energy, the magnetron tube

can be damaged.

 Do not store this appliance outdoors. Do not use this

product near water.

 Do not attempt to dry clothing or newspapers in the

microwave oven. These items can ignite.

 In order to evacuate moisture, your appliance is fitted

with a delayed ventilation function. Depending on the

applied cooking mode (solo / grill / combination), the

oven ventilation will continue to operate after the cooking

end. It switches off automatically after 3 minutes.

 Do not use the cavity for storage purposes. Do not

leave paper products, cooking utensils, or food in the

cavity when not in use.

If smoke is observed, switch off or unplug the

appliance and keep the door closed in order to

stifle any flames. Never use water.

Only allow children to use the microwave with-

out supervision when adequate instructions have

been given so that the child is able to use the

microwave in a safe way and understands the

hazards of improper use.

Utensil safety

 Most glass, glass ceramic and heat-resistant glass-

ware utensils are excellent for use in the microwave

oven. Although microwave energy will not heat most

glass and ceramic items, these utensils can become

hot as heat transfers from the food to the container.

Use oven gloves to remove dishes.

Testing suitability of cookware

 Place the cookware in the microwave along with a

glass half full of water. Heat on 900W (100%) for one

minute. If the cookware feels hot, you should not use

it. If it is just slightly warm, you can use it for reheating

but not for cooking. If the dish is room temperature, it

is suitable for microwave cooking.

 Paper napkins, wax paper, paper towels, plates,

cups, cartons, freezer wrap and cardboard are great

convenience utensils. Always be sure containers are

filled with food to absorb energy and thus avoid the

possibility of overheating.

 Many plastic dishes, cups, freezer containers and

plastic wraps may be used in the microwave oven.

Follow manufacturers instructions when using plas-

tics in the oven. Avoid using plastic utensils with foods

that have high fat or sugar content since these foods

reach high temperatures and could melt some plastics.

 Do not leave the oven unattended, heating or cooking

food in plastic, paper or other combustible containers.

If smoke is observed, keep door closed, switch the

oven off or disconnect oven until smoke stops.

SSaaffeettyy iinnssttrruuccttiioonnss

EEMMSS 22448855UUKK

 Metal containers and containers with metallic trim

should not be used in the microwave oven, unless

specifically recommended for microwave use.

 Containers with restricted openings, such as bottles,

should not be used for microwave cooking.

 Use caution when removing a lid or cover from a dish

to avoid steam burns.

Foil containers

Shallow foil containers may safely be used to reheat

foods in your microwave oven providing the fol-

lowing rules are observed:

1. Foil containers should not be more than 3 cm (1 1/4)

deep.

2. Foil lids must not be used.

3. The foil containers must be at least two-thirds full of

food. Empty containers must never be used.

4. Foil containers should be used singly in the microwave

oven and should not be allowed to touch the sides. If

your oven has a metal turntable or cooking rack, the

foil container should be placed on an upturned oven-

proof plate.

5. Foil containers should never be re-used in the

microwave oven.

6. If the microwave oven has been in use for

15 minutes or more, allow it to cool before using it

again.

7. The container and turntable may become hot during

use, take great care when removing either from the

oven. It is advisable to use an oven cloth or glove

when doing so.

8. Remember when using an aluminium foil container

that the reheating or cooking times may be longer

than you are used to, always ensure that the food is

piping hot before serving.

Food safety

 Do not heat food in a can in the microwave oven.

Always remove the food to a suitable container.

 Deep fat frying should not be done in the microwave

oven, because the fat temperature cannot be con-

trolled, hazardous situations can result.

 Popcorn may be prepared in the microwave oven,

but only in special packages or utensils designed

specifically for this purpose. This cooking opera-

tion should never be unattended.

 Pierce foods with non-porous skins or membranes to

prevent steam build-up and bursting. Apples, pota-

toes, chicken livers, and egg yolks are examples of

items that should be pierced.

 The contents of feeding bottles and baby food jars are

to be stirred or shaken and the temperature is to be

checked before consumption, in order to avoid

burns.

When heating liquids, e.g. soups, sauces and

beverages in your microwave oven, overheating

the liquid beyond boiling point can occur without

evidence of bubbling. This could result in a sud-

den boil over of the hot liquid. To prevent this

possibility the following steps should be taken:

1. Avoid using straight-sided containers with narrow

necks.

2. Do not overheat.

3. Stir the liquid before placing the container in the

oven and again halfway through the heating time.

4. After heating, allow to stand in the oven for a short

time, stirring again before carefully removing the

container.

Some products such as whole eggs and sealed

containers  for example, closed glass jars 

may explode and should not be heated in this

oven. Occasionally, poached eggs may explode

during cooking. Always pierce the yolk, then

cover and allow standing time of one minute

before removing cover.

Keep these instructions!

EEMMSS 22448855UUKK

Safety instructions when cooking by grill

1. The glass viewing window may break if water is spilled

on it during grilling.

2. Be sure to use an oven glove when loading and

unloading the oven. Containers get very hot in the

oven, so be careful not to burn yourself. The turntable

and metal rack also get very hot so be sure to use an

oven glove when handling them.

3. Do not touch the inner or outer viewing window with

metal components when loading or unloading the

oven. The inside of the door and oven get very hot so

take care when attending food in the oven.

4. Do not put the turntable or containers in cold water or

try to cool them quickly after use.

5. Do not place items on top of the cabinet. The top of

the cabinet gets very hot, so anything placed on it may

be damaged by the heat.

It is quite normal for steam to be emitted around

the door, or for misting to occur on the door, or

even for water droplets to appear below the door

during the cooking cycle. This is merely con-

densation from the heat of the food and does

not affect the safety of your oven. The door is

not intended to seal the oven cavity completely.

 Do not force the turntable to rotate by hand.

This may cause malfunctioning.

 Arcing in the oven during microwave operation

usually occurs from use of metallic utensils.

Continuous arcing, however, can damage the

unit. Stop the programme and check the uten-

sil.

 Care should be taken not to obstruct any air

vents located on the top, rear, side and bottom

of the oven.

Do not use this oven for commercial purposes.

EEMMSS 22448855UUKK

Oven utensils and accessories guide

A variety of utensils and materials may be used for

cooking in your microwave oven. For your safety

and to prevent damaging utensils and your oven

choose appropriate utensils and materials for each

cooking method. The list below is a general guide.

Material Utensils Microwave Grill Microwave &

Cooking Cooking Grill cooking

Ceramic & Glass Corning ware YES YES YES

Heat resistant

glass ware YES YES YES

Glass ware with

metal decoration NO NO NO

Lead crystal glass NO NO NO

China Without metal

decoration YES YES YES

Pottery YES YES YES

Plastic Microwave oven

heat-proof wear YES NO NO

Plastic wrap YES NO NO

Metal Metal baking pan NO YES NO

Aluminium foil* YES YES YES

Paper Cups, plates, towels YES NO NO

Waxed paper YES NO NO

Wood NO NO NO

Accessories Grill rack NO YES YES

Turntable YES YES YES

Turntable support YES YES YES

YES: Utensils and accessories to use NO: Utensils and accessories to avoid

*NOTE: Use aluminium foil only for shielding purposes, overuse may cause arcing.

EEMMSS 22448855UUKK

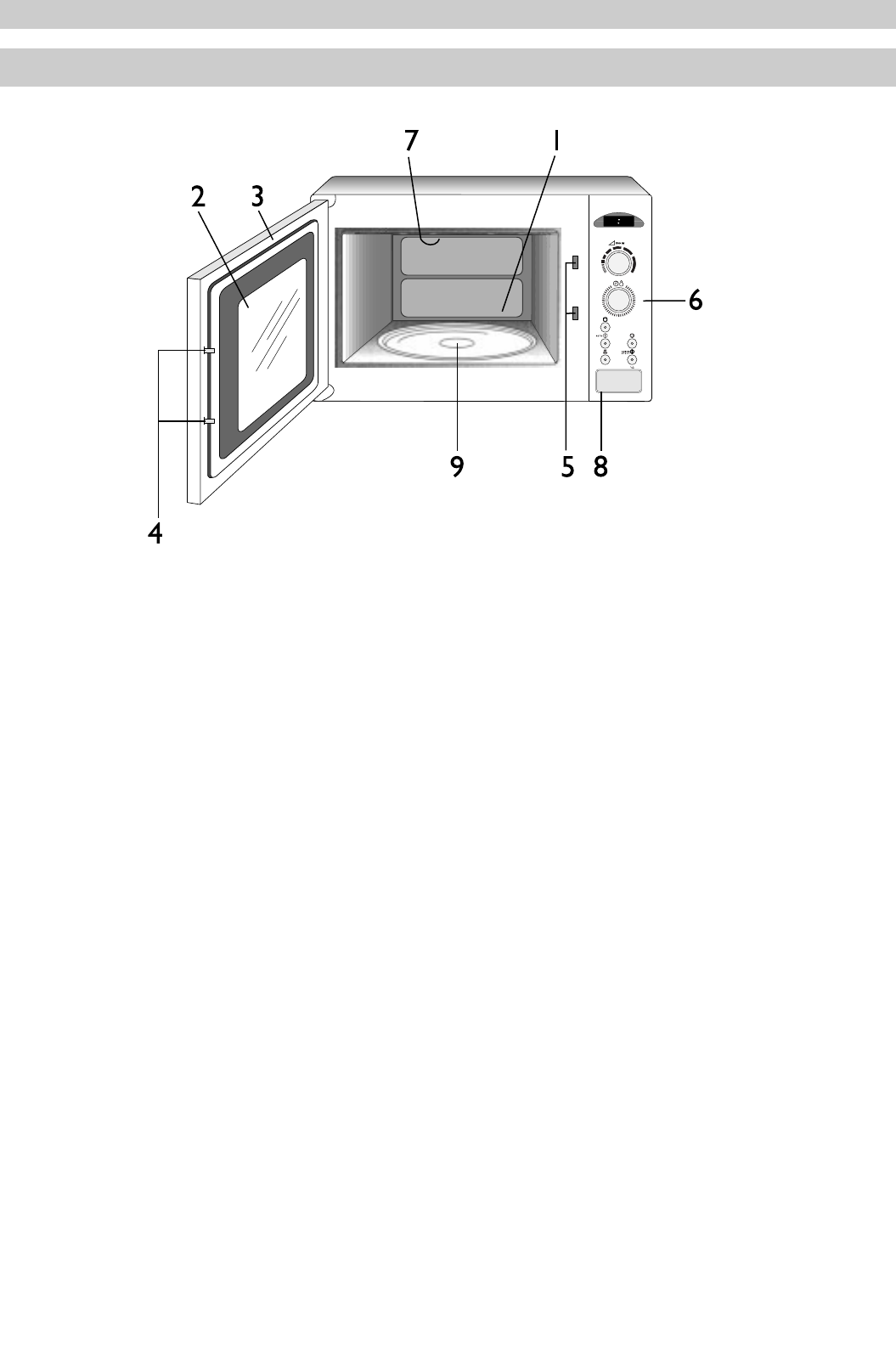

The microwave oven

1 Cooking compartment.

2 Viewing window.

3 Oven door.

4 Door catch.

5 Safety interlock system.

6 Control panel.

7 Grill element.

8 Door open button.

9 Drive shaft for turntable.

8 888

DDeessccrriippttiioonn ooff tthhee mmiiccrroowwaavvee oovveenn aanndd aacccceessssoorriieess

EEMMSS 22448855UUKK

Accessories

Turntable and turntable support

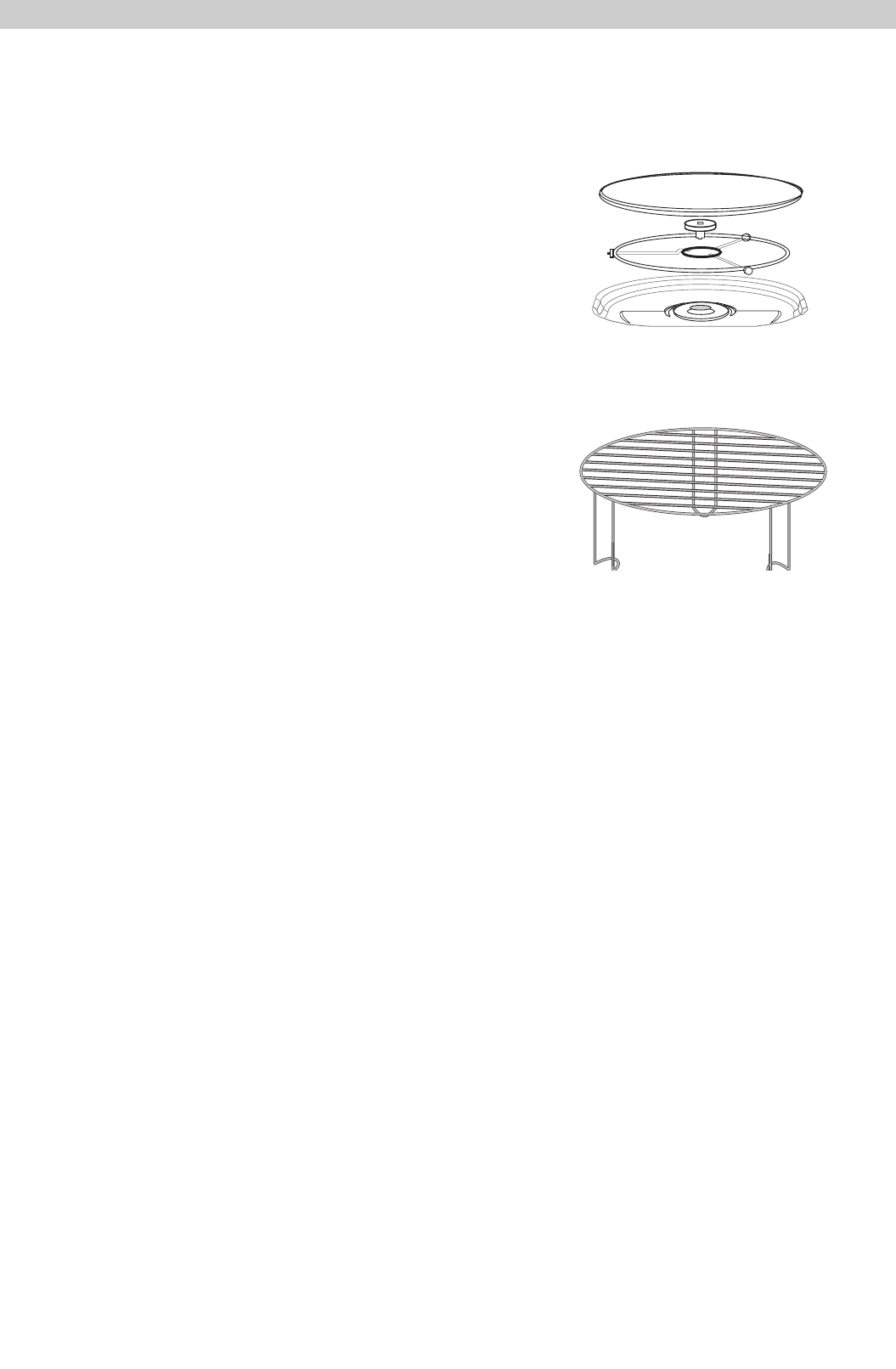

The turntable and turntable support should be installed as

shown in the diagram. Take care to ensure the turntable support

is properly in place.

The turntable may turn clockwise or counterclockwise during

operation. Do not rotate the turntable manually, as you could

damage the drive system.

Rack

For the use with the grill function, to brown shallow dishes.

It has to be postioned on the centre of the turntable.

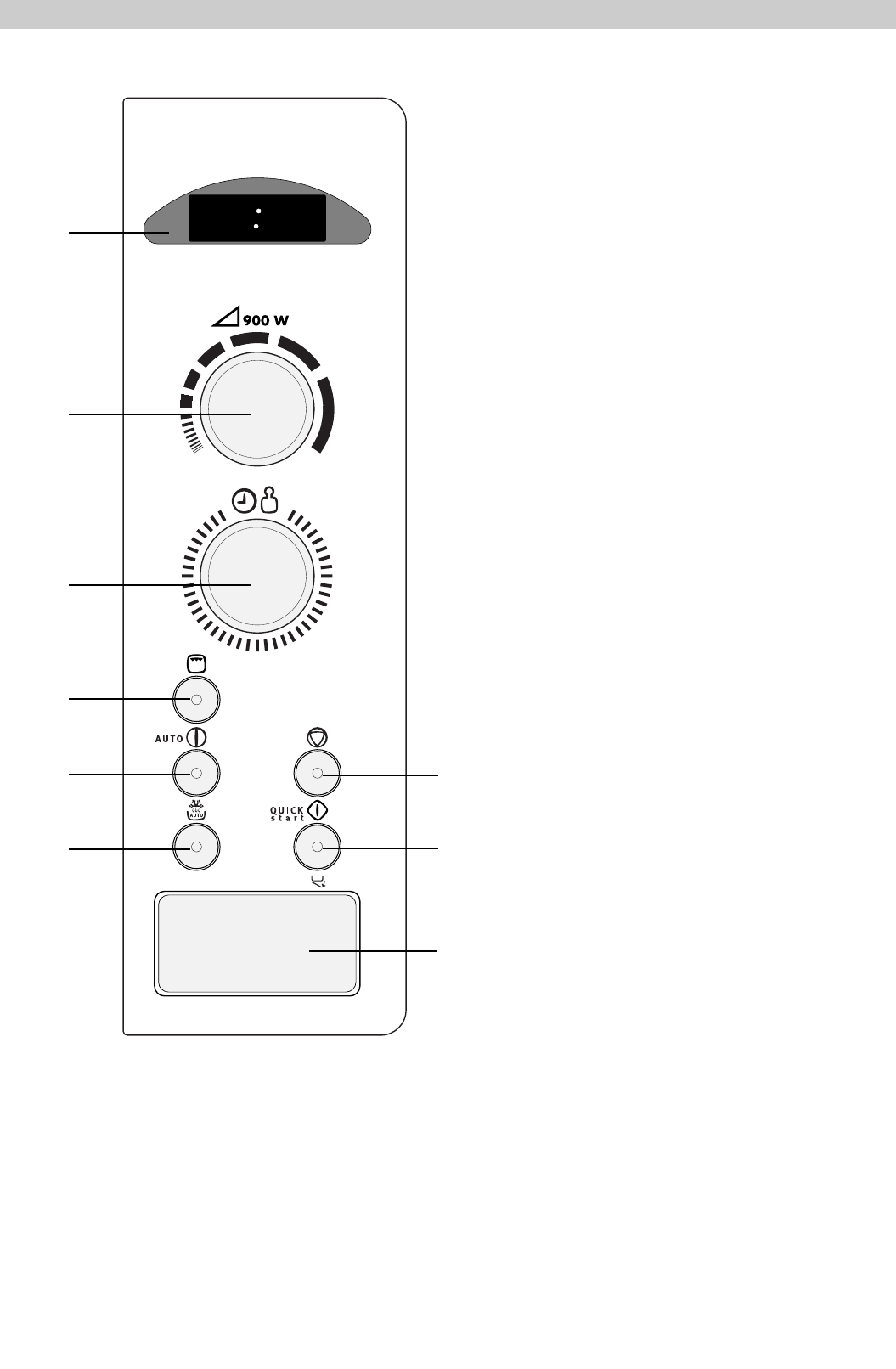

Control panel

1. Display window  showing time of day, cooking

time and weight.

2. Power knob  for desired microwave power level.

3. Timer knob  to select cooking time or weight.

4. Grill.

5. Auto  for Automatic cooking programmes.

6. Auto Defrost by weight.

7. Stop/Clear  to cancel or interrupt a cooking pro-

gramme.

8. Start  to start desired programme and to start

the Quick start programme.

9. Door open.

EEMMSS 22448855UUKK

8 888

EEMMSS 22448855UUKK

Cleaning

Wipe over the front of the appliance with a damp cloth.

Do not use abrasive cleaning agents (these can damage

the surface). For stainless steel fronts use a suitable

stainless steel cleaning agent that leaves a protective

film against fingerprints.

Before you first use the appliance, remove all the acces-

sories (including the turntable and turntable support)

from the cooking area. Wash the accessories in warm

water and washing up liquid. Wipe the cooking space

with a soft, damp cloth.

Setting the clock

Plug the appliance into the mains. The display starts to flash

"00:00".

The dots between the digits

will flash rapidly.

Example: To set 12:15:

Set the time of day with the Timer knob.

Confirm by pressing either the Start button or the

Clear button.

The time of the day is displayed.

The Timer knob can be turned clockwise (to increase) or counterclockwise (to decrease).

The time of day can be changed at any time by pressing the Start button for five seconds, turning the Timer

knob and confirming with the Start-or Clear button.

1122::1155

The dots between the digits flash slowly.

The appliance is now ready for use.

BBeeffoorree uussiinngg yyoouurr mmiiccrroowwaavvee oovveenn ffoorr tthhee ffiirrsstt ttiimmee

EEMMSS 22448855UUKK

Action Comments

1. Press door open button. The door opens.

2. Place food in the cooking space.

3. Shut the door. An audible click will be heard when the door is shut.

If the door is not shut properly the appliance will not

function.

4. Select the cooking functions and time Turn the timer knob clockwise to increase and

according to the instructions given in the counterclockwise to decrease time.

following pages.

5. Press the Start button. The appliance starts. The display shows the selected

cooking time, and counts down in seconds. When gril-

ling, the signal light representing this operating mode

lights up.

6. End of cooking sequence. The end of the cooking sequence is indicated by an

audible tone. The appliance and the interior light will

switch off. The time of day appears in the display.

If the oven is not started within 4 minutes, the settings are automatically cancelled and the time of day

reappears in the display.

If maximum cooking time setting "

60:00

" is exceeded during the setting, the display shows "

00:00

General operating instructions

EEMMSS 22448855UUKK

Action Comments

1. Interrupting the cooking process (e.g. for stirring): The cooking operation stops. In the display, the

Open the door by pressing the door button. two dots between the digits flash. The selected

settings are unaffected.

2. Shut the door and press the Start button. The countdown will continue.

3. Cancelling the programme : The cooking process is cancelled. The appliance and

Press the Clear button. the interior lighting switch off. Time of day is displayed.

4. Modifying the selected cooking time: The cooking time in the display changes.

turn the Timer knob clockwise or counter-

clockwise.

5. Modifing the selected microwave power: The new power setting is displayed for 5 seconds.

Rotate the Power knob. The cooking process continues with the new power

setting.

6. Operating of the grill: "GGrriillll" and "OOnnllyy" are displayed successively for

Press the Grill button. 0,5 seconds seconds

each. When working with grill and microwave power (e. g. 900 W),

"GGrriillll" and the chosen microwave power (990000) are

displayed successively for 0,5 seconds each.

If the new selection reaches "

0000::0000

" in the display, the cooking time is over and an audible signal will be

heard. The appliance and the interior lighting switch off. During a cooking process, the cooking time can be

increased to a maximum of 60 minutes.

EEMMSS 22448855UUKK

Microwave cooking

This basic microwave cooking method allows you to

cook food for a desired time. In addition to the maximum

power level, you can select 9 different microwave power

levels, 80W to 900W.

Foods with high moisture content should be cooked on

maximum power, as this is the fastest cooking method

and maintains the natural flavour and texture of the

foods.

Example: To cook at 900W for 1 min 15 secs:

1. Set the required microwave power by

turning the Power knob.

The time of day disappears from the

display and the selected microwave

power appears.

Turn to the left = lower power

Turn to the right = higher power

2. Set the required cooking time by

turning the Timer knob. The chosen

time appears in the display.

3. Press the Start button.

The selected time starts to count down.

Cooking time can be set as follows:

from 0 to 2 min in 5 second steps

from 2 to 5 min in 10 second steps

from 5 to 10 min in 20 second steps

from 10 to 20 min in 30 second steps

starting from 20 min in 1 min steps

Maximum programme length is 60 minutes.

Metal items must be kept at least 2 cm from the oven sides and the oven door.

0011::1144

0011::1155

990000

HHooww ttoo ooppeerraattee yyoouurr mmiiccrroowwaavvee oovveenn

EEMMSS 22448855UUKK

Minute timer with alarm

The minute timer with alarm can also be used as a

general purpose reminder. The timer works without

selecting a cooking function.

How to set:

1. Select the microwave power " 0" using

the Power knob (all the way to the left)

and ensure the grill is off.

2. Set the required time with the Timer knob.

The time of day disappears from the display

and the selected length of time appears.

3. Press the Start button. The pre-set time

will start to count down. An audible signal

will sound when the timer has finished

counting down.

900W  heating liquids

700W  to start roasting, stewing, etc.

 cooking vegetables

 cooking dishes

600W  defrosting and heating of deep frozen ready made meals

500W  heating refrigerated ready made meals

 finish cooking casseroles

 cooking egg based dishes

450W  finish cooking casseroles

350W  cooking of delicate dishes

250W  heating baby food in glass jar

 soaking rice

 heating delicate dishes

 melting of gelatin

150W  defrosting meat, fish and bread

80W  defrosting cheese, cream and butter

 defrosting cakes with cream or butter icing

 to let dough rise

 warming cold dishes, drinks, softening butter

Microwave setting guide

Example: Set oven to Grill for 20 minutes with Grill:

1. Turn the Power knob until it displays " 0".

The time of day disappears.

2. Set the required grilling time by using

the Timer knob.

3. Press the button for the grill function. The

signal light for grill comes on. GGrriilllland

OOnnllyyappear alternatively in the display.

4. Press the Start button. The pre-set time will

start to count down.

If you press the grill button while grilling, the oven turns off. The clock time appears in the display.

EEMMSS 22448855UUKK

Grill cooking

This method is ideal for toasting bread or muffins.

Remember the oven will be hot, always use oven

gloves. Place shallow dishes on grilling rack.

Cooking time can be set to a maximum of 60 minutes.

2200::0000

1199::5599

GGééiiTTTTOOhhllYY

Example: Set Microwave and Grill Cooking using Grill with Microwave power 900W

for 20 minutes:

1. Set the required microwave power output

using the Power knob.

The time of day disappears from the display.

The selected microwave power appears in the display (in watts).

2. Set the required time using the Timer knob.

3. Press the button for Grill function.

GGrriilllland 990000appear alternatively

in the display. The signal light comes on.

4. Press the Start button. The pre-set time will

start to count down.

If you press the grill button while grilling, the grill turns off and the signal light for grill goes off.

The appliance functions in microwave mode only.

EEMMSS 22448855UUKK

Microwave and Grill cooking

This function allows you to combine the advantages of

the speed and convenience of a Microwave with the

browning and crisping benefits of a Grill.

990000

1199::5599

2200::0000

990000

GGééiiTTTT

EEMMSS 22448855UUKK

Automatic Programmes

Programmes for defrosting and cooking are

avail-able. After having selected the programme, merely

enter the weight of the dish, the rest of the programming

is done automatically. The following gives you an over-

view of what food can be defrosted, cooked or combi-

nation cooked with which programme.

Progr. Food Examples Weight from  up to

categories

CC 11Fresh vegetables I Brussels sprouts, cabagge, carrots, celeriac 100  1000 g

CC 22Fresh vegetables II Corgettes, leeks, potatoes, spinach, fennel,

cauliflower, broccoli 100  1000 g

CC 33Frozen vegetables Carrots, cauliflower, Brussels sprouts, leeks,

corgettes, spinach, broccoli 100  1000 g

Cook covered, in a heat-resistant glass dish, whenever possible. A triple beep rings halfway through cook

time. If cooking over 500 g of vegetables, stir once or twice.

Please add water in the following amounts:

 for fresh vegetables (I+II): 100  500 g: 3  6 tablespoons / 500  1000 g: 9  12 tablespoons.

 for frozen vegetables: 100  500 g: 3  9 tablespoons / 500  1000 g: 9  15 tablespoons.

Example: To cook 500 g Fresh Vegetables I:

1. Press the button for Automatic Cooking

programme until CC11appears in the display.

2. Use the Timer/weight knob to set the weight.

3. Press the Start button.

The display shows the time.

550000

CC11

1144::0000

EEMMSS 22448855UUKK

Combination cooking Microwave and Grill

Progr. Food Weight Comments

categories from  up to

CCGG11Chicken 1(fresh) 200  2000 g If cooking a dish weighing over 500 g, 3 beeps

Chicken in pieces remind you to turn the food halfway through the

cooking time.

CCGG22Pork roast 2(fresh) 400  1200 g See above.

CCGG33Gratin 3200  2000 g If cooking a dish weighing 200  500 g, you

should place the dish on the grill rack.

1If cooking a weight from 1000  1400 g, please use a deep heat-resistant dish, directly on the turntable,

do not cover. Set chicken pieces directly on the rack.

2The pork roast should be cooked in a deep heat-resistant dish, set directly on the turntable. Do not cover.

3Enter the total weight of the dish.

The automatic cooking times are calculated for foods at +5° C (e.g. refrigerated foods)

The weight can be set as follows:

 from 100 to 1000 g in 25 g-steps,

 from 1000 to 2000 g in 50 g-steps.

For all dishes not covered by automatic programmes, enter manually microwave output power and time according

to cook tables.

Quick Start

How to set

The Quick Start function provides full microwave power

from 30 seconds up to 2 minutes and 30 seconds, in

30 second intervals.

Example: Heating a cup of water (1 min 30 s):

1. Press the Start/Quick button three times.

The time appears in the display

and the appliance starts to work.

2. You may increase the time by 30 second

intervals while the programme is running

up to a limit of 2 minutes and 30 seconds

by pressing the Start/Quick button.

0011::3300

EEMMSS 22448855UUKK

 Always keep the oven clean  avoid spill-overs and

do not forget to clean under the glass tray and the

inside of the door.

 Preferably use round or oval casseroles with a

lid when cooking in your microwave oven.

 Do not use metal or metal decorated casserole

dishes. Certain plastic materials can melt and be

warped by hot food.

 Cover the food when cooking. Use a glass lid,

a plate or grease proof paper.

 Pastry, bread and the like can be defrosted directly

in a bread basket or on a paper towel.

 If frozen food is heated in its packaging, the packa-

ging should be opened. Packaging containing metal

or metal decoration must not be used unless speci-

fically recommended for use in the microwave.

Remove metal clips and wire ties.

 Smaller pieces of aluminium foil can be used

to cover parts that easily overcook such as

chicken legs.

 Food with peel or skin should be pierced with

a fork  e.g. potatoes and sausages. Do not boil

eggs in the microwave oven as they can explode.

 Put large, thick pieces close to the edge of the cas-

serole and try to cut the food into even-sized pieces.

Always place the food in the centre of the oven.

 The food will be more evenly cooked if you stir or turn

it regularly.

 Always set a shorter cooking time than indicated in

your recipe to avoid overcooking. The larger the

amount of food the longer it takes.

 Use little or no water for vegetables.

 Use less salt and spices than for normal cooking.

 Season afterwards.

 Allow a few minutes standing time after the oven

has switched off to ensure complete and even cook-

ing results.

 Always ensure food is piping hot throughout before

serving.

 Use gloves when taking dishes and food from the

oven.

Child lock

This oven is equipped with a Child Lock Safety feature to prevent accidental operation by children.

How to set :

First press the Clear button 5 times, then press the Start button.

The display shows "LLOOCC".

The safety lock prevents the oven from operating. There will be no

effect if you turn either knob or any button.

LLOOCC

How to cancel :

Press the Clear button 5 times, then press the Start button. A beep

will then sound. The time of the day will appear in the display again

and the appliance will function as normal.

MMiiccrroowwaavvee HHiinnttss

EEMMSS 22448855UUKK

Defrosting

Dish Weight Power Duration Standing Remarks/Hints

(in g) (Watt) (min) time (min)

Meat

Whole meat 500 150 1015 1015 Turn once. Cover fatty parts with aluminium

foil midway through.

Steak 200 150 46 510 Turn once.

Mixed chopped meat 500 150 914 5-10 Remove defrosted chopped meat midway

through programme.

Poultry

Chicken 1000 150 2030 1530 Turn once. Cover legs and wings with alumi-

nium foil midway through.

Duck 1500 150 3545 4060 As for chicken.

2000 150 5060 4060

Fish

Whole fish 500 150 1015 1520 Turn once. Cover fins with aluminium foil.

Shrimps/Crab 250 150 68 1520 Stir thoroughly after half the defrosting time.

Dairy produce

Cottage cheese 500 150 1520 1520 Remove any aluminium foil wrapping.

Divide and stir frozen pieces from time to time.

Butter 250 150 23 1520 Remove any aluminium foil wrapping.

Cheese 250 150 24 20-30 Turn once.

Cream 200 ml 150 68 1520 Remove any aluminium foil wrapping.

Stir frozen from time to time.

Fruit

Strawberries 500 150 7-9 1015 Defrost in a covered container, turn once.

Cherries 250 150 57 510 As for strawberries.

Black currants 250 150 57 1015 As for strawberries.

Rapberries 250 150 46 510 As for strawberries.

CChhaarrttss

EEMMSS 22448855UUKK

Defrosting

Description Weight Power Duration Standing Remarks/Hints

(in g) (Watt) (min) time (min)

Bread

Rolls (50 g) 4 units 150 13 35 Set on a paper towel, turn once.

Whole meal, 1 slice 150 1530 35 Defrost in a covered container.

mixed, rye (6080 g)

Loaf 500 150 68 1520 Cover cutting surface.

Pastry

Dry cakes e.g. cakes

with short crust pastry 300 80 23 510 Set on a paper towel, cover.

Fruit flans baked

on a baking sheet 400450 80 48 1020

1 slice cheese cake 400 80 48 1020 As for dry cakes.

1 slice covered

apple tart 400 80 35 1020 As for dry cakes.

Cream and butter-

cream layer cakes 300400 80 24 1020 Begin defrosting of cakes in the appli-

ance, then remove.

Melting food

Chocolate/toppings 100 700 23 Break up into pieces, stir from time to time.

Butter 50 900 1545 To warm set time for 30 sec. longer.

Heating of refrigerated food and drink

1 jar baby food 125250 450 3050 23 Heat jar without lid. Stir after warming.

Check temperature.

1 ready meal on a plate 350400 900 23 23 Heat in a covered container. Place gravy

alongside in a cup.

1 portion of meat 150 900 451 23 All meat, except breaded meat, should

be heated in a covered container.

1 portion vegetables,

potatoes or rice 200 900 1130 23 Heat in covered container, stir once.

1 cup soup 200 ml 900 1202 23 Heat clear soup uncovered, cover thick

soups. Stir.

Drinks

Milk or baby food 200 ml 900 3545 23 Remove any lids. Stir after warming !

Boil 1 cup water 180 ml 900 1302 23 Stir instant coffee or tea when the water

has stopped boiling.

1 cup milk 200 ml 900 1502 23 Heat milk till it is just hot enough to

drink. Stir.

1 cup coffee (reheat) 200 ml 900 4555 23 Stir. Check temperature!

(in g) (Watt) (min) time (min)

Defrosting and heating of frozen convenience foods

1 portion meat

with gravy 150 700 24 23 Heat in a covered container.

Stir now and again.

1 portion meat with

vegetables, garnish 350450 700 714 23 As for meat with gravy.

Cooking vegetables

Cook all vegetables in a covered container.

Description Weight Liquid Power Duration Standing Remarks/Hints

(in g) added (Watt) (min) time (min)

Cauliflower 500 1/8 l 900 810 2 Dot with butter.

Frozen broccoli 300 1/8 l 900 79 2 Stalks facing outwards.

Mushrooms 250 none 900 46 2 Cut into slices.

Frozen peas & carrots 300 ½cup 900 79 2

Carrots 250 23 tsp 900 68 2 Cut into cubes or slices.

Potatoes 250 23 tsp 900 46 2 Peel and quarter.

Red/Green peppers 250 none 900 46 2 Cut into cubes or slices.

Leeks 250 ½cup 900 46 2 Cut into rings or pieces.

Frozen Brussels

Sprouts 300 ½cup 900 79 2

Cooking fish

Description Weight Power Duration Standing Remarks/Hints

(in g) (Watt) (min) time (min)

Fish fillets 500 500 68 2 Cook covered. Turn halfway through

the cooking time.

Whole fish 800 1. 900 35 3 Cover during cooking.

2. 450 9-11 3 Cover flat parts with aluminium foil.

The times stated here are for guidance only.

EEMMSS 22448855UUKK

Description Weight Power Duration Standing Remarks/Hints

Grilling table

Description Weight Accessories Time

(in g) (min)

Fish

Mackerels 600800 Rack 1824

Sardines 68 pieces Rack 2025

Meat

Sausages 168 pieces Rack 2026

Frozen chopped meat 2 pieces 1820

2 Rump steaks 1400 each Rack 2030

Others

Toast 1 4 slices Rack 24

Toasted snacks 2 slices Rack 510

Grill level 3 for all of the above

1 First preheat the oven for 2½minutes.

The grill temperatures and times given are for guidance only.

Grilling is ideal for flat pieces of meat and fish.

Unless otherwise stated, the settings given in the table are for use in cold oven.

Flat foods should be turned only once. Larger, rounder pieces should be turned more often.

Fish are best placed head to tail on the rack.

Combined Microwave and Grilling table

Description Weigh Accessories Shelf level Microwave Time

(in g) from base power (Watt) (min)

Noodle 500 g shallow dish Turntable 250 1217

casserole noodles

Potatoes 800 g shallow dish Turntable 900 2025

au gratin potatoes

Lasagne 800 g shallow dish Turntable 900 2025

Meatloaf 500 g deep dish Turntable 600 1416

Onion soup 2 bowls soup bowls Turntable 450 46

au gratin

The ranges of time given are for guidance only, as they depend upon the composition and the size of the

item being cooked, as well as the desired finish.

EEMMSS 22448855UUKK

The oven must always be clean. Residue of food from

spill-overs or spatters will absorb microwave energy

causing it to burn on. This could reduce the efficiency of

the oven and may cause unpleasant odours. Do not

attempt to tamper with or make any adjustments or

repairs to any part of the oven. Repairs should only be

made by an authorised service engineer.

Be sure the oven is off or the unit is unplugged

before cleaning.

Cleaning the accessories

(turnable, support and rack)

Clean them with mild detergent after removing them

from the cavity. The turntable support should be care-

fully handled.

The inside of the oven and turntable get very

hot, so do not touch them immediately after use.

Cleaning the interior

Soilage that is allowed to remain on the oven walls, door

seal and door surface will absorb microwave energy,

reduce the efficiency of the oven, and possibly damage

the oven interior.

Use mild, liquid detergent, warm water and a soft, clean

cloth to remove soilage. NEVER USE ABRASIVE CLEA-

NERS, COMMERCIAL OVEN CLEANERS OR STEEL

WOOL PADS ON ANY PART OF THE MICROWAVE

OVEN.

To loosen difficult soilage, boil a cup of water in the

microwave oven for 2 or 3 minutes. NEVER USE A

KNIFE OR ANY UTENSIL TO REMOVE SOILAGE FROM

OVEN SURFACES.

To remove odours from the oven interior, boil a cup of

water plus 2 tablespoons of lemon juice for 5 minutes.

Cleaning the exterior

Open the oven door when cleaning the control panel.

This will prevent the oven from being turned on acci-

dentally. You should clean outside surfaces of the oven

with mild liquid detergent and water followed by a wiping

with clear water to remove any excess detergent. Dry

with a soft cloth. Pay special attention to the door seal

and front of the cavity which must be kept clean at all

times. If these surfaces are damaged because of exces-

sive soiling, call in a specialised technician before using

your microwave oven.

Spray-on window cleaners or all purpose spray-on kit-

chen cleaners can also be used. Never use abrasive

cleaners, scouring pads or harsh chemicals on outside

surfaces of your oven. To prevent damage to the wor-

king parts, do not allow water to seep into ventilation

openings.

CCaarree aanndd cclleeaanniinngg

EEMMSS 22448855UUKK

SSeerrvviiccee aanndd ssppaarree ppaarrttss

If the appliance does not function correctly, please

carry out the following checks before contacting

your local Service Force Centre.

If the oven does not come on:

 Check the appliance is connected correctly.

 Check that the oven is plugged in properly.

 Replace the fuse in the plug, if required, with another of

the same rating and check that the plug has been

wired correctly.

 Check that the socket switch and/or the switch from

the mains supply to the oven are ON.

 Check that the socket is receiving power, by plugging

in an appliance you know to be working.

 Check that the the fuse in the fuse box is intact.

If the microwave does not function:

 The child safety lock may have been set.

 Check the controls are set correctly.

 Check settings/procedures against the instruction

booklet.

 Check the door closes properly (if food particles or

other objects have become stuck inside the door, it will

not close properly and microwave cooking will not take

place).

 Check the start pad has been depressed.

IMPORTANT:

If you call out an engineer to a fault listed above, or

to repair a fault caused by incorrect use or instal-

lation, a charge will be made even if the appliance

is under guarantee.

Service and Spare parts

In the event of your appliance requiring service, or if you

wish to purchase spare parts, please contact your local

Electrolux Service Force Centre by telephoning:

0870 5 929929

Your telephone call will be automatically routed to the

Service Force Centre covering your post code area.

For the address of your local Service Force Centre and

further information about Service Force, please visit the

website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have

made the above checks.

When you contact the Service Force Centre you will

need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance

(found on the rating plate)

5. The purchase date

In-guarantee customers should ensure the necessary

checks have been made as the engineer will make a

charge if the problem is not a mechanical or electri-

cal breakdown.

Please note that proof of purchase will be required

for in-guarantee calls.

Customer care

For general enquiries concerning your Electrolux appli-

ance or for further information on Electrolux products,

please contact our Customer Care Department by letter

or telephone at the address below or visit our website at

www.electrolux.co.uk:

Customer Care Department

Electrolux

55-77 High Street

Slough

Berkshire

SL1 1DZ

0 8705 950950 (*)

*calls to this number may be recorded for training purposes.

EEMMSS 22448855UUKK

GGuuaarraanntteeee ccoonnddiittiioonnss

Standard guarantee conditions

We, Electrolux, undertake that if within 12 months of

the date of the purchase this Electrolux appliance or any

part thereof is proved to be defective by reason only of

faulty workmanship or materials, we will, at our option

repair or replace the same FREE OF CHARGE for

labour, materials or carriage on condition that:

 The appliance has been correctly installed and used

only on the electricity supply stated on the rating plate.

 The appliance has been used for normal domestic

purposes only, and in accordance with the manufac-

turers instructions.

 The appliance has not been serviced, maintained,

repaired, taken apart or tampered with by any

person not authorised by us.

 All service work under this guarantee must be underta-

ken by an Electrolux service centre.

 Any appliance or defective part replaced shall become

the Companys property.

 This guarantee is in addition to your statutory and

other legal rights.

Exclusions

This guarantee does not cover:

 Damage or calls resulting from transportation, im-

proper use or neglect, the replacement of any light

bulbs or removable parts of glass or plastic.

 Costs incurred for calls to put right machines im-

properly installed or calls to machines outside the

United Kingdom.

 Appliances found to be in use within a commercial or

similar environment, plus those which are subject to ren-

tal agreements.

 Products of Electrolux manufacture which are not mar-

keted by Electrolux.

European Guarantee

If you should move to another country within Europe

then your guarantee moves with you to your new home

subject to the following qualifications:

 The guarantee starts from the date you first pur-

chased your product.

 The guarantee is for the same period and to the same

extent for labour and parts as exist in the new coun-

try of use for this brand or range of products.

 This guarantee relates to you and cannot be

trans-ferred to another user.

 Your new home is within the European Community

(EC) or European Free Trade Area.

 The product is installed and used in accordance

with our instructions and is only used domestically,

i.e. a normal household.

The electrical supply complies with the specification

given in the rating label.

 The product is installed taking into account regu-

lations in your new country.

Before you move, please contact your nearest

Customer Care centre, listed below, to give them details

of your new home. They will then ensure that the local

Service Organisation is aware of your move and able to

look after you and your appliances.

France Senlis +33 (0) 3 44 62 29 29

Germany Nürnberg +49 (0) 800 234 7378

Italy Pordenone +39 (0) 0434 39 4700

Sweden Stockholm +46 (0) 8 672 53 90

UK Slough +44 (0) 1753 219897

EEMMSS 22448855UUKK

1. Remove any promotion label from the door.

2. This oven can be used as a free standing oven or

built-in, into a kitchen cabinet using kit number BF

246. To install the oven in a kitchen cabinet follow the

instructions supplied with the building-in kit.

The oven should be installed on a flat, level surface. The

surface must be strong enough to safely bear the

weight (18 kg) of the oven, and the contents. To avoid

the possibility of causing vibration or noise the oven

must be in a stable position.

3. Keep the oven away from heat and water. Exposure to

heat and water can lower oven efficiency and lead to

malfunctioning, so be sure to install the oven away

from heat and water sources.

. Do not block air vents on the top and the sides of the

cabinet and also do not place any articles on the top

of the oven. A gap all around the oven is necessary :

140 mm above the oven and any objects, 50 mm on

the sides and 100 mm behind the oven. If air vents

are blocked during operation, the oven may overheat,

and this may lead to malfunctioning. Hot air escapes

from the vents, so be sure not to obstruct it or let cur-

tains come between the oven and the rear wall.

5. Place the oven as far away from radios and TVs as

possible. This oven does conform to EEC require-

ments* of radio interference suppression, but some

interference may occur if it is placed too close to a

radio or TV, so keep them as far apart as possible.

6. If positioned in a corner, leave a gap of at least

5 cm from the right side wall.

IMPORTANT! The oven can be placed almost

anywhere in the kitchen. Make sure the oven is

placed on a flat, level surface and that vents as

well as the surface underneath the oven are not blocked

(for sufficient ventilation).

Electrical connections

THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability

should this safety measure not be observed.

f the plug that is fitted to your appliance is not suitable

for your socket outlet, it must be cut off and the appro-

priate plug fitted.

Remove the fuse from the cut off plug. The cut off

plug should then be disposed of to prevent the hazard

of shocks in case it should be plugged into a 13 Amp

socket in another part of your home.

IMPORTANT

The wires in the mains lead are coloured in accordance

with the following code:

GREEN AND YELLOW EARTH

BLUE NEUTRAL

BROWN LIVE

If you fit your own plug, the colours of the wires in the

mains lead of your appliance may not correspond with

the markings identifying the terminals in your plug,

proceed as follows:

Connect the green and yellow (earth) wire to the termi-

nal in the plug which is marked with the letter E or the

earth symbol ( ) or coloured green and yellow.

Connect the blue (neutral) wire to the terminal in the

plug which is marked with the letter N or coloured

black.

Connect the brown (live) wire to the terminal in the plug

which is marked with the letter L or coloured red.

FFoorr tthhee iinnssttaalllleerr

13 AMP FUSE

BLUE

GREEN & YELLOW

BROWN

CORD CLAMP

Build-in model

To install the appliance in a kitchen cabinet, use the

appropriate mounting frame. Note the relevant instruc-

tions for installation and connection. When building in to

a high cabinet, you may use the liftdoor. Note the rele-

vant information for installation and connection given in

the operating instructions of the lift door.

Warning !

Never operate the microwave oven with the lift door

closed. Such operation would damage your appliance

and invalidate the guarantee.

Connect to a plug socket with protective earth contact

and fused with a 13 A-L automatic device or 13 A slow-

blowing fuse. When the oven is installed, there must be

a possibility of disconnecting it from mains with a

contact break of at least 3 mm on all poles.

A suitable size of LS-switch, or a melting or fly-out fuse,

are suitable contact-breakers.

EEMMSS 22448855UUKK

Building in kit BF 246

Overall dimension Width 540 mm

Depth 416 mm

Height 316 mm

Cavity Width 350 mm

Depth 351 mm

Height 210 mm

Volume 24 l

Power source 230-240 V, 50 Hz

Fuse 13A

Power consumption

(microwave + grill) 2750W

Power Output 900W

Grill 1250W

Weight 19 kg

MAFF Rating E

Technical data

The plug moulded on to the lead incorporates a fuse. For

replacement, use a 13 Amp BS1362 fuse. Only ASTA or

BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is

lost. The cover/carrier is indicated by the coloured insert

at the base of the plug.

A replacement cover/carrier is indicated by the coloured

insert at the base of the plug.

A replacement cover/carrier must be obtained from your

local Electrolux Service Centre.

This appliance complies with E.E.C. directive No.

87/308 of 2.6.87 relative to radio interference suppres-

sion.

Connecting to the mains

The oven is delivered with the power cord and a plug for

240 V, 50Hz, earthed socket outlet.

Earth protection minimizes the risks should a short-cir-

cuit occur. Check to ensure the voltage of the oven mat-

ches the supply.

N.B. If the oven is connected to the socket via an exten-

sion cord, make sure the cord is earthed.

Thi

s applianc

e must not be used on a nonearth

protected power supply. Contact an electrician if

you are uncertain regarding electrical connection

of the oven or provision of earth protection of the

supply.

This appliance must be earthed. If this appli-

ance is fitted with a non-rewirable plug for which

your socket is unsuitable, the plug should be

cut off and the appropriate plug fitted. If it is

necessary to change the fuse in a nonrewirable

plug, the fuse cover must be refitted. If the fuse

cover is lost or damaged, the plug must not be

used until a replacement is obtained.

9961 5474 - 11/02

Electrolux Ems 2485 Users Manual 99615474 2485, UK, Couv

EMS 2485 to the manual 68e569c2-fa9b-2244-711b-589f239b81bb

Navigation menu

Versions of this User Manual:

Views

Navigation
