2010.11.30

438 9094-21/ENOperating manual in original language

Maintenance manual

for reference machines

Washer extactors

FOM 71 CLS, FOM 71 MP-Lab

IEC 60456 Ed 5

Contents

Introduction .............................................................................................1:1

Wascator FOM 71 CLS

Software versions ...................................................................................2:1

Installation inspection of the reference machine ....................................3:1

Calibration of the level control system ....................................................4:1

Calibration of the scale system ...............................................................5:1

Installation of laboratory sensors for temperature and ...........................6:1

speed connection for external weight signal

Adjustment of temperature, speed and water ........................................7:1

Cleaning the machine from lint, scale and detergent .............................8:1

Maintenance before start up of a test series ..........................................9:1

Regular maintenance 6 - 12 months .....................................................10:1

Empty run test data CLS .......................................................................11:1

Program description CLS ......................................................................12:1

FOM 71 MP-Lab

Installation inspection of the reference machine…................ ...............13:1

Calibration of the level control system……………............... .................14:1

Installation of laboratory sensors for temperature and speed. .............15:1

Adjustment of temperature, speed and water……………….. ...............16:1

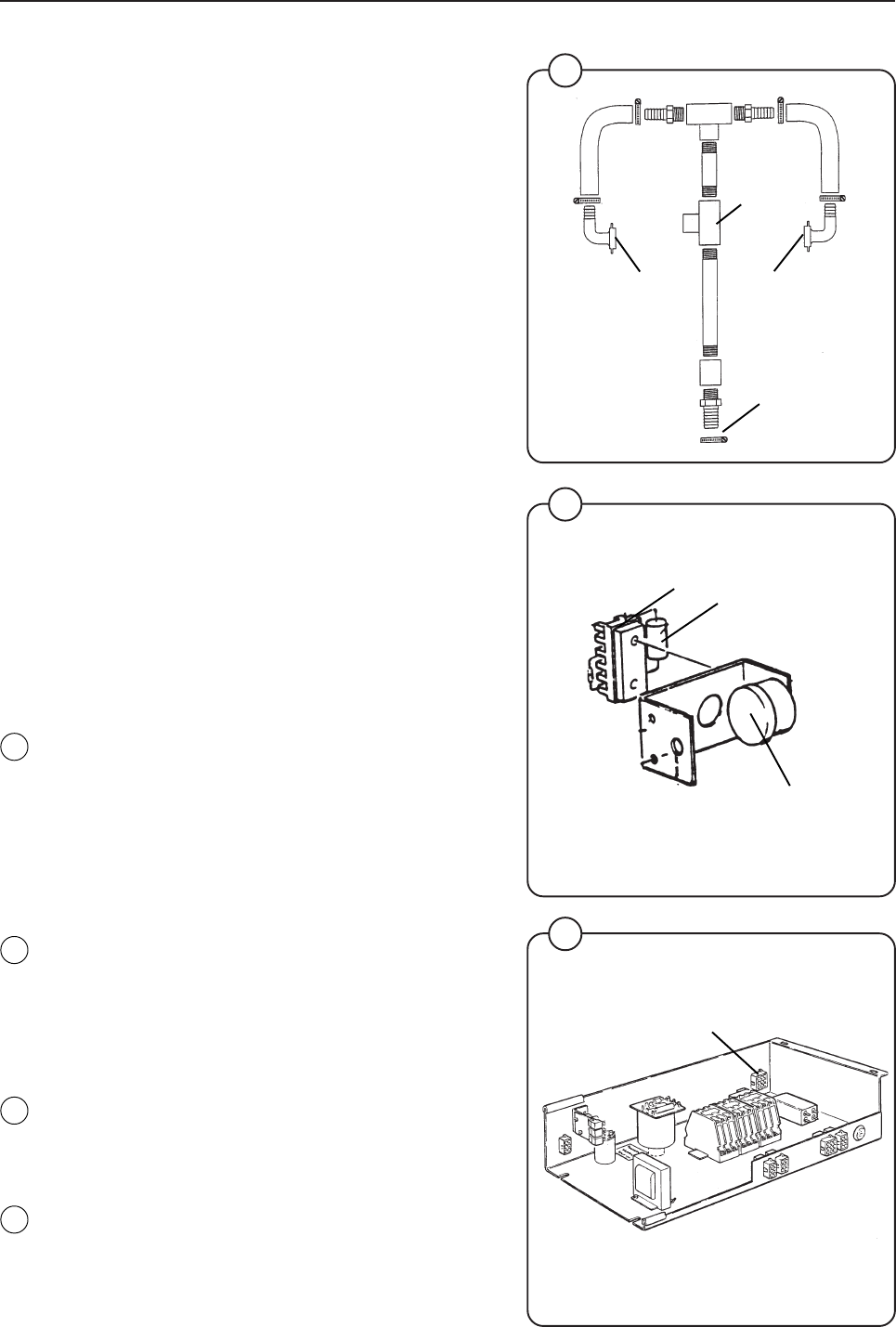

Flow meter: Installation…………………………….............. ...................17:1

Flow meter: Calibration………………………….................. ...................18:1

Flow meter: Change of amount of water…………................ ................19:1

Flow meter: Maintenance…………………………............... ...................20:1

Cleaning the machine from lint, scale and detergent …. ......................21:1

Maintenance before start up of a test series………............... ...............22:1

Regular maintenance 6 – 12 months……………….............. .................23:1

Empty run test data MP-Lab……………………….............. ..................24:1

Program description MP-Lab………………………............. ..................25:1

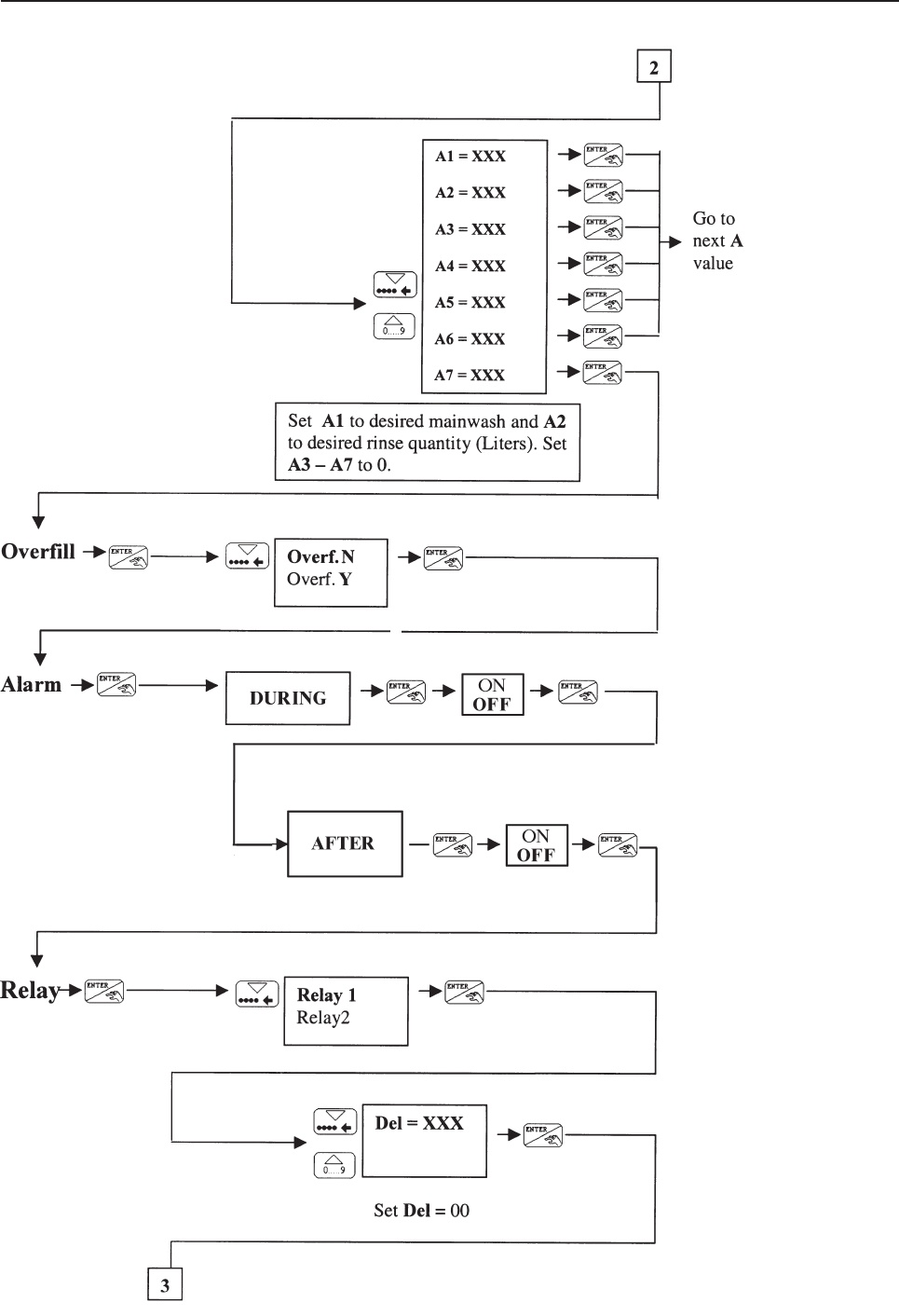

Programming charts Mp-Lab………………………............. ..................24:1

Installation of ﬂow meter control (438 9041-07/04)…. .............. Appendix 1

1:1

Introduction

The Maintenance manual for reference machines shall be used when performing

washing machine tests according to the international standard IEC 60456 Ed 5.

The purpose of this manual is to help the user to keep the reference machine in

best condition in order to minimize the inaccuracy of the results caused by the

reference machine.

The manual only deals with the approved reference machines in IEC 60456 Ed 5:

Wascator FOM 71 CLS and, FOM 71 MP-Lab equipped with ﬂow meter 472 99

0298..

Wascator

FOM 71 CLS

2:1

Wascator FOM 71 CLS

Software versions

Software 1.3:

Original software installed from production start

Software 1.7:

Introduced 2004-04-28 from serial number 005200049196

Changes: Following parameters added to Settings 1:

START SLOW FILL MM Default value = 0

IS TEMP ADJUST ADD Default value = 0

IS TEMP ADJUST SUB Default value = 0

Software 1.8

Introduced 2007-01-27 from serial number 005200089296

Changes: Following parameters added to Settings 1:

SPEED CALIB. LOW RANGE IN % Default value = 1000

SPEED CALIB. HIGH RANGE IN % Default value = 1000

SHOWED SPEED CALIB. LOW' Default value = 1000

SHOWED SPEED CALIB. HIGH' Default value = 1000

Software 2.0

Introduced 2009-08-25 from serial number 005200126347

Changes: Software bug regarding ﬁrst ﬁll corrected.

Following parameters added to Settings 1:

BACKLIGHT Default value

Rev 2.03

Introduced 2009-12-18 from serial number 005220402809

Changes: Default values changed:

IS TEMP ADJUST ADD Default value = 0

IS TEMP ADJUST SUB Default value = 3

Software 3.0

Introduced 2010-04-12 from serial number 005220405727

Changes: Software bug corrected.

Bug does not affect testing in accordance with IEC standards.

All software from 1.30 is suitable for IEC 60456 testing, but version 1.8 is recommen-

ded. Contact your nearest Electrolux Laundry Service Centre for downloading instruc-

tions.

Software versions

3:1

Installation inspection of the reference machine

5710 A

Wascator FOM 71 CLS

Installation inspection of the

reference machine

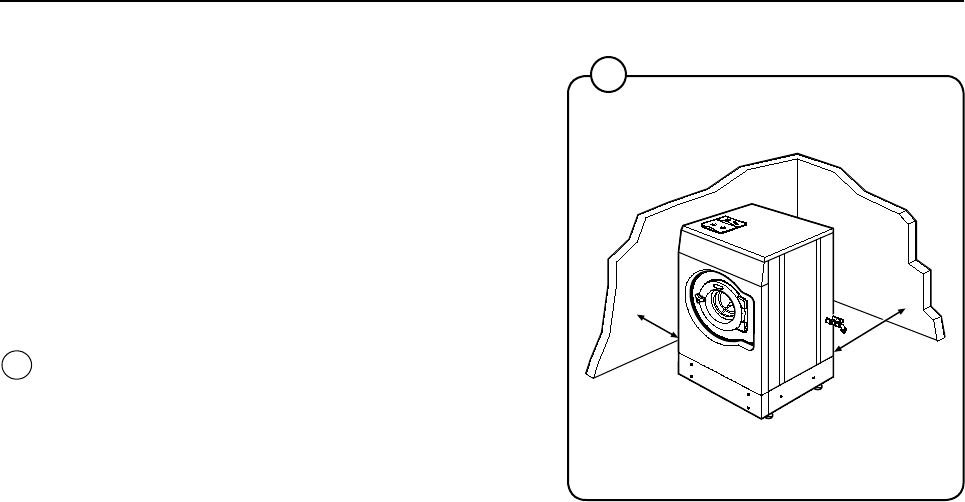

Before carrying out any major test series inspect

the installation and check the following terms:

• Themachinemustbeinstalledonalevel

base. The following clearances are recom-

mended in order to facilitate calibration:

At least 500 mm between the machine and

the wall behind and min. 50 mm on both

sides of the machine whether installed next to

the wall or other machines.

• Checkthelevellingofthemachine.Theverti-

cal difference from corner to corner of the top

lid shall not exceed 5 mm. If not adjust the

feet of the machine.

• Themachineshallbeconnectedusingthe

supplied Y hose or using two single hoses.

• Thewaterhoseandpowercablemusthang

freely between the machine and wall in order

to prevent disrupting the reference machine

scale system.

• Makesurethatthedraininstallationismade

according to the information on next page.

Observe the required air gap in the drain sys-

tem.

50 mm

500 mm

3:2 Installation inspection of the reference machine

5330

Drain connection

• Connect a 75 mm (2 1/2") ﬂexible rubber hose

to the machine’s drain pipe, ensuring a down-

ward ﬂow from the machine. Avoid sharp

bends, which may prevent proper drainage.

• There should be an air-gap of 50 mm between

the drain hose and the drain.

• Make sure that the drain hose is sufﬁciently

ﬂexible so that it does not cause problems

related to the scale system.

• Pipes made from PVC or similar materials

may not be connected to the machine due to

the load cells.

• The drainage hose should be located over a

ﬂoor drain, drainage channel or similar so that

the distance between the outlet and the drain

is at least 25 mm (1").

• Checkthattheamountofsupplywateratthe

water connection to the reference machine is

sufﬁcient and compliant with the speciﬁca-

tion in the standard (15 ± 2 litre) and that the

amount can be maintained at all times. The

water pressure at the intake of the machine

may never fall below 100kPa.

• Checkthatthepowersupplyiscompliantwith

the voltage speciﬁed on the reference machi-

ne data label and within the tolerances of the

standard (± 2%) .

• Makesurethatthepowersupplycanmaintain

the required voltage level whilst the reference

machine is heating.

4:1

Calibration of the level control system

CLS 1.jpeg

CLS 2.jpeg

Wascator FOM 71 CLS

Calibration of the level control

system

During testing compliant with the IEC 604456

Ed5 standard, this calibration does not control

the supply water values of the wash program.

However, where wash programs use the scale

for controlling the water intake level, the control

becomes active and manages other levels inside

the machine such as empty machine, heating

element safety level and overﬁll. These levels

are needed for the safety values of the machine.

Therefore, the level must be adjusted and main-

tained in accordance with the procedure descri-

bed below.

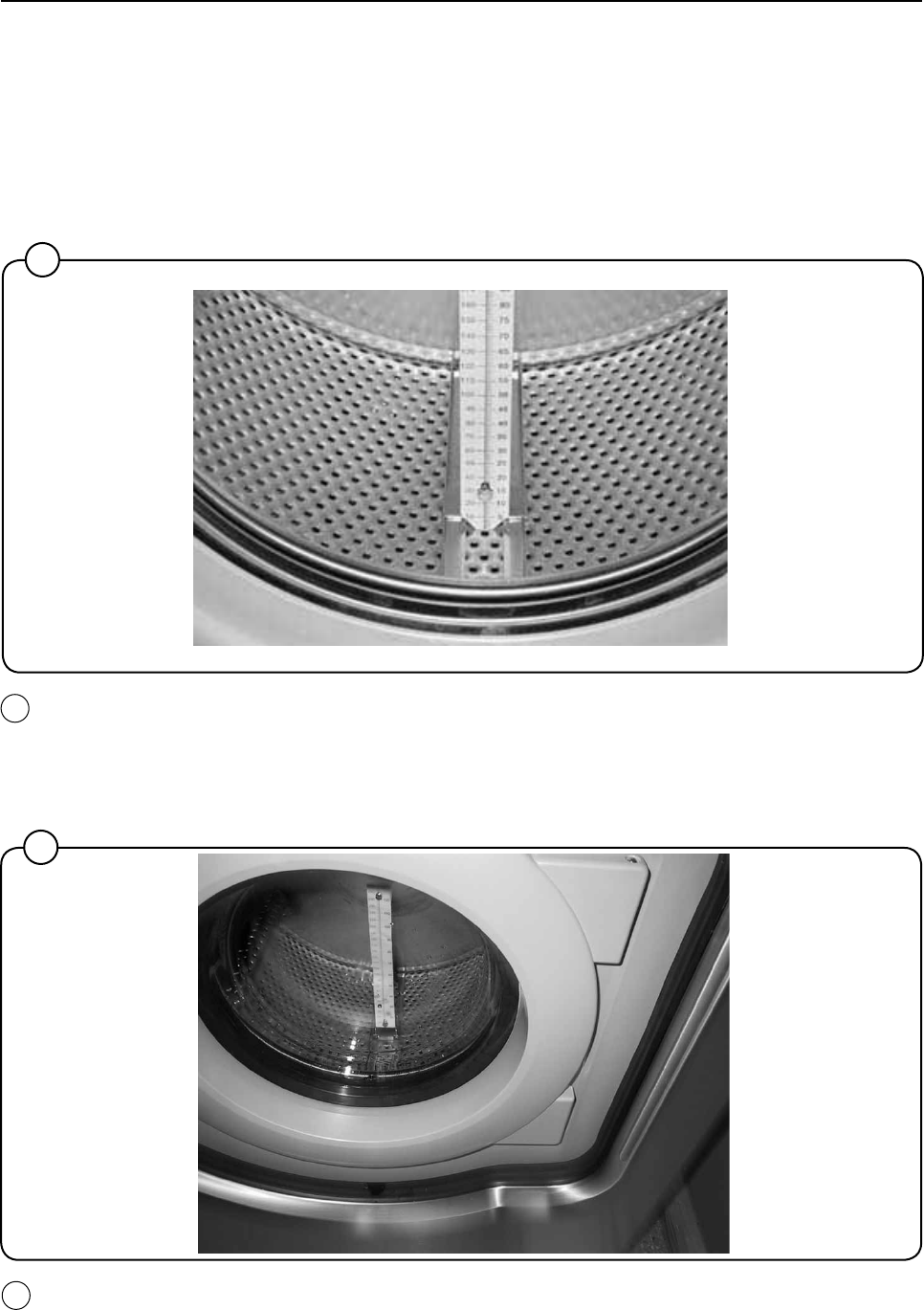

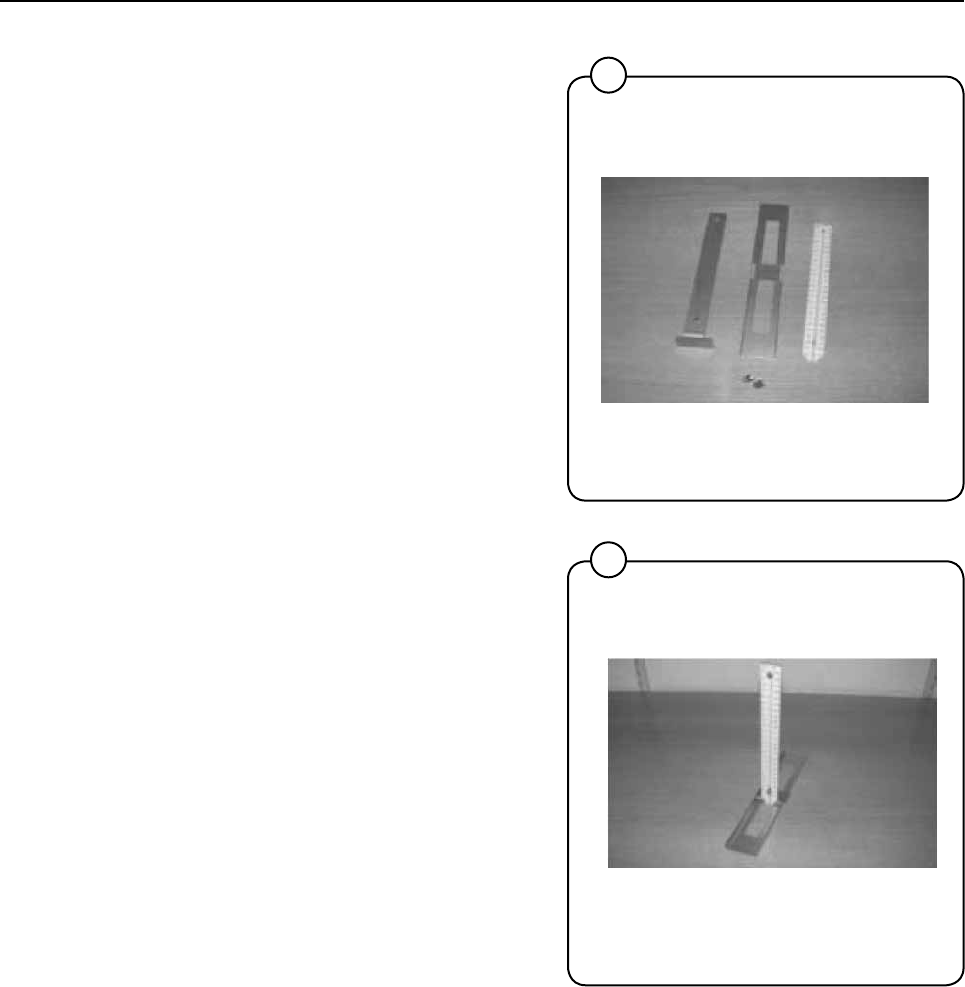

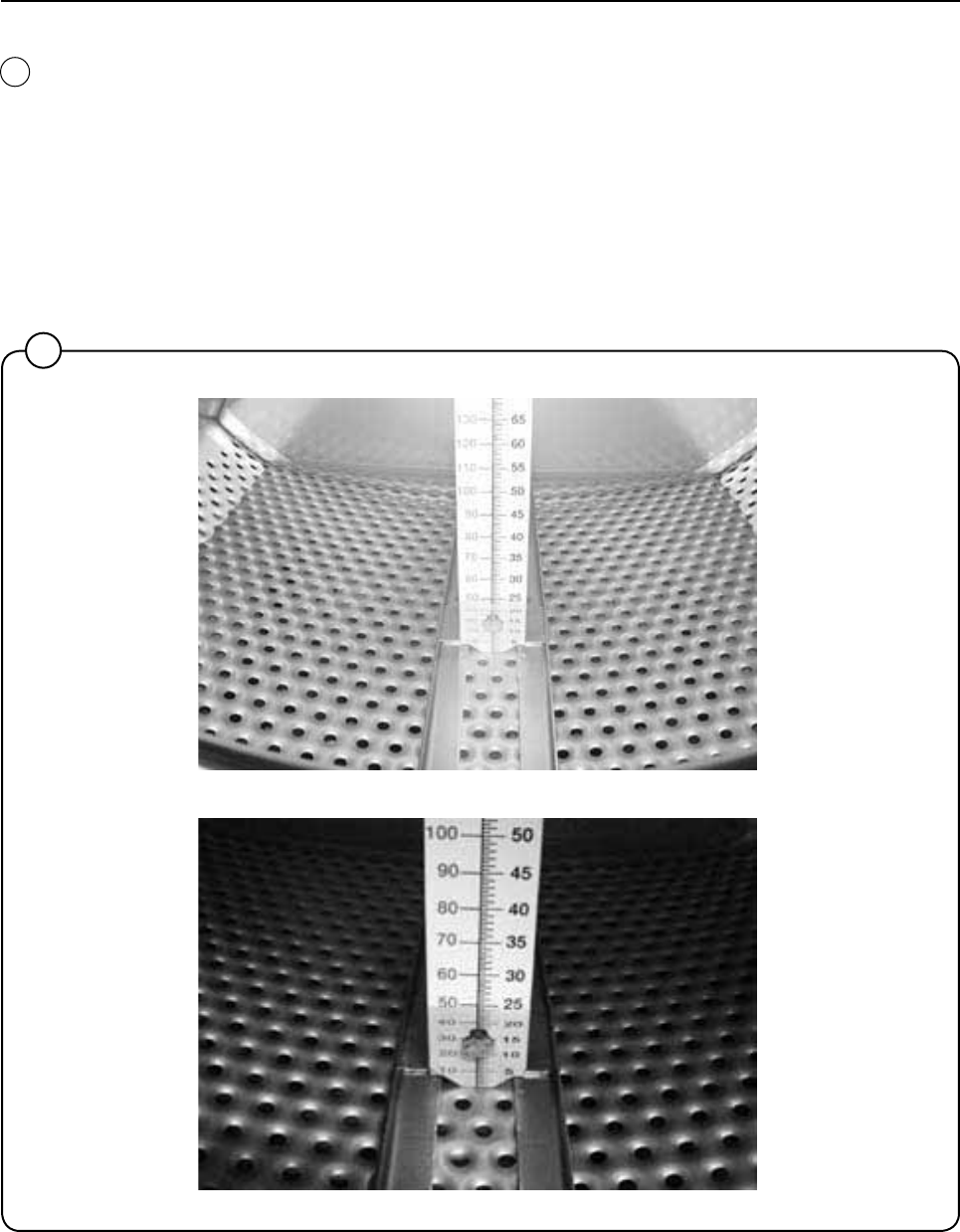

Assembling the ruler

Fig. 1-2: Mount the scale and ruler as shown in

the pictures.

4:2 Calibration of level control system

CLS 7.jpg

IMG 0012.jpg

Calibration of level control system

The level control system can be calibrated both individually and manually.

Calibration starts at the bottom of the inner drum and can go up to 250

mm from that point.

A ruler is supplied with the machine with which the water level above the

inner drum can be read.

• Placetheruleronthebottomoftheinnerdrum,equidistantbetweentwo

lifters and front and rear gables. Rotate the drum so that the ruler is fully

vertical and ensure that the three pins of the ruler ﬁt in the holes of the inner

drum.

• Pushthescaletothebottomofthedrumandtightenthenuts.

 • Closethedoor.

4:3

Calibration of level control system

CLS 4.jpg

CLS 6.jpg

• Therulerhastwodifferentscales,oneinmmandoneinRUunits

(exactly 2 mm/RU unit).

The calibration shall be made in at least ﬁve level steps, and the ﬁrst

step when the water just enters the inner drum. More calibration steps

can be made if requested.

- Go down to ”Options menu”.

- Press ”Select”.

- Go down to ”Service mode”.

- Press ”Select”.

4:4 Calibration of level control system

• ”ServiceMode”menuisnowshownonthedisplay.

SERVICE PROGRAM

MAKE A CHOICE:

CLEAR TRIP HOUR COUNTER

CLEAR SERVICE COUNTER

CLEAR WASH PROGRAM COUNTER IN CLS

CLEAR WASH PROGRAM COUNTER IN SMC

SCALE ADJUSTMENTS

CALIB. OF LEVEL SENSOR

EXIT

SELECT

4:5

Calibration of level control system

• Closethedoor.

• Godownto”Calibrationoflevelsensor”.

• Press”Select”.

• Press”Open”tollthemachinewithwateruntilthelevelreachesthebotton

of the inner drum where the ruler is placed.

• Press”OK”.

• EnterthevaluereadontherulerinRUunits(Therstsettingis0=levelin

drum.

• Press”OK”.

• Press”Open”tollmorewater.

• Press”OK”.

• EnterthevaluereadontherulerinRUunits.(Ifyouenteranincorrectvalue,

press ”CLR”. Enter new value.

• Press”OK”.

• Enteranotherthreevalues,makingveintotal.

• Onceallvalueshavebeenentered,press”Save”.

LEVEL CALIBRATION

FILL WATER TO

DESIRED LEVEL

LEVEL: 0 SCU

OPEN

4:6 Calibration of level control system

• Press”OK”.

• Godownto”Exit”.

• Press”Select”.

LEVEL CALIBRATION

OLD CALIBRATION

WILL BE OWERWRITTEN

ARE YOU SURE?

PRESS OK ELSE PRESS ANY OTHER KEY

5:1

Calibration of the scale system

Wascator FOM 71 CLS

Calibration of the scale system

After installation, and once all hoses and electrical cables have been

connected to the machine, the scale must be calibrated. The current

calibration (Weight vs scale output) is factory-set and a zero calibration

is required in order to compensate for the additional weight of the cables

and hoses. Important: The cables and hoses must hang freely and the

drain must have an air gap in order to ensure that the scale functions

properly. See chapter: Installation.

Zero calibration is almost identical to a Tara, but with one big difference. In

a Tara, the scale will be zero adjusted, although the adjustment will be lost

when the power is switched off. In a Zero calibration, the adjustment will

be saved.

Additional calibration variants may be selected in Service mode, but they

do not apply to the CLS version.

If a weight transducer need to be replaced, or if the scale electronics are

changed, a complete calibration of the scale is required. Please consult

an Electrolux Laundry System Service Centre before performing such a

calibration.

5:2 Calibration of the scale system

Zero adjustment of the scale (weight function)

The scale is factory-set and no adjustment should be necessary unless

some components have to be replaced. However, a zero adjustment must

be carried out as the total weight of the machine has to be programmed

into the scale.

Make sure that the water and drain hoses are in place and properly moun-

ted. Make sure that all panels are ﬁtted and the power connection is loca-

ted on top of the machine.

• Enter”Servicemode”asdescribedinlevelcalibration.

• Goto”Scaleadjustment”

• Press”Select”

• Goto”Zerocalibration”

• Press”Select”

• Press”Select”(Makesurethatthereisnoadditionalweightonthe

machine and don´t lean on the machine).

• Whendisplaytext”Resetscalefromcalibration…”appears,

press ”Select”

• Godownto”Exit”

• Press”Select”

• Gobacktothemainmenu.

The zero adjustment is now complete and the weight of the emty machine

should now be shown in the display as 0.0 kg (a margin of ± 0.1 kg is

permitted). If a different value is shown in the display, the zero adjustment

must be done again.

5:3

Calibration of the scale system

Bild 5.3.jpg

Adjustment of the FOM 71 CLS scale control unit in event that the scale

cannot be set to zero

If the offset weight is too high (or negative), a zero calibration may fail. This may be cau-

sed by the addition or removal of heavy objects (hoses, panels, etc) during installation.

The instruction below describes how to overcome this fault.

1. Remove the lower front panel and open up the control box for the FOM 71 CLS Weight

System located below the machine as shown in the picture above. The box is only at-

tached to the frame with zippers.

2. All panel plates and components removed from the machine must be placed on top of

the machine. This is important in order to get the correct weight when performing the

calibration.

3. Turn the potentiometer (shown above) counter clockwise until the Clarus Control display

shows about -20 kg. If you turn the display too far it will display 999. If so, turn the poten-

tiometer back about 1 full turn.

4. Once this has been done, a normal zero calibration may be performed in accordance

with the instructions above.

6:1

Calibration of the scale system

Wascator FOM 71 CLS

Installation of laboratory sensors for tempe-

rature and speed and connection for external

weight signal

Laboratory sensors can be attached to the

Wascator FOM 71 CLS model. However, it is

important that the installation is carried out in

accordance with the instructions below so as

not to incur improper operation or obtain inac-

curate test results.

Installation of a laboratory temperature

sensor

A suitable place for an external temperature

sensor can be found on the back gable of the

drum.

At the bottom of the gable, next to the rubber

hose running to the sample cock, there is a

socket to which a sensor can be connected.

Use a ¼” clamping nut for the sensor.

Maximum insertion of the sensor is 50 mm from

the edge of the socket. If the sensor is inserted

too far, it will interfere with the rotating inner

drum.

CLS 5.jpg

6:2 Calibration of the scale system

Installation of speed sensor

A speed sensor can be attached to the end of

the drum shaft. In order to be able to attach the

sensor, a hole can be made in the back panel

of the machine. A diameter less than 60 mm

will not affect the performance of the machine.

(Ventilation holes may change the air tempera-

ture inside the machine, which may also affect

water temperature.)

External weight sensing signal

An external signal may be obtained from the

weight control system. On distribution card B

(located on the right side panel in the rear con-

nection box), there are two outputs (X78:1 and X

78:2), which are for the weight signal. The loca-

tion of X78 is shown in the diagram of distribu-

tion card B below.

Electrical installation must be carried out

by an authorized personnel

5331

View of rear connection box

Japan only A B

A B

6:3

Calibration of the scale system

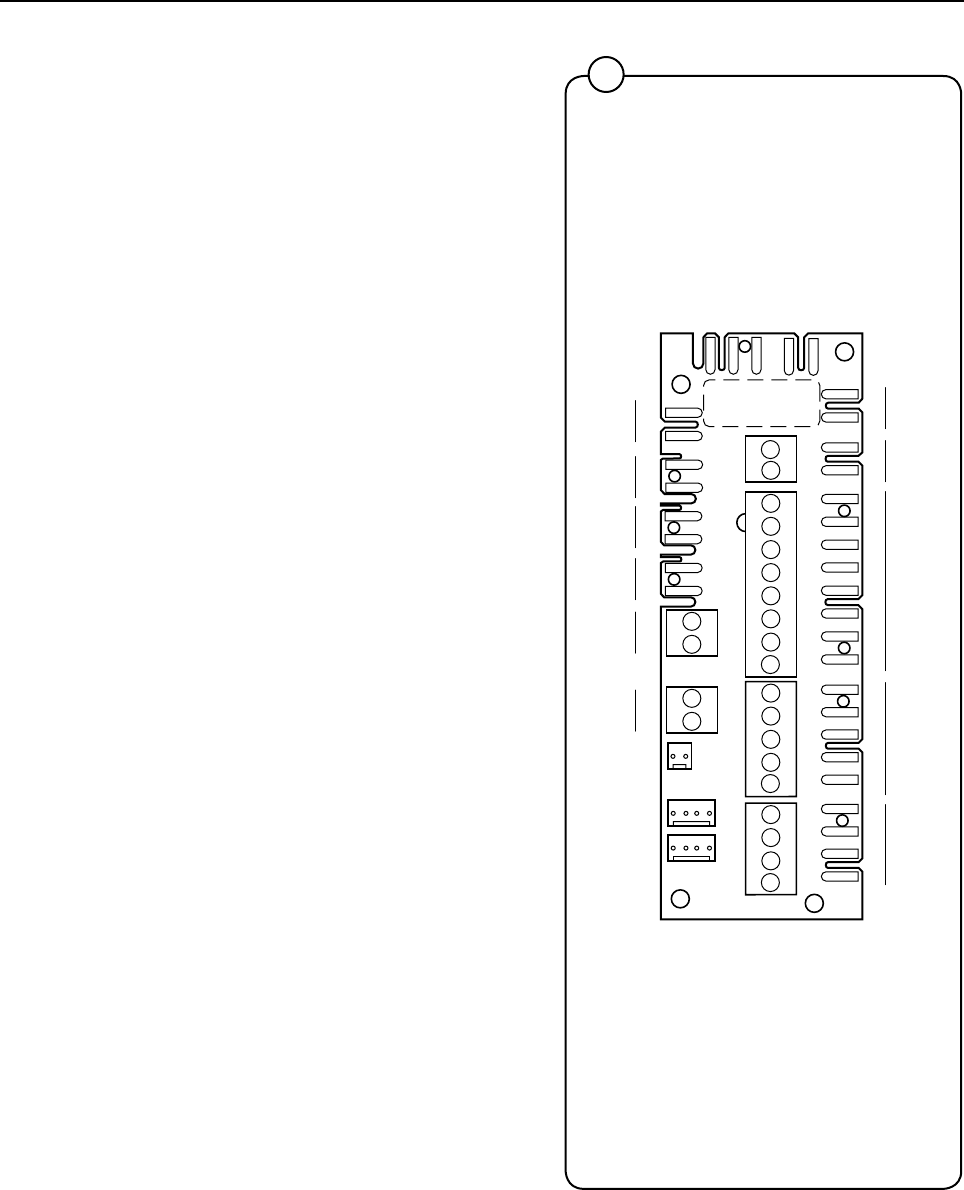

Card B

View of distribution card B

5743A

Weight signal 4 -20 mA (4 mA

equal to 0 kg and 20mA to 80 kg)

Output X78:1 = +

X78:2 = -





 



 

 

























7:1

Adjustment of temperature, speed and water

Wascator FOM 71 CLS

Adjustment of temperature, speed and water

Many of the machine's preset parameters shown under Settings 1 in Menu

mode can be changed. Some of these parameters are useful during the mainte-

nance and calibration procedures. A full parameter list can be found in Table 1

Adjustment of temperature

If the actual temperature in the bath does not correspond to the set temperatu-

re or temperature shown in the display, a correction can be made. Parameters

“IS TEMP ADJUST ADD” and IS TEMP ADJUST SUB” can correct a deviation.

Each parameter will change the temperature (decrease or increase). For deﬁni-

tions and scale intervals, see table at the end of this document. Note that equal

parameter values in both ﬁelds will both add and subtract the same change and

thus giving no correction from the default value.

Adjustment of speed

An accurate calibration of the wash and/or spin speed can be achieved using

the SPEED CALIB. LOW RANGE IN % and SPEED CALIB. HIGH RANGE IN %

parameters. The low range covers the speed interval 0-300 rpm, and the high

range from 300-1100 rpm. The parameters are a ratio factor where a change of

one unit will give a 0.1 % change of the speed.

It is also possible to adjust the display value of the speed to actual speed. The

display value shown is a calculated value derived from motor speed and the

pulley ratios. Due to belt slip and pulley tolerances the displayed value may

from time to time differ from the actual value. Parameters: SHOWED SPEED

CALIB. LOW' and SHOWED SPEED CALIB. HIGH

can adjust any difference. These parameters are also ratios where a change of

1 unit will give a 0.1% change of displayed speed.

Adjustment of water

For zero calibration of the scale see "Calibration of the scale system".

Due to the short time delay between the scale sensor system and the water

valve closure a negative off set value is needed in order to increase the ac-

curacy. Parameter: OFF SET LEVEL HG (1Hg = 0.1kg). Default value is 2 (0.2

kg) but in case water pressure is high, this value may need to be increased, or if

the pressure/ﬂow is low, to be decreased. If a change is necessary this can be

observed during a ﬁlling if the weighting system always stops at a small amount

(± 0.1-0.2 kg ) from the expected value.

The control system switches from the normal high ﬂow valve to a smaller 5

litre/min valve at the end of each ﬁlling in order to increase the accuracy of the

system. The parameter START SLOW FILLING HG deﬁnes how much before

the set amount of water this change of valves shall occur. Default value is 10HG

(=1 kg and equal to 1 litre )and shall not be changed.

7:2 Adjustment of temperature, speed and water

NOTE: It is advisable that authorized technicians from Electrolux

Laundry Systems are contacted before any change is made.

Procedure for changing parameters in SETTINGS 1

Electrical installation must be carried out by an authorized personnel

• TurnmainswitchattherearofthemachinetoOFF.

• Disconnectthemachinefromthemainpower.

• Unscrewthelidtotherearelectricalconnectionbox(4screws)andre-

move the lid.

• Removethemainswitchknobfromthelidandplacetheknobinthe

main switch again.

• Reconnectthemachinetomainpowerandturnthemainpowerswitch

to ON.

• SelectMENUindisplay.

• GodowntoSETTINGS1.

• Selectandchangethedesiredparameter.Foralistofavailableparame-

ters, see Table 1.

• Onceallchangeshavebeenmade,gotoREADY(lastlineinSettings1).

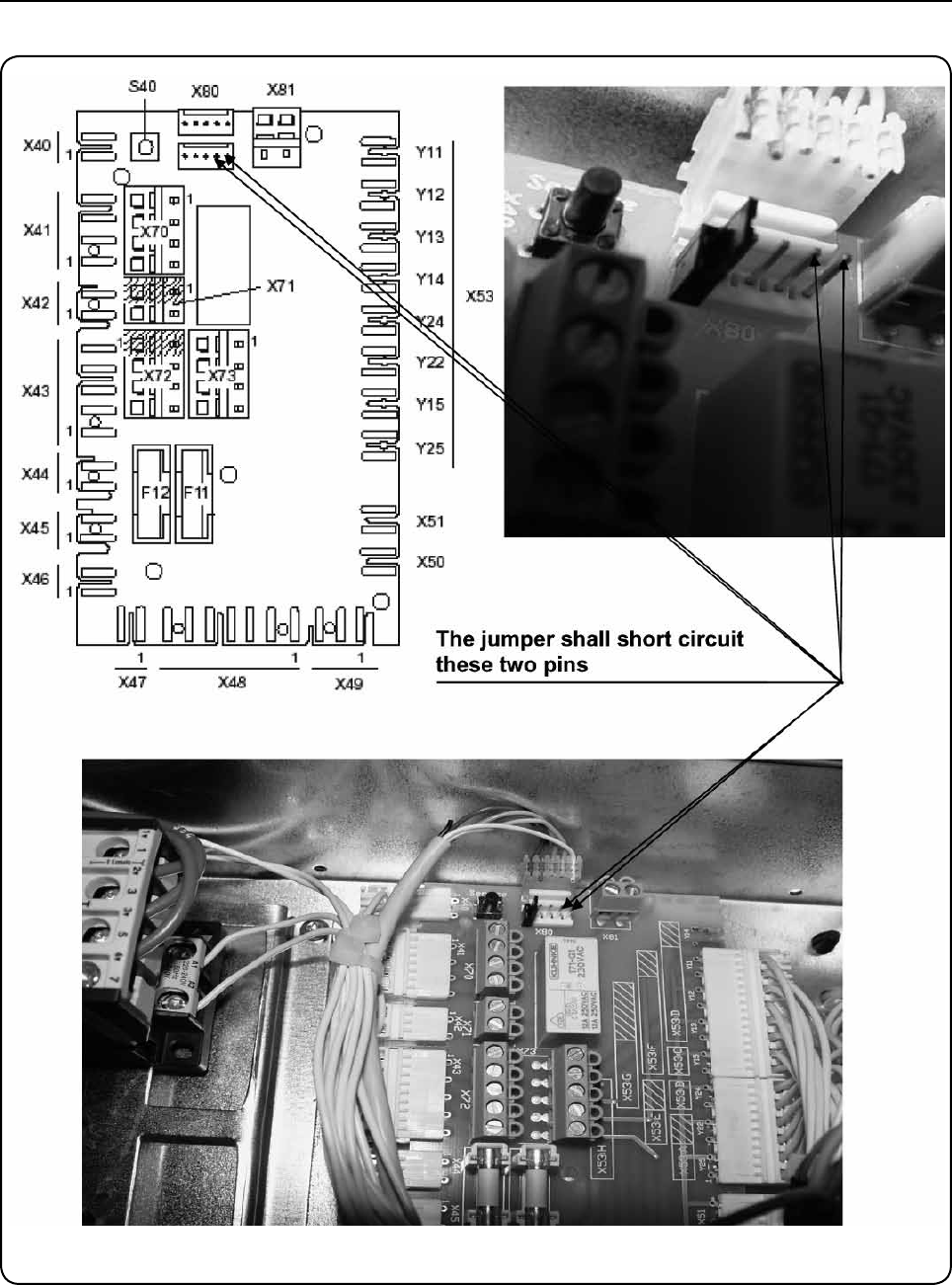

• Insertashort-circuitjumperoverthetwopinstotherightinconnection

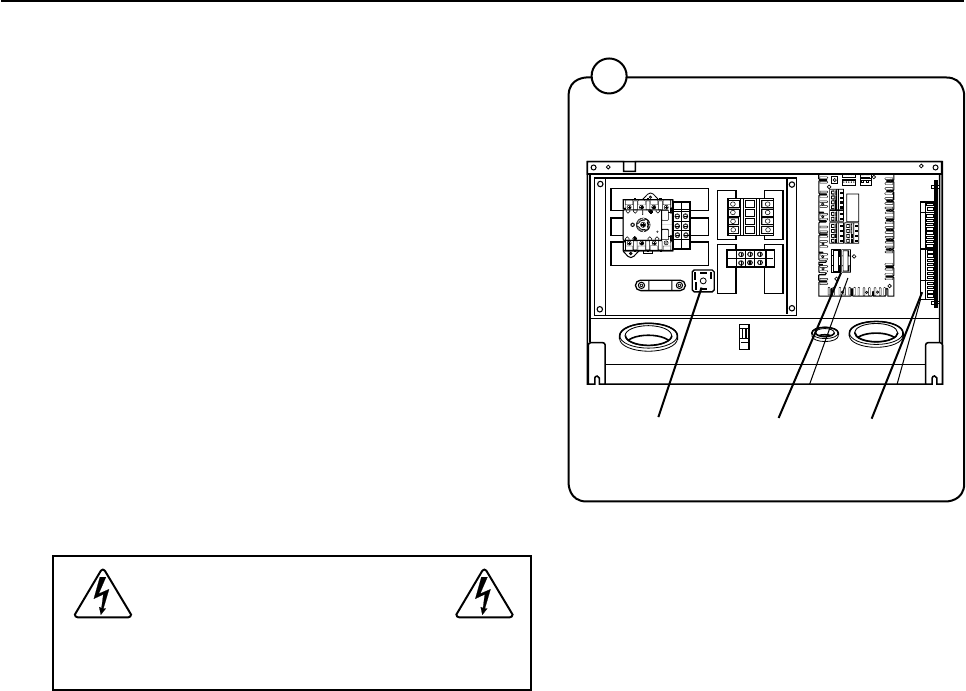

X80 on the A21 board in rear connection box. (The board to the right

facing rear). The location of X80 is shown in ﬁg. 1. The jumper is stored

on one of the pins in the X80 connector.

• PressSELECTonthefrontpanelandreadindisplaythatthechanges

have been loaded into the CPU.

• Disconnectthejumper.Replacethejumperononlyonepin.

• TurnmainswitchtoOFFanddisconnectmainpower.

• Re-tthemainswitchknobintherearconnectionboxlidandre-tthe

lid on the machine (knob in the OFF position).

• ConnectthemachinetomainpowerandturnmainswitchtotheON

position.

7:3

Adjustment of temperature, speed and water

Bild 7.3.jpg

7:4

FUNCTION DEFAULT

VALUE

EXPLANATION

ADJUST TIME ALLOWED N Change of the “step time” (See display) e.g. wash/

rinse/etc time during a program operation.

ADJUST TEMPERATURE ALLOWED N Change of the temperature within a sequence during

program operation

RAPID ADVANCE ALLOWED Y Permission to rapid advance during a program ope-

ration

SHOW WEIGHT ALLOWED Y Option to show scale output in the display.

WATER REDUCTION NOT ALLOWED Y Some normal washing machines with this type of

control can have an automatic system with water

reduction depending on load weight. For the FOM 71

CLS this function must always be Y.

MANUAL FUNCTIONS ALLOWED Y The functions in “Manual Mode” (See display under

Menu) are active

PAUSE ALLOWED Y Pause function can be activated with the pause

button.

FREE TEXT ALLOWED Y Option to write a free text area for each wash pro-

gram. This is used in order to shift between pro-

grams using the scale or level control, see manual

Programming FOM 71 CLS, chapter Programming

text page 42.

CHANGE WASH PROGRAM ALLO-

WED

Y Possibility to change to a different wash program

during a program operation

AUTO RESTART ALLOWED Y Automatic restart possible. The same program will be

restarted as many times as desired when selecting

the function Auto restart in wash program display.

ADJUST SPIN SPEED ALLOWED Y A possibility to change the spin speed during an

extraction in an ongoing wash program

DISPLAY REMAINING TIME Y Remaining time will be shown in display during

program operation Note: The remaining time will not

be shown the very ﬁrst time a speciﬁc program is

running.

DISPLAY ACTUAL TEMPERATURE Y Actual bath temperature will be shown in the display

during program operation

DISPLAY ACTUAL SPEED Y Actual machine speed will be shown during the pro-

gram operation

MACHINE NOT HEATED N Should be set to Y if programs without thermostop

shall be used. ( Fixed program time programs)

If set to N the wash programs will be programmed

with thermostop. (The program will wait for the tem-

perature to reach set temperature before count down

of set time.

Adjustment of temperature, speed and water

Table 1: Parameters in Settings 1

7:5

FUNCTION DEFAULT

VALUE

EXPLANATION

TEMPERATURE CONTROL OF

WATER

Y If set to Y and using hot and cold water supply the

hot and cold water is pulsed so the inlet water tem-

perature does not exceed the set temperature.

TEMPERATURE IN ºC Y Temperatures shown in centigrade. If N is set the

temperature shown will be in Fahrenheit.

REPEATED PROGRAM MODE

QUESTION

N If set to Y a switch between standard and advanced

programming can be made before each sequence.

FOM 71 CLS shall always be programmed in advan-

ced mode.

LOCKED STANDARD WASH

PROGRAMS

N If N the user has access to programs 991 -999. IN

FOM 71 CLS these programs are the start up and

check programs.

LEVEL QUICK COOL DOWN 80 If sequence COOL DOWN is used this value deﬁnes

the level increase of cold water if the Quick Cool

down function is activated.

LEVEL UNBALANCE 0 If set to a value other than zero the machine ﬁlls the

drum to selected level at an unbalance stop before

next attempt to distribute. For FOM 71 CLS the value

shall be 0

LEVEL LOW 0 Set level for low level question in standard program-

ming mode. Not used with FOM 71 CLS

LEVEL MEDIUM 0 See above (medium level)

LEVEL HIGH 0 See above (high level)

MIDDLE TEMPERATURE COOL

DOWN

70 Breaking point in the cool down sequence where the

temperature controlled cool down (4 ºC/min) ends

and the unmonitored part of the cool down sequence

starts.1 step = 1ºC

DEFAULT MOTOR ON TIME 12 A default value for the motor on time. This value only

used during certain restarts after for example unba-

lance breaks. 1 step = 1 sec

DEFAULT MOTOR OFF TIME 3 Default value for the motor off time: Only used as

above. 1 step = 1 sec

FLUSH DELAY TIME 10 Delay time for the ﬂushing of water when liquid de-

tergent injection pumps are used. 1 step = 1 sec

FLUSH ON TIME 6 Flushing time for the water after the ﬂush delay time.

1 step = 1 sec

BUZZER ON BUTTON N If Y a beep will occur each time a front panel key is

pressed.

MAX FILLING TIME 60 Max ﬁlling time before an error message occur if not

level/amount of water has been reached. 1 step = 10

sec

MAX HEATING TIME 60 Max heating time before an error message occurs if

the temperature has not increased a speciﬁc number

of degrees. 1 step = 10 sec

Adjustment of temperature, speed and water

Table 1: Parameters in Settings 1

7:6

FUNCTION DEFAULT

VALUE

EXPLANATION

SHOW WEIGHT TIMEOUT 20 Time the weight is shown in the display before the

normal display is restored. 1 step = 1 sec

PC5 BLOCKING OF HEATING N Parameter for parallel operation of commercial wash-

ers. Not used in FOM 71 CLS operations

PC5 BLOCKING OF SPINNING N See above

HEAT 2 STANDARD N For machines with dual heating systems. Selects

which system that shall have priority. Not used in

FOM 71 CLS operations.

SERVICE ALARM, HOURS 0 Time between service information calls. Parameter

for commercial machines not used in FOM 71 CLS

operations

BUZZER TIMEOUT AT END 3 Buzzer on time at the end of a wash process. 1 step

= 1 sec

BUZZER TIMEOUT AT PAUSE 10 Buzzer on time at the activation of a programmed

pause. 1 step = 1 sec

ERROR, OVERFILLED N If N no overﬁlling error message. Levels above the

over ﬁll level allowed.

PASSWORD ACTIVE N No password required. If Y password needed in

order to start the machine.

CMIS ADDRESS 0 Address for commercial management system. Not

used in FOM 71 CLS operations.

LEVEL IN MM ACTIVE N If Y the level values are in mm from bottom of the

drum. For FOM 71 CLS the highest possible level

exceeds the number of available software bites and

therefore the levels are measured in RU units (1 RU

unit = 2 mm)

START SLOW FILLING HG 10 Amount of water to be ﬁlled through the 5litre/min

valve at the end of the ﬁlling sequence when using

the scale in order to increase the accuracy. Value in

hg (1 hg = 0.1 Kg)

OFF SET LEVEL HG - 2 Offset value (negative) for the scale calculation elimi-

nating delays in control and valve systems. Value in

hg (1 hg = 0.1 Kg) Value entered

START SLOW FILL, MM

From software 1.7 and machine serial

number 52049196

0 Amount of water to be ﬁlled through the 5litre/min

valve at the end of the ﬁlling sequence when using

the level control in order to increase the accuracy.

Value in hg (1 hg = 0.1 Kg)

IS TEMP ADJUST ADD 0 Temperature calibration. Add increases actual

temperature signal to the control unit. Step ~0.7 ºC.

Result will be a lower wash temperature.

IS TEMP ADJUST SUB 3 Temperature calibration. Sub decreases actual

temperature signal to the control unit. Step ~0.7 ºC.

Result will be a higher wash temperature.

Adjustment of temperature, speed and water

Table 1: Parameters in Settings 1

7:7

FUNCTION DEFAULT

VALUE

EXPLANATION

SPEED CALIB. LOW RANGE IN %

From software 1.8 and machine serial

number 052089296

1000 Will change the drum speed in the low speed interval

≤ 300 RPM. The default value is a ratio value and a 1

unit change will change the ratio 0.1%

Thus 956 will mean 95.6% of original speed and

1050 105% of original speed.

SPEED CALIB. HIGH RANGE IN %

From software 1.8 and machine serial

number 052089296

1000 Will change the drum speed in the high speed inter-

val > 300 RPM. The default value is a ratio value and

a 1 unit change will change the ration 0.1% in the

same way as for LOW RANGE.

SHOWED SPEED CALIB. LOW'

From software 1.8 and machine serial

number 052089296

1000 Corrects the speed showed in display to actual

speed

Will change the showed display speed in the low

speed interval ≤ 300 RPM. The default value is a

ratio value and a 1 unit change will change the ratio

0.1% Thus 956 will mean 95.6% of original displayed

speed and 1050 105% of original displayed speed.

SHOWED SPEED CALIB. HIGH

From software 1.8 and machine serial

number 052089296

1000 Corrects the speed showed in display to actual

speed

Will change the shown display speed in the high

speed interval > 300 RPM. The default value is a ratio

value and a 1 unit change will change the ratio 0.1%

in the same way as for CALIB. LOW.

BACKLIGHT 30 Controls the time the display shall be illuminated in

seconds. 1 step = 1 sec.Max value 254 seconds.

Value 0 means display always illuminated.

READY

Adjustment of temperature, speed and water

Table 1: Parameters in Settings 1

8:1

Cleaning the machine

Wascator FOM 71 CLS

Cleaning the machine from debris in water, lint,

scale and residual detergent

It is very important that the wet parts of the machine are free from debris

and particles that can inﬂuence the wash performance of the machine.

Lint and threads from ballast and test swatches can accumulate on the

heating elements and as the bundle of lint/threads will grow it may eventu-

ally be so large that is clogging the drain valve and causing the drain valve

to leak. This leakage will deﬁnitely inﬂuence the wash performance as in the

beginning of the main wash unsolved detergent is located above the drain

valve seat. When leakage occurs the concentrated solution will leak out

reducing the detergent concentration in the bath.

Calcium carbonate from the hard water used in IEC tests will after time ac-

cumulate mainly on the heating elements. If the scale layer is too thick the

heating elements may be destroyed due to the insulating effect of the layer.

Heating power will also be reduced, giving longer heating times.

Lint from the textiles, together with zeolite from the detergent, will accumu-

late on the surface of the outer drum and on the back gable. If the amount

of detergent is too large this can affect the wash and/or rinse results from

the reference machine.

It is advisable not to remove the heating elements only for visual inspection

of any scale or lint. Elements shall only be removed when lint or scale have

been identiﬁed in accordance with the inspection procedure. A frequent

removal of the elements will sooner or later result in high resistance in the

wire connection causing too high connector temperature.

Electrical installation must be carried out by an authorized personnel

8:2 Cleaning the machine

Cleaning the incoming supply water ﬁlter

Debris clogging the incoming supply water ﬁlter can prolong the supply

time so it falls outside the speciﬁcation given in the standard. Therefore it

is necessary to regularly to clean the ﬁlter.

• Disconnecttheincomingwaterhoseandremovethelter.Thelter

cartridge can easily be taken out from the valve housing. Clean the

ﬁlter and reassemble all the parts.

Inspecting and removal of lint from heating elements and the drain

valve

• Thebuilt-upoflintaroundtheheatingelementsandatthedrainvalve

can be observed from inside the inner drum. Use a battery torch and

illuminate the inner side of the outer drum via the holes in the inner

drum. Lint around the elements and at the drain valve can then be

seen.

• Iflintisobservedaroundtheheatingelementstheyshallberemoved

and cleaned. Remove the front panel and the element cover. Discon-

nect the electrical wires and unscrew the fastening bolt on the ele-

ment until the bolt is at the end of the tread. (Do not remove the bolt).

Press the bolt and press in inwards as far as possible. Now the hea-

ting element can be removed and cleaned. Also clean the element if

a layer of scale is visible. After cleaning, the heating elements shall be

assembled again. Make sure that no water leaks are visible around the

element seal before mounting on the front panel.

Removal of lint from the drain valve

• Iflinthasbeenobservedin/onthedrainvalvetrytoremovethelintvia

the openings of the heating elements.

• Ifthatisnotpossiblethenthedrainvalvemustberemoved.Seein-

struction on next page.

8:3

Cleaning the machine

101772

5222

5185

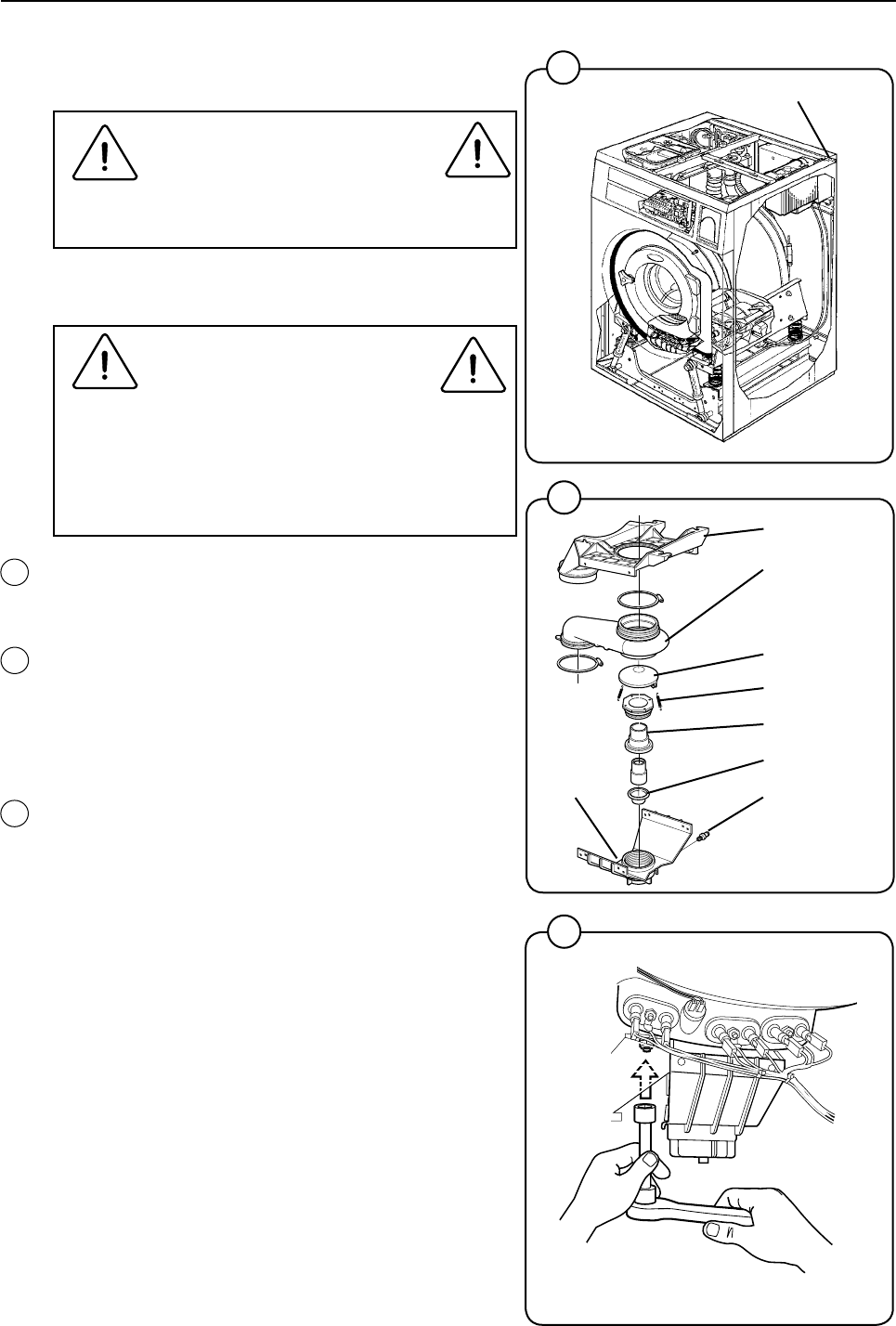

Repairs

Repair work on the machine should only be

done by specially trained personnel.

Dissambly

For repair works on the drain valve, there is

a risk that water still left in the machine may

ﬂood onto the ﬂoor. Be sure to dry up any

spilled water since it may cause people to

slip and hurt themselves.

1. Take down power from the machine by tur-

ning the main power switch to the 0 position.

2. Remove the front cover.

3. Disconnect the drain hose from upper part of

the valve.

4. Undo the hose clamp holding the valve rub-

ber bellows against the sleeve coupling of the

outer drum.

5. Loosen and unscrew the 4 retaining nuts of

the valve a couple of turns (use a socket,

extender and ratchet wrench). Turn the valve

and unhook it from the bolts.

6. Disconnect the pressure hose from the lo-

werm part of the valve.

7. Replace the valve with a new one.

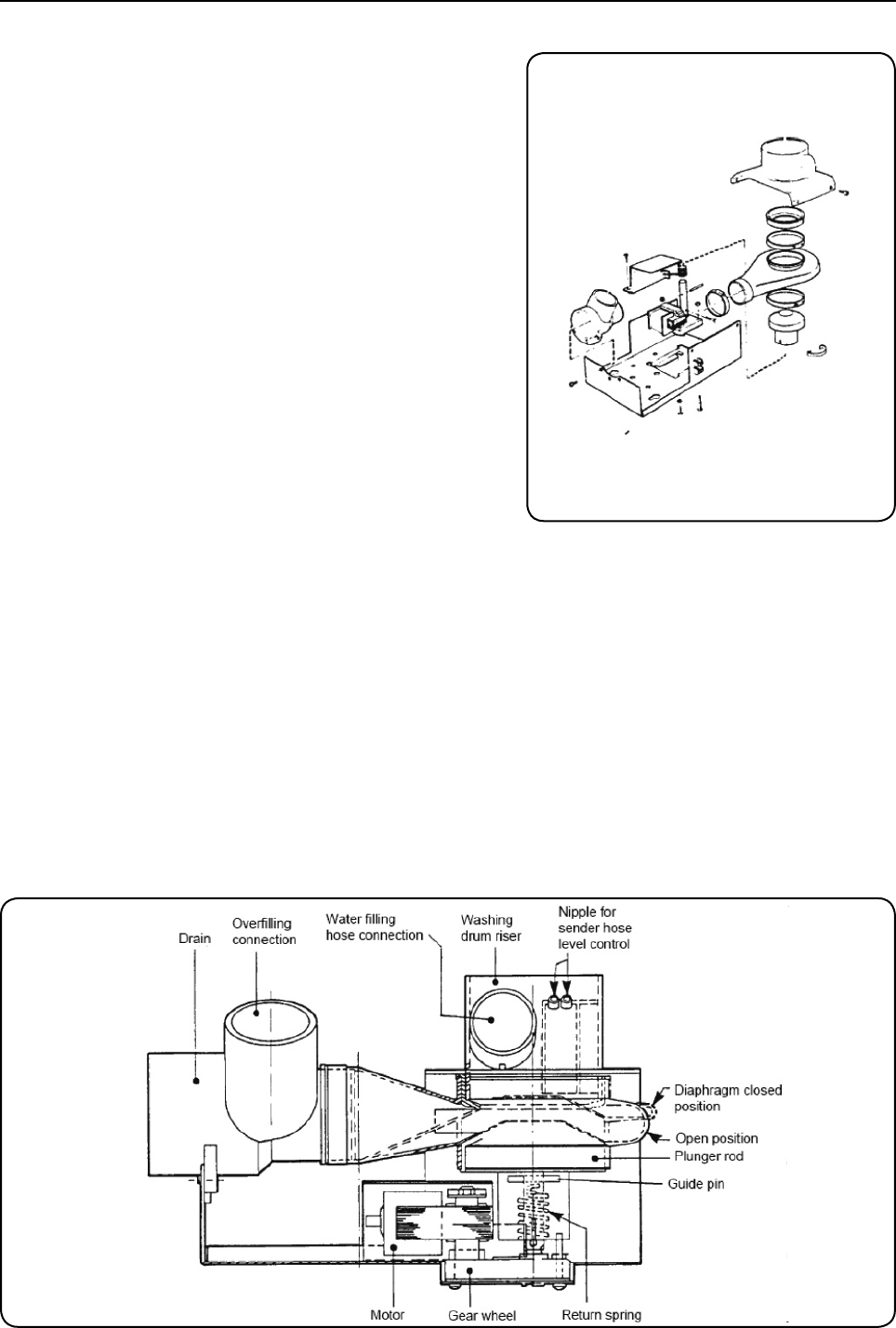

Main power switch

Upper part

Rubber

diaphragm

with drain

connection

Pressure plate

Recoll spring

Cylinder

Diaphragm

Nipple for con-

nection of feed

hose from control

valve

Lower part

8:4 Installation

Assembling

1. Connect the pressure hose to the lower part of the valve. Check that the

hose is not bent or pinched.

2. Fit the rubber bellows onto the sleeve coupling.

3. Hook the valve onto the bolts and turn the valve into position. Secure the

4 retaining bolts of the valve.

4. Secure the hose clamp at the connection of the rubber bellows on the

sleeve coupling.

5. Connect the drain hose to the upper part of the valve.

6. Turn the main power switch to position 1 and verify correct valve

operation and that it does not leak.

7. Reattach the front cover.

Removal of scale

Depending on the use of the reference machine, scale must be removed

from all parts exposed to water on a regular basis.

• Ifthemachineisoperatedinahardwaterarea,decalcifythemachinein

accordance with the following procedure:

o Put 0.5 kg of citric acid in the detergent department.

o Start program Cotton 85ºC.

o Rinse the reference machine by running the Cotton 85ºC program

again.

Removal of residual detergent

Detergent may accumilate at certain parts of the machine and also be a part

of the deposits on the inner side of the outer drum.

• Detergentmayaccumilateinthehosebetweenthedrumandtheexter-

nal tap valve. Remove the valve and clean the hose with a bottle cleaner.

Flush the hose with water to ensure that no detergent remains.

• RuneitheraCotton85°CorCotton60°Cprogramsonaregularbasis,

without ading a load or detergent. If foam is visible during the main wash,

repeat the Cotton programs until no "stable" foam is visible.

9:1

Maintenance before start up of a test series

Wascator FOM 71 CLS

Maintenance before start up of a test series

In order to ensure that the reference machine is in good order and will

work in accordance with the speciﬁcations given in IEC 60456 a number

of checks can be carried out:

Before any major test period:

• CheckforanylintaccordingtoinstructionsinChapter8.

• Checkthesupplytimeforrstll.Shallbe114±14secondsfrom

closure of door lock relay to end of ﬁlling of the 5 litre valve. If the time

is too short, lower the water pressure. If the time is too long, clean the

supply ﬁlter in accordance with the instruction set out in Chapter 8 or

increase the water pressure.

• CarryoutaninstallationcheckaccordingtoinstructionsinChapter3.

• CarryoutaweightcheckaccordingtoinstructionsinChapter5.

• Carryoutanemptyruntest.UseCotton60ºCorCotton40ºCdepen-

ding on the type of program to run be run during the test period.

• ComparetheresultsobtainedwithresultsshowninTable1inChapter

9 "Empty run test data". Note the deﬁnitions assigned to the time inter-

vals shown in the table.

• IfthevaluefalloutsidethespecicationdetailedinTableE.2inIEC

60456, carry out a second empty run test or recalibrate.

• Ifothervaluesobtainedfromtheemptyruntestdiffersfromthevalue

in Table 1, analyse the reason for this difference and correct (wrong

water pressure, wrong supply water temperature, faulty heating ele-

ment etc).

Before every test period:

• CheckforthepresenceoflintaccordingtoinstructionsinChapter8.

• Checkthesupplytimeforrstll.Shallbe127±14secondsfrom

closure of door lock relay to end of filling of the 5 litre valve. If the time

is too short, lower the water pressure. If the time is too long, clean the

supply filter according to instruction in Chapter 8 or rise the water pres-

sure.

• CarryoutaweightcheckaccordingtoinstructionsinChapter5.

Daily check:

• Ifthemachinehasnotbeeninuseforthelast2hoursrunthestartup

program (Program 991).The start up program will ﬂush the machine

with water and normalise all temperatures inside the machine.

10:1

Regular maintenance 6 - 12 month

Wascator CLS FOM 71 CLS

Regular maintenance 6-12 months

The reference machine shall at a regular basis be maintained and checked

in order to ensure that the reference machine is in good order and will work

in accordance with the speciﬁcations given in IEC 60456.

Every 6 months:

• CarryoutaninstallationcheckaccordingtoinstructionsinChapter3.

• Usethestartupprogram(Program991)andmakeavisualcheckand

ensure that the supply or drain valves are not leaking.

• CarryoutaweightcheckaccordingtoinstructionsinChapter5.

• Topreventthebuildupofscaleifthereferencemachineisruninhard

water decalcify the machine according to procedure described in Chap-

ter 8.

• Checkforanybuildupoflintordetergentandifveriedcleanaccording

to instructions in Chapter 8

• CarryoutanemptyruntestCotton60ºCorCotton40ºCdepending

what type of program to run during the test period.

• ComparetheresultsobtainedwithresultsshowninTable1inChapter

11 "Empty run test data". Note the deﬁnitions assigned to the time inter-

vals shown in the table.

• IfvaluesareoutsidethespecicationinTableE.2inIEC60456make

another empty run test or recalibrate.

• Ifothervaluesfromtheemptyruntestdiffersfromthevaluesshownin

Table 1 Analyse why the values differ and correct (Wrong water pressure,

wrong supply water temperature, faulty heating element etc).

Once a year:

• Performaacompletecalibrationofthemachineinaccordancewithcerti-

ﬁed procedures.

11:1

Empty run test data

Wascator FOM 71 CLS

Empty run test data

During the RRT2008 ring test, data was obtained from a number

of laboratories. This data is useful when checking that the refe-

rence machine in the laboratory is performing as expected.

Please note: This data is obtained from runs with an unloaded

machine. Therefore, the energy and process times obtained

here cannot be compared with the same parameters applied

during a test series carried out with a loaded machine. However,

empty test runs are not affected by load differentials or deter-

gent batches and will only produce results that are speciﬁc to

the machine.

Table 1 below shows the estimated/deﬁned values for Cotton

60°C,aswellasaveragevaluesfromtheRRT2008ringtest.

The RRT 2008 average values were obtained from the RRT 008

IEC/CENELEC/CECED ring test. These values are based on

empty run tests undertaken at 20 different laboratories.

The deﬁnitions used in Table 1 differ from those given in IEC

60456 and below are applicable to Table1.

Deﬁnitions

Total program time: Time from the start of ﬁrst ﬁlling to

the start of the retardation phase at

the end extraction sequence.

Heating time: The time until the heating relays have

been switched on during the diffe-

rent heating periods.

Total main wash time: The time from start of ﬁrst ﬁlling until

the start of ﬁrst rinse water supply.

Filling time of water: The ﬁrst ﬁlling time (26 litre). From

closure of door lock relay to end of

ﬁlling.

Cold water inlet temperature: The temperature of the supplied cold

water.

Temp at end of heating in

enzyme step: The temperature at the time the hea-

ting relay is switched off after reach

ing the 40ºC enzyme step.

Temp at the end of the

enzyme step: The temperature in the bath just

prior to the heating up to 60ºC.

11:2

Temp at the end of heating in

ﬁnal heating: The temperature when the hea-

ting relay is switched off after

reaching 60ºC.

Temp at the end of the main wash: The temperature in the bath

just prior to drain after main

wash.

Amount of water in main wash: The amount of supplied water

to the main wash.

Amount of water in rinses: The amount of water supplied

in each rinse.

Total energy consumption: The total energy consumed

during the program.

Drum Speed: Drum speed measured in RPM.

Water pressure: Water pressure (Static) measured

close to inlet valve and during the

ﬁlling of water.

Empty run test data

11:3

Estimated/

deﬁned

std values

Estimated/

deﬁned std

ranges

RRT2008

Average

value

Time:

Total program time Min,sec 72:00 2:00 71:58

Heating time cold - 20ºC Min,sec 1,30 1:00 1:30

Heating time 20ºC - 40ºC Min,sec 7:00 0:30 7:52

Heating time 40ºC - 60ºC Min,sec 8:30 0:30 8:02

Total mainwash time Min,sec 46:00 1:30 46:07

Filling time of water ﬁrst ﬁll Min,sec 1:45 0:30 2:02

Temperature:

Cold water inlet temperature ºC 15.0 2.0 15.4

At end of heating to 40 ºC. ºC 40.0 1,3 39.2

At end of heating to 60 ºC ºC 60.0 1,0 59.1

At the end of mainwash ºC 57,0 2.0 56.6

Water:

Amount of water in mainwash Litre 26,0 0,5 26.0

Amount of water in rinse 1 Litre 18,0 0,5 18.0

Amount of water in rinse 2 Litre 18,0 0,5 18.0

Amount of water in rinse 3 Litre 18,0 0,5 18.0

Amount of water in rinse 4 Litre 18,0 0,5 18.1

Total amount Litre 98.0 2.5 98.1

Energy:

Total energy consumption kWh 1,700 0,150 1.671

Voltage:

Line voltage during the test V 230 4 229.7

Ambient temperature:

Room temperature close to machine ºC 23.0 2 23.2

FOM 71 CLS

IEC 60456 ED 5 Cotton 60 Empty run

Empty run test data

12:1

Program description for IEC 60456 Ed5

Wascator FOM 71 CLS Program description for IEC 60456 Ed5

Programs contained in memory card assy: 988 91 62 28 (For software 1.5 9 and lower card no: 438 95 37 71, for software 1.6 0 and

higher card no:438 95 37 98)

NOTE 1 : All programs for Wascator FOM 71 CLS have a “pre ﬁll” of water before detergent ﬂush. The “pre ﬁll” consists of a 5 litre ﬁll

through the 15 litre/min valve followed by an 1 litre ﬁll through a 5 litre/min valve before ﬂushing the detergent together with the addi-

tional 20 litre of water.

NOTE 2: For software 1.59 and lower the ﬁlling parameters are Mainwash 1: 6 litre , Mainwash 2: 20 litre, for software 1. 60 and higher

the ﬁlling parameters are Mainwash 1: 6 litre , Mainwash 2: 26 litre. The tables show the programs for software 1.60 and higher.

IEC 60456 Ed5 Cotton 85ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 26 N N Y 20 2:00

Mainwash 3 N N Y 40 1:00

Mainwash 4 N N 14:00

Mainwash 5 N N Y 85 1:00

Mainwash 6 N N 8:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Rinse 4 18 N 2:00

Drain 5 N 1:00

Spin 1 5:00

12:2

IEC 60456 Ed5 Cotton 60ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 26 N N Y 20 2:00

Mainwash 3 N N Y 40 1:00

Mainwash 4 N N 14:00

Mainwash 5 N N Y 60 1:00

Mainwash 6 N N 8:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Rinse 4 18 N 2:00

Drain 5 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

12:3

IEC 60456 Ed5 Cotton 40ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 26 N N Y 20 2:00

Mainwash 3 N N Y 40 1:00

Mainwash 4 N N 11:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Rinse 4 18 N 2:00

Drain 5 N 1:00

Spin 1 5:00

Drain 5 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

12:4

IEC 60456 Ed5 Synthetics/Blends 60ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 22 N N Y 20 2:00

Mainwash 3 N N Y 40 1:00

Mainwash 4 N N 14:00

Mainwash 5 N N Y 60 1:00

Mainwash 6 N N 8:00

Mainwash 7

(Cool Down)

4 N N 2:00

Drain 1 N 1:00

Rinse 1 22 N 3:00

Drain 2 N 1:00

Rinse 2 22 N 3:00

Drain 3 N 1:00

Rinse 3 22 N 2:00

Drain 4 N 1:00

Spin 1 2:00

Spin 1 5:00

Program description for IEC 60456 Ed5

12:5

IEC 60456 Ed5 Synthetics/Blends 40ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 22 N N Y 20 2:00

Mainwash 3 N N Y 40 1:00

Mainwash 4 N N 11:00

Drain 1 N 1:00

Rinse 1 22 N 3:00

Drain 2 N 1:00

Rinse 2 22 N 3:00

Drain 3 N 1:00

Rinse 3 22 N 2:00

Drain 4 N 1:00

Spin 1 2:00

Program description for IEC 60456 Ed5

12:6

IEC 60456 Ed5 Wool 40ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 26 G G Y 20 0:30

Mainwash 3 G Y 35 0:30

Mainwash 4 G G Y 40 3:30

Drain 1 G 1:00

Rinse 1 26 G 3:00

Drain 2 G 1:00

Rinse 2 26 G 3:00

Drain 3 G 1:00

Spin 1 1:00

Rinse 3 26 G 2:00

Drain 4 G 1:00

Spin 2 6:00

Program description for IEC 60456 Ed5

12:7

IEC 60456 Ed5 Cotton 30ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 26 N N Y 20 2:00

Mainwash 3 N N Y 30 1:00

Mainwash 4 N N 17:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

12:8

IEC 60456 Ed5 Cotton 20ºC (Wascator FOM 71 CLS)

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 6 N

Mainwash 2 26 N N Y 20 2:00

Mainwash 3 N Y 20 1:00

Mainwash 4 N N 7:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

FOM 71 MP-Lab

13:1

Installation inspection of the reference machine

FOM 71 MP-Lab

Installation inspection of the reference machine

Before carrying out any major test series, inspect the installation and

check the following items:

• Inordertomakeinstallationandservicingthemachineeasier,thefol-

lowing clearances are recommended:

o At least 500 mm between the machine and the wall behind.

o A minimum clearance of 250mm at the sides between the machine

and a wall or other machine, where more than one machine is instal-

led.

• Checkthemountingboltstotheoor,asinthistypeofmachinethe

drum is attached directly to the frame. As a result, the ﬂoor under the

machine must be stable enough to absorb the dynamic forces genera-

ted during the spin cycles. For fastening details see the Operating and

installation manual for FOM 71 MP-Lab.

• Checkthelevellingofthemachine.Theverticaldifferencefromcorner

to corner of the top lid shall not exceed 5 mm. If this is not the case,

adjust the feet of the machine.

• ThemachinemustbeconnectedusingthesuppliedYhoseortwo

single hoses.

• Checkthattheamountofsupplywateratthewaterconnectionto

the reference machine is sufﬁcient and in line with the speciﬁcation in

the standard (15 ± 2 litre) and that the amount can be maintained in

all circumstances. Water pressure at the machine's water intake must

never fall below 100 kPa.

• Checkthatthepowersupplyiscompliantwiththevoltagespecied

on the reference machine's data label and within the tolerances of the

standard (± 2%).

• Makesurethatthepowersupplycanmaintaintherequiredvoltage

level whilst the reference machine is heating.

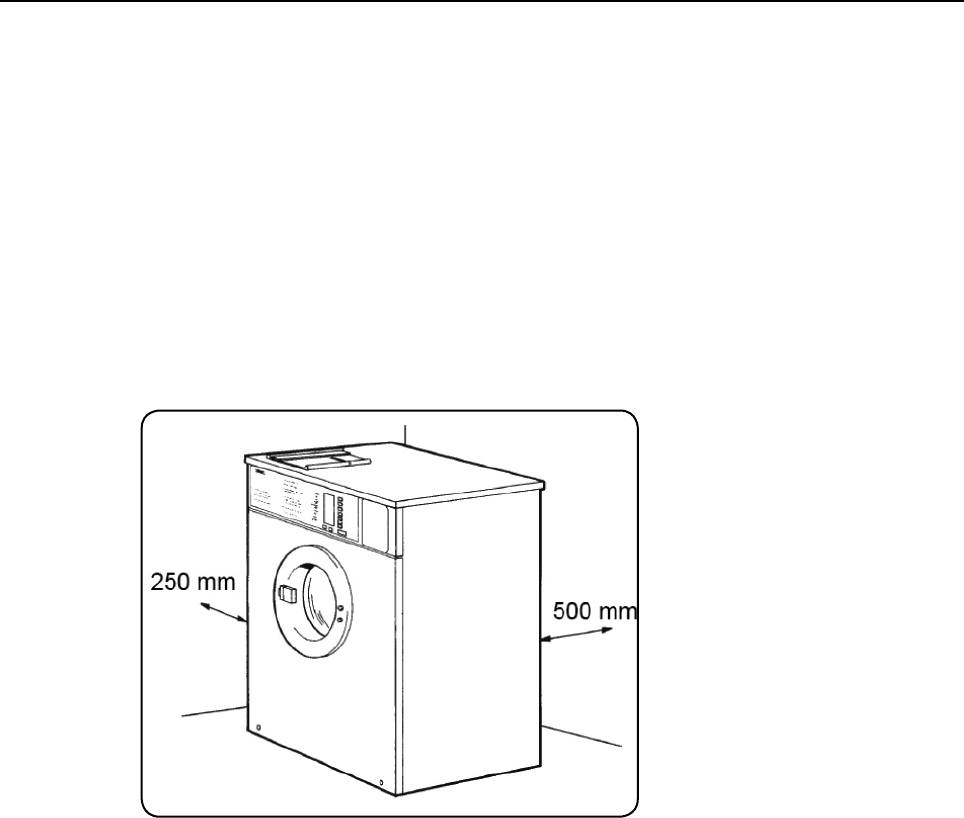

Bild 13_1.jpg

14:1

Calibration of the level control system

FOM 71 MP-Lab

Calibration of the level control system

For tests carried out in accordance with the IEC 604456 Ed5 standard, this

calibration does not control the supply water values of the wash program.

However, even if the wash programs use the ﬂow meter to control water in-

take, the level control becomes active and manages other levels inside the

machine such as empty machine, heating element safety levels and overﬁll that

are required for the safety values of the machine. Therefore, the level must be

adjusted and maintained in accordance with the procedure outlined below.

A: Calibration of the external level scale

• Cleanthelefthandexternalleveltubeusingabottlecleaner(withasmall

diameter) and remove all detergent deposits.

• Rotatethedrumsothattwoliftersareequidistantrelativetothelowest

point.

• Closethedoorandpressthemanualushbuttontoallowwaterintothe

drum until the level reaches the inner surface of the drum.

• Checkthatthezerolineontheexternalleveltubematcheswiththelevel.If

it does not, adjust the scale so the that the zero level lines match up.

• Usethedrainbuttontodrainthewater.

B: Water level check

1: Level calibration.

• Themachinemustbeempty.

• UsetheLevelControlProgram(programno.1).TheLevelControlprogram

ﬁlls the machine 5 times to 160 mm and then to 100 mm, 130 mm, 160 mm

and 200 mm.

Measure to 160 mm on the external scale, adjusting using the rotating poten-

tiometer on the front panel if necessary. One full turn of the potentiometer cor-

responds to about 3 mm in level difference.

• Restartforsecondllingandchecktheadjustment.

2: Repeatability

•RunLevelControlprogram(Program1).

•Fill5timesto160mm.

•Readwaterleveleachtimeontheexternalscale.Maxdeviation±5mm.

3: Linearity

• RunLevelControlprogram(Program1).

• Runthelastpart.Theprogramllsrepeatedlyto100mm,130mm,160mm

and 200 mm.

• Readwaterlevelateachstopontheexternalscale.Maxdeviation±5mm.

15:1

Installation of laboratory sensors

FOM 71 MP-Lab

Installation of laboratory sensors for temperature

and speed

Laboratory sensors can be attached to the FOM 71 MP-Lab model. Ho-

wever, it is important that the installation is executed in accordance with

the instructions below so as not to return improper operations or faulty test

results.

Installation of the laboratory temperature sensor.

A suitable place for an external temperature sensor can be found at the

side of the heating element box. Hole dimension is ½ “BSP. See picture

below.

Electrical installation must be carried out by an authorized personnel

15:2 Installation of laboratory sensors

Installation of speed sensor

A speed sensor can be attached to the end of the drum shaft. To facilitate

attaching the sensor, a hole can be made in the back panel of the machine.

A diameter of less than 60 mm will not affect machine performance. (Venti-

lation holes may change the air temperature inside the machine, which may

also affect water temperature).

16:1

Adjustment of temperature, speed and water

FOM 71 MP-Lab

Adjustment of temperature, speed and water

In contrary to Wascator FOM 71 CLS, there is little scope to change or

calibrate the internal parameters of the FOM 71 MP-Lab software.

Temperature:

• Ifthetemperatureofawashprogramistoohighortoolowduringthe

main wash sequence, the temperature sensor must be replaced.

Speed:

• Ifspeedistoolow(washspeedand/orspinspeed),checkincoming

voltage and frequency.

• Ifspeedistoohigh(washspeedand/orspinspeed)checkincoming

voltage and frequency. Also check to see whether the V-belt is exhibit-

ing signs of excessive wear. Changing to a new V-belt will/may reduce

the speed somewhat.

Water:

• Forleveladjustment,seeChapter13.

• Forowmeteradjustment,seeChapter17.

17:1

Flow meter installation

FOM 71 Mp-Lab

Flow meter installation

(All references in this document refer to ELS document 438 9041-07 Instal-

lation of ﬂow meter control FOM 71 MP-Lab. See Appendix 1.

• MakesurethattheowmeterisinstalledasdescribedinInstallation

manual 438 9041-07

• Examinethestraighttubesinfrontandaftertheowmetersensorhou-

sing.

• Theowsensorhousingshallnotbeplacedinalocationwherewater

can drip on it.

• ProgramtheunitinaccordancewithInstallationmanual4389041-07.

18:1

Flow meter calibration

FOM 71 MP-Lab

Flow meter calibration

(All references in this document refers to ELS document 438 9041-07 Installation

of ﬂow meter control FOM 71 MP-lab. See Appendix 1)

The ﬂow meter must be conﬁgured and calibrated in accordance with the in-

stallation manual. The conﬁguration must adhere to the procedure at page 6 of

the Installation manual. The conﬁguration also sets the amount of water for the

main wash and rinses, as well as calibration factor K. The value of the K-factor is

dependent on actual water pressure in the supply line and must be adjusted for

each installation. This calibration must be redone if water pressure in the supply

line changes.

A ﬂow meter shall be checked on a regular basis. If necessary, recalibration must

be carried out in accordance with the procedures set out in the ﬂow meter instal-

lation manual.

The check shall be carried out in accordance with one of the following procedu-

res.

• ProcedureA1

o Select the Cotton 60 program (or any other IEC cotton program)

o Start the program without load.

o Pause the program after ﬁrst ﬁll.

o Drain the machine via the manual drain button and collect the water in a

receptacle. Make sure no water is left in the drain hose.

o Weigh the water in the receptacle.

o If the receptacle is too small, drain water in stages and weigh.

o Rapid advance the program to its end.

o If the amount of water is incorrect, adjust the K-factor until the correct

amount is achieved.

o Make sure no other machine connected to the same water line is ﬁlling with

water whilst calibration is in process.

• ProcedureA2.

o Disconnect the water supply hose containing the ﬂow meter from the

machine.

o Fit a ﬂow restrictor of about 15 litres/min at the end of the hose (or a valve

with the opening adjusted to about 15 litres/min.)

o SelecttheCotton60°Cprogram(oranyotherIECcottonprogram)

o Start the program without load.

o Pause the program after ﬁrst ﬁll.

o Collect the water in a receptacle.

o Weigh the water in the receptacle.

o Rapid advance the program to its end.

18:2 Flow meter calibration

o If amount of water is not correct adjust the K-factor until the correct amount

is achieved.

o Be sure no other machine connected to the same water line is ﬁlling water at

the same time the calibration is done.

• ProcedureB:

If a high quality and resolution calibrated laboratory ﬂow meter is connected in se-

ries with the reference machine ﬂow meter, the following procedure may be imple-

mented instead:

o SelecttheCotton60°Cprogram(oranyotherIECcottonprogram).

o Start the program without load.

o Pause the program after ﬁrst ﬁll.

o Read the laboratory ﬂow meter and compare with the 26 litres the reference

ﬂow meter is to supply.

o If the amount of water is incorrect, adjust the K-factor until the correct

amount is achieved.

o Rapid advance the program to its end.

o Be sure no other machine connected to the same water line is ﬁlling water at

the same time the calib

19:1

Flow meter: Setting of the correct amount of water

FOM 71 MP-Lab

Flow meter: Setting of the correct amount of water

(All references in this document refers to ELS Document 438 9041-07

Installation of the ﬂow meter control FOM 71 MP-Lab. See Appendix 1)

In IEC 60456 Ed 5 the amount of water levels programmed into the ﬂow

meter shall be set according to table D.3 in the standard.

Program Set value A1 (Litre) Set Value A2 (Litre)

Cotton85°C 26 18

Cotton60°C 26 18

Cotton40°C 26 18

Synthetics/Blends60°C 22 4

Synthetics/Blends40°C 22 --a

Wool40°C 26 --a

Cotton30°C 26 18

Cotton20°C 26 18

NOTE:

a: No set value for A2 needed

IEC 60456 Ed5 Table D.3

Procedure for programming new set values into the ﬂow meter:

• FollowtheprogramminggivenintheInstallationmanualfortheow

meter page 6 to 9.

• GothroughthecompletecongurationprocedureandsetA1andA2

(page 8 in the Installation manual) to the desired values.

• Controlthattheowmeterisdeliveringthecorrectamount.Ifadevia-

tion correct with the K-factor (See Chapter 18 Flow

20:1

Flow meter: maintenance

FOM 71 MP-Lab

Flow meter: maintenance

(All references in this document refers to ELS document 438 9041-07 Instal-

lation of ﬂow meter control FOM 71 LAB. See Appendix 1)

• Occasionallychecktheamountofwatercomingfromtheowmeter.If

the amount is not correct, recalibrate in accordance with the procedures

set out in Chapter 16.

• Theimpellerintheowmeterissensitivetocontaminantsinthewater

and after long inoperative periods, the impeller may stop functioning.

• Iftheimpellerisnotworkingproperly,oriftheconnectionbetweenim-

peller or control unit is broken, the water intake will stop at 8 litre.

• Inthiscase,checktheelectricalconnectionbetweentheimpellerand

control unit or or ascertain where the impeller may be stuck open and

clean the impeller in accordance with the following instructions:

o Remove the electrical housing (Unscrew the side mounted screw and

twist and lift off the housing.)

o Unscrew the 4 screws on the impeller housing and remove the impel-

ler plate with impeller.

o Carefully turn the impeller and rotate (blow on) the impeller until it

rotates free.

o Reﬁt the impeller and electrical housing.

21:1

Cleaning the machine

FOM 71 MP-Lab

Cleaning the machine from debris in water, lint, scale and residual

detergent

It is very important that the wet parts of the machine are free from debris

and particles that may affect inﬂuence the wash performance of the machi-

ne.

Lint and threads from ballast and test swatches may accumulate on the

heating elements and as the bundle of lint/threads will grow it may even-

tually become so large that it clogs the drain valve, causing the drain valve

to leak. This leakage will deﬁnitely affect wash performance as undissolved

detergent builds up above the drain valve seat when the main wash begins.

When leakage occurs, the concentrated solution will leak out reducing de-

tergent concentration in the bath.

Calcium carbonate from hard water used in IEC tests will, after prolonged

exposure, accumulate on the heating elements. If the scale layer is too thick

the heating elements may be destroyed due to the insulating effect of the

layer. The heating power will also be reduced giving longer heating times.

Lint from textiles, together with zeolite from detergent, will accumulate on

the surface of the outer drum and on the back gable. Detergent will also

build up in these layers. If the amount of detergent is exessive, this may af-

fect the wash and/or rinse results obtained from the reference machine.

It is not advisable simply to remove the heating elements to visually inspect

for scale or lint. The elements should only be removed where accumulations

of lint or scale have been identiﬁed using the inspection procedure descri-

bed below. Frequently removing the elements will sooner or later produce

high resistance in the wire connection, causing an excessively high connec-

tor temperature.

21:2 Cleaning the machine

Cleaning the incoming supply water ﬁlter

Debris clogging the incoming supply water ﬁlter can prolong the supply

time so it falls outside the speciﬁcation given in the standard. Therefore it

is necessary to clean the ﬁlter on a regular basis.

• Removetheincomingwaterhoseandremovethelter.Theltercart-

ridge can be easily removed from the valve housing. Clean the ﬁlter and

reﬁt all components.

Inspecting and removing lint from heating elements and drain valve

• Abuild-upoflintaroundtheheatingelementsandatthedrainvalvecan

be seen from inside the inner drum. Use a battery torch to illuminate the

inner side of the outer drum through the holes in the inner drum. This

will allow you to see any lint around the elements and the drain valve.

• Ifthereislintontheheatingelements,theymustberemovedandclea-

ned. Disconnect the electrical wires and loosen the fastening bolt on

the element (do not remove the bolt). Using ﬂat pliers, turn the threaded

axisabout90°anti-clockwise.Theheatingelementcannowberemoved

and cleaned. Also clean the element if a layer of scale is visible. After

cleaning, reﬁt the element and ensure that no water leaks are visible

around the element seal before reﬁtting the front panel.

Removing lint from the drain valve

• Iflinthasbeenobservedin/onthedrainvalve,trytoremoveitviathe

heating element openings.

• Ifthisisnotpossible,thedrainvalvemustberemoved.

• Removethefrontpanelandunscrewallhosefasteningsonhosefrom

detergent box, to drain pipe and on the hose to the drum. Unscrew the

two bolts holding the drain valve unit and remove the electrical connec-

tion to the drain valve.

• Thedrainvalveassemblycannowberemoved.

• Reassembletheunitinreverseorder.

• Note:Donotplacetheelectricalconnectorinwrongplace(correctfre-

quency is 50 or 60 Hz).

• Alsoseeinstructionsonnextpage.

21:3

Cleaning the machine

Description

The drain valve is a motor-operated diaphragm

valve, which ensures rapid machine emptying

by its opening on a large cross-sectional surface

area. Its design is self-clearing, which eliminates

the need for lint ﬁlters.

The main valve components are:

• motorwithgear

• acme-threadedplungerrodwithplungerand

return spring

• rubberdiaphragm

• connectionsforwaterlling,overllingand

drainage.

In the open position, the valve is de-energised.

The plunger rod is thus screwed down to its

lowest position by the return spring. The di-

aphragm is compressed, forcing the piston

downwards and opening the valve.

When the motor is activated and begins to rotate,

the plunger rod is screwed upwards via the gear,

the diaphragm is compressed, forcing the plung-

er upwards, and the valve closes.

The overﬁlling connection is connected to the up-

per half of the washing drum, and the water and

suds are led directly to the waste outlet, should

the inlet valves or level control cease to function.

The connection for water ﬁlling as well as a

nipple for ceonnection of the sensing line for the

level control are located on the riser to the wash-

ing drum.

Bild 2 21_3

Bild 1 21_3

21:4 Cleaning the machine

Repair instructions

Deposits of scale in the diaphragm may prevent the valve from closing or

opening correctly. Therefore, the valve should be cleaned at speciﬁc inter-

vals dictated by operating conditions and water quality.

The valve fails to open or close correctly

• Checkthatthemotorhasthecorrectsupplyvoltage.

• Checkthattheplungerrodcanmovefreely.

• Checkthatthediaphragmisnotcloggedbydepositsofscale.

Comment

When replacing the motor:

Brown cable: 60 Hz

Blue cable: common.

Black cable: 50 Hz

Tensioning the return springs

With the valve housing removed:

- Turn the return spring so that the spring's ''tongue'' is resting against

the stop screw.

- Place the valve housing over the return spring so that the pin on the

spring ﬁts into the inlet of the piston rod. (NOTE: The piston rod shall

be ﬁtted so that its input is longitudinal with the housing.)

- Then turn the housing one turn in a clockwise direction. (In this way,

the spring's pin will be threaded into the piston rod. The spring is then

tensioned approximately 1/4 turn, as a result of the rise in the piston

rod.)

Stop screw

Spring tongue Return spring's pin

21:5

Removal of scale

Depending on how the reference machine is to be used, wet parts should

be descaled on a regular basis.

• Toremoveandpreventtheformationofscaleininstanceswherethe

machine is used in a hard water area, implement the following proce-

dure:

o Put 0.5 kg of citric acid in the detergent department.

o Start program Cotton 85ºC.

o Rinse the reference machine again by running the Cotton 85ºC pro-

gram.

Removal of residual detergent

Detergent may accumulate in certain parts of the machine and may also

form part of deposits on the inner side of the outer drum.

• Detergentmayaccumulateinthehosebetweenthedrumandtheexter-

nal tap valve. Remove the valve and clean the hose using bottle cleaner.

Flush the hose with water to ensure that no detergent remains.

• Detergentmayalsoaccumulateinthehosebetweenthedrumandthe

external level glass. Clean the glass and hose using bottle cleaner. Flush

the hose with water to ensure that no detergent remains.

• RunaCotton85°CorCotton60°Cprogramwiththemachineemptyand

without detergent on a regular basis. If foam is visible during the main

wash, repeat the Cotton program until no "stable" foam is visible.

Cleaning the machine

22:1

Maintenance before start up of a test series

FOM 71MP-Lab

Maintenance before start up of a test series

In order to ensure that the reference machine is in good order and will

work in accordance with the speciﬁcations given in IEC 60456 a number of

checks can be carried out:

Before any major test period:

• CheckforanylintaccordingtoinstructionsinChapter21.

• Checkthesupplytimeforrstll.Shallbe109±14secondsfromclosu-

re of door lock relay to end of ﬁlling. If time is too short, lower the water

pressure. If the time is too long, clean the supply ﬁlter in accordance with

the instruction set out in Chapter 21 or increase the water pressure.

• CarryoutaninstallationcheckaccordingtoinstructionsinChapter13.

• CarryoutaowmetercheckaccordingtoinstructionsinChapter19.

• Carryoutanemptyruntest.UseCotton60ºCorCotton40ºCdepending

on the type of program to be run during the test period.

• ComparetheresultsobtainedwithresultsshowninTable1inChapter

23 "Empty run test data" MP-Lab. Note the deﬁnitions assigned to the

time intervals shown in the table.

• IfthevaluefalloutsidethespecicationdetailedinTableE.2inIEC

60456, carry out a second empty run test or recalibrate.

• Ifothervaluesobtainedfromtheemptyruntestdiffersfromthevaluein

Table 1, analyse the reason for this difference and correct (wrong water

pressure, wrong supply water temperature, faulty heating element etc).

Before every test period:

• CheckforthepresenceoflintaccordingtoinstructionsinChapter21.

• Checkthesupplytimeforrstll.Shallbe109±14secondsfromclo-

sure of door lock relay to end of filling. If the time is too short, lower the

water pressure. If the time is too long, clean the supply filter in accordan-

ce to instruction in Chapter 21 or rise the water pressure.

• CarryoutaweightcheckaccordingtoinstructionsinChapter19.

Daily check:

• Ifthemachinehasnotbeeninuseforthelast2hoursrunthestartup

program (Program 991). The start up program will ﬂush the machine with

water and normalise all temperatures inside the machine.

23:1

FOM 71MP-Lab

Regular maintenance 6-12 months

The reference machine shall at a regular basis be maintained and checked

in order to ensure that the reference machine is in good order and will

work in accordance with the speciﬁcations given in IEC 60456.

Every 6 months:

• Usethestartupprogram(Program3)andmakeavisualcheckand

ensure that the supply or drain valves are not leaking.

• CarryoutaowmetercheckaccordingtoinstructionsinChapter18.

• Topreventthebuildupofscaleifthereferencemachineisruninhard

water decalcify the machine according to procedure described in

chapter 21.

• Checkforanybuildupoflintordetergentandifveriedcleanaccor-

ding to instructions in Chapter 21

• CarryoutanemptyruntestCotton60ºCorCotton40ºCdepending

what type of program to run during the test period.

• ComparetheresultsobtainedwithresultsshowninTable1inChap-

ter 11 "Empty run test data". Note the deﬁnitions assigned to the time

intervals shown in the table.

• IfvaluesareoutsidethespecicationinTableE.2inIEC60456make

another empty run test or recalibrate.

• Ifothervaluesfromtheemptyruntestdiffersfromthevaluesshownin

Table 1, analyse the reason for this difference and correct (wrong water

pressure, wrong supply water temperature, faulty heating element etc).

• Topreventthebuild-upofscaleifthereferencemachineisrunin

hard water decalcify the machine according to procedure described in

chapter 21.

• Checkforanybuild-upoflintordetergentand,ifveried,cleaninac-

cordance with procedures set out in Chapter 21.

• CarryoutanemptyruntestCotton60ºCorCotton40ºCdepending

what type of program to run during the test period.

• ComparetheresultsobtainedwithresultsshowninTable1inChap-

ter 24 "Empty run test data". Note the deﬁnitions assigned to the time

intervals shown in the table.

• IfvaluesareoutsidethespecicationinTableE.2inIEC60456make

another empty run test or recalibrate.

• Ifothervaluesfromtheemptyruntestdiffersfromthevaluesshownin

Table 1, analyse the reason for this difference and correct (wrong water

pressure, wrong supply water temperature, faulty heating element etc).

Once a year:

• Performacompletecalibrationofthemachineinaccordancewithcer-

tiﬁed procedures.

Regular maintenance 6 -12 months

24:1

FOM 71 MP-Lab

Empty run test data

During the CLS MP-Lab ring test, data was obtained from a number of laboratories.

This data is useful when checking that the reference machine in the laboratory is

performing as expected.

Please note: This data is obtained from runs with an unloaded machine. Therefore,

the energy and process times obtained here cannot be compared with the same

parameters applied during a test series carried out with a loaded machine. However,

empty test runs are not affected by load differentials or detergent batches and will

only produce results that are speciﬁc to the machine.

Table1belowshowstheestimated/denedvaluesforCotton60°C,aswellasav-

erage values from the RRT 2008 ring test.

The RRT 2008 average values were obtained from the RRT 008 IEC/CENELEC/CE-

CED ring test. These values are based on empty run tests undertaken at 15 different

laboratories.

The deﬁnitions used in Table 1 differ from those given in IEC 60456 and below are

applicable to Table1.

Deﬁnitions

Total program time: Time from the start of ﬁrst ﬁlling to the start

of the retardation phase at the end extraction

sequence.

Heating time: The time until the heating relays have been

switched on during the different heating peri-

ods.

Total main wash time: The time from start of ﬁrst ﬁlling until the start

of ﬁrst rinse water supply.

Filling time of water: The ﬁrst ﬁlling time (26 litre). From closure of

door lock relay to end of ﬁlling.

Cold water inlet temperature: The temperature of the supplied cold water.

Temp at end of heating in

enzyme step: The temperature at the time the heating relay is

switched off after reaching the 40ºC enzyme

step.

Temp at the end of the

enzyme step: The temperature in the bath just

prior to the heating up to 60ºC.

Empty run test data

24:2

Temp at the end of heating in

ﬁnal heating: The temperature when the hea ting relay

is switched off after reaching 60ºC.

Temp at the end of the main wash: The temperature in the bath just prior to

drain after main wash.

Amount of water in main wash: The amount of supplied water to the

main wash.

Amount of water in rinses: The amount of water supplied in each

rinse.

Total energy consumption: The total energy consumed during the

program.

Drum Speed: Drum speed measured in RPM.

Water pressure: Water pressure (Static) measured

close to inlet valve and during the ﬁlling

of water.

Empty run test data

24:3

Table 1

FOM 71 MP-Lab Estimated/

deﬁned std

values

Estimated/

deﬁned std

ranges

RRT2008

Average

value

Measured

value

16 IEC/CENELEC(Not Com-

pulsory)

IEC 60456 Cotton 60 Empty

run

Time:

Total program time Min,sec 78:00 2:00 78:24

Heating time cold - 20ºC Min,sec 1,00 0:30 0:54

Heating time 20ºC - 40ºC Min,sec 7:30 0:30 7:19

Heating time 40ºC - 60ºC Min,sec 8:15 0:30 8:25

Total mainwash time Min,sec 52:45 1:30 52:47

Filling time of water ﬁrst ﬁll Min,sec 1:45 0:15 1:43

Temperature:

Cold water inlet tempera-

ture

ºC 15.0 2.0 15.3

At end of heating to 40 ºC. ºC 40.0 1,0 40.1

At end of heating to 60 ºC ºC 60.0 1,0 60.3

At the end of mainwash ºC 55,0 2.0 56.2

Water:

Amount of water in main-

wash

Litre 26.0 0,5 26.0

Amount of water in rinse 1 Litre 18,0 0,5 18.0

Amount of water in rinse 2 Litre 18,0 0,5 18.1

Amount of water in rinse 3 Litre 18,0 0,5 18.1

Amount of water in rinse 4 Litre 18,0 0,5 18.1

Total amount Litre 98.0 2.5 98.2

Energy:

Total energy consumption kWh 1,800 0,150 1.830

Voltage:

Line voltage during the test V 230 4 231

Ambient temperature:

Room temperature close to

machine

ºC 23.0 2 23.2

Empty run test data

25:1

Wascator FOM 71 MP-Lab Program description for IEC 60456 Ed5

IEC 60456 Ed5 Cotton 85ºC (Wascator FOM 71 MP-Lab

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 26 N N Y 20 1:00

Mainwash 2 N 20 0:30

Mainwash 3 N N 20 1:00

Mainwash 4 N 20 0:30

Mainwash 5 N N Y 40 1:00

Mainwash 6 N N 14:00

Mainwash 7 N N Y 85 1:00

Mainwash 8 N N 14:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Rinse 4 18 N 2:00

Drain 5 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

25:2

IEC 60456 Ed5 Cotton 60ºC (Wascator FOM 71 MP-Lab)

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 26 N N Y 20 1:00

Mainwash 2 N 20 0:30

Mainwash 3 N N 20 1:00

Mainwash 4 N 20 0:30

Mainwash 5 N N Y 40 1:00

Mainwash 6 N N 14:00

Mainwash 7 N N Y 60 1:00

Mainwash 8 N N 14:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Rinse 4 18 N 2:00

Drain 5 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

25:3

IEC 60456 Ed5 Cotton 40ºC (Wascator FOM 71 CLS)

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 26 N N Y 20 1:00

Mainwash 2 N 20 0:30

Mainwash 3 N N 20 1:00

Mainwash 4 N 20 0:30

Mainwash 5 N N Y 40 1:00

Mainwash 6 N N 14:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Rinse 4 18 N 2:00

Drain 5 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

25:4

IEC 60456 Ed5 Synthetics/Blends 60ºC (Wascator FOM 71 Mp-Lab)

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 22 N N Y 20 1:00

Mainwash 2 N 20 0:30

Mainwash 3 N N 20 1:00

Mainwash 4 N 20 0:30

Mainwash 5 N N Y 40 1:00

Mainwash 6 N N 14:00

Mainwash 7 N N Y 60 1:00

Mainwash 8 N N 14:00

Mainwash 9

(Cool Down)

4 N N 2:00

Drain 1 N 1:00

Rinse 1 22 N 3:00

Drain 2 N 1:00

Rinse 2 22 N 3:00

Drain 3 N 1:00

Rinse 3 22 N 2:00

Drain 4 N 1:00

Spin 1 2:00

Program description for IEC 60456 Ed5

25:5

IEC 60456 Ed5 Synthetics/Blends 40ºC (Wascator FOM 71 Mp-Lab)

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 22 N N Y 20 1:00

Mainwash 2 N 20 0:30

Mainwash 3 N N 20 1:00

Mainwash 4 N 20 0:30

Mainwash 5 N N Y 40 1:00

Mainwash 6 N N 14:00

Drain 1 N 1:00

Rinse 1 22 N 3:00

Drain 2 N 1:00

Rinse 2 22 N 3:00

Drain 3 N 1:00

Rinse 3 22 N 2:00

Drain 4 N 1:00

Spin 1 2:00

Program description for IEC 60456 Ed5

25:6

IEC 60456 Ed5 Wool 40ºC (Wascator FOM 71 Mp-Lab)

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 26 G G Y 20 0:30

Mainwash 2 Y 40 0:30

Mainwash 3 G N 40 3:00

Drain 1 G 1:00

Rinse 1 26 G 3:00

Drain 2 G 1:00

Rinse 2 26 G 3:00

Drain 3 G 1:00

Spin 1 1:00

Rinse 3 26 G 2:00

Drain 4 G 1:00

Spin 2 6:00

Program description for IEC 60456 Ed5

25:7

IEC 60456 Ed5 Cotton 30ºC (Wascator FOM 71 Mp-Lab)

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 26 N N Y 20 1:00

Mainwash 2 N 20 0:30

Mainwash 3 N N 20 1:00

Mainwash 4 N 20 0:30

Mainwash 5 N N Y 30 1:00

Mainwash 6 N N 17:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

25:8

IEC 60456 Ed5 Cotton 20ºC (Wascator FOM 71 MP-Lab)

NOTE: For full program description see Chapter 26.

Sequence Water Supply

(litre)

Action during

heating

Normal/Gentle

Action during

wash

Normal/Gentle

Heating

Yes/No

Temperature

(ºC)

Time at

temperature

(Min)

Rinse/Drain/Spin

time(Min)

Mainwash 1 26 N N Y 20 1:00

Mainwash 2 N 20 0:30

Mainwash 3 N N 20 1:00

Mainwash 4 N 20 0:30

Mainwash 5 N N 20 1:00

Mainwash 6 N N 7:00

Drain 1 N 1:00

Rinse 1 18 N 3:00

Drain 2 N 1:00

Rinse 2 18 N 3:00

Drain 3 N 1:00

Rinse 3 18 N 2:00

Drain 4 N 1:00

Spin 1 5:00

Program description for IEC 60456 Ed5

26:1

FOM 71 MP-Lab

Reference Programming IEC 60456 Ed5

COTTON 85

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

IEC 60456 Ed5 Cotton 85

26:2

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

IEC 60456 Ed5 Cotton 85

26:3

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 40

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

IEC 60456 Ed5 Cotton 85

26:4

MAINWASH 6

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 7

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 85

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Cotton 85

26:5

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 8

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

IEC 60456 Ed5 Cotton 85

26:6

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Cotton 85

26:7

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

IEC 60456 Ed5 Cotton 85

26:8

RINSE 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 5 MIN

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Cotton 85

26:9

COTTON 60

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Cotton 60

26:10

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

IEC 60456 Ed5 Cotton 60

26:11

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 40

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 6

PAUSE WITH BUZZER Y/N N

IEC 60456 Ed5 Cotton 60

26:12

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 7

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 60

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

IEC 60456 Ed5 Cotton 60

26:13

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 8

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

IEC 60456 Ed5 Cotton 60

26:14

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

IEC 60456 Ed5 Cotton 60

26:15

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

IEC 60456 Ed5 Cotton 60

26:16

RINSE 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 5 MIN

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Cotton 60

26:17

COTTON 40

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Cotton 40

26:18

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

IEC 60456 Ed5 Cotton 40

26:19

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 40

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 6

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

IEC 60456 Ed5 Cotton 40

26:20

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Cotton 40

26:21

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

IEC 60456 Ed5 Cotton 40

26:22

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

IEC 60456 Ed5 Cotton 40

26:23

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 5 MIN

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Cotton 40

26:24

Synth/Blends 60

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Synth/Blends 60

26:25

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

IEC 60456 Ed5 Synth/Blends 60

26:26

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 40

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 6

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

IEC 60456 Ed5 Synth/Blends 60

26:27

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 7

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 255

HYSTERESES ... UNITS 31

TEMPERATURE...°C 60

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

IEC 60456 Ed5 Synth/Blends 60

26:28

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 8

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 9

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

IEC 60456 Ed5 Synth/Blends 60

26:29

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

IEC 60456 Ed5 Synth/Blends 60

26:30

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

IEC 60456 Ed5 Synth/Blends 60

26:31

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 2 MIN

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Synth/Blends 60

26:32

Synth/Blends 40

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Synth/Blends 40

26:33

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

IEC 60456 Ed5 Synth/Blends 40

26:34

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 40

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 6

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

IEC 60456 Ed5 Synth/Blends 40

26:35

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 14 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Synth/Blends 40

26:36

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

IEC 60456 Ed5 Synth/Blends 40

26:37

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 2 MIN

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Synth/Blends 40

26:38

Wool 40

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N Y

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 40

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Synth/Blends 40

26:39

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N Y

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 40

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N N

GENTLE ACTION Y/N Y

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

IEC 60456 Ed5 Synth/Blends 40

26:40

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N Y

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N Y

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N N

GENTLE ACTION Y/N Y

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N Y

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N Y

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Synth/Blends 40

26:41

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N N

GENTLE ACTION Y/N Y

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N Y

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N Y

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

IEC 60456 Ed5 Synth/Blends 40

26:42

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N N

GENTLE ACTION Y/N Y

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 6 MIN

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Synth/Blends 40

26:43

COTTON 30

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Cotton 30

26:44

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

IEC 60456 Ed5 Cotton 30

26:45

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 30

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 6

IEC 60456 Ed5 Cotton 30

26:46

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 17 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

IEC 60456 Ed5 Cotton 30

26:47

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 3

IEC 60456 Ed5 Cotton 30

26:48

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 5 MIN

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Cotton 30

26:49

COTTON 20

MAINWASH 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N Y

HOT WATER Y/N N

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N Y

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

IEC 60456 Ed5 Cotton 20

26:50

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N N

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N N

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

IEC 60456 Ed5 Cotton 20

26:51

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 30 SEC

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 5

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 20

WASH TIME ... MIN ... SEC 1 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

MAINWASH 6

IEC 60456 Ed5 Cotton 20

26:52

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 10

WASH TIME ... MIN ... SEC 7 MIN

COLD WATER Y/N N

HOT WATER Y/N N

COLD HARD WATER Y/N N

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 1

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

IEC 60456 Ed5 Cotton 20

26:53

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 2

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 3 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

IEC 60456 Ed5 Cotton 20

26:54

DRAIN 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

RINSE 3

PAUSE WITH BUZZER Y/N N

NORMAL ACTION DURING FILLING Y/N N

GENTLE ACTION DURING FILLING Y/N N

NORMAL ACTION DURING HEATING Y/N Y

GENTLE ACTION DURING HEATING Y/N N

NORMAL ACTION DURING WASH Y/N Y

GENTLE ACTION DURING WASH Y/N N

LEVEL ... UNITS 31

HYSTERESES ... UNITS 255

TEMPERATURE...°C 0

WASH TIME ... MIN ... SEC 2 MIN

COLD WATER Y/N N

HOT WATER Y/N Y

COLD HARD WATER Y/N Y

COMP 1 (LEVEL CONTROLLED) Y/N N

COMP 2 (LEVEL CONTROLLED) Y/N N

COMP 3 (LEVEL CONTROLLED) Y/N N

COMP 2 HOT (LEVEL CONTROLLED) Y/N N

SOAP DISPENSER N

DETERGENT 1 TIME ... MIN ... SEC 0

DETERGENT 2 TIME ... MIN ... SEC 0

DETERGENT 3 TIME ... MIN ... SEC 0

DETERGENT 4 TIME ... MIN ... SEC 0

DETERGENT 5 TIME ... MIN ... SEC 0

DRAIN 4

PAUSE WITH BUZZER Y/N N

NORMAL ACTION Y/N Y

GENTLE ACTION Y/N N

TIME ... MIN ... SEC 1 MIN

EXTRACT

SPINNING ... MIN ... SEC 5 MIN

IEC 60456 Ed5 Cotton 20

26:55

MAIN DATA

BUZZER ON WHEN PROGRAM FINISHED Y/N Y

GENTLE ACTION ON TIME … SEC 3

GENTLE ACTION OFF TIME … SEC 12

NORMAL ACTION ON TIME … SEC 12

NORMAL ACTION OFF TIME … SEC 3

IEC 60456 Ed5 Cotton 20

Installation of flow meter control

FOM 71 LAB

438 9041-07/04

May only be carried out by authorized personnel.

Flow meter control

This flow meter kit is specially designed for use

together with the reference machine FOM 71

LAB and complies with the new EN 60456/prA1.

The kit contains all necessary tubes and

connectors for installation to a water hose. If

installation to fixed tubes is preferred be sure that

a straight tube of 150 mm before and 75 mm

behind the flow meter is mounted in order to get

a uniform flow. The tube diameter shall be the

same as the attached tubes. Be sure that the

water has no particles that can block the rotating

sensor wheel in the flow meter. Mount if

necessary a filter in the water housing in front of

the straight tube. The kit also contains a standard

battery eliminator with euroconnection and 230V.

If other connections or voltages are needed an

eliminator should be bought locally with following

specifications: Output 24 VDC stabilised, Max

330mAmp, DC connector type: 2.1 mm pin,

negative pole in centre.

• Disconnect the power supply to the machine.

• Mount the flow meter control box on the wall.

• Remove the top panel.

• Mount the flow meter on the cold water supply

pipe.

• Connect cable with connection X135 to the

flow meter and connect X135 on the flow

meter control box (see page 10 and 11).

• Connect the eliminator 24V (X136) to the flow

meter control box.

• If the level control A is black it shall be

exchanged to a light grey (included in the kit).

Part No 471 8856-02.

Remove capacitor C22.

• Make a hole in the rear panel by knocking out

the hole to the left of the water connecions.

• Connect cable 10 connection X133 to the flow

meter control box and the other end to the

plinth B (X22) on connections 3 and 7 via the

hole in the rear panel.

• Disconnect the quick connector A (X9) with

the wires coming from the water valves. Pull

cable 9 through the hole in the rear panel and

connect X9A and X9B to both sides of opened

connector X9. Connect X9C to the flow meter

control box.

Fig

Flow

meter

Hot water

connection Cold water

connection

Cold water

supply pipe

C22

Change of EPROM

• Two memories are included in the kit, one with English display text and

one with German display text. In some cases the existing memory must

be changed (See section Start up with flow controlled programs.)

• In case a memory shift is needed dismount the FOM control board and

change the EPROM to attached.

On some machines relay 10 may not be mounted. If so, replace the

board.

Fig

Flow meter control

Fig

EPROM

RL 10

RC 10

106

104

102

100

0,5 1 1,5 2 2,5 3 3,5

Series 1

P (bar)

Volume %

Calibration and configuration of the flow meter

Configure the flow meter according to the

attached configuration scheme. It is very easy to

make mistakes during the configuration so be

careful and follow strictly the scheme. For a full

description of all possibilities see the attached

manual for the Batch controller type 8025. The

calibration factor ”K-factor” must be calibrated

according to conditions in each individual

laboratory. The K-factor depends among other

things of available water pressure. The figure

shows the dependency as measured in the

Electrolux- Wascator laboratory.

The two programmable volumes A1 and A2 shall

be programmed according to the water volume

indicated in EN 60 456. Note that carry over can

depend on textile quality and always make a

check before any new test series.

Flow meter control

Fig

Start up with flow controlled programs

Be sure that the service switch mounted on top of the electronic board is in

position 1. See picture in chapter "Service switch" in Operating and

Installation Manual FOM 71 LAB. The switch in that position means that all

programming questions will be presented on the display during

programming. Be sure that the question ”COLD HARD WATER” appears in

main wash and rinse sequences. If not the memory attached to the kit has

to be mounted on the FOM control board.

The flow meter can work parallel to the normal level control. A ”YES on

question ”HARD” water in mainwash and rinse sequences will initiate the

flow meter. The questions ”Cold” and ”HOT” water will choose the two

necessary volumes. Following procedures shall be made to convert an

existing EN 60456 program to a new program with flow meter control.

Take the existing EN 60 456 programs you want to convert to flow meter

controlled programs and copy them into an empty location (See Operating

and Installation Manual for FOM 71 LAB for copying instructions.) and

make following changes:

Set all water levels to 31 scale units (In all sequences.)

Change all inlet water in mainwash from ”COLD” to ”COLD” and ”HARD”

water.

Change all inlet waters in rinses from ”COLD” to ”HOT” and ”HARD” water.

Now ”HARD” means that the flow meter shall be used and ”COLD” water

volume A1 and ”HOT” water volume A2 (see page 8).

Only change in the sequences where you want a supply of water.

All other parameters shall be unchanged.

It is possible to run all original programs with the level control as

usual as long as the parameter ”HARD WATER” is not activated.

Flow meter control

Failures

The water supply stops at about 8 litres.

• Configuration wrong. Go through all configuration steps and correct.

Too much water (Approx. 30 - 40 litre). Flow control unit sends Alarm.

• No signal from sensor to flow control unit.

• Check cables.

• Check that sensor wheel in the sensor unit rotates free. Can be easily

checked by removing the sensor housing and unscrew the 4 screws

holding the wheel.

Error message from flow control unit.

• Error in stored values. Reprogram the unit.

Flow meter control

6Flow meter control

Flow meter control

Set and trim the K-factor value with

buttons 1 and 2 according to local

conditions depending on water

pressure, tube size etc. See also fig 6

at page 3. Suitable start value: 100.0.

8Flow meter control

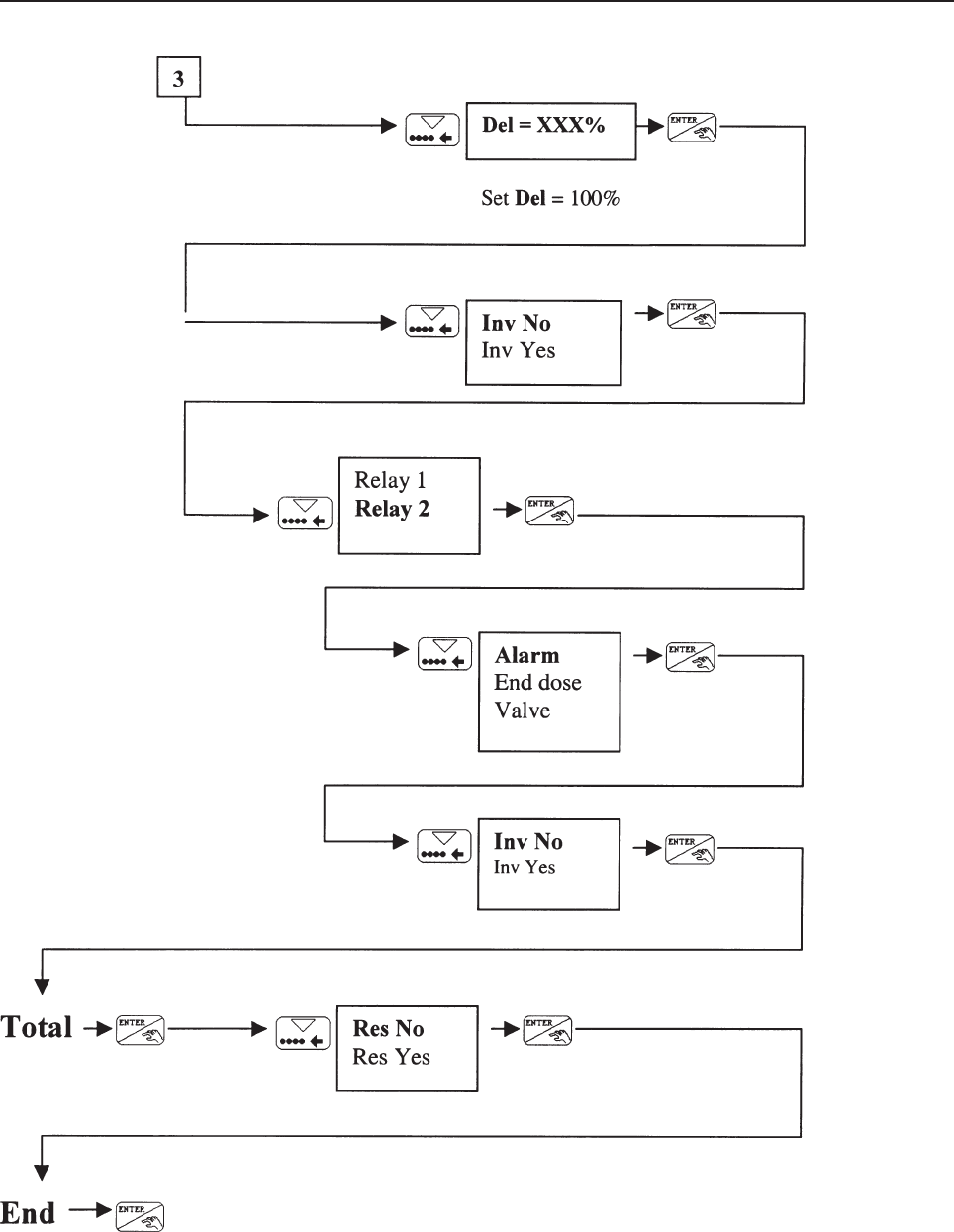

Flow meter control

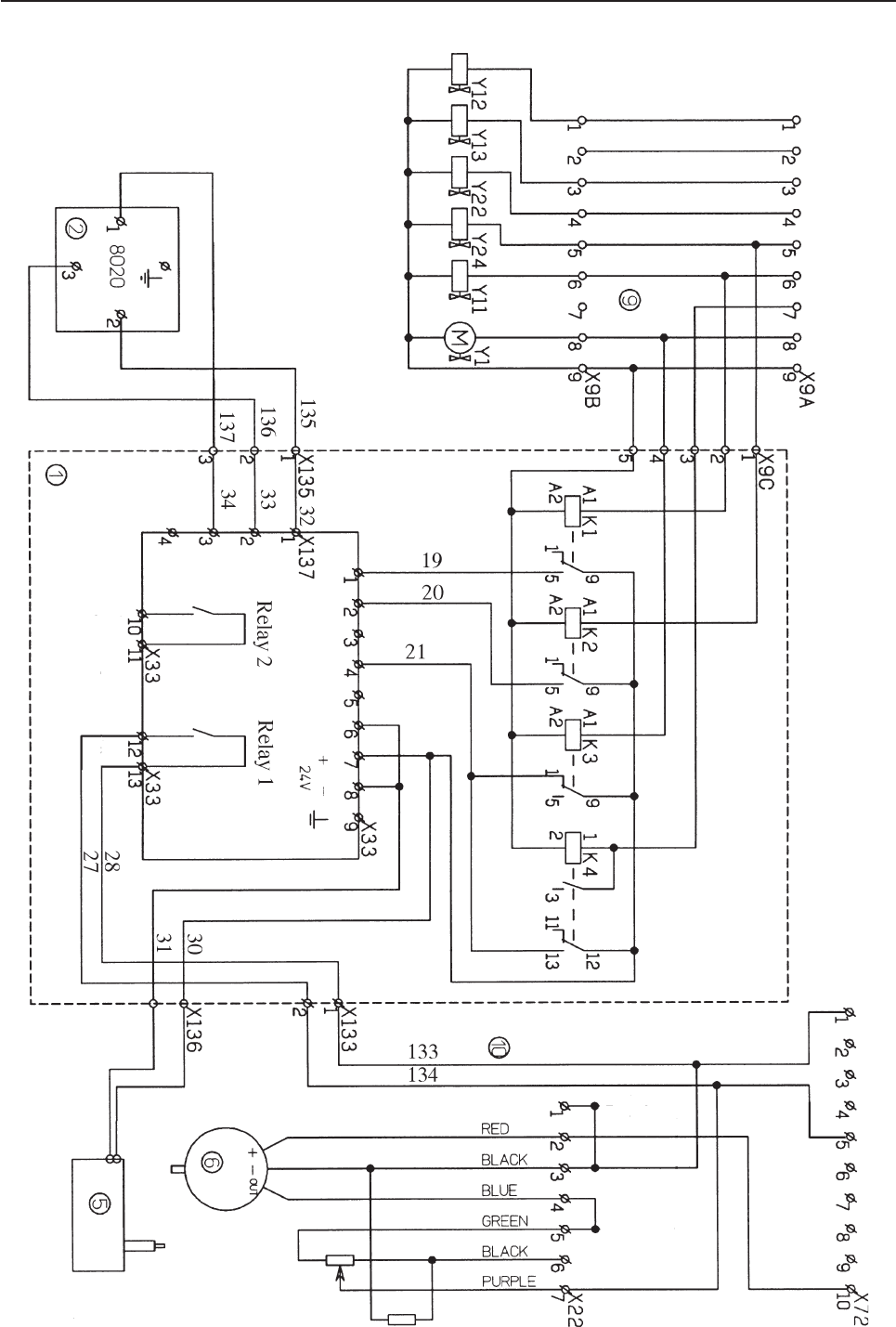

10 Flow meter control

Flow meter control

Electrolux Fom 71 Cls Users Manual

FOM 71 MP-LAB to the manual 9d44826c-4478-4b65-b1ed-93d58e7d7739

Navigation menu

Versions of this User Manual:

Views

Navigation
