LAVATHERM T57830

Condensation dryer

User Information

PERFEKT IN FORM UND FUNKTION

125985032.qxp 2006-07-17 11:14 Page 1

2

Dear customer,

Please read these operating instructions carefully and pay particular

attention to the safety notes indicated in the first pages. We recom-

mend that you keep this instruction booklet for future reference and

pass it on to any future owners.

The warning triangle and/or the key words (Warning!, Caution!) emphasi-

ze information that is particularly important for your safety or correct

functioning of the appliance.

This symbol guides you, step by step, in the operation of the appliance.

The information marked with this symbol provides additional instruc-

tions and practical tips on the use of the appliance.

Tips and information about economical and ecological use of the

machine are marked with the clover symbol.

Should any problems arise, this booklet provides instructions on how to

solve them by yourself; see section “Something not working?”.

If this information is not sufficient, please contact our nearest Service

centre (address and telephone numbers are indicated on the enclosed

leaflet).

Printed on recycled paper.

People who think ecologically, act accordingly...

125985032.qxp 2006-07-17 11:14 Page 2

3

Contents

Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Environmental tips.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Description of machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operating screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Before the first drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Sorting and preparing laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Overview of programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Hints & Tips on Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Switching machine on / switching light on. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Opening loading door / loading laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

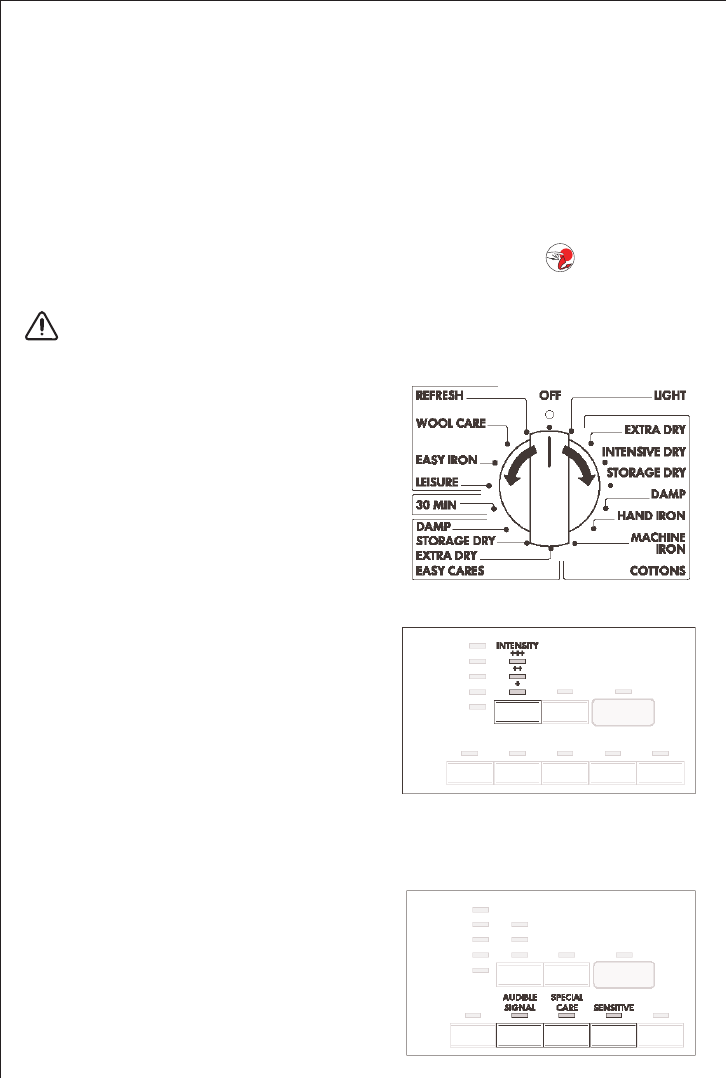

Selecting the programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Selecting additional functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Setting time delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Starting the programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Changing programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Removing laundry or loading laundry when necessary . . . . . . . . . . . . . . . . . 16

Drying cycle complete / removing laundry. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

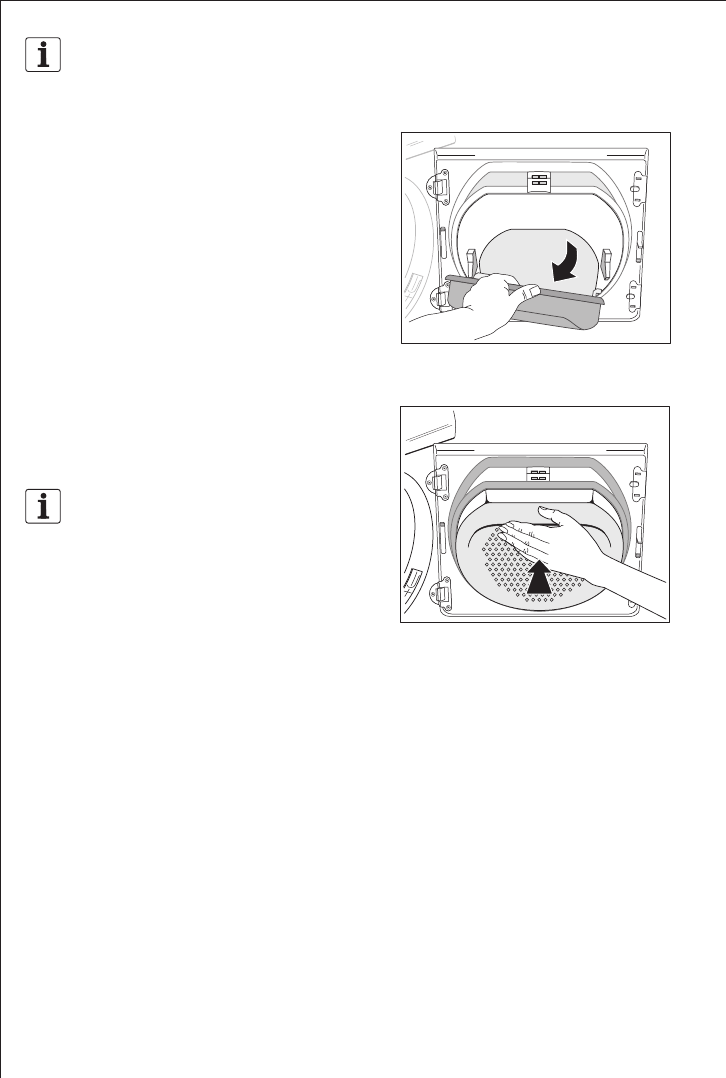

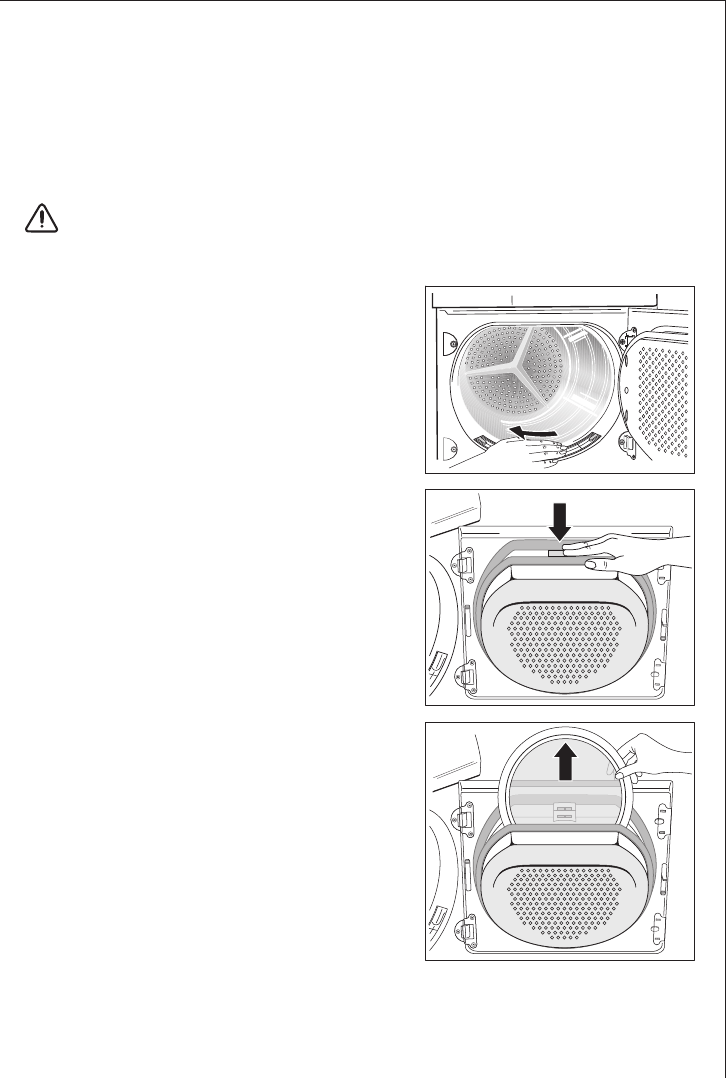

Cleaning lint filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Cleaning the door seal.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

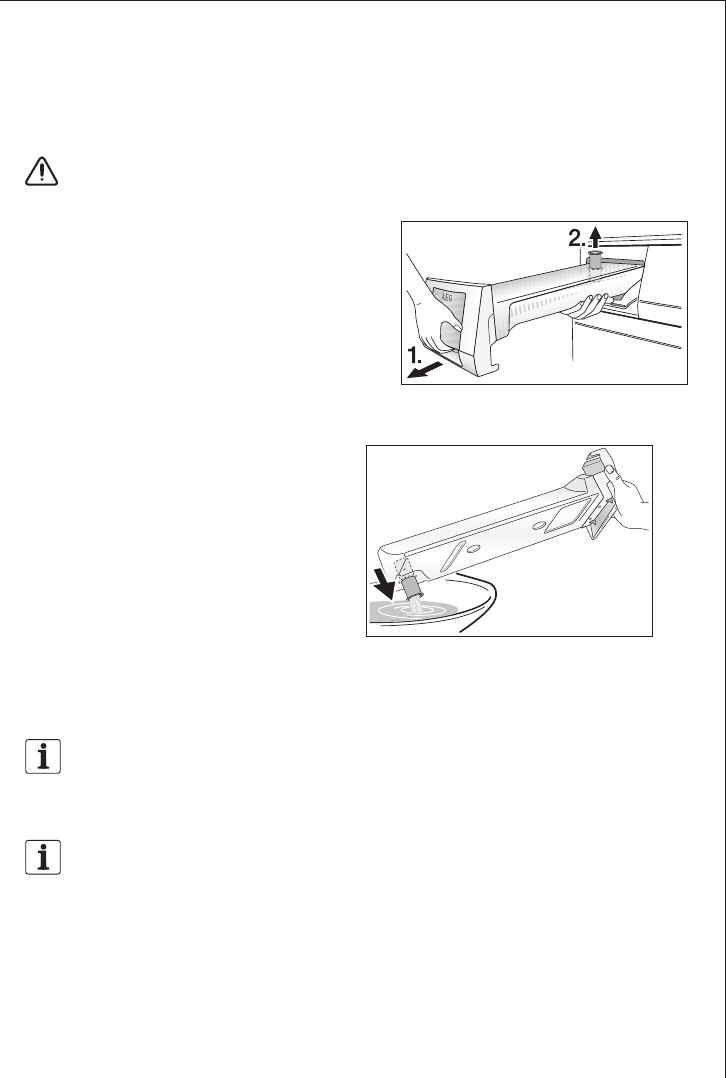

Emptying the water reservoir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

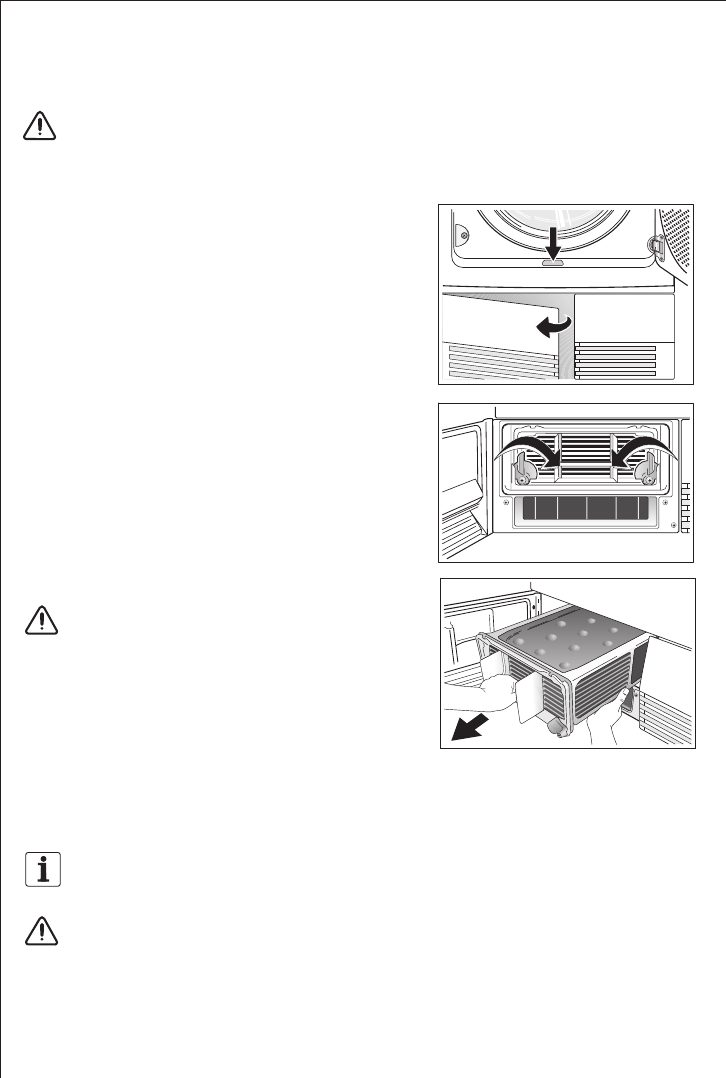

Cleaning heat exchanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Cleaning the drum. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Clean operating screen and housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

What to do if…. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Troubleshooting by yourself. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Changing bulb for inside light. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Programming options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Installation and connection instructions. . . . . . . . . . . . . . . . . . . . . . . . . 26

Installation safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Removing transport safety equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Permanent connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

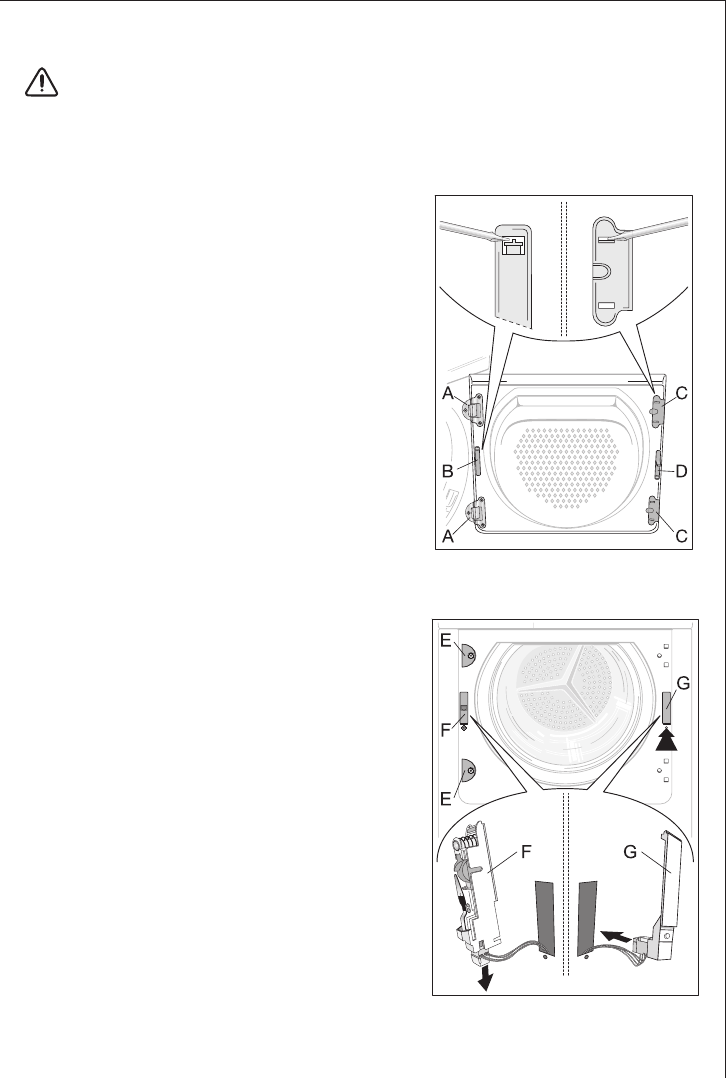

Door reversal instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Special accessories... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Warranty conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Service and Spare Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

125985032.qxp 2006-07-17 11:14 Page 3

4

Operating Instructions

Safety

Before first starting up

• Note the ”Installation and connection instructions”

• Before first starting up, check the machine for any damage incurred

during transport. Never connect up a damaged machine. If parts are

damaged, contact your supplier.

Intended use

• The dryer is intended for drying standard laundry in domestic applica-

tions.

• Conversions or modifications to the dryer are not permitted.

• The laundry must not contain flammable solvents (benzene, alcohol,

stain remover, etc.) . Risk of fire and/or explosion! Laundry which has

come into contact with such substances must be rinsed thoroughly by

hand before drying.

• When using dry-cleaning sets: Only use those products which are decla-

red as suitable for the dryer by the manufacturer.

• Do not place items of laundry in the dryer which contain foam rubber

or materials similar to rubber. Risk of fire!

• Do not place heavily worn laundry items in the dryer. Risk of fire!

• Do not place laundry items with loose fillings (e.g. cushions) in the

dryer. Risk of fire!

• Parts with rigid components (e.g. door mats) may cover the air slots.

Risk of fire! Do not place such items in the dryer.

• Do not overfill the dryer. Risk of fire! Observe max. loading volume of

7 kg.

• Ensure that explosive objects (e.g. cigarette lighters, spray cans, etc.) do

not enter the dryer with the laundry. Risk of fire and/or explosion!

• Risk of fire: items that have been spotted or soaked with vegetable or

cooking oil constitute a fire hazard and should not be placed in the

tumble dryer.

• If you have washed your laundry with stain remover you must execute

an extra rinse cycle before loading your tumble dryer.

• Clean the micro-fine filter and fine strainer after each drying cycle.

• Do not use the machine if there are no lint filters or if these are dama-

ged. Risk of fire!

• Clean the heat exchanger regularly.

• With stacked washer and dryer: Do not place objects on the dryer. These

may fall off during operation.

• The covering bonnet of the bulb for the drum light must be screwed

down tightly.

125985032.qxp 2006-07-17 11:14 Page 4

5

Child safety

• Keep packaging away from children. Risk of suffocation!

• Children can often not see the dangers associated with electric machi-

nes. Never leave unsupervised children near the dryer.

• Ensure that children and small animals cannot climb into the dryer’s

drum. Risk of death! Keep the dryer door shut whenever it is not being

used.

General safety

• Only specialists may undertake repairs on the dryer.

• Never start up the dryer if the mains cable is damaged or if the opera-

ting screen, operating plate or base area are damaged so that the insi-

de of the machine is open and accessible.

• Switch off the dryer before all cleaning, care or maintenance work. Also

disconnect the mains plug from the socket or – with permanent

connections – switch off the LS switch in the fuse box and/or fully

unscrew the screwed-in fuse.

• Disconnect the machine from the power supply during long pauses in

operations.

• When removing from the socket, never pull the mains plug by the cable,

instead take a hold of the plug.

• Manifold plugs, couplings and extension cables must not be used. Risk

of fire from overheating!

• Do not spray down the dryer with jets of water. Risk of electric shock!

• Do not lean on the open door. The machine may tip over.

• Once the drying cycle has been interrupted, the laundry and drum may

be hot. Risk of burns! Take care when removing the laundry.

125985032.qxp 2006-07-17 11:14 Page 5

6

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recy-

cled. The plastic components are identified by markings, e.g. >PE<,

>PS<, etc. Please dispose of the packaging materials in the appropriate

container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this

product may not be treated as household waste. Instead it shall be han-

ded over to the applicable collection point for the recycling of electri-

cal and electronic equipment. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed infor-

mation about recycling of this product, please contact your local city

office, your household waste disposal service or the shop where you

purchased the product.

Warning! Remove mains plug from socket when you have no further

use for the machine. Cut off mains cable and dispose of together with

plug.

Destroy loading door lock. Children cannot then lock themselves in the

machine and put their lives at risk.

125985032.qxp 2006-07-17 11:15 Page 6

7

Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not

therefore needed when washing.

• Your dryer will function most economically if you:

– always keep the ventilation slots on the base of the dryer

unobstructed;

– use the loading volumes specified in the programme overview;

– ensure you have good ventilation in the installation room;

– clean the micro-fine filter and fine strainer after each drying

cycle;

– spin the laundry well before drying. Example: Consumption data –

depending on spinning speed – for 7kg of laundry, dried using the

COTTONS STORAGE DRY (KATOEN KASTDROOG) programme.

1) Tariff: 0.15 Euro/kWh

Pre-draining Drying cycle

Revolutions

per minute

in litres Energy

in kWh

Costs

in euros1)

in liters as a %

1000 4,2 60 3,95 0,59

1200 3,9 53 3,69 0,55

1400 3,5 50 3,59 0,53

1800 2,9 42 3,19 0,47

125985032.qxp 2006-07-17 11:15 Page 7

8

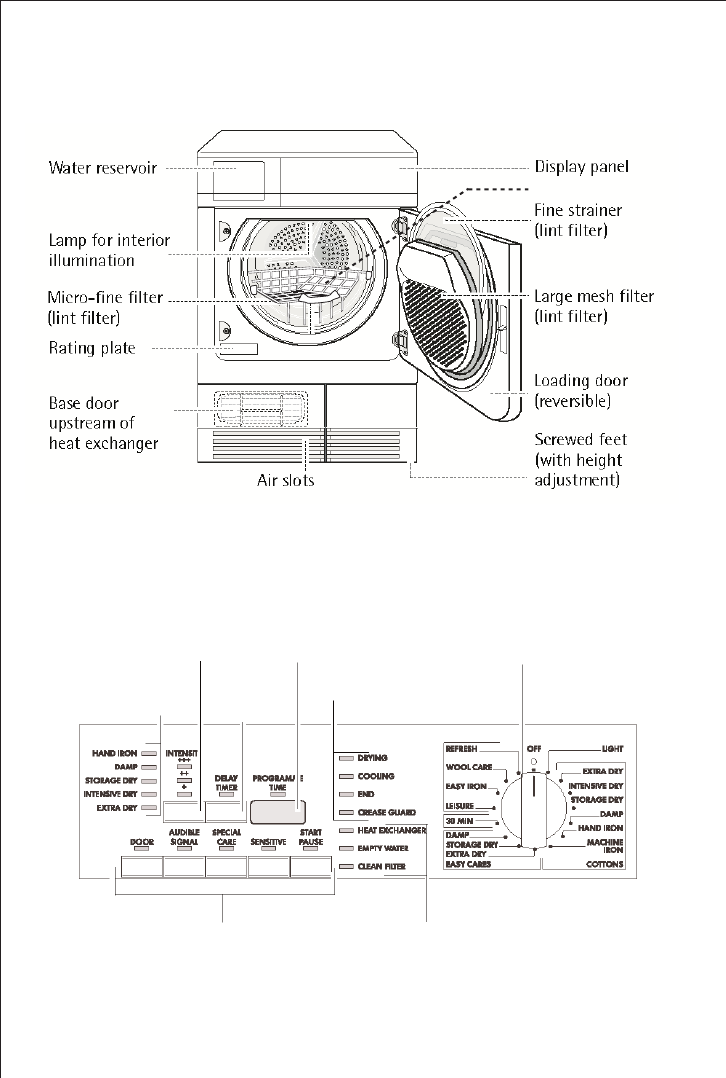

Description of machine

Operating screen

Programme progress display

Programme selector

Maintenance displays

– HEAT EXCHANGER (clean!)

– EMPTY WATER (empty!)

– CLEAN FILTER (clean lint filter!)

Block of buttons

and displays

Multi-display

DELAY TIMER

button

INTENSITY button

Display showing

level of dryness

Drying rack

125985032.qxp 2006-07-17 11:15 Page 8

9

Before the first drying cycle

In order to remove any residue which may have been produced during

production, wipe the dryer drum with a damp cloth or undertake a

brief drying cycle (30 MIN) with damp cloths.

Sorting and preparing laundry

Sorting laundry

• Sort by fabric type:

• Sort by fabric type:

– Cotton/linen for programmes in COTTONS programme

group.

– Mixtures and synthetics for programmes in EASY CARES programme

group.

• Sorting by care label. The care labels mean:

• Do not dry new, coloured textiles together with light-coloured laundry

items. Textile colours may bleed.

• Do not dry tricot or knitted items with the EXTRA DRY programme. Items

may become stuck!

• Do not dry wool in the dryer. May become entangled! After air-drying,

wool may be dried with the WOOL CARE programme.

Preparing laundry

• To avoid laundry becoming tangled: Close zips, button up coverings and

tie loose bands or ribbons (e.g. of aprons).

• Empty pockets. Remove metallic items (paperclips, safety pins etc).

• Turn items with double-layered fabrics inside out (e.g. with cottonlined

anoraks, the cotton layer should be outermost). These fabrics will then

dry better.

Basic drying in

tumble dryer

possible

Drying at

normal

temperature

Drying at reduced temperature

(press SPECIAL CARE button!)

Drying in tumble

dryer not possible

125985032.qxp 2006-07-17 11:15 Page 9

Overview of programmes

10

Programme

max. loading volume

(weight when dry)

Additional

functions

Application/properties Care

symbols

SPECIAL CARE

AUDIBLE SIGNAL

SENSITIVE1)

INTENSITY

COTTONS

EXTRA DRY 7 kg • • • •

Drying thick or multi-layered

textiles, e.g. terry towelling

items, bathing costumes.

INTENSIVE

DRY 7 kg • • • • Drying thick textiles, e.g. terry

towelling items, towels.

STORAGE

DRY 7 kg • • • •

Drying textiles of even thicknesses,

e.g. terry towelling items,

knitted items, towels.

DAMP 7 kg • • • •

For thin textiles which are still

to be ironed, e.g. knitted items,

cotton shirts.

HAND IRON 7 kg • • • •

For normal thickness cotton or

linen laundry, e.g. bedding, table

linen.

MACHINE

IRON 7 kg • • • •

For cotton or linen laundry

which are still to be put through

a machine, e.g. bedding, table

linen.

EASY CARES

EXTRA DRY 3 kg • • • •

Drying thick or multi-layered

textiles, e.g. pullovers, bedding,

table linen.

STORAGE

DRY 3 kg • • • •

For thin textiles which are not

ironed, e.g. easy care shirts, table

linen, baby’s clothes, socks, corsetry.

DAMP 3 kg • • • •

For thin textiles which are still

to be ironed, e.g. knitted items,

cotton shirts.

1)SPECIAL CARE and SENSITIVE cannot both be selected at the same time.

2) Press the SPECIAL CARE button!

2)

2)

2)

125985032.qxp 2006-07-17 11:15 Page 10

11

Programme

max. loading volume

(weight when dry)

Additional

functions

Application/properties Care

symbols

SPECIAL CARE1)

AUDIBLE SIGNAL

SENSITIVE 1)

INTENSITY

30 MIN 1 kg • • - - For drying individual items of laundry

or for small volumes of less than 1kg.

LEISURE 7 kg • • • •

Special programme for leisure cloth-ing, such

as jeans, sweat-shirts, etc., of different mate-

rial thicknesses (e.g. at the cuffs and seams).

EASY IRON 1 kg • • - -

Special programme with anti-crease

mechanism for easy care textiles such

shirts and blouses; for minimum ironing

effort. The result depends on the

type and quality of textiles. (The loading

volume corresponds to approx. 5 to

7 shirts.)

Recommendation: Place textiles in the

dryer straight after spinning. Once

dried, immediately remove textiles and

place on clothes hanger.

WOOL CARE 1 kg • • - -

Special programme for briefly treating

woollens with warm air after they have

been dried naturally, worn or stored for

long periods. Wool fibres are aligned

and the wool becomes soft and snugly.

Recommendation: Remove textiles immedia-

tely after drying.

REFRESH 1 kg • • - -

Special programme, lasting around 35

minutes, for refreshing or gently cleaning

textiles with commercially available

dry cleaning sets. (Only use those products

which are declared as suitable for the drier by

the manufacturer; please observe the manu-

facturer’s instructions for use.)

2)

2)

1)SPECIAL CARE and SENSITIVE cannot both be selected at the same time.

2) Press the SPECIAL CARE button!

125985032.qxp 2006-07-17 11:15 Page 11

12

Hints & Tips on Drying

Before placing articles of laundry in your tumble dryer, check the care

labels to ensure they are recommended for tumble drying.

Here is a list of the approximate weight of some common laundry

items.:

Sheet 700 to 1000 g

Pillowcase 100 to 200 g

Tablecloth 400 to 500 g

Table Napkin 50 to 100 g

Kitchen Towel 70 to 120 g

Linen Hand Towel 100 to 150 g

Hand Towel 150 to 250 g

Bath Towel 700 to 1000 g

Bathrobe 1000 to 1500 g

Shirt 200 to 300 g

Apron 150 to 200 g

125985032.qxp 2006-07-17 11:15 Page 12

13

• Always load well spun laundry. The higher the spin speed the lower

the electricity consumption and the shorter the drying time.

• DO NOT load dripping wet laundry into the dryer. Roll the article in

a towel or spin to remove excess water.

• Close poppers and zips and fasten any buttons.

• Sort the laundry. Separate synthetics from cotton/linens, and dry

separately.

• Remove the laundry immediately after the programme has finished.

• Use a fabric conditioning sheet to reduce static. We recommend the

sheet is pinned to an article of laundry (using a safety pin).

• Mix the load i.e. large and small articles.

• When drying large items such as sheets, we recommend you peri-

odically stop the dryer to redistribute the load.

DO NOT use the tumble dryer to dry the following:

• Articles contaminated with inflammable substances e.g. petrol, clea-

ning solvents, cooking oil, fats or hair lacquer.

• Woollen and synthetic/wool mixtures unless the item is labelled as

suitable for tumble drying.

• Very delicate articles such as silk.

• Very large and bulky items such as duvets or sleeping bags.

125985032.qxp 2006-07-17 11:15 Page 13

Drying

Switching machine on / switching light on

Turn the programme selector to any programme or turn it to LIGHT. The machi-

ne has been switched on. When the loading door is opened, the drum is illu-

minated.

Opening loading door / loading laundry

1.Open loading door:

Use force to push against the loading door (push point )

2. Load your laundry (do not force it in).

Caution! Do not jam laundry in between the loading door and rubber seal.

3. Close loading door securely. Lock must audibly lock.

Selecting the programme

Use the programme selector to set

the programme you require.

Selecting additional functions

INTENSITY

Precise setting of humidity content

of laundry. Laundry becomes dryer

from + to +++.

1. Press the INTENSITY button as

many times as necessary until the

small light at the level of residual

dampness required is illuminated.

If required, press the AUDIBLE

SIGNAL, SPECIAL CARE

or SENSITIVE buttons.

14

125985032.qxp 2006-07-17 11:15 Page 14

AUDIBLE SIGNAL

When the drying cycle has finished, an intermittent audible signal will

sound.

SPECIAL CARE

For especially gentle drying of sensitive fabrics with the care label

and for temperature-sensitive textiles (e.g. acrylic, viscose). Programme

is executed with reduced heat.

SPECIAL CARE is only suitable for use with loads of up to 3 kg!

SENSITIVE

For gentle drying of frequently-worn textiles. Programme starts on full heat

setting, which is then reduced towards the end of the programme to ensu-

re gentle care of laundry.

SPECIAL CARE and SENSITIVE cannot be selected together.

Setting time delay

With the DELAY TIMER button, you can delay the start of a programme by

between 30 minutes (30' and a maximum of 23 hours (23h).

1. Select the programme

2. Press the DELAY TIMER button as many times as necessary until the

required start delay appears on the multi display, e.g. 12h if the

programme is to be started in 12 hours. The DELAY TIMER display is

illuminated.

If 23h is displayed and you press the button again, the time delay will be

cancelled. The display will show 0' and then the duration of the selected

programme.

3. To activate the delay timer, press the START/PAUSE button. The amount

of time remaining until the programme is set to start is continuously

displayed (e.g. 12h, 11h, 10h, 30' etc).

Until the start of the programme the drum is moved at longish intervals

to loosen the laundry

Starting the programme

Press the START/PAUSE button. The programme is started.

The programme progress display and the display showing the level of

dryness show drying progress.

15

125985032.qxp 2006-07-17 11:15 Page 15

Changing programme

To change a programme which has been selected by mistake once the pro-

gramme has started, first turn the programme selector to OFF and then reset

the programme.

The programme can no longer be changed directly once the programme has

started. If nevertheless there is an attempt to change the programme on the

programme knob, the programme progress display and the maintenance indi-

cators flash. If an option button (excluding the AUDIBLE SIGNAL button) is

pressed, the corresponding indicator flashes several times. The drying pro-

gramme is not however affected by this (laundry protection).

Removing laundry or loading laundry when necessary

1. Open loading door

Warning! Laundry and drum can become hot. Risk of burns!

2. Load or remove laundry items.

3. Close loading securely. Lock must audibly lock.

4. Press the START/PAUSE button to continue the drying cycle.

Drying cycle complete / removing laundry

Once the drying cycle is complete, the END and CREASE GUARD dis-

plays light up. If the AUDIBLE SIGNAL button has been pressed, an

audible signal sounds intermittently.

The drying cycle is automatically followed by a crease guard phase

which lasts around 30 minutes. The drum rotates in intervals during this

phase. The laundry thereby remains relaxed and free of creases. The

laundry can be removed at any time during the crease guard phase. (The

laundry should be taken out towards the end of the crease guard phase

at the latest to prevent creases from forming.)

1. Open loading door

2. Before removing the laundry, remove lint from the micro-fine filer. It

is best to use a damp hand for this purpose (refer to “Cleaning and

maintenance” section).

3. Remove laundry.

4. Turn the programme selector to OFF.

Important! After each drying cycle

– clean the micro-fine filter and fine strainer,

– drain the condensate tank

(refer to the “Cleaning and maintenance” section).

5. Close loading door.

16

125985032.qxp 2006-07-17 11:15 Page 16

17

Cleaning and maintenance

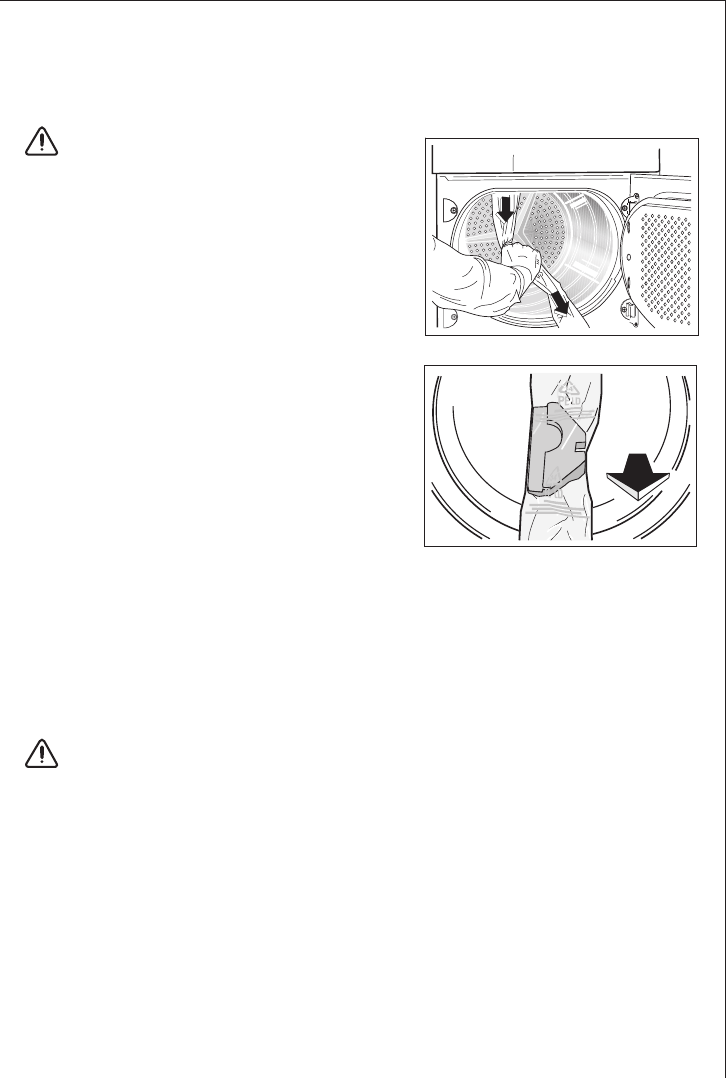

Cleaning fluff filter

To ensure that the dryer works perfectly, the fluff filters (micro-fine filter

and fine strainer) must be cleaned after every drying cycle.

Caution! Never operate the dryer without fluff filters or with damaged

or blocked fluff filters.

1. Open loading door

2. Use a damp hand to clean the micro-

fine filter, which is built into

the lower part of the loading aperture.

3. Push down unlock button on large

mesh filter. Large mesh filter

jumps up.

4. Take out fine strainer.

5. Remove fluff from fine strainer.

It is best to use a damp hand for this

purpose.

125985032.qxp 2006-07-17 11:15 Page 17

Clean the entire filter area

The strainer area does not have to be cleaned after every drying cycle,

but should be checked regularly and cleaned of fluff if necessary.

6. To do this, grip the top of the large

mesh filter and pull it forwards

until it comes loose from the two

brackets.

7. Remove fluff from the entire filter

area. It is best to use a vacuum

cleaner for this purpose.

8. Press both journals of the large

mesh filter into the brackets on the

loading door until they snap into

place.

9. Re-insert fine strainer.

10. Press against the large mesh filter

until it locks into the interlock.

If the fine strainer is not fitted,

the large mesh filter will not snap

into place and the loading door

cannot be closed.

Cleaning the door seal

Wipe the door seal with a damp cloth immediately after the drying cycle

has finished.

18

125985032.qxp 2006-07-17 11:15 Page 18

Emptying the water reservoir

Empty condensate tank after every drying cycle.

If the condensate tank is full, an active programme will break off automati-

cally and the EMPTY WATER display will light up. In order to continue the

programme, the condensate tank must first be emptied.

Warning! The condensate is not suitable for drinking or for preparing

foodstuffs.

1.Take out drawer containing

condensed water container

completely (1) and pull up the

condensed water container’s

drainage pipe as far as it will go (2).

2.Pour condensed water out into

a basin or similar receptacle.

3.Slide outlet connections in and

refit condensate tank. If the

programme has been interrup-

ted as a result of the condensa-

te tank being full: Press the

START/PAUSE button to conti-

nue the drying cycle.

The water reservoir has a volume of approx. 4 litres. This is sufficient for aro-

und 7 kg of laundry which has previously been spun at 800 revolutions/

minute.

The condensate can be used as distilled water, e.g. for steam ironing. Howe-

ver first filter the condensate (e.g. with a coffee filter) to remove any resi-

due and small pieces of fluff.

19

125985032.qxp 2006-07-17 11:15 Page 19

20

Cleaning heat exchanger

If the HEAT EXCHANGER display is illuminated, the heat exchanger needs to

be cleaned.

Caution! Operating when the heat exchanger is clogged with lint can dama-

ge the dryer. This also increases energy consumption.

1. Open loading door

2. Open base door. To do this, press the

release button on the bottom of the

loading opening and open the door to

the left.

3. Remove lint from the inside of the door

and the heat exchange chamber. Wipe

the door seal with a damp cloth.

4. Turn both lock washers inwards.

5. Use the handle to pull the heat exchan-

ger out of the base and carry it horizon-

tally to prevent any remaining water from

spilling.

6. To empty the heat exchanger, hold

vertically over a washing-up bowl.

Caution! Do not use sharp objects to

clean. The heat exchanger could

develop leaks.

7. Clean heat exchanger.

It is best to use a brush or to rinse

thoroughly with a shower head.

8. Replace heat exchanger and lock into

place (turn both lock washers

outwards until they snap into place).

9. Close base door.

The dryer will not operate if the HEAT EXCHANGER indicator is still lit.

Caution! Never operate the dryer without the heat exchanger.

125985032.qxp 2006-07-17 11:15 Page 20

21

Cleaning the drum

Caution! Do not use abrasives or steel wool to clean the drum.

Lime in the water or cleaning agents may form a barely visible lining on the

inside of the drum. The degree to which the laundry has been dried is then

no longer detected reliably. The laundry is damper than expected when

removed from the dryer.

Use a standard domestic cleaner (e.g. vinegar-based cleaner) to wipe down

the inside of the drum and drum ribs.

Clean operating screen and housing

Caution! Do not use furniture cleaners or aggressive cleaning agents to

clean the machine.

Use a damp cloth to wipe down the operating screen and housing.

What to do if …

Troubleshooting by yourself

If, during operation, the error code (E plus number or letter) appears on

the multi-display: Switch the machine off and on again. Reset program-

me. Press the START/PAUSE button

If the error is still displayed, please inform your local Service Force Cent-

re and quote the error code.

Problem Possible cause Remedy

Dryer does not work.

Mains plug is not plugged

in or fuse is not working

correctly.

Plug in at mains socket.

Check fuse in fuse box

(domestic installation).

Loading door is open. Close loading door.

Have you pressed the

START/ PAUSE button?

Press the START/PAUSE

button again.

125985032.qxp 2006-07-17 11:15 Page 21

Problem Possible cause Remedy

Drying results

unsatisfactory.

Wrong programme selected.

Select a different program-

me the next time you dry

(see “Overview of program-

mes” section).

Lint filter clogged. Clean lint filter.

Heat exchanger clogged

with lint. Clean heat exchanger.

Overloading of laundry. Observe recommended loa-

ding volumes.

Ventilation slots in base

area covered up.

Uncover ventilation slots in

base area.

Residue on inside surface of

drum or drum ribs.

Clean inside surface of

drum and drum ribs.

Make an adjustment using

the INTENSITY function (see

chapter ”Drying, Selecting

additional functions”).

Loading door does not

open with DOOR button.

Mains plug disconnected. Plug in at mains socket.

Programme selector in OFF

position.

Set programme. Loading

door can be opened at any

time by exerting pressure on

the door.

Loading door does not

close.

Fine strainer not in place

and/or large mesh filter not

locked in place.

Install fine strainer and/or

snap large mesh filter into

place.

When pressing a button,

the corresponding

button flashes several

times.

Washing protection. After

the start of the programme,

the option can no longer be

set.

Turn the programme knob

to OFF Set the programme

again.

Drum light does not

work.

Programme selector in OFF

position.

Turn programme selector to

LIGHT or to any programme.

Defective light bulb. Replace light bulb (see next

section).

PROGRAMME TIME display

changes erratically or stays

unchanged for a long

time.

Programme time is correc-

ted automatically depen-

ding on type and volume of

laundry and level of dampn-

ess.

Automatic process; this is

not a machine fault.

Programme inactive,

EMPTY WATER display

illuminated.

Condensate tank is full.

Empty condensate tank,

then start programme with

START/PAUSE button.

22

125985032.qxp 2006-07-17 11:15 Page 22

Changing bulb for inside light

Only use a special bulb which is designed specially for dryers. The special bulb

is available from the after-sales service, ET-Nr. 112 552 000-5.

Warning! Do not use standard bulbs! These develop too much heat and

may damage the machine!

Warning! Before replacing the bulb, disconnect the mains plug; with a

permanent connection: fully unscrew or deactivate the fuse.

1. Unscrew covering bonnet from above bulb (this can be found directly behind

the loading aperture, at the top; refer to “Description of machine” section.)

2. Replace defective bulb.

3. Screw covering bonnet back down.

Warning! For reasons associated with safety, the covering bonnet must

be screwed down tightly. If this is not done, the dryer must not be operated.

Problem Possible cause Remedy

Drying cycle lasts an

unusually long time.

Note:

After around 5 hours

the drying cycle ends

automatically (see

„Drying cycle complete“).

Lint filter clogged. Clean lint filter.

Heat exchanger clogged

with lint. Clean heat exchanger.

SPECIAL CARE

button pressed and load

volume too big.

SPECIAL CARE is only suita-

ble for use with

loads of up to 3 kg!

Load volume too big. Reduce load volume.

Laundry insufficiently pre-

drained.

Laundry must be adequately

pre-drained.

Drying cycle ends

shortly after programme

starts. END display illumina-

ted.

Not enough washing loaded

or washing loaded is too

dry for selected programme.

Select time programme or

higher drying level (e.g.

INTENSIVE DRY instead of

STORAGE DRY).

23

125985032.qxp 2006-07-17 11:15 Page 23

Programming options

Objective Implementation

Permanently programme

in the audible signal

which reminds you that

the programme is com-

plete.

1. Turn the programme selector to any programme.

2. Press the AUDIBLE SIGNAL button and hold down for

approx. 5 seconds.

A brief signal sounds several times. The AUDIBLE SIGNAL

display flashes several times.

The setting is permanently programmed.

The setting is cancelled as described under 1 and 2.

Adjust “level of dryness”

detection:

If the laundry is slightly

drier or slightly damper

at the end of the pro-

gramme

than with the

standard setting.

1. Turn the programme selector to any programme.

2. Press the AUDIBLE SIGNAL and SENSITIVE buttons at the

same time and hold down for approx. 5 seconds. The cur-

rent setting appears on the multi-display:

–C0: Setting for drier laundry

–C1: Standard setting

–C2: Setting for damper laundry

3. Press the START/PAUSE button until the setting required

appears on the multi-display.

4. Turn the programme selector to OFF.

The setting is permanently programmed.

To deactivate the EMPTY

WATER display when

using

an external drain for

the condensed water.

1. Turn the programme selector to any programme.

2. Press the DOOR and SPECIAL CARE buttons at the same

time and hold down for approx. 5 seconds. The multidisplay

briefly displays ”0”

The EMPTY WATER display is permanently deactivated.

The setting is cancelled as described under 1 and 2; the

multi-display however briefly displays ”1” (rather than

”0”).

24

125985032.qxp 2006-07-17 11:15 Page 24

Technical data

This appliance conforms with the following EU Directives:

– 73/23/EEC dated 19.02.1973 Low Voltage Directive

– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending

Directive 92/31/EEC

– 93/68/EEC dated 22.07.1993 CE Marking Directive

1) Different loading volume data may be needed in some countries as a result of different

measuring methods.

Consumption values

The consumption values have been established under standard conditions.

They may deviate when the machine is operated in domestic circumstances.

1) pre-drained at 1000 rpm

2) pre-drained at 1200 rpm

Programme

Loading volume

in kg

Energy consumption

in kWh

COTTONS STORAGE DRY 1)

7

3,95

COTTONS HAND IRON 1)

7

3,05

EASY CARES STORAGE DRY 2)

3

1,45

Height x width x depth 85 x 60 x 60 cm

Depth with loading door open 109 cm

Height can be adjusted by 1,5 cm

Weight when empty approx. 42kg

Loading volume (depends on programme) 1) max. 7 kg

Energy consumption in accordance with IEC 1121 s. e.

(7 kg of cotton, pre-drained at 1000 rpm, COTTONS

STORAGE DRY (KATOEN KASTDROOG) programme)

3,95 kWh

Use Domestic

Use + 5°C à + 35°C

25

125985032.qxp 2006-07-17 11:15 Page 25

Installation and connection instructions

Installation safety instructions

• Before first starting up, all parts of the transport safety equipment must be

removed. The machine may otherwise be damaged.

• Before starting up for the first time, ensure that the nominal voltage and

type of current specified on the machine type plate match the nominal vol-

tage and type of current at the installation site. The electrical fuses required

can also be found on the type plate.

• Always connect the plug into a protection contact socket which has been

installed as specified.

• With permanent connections: A permanent connection may only be esta-

blished by an authorised specialist electrician.

• Do not install machine in rooms at risk of frost.

• Ensure that the door of the machine cannot be blocked by interior doors of

the house or the doors of other appliances.

• Do not install on carpets with high piles. Air circulation will be hindered at

the ventilation slots.

• Ensure that the machine is not placed on its mains cable.

• Install the machine horizontally.

26

125985032.qxp 2006-07-17 11:15 Page 26

Removing transport safety equipment

Caution! Before first starting up,

all parts of the transport safety

equipment must be removed.

1.Open loading door

2. Pull off adhesive strips from inside

machine on top of drum.

3. Remove foil hose and polystyrene

padding from the machine.

Electrical connection

Any electrical work required to install this appliance should be carried out by a

qualified electrician or competent person.

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be

observed.

Should the appliance power supply cable need to be replaced, this must be

carried out by our Service Centre.

Before switching on, make sure the electricity supply voltage is the same as that

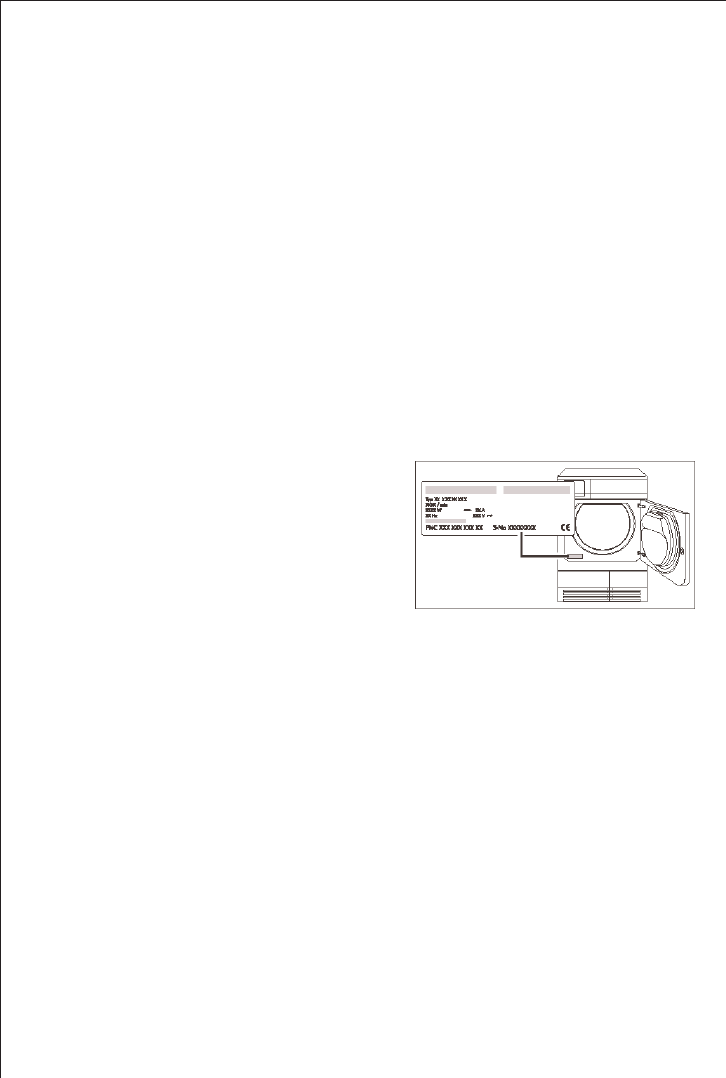

indicated on the appliance’s rating plate. (See picture on page 8).

The appliance is supplied with a 13amp plug fitted.

In the event of having to change the fuse in the plug supplied, a 13amp ASTA

approved BS 1363/A fuse must be used.

27

125985032.qxp 2006-07-17 11:15 Page 27

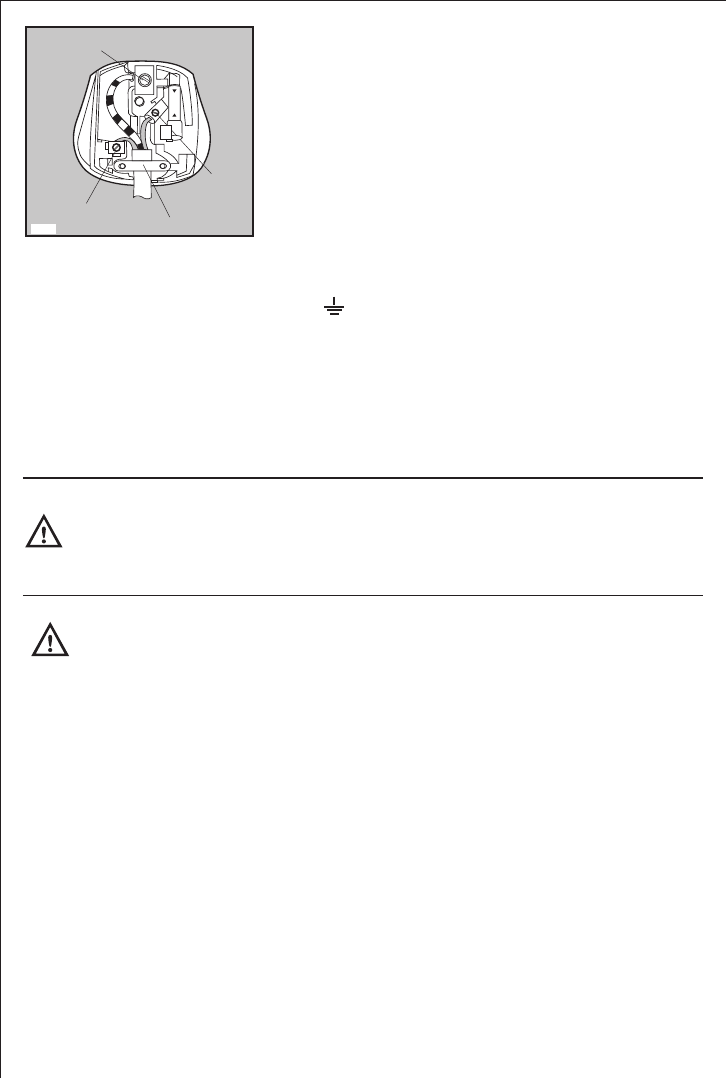

The wire coloured green and yellow must be connected to the terminal marked with

the letter «E» or by the earth symbol or coloured green and yellow.

The wire coloured blue must be connected to the terminal «N» or coloured black.

The wire coloured brown must be connected to the terminal marked «L» or coloured

red.

Upon completion there must be no cut, or stray strands of wire present and the cord

clamp must be secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp socket is a serious safety (shock)

hazard.

Ensure that the cut off plug is disposed of safely.

The power supply cable must be accessible after installing the machine.

Permanent connection

In the case of permanent connection it is necessary that you install a double pole

switch between the appliance and the electricity supply (mains), with a minimum

gap of 3mm between the switch contacts and of a type suitable for the required

load in compliance with the current electrical regulations.

The switch must not break the yellow and green earth cable at any point.

GREEN & YELLOW

BROWN

CORD CLAMP

BLUE

13 A

P1041

E

N

L

28

125985032.qxp 2006-07-17 11:15 Page 28

29

Door reversal instructions

Warning! The door stop may only be changed by a specialist. If

necessary,please contact our after-sales service or your specialist dealer.

Warning! Before changing the door stop, disconnect the mains plug;

with a permanent connection: fully unscrew or deactivate the fuse.

1. Open loading door .

2. Unscrew hinge A from the front ofthe

machine and take off the loading door.

3. Remove cover plates B and C. To do this,

insert a thin screwdriver into the slots as

shown in the illustration, press down-

wards slightly and pry out the cover

plates.

4. Use an appropriate tool and exert pres-

sure to unfasten locking block D from

the snap-on fixture, take out and reins-

ert on the other side, having rotated the

block through 180°.

5. Unscrew hinge A from the loading door,

rotate through 180°, reinsert on the

opposite side and screw down.

6. Reinsert cover plates B and C on the

opposite site having first rotated them

through 180°.

7. Unscrew cover plates E from the front of

the machine, rotate through 180, screw

on the opposite side.

8. Unscrew door lock F, push down slightly

and remove from the front of the

machine.

9. Press snap-in button G in and down,

press cover down slightly and remove

from front of the machine.

10. Transfer door lock F to the oppositesi-

de and screw down.

11. Fix cover G on to the other side and

allow the snap-in button to lock in

place.

12. Insert loading door and hinges into recesses on the front of the machine

and screw down.

125985032.qxp 2006-07-17 11:16 Page 29

Special accessories

The following special accessories are available from your Service Force Cen-

tre or your specialist dealer:

Intermediate installation kits for stacked

washer and dryer:

These intermediate installation kits can be used to arrange the dryer and

an automatic AEG-Electrolux washing machine (60cm wide, front loa-

ding) as a space-saving washer/dryer stack. The automatic washing

machine is at the bottom and the dryer is at the top.

Two versions can be supplied:

– without stacker plate 916.018 902

– with extractable stacker plate 916.018 903

Installation kit for external condensate drain

Installation kit (125 122 510) for direct draining of condensate into a

basin, siphon, gully, etc. The condensate tank then no longer has to be

drained, it must however remain in its intended position in the machi-

ne. Refer to the “Programme options” section for how to deactivate the

EMPTY WATER display. Max. displacement height: 1m from the base of

the dryer; max. displacement length: 3m

30

125985032.qxp 2006-07-17 11:16 Page 30

Warranty conditions

Great Britain

We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or

any part thereof is proved to be defective by reason only of faulty workmanship or materials, we

will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage

on condition that:

• The appliance has been correctly installed and used only on the electricity or gas supply stated on the rating plate.

• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's opera-

ting and maintenance instructions.

• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not authori-

sed by us.

• All service work under this guarantee must be undertaken by a Service Force Centre. Any appliance or defective part

replaced shall become the Company's property.

• This guarantee is in addition to your statutory and other legal rights.

• Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in

which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or remo-

vable parts of glass or plastic.

• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the Uni-

ted Kingdom.

• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.

• Products of AEG manufacture which are not marketed by AEG.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to

your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.

• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use

for this brand or range of products.

• This guarantee relates to you and cannot be transferred to another user.

• Your new home is within the European Community (EC) or European Free Trade Area.

• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal hou-

sehold.

• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details

of your new home. They will then ensure that the local Service Organisation is aware of your

move and able to look after you and your appliances.

France Senlis +33 (0) 3 44 62 29 29

Germany Nürnberg +49 (0) 800 234 7378

Italy Pordenone +39 (0) 800 117511

Sweden Stockholm +46 (0) 8 672 5360

UK Slough +44 (0) 1753 219899

31

125985032.qxp 2006-07-17 11:16 Page 31

32

Service and Spare Parts

If the event of your appliance requiring service, or if you wish to purchase

spare parts, please contact Service Force by telephoning:

00887700 55 992299 992299

Your telephone call will be automatically routed to the Service Force

Centre covering your post code area.

For the address of your local Service Force Centre and further information

about Service Force, please visit the website at

www. serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details

under the heading „What to do if...“

When you contact the Service Force Centre you will need to give the

following details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model and serial number of the appliance (found on the rating plate)

5. The purchase date.

Please note that a valid purchase receipt

or guarantee documentation is

required for in-guarantee service

calls.

Customer Care

For general enquiries concerning

your AEG-Electrolux appliance, or

for further information on AEGElectrolux

products please contact

our Customer Care Department by

letter or telephone at the address below or visit our website at

wwwwww..aaeegg..ccoo..uukk..

(*) Calls may be recorded for training purposes

Customer Care Department

AEG-Electrolux

Domestic Appliances

55-77 High Street

Slough

Berkshire, SL1 1DZ

Tel: 08705 350350 (*)

For Customer Service in the Republic

of Ireland please contact us at the

address

below:

AEG/ Electrolux Group (Ire) Ltd

Long Mile Road/ Dublin 12

Republic of Ireland

Tel: +353 (0) 1 4090754

Email: service.eid@electrolux.ie

125985032.qxp 2006-07-17 11:16 Page 32

AEG Hausgeräte GmbH

Postfach 1036

D-90327 Nürnberg

http://www.aeg.hausgeraete.de

© Copyright by AEG

125985032-01-200606-01

From the Electrolux Group. The world´s No.1 choice.

The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdo-

oruse. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,vacu-

um cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in moret-

han 150 countries around the world.

125985032.qxp 2006-07-17 11:16 Page 33
