ENGLISH ESPAÑOL FRANÇAIS
WARNING:
Read and follow all Safety Rules and Operating Instructions before
using this product. Failure to do so can result in serious injury.
ADVERTENCIA:
Lea el manual de instrucciones y siga todas las advertencias e
instrucciones de seguridad. El no hacerlo puede resultar en le-
siones graves.
AVERTISSEMENT:
Lire le manuel d’instructions et bien respecter tous les avertisse-
ments et toutes les instructions de sécurité. Tout défaut de le
faire pourrait entraîner des blessures graves.
Instruction Manual
Manual de Instrucciones
Manuel d’Instructions
WT3100
For Occasional Use Only
WEED EATER
1030 Stevens Creek Road
Augusta, GA 30907
545123530 8/10/06
RTrademark
Please do not return unit to retailer.
Por favor, no devuelva el aparato al lugar de compra.
Veuillez ne pas retourner l’outil au détaillant.
1-800-554-6723
www.weedeater.com
2
SAFETY RULES
WARNING: When using gardening ap-
pliances, basic safety precautions should al-
ways be followed to reduce the risk of fire and
serious injury. Read and follow all instructions.
This power unit can be dangerous! Operator
is responsible for following unit and manual
instructions and warnings. Read entire in-
struction manual before using unit! Be thor-
oughly familiar with the controls and the prop-
er use of the unit. Restrict the use of this unit
to persons who read, understand, and follow
unit and manual instructions and warnings.
Never allow children to operate this unit.
SAFETY INFORMATION
ON THE UNIT
INSTRUCTION
MANUAL
DANGER: Never use blades, wire or
flailing devices. Unit is designed for line trim-
mer use only. Use of any other accessories or
attachments will increase the risk of injury.
WARNING: Trimmer line throws ob-
jects violently. You and others can be blinded/
injured. Wear safety glasses and leg protec-
tion. Keep body parts clear of rotating line.
Safety Glasses or similar eye protection
Boots
50 ft.
(15 m)
HAZARD ZONE
Keep children, bystanders, and animals 50
feet (15 meters) away. If approached stop unit
immediately.
If situations occur which are not covered in
this manual, use care and good judgement. If
you need assistance, contact your authorized
service dealer or call 1-800-554-6723.
OPERATOR SAFETY
SDress properly. Always wear safety glasses
or similar eye protection when operating, or
performing maintenance, on your unit (safety
glasses are available). Eye protection should
be marked Z87.
SAlways wear face or dust mask if operation is
dusty.
SAlways wear heavy, long pants, long sleeves,
boots, and gloves. Wearing safety leg guards
is recommended.
SAlways wear foot protection. Do not go bare-
foot or wear sandals. Stay clear of spinning
line.
SSecure hair above shoulder length. Secure or
remove loose clothing or clothing with loosely
hanging ties, straps, tassels, etc. They can
be caught in moving parts.
SBeing fully covered also helps protect you
from debris and pieces of toxic plants thrown
by spinning line.
SStay Alert. Do not operate this unit when you
are tired, ill, upset or under the influence of al-
cohol, drugs, or medication. Watch what you
are doing; use common sense.
SWear hearing protection.
SNever start or run inside a closed room or
building. Breathing exhaust fumes can kill.
SKeep handles free of oil and fuel.
UNIT / MAINTENANCE SAFETY
DANGER: Never start the engine with
the clutch shroud removed. The clutch will fly
apart and cause serious injury.
STurn engine off and disconnect spark plug be-
fore performing maintenance except carbure-
tor adjustments.
SInspect unit before use. Look for and replace
damaged or loose parts before each use.
Make sure all handles, guards, and fasteners
are in place and securely fastened. Look for
and repair fuel leaks before use. Keep in good
working condition.
SReplace trimmer head that is chipped,
cracked, broken, or damaged in any other
way before using the unit.
SMaintain unit according to recommended pro-
cedures. Keep cutting line at proper length.
SUse only 0.115″diameter (3 mm) WEED
EATER brand cut length line (see RE-
PLACING THE LINE). Never use wire,
rope, string, etc.
SMake sure unit is assembled correctly as
shown in this manual.
SMake carburetor adjustments with lower
end supported to prevent line from contact-
ing any object.
SKeep others away when making carburetor
adjustments.
SUse only recommended WEED EATER
accessories and replacement parts.
SHave all maintenance and service not ex-
plained in this manual performed by an autho-
rized service dealer.
FUEL SAFETY
SMix and pour fuel outdoors.
SKeep away from sparks or flames.
SUse a container approved for fuel.
SDo not smoke or allow smoking near fuel or
the unit.
SAvoid spilling fuel or oil. Wipe up all fuel spills.
3
SMove at least 10 feet (3 meters) away from
fueling site before starting engine.
SStop engine and allow to cool before remov-
ing fuel cap.
SAlways store gasoline in a container ap-
proved for flammable liquids.
CUTTING SAFETY
WARNING: Inspect the area before
each use. Remove objects (rocks, broken
glass, nails, wire, etc.) which can be thrown
by or become entangled in line. Hard objects
can damage trimmer head and be thrown
causing serious injury.
SUse unit properly. Use only for trimming,
mowing, and sweeping. Do not use for edg-
ing, pruning, or hedge trimming. Do not force
unit. It will do the job better, and with less risk
of injury, at the rate for which it was designed.
SKeep firm footing and balance. Do not over-
reach.
SKeep all parts of your body away from spin-
ning line and muffler. Keep engine and cutting
head below waist level. A hot muffler can
cause serious burns.
SCut only from your right to your left. Cutting
with the line on right side of the shield will
throw debris away from the operator.
SUse only in daylight or in good artificial light.
SUse only for jobs explained in this manual.
TRANSPORTING AND STORAGE
SStop the unit when not in use.
SCarry or transport the unit with engine
stopped.
SAllow the engine to cool; secure unit before
storing or transporting in vehicle.
SEmpty the fuel tank before storing or trans-
porting the unit. Use up fuel left in the car-
buretor by starting the engine and letting it
run until it stops.
SStore unit and fuel in an area where fuel va-
pors cannot reach sparks or open flames
from water heaters, electric motors or
switches, furnaces, etc.
SStore the unit out of the reach of children
SPECIAL NOTICE: This unit is not
equipped with a temperature limiting muffler
and spark arresting screen which meets the
requirements of California Codes 4442 and
4443. All U.S. forest land and the states of
California, Idaho, Maine, Minnesota, New
Jersey, Oregon, and Washington require by
law that many internal combustion engines to
be equipped with a spark arrestor screen. If
you operate in a locale where such regula-
tions exist, you are legally responsible for
installing and maintaining the operating con-
dition of these parts. Failure to do so is a viola-
tion of the law. If a spark arrestor is required
in your area, contact your authorized service
dealer for the proper kit.
SAFETY NOTICE: Exposure to vibrations
through prolonged use of gasoline powered
hand tools could cause blood vessel or nerve
damage in the fingers, hands, and joints of
people prone to circulation disorders or ab-
normal swellings. Prolonged use in cold
weather has been linked to blood vessel dam-
age in otherwise healthy people. If symptoms
occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek med-
ical attention. An anti-vibration system does
not guarantee the avoidance of these prob-
lems. Users who operate power tools on a
continual and regular basis must monitor
closely their physical condition and the condi-
tion of this tool.
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find parts
missing or damaged, call 1-800-554-6723.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.
ATTACH THE HANDLE
1. Remove upper wing nut and curved head
tube bolt from upper handle.
2. Loosen lower wing nut on lower handle.
3. Insert upper handle over lower handle.
NOTE: Ensure upper handle grips are in
position as shown in the following illustrations
(throttle handle grip on left side).
4. Align holes and insert curved head tube
bolt through upper and lower handles.
5. Re--install and securely tighten upper wing
nut onto bolt.
6. Retighten lower wing nut securely.
Upper handle
Upper wing nut
Lower handle
Lower wing nut
Tube bolt
4
NOTE: When performing the following step,
be sure the starter rope is not caught under
the cable clamps. The starter rope must
hang freely to operate properly.
Cable
clamps
Starter rope
Throttle
cable
7. Align one cable clamp above the tube bolts
and the other below the starter rope han-
dle. Install the cable clamps one at a time
around the tube and throttle cable.
NOTE: Ensure throttle cable is in groove of
clamps and lies flat against the upper handle
tube after installation (see illustration above).
OPERATION
KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Primer Bulb
Starter Rope
Handle
ON/OFF
Switch
Throttle Trigger
Choke Lever
Shield
Shield
Trimmer Head
Muffler
Upper Handle
Lower Handle
ON/OFF SWITCH
The ON/OFF switch is used to stop engine. To
stop the engine, move the switch to the OFF
position.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
CHOKE
The CHOKE helps to supply fuel to the engine
toaidincoldstarting.Activatethechokeby
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
5
BEFORE STARTING ENGINE
WARNING: Be sure to read the fuel
information in the safety rules before you be-
gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
FUELING ENGINE
WARNING: Remove fuel cap slowly
when refueling.
HELPFUL TIP
To obtain the correct oil mix
ratio, pour 3.2 ounces of
2--cycle synthetic oil into
one gallon of fresh gas.
This engine is certified to operate on un-
leaded gasoline. Before operation, gasoline
must be mixed with a good quality synthetic
2-cycle air-cooled engine oil designed to be
mixed at a ratio of 40:1. Poulan/WEED EATER
brand synthetic oil is recommended. Mix gas-
oline and oil at a ratio of 40:1. A 40:1 ratio is
obtained by mixing 3.2 ounces (95 ml) of oil
with 1 gallon (4 liters) of unleaded gasoline.
DO NOT USE automotive oil or boat oil.
These oils will cause engine damage. When
mixing fuel, follow instructions printed on con-
tainer. Once oil is added to gasoline, shake
container momentarily to assure that the fuel
is thoroughly mixed. Always read and follow
the safety rules relating to fuel before fueling
your unit.
IMPORTANT
Experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads to
separation and formation of acids during stor-
age. Acidic gas can damage the fuel system
of an engine while in storage. To avoid engine
problems, empty the fuel system before stor-
age for 30 days or longer. Drain the gas tank,
start the engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel next
season.Never use engine or carburetor
cleaner products in the fuel tank or permanent
damage may occur. See the STORAGE sec-
tion for additional information.
HELPFUL TIP
If your engine switch reads
“push to stop”, it is always
in the ON position.
HOW TO STOP YOUR UNIT
STo stop the engine, move the ON/OFF
switch to the OFF position until the unit has
fully stopped.
SIf engine does not stop, move choke to the
FULL CHOKE position.
Choke Lever
Primer Bulb Muffler
ON/OFF
Switch
HOW TO START YOUR UNIT
WARNING: The trimmer head will
turn while starting the engine. Avoid any con-
tact with the muffler. A hot muffler can cause
serious burns.
HELPFUL TIP
If your engine still does not
start after following these
instructions, please call
1--800--554--6723.
STARTINGACOLDENGINE(ora
warm engine after running out of
fuel)
1. Move ON/OFF switch to the ON position.
2. Slowly press the primer bulb 6 times.
3. Move choke lever to the FULL CHOKE
position.
4. Squeeze the throttle trigger fully and hold
through all remaining steps.
5. Pull starter rope handle sharply until engine
sounds as if it is trying to start, but do not pull
rope more than 6 times.
6. As soon as engine sounds as if it is trying to
start, move choke lever to HALF CHOKE
position.
7. Pull starter rope sharply until engine runs,
but no more than 6 pulls. NOTE: If the en-
gine doesn’t start after 6 pulls (at the HALF
CHOKE position), move the choke lever to
the FULL CHOKE position and press the
primer bulb 6 times. Squeeze and hold the
throttle trigger and pull the starter rope 2
more times. Move the choke lever to the
HALF CHOKE position and pull the starter
rope until the engine runs, but no more
than 6 pulls. If the engine still doesn’t start,
it is probably flooded. Proceed to START-
ING A FLOODED ENGINE.
8. Once the engine starts, allow it to run 10
seconds, then move the choke lever to the
OFF CHOKE position. Allow the unit to run
for 30 more seconds at OFF CHOKE be-
fore releasing the throttle trigger.
NOTE: If engine dies with the choke le-
ver in the OFF CHOKE position, move the
choke lever to the HALF CHOKE position
and pull the rope until engine runs, but no
more than 6 pulls.
STARTING A WARM ENGINE
1. Move ON/OFF switch to the ON position.
2. Move the choke lever to the HALF CHOKE
position.
6
3. Squeeze and hold the throttle trigger. Keep
throttle trigger fully squeezed until the engine
runs smoothly.
4. Pull starter rope sharply until engine runs,
but no more than 5 pulls.
5. Allow engine to run 15 seconds, then move
thechokelevertoOFFCHOKE.
NOTE: If engine has not started, pull starter
rope 5 more pulls. If engine still does not run, it
is probably flooded.
STARTING A FLOODED ENGINE
Flooded engines can be started by placing
the choke lever in the OFF CHOKE position;
then, pull the rope to clear the engine of ex-
cess fuel. This could require pulling the starter
handle many times depending on how badly
the unit is flooded.
If the unit still doesn’t start, refer to
TROUBLESHOOTING TABLE or call
1-800-554-6723.
OPERATING INSTRUCTIONS
OPERATING POSITION
Eye
Protection
Heavy Long
Pants
Heavy
Shoes
ALWAYS USE:
Cut from your right to your left.
NOTE: Keep left and right hands on grips
during operation of unit as shown above to
avoid covering air intake holes located on un-
derside of upper handle.
WARNING: Always wear eye protec-
tion. Never lean over the trimmer head.
Rocks or debris can ricochet or be thrown into
eyes and face and cause blindness or other
serious injury.
Do not run the engine at a higher speed than
necessary. The cutting line will cut efficiently
when the engine is run at less than full throttle.
At lower speeds, there is less engine noise and
vibration.
Always release the throttle trigger and allow the
engine to return to idle speed when not cutting.
To stop engine:
SRelease the throttle trigger.
SMove the ON/OFF switch to the OFF posi-
tion.
MAINTENANCE
WARNING: Disconnect the spark
plug before performing maintenance except
for carburetor adjustments.
HELPFUL TIP
IMPORTANT: Have all
repairs other than the rec-
ommended maintenance
described in the instruction
manual performed by an
authorized service dealer.
If any dealer other than an authorized
service dealer performs work on the
product, WEED EATER may not pay for
repairs under warranty. It is your re-
sponsibility to maintain and perform
general maintenance.
CHECK FOR LOOSE
FASTENERS AND PARTS
SSpark Plug Boot
SAir Filter
SHousing Screws
SDebris Shield
CHECK FOR DAMAGED OR
WORN PARTS
Contact an authorized service dealer for re-
placement of damaged or worn parts.
SON/OFF Switch -- Ensure ON/OFF switch
functions properly by moving the switch to
the OFF position. Make sure engine stops;
then restart engine and continue.
SFuel Tank -- Discontinue use of unit if fuel
tank shows signs of damage or leaks.
SDebris Shield -- Discontinue use of unit if
debris shield is damaged.
INSPECT AND CLEAN UNIT AND
LABELS
SAfter each use, inspect complete unit for
loose or damaged parts. Clean the unit and
labels using a damp cloth with a mild deter-
gent.
SWipe off unit with a clean dry cloth.
CLEAN THE AIR INTAKE SCREEN
The air intake screen allows air to circulate to
keep the engine functioning properly and pre-
vents debris from entering the engine.
7
Air intake screen
WARNING: Stop your unit before at-
tempting to clean the intake screen. DO NOT
USE GARDEN HOSE OR PRESSURE
WASHER TO CLEAN THIS UNIT!
SClean the intake screen periodically with a
nylon brush.
CLEAN THE AIR FILTER
A dirty air filter decreases engine perfor-
mance and increases fuel consumption and
harmful emissions. Always clean with engine
stopped. Clean filter after every 5 hours of op-
eration.
1. Clean the air filter cover and the area
around the cover to prevent dirt from falling
into the carburetor chamber when the cov-
er is removed.
2. Remove parts as illustrated. It is not nec-
essary to remove the air filter hose from
the air filter cover.
NOTE: If the air filter hose becomes unat-
tached from the cover or lower handle during
cleaning, reattach before attempting to restart
the engine or operate the unit.
A
ir Filter Co
v
er
Air
Filter
Screws
Air Filter
Hose
NOTE: Do not clean filter in gasoline or oth-
er flammable solvent to avoid creating a fire
hazard or producing harmful evaporative
emissions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Add 10 -- 15 drops of oil to the filter;
squeeze the filter to distribute oil.
NOTE: FILTER MUST BE OILED!
6. Replace parts.
REPLACE SPARK PLUG
Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0.025 inch. Ignition timing is
fixed and nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder and dis-
card.
3. Replace with Champion RCJ-6Y spark plug
and tighten securely with a 3/4 inch socket
wrench.
4. Reinstall the spark plug boot.
SERVICE AND ADJUSTMENTS
REPLACING THE LINE
For unit to operate properly, the cutting line
should be replaced when line becomes worn to
less than 3 inches in length from the edge of the
line exit tunnels on each side of the cutting head.
WARNING: Only replace cutting line
with engine switch in the OFF position.
1. Remove and discard worn line before
installing new line.
2. Use only 0.115″(3 mm) diameter WEED
EATER brand cut length line.
3. Insert one end of the line through the posi-
tioning tunnel.
4. Continue to feed line through tunnel until
line is centered (leaving equal amounts on
each side). See illustration below.
Positioning
tunnel
5. Insert ends of line one at a time through the
line exit tunnels.
6. Pull the line and make sure the line is ex-
tended fully through the tunnels.
Line exit
tunnels
7. Correctly installed line will be the same
length on both ends.
CARBURETOR ADJUSTMENTS
WARNING: Keep others away when
making idle speed adjustments. The trimmer
head will be spinning during most of this pro-
cedure. Wear your protective equipment and
observe all safety precautions. After making
adjustments, the trimmer head must not
move/spin at idle speed.
The carburetor has been carefully set at the
factory. Adjustments may be necessary if you
notice any of the following conditions:
SEngine will not idle when the throttle is re-
leased.
SThe trimmer head moves/spins at idle.
8
Make adjustments with the unit supported so
the cutting attachment is off the ground and
will not make contact with any object. Hold
the unit by hand while running and making ad-
justments. Keep all parts of your body away
from the cutting attachment and muffler.
Idle Speed Adjustment
Allow engine to idle. Adjust speed until engine
runs without trimmer head moving or spinning
(idle too fast) or stalling (idle speed too slow).
STurn idle speed screw clockwise to in-
crease engine speed if engine stalls or dies.
STurn idle speed screw counterclockwise to
decrease engine speed if trimmer head
moves or spins at idle.
WARNING: Recheck the idle speed
after each adjustment. The trimmer head
must not move or spin at idle speed to avoid
serious injury to the operator or others.
Idle Speed Screw
Air Filter
Cover
If you require further assistance or are unsure
about performing this procedure, contact an
authorized service dealer or call
1--800--554--6723.
STORAGE
WARNING: Perform the following
steps after each use:
SAllow engine to cool, and secure the unit
before storing or transporting.
SStore unit and fuel in a well ventilated area
where fuel vapors cannot reach sparks or
open flames from water heaters, electric
motors or switches, furnaces, etc.
SStore unit with all guards in place. Position
unit so that any sharp object cannot acci-
dentally cause injury.
SStore unit and fuel well out of the reach of
children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:
SClean the entire unit before lengthy storage.
SStore in a clean dry area.
SLightly oil external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERA-
TION section of this manual, see message la-
beled IMPORTANT regarding the use of ga-
sohol in your engine.
Fuel stabilizer is an acceptable alternative in
minimizing the formation of fuel gum deposits
during storage. Add stabilizer to the gasoline
in the fuel tank or fuel storage container. Fol-
low the mix instructions found on stabilizer
container. Run engine at least 5 minutes after
adding stabilizer.
HELPFUL TIP
During storage of your gas/
oil mixture, the oil will sepa-
rate from the gas.
We recommend that you
shake the gas can weekly
to insure proper blending of
the gas and oil.
ENGINE
SRemove spark plug and pour 1 teaspoon of
40:1, 2-cycle engine oil (air cooled) through
the spark plug opening. Slowly pull the
starter rope 8 to 10 times to distribute oil.
SReplace spark plug with new one of recom-
mended type and heat range.
SClean air filter.
SCheck entire unit for loose screws, nuts,
and bolts. Replace any damaged, broken,
or worn parts.
SAt the beginning of the next season, use
only fresh fuel having the proper gasoline to
oil ratio.
OTHER
SDo not store gasoline from one season to
another.
SReplace your gasoline can if it starts to rust.
9
TROUBLE CAUSE REMEDY
Engine will not
start.
1. Engine flooded.
2. Fuel tank empty.
3. Spark plug not firing.
4. Fuel not reaching
carburetor.
5. Carburetor requires
adjustment.
1. See “Starting a Flooded Engine” in
Operation Section.
2. Fill tank with correct fuel mixture.
3. Install new spark plug.
4. Check for dirty fuel filter; replace.
Check for kinked or split fuel line;
repair or replace.
5. Contact an authorized service dealer.
Engine will
not idle
properly.
1. Carburetor requires
adjustment.
2. Crankshaft seals worn.
3. Compression low.
1. See “Carburetor Adjustment” in
Service and Adjustments Section.
2. Contact an authorized service dealer.
3. Contact an authorized service dealer.
1. Air filter dirty.
2. Spark plug fouled.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
5. Compression low.
Engine will not
accelerate,
lacks power,
or dies under
a load.
1. Clean or replace air filter.
2. Clean or replace plug
and regap.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
5. Contact an authorized service dealer.
Engine
smokes
excessively.
1. Choke partially on.
2. Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires
adjustment.
1. Adjust choke.
2. Empty fuel tank and refill with
correct fuel mixture.
3. Clean or replace air filter.
4. Contact an authorized service dealer.
Engine runs
hot.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires
adjustment.
4. Carbon build-up on
muffler outlet screen.
1. See “Fueling Engine” in Operation
section.
2. Replace with correct spark plug.
3. Contact an authorized service dealer.
4. Contact an authorized service dealer.
WARNING: Always stop unit and disconnect spark plug before performing all of the
recommended remedies below except remedies that require operation of the unit.
TROUBLESHOOTING TABLE
LIMITED WARRANTY
WEED EATER warrants to the original pur-
chaser that each new WEED EATER brand
gasoline tool or attachment is free from de-
fects in material and workmanship and
agrees to repair or replace under this war-
ranty any defective gasoline product or at-
tachment as follows from the original date of
purchase.
2 YEARS -- Parts and Labor, when used for
household purposes.
60 DAYS -- Parts and Labor, when used for
commercial, professional, or income produc-
ing purposes.
30 DAYS -- Parts and Labor, if used for rental
purposes.
This warranty is not transferable and does not
cover damage or liability caused by improper
handling, improper maintenance, or the use
of accessories and/or attachments not spe-
cifically recommended by WEED EATER for
this tool. Additionally, this warranty does not
cover tune-ups, spark plugs, filters, starter
ropes, starter springs, cutting line, or rotating
head parts that will wear and require replace-
ment with reasonable use during the warranty
period. This warranty does not cover prede-
livery setup or normal adjustments explained
in the operator’s manual.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM
STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR
OTHER DAMAGES WILL BE ALLOWED,
AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EX-
PRESSLY STIPULATED HEREIN.
10
SOME STATES DO NOT ALLOW LIMITA-
TIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT
APPLY TO YOU.
The policy of WEED EATER is to continu-
ously improve its products. Therefore, WEED
EATER reserves the right to change, modify,
or discontinue models, designs, specifica-
tions, and accessories of all products at any
time without notice or obligation to any pur-
chaser.
U.S. EPA / ENVIRONMENT CANADA
EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OB-
LIGATIONS: The U.S. Environmental Protec-
tion Agency, California Air Resources Board,
Environment Canada and Poulan/WEED EAT-
ER are pleased to explain the emissions control
system warranty on your year 2005 and later
small off--road engine. In California, all small off--
road engines must be designed, built, and
equipped to meet the State’s stringent anti--
smog standards. Poulan/WEED EATER must
warrant the emission control system on your
small off--road engine for the periods of time
listed below provided there has been no abuse,
neglect, or improper maintenance of your small
off--road engine. Your emission control system
includes parts such as the carburetor and the
ignition system. Where a warrantable condition
exists, Poulan/WEED EATER will repair your
small off--road engine at no cost to you. Ex-
penses covered under warranty include diagno-
sis, parts and labor. MANUFACTURER’S
WARRANTY COVERAGE: If any emissions
related part on your engine (as listed under
Emissions Control Warranty Parts List) is defec-
tive or a defect in the materials or workmanship
of the engine causes the failure of such an emis-
sion related part, the part will be repaired or re-
placed by Poulan/WEED EATER. OWNER’S
WARRANTY RESPONSIBILITIES: As the
small off--road engine owner, you are responsi-
ble for the performance of the required mainte-
nance listed in your instruction manual. Poulan/
WEED EATER recommends that you retain all
receipts covering maintenance on your small
off--road engine, but Poulan/WEED EATER
cannot deny warranty solely for the lack of re-
ceipts or for your failure to ensure the perfor-
mance of all scheduled maintenance. As the
small off--road engine owner, you should be
aware that Poulan/WEED EATER may deny
you warranty coverage if your small off--road
engine or a part of it has failed due to abuse, ne-
glect, improper maintenance, unapproved mod-
ifications, or the use of parts not made or ap-
proved by the original equipment manufacturer.
You are responsible for presenting your small
off--road engine to an Poulan/WEED EATER
authorized repair center as soon as a problem
exists. Warranty repairs should be completed in
a reasonable amount of time, not to exceed 30
days. If you have any questions regarding your
warranty rights and responsibilities, you should
contact your nearest authorized service center
or call Poulan/WEED EATER at
1--800--554--6723.
WARRANTY COMMENCEMENT DATE:
The warranty period begins on the date the
small off--road engine is purchased.
LENGTH OF COVERAGE: This warranty
shall be for a period of two years from the ini-
tial date of purchase. WHAT IS COVERED:
REPAIR OR REPLACEMENT OF PARTS.
Repair or replacement of any warranted part
will be performed at no charge to the owner at
an approved Poulan/WEED EATER servic-
ing center. If you have any questions regard-
ing your warranty rights and responsibili-
ties, you should contact your nearest
authorized service center or call Poulan/
WEED EATER at 1--800--554--6723. WAR-
RANTY PERIOD: Any warranted part which
is not scheduled for replacement as required
maintenance, or which is scheduled only for
regular inspection to the effect of “repair or re-
place as necessary” shall be warranted for 2
years. Any warranted part which is scheduled
for replacement as required maintenance
shall be warranted for the period of time up to
the first scheduled replacement point for that
part. DIAGNOSIS: The owner shall not be
charged for diagnostic labor which leads to
the determination that a warranted part is de-
fective if the diagnostic work is performed at
an approved Poulan/WEED EATER servic-
ing center. CONSEQUENTIAL DAMAGES:
Poulan/WEED EATER may be liable for dam-
ages to other engine components caused by
the failure of a warranted part still under war-
ranty. WHAT IS NOT COVERED: All failures
caused by abuse, neglect, or improper main-
tenance are not covered. ADD--ON OR MO-
DIFIED PARTS: The use of add--on or modi-
fied parts can be grounds for disallowing a
warranty claim. Poulan/WEED EATER is not li-
able to cover failures of warranted parts caused
by the use of add--on or modified parts. HOW
TO FILE A CLAIM: If you have any questions
regarding your warranty rights and responsibili-
ties, you should contact your nearest authorized
service center or call Poulan/WEED EATER
at 1--800--554--6723. WHERE TO GET WAR-
RANTY SERVICE: Warranty services or re-
pairs shall be provided at all Poulan/WEED
EATER service centers. Call:
1--800--554--6723. MAINTENANCE, RE-
PLACEMENT AND REPAIR OF EMISSION
RELATED PARTS: Any Poulan/WEED EAT-
ER approved replacement part used in the
performance of any warranty maintenance or
repair on emission related parts will be pro-
vided without charge to the owner if the part is
11
under warranty. EMISSION CONTROL
WARRANTY PARTS LIST: Carburetor, Igni-
tion System: Spark Plug (covered up to main-
tenance schedule), Ignition Module, Muffler
including catalyst. MAINTENANCE STATE-
MENT: The owner is responsible for the per-
formance of all required maintenance as de-
fined in the instruction manual.

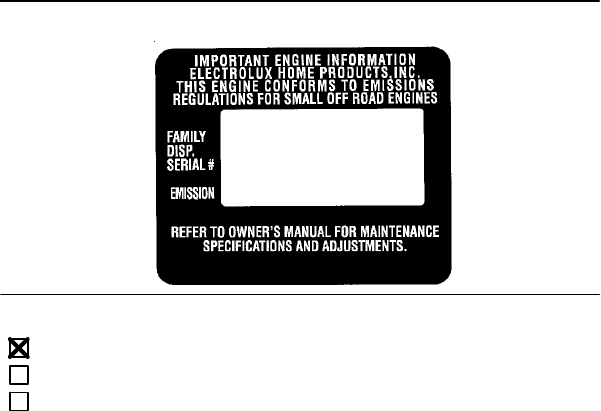

The information on the product label indicates which standard your engine is certified.
Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA.
This engine is certified to be emissions compliant for the following use:
Moderate (50 hours)
Intermediate (125 hours)
Extended (300 hours)

Navigation menu
