Electronic Systems Technology HZN216AD WIRELESS MODEM User Manual

Electronic Systems Technology WIRELESS MODEM

UserManual.wiki >

Electronic Systems Technology >

HZN216AD User Manual HTML Version

User Manual

ESTeemUser’sManual

HorizonSeries



ManualRevision1.0

June2016



ESTeem Industrial Wireless Solutions

Electronic Systems Technology, Inc.

Dba ESTeem Wireless Modems

Building B1

415 N. Quay Street

Kennewick, WA 99336

Phone: 509-735-9092

Fax: 509-783-5475

E-mail: market@esteem.com

Web Site: www.esteem.com

in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording,

or otherwise, without the prior written permission of Electronic Systems Technology.

Author: Date:

Name: Eric P. Marske

Title: Product Support Manager

Approved by: Date:

Name: Mike Eller

Title: President

PRODUCTWARRANTY



ESTeem Industrial Wireless Solutions Specifications subject to change without notice

415 North Quay Street  Kennewick, WA 99336 www.esteem.com

Phone (509) 735-9092  Fax (509) 783-5475 Revised: 27 Jun 2016

Electronic Systems Technology, Inc. dba ESTeem Wireless Modems, (hereinafter ESTeem) expressly warrants its products as free

of manufacturing defects for a period of one year from the date of sale to first user/customer. THERE ARE NO OTHER

WARRANTIES, EXPRESS OR IMPLIED AND THERE IS EXPRESSLY EXCLUDED ALL WARRANTIES OF MERCHANTABILITY

OR FITNESS FOR A PARTICULAR PURPOSE. NO OTHER WARRANTY GIVEN BY ANY EMPLOYEE, AGENT, DISTRIBUTOR

OR OTHER PERSON WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON ESTEEM.

LIMITATION OF LIABILITY:

ESTeem's liability shall be limited to refunding of purchase price, repair or replacement of product. IN NO EVENT SHALL ESTEEM

HAVE LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, SPECIAL OR EXEMPLARY DAMAGES CAUSED DIRECTLY OR

INDIRECTLY BY THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY INTERRUPTION OF SERVICES, LOSS OF

BUSINESS OR ANTICIPATORY PROFITS. IN NO EVENT SHALL ESTEEM BE LIABLE FOR ANY DAMAGES WHATSOEVER

IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT.

In the event that a unit or part requires replacement or factory servicing, the following conditions apply:

a) Customer must obtain from ESTeem an authorized RMA (Return Materials Authorization) Number before shipment of

product or parts to ESTeem for any reason;

b) If the whole unit is shipped, it must be in its original carton and shipping components, or a carton and shipping

components supplied by ESTeem, or it parts only are shipped, they must be packaged and cushioned so as to prevent

damage in transit and shipped freight prepaid;

PRODUCT WILL BE CONSIDERED OUT OF WARRANTY IF:

a) If the product is damaged due to improper or abnormal use, abuse, mishandling, accident or improper maintenance or

failure to follow operating instruction;

b) If the product is defective as a result of sand, dirt, or water damage;

c) If any factory-sealed enclosure has been opened or shows evidence of an attempt to be opened;

d) If defects or damage are caused by the use of unauthorized parts or unauthorized service;

e) If the product has had its serial numbers altered or removed.

Warranty repair form must be accompanied by proof of user's purchase of unit. Product must be shipped to the manufacturer at the

following address:

ESTeem Wireless Modems

415 North Quay Street

Kennewick, Washington USA 99336

ADDITIONAL SERVICE:

If ESTeem releases an improvement update to firmware internal to the ESTeem unit during the 90-day period after the unit was

purchased by the first user/customer, ESTeem will update the applicable unit with the revised version at no charge other than for

UPS handling and shipping to and from your location to the ESTeem factory. Return of any such item must be accompanied with

proof of purchase.

TABLEOFCONTENTS

Revised:27Jun16Page1ESTeemHorizonSeries

CHAPTER1–Introduction



BeforeYouBegin1‐1



HorizonOverview1‐1



HorizonConfigurationModes

AccessPointModes ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 1‐2

AccessPointPeer(Repeater)Mode ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 1‐3

Self‐HealingMeshNetwork ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 1‐4

Station(WiFiClient)Modes ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 1‐4

RS‐232SerialApplications ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 1‐5



CHAPTER2–StartingOut



ThreeConfigurationPhases2‐1



HorizonHardwareDescription2‐1

FrontPanelLayout ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 2‐2

AntennaConnectionOverview ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 2‐2



HorizonHardwareConfiguration2‐3



CHAPTER3–ExampleApplications



ModesofOperationDescriptionandExamples 3‐1

EthernetBridgeMode ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐1

RouterModes ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐3

MobileClientModes ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐4

802.11AccessPointModes ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐5



ProgrammingExamples3‐7

UsingESTeemNetworkConfiguration(ENC)Utility ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐7

Example1–PointtoPointEthernetBridge ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐9

Example2–PointtoPointEthernetBridgewithRepeater ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐10

Example3–PointtoMultipointwithMeshRepeater ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐11

Example4–PointtoMultipointRouterMode ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐13

Example5–MobileClientMode ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐15

Example6–802.11AccessPointMode ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐16

RouterAddressingExamples ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 3‐17



CHAPTER4–UtilitiesandFeatures



ESTeemNetworkConfiguration(ENC)Utility ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐1

ESTeemDiscoveryUtility ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐1

FirmwareUpdates ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐3

SettingLocalTime ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐4

ConfiguringTimeServer ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐5

VLANOperation ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐6

TABLEOFCONTENTS

Revised:27Jun16Page2ESTeemHorizonSeries

IGMPSnooping ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐6

SimpleNetworkManagementProtocol(SNMP) ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 4‐10



CHAPTER5–WebConfiguration



LoggingIntoWebConfigurationManager5‐1



WebConfigurationManager

TopMenu ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐1

SettingModemIDField ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐2

StatusMenu ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐3

SystemLogScreen ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐4

SetupScreen ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐5

AdvancedConfigurationScreen ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐5

BackupScreen ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐6

RestoreScreen ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐6

SoftwareUpdate ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐7

SystemReboot ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 5‐7



CHAPTER6–SerialConfigurationandApplications



UsingRS‐232ProgrammingPort6‐1



UsingRS‐232DataPort

SerialConnections ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6‐3

SerialConfiguration ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 6‐3



CHAPTER7–BridgeLinksandMeshNetworking



ESTeemMeshNetwork7‐1

Configuration ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 7‐1



RapidSpanningTreeProtocol(RSTP)

Overview ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 7‐4

Phases ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 7‐4

PriorityandPathCost ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 7‐4

RootBridge ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 7‐4



RedundantBackup

RedundantMasterConfiguration ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 7‐5



CHAPTER8–AntennaSetups



AntennaandCableConfigurations

Horizon2.4AntennaandCableConfigurations ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 8‐1

Horizon900AntennaandCableConfigurations ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ 8‐3



TABLEOFCONTENTS

Revised:27Jun16Page3ESTeemHorizonSeries

WeatherproofingCoaxialCableConnections 8‐3



AntennaDiversity8‐3



AssemblingtheAA195PMOutdoorPoleMountingKit 8‐4

GroundingProcedure8‐9

FresnelZone 8‐10



APPENDIXA–FCCInformation



APPENDIXB–InterfacePorts



EthernetInterface ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ B‐1

ConfiguringDHCPServer ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ B‐1

RS‐232ProgrammingPortPin‐Out ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ B‐2

RS‐232DataPortPin‐Out ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ B‐2



APPENDIXC–RadioConfiguration



FrequencyofOperation ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ C‐1

RFDataRateConfiguration ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ C‐1

RFBandwidths ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ C‐2

RFDataRatesandThroughputChart ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ C‐3

SettingRFOutputPower ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ C‐4



APPENDIXD–Security



APPENDIXE–Troubleshooting



TestingCommunicationLink ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ E‐1

ViewingPeerTable ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ E‐1

TroubleshootingTips ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ E‐2



APPENDIXF–Horizon2.4Specifications



Horizon2.4(216An)Specifications ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ F‐1

CaseDiagram ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ F‐2

AntennaSpecifications ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ F‐3



APPENDIXG–Horizon900Specifications



Horizon900(216Ad)Specifications ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ G‐1

CaseDiagram ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ G‐2

AntennaSpecifications ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ G‐3



CHAPTER1

INTRODUCTION

Revised: 27 Jun 16 1-1 ESTeem Horizon Series

BEFOREYOUBEGIN



ThankyouandcongratulationsonyourpurchaseoftheESTeemHorizon

SeriesWirelessEthernetModem!Thismanualwaswrittentohelpboththe

firsttimeandadvanceduseroftheHorizontoconfigurethewireless

modemforyourapplication.IfthisisyourfirsttimeconfiguringtheHorizon

andyouwouldliketogetgoingassoonaspossible,werecommendusing

theESTeemResourceCDprovidedwiththemodem.TheResourceCDwill

providethesoftwareutilitiesandguideyouthroughtheconfigurationof

thewirelessmodemforyourapplication.



TheESTeemHorizonSeriesofwirelessEthernetnetworkinghardwareare

verysophisticatednetworkingdevices.Tokeepthemanualusablyshort,manyof

theapplicationdescriptionsandprogrammingdetailsassumetheuserhasagood

workingknowledgeofthefollowingnetworkconcepts:



 GeneralEthernetnetworkingandtheconfigurationofLANtopologies

 CommonEthernetterminologyandacronyms

 TCP/IPnetworkprotocolstructureandhowtoconfigureTCP/IPnetworksandsubnets

 HowtoidentifyandsettheTCP/IPaddressonyourcomputer

 Haveadministratorprivilegestothecomputerandnetworkyouareconfiguring

 Ifusingroutingprotocols,youmustbeabletoidentifyandconfigurethenetworkrouters,gatewaysandfirewalls

 YoumustbefamiliarwithusingwebbrowsersoftwaresuchasInternetExplorer,NetscapeorMozilla



Ifyouareunfamiliarwithanyoftheabovenetworkingconcepts,youmayneedtocontactyournetworkadministratorfor

assistance.



HORIZONOVERVIEW



TheESTeemHorizonisaseriesofwirelessLAN

transceiversthatcanbeusedtobuildmanytypes

ofWirelessLocalAreaNetworks(WLAN).The

wirelessmodemsinHorizonseriescanprovideRF

dataratesupto150MbpsandhaveanRS‐232

serialportforlegacydevicenetworks.TheModel

Horizonisaverysophisticatednetworkingdevice

thatcanbeconfiguredformultiplemodesof

operationdependingupontheneedsofthe

wirelessandwiredLANsystem.Thefollowing

configurationmodesareprovidedasanoverview

ofthebasicnetworktypes,asallpossiblenetwork

configurationscannotbelisted.Forfurtherhelpin

selectingthecorrectnetworktype,pleasereferto

Chapter4ofthisUser’sManualorcallCustomer

Supportat509‐735‐9092.



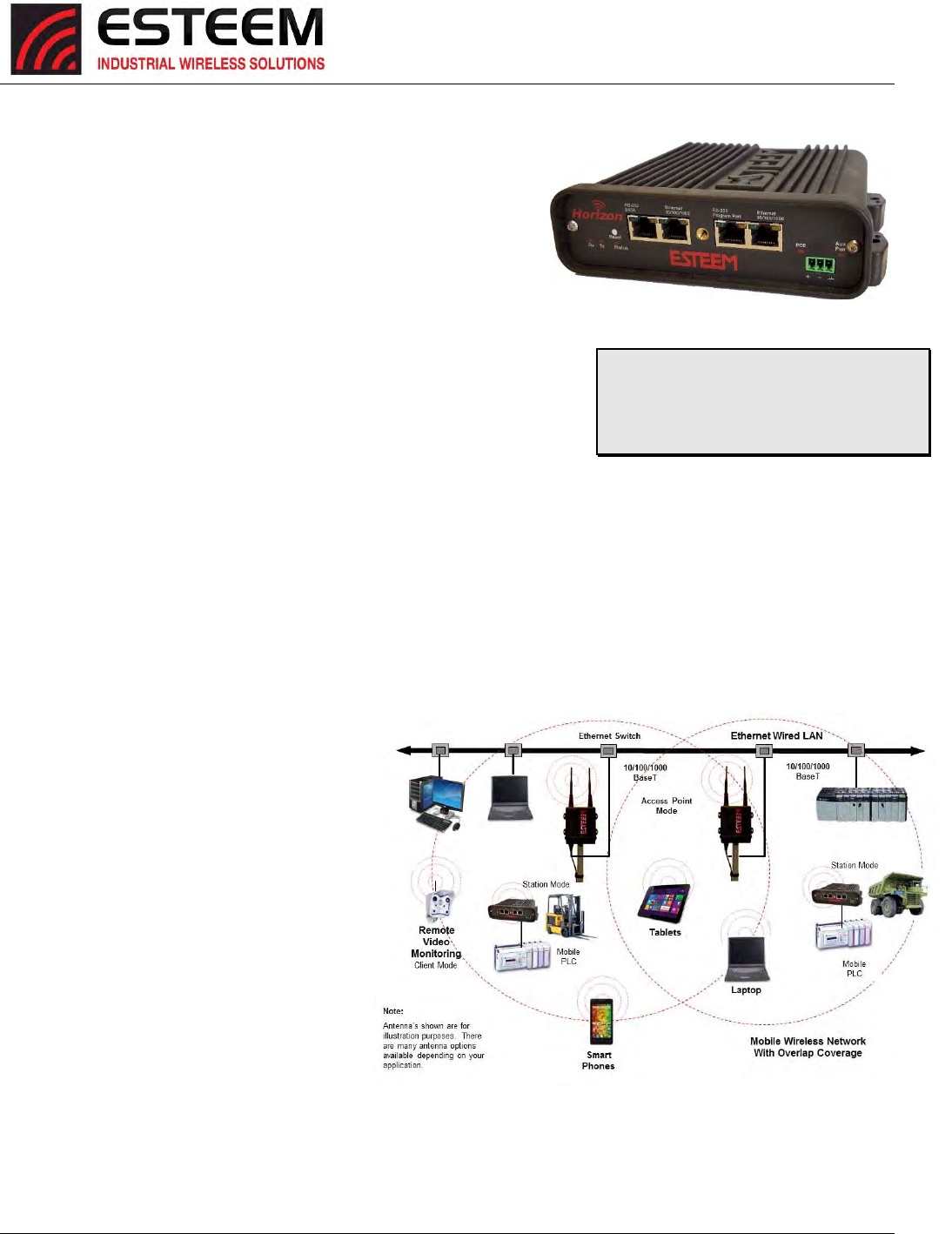

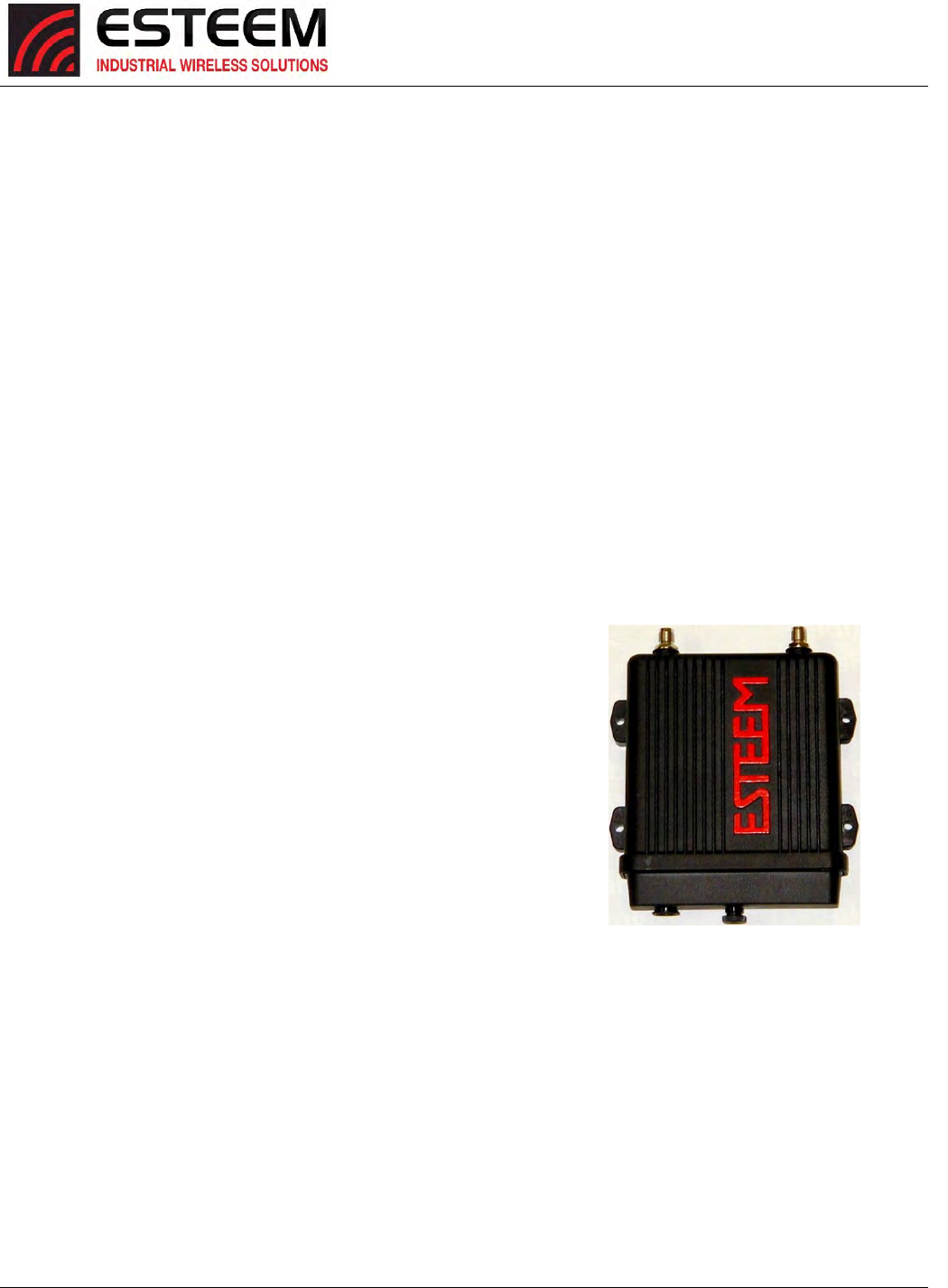

Figure1:ESTeemHorizonSeries



ThroughoutthisUser’sManualare

“TechnicalTips”inboxeslikethisthathave

beenaddedtohelpanswerthemost

commonlyaskedquestions.



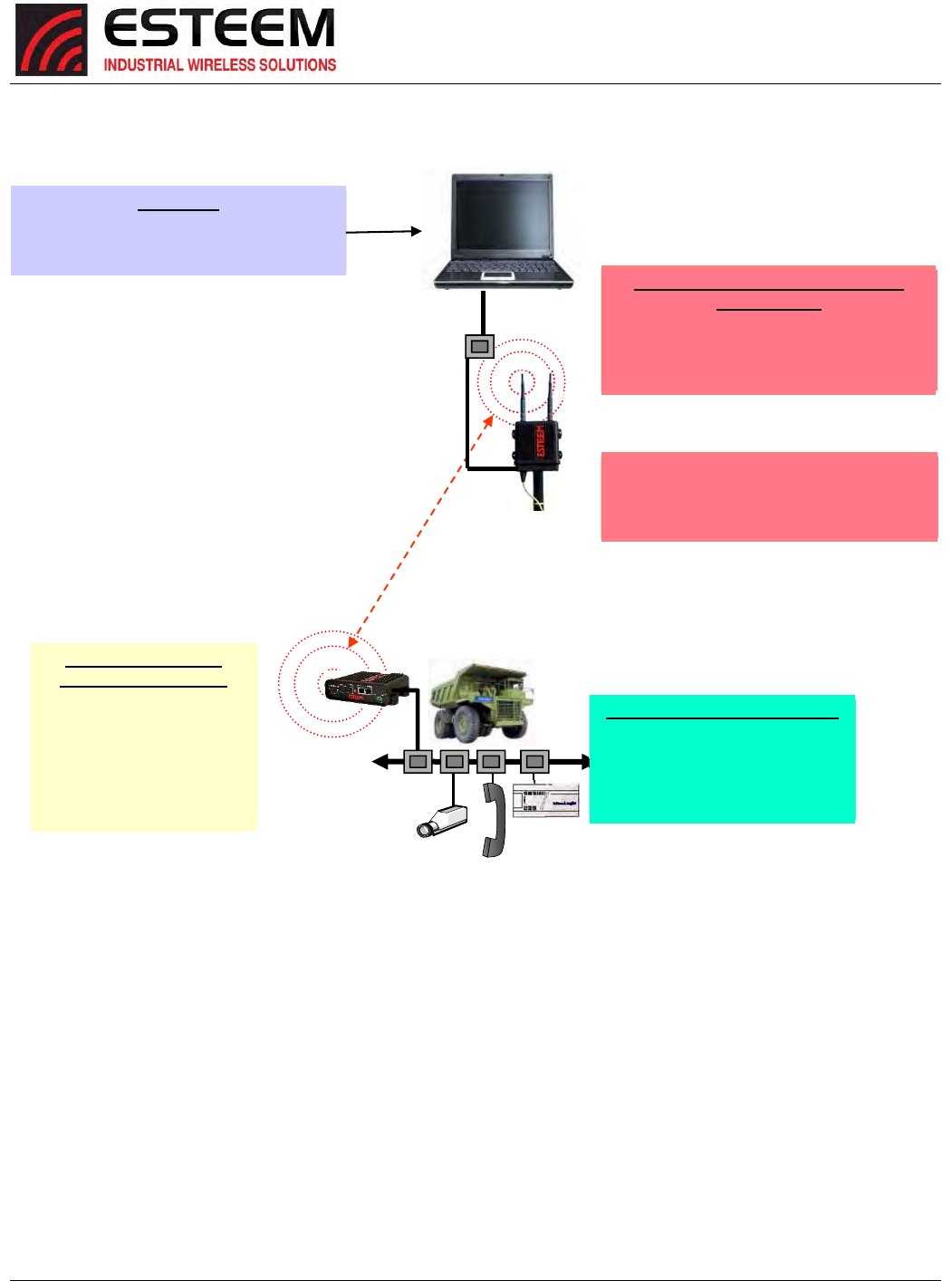

Figure2:AccessPointBridgeDiagram



CHAPTER1

INTRODUCTION

Revised: 27 Jun 16 1-2 ESTeem Horizon Series

CONFIGURATIONMODES



TheHorizoncanbeconfiguredformultiple

modesofoperationwithoutanychangestothe

hardware.Thefollowingarebriefdescriptions

oftheconfigurationmodes.Fordetailed

descriptionsandsuggestedapplicationsfor

eachmode,pleaserefertoChapter4.



AccessPointModes



WhentheHorizonisconfiguredasanAccess

Pointitwillprovideawirelessbridgeformobile

clientssuchasHorizonorModel195Emodems

inclientmodesorWi‐Fidevices.Multiple

AccessPointscanbephysicallyconnectedto

thesamenetwork(LAN)orthrougharadiolink

usingtheAccessPointPeermodetoprovide

overlapping,seamlessEthernetcommunication

formobiledevices.



1. AccessPointBridgeMode



AnESTeemHorizoninAccessPointBridgemodewillbothprovidewirelessaccesstomobileclients(AccessPoint)and

bridgeallEthernetdataconnectedtotheEthernetports.TheAPBridgemodewillpassallnetworktrafficbetween

connecteddevicesincludingglobalnetworkbroadcasts.(SeeFigure2)



2. AccessPointRouterMode



InthismodetheESTeemHorizonwill

functionasarouterbetweenwired

Ethernetnetworks,connectedtothe

Horizon’sEthernetport,andthe

wirelessclientsinthenetwork.Asin

allstandardrouterconfigurations,

thewirelessandwiredEthernet

networkswillneedtobeonseparate

subnets.TheHorizoninAccessPoint

Routermodewillpassnetworktraffic

forconnecteddevicesbutwillblock

globalnetworkbroadcastsfromthe

wirednetwork.Thismodeof

operationshouldbeusedinsteadof

theAccessPointBridgemodewhena

separationbetweennetworksis

requiredortheESTeemisconnected

tolargerLANNetworksthatwill

continuouslysendglobalnetwork

broadcasts(Figure3).



Figure3:PeerModeDiagram



Figure4:AccessPointMasqueradeDiagram

CHAPTER1



INTRODUCTION

Revised: 27 Jun 16 1-3 ESTeem Horizon Series

3. AccessPointMasqueradeMode



TheAccessPointMasquerademodeisaspecialuseoftheAccessPointmodewheretheHorizonwillconnectmobile

clientsintoasinglestaticIPaddressonawirednetwork.Datarequestsfromthewirelessnetworkwillbeprocessed

throughtheAccessPointMasquerademodem,butanyrequestfromthewiredEthernetnetworktodevicesonthe

wirelessnetworkwillberejectedsimilartotheoperationofa“firewall”.TheHorizonwillhidealltheIPaddresses

connectedonthewirelesslink.YouwouldusethismodeofoperationifHorizonisconnecteddirectlytotheInternet

withastaticIPaddress(DSL,T1,etc.)andyouwantthewirelessclientstoaccesstheinformationthroughtheHorizon

(Figure4).ThismodeshouldalsobeusedforattachingtheHorizontoanetworkwherefewIPaddressesareavailable

orafirewallforthewirelessclientsisrequired.



AccessPointPeer(Repeater)Mode



TheAccessPointPeerconnectionisauniqueenhancementoftheESTeemHorizonseries.TheAccessPointRepeater

canbeusedwithanyoftheaboveAccessPointmodes.Withthisrepeaterfeatureenabled,theAccessPointsdonot

havetobehardwiredtogetheronthesamephysicalLANtoprovideseamlessEthernetcommunicationforroaming

clients.InadditiontogreatlyextendingtheAccessPointcanopyrange,theHorizonwillalsobridgeanyEthernetdevice

orEthernetnetworkconnectedtotheunitoverthissamewirelessEthernetnetwork.Thismodegivestheuserthe

featuresofapointtomulti‐pointbridgenetworkbutalsoallowstheHorizonintheClientmodetosimultaneouslyroam

underthenetworkcanopy.



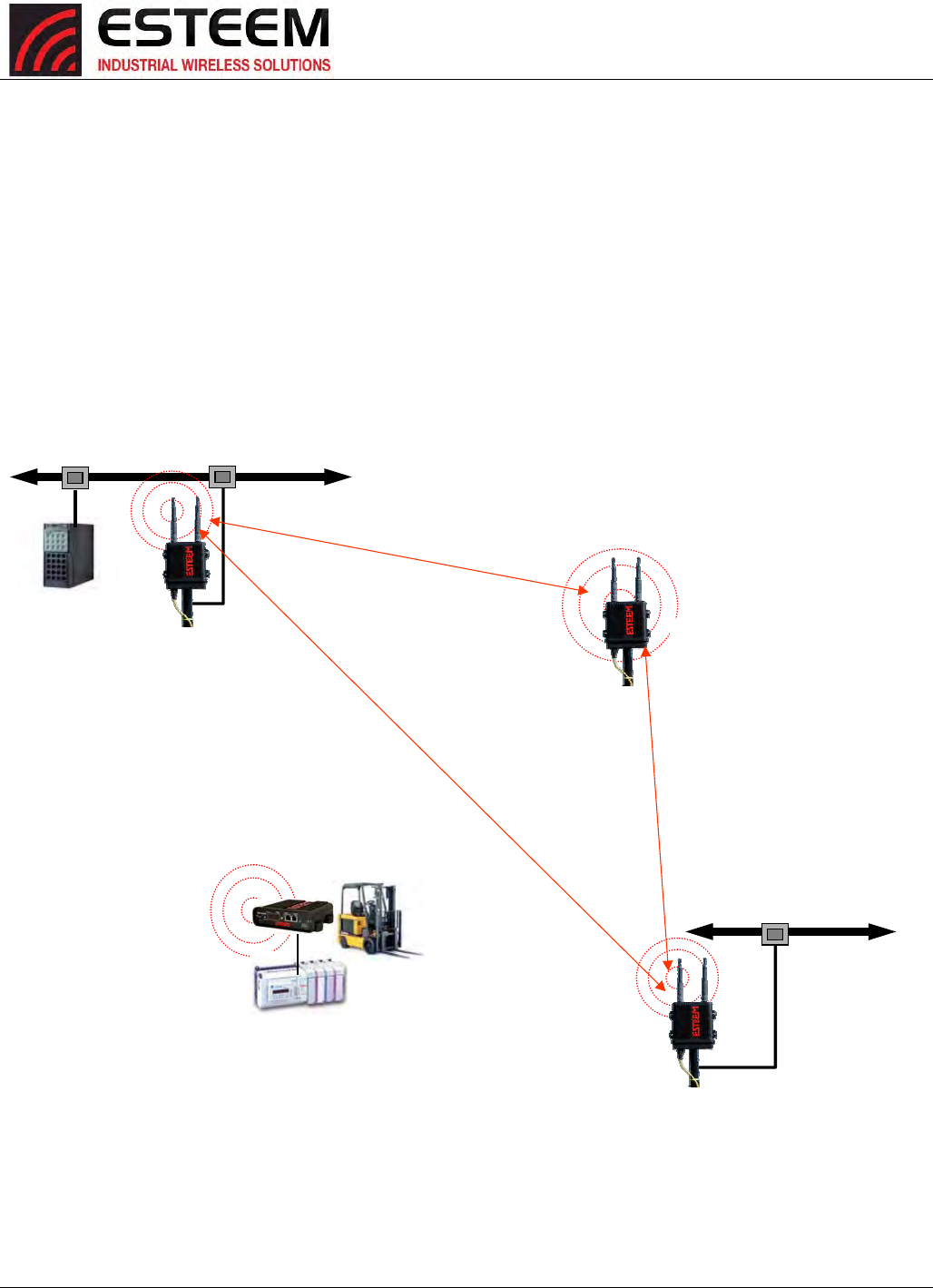

Figure5:MeshNetworkDiagram

CHAPTER1

INTRODUCTION

Revised: 27 Jun 16 1-4 ESTeem Horizon Series

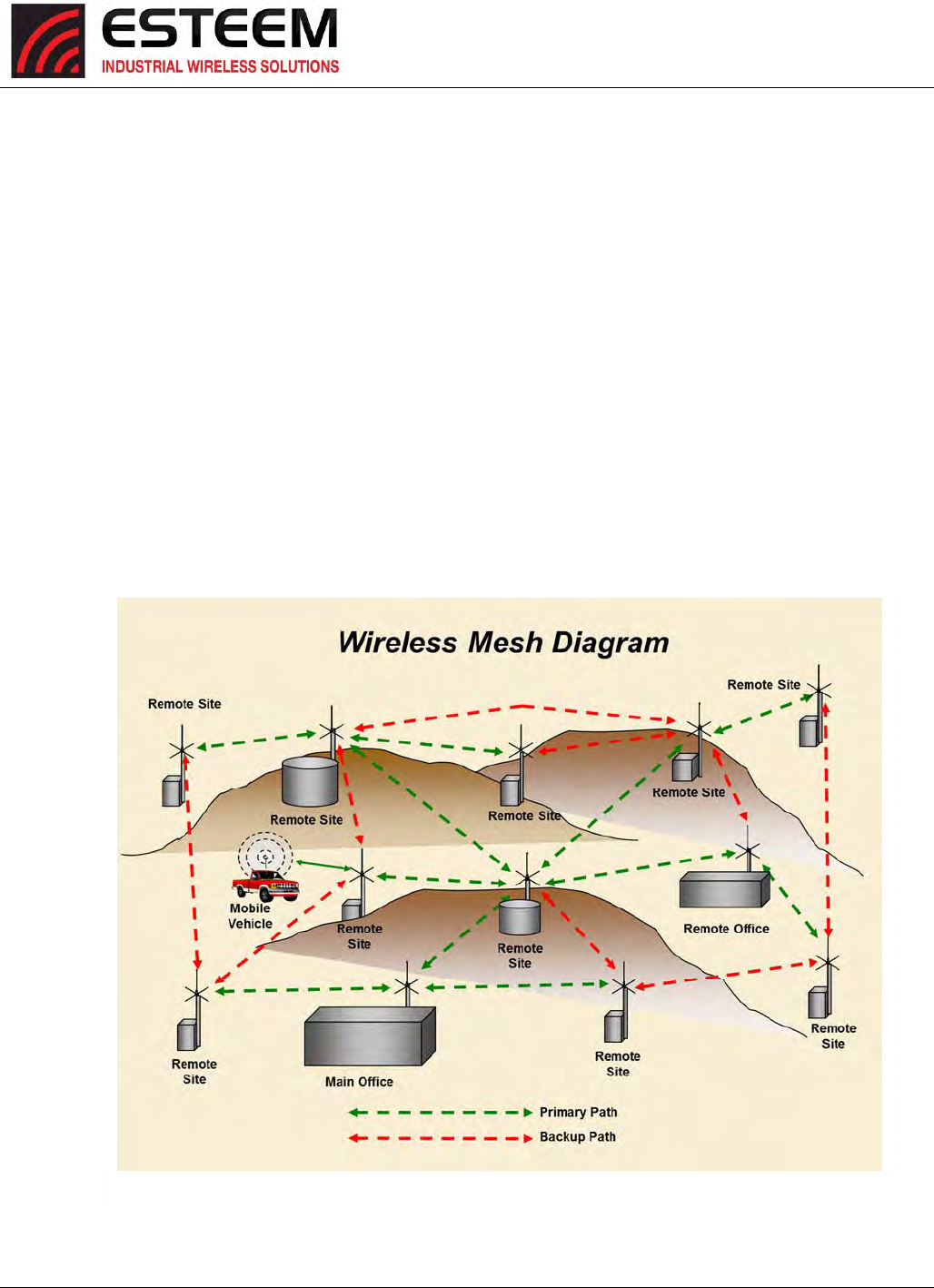

Self‐HealingMeshNetwork



IfmultipleAccessPointRepeaterroutesareconfiguredtothesamedestinationESTeem,theHorizonwillcreatea

“self‐healing”meshnetworkbyautomaticallyre‐routingdatathroughalternatepathstoreachitsdestinationifthe

primarypathisinoperable.Theroutingandpriorityofalternatepathsiscompletelyuserconfigurable.(SeeFigure5)



Station(Client)Modes



1. EtherStationMode



WhentheHorizonisconfiguredintheEtherStationmodeandattachedtoasingleEthernetDevice,theHorizonwill

emulatean802.11wirelesscardinfunctionalityforcommunicationasamobileclient.TheHorizonwillseamlessroam

undertheradiocanopyofAccessPointsandcanprovidegreatlyincreasedrangeoveraWirelessLANCardformobile

Ethernetdevicessuchasvehicles,forklifts,cranes,etc(Figures2‐4).



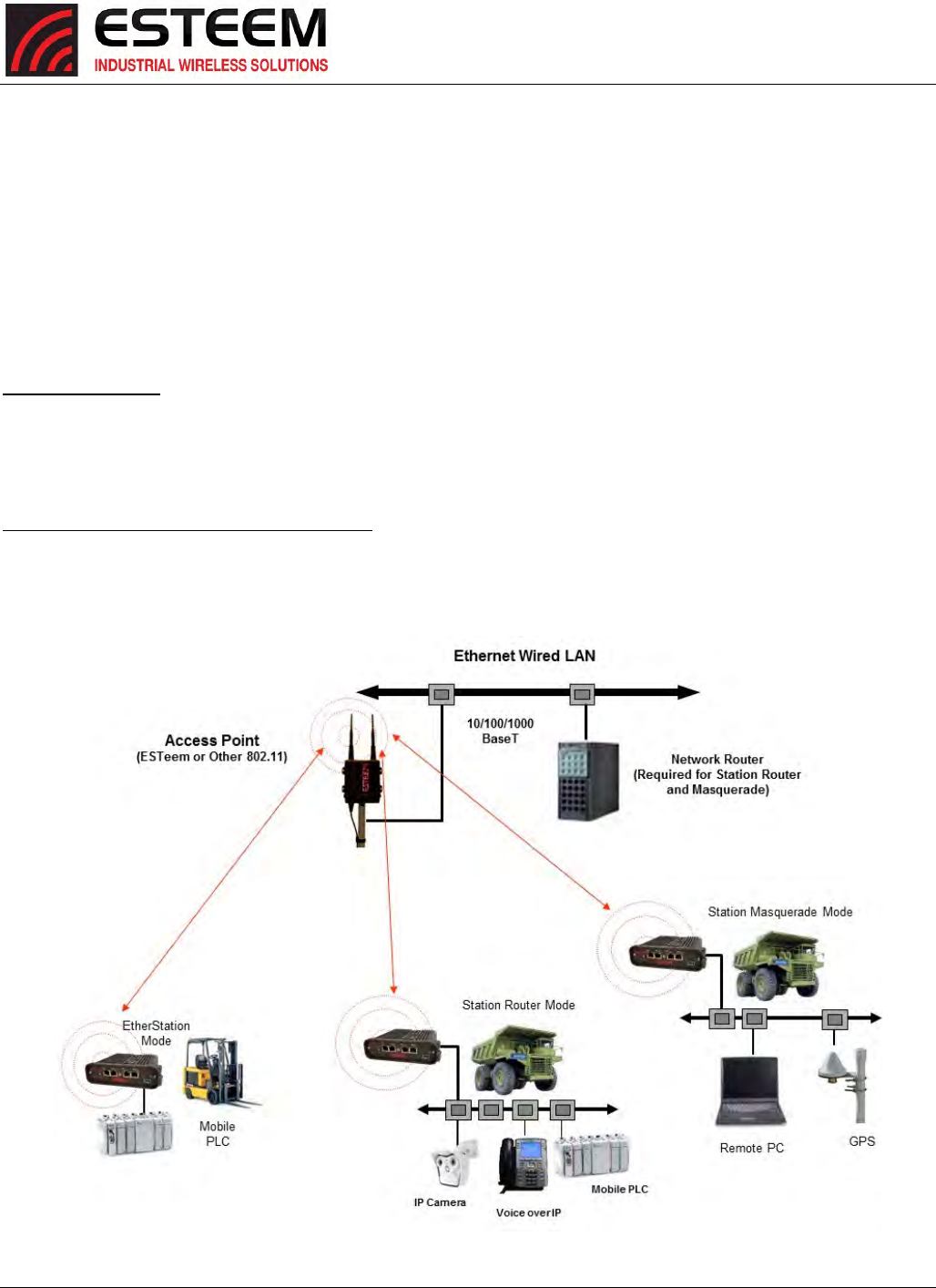

2. StationRouterMode



TheStationRoutermodewillalsofunctionsasamobileclient,similartoEtherStation,butwillallowmultipleEthernet

devicestobeconnectedtoasingleHorizon(Figure4).TheHorizonwillfunctionasarouterbetweenthewirelessclient

modeandthewiredEthernetdevicesconnectedtotheEthernetport.SimilarinconfigurationtotheAccessPointRouter

mode,thewirelessandwiredEthernetnetworkswillneedtobeonseparatesubnets.Tocommunicatefromwireless

networktodevicesonthewiredStationRouternetwork,aseparaterouter(connectedtotheEthernetsideoftheAccess

Point)isrequired.ThismodewouldbeusedwheremultipleEthernetdeviceswillbeconnectedtoasingleHorizonina

mobileclientapplicationandtheconnectedEthernetdeviceswillneedtobeaccessiblefromtheAccessPoint’sLAN

network.



3. StationMasqueradeMode



TheStationMasquerademodeisanothercasemultipledeviceswillbeconnectedtoasingleESTeeminamobileorclient

application.However,unliketheStationRoutermode,theStationMasqueradewillconsolidateallconnectedEthernet

devicestoasingleIPaddressonthenetwork.ThedevicesconnectedtotheStationMasqueradewillbeabletoaccess

informationfromboththewirelessandwiredLAN,butwillbeinaccessibletheotherwaysimilarinapplicationtoa

firewall.ThismodewouldbeusedwheremultipleEthernetdeviceswillbeconnectedtoasingleHorizoninamobile

applicationandtheIPaddressesforeachdevicewillbehiddenfromtheLANconnectedtotheAP.SeeFigure4.



CHAPTER1

INTRODUCTION

Revised: 27 Jun 16 1-5 ESTeem Horizon Series

RS‐232SerialApplications



TheESTeemHorizonisinstalledwithanRS‐232dataportforserialdataapplicationsrunoverthebroadbandlink(Figure

6).Theserialoverbroadbandnetworkcanbeusedinapoint‐to‐pointorpoint‐to‐multi‐pointapplicationfornetworking

serial(RS‐232C)devices,providingserialconnectionstolegacyhardwareinanewEthernetnetworkorprovidingforhigh‐

bandwidthdevices(suchasVideoorVoiceoverIP)inanexistingserialnetwork.



TobeginsetupofyourwirelessEthernetnetwork,continuetoChapter2‐StaringOutofthisUser’sManual.



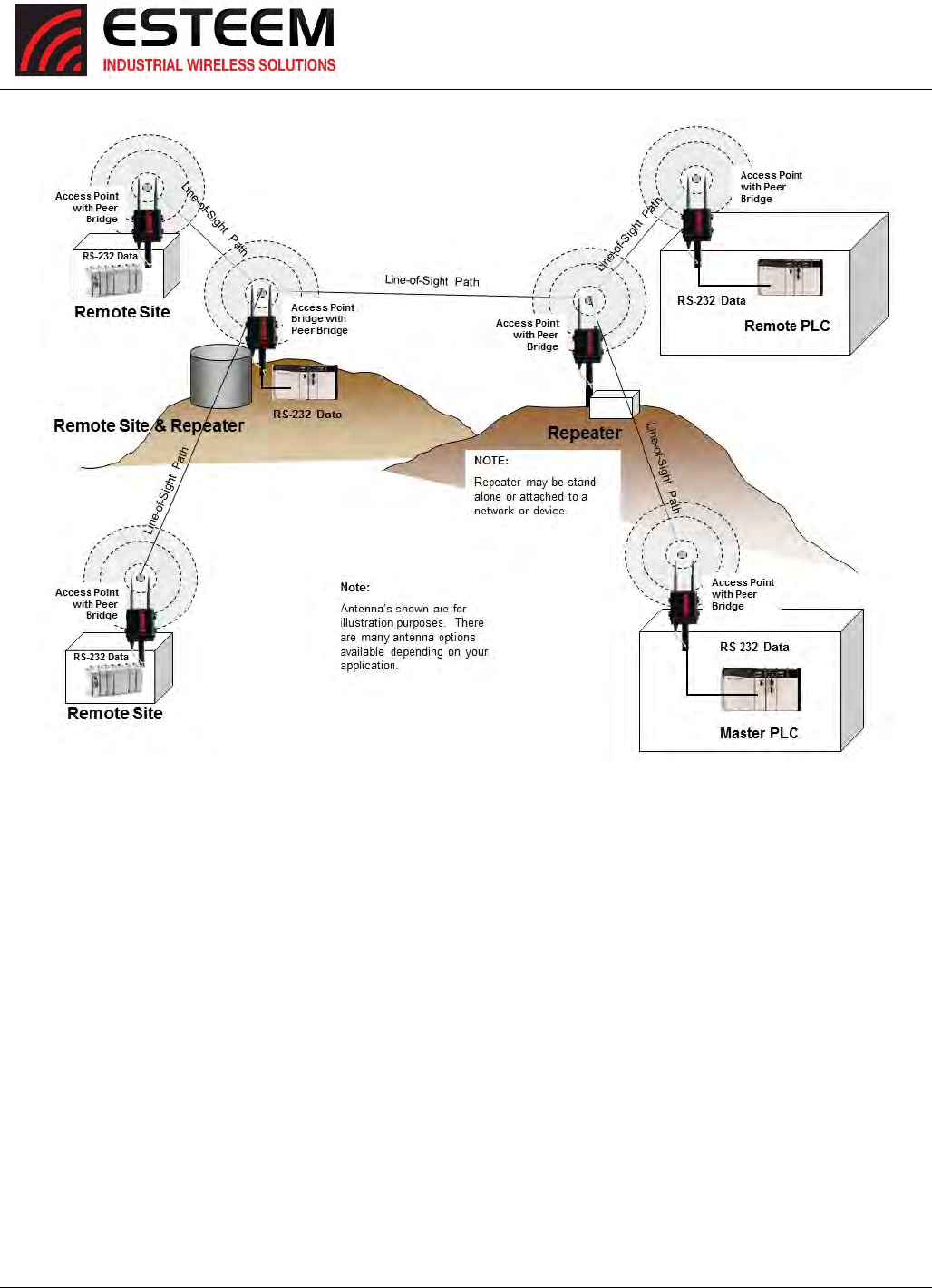

Figure6:Multi‐pointSerialDiagram

CHAPTER2

STARTINGOUT

Revised: 27 Jun 16 2-1 ESTeem Horizon Series

OVERVIEW

TherearethreemainphasestopreparetheESTeemHorizonforoperationinawirelessnetwork:

Phase1‐DeterminethecorrectmodeofoperationfortheHorizoninthewirelessnetwork.TheESTeemHorizonisa

sophisticatednetworkingdevicethatcanbeconfiguredformultiplemodesofoperation.Determiningthecorrectmodeof

operationfortheESTeemHorizonisthefirststep.Chapter3ofthisUser’sManualdetailsthemodesofoperationand

applicationswhereeachwouldbeused.



Phase2‐ProgramtheESTeemforoperationinthewirelessnetwork.OncethecorrectmodeofoperationfortheESTeemhas

beendetermined,theHorizoncanbeprogrammedforthewirelessnetwork.TosimplifytheprogrammingoftheHorizon,

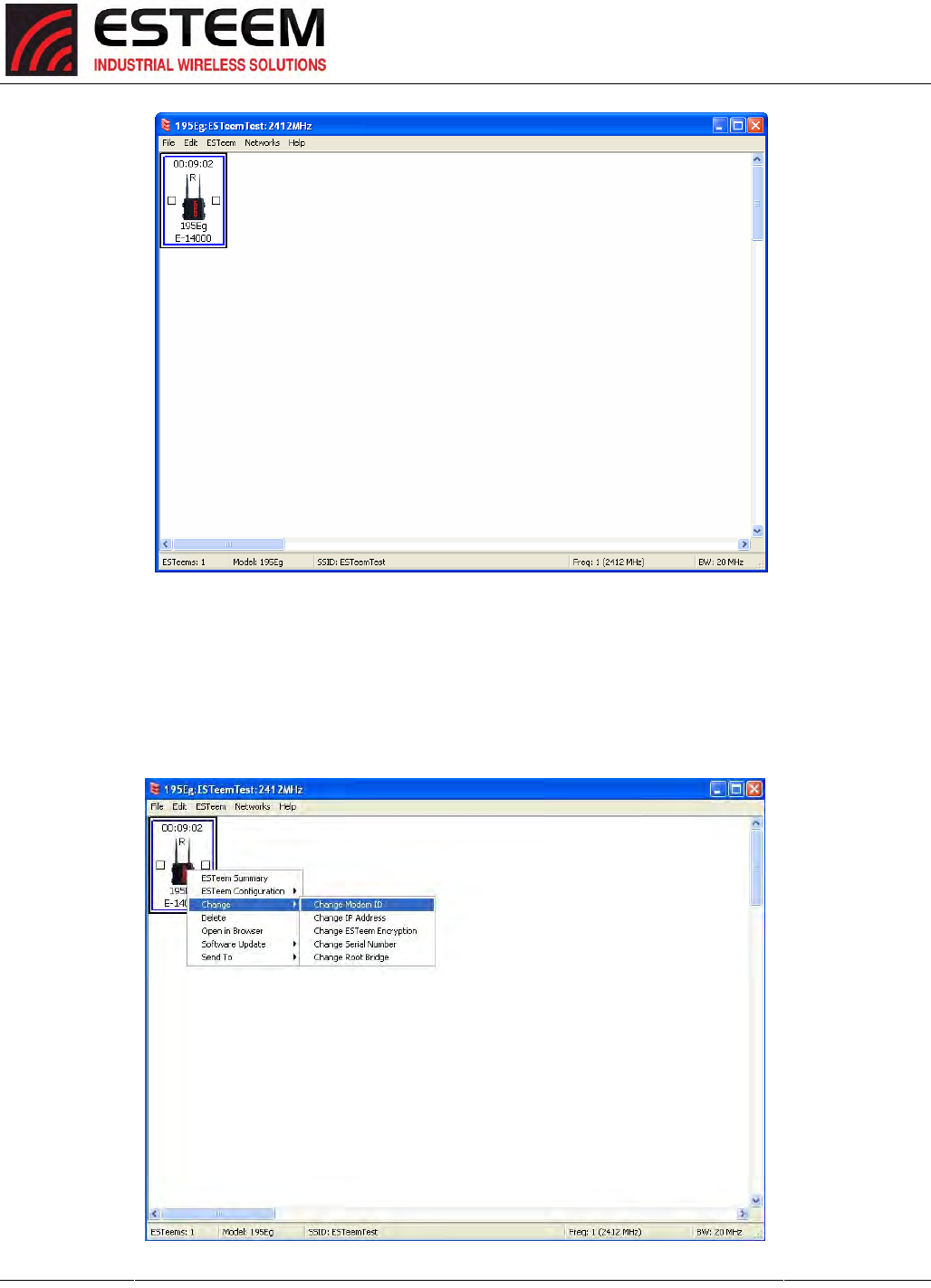

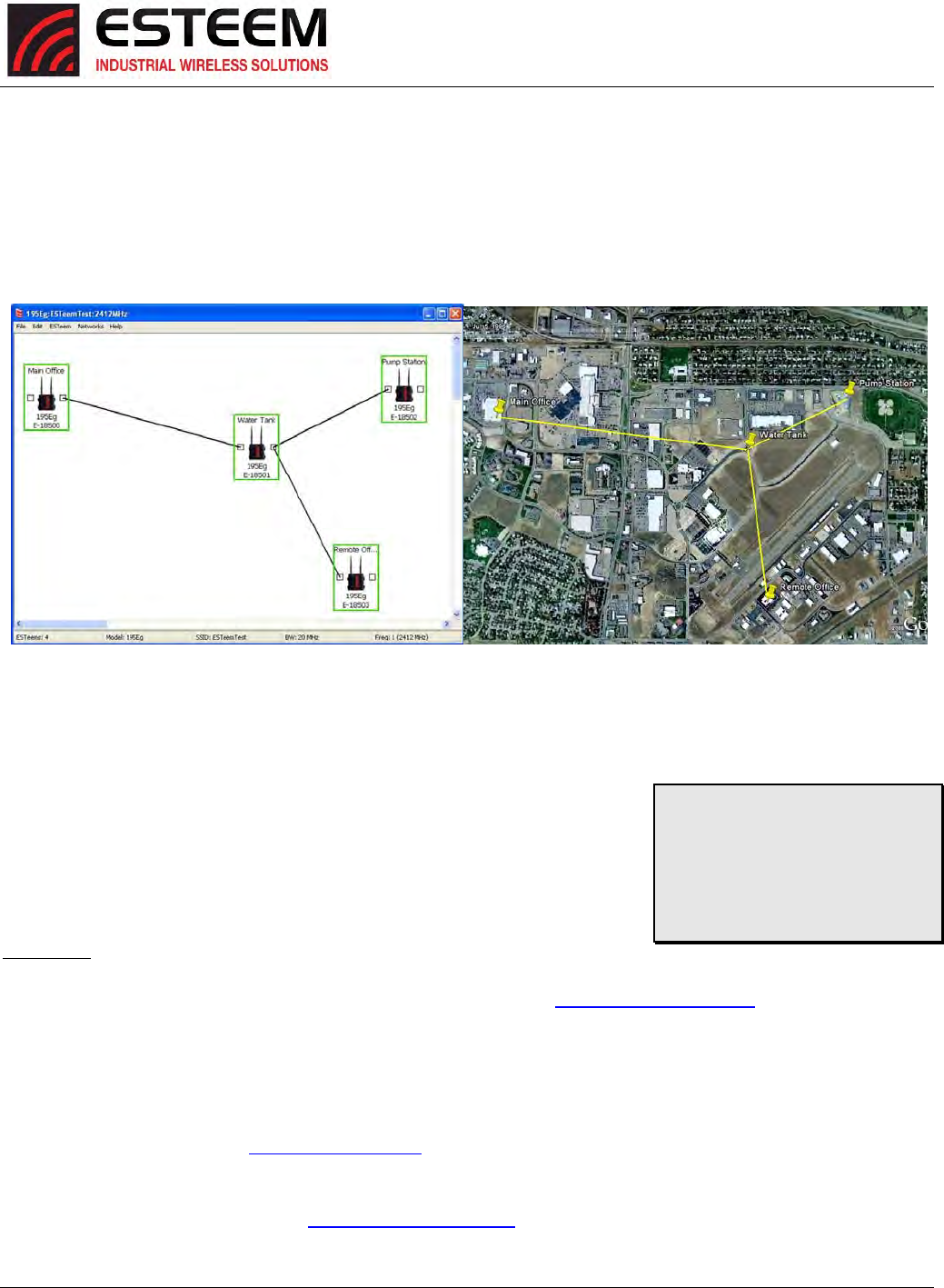

ESTeemhascreatedanewsoftwareutilitycalledtheESTeemNetworkConfiguration(ENC)Utilitywhichisusedtographically

configuretheprimaryandbackupcommunicationroutesbetweenradiomodemsinthenetwork.TheENCUtilitycanbe

installedfromtheESTeemResourceDiskorfromtheESTeemwebsite(www.esteem.com).Chapter4(UtilitiesandFeatures)of

thisUser’sManualwillguideyouintheinstallationofthesoftwareandgiveabriefoverviewofoperationoftheENCUtility,but

adetailedUser’sGuideisavailablebothontheESTeemResourceDiskandintheHelpsectionoftheprogramitself.



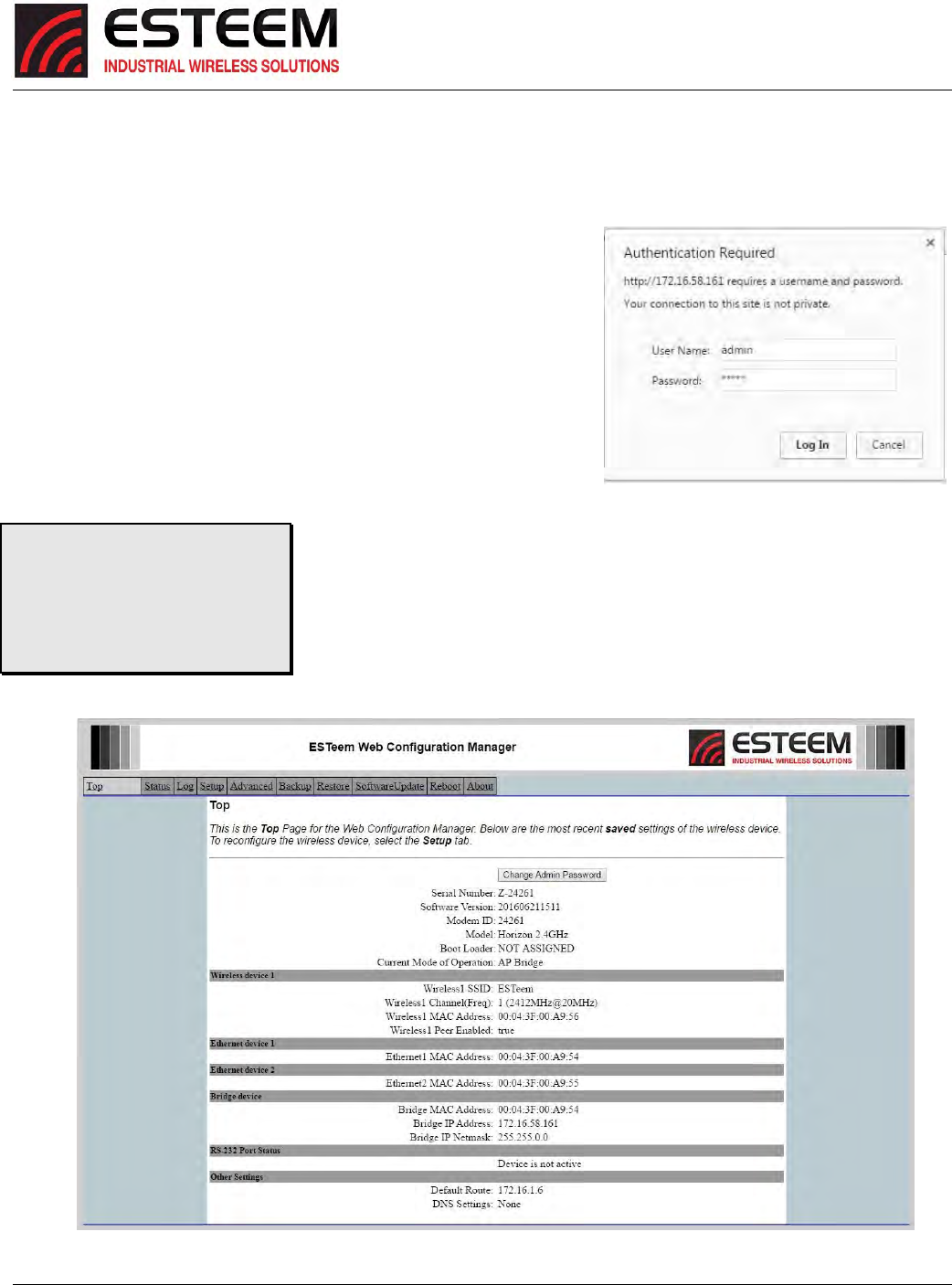

TheESTeemHorizoncanalsobeprogrammedthroughtheinternalWebinterface(discussedindetailinChapter5)ifyoudonot

haveaccesstotheENCUtility.



Phase3‐InstalltheESTeemhardwareandtestcommunication.AftertheESTeemHorizonprogramming,installthehardware

ineachremotelocation.Chapter8ofthisUser’sManualdescribestheantennaspecifications,mountingoptionsandthe

configurationofthepolemountinghardwarefortheESTeem.Forinstructionsontestingandtroubleshootingthewirelesslink,

refertoAppendixF(Troubleshooting).



HORIZONHARDWARELAYOUT

Tobegintheconfiguration,unpacktheESTeemHorizonshippingboxesandlocatetheitemsbelowforinitialconfiguration.Take

afewminutestoinventoryyourequipmentbeforeyouproceed.ReportanymissingordamageditemstoCustomerSupport

(509‐735‐9092)assoonaspossible.EachnodeinyourESTeemHorizon’snetworkmayhavedifferenthardwarecomponents

baseduponthefinalinstallationlocation(i.e.Outdoor,Indoor,Point‐to‐pointorMuti‐Point).Antennatypes,cablelengths,

powersuppliesmaybedifferent,butthefollowingitemswillberequiredforbasicsetup:



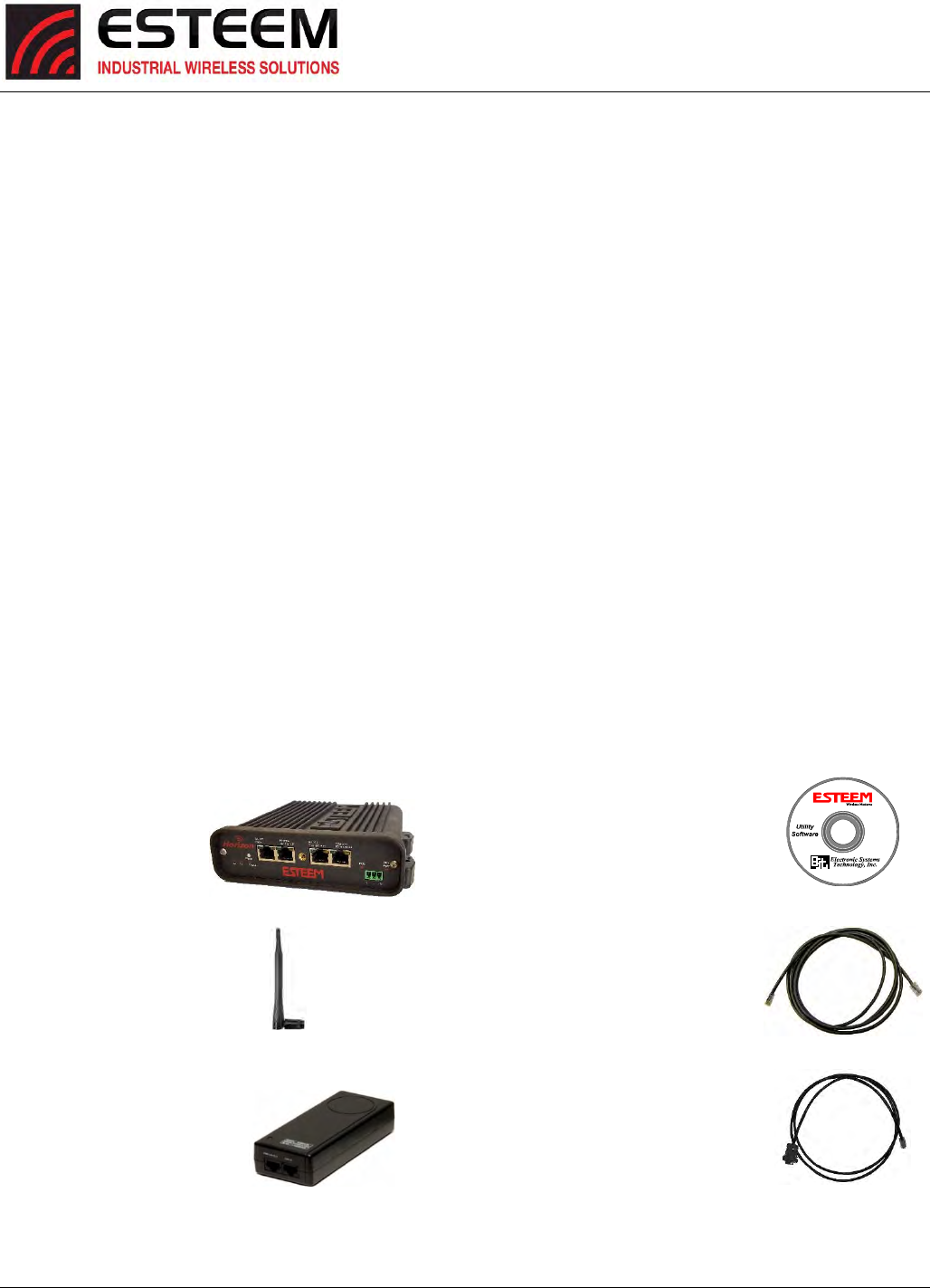

HorizonRadio





AA109ResourceDisk



 



Antenna

(AA01SDisplayed)

 



(2)EthernetCables



 



PowerSupply

(AA175.2Displayed)



SerialInterfaceCable

(AA6021.1)



Note:Youraccessorymodelnumbersmayvaryfromtheabove,butyouwillneedtolocateeachofaboveitemstocontinue

configuration.





CHAPTER2

STARTINGOUT

Revised: 27 Jun 16 2-2 ESTeem Horizon Series





Figure2:HorizonAntennaOverview



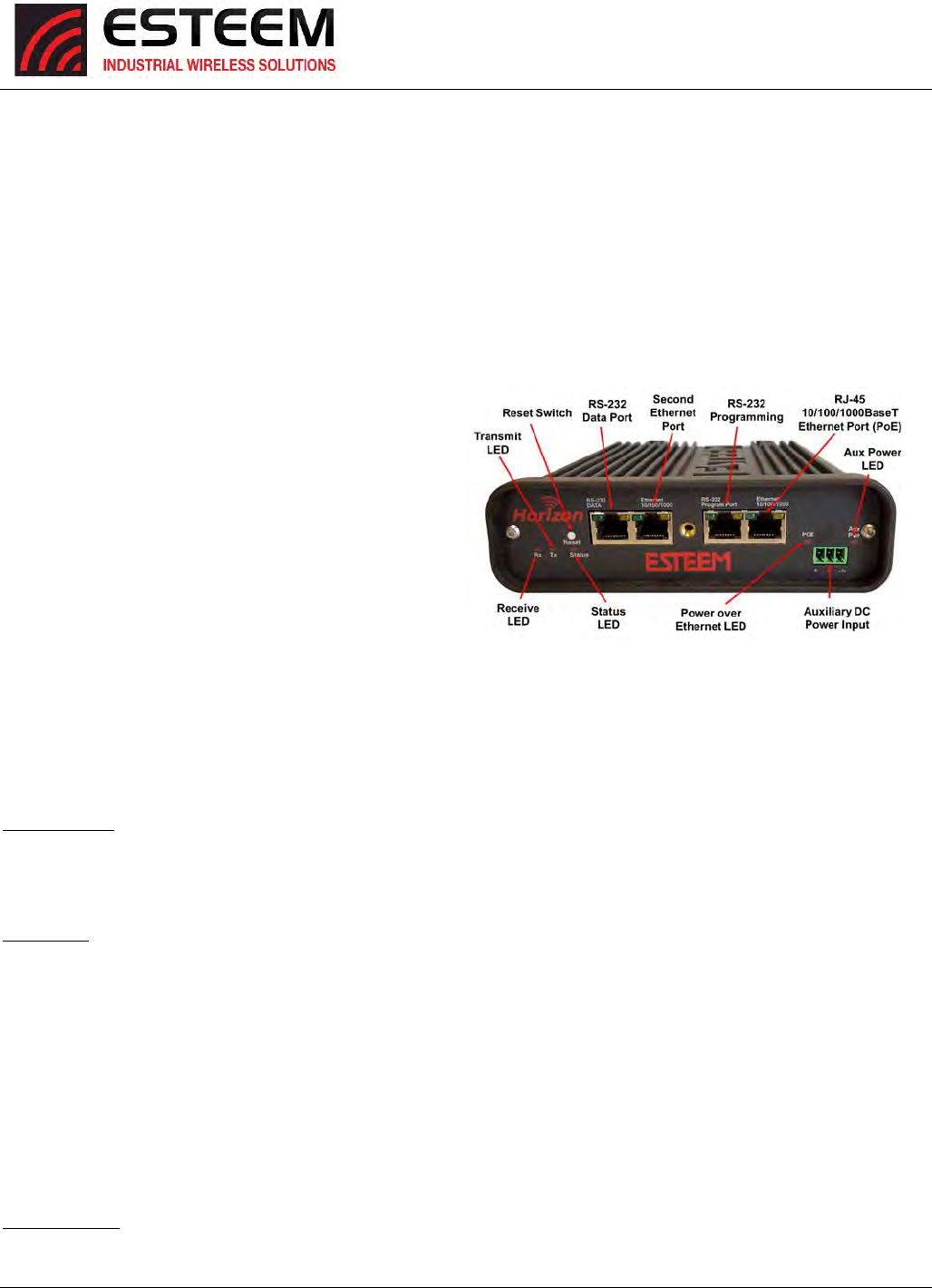

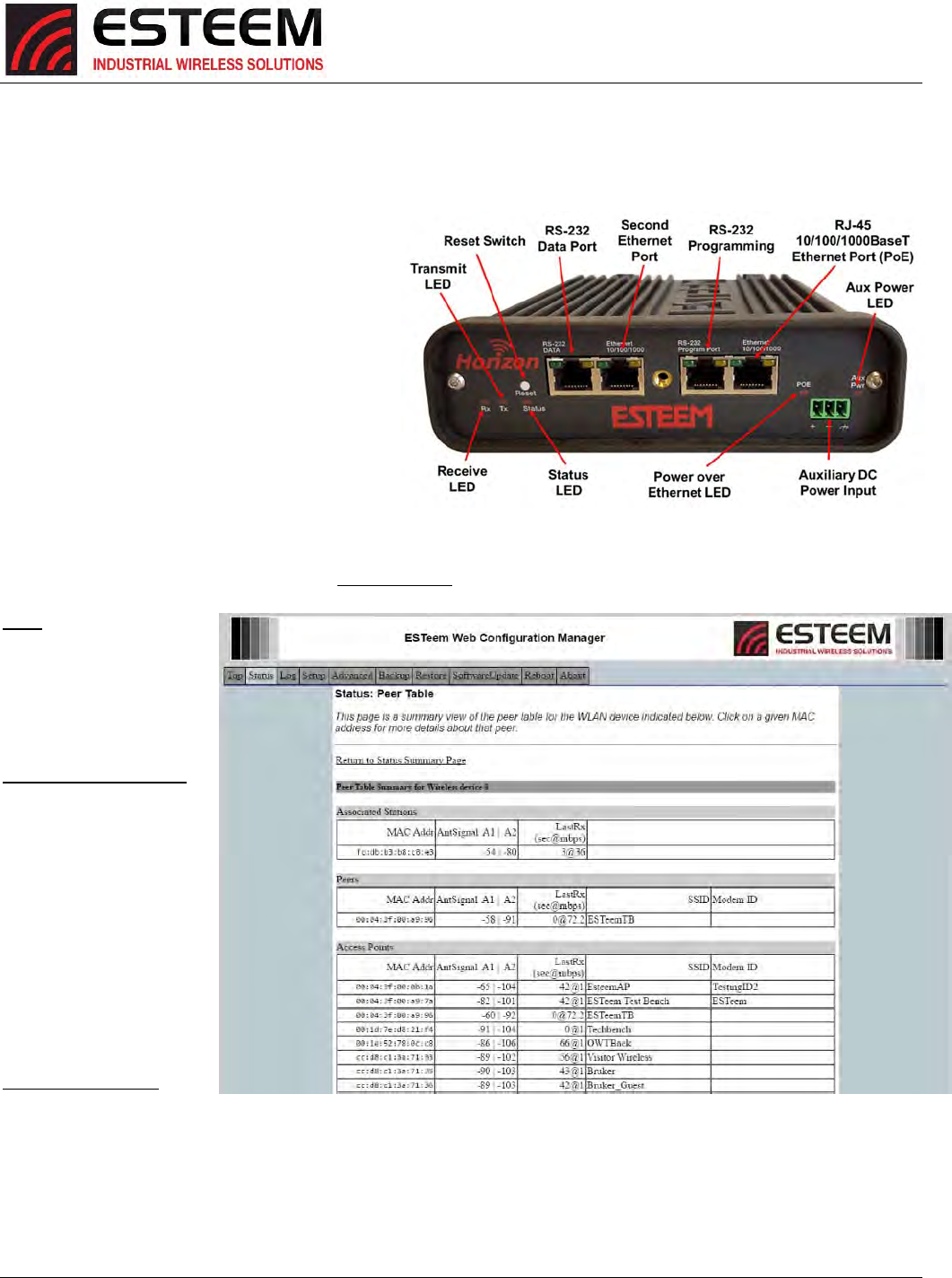

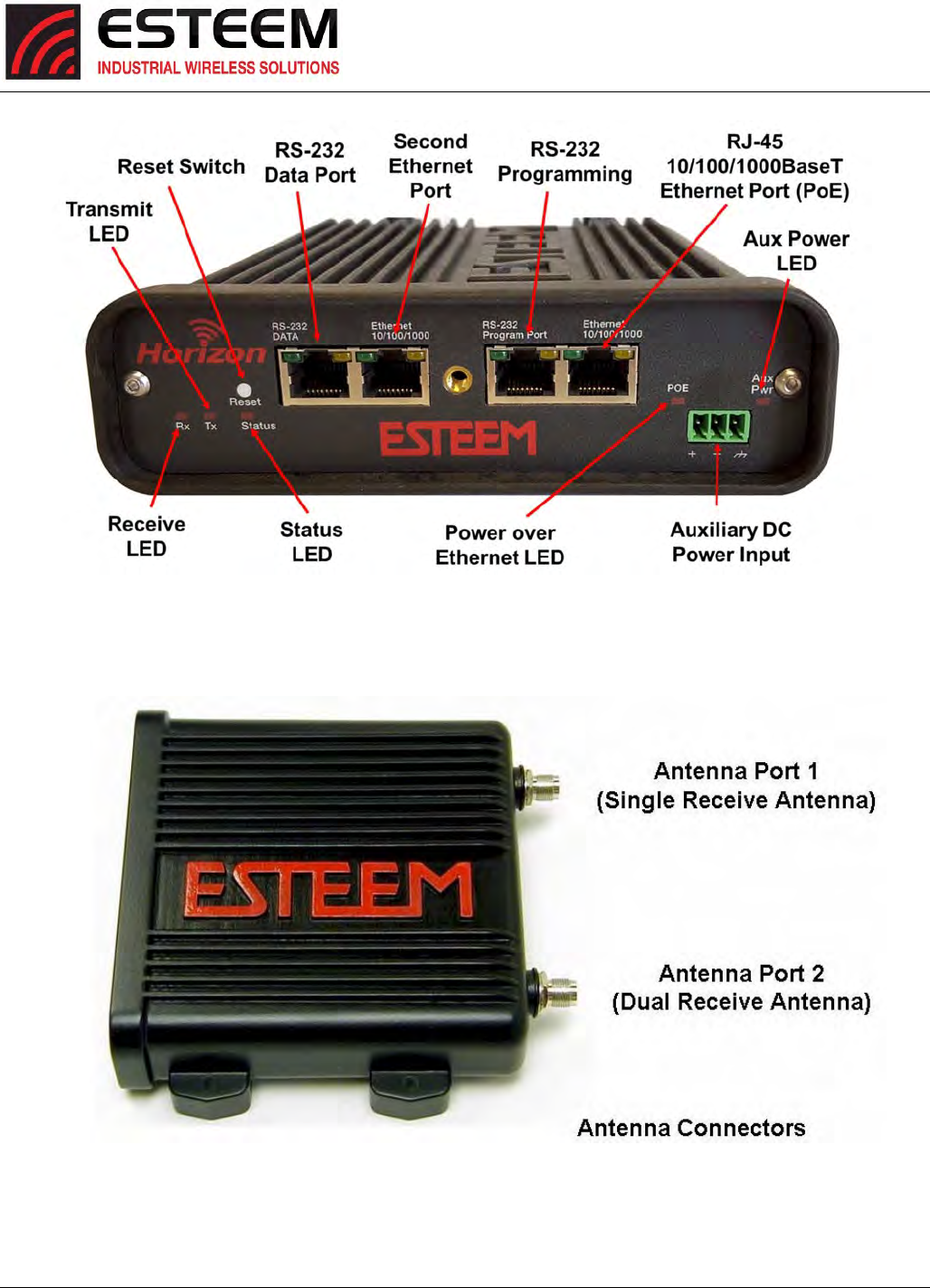

Figure1:HorizonFrontPanelOverview

CHAPTER2

STARTINGOUT

Revised: 27 Jun 16 2-3 ESTeem Horizon Series

HORIZONHARDWARECONFIGURATION



ThefollowingstepsshouldbecompletedtobeginconfigurationoftheESTeemHorizon:



1. ConnecttheantennatotheantennaconnectorontheHorizon(Figure3).ForasingleantennauseAntennaPort1and

connectbothifusingdualantennas.



2. AssembletheHorizonhardwareasshowninFigure4.



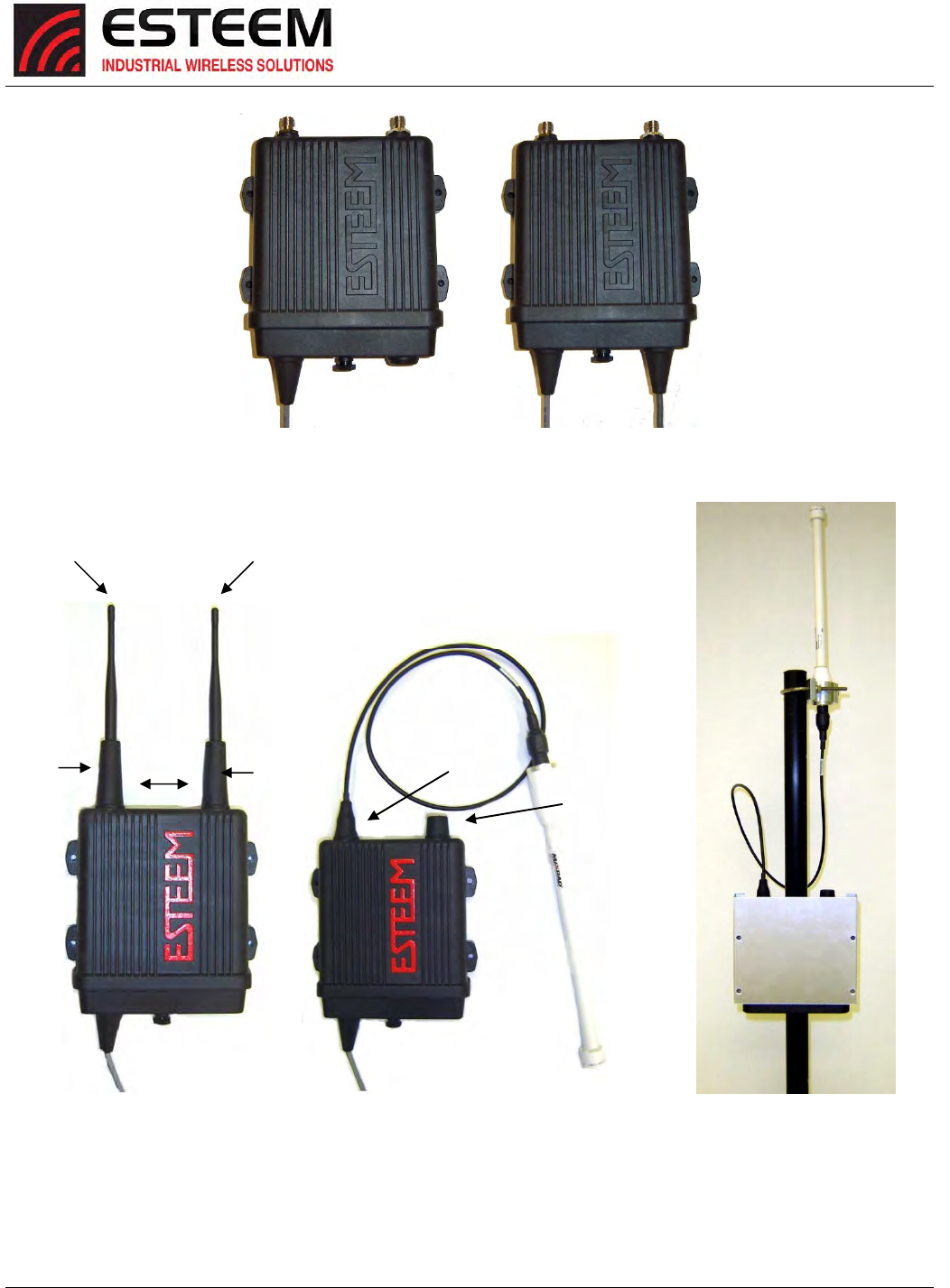

Figure3:AntennaConfigurationDiagram

TechnicalTips:



1.ConfiguretheHorizon

priortomounting.



2.Attachantennatothe

Horizonbeforepowering

up.



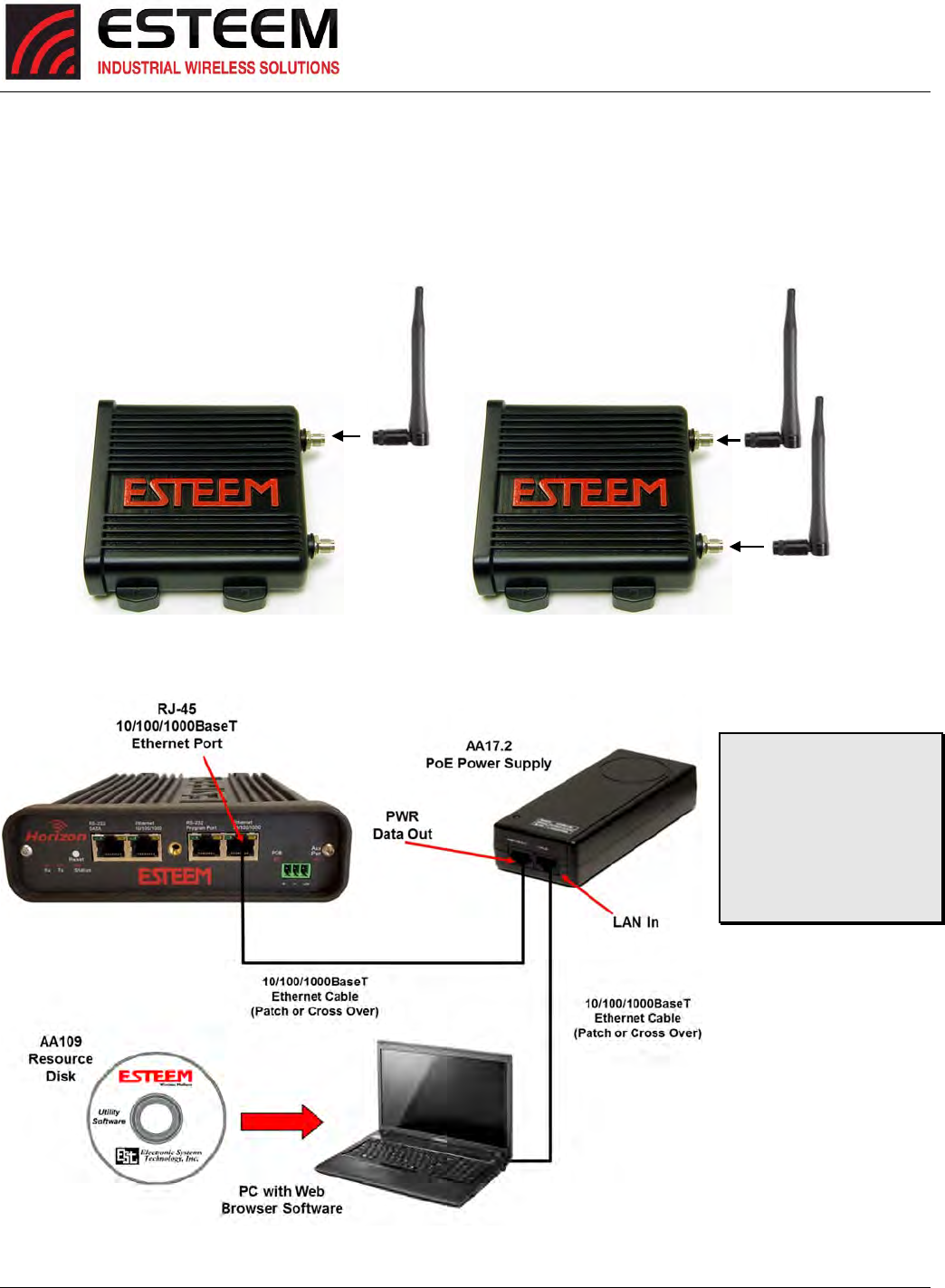

Figure4:HardwareConfigurationDiagram

Leave

Open

Single Antenna

Configuration Dual Antenna

Configuration

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-1 ESTeem Horizon Series

MODESOFOPERATION



TheESTeemHorizonisasophisticatedwirelessnetworkingdevicethatcanbeconfiguredformultiplemodesofoperation.

DeterminingthecorrectmodeofoperationfortheESTeemisthefirststepincreatingareliablewirelessnetwork.Thischapter

willexplaineachmodeofoperation,provideexampleapplicationsanddetailedprogramminginformationforeachmode.

Pleasereviewthefollowingmodesofoperations.Ifyoudonotseeanexampleofyourapplication,pleasecontactESTeem

supportat509‐735‐9092forhelpinselectingyourmodeofoperation.



EthernetBridgeMode(APBridge)



ThemostcommonlyusedmodeofoperationwiththeESTeemHorizonistheEthernetbridgemode.TheEthernetbridgemode

willconnecttwoormoreESTeemHorizon’swhilepassingallnetworktrafficthatarrivesinboththewirelessandconnected

Ethernetports;includingallglobalnetworktraffic(Figure1).ThismodewillworkinmostwirelessapplicationsoftheHorizon

towirelesslyconnecttwoormoreremoteEthernetdevicesornetworks.TheEthernetbridgemodeisalsousedinrepeating

(Figure2)andinself‐healingMeshnetworks(Figure3)forfixed(non‐mobile)applications.



ExampleApplications



 BuildingtobuildingremotewirelessLANnetworks

 PointtopointwirelessEthernetcommunicationdevices

 Multi‐pointwirelessEthernetnetworks

 RemoteSupervisoryControlandDataAcquisition(SCADA)networks

 Redundant,self‐healingMeshnetworks

 FixedlocationswithmobileESTeemHorizon’s



ApplicationsWhereEthernetBridgeModeNotUsed



 Mobileapplications(seeMobileClients)

 ConnectionstolargeEthernettrafficnetworkssuchaslargeofficebuildingsorplantnetworks(seeRoutermodes)



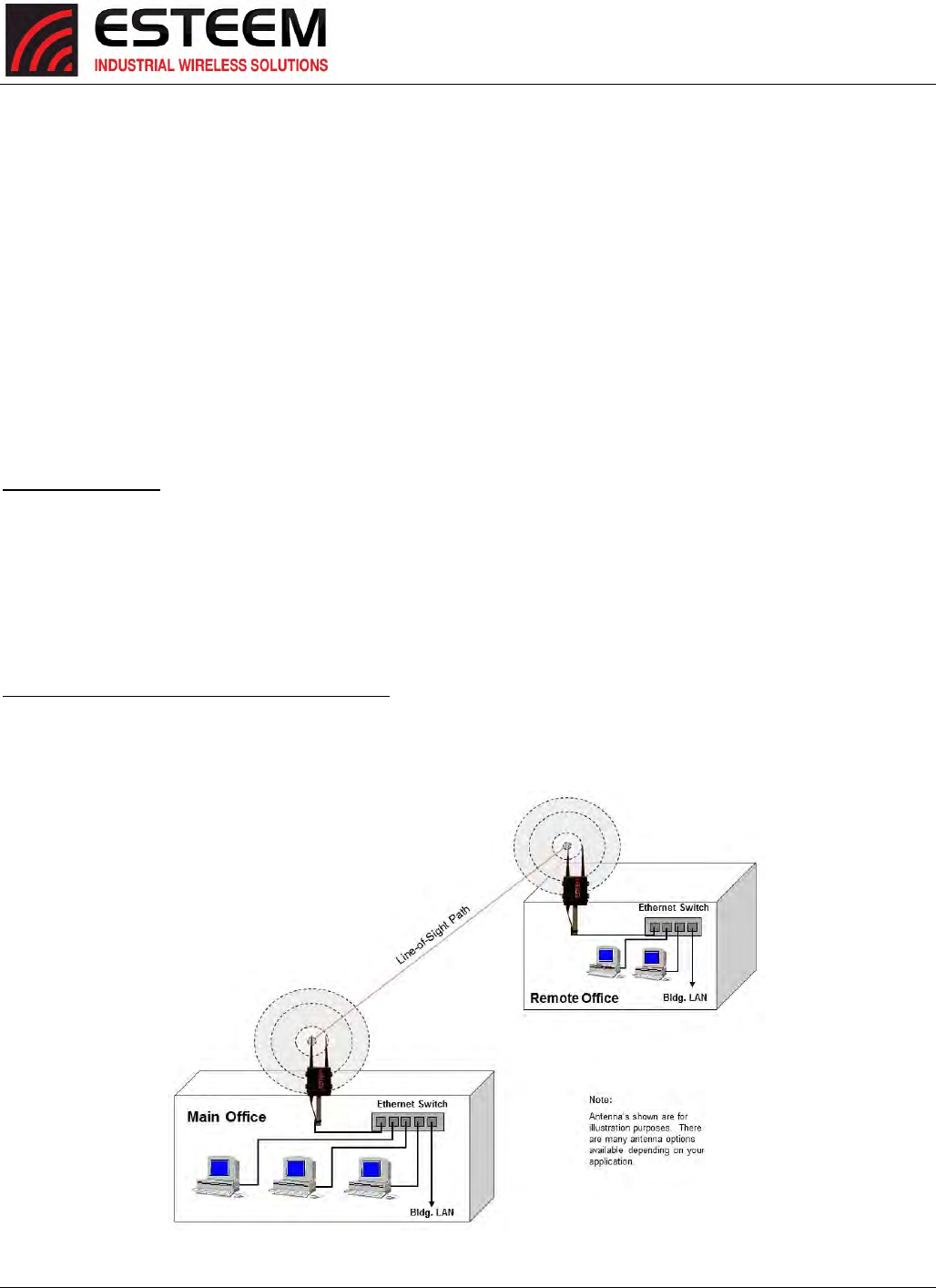

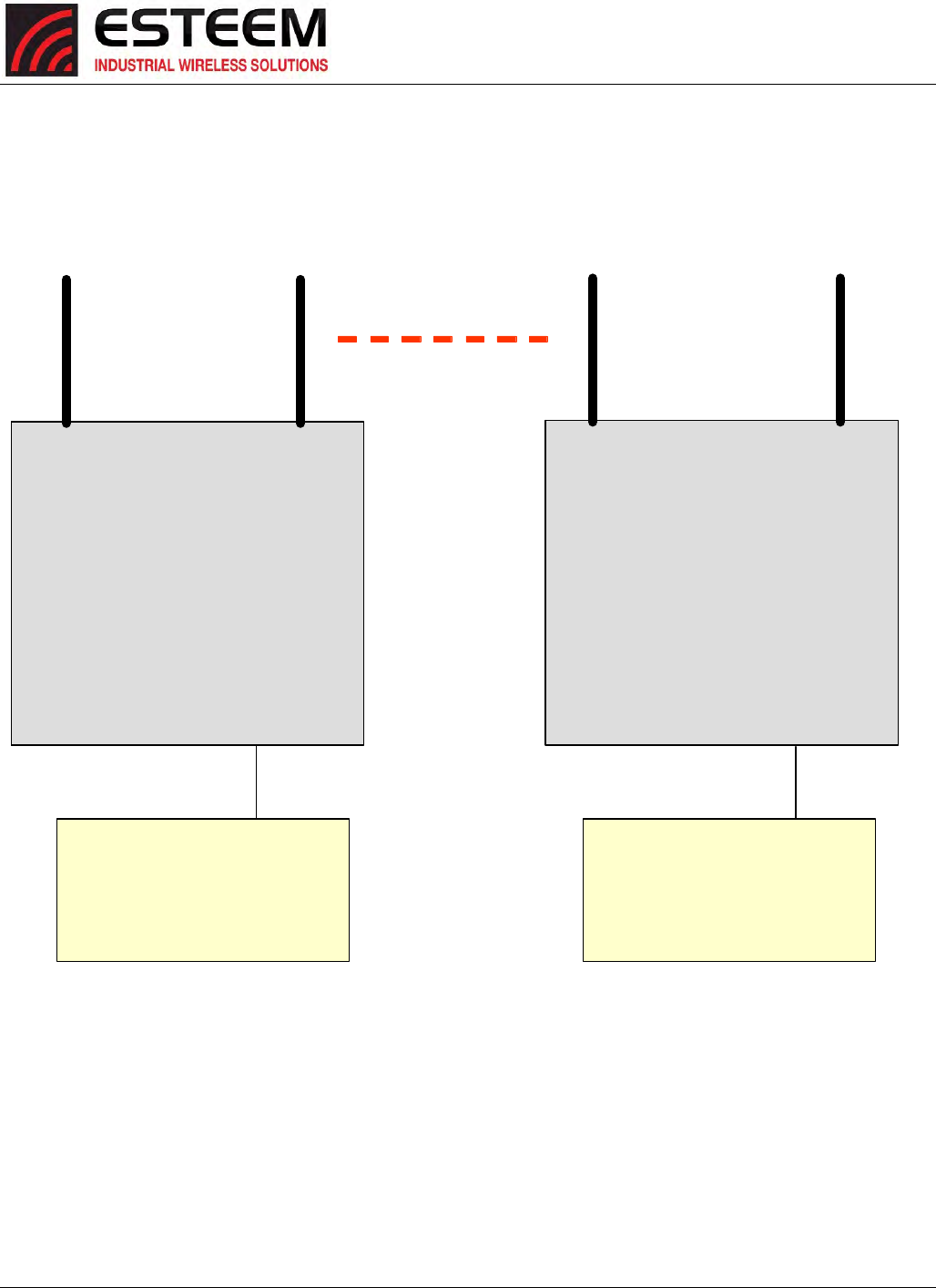

Figure1:PointtoPointExample

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-2 ESTeem Horizon Series

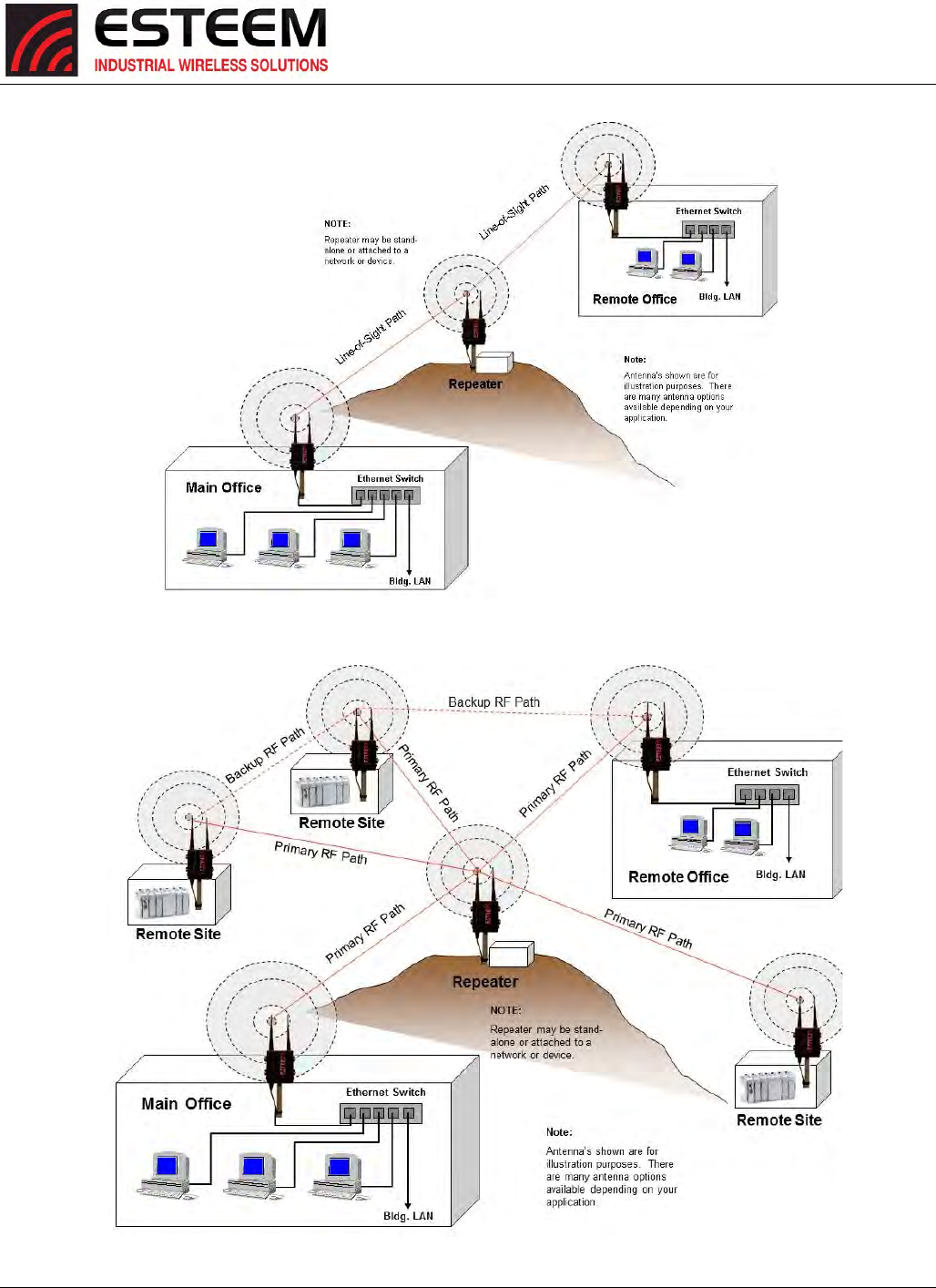

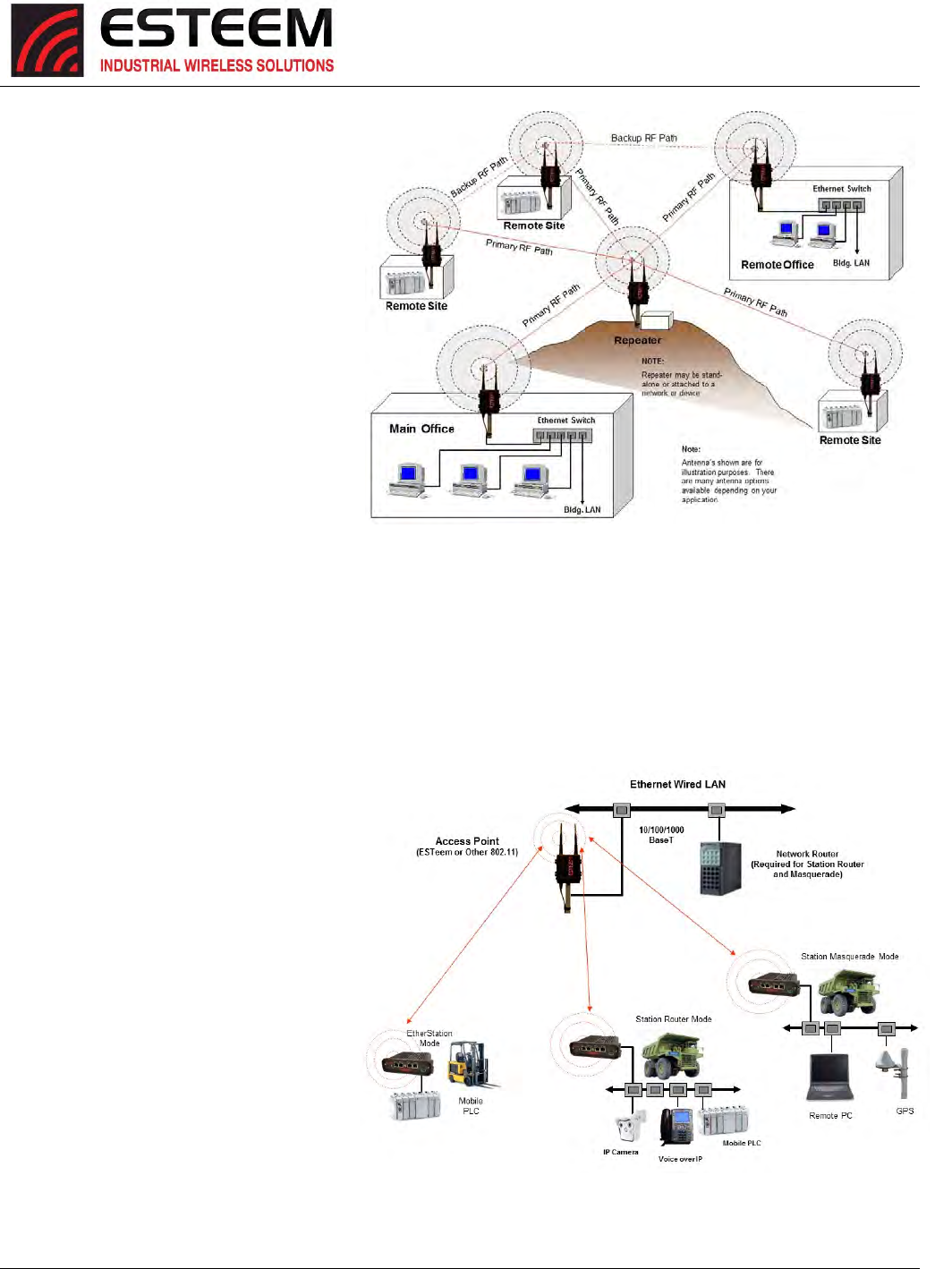

Figure3:MultipointBridgewithMeshNetworking



Figure2:EthernetBridgewithRepeater

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-3 ESTeem Horizon Series

RouterModes(APRouterandAPMasquerade)



TheESTeemHorizoncanbeconfiguredasanetworkrouterornetworkfirewallbetweentheEthernetLANconnectionandthe

wirelessnetworkofremotelocations.TheroutermodesareusedtolimitthenetworktrafficfromabusyEthernetnetwork

connectiontoonlythosespecificIPaddressusedonthewirelessnetwork(seeFigure4).TheEthernetroutermode(APRouter)

willallowbi‐directionalcommunicationfromtheEthernetLANconnectiontothewirelessnetwork.TheEthernetfirewallmode

(APMasquerade)willallowEthernetdevicesinthewirelessnetworktorequestinformationfromtheEthernetLANnetwork

andreceivearesponse,butnotrafficcanbegeneratedfromtheEthernetLANside.



ExampleApplications



 WirelessEthernetnetworksconnectedtolargecompanyorplantEthernetLANnetworks(APRouter)

 WirelessEthernetnetworkswitharequirementfornetworkisolationfromtheplantorcompanynetwork(APRouter)

 SharedEthernetconnectiontodirectInternetservice(DSL,Cable,T1,etc.)(APMasquerade)



ApplicationsWhereEthernetRouterModeNotUsed



 Mobileapplications(seeMobileClients)

 SimplenetworkconnectionsonlyusingasingleIPnetworksubnet(seeEthernetBridgemodes)



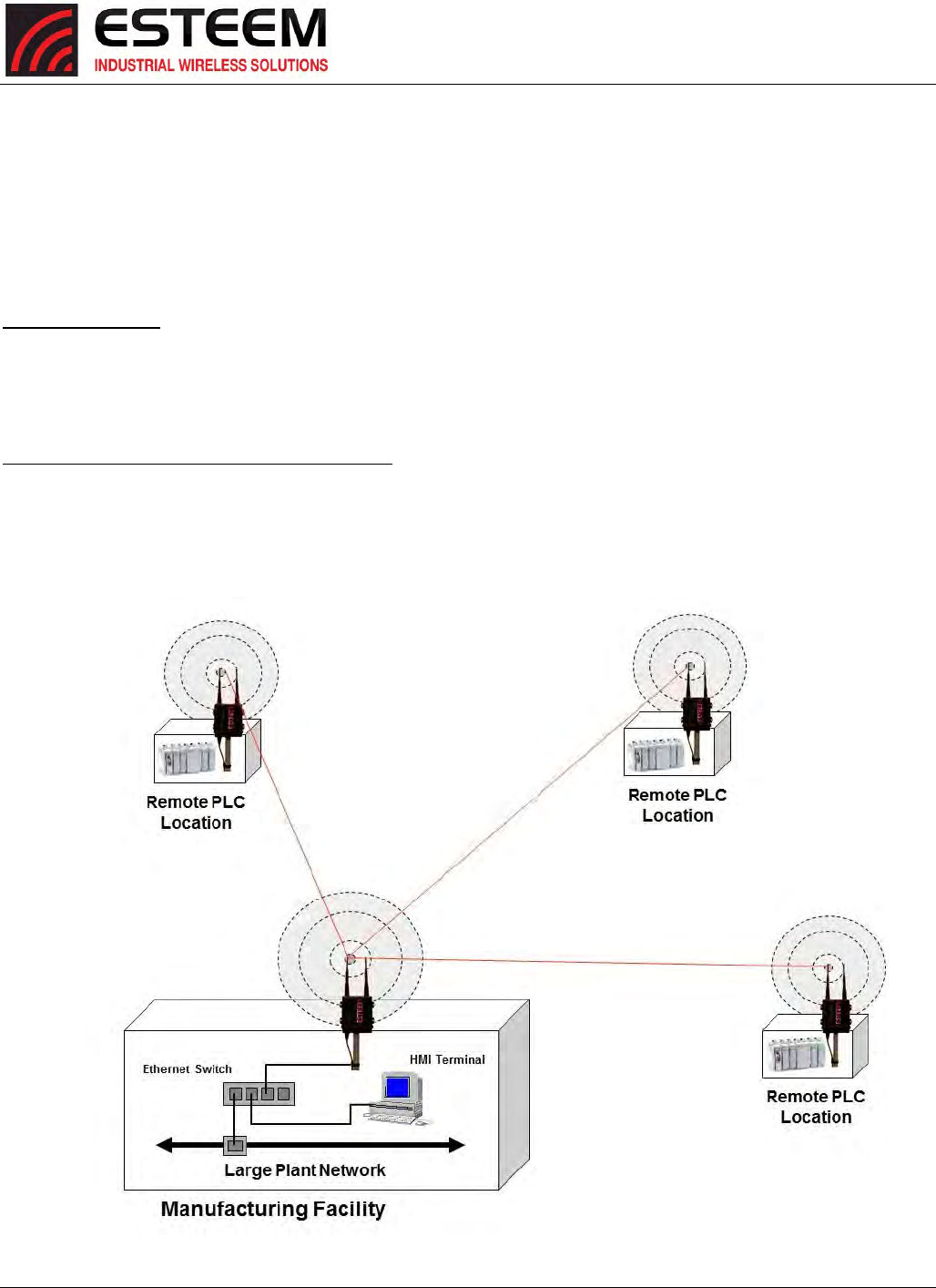

Figure4:RouterModeExample

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-4 ESTeem Horizon Series

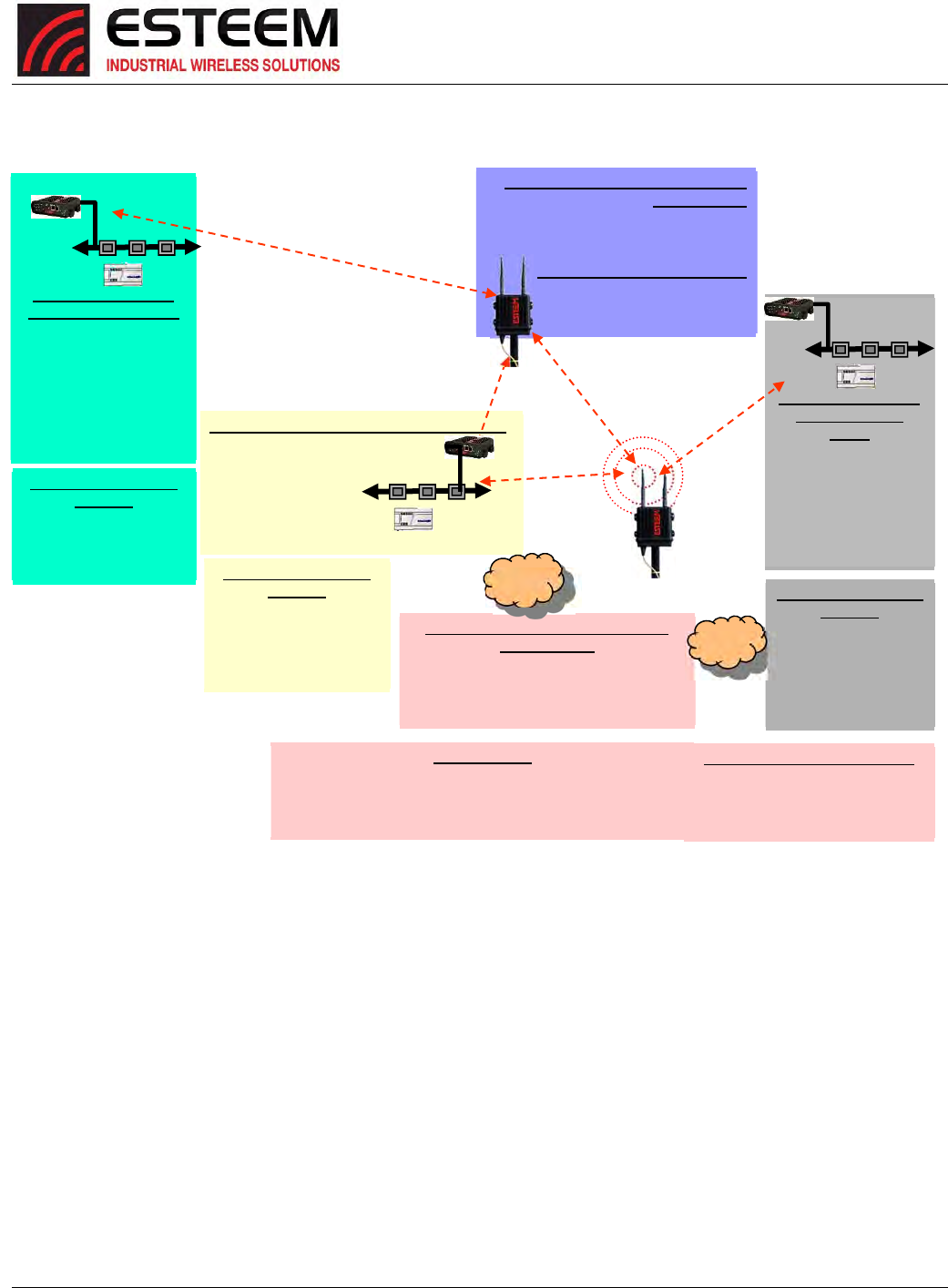

MobileClientModes(EtherStation,StationRouterorStationMasquerade)



TheESTeemHorizoncanalsobeconfiguredtofunctionasamobileclient.TheclientmodesallowtheHorizontoseamlessly

roambetweenfixedAccessPoints.TheseAccessPointscaneitherbeESTeemHorizonwirelessmodemsconfiguredinoneof

thethreeAccessPointmodes(APBridge,APRouterorAPMasquerade–seeabove)oranyIEEE802.11(Wi‐Fi).Theclient

modeswillallowmobileEthernetdevicestoconnecttoeachotherortoanEthernetLANthroughthefixedAP(Figure5).



TheEtherStationmodeisusedtoconnectasingleEthernetdevicetotheESTeemHorizon.IfyouareconnectingtheHorizon

tomultipleEthernetdevicesinamobilemode,theStationRouterorStationMasqueradewillberequired.TheStationRouter

willallowbi‐directionalcommunicationbetweentheEthernetdevicesconnectedtotheHorizonandthewirelessnetwork,

whiletheStationMasqueradewillserveasafirewallontheEthernetside.



ExampleApplications



 MobileapplicationswheretheHorizonwillchangelinksoftenbetweenfixedAccessPoints

 Longrangemobileclientnetworks

 Publicsafetyapplicationsforpolice,fireandEMS



ApplicationsWhereMobileClientModeNotUsed



 FixedlocationsusingEthernetBridgingorRouting

 WirelessEthernetnetworkswithrepeaters





ure5:RouterModeExam

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-5 ESTeem Horizon Series

802.11AccessPointModes(APBridge,APRouterorAPMasquerade)



TheESTeemHorizoncanbeconfiguredasahighpower802.11AccessPoint(AP).TheIEEE802.11n/g/bAccessPoint(AP)

functionalityisavailableinallthreeoftheAccessPointmodes(APBridge,APRouterorAPMasquerade).TheAccessPoint

modewillprovideeitherasinglewirelessconnection(Figure6)oroverlappingcoverage(Figure7)tocreatea“canopy”of

wirelesscoveragefor802.11devices.TheESTeemHorizoninAPmodecanfunctionasbothanEthernetbridgeorrouterand

802.11APsimultaneously(Figure8).



ExampleApplications



 Industrial,longrange802.11(Wi‐Fi)networks

 HybridnetworksofEthernetbridging/routingandmobileclientaccess



ApplicationsWhereAccessPoint(AP)ModeNotUsed



 Mobileapplications



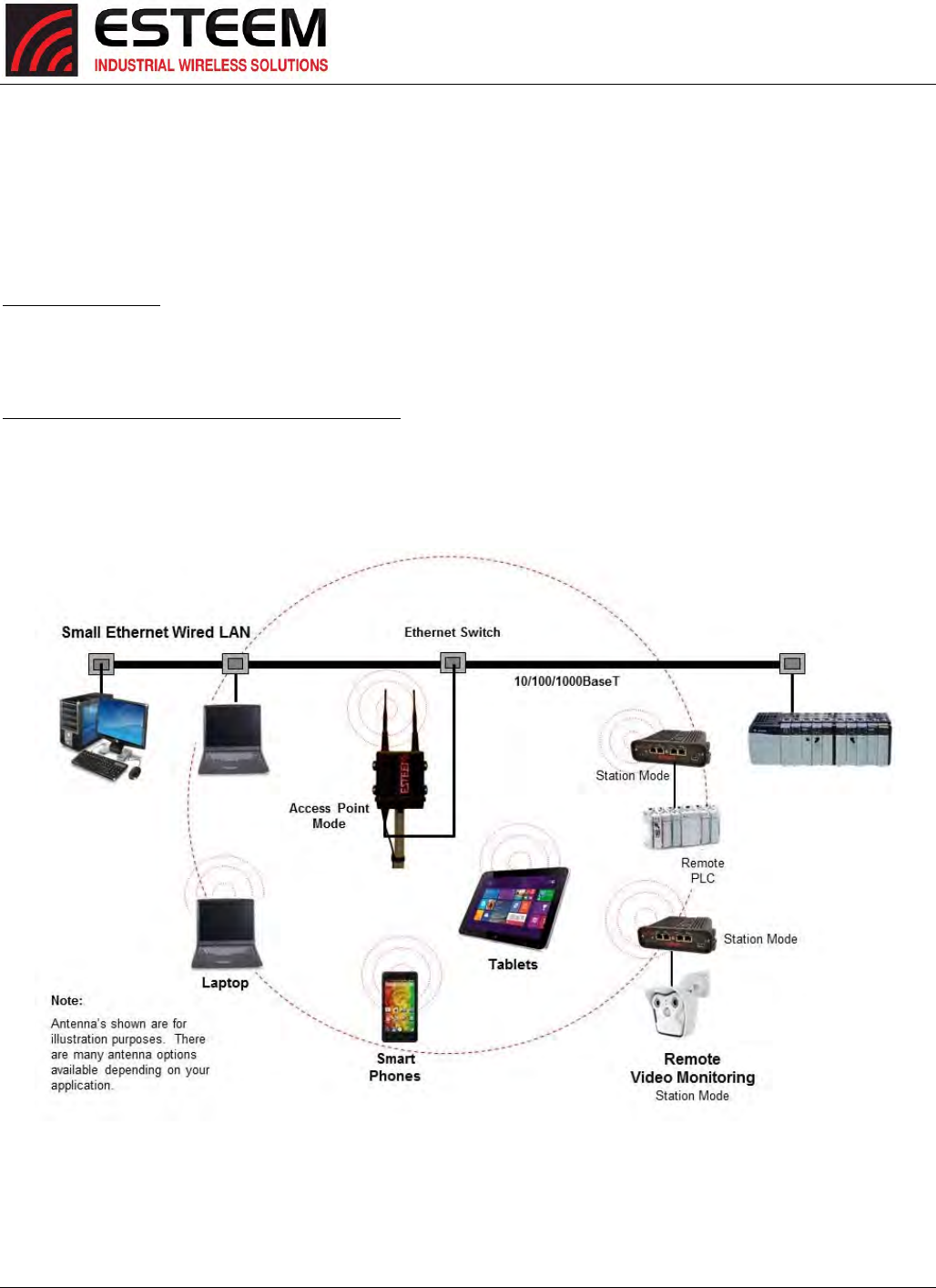

Figure6:SingleAccessPointNetwork



CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-6 ESTeem Horizon Series







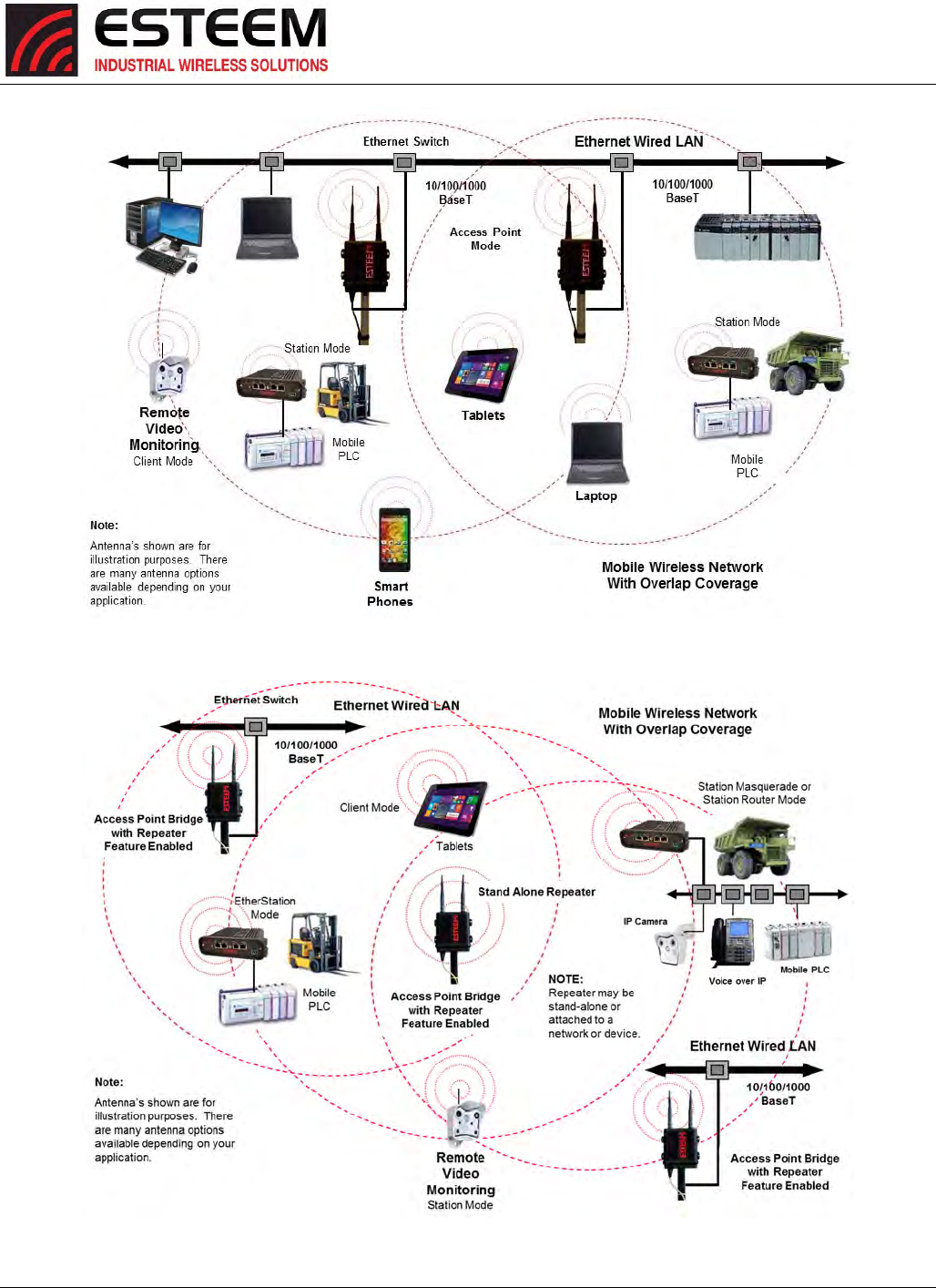

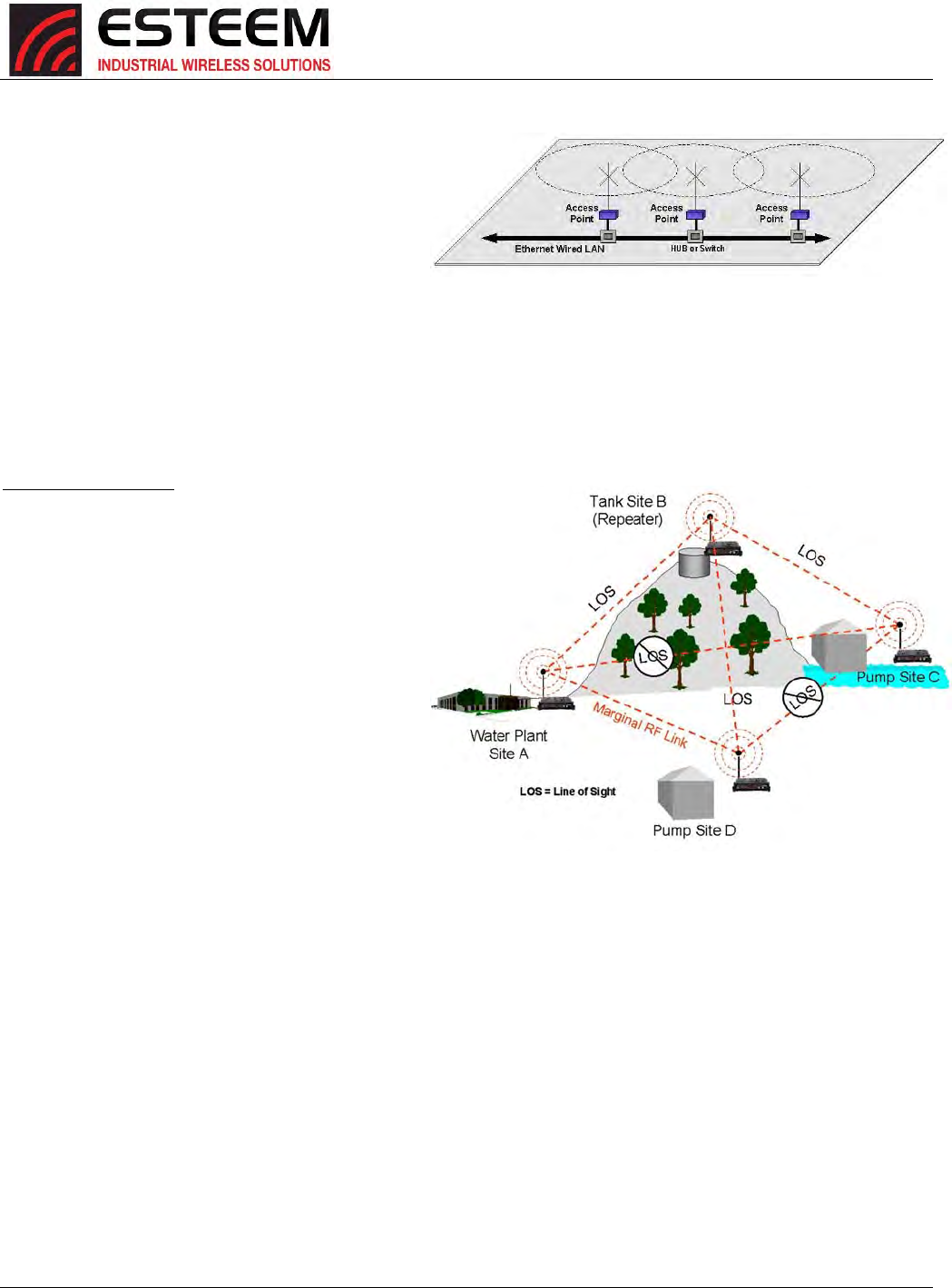

Figure7:OverlappingAccessPointCoverage



Figure8:AccessPointandEthernetBridge



CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-7 ESTeem Horizon Series

PROGRAMMINGEXAMPLES



OncethemodeofoperationfortheESTeemhasbeendetermined,you

arenowreadytoprogramtheHorizonforuse.ESTeemhascreateda

simplifiednetworkprogrammingutilitycalltheESTeemNetwork

Configuration(ENC)Utility.ThisENCUtilitywillbeusedinallthe

followingprogrammingexamples.Fordetailedinstructionson

installingtheENCUtility,pleaserefertotheUser’sGuide(foundinthe

ESTeemResourceCDorUtilityprogramitself)orChapter4ofthis

User’sManual



AddingEsteem’stoENCUtilityandChangingName



EachoftheexampleapplicationswillusethefollowingproceduretoaddandrenameESTeemHorizon’s.



1. ConsulttheENCUtility’sUserGuideonhowthecreateanewwirelessnetwork.Onceyouhaveablanknetwork

configurationpage(Figure9),selectESTeemfromthemenuitemstodisplaythedropdownmenu,thenselectNew>New

ESTeem.



2. EnterintheESTeemHorizonserialnumbersusedfortheexample

(forexampleenterZ‐14000intheSetSerialNumberBox)andpress

theOKbutton(Figure10).TheENCUtilitywilllookuptheESTeem

Horizon’sserialnumberinthedatabaseandmatchthecorrect

WirelessLANMAC(WLANMAC)addresstothemodem.ThisWLAN

MACaddresswillbedisplayedabovethemodemsymbolonthe

screen(Figure11).

TechnicalTip:TheENCUtilitycalculatesthewireless

linkinformationbaseduponexactESTeemserial

numbers.Theserialnumberslistedinthefollowing

examplesareforexampleonly.Enterthecorrect

ESTeemserialnumbersforyourapplication.



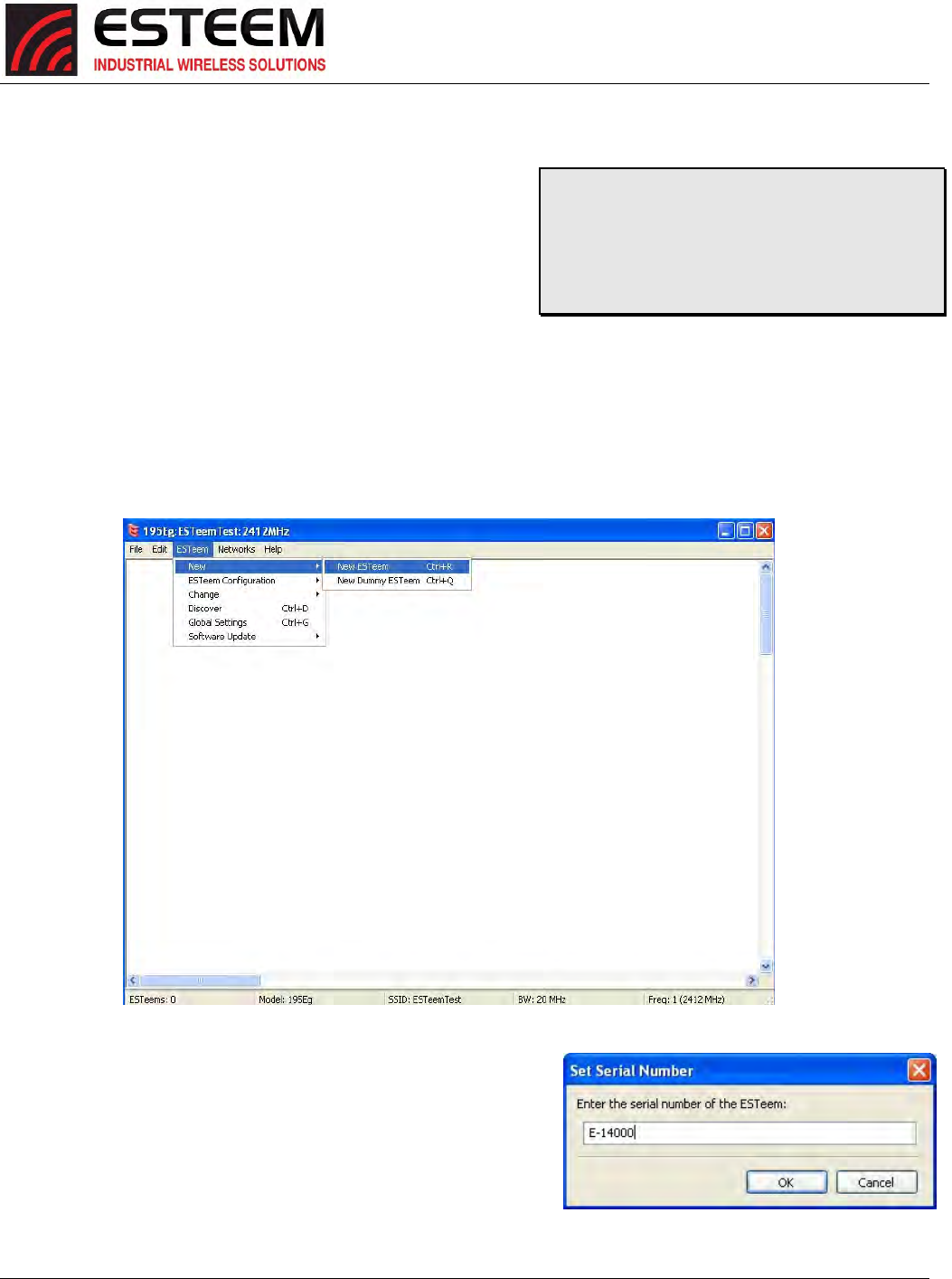

Figure9:AddingESTeemtoBlankENCConfigurationPage



Figure10:EntertheSerialNumber

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-8 ESTeem Horizon Series



3. TochangethenameoftheESTeemHorizonfromtheWLANMACaddressto“MainOffice”(oranyotherlocationname)

tomatchtheexampleconfiguration,Right‐MouseclickontheESTeemiconandselectChange>ChangeModemID(Figure

12).Enter“MainOffice”inthepop‐upwindowandselectOK.



4.DuplicatetheaboveprocedureforeachESTeemHorizonaddedtothenetwork.



Figure11:MainOfficeESTeemHorizon



Figure12:ChangeModemID



CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-9 ESTeem Horizon Series

EthernetBridgeModeExample1(Figure1)



PointtoPointEthernetBridge



(2)ESTeemHorizon

SerialNumbers:Z‐14000(MainOffice)andZ‐14001(RemoteOffice)



1. AddthetwoESTeemHorizonstothenetworkusingtheaboveprocedure.OncebothESTeemHorizonsareonthe

configurationpage,createawirelesslinkby

clinkingononeofthetwoconnectionboxesand

draggingalinetotheothermodem(Figure13).



5. VerifybothESTeemmodemsareconnectedto

thesameswitchasthecomputerrunningthe

ENCUtilityandsendtheconfigurationtoboth

modemsatthesametimebyselecting

ESTeem>ESTeemConfiguration>Send

ConfigurationtoAllESTeems(Figure14).



6. OncetheENCUtilityhasdownloadedthe

configurationforbothESTeemHorizons,the

statusboxaroundtheESTeemswillchangefrom

yellowtoblue.Thisindicatesthatthe

configurationwascompletedsuccessfullyand

theESTeemHorizonsarereadytobeinstalledin

theapplication.



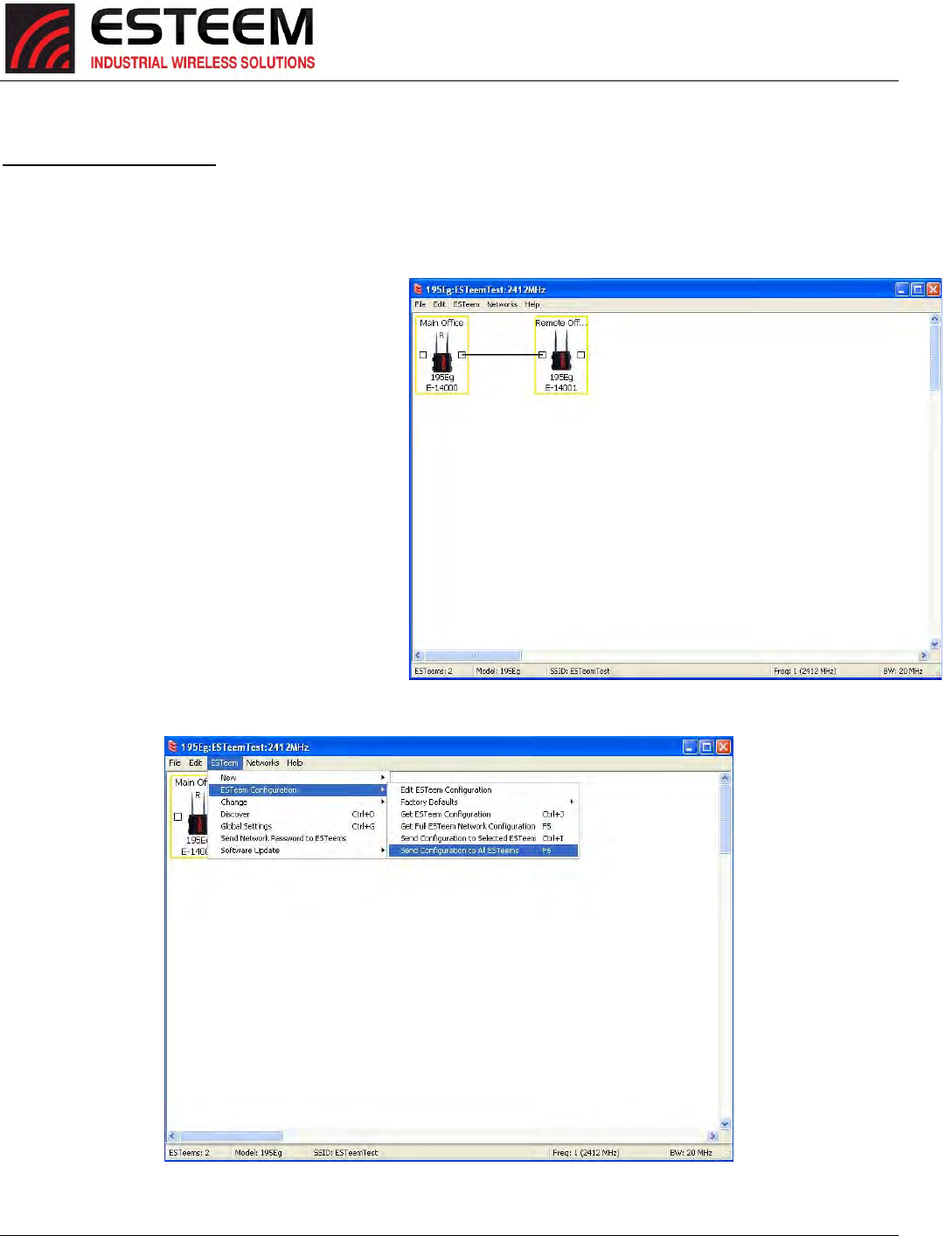

Figure13:CreateWirelessLink



Figure14:SendConfigurationtoESTeem’s



CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-10 ESTeem Horizon Series

EthernetBridgeModeExample2(Figure2)



PointtoPointwithRepeaterEthernetBridge



(3)ESTeemHorizon

SerialNumbers:

Z‐14000(MainOffice)

Z‐14001(RemoteOffice)

Z‐14002(Repeater)



1.Usingtheaboveprocedure,enterthethree

ESTeemHorizonsintotheENCUtility.Your

layoutshouldappearlikeFigure14.



2. MovetheESTeemHorizoniconsonthescreen

tosimulatethelayoutofthediagram.Draw

connectionlinesbetweenthemodemstomake

thewirelesslinkinthesameorderasthe

networklayout(Figure15).



3. VerifyallESTeemmodemsareconnectedtothesameswitch

asthecomputerrunningtheENCUtilityandsendthe

configurationtobothmodemsatthesametimeby

selectingESTeem>ESTeemConfiguration>SendConfiguration

toAllESTeems.OncetheENCUtilityhasdownloadedthe

configurationforbothESTeemHorizon’s,thestatusbox

aroundtheESTeem‘swillchangefromyellowtoblue.Thisindicatesthattheconfigurationwascompletedsuccessfully

andtheESTeemHorizon’sarereadytobeinstalledintheapplication.

TechnicalTip:Althoughitdoesnotmatterwherethe

ESTeemiconsarelocatedonthescreen,putting

theminthesamelayoutastheapplicationmakesit

easiertovisuallyverifythenetworkconnections.



Figure14:Example2Modems



Figure15:Example2Layout

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-11 ESTeem Horizon Series

EthernetBridgeModeExample3(Figure3)



PointtoMultipointwithMeshRepeaterLinks



(6)ESTeemHorizon

SerialNumbers:

Z‐14000(MainOffice)

Z‐14001(RemoteOffice)

Z‐14002(Repeater)

Z‐14003(RemoteSite1)

Z‐14004(RemoteSite2)

Z‐14005(RemoteSite3)



1. UsingtheaboveprocedureforaddingESTeem

Horizons,addthesixESTeemHorizonsforthis

exampleandrenamebylocation.Yourlayout

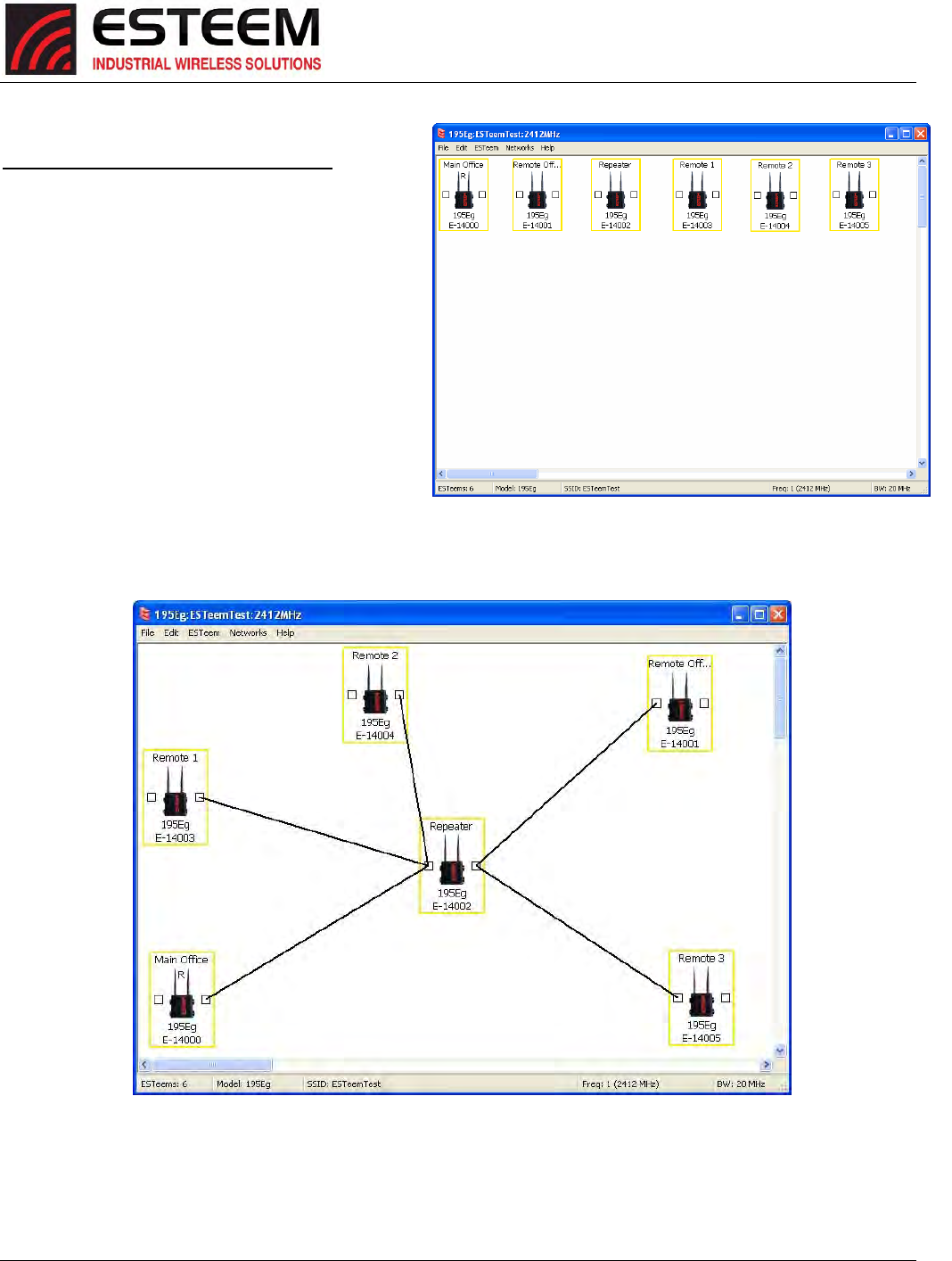

shouldappearlikeFigure16.



2. MovetheESTeemHorizoniconsonthescreento

simulatethelayoutofthediagram.Draw

connectionlinesbetweentheprimarywireless

linksmodemsinthesameorderasthenetworklayout(Figure17).



3. TocreatethebackuplinkbetweenRemote1andRemote2andtheotherbackuplinkfromRemote2totheRemoteOffice,

drawawirelessconnectionasyouwouldontheprimarylink.Double‐clickonthelinecreated.TheLinkEditorboxwillbe

displayed(Figure16).AnyPathLengthgreaterthan1willdisplayasadashedlineindicatingabackuplinkintherepeater



Figure16:Example3Modems



Figure15:Example2Layout

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-12 ESTeem Horizon Series

Meshconfiguration(Figure17).FordetailedinstructiononMeshnetworkconfiguration,refertoChapter7ofthisUser’s

Manual.



4. VerifyallESTeemmodemsare

connectedtothesameswitchas

thecomputerrunningtheENC

Utilityandsendtheconfiguration

toallmodemsatthesametimeby

selectingESTeem>ESTeem

Configuration>SendConfiguration

toAllESTeems.OncetheENC

Utilityhasdownloadedthe

configurationforbothESTeem

Horizon’s,thestatusboxaround

theESTeem‘swillchangefrom

yellowtoblue.Thisindicatesthat

theconfigurationwascompleted

successfullyandtheESTeem

Horizon’sarereadytobeinstalled

intheapplication.



Figure16:BackupLinkConfiguration



Figure17:MeshNetworkConfiguration



CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-13 ESTeem Horizon Series

EthernetRouterModeExample(Figure4)



PointtoMultipointRouterMode



(4)ESTeemHorizon

SerialNumbers:

Z‐14000(RouteratNetwork)

Z‐14001(RemoteSite1)

Z‐14002(RemoteSite2)

Z‐14003(RemoteSite3)



1. UsingtheaboveprocedureforaddingESTeem

Horizons,addthefourESTeemHorizonsforthis

exampleandrenamebylocation.Yourlayout

shouldappearlikeFigure18.



2. MovetheESTeemHorizoniconsonthescreento

simulatethelayoutofthediagram.Draw

connectionlinesbetweenthewirelesslinks

modemsinthesameorderasthenetworklayout

(Figure19).



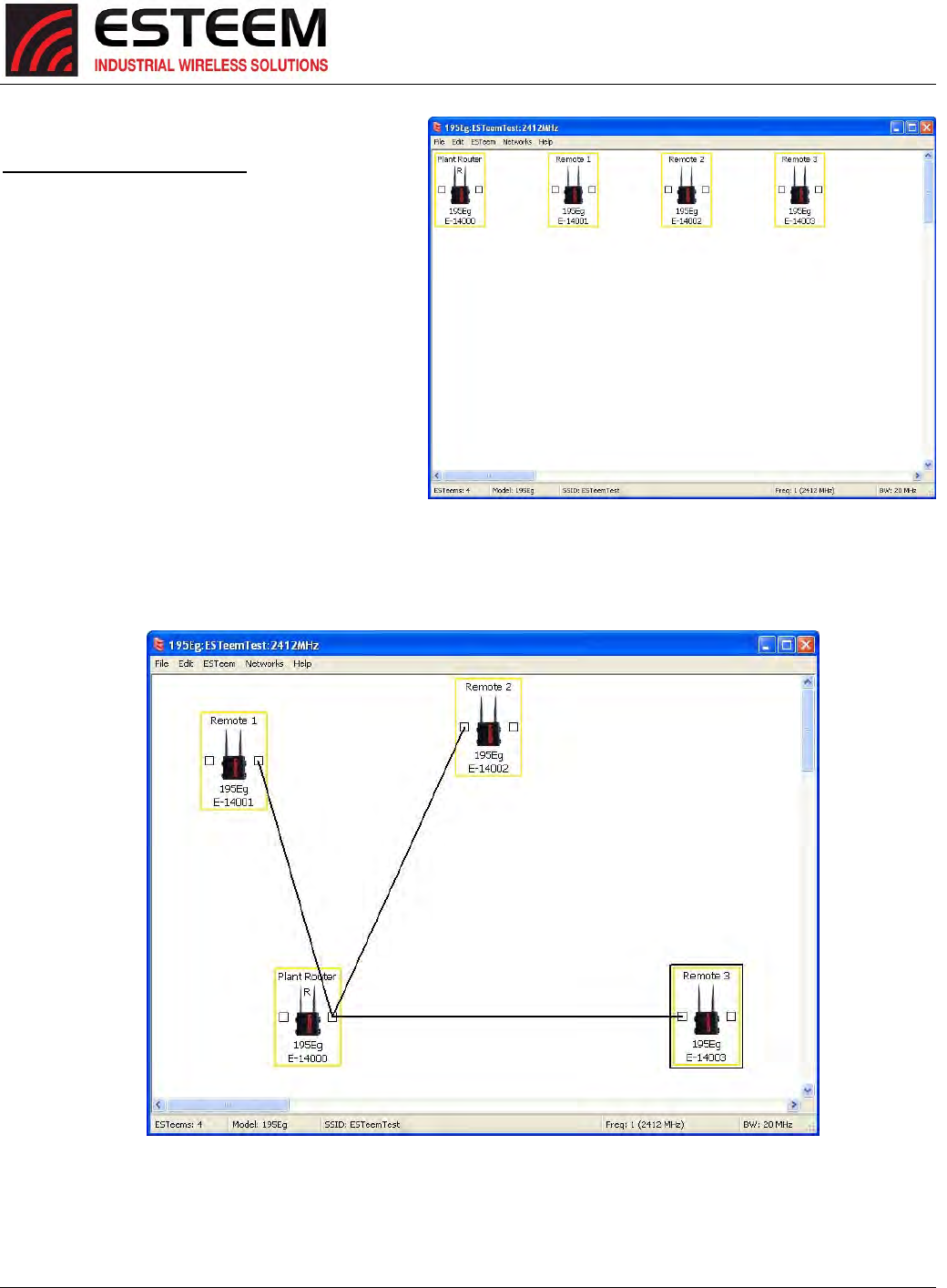

Figure18:RouterModeExampleModems



Figure19:RouterExampleLayout

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-14 ESTeem Horizon Series

3. Bydefault,theENCUtilitysetsallESTeemmodemsinAPBridgemode.

TochangethePlantRouterESTeemtoAPRoutermode,double‐clickon

theicontobringuptheESTeemSummarywindowandpresstheEdit

button(Figure20).



4. ChangetheModeofOperationfromAPBridgetoAPRouter

(orMasqueradeifdesired)andpresstheNextbuttonatthebottomof

thewindow(Figure21).



5. ContinuethroughtheconfigurationscreenssettingtheAPRouter

addressingtomatchtheIPaddressrangesforyournetwork.Forhelp

withsettingtherouteraddressingpleaserefertoRouterAddress

Exampleslaterinthischapter.YouwillendonthescreeninFigure

22.PresstheFinishbuttontoreturntotheconfigurationpage.



6. VerifyallESTeemmodemsareconnectedtothesameswitchasthe

computerrunningtheENCUtilityandsendtheconfigurationtoall

modemsatthesametimebyselectingESTeem>ESTeem

Configuration>SendConfigurationtoAllESTeem’s.OncetheENC

UtilityhasdownloadedtheconfigurationforbothESTeemHorizons,

thestatusboxaroundtheESTeem’swillchangefromyellowtoblue.

Thisindicatesthattheconfigurationwascompletedsuccessfullyand

theESTeemHorizonsarereadytobeinstalledintheapplication.



Figure21:APRouterConfiguration



Figure20:ESTeemSummaryPage



Figure22:ESTeemSummaryPage

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-15 ESTeem Horizon Series

MobileClientModeExample(Figure5)



EtherStation,StationRouterandStationMasqueradeModes



(3)ESTeemHorizon

SerialNumbers:

Z‐14000(EtherStation)

Z‐14001(StationRouter)

Z‐14002(StationMasquerade)



SettingtheESTeemforMobileClient(station)modewiththeENCUtilityisdifferentthanthe

Bridge/RouterorAccessPoint(AP)modes.ESTeemmodemsconfiguredinasaMobileClientwill

notlinkwithaspecificfixedmodem;butwillroambetweenany802.11AccessPointwiththe

correctNetworkName(SSID)andEncryption.TheESTeemconfiguredasaclientisalsonotseton

aspecificoperatingfrequency(channel)butwillscanallchannelslookingfortheAP.Usethe

followingproceduretoconfigureanESTeemHorizoninoneofthethreemobileclientmodes:



1. StartinganewnetworkofESTeemHorizonsinMobile

ClientmodeisthesameasanyoftheBridgemodes

exceptwhenyouareaskedforthefrequency(channel)

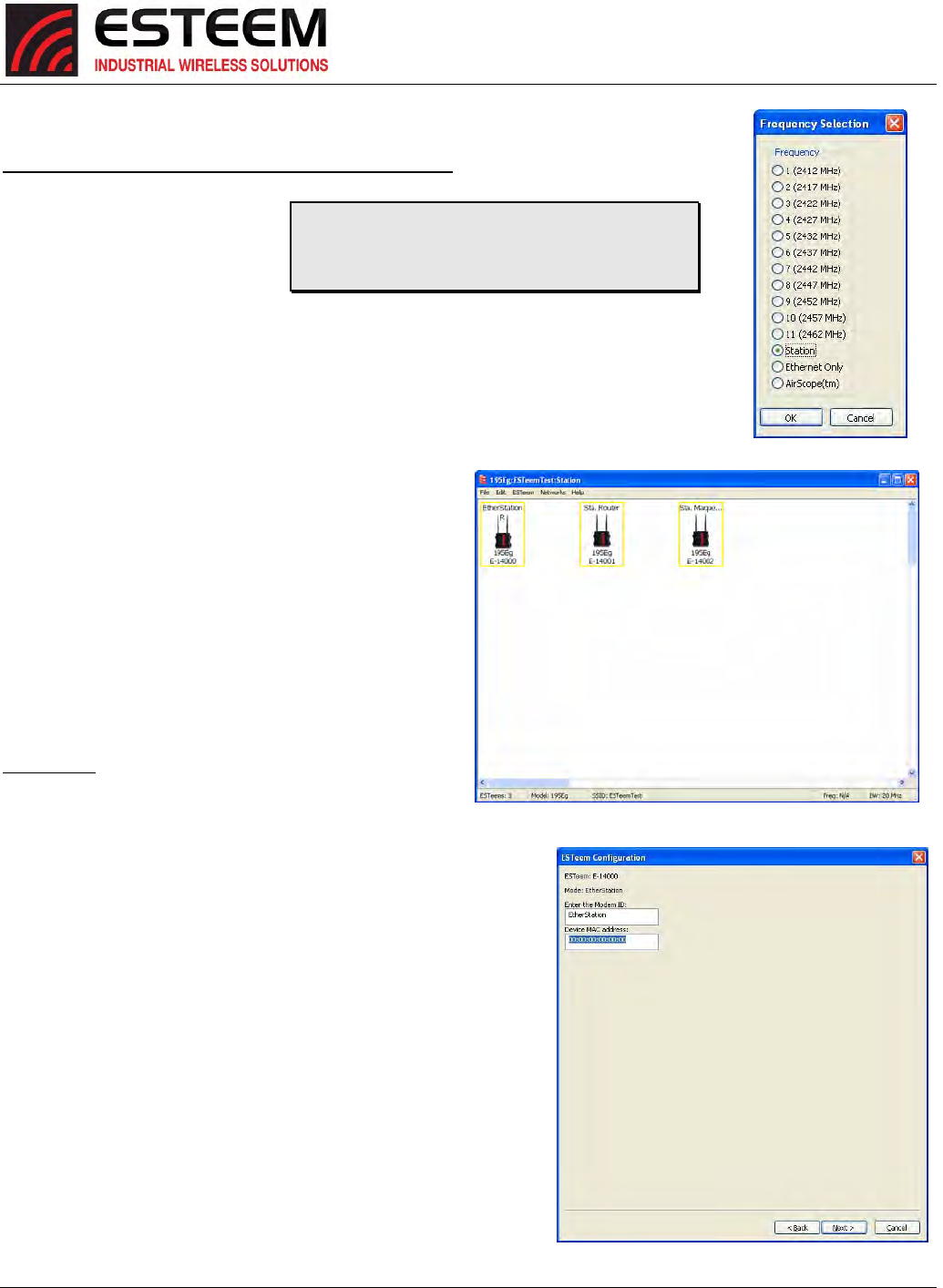

ofoperation,select“Station”(Figure23).



2. AddthethreemobileclientmodemstotheENCUtility

configurationpageasinstructedaboveandsetthe

ModemIDtomatchthethreemodesofoperation.

YourconfigurationwillappearasinFigure24.



EtherStation



3. Bydefault,theENCUtilitysetsallstationmodeESTeem

modemstoEtherStationmode.Theonlyadjustment

necessarytotheEtherStationmodeminourexampleis

toentertheconnectedEthernetdevice’sMACaddress.The

ESTeemHorizonwill“clone”theEthernetMACaddressofthe

connectedEthernetdevice.ToconfiguretheEtherStation

modem,double‐clickontheicontobringuptheESTeemSummary

windowandpresstheEditbutton(Figure20).



4. EtherStationmodeshouldbeselectedintheModeofOperation.

PresstheNextbuttonatthebottomofthewindowtocontinue.

EntertheconnectedEthernetdevice’sMACaddressinthe“Device

MACAddress”box(Figure25)andpresstheNextbuttonatthe

bottomofthewindowtocontinue.



5. Verifytheencryptionsettingsarecorrectforthe802.11AP

networkinwhichtheEtherStationmodemwillbeworkingand

presstheFinishbuttontoreturntotheconfigurationpage.



TechnicalTip:TheESTeemHorizon’sinMobileClient

modesdonothaveaspecificfrequencyofoperation

ascanbeseeninFigure24.



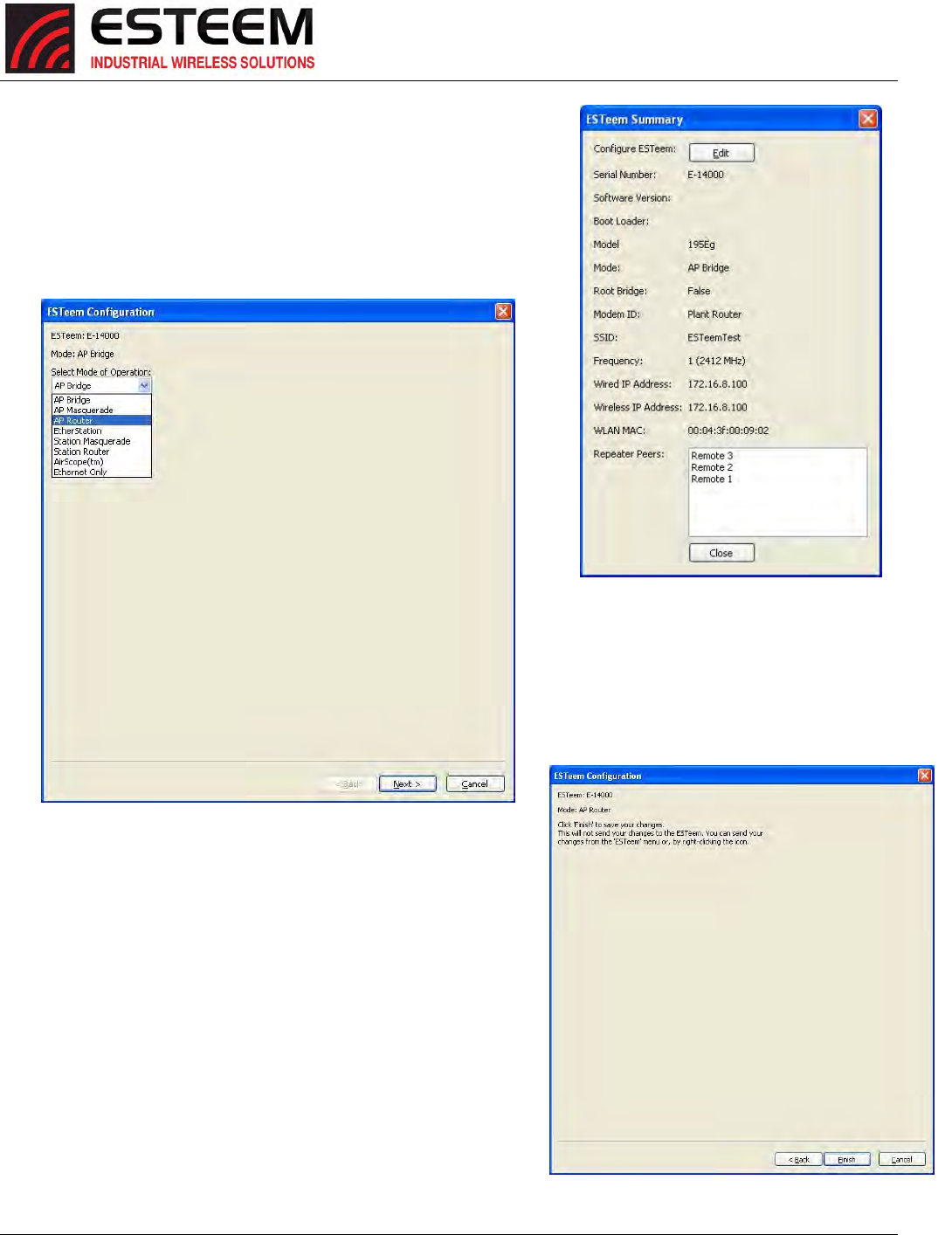

Figure23:Station



Figure24:StationModeExampleModems



Figure25:MACAddressEntry

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-16 ESTeem Horizon Series

StationRouterandStationMasquerade



6. Toconfigurethetwoothermodems,double‐clickontheiricons

tobringuptheESTeemSummarywindowandpresstheEdit

button(Figure20).



7. SelectStationRouterforZ‐14001andStationMasqueradefor

Z‐14002intheModeofOperation(Figure26).PresstheNext

buttonatthebottomofthewindowtocontinue.



8. ContinuethroughtheconfigurationscreenssettingtheStation

Router/MasqueradeaddressingtomatchtheIPaddressranges

foryournetwork.Forhelpwithsettingtherouteraddressing

pleaserefertoRouterAddressExampleslaterinthischapter.



9. Verifytheencryptionsettingsarecorrectforthe802.11AP

networkinwhichtheEtherStationmodemwillbeworkingand

presstheFinishbuttontoreturntotheconfigurationpage.



10. VerifyallESTeemmodemsareconnectedtothesameswitchas

thecomputerrunningtheENCUtilityandsendthe

configurationtoallmodemsatthesametimebyselecting

ESTeem>ESTeemConfiguration>SendConfigurationtoAll

ESTeems.OncetheENCUtilityhasdownloadedtheconfigurationforbothESTeemHorizons,thestatusboxaroundthe

ESTeemswillchangefromyellowtoblue.ThisindicatesthattheconfigurationwascompletedsuccessfullyandtheESTeem

Horizonsarereadytobeinstalledintheapplication.



802.11AccessPointModes(Figures6‐8)



AccessPointBridge,RouterorMasqueradeModes



ConfiguringtheESTeemHorizonasanAccessPointfor

802.11clients(asseenFigures6‐8)isexactlythesameas

configurationforAPBridge,APRouterandAP

Masqueradeasshownabove.Theonlydifferencebeing

thatawirelesslinkisonlyaddedbetweenESTeem

Horizonswhereawirelessconnectionisnecessary.In

figures6and7therewouldbenowirelesslinklistedin

theENCUtility.Infigure8,theconfigurationwouldbe

exactlyasshowninFigure2withtheadditionofthe

mobileclientsinthenetwork.



The802.11clientswillusetheSSIDconfiguredduringthe

setupofthenetworkwiththeENCUtility.The

encryptionwillbesetatthefactorydefaultsettingsfor

clients(WPAPSK).Toadjusttheencryptiontype,right‐

mouseclickontheESTeemiconandselect

Change>ChangeESTeemEncryption(Figure27).



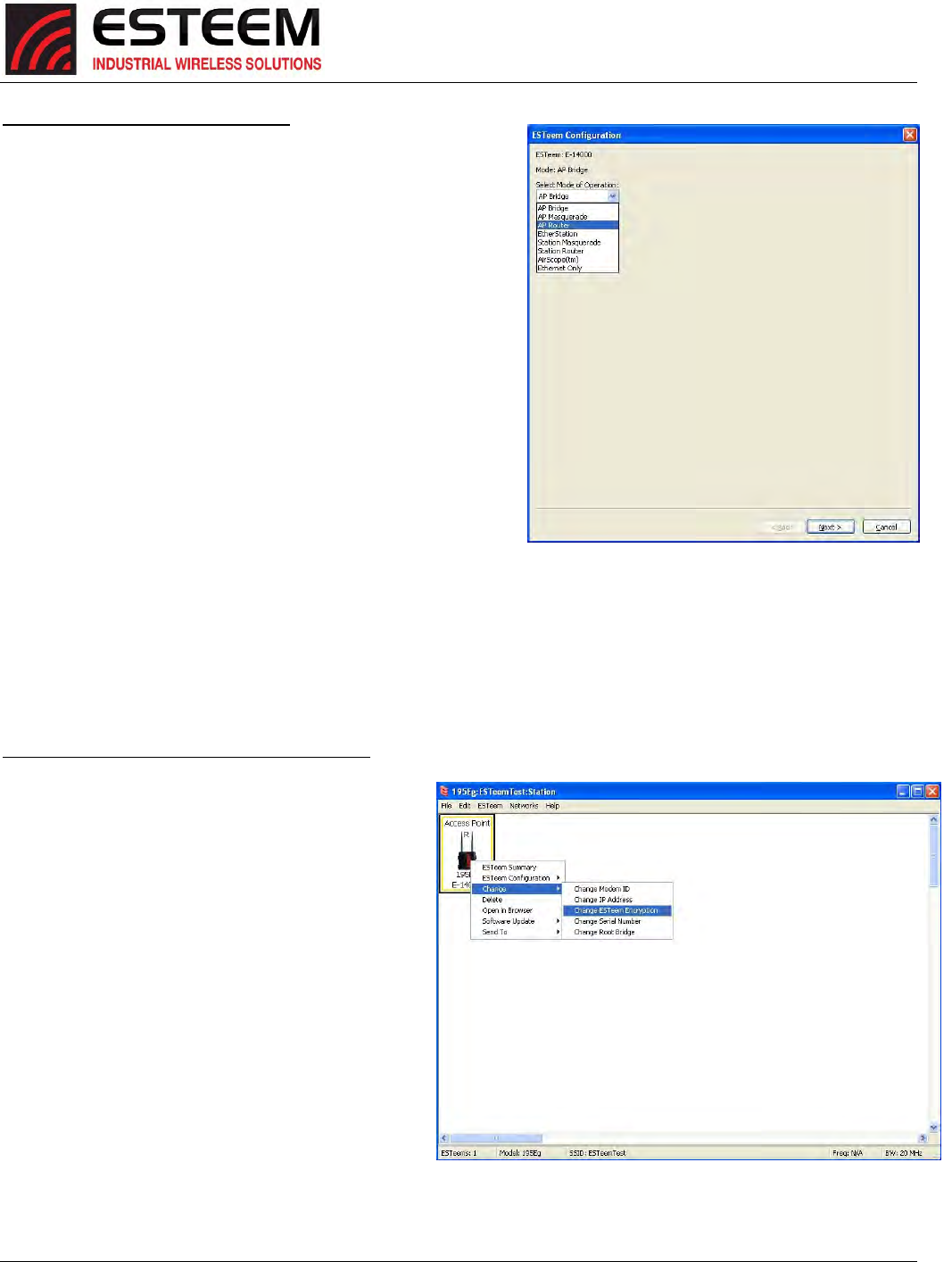

Figure26:ModeofOperationSelection



Figure27:EncryptionConfiguration



CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-17 ESTeem Horizon Series

ROUTERADDRESSINGEXAMPLES



ThefollowingareexamplesoftheIPaddressingandsubnetsrequiredfortheESTeemRoutermodes.



PointtoPointAccessPointRoutertoStationRouter

AP Router

Wireless IP Address: 172.16.1.6

Netmask: 255.255.0.0

Default Route: 172.17.1.6

Ethernet IP Address: 172.17.1.6

Netmask: 255.255.0.0

Static Route: 172.20.0.0

255.255.0.0

gateway: 172.16.2.22

Station Router

Wireless IP Address: 172.16.2.22

Netmask: 255.255.0.0

Default Route: 172.16.1.6

Ethernet IP Address: 172.20.2.22

Netmask: 255.255.0.0

Device

IP address: 172.17.X.X

Netmask: 255.255.0.0

Default gateway 172.17.1.6

Device

IP address: 172.20.X.X

Netmask: 255.255.0.0

Default gateway 172.20.2.22



Figure28:APRouterAddressingExample



CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-18 ESTeem Horizon Series



Stand‐AloneAccessPointRouterandSingleStationRouter



Figure29:StationRouterAddressingExample



Static Routes

Routes for 172.18.0.0 network use

gateway 172.16.2.20

Note: Wireless Networks and

Station Devices Must Be on

Separate Subnets

ESTeem Horizon in Access Point

Router Mode

Ethernet IP Address = 172.17.1.6

Wireless IP Address 172.16.1.6

Netmask = 255.255.0.0

Default Route = 172.17.1.6

ESTeem Horizon in

Station Router Mode

Netmask 255.255.0.0

Wireless IP Address

172.16.2.20

Ethernet IP Address

172.18.2.20

Gateway(Route)

172.16.1.6

Connected Ethernet Devices

IP Address 172.18.X.X

Netmask 255.255.0.0

Gateway (Route) =

172.18.2.20

Computer

IP Address = 172.17.1.1

Netmask = 255.255.0.0

Default Route = 172.17.1.6

CHAPTER3

EXAMPLEAPPLICATIONS

Revised: 27 Jun 16 3-19 ESTeem Horizon Series



Stand‐AloneAccessPointRouterwithMultipleStationRouters



Figure30:CompleteRouterAddressingExample



ESTeem Horizon in Access Point

Bridge Mode

Bridge IP Address = 172.16.1.7

Netmask = 255.255.0.0

Default Route = 172.16.1.6

Connected Ethernet Devices

IP Address 172.16.X.X

Netmask 255.255.0.0

Gateway (Route) = 172.16.1.6

ESTeem Horizon in

Station Router

Mode

Netmask 255.255.0.0

Wireless IP Address

172.16.2.22

Ethernet IP Address

172.20.2.20

Gateway(Route)

172.16.1.6

ESTeem Horizon in Station Router Mode

Netmask 255.255.0.0

Wireless IP Address 172.16.2.20

Ethernet IP Address

172.18.2.20

Gateway(Route) 172.16.1.6

Static Routes

Routes for 172.18.0.0 network use gateway 172.16.2.20

Routes for 172.19.0.0 network use gateway 172.16.2.21

Routes for 172.20.0.0 network use gateway 172.16.2.22

Routes for 172.16.0.0 network use gateway 172.16.1.6

Note: Wireless Networks

and Station Devices

Must Be on Separate

Subnets

ESTeem Horizon in Access Point

Router Mode

Ethernet IP Address = 172.17.1.6

Wireless IP Address 172.16.1.6

Netmask = 255.255.0.0

Default Route = 172.17.1.6

ESTeem Horizon in

Station Router Mode

Netmask 255.255.0.0

Wireless IP Address

172.16.2.21

Ethernet IP Address

172.19.2.20

Gateway(Route)

172.16.1.6

Connected Ethernet

Devices

IP Address 172.18.X.X

Netmask 255.255.0.0

Gateway (Route) =

172.18.2.20

Connected Ethernet Devices

IP Address 172.17.X.X

Netmask 255.255.0.0

Gateway (Route) = 172.17.1.6

Connected Ethernet

Devices

IP Address 172.19.X.X

Netmask 255.255.0.0

Gateway (Route) =

172.19.2.20

Connected Ethernet

Devices

IP Address

172.20.X.X

Netmask

255.255.0.0

Gateway (Route) =

172.20.2.20

Blockage

CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-1 ESTeem Horizon Series

ESTeemNetworkConfigurationUtility(ENC)



TheESTeemNetworkConfiguration(ENC)Utilityisasoftwareprogramdesignedtogreatlysimplifytheconfigurationofyour

HorizonwirelessEthernetnetwork.TheENCUtilitywillallowgraphical,point‐and‐clickconfigurationofyournetworkrouting,

thenconfigureeachESTeemwirelessmodemforthenetworkasdesigned(Figure1).TheENCUtilitywilleliminatetheneedto

programorupdateeachESTeemwirelessmodemindividually.TheENCUtilitycansendallwirelessmodemconfigurationchanges

simultaneouslytoaneworexistingnetwork.



TheENCUtilitywillbeusedforallwirelessnetworkprogramminginthisUser’sManual.Fordetailedinstructionsontheuseof

theESTeemNetworkConfiguration(ENC)UtilitypleaserefertheENCUtilityUser’sGuideavailableontheESTeemResourceCDor

intheapplicationitself.



ESTeemDiscoveryUtility



TheESTeemDiscoveryUtilitywillallowyoutoconfiguretheIPaddressontheHorizon

radiotomatchyournetworkregardlessofitscurrentIPsubnet.Thisutilitywillalsoallow

youtoupdatethesoftwareintheHorizonandopenthewebconfigurationforthat

wirelessmodem.



Installation



TheDiscoveryUtilitycanbedownloadedfromtheESTeemwebsite(http://www.esteem.com)orisavailableonthe

SoftwareResourcemediathatwasshippedwiththeHorizonradios.



1. TheDiscoveryUtilityisaJava™basedapplicationcompatiblewithanycomputeroperatingsystem(Window,

Linux,etc).Theapplicationrequirestwo(2)additionalsupportfilestooperate:



Java–Downloadablefromhttp://www.java.com.Theversionrequiredwillbebaseduponyouroperatingsystem.

Note:TheinstallationandupdatesfromJavamaytryandinstalladditionalwebbrowsertoolbars.Uncheckthe

optionalinstallationiftheyarenotdesired.

WinPcap–Downloadablefromhttp://www.winpcap.org/.Theversionrequiredwillbebaseduponyour

operatingsystem.



Figure1:ESTeemNetworkConfigurationUtility

TechnicalTip:Ifyourcomputeris

configuredforDHCPandnot

attachedtothenetwork,youwill

needtoassignastaticIPaddress

toprogramtheHorizon.



CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-2 ESTeem Horizon Series



2. Onceboththeaboveprogramshavebeeninstalled,savetheESTeem.exefiletoanylocationonyourcomputer

suchastheDesktop.DoubleclicktheESTeem.exeprogramandFigure2willbedisplayed.

3. ConnecttheHorizonmodemtoyourcomputereitherdirectlytotheEthernetcardorthroughaSwitchusinga

CAT‐5eEthernetcable.TheEthernetportsupportsAuto‐Negotiation,soeitherapatchcableorcrossovercable

willwork.PresstheDiscoverESTModemsbutton.



4. TheESTeemHorizonwillbedisplayed(Figure3).IftheESTeemHorizonisnotonthesameIPsubnetasthe

computer,doubleclickontheIP,NetmaskorGatewayandmakethenecessarychanges.PresstheApplyChanges

buttonwhencomplete.



5. IfchangesweremadetotheIPaddress,youwillneedtopresstheDiscoverESTModemsbuttonagaintoshow

thechanges.Right‐mouseclickontheHorizonandselectConfigureRadiobuttontobeginprogramming.



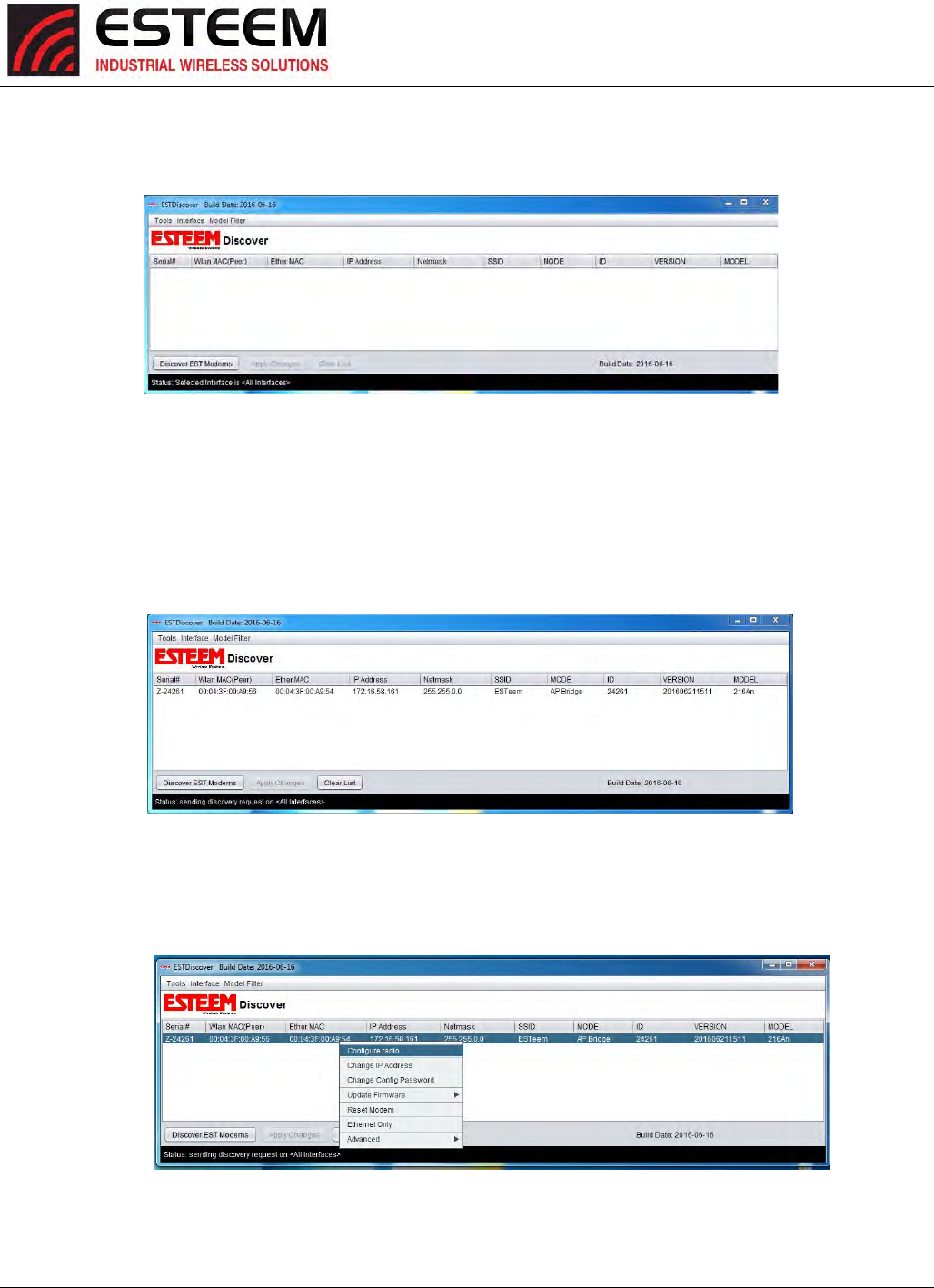

Figure2:ESTeemDiscoveryUtility



Figure3:ESTeemDiscoveryUtility



Figure4:OpeningRadioConfigurationSoftware

CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-3 ESTeem Horizon Series

FirmwareUpdates



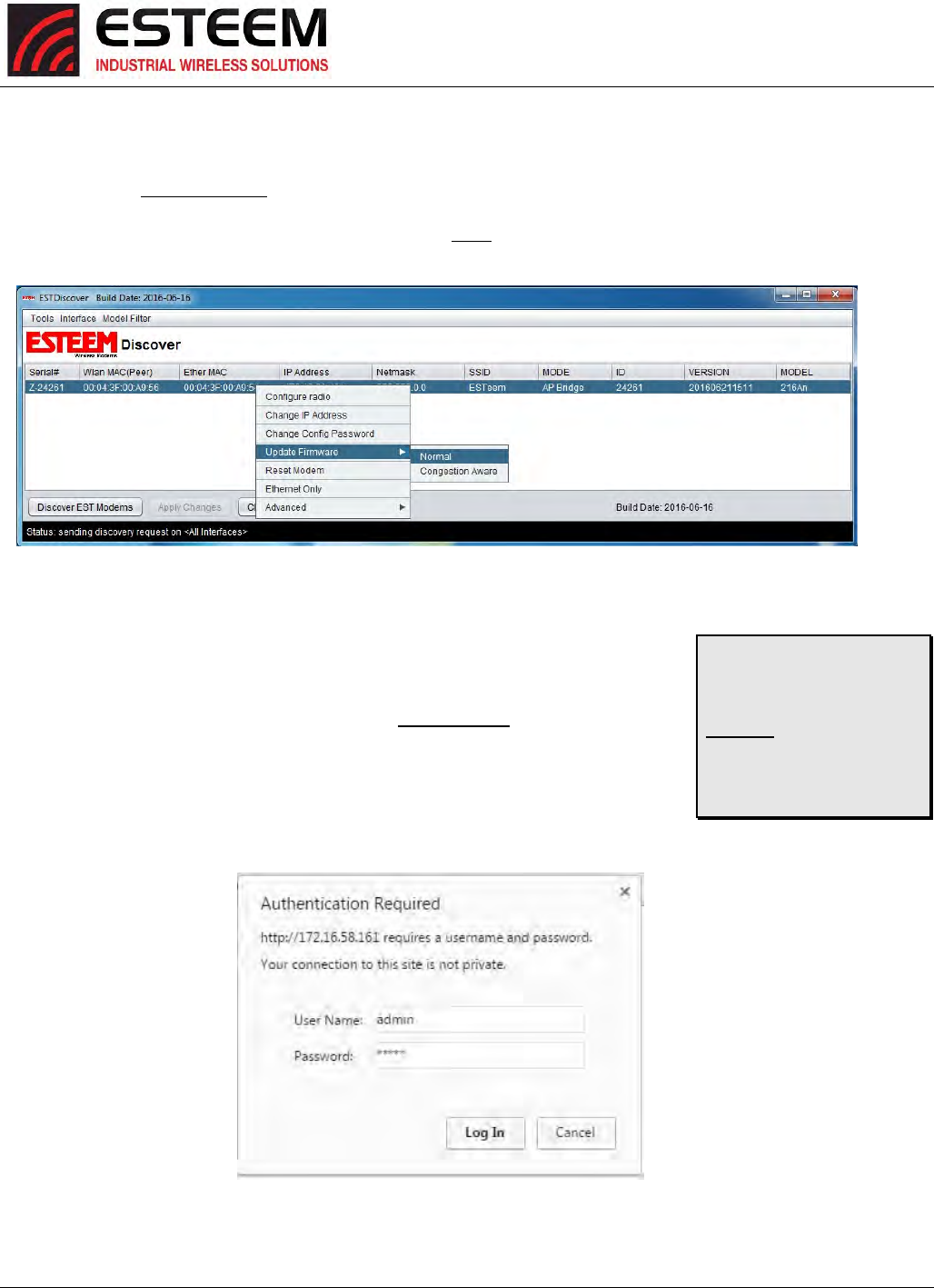

ToupdatefirmwareonanyESTeemHorizonthatisshownontheDiscoveryprogram,“right‐mouse”clickontheHorizon’sMAC

addressandselectUpdateFirmwarefromthemenu(Figure5).Therearetwofirmwareupdateoptionsavailable,“Normal”and

“CongestionAware”.SelectNormalformostupdatesanduseCongestionAwarewhensendingtheupdateoverthewirelesslink

onabusynetwork.Onceyoulocatetheupdatefile,selecttheOpenbuttonandtheHorizonwillupdate,validateandthenreboot

withtheupdatedoperatingsystem.



OpeningWebBrowser



ToquicklyopenawebbrowserpagetotheIPaddressprogrammedintheHorizon,“right‐

mouse”clickontheHorizon’sMACaddressandselectConfigureradiofromthemenu(Figure

5).IfyourcomputerisconfiguredforthesameIPsubnetattheESTeemHorizonwireless

modem,youwillbeaskedtosigninwiththeUsernameandPassword(Figure6).Youcannow

beginprogrammingtheHorizonforyourapplication.







Figure5:DiscoveryFeaturesMenu



TechnicalTip:Thedefault

UsernameandPasswordis

“admin”(alllowercase).

Example

Username:admin

Password:admin



Figure6:ESTeemWebPageLog‐onScreen

CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-4 ESTeem Horizon Series

SETTINGLOCALTIME



TheESTeemHorizonwillbeshippedfromthefactorywiththeinternalreal‐timeclocksettoPacificTime.Tochangetheclock

settingstothelocaltimeforaccuratelogfileentries:



2. SelectAdvancedfromthetop

Menu,selectGlobalSettings>Set

SystemTime(Figure7)fromthe

menuandpresstheNextbutton

tocontinue.



3. Selectthecorrectdateandtime

fromthedrop‐downmenus

(Figure8)andpresstheSet

SystemTimebuttontosavethe

timetotherealtimeclock.



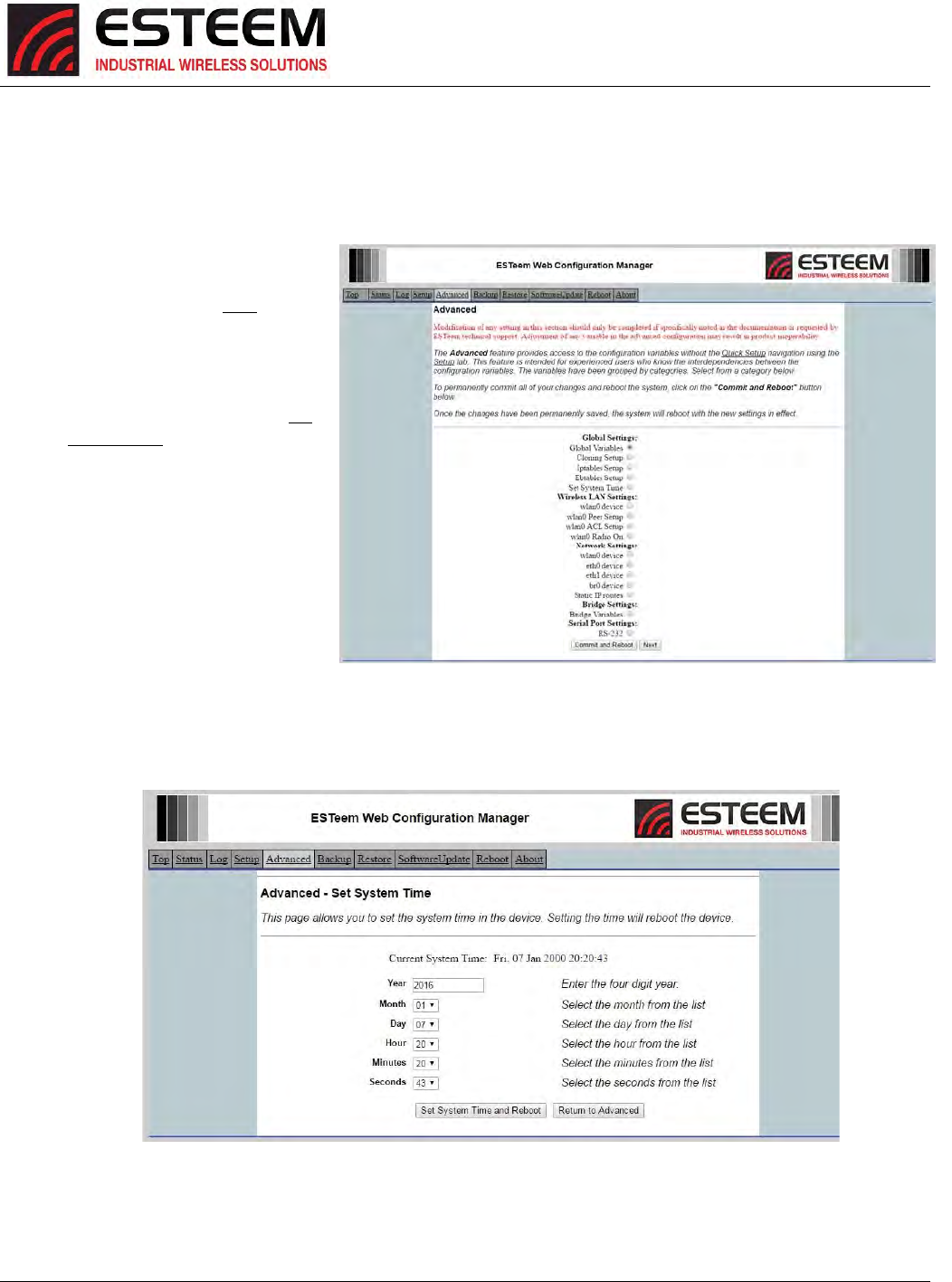

Figure7:AdvancedFeaturesScreen



Figure8:AdvancedFeaturesScreen



CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-5 ESTeem Horizon Series

CONFIGURINGTIMESERVER



EnablingNTPtimesynchronizationservicesontheHorizonwillallowusageoftimeservicesfromupstreamservicestokeepthe

timeonthesystemaccurate.



Toallowtimesynchronization,theHorizonmustbeconfiguredwiththeNTPDaemonenabledandtheappropriateIPaddressof

theupstreamnetworkNTPserver.



1. SelectAdvancedfromthemenuitemsandGlobalVariables(Figure7).



2. PresstheNextbuttonandFigure9willbedisplayed.AtthebottomofthepagearetheNTPserverconfigurations.



3. TheNTPdaemonisenabledbyselectingONforNTPClient(Figure9).Whenenabled,theNTPdaemonwillusetime

servicesfromupstreamservicestokeepthetimeonthissystemaccurate.



4. Next,theNTPServershouldbeconfiguredto“On,”ifyouwanttoallowthesystemtoprovideNTPserviceforclients

wishingtimesynchronization(Figure9).



5. ThefinalstepinconfiguringNTPservicesistoentertheIPaddressorthehostnameoftheupstreamNTPserver.Once

configurationiscomplete,presstheAcceptbutton.



6. Tocompletetheconfiguration,select“CommitandReboot.”TheHorizonwillnowcommittheconfigurationchanges

andreboot.



Figure9:NTPSettings

CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-6 ESTeem Horizon Series



VLANOPERATION



VirtualLAN(VLAN)systemsarerapidlybecomingthedesiredconfigurationonlargerEthernetnetworks.TheESTeemHorizon

softwarewillallowtheEthernetmodemstotransparentlypasstheVLANpacketsforthesenetworks.TheHorizoncurrentlycan

notbeusedasaVLANswitch,butwillpassVLANtaggedEthernetpacketsthroughthewirelessbridge.



IGMPSNOOPING



InternetGroupManagementProtocol(IGMP)SnoopingallowstheESTeemHorizontooperatemoreefficientlyinnetworkswith

highMulticast(UDP,etc.)traffic.IGMPSnoopingwilldefinethedestinationfortheMulticasttrafficandsendthedatatothe

correctwirelessEthernetmodem,nottheentirenetwork.ThislimitingofMulticasttraffictospecificdestinationsgreatlyincreases

theoverallnetworkefficiency.



TheproblemwithusingmulticasttrafficoverawirelessconnectionisthatmulticastpacketsdonotrequireanAcknowledgeon

theprotocollayer.IfthewirelessnetworkmissesadatapacketontheRFnetwork,thatmulticastdatapacketislost.



TheoryofOperation



TherearetwotypesofEthernetpacketsonanetwork,unicastandmulticast.Unicastisintendedforexactlyonerecipient(and

ignoredbyallothers).Multicastisintendedtobereceivedbymultiplerecipients.Interestedpartiescanlistenforparticular

multicastpackets,butmostnodesignoreit.Inanycase,thenetworkmediumisstillutilizednomatterhowmanynodesare

listening.Broadcastpacketsareaspecialtypeofmulticasttrafficwhichallnodesalwaysreceive.Theseareparticularlyusefulfor

globalannouncements(Hey,I'mAlice!)andqueries(Hey,I'mAliceandI'mlookingforBob!).Morerelevantly,itishowhostson

anetworkfindouteachother'saddresses,andareabsolutelycrucialtotheproperfunctioningofanetwork.



Asthenetworkgrowsphysically,itencounterssomegrowingpains.Thefirstismorephysical,relatingtothecablinglimitations.

Bridgessolvethisproblembyjoiningtwophysicalnetworkstogethersotheyappeartobeasinglelargenetwork.Throughuseof

bridges,anetworkcanscaletohundredsoreventhousandsofhosts.Thereisadownside,however.Wellbeforethephysical

limitationsofbridginghit,youstarttorunintoefficiencyproblems,asalltraffichastotraveleverywhereonthenetwork.Theraw

carryingcapacityofthissharedmedium,oftenreferredtoasbandwidth,isthesecondscalingproblem.



Smartbridges,orswitches,helpalleviatethebandwidthproblembyonlypassingtrafficacrossthebridgeifthedestinationhost

wasontheotherside.Thisgreatlyincreasesthecapacityandefficiencyofthenetworkbyallowingtwopairsofhosts

communicatingsimultaneouslyoneachsideoftheswitchedbridge.Onlywhenthepacketneedstogototheothersideisboth

mediumsutilizedsimultaneouslyforthesamepacket.



Unfortunately,broadcastandmulticasttrafficbyitsverynaturemustalwaysberelayedacrossthebridge.Whilethenumberof

networknodesmaygrowlinearly,themulticasttraffictendstogrowexponentially.Thisisn'tgenerallyaproblemforwired

networks,astheyhaveaconsiderableamountofbandwidthtospare,butwirelessnetworkshave,atbest,anorderofmagnitude

lessbandwidthtobeginwith.Ifawirelessnetworkisbridgedwithawirednetwork,whiletheabsolutenumbersarethesame,a

muchhigherproportionofthewirelessnetwork’savailablebandwidthisusedupbymulticasttraffic.Thiseffectisfurther

magnifiedifmultiplewirelessrepeatersareinuse.



Thepreferredwayofdealingwithexcessmulticasttrafficistoputthewirelessnetworkonadifferentsub‐network(subnet)and

usearoutertojoinittothewirednetwork.Thisensuresthatonlyunicasttrafficintendedforthewirelessnetworkcrossesover,

asmulticastandbroadcasttrafficstayswithinitslocalsubnet.Normallythisisfine,buttherearetimeswhereyouneedmulticast

traffictospansubnets.ForIPtraffic,thiscanbeobviatedbyusingamulticast‐capablerouter,butforlegacymulticastprotocols

thatwerenotdesignedtoberouted,anothersolutionmustbefound.



CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-7 ESTeem Horizon Series

TherearetwoprimarytypesofcommunicationnetworksusedinwirelessEthernetsystems;fixedpointscommunicatingtoeach

otherthroughanEthernetBridgeandmobiledevicescommunicatingtothesefixedpoints.ThefixedpointEthernetbridge

communicationintheHorizonisthroughRepeaterPeerlinks,whilethemobilecommunicationisfromtheClientmodes

(EtherStation,StationRouterandStationMasquerade)totheAccessPoints(FixedLocations)inthenetwork.Eachofthese

networkshandlesMulticasttrafficdifferentlyasexplainedbelow.



EthernetBridgeMode(withPeers)



WhentheESTeemHorizonisconfiguredasapeer,allmulticasttrafficis“wrapped”inaUnicastframeandsenttoallotherrepeater

peers.(Figure10)ThisoperationallowstheESTeemnetworktoreceiveanacknowledgepacketandretransmitthedataifthe

packetislostduringtransmission.ThisunicastencapsulationwillworkregardlessiftheprotocolcansupportIGMPornot.





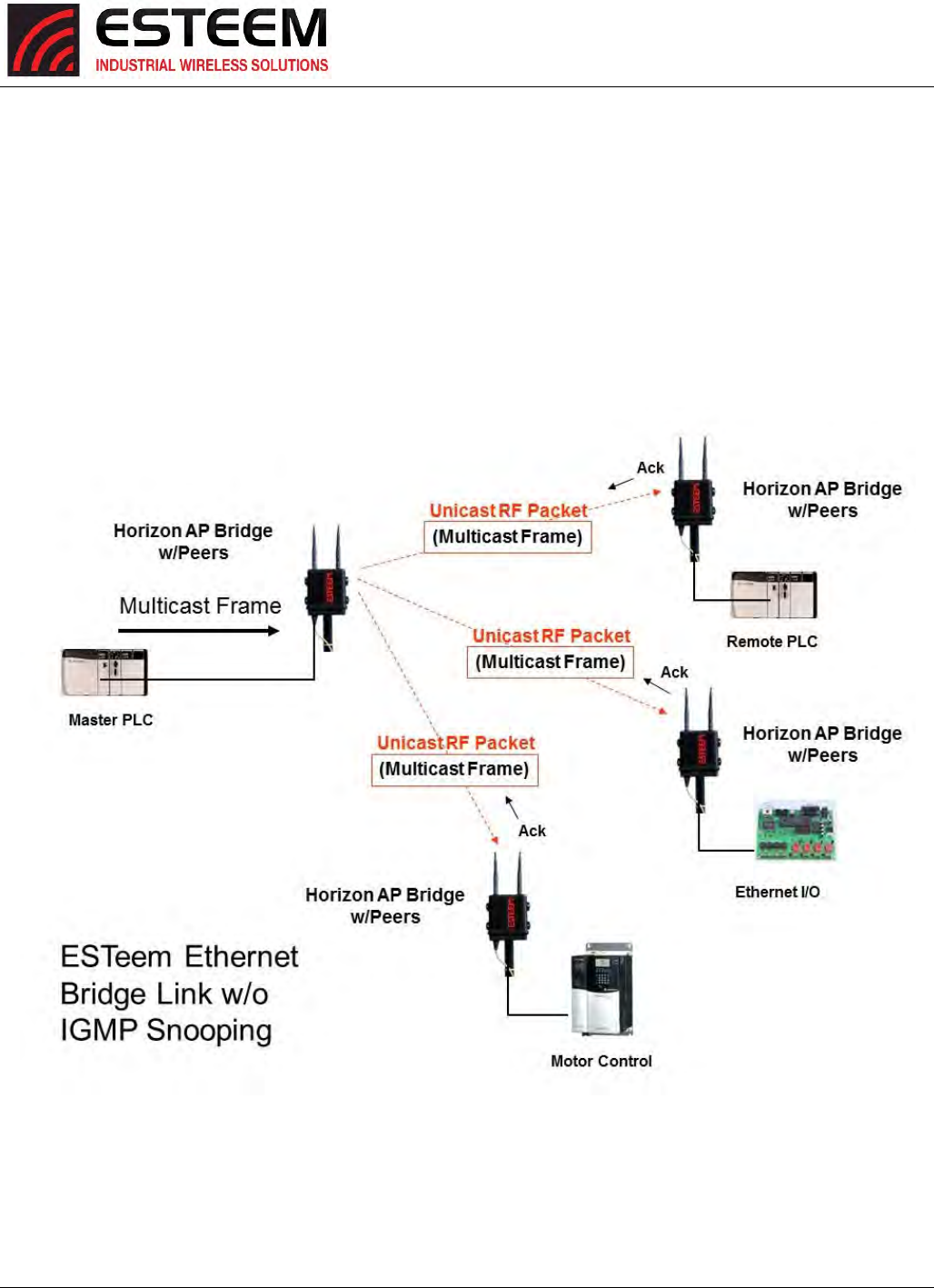

Figure10:RepeaterPeerOperation



CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-8 ESTeem Horizon Series

EthernetBridgeMode(RepeaterPeers)WithIGMPSnooping



WhentheESTeemHorizonisconfiguredasarepeaterpeer,IGMPSnoopingisenabledandthenetworksupportsIGMPprotocol,

theHorizonwillbegintoidentifytheconnectedEthernetdevicesusingMulticasttransmissionsandreportthisinformationtothe

network.Asthisprocesscontinues,allsitesthathaveMulticasttrafficonthewirelessnetworkwillonlysendtheserequeststo

thespecificESTeemreportingtheEthernetdevice(seeFigure11).







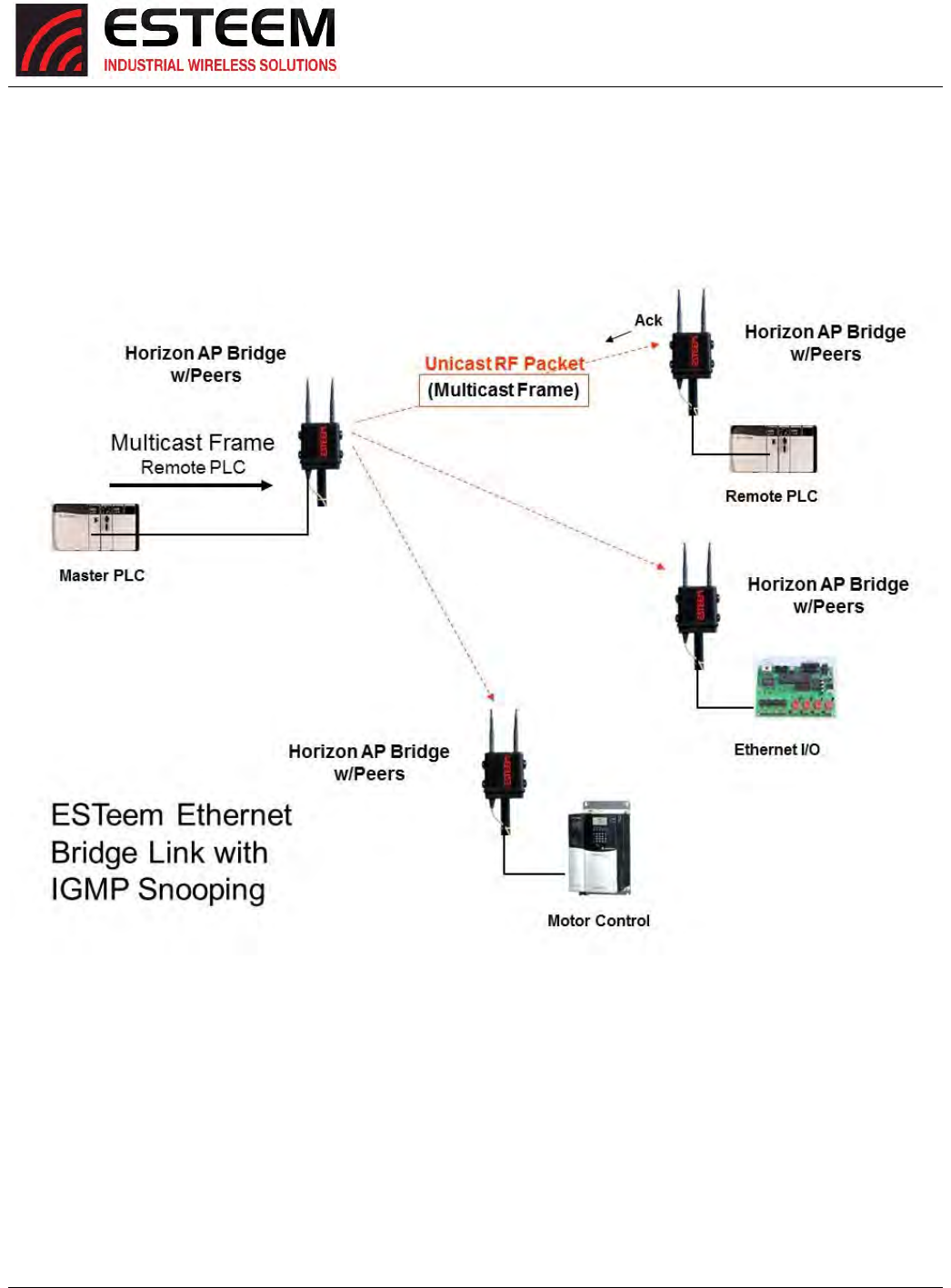

Figure11:RepeaterPeerwithIGMPEnabled



CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-9 ESTeem Horizon Series

EnablingIGMPSnooping



ToenabletheESTeemHorizonforIGMPSnooping,selectAdvanced>BridgeVariablesandpresstheNextButton(Figure15).Select

IGMPSnooptoOn,presstheAcceptButtonandthenCommitandReboot.



Figure12:IGMPEnabled



CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-10 ESTeem Horizon Series

SimpleNetworkManagementProtocol(SNMP)



TheESTeemHorizonsupportsSNMPVersion1(SNMPv1)andVersion2(SNMPv2c)protocol.ThisprotocolenablesanySNMP

servertoviewthestatusofthewirelessnetworkwhilethesystemisinoperation.ThefollowingarealistoftheManagement

InformationBase(MIB)itemsthataresupportedintheESTeemHorizonandtheirMIBlocation:



MIBNameMIBDirectoryLocationNotes

 

SystemTemperatureEST‐MIB::sysInternalTemp.0inC*1000

UptimeHOST‐RESOURCES‐MIB::hrSystemUptime.0SystemUpdate

ModemIDEST‐MIB::sysIdentifier.0User‐specified“nickname”forESTeem

SerialNumberEST‐MIB::sysSerialNumber.0ESTeemserialnumber

ModelEST‐MIB::sysModel.0ESTeemmodelnumber

FirmwareVersionEST‐MIB::sysFirmwareRevision.0Firmwarerevision

SystemModeEST‐MIB::sysMode.0AP_BRIDGE/STA_ETHERSTA,etc

FreeMemoryUCD‐SNMP‐MIB::memTotalFree.0TotalFreeMemory

IdleCPUUCD‐SNMP‐MIB::ssCpuIdle.0PercentageofCPUIdle

 

[[per‐interface]] 

IPAddressIF‐MIB::ifAddress

PortSpeedIF‐MIB::ifSpeedInbps

PortStatusIF‐MIB::ifOperStatus

MacAddressIF‐MIB::ifPhysAddress

 

[[per‐wlandeventry]]EST‐MIB::wirelessDevicesNumber.0WirelessPortIdentification

DeviceNameEST‐MIB::wirelessDeviceTable.1.wName.1Nameofdevice(wlan0standard)

MACAddressEST‐MIB::wirelessDeviceTable.1.wMacAddress.1MACaddressofWLANport

ModeEST‐MIB::wirelessDeviceTable.1.wMode.1

CurrentModeap=accesspoint,sta=station

modeandairscope

FrequencyEST‐MIB::wirelessDeviceTable.1.wFreq.1FrequencyinMHz

BandwidthEST‐MIB::wirelessDeviceTable.1.wBandwidth.1Bandwidth(5,10,or20MHzifused)

SSIDEST‐MIB::wirelessDeviceTable.1.wSSID.1ServiceSetIdentification

BSSIDEST‐MIB::wirelessDeviceTable.1.wBSSID.1BasicServiceSetIdentification

OperationalRatesEST‐MIB::wirelessDeviceTable.1.wOpRates.1ListofRFDataRatesinRateSet

BasicRatesEST‐MIB::wirelessDeviceTable.1.wBasRates.1ListofRFBasicRatesforstatusmessages

 



CHAPTER4

UTILITIES&FEATURES

Revised: 27 Jun 16 4-11 ESTeem Horizon Series

[[peertableentry]]

AllentriesinthePeerTablewillhavea

deviceentryindex,bothESTeemand

otherwirelessdevices

EST‐MIB::wirelessPeersNumber.0Totalnumberofpeerentriesintable

 

wlandeviceEST‐MIB::wirelessPeerTable.1.pDevice.1

indexintothewirelessDeviceTable(each

entrywillhaveauniquenumber

PeerMACAddressEST‐MIB::wirelessPeerTable.1.pMacAddr.1MACaddressofpeer

isRepeater?EST‐MIB::wirelessPeerTable.1.pRepeater.1IsthepeeranESTeemrepeater

isAP?EST‐MIB::wirelessPeerTable.1.pAP.1IsthepeeranAccessPoint

isAssocSta?EST‐MIB::wirelessPeerTable.1.pAssoc.1IsthepeeranMobileClient

isAdhoc?EST‐MIB::wirelessPeerTable.1.pAdhoc.1

IsthepeeranAdHocStation(802.11

only)

FrequencyEST‐MIB::wirelessPeerTable.1.pFreq.1FrequencyinMHz

currentratesetEST‐MIB::wirelessPeerTable.1.pCurRates.1CurrentOperatingRates

lastrxsignalEST‐MIB::wirelessPeerTable.1.pSignal.1ReceiveSignalin–dBm

lastrxnoiseEST‐MIB::wirelessPeerTable.1.pNoise.1BackgroundNoisein–dBm

BSSIDEST‐MIB::wirelessPeerTable.1.pBssid.1BasicServiceSetID(InHex)

SSIDEST‐MIB::wirelessPeerTable.1.pSSID.1SSIDinText

isValid?EST‐MIB::wirelessPeerTable.1.pCurrent.1Trueifpeerinfoisfora“current”peer.

lastrxEST‐MIB::wirelessPeerTable.1.pLastRxl.1

secondssincelastreceivedpacketfrom

peer

lasttxEST‐MIB::wirelessPeerTable.1.pLastTx.1

secondssincelasttransmittedpacketto

peer

currenttxrateEST‐MIB::wirelessPeerTable.1.pCurrentRate.1currenttxrateinbps.



DownloadingMIBTables



TodownloadtheMIBitemslistedaboveandimportintoyourSNMPserver,logintoanyESTeemHorizonandselecttheAbout

page(Figure16).PresstheDownloadMIBFileshyperlinkonthepageandsavethefilestoyourcomputer.



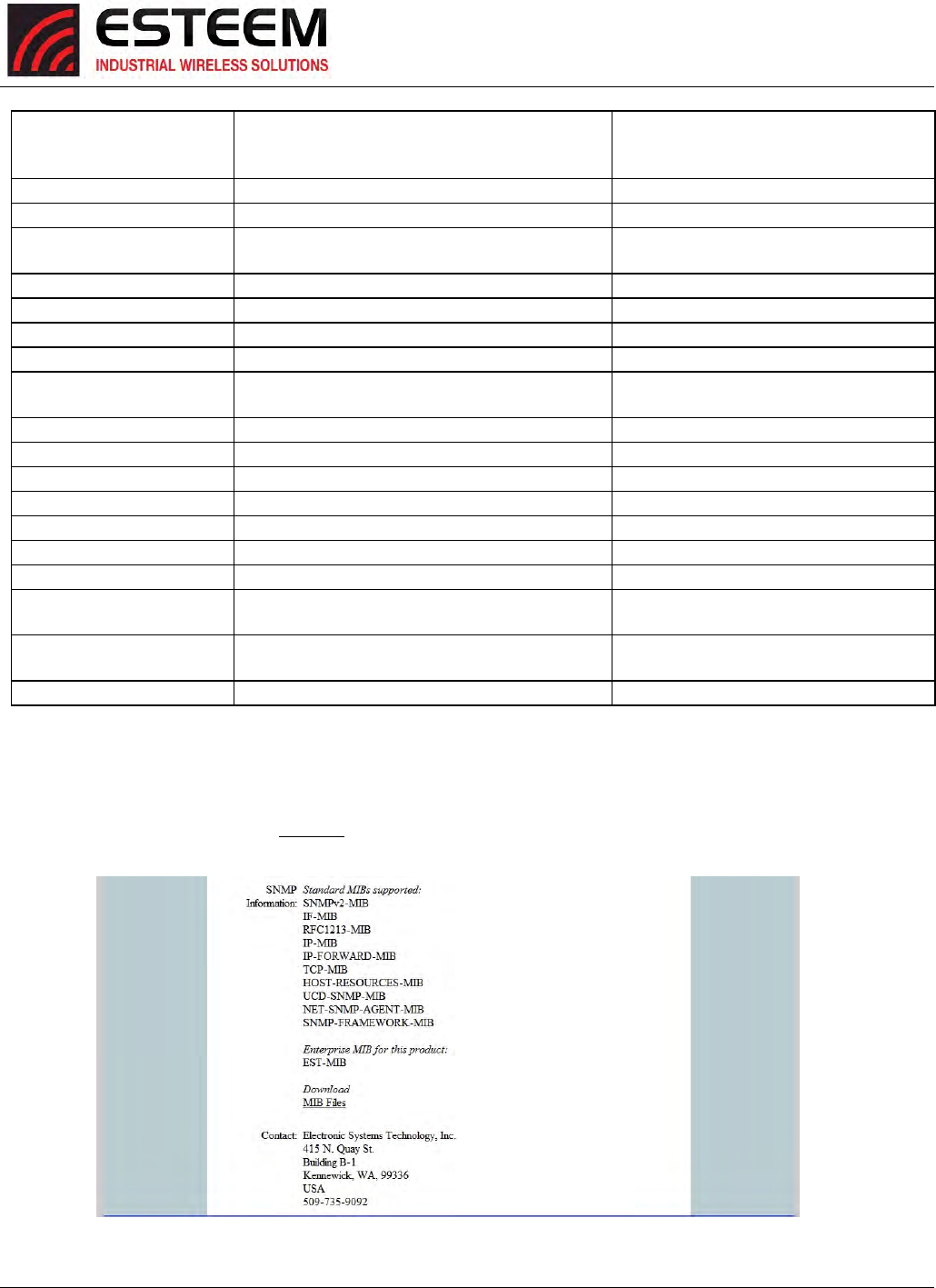

Figure16:MIBTableDownload



CHAPTER5

WEBCONFIGURATION

Revised: 27 Jun 16 5-1 ESTeem Horizon Series

TheESTeemHorizonWebConfigurationManagerisaninternalwebserverthatwillallowsetup,monitoringanddiagnosticsofall

operatingparametersintheHorizon.TheHorizoncanbeconfiguredusinganycurrentwebbrowsersoftwaresuchasInternet

Explorer,Mozilla,FireFoxorGoogleChrome®.



LOGGINGONTOTHEESTeemWEBPAGE



1. UsingyourWebBrowserconnecttotheHorizonWebPagewiththeIP

AddressthatyouhaveassigneditinChapter3.



2. YouwillnowseetheLog‐onMenuonFigure1.ToentertheHorizonTop

MenuyouwillneedtologintothesystemwithaUserNameandPassword.



3. FortheUserNameenteradminandpresstheEnterkey(<Enter>).The

UserNameisdefinedatthefactoryandisnotchangeable.



4. EnteryourPasswordandpresstheEnterkey(<Enter>).



5. AfterLog‐inthenextscreen

displayedwillbetheHorizonTopMenupage(Figure2).Thisexamplescreenshowsthe

TopMenuscreen.



Note:ThroughouttheConfigurationManagerareHelpScreensthatcanbeaccessed

forfurtherinformationoneachitem.



Figure1:ESTeemWebPageLog‐onScreen

TechnicalTip:Ifthisisthefirsttime

theHorizonhasbeenprogrammed

andthePasswordwasnotchanged

fromthefactorydefaultvalues,the

factorydefaultPasswordisalso

admin.



Figure2:TopMenuScreen

CHAPTER5

WEBCONFIGURATION

Revised: 27 Jun 16 5-2 ESTeem Horizon Series

WEBCONFIGURATIONMANAGERSECTIONS



Thefollowingsectionswilldescribethefeaturesineachofthemainandsubmenuitemsinthewebpages.Forstep‐by‐step

examplesofhowtoconfiguretheHorizonindifferentModesofOperation,pleaserefertoChapter3–ExampleApplications.



TopMenu



TheTopMenuwillbethedefaultwebpagefortheHorizonWebConfigurationManager(Figure2).Thissectionwilldisplaythe

currentconfigurationsummaryfortheHorizonandallowchangingofthedefaultpassword.ThispagewillalsodisplaytheModem

IDfieldthatcanbeusedtoeasilyidentifytheHorizonyouareprogramming.ThisModemIDfieldcanbesettoanytext

combinationforexample,locationname,GPScoordinatesoraddresses.



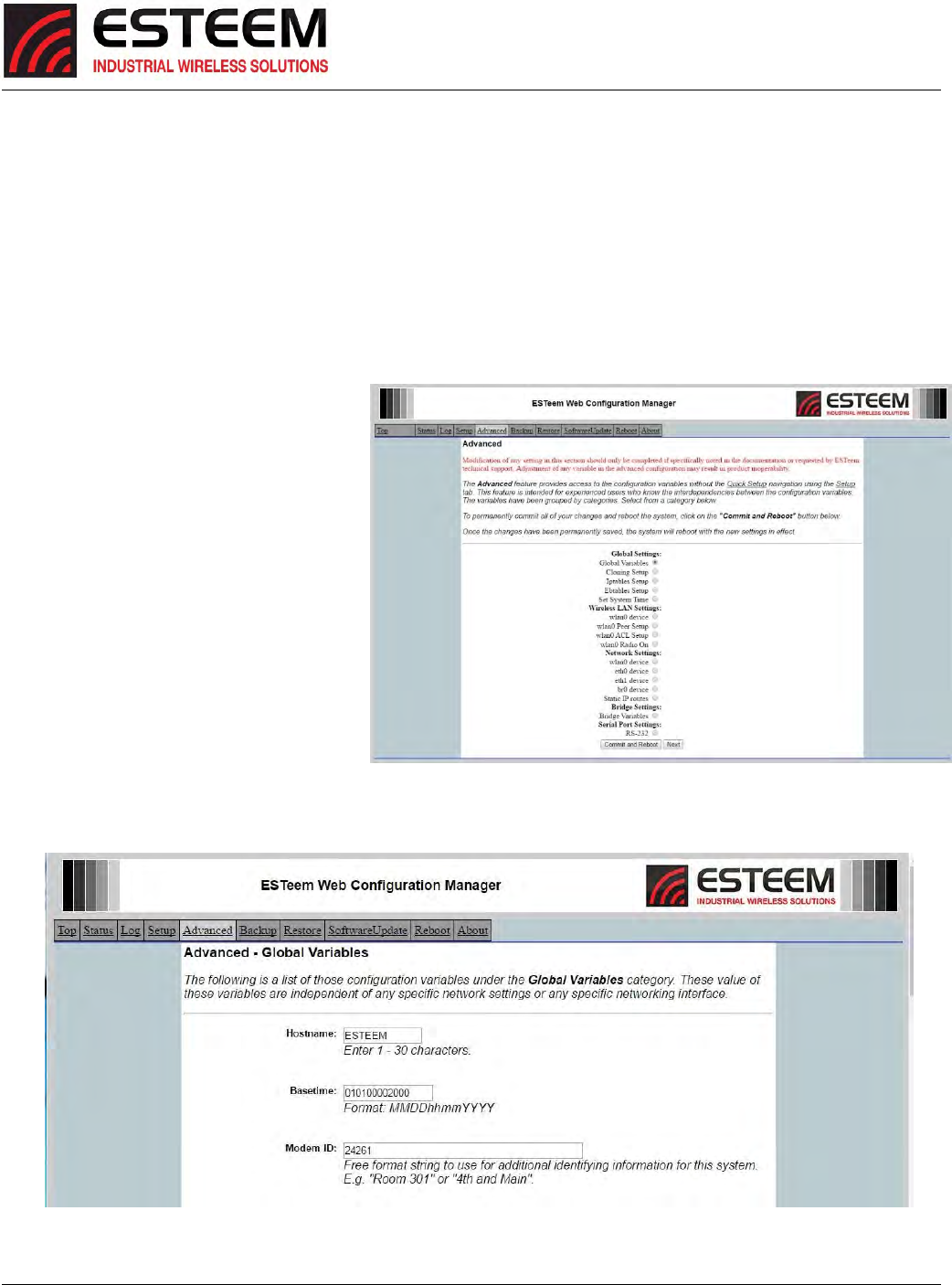

SettingtheModemID



1. TheModemIDfieldcanbeadjustedunder

theGlobalVariablesoftheAdvancedMenu

tab.SelectGlobalVariablesandpressthe

Nextbutton.Figure3willbedisplayed.



2. ScrolltothebottomoftheGlobalVariables

windowandenterthetextyouwouldlike

displayedintheModemIDfield(Figure4).

Whencomplete,presstheSaveSettings

buttonandtheCommitChangesbuttonon

thenextscreentosavethenametothe

Horizon.



Figure3:GlobalVariablesScreen



Figure4:ModemIDFieldinGlobalVariablesScreen

CHAPTER5

WEBCONFIGURATION

Revised: 27 Jun 16 5-3 ESTeem Horizon Series

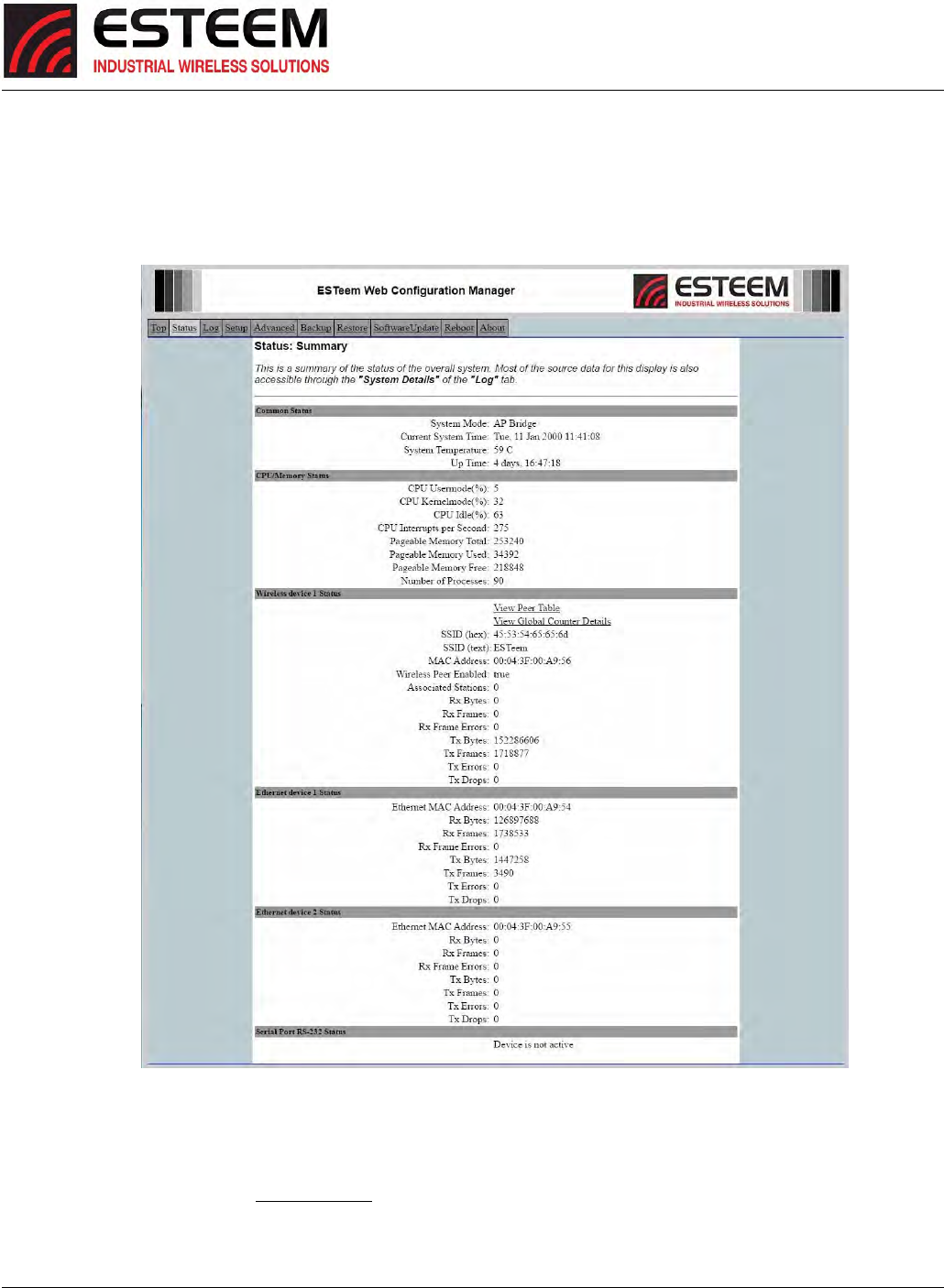

StatusMenu



TheStatusMenuprovidesasummaryofthecurrentmodeofoperation,systemtime,processorusage,internaltemperatureand

statusofthecommunicationlinkstootherwirelessdevices.AnexampleisshownbelowinFigure5.Mostofthecommunication

troubleshootingisdoneinthissectionoftheWebConfigurationManager.



PeerStatusTable



ThePeerStatussubmenuliststheconnectedwirelessdevices(Horizon’sor802.11clients),theirsignalstrength,datarateand

timeoflastpacketsent.PresstheViewPeerTablelinkandRepeaterPeerStatusTablewillbedisplayed(Figure6).Foradetailed

analysisoftheinformationprovidedinthistable,pleasereviewAppendixE–Troubleshooting.



Figure5:StatusScreen

CHAPTER5

WEBCONFIGURATION

Revised: 27 Jun 16 5-4 ESTeem Horizon Series

AssociatedStation–ThissectionwilllistalltheassociatedstationsthatareattachedtotheAccessPoint.Thesecouldbeother

Horizon’sinoneofthethreeClientmodesor802.11devices.



Peers–ThissectionwilllistallconnectedHorizonpeers(EthernetBridgelinks)bytheirWirelessMACaddress.Fordetailed

informationonpeerlinks,bridgingandwirelessMesh,seeChapter7–WirelessBridgingandMeshFeatures.



AccessPoints–Thissectionwilllistallother802.11AccessPointsthataresharingtheoperatingchannel(frequency)oftheHorizon.

YoucanalsonotethatthePeerslistedabovearealsoincludedinthislist.



SystemLogScreen



TheLogScreenisatrouble‐shootingtoolthatshowsthecurrentlogofHorizonsystemmessages.SeeFigure7.TheSystemDetails

buttonwilldisplayamoredetailedsystemdiagnosticthatmayberequestedbyESTeemtechnicalsupport.



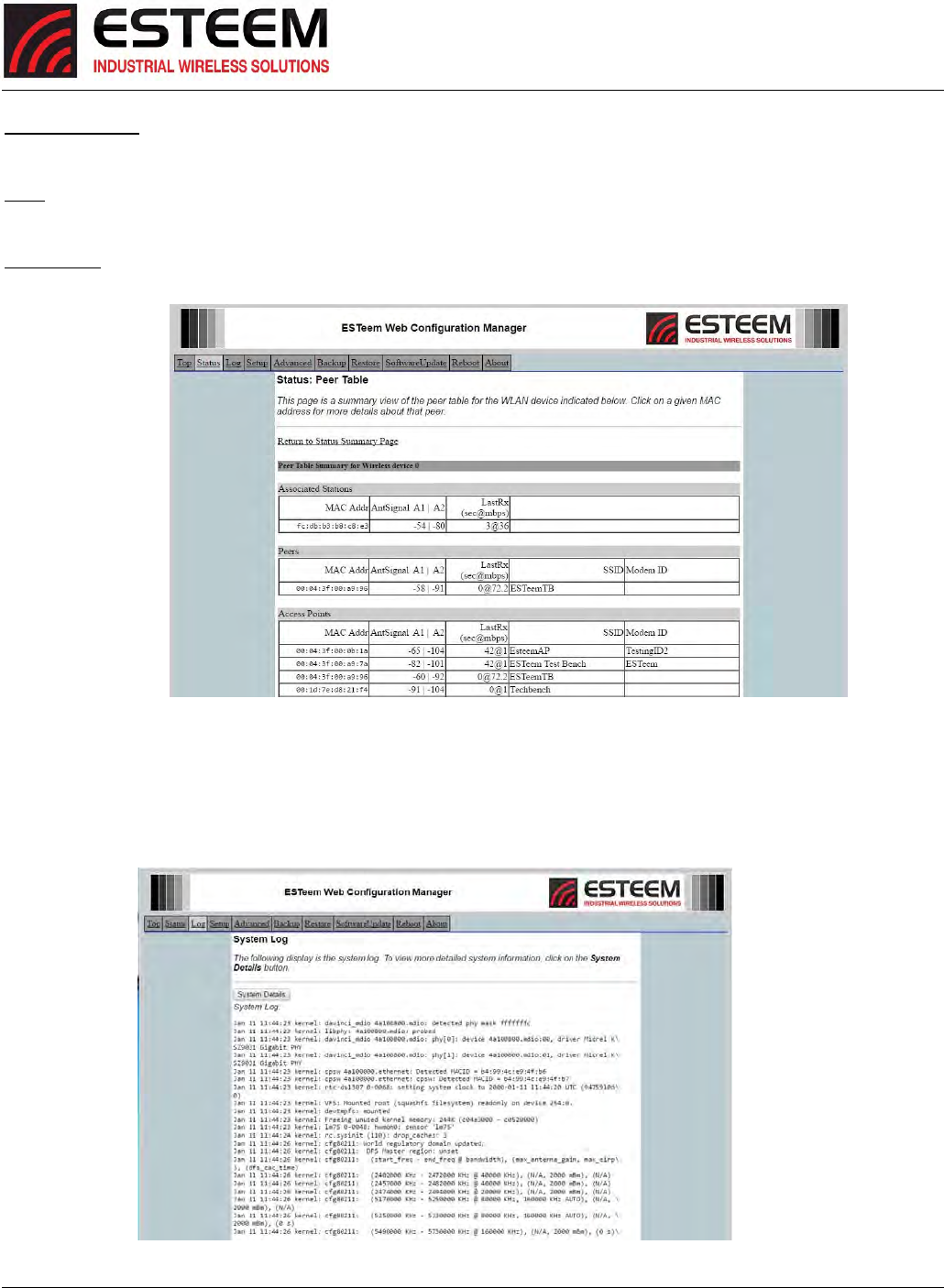

Figure6:PeerTableScreen



Figure7:SystemLogScreen

CHAPTER5

WEBCONFIGURATION

Revised: 27 Jun 16 5-5 ESTeem Horizon Series

SetupScreen



TheSetupscreenallowsthestep‐by‐stepconfigurationoftheHorizonusingtheWebConfigurationManager(Figure8).Please

seeChapter3forcompletedescriptiononModesofOperationandexamplesystemconfigurations.



AdvancedConfigurationScreen



TheAdvancedscreenallowstheusertoaccessallconfigurationparameters.Theparametersaregroupedbasedupontheir

variable.ItisrecommendedthatonlyadvancedusersoftheHorizonenterthissectionunlessinstructedbyESTeemtechnical

support.SeeFigure9.







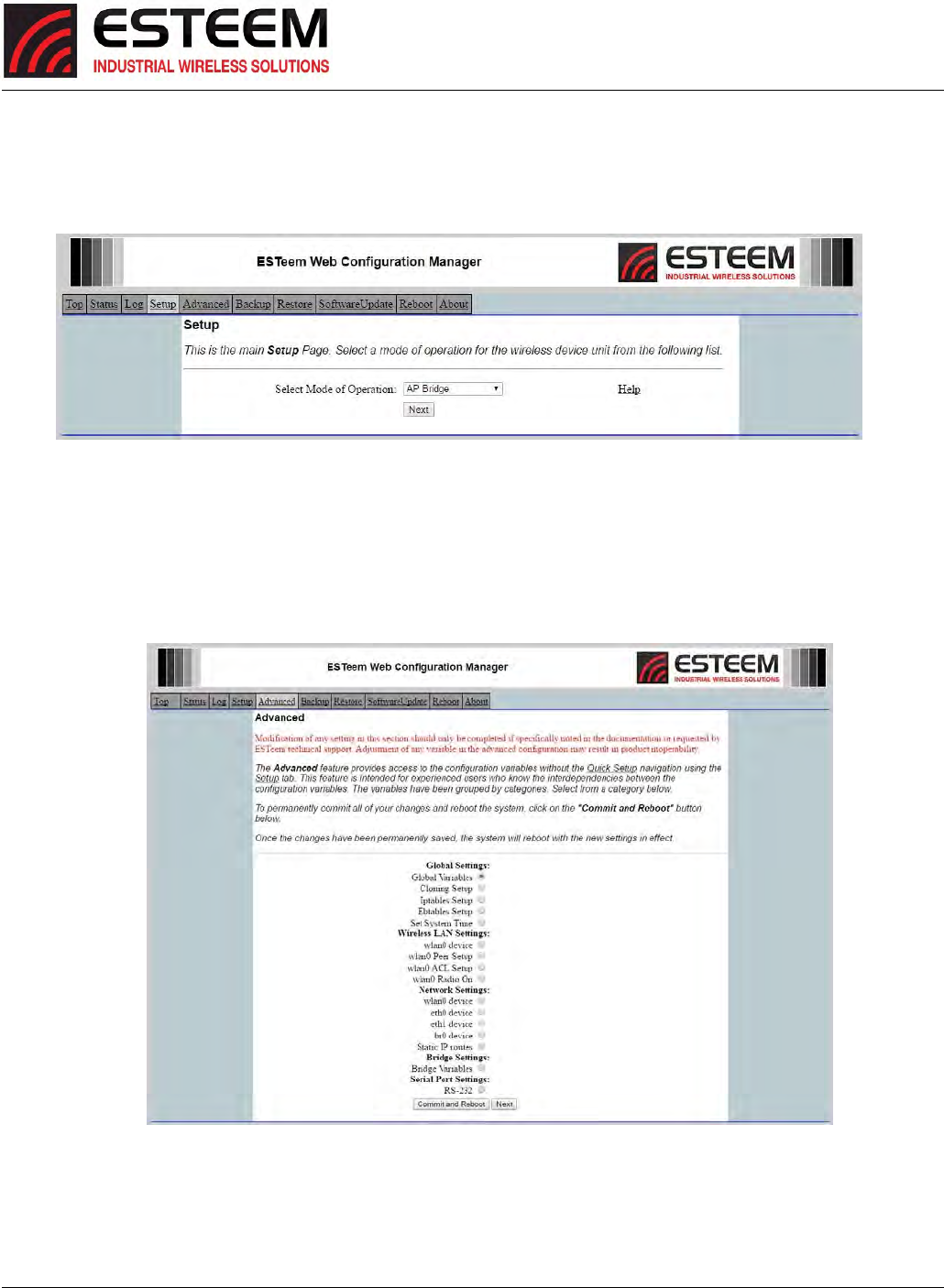

Figure8:SetupScreen



Figure9:AdvancedFeaturesScreen

CHAPTER5

WEBCONFIGURATION

Revised: 27 Jun 16 5-6 ESTeem Horizon Series

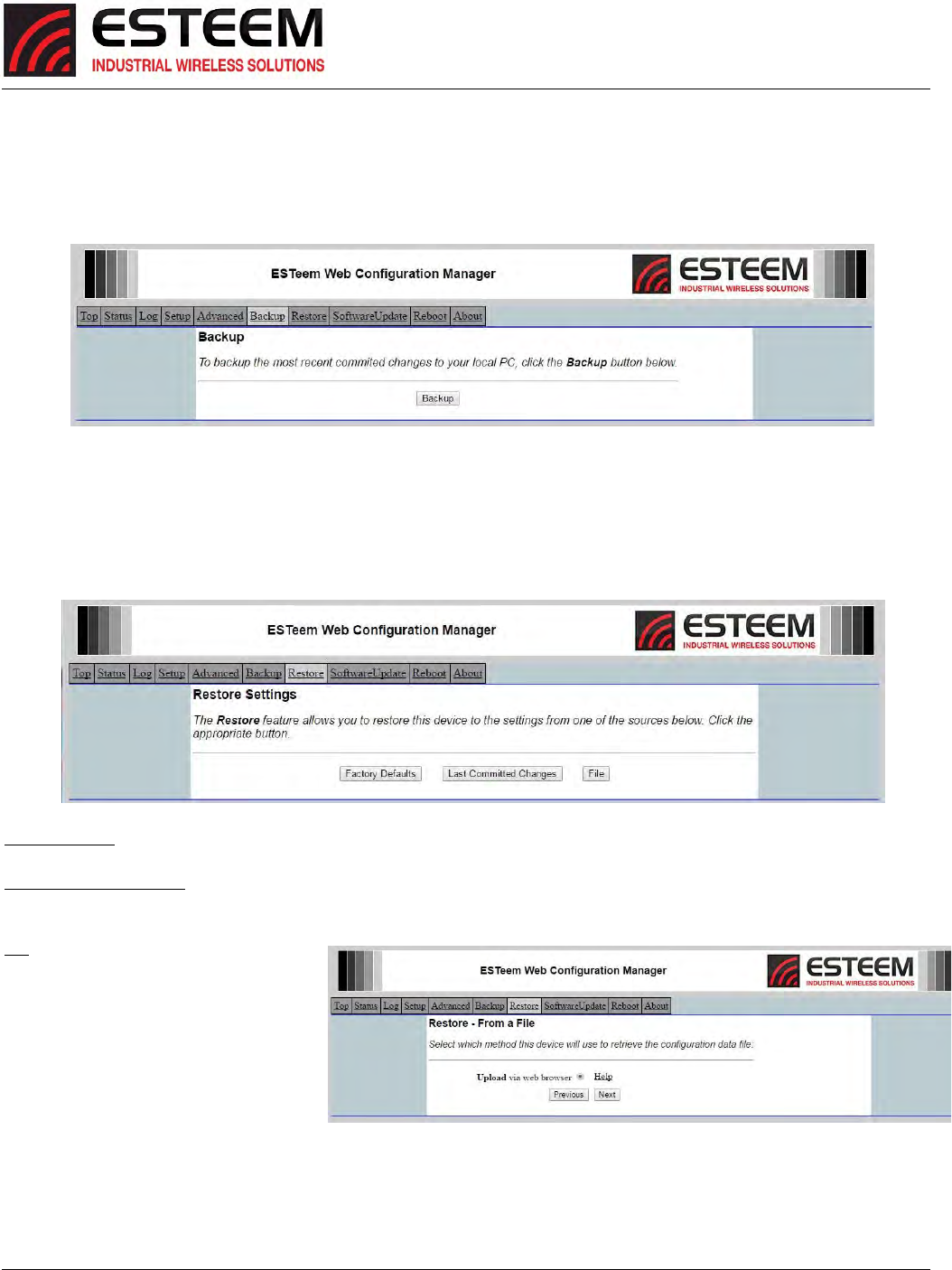

BackupScreen



TheBackupScreensavesthecurrentconfigurationintheHorizontoafileonthecomputerornetwork.SeeFigure10.Pressing

theBackupButtonwillcreateaconfigurationfilethatcanbesavedtothecomputer.Thissavedfilecanthenbelateropened,if

necessary,bytheRestoremenutoquicklyreplaceaHorizonwithasparemodem.



RestoreScreen



TheRestorescreenisusedtorestoretheHorizontofactorydefaults,returntothelastsavedconfigurationortoaccessthe

configurationfilesthatwerebackeduptothecomputer.SeeFigure11.



FactoryDefault–ReturnstheHorizontoallfactorydefaultvalues.



LastCommittedChanges–Thisbuttonwillremoveanychangestothemodemthathavebeendonesincethelastcommitted

changes.ThelastcommittedchangeswillbereadfromtheFlashfileandresetintheHorizon.



File–Pressingthisbuttonwillbringupa

selectionofwheretherestorefilewas

savedduringtheBackup(Figure12).Select

“Uploadviawebbrowser”tobrowsefor

filessavedonalocalcomputerorselect

“DownloadfromanhttporftpURL”for

filessavedonanetworkoroverthe

Internet.



Figure10:BackupScreen



Figure11:RestoreSettingScreen

Figure12:RestorefromLocalFileScreen

CHAPTER5

WEBCONFIGURATION

Revised: 27 Jun 16 5-7 ESTeem Horizon Series

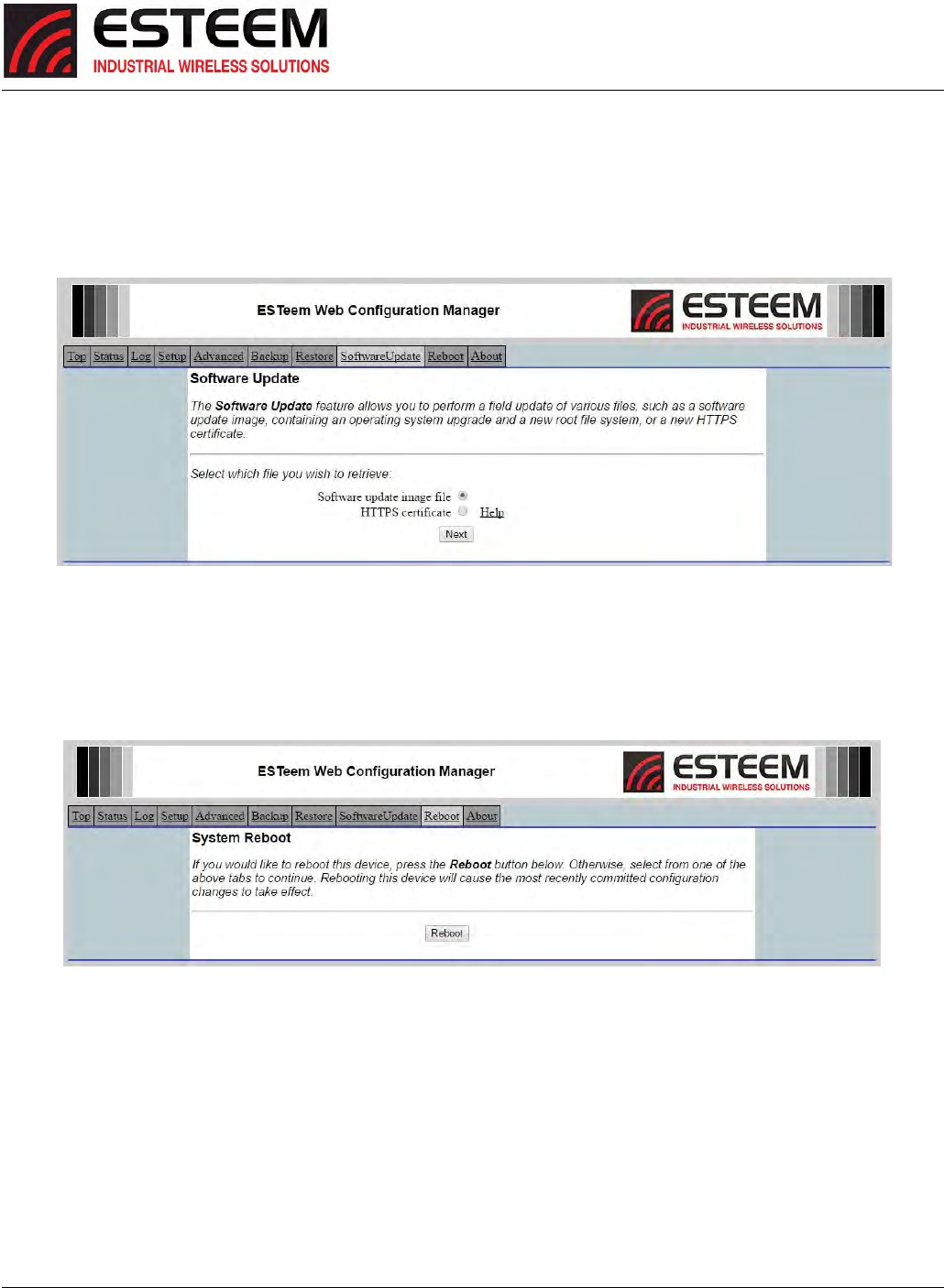

SoftwareUpdateScreen



TheSoftwareUpdatefeatureallowstheusertoupdatethelatestHorizonoperatingsystemsoftwarefromafilesuppliedbythe

factoryortheInternettotheHorizon’sflashmemory.Touploadfromafileonyourcomputer,selectUploadviawebbrowserand

afileselectionwindowwillbedisplayed.TouploaddirectlyfromtheInternet,selectDownloadfromanhttporftpURLandenter

thesiteaddress.SeeFigure13.



SystemRebootScreen



TheRebootscreenallowstheusertoresettheHorizon.SeeFigure14.



Figure13:SoftwareUpdateScreen



Figure14:SystemRebootScreen

CHAPTER6

SERIALAPPLICATIONS

Revised: 27 Jun 16 6-1 ESTeem Horizon Series

UsingTheRS‐232ProgrammingPort



TheRS‐232ProgrammingPortwillprovidealimitedsetcriticalprogrammingfeaturessuchassettingtheIPaddressorrestoring

theHorizonradiotofactoryfaults.AnyterminalemulationprogramthatcanrunwithVT100emulationcanbeusedforthis

configurationoftheESTeemHorizon.AnyRS‐232terminalprogram(suchasPuTTY‐http://www.putty.org)willwork.Configure

yourRS‐232portforaBaudRateto38,400,DataBitsto8,ParitytoNone,StopBitsto1andHandshakingtoNone.Onceyour

HorizonhasanIPaddress,youcanattachtheESTeemtoyournetworkandusetheWebConfigurationManager(Chapter5for

completedetails)forfurtherprogramming.



ProgrammingUsingtheRS‐232ProgrammingPort



1. Connecttheserialcable(ESTP/N:AA0621.1)betweentheRS‐232connector(RJ‐45)ontheHorizon’sRS‐232Programming

Porttotheserialportonthecomputer.



2. Ifyourcomputerisconfiguredproperly,youwillseetheESTeemHorizonbootingsequenceonyourTerminalEmulation

program.OncetheESTeembootsequenceiscomplete(approximately60seconds)youwillreceivethismessage:



“PleasepressEntertoactivethisconsole.”



Ifyoudon’tseethismessagepresstheResetbuttononthefrontpaneloftheHorizonand/orchecktheprogrammingofyour

RS‐232port.

3. PresstheEnterkeyandyouwillbeattheConfigurationMenuHorizonloginprompt.SeeFigure1.



4. ToentertheHorizonMainMenuyouwillneedtologintothesystemwithaloginnameandpassword.



5. IfthisisnotthefirsttimeconfigurationoftheHorizon,seeyournetworksystemsadministratorforthepassword.



6. AttheHorizonloginprompttypeadminfortheloginnameandpresstheEnterkey(<Enter>).Theloginnameisdefinedat

thefactoryandisnotchangeablebytheuser.Notethatallcharactersarelowercase.



IfthisisthefirsttimetheHorizonhasbeenprogrammedorthePasswordwasnotchangedfromthefactorydefaultvalues,the

factorydefaultpasswordisalsoadmin.EnteradminforthepasswordandpresstheEnterkey(<Enter>).



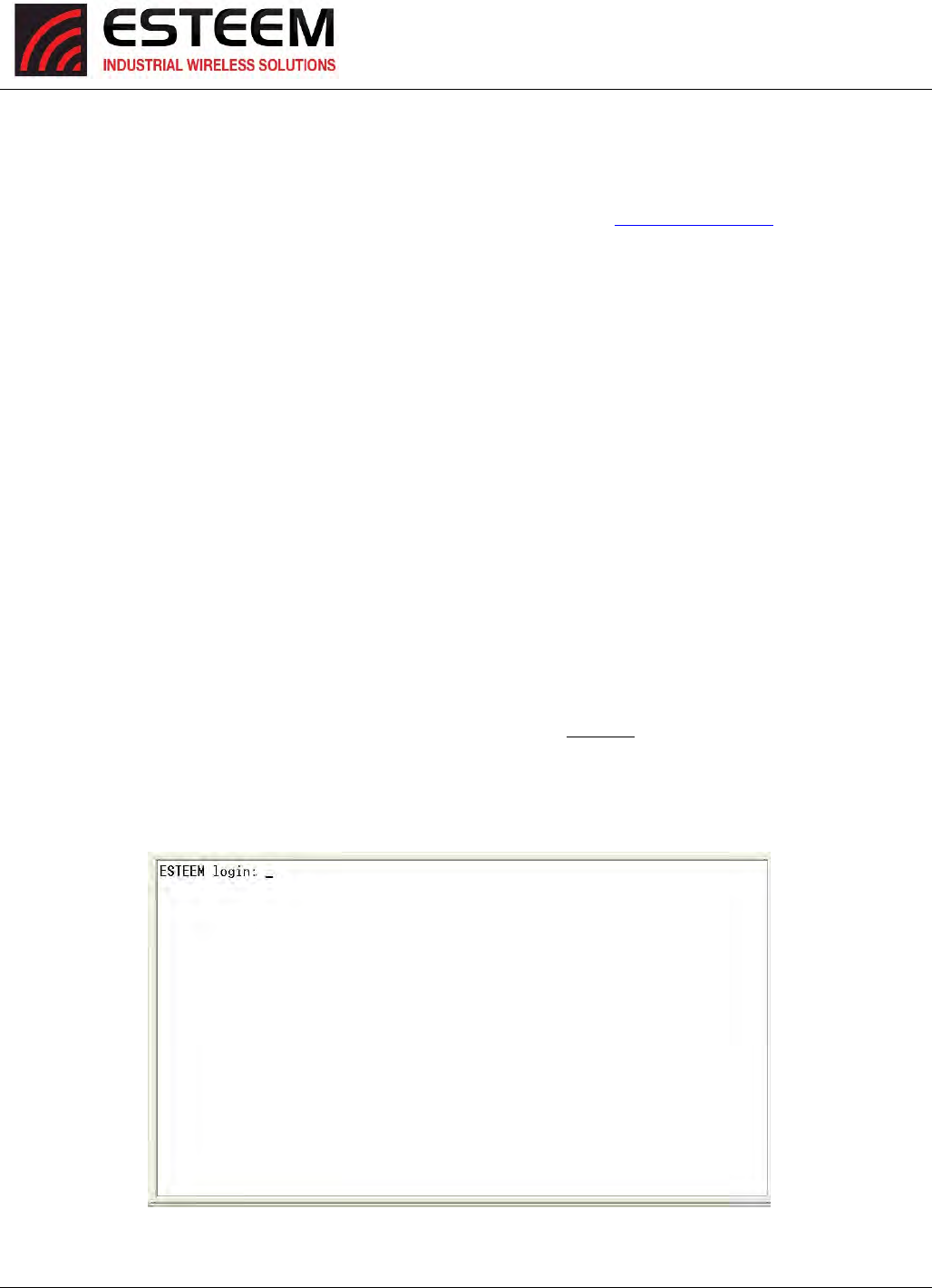

Figure1:RS‐232PortLog‐inScreen



CHAPTER6

SERIALAPPLICATIONS

Revised: 27 Jun 16 6-2 ESTeem Horizon Series



7. TosettheIPaddressintheESTeemHorizon,typetheletter“A”andpresstheEnterkey.EnterthevaluefortheIPaddress,

NetmaskanddefaultroutepressingtheEnterkeyaftereachentry.



8. AfterthebasicparametershavebeenenteredintotheHorizonyouwillneedtocommitthechangestotheHorizon(Figure

3).PresstheCkeyandthenEnter.Thechangeswillbesavedtoflashmemory.Youcanuseprogrammingfeaturesinthe

ESTeemWebConfigurationManagertoconfiguretheunitforyourapplication.



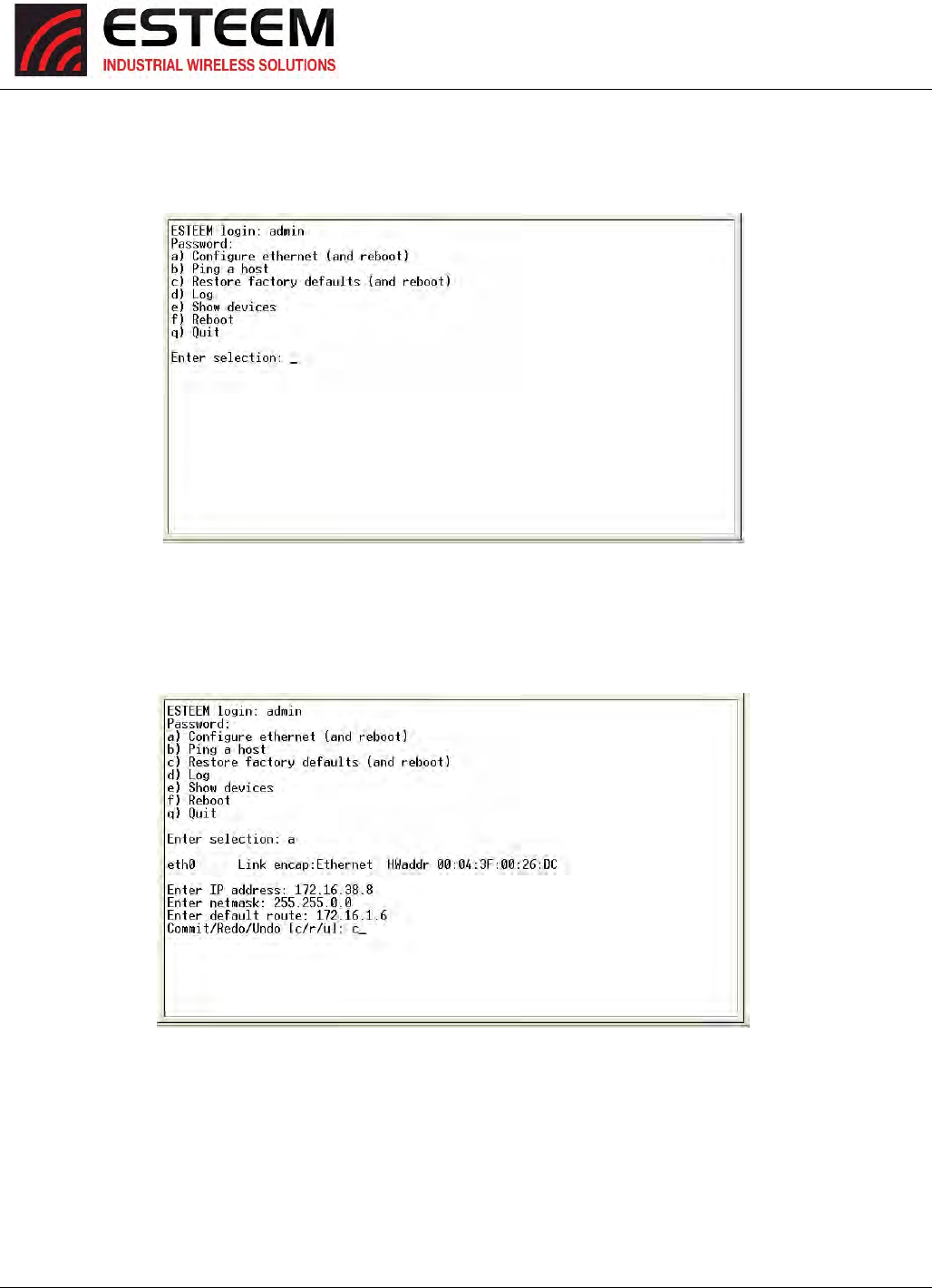

Figure2:RS‐232WelcomeScreen



Figure3:RS‐232WelcomeScreen



CHAPTER6

SERIALAPPLICATIONS

Revised: 27 Jun 16 6-3 ESTeem Horizon Series

UsingTheRS‐232DataPort



TheESTeemHorizonhasaserialdataportthatcanprovideRS‐232communicationbetweentwoormoreserialdevicesusingthe

wirelessbroadbandlink.TheserialdataisencapsulatedandtransferredasastandardEthernetpacketoveranoperatingHorizon

wirelessEthernetsystem.TheconfigurationforaserialHorizonnetworkwillbethesameasanEthernetoraserial(RS‐232)based

communicationnetwork.



Theserialinterfaceoptioncanbeusedtolinktwoormoreserialdevicesinaneworexistingsystem.Theserialdatahasverylittle

impactonthenetworkbandwidthandwillallowforbothEthernetandserialapplicationssimultaneously.Apossibleapplication

wouldbeinstallationoftheHorizoninanexistingserialbasednetworkthatwaslookingforfutureupgradetoanEthernetbased

system.Anotherwouldbeusingthehigh‐bandwidthEthernetconnectionstoprovidealinktoremotevideohardwarewhilealso

providingaseriallinktotheexistingPLCinaSCADAtypeapplication.



SerialConnections



TheRJ‐45serialdataportisthefar‐leftportonthefaceofthe

Horizon(Figure4).UsingtheESTeemAA0621.1interface

cable,theHorizoncanbeconnectedtoastandardDTE‐

device(PC)withamale9‐pinSub‐Dconnector.Thecomplete

cableconfigurationisavailableinAppendixC–Interface

Ports.



SerialConfiguration



ConfigurationoftheserialportisdoneinAdvanced>SerialPortSettings.SelectSerialPortSettings>RS‐232andpresstheNext

button,theSerialPortSetupscreen(Figure5)willbedisplayed.EachsectionintheSerialPortSetupscreenisdescribedindetail

withthefollowing:



DataSerialPort

EnablingtheserialdataportallowsthemodemtosendRS‐232dataoverthebroadbandwirelessconnectionestablishedwiththe

ESTeemrepeaterpeers.Themodemcanbeconfiguredinapoint‐to‐pointorpoint‐to‐multipointsystem.SelectYesifyouwish

toenabletheserialdataport.



SerialMode

TherearetwodistinctmodesofoperationfortheserialportintheHorizon.TheRedirectormodewillprovidetwo‐wayserial

communicationbetweentwoormoreserialdevices,whiletheTerminalServermodewillallowserialcommunicationtoaspecific

remotesitebyconnectingthroughtelnetorSSH.Selectoneofthefollowingmodesofoperation:



FullRedirectorMode‐Thismodeallowsbi‐directionalRS‐232datacommunicationwithotherESTeemHorizon’s.TheRS‐232data

transmissionwillappeartransparenttotheconnecteddevicesasifaserialcableisconnectedbetweenthetwoports.Thismode

willalsobeusedinamulti‐pointserialnetworkwereallserialdeviceswillneedbi‐directionalcommunication(Figure6).



TerminalServerMode‐ThismodeofoperationtranslatesRS‐232serialdataintoanetwork‐orientedterminalprotocol,suchas

telnetorSSH.ThismodewouldbeselectedifaninteractiveRS‐232sessionatremotelocationsisdesiredoverthewireless

Ethernetlink.



SerialBaudRate

SelectthedatarateoftheRS‐232connectiontomatchyourserialdevice.



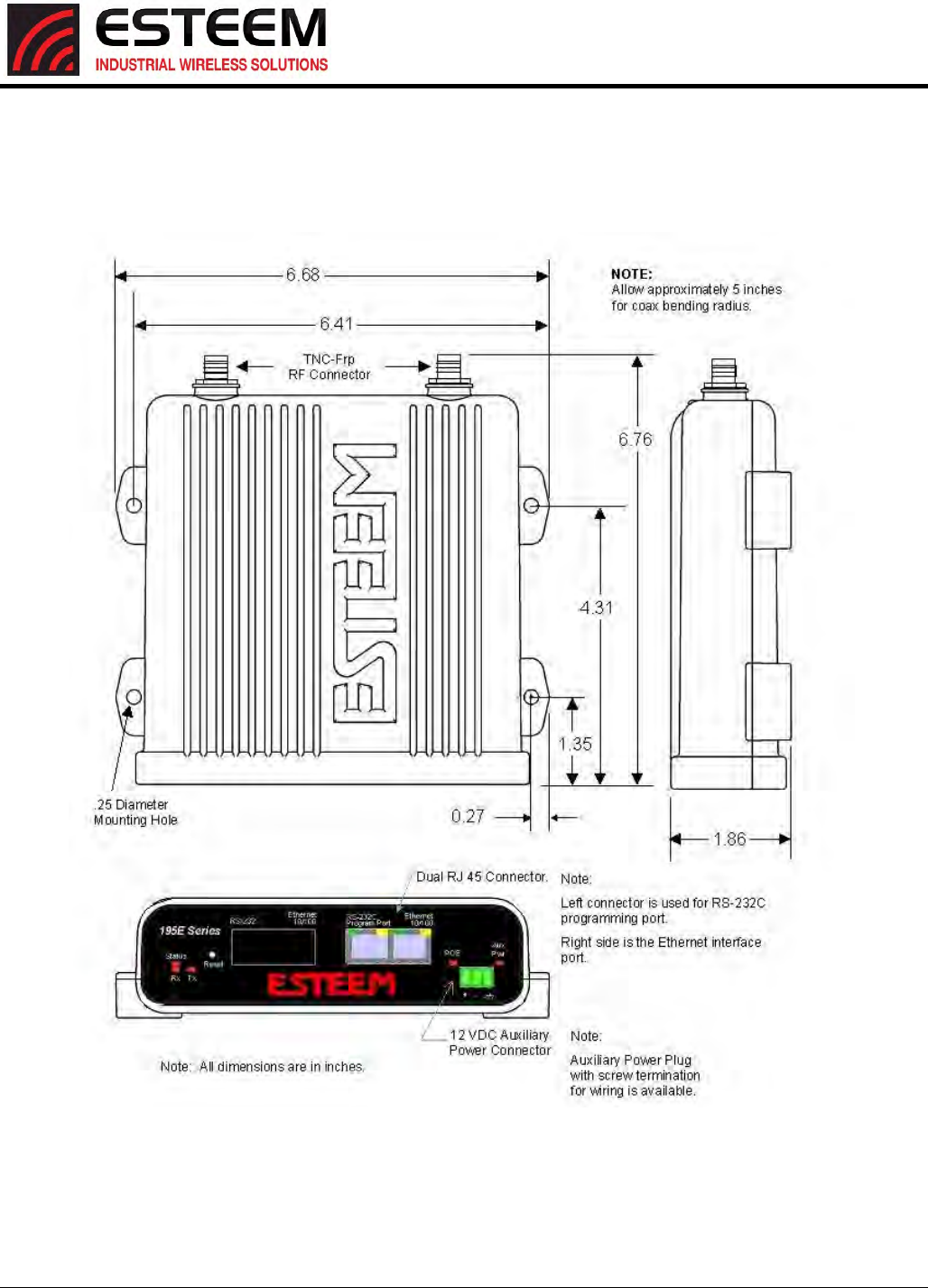

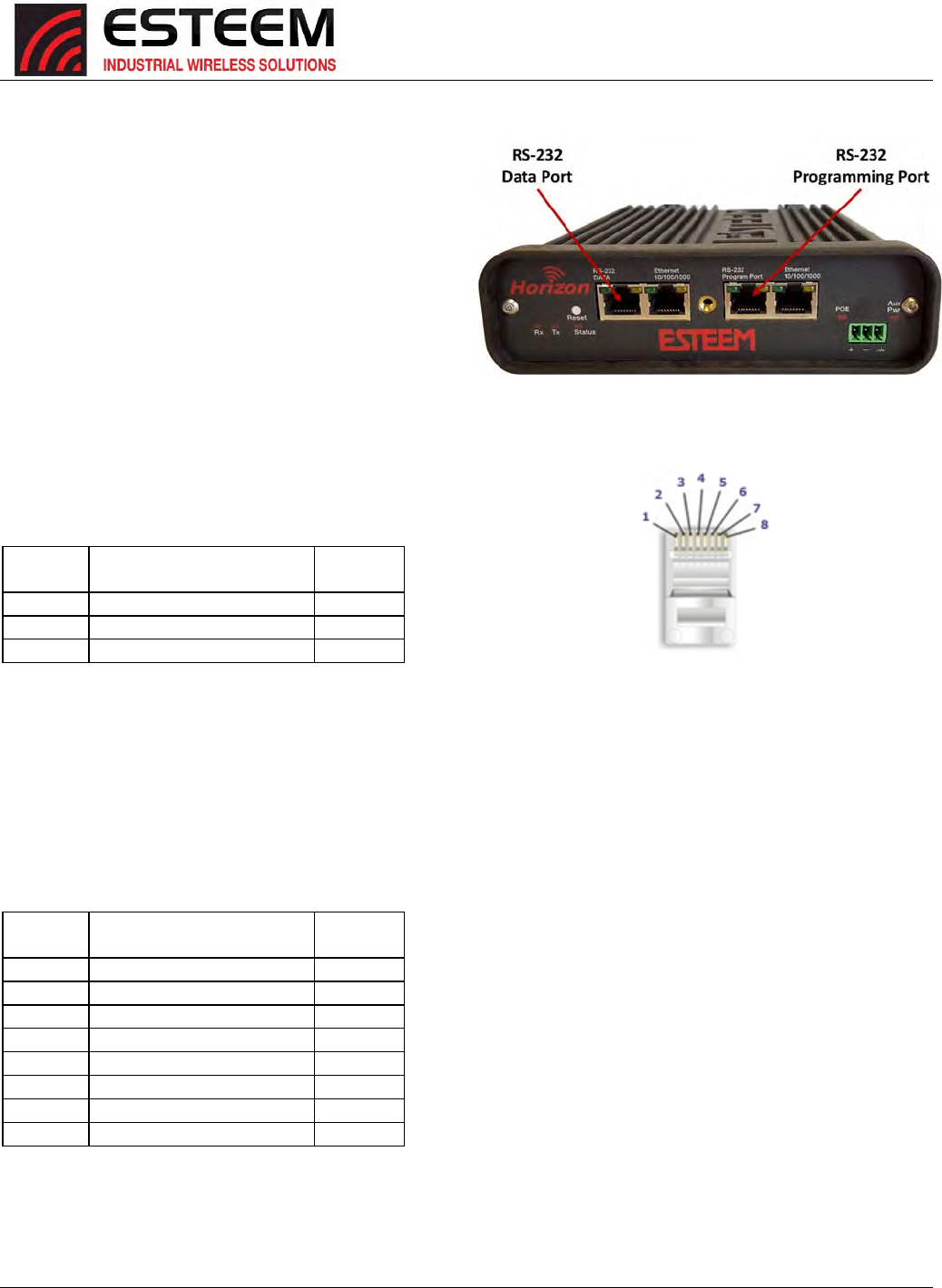

Figure4:HorizonFrontPanelOverview

CHAPTER6

SERIALAPPLICATIONS

Revised: 27 Jun 16 6-4 ESTeem Horizon Series



SerialDataBits

SelectthenumberofdatabitsontheRS‐232connectiontomatchyourserialdevice.



SerialStopBits

SelectthenumberofstopbitsontheRS‐232connectiontomatchyourserialdevice.



SerialParity

SelecttheparityoftheRS‐232connectiontomatchyourserialdevice.



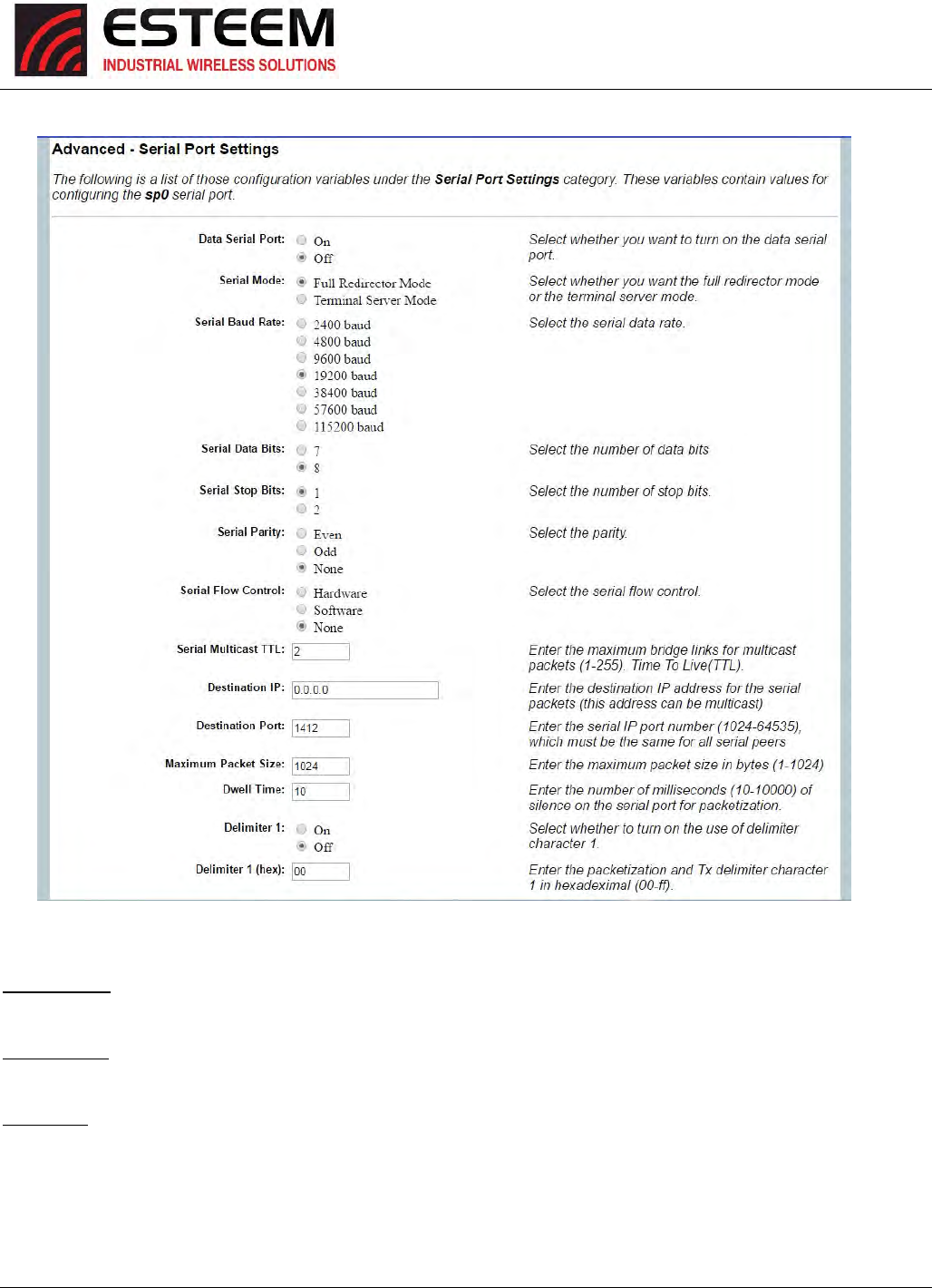

Figure5:SerialConfigurationScreen



CHAPTER6

SERIALAPPLICATIONS

Revised: 27 Jun 16 6-5 ESTeem Horizon Series



SerialFlowControl

SelectthetypeofdataflowcontrolusedontheRS‐232connection.TheESTeemcansupportHardwareflowcontrol(RTS/CTS

controllines)orSoftwareFlowControl(XON/XOFF).SelectNoneifnoserialflowcontrolisnecessary.



SerialMulticastTTL(MaximumBridgeLinksforMulticastPackets)

ThisvaluesetsthemaximumnumberofEthernetbridgelinksthatthemulticastpacketswillbesentthroughwhenusedinamulti‐

pointsystem.Amulti‐pointserialnetworkusesmulticastpackets(UDP)tosendthedatatomorethanoneremoteESTeem.You

wanttolimitthenumberofnetworkbridgelinksthattheseUDPpacketswillbepassedthroughtomakethenetworkmore

efficient.



IfyouareusingmultipleESTeemrepeaterlinkstosendtheserialdatatoremotelocations,thevalueforthemaximumbridgelink

needstobeincreasedtoanumbergreaterthanthelongestrepeaterchain.Forexample,ifyouareusingfourrepeater(peer)

linkstosendtheserialdatabetweentwoormoresitesthenumberwillneedtobefive(5)orgreater(Figure4).



DestinationIPAddress

TheESTeemconfiguredforthecorrectdestinationIPandportnumberwillsendandreceivetheserialdatafromanothermodem.

SetthedestinationIPaddressfortheESTeemwheretheserialdatawillbesent.IfsendingtomorethanoneESTeem(Multipoint)

settoamulticastaddress(i.e224.0.0.1).



Note:IfyouareusingtheESTeemHorizoninamultipointapplication(multicast),youmusthavedefaultGatewayconfiguredin

theESTeemsettotheIPaddressoftheRootBridgemodem.



DestinationPort

TheESTeemconfiguredforthecorrectdestinationIPandportnumberwillsendandreceivetheserialdatafromanothermodem.

SettheIPportnumberstomatchwheretheserialdatawillbesent.TheserialdatawillnotbesentifboththeIPaddressandport

numberisnotcorrect.



MaximumPacketSize

Thisnumberrepresentsthemaximumsizeoftheserialdatapacketinbytes.Ifthenumberofbytesofdataintheserialportbuffer

exceedsthemaximumpacketsizebeforethetimerordelimitercharacterisreached,theESTeemwillsendforwardtheserial

packet.Forexample,ifthemaximumpacketsizeissettoavalueof100,whentheserialportreceives100bytesthedatawillbe

sentthroughthewirelessconnection.



DwellTime(NumberofMillisecondsforPacketization)

ThisnumberrepresentsthetimetheESTeemwillholddataintheserialdatabufferbeforesendingtotheremoteESTeem.This

featureisgenerallyusediftheserialdatadoesnothaveaconsistentpacketlengthordelimitercharacter.Forexample,ifthe

numberofmillisecondsissettoavalueof10theESTeemwillmonitortheincomingserialdatastreamandanybreakincharacters

longerthan10millisecondswillcausethedatawillbesentthroughthewirelessconnection.



DelimiterCharacters

Enablingandspecifyingadelimitercharacterwilltransmitthedataintheserialbufferwhenthedelimitercharacterisrecognized

intheserialdatastream.Therearetwouniquedelimitercharactersthatcanbeconfiguredandenabledindependently.



ModemControlLines

EnablingthisfeaturewillallowtheESTeemintheTerminalServermodetoreadandgeneratemodemcontrollinestothe

connecteddevice.

CHAPTER6

SERIALAPPLICATIONS

Revised: 27 Jun 16 6-6 ESTeem Horizon Series



Figure6:SerialFullRedirectorExample

CHAPTER7

BRIDGELINKSANDMESH



Revised: 27 Jun 16 7-1 ESTeem Horizon Series

Toincreasethewirelessnetwork’sareaofcoveragefor

bothindoorandoutdoorapplications,theHorizonutilizes

acustommeshingfeaturethatallowsincreasedcoverage

areaswithouttheaddedexpenseofhardcablingor

addinganadditionalpointtopointradiolink.



WithaconventionalIEEE802.11(Wi‐Fi)AccessPoint(AP)

network,alloftheAPshavetobeinterfacedtoacommon

networkeitherbyhardwire,seeFigure1,oraseparate,

dedicatedRFbackbone.TheModelHorizoncancreatethisRFbackbone,bridgeEthernetnetworksconnectedtothewired

Ethernetportandprovidethewirelesscanopyfor802.11clientssimultaneously.



WhenprogrammedinanyofthethreeAccessPoint(AP)Modes(Bridge,RouterorMasquerade),theHorizonwillcreateawireless

networkwithotherHorizonunitsinradiorangethatareprogrammedinthePeertableduringsetup.Thisfeatureaddsthe

increasedfunctionalityofrepeaterstothetypicalEthernetBridgeconfiguration.



ESTeemMeshNetwork



OneofthemostpowerfulfeaturesoftheAPPeerMode

istheabilitytoinputmultiplecommunicationroutesand

designatethepriorityforeachoftheseroutestocreatea

wirelessMeshnetwork.TheESTeemHorizonwill

automaticallychangecommunicationroutesinthe

networkifaroutehasfailed.Thenewroutewillbebased

upontheprioritylevelsetduringconfiguration.This

wirelessMeshingtechnologyallowstheRFnetworkto

“self‐heal”ifanyofthecommunicationpathsfail.



Theroutingpriorityismanuallysetduringthe

configurationoftheHorizon.Amanualpath

configurationisfarsuperiortostandard“self‐discovery”

networks,becauseyouhavedirectcontroloverthebest

RFpathsandcaneasilyidentifyanyfailedroutesforeasy

troubleshooting.Forexample,Figure2showsatypical

wirelessEthernetsystemusedintheWater/WasteWater

Industry.Theproblemwithastandard“self‐discovery”

Meshnetworkistheselectionofroutes.NoticethatthecommunicationbetweentheWaterPlant(SiteA)andPumpSiteDhasa

marginallink,butitisthemostdirectroutebetweentheEthernetdevices.



Thisscenarioposesthequestion,whichpathwillthenetworkselect?TheESTeemMeshNetworktakesouttheguessinggames

byallowingtheusertoselectandprioritizeallcommunicationroutesinthesystem.Inourexamplewewouldwanttheprimary

linktogothroughTankB(Repeater)andusethedirectlinkonlyifthisprimarylinkfails.Thefollowingsectionswillshowhowthis

completed.



Configuration



TheconfigurationofthewirelesspathsiscompletedduringsetupoftheAccessPointmodes.AllthreeAccessPointmodessupport

repeatingandMeshingfeatures.TheMeshnetworkconfigurationusingtheESTeemNetworkConfiguration(ENC)Utilityisshown

indetailinChapter3ofthisUser’sManual.



Figure1:ConventionalAccessPointDiagram



Figure2:SmallMeshNetworkDiagram

CHAPTER7

BRIDGELINKSANDMESH

Revised: 27 Jun 16 7-2 ESTeem Horizon Series

YoucanalsoconfiguretheMeshnetworkingdirectlythroughthewebconfigurationsetup(Chapter5).Figure3showsanexample

repeaterpeertablefromthesetupmenus.FortheHorizontocommunicatewithanotherHorizon,selectYesmustatEnablePeer

Capability.Next,theSerialNumberorWirelessLAN(WLAN)MACaddressofeachHorizonthatwillhavedirectcommunications

mustbeaddedtothePeerList.Finally,enablingthelinkallowsthecorrespondingHorizontobeincludedinthecommunication

routing.Mobileclientsdonotrequireinputintherepeaterpeertable.IfmultipleMeshroutesareconfigured,youwillalsoneed

tosetthevaluesforPriorityandPathCosts(explainedinRapidSpanningTreebelow).Formultipleexamplesofrepeater

configurations,pleaserefertoChapter3ofthisuser’smanual.



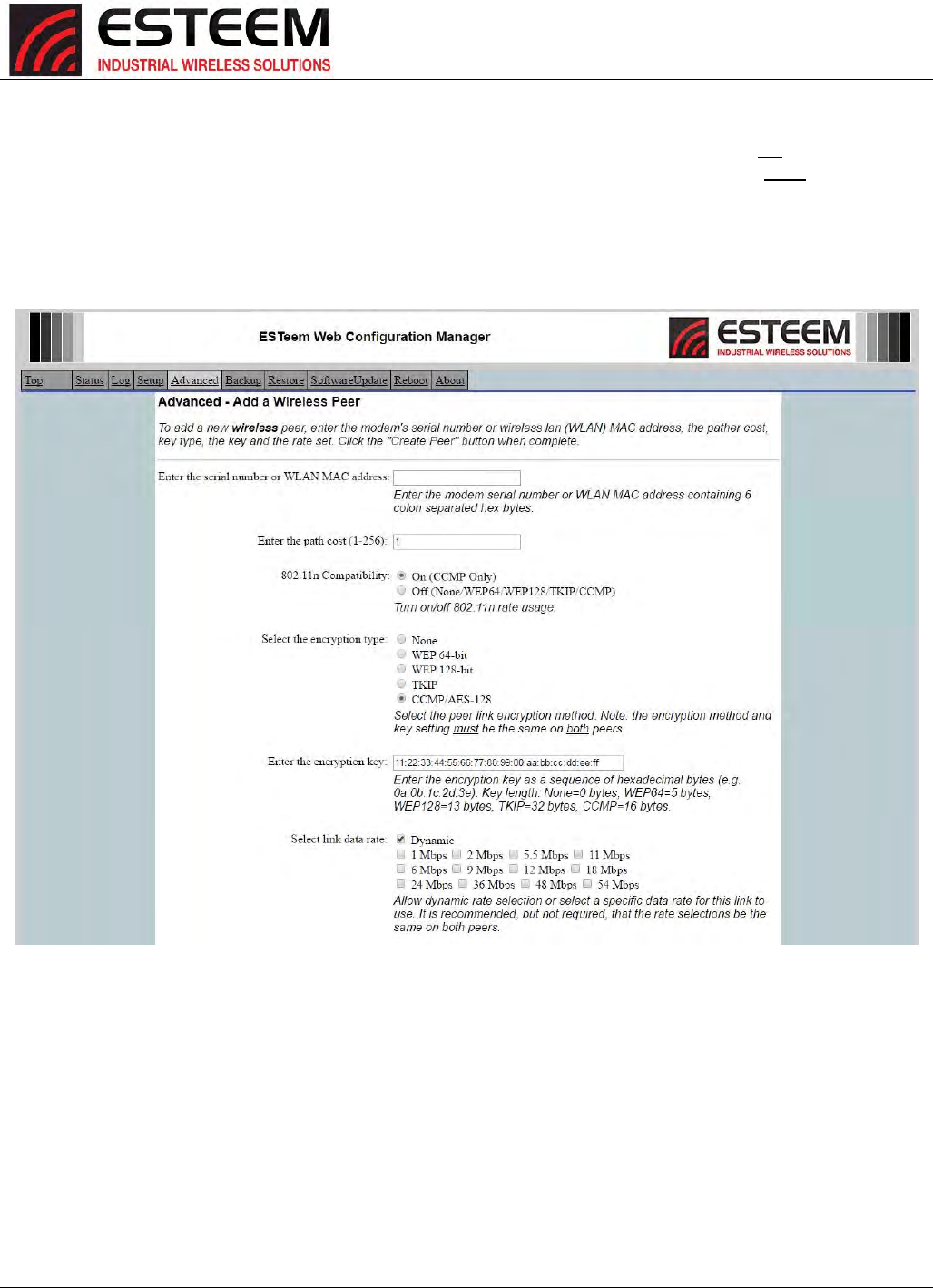

Figure3:RepeaterConfigurationExample

CHAPTER7

BRIDGELINKSANDMESH

Revised: 27 Jun 16 7-3 ESTeem Horizon Series

RapidSpanningTreeProtocol(RSTP)



TheESTeemHorizonusesstandardEthernetRapidSpanningTreeProtocol(RSTP)todeterminetheradioroutingstructureofthe

wirelessnetwork.TheprimarypurposeofRSTPistomakesurethat“networkloops”arenotcreated.Anetworkloopishaving

twocommunicationpathstothesamedestinationwheretheremotedevicewouldreceivethesamedatamultipletimes.Ifthere

werenowaytocontrolthedataflow,thisdatawouldbeconstantlypassedaroundthisloopcausinga“packetstorm”thatwould

shutdowntheentirenetwork.TheSpanningTreeProtocolwillblockalltheseredundantlinks.



TheRSTPoperationbeginsbydeterminingwhichEthernetdeviceonthenetworkwillbetheRootBridge.AllEthernetnetworks

haveaRootBridgethatisselectedbythelowestMACaddress.AllpathcostsareevaluatedagainstthisRootBridgedeviceto

determineroutingandwhichpathswillbeblocked.OnawiredEthernetnetwork,thelocationoftheRootBridgeisnotreally

important,butinawirelessnetworkselectionoftheRootBridgeiscriticaltothewirelessnetworkrouting.Let’suseoneofthe

ExamplenetworkdiagramsfromChapter3tocontinuethediscussion(Figure4).



Figure4:ProgrammingExample#1Diagram

Access Point Router

with Repeater

Feature Enabled

10/100BaseT

HUB or Switch

Mobile

PLC

EtherStation

Mode

10/100BaseT

Access Point Bridge

with Repeater

Feature Enabled

Primary Repeater Path

Backup Repeater Path

Access Point Bridge

with Repeater

Feature Enabled

Mobile Vehicle

Single Ethernet Device

Example #4

S/N: 14004

Primary Repeater Path

Plant Network

Large Wired LAN

Example #1

S/N: E-14001

WLAN MAC=00:04:3F:00:09:01

Remote Building

Small Ethernet Wired LAN

Example #3

S/N: E-14003

WLAN MAC=00:04:3F:00:09:10

Stand-Alone Repeater Site

Example #2

S/N: E-14002

WLAN MAC= 00:04:3F:00:09:05

Network

Router

(Required)

CHAPTER7

BRIDGELINKSANDMESH

Revised: 27 Jun 16 7-4 ESTeem Horizon Series

RSTPPhases



ThefollowingsectionsdescribetheprocessoftheRSTPintheESTeemHorizonashowitwouldhappenintheaboveexample.



LearningPhase‐Onceproperlyconfigured,eachHorizonwillbegintosearchouttheotherHorizonunitsinradiorangethatare

programmedintheAPRepeaterPeertable.AllHorizon’swillcalculatetheirroutestoeveryHorizoninthenetworkbasedupon

thelowest“pathlength”totheRootBridge.Pathlengthisthetotalnumberofwirelesslinks(repeaterpeerlinks)totransmita

packetthroughthewirelessnetworktotheRootBridge.Note:TheRootBridgeinanetworkshouldbetheHorizonwherethe

majorityofthedataflowisprocessed.Ineverywirelessnetworkoftwoormoreradios,theRootBridgeshouldbeuserdefined.

Ifnotdefined,theHorizonwiththelowestMACaddresswillbedesignatedastheRootBridge.



InFigure4,thePlantnetwork(Example1)isthemostlogicallocationfortheRootBridgebasedupontheamountofdataflow.

SettingthissiteastherootbridgeisdiscussedbelowinRootBridge.



BlockingandForwardingPhase–Toensureyoudonothaveanetworkloopsituationduetoredundantpathsinyourwireless

network,theModelHorizonwillrecognizeanddisable(block)oneormoreredundantlinksandprovidebackuplinksshouldthe

primarylinkfail.Thisestablishesawirelessmeshnetworkwithaseriesofforwardinglinks,basedupontheshortestpathlength

totheRootBridge.



Forexample,lookingatFigure4,theRemoteBuildinghastworoutestotheRootBridge(PlantNetwork–Example#1);directlyto

thesiteandthroughtherepeater.Thedirectlinkbetweenthetwositesistheshortestroute(lowestPathLength)andwillbe

selectedastheprimaryrouteunlessoverriddenbymanuallychangingthePathLengthintheconfiguration.



PathCost



IfmorethanonecommunicationpathtotheRootBridgeisfound,theHorizonmustdeterminewhichroutetotakebasedupon

thelowestPathCost.ThedefaultpathcosttoalllinksintheHorizonnetworkis1.IfthePathCostsareequalthenthelowest

MACaddresswilldeterminethepriorityroute.IntheESTeemMeshNetworkwewanttodirectlycontrolalldataflowsodonot

wanttheroutestobeautomaticallydetermined.



LookingagainatourExampleinFigure4,ifwemadenochangestothedefaultpathcostof1(notevaluesinFigure3)thelowest

pathcostwouldbedirectfromtheRemoteBuildingtotheRootBridge(PlantNetwork).



LinkDescriptionTotalPathLength

DirectfromRemoteBuilding1

RemoteBuildtoRootBridgeThroughRepeater 2(Length1torepeater+Length1toMaster=2)



ToconfiguretheHorizontoselecttherepeaterastheprimaryradiopath,setthepathcostvalueforthedirectlinkgreaterthan2

(suchasavalueof3)tomakethistheprimaryradiopath.Thelowestpathlengthwillidentifythehighestpriority.TheModel

Horizonwillusethisrouting,butalsoswitchtodirectcommunicationiftherepeaterweretodisappear.



RootBridge



InanyAccessPointRepeaternetworkconsistingofmorethantwosites,oneModelHorizonshouldbedesignatedastheRoot

Bridge.OnlyoneModelHorizoncanbedesignatedastheRootBridgeinagivennetworkandshouldbelocatedwherethemajority

oftheEthernetdataflowisprocessed.ThissitemaybetheMasterlocationinaSCADAnetworkorcouldbeconfiguredata

repeatersite.SelectionisimportantbecauseallModelHorizon’sNOTconfiguredastheRootBridgewillchooseroutingbased

uponthePathLengthtotheRootBridge.IfyouhaveanyquestionastowhichsiteinyourAPRepeaterapplicationshouldbethe

RootBridge,contactESTeemCustomerSupportat509‐735‐9092ore‐mailyourapplicationtosupport@esteem.com.



CHAPTER7

BRIDGELINKSANDMESH

Revised: 27 Jun 16 7-5 ESTeem Horizon Series

TheRootBridgewillbeselectedinoneoftwoways:theRootBridgecanbemanuallyset(recommended)duringtheconfiguration

oftheRepeaterPeertable(Figure3)ortheRootBridgedesignationwilldefaulttothelowestMACaddressofalltheModel

Horizon’sinthenetwork.ThemanualRootBridgeconfigurationislocatedinthe“AdvancedSettings”section.



RedundantBackup



TheESTeemHorizonconfiguredinAccessPointmodewill

automaticallyfunctionasaredundantbackupiftwoHorizonsare

installedatthesamelocation(Figure7).IftwoHorizonsare

connectedtothesameswitch,oneoftheHorizonswillbeBlocked

whentheRapidSpanningTreeProtocoliscompleted.The

networkwillcontinuetousethisrouteuntilanyproblemwiththe

originalModelHorizonisdetectedandthesecondHorizonwill

beginoperationatthatsite.



RedundantMasterConfiguration



TheconfigurationinFigure7willalsoprovidearedundantbackup

fortheMasterSite(RootBridge).ConfigurebothHorizonsasRoot

Bridges(seeabove)givingtheprimaryRootBridgeavalueof1and

thesecondaryRootBridgeavalueof2.



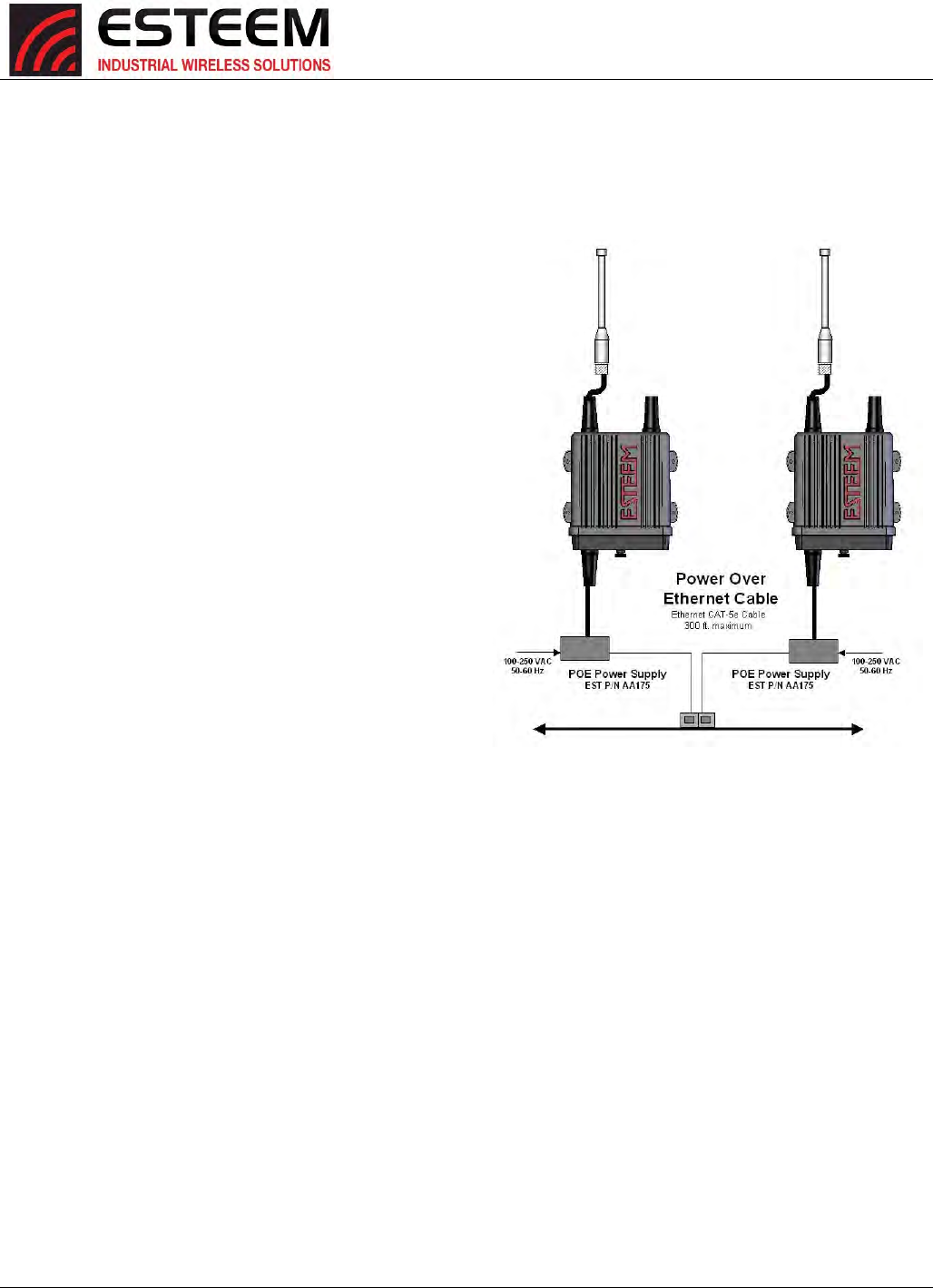

Figure7:RedundantBackupDiagram

CHAPTER8

ANTENNASETUPS



Revised: 27 Jun 16 8-1 ESTeem Horizon Series

Horizon2.4GHzAntennaandCableConfigurations



ESTeemoffersdifferenttypesofantennasforbothindoorandoutdoorconfigurations.Toreducepotentialradiointerferenceto

otherusers,theantennatypeanditsgainshouldbechosensothattheequivalentisotropicallyradiatedpower(e.i.r.p.)isnot

morethanthatpermittedforsuccessfulcommunication.



ThisradiotransmitterESTeemHorizon2.4GHz(HVIN:216AN)hasbeenapprovedbyIndustryCanadatooperatewiththeantenna

typeslistedbelowwiththemaximumpermissiblegainandrequiredantennaimpedanceforeachantennatypeindicated.Antenna

typesnotincludedinthislist,havingagaingreaterthanthemaximumgainindicatedforthattype,arestrictlyprohibitedforuse

withthisdevice.



LepresentemetteurradioESTeemHVIN:216ANaeteapprouveparIndustrieCanadapourfonctionneraveclestypesd'antenne

enumeresci‐dessousetayantungainadmissiblemaximaletl'impedancerequisepourchaquetyped'antenne.Lestypesd'antenne

noninclusdanscetteliste,oudontlegainestsuperieuraugainmaximalindique,sontstrictementinterditspourl'exploitationde

l'emetteur.



Warning:OnlythetestedcablelengthsandantennasprovidedbyESTeemmeettheFCCmaximumpeakoutputpower

requirements.Anyothercombinationofantennasorcoaxcablesisnotauthorized.Thisdevicehasbeendesigned

tooperateinapolemountconfigurationwiththeantennaslistedbelow,havingamaximumgainof6dBinamulti‐

pointsystemor15dBinapointtopointnetwork.Antennasnotincludedinthislistorhavingagaingreater6dBin

amulti‐pointsystemor15dBinapointtopointnetworkarestrictlyprohibitedforusewiththisdevice.Therequired

antennaimpedanceis50ohms.



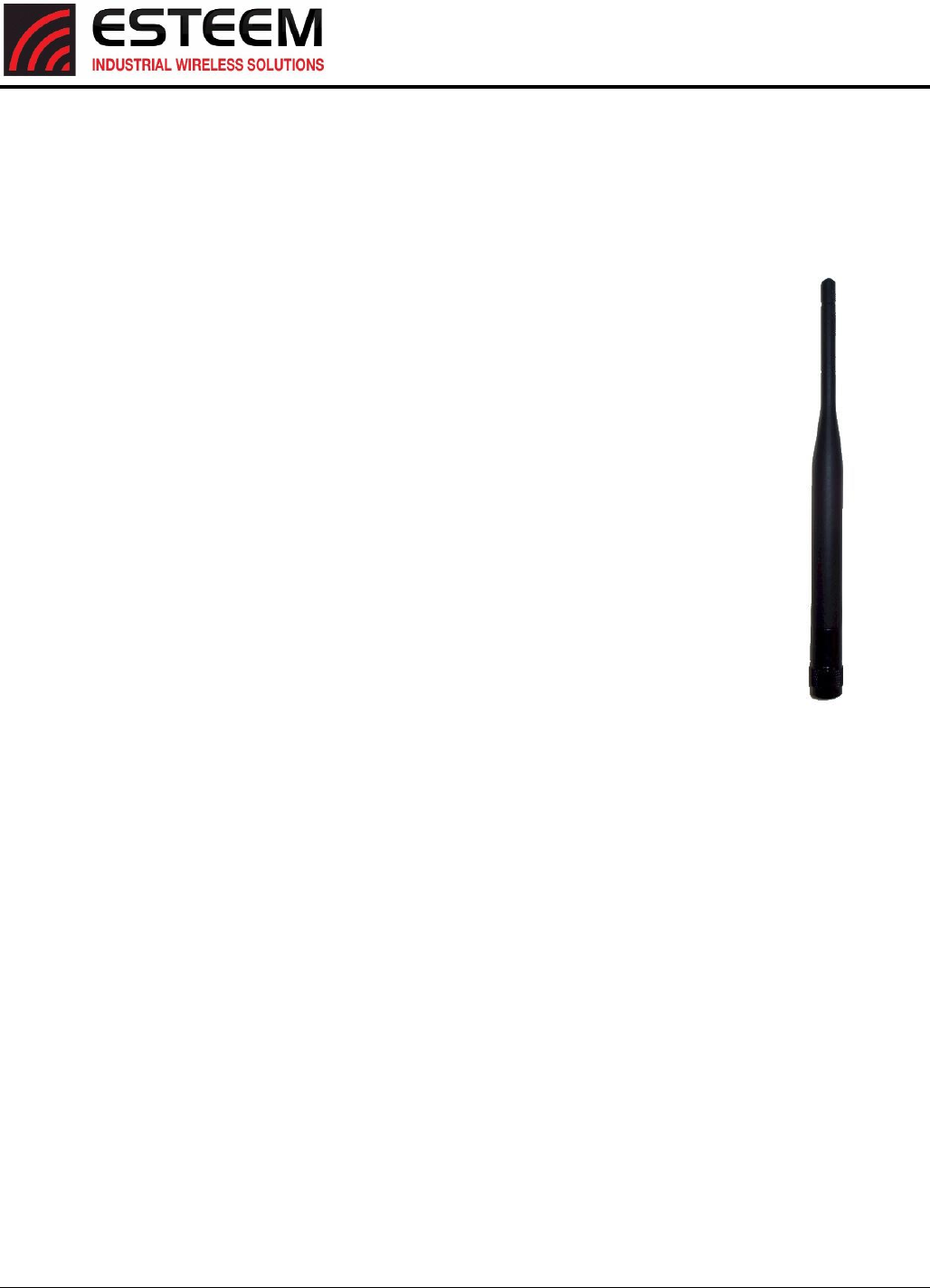

PartNumber:AA20DMEg



Omni‐directionaldirectmountantenna,5dBigain.



Indoorandoutdoorapplications.



Theremustbeaminimumseparationdistanceof24

cm.fromtheantennatotheuser.SeeWarnings.



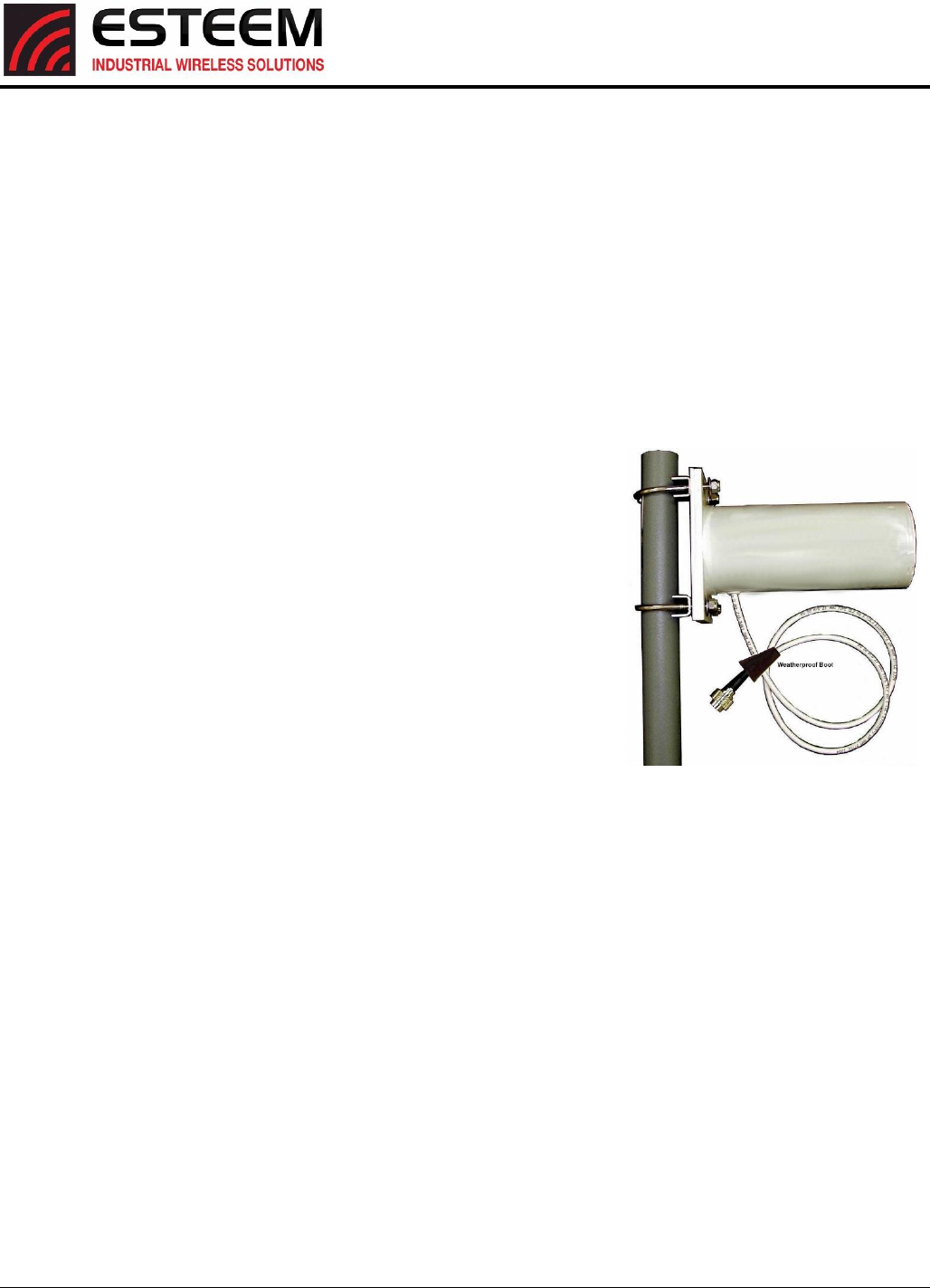

PartNumber:AA203Eg



Directionalpolemountantenna,6dBigainwith3‐ft.

integralfeedlineandconnector.



Pointtopointandpointtomulti‐pointoutdoor

applications.



AntennaportBisnotusedinthisconfiguration.



Theremustbeaminimumseparationdistanceof24

cm.fromtheantennatotheuser.SeeWarnings.





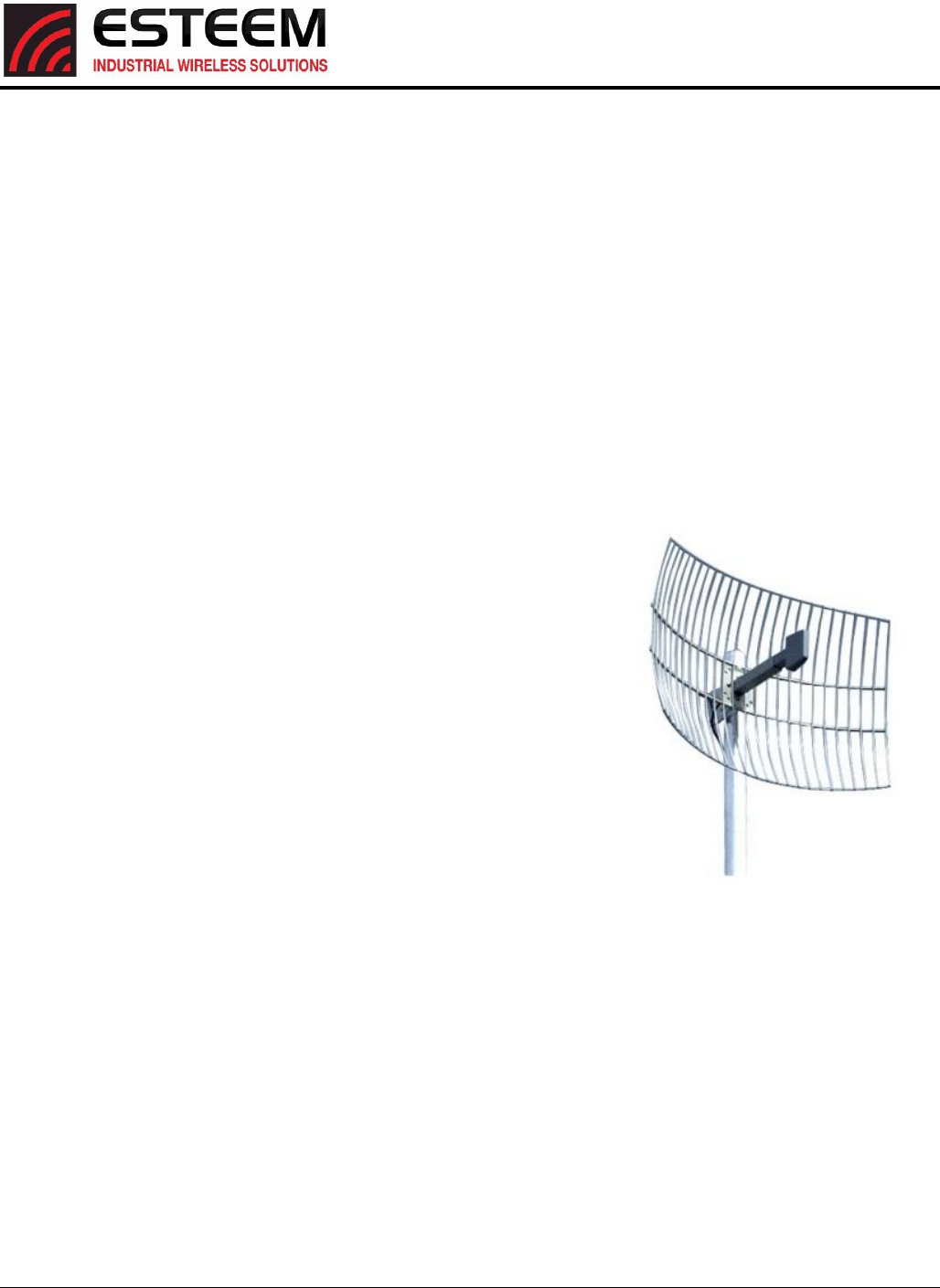

PartNumber:AA204Eg.1



Directionalpolemountantenna,15dBigainwith3‐ft.

integralfeedlineandconnector.



Pointtopointapplicationsonly.



MaximumOutputPowerof250mWatts(PowerLevel=

LowPower)



AntennaportBisnotusedinthisconfiguration.



Theremustbeaminimumseparationdistanceof50

cm.fromtheantennatotheuser.SeeWarnings.



Transmit/Receive

ntenna Port 1 Receive Only

Antenna Port 2

Warnings:

Only pre-made coax cables from the factory used in

conjunction with either the AA203Eg or AA204Eg.1

directional antennas meet all FCC Section 15.247(b)

EIRP maximum power requirements.

Use of the AA204Eg.1, directional antenna is limited to

fixed point to point applications only. In accordance FCC

Section 15.247(b)iii, this antenna must be professionally

installed. The installer must ensure the system is used

exclusively for fixed, point-to-point applications and the

ESTeem Horizon is set for 0.25 Watts output power

(Power Level = Min).

CHAPTER8

ANTENNASETUPS



Revised: 27 Jun 16 8-2 ESTeem Horizon Series

Horizon900MHzAntennaandCableConfigurations



ESTeemoffersdifferenttypesofantennasforbothindoorandoutdoorconfigurations.Thisdevicehasbeendesignedtooperate

withtheantennaslistedbelow,andhavingamaximumgainof7dB.Antennasnotincludedinthislistorhavingagaingreater

than7dBarestrictlyprohibitedforusewiththisdevice.Therequiredantennaimpedanceis50ohms.



ThisradiotransmitterESTeemHorizon900MHz(HVIN:216AD)hasbeenapprovedbyIndustryCanadatooperatewiththe

antennatypeslistedbelowwiththemaximumpermissiblegainandrequiredantennaimpedanceforeachantennatypeindicated.

Antennatypesnotincludedinthislist,havingagaingreaterthanthemaximumgainindicatedforthattype,arestrictlyprohibited

forusewiththisdevice.



LepresentemetteurradioESTeemHVIN:216ADaeteapprouveparIndustrieCanadapourfonctionneraveclestypesd'antenne

enumeresci‐dessousetayantungainadmissiblemaximaletl'impedancerequisepourchaquetyped'antenne.Lestypesd'antenne

noninclusdanscetteliste,oudontlegainestsuperieuraugainmaximalindique,sontstrictementinterditspourl'exploitationde

l'emetteur.



Warning:OnlythetestedcablelengthsandantennasprovidedbyESTmeettheFCCandDOCmaximumpeakoutputpower

requirements.Anyothercombinationofantennasorcoaxcablesisnotauthorized.Toreducepotentialradiointerferenceto

otherusers,theantennatypeanditsgainshouldbesochosenthattheequivalentisotropicallyradiatedpower(e.i.r.p.)isnot

morethanthatpermittedforsuccessfulcommunication.











PartNumber:AA20DMs



Omni‐directionaldirectmountantenna,2dBigain.



Indoorandoutdoorapplications.



Theremustbeaminimumseparationdistanceof23

cm.fromtheantennatotheuser.SeeWarnings.



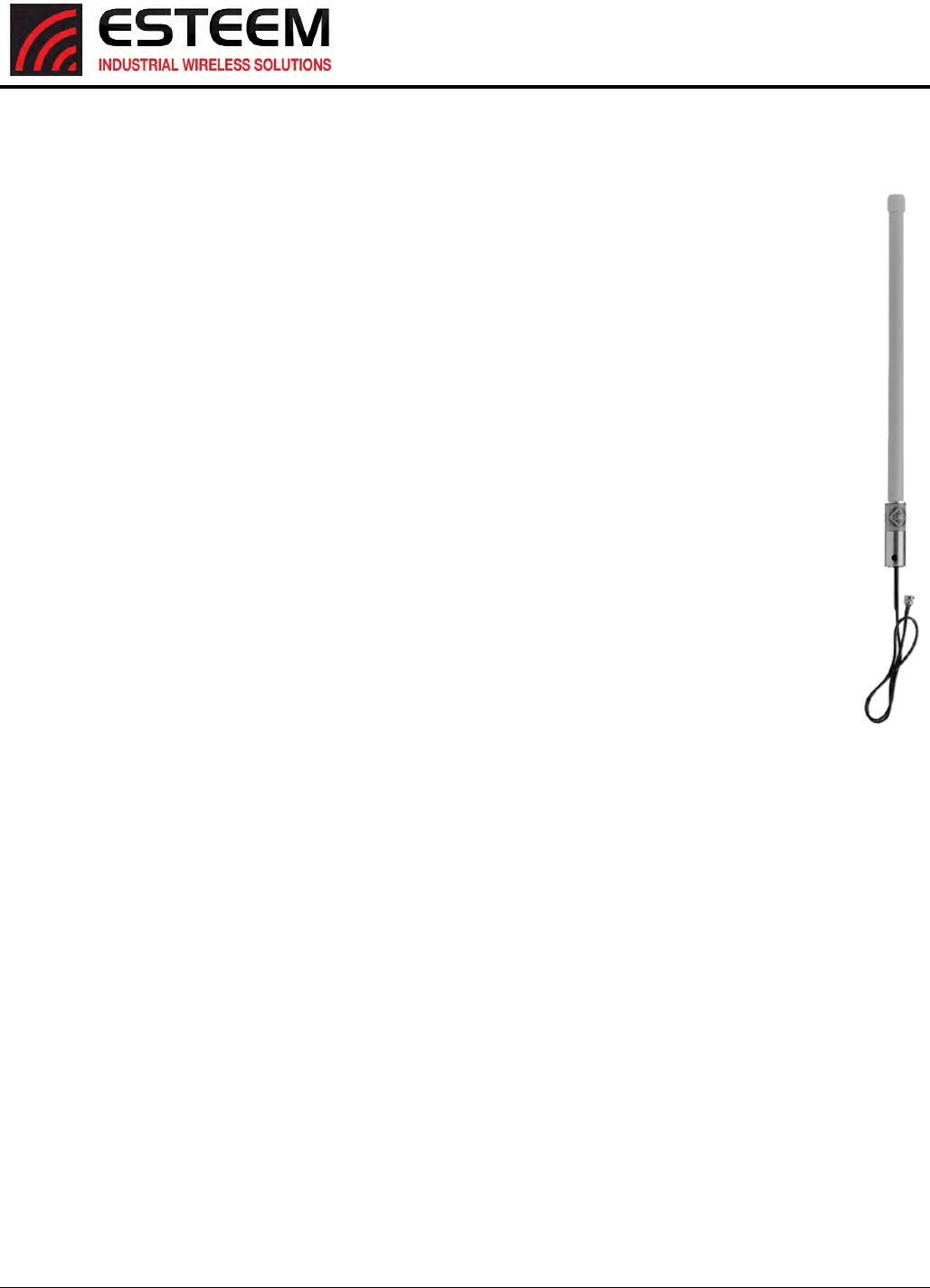

PartNumber:AA20Es900



Omni‐directionalexternalpolemountantenna,7dBi

gainwith3‐ft.integralfeedlineandconnector.



Outdoorapplications.



Theremustbeaminimumseparationdistanceof

23cm.fromtheantennatotheuser.SeeWarnings.



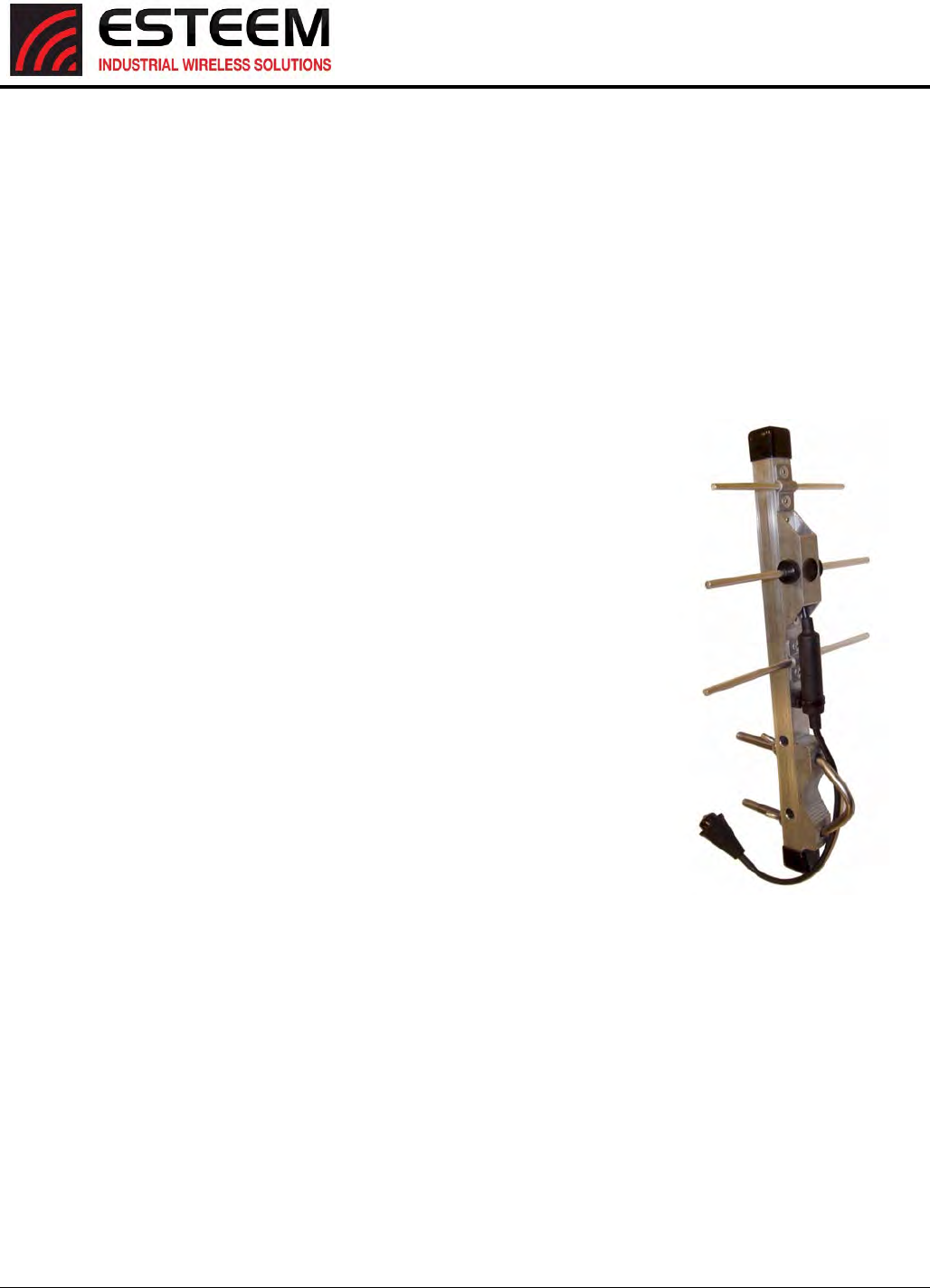

PartNumber:AA203Es900



Directionalpolemountantenna,7dBigainwith3‐ft.

integralfeedlineandconnector.



Pointtopointandpointtomulti‐pointoutdoor

applications.



Theremustbeaminimumseparationdistanceof23

cm.fromtheantennatotheuser.SeeWarnings.



Notes:

Antenna Port A is a transmit and receive port for use in all

applications.

Antenna Port B is a receive only port and is used for dual

diversity antennas applications only. This port is not used

for point to point applications.

Warnings:

Only pre-made coax cables from the factory used in

conjunction with either the AA20Es900 omni-directional

and AA203Es900 directional antennas meet all FCC

Section 15.247(b) EIRP maximum power requirements.

Transmit/Receive

ntenna Port 1 Receive Only

Antenna Port 2

CHAPTER8

ANTENNASETUPS



Revised: 27 Jun 16 8-3 ESTeem Horizon Series

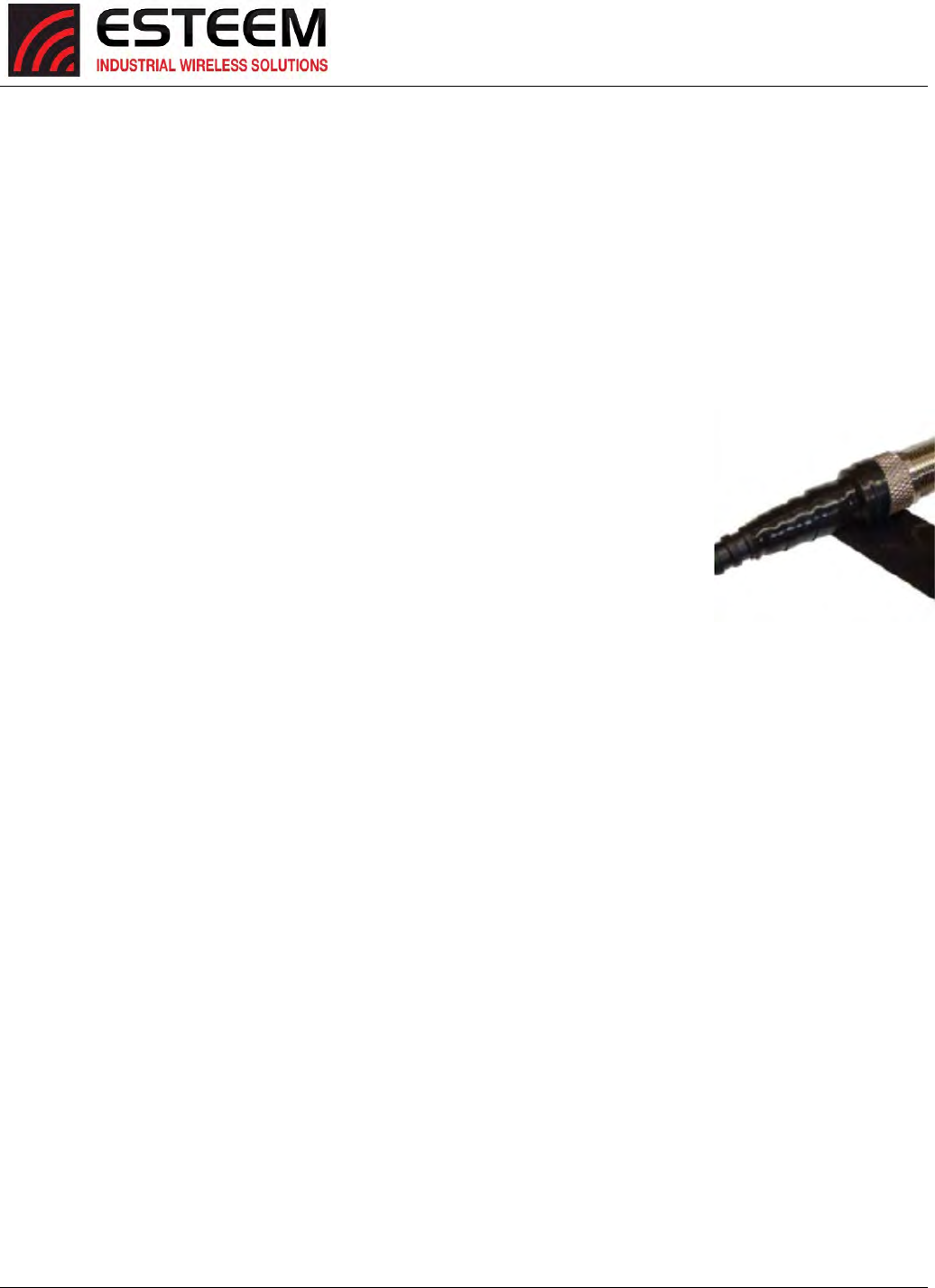

WEATHERPROOFINGCOAXCONNECTIONS



1.Lightlycoatthethreadsoftheconnectorswithsiliconelubricantpriortoassembly(SeeNote1)andhandtighten.Make

suretousethesiliconsparinglysowhenassembled,anyexcessdoesnotgetoncenterconductor.Careshouldbetaken

nottogetanylubricantonthecenterconductor.



2.Wraptheconnectorassemblywithanon‐adhesivesiliconetape,ESTpartnumberAA243,forweatherproofing(SeeNote

2andinstructionsbelow).

a) Cleansurfacetobewrapped.Cutofflengthtobeused.

b) Peelbackashortlengthofprotectivefilm.Keeptapecleananddry.

c) Beginwithonecompleteoverlapoftapeontoitself.

d) STRETCHCoaxWrapwhilecontinuingtowrapobjectwith“half‐laps”,removingclearfilmasyougo(Figure1).For

greaterpressureresistance,use2ormoretightlywrappedlayers.

e) Endoftapeatfinalwrapshouldbecompletelypositionedontoitself.



Note:CoaxWrap’sbondbeginstocureimmediatelyuponcontactwithitself.Repositioningor

removalisnotrecommendedafter2minutesofwrapping.



3.Applyanelectricalcoating(sealingagent),overthevaporbarrierpatchforadded

protection(SeeNote3).



NOTES:



1.DowCorningRTV‐3140orequivalent.



2.CoaxWrap,CW10Borequivalent.



3.SCOTCHKOTE,3‐MCompany,orequivalent.



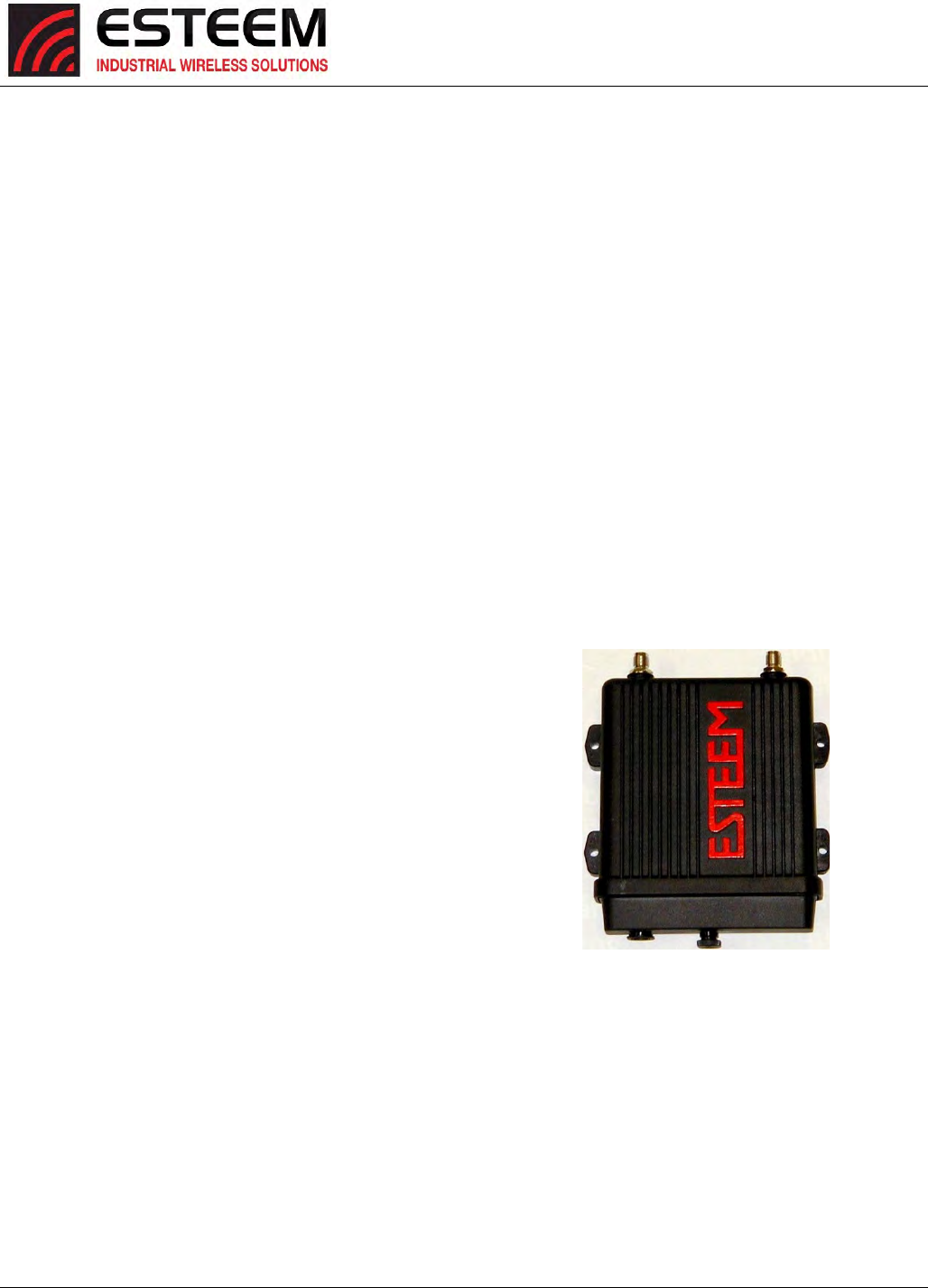

ANTENNADIVERSITY



ThedualdiversityantennaconfigurationontheHorizonallowstheradiotooperatemoreefficientlyinareaswithhighreflections

(suchasindoorsorinacity)withoutdirectlineofsight(LOS)betweentheantennas.Oneofthemostdifficultconditionstocontrol

inaradiosystemistheeffectofadestructivereflectedradiosignalcalledmutipathing.Multipathingoccurswhenwavesemitted

bythetransmittertravelalongadifferentpathandinterferedestructivelywithwavestravelingonadirectline‐of‐sitepath.The

phenomenonoccursbecausewavestravelingalongdifferentpathsmaybecompletelyoutofphasewhentheyreachtheantenna,

therebycancelingeachotherout.Thedualdiversityantennaconfigurationplacesaphysicaldistancebetweentheantennas

whereonereflectedsignalwillbeoutofphase,butthesecondwillbenot.TheESTeemHorizonwillsamplebothantennasand

selectthebestreceivesignal.BothantennaportsareactivebydefaultintheHorizonseries.



CHAPTER8

ANTENNASETUPS

Revised: 27 Jun 16 8-4 ESTeem Horizon Series

AssemblingTheAA195PMTwoHoleOutdoorPoleMountingKit



TheAA195PMmountingkitcontainseverythingrequiredforpolemountingandweatherproofingtheESTeemHorizonforoutdoor

installations.TheHorizonwithAA195PMmountingkitcanbedirectlymountedtoaroundpolefrom1.25”toadiameterof2.25”

OD.Anymountingstructuregreaterthan2”requireshoseclampstrappingrunthroughthePoleMountBrackets.Themounting

kitrequiresthefollowingassembly:



1. IfyoupurchasedanAA195PMmountingkitwithyourHorizon,thekitwillbepackedinthesamepackingboxastheESTeem

(Figure4).



2. Removeandinventorythe

two(2)PoleMounting

Brackets,one(1)Two‐Hole

FacePlateCover(with

singleportcoverinstalled),

one(1)HeatShieldand(1)

AA195PMHardwarebag

fromthepackingbox

(Figure4).Reportany

missingordamageditems

toESTeemCustomer

Support(Phone509‐735‐

9092)assoonaspossible

forreplacement.



3. InventorytheAA195PM

Hardwarebagforallthe

componentslistedin

Figure5.





 



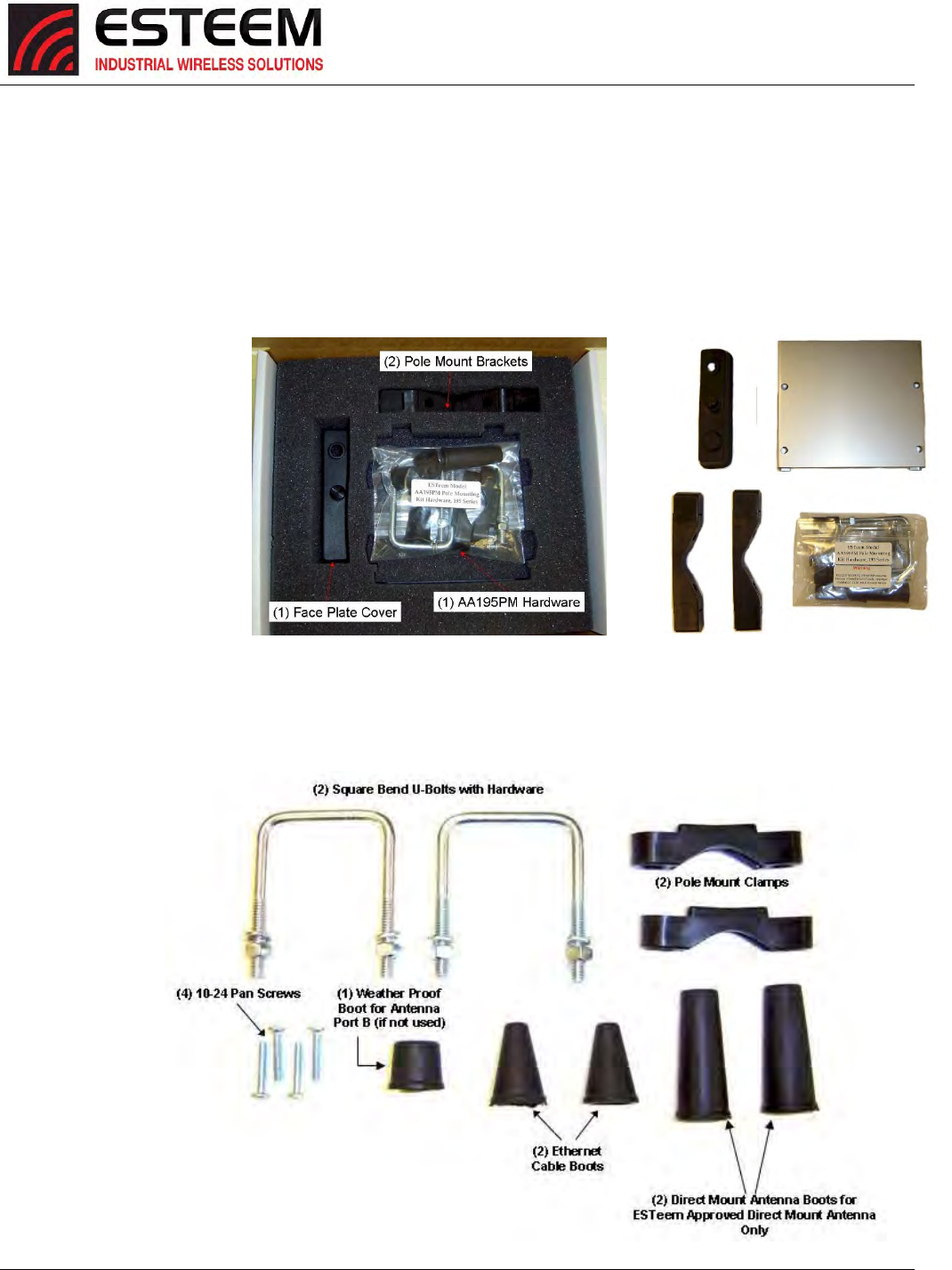

Figure4:PacketBoxContents



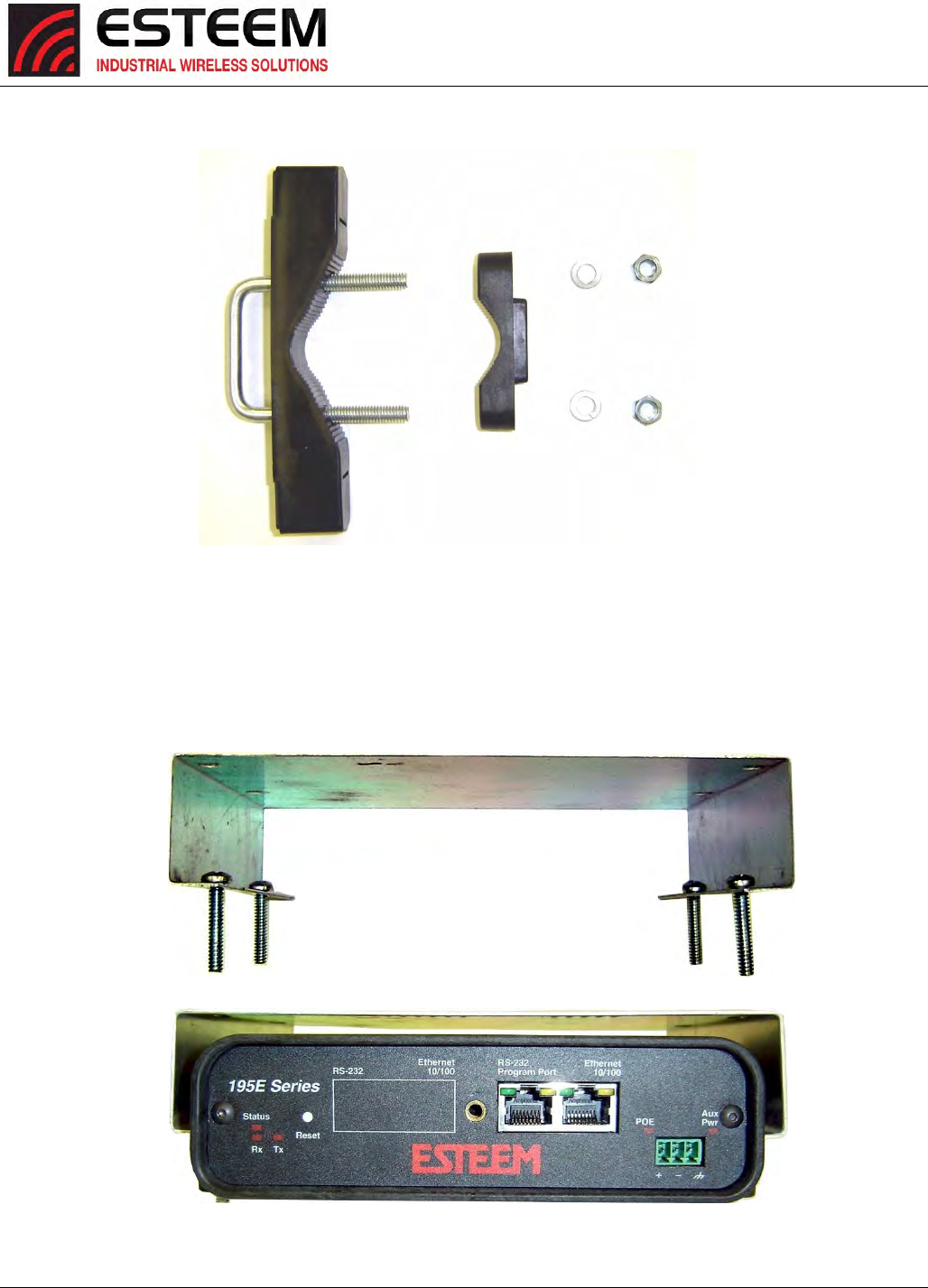

Figure5:AA195PMHardwareContents

CHAPTER8

ANTENNASETUPS

Revised: 27 Jun 16 8-5 ESTeem Horizon Series

4. AssemblethetwoPoleMountingBracketswiththeincludedU‐bolts,hardwareandPoleMountClamps.ReferenceFigure6.

5. Placethefoursupplied10‐24x1”PhillipsPanHeadscrewsthroughthemountingholesoftheHeatShieldandattachtothe

topoftheESTeemHorizon(Figure7).



6. AttachthetwoPoleMountingBracketstotheESTeemHorizonwiththe10‐24x1”PhillipsPanHeadscrewsthroughthetop

oftheheatshield.ReferenceFigure8(HeatShieldremovedfordetail).



Figure6:PoleMountAssembly



Figure7:HeatShieldAttachment



CHAPTER8

ANTENNASETUPS

Revised: 27 Jun 16 8-6 ESTeem Horizon Series



7. AssembletheoutdoorratedCAT‐5eEthernetcable(NotProvided)withthesuppliedEthernetCableBoot(Figure9).



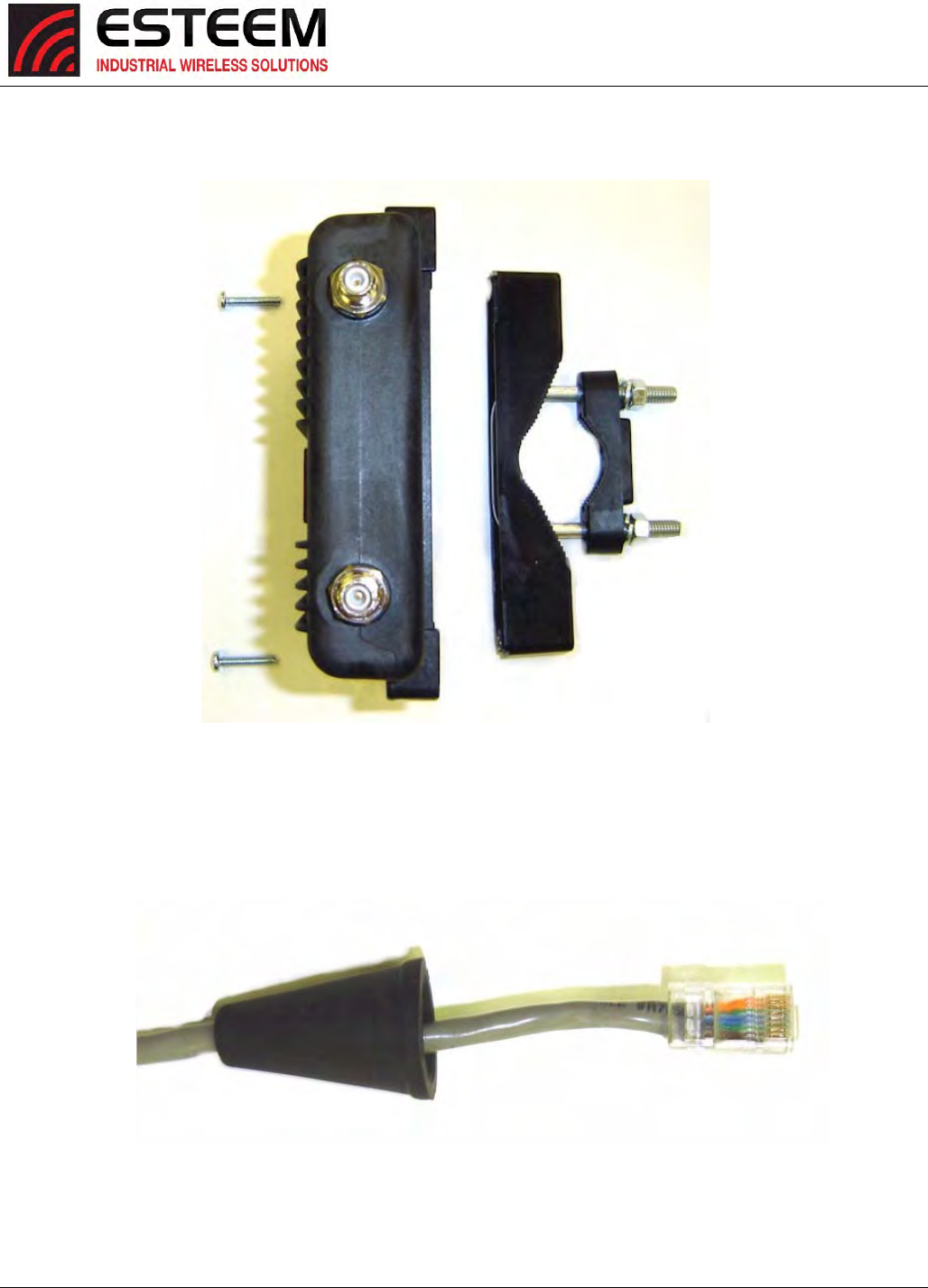

Figure8:PoleMountConnectiontoCase

(HeatShieldRemovedforDetail)



Ethernet Cable Boot



Figure9:EthernetCableAssembly



CHAPTER8

ANTENNASETUPS

Revised: 27 Jun 16 8-7 ESTeem Horizon Series

8. FeedtheCAT‐5eEthernetconnector(s)throughtheFacePlateCoverandsecuretheEthernetCableBoottothecover.

ReferenceFigure10.



NOTE:TheEthernetcablebootmustbeinstalledbeforetheRJ‐45endisinstalled.IfusingtheESTeemAA09.1outdoor

Ethernetcable,verifythattheEthernetcablebootendisroutedtowardtheESTeemHorizon.



9. RoutetheCAT‐5eEthernetcablethroughthemoldedstrain‐relieffinsintheFacePlateCover(Figure11)tosecurethecable

andprovidestrain‐relieffortheconnector.IfasecondEthernetcableisinstalled,removethesecondportcoverandroute

cable.



10. PlugtheCAT‐5eEthernetcabletotheHorizon’sEthernetportandsecuretheFacePlateCoverwiththeattachedthumbscrew.

VerifythattheweatherproofsealontheFacePlateCoverissealedagainsttheouterrimoftheHorizon.ReferenceFigure12.



11. AttachtheantennaconnectorbootsasshowinFigure13foreitherdualattachedantennasorexternalantennas.Youare

nowreadytomounttheESTeemHorizon





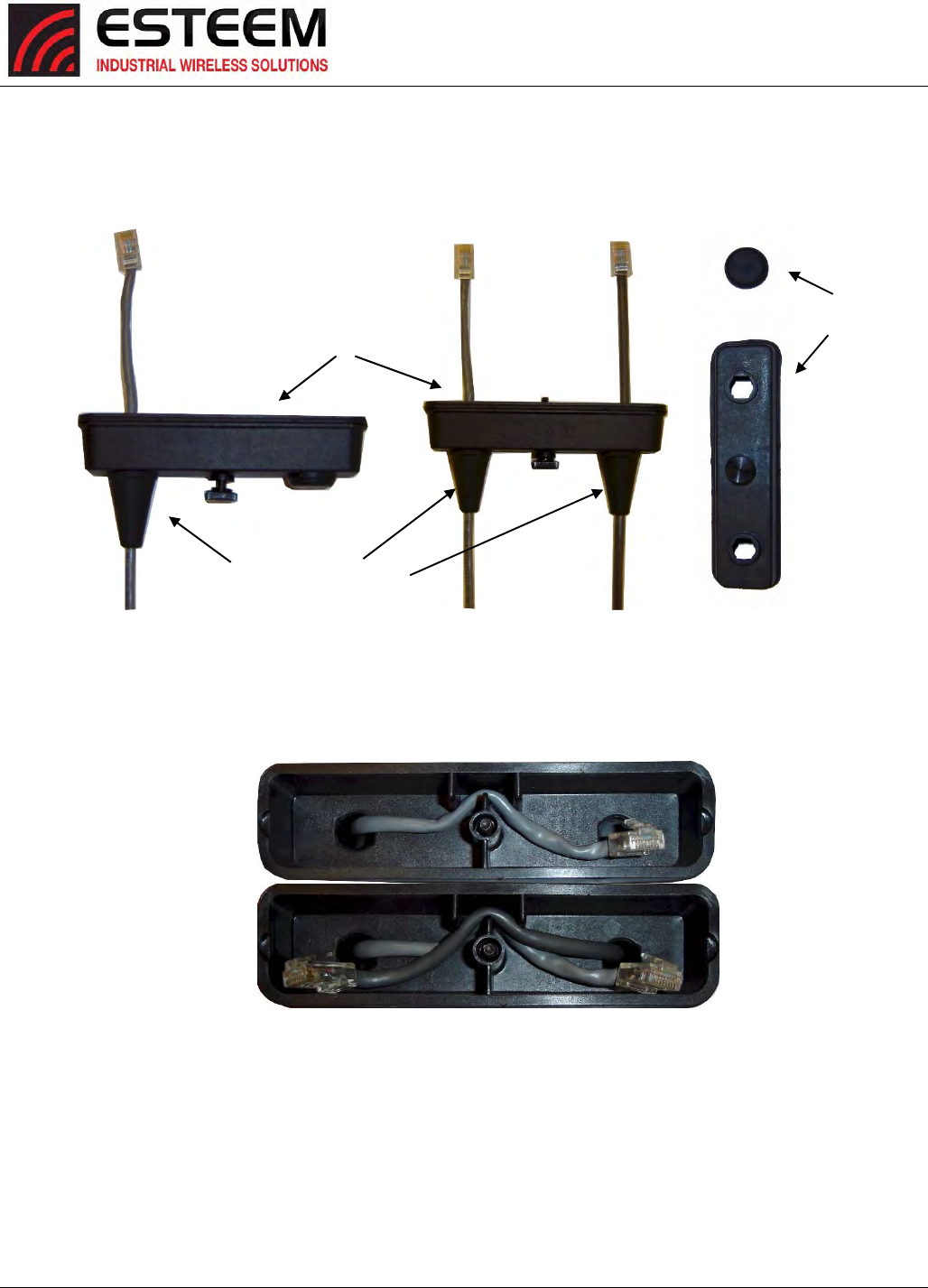

Figure11:FacePlateCoverStrainRelief



   

Figure10:EthernetCableRouting



Face Plate Cover

Ethernet Cable Boots

Second Port Cover

Remove for 2nd Cable

CHAPTER8

ANTENNASETUPS



Revised: 27 Jun 16 8-8 ESTeem Horizon Series



Caution:OutdoormountingoftheHorizonrequirestheuseofweatherproofboots.Improperinstallationcould

resultinradiofailure.

Caution:AlwaysmounttheHorizonverticallywiththeantennaportsontop.

  

Figure12:FacePlateCoverInstalledonESTeem



Figure13:CompletedAA195PMMounts

Direct Mount

Antenna Boots

Port 1

EST Approved Direct Mount

Antenna Only

Port 2

EST Approved External

Antenna With Factory

Installed Boot

Weather Proof Boot

NOTE: Remove Plastic

Connector Cover

Before Installation

Face Towards

The South

(North America)

CHAPTER8

ANTENNASETUPS



Revised: 27 Jun 16 8-9 ESTeem Horizon Series

HorizonPoleMountGroundingProceedures



MountingtheHorizonseriesradiomodemoutdoorsrequirespropergroundingprocedurestopreventdamagetoboththeradio

hardwareandtheconnectedEthernetandSerialperipherals.ThecaseontheHorizonserieswirelessmodemiselectrically

conductive,buttheAA195PoleMountkitprovidesisolationfromtheconnectedstructure.TobringtheHorizoncasetoaground

potentialwithEarthgroundandeliminateanystaticbuilduponthecaseitself,theshieldontheEthernetcableisusedtoprovide

thegroundconnection.



OutdoorEthernetCable



AcriticalcomponentofthisgroundingprotectionsystemistheESTeemAA09.1outdoor,shieldedCAT‐5EEthernetcable.This

cableprovidesthree,necessaryelements;Ethernetdata,DCPoweroverEthernet(PoE)applications,andagroundfromthe

HorizoncasetotheAA166surgeprotector.TheEthernetcableisoutdoorratedandprotectedfromUVbreakdown.

Installation



ThefollowingdiagramoutlinesallthecriticalcomponentsandconnectionsintheHorizonseriessystem.TheEarthground

connectiontothesurgeprotectormustbeinstalledtocomplywithlocalElectricalcoderequirements.



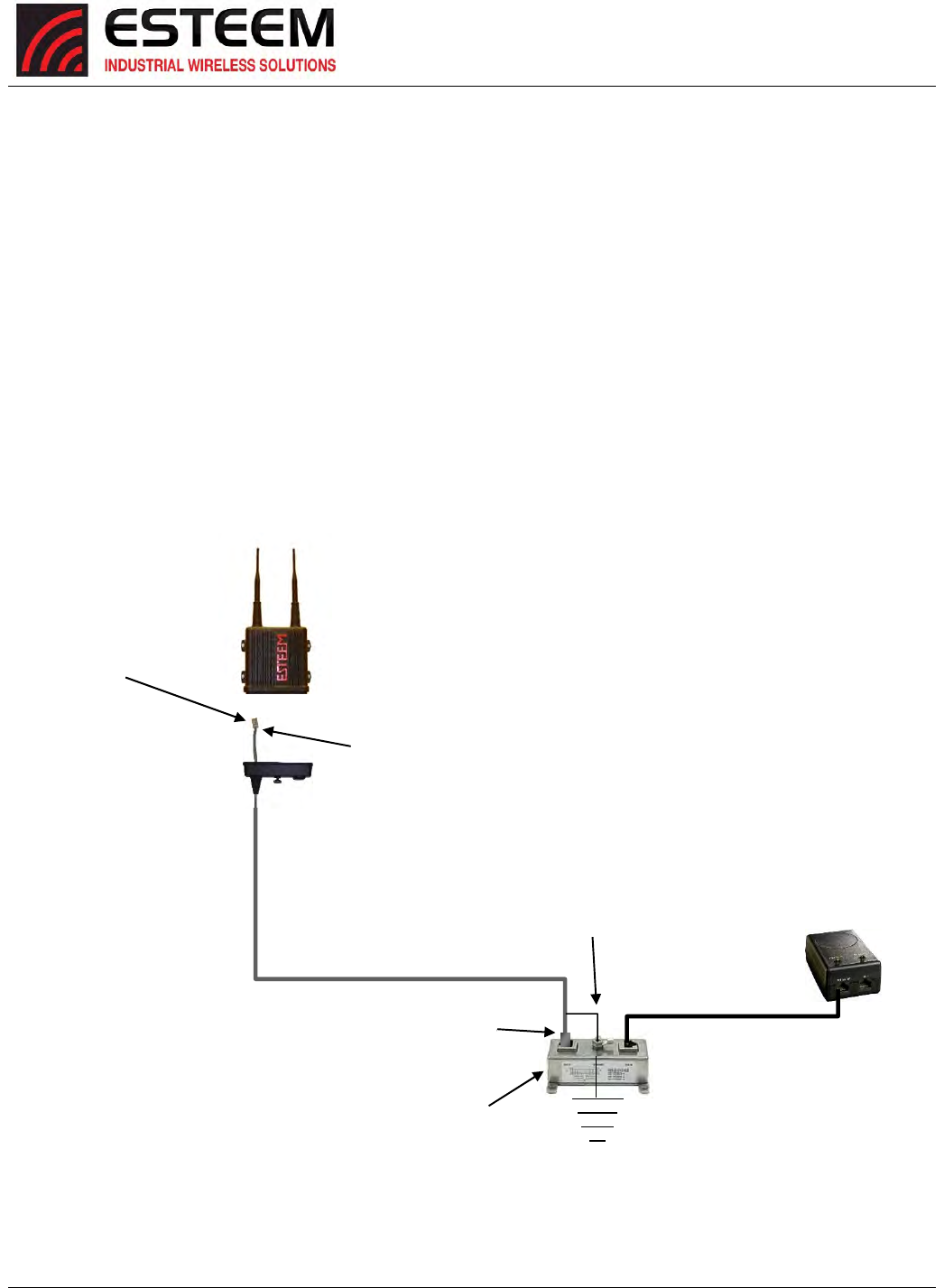

Figure14:PoleMountInstallationDiagram



ESTeem Horizon

Series Wireless Modem

ESTeem AA09.1

Outdoor, Shielded

CAT-5E Cable

(300 ft. maximum)

Metal RJ-45 Hood

(Amp 5-569530-3)

Drain Wire Soldered

To Metal RJ-45 Hood

Drain Wire With

Ring Terminal Connected

to Ground Lug

Approved Earth

Ground Connection

AA166 Ethernet

Surge Protection

Ethernet Patch Cable

(AA09.2)

Power Over Ethernet

Supply

(AA175)

Metal RJ-45 Hood

(Amp 5-569530-3)

CHAPTER8

ANTENNASETUPS

Revised: 27 Jun 16 8-10 ESTeem Horizon Series



FresnelZone



TheFresnelzoneshowstheellipsoidspreadoftheradiowavesaroundthevisualline‐of‐sightaftertheyleavetheantenna(see

Figure15).Thisareamustbeclearofobstructionsorthesignalstrengthwillbereducedduetosignalblockage.Typically,20%

FresnelZoneblockageintroduceslittlesignallosstothelink.Beyond40%blockage,signallosswillbecomesignificant.This

calculationisbasedonaflatearth.Itdoesnottakeintoaccountthecurvatureoftheearth.ItisrecommendedforRFpathlinks

greaterthan7milestohaveamicrowavepathanalysisdonethattakesthecurvatureoftheearthandthetopographyofthe

terrainintoaccount.



FresnelZoneRadius=72.1SQRT[(d1d2)/(F(d1+d2)]



Units

FresnelZoneRadiusinfeet.

d1andd2instatuemiles

FinGHz



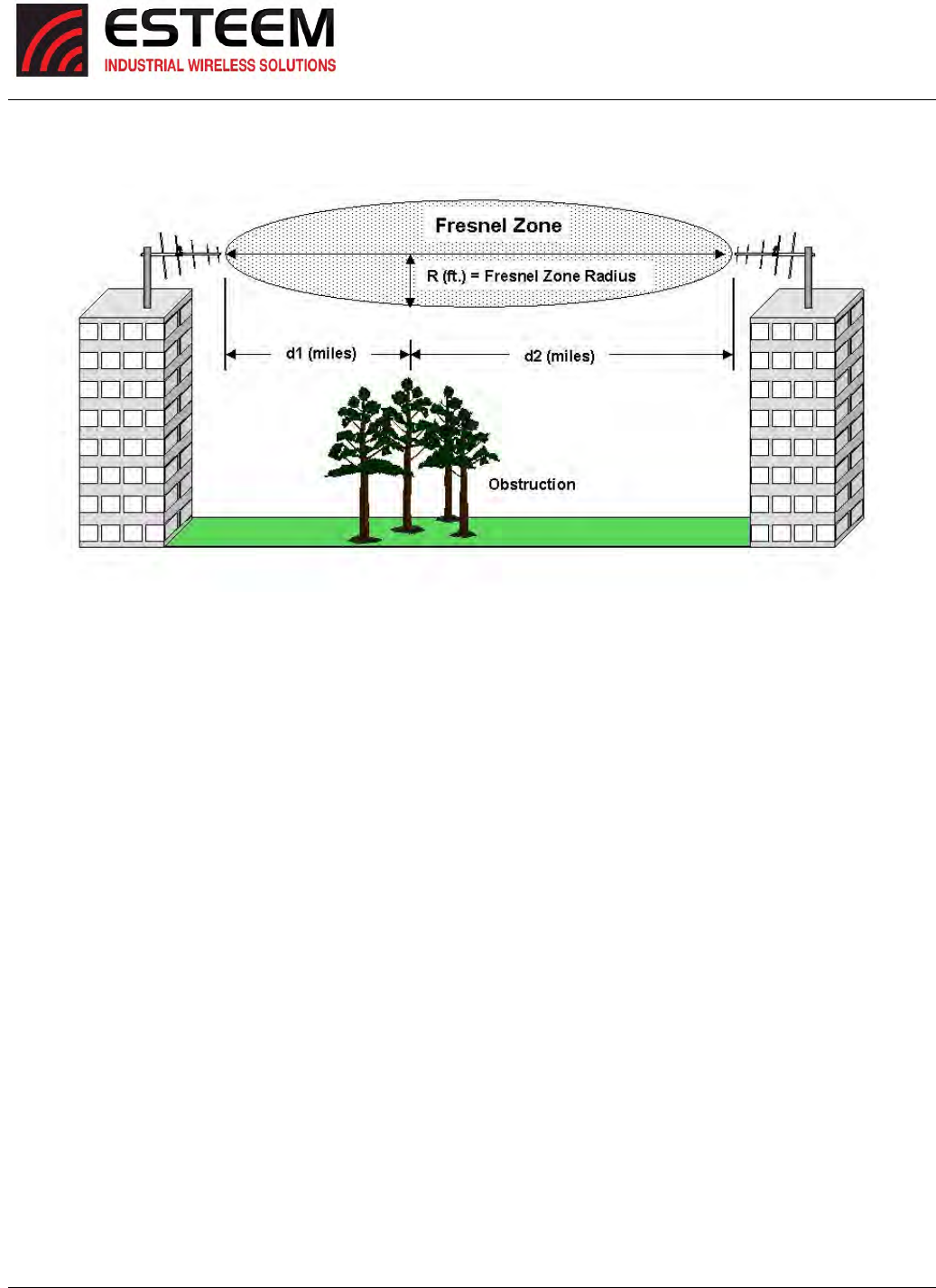

Figure15:FresnelZoneDiagram



APPENDIX A

LICENSING INFORMATION

Revised: 28 Jun 16 APX A-1 ESTeem Horizon Series

Information to Users

FCC Statement

The ESTeem Horizon complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Caution: Changes or modifications to this equipment not expressly approved by ESTeem Wireless Modems for compliance could

void the user's authority to operate the equipment.

IC Statement

“This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two

conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.”

“Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux

deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute

interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil.”

Emissions Information

Horizon 2.4 GHz (Model 216An)

HVIN: 216AN

Direct Sequence/OFDM Spread Spectrum Device

(USA) FCC ID: ENPHZN216AN

(Canada) IC No: 2163A-216AN

Horizon 900 MHz (Model 216Ad)

HVIN: 216AD

Direct Sequence/OFDM Spread Spectrum Device

(USA) FCC ID: ENPHZN216AD

(Canada) IC No: 2163A-216AD

The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

APPENDIX A

LICENSING INFORMATION

Revised: 28 Jun 16 APX A-2 ESTeem Horizon Series

FEDERAL COMMUNICATIONS COMMISSION FIELD OFFICES

ALASKA

1011 E. Tudor Rd.

Rm 240 Box 2955

Anchorage, AK 99510

CALIFORNIA

Interstate Office Park

4542 Ruffner St., Room 370

San Diego, CA 92111-2216

Los Angeles Office (LA)

Ceritos Corporate Tower

18000 Studebaker Rd., Room 660

Cerritos, CA 90701-3684

San Francisco Office (SF)

5653 Stoneridge Drive, Suite 105

Pleasanton, CA 94588-8543

COLORADO

Denver Office (DV)

215 S. Wadsworth Blvd., Suite 303

Lakewood, CO 80226-1544

FLORIDA

919 Federal Bldg

51 SE First Ave.

Miami, FL 33130

Tampa Office (TP)

2203 N. Lois Ave., Room 1215

Tampa, FL 33607-2356

GEORGIA

Atlanta Office (AT)

3575 Koger Blvd., Suite 320

Duluth, GA 30096-4958

HAWAII

7304 Prince Kuhi

Federal Building

Honolulu, HI

ILLINOIS

Chicago Office (CG)

Park Ridge Office Ctr., Room 306

1550 Northwest Highway

Park Ridge, IL 60068-1460

LOUISIANA

New Orleans Office (OR)

2424 Edenborn Ave. Suite 460

Metarie, LA 70001

MARYLAND

1017 Geo. Fallon

Building 31

Hopkins Plaza

Baltimore, MD

MASSACHUSETTS

Boston Office (BS)

1 Batterymarch Park

Quincy, MA 02169-7495

MICHIGAN

Detroit Office (DT)

24897 Hathaway Street

Farmington Hills, MI 48335-1552

MINNESOTA

691 Federal Building

316 N Robert St.

St. Paul, MN

MISSOURI

Kansas City Office (KC)

520 NE Colbern Road

Second Floor

Lee’s Summit, MO 64086

NEW YORK

1307 Federal Building

111 W. Huron

Buffalo, NY 14202

NEW YORK

New York Office (NY)

201 Varick Street, Suite 1151

New York, NY 10014-4870

OREGON

1782 Federal Building

1220 SW 3rd Avenue

Portland, OR 97204

PENNSYLVANIA

Philadelphia Office (PA)

One Oxford Valley Office Bld.

Room 404

2300 E. Lincoln Hwy

Langhorne, PA 19047-1859

PUERTO RICO

747 Federal Building

Carlo Chardon Ave.

Hato Rey, PR 00918

TEXAS

Dallas Office (DL)

9330 LBJ Freeway, Room 1170

Dallas, TX 75243-3429

5636 Federal Building

515 Rusk Avenue

Houston, TX 77002

WASHINGTON DC

Columbia Office (CF)

9300 East Hampton Drive

Capitol Heights, MD 20743

WASHINGTON

Seattle Office (ST)

11410 NE 122nd Way

Room 312

Kirkland, WA 98034-6927

APPENDIXB

INTERFACEPORTS

Revised: 27 Jun 16 APX B-1 ESTeem Horizon Series

ETHERNETINTERFACE



TheESTeemHorizon’sEthernetPortisaFullandHalf‐DuplexAuto‐negotiationinterfacesupporting10Mbps,100Mbpsand1Gbps

(10/100/1000BaseT).TheEthernetportiscompliantwithIEEE802.3at‐2009PowerOverEthernetPlus(PoE+)toprovideboth

dataandpoweroverthesameCAT‐5EgradeEthernetcable.TheportiscompatiblewithTIA/EIA‐568Bcableconfiguration(Figure

1).



AsecondEthernetportisincludedwiththeESTeemHorizon.ThissecondEthernetportcanbeconfiguredtobridgetotheprimary

EthernetportorconfiguredtocommunicateontheWirelessorEthernetsideoftheHorizoninroutermode.



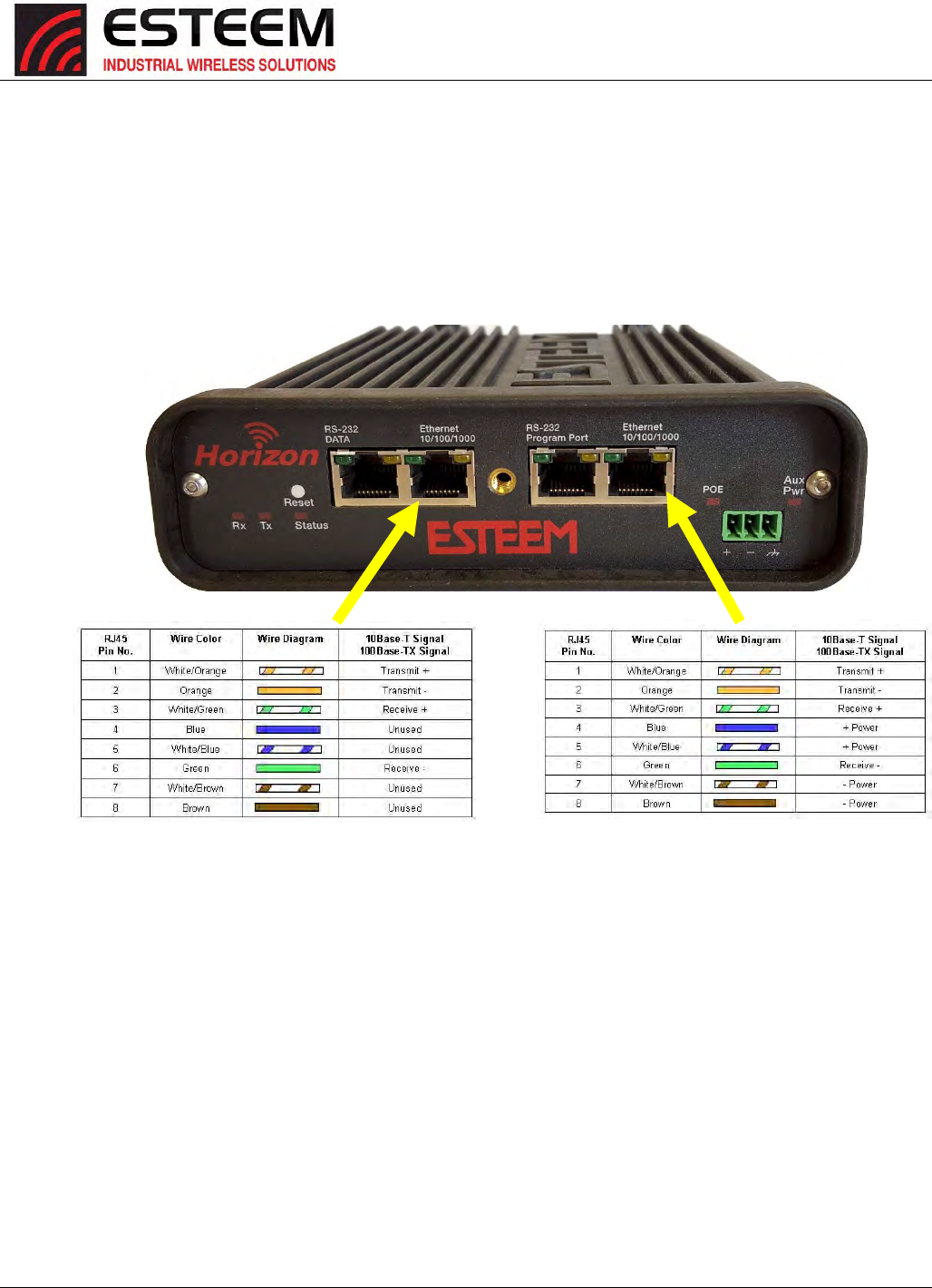

Figure1:EthernetPinLayout

APPENDIXB

INTERFACEPORTS

Revised: 27 Jun 16 APX B-2 ESTeem Horizon Series

CONFIGURINGDHCPSERVER



TheESTeemHorizonEthernetportsupportsbothclientandserverDynamicHostConfigurationProtocol(DHCP).Figure2shows

theDHCPhostconfigurationscreenthatwillbeshownifDHCPserverisselectedinthesetupscreens.Enterthevaluesthatmatch

theDHCPconfigurationforyournetwork.



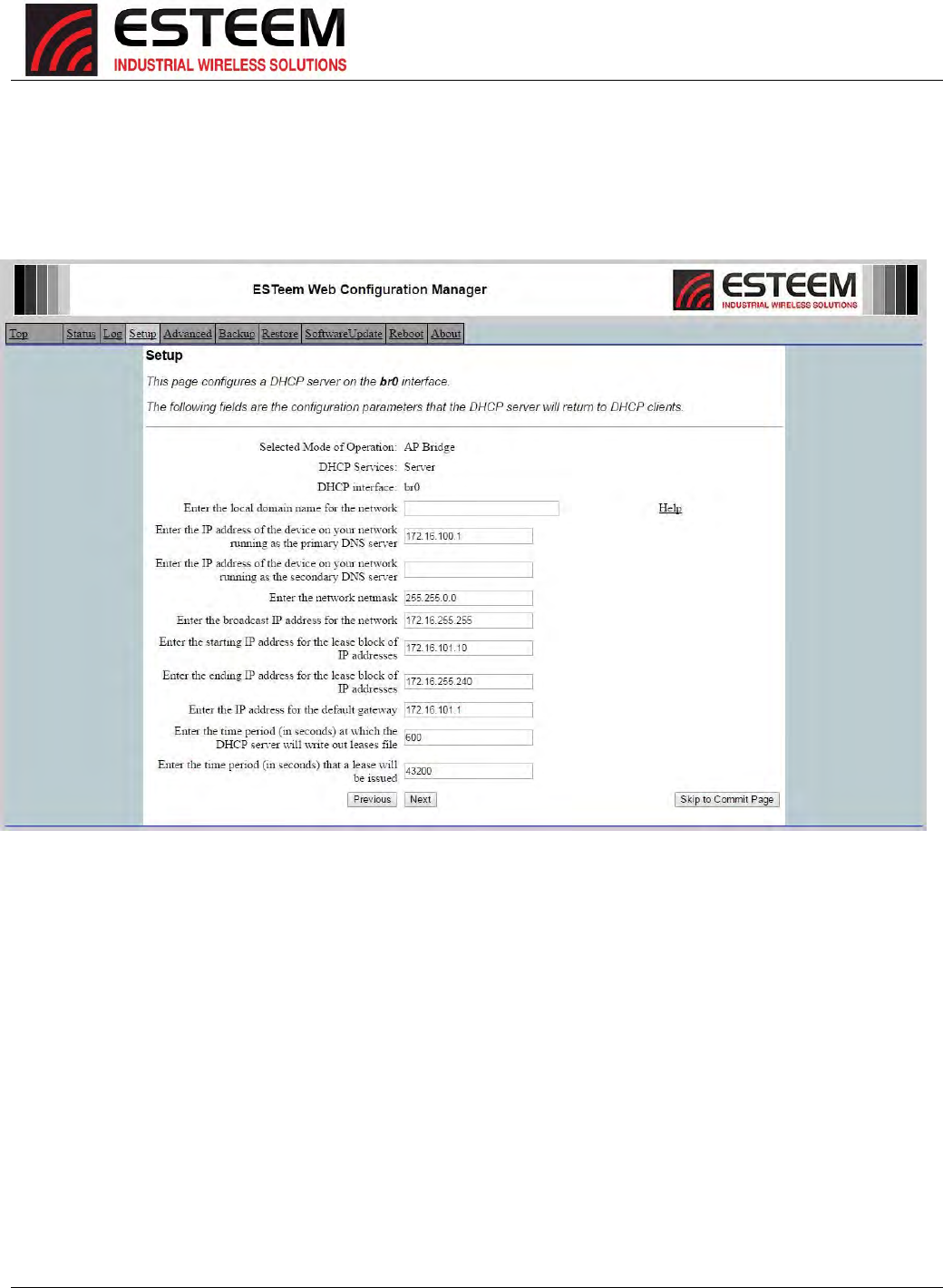

Figure2:DHCPServerConfiguration

APPENDIXB

INTERFACEPORTS

Revised: 27 Jun 16 APX B-3 ESTeem Horizon Series

RS‐232CProgrammingPortConfiguration



TheESTeemHorizonusesaproprietaryRS‐232Cinterfaceina

RJ‐45connectoronthefrontpanel.TointerfacetheHorizonto

theserialportonthecomputer,youneedESTeemcableAA0621

thatcombinesastandardEthernetpatchcabletoa9‐pinFemale

adapter.



TheRS‐232ProgrammingPortontheESTeemHorizoncanbe

usedtoaccesstheconfigurationmenuintheESTeemforsystem

andnetworkconfiguration.TheESTeemcommunicationsport

operatesat38,400bps,NoParity,8DataBitsand1StopBit

(38,400,N,8,1).Configureyourterminalprogramtomatchthese

settings.



RS‐232ProgrammingPortPin‐OutTable

ESTeemModelAA0621

RS‐232CPortPin‐OutTable



RJ‐45Pin

No.

Function



DB‐9

PinNo.

4SignalGround(GND)5

5ReceiveData(RxD)2

6TransmitData(TxD)3



RS‐232CDataPortConfiguration



TheESTeemHorizonhasanRS‐232CdatainterfaceinaRJ‐45connectoronthefrontpanel.SeeChapter6forfurtherinformation

onserialdataportconfiguration.TointerfacetheHorizontotheserialportonthecomputer,youneedserialcablewiththe

followingpin‐out:



ESTeemModelAA0621

RS‐232CPortPin‐OutTable



RJ‐45Pin

No.

Function



DB‐9

PinNo.

1DataSetReady(DSR)6

2DataCarrierDetect(DCD)1

3DataTerminalReady(DTR)4

4SignalGround(GND)5

5ReceiveData(RxD)2

6TransmitData(TxD)3

7CleartoSent(CTS)8

8RequesttoSent(RTS)7



HorizonSerialPortInterface



EthernetPin‐out

APPENDIXC

RADIOCONFIGURATION

Revised: 27 Jun 16 APX C-1 ESTeem Horizon Series

HorizonFrequenciesofOperation



InawirelessEthernetnetworkalloftheESTeemHorizonmustbesettothesameradio

frequencyofoperation(channel)andbandwidth.Thefollowingtableshowsthe

channelsandcorrespondingfrequenciesofoperationforeachmodelofESTeem.The

frequencyofoperationisselectablewhenconfiguringthemodeofoperationofthe

Horizon(referenceChapter3).



Figure1:RadioFrequencyChannelSelection



RFDataRateConfiguration



TheRFdatarateoftheHorizoncanbeprogrammedforoperationatmultipledatarates.TheRFdataratecanbesetforafixed

rateoraspecificrangethatisdynamicallyscaledbytheHorizonfrommonitoringthereceivedsignalquality.Dynamicscaling

meansthattheHorizonwilloperateatthehighestRFdataratethatisprogrammedintounit.Ifthereceiveddataqualitydrops

belowtherequiredminimumsforreliablecommunications,theHorizonwillreducethedataratetothenextloweststepto

increasesignalquality.ConverselyifthesignalqualityincreasesabovetheminimumstheHorizonwillincreasetheRFdatarate

thenexthighestlevel.



TheESTeemHorizonissetatthefactorytooperateatmaximizedscalingspeeddataratesandshouldnotneedadjustment.The

RFDataRateisprogrammedintheHorizonthroughtheAdvancedMenu>WirelessLANSettings>wlan0deviceandthevaluefor

CommunicationRatesand802.11nCommunicationRateIndex:.IntheexampleshowninFigure2theRFDateRateis

programmedtodynamicscalealldatarates(recommendfactorydefaultsetting).Tosetthevaluesforthedatarate,checkthe

boxnexttothelisteddataratetoenablethisrateforoperation.



TechnicalTip:Theshaded

frequencychannelsareavailable

for802.11(Wi‐Fi)clientuse.All

othernon‐shadedchannelsare

proprietary.



ChannelNumberFrequencyBandwidths

 

Horizon900MHz

4907MHz5/10MHz

5912MHz5/10/20MHz

6917MHz5/10/20MHz

7922MHz5/10MHz

ChannelNumberFrequencyBandwidths

 

Horizon2.4GHz

12412MHz5/10/20/40MHz

22417MHz5/10/20/40MHz

32422MHz5/10/20/40MHz

42427MHz5/10/20/40MHz

52432MHz5/10/20/40MHz

62437MHz5/10/20/40MHz

72442MHz5/10/20/40MHz

82447MHz5/10/20/40MHz

92452MHz5/10/20/40MHz

102457MHz5/10/20/40MHz

112462MHz5/10/20/40MHz

 

APPENDIXC

RADIOCONFIGURATION

Revised: 27 Jun 16 APX C-2 ESTeem Horizon Series



RFBandwidths



TheHorizonradioshaveadjustableRFbandwidthsforoperation.ReducingtheRFbandwidthincreasesthenumberofavailable

channelsandtheradio'sabilitytorejectRFinterference.DifferentmodelsoftheHorizonserieswillhavedifferentavailable

bandwidthsdependinguponthefrequencyofoperation.Forexample,Figure3showstheconfigurationoftheHorizon2.4

GHz’savailablebandwidths.



NOTE:AllESTeemradiosinthesamenetworkMUSTbeonthesamefrequencychannelandusethesamebandwidth

selection.



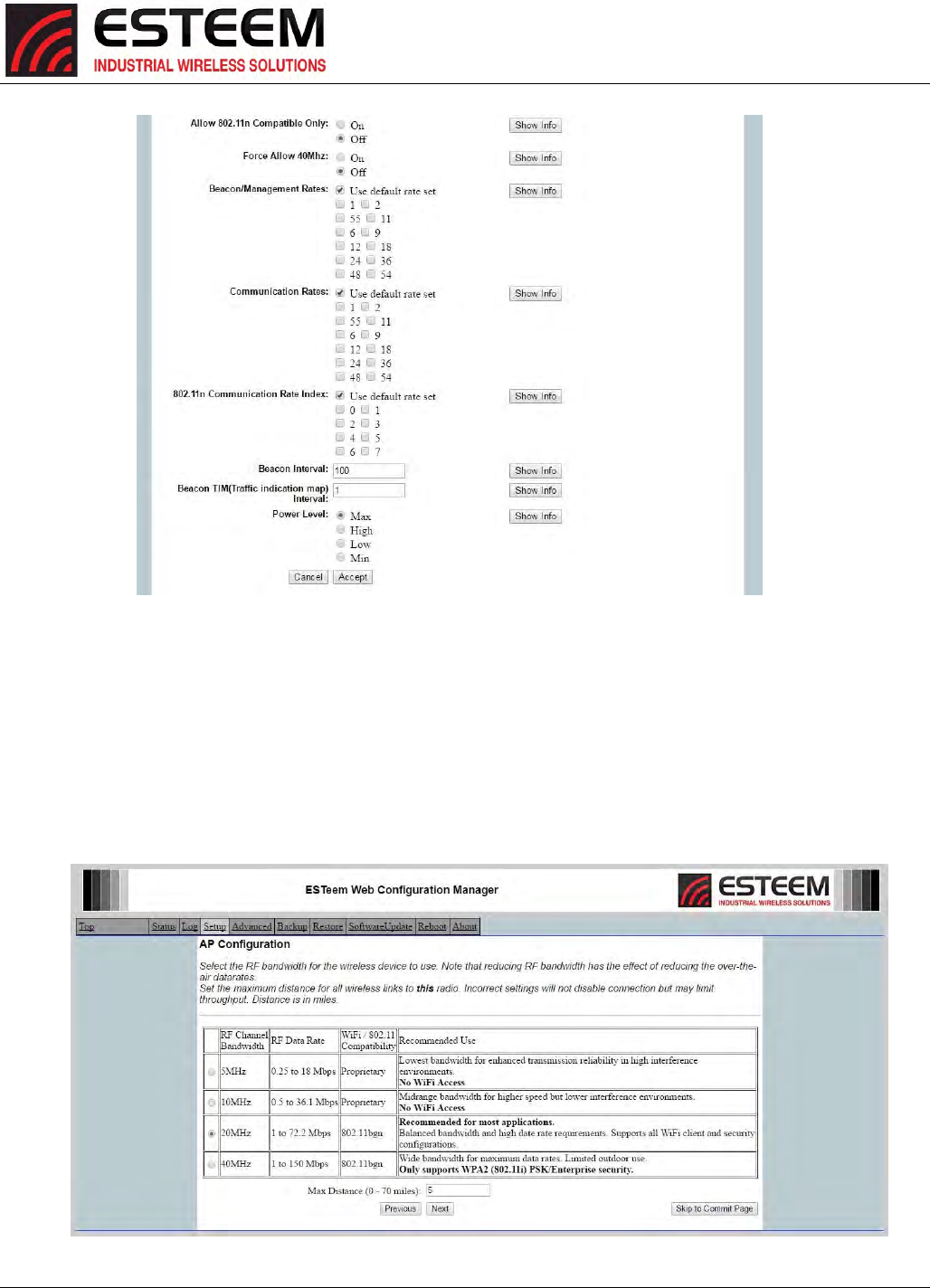

Figure2:AdvancedDataRateSelection



Figure3:Horizon2.4GHzBandwidthSelection

APPENDIXC

RADIOCONFIGURATION

Revised: 27 Jun 16 APX C-3 ESTeem Horizon Series

DataRatesandThroughput



TheHorizonseriesradiosaredesignedtodynamicallychangetheirdatarate,modulationandguardindex(GI)basedupontheir

currentreceivesignalstrengthandbackgroundnoise.ItishighlyrecommendedtoallowtheHorizontodynamicallyscaletothe

bestdatarategiventheoperationconditions.DynamicscalingmeansthattheHorizonwilloperateatthehighestRFdatarate

thatisprogrammedintounit.Thefollowingtablesshowtheinteractionsofdatarate,channelbandwidth(CW)andguard

interval(GI):



Table1:DataRatesandThroughput



Legacy DSSS or Modulation Coding Data Rate Throughput Data Rate Throughput Data Rate Throughput

Rates OFDM 5MHz 5MHz 10MHz 10MHz 20MHz 20MHz

1DSSS BPSK 1/11 0.25 0.01 0.5 0.03 10.60

2DSSS QPSK 1/11 0.5 0.03 10.06 20.11

5.5 DSSS CCK 4/8 1.375 0.43 2.75 0.86 5.5 1.72

11 DSSS CCK 4/8 2.75 0.86 5.5 1.72 11 3.44

6OFDM BPSK 1/2 1.5 0.47 30.09 61.88

9OFDM BPSK 3/4 2.25 1.05 4.5 2.11 94.22

12 OFDM QPSK 1/2 30.94 61.88 12 3.75

18 OFDM QPSK 3/4 4.5 2.11 94.22 18 8.44

24 OFDM 16-QAM 1/2 61.88 12 3.75 24 7.50

36 OFDM 16-QAM 3/4 94.22 18 8.44 36 16.88

48 OFDM 64-QAM 2/3 12 5.00 24 10.00 48 20.00

54 OFDM 64-QAM 3/4 13.5 6.33 27 12.66 54 25.31

802.11n Spatial Modulation Coding Data Rate Throughput Data Rate Throughput Data Rate Throughput Data Rate Throughput

Index Streams GI = --> 800ns 800ns 400ns 400ns 800ns 800ns 400ns 400ns

CW = --> 5MHz 5MHz 5MHz 5MHz 10MHz 10MHz 10MHz 10MHz

01 BPSK 1/2 1.625 0.56 1.8 0.62 3.25 1.12 3.6 1.24

11QPSK 1/2 3.25 1.12 3.6 1.24 6.5 2.23 7.2 2.48

21QPSK 3/4 4.875 2.51 5.425 2.8 9.75 5.03 10.85 5.59

31 16-QAM 1/2 6.5 2.23 7.225 2.48 13 4.47 14.45 4.97

41 16-QAM 3/4 9.75 5.03 10.825 5.58 19.5 10.05 21.65 11.16

51 64-QAM 2/3 13 5.96 14.45 6.62 26 11.92 28.9 13.25

61 64-QAM 3/4 14.625 7.54 16.25 8.38 29.25 15.08 32.5 16.76

71 64-QAM 5/6 16.25 9.31 18.05 10.34 32.5 18.62 36.1 20.68

CW = --> 20MHz 20MHz 20MHz 20MHz 40MHz 40MHz 40MHz 40MHz

01 BPSK 1/2 6.5 2.23 7.2 2.48 13.5 4.64 15 5.16

11QPSK 1/2 13 10.05 14.4 4.95 27 9.28 30 10.31

21QPSK 3/4 19.5 10.05 21.7 11.19 40.5 20.88 45 23.20

31 16-QAM 1/2 26 8.94 28.9 9.93 54 18.56 60 20.63

41 16-QAM 3/4 39 20.11 43.3 22.33 81 41.77 90 46.41

51 64-QAM 2/3 52 23.83 57.8 26.49 108 49.5 120 55.00

61 64-QAM 3/4 58.5 30.16 65 33.52 121.5 62.65 135 69.61

71 64-QAM 5/6 65 37.24 72.2 41.36 135 77.34 150 85.94

APPENDIXC

RADIOCONFIGURATION

Revised: 27 Jun 16 APX C-4 ESTeem Horizon Series

SETTINGRFPOWERLEVEL



TheESTeemHorizonpeakpowerisadjustableinoutputpowerfromtheadvancedconfigurationmenu.Theoutputpoweris

adjustedontheAdvancedMenu>WirelessLANSettings>wlan0devicescreen(Figure4)oftheWebConfigurationManager.

SelectthevalueandpresstheSaveSettingsbutton.



Max(Maximum)FullPower

Hi(High)75%Power

Lo(Low)50%Power

Min(Minimum)25%Power



Figure5:PowerLevelSettings



Figure4:AdvancedGlobalVariables

APPENDIXD

SECURITY

Revised: 27 Jun 16 APX D-1 ESTeem Horizon Series

OVERVIEW



ThesecurityfortheESTeemHorizon,likeallnetworksecurity,mustbemulti‐layered.Onelevelofsecurityisneverenoughto

makesurethatdatadoesnotendupinthewronghands.Pleasereviewthefollowingsecuritylevelsanddecidewhatisthemost

appropriateforyournetwork.



AES‐CCMP(802.11iandWPA‐2)



AES‐CCMP(AdvancedEncryptionStandard‐CounterModeCBC‐MACProtocol)istheencryptionalgorithmusedintheIEEE802.11i

andWPA‐2securityprotocols.Thisnationalencryptionstandardusesa128bit‐AESblockcipherandCCMPtechniquetoensure

thehighestlevelofsecurityandintegrityavailableonawirelessnetwork.AES‐CCMPincorporatestwosophisticatedcryptographic

techniques(countermodeandCBC‐MAC)andadaptsthemtoEthernetframestoprovidearobustsecurityprotocolbetweenthe

mobileclientandtheaccesspoint.AESitselfisaverystrongcipher,butcountermodemakesitdifficultforaneavesdroppertospot

patterns,andtheCBC‐MACmessageintegritymethodensuresthatmessageshavenotbeentamperedwith.TheESTeemHorizon

iscompatibleaseitheranAccessPointorclientineitherWPA2orIEEE802.11isecuritysystems.



Wi‐FiProtectedAccess2withPresharedKey(WPA2PSK)

WPA2PSKusesacommonpassphrase(presharedkey)betweentheAccessPoint(AP)andtheclienttobeginasecure

communicationsession.ThispassphrasemustbeenteredexactlythesameinboththeAccessPointandtheclient.Thispassphrase

isusedtoauthenticatecommunicationsessionbetweentheAPandclienttobeginthesecurewirelessnetworkingsession.



Wi‐FiProtectedAccess2withEnterpriseServer(WPAEnterprise)

LikeWPA2PSK,WPA2EnterpriseverifiestheauthenticityoftheAccessPointandclient,butusesan802.1xbackendauthentication

serverhandlingtheauthenticationdecision.ThemostcommonlytypeofauthenticationserverisaRADIUSserver.TheESTeem

HorizoncanbeconfiguredtooperatewithanestablishedRADIUSserveronthenetwork.



WPA



Wi‐FiProtectedAccesswithPresharedKey(WPAPSK)

WPA,whichuses802.1x,wasintroducedin2003toimproveontheauthenticationandencryptionfeaturesofWEP.All

authenticationishandledwithinthisaccesspointdevice.WPAhastwosignificantadvantagesoverWEP:

1. Anencryptionkeydifferingineverypacket.TheTKIP(TemporalKeyIntegrityProtocol)mechanismsharesastartingkey

betweendevices.Eachdevicethenchangestheirencryptionkeyforeverypacket.Itisextremelydifficultforhackerstoread

messageseveniftheyhaveinterceptedthedata.

2. CertificateAuthentication(CA)canbeused,blockingahackerposingasavaliduser.



Wi‐FiProtectedAccesswithEnterpriseServer(WPAEnterprise)

LikeWPAPSK,WPAEnterpriseverifiestheauthenticityoftheAccessPointandclient,butusesan802.1xbackendauthentication

serverhandlingtheauthenticationdecision.ThemostcommonlytypeofauthenticationserverisaRADIUSserver.TheESTeem

HorizoncanbeconfiguredtooperatewithanestablishedRADIUSserveronthenetwork.



WPAisserver/clientrelationshipfromasoftwaredriveronacomputer’swirelessLAN(WLAN)cardtoanAccessPoint.Thescope

ofWPAislimitedinusetothisconfigurationonly.TheESTeemHorizoncansupportWPAEnterpriseandPSKasanAccessPoint,

butthelevelofsecurityontheBridginglayerisconfiguredseparately.



APPENDIXD

SECURITY

Revised: 27 Jun 16 APX D-2 ESTeem Horizon Series

128‐BITWEP



The128WEPusesaparticularalgorithmcalledRC4encryptiontoencodeanddecodetrafficthatisbasedona104‐bitencryption

keyanda24‐bitInitializationVector(IV).RC4startswitharelativelyshortencryptionkey(104bits)thatisexpandedintoanearly

infinitestreamofkeystoaccompanythestreamofpackets.



ThebasicconceptofRC4isgood,butthewayit’simplementedinWEPleavesitopentocompromise.Theresearchersthattest

theintegrityofthesystemusuallyfocusononepieceoftheimplementation,theInitializationVector(IV).



TheIV(24bits)isthealgorithmcomponentthat’ssupposedtokeepexpandedkeysfromrepeating.Fromtheresearcher’spoint

ofview,ahigh‐volumeaccesspointismathematicallyguaranteedtoreusethesamekeystreamatleastonceaday.Whenthis

happens,it’scalledanIVcollisionthisbecomesasoftspottoenterthesystem.



Theresearchersaren’tsayingthatit’seasytobreakintothesystem,orthatit’sbeingdoneonaregularbasis,onlythatitispossible

andadministratorsshouldconsiderwaystoreducethepossibility



AccessControlList(ACL)



TheACLisoneofthesimplestyetmostsecuremethodsofnetworksecurity.TheACLisaconfigurableMACfilterintheModel

192EthatcanbesettoallowspecificMACaddressonthewirelessnetworkbyindividualaddressoraddressranges.Thesame

filtercanalsobesettorejectindividualMACaddressesoraddressranges.



TheMACaddressisaunique,6hexadecimalfieldaddressassignedatthemanufacturerthatcannotbechanged.TheMACaddress

istraceablethroughtheIEEEgoverningbodytothemanufacturerandisthe“fingerprint”forallEthernetdevices.



UsingacombinationofboththeWPAor128‐BitWEPencryptionandtheACLfilterprovidetheESTeemanextremelysecure

wirelessnetworkinglayer.



DisablingBroadcastProbesandHidingSSID



Asimplebutveryeffectivewayofsecuringanetworkistomakethenetworkdifficulttofind.Bydisablingbroadcastprobesand

hidingtheServiceSetIdentification(SSID),wirelessandnetwork“sniffers”willnotbeabletofindyourESTeemHorizonnetwork.

Togainaccesstothewirelessnetwork,youwouldberequiredtohavetheSSIDandallsecurityloadedintheWLANcardsoftware

priortoenteringthenetwork.



ProprietaryBridgeCommunication



AlthoughtheESTeemHorizoniscompatiblewiththeopencommunicationstandardsIEEE802.11gand802.11b,therepeater

communicationbetweentheunitsisaproprietarycommunicationlink.Noothermanufacturerofwirelesshardwarecanaccess

theESTeemrepeaternetworkwhenbridgingbetweenEthernetnetworks.Thisproprietarycommunicationlayer,incombination

withtheothersecuritysettings,allowsyouastheusertorejectwirelessclientsintothenetworkifsodesired.Whenusedin

conjunctionwiththeAccessControlListthe802.11gand802.11bclientaccesscanberemoved.



Thesecuritylevelofthebridgecommunicationlinkisconfigurablefor64‐BitWEP,128‐BitWEPorTKIPandiscompletely

independentoftheclientaccessleveloranyothercommunicationlinklevel.Forexample,anESTeemHorizoncanbeconfigured

forWPAEnterpriseforclientlevelaccess,communicatetoanotherESTeemHorizonusingaTKIPbridgelinkandalsocommunicate

128‐BitWEPtoourolderESTeemModel192Eradiomodemsallrunningsimultaneously.



APPENDIXD

SECURITY

Revised: 27 Jun 16 APX D-3 ESTeem Horizon Series

MasqueradeModes



WhentheESTeemHorizonisconfiguredineithertheAccessPointMasqueradeortheClientMasquerademodes,thewireless

modemfunctionsasanetworkfirewall.Ifaccesstothewirednetworkisthegreatestconcern,placetheESTeeminthe

MasquerademodeandthewirelessnetworkwillbecompletelyisolatedfromthewiredEthernetnetwork.



IncreasingNetworkSecurity



Thefollowingareafewsuggestionstohelpimprovetheoverallsecurityofyourwirelessnetwork:



1. Enablethesecurity.Ifyouresearchallofthearticlesregardinghackers,theyhavegottenintotheuser’snetworkduetothe

securitynotbeingenabled.



2. SettheACLfiltertoincludeonlythoseMACaddressofthewirelessEthernetdevicebeingusedonthenetwork.



3. Makesurethekeysarenotreusedinyourcompany,sincereuseincreasesthestatisticallikelihoodthatsomeonecanfigure

thekeyoutandchangethedefaultpasswordonyouraccesspointorwirelessrouter



4. Asanetworkadministrator,youshouldperiodicallysurveyyourcompanyusingatoollikeNetStumblertoseeifany"rogue"

accesspointspopupwithinyourcompanywithoutauthorization.Allofyourhardworkto"harden"yourwirelessnetwork

couldbewastedifarogueAPwaspluggedintoyournetworkbehindthefirewall.



5. ManyaccesspointsallowyoutocontrolaccessbasedontheMACaddressoftheNICattemptingtoassociatewithit.Ifthe

MACaddressofyourNICisn'tinthetableoftheaccesspoint,youwon'tassociatewithit.Andwhileit'struethatthereare

waysofspoofingaMACaddressthat'sbeensniffedoutoftheair,ittakesanadditionallevelofsophisticationtospoofaMAC

address.ThedownsideofdeployingMACaddresstablesisthatifyouhavealotofaccesspoints,maintainingthetablesin

eachaccesspointcouldbetimeconsuming.Somehigher‐end,enterprise‐levelaccesspointshavemechanismsforupdating

thesetablesacrossmultipleaccesspointsofthesamebrand.



6. Considerusinganadditionallevelofauthentication,suchasRemoteAccessDailinUserService(RADIUS),beforeyoupermit

anassociationwithyouraccesspointsthroughWPAandWPA2Enterprise.



7. Ifyou'redeployingawirelessrouter,thinkaboutassigningstaticIPaddressesforyourwirelessNICsandturnoffDynamic

HostConfigurationProtocol(DHCP).Ifyou'reusingawirelessrouterandhavedecidedtoturnoffDHCP,alsoconsider

changingtheIPsubnet.Manywirelessroutersdefaulttothe192.168.1.0networkanduse192.168.1.1asthedefaultrouter.



8. OnlypurchaseAccessPointsthathaveflashablefirmware.Thereareanumberofsecurityenhancementsthatarebeing

developed,andyouwanttobesurethatyoucanupgradeyouraccesspoint.



9. Asimplesecuritytechniqueusedbythemilitaryistohavetheadministratorperiodicallychangethekeyforthesystemi.e.

weekly,monthly,etc.



APPENDIXE

TROUBLESHOOTING



Revised: 27 Jun 16 APX E-1 ESTeem Horizon Series

TestingCommunicationLink



AfteryouhaveconfiguredatleasttwooftheHorizonwirelessEthernetmodemsforoperation,youcanverifycommunicationwith

eachthefollowingsteps:



StatusLight



ThequickestsourceoflinkstatusistoviewtheStatus

LEDonthefaceoftheHorizon(Figure1).IftheStatus

lightissolid,theHorizonhasaconnectiontoanother

HorizonlistedinthePeerTable.



StatusScreen/PeerTable



Toviewdetailedinformationonthestatusofthe

communicationlink(suchasconnectionspeed,signal

strengthandlastupdatetime)youcanopenthe

StatusScreenfromtheWebInterface.Afterpressthe

StatustabatthetopofthescreentheStatus:SummarywillbedisplayedshowingthestatusofallportsandmemoryintheHorizon.

UndertheWirelessStatusheadingclickontheViewPeerTable(Figure2).



Peers‐ThePeerTablewill

displayallconnected

Horizonsconfiguredasa

PeerlinktothisESTeemby

theirWireless(WLAN)MAC

address.



ReceivedSignalStrength–

TheAntSignalcolumnwill

displaythereceivesignal

strengthforeachofthetwo

antennaports.Thefirst

antennaportislistedasA1

whilethesecond(receive

only)portislistedasA2.

Youmayreceiveasignal

levelonA2althoughno

antennaisattached.This

signalstrengthvalueislisted

indBm.



LastRXandDataRate–This

isthetimeofthelast

receiveddatapacket.When

monitoringthestatusmenu,itisimportanttonotethetimethelasttransmissionwasupdatedsoyouarenotlookingat“stale”

data.Avalueof0inthetimerepresentsacurrent(lessthan1second)receivevalue.Thecurrentdatarateofthelastdatapacket

receivedwillalsobeshownbytheHorizon.ThespeedisdisplayedinMbps.Forexample,inFigure2aLastRxvalueof0@72.2

representsanRFpacketreceivedwithinthelastsecondrunningat72.2Mbps.



Figure1:ConnectionStatusLight



Figure2:PeerStatus

APPENDIXE

TROUBLESHOOTING

Revised: 27 Jun 16 APX E-2 ESTeem Horizon Series



Note:TheESTeemHorizonusesspreadspectrumtechnologythatanalyzeseachdatapacketforsignalstrengthanddataquality

(strengthvs.noise).Thehigheryoursignal,themorebackgroundnoiseyoucansustainwithoutcausingdegradationinthedata

transfer.Thisisalsotrueforlowersignalstrengthswithaverylowbackgroundnoise.Thesevaluesareprovidedforguidanceand

ifyouhaveanyquestionsaboutthevaluesinyourapplication,pleasecontactESTeemCustomerSupportat509‐735‐9092ore‐

mailyourapplicationtosupport@esteem.com.



ModemID–ThisisModemIDfortheoppositeESTeempeer.



TROUBLESHOOTINGTIPS



General(ApplicabletoAllModesofOperation)



WheredoIfindthelatestfirmwareversionnumber?–WehavethelatestversionnumberoftheHorizonfirmwarelistedonthe

ESTeemWebsite(www.esteem.com)undertheHorizonproductpage.



HowandwhendoIupdatetheHorizonfirmware?‐YoushouldonlyupdatetheHorizonfirmwareifyouarehavingaspecific

problemanditisrecommendedthatyoudosobyESTeemCustomerSupportpersonnel.Alltheupdateinstructionsandfilesare

locatedontheESTeemFTPsiteatthefollowingaddress:

ftp://www.esteem.com/Horizon



DoallfirmwareversionshavetobethesametocommunicatebetweentheHorizon?–Itisnotnecessaryforallthefirmware

versionstobethesamerevisiontocommunication,butthelaterversionmayhaveaddedfeaturesthattheotherversionswillnot

recognize.



WhatcharactersarevalidforWEPKeyentry?‐OnlytheHexadecimalcharacters0‐9andA‐Farevalidforkeyentry.



WhatESTeemUtilityversionisrequiredtoprogramtheHorizon?–TheESTeemUtilityprogramisnotrequiredtoprogramthe

Horizon.TheHorizoncanbeprogrammedusinganyTerminalEmulationprogram(suchasWindowsHyperTerminal)andanyweb

browserprogram.



WhatisthespeedandduplexconfigurationontheHorizon–TheHorizonisanauto‐negotiationfull/half‐duplex10/100Base‐T

interface.Etheracross‐overorpatchcableissupported.



AccessPointMode



WirelessLANcardsarenotconnecting–VerifythatthewirelessLANcardsaresettoInfrastructureMode,haveamatchingSSID

(orESSIS)setthesameastheHorizonandthatallencryptioncodesarethesame.



MyWirelessLANcardshowsasolidconnection,butIcannotpassanydata–VerifytheencryptionandtheACLsettingonthe

HorizonmatchthewirelessLANcard.



AccessPointPeerMode



Howlongdoesittaketore‐establishtheWirelessEthernetNetwork?‐IfacommunicationlinkislostandtheWirelessNetwork

needstore‐establishtherepeaterroutes,thetimecantakeupto10seconds.



ShouldtheAPRepeaterModebeusedonmobileequipment?‐TheAPRepeatermodeshouldbeusedonequipmentthatwill

notchangetheRepeaterRouteasitmoves.Forexample,ifamobiledevicesuchasacranecancommunicatedirectlytoanother

ESTeemandwillnotloosethelinkinitstravel,theAPRepeaterModecouldbeused.IfthedevicerequirestwoESTeemHorizon’s

APPENDIXE

TROUBLESHOOTING

Revised: 27 Jun 16 APX E-3 ESTeem Horizon Series

(BaseandRepeater)tomaintaincommunicationacrossitscompletetravel,theStationModesshouldbeusedonthemobile

device.TheproblemwillbeinthetimethatthemobileESTeemwilltaketotransferbetweenthetwosites.InAccessPoint

Repeatermodethetransfercantakeupto30seconds,whiletheEtherStationmodewilltransferwithoutapacketloss.



DoesWEPhavetobeused?–TheWEPdoesnothavetobeenabledforthemodemstocommunicate,butallmodemsmustbe

configuredthesameway.



Correctconfiguration,butcannotestablishcommunications.–Inadditiontothenetworkconfiguration,allHorizonmodems

configuredintheAPmodemustsharethesameSSIDandbeonthesamefrequencychannel.Themostlikelycauseoftheerror

istheWLANMACaddressisnotconfiguredinbothHorizon’srepeatertables.Ifonlyonesideisconfigured,everythingwillappear

tobecorrectbutnocommunicationwillfunction.



EtherStation

HowdoIaccesstheHorizonwebpageinEtherStationMode?TheHorizondoesnothaveanactivewebbrowserwhenconfigured

inEtherStationmode.YoumustaccesstheESTeemwiththeESTeemDiscoveryProgramorthroughtheRS‐232portafter

configurationinthismode.Tomonitorthelinkstatus,youcanusetheEtherStationStatusprogram.



WhatIPaddressdoIconfiguretheESTeeminEtherStationmode?–TheHorizonwillnothaveanIPaddressinEtherStationmode.



Icannotlinkmydeviceintothewirelessnetwork–VerifythattheMACaddressofthedeviceisexactlythesameasconfiguredin

theHorizon.TheMACaddressmusthavecolonsbetweenthevalues.



CanIconnectmyHorizoninEtherStationmodetoaHUBorEthernetSwitch?–No.Themodemmustbeconnecteddirectlyto

theEthernetdeviceforwhichitisprogrammed.InEtherStationmodetheHorizoncanonlyserviceONEEthernetdevice.

APPENDIX F

HORIZON 2.4 SPECIFICATIONS

Horizon 2.4 GHz Specifications

Revised: 28 Jun 16 APX F-1 ESTeem Horizon Series

ESTeem Horizon 2.4 GHz Specifications

Transmitter/Receiver

Frequency of Operation (Software Selectable)

2.412 to 2.462 GHz (11-channels)

RF Data Rate

1 to 150 Mbps (20 steps)

Tx Output Power (Software Selectable)

250 to 1000 mW (Pk) (4-levels)

Tx Output Impedance

50 ohms

Rx Sensitivity

-92 to -69 dBm

FCC Type Acceptance

ENPHZN216AN

Industry Canada Type Acceptance

2163A-216AN

LED Indicators

Power (On/Off) - Carrier Detect (On/Off) - Transmitter (On/Off) - Receiver

(On/Off)

Power Requirements

Receive

600ma @ 12 VDC

Transmit

1.350A (Cont) 3A (Peak) @ 12 VDC

PoE Power Supply

(IEEE 802.3at,30 watts) (opt)

External Power Input

10 to 28 VDC @ 3A

Input/Output Connectors

Ethernet Port 1 (10/100)

RJ-45 Female

Ethernet Port 2 (10/100)

802.11 Compatibility

802.11n/g/b

RS-232C Comm Port (2,400 to 115.2 K baud)

RJ-45 Female

RS-232C Programming Port (38,400, N, 8, 1)

Antenna Input/Outputs

TNC Reverse Female

External DC Input Power

Mini-Combicon, 3 pin female

Case

Temperature Range

-30° to +60° C

Humidity

95% Non-condensing

Dimensions

1.9 in. H x 6.7 in. W x 6.2 in. L

Weight

1.25 lbs.

Product Warranty

1 Year

Other

Outdoor Pole Mt. Kit

AA195PM (opt)

PoE Power Supply

AA175.2 (opt)

External DC Input Power Connector

AA195PP (opt)

APPENDIX F

HORIZON 2.4 SPECIFICATIONS

Horizon Case Specifications

Revised: 28 Jun 16 APX F-2 ESTeem Horizon Series

APPENDIX F

HORIZON 2.4 SPECIFICATIONS

Antenna Specifications

Revised: 28 Jun 16 APX F-3 ESTeem Horizon Series

Model: AA20DMEg

Applications: Model 195Eg direct case mount

Antenna Type: Omni-Directional, Sleeve dipole

Frequency: 2400 to 2485 MHz

Polarization: Vertical

Impedance: 50 ohms

Gain: 5 dBi (3 dBd)

VSWR: < 2:1

Power: 10 W

Front To Back Ratio: n/a

Horizontal Beamwidth: n/a

Vertical Beamwidth: n/a

Antenna Material: Polyurethane Plastic Radome

Recommended Mounting Hardware: n/a

Antenna Connector: TNC-R Male

Flexibility: +/- 20 

Antenna Envelope: 8.28 in. length by .54 in. width

Temperature: -40 to +70 C

Weight: 33 grams

Model AA20DMEg

Caution

Omni-directional antenna

should not be located within

24 cm of personnel.

APPENDIX F

HORIZON 2.4 SPECIFICATIONS

Antenna Specifications

Revised: 28 Jun 16 APX F-4 ESTeem Horizon Series

Model No: AA203Eg

Antenna Type: Directional, DC grounded

Applications: Fixed base.

Frequency: 2400 to 2485 MHz

Polarization: Vertical or Horizontal

Impedance: 50 ohms

Gain: 6 dBi (4 dBd)

VSWR: < 1.5

Front to Back Ratio: >23 dB

Horizontal Beamwidth: 55 degrees @ ½ power

Vertical Beamwidth: 55 degrees @ ½ power

Antenna Material: Sealed in UV stable fiberglass enclosed radome

Mounting Hardware: Stainless steel U bolts (included) for mounting up

to 1 5/8 in. diameter pipe.

Antenna Connector: TNC-R Male with 36in. pig tail

Maximum Power Input: 5 Watts

Antenna Envelope: 4.5 in. length by 3 in. diameter

Windload (RWV): 125 mph

Lateral Thrust at

Rated Wind: 5.8 lbs.

Wind Surface Area: 0.060 ft2

Weight: 1 lbs.

Model AA203Eg

Caution

To comply with the FCC

exposure compliance

requirements, a separation

distance of at least 24 cm

must be maintained between

the antenna and all persons.

APPENDIX F

HORIZON 2.4 SPECIFICATIONS

Antenna Specifications

Revised: 28 Jun 16 APX F-5 ESTeem Horizon Series

Model No: AA204Eg.1

Applications: Fixed base mounting

Antenna Type: 2.4 GHz ISM, Directional, DC Grounded, Parabolic Grid

Frequency: 2400-2485 MHz

Polarization: Vertical or Horizontal

Impedance: 50 ohms

Gain: 15 dBi (13 dBd) nominal

VSWR: < 1.5:1 nominal

Front to Back Ratio: >24 dB

Horizontal Beamwidth: 16 degrees @ ½ power

Vertical Beamwidth: 11 degrees @ ½ power

Antenna Material: Zinc plated cold rolled steel with polyester power

coat finish

Recommended Mounting

Hardware: Standard U-bolt steel mast clamp complete with

mounting hardware. Designed for masts of up to

2.5 in. O.D.

Antenna Connector: TNC-R Male with 36 in. pig-tail

Maximum Power Input: 10 Watts

Wind Survival: 100 mph

Wind Load: 16 mph

Antenna Envelope: 34 in. length by 17 in. width by 11 in. height

Weight: 3 lbs.

Use of the AA204Eg.1, directional antenna is limited to fixed point-to-point applications only. In accordance with FCC

Section 15.247(b)iii, this antenna must be professionally installed. The installer must ensure the system is used

exclusively for fixed, point-to-point applications and the ESTeem Model 195Eg is set for 0.25 Watts output power (Power

Level = Min).

Model AA204Eg.1

Caution

To comply with the FCC exposure

compliance requirements, a

separation distance of at least 50 cm

must be maintained between the

antenna and all persons.

APPENDIXG

HORIZON900SPECIFICATIONS



Horizon900MHzSpecifications



Revised: 27 Jun 16 APX G-1 ESTeem Horizon Series

Transmiter/Receiver

Frequency of Operation (Software Selectable) 902 to 928 MHz (4-channels)

RF Data Rate 1 to 57.8 Mbps

Tx Output Power (Software Selectable) 250, 500, 750, and 1000 mW (Pk) (4-levels)

Channel Bandwidth 5 MHz, 10 MHz or 20 MHz

Tx Output Impedance 50 ohms

Rx Sensitivity -97 to -78 dBm

FCC Type Acceptance ENPHZN216AD (Preliminary)

Industry Canada Type Acceptance 2163A-216AD (Preliminary)

LED Indicators Power (On/Off) - Carrier Detect (On/Off) - Transmitter (On/Off) - Reveiver (On/Off)

Power Requirements

Receive 600ma @ 12 VDC

Transmit 1.350A (Cont) 3A (Peak) @ 12 VDC

PoE Power Supply (IEEE 802.3at,30 watts) (opt)

External Power Input 10 to 28 VDC @ 3A

Input/Output Connectors

Ethernet Port 1 (10/100/1000)

Ethernet Port 2 (10/100/1000)

802.11 Compatibility n/a

RS-232C Comm Port (2,400 to 115.2 K baud)

RS-232C Programming Port (38,400, N, 8, 1)

Antenna Input/Outputs TNC Reverse Female

External DC Input Power Mini-Combicon, 3 pin female

Case

Temperature Range -30° to +60° C

Humidity 95% Non-condensing

Dimensions 1.9 in. H x 6.7 in. W x 6.2 in. L

Weight 1.25 lbs.

Product Warranty 1 Year

Other

Outdoor Pole Mt. Kit AA195PM (opt)

PoE Power Supply AA175.2 (opt)

RJ-45 Female

ESTeem Horizon 900 MHz Specifications

APPENDIXG

HORIZON900SPECIFICATIONS



HorizonCaseSpecifications



Revised: 27 Jun 16 APX G-2 ESTeem Horizon Series

APPENDIXH

HORIZON900SPECIFICATIONS



AntennaSpecifications



Revised: 27 Jun 16 APX H-3 ESTeem Horizon Series

Model No: AA20Es900

Antenna Type: Omni Directional, DC Grounded

Applications: Fixed base

Frequency: 902 to 928 MHz

Polarization: Vertical

Impedance: 50 ohms

Gain: 7 dBi (5 dBd)

VSWR: 1.5:1 Typical

Front to Back Ratio: n/a

Horizontal Beamwidth: n/a

Vertical Beamwidth: 22 degrees @ ½ power

Antenna Material: Brass radiator, UV inhibited

fiberglass enclosed

Mounting Hardware: Base to Mast, Supplied.

Maximum Power Input: 150 Watts

Wind Survival: 100 mph

Bending Moment: 14.2 ft-lbs. @ 100 mph

Antenna Connector: TNC-R Male with 36in. pig-tail.

Antenna Envelope: 48 in. L x 1-5/16 in. Dia.

Weight: 1.75 lbs.

Model AA20Es900

Caution

To comply with the FCC

exposure compliance

requirements, a separation

distance of at least 23 cm

must be maintained between

the antenna and all persons.

APPENDIXH

HORIZON900SPECIFICATIONS



AntennaSpecifications



Revised: 27 Jun 16 APX H-4 ESTeem Horizon Series

Model No: AA203Es900

Antenna Type: Directional, DC grounded

Applications: Fixed base.

Frequency: 902 to 928 MHz

Polarization: Vertical or Horizontal

Impedance: 50 ohms

Gain: 7 dBi (5 dBd)

VSWR: < 1.5:1 Nominal

Front to Back Ratio: > 16 dB

Horizontal Beamwidth: 130 degrees @ ½ power

Vertical Beamwidth: 70 degrees @ ½ power

Antenna Material: Aluminum

Mounting Hardware: Heavy duty U bolts for mounting up to 2.0 in. pipe

(included).

Antenna Connector: TNC-R Male with 2 ft. pigtail with ESTeem

weatherproof boot.

Maximum Power Input: 50 Watts

Antenna Envelope: 1.1 ft. length by 6 in. width

Windload (RWV): 150 mph

Wind Surface Area: .11 ft²

Weight: 1 lbs.

Caution

To comply with the FCC

exposure compliance

requirements, a separation

distance of at least 23 cm

must be maintained between

the antenna and all persons.

Electronic Systems Technology HZN216AD WIRELESS MODEM User Manual

Electronic Systems Technology WIRELESS MODEM

User Manual

Navigation menu

Namespaces

Views

Navigation
