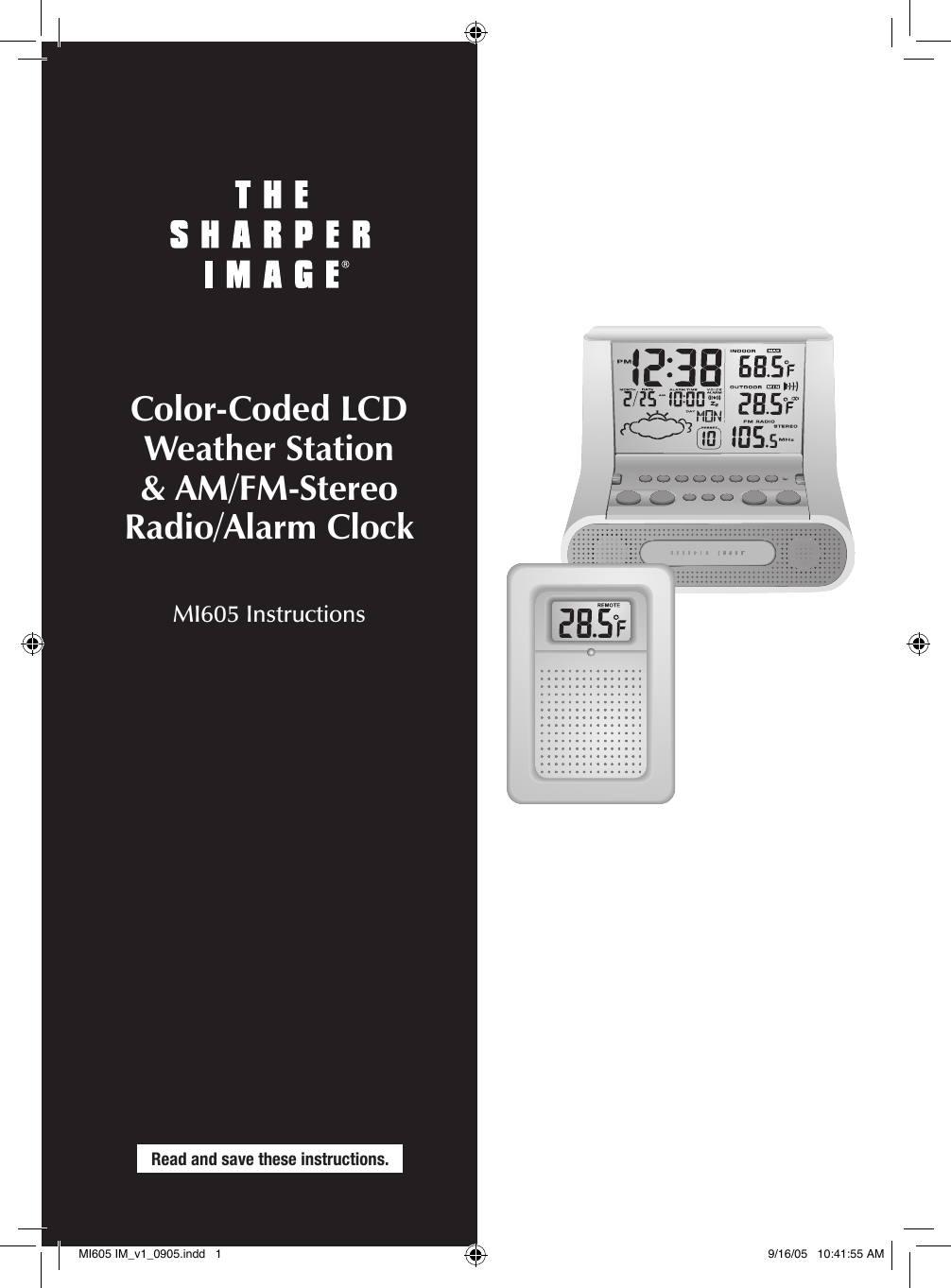

Read and save these instructions.Color-Coded LCDWeather Station& AM/FM-Stereo Radio/Alarm ClockMI605 InstructionsMI605 IM_v1_0905.indd 1 9/16/05 10:41:55 AM

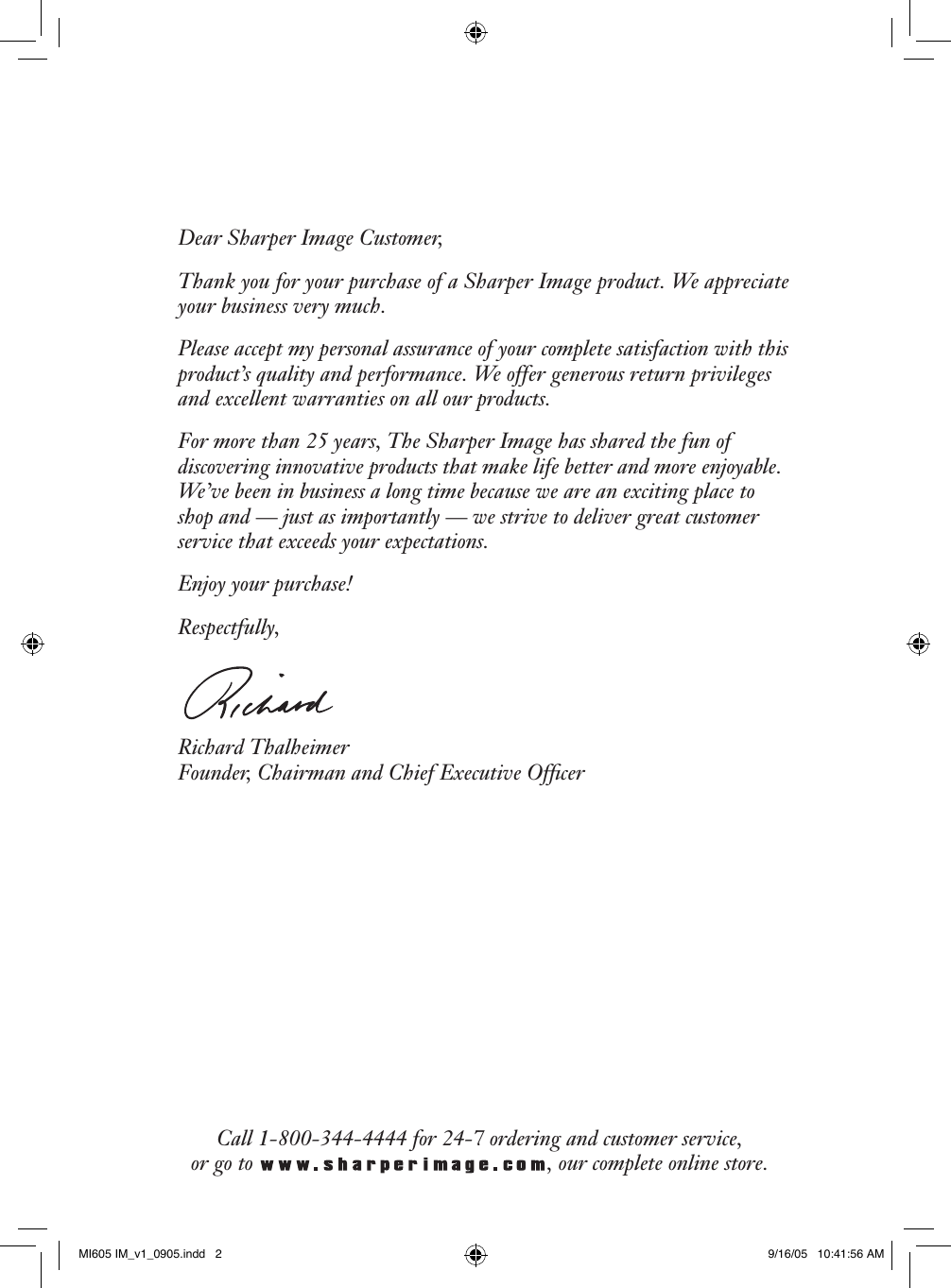

Dear Sharper Image Customer,Thank you for your purchase of a Sharper Image product. We appreciate your business very much.Please accept my personal assurance of your complete satisfaction with this product’s quality and performance. We offer generous return privileges and excellent warranties on all our products.For more than 25 years, The Sharper Image has shared the fun of discovering innovative products that make life better and more enjoyable. We’ve been in business a long time because we are an exciting place to shop and — just as importantly — we strive to deliver great customer service that exceeds your expectations.Enjoy your purchase!Respectfully,Richard Thalheimer Founder, Chairman and Chief Executive OfficerCall 1-800-344-4444 for 24-7 ordering and customer service, or go to , our complete online store.MI605 IM_v1_0905.indd 2 9/16/05 10:41:56 AM

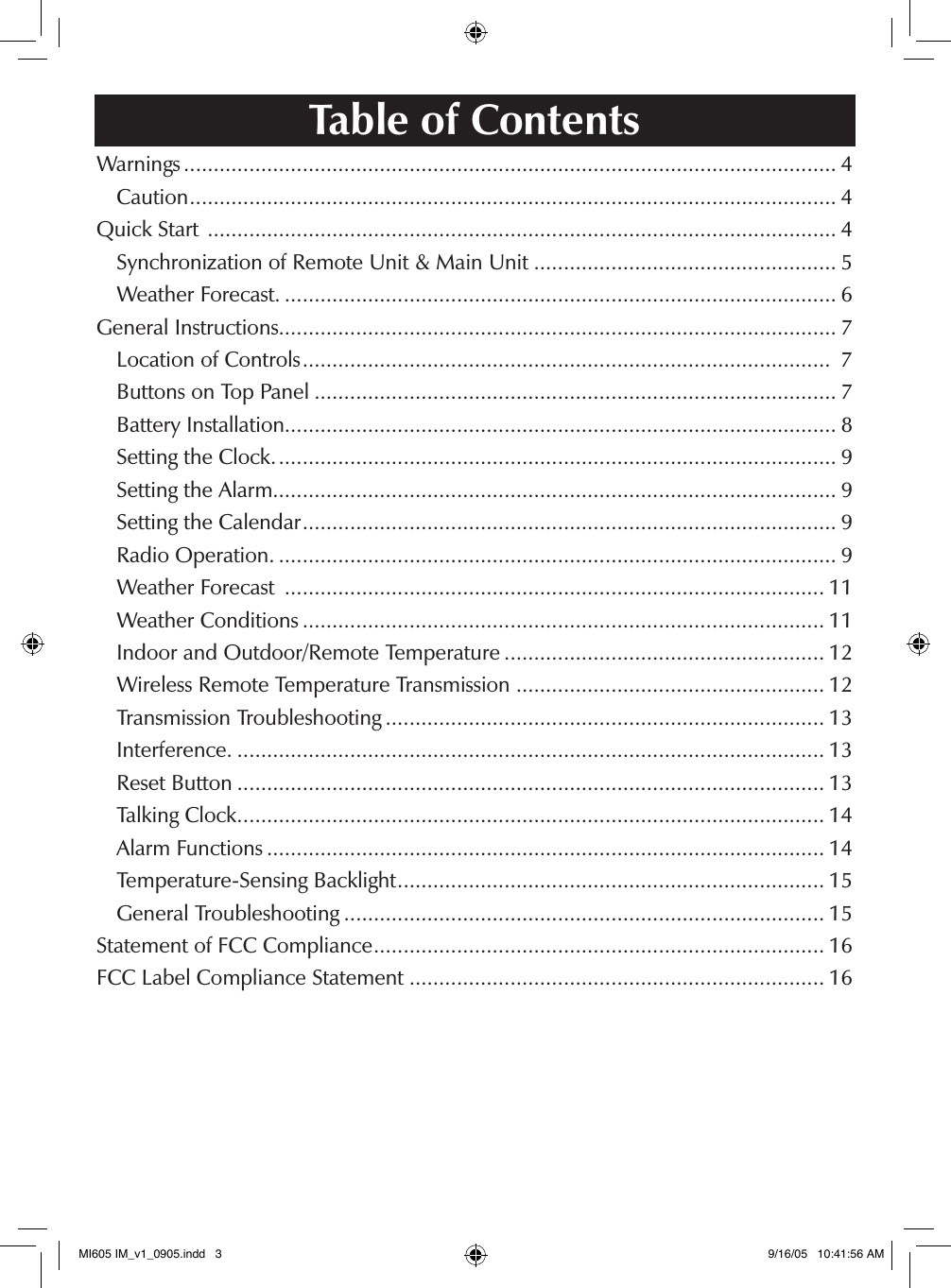

Table of ContentsWarnings .............................................................................................................. 4 Caution ............................................................................................................. 4Quick Start .......................................................................................................... 4 Synchronization of Remote Unit & Main Unit ................................................... 5 Weather Forecast. ............................................................................................. 6General Instructions.............................................................................................. 7 Location of Controls ......................................................................................... 7 Buttons on Top Panel ........................................................................................ 7 Battery Installation............................................................................................. 8 Setting the Clock. .............................................................................................. 9 Setting the Alarm............................................................................................... 9 Setting the Calendar .......................................................................................... 9 Radio Operation. .............................................................................................. 9 Weather Forecast ........................................................................................... 11 Weather Conditions ........................................................................................ 11 Indoor and Outdoor/Remote Temperature ...................................................... 12 Wireless Remote Temperature Transmission .................................................... 12 Transmission Troubleshooting .......................................................................... 13 Interference. ................................................................................................... 13 Reset Button ................................................................................................... 13 Talking Clock. .................................................................................................. 14 Alarm Functions .............................................................................................. 14 Temperature-Sensing Backlight ........................................................................ 15 General Troubleshooting ................................................................................. 15Statement of FCC Compliance ............................................................................ 16FCC Label Compliance Statement ...................................................................... 16MI605 IM_v1_0905.indd 3 9/16/05 10:41:56 AM

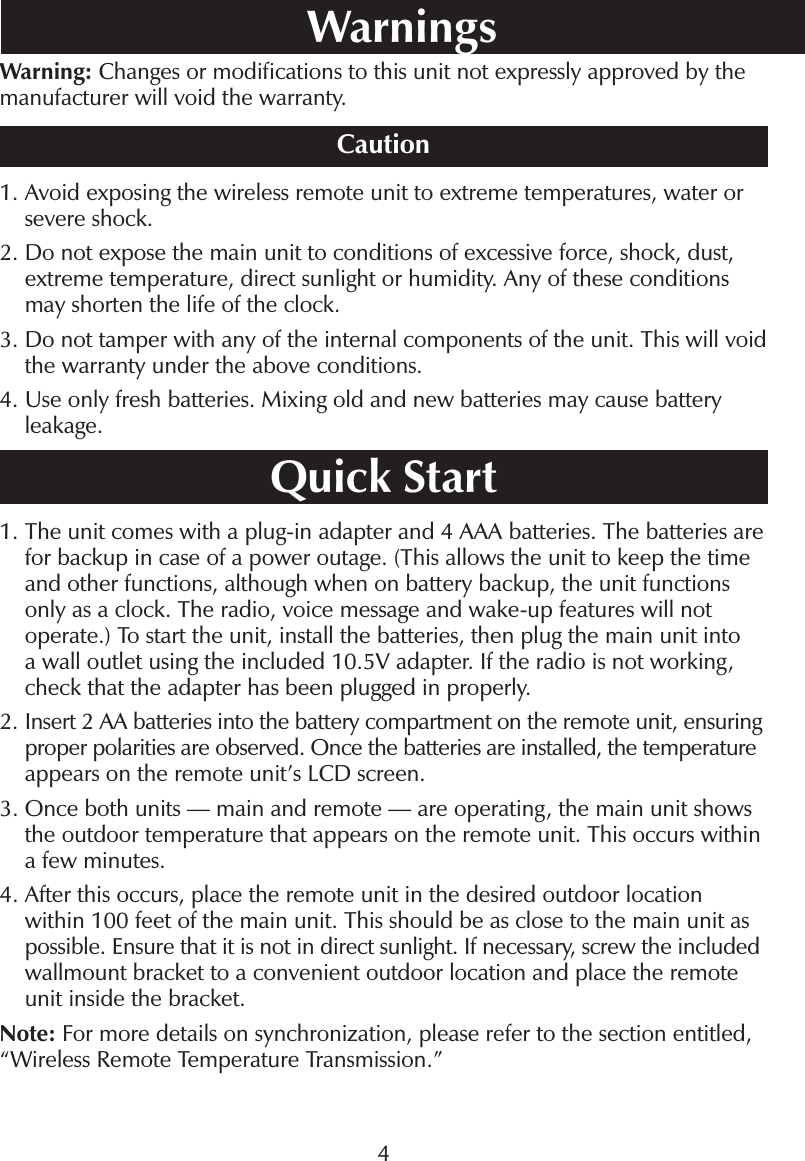

4Warning: Changes or modifications to this unit not expressly approved by themanufacturer will void the warranty.Caution1. Avoid exposing the wireless remote unit to extreme temperatures, water orsevere shock.2. Do not expose the main unit to conditions of excessive force, shock, dust,extreme temperature, direct sunlight or humidity. Any of these conditionsmay shorten the life of the clock.3. Do not tamper with any of the internal components of the unit. This will voidthe warranty under the above conditions.4. Use only fresh batteries. Mixing old and new batteries may cause batteryleakage.Quick Start1. The unit comes with a plug-in adapter and 4 AAA batteries. The batteries arefor backup in case of a power outage. (This allows the unit to keep the timeand other functions, although when on battery backup, the unit functionsonly as a clock. The radio, voice message and wake-up features will notoperate.) To start the unit, install the batteries, then plug the main unit intoa wall outlet using the included 10.5V adapter. If the radio is not working,check that the adapter has been plugged in properly.2. Insert 2 AA batteries into the battery compartment on the remote unit, ensuringproper polarities are observed. Once the batteries are installed, the temperatureappears on the remote unit’s LCD screen.3. Once both units — main and remote — are operating, the main unit showsthe outdoor temperature that appears on the remote unit. This occurs withina few minutes.4. After this occurs, place the remote unit in the desired outdoor locationwithin 100 feet of the main unit. This should be as close to the main unit aspossible. Ensure that it is not in direct sunlight. If necessary, screw the includedwallmount bracket to a convenient outdoor location and place the remoteunit inside the bracket.Note: For more details on synchronization, please refer to the section entitled,“Wireless Remote Temperature Transmission.”WarningsMI605 IM_v1_0905.indd 4 9/16/05 10:41:57 AM

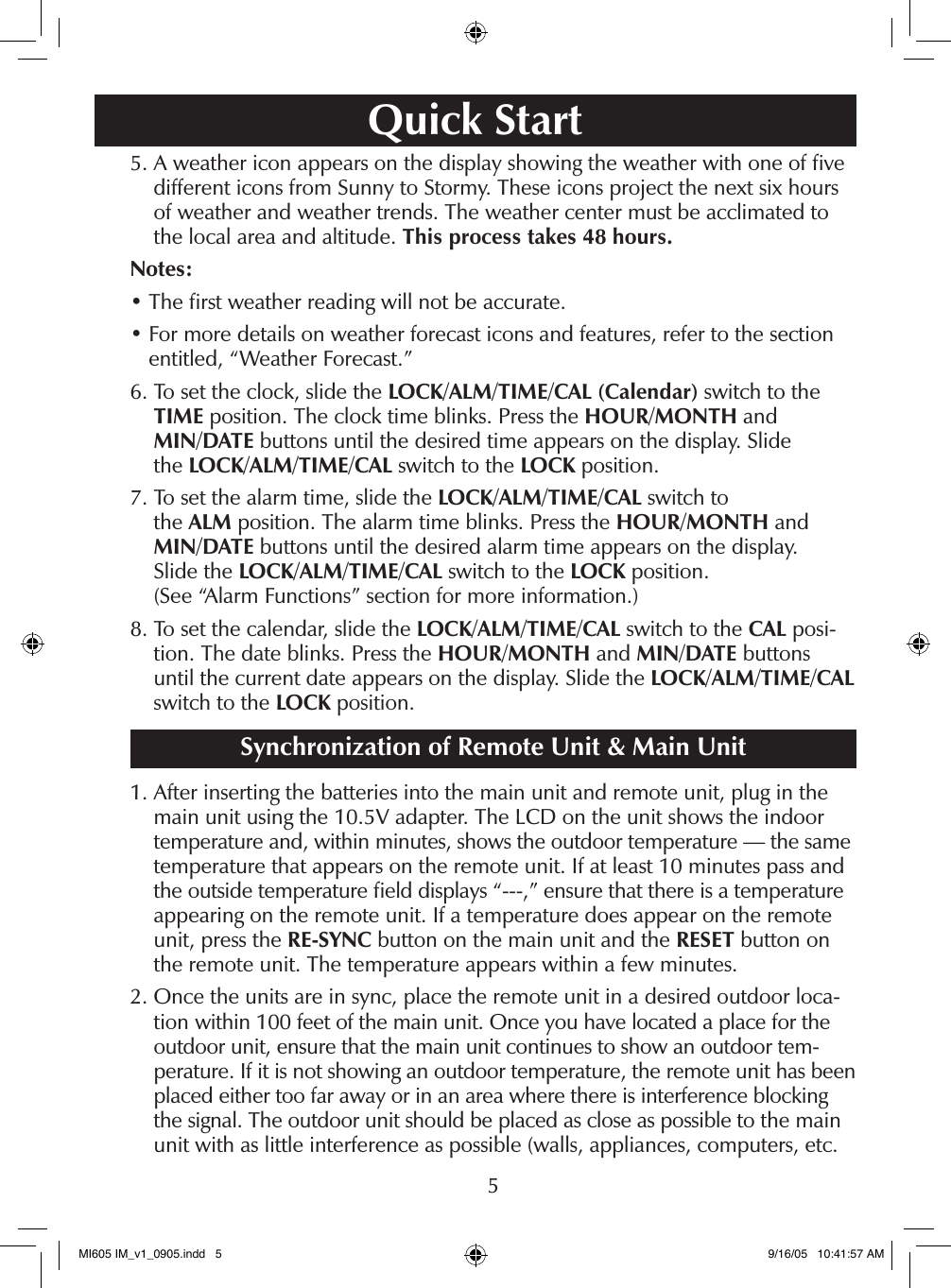

55. A weather icon appears on the display showing the weather with one of five different icons from Sunny to Stormy. These icons project the next six hours of weather and weather trends. The weather center must be acclimated to the local area and altitude. This process takes 48 hours.Notes:• The first weather reading will not be accurate.• For more details on weather forecast icons and features, refer to the section entitled, “Weather Forecast.”6. To set the clock, slide the LOCK/ALM/TIME/CAL (Calendar) switch to the TIME position. The clock time blinks. Press the HOUR/MONTH and MIN/DATE buttons until the desired time appears on the display. Slide the LOCK/ALM/TIME/CAL switch to the LOCK position.7. To set the alarm time, slide the LOCK/ALM/TIME/CAL switch to the ALM position. The alarm time blinks. Press the HOUR/MONTH and MIN/DATE buttons until the desired alarm time appears on the display. Slide the LOCK/ALM/TIME/CAL switch to the LOCK position. (See “Alarm Functions” section for more information.)8. To set the calendar, slide the LOCK/ALM/TIME/CAL switch to the CAL posi-tion. The date blinks. Press the HOUR/MONTH and MIN/DATE buttons until the current date appears on the display. Slide the LOCK/ALM/TIME/CAL switch to the LOCK position.Synchronization of Remote Unit & Main Unit1. After inserting the batteries into the main unit and remote unit, plug in the main unit using the 10.5V adapter. The LCD on the unit shows the indoor temperature and, within minutes, shows the outdoor temperature — the same temperature that appears on the remote unit. If at least 10 minutes pass and the outside temperature field displays “---,” ensure that there is a temperature appearing on the remote unit. If a temperature does appear on the remote unit, press the RE-SYNC button on the main unit and the RESET button on the remote unit. The temperature appears within a few minutes.2. Once the units are in sync, place the remote unit in a desired outdoor loca-tion within 100 feet of the main unit. Once you have located a place for the outdoor unit, ensure that the main unit continues to show an outdoor tem-perature. If it is not showing an outdoor temperature, the remote unit has been placed either too far away or in an area where there is interference blocking the signal. The outdoor unit should be placed as close as possible to the main unit with as little interference as possible (walls, appliances, computers, etc.Quick StartMI605 IM_v1_0905.indd 5 9/16/05 10:41:57 AM

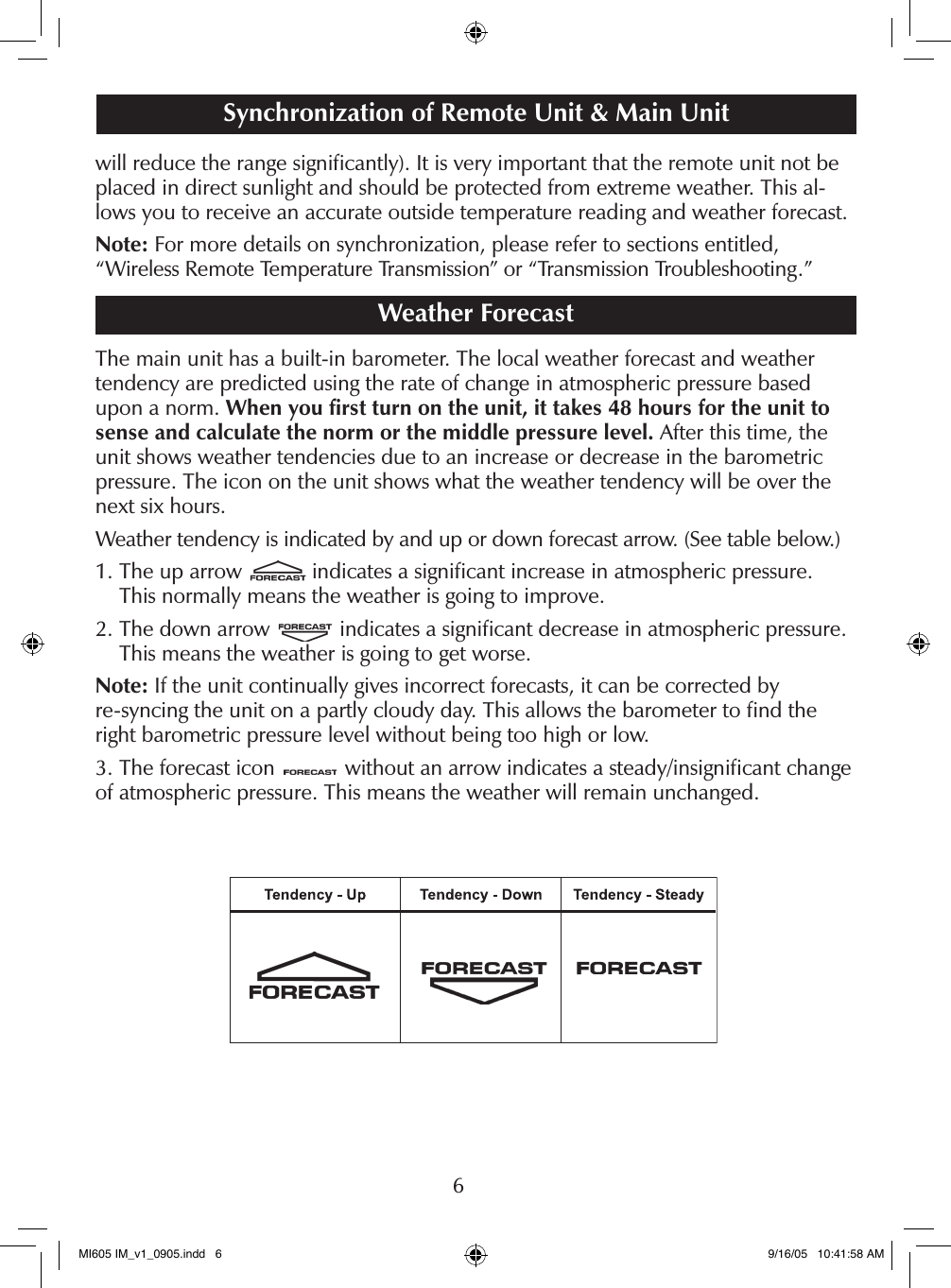

6will reduce the range significantly). It is very important that the remote unit not be placed in direct sunlight and should be protected from extreme weather. This al-lows you to receive an accurate outside temperature reading and weather forecast.Note: For more details on synchronization, please refer to sections entitled, “Wireless Remote Temperature Transmission” or “Transmission Troubleshooting.” Weather ForecastThe main unit has a built-in barometer. The local weather forecast and weather tendency are predicted using the rate of change in atmospheric pressure based upon a norm. When you first turn on the unit, it takes 48 hours for the unit to sense and calculate the norm or the middle pressure level. After this time, the unit shows weather tendencies due to an increase or decrease in the barometric pressure. The icon on the unit shows what the weather tendency will be over the next six hours.Weather tendency is indicated by and up or down forecast arrow. (See table below.)1. The up arrow indicates a significant increase in atmospheric pressure. This normally means the weather is going to improve.2. The down arrow indicates a significant decrease in atmospheric pressure. This means the weather is going to get worse.Note: If the unit continually gives incorrect forecasts, it can be corrected by re-syncing the unit on a partly cloudy day. This allows the barometer to find the right barometric pressure level without being too high or low.3. The forecast icon without an arrow indicates a steady/insignificant change of atmospheric pressure. This means the weather will remain unchanged.Synchronization of Remote Unit & Main UnitLCDMI605 IM_v1_0905.indd 6 9/16/05 10:41:58 AM

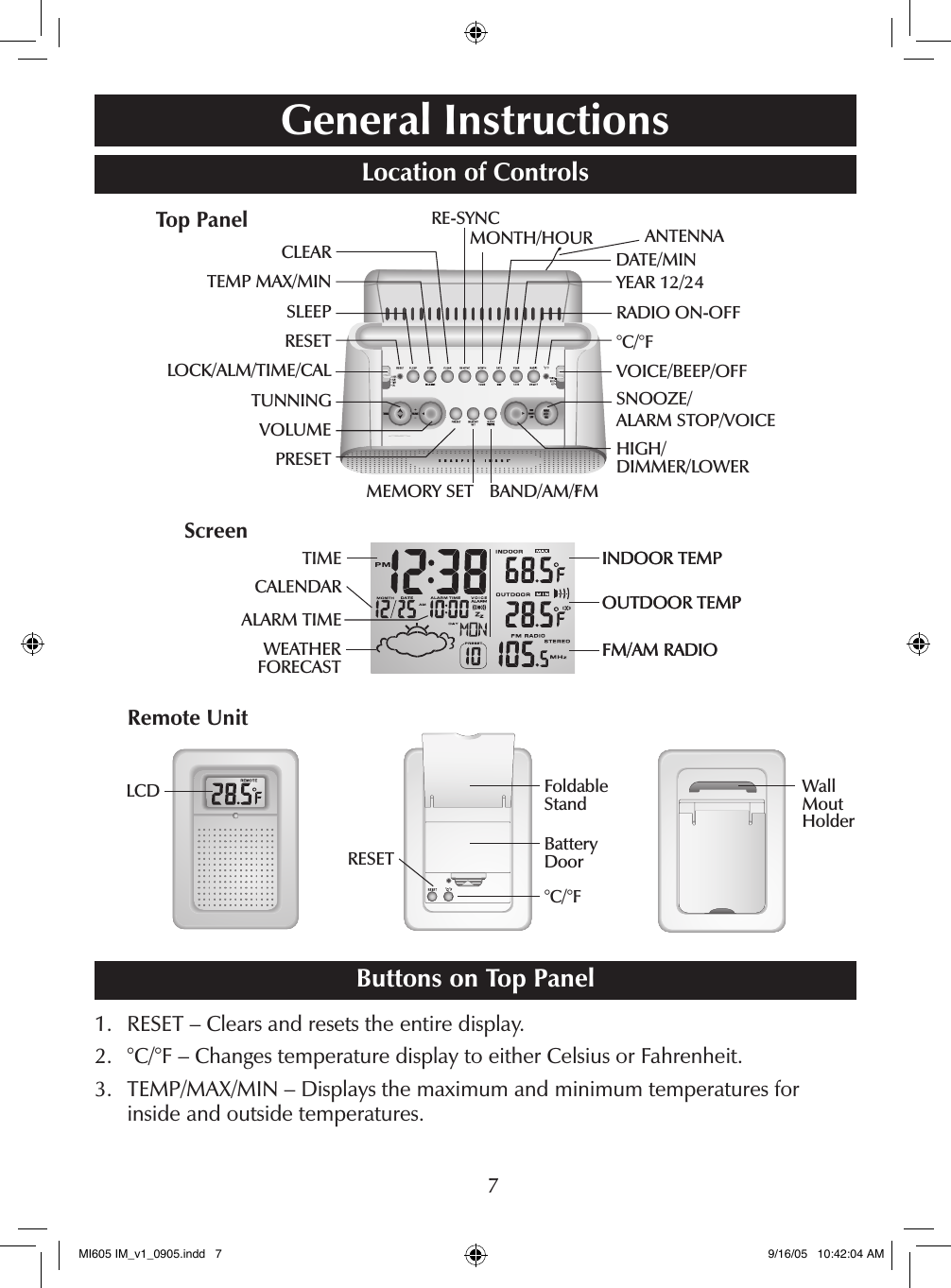

7General InstructionsLocation of Controls Buttons on Top Panel1. RESET – Clears and resets the entire display.2. °C/°F – Changes temperature display to either Celsius or Fahrenheit.3. TEMP/MAX/MIN – Displays the maximum and minimum temperatures for inside and outside temperatures.CLEAR TEMP MAX/MINSLEEPRESETLOCK/ALM/TIME/CALTUNNINGVOLUMEPRESETRE-SYNCMONTH/HOURYEAR 12/24RADIO ON-OFF°C/°FVOICE/BEEP/OFFDATE/MINMEMORY SETSNOOZE/ ALARM STOP/VOICEHIGH/ DIMMER/LOWERBAND/AM/FMINDOOR TEMPOUTDOOR TEMPFM/AM RADIOINDOOR TEMPOUTDOOR TEMPFM/AM RADIOTIMECALENDARWEATHER FORECASTALARM TIMETop PanelScreenLCDRESET°C/°FBattery DoorFoldable Stand Wall Mout HolderRemote UnitANTENNAMI605 IM_v1_0905.indd 7 9/16/05 10:42:04 AM

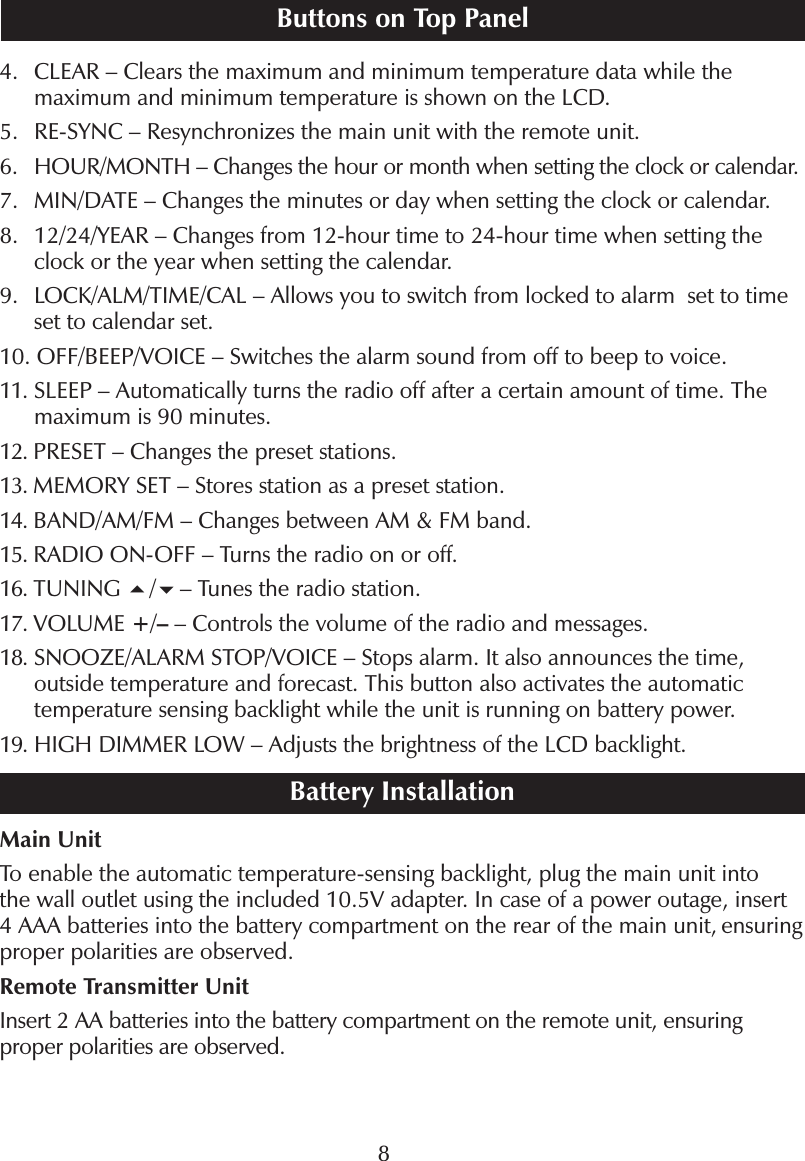

84. CLEAR – Clears the maximum and minimum temperature data while themaximum and minimum temperature is shown on the LCD.5. RE-SYNC – Resynchronizes the main unit with the remote unit.6. HOUR/MONTH – Changes the hour or month when setting the clock or calendar.7. MIN/DATE – Changes the minutes or day when setting the clock or calendar.8. 12/24/YEAR – Changes from 12-hour time to 24-hour time when setting theclock or the year when setting the calendar.9. LOCK/ALM/TIME/CAL – Allows you to switch from locked to alarm set to timeset to calendar set.10. OFF/BEEP/VOICE – Switches the alarm sound from off to beep to voice.11. SLEEP – Automatically turns the radio off after a certain amount of time. Themaximum is 90 minutes.12. PRESET – Changes the preset stations.13. MEMORY SET – Stores station as a preset station.14. BAND/AM/FM – Changes between AM & FM band.15. RADIO ON-OFF – Turns the radio on or off.16. TUNING /– Tunes the radio station.17. VOLUME +/–– Controls the volume of the radio and messages.18. SNOOZE/ALARM STOP/VOICE – Stops alarm. It also announces the time,outside temperature and forecast. This button also activates the automatictemperature sensing backlight while the unit is running on battery power.19. HIGH DIMMER LOW – Adjusts the brightness of the LCD backlight.Battery InstallationMain UnitTo enable the automatic temperature-sensing backlight, plug the main unit intothe wall outlet using the included 10.5V adapter. In case of a power outage, insert4 AAA batteries into the battery compartment on the rear of the main unit, ensuringproper polarities are observed.Remote Transmitter UnitInsert 2 AA batteries into the battery compartment on the remote unit, ensuringproper polarities are observed.Buttons on Top PanelMI605 IM_v1_0905.indd 8 9/16/05 10:42:05 AM

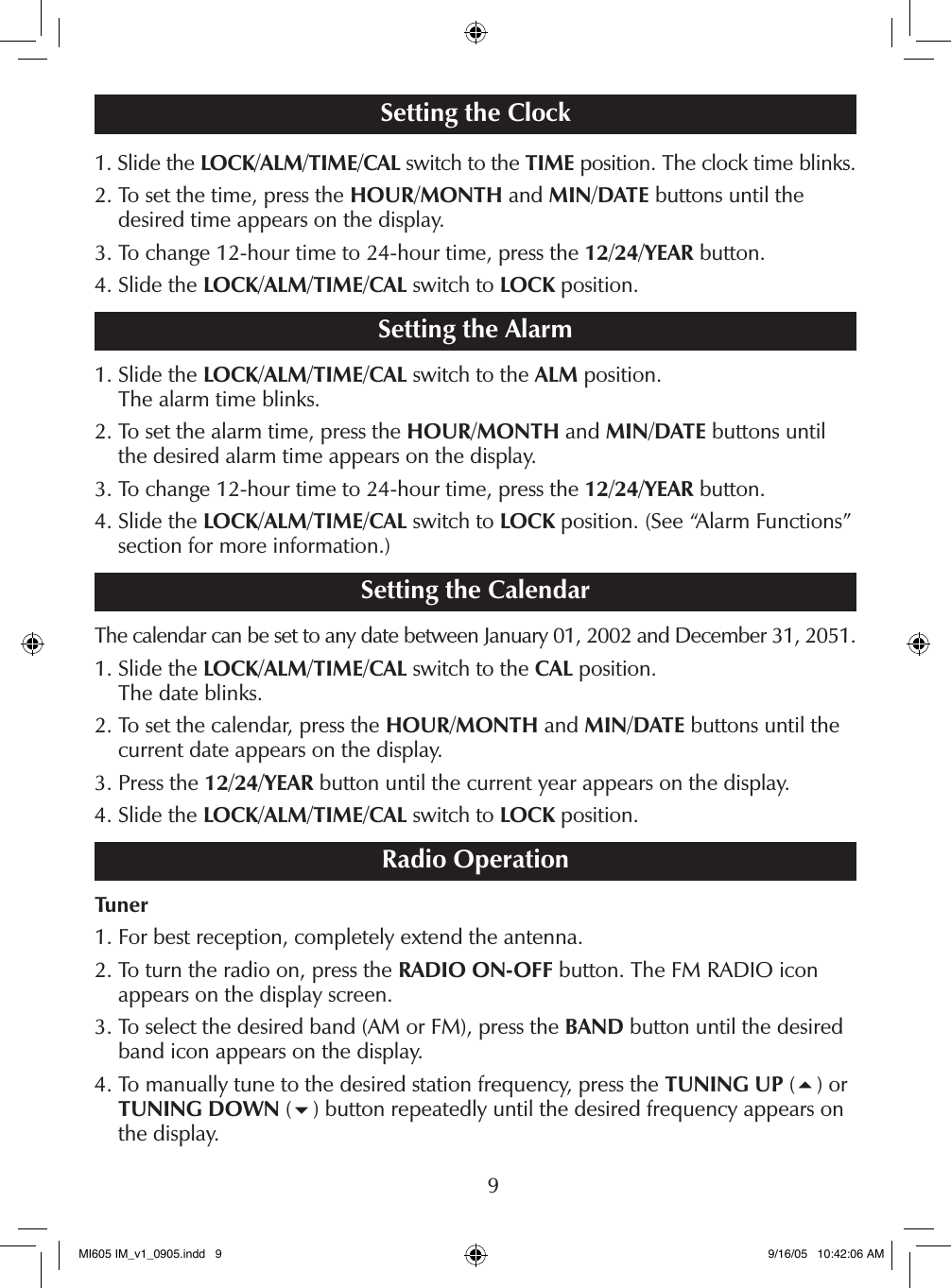

9Setting the Clock1. Slide the LOCK/ALM/TIME/CAL switch to the TIME position. The clock time blinks.2. To set the time, press the HOUR/MONTH and MIN/DATE buttons until the desired time appears on the display.3. To change 12-hour time to 24-hour time, press the 12/24/YEAR button.4. Slide the LOCK/ALM/TIME/CAL switch to LOCK position.Setting the Alarm1. Slide the LOCK/ALM/TIME/CAL switch to the ALM position. The alarm time blinks.2. To set the alarm time, press the HOUR/MONTH and MIN/DATE buttons until the desired alarm time appears on the display.3. To change 12-hour time to 24-hour time, press the 12/24/YEAR button.4. Slide the LOCK/ALM/TIME/CAL switch to LOCK position. (See “Alarm Functions” section for more information.)Setting the CalendarThe calendar can be set to any date between January 01, 2002 and December 31, 2051.1. Slide the LOCK/ALM/TIME/CAL switch to the CAL position. The date blinks.2. To set the calendar, press the HOUR/MONTH and MIN/DATE buttons until the current date appears on the display.3. Press the 12/24/YEAR button until the current year appears on the display.4. Slide the LOCK/ALM/TIME/CAL switch to LOCK position.Radio OperationTuner1. For best reception, completely extend the antenna.2. To turn the radio on, press the RADIO ON-OFF button. The FM RADIO icon appears on the display screen.3. To select the desired band (AM or FM), press the BAND button until the desired band icon appears on the display.4. To manually tune to the desired station frequency, press the TUNING UP (5) or TUNING DOWN (6) button repeatedly until the desired frequency appears on the display.MI605 IM_v1_0905.indd 9 9/16/05 10:42:06 AM

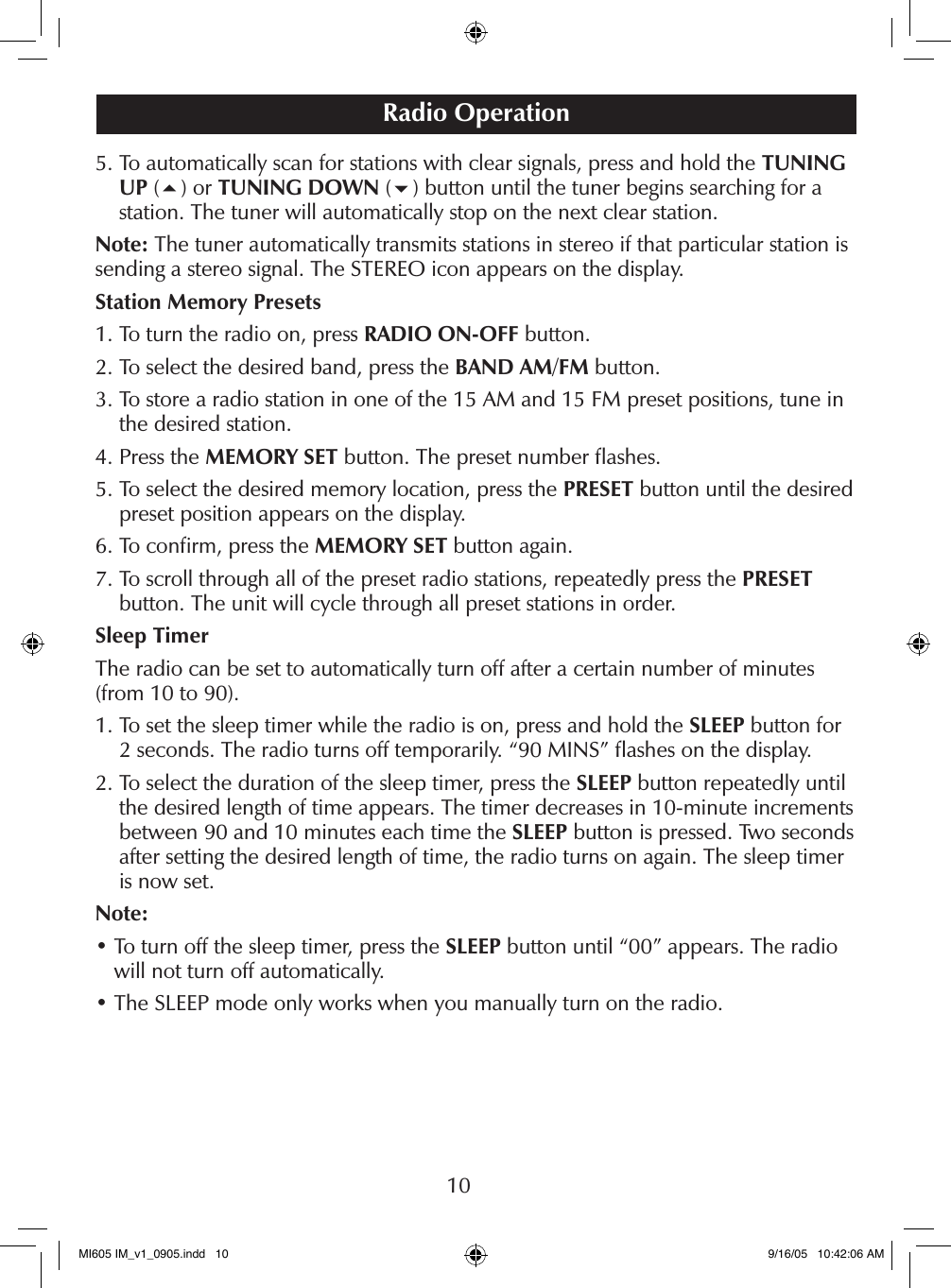

105. To automatically scan for stations with clear signals, press and hold the TUNING UP (5) or TUNING DOWN (6) button until the tuner begins searching for a station. The tuner will automatically stop on the next clear station.Note: The tuner automatically transmits stations in stereo if that particular station is sending a stereo signal. The STEREO icon appears on the display.Station Memory Presets1. To turn the radio on, press RADIO ON-OFF button.2. To select the desired band, press the BAND AM/FM button.3. To store a radio station in one of the 15 AM and 15 FM preset positions, tune in the desired station.4. Press the MEMORY SET button. The preset number flashes.5. To select the desired memory location, press the PRESET button until the desired preset position appears on the display.6. To confirm, press the MEMORY SET button again.7. To scroll through all of the preset radio stations, repeatedly press the PRESET button. The unit will cycle through all preset stations in order.Sleep TimerThe radio can be set to automatically turn off after a certain number of minutes (from 10 to 90).1. To set the sleep timer while the radio is on, press and hold the SLEEP button for 2 seconds. The radio turns off temporarily. “90 MINS” flashes on the display.2. To select the duration of the sleep timer, press the SLEEP button repeatedly until the desired length of time appears. The timer decreases in 10-minute increments between 90 and 10 minutes each time the SLEEP button is pressed. Two seconds after setting the desired length of time, the radio turns on again. The sleep timer is now set.Note:• To turn off the sleep timer, press the SLEEP button until “00” appears. The radio will not turn off automatically.• The SLEEP mode only works when you manually turn on the radio.Radio OperationMI605 IM_v1_0905.indd 10 9/16/05 10:42:06 AM

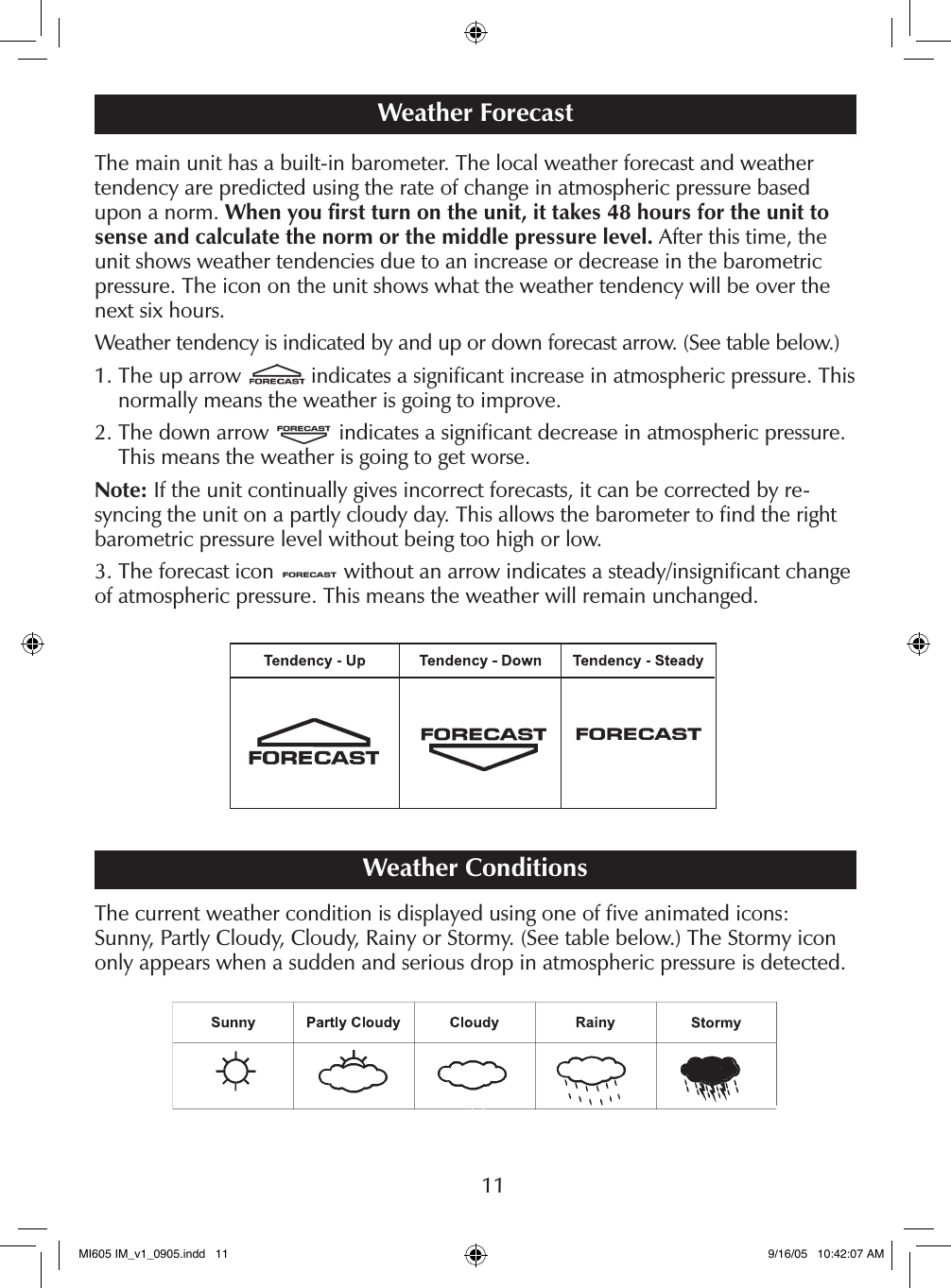

11The main unit has a built-in barometer. The local weather forecast and weather tendency are predicted using the rate of change in atmospheric pressure based upon a norm. When you first turn on the unit, it takes 48 hours for the unit to sense and calculate the norm or the middle pressure level. After this time, the unit shows weather tendencies due to an increase or decrease in the barometric pressure. The icon on the unit shows what the weather tendency will be over the next six hours.Weather tendency is indicated by and up or down forecast arrow. (See table below.)1. The up arrow indicates a significant increase in atmospheric pressure. This normally means the weather is going to improve.2. The down arrow indicates a significant decrease in atmospheric pressure. This means the weather is going to get worse.Note: If the unit continually gives incorrect forecasts, it can be corrected by re-syncing the unit on a partly cloudy day. This allows the barometer to find the right barometric pressure level without being too high or low.3. The forecast icon without an arrow indicates a steady/insignificant change of atmospheric pressure. This means the weather will remain unchanged.Weather ConditionsThe current weather condition is displayed using one of five animated icons: Sunny, Partly Cloudy, Cloudy, Rainy or Stormy. (See table below.) The Stormy icon only appears when a sudden and serious drop in atmospheric pressure is detected.Weather ForecastMI605 IM_v1_0905.indd 11 9/16/05 10:42:07 AM

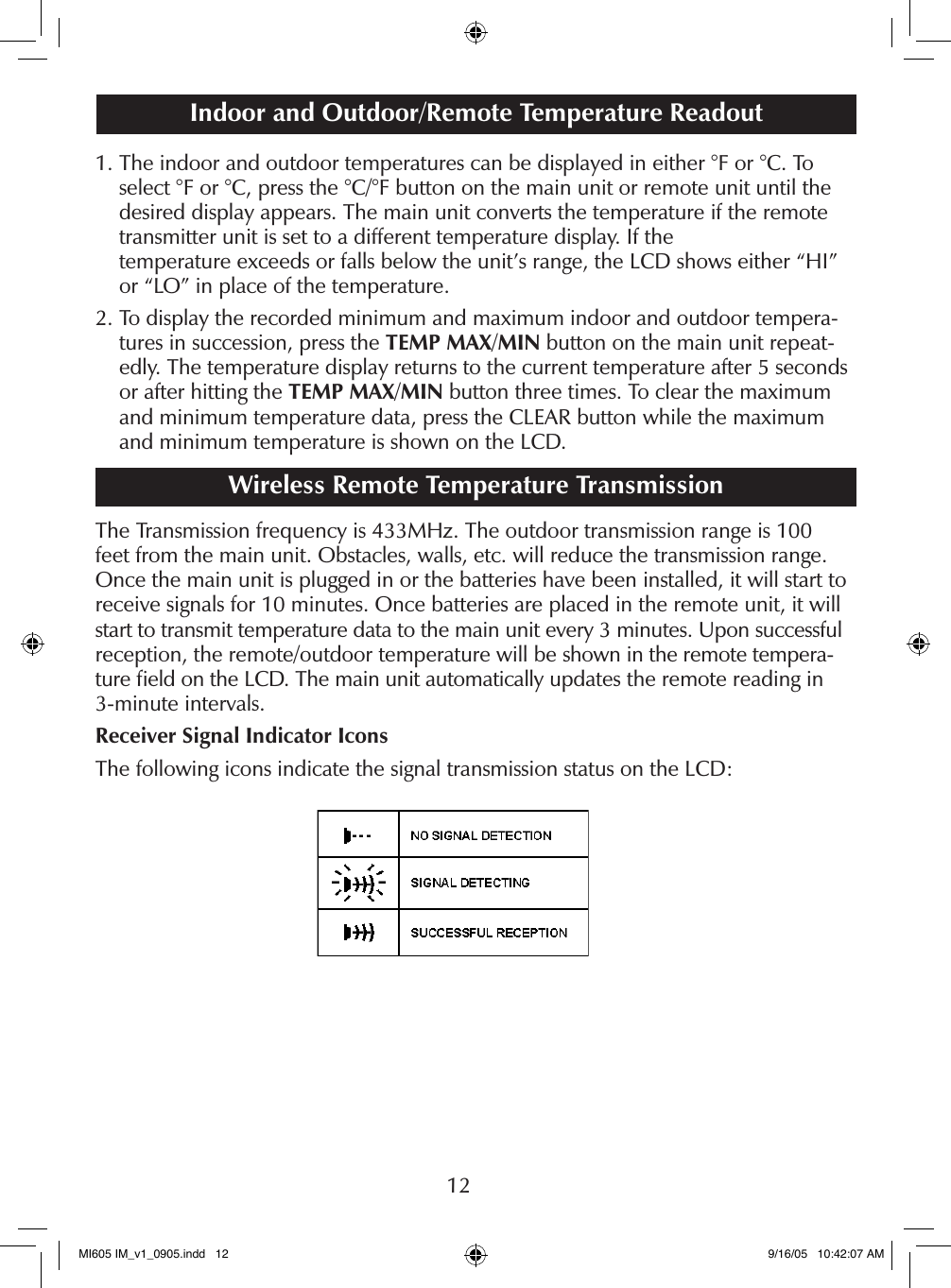

121. The indoor and outdoor temperatures can be displayed in either °F or °C. To select °F or °C, press the °C/°F button on the main unit or remote unit until the desired display appears. The main unit converts the temperature if the remote transmitter unit is set to a different temperature display. If the temperature exceeds or falls below the unit’s range, the LCD shows either “HI” or “LO” in place of the temperature.2. To display the recorded minimum and maximum indoor and outdoor tempera-tures in succession, press the TEMP MAX/MIN button on the main unit repeat-edly. The temperature display returns to the current temperature after 5 seconds or after hitting the TEMP MAX/MIN button three times. To clear the maximum and minimum temperature data, press the CLEAR button while the maximum and minimum temperature is shown on the LCD.Wireless Remote Temperature TransmissionThe Transmission frequency is 433MHz. The outdoor transmission range is 100 feet from the main unit. Obstacles, walls, etc. will reduce the transmission range. Once the main unit is plugged in or the batteries have been installed, it will start to receive signals for 10 minutes. Once batteries are placed in the remote unit, it will start to transmit temperature data to the main unit every 3 minutes. Upon successful reception, the remote/outdoor temperature will be shown in the remote tempera-ture field on the LCD. The main unit automatically updates the remote reading in 3-minute intervals.Receiver Signal Indicator IconsThe following icons indicate the signal transmission status on the LCD:Indoor and Outdoor/Remote Temperature ReadoutMI605 IM_v1_0905.indd 12 9/16/05 10:42:07 AM

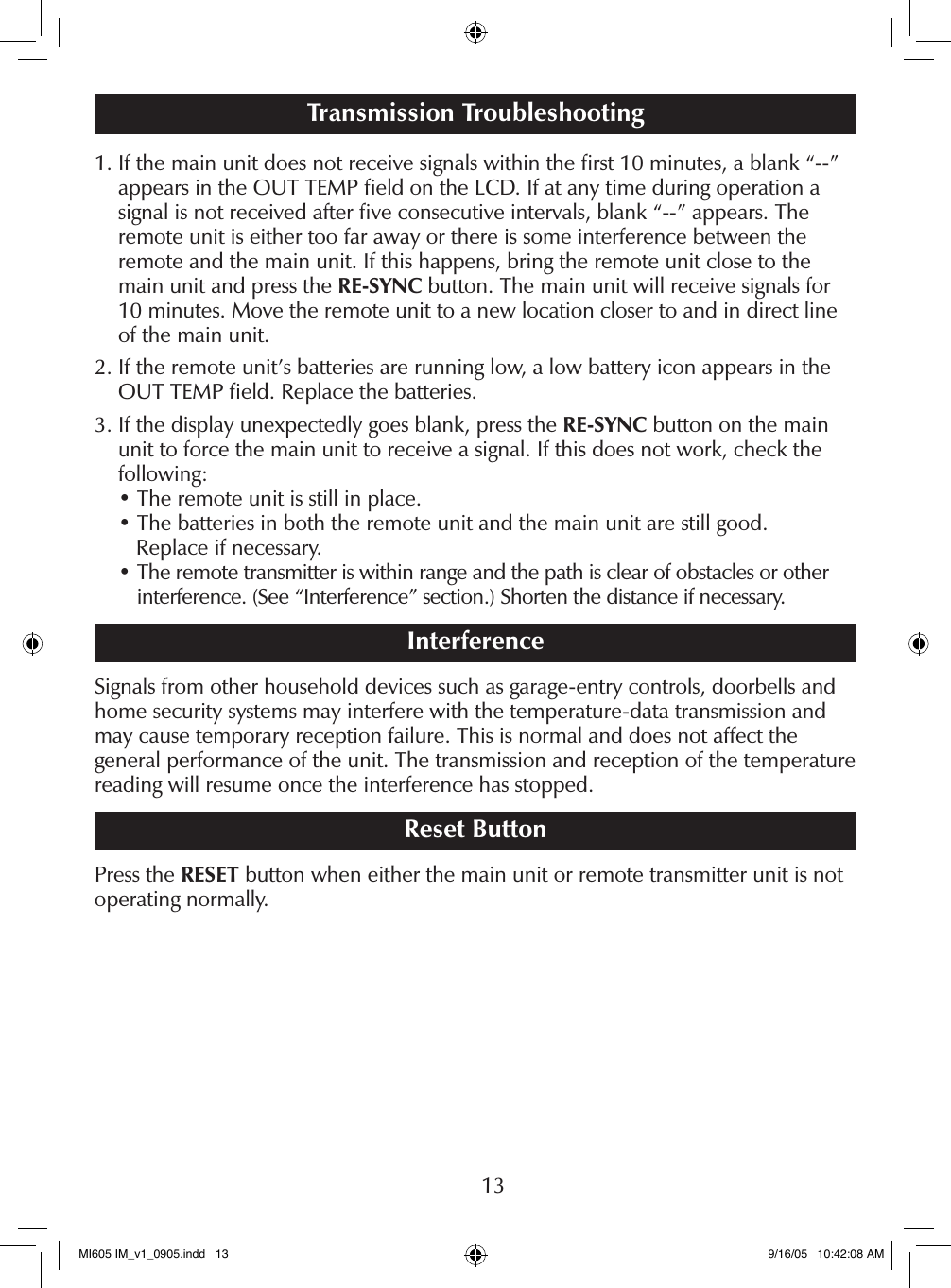

131. If the main unit does not receive signals within the first 10 minutes, a blank “--” appears in the OUT TEMP field on the LCD. If at any time during operation a signal is not received after five consecutive intervals, blank “--” appears. The remote unit is either too far away or there is some interference between the remote and the main unit. If this happens, bring the remote unit close to the main unit and press the RE-SYNC button. The main unit will receive signals for 10 minutes. Move the remote unit to a new location closer to and in direct line of the main unit.2. If the remote unit’s batteries are running low, a low battery icon appears in the OUT TEMP field. Replace the batteries.3. If the display unexpectedly goes blank, press the RE-SYNC button on the main unit to force the main unit to receive a signal. If this does not work, check the following: • The remote unit is still in place. • The batteries in both the remote unit and the main unit are still good. Replace if necessary. • The remote transmitter is within range and the path is clear of obstacles or other interference. (See “Interference” section.) Shorten the distance if necessary.InterferenceSignals from other household devices such as garage-entry controls, doorbells and home security systems may interfere with the temperature-data transmission and may cause temporary reception failure. This is normal and does not affect the general performance of the unit. The transmission and reception of the temperature reading will resume once the interference has stopped.Reset ButtonPress the RESET button when either the main unit or remote transmitter unit is not operating normally.Transmission TroubleshootingMI605 IM_v1_0905.indd 13 9/16/05 10:42:08 AM

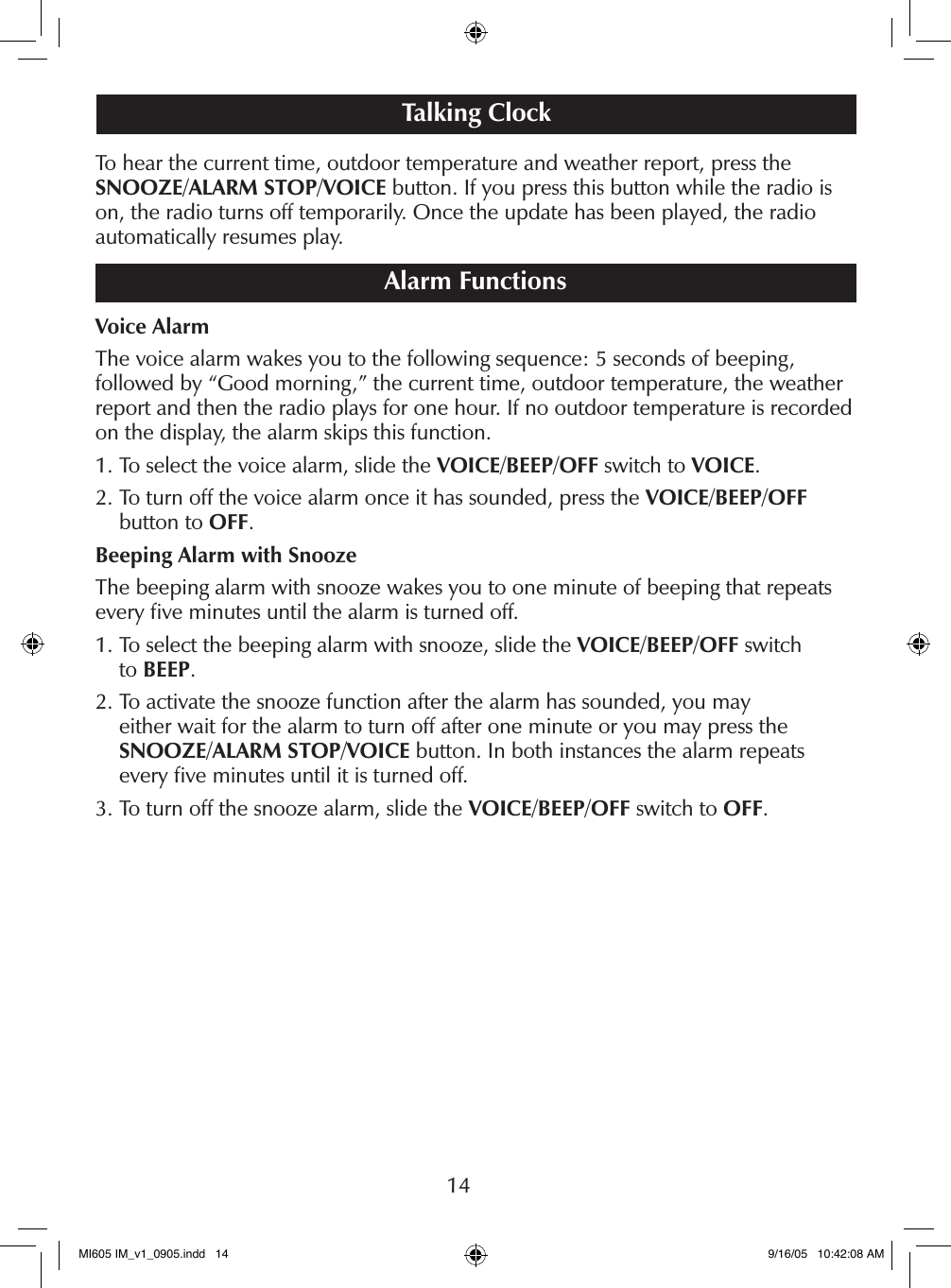

14To hear the current time, outdoor temperature and weather report, press the SNOOZE/ALARM STOP/VOICE button. If you press this button while the radio is on, the radio turns off temporarily. Once the update has been played, the radio automatically resumes play.Alarm FunctionsVoice AlarmThe voice alarm wakes you to the following sequence: 5 seconds of beeping, followed by “Good morning,” the current time, outdoor temperature, the weather report and then the radio plays for one hour. If no outdoor temperature is recorded on the display, the alarm skips this function. 1. To select the voice alarm, slide the VOICE/BEEP/OFF switch to VOICE.2. To turn off the voice alarm once it has sounded, press the VOICE/BEEP/OFF button to OFF.Beeping Alarm with SnoozeThe beeping alarm with snooze wakes you to one minute of beeping that repeats every five minutes until the alarm is turned off.1. To select the beeping alarm with snooze, slide the VOICE/BEEP/OFF switch to BEEP.2. To activate the snooze function after the alarm has sounded, you may either wait for the alarm to turn off after one minute or you may press the SNOOZE/ALARM STOP/VOICE button. In both instances the alarm repeats every five minutes until it is turned off.3. To turn off the snooze alarm, slide the VOICE/BEEP/OFF switch to OFF.Talking ClockMI605 IM_v1_0905.indd 14 9/16/05 10:42:08 AM

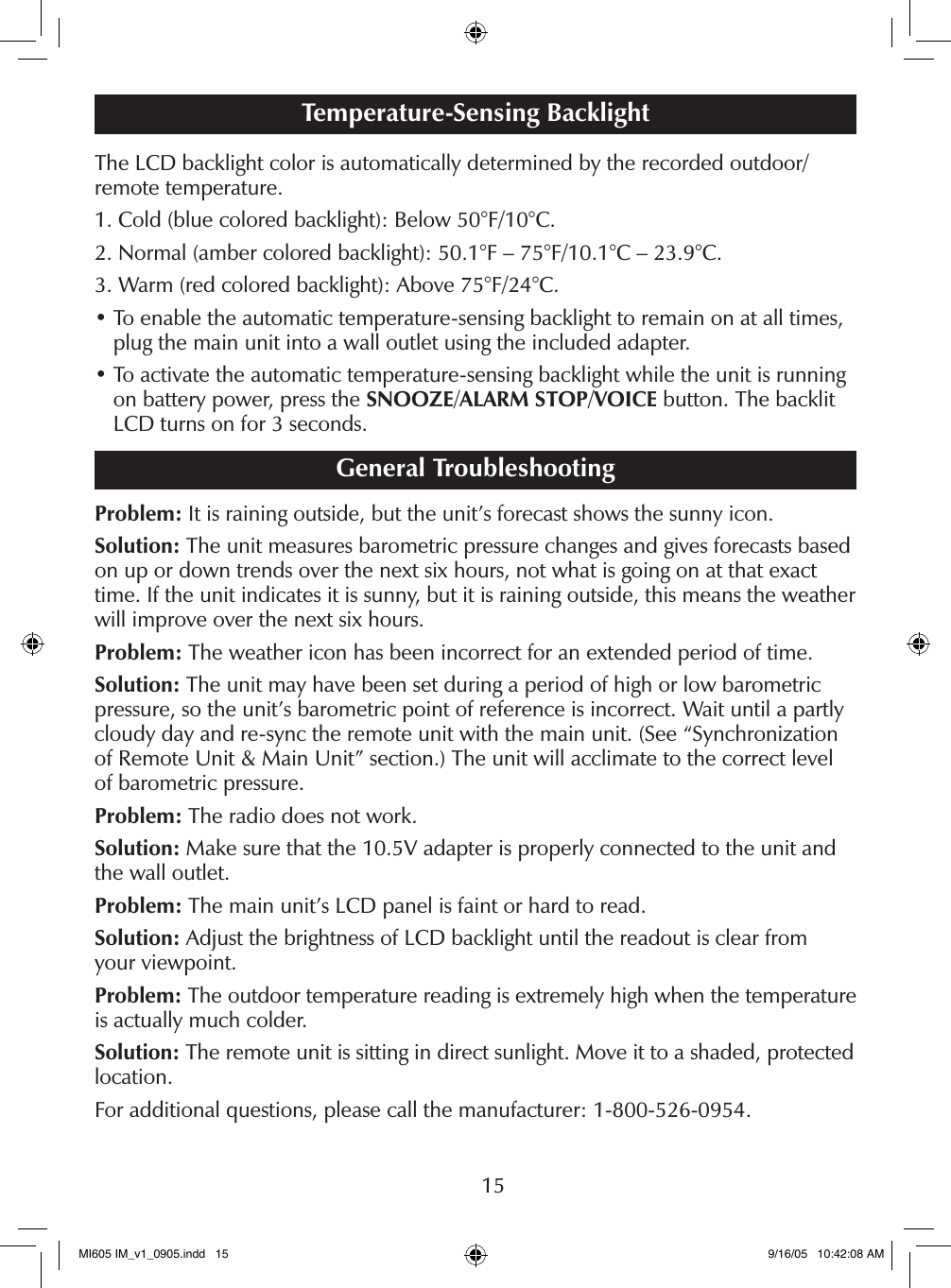

15The LCD backlight color is automatically determined by the recorded outdoor/ remote temperature.1. Cold (blue colored backlight): Below 50°F/10°C.2. Normal (amber colored backlight): 50.1°F – 75°F/10.1°C – 23.9°C.3. Warm (red colored backlight): Above 75°F/24°C.• To enable the automatic temperature-sensing backlight to remain on at all times, plug the main unit into a wall outlet using the included adapter.• To activate the automatic temperature-sensing backlight while the unit is running on battery power, press the SNOOZE/ALARM STOP/VOICE button. The backlit LCD turns on for 3 seconds.General TroubleshootingProblem: It is raining outside, but the unit’s forecast shows the sunny icon.Solution: The unit measures barometric pressure changes and gives forecasts based on up or down trends over the next six hours, not what is going on at that exact time. If the unit indicates it is sunny, but it is raining outside, this means the weather will improve over the next six hours.Problem: The weather icon has been incorrect for an extended period of time.Solution: The unit may have been set during a period of high or low barometric pressure, so the unit’s barometric point of reference is incorrect. Wait until a partly cloudy day and re-sync the remote unit with the main unit. (See “Synchronization of Remote Unit & Main Unit” section.) The unit will acclimate to the correct level of barometric pressure.Problem: The radio does not work.Solution: Make sure that the 10.5V adapter is properly connected to the unit and the wall outlet.Problem: The main unit’s LCD panel is faint or hard to read.Solution: Adjust the brightness of LCD backlight until the readout is clear from your viewpoint.Problem: The outdoor temperature reading is extremely high when the temperature is actually much colder.Solution: The remote unit is sitting in direct sunlight. Move it to a shaded, protected location.For additional questions, please call the manufacturer: 1-800-526-0954.Temperature-Sensing BacklightMI605 IM_v1_0905.indd 15 9/16/05 10:42:08 AM
MI605 IM_v1_0905.indd 17 9/16/05 10:42:08 AM

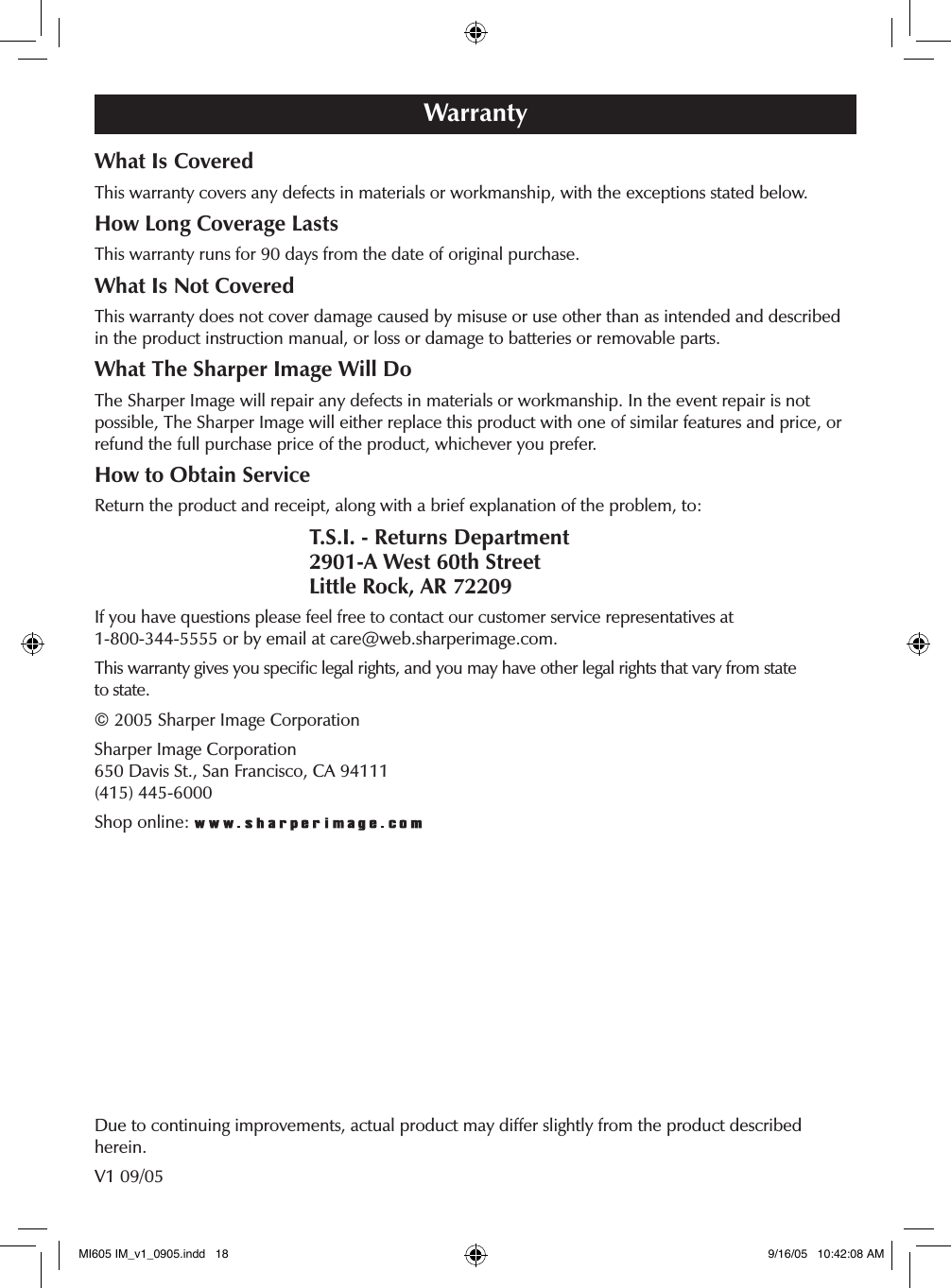

WarrantyWhat Is CoveredThis warranty covers any defects in materials or workmanship, with the exceptions stated below.How Long Coverage LastsThis warranty runs for 90 days from the date of original purchase.What Is Not CoveredThis warranty does not cover damage caused by misuse or use other than as intended and described in the product instruction manual, or loss or damage to batteries or removable parts. What The Sharper Image Will DoThe Sharper Image will repair any defects in materials or workmanship. In the event repair is not possible, The Sharper Image will either replace this product with one of similar features and price, or refund the full purchase price of the product, whichever you prefer.How to Obtain ServiceReturn the product and receipt, along with a brief explanation of the problem, to: T.S.I. - Returns Department 2901-A West 60th Street Little Rock, AR 72209If you have questions please feel free to contact our customer service representatives at 1-800-344-5555 or by email at care@web.sharperimage.com.This warranty gives you specific legal rights, and you may have other legal rights that vary from state to state.© 2005 Sharper Image CorporationSharper Image Corporation 650 Davis St., San Francisco, CA 94111 (415) 445-6000Shop online: Due to continuing improvements, actual product may differ slightly from the product described herein.V1 09/05MI605 IM_v1_0905.indd 18 9/16/05 10:42:08 AM
