Electronics Tomorrow Ltd. Bluetooth Cooking Thermometer A550

User manual

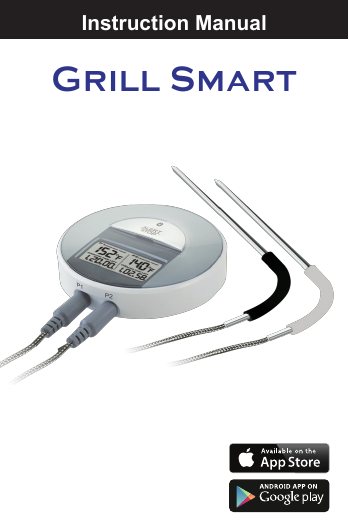

Grill SmartInstruction Manual

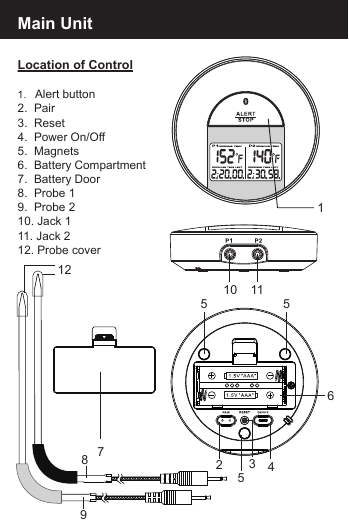

Main UnitLocation of Control1.   Alert button2.  Pair 3.  Reset4.  Power On/Off5.  Magnets6.  Battery Compartment7.  Battery Door8.  Probe 19.  Probe 210. Jack 111. Jack 212. Probe cover32467510891155112

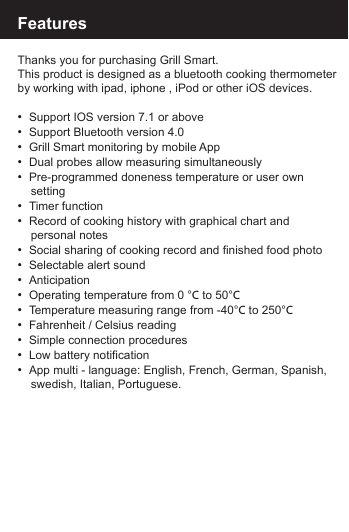

FeaturesThanks you for purchasing Grill Smart. This product is designed as a bluetooth cooking thermometerby working with ipad, iphone , iPod or other iOS devices.•  Support IOS version 7.1 or above •  Support Bluetooth version 4.0•  Grill Smart monitoring by mobile App•  Dual probes allow measuring simultaneously•  Pre-programmed doneness temperature or user own     setting•  Timer function•  Record of cooking history with graphical chart and     personal notes•  Social sharing of cooking record and finished food photo•  Selectable alert sound•  Anticipation•  Operating temperature from 0 °C to 50°C•  Temperature measuring range from -40°C to 250°C•  Fahrenheit / Celsius reading•  Simple connection procedures•  Low battery notification•  App multi - language: English, French, German, Spanish,    swedish, Italian, Portuguese.

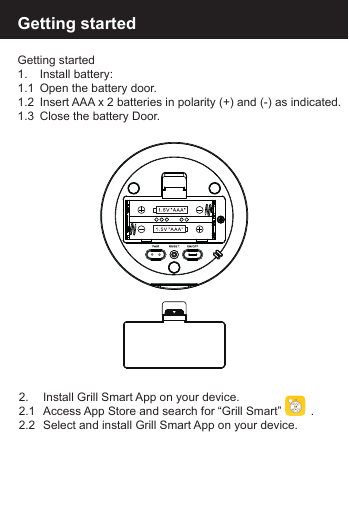

Getting startedGetting started1.  Install battery:1.1  Open the battery door.1.2  Insert AAA x 2 batteries in polarity (+) and (-) as indicated.1.3  Close the battery Door.2.   Install Grill Smart App on your device.2.1  Access App Store and search for “Grill Smart”         . 2.2  Select and install Grill Smart App on your device.

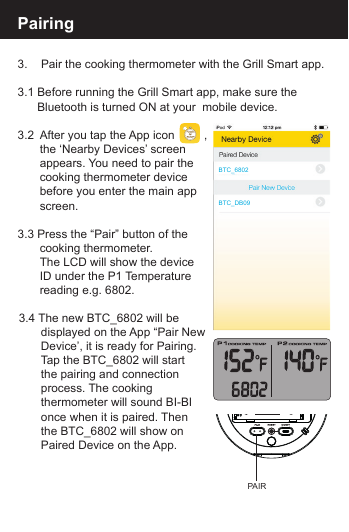

Pairing 3.    Pair the cooking thermometer with the Grill Smart app.3.1 Before running the Grill Smart app, make sure the       Bluetooth is turned ON at your  mobile device.3.2  After you tap the App icon         ,  the ‘Nearby Devices’ screen   appears. You need to pair the   cooking thermometer device   before you enter the main app screen.3.3 Press the “Pair” button of the   cooking thermometer.   The LCD will show the device   ID under the P1 Temperature   reading e.g. 6802.3.4 The new BTC_6802 will be   displayed on the App “Pair New   Device’, it is ready for Pairing.   Tap the BTC_6802 will start   the pairing and connection   process. The cooking   thermometer will sound BI-BI   once when it is paired. Then   the BTC_6802 will show on   Paired Device on the App.BTC_6802BTC_DB09PAIR

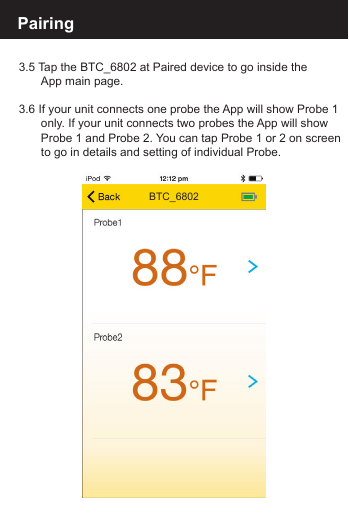

Pairing 3.5 Tap the BTC_6802 at Paired device to go inside the  App main page.3.6 If your unit connects one probe the App will show Probe 1  only. If your unit connects two probes the App will show   Probe 1 and Probe 2. You can tap Probe 1 or 2 on screen  to go in details and setting of individual Probe.BTC_6802

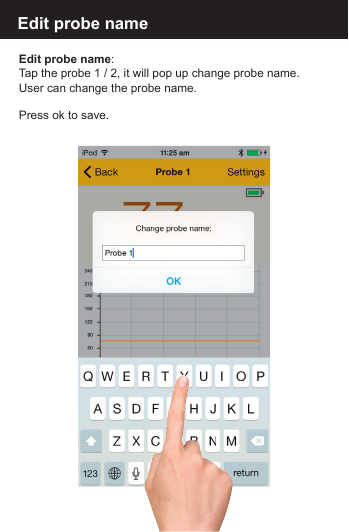

Edit probe namePress ok to save.Edit probe name:Tap the probe 1 / 2, it will pop up change probe name.User can change the probe name.

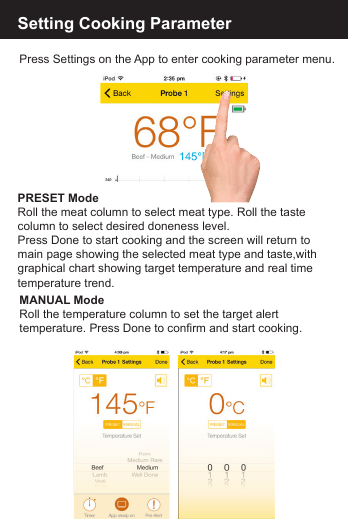

Setting Cooking ParameterPress Settings on the App to enter cooking parameter menu.PRESET Mode Roll the meat column to select meat type. Roll the taste column to select desired doneness level.Press Done to start cooking and the screen will return tomain page showing the selected meat type and taste,with graphical chart showing target temperature and real time temperature trend. MANUAL ModeRoll the temperature column to set the target alert temperature. Press Done to confirm and start cooking.

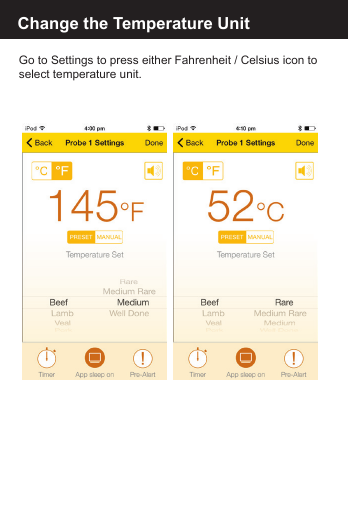

Change the Temperature Unit Go to Settings to press either Fahrenheit / Celsius icon to select temperature unit.

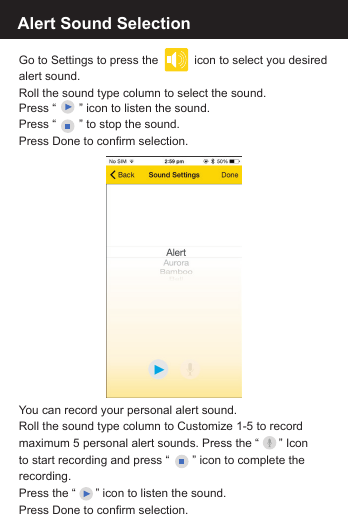

Press “       ” icon to listen the sound. Press “       ” to stop the sound. Press Done to confirm selection.Alert Sound SelectionGo to Settings to press the           icon to select you desiredalert sound. Roll the sound type column to select the sound. You can record your personal alert sound.Roll the sound type column to Customize 1-5 to recordmaximum 5 personal alert sounds. Press the “      ” Icon to start recording and press “       ” icon to complete the recording. Press the “      ” icon to listen the sound.Press Done to confirm selection.

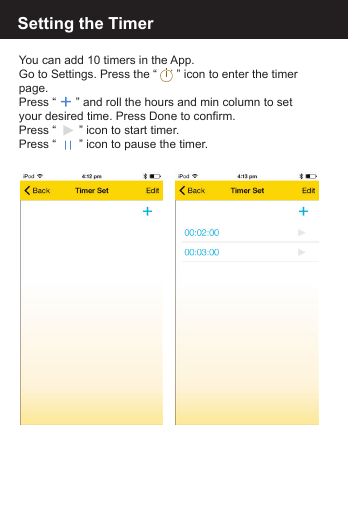

Setting the TimerYou can add 10 timers in the App.Go to Settings. Press the “      ” icon to enter the timer page. Press “      ” and roll the hours and min column to set your desired time. Press Done to confirm.Press “       ” icon to start timer.Press “       ” icon to pause the timer.

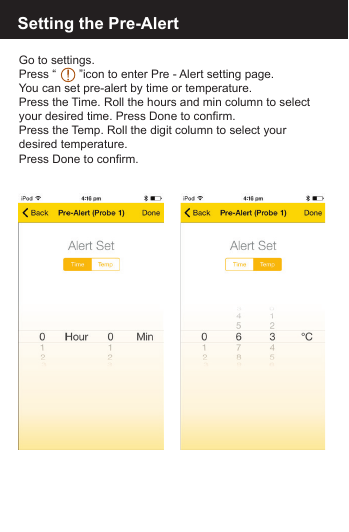

Setting the Pre-AlertGo to settings.Press “       ”icon to enter Pre - Alert setting page.You can set pre-alert by time or temperature.Press the Time. Roll the hours and min column to select your desired time. Press Done to confirm.Press the Temp. Roll the digit column to select yourdesired temperature. Press Done to confirm.

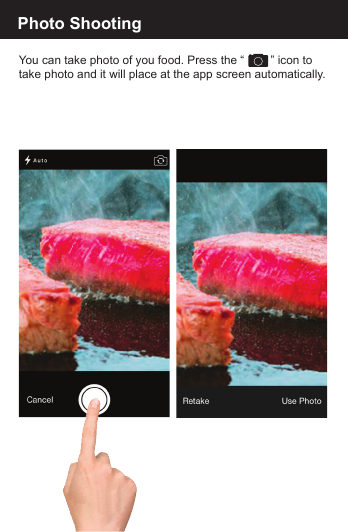

Photo ShootingYou can take photo of you food. Press the “        ” icon to take photo and it will place at the app screen automatically.

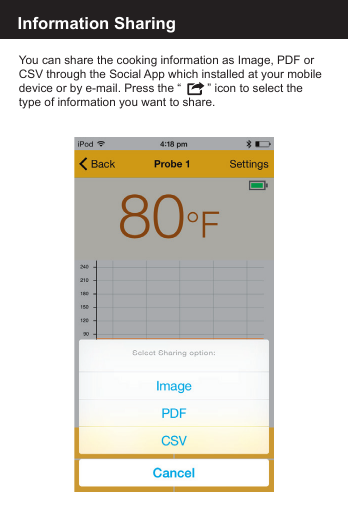

Information SharingYou can share the cooking information as Image, PDF or CSV through the Social App which installed at your mobiledevice or by e-mail. Press the “        ” icon to select the type of information you want to share.
HistoryYour cooking history will record and store inside the App. You can recall the information by pressing the “       ” icon.Press individual history to browse the details.

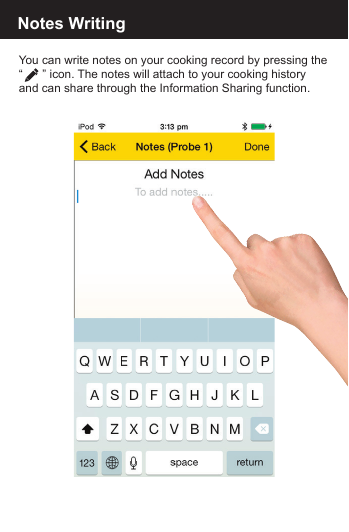

Notes WritingYou can write notes on your cooking record by pressing the “      ” icon. The notes will attach to your cooking history and can share through the Information Sharing function.
APP Sleep ON / OFFYou can change the APP Sleep ON/OFF.Select App Sleep on          , the App screen will auto off if your mobile device set as auto lock.Select App sleep off          the App screen will always on.

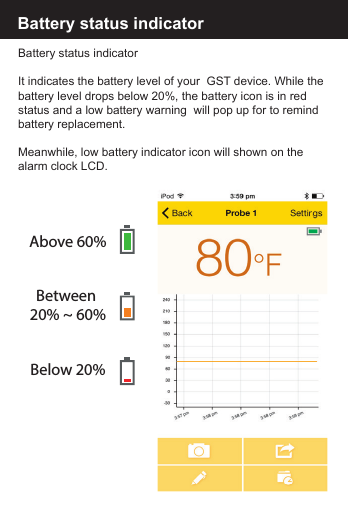

Battery status indicatorBattery status indicatorIt indicates the battery level of your  GST device. While the battery level drops below 20%, the battery icon is in red status and a low battery warning  will pop up for to remind  battery replacement.Meanwhile, low battery indicator icon will shown on the    alarm clock LCD.Above 60%Between 20% ~ 60%Below 20%

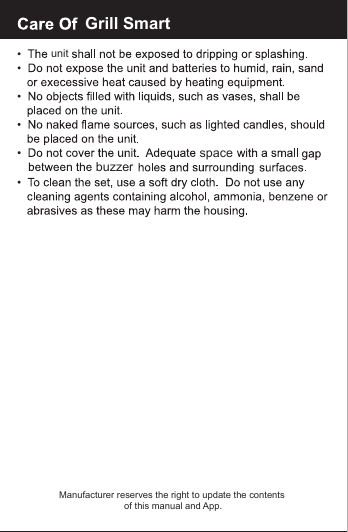

Grill SmartunitspacebuzzerManufacturer reserves the right to update the contents of this manual and App.

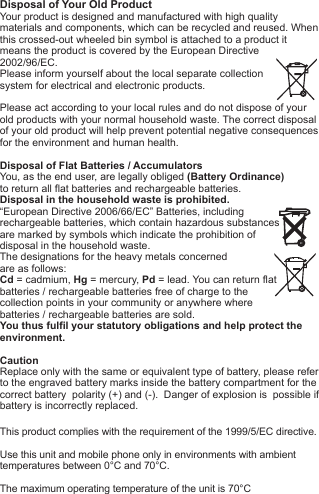

Disposal of Your Old ProductYour product is designed and manufactured with high quality materials and components, which can be recycled and reused. When this crossed-out wheeled bin symbol is attached to a product itmeans the product is covered by the European Directive2002/96/EC.Please inform yourself about the local separate collectionsystem for electrical and electronic products. Please act according to your local rules and do not dispose of yourold products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health. Disposal of Flat Batteries / AccumulatorsYou, as the end user, are legally obliged (Battery Ordinance) to return all flat batteries and rechargeable batteries. Disposal in the household waste is prohibited. “European Directive 2006/66/EC” Batteries, including rechargeable batteries, which contain hazardous substancesare marked by symbols which indicate the prohibition ofdisposal in the household waste. The designations for the heavy metals concerned are as follows: Cd = cadmium, Hg = mercury, Pd = lead. You can return flatbatteries / rechargeable batteries free of charge to thecollection points in your community or anywhere wherebatteries / rechargeable batteries are sold.You thus fulfil your statutory obligations and help protect the environment.CautionReplace only with the same or equivalent type of battery, please refer to the engraved battery marks inside the battery compartment for the correct battery  polarity (+) and (-).  Danger of explosion is  possible if battery is incorrectly replaced.This product complies with the requirement of the 1999/5/EC directive.Use this unit and mobile phone only in environments with ambienttemperatures between 0°C and 70°C.The maximum operating temperature of the unit is 70°C

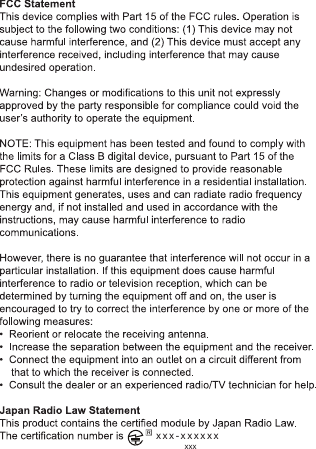

xxx-xxxxxxxxx
