Elentec SFK411 Bluetooth Rear-view Mirror Handsfree kit User Manual SPECIFICATION

Elentec Co.,Ltd. Bluetooth Rear-view Mirror Handsfree kit SPECIFICATION

Users manual

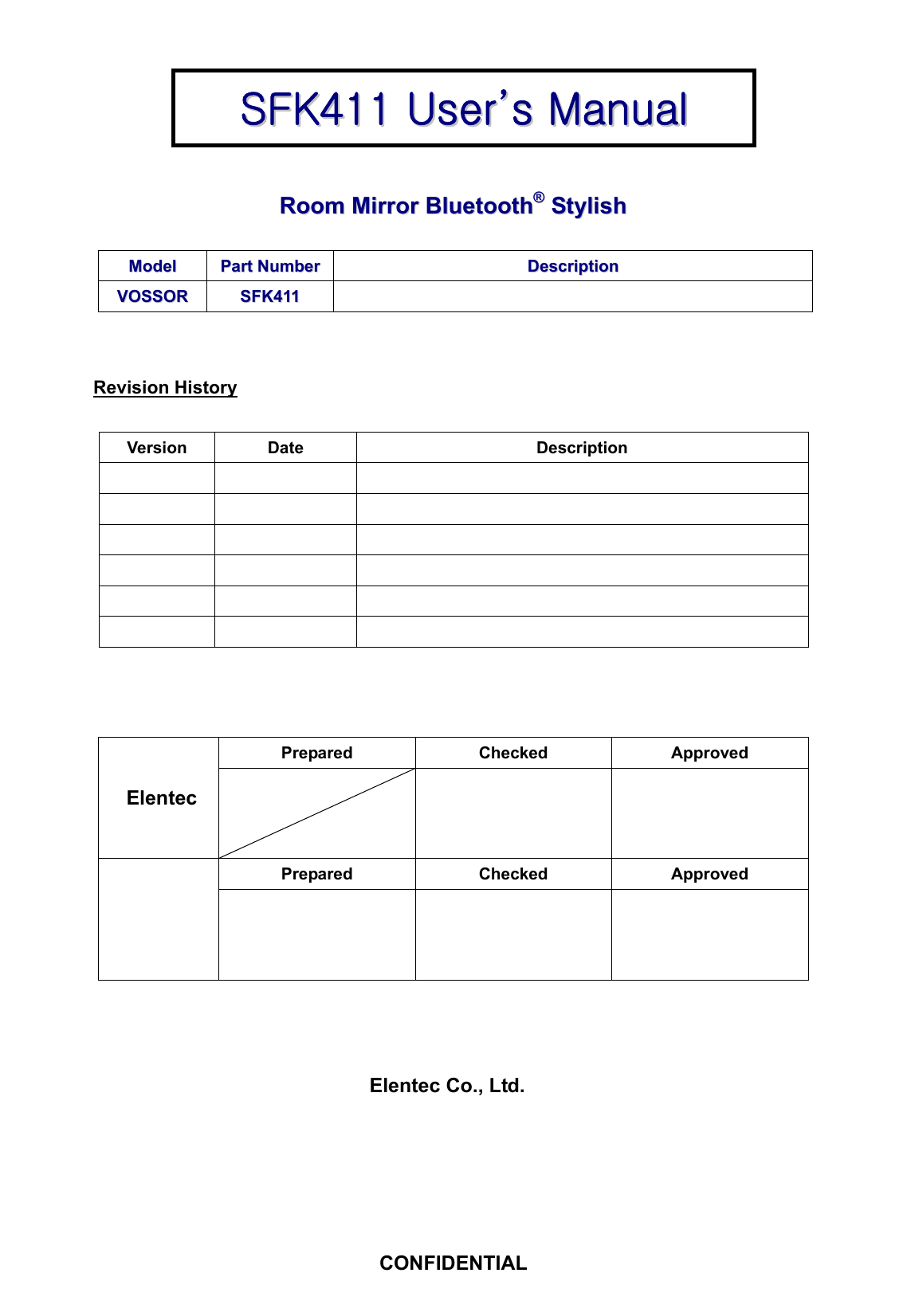

  - 2 -       RRoooomm  MMiirrrroorr  BBlluueettooootthh®®  SSttyylliisshh   MMooddeell PPaarrtt  NNuummbbeerr DDeessccrriippttiioonn VVOOSSSSOORR SSFFKK441111    Revision History  Version Date  Description                      Prepared Checked Approved Elentec       Prepared Checked Approved        Elentec Co., Ltd.  SSFFKK441111  UUsseerr’’ss  MMaannuuaall  CONFIDENTIAL

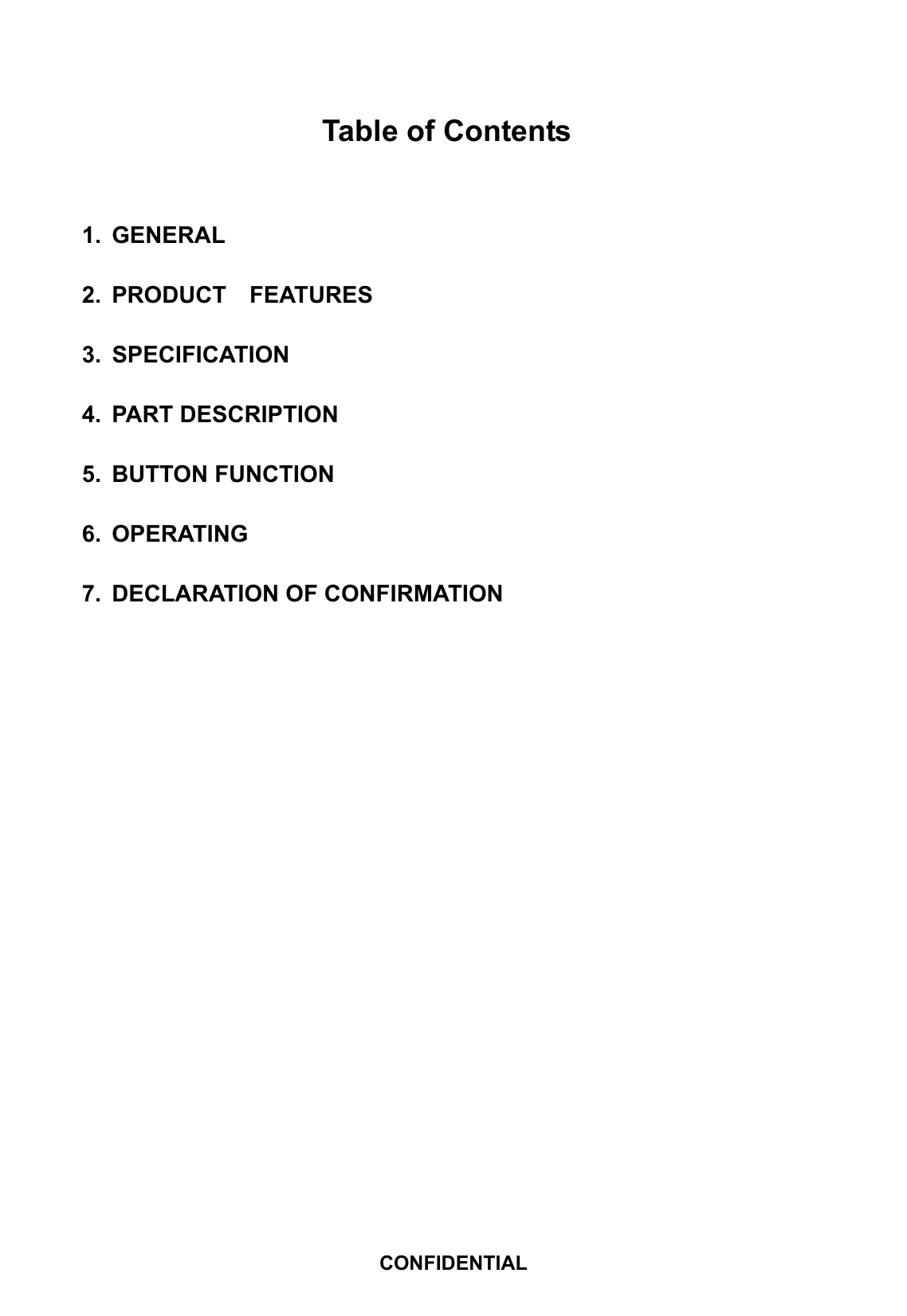

Table of Contents   1. GENERAL  2. PRODUCT  FEATURES  3. SPECIFICATION  4. PART DESCRIPTION  5. BUTTON FUNCTION  6. OPERATING  7.  DECLARATION OF CONFIRMATION                    CONFIDENTIAL

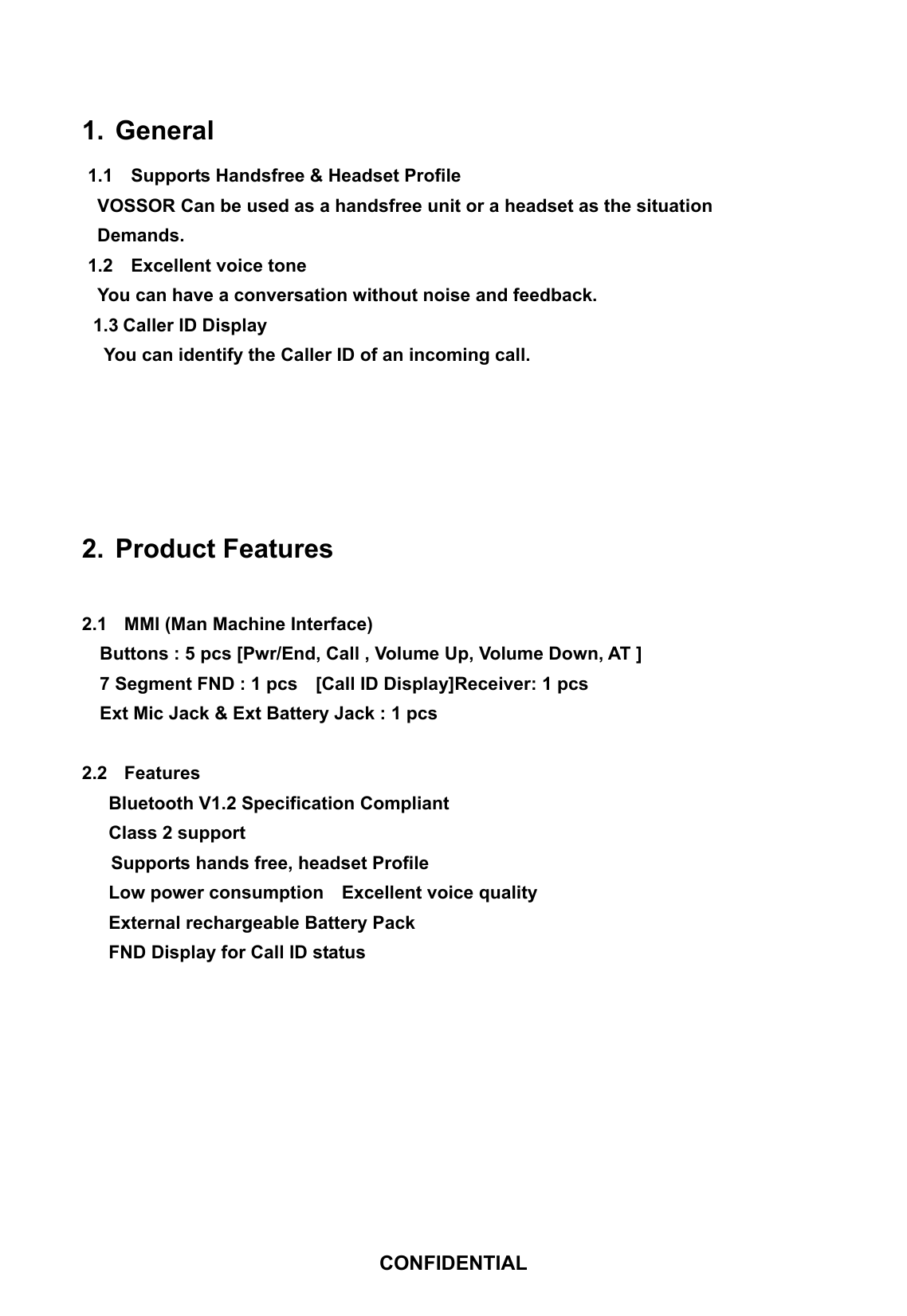

1. General  1.1    Supports Handsfree & Headset Profile VOSSOR Can be used as a handsfree unit or a headset as the situation Demands. 1.2  Excellent voice tone You can have a conversation without noise and feedback. 1.3 Caller ID Display You can identify the Caller ID of an incoming call.    2. Product Features  2.1  MMI (Man Machine Interface) Buttons : 5 pcs [Pwr/End, Call , Volume Up, Volume Down, AT ] 7 Segment FND : 1 pcs    [Call ID Display]Receiver: 1 pcs Ext Mic Jack & Ext Battery Jack : 1 pcs  2.2 Features Bluetooth V1.2 Specification Compliant Class 2 support Supports hands free, headset Profile Low power consumption    Excellent voice quality External rechargeable Battery Pack FND Display for Call ID status        CONFIDENTIAL
3. Specification  General Specification  Item Description Bluetooth Specification  V1.2 Supported Profile  Handsfree / Headset    profile Rx. Sensitivity  Typ. -70 dBm Ext Battery pack  5.0V, 2000mAh Li-ion Polymer Speaker 8Ω / 2W (normal) MIC  -44dB / Omni directional Standby Time (Sniff Mode)  ≤ 200 Hr   Talking Time  ≤ 10 Hr Full Charging Time  ≤ 4 Hr ± 30min                    CONFIDENTIAL

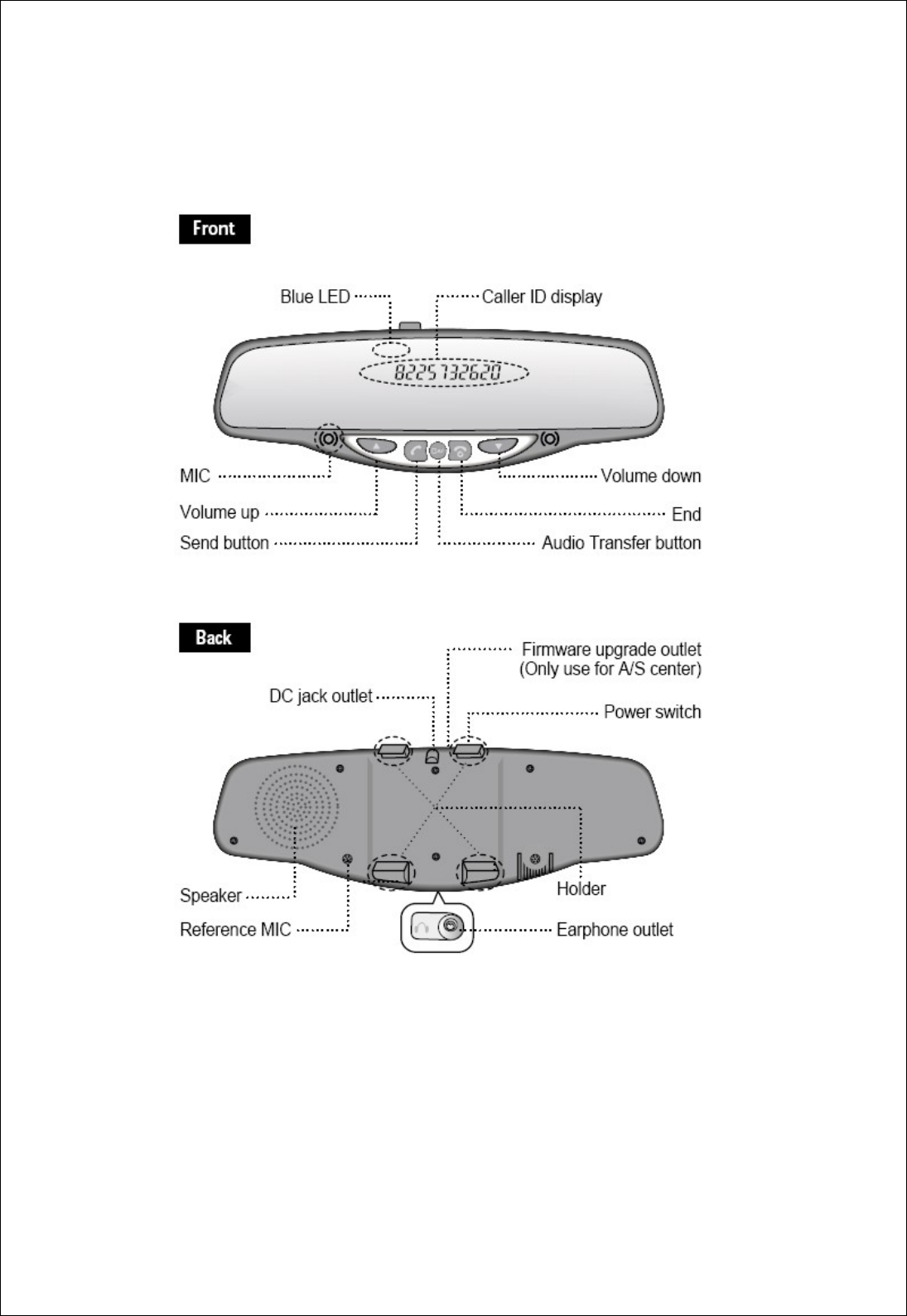

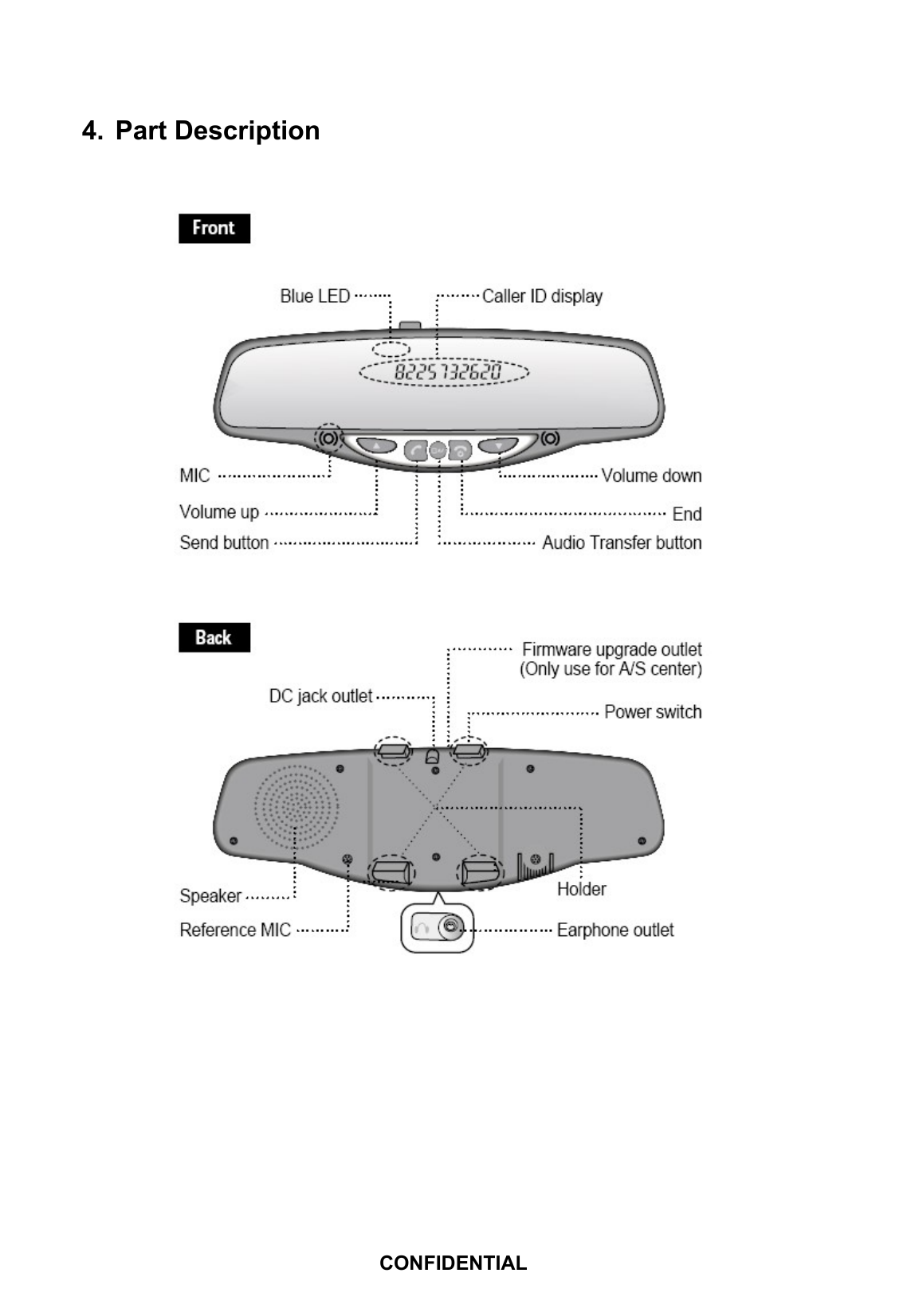

4. Part Description        CONFIDENTIAL

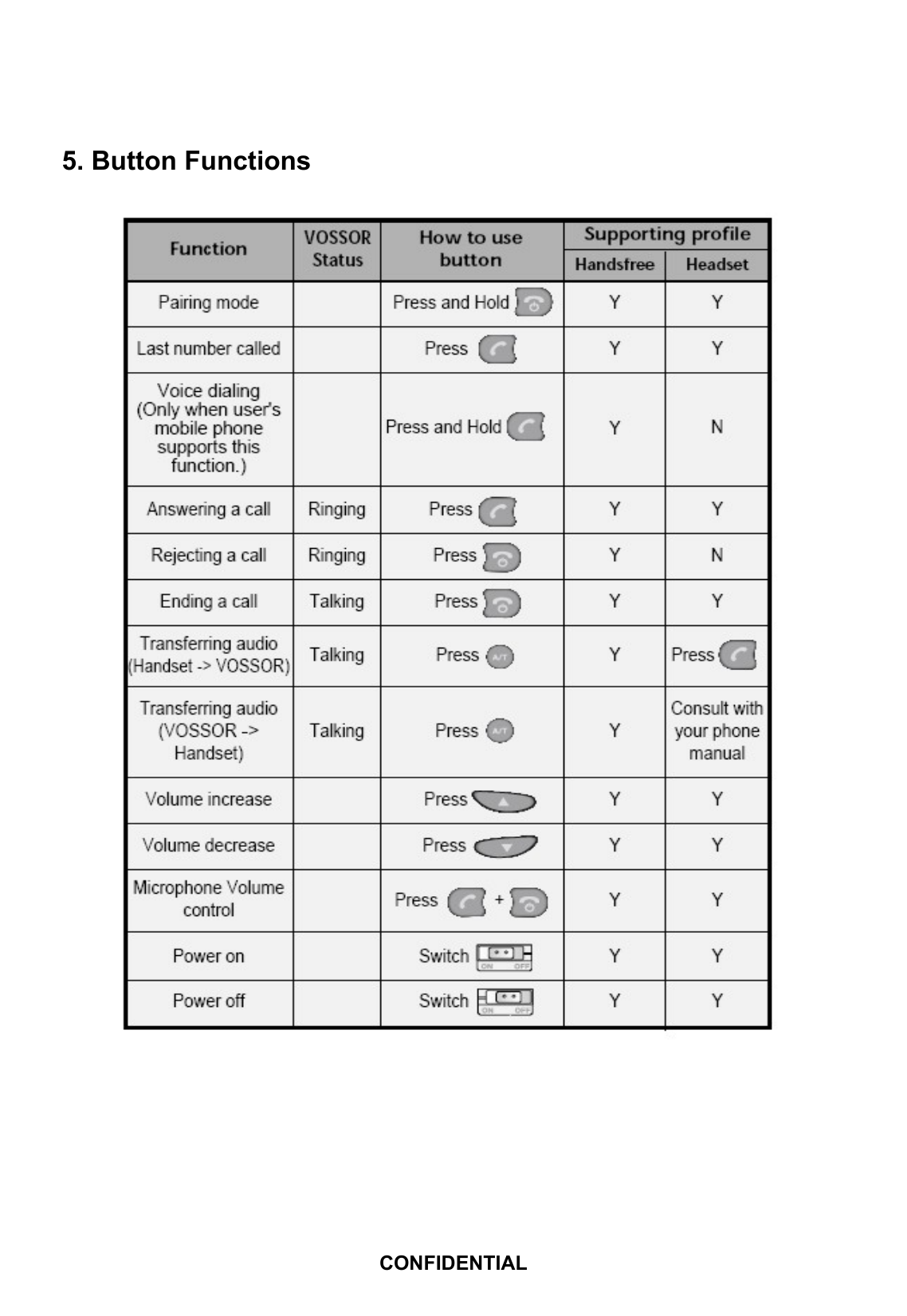

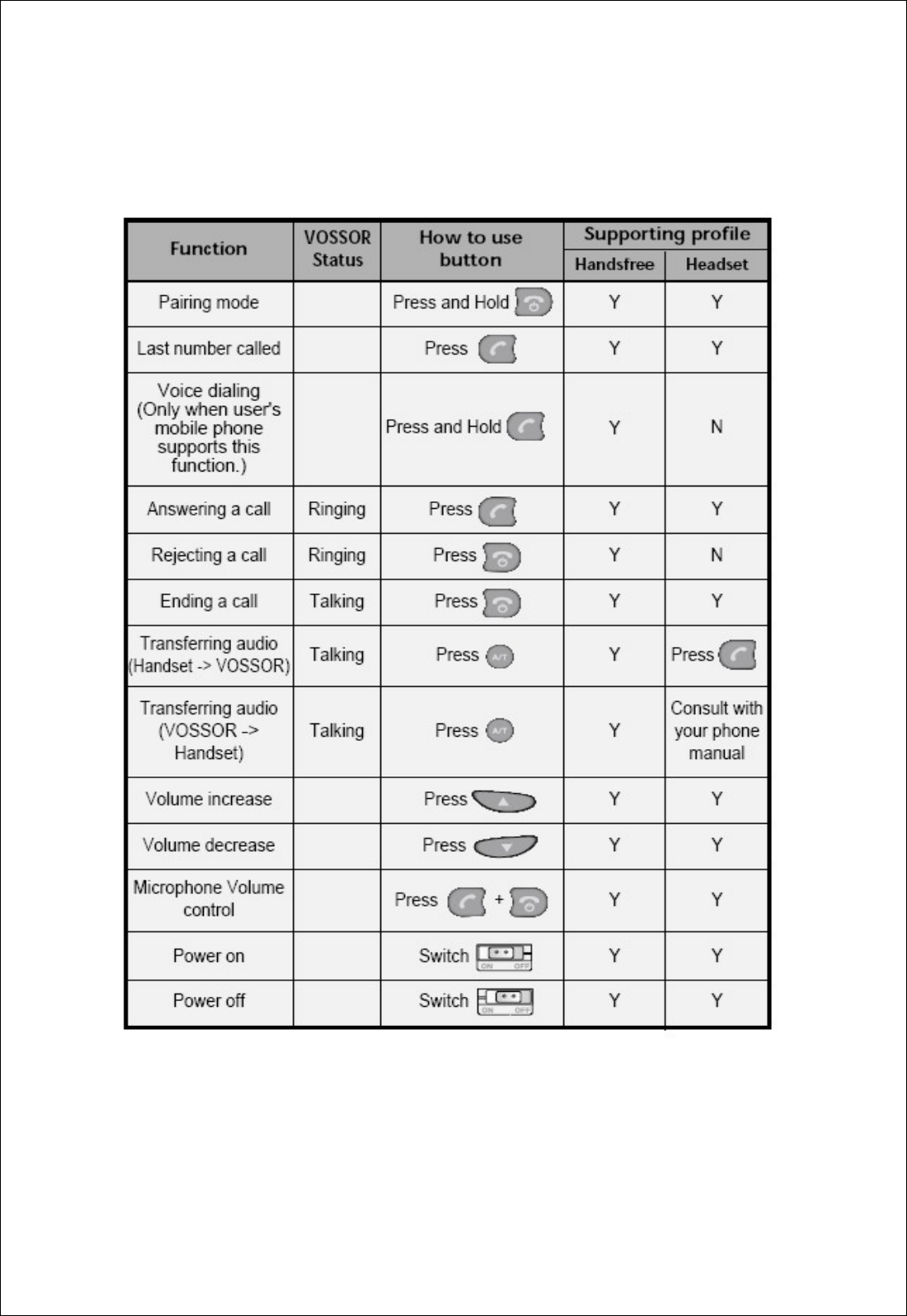

   5. Button Functions        CONFIDENTIAL

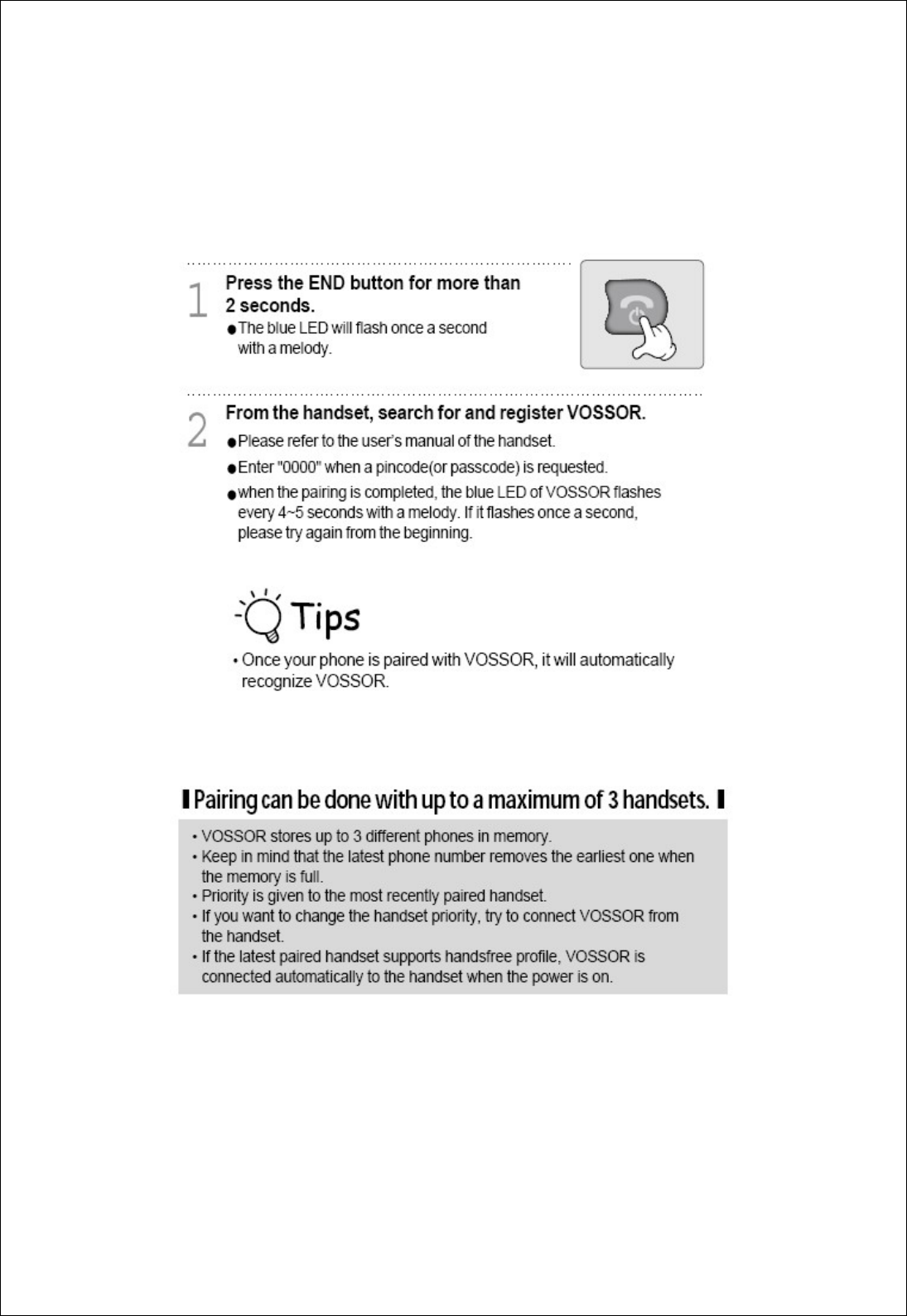

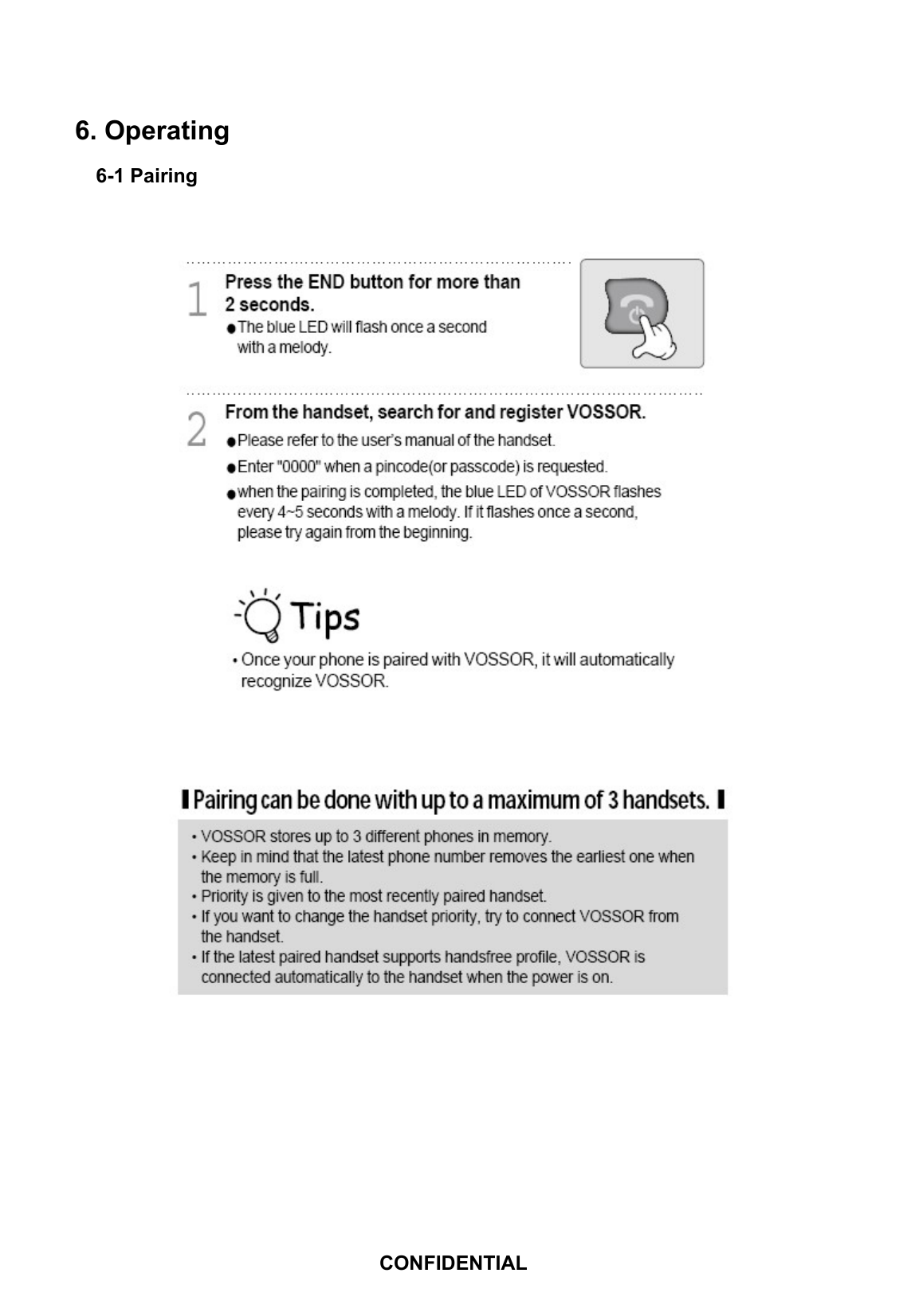

6. Operating   6-1 Pairing        CONFIDENTIAL

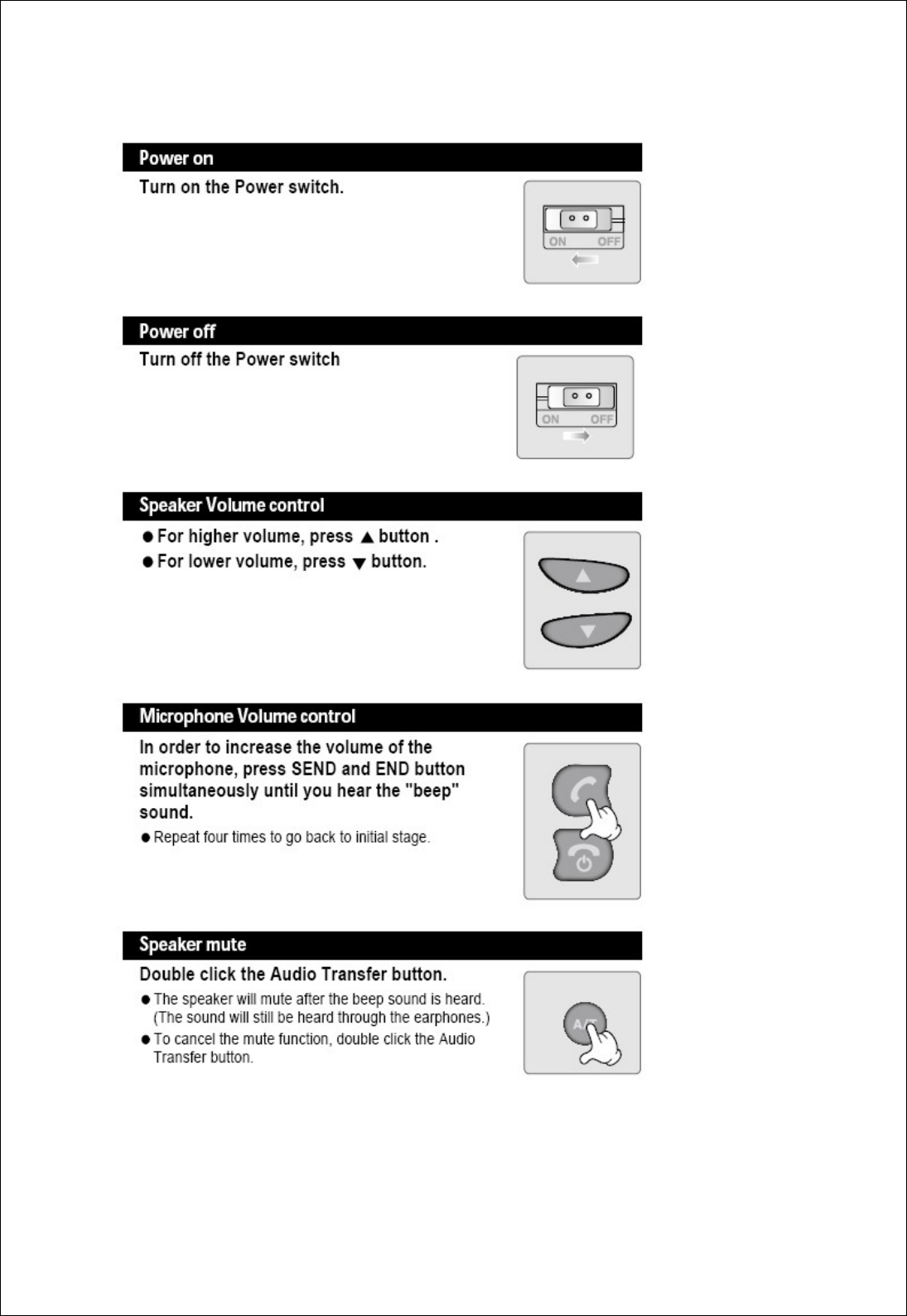

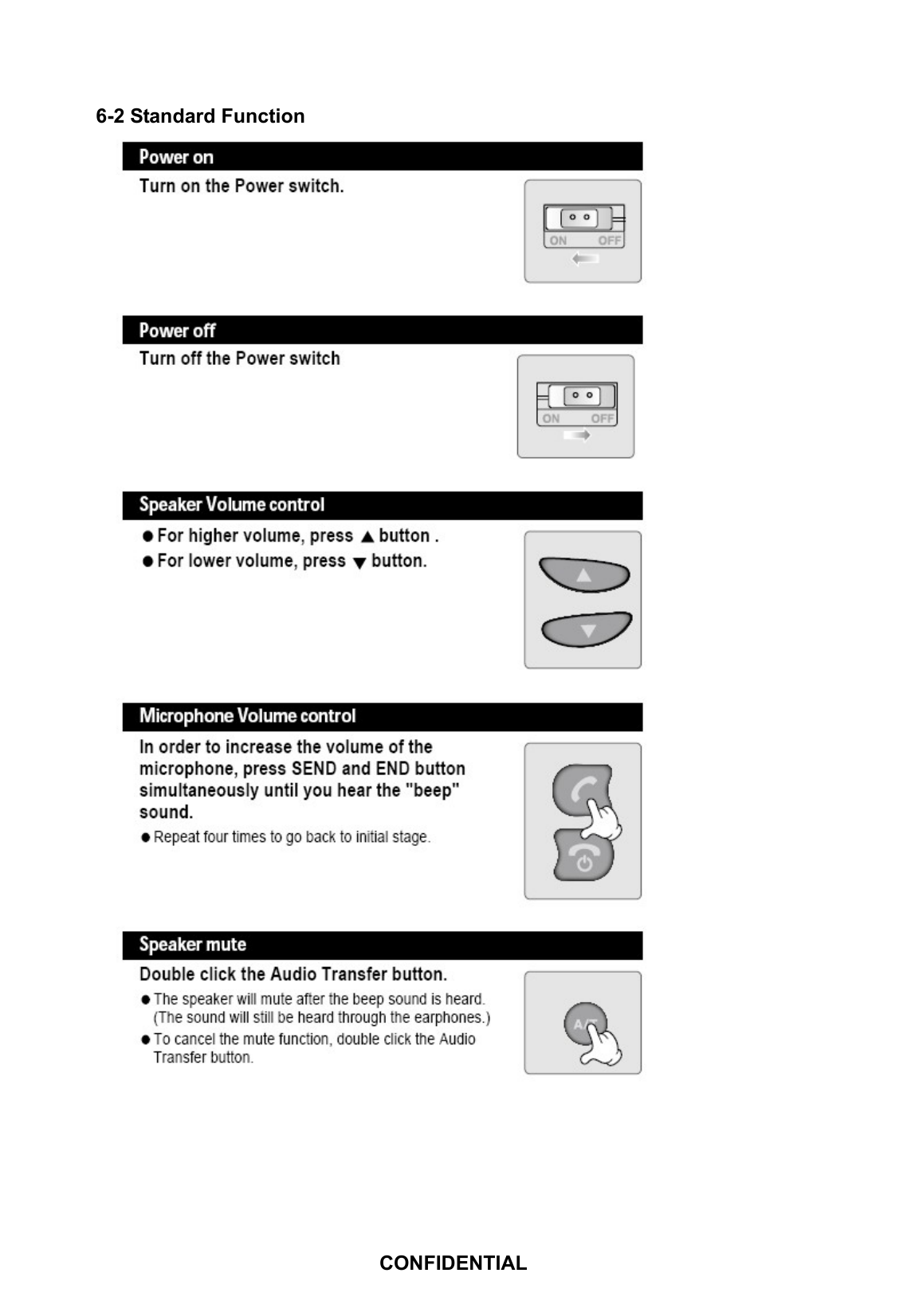

6-2 Standard Function     CONFIDENTIAL
