CONGRATULATIONS
Congratulations on purchasing the custom congurable multi-speaker wireless system for
your home, oce or portable use. You don't need a wi router to connect multiple speakers
to your phone, tv, computer or any analog/bluetooth device. Its audiophile level sound will
add hours to your listening pleasure. When you travel you can take it with you and use it at
the beach, when you camp or in your living room. The speaker is splash-proof and meets or
exceeds IP64 testing requirments.
This document will familarize you with the product, how to set up and congure the
network and how you can add to the versatility of this system by adding Drone speakers and
Bluetooth Adapters (both are sold separately) to increase the usage of your system.
Here is what is included in the system:
What’s in the box
Control Speaker
(x1)
Drone Speaker
(x1)
(x1)
USB AUX
USB AUX
USB Power Adapter
(x2)
USB Micro Cable
(x2)
Auxilary Cable
(x2)
1

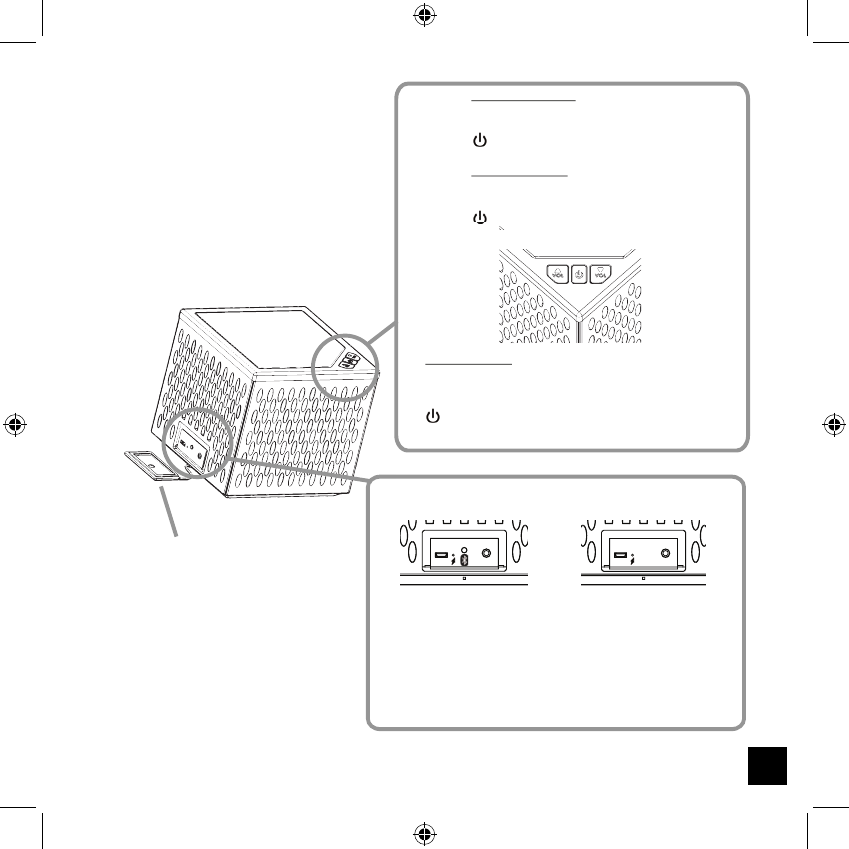

Control Speaker
Vol + increase sound level (ashes red when at max)
Vol - decrease sound level (ashes red when at min)
Single Press = unit on/o
Press and hold = link Control to Drone
Drone Speaker
Vol + increase sound level (ashes red when at max)
Vol - decrease sound level(ashes red when at min)
Single Press = unit on/o
Press and hold = link Control to Drone
LED Behavior
Vol +/- LED ON = Power on the unit
Vol +/- LED Flashes Red when Volume at Maximum or Minimum
LED OFF = unit is not linked with a Drone
LED Blinking = Drone and Control are attempting to Link
LED ON = unit is linked to at least one Drone Speaker
Connector
Cover
USB AUX
USB AUX
Control Speaker Drone Speaker
USB Mini for Charging/Power
Bluetooth Button - enables pairing
to new bluetooth
device
Auxilary Input - plug in stereo cable to
get sound directly with-
out bluetooth.
Charging LED - Color indicates Battery
Status
Note: Aux cable plugged in disables bluetooth/wireless input
USB Mini for Charging/Power
Auxilary Input - plug in stereo cable to
get sound directly with-
out wireless.
Charging LED - Color indicates Battery
Status
GETTING TO
KNOW YOUR
RELAY SPEAKER
2

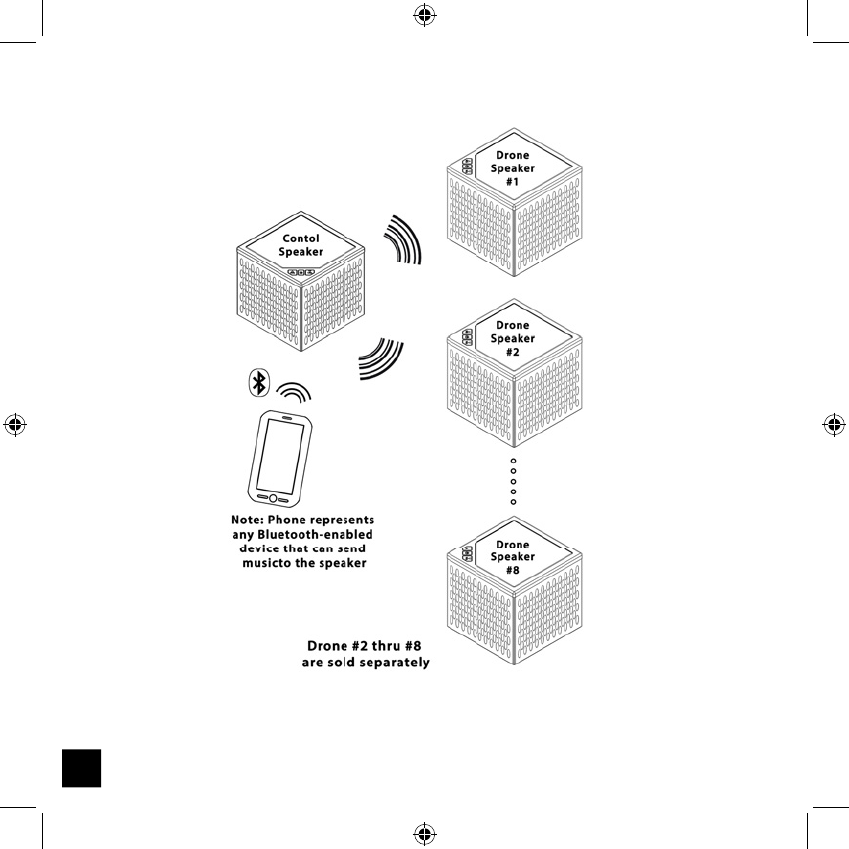

Control Speaker Connects Bluetooth to Multiple Drones
This is the typical setup for multiple speakers connected to the Control
Speaker. If there are no Drone Speakers connected the Control acts like a
single bluetooth speaker.
3

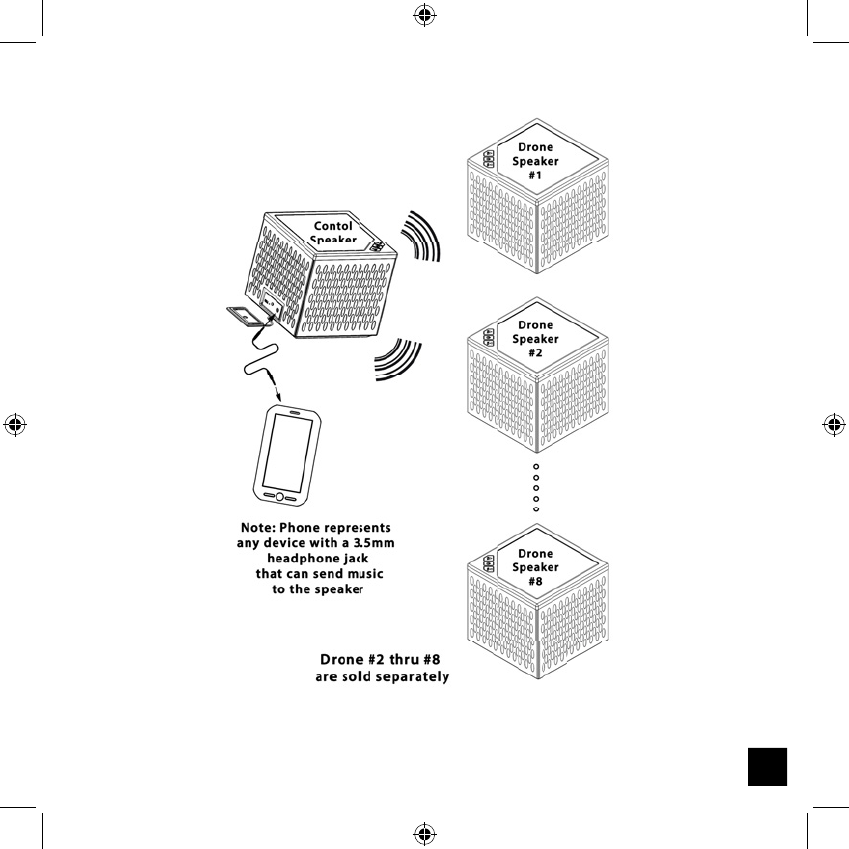

Control Speaker Connects Auxilary Input to Multiple Drones
The Control Speaker can be connected to any analog device with the 3.5mm stereo
plug cable supplied. Then the Control Speaker can link to the Drone Speaker(s).
4

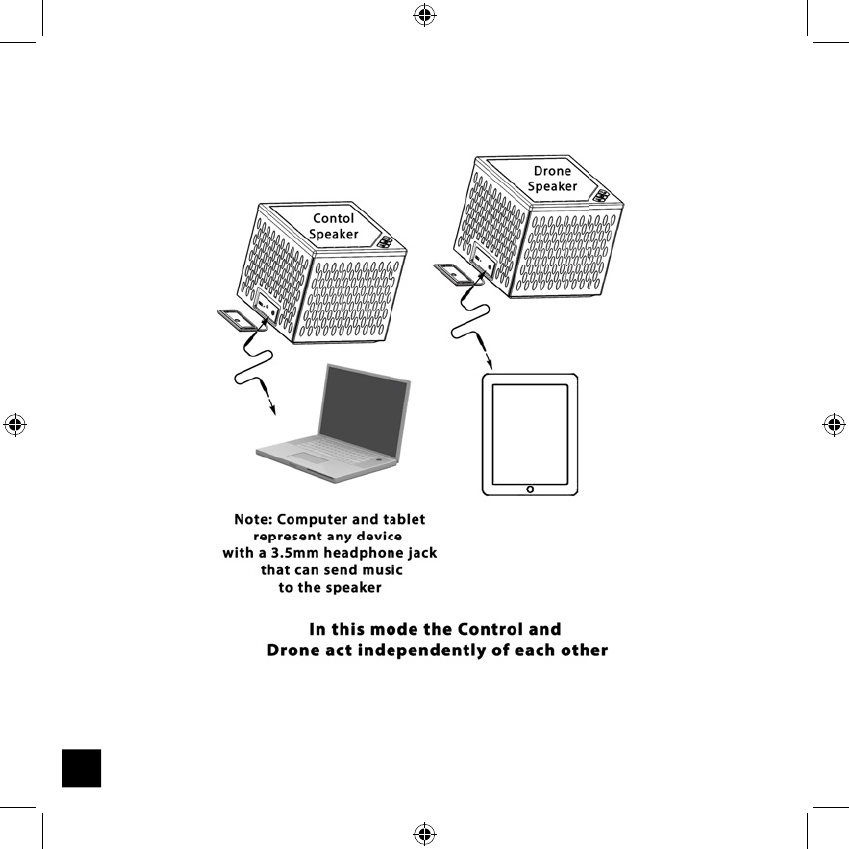

Control Speaker and Drone Connected Separately
The Control speaker and Drone speaker can be connected directly to dierent
devices and work as individual portable speaker without using bluetooth or
wireless connectivity.
5
Connecting to a TV using a MG9 Bluetooth Adapter
The separately available MG9 Bluetooth Adapter can connect your TV, your older
iPod, or any analog device with 3.5 or RCA connection to your Relay Speaker. This
makes the RELAY Speaker an easy way to attach a TV and enjoy enhanced sound
6
Setup and Use of Relay Speaker System
1. Battery Charging
PLEASE CHARGE YOUR BATTERIES OR PLUG IN AND LEAVE THE DC ADAPTER
ATTACHED TO YOUR SPEAKERS UNTIL THE BATTERIES ARE FULLY CHARGED
Plug in the supplied USB to USB Micro cable to the USB Plug on each speaker in
the system. Plug the larger end of the USB plug into the DC Adapter supplied
with the unit or into your computer's USB port.
Next to the USB Micro plug on the speaker is a LED that indicates if the unit is
charging or battery is fully charged. When the LED is green the battery is fully
charged. When the LED is ashing Red the battery power has dropped to 10%
or lower and you should plug in the USB Power to continue using the speaker.
When the LED is Red the battery is being charged.
USB Power indicator:
1. Green = fully charged
2. Flashing red = battery below 10% of usage left
3. Solid red = USB is charging the battery
2. Connecting to Bluetooth Device
A. Put your phone, device or MG9 in pairing mode following that devices
owner's manual or instructions.
B. Turn the Control Speaker ON
C. Press and hold the Bluetooth pairing button on the Control Speaker
Connector Panel for 5 seconds
D. Wait for audible beep on the speaker or indication from phone that device is
paired, or until music starts playing.
NOTE: Plugging in the Auxilary cable will disable the Bluetooth input on the Control
Speaker or the wireless input on the Drone Speaker.
7
3. Connecting to an Analog Output
A. Plug in the Auxilary Input Cable to your music device
B. Plug the other side of the Auxilary Cable to the Control Speaker if you want to
have multiple speakers playing the same music or plug in the other side of
the Auxilary Cable to Control or Drone Speaker if you only want one speaker
playing the music.
4. Connecting the Drone Speaker to the Control Speaker
(if you want multiple speakers playing same music)
A. Turn your Drone Speaker ON
B. The Power LED on the Drone and Control will be ashing when there is no
link between the two. Out of the box, the Drone and Control should already
be linked, if not, please try to relink them. Music should now start playing on
the Drone
C. To link Control and Drone
1. Press and Hold the Power Button on the Control Speaker. Power LED
should then be ashing; release the power button.
2. Turn on the Drone speaker and then press and hold the Power Button
until the drone starts blinking or the power LED on the Drone is solid
white.
3. If you are going to do more than one Drone, please repeat steps 1 and 2
for each Drone.
NOTE: After the rst time you link the Control and Drone, you should never have to
link them again.
5. Adjusting the Speaker Volume
You can adjust the volume of the speaker individually by using the Vol +/- key.
Press the correct key to increase or decrease the volume level of the audio.
NOTE: When the speaker is powered o the volume is reset to a minimum level to
avoid damage to your hearing or the speaker due to high volume levels.
8
