Elexa Consumer SMMAL-T-1 POWER TILT LCD/PLASMA MOUNT AND AMBIENT LIGHT KITS User Manual SMM AL T USER
Elexa Consumer Products Inc. POWER TILT LCD/PLASMA MOUNT AND AMBIENT LIGHT KITS SMM AL T USER
Users Manual
Usermanual

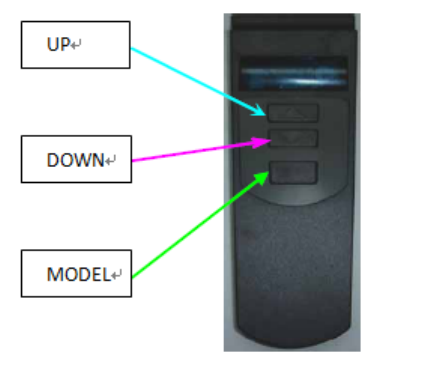

1． Functionalschematicdiagram
2.Instructions
1)changecolormanually .
Pressthebutton“MODEL”toturnon,akindofcolorlight,pressthisbuttonordinaltocontrol
theAmbientlightforchangingcolors(changesevencolormost).Pressthebuttoneighthtime
toturnoff(otherbuttonsto lose effectiveness).
2)changecolor automatically .
Press the button “MODEL” to turn on, hold on two seconds, Enter the automatic mode. Now
the Ambientlightwillchangecolorautomatically every five seconds. Press the button “UP” to
speed up the speed of changing color, when press the button fifth, the Ambientlightwill
changecolorautomatically every seconds. Press the button “DOWN” decelerate the speed
of changing color, when press the button fifth, the Ambientlightwillchangecolor
automatically every seconds.
3)Pressthebutton“MODEL”again,turnbacktotheakindofcolormode,nowchangecolor
manuallyandpressthebutton“UP”toturnonsoundcontrol,thenthe Ambientlightwillflash
andchangecolorautomatically according to the music. Press the button “MODEL” again, it
will flash in a kind of color. When it is flashing, press the button “MODEL” continuously to
enter “changecolormanually” mode.
User manual

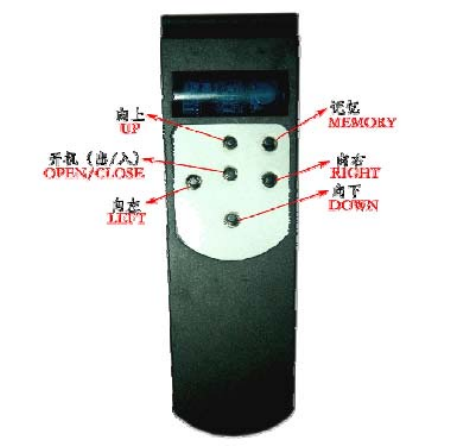

2． Functionalschematicdiagram
2.Instructions
1) Press the button “OPEN” on the remote, the TV Mount will extend and
stop.
2) Press the button “LEFT,RIGHT,DOWN” to adjust the angle that you
want.
3) Hold the button “MEMORY” long time and adjust the angle you want,
then press the button “MEMORY” again, the red light turn off and
this angle is saved.
Press the button “OPEN” again,the TV Mount will turn back to midpoint
automatically, then contraction, return and turn off; if you want to turn
on again, press the button “MEMORY” only, then the TV Mount will restore
the angle that you saved before turn off.
FCC ID: VII-SMMAL-T-1
IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules:
Operation is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any
interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipments.
