INSTALLATION

MANUAL

Cross Platform Control

Specifications, Installation and Programming

This Manual pertains to both the ELK-M1G and the ELK-M1 models

M1 includes the SIA CP-01 Standards for False Alarm Reduction

M1 Installation and Programming Manual

Page 2

Introduction

LIMITATION

The ELK-M1G and ELK-M1 Controls are designed to warn against unauthorized entry and other situations. However, it is not a guarantee of

protection against the occurrence of burglary, fire, or other emergency. Any alarm system is subject to compromise or failure to warn for various

reasons. For example:

- Unauthorized access can be gained through unprotected points or by disarming or bypassing protected points.

- Sensing devices are power driven and do not operate without electrical power. Battery-operated devices will not work without batteries, with

dead batteries, or if the batteries are not put in properly. Devices powered solely by AC will not work if their AC power supply is cut off for any

reason, however briefly.

- Telephone lines over which alarm signals are transmitted may be out of service or rendered inoperable by an intruder.

- Even if the system responds to the emergency as intended, occupants may have insufficient time to protect themselves from the emergency

situation. In the case of a monitored alarm system, authorities may not respond appropriately.

- Smoke detectors have limitations and cannot detect all types of fires. According to data published by the Federal Emergency Management

Agency, while smoke detectors have played a key role in reducing residential fire deaths in the United States, they may not activate or provide

early warning for a variety of reasons in as many as 35% of all fires, . Some of the reasons some detectors used in conjunction with this

System may not work are as follows. Smoke detectors may have been improperly installed and positioned. Smoke detectors may not sense

fires that start where smoke cannot reach the detectors, such as in chimneys, in walls, or roofs, or on the other side of closed doors. Smoke

detectors also may not sense a fire on another level of a residence or building. A second floor detector, for example, may not sense a first floor

or basement fire. Finally, smoke detectors have sensing limitations. No smoke detector can sense every kind of fire every time. In general,

detectors may not always warn about fires caused by carelessness and safety hazards like smoking in bed, violent explosions, escaping gas,

improper storage of flammable materials, overloaded electrical circuits, children playing with matches, or arson. Depending an the nature of the

fire, and/or location of the smoke detectors, the detector, even if it operates as anticipated, may not provide sufficient warning to allow all

occupants to escape in time to prevent injury or death..

- Signals sent by wireless transmitters may be blocked or reflected by metal before they reach the alarm receiver. Even if the signal path

has been recently checked during a weekly test, blockage can occur if a metal object is moved into the path.

- Wireless transmitters (used in some systems) are designed to provide long battery life under normal operating conditions. Longevity of

batteries may be as much as 4 to 7 years, depending on the environment, usage, and the specific wireless device being used. External

factors such as humidity, high or low temperatures, as well as large swings in temperature, may all reduce the actual battery life in a given

installation. This wireless system, however, can identify a true low battery situation, thus allowing time to arrange a change of battery to

maintain protection for that given point within the system.

- Installing an alarm system may make the owner eligible for a lower insurance rate, but an alarm system is not a substitute for insurance.

Homeowner, property owners and renters should continue to act prudently in protecting themselves and continue to insure their lives and

property.

- A user may not be able to reach a panic or emergency button quickly enough.

- Passive Infrared Motion Detectors can only detect intrusion within the designed ranges as diagrammed in their installation manual. Passive

Infrared Detectors do not provide volumetric area protection. They do create multiple beams of protection, and intrusion can only be detected

in unobstructed areas covered by those beams. They cannot detect motion or intrusion that takes place behind walls, ceilings, floors, closed

doors, glass partitions, glass doors, or windows. Mechanical tampering, masking, painting or spraying of any material on the mirrors, windows

or any part of the optical system can reduce their detection ability. Passive Infrared Detectors sense changes in temperature; however, as the

ambient temperature of the protected area approaches the temperature range of 90 to 105F (32 to 40C), the detection performance can

decrease.

- Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers if they are located on the other side of

closed or partly open doors. If warning devices are located on a different level of the residence from the bedrooms, they are less likely to

waken or alert people inside the bedrooms. Even persons who are awake may not hear the warning if the alarm is muffled by noise from a

stereo, radio, air conditioner or other appliance, or by passing traffic. Finally, alarm warning devices, however loud, may not warn hearing-

impaired people.

- This equipment, like other electrical devices, is subject to component failure. Even though this equipment is designed to last as long as 20

years, the electronic components could fail at any time.

- The most common cause of an alarm system not functioning when an intrusion or fire occurs is inadequate maintenance. This alarm

system should be tested weekly to make sure all sensors and transmitters are working properly.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise without the prior written permission of the manufacturer. The material in this publication is for information

purposes and subject to change without notice. The manufacturer assumes no responsibility for any errors which may appear in this publication.

Printed in U.S.A.

Use of this control for fire detection and/or annunciation may not be permitted by certain states, counties, municipalities or local jurisdiction. It is

the responsibility of the installing alarm company to check with the local A.H.J. (Authority Having Jurisdiction) or State Fire Marshal’s office prior

to using this control for fire detection.

M1 Installation and Programming Manual Page 3

Table of Contents

Specifications, Features, and Benefits ..................................................................................................... 5

Wiring & Hookup Diagram........................................................................................................................... 6

Section 1 - Installation and Wiring ............................................................................................................. 8

1.1 Planning the Installation ...................................................................................................................... 8

1.2 Parts Diagram & Descriptions ........................................................................................................... 8

1.3 Mounting and Wiring Preparation ....................................................................................................... 8

1.4 Control Wiring .................................................................................................................................... 9

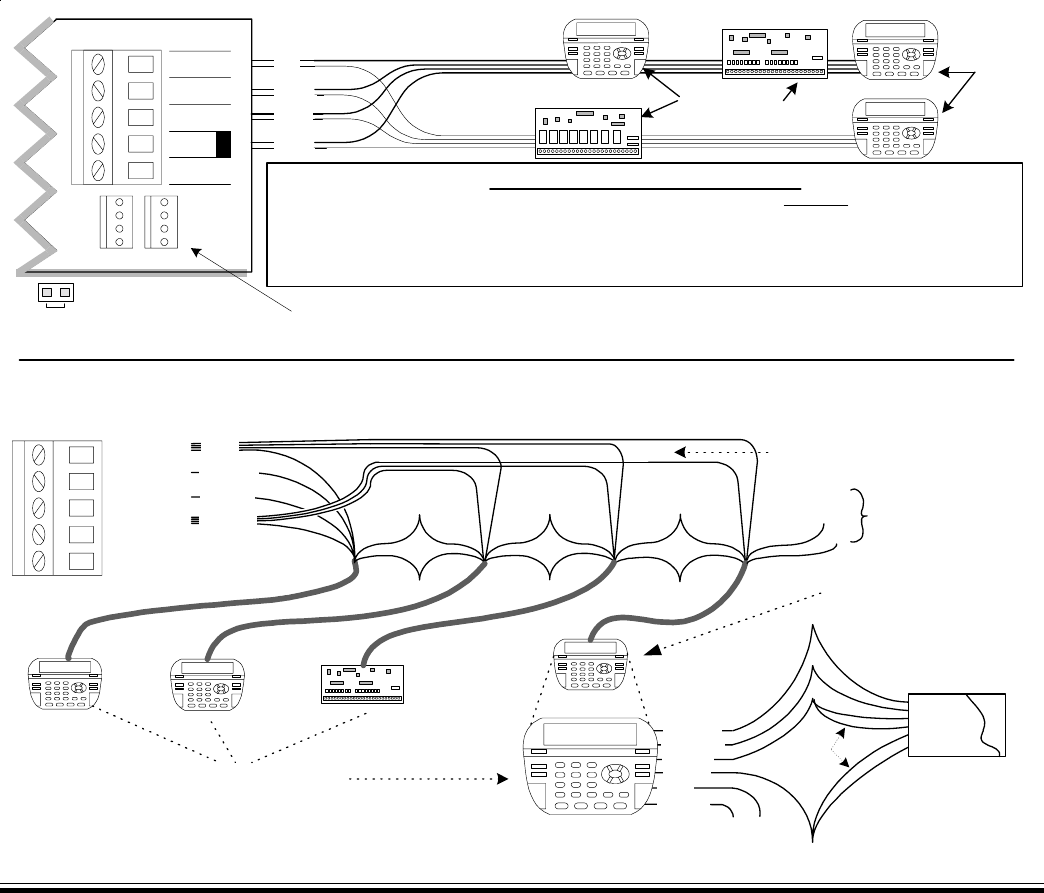

Data Bus E.O.L. Termination - VERY IMPORTANT! .............................................................................. 12

Section 2 - Operating the System ............................................................................................................ 14

2.1 Introduction ....................................................................................................................................... 14

2.2 Powering Up (One Keypad)............................................................................................................. 14

2.3 User Codes and Authorities .............................................................................................................. 14

2.4 Installer Program Code and Authorities ............................................................................................ 14

2.5 Keypad Overview ............................................................................................................................. 15

Keypad Menus........................................................................................................................................ 16

Multi-area (Partition) Operation............................................................................................................... 20

Section 3 - Programming The Control ..................................................................................................... 21

3.1 Introduction ....................................................................................................................................... 21

3.2 Local Keypad Programming ............................................................................................................. 21

3.3 Local or Remote Computer Programming (ELK-RP) and Anti-Takeover ......................................... 21

3.4 Area Partitioning................................................................................................................................ 21

3.5 Communicator Setup Checklist ....................................................................................................... 22

3.6 Entering Installer Level Programming............................................................................................... 22

Menu 01 - Bus Module Enrollment.......................................................................................................... 24

Menu 02 - User Code Options ................................................................................................................ 25

Menu 03 - Area Definitions...................................................................................................................... 26

Menu 04 - Keypad Definitions ................................................................................................................. 28

Menu 05 - Zone Definitions ..................................................................................................................... 30

Menu 06 - Alarm Duration Timers ........................................................................................................... 33

Menu 07 - Global System Definitions ..................................................................................................... 34

Menu 08 - Telephone Account Setup ...................................................................................................... 38

Menu 09 - Area Reporting Codes ........................................................................................................... 40

Menu 10 - Zone Reporting Codes........................................................................................................... 42

Menu 11 - Keypad F-Key Reporting Codes ............................................................................................ 43

Menu 12 - Sys Report Code Options & Codes ...................................................................................... 44

Menu 13 - User Report Codes................................................................................................................ 46

Menu 14 - Wireless Definitions............................................................................................................... 47

Section 4 - PC Programming and Automation Capabilities.................................................................... 49

4.1 ELK-RP Software ............................................................................................................................ 49

4.2 Update/Verify Firmware in the Control and Peripherals ................................................................... 50

4.3 Automation Rules and Attributes ...................................................................................................... 51

Appendix A - Event Codes ........................................................................................................................ 58

Appendix B - Telephone Remote Control ............................................................................................... 60

Appendix C - Voice Message Vocabulary *RP only * ............................................................................. 62

Appendix D - Two Way “Listen-in/Talk” Interface (optional) ................................................................. 64

Appendix E - SIA CP-01 Compliance ........................................................................................................ 65

Appendix F - Regulatory Agency Statements.......................................................................................... 66

Appendix G - Additional Keypad Information .......................................................................................... 68

Index............................................................................................................................. 71

M1 Installation and Programming Manual

Page 4

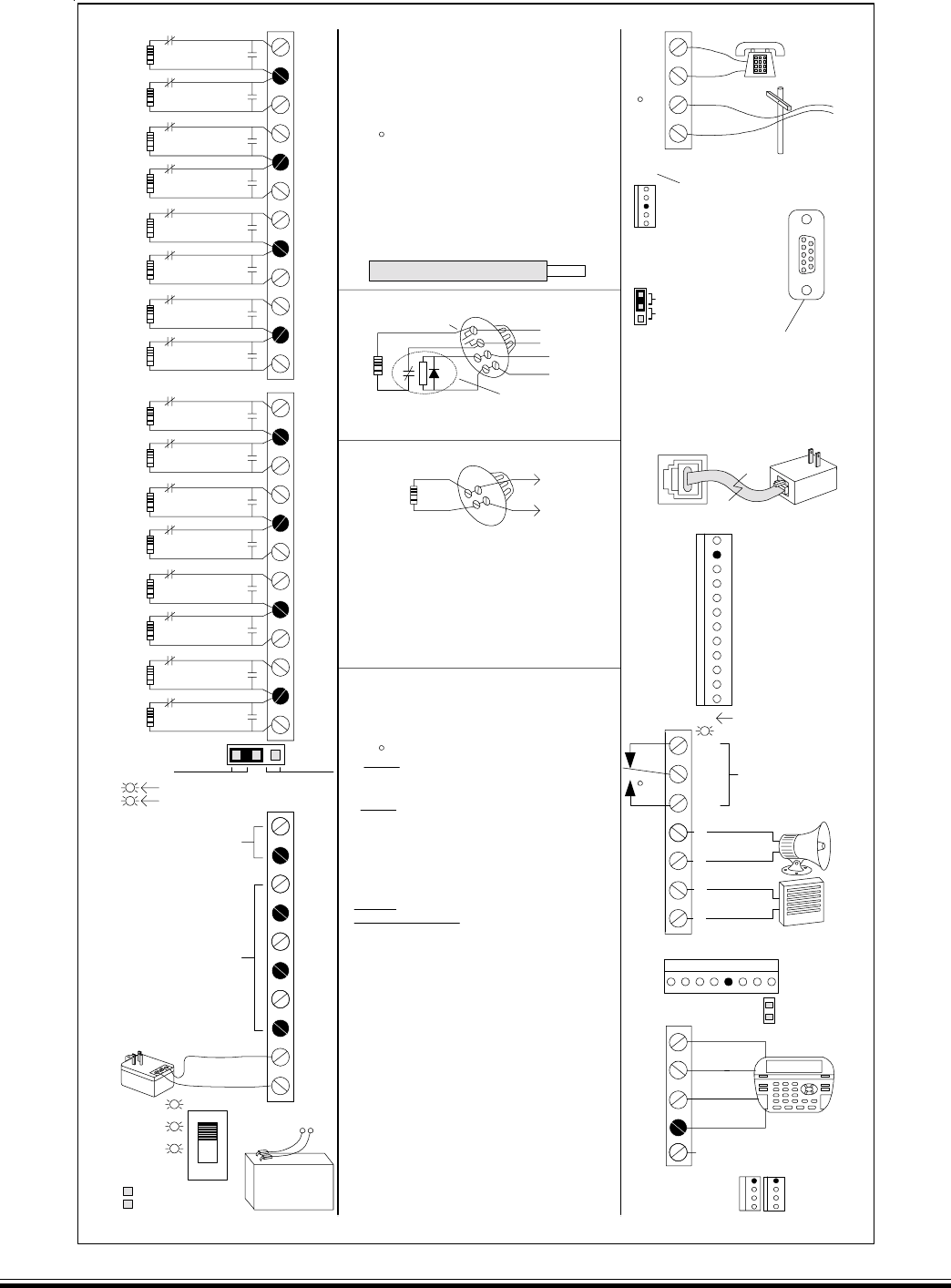

OUT3 On LED

J-16 Programmable Outputs

See Note 1

& Note 2

Lighting

Interface Conn.

See Note 5

1 WAY (PL513/PSC04)

Select PLC Mode

2 WAY (TW523/PSC05)

JP2

RS232 CONN.

Siren or Voltage

Voice & Siren

Dry Contact Relay

rated 5A @

12 - 28VDC

See Note 2

OUT 1 OUT 3

N/C

COM

N/O

OUT 2

Notes

1. Maximum COMBINED continuous current

drain from terminals +SAUX,+VAUX,+VKP,

OUT2 and J16 is 1.5 Amps. Under alarm the

combined outputs should not exceed 2.5 Amps.

RED

BLACK

WHITE

GREEN

+VAUX

+12VDC Auxiliary

Power (3)

1.25 Amp PTC

protected

Grey

Brown

Red

Green TELCO

LINE

HOUSE

PHONES

NEG

Z10

Z11

NEG

Z13

NEG

Z15

Z14

Z12

NEG

Z16

+SAUX

NEG

+VAUX

NEG

+VAUX

NEG

+VAUX

NEG

16.5 V

AC +VKP

DATA B

DATA A

NEG

OUT 16

OUT 15

OUT 14

OUT 13

OUT 12

OUT 11

OUT 10

OUT 9

OUT 8

OUT 7

+12V

NEG

RING

TIP

Aux Data Bus

See Manual

and Note 5

Serial Port for

Computer/ELKRP

See manual

and Note 5

J3 B

Audio Network Interface See Note 5

Keypad &

Data Bus

J2 J1

16 Zones expandable to 208

Do Not

Connect to

a Phone

Line!

Not Used -See Note 3

BATTERY

SW1

12V Battery

7 to 18 Ah

Keypad

Testing of this system should be performed

regulary. Control panel specifications are subject

to change without notice.

Complies with FCC Part 68:

Reg. # US: 5K6AL03BELK-M1 REN: 0.3B

Use Standard Jack: USOC RJ-31X.

Serial Number located below on base.

Complies with part 15 of FCC rules.

See Note 2

+SAUX

+12VDC Switched

Smoke Power

1.1 Amp PTC

protected

NEG

DATA B

+12V

JP3

Jumper to start with

no AC - See Note 4.

Power

Status

Reverse

Bat Leads

UL Listed Transformer,

Class II, 16.5VAC, 45VA

Do not connect to a

switched outlet.

ELK-TRG1640

NORMAL

ZONE 16

JP1 SMOKE

2WIRE

TELCO SEIZED

DIALER ACTIVE

Set JP1 to '2WIRE SMOKE' and use 680 Ohm

EOL resistor, part # ELK-ER680

Use Only Compatible Detectors:

System Sensor: 1151, 2100, 2100T, 2151

GE: 429AT, 521BXT, 521B.

Hochiki America: SLK-835.

Detection Systems: DS250, DS250TH, DS282,

DS282TH, DS282THS, DS282THC.

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL

2-Wire Smoke Detector - Zone 16 ONLY

4-Wire Smoke Detector - Any Zone

2200

Ohm

EOL

To Zone Input

U.L. Listed EOL Supervision Relay, ESL #204A

or equiv. Use 2,200 Ohm EOL resistor, part #

ELK-ER2200. Set JP1 to 'Normal'.

N.O. Alarm Contacts

+SAUX

To Zone NEG

NEG

DATA A

-See Note 2

Data Bus Terminating Resistor

See Note 1.

Data Bus

See Note 1

1.25 Amp PTC

protected

112404

ELK

PRODUCTS, INC.

HILDEBRAN, N.C., 28637, USA

Cross Platform Control

All circuits are power limited except Telco and

Battery leads.

PSC05 or

Equivalent

ELK-M1

Maximum Number = 20 Do not mix models.

StripStrip Wires to 1/4" Length

680

Ohm

EOL

NEG

Z16

2. OUT 1 is for speakers 4 to 8 Ohms. If using

more than 2 speakers, use series/parallel wiring

to avoid going below a 4 ohm total load.

OUT 2 may be set for speaker OR voltage. It is

supervised against opens. If not used, install

2,2k Ohm resistor across terminals to avoid

Output 2 Trouble condition. In speaker mode

(default), avoid going below a 4 ohm total load.

In voltage mode (switched to ground, 1A Max.)

use UL Listed self-contained siren or bell.

OUT 3 is a NO/NC dry contact relay rated 5A.

OUT 7 through 16 are +12V switched positive

voltage outputs rated at 50mA max.

3. This former earth ground terminal is no longer

used. Do NOT connect this terminal or any neg

terminal to earth ground.

4. If AC fails, low battery disconnect shuts down

the control at 10.2 Volts. To start the control with

a good battery and no AC, short the silver pads

momentarily. Replace Battery every 3-5 years.

Test regularly with ELK-BLT Battery Life Tester.

5. These particular items not evaluated by UL.

O - I - B A +

(Supervised)

M1 Installation and Programming Manual Page 5

General:

• Large zone capacity: 16 on-board zones expandable to 208

• Wireless capability: Up to 48 zones

• Two Way Listen-in interface

• Flash Memory - Allows field updates to firmware electronically

• RS-232 serial port to interface PCs and peripheral devices

• Time/Date stamped 512 event history log

• Menu driven, text keypad programming - no manual required!

• Voice announcement of alarms, zone descs, status, etc.

- 500+ Word/Phrase Vocabulary

- Link up to 6 words/phrases per announcement

- 10 custom recordable words/phrases

• 13 On-Board Outputs: 1 voice driver/siren, 1 siren driver/

voltage, 1 form “C” Relay, and 10 low current (50 mA) voltage

outputs

• Supports 4 wire (any zone) and 2 wire (zone 16) smoke

detectors

• Includes Fire alarm verification routine

• Can be partitioned into 8 areas and account numbers

• User Codes: 99 (4 or 6 digit) with assignable authority levels

• Arm levels: Away, Stay, Stay Instant, Nite, Nite Instant, Vacation

• Plug-in terminal blocks make service and pre-wires a snap!

• Hardware "watchdog" and nonvolatile EEPROM memory

• Supervised phone line, alarm output, and aux. overcurrent

Communications

• True V.22 bis Modem for fast reliable upload/download

• Optional Ethernet port for reporting, operation, programming

• Built-in Phone Remote Control makes any phone a keypad

• Integrated Voice Dialer uses vocabulary or custom words

• Communicator formats: SIA, Contact ID, 4 + 2, and Pager

• Installer telephone (buttset) test feature

• Elk-RP PC programming software with conflict resolution to

easily highlight differences between control and PC

- Dial-up, ethernet, RS-232 port, or local house phone jack

- Automatic answering machine bypass

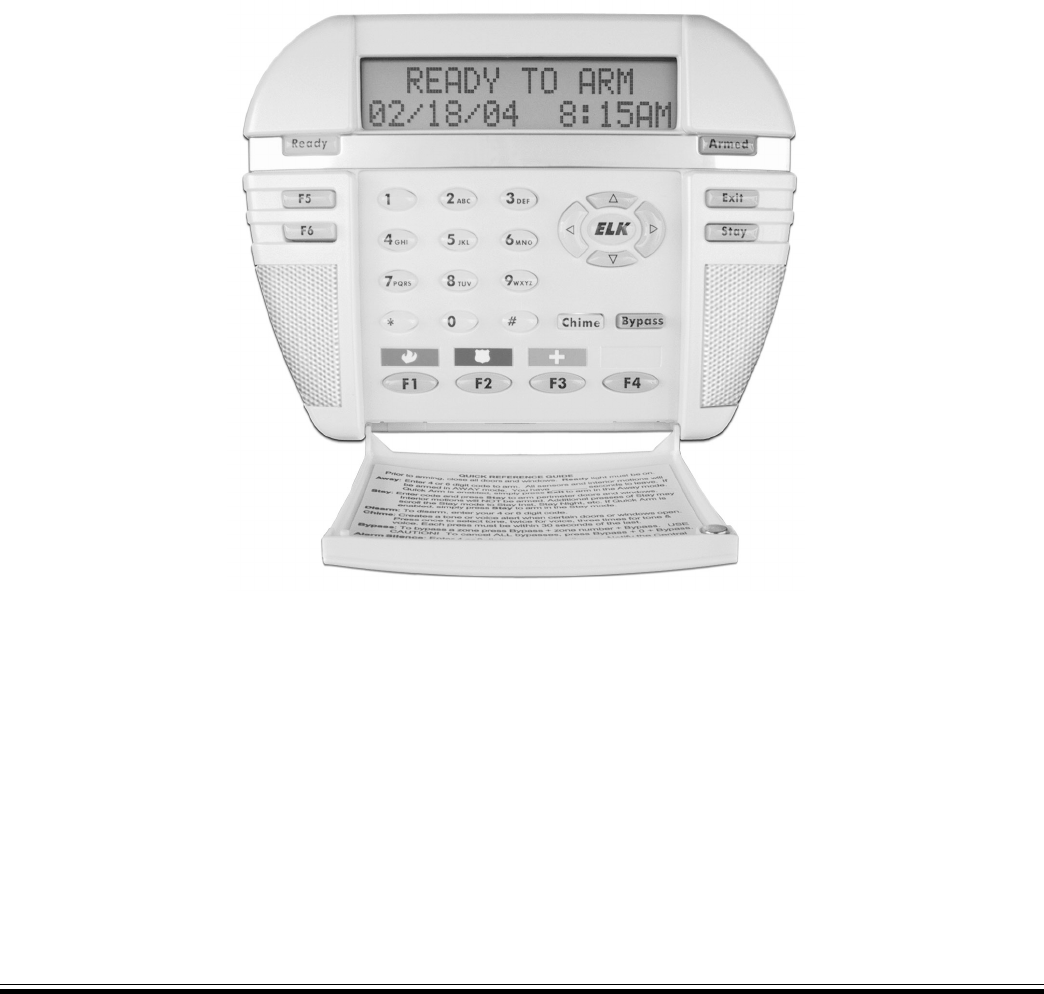

Keypad

• Backlit, Large Character LCD Display, 16 x 2 lines

• Built-in Temperature Sensor

• Optional Plug-in Prox Access reader (26 bit Weigand format)

• Menu navigation keys and 6 programmable function keys

• Plug-in connector, only 4 wires to the control

• 1 Zone input and 1 Output Programmable per Keypad

• Programmable display of time, date, & temperature

• Displays system diagnostics and settings.

• Maximum Keypads allowed: 16

Automation & Integration

• Create lifestyle enhancing comfort, convenience, and security

• Powerful “Whenever/And/Then” RULES Programming allows

almost any imaginable operation. No need to chain rules

together. Any single “Whenever” event can have one or more

ANDs and THENs (conditions and commands).

• Rules utilize easy to understand text based references

• Control lighting using RS-232 serial or 2-way Power Line

Control (PLC) ports including On, Off, Dim, All On, All Off

commands

• Transmit and receive custom serial ASCII strings

• Read Temperature Sensors - Communicate with Thermostats

• Turn on Tasks, Lights, Outputs via Keypad or Telephone

Remote

•Sunset/Sunrise calculation and activation built-in

Power Supply

• Heavy duty - 2.5 Amp power supply w/ 1.5 Amp continuous

• Dynamic battery test

• Master power switch and Low battery disconnect

• PTC (fuseless) resettable overload protection

• Multiple auxiliary power terminals

Part Numbers and Accessories:

ELK-M1 Standard M1 Control in 14” x 14” enclosure

ELK-M1G M1 GOLD Control in 14” x 14” enclosure

For packages add the following suffixes: I.E. ELK-M1GSYS1

SYS1 Control, Enclosure, & Transformer

SYS2 Control,Enclosure,Xfmr, & Keypad

SYS3 Ctrl,Encl,Xfmr,KP, & 12V-8Ah battery

SYS4 Ctrl,Encl,Xfmr,KP,12V-8Ah,Spkr,RJset

ELK-M1KP Keypad, LCD,16 character x 2 line

ELK-M1XIN 16 Zone (input) expander

ELK-M1XOVR 16 Output expander, 8 Voltage/8 Relays

ELK-M1XOV 16 Output expander, Voltage only

ELK-M1RB Relay board, 8 form ”C” relays

ELK-M1DBH Data bus wiring hub

ELK-M1XEP Ethernet Port Exp/Interface (Qtr 1 of 05)

ELK-M1XSP Lighting, Thermostat Interface & Serial exp.

ELK-M1PR Mini prox reader for keypad

ELK-M1TWI Two Way Listen-in Int. w/3 mic inputs

ELK-M1TWS Speaker & Mic for Two Way Listen-in

ELK-M1ZTS Zone Temperature Sensor -50 to 140 F

ELK-RP PC software, free with 1st Control purchase

Comparisons of M1 and M1G (Gold) ELK-M1 (Std) ELK-M1G (Gold)

• Automation (“Whenever/And/Then”) Rules Capacity 100 528

• Serial (RS232) Port Supported 1 8 w/expanders

• Phone Number Capacity 4 8

• Number of HVAC Thermostats Supported 2 16

• Total Number of Outputs Supported 32 205

• Advanced Lighting Options (Pre-set Dim, Extended, Levels, Scenes) - Yes

• Analog Zone Definitions Supported - Yes

• Additional capacity for transmission of Serial ASCII Strings - Yes

• Larger capability for events (time and date), task, lights, outputs - Yes

The M1 is available in two models, the ELK-M1 Standard and the ELK-M1G Gold. The features and benefits which are common to

both models is listed on the top section of this page. The bottom section highlights the key differences between both models.

Specifications, Features, and Benefits

M1 Installation and Programming Manual

Page 6

+SAUX

NEG

+VAUX

NEG

+VAUX

NEG

+VAUX

NEG

NORMAL

ZONE 16

JP1

SW1

16.5 V

JUMPER TO START

WITH NO AC

POWER

TELCO SEIZED

NEG

Z10

Z11

NEG

Z13

NEG

Z15

Z14

Z12

NEG

Z16

NEG

Auxiliary +12VDC Power Outputs protected by

1.25A PTC NOTE:Maximum continuous current

drain from +VAUX,+VKP and J16 combined

must not exceed 900 mA or 2.5 Amps in alarm.

Test battery regularly with

ELK-BLT Battery Life Tester.

lace ever

3-5

ears

DIALER ACTIVE

SMOKE

2WIRE

STATUS

REVERSE

BAT LEADS

12V Battery

5 to 18Ah

N.C. N.O.

ZONE

2200

Ohm

EOL 8

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL 6

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL 4

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL 2

N.C. N.O.

ZONE

2200

Ohm

EOL

Sealed

Lead Acid

Control requires AC power to start. However, for testing purposes it can

be started from battery ONLY by momentarily shorting these two pads.

UL Listed Class II Transformer

DO NOT CONNECT TO A SWITCHED OUTLET

16.5VAC, 45VA ELK-TRG1640 18AWG Min.

NEG

N.C. N.O.

ZONE

2200

Ohm

EOL 16

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL 14

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL 12

N.C. N.O.

ZONE

2200

Ohm

EOL

N.C. N.O.

ZONE

2200

Ohm

EOL 10

N.C. N.O.

ZONE

2200

Ohm

EOL

Master Power Switch (SW1), disconnects AC and Battery power from control

This unit provides Residential fire alarm service when installed according to ANSI/

NFPA 72-1993. This unit provides Grade A Residential Burglar alarm service. In

conjunction with the enclosure, this unit also provides the following Commercial

Burglar alarm service: Grade A Local, Police Connect with Basic Line Security, and

Grades B & C Central Station. Transmission of the fire alarm signal to a fire alarm

headquarters or central station shall be permitted only with the approval of the authority

having jurisdiction. The burglar alarm signal shall not be transmitted to a police

emergency number, equipment is to be installed in accordance with NFPA

(985,55.1.P)

2-Wire

Smoke Detector

680

Ohm

EOL

Dialer/Modem is idle. If ON, Dialer/Modem is in use (communicating).

1 blink with equal On and Off times is Normal. 2 fast blinks = Control running on

bootloader only. 4 fast blinks = Control is re-initializing it's EEPROM memory after

a firmware flash. 5 fast blinks = Memory/Operation overflow

Battery is connected correctly. If ON, check battery lead connections.

AC Voltage is present and power switch is turned ON. If OFF, check AC power.

Phone line is good and house phones are connected. If ON constantly, the phone

line may be bad. During remote mode this LED will be ON since the house phones

are then disconnected from the outside line & are being powered from control.

TELCO

SEIZED

DIALER

ACTIVE OFF

OFF

LEDS

Indicators

Power

Regular 1

sec. Blink

Battery

Reversed OFF

Status

4-Wire

Smoke Detector

2200

Ohm

EOL

To Zone Input

U.L. Listed EOL Supervision Relay

(ESL #204 or Equivalent).

N.O. Alarm

Contacts

Zone 16 can be configured as a 2-wire smoke zone.

Set JP1 to "2 WIRE SMOKE" and use 680 Ohm EOL

resistor, part # ELK-ER680

Use Only Compatible Detectors:

System Sensor: 1151, 2100, 2100T, 2151

GE: 429AT, 521BXT, 521B.

Hochiki America: SLK-835.

Detection Systems: DS250, DS250TH, DS282,

DS282TH, DS282THS, DS282THC.

Maximum Number = 20 Do not mix models.

Switched +12 VDC Output

protected by 1.1A PTC.

BATTERY

To Zone NEG

(Left Side Terminals)

2-Wire Smoke Circuit

NEG

Z16

Normal

State Descriptions

2200 Ohm

EOL Resistors are

part # ELK-ER2200

All circuits are current limited except telephone line and Battery leads.

Testing of this system should be performed regularly.

Control panel specifications are subject to change without

notice.

Wiring & Hookup Diagram

M1 Installation and Programming Manual Page 7

(Right Side Terminals)

OUT1

+12V (+VAUX)

NEG

NEG -

DATA B

+12V

DATA BUS

J3 J4

1 WAY

PLC

Mode

2 WAY

JP2

RS232

J16

OUT3 LED

OUT3OUT2

+-+-

+VKP

DATA B

DATA A

NEG

Not Used

TIP

RING

* See Auxiliary Current ratings

1 WAY (PL513/PSC04) Select PLC Mode (JP2)

Selects single or bi-directional

PLC Transmissions

2 WAY (TW523/PSC05)

JP2

Siren

Voice

TELCO

LINE

HOUSE

PHONES

OUTPUTS

AUDIO NETWORK INTERFACE

Aux Data Bus (J3)

For wireless receiver. Presently

works with ITI / Caddx NX408E,

NX416E, or NX448E. See

Programming Menu 14.

Audio Network Connection (J7)

For Two-Way Listen-in and Future Use!

J1J2

NEG

+12V

N/CCOMN/O

Compiles with FCC Part 68

Reg. Number: US:5K6AL03BELK-M1

Ringer Equivalence REN: 0.3B

Use USOC RJ-31X connector.

Complies with the limits for class B computer

devices in accordance with the specifications of

subpart J of part 15 of FCC rules.

Out 3 - Programmable General Purpose Relay

Rated at 5Amps @ 12 - 28VDC

(Dry Contacts)

Terminating Jumper (JP3): See

important information about Data

Bus Termination. This former earth ground terminal is no longer used. Do NOT connect this terminal or any neg. terminal to earth ground.

Out 1 - Voice/Siren

Speaker output only (Interior)

Out 2 - Siren or Voltage

Selectable as Siren Driver (20 Watts) OR Voltage (open

collector-switch to ground protected by 1.25Amp PTC).

Programmable Outputs (J16)

OUT 7 - 16 are +12V switched positive

general purpose outputs rated at 50mA.

Lighting

Interface Conn.

RJ31X JACK

(ELK-RJSET)

PC Personal Computer

(Windows Based)

Serial Port (J4)

for Computer/ELKRP

(This connection not

evaluated by UL)

Lighting Interface Conn. (J5)

Use Std. 4 conductor modular telephone

cable to connect to a powerline Interface

(PSC05, X-10 PLC or equiv.).

Do not connect to a live phone line!

(This connection not evaluated by UL)

N/C

COM

N/O

DATA BUS TERMINATION IS VERY IMPORTANT!!

Diagram shows 2 basic (4-wire) home run cables with daisy chained devices on each. Last device on each cable

MUST have a Terminating Jumper installed. Jumpers are marked JP2 on keypads, JP1 on Expanders. Control

Hardware pack has two black jumpers for this purpose. Jumpers engage a 120 Ohm resistor across data A & B

lines. NOTE: If there is only 1 data bus cable, install JP3 Jumper on the Control.

Temporary Connection "Plug-in" jacks for RS-485 Data Bus (J1 & J2)

Local connection for Data Bus Devices ie: Keypads, etc. for testing purposes only.

Tip

Ring

Green

Red

Yellow

Black

Demark

Block

ELK-SP30 or equiv.

ELK-SP35 or equiv.

PSC05 or

equiv.

Relay Expansion Module (ELK-M1RB)

Optional module adds 8 general purpose

relays. Plugs into J16 connector.

Input Expander:

ELK-M1XIN

16 additional zones

Output Expanders:

ELK-M1XOV ELK-M1OVR

16 voltage outputs 8 voltage & 8 relays

Red

Black

White

Green

Brown

Blue

Yellow

Violet

Pink

Tan

Orange

Grey

+VAUX

NEG

OUT 16

OUT 15

OUT 14

OUT 13

OUT 12

OUT 11

OUT 10

OUT 9

OUT 8

OUT 7

+12V

NEG

splice

Green

Grey

Red

Brown

ELK-M1KP

BLACK

WHITE

GREEN

JP3

RS-485 Data Bus Max. length is 4000 ft. Max.

devices vary by control. +VKP protected with 1.25A PTC

NOTE: If you want to home run more than 2 cables, run 6 or 8 conductor cable so that the data lines A & B can have

a return path to series connect back out to the next device. This is best done with a ELK-M1DBH Data Bus Hub

which accepts Cat5 or Cat6 cable with RJ45 plugs. For more information see diagram in keypad instructions.

WARNING! The RS485 Data Bus must NEVER have more that two (2) terminating jumpers installed.

Reliability, response, and behavior will be affected!

RS-485 DATA BUS

DATA A

RED

ELK-M1XIN

ELK-M1XOV

Jumper

Terminate

these two

devices.

DO NOT Jumper

Terminate these devices.

Keypad 1

ELK-M1KP

Keypad 2

ELK-M1KP

Keypad 3

Yellow

Green

Red

Black

Yellow

Green

Red

Black

Close up view of std. 4 conductor modular phone cord. When

viewed as shown (back to back), the pin to pin color coding

does not reverse. Cord for PLC must be similar to above.

End

view

Pin 2 < to > 2

Pin 3 < to > 3

Pin 5 < to > 5

Pinout for Serial Port Cable (9 pin male to 9 pin female)

Maximum recommended length = 50 ft.

Out 2 is supervised. If not used,

install a resistor (2.2k Ohm) to

avoid Output 2 trouble condition.

M1 Installation and Programming Manual

Page 8

1.1 Planning the Installation

The first step in any multi-zone security system installation is planning the job.

1. Read this entire manual to familiarize yourself with all system features and procedures before actually beginning the

installation. Read all the information regarding Underwriters Laboratories (UL) and NFPA requirements.

2. Perform a physical survey of the installation site. Use the diagrams below as a guide in planning the installation.

3. Discuss the installation requirements and applications with the customer.

4. Compare the installation requirements and applications with the factory default settings to determine what customized

programming is needed to meet the specific installation requirements.

5. Bench test the system prior to installation.

1.2 Parts Diagram & Descriptions

See Wiring & Hookup Diagram on pages 6 & 7.

1.3 Mounting and Wiring Preparation

Control Mounting

Remove all packing material and compare the system components with those in the figure above to familiarize yourself with

the part names. Mount the control in a secure, dry location where the ambient temperature inside the control box can remain

at 32‘ to 120° Fahrenheit (0’ to +49' Celsius). Choose a location that allows easy wiring to an unswitched power outlet and to a

grounding conductor for the control. A central location makes running system wiring easier. Remove control box knockouts

that best suit your wiring needs. Mount the control using the upper center slotted hole to level. Install and connect all

necessary wiring for the power transformer, detection loops, keypads and siren outputs.

Section 1 - Installation and Wiring

Legend

- Main Control

- Audible Alarm

- Smoke Detector

- Contact

- Keypad

Bedroom 1Bedroom 2

Bedroom 3 Living Room

Kitchen / Dining

TYPICAL BURGLARY INSTALLATION LAYOUT

Bedroom 1Bedroom 2

Bedroom 3 Living Room

Kitchen / Dining

TYPICAL FIRE INSTALLATION LAYOUT

CCCCC

Basement

First Floor

All perimeter openings below 18" should be provided with protection.

A Smoke Detector shall be located in each sleeping area and between

the sleeping areas and the main living area.

Early warning fire detection is best achieved by the installation of fire

detection equipment in the location shown above.

In homes basements or multiple levels at least one smoke detector

shall be on each level.

M1 Installation and Programming Manual Page 9

Keypad Mounting and Wiring

Ideal keypad height is 50-58 inches above the floor. Select a location with an ambient temperature range between 32° and

120° F (0° to +49° C). Avoid direct sunlight if possible. Fasten mounting plate to electrical box (or directly to wall) using flat

head screws to prevent shorts to the back of the circuit board. Keypads have a removable wiring plug for connecting to the M1

4-wire data bus. CAT5 or CAT6 eight (8) conductor cable is recommended for all Data Bus cables. The extra wires provide

data return paths. Splice the Black, Red, White, and Green wires from the removable wiring plug to the Data Bus cable. Plug

the connector into the back of the keypad. Tuck wires neatly into back plate and install Keypad on mounting plate. Each

keypad has connections for an optional programmable output and a programmable zone input.

NOTE: Refer to the section titled Data Bus E.O.L. Termination for important information about how to handle multiple

homerun cables. NEVER SPLICE OR CONNECT WIRE WITH CONTROL POWER ON. Minimum cabling should be four

conductor 22 or 24 gauge. Maximum resistance per wire is 25 Ohms. Device placement beyond 1000' is not recommended.

1.4 Control Wiring

Zones 1 Thru 16

The zone input terminals on the control board are labeled Z1, Z2, thru Z16. There are 8 common negative terminals mixed

between every two zones with each negative to be shared by those two zones. Through programming each zone may be

configured for standard EOL supervised (end-of-line resistor) function, as well as normally closed or normally open with no

resistor required. By default each zone requires a 2,200 Ohm EOL supervision resistor at the furthest most remote end of the

detection device wiring. A combination of N/C (normally closed) and/or N/O (normally open) devices may be connected to an

EOL supervised zone.

Tip: The condition of any zone can be checked using a voltage meter across the zone and com terminals. A non-violated

zone should measure approximately 7.0 Volts DC. If the circuit is violated in an open condition, the voltage should rise to

13.8 VDC. If the circuit is shorted across the EOL resistor, the voltage should be 0 VDC. One of the Keypad Menus also

allows zone voltage to be viewed on the LCD screen. See Keypad Menus, “86-System Diagnostics” on [page 19].

1. Connect all alarm sensors to the zone wiring per the instructions provided by the sensor manufacturer and wiring

diagram on pages 6 & 7.

2. Connect each zone wire to the appropriate terminal. Each zone has an input terminal and a common (negative) return.

NOTE: A negative terminal is shared by every two zones and all negatives are common to each other.

NEG

N.C. N.O.

ZONE

2200

Ohm

EOL 2

N.C. N.O.

ZONE

2200

Ohm

EOL

ELK-M1KP

See Note about

Data Bus

Termination

BLACK

WHITE

GREEN

RED

Keypad

Wiring

Assembly

Data Bus Cable

CAT5 or CAT6 Recommended

Optional programmable Zone Input from Keypad

Hookup Diagram for Keypad

Splice 6 Pin Keypad Wiring Assembly to the Data Bus cable using ELK-900-2 "B" Connectors.

BROWN

Optional programmable Output from Keypad

Keypad 1

The optional Zone Input # or Output # is

determined by the Keypad Address.

Load (50mA max)

I.E. LED, Relay

To BLACK (Neg) Wire

To BROWN Wire

N.C. N.O. 2200

Ohm

EOL

To BLACK (Neg) Wire

BLUE

To BLUE Wi re

NOTE: The first batch of M1KP Keypads provided a switched

negative (pull to ground) output. Connect per diagram above.

These units have the letter "E" at the end of the ID number on the

lower back side of the board. EG: PC096E Boards with a letter

"F" or later provide the output as a switched positive.

Load (50mA max)

i.e. Relay, LED

To Red (Pos) Wire

To Brown Wire

KP Zone Output

Address # #

1 193 193

2 194 194

3 195 195

4 196 196

5 197 197

6 198 198

7 199 199

8 200 200

KP Zone Output

Address # #

9 201 201

10 202 202

11 203 203

12 204 204

13 205 205

14 206 206

15 207 207

16 208 208

M1 Installation and Programming Manual

Page 10

Two-Wire Smoke Zones (Zone 16)

To enable the use of two-wire smoke detectors on Zone 16, move Jumper JP1 (located just below Zone 16 terminals) to the

right side so that the two right hand pins are covered. Go to the installer programming mode, Menu 05 - Zone Definitions, and

program Zone 16 as a Fire zone (Def=10). Step to the next location and program Wire Type=6. NOTE Use only compatible

two-wire detectors as listed on the front label of the control. Do not mix brands. The maximum number of detectors is

also listed on the front label. When jumper JP1 is set for two-wire operation, a 680 Ohm EOL resistor (furnished in the

hardware pack) must be used instead of the 2,200 Ohm. Maximum wire resistance must not exceed 60 Ohms.

Switched Power Connection (+SAUX)

Four-wire smoke detector and other devices that require a temporary power disruption in order to reset or unlatch from the

alarm state (i.e. smoke detectors, etc.) should be connected to the +SAUX 12 Volt DC switched power terminal. When a

smoke reset is performed, the operating voltage to these devices is momentarily interrupted.

Auxiliary Power Connections (+VAUX)

Motion detectors, glass breaks, etc. and other devices requiring unswitched 24-hour power should be connected to one of the

auxiliary terminals, +VAUX. All negative terminals on the terminal strip are at the same reference and may be used whenever

a common (circuit ground) negative is required. Use caution when wiring the control to distribute the load devices among the

supply and the negative terminals evenly. NOTE: Circuit ground refers to any negative terminal connection on this control.

This does not refer to the earth ground terminal or to the common terminals of Relay Output 3. These terminals are not at

the same voltage potential and should not be wired so that they are electrically connected to a negative.

PTC (Positive Temperature Coefficient) Circuit Breakers

The +VAUX Auxiliary power and J16 power output terminals are protected against shorts and overloads by a 1.25A PTC. A PTC

is a solid state, auto-restoring type of circuit breaker. The +SAUX Switched (Smoke) power output is protected by a 1.1A PTC.

The +VKP Keypad power output is protected by a 1.25A PTC. Output 2 is protected by a 1.25A PTC. NOTE: Sometimes it may

be necessary to remove power (unplug the outputs) for approx. 20 seconds after a short, to allow the PTC to reset. Even

if the short is no longer present, the remaining residual current draw may be so high that the PTC cannot determine that

the short is gone. If the PTC re-trips, check the field wiring and repair.

Transformer Primary Power Input (AC)

The control is powered by a 16.5 VAC, 40 min. VA, UL Listed Class II (power limited) transformer (ELK-TRG1640). The

specified sized and rated transformer must be used to operate this control. The transformer must be connected to a 120 VAC,

24-hour outlet not controlled by a switch other than an approved overcurrent protection device.

Connect the transformer to the AC Terminals using 16 to 18 gauge minimun wire. Do not exceed 50 feet between the

transformer and the control or run the AC power in a multiconductor with other system circuits. Leave the transformer

unplugged as well as the standby battery until all other connections have been made.

Standby Battery Connection

Connect the BLACK wire to the Neg (-) terminal on the battery, the connect the RED wire to the Pos (+) terminal on the battery.

The control is designed to operate with and recharge a 12 volt, sealed lead acid battery from 7Ah up to 18 Ah for backup of the

primary power supply. The control maintains a float charge for the battery of 13.8 VDC at 100 mA. This is in addition to the

continuous output of 1.5 Amps that the power supply maintains (see maximum current drains for UL Listed Systems).

CAUTION: Do not reverse the battery leads! The control has special circuitry which helps protect it from battery reversal

damage for short durations. However, prolonged reversal of the battery leads may cause permanent damage. A reverse

battery warning LED is located to the left of the power On/Off switch. If this light is ON, turn the power off immediately

and correct the battery lead connections.

+VAUX

NEG

SW1

16.5 V

JUMPER TO START

WITH NO AC

POWER

BATTERY

ELK-1280

12V Battery

Sealed Lead Acid

STATUS

REVERSE

BAT LEADS

UL Listed Transformer,

Class II, 16.5VAC, 45VA

RED BLK

ELK-TRG1640

M1 Installation and Programming Manual Page 11

AC Failure, Low Battery, and Automatic Low Voltage Shutdown

During an AC power failure the battery automatically takes over and AC Fail trouble annunciates at the keypad. The

communicator can be programmed to report AC Fail to the Central Station after a time delay (see Menu 12, System Option 01).

If the battery voltage falls below 11.2 VDC a Low Battery Trouble condition will occur. The communicator can be programmed

to report Low Battery to the Central Station. The battery will continue to run the control until its voltage reaches 10.5 VDC, at

which time the control will disconnect and shut down to prevent a false alarm and damage to the battery. The AC Fail trouble

display will clear if the AC restores. However, the Low Battery Trouble requires a manual or automatic battery load test before

it will clear. An automatic battery load test is performed every 24 hours. See Section 2.2 for powering up the control.

Telephone Line Connection (R1,T1,T,R)

The telephone interface is connected by the use of an approved RJ-31X interconnect jack. This device allows the subscriber

to disconnect the control/communicator from the public switched telephone network in the event of a malfunction. The control

is equipped with line seizure so that the premises telephone service is interrupted during communication to the central

station. Connection to the approved jack is done with a RJSET cord which connects the control terminals to the RJ31X jack.

HELPFUL HINT: The telephone cord can be supervised back to the RJ31X block or Telco demarcation block by installation of

a EOL resistor across the Orange and Blue wires (terminals 2 and 7 on the RJ31X jack). Back inside the control, connect the

Orange and Blue leads from the RJ cord to any 24hr Burglar zone input.

Outputs

There are 13 outputs on the main board. Outputs may be expanded utilizing output expander boards connected to the RS-485

4-wire Keypad data bus. Outputs 1 & 2 trip when any alarm is activated. All others must be enabled through the RP Rules

Programming and can be triggered by multiple conditions “events”. Do not exceed the current limits on voltage only outputs.

Output 1 is driven by an Audio Amplifier. It is designed to handle standard 8 ohm alarm speakers (never go below a total

connected load of 2 Ohms) for inside or outside use. This output is the source for voice announcements such as: Zone 1 not

ready, System Armed, Alarm Activated, etc., as well as alarm siren sounds. The initial start volume and the final volume can be

adjusted in programming to suit the application.

Output 2 is a traditional Alarm output. It is factory set to produce alarm siren sounds into standard 8 Ohm speakers (never go

below a total connected load of 4 Ohms). It can be alternately programmed to produce voltage only (12VDC) for driving self-

contained sirens or siren driver boards

Output 3 is a Single Pole Double Throw Relay with form “C” contacts (Com, N/O, and N/C).

Outputs 7, 8, 9, 10, 11, 12, 13, 14, 15, and 16 are low current, positive (+) voltage only, for driving LEDs, relays, etc. Outputs 4,

5, and 6 ARE NOT available from the main board. They can only be accessed with a data bus Output expander set to

address 1. This expander will replicate all the main board outputs, including outputs 4, 5, and 6.

Earth Grounding

Tests and studies have determined that the best results against lightning and transients are obtained by isolating the control

from ground. Do NOT connect any of the M1 terminals, especially the Neg. terminals to earth ground. Early production M1

circuit boards had a terminal marked “earth ground”. This terminal is no longer used on circuit board revision I or later.

However, ancilliary devices such as the ELK-950 Surge Protector on the incoming Telephone circuit are still recommended.

Keypad & Expanders on the RS-485 Data Bus (+VKP, Data A, Data B, Neg)

Keypads and data bus expander devices connect to the four terminals marked +VKP, Data A, Data B, and Neg. The keypad

plug-in wire harness color code is: Red +VKP, Green Data A, White Data B, and Black (-) Neg. The +VKP power terminal is

protected by an auto reset PTC device. In the event of a short circuit or malfunction, power will be removed from all devices

until the problem is resolved. Two (2) quick connect header pin plugs (J1 and J2) along the bottom of the board may be used

for temporary purposes I.E. bench testing using a four conductor ribbon cable. Do not use for permanent connections.

Using Output 7 (low current) with a sensitive relay to switch 24V AC to a Door Strike

24V AC

Transformer

Door

Strike

ELK-924

POS

NEG

-T+T

N/OCOMN/C

24V OPEN

N/OCOMN/C

+12V

NEG

J16

OUTPUTS

Programmable Outputs (J16) OUT 7 - 16 are +12V switched

positive general purpose outputs rated at 50mA.

+12V Red

Black

White

Green

Brown

Blue

Yellow

Violet

Pink

Tan

Orange

Grey

+VAUX

NEG

OUT 16

OUT 15

OUT 14

OUT 13

OUT 12

OUT 11

OUT 10

OUT 9

OUT 8

OUT 7

M1 Installation and Programming Manual

Page 12

NEG -

DATA B

+12V

DATA BUS

+VKP

DATA B

DATA A

NEG

EGND

J1J2

RE: Data Bus Termination Note

DATA BUS TERMINATION IS VERY IMPORTANT!!

Ideal setup is 2 home run cables (4 wire) with daisy chained devices along each. The last device on each cable MUST have

a Terminating resistor installed (activated) via the gold 2 pin header/jumpers marked JP2 on keypads, JP1 on expanders.

Place a black shorting cap (see hardware pack) onto the 2 gold pins to install a 120 Ohm resistor across data lines A & B.

NOTE: Place a shorting cap on JP3 of Main Board it there is only 1 data bus cable. See diagrams on multiple cables.

Temporary Connection "Plug-in" jacks for RS-485 Data Bus (J1 & J2)

Local connection for Data Bus Devices ie: Keypads, etc. for testing purposes only.

ELK-M1KP

BLACK

WHITE

GREEN

JP3 Teminating Jumper

(Located beneath cover)

RS-485 Data Bus (Max. length is 4000 ft.

Max. bus devices vary by control.)

WARNING! The RS485 Data Bus must NEVER have more that two (2) terminating resistors

header/jumpers installed. Reliability and response will be negatively affected!

RS-485 DATA BUS

DATA A

RED

ELK-M1XIN

ELK-M1XOV

Jumper

Terminate

these two

devices.

DO NOT Jumper

Terminate these devices.

Keypad 1

ELK-M1KP

Keypad 2

ELK-M1KP

Keypad 3

If home running 3 or more cables, use 6 conductor cables. At the device, make a three way splice of the data A wire, device A wire or terminal, and a

return data A1 wire (using one of the extra wires). Do the same for the data B wire. At the control, make a two way splice of the data A1 return wire (series

connection) to the outgoing data A wire of the next cable. Repeat for the data B wire. Terminate at the last device and the control JP3 ONLY!

Keypad Keypad

Keypad

Install Teminating Jumper

Cap on this last device AND

on the control JP3.

6 conductor cables

+VKP

DATA A

DATA B

NEG

DATA

A1 A

B1 B

DATA

A1 A

B1 B

DATA

A1 A

B1 B

WHITE

GREEN

BLACK

RED

SPARE

PAIR

See Diagram on next page for connection

of Optional Output and Zone Input

WHITE

GREEN

BLACK (-)

RED +12

BLUE

BROWN

Conductor

Cable

Keypad

DATA

For future

devices

Diagram for Daisy Chain Connection of Data Bus Devices Using Two (2) Home Run Cables

Connect each device to the 6

conductor cable as shown.

Diagram for Daisy Chain Connection of Data Bus Devices Using 3 or More Home Run Cables.

NOTE: The power wires are parallel

connected to the +VKP & Neg terminals.

RS-485 DATA BUS

Data Bus E.O.L. Termination - VERY IMPORTANT!

Unlike many controls, the M1 features a true RS-485 “differential” data bus operating at 38,400 baud (bits per second). This

is a relatively high speed by industry standards and was designed to ensure fast, accurate communications. As a result of

this high speed, data bus terminating resistors (120 Ohm resistors) are recommended in order to eliminate the possibility of

reflection errors caused by varying cable lengths, especially with multiple home run (star topology) cables.

Every M1 data bus device; keypad, zone, output expander, etc. and the control board has a built-in bus terminating resistor

(120 Ohm). Each terminating resistor is installed (activated) via a 2 pin header/jumper (2 Gold Pins) using a small black

shorting cap. The terminating resistors are marked JP2 on the keypads and JP1 on the expanders. From the factory, no

terminating resistors are installed (activated). The control hardware pack includes two of the small black shorting caps.

When one of the shorting caps is placed on the two gold pins, it installs (activates) the built-in 120 Ohm terminating resistor

across Data Lines A & B.

WARNING! The RS-485 Data Bus must NEVER have more than 2 terminating resistors header/jumpers installed. Reliability

and response will be negatively affected. See diagrams on opposite page.

Ideally, there should be no more than two home run data bus cables, with devices daisy chain connected along the two

cables and a terminating resistor (header/jumper) installed on the last device of each cable. However, if you prefer to home

run everything (3 or more), we highly recommend using 6 or 8 conductor cabling (CAT5 or CAT6 cable is ideal). At each

device, splice data wires A & B to 2 of the extra conductors so they return back to the control as A1 & B1. At the control, splice

the returning data wires A1 & B1 in series to data wires A & B going back out to the next device. Remember to install a

terminating header/jumper on the last wired device. Electrically the data wires are now in one long series circuit. Connect

the POS (+) and Neg (-) power wires of each device directly to the M1’s +VKP and Neg terminals. DO NOT SERIES THE

POWER WIRES as this will cause unnecessary voltage loss.

M1 Installation and Programming Manual Page 13

The ideal way to connect multiple home run cables is with an ELK-M1DBH Data Bus Hub. It accepts CAT5 or CAT6 cable with RJ45 plugs on the ends. It

does all the work of series connecting the DATA lines A & B. Terminate at the hub using the included RJ45 Terminating Plug in the first unused jack.

Keypad Keypad Keypad

8 - Brn/Wht

7 - Wht/Brn

6 - Org/Wht

5 - Wht/Blue

4 - Blue/Wht

3 - Wht/Org

2 - Grn/Wht

1 - Wht/Grn

RED +12V

BLACK (-)

GREEN (A)

WHITE (B)

BROWN

Pin1

RJ45 Plug

A Grn/Wht

A1 Org/Wht

Wht/Brn

Brn/Wht

B1 Wht/Org

B Wht/Grn

Spare

ELK-M1DBH Data Bus Hub

CAT5 or

CAT6 Cable

COLOR CODE for CAT5 or CAT6 Data Bus Cable to ELK-M1DBH Data Bus Hub.

Pin1

Mount M1DBH inside control.

Connect it to the M1 Data Bus

terminals using a 4 conductor cable.

J2 J4 J6 J8

J1 J3 J5 J7 J9

RJ45 Terminating Plug

Insert in first unused jack and

terminate the control at JP3.

DO NOT TERMINATE AT

ANY OF THE DEVICES!

CAT5 Cables

Front view

Daisy Chain Connection of Data Bus Devices

Using ELK-M1DBH And CAT5 Cables.

RS-485 DATA BUS

Optional programmable Zone Input from Keypad

Optional programmable Output from Keypad

Load (50mA max)

I.E. LED, Relay

To BLACK (Neg) Wire

To BROWN Wire

N.C. N.O. 2200

Ohm

EOL

To BLACK (Neg) Wire

To BLUE Wire

BLUE

Keypad

Setting the Data Bus Address and Enrolling Device(s) into the System

Keypads and expander devices communicate with the M1 over the RS-485 4-wire data bus. Each device must have a unique

address setting (from 1 to 16) within it's device type. Keypads are device TYPE 1, input (zone) expanders TYPE 2, output

expanders TYPE 3, etc. The purpose of device types is so that the address numbers can be re-used in each different device

type. It is OK to have a Keypad, a Zone Expander, and a Output Expander all set to address 2 and on the same data bus since

each device is a different device type. It is NOT OK to have duplications of addresses within the same device type. I.E.

Multiple keypads on the same control cannot be set to 'like' addresses.

ADDRESS: From the factory all keypads are set to address 1. Valid keypad addresses are 1 to 4 for the ELK-M1, or 1 to 16 for

the ELK-M1G. The first keypad on the system (Keypad 1) is automatically enrolled upon power up. Each additional keypad must

be assigned a unique address and then manually enrolled from “Menu 1 - Bus Module Enrollment”. (See M1 Instruction

Manual, Menu 01, for complete instructions on Bus Module Enrollment)

1. Press and hold the " * " key, followed by the F5 key . HOLD BOTH keys pressed for 5-10 seconds or until the LCD displays:

Exit when done. F1 Set Addr. (This is Keypad setup mode)

NOTE: This mode may also be accessed by removing power from the keypad (unplugging the data bus cable) and then

applying power while holding any key pressed.

2. Press the F1 key to display the current address setting.

3. Set the desired address by entering a number from 1 to X.

4. Press the Exit key when done.

Auth. Required

Enter Valid Pin

01-Bus Module

Enrollment

ENROLLING:

1. Press the ELK key, then press 9 (or scroll up) to display 9 - Installation Programming. Press the

RIGHT arrow key to select this menu. The Installer Program Code (PIN) must be entered to access

this menu.

2. Enter the Installer Program Code. (See M1 Manual for the default Code)

3. The first Installer Programming menu displayed will be "Bus Module Enrollment"

4. Press the RIGHT arrow key to select this menu. "Enrolling Bus Modules" will display

5. The M1 transmit an enrollment message to all data bus devices, following by a display showing the

total Bus Modules that are enrolled. To view the enrolled devices and/or remove a device press the

RIGHT arrow key next to the word Edit.

6. Press the * or Exit keys to exit Installer Programming.

XX Bus Modules

Enrolled, Edit rr

M1 Installation and Programming Manual

Page 14

2.1 Introduction

For best operation during bench testing, all zones should be terminated with end of line resistors and the correct transformer

and battery should be connected to the unit. The control comes with factory default programming, allowing it to be bench

tested prior to installation. The factory default code for user 1 is 3456. This code is authorized to operate all user related

features of the system. The control is designed to accommodate the grouping of specific zones into partitions called areas

and by default, all zones are assigned to area #1. This is the most common mode in which the system operates. This section

of the manual gives an overview of powering up and basic keypad functioning.

2.2 Powering Up (One Keypad)

After all other connections have been made and checked thoroughly, the controls AC transformer and battery may be

connected. The Master Power Switch located on the lower left corner can then be turned on which will complete the AC and

battery connections into the control. Upon power up the control will perform self-diagnostics and auto-enroll the first keypad

(Keypad Address #1). Any additional keypads or expanders must be manually enrolled using Installer Level Programming.

See “Menu 01 - Bus Module Enrollment”.

NOTE: It is very important to make certain that every keypad, input expander, output expander, or any other data bus

device be assigned a unique data bus address within its type. See “MENU 01 - Bus Module Enrollment” for instructions

on setting keypad and expander addresses.

System Startup on Battery Only

Ordinarily, the control will not startup without AC power. However, if AC power is not available (new construction sites, field

testing, etc.) it is possible to start the control on battery ONLY! Locate the two silver pads on the lower left corner of the circuit

board. Take a small blade screwdriver and short these two pads. This will temporarily bypass the AC sensing circuit and

allow the control to startup. The On/Off power switch must be in the On position.

2.3 User Codes and Authorities

The control has 99 user passcodes plus one installer passcode. Each user code may be assigned specific authorities as to

what it is allowed to do. The authorities are assigned from the Installer level programming, however the code numbers and

user name is assigned from the keypad user menu 6 - Change User Codes. Only a Master authority level code or the

Installer code is allowed to access keypad user menu 6. The User’s Guide contains a description of panel

operations accessible to the user codes. Control operations accessed by the installer passcode are slightly different.

The Factory Default Code for User Code 1 is: 3 4 5 6 (Master Code)

(If the six digit code option is enabled, User Code 1 default will then be: 1 2 3 4 5 6)

The user code may be used for functions in a specific area or system-wide. Some options may be performed at any time,

even while the control is fully or partially armed. The menu system is designed to be next-step-oriented. After a brief

explanation of the options, the user should be able to begin operating the system immediately. For purposes of discussion,

the installer and the end consumer are both considered users, but have different capabilities.

2.4 Installer Program Code and Authorities

The installer code can access all the keypad user menus, including of course menu 9 - Installation Programming. The

Installer code also has limited arm/disarm privileges. It may be used to arm any area and may be used to disarm any area,

so long as that area was armed specifically by the installer code. The Installer code cannot disarm if an area was armed by

any user code. The Installer code may be used to silence 24hr alarms or a Burglary alarm in an area that was armed by the

installer or in an area that is not armed. The installer code may also be used to silence a trouble condition in a disarmed

area. See User’s Guide for a full description of arming and disarming procedures.

The Factory Default Installer Program Code is: 1 7 2 8 3 9

Section 2 - Operating the System

M1 Installation and Programming Manual Page 15

Ready Light - This light is ON when all burglar zones are secure and the system is OK for arming. If this light is OFF, one or more zones are

violated (not secure). For maximum security, all zones should be secured before the system is armed.

If FLASHING, one or more force-armable zones are violated. Force arming temporarily excludes violated zone(s) from the system. However, if

a force armed zone becomes secure while the system is armed, it will automatically restore to service. This is handy for a garage door. The

system may be armed with the door up, but once the car is backed out and the door is closed, it will become secured.

Armed Light- This light will be ON when the system is armed. The mode of arm will be indicated by the LCD display and the Exit or Stay

lighted pushbuttons. This light will be OFF when the system is disarmed.

Exit Key - This lighted key may be programmed for single or double press arming to the AWAY (not occupied) mode. If the Exit light is ON the

system is armed and all perimeter sensors and interior motions are active. The Away key may be pressed during the exit delay time t to

convert from Away mode to Away Vacation mode. The Away Vacation mode is primarily for use with the Whenever/And/Then Rules program-

ming of Elk-RP to invoke long term energy savings.

Stay Key - This lighted key may be programmed for single or double press arming to the STAY (occupied) mode. If the Stay light is ON the

system is armed and all interior zones are excluded (bypassed). Only perimeter doors and windows are active in the Stay mode. This key

may also be programmed to change to other Stay modes such as: Stay Instant, Stay Night, and Stay Night Instant. Since interior zones are

automatically excluded once the Stay mode is activated, the M1 allows this key to Stay arm even while one or more interior zones are

violated, provided they are programmed for “force arming”. The Stay Night mode re-activates any interior night zones. To prevent a false

alarm the control will not allow change to the Stay Night mode when a interior night zone is violated unless it is programmed for “Force arm”.

Chime Key - Chime produces an audible alert whenever certain doors, windows, or other selected zones are violated. There are four

different selections: Tone only, Voice, Tone/Voice, and Off. In the programming mode this key also functions as an insert character key for

text programming. The key light indicated when Chime is On.

Bypass Key - Pressing this key followed by a zone number and the bypass key again will exclude or bypass the selected zone. This

key may also be used to delete a character during text programming. When the Bypass key is lit, one or more zones are bypassed.

* Key - This key serves as a clear or reset key. If an error is made while entering digits, pressing this key clears the error. Three presses is

a master clear.

# Key - This key is currently a duplicate of the Bypass key.

Numerical Keys - These keys are used for entry of passcodes, programming, etc. Keys 2 - 9 also have an assigned alpha character

which are used for entering text.

Arrow Keys - The menu and arrow keys have powerful functionality used for both normal operation and programming. Pressing the Menu

key displays relative information according to each application. The arrow keys allow scrolling through all available options. The user can

activate or select the displayed option by pressing the right arrow key. Once an option has been selected, the user may be prompted for

a passcode. Additional sub-menu options may appear to assist. The user may return to the status screen by pressing the * key.

2.5 Keypad Overview

M1 Installation and Programming Manual

Page 16

Access to menus 1 to 5 can be restricted via programming to only Users that have “User Code Option 8” set. Menus 6 & 8

required a Master or Installer Code. Menu 9 requires the Installer Code. Press ELK to begin, then press the UP or DOWN

arrow key to select a menu. Enter a code if prompted. To select a menu press the RIGHT arrow key.

Keypad Menus

Allows viewing or controlling of the automation functions such as Tasks, Lighting, Outputs,

Temperature Sensor, Keypad Temperature, and Thermostats. Press the RIGHT arrow key to

select, then choose the desired function using the UP or DOWN arrow keys.

NOTE: The automation functions must be assigned and named using the ELK-RP software.

In most cases they cannot do anything unless they have been written into one of the

“Whenever/And/Then” automation rules.

Tasks are like 1 button macros, performing multiple jobs with one push. To activate a task

press the RIGHT arrow key and press UP or DOWN to scroll through the list of available tasks.

To jump directly to a particular task, enter it’s two digit number. Once the task is displayed, all

it takes to activate it is to press the # key. A rule to use the “Water the Lawn” task might be:

WHENEVER “Water the Lawn” IS ACTIVATED THEN TURN ON Valve 19 FOR 5 MINUTES, etc.

Lighting allows the individual control of lights and/or appliances which have been assigned

through the ELK-RP software. Press the RIGHT arrow key to select Lighting, then press the

UP or DOWN arrow keys to scroll through the list. If you know the three digit number, you may

enter it to jump directly to that Lighting/Appliance. The current state of the unit will be

displayed. Press the # key to toggle (change) the unit from on > off or from off > on.

Outputs might be relays or voltages used to actuate something like a motor, fan, pump, etc.

Outputs can be turned on or turned off from this menu. Press the RIGHT arrow key to select

Outputs, then press the UP or DOWN arrow keys to scroll through the list. If you know the

three digit number, you may enter it to jump directly to that Output. The current state of the

output will display. Press the # key to toggle (change) the output from on > off or from off > on.

Remote “Zone” Temperature Sensors can be read from this menu. Press the RIGHT arrow

key to select this menu, then press the UP or DOWN arrow keys to scroll through the list of

available sensors. To jump directly to a particular sensor enter it’s two digit number. The

current temperature will be displayed. Press the * key to exit.

Keypad Temperature Sensors can be read from this menu. Press the RIGHT arrow key to

select this menu, then press the UP or DOWN arrow keys to scroll through the list of available

keypads. To jump directly to a particular keypad enter it’s two digit number. The current

temperature at the keypad will be displayed. Press the * key to exit.

Thermostats can be read from this menu. Press the RIGHT arrow key to select this menu,

then press the UP or DOWN arrow keys to scroll through the list of available thermostats. To

jump directly to a particular thermostat enter it’s two digit number. The current temperature at

the thermostat will be displayed. Press the * key to exit.

Used for resetting latched smoke detectors after a fire alarm activation..

Press the RIGHT arrow key to actuate the Reset Smoke Detector feature. This causes the

power to smoke detectors to be removed for 5 seconds. During this time all fire zones will be

ignored to keep an accidental alarm from occurring.

1-View/Control r

Automation Fncts

2-Reset r

Smoke Detectors

READY TO ARM

9:00AM 08/01/03

Continued on next page..

3-Outputs r

Pump Motor Cntrl

001:=Off, # to Chg

2-Lighting r

1-Tasks r

Water The Lawn

01: # Activates

Kitchen Lights

001:=Off, # to Chg

5 Seconds Smoke

Output Reset r

The control offers extended Menu Options via the center navigation “ELK” key. Some menus

may require a valid code to authorize. The Factory Default Code for USER Code 1 is: 3 4 5 6

(1 2 3 4 5 6 if the six digit code option is enabled)

4-Temperature r

Sensor

Outside

S01:=032 Degrees

5-Keypad r

Temperature

Keypad 01

K01:=073 Degrees

6-Thermostat r

Temperature

Hallway

T01:=072 Degrees

M1 Installation and Programming Manual Page 17

3-Walk Test Area r

< Area? Name >

4-View History r

Log

6-Change r

User Codes

Requires Master or

Installer Code

Menu 3 permits a local walk test of all zones assigned to this keypad’s area. The siren(s) and

communicator are disabled during a walk test. Press the RIGHT arrow key to begin a Walk

Test. The keypad displays the total tested zones adjacent to the total number of zones involved.

When a zone is activated, it’s name is displayed across the bottom and can be audible if the

Chime mode is on.

Allows viewing of the past 512 activities stored in the history log. Press the RIGHT arrow key to

view the History Log. History activities include: Arm, Disarm, Alarm, Trouble, etc. The top line

displays the Log number, Mth/Day, Time, and event description.

L001 is always the most recent event. Press the UP or DOWN arrow keys to move forward and

back. Event 512 will be the oldest event. The bottom line displays the event description, the

extended data (zone, user, etc.) and the area number (A1-A8).

Allows viewing of the current status of all zones. Press the RIGHT arrow key to select. Press

UP or DOWN to scroll through the zones or enter a three digit number to jump directly to a

particular zone. I.E. for zone 16 enter 016. Press the * key to exit.

For changing a user code and/or name for codes which have been previously enabled by the

Installer. Only a Master code OR the installer code can access this menu. Press the RIGHT

arrow key to begin. Press UP or DOWN keys to locate a user, or enter 3 digits to jump. Press

RIGHT arrow key to view the existing code. To change, enter the new code digits and listen for 3

beeps to confirm. To edit the name, press the RIGHT arrow key once, then press the DOWN

arrow key. Enter the text using the letters on the keys. I.E. For “K” press the 5 key twice. Move

RIGHT or LEFT with the arrow keys. Press Chime to insert a space. Press Bypass to erases a

letter. The UP and DOWN arrow keys shift from upper to lower case letters. Press the ELK key

to save and exit.

Allows an end user to change up to 20 settings incorporated into an automation rule. These

settings can be: time of day, time duration (seconds), or a numeric value. Each custom setting

has a reference number (CS) and a text description: I.E. CS01: Sprkl On 00:00 [Time] implying

a time of day setting. Press the RIGHT arrow key to begin.

Press the UP or DOWN arrow keys to locate a setting, then press the RIGHT arrow key to

select. Enter the new value and press the ELK key to save and exit.

Menu 8 consists of 8 sub-menus used for advanced system settings. Press the right arrow key

and enter a valid user code. Press the UP or DOWN arrow keys to select a sub-menu or enter

the one digit number to jump directly to any sub-menu. I.E. enter 6 to jump to 86.

To set the system clock press the RIGHT arrow key, then press the UP or DOWN arrow key to

select the day. Next, press the RIGHT arrow key to move to Date/Time setting. Enter two digits

for month, date, year, hour, and min. To exit press the * key.

To set the volume for output 1 voice messages (non-alarm) press the RIGHT arrow key and set

desired volume with the UP or DOWN keys. There are 8 settings (0-7). WARNING: PROTECT

EARS! Each adjustment broadcasts a test message through Output 1. To exit press the * key.

To set keypad adjustments press the RIGHT arrow key. Then press the UP or DOWN keys to select

one of the three options.

8-System r

Settings

83-Keypad r

Adjustments

1:Set Keypad r

Beep Tone

2:Set Keypress r

Beep Volume

3:Set Backlight r

Dim Level

82-Out1 Voice

Adjust Volume r

81-Set Sys Clock r

24hr format

000of016 Tested r

A?-Violate Zones

L001:01/01bb

b08:00

AreaArmed 103A1

001:Selb b

b b

b Prgr

< User Name >

7--Automation r

Custom Settings

CS01:bb

b00:00Timer

Sprklr On

Requires Master or

Installer Code

Requires Master or

Installer Code

5-View Status r

of all zones

To set keypad beep tones press the RIGHT arrow key, then select the desired tone using the UP or

DOWN keys. There are 9 settings (0-8). When done, exit by pressing the * key.

To set key-press beep volume press the RIGHT arrow key, then select the desired volume using

the UP or DOWN keys. There are 7 volume levels (1-7) plus Off (0). To exit press the * key.

To set backlight dim level press the RIGHT arrow key, then select the desired level using the UP or

DOWN keys. There are 9 backlight levels (1-9) plus Off (0). The keypad automatically dims to this

setting after 30 seconds of no activity in order to save energy. To exit press the * key.

M1 Installation and Programming Manual

Page 18

To perform system tests press the right arrow key. Then press the up or down arrow keys to

select one of the three tests.

The control’s standby battery is load tested automatically every 24hrs. However, it can also be

manually load tested anytime using this option. Press the right arrow key to start the test. The

battery is placed under load for 30 seconds and the battery voltage and system current is

displayed. If the battery falls below a set level, a Low Battery trouble will occur. If it’s necessary

to replace the battery, this test should be used to test and clear a Low Battery Trouble condition.

To test the keypad’s LCD screen press the RIGHT arrow key. The entire screen should appear

black indicating all pixels are working. To exit press the * key.

To manually test the communicator (dialer) press the RIGHT arrow key. Testing is done using

the first phone number that is programmed to send a test code. If there is no phone number

programmed to send a test code, the test will end. To exit this menu press the * key.

There are two types of test, silent and monitored. To silently send a test press the right

arrow key from this display. To hear the test using the inside speakers (OUT1) press the up

or down arrow key to bring up the following display.

This unique feature permits you to hear or “monitor” a single communicator test using the

inside speakers (OUT1) eliminating the need for a telephone “Butt” set. Simply press the

right arrow key from this display to begin.

Similar to above, this works for multiple communicator tests. Press the right arrow key to

enable. Each communicator transmission will be monitored until mode is canceled. Press

the star (*) key three times to cancel. Canceled automatically after 24hr daily battery test.

This special option allows any pending (not reported) dialer communications to be cleared

or cancelled. Typically this will be used only for initial installation and testing.

NOTE: ALWAYS NOTIFY THE MONITORING STATION BEFORE TESTING THE DIALER! If the test

should fail, a Comm Fail trouble will occur. To clear a Comm Fail the dialer must be able to

complete a good communication.

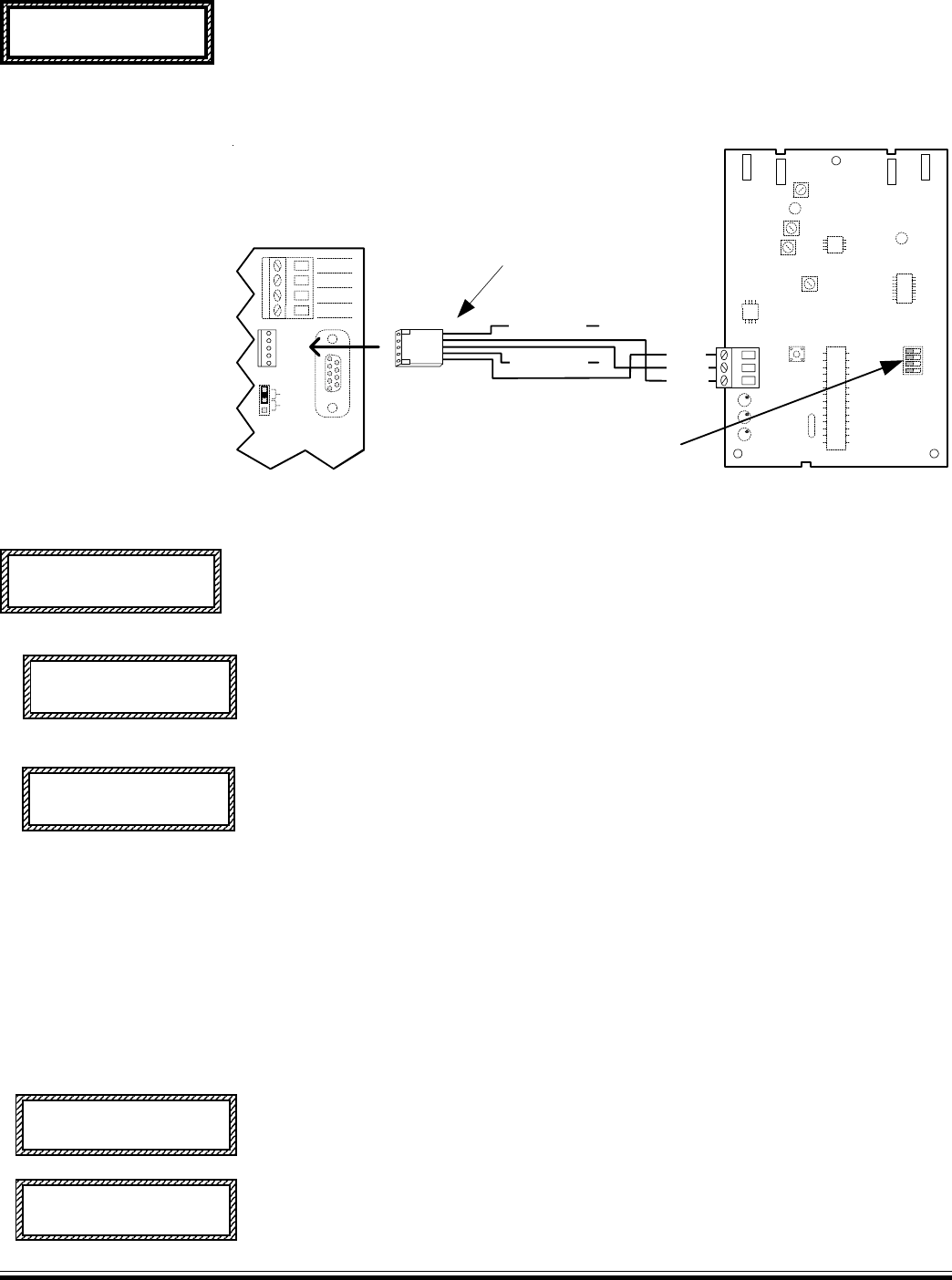

To connect ELK’s Remote Program PC software (RP) via the user assisted method, press the

RIGHT arrow key and then select the connection mode with the UP or DOWN arrow keys.

1:Seize Line Attended Mode - 1) Allows RP connection to begin on an already established voice

connection between the control phone line and the RP Computer. 2) Also useful for manually

answering an incoming call from the RP Computer with programming Rings to Auto Answer.

2:Seize Line Unattended Mode - Pressing the RIGHT arrow key causes the control to dial the

programmed RP telephone number. The RP Computer must be in the “wait for call” mode.

This is a collection of tools for diagnosing system problems. Press the RIGHT arrow key and

enter a valid user code to begin. Press the UP or DOWN keys to select one of the four tools:

This tool is useful for determining if data bus errors are accumulating. It displays the device

type and number of retries accumulated since the last power-up.

This tool displays the control’s voltage and the average current being drawn from the power

supply.

This tool allows the voltage on each zone to be displayed in real time. It changes as contacts

or devices are violated. Press the RIGHT arrow key to begin.

Use the UP or DOWN keys to scroll through each zone. The displayed information consists of:

the present zone voltage, the L low and H high alarm thresholds, and the analog (A to D)

equivalent of the zone voltage..

This is a read only screen displaying the telephone line voltage during the last on-hook

condition. It is an approximate measurement accurate to only +-20%.

85-Connect ‘RP’ r

Remote Program

2:LCD Test r

3:Communicator r

Manual Test

1:Seize Line r

Attended Mode

2:Seize Line r

UnAttended Mode

86-System r

Diagnostics

1:DataBusErrors b

T2A1 Retry 00000

2:Sys Volt/Curr b

13.8V 0.440Amps

3:Zone=001 Volts

Display Level r

4:LastOnHookTele

Line V=57,+-20%

Zn=001 Volt=07.2

L04.6 H09.0 A132

1:Battery Test r

for 30 Seconds

84-System r

Tests

Send Test r

Silently

Send Test w/ r

speaker monitor

Turn Butt Set r

Monitor Mode On

Clear Pending r

Dialer Reports

M1 Installation and Programming Manual Page 19

9-Installation r

Programming (0)

87-Custom

Message Record r

This option is used in conjuction with a house telephone (microphone) to record up to 10

custom voice messages. Each message occupies a 6 second block. Two or more

consecutive blocks may be linked together for longer times. Total record time cannot exceed

60 seconds. These messages require the Elk-RP software, which utilize these messages

together with the built-in 500+ word vocabulary to construct voice phrases for many uses,

including the voice dialer. Press the RIGHT arrow key to begin custom message record.

Selects any one of the custom messages (VM01-VM10) for playback or recording. Press the

UP or DOWN arrow keys to select. To Play the selected message press the RIGHT arrow key.

The message will play through Output 1 speakers. To record a new message press the LEFT

arrow key. To exit press the * key.

This sets the number of consecutive 6 sec. record blocks. The default is 01 blocks which is

normally long enough for most applications. However, to create a longer message press the

RIGHT arrow key and enter the number 01 to 02, etc. NOTE: Creating longer messages

reduces the total number of custom messages. This screen also allows all messages to be

played “PlayAll” by pressing the RIGHT arrow key. When ready to record press the LEFT arrow

key.

This is the prerecord screen. To begin recording: 1) lift the house phone (off hook), 2) press

the LEFT arrow key, 3) start speaking. To stop recording press the “0” key. If stop is not

pressed, recording will automatically end after 6 sec. (or the total number of blocks times 6

seconds).

NOTE: A local house phone is used as the microphone. Installer programming menu 07,

option 1, must be set to a 1 in order for the local phone to be recognized by the control.

This will display as soon as recording has stopped. To play the new message press the

RIGHT arrow key. To record the message again press the LEFT arrow key and follow the

same procedures again. To exit press the * key.

VM01b 1 Block(s)

Record< Play>

6 Sec Blocks=01b

Record< PlayAll>

6 Sec Blocks=01b

Rec< LiftPhone!

VM01b 1 Block(s)

Record< Play>

Step by step summary of procedures for recording a custom message:

1) Verify that a house telephone is connected to the control’s T1 and R1 terminals and that Installer menu 07, option 1

is set to a 1. This allows the control to recognize the telephone and allow it to be used as a microphone.

2) Go to the user menu 8-System Settings by pressing the ELK key and entering 8. Press the r key and enter a valid

user code. Press 87 to reach the custom message record screen.

3) Using the Up/Down arrow keys, select the voice message to record VM01 to VM10. There are 10 custom

messages.

4) Press the l key and select the number of 6 second blocks for your message. Hint-rehearse and time the message,

if it is greater than 6 seconds then increase the number of consecutive blocks as required.

5) Lift the telephone handset and press the l key to begin the recording. The recording will not start until the handset

is off-hook and the l key is pressed.

6) Record your message by speaking into the handset. If the message is shorter than the amount of time selected

then press 0 to stop recording. Otherwise, recording will stop when the number of blocks is reached.

7) Press the Right arrow key to play the message. The message will be heard through the telephone handset if it is

still off-hook. Otherwise the message will be directed to the amplifier connected to output 1.

Requires

Installer

Code

From this menu you may press the RIGHT arrow to enter Installation Level Programming. If

the Installer Programming Code has not already been entered it will be required at this time.

REFER TO PAGE 22 FOR PROGRAMMING INSTRUCTIONS

NOTE: The Remote Programming RP software can be used to lockout certain local program

capabilities for “anti-takeover” purposes. The number in the lower right corner of this menu will

indicate the level of lockout as follows:

(0) = No lockout,

(1)=Lockout Telephone number programming - view everything,

(2)=Lockout ALL programming - view everything,

(3)=Lockout ALL Programming and Viewing. This can only be set or removed from the ELK-RP

Remote Programming Software.

M1 Installation and Programming Manual

Page 20

This menu allows the keypad to be mapped temporarily to any other area, allowing multi-

area (partitioned) operation. The mapped area can be armed, disarmed, and otherwise

controlled just as if the keypad were permanently assigned to that area. It may also be

used to display a snapshot of all areas at once, showing the status of each area at once.

Press the RIGHT arrow key to select and display the following screen.

Enter a valid user code. The control does not allow (restricts) mapping or viewing of

areas that are not authorized for the user code. The following screen will be displayed:

MAPPING TO AN INDIVIDUAL AREA

Enter the area number to be mapped OR scroll UP and DOWN with the arrow keys.

Pressing the Exit or * key will map the Keypad to the area shown. The keypad will now

display the status, including LEDs and the LCD screen of the mapped area. For the next

1 minute it will be possible to arm, disarm, bypass, etc. the mapped area from this

keypad. The 1 minute will be extended with each keypress. The keypad will return to its

primary assigned area after 1 minute of no keypress activity.

MAPPING TO A CONSOLIDATED DISPLAY OF ALL AREAS

Pressing the rr

r RIGHT arrow key will map the Keypad to a consolidated ‘snapshot’

display of all areas which the user code was authorized to operate. This display permits

quick arming and disarming only. If a area is not ready to arm it will be necessary to map

individually (see steps above) to that area to view the violated zone(s) and either secure or

bypass them prior to arming.

The example at left shows that the user code was authorized for all 8 areas, as indicated

by a letter beneath each of the 8 area numbers. The letters show the status of each area.

A lower case “r” means the area is Ready to Arm, a lower case “n” means Not Ready, a

upper case “A” means Armed, and a upper case “X” means that area is the primary area

assigned to the Keypad which cannot be operated from the consolidated display.

The example at left shows that the user code was only authorized for areas 1, 2, and 3.

The unauthorized area(s) have a “-” beneath them.

To change (toggle) the arm status of an area, press the number key representing the area

number. IMPORTANT: The area status is not “real time”. It is a snapshot taken when the

r RIGHT arrow key was pressed. If a zone has since become violated the area will still

be displaying “r”, however the letter will immediately change to “n” and the keypad will emit

an error tone when an attempt is made to arm by pressing the area number.

0-Select Keypad

Alternate Area r

Auth. Required

Enter Valid Pin

Select Area- 1 r

[Area Name]

READY TO Arm

[Area Name]

Multi-area (Partition) Operation

Select Area- 1 r

[Area Name]

Area# 12345678

Status= Xr r r r r r r

Area# 12345678

Status= Xr r - - - - -

NOTE: This is a new feature which became available with firmware release version 4.2.5. The

firmware may be flash upgraded in older controls to add this capability.

M1 Installation and Programming Manual Page 21

3.1 Introduction

The Security functionality of the M1 Control can be programmed either from an ELK-M1KP LCD Keypad OR from the ELK-RP

PC Software. The keypad features a menu-driven “Text” based interface with simple Yes/No answers for most options. After

just a short amount of experience the average installer will not even require an instruction manual to keypad program the

control.

For the Automation functionality the ELK-RP PC Software is a requirement. The options and capabilities available for

automation are so unique and powerful that it takes a PC to make use of all the benefits. The M1 features a powerful

“Whenever/And/Then” RULES based programming that allows almost any imaginable operation.

3.2 Local Keypad Programming

There are two levels of operation for programming the control locally, user level and installer level.

- User level programming provides the ability to add, change, or delete user passcodes and names. It also allows custom

automation settings to be viewed and changed. A master user code is required to access the user code and custom settings

screens. User programming is explained in the User’s Guide.

- Installer level programming allows total customizing of the Security operating features. Only the installer code may access

this level. If the installer code is lost or forgotten, it is impossible to program the control locally. Anyone attempting installer

level programming should be familiar with the contents of this publication prior to programming the control panel. If remote

programming is used, it is possible to “lock out” or prevent takeover of a control by another installation company by selecting

“Lockout Local Prog.” This prevents the installer passcode from gaining access to programming via an LCD keypad. The

installer passcode may still be used for the non-programming functions described in Chapter 2. Lockout Local Prog does not

affect remote programming.

3.3 Local or Remote Computer Programming (ELK-RP) and Anti-Takeover

ELK-RP programming utilizes extensive error checking and security safeguards, including data encryption, password log-on,

serial number, and dealer assigned RP access code. The serial # identifies the control to RP while the RP access code

identifies the computer to the control prior to a programming session. RP loads the access code during the first connection. It

cannot be viewed or changed from local keypad programming. In addition to these safeguards, you can set an anti-takeover

option from RP which prevents certain keypad programming. Even a total default of the panel programming cannot reset the

anti-takeover option once it is set..

3.4 Area Partitioning

The control may be divided into 1 to 8 independent areas (partitions). Each area appears as a full-featured system, allowing

one control to be shared by multiple, independent departments within a common structure. Zones, User Codes, and

Keypads may be assigned to any 1 area up to the maximum number available. An example is a single business divided into

separate departments, each department occupied by different employees. Mount the control in a secure area (common utility

closet) with dedicated and uninterrupted AC power and telephone service. Then assign zones, codes, and keypads to each

department.

Output 1 siren/voice activates on all alarms, regardless of the area. The RP Software Rules can be used create additional

(separate) outputs. When reporting to the central station events like AC Power Failure, Automatic tests, Low Battery, etc., are

considered system reports and are transmitted using the Area 1 account number. If area partitioning is not desired, simply

designate all zones to a single area (Area 1) which is the factory default setting for zones 1-16.

COMMON AREA - Another popular feature is the ability to have one or more areas made “common” to Area 1. This is often

referred to as a “Vestibule Feature”. Any of the Areas 2 thru 8 may be made common to Area 1. The result is: Area 1 cannot be

armed until all its common areas are armed. Once armed, Area 1 will disarm if any common area becomes disarmed. This

is good for lobbies or vestibules shared by two or more businesses. Each business must have their own area keypad.

NOTE: If you want Area 1 to automatically arm when all its common areas become armed, use a Whenever/And/Then rule

from the RP software to do this.

Section 3 - Programming The Control

M1 Installation and Programming Manual

Page 22

3.5 Communicator Setup Checklist

The Communicator (Dialer) in the M1 can dial up to 4 telephone numbers in addition to the RP computer. The more powerful

M1G can dial up to 8 phone numbers plus RP. Digital reporting formats include: Pulse 4+2, SIA, Contact ID, and Pager. There

is also a Voice format which can be commanded from the RP Rules Programming to call a business, home, or cellphone and

deliver a voice message. Use the following checklist for each required telephone number.

1. Under Menu 08 - Telephone Account Setup, select one of the telephone numbers and program the following:

Option 01: Select the desired reporting format - 0=Disable, 1=Contact ID, 2=SIA, 3=Pulse 4+2, 4=Pager, 5=Voice.

Note: The Voice format (5) cannot be enabled from keypad programming. It can only be programmed from the

Elk-RP Software using the Whenever/And/Then Rules.

Option 02: Set the priority for the first (primary number) to 0 = Always Report.

Option 03: Program the telephone number digits to be dialed. No special start or ending characters are required.

Option 04: Set the dial attempts to greater than 0. For Digital reports 8 is suggested. For Voice the max. is 2.

Option 05 Program the digits for the account number to report. Each area (partition) has its own Acct. Number.

Option 13: Select Yes to have Area info, Zone Alarms, Zone Restores, and Zone Unbypasses reported to this Tel #.

Option 14: Select Yes if you wish to have Zone Bypasses reported to this Tel #.

Option 15: Select Yes if you wish to have Zone Troubles reported to this Tel #.

Option 16: Select Yes if you wish to have User (Open/Close) Reports reported to this Tel #.

Option 17: Select Yes if you wish to have Global System Events (AC Fail, Low Battery, etc.) reported to this Tel #.

Option 18: Although not required, you may program a text name for each telephone number.

2. Under Menu 09 - Area Reporting Codes, select the area (partition) and program the desired options such as: Dialer

Delay, Alarm Abort, Auto Open/Closings, etc. then .

3. Under Menu 10 - Zone Reporting Codes, select the zone number and program the desired options such as: Zone Alarms,

Restores, Bypasses, or Trouble.

Option A: For Zone Alarm program a two digit code. To have the automatic SIA or Contact ID report codes transmitted

simply program a nonzero value. I.E. Program a 1 (01).

Option R: For Zone Restore program a two digit code. For automatic SIA or Contact ID codes program a 1 (01).

Option B: For Zone Bypass program a two digit code. For automatic SIA or Contact ID codes program a 1 (01).

Option T: For Zone Trouble program a two digit code. For automatic SIA or Contact ID codes program a 1 (01).

4. Under Menu 11 - F Key Reporting Codes, select and program the alarm code for each desired Keypad Panic Key. NOTE:

Keypad Panics only have Alarm report codes, they do not have restore codes. For automatic SIA or Contact ID codes

program a 1 (01).

5. Under Menu 12 - Sys Report Code Options & Codes, select and program each desired option such as: AC Fail, Low

Battery, Automatic Test, and other system wide options, including the time values for certain options. For automatic SIA or

Contact ID report codes program a 1 (01).

6. Under Menu 13 - User Report Codes, select and and program an Open or Close report code for any User(s) that you

wish to track arm/disarm events, including arm/disarm by the Installer Code or Elk-RP computer.

3.6 Entering Installer Level Programming

1. Press the center ‘ELK’ key once followed by the DOWN arrow key until display reads “9-Installation Programming”. NOTE:

The keypad may beep and display the following:

2. Enter the Installer Program Code when required.

Press the right arrow key to select the “Installation Programming” option.

The Factory Default Installer Program Code is: 1 7 2 8 3 9

For security against unauthorized programming changes, the installer code should be changed from its factory default setting.

This can be done from Menu 07 - Globals System Definitions, Option 42.

Once the Installer Code has been entered, the first programming menu will display and a 4 minute timer will be started.

If there is no key-press activity during this time period the control will automatically exit from the programming mode. It

is easy to navigate around and between the programming menus and options using the up and down arrow keys. When

the correct menu or option is located, press the right arrow key to proceed into that menu.

Refer to the Quick Reference Guide on the following page to locate a particular menu or to see what options

appear under each menu. Refer to the individual menus and their option descriptions for details about each of the

programmable items.

Auth. Required

Enter Valid Pin

M1 Installation and Programming Manual Page 23

ELK-M1 and ELK-M1G QUICK REFERENCE - MENU PROGRAMMING

Menu 01 Menu 04 Menu 06 Menu 07 Menu 08 Menu 10 Menu 13

Bus Mod Enroll Keypad Defs Cutoff Timers Global Options (cont.) Telephone #’s & Accts Zone Rpt Codes User Rpt Codes

Keypad 1 (1) Burglar (26) Out 2 Change to Voltage Telephone #1 Zone #1 User #1

Enrolling (1) Area Assgn (2) Fire (27) Out 2 Delay Time (1) Always Report Alarm Code (1) Open Code

-Disp Totat Modules (2) Silent Entry (3) Medical (28) Out 2 Sgl Alarm Lockout (2) Number Restore Code Close Code

-Allow Module Edit (3) Silent Exit (4) Police (29) Rings til Answer (3) Format Bypass Code

(4) Silent Chime (5) Carbon Mon (30) Ring/Hang/Answer (4) Attempts Trouble Code User 100

Menu 02 (5) Dark in 60 sec (6) Emergency (31) 2 Way Listen-in Enable (5) Acct #1 - Installer-

User Code Auth. (6) Show Date/Time (7) Freeze (32) 2 Way Callback Time (6) Acct #2 Menu 11 (1) Open Code

User 1 (7) Show Temp (8) Gas (33) CS Alm Verify Time (7) Acct #3 Keypad Close Code

(1) Area # (8) Show Area (9) Heat (34) Baud Rate Port 0 (8) Acct #4 Report Codes

(2) Arm (9) Byp Req Code (10) Water (35) Xmit Event Log (9) Acct #5 Keypad 1 User 101

(3) Disarm (10) F1 Key Def. (11) Aux1 24hr (36) Xmit Zone Changes (10) Acct #6 (1) F1 Key Alarm - RP Computer

(4) Bypass (11) F2 Key Def (12) Aux2 24hr (37) Xmit Output Changes (11) Acct #7 (2) F2 Key Alarm Upload/Download

(5) Access (12) F3 Key Def (38) Xmit Task Changes (12) Acct #8 (3) F3 Key Alarm (1) Open Code

(6) Temporary (13) F4 Key Def (39) Xmit Light Changes (13) Report Area/Alm (4) F4 Key Alarm Close Code

(7) Master (14) F5 Key Def Menu 07 (40) Xmit Keypad Keys /Rest/Unbypass (5) F5 Key Alarm

(8) Menu 1-5 (15) F6 Key Def Global Options (41) Req Code User Menus 1-5 (14) Report Zn Bypass (6) F6 Key Alarm Menu 14

(9) Duress (16) [Name] (1) Tel Remote (42) Local Prog. Code (15) Report Zn Troubles Wireless Defs

(10) [Name] (2) 12hr TimeDisp (43) Serial Number [Read Only] (16) Report User Op/Cl 1: ReceiverOptions

(3) DD/MM Disp. (44) Software Ver. [Read Only] (17) Report Sys Globals (1) Receiver Size

Menu 03 Menu 05 (4) Celcius Disp. (45) Default Control Options (18) [Name] (2) ZnBank(Start Zn)

Area Defs Zone Defs (5) DST Observe (81) Default User Codes (3) Reg Supv. Hrs.

Area 1 Zone 1 (6) Fast Loop Tm (82) Default Areas Data Menu 09 Menu 12 (4) Fire Supv. Hrs.

(1) Exit Delay 1 (1) Definition (7) SlowLoop Tm (83) Default Keypads Data Area Report Codes System Rpt Codes 2: Transmitter Opts

(2) Entry Delay 1 (2) Type (8) Cross SelfVer (84) Default Zones Data Area 1 (1) AC Fail Delay ^ Select Transmitter

(3) Exit Delay 2 (3) Area Assign (9) Cross Zn Tm (85) Default Zone Names (1) Dial Delay Time (2) AC Fail Code (1) Enable Xmtr.

(4) Entry Delay 2 (4) Silent Alarm (10) Aud Trbls (86) Default Cutoff Timers (2) Abort Code (3) Auto Test Code (2) Supv. Type

(5) Auto Stay (5) Dialer Delay (11) 6 digit codes (87) Default Global Data (3) Cancel Time (4) TstTime hr:mm (3) Enable Option 1

(6) Exit Restart (6) Listen-In (12) CodeLockout (88) Default Telephone Data (4) Cancel Code (5) Days betweenTest (4) Enable Option 2

(7) Closing Ringback (7) Bypass (13) Common Area (89) Default Telephone Numbers (5) Close Auto (6) Aux Overcurrent (5) Keyfob User ID

(8) SglKey Quickarm (8) Force Arm (14) Out1 Yelp to Buz (90) Default Area Report Codes (6) Close Early (7) Exp Module Tbl 3: Learn Transmitter

(9) DblKey Quickarm (9) Swinger (15) Out1 Start Vol. (91) Default Zone Report Codes (7) Close Extended (8) Installer Begin ^ Select Transmitter

(10) StayKeyScroll (10) Per. Trip (16) Out1 Max. Alm. (92) Default System Report Codes (8) Fail to Close (9) Installer End (1) Xmtr to Learn

(11) Stay Instant (11) Fast Loop (17) Out1 Max. Voice (93) Default User Report Codes (9) Late Close (10) Log 80% Full (2) Push Xmtr

(12) Night Scroll (12) Chime (18) Out1 Max. NonAlm (94) Default Voice Messages (10) Keyswitch Close (11) Low Battery 4: Keyfob Event Def.

(13) Night Instant (13) Cross Zn (19) Out1 ‘No Talk’ (95) Default Wireless Definitions (11) Duress Code (12) Memory Error (1) Button 1 Code

(14) StayChgArmed (14) [Name] (20) Out1 Say Sys (99) Default Entire Control Panel (12) Open After Alarm (13) RP Download (2) Button 2 Code

(15) [Name] (21) Out1 Say Alms (13) Open Early (14) Tel Line Fault (3) Button 3 Code

(22) Out1 Say Zn Status (14) Fail to Open (15) Output 2 Tbl (4) Button 4 Code

(23) Out1 Say Sys Tbl (15) Open Late (5) Button 5 Code

(24) Out1 Say Zn Tbl (16) Keyswitch Open (6) Button 6 Code

(25) Out1 Say Chime (17) User Lockout (7) Button 7 Code

(18) Exit Error (8) Button 8 Code

(19) Fail to Comm

M1 Installation and Programming Manual

Page 24

Menu 01 - Bus Module Enrollment

01-Bus Module

Enrollment r

Bus Module Enroll Description of Option

Enrolling

Bus Modules

XX Bus Modules

Enrolled, Editr

Press the RIGHT arrow key to select this menu and automatically start the bus enrollment

process. ALL data bus devices which are presently connected to the data bus should

become enrolled.

The enrollment process only takes a few seconds. Once complete, this summary screen

will appear displaying the total number of bus modules that were found and enrolled. To

edit and/or view the devices individually, press the RIGHT arrow key one time.

Each enrolled keypad/device can be viewed one by one. The first device will always be

Keypad 1 with a T1 (for type 1) and Addr=01 (for address 01). As explained below,

different kinds of devices can be identified by their device “Type”. Pressing the Up or Down

arrow keys will scroll through each enrolled device.

If a device is removed from the data bus, it should be removed by repeating the enrollment

process. The control will only enroll the devices that are connected. It will remove any

previously enrolled devices that it does not see.

After the last device is reviewed, the next press of the Up arrow key moves to the “End

Enrollment” screen which once again displays the total number of devices enrolled.

Keypad T1 b

Addr=01

Keypad T1 b

Addr=02 lr

End Enrollment

0x Bus Modules

NOTE: Every data bus device: Keypad, Input (Zone) Expander, Output Expander, etc. MUST have a unique

address within its type. This menu is then used to enroll the device into the system. SEE DETAILS BELOW:

DATA BUS DEVICE TYPES AND ADDRESSES: Each data bus device is a specific “Device Type”. Keypads are TYPE

1, Input (Zone) Expanders are TYPE 2, Output Expanders are TYPE 3, Serial Port Expanders are TYPE 5. Any new

devices designed will be assigned a Device Type. Every data bus device MUST have a unique “Address” setting within

its type. Valid Input Expanders addresses are 2 to 13, Output Expander addresses are 1 to 13. The address determines

the starting and ending zone or output numbers for that expander. See chart below:

Addr Input Exp Output Exp Addr Input Exp Output Exp. Addr Input Exp Output Exp.

1 = N/A (main bd) Outputs 1-16 6 = Zone 81-96 Output 65-80 11 = Zone 161-176 Output 161-176

2 = Zone 17-32 Output 17-32 7 = Zone 97-112 Output 97-112 12 = Zone 177-192 Output 177-192

3 = Zone 33-48 Output 33-48 8 = Zone 113-128 Output 113-128 13 = Zone 193-208 Output 193-208

4 = Zone 49-64 Output 49-64 9 = Zone 129-144 Output 129-144

5 = Zone 65-80 Output 65-80 10 = Zone 145-160 Output 145-160

INPUT AND OUTPUT EXPANDER ADDRESSES: Locate the bank of four white (DIP) switches along the top edge of the

board. Each switch has a position of Off or On (0 or 1) and a binary value (1, 2, 4, 8). The addition of the binary values

(sum total) for the switches set to the On position determines the data bus address. For example: Data bus address 5

is set by placing switches 1 and 4 to the On position (1 + 4 = 5). All other switches must be in the down or Off position.

KEYPAD ADDRESSES: All keypads are factory set to address 1. Valid addresses are 1 to 4 for the ELK-M1, or 1 to 16

for the ELK-M1G. The first keypad on the system (Keypad 1) is automatically enrolled upon power up. Each additional

keypad must be assigned a unique address and then manually enrolled from “Menu 1 - Bus Module Enrollment”. To set

the address on a keypad do the following:

1. Hold down a key while applying power OR press and hold the (Asterisk) “ * ” and F5 keys for 5 seconds.

2. Press the F1 key, then use the UP or DOWN arrow keys to set the desired address number.

3. Press the EXIT key when done.

NOTE: If a device is removed from the data bus, it should be un-enrolled to prevent a trouble. To replace a

defective device, set the address to the same value as the old unit and initiate the Bus Enrollment process.

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

M1 Installation and Programming Manual Page 25

001 09:=No r

Duress

001: SelbPrgr

User 1

001 01:12345678 r

Code used inArea

001 02:=Yes r

Arm with Code

001 03:=Yes r

Disarm with Code

001 04:=Yes r

Bypass with Code

001 05:=No r

Access with Code

Menu 02 - User Code Options

There are 99 potential User codes. User 1 (001) is the first to display. Press the right

arrow key to program, or press the up or down arrow keys to select another user. Enter

three digits to jump to a specific user. The user name is displayed along the bottom.

This option assigns the areas(s) in which this code may be used. For example: if the

numbers 1,2, & 4 are displayed, the code may be used in those areas. To assign or

remove an area press the numbers keys 1 thru 8. Each press toggles the number on/off.

Selects Arm privileges. If Yes, this code can Arm it’s assigned area(s) (see option 01

above) from a keypad that is also assigned to the desired area. If No, this code cannot be

used to Arm.

Selects Disarm privileges. If Yes, this user code can Disarm it’s assigned area(s) (see

option 01 above) from a keypad that is also assigned to the desired area. If No, this code

cannot be used to Disarm.

A Yes allows this code to Bypass zones whenever Menu 04-Keypad Definitions, Option

09, “Byp Key Req PIN” is set to Yes. Code and Keypad must be in the same area.

Default value for both these options is No (code not required for bypass).

A Yes allows this code to activate the Access Keypad Events 1313-1328 for the keypad

where code is entered. Use the Whenever/And/Then Rules from Elk-RP to assign an

output to this event for tripping a door strike or lock. Note: If this code is enabled for

arming, it will be necessary to press the Exit or Stay key to arm after the code.

If Yes, this code can only disarm if the control was armed by it or another temporary code.

In other words: A temporary code cannot disarm the control if a regular code was used to

arm. A temporary code might be used for cleaning, repair personnel, etc.

A Master Code can be used to review, change, or delete other users, and to modify

selected system options. Only one Master code is needed per system. For security

purposed, multiple Master codes are not recommended.

When Menu 07 - Global System Definitions, Option 41, “Require Code User Menu 1-5” is

set to a Yes, this option is then used to set which codes are allowed to access Menus 1 -

5. NOTE: Menus 6, 7, and 8 are only available to a Master or Installer code.

If Yes, this code will cause a silent Duress or “holdup” alarm to activate when the code is

used to arm or disarm the system. CAUTION: The communicator report code MUST

also be programmed! This feature is dangerous and should be used with caution.

To edit the User (Name) text press the left arrow key. Enter text using the number keys.

I.E. For a “K” press the 5 key twice. To move the cursor, press the RIGHT or LEFT arrow

keys. The Chime key inserts a space, the Bypass key erases 1 digit. The up/down keys

to toggle between upper and lower case. Press the ELK key when complete.

001 06:=No r

Temporary Code

001 07:=Yes r

Master Code

001 08:=No r

Menu 1-5 Allowed

02-UserCode Optn

Code used to: r

User Code Options Description of Option

001 10:Usr Name l

User1

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

Default Code for User Code 1 is: 3 4 5 6 Note: If six digit code option is enabled, the

default will be 1 2 3 4 5 6. See Menu 07 - Global System Definitions, Option G11

M1 Installation and Programming Manual

Page 26

A1: SelbPrgr

Area 1

A1 01:=060 r

Exit Delay1 Time

A1 02:=030 r

Entry Delay1Time

A1 03:=060 r

Exit Delay2 Time

A1 04:=030 r

Entry Delay2Time

A1 05:=No r

AutoStay No Exit

Menu 03 - Area Definitions

Of the 8 potential areas (partitions), Area 1 is the first to display. Press the right arrow

key to program, or press the up or down arrow keys to select another area. To jump to a

specific area enter the number (1-8). The area name is displayed on the bottom.

The amount of exit time in seconds for all zones programmed as Exit Delay 1. Range is

045 to 255 seconds. Default value is 060. NOTE: Due to the way force arm works, if

an Exit Delay 1 zone also has force arm enabled, its exit time will be the greater

of the time values for Exit Delay 1 or Exit Delay 2. Do not enable force arm on

Exit Delay 1 zones if this operation is not desired.

The amount of entry delay time in seconds for zones programmed as Entry Delay 1.

Range is 030 to 255 seconds. Default value is 030.

The amount of exit delay time in seconds for zones programmed as Exit Delay 2. Range

is 045 to 255 seconds. Default value is 060. See note above regarding force arm

and Exit Delay 1 zones.

The amount of entry delay time in seconds for zones programmed as Entry Delay 2.

Range is 030 to 255 seconds. Default value is 030.

If Yes, the control will switch from AWAY mode to STAY mode at the end of the exit delay

time if no exit zone is violated (no exit detected). NOTE: This tracks the longest of the

two exit timers. All interior zones are bypassed in the STAY mode. Default value is No.

If this option is set to Yes (default), the exit procedures will be affected in three ways:

1) ADDITIONAL EXIT1 “GRACE” FEATURE - During the initial Exit Delay 1 time if the

zone violates a second time and restores, the exit timer will automatically restart one

time. I.E. If the Exit1 door is opened, closed, and then opened again the timer will restart.

NOTE: This only works on Exit Delay 1 zones and the timer only restarts one time.

It does NOT work if the zone is enabled for force arm! This features complies with

the SIA CP-01 false alarm reduction standard.

2) SPOUSE “LEAVE FOR WORK” OR “LET PET OUT” FEATURE - If the system is

armed in one of the Stay modes, a User may press the Exit key to re-start the exit delay

time in order to open an exit/entry door and leave for work. The system remains in the

Stay mode for remaining family members that are still in the house. This can also be

used to let a pet outdoors. When the pet is ready to come back inside the User simply

presses the Exit key again to restart the timer.

3) GOING FROM STAY MODE TO AWAY MODE - If the system is armed in one of the

Stay modes, a User may change the arm mode to Away. This is done by pressing the

Exit key twice in short succession (within 3 seconds) and leaving the building.

A1 06:=Yes r

Exit1TimeRestart

03-Area r

Definitions

Area Defintions Description of Option

* SIA

CP-01

* SIA

CP-01

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

Exit Error If an entry/exit zone is violated at the time the Exit Delay time expires, the Exit Error Feature will be

activated. The local siren will sound immediately and the Entry Delay warning will begin. If the control is not

disarmed before the Entry Delay expires, the communicator will report the alarm along with an Exit Error code,

provided these codes are programmed. An Exit Error event flag will also be set which can be used by the

“Whenever/And/Then” rules (refer to the ELK-RP software) to sound a siren, or blink a light, or whatever.

Exit Error feature complies with the SIA CP-1 false alarm reduction standard.

M1 Installation and Programming Manual Page 27

A1 11:=No r

StayInstantScr

A1 12:=Yes r

Night Scroll

A1 13:=No r

NightInstantScr

A1 14:=No r

StayChgIfArmed

If Yes, a Closing Ringback signal (otherwise known as closing report successful) will be

sent to all the keypads when the Communicator transmits a closing report and the Central

Station Receiver kissoff (acknowledgement) is received. The Exit Delay time will be

restarted at this time. The default value is No.

If Yes, the control can be armed by a single press of the Exit or Stay keys. No code is

required except to disarm. Note: This option cannot be set to Yes if “Dbl Key Quick

Arm” (see below) is set to Yes. The default value is Yes.

If Yes, the system can be armed by a double press of the Exit or Stay keys. The second

press must follow the first very quickly. Note: This option cannot be set to Yes if “Sgl

Key Quick Arm” (see above) is set to Yes. The default value is No.

If Yes, the Stay key may be pressed during the exit delay time to scroll (step) through the

selected levels of Stay arming. I.E. Stay Instant, Stay Night, etc. The options below

select the levels that will be available. The default value is Yes.

If Yes, AND option 10 is set to Yes, multiple presses of the Stay key during exit delay will

be able to scroll to the Stay Instant arming level. The default value is No.

If Yes, AND option 10 is set to Yes, multiple presses of the Stay key during exit delay will

be able to scroll to the Stay Night arming level. The default value is Yes.

If Yes, AND option 10 is set to Yes, multiple presses of the Stay key during exit delay will

be able to scroll to the Stay Night Instant arming level. The default value is No.

This option should be used with caution. If Yes, the Stay key may be used to scroll or

step the armed level after exit delay has expired and the control is fully armed. The

default value is No.

To program the text description of the Area (Name) press the left arrow key. Enter text

using the number keys. I.E. For a “K” press the 5 key twice. To move the cursor press

the right or left arrow keys. While programming the text, pressing the Chime key inserts

a space, and the Bypass key erases 1 digit. The up and down arrow keys toggle between

upper and lower case. Press the ELK key when complete.

Menu 03 - Area Definitions (continued)

A1 15:AreaNamel

Area 1

A1 09:=No r

DblKeyQuickArm

A1 10:=Yes r

Stay Key Scroll

VACATION MODE: During the exit delay time the Away key may be pressed to convert from Away mode to Away

Vacation mode. The Away Vacation mode does not alter any of the security arming times or zones. Its primary purpose

is for use with the Whenever/And/Then Rules programming of Elk-RP for enhanced energy savings modes.

AUTO ARMING: The control has an Auto Arming feature which may be setup using the “Whenever/And/Then Rules” in

the ELK-RP PC Programming Software. Basically, a rule must be written to initiate the auto arm sequence at a specific

time and/or date occurrence along with a programmable pre-warning time period. At the end of the pre-warn time, the

system will automatically arm to the AWAY mode, bypassing any violated Burglar zones. All area keypad(s) will beep

and display a warning when the initiating time occurs. Pressing the * key clears this warning for 1 minute. The auto arm

time may be extended in 10 minute increments by pressing the RIGHT arrow key. No further warnings will occur until 10

minutes prior to the newly “extended” auto arm time. Example 1: If a scheduled AutoArm is set for 06:00pm with a pre-

warn time of 20 minutes, the warning will start at 6:00pm and the auto arm will occur at 6:20pm. Pressing the RIGHT

arrow key to extend the time will cause the new auto arm time to be 6:30pm.

Area Definitions Description of Option

A1 08:=Yes r

Sgl Key Quickarm

A1 07:=No Sendr

Closing Ringback

M1 Installation and Programming Manual

Page 28

KP01 03:=No r

Silent on Exit

KP01 04:=No r

Silent on Chime

KP01 05:=No r

Go dark in 60sec

KP01 06:=Yes r

Show Date & Time

KP01 07:=Yes r

Show Temperature

KP01 08:=Yes r

Show Area Name

KP01 09:=No r

Byp Key Req PIN

KP01 01:=1 r

Area Assigned To

Menu 04 - Keypad Definitions

04-Keypad r

Definitions

Keypad Definitions Description of Option

The ELK-M1 can have up to 4 Keypads. The ELK-M1G (Gold) can have up to 16

Keypads. Keypad 1 is the first display in this menu. Press the right arrow key to

program or press the up or down arrow keys to select another keypad. To jump to a

specific keypad enter the number (1-16). The keypad name is displayed on the bottom.

A single keypad may only be assigned to work with a single area. Multi-area operation

from a single keypad is a future enhancement. Select any area from 1 to 8. The default

value is 1.

If Yes, the keypad will not produce an entry warning signal during entry delay time after

violation of a delay 1 or delay 2 zone while armed. The default value is No.

If Yes, the keypad will not produce an exit warning tone during exit delay 1 or exit delay 2

times upon arming. The default value is No.

If Yes, the keypad will not produce any Chime tone even though the Chime mode may be

on and a chime type zone is violated. This is good for a baby’s room, etc. The default

value is No.

If Yes, the keypad turns off it’s Ready and Armed lights (goes dark) and blanks armed or

disarmed indication on the LCD display 60 seconds after arming or no activity (button

pushing). Any button press turns the indicators back on. The default value is No.

If Yes, the keypad will display the date and time on the bottom line of the LCD screen. If

there is too much information to display at once, the bottom line of the LCD will alternate.

The default value is Yes.

If Yes, the keypad will display it’s local temperature on the bottom line of the LCD screen.

If there is too much information to display at once, the bottom line of the LCD will

alternate. The default value is Yes.

If Yes, the keypad will display the name of the area in which it belongs. If there is too

much information to display at once, the bottom line of the LCD will alternate. The default

value is Yes.

If Yes, the Bypass key cannot be used unless a valid user code is entered. The default

value is No.

KP01 02:=No r

Silent on Entry

KP01: SelbPrgr

Keypad 1

Keypad F1, F2, F3, F4, F5, F6 keys Each keypad has 6 lighted function keys that may be programmed to activate

specific operations. There are 7 programming attributes for each key: 1) KeyEvent - A four digit event code for the zone

definitions 0001 thru 0035, or the automation tasks 2001 - 2032. 2) KeyLight - A four digit event code which lights the

key when the event is active. This can be any of the Appendix A Event Codes. 3) Light Invert - A Yes/No option which

allows the light to be opposite of the event, off when active, on when not. 4) Light Blink - A Yes/No option which allows

the light to blink when active. 5) Key Requires PIN - A Yes/No option used to prevent the key from activating unless a

valid user code is entered. 6) Single Key Press - A Yes/No option which allows a single press of the key instead of the

normal double press to activate the event. NOTE: In the double press mode the key’s name is displayed on the LCD

screen as soon as the first press occurs. This serves to visually verify to the user that the correct key has been

selected prior to the second “activating” key press. 7) Key Name - A sixteen character programmable description that

describes the key’s function. I.E. Police Alarm, Garage Door, etc.

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

M1 Installation and Programming Manual Page 29

Menu 04 - Keypad Definitions (continued)

Keypad Definitions Description of Option

KP01 10:F1 Key r

Definitions

F1KeyEvent=0010r

Evt=Fire Alarm

F1KeyLight=1001r

Evt=Fire Alarm

F1 Key:=No r

Light Invert

F1 Key:=No r

Light Blink

F1 Key:=No r

Key Requires PIN

F1 Key:=No r

SingleKeyPress

F1 Key Name lr

F1 = Fire

To program the F1 key definitions press the right arrow key. The program will branch off

into the 7 options for this key. To select another option press the UP or DOWN arrow

keys. To jump to a specific option enter the two digit number for that option.

Key Event refers to what the key activates. F Keys can used to activate an Alarm, an

Automation Task, or by Elk-RP Whenever/And/Then Rules to activate most anything.

Press the RIGHT arrow key and enter 4 digits. Enter 0000 if Elk-RP is going to be

used exclusively. Enter 0001-0036 for an alarm activation (see zone Defs), or 2001-

2032 for an automation task activation (see Elk-RP software). The event description

is displayed along the bottom. Press the RIGHT arrow key to move to the next option.

Key Light selects the event which will cause the key to light up. See Event Codes in

Appendix A. Press the RIGHT arrow key and enter 4 digits. The bottom line displays

the description of the event. Press the RIGHT arrow key to move to the next option.

Light Invert selects whether the key should be lighted when the event is On (normal) or

when the event is Off (Inverted). Press the RIGHT arrow key and select 1 for Yes or 0

for No. Press the RIGHT arrow key to move to the next option.

Light Blink selects whether the key should blink when lighted or be steady. Press the

RIGHT arrow key and select 1 for Yes or 0 for No. Press the RIGHT arrow key to

move to the next option.

Key Requires PIN selects whether the F key requires a valid user code prior to

activation. Press the RIGHT arrow and select 1 for Yes or 0 for No. Press the RIGHT

arrow key to move to the next option.

If this option is No, a single press of the F key will activate the event. If Yes, then two

presses OR single press and hold 2 seconds is required. Press the RIGHT arrow and

select 1 for Yes or 0 for No. Press the RIGHT arrow key to move to the next option.

The Key Name will be displayed whenever the F key is pressed. Press the LEFT

arrow key and enter text using the number keys. I.E. For “K” press the 5 key twice.

Move the cursor using the right or left arrow keys. The up or down arrow keys select

between lower and upper case. Press the ELK key when complete.

KP01 11:F2 Key r

Definitions

KP01 12:F3 Key r

Definitions

KP01 13:F4 Key r

Definitions

KP01 14:F5 Key r

Definitions

KP01 15:F6 Key r

Definitions

If the F2 Key is to be used, repeat the steps above.

If the F3 Key is to be used, repeat the steps above.

If the F4 Key is to be used, repeat the steps above.

If the F5 Key is to be used, repeat the steps above.

If the F6 Key is to be used, repeat the steps above.

To edit the Keypad Name press the LEFT arrow key. Enter text using the number keys.

I.E. For “K” press the 5 key twice. Use the RIGHT or LEFT arrow keys to move the

cursor. The UP or DOWN keys select between lower and upper case. The Chime key

inserts a space, and the Bypass key erases 1 digit. Press the ELK key when complete.

KP01 16:KP Namel

Keypad 1

M1 Installation and Programming Manual

Page 30

ZN001: SelbPrgr

Zone 001

ZN001 01:Def=01 r

Burg Entry/Exit1

Menu 05 - Zone Definitions

05-Zone r

Definitions

Zone Definitions Description of Option

There are up to 208 zones. Press the UP or DOWN arrow key to scroll and select a

particular zone. To jump to any zone, enter the number from 001 to 208. The zone name

will display along the bottom line. Press the right arrow to program the selected zone.

This first option is used to set the zone definition. To locate a different option press the up

or down arrow key OR enter an option’s number to jump directly to it. Press the right

arrow key to program the selected option. The available definitions are:

00 Disabled - Used to remove any unused zone(s). No need to put a jumper or resistor across the terminals.

01 Burglar Entry/Exit 1 - For perimeter entry/exit doors. Allows a time delay to enter and exit during arm and disarm.

02 Burglar Entry/Exit 2 - For perimeter entry/exit doors that require more time delay during arm and disarm.

03 Burglar Perimeter Instant - Windows and perimeter openings. Activates an immediate Burglary alarm if tripped

during ANY armed mode. Does not provide any exit or entry delay.

04 Burglar Interior - For motion detectors, interior doors, etc. Creates an instant alarm if tripped during the AWAY arm

mode. This zone type IS NOT ACTIVE during the STAY, STAY INSTANT, NITE, and NITE INSTANT arm modes.

05 Burglar Interior Follower - For motions detectors, interior doors, etc. which may be in the keypad or entry pathway.

If an entry delay zone is violated first, this zone will delay (Follow) also, otherwise it will create an instant alarm.

This zone type IS NOT ACTIVE during the STAY, STAY INSTANT, NITE, and NITE INSTANT arm modes.

06 Burglar Interior Nite - For motion detectors, interior doors, etc. which are not close to sleeping areas. The primary

use of this zone type is for increased security when the user is home. Interior Nite zones ARE ACTIVE during the

NITE and NITE INSTANT arm modes as well as the AWAY arm mode and will create an instant alarm if tripped.

This zone type is NOT ACTIVE during the STAY or STAY INSTANT arm modes.

07 Burglar Interior Nite Delay - For motion detectors, interior doors, etc. that are not close to sleeping areas. Same

as an Interior Nite zone except that Interior Nite Delay zones will delay for the entry/exit delay 1 time period. Interior

Nite zones ARE ACTIVE during the NITE and NITE INSTANT arm modes providing increased security when the

user is home and in bed. However, if the user accidentally wanders into a Nite Delay zone the entry delay timer

will start and the tone will sound, warning the user to disarm before a false alarm occurs.

NOTE: If “Auto Stay,No Exit” is set to YES (see Area Definitions) and the system is armed in the Away

mode, all interior zones will be bypassed if no exit is detected from the premises during the exit delay time.

08 Burglar 24 hr - Intended for tamper switches, etc. Activates an immediate Burglary alarm if tripped anytime

(during armed or disarmed state).

09 Burglar 24 hr Box Tamper - Intended for control, siren, and bell box tamper switches. Activates an immediate

Burglary Tamper alarm if tripped anytime (armed or disarmed state).

10 Fire 24 hr Alarm - Intended for Fire alarm sensors such as smoke detectors, heat stats, pull stations, etc.

Activates an immediate Fire alarm upon a short across the zone wires. A Fire Trouble will be activated if an open

(break in the zone wires) should occur.

11 Fire 24 hr ‘Verified’ - For smoke detectors in high-risk false alarm areas. Upon initial activation (short across the

zone), the control ignores the alarm and removes smoke power for 5 seconds to reset the detectors. During this 5

seconds, and for 25 additional seconds afterwards, no alarms will be recognized from this zone. Following this is

a 30 second verification time window, during which any additional activation will be regarded as verification of the

initial alarm and the control will initiate a Fire Alarm. If the 30 seconds expires with no further activations, the entire

process is cleared (reset). A Fire Trouble will be activated if an open (break in the zone wires) occurs.

12 Fire 24 hr Supervisory - Intended for monitoring water control valves on fire sprinkler systems. Same as Fire 24hr

except that a short across the zone activates a Fire Supervisory alarm. A Fire Trouble will be activated if an open

(break in the zone wires) should occur.

13 Auxiliary1 24 hr - This zone can trip anytime (armed or disarmed) and send a communicator report, but there is

no audible alarm output or keypad indication provided. It is displayed in the event log. A Whenever/And/Then rule

can be written from the RP software to do other things with this zone type. Resets upon restoral.

14 Auxiliary2 24 hr - This zone can trip anytime (armed or disarmed) and send a communicator report, but there is

no audible alarm output or keypad indication provided. It is displayed in the event log. A Whenever/And/Then rule

can be written from the RP software to do other things with this zone type. Resets upon restoral.

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

Def Zone Description Operating Characteristics

Away Stay Stay Instant Nite Nite Instant

Burg Entry/Exit (1 or 2) Zone A A AN A AN QUICK VIEW OF ARMING MODES

Burg Perimeter (Instant) Zone AN AN AN AN AN This illustrates the condition of Burg

Burglar Burg Interior Zone AN - - - - zone types in the various arm modes.

Burg Interior Follower Zone A - - - - Legend: A = Armed

Burg Interior Nite Zone AN - - AN AN “-” = Not Armed,

Burg Interior Nite Delay Zone AN - - A AN AN = Armed, No Delay

M1 Installation and Programming Manual Page 31

ZN001 02:Type=0r

0=EOL Supervised

ZN001 03:Area=1 r

[Area Name]

“Type” refers to the wiring configuration for zones. For Burglar and Keyswitch zones the

valid types are: 0=EOL Supervised, 1=Normally Closed, 2=Normally Open, 3=EOL

Security (Day) Alert on Open, or 4=EOL Security (Day) Alert on Short. For ALL other non-

fire zones the types may be 0, 1 or 2 only. Fire zone valid types are: 5=EOL Supervised 4-

wire detectors, 6=EOL Supervised 2-wire detectors (zone 16 ONLY!)

Enter the area (partition) number that this zone is to be assigned to. A zone can only

reside in one area and fire zones can only reside in Area 1.

A zone programmed ‘Yes’ for Silent Alarm will not cause any audible alarm event from a

programmable output OR from any keypad. However, a visual display will occur on the

keypad(s) which are assigned to the same area as the zone.

Menu 05 - Zone Definitions (continued)

15 Keyfob - Used when a wireless keyfob is enrolled into a receiver at this zone ID location.

16 No Alarm - Intended for use in Whenever/And/Then rules from the Remote Programming RP software. This zone

type DOES NOT ACTIVATE any alarm and is not logged in the Event log. No reset is required.

17 Carbon Monoxide 24 hr - Activates an immediate Carbon Monoxide alarm if tripped anytime (armed or disarmed).

The keypad will display the alarm as well as the event log. This type of alarm can be silenced/reset with a valid

User Code. The audible alarm can be set in “Cutoff Timers”.

18 Emergency 24 hr - Similar to Def 17, this zone creates an alarm if tripped anytime (armed or disarmed).

19 Freeze Alarm 24 hr - Similar to Def 17, this zone creates an alarm if tripped anytime (armed or disarmed).

20 Gas Alarm 24 hr - Similar to Def 17, this zone creates an alarm if tripped anytime (armed or disarmed).

21 Heat Alarm 24 hr - Similar to Def 17, this zone creates an alarm if tripped anytime (armed or disarmed).

22 Medical Alarm 24 hr - Activates an immediate Medical alarm if tripped anytime (armed or disarmed).

23 Police Alarm w/Indication 24 hr - Activates an audible Police (Holdup) alarm if tripped (armed or disarmed).

24 Police Alarm no Indication 24 hr - Activates an non-audible Police (Silent) alarm if tripped (armed or disarmed).

25 Water Alarm 24 hr - Activates an immediate Water alarm if tripped anytime (armed or disarmed).

26 Keyswitch Momentary - Intended for a spring loaded momentary key switch. Toggles the armed state (disarmed/

armed) with each trip.

27 Keyswitch Momentary - Away Mode - Intended for a spring loaded momentary key switch. Arms the area in the

AWAY mode with each trip.

28 Keyswitch Momentary - Stay Mode - Intended for a spring loaded momentary key switch. Arms the area in the

STAY mode with each trip.

29 Keyswitch Momentary - Disarm Only - For a spring loaded momentary key switch. Disarms with each trip.

30 Keyswitch On/Off (Maintained) - Intended for a 2 position On/Off key switch. Arms the area in Open position.

Disarms the area in the Closed position.

31 Mute All Area Audibles - For silencing all area audibles by a two-way listen-in module (other manufacturer).

32 Power Supervisory 24 hr - For supervising an external power supply which provides alarm/trouble contacts. Wire

the power supply contacts to short the zone in a Low Battery event and open the zone in an AC Failure event.

33 Temperature - For use with ELK-M1ZTS Temperature Sensors. Requires the use of Whenever/And/Then rules

from the ELK-RP software. NOTE: This definition is for ZONES 1 thru 16 ONLY! Temperature zones must be set

to FAST LOOP (less that 200ms) response.

34 Analog - For sensors that produce a variable voltage (0 to 12 volt range). Requires the Whenever/And/Then rules

from the ELK-RP software. NOTE: This definition is only available with the ELK-M1G (Gold) control.

Def Zone Description Operating Characteristics

0 EOL Supervised, 2,200 Ohm resistor (Zones 1 - 16 are defaulted to Hwd 0)

1 Normally Closed only. No resistor required.

2 Normally Open only. No resistor required.

3 EOL Supervised with Security (Day) Alert on Open. (Burglar & Keyswitch Zones Only) If zone wiring is OPENED

while the control is disarmed the Keypad will beep and display the zone name. Ideal for gun cabinets, exit doors,

etc. Press the Star key to silence beep. User code is required to acknowledge/reset the alert. A regular alarm is

created if the control is armed. Requires the Whenever/And/Then rules from RP software for additional output.

4 EOL Supervised with Security Day Alert on Short. (Burglar & Keyswitch Zones Only) Same as type 3 except the

zone wiring must be SHORTED while the control is disarmed to create the alert. Pressing the Star key silences. A

User code is required to acknowledge/reset the alert. A regular alarm is created if the control is armed. Requires

the Whenever/And/Then rules from RP software for additional output.

5 Fire, 4-Wire Smoke Detector with 2,200 Ohm EOL resistor. Trouble on open, alarm on short. (Zones 1 to 16).

6 Fire, 2-wire Smoke Detector with 680 Ohm EOL resistor. (ZONE 16 ONLY)

Type Wiring Configuration Operating Description

ZN001 04: =No r

Silent Alarm

M1 Installation and Programming Manual

Page 32

ZN001 13: =No r

In CrossZonePool

Menu 05 - Zone Definitions (continued)

Zone Definitions Description of Option

Dialer delay is designed to reduce false alarm dispatches. Upon an alarm from a zone

with this option the communicator delays dialing for the “Dialer Delay” time programmed in

Menu 09-Area Reporting Codes. If a valid code is entered before this delay expires, the

report will ABORT (no report). If an ‘Alarm Abort” code is programmed, (see Menu 09), the

communicator will transmit this in place of the alarm. NOTE: The Dialer Delay Time will

only start once per alarm, regardless of additional zone trips. Default setting is No.

Allows zone to trigger a listen-in session after alarm is reported. Control will hold the line

for 60 seconds after ‘kiss-off’, allowing Central Station to enter *55* to activate listen-in.

The Central Station can renew or terminate listen-in remotely. NOTE: Two-Way must be

enabled (Menu 07-Globals) and an interface (ELK-M1TWI) with one or more microphone/

speakers (ELK-M1TWS) must be installed. Default setting is No.

A Yes allows zone to be manually bypassed. A bypassed zone will be ignored by the

system. Burglar zone bypasses are canceled upon a disarm. To bypass a zone: Press

the Bypass key + [zone number] + the Bypass key once again. Default setting is Yes.

Force Arm allows a violated zone to be temporarily bypassed upon arming. Prior to arm,

the READY light blinks if force arm zone(s) are the only zones violated. Force arm

requires two entries of a user code. Quick arm cannot be used for force arming. Upon

the first code entry the keypad will display READY FORCE. The second code entry will

force arm. Force armed zone(s) automatically return to service if they become normal

while armed. CAUTION! Force arm operates in a unique way on entry/exit zones! -

Entry/Exit zones that are also force armable can be violated during the exit delay and still

become force armed. This allows a user to arm, open a garage door, back out, and then

shut the door at their leisure, without creating a false alarm and without a long exit delay

time. As soon as the garage door is closed, it will automatically return to service. Default

setting is No. NOTE: For UL installations Force Arm shall be disabled.

Swinger Shutdown prevents a runaway communicator by shunting a zone after two trips.

It cannot send another alarm until the control is reset OR a 48 hour time period elapse.

Default setting is No. NOTE: For UL installations this feature shall be disabled.

This type zone must be tripped at least once per disarm cycle*. This prevents blocked

PIRs or seldom used doors from being left not secure. Keypad will display “Not Ready” if

a periodic zone has not been tripped. * NOTE: A periodic trip will not be required for a

disarm period of 1 hour or less. Default setting is No.

Response is the time the zone must be violated before the system detects it. If No, the

zone responds to the Slow response time. The time values are in milliseconds and they

are programmed in the Menu 07 Global Sys. Definitions menu. Default setting is No.

Each zone may be selected to be included in the Chime annunciation whenever Chime

Mode is turned on from the keypad. Most zone types may be included via this option.

Default setting is No.

Burglar zones programmed “In CrossZonePool” cannot cause an alarm unless another

zone in the cross zone pool also activates within a time window OR unless “Cross Zone

Self Ver“ is Menu 07 - Global System Definitions. Entry/exit zones should NOT be

programmed as Cross zones. Default setting is No.

To program the text description of the Zone (Name) press the left arrow key. Enter text

using the number keys. I.E. For a “K” press the 5 key twice. To move the cursor press

the right or left arrow keys. While programming the text, pressing the Chime key inserts

a space and the Bypass key erases 1 digit. The up and down arrow keys move between

upper and lower case. Press the ELK key when complete.

ZN001 14:Namel

Zone 001

ZN001 07: =No r

Zone Bypassable

ZN001 10: =No r

Req PeriodicTrip

ZN001 11: =No r

FastLoopResponse

ZN001 08: =No r

Force Armable

ZN001 12: =No r

Enable Chime

ZN001 06: =No r

Enable Listen-In

ZN001 05: =Yes r

Dialer Delay

ZN001 09: =No r

SwingerShutdown

M1 Installation and Programming Manual Page 33

CT01:=00600 secr

BurgDuration

CT02:=00000 secr

FireDuration

Menu 06 - Alarm Duration Timers

06-Alarm Cutoff r

Timers

Alarm Cutoff Timers Description of Option

Burglar Alarm duration time in seconds. Default time is 00600 sec. (10 min.). Burglar

always activates Siren/Voice Output (Out1) and Siren Output (Out2). Additional outputs

may be programmed using the RP software “Rules” function.

Fire Alarm duration time in seconds. Default time is 65535 sec. (never cutoff). Fire always

activates Siren/Voice Output (Out1) and Siren Output (Out2). Additional outputs may be

programmed using the RP software “Rules” function.

Medical Alarm duration time in seconds. Default time is 00600 sec. (10 min.). Medical

always activates Siren/Voice Output (Out1) and Siren Output (Out2). Additional outputs

may be programmed using the RP software “Rules” function.

Audible Police Alarm duration time in seconds. Default time is 00600 sec. (10 min).

Audible Police always activates Siren/Voice Output (Out1) and Siren Output (Out2).

Additional outputs may be programmed using the RP software “Rules” function.

CO (Carbon Monoxide) Alarm duration time in seconds. The default time is 00600 sec. (10

min.). This alarm type is not preassigned to any outputs. The RP software “Rules”

function must be used to assign outputs.

Emergency Alarm duration time in seconds. The default time is 00600 sec. (10 min.).

This alarm type is not preassigned to any outputs. The RP software “Rules” function must

be used to assign outputs.

Freeze Alarm duration time in seconds. The default time is 00600 sec. (10 min.). This

alarm type is not preassigned to any outputs. The RP software “Rules” function must be

used to assign outputs.

Gas Alarm duration time in seconds. The default time is 00600 sec. (10 min.). This alarm

type is not preassigned to any outputs. The RP software “Rules” function must be used

to assign outputs.

Heat Alarm duration time in seconds. The default time is 00600 sec. (10 min.). This alarm

type is not preassigned to any outputs. The RP software “Rules” function must be used

to assign outputs.

Water Alarm duration time in seconds. The default time is 00600 sec. (10 min.). This

alarm type is not preassigned to any outputs. The RP software “Rules” function must be

used to assign outputs.

Aux 1 Alarm duration time in seconds. The default time is 00600 sec. (10 min.). This

alarm type is not preassigned to any outputs. The RP software “Rules” function must be

used to assign outputs.

Aux 2 Alarm duration time in seconds. The default time is 00600 sec. (10 min.). This

alarm type is not preassigned to any outputs. The RP software “Rules” function must be

used to assign outputs.

CT03:=00600 secr

Med Duration

CT04:=00600 secr

Pol Duration

Each alarm type has a duration timer for cutting off the alarm after a programmable time period. Any output assigned to

the alarm type will turn on when the alarm activates and will turn off when the alarm cutoff timer expires. If multiple alarm

types are assigned to a single output, all alarms must turn off before the output can turn off. The range in seconds is

00000 to 65535. 00000=Never turn on. 65535=Never turn off NOTE: 65535 seconds is 1,092 minutes or 18.2 hours.

CT05:=00600 secr

CO Duration

CT06:=00600 secr

EmerDuration

CT07:=00600 secr

FrezDuration

CT08:=00600 secr

Gas Duration

CT09:=00600 secr

HeatDuration

CT10:=00600 secr

WatrDuration

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

CT11:=00600 secr

Aux1Duration

CT12:=00600 secr

Aux2Duration

M1 Installation and Programming Manual

Page 34

G01:=0 TelRmtCtl

In&OutsidTeleCtl

G02: =Yes r

12Hr Time Disp

G03: =No r

DD/MM Date Disp

Menu 07 - Global System Definitions

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

07-Global System r

Definitions

Global Sys Definitions Description of Option

Telephone Remote Control allows any phone to become a basic keypad. This feature can

be set for interior use only (1), interior & exterior use (2), or disabled (0). The M1VB Voice

Module (standard on most units) is required for this feature. Default is (0) disabled.

Keypads that are programmed to show time and date on their second display line will

either display 12 hour format or 24 hour military format, depending upon this option.

Default is Yes

If this option is No, the date will display as Month/Day/Year. If this option is Yes, the date

will display as Day/Month/Year. Default No.

Keypads that are programmed to show temperature on their second display line will either

display as Celsius or Fahrenheit, depending upon this option. Default is No.

The system will automatically adjust its internal clock for daylight savings time changes if

this option is set to ‘Yes’. Default is Yes.

Sets the time that a “Fast Loop” zone must remain open before the control responds. To

set, press the RIGHT arrow key and enter a number from 002 to 255. Time is adjusted in

10 millisecond increments from 20ms to 2550ms (2.55 seconds). Default is 40ms.

Sets the time that a “Slow Loop” zone must remain open before the control responds. A

“Slow Loop” zone is basically any zone that does not have the “FastLoopResponse”

option enabled in Menu 05 - Zone Definitions. To set, press the RIGHT arrow key and

enter a number from 002 to 255. Time is adjusted in 10 millisecond increments from

20ms to 2550ms (2.55 seconds). Default is 400ms.

Zones programmed with the ‘Cross Zone’ option may be allowed to self-verify an alarm

condition. I.E. A second trip of the same zone within the Cross Zone Verify Time window

will be considered a verified alarm. Default is No.

This timer function is the amount of time in seconds that is allowed for two or more ‘Cross

Zone” zones to verify each other in an alarm condition OR for a second trip of the same

zone when ‘CrossZoneSelfVer’ has been enabled. Default is No.

This option selects whether ordinary non-fire system troubles will cause audible alerts to

sound. This option does not affect fire trouble conditions, which will always be audible.

Default is No.

The M1 supports up to 99 User codes, plus the Installer code. The User codes can be

either 4 digits in length or 6 digits, depending upon this option. Default is No (4 digits).

NOTE: The Installer code is ALWAYS 6 digits.

To prevent a would be thief or hacker from being able to hunt for a valid user code, the

system can automatically lock out all code entry for 1 minute after a sequence of invalid

digits. The range of value can be set from 13 to 99. Default is 99.

04: =No r

Celcius TempDisp

G05: =Yes r

Daylight Savings

G06: =0040 ms r

Fast Loop Resp

G07: =0400 ms r

Slow Loop Resp

G08: =No r

CrossZoneSelfVer

G09: =030 r

CrossZoneVerTime

G10: =Yes r

Audible Troubles

G11: =No r

6 Digit UserCode

G12:=99 Digits r

WrongCodeLockout

M1 Installation and Programming Manual Page 35

G14: =No Out1&2r

Chg YelpToBuzzer

G15:=1 Out1Startr

Alarm Volum-Tstr

G16:=7 Out1 Maxr

Siren Volum-Tstr

G17: =5 Out1 Maxr

VoiceAlmVol-Tstr

G18: =2 Out1 Nonr

AlmVoiceVol-Tstr

Menu 07 - Global System Definitions (continued)

Global Sys Definitions Description of Option

Any of the Areas 2 thru 8 may be made common to Area 1. The result is: Area 1 cannot

be armed until all its common areas are armed. Once armed, Area 1 will disarm if any

common area becomes disarmed. This is good for lobbies or vestibules shared by two or

more businesses. Each business must have their own area keypad. NOTE: If you want

Area 1 to automatically arm when all its common areas become armed, use a

Whenever/And/Then rule from the RP software to do this.

Changes the Burglar Yelp sound on outputs 1 & 2 to a pulsing Buzzer sound. NOTE:

Out1 is designed for 8 Ohm - 20 watt min. speakers (up to 4 max) and has

adjustable volume settings. Default is No.

Options G15 thru G18 set the start and final volume levels for alarms and non alarms.

G15 sets the initial siren/bell volume of Output 1 upon initial alarm activation. The range of

settings is selectable from 0 to 7 (0 = lowest, 7 = loudest).

Sets the maximum siren/bell volume of Output 1. The sound starts at the initial setting

and increases (volume step) every 10 seconds until the max. is reached. Volume

stepping reduces noise and confusion with user caused false alarms. Default is 7.

Sets the maximum volume of Output 1 for Voice alarm messages. Just as in G16, with a

low initial setting, the voice alarm message starts low and automatically increases

(volume stepping) over a period of time until the max. is reached. Default is 5.

Sets the maximum volume of Output 1 for Voice non-alarm messages. Non-alarm

messages consist of system status, zone status, and various operating helpful hints that

are produced for the user during non-alarm conditions. Default is 2.

Selects whether or not voice messages are to be spoken through Output 1. Selecting

‘Yes” completely eliminates all spoken voice messages from Output 1. Selecting “No”

allows voices to be spoken based upon the settings of G20 through G25. Default is No.

Selects whether System “non-alarm” messages will be spoken through Output 1. System

messages include: “System is Armed”, “System is Disarmed”, etc. Default is Yes.

Selects whether Alarm messages will be spoken through Output 1.

Selects whether Zone status messages will be spoken through Output 1.

Selects whether System Trouble messages will be spoken through Output 1.

Selects whether Zone Trouble messages will be spoken through Output 1.

Selects whether Chime Event messages will be spoken through Output 1.

G19:=No Out1 r

SuppressAllVoice

G20:=Yes Out1 r

SaySystmMessages

G21:=Yes Out1 r

Say Alarms

G22:=Yes Out1 r

Say Zone Status

G23:=Yes Out1 r

SaySystemTrouble

G24:=Yes Out1 r

Say Zone Trouble

G25:=Yes Out1 r

Say Chime

G13:_ _ _ _ _ _ _ _r

Common To Area1

M1 Installation and Programming Manual

Page 36

Menu 07 - Global System Definitions (continued)

Global Sys Definitions Description of Option

Allows Output 2 to be converted from a siren driver into a voltage only output. If set to

“No” the control produces alarm sounds for use with 8 Ohm speakers. If set to “Yes” the

control will produce +12 Volts for use with self-contained sirens or bells. Default is No.

Ordinarily, Outputs 1 & 2 activate immediately on alarms. However, Output 2 can be time

delayed up to 255 seconds. Using Output 1 strictly for interior sounders and Output 2 for

outside sounders, a false alarm will be heard inside first, giving the user time to disarm

before any outside sounders are activated. A “good neighbor” feature. Default is 000.

Output 2 can be set to alarm only once per armed cycle for burglary type alarms. This

feature is intended for noise abatement. The dialer will continue to transmit all alarms that

may occur. THIS ONLY LOCKS OUT AUDIBLE FROM OUTPUT 2.

The control must be set to auto answer an incoming call in order for Telephone Remote

Control or the Remote Programming (RP) to be accessed remotely. The range of rings

can be set from 1 to 15. A value of “0” disables auto answer.

A Yes enables faster connection from an outside telephone. It works as follows: Call the

control and hang up after 1 or 2 rings. This starts a 45 second timer. Call the control a

2nd time during this 45 second time and the control will answer on the first ring. In some

cases this Ring/Hang/Answer option may be the only way to get around telephone

company provided answering services. Option 29 MUST also be set!

NOTE: If an on-site answering machine picks up, the RP software and the control

will automatically attempt to override the machine using tone sniffing methods.

Set this option to Yes ONLY when an ELK-M1TWI Two Way Listen-In interface is

installed. This enables the correct software commands and procedures to make the two

way functional. Refer also to the instructions that are shipped with the ELK-M1TWI

If Two Way is enabled, this timer provides a window for the CS to enter * 55 * and activate

two way listen-in by holding the phone line off-hook for 001 to 255 seconds after a kissoff.

Upon hangup, this timer re-starts to provide a window for the CS to callback and initiate

two way. Control will answer an incoming call on the first ring. Enter 000 to disable.

Allows the Central Station alarm verification by suspending (holding) new alarms after the

initial alarm kissoff. The phone line is kept free for this time period. The time value can be

from 001 to 255 seconds. Long time periods are not recommended. Enter 000 to disable.

This location is used to select the initial (default) baud rate for the on-board RS-232 serial

port which is Port 0. The available baud rates are: 0 or 1=300 baud, 2=1200, 3=2400,

4=4800, 5=9600, 6=14400, 7=19200, 8=38400, and 9=115200

The control can transmit ASCII data via it’s RS-232 port to automation types of equipment.

The ELK ASCII Protocol document is available upon request. This first option sets the

control to transmit all event log information immediately as it occurs.

This option sets the control to transmit zone status changes immediately as they occur.

The ELK ASCII Protocol document is available upon request.

This option sets the control to transmit output status changes immediately as they occur.

G29:=00 Rings r

Until AutoAnswer

G28:=No Out2 r

SingleAlmLockout

G35:=No Xmitr

Event Log- ASCII

G30:=No r

Ring/Hang/Answer

G36:=No Xmitr

Zone Chgs - ASCII

G37:=No Xmitr

OutputChgs-ASCII

G34:=9 115200r

Baud Rate Port 0

G32:=00sec 2Wayr

CallbackTime

G31:=No 2Wayr

Listen-In Enable

G33:=000sec CSr

Verify Call Time

G26: =No r

Out2 Voltage Out

G27:=000secOut2r

Delay Turn-On

M1 Installation and Programming Manual Page 37

Menu 07 - Global System Definitions (continued)

This option sets the control to transmit automation task status changes immediately as

they occur.

This option sets the control to transmit automation lighting status changes immediately

as they occur.

Sets the control to transmit keypad key changes. This includes the Chime, Bypass, Exit,

Stay keys, the ELK key and it’s surrounding arrow keys, and the F keys. It does not

transmit any of the numeric keys..

Allows User Menus 1 through 5 to be blocked from view until a valid User code is entered.

If set to “Yes”, only User Codes which have the “Menu 1-5 Allowed” option enabled will be

able to view or access Menus 1 through 5. Default is No.

This is the 6 digit Installer program code that is required in order to access the local

installer programming mode. NOTE: Be careful when changing this code as it will be

impossible to program the panel if the code is programmed wrong or forgotten.

This is a read-only location. Each control is assigned a unique serial number for

identification of the unit regarding warranty, technical support, anti-takeover, and other

issues that may arise.

This is a read-only location displaying information about the current software and

bootloader revision that the control is operating with. This will only be needed with the

assistance of a factory technical support person.

This option allows factory default values to be restored by individual menus/categories.

Press the right arrow to select this option, then press the up or down arrow keys to scroll

through the choices. To factory default any single category enter the displayed number.

For example, entering 81 from this screen will cause all the User Codes to be factory

defaulted. Please be patient as it may take a minute or more to default some items.

Entering 82 from this screen causes all area definitions to be factory defaulted.

Entering 83 from this screen causes all keypad definitions to be factory defaulted.

Entering 84 from this screen causes all zone definitions to be factory defaulted.

Entering 85 from this screen causes all zone names to be factory defaulted.

Entering 86 from this screen causes all the cutoff timers to be factory defaulted.

Entering 87 from this screen causes all global system defs to be factory defaulted.

Entering 88 from this screen causes all telephone reporting setup to be factory defaulted.

Entering 89 from this screen causes all telephone numbers ONLY to be factory defaulted.

Entering 90 from this screen causes all area report codes to be factory defaulted.

Entering 91 from this screen causes all zone report codes to be factory defaulted.

Entering 92 from this screen causes all system report codes to be factory defaulted.

Entering 93 from this screen causes all user report codes to be factory defaulted.

Entering 94 from this screen causes all voice messages to be factory defaulted.

Entering 95 from this screen causes all wireless definitions to be factory defaulted.

Entering 99 from this screen causes the entire panel programming to be factory defaulted.

Global Sys Def Description of Option

G44:xxxxxxxxxxxx

Axxxxxx Bxxxxxx

G45:=DefaultCtl r

81=User Codes

G42:=172839 r

Local Prog Code

82=Areas Data

83=Keypads Data

84=Zones Data

85=Zone Names

86=CutoffTimes

87=Global Data

88=TeleAcct Data

89=Tele #’s Only

90=AreaRptCodes

91=ZoneRptCodes

92=SysRptCodes

93=UserRptCodes

94=VoiceMessages

95=WirelessDef

99=Entire Panel

G43:=D1234567 r

Serial Number

G41:=No Require

Code UserMenu1-5

G39:=No Xmitr

Light Chgs-ASCII

G40:=No Xmitr

Keypad Key Chgs

G38:=No Xmitr

Task Chgs - ASCII

M1 Installation and Programming Manual

Page 38

T1: SelbPrgr

[Name for Tel#1]

T1: 02: = 0 r

0=Always Report

Menu 08 - Telephone Account Setup

08-Telephone r

Account Setup

Telephone Acct Setup Description of Option

The ELK-M1 provides up to 4 regular phone numbers plus 1 number for ELK-RP remote

programming software. The ELK-M1G (Gold) provides up to 8 regular phone numbers plus

the ELK-RP number. Each of the regular phone numbers can be used to report alarms,

troubles, closings, opening, etc. in digital format as well as pager and voice formats.

Using the up/down arrow keys, select the appropriate telephone number, then press the

right arrow key to begin the programming options, starting with option 01.

This selects the reporting format to be used with this number. The available formats are:

00 = Disable reporting 01 = Contact ID 02 = SIA

03 = Pulse 4+2 04 = Pager DTMF tones 05 = Voice Message

Note: Voice Message (Voice Dialer) Format can only be selected from the Elk-RP

Computer software. The activation of a voice messages requires a Whenever/

And/Then Rule from the Elk-RP software. See Section 4.3.

Two choices: 0=Always Report or 1=Backup. Always Report means the number will

always be dialed when its “report to” options are activated. Backup means the number

will ONLY be dialed if the previous sequential number fails to complete its call. When

backup is selected the “report to” options will be copied from the previous number and

ONLY the name, number, format, and dial attempts may be edited. To edit any “report to”

options you must temporarily set this value to 0. NOTE: Telephone # 1 cannot be set

as a backup since it is the first number. A backup cannot have another backup.

These are the digits to dial for the selected telephone number. Up to 20 digits may be

programmed. Valid number digits are: 0, 1, 2, 3, 4, 5, 6, 7, 8, and 9. In addition, special

characters may be entered such as comma (,) for 2 sec. pause, slash (/) for 125 msec

wait, # and * for touchtone signaling, plus the letters A, B, C, & D. The cursor

automatically moves right each time you enter a number digit. To enter a special

character place the cursor where you want the character and press the up arrow key. The

1 key produces a 1, #, *, and /. The 2 key produces a 2, A, B, and C. The 3 key

produces a 3, and a D. When finished with a special character you must press the down

arrow key to return to number digits.

This sets the number of dial attempts (re-dials) that the communicator will make to this

number before a Comm Fail (fail to report) is logged. Valid range is 01 to 15 attempts.

Default is 08.

The Account number for Area 1 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required.

The Account number for Area 2 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required.

The Account number for Area 3 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required.

T1: 03:Num=

T1: 01:Format=0 r

0=Disabled

T1: 04: = 08 r

Dial Attempts

T1: 05:=000000r

Acct # for Area1

T1: 06:=000000r

Acct # for Area2

T1: 07:=000000r

Acct # for Area3

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

M1 Installation and Programming Manual Page 39

T1: 12:=000000r

Acct # for Area8

T1: 13:=Yes Rptr

AreaAlms,RestUnbp

T1: 14:=No Rptr

Bypasses

Telephone Acct Setup Description of Option

The Account number for Area 4 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required.

The Account number for Area 5 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required.

The Account number for Area 6 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required.

The Account number for Area 7 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required

The Account number for Area 8 (up to 6 digits) when it is reported to this telephone

number. Since all 6 digits must be entered, enter leading zeros (0’s) if a shorter account

number is required.

THE FOLLOWING 5 OPTIONS DEFINE WHAT IS REPORTED BY THIS TELEPHONE #

This YES or NO option identifies whether this telephone number should report misc.

options from the AREA REPORTING CODES menu, Zone Alarms, Restores, and

Unbypasses from the ZONE REPORTING CODES menu, and Keypad Alarms from the

KEYPAD F-KEY REPORTING CODES menu.

This YES or NO option identifies whether this telephone number should report the Zone

Bypasses from the ZONE REPORTING CODES menu.

This YES or NO option identifies whether this telephone number should report the Zone

Troubles from the ZONE REPORTING CODES menu.

This YES or NO option identifies whether this telephone number should report the user

opening and closing codes from the USER REPORTING CODES menu.

This YES or NO option identifies whether this telephone number should report the global

system event codes from SYS REPORT OPTIONS & CODES menu.

To edit or program a text description (Name) such as “ACME Central Station” for the

Telephone number press left arrow key. Spell out the text using the number keys. I.E.

For a “K” press the 5 key twice. To move the cursor press the right or left arrow keys.

While programming the text, pressing the Chime key inserts a space, and the Bypass

key erases 1 digit. The up and down arrow keys toggles between upper and lower case.

Press the ELK key when complete.

T1: 15:=No Rptr

Zone Troubles

T1: 16:=No Rptr

User ReportCodes

T1: 17:=Yes Rptr

Global SysEvents

Menu 08 Telephone Account Setup (continued)

T1: 18:Name l

[Name for Tel#1]

T1: 10:=000000r

Acct # for Area6

T1: 11:=000000r

Acct # for Area7

T1: 09:=000000r

Acct # for Area5

T1: 08:=000000r

Acct # for Area4

M1 Installation and Programming Manual

Page 40

AR1: SelbPrgr

ReportCodesArea1

AR1 01:000=Sec r

Dialer Delay Time

AR1 02:Code= 00r

Alm Abort Code

Menu 09 - Area Reporting Codes

09-Area Reporting

Codes r

Area Report Codes Description of Option

Each of the eight (8) Areas has specific communicator reporting codes for events that only

occur within that area. Using the up/down arrow keys, select the appropriate area, then

press the right arrow key to begin starting with option 01.

Dialer Delay Time is an amount of time following an alarm during which the report may be

aborted if the area is disarmed by a valid user. An optional alarm abort code may be

programmed to report. Range is 000 to 255 seconds. Default is 000 (delay disabled).

Alarm Abort code is an optional code that may be reported when an alarm is aborted

during the Comm Abort Time window. Range is 00 to FF. Default is 00 (no report).

Cancel Window Time is the time following an alarm during which a cancel code will be

reported if the area is disarmed. Cancel is not the same as abort since the alarm has

already reported. Range is 00 to FF. Default is 00 (no report).

Alarm Cancel code is the code that will be reported if the area in alarm is disarmed within

the Cancel Window Time. Range is 00 to FF. Default is 00 (no report).

Close Automatic code will be reported anytime the area is armed automatically by a Rule

from the RP software programming. Refer to the ELK-RP Rules Programming

instructions. Range is 00 to FF. Default is 00 (no report).

Close Early code will be reported if the area is closed prior to a programmed Expected

Arm time. Refer to the ELK-RP Rules Programming instructions. Range is 00 to FF.

Default is 00 (no report).

Close Extended code will be reported if a programmed Expected Arm time is extended by

a valid user. Refer to the ELK-RP Rules Programming instructions. Range is 00 to FF.

Default is 00 (no report).

Fail to Close code will be reported if the area is not armed by a programmed Expected

Arm time. Refer to the ELK-RP Rules Programming instructions. Range is 00 to FF.

Default is 00 (no report).

Late to Close code will be reported if the area is armed after a programmed Expected Arm

time. Refer to the ELK-RP Rules Programming instructions. Range is 00 to FF. Default

is 00 (no report).

Keyswitch Close code will be reported in place of a user code whenever the area is armed

by a keyswitch. Refer to the ELK-RP Rules Programming instructions. Range is 00 to

FF. Default is 00 (no report).

AR1 03:000=Sec r

CancelWindowTime

AR1 04:Code= 00r

Alm Cancel Code

AR1 05:Code= 00r

Close Automatic

AR1 06:Code= 00r

Close Early

AR1 07:Code= 00r

Close Extended

AR1 08:Code= 00r

Fail To Close

AR1 09:Code= 00r

Late Close

AR1 10:Code= 00r

Keyswitch Close

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

NOTE: Enter a two digit value to enable a particular report code. To disable a report code enter 00. When SIA or

Contact ID is the reporting format, the two digit value can simply be 01 since the control automatically produces the

correct code according to the SIA or Contact ID protocol. For 4+2 pulse format, enter a value from 01 to FF. To enter

the A thru F HEX characters press the RIGHT arrow key to position the cursor under the desired digit, then press the UP

arrow (shift) key once. Each press of the 2 key will now produce the following: 2, A, B, C. Each press of the 3 key will

now produce the following: 3, D, E, F. Press the RIGHT arrow key to cancel shift and move to the next character. See

Appendix for a summary of the SIA and Contact ID codes.

M1 Installation and Programming Manual Page 41

Area Report Codes Description of Option

Duress code will be reported if the area is armed or disarmed by a valid user code that is

programmed with the duress attribute. Range is 00 to FF. Default is 00 (no report).

Open After Alarm code will be reported whenever a valid user arrives and disarms the area

following an alarm activation. Range is 00 to FF. Default is 00 (no report).

Open Early code will be reported if the area is disarmed prior to a programmed Expected

Disarm time. Refer to the ELK-RP Rules Programming instructions. Range is 00 to FF.

Default is 00 (no report).

Fail to Open code will be reported if the area is not disarmed by a programmed Expected

Disarm time. Refer to the ELK-RP Rules Programming instructions. Range is 00 to FF.

Default is 00 (no report).

Open Late code will be reported if the area is disarmed after a programmed Expected

Disarm time. Refer to the ELK-RP Rules Programming instructions. Range is 00 to FF.

Default is 00 (no report).

Open Keyswitch code will be reported in place of a user code whenever the area is

disarmed by a Keyswitch zone. Range is 00 to FF. Default is 00 (no report).

User Lockout code will be reported if someone repeatedly enters digits (see Menu 07 -

Global System Definitions, Option 12 for the maximum number of digits allowed) in an

attempt to hack out a valid user code. Range is 00 to FF. Default is 00 (no report).

Exit Error Code can be used to identify an accidental alarm caused by an error while

arming. Locally, it works as follows: If an exit delay rolls directly into entry delay as a

result of a zone being left violated, the entry delay warning AND the siren will sound. If the

control is not disarmed prior to the entry delay expiring, the communicator will report the

alarm along with the Exit Error code. Range is 00 to FF. Default is 00 (no report).

Fail to communicate displays on the keypad and the event log when the communicator

fails to complete it’s report using the number of dial attempts. A good communications

report must occur in order to reset/clear the failure. If this fail to communicate report code

is enabled, it will be reported with next good communications to indicate a “past” failure.

Range is 00 to FF. Default is 00 (no report).

AR1 13:Code= 00r

Open Early

AR1 14:Code= 00r

Fail To Open

AR1 15:Code= 00r

Open Late

Menu 09 - Area Reporting Codes (continued)

AR1 16:Code= 00r

Open Keyswitch

AR1 17:Code= 00r

User Lockout

AR1 18:Code= 00r

Exit Error

AR1 19:Code= 00r

Fail Communicate

AR1 11:Code= 00r

Duress Code

AR1 12:Code= 00r

Open After Alrm

Area RCs CID SIA

Alarm Abort 1406 O C

Alarm Cancel 1406 O C

Automatic Close 3403 C A

Early Close 3451 C K

Closing Extended 1464 C E

Fail To Close 1454 C I

Late Close 3452 C J

Key Switch Close 3409 C S

Duress 1121 H A

Area RCs CID SIA

Open After Alarm 1450 O R

Early Open 1451 O K

Fail To Open 1453 O I

Late Open 1452 O J

Key Switch Open 1409 O S

Keypad Locked Out 1461 J A

Exit Error 1457 E E

Fail To Communicate 1354 R T

Based on the event, the CID (Contact ID) or SIA Codes for Area Reporting Codes will be:

M1 Installation and Programming Manual

Page 42

Z001: SelbPrgr

[Name of Zone]

Z001:A=00 R=00 r

Byp=00 Tbl=00

Menu 10 - Zone Reporting Codes

10-Zone Reportng

Codes r

Zone Report Codes Description of Option

Each of the 208 Zones has specific communicator reporting codes for Alarm, Restore,

Bypass, and Trouble. Using the up/down arrow keys, select the appropriate zone, then

press the right arrow key to begin programming of that zone.

The cursor starts at the 00 beside A (Alarm). Enter the desired two digit reporting code

and press the right arrow key to advance to the R (Restore). To jump the cursor to another

report without changing this one simply press the right arrow key. The next press of the

right arrow key after Tbl (Trouble) will advance the screen back to the beginning of that

zone. Range is 00 to FF. Default for all entries is 00 (no report).

NOTE: Each reporting code must be programmed according to the desired reporting

format. However, for SIA and Contact ID formats the actual reporting digits will be

produced by the control according to the type of alarm or event. The only programming

required to enable reporting with the SIA and Contact ID formats is to set the programmed

code to a non zero (0) value. See below:

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

NOTE: Enter a two digit value to enable a report code. To disable a report code enter 00. When SIA or Contact ID is the

reporting format, the two digit value can simply be 01 since the control automatically produces the correct code

according to the SIA or Contact ID protocol. For 4+2 pulse format, enter a value from 01 to FF. To enter the A thru F

HEX characters press the RIGHT arrow key to position the cursor under the desired digit, then press the UP arrow (shift)

key once. Each press of the 2 key will now produce the following: 2, A, B, C. Each press of the 3 key will now produce

the following: 3, D, E, F. Press the RIGHT arrow key to cancel shift and move to the next character. See Appendix for

a summary of the SIA and Contact ID codes.

Alarms Restore Bypass Trouble

Zone RCs CID SIA CID SIA CID SIA CID SIA

01 = Burglar Entry/Exit 1 1134 BA 3134 B R 1573 BB 1370 BT

02 = Burglar Entry/Exit 2 1134 BA 3134 B R 1573 BB 1370 BT

03 = Burglar Perim Inst 1131 BA 3131 B R 1573 BB 1370 BT

04 = Burglar Interior 1132 BA 3132 B R 1573 BB 1370 BT

05 = Burglar Int Follower 1132 BA 3132 B R 1573 BB 1370 BT

06 = Burglar Int Night 1135 BA 3135 B R 1573 BB 1370 BT

07 = Burglar Int Nt Fllwr 1135 BA 3135 B R 1573 BB 1370 BT

08 = Burglar 24 Hour 1133 BA 3133 B R 1573 BB 1370 BT

09 = Burglar Box Tamper 1137 TA 3137 T R 1573 TB 1370 BT

10 = Fire Alarm 1110 FA 3110 F R 1571 FB 1373 FT

11 = Fire Verified 1110 FA 3110 F R 1571 FB 1373 FT

12 = Fire Supervisory 1200 FS 3200 F R 1571 FB 1373 FT

13 = Aux Function 1 1150 UA 3150 U R 1572 UB ---- ----

14 = Aux Function 2 1150 UA 3150 U R 1572 UB ---- ----

15 = Aux Function 3 1150 UA 3150 U R 1572 UB ---- ----

16 = Aux Function 4 1150 UA 3150 U R 1572 UB ---- ----

17 = Carbon Monoxide 1162 GA 3162 G R 1572 GB ---- ----

18 = Gen Pur. Do Nothing ---- ---- ---- ---- ---- ---- ---- ----

Based on the zone definition, the CID (Contact ID) or SIA formats for Zone Reporting Codes will be:

Alarms Restore Bypass Trouble

Zone RCs CID SIA CID SIA CID SIA CID SIA

19 = Emergency Alarm 1101 QA 3101 Q R 1572 QB ---- ----

20 = Freeze Alarm 1159 ZA 3159 Z R 1572 ZB ---- ----

21 = Gas Alarm 1151 GA 3151 G R 1572 GB ---- ----

22 = Heat Alarm 1114 KA 3114 K R 1572 KB ---- ----

23 = Medical Alarm 1100 MA 3100 M R 1572 MB ---- ----

24 = Police Alarm 1120 P A 3120 P R 1572 PB ---- ----

25 = Police No Indication 1120 P A 3120 P R 1572 PB ---- ----

26 = Water Alarm 1154 WA 3154 WR 1572 WB ---- ----

27 = Key Mom Arm/Disarm ---- ---- ---- ---- ---- ---- ---- ----

28 = Key Mom Arm Away ---- ---- ---- ---- ---- ---- ---- ----

29 = Key Mom Arm Stay ---- ---- ---- ---- ---- ---- ---- ----

30 = Key Mom Disarm ---- ---- ---- ---- ---- ---- ---- ----

31 = Key On/Off ---- ---- ---- ---- ---- ---- ---- ----

32 = Mute Audibles ---- ---- ---- ---- ---- ---- ---- ----

33 = Analog Zone ---- ---- ---- ---- ---- ---- ---- ----

34 = Power Supervisory 1338 YT ---- ---- ---- ---- 1342 YP

35 = Phone Key ---- ---- ---- ---- ---- ---- ---- ----

36 = Intercom Key ---- ---- ---- ---- ---- ---- ---- ----

M1 Installation and Programming Manual Page 43

Menu 11 - Keypad F-Key Reporting Codes

11-Keypad F-Keyr

Reporting Codes

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

Referring back to Menu 04-Keypad Definitions, each F Key (F1 thru F6) can be programmed to activate a specific event.

If the programmed “activate event” is an alarm such as: Burg, Fire, Medical, Police Panic, etc., then it is possible to have

an alarm report code transmitted when an F key is used to activate that event. Enter a two digit value for the “A” alarm

report code. To disable the alarm report code enter 00. If the reporting format is SIA or Contact ID, the value can simply

be 01 because the control will automatically produces the correct code according to alarm type using the SIA or Contact

ID protocol. For 4+2 pulse format, enter a value from 01 to FF. To enter the A thru F HEX characters press the RIGHT

arrow key to position the cursor under the desired digit, then press the UP arrow (shift) key once. Each press of the 2

key will now produce the following: 2, A, B, C. Each press of the 3 key will now produce the following: 3, D, E, F.

Press the RIGHT arrow key to cancel shift and move to the next character.

FK01: A=00 r

[KP01 FKey01]

FK02:A=00 r

[KP01 FKey02]

F-Key Report Codes Description of Option

Each Keypad has 6 programmable F keys. This menu displays the F keys starting at

FK01 thru FK06 for Keypad 1, then FK07 thru FK13 for Keypad 2, etc. Use the UP and

DOWN arrow keys to select the appropriate keypad and key, then press the RIGHT arrow

key to programming the code. It may take some experimenting but it is possible to jump

directly to a specific keypad and key by entering a two digit number.

To program the alarm report code press the RIGHT arrow key to move the cursor into the

A= column, then enter a two digit value. Range is 00 to FF. Default is 00 (no report). To

return back to the left column to select another key or keypad press the ELK key

NOTE: Each reporting code must be programmed according to the desired reporting

format. However, for SIA and Contact ID formats the actual reporting digits will be

produced by the control according to the type of alarm or event. The only programming

required to enable reporting with the SIA and Contact ID formats is to set the programmed

code to a non zero (0) value. See below:

Alarms

Keypad Alarm RCs CID SIA

00 = Disabled ---- ----

01 = Burglar Entry/Exit 1 1134 BA

02 = Burglar Entry/Exit 2 1134 BA

03 = Burglar Perim Inst 1131 BA

04 = Burglar Interior 1132 BA

05 = Burglar Int Follower 1132 BA

06 = Burglar Int Night 1135 BA

07 = Burglar Int Nt Delay 1135 BA

08 = Burglar 24 Hour 1133 BA

09 = Burglar Box Tamper 1137 TA

10 = Fire Alarm 1110 FA

11 = Fire Verified 1110 FA

12 = Fire Supervisory 1200 FS

13 = Aux1 24hr Alarm 1150 UA

14 = Aux2 24hr Alarm 1150 UA

15 = Keyfob ---- ----

16 = Non-Alarm ---- ----

17 = Carbon Monoxide 1162 GA

Based on the F Key Event definition, the CID (Contact ID) or SIA formats will be:

Alarms

Keypad Alarm RCs CID SIA

18 = Emergency Alarm 1101 QA

19 = Freeze Alarm 1159 ZA

20 = Gas Alarm 1151 GA

21 = Heat Alarm 1114 KA

22 = Medical Alarm 1100 MA

23 = Police Alarm 1120 P A

24 = Police No Indication 1120 P A

25 = Water Alarm 1154 WA

26 = Key Mom Arm/Disarm ---- ----

27 = Key Mom Arm Away ---- ----

28 = Key Mom Arm Stay ---- ----

29 = Key Mom Disarm ---- ----

30 = Key On/Off ---- ----

31 = Mute Audibles ---- ----

32 = Power Supervisory 1338 YT

33 = Temperature ---- ----

34 = Analog ---- ----

M1 Installation and Programming Manual

Page 44

SR01: 015=AC Fail

Rpt Delay - Minr

SR02: T=00 R=00 r

AC Fail Codes

SR03: 00 = Autor

Test Code

Menu 12 - Sys Report Code Options & Codes

12-Sys Rpt Code r

Options & Codes

Sys Rpt Code Options Description of Option

AC Fail Report Delay may be set to delay from 001 to 255 minutes. Valid range is 000 -

254 minutes. Default setting is 15 minutes. Setting this location to 255 results in no AC

failure annunciation at the keypad or by the dialer.

AC Fail T (Trouble) code will be reported upon AC failure, after any AC Fail Rpt delay time.

AC Fail R (Restore) will be reported immediately upon restoral of the AC power. Range is

00 to FF. Default is 00 (no report).

Auto Test code may be periodically reported to verify that the telephone line and internal

communications circuitry is functioning properly. Range is 00 to FF. Default is 00 (no

report).

Auto Test Hr:Min is normally set to occur during off-peak times. However, if may be set to

occur at any specific hour and minute. This location requires military time format. IE:

7:30 is AM while 19:30 is 7:30pm. Default is 00:00 which is Midnight.

Days Between Auto Test may be set to skip a certain number of days, from 1 to 255. The

default value is 000 which means that the test code, if programmed, will be reported every

day (24 hour interval) from the Auto Test time.

Aux. Overcurrent trouble (T) will be reported when the control’s auxiliary power is

overloaded. A restore (R) will be reported when the overload ceases. Range is 00 to FF.

Default is 00 (no report).

Exp Module Tbl T (Trouble) will be reported when an enrolled data bus module fails to

respond or is missing. Exp Module Tbl R (Restore) will be reported when the module is

restored. Range is 00 to FF. Default is 00 (no report).

This report code may be programmed in order to know when the Installer Level of

Programming has been entered. Range is 00 to FF. Default is 00 (no report).

This report code may be programmed to notify when Installer Level Programming is ended.

To prevent unnecessary reports, the report will not transmit until the * key is pressed three

times to signify final end of programming. The report will occur automatically at Midnight if

the * key sequence is not pressed. Range is 00 to FF. Default is 00 (no report).

Log 80% Full will be reported whenever the Event Log becomes 80% full. Range is 00 to

FF. Default is 00 (no report). The Elk-RP is required to download the log and/or clear it.

SR04: =00:00 r

Auto Test Hr:Min

SR05: 000=Days r

Between AutoTest

SR06: T=00 R=00 r

Aux Overcurrent

SR07: T=00 R=00 r

Exp Module Tbl

SR08: 00=Instalr

Program Begin

SR09: 00=Instalr

Program End

SR10: 00= Logr

80% Full

Press RIGHT arrow key to select this menu. Press UP or DOWN arrow keys to select

another menu. The ELK key backs up one menu level. To exit press the * or Exit key.

System Report Codes and Options are global to the entire system such as Low Battery, AC Fail, etc. Using the up/down

arrow keys, select the appropriate option, then press the right arrow key to begin programming that option.

NOTE: Enter a two digit value to enable a report code. To disable a report code enter 00. When SIA or Contact ID is the

reporting format, the two digit value can simply be 01 since the control automatically produces the correct code

according to the SIA or Contact ID protocol. For 4+2 pulse format, enter a value from 01 to FF. To enter the A thru F

HEX characters press the RIGHT arrow key to position the cursor under the desired digit, then press the UP arrow (shift)

key once. Each press of the 2 key will now produce the following: 2, A, B, C. Each press of the 3 key will now produce

the following: 3, D, E, F. Press the RIGHT arrow key to cancel shift and move to the next character. See Appendix for

a summary of the SIA and Contact ID codes.

M1 Installation and Programming Manual Page 45

SR14: T=00 R=00 r

Phone Line Fault

SR15: T=00 R=00 r

Output 2 Trouble

SR13: 00= Up/ r

Download End

Low Battery T (Trouble) will be reported if the battery drops below 11.2 Volts. Low Battery

R (Restore) will be eligible to report once the battery has passed a test at 11.5 Volts or

higher. Range is 00 to FF. Default is 00 (no report).

Memory Error T (Trouble) will be reported if the system memory checksum fails. An

upload or review of the programming is the only way to detect where the error occurred.

To clear the error and send a R (Restore) you must enter and exit the installer

programming mode. Range is 00 to FF. Default is 00 (no report).

Up/Download End will be reported upon completion of a Up/Download session as a

verification that the control was accessed. Range is 00 to FF. Default is 00 (no report).

Phone Line Fault T (Trouble) will be reported if the Voltage and Current is lost on the

telephone line. Phone Line Fault R (Restore) will report upon restoral of the telephone

line. Range is 00 to FF. Default is 00 (no report).

Output 2 T (Trouble) will be reported if an open circuit occurs on Output 2. Output 2 R

(Restore) will be reported upon restoral of the connection. Range is 00 to FF. Default is

00 (no report).

Menu 12 - Sys Report Code Options & Codes (continued)

Sys Rpt Code Options Description of Option

SR11: T=00 R=00 r

Low Battery

SR12: T=00 R=00 r

Memory Error

System RCs CID SIA

AC Fail 1301 A T

AC Restore 3301 A R

Automatic Test 1602 R P

Aux Over Current 1312 Y P

Aux Over Current Restore 3312 Y Q

Expansion Module Trouble 1333 E T

Expansion Module Restore 3333 E R

Local Programming Begin 1627 L B

Local Programming End 1628 L X

System RCs CID SIA

Log 80% Full 1623 J L

Low Backup Battery 1302 Y T

Low Battery Restore 3302 Y R

Memory Error 1304 Y F

Remote Programming End 1412 R S

Telephone Line Fault 1351 L T

Telephone Line Restore 3351 L R

Output 2 Trouble 1322 Y A

Output 2 Restore 3322 Y H

Based on the event, the CID (Contact ID) or SIA Codes for System Reporting Codes will be:

M1 Installation and Programming Manual

Page 46

UR001: SelbPrgr

[Name of User]

UR001:O=00 C=00r

[Name of User]

Menu 13 - User Report Codes

13-User Report

Codes r

User Report Codes Description of Option

Each of the 99 User Codes and the Installer has communicator reporting codes for Open

(disarm) and Close (arm). Using the up/down arrow keys, select the appropriate user,

then press the right arrow key to begin programming of that user’s report codes.

The cursor starts at the 00 beside O (Open). Enter the desired two digit reporting code

and press the right arrow key to advance to the C (Close). Range is 00 to FF. Default is

00 (no report). To jump the cursor to the next report code without changing this one

simply press the right arrow key. The next press of the right arrow key will advance back

to the beginning screen.

UR100:O=00 C=00r

Installer Op/Close

UR101:O=00 C=00r

Up/Dnload Op/Cl
